先锋PIONEER VSX-D811S电路图

分类：电子电工 日期： 点击：0

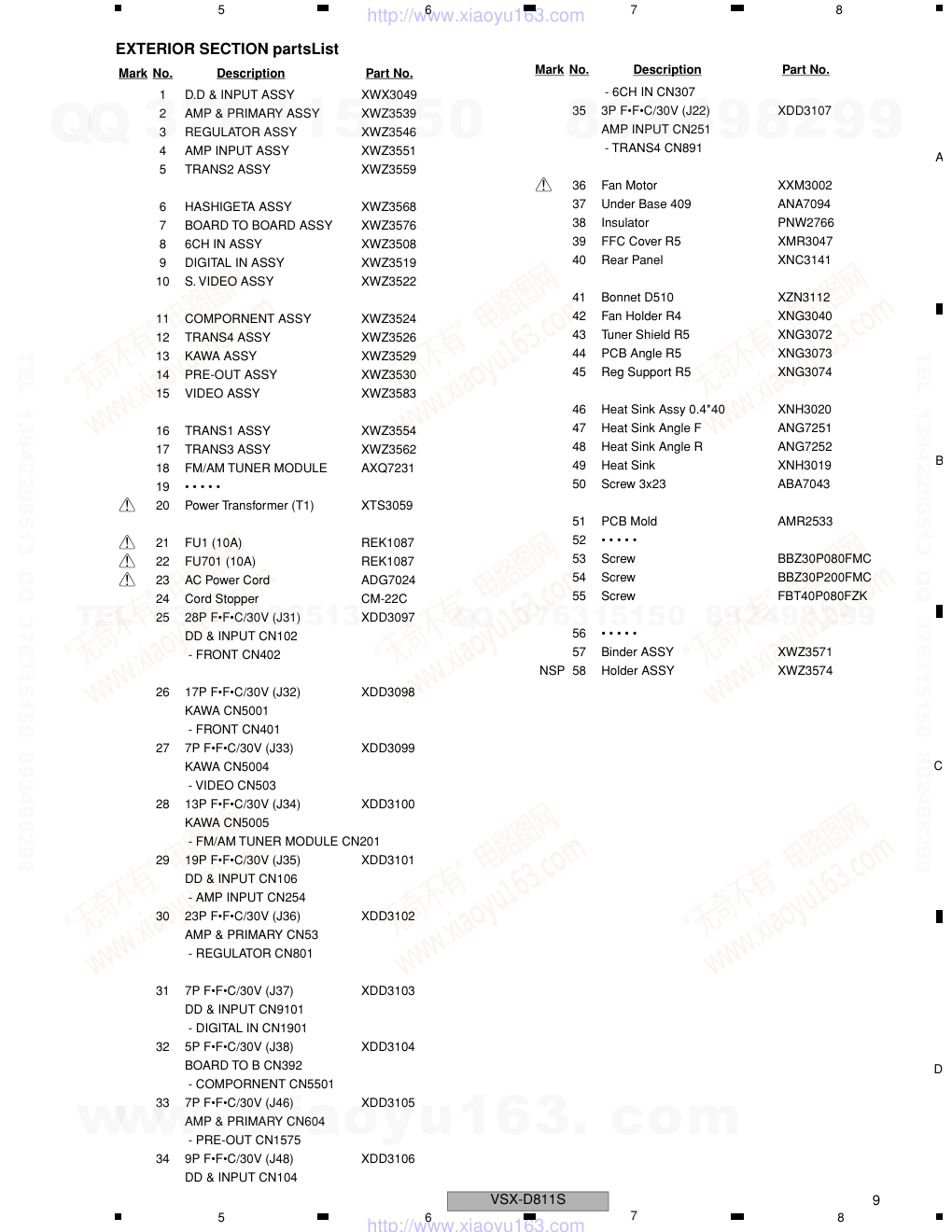

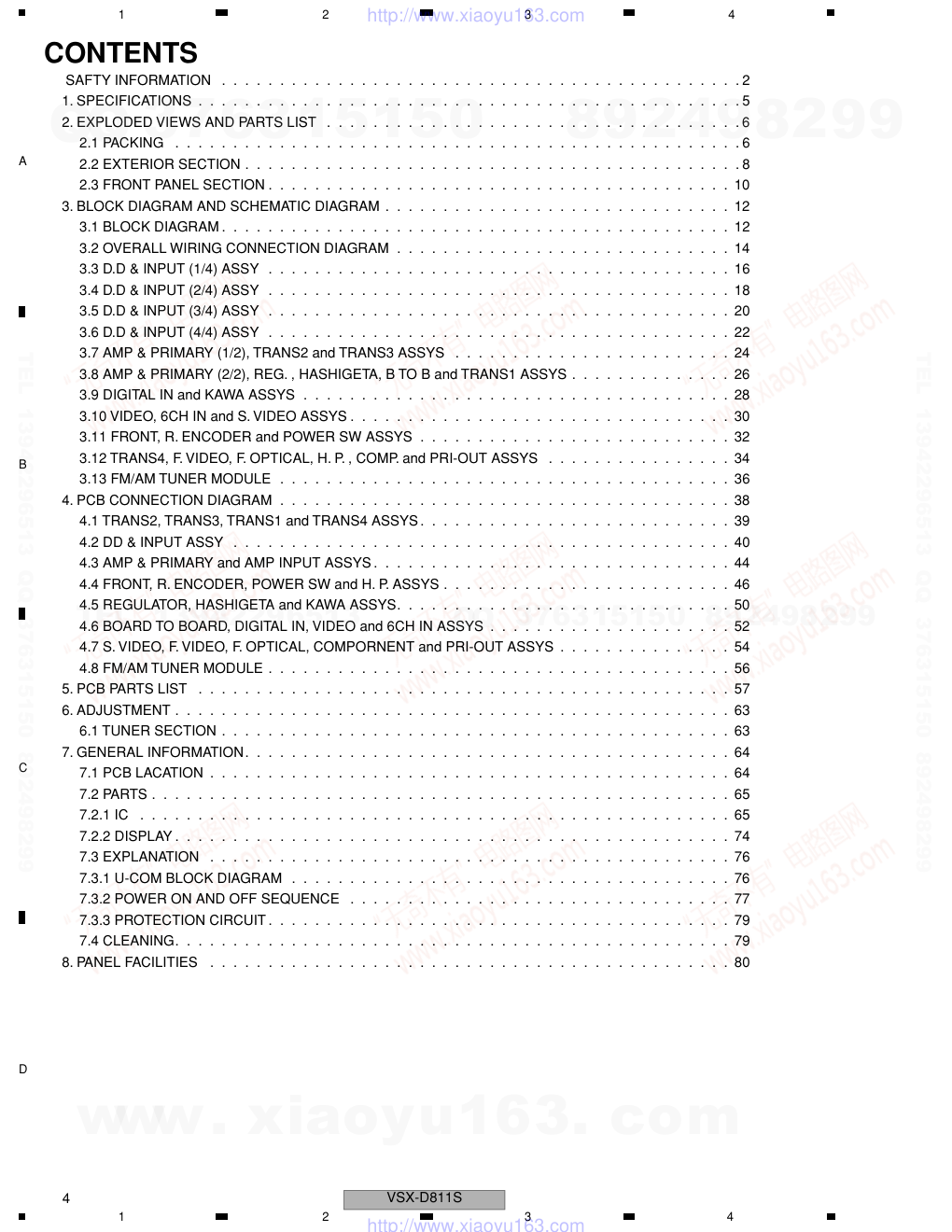

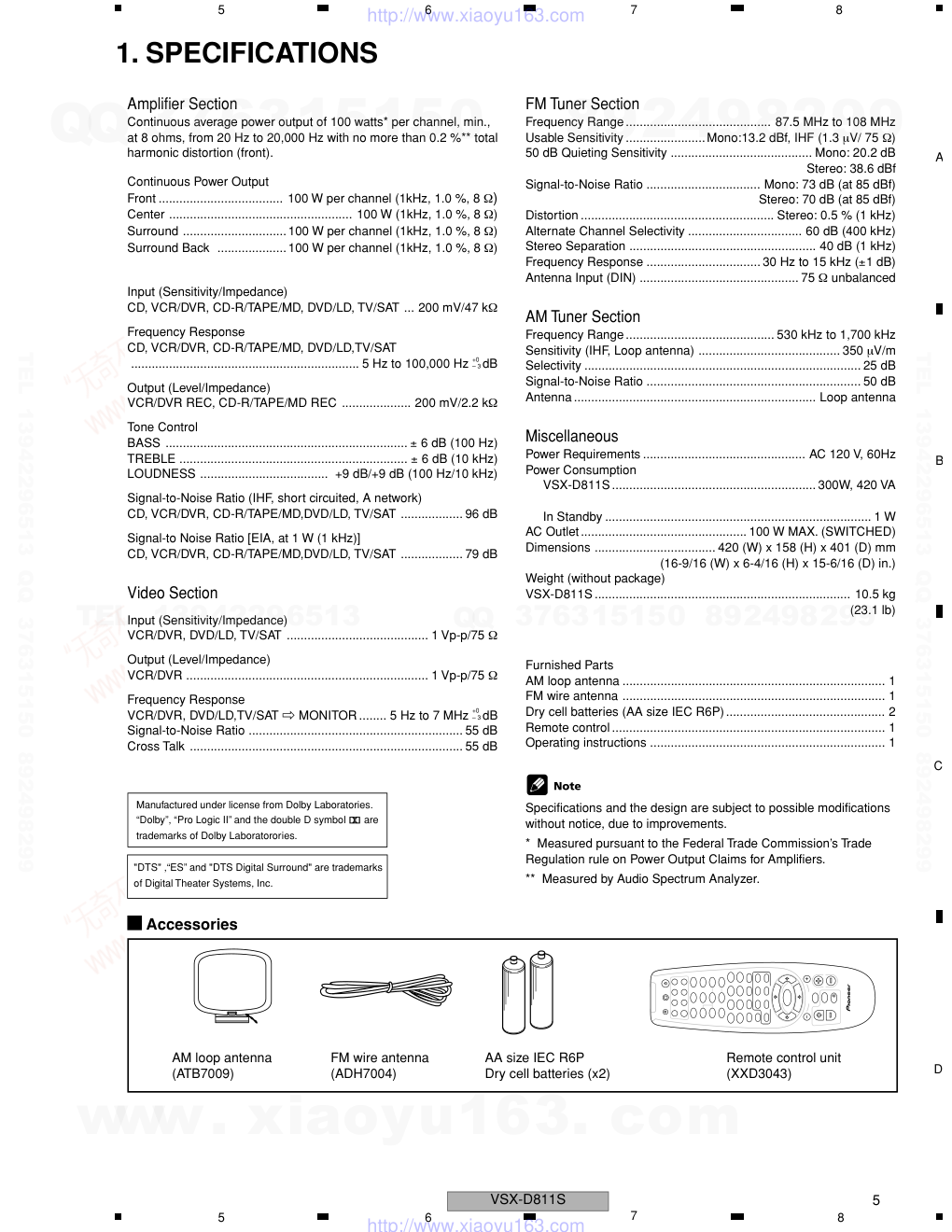

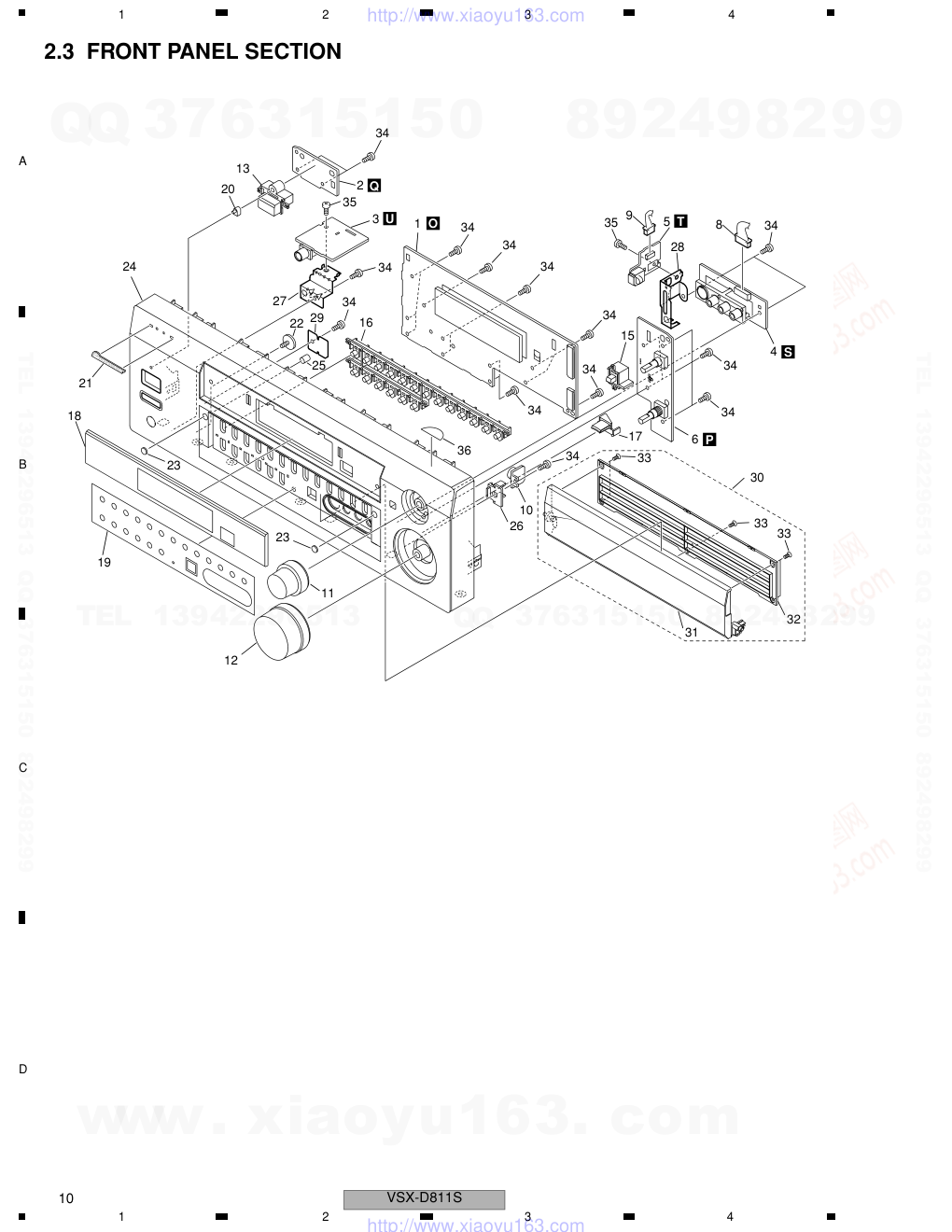

先锋PIONEER VSX-D811S电路图-0 先锋PIONEER VSX-D811S电路图-1 先锋PIONEER VSX-D811S电路图-2 先锋PIONEER VSX-D811S电路图-3 先锋PIONEER VSX-D811S电路图-4 先锋PIONEER VSX-D811S电路图-5 先锋PIONEER VSX-D811S电路图-6 先锋PIONEER VSX-D811S电路图-7 先锋PIONEER VSX-D811S电路图-8 先锋PIONEER VSX-D811S电路图-9

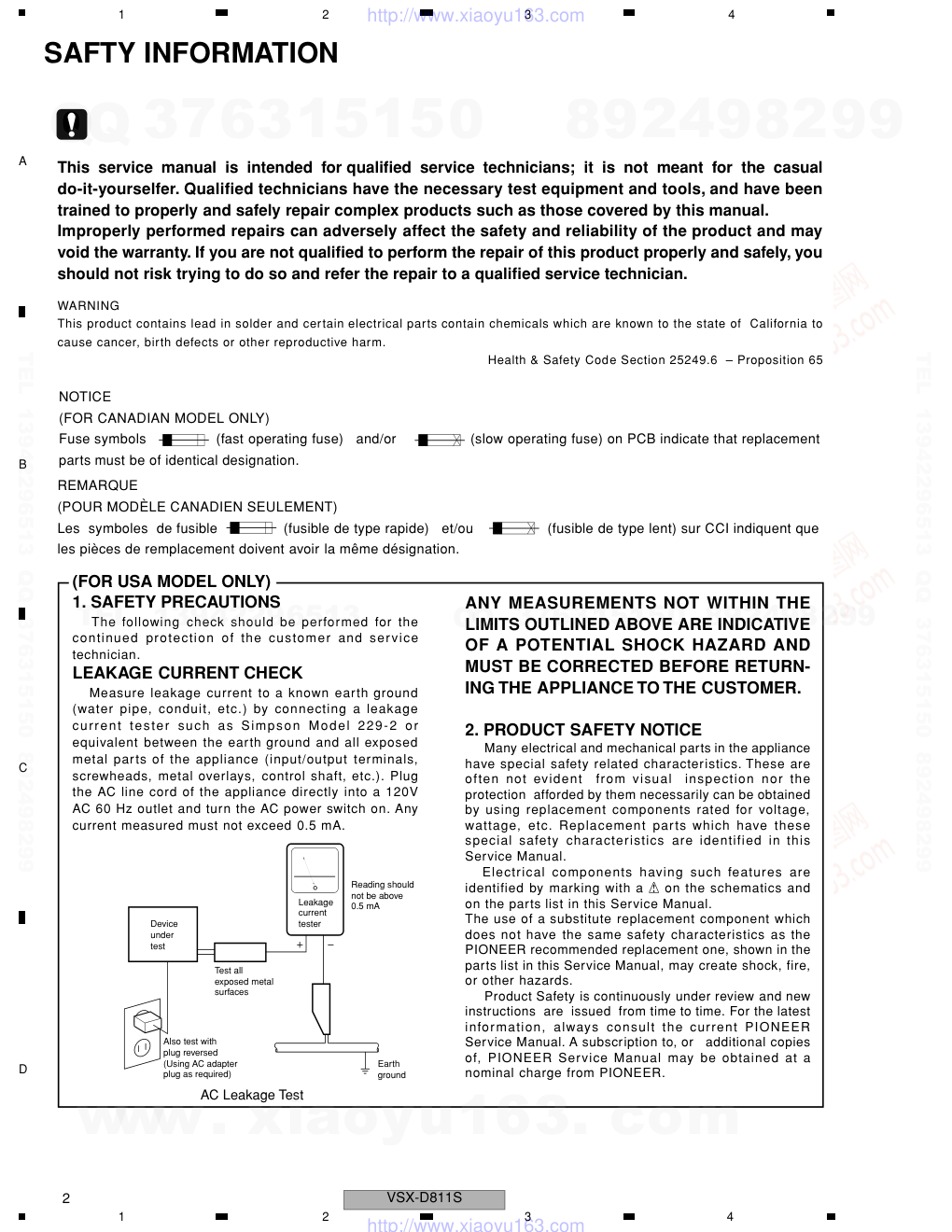

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2002 DOWN UP ENTER INPUT SELECTOR MASTER VOLUME MULTI JOG AUDIO/VIDEO MULTI-CHANNEL RECEIVER R STANDBY STANDBY/ON PHONES N∫m-Û˘,,∫ VSX-D811S RRV2583 AUDIO/VIDEO MULTI-CHANNEL RECEIVER VSX-D811S THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model Type Power Requirement Remarks VSX-D811S KUXJI AC120V VSX-D811S KCXJI AC120V For details, refer to "Important symbols for good services". T-ZZK FEB. 2002.printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 2 SAFTY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURN- ING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. (FOR USA MODEL ONLY) 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA. Device under test Leakage current tester Earth ground Reading should not be above 0.5 mA Also test with plug reversed (Using AC adapter plug as required) Test all exposed metal surfaces AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 3 [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 4 CONTENTS SAFTY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 1. SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 2. EXPLODED VIEWS AND PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2.1 PACKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2.2 EXTERIOR SECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2.3 FRONT PANEL SECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.1 BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.2 OVERALL WIRING CONNECTION DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 3.3 D.D & INPUT (1/4) ASSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 3.4 D.D & INPUT (2/4) ASSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 3.5 D.D & INPUT (3/4) ASSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 3.6 D.D & INPUT (4/4) ASSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 3.7 AMP & PRIMARY (1/2), TRANS2 and TRANS3 ASSYS . . . . . . . . . . . . . . . . . . . . . . . . 24 3.8 AMP & PRIMARY (2/2), REG. , HASHIGETA, B TO B and TRANS1 ASSYS . . . . . . . . . . . . . . 26 3.9 DIGITAL IN and KAWA ASSYS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 3.10 VIDEO, 6CH IN and S. VIDEO ASSYS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 3.11 FRONT, R. ENCODER and POWER SW ASSYS . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 3.12 TRANS4, F. VIDEO, F. OPTICAL, H. P. , COMP. and PRI-OUT ASSYS . . . . . . . . . . . . . . . . 34 3.13 FM/AM TUNER MODULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 4. PCB CONNECTION DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 4.1 TRANS2, TRANS3, TRANS1 and TRANS4 ASSYS. . . . . . . . . . . . . . . . . . . . . . . . . . . 39 4.2 DD & INPUT ASSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 4.3 AMP & PRIMARY and AMP INPUT ASSYS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 4.4 FRONT, R. ENCODER, POWER SW and H. P. ASSYS . . . . . . . . . . . . . . . . . . . . . . . . . 46 4.5 REGULATOR, HASHIGETA and KAWA ASSYS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 4.6 BOARD TO BOARD, DIGITAL IN, VIDEO and 6CH IN ASSYS . . . . . . . . . . . . . . . . . . . . . 52 4.7 S. VIDEO, F. VIDEO, F. OPTICAL, COMPORNENT and PRI-OUT ASSYS . . . . . . . . . . . . . . . 54 4.8 FM/AM TUNER MODULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 5. PCB PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 6. ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 6.1 TUNER SECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 7. GENERAL INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 7.1 PCB LACATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 7.2 PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 7.2.1 IC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 7.2.2 DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74 7.3 EXPLANATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76 7.3.1 U-COM BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76 7.3.2 POWER ON AND OFF SEQUENCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 7.3.3 PROTECTION CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 7.4 CLEANING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 8. PANEL FACILITIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 5 1. SPECIFICATIONS Accessories Remote control unit (XXD3043) AM loop antenna (ATB7009) FM wire antenna (ADH7004) AA size IEC R6P Dry cell batteries (x2) Amplifier Section Continuous average power output of 100 watts* per channel, min., at 8 ohms, from 20 Hz to 20,000 Hz with no more than 0.2 %** total harmonic distortion (front). Continuous Power Output Front .................................... 100 W per channel (1kHz, 1.0 %, 8 Ω) Center ..................................................... 100 W (1kHz, 1.0 %, 8 Ω) Surround ..............................100 W per channel (1kHz, 1.0 %, 8 Ω) Surround Back ....................100 W per channel (1kHz, 1.0 %, 8 Ω) Input (Sensitivity/Impedance) CD, VCR/DVR, CD-R/TAPE/MD, DVD/LD, TV/SAT ... 200 mV/47 kΩ Frequency Response CD, VCR/DVR, CD-R/TAPE/MD, DVD/LD,TV/SAT .................................................................. 5 Hz to 100,000 Hz dB Output (Level/Impedance) VCR/DVR REC, CD-R/TAPE/MD REC .................... 200 mV/2.2 kΩ Tone Control BASS ...................................................................... ± 6 dB (100 Hz) TREBLE .................................................................. ± 6 dB (10 kHz) LOUDNESS ..................................... +9 dB/+9 dB (100 Hz/10 kHz) Signal-to-Noise Ratio (IHF, short circuited, A network) CD, VCR/DVR, CD-R/TAPE/MD,DVD/LD, TV/SAT .................. 96 dB Signal-to Noise Ratio [EIA, at 1 W (1 kHz)] CD, VCR/DVR, CD-R/TAPE/MD,DVD/LD, TV/SAT .................. 79 dB Video Section Input (Sensitivity/Impedance) VCR/DVR, DVD/LD, TV/SAT ......................................... 1 Vp-p/75 Ω Output (Level/Impedance) VCR/DVR ...................................................................... 1 Vp-p/75 Ω Frequency Response VCR/DVR, DVD/LD,TV/SAT ] MONITOR ........ 5 Hz to 7 MHz dB Signal-to-Noise Ratio .............................................................. 55 dB Cross Talk ............................................................................... 55 dB FM Tuner Section Frequency Range.......................................... 87.5 MHz to 108 MHz Usable Sensitivity .......................Mono:13.2 dBf, IHF (1.3 µV/ 75 Ω) 50 dB Quieting Sensitivity ......................................... Mono: 20.2 dB Stereo: 38.6 dBf Signal-to-Noise Ratio ................................. Mono: 73 dB (at 85 dBf) Stereo: 70 dB (at 85 dBf) Distortion ........................................................ Stereo: 0.5 % (1 kHz) Alternate Channel Selectivity ................................. 60 dB (400 kHz) Stereo Separation ...................................................... 40 dB (1 kHz) Frequency Response ................................. 30 Hz to 15 kHz (±1 dB) Antenna Input (DIN) .............................................. 75 Ω unbalanced AM Tuner Section Frequency Range........................................... 530 kHz to 1,700 kHz Sensitivity (IHF, Loop antenna) ......................................... 350 µV/m Selectivity ................................................................................ 25 dB Signal-to-Noise Ratio .............................................................. 50 dB Antenna ...................................................................... Loop antenna Miscellaneous Power Requirements ............................................... AC 120 V, 60Hz Power Consumption VA VSX-D811S........................................................... 300W, 420 In Standby ............................................................................. 1 W AC Outlet................................................ 100 W MAX. (SWITCHED) Dimensions ................................... 420 (W) x 158 (H) x 401 (D) mm (16-9/16 (W) x 6-4/16 (H) x 15-6/16 (D) in.) Weight (without package) kg VSX-D811S .......................................................................... 10.5 (23.1 lb) Furnished Parts AM loop antenna ............................................................................ 1 FM wire antenna ............................................................................ 1 Dry cell batteries (AA size IEC R6P).............................................. 2 Remote control ............................................................................... 1 Operating instructions .................................................................... 1 Specifications and the design are subject to possible modifications without notice, due to improvements. * Measured pursuant to the Federal Trade Commission’s Trade Regulation rule on Power Output Claims for Amplifiers. ** Measured by Audio Spectrum Analyzer. +0 – 3 +0 – 3 "DTS" ,“ES” and "DTS Digital Surround" are trademarks of Digital Theater Systems, Inc. Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic II” and the double D symbol are trademarks of Dolby Laboratorories. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 6 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) NOTES: 1 3 2 4 9 11 12 7 10 13 5 6 KCXJI Type Only 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 7 PACKING partsList (2) CONTRAST TABLE VSX-D811S/KUXJI and KCXJI are constructed the same except for the following : Mark No. Description Part No. 1 FM wire antenna ADH7004 NSP 2 Warranty Card ARY7045 3 AM loop antenna ATB7009 NSP 4 Dry cell batteries (AA/R6P) VEM-013 5 Operating instructions XRB3013 (English) 6 Operating instructions See Contrast table (2) (French) 7 Remote Control Unit XXD3043 8 Battery Cover XZA3002 NSP 9 Polyethylene Bag Z21-038 10 Packing Sheet AHG7069 11 Left Pad R5 XHA3032 12 Right Pad R5 XHA3033 13 Packing Case XHD3202 Mark No. Description Part No. Mark NO Symbol and Description VSX-D811S/KUXJI VSX-D811S/KCXJI 6 Operating Instructions (French) Not used XRC3057 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 8 2.2 EXTERIOR SECTION D L K H M J I C I J M L K H E A B C D E N N F F A B G G O O Q 33 Q 53 24 40 23 53 53 55 53 53 53 53 53 53 53 53 53 53 53 53 53 53 44 28 18 1 15 3 43 39(1/2) 39(2/2) 45 6 53 41 55 25 26 27 29 53 53 53 34 32 10 7 53 30 2 4 17 16 5 53 21 53 53 54 54 50 50 53 20 Accessory of Front Panel 53 51 53 53 53 Refer to "2.3 FRONT PANEL SECTION". 55 55 48 47 49 46 9 31 53 37 53 11 H A L N J V 8 M B E F 13 K X D C I G 53 38 53 53 22 53 53 53 53 36 57 42 53 38 35 12 R 58 14 W NON-CONTACT SIDE CONTACT SIDE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 9 EXTERIOR SECTION partsList Mark No. Description Part No. 1 D.D & INPUT ASSY XWX3049 2 AMP & PRIMARY ASSY XWZ3539 3 REGULATOR ASSY XWZ3546 4 AMP INPUT ASSY XWZ3551 5 TRANS2 ASSY XWZ3559 6 HASHIGETA ASSY XWZ3568 7 BOARD TO BOARD ASSY XWZ3576 8 6CH IN ASSY XWZ3508 9 DIGITAL IN ASSY XWZ3519 10 S. VIDEO ASSY XWZ3522 11 COMPORNENT ASSY XWZ3524 12 TRANS4 ASSY XWZ3526 13 KAWA ASSY XWZ3529 14 PRE-OUT ASSY XWZ3530 15 VIDEO ASSY XWZ3583 16 TRANS1 ASSY XWZ3554 17 TRANS3 ASSY XWZ3562 18 FM/AM TUNER MODULE AXQ7231 19 • • • • • > 20 Power Transformer (T1) XTS3059 > 21 FU1 (10A) REK1087 > 22 FU701 (10A) REK1087 > 23 AC Power Cord ADG7024 24 Cord Stopper CM-22C 25 28P F•F•C/30V (J31) XDD3097 DD & INPUT CN102 - FRONT CN402 26 17P F•F•C/30V (J32) XDD3098 KAWA CN5001 - FRONT CN401 27 7P F•F•C/30V (J33) XDD3099 KAWA CN5004 - VIDEO CN503 28 13P F•F•C/30V (J34) XDD3100 KAWA CN5005 - FM/AM TUNER MODULE CN201 29 19P F•F•C/30V (J35) XDD3101 DD & INPUT CN106 - AMP INPUT CN254 30 23P F•F•C/30V (J36) XDD3102 AMP & PRIMARY CN53 - REGULATOR CN801 31 7P F•F•C/30V (J37) XDD3103 DD & INPUT CN9101 - DIGITAL IN CN1901 32 5P F•F•C/30V (J38) XDD3104 BOARD TO B CN392 - COMPORNENT CN5501 33 7P F•F•C/30V (J46) XDD3105 AMP & PRIMARY CN604 - PRE-OUT CN1575 34 9P F•F•C/30V (J48) XDD3106 DD & INPUT CN104 - 6CH IN CN307 35 3P F•F•C/30V (J22) XDD3107 AMP INPUT CN251 - TRANS4 CN891 > 36 Fan Motor XXM3002 37 Under Base 409 ANA7094 38 Insulator PNW2766 39 FFC Cover R5 XMR3047 40 Rear Panel XNC3141 41 Bonnet D510 XZN3112 42 Fan Holder R4 XNG3040 43 Tuner Shield R5 XNG3072 44 PCB Angle R5 XNG3073 45 Reg Support R5 XNG3074 46 Heat Sink Assy 0.4*40 XNH3020 47 Heat Sink Angle F ANG7251 48 Heat Sink Angle R ANG7252 49 Heat Sink XNH3019 50 Screw 3x23 ABA7043 51 PCB Mold AMR2533 52 • • • • • 53 Screw BBZ30P080FMC 54 Screw BBZ30P200FMC 55 Screw FBT40P080FZK 56 • • • • • 57 Binder ASSY XWZ3571 NSP 58 Holder ASSY XWZ3574 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 10 2.3 FRONT PANEL SECTION 18 21 15 20 13 2 12 11 19 23 4 23 24 1 6 28 5 34 34 35 34 22 16 25 29 34 34 34 34 34 34 36 34 34 34 35 34 17 33 33 30 33 3 27 8 9 10 26 32 31 Q U O P S T www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 11 FRONT PANEL SECTION partsList Mark No. Description Part No. 1 FRONT ASSY XWZ3501 2 POWER SW ASSY XWZ3510 3 H.P. ASSY XWZ3513 4 FRONT VIDEO ASSY XWZ3515 5 FRONT OPTICAL ASSY XWZ3516 6 R. ENCODER ASSY XWZ3582 7 • • • • • 8 8P Shielded Cable (J29) XDX3012 9 6P Shielded Cable (J30) XDX3018 10 Damper Assy AXA7052 11 Select Knob R5BH XAB3023 12 Volume Knob R5BH XAB3025 13 Power Button R5B XAD3123 14 • • • • • 15 Jog Button R5B XAD3124 16 Door Button R5B XAD3126 17 B Lens R4 XAK3181 18 D Panel R5 W XAK3274 19 BN Cover 811B UL XAK3294 20 Led Lens 1.6 XAK3308 21 Pioneer Badge B XAM3006 22 Screw DR 3x8W XBA3010 23 Cushion R4B XED3001 24 Front Panel XMB3063 25 Magnet R5 XMF3002 26 Holder L R5 XMR3046 27 Earth Plate R5 HP XNG3066 28 Earth Plate R5 D XNG3067 29 Magnet Cover R5 XNG3075 30 Door Assy R5B XXG3091 31 Door R5B XAK3275 32 Door Cover R5B XAK3276 33 Screw 2x35 B XBA3007 34 Screw PPZ30P080FMC 35 Screw BBZ30P080FMC NSP 36 Energy Star Label AAX7876 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 12 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM 1 1 3 1 AXQ7231 CN101 10 CN201 7 CN307 IC101 TC9273F-007 (FUNCTION SEL) IC303 IC1901 IC302 IC302 IC551 IC552 IC552 IC553 TC74HC4053 CONPONENT1 CONPONENT2 CONPONENT OUT (CONPOSEL) IC104 IC102 NJU7312AM IC9701 IC9101 IC9508 IC9504 IC9503 IC9502 (ADC) (DIR) (DAC) (FL/FR) (EXP/DSP) (SL/SR) (C) (SW) (CODEC) (for DECODE) (SP config) IC9501 BS62LV 1024TC-70 (RAM for AAC) PDN030A (ROM for DECODE) TC74 VHC574F TC74 VHC574F CRYSTAL DSP A V M J 3 1 7 1 5 9 CN104 7 5 1 CN1901 6 CN9101 2 6 3 IC304 1 7 3 3 13 12 1 1 1 3 6 2 7 5 3 2 1 5 15 14 13 4 3 2 123 32 43 39-40 11-13 10 22 30 27 3 3 11,12 28 26 2 1 9 7,8,10 IC9702 2 1 IC9703 3 1 IC9703 5 7 IC9704 2 1 IC9201 3 1 IC9705 2 1 IC9706 IC9102 AK4382VT AK4586 (SB DAC) NJM4558MD (LPF) NJM4558MD (LPF) NJM4558MD (6dB AMP) NJM2100M NJU 7313AM IC9601 2,3 1 6 7 4 6 3 8 7 20 21 19 12 11 10 6 4 2 6 3 9 5 1 7 5 9 10 11 N S 9 5 7 3 9 5 7 3 11 11 CN901 6 CN354 IC351 IC352 (Y SEL) (C SEL) 2 8 S X CN901 3 CN107 1 T 5 3 5 4 15 14 8 CN1902 CN951 1 1 IC9601 (EXP/DSP) K (8 16bit) Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". NJU7313AM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 13 14.1/24.1 14.7/27.3 13.8 IC103 IC112 DB3812F IC105 IC106 IC107 IC107 Q112 Q303 Q603 Q601 Q1552 Q653 Q651 Q632 Q631 uPC2570 (PRE AMP) L E CN101 14 CN302 1 11 15 17 31 34 33 36 6 9 5 7 5 7 IC110 14 1 3 1 3 1 5 7 IC601 24 26 IC602 24 26 IC601 RY751 RY753 RY754 RY752 22 15 U B W H CN702 6 CN1551 6 CN106 4 CN601 9 8 5 1 11 +12V -12V T1 POWER TRANSFORMER T51 AC IN D801–D804 U+5V D51-D54 RY51 IC51 IC801 T+12V IC805 CN101 IC802 NECK+B POWER AMP IC601, IC602 NECK-B D702 D701 +BVL +BVH -BVH -BVL FL AC FL AC Q701 Q702 B B A D+5V D721–D724 IC803 A+5V IC804 CN101 E A CN101 A CN402 O IC301 (CONPONENT SEL) L 9 5 7 1 11 S 3 CN901 5 CN301 6 Q682 Q681 IC602 18 14 RY752 W 12 1 W W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 14 3.2 OVERALL WIRING CONNECTION DIAGRAM FRONT ASSY (XWZ3501) O BOARD TO BOARD ASSY (XWZ3576) S. VIDEO ASSY (XWZ3522) FRONT VIDEO ASSY (XWZ3515) N S FRONT OPTICAL ASSY (XWZ3516) T G R.ENCODER ASSY (XWZ3582) P D.D & INPUT ASSY (XWX3049) A REGULATOR ASSY (XWZ3546) E 6CH IN ASSY (XWZ3508) M VIDEO ASSY (XWZ3583) FM/AM TUNER MODULE (AXQ7231) L X HASHIGETA ASSY (XWZ3568) F AMP INPUT ASSY (XWZ3551) H KAWA ASSY (XWZ3529) K A 1/4, A 2/4, A 3/4, A 4/4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 15 COMPORNENT ASSY (XWZ3524) PRI-OUT ASSY (XWZ3530) ADG7024 DIGITAL IN ASSY (XWZ3519) V J W POWER SW ASSY (XWZ3510) Q U H.P. ASSY (XWZ3513) TRANS3 ASSY (XWZ3562) D R TRANS2 ASSY (XWZ3559) TRANS1 ASSY (XWZ3554) C I AMP& PRIMARY ASSY (XWZ3539) B J3(J8) J7 J6 J1 J2 J4 J5 B 1/2, B 2/2 TRANS4 ASSY (XWZ3526) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 16 3.3 D.D & INPUT (1/4) ASSY A D.D & INPUT ASSY (XWX3049) VSX-D811S VSX-D811S VSX-D811S A 1/4 A 1/4 CN901 S A 2/4 CN802 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 17 A 1/4 CN402 O A 2/4 A 4/4 A 4/4 A 2/4,4/4 A 4/4 A 2/4,3/4,4/4 A 2/4 A 2/4 A 2/4,3/4 CN1002 F CN307 M : The power supply is shown with the marked box. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 18 3.4 D.D & INPUT (2/4) ASSY A D.D & INPUT ASSY (XWX3049) A 2/4 A 2/4 A 1/4 A 4/4 A 1/4 A 1/4 A 3/4 CN1901 J A 3/4 A 1/4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 19 VSX-D811S A 2/4 CN254 H A 1/4 A 1/4 A 1/4 A 1/4 A 1/4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 20 3.5 D.D & INPUT (3/4) ASSY A A 3/4 A 1/4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 21 VSX-D811S VSX-D811S : The power supply is shown with the marked box. D.D & INPUT ASSY (XWX3049) A 3/4 A 3/4 A 2/4 A 1/4 A 2/4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 22 3.6 D.D & INPUT (4/4) ASSY A D.D & INPUT ASSY (XWX3049) A 4/4 A 4/4 A 1/4 A 1/4 A 1/4 A 2/4 A 1/4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 23 A 4/4 A 1/4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 24 3.7 AMP & PRIMARY (1/2), TRANS2 and TRANS3 ASSYS NO USE KUXJI, KCXJI TYPE KUXJI, KCXJI TYPE NO USE NO USE NO USE NO USE AMP&PRIMARY ASSY (XWZ3539) B 1/2 B 2/2 CN253 H B 1/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 25 KUXJI, KCXJI TYPE KUXJI, KCXJI TYPE KUXJI, KCXJI KUXJI, KCXJI KUXJI, KCXJI KUXJI, KCXJI REK1087 (10A) C D TRANS3 ASSY D TRANS2 ASSY (XWZ3559) C (XWZ3562) POWER TRANSFORMER 1551 U CN1575 W CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491004 FOR IC851 AND IC852 MFD, BY LITTELFUSE INC. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491001 FOR IC603 MFD, BY LITTELFUSE INC. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491003 FOR IC853 MFD, BY LITTELFUSE INC. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491010 FOR IC604, IC605, IC606, AND IC607 MFD, BY LITTELFUSE INC. B 2/2 B 2/2 • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.125 FOR IC701 AND IC702 MFD, BY LITTELFUSE INC. B 1/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 26 3.8 AMP & PRIMARY (2/2), REG. , HASHIGETA, B TO B and TRANS1 ASSYS E F G CN101 B 1/2 A 1/4 A 1/4 CN5002 CN302 L BOARD TO BOARD ASSY (XWZ3576) G REGULATOR ASSY (XWZ3546) E HASHIGETA ASSY (XWZ3568) F AMP& PRIMARY ASSY (XWZ3539) B 2/2 B 2/2 K CN5003 K CN301 L CN351 N CN551 V CN105 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 27 H I CN106 A 2/4 CN601 CN891 B 1/2 B 1/2 POWER TRANSFORMER LIVE NEUTRAL REK1087 (10A) AC POWER CORD ADG7024 • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - FAN MOTOR AMP INPUT ASSY (XWZ3551) H TRANS1 ASSY (XWZ3554) I B 2/2 R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 28 3.9 DIGITAL IN and KAWA ASSYS NO USE VSX-D811S VSX-D811S NO USE NO USE NO USE J DIGITAL IN ASSY (XWZ3519) J CN9101 CN951 T A 2/4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 29K KAWA ASSY (XWZ3529) K CN401 O CN804 E CN1001 F CN303 L CN201 X www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 30 3.10 VIDEO, 6CH IN and S. VIDEO ASSYS KUXJI, KCXJI L M 6CH IN ASSY (XWZ3508) M VIDEO ASSY (XWZ3583) L CN803 E CN390 G CN5004 K CN104 A 1/4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 31 VSX-D811S NO USE NO USE N S. VIDEO ASSY (XWZ3522) N CN391 G CN901 S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 32 3.11 FRONT, R. ENCODER and POWER SW ASSYS VSX-D811S VSX-D811S /KUXJI,KCXJI O P FRONT ASSY (XWZ3501) O R.ENCODER ASSY (XWZ3582) P CN102 A 1/4 CN5001 R.ENCODER ASSY S511 : ENTER S512 : MULTI JOG DIAL S513 : MASTER VOLUME K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 33 O Q POWER SW ASSY (XWZ3510) Q FRONT ASSY S451 : SIGNAL SELECT S452 : MIDNIGHT/ LOUDNES S453 : SPEAKER S454 : MONITOR S455 : TONE S456 : SETUP S457 : ADVANCED SRR S458 : DIRECT S459 : FL DIMMER S460 : INPUT ATT S461 : MPX S462 : BAND S463 : STANDARD S464 : TUNING(+) S465 : TUNING(–) S466 : STATION(+) S467 : STATION(–) S468 : MULTI JOG S476 : CLASS POWER SW ASSY S501 : POWER STANDBY/ON www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 34 3.12 TRANS4, F. VIDEO, F. OPTICAL, H. P. , COMP. and PRI-OUT ASSYS R S T U Y CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.630 FOR IC891 AND IC892 MFD, BY LITTELFUSE INC. FRONT VIDEO ASSY (XWZ3515) S FRONT OPTICAL ASSY (XWZ3516) T U H.P. ASSY (XWZ3513) R TRANS4 ASSY (XWZ3526) CN1902 J CN354 N CN251 H CN107 A 1/4 CN702 B 1/2 POWER TRANSFORMER VSX-D811S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 35 V W COMPORNENT ASSY (XWZ3524) PRI-OUT ASSY (XWZ3530) V W CN604 B 1/2 CN392 G VSX-D811S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 36 3.13 FM/AM TUNER MODULE FM FRONT END MW RF TUNING BLOCK FM/AM TUNER MODULE (AXQ7231) X OSC : 981 - 2052kHz 9k step (AM) (AM) (AM) (AM) (AM) (AM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) X www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 37 L201 ATE7003 PLL IC AM/FM IF+MPX IC ATF7026 : AUDIO SIGNAL ROUTE (TUNER) (TX) : AM SIGNAL ROUTE (AM) : FM SIGNAL ROUTE (FM) (AM) (AM) (FM) (AM) (AM) (AM) (AM) (AM) (AM) (FM) (AM) (FM) (TX) (TX) (TX) (TX) (TX) (FM) : The power supply is shown with the marked box. X CN5005 K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 38 4. PCB CONNECTION DIAGRAM NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 39 4.1 TRANS2, TRANS3, TRANS1 and TRANS4 ASSYS (XNP3055-B) (XNP3055-B) (XNP3055-B) TRANS3 ASSY D TRANS2 ASSY C I R CN251 H 701 B J1 J2 B J6 J4 J3 J5 J7 B POWER TRANSFORMER TRANS1 ASSY (XNP3052-B) (XNP3052-B) TRANS4 ASSY C D I R D I C R SIDE A SIDE A SIDE A SIDE A SIDE A SIDE B SIDE B CN891 851 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 40 4.2 DD & INPUT ASSY D.D & INPUT ASSY A CN1002 F CN402 O CN901 S CN254 H Q9603 Q9604 Q9605 Q9606 IC102 IC103 Q9611 Q9601 Q9602 Q9609 Q0608 Q9607 Q IC950 Q9610 Q9601 Q9602 IC9601 Q111 IC301 Q107 Q108 Q109 Q110 IC110 IC105 IC106 IC107 Q112 A SIDE A CN102 CN106 CN107 CN105 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 41 CN802 E CN1002 CN1901 J CN307 M 05 Q9606 Q9611 Q9601 Q9602 IC9101 IC9504 IC9507 IC9501 Q9203 Q9204 IC9506 IC9102 IC9505 IC9508 1 IC9201 IC104 Note : The pin of function IC (IC101 TC9273F-007) can be checked from side-A by the through-hole round. The pin No. is printed on the side-A. Even if the FM/AM TUNER MODULE is disconnected, other functions can operate. IC9812 Q9201 Q9202 (XNP3056-C) A SIDE A CN105 CN101 CN9101 CN104 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 42 D.D & INPUT ASSY A IC9502 IC9503 Q9552 Q9551 IC101 IC9811 IC9705 IC9703 IC9707 IC9701 IC9704 IC9702 IC9705 A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 43 IC9705 IC112 IC9703 IC9707 IC9701 IC9704 IC9702 IC9705 (XNP3056-C) A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 44 4.3 AMP & PRIMARY and AMP INPUT ASSYS B H Y SIDE A AMP INPUT ASSY H AMP&PRIMARY ASSY B CN106 A R J5 D 8 C 15 U Q604 Q606 Q605 Q602 Q601 Q603 IC601 IC605 IC604 IC603 Q632 Q704 Q702 IC702 Q703 Q701 IC701 Q631 IC606 IC607 Q656 Q683 IC602 Q633 Q655 Q697 Q696 Q681 Q682 Q652 Q654 Q651 Q653 J7 D J6 D (XNP3055-B) (XNP3055-B) CN891 FAN MOTOR Q255 Q254 Q252 Q256 Q253 Q251 IC251 Q257 Q258 J3 D CN254 CN252 CN251 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 45B SIDE A I I J4 D J5 D 851 C 1551 U Q51 IC52 IC51 AC IN NEUTRAL LIVE J2 J1 CN801 E CN1575 W J3 CN53 CN604 CN51 701 CN702 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 46 4.4 FRONT, R. ENCODER, POWER SW and H. P. ASSYS FRONT ASSY O CN702 B POWER SW ASSY Q O Q U SIDE A H.P ASSY U (XNP3052-B) (XNP3052- (XNP3052-B) 1551 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 47 CN5001 K CN102 A R.ENCODER ASSY P O P SIDE A SSY (XNP3052-B) (XNP3052-B) CN402 CN401 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 48 FRONT ASSY O U R.ENCODER ASSY P (XNP3052-B) O P SIDE B IC401 Q401 Q441 Q442 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 49 POWER SW ASSY Q H.P ASSY U (XNP3052-B) (XNP3052-B) (XNP3052-B) O Q U SIDE B IC481 IC401 Q402 Q405 Q403 Q481 Q482 Q483 Q471 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 50 4.5 REGULATOR, HASHIGETA and KAWA ASSYS SIDE A SIDE A E F E F (XNP3055-B) (XNP3055-B) Q805 Q803 Q806 Q801 Q804 Q802 IC804 IC805 REGULATOR ASSY E HASHIGETA ASSY F CN53 B CN302 L CN101 A CN105 A IC802 IC803 IC801 CN803 CN801 CN802 CN1002 CN5002 K CN804 CN5003 K CN1001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 51 SIDE A SIDE B K K (XNP3052-B) (XNP3052-B) KAWA ASSY K KAWA ASSY K CN303 L CN201 X CN401 O Q5001 Q5002 Q5020 Q5021 Q5022 IC5001 CN5001 CN5005 CN804 E CN5002 CN5004 CN1001 F CN5003 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 52 4.6 BOARD TO BOARD, DIGITAL IN, VIDEO and 6CH IN ASSYS G J L M J L G M SIDE A SIDE A DIGITAL IN ASSY J 6CH IN ASSY M CN951 T CN9101 A CN104 A CN351 N CN551 V CN803 E CN5004 K (XNP3052-B) (XNP3052-B) (XNP3052-B) (XNP3055-B) BOARD TO BOARD ASSY G VIDEO ASSY L Q302 Q301 CN307 CN1901 CN1902 CN302 CN303 CN391 CN392 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 53 J L M J L M SIDE B SIDE B DIGITAL IN ASSY J 6CH IN ASSY M (XNP3052-B) (XNP3052-B) (XNP3052-B) VIDEO ASSY L IC1902 IC1903 IC304 IC303 IC302 IC305 IC1901 IC301 Q303 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 54 4.7 S. VIDEO, F. VIDEO, F. OPTICAL, COMPORNENT and PRI-OUT ASSYS SIDE A SIDE A N S T V W N S T V W FRONT VIDEO ASSY S FRONT OPTICAL ASSY T CN604 B CN901 S CN391 G CN354 N CN107 A CN392 G CN1902 J S. VIDEO ASSY N PRE-OUT ASSY W COMPORNENTASSY V (XNP3052-B) (XNP3052-B) (XNP3052-B) (XNP3052-B) (XNP3052-B) CN1575 CN551 CN354 CN351 CN951 CN901 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 55 SIDE B SIDE B T V N S W T V N S W FRONT VIDEO ASSY S FRONT OPTICAL ASSY T S. VIDEO ASSY N PRE-OUT ASSY W COMPORNENTASSY V IC552 IC551 IC351 IC352 (XNP3052-B) (XNP3052-B) (XNP3052-B) (XNP3052-B) (XNP3052-B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 56 4.8 FM/AM TUNER MODULE (ANP7338-B) (ANP7338-B) CN5005 K FM/AM TUNER MODULE X FM/AM TUNER MODULE X IC201 Q205 Q204 Q203 IC202 Q201 Q202 X X SIDE A SIDE A SIDE B SIDE B CN201 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 57 5. PCB PARTS LIST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 NOTES: 560 Ω 47k Ω 0.5 Ω 1 Ω RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0 561 473 5.62k Ω RN1/4PC F 562 x 10 1 5621 Mark No. Description Part No. LIST OF ASSEMBLIES 1..D.D & INPUT ASSY XWX3049 NSP 1..AMP & PS ASSY XWK3059 2..AMP & PRIMARY ASSY XWZ3539 2..REGULATOR ASSY XWZ3546 2..AMP INPUT ASSY XWZ3551 NSP 2..TRANS1 ASSY XWZ3554 2..TRANS2 ASSY XWZ3559 NSP 2..TRANS3 ASSY XWZ3562 2..HASHIGETA ASSY XWZ3568 2..BOARD TO BOARD ASSY XWZ3576 NSP 1..COMPLEX ASSY XWK3046 2..FRONT ASSY XWZ3501 2..6CH IN ASSY XWZ3508 2..POWER SW ASSY XWZ3510 2..H.P. ASSY XWZ3513 2..FRONT VIDEO ASSY XWZ3515 2..FRONT OPTICAL ASSY XWZ3516 2..DIGITAL IN ASSY XWZ3519 2..S. VIDEO ASSY XWZ3522 2..COMPORNENT ASSY XWZ3524 2..TRANS4 ASSY XWZ3526 2..KAWA ASSY XWZ3529 2..PRE-OUT ASSY XWZ3530 2..R. ENCODER ASSY XWZ3582 2..VIDEO ASSY XWZ3583 1..FM/AM TUNER MODULE AXQ7231 Mark No. Description Part No. COMPLEX ASSY OTHERS J 41 (JUMPER WIRED) D15A04-100-2651 J 42 (JUMPER WIRED) D15A07-075-2651 J 47 (JUMPER WIRED) D20PYY0630E AMP & PS ASSY OTHERS Y 701 (AWG14 BOARD IN) ADX7286 J 21 (JUMPER WIRED) D20PYY0715E AD.D & INPUT ASSY SEMICONDUCTORS IC9102 AK4382AVT IC9101 AK4586VQ IC112 BD3812F IC301 BU4094BCF IC9501 CS493292 IC103 M62446FP IC9201 NJM2100M IC9812 NJM2391DL1-25 IC9811 NJM2391DL1-33 IC102 NJU7312AM IC9601 NJU7313AM IC9504 PD8097A IC9505 TC74LVX244FT IC9502, IC9503 TC74VHC574F IC9506 TC74VHCT244AFT IC9507 TC7WU04FU IC101 TC9273F-007 IC104–IC107, IC110, IC9701–IC9707 UPC4570G2 Q107–Q112, Q9201, Q9202 2SC3326 Q9101, Q9204, Q9607, Q9609, Q9610 DTA124EK Q9102, Q9203, Q9608 DTC124EK D9601, D9602 1SS181 D105, D106, D301, D9921 1SS355 D107, D108 DAN217 D201, D202 RB501V-40 D104 UDZS5.1B D101, D102 UDZS6.8B COILS AND FILTERS L9101, L9501, L9504, L9811, L9812 ATL7002 L111–L114, L1601, L1602 QTL1013 L9102–L9104, L9502, L9503 QTL1013 L9506, L9507 QTL1013 CAPACITORS C9510, C9511 CCSRCH100D50 C101–C114, C121–C123 CCSRCH101J50 C126–C128, C152–C154 CCSRCH101J50 C158, C159, C197, C198 CCSRCH101J50 C207, C208, C221, C222 CCSRCH101J50 C228, C229, C9160, C9201, C9202 CCSRCH101J50 C9101, C9102 CCSRCH220J50 C235, C241, C9117, C9749, C9751 CCSRCH221J50 C9509, C9757 CCSRCH271J50 C9530, C9731, C9735 CCSRCH331J50 C9103, C9110, C9111, C9114, C9125 CCSRCH471J50 C9503, C9505, C9507, C9513, C9515 CCSRCH471J50 C9518, C9520, C9522, C9525, C9528 CCSRCH471J50 C9571, C9611–C9614, C9625, C9639 CCSRCH471J50 C9729, C9815, C9816 CCSRCH471J50 C9707, C9708, C9721, C9722 CCSRCH820J50 C130–C137, C146–C151, C202 CEAT100M50 C261, C305, C9207, C9208, C9523 CEAT100M50 C9526 CEAT100M50 C9105, C9106, C9108, C9116, C9122 CEAT101M10 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 58 C9516, C9551, C9792, C9812, C9814 CEAT101M10 C9740 CEAT220M25 C9205 CEAT221M6R3 C9112, C9529, C9769, C9770 CEAT2R2M50 C9713, C9714, C9727, C9728, C9739 CEAT330M25 C9753, C9765–C9768 CEAT330M25 C144, C145 CEAT3R3M50 C117, C118, C225, C226 CEAT470M50 C232, C233, C239, C244 CEAT470M50 C155, C156 CEAT471M10 C115, C116, C234, C240 CEAT4R7M50 C9203, C9204, C9615–C9618, C9761 CEAT4R7M50 C9811, C9813 CEAT4R7M50 C271, C9703, C9704, C9717, C9718 CKSRYB102K50 C9745, C9781 CKSRYB102K50 C119, C120, C124, C125, C138 CKSRYB103K50 C141, C171, C172, C179, C180 CKSRYB103K50 C183, C199, C203, C204 CKSRYB103K50 C223, C224, C230, C231 CKSRYB103K50 C237, C238, C242, C243, C304 CKSRYB103K50 C9104, C9107, C9109, C9121 CKSRYB103K50 C9123, C9124, C9209, C9502, C9504 CKSRYB103K50 C9506, C9508, C9512, C9514, C9517 CKSRYB103K50 C9519, C9521, C9524, C9527, C9531 CKSRYB103K50 C9584, C9636, C9637, C9705, C9706 CKSRYB103K50 C9709–C9712, C9723–C9726 CKSRYB103K50 C9737, C9738, C9817 CKSRYB103K50 C140, C143, C1631, C1632 CKSRYB104K16 C173, C174, C9113, C9115, C9126 CKSRYB104K16 C9206, C9818 CKSRYB104K16 C9755 CKSRYB122K50 C9701, C9702, C9715, C9716, C9763 CKSRYB222K50 C9736 CKSRYB223K25 C139, C142, C9626 CKSRYB223K50 C236 CKSRYB472K50 C184, C185, C9732 CKSRYB473K25 C227, C9730 CKSRYF104Z25 RESISTORS > R171, R172 RS1/16S102J R9104 RS1/16S1802F > R174, R175 RS1LMF101J Other Resistors RS1/16S###J OTHERS CN9101 (7P CONNECTOR) 52044-0745 CN104 (9P CONNECTOR) 52044-0945 CN106 (20P CONNECTOR) 52045-1945 CN102 (28P CONNECTOR) 52045-2845 JA101–JA104 (PIN JACK(4P)) AKB7048 CN107 (CONNECTOR POST) B3B-PH-K CN101 (16P SOCKET) KP200TA16L CN105 (8P SOCKET) KP200TA8L 101–103 (PCB BINDER) VEF1040 X9501 (CRYSTAL RESONATOR) VSS1086 (27.0MHZ) X9101 (CRYSTAL RESONATOR) VSS1140 (12.288MHZ) BAMP & PRIMARY ASSY SEMICONDUCTORS > IC603 (PROTECTOR(1A)) AEK7009 Mark No. Description Part No. > IC701, IC702 (PROTECTOR(125mA)) AEK7020 > IC604–IC607 (PROTECTOR(10A)) AEK7022 IC51 NJM78M56FA > IC601, IC602 PAC011A Q703 2SA1145 Q702 2SA1837 Q696, Q697 2SC1740S Q704 2SC1845 Q605, Q606, Q633, Q655, Q656 2SC2240 Q683 2SC2240 Q601–Q604, Q631, Q632 2SC2878 Q651–Q654, Q681, Q682 2SC2878 Q701 2SC4793 Q51 KRC101M D56, D601, D603, D606, D608 1SS133 D631, D632, D651–D654 1SS133 D683, D684, D752, D754, D758 1SS133 > D701, D702 D5SBA20(B) D602, D604, D681, D682 MTZJ16A D711 MTZJ22D D58 MTZJ5.1A D712 MTZJ5.1B > D51–D55, D721–D724 S5688G COILS AND FILTERS > L51 ATF7018 L751–L754, L761, L762 ATH1004 SWITCHES AND RELAYS RY751–RY754 XSR3002 > RY51 XSR3003 CAPACITORS C707, C708 (0.01/AC250V) ACG1005 > C51, C52 (10000pF/AC250V) ACG7020 C703, C704 (3300uF/42V) ACH7135 C701, C702 (4700uF/71V) ACH7137 C611–C614, C636, C637 CCPUCH6R8K50 C661–C664, C686, C687 CCPUCH6R8K50 C615, C616, C638, C665, C666 CEANP2R2M50 C688 CEANP2R2M50 C775, C776 CEANP470M50 C712 CEAT101M10 C609, C610, C635, C659, C660 CEAT101M16 C685 CEAT101M16 C711 CEAT101M35 C53 CEAT102M16 C697 CEAT221M10 C54 CEAT470M25 C605, C606, C633, C655, C656 CEAT4R7M50 C683 CEAT4R7M50 C705, C706 CEHAT100M2A C751, C752, C755, C761, C762 CFTYA104J50 C771 CFTYA104J50 C601, C602, C631, C651, C652 CKPUYB102K50 C681, C696 CKPUYB102K50 C603, C604, C632, C653, C654 CKPUYB331K50 C682 CKPUYB331K50 C55–C57 CKPUYF103Z25 RESISTORS > R51 (2.2M/ 1/2W) RCN1080 > R52 RD1/2PM270J Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 59 > R615 RD1/4PU331J > R751, R752, R755, R761, R762 RD1/4PUF101J > R772 RD1/4PUF101J > R753, R754, R756, R763, R764 RS1LMF4R7J > R771 RS1LMF4R7J > R711 RS2LMF392J > R617, R622, R639, R667, R668 XCN3001 > R691 (0.22/5W) XCN3001 Other Resistors RD1/4PU###J OTHERS CN604 (7P CONNECTOR) 52045-0745 CN53 (23P CONNECTOR) 52045-2345 CN702 (6P JUMPER CONNECTOR) 52147-0610 CN751 (SPEAKER TERMINAL 8-P) AKE7074 CN753 (SPEAKER TERMINAL 6-P) AKE7075 CN752 (SPEAKER TERMINAL 4-P) AKE7076 51 (AC SOCKET 1-P) AKP1060 H51, H52, H701, H702 (FUSE CLIP) AKR7001 > T51 (STANDBY TRANSFORMER) ATT7057 CN601 (18P PLUG) KM200TA18 CN51 (AC CODE SOCKET) RKP1751 KN51, KN601 (EARTH METAL FITTING)VNF1084 701 (7P CABLE HOLDER) XKP3047 CTRANS2 ASSY SEMICONDUCTORS > IC853 (PROTECTOR (3A)) AEK7015 > IC851, IC852 (PROTECTOR (4A)) AEK7018 OTHERS 851 (7P CABLE HOLDER) XKP3047 DTRANS3 ASSY TRANS3 ASSY has no service part. EREGULATOR ASSY SEMICONDUCTORS IC803, IC804 NJM78M05FA IC801, IC805 NJM78M12FA IC802 NJM79M12FA Q801, Q803, Q805 KRA103M Q802, Q804, Q806 KRC102M D809, D810 MTZJ6.2A > D801–D804 S5688G CAPACITORS C808, C811 CEAT101M10 C805, C806, C813 CEAT101M16 C801, C802 CEAT222M25 C809 CEAT332M16 C803, C804, C807, C810, C812 CKPUYF103Z25 OTHERS CN801 (23P CONNECTOR) 52045-2345 CN804 (13P PLUG) KM200TA13 CN802 (16P PLUG) KM200TA16 CN803 (6P PLUG) KM200TA6 FHASHIGETA ASSY OTHERS CN1001, CN1002 (8P PLUG) KM200TA8 Mark No. Description Part No. GBOARD TO BOARD ASSY OTHERS CN392 (5P CONNECTOR) 52045-0545 CN391 (11P PLUG) KM200TA11 CN390 (13P PLUG) KM200TA13 391 (PCB BINDER) VEF1040 HAMP INPUT ASSY SEMICONDUCTORS IC251 NJM4558D-D Q257 2SA933S Q251, Q256 2SC2878 Q252 2SD1858X Q254 KRA103M Q253, Q255 KRC103M D251, D252 1SS133 D253 MTZJ27D D254 MTZJ5.1B CAPACITORS C251 CEANP470M25 C254 CEAT101M25 C252, C253 CKPUYF103Z25 RESISTORS All Resistors RD1/4PU###J OTHERS CN251 (3P CONNECTOR) 52044-0345 CN254 (19P CONNECTOR) 52044-1945 CN252 (3P PLUG) KM250MA3L CN253 (18P SOCKET) KP200TA18L ITRANS1 ASSY TRANS1 ASSY has no service part. JDIGITAL IN ASSY SEMICONDUCTORS IC1901 TC74ACT151F IC1902, IC1903 TC74HCU04AF COILS AND FILTERS F1901–F1903 DTF1067 L1904, L1905 QTL1013 CAPACITORS C1918 CCSRCH221J50 C1907, C1914, C1928 CCSRCH271J50 C1911, C1925 CCSRCH470J50 C1916, C1926 CCSRCH471J50 C1904, C1905, C1912 CEAT101M10 C1915 CKSRYB102K50 C1906, C1910, C1913, C1919, C1920 CKSRYB103K50 C1923, C1929 CKSRYB103K50 C1901–C1903, C1908, C1909 CKSRYB104K25 C1921, C1922 CKSRYB104K25 RESISTORS All Resistors RS1/16S###J OTHERS CN1901 (7P CONNECTOR) 52045-0745 CN1902 (CONNECTOR POST) B5B-PH-K JA1904 (OPT. LINK OUT 12MB/S) JFJ3000-010020 JA1902, JA1903 (OPT. LINK IN 12MB/S) JFJ4000-010020 101 (PCB BINDER) VEF1040 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 60 JA1901, JA1907 (1P PIN JACK) VKB1077 KKAWA ASSY SEMICONDUCTORS IC5001 BU4094BCF Q5001 2SC1740S Q5020–Q5022 DTC124EK Q5002 DTC143EK D5001, D5002 1SS355 COILS AND FILTERS L5001 QTL1013 CAPACITORS C5004–C5007 CCSRCH101J50 C5012 CCSRCH471J50 C5001, C5002 CEAT100M50 C5003 CEAT101M16 C5009 CKSRYB103K50 C5011 CKSRYB104K16 C5010 CKSRYF105Z10 RESISTORS All Resistors RS1/16S###J OTHERS CN5004 (7P CONNECTOR) 52044-0745 CN5005 (13P CONNECTOR) 52044-1345 CN5001 (17P CONNECTOR) 52044-1745 CN5002 (13P SOCKET) KP200TA13L CN5003 (8P SOCKET) KP200TA8L 5001 (SCREW PLATE) VNE1948 LVIDEO ASSY SEMICONDUCTORS IC301 NJM2296M Q302 2SA1515 Q303 2SC3326 Q301 2SC3377 D301, D302, D305, D306 1SS355 D303, D304 UDZS6.2B CAPACITORS C347 CCSRCH470J50 C307–C310, C312, C314, C338 CEAT470M25 C1360, C302 CKSRYB103K50 C339, C340 CKSRYB104K25 C304–C306 CKSRYB221K50 C333 CKSRYB331K50 C311, C313 CKSRYB473K25 RESISTORS > R313, R316 RS3LMF390J Other Resistors RS1/16S###J OTHERS CN303 (7P CONNECTOR) 52044-0745 CN305 (6P PIN JACK) AKB7123 CN301 (13P SOCKET) KP200TA13L CN302 (6P SOCKET) KP200TA6L M6CH IN ASSY SEMICONDUCTORS IC302–IC305 NJM4558MD Mark No. Description Part No. CAPACITORS C1354, C1359, C319, C320 CCSRCH101J50 C327, C328, C342–C345 CCSRCH101J50 C348, C349 CCSRCH101J50 C1362 CCSRCH121J50 C1361 CCSRCH680J50 C1357 CEAT220M25 C1358, C321, C324, C331, C332 CEAT4R7M50 C1352, C1353, C1355, C1356, C316 CKSRYB103K50 C322, C323, C329, C330 CKSRYB103K50 C1350, C1351, C317, C318 CKSRYB221K50 C325, C326 CKSRYB221K50 RESISTORS All Resistors RS1/16S###J OTHERS CN307 (9P CONNECTOR) 52044-0945 308 (6P PIN JACK) AKB7089 NS.VIDEO ASSY SEMICONDUCTORS IC351, IC352 NJM2296M D351–D354 1SS355 CAPACITORS C375, C376 CCSRCH470J50 C352, C355, C358, C361–C363 CEAT470M25 C366 CEAT470M25 C372, C373, C378 CKSRYB103K50 C351, C353, C354, C356, C357 CKSRYB104K25 C359, C367 CKSRYB104K25 C364, C365, C368–C371 CKSRYB221K50 RESISTORS All Resistors RS1/16S###J OTHERS CN353 (2-4P MINI DIN SOCKET) AKP7020 CN352 (3-4P MINI DIN SOCKET) AKP7043 CN354 (CONNECTOR POST) B5B-PH-K CN351 (11P SOCKET) KP200TA11L JA351 (JACK) RKN1004 OFRONT ASSY SEMICONDUCTORS IC401 PDG268B Q401, Q402, Q442, Q471 DTA124EK Q403, Q441 DTC143EK D406, D410, D442 1SS355 D403, D405 DAN217 D401, D404 DAP202K D407, D408 RB501V-40 COILS AND FILTERS L401 LFEA2R2J SWITCHES AND RELAYS S451–S468, S476 ASG1051 CAPACITORS C420 (220mF/35V) ACH7101 C404 (0.047F/5.5V) ACH7132 C511 CCSRCH471J50 C442 CEAL470M10 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 61 C402 CEAT221M6R3 C409, C410 CEAT2R2M50 C412 CEAT470M50 C405 CEAT471M6R3 C451–C453, C472, C492, C495 CKSRYB102K50 C401, C403, C411, C419, C441 CKSRYB103K50 C531 CKSRYB103K50 C408, C416, C418, C471 CKSRYB104K16 C406, C407 CKSRYB473K16 RESISTORS All Resistors RS1/16S###J OTHERS 471 (CABLE HOLDER (4P)) 51063-0405 404 (CABLE HOLDER (7P)) 51063-0705 CN401 (17P CONNECTOR) 52044-1745 CN402 (28P CONNECTOR) 52044-2845 V401 (FL TUBE) XAV3013 X401 (CERAMIC RESONATOR) ASS7039 (7.2MHz) 401 (REMOTE RECEIVERUNIT) GP1U27X PR.ENCODER ASSY SEMICONDUCTORS D512 SLI-343DCW(STU) D511 UDZS5.6B SWITCHES AND RELAYS S511 ASG1051 S513 (ROTARY ENCODER) XSX3005 S512 (ROTARY ENCODER) XSX3006 RESISTORS All Resistors RS1/16S###J OTHERS 511 (CABLE HOLDER (7P)) 51063-0705 512 (LED HOLDER) XAK3187 QPOWER SW ASSY SEMICONDUCTORS D501 BR3371XJ30A SWITCHES AND RELAYS S501 ASG1051 RESISTORS All Resistors RS1/16S###J OTHERS 501 (CABLE HOLDER (4P)) 51063-0405 RTRANS4 ASSY SEMICONDUCTORS > IC891, IC892 (PROTECTOR (630mA)) AEK7006 > D891 S1WB(A)60SD CAPACITORS C891, C892 CEAT471M35 OTHERS CN891 (3P CONNECTOR) 52045-0345 SFRONT VIDEO ASSY Mark No. Description Part No. CAPACITORS C903, C905 CEAL470M25 C908, C911, C914 CKSRYB103K50 C904, C906, C909, C912 CKSRYB104K25 C901, C902 CKSRYB221K50 C907, C910, C913 CKSRYB471K50 RESISTORS All Resistors RS1/16S###J OTHERS JA902 (PIN JACK (4P)) AKX7014 TFRONT OPTICAL ASSY CAPACITORS C951 CKSRYB104K25 RESISTORS All Resistors RS1/16S###J OTHERS JA951 (OPT. LINK IN 12MB/S) JFJ4000-010020 CN951 (CONNECTOR) S5B-PH-K KN951 (EARTH METAL FITTING) VNF1084 UH.P. ASSY SEMICONDUCTORS Q1551, Q1552 2SC3326 CAPACITORS C1554, C1557 CCSRCH471J50 C1553, C1556 CKSRYB103K50 C1555, C1558 CKSRYB104K16 C1551, C1552 CKSRYB223K50 RESISTORS > R1553, R1554 RS1LMF471J > R1551, R1552 RS2LMF331J Other Resistors RS1/16S###J OTHERS 1551 (6P CABLE HOLDER) 51048-0600 JA1551 (HEADPHONE JACK) RKB1014 KN1551 (EARTH METAL FITTING) VNF1084 VCOMPORNENT ASSY SEMICONDUCTORS IC551 TC74HC4053AF IC552, IC553 TK15420M CAPACITORS C551–C554, C557, C558 CEAT101M10 C555, C556, C559–C562, C566 CKSRYB103K50 C568 CKSRYB103K50 RESISTORS All Resistors RS1/16S###J OTHERS CN551 (5P CONNECTOR) 52045-0545 JA553 (3P RCA PINJACK) AKB7124 JA551 (6P RCA PINJACK) AKB7128 WPRE-OUT ASSY CAPACITORS C1581 CKSRYB103K50 RESISTORS Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 62 All Resistors RS1/16S### J OTHERS CN1575 (7P CONNECTOR) 52045-0745 1575 (PIN JACK(6P)) AKB7089 XFM/AM TUNER MODULE SEMICONDUCTORS IC201 BA1451F IC202 LC72131MD Q201, Q204, Q205 2SC2412K Q202 DTA124ES Q203 DTC124EK D201 1SS133 D202 MTZJ5.1C COILS AND FILTERS L201 (FM DETECTOR COIL) ATE7003 F202 (CERAMIC FILTER) ATF-107 F201 (CERAMIC FILTER) ATF-119 F203 (AM CERAMIC FILTER) ATF7026 CAPACITORS C206 CCSRCH100D50 C212, C213, C226, C233–C235 CCSRCH101J50 C240 CCSRCH101J50 C231, C232 CCSRCH150J50 C223 CEAT100M50 C229 CEAT101M10 C224 CEAT1R0M50 C227 CEAT220M25 C241 CEAT2R2M50 C243 CEAT330M16 C228 CEAT3R3M50 C237 CEAT470M10 C211 CEJA1R0M50 C210 CEJA470M16 C204, C238, C602 CKSRYB102K50 C101, C102, C208, C220, C239 CKSRYB103K50 C242, C601 CKSRYB103K50 C216, C217, C225 CKSRYB153K50 C201, C205, C209, C214, C230 CKSRYB223K50 C236, C603 CKSRYB223K50 C221 CKSRYB224K10 C202, C222 CKSRYB473K16 C215 CKSRYB681K50 RESISTORS R211 RD1/4PU221J R221 RD1/4PU222J R233 RD1/4PU391J R243 RS1/10S0R0J R103 RS1/10S331J R104 RS1/10S391J Other Resistors RS1/16S###J OTHERS CN201 (13P CONNECTOR) 52044-1345 BN201 (TERMINAL 4-P) AKA7003 (SHIELD CASE T) ANK7072 (SHIELD CASE B) ANK7073 X201 (CRYSTAL RESONATOR) ASS1093 (7.2MHz) FM FRONTEND AXF7003 Mark No. Description Part No. AM RF TUNING BLOCK AXX7071 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 63 6. ADJUSTMENT 6.1 TUNER SECTION MPX SG FM SG PRODUCT DC Voltmeter L201 IC201 pin 21 pin 23 FM/AM TUNER MODULE X SIDE B Step No. Adjustment Title ANT. Input level and signal condition Adjustment Input Level (dBµV) Adjust point Contents Frequency (MHz) Modulation 1 T-METER Adjustment 98 OFF 80 L201 Adjust L201 so that the DC voltage between Pin 21 and Pin 23 of IC201 (Test point Vtm) gets within 0 ± 50mV. AM Tuner Section • There is no adjustment in the AM tuner. FM75Ω antenna terminal Fig.1 Adjustment Wiring Diagram Fig.2 Adjustment Point FM Tuner Section • Set the mode selector to FM BAND. • Connect the wiring as shown in Fig. 1. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 64 7. GENERAL INFORMATION 7.1 PCB LACATION AMP&PRIMARY Assy FRONT Assy FRONT VIDEO Assy AMP INPUT Assy D.D & INPUT Assy VIDEO Assy COMPONENT Assy TRANS 2 Assy S R. ENCODER Assy P FRONT OPTICAL Assy T H A HASHIGETA Assy F L 6CH IN Assy M BOARD TO BOARD Assy G DIGITAL IN Assy J KAWA Assy K FM/AM TUNER MODULE X S.VIDEO Assy N O V REGULATOR Assy NOTE : This photograph is VSX-D711. E PRE-OUT Assy W C B H.P. Assy TRANS 3 Assy U D R I POWER SW Assy Q TRANS 1 Assy TRANS 4 Assy Note : D.D & INPUT Assy The pin of function IC (IC101 TC9273F-007) can be checked from side-A by the through-hole round. The pin No. is printed on the side-A. Even if the FM/AM TUNER MODULE is disconnected, other functions can operate. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 65 7.2 PARTS 7.2.1 IC 7 Pin Arrangement (Top View) 7 PDG268B (FRONT ASSY : IC401) • System Control MCU • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. • List of IC PDG268A, AK4586VQ, BD3812F, NJU7312AM, PD8097A, AK4382AVT 1 G2 G1 NC ACIN RDS_DT RDS_CK OVFB RMC VER_2 PLL_CE CDC_CS CDC_CK CDC_DO CDC_DI STEREO TUNED VENC_A VENC_B A.MUTE CSB DSP_CS DSP_CK DSP_SI DSP_SO MVOL_ATT ST_EVR PLL_DO KEYIN1 KEYIN2 G1/A1 G0/A0 NC PE0/EC0/INT0 PE1/EC1/INT1 PE2/INT2 PE3/INT3/NMI PE4/RMC PE5 PE6/PWM PE7/TO/ADJ PC0/KR0 PC1/KR1 PC2/KR2 PC3/KR3 PC4/KR4 PC5/KR5 PC6/KR6 PC7/KR7 PB0/CINT PB1/CS0 PB2/SCK0 PB3/SI0 PB4/SO0 PB5/SCK1 PB6/SI1 PB7/SO1 AVREF PA1/AN0 PA1/AN1 KEYIN3 VER_1 FENC_A FENC_B AMP_DC AMP_OL 9459_ST MVRATT SYS_CK SYS_DT PA2/AN2 PA3/AN3 PA4/AN4 PA5/AN5 PA6/AN6 PA7/AN7 AVSS RST EXTAL XTAL VSS TX TEX VDD VFIP PD0/A55 PD1/A54 PD2/A53 PD3/A52 PD4/A51 A21 A22 A23 PH7/A24 PH6/A25 PH5/A26 PH4/A27 PH3/A28 PH2/A29 PH1/A30 PH0/A31 PG7/A32 PG6/A33 PG5/A34 PG4/A35 PG3/A36 PG2/A37 PG1/A38 PG0/A39 PF7/A40 PF6/A41 PF5/A42 PF4/A43 PF3/A44 PF2/A45 PF1/A46 PF0/A47 PD7/A48 PD6/A49 PD5/A50 S11 S12 S13 S14 S15 S16 S17 S18 S19 S20 S21 S22 4053INH 4053A RY_B RY_C/R RY_A RY_AC GAIN_SEL NECK_SEL DSP_RST 9164_CS T_MUTE T_POWON NC FM+(RDS) CDC_RST DSP_MT 9273_CS D_MUTE G2/A2 G3/A3 G4/A4 G5/A5 G6/A6 G7/A7 G8/A8 G9/A9 G10/A10 G11/A11 G12/A12 VDD G13/A13 G14/A14 G15/A15 A16 A17 A18 A19 A20 G3 G4 G5 G6 G7 G8 G9 G10 NC S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 21 22 23 24 25 26 27 28 29 30 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 66 • Pin Function No. Pin Name I/O Pin Function Active 1 G2 O Grid output 2 H 2 G1 O Grid output 1 H 3 NC − Connect to Vdd 4 ACIN I lnput AC pulse 5 RDS_DT I Serial control DATA signal of RDS communication 6 RDS_CK I Serial control CLOCK signal of RDS communication (Use external interrupt) 7 DIRLOCK I ERR/OVER input from CODEC 8 RMC I Remote control signal input (no-carrier signal) 9 VER_2 I Destination switch 2 10 ST_EVR O Strobe of communication for E-volume H 11 CDC_CS O Chip serect for CODEC 12 CDC_CK O Control clock for CODEC & TC9164 13 CDC_DO O Control data for CODEC & TC9164 14 CDC DI I Data input from DIR 15 STEREO I Signal to switch Stereo / Monoral 16 TUNED I Condition of TUNED 17 VENC_A I Input from rotary encoder of E-volume (A) 18 VENC_B I Input from rotary encoder of E-volume (B) 19 HP ON I Headphone detect L 20 CREQ l Request for DSP L 21 CCS O Chip select for DSP L 22 CCK O Clock signal for DSP H 23 CDT I DATA input signal for DSP 24 CSDO O DATA output signal for DSP H 25 FS 96 l 96 k H 26 AMP_OL l Detect overload of protection circuit (L: overload) H 27 PLL_DO I Data input signal for communication with LC72131 (Tuner) 28 AVref − Connect to Vdd 29 KEYIN1 I Key input A/D conversion port 1 30 KEYIN2 I Key input A/D conversion port 2 31 KEYIN3 I Key input A/D conversion port 3 32 VER_1 I lnput 1 to switch region (A/D input) 33 FENC_A I FUNC Rotary encoder signal input (A) 34 FENC_B I FUNC Rotary encoder signal input (B) 35 AMP_DC I Detect trouble DC of protection circuit (L : Trouble) L 36 VER_2 I lnput 2 to switch region (A/D input) L 37 AVSS − Connect to Vss 38 RST − Reset 39 EXTAL − Connect to the oscillator (7.2MHz) 40 XTAL − 41 VSS − Connect to Vss 42 TX − NC 43 TEX − Connect to Vss 44 VDD − +5V 45 VFDP − -30V 46 9459_ST O O Strobe for E-volume (TC9459) of SB ATT control of master volume for E-volume (less than -15dB : L) H H 47 MVRATT 48 49 SYS_DT O Data signal for communication with M62446, TC9163, TC9164 and PLL H O Clock signal for communication with M62446, TC9163, TC9164 and PLL H 50 SYS_CK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 67 • Pin Function No. Pin Name I/O Pin Function Active 51 9273_CS O DSP Mute (ASSY mute) O Chip select for TC9273 O Gain select (5.1ch and Stereo of analog input : H ) H H H 52 DSP_MT 53 GAIN_SEL 54 AMUTE O Audio mute H 55 T_MUTE O Tuner mute H 56 PLL_CE O 57 NECK_SEL O 5.1ch, surround mode and A+B Stereo : H / Stereo : L H 58 FM+(RDS) O Tr switch ON/OFF for power supply of RDS decoder (L : AM, power OFF , H : Other) H 59 9164_ CS O TC9163, TC9164 Chip select 60 CRST O Reset for DSP 61 CDC_PD O Power down for CODEC 62 ABOT O Abort for DSP H 63 RY_AC O AC relay ON/OFF H 64 RY_A O Speaker A relay ON/OFF H 65 RY_C/R O Rear/Center Speaker relay ON/OFF H 66 EXP CS O Chip select for expand IC H 67 EXP OE O Chip select for expand IC H 68 RY_AC O O AC relay ON/OFF control H 69 S22 O Segment output 22 H 70 S21 Segment output 21 71 S20 Segment output 20 72 S19 Segment output 19 73 S18 Segment output 18 74 S17 Segment output 17 75 S16 Segment output 16 76 S15 Segment output 15 77 S14 Segment output 14 78 S13 Segment output 13 79 S12 Segment output 12 80 S11 Segment output 11 81 S10 Segment output 10 82 S9 Segment output 9 H 83 S8 Segment output 8 84 S7 Segment output 7 85 S6 Segment output 6 86 S5 Segment output 5 87 S4 Segment output 4 88 S3 Segment output 3 89 VDD − 5V 90 S2 O O Segment output 2 H 91 S1 Segment output 1 92 Not used Not used (Fixed Vfdp) 93 G10 Grid output 10 94 G9 Grid output 9 95 G8 Grid output 8 96 G7 Grid output 7 97 G6 Grid output 6 98 G5 Grid output 5 99 G4 Grid output 4 100 G3 Grid output 3 Chip select for communication to LC72131 (Tuner) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 68 7 Pin Arrangement (Top View) 7 Block Diagram 7 AK4586VQ (DD & INPUT ASSY : IC9101) • 96kHz 24Bit 6-channel CODEC with DIR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 69 7 Pin / Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 70 7 Pin / Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 71 •� Pin Function No. Pin Name Function 1 IN1 1ch input terminal 2 AGND1 Analog ground terminal 3 IN2 4 AGND2 5 Vee 6 AGND3 7 Vcc 8 CL 2ch input terminal 9 DA 10 MUTE 11 DGND 12 SEL 13 OUT2 14 OUT1 •� Pin Function No. Pin Name Function 1 VSS Minus Power Supply 2, 27 L1,R1 3, 26 L2,R2 4, 25 L3,R3 5, 24 COM1 6, 23 L4,R4 7, 22 L5,R5 Input and Output 8, 21 L6,R6 9, 20 COM2 10, 19 L7,R7 21, 18 L8,R8 26, 17 COM3 13 GND Digital Plus Power Supply Ground 14 CK Clock Input 15 DATA Data Input 16 ST Strobe Input 28 VDD Analog ground terminal (-) Power supply terminal Analog ground terminal (+) Power supply terminal Serial clock input terminal Serial data an latch input terminal Mute terminal Ground terminal for comparator Serial data select terminal 2ch output terminal 1ch output terminal VDD Vss L1 28 1 CK Vee 14 13 ST DATA 16 15 2 L2 3 L3 4 L-COM1 Level Shifter Level Shifter Level Circuit Level Circuit 5 L4 6 L5 7 L6 8 L-COM2 9 L7 10 Control Circuit L8 11 L-COM3 R1 R2 R3 R-COM1 R4 R5 R6 R-COM2 R7 R8 R-COM3 12 27 26 25 24 23 22 21 20 19 18 17 NJU7312AM (D.D & INPUT ASSY : IC102) • Analog Switch Array •� Block Diagram Block Diagram BD3812F ( D.D & INPUT ASSY : IC112) • Audio Sound Processor •� www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 72 7 Pin Arrangement (Top View) 7 Block Diagram 7 PD8097A (D.D & INPUT ASSY : IC9504) • 4Mb P2ROM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 73 7 Pin Function 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 7 Block Diagram Pin / Function No. Pin Name I/O Function 1 MCLK I Master Clock Input Pin An external TTL clock should be input on this pin. 2 BICK I Audio Serial Data Clock Pin 3 SDTI I Audio Serial Data Input Pin 4 LRCK I L/R Clock Pin 5 PDN I Power-Down Mode Pin When at ì Lî , the AK4382 is in the power- down mode and is held in reset. The AK4382 should always be reset upon power-up. 6 CSN I Chip Select Pin 7 CCLK I Control Data Input Pin 8 CDTI I Control Data Input Pin 9 AOUTR- O Rch Negative Analog Output Pin 10 AOUTR+ O Rch Positive Analog Output Pin 11 AOUTL - O Lch Negative Analog Output Pin 12 AOUTL+ O Lch Positive Analog Output Pin 13 VSS - Ground Pin 14 VDD - Power Supply Pin 15 DZFR O Rch Data Zero Input Detect Pin 16 DZFL O Lch Data Zero Input Detect Pin Note: All input pins should not be left floating. LRCK BICK SDTI Audio Data Interface MCLK PDN ∆Σ Modulator AOUTL+ 8X Interpolator SCF AOUTR+ SCF VDD VSS De-emphasis Control µP Interface Clock Divider CSN CCLK CDTI DZFR ∆Σ Modulator 8X Interpolator AOUTL- AOUTR- DZFL 7 AK4382AVT (DD & INPUT ASSY : IC9102) • D/A Converter IC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 74 7.2.2 DISPLAY • Pin Assignment • Grid Assignment • Segment Designation (1G) (9G to 2G) n c e Dp1 Dp2 p r d1 d2 m k b f g j h S1 S2 S3 S4 a2 a1 c e d b f g a 49 1 1G 10G 9G 8G 7G 6G 5G 4G 3G 2G 7 XAV3013 (FRONT ASSY : V401) • FL DISPLAY dB SIGNAL AUTO SB MIDNIGHT LOUDNESS DIRECT MONITOR STEREO TUNED MONO ANALOG DTS MPEG DIGITAL ADV.SURR. NEO:6 DIGITAL PRO LOGIC ∏ ATT MPEG RF ATT EON SP £ AB dB SIGNAL AUTO SB MIDNIGHT LOUDNESS DIRECT MONITOR TUNED MONO ANALOG DTS MPEG STEREO DIGITAL DIGITAL PRO LOGIC∏ ATT Re-EQ MPEG ADV.SURR. RF ATT EON RDS Neo:6 DIGITAL SP ‰ AB DIGITAL Re-EQ RDS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 75 Pin No. 26 25 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 Connection F2 F2 NP NP P22 P21 P20 P19 P18 P17 P16 P15 P14 P13 P12 P11 P10 P9 P8 P7 P6 P5 P4 P3 P2 Pin No. 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 Connection P1 NX NX NX NX NX NX NX NX NX 10G 9G 8G 7G 6G 5G 4G 3G 2G 1G NP NP F1 F1 • Pin Connection • Anode Connection NOTE 1) F1, F2.......... Filament 2) NP................ No pin 3) NX................ No extend pin 4) DL................. Datum Line 5) 1G to 10G..... Grid 6) Field of vision is a minimum of 21.8° from the lower side. 2G P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P17 P18 P19 P20 P21 P22 a2 a1 S3 h j k b f m g c e r p n d1 d2 Dp2 Dp1 S1 S4 S2 10G 9G a2 a1 S3 h j k b f m g c e r p n d1 d2 Dp2 Dp1 S1 S4 S2 8G a2 a1 S3 h j k b f m g c e r p n d1 d2 Dp2 Dp1 S1 S4 S2 7G a2 a1 S3 h j k b f m g c e r p n d1 d2 Dp2 Dp1 S1 S4 S2 6G a2 a1 S3 h j k b f m g c e r p n d1 d2 Dp2 Dp1 S1 S4 S2 5G a2 a1 S3 h j k b f m g c e r p n d1 d2 Dp2 Dp1 S1 S4 S2 4G a2 a1 S3 h j k b f m g c e r p n d1 d2 Dp2 Dp1 S1 S4 S2 3G a2 a1 S3 h j k b f m g c e r p n d1 d2 Dp2 Dp1 S1 S4 S2 1G EON √ TUNED RDS S1 A B 1a 1b 1f 1g 1c 1e 1d RFATT MONO DTS MPEG ANALOG 2e S1 DIRECT MIDNIGHT AUTO SB MONITOR PROLOGIC ∏ DIGITAL (L) Neo:6 2f MPEG 2g 2b 2d DIGITAL DIGITAL (R) ATT ADV.SURR. Re-EQ LOUDNESS STEREO 2c 2a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 76 7.3 EXPLANATION 7.3.1 U-COM BLOCK DIAGRAM IC 5001: Expand IC BU4094BCF TUNER MODULE 2: Serial In IC 9504 3: CLK SYS CK SYS CLK SYS CLK ROM FOR IC9502: FLIP/FLOP 1: ST EXP ST SYS DATA SYS DATA DD/DTS IC9503: FLIP/FLOP 15: OE EXP OE TUNED TUNED PD8097A (MR27V802D) TC74VHC574F IC 301: Expand IC STEREO STEREO BU4094BCF PLL CE PLL CE 2: Serial In SYS DT PLL DO PLL DO 10: Q 3: CLK SYS CK T MUTE T MUTE 1: ST EXP ST 15: OE EXP OE OE CLK CLK IC101: Function Selector TC9273F-007 15: DATA SYS DT 14: CLK SYS CK 16: ST 9273STST IC103: EVOL (6-CH) IC112: EVOL (2-CH) M62446FP 40: DATA SYS DT 41: CLK SYS CK CE OE 39: LATCH EVRST SDI1~4 SDTO IC9101: CODEC SDI1~3 BICK IC 9501: Main DSP AK4586VQ SDTO LRCK CS493292 BICK LRCK IC9601: NJU7313AM 17: DATA SYS DT 16: CLK SYS CK 14: ST SYS ST IC102: Function Selector NJU7312AM 17: DATA SYS DT 5V/3V Level Shifter 16: CLK SYS CK IC9505: 5V -->3V TC74LVX244FT 14: ST SYS ST IC9506: 3V-->5V TC74VHCT244AFT 96k CDTO CRST PLL DO CCS PLL CS IC401: CCK TUNED System Microprocessor CDT STEREO CSDO TMUTE PDG268B CRES RDS DATA RDS CLK RDS DATA RDS CLK SCDOUT INTREQ SCDIN SCCLK CS RESET CK CS DO PDN DI CS DO PDN DI ERR COCS CODO COPD FS96 ERR EVRST EXP OE 9273STST COCK SYS DT SYS CK SYS ST 59ST K A A A BD3812F 9: DATA SYS DT 8: CLK SYS CK 12: LATCH 59ST A A A IC9102: CODEC SDI4 AK4582VT SDTO BICK LRCK A A A A X A A A IC481: RDS IC BU1923 O O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 77 7.3.2 POWER ON AND OFF SEQUENCE 0 200 400 1000 1200 1400 1800 2800 3000 3600 4800 5200 (msec) AC relay "H" (on) "L" (mute) (port) A.MUTE "L"or"H" (port) FUNCTION SW full open last data (TC9273F) IC101 DSP,2ch, 5.1ch LINE full open last data (NJU7313AM) IC9601 VIDEO system mute(off) last data (NJM2296) IC301 IC351/IC352 TUNER dummy data last data (LC72131) IC202 E-VOLUME mute last data (M62446FP) IC103 DSP reset start control (CS49329) IC9501 DIR/CODEC reset start control (AK4586) IC9101 SPEKER relay off on OVERLOAD DETECT start control AMP ERROR DETECT start control A A A A A L N X POWER ON SEQUENCE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 78 0 200 400 AC relay "H" "L" (port) A.MUTE "L" (port) FUNCTION SW full open (TC9273F) IC101 DSP,2ch, 5.1ch LINE full open (NJU7313AM) IC9601 VIDEO system mute (NJM2296) IC301 IC351/IC352 TUNER mute (LC72131) IC202 E-VOLUME mute (M62446FP) IC103 DSP (CS49329) IC9501 DIR/CODEC (AK4586) IC9101 SPEKER relay on off (port) OVERLOAD DETECT AMP ERROR DETECT A A A A A L N X POWER OFF SEQUENCE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 79 7.3.3 PROTECTION CIRCUIT 7.4 CLEANING 1. DC abnormal detection It processes more preferentially than overload detection. *A.MUTE : Audio mute command ↓' An unusual state continues for 3 seconds. ↓ continuation ↓ return A power supply is shut off. A program is performed from the beginning. ↓' The power key cannot be effective for 60 seconds If the AC plug is pulled off within 60 sec, and then it is plugged in again, the unit will be reset for 60 sec. 2. Overload detection ↓' An unusual state continues for 3 seconds. ↓ continuation ↓ return A power supply is shut off. A power supply is shut off even if it returns. When detected DC abnormal, A.MUTE* is on and speaker relay is off, then flash "AMP_ERR" on display. When detected overload, A.MUTE* is on and speaker relay is off, then flash "OVERLOAD" on display. Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools: Position to be cleaned Cleaning tools Fans Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 80 8. PANEL FACILITIES 8.1 PANEL FACILITIES DOWN UP ENTER INPUT SELECTOR MASTER VOLUME MULTI JOG AUDIO/VIDEO MULTI-CHANNEL RECEIVER R STANDBY STANDBY/ON PHONES N∫m-Û˘,,∫ STATION STANDARD SPEAKERS S-VIDEO VIDEO L AUDIO R ADVANCED SURROUND STEREO/ DIRECT SIGNAL SELECT MIDNIGHT/ LOUDNESS TUNING MONITOR TONE QUICK SETUP VIDEO INPUT TUNER EDIT CLASS BAND MPX MULTI JOG LISTENING MODE INPUT ATT FL DIMMER MULTI JOG DIGITAL IN 1 2 7 4 5 3 6 8 24 23 22 21 20 19 18 17 9 10 11 12 13 14 15 16 1 STANDBY/ON Switches the receiver between on and standby. 2 STANDBY indicator Lights when the receiver is in standby mode. 3 Remote sensor Receives the signals from the remote control. 4 ENTER 5 MULTI JOG/INPUT SELECTOR dial The MULTI JOG/INPUT SELECTOR dial performs a number of tasks. Use it to select options after pressing TONE CONTROL, QUICK SETUP or TUNER EDIT. 6 MASTER VOLUME 7 PHONES jack Use to connect headphones. When the headphones are connected, there is no sound output from the speakers. 8 STATION (+/–) buttons Selects station presets when using the tuner. 9 TUNING buttons Selects the frequency when using the tuner. 10 LISTENING MODE buttons STANDARD Press for Standard decoding and to switch between the various Pro Logic II options. ADVANCED SURROUND Use to switch between the various surround modes. STEREO/DIRECT Switches direct playback on or off. Direct playback bypasses the tone controls and channel levels for the most accurate reproduction of a source. Front panel www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 81 11 SIGNAL SELECT Use to select an input signal. 12 MIDNIGHT/LOUDNESS Use Midnight when listening to movie soundtracks at low volume. Use Loudness to boost the bass and treble at low volume. 13 SPEAKERS Use to cycle through the speaker system: A = B = A+B 14 MONITOR Press to switch tape monitoring on/off. 15 TONE Press this button to access the bass and treble controls, which you can then adjust with the MULTI JOG/INPUT SELECTOR dial. 16 QUICK SETUP 17 VIDEO INPUT 18 DIGITAL IN 19 FL DIMMER Use this button to make the fluorescent display (FL) dimmer or brighter. 20 INPUT ATT Use to attenuate (lower) the level of an analog input signal to prevent distortion. 21 MPX Press to receive a radio broadcast in mono. 22 BAND Switches between AM and FM radio bands. 23 CLASS Switches between the three banks (classes) of station presets. 24 TUNER EDIT Press to memorize and name a station for recall using the STATION +/– buttons. Rear Panel ACOUTLET ASSIGNABLE PREOUT A B MONITOR OUT MONITOR OUT FRONT R L R R R L R L FRONT CENTER SURROUND R L L L SURROUND BACK S P E A K E R S Y PB PR Y PB PR OUT IN IN IN S-VIDEO VCR / DVR T V / SAT DVD / LD CONTROL OUT ANTENNA AM LOOP FM UNBAL 75Ω R AUDIO L DVD 7.1CH INPUT IN IN IN IN IN IN IN IN IN R L CENTER SURROUND R L SURROUND BACK SUB W. CD AUX VCR / DVR TV / SAT DVD/ LD PLAY CD-R / TAPE / MD FRONT D V D 5.1CH INPUT PREOUT COAX OPT OPT COMPONENT VIDEO (DVD/ LD)(CD) ( T V / SAT) (CD-R/ / TAPE / MD) OUT MONITOR OUT SUB WOOFER VIDEO REC ¥ ¥ ø ø ø ASSIGNABLE DIGITAL IN DIGITAL OUT (T V / SAT) FRONT CENTER SURROUND BACK SURROUND IN ( DVD / LD) IN ¥ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 82 1 2 3 4 5 6 7 8 9 10 15 13 12 11 14 Display 1 SIGNAL SELECT indicators Lights to indicate the type of input signal assigned for the current component: AUTO Lights when AUTO signal select is on SB Depending on the source, this lights when a signal with surround back channel encoding is detected. DIGITAL Lights when a digital audio signal is detected. DIGITAL Lights when a Dolby Digital encoded signal is detected. ANALOG Lights when an analog signal is detected. DTS Lights when a source with DTS encoded audio signals is detected. 2 DTS When the Standard mode of the receiver is on, this lights to indicate decoding of a DTS signal. 3 DIGITAL When the Standard mode of the receiver is on, this lights to indicate decoding of a Dolby Digital signal. 4 PRO LOGIC II When the Standard mode of the receiver is on, this lights to indicate Pro Logic II decoding. 5 ATT Lights when INPUT ATT is used to attenuate (reduce) the level of the analog input signal. 6 DIRECT Lights when source direct playback is in use. This function bypasses all tone, balance, Advanced surround, and Dolby Surround effects. 7 MIDNIGHT Lights during Midnight listening. 8 MONITOR Lights when MONITOR is selected 9 Speaker indicator Shows the speaker system currently in use. 10 Character display 11 Neo:6 Lights during NEO:6 processing 12 ADV. SURR (Advanced Surround) Lights when one of the Advanced Surround modes has been selected. 13 LOUDNESS Lights when LOUDNESS has been selected. 14 TUNER indicators STEREO: Lights when a stereo FM broadcast is being received in auto stereo mode. MONO: Lights when the mono mode is set using the MPX button. TUNED: Lights when a broadcast is being received. 15 Master volume level Shows the overall volume level. ---dB indicates the minimum level, and −0 dB indicates the maximum level. Depending on your level settings for each channel, the maximum level can range between –10 dB and –0 dB. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 5 6 7 8 5 6 7 8 83 TV TV INPUT MENU TV VOL MASTER VOLUME TV CONTROL AV PRE-PROGRAMMED REMOTE CONTROL UNIT CHANNEL ENTER ENTER MPX/RETURN DTV INFO DTV ON/OFF DTV MENU D.ACCESS T.EDIT/GUIDE ST TUNE T P S E U TUNE ST CLASS FL DIMMER BAND TOP MENU AUDIO SUB TITLE REMOTE SETUP RECEIVER CONTROL STANDARD ADV.SURR. STEREO ANGLE 1 ¡ 4 ¢ 7 8 3 ¶ LEVEL DVD VCR CD-R TV RCV TUN TVC CD TEST TONE CH SELECT INPUT ATT INPUT SEL. MUTE MIDNIGHT/ LOUDNESS SIGNAL SEL MULTI CONTROL EFFECT DISPLAY DISC +10 RECEIVER SOURCE 1 2 3 4 5 6 7 8 9 0 3 4 5 6 8 7 9 11 10 12 13 14 15 2 1 Remote control 1 SOURCE Press to turn on/off other components connected to the receiver. 2 MULTI CONTROL buttons Press to select control of other components (see Controlling the Rest of Your System). 3 RCV Switches the remote to controls the receiver (used to select the features above the number buttons. (ex. INPUT ATT, FL. DIMMER). Also use this button to set up surround sound. 4 Number buttons/Receiver controls/ENTER Use the number buttons to directly select a radio frequency or the tracks on a CD, DVD, etc. DISPLAY/DISC (ENTER) The button’s use depends on the component selected. It can be used to switch the display between the station preset name and the frequency for the tuner, enter commands for TV or DTV, and can also be used to select a disc in a multi-CD player. Receiver Controls Press the RCV button first to access the functions above the number buttons. The display flashes when it isn’t possible to use a function. TEST TONE Sounds the test tone when setting up the surround sound of the receiver. INPUT ATT Attenuates (lowers) the level of an analog input signal to prevent distortion (when the overload indicator lights). FL DIMMER Dims or brightens the display. CH SELECT Selects a speaker when setting up the surround sound of the receiver. LEVEL +/– Adjusts the levels of the surround sound of the receiver. EFFECT +/– buttons Adds or subtracts the amount of effect with different advanced listening modes (except 5 or 6 Ch Stereo and Virtual SB). 5 Component/Tuner controls The main buttons (3, 7, etc.) are used to control a component after you have selected it using the MULTI CONTROL buttons. The tuner/ DTV controls above these buttons can be accessed after you have selected the corresponding MULTI CONTROL button (TUNER or DVD (when connected to DTV)). DTV INFO Use to bring up information screens on a digital TV. MPX/RETURN Switches between stereo and mono reception of FM broadcasts. If the signal is weak then switching to mono will improve the sound quality. Also acts as a stop button for CDs, tapes, or DVDs. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D811S A B C D 1 2 3 4 1 2 3 4 84 D. ACCESS After pressing, you can access a radio station directly using the number buttons. T. EDIT/GUIDE Press to memorize and name a station for recall using the STATION +/– buttons. Also displays the guides on a digital TV. BAND Switches between the tuner AM and FM bands. CLASS Switches between the three banks (classes) of radio station presets. DTV ON/OFF Switches a digital TV on/off. DTV MENU Displays menus on a digital TV. 6 DVD controls (Press DVD first to access) These controls will also function as DTV controls, depending on the component you’ve selected. TOP MENU Displays the disc ‘top’ menu of a DVD. AUDIO Changes the audio language or channel. SUBTITLE Displays/changes the subtitles included in multilingual DVD- Video discs. ANGLE Switches camera angles on discs with multi-angle scenes. 7 REMOTE SETUP Press this button to set up the remote control to control other components. 8 RECEIVER CONTROL buttons STANDARD Press to switch between the various Dolby/DTS modes ADV. SURR. Use to switch between the various surround modes. STEREO Switches direct playback on or off. Direct playback bypasses the tone controls and channel levels for the most accurate reproduction of a source. INPUT SELECT Use to select the input source. SIGNAL SELECT Use to select between an input signal. MIDNIGHT/LOUDNESS Switches to Midnight or Loudness listening. MUTE Mutes the sound (or restores the sound if it has been muted). 9 TV control buttons These buttons are dedicated to control the TV assigned to the TVC button. Thus if you only have one TV to hook up to this system assign it to the TVC MULTI CONTROL button. If you have two TVs, assign the main TV to the TVC button. TV VOLUME +/– Use to adjust the volume on your TV. TV INPUT Use select the TV function. TV Use to turn on/off the power of the TV. 10 LED DISPLAY This display flashes when a command is sent from the remote control. 11 RECEIVER This switches between standby and on for this receiver. 12 }]‘’ (TUNE/ST +/–) /ENTER Use the arrow buttons when setting up your surround sound system (see pages 38–43). Also used to control DVD menus/options and for deck 1 of a double cassette deck player. Use the TUNE +/– buttons to find radio frequencies and use ST +/– to find preset stations. 13 CHANNEL +/– Select radio station presets. Also skip tracks backward or forward on CDs, DVDs, etc. 14 MASTER VOLUME +/– Use to set the listening volume. 15 MENU button Displays the disc menu of DVD-Video discs. It also displays TV and DTV menus. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
