先锋PIONEER VSX-D810S音响电路图

分类：电子电工 日期： 点击：0

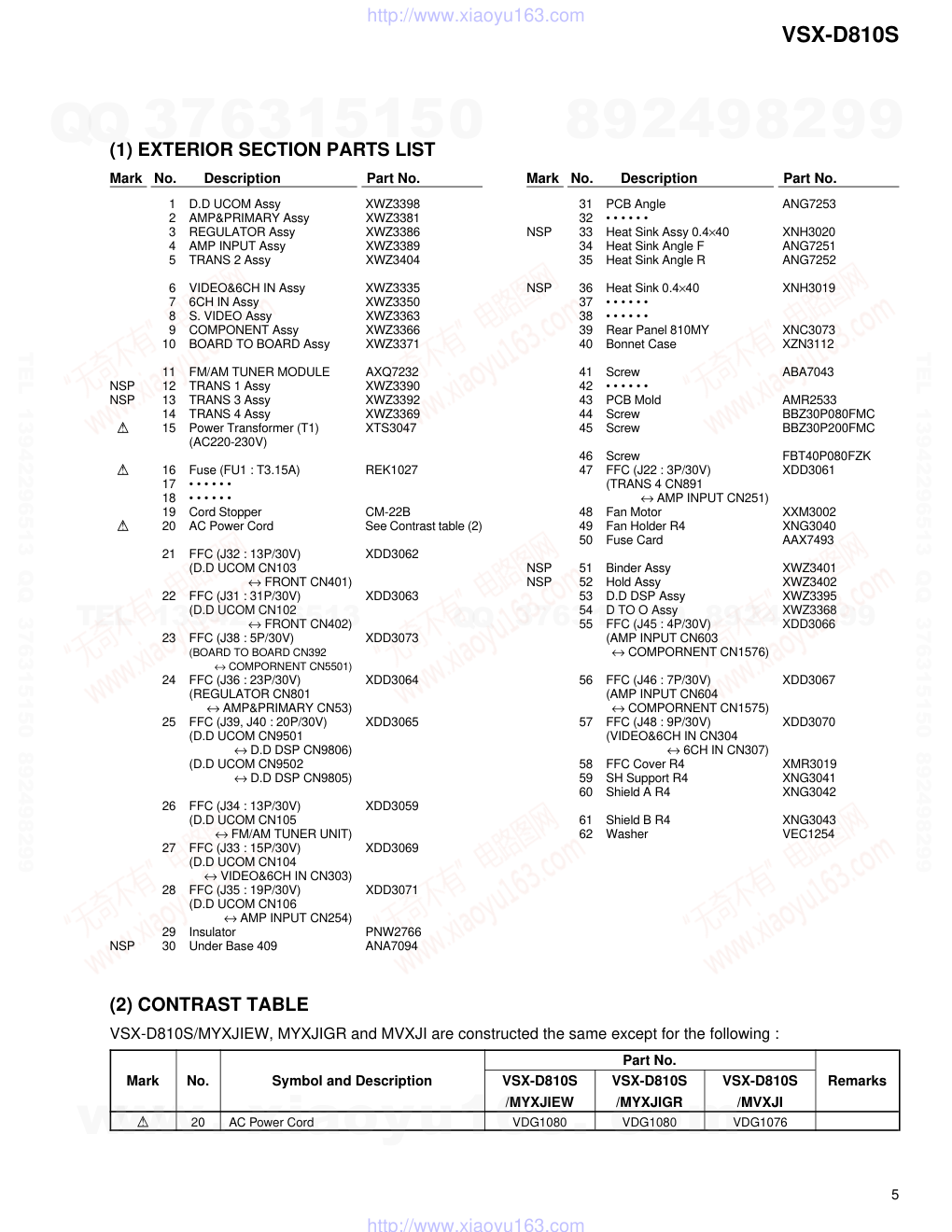

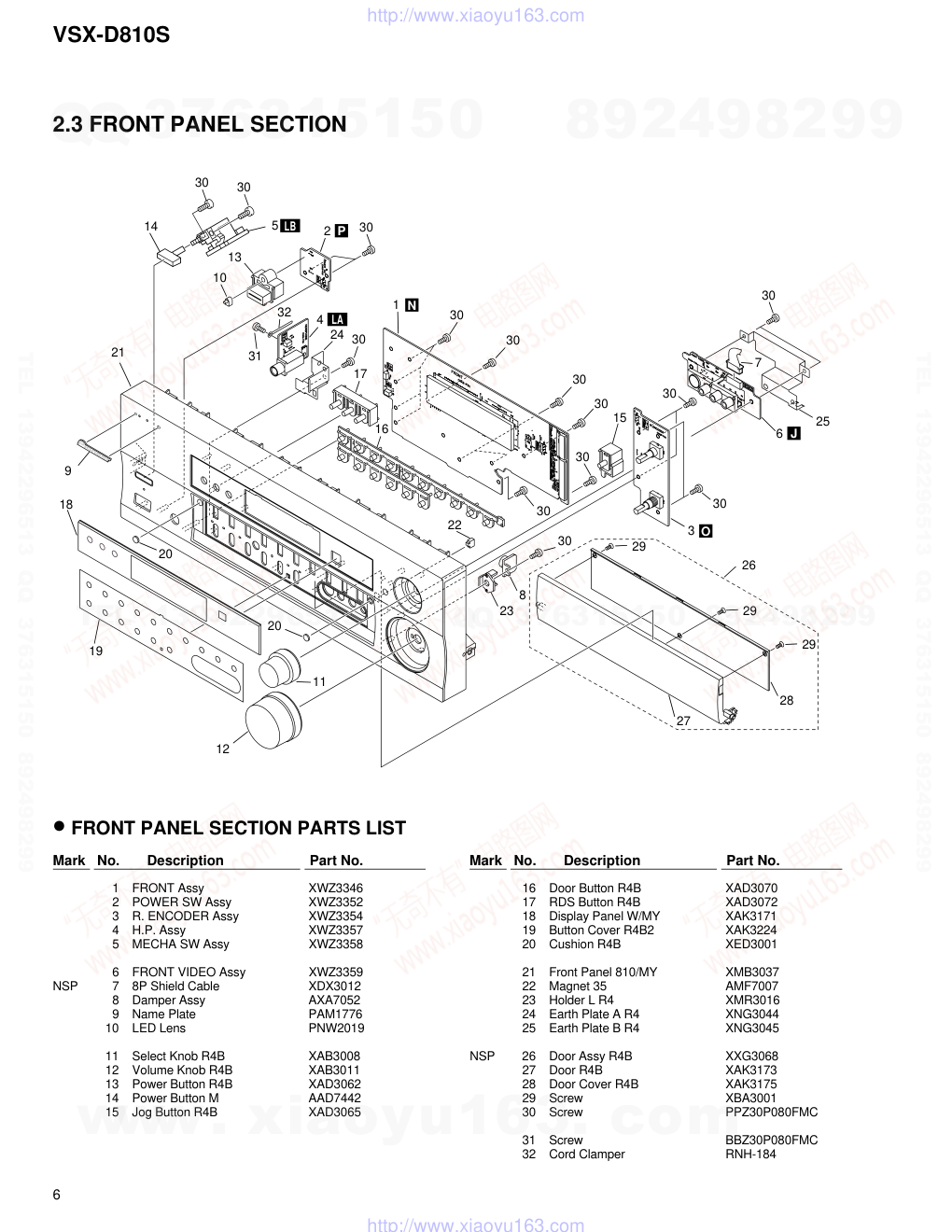

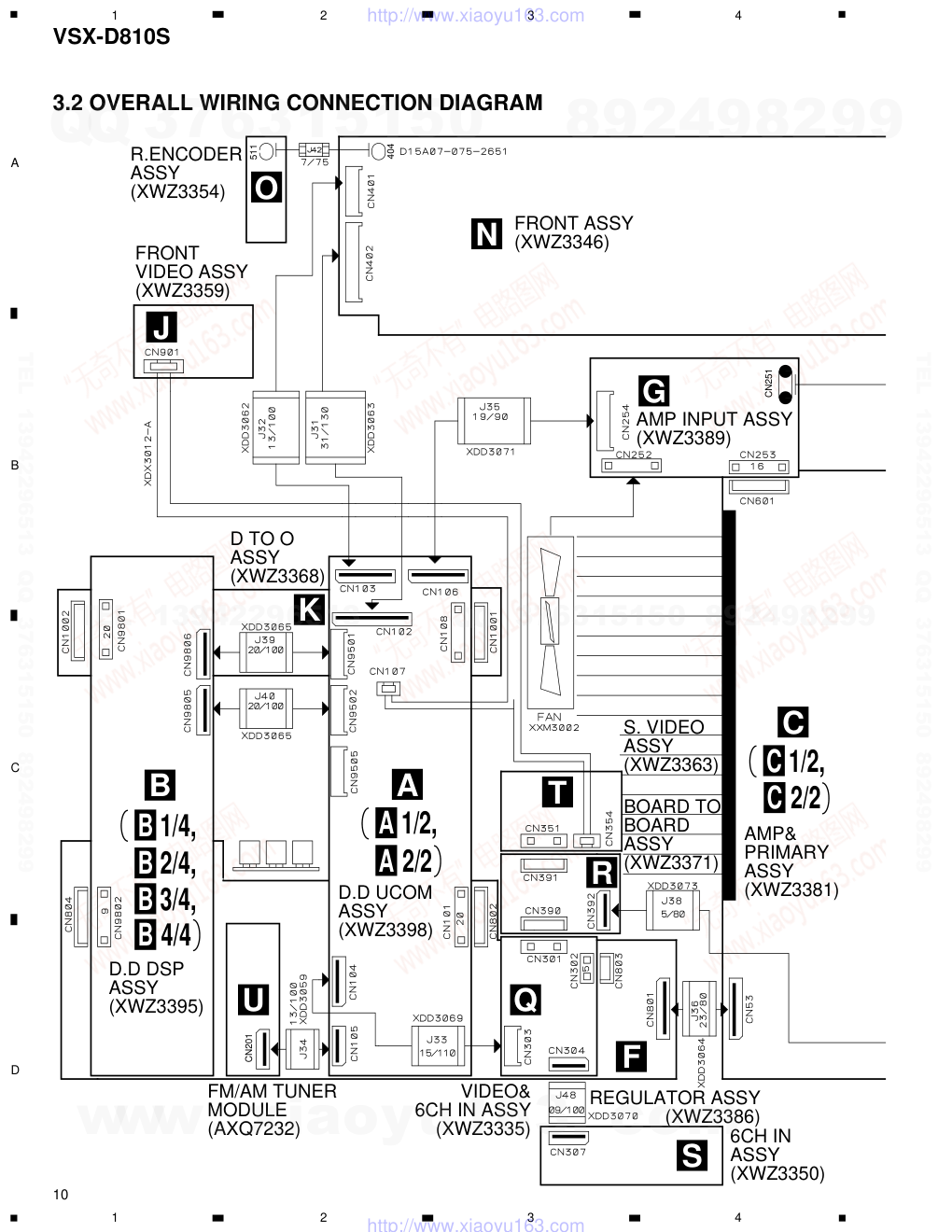

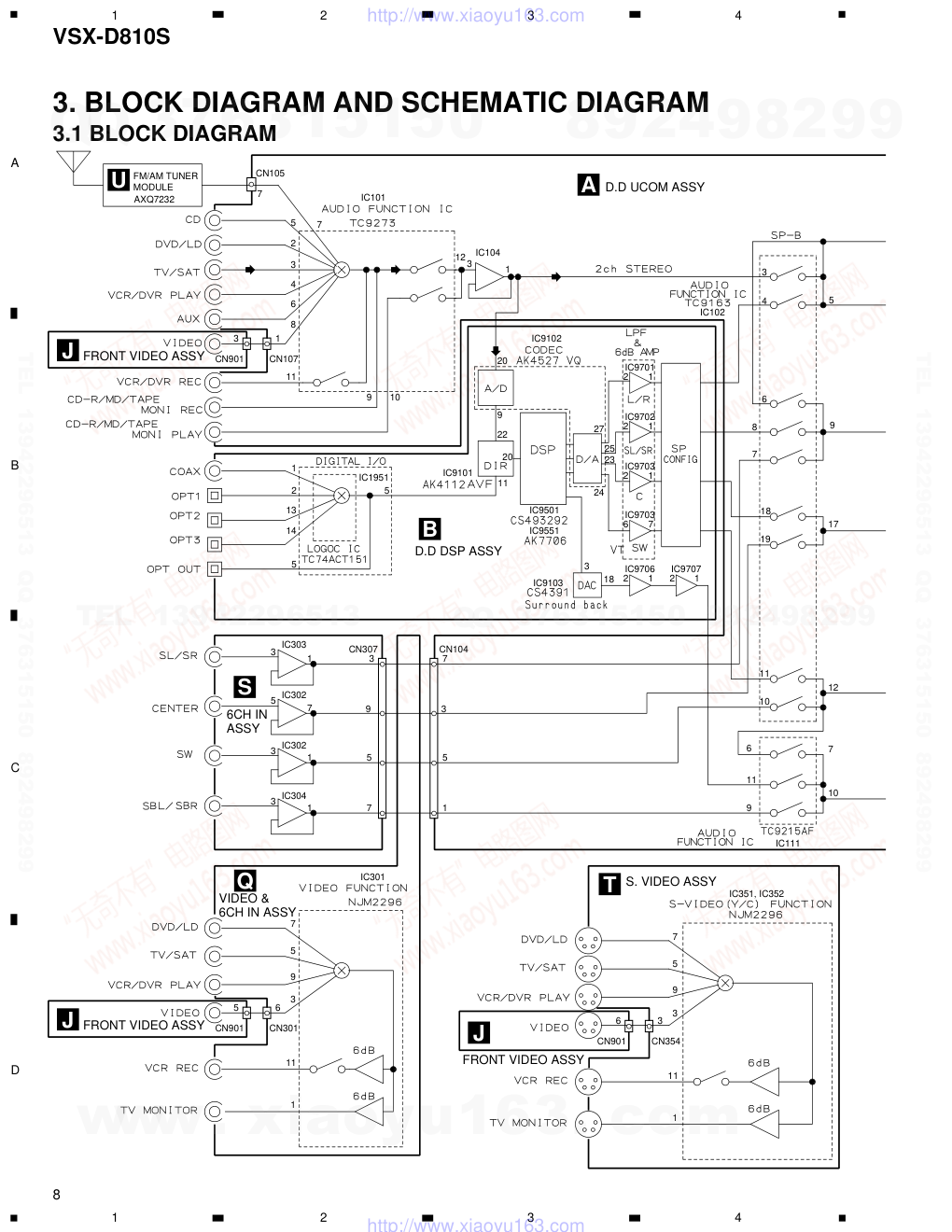

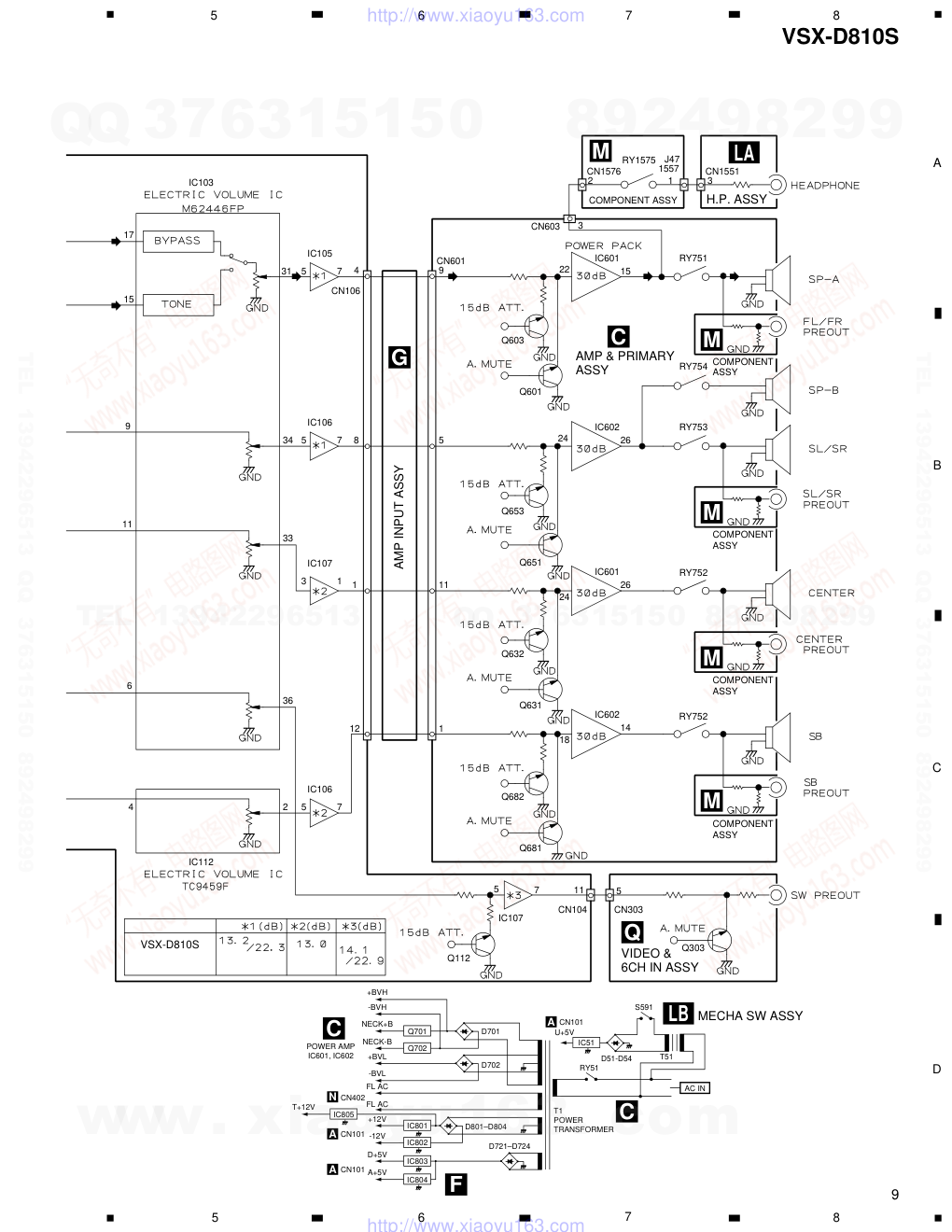

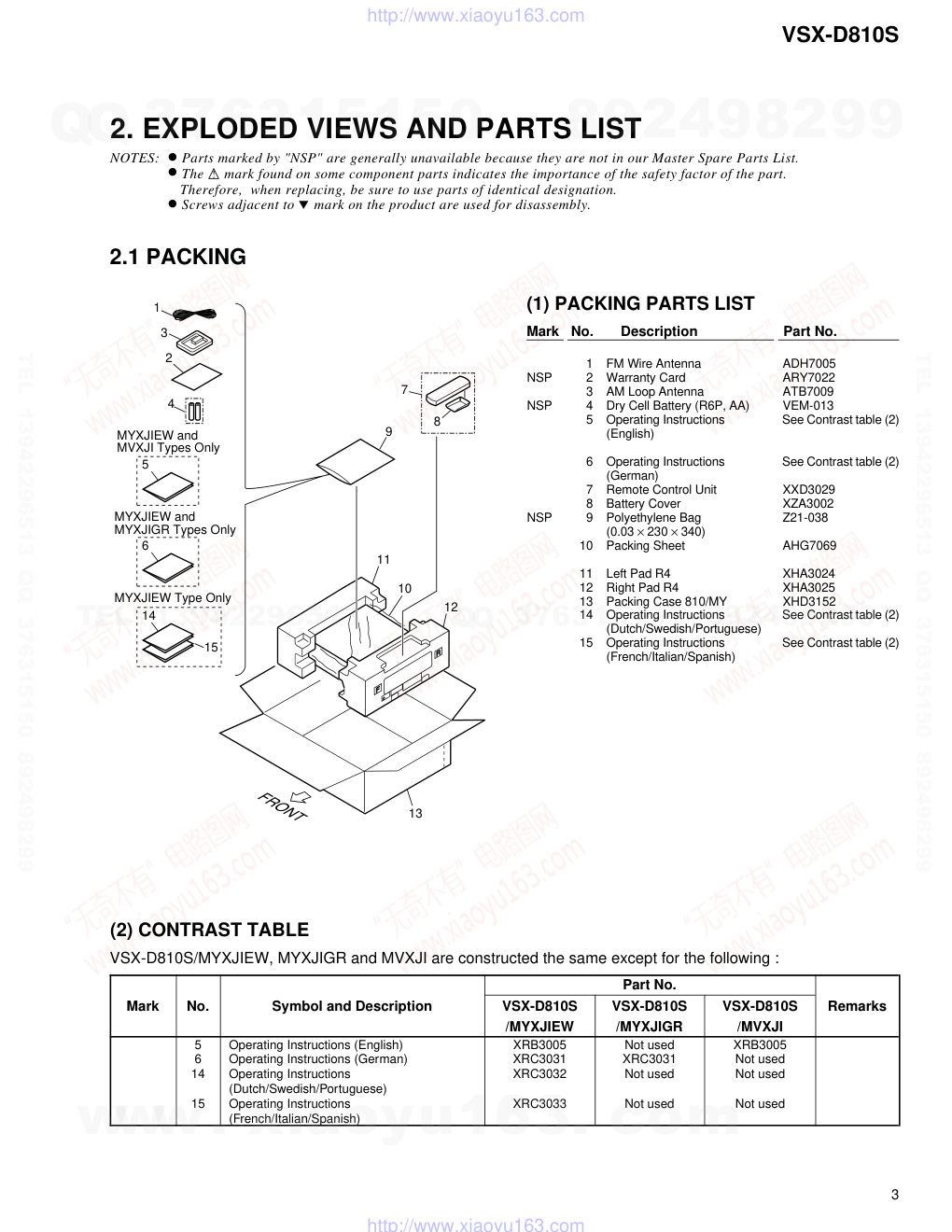

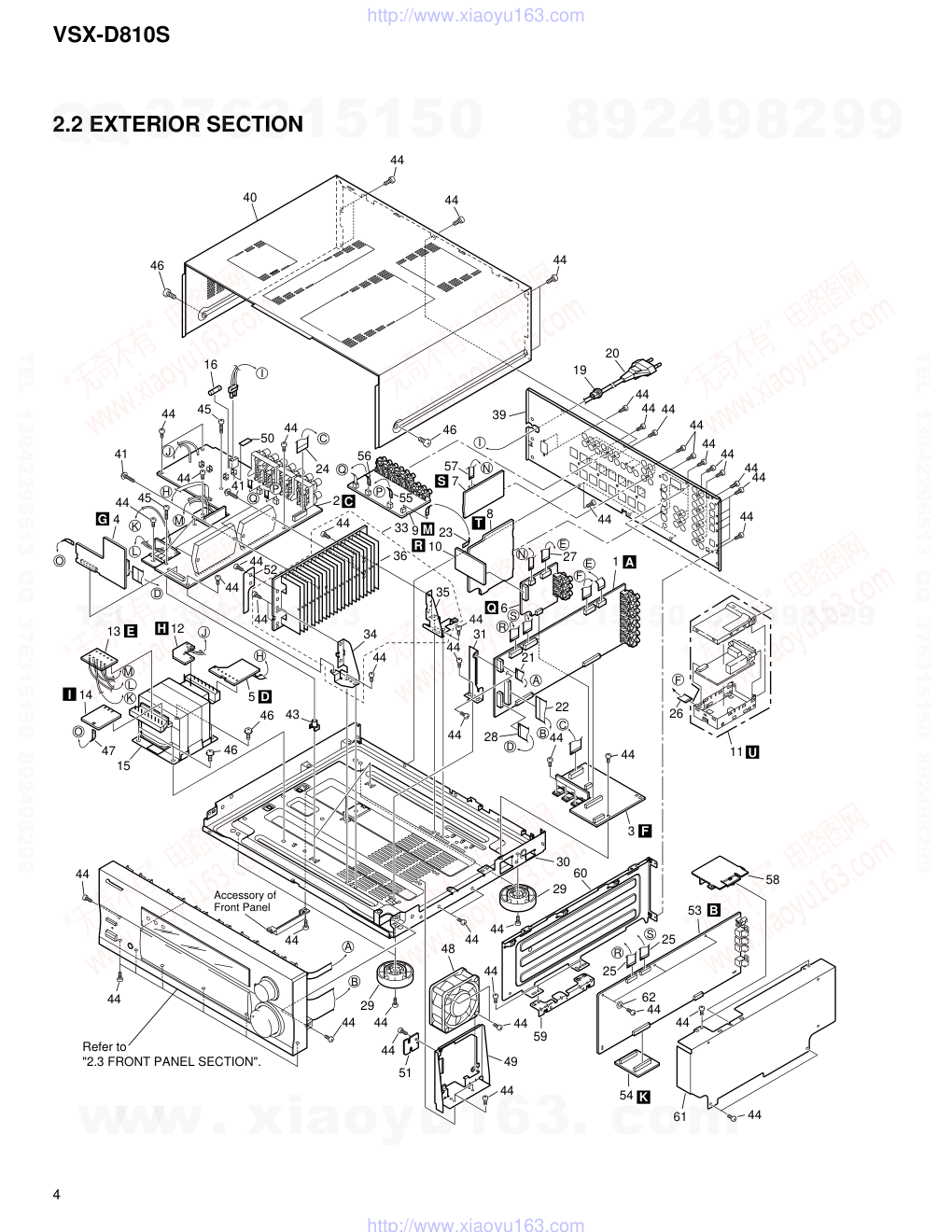

先锋PIONEER VSX-D810S音响电路图-0 先锋PIONEER VSX-D810S音响电路图-1 先锋PIONEER VSX-D810S音响电路图-2 先锋PIONEER VSX-D810S音响电路图-3 先锋PIONEER VSX-D810S音响电路图-4 先锋PIONEER VSX-D810S音响电路图-5 先锋PIONEER VSX-D810S音响电路图-6 先锋PIONEER VSX-D810S音响电路图-7 先锋PIONEER VSX-D810S音响电路图-8 先锋PIONEER VSX-D810S音响电路图-9

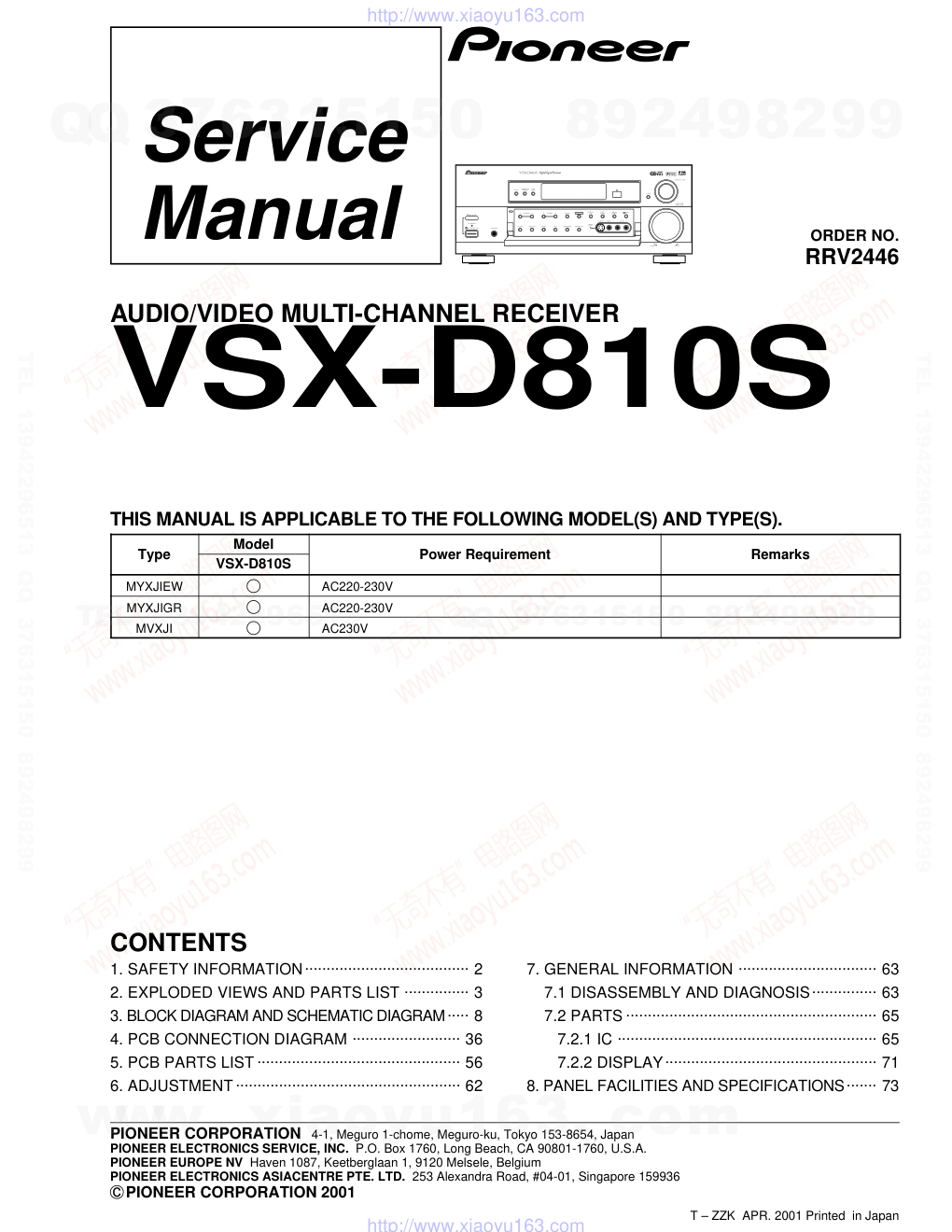

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2001 c RRV2446 1. SAFETY INFORMATION...................................... 2 2. EXPLODED VIEWS AND PARTS LIST ............... 3 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM..... 8 4. PCB CONNECTION DIAGRAM ......................... 36 5. PCB PARTS LIST ............................................... 56 6. ADJUSTMENT .................................................... 62 CONTENTS 7. GENERAL INFORMATION ................................ 63 7.1 DISASSEMBLY AND DIAGNOSIS............... 63 7.2 PARTS .......................................................... 65 7.2.1 IC ............................................................ 65 7.2.2 DISPLAY................................................. 71 8. PANEL FACILITIES AND SPECIFICATIONS....... 73 T – ZZK APR. 2001 Printed in Japan THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). AUDIO/VIDEO MULTI-CHANNEL RECEIVER VSX-D810S 1 N∫m-Û˘,?∫ Type Model Power Requirement Remarks VSX-D810S MYXJIEW AC220-230V MYXJIGR AC220-230V MVXJI AC230V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 VSX-D810S 1. SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5mA. (FOR USA MODEL ONLY) Leakage current tester Reading should not be above 0.5mA Device under test Test all exposed metal surfaces Also test with plug reversed (Using AC adapter plug as required) Earth ground AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 VSX-D810S 2.1 PACKING (1) PACKING PARTS LIST Mark No. Description Part No. 2. EXPLODED VIEWS AND PARTS LIST NOTES: • Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. • The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Screws adjacent to mark on the product are used for disassembly. 9 11 12 7 10 13 8 1 3 2 4 5 MYXJIEW and MVXJI Types Only 6 MYXJIEW and MYXJIGR Types Only MYXJIEW Type Only 15 14 1 FM Wire Antenna ADH7005 NSP 2 Warranty Card ARY7022 3 AM Loop Antenna ATB7009 NSP 4 Dry Cell Battery (R6P, AA) VEM-013 5 Operating Instructions See Contrast table (2) (English) 6 Operating Instructions See Contrast table (2) (German) 7 Remote Control Unit XXD3029 8 Battery Cover XZA3002 NSP 9 Polyethylene Bag Z21-038 (0.03 × 230 × 340) 10 Packing Sheet AHG7069 11 Left Pad R4 XHA3024 12 Right Pad R4 XHA3025 13 Packing Case 810/MY XHD3152 14 Operating Instructions See Contrast table (2) (Dutch/Swedish/Portuguese) 15 Operating Instructions See Contrast table (2) (French/Italian/Spanish) (2) CONTRAST TABLE VSX-D810S/MYXJIEW, MYXJIGR and MVXJI are constructed the same except for the following : Part No. Mark No. Symbol and Description VSX-D810S VSX-D810S VSX-D810S Remarks /MYXJIEW /MYXJIGR /MVXJI 5 Operating Instructions (English) XRB3005 Not used XRB3005 6 Operating Instructions (German) XRC3031 XRC3031 Not used 14 Operating Instructions XRC3032 Not used Not used (Dutch/Swedish/Portuguese) 15 Operating Instructions XRC3033 Not used Not used (French/Italian/Spanish) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 VSX-D810S D L K O O H M J I C R S Q P I J M L K H E B A C S R D F N E F A B N P Q 39 44 44 46 44 44 44 44 44 44 44 44 44 44 44 44 44 31 26 11 6 3 44 40 46 22 21 27 28 44 44 44 44 57 23 44 44 44 8 24 2 4 13 12 5 44 16 44 44 45 45 41 41 44 44 15 Accessory of Front Panel 44 43 44 44 44 Refer to "2.3 FRONT PANEL SECTION". 46 46 35 34 7 44 44 30 44 9 G 1 A Q T S M C F U B K E H I D R 44 29 47 48 49 51 53 54 55 25 25 56 58 59 60 61 62 14 4452 33 44 36 44 44 10 19 20 44 29 50 2.2 EXTERIOR SECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 VSX-D810S (1) EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 1 D.D UCOM Assy XWZ3398 2 AMP&PRIMARY Assy XWZ3381 3 REGULATOR Assy XWZ3386 4 AMP INPUT Assy XWZ3389 5 TRANS 2 Assy XWZ3404 6 VIDEO&6CH IN Assy XWZ3335 7 6CH IN Assy XWZ3350 8 S. VIDEO Assy XWZ3363 9 COMPONENT Assy XWZ3366 10 BOARD TO BOARD Assy XWZ3371 11 FM/AM TUNER MODULE AXQ7232 NSP 12 TRANS 1 Assy XWZ3390 NSP 13 TRANS 3 Assy XWZ3392 14 TRANS 4 Assy XWZ3369 15 Power Transformer (T1) XTS3047 (AC220-230V) 16 Fuse (FU1 : T3.15A) REK1027 17 • • • • • • 18 • • • • • • 19 Cord Stopper CM-22B 20 AC Power Cord See Contrast table (2) 21 FFC (J32 : 13P/30V) XDD3062 (D.D UCOM CN103 ↔ FRONT CN401) 22 FFC (J31 : 31P/30V) XDD3063 (D.D UCOM CN102 ↔ FRONT CN402) 23 FFC (J38 : 5P/30V) XDD3073 (BOARD TO BOARD CN392 ↔ COMPORNENT CN5501) 24 FFC (J36 : 23P/30V) XDD3064 (REGULATOR CN801 ↔ AMP&PRIMARY CN53) 25 FFC (J39, J40 : 20P/30V) XDD3065 (D.D UCOM CN9501 ↔ D.D DSP CN9806) (D.D UCOM CN9502 ↔ D.D DSP CN9805) 26 FFC (J34 : 13P/30V) XDD3059 (D.D UCOM CN105 ↔ FM/AM TUNER UNIT) 27 FFC (J33 : 15P/30V) XDD3069 (D.D UCOM CN104 ↔ VIDEO&6CH IN CN303) 28 FFC (J35 : 19P/30V) XDD3071 (D.D UCOM CN106 ↔ AMP INPUT CN254) 29 Insulator PNW2766 NSP 30 Under Base 409 ANA7094 31 PCB Angle ANG7253 32 • • • • • • NSP 33 Heat Sink Assy 0.4×40 XNH3020 34 Heat Sink Angle F ANG7251 35 Heat Sink Angle R ANG7252 NSP 36 Heat Sink 0.4×40 XNH3019 37 • • • • • • 38 • • • • • • 39 Rear Panel 810MY XNC3073 40 Bonnet Case XZN3112 41 Screw ABA7043 42 • • • • • • 43 PCB Mold AMR2533 44 Screw BBZ30P080FMC 45 Screw BBZ30P200FMC 46 Screw FBT40P080FZK 47 FFC (J22 : 3P/30V) XDD3061 (TRANS 4 CN891 ↔ AMP INPUT CN251) 48 Fan Motor XXM3002 49 Fan Holder R4 XNG3040 50 Fuse Card AAX7493 NSP 51 Binder Assy XWZ3401 NSP 52 Hold Assy XWZ3402 53 D.D DSP Assy XWZ3395 54 D TO O Assy XWZ3368 55 FFC (J45 : 4P/30V) XDD3066 (AMP INPUT CN603 ↔ COMPORNENT CN1576) 56 FFC (J46 : 7P/30V) XDD3067 (AMP INPUT CN604 ↔ COMPORNENT CN1575) 57 FFC (J48 : 9P/30V) XDD3070 (VIDEO&6CH IN CN304 ↔ 6CH IN CN307) 58 FFC Cover R4 XMR3019 59 SH Support R4 XNG3041 60 Shield A R4 XNG3042 61 Shield B R4 XNG3043 62 Washer VEC1254 (2) CONTRAST TABLE VSX-D810S/MYXJIEW, MYXJIGR and MVXJI are constructed the same except for the following : Part No. Mark No. Symbol and Description VSX-D810S VSX-D810S VSX-D810S Remarks /MYXJIEW /MYXJIGR /MVXJI 20 AC Power Cord VDG1080 VDG1080 VDG1076 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 VSX-D810S • FRONT PANEL SECTION PARTS LIST Mark No. Description Part No. 2.3 FRONT PANEL SECTION Mark No. Description Part No. 18 9 15 10 13 2 12 11 19 20 6 20 21 1 3 25 30 30 16 22 31 32 30 30 30 30 30 30 30 30 30 30 29 29 26 29 4 24 7 8 23 28 27 P N O J 17 LB LA 30 14 5 30 1 FRONT Assy XWZ3346 2 POWER SW Assy XWZ3352 3 R. ENCODER Assy XWZ3354 4 H.P. Assy XWZ3357 5 MECHA SW Assy XWZ3358 6 FRONT VIDEO Assy XWZ3359 NSP 7 8P Shield Cable XDX3012 8 Damper Assy AXA7052 9 Name Plate PAM1776 10 LED Lens PNW2019 11 Select Knob R4B XAB3008 12 Volume Knob R4B XAB3011 13 Power Button R4B XAD3062 14 Power Button M AAD7442 15 Jog Button R4B XAD3065 16 Door Button R4B XAD3070 17 RDS Button R4B XAD3072 18 Display Panel W/MY XAK3171 19 Button Cover R4B2 XAK3224 20 Cushion R4B XED3001 21 Front Panel 810/MY XMB3037 22 Magnet 35 AMF7007 23 Holder L R4 XMR3016 24 Earth Plate A R4 XNG3044 25 Earth Plate B R4 XNG3045 NSP 26 Door Assy R4B XXG3068 27 Door R4B XAK3173 28 Door Cover R4B XAK3175 29 Screw XBA3001 30 Screw PPZ30P080FMC 31 Screw BBZ30P080FMC 32 Cord Clamper RNH-184 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 VSX-D810S This page was intentionally left blank. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 8 A B C D 1 2 3 4 1 2 3 4 1 3 AXQ7232 CN105 7 CN307 IC101 IC303 IC1951 IC302 IC302 IC301 IC104 IC102 IC9701 IC9102 IC9101 IC9501 IC9551 A Q S B 3 1 7 1 5 9 CN104 7 5 3 5 3 IC304 1 7 1 3 7 5 9 1 11 5 3 1 2 5 13 14 3 4 6 123 20 9 11 22 20 27 24 3 18 25 23 2 1 IC9702 2 1 IC9703 2 1 IC9703 6 7 IC9706 IC9103 2 1 IC9707 2 1 4 6 3 8 7 19 18 17 12 11 10 10 7 11 6 9 9 5 1 7 2 11 9 10 T J 7 5 9 3 11 CN901 6 CN354 IC351, IC352 J 3 CN901 5 CN301 6 8 J U CN901 3 CN107 1 5 IC111 FRONT VIDEO ASSY S. VIDEO ASSY FRONT VIDEO ASSY FRONT VIDEO ASSY FM/AM TUNER MODULE D.D UCOM ASSY VIDEO & 6CH IN ASSY 6CH IN ASSY D.D DSP ASSY 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 9 A B C D 5 6 7 8 5 6 7 8 VSX-D810S IC103 IC112 IC105 IC106 IC107 IC107 Q112 Q303 Q603 Q601 Q653 Q651 Q632 Q631 Q CN104 11 CN303 5 11 15 17 31 34 33 36 6 9 5 7 5 7 IC106 2 4 5 7 3 1 5 7 IC601 24 26 IC602 24 26 IC601 RY751 RY1575 RY753 RY754 RY752 22 15 M C M G CN1576 2 CN603 3 1557 1 CN1551 J47 3 CN106 4 CN601 9 8 5 1 11 +12V -12V T1 POWER TRANSFORMER T51 AC IN D801–D804 U+5V D51-D54 RY51 IC51 IC801 T+12V IC805 CN101 IC802 NECK+B POWER AMP IC601, IC602 NECK-B D702 D701 +BVL +BVH -BVH -BVL FL AC FL AC Q701 Q702 C C A D+5V D721–D724 IC803 A+5V IC804 CN101 F A CN101 A CN402 N Q682 Q681 IC602 18 14 RY752 M 12 1 M M S591 LB LA MECHA SW ASSY AMP & PRIMARY ASSY VIDEO & 6CH IN ASSY H.P. ASSY COMPONENT ASSY AMP INPUT ASSY COMPONENT ASSY COMPONENT ASSY COMPONENT ASSY COMPONENT ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 10 A B C D 1 2 3 4 1 2 3 4 FRONT ASSY (XWZ3346) N BOARD TO BOARD ASSY (XWZ3371) S. VIDEO ASSY (XWZ3363) FRONT VIDEO ASSY (XWZ3359) T J R R.ENCODER ASSY (XWZ3354) O D.D UCOM ASSY (XWZ3398) A REGULATOR ASSY (XWZ3386) F 6CH IN ASSY (XWZ3350) S VIDEO& 6CH IN ASSY (XWZ3335) FM/AM TUNER MODULE (AXQ7232) Q U D TO O ASSY (XWZ3368) K AMP& PRIMARY ASSY (XWZ3381) C AMP INPUT ASSY (XWZ3389) G 404 CN251 CN201 511 C 1/2, C 2/2 A 1/2, A 2/2 D.D DSP ASSY (XWZ3395) B B 1/4, B 2/4, B 3/4, B 4/4 3.2 OVERALL WIRING CONNECTION DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 11 A B C D 5 6 7 8 5 6 7 8 COMPONENT ASSY (XWZ3366) M POWER SW ASSY (XWZ3352) P H.P. ASSY (XWZ3357) TRANS3 ASSY (XWZ3392) E I TRANS1 ASSY (XWZ3390) TRANS2 ASSY (XWZ3404) D H 1577 471 CN891 J8 J7 J6 501 701 J44 851 J1 J2 J4 J5 TRANS4 ASSY (XWZ3369) LA MECHA SW ASSY (XWZ3358) LB Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 12 A B C D 1 2 3 4 1 2 3 4 CN901 J D.D UCOM ASSY (XWZ3398) A 1/2 CN201 U CN802 F 3.3 D.D UCOM ASSY (1/2) 1/2 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 13 A B C D 5 6 7 8 5 6 7 8 CN401 N CN402 N A 2/2 A 2/2 A 2/2 A 2/2 A 2/2 A 2/2 CN303 Q CN1001 K : The power supply is shown with the marked box. E-VR IC E-VR IC 1/2 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 14 A B C D 1 2 3 4 1 2 3 4 D.D UCOM ASSY (XWZ3398) A 2/2 CN254 G A 1/2 A 1/2 A 1/2 VSX-D810S 3.4 D.D UCOM ASSY (2/2) 2/2 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 15 A B C D 5 6 7 8 5 6 7 8 A 1/2 A 1/2 B 1/4 CN9806 B 1/4 CN9805 2/2 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 16 A B C D 1 2 3 4 1 2 3 4 D.D DSP ASSY (XWZ3395) B 1/4 A 2/2 CN9501 B 3/4 B 4/4 B 2/4 B 2/4 3.5 D.D DSP ASSY (1/4) 1/4 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 17 A B C D 5 6 7 8 5 6 7 8 B 4/4 A 2/2 CN9502 B 3/4 B 2/4 1/4 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 18 A B C D 1 2 3 4 1 2 3 4 VSX-D810S D.D DSP ASSY (XWZ3395) B 2/4 B 1/4 B 3/4 CN1002 K B 1/4 B 3/4 3.6 D.D DSP ASSY (2/4) 2/4 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 19 A B C D 5 6 7 8 5 6 7 8 B 4/4 B 3/4 B 1/4 CN804 F : The power supply is shown with the marked box. DIR DAC CODEC 2/4 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 20 A B C D 1 2 3 4 1 2 3 4 D.D DSP ASSY (XWZ3395) B 3/4 B 2/4 B 1/4 B 2/4 3.7 D.D DSP ASSY (3/4) 3/4 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 21 A B C D 5 6 7 8 5 6 7 8 B 2/4 B 1/4 3/4 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 22 A B C D 1 2 3 4 1 2 3 4 D.D DSP ASSY (XWZ3395) B 4/4 3.8 D.D DSP ASSY (4/4) 4/4 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 23 A B C D 5 6 7 8 5 6 7 8 B 2/4 B 1/4 B 1/4 : The power supply is shown with the marked box. 4/4 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 24 A B C D 1 2 3 4 1 2 3 4 MYXJI,MVXJI MYXJIEW,MYXJIGR,MVXJI MYXJI, MVXJI MYXJI, MVXJI MYXJI, MVXJI AMP&PRIMARY ASSY (XWZ3381) C 1/2 CN253 G 3.9 AMP&PRIMARY (1/2), TRANS2 and TRANS3 ASSYS 1/2 C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 25 A B C D 5 6 7 8 5 6 7 8 MYXJI,MVXJI MYXJI,MVXJI VSX- D810S MYXJI, MVXJI MYXJI, MVXJI TRANS3 ASSY (XWZ3392) E TRANS2 ASSY (XWZ3404) D POWER TRANSFORMER CN1576 M CN1575 M CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491004 FOR IC851 AND IC852 MFD, BY LITTELFUSE INC. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491003 FOR IC853 MFD, BY LITTELFUSE INC. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491001 FOR IC603 MFD, BY LITTELFUSE INC. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491010 FOR IC604, IC605, IC606, AND IC607 MFD, BY LITTELFUSE INC. C 2/2 C 2/2 C 2/2 • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.125 FOR IC701 AND IC702 MFD, BY LITTELFUSE INC. 1/2 C E D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 26 A B C D 1 2 3 4 1 2 3 4 CN101 A 1/2 CN9802 B 2/4 REGULATOR ASSY (XWZ3386) F CN302 Q 2/2 C 3.10 AMP&PRIMARY (2/2), REGULATOR, AMP INPUT, TRANS1 and TRANS4 ASSYS F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 27 A B C D 5 6 7 8 5 6 7 8 AMP&PRIMARY ASSY (XWZ3381) C 2/2 C 1/2 CN106 A 2/2 CN601 C 1/2 CN591 LB C 1/2 H I TRANS1 ASSY (XWZ3390) G AMP INPUT ASSY (XWZ3389) POWER TRANSFORMER LIVE NEUTRAL REK1027 (T3.15A) ATT7037 AC POWER CORD MYXJIEW,MYXJIGR : VDG1080 MVXJI : VDG1076 • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.630 FOR IC891 AND IC892 MFD, BY LITTELFUSE INC. FAN MOTOR TRANS4 ASSY (XWZ3369) CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.315 FOR IC52 MFD, BY LITTELFUSE INC. 2/2 C G I H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 28 A B C D 1 2 3 4 1 2 3 4 D TO O ASSY (XWZ3368) K 1577 M FRONT VIDEO ASSY (XWZ3359) J CN354 T CN107 A 1/2 CN108 A 1/2 CN9801 B 2/4 H.P. ASSY (XWZ3357) LA MECHA SW ASSY (XWZ3358) LB J44 C 2/2 3.11 FRONT VIDEO, D TO O, H. P., MECHA SW and COMPONENT ASSYS J K LA LB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 29 A B C D 1 2 3 4 1 2 3 4 COMPONENT ASSY (XWZ3366) M CN1551 CN604 C 1/2 CN392 R CN603 C 1/2 VSX-D810S LA M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 30 A B C D 1 2 3 4 1 2 3 4 FRONT ASSY (XWZ3346) N R.ENCODER ASSY (XWZ3354) O CN102 A 1/2 CN103 A 1/2 R.ENCODER ASSY S511 : TONE S512 : MULTI JOG DIAL S513 : MASTER VOLUME 3.12 FRONT, R. ENCODER and POWER SW ASSYS N O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 31 A B C D 5 6 7 8 5 6 7 8 POWER SW ASSY (XWZ3352) P FRONT ASSY S451 : DIRECT S452 : MONITOR S453 : DVD 5.1ch S454 : DSP MODE S455 : SIGNAL SELECT S456 : DD/DTS S457 : MIDNIGHT S458 : SPEAKER S459 : MPX S460 : BAND S461 : MEMORY S462 : CLASS S463 : TUNING (+) S464 : TUNING (–) S465 : STATION (+) S466 : RF ATT S467 : CHARA SEARCH S468 : EON S476 : STATION (–) POWER SW ASSY S501 : POWER STANDBY/ON SYSTEM CONTROL MCU MYXJIEW, MYXJIGR, MVXJI FL Tube RDS Decoder IC P N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 32 A B C D 1 2 3 4 1 2 3 4 BOARD TO BOARD ASSY (XWZ3371) R VIDEO&6CH IN ASSY (XWZ3335) Q 6CH IN ASSY (XWZ3350) S CN803 F CN551 M CN104 A 1/2 3.13 VIDEO&6CH IN, BOARD TO BOARD, 6CH IN and S. VIDEO ASSYS Q R S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 33 A B C D 5 6 7 8 5 6 7 8 S. VIDEO ASSY (XWZ3363) T VSX-D810S CN901 J T www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 34 A B C D 1 2 3 4 1 2 3 4 FM FRONT END MW RF TUNING BLOCK FM/AM TUNER MODULE (AXQ7232) U OSC : 981 - 2052kHz 9k step L1 (AM) (AM) (AM) (AM) (AM) (AM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) 3.14 FM/AM TUNER MODULE U www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 35 A B C D 5 6 7 8 5 6 7 8 PLL IC AM/FM IF+MPX IC 1/2 A CN105 L201 ATE7003 : AUDIO SIGNAL ROUTE (TUNER) (TX) : AM SIGNAL ROUTE (AM) : FM SIGNAL ROUTE (FM) (AM) (AM) (FM) (AM) (AM) (AM) (AM) (AM) (AM) (FM) (AM) (FM) (TX) (TX) (TX) (TX) (TX) (FM) : The power supply is shown with the marked box. U www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 36 A B C D 1 2 3 4 1 2 3 4 NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B 4. PCB CONNECTION DIAGRAM 4.1 6CH IN ASSY S (XNP3032-B) CN304 Q SIDE A 6CH IN ASSY S (XNP3032-B) 6CH IN ASSY S SIDE B IC304 IC303 IC302 IC305 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 37 A B C D 1 2 3 4 1 2 3 4 4.2 TRANS2, TRANS3, REGULATOR, TRANS1 and TRANS4 ASSYS I H F E (XNP3033-B) Q805 Q803 Q806 Q808 Q807 Q801 Q804 Q802 IC804 IC805 REGULATOR ASSY F TRANS3 ASSY E TRANS2 ASSY D H I CN53 C CN302 Q CN9802 B CN251 G CN101 A 701 C J1 J2 C J6 J4 J3 J5 J7 C SIDE A IC802 IC803 IC801 POWER TRANSFORMER TRANS1 ASSY (XNP3032-B) SIDE A (XNP3032-B) SIDE B TRANS4 ASSY D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 38 A B C D 1 2 3 4 1 2 3 4 A 4.3 D.D UCOM ASSY D.D UCOM ASSY A CN1001 K CN9806 B CN9805 B CN901 J CN401 N CN402 N CN254 G IC110 IC5901 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 39 A B C D 5 6 7 8 5 6 7 8A CN802 F CN303 Q CN201 U IC107 IC105 Q107 Q108 IC103 IC110 Q251 Q110 Q252 IC102 Q101 IC1301 Q104 Q103 Q111 Q112 IC106 Q109 IC104 (XNP3034-B) SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 40 A B C D 1 2 3 4 1 2 3 4 A D.D UCOM ASSY A IC101 IC112 IC111 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 41 A B C D 5 6 7 8 5 6 7 8A (XNP3034-B) SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 42 A B C D 1 2 3 4 1 2 3 4 B K 4.4 D.D DSP and D TO O ASSYS D.D DSP ASSY B CN108 A CN9502 A CN9501 A IC9103 IC9601 IC9102 IC9552 IC9551 Q91 Q9103 Q9601 Q9602 Q9609 Q9610 Q9608 Q9607 Q9606 Q9604 Q9605 Q9612 Q9611 Q9603 Q9203 Q9204 (XNP3032-B) SIDE A D TO O ASSY K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 43 A B C D 5 6 7 8 5 6 7 8B CN804 F 8 IC9504 IC9501 IC9101 IC9508 IC9505 IC9507 IC9812 9551 IC9811 IC9506 Q9104 Q9102 Q9101 Q9103 (XNP3034-B) SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 44 A B C D 1 2 3 4 1 2 3 4 B D.D DSP ASSY B IC92 IC9152 IC9151 IC9502 IC9503 IC9552 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 45 A B C D 5 6 7 8 5 6 7 8B IC9202 IC9201 IC9701 IC9702 IC9704 IC9705 IC9707 IC9604 IC9603 IC9602 IC9703 IC9706 (XNP3034-B) SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 46 A B C D 1 2 3 4 1 2 3 4 C G 4.5 AMP INPUT, AMP&PRIMARY and MECHA SW ASSYS AMP INPUT ASSY G AMP&PRIMARY ASSY C CN106 A I Q604 Q606 Q605 Q602 Q603 IC601 IC603 Q632 Q704 Q702 Q703 Q701 Q631 Q656 IC602 Q633 Q655 Q691 Q692 Q652 Q654 Q651 Q653 J7 E J6 E (XNP3033-B) SIDE A (XNP3033-B) SIDE A CN891 FAN MOTOR J3 E LB MECHA SW ASSY (XNP3032-B) SIDE B (XNP3032-B) SIDE A LB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 47 A B C D 5 6 7 8 5 6 7 8C H H J4 E J5 E 851 D Q51 IC52 IC51 AC IN NEUTRAL LIVE J2 J1 CN801 F CN1576 M CN1575 M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 48 A B C D 1 2 3 4 1 2 3 4 4.6 FRONT, R.ENCODER and POWER SW ASSYS N P FRONT ASSY N POWER SW ASSY P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 49 A B C D 5 6 7 8 5 6 7 8O N CN102 A CN103 A R.ENCODER ASSY O (XNP3032-B) SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 50 A B C D 1 2 3 4 1 2 3 4 N O FRONT ASSY N Q401 Q403 Q402 Q441 Q442 (XNP3032-B) SIDE B R.ENCODER ASSY O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 51 A B C D 5 6 7 8 5 6 7 8P N IC481 IC401 Q402 Q404 Q481 Q482 Q483 Q471 POWER SW ASSY P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 52 A B C D 1 2 3 4 1 2 3 4 Q 4.7 VIDEO&6CH IN ASSY (XNP3032-B) VIDEO&6CH IN ASSY Q VIDEO&6CH IN ASSY Q CN104 A CN307 S CN803 F SIDE A Q301 Q302 (XNP3032-B) SIDE B IC301 Q303 CN390 R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 53 A B C D 1 2 3 4 1 2 3 4 (XNP3032-B) FRONT VIDEO ASSY J CN107 A CN551 M CN301 Q SIDE A (XNP3032-B) SIDE B BOARD TO BOARD ASSY R S. VIDEO ASSY T IC351 IC352 4.8 FRONT VIDEO, BOARD TO BOARD and S.VIDEO ASSYS T R J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 54 A B C D 1 2 3 4 1 2 3 4 4.9 H.P. and COMPONENT ASSYS M (XNP3032-B) COMPONENT ASSY M H.P. ASSY H.P. ASSY COMPONENT ASSY M CN604 C CN603 C CN392 R SIDE A (XNP3032-B) SIDE B IC553 IC552 IC551 LA LA LA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D810S 55 A B C D 1 2 3 4 1 2 3 4 (ANP7338-B) (ANP7338-B) CN105 A FM/AM TUNER MODULE U FM/AM TUNER MODULE U SIDE A SIDE B IC201 Q205 Q204 Q203 IC202 Q201 Q202 4.10 FM/AM TUNER MODULE U www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 VSX-D810S Mark No. Description Part No. Mark No. Description Part No. Mark No. Description Part No. Mark No. Description Part No. FM/AM TUNER MODULE AXQ7232 NSP COMPLEX ASSY XWK3011 VIDEO&6CH IN ASSY XWZ3335 FRONT ASSY XWZ3346 6CH IN ASSY XWZ3350 POWER SW ASSY XWZ3352 R.ENCODER ASSY XWZ3354 H.P. ASSY XWZ3357 MECHA SW ASSY XWZ3358 FRONT VIDEO ASSY XWZ3359 S.VIDEO ASSY XWZ3363 COMPONENT ASSY XWZ3366 D TO O ASSY XWZ3368 TRANS4 ASSY XWZ3369 BOARD TO BOARD ASSY XWZ3371 NSP AMP&PS ASSY XWK3024 AMP&PRIMARY ASSY XWZ3381 REGULATOR ASSY XWZ3386 AMP INPUT ASSY XWZ3389 TRANS2 ASSY XWZ3404 NSP TRANS1 ASSY XWZ3390 NSP TRANS3 ASSY XWZ3392 NSP D.D & INPUT ASSY XWK3028 D.D DSP ASSY XWZ3395 D.D UCOM ASSY XWZ3398 5. PCB PARTS LIST NOTES: •The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. •When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω → 56 × 10 1 → 561 ........................................................ RD1/4PU 5 6 1 J 47k Ω → 47 × 10 3 → 473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω → R50 ..................................................................................... RN2H R 5 0 K 1 Ω → 1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω → 562 × 10 1 → 5621 ...................................................... RN1/4PC 5 6 2 1 F COMPLEX ASSY OTHERS J 47 JUMPER WIRED D15A03-400-2651 J 41 JUMPER WIRED D15A04-125-2651 J 42 JUMPER WIRED D15A07-075-2651 AMP&PS ASSY OTHERS Y 8 AWG14 BOARD IN ADX7284 J 44 JUMPER WIRED D20PYY0325E J 21 JUMPER WIRED D20PYY0715E D.D UCOM ASSY SEMICONDUCTORS IC103 M62446FP IC5901 PD5634A IC102 TC9163AF IC111 TC9215AF IC101 TC9273F-007 IC112 TC9459F IC104–IC107, IC110 UPC4570G2-TFB Q101 2SC1740S Q251, Q252 2SC2412K Q107–Q112 2SC3326 D103, D105, D106, D254, D255 1SS355 D201, D202 RB501V-40 D104, D256 UDZS5.1B D101, D102 UDZS6.8B COILS AND FILTERS L5901 CHIP SOLID INDUCTOR ATL7002 L101, L102, L111, L112 QTL1013 L1203, L1204, L1601, L1602, L5902 QTL1013 CHIP SOLID INDUCTOR CAPACITORS C101–C114, C121–C123 CCSRCH101J50 C126–C128, C152–C154 CCSRCH101J50 C158–C160, C197, C198 CCSRCH101J50 C207, C208, C221, C222 CCSRCH101J50 C228, C229 CCSRCH101J50 C211, C212 CCSRCH220J50 C235, C241 CCSRCH221J50 C5906 CCSRCH271J50 C251, C252, C5902 CCSRCH471J50 C130–C137, C146–C151 CEAT100M50 C161, C162, C202, C245–C247 CEAT100M50 C261 CEAT100M50 C5904 CEAT101M10 C157 CEAT101M16 C144, C145, C250 CEAT3R3M50 C117, C118 CEAT470M25 C225, C226, C232, C233, C239 CEAT470M50 C244 CEAT470M50 C155, C156 CEAT471M10 C115, C116, C234, C240 CEAT4R7M50 C173, C174 CKSQYB224K16 C256 CKSQYF105Z16 C271, C5912 CKSRYB102K50 C119, C120, C124, C125 CKSRYB103K50 C171, C172, C179, C180, C183 CKSRYB103K50 C199–C201, C203, C204 CKSRYB103K50 C223, C224, C230, C231 CKSRYB103K50 C237, C238, C242, C243 CKSRYB103K50 C248, C249 CKSRYB103K50 C140, C143, C253–C255, C5907 CKSRYB104K16 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 VSX-D810S Mark No. Description Part No. Mark No. Description Part No. C236 CKSRYB152K50 C139, C142 CKSRYB153K50 C138, C141 CKSRYB822K50 C227 CKSRYF104Z16 C1631, C1632 CKSRYF104Z25 C184, C185 CKSRYF473Z50 RESISTORS R171–R173 RS1/16S102J R174, R175 RS1LMF101J Other Resistors RS1/16S&&&J OTHERS CN9501, CN9502 20P CONNECTOR 52044-2045 CN9505 10P CONNECTOR 52045-1045 CN103, CN105 13P CONNECTOR 52045-1345 CN104 15P CONNECTOR 52045-1545 CN106 19P CONNECTOR 52045-1945 CN102 31P CONNECTOR 52045-3145 JA101–JA104 PIN JACK (4P) AKB7048 CN107 CONNECTOR POST B3B-PH-K CN101, CN108 19P SOCKET KP200TA20L 101–104 PCB BINDER VEF1040 X5901 CERAMIC RESONATOR ASS7032 (15.7MHz) D.D DSP ASSY SEMICONDUCTORS IC9101 AK4112AVF IC9102 AK4527VQ IC9551 AK7706VT IC9103 CS4391 IC9501 CS493292 IC9201, IC9202 NJM2100M IC9504 PDN031C IC9811 PQ20WZ51 IC9812 PQ7VZ5 IC9552 TC551001CFT-70L IC9151 TC74ACT151F IC9152 TC74HCU04AF IC9505 TC74LVX244FT IC9502, IC9503 TC74VHC574F IC9506 TC74VHCT244AFT IC9507 TC7WU04FU IC9601 TC9164AF IC9602–IC9604, IC9701–IC9707 UPC4570G2-TFB Q9201, Q9202, Q9601–Q9606, Q9611 2SC3326 Q9102, Q9104, Q9203, Q9607 DTA124EK Q9609, Q9610 DTA124EK Q9101, Q9103, Q9204, Q9608 DTC124EK D9601, D9602 1SS181 COILS AND FILTERS L9501, L9551, L9801, L9802, L9807 ATL7002 L9809, L9811, L9812, L9900, L9901 ATL7002 CHIP SOLID INDUCTOR L9101–L9107, L9151–L9153 QTL1013 L9502, L9503, L9506, L9507, L9552 QTL1013 L9813 CHIP SOLID INDUCTOR QTL1013 CAPACITORS C9510, C9511 CCSRCH100D50 C9115, C9135, C9160, C9609, C9610 CCSRCH101J50 C9721, C9722, C9735, C9900 CCSRCH101J50 C9822 CCSRCH102J50 C9107 CCSRCH150J50 C9106 CCSRCH180J50 C9621, C9622, C9749, C9751, C9809 CCSRCH221J50 C9509, C9629 CCSRCH271J50 C9159 CCSRCH470J50 C9101, C9104, C9112, C9114, C9119 CCSRCH471J50 C9122, C9130, C9154, C9156, C9503 CCSRCH471J50 C9505, C9507, C9513, C9515, C9518 CCSRCH471J50 C9520, C9522, C9525, C9528, C9553 CCSRCH471J50 C9555, C9557, C9559, C9561, C9564 CCSRCH471J50 C9617, C9618, C9639, C9757 CCSRCH471J50 C9201, C9202 CCSRCH560J50 C9707, C9708 CCSRCH820J50 C9611, C9612, C9736 CCSRCH821J25 C9113 CEAT221M10 C9523, C9526, C9643, C9644, C9770 CEJQ100M25 C9501, C9516, C9551, C9740 CEJQ101M10 C9801, C9802, C9812, C9814 CEJQ101M10 C9123, C9125 CEJQ1R0M50 C9127, C9529 CEJQ2R2M50 C9713, C9714, C9727, C9728, C9739 CEJQ330M10 C9753, C9765–C9769 CEJQ330M10 C9102, C9108, C9117, C9120 CEJQ470M16 C9151, C9152, C9162, C9562 CEJQ470M16 C9803, C9805 CEJQ470M25 C9203, C9204, C9206, C9207 CEJQ4R7M50 C9603, C9604, C9615, C9616 CEJQ4R7M50 C9627, C9628, C9761, C9811,C9813 CEJQ4R7M50 C9110 CEJQR47M50 C9131, C9745, C9781, C9815 CKSRYB102K50 C9103, C9105, C9118, C9121, C9124 CKSRYB103K50 C9133, C9134, C9153, C9155 CKSRYB103K50 C9157, C9158, C9502, C9504, C9506 CKSRYB103K50 C9508, C9512, C9514, C9517, C9519 CKSRYB103K50 C9521, C9524, C9527, C9531, C9552 CKSRYB103K50 C9554, C9556, C9558, C9560, C9563 CKSRYB103K50 C9572, C9636, C9637, C9816 CKSRYB103K50 C9109, C9116, C9126, C9626, C9784 CKSRYB104K16 C9804, C9806, C9817, C9818, C9831 CKSRYB104K16 C9841, C9901, C9904, C9905 CKSRYB104K16 C9605, C9606, C9633, C9755 CKSRYB122K50 C9211, C9212 CKSRYB152K50 C9703, C9704, C9715, C9716, C9729 CKSRYB182K50 C9601, C9602, C9613, C9614, C9625 CKSRYB222K50 C9763 CKSRYB222K50 C9701, C9702 CKSRYB272K50 C9732 CKSRYB333K16 C9645 CKSRYB472K50 C9111 CKSRYB682K50 C9717, C9718, C9731 CKSRYB821K50 C9163, C9164, C9166, C9205 CKSRYF104Z25 C9208–C9210, C9607, C9608 CKSRYF104Z25 C9619, C9620, C9631, C9632 CKSRYF104Z25 C9705, C9706, C9709–C9712 CKSRYF104Z25 C9723–C9726, C9730, C9737, C9738 CKSRYF104Z25 C9759, C9760, C9810, C9819–C9821 CKSRYF104Z25 C9823 CKSRYF104Z25 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 VSX-D810S Mark No. Description Part No. Mark No. Description Part No. RESISTORS All Resistors RS1/16S&&&J OTHERS CN9805, CN9806 20P CONNECTOR 52045-2045 JA9150, JA9152,JA9153 GP1FA551RZ OPTICAL LINK IN JA9155 OPTICAL LINK OUT GP1FA551TZ CN9801 20P SOCKET KP200TA20L CN9802 9P SOCKET KP200TA9L JA9151 1P PIN JACK VKB1077 X9101 CRYSTAL RESONATOR ASS7025 (24MHz) X9501 CRYSTAL RESONATOR VSS1086 (27.0MHz) AMP&PRIMARY ASSY SEMICONDUCTORS IC52 PROTECTOR (315mA) AEK7003 IC603 PROTECTOR (1A) AEK7009 IC701, IC702 PROTECTOR (125mA) AEK7020 IC604–IC607 PROTECTOR (10A) AEK7022 IC51 NJM78M56FA IC601, IC602 PAC011A Q703 2SA1145 Q702 2SB1238X Q696, Q697 2SC1740S Q704 2SC1845 Q605, Q606, Q633, Q655, Q656 2SC2240 Q683 2SC2240 Q601–Q604, Q631, Q632 2SC2878 Q651–Q654, Q681, Q682 2SC2878 Q701 2SD1859X Q51 KRC101M D56, D57, D601, D603, D606 1SS133 D608, D631, D632, D651–D654 1SS133 D683, D684, D751–D754 1SS133 D757, D758 1SS133 D701, D702 D5SBA20(B) D711 MTZJ22D D58 MTZJ5.1A D712 MTZJ5.1B D602, D604, D681, D682 MTZJ8.2A D51–D55, D721–D724 S5688G COILS AND FILTERS L51 LINE FILTER ATF7018 L751–L754, L761, L762 COIL ATH1004 SWITCHES AND RELAYS RY751–RY754 RELAY XSR3002 RY51 JOE LOWPOWER RELAY XSR3003 CAPACITORS C707, C708 (0.01µF/AC250V) ACG1005 C51, C52 (10000pF/AC250V) ACG7020 C703, C704 (3300µF/42V) ACH7135 C701, C702 (4700µF/71V) ACH7137 C607, C608, C634, C657, C658 CCCSL101J50 C684 CCCSL101J50 C611–C614, C636, C637 CCCSL6R0D50 C661–C664, C686, C687 CCCSL6R0D50 C615, C616, C638, C665, C666 CEANP2R2M50 C688 CEANP2R2M50 C705, C706 CEAT100M2A C712 CEAT101M10 C609, C610, C635, C659, C660 CEAT101M16 C685 CEAT101M16 C711 CEAT101M35 C53 CEAT102M16 C697 CEAT221M10 C54 CEAT470M25 C605, C606, C633, C655, C656 CEAT4R7M50 C683 CEAT4R7M50 C751–C756, C761–C764 CFTYA224J50 C771, C772 CFTYA224J50 C55–C57 CGCYX103M25 C601, C602, C652, C681, C696 CKCYB102K50 C603, C604, C632, C653, C654 CKCYB331K50 C682 CKCYB331K50 C631, C651, C769, C770 CKPUYB102K50 C757–C759, C765–C768, C773 CQMBA472J50 RESISTORS R52 RD1/2PM270J R615 RD1/4PU331J R751, R752, R755, R761, R762 RD1/4PUF101J R772 RD1/4PUF101J R753, R754, R756, R763, R764 RS1LMF4R7J R771 RS1LMF4R7J R711 RS2LMF332J R617, R622, R639, R667, R668 XCN3001 R691 (0.22Ω/5W) XCN3001 Other Resistors RD1/4PU&&&J OTHERS 52 3P CABLE HOLDER 51048-0300 CN603 4P CONNECTOR 52045-0445 CN604 7P CONNECTOR 52045-0745 CN53 23P CONNECTOR 52045-2345 CN751, CN752 AKE7059 SPEAKER TERMINAL 8-P H 51, H 52 FUSE CLIP AKR7001 T 51 STANDBY TRANSFORMER ATT7037 CN601 18P PLUG KM200TA18 CN51 AC CODE SOCKET RKP1751 KN51, KN601EARTH METAL FITTING VNF1084 701 7P CABLE HOLDER XKP3047 TRANS2 ASSY SEMICONDUCTORS IC853 PROTECTOR (3A) AEK7015 IC851, IC852 PROTECTOR (4A) AEK7018 OTHERS 851 7P CABLE HOLDER XKP3047 TRANS3 ASSY TRANS3 ASSY has no service part. D E C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 VSX-D810S Mark No. Description Part No. Mark No. Description Part No. REGULATOR ASSY SEMICONDUCTORS IC803, IC804 NJM78M05FA IC801, IC805 NJM78M12FA IC802 NJM79M12FA Q801, Q803, Q805, Q807 KRA103M Q802, Q804, Q806, Q808 KRC101M D809, D810 MTZJ6.2A D801–D804 S5688G CAPACITORS C808, C811 CEAT101M10 C805, C806, C813 CEAT101M16 C801, C802 CEAT222M25 C809 CEAT332M16 C803, C804, C807, C810, C812 CGCYX103M25 OTHERS CN801 23P CONNECTOR 52045-2345 CN802 20P PLUG KM200TA20 CN803 5P PLUG KM200TA5 CN804 9P PLUG KM200TA9 AMP INPUT ASSY SEMICONDUCTORS IC251 NJM4558D-D Q257 2SA933S Q251, Q256 2SC2878 Q252 2SD1858X Q254 KRA103M Q253, Q255 KRC103M D251, D252 1SS133 D253 MTZJ27D D254 MTZJ5.1B CAPACITORS C251 CEANP470M25 C254 CEAT101M25 C252, C253 CKPUYF103Z25 RESISTORS All Resistors RD1/4PU&&&J OTHERS CN251 3P CONNECTOR 52044-0345 CN254 19P CONNECTOR 52044-1945 CN252 3P PLUG KM250MA3L CN253 18P SOCKET KP200TA18L TRANS1 ASSY TRANS1 ASSY has no service part. TRANS4 ASSY SEMICONDUCTORS IC891, IC892 PROTECTOR (630mA) AEK7006 D891 S1WB(A)60SD CAPACITORS C891, C892 CEAT471M35 OTHERS CN891 3P CONNECTOR 52045-0345 FRONT VIDEO ASSY CAPACITORS C903, C905 CEJQ470M25 C908, C911, C914 CKSRYB103K50 C904, C906, C909, C912 CKSRYB104K25 C901, C902 CKSRYB221K50 C907, C910, C913 CKSRYB471K50 RESISTORS All Resistors RS1/16S&&&J OTHERS JA902 PIN JACK (4P) AKX7014 CN901 CONNECTOR S8B-PH-K-S D TO O ASSY OTHERS CN1001,CN1002 20P PLUG KM200TA20 H.P. ASSY CAPACITORS C1551, C1552 CKSRYB223K50 RESISTORS R1553, R1554 RS1LMF471J R1551, R1552 RS2LMF331J OTHERS CN1551 CONNECTOR(3P) KPE3 JA1551 JACK RKN1002 KN1551 EARTH METAL FITTING VNF1084 MECHA SW ASSY SWITCHES AND RELAYS S591 ASG7014 CAPACITORS C591, C592 CKSQYF103Z50 OTHERS CN591 3PJUMPER CONNECTOR 52151-0310 COMPONENT ASSY SEMICONDUCTORS IC551 TC74HC4053AF IC552, IC553 TK15420M D1575,D1576 1SS355 SWITCHES AND RELAYS RY1575 RELAY XSR3002 CAPACITORS C551–C554, C557, C558 CEAT101M10 C1581, C555, C556, C559–C562 CKSRYB103K50 C566, C568 CKSRYB103K50 K J M F H I G LB LA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 VSX-D810S Mark No. Description Part No. Mark No. Description Part No. RESISTORS All Resistors RS1/16S&&&J OTHERS 1577 CABLE HOLDER(3P) 51063-0305 CN1576 4P CONNECTOR 52045-0445 CN551 5P CONNECTOR 52045-0545 CN1575 7P CONNECTOR 52045-0745 1575 PIN JACK(6P) AKB7089 JA553 3P RCA PINJACK AKB7124 JA551 6P RCA PINJACK AKB7128 FRONT ASSY SEMICONDUCTORS IC481 BU1923F IC401 PDG261A Q481 2SA1037K Q483 2SC3326 Q401, Q402, Q442, Q471 DTA124EK Q403, Q404, Q441, Q482 DTC143EK D407, D442 1SS355 D403, D405 DAN217 D401, D404 DAP202K COILS AND FILTERS L401, L481 LFEA2R2J SWITCHES AND RELAYS S451–S468, S476 ASG1051 CAPACITORS C420 (220µF/35V) ACH7101 C404 (0.047F/5.5V) ACH7132 C489, C490 CCSRCH270J50 C488 CCSRCH561J50 C483 CEAT101M10 C486 CEAT1R0M50 C402 CEAT221M6R3 C409, C410, C484 CEAT2R2M50 C412 CEAT470M50 C405 CEJQ221M6R3 C442 CEJQ470M10 C451–C453, C472, C481, C482 CKSRYB102K50 C495 CKSRYB102K50 C401, C403, C411, C419, C441 CKSRYB103K50 C531 CKSRYB103K50 C408, C416, C418, C471 CKSRYB104K16 C492–C494, C496, C497 CKSRYB104K16 C485 CKSRYB472K50 C406, C407 CKSRYB473K16 RESISTORS All Resistors RS1/16S&&&J OTHERS 471 CABLE HOLDER (4P) 51063-0405 404 CABLE HOLDER (7P) 51063-0705 CN401 13P CONNECTOR 52044-1345 CN402 31P CONNECTOR 52044-3145 V401 FL TUBE XAV3010 X481 CERAMIC RESONATOR ASS7004 (4.332MHz) X401 CERAMIC RESONATOR ASS7018 (7.2MHz) 401 REMOTE RECEIVER UNIT GP1U28X R.ENCODER ASSY SWITCHES AND RELAYS S511 ASG1051 S513 ROTARY ENCODER XSX3005 S512 ROTARY ENCODER XSX3006 OTHERS 511 CABLE HOLDER (7P) 51063-0705 POWER SW ASSY SEMICONDUCTORS D501 BR3371XJ30A SWITCHES AND RELAYS S501 ASG1051 RESISTORS All Resistors RS1/16S&&&J OTHERS 501 CABLE HOLDER (4P) 51063-0405 VIDEO&6CH IN ASSY SEMICONDUCTORS IC301 NJM2296M Q302 2SA1515 Q303 2SC3326 Q301 2SC3377 D301, D302, D305, D306 1SS355 D303, D304 UDZS6.2B CAPACITORS C347 CCSRCH470J50 C307–C310, C312, C314, C338 CEAT470M25 C1360, C302 CKSRYB103K50 C339, C340 CKSRYB104K25 C304–C306 CKSRYB221K50 C333 CKSRYB331K50 C311, C313 CKSRYB473K25 RESISTORS R313, R316 RS3LMF390J Other Resistors RS1/16S&&&J OTHERS CN304 9P CONNECTOR 52044-0945 CN303 15P CONNECTOR 52044-1545 CN305 6P PIN JACK AKB7123 CN301 13P SOCKET KP200TA13L CN302 5P SOCKET KP200TA5L P Q O N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 VSX-D810S Mark No. Description Part No. Mark No. Description Part No. BOARD TO BOARD ASSY OTHERS CN392 5P CONNECTOR 52045-0545 CN391 11P PLUG KM200TA11 CN390 3P PLUG KM200TA13 6CH IN ASSY SEMICONDUCTORS IC302–IC305 NJM4558MD CAPACITORS C1354, C1359, C319, C320 CCSRCH101J50 C327, C328, C342–C345 CCSRCH101J50 C348, C349 CCSRCH101J50 C1362 CCSRCH121J50 C1361 CCSRCH680J50 C1357 CEAT220M25 C1358, C321, C324, C331, C332 CEAT4R7M50 C1352, C1353, C1355,C1356,C316 CKSRYB103K50 C322, C323, C329, C330 CKSRYB103K50 C1350, C1351, C317, C318 CKSRYB221K50 C325, C326 CKSRYB221K50 RESISTORS All Resistors RS1/16S&&&J OTHERS CN307 9P CONNECTOR 52044-0945 308 PIN JACK(6P) AKB7089 S. VIDEO ASSY SEMICONDUCTORS IC351, IC352 NJM2296M D351–D354 1SS355 CAPACITORS C375, C376 CCSRCH470J50 C352, C355, C358, C361–C363 CEAT470M25 C366 CEAT470M25 C372, C373, C377, C378 CKSRYB103K50 C351, C353, C354, C356, C357 CKSRYB104K25 C359, C367 CKSRYB104K25 C364, C365, C368–C371 CKSRYB221K50 RESISTORS All Resistors RS1/16S&&&J OTHERS CN354 CONNECTOR POST B5B-PH-K CN351 11P SOCKET KP200TA11L JA351 JACK RKN1004 CN353 2-4P MINI DIN SOCKET XKP3044 CN352 3-4P MINI DIN SOCKET XKP3045 FM/AM TUNER MODULE SEMICONDUCTORS IC201 BA1451F IC202 LC72131MD-TFB Q201, Q204, Q205, Q601 2SC2412K Q202 DTA124ES Q203, Q602 DTC124EK D201 1SS133 D601 HVU187 D202 MTZJ5.1C D101 UDZS6.8B COILS AND FILTERS L201 FM DETECTOR COIL ATE7003 F202 CERAMIC FILTER ATF-107 F201 CERAMIC FILTER ATF-119 F601 ANTIBIRDY FILTER ATF7025 F203 AM CERAMIC FILTER ATF7026 L602 LAU2R2J L601 LCTA270J2520 CAPACITORS C605 CCSQCH680J50 C212, C213, C226, C233–C235 CCSRCH101J50 C240, C614 CCSRCH101J50 C206 CCSRCH120J50 C231, C232 CCSRCH150J50 C223 CEAT100M50 C229 CEAT101M10 C224 CEAT1R0M50 C227 CEAT220M25 C241 CEAT2R2M50 C243 CEAT330M16 C228 CEAT3R3M50 C237 CEAT470M10 C211 CEJQ1R0M50 C210 CEJQ470M16 C103, C104, C204, C238, C609 CKSRYB102K50 C102, C208, C216, C217, C220 CKSRYB103K50 C239, C242, C604, C610, C615 CKSRYB103K50 C225 CKSRYB153K50 C607, C608 CKSRYB182K50 C201, C205, C214, C230, C236 CKSRYB223K50 C244, C611 CKSRYB223K50 C221 CKSRYB224K10 C603 CKSRYB392K50 C215 CKSRYB471K50 C202, C222 CKSRYB473K16 C606 CKSRYB561K50 RESISTORS R211 RD1/4PU221J R221 RD1/4PU222J R233 RD1/4PU391J R103, R104 RS1/10S221J Other Resistors RS1/16S&&&J OTHERS CN201 13P CONNECTOR 52044-1345 BN201 2P TERMINAL WITH PAL AKA7002 SHIELD CASE T ANK7072 SHIELD CASE B ANK7073 X201 CRYSTAL RESONATOR ASS1093 (7.2MHz) FM FRONT END AXF7005 AM RF TUNING BLOCK AXX7072 T U R S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 VSX-D810S 6.1 TUNER SECTION MPX SG FM SG PRODUCT DC Voltmeter L201 IC201 pin 21 1 24 pin 23 FM/AM TUNER MODULE U SIDE B Step No. Adjustment Title ANT. Input level and signal condition Adjustment Input Level (dBµV) Adjust point Contents Frequency (MHz) Modulation 1 T-METER Adjustment 98 OFF 80 L201 Adjust L201 so that the DC voltage between Pin 21 and Pin 23 of IC201 (Test point Vtm) gets within 0 ± 50mV. AM Tuner Section • There is no adjustment in the AM tuner. FM75Ω antenna terminal Fig.1 Adjustment Wiring Diagram Fig.2 Adjustment Point FM Tuner Section • Set the mode selector to FM BAND. • Connect the wiring as shown in Fig. 1. 6. ADJUSTMENT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 VSX-D810S 2 Remove the Bonnet (seven screws). 1 2 2 ×2 2 ×3 2 ×5 5 ×3 ×2 ×3 7.1 DISASSEMBLY AND DIAGNOSIS 7. GENERAL INFORMATION Diagnosis 3 ×2 3 3 Rear Panel Pull up 6 Diagnosis AMP&PRIMARY Assy REGULATOR Assy Heat Sink 7 Note : The product does not operate when the screws of Speaker Terminal are taken off from Rear Panel. When FM/AM TUNER MODULE was removed, the product operates except FM/AM TUNER function. 4 4 4 Note : This photograph shows other models. However, the work method is the same. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 VSX-D810S PCB Location AMP&PRIMARY Assy FRONT Assy FRONT VIDEO Assy AMP INPUT Assy D.D UCOM Assy VIDEO&6CH IN Assy REGULATOR Assy COMPONENT Assy TRANS 2 Assy J R. ENCODER Assy O G A D.D DSP Assy B Q 6CH IN Assy S S.VIDEO Assy T F N M D C H.P. Assy TRANS 3 Assy L E I H POWER SW Assy P TRANS 1 Assy TRANS 4 Assy Please check IC101(Function IC) mounted on SIDE B from SIDE A. The Pin number points on SIDE A of IC101 are shown as follows. Please check IC9151(Digital Selector IC) mounted on SIDE B from SIDE A. The Pin number points on SIDE A of IC9151 are shown as follows. D.D UCOM Assy A SIDE A D.D DSP Assy B SIDE A Diagnosis of D.D UCOM Assy and D.D DSP Assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 VSX-D810S PDG261A (FRONT ASSY : IC401) • System Control MCU • Pin Arrangement (Top View) • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. 7.2 PARTS 7.2.1 IC 1 G2 G1 NC ACIN RDS_DT RDS_CK Not used RMC VER_2 PLL_CE Not used Not used DSPM_RDY DSPM_CS2 STEREO TUNED VENC_A VENC_B A.MUTE DSPM_RDY DSPM_CS DSPM_CK DSPM_SI DSPM_SO MVOL_ATT ST_EVR PLL_DO KEYIN1 KEYIN2 G1/A1 G0/A0 NC PE0/EC0/INT0 PE1/EC1/INT1 PE2/INT2 PE3/INT3/NMI PE4/RMC PE5 PE6/PWM PE7/TO/ADJ PC0/KR0 PC1/KR1 PC2/KR2 PC3/KR3 PC4/KR4 PC5/KR5 PC6/KR6 PC7/KR7 PB0/CINT PB1/CS0 PB2/SCK0 PB3/SI0 PB4/SO0 PB5/SCK1 PB6/SI1 PB7/SO1 AVREF PA1/AN0 PA1/AN1 KEYIN3 VER_1 FENC_A FENC_B AMP_DC AMP_OL VIDEO1 VIDEO2 VIDEO3 SYS_CK SYS_DT PA2/AN2 PA3/AN3 PA4/AN4 PA5/AN5 PA6/AN6 PA7/AN7 AVSS RST EXTAL XTAL VSS TX TEX VDD VFIP PD0/A55 PD1/A54 PD2/A53 PD3/A52 PD4/A51 A21 A22 A23 PH7/A24 PH6/A25 PH5/A26 PH4/A27 PH3/A28 PH2/A29 PH1/A30 PH0/A31 PG7/A32 PG6/A33 PG5/A34 PG4/A35 PG3/A36 PG2/A37 PG1/A38 PG0/A39 PF7/A40 PF6/A41 PF5/A42 PF4/A43 PF3/A44 PF2/A45 PF1/A46 PF0/A47 PD7/A48 PD6/A49 PD5/A50 S11 S12 S13 S14 S15 S16 S17 S18 S19 S20 S21 S22 4053INH 4053A RY_B RY_C/R RY_A RY_AC GAIN_SEL NECK_SEL DSPM_RST 9164_CS T_MUTE T_POWON RY_HP FM+(RDS) 9459_ST Not used 9273_CS Not used G2/A2 G3/A3 G4/A4 G5/A5 G6/A6 G7/A7 G8/A8 G9/A9 G10/A10 G11/A11 G12/A12 VDD G13/A13 G14/A14 G15/A15 A16 A17 A18 A19 A20 G3 G4 G5 G6 G7 G8 G9 G10 Not used S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 21 22 23 24 25 26 27 28 29 30 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 VSX-D810S • Pin Function No. Pin Name I/O Pin Function Active 1 G2 O Grid output 2 H 2 G1 O Grid output 1 H 3 NC − Connect to VDD 4 ACIN I AC pulse input 5 RDS_DT I Serial control DATA signal of RDS communication 6 RDS_CK I Serial control CLOCK signal of RDS communication 7 Not used I Connect to GND 8 RMC I Remote control signal input (no-carrier signal) 9 VER_2 I Destination switch 2 10 PLL_CE O Chip select signal for communication with LC72131 (tuner) H 11 Not used O 12 Not used O 13 DSPM_RDY I DSP Micro Computer READY input 14 DSPM_CS2 I CS input for DSP Micro Computer 15 STEREO I Stereo/Monoral signal judgment signal 16 TUNED I TUNED information 17 ENC_A I EVOL Rotary encoder signal input A 18 ENC_B I EVOL Rotary encoder signal input B 19 AMUTE O Audio mute L 20 DSPM_RDY O RADY of DSP Micro Computer communication 21 DSPM_CS1 O Chip select output for control of DSP Micro Computer L 22 DSPM_CK O Clock signal for communication with DSP Micro Computer H 23 DSPM_SI I DATA input signal for communication with DSP Micro Computer 24 DSPM_SO O DATA output signal for communication with DSP Micro Computer H 25 MVRATT O ATT control of master volume (L : Less than -15dB) H 26 ST_EVR O Strobe signal for communication with electric volume IC H 27 PLL_DO I Data input signal for communication with LC72131 (tuner) 28 AVref − Connect to VDD 29 KEYIN1 I Key input A/D conversion port 1 30 KEYIN2 I Key input A/D conversion port 2 31 KEYIN3 I Key input A/D conversion port 3 32 VER_1 I Destination switch (A/D input) 33 FENC_A I FUNC Rotary encoder signal input A 34 FENC_B I FUNC Rotary encoder signal input B 35 AMP_DC I DC abnormality detection of protection circuit (L : Abnormality detection) *1 L 36 AMP_OL I Over-load detection of protection circuit (L : Abnormality detection) *2 L 37 AVSS − Connect to VSS 38 RST − Reset 39 EXTAL − Connect to the oscillator (7.2MHz) 40 XTAL − 41 VSS − Connect to VSS 42 TX − Open 43 TEX − Connect to VSS 44 VDD − +5V 45 VFDP − -30V 46 VIDEO1 O NJM2296D control H 47 VIDEO2 48 VIDEO3 49 SYS_DT O Data signal for communication with M62446, TC9163, TC9164 and PLL H O Clock signal for communication with M62446, TC9163, TC9164 and PLL H 50 SYS_CK *1 : When DC voltage was output from amplifier, "POWER OFF" is displayed at FL display. *2 : When the output of amplifier became overload state, "OVER LOAD" is displayed at FL display. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 VSX-D810S No. Pin Name I/O Pin Function Active 51 Not used O TC9273 Chip select O H 52 9273_CS 53 Not used 54 9459_ST O Electronic volume TC5496 Strobe for SB H 55 FM+(RDS) O Tr switch ON/OFF for power supply of RDS decoder (L : AM, power OFF , H : Other) H 56 RY_HP − HP relay ON/OFF H 57 T_POWON O Tuner module ON/OFF (North America model only) H 58 T_MUTE O Tuner mute H 59 9164 CS O TC9163, TC9164 Chip select 60 DSP_RST O DSP Micro Computer reset 61 NECK_SEL O 5.1ch, surround mode and A+B Stereo : H / Stereo : L 62 GAIN_SEL O Gain select (5.1ch and Stereo of analog input : H ) H 63 RY_AC O AC relay ON/OFF H 64 RY_A O Speaker A relay ON/OFF H 65 RY_C/R O Rear/Center Speaker relay ON/OFF H 66 RY_B O Speaker B relay ON/OFF H 67 4053A O Component terminal control H 68 4053INH O O Component terminal control H 69 S22 O Segment output 22 H 70 S21 Segment output 21 71 S20 Segment output 20 72 S19 Segment output 19 73 S18 Segment output 18 74 S17 Segment output 17 75 S16 Segment output 16 76 S15 Segment output 15 77 S14 Segment output 14 78 S13 Segment output 13 79 S12 Segment output 12 80 S11 Segment output 11 81 S10 Segment output 10 82 S9 Segment output 9 H 83 S8 Segment output 8 84 S7 Segment output 7 85 S6 Segment output 6 86 S5 Segment output 5 87 S4 Segment output 4 88 S3 Segment output 3 89 VDD − 5V 90 S2 O O Segment output 2 H 91 S1 Segment output 1 92 Not used Not used (Fixed Vfdp) 93 G10 Grid output 10 94 G9 Grid output 9 95 G8 Grid output 8 96 G7 Grid output 7 97 G6 Grid output 6 98 G5 Grid output 5 99 G4 Grid output 4 100 G3 Grid output 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 VSX-D810S PD5634A (D.D UCOM ASSY : IC5901) • Receiver Control microcomputer • Pin Arrangement (Top View) 1 ASO ACK AREQ Not used M_DO M_DI M_CK GND GND M_CS2 M_REDAY RESET GND 5V Not used M_CS1 Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used P96 P95 P94 P93 P92 P91 P90 BYTE CNVSS P87 P86 RESET XOUT VSS XIN VCC P85 P84 P83 P82 P81 P80 P77 P76 P75 P74 P73 P72 P71 P70 T_LXD T_RXD T_SCLK T_BUSY CSDO CDT CCK CRST CREQ ABOT GND CCS CA17 CA16 CA15 5V Not used MUTE ADMD DT P67 P66 P65 P64 P63 P62 P61 P60 P57 P56 P55 P64 P53 P52 P51 P50 P47 P46 P45 P44 P10 P11 P12 P13 P14 P15 P16 P17 P20 P21 P22 P23 P24 P25 P26 P27 VSS P30 VCC P31 P32 P33 P34 P35 P36 P37 P40 P41 P42 P43 Not used Not used CDC_CK CDC_DT CDC_CS ERR Not used Not used Not used Not used FS96 CODEC PD DIR SDTO DIR PD Not used Not used GND Not used 5V ATT Not used Not used Not used Not used SELC SELB SELA Not used ST CK P97 AVCC VREF P100 AVSS P101 P102 P103 P104 P105 P106 P107 P00 P01 P02 P03 P04 P05 P06 P07 ASI 5V 5V ADRT GND ADRY ARDY AIRT Not used Not used Not used ANOVL Not used Not used 2CHSW1 2CHSW2 Not used Not used Not used Not used 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 21 22 23 24 25 26 27 28 29 30 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 VSX-D810S • Pin Function No. Pin Name I/O Pin Function Active 1 ASO O AK7706 DATA output 2 ACK O AK7706 CLOCK output 3 AREQ O AK7706 REQ 4 Not used O 5 M_DO O DATA OUT to Main microcomputer 6 M_DI I DATA IN from Main microcomputer 7 M_CK I CLOCK IN for Main microcomputer communication 8 BYTE I GND 9 T_PGM/OE I Pull down to CNVss, GND (For FLASH rewriting) 10 M_CS2 O CS output for Main microcomputer communication 11 M_READY O READY output for Main microcomputer communication 12 RESET − Reset (from Main microcomputer) 13 XOUT − Oscillator 14 VSS − GND 15 XIN − Oscillator 16 VCC − 5V 17 MN1 I 5V 18 M_CS1 I CS input for Main microcomputer communication 19 Not used O 20 Not used O 21 Not used O 22 Not used O 23 Not used O 24 Not used O 25 Not used O 26 Not used O 27 Not used O 28 Not used O 29 Not used O 30 Not used O 31 TXD O For FLASH rewriting 32 RXD I For FLASH rewriting 33 T-SCLK I For FLASH rewriting 34 T-BUSY O For FLASH rewriting 35 CSDO O DATA OUT for Crystal DSP 36 CDT I DATA IN for Crystal DSP 37 CCK Ο CLK for Crystal DSP 38 CRST O RESET for Crystal DSP REQ for Crystal DSP ABOOT for Crystal DSP 39 CREQ I 40 ABOT O 41 VSS − 42 CCS O CS for Crystal DSP 43 CA17 O For Crystal DSP 44 CA16 O For Crystal DSP 45 CA15 O For Crystal DSP I 5V O O For E-SW (TC9164) 46 T-Vdd 47 Not used 48 MUTE 49 ADMD O For E-SW (TC9164) O For E-SW (TC9164) 50 DT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 VSX-D810S No. Pin Name I/O Pin Function Active 51 CK O For E-SW (TC9164) O For E-SW (TC9164) O 52 ST 53 Not used 54 SELA O For LOGIC IC, TC74ACT151F 55 SELB O For LOGIC IC, TC74ACT151F 56 SELC O For LOGIC IC, TC74ACT151F 57 Not used O 58 Not used O 59 Not used O 60 Not used O 61 ATT O ATT output 62 VCC − 5V 63 Not used O 64 VSS − GND 65 Not used O 66 Not used O 67 DIR PD O Power down for DIR O I O O O O I O O O O O O O O O O O O O O I I − O − − I O O 68 DIR SDTO I O DIR DATA IN 69 CDC_PD Power down for CODEC 70 FS96 96K 71 Not used 72 Not used 73 Not used 74 Not used 75 ERR DIR 76 CDC_CS CS for CODEC communication 77 CDC_DT DATA OUT for CODEC communication 78 CDC_CK Clock for CODEC communication 79 Not used 80 Not used 81 Not used 82 Not used 83 Not used 84 Not used 85 2CHSW2 For TC9215 control (SW H : PASSIV, L : POWERED) 86 2CHSW1 For TC9215 control (SB H : DSP, L : 6CH) 87 Not used 88 Not used 89 ANOV I Analog input overload detection (A/D) 90 Not used 91 Not used 92 Not used 93 AIRT AK7706DSP INIT reset (control it only in a power start) 94 ARDY AK7706 writing READY input 95 ADRY AK7706 output data READY input 96 AVSS GND 97 ADRT AK7706 DSP reset 98 VREF 5V 99 AVCC 5V 100 ASI www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 VSX-D810S XAV3010 (FRONT ASSY : V401) • FL DISPLAY 7.2.2 DISPLAY • Pin Assignment • Grid Assignment • Segment Designation (1G) (9G to 2G) n c e Dp1 Dp2 p r d1 d2 m k b f g j h S1 S2 S3 S4 a2 a1 c e d b f g a 49 1 1G 10G 9G 8G 7G 6G 5G 4G 3G 2G dB SIGNAL SELECT MIDNIGHT LOUDNESS DIRECT MONITOR TUNED MONO ANALOG DIGITAL SP AB DIGITAL DTS DIGITAL PRO LOGIC SB ATT DSP DNR RF ATT EON RDS STEREO dB SIGNAL SELECT MIDNIGHT LOUDNESS DIRECT MONITOR TUNED MONO ANALOG DIGITAL SP AB DIGITAL DTS DIGITAL PRO LOGIC SB ATT DSP DNR RF ATT EON RDS STEREO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 VSX-D810S Pin No. 26 25 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 Connection F2 F2 NP NP P22 P21 P20 P19 P18 P17 P16 P15 P14 P13 P12 P11 P10 P9 P8 P7 P6 P5 P4 P3 P2 Pin No. 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 Connection P1 NX NX NX NX NX NX NX NX NX 10G 9G 8G 7G 6G 5G 4G 3G 2G 1G NP NP F1 F1 • Pin Connection • Anode Connection NOTE 1) F1, F2.......... Filament 2) NP................ No pin 3) NX................ No extend pin 4) DL................. Datum Line 5) 1G to 10G..... Grid 6) Field of vision is a minimum of 29° from the lower side. 2G P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P17 P18 P19 P20 P21 P22 a2 a1 S3 h j k b f m g c e r p n d1 d2 Dp2 Dp1 S1 S4 S2 10G 9G a2 a1 S3 h j k b f m g c e r p n d1 d2 Dp2 Dp1 S1 S4 S2 8G a2 a1 S3 h j k b f m g c e r p n d1 d2 Dp2 Dp1 S1 S4 S2 7G a2 a1 S3 h j k b f m g c e r p n d1 d2 Dp2 Dp1 S1 S4 S2 6G a2 a1 S3 h j k b f m g c e r p n d1 d2 Dp2 Dp1 S1 S4 S2 5G a2 a1 S3 h j k b f m g c e r p n d1 d2 Dp2 Dp1 S1 S4 S2 4G a2 a1 S3 h j k b f m g c e r p n d1 d2 Dp2 Dp1 S1 S4 S2 3G a2 a1 S3 h j k b f m g c e r p n d1 d2 Dp2 Dp1 S1 S4 S2 1G 2a 2b 2f 2g 2c 2e 2d 1a 1b 1f 1g 1c 1e 1d dB SIGNAL SELECT MIDNIGHT LOUDNESS DIRECT MONITOR TUNED MONO ANALOG DIGITAL SP B A DIGITAL DNR DTS DIGITAL PRO LOGIC SB DSP RF ATT ATT EON RDS STEREO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 VSX-D810S 1 N∫m-Û˘,?∫ # $ % ^ & * ( ) ! @ 1 2 3 4 5 7 8 6 9 ~ = 0 - 8.1 PANEL FACILITIES 8. PANEL FACILITIES AND SPECIFICATIONS Front Panel 1 STANDBY indicator Lights when the receiver is in standby mode (note that the receiver consumes a small amount of power (1W) in standby mode). 2 — OFF/ _ ON (Main power) button If the button is OFF (—), the power of the receiver is shut off and the STANDBY/ON button on the receiver or the RECEIVER button on the remote control do not function. Pressing the button again will turn the receiver ON (_) and the receiver enters the standby mode. In the standby mode, you can turn on the receiver using STANDBY/ON button on the receiver or the RECEIVER button on the remote control. STANDBY/ON button Switches the receiver between on and standby (note that the receiver consumes a small amount of power (1W) in standby mode). 3 STATION (+/–) buttons Selects station memories when using the tuner. 4 TUNING (+/–) buttons Selects the frequency when using the tuner. 5 DIRECT button Use to switch DIRECT playback on or off. This mode bypasses the tone controls, channel levels, 2/DTS and DSP modes for the most accurate reproduction of a program source. 6 MONITOR button Press to switch tape monitoring on/off. 7 DIGITAL NR button Switches the DIGITAL NR on or off. To reduce extraneous noise switch on DIGITAL NR. 8 DSP MODE button Use to switch between the various DSP modes available (HALL1, HALL 2, JAZZ, DANCE, THEATER1, THEATER 2, 5/ 6CH STEREO) and DSP off. Use this button to create different surround sound effects from any stereo source. 9 Remote sensor Receives the signals from the remote control. 0 SIGNAL SELECT button Use to select an analog or digital or AUTO signal. - 2/DTS button Use to switch between the various 2/DTS surround modes. = TONE button This button allows you to activate the BASS & TREBLE controls. To adjust the BASS and/or TREBLE use the MULTI JOG dial. Tone can only be used in 2 channel stereo sound mode. The tone controls have no effect on the B speaker system. ~ MULTI JOG dial You can use this dial for two purposes. Firstly, in normal mode turn it to select a source component. Secondly, use it to adjust the BASS and/or TREBLE levels when the TONE button has been activated (as explained above). ! MASTER VOLUME Use to set the overall listening volume. @ VIDEO INPUT jacks Connect a video camera, video game system, etc. to the VIDEO INPUT jacks. # MIDNIGHT button Use when listening to movie soundtracks at low volume. This feature will enable you to hear quiet sounds and not get jolted by loud or sudden sound effects. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 VSX-D810S Rear Panel L R VIDEO VIDEO TO MONTOR TV TO MONTOR TV OUT VCR / DVR DIGITAL IN ¥ ø π CONTROL IN IN IN IN IN AUX CD PCM/2� /DTS COAX OPT OPT OPT (CD-R) (CD) (TV) (DVD) O P T IN IN IN OUT OUT CD - R / TAPE / MD SUB WOOFER DIGITAL OUT IN TV / SAT TV / SAT DVD / LD DVD / LD FRONT O U T R E C P L A Y VCR / DVR S IN S IN S IN S OUT S OUT OUT FM UNBAL 75Ω AM LOOP ANTENNA DVD 7.1 CH INPUT PREOUT L R R R L L L R L R BACK COMPONENT VIDEO FRONT CENTER SURROUND SURROUND BACK TO MONITOR TV OUT CENTER SUB WOOFER SURROUND SURROUND BACK Y Y L R L R PB PB PR PR A (DVD/LD) IN 1 (TV/SAT) IN 2 B DVD 7.1 CH INPUT PREOUT FRONT FRONT SURROUND CENTER S P E A K E R S $ SPEAKERS button Use to switch the speaker system A = B = A+B = off. In B and A+B speaker modes you hear only 2 channel stereo sound. % MPX button If there is interference or noise during a FM radio broadcast, or the radio reception is weak, press the MPX button to switch the receiver into mono reception mode. This should improve the sound quality and allow you to enjoy the broadcast. ^ BAND button Press to select the AM or FM band. & MEMORY button Press to memorize a station for recall using the STATION (+/–) buttons. * CLASS button Switches between the three banks (classes) of station memories. ( RF ATT button Use to lower the input level of a radio signal that is too powerful or contains interference thus causing the receiver to distort CHARACTER/SEARCH button Use to search for different program types in RDS mode. It is also used to input station names. EON MODE button Use to search for different programs that are transmitting traffic or news information (this search method is called EON). ) PHONES jack Use to connect headphones but this does not switch the speakers off. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 VSX-D810S Display 1 SIGNAL SELECT indicators Light to indicate the type of input signal assigned for the current component (see “Front Panel“, 0 SIGNAL SELECT). When the AUTO setting is being used on the VSX-D810S receiver a set of brackets will appear around the SIGNAL SELECT indicators. 2DIGITAL : Lights when a Dolby Digital signal is played. DTS: Lights when a source with DTS audio signals is played. ANALOG : Lights when an analog signal is selected. DIGITAL : Lights when a digital audio signal is selected. [ ]: Lights when the AUTO setting is selected. 2 DTS indicator Lights when DTS mode is being used. 3 2 DIGITAL indicator When the 2 (DOLBY)/DTS mode of the receiver is on, this lights to indicate playback of a Dolby Digital signal. However, 2 PRO LOGIC lights during two channel playback of Dolby Digital. 4 Surround Back indicator Lights when most Surround Back channel flag encoded (6.1channel) software is playing. (With some Surround Back channel software the surround back indicator won’t light because there is no flag encoded in the software.) If you play DTS 5.1/6.1 channel software surround sound will be heard whether it is encoded with a surround back channel flag or not. 5 OVERLOAD indicator This lights when an analog signal is too high (the SIGNAL SELECT would have to be on ANALOG). It indicates the sound is distorting and the input signal should be reduced. 6 ATT indicator Lights when ATT is used to attenuate (reduce) the level of the input signal (can only be used in ANALOG mode). 7 DIRECT indicator Lights when source DIRECT is in use. This function bypasses all tone, balance, DSP and Dolby Surround effects. 8 SPEAKER indicator Shows if the speaker system is on or not. SP 3A means that speakers are switched on. SP 3 means that speakers are switched off. 9 MONITOR indicator Lights when MONITOR is selected. Used to hear a recording as it's being made. 0 RF ATT indicator Lights when the RF ATT is on. - EON indicator The box around EON indicator lights to inform you that the currently tuned station carries the EON data service. When the EON mode is set, the EON indicator light’s, but during actual reception of an EON broadcast the EON indicator will flash. An empty box in the EON indicator spot means it is possible to pick up an EON broadcast but the receiver has not been set to do so (this will only appear when RDS is switched on). = RDS indicator Lights when an RDS broadcast is received. ~ CHARACTER display Shows the radio frequency or function (DVD/LD, CD, etc.) receiver is using . ! 2 PRO LOGIC indicator When the 2/DTS mode of the receiver is on, this lights to indicate playback of a two channel source. @ DNR indicator Lights when the digital noise reduction is on. Use to reduce extraneous noise. It can be used with any sound mode. # DSP indicator Lights when any “Advanced Theater” or “DSP” mode is selected. $ MIDNIGHT indicator Lights when MIDNIGHT listening mode is in use. % LOUDNESS indicator Lights when the LOUDNESS is on. Use to boost the bass and treble at low volume. ^ TUNER indicators MONO: Lights when the mono mode is set using the MPX button. TUNED: Lights when a broadcast is being received. STEREO: Lights when a stereo FM broadcast is being received in auto stereo mode. & MASTER VOLUME LEVEL Shows the overall volume level. Volume level is maintained even when the power is off. ---dB indicates the minimum level, and 0dB indicates the maximum level. dB SIGNAL SELECT MIDNIGHT LOUDNESS DIRECT MONITOR TUNED MONO ANALOG DIGITAL SP A DIGITAL DTS DIGITAL PRO LOGIC SB ATT DSP DNR RF ATT EON STEREO RDS 1 2 3 4 5 6 7 8 9 0 - = ~ & ! # $ @ % ^ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 VSX-D810S TV TVFUNC MENU VOLUME MASTER VOLUME TV CONTROL AV PRE-PROGRAMMED AND LEARNING REMOTE CONTROL UNIT CHANNEL ENTER DISC MPX DISPLAY RF ATT D.ACCESS ST TUNE TUNE ST CLASS ATT BAND /DTS DSP TEST TONE CH SELECT CH LEVEL FUNCTION SIGNAL SELECT 1 ¡ 4 ¢ 7 8 3 ¶ EFFECT DVD VCR CD-R TV RCV TUN TVC CD MIDNIGHT LOUDNESS MUTING SETUP FL DIMMER MULTI CONTROL 5.1 / 7.1 RECEIVER SOURCE 1 2 3 4 5 6 7 8 10 9 0 2 3 @ ! 0 2 1 4 5 9 - ~ = # 7 6 8 Remote Control 1 SOURCE button Use to turn on/off other components connected to the receiver. 2 MULTI CONTROL buttons Use to put the receiver/remote control in the stated mode. For other equipment controls, see “Controlling the Rest of Your System”. 3 RCV button Use this button when setting up the surround sound for the receiver. Also press it if you want to use special features attached to some of the number buttons, for example MIDNIGHT, 5.1/7.1, EFFECT +/− or ATT. 4 NUMBER/MODE buttons Use the number buttons to select the radio frequency in tuner DIRECT ACCESS mode or the tracks in CD, DVD mode etc. Also, buttons marked with the following names have special functions. If you try to use one of these functions but the display flashes it means that function cannot be used in the current mode (for example DSP modes cannot be used when 5.1 Ch (VSX-D710S)/ 7.1 Ch (VSX- D810S) setting is on). MIDNIGHT button Use to put receiver in MIDNIGHT mode. To use first press the RCV button then operate this button. 5.1/7.1 button (VSX-D810S is 7.1 Ch) When the DVD/LD or DVD 5.1/7.1 Ch function is selected each press switches the DVD/LD input between DVD/LD and DVD 5.1/7.1 Ch. To use first press the RCV button then operate this button. ATT button When the overload indicator lights use this button to attenuate (lower) the level of an analog input signal and prevent distortion. To use first press the RCV button then operate this button. EFFECT +/– buttons Use to add or subtract the amount of effect in different DSP sound modes (except 6 Ch Stereo) or advanced listening modes. To use first press the RCV button then operate these buttons. 5 THE FOLLOWING BUTTONS ARE BOTH CONTROLS FOR OTHER COMPONENTS (LIKE A DVD PLAYER) AND DEDICATED TUNER CONTROLS. THE TUNER CONTROLS ARE EXPLAINED HERE. YOU CAN USE THEM AFTER YOU HAVE PUSHED THE TUNER MULTI CONTROL BUTTON. BAND button Use to switch between the AM and FM band when in TUNER mode. CLASS button Use to switch between the three banks (classes) of station memories. MPX button Use to switch between auto stereo and mono reception of FM broadcasts. If the signal is weak then switching to MONO will improve the sound quality. D. ACCESS button Use to directly access a radio station by pressing the number of the station you want. DISPLAY button Use to display the RDS information. RF ATT button Use to lower the input level of a radio signal that is too powerful or contain interference thus causing the receiver to distort. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 VSX-D810S 8 LOUDNESS button Use to switch on the loudness. This feature is useful for getting good bass and treble sounds listening at low volumes. FL DIMMER button Use this button to make the fluorescent display (FL) dimmer or brighter. There are three brightness settings as well as an off setting. SETUP button Use this button when setting up the remote control to control other components. MUTING button Use to mute the sound or restore the sound if it has been muted. 9 THE FOLLOWING BUTTONS ARE DEDICATED TV CONTROL BUTTONS. THEY ARE ONLY USED FOR CONTROLLING YOUR TV. TV FUNC button Use to select the TV function. TV button Use to turn on/off the power of the TV. TV VOLUME +/– buttons Use to adjust the volume on your TV. 0 MENU button Use to access different menus associated with your DVD player. To use first press the DVD button then operate this button. 6 2 /DTS button Use to put the receiver in DOLBY DIGITAL, DOLBY SURROUND and DTS modes. To use first press the RCV button then operate this button. DSP button Use to put receiver in one of the DSP modes. To use first press the RCV button then operate this button. TEST TONE button Use to sound the TEST TONE when setting up the surround sound of the receiver (the 2 /DTS mode must be on). To use first press the RCV button then operate this button. SIGNAL SELECT Use to select the proper signal (analog, digital) for the source your are inputting. On the VSX-D810S receivers there is an AUTO setting. In this setting the receiver will automatically switch between the analog and digital signals according to what is being input. If both signals are input the AUTO setting will choose the digital one. This setting is convenient as the receiver will always choose the best or appropriate signal. To use first press the RCV button then operate this button. 7 CH SELECT button Use to select a speaker when setting up the surround sound of the receiver. CH LEVEL +/– Use to set up the levels of the surround sound of the receiver. FUNCTION button Use to select the playback or recording source. This button lets you cycle through the different functions of the receiver in the following order: CD, TUNER, AUX, CDR/ TAPE, VCR/DVR, DVD/LD, DVD 7.1 ch, VIDEO, and TV/ SAT. - MASTER VOLUME +/– buttons Use to set the overall listening volume. = CHANNEL +/– buttons Use to skip tracks backward or forward on CDs, DVDs, etc and change channels on the VCR, DVR, etc. ~ @ # % fi ( TUNE/ST +/–) & ENTER buttons Use these arrow buttons when setting up your surround sound system. These buttons are also used to control DVD menus/options and for deck 1 of a double cassette deck player. The TUNE/ST +/– buttons can be used to find radio frequencies and preset stations, respectively . ! DISC button Use to select a disc and a multi-CD player. To use first press the CD button then operate this button. @ RECEIVER (POWER) button This switches between STANDBY mode and power ON for this receiver. # LED DISPLAY This display flashes when a command is sent from the remote control to the receiver. It also flashes at other times, for example when teaching the receiver preset codes, with specific meanings. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 VSX-D810S 8.2 SPECIFICATIONS Accessories Remote control unit (XXD3029) AM loop antenna (ATB7009) FM wire antenna (ADH7005) AA size IEC R6P Dry cell batteries (x2) Amplifier Section Continuous Power Output (STEREO MODE) FRONT .............. 100 W + 100 W (DIN 1 kHz, THD 1 %, 8 Ω) Continuous Power Output (SURROUND MODE) FRONT ............................. 100 W/ch (1 kHz, THD 1 %, 8 Ω) CENTER ............................... 100 W (1 kHz, THD 1 %, 8 Ω) SURROUND .................... 100 W/ch (1 kHz, THD 1 %, 8 Ω) SURROUND BACK .......... 100 W/ch (1 kHz, THD 1 %, 8 Ω) • Above specifications are applicable when the power supply is 230V. Input (Sensitivity/Impedance) CD, AUX, VCR/DVR, CD-R/TAPE/MD, DVD/LD, TV/SAT, VIDEO .......................................... 200 mV/47 kΩ Frequency Response CD, AUX, VCR/DVR, CD-R/TAPE/MD, DVD/LD, TV/SAT, VIDEO .......................... 5 Hz to 100,000 Hz dB Output (Level/Impedance) VCR/DVR OUT, CD-R/TAPE/MD REC ..... 200 mV/2.2 kΩ Tone Control BASS ....................................................... ± 6 dB (100 Hz) TREBLE ................................................... ± 6 dB (10 kHz) LOUDNESS ................................ +9 dB (100 Hz/10 kHz) Signal-to-Noise Ratio [DIN (Continuous rated power output/50 mW)] CD, AUX, VCR/DVR, CD-R/TAPE/MD, DVD/LD, TV/SAT, VIDEO ..............................................88 dB/64 dB VIDEO Section Input (Sensitivity/Impedance) VCR/DVR, DVD/LD, TV/SAT .......................... 1 Vp-p/75 Ω Output (Level/Impedance) VCR/DVR, TO MONITOR TV OUT ................ 1 Vp-p/75 Ω Frequency Response VCR/DVR, DVD/LD, TV/SAT → MONITOR .......................................................... 5 Hz to 7 MHz dB Signal-to-Noise Ratio ............................................... 55 dB COMPONENT VIDEO Section Input (Sensitivity/Impedance) DVD/LD, TV/SAT ............................................ 1 Vp-p/75 Ω Output (Level/Impedance) TO MONITOR TV OUT .................................. 1 Vp-p/75 Ω +0 –3 +0 –3 Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic" and the double-D symbol are trade- marks of Dolby Laboratories. Confidential Unpublished Works. © 1992-1997 Dolby Laboratories, Inc. All rights reserved. "DTS" ,"ES" and "DTS Digital Surround" are trademarks of Digital Theater Systems, Inc. Manufactured under license from Digital Theater Systems, Inc. FM Tuner Section Frequency Range ...............................87.5 MHz to 108 MHz Usable Sensitivity ........... Mono:13.2 dBf, IHF (1.3 µV/ 75 Ω) 50 dB Quieting Sensitivity ............................. Mono: 20.2 dB Stereo: 38.6 dBf Signal-to-Noise Ratio ..................... Mono: 73 dB (at 85 dBf) Stereo: 70 dB (at 85 dBf) Signal-to-Noise Ratio (DIN).............................. Mono: 62 dB Stereo: 58 dB Distortion ............................................ Stereo: 0.5 % (1 kHz) Alternate Channel Selectivity ..................... 60 dB (400 kHz) Stereo Separation .......................................... 40 dB (1 kHz) Frequency Response ...................... 30 Hz to 15 kHz (±1dB) Antenna Input (DIN) .................................. 75 Ω unbalanced AM Tuner Section Frequency Range ............................... 531 kHz to 1,602 kHz Sensitivity (IHF, Loop antenna) ............................. 350 µV/m Selectivity .................................................................... 30 dB Signal-to-Noise Ratio .................................................. 50 dB Antenna .......................................................... Loop antenna Miscellaneous Power Requirements UK model .............................................. AC 230 V, 50/60 Hz European model .......................... AC 220 – 230 V, 50/60 Hz Power Consumption VSX-D810S ............................................................ 280 W In Standby ...................................................................... 1 W Dimensions ....................... 420 (W) x 158 (H) x 401 (D) mm Weight (without package) VSX-D810S ...........................................................10.5 kg Furnished Parts AM loop antenna ................................................................ 1 FM wire antenna ................................................................ 1 Dry cell batteries (AA size IEC R6P).................................. 2 Remote control ................................................................... 1 Operating instructions ........................................................ 1 NOTE: • Specifications and the design are subject to possible modifications without notice, due to improvements. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
