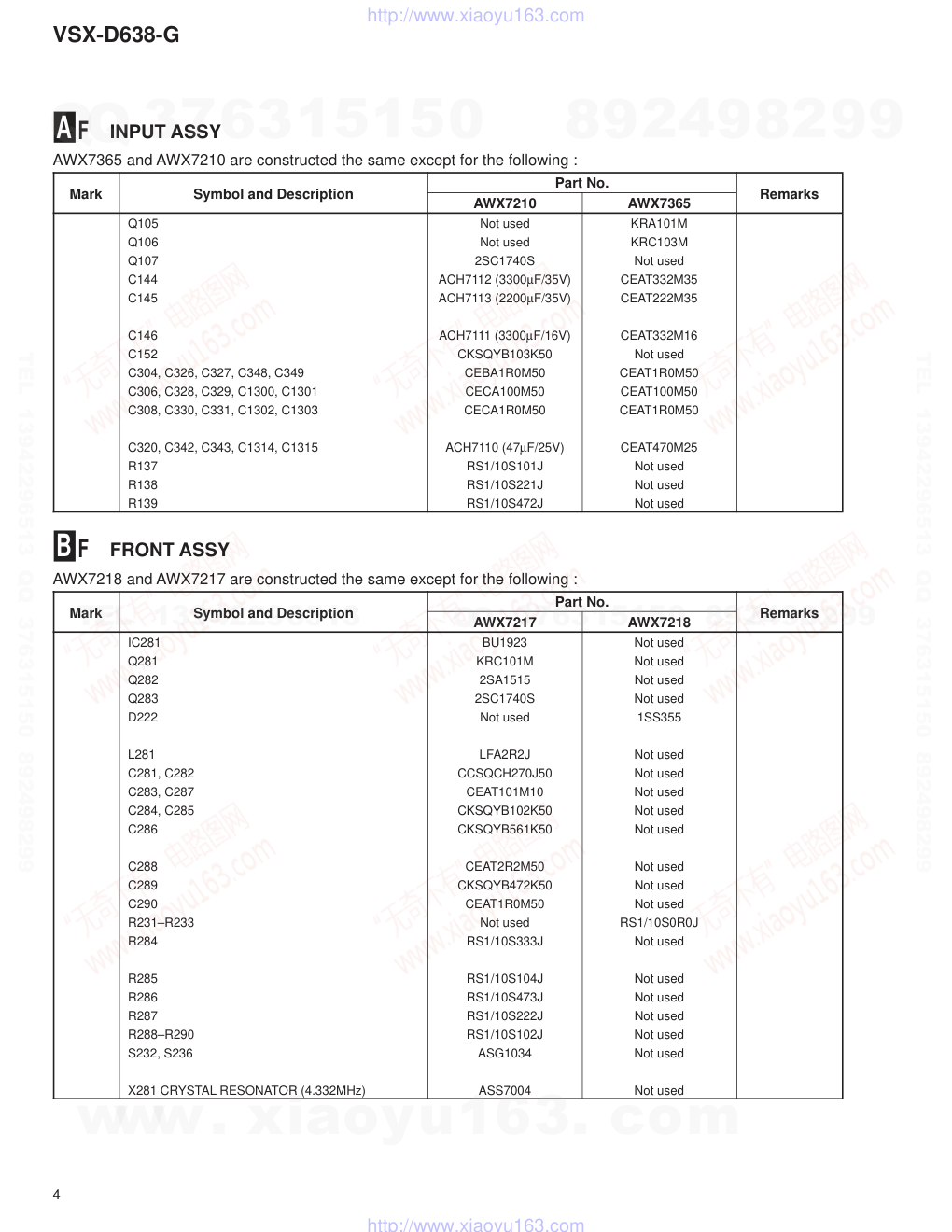

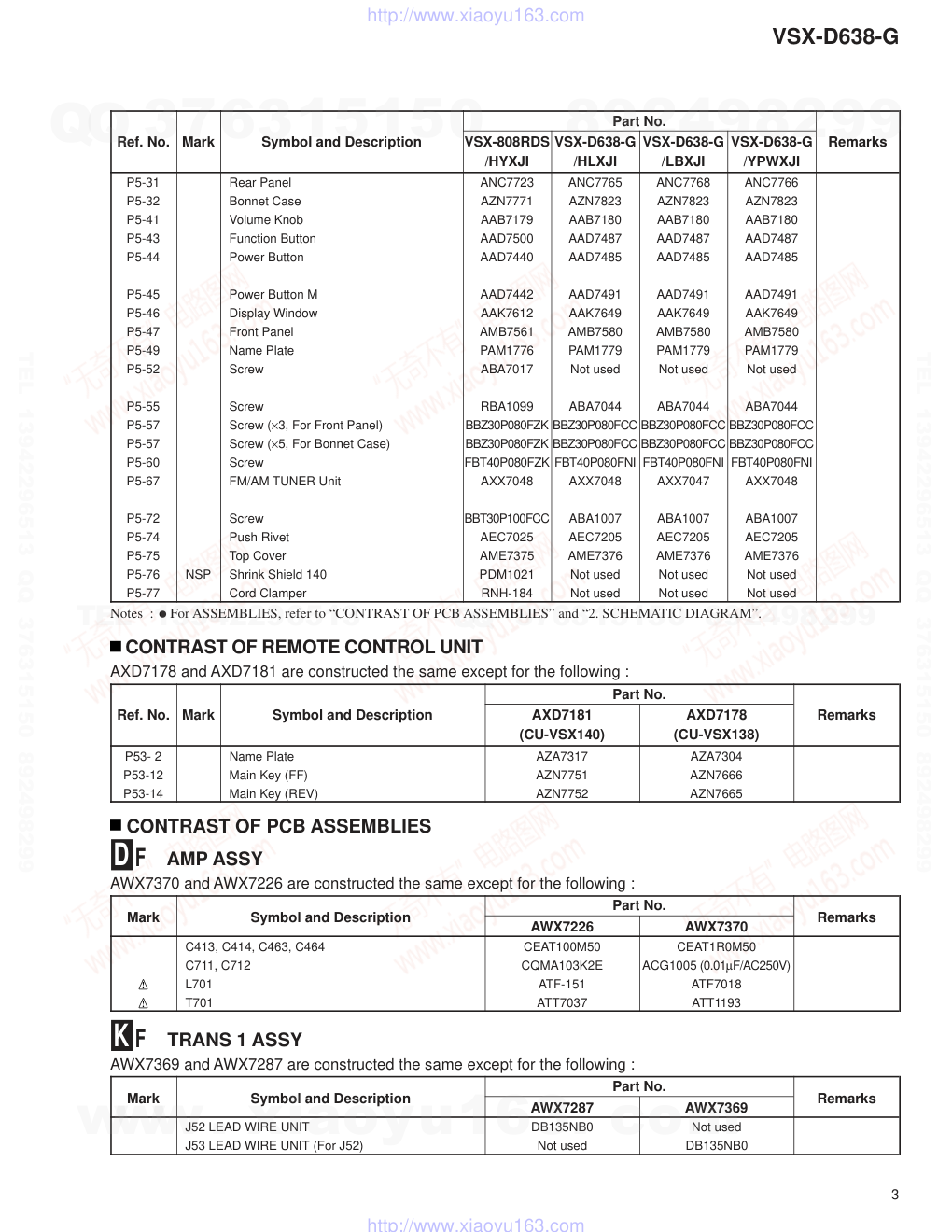

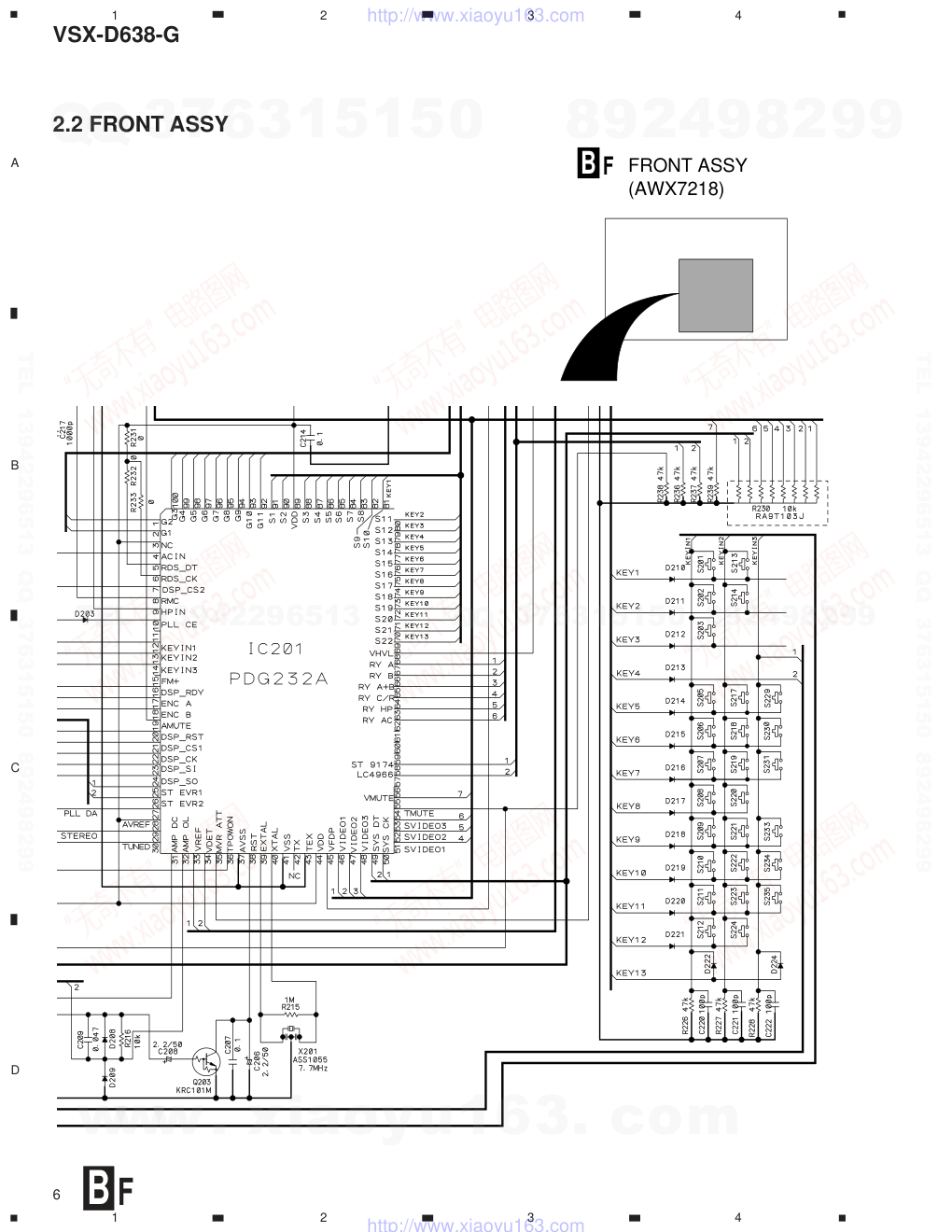

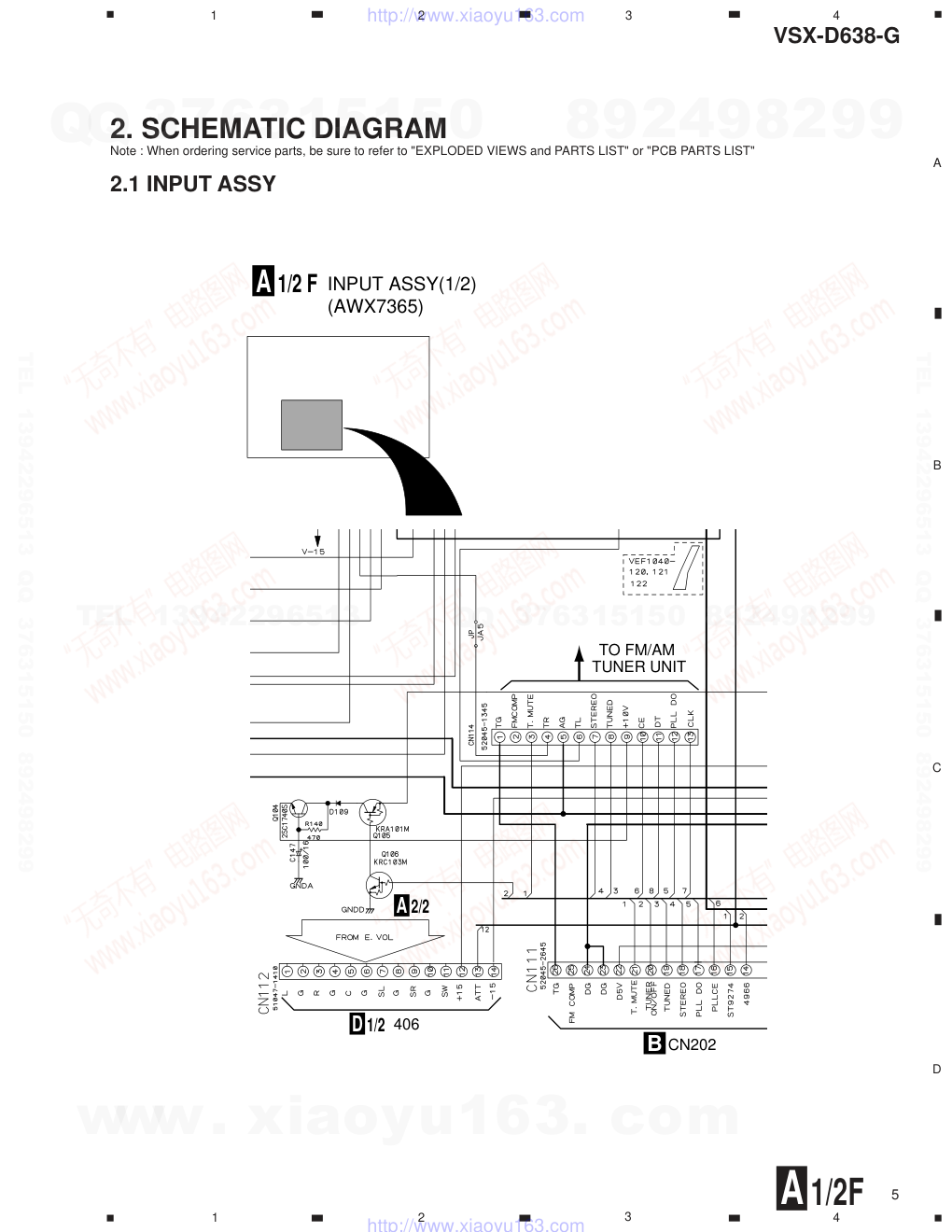

ORDER NO. PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER ELECTRONIC CORPORATION 1999 RRV2154 T – ZZK JUNE 1999 Printed in Japan CONTENTS 1. CONTRAST OF MISCELLANEOUS PARTS ........ 2 2. SCHEMATIC DIAGRAM ....................................... 5 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). AUDIO/VIDEO MULTI-CHANNEL RECEIVER VSX-D638-G Type Model Power Requirement The voltage can be converted by VSX-D638-G the following method. HLXJI ‡ AC220-230V AC240V, ∗ LBXJI ‡ AC110V ––––––– YPWXJI ‡ AC240V ––––––– ∗ : Alter the wiring of the Power-supply block at the primary winding of Power-transformer referring to the "Line Voltage Selection" described in Service Manual. Model Order No. Remarks VSX-808RDS/HYXJI RRV2115 ¶ This service manual should be used together with the following manual(s): www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D638-G 2 1. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 560 47k 0.5 1 RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 101 47 x 103 R50 1R0 561 473 5.62k RN1/4PC F 562 x 101 5621 CONTRAST TABLE Part No. Ref. No. Mark Symbol and Description VSX-808RDS VSX-D638-G VSX-D638-G VSX-D638-G Remarks /HYXJI /HLXJI /LBXJI /YPWXJI ASSEMBLIES INPUT ASSY AWK7474 AWK7475 AWK7475 AWK7475 P5- 1 INPUT ASSY AWX7210 AWX7365 AWX7365 AWX7365 P5- 2 FRONT ASSY AWX7217 AWX7218 AWX7218 AWX7218 AMP ASSY AWK7482 AWK7482 AWK7507 AWK7506 P5- 5 AMP ASSY AWX7226 AWX7226 AWX7370 AWX7226 P5- 7 TRANS 1 ASSY AWX7287 AWX7287 AWX7287 AWX7369 PACKING SECTION P3- 3 Operating Instructions (English) ARB7158 ARB7160 ARB7160 ARB7160 P3- 5 FM Antenna ADH7005 ADH7005 ADH7004 ADH7005 P3- 7 NSP Warranty Card ARY7022 Not used Not used ARY7027 P3- 8 Remote Control Unit (CU-VSX140) AXD7181 Not used Not used Not used P3- 8 Remote Control Unit (CU-VSX138) Not used AXD7178 AXD7178 AXD7178 P3-13 Packing Case AHD7695 AHD7696 AHD7697 AHD7697 P3-14 Operating Instructions (German) ARC7203 Not used Not used Not used P3-15 Operating Instructions (French/Italian) ARC7204 Not used Not used Not used P3-16 Operating Instructions (Swedish/Dutch) ARC7205 Not used Not used Not used P3-17 Operating Instructions ARC7206 Not used Not used Not used (Portuguese/Spanish) Operating Instructions (Chinese) Not used ARC7256 ARC7256 Not used EXTERIOR SECTION P5-18 Power Transformer (T1) ATS7242 Not used Not used ATS7242 (AC220-230V/240V) P5-18 Power Transformer (T1) (AC220-230V) Not used ATS7243 Not used Not used P5-18 Power Transformer (T1) (AC110V) Not used Not used ATS7244 Not used P5-19 Fuse (FU1 : T2.5A) REK-104 REK-104 Not used REK-104 P5-19 Fuse (FU1 : T5A) Not used Not used AEK1061 Not used P5-26 AC Power Cord VDG1061 VDG1061 VDG1058 VDG1065 P5-29 Tuner Holder AAD7490 AAD7492 AAD7492 AAD7492 VSX-D638-G/HLXJI, LBXJI, YPWXJI and VSX-808RDS/HYXJI are constructed the same except for the following : www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D638-G 3 Notes : ÷ For ASSEMBLIES, refer to “CONTRAST OF PCB ASSEMBLIES” and “2. SCHEMATIC DIAGRAM”. Part No. Ref. No. Mark Symbol and Description VSX-808RDS VSX-D638-G VSX-D638-G VSX-D638-G Remarks /HYXJI /HLXJI /LBXJI /YPWXJI P5-31 Rear Panel ANC7723 ANC7765 ANC7768 ANC7766 P5-32 Bonnet Case AZN7771 AZN7823 AZN7823 AZN7823 P5-41 Volume Knob AAB7179 AAB7180 AAB7180 AAB7180 P5-43 Function Button AAD7500 AAD7487 AAD7487 AAD7487 P5-44 Power Button AAD7440 AAD7485 AAD7485 AAD7485 P5-45 Power Button M AAD7442 AAD7491 AAD7491 AAD7491 P5-46 Display Window AAK7612 AAK7649 AAK7649 AAK7649 P5-47 Front Panel AMB7561 AMB7580 AMB7580 AMB7580 P5-49 Name Plate PAM1776 PAM1779 PAM1779 PAM1779 P5-52 Screw ABA7017 Not used Not used Not used P5-55 Screw RBA1099 ABA7044 ABA7044 ABA7044 P5-57 Screw (×3, For Front Panel) BBZ30P080FZK BBZ30P080FCC BBZ30P080FCC BBZ30P080FCC P5-57 Screw (×5, For Bonnet Case) BBZ30P080FZK BBZ30P080FCC BBZ30P080FCC BBZ30P080FCC P5-60 Screw FBT40P080FZK FBT40P080FNI FBT40P080FNI FBT40P080FNI P5-67 FM/AM TUNER Unit AXX7048 AXX7048 AXX7047 AXX7048 P5-72 Screw BBT30P100FCC ABA1007 ABA1007 ABA1007 P5-74 Push Rivet AEC7025 AEC7205 AEC7205 AEC7205 P5-75 Top Cover AME7375 AME7376 AME7376 AME7376 P5-76 NSP Shrink Shield 140 PDM1021 Not used Not used Not used P5-77 Cord Clamper RNH-184 Not used Not used Not used Part No. Ref. No. Mark Symbol and Description AXD7181 AXD7178 Remarks (CU-VSX140) (CU-VSX138) P53- 2 Name Plate AZA7317 AZA7304 P53-12 Main Key (FF) AZN7751 AZN7666 P53-14 Main Key (REV) AZN7752 AZN7665 CONTRAST OF REMOTE CONTROL UNIT AXD7178 and AXD7181 are constructed the same except for the following : AWX7370 and AWX7226 are constructed the same except for the following : AMP ASSY F D Mark Symbol and Description Part No. Remarks AWX7226 AWX7370 C413, C414, C463, C464 CEAT100M50 CEAT1R0M50 C711, C712 CQMA103K2E ACG1005 (0.01µF/AC250V) L701 ATF-151 ATF7018 T701 ATT7037 ATT1193 CONTRAST OF PCB ASSEMBLIES AWX7369 and AWX7287 are constructed the same except for the following : TRANS 1 ASSY F K Mark Symbol and Description Part No. Remarks AWX7287 AWX7369 J52 LEAD WIRE UNIT DB135NB0 Not used J53 LEAD WIRE UNIT (For J52) Not used DB135NB0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D638-G 4 AWX7218 and AWX7217 are constructed the same except for the following : FRONT ASSY F B Mark Symbol and Description Part No. Remarks AWX7217 AWX7218 IC281 BU1923 Not used Q281 KRC101M Not used Q282 2SA1515 Not used Q283 2SC1740S Not used D222 Not used 1SS355 L281 LFA2R2J Not used C281, C282 CCSQCH270J50 Not used C283, C287 CEAT101M10 Not used C284, C285 CKSQYB102K50 Not used C286 CKSQYB561K50 Not used C288 CEAT2R2M50 Not used C289 CKSQYB472K50 Not used C290 CEAT1R0M50 Not used R231–R233 Not used RS1/10S0R0J R284 RS1/10S333J Not used R285 RS1/10S104J Not used R286 RS1/10S473J Not used R287 RS1/10S222J Not used R288–R290 RS1/10S102J Not used S232, S236 ASG1034 Not used X281 CRYSTAL RESONATOR (4.332MHz) ASS7004 Not used AWX7365 and AWX7210 are constructed the same except for the following : INPUT ASSY F A Mark Symbol and Description Part No. Remarks AWX7210 AWX7365 Q105 Not used KRA101M Q106 Not used KRC103M Q107 2SC1740S Not used C144 ACH7112 (3300µF/35V) CEAT332M35 C145 ACH7113 (2200µF/35V) CEAT222M35 C146 ACH7111 (3300µF/16V) CEAT332M16 C152 CKSQYB103K50 Not used C304, C326, C327, C348, C349 CEBA1R0M50 CEAT1R0M50 C306, C328, C329, C1300, C1301 CECA100M50 CEAT100M50 C308, C330, C331, C1302, C1303 CECA1R0M50 CEAT1R0M50 C320, C342, C343, C1314, C1315 ACH7110 (47µF/25V) CEAT470M25 R137 RS1/10S101J Not used R138 RS1/10S221J Not used R139 RS1/10S472J Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D638-G 5 A B C D 1 2 3 4 1 2 3 4 2. SCHEMATIC DIAGRAM Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST" 2.1 INPUT ASSY CN202 B 406 1/2 D 2/2 A TO FM/AM TUNER UNIT 1/2 F INPUT ASSY(1/2) (AWX7365) A 1/2F A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D638-G 6 A B C D 1 2 3 4 1 2 3 4 F B 2.2 FRONT ASSY F FRONT ASSY (AWX7218) B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
