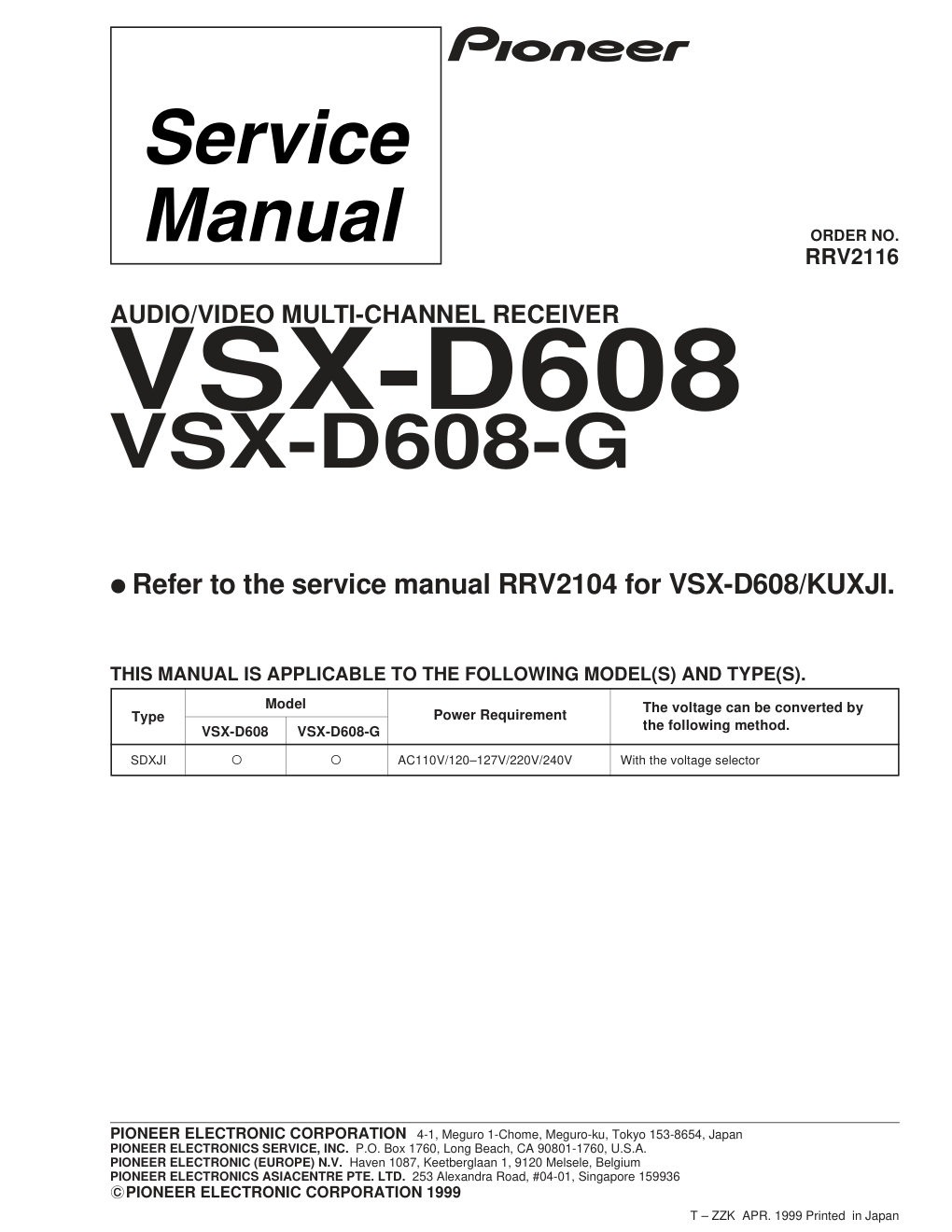

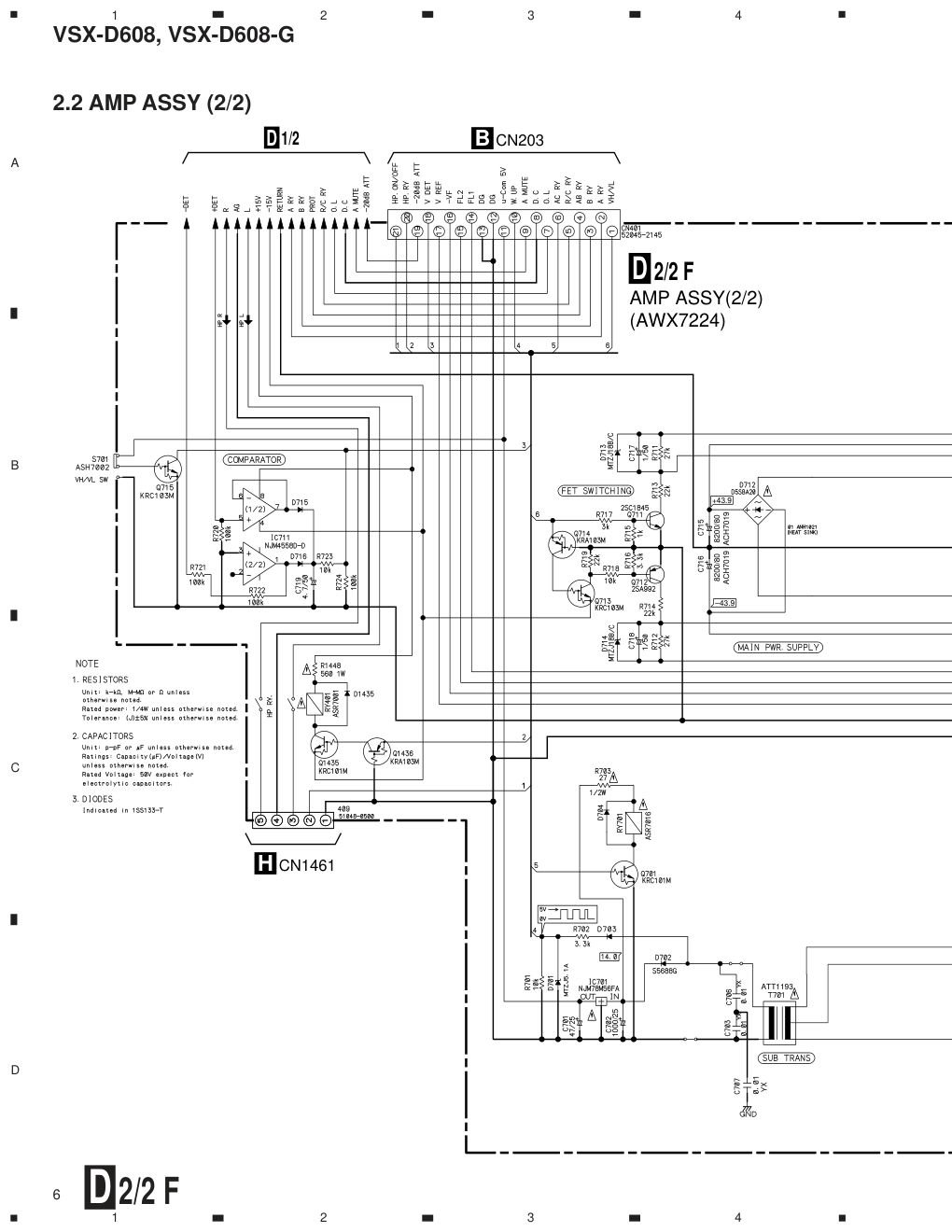

ORDER NO. PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER ELECTRONIC CORPORATION 1999 RRV2116 T – ZZK APR. 1999 Printed in Japan VSX-D608 AUDIO/VIDEO MULTI-CHANNEL RECEIVER ÷ Refer to the service manual RRV2104 for VSX-D608/KUXJI. THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model VSX-D608 VSX-D608-G Type The voltage can be converted by the following method. Power Requirement SDXJI ‡ ‡ AC110V/120–127V/220V/240V With the voltage selector VSX-D608-G VSX-D608, VSX-D608-G 2 Part No. Ref. No. Mark Symbol and Description VSX-D608 VSX-D608 VSX-D608-G Remarks /KUXJI /SDXJI /SDXJI PCB ASSEMBLIES NSP INPUT ASSY AWK7472 AWK7473 AWK7473 P5 - 2 FRONT ASSY AWX7215 AWX7216 AWX7216 NSP AMP ASSY AWK7480 AWK7481 AWK7481 P5 - 5 AMP ASSY AWX7223 AWX7224 AWX7224 P5 - 7 TRANS1 ASSY AWX7231 Not used Not used NSP EXCELLENT ASSY AWK7485 AWK7518 AWK7518 P5 - 16 FRONT LARGE ASSY AWX7288 AWX7379 AWX7379 PACKING P3 - 7 NSP Warranty Card ARY7023 Not used Not used P3 - 13 Packing Case AHD7692 AHD7693 AHD7694 Operating Instructions Not used ARC7243 ARC7243 No.1 (Spanish/Chinese) Caution 220V Label Not used ARR1003 ARR1003 No.2 EXTERIOR SECTION P5 - 18 Power Transfomer (T1) ATS7234 ATS7236 ATS7236 P5 - 19 Fuse (FU1 : 10A) REK1087 REK1132 REK1132 P5 - 20 Fuse (FU2 : 7A) VEK1027 Not used Not used P5 - 20 Fuse (FU2 : 4A) Not used REK1133 REK1133 P5 - 26 AC Power Cord ADG7024 VDG1058 VDG1058 P5 - 28 Cord Stopper CM-22C CM-22B CM-22B P5 - 29 Tuner Holder AAD7490 AAD7490 AAD7492 P5 - 31 Rear Panel ANC7724 ANC7721 ANC7764 P5 - 32 Bonnet Case AZN7762 AZN7762 AZN7756 P5 - 41 Volume Knob AAB7179 AAB7179 AAB7180 P5 - 43 Function Button AAD7500 AAD7500 AAD7487 P5 - 44 Power Button AAD7440 AAD7440 AAD7485 P5 - 46 Display Window AAK7606 AAK7606 AAK7648 P5 - 47 Front Panel AMB7552 AMB7552 AMB7578 P5 - 49 Name Plate PAM1776 PAM1776 PAM1779 P5 - 57 Screw (×3, For Front Panel) BBZ30P080FZK BBZ30P080FZK BBZ30P080FCC P5 - 57 Screw (×5, For Bonnet Case) BBZ30P080FZK BBZ30P080FZK BBZ30P080FCC P5 - 60 Screw (×2, For Bonnet Case) FBT40P080FZK FBT40P080FZK FBT40P080FNI P5 - 67 FM/AM TUNER Unit AXX7046 AXX7047 AXX7047 Fuse (FU3 : 4A) Not used REK1133 REK1133 No.3 Voltage Selector Not used AKX-507 AKX-507 No.4 Voltage Selector Not used AKX1004 AKX1004 No.5 1. CONTRAST OF MISCELLANEOUS PARTS 7 CONTRAST TABLE VSX-D608/SDXJI, VSX-D608-G/SDXJI and VSX-D608/KUXJI are constructed the same except for the following: NOTES : ÷ Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List. ÷ The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÷ Reference Nos. indicate the pages and Nos. in the service manual for the base model. ÷ When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J = 5%, and K = 10%). 560 Ω = 56 × 10 1 = 561 ................................................... RD1/4PU 5 6 1 J 47k Ω = 47 × 10 3 = 473 .................................................. RD1/4PU 4 7 3 J 0.5 Ω = R50 ...................................................................... RN2H Â 5 0 K 1 Ω = 1R0 ......................................................................... RS1P 1 Â 0 K Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω = 562 × 10 1 = 5621 ........................................... RN1/4PC 5 6 2 1 F ¶ The numbers in the remarks column correspond to the numbers on the “ EXPLODED VIEWS ”. ¶ For PCB ASSEMBLIES, Refer to “ CONTRAST OF PCB ASSEMBLIES ” and “ 2. SCHEMATIC DIAGRAM ”. VSX-D608, VSX-D608-G 3 7 EXPLODED VIEWS ¶ PACKING ¶ EXTERIOR SECTION Polyethyene Bag Rear Pad (2/2) Rear Pad (1/2) Front Pad (1/2) Sub Instruction Manual Operating Instructions (English) No.1 Alkaline Dry Cell Battery (LR6, AA) Packing Sheet Front Pad (2/2) No.2 AC Power Cord Cord Stopper Rear Panel No.5 No.4 (FU1) (FU2) No.3 (FU3) AMP Assy Screw BBZ30P080FZK VSX-D608, VSX-D608-G 4 AWX7224 and AWX7223 are constructed the same except for the following: Mark Symbol and Description Remarks Part No. C715, C716 ACH7018 ACH7019 (8200µF/71V) (8200µF/80V) R704 RCN1080 Not used (2.2MΩ/ 1/2W) H705, H706 FUSE CLIP Not used AKR1004 KN704 EARTH METAL FITTING VNF1084 Not used T701 POWER TRANSFORMER ATT1223 ATT1193 AWX7223 AWX7224 AMP ASSY F D 7 CONTRAST OF PCB ASSEMBLIES AWX7216 and AWX7215 are constructed the same except for the following: Mark Symbol and Description Remarks Part No. D222 Not used 1SS355 AWX7215 AWX7216 FRONT ASSY F B AWX7379 and AWX7288 are constructed the same except for the following: Mark Symbol and Description Remarks Part No. CN627 AKE7036 AKE7026 AWX7288 AWX7379 FRONT LARGE ASSY F G VSX-D608, VSX-D608-G 5 A B C D 1 2 3 4 1 2 3 4 2. SCHEMATIC DIAGRAM Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". 2.1 FRONT ASSY F B FRONT ASSY S201 : SIGNAL SELECT S202 : MIDNIGHT S203 : DIGITAL NR S205 : – S206 : + S207 : – S208 : + S209 : SPEAKERS S210 : LOUDNESS S211 : DIRECT S212 : TAPE2 MONITOR S213 : / DTS S214 : DSP MODE S217 : DVD/LD S218 : TV/SAT S219 : CD S220 : FM/AM S221 : VCR 1 S222 : VCR 2 S223 : MD/TAPE1 S224 : VIDEO S229 : CLASS S230 : MEMORY S231 : MPX MODE S233 : – S234 : + S235 : TUNING SELECT S250 : MASTER VOLUME STATION/FREQUENCY BASS TREBLE FRONT ASSY (AWX7216) F B VSX-D608, VSX-D608-G 6 A B C D 1 2 3 4 1 2 3 4 2/2 F D 2.2 AMP ASSY (2/2) 8200/80 ACH7019 8200/80 ACH7019 2/2 F AMP ASSY(2/2) (AWX7224) D 1/2 D CN203 B CN1461 H ATT1193 1000/25 +43.9 –43.9 VSX-D608, VSX-D608-G 7 A B C D 5 6 7 8 5 6 7 8 2/2 F D AC OUTLET AC POWER CORD VDG1058 LIVE NEUTRAL REK1132 1451 M 351, 356 J 353 J 10A ATF7018 REK1133 4A +67.0 –67.0 AC110V/120–127V/220V/240V 50/60Hz L L2 N 115V 230V 4A MAIN TRANS. VOLTAGE SELECTOR AKX1004 VOLTAGE SELECTOR AKX-507
