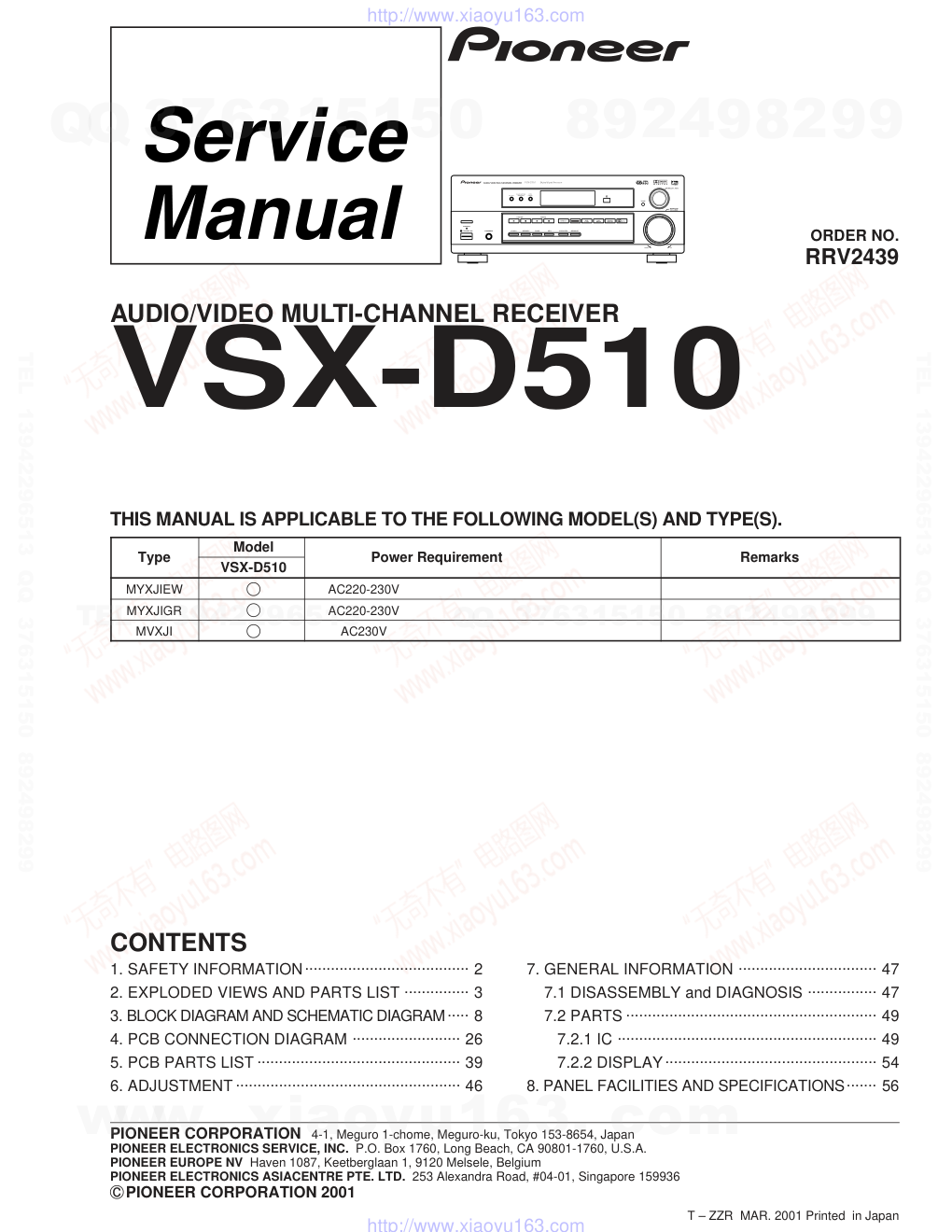

先锋PIONEER VSX-D510电路图
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
� �
� �
� �
� �
� �PIONEER CORPORATION 2001
c
RRV2439
1. SAFETY INFORMATION...................................... 2
2. EXPLODED VIEWS AND PARTS LIST ............... 3
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM..... 8
4. PCB CONNECTION DIAGRAM ......................... 26
5. PCB PARTS LIST ............................................... 39
6. ADJUSTMENT .................................................... 46
CONTENTS
7. GENERAL INFORMATION ................................ 47
7.1 DISASSEMBLY and DIAGNOSIS ................ 47
7.2 PARTS .......................................................... 49
7.2.1 IC ............................................................ 49
7.2.2 DISPLAY................................................. 54
8. PANEL FACILITIES AND SPECIFICATIONS....... 56
T – ZZR MAR. 2001 Printed in Japan
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
AUDIO/VIDEO MULTI-CHANNEL RECEIVER
VSX-D510
Type
Model
Power Requirement
Remarks
VSX-D510
MYXJIEW
AC220-230V
MYXJIGR
AC220-230V
MVXJI
AC230V
R
PHONES
STANDBY
STANDBY/ON
STATION
CLASS
MEMORY
BAND
MPX
SPEAKERS
MIDNIGHT
TUNING
DIRECT
DVD
5.1CH
DSP
MODE
/DTS
SIGNAL
SELECT
MONITOR
N∫m-Û.,?����
Digital Signal Processor
TONE
DOWN
UP
MULTI JOG
MASTER
VOLUME
1
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
2
VSX-D510

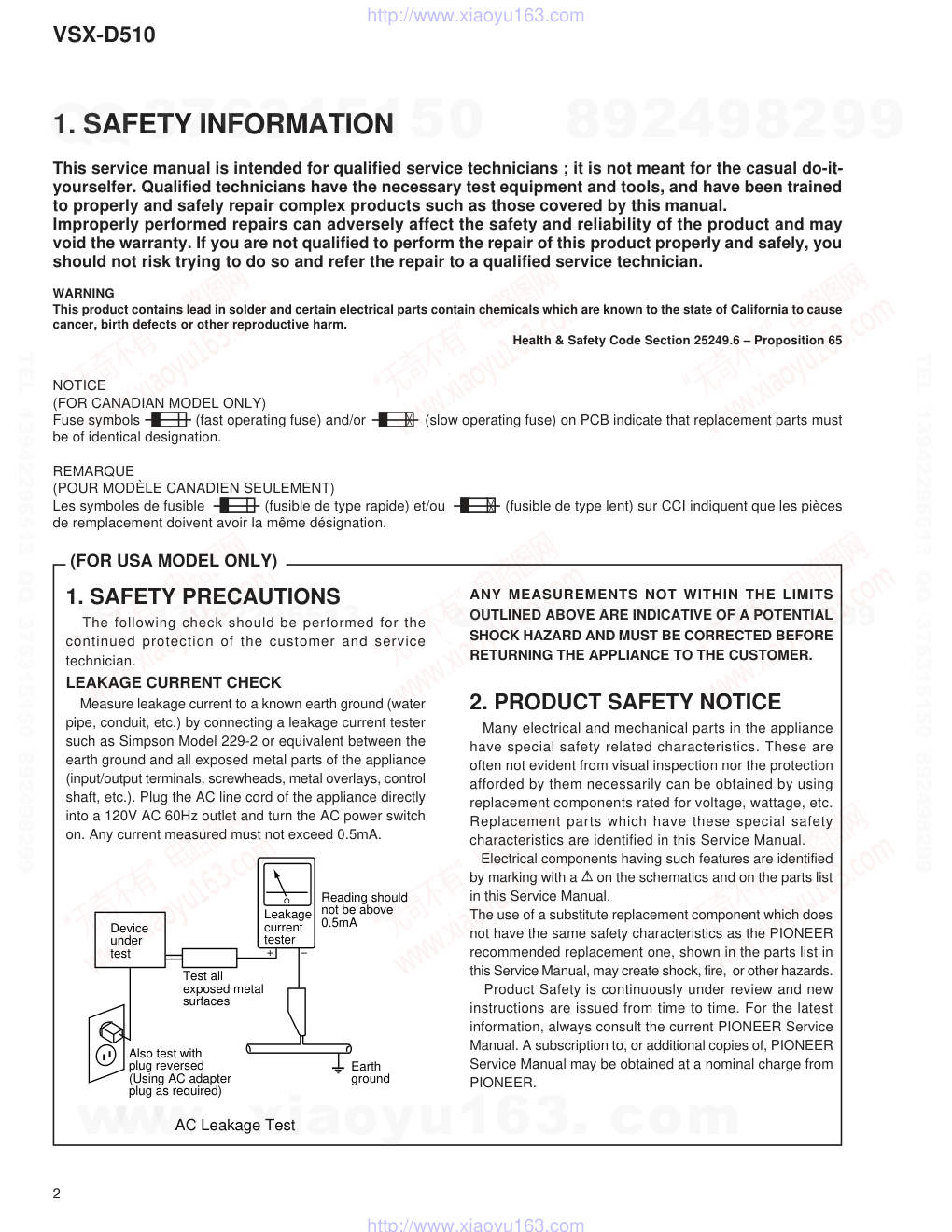

1. SAFETY INFORMATION
This service manual is intended for qualified service technicians ; it is not meant for the casual do-it-
yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained
to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause
cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 – Proposition 65
NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must
be of identical designation.
REMARQUE
(POUR MODÈLE CANADIEN SEULEMENT)
Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces
de remplacement doivent avoir la même désignation.
ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL
SHOCK HAZARD AND MUST BE CORRECTED BEFORE
RETURNING THE APPLIANCE TO THE CUSTOMER.
2. PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are
often not evident from visual inspection nor the protection
afforded by them necessarily can be obtained by using
replacement components rated for voltage, wattage, etc.
Replacement parts which have these special safety
characteristics are identified in this Service Manual.
Electrical components having such features are identified
by marking with a
on the schematics and on the parts list
in this Service Manual.
The use of a substitute replacement component which does
not have the same safety characteristics as the PIONEER
recommended replacement one, shown in the parts list in
this Service Manual, may create shock, fire, or other hazards.
Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current PIONEER Service
Manual. A subscription to, or additional copies of, PIONEER
Service Manual may be obtained at a nominal charge from
PIONEER.
1. SAFETY PRECAUTIONS
The following check should be performed for the
continued protection of the customer and service
technician.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground (water
pipe, conduit, etc.) by connecting a leakage current tester
such as Simpson Model 229-2 or equivalent between the
earth ground and all exposed metal parts of the appliance
(input/output terminals, screwheads, metal overlays, control
shaft, etc.). Plug the AC line cord of the appliance directly
into a 120V AC 60Hz outlet and turn the AC power switch
on. Any current measured must not exceed 0.5mA.
(FOR USA MODEL ONLY)
Leakage
current
tester
Reading should
not be above
0.5mA
Device
under
test
Test all
exposed metal
surfaces
Also test with
plug reversed
(Using AC adapter
plug as required)
Earth
ground
AC Leakage Test
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
3
VSX-D510

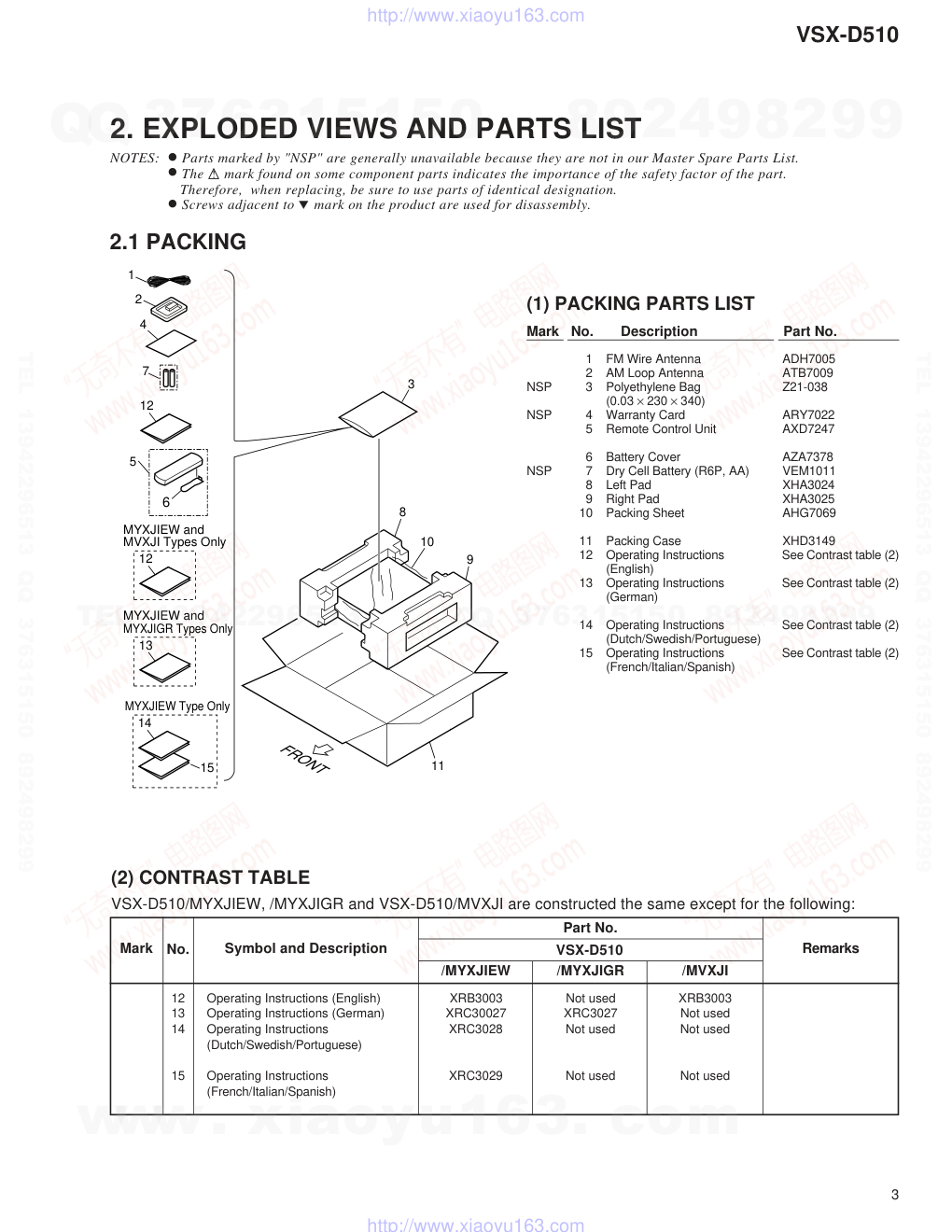

2.1 PACKING
1
FM Wire Antenna
ADH7005
2
AM Loop Antenna
ATB7009
NSP
3
Polyethylene Bag
Z21-038
(0.03 × 230 × 340)
NSP
4
Warranty Card
ARY7022
5
Remote Control Unit
AXD7247
6
Battery Cover
AZA7378
NSP
7
Dry Cell Battery (R6P, AA)
VEM1011
8
Left Pad
XHA3024
9
Right Pad
XHA3025
10
Packing Sheet
AHG7069
11
Packing Case
XHD3149
12
Operating Instructions
See Contrast table (2)
(English)
13
Operating Instructions
See Contrast table (2)
(German)
14
Operating Instructions
See Contrast table (2)
(Dutch/Swedish/Portuguese)
15
Operating Instructions
See Contrast table (2)
(French/Italian/Spanish)
(1) PACKING PARTS LIST
Mark No. Description Part No.
2. EXPLODED VIEWS AND PARTS LIST
NOTES: • Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
• The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
• Screws adjacent to mark on the product are used for disassembly.
15
14
1
2
4
12
7
3
8
9
5
10
11
12
MYXJIEW and
MVXJI Types Only
13
MYXJIEW and
MYXJIGR Types Only
6
MYXJIEW Type Only
(2) CONTRAST TABLE
VSX-D510/MYXJIEW, /MYXJIGR and VSX-D510/MVXJI are constructed the same except for the following:
/MYXJIEW
/MYXJIGR
/MVXJI
Part No.
Symbol and Description
No.
Mark
Remarks
VSX-D510
12
Operating Instructions (English)
XRB3003
Not used
XRB3003
13
Operating Instructions (German)
XRC30027
XRC3027
Not used
14
Operating Instructions
XRC3028
Not used
Not used
(Dutch/Swedish/Portuguese)
15
Operating Instructions
XRC3029
Not used
Not used
(French/Italian/Spanish)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
4
VSX-D510
D
L
K
H
M
J
I
C
I
J
M
L
K
H
E
E
B
A
C
D
F
N
N
F
35
A
B
36
G
G
24
36
39
36
36
36
36
36
36
36
36
36
36
36
36
36
26
15
7
1
2
5
27
12
13
14
16
36
36
17
4
3
9
8
6
36
11
36
36
37
37
38
38
43
36
36
36
10
Accessory of
Front Panel
36
34
36
36
36
Refer to

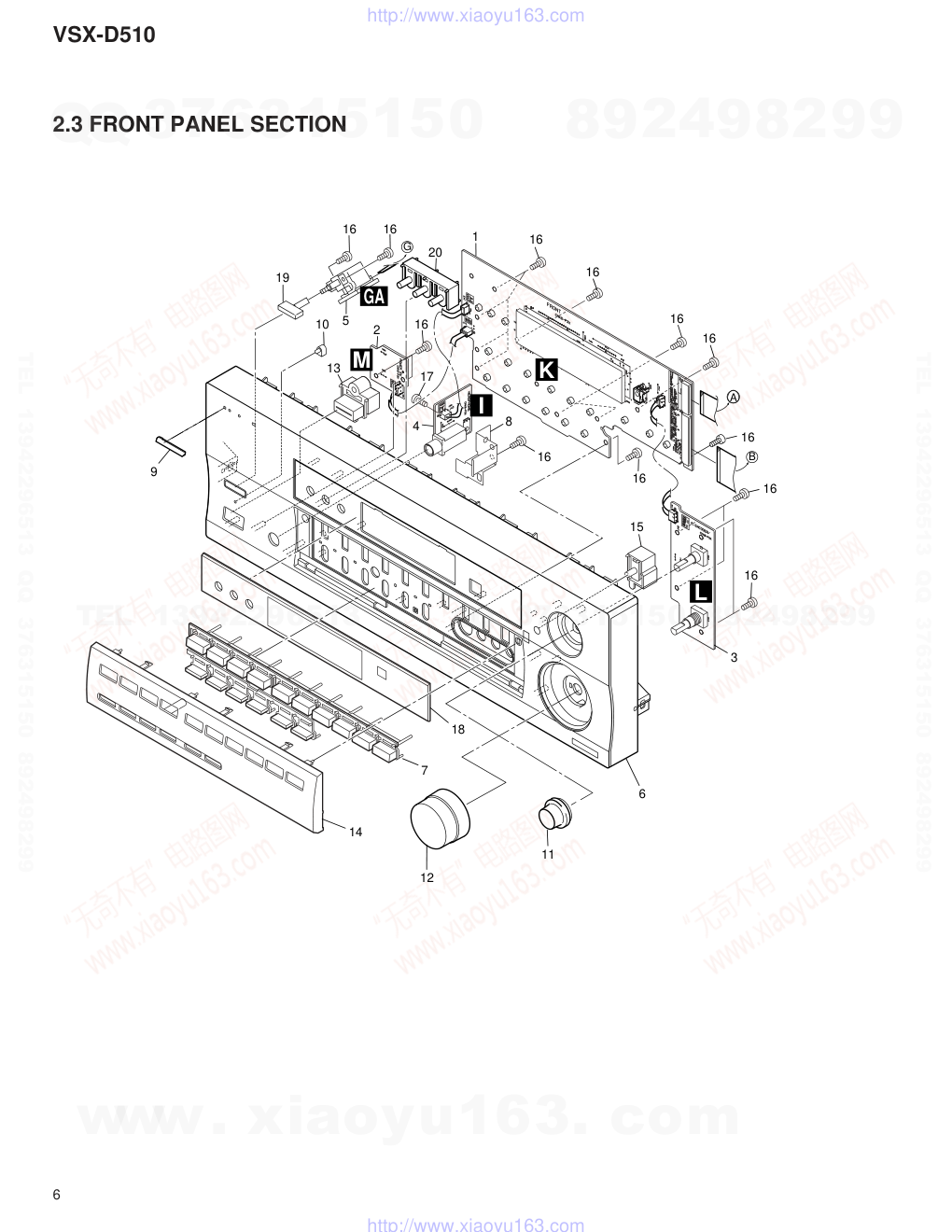

"2.3 FRONT PANEL SECTION".
39
39
29
28
30
41
42
36
23
36
E
A
H
J
B
C
D
G
F
36
32
36
32
36
36
25
39
22
22
31
18
19

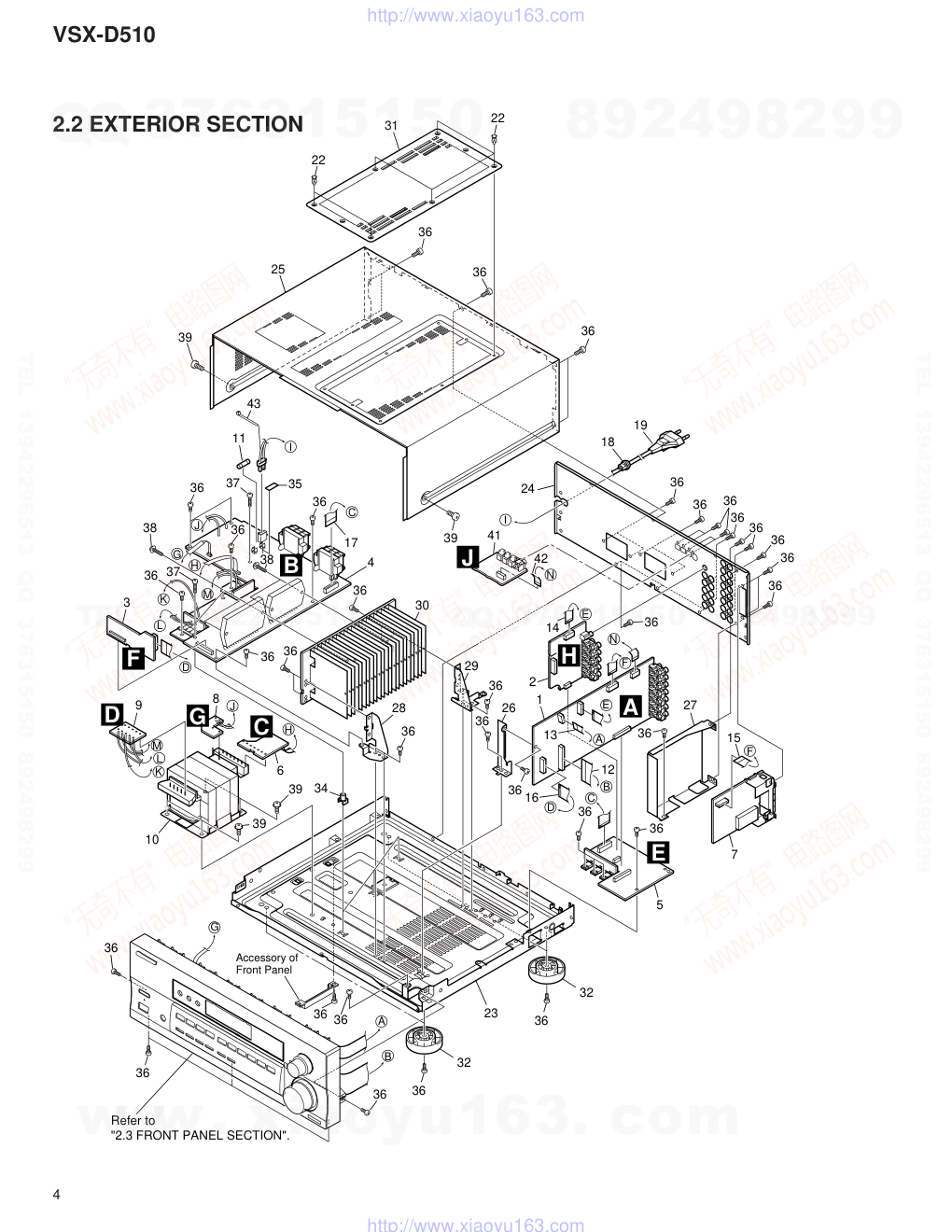

2.2 EXTERIOR SECTION
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
5
VSX-D510
1
D.D & INPUT Assy
XWX3025
2
VIDEO&6CH IN Assy
XWZ3333
NSP
3
AMP INPUT Assy
AWX7382
4
AMP&PRIMARY Assy
XWZ3373
5
REGULATOR Assy
AWX7493
6
TRANS 2 Assy
AWX7468
7
FM/AM TUNER Unit
AXX7048
NSP
8
TRANS 1 Assy
AWX7390
NSP
9
TRANS 3 Assy
AWX7392
10
Power Transformer (AC230V)
ATS7259
11
Fuse (FU1 : T2.5A)
REK1026
12
FFC (J31 : 31P/180 BD 60V)
XDD3055
(D.D & INPUT CN102
↔ FRONT CN402)
13
FFC (J32 : 19P/180 BD 60V)
XDD3054
(D.D & INPUT CN103
↔ FRONT CN401)
14
FFC (J33 : 14P/200 BD 60V)
XDD3060
(D.D & INPUT CN104
↔ VIDEO&6CH IN CN303)
15
FFC (J34 : 13P/100 BD 60V)
XDD3059
(D.D & INPUT CN105
↔ FM/AM TUNER CN1)
16
FFC (J35 : 17P/90 BD 60V)
XDD3072
(D.D & INPUT CN106
↔ AMP INPUT CN290)
17
FFC (J36 : 22P/80 BD 60V)
XDD3057
(REGULATOR CN801
↔ AMP&PRIMARY CN53)
18
Strain Relief
CM-22B
19
AC Power Cord
See Contrast table (2)
20
• • • • •

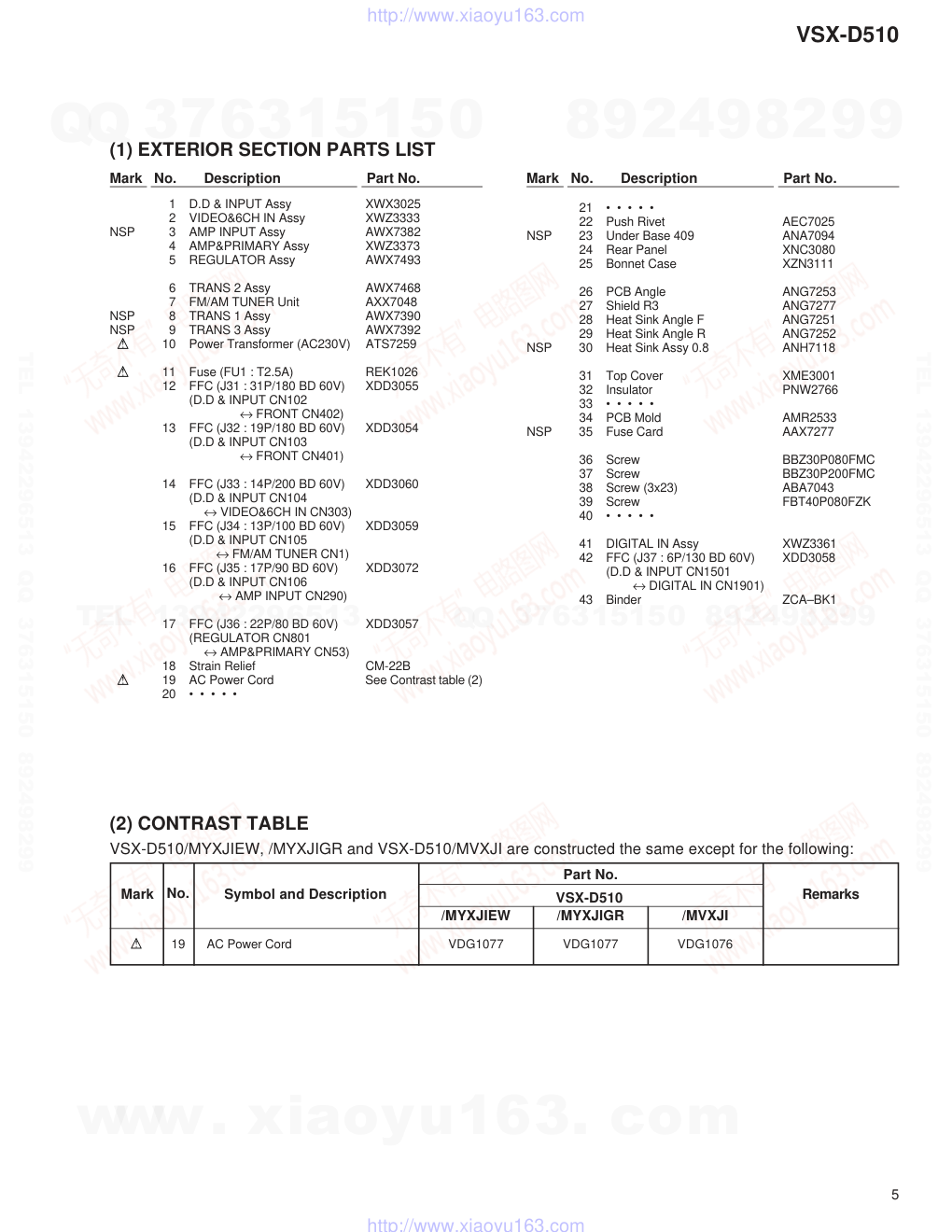

(1) EXTERIOR SECTION PARTS LIST
Mark No. Description Part No.
Mark No. Description Part No.
21
• • • • •
22
Push Rivet
AEC7025
NSP
23
Under Base 409
ANA7094
24
Rear Panel
XNC3080
25
Bonnet Case
XZN3111
26
PCB Angle
ANG7253
27
Shield R3
ANG7277
28
Heat Sink Angle F
ANG7251
29
Heat Sink Angle R
ANG7252
NSP
30
Heat Sink Assy 0.8
ANH7118
31
Top Cover
XME3001
32
Insulator
PNW2766
33
• • • • •
34
PCB Mold
AMR2533
NSP
35
Fuse Card
AAX7277
36
Screw
BBZ30P080FMC
37
Screw
BBZ30P200FMC
38
Screw (3x23)
ABA7043
39
Screw
FBT40P080FZK
40
• • • • •
41
DIGITAL IN Assy
XWZ3361
42
FFC (J37 : 6P/130 BD 60V)
XDD3058
(D.D & INPUT CN1501
↔ DIGITAL IN CN1901)
43
Binder
ZCA–BK1
(2) CONTRAST TABLE
VSX-D510/MYXJIEW, /MYXJIGR and VSX-D510/MVXJI are constructed the same except for the following:
/MYXJIEW
/MYXJIGR
/MVXJI
Part No.
Symbol and Description
No.
Mark
Remarks
VSX-D510
19
AC Power Cord
VDG1077
VDG1077
VDG1076
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
6
VSX-D510
2.3 FRONT PANEL SECTION
B
A
G
14
9
7
10
19
16
16
15
13
4
2
12
18
6
3
8
16
17
16
5
20
16
16
16
16
16
16
16
16
1
11
K
L
M
I
GA
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
7
VSX-D510

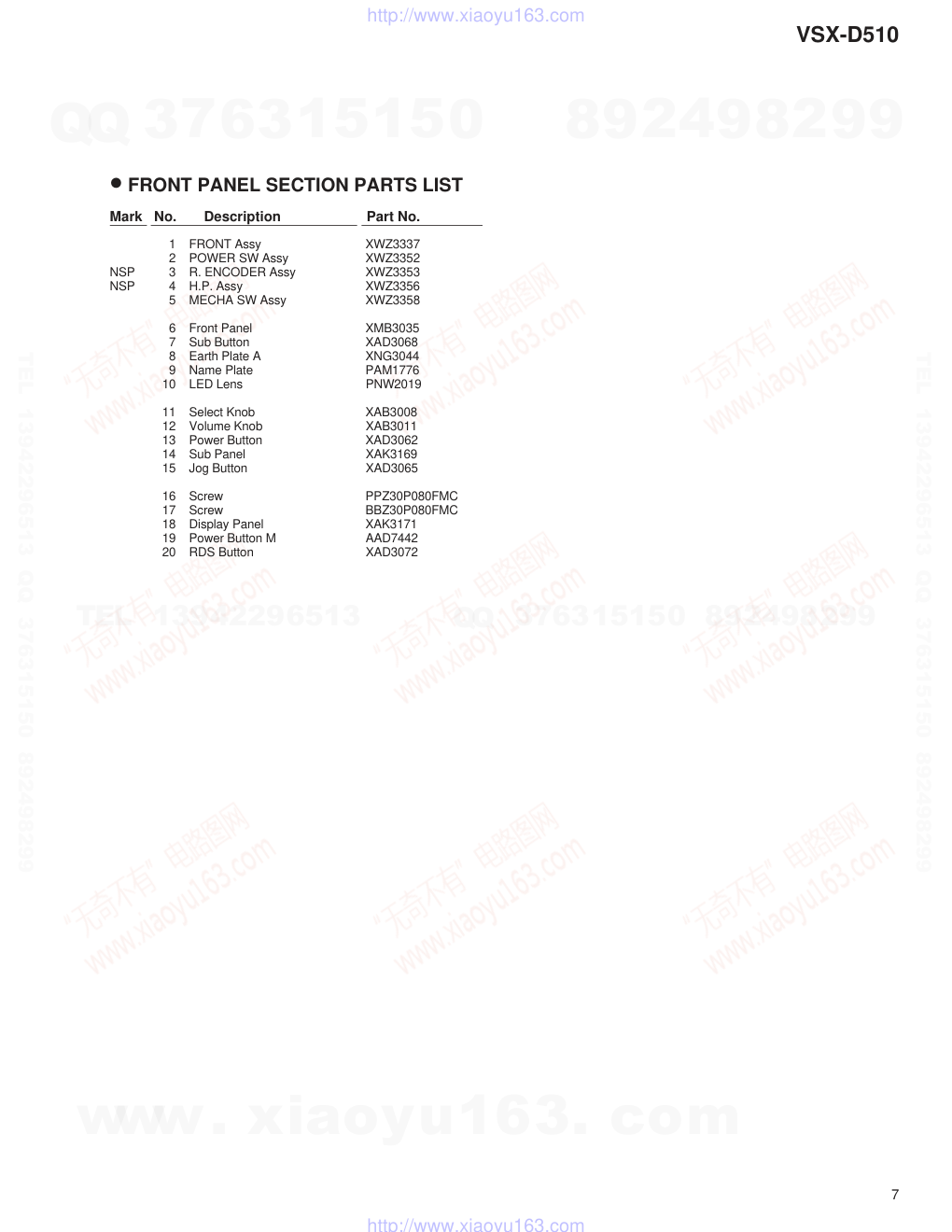

• FRONT PANEL SECTION PARTS LIST
Mark No. Description Part No.
1
FRONT Assy
XWZ3337
2
POWER SW Assy
XWZ3352
NSP
3
R. ENCODER Assy
XWZ3353
NSP
4
H.P. Assy
XWZ3356
5
MECHA SW Assy
XWZ3358
6
Front Panel
XMB3035
7
Sub Button
XAD3068
8
Earth Plate A
XNG3044
9
Name Plate
PAM1776
10
LED Lens
PNW2019
11
Select Knob
XAB3008
12
Volume Knob
XAB3011
13
Power Button
XAD3062
14
Sub Panel
XAK3169
15
Jog Button
XAD3065
16
Screw
PPZ30P080FMC
17
Screw
BBZ30P080FMC
18
Display Panel
XAK3171
19
Power Button M
AAD7442
20
RDS Button
XAD3072
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
8
A
B
C
D
1
2
3
4
1
2
3
4
AXX7048
UNIT
CN105
6
CN305
IC101
IC303
IC1901
IC302
IC302
IC301
IC104
IC102
IC1701
IC1101
IC1201
A
H
J
7
7
7
1
9
11
CN104
7
9
11
CN1901
2
CN1501
2
5
3
7
5
9
1
11
5
5
3
2
5
3
4
123
14
42
21
26
23
25
6
7
IC1703
6
7
IC1705
DTS DECODER
6
7
IC1705
2
1
4
6
3
8
7
19
18
17
12
11
10
9
5
1
7
2
11
9
10
D.D & INPUT ASSY
DIGITAL
IN ASSY
VIDEO & 6CH IN ASSY

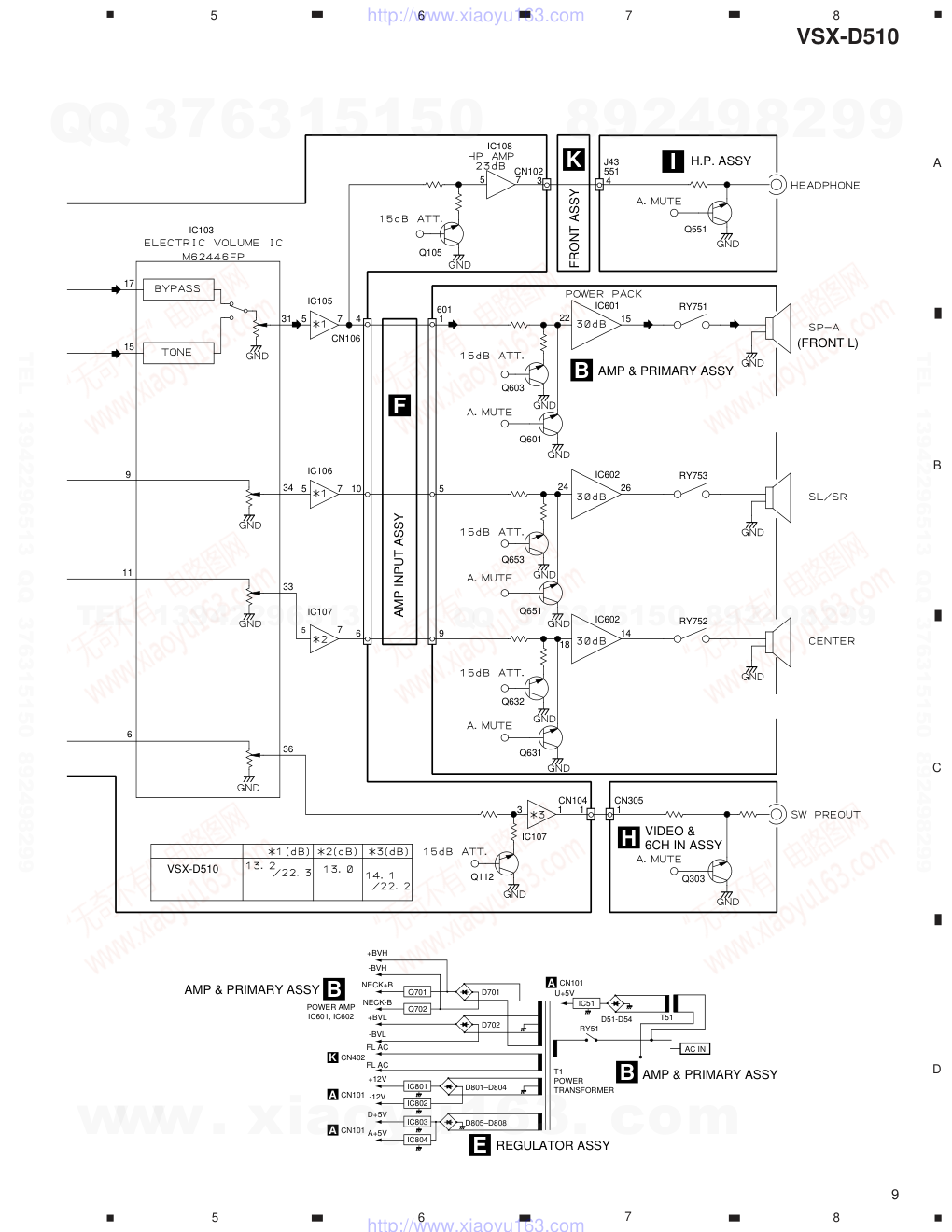

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM

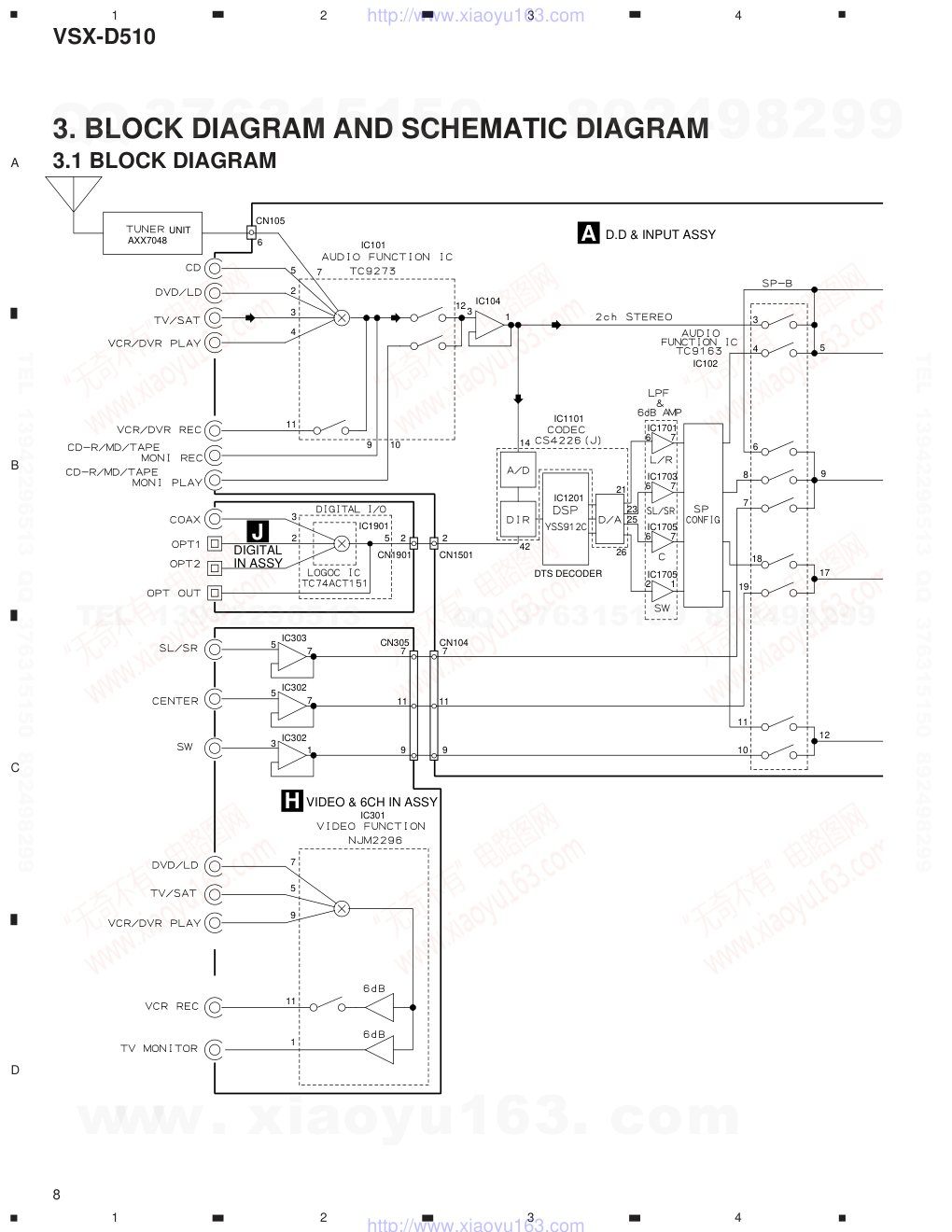

3.1 BLOCK DIAGRAM
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
9
A
B
C
D
5
6
7
8
5
6
7
8
VSX-D510
IC103
IC105
IC106
IC107
IC108
IC107
Q112
Q303
Q603
Q601
Q653
Q651
Q632
Q631
H
CN104
1
CN305
1
11
15
17
31
34
33
36
6
9
5
7
5
7
5
7
5
7
3
1
IC602
18
14
IC602
24
26
IC601
RY751
RY753
RY752
22
15
Q551
Q105
I
K
B
F
CN102
3
551
J43
4
CN106
4
601
1
10
5
6
9
+12V
-12V
T1
POWER
TRANSFORMER
T51
AC IN
D801–D804
U+5V
D51-D54
RY51
IC51
IC801
CN101
IC802
NECK+B
POWER AMP
IC601, IC602
NECK-B
D702
D701
+BVL
+BVH
-BVH
-BVL
FL AC
FL AC
Q701
Q702
B
B
A
D+5V
D805–D808
IC803
A+5V
IC804
CN101
E
A
CN101
A
CN402
K
AMP & PRIMARY ASSY
AMP & PRIMARY ASSY
REGULATOR ASSY
AMP & PRIMARY ASSY
VIDEO &
6CH IN ASSY
H.P. ASSY
FRONT ASSY
(FRONT L)
AMP INPUT ASSY
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
10
A
B
C
D
1
2
3
4
1
2
3
4
FRONT ASSY
(XWZ3337)
K
R.ENCODER
ASSY
(XWZ3353)
L
D.D & INPUT ASSY
(XWX3025)
A
REGULATOR ASSY
(AWX7493)
E
DIGITAL IN ASSY
(XWZ3361)
J
VIDEO&
6CH IN ASSY
(XWZ3333)
H
AMP&PRIMARY ASSY
(XWZ3373)
B
AMP INPUT ASSY
(AWX7382)
F
FM/AM
TUNER
UNIT
(AXX7048)
404
511
B 1/2, B 2/2
A 1/3, A 2/3,
A 3/3
XDD3059
D15A06-075-2651
XDD3072
XDD3060
XDD3057
XDD3054
XDD3055
XDD3058

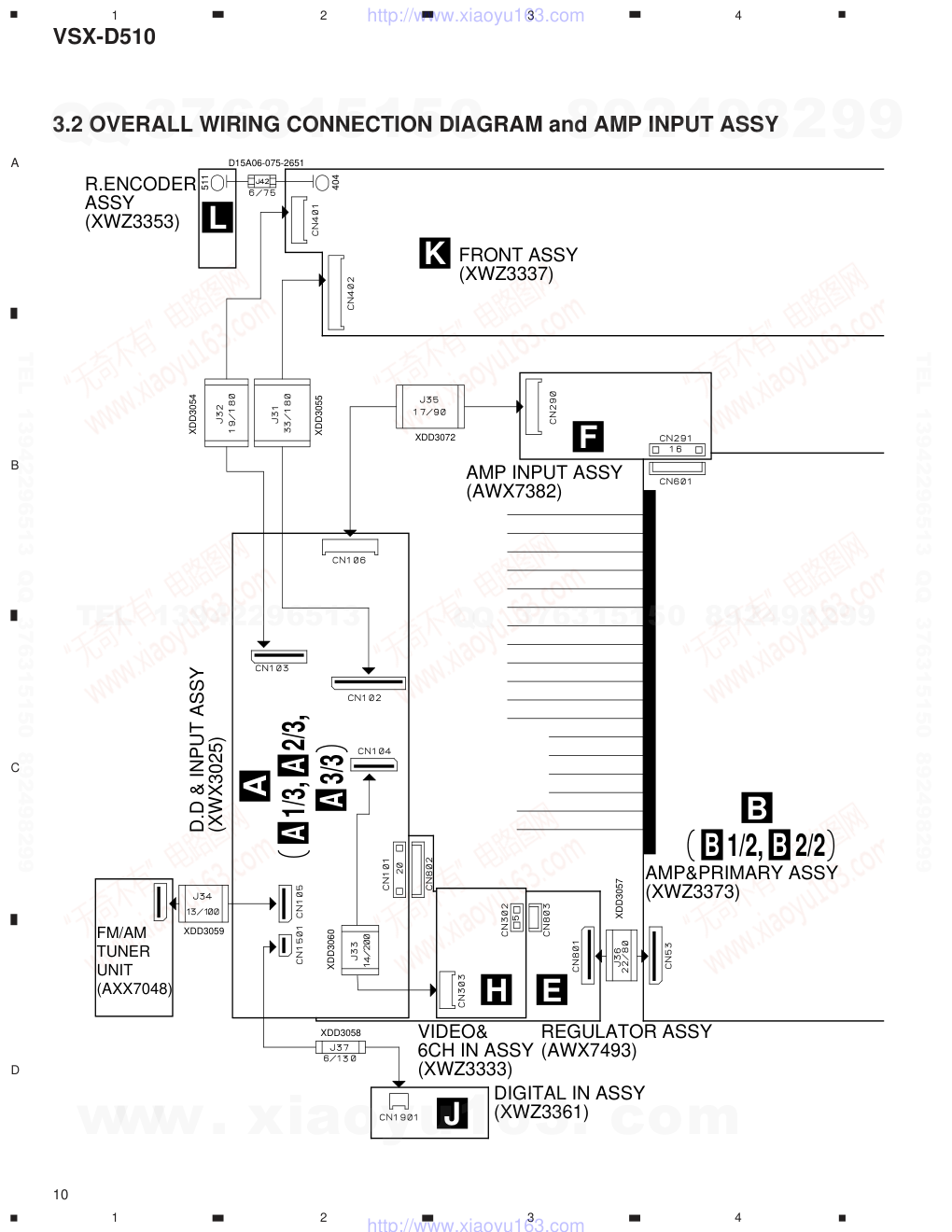

3.2 OVERALL WIRING CONNECTION DIAGRAM and AMP INPUT ASSY
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
11
A
B
C
D
5
6
7
8
5
6
7
8
AC CORD
CN106
CN601
A 1/3
B 1/2
POWER SW ASSY
(XWZ3352)
M
H.P.
ASSY
(XWZ3356)
I
TRANS3
ASSY
(AWX7392)
D
TRANS1 ASSY
(AWX7390)
G
TRANS2
ASSY
(AWX7468)
C
471
J3
J7
J6
501
403
1551
701
851
J1
J2
J4
J5
D15A04-070-2651
D20PYY0715E
D15A04-125-2651
MECHA SW ASSY
(XWZ3358)
GA
F AMP INPUT ASSY
(AWX7382)
52
Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST".
F
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
12
A
B
C
D
1
2
3
4
1
2
3
4
QTL1013
QTL1013
VSX-D510
D.D & INPUT ASSY
(XWX3025)
A 1/3
FM/AM TUNER UNIT
CN802
E
3.3 D.D & INPUT ASSY (1/3)
1/3
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
13
A
B
C
D
5
6
7
8
5
6
7
8
CN290
F
CN401
K
CN402
K
A 3/3
A 2/3
A 3/3
A 2/3
A 3/3
CN303
H
: The power supply is shown with the marked box.
E-VR IC
1/3
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
14
A
B
C
D
1
2
3
4
1
2
3
4
D.D & INPUT ASSY
(XWX3025)
A 2/3
CN1901
J
A 1/3
A 3/3
A
1/3
3.4 D.D & INPUT ASSY (2/3)
2/3
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
15
A
B
C
D
5
6
7
8
5
6
7
8
: The power supply is shown with the marked box.
A 3/3
DTS DECODER IC
SRAM(256K)
MULTI CH CODEC IC
2/3
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
16
A
B
C
D
1
2
3
4
1
2
3
4
D.D & INPUT ASSY
(XWX3025)
A 3/3
A 2/3
A 2/3
A 1/3
E-SW IC
3/3
A
3.5 D.D & INPUT ASSY (3/3)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
17
A
B
C
D
5
6
7
8
5
6
7
8
A 1/3
3/3
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
18
A
B
C
D
1
2
3
4
1
2
3
4
AMP&PRIMARY ASSY
(XWZ3373)
B 1/2
CN291
F
3.6 AMP&PRIMARY (1/2), TRANS2 and TRANS3 ASSYS
1/2
B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
19
A
B
C
D
5
6
7
8
5
6
7
8
TRANS3 ASSY
(AWX7392)
D
TRANS2
ASSY
(AWX7468)
C
POWER TRANSFORMER
CAUTION : FOR CONTINUED PROTECTION
AGAINST RISK OF FIRE.
REPLACE ONLY WITH SAME TYPE
NO. 49101.6 FOR IC851, IC852 AND
IC853 MFD, BY LITTELFUSE INC.
CAUTION : FOR CONTINUED PROTECTION
AGAINST RISK OF FIRE.
REPLACE ONLY WITH SAME TYPE
NO. 491001 FOR IC603 MFD, BY
LITTELFUSE INC.
B 2/2
B 2/2
• NOTE FOR FUSE REPLACEMENT
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE WITH SAME TYPE AND RATINGS ONLY.
CAUTION -
C
1/2
B
D
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
20
A
B
C
D
1
2
3
4
1
2
3
4
CN101
A 1/3
REGULATOR ASSY
(AWX7493)
E
CN302
H
2/2
B
E
3.7 AMP&PRIMARY (2/2), REGULATOR, MECHA SW and TRANS1 ASSYS
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
21
A
B
C
D
5
6
7
8
5
6
7
8
1SS133
1SS133
1SS133
AMP&PRIMARY ASSY
(XWZ3373)
B 2/2
B 1/2
B 1/2
G
TRANS1 ASSY
(AWX7390)
POWER TRANSFORMER
LIVE
NEUTRAL
REK1026 (T2.5A)
ATT7037
AC POWER CORD
MYXJIEW: VDG1077
MYXJIGR: VDG1077
MVXJI : VDG1076
• NOTE FOR FUSE REPLACEMENT
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE WITH SAME TYPE AND RATINGS ONLY.
CAUTION -
GA MECHA SW ASSY
(XWZ3358)
CAUTION : FOR CONTINUED PROTECTION
AGAINST RISK OF FIRE.
REPLACE ONLY WITH SAME TYPE
NO. 491.315 FOR IC52 MFD, BY
LITTELFUSE INC.
2/2
B
G G A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
22
A
B
C
D
1
2
3
4
1
2
3
4
3.8 VIDEO&6CH IN, H. P. and DIGITAL IN ASSYS
H
VIDEO&6CH IN ASSY
(XWZ3333)
H
CN104
CN803
E
A 1/3
VIDEO SW IC
VSX-D510
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
23
A
B
C
D
1
2
3
4
1
2
3
4J
I
H.P. ASSY
(XWZ3356)
I
DIGITAL IN ASSY
(XWZ3361)
J
CN1501
A 2/3
403
K
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
24
A
B
C
D
1
2
3
4
1
2
3
4
FRONT ASSY
(XWZ3337)
K
R.ENCODER ASSY
(XWX3353)
L
CN102
A 1/3
CN103
A 1/3
3.9 FRONT, R. ENCODER and POWER SW ASSYS
K L
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
25
A
B
C
D
5
6
7
8
5
6
7
8
POWER
SW ASSY
(XWZ3352)
M
1551
I
POWER SW ASSY
S501 : STANDBY/ON
FRONT ASSY
S451 : DIRECT
S452 : MONITOR
S453 : DVD 5.1CH
S454 : DSP MODE
S455 : SIGNAL SELECT
S456 : DOLBY / DTS
S457 : MIDNIGHT
S458 : SPEAKERS
S459 : MPX MODE
S460 : BAND FM/AM
S461 : MEMORY
S462 : CLASS
S463 : TUNING (+)
S464 : TUNING (–)
S465 : STATION (+)
S466 : RF ATT
S467 : CHARA SEARCH
S468 : E ON
S476 : STATION (–)
R. ENCODER ASSY
S511 : TONE
SYSTEM CONTROL MCU
IC481: RDS RECORDER
M
K
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
26
A
B
C
D
1
2
3
4
1
2
3
4
NOTE FOR PCB DIAGRAMS :
1. Part numbers in PCB diagrams match those in the schematic
diagrams.
2. A comparison between the main parts of PCB and schematic
diagrams is shown below.
3. The parts mounted on this PCB include all necessary parts for
several destinations.
For further information for respective destinations, be sure to
check with the schematic diagram.
4. View point of PCB diagrams.
Symbol In PCB
Diagrams
Symbol In Schematic
Diagrams
Part Name
B C E
D
D
G
G
S
S
B C E
B
C
E
D
G
S
B
C
E
B
C
E
B
C
E
Transistor
Transistor
with resistor
Field effect
transistor
Resistor array
3-terminal
regulator
Capacitor
Connector
P.C.Board
Chip Part
SIDE A
SIDE B
4. PCB CONNECTION DIAGRAM
4.1 DIGITAL IN ASSY
J
(XNP3035-B)
CN1501
A
SIDE A
DIGITAL IN ASSY
J
(XNP3035-B)
DIGITAL IN ASSY
J
SIDE B
IC1901
IC1902
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
27
A
B
C
D
1
2
3
4
1
2
3
4
4.2 TRANS2, TRANS3, REGULATOR and TRANS1 ASSYS
G
E
D
(ANP7331-C)
Q805
Q803
Q806
Q801
Q804
Q802
IC804
REGULATOR ASSY
E
TRANS3 ASSY
D
TRANS2 ASSY
C
CN53
B
CN302
H
CN101
A
701
B
J1 J2
B
J6 J4 J3 J5 J7
B
SIDE A
IC802
IC803
IC801
POWER TRANSFORMER
TRANS1 ASSY
G
C
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
28
A
B
C
D
1
2
3
4
1
2
3
4
A
4.3 D.D & INPUT ASSY
D.D & INPUT ASSY
A
CN402
K
CN401
K
CN303
H
CN290
F
IC102
IC1602
IC103
IC160
IC1701 IC1712 IC170
Q1602 Q1601 Q1604 Q1
Q106
Q111
IC107
Q112
Q1608 Q1607
Q1609 Q1610
Q107 Q108
Q109 Q110
IC109
IC105
IC106
IC108 Q105
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
29
A
B
C
D
5
6
7
8
5
6
7
8A
CN802
E
CN1901
J
IC102
1602
IC1603
IC1604
IC1201
1701 IC1712
IC1704
IC1703
IC1705 Q1003 Q1004 Q1001 Q1002
IC1101
IC1301
Q101
Q102
Q104
Q103
2 Q1601 Q1604 Q1603
Q1606 Q1605
IC1001
IC104
IC1401
Q1101 Q1102
(XNP3037-A)
SIDE A
FM/AM TUNER UNIT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
30
A
B
C
D
1
2
3
4
1
2
3
4
A
D.D & INPUT ASSY
A
IC1601
IC101
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
31
A
B
C
D
5
6
7
8
5
6
7
8A
IC1601
(XNP3037-A)
SIDE B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
32
A
B
C
D
1
2
3
4
1
2
3
4
AMP INPUT ASSY
F
AMP&PRIMARY ASSY
B
CN106
A
Q604
Q606
Q605
Q602
Q603
IC601
IC603
Q632
Q704
Q702
Q703
Q701
Q631
Q656
IC602
Q633
Q655
Q691
Q692
Q652
Q654
Q651
Q653
J7
D
J6
D
J3
D
(ANP7331-C)
SIDE A
(ANP7331-C)
SIDE A
GA MECHA SW ASSY
(XNP3035-B)
SIDE B
(XNP3035-B)
SIDE A
B F GA
4.4 AMP INPUT, AMP&PRIMARY and MECHA SW ASSYS
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
33
A
B
C
D
5
6
7
8
5
6
7
8
J4
D
J5
D
851
C
Q51
IC52
IC51
AC IN
NEUTRAL
LIVE
CN801
F
J2
G
J1
G
CN801
E
B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
34
A
B
C
D
1
2
3
4
1
2
3
4
FRONT ASSY
K
POWER SW ASSY
M
H.P. ASSY
I
4.5 H.P., FRONT, R.ENCODER and POWER SW ASSYS
I K M
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
35
A
B
C
D
5
6
7
8
5
6
7
8L
K
CN103
A
CN102
A
R.ENCODER ASSY
L
(XNP3035-B)
SIDE A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
36
A
B
C
D
1
2
3
4
1
2
3
4
K L
FRONT ASSY
K
IC401
(XNP3035-B)
SIDE B
R.ENCODER ASSY
L
Q402
Q403
Q442
Q441
Q401
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
37
A
B
C
D
5
6
7
8
5
6
7
8M
K
I
IC481
IC401
POWER SW ASSY
M
H.P. ASSY
I
Q485
Q404
Q405
Q471
Q482
Q481
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
VSX-D510
38
A
B
C
D
1
2
3
4
1
2
3
4
H
4.6 VIDEO&6CH IN ASSY
(XNP3035-B)
VIDEO&6CH IN ASSY
H
CN104
A
CN803
E
SIDE A
Q301
Q303
Q302
(XNP3035-B)
SIDE B
VIDEO&6CH IN ASSY
H
IC302
IC303
IC301
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
39
VSX-D510
LIST OF PCB ASSEMBLIES
NSP
COMPLEX ASSY
XWK3002
POWER SW ASSY
XWZ3352
R.ENCODER ASSY
XWZ3353
VIDEO&6CH IN ASSY
XWZ3333
DIGITAL IN ASSY
XWZ3361
FRONT ASSY
XWZ3337
NSP
H.P. ASSY
XWZ3356
MECHA SW ASSY
XWZ3358
NSP
AMP&PS ASSY
XWK3016
NSP
AMP INPUT ASSY
AWX7382
AMP&PRIMARY ASSY
XWZ3373
REGULATOR ASSY
AWX7493
TRANS2 ASSY
AWX7468
NSP
TRANS1 ASSY
AWX7390
NSP
TRANS3 ASSY
AWX7392
D.D & INPUT ASSY
XWX3025
D.D & INPUT ASSY
SEMICONDUCTORS
IC1001
OP-AMP IC
NJM2100M
IC101
ANALOG SWITCH IC
TC9273F-007
IC102
E-SW IC
TC9163AF
IC103
E-VR IC
M62446FP
IC104
OP-AMP IC
UPC4570G2-TFB
IC105
OP-AMP IC
UPC4570G2-TFB
IC106
OP-AMP IC
UPC4570G2-TFB
IC107
OP-AMP IC
UPC4570G2-TFB
IC108
OP-AMP IC
M5216FP
IC1101
MULTI CH CODEC IC
CS4226-KQ(J)
IC1201
DTS DECORDER IC
YSS912C
IC1301
SRAM
IS61C256AH-15J
IC1401
REGULATOR IC
PQ20WZ51
IC1601
E-SW IC
TC9164AF
IC1602
IC
NJM4558MD
IC1603
IC
NJM4558MD
IC1604
IC
NJM4558MD
IC1701
IC
NJM4558MD
IC1702
IC
NJM4558MD
IC1703
IC
NJM4558MD
IC1704
IC
NJM4558MD
IC1705
IC
NJM4558MD
Q 1001
CHIP MUTING TR
2SC3326
Q 1002
CHIP MUTING TR
2SC3326
5. PCB PARTS LIST
NOTES : ÷ Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List.
÷ The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
÷ When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex. 1
When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by
J = 5%, and K = 10%).
560 Ω = 56 × 10 1 = 561 ................................................... RD1/4PU 5 6 1 J
47k Ω = 47 × 10 3 = 473 .................................................. RD1/4PU 4 7 3 J
0.5 Ω = R50 ...................................................................... RN2H Â 5 0 K
1 Ω = 1R0 ......................................................................... RS1P 1 Â 0 K
Ex. 2
When there are 3 effective digits (such as in high precision metal film resistors).
5.62k Ω = 562 × 10 1 = 5621 ........................................... RN1/4PC 5 6 2 1 F
Mark No. Description Part No.
Mark No. Description Part No.
Q 1003
CHIP DIGITAL TRANS.
DTA124EK
Q 1004
DIGITAL TRANSISTOR
DTC124EK
Q 101
CHIP TRANSISTOR
2SC2412K
Q 102
CHIP TRANSISTOR
2SC2412K
Q 105
CHIP MUTING TR
2SC3326
Q 106
CHIP MUTING TR
2SC3326
Q 107
CHIP MUTING TR
2SC3326
Q 108
CHIP MUTING TR
2SC3326
Q 109
CHIP MUTING TR
2SC3326
Q 110
CHIP MUTING TR
2SC3326
Q 1101
CHIP DIGITAL TRANS.
DTA124EK
Q 1102
DIGITAL TRANSISTOR
DTC124EK
Q 111
CHIP MUTING TR
2SC3326
Q 112
CHIP MUTING TR
2SC3326
Q 1601
CHIP MUTING TR
2SC3326
Q 1602
CHIP MUTING TR
2SC3326
Q 1603
CHIP MUTING TR
2SC3326
Q 1604
CHIP MUTING TR
2SC3326
Q 1605
CHIP MUTING TR
2SC3326
Q 1606
CHIP MUTING TR
2SC3326
Q 1607
CHIP DIGITAL TRANS.
DTA124EK
Q 1608
CHIP DIGITAL TRANS.
DTA124EK
Q 1609
DIGITAL TRANSISTOR
DTC124EK
Q 1610
CHIP DIGITAL TRANS.
DTA124EK
D 101
CHIP ZENER DIODE
UDZS6.8B
D 102
CHIP ZENER DIODE
UDZS6.8B
D 103
DIODE
1SS355
D 104
CHIP ZENER DIODE
UDZS5.1B
D 105
DIODE
1SS355
D 106
DIODE
1SS355
D 1601
DIODE
1SS181
D 1602
DIODE
1SS181
COILS AND FILTERS
L 101
CHIP SOLID INDUCTOR
QTL1013
L 1101
CHIP SOLID INDUCTOR
QTL1013
L 1102
CHIP SOLID INDUCTOR
QTL1013
L 1103
CHIP SOLID INDUCTOR
QTL1013
L 1104
CHIP SOLID INDUCTOR
QTL1013
L 111
CHIP SOLID INDUCTOR
QTL1013
L 1111
CHIP SOLID INDUCTOR
QTL1013
L 112
CHIP SOLID INDUCTOR
QTL1013
L 1123
CHIP SOLID INDUCTOR
QTL1013
L 1124
CHIP SOLID INDUCTOR
QTL1013
L 1203
CHIP SOLID INDUCTOR
QTL1013
L 1204
CHIP SOLID INDUCTOR
QTL1013
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
40
VSX-D510
Mark No. Description Part No.
Mark No. Description Part No.
L 1601
CHIP SOLID INDUCTOR
QTL1013
L 1602
CHIP SOLID INDUCTOR
QTL1013
CAPACITORS
C 1001
CERAMIC CAPACITOR
CCSRCH101J50
C 1002
CERAMIC CAPACITOR
CCSRCH101J50
C 1003
ELECT. CAPACITOR
CEAT4R7M50
C 1004
ELECT. CAPACITOR
CEAT4R7M50
C 1005
ELECT. CAPACITOR
CEAT221M6R3
C 1006
CHIP CERAMIC C.
CKSRYB103K50
C 1007
ELECT. CAPACITOR
CEJQNP100M10
C 1008
ELECT. CAPACITOR
CEJQNP100M10
C 1009
CERAMIC CAPACITOR
CKSRYF104Z25
C 101
CERAMIC CAPACITOR
CCSRCH101J50
C 102
CERAMIC CAPACITOR
CCSRCH101J50
C 103
CERAMIC CAPACITOR
CCSRCH101J50
C 104
CERAMIC CAPACITOR
CCSRCH101J50
C 105
CERAMIC CAPACITOR
CCSRCH101J50
C 106
CERAMIC CAPACITOR
CCSRCH101J50
C 107
CERAMIC CAPACITOR
CCSRCH101J50
C 108
CERAMIC CAPACITOR
CCSRCH101J50
C 109
CERAMIC CAPACITOR
CCSRCH101J50
C 110
CERAMIC CAPACITOR
CCSRCH101J50
C 1101
CHIP CERAMIC C.
CCSRCH471J50
C 1102
CERAMIC CAPACITOR
CCSRCH102J50
C 1103
CERAMIC CAPACITOR
CCSRCH390J50
C 1104
CERAMIC CAPACITOR
CCSRCH390J50
C 1105
CERAMIC CAPACITOR
CKSRYF104Z16
C 1106
CHIP CERAMIC C.
CCSRCH471J50
C 1107
CHIP CERAMIC C.
CKSRYB223K50
C 1108
CERAMIC CAPACITOR
CKSQYB224K16
C 1109
CERAMIC CAPACITOR
CKSRYF104Z16
C 111
CERAMIC CAPACITOR
CCSRCH101J50
C 1110
CHIP CERAMIC C.
CCSRCH471J50
C 1111
CERAMIC CAPACITOR
CKSRYF104Z25
C 1112
ELECT. CAPACITOR
CEAT1R0M50
C 1113
CERAMIC CAPACITOR
CCSRCH180J50
C 1114
CERAMIC CAPACITOR
CCSRCH180J50
C 1115
ELECT. CAPACITOR
CEATR47M50
C 1116
ELECT. CAPACITOR
CEAT101M10
C 1117
CERAMIC CAPACITOR
CKSRYF104Z25
C 1118
CHIP CERAMIC C.
CCSRCH471J50
C 1119
CHIP CERAMIC C.
CCSRCH271J50
C 112
CERAMIC CAPACITOR
CCSRCH101J50
C 1121
ELECT. CAPACITOR
CEAT101M10
C 1122
ELECT. CAPACITOR
CEAT101M10
C 1123
CHIP CERAMIC C.
CCSRCH331J50
C 1124
CHIP CERAMIC C.
CCSRCH331J50
C 1128
CHIP CERAMIC C.
CKSRYB103K50
C 1129
CHIP CERAMIC C.
CKSRYB103K50
C 113
CERAMIC CAPACITOR
CCSRCH101J50
C 1130
CHIP CERAMIC C.
CCSRCH471J50
C 1132
CHIP CERAMIC C.
CKSRYB103K50
C 1133
CERAMIC CAPACITOR
CKSRYF104Z25
C 1134
CHIP CERAMIC C.
CKSRYB103K50
C 1135
CERAMIC CAPACITOR
CKSRYB104K16
C 1136
CERAMIC CAPACITOR
CKSRYB104K16
C 114
CERAMIC CAPACITOR
CCSRCH101J50
C 115
ELECT. CAPACITOR
CEAT4R7M50
C 116
ELECT. CAPACITOR
CEAT4R7M50
C 117
ELECT. CAPACITOR
CEAT470M25
C 118
ELECT. CAPACITOR
CEAT470M25
C 119
CHIP CERAMIC C.
CKSRYB103K50
C 120
CHIP CERAMIC C.
CKSRYB103K50
C 1201
ELECT. CAPACITOR
CEAT101M10
C 1202
ELECT. CAPACITOR
CEAT221M6R3
C 1203
CHIP CERAMIC C.
CCSRCH200J50
C 1204
CHIP CERAMIC C.
CCSRCH200J50
C 1205
CHIP CERAMIC C.
CKSRYB103K50
C 1206
CHIP CERAMIC C.
CKSRYB103K50
C 1207
CERAMIC CAPACITOR
CCSRCH101J50
C 1208
CHIP CERAMIC C.
CKSRYB103K50
C 1209
CERAMIC CAPACITOR
CCSRCH101J50
C 121
CERAMIC CAPACITOR
CCSRCH101J50
C 1210
CHIP CERAMIC C.
CCSRCH471J50
C 1211
CHIP CERAMIC C.
CKSRYB103K50
C 1212
CERAMIC CAPACITOR
CCSRCH101J50
C 1213
CERAMIC CAPACITOR
CCSRCH101J50
C 1214
CHIP CERAMIC C.
CKSRYB103K50
C 1215
CHIP CERAMIC C.
CKSRYB103K50
C 1216
CHIP CERAMIC C.
CKSRYB103K50
C 1217
CERAMIC CAPACITOR
CCSRCH101J50
C 1218
CERAMIC CAPACITOR
CCSRCH101J50
C 1219
CERAMIC CAPACITOR
CKSRYF104Z25
C 122
CERAMIC CAPACITOR
CCSRCH101J50
C 1220
CHIP CERAMIC C.
CKSRYB103K50
C 1221
CERAMIC CAPACITOR
CCSRCH101J50
C 1222
CHIP CERAMIC C.
CKSRYB103K50
C 1223
CERAMIC CAPACITOR
CCSRCH101J50
C 1224
CERAMIC CAPACITOR
CKSRYF104Z25
C 1225
CERAMIC CAPACITOR
CKSRYF104Z25
C 1226
CERAMIC CAPACITOR
CKSRYF104Z16
C 1227
CERAMIC CAPACITOR
CKSRYF104Z16
C 1228
CERAMIC CAPACITOR
CKSRYF104Z25
C 1229
CERAMIC CAPACITOR
CKSRYF104Z25
C 123
CERAMIC CAPACITOR
CCSRCH101J50
C 1230
CERAMIC CAPACITOR
CKSRYF104Z16
C 1231
CERAMIC CAPACITOR
CKSRYF104Z25
C 1232
CERAMIC CAPACITOR
CKSRYF104Z16
C 124
CHIP CERAMIC C.
CKSRYB103K50
C 125
CHIP CERAMIC C.
CKSRYB103K50
C 126
CERAMIC CAPACITOR
CCSRCH101J50
C 127
CERAMIC CAPACITOR
CCSRCH101J50
C 128
CERAMIC CAPACITOR
CCSRCH101J50
C 130
ELECT. CAPACITOR
CEAT100M50
C 1301
ELECT. CAPACITOR
CEJA101M10
C 1302
CHIP CERAMIC C.
CKSRYB103K50
C 1303
CERAMIC CAPACITOR
CCSRCH101J50
C 1304
CERAMIC CAPACITOR
CKSRYF104Z25
C 131
ELECT. CAPACITOR
CEAT100M50
C 132
ELECT. CAPACITOR
CEAT100M50
C 133
ELECT. CAPACITOR
CEAT100M50
C 134
ELECT. CAPACITOR
CEAT100M50
C 135
ELECT. CAPACITOR
CEAT100M50
C 136
ELECT. CAPACITOR
CEAT100M50
C 137
ELECT. CAPACITOR
CEAT100M50
C 138
CHIP CERAMIC C.
CKSRYB822K50
C 139
CHIP CERAMIC C.
CKSRYB153K50
C 140
CERAMIC CAPACITOR
CKSQYB224K16
C 1401
ELECT. CAPACITOR
CEAT4R7M50
C 1404
ELECT. CAPACITOR
CEAT101M10
L 1302
CHIP SOLID INDUCTOR
QTL1013
L 1401
CHIP SOLID INDUCTOR
ATL7002
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
41
VSX-D510
Mark No. Description Part No.
Mark No. Description Part No.
C 141
CHIP CERAMIC C.
CKSRYB822K50
C 142
CHIP CERAMIC C.
CKSRYB153K50
C 143
CERAMIC CAPACITOR
CKSQYB224K16
C 144
ELECT. CAPACITOR
CEAT3R3M50
C 145
ELECT. CAPACITOR
CEAT3R3M50
C 146
ELECT. CAPACITOR
CEAT100M50
C 147
ELECT. CAPACITOR
CEAT3R3M50
C 148
ELECT. CAPACITOR
CEAT3R3M50
C 149
ELECT. CAPACITOR
CEAT3R3M50
C 150
ELECT. CAPACITOR
CEAT3R3M50
C 151
ELECT. CAPACITOR
CEAT3R3M50
C 152
CERAMIC CAPACITOR
CCSRCH101J50
C 153
CERAMIC CAPACITOR
CCSRCH101J50
C 154
CERAMIC CAPACITOR
CCSRCH101J50
C 155
ELECT. CAPACITOR
CEAT471M10
C 156
ELECT. CAPACITOR
CEAT471M10
C 157
ELECT. CAPACITOR
CEAT101M16
C 158
CHIP CERAMIC C.
CKSRYB103K50
C 159
CERAMIC CAPACITOR
CCSRCH101J50
C 160
CERAMIC CAPACITOR
CCSRCH101J50
C 1601
CHIP CERAMIC C.
CCSRCH221J50
C 1602
CHIP CERAMIC C.
CCSRCH221J50
C 1603
CHIP CERAMIC C.
CCSRCH471J50
C 1604
CHIP CERAMIC C.
CCSRCH471J50
C 1605
ELECT. CAPACITOR
CEAT4R7M50
C 1606
ELECT. CAPACITOR
CEAT4R7M50
C 1607
CHIP CERAMIC C.
CKSRYB103K50
C 1608
CHIP CERAMIC C.
CKSRYB103K50
C 1609
CHIP CERAMIC C.
CCSRCH221J50
C 161
ELECT. CAPACITOR
CEAT470M25
C 1610
CHIP CERAMIC C.
CCSRCH221J50
C 1611
CHIP CERAMIC C.
CCSRCH471J50
C 1612
CHIP CERAMIC C.
CCSRCH471J50
C 1613
ELECT. CAPACITOR
CEAT4R7M50
C 1614
ELECT. CAPACITOR
CEAT4R7M50
C 1615
CHIP CERAMIC C.
CKSRYB222K50
C 1616
CHIP CERAMIC C.
CKSRYB222K50
C 1617
CHIP CERAMIC C.
CKSRYB222K50
C 1618
CHIP CERAMIC C.
CKSRYB222K50
C 1619
CHIP CERAMIC C.
CKSRYB103K50
C 162
ELECT. CAPACITOR
CEAT470M25
C 1620
CHIP CERAMIC C.
CKSRYB103K50
C 1621
CHIP CERAMIC C.
CKSRYB122K50
C 1623
CHIP CERAMIC C.
CCSRCH271J50
C 1625
ELECT. CAPACITOR
CEAT4R7M50
C 1626
ELECT. CAPACITOR
CEAT4R7M50
C 1627
CHIP CERAMIC C.
CKSRYB222K50
C 1628
CERAMIC CAPACITOR
CKSRYF104Z50
C 1629
CHIP CERAMIC C.
CKSRYB103K50
C 163
CERAMIC CAPACITOR
CCSRCH101J50
C 1630
CHIP CERAMIC C.
CKSRYB103K50
C 1631
CERAMIC CAPACITOR
CKSRYF104Z25
C 1632
CERAMIC CAPACITOR
CKSRYF104Z25
C 1636
CHIP CERAMIC C.
CKSRYB103K50
C 1637
CHIP CERAMIC C.
CKSRYB103K50
C 1639
CHIP CERAMIC C.
CCSRCH471J50
C 164
CERAMIC CAPACITOR
CCSRCH101J50
C 1640
CERAMIC CAPACITOR
CCSRCH101J50
C 1641
CERAMIC CAPACITOR
CCSRCH101J50
C 1642
CHIP CERAMIC C.
CKSRYB103K50
C 165
ELECT. CAPACITOR
CEAT470M25
C 166
ELECT. CAPACITOR
CEAT470M25
C 167
CHIP CERAMIC C.
CCSRCH221J50
C 168
CERAMIC CAPACITOR
CKSRYB152K50
C 169
ELECT. CAPACITOR
CEAT470M25
C 170
ELECT. CAPACITOR
CEAT4R7M50
C 1701
CERAMIC CAPACITOR
CKSRYB682K50
C 1702
CERAMIC CAPACITOR
CKSRYB682K50
C 1703
CHIP CERAMIC C.
CKSRYB222K50
C 1704
CHIP CERAMIC C.
CKSRYB222K50
C 1705
CERAMIC CAPACITOR
CKSRYB104K16
C 1706
CERAMIC CAPACITOR
CKSRYB104K16
C 1707
CHIP CERAMIC C.
CCSRCH151J50
C 1708
CHIP CERAMIC C.
CCSRCH151J50
C 1709
CHIP CERAMIC C.
CKSRYB103K50
C 171
CHIP CERAMIC C.
CKSRYB103K50
C 1710
CHIP CERAMIC C.
CKSRYB103K50
C 1711
CHIP CERAMIC C.
CKSRYB103K50
C 1712
CHIP CERAMIC C.
CKSRYB103K50
C 1713
ELECT. CAPACITOR
CEAT220M25
C 1714
ELECT. CAPACITOR
CEAT220M25
C 1715
CERAMIC CAPACITOR
CKSRYB682K50
C 1716
CERAMIC CAPACITOR
CKSRYB682K50
C 1717
CHIP CERAMIC C.
CKSRYB222K50
C 1718
CHIP CERAMIC C.
CKSRYB222K50
C 1719
CERAMIC CAPACITOR
CKSRYB104K16
C 172
CHIP CERAMIC C.
CKSRYB103K50
C 1720
CERAMIC CAPACITOR
CKSRYB104K16
C 1721
CHIP CERAMIC C.
CCSRCH151J50
C 1722
CHIP CERAMIC C.
CCSRCH151J50
C 1723
CHIP CERAMIC C.
CKSRYB103K50
C 1724
CHIP CERAMIC C.
CKSRYB103K50
C 1725
CHIP CERAMIC C.
CKSRYB103K50
C 1726
CHIP CERAMIC C.
CKSRYB103K50
C 1727
ELECT. CAPACITOR
CEAT220M25
C 1728
ELECT. CAPACITOR
CEAT220M25
C 1729
CERAMIC CAPACITOR
CKSRYB682K50
C 173
CHIP CERAMIC C.
CCSRCH151J50
C 1731
CHIP CERAMIC C.
CKSRYB222K50
C 1732
CERAMIC CAPACITOR
CKSRYB682K50
C 1733
CERAMIC CAPACITOR
CKSRYB104K16
C 1734
CERAMIC CAPACITOR
CKSRYB104K16
C 1735
CHIP CERAMIC C.
CCSRCH151J50
C 1736
CERAMIC CAPACITOR
CCSRCH102J50
C 1737
CHIP CERAMIC C.
CKSRYB103K50
C 1738
CHIP CERAMIC C.
CKSRYB103K50
C 1739
ELECT. CAPACITOR
CEAT220M25
C 174
CHIP CERAMIC C.
CCSRCH151J50
C 1740
ELECT. CAPACITOR
CEAT220M25
C 175
ELECT. CAPACITOR
CEAT101M16
C 176
ELECT. CAPACITOR
CEAT101M16
C 177
CHIP CERAMIC C.
CKSRYB103K50
C 178
CHIP CERAMIC C.
CKSRYB103K50
C 179
CHIP CERAMIC C.
CKSRYB103K50
C 180
CHIP CERAMIC C.
CKSRYB103K50
C 183
CHIP CERAMIC C.
CKSRYB103K50
C 184
CERAMIC CAPACITOR
CKSRYF473Z50
C 185
CERAMIC CAPACITOR
CKSRYF473Z50
C 186
CHIP CERAMIC C.
CKSRYB103K50
C 187
CHIP CERAMIC C.
CKSRYB103K50
C 188
CHIP CERAMIC C.
CKSRYB103K50
C 189
CHIP CERAMIC C.
CKSRYB103K50
C 190
CHIP CERAMIC C.
CKSRYB103K50
C 191
CHIP CERAMIC C.
CKSRYB103K50
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
42
VSX-D510
C 199
CHIP CERAMIC C.
CKSRYB103K50
C 201
ELECT. CAPACITOR
CEAT4R7M50
C 202
CERAMIC CAPACITOR
CKSRYF104Z16
C 205
ELECT. CAPACITOR
CEAT3R3M50
C 207
CERAMIC CAPACITOR
CCSRCH101J50
C 208
CERAMIC CAPACITOR
CCSRCH101J50
C 209
CERAMIC CAPACITOR
CKSRYF104Z25
C 211
CERAMIC CAPACITOR
CCSRCH220J50
C 212
CERAMIC CAPACITOR
CCSRCH220J50
RESISTORS
R174
METAL OXIDE RESISTOR
RS1LMF101J
R175
METAL OXIDE RESISTOR
RS1LMF101J
Other Resistors
RS1/16S&&&J
OTHERS
CN101
19P SOCKET
KP200TA19L
CN102
33P CONNECTOR
52045-3345
CN103
19P CONNECTOR
52045-1945
CN104
CONNECTOR
52045-1445
CN105
CONNECTOR
52045-1345
CN106
CONNECTOR
52045-1745
CN1501 CONNECTOR 6P
52045-0645
JA103
PIN JACK(4P)
AKB7048
JA104
PIN JACK(4P)
AKB7048
JA105
PIN JACK(6P)
AKB7050
X1101
CRYSTAL RESONATOR
RSS1052
(18.432MHz)
X1201
CRYSTAL RESONATOR
VSS1140
(12.288MHz)
AMP&PRIMARY ASSY
SEMICONDUCTORS
IC51
REGULATOR IC
NJM78M56FA
IC52
PROTECTOR(315mA)
AEK7003
IC601
AUDIO IC
PAC010A
IC602
AUDIO IC
PAC011A
IC603
PROTECTOR(1A)
AEK7009
Q 51
TRANSISTOR
KRC101M
Q 601
TRANSISTOR
2SC2878
Q 602
TRANSISTOR
2SC2878
Q 603
TRANSISTOR
2SC2878
Q 604
TRANSISTOR
2SC2878
Q 605
TRANSISTOR
2SC2240
Q 606
TRANSISTOR
2SC2240
Q 631
TRANSISTOR
2SC2878
Q 632
TRANSISTOR
2SC2878
Q 633
TRANSISTOR
2SC2240
Q 651
TRANSISTOR
2SC2878
Q 652
TRANSISTOR
2SC2878
Q 653
TRANSISTOR
2SC2878
Q 654
TRANSISTOR
2SC2878
Q 655
TRANSISTOR
2SC2240
Q 656
TRANSISTOR
2SC2240
Q 691
TRANSISTOR
2SC1740S
Q 692
TRANSISTOR
2SC1740S
Q 701
TRANSISTOR
2SD1859X
Mark No. Description Part No.
Q 702
TRANSISTOR
2SB1238X
Q 703
TRANSISTOR
2SA1145
Q 704
TRANSISTOR
2SC1845
D 51
DIODE
S5688G
D 52
DIODE
S5688G
D 53
DIODE
S5688G
D 54
DIODE
S5688G
D 55
DIODE
S5688G
D 56
DIODE
1SS133
D 57
DIODE
1SS133
D 58
ZINER DIODE
MTZJ5.1A
D 601
DIODE
1SS133
D 602
DIODE
1SS133
D 603
DIODE
1SS133
D 604
DIODE
1SS133
D 605
ZENER DIODE
MTZJ8.2A
D 606
ZENER DIODE
MTZJ8.2A
D 631
DIODE
1SS133
D 632
DIODE
1SS133
D 633
ZENER DIODE
MTZJ8.2A
D 634
ZENER DIODE
MTZJ8.2A
D 651
DIODE
1SS133
D 652
DIODE
1SS133
D 653
DIODE
1SS133
D 654
DIODE
1SS133
D 701
DIODE
D5SBA20(B)
D 702
DIODE
D5SBA20(B)
D 711
ZENER DIODE
MTZJ22D
D 712
ZENER DIODE
MTZJ5.1B
D 751
DIODE
1SS133
D 752
DIODE
1SS133
D 753
DIODE
1SS133
D 754
DIODE
1SS133
D 755
DIODE
1SS133
D 756
DIODE
1SS133
COILS AND FILTERS
L 52
LINE FILTER
XTF3001
L 751
COIL
ATH1004
L 752
COIL
ATH1004
L 753
COIL
ATH1004
L 761
COIL
ATH1004
L 762
COIL
ATH1004
SWITCHES AND RELAYS
RY51
JOE LOWPOWER RELAY
XSR3003
RY751
RELAY
XSR3002
RY752
RELAY
XSR3002
RY753
RELAY
XSR3002
CAPACITORS
C51
CKA (10000pF/AC250V)
ACG7020
C52
CKA (10000pF/AC250V)
ACG7020
C53
ELECT. CAPACITOR
CEAT102M16
C54
ELECT. CAPACITOR
CEAT470M25
C55
CERAMIC CAPACITOR
CGCYX103M25
C56
CERAMIC CAPACITOR
CGCYX103M25
C57
CERAMIC CAPACITOR
CGCYX103M25
C601
CERAMIC CAPACITOR
CKCYB102K50
C602
CERAMIC CAPACITOR
CKCYB102K50
C603
CERAMIC CAPACITOR
CKCYB331K50
C604
CERAMIC CAPACITOR
CKCYB331K50
C605
ELECT. CAPACITOR
CEAT4R7M50
B
Mark No. Description Part No.
C 192
CHIP CERAMIC C.
CKSRYB103K50
C 193
CHIP CERAMIC C.
CKSRYB103K50
C 194
ELECT. CAPACITOR
CEAT4R7M50
C 195
ELECT. CAPACITOR
CEAT4R7M50
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
43
VSX-D510
C606
ELECT. CAPACITOR
CEAT4R7M50
C607
CERAMIC CAPACITOR
CCCSL120J50
C608
CERAMIC CAPACITOR
CCCSL120J50
C609
CERAMIC CAPACITOR
CCCSL120J50
C610
CERAMIC CAPACITOR
CCCSL120J50
C611
ELECT. CAPACITOR
CEAT101M16
C612
ELECT. CAPACITOR
CEAT101M16
C613
CERAMIC CAPACITOR
CCCSL221J50
C614
CERAMIC CAPACITOR
CCCSL221J50
C615
ELECT. CAPACITOR
CEANP2R2M50
C616
ELECT. CAPACITOR
CEANP2R2M50
C631
CERAMIC CAPACITOR
CKCYB102K50
C632
CERAMIC CAPACITOR
CKCYB331K50
C633
ELECT. CAPACITOR
CEAT4R7M50
C634
CERAMIC CAPACITOR
CCCSL12J50
C635
CERAMIC CAPACITOR
CCCSL120J50
C636
ELECT. CAPACITOR
CEAT101M16
C637
CERAMIC CAPACITOR
CCCSL221J50
C638
ELECT. CAPACITOR
CEANP2R2M50
C651
CERAMIC CAPACITOR
CKCYB102K50
C652
CERAMIC CAPACITOR
CKCYB102K50
C653
CERAMIC CAPACITOR
CKCYB331K50
C654
CERAMIC CAPACITOR
CKCYB331K50
C655
ELECT. CAPACITOR
CEAT4R7M50
C656
ELECT. CAPACITOR
CEAT4R7M50
C657
CERAMIC CAPACITOR
CCCSL120J50
C658
CERAMIC CAPACITOR
CCCSL120J50
C659
CERAMIC CAPACITOR
CCCSL120J50
C660
CERAMIC CAPACITOR
CCCSL120J50
C661
ELECT. CAPACITOR
CEAT101M16
C662
ELECT. CAPACITOR
CEAT101M16
C663
CERAMIC CAPACITOR
CCCSL221J50
C664
CERAMIC CAPACITOR
CCCSL221J50
C665
ELECT. CAPACITOR
CEANP2R2M50
C666
ELECT. CAPACITOR
CEANP2R2M50
C691
CERAMIC CAPACITOR
CKCYB102K50
C692
ELECT. CAPACITOR
CEAT221M10
C701
ELECT.CAPACITOR
ACH7134
(4700µF/63V)
C702
ELECT.CAPACITOR
ACH7134
(4700µF/63V)
C703
ELECT.CAPACITOR
ACH7135
(3300µF/42V)
C704
ELECT.CAPACITOR
ACH7135
(3300µF/42V)
C705
ELECT. CAPACITOR
CEAT100M2A
C706
ELECT. CAPACITOR
CEAT100M2A
C707
CKA (0.01µF/AC250V)
ACG1005
C708
CKA (0.01µF/AC250V)
ACG1005
C711
ELECT. CAPACITOR
CEAT101M35
C712
ELECT. CAPACITOR
CEAT101M10
C751
AUDIO FILM CAPACITOR
CFTYA224J50
C752
AUDIO FILM CAPACITOR
CFTYA224J50
C753
AUDIO FILM CAPACITOR
CFTYA224J50
C754
AUDIO FILM CAPACITOR
CFTYA224J50
C755
AUDIO FILM CAPACITOR
CFTYA224J50
C756
AUDIO FILM CAPACITOR
CFTYA224J50
C757
FILM CAPACITOR
CFTYA472J50
C758
FILM CAPACITOR
CFTYA472J50
C759
FILM CAPACITOR
CFTYA472J50
C761
AUDIO FILM CAPACITOR
CFTYA224J50
C762
AUDIO FILM CAPACITOR
CFTYA224J50
C763
AUDIO FILM CAPACITOR
CFTYA224J50
C764
AUDIO FILM CAPACITOR
CFTYA224J50
C765
FILM CAPACITOR
CQMB472J50
C766
FILM CAPACITOR
CQMB472J50
RESISTORS
R52
CARBON FILM RESISTOR
RD1/2PM270J
R615
RESISTOR (0.22Ω/5W)
XCN3001
R616
RESISTOR (0.22Ω/5W)
XCN3001
R638
RESISTOR (0.22Ω/5W)
XCN3001
R665
RESISTOR (0.22Ω/5W)
XCN3001
R666
RESISTOR (0.22Ω/5W)
XCN3001
R711
METAL OXIDE RESISTOR
RS2LMF272J
R751
CARBON FILM RESISTOR
RD1/4PUF101J
R752
CARBON FILM RESISTOR
RD1/4PUF101J
R753
METAL OXIDE RESISTOR
RS1LMF4R7J
R754
METAL OXIDE RESISTOR
RS1LMF4R7J
R755
CARBON FILM RESISTOR
RD1/4PUF101J
R756
METAL OXIDE RESISTOR
RS1LMF4R7J
R761
CARBON FILM RESISTOR
RD1/4PUF101J
R762
CARBON FILM RESISTOR
RD1/4PUF101J
R763
METAL OXIDE RESISTOR
RS1LMF4R7J
R764
METAL OXIDE RESISTOR
RS1LMF4R7J
Other Resistors
RD1/4PU&&&J
OTHERS
52
3P CABLE HOLDER
51048-0300
701
7P CABLE HOLDER
51048-0700
CN51
AC CODE SOCKET
RKP1751
CN53
22P CONNECTOR
52045-2245
CN601
16P PLUG
KM200TA16
CN751
SPEAKER TERMINAL 6-P
XKE3007
CN752
SPEAKER TERMINAL 4-P
XKE3006
H51
FUSE CLIP
AKR7001
H52
FUSE CLIP
AKR7001
T51
STANDBY TRANSFORMER ATT7037
KN51
EARTH METAL FITTING
VNF1084
KN601
EARTH METAL FITTING
VNF1084
J44
3P JUMPER WIRE
D20PYY0325E
TRANS2 ASSY
SEMICONDUCTORS
IC851
PROTECTOR (1.6A)
AEK7012
IC852
PROTECTOR (1.6A)
AEK7012
IC853
PROTECTOR (1.6A)
AEK7012
OTHERS
851
7P CABLE HOLDER
51048-0700
TRANS3 ASSY
TRANS3 ASSY has no service part.
REGULATOR ASSY
SEMICONDUCTORS
IC801
REGULATOR IC
NJM78M12FA
IC802
REGULATOR IC
NJM79M12FA
IC803
REGULATOR IC
NJM78M05FA
IC804
REGULATOR IC
NJM78M05FA
Q801
TRANSISTOR
KRA103M
C
D
E
Mark No. Description Part No.
Mark No. Description Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
44
VSX-D510
C803
CERAMIC CAPACITOR
CGCYX103M25
C804
CERAMIC CAPACITOR
CGCYX103M25
C805
ELECT. CAPACITOR
CEAT101M16
C806
ELECT. CAPACITOR
CEAT101M16
C807
CERAMIC CAPACITOR
CGCYX103M25
C808
ELECT. CAPACITOR
CEAT101M10
C809
ELECT. CAPACITOR
CEAT222M16
C810
CERAMIC CAPACITOR
CGCYX103M25
C811
ELECT. CAPACITOR
CEAT101M10
OTHERS
CN801
22P CONNECTOR
52045-2245
CN802
19P PLUG
KM200TA19
CN803
5P PLUG
KM200TA5
AMP INPUT ASSY
OTHERS
CN290
17P CONNECTOR
52044-1745
CN291
16P SOCKET
KP200TA16L
TRANS1 ASSY
TRANS1 ASSY has no service part.
VIDEO&6CH IN ASSY
SEMICONDUCTORS
IC301
VIDEO SW IC
NJM2296M
IC302
IC
NJM4558MD
IC303
IC
NJM4558MD
Q301
TRANSISTOR
2SC3377
Q302
TRANSISTOR
2SA1515
Q303
TRANSISTOR
2SC2878
D301
DIODE
1SS355
D302
DIODE
1SS355
D303
CHIP ZENER DIODE
UDZS6.2B
D304
CHIP ZENER DIODE
UDZS6.2B
D305
DIODE
1SS355
D306
DIODE
1SS355
CAPACITORS
C302
CERAMIC CAPACITOR
CKSRYB103K50
C304
CERAMIC CAPACITOR
CKSRYB221K50
C305
CERAMIC CAPACITOR
CKSRYB221K50
C306
CERAMIC CAPACITOR
CKSRYB221K50
C307
ELECT. CAPACITOR
CEAT470M25
C308
ELECT. CAPACITOR
CEAT470M25
C309
ELECT. CAPACITOR
CEAT470M25
C310
ELECT. CAPACITOR
CEAT470M25
C311
CERAMIC CAPACITOR
CKSRYB473K50
C312
ELECT. CAPACITOR
CEAT470M25
C313
CERAMIC CAPACITOR
CKSRYB473K50
C314
ELECT. CAPACITOR
CEAT470M25
C315
CERAMIC CAPACITOR
CKSRYB103K50
C316
CERAMIC CAPACITOR
CKSRYB103K50
C317
CERAMIC CAPACITOR
CKSRYB221K50
C318
CERAMIC CAPACITOR
CKSRYB221K50
C319
CHIP CAPACITOR
CCSRCH101J50
C320
CHIP CAPACITOR
CCSRCH101J50
C321
ELECT. CAPACITOR
CEAT4R7M50
C322
CERAMIC CAPACITOR
CKSRYB103K50
C323
CERAMIC CAPACITOR
CKSRYB103K50
C324
ELECT. CAPACITOR
CEAT4R7M50
C325
CERAMIC CAPACITOR
CKSRYB221K50
C326
CERAMIC CAPACITOR
CKSRYB221K50
C327
CHIP CAPACITOR
CCSRCH101J50
C328
CHIP CAPACITOR
CCSRCH101J50
C329
CERAMIC CAPACITOR
CKSRYB103K50
C330
CERAMIC CAPACITOR
CKSRYB103K50
C331
ELECT. CAPACITOR
CEAT4R7M50
C332
ELECT. CAPACITOR
CEAT4R7M50
C333
CERAMIC CAPACITOR
CKSRYB331K50
C338
ELECT. CAPACITOR
CEAT470M25
C339
CERAMIC CAPACITOR
CKSRYB104K25
C340
CERAMIC CAPACITOR
CKSRYB104K25
C342
CHIP CAPACITOR
CCSRCH101J50
C343
CHIP CAPACITOR
CCSRCH101J50
C344
CHIP CAPACITOR
CCSRCH101J50
C345
CHIP CAPACITOR
CCSRCH101J50
C346
CERAMIC CAPACITOR
CKSRYB104K16
C347
CHIP CAPACITOR
CCSRCH470J50
RESISTORS
R 313
METAL OXIDE RESISTOR
RS3LMF560J
R 316
METAL OXIDE RESISTOR
RS3LMF560J
Other Resistors
RS1/16S&&&J
OTHERS
CN302
5P SOCKET
KP200TA5L
CN303
14P CONNECTOR
52044-1445
CN305
PIN JACK(6P)
XKB3009
CN307
PIN JACK(4P)
XKB3013
JA301
JACK
RKN1004
H.P. ASSY
SEMICONDUCTORS
Q1551
TRANSISTOR
2SC3326
Q1552
TRANSISTOR
2SC3326
CAPACITORS
C1551
CERAMIC CAPACITOR
CKSRYB104K16
C1552
CERAMIC CAPACITOR
CKSRYB103K50
C1553
CHIP CERAMIC C.
CCSRCH471J50
C1555
CHIP CAPACITOR
CKSRYB223K50
C1556
CHIP CAPACITOR
CKSRYB223K50
I
F
H
Mark No. Description Part No.
Mark No. Description Part No.
G
Q802
TRANSISTOR
KRC101M
Q803
TRANSISTOR
KRA103M
Q804
TRANSISTOR
KRC101M
D801
DIODE
S5688G
D802
DIODE
S5688G
D803
DIODE
S5688G
D804
DIODE
S5688G
D805
DIODE
S5688G
D806
DIODE
S5688G
D807
DIODE
S5688G
D808
DIODE
S5688G
CAPACITORS
C801
ELECT. CAPACITOR
CEAT222M25
C802
ELECT. CAPACITOR
CEAT222M25
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
45
VSX-D510
RESISTORS
R1551
METAL OXIDE RESISTOR
RS1/2LMF121J
R1552
METAL OXIDE RESISTOR
RS1/2LMF121J
R1553
CHIP RESISTOR
RS1/16S472J
R1554
CHIP RESISTOR
RS1/16S472J
OTHERS
1551
CABLE HOLDER(4P)
51063-0405
JA1551
JACK
RKN1002
KN1551 EARTH METAL FITTING
VNF1084
DIGITAL IN ASSY
SEMICONDUCTORS
IC1901
LOGIC IC
TC74ACT151F
IC1902
LOGIC IC
TC74HCU04AF
COILS AND FILTERS
F1901
CHIP BEAD
DTF1067
F1902
CHIP BEAD
DTF1067
F1903
CHIP BEAD
DTF1067
F1904
CHIP BEAD
DTF1067
CAPACITORS
C1901
CERAMIC CAPACITOR
CKSRYB104K25
C1902
CERAMIC CAPACITOR
CKSRYB104K25
C1903
CERAMIC CAPACITOR
CKSRYB104K25
C1904
ELECT. CAPACITOR
CEAT101M10
C1905
ELECT. CAPACITOR
CEAT101M10
C1906
CERAMIC CAPACITOR
CKSRYB103K50
C1907
CHIP CERAMIC C.
CCSRCH271J50
C1908
CERAMIC CAPACITOR
CKSRYB104K25
C1909
CERAMIC CAPACITOR
CKSRYB104K25
C1910
CERAMIC CAPACITOR
CKSRYB103K50
C1911
CERAMIC CAPACITOR
CCSRCH560J50
C1912
ELECT. CAPACITOR
CEAT101M10
C1913
CERAMIC CAPACITOR
CKSRYB103K50
C1914
CHIP CERAMIC C.
CCSRCH271J50
C1915
CHIP CAPACITOR
CKSRYB102K50
C1916
CHIP CERAMIC C.
CCSRCH471J50
C1917
CHIP CERAMIC C.
CCSRCH220J50
C1918
CHIP CERAMIC C.
CCSRCH221J50
C1919
CERAMIC CAPACITOR
CKSRYB103K50
C1920
CERAMIC CAPACITOR
CKSRYB103K50
C1921
CERAMIC CAPACITOR
CKSRYB104K25
C1922
CERAMIC CAPACITOR
CKSRYB104K25
RESISTORS
All Resistors
RS1/16S&&&J
OTHERS
CN1901 CONNECTOR 6P
52045-0645
JA1901
JACK (1P)
VKB1077
JA1902
OPTICAL RECEIV MOD.
GP1F32R
JA1903
OPTICAL RECEIV MOD.
GP1F32R
JA1904
OPTICAL LINK OUT
GP1F32T
FRONT ASSY
SEMICONDUCTORS
IC401
CONTROL MCU
PDG260A
IC481
RDS RECORDER
BU1923F
Q 401
CHIP DIGITAL TRANS.
DTA124EK
Q 402
CHIP DIGITAL TRANS.
DTA124EK
Q 403
DIGITAL TRANSISTOR
DTC143EK
Q 404
DIGITAL TRANSISTOR
DTC143EK
Q 405
CHIP TANSISTOR
2SA1037K
Q 441
DIGITAL TRANSISTOR
DTC143EK
Q 442
CHIP DIGITAL TRANS.
DTA124EK
Q 471
CHIP DIGITAL TRANS.
DTA124EK
Q 481
CHIP TANSISTOR
2SA1037K
Q 482
DIGITAL TRANSISTOR
DTC143EK
Q 483
CHIP MUTING TRANS.
2SC3326
D 401
CHIP DIODE ARRAY
DAP202K
D 403
DIODE
DAN217
D 404
CHIP DIODE ARRAY
DAP202K
D 405
DIODE
DAN217
D 407
DIODE
1SS355
D 408
DIODE
1SS355
D 442
DIODE
1SS355
COILS AND FILTERS
L401
RADIAL INDUCTOR
LFEA2R2J
L481
RADIAL INDUCTOR
LFEA2R2J
SWITCHES AND RELAYS
S 451
SWITCH
ASG1051
S 452
SWITCH
ASG1051
S 453
SWITCH
ASG1051
S 454
SWITCH
ASG1051
S 455
SWITCH
ASG1051
S 456
SWITCH
ASG1051
S 457
SWITCH
ASG1051
S 458
SWITCH
ASG1051
S 459
SWITCH
ASG1051
S 460
SWITCH
ASG1051
S 461
SWITCH
ASG1051
S 462
SWITCH
ASG1051
S 463
SWITCH
ASG1051
S 464
SWITCH
ASG1051
S 465
SWITCH
ASG1051
S 466
SWITCH
ASG1051
S 467
SWITCH
ASG1051
S 468
SWITCH
ASG1051
S 476
SWITCH
ASG1051
CAPACITORS
C401
CERAMIC CAPACITOR
CKSRYB103K50
C402
ELECT. CAPACITOR
CEAT221M6R3
C403
CERAMIC CAPACITOR
CKSRYB103K50
C404
EDL CAPACITOR
ACH7132
(0.047F/5.5V)
C405
ELECT. CAPACITOR
CEAT221M6R3
C406
CERAMIC CAPACITOR
CKSRYB473K16
C407
CERAMIC CAPACITOR
CKSRYB473K16
C408
CERAMIC CAPACITOR
CKSRYB104K16
C409
ELECT. CAPACITOR
CEAT2R2M50
C410
ELECT. CAPACITOR
CEAT2R2M50
C411
CERAMIC CAPACITOR
CKSRYB103K50
C412
ELECT. CAPACITOR
CEAT470M50
C416
CERAMIC CAPACITOR
CKSRYB104K16
C418
CERAMIC CAPACITOR
CKSRYB104K16
C419
CERAMIC CAPACITOR
CKSRYB103K50
C420
ELECTROLYTIC CAPACIT
ACH7101
(220µF/35V)
J
K
Mark No. Description Part No.
Mark No. Description Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
46
VSX-D510
C441
CERAMIC CAPACITOR
CKSRYB103K50
C442
ELECT. CAPACITOR
CEJA470M10
C451
CHIP CAPACITOR
CKSRYB102K50
C452
CHIP CAPACITOR
CKSRYB102K50
C453
CHIP CAPACITOR
CKSRYB102K50
C471
CERAMIC CAPACITOR
CKSRYB104K16
C481
CHIP CAPACITOR
CKSRYB102K50
C482
CHIP CAPACITOR
CKSRYB102K50
C483
ELECT. CAPACITOR
CEAT101M10
C484
ELECT. CAPACITOR
CEJQ2R2M50
C485
CHIP CAPACITOR
CKSRYB472K50
C486
ELECT. CAPACITOR
CEATR10M50
C488
CHIP CERAMIC C.
CCSRCH561J50
C489
CHIP CERAMIC C.
CCSRCH270J50
C490
CHIP CERAMIC C.
CCSRCH270J50
C491
CERAMIC CAPACITOR
CKSRYB104K16
C492
CERAMIC CAPACITOR
CKSRYB104K16
C493
CERAMIC CAPACITOR
CKSRYB104K16
C494
CERAMIC CAPACITOR
CKSRYB104K16
C495
CHIP CAPACITOR
CKSRYB102K50
C531
CERAMIC CAPACITOR
CKSRYB103K50
C532
CERAMIC CAPACITOR
CKSRYB223K25
RESISTORS
All Resistors
RS1/16S&&&J
OTHERS
401
REMOTE RECEIVER UNIT
GP1U28X
403
CABLE HOLDER(4P)
51063-0405
404
CABLE HOLDER(6P)
51063-0605
471
CABLE HOLDER(4P)
51063-0405
CN401
19P CONNECTOR
52044-1945
CN402
33P CONNECTOR
52044-3345
V401
FL TUBE
XAV3010
X401
CERAMIC RESONATOR
ASS7018
(7.2MHz)
X481
CERAMIC RESONATOR
ASS7004
(4.332MHz)
R.ENCODER ASSY
SWITCHES AND RELAYS
S 511
SWITCH
ASG1051
S 512
ROTARY ENCODER
XSX3006
S 513
ROTARY ENCODER
XSX3005
OTHERS
511
CABLE HOLDER(6P)
51063-0605
POWER SW ASSY
SEMICONDUCTORS
D501
BR3371XJ30A
SWITCHES AND RELAYS
S 501
SWITCH
ASG1051
RESISTORS
R 501
CHIP RESISTOR
RS1/16S271J
OTHERS
501
CABLE HOLDER(4P)
51063-0405
M
Mark No. Description Part No.
L
6. ADJUSTMENT
There is no information to be shown in this chapter.
MECHA SW ASSY
SWITCHES AND RELAYS
S 591
SWITCH
ASG7014
CAPACITORS
C 591
CERAMIC CAPACITOR
CKSQYF103Z50
C 592
CERAMIC CAPACITOR
CKSQYF103Z50
OTHERS
CN591
CONNECTOR(3P)
52151-0310
Mark No. Description Part No.
GA
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
47
VSX-D510
2 ×2
Remove the Bonnet (seven screws).
1
Rear Panel
Pull up
2
2
4
Diagnosis
AMP&PRIMARY Assy
REGULATOR Assy
Heat Sink
5
×2
2 ×3
2 ×5
3 ×3
×2
2 ×3
7.1 DISASSEMBLY and DIAGNOSIS
7. GENERAL INFORMATION
Diagnosis
PCB Location
AMP&PRIMARY Assy
FRONT Assy
AMP INPUT Assy
D.D & INPUT Assy
VIDEO&6CH IN Assy
FM/AM TUNER Unit
REGULATOR Assy
H.P. Assy
TRANS 3 Assy
TRANS 2 Assy
TRANS 1 Assy
R. ENCODER Assy L
F
A
H
DIGITAL IN Assy J
E
K
I
D
G
C
B
POWER SW Assy
M
Note : This photograph shows other models.
However, the work method is the same.
Note : If a speaker and the screw of a rear panel are removed, a set will stop moving.
Even if it removes TUNER Unit, it is uninfluential in operation of those other than TUNER Unit.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
48
VSX-D510
Remove FM/AM TUNER Unit and Shield R3 (five screws).
Please check SIDE A of the D.D & INPUT Assy on this status.
Please check IC101 mounted on side B from SIDE A.
The Pin number points on SIDE A of IC 101 are shown as follows.
1
2
1
5
6
7
8
9
10
12
13
14
15
16
17
18
19
20
21
11
3
4
Diagnosis of D.D & INPUT Assy
D.D & INPUT Assy
A
SIDE A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
49
VSX-D510
PDG260A (FRONT ASSY : IC401)
• System Control MCU
• Pin Arrangement (Top View)
• The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams.
7.2 PARTS
7.2.1 IC
1
G2
G1
NC
ACIN
RDS_DT
RDS_CK
OVFB
RMC
VER_2
PLL_CE
CDC_CS
CDC_CK
CDC_DO
CDC_DI
STEREO
TUNED
VENC_A
VENC_B
A.MUTE
CSB
DSP_CS
DSP_CK
DSP_SI
DSP_SO
MVOL_ATT
ST_EVR
PLL_DO
KEYIN1
KEYIN2
G1/A1
G0/A0
NC
PE0/EC0/INT0
PE1/EC1/INT1
PE2/INT2
PE3/INT3/NMI
PE4/RMC
PE5
PE6/PWM
PE7/TO/ADJ
PC0/KR0
PC1/KR1
PC2/KR2
PC3/KR3
PC4/KR4
PC5/KR5
PC6/KR6
PC7/KR7
PB0/CINT
PB1/CS0
PB2/SCK0
PB3/SI0
PB4/SO0
PB5/SCK1
PB6/SI1
PB7/SO1
AVREF
PA1/AN0
PA1/AN1
KEYIN3
VER_1
FENC_A
FENC_B
AMP_DC
AMP_OL
VIDEO1
VIDEO2
VIDEO3
SYS_CK
SYS_DT
PA2/AN2
PA3/AN3
PA4/AN4
PA5/AN5
PA6/AN6
PA7/AN7
AVSS
RST
EXTAL
XTAL
VSS
TX
TEX
VDD
VFIP
PD0/A55
PD1/A54
PD2/A53
PD3/A52
PD4/A51
A21
A22
A23
PH7/A24
PH6/A25
PH5/A26
PH4/A27
PH3/A28
PH2/A29
PH1/A30
PH0/A31
PG7/A32
PG6/A33
PG5/A34
PG4/A35
PG3/A36
PG2/A37
PG1/A38
PG0/A39
PF7/A40
PF6/A41
PF5/A42
PF4/A43
PF3/A44
PF2/A45
PF1/A46
PF0/A47
PD7/A48
PD6/A49
PD5/A50
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
S21
S22
4053INH
4053A
RY_B
RY_C/R
RY_A
RY_AC
GAIN_SEL
NECK_SEL
DSP_RST
9164_CS
T_MUTE
T_POWON
FM+(RDS)
CDC_RST
DSP_MT
9273_CS
D_MUTE
G2/A2
G3/A3
G4/A4
G5/A5
G6/A6
G7/A7
G8/A8
G9/A9
G10/A10
G11/A11
G12/A12
VDD
G13/A13
G14/A14
G15/A15
A16
A17
A18
A19
A20
G3
G4
G5
G6
G7
G8
G9
G10
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
21
22
23
24
25
26
27
28
29
30
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
50
VSX-D510
No.
Pin Name
I/O
Pin Function
Active
1
G2
O
Grid output 2
H
2
G1
O
Grid output 1
H
3
NC
−
Connect to VDD
4
ACIN
I
AC pulse input
5
RDS_DT
I
Serial control DATA signal of RDS communication
6
RDS_CK
I
Serial control CLOCK signal of RDS communication
7
DIRLOCK
I
ERR/OVER input from CODEC
8
RMC
I
Remote control signal input (no-carrier signal)
9
VER_2
I
Destination switch 2
10
PLL_CE
O
Chip select signal for communication with LC72131 (tuner)
H
11
CDC_CS
O
CODEC chip serect
12
CDC_CK
O
CODEC, TC9164 control clock
13
CDC_DO
O
CODEC, TC9164 control data output
14
CDC_DI
I
Data input from CODEC
15
STEREO
I
Stereo/Monoral signal judgment signal
16
TUNED
I
TUNED information
17
ENC_A
I
EVOL Rotary encoder signal input A
18
ENC_B
I
EVOL Rotary encoder signal input B
19
AMUTE
O
Audio mute
L
20
CSB
O
Chip select for control of YSS912 sub DSP
L
21
DSP_CS
O
Chip select for control of YSS912 main DSP
L
22
DSP_CK
O
Clock signal for communication with YSS912
H
23
DSP_SI
I
DATA input signal for communication with YSS912
24
DSP_SO
O
DATA output signal for communication with YSS912
H
25
MVRATT
O
ATT control of master volume (L : Less than -15dB)
H
26
ST_EVR
O
Strobe signal for communication with electric volume IC
H
27
PLL_DO
I
Data input signal for communication with LC72131 (tuner)
28
AVref
−
Connect to VDD
29
KEYIN1
I
Key input A/D conversion port 1
30
KEYIN2
I
Key input A/D conversion port 2
31
KEYIN3
I
Key input A/D conversion port 3
32
VER_1
I
Destination switch (A/D input)
33
FENC_A
I
FUNC Rotary encoder signal input A
34
FENC_B
I
FUNC Rotary encoder signal input B
35
AMP_DC
I
DC abnormality detection of protection circuit (L : Abnormality detection)*
L
36
AMP_OL
I
Over-load detection of protection circuit (L : Abnormality detection)*
L
37
AVSS
−
Connect to VSS
38
RST
−
Reset
39
EXTAL
−
Connect to the oscillator (7.2MHz)
40
XTAL
−
41
VSS
−
Connect to VSS
42
TX
−
Open
43
TEX
−
Connect to VSS
44
VDD
−
+5V
45
VFDP
−
-30V
46
VIDEO1
O
NJM2296D control
H
47
VIDEO2
48
VIDEO3
49
SYS_DT
O
Data signal for communication with M62446, TC9163, TC9164 and PLL
H
O
Clock signal for communication with M62446, TC9163, TC9164 and PLL
H
50
SYS_CK
*: To FL "PowerOFF" When displayed, it is the case where DC is in the output of AMP.
To FL "OVER LOAD" When displayed, it is the case where the output of AMP is Over-load.
• Pin Function
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
51
VSX-D510
No.
Pin Name
I/O
Pin Function
Active
51
D_MUTE
O
TC9273 Chip select
O
Digital mute (Not used)
O
DSP mute (ASSY mute)
H
H
H
52
9273_CS
53
DSP_MT
54
CDC_RST
O
CODEC reset
H
55
FM+(RDS)
O
Tr switch ON/OFF for power supply of RDS decoder (L : AM, power OFF , H : Other)
H
56
Not used
−
57
T_POWON
O
Tuner module ON/OFF (North America model only)
H
58
T_MUTE
O
Tuner mute
H
59
9164 CS
O
TC9163, TC9164 Chip select
60
DSP_RST
O
YSS912 reset
61
NECK_SEL
O
5.1ch, surround mode and A+B Stereo : H / Stereo : L
62
GAIN_SEL
O
Gain select (5.1ch and Stereo of analog input : H )
H
63
RY_AC
O
AC relay ON/OFF
H
64
RY_A
O
Speaker A relay ON/OFF
H
65
RY_C/R
O
Rear/Center Speaker relay ON/OFF
H
66
RY_B
O
Speaker B relay ON/OFF
H
67
4053A
O
Component terminal control
H
68
4053INH
O
O
Component terminal control
H
69
S22
O
Segment output 22
H
70
S21
Segment output 21
71
S20
Segment output 20
72
S19
Segment output 19
73
S18
Segment output 18
74
S17
Segment output 17
75
S16
Segment output 16
76
S15
Segment output 15
77
S14
Segment output 14
78
S13
Segment output 13
79
S12
Segment output 12
80
S11
Segment output 11
81
S10
Segment output 10
82
S9
Segment output 9
H
83
S8
Segment output 8
84
S7
Segment output 7
85
S6
Segment output 6
86
S5
Segment output 5
87
S4
Segment output 4
88
S3
Segment output 3
89
VDD
−
5V
90
S2
O
O
Segment output 2
H
91
S1
Segment output 1
92
Not used
Not used (Fixed Vfdp)
93
G10
Grid output 10
94
G9
Grid output 9
95
G8
Grid output 8
96
G7
Grid output 7
97
G6
Grid output 6
98
G5
Grid output 5
99
G4
Grid output 4
100
G3
Grid output 3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
52
VSX-D510
OUT4
OUT3
OUT2
OUT1
AVDD
SWin
GNDS
SRin
1
2
3
4
5
6
7
8
SLin
GNDC
Cin
GNDR
Rin
GNDL
Lin
BYPASSR
9
10
11
12
13
14
15
16
BYPASSR
LTRE
LBASS3
LBASS2
LBASS1
17
18
19
20
21
MCU
I/F
DVDD
CLK
DATA
LATCH
DGND
AGND
SWout
版权声明
1. 本站所有素材，仅限学习交流，仅展示部分内容，如需查看完整内容，请下载原文件。
2. 会员在本站下载的所有素材，只拥有使用权，著作权归原作者所有。
3. 所有素材，未经合法授权，请勿用于商业用途，会员不得以任何形式发布、传播、复制、转售该素材，否则一律封号处理。
4. 如果素材损害你的权益请联系客服QQ：77594475 处理。
