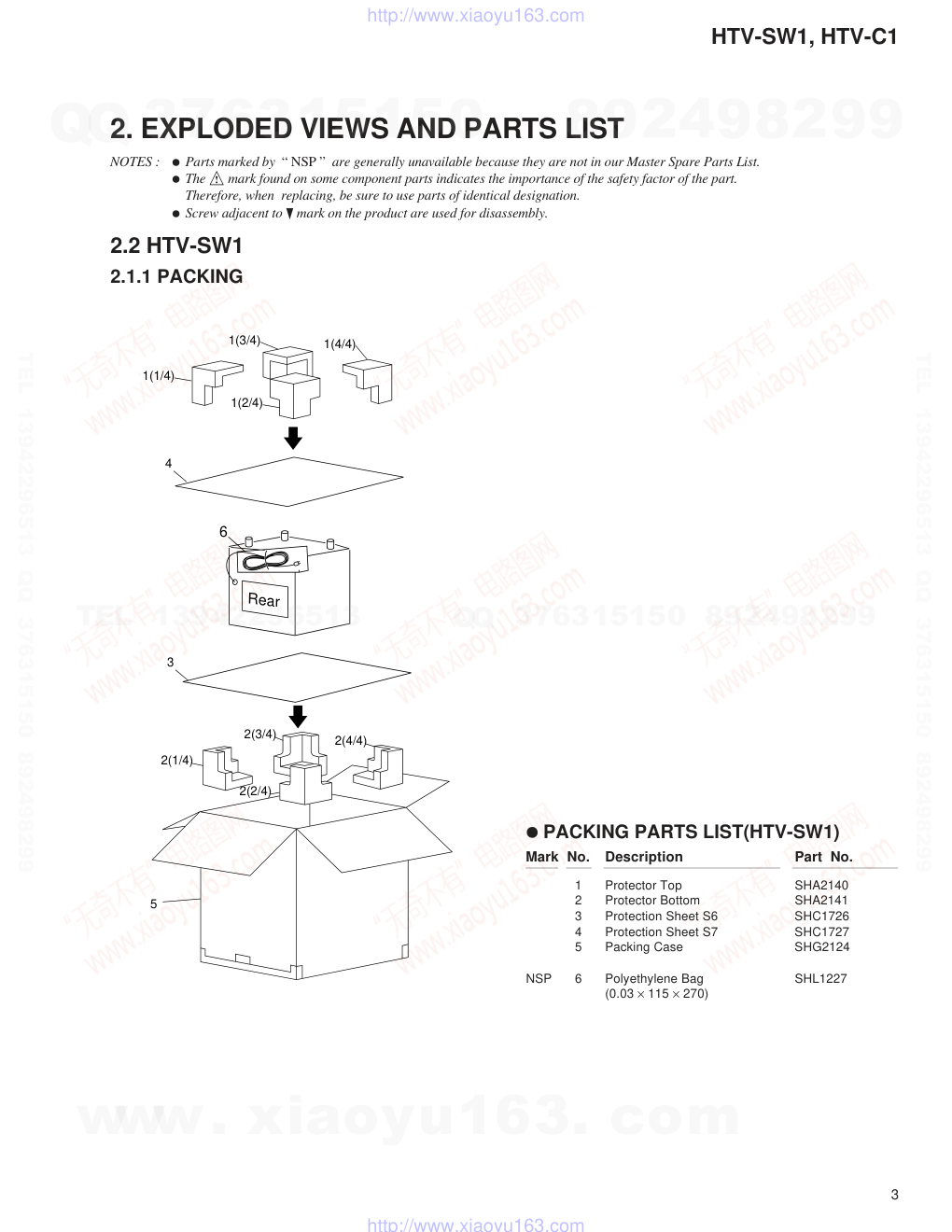

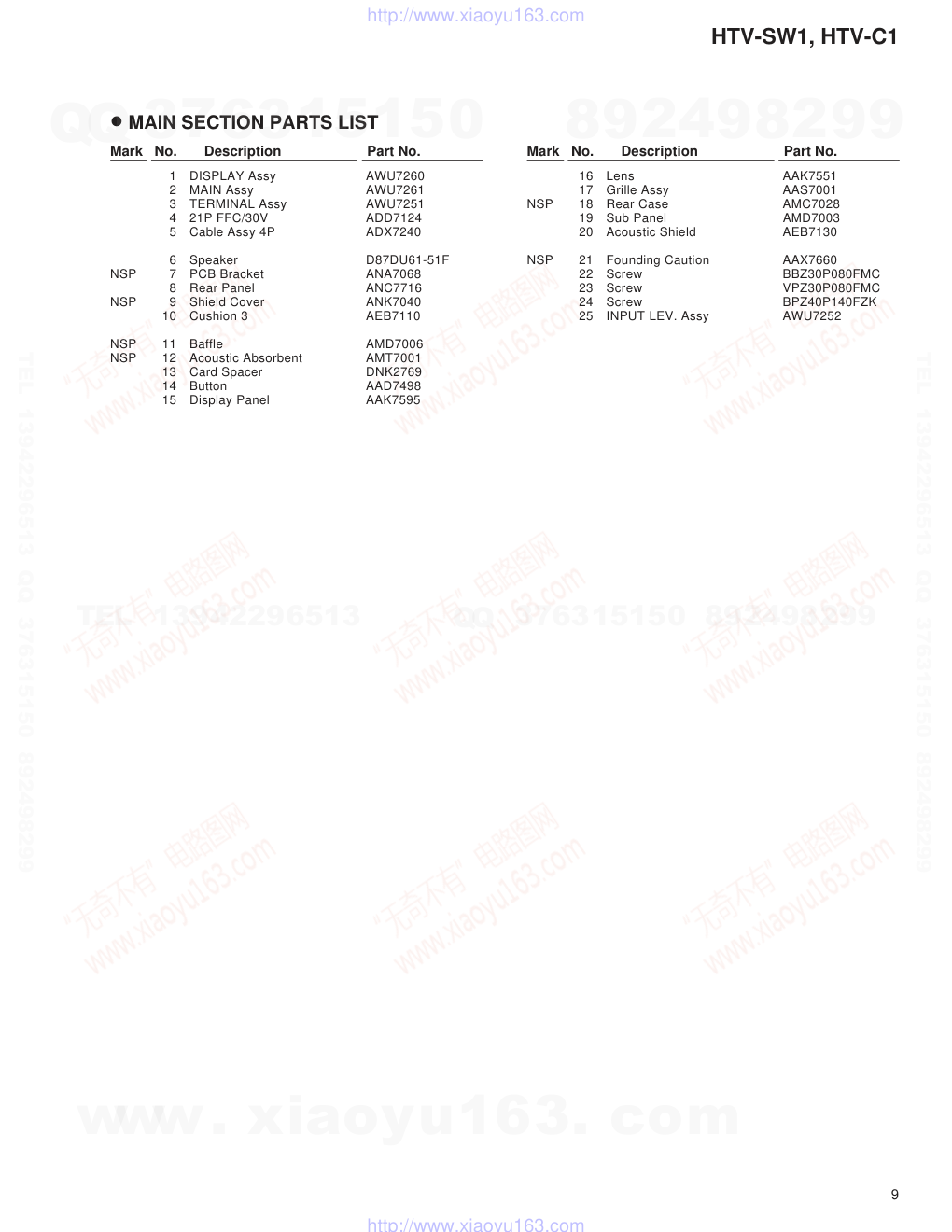

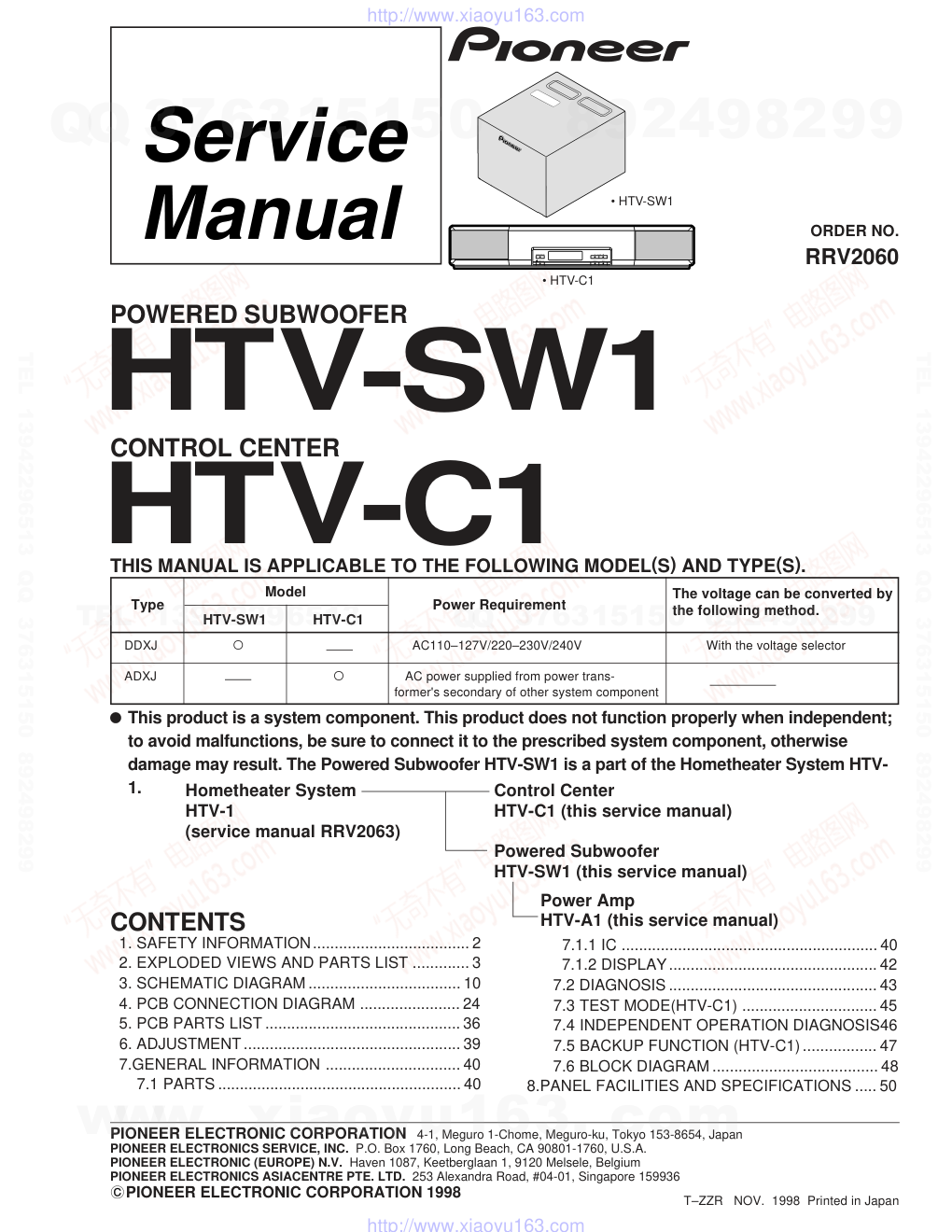

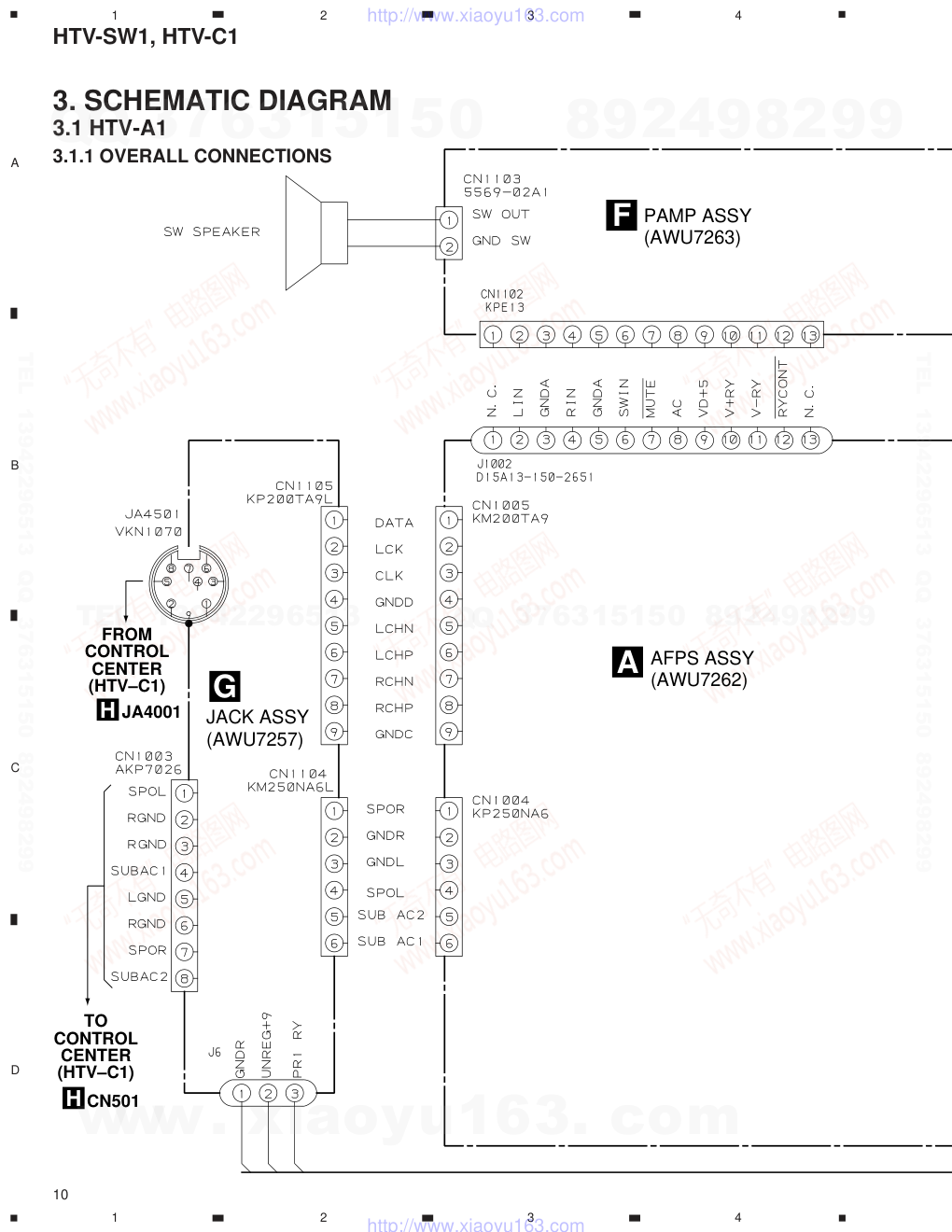

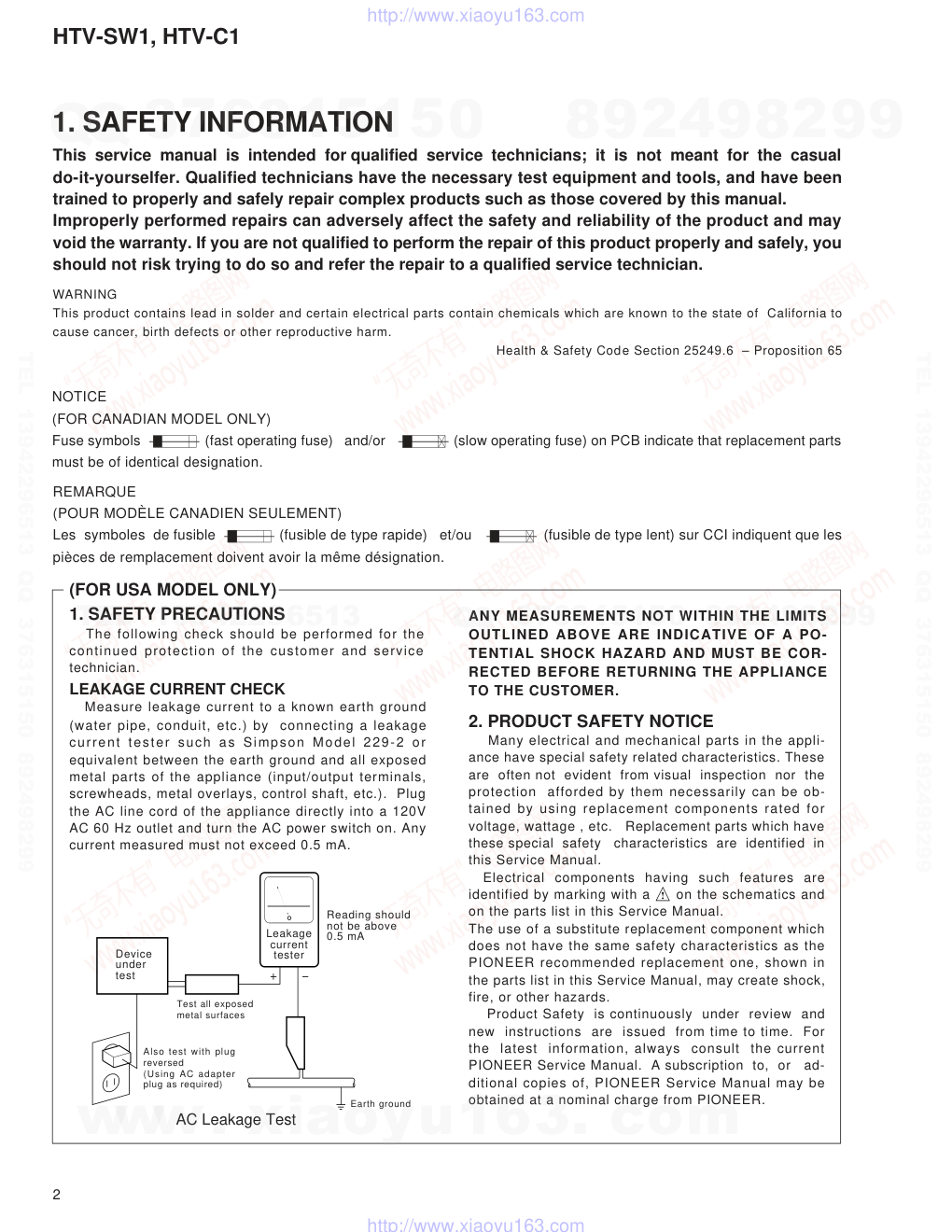

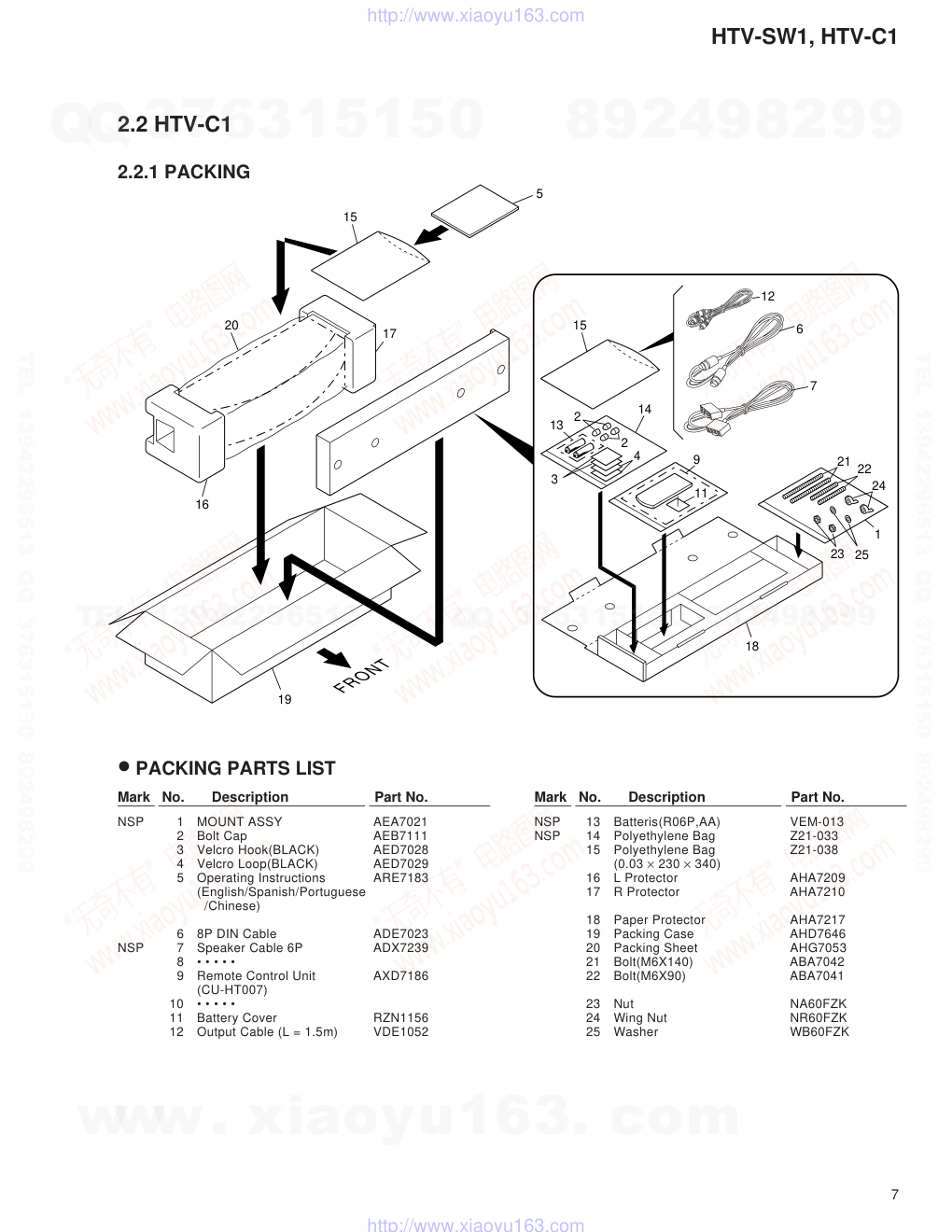

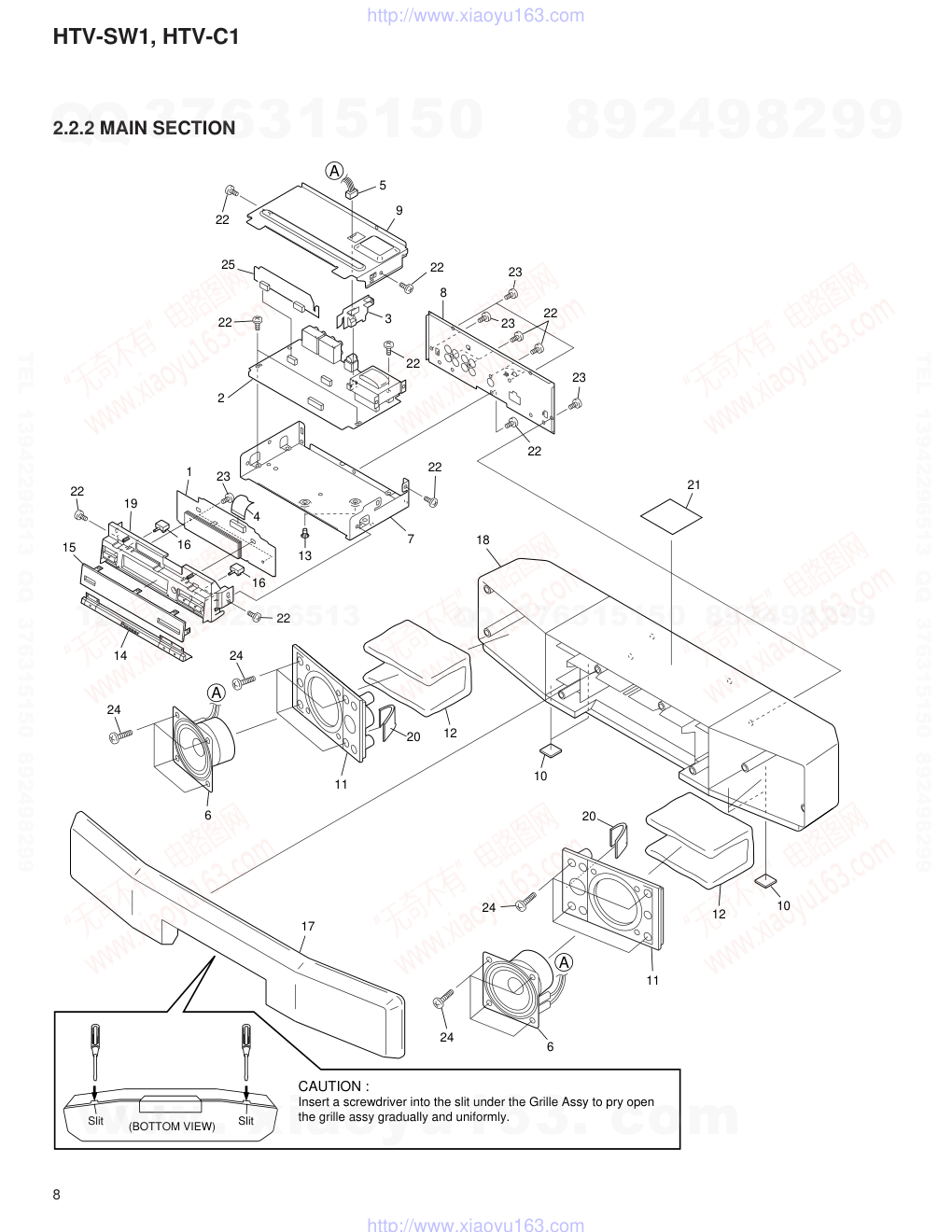

ORDER NO. PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER ELECTRONIC CORPORATION 1998 HTV-C1 DDXJ ‡ AC110–127V/220–230V/240V With the voltage selector ADXJ ‡ AC power supplied from power trans- former's secondary of other system component This product is a system component. This product does not function properly when independent; to avoid malfunctions, be sure to connect it to the prescribed system component, otherwise damage may result. The Powered Subwoofer HTV-SW1 is a part of the Hometheater System HTV- 1. POWERED SUBWOOFER RRV2060 T–ZZR NOV. 1998 Printed in Japan HTV-SW1 1. SAFETY INFORMATION.................................... 2 2. EXPLODED VIEWS AND PARTS LIST ............. 3 3. SCHEMATIC DIAGRAM ................................... 10 4. PCB CONNECTION DIAGRAM ....................... 24 5. PCB PARTS LIST ............................................. 36 6. ADJUSTMENT.................................................. 39 7.GENERAL INFORMATION ............................... 40 7.1 PARTS ........................................................ 40 CONTENTS 7.1.1 IC ........................................................... 40 7.1.2 DISPLAY................................................ 42 7.2 DIAGNOSIS ................................................ 43 7.3 TEST MODE(HTV-C1) ............................... 45 7.4 INDEPENDENT OPERATION DIAGNOSIS46 7.5 BACKUP FUNCTION (HTV-C1)................. 47 7.6 BLOCK DIAGRAM ...................................... 48 8.PANEL FACILITIES AND SPECIFICATIONS ..... 50 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). CONTROL CENTER • HTV-SW1 • HTV-C1 SURROUND MODE STANDBY/ON DISPLAY INPUT VOLUME Hometheater System Control Center HTV-1 HTV-C1 (this service manual) (service manual RRV2063) Powered Subwoofer HTV-SW1 (this service manual) The voltage can be converted by the following method. Model HTV-SW1 HTV-C1 Type Power Requirement Power Amp HTV-A1 (this service manual) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 2 1. SAFETY INFORMATION 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A PO- TENTIAL SHOCK HAZARD AND MUST BE COR- RECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appli- ance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be ob- tained by using replacement components rated for voltage, wattage , etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or ad- ditional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA. (FOR USA MODEL ONLY) Also test with plug reversed (Using AC adapter plug as required) Device under test Test all exposed metal surfaces Earth ground Leakage current tester Reading should not be above 0.5 mA AC Leakage Test This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 3 2. EXPLODED VIEWS AND PARTS LIST NOTES : ÷ Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List. ÷ The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÷ Screw adjacent to ∞ mark on the product are used for disassembly. Mark No. Description Part No. Rear 4 3 1(1/4) 1(3/4) 1(4/4) 1(2/4) 6 2(1/4) 2(3/4) 2(4/4) 2(2/4) 5 2.2 HTV-SW1 2.1.1 PACKING ÷ PACKING PARTS LIST(HTV-SW1) 1 Protector Top SHA2140 2 Protector Bottom SHA2141 3 Protection Sheet S6 SHC1726 4 Protection Sheet S7 SHC1727 5 Packing Case SHG2124 NSP 6 Polyethylene Bag SHL1227 (0.03 × 115 × 270) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 4 Mark No. Description Part No. ÷ EXTERIOR(Cabinet HTV-SW1) PARTS LIST NSP 1 Cabinet SMM1821 NSP 2 Power AMP HTV-A1/DDXJ 3 Connecting Cord SDF1072 NSP 4 Paper Port tube SMR1283 5 Foot SNK2274 NSP 6 CAUTION LABEL SRR1012 7 Speaker Q20EU82-52F 8 Screw BYC40P200FZB 9 Bind Tapping Screw BYC40P300FZK NSP 10 Logo 40 SAM1452 2.1.2 EXTERIOR ( Cabinet HTV-SW1 ) 5 3 9 9 10 4 1 A 2 8 8 8 Refer to "2.1.3 POWER AMP SECTION" A A 6 7 8 8 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 5 2.1.3 EXTERIOR ( POWER AMP HTV-A1) 1 24 29 29 23 23 28 27 23 7 8 23 22 22 4 6 3 25 14 20 23 29 11 23 29 23 5 23 23 23 23 23 23 23 19 23 12 26 23 10 9 15 13 29 15 18 16 21 16 2 18 18 17 22 22 33 30 A B E A B D C D C F F E G G 23 32 23 29 31 23 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 6 • EXTERIOR(POWER AMP HTV-A1) PARTS LIST 1 AFPS ASSY AWU7262 2 PAMP ASSY AWU7263 3 PT PRI ASSY AWU7264 4 PT SEC ASSY AWU7265 5 JACK ASSY AWU7257 6 Power Transformer (T1) ATS7228 7 Fuse (FU1 : T3.15AL250V) REK1027 8 Fuse (FU2, 3 : T1.6AL250V) REK1024 9 AC Power Cord VDG1058 NSP 10 Chassis ANA7093 NSP 11 Heat Sink ANH7079 12 PW Barrier AEC7157 13 ST Barrier AEC7155 14 TRANS Frame ANG7216 15 Mini Card Spacer AEC7143 16 Mica Sheet AEE7010 17 Strain Relief CM-22B NSP 18 PCB Holder PNW2174 19 Bonnet Case AZN7214 20 PCB Stay ANG7217 21 Screw ABA-258 22 Screw ASZ40P060FMC 23 Screw BBZ30P080FMC 24 Screw IBZ30P080FMC 25 STANDBY PT Assy AWU7267 26 PW SWITCH Assy AWU7259 27 Connector Assy 6P ADX7245 NSP 28 Cord Support Assy • • • • • 29 Push Rivet AEC7149 30 Cushion AEB7123 31 Heat Protector AEC7136 NSP 32 Volt Selector Label AAX7667 NSP 33 POWER SW Label AAX7669 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 7 16 20 17 19 15 7 6 5 13 2 2 9 11 18 3 4 14 12 21 22 24 25 1 23 15 2.2.1 PACKING NSP 1 MOUNT ASSY AEA7021 2 Bolt Cap AEB7111 3 Velcro Hook(BLACK) AED7028 4 Velcro Loop(BLACK) AED7029 5 Operating Instructions ARE7183 (English/Spanish/Portuguese /Chinese) 6 8P DIN Cable ADE7023 NSP 7 Speaker Cable 6P ADX7239 8 • • • • • 9 Remote Control Unit AXD7186 (CU-HT007) 10 • • • • • 11 Battery Cover RZN1156 12 Output Cable (L = 1.5m) VDE1052 • PACKING PARTS LIST Mark No. Description Part No. Mark No. Description Part No. NSP 13 Batteris(R06P,AA) VEM-013 NSP 14 Polyethylene Bag Z21-033 15 Polyethylene Bag Z21-038 (0.03 × 230 × 340) 16 L Protector AHA7209 17 R Protector AHA7210 18 Paper Protector AHA7217 19 Packing Case AHD7646 20 Packing Sheet AHG7053 21 Bolt(M6X140) ABA7042 22 Bolt(M6X90) ABA7041 23 Nut NA60FZK 24 Wing Nut NR60FZK 25 Washer WB60FZK 2.2 HTV-C1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 8 2.2.2 MAIN SECTION A A A CAUTION : Insert a screwdriver into the slit under the Grille Assy to pry open the grille assy gradually and uniformly. (BOTTOM VIEW) Slit Slit 22 22 2 4 13 22 22 3 25 7 16 22 1 16 22 14 24 6 17 24 24 6 24 15 19 5 22 23 22 22 23 23 21 8 9 11 10 12 10 12 18 11 20 20 23 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 9 1 DISPLAY Assy AWU7260 2 MAIN Assy AWU7261 3 TERMINAL Assy AWU7251 4 21P FFC/30V ADD7124 5 Cable Assy 4P ADX7240 6 Speaker D87DU61-51F NSP 7 PCB Bracket ANA7068 8 Rear Panel ANC7716 NSP 9 Shield Cover ANK7040 10 Cushion 3 AEB7110 NSP 11 Baffle AMD7006 NSP 12 Acoustic Absorbent AMT7001 13 Card Spacer DNK2769 14 Button AAD7498 15 Display Panel AAK7595 • MAIN SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 16 Lens AAK7551 17 Grille Assy AAS7001 NSP 18 Rear Case AMC7028 19 Sub Panel AMD7003 20 Acoustic Shield AEB7130 NSP 21 Founding Caution AAX7660 22 Screw BBZ30P080FMC 23 Screw VPZ30P080FMC 24 Screw BPZ40P140FZK 25 INPUT LEV. Assy AWU7252 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 10 A B C D 1 2 3 4 1 2 3 4 3. SCHEMATIC DIAGRAM 3.1 HTV-A1 3.1.1 OVERALL CONNECTIONS AFPS ASSY (AWU7262) A JACK ASSY (AWU7257) G PAMP ASSY (AWU7263) F FROM CONTROL CENTER (HTV–C1) TO CONTROL CENTER (HTV–C1) H H JA4001 CN501 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 11 A B C D 5 6 7 8 5 6 7 8 Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". PW SWITCH ASSY (AWU7259) E STANDBY PT ASSY (AWU7267) D PT SEC ASSY (AWU7265) B PT PRI ASSY (AWU7264) C T1 : ATS7228 AC110 -127V 50/60Hz ! ! AC POWER CORD VDG1058 220-230V/240V AKP7038 AKP7038 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 12 A B C D 1 2 3 4 1 2 3 4 AFPS ASSY (AWU7262) A CN1105 G 2 1 1/2 1/2 2/2 1/2 2/2 1/2 2/2 2/2 L/R MIX OE(OUTPUT) CONTROL 7.6 E-VOLUME & TONE CONTROL, SUBWOOFERLEVEL 18.2 18.4 5.1 40.3 26.9 –18.6 –26.9 –40.3 –18.8 4.5 BALANCE IN I/O EXPANDER LPF 180Hz 3.1.2 AFPS, PT SEC, PT PRI, STANDBY PT, and PW SWITCH ASSY A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 13 A B C D 5 6 7 8 5 6 7 8 PW SWITCH ASSY(AWU7259) CN1101 : AUDIO SIGNAL ROUTE(Lch) : AUDIO SIGNAL ROUTE(SWch) E PT PRI ASSY (AWU7264) C PT SEC ASSY (AWU7265) B STANDBY PT ASSY (AWU7267) D F J6 G CN1102 F CN1104 G FU1: REK1027(T3.15AL250V) H1- H6 : AKR7001 FU2,FU3: REK1024 (T1.6AL250V) AC POWER CORD VDG1058 AC110 -127V/ 220-230V/240V 50/60Hz POWER TRANS- FORMER T1 ATS7228 CN77 AKP7038 CN55 AKP7038 ATT7027 1/2 1/2 1/2 2/2 2/2 2/2 Q1001, Q1002 : PROTECTION (SPEAKER) RELAY DRIVER 0.1 5.1 0.8 0.8 11.6 9.9 40Hz +9.5dB HPF BUFFER AMP HPF 180Hz • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - VEF1040 S1: Power SW S2: Voltage -Selector S3: Voltage -Sslector B C A E D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 14 A B C D 1 2 3 4 1 2 3 4 3.1.3 PAMP ASSY F PAMP ASSY(AWU7263) J1001 F A J1002 A 6 6 3 4 25.8 –25.7 26.9 –26.9 5 –12 12 40.2 –40.2 SW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 15 A B C D 5 6 7 8 5 6 7 8F : AUDIO SIGNAL ROUTE(Lch) : AUDIO SIGNAL ROUTE(SWch) SW SPEAKER 7 5 5 2SC5198(P) 2SA1941(P) 13.7 .8 –40.3 40.3 CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 491.500 MFD, BY LITTELFUSE INK. FOR IC1201 (AEK7005). Q1201, Q1202 : MUTE PROTECTION CIRCUIT SW ch DISCRETE POWER AMP OVER LOAD DETECTOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 A B C D 1 2 3 4 1 2 3 4 HTV-SW1, HTV-C1 3.1.4 JACK ASSY JACK ASSY(AWU7257) CN6 : AUDIO SIGNAL ROUTE(Lch) G D H H TO CONTROL CENTER HTV-CI CN501 TO CONTROL CENTER HTV-CI JA4001 CN1005 A CN1004 A G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTW-SW1, HTV-C1 17 1 CN1005-5 pin (LCHN), 6 pin (LCHP) V : 20mV/div. H : 0.2mS/div. Measurement condition : Input a 1 kHz, 200mV signal to INPUT 1(2) LCHP LCHN GND GND 2 IC8001- 2 pin (DATA), 3 pin (CLOCK), 4 pin (LCK) V: 0.5V/div. H: 1mS/div. Measurement condition : Volume Min → 1 DATA CLOCK LCK GND GND GND 3 Q1109 Base V : 20mV/div. H : 5mS/div. Measurement condition : SW ch output signal f=100Hz, 1W GND 4 Q1110 Emitter V : 50mV/div. H : 5mS/div. Measurement condition : SW ch output signal f=100Hz, 1W GND 5 Q1101 Base, Q1102 Base V : 0.5V/div. H : 5mS/div. Measurement condition : SW ch output signal f=100Hz, 1W Q1101 Base Q1102 Base GND GND 6 Q1105 Collector, Q1106 Collector V : 0.5V/div. H : 5mS/div. Measurement condition : SW ch output signal f=100Hz, 1W Q1105 Collector Q1106 Collector GND GND 7 D1309 Cathode V : 1V/div. H : 10mS/div. GND 1 IC5001-45 pin (P1) V : 1V/div. H : 1mS/div. GND 2 IC5001-62 pin (1G) V : 1V/div. H : 1mS/div. GND 3 CN3001-6 pin (CLK), 7 pin (DATA), 8 pin (LCK) V: 0.5V/div. H: 1mS/div. Measurement condition : Volume Min → 1 CLK DATA LCK GND GND GND 4 CN3001-9 pin (SCK), 10 pin (RVDT), 11 pin (REDY) V : 0.5V/div. H : 0.5mS/div. Measurement condition : SUR. MODE OFF → VD SCK RVDT REDY GND GND GND 5 CN501-4 pin (AC1):CH1, 8 pin (AC2):CH2 V : CH1:2V/div. , CH2:0.5V/div. H : 1mS/div. Measurement condition : POWER ON (Connect with HTV-A1) CN501-4 pin (AC1):CH1, 8 pin (AC2):CH2 V : CH1:2V/div. , CH2:0.5V/div. H : 1mS/div. Measurement condition : STANDBY (Connect with HTV-A1) AC1 AC2 GND GND 5 AC1 AC2 GND GND (HTV-A1) Waveforms Waveforms (HTV-A1) Note: The encircled numbers denote measuring point in the schematic diagram. A F Waveforms ( HTV-C1) H K Waveforms ( HTV-C1) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 18 A B C D 1 2 3 4 1 2 3 4 INPUT LEV. ASSY (AWU7252) I DISPLAY ASSY (AWU7260) K MAIN ASSY (AWU7261) H 3.2 HTV-C1 3.2.1 OVERALL CONNECTIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 19 A B C D 5 6 7 8 5 6 7 8 TERMINAL ASSY (AWU7251) J TO SW AMP UNIT (HTV–A1) JACK ASSY FROM SW AMP UNIT (HTV–A1) JACK ASSY G CN1003 G JA4501 CONDITION SURROUND MODE No. Pin Name OFF VD ST WIDE 10 D5V 4.9 4.9 4.9 16 XRST 5.0 5.0 5.0 18 CSL1 4.9 4.9 4.9 22 RDAV 5.0 5.0 5.0 23 ROUT 2.5 2.9 2.9 24 RADV 5.0 5.0 5.0 26 RINOP 2.4 2.4 2.4 27 RIN 2.4 2.4 2.4 28 CDAV 5.0 5.0 5.0 31 CLKV 5.0 5.0 5.0 32 XTLO 2.5 2.5 2.5 33 XTLI 2.5 2.5 2.5 37 SDAV 5.0 5.0 5.0 38 LIN 2.4 2.4 2.4 39 LINOP 2.4 2.4 2.4 41 LADV 5.0 5.0 5.0 42 LOUT 2.5 2.9 2.9 43 LDAV 5.0 5.0 5.0 46 SCK 5.0 5.0 5.0 47 READY 4.9 4.9 4.9 49 XLAT 5.0 5.0 5.0 50 RVDT 5.0 5.0 0.0 51 XS24 4.9 4.9 4.9 52 D5V 4.9 4.9 4.9 73 D5V 4.9 4.9 4.9 Voltages of MAIN Assy IC3001 (CXD2724Q) (V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 20 A B C D 1 2 3 4 1 2 3 4 MAIN ASSY (AWU7261) H CN5001 K 4 3 VTL1096 VTL1096 VTL1096 VTL1096 VTL1096 VTL1096 DOLBY VIRTUAL DECODER INPUT 1 INPUT 2 0V 4.5V 3.2.2 MAIN, INPUT LEV. and TERMINAL ASSY H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 21 A B C D 5 6 7 8 5 6 7 8 TERMINAL ASSY (AWU7251) CN1003 (HTV-A1) : AUDIO SIGNAL ROUTE (Lch) J INPUT LEV. ASSY (AWU7252) I G JA4501 (HTV-A1) G FRONT SPEAKER 5 LEVEL IN STANDBY POWER ON 12.2V 11.6V 0V A B A -13.5 -18.7 -28 -40.9 B 9.5V 11.5 J I H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 22 A B C D 1 2 3 4 1 2 3 4 DISPLAY ASSY (AWU7260) CN3001 K H S5001 : INPUT S5002 : VOL+ S5003 : VOL– S5004 : DISPLAY S5005 : SURROUND MODE S5006 : POWER(STAND BY/ON) POWER SUR. DISP VOL– VOL+ INPUT No push on 0 0.8 1.6 2.5 3.3 4 4.6 REMOCON RESTE Power Detect Each push on the button Voltage (v) INPUT1 INPUT2 MUTE1 4.7V 0V MUTE2 0V 4.7V 5.6 4.8 3.2.3 DISPLAY ASSY K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 23 A B C D 5 6 7 8 5 6 7 8 2 1 -28 ¶ In regard to the voltage at pin 22 of IC5001 (LEVEL IN) • This terminal monitors the input signal level for operation of the automatic standby mode. • When INPUT key (INPUT 2) is selected and -46dB V (about 5mV rms) is applied as input (input to both channels, freq. =1kHz), this terminal rises to about 0.8V DC (in case of both channels, -40 dB V, about 0.8V DC) and POWER ON is effected. K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 24 A B C D 1 2 3 4 1 2 3 4 A (ANP7288-B) (ANP7288-B) CN1104 G CN1105 G AFPS ASSY A PT SEC ASSY B PT PRI ASSY C CN55 D SIDE A T1 POWER TRANSFORMER T1 POWER TRANSFORMER IC110 IC111 IC103 IC101 IC102 NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B 4. PCB CONNECTION DIAGRAM 4.1 HTV-A1 B C 4.1.1 AFPS, PT SEC and PT PRI ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 25 A B C D 5 6 7 8 5 6 7 8 (ANP7288-B) 88-B) ANP7288-B) CN1101 F CN1102 F SIDE A C102 Q102 IC105 IC121 IC122 Q105 Q6051 Q1005 Q1002 Q303 Q301 Q302 Q1001 Q1004 Q6052 IC106 Q101 Q103 Q104 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 26 A B C D 1 2 3 4 1 2 3 4 (ANP7288-B) AFPS ASSY A IC4502 IC4501 IC4503 IC6001 IC6031 IC6501 IC6701 IC7101 IC8001 Q106 Q1003 Q8001 SIDE B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 27 A B C D 5 6 7 8 5 6 7 8 (ANP7288-B) (ANP7288-B) PT SEC ASSY B PT PRI ASSY C SIDE B A B C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1 28 A B C D 1 2 3 4 1 2 3 4 4.1.2 STANDBY PT, PW SWITCH ASSY D E (ANP7289-B) (ANP7289-B) STANDBY PT ASSY D STANDBY PT ASSY D PW SWITCH ASSY E J6 G CN77 C SIDE A SIDE B LIVE NEUTRAL AC POWER CORD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1 29 A B C D 1 2 3 4 1 2 3 4 4.1.3 JACK ASSY (ANP7288-B) (ANP7288-B) JACK ASSY G CN6 D CN501 JA4001 CN1004 A H H CN1005 A SIDE A JACK ASSY G SIDE B TO CONTROL CENTER HTV-C1 FROM CONTROL CENTER HTV-C1 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 30 A B C D 1 2 3 4 1 2 3 4 4.1.4 PAMP ASSY F PAMP ASSY F SW SPEAKER PAMP ASSY F Q1104 Q1309 Q1106 Q1107 Q1110 Q1111 Q1109 Q1108 Q1103 Q1105 Q1101 Q1102 Q1112 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 31 A B C D 5 6 7 8 5 6 7 8F (ANP7288-B) (ANP7288-B) J1001 A J1002 A SIDE A SIDE B Q1112 Q1303 Q1306 Q1310 Q1305 Q1202 IC1201 Q1201 Q1204 Q1203 Q1307 Q1308 Q1302 Q1301 IC1101 Q1304 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 32 A B C D 1 2 3 4 1 2 3 4 4.2.1 MAIN ASSY 4.2 HTV-C1 H (ANP7287-A) MAIN ASSY H CN5001 K CN1003 G JA4501 G CN4002 I CN203 J CN4001 I SIDE A FROM SW AMP UNIT HTV-A1 IC501 IC502 IC504 IC505 IC507 IC506 IC503 IC551 IC3001 Q551 Q501 Q553 TO SW AMP UNIT HTV-A1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 33 A B C D 5 6 7 8 5 6 7 8 (ANP7287-A) MAIN ASSY H SIDE B Q552 Q554 Q2003 Q2001 Q2031 IC3001 Q2032 Q2011 Q2012 Q2002 IC3501 IC2001 IC2002 H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 34 A B C D 1 2 3 4 1 2 3 4 (ANP7287-A) (ANP7287-A) (ANP7287-A) INPUT LEV. ASSY I TERMINAL ASSY J DISPLAY ASSY K SIDE A FRONT SPEAKER CN552 H CN551 H CN503 H CN3001 H 4.2.2 INPUT LEV., TERMINAL and DISPLAY ASSY I J K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 35 A B C D 5 6 7 8 5 6 7 8 (ANP7287-A) (ANP7287-A) (ANP7287-A) INPUT LEV. ASSY I TERMINAL ASSY J DISPLAY ASSY K SIDE B IC4002 IC4001 IC2511 Q5004 Q5009 IC5001 Q5001 Q5008 Q5007 I J K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 36 MOTHER ASSY AWM7419 AFPS ASSY AWU7262 PAMP ASSY AWU7263 PT PRI ASSY AWU7264 PT SEC ASSY AWU7265 JACK ASSY AWU7257 SUB ASSY AWX7293 STANDBY PT ASSY AWU7267 PW SWITCH ASSY AWU7259 AFPS ASSY SEMICONDUCTORS IC121,IC122 (250mA) AEK7002 IC8001 BU2092F IC6001 M62419FP IC4501-IC4503,IC6031 NJM4558MD IC6501,IC6701 NJM4558MD IC7101 NJM4558MD IC105 NJM7812FA IC106 NJM7912FA Q1002,Q1005 2SC1740S Q6051,Q6052 2SC1740S Q101 2SD1858X Q1001 DTA143ES Q8001 DTC124EK D103-D106 11ES2 D1001,D1002,D8001,D8002 1SS133 D101 D3SBA20(B) D102 D5SBA20(B) D6051 MTZJ10B D8003 MTZJ2.7B D107 MTZJ5.6B D6001,D6002,D8004-D8006 MTZJ8.2B RELAY RY1002 ASR1035 CAPACITORS C101,C102 (4700µF/63V) ACH7007 C103,C104 (3300µF/50V) ACH7056 C6013,C6014 CCSQCH470J50 C7102,C7103 CEANPR47M50 C6011,C6012,C6015-C6018 CEAT100M50 5. PCB PARTS LIST Mark No. Description Part No. NOTES : Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J = 5%, and K = 10%). 560 Ω = 56 × 10 1 = 561 ................................................... RD1/4PU 5 6 1 J 47k Ω = 47 × 10 3 = 473 .................................................. RD1/4PU 4 7 3 J 0.5 Ω = R50 ...................................................................... RN2H  5 0 K 1 Ω = 1R0 ......................................................................... RS1P 1  0 K Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω = 562 × 10 1 = 5621 ........................................... RN1/4PC 5 6 2 1 F Mark No. Description Part No. A C6031,C6032,C6051,C6053 CEAT100M50 C6701,C6702,C7104,C7105,C8006 CEAT100M50 C6004 CEAT101M10 C6052 CEAT101M16 C105 CEAT102M25 C6054 CEAT221M10 C6503,C6504 CEAT2R2M50 C106 CEAT471M25 C107-C109,C111,C8001,C8007 CEAT470M25 C6019,C6020 CEAT4R7M50 C8003-C8005 CKSQYB102K50 C6029,C6030 CKSQYB104K25 C6027,C6028 CKSQYB221K50 C6005,C6006 CKSQYB472K50 C6021,C6022,C6025,C6026 CKSQYB682K50 C6023,C6024 CKSQYB683K25 C4501-C4506,C6001,C6003,C8002 CKSQYF103Z50 C1001-C1004,C216,C217 CKSQYF104Z50 C6060 CKSQYF473Z50 C205-C208 CQMA223K2E C6704 CQMBA104J50 C6501,C6502,C6703 CQMBA473J50 RESISTORS R8004 RD1/2PM222J R1001,R1002 RD1/4PM100J R101 RD1/4PU182J R102 RD1/4PU220J R8005 RD1/4PU273J R6051 RD1/4PU821J R4505-R4512 RS1/10S1001F R110 RS3LMF151J Other Resistors RS1/10S J OTHERS CABLE HOLDER (9P) 51052-0900 CABLE HOLDER (13P) 51063-1305 J1002 JUMPER WIRE D15A13-150-2651 J1004 BOARD IN WIRE DB020ND0 CN1005 9P PLUG KM200TA9 CN1004 SOCKET 6-P KP250NA6 CN101 CONNECTOR (11P) KPE11 CN102 CONNECTOR (5P) KPE5 KN101 EARTH METAL FITTING VNF1084 LIST OF PCB ASSEMBLIES 5.1 HTV-A1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 37 PT SEC ASSY SEMICONDUCTORS IC103 (1A) AEK7009 IC101,IC102 (1.25A) AEK7010 IC110,IC111 (7A) AEK7021 CAPACITORS C123 (0.01µF) ACG7021 C121,C122 CKSQYF103Z50 OTHERS CABLE HOLDER (5P) 51063-0505 CABLE HOLDER (11P) 51063-1105 J102 JUMPER WIRE D15A05-200-2651 J101 JUMPER WIRE D15A11-200-2651 PT PRI ASSY OTHERS CN77 6P CONNECTOR AKP7038 PCB BINDER VEF1040 STANDBY PT ASSY SEMICONDUCTORS IC1 (315mA) AEK7003 D1,D2 1SS133X D3 S1VB20/F03 TRANSFORMER T3 ATT7027 RELAY RY1 ASR7019 CAPACITORS C5 (0.01µF/AC250V) ACG1005 C1,C3,C4 (1000pF/AC250V) ACG7020 C6 CEAT102M25 OTHERS CN55 6P CONNECTOR AKP7038 H1– H6 FUSE CLIP AKR7001 CN6 CONNECTOR (3P) KPE3 CN2,CN3 AC CORD SOCKET RKP1751 S3 VOLTAGE SELECTOR AKX7004 S2 VOLTAGE SELECTOR AKX7006 PCB BINDER VEF1040 PW SWITCH ASSY SWITCH S1 ASM7002 OTHERS J1 CONNECTOR ASSY 2P ADX7244 PAMP ASSY SEMICONDUCTORS IC1201 (500mA) AEK7005 IC1101 STK407-040B Q1105 2SA1145 Q1104 2SA1837 Q1102 2SA1941(P) Q1108 2SA970 Q1109,Q1110 2SA992 Q1107 2SC1740S Q1301,Q1302,Q1307,Q1308 2SC1740S Q1309 2SC2240 Q1106 2SC2705 Q1103 2SC4793 Q1101 2SC5198(P) Q1111,Q1201,Q1202 2SD2144S Q1306,Q1310 DTA123JS Q1112,Q1303 DTA143ES Q1304,Q1305 DTC143ES D1307,D1309 11ES2 D1101-D1103,D1301-D1304, 1SS133 D1308,D1310-D1312,D1316 1SS133 COILS L1201,L1202 AF CHOKE COIL ATH-133 L1101 AF CHOKE COIL ATH1004 RELAY RY1101 ASR1035 CAPACITORS C1107,C1108 CCCSL101K2H C1104 CCCSL120K2H C1106 CCCSL5R0C2H C1207,C1208 CCSQSL3R0C50 C1217,C1218 CCSQSL471J50 C1103 CCSQSL681J50 C1101 CEAT100M50 C1211,C1212 CEAT101M50 C1105 CEANP101M50 C1306 CEANP2R2M50 C1100,C1205,C1206,C1209 CEAT100M50 C1210,C1304 CEAT100M50 C1111,C1303 CEAT101M10 C1201,C1202 CEAT1R0M50 C1120 CEAT220M50 C1305 CEAT221M10 C1307 CEAT470M25 C1203,C1204 CKSQYB152K50 C1102 CKSQYB223K50 C1109,C1110,C1219 CKSQYF104Z50 RESISTORS R1124 (0.33Ω,5W) ACN7001 R1126 RD1/2PM100J R1217,R1218 RD1/4LMF101J R1109 RD1/4PM104J R1110 RD1/4PM112J R1125,R1215,R1216 RD1/4PMF100J R1116-R1119 RD1/4PMF101J R1112 RD1/4PMF680J R1312 RD1/4PU222J R1315 RD1/4PU821J R1115 RF1/4PS101J R1120-R1123 RF1/4PS4R7J R1213,R1214 RS2LMFR22J Other Resistors RS1/10S J OTHERS CN1103 2P CONNECTOR 5569-02A1 CN1101 9P JUMPER CONNECTOR KPD9 CN1102 CONNECTOR (13P) KPE13 C B D E Mark No. Description Part No. Mark No. Description Part No. F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 38 JACK ASSY SEMICONDUCTORS D4501-D4506,D4508 MTZJ8.2B CAPACITORS C4603 (0.01µF/100V) ACG7021 C4601,C4602,C4604-C4606 CKCYF103Z50 OTHERS CABLE HOLDER (3P) 51063-0305 CN1003 8P CONNECTOR AKP7026 J6 JUMPER WIRE D15A03-200-2651 CN1104 PLUG 6-P KM250NA6L CN1105 9P SOCKET KP200TA9L PCB BINDER VEF1040 I/O JACK VKN1070 SCREW PLATE VNE1948 G 5.2 HTV-C1 COMPLEX ASSY AWM7418 DISPLAY ASSY AWU7260 MAIN ASSY AWU7261 TERMINAL ASSY AWU7251 INPUT LEV. ASSY AWU7252 MAIN ASSY SEMICONDUCTORS IC501,IC502 (630mA) AEK7006 IC503,IC551 (200mA) AEK7023 IC504 BA05T IC2001 BU4066BCF IC3001 CXD2724Q IC2002,IC3501 NJM4558MD IC507 NJM7805FA IC505 NJM7806FA IC506 NJM7906FA Q501 2SB1238X Q553 2SB1238X Q2001,Q2002,Q2011,Q2012,Q554 2SC2412K Q2031 DTA124EK Q2003,Q2013 DTA143EK Q2032 DTC124EK D501-D505 11ES2 D553,D554 11ES2 D2001,D2002,D506,D555-D557 1SS133 D2003,D2013 DAP202K D507 MTZJ27D D4001-D4003,D4007,D4008 MTZJ8.2B D4017,D4018 MTZJ8.2B D508 MTZJ9.1C COILS L4001-L4007 CHIP BEAD FILTER DTL1019 L2501 LAU1R0J L3203 LFA220J L3202 LFA6R8J L501 FERRITE BEAD VTH1024 L2001- L2006 CHIP BEADS VTL1096 TRANSFORMER T2 ATT7025 CAPACITORS C500 (0.01µF/AC250V) ACG1005 C591 (0.01µF/100V) ACG7021 C3204,C3209,C3285-C3288,C3295CCSQCH101J50 C3206,C3207 CCSQCH120J50 C3517-C3520 CCSQSL331J50 C2021,C2023,C504-C506,C509 CEAT100M50 C511 CEAT100M50 C552 CEAT101M10 C503 CEAT101M63 C501 CEAT222M25 C502 CEAT331M25 C3201-C3203,C3523,C3524 CEAT470M25 C507,C508 CEAT470M50 C3282,C3292 CEAT471M6R3 C3511,C3512 CEAT4R7M50 C2031,C3296,C3515,C3516 CKSQYB102K50 C3205,C3208 CKSQYB331K50 C2005,C2015,C2022,C2024 CKSQYF103Z50 C3283,C3284,C3289-C3291 CKSQYF103Z50 C3293,C3294,C3513,C3514 CKSQYF103Z50 C534-C536,C540,C592 CKSQYF103Z50 RESISTORS R556 RD1/4PU220J R503 RD1/4PU223J R502 RS1LMF122J R560 RS3LMF101J Other Resistors RS1/10S J OTHERS CN2001,CN2002 PIN JACK (4P) AKB7015 CN501 8P CONNECTOR AKP7026 X3201 CRYSTAL RESONATOR ASS7000 (33.8688MHz) CN3001 FFC CONNECTOR 21P HLEM21S-1 CN551 10P PLUG KM200TA10 CN552 6P PLUG KM200TA6 CN503 SOCKET 4-P KP250NA4 I/O JACK VKN1070 KN4001,KN501 VNF1084 EARTH METAL FITTING INPUT LEV. ASSY SEMICONDUCTORS IC2511,IC4001,IC4002 NJM4558MD D2510,D2512 1SS133 D2513 MTZJ4.3B CAPACITORS C2513,C2518 CCSQCH220J50 C4001,C4002,C4011,C4012 CEAT100M50 C2511 CEAT1R0M50 C2514,C2515,C2519,C2522,C4051CEAT470M25 C4053 CEAT470M25 C2520,C2521,C4071,C4072 CEAT4R7M50 C4052,C4054,C4056,C4058 CKSQYF103Z50 RESISTORS R2528 RD1/4PU101J R4003-R4006 RS1/10S1002F Other Resistors RS1/10S J H Mark No. Description Part No. Mark No. Description Part No. LIST OF PCB ASSEMBLIES I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 39 OTHERS CN4002 10P SOCKET KP200TA10L CN4001 6P SOCKET KP200TA6L TERMINAL ASSY OTHERS CN203 4-P PLUG KM250NA4L KN201 SCREW PLATE VNE1948 DISPLAY ASSY SEMICONDUCTORS IC5001 PDG239A Q5009 2SC2412K Q5007,Q5008 DTA143EK Q5001,Q5004 DTC143EK D5002,D5008-D5011,D5013 1SS133 D5007 GL3ED8 D5012 MTZJ3.0B D5003 MTZJ6.8B D5005,D5006 SLP3118C51H COIL L5001 LAU220J SWITCHES S5001-S5006 ASG1034 CAPACITORS C5025 (0.047F/5.5V) ACH1246 C5024 CCSQSL471J50 C5004 CEJA100M25 C5002,C5008 CEJA101M10 C5026 CEJA220M10 C5023 CKSQYB472K50 C5001,C5003,C5007,C5013 CKSQYF103Z50 C5006 CKSQYF473Z50 RESISTORS R5017 RA15T473J R5016 RA9T473J R5007 RD1/4PU821J Other Resistors RS1/10S J OTHERS V5001 FL TUBE AAV7052 X5001 CERAMIC RESONATOR DSS1053 (8MHz) REMOTE RECEIVER UNIT GP1U28X FL HOLDER VNF1085 CN5001 FFC CONNECTOR 21P XKP3021 Mark No. Description Part No. J K 6. ADJUSTMENT There is no information to be shown in this chapter. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 40 7. GENERAL INFORMATION 7.1 PARTS 7.1.1 IC M62419FP (IC6001: AFPS ASSY) BU2092F (IC8001: AFPS ASSY) Serial In/Parallel Out Driver Electronic Volume Control with Tone Function 21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 + – + – + – + – + – + – 22 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 + – + – + – + – + – + – I/F DATA DATA GND SELECT OUT 1 VOL IN 1 LOUD IN 1 SELECT 2 NF 1 SELECT 1 IN A SELECT 1 IN B SELECT 1 IN C SELECT 1 IN D ATTF OUT 1 ATTR OUT 1 TONE IN 1 TC 1 A TC 1 B TC 1 C TONE OUT 1 FADER IN 1 REAR OUT 1 FRONT OUT 1 Vcc CLOCK VDD SELECT OUT 2 VOL IN 2 LOUD IN 2 SELECT 2 NF 2 SELECT 2 IN A SELECT 2 IN B SELECT 2 IN C SELECT 2 IN D ATTF OUT 2 ATTR OUT 2 TONE IN 2 TC 2 A TC 2 B TC 2 C TONE OUT 2 FADER IN 2 REAR OUT 2 FRONT OUT 2 VREF Vcc Vref CLOCK VDD Pin Function Block Diagram No. Name I/O Description 1 Vss – GND 2 DATA I Serial data input 3 CLOCK I Shift lock for data ( ) 4 LCK I Lutch clock for data ( ) Parallel data output (Nch Open Drain FET) 5 Q0 | | O 16 Q11 17 OE I Output enable (H: output, FET: OFF) 18 VDD – Power supply Lutch Data L H Output FET ON OFF 1 2 3 4 5 6 7 8 9 18 17 16 15 14 13 12 11 10 Vss DATA CLOCK LCK Q0 Q1 Q2 Q3 Q4 VDD OE Q11 Q10 Q9 Q8 Q7 Q6 Q5 12 bits Strage Register 12 bits Shift Register Output Buffer (Open Drain) Control Circuit Block Diagram ¶ The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 41 Pin Function No. Name Description 1 DATA Control data input terminal. Data are entered synchronized to CLOCK. 2 GND Ground terminal 3 SELECT OUT1 Output terminals of the input selector switch 4 VOL IN1 Input terminals of the volume control section 5 LOUD IN1 Frequency characteristic setting terminal of the loudness section 6 SELECT2 NF1 Each input gain is adjusted by the resistor connected between this terminal and the SELECT OUT terminal and the resistor added between IN A and IN D. 7 SELECT1 IN A Input terminal for channel 1 of the input selector switch section 8 SELECT1 IN B 9 SELECT1 IN C 10 SELECT1 IN D 11 ATTF OUT1 Output terminals of the volume control section (initial stage). Connect by C connection to the VREF terminal 22 for reduction of the switching noise. 12 ATTR OUT1 Output terminals of the volume control section (last stage) 13 TONE IN1 Input terminals of the tone control section 14 TC1 A Frequency characteristic setting terminals of the tone control section for channel 1 15 TC1 B 16 TC1 C 17 TONE OUT1 Output terminals of the tone control section 18 FADER IN1 Input terminals of the fader volume control section 19 REAR OUT1 Output terminals of the fader volume control section (rear) 20 FRONT OUT1 Output terminals of the fader volume control section (front) 21 Vcc Analog power supply terminal 22 DATA IC signal ground. Impress 1/2 VCC. 23 FRONT OUT2 Output terminals of the fader volume control section (front) No. Name Description 24 REAR OUT2 Output terminals of the fader volume control section (rear) 25 FADER IN2 Input terminals of the fader volume control section 26 TONE OUT2 Output terminals of the tone control section 27 TC2 C Frequency characteristic setting terminals of the tone control section for channel 2 28 TC2 B 29 TC2 A 30 TONE IN2 Input terminals of the tone control section 31 ATTR OUT2 Output terminals of the volume control section (last stage) 32 ATTF OUT2 Output terminals of the volume control section (initial stage). Connect by C connection to the VREF terminal 22 for reduction of the switching noise. 33 SELECT2 IN D Input terminal for channel 2 of the input selector switch section 34 SELECT2 IN C 35 SELECT2 IN B 36 SELECT2 IN A 37 SELECT2 NF2 Each input gain is adjusted by the resistor connected between this terminal and the SELECT OUT terminal and the resistor added between IN A and IN D. 38 LOUD IN2 Frequency characteristic setting terminal of the loudness section 39 VOL IN2 Input terminals of the volume control section 40 SELECT OUT1 Output terminals of the input selector switch 41 VDD Digital power supply terminal 42 CLOCK Clock input terminal for serial data transfer www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 42 7.1.2 DISPLAY • Pin Assignment • Pin Connection • Grid Assignment • Anode Connection PATTERN AREA NOTE 1) F1,F2 -------------- Filament 2) NP ------------------No pin 3) NX ------------------ No extend pin 4) DL ------------------ Datum Line 5) 1G - 9G ----------- Grid P1 P2 P3 P4 P5 P6 P7 P8 P9 a1 a2 h j k b f m g P10 P11 P12 P13 P14 P15 P16 P17 c e r p n d1 d2 Dp 1G - 8G 9G 1G - 8G 9G 1 ‡� AAV7052 (V5001: DISPLAY ASSY) 7 FL INDICATOR TUBE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 43 7.2 DIAGNOSIS 7 6 Bonnet Case PAMP Assy PAMP Assy AFPS Assy Note: At the time of installation, install so that the circuit boards comes under the PCB stay claw. AFPS Assy PCB Stay ST Barrier 1 × 5 1 3 9 10 5 × 3 2 × 3 1 × 4 1 × 3 1 × 4 1 1 × 2 8 × 2 4 × 2 2 × 3 3 PCB Holder BONNET CASE AFPS ASSY At this time, diagnosis of the PAMP assembly is possible. Claw AFPS assembly DIAGNOSIS 7.2.1 DISASSEMBYL (HTV-A1) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 44 Take off theW131 Short- circuited Short-circuit W141 (PRIRY) and W142 (UNREG+9) in the TANDBY PT assembly. Short-circuit W215 (SPRY) and W216 (GNDD) in the AFPS assembly. [At the time of L/Rch analysis] Disconnect C6031 in the AFPS assembly and apply the signal to W251 (L ch IN). [In case of the right channel, disconnect C6023 and apply the signal to W240 (R ch IN).] ÷ As the gain from L ch IN to L ch SP OUT is about 37 dB (freq. = 1 kHz), input of 40 mVrms to L ch IN results in output of 1 W (2.83 Vrms/8 Ω) at L ch SP OUT. [At the time of SWch analysis] Disconnect W131 (SW IN) in the PAMP assembly. Apply the signal to the plus pole of CI100. ÷ As the gain from CI100 to SWch is about 38 dB (freq. = 100 Hz), input of 36 mVrms to CI100 results in output of 1 W (2.83 Vrms/8 Ω) at SWch SP OUT. 1 1 2 3 4 4 5 5 PAMP ASSY SIDE A SIDE A SIDE A STANDBY PT ASSY AFPS ASSY Short-circuited Enter an signal input Take off the C6031 KN101 JACK ASSY AFPS ASSY KN1001 2 3 3 7.2.2 INDEPENDENT OPERATION DIAGNOSIS METHOD(HTV-A1) Enter an signal input In principle, the HTV-1 system operates only as a combination of HTV-C1 and HTV-A1, but analysis from the electronic volume control (M62419FP) on is possible according to the following method. Note: The white numbers in black circles in the drawing correspond to the following step numbers. Caution items for diagnosis of the AF PS assembly after removal from the chassis The assembly operates only when the earth fittings KN101 (AFPS assembly) and KN10 01 (JACK assembly) are connected. For diagnosis with the AFPS assembly remo ved from the chassis, perform diagnosis with these earth fittings short-circuited. � www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 45 7.3 TEST MODE (HTV-C1) DISPLAY ASSY K SIDE B Short point IC5001 Pin 19 7.3.1 Entry into Test Mode There are the following two methods for entry into test mode. (1) Reception of the command "A55F" by remote control. (2) Short-circuit the TEST MODE point (pin 19 of IC5001 and GND) on the copper foil side of the DISPLAY assembly. Connect the power cable to an outlet. • At the time of entry into test mode, FL displays "TEST 1" for 1 second. • The LED flashes during test mode. • At this time, the VOLUME setting becomes 10. • The SURROUND mode becomes DOLBY VIRTUAL ON. 7.3.2 Test Mode Operation FL segment check Press the DISPLAY key. = The operations (1) to (5) are switched sequentially. (1) FL, LED all lit (2) FL, LED all not lit (3) (Segment check 1) Display of "ABCDEFGH" (4) (Segment check 2) Display of "IJKLMNOP" (5) Normal display 1. Confirmation of the Automatic Standby Function (1) Press the INPUT key. = The power is switched off and automatic standby mode is entered. The standby indicator lights orange. (This condition is reached when 5 minutes without a signal have passed during power ON.) (2) Apply an input signal to the INPUT terminal. = AUTO POWER ON (This operates only with input to the selected INPUT terminal.) • In regard to the automatic standby mode • Automatic standby mode always is reached during POWER ON. • Standby condition is reached when the input signal disappears for 5 minutes (input level of INPUT 1 (2): 49 dB V, LEVEL IN voltage: 0.6 V DC). At this time, the standby indicator lights orange. • POWER ON occurs when an input signal is entered in this condition ( a signal of -46dB V to INPUT 1 (2)). • When the power is switched off with the STANDBY/ON key on the unit or with the power key of the remote control unit, this function does not operate and the standby indicator lights red. 2. DSP Check Press the SURR. MODE key. = DSP check mode is entered. DSP check mode A test tone is put out at the time of DOLBY VIRTUAL condition. Test tone output is repeated in the order of LEFT =� CENTER = RIGHT = SURROUND. Confirm that DSP operates normally at the time of SURROUND output. Press the SURROUND MODE key twice. =� DSP check mode is canceled. FL and LED display normally. • Keys other than the specified ones operate normally. 7.3.3. Test Mode Cancellation During power ON, set the STANDBY/OFF key to OFF or disconnect the power cable from the outlet. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 46 7.4 INDEPENDENT OPERATION DIAGNOSIS METHOD (HTV-C1) MAIN ASSY H SIDE A AC26V FRONT CN501 CN3001 CN503 KN4001 KN501 T2 EARTH METAL FITTING KN501and KN4001at the short-circuit MAIN ASSY H SIDE A SURR. MODE Gain (dB) OFF -3.0dB VD (EFFECT +3) -3.6dB ST - WIDE -3.5dB CAUTION : • In principle, the HTV-1 system operates only as a combination of HTV-C1 and HTV-SW1, but operation is possible by applying AC 26 V at the input side (bettween AC1 and AC2) of the subtransformer (T2) in the MAIN assembly. • In this case, it is not possible to check all functions (functions on the HTV-A1 side). • The gain from the pin jack [(INPUT 1 (2)] to AL6+ (-) or AR6+ (-) is as shown below. • With input of -14 dBV (200mV rms) to INPUT 1 (2), -17 dBV appears at AL6+ (-), AR6+ (-) in case of SURR. OFF. # In case of independent operation, a DC component appears at AL6+ (-), AR6+ (-) depending on the signal level. • Caution and diagnosis method at the time of removal of the MAIN assembly from the chassis. No operation occurs when the earth plates KN501 and KN4001 are not connected. When diagnosis is to be performed with the MAIN assembly removed from the chassis, short-circuit the earth plates KN501 and KN4001 before diagnosis. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 47 7.5 IN REGARD to the BACKUP FUNCTION (HTV-C1) Even when disconnected from the main power supply, HTV-C1 keeps the following memory settings stored for about two weeks to one month because of the backup power supply. When these settings are changed at the time of servicing, they will remain changed, so that caution is required. In this case, return to the factory settings is possible by switching the power supply off after entry into test mode. 7 Function for memorizing of settings * Input switching * Bass * Treble * Balance * SW level * Sound mode * Effect level * Loudness ON/OFF * Demonstration mode ON/OFF * Volume (only in case of demonstration mode OFF) 7 Settings at the time of shipping from the factory * Input switching: INPUT1 * Bass: ±2 * Treble: ±0 * Balance: CENTER * SW level: +1 * Surround mode: VIRTUAL DOLBY * Effect level: +3 * Loudness: OFF * Demonstration mode: ON * Volume: MIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 48 7.3 BLOCK DIAGRAM CONTROL CENTER HTV–C1 IC2001 BU4066BCF IC2002 NJM4558MD IC3001 CXD2724Q IC3501 NJM4558MD IC4001(1/2) NJM4558MD IC4001(2/2) NJM4558MD Q2001,Q2011 2SC2412K IC2511 NJM4558MD IC5001 PDG239A Q5004 DTC143EK Q5007 DTA143EK Q5008 DTA143EK 2SB1238X NJM7906FA NJM7806FA NJM7805FA BA05T Q553 2SB1238X 11ES2 11ES2 D5007 GL3ED8 (Interruption Detect) STANDBY -INDICATOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 49 AMPLIFIER HTV–A1 AC110-127V /220-230V /240V 50/60Hz AC POWER CORD NJM7912FA NJM7812FA 2SD1858X D103 ~ D106 11ES2 D101 D3SBA20(B) D102 D5SBA20(B) D3 S1VB20/F03 IC6701(2/2) NJM4558MD LPF (180Hz) IC6701(1/2) NJM4558MD IC6001(2/2) M62419FP IC6001(1/2) M62419FP IC7101 NJM4558MD IC8001 BU2092F 2SC1740S 2SC1740S IC4503 NJM4558MD IC6501 NJM4558MD HPF (180Hz) IC1101 STK407-040B Q1201,Q1202 2SD2144S Q1111 2SD2144S Q1301,Q1302,Q1307,Q1308 : 2SC1740S Q1309 : 2SC2240 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 50 8. PANEL FACILITIES AND SPECIFICATIONS SURROUND MODE STANDBY/ON DISPLAY INPUT VOLUME INPUT 12 INPUT 12 ST.WIDE ST.WIDE VIRTUAL DOLBY AUTO POWER ON AUTO POWER ON 2 8 7 - 4 5 6 9 1 3 0 SURROUND MODE STANDBY/ON DISPLAY INPUT VOLUME INPUT 12 ST.WIDE VIRTUAL ON DOLBY 1 � STANDBY/ON switch Turns the power ON/OFF (Standby). 2 STANDBY indicator Auto Standby function This unit features a function that automatically switches power ON or OFF (Standby) depending on whether a signal is input or not. ÷ When power is switched ON, if there is no input signal for 5 minutes, the unit automatically switches to Standby and the standby indicator lights orange. ÷ If a signal is input through the selected input jack when the indicator is lit orange (showing that the Auto Standby function is operating), power automatically switches ON. ÷ If you switch power OFF with the Standby switch in the main unit or the remote control (the Standby indicator lights red), the unit remains in the Standby mode even if a signal is input through the selected input jack. ÷ When power to the unit is ON, the indicator lights green. 3 SURROUND MODE button Selects Surround Mode. 4 DISPLAY button When pressed once, displays each setting in sequence for 2 seconds. When pressed again, switches to Dimmer Mode, chang- ing the brightness of the display. 5 VOLUME+, – buttons 6 INPUT button Selects the input device. 7 INPUT 1, 2 indicator When the INPUT 1 terminal is selected, “1” is illuminated; when the INPUT 2 terminal is selected, “2” is illuminated. 8 ST.WIDE indicator Lights up when Surround Mode is switched to “STEREO WIDE.” 9 DOLBY VIRTUAL indicator Lights up when Surround Mode is switched to “DOLBY VIRTUAL.” 0 Power ON indicator This lights when the Control Center standby switch is set to On. The indicator remains lit even if you switch the display OFF. - Character display CONTROL CENTER (HTV-C1) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 51 Remote Control Unit Except Australian model Australian model 1 SOURCE CONTROL buttons Select the device to be operated. 2 SOUND button Selects the sound control function (BASS/TREBLE/BALANCE/ S.W. LEVEL/EFFECT/LOUDNESS). 3 SUR.(surround) MODE button Selects Surround Mode. 4 PRESET button To preset other manufacturer's devices, press any one of the SOURCE CONTROL buttons together with this button. 5 DISPLAY button When pressed once, displays each setting in sequence for 2 seconds. When pressed again, switches to Dimmer Mode, chang- ing the brightness of the display. 6 � STANDBY/ON button Turns the Home Theater System power ON/OFF (Standby). 7 INPUT button Selects the input device. 8 LEARN button (Australian model only) Selects Learn Mode. 9 RESET button (Australian model only) 0 Other device operation buttons Select the device to be operated with the SOURCE CONTROL buttons and then operate the device. - MUTING button Press to mute the volume. = VOLUME +, – button(s) Use to adjust the volume. ~ LEVEL +, – button(s) Use to adjust the sound control mode selected with the SOUND button. PRE-PROGRAMMED REMOTE CONTROL UNIT PRE-PROGRAMMED REMOTE CONTROL UNIT STANDBY/ON TV CA TV SAT VCR LD DVD CHANNEL STANDBY/ON OFF PRESET RECALL TV FUNC. GUIDE TV/VCR PRESET SOUND SUR.MODE VOLUME SOURCE 0 +10 ENTER CH.ENTER A/B MENU SYSTEM CONTROL SOURCE CONTROL 7 8 9 4 5 6 1 2 3 MUTING DISPLAY INPUT VOLUME LEVEL 7 10 11 12 13 6 5 4 3 2 1 PRE-PROGRAMMED AND LEARNING PRE-PROGRAMMED AND LEARNING REMOTE CONTROL UNIT REMOTE CONTROL UNIT STANDBY/ON TV CATV SAT VCR LD DVD CD STANDBY/ON OFF TRANSMIT / PRESET PREOALL / LEARN LEARN RESET TV FUNC. GUIDE TV/VCR PRESET SOUND SUR.MODE VOLUME SOURCE CHANNEL 0 +10 ENTER A/B CH.ENTER DISC MENU SYSTEM CONTROL 7 8 9 4 5 6 1 2 3 MUTING DISPLAY INPUT VOLUME LEVEL SOURCE CONTROL 1 2 3 4 5 6 7 8 9 10 11 12 13 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTV-SW1, HTV-C1 52 Accessories HTV-1 SPECIFICATIONS Amplifier Section Continuous power output (DIN) Front L/R ............................... 30 W + 30 W (1 kHz, THD 1%, 8Ω) Subwoofer ...................................... 60 W (100 Hz, THD 1%, 8Ω) Continuous power output (RMS) Front L/R ............................. 40 W + 40 W (1 kHz, THD 10%, 8Ω) Subwoofer .................................... 80 W (100 Hz, THD 10%, 8Ω) Input (Sensitivity/Impedance) INPUT 1, 2 ................................................................. 220 mV/70 kΩ Speaker Section Front L/R ............................................................... 8.7 cm cone type Subwoofer ............................................................20 cm cone type Miscellaneous [Except Australian model] Power Requirements ............................. AC 110-127/220-230/240 V (switchable), 50/60 Hz Power Consumption ............................................................. 400 W In Standby Condition ................................................ less than 3 W [Australian model] Power Requirements ......................................... AC 240 V, 50/60 Hz Power Consumption ............................................................. 350 W In Standby Condition ................................................ less than 3 W Dimensions Control center .......................... 610 (W) × 110 (H) × 166 (D) mm Powered subwoofer ................ 364 (W) × 360 (H) × 371 (D) mm Weight (without package) Control center .................................................................... 3.8 kg Powered subwoofer ........................................................ 13.5 kg Furnished Parts System cable A .............................................................................. 1 System cable B .............................................................................. 1 Audio cord ..................................................................................... 1 Mount kit ........................................................................................ 1 Dry Cell Batteries Except Australian model .......................... size "AA" IEC R6P x 2 Australian model ................................. size "AAA" IEC LR03 x 2 Remote Control Unit ..................................................................... 1 Operating Instructions .................................................................. 1 Warranty card (Australian model only) ....................................... 1 NOTE: Specifications and the design are subject to possible modifications without notice, due to improvements. [Australian model] (CU-HT008) (AXD7191) Wing nuts x 2 (NR60FZK) Nuts x 2 (NA60FZK) Manufactured under license from Dolby Laboratories. DOLBY and the double-D symbol are trademarks of Dolby Laboratories. Red White ¶ Batteries (R6P, AA) (VEM-013) ¶ System cable A (3m) (ADX7239) ¶ Audio cord (VDE1052) (L= 1.5 m) ¶ System cable B (3m) (ADE7023) ¶ Operating instructions ¶ Warranty card (Australian model only) ¶ Mount kit (AEA7021) ¶ Remote control unit Washers x 2 (WB60FZK) Bolts (S) x 2 (ABA7041) Bolts (L) x 2 (ABA7042) Bolt caps x 4 (AEB7111) Velcro tapes (hooks) x 2 (AED7028) Velcro tapes (loops) x 2 (AED7029) [Except Australian model] (CU-HT007) (AXD7186) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
