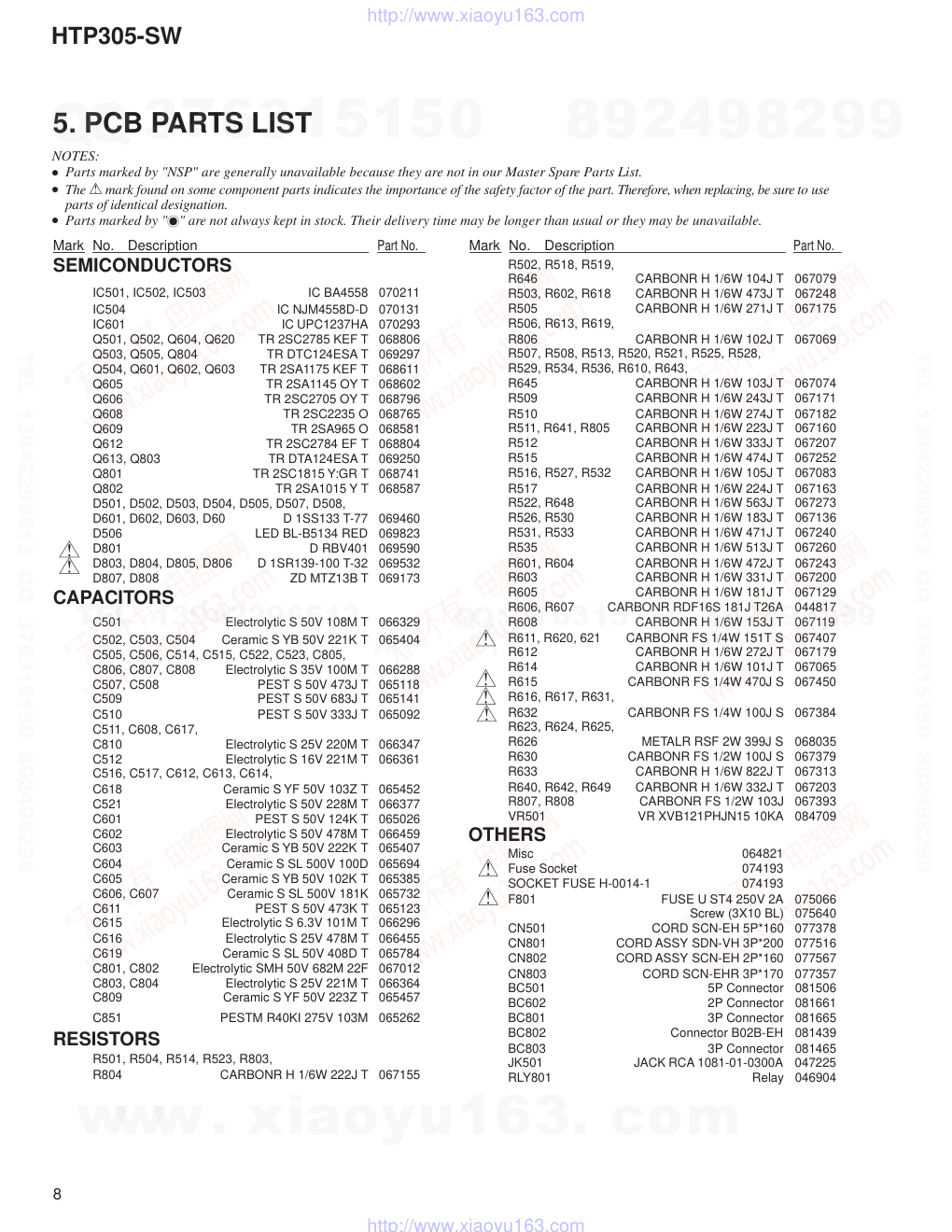

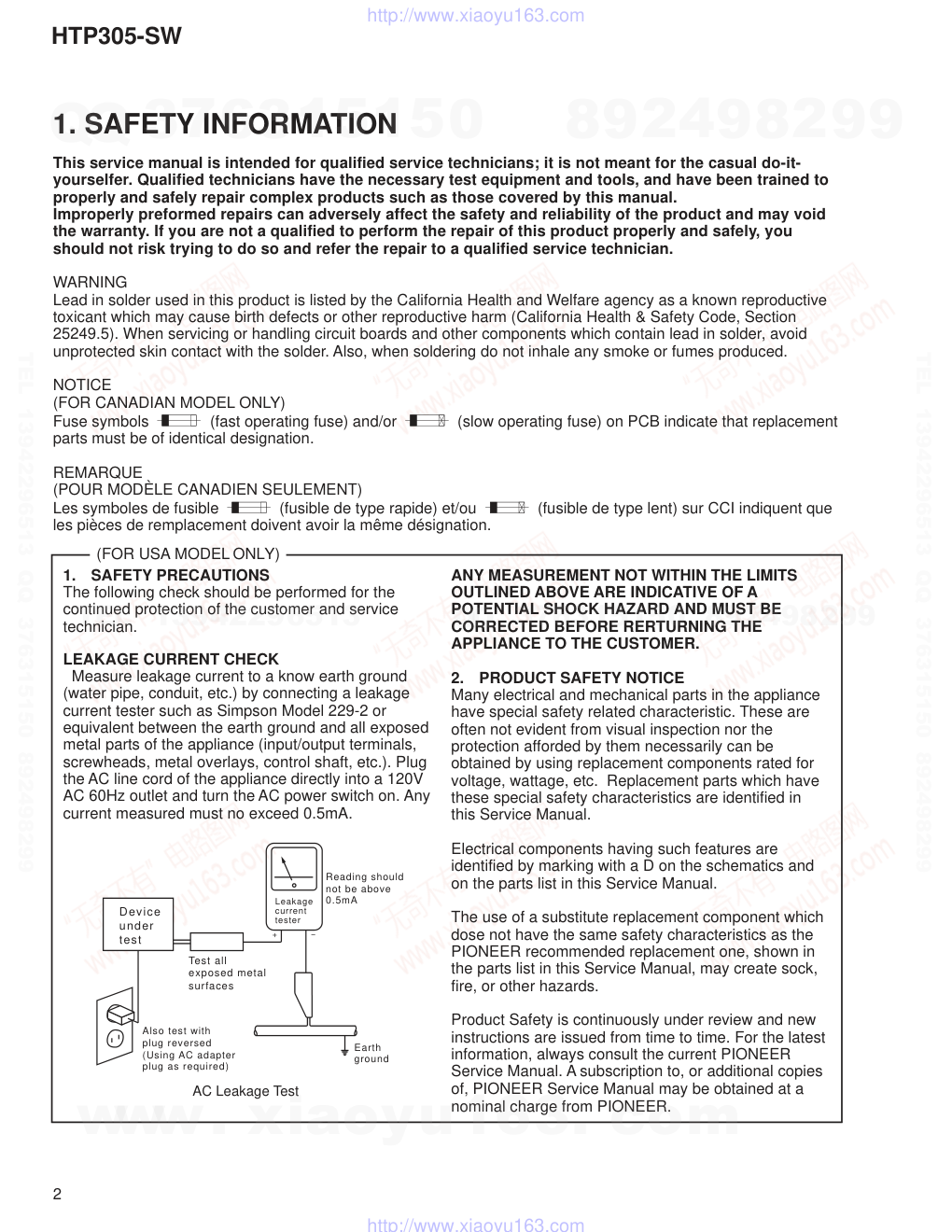

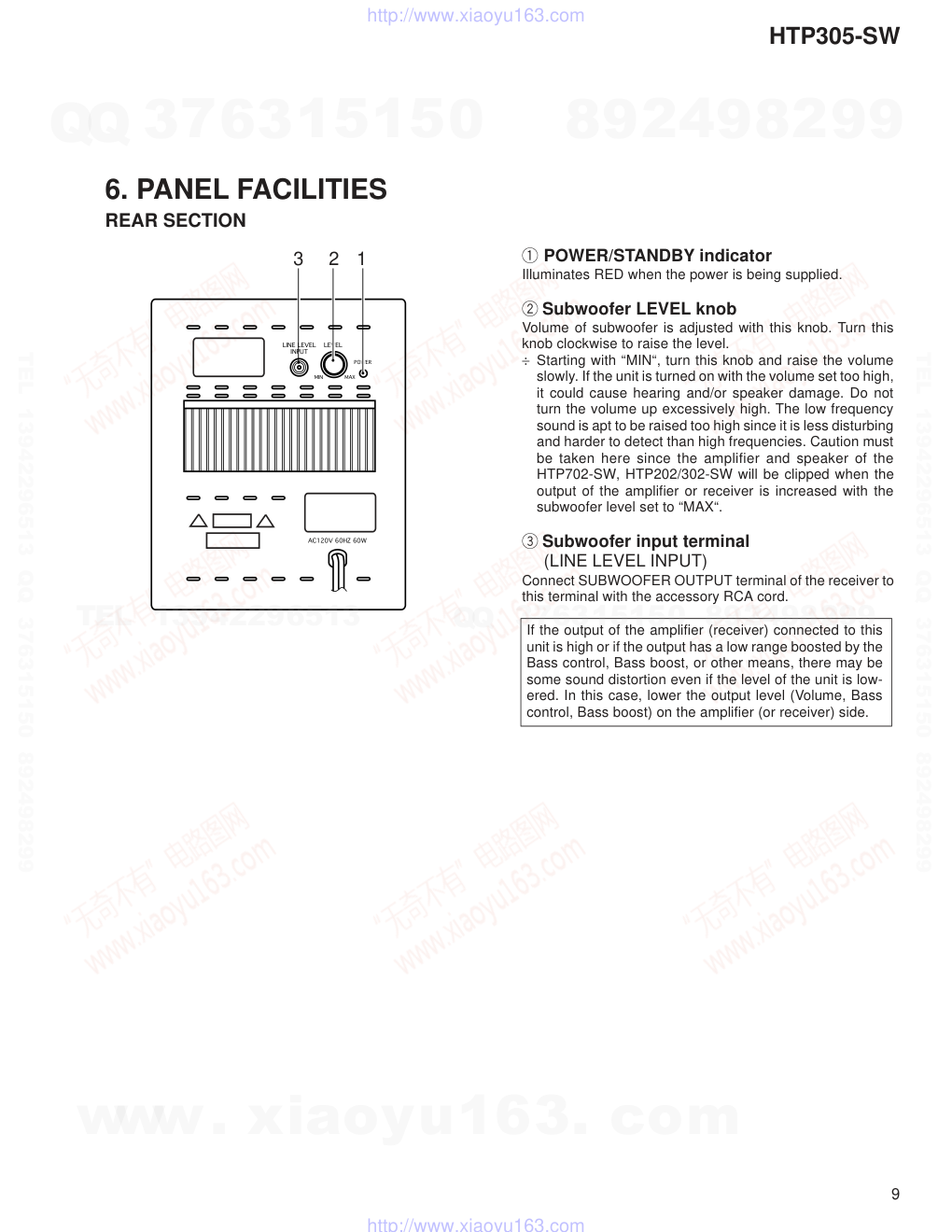

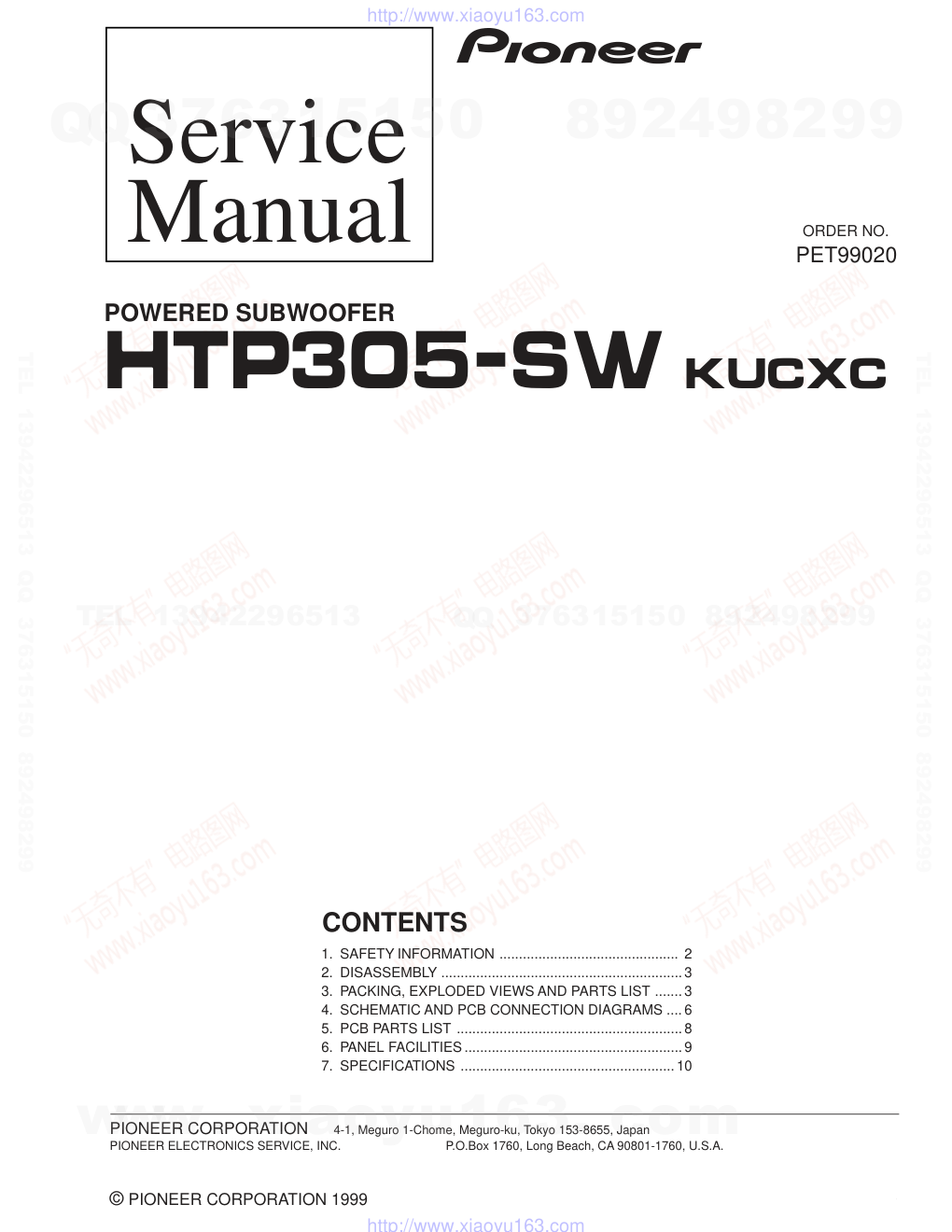

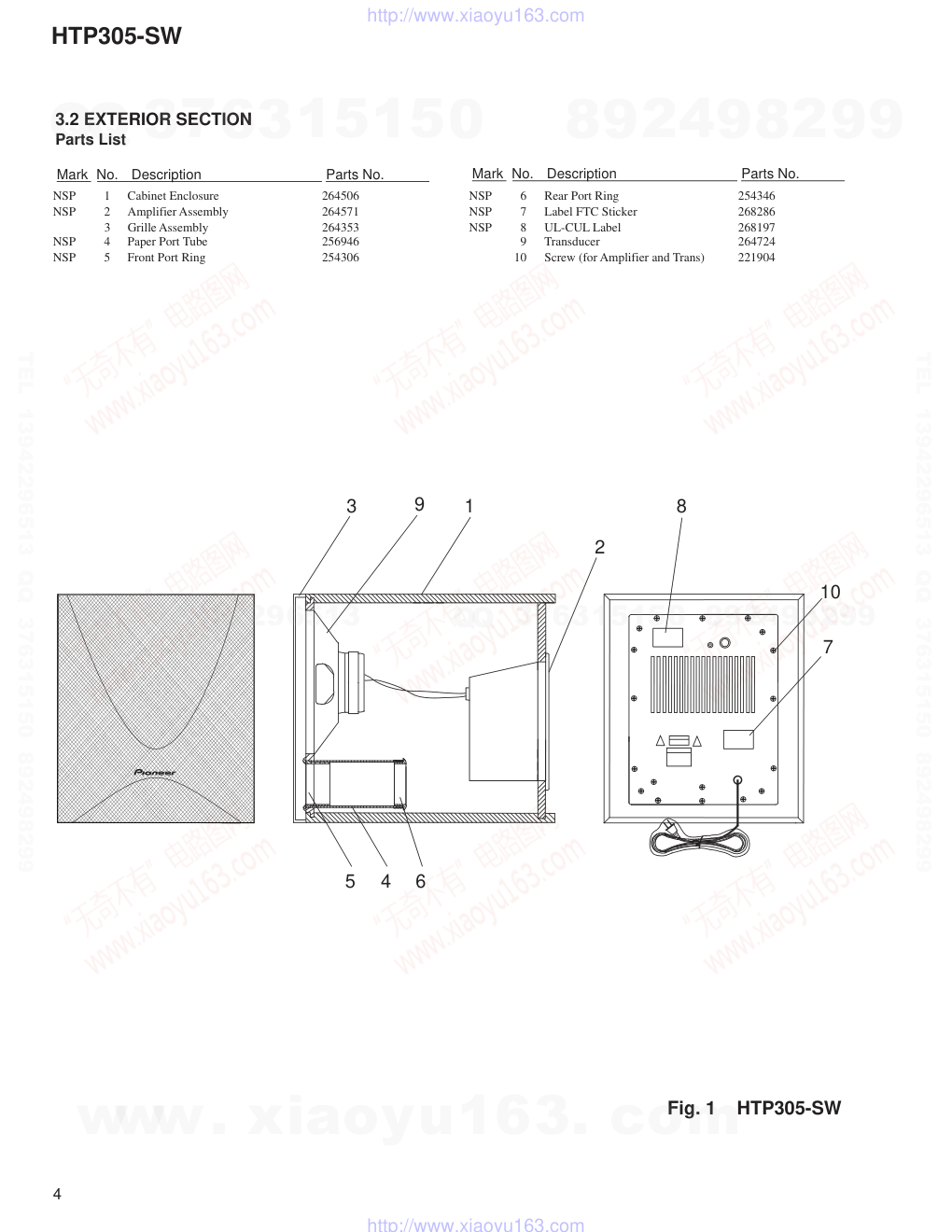

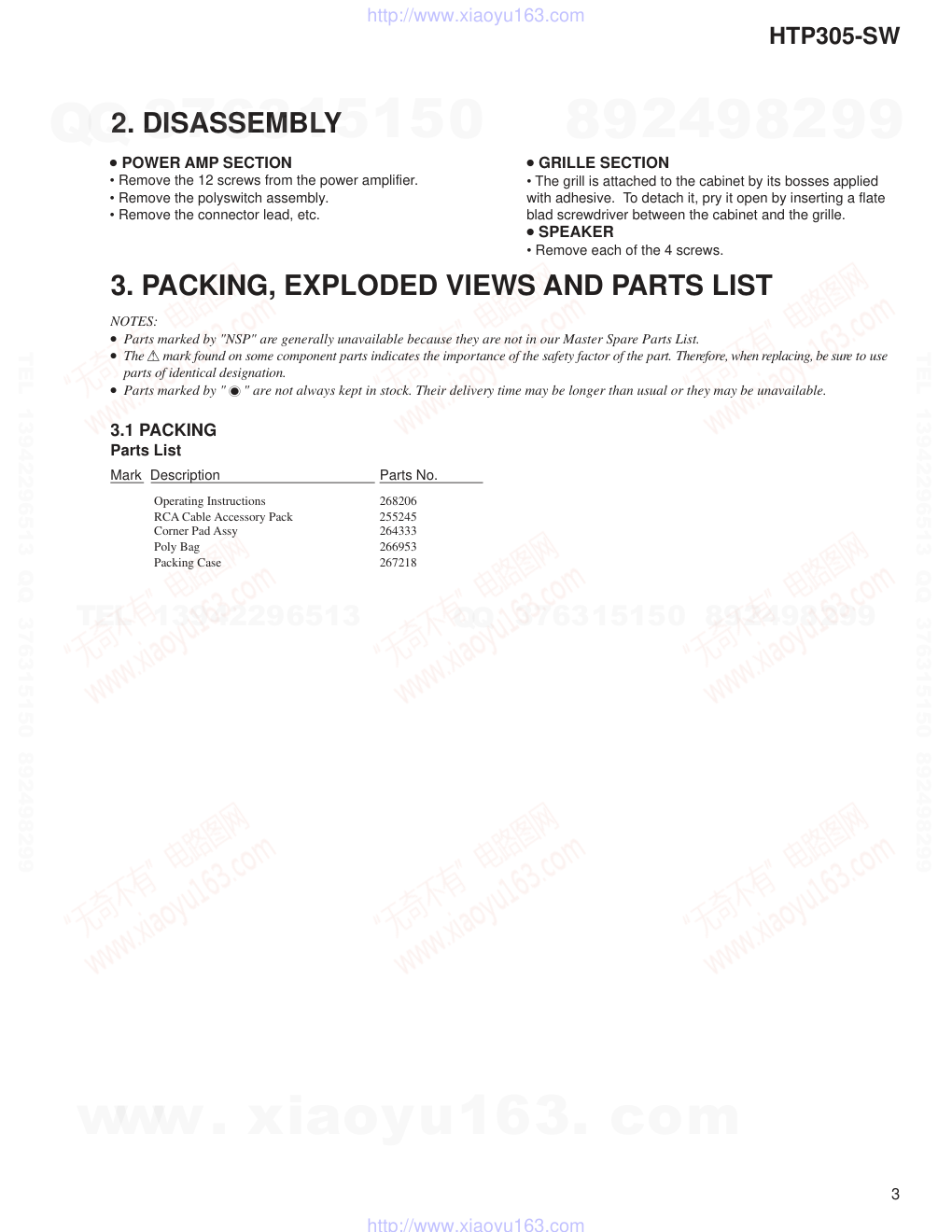

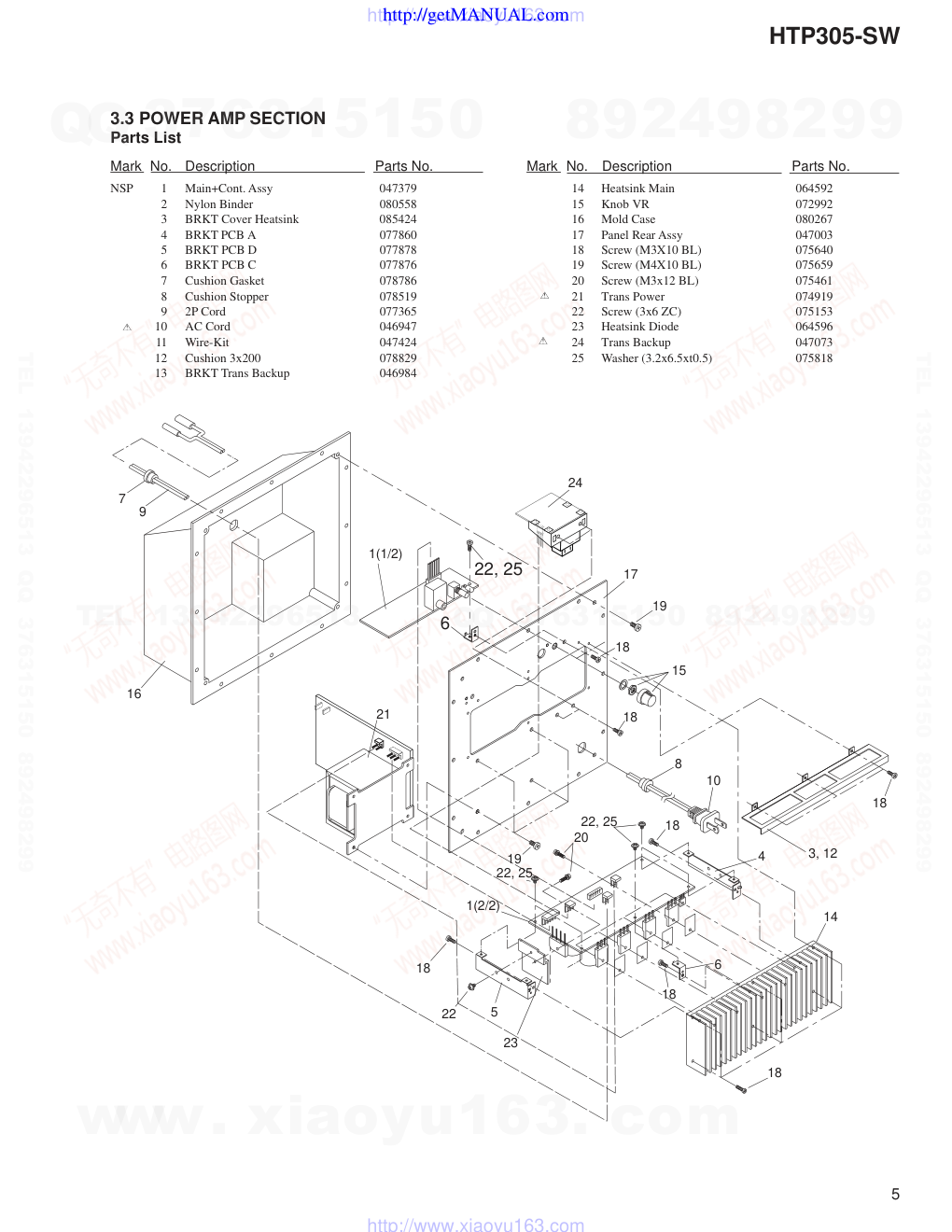

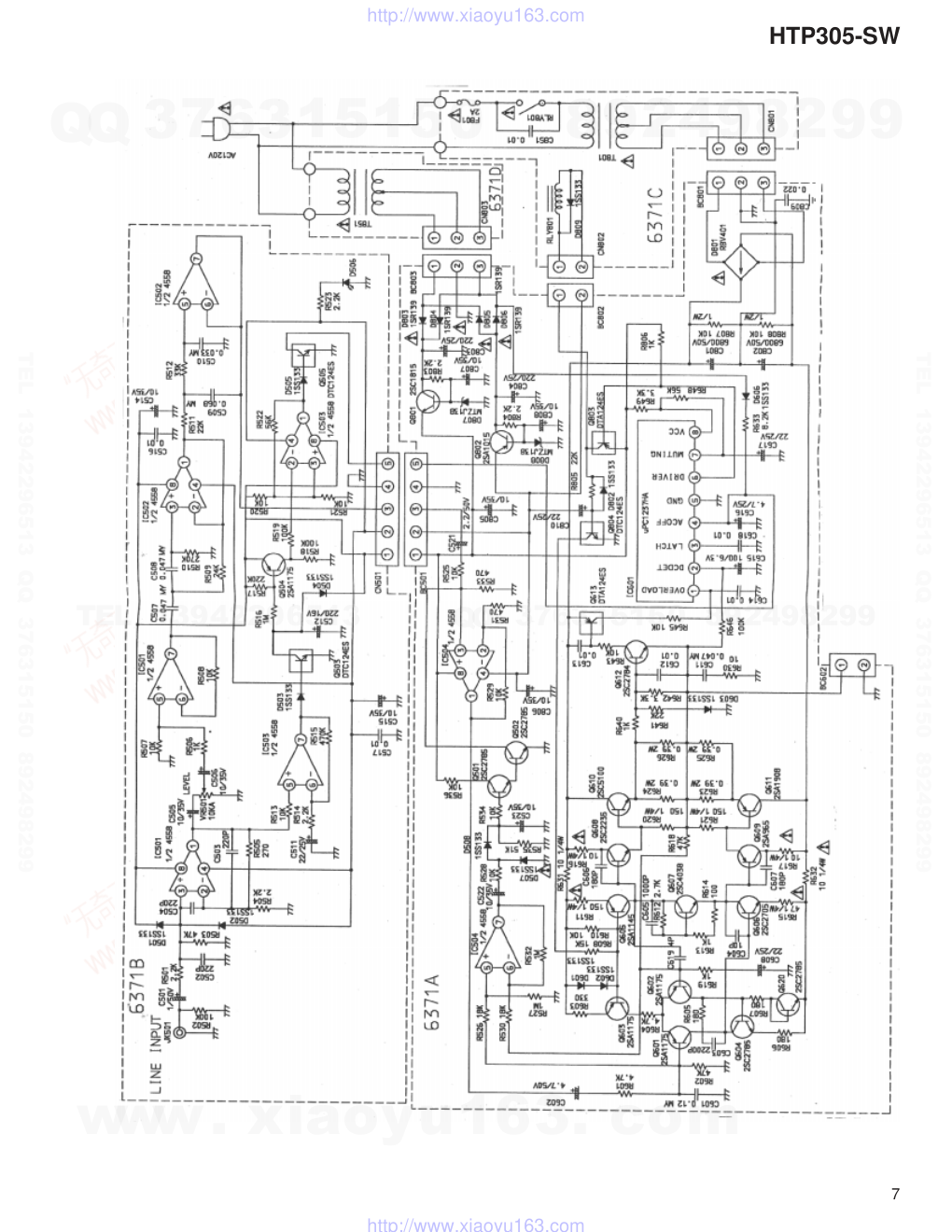

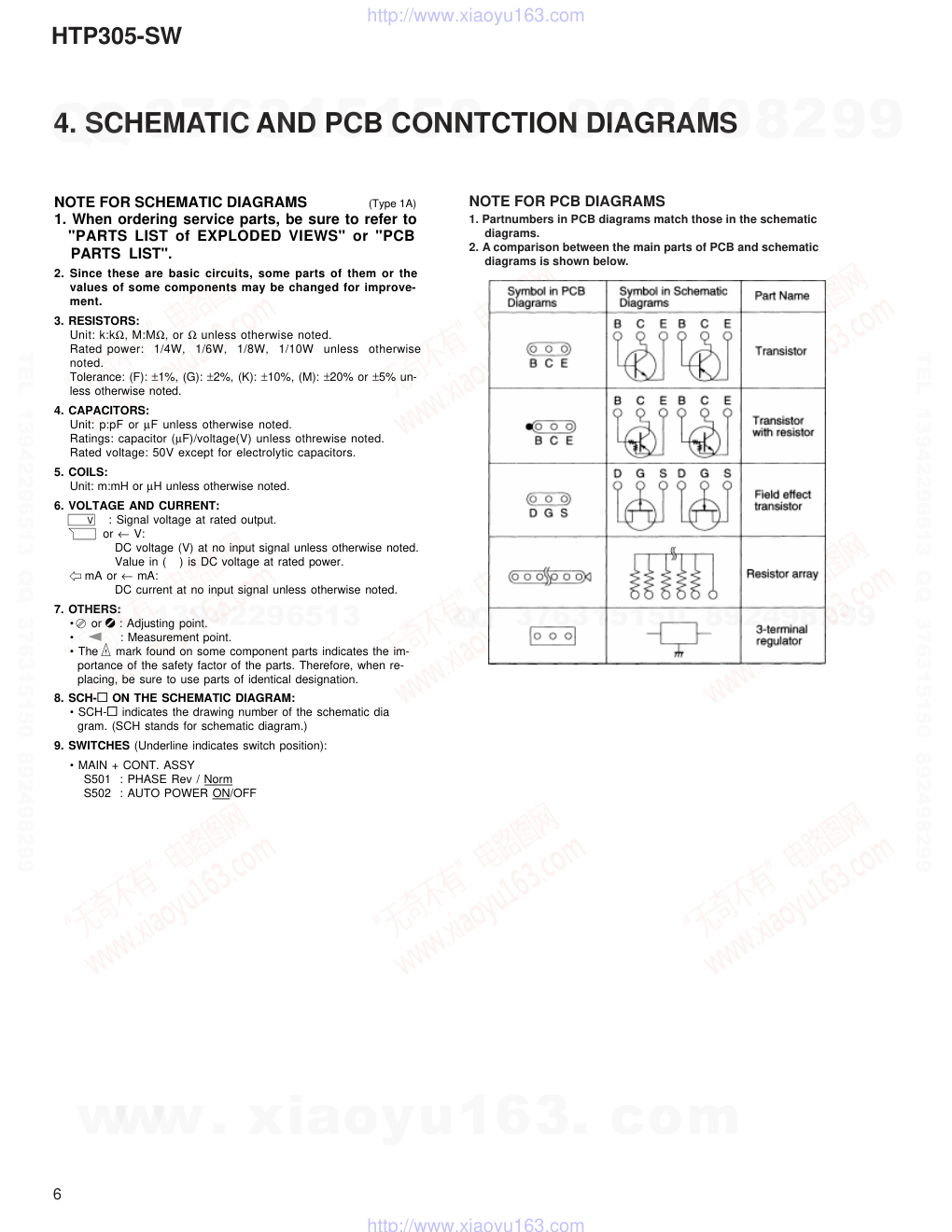

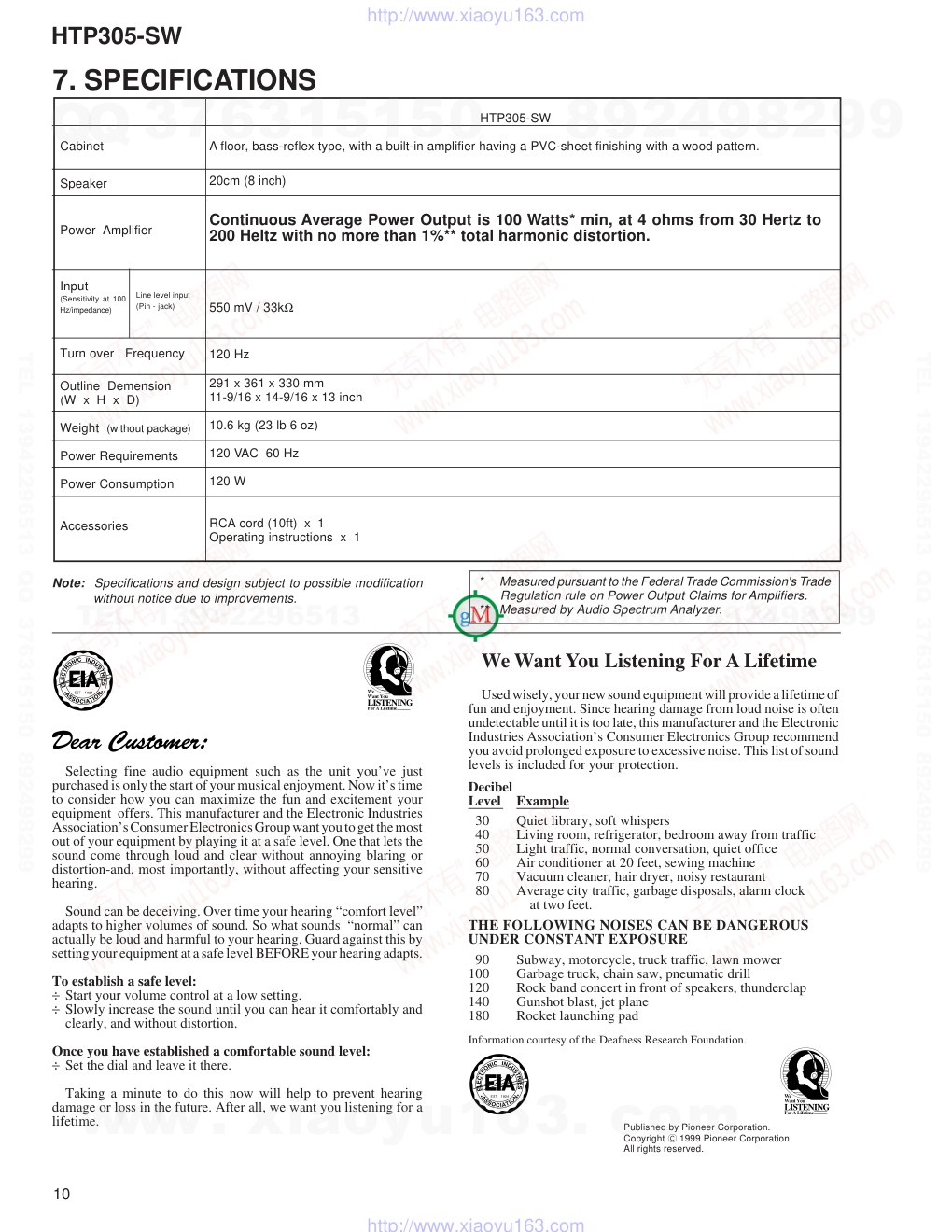

1 HTP305-SW PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8655, Japan PIONEER ELECTRONICS SERVICE, INC. P.O.Box 1760, Long Beach, CA 90801-1760, U.S.A. © PIONEER CORPORATION 1999 CONTENTS 1. SAFETY INFORMATION .............................................. 2 2. DISASSEMBLY ..............................................................3 3. PACKING, EXPLODED VIEWS AND PARTS LIST ....... 3 4. SCHEMATIC AND PCB CONNECTION DIAGRAMS .... 6 5. PCB PARTS LIST ..........................................................8 6. PANEL FACILITIES ........................................................ 9 7. SPECIFICATIONS ....................................................... 10 Service Manual ORDER NO. PET99020 POWERED SUBWOOFER HTP305-SW KUCXC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HTP305-SW 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly preformed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not a qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING Lead in solder used in this product is listed by the California Health and Welfare agency as a known reproductive toxicant which may cause birth defects or other reproductive harm (California Health & Safety Code, Section 25249.5). When servicing or handling circuit boards and other components which contain lead in solder, avoid unprotected skin contact with the solder. Also, when soldering do not inhale any smoke or fumes produced. NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. (FOR USA MODEL ONLY) 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a know earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60Hz outlet and turn the AC power switch on. Any current measured must no exceed 0.5mA. ANY MEASUREMENT NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RERTURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristic. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a D on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which dose not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create sock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. + - Reading should not be above 0.5mA Leakage current tester Device under test Test all exposed metal surfaces Earth ground Also test with plug reversed (Using AC adapter plug as required) AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HTP305-SW 2. DISASSEMBLY G POWER AMP SECTION • Remove the 12 screws from the power amplifier. • Remove the polyswitch assembly. • Remove the connector lead, etc. 3. PACKING, EXPLODED VIEWS AND PARTS LIST NOTES: G Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. G The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. G Parts marked by " " are not always kept in stock. Their delivery time may be longer than usual or they may be unavailable. G GRILLE SECTION • The grill is attached to the cabinet by its bosses applied with adhesive. To detach it, pry it open by inserting a flate blad screwdriver between the cabinet and the grille. G SPEAKER • Remove each of the 4 screws. 3.1 PACKING Parts List Operating Instructions 268206 RCA Cable Accessory Pack 255245 Corner Pad Assy 264333 Poly Bag 266953 Packing Case 267218 Mark Description Parts No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HTP305-SW 3.2 EXTERIOR SECTION Parts List Mark No. Description Parts No. Mark No. Description Parts No. Fig. 1 HTP305-SW 1 2 3 4 5 6 9 8 7 10 NSP 1 Cabinet Enclosure 264506 NSP 2 Amplifier Assembly 264571 3 Grille Assembly 264353 NSP 4 Paper Port Tube 256946 NSP 5 Front Port Ring 254306 NSP 6 Rear Port Ring 254346 NSP 7 Label FTC Sticker 268286 NSP 8 UL-CUL Label 268197 9 Transducer 264724 10 Screw (for Amplifier and Trans) 221904 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HTP305-SW 3.3 POWER AMP SECTION Parts List Mark No. Description Parts No. 20 22, 25 18 18 19 18 22, 25 4 22 5 14 6 18 1(2/2) 10 8 18 3, 12 19 17 21 16 7 9 18 15 23 18 24 1(1/2) 6 22, 25 Mark No. Description Parts No. NSP 1 Main+Cont. Assy 047379 2 Nylon Binder 080558 3 BRKT Cover Heatsink 085424 4 BRKT PCB A 077860 5 BRKT PCB D 077878 6 BRKT PCB C 077876 7 Cushion Gasket 078786 8 Cushion Stopper 078519 9 2P Cord 077365 10 AC Cord 046947 11 Wire-Kit 047424 12 Cushion 3x200 078829 13 BRKT Trans Backup 046984 14 Heatsink Main 064592 15 Knob VR 072992 16 Mold Case 080267 17 Panel Rear Assy 047003 18 Screw (M3X10 BL) 075640 19 Screw (M4X10 BL) 075659 20 Screw (M3x12 BL) 075461 21 Trans Power 074919 22 Screw (3x6 ZC) 075153 23 Heatsink Diode 064596 24 Trans Backup 047073 25 Washer (3.2x6.5xt0.5) 075818 http://getMANUAL.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HTP305-SW 4. SCHEMATIC AND PCB CONNTCTION DIAGRAMS NOTE FOR SCHEMATIC DIAGRAMS (Type 1A) 1. When ordering service parts, be sure to refer to "PARTS LIST of EXPLODED VIEWS" or "PCB PARTS LIST". 2. Since these are basic circuits, some parts of them or the values of some components may be changed for improve- ment. 3. RESISTORS: Unit: k:kΩ, M:MΩ, or Ω unless otherwise noted. Rated power: 1/4W, 1/6W, 1/8W, 1/10W unless otherwise noted. Tolerance: (F): ±1%, (G): ±2%, (K): ±10%, (M): ±20% or ±5% un- less otherwise noted. 4. CAPACITORS: Unit: p:pF or µF unless otherwise noted. Ratings: capacitor (µF)/voltage(V) unless othrewise noted. Rated voltage: 50V except for electrolytic capacitors. 5. COILS: Unit: m:mH or µH unless otherwise noted. 6. VOLTAGE AND CURRENT: : Signal voltage at rated output. or ← V: DC voltage (V) at no input signal unless otherwise noted. Value in ( ) is DC voltage at rated power. mA or ← mA: DC current at no input signal unless otherwise noted. 7. OTHERS: • or : Adjusting point. • : Measurement point. • The mark found on some component parts indicates the im- portance of the safety factor of the parts. Therefore, when re- placing, be sure to use parts of identical designation. 8. SCH-& ON THE SCHEMATIC DIAGRAM: • SCH-& indicates the drawing number of the schematic dia gram. (SCH stands for schematic diagram.) 9. SWITCHES (Underline indicates switch position): • MAIN + CONT. ASSY S501 : PHASE Rev / Norm S502 : AUTO POWER ON/OFF V NOTE FOR PCB DIAGRAMS 1. Partnumbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HTP305-SW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 HTP305-SW 5. PCB PARTS LIST NOTES: G Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. G The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. G Parts marked by " " are not always kept in stock. Their delivery time may be longer than usual or they may be unavailable. Mark No. Description Part No. Mark No. Description Part No. SEMICONDUCTORS IC501, IC502, IC503 IC BA4558 070211 IC504 IC NJM4558D-D 070131 IC601 IC UPC1237HA 070293 Q501, Q502, Q604, Q620 TR 2SC2785 KEF T 068806 Q503, Q505, Q804 TR DTC124ESA T 069297 Q504, Q601, Q602, Q603 TR 2SA1175 KEF T 068611 Q605 TR 2SA1145 OY T 068602 Q606 TR 2SC2705 OY T 068796 Q608 TR 2SC2235 O 068765 Q609 TR 2SA965 O 068581 Q612 TR 2SC2784 EF T 068804 Q613, Q803 TR DTA124ESA T 069250 Q801 TR 2SC1815 Y:GR T 068741 Q802 TR 2SA1015 Y T 068587 D501, D502, D503, D504, D505, D507, D508, D601, D602, D603, D60 D 1SS133 T-77 069460 D506 LED BL-B5134 RED 069823 D801 D RBV401 069590 D803, D804, D805, D806 D 1SR139-100 T-32 069532 D807, D808 ZD MTZ13B T 069173 CAPACITORS C501 Electrolytic S 50V 108M T 066329 C502, C503, C504 Ceramic S YB 50V 221K T 065404 C505, C506, C514, C515, C522, C523, C805, C806, C807, C808 Electrolytic S 35V 100M T 066288 C507, C508 PEST S 50V 473J T 065118 C509 PEST S 50V 683J T 065141 C510 PEST S 50V 333J T 065092 C511, C608, C617, C810 Electrolytic S 25V 220M T 066347 C512 Electrolytic S 16V 221M T 066361 C516, C517, C612, C613, C614, C618 Ceramic S YF 50V 103Z T 065452 C521 Electrolytic S 50V 228M T 066377 C601 PEST S 50V 124K T 065026 C602 Electrolytic S 50V 478M T 066459 C603 Ceramic S YB 50V 222K T 065407 C604 Ceramic S SL 500V 100D 065694 C605 Ceramic S YB 50V 102K T 065385 C606, C607 Ceramic S SL 500V 181K 065732 C611 PEST S 50V 473K T 065123 C615 Electrolytic S 6.3V 101M T 066296 C616 Electrolytic S 25V 478M T 066455 C619 Ceramic S SL 50V 408D T 065784 C801, C802 Electrolytic SMH 50V 682M 22F 067012 C803, C804 Electrolytic S 25V 221M T 066364 C809 Ceramic S YF 50V 223Z T 065457 C851 PESTM R40KI 275V 103M 065262 RESISTORS R501, R504, R514, R523, R803, R804 CARBONR H 1/6W 222J T 067155 R502, R518, R519, R646 CARBONR H 1/6W 104J T 067079 R503, R602, R618 CARBONR H 1/6W 473J T 067248 R505 CARBONR H 1/6W 271J T 067175 R506, R613, R619, R806 CARBONR H 1/6W 102J T 067069 R507, R508, R513, R520, R521, R525, R528, R529, R534, R536, R610, R643, R645 CARBONR H 1/6W 103J T 067074 R509 CARBONR H 1/6W 243J T 067171 R510 CARBONR H 1/6W 274J T 067182 R511, R641, R805 CARBONR H 1/6W 223J T 067160 R512 CARBONR H 1/6W 333J T 067207 R515 CARBONR H 1/6W 474J T 067252 R516, R527, R532 CARBONR H 1/6W 105J T 067083 R517 CARBONR H 1/6W 224J T 067163 R522, R648 CARBONR H 1/6W 563J T 067273 R526, R530 CARBONR H 1/6W 183J T 067136 R531, R533 CARBONR H 1/6W 471J T 067240 R535 CARBONR H 1/6W 513J T 067260 R601, R604 CARBONR H 1/6W 472J T 067243 R603 CARBONR H 1/6W 331J T 067200 R605 CARBONR H 1/6W 181J T 067129 R606, R607 CARBONR RDF16S 181J T26A 044817 R608 CARBONR H 1/6W 153J T 067119 R611, R620, 621 CARBONR FS 1/4W 151T S 067407 R612 CARBONR H 1/6W 272J T 067179 R614 CARBONR H 1/6W 101J T 067065 R615 CARBONR FS 1/4W 470J S 067450 R616, R617, R631, R632 CARBONR FS 1/4W 100J S 067384 R623, R624, R625, R626 METALR RSF 2W 399J S 068035 R630 CARBONR FS 1/2W 100J S 067379 R633 CARBONR H 1/6W 822J T 067313 R640, R642, R649 CARBONR H 1/6W 332J T 067203 R807, R808 CARBONR FS 1/2W 103J 067393 VR501 VR XVB121PHJN15 10KA 084709 OTHERS Misc 064821 Fuse Socket 074193 SOCKET FUSE H-0014-1 074193 F801 FUSE U ST4 250V 2A 075066 Screw (3X10 BL) 075640 CN501 CORD SCN-EH 5P*160 077378 CN801 CORD ASSY SDN-VH 3P*200 077516 CN802 CORD ASSY SCN-EH 2P*160 077567 CN803 CORD SCN-EHR 3P*170 077357 BC501 5P Connector 081506 BC602 2P Connector 081661 BC801 3P Connector 081665 BC802 Connector B02B-EH 081439 BC803 3P Connector 081465 JK501 JACK RCA 1081-01-0300A 047225 RLY801 Relay 046904 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 HTP305-SW REAR SECTION 1 POWER/STANDBY indicator Illuminates RED when the power is being supplied. 2 Subwoofer LEVEL knob Volume of subwoofer is adjusted with this knob. Turn this knob clockwise to raise the level. ÷ Starting with “MIN“, turn this knob and raise the volume slowly. If the unit is turned on with the volume set too high, it could cause hearing and/or speaker damage. Do not turn the volume up excessively high. The low frequency sound is apt to be raised too high since it is less disturbing and harder to detect than high frequencies. Caution must be taken here since the amplifier and speaker of the HTP702-SW, HTP202/302-SW will be clipped when the output of the amplifier or receiver is increased with the subwoofer level set to “MAX“. 3 Subwoofer input terminal (LINE LEVEL INPUT) Connect SUBWOOFER OUTPUT terminal of the receiver to this terminal with the accessory RCA cord. If the output of the amplifier (receiver) connected to this unit is high or if the output has a low range boosted by the Bass control, Bass boost, or other means, there may be some sound distortion even if the level of the unit is low- ered. In this case, lower the output level (Volume, Bass control, Bass boost) on the amplifier (or receiver) side. 6. PANEL FACILITIES POWER LINE LEVEL INPUT LEVEL AC120V 60HZ 60W MIN MAX 1 2 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 HTP305-SW 7. SPECIFICATIONS Cabinet Speaker Power Amplifier Input (Sensitivity at 100 Hz/impedance) Turn over Frequency Outline Demension (W x H x D) Weight (without package) Power Requirements Power Consumption Accessories HTP305-SW A floor, bass-reflex type, with a built-in amplifier having a PVC-sheet finishing with a wood pattern. 20cm (8 inch) Continuous Average Power Output is 100 Watts* min, at 4 ohms from 30 Hertz to 200 Heltz with no more than 1%** total harmonic distortion. 550 mV / 33kΩ 120 Hz 291 x 361 x 330 mm 11-9/16 x 14-9/16 x 13 inch 10.6 kg (23 lb 6 oz) 120 VAC 60 Hz 120 W RCA cord (10ft) x 1 Operating instructions x 1 Line level input (Pin - jack) Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion-and, most importantly, without affecting your sensitive hearing. Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts. To establish a safe level: ÷ Start your volume control at a low setting. ÷ Slowly increase the sound until you can hear it comfortably and clearly, and without distortion. Once you have established a comfortable sound level: ÷ Set the dial and leave it there. Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime. Published by Pioneer Corporation. Copyright C 1999 Pioneer Corporation. All rights reserved. We Want You Listening For A Lifetime Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage from loud noise is often undetectable until it is too late, this manufacturer and the Electronic Industries Association’s Consumer Electronics Group recommend you avoid prolonged exposure to excessive noise. This list of sound levels is included for your protection. Information courtesy of the Deafness Research Foundation. 90 Subway, motorcycle, truck traffic, lawn mower 100 Garbage truck, chain saw, pneumatic drill 120 Rock band concert in front of speakers, thunderclap 140 Gunshot blast, jet plane 180 Rocket launching pad THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE 30 Quiet library, soft whispers 40 Living room, refrigerator, bedroom away from traffic 50 Light traffic, normal conversation, quiet office 60 Air conditioner at 20 feet, sewing machine 70 Vacuum cleaner, hair dryer, noisy restaurant 80 Average city traffic, garbage disposals, alarm clock at two feet. Decibel Level Example Note: Specifications and design subject to possible modification without notice due to improvements. * Measured pursuant to the Federal Trade Commission's Trade Regulation rule on Power Output Claims for Amplifiers. ** Measured by Audio Spectrum Analyzer. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 HTP305-SW NOTES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 HTP305-SW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
