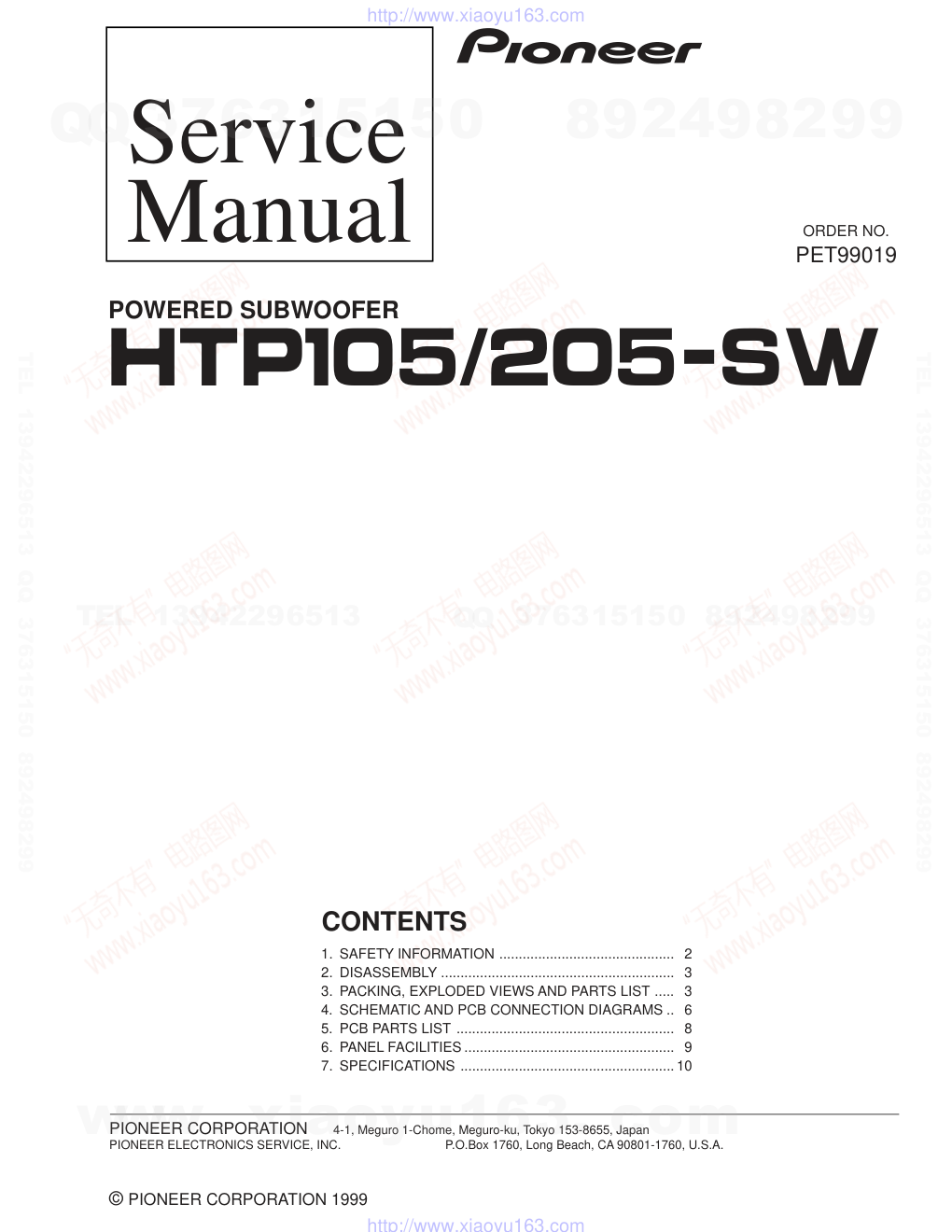

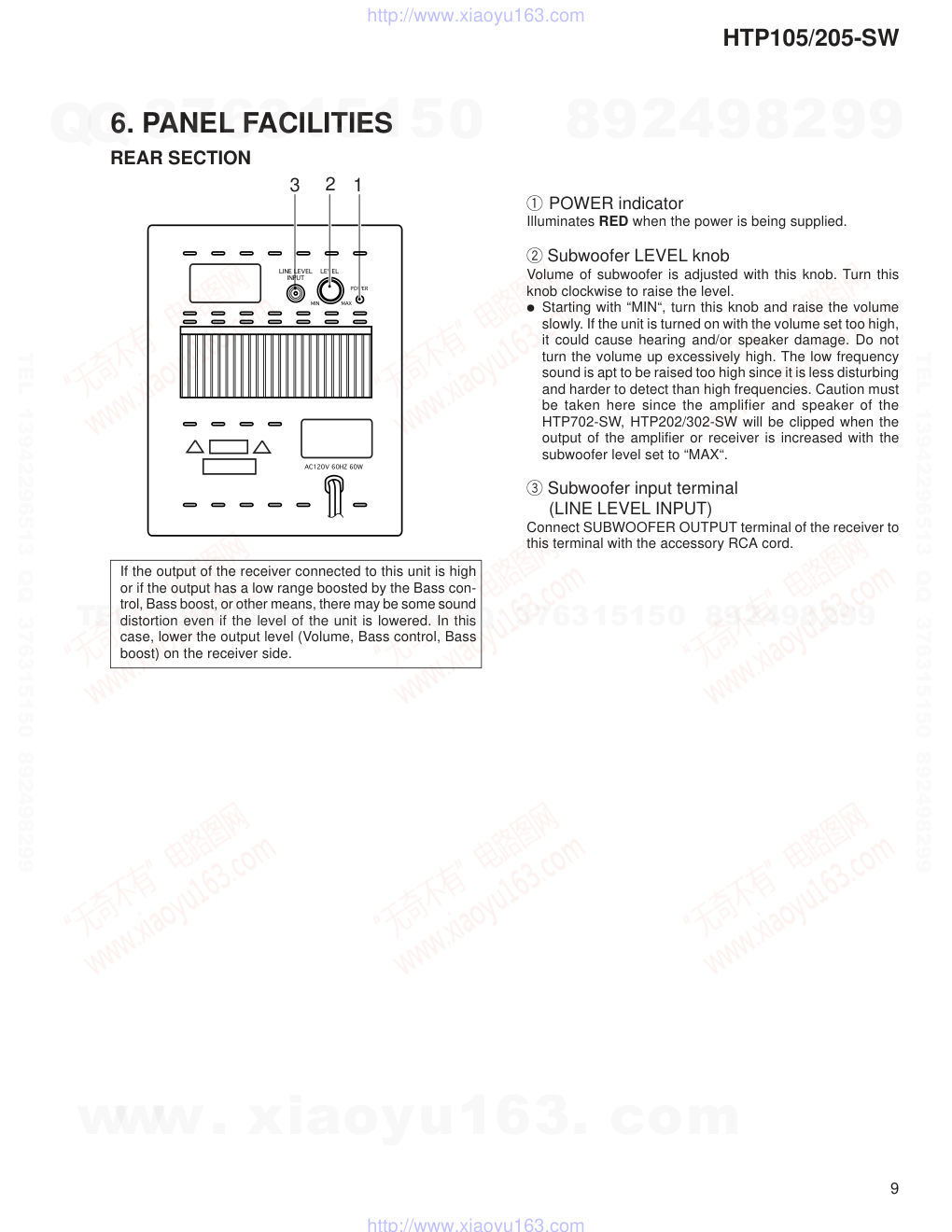

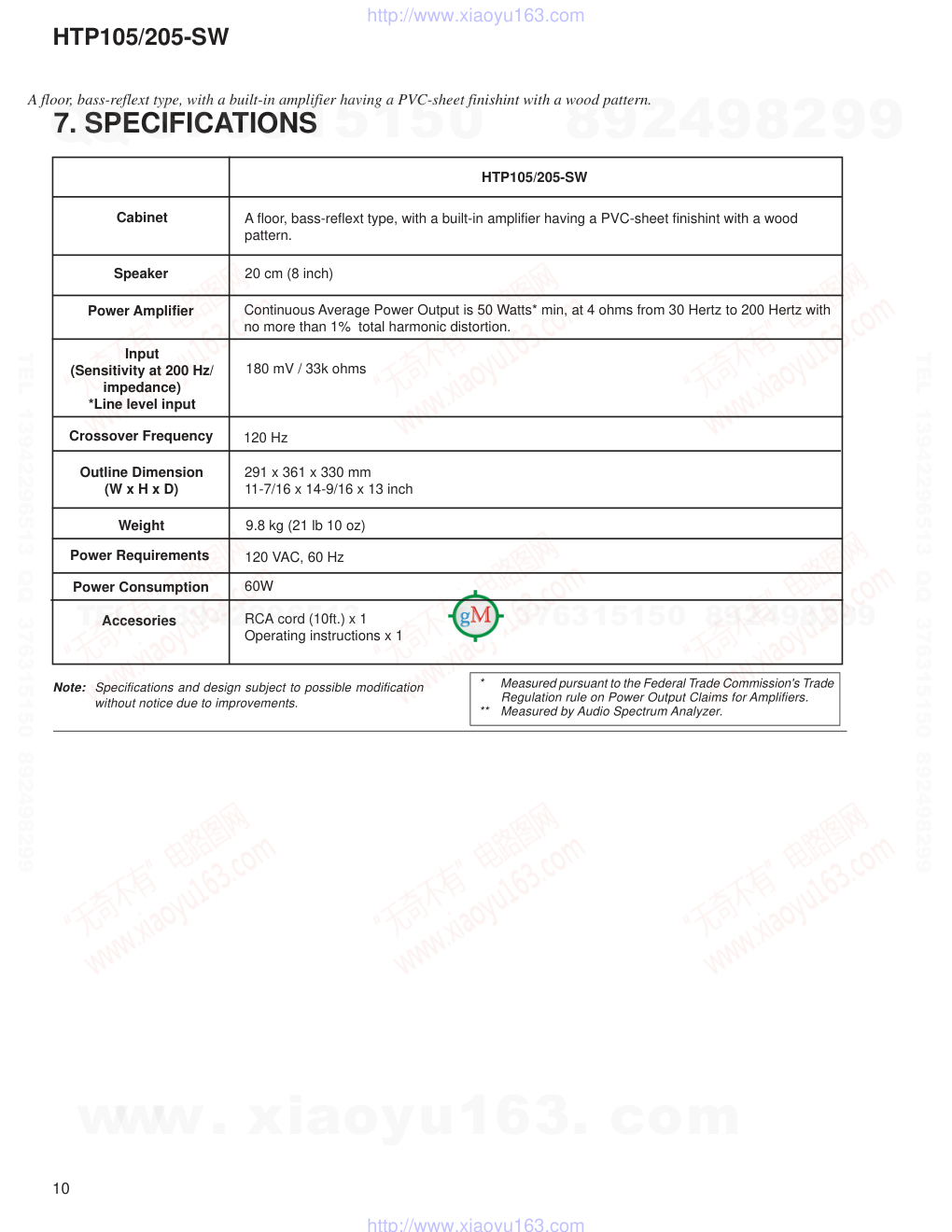

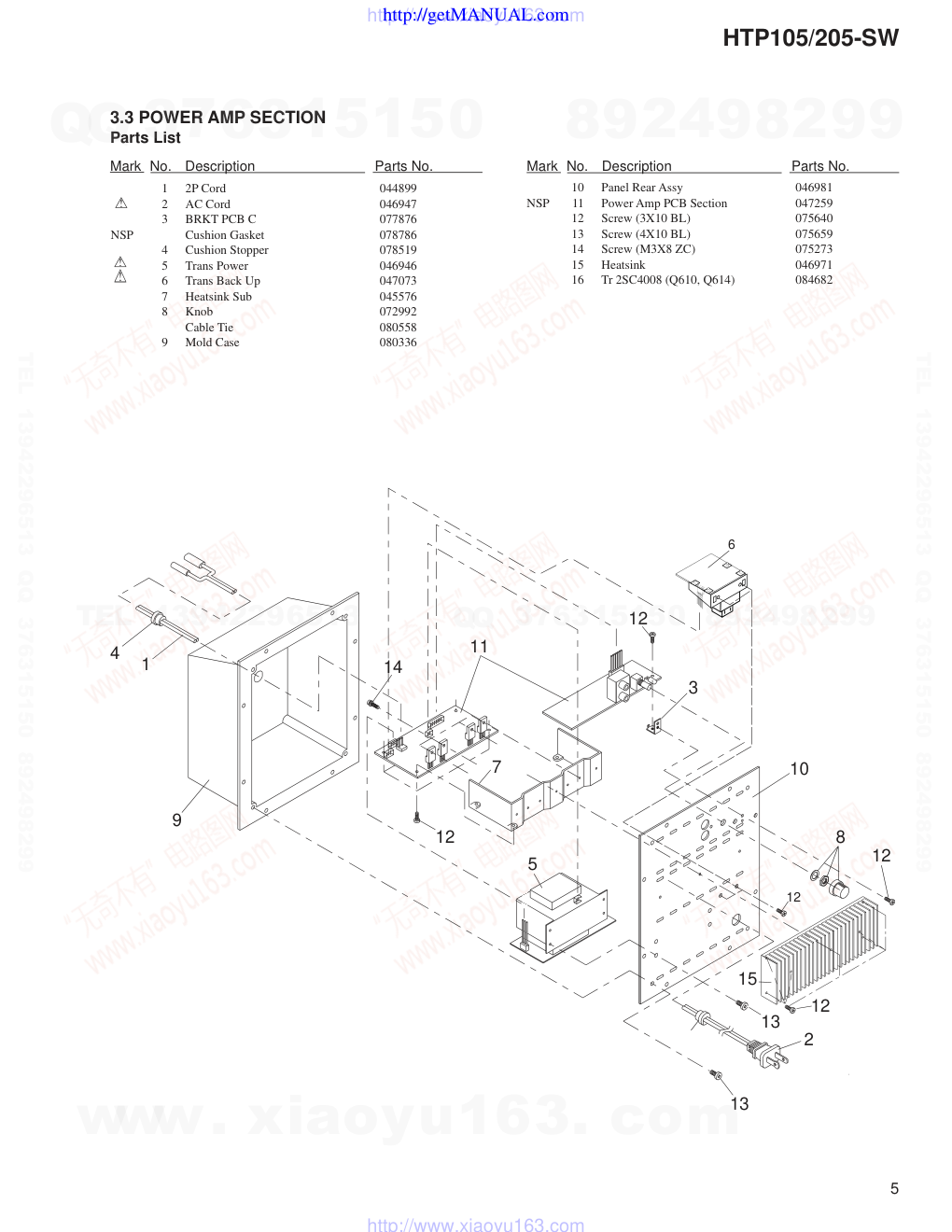

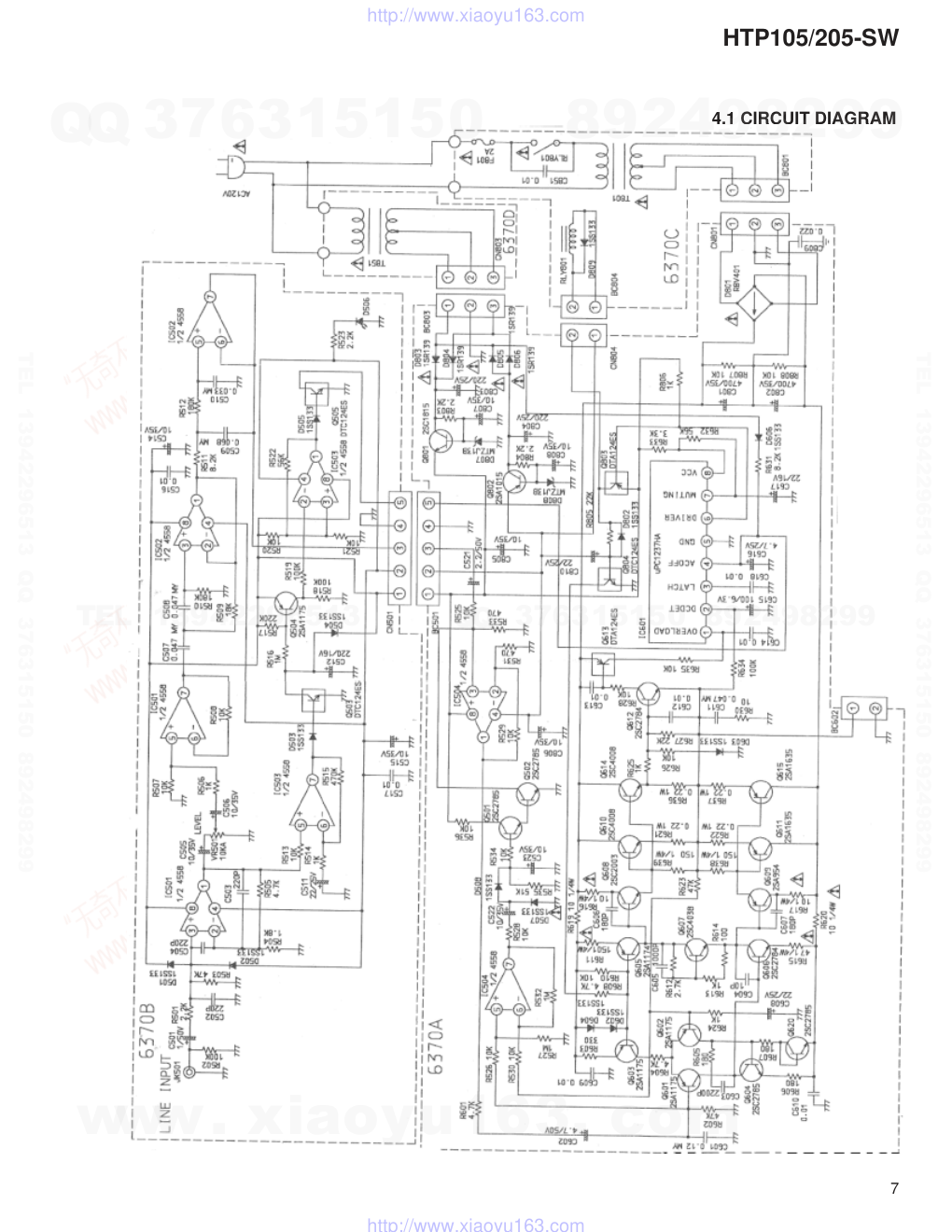

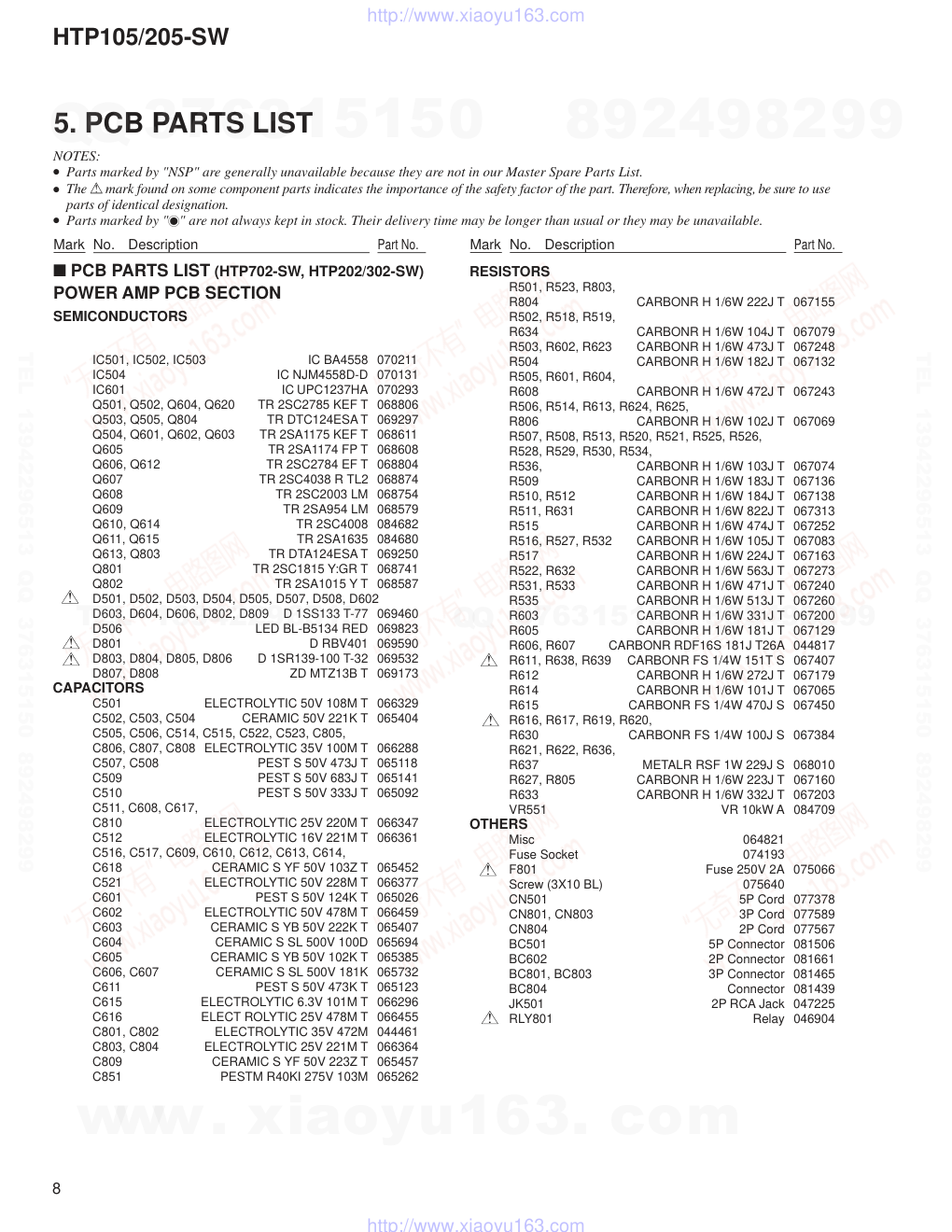

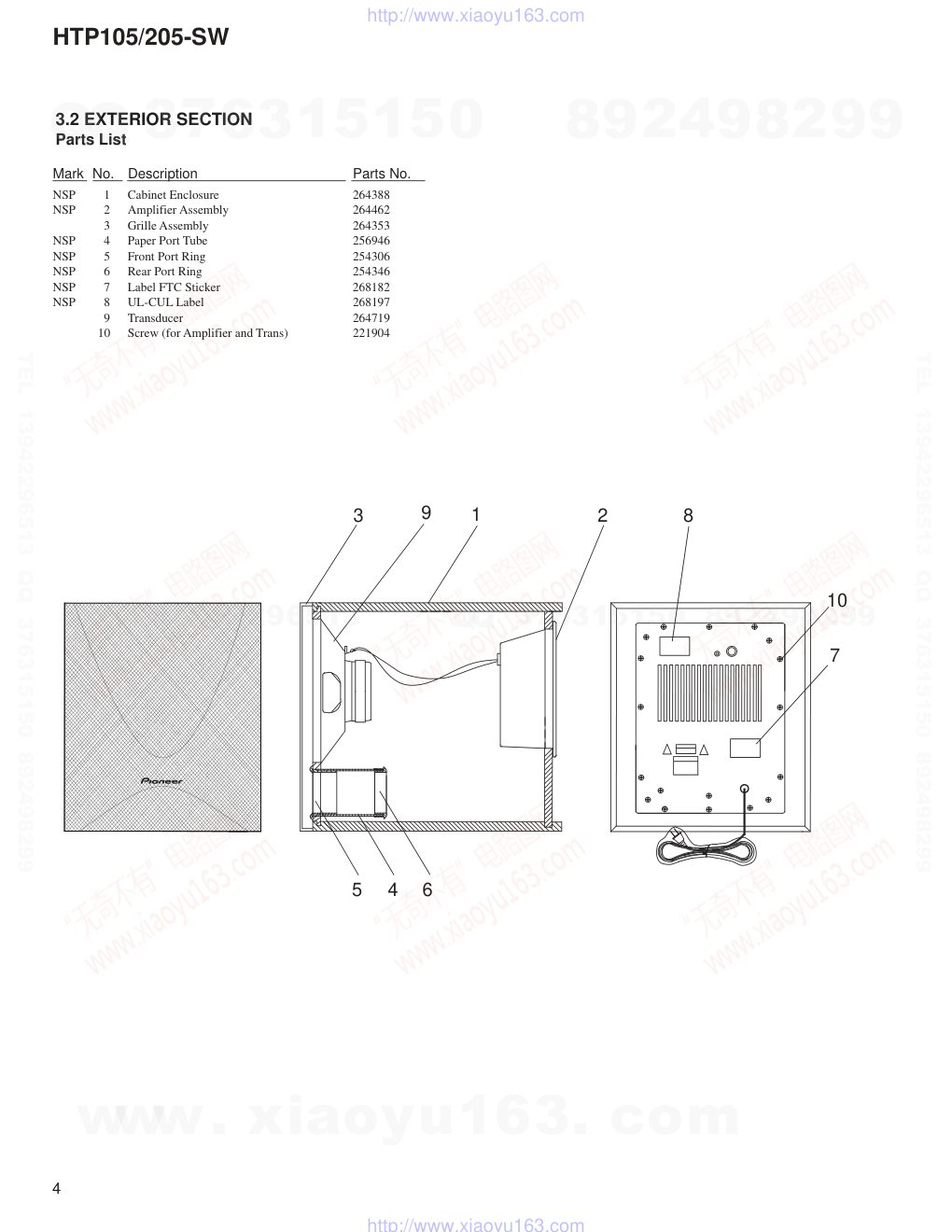

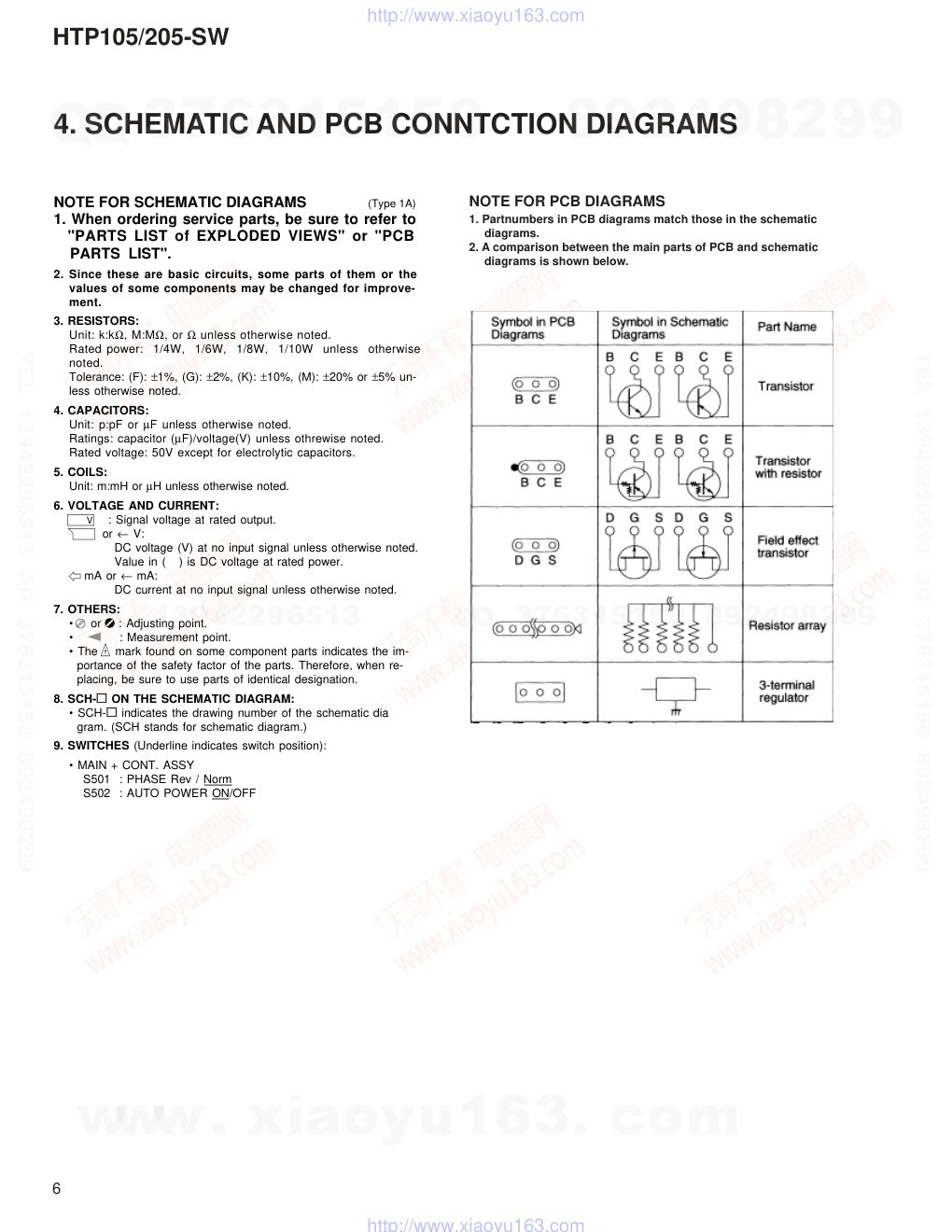

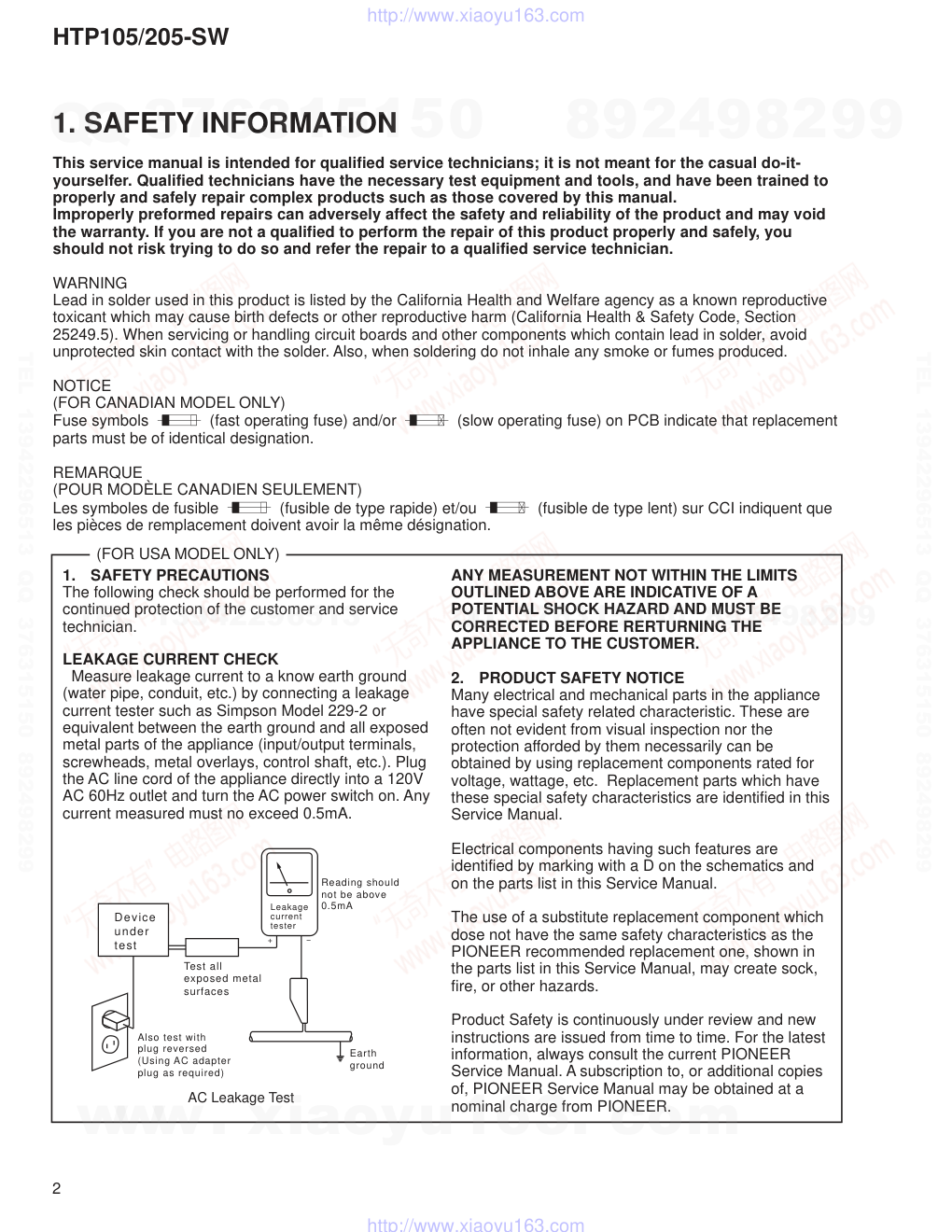

HTP105/205-SW 1 PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8655, Japan PIONEER ELECTRONICS SERVICE, INC. P.O.Box 1760, Long Beach, CA 90801-1760, U.S.A. © PIONEER CORPORATION 1999 CONTENTS 1. SAFETY INFORMATION ............................................. 2 2. DISASSEMBLY ............................................................ 3 3. PACKING, EXPLODED VIEWS AND PARTS LIST ..... 3 4. SCHEMATIC AND PCB CONNECTION DIAGRAMS .. 6 5. PCB PARTS LIST ........................................................ 8 6. PANEL FACILITIES ...................................................... 9 7. SPECIFICATIONS ....................................................... 10 Service Manual ORDER NO. PET99019 POWERED SUBWOOFER HTP105/205-SW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTP105/205-SW 2 This service manual is intended for qualified service technicians; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly preformed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not a qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING Lead in solder used in this product is listed by the California Health and Welfare agency as a known reproductive toxicant which may cause birth defects or other reproductive harm (California Health & Safety Code, Section 25249.5). When servicing or handling circuit boards and other components which contain lead in solder, avoid unprotected skin contact with the solder. Also, when soldering do not inhale any smoke or fumes produced. NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. (FOR USA MODEL ONLY) 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a know earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60Hz outlet and turn the AC power switch on. Any current measured must no exceed 0.5mA. ANY MEASUREMENT NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RERTURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristic. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a D on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which dose not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create sock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. + - Reading should not be above 0.5mA Leakage current tester Device under test Test all exposed metal surfaces Earth ground Also test with plug reversed (Using AC adapter plug as required) AC Leakage Test 1. SAFETY INFORMATION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTP105/205-SW 3 G POWER AMP SECTION • Remove the 8 screws from the power amplifier. • Remove the connector lead, etc. 3. PACKING, EXPLODED VIEWS AND PARTS LIST NOTES: G Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. G The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. G Parts marked by " " are not always kept in stock. Their delivery time may be longer than usual or they may be unavailable. G GRILLE SECTION • The grill is attached to the cabinet by its bosses applied with adhesive. To detach it, pry it open by inserting a flat blade scewdriver between the cabinet and the grille. G SPEAKER • Remove each of the 4 screws 3.1 PACKING Parts List Mark No. Description Parts No. Operating Instructions 268206 RCA Cable Accessory Pack 255245 Corner Pad Assy 264333 Poly Bag 266953 Packing Case 264328 2. DISASSEMBLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTP105/205-SW 4 3.2 EXTERIOR SECTION Parts List NSP 1 Cabinet Enclosure 264388 NSP 2 Amplifier Assembly 264462 3 Grille Assembly 264353 NSP 4 Paper Port Tube 256946 NSP 5 Front Port Ring 254306 NSP 6 Rear Port Ring 254346 NSP 7 Label FTC Sticker 268182 NSP 8 UL-CUL Label 268197 9 Transducer 264719 10 Screw (for Amplifier and Trans) 221904 Mark No. Description Parts No. 1 2 3 4 5 6 9 8 7 10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTP105/205-SW 5 3.3 POWER AMP SECTION Parts List Mark No. Description Parts No. Mark No. Description Parts No. 1 2P Cord 044899 2 AC Cord 046947 3 BRKT PCB C 077876 NSP Cushion Gasket 078786 4 Cushion Stopper 078519 5 Trans Power 046946 6 Trans Back Up 047073 7 Heatsink Sub 045576 8 Knob 072992 Cable Tie 080558 9 Mold Case 080336 10 Panel Rear Assy 046981 NSP 11 Power Amp PCB Section 047259 12 Screw (3X10 BL) 075640 13 Screw (4X10 BL) 075659 14 Screw (M3X8 ZC) 075273 15 Heatsink 046971 16 Tr 2SC4008 (Q610, Q614) 084682 4 1 2 3 15 8 11 10 9 12 13 14 5 13 12 12 12 7 12 6 http://getMANUAL.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTP105/205-SW 6 4. SCHEMATIC AND PCB CONNTCTION DIAGRAMS NOTE FOR SCHEMATIC DIAGRAMS (Type 1A) 1. When ordering service parts, be sure to refer to "PARTS LIST of EXPLODED VIEWS" or "PCB PARTS LIST". 2. Since these are basic circuits, some parts of them or the values of some components may be changed for improve- ment. 3. RESISTORS: Unit: k:kΩ, M:MΩ, or Ω unless otherwise noted. Rated power: 1/4W, 1/6W, 1/8W, 1/10W unless otherwise noted. Tolerance: (F): ±1%, (G): ±2%, (K): ±10%, (M): ±20% or ±5% un- less otherwise noted. 4. CAPACITORS: Unit: p:pF or µF unless otherwise noted. Ratings: capacitor (µF)/voltage(V) unless othrewise noted. Rated voltage: 50V except for electrolytic capacitors. 5. COILS: Unit: m:mH or µH unless otherwise noted. 6. VOLTAGE AND CURRENT: : Signal voltage at rated output. or ← V: DC voltage (V) at no input signal unless otherwise noted. Value in ( ) is DC voltage at rated power. mA or ← mA: DC current at no input signal unless otherwise noted. 7. OTHERS: • or : Adjusting point. • : Measurement point. • The mark found on some component parts indicates the im- portance of the safety factor of the parts. Therefore, when re- placing, be sure to use parts of identical designation. 8. SCH-& ON THE SCHEMATIC DIAGRAM: • SCH-& indicates the drawing number of the schematic dia gram. (SCH stands for schematic diagram.) 9. SWITCHES (Underline indicates switch position): • MAIN + CONT. ASSY S501 : PHASE Rev / Norm S502 : AUTO POWER ON/OFF V NOTE FOR PCB DIAGRAMS 1. Partnumbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTP105/205-SW 7 4.1 CIRCUIT DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTP105/205-SW 8 5. PCB PARTS LIST NOTES: G Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. G The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. G Parts marked by " " are not always kept in stock. Their delivery time may be longer than usual or they may be unavailable. I PCB PARTS LIST (HTP702-SW, HTP202/302-SW) POWER AMP PCB SECTION SEMICONDUCTORS Mark No. Description Part No. Mark No. Description Part No. IC501, IC502, IC503 IC BA4558 070211 IC504 IC NJM4558D-D 070131 IC601 IC UPC1237HA 070293 Q501, Q502, Q604, Q620 TR 2SC2785 KEF T 068806 Q503, Q505, Q804 TR DTC124ESA T 069297 Q504, Q601, Q602, Q603 TR 2SA1175 KEF T 068611 Q605 TR 2SA1174 FP T 068608 Q606, Q612 TR 2SC2784 EF T 068804 Q607 TR 2SC4038 R TL2 068874 Q608 TR 2SC2003 LM 068754 Q609 TR 2SA954 LM 068579 Q610, Q614 TR 2SC4008 084682 Q611, Q615 TR 2SA1635 084680 Q613, Q803 TR DTA124ESA T 069250 Q801 TR 2SC1815 Y:GR T 068741 Q802 TR 2SA1015 Y T 068587 D501, D502, D503, D504, D505, D507, D508, D602 D603, D604, D606, D802, D809 D 1SS133 T-77 069460 D506 LED BL-B5134 RED 069823 D801 D RBV401 069590 D803, D804, D805, D806 D 1SR139-100 T-32 069532 D807, D808 ZD MTZ13B T 069173 CAPACITORS C501 ELECTROLYTIC 50V 108M T 066329 C502, C503, C504 CERAMIC 50V 221K T 065404 C505, C506, C514, C515, C522, C523, C805, C806, C807, C808 ELECTROLYTIC 35V 100M T 066288 C507, C508 PEST S 50V 473J T 065118 C509 PEST S 50V 683J T 065141 C510 PEST S 50V 333J T 065092 C511, C608, C617, C810 ELECTROLYTIC 25V 220M T 066347 C512 ELECTROLYTIC 16V 221M T 066361 C516, C517, C609, C610, C612, C613, C614, C618 CERAMIC S YF 50V 103Z T 065452 C521 ELECTROLYTIC 50V 228M T 066377 C601 PEST S 50V 124K T 065026 C602 ELECTROLYTIC 50V 478M T 066459 C603 CERAMIC S YB 50V 222K T 065407 C604 CERAMIC S SL 500V 100D 065694 C605 CERAMIC S YB 50V 102K T 065385 C606, C607 CERAMIC S SL 500V 181K 065732 C611 PEST S 50V 473K T 065123 C615 ELECTROLYTIC 6.3V 101M T 066296 C616 ELECT ROLYTIC 25V 478M T 066455 C801, C802 ELECTROLYTIC 35V 472M 044461 C803, C804 ELECTROLYTIC 25V 221M T 066364 C809 CERAMIC S YF 50V 223Z T 065457 C851 PESTM R40KI 275V 103M 065262 RESISTORS R501, R523, R803, R804 CARBONR H 1/6W 222J T 067155 R502, R518, R519, R634 CARBONR H 1/6W 104J T 067079 R503, R602, R623 CARBONR H 1/6W 473J T 067248 R504 CARBONR H 1/6W 182J T 067132 R505, R601, R604, R608 CARBONR H 1/6W 472J T 067243 R506, R514, R613, R624, R625, R806 CARBONR H 1/6W 102J T 067069 R507, R508, R513, R520, R521, R525, R526, R528, R529, R530, R534, R536, CARBONR H 1/6W 103J T 067074 R509 CARBONR H 1/6W 183J T 067136 R510, R512 CARBONR H 1/6W 184J T 067138 R511, R631 CARBONR H 1/6W 822J T 067313 R515 CARBONR H 1/6W 474J T 067252 R516, R527, R532 CARBONR H 1/6W 105J T 067083 R517 CARBONR H 1/6W 224J T 067163 R522, R632 CARBONR H 1/6W 563J T 067273 R531, R533 CARBONR H 1/6W 471J T 067240 R535 CARBONR H 1/6W 513J T 067260 R603 CARBONR H 1/6W 331J T 067200 R605 CARBONR H 1/6W 181J T 067129 R606, R607 CARBONR RDF16S 181J T26A 044817 R611, R638, R639 CARBONR FS 1/4W 151T S 067407 R612 CARBONR H 1/6W 272J T 067179 R614 CARBONR H 1/6W 101J T 067065 R615 CARBONR FS 1/4W 470J S 067450 R616, R617, R619, R620, R630 CARBONR FS 1/4W 100J S 067384 R621, R622, R636, R637 METALR RSF 1W 229J S 068010 R627, R805 CARBONR H 1/6W 223J T 067160 R633 CARBONR H 1/6W 332J T 067203 VR551 VR 10kW A 084709 OTHERS Misc 064821 Fuse Socket 074193 F801 Fuse 250V 2A 075066 Screw (3X10 BL) 075640 CN501 5P Cord 077378 CN801, CN803 3P Cord 077589 CN804 2P Cord 077567 BC501 5P Connector 081506 BC602 2P Connector 081661 BC801, BC803 3P Connector 081465 BC804 Connector 081439 JK501 2P RCA Jack 047225 RLY801 Relay 046904 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTP105/205-SW 9 REAR SECTION 1 POWER indicator Illuminates RED when the power is being supplied. 2 Subwoofer LEVEL knob Volume of subwoofer is adjusted with this knob. Turn this knob clockwise to raise the level. ÷ Starting with “MIN“, turn this knob and raise the volume slowly. If the unit is turned on with the volume set too high, it could cause hearing and/or speaker damage. Do not turn the volume up excessively high. The low frequency sound is apt to be raised too high since it is less disturbing and harder to detect than high frequencies. Caution must be taken here since the amplifier and speaker of the HTP702-SW, HTP202/302-SW will be clipped when the output of the amplifier or receiver is increased with the subwoofer level set to “MAX“. 3 Subwoofer input terminal (LINE LEVEL INPUT) Connect SUBWOOFER OUTPUT terminal of the receiver to this terminal with the accessory RCA cord. If the output of the receiver connected to this unit is high or if the output has a low range boosted by the Bass con- trol, Bass boost, or other means, there may be some sound distortion even if the level of the unit is lowered. In this case, lower the output level (Volume, Bass control, Bass boost) on the receiver side. 6. PANEL FACILITIES POWER LINE LEVEL INPUT LEVEL AC120V 60HZ 60W MIN MAX 1 2 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTP105/205-SW 10 * Measured pursuant to the Federal Trade Commission's Trade Regulation rule on Power Output Claims for Amplifiers. ** Measured by Audio Spectrum Analyzer. Note: Specifications and design subject to possible modification without notice due to improvements. 7. SPECIFICATIONS HTP105/205-SW A floor, bass-reflext type, with a built-in amplifier having a PVC-sheet finishint with a wood pattern. Speaker 20 cm (8 inch) Power Amplifier Continuous Average Power Output is 50 Watts* min, at 4 ohms from 30 Hertz to 200 Hertz with no more than 1% total harmonic distortion. Cabinet A floor, bass-reflext type, with a built-in amplifier having a PVC-sheet finishint with a wood pattern. Input (Sensitivity at 200 Hz/ impedance) *Line level input 180 mV / 33k ohms Crossover Frequency 120 Hz Outline Dimension (W x H x D) 291 x 361 x 330 mm 11-7/16 x 14-9/16 x 13 inch Weight 9.8 kg (21 lb 10 oz) Power Requirements 120 VAC, 60 Hz Power Consumption 60W Accesories RCA cord (10ft.) x 1 Operating instructions x 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTP105/205-SW 11 NOTES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HTP105/205-SW 12 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
