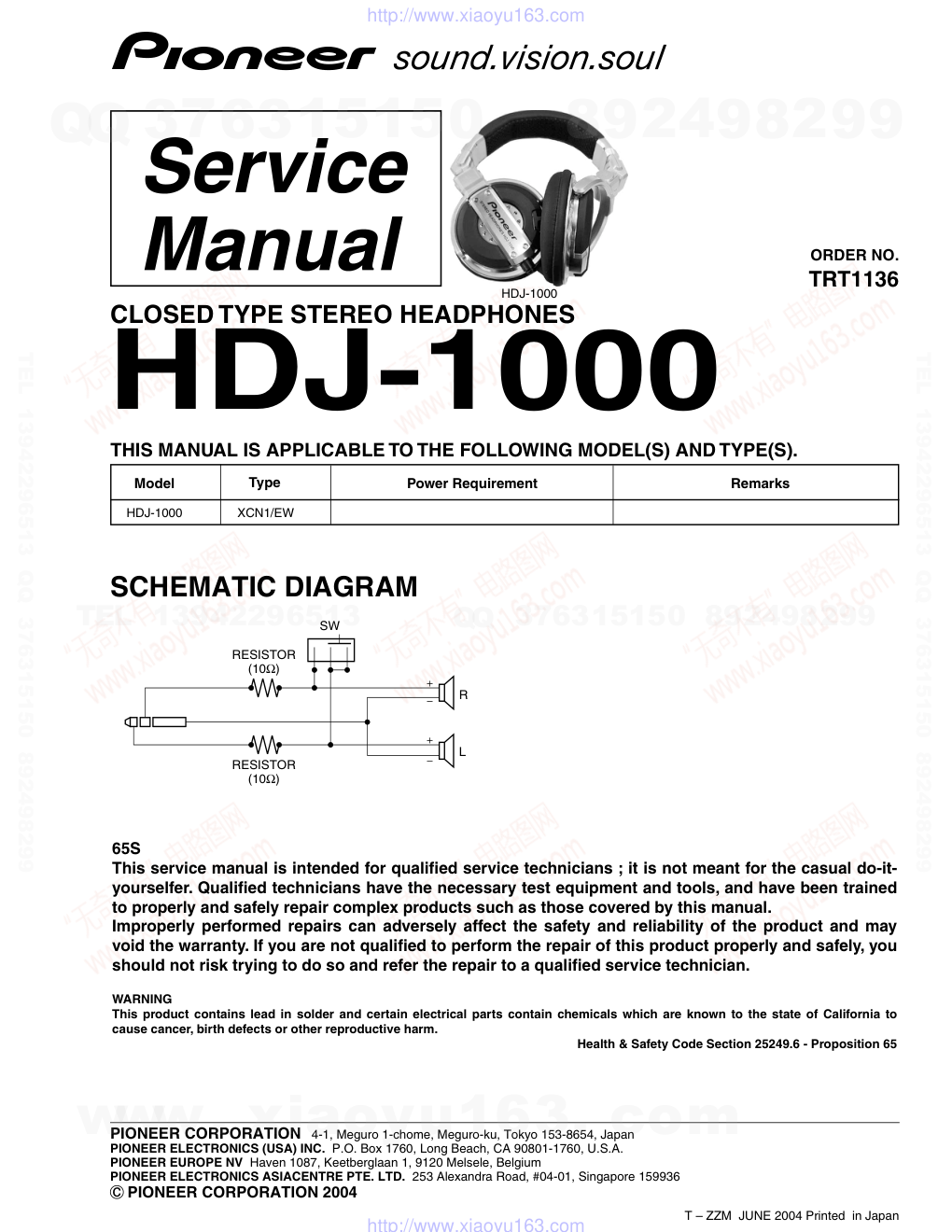

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2004 c ORDER NO. HDJ-1000 TRT1136 T – ZZM JUNE 2004 Printed in Japan CLOSED TYPE STEREO HEADPHONES SCHEMATIC DIAGRAM R SW RESISTOR (10Ω) RESISTOR (10Ω) L HDJ-1000 WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 65S This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model Type HDJ-1000 Power Requirement Remarks XCN1/EW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HDJ-1000 1 2 3 4 C D F A B E 1 2 3 4 EXPLODED VIEWS AND PARTS LIST NOTES : Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to ∞ mark on the product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) Exploded Views Packing 8 4 3 1 2 7 6 5 13 47 40 35 23 35 36 47 47 41 41 36 30 28 27 33 48 34 48 34 33 26 42 39 48 32 6 11 47 29 18 9 20 44 43 45 21 22 17 12 18 14 14 19 11 10 8 20 25 42 39 31 48 29 21 7 16 15 2 3 4 1 Vynil Strap Product 45 44 43 9 49 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HDJ-1000 5 6 7 8 5 6 7 8 C D F A B E • EXPLODED VIEWS PARTS LIST 1 Speaker Unit Assy L WXX1332 2 Speaker Unit Assy R WXX1333 3 SW Board Assy WXX1334 4 Jack Board Assy WXX1335 5 • • • • • 6 Plug Adapter WKX1035 7 Bracket WNA1118 8 Case WNK2137 9 Case WNK2138 10 Pad WNK2155 11 Pad WNK2156 12 Knob WNK2157 13 Ear Pad WNV1101 NSP 14 Cord WDC1064 15 Cord Assy WDE1197 16 Screw PMZ20P060FZK 17 Plate Spring WBK1012 18 Spring WBX1003 19 Screw PPK25P040FZK 20 Screw CPZ14P050FNI 21 Screw PPZ20P060FZK 22 Screw PPZ25P060FZK 23 Band Slider Assy WXX1340 24 • • • • • 25 Hunger WNK2319 Mark No. Description Part No. Mark No. Description Part No. 26 Hunger WNK2320 NSP 27 Slider WNK2321 NSP 28 Slider WNK2322 29 Cover WNK2145 NSP 30 Cover WNK2146 31 Housing WNK2323 32 Housing WNK2324 33 Holder WNK2149 34 Holder WNK2150 NSP 35 Cover WNK2151 NSP 36 Cover WNK2152 37 • • • • • 38 • • • • • 39 Plate WNK2159 NSP 40 Cushion WNV1122 41 Cord WDC1063 42 Spring WBH1027 NSP 43 Speaker WWW1043 NSP 44 Cushion WER1092 NSP 45 Sound Absorber WER1091 46 • • • • • 47 Screw PPZ20P050FNI 48 Screw PPZ20P130FNI 49 Cushion WEP1056 • PACKING PARTS LIST 1 Carrying Pouch WMA1111 2 Operating Instructions WRB1048 (German / Italian / Spanish / Dutch / Chinese) 3 Inner Case WHF1085 4 Outer Case WHG1768 5 Decoration Paper WHG1769 6 Decoration Paper WHG1773 7 Mount Paper WHG1983 8 Master Carton WHP1633 9 Label WHM1031 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
