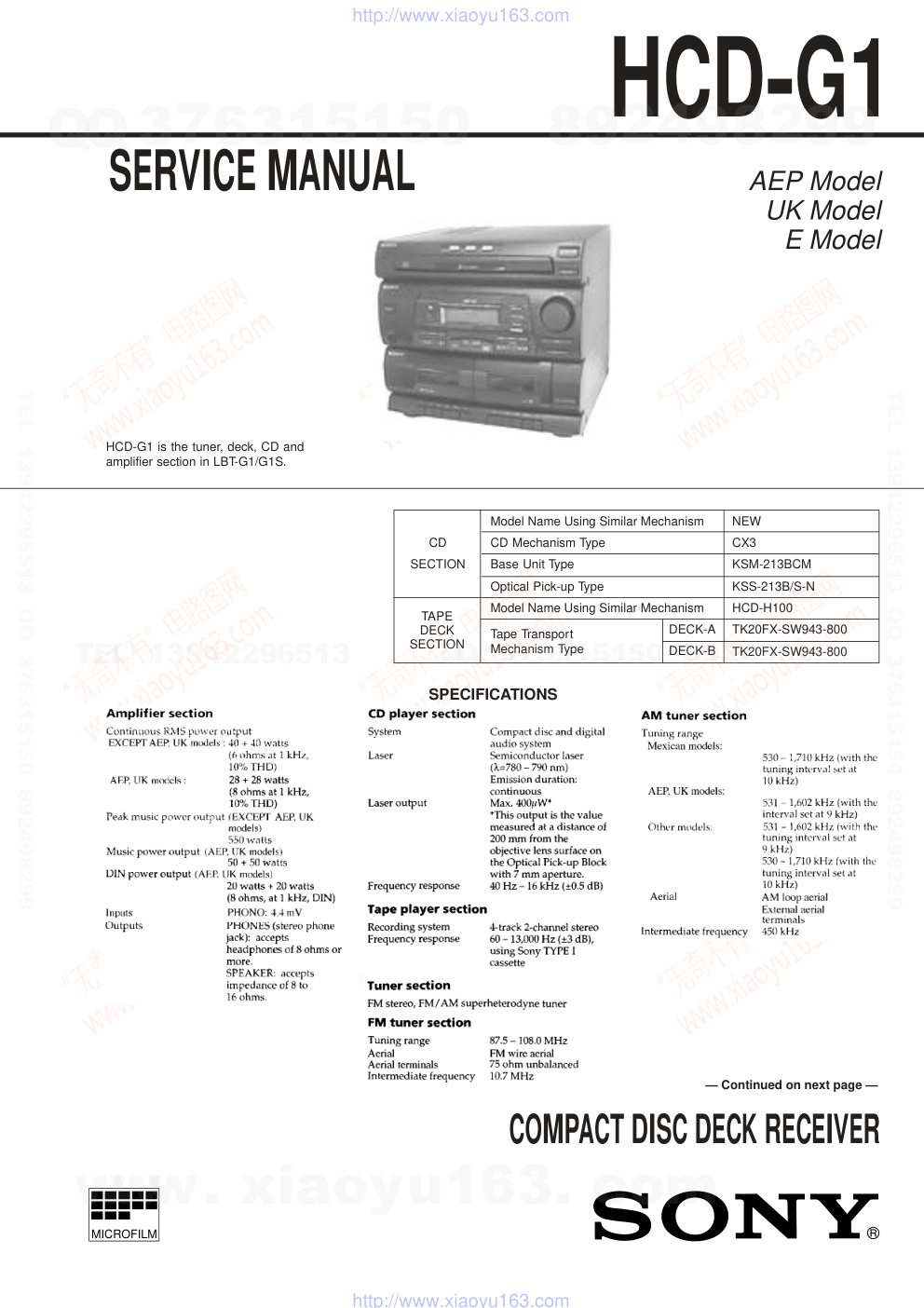

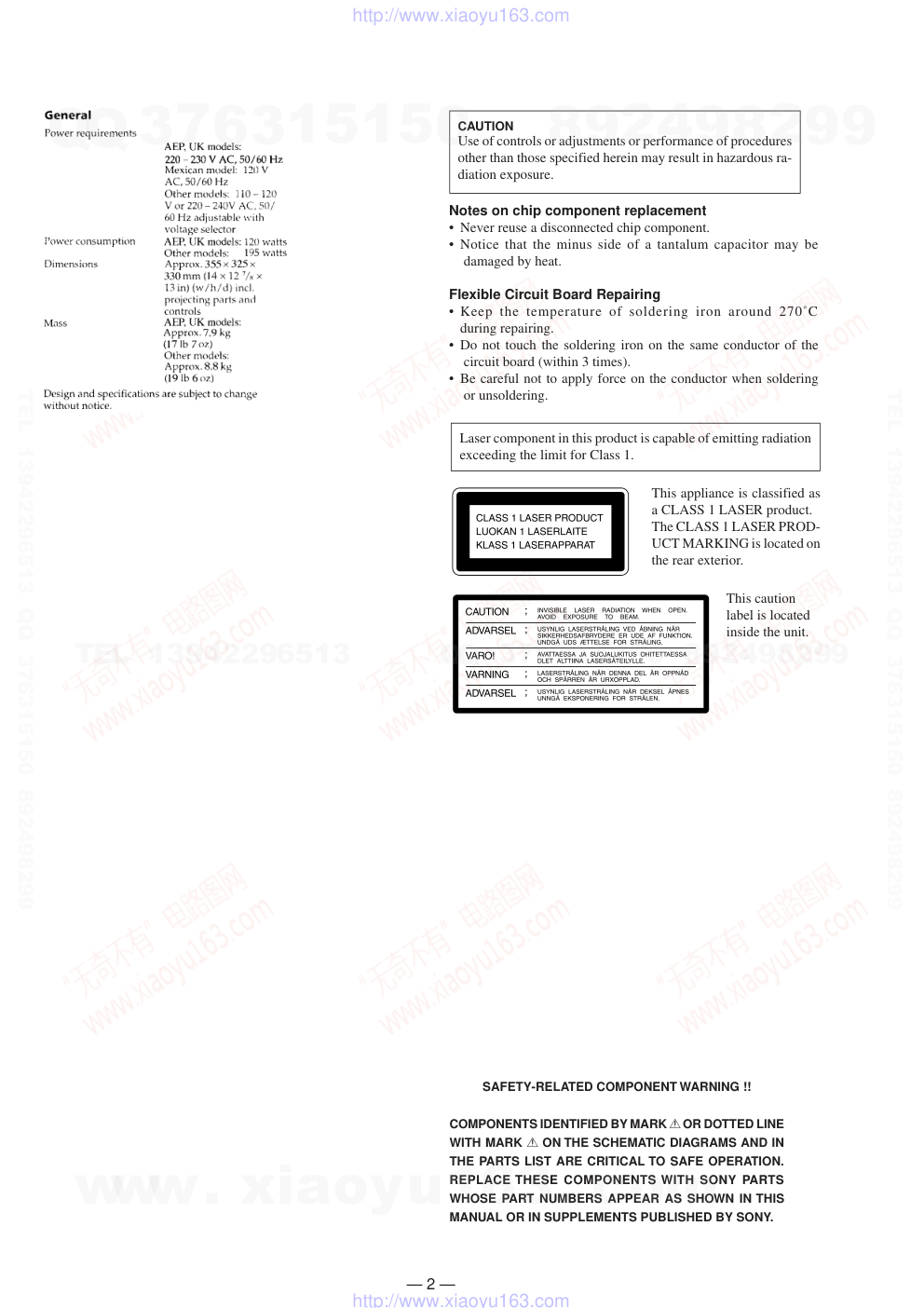

— 1 — SERVICE MANUAL COMPACT DISC DECK RECEIVER MICROFILM Model Name Using Similar Mechanism NEW CD Mechanism Type CX3 Base Unit Type KSM-213BCM Optical Pick-up Type KSS-213B/S-N Model Name Using Similar Mechanism HCD-H100 TK20FX-SW943-800 TK20FX-SW943-800 CD SECTION AEP Model UK Model E Model DECK-A DECK-B SPECIFICATIONS TAPE DECK SECTION Tape Transport Mechanism Type — Continued on next page — HCD-G1 is the tuner, deck, CD and amplifier section in LBT-G1/G1S. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 2 — Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PROD- UCT MARKING is located on the rear exterior. This caution label is located inside the unit. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY-RELATED COMPONENT WARNING !! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 3 — TABLE OF CONTENTS 1. GENERAL .......................................................................... 4 2. DISASSEMBLY 2-1. CD Door ............................................................................... 5 2-2. Back Panel ............................................................................ 5 2-3. CD Mechanism Deck ............................................................ 6 2-4. Front Panel and Main Board ................................................. 6 2-5. CD Tray ................................................................................ 7 2-6. CD Decoder Board................................................................ 7 2-7. Base Unit .............................................................................. 8 3. MECHANICAL ADJUSTMENTS ................................ 9 4. ELECTRICAL ADJUSTMENTS ................................. 9 5. DIAGRAMS 5-1. Circuit Boards Location ...................................................... 14 5-2. Block Diagrams • Tuner Section (E, AR, MX models)................................. 15 • Tuner Section (AEP, UK models) .................................... 17 • CD Section ....................................................................... 19 • Deck Section .................................................................... 21 • Main Section (E, AR, MX models) ................................. 23 • Main Section (AEP, UK models) ..................................... 25 • Power Section (E, AR, MX models) ................................ 27 • Power Section (AEP, UK models) ................................... 28 5-3. IC Block Diagrams.............................................................. 29 5-4. Printed Wiring Board —Main Section — (E, AR, MX models) ........................................................... 34 5-5. Schematic Diagram — Main Section — (E, AR, MX models) ........................................................... 39 5-6. Schematic Diagram — Main Section — (AEP, UK models) .............................................................. 43 5-7. Printed Wiring Board —Main Section — (AEP, UK models) .............................................................. 47 5-8. Printed Wiring Board — CD Section —............................. 52 5-9. Schematic Diagram — CD Section — ............................... 57 5-10. Schematic Diagram — Panel Section — ......................... 61 5-11. Printed Wiring Board — Panel Section — ....................... 65 5-12. Printed Wiring Board — Tuner Section — (E, AR, MX models)......................................................... 71 5-13. Schematic Diagram — Tuner Section — (E, AR, MX models)......................................................... 75 5-14. Schematic Diagram — Tuner Section — (AEP, UK models) ............................................................ 79 5-15. Printed Wiring Board — Tuner Section — (AEP, UK models) ............................................................ 83 5-16. IC Pin Function ................................................................ 87 6. EXPLODED VIEWS 6-1. Case and Back Panel ........................................................... 89 6-2. Front Panel Section ............................................................. 90 6-3. Cassette Mechanism Deck Section 1 .................................. 91 6-4. Cassette Mechanism Deck Section 2 .................................. 92 6-5. CD Mechanism Deck Section 1 .......................................... 93 6-6. CD Mechanism Deck Section 2 .......................................... 94 6-7. Base Unit Section (KSM-213BCM) ................................... 95 7. ELECTRICAL PARTS LIST ........................................ 96 SERVICING NOTE NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, ob- serve from more than 30 cm away from the objective lens. MODEL IDENTIFICATION — AC POWER SUPPLY CODE — AEP model UK model Mexican model (Without voltage selector) E, Argentine model (With voltage selector) • Abbreviation AR : Argentine model MX : Mexican model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 4 — SECTION 1 GENERAL Location of Parts and Controls 1 2 3 4 6 5 7 8 9 !¡ !™ !£ !¢ !∞ !§ !¶ !• !ª @º @¡ @™ @¢ @∞ @¶ @§ @• @ª #º #¡ #™ 1 Disc tray 2 DISC 1 button 3 DISC 2 button 4 DISC 3 button 5 § OPEN/CLOSE button 6 DISC SKIP button 7 VOLUME knob 8 CLOCK SET button 9 TIMER SET, CLOCK LIGHT button !º TIMER MODE button !¡ Display window !™ Remote sensor !£ POWER button !¢ PHONES jack !∞ p (stop) button !§ P (play/pause) button !¶ SHUFFLE buttom !• PROGRAM button !ª REPEAT button @º CD button @¡ TAPE button @™ PHONO button @£ TUNER/BAND button @¢ PRESET – button @∞ PRESET + button @§ MEMORY button @¶ – TUNING +/≠ 0/ ) ± buttons @• DBFB button @ª PRESET EQ button #º Deck B #¡ Tape operating buttons r (recording) (for deck A only) · (play) 0 (fast rewind) ) (fast forward) p6 (stop/eject) P (pause) #™ Deck A ¢ @£ !º www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 5 — SECTION 2 DISASSEMBLY Note: Follow the disassembly procedure in the numerical order given. 2-1. CD DOOR 5 Two screws (BVTP3x10) 1 Pull out the CD tray and remove the CD door with releasing claws into the direction of arrow. CD door Two claws Two claws 6 Back panel 3 Two screws (BVTP3x10) 2 Three screws (BVTP3x10) 1 Two screws (BVTP3x10) 2-2. BACK PANEL 4 Five screws (BVTP3x6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 6 — 2-3. CD MECHANISM DECK 5 CD mechanism deck 2-4. FRONT PANEL AND MAIN BOARD 6 Connector (CN202) The TC mechanism deck section can be removed with six screws. 1 Two screws (BVTP3x10) 4 Flat type wire (CN09) 2 Two screws (BVTP3x10) 3 Harness (CN08) !¡ Front panel 4 Two screws (BVTP3x10) 5 Connector (CN203) 7 Connector (CN201) 2 Rivet !™ Main board 1 Tuner board 0 Three screws (BVTP3X10) 3 Screw (BVTP3x10) 9 Connector (CN701) 8 Harness (CN205) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 7 — 2-5. CD TRAY 2-6. CD DECODER BOARD 2 Two screws (BVTP3x10) 4 Flat type wire (CN06) 7 CD decoder board 3 Screw (BVTP3x10) 4 Bracket 5 CD tray 2 Bracket 1 Screw (BVTP3x10) 3 Two claws 5 Connector (CN05) 6 Flat type wire (CN01) 1 Two screws (P2.6x4) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 8 — 2-7. BASE UNIT 1 Screw (PTPWH2.6x8) 2 UD-cam 3 Two screws (PTPWH3X8) Note: When installing, set to the groove of UD-cam. 4 Base unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 9 — Precaution 1. Clean the following parts with a denatured alcohol-moistened swab: record/playback heads pinch rollers erase head rubber belts capstan idlers 2. Demagnetize the record/playback head with a head demagne- tizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power sup- ply voltage unless otherwise noted. Torque Measurement DECK SECTION 0 dB=0.775V 1. Demagnetize the record/playback head with a head damagnetizer. 2. Do not use a magnetized screwdriver for the adjustments. 3. After the adjustments, apply suitable locking compound to the parts adjusted. 4. The adjustments should be performed with the rated power sup- ply voltage unless otherwise noted. 5. The adjustments should be performed in the order given in this service manual. (As a general rule, playback circuit adjustment should be completed before performing recording circuit adjustment.) 6. The adjustments should be performed for both L-CH and R- CH. Used for 10 kHz, –10 dB 3 kHz, 0 dB Azimuth Adjustment Tape Speed Adjustment Tape P-4-A100 WS-48B Signal Record/Playback Head Azimuth Adjustment (Deck A, Deck B) Note: Perform this adjustments for both decks. Procedure: 1. Mode : Playback test tape P-4-A100 (10kHz, –10dB) set level meter + – FWD FWD back tension 1 to 5 g • cm (0.01 - 0.07 oz • inch) FF/REW 40 to 70 g • cm (0.56 - 0.97 oz • inch) Torque Torque meter Meter reading CQ-102C CQ-102C CQ-201B 55 to 140 g • cm (0.76 - 1.94 oz • inch) SPEAKER terminal SECTION 3 MECHANICAL ADJUSTMENTS SECTION 4 ELECTRICAL ADJUSTMENTS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 10 — 2. Turn the adjustment screw and check output peaks. If the peaks do not match for L-CH and R-CH, turn the adjustment screw so that outputs match within 2 dB of peak. 3. Mode: Playback good R L-CH peak R-CH peak output level screw position within 2dB L-CH peak R-CH peak screw position test tape P-4-A100 (10kHz, –10dB) SPEAKER terminal (L-CH) set L oscilloscope SPEAKER terminal (R-CH) Waveform of oscilloscope wrong in phase 45˚ 90˚ 135˚ 180˚ within 2dB 4. After the adjustments, apply suitable locking compound to the parts adjusted. Adjustment Location: Adjustment screws REC/PB head (deck A) or PB head (deck B) test tape WS-48B (3kHz, 0dB) set SPEAKER terminal frequency counter + Tape Speed Adjustment (Deck A) Procedure: 1. Mode: Playback – 2. Adjust the SFR201 so that the frequency counter reads 3,000 Hz ± 90 Hz. Adjustment Location [MAIN BOARD] — Component side — CN205 CN301 SFR201 Tape Speed Sample Value of Wow and flutter W. RMS (JIS) within 0.3% (test tape: WS-48B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 11 — TUNER SECTION 0 dB=1µV Note: As a FM front end (U1) is difficult to repair if faulty, replace it with new one. (AEP, UK models) AM Tuning Voltage Adjustment + – Tuner board DC voltmeter loop antenna Field strength dB (µV/m) = SSG output level dB (µV/m) –26dB. loop antenna (Supplied accessories) AM RF SSG 30% amplitude modulation by 400Hz signal 60cm set AM antenna terminal (JK101) Procedure: 1. Tune the set to 600 kHz (10 kHz step) or 603 kHz (9 kHz step). 2. Set the output of AM RF SSG so that the input level of the set will become 60 dB (µV/m). 3. Adjust L104 so that when the waveform on the oscilloscope is maximum, no noise appears. 4. Tune the set to 1,400 kHz (10 kHz step) or 1404 kHz (9 kHz step). DC voltmeter TP2 (VT) Tuner board + – Procedure : 1. Set the reception frequency of the unit to 87.5 MHz. 2. Adjust L103 for 1.2 ± 0.05V reading on the DC voltmeter. 3. Set the reception frequency of the unit to 108 MHz. 4. Confirm that the voltage reading on the DC voltmeter is within 7.8 ± 0.5V. Adjustment Location: TUNER board 5. Adjust TC102 so that when the waveform on the oscilloscope is maximum, no noise appears. • Repeat the procedures in each adjustment several times, and the tracking adjustment should be finally done by the trimmer capacitors. Adjustment Location: TUNER board TP2 (VT) Procedure: 1. Set the reception frequency of the unit to 530 kHz (10 kHz step) or 531 kHz (9 kHz step). 2. Adjust L105 for 1.2 ± 0.05 V reading on the DC voltmeter. 3. Set the reception frequency of the unit to 1,710 kHz (10 kHz step) or 1602 kHz (9 kHz step). 4. Confirm that the voltage reading on the DC voltmeter is within 8.0 ± 0.5 V. Adjustment Location: TUNER board AM Tracking Adjustment FM Tuning Voltage Adjustment (EXCEPT AEP, UK models) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 12 — FM Tuned Level Adjustment FM Tracking Adjustment (EXCEPT AEP, UK models) FM RF SSG oscilloscope FM ANTENNA terminal (JK101) SPEAKER terminal set Carrier frequency : 90 MHz, 106 MHz Modulation : AUDIO 1kHz, 75kHz deviation (100%) Output level : 20 dB (at 75 Ω open) + – Procedure: 1. Tune the set to 90 MHz. 2. Adjust L102 so that when the waveform on the oscilloscope is maximum, no noise appears. 3. Tune the set to 106 MHz. 4. Adjust TC101 so that when the waveform on the oscilloscope is maximum, no noise appears. • Repeat the procedures in each adjustment several times, and the tracking adjustment should be finally done by the trimmer capacitors. Adjustment Location: TUNER board AEP, UK models [TUNER BOARD] — Component side — TP2 (VT) FM Tuning Voltage FM Tuned Level JK101 L103 TC101 L104 L102 FM Tracking L105 TC102 AM Tracking AM Tuning Voltage CN101 Adjustment Location EXCEPT AEP, UK models [TUNER BOARD] — Component side — U1 JK101 L104 TC102 L105 AM Tuning Voltage FM Tuned Level SFR101 Carrier frequency : 98 MHz Modulation : AUDIO 1 kHz, 75 kHz deviation (100%) Output level : 28 dB (at 75 Ω open) FM RF SSG set 75 Ω coaxial FM ANTENNA terminal (JK101) Procedure: 1. Supply a 28 dB 98 MHz signal from the ANTENNA terminal. 2. Tune the set to 98 MHz. 3. Adjust SFR101 to the point (moment) when the TUNED indica- tor will change from going off to going on. Adjustment Location: TUNER board T101 AM Tracking TP2 (VT) SFR101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 14 — CD SECTION Note: 1. CD Block is basically constructed to operate without adjustment. Therefore, check each item in order given. 2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated. 3. Use an oscilloscope with more than 10MΩ impedance. 4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the fol- lowing checks. 5. Adjust the focus bias adjustment when optical block is replaced. Focus Bias Adjustment RF Level Check Procedure : 1. Connect oscilloscope to test point TP (RF) on CD DECODER board. 2. Turned Power switch on. 3. Put disc (YEDS-18) in and playback. 4. Confirm that oscilloscope waveform is clear and check RF sig- nal level is correct or not. Note: Clear RF signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. TP (RF) CN12 (VC) CD DECODER board oscilloscope level: 1.0 Vp-p VOLT/DIV: 200 mV TIME/DIV: 500 nS +0.3 –0.2 Adjustment Location: CD DECODER board FEO VC – + Procedure: 1. Connect DC voltmeter to test point CN12 (FEO), (VC) on CD DECODER board. 2. Turned Power switch on. 3. Put disc (YEDS-18) in and stop. 4. Adjust VR01 so that the DC voitmeter reading is 0 ± 20 mV. Adjustment Location: CD DECODER board CD DECODER board CN12 DC voltmeter Focus Gain Adjustment (VR02) This gain has a margin, so even if it is slightly off. There is no problem. Therfore, do not perform this adjusment. Please note that it should be fixed to mechanical center position when you moved and do not know original position. Adjustment Location [CD DECODER BOARD] — Component side — SECTION 5 DIAGRAMS 5-1. CIRCUIT BOARDS LOCATION MAIN Board DISC LED board PANEL board SENSOR board TUNER board SW (D) board SW (C) board MOTOR (6P) (S) board MOTOR board SW (B) board O/C board CD DECODER board R/P SWITCH board SW (A) board AC SUPPLY board (E, Argentine, Mexican) AC POWER SUPPLY board (AEP, UK) VOL SELECT board (E, Argentine) — 13 — RF Level Focus Gain CN12 IC03 IC01 FEO VC VR01 VR02 R07 Focus Bias www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 15 — — 16 — 5-2. BLOCK DIAGRAMS — TUNER SECTION — (E, AR, MX models) HCD-G1 FM 75 OHM JK101 ANTENNA L101 AM 1 6 3 8 RF IN IF OUT FM FRONT END IC101 MAX IN OSC T101 TC101,L102 FM TRACKING D107 D106 FM OSC AMP Q102 L103 FM TUNING VOLTAGE TP2 VT G L104 L104,TC102 AM TRACKING AM TUNING VOLTAGE FM TUNING VOLTAGE TP2 TC102 L.P.F Q107,108 AM RF AMP Q106 21 1 24 X201 7.2MHz 17 Q105 B+ B+ 19 L103 FM IF AMP Q101 1 FM IF CF102 10.7MHz CF101 10.7MHz AM TUNING VOLTAGE L105 23 24 21 22 18 FM TUNED LEVEL SFR101 6 10 7 15 16 12 13 20 11 12 13 14 2 3 4 AGC CONT. Q109 8 CF104 10.4MHz 17 CF105 19kHz CF103 450kHz 16 18 IF G TP1 7 2 T102 4 DI CLK CE MUTE STEREO DO ST IND 14 AM IF L OUT TU L FM DET MPX VCO MPX IN AM/FM ST IND AM MIX PL DET PH DET PH DET SMET AM/FM TU LED OSC AFC AM RF OSC/FMSD A MAIN SECTION CE DI CLK DO ST/MONO AM/FM SD H CTR L CTR SD/IN AM IN FM IN FM B+ X OUT X IN PD 1 09 FM/AM MPX IC102 • R CH is omitted • Signal path : FM : AM • Abbreviation AR : Argentine model. MX : Mexican model. 5 PLL IC201 (Page 23) www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — TUNER SECTION — (AEP, UK models) — 17 — — 18 — HCD-G1 FM 75 OHM JK101 ANTENNA L101 AM 1 7 5 8 RF IN IF OUT FM FRONT END U1 VT OSC L104 TP2 L104,TC102 AM TRACKING AM TUNING VOLTAGE TP2 TC102 L.P.F Q107,108 AM RF AMP Q106 21 1 24 X201 7.2MHz 17 Q105 B+ B+ 19 FM IF AMP Q101 1 FM IF CF102 10.7MHz CF101 10.7MHz AM TUNING VOLTAGE L105 23 24 21 22 18 FM TUNED LEVEL SFR101 6 10 7 15 16 12 13 20 11 12 13 14 2 3 4 8 CF104 10.7MHz 17 CF105 19kHz T101 FTZ. FILTER CF103 450kHz 18 IF G TP1 7 2 T102 4 DI CLK CE MUTE STEREO DO ST IND 14 15 AM IF L OUT R OUT TU L R CH FM DET MPX VCO ST IND AM MIX PL DET PH DET PH DET SMET AM/FM TU LED OSC AFC AM RF OSC/FMSD A MAIN SECTION CE DI CLK DO ST/MONO AM/FM SD H CTR L CTR SD/IN AM IN FM IN FM B+ X OUT X IN PD 1 09 FM/AM MPX IC102 • R CH is omitted • Signal path : FM : AM 5 PLL IC201 (Page 25) AM/FM 3 6 1 16 MPX IN www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 19 — — 20 — — CD SECTION — HCD-G1 B+ 4 1 2 5 6 10 DETECTOR LASER DIODE PD LD APC Q01 LD ON Q02 33 34 39 38 35 36 PD1 PD2 31 RF 0 FOCUS/TRACKING SERVO, RF AMP IC01 (1/2) 19 20 21 23 24 25 22 40 EI VR02 VC 42 TEO CN2 6 7 13 12 48 45 1 37 VC 2 1 CN12 FOCUS TRACKING RF LEVEL VR01 TRACKING COIL DRIVE VO3(+) 25 VO3(-) 18 17 FOCUS COIL DRIVE 15 16 27 VIN4 VIN3 VO4(+) VO4(-) TRACKING COIL FOCUS COIL 2-AXIS DEVICE FOCUS/TRACKING COIL DRIVE, SPINDLE/SLED MOTOR DRIVE IC03 SLED MOTOR DRIVE 6 12 11 • SPINDLE MOTOR DRIVE 13 14 • M M M102 SLED MOTOR M101 SPINDLE MOTOR 4 16 15 14 SLED SERVO IC01 (2/2) SL O SL M SL P 24 OP OUT 23 IN - 9 MUTE 22 8 23 14 13 15 16 17 36 RF DIGITAL PLL EFM DEMODULATOR DIGITAL FILTER + 1BIT DAC NLPWM LPWM DATA SQCK CLOK SCOR SQSO SENS 70 69 D/A INTERFACE SERVO AUTO SEQUENCER 9 5 11 4 1 7 10 SUB CODE PROCESSOR CPU INTERFACE DIGITAL CLV CLOCK GENERATOR 6 18 25 74 73 XLT01 33.8688MHz S05 LIMIT SWITCH SPOA 2 6 7 4 TURN TABLE MOTOR DRIVE Q10,11,14,15 11 TURN TABLE MOTOR DRIVE CONTROL 8 9 TRAY MOTOR DRIVER Q06 - Q09 5 13 14 15 3 10 CONTROL MUTE E POWER SECTION S01 OPTICAL PICK-UP UP/DOWN DET UP DOWN TRAY/TABLE MOTOR DRIVER, REG CONTROL IC02 + - CD L DATA SQCK SQSO SCOR SENS XLAT COUNT FOK DI CLK STB B. BOOST UP DOWN C MAIN SECTION MIX AMP IC05 DIGITAL SIGNAL PROCESSOR, D/A CONVERTER, DIGITAL FILTER IC04 CLKO XLTO DATO SEIN CNIN FOK XLON XRST MDP XTA0 XTA1 MUTE M M M103 TURN TABLE MOTOR M104 TRAY MOTOR T.T+ T.T- DOWN TRAY + TRAY - XRST MUTE B.BOOST DATA I CLOK STB CONTROL UP E F LD PD VC ATSC FEO FEBIAS TA M TA O FE M FE O XRST FOK C. OUT SENS DATA XLT CLK OPTICAL PICK-UP BLOCK A C B D E F 7 VO2(+) VO2(-) VO1(+) VO1(-) VIN2 VIN1 • • Q13 • R CH is omitted • Signal path : CD 09 FOCUS TRACKING FOCUS GAIN XLAT (Page 23,25) (Page 27,28) www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 21 — — 22 — — DECK SECTION — HCD-G1 R CH R CH CH1/A CH1/B NF - + PRE OUT BIAS OSC COIL L201 R CH R CH BIAS OSC Q218 PLAY/REC CONTROL Q203,205 PLAY/REC CONTROL DRIVE Q207 PLAY/REC CONTROL Q201 Q211 A/B TAPE A/TAPE B + - REC IN NF REC OUT REC/PLAY EQ AMP IC201 REC SWITCH DRIVE Q217 MUTE SWITCH Q216 MUTE Q209 D205 + Q219 D202 TAPE A SWITCH Q214 SW201 REC/PLAY SWITCH PLAY REC TAPE A/B SWITCH Q213 D201 D203 D213 D212 D211 B + D207 D206 M SFR201 TAPE SPEED M901 REEL/CAPSTAN MOTOR S203 PLAY S202 B DECK S201 A DECK GROUND SWITCH Q220 B + REC L CD SYNC PB L D208 09 D209 B MAIN SECTION TAPE B HP901 PB HEAD TAPE A HRP901 REC/PB HEAD HE901 ERASE HEAD • R CH is omitted • Signal path : PB (DECK A) : PB (DECK B) : REC (DECK A) 3 1 2 5 9 11 10 19 (Page 23,25) www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 23 — — 24 — HCD-G1 — MAIN SECTION — (E, AR, MX models) 11 9 12 10 TUNER MUTE Q1 3 CONTROL LINE AMP Q451 ELECTRICAL VOLUME 1 2 LVR IN LVR OUT INPUT SELECTOR IC401 LT OUT L2 L4 L1 L3 15 14 16 CLK DI CE CL DI CE Q491 18 19 TUNED SWITCH Q751 16 BASS BOOST Q461 LED DRIVER Q605 BASS BOOST SWITCH Q463 DBFB LED601 5 7 L.P.F IC403 MUTE Q581 MUTE SWITCH Q583,584 MUTE Q604 13 12 7 8 1 POWER AMP IC501 OVERLOAD STANDBY CONTROL Q501 - Q503 DET Q551 3 6 MUTE Q587 MUTE SWITCH Q589 D585, 781 PROTECT SWITCH Q553 4 6 7 4 POWER ON DET Q782 DET OUT VCC ON MUTE AC OFF DET PROTECTOR IC502 STBY SWITCH Q586 STBY SWITCH Q585 MUTE SWITCH Q603 D584 POWER ON DET Q781 PWN P. ON D POWER SECTION POWER ON DET Q601 B+ RESET SWITCH Q602 B+ 68 55 53 52 RESET POWER DOWN IN POWER OUT SYSTEM MUTE OUT DI CLK CE 64 65 66 DI CLK 1 2 3 17 LED DRIVER IC603 DATA DISC1 DISC3 CLK LATCH 6 17 12 LED602 - LED603 D617 RST B+ DISC 1 - 3 D582, 583 DI CLK B. BOOST CD L CD SYNC SQSO SCOR SENS XLAT COUNT FOK STB UP DOWN SQCK DATA 09 39 40 45 62 67 37 38 60 44 43 41 SQSO SCOR SENS XLAT COUNT FOK STB DI2 GFS SQCK/MODE SW IN DATA REC L C CD SECTION B DECK SECTION DO ST IND MUTE STEREO CE CLK DI TU L A TUNER SECTION 13 - 15 1 - 3 15 10• 7 A - C Y0 Y5 • Y7 5 G2 SELECTOR IC602 KEY MATRIX 29 - 32 • 34 69 - 80 • 1 - 12 21 - 24 LCD DISPLAY LCD601 59 58 X601 4.19MHz X2 X1 COM 0 COM 3 S00 S23 KI 0 KI 4 KO A KO C 42 2 REMOTE CONTROL RECEIVER RM601 49 48 S02 OPEN/CLOSE DET 46 47 S03 TURN TABLE POSITION DET S04 TURN TABLE OPERATION DET TRAY CLOSE SW TRAY OPEN SW DISC COUNT SW TURN TABLE SW 36 63 61 SYS.REC IN TAPE REC OUT DI1 FM ST IN TU MUTE OUT TUNED DO CLK CE LATCH OUT SYSTEM CONTROLLER, LCD DRIVER IC601 REM. IN RL501 JK501 SPEAKER R-CH JK502 PHONES • R CH is omitted. • Signal path : FM : PB : REC : CD : PHONO • Abbreviation AR : Argentine model. MX : Mexican model. (Page 16) (Page 22) (Page 20) (Page 27) MODE SWITCH Q606 AM TUNING STEP SWITCH SW751 E, AR PHONO 5 7 PHONO AMP IC301 2 1 13 PB L TAPE SELECTOR IC402 JK301 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 25 — — 26 — — MAIN SECTION — (AEP, UK models) HCD-G1 11 9 12 10 3 CONTROL LINE AMP Q305 ELECTRICAL VOLUME 1 2 LVR IN LVR OUT INPUT SELECTOR IC303 LT OUT L2 L4 L1 L3 15 14 16 CLK DI CE CL DI CE Q309 BUFFER 19 TUNED SWITCH Q311 16 BASS BOOST Q319 LED DRIVER Q605 BASS BOOST SWITCH Q307 DBFB LED601 MUTE Q303 MUTE Q604 MUTE Q401 15 11 POWER AMP JK301 R-CH IC301 RELAY DRIVE Q602 MUTE SWITCH Q603 D POWER SECTION POWER ON DET Q601 B+ RESET P.MUTE P. ON/OFF Q602 B+ 68 55 53 52 RESET POWER DOWN IN POWER OUT SYSTEM MUTE OUT DI CLK CE 64 65 66 DI CLK 1 2 3 17 LED DRIVER IC603 DATA DISC1 DISC3 CLK LATCH 6 17 12 LED602 - LED603 D617 RST B+ DISC 1 - 3 D319, 318 DI CLK B. BOOST CD L CD SYNC SQSO SCOR SENS XLAT COUNT FOK STB UP DOWN SQCK DATA 39 40 45 62 67 37 38 60 44 43 41 SQSO SCOR SENS XLAT COUNT FOK STB DI2 GFS SQCK/MODE SW IN DATA REC L C CD SECTION B DECK SECTION DO ST IND MUTE STEREO CE CLK DI TU L A TUNER SECTION 13 - 15 1 - 3 15 10• 7 A - C Y0 Y5 • Y7 5 G2 SELECTOR IC602 09 KEY MATRIX 29 - 32 • 34 69 - 80 • 1 - 12 21 - 24 LCD DISPLAY LCD601 59 58 X601 4.19MHz X2 X1 COM 0 COM 3 S00 S23 KI 0 KI 4 KO A KO C 42 2 REMOTE CONTROL RECEIVER RM601 49 48 S02 OPEN/CLOSE DET 46 47 S03 TURN TABLE POSITION DET S04 TURN TABLE OPERATION DET TRAY CLOSE SW TRAY OPEN SW DISC COUNT SW TURN TABLE SW 36 63 61 SYS.REC IN DI1 FM ST IN TU MUTE OUT TUNED DO CLK CE LATCH OUT SYSTEM CONTROLLER, LCD DRIVER IC601 REM. IN • R CH is omitted. • Signal path : FM : PB : REC : CD : PHONO (Page 18) (Page 22) (Page 20) (Page 28) POWER ON MUTE SWITCH Q313 SPEAKER JK302 PHONES PHONO 5 7 EQ AMP IC304 2 1 13 PB L TAPE SELECTOR IC302 JK502 18 TAPE REC OUT D304 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 27 — — 28 — — POWER SECTION — (E, AR, MX models) — POWER SECTION — (AEP, UK models) HCD-G1 +7.5V REG Q316 +11.5V REG Q315 RECT D310-D313 +10.5V REG Q321 +7.5V +5V +10.5V PT302 POWER TRANSFORMER AC IN 6 4 1 5 2 3 +5V REG Q301 REG CONTROL Q04 RY301 RELAY RECT D306 +51.5V 09 P.MUTE P.ON/OFF CONTROL MUTE D MAIN SECTION (Page 25) E CD SECTION (Page 20) +5V +12V +5V REG Q05 +12V REG Q317 RECT D322 AC IN PT302 POWER TRANSFORMER VOLTAGE SELECTOR SW801 E, AR RECT Q707,708 +12V REG Q701 +7.5V REG Q703 +5V REG Q05 REG CONTROL Q04 +5V REG Q12 +5.6V REG Q704 +11.2V REG Q702 +5V MUTE CONTROL +5V +5.6V +11.2V +12V +12V PWN P.ON +12V REG Q705 REG CONTROL Q706,707 RECT Q709 RECT D701 -10.5V REG D741 -10.5V +33V -33V D MAIN SECTION E CD SECTION 09 (Page 20) (Page 24) • Abbreviation AR : Argentine model. MX : Mexican model. www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 30 — — 29 — IC03 BA5941FP + – LEVEL SHIFT + – + – 1 2 3 4 5 6 7 8 9 10 11 12 13 14 28 27 LEVEL SHIFT + – + – MUTE + – + – LEVEL SHIFT + – + – LEVEL SHIFT + – + – + – 15 16 17 18 19 21 20 22 26 25 24 23 + – NC Vcc Vcc Vcc VCC BIAS IN IN1B IN1A IN2B IN2A GND GND MUTE VCC OUT2A OUT2B OUT1A OUT1B IN4B IN4A IN3B IN3A OP OUT OP IN (–) OP IN (+) GND NC VCC OUT3A OUT3B OUT4A OUT4B DRIVER DRIVER GND MUTE CONTROL XRST T.T(M) POSI.1 POSI.2 T.T.SW VDD STB CLOK DATA I DATA 0 LOADING M- LOADING M+ SENSOR 1 8 2 3 4 5 6 7 16 9 15 T C 14 13 12 11 10 SERIAL I/O CONTROL LATCH LATCH LATCH IC02 TC9173P 36 PHD2 PHD1 PHD 33 LD 32 RF M 31 RF O 30 RF I 29 CP 28 CB 27 CC1 26 CC2 25 FOK 24 SENS 23 C. OUT 22 XRST 21 DATA 20 XLT 19 CLK 18 VCC 17 ISET 16 SL 0 15 SL M 14 SL P 13 12 TA O TA M 11 FSET 10 TG2 9 TGU 8 SRCH 7 FE M 6 FE O 5 FLB 4 FGD 3 FDFCT 2 FEI 1 FEO 48 VC 47 TDFCT 46 TZC 45 ATSC 44 TEI 43 LPFI 42 TEO 41 VEE 40 EI 39 E 38 F 37 FE BIAS + + – + + – + – + – + – + – + – + + + – + – + – + – + – + – + – + – – + + – – + + – + – + – + – + – APC – – – – LEVELS FOK MIRR DFCT RF IV AMP2 RF IV AMP1 FE AMP F IV AMP E IV AMP TE AMP FZC COMP BAL1 BAL2 BAL3 TOG1 TOG2 TOG3 TTL IIL IIL TTL TTL IIL • IIL DATA RESISTOR • INPUT SHIFT RESISTOR • ADDRESS DECODER • OUTPUT DECODER HPF COMP LPF COMP TZC COMP DFCT DFCT TM1 FS4 ATSC • WINDOW COMP • FCS PHASE COMPENSATION • TRACKING • PHASE COMPENSATION • ISET FS1 FS2 TM4 TM5 TM6 TM3 TM7 TG2 • F SET TG1 TM2 + – TOG1-3 FS1-4 TG1-2 TM1-7 PS1-4 BAL1-3 35 34 — CD SECTION — IC01 CXA1782BQ 5-3. IC BLOCK DIAGRAMS www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com IC04 CXD2508Q DTS3 DTS2 RPWM NRPWM AVSS2 AVSS3 XTA0 XTA1 AVDD3 AVDD2 NLPWM LPWM VDD DTS1 ZEROR ZEROL SCOR SBSO EXCK SQSO XRST DATA XLAT CLOK VSS SEIN DATO XLTO CLKO SPOA (PIC SW) SPOB (OPEN SW) SPOC (CLOSE SW) XTSL XLON (LD ON) FOK MON WFCK EMPHI EMPH DOUT C4M FSTT MNT0 MNT1 MNT3 XPOF C2PO VSS RFCK GFS XPCK XUGF GTOP BCK1 BCK PCMD1 PCMD LRCK1 LRCK WDCK MDP MDS LOCK TEST FIL0 FIL1 PCO VDD AVSS1 CLTV AVDD1 RF BIAS ASY1 ASY0 ASYE 1 24 EFM DEMODULATOR DIGITAL OUT 1 10 3 4 3 13 11 DIGITAL FILTER + 1BIT DAC DIGITAL CLV D / A INTERFACE ERROR CORRECTOR SQCK MUTE SENS CNIN 23 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 SERVO AUTO SEQUENCER 16K RAM 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 22 21 64 41 42 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 CPU INTERFACE SUB CODE PROCESSOR CLOCK GENERATOR DIGITAL PLL ASYMMETRY CORRECTOR — 32 — — 31 — IC102 LA1831 XIN CE DI CL DO SYC IN0 IN1 OUT0 OUT1 OUT2 OUT3 SHIFT REGISTER LATCH 12 BIT PROGRAMMABLE DIVIDER SWALLOW COUNTER 1/16 . 1/17 BIT REFERENCE DIVIDER PHASE DETECTOR CHARGE PUMP 1 / 2 X OUT VSS PD2 PD1 VDD FM IN AM IN OUT 6 HCTR LCTR OUT 5 OUT 4 UNIVERSAL COUNTER 7 10 11 12 9 8 6 5 4 3 2 1 13 14 24 23 22 21 20 19 18 17 16 15 IC201 LC7218 FM IF REG GND VCC FM DET S-CURVE TUNING DRIVE LEVEL DET AM/FM IF BUFE ALC BUFFER AM OSC AM MIX AM RF AMP AGC AM DET AM IF COMP FM AM MUTE DECORDER STEREO DRIVE FF TRIG PHASE DET VCO AM/FM SW PILOT DET STEREO SW 3 6 9 12 2 5 8 11 1 4 7 10 22 19 16 13 23 20 17 14 24 21 18 15 OSC/FMSD OSC AFC AM RF SMET AM HPF AF DET MPX VCO MPX IN R OUT L OUT PL DET FM IF AM MIX REG AM IF GND TU LED ST IND FM DET VCC AM/FM PH DET PH DET IC101 LA1186N RF IN 1 2 3 4 5 6 7 8 9 BYPAS GND GND MIX IN IF OSC VCC AFC RF VREF MIX REG OSC BUF — TUNER SECTION — CH2/A CH2/B NF VCC CG NF ALC METAL OUT PRE OUT TAPE A /TAPE B REC OUT REC IN CH1/A CH1/B NF GND1 M/H NF CH2 CH2 ALC M/N CH1 GND GND CH1 + – + – + – + – A/B GND METAL OUT PRE OUT MIX OUT REC OUT REC IN IREF VREF2 VREF1 24 23 22 21 20 19 18 17 16 15 14 13 1 2 3 4 5 6 7 8 9 10 11 12 IC201 TA8189N — MAIN SECTION — www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 33 — 1 2 3 4 7 8 OVER LOAD DET F/F OFFSET DET LATCH AUTORESET VCC ON MUTE AC OFF DET VCC 5 6 IC502 uPC1237HA 1 14 + – ch.1 + – ch.2 GND ch.1 OUT ch.2 OUT ch.1 –VCC ch.1 +VCC ch.2 +VCC ch.2 –VCC Pre. +VCC Pre. –VCC GND ch.1 +IN ch.1 –IN ch.2 –IN ch.2 +IN GND 3 6 2 5 4 9 12 8 11 13 7 10 IC501 STK405-070A 3 6 9 12 15 18 2 5 8 11 14 17 1 4 7 10 13 16 SHIFT REGISTER LATCH ENABLE SIN CK LATCH SOUT EN RST GND GND VDD O1 O2 O3 O4 O5 O6 O7 O8 GND IC603 BU2114 — PANEL SECTION — + – 3 6 9 12 15 2 5 8 11 14 1 4 7 10 13 28 25 22 19 16 29 26 23 20 17 30 27 24 21 18 + – + – + – LATCH DECODER CONTROL SHIFT REGISTER – + LVROUT LVRIN LTOUT LTCOM LT4 LT3 LT2 LT1 L4 L3 L2 L1 VDD CL DI RVROUT RVRIN RTOUT RTCOM RT4 RT3 RT2 RT1 R4 R3 R2 R1 VREF VSS CE IC303, 401 LC75392 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 88 — — 87 — 57 58 59 60 61 62 63 64 65 66 67 68 69 to 80 VDD X1 X2 XLAT FM ST IN DI 2 DI 1 DO CLK CE STB RESET S00 to S11 — — — O I I I O O O O I O I/O Pin Name Function Pin No. +5V power supply System clock (4.19 MHz) Latch signal output to CXD2508Q FM stereo detection signal input Optical pick-up up detection signal input Serial data input Serial data output Serial clock output Chip enable output STB signal output Reset input “L” : reset Segment output to LCD 5-16. IC PIN FUNCTION • IC601 System Controller, LCD driver (µPD753017AGC) 1 to 12 13 14 15 16 17 18 19 20 21 to 24 25 26 to 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 Segment output to LCD. Key control signal output A “H” : active Key control signal output B “H” : active Key control signal output C “H” : active Turned detection signal from tuner Latch output to LED driver “H” : active (Not used) REC/PB select signal output to tape selector Tuner mute control signal output Not used LCD drive signal output Not used Key input 0 “ H” : active Key input 1 “ H” : active Key input 2 “ H” : active Key input 3 “ H” : active Ground Key input 4 “ H”: active Key input 5 “ H” : active (Not used) CD SYNCHRO REC signal input “L” : active FOK signal input from CXD2508Q COUNT signal input from CXD2508Q SQCK/CLOK/MODE SW signal input/output Serial data output Serial data input from CXD2508Q Remote control signal input “L” : active SCOR signal input from CXD2508Q SENS signal input from CXD2508Q Optical pick-up down detection signal input “L” : down Detection signal input of turn table position Detection signal input of turn table operation Disc tray open detection signal input Disc tray close detection signal input Volume encoder signal input and volume motor control signal output (Not used) System mute control signal output “H” : ON Power ON/OFF control signal output “H” : OFF, “L” : ON +5V power supply Power down detect input “L” : active Not used I/O Function Pin No. Pin Name S12 to S23 KO A KO B KO C TUNED LATCH OUT TAPE REC OUT TU MUTE OUT — COM 1 to COM 3 BIAS VLC 0 to VLC 2 KI 0 KI 1 KI 2 KI 3 VSS KI 4 KI 5 SYC. REC IN FOK COUNT SQCK/MODE SW IN DATA SQSO REM. IN SCOR SENS GFS DISC COUNT SW TURN TABLE SW TRAY OPEN SW TRAY CLOSE SW VR UP VR DOWN SYSTEM MUTE OUT POWER OUT VDD POWER DOWN IN OPEN O O O O I O O O — O O O I I I I — I I I I I I/O O I I I I I I I I I I/O I/O O O — I — • Abbreviation LCD: Liquid Crystal Display www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 90 — — 89 — 12 (E, AR, MX) 6-2. FRONT PANEL SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 64 4-992-145-01 BUTTON, POWER 65 4-992-146-01 KNOB, DISC 66 4-992-147-01 KNOB, TIMER 67 4-992-148-01 KNOB, DBFB 68 4-992-149-01 KNOB, FUNCTION 69 4-992-150-01 KNOB, OPEN/CLOSE * 70 1-666-440-11 SENSOR BOARD 71 4-993-057-01 HOLDER, LED 72 4-993-076-01 KNOB (L), TAPE PHONO 73 4-993-077-01 KNOB (R), TAPE PHONO 75 4-992-826-01 PLATE, DISPLAY 76 4-992-827-01 HOLDER, DISPLAY * 77 4-992-828-01 HOLDER (LED3-10), LED LCD601 1-801-841-11 DISPLAY PANEL, LIQUID CRYSTAL 51 4-992-128-01 DOOR (L), CASSETTE 52 4-992-129-01 DOOR (R), CASSETTE 53 4-992-130-01 SPRING, DOOR 54 4-992-131-01 DAMPER (GRY), GEAR 55 4-992-125-01 KNOB, VOLUME 56 4-992-126-01 SPRING, VOLUME 57 4-992-127-01 LENS, LED 58 4-992-124-01 PANEL, FRONT * 59 1-666-444-11 R/P SWITCH BOARD * 60 A-4398-918-A PANEL BOARD, COMPLETE (MX) * 60 A-4403-221-A PANEL BOARD, COMPLETE (E,AR) * 60 A-4403-354-A PANEL BOARD, COMPLETE (AEP,UK) * 61 1-666-438-11 DISC LED BOARD * 62 1-666-439-11 O/C BOARD 63 4-993-074-01 WINDOW, DISPLAY not supplied LCD601 75 76 #1 #1 #1 #1 #1 #1 #1 71 64 65 70 62 60 61 77 68 69 66 72 73 #5 67 #1 #1 59 57 54 63 56 58 54 #1 51 52 53 53 55 Cassette mechanism deck block #1 not supplied SECTION 6 EXPLODED VIEWS NOTE: • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and pack- ing materials are given in the last of this parts list. • Abbreviation MX : Mexican model AR : Argentine model 6-1. CASE AND BACK PANEL SECTION The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 9 4-992-153-01 STOPPER (2271), CORD * 10 4-992-158-01 HOLDER, MAIN PC BOARD * 11 1-666-445-11 AC SUPPLY BOARD (E,AR,MX) * 11 1-666-674-11 AC POWER SUPPLY BOARD (AEP,UK) !12 1-551-506-XX CORD, POWER (E,AR,MX) !12 1-696-572-21 CORD, POWER (UK) !12 1-765-558-11 CORD, POWER (AEP) 13 3-531-576-11 RIVET * 14 1-666-452-11 VOL SELECT BOARD (E,AR) * 15 4-993-738-01 HOLDER, VOLTAGE SELECTION (SW) (E,AR) !PT302 1-431-461-11 TRANSFORMER, POWER (E,AR,MX) !PT302 1-431-462-11 TRANSFORMER, POWER (AEP,UK) 1 3-363-099-01 SCREW (CASE 3 TP2) (MX) * 2 4-992-156-01 CASE 3 4-992-160-01 COVER, CD DOOR 4 4-992-159-01 DOOR, CD * 5 A-4398-915-A MAIN BOARD, COMPLETE (MX) * 5 A-4403-155-A MAIN BOARD, COMPLETE (AEP,UK) * 5 A-4403-222-A MAIN BOARD, COMPLETE (E,AR) * 6 A-4398-942-A TUNER BOARD, COMPLETE (E,AR,MX) * 6 A-4403-154-A TUNER BOARD, COMPLETE (AEP,UK) 7 4-992-154-01 RUBBER, FOOT * 8 4-992-155-01 PANEL, BACK (MX) * 8 4-993-075-01 PANEL, BACK (AEP,UK) * 8 4-993-737-01 PANEL, BACK (E,AR) 7 Front panel block 9 12 (AEP) #1 #2 #1 #1 #1 #2 2 #1 #1 #3 #3 #2 #1 not supplied 8 10 11 15 14 6 7 12 (UK) PT302 #2 #2 #2 not supplied #2 CD mechanism deck 1 not supplied 13 5 #2 #1 4 3 #1 1 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 91 — 6-3. CASSETTE MECHANISM DECK SECTION 1 101 102 103 104 105 111 110 107 108 109 106 101 4-992-133-01 BUTTON, REC 102 4-992-134-01 BUTTON (A), PLAY 103 4-992-135-01 BUTTON (A), REW 104 4-992-136-01 BUTTON (A), F.F 105 4-992-137-01 BUTTON (A), STOP/EJECT 106 4-992-489-01 BUTTON (A), PAUSE 107 4-992-139-01 BUTTON (B), PLAY 108 4-992-140-01 BUTTON (B), REW 109 4-992-141-01 BUTTON (B), F.F 110 4-992-142-01 BUTTON (B), STOP/EJECT 111 4-992-138-01 BUTTON (B), PAUSE Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 92 — 6-4. CASSETTE MECHANISM DECK SECTION 2 161 SW202 not supplied M901 151 152 153 154 152 153 154 163 HE901 not supplied not supplied not supplied SW204 HRP901 SW203 not supplied 160 not supplied not supplied not supplied HP901 158 157 not supplied 160 161 HE901 9-980-280-01 E HEAD (ERASE) HP901 9-980-287-01 HEAD (PLAY) HRP901 9-980-279-01 HEAD (REC/PLAY) M901 9-980-281-01 MOTOR (CAPSTAN/REEL) SW202 9-980-270-01 LEAF SWITCH (A DECK) SW203 9-980-270-01 LEAF SWITCH (B DECK) SW204 9-980-271-01 LEAF SWITCH (PLAY) 151 9-980-282-01 E HEAD SCREW 152 9-980-284-01 AZIMUTH SCREW 153 9-980-283-01 HEAD SCREW ISO 154 9-980-272-01 PINCH ROLLER ARM ASSY 157 9-980-275-01 MOTOR COLLAR SCREW 158 9-980-274-01 MOTOR RUBBER 160 9-980-273-01 RF BELT 161 9-980-277-01 MAIN BELT * 163 1-759-417-11 DECK, MECHANICAL Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 93 — 6-5. CD MECHANISM DECK SECTION 1 209 218 #7 212 206 205 224 M103 214 217 216 #7 202 226 208 210 213 #5 #9 215 #7 #7 220 207 225 225 219 222 221 211 203 212 201 204 223 #11 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 201 1-666-451-11 MOTOR BOARD 202 3-669-480-11 + PTPWH 2 203 4-992-168-01 TRAY, CHANGER BASE 204 4-992-180-01 PLATE, BLIND 205 4-992-181-01 LEVER, SENSOR (SW) 206 4-992-182-01 SPRING, SENSOR (SW) LEVER 207 4-992-170-01 BELT, LOADING 208 4-992-171-01 PULLEY, GEAR 209 4-992-179-01 GEAR, TR 210 4-992-177-01 GEAR, TR LOCK 211 4-992-178-01 GEAR (C), RELAY 212 4-992-187-01 CUSHION 213 4-992-186-01 CUSHION, SW LEVER 214 4-992-173-01 GEAR (B), RELAY 215 4-992-183-01 SCREW, RELAY GEAR (B) 216 4-992-174-01 GEAR, CHANGE 217 4-992-184-01 WASHER, CHANGE GEAR 218 4-992-176-01 SPRING, CHANGE GEAR 219 4-992-185-01 WASHER, CHANGE PLATE 220 4-992-172-01 GEAR (A), RELAY * 221 4-993-032-01 PLATE, CHANGE 222 4-993-033-01 WASHER, POLY ETHYLENE * 223 1-666-448-11 SW (B) BOARD * 224 1-666-447-11 SW (A) BOARD * 225 4-993-034-01 GUIDE, RAIL 226 4-993-140-01 TURN TABLE M103 X-4948-765-1 MOTOR ASSY (TURN TABLE) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 94 — 6-6. CD MECHANISM DECK SECTION 2 263 257 256 264 266 252 253 259 #7 #1 #1 #1 251 268 #1 Base unit block 255 259 M104 267 not supplied #10 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark #10 261 254 262 258 #10 265 #10 #5 #11 251 1-769-856-11 WIRE (FLAT TYPE) (5 CORE) 252 4-992-190-01 UD-CAM 253 4-992-191-01 UD-GEAR 254 4-992-195-01 MAGNET * 255 4-992-196-01 CHASSIS, MAIN 256 4-992-197-01 BELT, LOADING GEAR 257 4-992-198-01 PULLEY (B), GEAR 258 4-992-199-01 GEAR, SLIDE 259 4-992-200-01 ROLLER 261 4-992-192-01 SPRING, BRAKE CAM 262 4-992-193-01 LEVER, SW * 263 1-666-450-11 SW (D) BOARD * 264 1-666-449-11 SW (C) BOARD 265 1-773-152-11 WIRE (FLAT TYPE) (21 CORE) 266 4-992-194-01 CLAMP 267 4-992-201-01 WASHER, POLYETHYLENE * 268 A-4398-909-A CD DECODER BOARD, COMPLETE M104 X-4948-766-1 MOTOR ASSY (A) (TRAY) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 95 — 6-7. BASE UNIT SECTION (KSM-213BCM) not supplied 302 307 308 305 306 303 M102 M101 303 304 309 304 301 302 The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number speci- fied. #13 #13 #13 #13 #12 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 301 4-992-164-01 BASE, KSM MECHANICAL 302 4-992-165-01 DAMPER (GREEN) 303 4-992-166-01 DAMPER (RED) 304 4-992-167-01 SPRING, MECHANICAL BASE 305 2-626-907-01 GEAR (A) (S) 306 2-626-908-01 SHAFT, SLED 307 2-627-003-02 GEAR (B) !308 8-848-379-31 OPTICAL PICK-UP KSS-213B/S-N * 309 1-639-678-12 MOTOR (6P)(S) BOARD M101 X-2625-877-1 MOTOR ASSY (SPINDLE) M102 X-2625-769-1 MOTOR ASSY (SLED) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 96 — CD DECODER SECTION 7 ELECTRICAL PARTS LIST AC POWER SUPPLY • SEMICONDUCTORS In each case, u: µ , for example: uA...: µ A..., uPA...: µ PA..., uPB...: µ PB..., uPC...: µ PC..., uPD...: µ PD... • CAPACITORS uF : µ F • COILS uH : µ H • Abbreviation MX : Mexican model AR : Argentine model • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • RESISTORS All resistors are in ohms METAL: Metal-film resistor METAL OXIDE: Metal Oxide-film resistor F : nonflammable Note: The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. * 1-666-674-11 AC POWER SUPPLY BOARD (AEP,UK) ********************* ************************************************************** * 1-666-445-11 AC SUPPLY BOARD (E,AR,MX) *************** < FUSE > !F801 1-532-465-31 FUSE (T3.15A/250V) * F801HA 1-533-213-31 HOLDER, FUSE (E,AR) * F801HB 1-533-213-31 HOLDER, FUSE (E,AR) ************************************************************** * A-4398-909-A CD DECODER BOARD, COMPLETE ************************** < CAPACITOR > C02 1-126-963-11 ELECT 4.7uF 20% 50V C03 1-126-933-11 ELECT 100uF 20% 10V C04 1-162-306-11 CERAMIC 0.01uF 20% 16V C05 1-136-159-00 FILM 0.033uF 5% 50V C06 1-162-306-11 CERAMIC 0.01uF 20% 16V C07 1-136-159-00 FILM 0.033uF 5% 50V C07A 1-162-199-31 CERAMIC 10PF 5% 50V C08 1-161-494-00 CERAMIC 0.022uF 25V C09 1-126-959-11 ELECT 0.47uF 20% 50V C10 1-162-306-11 CERAMIC 0.01uF 20% 16V C11 1-126-933-11 ELECT 100uF 20% 10V C11A 1-164-159-11 CERAMIC 0.1uF 50V C12 1-162-306-11 CERAMIC 0.01uF 20% 16V C13 1-164-159-11 CERAMIC 0.1uF 50V C14 1-162-302-11 CERAMIC 0.0022uF 30% 16V C15 1-164-159-11 CERAMIC 0.1uF 50V C16 1-136-159-00 FILM 0.033uF 5% 50V C17 1-136-165-00 FILM 0.1uF 5% 50V C18 1-164-159-11 CERAMIC 0.1uF 50V C19 1-126-963-11 ELECT 4.7uF 20% 50V C20 1-162-306-11 CERAMIC 0.01uF 20% 16V C21 1-136-157-00 FILM 0.022uF 5% 50V C22 1-126-933-11 ELECT 100uF 20% 10V C23 1-164-159-11 CERAMIC 0.1uF 50V C24 1-126-965-11 ELECT 22uF 20% 50V C25 1-126-960-11 ELECT 1uF 20% 50V C26 1-161-494-00 CERAMIC 0.022uF 30% 25V C27 1-162-306-11 CERAMIC 0.01uF 20% 16V C28 1-164-159-11 CERAMIC 0.1uF 50V C29 1-126-935-11 ELECT 470uF 20% 16V C30 1-126-933-11 ELECT 100uF 20% 10V C31 1-162-600-11 CERAMIC 0.047uF 10% 16V C32 1-162-301-11 CERAMIC 0.0015uF 30% 16V C33 1-162-306-11 CERAMIC 0.01uF 20% 16V C34 1-162-286-31 CERAMIC 220PF 10% 50V C35 1-162-306-11 CERAMIC 0.01uF 20% 16V C36 1-126-963-11 ELECT 4.7uF 20% 50V C37 1-164-159-11 CERAMIC 0.1uF 50V C38 1-102-958-00 CERAMIC 20PF 5% 50V C39 1-102-958-00 CERAMIC 20PF 5% 50V C42 1-126-012-11 ELECT 470uF 20% 16V C43 1-126-933-11 ELECT 100uF 20% 10V C45 1-126-923-11 ELECT 220uF 20% 10V C46 1-126-933-11 ELECT 100uF 20% 10V C51 1-162-288-31 CERAMIC 330PF 10% 50V C51A 1-126-959-11 ELECT 0.47uF 20% 50V C52 1-162-288-31 CERAMIC 330PF 10% 50V C53 1-162-284-31 CERAMIC 150PF 10% 50V C54 1-162-284-31 CERAMIC 150PF 10% 50V C55 1-162-284-31 CERAMIC 150PF 10% 50V C56 1-162-284-31 CERAMIC 150PF 10% 50V C57 1-126-961-11 ELECT 2.2uF 20% 50V C58 1-126-961-11 ELECT 2.2uF 20% 50V C59 1-162-294-31 CERAMIC 0.001uF 10% 50V C60 1-162-294-31 CERAMIC 0.001uF 10% 50V C80 1-164-159-11 CERAMIC 0.1uF 50V C81 1-164-159-11 CERAMIC 0.1uF 50V C82 1-164-159-11 CERAMIC 0.1uF 50V C83 1-164-159-11 CERAMIC 0.1uF 50V C84 1-162-282-31 CERAMIC 100PF 10% 50V C85 1-162-292-31 CERAMIC 680PF 10% 50V C86 1-162-282-31 CERAMIC 100PF 10% 50V C86A 1-161-494-00 CERAMIC 0.022uF 25V C87 1-162-282-31 CERAMIC 100PF 10% 50V C88 1-162-282-31 CERAMIC 100PF 10% 50V C89 1-161-494-00 CERAMIC 0.022uF 25V C90 1-161-494-00 CERAMIC 0.022uF 25V C93 1-126-925-11 ELECT 470uF 20% 10V C94 1-126-933-11 ELECT 100uF 20% 10V C98 1-161-494-00 CERAMIC 0.022uF 25V < CONNECTOR > CN01 1-580-475-11 SOCKET, CONNECTOR 16P CN05 1-564-721-11 PIN, CONNECTOR (SMALL TYPE) 5P CN06 1-695-366-21 PIN, CONNECTOR (PC BOARD) 5P CN09 1-770-528-31 PIN, CONNECTOR (PC BOARD) 21P When indicating parts by reference number, please include the board name. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark AC SUPPLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 97 — < DIODE > D01 8-719-987-63 DIODE 1N4148M D03 8-719-109-89 DIODE RD5.6ESB2 D09 8-719-109-93 DIODE RD6.2ESB2 D20 8-719-987-63 DIODE 1N4148M D21 8-719-987-63 DIODE 1N4148M D22 8-719-987-63 DIODE 1N4148M D23 8-719-987-63 DIODE 1N4148M D24 8-719-987-63 DIODE 1N4148M D25 8-719-987-63 DIODE 1N4148M D26 8-719-987-63 DIODE 1N4148M D27 8-719-987-63 DIODE 1N4148M D35 8-719-982-11 DIODE MTZJ-4.3B D36 8-719-031-85 DIODE 1N4002L < IC > IC01 8-752-069-56 IC CXA1782BQ IC02 8-759-388-27 IC TC9173P IC03 8-759-429-31 IC BA5941FP IC04 8-752-369-28 IC CXD2508Q IC05 8-759-505-55 IC NJM4558L < COIL > L01 1-410-509-11 INDUCTOR 10uH < TRANSISTOR > Q01 8-729-195-23 TRANSISTOR 2SA952 Q02 8-729-195-23 TRANSISTOR 2SA952 Q04 8-729-194-57 TRANSISTOR 2SC945-P Q05 8-729-142-46 TRANSISTOR 2SC2001-LK Q06 8-729-195-23 TRANSISTOR 2SA952 Q07 8-729-195-23 TRANSISTOR 2SA952 Q08 8-729-142-46 TRANSISTOR 2SC2001-LK Q09 8-729-142-46 TRANSISTOR 2SC2001-LK Q10 8-729-195-23 TRANSISTOR 2SA952 Q11 8-729-195-23 TRANSISTOR 2SA952 Q12 8-729-142-46 TRANSISTOR 2SC2001-LK Q13 8-729-142-46 TRANSISTOR 2SC2001-LK Q14 8-729-142-46 TRANSISTOR 2SC2001-LK Q15 8-729-142-46 TRANSISTOR 2SC2001-LK < RESISTOR > R01 1-249-459-11 CARBON 12K 5% 1/4W R02 1-249-430-11 CARBON 12K 5% 1/4W R03 1-249-397-11 CARBON 22 5% 1/4W F R05 1-247-863-11 CARBON 22K 5% 1/4W R06 1-247-847-11 CARBON 4.7K 5% 1/4W R07 1-249-430-11 CARBON 12K 5% 1/4W R07A 1-249-430-11 CARBON 12K 5% 1/4W R07B 1-249-430-11 CARBON 12K 5% 1/4W R08 1-249-460-11 CARBON 15K 5% 1/4W R09 1-249-460-11 CARBON 15K 5% 1/4W R10 1-247-718-11 CARBON 2.7K 5% 1/4W F R11 1-249-438-11 CARBON 56K 5% 1/4W F R12 1-247-879-11 CARBON 100K 5% 1/4W R13 1-247-896-11 CARBON 510K 5% 1/4W R14 1-247-879-11 CARBON 100K 5% 1/4W R15 1-247-881-00 CARBON 120K 5% 1/4W R16 1-247-887-00 CARBON 220K 5% 1/4W R17 1-247-879-11 CARBON 100K 5% 1/4W R18 1-249-428-11 CARBON 8.2K 5% 1/4W F R19 1-249-431-11 CARBON 15K 5% 1/4W R21 1-247-863-11 CARBON 22K 5% 1/4W R22 1-247-879-11 CARBON 100K 5% 1/4W R23 1-249-430-11 CARBON 12K 5% 1/4W R24 1-247-883-00 CARBON 150K 5% 1/4W R25 1-247-879-11 CARBON 100K 5% 1/4W R26 1-249-855-11 CARBON 10K 5% 1/4W R27 1-249-430-11 CARBON 12K 5% 1/4W R28 1-249-855-11 CARBON 10K 5% 1/4W R29 1-249-843-11 CARBON 3.3K 5% 1/4W R30 1-249-843-11 CARBON 3.3K 5% 1/4W R31 1-249-855-11 CARBON 10K 5% 1/4W R32 1-247-903-00 CARBON 1M 5% 1/4W R33 1-249-855-11 CARBON 10K 5% 1/4W R34 1-247-879-11 CARBON 100K 5% 1/4W R35 1-249-847-11 CARBON 4.7K 5% 1/4W R36 1-249-847-11 CARBON 4.7K 5% 1/4W R37 1-247-807-11 CARBON 100 5% 1/4W R38 1-247-807-11 CARBON 100 5% 1/4W R39 1-249-847-11 CARBON 4.7K 5% 1/4W R40 1-249-847-11 CARBON 4.7K 5% 1/4W R41 1-247-807-11 CARBON 100 5% 1/4W R42 1-247-807-11 CARBON 100 5% 1/4W R44 1-247-807-11 CARBON 100 5% 1/4W R44A 1-249-847-11 CARBON 4.7K 5% 1/4W R46 1-249-855-11 CARBON 10K 5% 1/4W R46A 1-249-409-11 CARBON 220 5% 1/4W F R50 1-249-847-11 CARBON 4.7K 5% 1/4W R50A 1-247-721-11 CARBON 4.7K 5% 1/4W F R52 1-247-721-11 CARBON 4.7K 5% 1/4W F R53 1-249-411-11 CARBON 330 5% 1/4W R55 1-249-847-11 CARBON 4.7K 5% 1/4W R56 1-249-847-11 CARBON 4.7K 5% 1/4W R57 1-249-427-11 CARBON 6.8K 5% 1/4W F R58 1-249-442-11 CARBON 510 5% 1/4W R59 1-247-903-00 CARBON 1M 5% 1/4W R61 1-249-855-11 CARBON 10K 5% 1/4W R62 1-249-855-11 CARBON 10K 5% 1/4W R63 1-249-855-11 CARBON 10K 5% 1/4W R64 1-249-855-11 CARBON 10K 5% 1/4W R65 1-247-864-11 CARBON 24K 5% 1/4W R66 1-247-864-11 CARBON 24K 5% 1/4W R67 1-247-864-11 CARBON 24K 5% 1/4W R68 1-247-864-11 CARBON 24K 5% 1/4W R69 1-249-430-11 CARBON 12K 5% 1/4W R70 1-249-430-11 CARBON 12K 5% 1/4W R71 1-249-430-11 CARBON 12K 5% 1/4W R72 1-249-430-11 CARBON 12K 5% 1/4W R73 1-249-839-11 CARBON 2.2K 5% 1/4W R74 1-249-839-11 CARBON 2.2K 5% 1/4W R75 1-249-847-11 CARBON 4.7K 5% 1/4W R76 1-249-847-11 CARBON 4.7K 5% 1/4W R78 1-249-847-11 CARBON 4.7K 5% 1/4W Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark CD DECODER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 98 — R79 1-249-405-11 CARBON 100 5% 1/4W F R80 1-247-883-00 CARBON 150K 5% 1/4W R81 1-247-807-11 CARBON 100 5% 1/4W R82 1-247-807-11 CARBON 100 5% 1/4W R83 1-249-469-11 CARBON 100K 5% 1/4W R83A 1-247-863-11 CARBON 22K 5% 1/4W R84 1-249-465-11 CARBON 47K 5% 1/4W R85 1-249-465-11 CARBON 47K 5% 1/4W R86 1-249-465-11 CARBON 47K 5% 1/4W R87 1-249-465-11 CARBON 47K 5% 1/4W R88 1-249-469-11 CARBON 100K 5% 1/4W R89 1-249-839-11 CARBON 2.2K 5% 1/4W R90 1-249-839-11 CARBON 2.2K 5% 1/4W R91 1-249-839-11 CARBON 2.2K 5% 1/4W R92 1-249-839-11 CARBON 2.2K 5% 1/4W R93 1-249-420-11 CARBON 1.8K 5% 1/4W F R93A 1-249-420-11 CARBON 1.8K 5% 1/4W F R94 1-249-420-11 CARBON 1.8K 5% 1/4W F R94A 1-249-420-11 CARBON 1.8K 5% 1/4W F R99 1-247-704-11 CARBON 220 5% 1/4W F < VARIABLE RESISTOR > VR01 1-228-996-00 RES, ADJ, METAL 47K VR02 1-228-998-00 RES, ADJ, METAL 220K < VIBRATOR > XTL01 1-760-123-11 VIBRATOR, CRYSTAL (33.8688MHz) ************************************************************** * 1-666-438-11 DISC LED BOARD ************** * 4-992-828-01 HOLDER (LED3-10), LED < DIODE > LED602 8-719-046-80 DIODE SML19416W-TP4 (DISC 1) LED603 8-719-046-80 DIODE SML19416W-TP4 (DISC 2) LED604 8-719-046-80 DIODE SML19416W-TP4 (DISC 3) < RESISTOR > R630 1-249-408-11 CARBON 180 5% 1/4W F R631 1-249-408-11 CARBON 180 5% 1/4W F R632 1-249-408-11 CARBON 180 5% 1/4W F < SWITCH > S624 1-572-481-11 SWITCH, KEY BOARD (1 KEY)(DISC 1) S625 1-572-481-11 SWITCH, KEY BOARD (1 KEY)(DISC 2) S626 1-572-481-11 SWITCH, KEY BOARD (1 KEY)(DISC 3) ************************************************************** * A-4398-915-A MAIN BOARD, COMPLETE (MX) ***************************** * A-4403-222-A MAIN BOARD, COMPLETE (E,AR) ******************** 7-685-645-79 SCREW +BVTP 3X6 TYPE2 SLIT < CAPACITOR > C1 1-161-494-00 CERAMIC 0.022uF 25V C2 1-161-494-00 CERAMIC 0.022uF 25V C201 1-162-286-31 CERAMIC 220PF 10% 50V C202 1-162-286-31 CERAMIC 220PF 10% 50V C203 1-162-292-31 CERAMIC 680PF 10% 50V C204 1-162-292-31 CERAMIC 680PF 10% 50V C205 1-162-286-31 CERAMIC 220PF 10% 50V C206 1-162-286-31 CERAMIC 220PF 10% 50V C207 1-126-964-11 ELECT 10uF 20% 50V C208 1-126-964-11 ELECT 10uF 20% 50V C209 1-130-485-00 MYLAR 0.015uF 5% 50V C210 1-130-485-00 MYLAR 0.015uF 5% 50V C211 1-126-044-11 ELECT 1uF 20% 50V C212 1-126-044-11 ELECT 1uF 20% 50V C215 1-164-736-31 CERAMIC 0.0012uF 10% 50V C216 1-164-736-31 CERAMIC 0.0012uF 10% 50V C217 1-162-286-31 CERAMIC 220PF 10% 50V C218 1-162-286-31 CERAMIC 220PF 10% 50V C219 1-126-962-11 ELECT 3.3uF 20% 50V C220 1-126-962-11 ELECT 3.3uF 20% 50V C221 1-126-644-11 ELECT 100uF 20% 16V C222 1-126-644-11 ELECT 100uF 20% 16V C223 1-162-294-31 CERAMIC 0.001uF 10% 50V C224 1-162-294-31 CERAMIC 0.001uF 10% 50V C225 1-126-962-11 ELECT 3.3uF 20% 50V C226 1-126-962-11 ELECT 3.3uF 20% 50V C228 1-126-964-11 ELECT 10uF 20% 50V C230 1-137-350-11 FILM 0.015uF 5% 100V C231 1-137-150-11 FILM 0.01uF 5% 100V C232 1-130-479-00 MYLAR 0.0047uF 5% 50V C233 1-130-487-00 MYLAR 0.022uF 5% 50V C234 1-124-910-11 ELECT 47uF 20% 50V C235 1-161-494-00 CERAMIC 0.022uF 25V C237 1-126-025-11 ELECT 330uF 20% 16V C238 1-126-962-11 ELECT 3.3uF 20% 50V C239 1-162-292-31 CERAMIC 680PF 10% 50V C240 1-162-292-31 CERAMIC 680PF 10% 50V C241 1-126-644-11 ELECT 100uF 20% 16V C242 1-126-959-11 ELECT 0.47uF 20% 50V C243 1-126-961-11 ELECT 2.2uF 20% 50V C281 1-162-301-11 CERAMIC 0.0015uF 30% 16V C282 1-162-301-11 CERAMIC 0.0015uF 30% 16V C300 1-164-159-11 CERAMIC 0.1uF 50V C301 1-162-302-11 CERAMIC 0.0022uF 30% 16V C302 1-162-302-11 CERAMIC 0.0022uF 30% 16V C303 1-162-282-31 CERAMIC 100PF 10% 50V C304 1-162-282-31 CERAMIC 100PF 10% 50V C305 1-162-290-31 CERAMIC 470PF 10% 50V C306 1-162-290-31 CERAMIC 470PF 10% 50V C307 1-126-963-11 ELECT 4.7uF 20% 50V C308 1-126-963-11 ELECT 4.7uF 20% 50V C309 1-162-294-31 CERAMIC 0.001uF 10% 50V C310 1-162-294-31 CERAMIC 0.001uF 10% 50V C313 1-162-302-11 CERAMIC 0.0022uF 30% 16V C314 1-162-302-11 CERAMIC 0.0022uF 30% 16V C315 1-130-494-11 MYLAR 0.082uF 5% 50V Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DISC LED CD DECODER MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 99 — Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C316 1-130-494-11 MYLAR 0.082uF 5% 50V C317 1-126-959-11 ELECT 0.47uF 20% 50V C318 1-126-959-11 ELECT 0.47uF 20% 50V C319 1-126-644-11 ELECT 100uF 20% 16V C320 1-126-644-11 ELECT 100uF 20% 16V C401 1-162-288-31 CERAMIC 330PF 10% 50V C402 1-162-288-31 CERAMIC 330PF 10% 50V C403 1-126-959-11 ELECT 0.47uF 20% 50V C404 1-126-959-11 ELECT 0.47uF 20% 50V C405 1-126-959-11 ELECT 0.47uF 20% 50V C406 1-126-959-11 ELECT 0.47uF 20% 50V C407 1-126-959-11 ELECT 0.47uF 20% 50V C408 1-126-959-11 ELECT 0.47uF 20% 50V C409 1-126-959-11 ELECT 0.47uF 20% 50V C410 1-126-959-11 ELECT 0.47uF 20% 50V C411 1-162-199-31 CERAMIC 10PF 5% 50V C412 1-162-199-31 CERAMIC 10PF 5% 50V C415 1-162-290-31 CERAMIC 470PF 10% 50V C416 1-162-290-31 CERAMIC 470PF 10% 50V C417 1-130-485-00 MYLAR 0.015uF 5% 50V C418 1-130-485-00 MYLAR 0.015uF 5% 50V C419 1-162-292-31 CERAMIC 680PF 10% 50V C420 1-162-292-31 CERAMIC 680PF 10% 50V C421 1-162-294-31 CERAMIC 0.001uF 10% 50V C422 1-162-294-31 CERAMIC 0.001uF 10% 50V C425 1-162-301-11 CERAMIC 0.0015uF 30% 16V C426 1-162-301-11 CERAMIC 0.0015uF 30% 16V C427 1-130-485-00 MYLAR 0.015uF 5% 50V C428 1-130-485-00 MYLAR 0.015uF 5% 50V C429 1-162-284-31 CERAMIC 150PF 10% 50V C430 1-162-284-31 CERAMIC 150PF 10% 50V C431 1-162-305-11 CERAMIC 0.0068uF 20% 16V C432 1-162-305-11 CERAMIC 0.0068uF 20% 16V C433 1-126-934-11 ELECT 220uF 20% 16V C434 1-126-934-11 ELECT 220uF 20% 16V C451 1-126-959-11 ELECT 0.47uF 20% 50V C452 1-126-959-11 ELECT 0.47uF 20% 50V C453 1-162-282-31 CERAMIC 100PF 10% 50V C454 1-162-282-31 CERAMIC 100PF 10% 50V C455 1-124-767-00 ELECT 2.2uF 20% 50V C456 1-124-767-00 ELECT 2.2uF 20% 50V C457 1-126-934-11 ELECT 220uF 20% 16V C458 1-126-964-11 ELECT 10uF 20% 50V C459 1-164-159-11 CERAMIC 0.1uF 50V C460 1-164-159-11 CERAMIC 0.1uF 50V C461 1-126-964-11 ELECT 10uF 20% 50V C462 1-126-964-11 ELECT 10uF 20% 50V C463 1-126-934-11 ELECT 220uF 20% 16V C471 1-162-282-31 CERAMIC 100PF 10% 50V C472 1-162-282-31 CERAMIC 100PF 10% 50V C473 1-162-282-31 CERAMIC 100PF 10% 50V C474 1-162-282-31 CERAMIC 100PF 10% 50V C475 1-124-767-00 ELECT 2.2uF 20% 50V C476 1-124-767-00 ELECT 2.2uF 20% 50V C477 1-124-767-00 ELECT 2.2uF 20% 50V C478 1-124-767-00 ELECT 2.2uF 20% 50V C479 1-126-644-11 ELECT 100uF 20% 16V C480 1-126-644-11 ELECT 100uF 20% 16V C491 1-126-044-11 ELECT 1uF 20% 50V C492 1-126-044-11 ELECT 1uF 20% 50V C493 1-162-215-31 CERAMIC 47PF 5% 50V C494 1-162-215-31 CERAMIC 47PF 5% 50V C495 1-126-959-11 ELECT 0.47uF 20% 50V C496 1-126-959-11 ELECT 0.47uF 20% 50V C497 1-126-644-11 ELECT 100uF 20% 16V C499 1-126-964-11 ELECT 10uF 20% 50V C500 1-164-159-11 CERAMIC 0.1uF 50V C501 1-162-302-11 CERAMIC 0.0022uF 30% 16V C502 1-162-302-11 CERAMIC 0.0022uF 30% 16V C505 1-126-964-11 ELECT 10uF 20% 50V C506 1-126-964-11 ELECT 10uF 20% 50V C507 1-126-968-11 ELECT 100uF 20% 50V C508 1-126-969-11 ELECT 220uF 20% 50V C509 1-126-969-11 ELECT 220uF 20% 50V C510 1-164-159-11 CERAMIC 0.1uF 50V C511 1-162-195-31 CERAMIC 4.7PF 10% 50V C512 1-162-195-31 CERAMIC 4.7PF 10% 50V C513 1-137-354-11 FILM 0.1uF 5% 100V C514 1-137-354-11 FILM 0.1uF 5% 100V C515 1-126-968-11 ELECT 100uF 20% 50V C516 1-164-159-11 CERAMIC 0.1uF 50V C517 1-126-968-11 ELECT 100uF 20% 50V C523 1-164-159-11 CERAMIC 0.1uF 50V C524 1-164-159-11 CERAMIC 0.1uF 50V C551 1-161-494-00 CERAMIC 0.022uF 25V C552 1-161-494-00 CERAMIC 0.022uF 25V C553 1-126-044-11 ELECT 1uF 20% 50V C554 1-162-306-11 CERAMIC 0.01uF 20% 16V C555 1-126-644-11 ELECT 100uF 20% 16V C556 1-162-302-11 CERAMIC 0.0022uF 30% 16V C557 1-126-963-11 ELECT 4.7uF 20% 50V C558 1-126-644-11 ELECT 100uF 20% 16V C581 1-124-910-11 ELECT 47uF 20% 50V C582 1-164-159-11 CERAMIC 0.1uF 50V C583 1-126-644-11 ELECT 100uF 20% 16V C701 1-126-974-11 ELECT 3300uF 20% 50V C702 1-126-974-11 ELECT 3300uF 20% 50V C708 1-161-494-00 CERAMIC 0.022uF 25V C709 1-161-494-00 CERAMIC 0.022uF 25V C710 1-126-943-11 ELECT 2200uF 20% 25V C711 1-124-910-11 ELECT 47uF 20% 50V C712 1-126-644-11 ELECT 100uF 20% 16V C713 1-161-494-00 CERAMIC 0.022uF 25V C714 1-161-494-00 CERAMIC 0.022uF 25V C715 1-161-494-00 CERAMIC 0.022uF 25V C716 1-126-644-11 ELECT 100uF 20% 16V C717 1-126-644-11 ELECT 100uF 20% 16V C718 1-126-012-11 ELECT 470uF 20% 16V C719 1-161-494-00 CERAMIC 0.022uF 25V C720 1-126-644-11 ELECT 100uF 20% 16V C721 1-161-494-00 CERAMIC 0.022uF 25V C722 1-126-012-11 ELECT 470uF 20% 16V C723 1-161-494-00 CERAMIC 0.022uF 25V C724 1-126-644-11 ELECT 100uF 20% 16V C725 1-161-494-00 CERAMIC 0.022uF 25V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 100 — Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C726 1-126-644-11 ELECT 100uF 20% 16V C727 1-161-494-00 CERAMIC 0.022uF 25V C728 1-126-644-11 ELECT 100uF 20% 16V C729 1-161-494-00 CERAMIC 0.022uF 25V C730 1-126-376-11 ELECT 470uF 20% 25V C731 1-161-494-00 CERAMIC 0.022uF 25V C732 1-126-644-11 ELECT 100uF 20% 16V C733 1-161-494-00 CERAMIC 0.022uF 25V C734 1-126-012-11 ELECT 470uF 20% 16V C735 1-161-494-00 CERAMIC 0.022uF 25V C741 1-126-012-11 ELECT 470uF 20% 16V C742 1-161-494-00 CERAMIC 0.022uF 25V C781 1-126-044-11 ELECT 1uF 20% 50V C791 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > * CN08 1-568-272-11 SOCKET, CONNECTOR 6P * CN101 1-779-767-11 PIN, CONNECTOR * CN201 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P CN202 1-564-707-11 PIN, CONNECTOR (SMALL TYPE) 5P * CN203 1-564-704-11 PIN, CONNECTOR (SMALL TYPE) 2P * CN205 1-568-274-11 SOCKET, CONNECTOR 8P * CN301 1-770-334-11 PIN, CONNECTOR (PC BOARD) 17P * CN701 1-564-508-11 PLUG, CONNECTOR 5P (E,AR) * CN701 1-564-509-11 PLUG, CONNECTOR 6P (MX) < DIODE > D201 8-719-987-63 DIODE 1N4148M D202 8-719-987-63 DIODE 1N4148M D203 8-719-987-63 DIODE 1N4148M D205 8-719-987-63 DIODE 1N4148M D208 8-719-987-63 DIODE 1N4148M D209 8-719-987-63 DIODE 1N4148M D211 8-719-987-63 DIODE 1N4148M D212 8-719-987-63 DIODE 1N4148M D213 8-719-987-63 DIODE 1N4148M D501 8-719-987-63 DIODE 1N4148M D551 8-719-987-63 DIODE 1N4148M D552 8-719-987-63 DIODE 1N4148M D553 8-719-987-63 DIODE 1N4148M D581 8-719-987-63 DIODE 1N4148M D582 8-719-987-63 DIODE 1N4148M D583 8-719-987-63 DIODE 1N4148M D584 8-719-987-63 DIODE 1N4148M D585 8-719-987-63 DIODE 1N4148M D701 8-719-510-33 DIODE D2SBA20 D705 8-719-200-02 DIODE 10E2 D706 8-719-200-02 DIODE 10E2 D707 8-719-200-02 DIODE 10E2 D708 8-719-200-02 DIODE 10E2 D709 8-719-200-02 DIODE 10E2 D711 8-719-110-31 DIODE RD12ES-B2 D712 8-719-110-08 DIODE RD8.2ES-B2 D713 8-719-109-93 DIODE RD6.2ESB2 D714 8-719-110-31 DIODE RD12ES-B2 D741 8-719-110-31 DIODE RD12ES-B2 D781 8-719-987-63 DIODE 1N4148M < FUSE, FUSE HOLDER > !F701 1-532-388-31 FUSE (T2AL/250V) * F701H 1-533-213-31 HOLDER, FUSE (E,AR) * F701HA 1-533-213-31 HOLDER, FUSE (E,AR) < IC > IC201 8-759-242-58 IC TA8189N IC301 8-759-634-51 IC M5218AP IC401 8-759-473-59 IC LC75392 IC402 8-759-000-49 IC MC14066BCP IC403 8-759-505-55 IC NJM4558L IC501 8-749-013-85 IC STK405-070A IC502 8-759-111-68 IC uPC1237HA < JACK > JK301 1-750-679-21 JACK, PIN 2P (PHONO) JK501 1-694-092-11 TERMINAL BOARD (SPEAKER) JK502 1-779-715-11 JACK (LARGE TYPE)(PHONES) < COIL > L201 1-429-552-11 TRANSFORMER, BIAS OSCILLATION * L501 1-420-872-00 COIL, AIR CORE * L502 1-420-872-00 COIL, AIR CORE < TRANSISTOR > Q1 8-729-194-57 TRANSISTOR 2SC945-P Q2 8-729-194-57 TRANSISTOR 2SC945-P Q201 8-729-194-57 TRANSISTOR 2SC945-P Q202 8-729-194-57 TRANSISTOR 2SC945-P Q203 8-729-194-57 TRANSISTOR 2SC945-P Q204 8-729-194-57 TRANSISTOR 2SC945-P Q205 8-729-194-57 TRANSISTOR 2SC945-P Q206 8-729-194-57 TRANSISTOR 2SC945-P Q207 8-729-119-76 TRANSISTOR 2SA1175-HFE Q208 8-729-194-57 TRANSISTOR 2SC945-P Q209 8-729-194-57 TRANSISTOR 2SC945-P Q210 8-729-194-57 TRANSISTOR 2SC945-P Q211 8-729-194-57 TRANSISTOR 2SC945-P Q212 8-729-194-57 TRANSISTOR 2SC945-P Q213 8-729-119-76 TRANSISTOR 2SA1175-HFE Q214 8-729-194-57 TRANSISTOR 2SC945-P Q216 8-729-119-76 TRANSISTOR 2SA1175-HFE Q217 8-729-194-57 TRANSISTOR 2SC945-P Q218 8-729-142-46 TRANSISTOR 2SC2001-LK Q219 8-729-194-57 TRANSISTOR 2SC945-P Q220 8-729-142-46 TRANSISTOR 2SC2001-LK Q451 8-729-194-57 TRANSISTOR 2SC945-P Q452 8-729-194-57 TRANSISTOR 2SC945-P Q461 8-729-194-57 TRANSISTOR 2SC945-P Q462 8-729-194-57 TRANSISTOR 2SC945-P Q463 8-729-194-57 TRANSISTOR 2SC945-P Q491 8-729-194-57 TRANSISTOR 2SC945-P Q492 8-729-194-57 TRANSISTOR 2SC945-P Q501 8-729-194-57 TRANSISTOR 2SC945-P Q502 8-729-194-57 TRANSISTOR 2SC945-P Q503 8-729-119-76 TRANSISTOR 2SA1175-HFE Q551 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number speci- fied. MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 101 — Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Q552 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q553 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q581 8-729-231-55 TRANSISTOR 2SC2878-AB Q582 8-729-231-55 TRANSISTOR 2SC2878-AB Q583 8-729-029-67 TRANSISTOR DTC114ESA-TP Q584 8-729-119-76 TRANSISTOR 2SA1175-HFE Q585 8-729-029-86 TRANSISTOR DTC124ESA Q586 8-729-029-86 TRANSISTOR DTC124ESA Q587 8-729-231-55 TRANSISTOR 2SC2878-AB Q588 8-729-231-55 TRANSISTOR 2SC2878-AB Q589 8-729-029-56 TRANSISTOR DTA144ESA Q701 8-729-188-23 TRANSISTOR 2SD882-P Q702 8-729-142-46 TRANSISTOR 2SC2001-LK Q703 8-729-188-23 TRANSISTOR 2SD882-P Q704 8-729-142-46 TRANSISTOR 2SC2001-LK Q705 8-729-188-23 TRANSISTOR 2SD882-P Q706 8-729-119-76 TRANSISTOR 2SA1175-HFE Q707 8-729-194-57 TRANSISTOR 2SC945-P Q751 8-729-194-57 TRANSISTOR 2SC945-P Q781 8-729-029-86 TRANSISTOR DTC124ESA Q782 8-729-029-86 TRANSISTOR DTC124ESA < RESISTOR > R1 1-247-855-11 CARBON 10K 5% 1/4W R2 1-247-855-11 CARBON 10K 5% 1/4W R201 1-249-393-11 CARBON 10 5% 1/4W F R202 1-249-393-11 CARBON 10 5% 1/4W F R203 1-247-889-00 CARBON 270K 5% 1/4W R204 1-247-889-00 CARBON 270K 5% 1/4W R205 1-249-407-11 CARBON 150 5% 1/4W F R206 1-249-407-11 CARBON 150 5% 1/4W F R207 1-249-431-11 CARBON 15K 5% 1/4W R208 1-249-431-11 CARBON 15K 5% 1/4W R209 1-247-855-11 CARBON 10K 5% 1/4W R210 1-247-863-11 CARBON 22K 5% 1/4W R211 1-247-891-00 CARBON 330K 5% 1/4W R212 1-247-891-00 CARBON 330K 5% 1/4W R213 1-247-847-11 CARBON 4.7K 5% 1/4W R214 1-247-847-11 CARBON 4.7K 5% 1/4W R215 1-247-855-11 CARBON 10K 5% 1/4W R216 1-249-431-11 CARBON 15K 5% 1/4W R217 1-247-871-11 CARBON 47K 5% 1/4W R218 1-247-704-11 CARBON 220 5% 1/4W F R219 1-247-841-11 CARBON 2.7K 5% 1/4W R220 1-249-434-11 CARBON 27K 5% 1/4W R221 1-247-879-11 CARBON 100K 5% 1/4W R222 1-247-879-11 CARBON 100K 5% 1/4W R223 1-247-855-11 CARBON 10K 5% 1/4W R224 1-247-855-11 CARBON 10K 5% 1/4W R225 1-247-863-11 CARBON 22K 5% 1/4W R226 1-247-863-11 CARBON 22K 5% 1/4W R227 1-247-885-00 CARBON 180K 5% 1/4W R228 1-247-885-00 CARBON 180K 5% 1/4W R229 1-247-881-00 CARBON 120K 5% 1/4W R230 1-247-881-00 CARBON 120K 5% 1/4W R231 1-249-420-11 CARBON 1.8K 5% 1/4W F R232 1-249-420-11 CARBON 1.8K 5% 1/4W F R233 1-247-839-11 CARBON 2.2K 5% 1/4W R234 1-247-839-11 CARBON 2.2K 5% 1/4W R235 1-247-855-11 CARBON 10K 5% 1/4W R236 1-247-855-11 CARBON 10K 5% 1/4W R237 1-247-887-00 CARBON 220K 5% 1/4W R238 1-247-843-11 CARBON 3.3K 5% 1/4W R239 1-247-855-11 CARBON 10K 5% 1/4W R240 1-249-393-11 CARBON 10 5% 1/4W F R241 1-249-434-11 CARBON 27K 5% 1/4W R242 1-247-708-11 CARBON 470 5% 1/4W F R243 1-247-855-11 CARBON 10K 5% 1/4W R244 1-247-855-11 CARBON 10K 5% 1/4W R245 1-249-393-11 CARBON 10 5% 1/4W F R246 1-249-393-11 CARBON 10 5% 1/4W F R247 1-247-855-11 CARBON 10K 5% 1/4W R248 1-249-434-11 CARBON 27K 5% 1/4W R249 1-249-381-11 CARBON 1 5% 1/4W F R250 1-247-847-11 CARBON 4.7K 5% 1/4W R251 1-247-847-11 CARBON 4.7K 5% 1/4W R252 1-247-847-11 CARBON 4.7K 5% 1/4W R253 1-247-871-11 CARBON 47K 5% 1/4W R256 1-247-871-11 CARBON 47K 5% 1/4W R257 1-247-839-11 CARBON 2.2K 5% 1/4W R258 1-247-871-11 CARBON 47K 5% 1/4W R259 1-247-871-11 CARBON 47K 5% 1/4W R260 1-247-855-11 CARBON 10K 5% 1/4W R261 1-249-424-11 CARBON 3.9K 5% 1/4W F R262 1-247-839-11 CARBON 2.2K 5% 1/4W R263 1-249-417-11 CARBON 1K 5% 1/4W F R264 1-247-839-11 CARBON 2.2K 5% 1/4W R265 1-247-847-11 CARBON 4.7K 5% 1/4W R266 1-249-417-11 CARBON 1K 5% 1/4W F R267 1-247-839-11 CARBON 2.2K 5% 1/4W R281 1-247-883-00 CARBON 150K 5% 1/4W R282 1-247-883-00 CARBON 150K 5% 1/4W R301 1-249-417-11 CARBON 1K 5% 1/4W F R302 1-249-417-11 CARBON 1K 5% 1/4W F R303 1-247-855-11 CARBON 10K 5% 1/4W R304 1-247-855-11 CARBON 10K 5% 1/4W R305 1-249-417-11 CARBON 1K 5% 1/4W F R306 1-249-417-11 CARBON 1K 5% 1/4W F R307 1-247-879-11 CARBON 100K 5% 1/4W R308 1-247-879-11 CARBON 100K 5% 1/4W R309 1-249-418-11 CARBON 1.2K 5% 1/4W F R310 1-249-418-11 CARBON 1.2K 5% 1/4W F R311 1-247-867-11 CARBON 33K 5% 1/4W R312 1-247-867-11 CARBON 33K 5% 1/4W R313 1-247-893-11 CARBON 390K 5% 1/4W R314 1-247-893-11 CARBON 390K 5% 1/4W R315 1-247-879-11 CARBON 100K 5% 1/4W R316 1-247-879-11 CARBON 100K 5% 1/4W R317 1-247-843-11 CARBON 3.3K 5% 1/4W R318 1-247-843-11 CARBON 3.3K 5% 1/4W R319 1-249-417-11 CARBON 1K 5% 1/4W F R320 1-249-417-11 CARBON 1K 5% 1/4W F R321 1-247-710-11 CARBON 560 5% 1/4W F R323 1-247-704-11 CARBON 220 5% 1/4W F R401 1-249-430-11 CARBON 12K 5% 1/4W R402 1-249-430-11 CARBON 12K 5% 1/4W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 102 — Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R403 1-247-847-11 CARBON 4.7K 5% 1/4W R404 1-247-847-11 CARBON 4.7K 5% 1/4W R405 1-247-879-11 CARBON 100K 5% 1/4W R406 1-247-879-11 CARBON 100K 5% 1/4W R407 1-247-871-11 CARBON 47K 5% 1/4W R408 1-247-871-11 CARBON 47K 5% 1/4W R409 1-247-863-11 CARBON 22K 5% 1/4W R410 1-247-863-11 CARBON 22K 5% 1/4W R411 1-249-434-11 CARBON 27K 5% 1/4W R412 1-249-434-11 CARBON 27K 5% 1/4W R413 1-247-887-00 CARBON 220K 5% 1/4W R414 1-247-887-00 CARBON 220K 5% 1/4W R415 1-247-855-11 CARBON 10K 5% 1/4W R416 1-247-855-11 CARBON 10K 5% 1/4W R416 1-249-434-11 CARBON 27K 5% 1/4W R417 1-249-434-11 CARBON 27K 5% 1/4W R418 1-249-434-11 CARBON 27K 5% 1/4W R419 1-247-867-11 CARBON 33K 5% 1/4W R420 1-247-867-11 CARBON 33K 5% 1/4W R421 1-247-843-11 CARBON 3.3K 5% 1/4W R422 1-247-843-11 CARBON 3.3K 5% 1/4W R423 1-249-430-11 CARBON 12K 5% 1/4W R424 1-249-430-11 CARBON 12K 5% 1/4W R425 1-247-867-11 CARBON 33K 5% 1/4W R426 1-247-867-11 CARBON 33K 5% 1/4W R427 1-247-871-11 CARBON 47K 5% 1/4W R428 1-247-871-11 CARBON 47K 5% 1/4W R429 1-247-871-11 CARBON 47K 5% 1/4W R430 1-247-871-11 CARBON 47K 5% 1/4W R431 1-247-871-11 CARBON 47K 5% 1/4W R432 1-247-871-11 CARBON 47K 5% 1/4W R433 1-247-871-11 CARBON 47K 5% 1/4W R434 1-247-871-11 CARBON 47K 5% 1/4W R435 1-247-839-11 CARBON 2.2K 5% 1/4W R436 1-247-839-11 CARBON 2.2K 5% 1/4W R437 1-247-839-11 CARBON 2.2K 5% 1/4W R438 1-247-855-11 CARBON 10K 5% 1/4W R439 1-247-855-11 CARBON 10K 5% 1/4W R440 1-247-847-11 CARBON 4.7K 5% 1/4W R441 1-247-704-11 CARBON 220 5% 1/4W F R451 1-247-710-11 CARBON 560 5% 1/4W F R453 1-247-903-00 CARBON 1M 5% 1/4W R454 1-247-903-00 CARBON 1M 5% 1/4W R455 1-247-839-11 CARBON 2.2K 5% 1/4W R456 1-247-839-11 CARBON 2.2K 5% 1/4W R457 1-247-847-11 CARBON 4.7K 5% 1/4W R458 1-247-847-11 CARBON 4.7K 5% 1/4W R459 1-247-723-11 CARBON 6.8K 5% 1/4W F R460 1-247-723-11 CARBON 6.8K 5% 1/4W F R461 1-247-704-11 CARBON 220 5% 1/4W F R462 1-247-879-11 CARBON 100K 5% 1/4W R463 1-247-871-11 CARBON 47K 5% 1/4W R464 1-247-879-11 CARBON 100K 5% 1/4W R465 1-247-871-11 CARBON 47K 5% 1/4W R466 1-247-871-11 CARBON 47K 5% 1/4W R467 1-247-843-11 CARBON 3.3K 5% 1/4W R468 1-247-843-11 CARBON 3.3K 5% 1/4W R469 1-247-839-11 CARBON 2.2K 5% 1/4W R470 1-247-839-11 CARBON 2.2K 5% 1/4W R471 1-247-871-11 CARBON 47K 5% 1/4W R472 1-247-871-11 CARBON 47K 5% 1/4W R473 1-247-835-11 CARBON 1.5K 5% 1/4W R474 1-247-835-11 CARBON 1.5K 5% 1/4W R475 1-247-855-11 CARBON 10K 5% 1/4W R476 1-247-855-11 CARBON 10K 5% 1/4W R477 1-247-839-11 CARBON 2.2K 5% 1/4W R478 1-247-839-11 CARBON 2.2K 5% 1/4W R479 1-247-704-11 CARBON 220 5% 1/4W F R480 1-247-710-11 CARBON 560 5% 1/4W F R493 1-247-903-00 CARBON 1M 5% 1/4W R494 1-247-903-00 CARBON 1M 5% 1/4W R495 1-247-847-11 CARBON 4.7K 5% 1/4W R496 1-247-847-11 CARBON 4.7K 5% 1/4W R497 1-247-708-11 CARBON 470 5% 1/4W F R499 1-247-855-11 CARBON 10K 5% 1/4W R500 1-247-807-11 CARBON 100 5% 1/4W R501 1-249-438-11 CARBON 56K 5% 1/4W R502 1-249-466-11 CARBON 56K 5% 1/4W R503 1-247-841-11 CARBON 2.7K 5% 1/4W R504 1-247-841-11 CARBON 2.7K 5% 1/4W R505 1-249-438-11 CARBON 56K 5% 1/4W R506 1-249-438-11 CARBON 56K 5% 1/4W R507 1-249-482-11 CARBON 4.7 5% 1/2W R508 1-249-482-11 CARBON 4.7 5% 1/2W R509 1-249-405-11 CARBON 100 5% 1/4W F R510 1-247-855-11 CARBON 10K 5% 1/4W R511 1-247-855-11 CARBON 10K 5% 1/4W R512 1-247-855-11 CARBON 10K 5% 1/4W R513 1-249-431-11 CARBON 15K 5% 1/4W R514 1-249-417-11 CARBON 1K 5% 1/4W F R515 1-249-417-11 CARBON 1K 5% 1/4W F R521 1-249-482-11 CARBON 4.7 5% 1/2W R522 1-249-482-11 CARBON 4.7 5% 1/2W R523 1-247-727-11 CARBON 10 5% 1/2W R524 1-247-727-11 CARBON 10 5% 1/2W !R525 1-216-429-11 METAL OXIDE 270 5% 1W F !R526 1-216-429-11 METAL OXIDE 270 5% 1W F R527 1-247-737-11 CARBON 68 5% 1/2W F R528 1-247-737-11 CARBON 68 5% 1/2W F !R551 1-208-601-11 WIREWOUND 0.1 10% 2W F !R552 1-208-601-11 WIREWOUND 0.1 10% 2W F R553 1-247-879-11 CARBON 100K 5% 1/4W R554 1-247-879-11 CARBON 100K 5% 1/4W R555 1-247-839-11 CARBON 2.2K 5% 1/4W R556 1-247-839-11 CARBON 2.2K 5% 1/4W R557 1-249-431-11 CARBON 15K 5% 1/4W R558 1-249-431-11 CARBON 15K 5% 1/4W R559 1-247-839-11 CARBON 2.2K 5% 1/4W R560 1-249-430-11 CARBON 12K 5% 1/4W R561 1-249-430-11 CARBON 12K 5% 1/4W R562 1-247-871-11 CARBON 47K 5% 1/4W R563 1-247-855-11 CARBON 10K 5% 1/4W R564 1-247-879-11 CARBON 100K 5% 1/4W R565 1-247-847-11 CARBON 4.7K 5% 1/4W R566 1-247-713-11 CARBON 1K 5% 1/4W F The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number speci- fied. MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 103 — Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R567 1-249-438-11 CARBON 56K 5% 1/4W R581 1-247-843-11 CARBON 3.3K 5% 1/4W R582 1-247-843-11 CARBON 3.3K 5% 1/4W R583 1-249-439-11 CARBON 68K 5% 1/4W R584 1-247-847-11 CARBON 4.7K 5% 1/4W R585 1-247-839-11 CARBON 2.2K 5% 1/4W R586 1-249-431-11 CARBON 15K 5% 1/4W R587 1-249-432-11 CARBON 18K 5% 1/4W R588 1-249-438-11 CARBON 56K 5% 1/4W R589 1-249-434-11 CARBON 27K 5% 1/4W R590 1-249-431-11 CARBON 15K 5% 1/4W R591 1-247-721-11 CARBON 4.7K 5% 1/4W F R592 1-247-879-11 CARBON 100K 5% 1/4W R593 1-247-843-11 CARBON 3.3K 5% 1/4W R594 1-247-843-11 CARBON 3.3K 5% 1/4W R595 1-247-879-11 CARBON 100K 5% 1/4W !R701 1-216-349-00 METAL OXIDE 1 5% 1W F R702 1-247-706-11 CARBON 330 5% 1/4W F R703 1-247-713-11 CARBON 1K 5% 1/4W F R704 1-247-708-11 CARBON 470 5% 1/4W F R705 1-247-706-11 CARBON 330 5% 1/4W F !R706 1-216-349-00 METAL OXIDE 1 5% 1W F R707 1-247-711-11 CARBON 680 5% 1/4W F R708 1-247-855-11 CARBON 10K 5% 1/4W R709 1-247-855-11 CARBON 10K 5% 1/4W R710 1-249-427-11 CARBON 6.8K 5% 1/4W F !R741 1-215-892-11 METAL OXIDE 1K 5% 2W F R751 1-247-855-11 CARBON 10K 5% 1/4W R752 1-247-867-11 CARBON 33K 5% 1/4W R781 1-247-855-11 CARBON 10K 5% 1/4W R782 1-247-855-11 CARBON 10K 5% 1/4W < RELAY > RL501 1-515-921-11 RELAY (12V) < VARIABLE RESISTOR > SFR201 1-228-994-00 RES, ADJ, METAL 10K < SWITCH > SW751 1-762-735-11 SWITCH, SLIDE (AM TUNING STEP)(E,AR) ************************************************************** * A-4403-155-A MAIN BOARD, COMPLETE (AEP,UK) ********************* 7-685-645-79 SCREW +BVTP 3X6 TYPE2 SLIT < CAPACITOR > C201 1-162-286-31 CERAMIC 220PF 10% 50V C202 1-162-286-31 CERAMIC 220PF 10% 50V C203 1-162-292-31 CERAMIC 680PF 10% 50V C204 1-162-292-31 CERAMIC 680PF 10% 50V C205 1-162-286-31 CERAMIC 220PF 10% 50V C206 1-162-286-31 CERAMIC 220PF 10% 50V C207 1-124-907-11 ELECT 10uF 20% 50V C208 1-124-907-11 ELECT 10uF 20% 50V C209 1-130-485-00 MYLAR 0.015uF 5% 50V C210 1-130-485-00 MYLAR 0.015uF 5% 50V C211 1-124-903-11 ELECT 1uF 20% 50V C212 1-124-903-11 ELECT 1uF 20% 50V C213 1-162-301-11 CERAMIC 0.0015uF 30% 16V C214 1-162-301-11 CERAMIC 0.0015uF 30% 16V C215 1-164-086-11 CERAMIC 0.0012uF 20% 50V C216 1-164-086-11 CERAMIC 0.0012uF 20% 50V C217 1-162-286-31 CERAMIC 220PF 10% 50V C218 1-162-286-31 CERAMIC 220PF 10% 50V C219 1-126-962-11 ELECT 3.3uF 20% 50V C220 1-126-962-11 ELECT 3.3uF 20% 50V C221 1-104-665-11 ELECT 100uF 20% 16V C222 1-104-665-11 ELECT 100uF 20% 16V C223 1-162-294-31 CERAMIC 0.001uF 10% 50V C224 1-162-294-31 CERAMIC 0.001uF 10% 50V C225 1-126-962-11 ELECT 3.3uF 20% 50V C226 1-126-962-11 ELECT 3.3uF 20% 50V C228 1-124-907-11 ELECT 10uF 20% 50V C230 1-130-485-00 MYLAR 0.015uF 5% 50V C231 1-130-483-00 MYLAR 0.01uF 5% 50V C232 1-130-479-00 MYLAR 0.0047uF 5% 50V C233 1-130-487-00 MYLAR 0.022uF 5% 50V C234 1-104-664-11 ELECT 47uF 20% 25V C235 1-161-494-00 CERAMIC 0.022uF 25V C237 1-124-119-00 ELECT 330uF 20% 16V C238 1-126-962-11 ELECT 3.3uF 20% 50V C239 1-162-292-31 CERAMIC 680PF 10% 50V C240 1-162-292-31 CERAMIC 680PF 10% 50V C241 1-104-665-11 ELECT 100uF 20% 16V C242 1-126-959-11 ELECT 0.47uF 20% 50V C243 1-126-961-11 ELECT 2.2uF 20% 50V C301 1-130-495-11 MYLAR 0.1uF 5% 50V C302 1-130-495-11 MYLAR 0.1uF 5% 50V C303 1-130-495-11 MYLAR 0.1uF 5% 50V C304 1-130-495-11 MYLAR 0.1uF 5% 50V C305 1-126-972-11 ELECT 1000uF 20% 50V C306 1-126-972-11 ELECT 1000uF 20% 50V C307 1-104-664-11 ELECT 47uF 20% 25V C308 1-104-664-11 ELECT 47uF 20% 25V C309 1-104-666-11 ELECT 220uF 20% 16V C310 1-104-666-11 ELECT 220uF 20% 16V C311 1-124-572-11 ELECT 100uF 20% 63V C312 1-162-294-31 CERAMIC 0.001uF 10% 50V C313 1-162-294-31 CERAMIC 0.001uF 10% 50V C314 1-124-903-11 ELECT 1uF 20% 50V C315 1-124-903-11 ELECT 1uF 20% 50V C316 1-104-664-11 ELECT 47uF 20% 25V C317 1-124-572-11 ELECT 100uF 20% 63V C318 1-162-290-31 CERAMIC 470PF 10% 50V C319 1-162-290-31 CERAMIC 470PF 10% 50V C320 1-124-903-11 ELECT 1uF 20% 50V C321 1-124-903-11 ELECT 1uF 20% 50V C322 1-124-907-11 ELECT 10uF 20% 50V C323 1-124-907-11 ELECT 10uF 20% 50V C324 1-124-907-11 ELECT 10uF 20% 50V C325 1-164-159-11 CERAMIC 0.1uF 50V C326 1-164-159-11 CERAMIC 0.1uF 50V The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number speci- fied. MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 104 — Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C327 1-124-907-11 ELECT 10uF 20% 50V C328 1-124-480-11 ELECT 470uF 20% 25V C329 1-124-907-11 ELECT 10uF 20% 50V C330 1-124-907-11 ELECT 10uF 20% 50V C331 1-126-959-11 ELECT 0.47uF 20% 50V C332 1-126-959-11 ELECT 0.47uF 20% 50V C333 1-104-665-11 ELECT 100uF 20% 16V C334 1-126-959-11 ELECT 0.47uF 20% 50V C335 1-126-959-11 ELECT 0.47uF 20% 50V C338 1-162-215-31 CERAMIC 47PF 5% 50V C339 1-162-215-31 CERAMIC 47PF 5% 50V C340 1-162-282-31 CERAMIC 100PF 10% 50V C341 1-162-282-31 CERAMIC 100PF 10% 50V C342 1-104-665-11 ELECT 100uF 20% 16V C343 1-162-199-31 CERAMIC 10PF 5% 50V C344 1-162-199-31 CERAMIC 10PF 5% 50V C345 1-104-666-11 ELECT 220uF 20% 16V C348 1-104-666-11 ELECT 220uF 20% 16V C349 1-162-290-31 CERAMIC 470PF 10% 50V C350 1-162-290-31 CERAMIC 470PF 10% 50V C351 1-126-963-11 ELECT 4.7uF 20% 50V C352 1-126-963-11 ELECT 4.7uF 20% 50V C353 1-126-959-11 ELECT 0.47uF 20% 50V C354 1-126-959-11 ELECT 0.47uF 20% 50V C355 1-126-959-11 ELECT 0.47uF 20% 50V C356 1-126-959-11 ELECT 0.47uF 20% 50V C357 1-104-666-11 ELECT 220uF 20% 16V C359 1-126-961-11 ELECT 2.2uF 20% 50V C360 1-117-750-11 ELECT 3300uF 20% 63V C361 1-137-150-00 MYLAR 0.01uF 5% 100V C362 1-137-150-00 MYLAR 0.01uF 5% 100V C363 1-162-290-31 CERAMIC 470PF 10% 50V C364 1-162-290-31 CERAMIC 470PF 10% 50V C365 1-130-485-00 MYLAR 0.015uF 5% 50V C366 1-130-485-00 MYLAR 0.015uF 5% 50V C367 1-162-292-31 CERAMIC 680PF 10% 50V C368 1-162-292-31 CERAMIC 680PF 10% 50V C369 1-161-494-00 CERAMIC 0.022uF 25V C370 1-161-494-00 CERAMIC 0.022uF 25V C371 1-124-636-00 ELECT 3300uF 20% 25V C372 1-104-665-11 ELECT 100uF 20% 16V C373 1-161-494-00 CERAMIC 0.022uF 25V C374 1-161-494-00 CERAMIC 0.022uF 25V C375 1-161-494-00 CERAMIC 0.022uF 25V C376 1-126-941-11 ELECT 470uF 20% 16V C377 1-161-494-00 CERAMIC 0.022uF 25V C378 1-161-494-00 CERAMIC 0.022uF 25V C379 1-104-665-11 ELECT 100uF 20% 16V C380 1-161-494-00 CERAMIC 0.022uF 25V C381 1-126-941-11 ELECT 470uF 20% 16V C382 1-124-480-11 ELECT 470uF 20% 25V C383 1-161-494-00 CERAMIC 0.022uF 25V C384 1-161-494-00 CERAMIC 0.022uF 25V C385 1-126-941-11 ELECT 470uF 20% 16V C386 1-161-494-00 CERAMIC 0.022uF 25V C387 1-126-941-11 ELECT 470uF 20% 16V C388 1-162-284-31 CERAMIC 150PF 10% 50V C389 1-162-284-31 CERAMIC 150PF 10% 50V C390 1-130-486-00 MYLAR 0.018uF 10% 50V C391 1-130-486-00 MYLAR 0.018uF 10% 50V C393 1-162-600-11 CERAMIC 0.0047uF 30% 16V C394 1-162-600-11 CERAMIC 0.0047uF 30% 16V C395 1-162-600-11 CERAMIC 0.0047uF 30% 16V C396 1-162-600-11 CERAMIC 0.0047uF 30% 16V C397 1-162-600-11 CERAMIC 0.0047uF 30% 16V C398 1-162-600-11 CERAMIC 0.0047uF 30% 16V C399 1-162-600-11 CERAMIC 0.0047uF 30% 16V C400 1-162-600-11 CERAMIC 0.0047uF 30% 16V C402 1-130-471-00 MYLAR 0.001uF 5% 50V C403 1-162-288-31 CERAMIC 330PF 10% 50V C404 1-162-288-31 CERAMIC 330PF 10% 50V C405 1-104-664-11 ELECT 47uF 20% 25V C406 1-104-665-11 ELECT 100uF 20% 16V C407 1-162-290-31 CERAMIC 470PF 10% 50V C408 1-162-290-31 CERAMIC 470PF 10% 50V C409 1-162-600-11 CERAMIC 0.0047uF 30% 16V C410 1-162-600-11 CERAMIC 0.0047uF 30% 16V C411 1-162-294-31 CERAMIC 0.001uF 10% 50V C412 1-162-294-31 CERAMIC 0.001uF 10% 50V C413 1-162-286-31 CERAMIC 220PF 10% 50V C414 1-130-482-00 MYLAR 0.0082uF 5% 50V C415 1-130-482-00 MYLAR 0.0082uF 5% 50V C416 1-162-302-11 CERAMIC 0.0022uF 30% 16V C417 1-162-302-11 CERAMIC 0.0022uF 30% 16V C419 1-162-302-11 CERAMIC 0.0022uF 30% 16V C420 1-162-302-11 CERAMIC 0.0022uF 30% 16V C421 1-124-907-11 ELECT 10uF 20% 50V C422 1-124-907-11 ELECT 10uF 20% 50V C424 1-126-963-11 ELECT 4.7uF 20% 50V C425 1-126-963-11 ELECT 4.7uF 20% 50V C426 1-162-290-31 CERAMIC 470PF 10% 50V C427 1-162-290-31 CERAMIC 470PF 10% 50V C428 1-162-282-31 CERAMIC 100PF 10% 50V C429 1-162-282-31 CERAMIC 100PF 10% 50V C430 1-126-959-11 ELECT 0.47uF 20% 50V C431 1-126-959-11 ELECT 0.47uF 20% 50V C432 1-162-302-11 CERAMIC 0.0022uF 30% 16V C433 1-162-302-11 CERAMIC 0.0022uF 30% 16V C434 1-164-159-11 CERAMIC 0.1uF 50V C435 1-162-292-31 CERAMIC 680PF 10% 50V C436 1-162-292-31 CERAMIC 680PF 10% 50V C437 1-104-665-11 ELECT 100uF 20% 16V C438 1-104-666-11 ELECT 220uF 20% 16V C439 1-104-665-11 ELECT 100uF 20% 16V C442 1-104-665-11 ELECT 100uF 20% 16V C443 1-104-665-11 ELECT 100uF 20% 16V C444 1-104-665-11 ELECT 100uF 20% 16V C445 1-161-494-00 CERAMIC 0.022uF 25V C446 1-161-494-00 CERAMIC 0.022uF 25V C447 1-161-494-00 CERAMIC 0.022uF 25V C448 1-126-959-11 ELECT 0.47uF 20% 50V C449 1-126-959-11 ELECT 0.47uF 20% 50V C450 1-126-959-11 ELECT 0.47uF 20% 50V C451 1-126-959-11 ELECT 0.47uF 20% 50V C452 1-124-907-11 ELECT 10uF 20% 50V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 105 — Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < CONNECTOR > * CN08 1-568-272-11 SOCKET, CONNECTOR 6P * CN101 1-779-767-11 PIN, CONNECTOR * CN201 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P CN202 1-564-707-11 PIN, CONNECTOR (SMALL TYPE) 5P * CN203 1-564-704-11 PIN, CONNECTOR (SMALL TYPE) 2P * CN205 1-568-274-11 SOCKET, CONNECTOR 8P * CN301 1-770-334-11 PIN, CONNECTOR (PC BOARD) 17P * CN401 1-564-507-11 PLUG, CONNECTOR 4P < DIODE > D201 8-719-987-63 DIODE 1N4148M D202 8-719-987-63 DIODE 1N4148M D203 8-719-987-63 DIODE 1N4148M D205 8-719-987-63 DIODE 1N4148M D208 8-719-987-63 DIODE 1N4148M D209 8-719-987-63 DIODE 1N4148M D211 8-719-987-63 DIODE 1N4148M D212 8-719-987-63 DIODE 1N4148M D213 8-719-987-63 DIODE 1N4148M D301 8-719-109-93 DIODE RD6.2ESB2 D302 8-719-987-63 DIODE 1N4148M D303 8-719-987-63 DIODE 1N4148M D304 8-719-987-63 DIODE 1N4148M D306 8-719-510-33 DIODE D2SBA20 D310 8-719-904-02 DIODE 1N4002T D311 8-719-904-02 DIODE 1N4002T D312 8-719-904-02 DIODE 1N4002T D313 8-719-904-02 DIODE 1N4002T D314 8-719-110-08 DIODE RD8.2ES-B2 D315 8-719-110-31 DIODE RD12ES-B2 D316 8-719-110-31 DIODE RD12ES-B2 D318 8-719-987-63 DIODE 1N4148M D319 8-719-987-63 DIODE 1N4148M D321 8-719-987-63 DIODE 1N4148M D322 8-719-987-63 DIODE 1N4148M D401 8-719-987-63 DIODE 1N4148M < FUSE, FUSE HOLDER > !F301 1-532-504-31 FUSE (T4AL/250V) * F301HA 1-533-213-31 HOLDER, FUSE * F301HB 1-533-213-31 HOLDER, FUSE !F302 1-532-388-31 FUSE (T2AL/250V) * F302HA 1-533-213-31 HOLDER, FUSE * F302HB 1-533-213-31 HOLDER, FUSE < IC > IC201 8-759-242-58 IC TA8189N IC301 8-749-920-14 IC STK-4412 IC302 8-759-000-49 IC MC14066BCP IC303 8-759-473-59 IC LC75392 IC304 8-759-634-51 IC M5218AP < JACK > JK301 1-694-092-11 TERMINAL BOARD (SPEAKER) JK302 1-779-715-11 JACK (LARGE TYPE)(PHONES) JK502 1-750-679-21 JACK, PIN 2P (PHONO) < COIL > L201 1-429-552-11 TRANSFORMER, BIAS OSCILLATION L301 1-420-872-00 COIL, AIR L302 1-420-872-00 COIL, AIR < TRANSISTOR > Q201 8-729-194-57 TRANSISTOR 2SC945-P Q202 8-729-194-57 TRANSISTOR 2SC945-P Q203 8-729-194-57 TRANSISTOR 2SC945-P Q204 8-729-194-57 TRANSISTOR 2SC945-P Q205 8-729-194-57 TRANSISTOR 2SC945-P Q206 8-729-194-57 TRANSISTOR 2SC945-P Q207 8-729-119-76 TRANSISTOR 2SA1175-HFE Q208 8-729-194-57 TRANSISTOR 2SC945-P Q209 8-729-194-57 TRANSISTOR 2SC945-P Q210 8-729-194-57 TRANSISTOR 2SC945-P Q211 8-729-194-57 TRANSISTOR 2SC945-P Q212 8-729-194-57 TRANSISTOR 2SC945-P Q213 8-729-119-76 TRANSISTOR 2SA1175-HFE Q214 8-729-194-57 TRANSISTOR 2SC945-P Q216 8-729-119-76 TRANSISTOR 2SA1175-HFE Q217 8-729-194-57 TRANSISTOR 2SC945-P Q218 8-729-142-46 TRANSISTOR 2SC2001-LK Q219 8-729-194-57 TRANSISTOR 2SC945-P Q220 8-729-142-46 TRANSISTOR 2SC2001-LK Q301 8-729-142-46 TRANSISTOR 2SC2001-LK Q302 8-729-231-55 TRANSISTOR 2SC2878-AB Q303 8-729-231-55 TRANSISTOR 2SC2878-AB Q305 8-729-194-57 TRANSISTOR 2SC945-P Q306 8-729-194-57 TRANSISTOR 2SC945-P Q307 8-729-194-57 TRANSISTOR 2SC945-P Q308 8-729-194-57 TRANSISTOR 2SC945-P Q309 8-729-194-57 TRANSISTOR 2SC945-P Q311 8-729-194-57 TRANSISTOR 2SC945-P Q312 8-729-194-57 TRANSISTOR 2SC945-P Q313 8-729-194-57 TRANSISTOR 2SC945-P Q315 8-729-188-23 TRANSISTOR 2SD882-P Q316 8-729-188-23 TRANSISTOR 2SD882-P Q317 8-729-188-23 TRANSISTOR 2SD882-P Q319 8-729-194-57 TRANSISTOR 2SC945-P Q320 8-729-194-57 TRANSISTOR 2SC945-P Q321 8-729-142-46 TRANSISTOR 2SC2001-LK Q401 8-729-194-57 TRANSISTOR 2SC945-P Q402 8-729-194-57 TRANSISTOR 2SC945-P < RESISTOR > R201 1-249-393-11 CARBON 10 5% 1/4W F R202 1-249-393-11 CARBON 10 5% 1/4W F R203 1-247-889-00 CARBON 270K 5% 1/4W R204 1-247-889-00 CARBON 270K 5% 1/4W R205 1-249-407-11 CARBON 150 5% 1/4W F R205A 1-247-827-11 CARBON 680 5% 1/4W R206 1-249-407-11 CARBON 150 5% 1/4W F R206A 1-247-827-11 CARBON 680 5% 1/4W R207 1-249-431-11 CARBON 15K 5% 1/4W R208 1-249-431-11 CARBON 15K 5% 1/4W R209 1-247-855-11 CARBON 10K 5% 1/4W The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number speci- fied. MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 106 — Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R210 1-247-863-11 CARBON 22K 5% 1/4W R211 1-247-891-00 CARBON 330K 5% 1/4W R212 1-247-891-00 CARBON 330K 5% 1/4W R213 1-247-847-11 CARBON 4.7K 5% 1/4W R214 1-247-847-11 CARBON 4.7K 5% 1/4W R215 1-247-855-11 CARBON 10K 5% 1/4W R216 1-249-431-11 CARBON 15K 5% 1/4W R217 1-249-465-11 CARBON 47K 5% 1/4W R218 1-247-704-11 CARBON 220 5% 1/4W F R219 1-247-841-11 CARBON 2.7K 5% 1/4W R220 1-249-434-11 CARBON 27K 5% 1/4W R221 1-247-879-11 CARBON 100K 5% 1/4W R222 1-247-879-11 CARBON 100K 5% 1/4W R223 1-247-855-11 CARBON 10K 5% 1/4W R224 1-247-855-11 CARBON 10K 5% 1/4W R225 1-247-863-11 CARBON 22K 5% 1/4W R226 1-247-863-11 CARBON 22K 5% 1/4W R227 1-247-885-00 CARBON 180K 5% 1/4W R228 1-247-885-00 CARBON 180K 5% 1/4W R229 1-247-881-11 CARBON 120K 5% 1/4W R230 1-247-881-11 CARBON 120K 5% 1/4W R231 1-249-420-11 CARBON 1.8K 5% 1/4W F R232 1-249-420-11 CARBON 1.8K 5% 1/4W F R233 1-247-839-11 CARBON 2.2K 5% 1/4W R234 1-247-839-11 CARBON 2.2K 5% 1/4W R235 1-247-855-11 CARBON 10K 5% 1/4W R236 1-247-855-11 CARBON 10K 5% 1/4W R237 1-247-887-00 CARBON 220K 5% 1/4W R238 1-247-843-11 CARBON 3.3K 5% 1/4W R239 1-247-855-11 CARBON 10K 5% 1/4W R240 1-249-393-11 CARBON 10 5% 1/4W F R241 1-249-434-11 CARBON 27K 5% 1/4W R242 1-247-708-11 CARBON 470 5% 1/4W F R243 1-247-855-11 CARBON 10K 5% 1/4W R244 1-247-855-11 CARBON 10K 5% 1/4W R245 1-249-393-11 CARBON 10 5% 1/4W F R246 1-249-393-11 CARBON 10 5% 1/4W F R247 1-247-855-11 CARBON 10K 5% 1/4W R248 1-249-434-11 CARBON 27K 5% 1/4W R249 1-249-381-11 CARBON 1 5% 1/4W F R250 1-247-847-11 CARBON 4.7K 5% 1/4W R251 1-247-847-11 CARBON 4.7K 5% 1/4W R252 1-247-871-11 CARBON 47K 5% 1/4W R253 1-247-871-11 CARBON 47K 5% 1/4W R256 1-247-871-11 CARBON 47K 5% 1/4W R257 1-247-839-11 CARBON 2.2K 5% 1/4W R258 1-247-871-11 CARBON 47K 5% 1/4W R259 1-247-871-11 CARBON 47K 5% 1/4W R260 1-247-855-11 CARBON 10K 5% 1/4W R261 1-249-424-11 CARBON 3.9K 5% 1/4W F R262 1-247-839-11 CARBON 2.2K 5% 1/4W R263 1-249-417-11 CARBON 1K 5% 1/4W F R264 1-247-839-11 CARBON 2.2K 5% 1/4W R265 1-247-847-11 CARBON 4.7K 5% 1/4W R266 1-249-417-11 CARBON 1K 5% 1/4W F R267 1-247-839-11 CARBON 2.2K 5% 1/4W R301 1-260-072-11 CARBON 4.7 5% 1/2W R302 1-260-072-11 CARBON 4.7 5% 1/2W !R303 1-212-879-11 FUSIBLE 82 5% 1/4W F !R304 1-212-879-11 FUSIBLE 82 5% 1/4W F R305 1-249-459-11 CARBON 12K 5% 1/4W R306 1-249-459-11 CARBON 12K 5% 1/4W R307 1-260-087-11 CARBON 100 5% 1/2W R308 1-247-879-11 CARBON 100K 5% 1/4W R309 1-247-879-11 CARBON 100K 5% 1/4W R310 1-247-879-11 CARBON 100K 5% 1/4W R311 1-247-889-00 CARBON 270K 5% 1/4W R312 1-247-879-11 CARBON 100K 5% 1/4W R313 1-247-879-11 CARBON 100K 5% 1/4W R314 1-247-879-11 CARBON 100K 5% 1/4W R315 1-247-879-11 CARBON 100K 5% 1/4W R316 1-247-879-11 CARBON 100K 5% 1/4W R317 1-247-879-11 CARBON 100K 5% 1/4W R318 1-247-847-11 CARBON 4.7K 5% 1/4W R319 1-247-847-11 CARBON 4.7K 5% 1/4W R320 1-247-863-11 CARBON 22K 5% 1/4W R321 1-247-839-11 CARBON 2.2K 5% 1/4W R322 1-247-839-11 CARBON 2.2K 5% 1/4W R323 1-247-713-11 CARBON 1K 5% 1/4W F R324 1-247-713-11 CARBON 1K 5% 1/4W F R325 1-247-871-11 CARBON 47K 5% 1/4W R326 1-247-871-11 CARBON 47K 5% 1/4W R327 1-249-424-11 CARBON 3.9K 5% 1/4W F R328 1-249-424-11 CARBON 3.9K 5% 1/4W F R329 1-249-427-11 CARBON 6.8K 5% 1/4W F R330 1-249-427-11 CARBON 6.8K 5% 1/4W F R331 1-249-417-11 CARBON 1K 5% 1/4W F R332 1-249-417-11 CARBON 1K 5% 1/4W F R333 1-247-903-00 CARBON 1M 5% 1/4W R334 1-247-903-00 CARBON 1M 5% 1/4W R335 1-247-708-11 CARBON 470 5% 1/4W F R336 1-247-879-11 CARBON 100K 5% 1/4W R337 1-247-855-11 CARBON 10K 5% 1/4W R338 1-247-879-11 CARBON 100K 5% 1/4W R339 1-247-839-11 CARBON 2.2K 5% 1/4W R340 1-247-717-11 CARBON 2.2K 5% 1/4W F R341 1-247-847-11 CARBON 4.7K 5% 1/4W R342 1-247-847-11 CARBON 4.7K 5% 1/4W R343 1-247-903-00 CARBON 1M 5% 1/4W R344 1-247-903-00 CARBON 1M 5% 1/4W R347 1-247-855-11 CARBON 10K 5% 1/4W R348 1-247-847-11 CARBON 4.7K 5% 1/4W R350 1-247-839-11 CARBON 2.2K 5% 1/4W R351 1-247-839-11 CARBON 2.2K 5% 1/4W R352 1-247-839-11 CARBON 2.2K 5% 1/4W R353 1-247-704-11 CARBON 220 5% 1/4W F R355 1-247-708-11 CARBON 470 5% 1/4W F R356 1-247-867-11 CARBON 33K 5% 1/4W R357 1-247-867-11 CARBON 33K 5% 1/4W R358 1-247-879-11 CARBON 100K 5% 1/4W R359 1-247-879-11 CARBON 100K 5% 1/4W R360 1-249-440-11 CARBON 82K 5% 1/4W R361 1-249-440-11 CARBON 82K 5% 1/4W R362 1-247-847-11 CARBON 4.7K 5% 1/4W R363 1-247-847-11 CARBON 4.7K 5% 1/4W The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number speci- fied. MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 107 — Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R364 1-247-883-00 CARBON 150K 5% 1/4W R365 1-247-883-00 CARBON 150K 5% 1/4W R366 1-247-863-11 CARBON 22K 5% 1/4W R367 1-247-863-11 CARBON 22K 5% 1/4W R368 1-247-871-11 CARBON 47K 5% 1/4W R369 1-247-871-11 CARBON 47K 5% 1/4W R370 1-247-887-00 CARBON 220K 5% 1/4W R371 1-247-887-00 CARBON 220K 5% 1/4W R372 1-249-417-11 CARBON 1K 5% 1/4W F R373 1-247-843-11 CARBON 3.3K 5% 1/4W R374 1-247-721-11 CARBON 4.7K 5% 1/4W F R375 1-247-855-11 CARBON 10K 5% 1/4W R376 1-249-430-11 CARBON 12K 5% 1/4W R377 1-247-855-11 CARBON 10K 5% 1/4W R378 1-247-855-11 CARBON 10K 5% 1/4W R379 1-247-855-11 CARBON 10K 5% 1/4W R380 1-247-855-11 CARBON 10K 5% 1/4W !R381 1-208-601-11 WIREWOUND 0.1 10% 2W F R382 1-246-461-15 CARBON 330 5% 1/4W R383 1-247-708-11 CARBON 470 5% 1/4W F R384 1-247-711-11 CARBON 680 5% 1/4W F R385 1-249-417-11 CARBON 1K 5% 1/4W F R386 1-260-094-11 CARBON 390 5% 1/2W R387 1-260-094-11 CARBON 390 5% 1/2W R388 1-249-431-11 CARBON 15K 5% 1/4W !R389 1-208-601-11 WIREWOUND 0.1 10% 2W F R390 1-247-708-11 CARBON 470 5% 1/4W F R391 1-249-434-11 CARBON 27K 5% 1/4W R392 1-249-434-11 CARBON 27K 5% 1/4W R393 1-249-430-11 CARBON 12K 5% 1/4W R394 1-249-430-11 CARBON 12K 5% 1/4W R395 1-247-843-11 CARBON 3.3K 5% 1/4W R396 1-247-719-11 CARBON 3.3K 5% 1/4W F R397 1-249-434-11 CARBON 27K 5% 1/4W R398 1-249-434-11 CARBON 27K 5% 1/4W R399 1-247-867-11 CARBON 33K 5% 1/4W R400 1-247-867-11 CARBON 33K 5% 1/4W R401 1-249-427-11 CARBON 6.8K 5% 1/4W F R402 1-249-427-11 CARBON 6.8K 5% 1/4W F R403 1-249-430-11 CARBON 12K 5% 1/4W R404 1-249-430-11 CARBON 12K 5% 1/4W R405 1-249-417-11 CARBON 1K 5% 1/4W F R406 1-249-417-11 CARBON 1K 5% 1/4W F R407 1-247-843-11 CARBON 3.3K 5% 1/4W R408 1-247-843-11 CARBON 3.3K 5% 1/4W R409 1-247-879-11 CARBON 100K 5% 1/4W R410 1-247-879-11 CARBON 100K 5% 1/4W R412 1-247-855-11 CARBON 10K 5% 1/4W R413 1-247-855-11 CARBON 10K 5% 1/4W R414 1-247-893-11 CARBON 390K 5% 1/4W R415 1-247-893-11 CARBON 390K 5% 1/4W R416 1-247-867-11 CARBON 33K 5% 1/4W R417 1-247-867-11 CARBON 33K 5% 1/4W R418 1-249-418-11 CARBON 1.2K 5% 1/4W F R419 1-249-418-11 CARBON 1.2K 5% 1/4W F R420 1-247-879-11 CARBON 100K 5% 1/4W R421 1-247-879-11 CARBON 100K 5% 1/4W R422 1-247-855-11 CARBON 10K 5% 1/4W R423 1-247-855-11 CARBON 10K 5% 1/4W R424 1-249-417-11 CARBON 1K 5% 1/4W F R425 1-249-417-11 CARBON 1K 5% 1/4W F R426 1-249-417-11 CARBON 1K 5% 1/4W F R427 1-249-417-11 CARBON 1K 5% 1/4W F R430 1-247-867-11 CARBON 33K 5% 1/4W R432 1-247-855-11 CARBON 10K 5% 1/4W R433 1-247-871-11 CARBON 47K 5% 1/4W R434 1-247-855-11 CARBON 10K 5% 1/4W R435 1-246-461-15 CARBON 330 5% 1/4W R436 1-247-871-11 CARBON 47K 5% 1/4W R437 1-247-871-11 CARBON 47K 5% 1/4W R438 1-247-871-11 CARBON 47K 5% 1/4W R439 1-247-871-11 CARBON 47K 5% 1/4W R440 1-247-871-11 CARBON 47K 5% 1/4W R441 1-247-871-11 CARBON 47K 5% 1/4W R442 1-247-871-11 CARBON 47K 5% 1/4W R443 1-247-871-11 CARBON 47K 5% 1/4W R450 1-247-871-11 CARBON 47K 5% 1/4W R451 1-247-871-11 CARBON 47K 5% 1/4W R452 1-249-417-11 CARBON 1K 5% 1/4W F < RELAY > RY301 1-515-921-11 RELAY (12V) < VARIABLE RESISTOR > SFR201 1-228-994-00 RES, ADJ, METAL 10K ************************************************************** * 1-666-451-11 MOTOR BOARD ************ < CAPACITOR > C01 1-126-963-11 ELECT 4.7uF 20% 50V < CONNECTOR > * CN06 1-568-824-11 SOCKET, CONNECTOR 5P < MOTOR > M103 X-4948-765-1 MOTOR ASSY (TURN TABLE) ************************************************************** * 1-639-678-12 MOTOR (6P) (S) BOARD ******************** < CONNECTOR > CN1 1-564-722-11 PIN, CONNECTOR (SMALL TYPE) 6P < MOTOR > M101 X-2625-877-1 MOTOR ASSY (SPINDLE) M102 X-2625-769-1 MOTOR ASSY (SLED) The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number speci- fied. MOTOR (6P) (S) MOTOR MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 108 — Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < SWITCH > S1 1-572-085-11 SWITCH, LEAF (LIMIT) ************************************************************** * 1-666-439-11 O/C BOARD ********* < SWITCH > S623 1-572-481-11 SWITCH, KEY BOARD (1 KEY)(6 OPEN/CLOSE) S627 1-572-481-11 SWITCH, KEY BOARD (1 KEY)(DISC SKIP) ************************************************************** * A-4398-918-A PANEL BOARD, COMPLETE (MX) ********************* * A-4403-221-A PANEL BOARD, COMPLETE (E,AR) ********************* * A-4403-354-A PANEL BOARD, COMPLETE (AEP,UK) ********************* 4-992-826-01 PLATE, DISPLAY 4-992-827-01 HOLDER, DISPLAY 4-993-057-01 HOLDER, LED < CAPACITOR > C601 1-164-159-11 CERAMIC 0.1uF 50V C603 1-124-471-00 ELECT 1000uF 20% 6.3V C604 1-161-494-00 CERAMIC 0.022uF 25V C607 1-126-022-11 ELECT 47uF 20% 16V C608 1-164-159-11 CERAMIC 0.1uF 50V C609 1-126-045-11 ELECT 2.2uF 20% 50V C610 1-126-044-11 ELECT 1uF 20% 50V C611 1-164-159-11 CERAMIC 0.1uF 50V C612 1-126-964-11 ELECT 10uF 20% 50V C613 1-161-494-00 CERAMIC 0.022uF 25V C614 1-126-044-11 ELECT 1uF 20% 50V C615 1-162-282-31 CERAMIC 100PF 10% 50V C616 1-161-494-00 CERAMIC 0.022uF 25V C617 1-162-202-31 CERAMIC 13PF 5% 50V C618 1-162-202-31 CERAMIC 13PF 5% 50V C619 1-161-494-00 CERAMIC 0.022uF 25V C620 1-164-159-11 CERAMIC 0.1uF 50V C621 1-104-665-11 ELECT 100uF 20% 16V C622 1-104-665-11 ELECT 100uF 20% 16V C623 1-104-665-11 ELECT 100uF 20% 16V C624 1-162-306-11 CERAMIC 0.01uF 20% 16V C628 1-162-286-31 CERAMIC 220PF 10% 50V < CONNECTOR > * CN301 1-770-332-11 HOUSING, CONNECTOR (PC BOARD) 17P CN601 1-568-838-11 SOCKET, CONNECTOR 21P < DIODE > D601 8-719-987-63 DIODE 1N4148M D602 8-719-987-63 DIODE 1N4148M D603 8-719-987-63 DIODE 1N4148M D604 8-719-987-63 DIODE 1N4148M D608 8-719-911-19 DIODE 1SS119 (MX) D609 8-719-987-63 DIODE 1N4148M (EXCEPT MX) D610 8-719-987-63 DIODE 1N4148M D611 8-719-987-63 DIODE 1N4148M D612 8-719-987-63 DIODE 1N4148M D613 8-719-987-63 DIODE 1N4148M D614 8-719-987-63 DIODE 1N4148M D615 8-719-987-63 DIODE 1N4148M D616 8-719-987-63 DIODE 1N4148M D617 8-719-987-63 DIODE 1N4148M D619 8-719-987-63 DIODE 1N4148M D620 8-719-987-63 DIODE 1N4148M (MX) D622 8-719-987-63 DIODE 1N4148M < IC > IC601 8-759-473-58 IC uPD753017AGC-E02-3B9 IC602 8-759-241-12 IC TC74HC237AP IC603 8-759-473-61 IC BU2114 < COIL > L601 1-408-096-00 INDUCTOR 470uH L602 1-412-507-11 INDUCTOR 47uH L603 1-412-507-11 INDUCTOR 47uH < LIQUID CRYSTAL DISPLAY > LCD601 1-801-841-11 DISPLAY PANEL, LIQUID CRYSTAL < DIODE > LED601 8-719-300-79 DIODE SEL1213C (DBFB) < LAMP > LP601 1-518-527-51 LAMP, PILOT LP602 1-518-527-51 LAMP, PILOT LP603 1-518-527-51 LAMP, PILOT < TRANSISTOR > Q601 8-729-194-57 TRANSISTOR 2SC945-P Q602 8-729-194-57 TRANSISTOR 2SC945-P Q603 8-729-194-57 TRANSISTOR 2SC945-P Q604 8-729-119-76 TRANSISTOR 2SA1175-HFE Q605 8-729-194-57 TRANSISTOR 2SC945-P Q606 8-729-194-57 TRANSISTOR 2SC945-P (E,AR) < RESISTOR > R601 1-247-871-11 CARBON 47K 5% 1/4W R602 1-249-417-11 CARBON 1K 5% 1/4W F R603 1-249-417-11 CARBON 1K 5% 1/4W F R604 1-247-871-11 CARBON 47K 5% 1/4W R605 1-247-871-11 CARBON 47K 5% 1/4W R606 1-249-417-11 CARBON 1K 5% 1/4W F R607 1-249-431-11 CARBON 15K 5% 1/4W R608 1-247-871-11 CARBON 47K 5% 1/4W R610 1-247-855-11 CARBON 10K 5% 1/4W R611 1-247-879-11 CARBON 100K 5% 1/4W R612 1-247-879-11 CARBON 100K 5% 1/4W R613 1-247-879-11 CARBON 100K 5% 1/4W MOTOR (6P) (S) O/C PANEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 109 — Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R614 1-247-871-11 CARBON 47K 5% 1/4W R615 1-247-871-11 CARBON 47K 5% 1/4W R616 1-247-871-11 CARBON 47K 5% 1/4W R617 1-247-871-11 CARBON 47K 5% 1/4W R618 1-247-871-11 CARBON 47K 5% 1/4W R619 1-247-871-11 CARBON 47K 5% 1/4W R621 1-249-381-11 CARBON 1 5% 1/4W F R622 1-249-381-11 CARBON 1 5% 1/4W F R623 1-249-381-11 CARBON 1 5% 1/4W F R624 1-247-855-11 CARBON 10K 5% 1/4W R625 1-247-807-11 CARBON 100 5% 1/4W R626 1-247-807-11 CARBON 100 5% 1/4W R627 1-247-807-11 CARBON 100 5% 1/4W R628 1-247-871-11 CARBON 47K 5% 1/4W R629 1-249-409-11 CARBON 220 5% 1/4W R633 1-249-408-11 CARBON 180 5% 1/4W F R634 1-249-408-11 CARBON 180 5% 1/4W F R635 1-249-408-11 CARBON 180 5% 1/4W F R636 1-247-871-11 CARBON 47K 5% 1/4W R637 1-247-847-11 CARBON 4.7K 5% 1/4W (E,AR) R638 1-247-847-11 CARBON 4.7K 5% 1/4W R641 1-247-871-11 CARBON 47K 5% 1/4W R642 1-247-847-11 CARBON 4.7K 5% 1/4W R643 1-247-847-11 CARBON 4.7K 5% 1/4W R644 1-247-847-11 CARBON 4.7K 5% 1/4W R645 1-247-847-11 CARBON 4.7K 5% 1/4W R646 1-247-721-11 CARBON 4.7K 5% 1/4W F < SWITCH > S601 1-572-481-11 SWITCH, KEY BOARD (1 KEY)(POWER) S602 1-572-481-11 SWITCH, KEY BOARD (1 KEY)(TUNER/BAND) S603 1-572-481-11 SWITCH, KEY BOARD (1 KEY)(CD) S604 1-572-481-11 SWITCH, KEY BOARD (1 KEY)(TAPE) S605 1-572-481-11 SWITCH, KEY BOARD (1 KEY)(PHONO) S606 1-572-481-11 SWITCH, KEY BOARD (1 KEY)(DBFB) S607 1-571-914-21 SWITCH, KEY BOARD (VOLUME +) S608 1-571-914-21 SWITCH, KEY BOARD (VOLUME –) S609 1-572-481-11 SWITCH, KEY BOARD (1 KEY) (TUNING +, ) ±) S610 1-572-481-11 SWITCH, KEY BOARD (1 KEY) (TUNING –, ≠ 0) S611 1-572-481-11 SWITCH, KEY BOARD (1 KEY)(PRESET +) S612 1-572-481-11 SWITCH, KEY BOARD (1 KEY)(PRESET –) S613 1-572-481-11 SWITCH, KEY BOARD (1 KEY)(MEMORY) S614 1-572-481-11 SWITCH, KEY BOARD (1 KEY)(p) S615 1-572-481-11 SWITCH, KEY BOARD (1 KEY)(·P) S616 1-572-481-11 SWITCH, KEY BOARD (1 KEY)(SHUFFLE) S617 1-572-481-11 SWITCH, KEY BOARD (1 KEY)(REPEAT) S618 1-572-481-11 SWITCH, KEY BOARD (1 KEY)(PROGRAM) S619 1-572-481-11 SWITCH, KEY BOARD (1 KEY)(CLOCK SET) S620 1-572-481-11 SWITCH, KEY BOARD (1 KEY) (TIMER SET, CLOCK LIGHT) S621 1-572-481-11 SWITCH, KEY BOARD (1 KEY)(TIMER MODE) S622 1-572-481-11 SWITCH, KEY BOARD (1 KEY)(PRESET EQ) < VIBRATOR > X601 1-760-096-11 VIBRATOR, CRYSTAL (4.19MHz) ************************************************************** * 1-666-444-11 R/P SWITCH BOARD **************** < CAPACITOR > C236 1-126-024-11 ELECT 220uF 20% 16V C244 1-161-494-00 CERAMIC 0.022uF 25V < COIL > L202 1-411-822-11 COIL, CHOKE 470uH < DIODE > D206 8-719-904-02 DIODE 1N4002T D207 8-719-904-02 DIODE 1N4002T < SWITCH > SW201 1-571-135-11 SWITCH, PUSH (1KEY)(REC/PB) ************************************************************** * 1-666-440-11 SENSOR BOARD ************* < IC > RM601 8-749-013-84 IC SPS-447-1 ************************************************************** * 1-666-447-11 SW (A) BOARD ************ < SWITCH > S04 1-771-169-11 SWITCH, PUSH (TURN TABLE OPERATION DET) ************************************************************** * 1-666-448-11 SW (B) BOARD ************ < SWITCH > S03 1-771-169-11 SWITCH, PUSH (TURN TABLE POSITION DET) ************************************************************** * 1-666-449-11 SW (C) BOARD ************ < SWITCH > S02 1-571-300-31 SWITCH, ROTARY (OPEN/CLOSE DET) ************************************************************** * 1-666-450-11 SW (D) BOARD ************ < SWITCH > S01 1-571-300-31 SWITCH, ROTARY (OPTICAL PICK-UP UP/DOWN DET) ************************************************************** SW (D) SW (C) SW (B) SW (A) SENSOR R/P SWITCH PANEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 110 — Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * A-4403-154-A TUNER BOARD, COMPLETE (AEP,UK) ********************* < CAPACITOR > C102 1-162-294-11 CERAMIC 0.001uF 10% 50V C106 1-161-494-00 CERAMIC 0.022uF 25V C106A 1-162-207-11 CERAMIC 22PF 5% 50V C107 1-161-494-00 CERAMIC 0.022uF 25V C108 1-161-494-00 CERAMIC 0.022uF 25V C111 1-162-301-11 CERAMIC 0.0015uF 30% 16V C112 1-162-301-11 CERAMIC 0.0015uF 30% 16V C114 1-164-159-11 CERAMIC 0.1uF 50V C116 1-130-014-00 FILM 470PF 5% 50V C117 1-162-205-31 CERAMIC 18PF 5% 50V C118 1-104-665-11 ELECT 100uF 20% 16V C121 1-162-203-31 CERAMIC 15PF 5% 50V C122 1-126-961-11 ELECT 2.2uF 20% 50V C123 1-124-903-11 ELECT 1uF 20% 50V C124 1-162-206-31 CERAMIC 20PF 5% 50V C125 1-124-903-11 ELECT 1uF 20% 50V C126 1-110-671-31 CERAMIC 47000PF 50V C127 1-124-907-11 ELECT 10uF 20% 50V C128 1-161-494-00 CERAMIC 0.022uF 25V C129 1-124-903-11 ELECT 1uF 20% 50V C130 1-136-156-00 FILM 0.018uF 5% 50V C131 1-136-156-00 FILM 0.018uF 5% 50V C132 1-130-471-00 MYLAR 0.001uF 5% 50V C133 1-130-471-00 MYLAR 0.001uF 5% 50V C135 1-126-962-11 ELECT 3.3uF 20% 50V C137 1-126-959-11 ELECT 0.47uF 20% 50V C138 1-162-306-11 CERAMIC 0.01uF 20% 16V C139 1-161-494-00 CERAMIC 0.022uF 25V C140 1-104-665-11 ELECT 100uF 20% 16V C141 1-161-494-00 CERAMIC 0.022uF 25V C142 1-104-665-11 ELECT 100uF 20% 16V C143 1-126-959-11 ELECT 0.47uF 20% 50V C144 1-161-494-00 CERAMIC 0.022uF 25V C145 1-162-217-31 CERAMIC 56PF 5% 50V C146 1-104-665-11 ELECT 100uF 20% 16V C147 1-161-494-00 CERAMIC 0.022uF 25V C148 1-164-159-11 CERAMIC 0.1uF 50V C149 1-161-494-00 CERAMIC 0.022uF 25V C150 1-164-159-11 CERAMIC 0.1uF 50V C151 1-162-285-31 CERAMIC 180PF 10% 50V C152 1-164-736-31 CERAMIC 0.0012uF 10% 50V C153 1-161-494-00 CERAMIC 0.022uF 25V C154 1-162-306-11 CERAMIC 0.01uF 20% 16V C157 1-162-294-11 CERAMIC 0.001uF 10% 50V C160 1-161-494-00 CERAMIC 0.022uF 25V C161 1-124-903-11 ELECT 1uF 20% 50V C162 1-124-903-11 ELECT 1uF 20% 50V C163 1-162-306-11 CERAMIC 0.01uF 20% 16V C164 1-162-290-11 CERAMIC 470PF 10% 50V C166 1-162-199-31 CERAMIC 10PF 5% 50V C207 1-104-664-11 ELECT 47uF 20% 16V C208 1-162-306-11 CERAMIC 0.01uF 20% 16V C209 1-162-282-31 CERAMIC 100PF 10% 50V C210 1-162-282-31 CERAMIC 100PF 10% 50V C211 1-162-282-31 CERAMIC 100PF 10% 50V C212 1-162-282-31 CERAMIC 100PF 10% 50V C213 1-162-210-31 CERAMIC 30PF 5% 50V C214 1-162-210-31 CERAMIC 30PF 5% 50V C215 1-126-233-11 ELECT 22uF 20% 50V < FILTER > CF101 1-567-107-00 FILTER, CERAMIC CF102 1-567-107-00 FILTER, CERAMIC CF103 1-527-996-11 FILTER, CERAMIC CF104 1-579-856-31 DISCRIMINATOR, CERAMIC CF105 1-577-075-11 OSCILLATOR, CERAMIC < CONNECTOR > CN101 1-779-766-11 CONNECTOR < DIODE > D101 8-719-987-63 DIODE 1N4148M D102 8-719-987-63 DIODE 1N4148M D108 8-719-800-72 DIODE 1SV149-B D109 8-719-800-72 DIODE 1SV149-B D110 8-719-109-89 DIODE RD5.6ESB2 D111 8-719-987-63 DIODE 1N4148M D112 8-719-987-63 DIODE 1N4148M D202 8-719-987-63 DIODE 1N4148M < IC > IC102 8-759-090-40 IC LA1831 IC201 8-759-175-87 IC LC7218-ST < JACK > JK101 1-694-126-11 TERMINAL BOARD (ANTENNA) < COIL > L101 1-429-550-11 TRANSFORMER, FM ANT L102 1-412-503-11 INDUCTOR 22uH L103 1-412-503-11 INDUCTOR 22uH L104 1-411-901-11 COIL, ANTENNA L105 1-429-555-11 TRANSFORMER, MW OSC L106 1-412-503-11 INDUCTOR 22uH L107 1-408-417-00 INDUCTOR 47uH L108 1-408-417-00 INDUCTOR 47uH L110 1-410-527-11 INDUCTOR 100uH L203 1-412-507-11 INDUCTOR 47uH < TRANSISTOR > Q101 8-729-015-41 TRANSISTOR 2SC1675-T1 Q105 8-729-902-80 TRANSISTOR DTA114YS Q106 8-729-041-83 TRANSISTOR 2SK544E Q107 8-729-194-57 TRANSISTOR 2SC945-P Q108 8-729-194-57 TRANSISTOR 2SC945-P < RESISTOR > R104 1-247-807-11 CARBON 100 5% 1/4W R105 1-249-417-11 CARBON 1K 5% 1/4W F R106 1-247-839-11 CARBON 2.2K 5% 1/4W R107 1-249-427-11 CARBON 6.8K 5% 1/4W F R108 1-249-411-11 CARBON 330 5% 1/4W TUNER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 111 — Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R112 1-247-849-11 CARBON 5.6K 5% 1/4W R113 1-247-879-11 CARBON 100K 5% 1/4W R114 1-247-879-11 CARBON 100K 5% 1/4W R115 1-249-397-11 CARBON 22 5% 1/4W F R118 1-247-807-11 CARBON 100 5% 1/4W R119 1-249-413-11 CARBON 470 5% 1/4W F R120 1-247-843-11 CARBON 3.3K 5% 1/4W R121 1-247-843-11 CARBON 3.3K 5% 1/4W R122 1-247-843-11 CARBON 3.3K 5% 1/4W R123 1-249-428-11 CARBON 8.2K 5% 1/4W F R126 1-249-427-11 CARBON 6.8K 5% 1/4W F R127 1-249-427-11 CARBON 6.8K 5% 1/4W F R128 1-249-427-11 CARBON 6.8K 5% 1/4W F R129 1-249-427-11 CARBON 6.8K 5% 1/4W F !R130 1-212-986-00 FUSIBLE 150 5% 1/2W F R131 1-249-417-11 CARBON 1K 5% 1/4W F R132 1-247-855-11 CARBON 10K 5% 1/4W R133 1-247-843-11 CARBON 3.3K 5% 1/4W R134 1-247-843-11 CARBON 3.3K 5% 1/4W R137 1-247-855-11 CARBON 10K 5% 1/4W R140 1-249-417-11 CARBON 1K 5% 1/4W F R141 1-249-409-11 CARBON 220 5% 1/4W F R145 1-249-417-11 CARBON 1K 5% 1/4W F R146 1-247-807-11 CARBON 100 5% 1/4W R155 1-249-411-11 CARBON 330 5% 1/4W R156 1-247-855-11 CARBON 10K 5% 1/4W R210 1-247-847-11 CARBON 4.7K 5% 1/4W R211 1-249-417-11 CARBON 1K 5% 1/4W F R212 1-247-855-11 CARBON 10K 5% 1/4W R213 1-247-855-11 CARBON 10K 5% 1/4W R214 1-249-427-11 CARBON 6.8K 5% 1/4W F R215A 1-249-417-11 CARBON 1K 5% 1/4W F < VARIABLE RESISTOR > SFR101 1-238-600-11 RES, ADJ, CARBON 10K < TRANSFORMER > T101 1-429-553-11 TRANSFORMER, FM IFT T102 1-429-554-11 TRANSFORMER, AM IFT < TRIMMER > TC102 1-141-304-21 CAP, TRIMMER 10PF < FRONT END > U1 1-473-755-11 BLOCK (FRONT END) < VIBRATOR > X201 1-579-585-11 VIBRATOR, CRYSTAL (7.2MHz) ************************************************************** * A-4398-942-A TUNER BOARD, COMPLETE (E,AR,MX) ********************* < CAPACITOR > C101 1-162-294-31 CERAMIC 0.001uF 10% 50V C102 1-162-294-31 CERAMIC 0.001uF 10% 50V C103 1-162-197-31 CERAMIC 6.8PF 10% 50V C104 1-161-494-00 CERAMIC 0.022uF 25V C105 1-162-206-31 CERAMIC 20PF 5% 50V C106 1-161-494-00 CERAMIC 0.022uF 25V C107 1-161-494-00 CERAMIC 0.022uF 25V C108 1-161-494-00 CERAMIC 0.022uF 25V C110 1-162-191-31 CERAMIC 2.2PF 10% 50V C111 1-162-217-31 CERAMIC 56PF 5% 50V C112 1-162-282-31 CERAMIC 100PF 10% 50V C114 1-164-159-11 CERAMIC 0.1uF 50V C115 1-162-294-31 CERAMIC 0.001uF 10% 50V C116 1-130-014-00 FILM 470PF 5% 50V C117 1-162-208-31 CERAMIC 24PF 5% 50V C118 1-126-933-11 ELECT 100uF 20% 16V C121 1-162-203-31 CERAMIC 15PF 5% 50V C122 1-126-961-11 ELECT 2.2uF 20% 50V C123 1-126-960-11 ELECT 1uF 20% 50V C124 1-162-206-31 CERAMIC 20PF 5% 50V C125 1-126-960-11 ELECT 1uF 20% 50V C126 1-162-600-11 CERAMIC 0.047uF 10% 16V C127 1-126-964-11 ELECT 10uF 20% 50V C128 1-161-494-00 CERAMIC 0.022uF 25V C129 1-126-960-11 ELECT 1uF 20% 50V C130 1-136-155-00 FILM 0.015uF 5% 50V C131 1-136-155-00 FILM 0.015uF 5% 50V C132 1-130-473-00 MYLAR 0.0015uF 5% 50V C133 1-130-473-00 MYLAR 0.0015uF 5% 50V C134 1-162-294-31 CERAMIC 0.001uF 10% 50V C135 1-126-962-11 ELECT 3.3uF 20% 50V C137 1-126-959-11 ELECT 0.47uF 20% 50V C138 1-162-306-11 CERAMIC 0.01uF 20% 16V C139 1-161-494-00 CERAMIC 0.022uF 25V C140 1-126-933-11 ELECT 100uF 20% 16V C141 1-161-494-00 CERAMIC 0.022uF 25V C142 1-126-933-11 ELECT 100uF 20% 16V C143 1-126-962-11 ELECT 3.3uF 20% 50V C144 1-162-306-11 CERAMIC 0.01uF 20% 16V C145 1-162-217-31 CERAMIC 56PF 5% 50V C147 1-161-494-00 CERAMIC 0.022uF 25V C148 1-162-294-31 CERAMIC 0.001uF 10% 50V C149 1-161-494-00 CERAMIC 0.022uF 25V C150 1-164-159-11 CERAMIC 0.1uF 50V C151 1-162-301-11 CERAMIC 0.0015uF 30% 16V C152 1-162-301-11 CERAMIC 0.0015uF 30% 16V C153 1-161-494-00 CERAMIC 0.022uF 25V C155 1-162-282-31 CERAMIC 100PF 10% 50V C157 1-162-294-31 CERAMIC 0.001uF 10% 50V C160 1-161-494-00 CERAMIC 0.022uF 25V C161 1-126-960-11 ELECT 1uF 20% 50V C162 1-126-960-11 ELECT 1uF 20% 50V C207 1-126-967-11 ELECT 47uF 20% 16V C208 1-162-306-11 CERAMIC 0.01uF 20% 16V C209 1-162-282-31 CERAMIC 100PF 10% 50V C210 1-162-282-31 CERAMIC 100PF 10% 50V C211 1-162-282-31 CERAMIC 100PF 10% 50V C212 1-162-282-31 CERAMIC 100PF 10% 50V C213 1-162-209-31 CERAMIC 27PF 5% 50V C214 1-162-209-31 CERAMIC 27PF 5% 50V The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number speci- fied. TUNER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 112 — Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C215 1-128-551-11 ELECT 22uF 20% 25V C218 1-162-294-31 CERAMIC 0.001uF 10% 50V < FILTER > CF101 1-567-390-11 FILTER,CERAMIC CF102 1-567-107-00 FILTER, CERAMIC CF103 1-527-996-11 FILTER, CERAMIC CF104 1-579-856-11 DISCRIMINATOR, CERAMIC CF105 1-577-075-11 OSCILLATOR, CERAMIC < CONNECTOR > CN101 1-779-766-11 CONNECTOR < DIODE > D101 8-719-987-63 DIODE 1N4148M D102 8-719-987-63 DIODE 1N4148M D105 8-719-987-63 DIODE 1N4148M D106 8-719-059-68 DIODE KV1340A-2 D107 8-719-059-68 DIODE KV1340A-2 D108 8-719-800-72 DIODE 1SV149-B D109 8-719-800-72 DIODE 1SV149-B D110 8-719-109-89 DIODE RD5.6ESB2 D111 8-719-987-63 DIODE 1N4148M D112 8-719-987-63 DIODE 1N4148M < IC > IC101 8-759-801-96 IC LA1186 IC102 8-759-090-40 IC LA1831 IC201 8-759-175-87 IC LC7218-ST < JACK > JK101 1-694-092-21 TERMINAL BOARD (SPEAKER)(ANTENNA) < COIL > L101 1-429-550-11 TRANSFORMER, FM ANT L102 1-429-551-11 TRANSFORMER, FM RF L103 1-411-798-11 COIL, FM OSC L104 1-411-901-11 COIL, ANTENNA L105 1-429-555-11 TRANSFORMER, MW OSC L107 1-408-417-00 INDUCTOR 47uH L108 1-408-417-00 INDUCTOR 47uH L203 1-410-517-11 INDUCTOR 47uH < TRANSISTOR > Q101 8-729-015-41 TRANSISTOR 2SC1675-T1 Q102 8-729-015-41 TRANSISTOR 2SC1675-T1 Q105 8-729-902-80 TRANSISTOR DTA114YS Q106 8-729-041-83 TRANSISTOR 2SK544E Q107 8-729-194-57 TRANSISTOR 2SC945-P Q108 8-729-194-57 TRANSISTOR 2SC945-P Q109 8-729-904-36 TRANSISTOR DTC114YS < RESISTOR > R101 1-247-879-11 CARBON 100K 5% 1/4W R102 1-249-417-11 CARBON 1K 5% 1/4W F R103 1-249-393-11 CARBON 10 5% 1/4W F R104 1-247-807-11 CARBON 100 5% 1/4W R105 1-249-417-11 CARBON 1K 5% 1/4W F R106 1-247-843-11 CARBON 3.3K 5% 1/4W R107 1-249-427-11 CARBON 6.8K 5% 1/4W F R108 1-249-411-11 CARBON 330 5% 1/4W R109 1-247-879-11 CARBON 100K 5% 1/4W R110 1-247-867-11 CARBON 33K 5% 1/4W R111 1-249-417-11 CARBON 1K 5% 1/4W F R112 1-247-807-11 CARBON 100 5% 1/4W R113 1-247-879-11 CARBON 100K 5% 1/4W R114 1-247-879-11 CARBON 100K 5% 1/4W R115 1-249-397-11 CARBON 22 5% 1/4W F R118 1-247-807-11 CARBON 100 5% 1/4W R119 1-249-413-11 CARBON 470 5% 1/4W F R120 1-247-843-11 CARBON 3.3K 5% 1/4W R121 1-247-843-11 CARBON 3.3K 5% 1/4W R122 1-247-843-11 CARBON 3.3K 5% 1/4W R123 1-247-724-11 CARBON 8.2K 5% 1/4W F R126 1-249-427-11 CARBON 6.8K 5% 1/4W F R127 1-249-427-11 CARBON 6.8K 5% 1/4W F R128 1-249-427-11 CARBON 6.8K 5% 1/4W F R129 1-249-427-11 CARBON 6.8K 5% 1/4W F R130 1-249-407-11 CARBON 150 5% 1/4W F R131 1-247-713-11 CARBON 1K 5% 1/4W F R132 1-247-855-11 CARBON 10K 5% 1/4W R133 1-247-839-11 CARBON 2.2K 5% 1/4W R134 1-247-843-11 CARBON 3.3K 5% 1/4W R138 1-247-847-11 CARBON 4.7K 5% 1/4W R140 1-247-843-11 CARBON 3.3K 5% 1/4W R145 1-247-839-11 CARBON 2.2K 5% 1/4W R149 1-249-431-11 CARBON 15K 5% 1/4W R155 1-247-725-11 CARBON 10K 5% 1/4W F R210 1-247-847-11 CARBON 4.7K 5% 1/4W R211 1-249-417-11 CARBON 1K 5% 1/4W F R212 1-247-855-11 CARBON 10K 5% 1/4W R213 1-249-417-11 CARBON 1K 5% 1/4W F R214 1-249-427-11 CARBON 6.8K 5% 1/4W F R215A 1-249-417-11 CARBON 1K 5% 1/4W F < VARIABLE RESISTOR > SFR101 1-238-600-11 RES, ADJ, CARBON 10K < TRANSFORMER > T101 1-429-553-11 TRANSFORMER, FM IFT T102 1-429-554-11 TRANSFORMER, AM IFT < TRIMMER > TC101 1-141-232-00 CAP, TRIMMER TC102 1-141-232-00 CAP, TRIMMER < VIBRATOR > X201 1-579-585-11 VIBRATOR, CRYSTAL (7.2MHz) ************************************************************** TUNER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 113 — Ref. No. Part No. Description Remark * 1-666-452-11 VOL SELECT BOARD (E,AR) *********************** < SWITCH > !SW801 1-762-734-11 SWITCH, SLIDE (VOLTAGE SELECTOR) ************************************************************** MISCELLANEOUS ************* !12 1-551-506-99 CORD, POWER (E,AR,MX) !12 1-696-572-21 CORD, POWER (UK) !12 1-765-558-11 CORD, POWER (AEP) * 163 1-759-417-11 DECK, MECHANICAL 251 1-769-856-11 WIRE (FLAT TYPE) (5 CORE) 265 1-773-152-11 WIRE (FLAT TYPE) (21 CORE) !308 8-848-379-31 OPTICAL PICK-UP KSS-213B/S-N HE901 9-980-280-01 E HEAD (ERASE) HP901 9-980-287-01 HEAD (PLAY) HRP901 9-980-279-01 HEAD (REC/PLAY) LCD601 1-801-841-11 DISPLAY PANEL, LIQUID CRYSTAL M101 X-2625-877-1 MOTOR ASSY (SPINDLE) M102 X-2625-769-1 MOTOR ASSY (SLED) M103 X-4948-765-1 MOTOR ASSY (TURN TABLE) M104 X-4948-766-1 MOTOR ASSY (A) (TRAY) M901 9-980-281-01 MOTOR (CAPSTAN/REEL) !PT302 1-431-461-11 TRANSFORMER, POWER (E,AR,MX) !PT302 1-431-462-11 TRANSFORMER, POWER (AEP,UK) SW202 9-980-270-01 LEAF SWITCH (A DECK) SW203 9-980-270-01 LEAF SWITCH (B DECK) SW204 9-980-271-01 LEAF SWITCH (PLAY) ************************************************************** ************** HARDWARE LIST ************** #1 7-685-647-79 SCREW +P 3X10 TYPE2 SLIT #2 7-685-645-79 SCREW +BVTP 3X6 TYPE2 SLIT #3 7-685-158-19 SCREW +P 4X6 TYPE2 SLIT #5 7-685-131-19 SCREW +P 2.6X4 TYPE2 SLIT #6 7-685-139-29 SCREW, TAPPING, (M2.6X20) #7 7-685-134-19 SCREW (+ PTPWH) (2.6X8) #9 7-624-118-01 RING, RETAINING E-2.5 #10 7-685-903-21 SCREW +PTPWH 3X8 (TYPE2) #11 7-685-106-19 SCREW +P 2X10 TYPE2 SLIT #12 7-621-255-15 SCREW +P 2X3 #13 7-685-139-19 SCREW +BTP 2.6X16 TYPE2 N-S The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number speci- fied. VOL SELECT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 114 — HCD-G1 9-960-958-11 Sony Corporation Home A&V Products Company 97E0973-1 Printed in Japan © 1997. 5 Published by General Engineering Dept. (Shibaura) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
