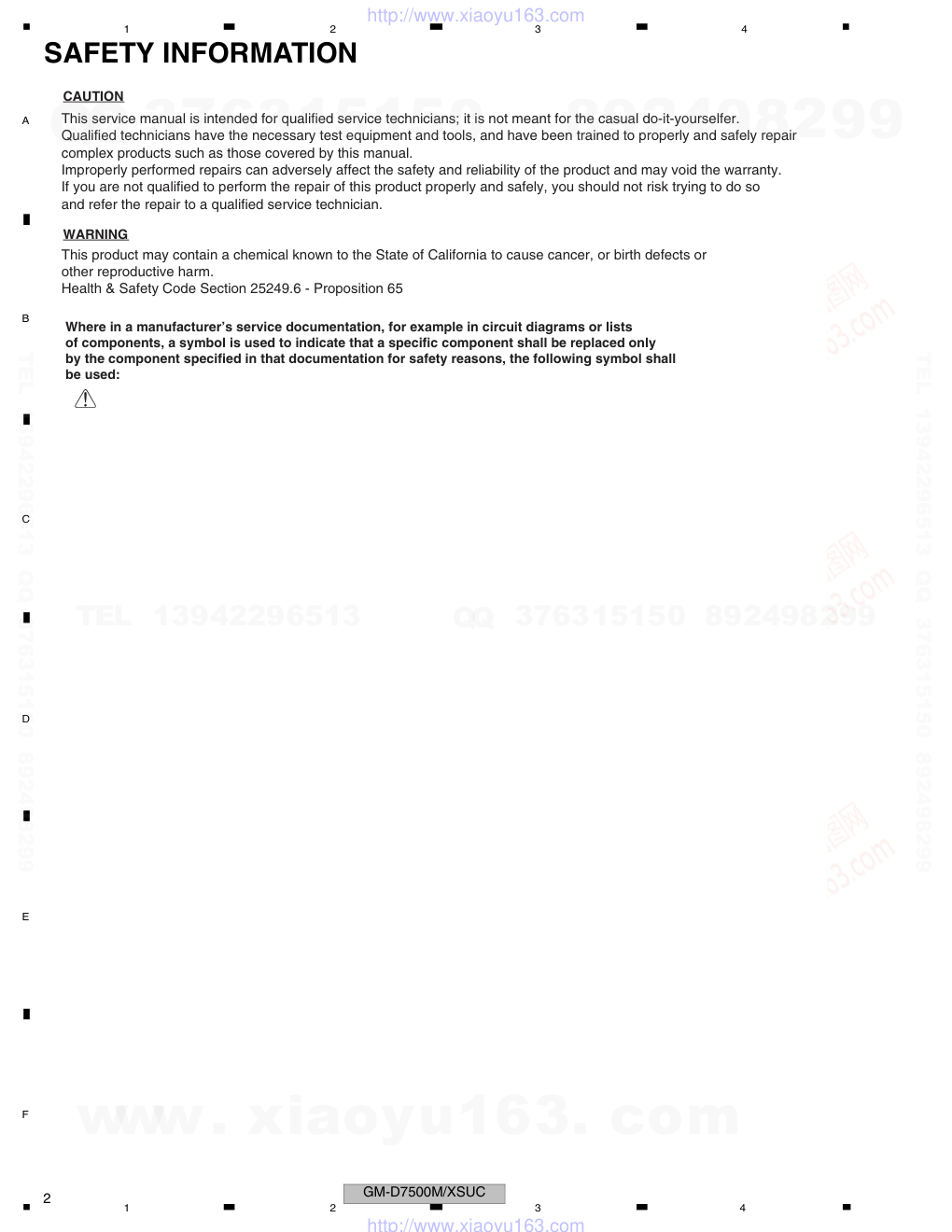

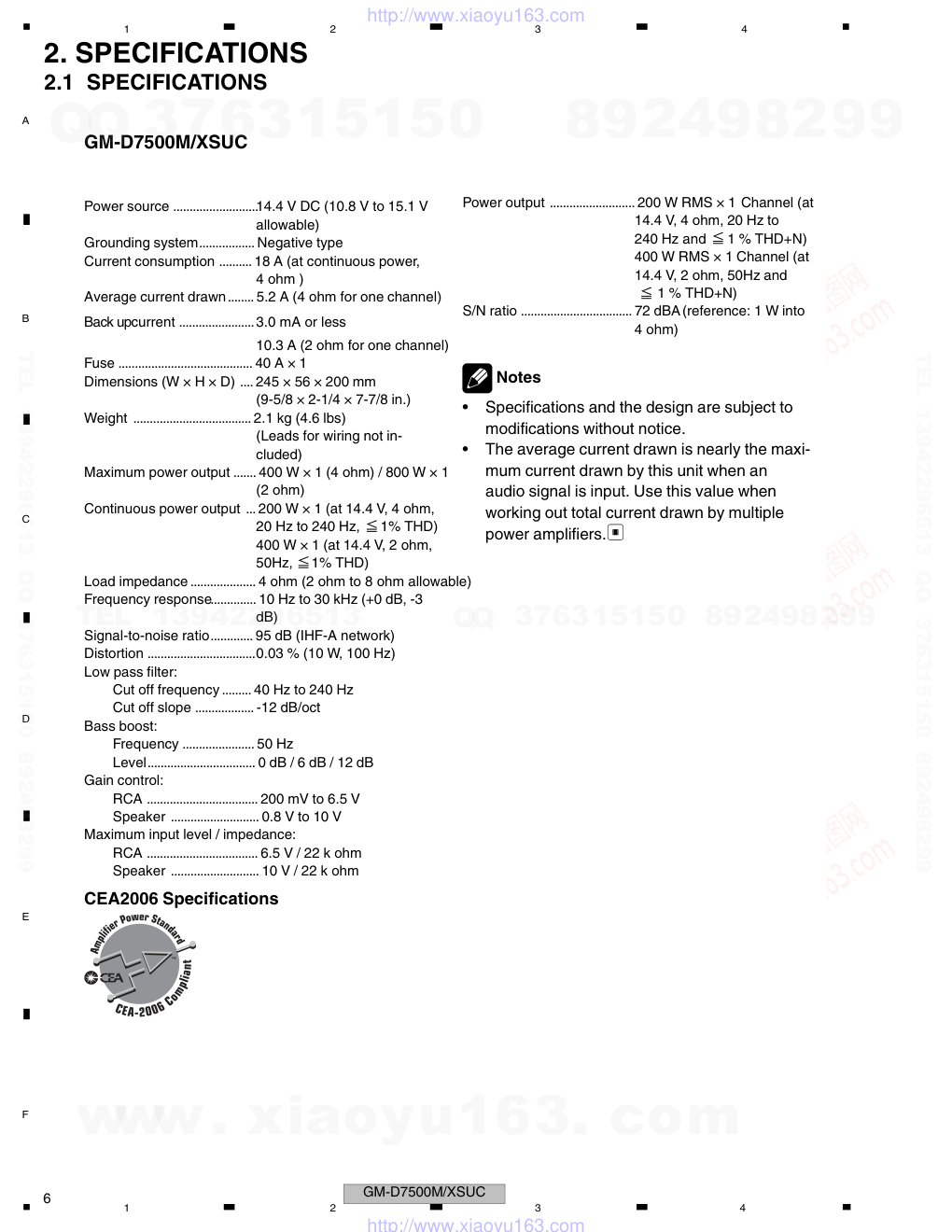

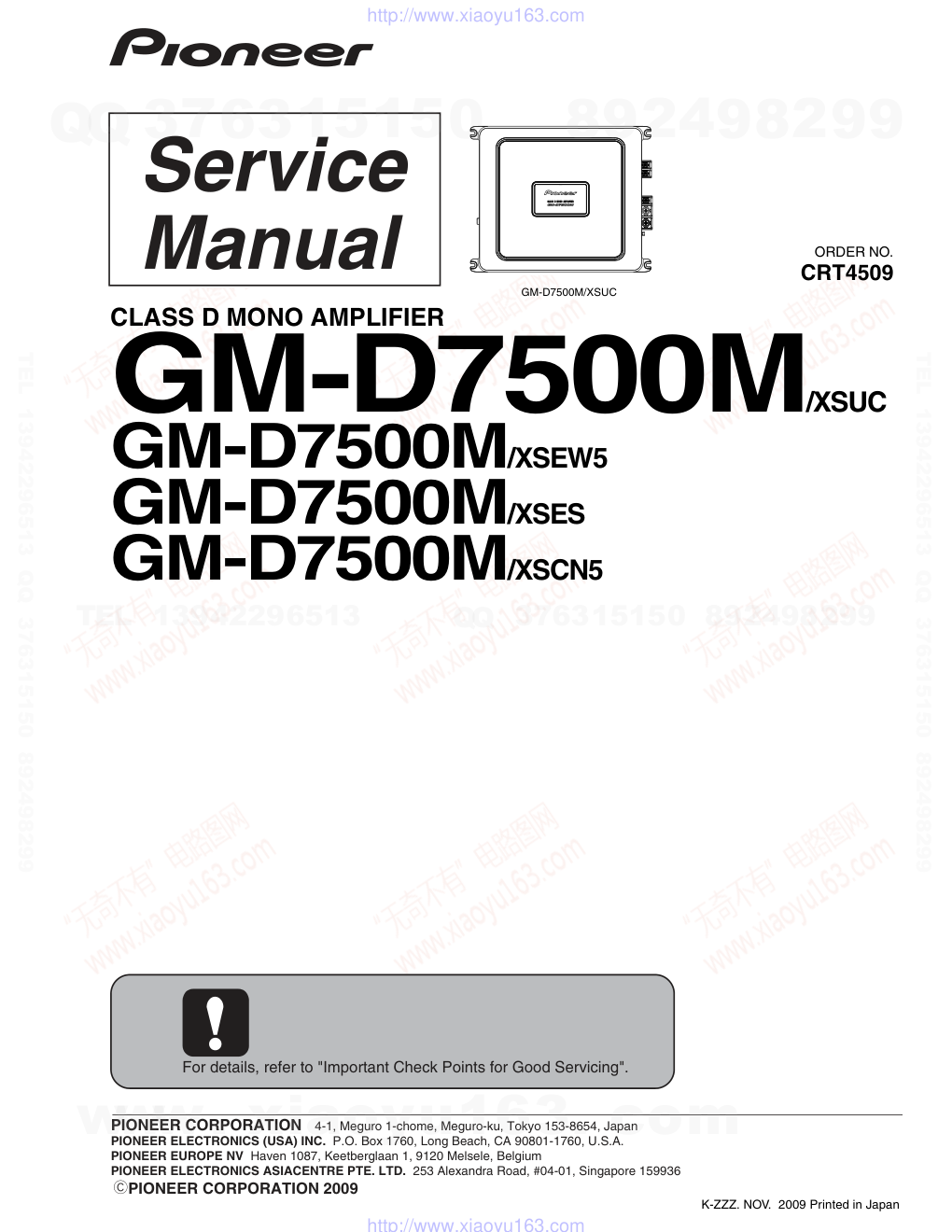

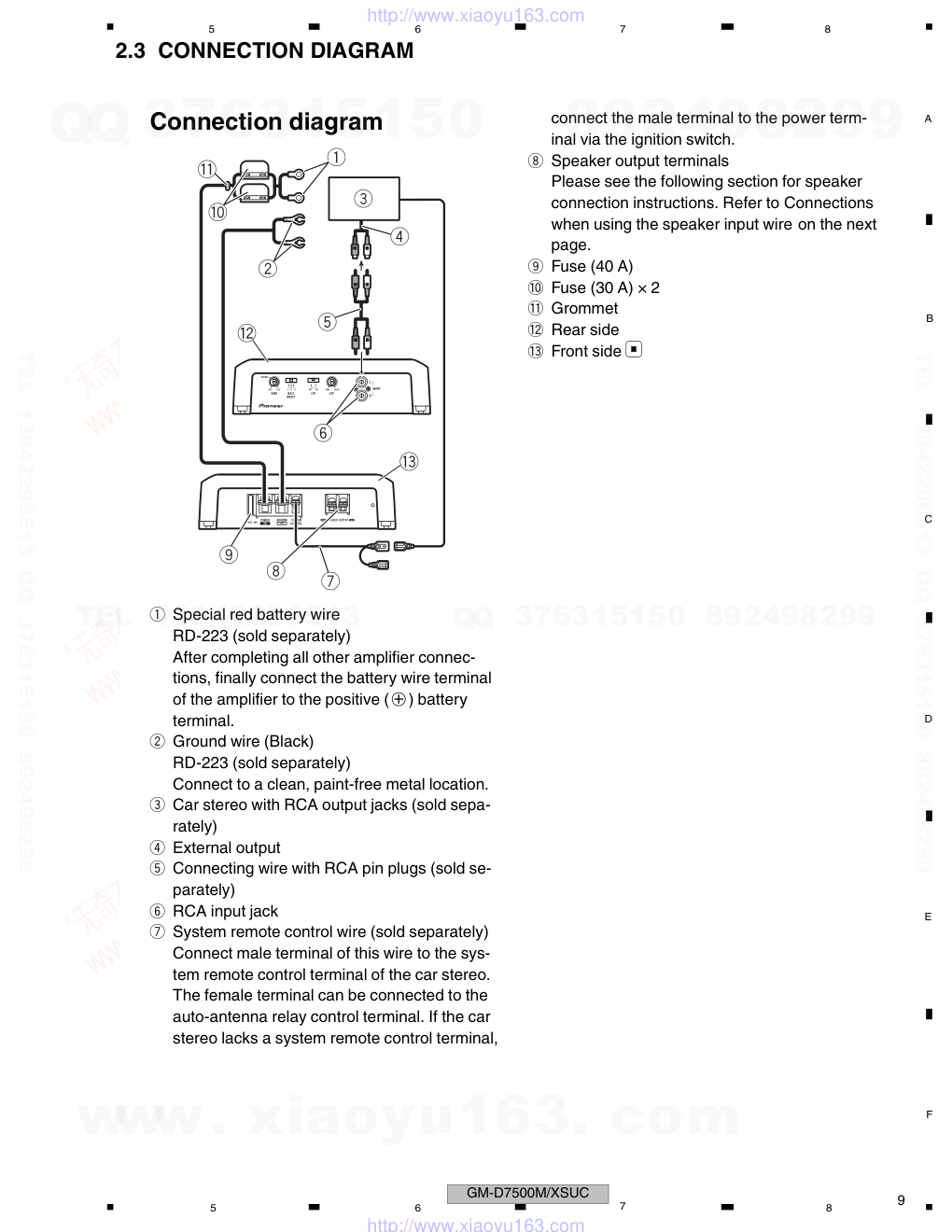

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2009 GM-D7500M/XSUC CRT4509 CLASS D MONO AMPLIFIER GM-D7500M/XSUC GM-D7500M/XSEW5 GM-D7500M/XSES GM-D7500M/XSCN5 For details, refer to "Important Check Points for Good Servicing". K-ZZZ. NOV. 2009 Printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION CAUTION Where in a manufacturer’s service documentation, for example in circuit diagrams or lists of components, a symbol is used to indicate that a specific component shall be replaced only by the component specified in that documentation for safety reasons, the following symbol shall be used: This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product may contain a chemical known to the State of California to cause cancer, or birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 3 5 6 7 8 5 6 7 8 C D F A B E [Important Check Points for Good Servicing] In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. a Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 4 1 2 3 4 1 2 3 4 C D F A B E CONTENTS SAFETY INFORMATION..................................................................................................................................... 2 1. SERVICE PRECAUTIONS ............................................................................................................................... 5 1.1 SERVICE PRECAUTIONS......................................................................................................................... 5 1.2 NOTES ON SOLDERING .......................................................................................................................... 5 2. SPECIFICATIONS ............................................................................................................................................ 6 2.1 SPECIFICATIONS...................................................................................................................................... 6 2.2 PANEL FACILITIES.................................................................................................................................... 8 2.3 CONNECTION DIAGRAM ......................................................................................................................... 9 3. BASIC ITEMS FOR SERVICE........................................................................................................................ 10 3.1 CHECK POINTS AFTER SERVICING..................................................................................................... 10 3.2 JIGS LIST ................................................................................................................................................ 10 4. BLOCK DIAGRAM.......................................................................................................................................... 10 5. DIAGNOSIS.................................................................................................................................................... 11 5.1 CONNECTOR FUNCTION DESCRIPTION............................................................................................. 11 6. SERVICE MODE ............................................................................................................................................ 11 7. DISASSEMBLY............................................................................................................................................... 12 8. EACH SETTING AND ADJUSTMENT ........................................................................................................... 13 9. EXPLODED VIEWS AND PARTS LIST.......................................................................................................... 14 9.1 PACKING ................................................................................................................................................. 14 9.2 EXTERIOR............................................................................................................................................... 16 10. SCHEMATIC DIAGRAM ............................................................................................................................... 18 10.1 AMP UNIT(GUIDE PAGE)...................................................................................................................... 18 11. PCB CONNECTION DIAGRAM ................................................................................................................... 24 11.1 AMP UNIT.............................................................................................................................................. 24 12. ELECTRICAL PARTS LIST .......................................................................................................................... 28 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 5 5 6 7 8 5 6 7 8 C D F A B E 1. SERVICE PRECAUTIONS 1.1 SERVICE PRECAUTIONS 1.2 NOTES ON SOLDERING 1. You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. 2. Be careful in handling ICs. Some ICs such as MOS type are so fragile that they can be damaged by electrostatic induction. For environmental protection, lead-free solder is used on the printed circuit boards mounted in this unit. Be sure to use lead-free solder and a soldering iron that can meet specifications for use with lead-free solders for repairs accompanied by reworking of soldering. Compared with conventional eutectic solders, lead-free solders have higher melting points, by approximately 40 C. Therefore, for lead-free soldering, the tip temperature of a soldering iron must be set to around 373 C in general, although the temperature depends on the heat capacity of the PC board on which reworking is required and the weight of the tip of the soldering iron. Compared with eutectic solders, lead-free solders have higher bond strengths but slower wetting times and higher melting temperatures (hard to melt/easy to harden). The following lead-free solders are available as service parts: Parts numbers of lead-free solder: GYP1006 1.0 in dia. GYP1007 0.6 in dia. GYP1008 0.3 in dia. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 6 1 2 3 4 1 2 3 4 C D F A B E 2. SPECIFICATIONS 2.1 SPECIFICATIONS Power source ..........................14.4 V DC (10.8 V to 15.1 V allowable) Grounding system................. Negative type Current consumption .......... 18 A (at continuous power, 4 ohm ) Average current drawn........ 5.2 A (4 ohm for one channel) 10.3 A (2 ohm for one channel) Fuse ......................................... 40 A × 1 Dimensions (W × H × D) .... 245 × 56 × 200 mm (9-5/8 × 2-1/4 × 7-7/8 in.) Weight .................................... 2.1 kg (4.6 lbs) (Leads for wiring not in- cluded) Maximum power output ....... 400 W × 1 (4 ohm) / 800 W × 1 (2 ohm) Continuous power output ... 200 W × 1 (at 14.4 V, 4 ohm, 20 Hz to 240 Hz, 1% THD) 400 W × 1 (at 14.4 V, 2 ohm, 50Hz, 1% THD) Load impedance.................... 4 ohm (2 ohm to 8 ohm allowable) Frequency response.............. 10 Hz to 30 kHz (+0 dB, -3 dB) Signal-to-noise ratio............. 95 dB (IHF-A network) Distortion .................................0.03 % (10 W, 100 Hz) Low pass filter: Cut off frequency......... 40 Hz to 240 Hz Cut off slope .................. -12 dB/oct Bass boost: Frequency ...................... 50 Hz Level................................. 0 dB / 6 dB / 12 dB Gain control: RCA .................................. 200 mV to 6.5 V Speaker ........................... 0.8 V to 10 V Maximum input level / impedance: RCA .................................. 6.5 V / 22 k ohm Speaker ........................... 10 V / 22 k ohm CEA2006 Specifications Power output .......................... 200 W RMS × 1 Channel (at 14.4 V, 4 ohm, 20 Hz to 240 Hz and 1 % THD+N) 400 W RMS × 1 Channel (at 14.4 V, 2 ohm, 50Hz and 1 % THD+N) S/N ratio .................................. 72 dBA(reference: 1 W into 4 ohm) Notes • Specifications and the design are subject to modifications without notice. • The average current drawn is nearly the maxi- mum current drawn by this unit when an audio signal is input. Use this value when working out total current drawn by multiple power amplifiers. Back upcurrent .......................3.0 mA or less GM-D7500M/XSUC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 7 5 6 7 8 5 6 7 8 C D F A B E Power source .........................14.4 V DC (10.8 V to 15.1 V allowable) Grounding system................ Negative type Current consumption .......... 18 A (at continuous power, 4 ohm ) Average current drawn........ 5.2 A (4 ohm for one channel) 10.3 A (2 ohm for one channel) Fuse ......................................... 40 A × 1 Dimensions (W × H × D) .... 245 mm × 56 mm × 200 mm Weight ..................................... 2.1 kg (Leads for wiring not included) Maximum power output ...... 400 W × 1 (4 ohm ) / 800 W × 1 (2 ohm ) Continuous power output ... 200 W × 1 (at 14.4 V, 4 ohm , 20 Hz to 240 Hz, 1% THD) 400 W × 1 (at 14.4 V, 2 ohm , 50 Hz, 1% THD) Load impedance................... 4 ohm (2 ohm to 8 ohm allowable) Frequency response............. 10 Hz to 30 kHz (+0 dB, -3 dB) Signal-to-noise ratio............. 95 dB (IEC-A network) Distortion ................................ 0.03 % (10 W, 100 Hz) Low pass filter: Cut off frequency......... 40 Hz to 240 Hz Cut off slope .................. -12 dB/oct Bass boost: Frequency ...................... 50 Hz Level................................. 0 dB / 6 dB / 12 dB Gain control: RCA ................................. 200 mV to 6.5 V Speaker .......................... 0.8 V to 10 V Maximum input level / impedance: RCA ................................. 6.5 V / 22 k ohm Speaker ......................... 10 V / 22 k ohm Notes • Specifications and the design are subject to modifications without notice. • The average current drawn is nearly the maxi- mum current drawn by this unit when an audio signal is input. Use this value when working out total current drawn by multiple power amplifiers. Back up current ......................3.0 mA or less GM-D7500M/XSEW5, GM-D7500M/XSES, GM-D7500M/XSCN5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 8 1 2 3 4 1 2 3 4 C D F A B E 2.2 PANEL FACILITIES What ’s what Front side Rear side To adjust the switch, use a flathead screwdri- ver if needed. 1 Power indicator The power indicator lights up to indicate power ON. 2 GAIN (gain) control If output remains low, even when the car stereo volume is turned up, turn controls to stereo volume is turned up, turn these con- trols to higher level. • For use with an RCA equipped car stereo (standard output of 500 mV), set to the NORMAL position. For use with an RCA equipped Pioneer car stereo, with max. output of 4 V or more, adjust level to match that of the car stereo output. • If you hear too much noise when using the speaker input terminals, turn the gain control to higher level. 3 BASS BOOST (bass boost level control) switch You can select a bass boost level from 0 dB, 6 dB and 12 dB. 4 LPF (low-pass filter) switch Switch the settings based on the connected speaker. • When the Subwoofer is connected: Select ON. This eliminates high range frequency and outputs low range fre- quency. • When the full range speaker is con- nected: Select OFF. OFF outputs the entire fre- quency range. 5 LPF (low-pass filter) cut off frequency control You can select a cut off frequency from 40 Hz to 240 Hz. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 9 5 6 7 8 5 6 7 8 C D F A B E 2.3 CONNECTION DIAGRAM Connection diagram 1 Special red battery wire RD-223 (sold separately) After completing all other amplifier connec- tions, finally connect the battery wire terminal of the amplifier to the positive ( ) battery terminal. 2 Ground wire (Black) RD-223 (sold separately) Connect to a clean, paint-free metal location. 3 Car stereo with RCA output jacks (sold sepa- rately) 4 External output 5 Connecting wire with RCA pin plugs (sold se- parately) 6 RCA input jack 7 System remote control wire (sold separately) Connect male terminal of this wire to the sys- tem remote control terminal of the car stereo. The female terminal can be connected to the auto-antenna relay control terminal. If the car stereo lacks a system remote control terminal, connect the male terminal to the power term- inal via the ignition switch. 8 Speaker output terminals Please see the following section for speaker connection instructions. Refer to Connections when using the speaker input wire on the next page. 9 Fuse (40 A) a Fuse (30 A) × 2 b Grommet c Rear side d Front side www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 10 1 2 3 4 1 2 3 4 C D F A B E 3. BASIC ITEMS FOR SERVICE 3.1 CHECK POINTS AFTER SERVICING 3.2 JIGS LIST 4. BLOCK DIAGRAM There is not information to be shown in this chapter. To keep the product quality after servicing, please confirm following check points. d e m rif n o c e b o t m e tI s e r u d e c o r P . o N 1 Confirm whether the customer complain has been solved. The customer complain must not be reappeared. Audio and operations must be normal. 2 Check the output sound. Audio and operations must be normal. r e tf a e c n a r a e p p a sti n o trid r o s e h ct a r c s o N k c e h c e c n a r a e p p A 3 receiving it for service. See the table below for the items to be checked regarding audio: Item to be checked regarding audio Distortion Noise Volume too low Volume too high Volume fluctuating Sound interrupted - Lubricants and Glues List Name Grease Bond Bond Grease No. GEM1057 GEM1017 GYL1006 Remarks Applying to Heatsink Applying to capacitors and inductors Applying to thermistor Name Grease No. Remarks * You can use GEM1017 even if the color is different from the original ones. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 11 5 6 7 8 5 6 7 8 C D F A B E 5. DIAGNOSIS 5.1 CONNECTOR FUNCTION DESCRIPTION 6. SERVICE MODE There is not information to be shown in this chapter. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 12 1 2 3 4 1 2 3 4 C D F A B E 7. DISASSEMBLY 1 1 2 - Removing the Case (Fig.1) Remove the four screws and then remove the Case. Fig.1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 Case - Removing the Amp Unit (Fig.2) Remove the nine screws and then remove the Amp Unit. Remove the two screws. Amp Unit Fig.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 13 5 6 7 8 5 6 7 8 C D F A B E 8. EACH SETTING AND ADJUSTMENT There is not information to be shown in this chapter. T601 Press the thermistor against the transformer and apply an adhesive as the end of the thermistor touches the transformer. Adhesive PRESS Bonding Position GYL1006 GEM1017 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 14 1 2 3 4 1 2 3 4 C D F A B E 9. EXPLODED VIEWS AND PARTS LIST 9.1 PACKING NOTES : Parts marked by " * " are generally unavailable because they are not in our Master Spare Parts List. The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screw adjacent to mark on the product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions,apply as you think it appropriate.) " www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 15 5 6 7 8 5 6 7 8 C D F A B E (1) PACKING SECTION PARTS LIST (2) CONTRAST TABLE GM-D7500M/XSUC, GM-D7500M/XSEW5,GM-D7500M/XSES and GM-D7500M/XSCN5 are constructed the same except for the following: Owner's Manual,Installation Manual Mark No. Description Part No. 1 Screw Assy CEA5330 2 Screw BYC40P180FTB * 3 Polyethylene Sheet CNM4338 4 Polyethylene Bag CEG1116 * 5-1 Warranty Card See Contrast table(2) 5-2 Owner's Manual See Contrast table(2) 6 Cord Assy YDE5010 7 Polyethylene Bag See Contrast table(2) 8 Unit Box See Contrast table(2) 9 Contain Box See Contrast table(2) 10 Protector YHP5062 Mark No. Description Part No. Mark No. Description GM-D7500M/XSUC GM-D7500M/XSEW5 GM-D7500M/XSES GM-D7500M/XSCN5 5-1 Warranty Card CRY1276 CRY1279 Not used YRY5002 5-2 Owner's Manual YRD5294 YRD5293 YRD5295 YRB5118 7 Polyethylene Bag YEG5004 YEG5003 YEG5003 YEG5003 8 Unit Box YHG5513 YHG5512 YHG5514 YHG5515 9 Contain Box YHL5513 YHL5512 YHL5568 YHL5515 Part No. Language YRD5293 English, Spanish(Espanol), German, French, Italian, Dutch, Russian YRD5294 English, Spanish(Espanol), French YRD5295 English, Spanish(Espanol), Portuguese(B), Arabic YRB5118 Simplified Chinese www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 16 1 2 3 4 1 2 3 4 C D F A B E 9.2 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 17 5 6 7 8 5 6 7 8 C D F A B E EXTERIOR SECTION PARTS LIST Mark No. Description Part No. 1 Screw BBZ30P100FTB 2 Screw BBZ30P100FTB 3 Screw(M3 x 8) CBA2011 4 Panel YNB5060 5 Panel YNB5061 6 Case YNB5062 7 Rubber Seet YNN5028 8 Heat Sink YNR5132 9 Cover YNR5133 10 Amp Unit YWH5043 11 Screw BBZ30P080FSN 12 Screw(M3 x 8) CBA2011 13 Holder CND2466 14 Screw PPZ30P100FSN 15 Sub Heat Sink YNR5144 16 Badge Unit YXA5694 17 Lighting Conductor Unit YXA5697 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 18 1 2 3 4 1 2 3 4 C D F A B E 10. SCHEMATIC DIAGRAM 10.1 AMP UNIT(GUIDE PAGE) A A-a A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or "ELECTRICAL PARTS LIST". YCH5003-A C625 3900u 16V 10u/100 C648 YCH5003-A C624 3900u 16V 47u/25 C647 10u/50 C637 100u/16 C619 10u/50 C638 47u/25 C639 47u/25 C640 47u/25 C643 4.7u/50 C125 C121 0.15u/50 C127 0.01u/50 C112 47p/50 C124 0.01u/50 C122 0.01u/50 C111 47p/50 C113 47p/50 C129 0.01u/50 C120 0.01u/50 C114 47p/50 C636 0.1u/50 C627 CCG1186-A 1000p 630V C108 0.01u/50 C109 0.01u/50 C105 1000p/50 C106 1000p/50 C621 0.1u/16 C622 4700p/50 C634 0.1u/50 C620 0.022u/50 C633 0.1u/50 C645 0.01u/50 C618 0.022u/50 C104 470p/50 C642 0.01u/50 C635 0.1u/50 C103 470p/50 C628 CCG1186-A 1000p 630V C641 0.01u/50 C646 0.01u/50 C626 CCG1186-A 1000p 630V C126 0.22u/50 C623 4700p/50 D608 FML22R D607 FML22S D611 UDZS13(B) D610 UDZS16(B) D609 UDZS16(B) NJM45 IC1 OUT1 1 IN-1 2 IN+1 3 GND 4 NJM4558MD IC104 OUT1 1 IN-1 2 IN+1 3 GND 4 5 IN+2 6 IN-2 7 OUT2 8 VCC NJM2068MD IC102 OUT1 1 -IN1 2 +IN1 3 V- 4 5 +IN2 6 -IN2 7 OUT2 8 V+ NJM2068MD IC101 OUT1 1 -IN1 2 +IN1 3 V- 4 5 +IN2 6 -IN2 7 OUT2 8 V+ NJM4558MD IC103 OUT1 1 IN-1 2 IN+1 3 GND 4 5 IN+2 6 IN-2 7 OUT2 8 VCC LTC114YUB Q102 LTA124EUB Q101 FKV550N Q616 FKV550N Q615 FKV550N Q614 FKV550N Q613 FKV550N Q611 FKV550N Q612 Q607 2SD1766(QR) Q610 2SD1766(QR) Q619 2SD2395(EF) Q617 2SD2395(EF) 2SB1188(QR) Q608 2SB1188(QR) Q609 R109 10k CCN1152-A-T R111 10k CCN1152-A-T R116 10k CCN1152-A-T R655 22 R653 22 R112 10k CCN1152-A-T R113 10k CCN1152-A-T R115 10k CCN1152-A-T R114 10k CCN1152-A-T R657 22 R656 22 R110 10k CCN1152-A-T R654 22 R119 4.7k R117 100k R641 180k R661 15k 1/4W R135 27k R642 10k R134 330 R130 1.2k R133 1k R128 100 R132 1.8k R R 4 R639 4.7k R640 2.2k R127 47 R126 1.8k R660 15k 1/4W R104 470 R103 470 S102 CSH1029-A 1 2 3 4 5 6 7 8 9 10 47u/25 C649 D101 1SS355 D103 1SS355 D102 1SS355 D104 1SS355 D105 1SS355 D106 1SS355 D108 1SS355 D107 1SS355 Q103 2SC4081(QR) C650 0.047u/50 4.7u/50 C118 R138 22k R101 33k R102 33k C123 4700p/50 47u/25 C644 R137 22k 2SB1566(EF) Q618 S101 CSH1021-A 1 2 3 4 5 6 R122 2.7k R123 2.7k R645 4.7k R646 4.7k CCH1971-A C632 CCH1971-A C630 CCH1971-A C631 CCH1971-A C629 33u/50 C142 CN102 VNF1084-A 1 CN603 VNF1084-A 1 CN604 VNF1084-A 1 R648 120 R652 120 R650 120 R651 120 R649 120 R647 120 C119 0.22u/50 C115 1000p/50 C116 1000p/50 R643 3.3k R644 3.3k CCS1265-B VR102 1 3 2 4 5 6 C110 0.01u/50 C107 0.01u/50 YCS5002-A VR101 1 3 2 4 5 6 R662 1k 1/4W R663 1k 1/4W R136 5.1k R129 120 R131 100k L603 YTH5018-A L602 YTH5018-A C128 100p/50 33u/50 C141 R120 820 R141 4.7k R142 4.7k R124 100k CN101 YKB5015-A 2 1 3 4 DTC643TU Q924 47u/25 C150 R664 470 R665 470 UPC UPC DDC601 DDC602 GND607 VH602 DDC603 REG604 REG601 DDC604 REG605 REG602 DDC605 REG606 REG603 DDC606 VH601 REG607 LPF103 LPF102 LPF104 RCA101 RCA102 RCA103 RCA104 SPI101 SPI102 LPF101 GAIN101 GAIN102 MU901 BBR501 T601 YTT5012 1 2 3 4 5 6 7 8 R659 100 R658 100 R666 22k 1/4W +5V -5V +16V -VH -VH 1/2w L+ L- R+ +VH [BUFFER/ISO] [LPF] [BASS BOOST] [PR -16V -VH+12V [GAIN] ON OFF 4:18 OFF 6dB 12dB max min 40HZ 240HZ R- LPF SW 2w 2w 1/2w 1/2w 0~20k 0~10k 1/2w 1/2w 1/2w 1/2w 1/2w 1/2w 1/2w 1/2w 1/2w 1/2w (-36v) (-48v) (+48v) (-48v) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 19 5 6 7 8 5 6 7 8 C D F A B E A A-b YKE5032-A CN301 1 2 100u/16 C619 10u/50 C901 4.7u/50 10u/50 C930 220u/10 C910 C130 0.01u/50 C127 0.01u/50 C316 0.01u/50 C317 NM C129 0.01u/50 C304 1000p C302 2200p C303 2200p C301 0.01u C315 CCG1248-A 630V 2200p C621 0.1u/16 C603 NM C605 NM C604 0.01u/50 C620 0.022u/50 C602 0.01u/50 C614 0.1u/50 C608 0.01u/50 C618 0.022u/50 C931 1000p/50 C607 NM C617 1u/16 C615 1000p/50 0.22u/50 C606 0.01u/50 D601 RM4Z-LFJ4 D930 1SS355 D922 UDZS9R1(B) D901 UDZS16(B) D932 UDZS24(B) D602 UDZS7R5(B) GND NJM4558MD IC105 OUT1 1 IN-1 2 IN+1 3 GND 4 5 IN+2 6 IN-2 7 OUT2 8 VCC UPC494GS IC602 Non-Inv1 1 Inv1 2 FB 3 DTCONT 4 5 CT 6 RT 7 GND 8 C1 9 E1 10 E2 11 C2 12 VCC 13 OutoutCont 14 RetOut 15 Inv2 16 Non-Inv2 LTC114YUB Q934 DTC114WUA Q933 LTA124EUB Q923 2SB1243(QR) Q606 2SA1576A(QR) Q602 R627 4.7k 1/4W R601 2.2k 1/4W R938 22k R901 4.7k 1/4W R607 470 1/4W R933 2.2k R911 4.7k 1/4W R922 NM R633 330 1/4W R936 4.7k R315 47 R641 180k R902 1k R317 47 R931 1k R940 1k R937 100k R930 1k R326 NM R604 10k R314 NM R311 10k R318 47 R935 1k R313 8.2k R305 8.2k R605 2.2k R632 1.8k 1/4W R642 10k R134 330 R634 1M R638 4.7k R637 4.7k R639 4.7k R640 2.2k R606 4.7k R934 4.7k R910 33k R939 10k R920 4.7k 1/4W R628 22k R635 15k R603 10k R921 2.2k R602 47k CCX1064 TH603 L601 YTH5010-A 100u/25 C920 Q901 2SC4081(QR) Q911 2SC4081(QR) Q910 2SC4081(QR) 2SA1576A(QR) Q921 2SA1576A(QR) Q930 Q931 2SC4081(QR) Q932 2SC4081(QR) 2SA1576A(QR) Q920 CL-197HB1-D(CDE) D606 C305 22u 25V C307 22u 25V 22u/50 C131 R304 330 R312 10 1/2W R310 4.7 1/4W D301 RF081M2S D931 UDZS30(B) D933 UDZS30(B) R621 4.7k CCX1013 TH604 R622 4.7k D605 DAN202U 2SA1576A(QR) Q603 Q601 2SC4081(QR) R616 100k R617 1k R618 100k R610 47k D604 UDZS4R7(B) LTC114EUB Q691 R691 3.9k C331 220p/50 R302 2.2k 22u/50 C308 22u/50 C309 IRS2092 IC301 VAA 1 GND 2 IN- 3 COMP 4 5 CSD 6 VSS 7 VREF 8 OCSET 9 DT 10 COM 11 LO 12 VCC 13 VS 14 HO 15 VB 16 CSH CN602 VNF1084-A 1 CN302 VNF1084-A 1 D603 TDZ8.2 C611 0.01u/50 C691 0.01u/50 3.3k 3.3k R320 1 1/4W R613 10k D615 1SS355 R321 82k 1/4W R306 3.3k R308 4.7k R309 6.8k R331 56k R332 220 R136 5.1k R319 33k R322 10 R324 10 R323 10 R325 10 CN303 VNF1084-A 1 R316 47 R307 33k D302 RF081M2S C128 100p/50 IRF6775 Q303 SOURCE1 1 SOURCE2 2 GATE 3 DRAIN1 4 DRAIN2 5 DRAIN3 6 DRAIN4 7 IRF6775 Q301 SOURCE1 1 SOURCE2 2 GATE 3 DRAIN1 4 DRAIN2 5 DRAIN3 6 DRAIN4 7 IRF6775 Q302 SOURCE1 1 SOURCE2 2 GATE 3 DRAIN1 4 DRAIN2 5 DRAIN3 6 DRAIN4 7 IRF6775 Q304 SOURCE1 1 SOURCE2 2 GATE 3 DRAIN1 4 DRAIN2 5 DRAIN3 6 DRAIN4 7 R670 47k R671 1.8k D934 DAN202U R941 22k D303 UDZS5R1(B) D304 UDZS5R1(B) C318 0.1u/50 C319 0.1u/50 C320 0.1u/50 C321 0.1u/50 220u/16 C651 C932 0.1u/50 C340 ACG1088-A 0.1u 250V C341 ACG1088-A 0.1u 250V C343 0.47u/50 C345 0.47u/50 C344 0.47u/50 C346 0.47u/50 C349 0.33u/50 C347 0.33u/50 C348 0.33u/50 C350 0.33u/50 DTC643TU Q924 YKE5030-B CN601 1 2 3 4 5 C601 NM R161 220 C161 2200p/50 BU603 BU605 BU602 BU604 BU606 BU601 GND604 GND606 GND605 GND601 GND603 GND602 BR001 BR002 BU607 BU608 SPO301 SPO302 SPO303 SPO304 GND304 GND303 GND302 GND301 PRO601 PRO602 PRO903 PRO902 UPC601 UPC602 PRO901 MU901 PRO905 PRO904 R680 2.2k AMP302 AMP301 PRO907 PRO906 LED601 CCX1088-A TH601 L301 YTH5022-A C609 0.1u/50 -VH +16V -5V -5V GND NP +5V -VH +VH +VH OOST] [PRE AMP] INPUT SENSOR 2W GND BackUp Brem F.B. +VH +VH DC OFFSET DETECT OVER/UNDER VOLTAGE DETECT 2W 2W 2W FU601 40A CEK1332 (-48v) (+48v) (-48v) (+48v) (+48v) > A AMP UNIT The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. NM : No Mount www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 20 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-b YKE5032-A CN301 1 2 10u/50 C930 C130 0.01u/50 C316 0.01u/50 C317 NM 0.01u/50 C304 1000p C302 2200p C303 2200p C301 0.01u C315 CCG1248-A 630V 2200p D930 1SS355 D932 UDZS24(B) NJM4558MD IC105 OUT1 1 IN-1 2 IN+1 3 GND 4 5 IN+2 6 IN-2 7 OUT2 8 VCC R938 22k R936 4.7k R315 47 R317 47 R931 1k R937 100k R930 1k R326 NM R314 NM R311 10k R318 47 R935 1k R313 8.2k R305 8.2k 2SA1576A(QR) Q930 Q931 C4081(QR) Q932 SC4081(QR) C305 22u 25V C307 22u 25V 22u/50 C131 R304 330 R312 10 1/2W R310 4.7 1/4W D301 RF081M2S D931 UDZS30(B) D933 UDZS30(B) C331 220p/50 R302 2.2k 22u/50 C308 22u/50 C309 IRS2092 IC301 VAA 1 GND 2 IN- 3 COMP 4 5 CSD 6 VSS 7 VREF 8 OCSET 9 DT 10 COM 11 LO 12 VCC 13 VS 14 HO 15 VB 16 CSH CN302 VNF1084-A 1 R320 1 1/4W R321 82k 1/4W R306 3.3k R308 4.7k R309 6.8k R331 56k R332 220 R319 33k R322 10 R324 10 R323 10 R325 10 CN303 VNF1084-A 1 R316 47 R307 33k D302 RF081M2S IRF6775 Q303 SOURCE1 1 SOURCE2 2 GATE 3 DRAIN1 4 DRAIN2 5 DRAIN3 6 DRAIN4 7 IRF6775 Q301 SOURCE1 1 SOURCE2 2 GATE 3 DRAIN1 4 DRAIN2 5 DRAIN3 6 DRAIN4 7 IRF6775 Q302 SOURCE1 1 SOURCE2 2 GATE 3 DRAIN1 4 DRAIN2 5 DRAIN3 6 DRAIN4 7 IRF6775 Q304 SOURCE1 1 SOURCE2 2 GATE 3 DRAIN1 4 DRAIN2 5 DRAIN3 6 DRAIN4 7 D303 UDZS5R1(B) D304 UDZS5R1(B) C318 0.1u/50 C319 0.1u/50 C320 0.1u/50 C321 0.1u/50 C932 0.1u/50 C340 ACG1088-A 0.1u 250V C341 ACG1088-A 0.1u 250V C343 0.47u/50 C345 0.47u/50 C344 0.47u/50 C346 0.47u/50 C349 0.33u/50 C347 0.33u/50 C348 0.33u/50 C350 0.33u/50 R161 220 C161 2200p/50 SPO301 SPO302 SPO303 SPO304 GND304 GND303 GND302 GND301 PRO905 PRO904 AMP302 AMP301 L301 YTH5022-A -VH +VH [PRE AMP] 2W F.B. +VH OVER/UNDER VOLTAGE DETECT 2W 2W 2W (-48v) (+48v) (+48v) A AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 21 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-b 10u/50 C901 10u/5 C93 220u/10 C910 C603 NM C605 NM C604 0.01u/50 C602 0.01u/50 C614 0.1u/50 C608 0.01u/50 0.022u/50 C931 1000p/50 C607 NM C617 1u/16 C615 1000p/50 C606 0.01u/50 D601 RM4Z-LFJ4 D930 1SS355 D922 UDZS9R1(B) D901 UDZS16(B) D932 UDZS24(B) D602 UDZS7R5(B) GND UPC494GS IC602 Non-Inv1 1 Inv1 2 FB 3 DTCONT 4 5 CT 6 RT 7 GND 8 C1 9 E1 10 E2 11 C2 12 VCC 13 OutoutCont 14 RetOut 15 Inv2 16 Non-Inv2 LTC114YUB Q934 DTC114WUA Q933 LTA124EUB Q923 2SB1243(QR) Q606 2SA1576A(QR) Q602 R627 4.7k 1/4W R601 2.2k 1/4W R901 4.7k 1/4W R607 470 1/4W R933 2.2k R911 4.7k 1/4W R922 NM R633 330 1/4W R936 4.7k R902 1k R940 1k R93 1k R604 10k R605 2.2k R632 1.8k 1/4W R634 1M R638 4.7k R637 4.7k R639 4.7k R606 4.7k R934 4.7k R910 33k R939 10k R920 4.7k 1/4W R628 22k R635 15k R603 10k R921 2.2k R602 47k CCX1064 TH603 L601 YTH5010-A 100u/25 C920 Q901 2SC4081(QR) Q911 2SC4081(QR) Q910 2SC4081(QR) 2SA1576A(QR) Q921 2SA1576A(QR) Q930 Q931 2SC4081(QR) Q932 2SC4081(QR) 2SA1576A(QR) Q920 CL-197HB1-D(CDE) D606 D931 UDZS30(B) D93 UDZS3 R621 4.7k CCX1013 TH604 R622 4.7k D605 DAN202U 2SA1576A(QR) Q603 Q601 2SC4081(QR) R616 100k R617 1k R618 100k R610 47k D604 UDZS4R7(B) LTC114EUB Q691 R691 3.9k CN602 VNF1084-A 1 D603 TDZ8.2 C611 0.01u/50 C691 0.01u/50 R613 10k D615 1SS355 R670 47k R671 1.8k D934 DAN202U R941 22k 220u/16 C651 C93 0.1u/50 YKE5030-B CN601 1 2 3 4 5 C601 NM BU603 BU605 BU602 BU604 BU606 BU601 GND604 GND606 GND605 GND601 GND603 GND602 BR001 BR002 BU607 BU608 PRO601 PRO602 PRO903 PRO902 UPC601 UPC602 PRO901 PRO905 PRO904 R680 2.2k PRO907 PRO906 LED601 CCX1088-A TH601 C609 0.1u/50 -VH +16V -5V -5V GND NP +5V +VH INPUT SENSOR GND BackUp Brem +VH DC OFFSET DETECT FU601 40A CEK1332 (-48v) (+48v) > The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. NM : No Mount www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 22 1 2 3 4 1 2 3 4 C D F A B E A-b A-a A-a A-b C648 47u/25 C647 4.7u/50 C125 C130 0.01u/50 C121 0.15u/50 C127 0.01u/50 C112 47p/50 C124 0.01u/50 C122 0.01u/50 C111 47p/50 C113 47p/50 C129 0.01u/50 C120 0.01u/50 C114 47p/50 C108 0.01u/50 C109 0.01u/50 C105 1000p/50 C106 1000p/50 C104 470p/50 C103 470p/50 C126 0.22u/50 D611 UDZS13(B) NJM4558MD IC105 OUT1 1 IN-1 2 IN+1 3 GND 4 5 IN+2 6 IN-2 7 OUT2 8 VCC NJM4558MD IC104 OUT1 1 IN-1 2 IN+1 3 GND 4 5 IN+2 6 IN-2 7 OUT2 8 VCC NJM2068MD IC102 OUT1 1 -IN1 2 +IN1 3 V- 4 5 +IN2 6 -IN2 7 OUT2 8 V+ NJM2068MD IC101 OUT1 1 -IN1 2 +IN1 3 V- 4 5 +IN2 6 -IN2 7 OUT2 8 V+ NJM4558MD IC103 OUT1 1 IN-1 2 IN+1 3 GND 4 5 IN+2 6 IN-2 7 OUT2 8 VCC LTC114YUB Q102 LTA124EUB Q101 Q619 2SD2395(EF) R109 10k CCN1152-A-T R111 10k CCN1152-A-T R116 10k CCN1152-A-T R112 10k CCN1152-A-T R113 10k CCN1152-A-T R115 10k CCN1152-A-T R114 10k CCN1152-A-T R110 10k CCN1152-A-T R119 4.7k R117 100k R135 27k R134 330 R130 1.2k R133 1k R128 100 R132 1.8k R127 47 R126 1.8k R104 470 R103 470 S102 CSH1029-A 1 2 3 4 5 6 7 8 9 10 47u/25 C649 D101 1SS355 D103 1SS355 D102 1SS355 D104 1SS355 D105 1SS355 D106 1SS355 D108 1SS355 D107 1SS355 Q103 2SC4081(QR) C650 0.047u/50 4.7u/50 C118 R138 22k C131 R101 33k R102 33k C123 4700p/50 R137 22k S101 CSH1021-A 1 2 3 4 5 6 R122 2.7k R123 2.7k 33u/50 C142 CN102 VNF1084-A 1 C119 0.22u/50 C115 1000p/50 C116 1000p/50 CCS1265-B VR102 1 3 2 4 5 6 C110 0.01u/50 C107 0.01u/50 YCS5002-A VR101 1 3 2 4 5 6 R136 5.1k R129 120 R131 100k C128 100p/50 33u/50 C141 R120 820 R141 4.7k R142 4.7k R124 100k CN101 YKB5015-A 2 1 3 4 DTC643TU Q924 47u/25 C150 R664 470 R665 470 REG607 LPF103 LPF102 LPF104 RCA101 RCA102 RCA103 RCA104 SPI101 SPI102 LPF101 GAIN101 GAIN102 MU901 BBR501 R666 22k 1/4W L+ L- R+ [BUFFER/ISO] [LPF] [BASS BOOST] [PRE AMP -16V -VH+12V [GAIN] ON OFF OFF 6dB 12dB max min 40HZ 240HZ R- LPF SW 2w 2w 0~20k 0~10k (-36v) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 23 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-b A-a YCH5003-A C625 3900u 16V 10u/100 C648 YCH5003-A C624 3900u 16V 47u/25 C647 10u/50 C637 100u/16 C619 10u/50 C638 47u/25 C639 47u/25 C640 47u/25 C643 C112 47p/50 C636 0.1u/50 C627 CCG1186-A 1000p 630V C106 1000p/50 C621 0.1u/16 C622 4700p/50 C634 0.1u/50 C620 0.022u/50 C633 0.1u/50 C645 0.01u/50 C618 0.022u/50 C642 0.01u/50 C635 0.1u/50 C628 CCG1186-A 1000p 630V C641 0.01u/50 C646 0.01u/50 C626 CCG1186-A 1000p 630V C623 4700p/50 D608 FML22R D607 FML22S D611 UDZS13(B) D610 UDZS16(B) D609 UDZS16(B) 9 10 11 12 13 O 14 15 16 FKV550N Q616 FKV550N Q615 FKV550N Q614 FKV550N Q613 FKV550N Q611 FKV550N Q612 Q607 2SD1766(QR) Q610 2SD1766(QR) Q617 2SD2395(EF) 2SB1188(QR) Q608 2SB1188(QR) Q609 R655 22 R653 22 R112 10k CCN1152-A-T R657 22 R656 22 R654 22 R641 180k R661 15k 1/4W R642 10k R638 4.7k R637 4.7k R639 4.7k R640 2.2k R660 15k 1/4W 47u/25 C649 C650 0.047u/50 47u/25 C644 2SB1566(EF) Q618 R645 4.7k R646 4.7k CCH1971-A C632 CCH1971-A C630 CCH1971-A C631 CCH1971-A C629 CN603 VNF1084-A 1 CN604 VNF1084-A 1 R648 120 R652 120 R650 120 R651 120 R649 120 R647 120 C116 1000p/50 R643 3.3k R644 3.3k C110 0.01u/50 C107 0.01u/50 R662 1k 1/4W R663 1k 1/4W L603 YTH5018-A L602 YTH5018-A 470 470 UPC601 UPC602 DDC601 DDC602 GND607 VH602 DDC603 REG604 REG601 DDC604 REG605 REG602 DDC605 REG606 REG603 DDC606 VH601 BBR501 T601 YTT5012 1 2 3 4 5 6 7 8 R659 100 R658 100 R666 22k 1/4W -VH +5V +16V -5V -5V +16V -VH -VH 1/2w +5V +VH +VH -16V 4:18 2w 2w 1/2w 1/2w 1/2w 1/2w 1/2w 1/2w 1/2w 1/2w 1/2w 1/2w 1/2w 1/2w (-48v) (+48v) (-48v) (+48v) (-48v) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 24 1 2 3 4 1 2 3 4 C D F A B E 11. PCB CONNECTION DIAGRAM 11.1 AMP UNIT A A AMP UNIT Capacitor Connector P.C.Board Chip Part SIDE B SIDE A NOTE FOR PCB DIAGRAMS 1.The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2.Viewpoint of PCB diagrams 10 20 30 40 50 60 70 80 90 X 170 160 150 140 130 120 110 100 90 80 70 60 50 40 30 20 10 0 Y 1 1 1 1 1 1 1 1 5 1 1 5 E E E R640 R641 R658 C620 R660 R661 R662 R663 R664 C629 R665 R666 C630 C631 C632 C637 C638 C639 C640 C641 C642 C643 C644 C645 C646 C647 C648 C649 C650 D608 D609 D610 D611 R101 R102 R310 R312 R122 R123 R129 R130 R131 C105 C106 C305 C307 C308 C309 C118 C119 C121 VR101 C125 R161 VR102 C131 C141 C142 C150 C161 L602 Q617 L603 Q618 Q619 CN603 CN101 CN102 S101 S102 R659 LPF 6dB-12dB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 25 5 6 7 8 5 6 7 8 C D F A B E A SIDE A 80 90 100 110 120 130 140 150 160 170 180 190 200 210 1 5 1 1 E 1 1 1 1 1 1 1 1 1 1 1 1 1 1 E E E 1 5 10 15 1 5 E E E E E E E E 1 1 1 1 1 E E E E E E E E 1 1 1 1 1 1 R601 R602 R603 R605 R606 R607 R610 R613 R616 R617 R618 R621 R622 R627 R628 Q691 R632 R633 R634 R635 R637 R638 R639 C601 C602 C603 R640 C604 R641 C605 R642 C606 R643 TH603 C607 TH604 R644 C608 R645 C609 R646 R647 C611 R650 C614 R651 C615 R652 R653 C617 R654 C618 R655 C619 R656 R657 C620 C621 C622 C623 C624 C625 C626 C627 C628 C629 C631 R670 R671 R680 C651 R691 L301 D601 D602 D603 D604 D605 D606 D607 D608 Q901 D615 Q910 Q911 IC602 T601 Q920 C691 Q921 Q923 Q930 Q931 Q932 Q933 Q934 R320 R321 R324 R901 R325 R902 R326 R910 R911 C305 C307 308 R920 R921 R922 C315 C316 C317 R930 R931 R933 R934 R935 R936 R937 R938 R939 C901 R940 R941 C910 C340 C341 C343 C344 C920 C345 C346 C347 C348 C349 C350 C930 C931 C932 Q601 Q602 Q603 Q606 Q607 Q608 Q610 Q611 Q612 Q613 Q614 D901 Q615 Q616 L603 D922 D930 D931 D932 D933 D934 CN601 CN602 CN604 CN301 CN302 CN303 L601 R648 R649 Q609 R604 R323 R322 FRONT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 26 1 2 3 4 1 2 3 4 C D F A B E A A AMP UNIT 210 200 190 180 170 160 150 140 130 120 110 1 1 1 5 1 5 1 5 1 5 10 TH601 Q301 Q302 Q303 Q304 R305 R306 R313 R314 R315 R316 R317 R318 R331 R332 C320 C331 1 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 27 5 6 7 8 5 6 7 8 C D F A B E A SIDE B 110 100 90 80 70 X 170 160 150 140 130 120 110 100 90 80 70 60 50 40 30 20 10 0 Y 60 50 40 30 20 10 E E E E 1 5 1 5 1 5 1 5 1 5 1 5 10 15 Q101 Q102 Q103 Q924 R103 R104 R109 R302 R304 R110 R305 R111 R306 R112 R113 R307 R308 R114 R309 R115 R116 R117 R119 R311 R313 R314 R120 R315 R316 R317 R124 R318 R319 R126 R127 R128 R132 R133 R134 R135 R136 R137 R138 R331 R332 C103 C104 R141 R142 C107 C108 C301 C302 C303 C304 C110 C111 C112 C113 C114 C115 C116 C120 C122 C123 C124 C318 C319 C126 C127 C128 C129 C320 C321 C130 C331 D101 D102 D103 D104 D105 D106 D107 D108 D301 D302 D303 D304 IC101 IC102 IC103 IC104 IC105 IC301 C636 C634 C633 C635 C109 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 28 1 2 3 4 1 2 3 4 C D F A B E 12. ELECTRICAL PARTS LIST NOTE: Parts whose parts numbers are omitted are subject to being not supplied. The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Meaning of the figures and others in the parentheses in the parts list. Example) IC 301 is on the point (face A, 91 of x-axis, and 111 of y-axis) of the corresponding PC board. IC 301 (A, 91, 111) IC NJM2068V Circuit Symbol and No. Part No. Unit Number : YWH5043 Unit Name : Amp Unit A Unit Number : YWH5043 Unit Name : Amp Unit MISCELLANEOUS IC 101 (B,34,105) IC NJM2068MD IC 102 (B,34,74) IC NJM2068MD IC 103 (B,35,45) IC NJM4558MD IC 104 (B,35,24) IC NJM4558MD IC 105 (B,46,24) IC NJM4558MD IC 301 (B,99,23) IC IRS2092SPBF IC 602 (A,103,101) IC UPC494GS Q 101 (B,47,45) Chip Digital Transistor LTA124EUB Q 102 (B,47,50) Transistor LTC114YUB Q 103 (B,43,49) Transistor 2SC4081 Q 301 (B,133,29) FET IRF6775MPBF Q 302 (B,124,15) FET IRF6775MPBF Q 303 (B,124,29) FET IRF6775MPBF Q 304 (B,133,15) FET IRF6775MPBF Q 601 (A,149,89) Transistor 2SC4081 Q 602 (A,144,88) Chip Transistor 2SA1576A Q 603 (A,129,78) Chip Transistor 2SA1576A Q 606 (A,113,92) Transistor 2SB1243 Q 607 (A,117,110) Transistor 2SD1766 Q 608 (A,107,116) Transistor 2SB1188 Q 609 (A,117,116) Transistor 2SB1188 Q 610 (A,107,110) Transistor 2SD1766 Q 611 (A,145,163) Transistor FKV550N Q 612 (A,182,163) Transistor FKV550N Q 613 (A,133,163) Transistor FKV550N Q 614 (A,169,163) Transistor FKV550N Q 615 (A,120,163) Transistor FKV550N Q 616 (A,157,163) Transistor FKV550N Q 617 (A,61,163) Transistor 2SD2395 Q 618 (A,48,163) Transistor 2SB1566 Q 619 (A,73,163) Transistor 2SD2395 Q 691 (A,149,85) Transistor LTC114EUB Q 901 (A,150,93) Transistor 2SC4081 Q 910 (A,156,83) Transistor 2SC4081 Q 911 (A,156,79) Transistor 2SC4081 Q 920 (A,141,84) Chip Transistor 2SA1576A Q 921 (A,141,80) Chip Transistor 2SA1576A Q 923 (A,138,80) Chip Digital Transistor LTA124EUB Q 924 (B,47,40) Transistor DTC643TU Q 930 (A,115,81) Chip Transistor 2SA1576A Q 931 (A,110,79) Transistor 2SC4081 Q 932 (A,113,72) Transistor 2SC4081 Q 933 (A,120,85) Transistor DTC114WUA Q 934 (A,115,85) Transistor LTC114YUB D 101 (B,34,112) Diode 1SS355 D 102 (B,36,112) Diode 1SS355 D 103 (B,31,99) Diode 1SS355 D 104 (B,40,105) Diode 1SS355 D 105 (B,34,81) Diode 1SS355 D 106 (B,36,81) Diode 1SS355 D 107 (B,31,68) Diode 1SS355 D 108 (B,40,74) Diode 1SS355 D 301 (B,89,11) Diode RF081M2S D 302 (B,95,11) Diode RF081M2S D 303 (B,92,29) Diode UDZS5R1(B) D 304 (B,89,26) Diode UDZS5R1(B) D 601 (A,181,107) Diode RM4Z-LFJ4 D 602 (A,153,90) Diode UDZS7R5(B) D 603 (A,119,91) Diode TDZ8.2 D 604 (A,124,81) Diode UDZS4R7(B) D 605 (A,129,85) Diode DAN202U D 606 (A,210,18) LED CL-197HB1-D(CDE) D 607 (A,98,163) Diode FML22S D 608 (A,86,163) Diode FML22R D 609 (A,49,156) Diode UDZS16(B) D 610 (A,20,156) Diode UDZS16(B) D 611 (A,51,133) Diode UDZS13(B) D 615 (A,119,80) Diode 1SS355 D 901 (A,134,92) Diode UDZS16(B) D 922 (A,137,84) Diode UDZS9R1(B) Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 29 5 6 7 8 5 6 7 8 C D F A B E D 930 (A,108,82) Diode 1SS355 D 931 (A,108,77) Diode UDZS30(B) D 932 (A,116,73) Diode UDZS24(B) D 933 (A,108,73) Diode UDZS30(B) D 934 (A,134,80) Diode DAN202U L 301 (A,161,25) Choke Coil 25 uH YTH5022 L 601 (A,185,128) Choke Coil 50 uH YTH5010 L 602 (A,66,136) Choke Coil 320 uH YTH5018 L 603 (A,93,136) Choke Coil 320 uH YTH5018 T 601 (A,148,122) Transformer YTT5012 TH601 (B,136,36) Thermistor CCX1088 TH603 (A,131,103) Thermistor CCX1064 TH604 (A,109,164) Thermistor CCX1013 S 101 (A,15,74) Switch(6dB-12dB) CSH1021 S 102 (A,15,52) Switch(LPF) CSH1029 VR101 (A,19,93) Variable Resistor 20 kohm YCS5002 VR102 (A,19,35) Variable Resistor 10 kohm(A) CCS1265 >FU601 Fuse 40A CEK1332 CN101 (A,12,123) RCA Pinjack YKB5015 CN102 (A,16,140) Terminal VNF1084 CN301 (A,208,52) Terminal YKE5032 CN302 (A,205,76) Terminal VNF1084 CN303 (A,168,48) Terminal VNF1084 CN601 (A,208,117) Terminal YKE5030 CN602 (A,198,110) Terminal VNF1084 CN603 (A,72,108) Terminal VNF1084 CN604 (A,196,153) Terminal VNF1084 RESISTORS R 101 (A,32,107) RS1/10SR333J R 102 (A,34,107) RS1/10SR333J R 103 (B,32,112) RS1/10SR471J R 104 (B,32,81) RS1/10SR471J R 109 (B,38,105) 10 kohm CCN1152 R 110 (B,38,74) 10 kohm CCN1152 R 111 (B,36,99) 10 kohm CCN1152 R 112 (B,36,68) 10 kohm CCN1152 R 113 (B,34,100) 10 kohm CCN1152 R 114 (B,34,69) 10 kohm CCN1152 R 115 (B,31,95) 10 kohm CCN1152 R 116 (B,31,64) 10 kohm CCN1152 R 117 (B,46,53) RS1/10SR104J R 119 (B,44,45) RS1/10SR472J R 120 (B,42,45) RS1/10SR821J R 122 (A,19,85) RS1/10SR272J R 123 (A,22,85) RS1/10SR272J R 124 (B,36,52) RS1/10SR104J R 126 (B,38,31) RS1/10SR182J R 127 (B,36,31) RS1/10SR470J R 128 (B,34,34) RS1/10SR101J R 129 (A,21,54) RS1/10SR121J R 130 (A,21,52) RS1/10SR122J R 131 (A,21,50) RS1/10SR104J R 132 (B,34,30) RS1/10SR182J R 133 (B,45,33) RS1/10SR102J R 134 (B,35,18) RS1/10SR331J R 135 (B,39,18) RS1/10SR273J R 136 (B,45,30) RS1/10SR512J R 137 (B,30,111) RS1/10SR223J Circuit Symbol and No. Part No. R 138 (B,30,81) RS1/10SR223J R 141 (B,38,88) RS1/10SR472J R 142 (B,38,59) RS1/10SR472J R 161 (A,55,22) RS1/10SR221J R 302 (B,90,21) RS1/8SQ222J R 304 (B,95,33) RS1/8SQ331J R 305 (B,103,29) RS1/8SQ822J R 306 (B,103,33) RS1/8SQ332J R 307 (B,94,16) RS1/8SQ333J R 308 (B,91,16) RS1/8SQ472J R 309 (B,89,16) RS1/8SQ682J R 310 (A,65,12) RD1/4PU4R7J R 311 (B,97,16) RS1/8SQ103J R 312 (A,68,17) RS1/2PMF100J R 313 (B,105,13) RS1/8SQ822J R 315 (B,111,23) RS1/8SQ470J R 316 (B,111,25) RS1/8SQ470J R 317 (B,111,11) RS1/8SQ470J R 318 (B,111,9) RS1/8SQ470J R 319 (B,100,14) RS1/8SQ333J R 320 (A,117,40) RD1/4PU1R0J R 321 (A,160,73) RD1/4PU823J R 322 (A,176,23) RS2LMF100J R 323 (A,198,23) RS2LMF100J R 324 (A,184,23) RS2LMF100J R 325 (A,191,23) RS2LMF100J R 331 (B,110,21) RS1/10SR563J R 332 (B,113,21) RS1/10SR221J R 601 (A,176,83) RD1/4PU222J R 602 (A,155,94) RS1/10SR473J R 603 (A,153,86) RS1/10SR103J R 604 (A,152,90) RS1/10SR103J R 605 (A,147,87) RS1/10SR222J R 606 (A,144,91) RS1/10SR472J R 607 (A,130,92) RD1/4PU471J R 610 (A,121,81) RS1/10SR473J R 613 (A,121,78) RS1/10SR103J R 616 (A,126,77) RS1/10SR104J R 617 (A,130,73) RS1/10SR102J R 618 (A,132,77) RS1/10SR104J R 621 (A,130,82) RS1/10SR472J R 622 (A,128,82) RS1/10SR472J R 627 (A,112,86) RD1/4PU472J R 628 (A,115,89) RS1/10SR223J R 632 (A,100,86) RD1/4PU182J R 633 (A,100,89) RD1/4PU331J R 634 (A,106,94) RS1/10SR105J R 635 (A,105,94) RS1/10SR153J R 637 (A,102,108) RS1/10SR472J R 638 (A,100,108) RS1/10SR472J R 639 (A,102,111) RS1/10SR472J R 640 (A,96,106) RS1/10SR222J R 641 (A,96,109) RS1/10SR184J R 642 (A,100,111) RS1/10SR103J R 643 (A,113,116) RS1/8SQ332J R 644 (A,102,117) RS1/8SQ332J R 645 (A,121,106) RS1/10SR472J R 646 (A,111,115) RS1/10SR472J R 647 (A,179,150) RS1/2PMF121J R 648 (A,142,150) RS1/2PMF121J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 30 1 2 3 4 1 2 3 4 C D F A B E R 649 (A,167,150) RS1/2PMF121J R 650 (A,130,150) RS1/2PMF121J R 651 (A,155,150) RS1/2PMF121J R 652 (A,118,150) RS1/2PMF121J R 653 (A,171,138) RS1/2PMF220J R 654 (A,163,146) RS1/2PMF220J R 655 (A,114,131) RS1/2PMF220J R 656 (A,124,116) RS1/2PMF220J R 657 (A,119,135) RS1/2PMF220J R 658 (A,28,143) RS1/2PMF101J R 659 (A,44,143) RS1/2PMF101J R 660 (A,29,155) RD1/4PU153J R 661 (A,59,155) RD1/4PU153J R 662 (A,25,146) RD1/4PU102J R 663 (A,49,144) RD1/4PU102J R 664 (A,39,143) RS2LMF471J R 665 (A,33,143) RS2LMF471J R 666 (A,44,127) RD1/4PU223J R 670 (A,128,100) RS1/10SR473J R 671 (A,101,94) RS1/10SR182J R 680 (A,121,91) RS1/10SR222J R 691 (A,148,80) RS1/10SR392J R 901 (A,137,96) RD1/4PU472J R 902 (A,142,90) RS1/10SR102J R 910 (A,156,86) RS1/10SR333J R 911 (A,160,81) RD1/4PU472J R 920 (A,135,74) RD1/4PU472J R 921 (A,145,80) RS1/10SR222J R 930 (A,115,78) RS1/10SR102J R 931 (A,106,82) RS1/10SR102J R 933 (A,154,81) RS1/10SR222J R 934 (A,110,75) RS1/10SR472J R 935 (A,106,72) RS1/10SR102J R 936 (A,106,78) RS1/10SR472J R 937 (A,106,75) RS1/10SR104J R 938 (A,104,74) RS1/10SR223J R 939 (A,113,75) RS1/10SR103J R 940 (A,117,79) RS1/10SR102J R 941 (A,124,86) RS1/10SR223J CAPACITORS C 103 (B,29,95) CCSRCH471J50 C 104 (B,29,64) CCSRCH471J50 C 105 (A,18,111) CKSRYB102K50 C 106 (A,20,111) CKSRYB102K50 C 107 (B,36,85) CKSRYB103K50 C 108 (B,36,116) CKSRYB103K50 C 109 (B,34,116) CKSRYB103K50 C 110 (B,34,85) CKSRYB103K50 C 111 (B,38,99) CCSRCH470J50 C 112 (B,38,68) CCSRCH470J50 C 113 (B,34,98) CCSRCH470J50 C 114 (B,34,67) CCSRCH470J50 C 115 (B,34,94) CKSRYB102K50 C 116 (B,34,63) CKSRYB102K50 C 118 (A,55,40) CEAT4R7M50 C 119 (A,25,83) CKSQYB224K50 C 120 (B,37,52) CKSRYB103K50 C 121 (A,18,105) CKSQYB154K50 C 122 (B,33,39) CKSRYB103K50 Circuit Symbol and No. Part No. C 123 (B,34,32) CKSRYB472K50 C 124 (B,40,31) CKSRYB103K50 C 125 (A,23,45) CEAT4R7M50 C 126 (B,38,17) CKSQYB224K50 C 127 (B,33,18) CKSRYB103K50 C 128 (B,45,32) CCSRCH101J50 C 129 (B,48,30) CKSRYB103K50 C 130 (B,44,18) CKSRYB103K50 C 131 (A,55,26) CEAT220M50 C 141 (A,24,105) CEAT330M50 C 142 (A,24,64) CEAT330M50 C 150 (A,23,26) CEAT470M25 C 161 (A,55,20) CKSRYB222K50 C 301 (B,92,25) CKSRYB103K50 C 302 (B,98,34) CCSRCH222J50 C 303 (B,98,30) CCSRCH222J50 C 304 (B,97,30) CCSRCH102J50 C 305 (A,83,29) CEAT220M25 C 307 (A,83,37) CEAT220M25 C 308 (A,83,12) CEAT220M50 C 309 (A,77,12) CEAT220M50 C 315 (A,199,53) 2 200 pF CCG1248 C 316 (A,206,65) CKSQYB103K50 C 318 (B,90,25) CKSRYB104K50 C 319 (B,94,29) CKSRYB104K50 C 320 (B,101,11) CKSRYB104K50 C 321 (B,99,11) CKSRYB104K50 C 331 (B,110,19) CCSRCH221J50 C 340 (A,121,36) 0.1 uF ACG1088 C 341 (A,121,29) 0.1 uF ACG1088 C 343 (A,176,37) CFTLA474J50 C 344 (A,174,47) CFTLA474J50 C 345 (A,184,37) CFTLA474J50 C 346 (A,181,47) CFTLA474J50 C 347 (A,198,37) CFTLA334J50 C 348 (A,195,47) CFTLA334J50 C 349 (A,191,37) CFTLA334J50 C 350 (A,188,47) CFTLA334J50 C 602 (A,203,118) CKSRYB103K50 C 604 (A,155,96) CKSRYB103K50 C 606 (A,202,89) CKSRYB103K50 C 608 (A,153,94) CKSRYB103K50 C 609 (A,125,90) CKSQYB104K50 C 611 (A,129,76) CKSRYB103K50 C 614 (A,208,18) CKSRYB104K50 C 615 (A,103,94) CKSRYB102K50 C 617 (A,99,94) CKSRYB105K16 C 618 (A,104,108) CKSRYB223K50 C 619 (A,113,98) CEAT101M16 C 620 (A,95,117) CFTLA223J50 C 621 (A,98,111) CKSRYB104K16 C 622 (A,163,156) CCSCH472J50 C 623 (A,171,147) CCSCH472J50 C 624 (A,185,93) 3 900 uF/16 V YCH5003(P35) C 625 (A,168,93) 3 900 uF/16 V YCH5003(P35) C 626 (A,114,140) 1 000 pF CCG1186 C 627 (A,124,140) 1 000 pF CCG1186 C 628 (A,121,122) 1 000 pF CCG1186 C 629 (A,84,99) 3 300 uF/50 V CCH1971(P35) C 630 (A,60,99) 3 300 uF/50 V CCH1971(P35) Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7500M/XSUC 31 5 6 7 8 5 6 7 8 C D F A B E C 631 (A,84,75) 3 300 uF/50 V CCH1971(P35) C 632 (A,60,75) 3 300 uF/50 V CCH1971(P35) C 633 (B,85,94) CKSRYB104K50 C 634 (B,57,94) CKSRYB104K50 C 635 (B,85,80) CKSRYB104K50 C 636 (B,59,80) CKSRYB104K50 C 637 (A,64,156) CEAT100M50 C 638 (A,34,156) CEAT100M50 C 639 (A,54,156) CEAT470M25 C 640 (A,24,156) CEAT470M25 C 641 (A,48,156) CKSRYB103K50 C 642 (A,18,156) CKSRYB103K50 C 643 (A,70,156) CEAT470M25 C 644 (A,43,156) CEAT470M25 C 645 (A,75,156) CKSRYB103K50 C 646 (A,39,156) CKSRYB103K50 C 647 (A,49,128) CEAT470M25 C 648 (A,38,128) CEAT100M2A C 649 (A,28,128) CEAT470M25 C 650 (A,33,128) CKSRYB473K50 C 651 (A,122,99) CEAT221M16 C 691 (A,149,82) CKSRYB103K50 C 901 (A,142,95) CEAT100M50 C 910 (A,167,77) CEANP221M10 C 920 (A,143,73) CEAT101M25 C 930 (A,100,79) CEAT100M50 C 931 (A,110,76) CKSRYB102K50 C 932 (A,115,76) CKSRYB104K50 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
