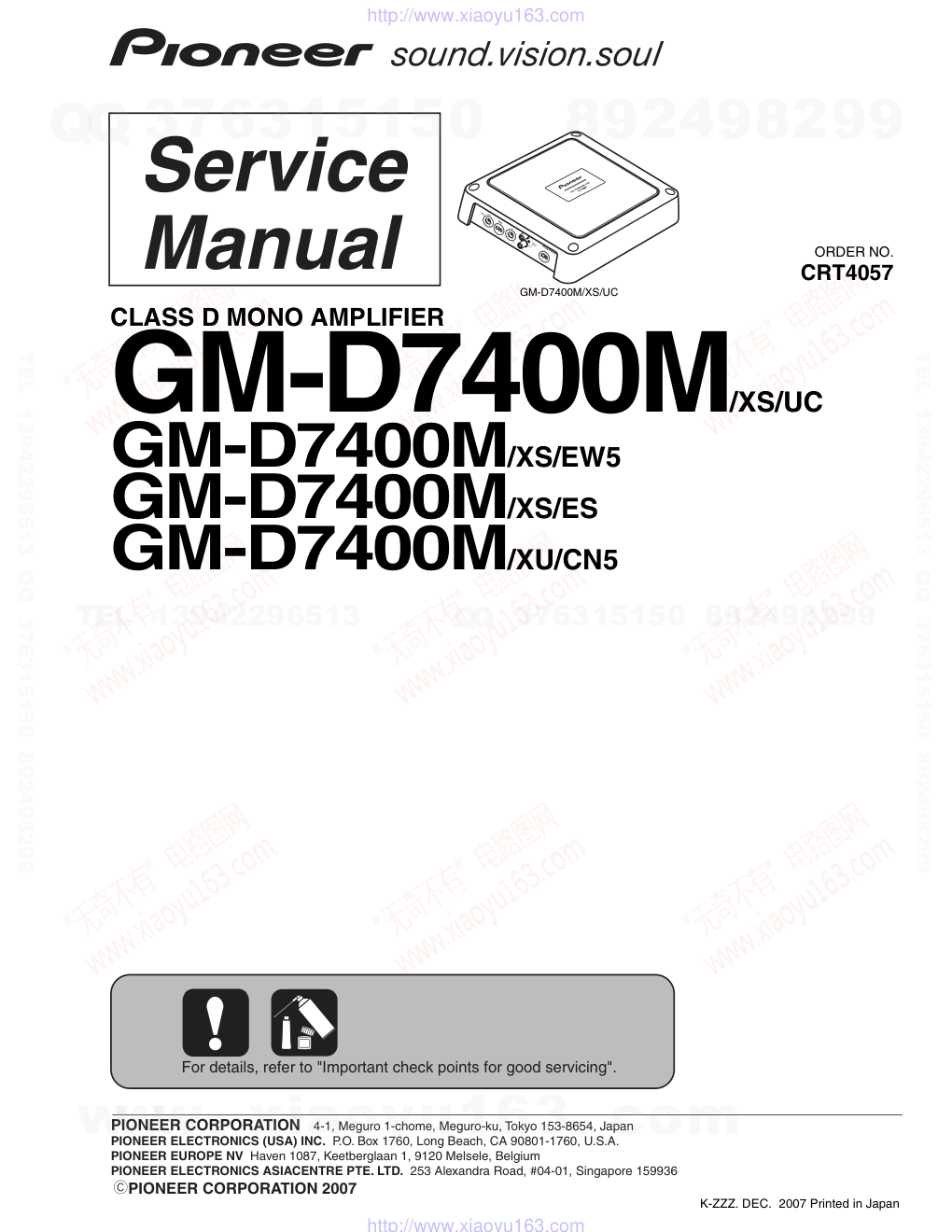

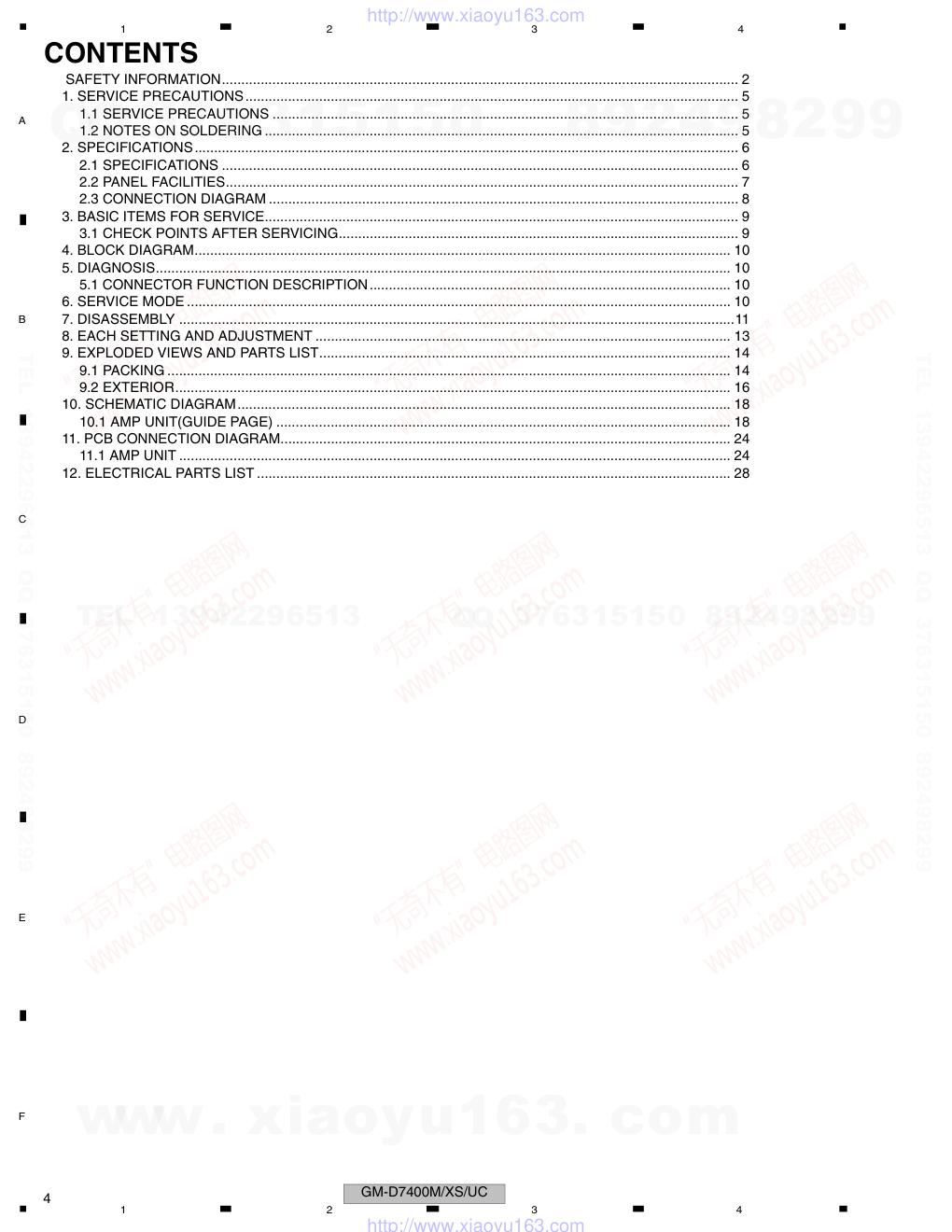

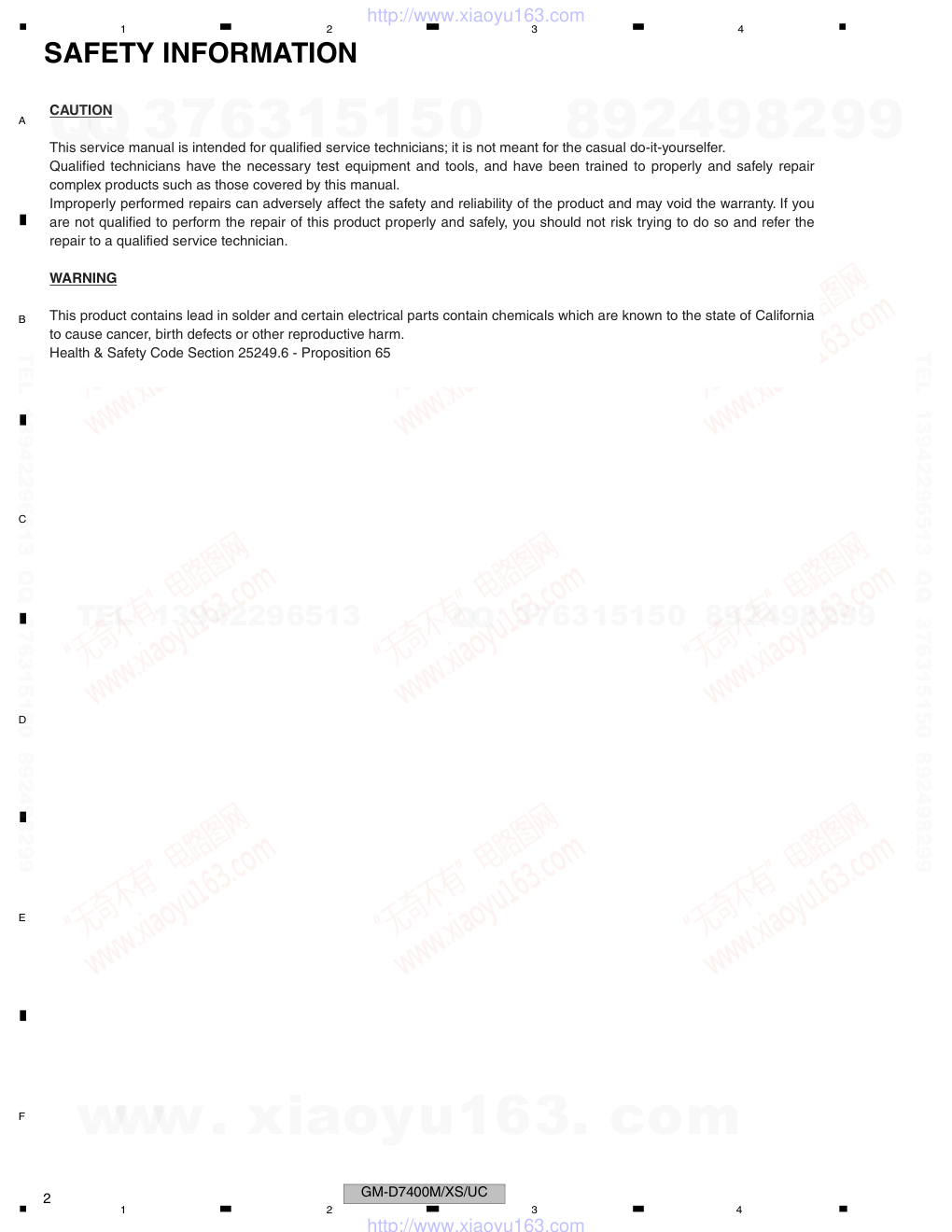

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2007 GM-D7400M/XS/UC CRT4057 CLASS D MONO AMPLIFIER GM-D7400M/XS/UC GM-D7400M/XS/EW5 GM-D7400M/XS/ES GM-D7400M/XU/CN5 For details, refer to "Important check points for good servicing". K-ZZZ. DEC. 2007 Printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 3 5 6 7 8 5 6 7 8 C D F A B E [Important Check Points for Good Servicing] In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. a Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 4 1 2 3 4 1 2 3 4 C D F A B E CONTENTS SAFETY INFORMATION..................................................................................................................................... 2 1. SERVICE PRECAUTIONS............................................................................................................................... 5 1.1 SERVICE PRECAUTIONS ........................................................................................................................ 5 1.2 NOTES ON SOLDERING .......................................................................................................................... 5 2. SPECIFICATIONS............................................................................................................................................ 6 2.1 SPECIFICATIONS ..................................................................................................................................... 6 2.2 PANEL FACILITIES.................................................................................................................................... 7 2.3 CONNECTION DIAGRAM ......................................................................................................................... 8 3. BASIC ITEMS FOR SERVICE.......................................................................................................................... 9 3.1 CHECK POINTS AFTER SERVICING....................................................................................................... 9 4. BLOCK DIAGRAM.......................................................................................................................................... 10 5. DIAGNOSIS.................................................................................................................................................... 10 5.1 CONNECTOR FUNCTION DESCRIPTION............................................................................................. 10 6. SERVICE MODE ............................................................................................................................................ 10 7. DISASSEMBLY ...............................................................................................................................................11 8. EACH SETTING AND ADJUSTMENT ........................................................................................................... 13 9. EXPLODED VIEWS AND PARTS LIST.......................................................................................................... 14 9.1 PACKING ................................................................................................................................................. 14 9.2 EXTERIOR............................................................................................................................................... 16 10. SCHEMATIC DIAGRAM............................................................................................................................... 18 10.1 AMP UNIT(GUIDE PAGE) ..................................................................................................................... 18 11. PCB CONNECTION DIAGRAM.................................................................................................................... 24 11.1 AMP UNIT .............................................................................................................................................. 24 12. ELECTRICAL PARTS LIST .......................................................................................................................... 28 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 5 5 6 7 8 5 6 7 8 C D F A B E 1. SERVICE PRECAUTIONS 1.1 SERVICE PRECAUTIONS 1.2 NOTES ON SOLDERING 1. You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. 2. Be careful in handling ICs. Some ICs such as MOS type are so fragile that they can be damaged by electrostatic induction. 3. There is a danger for electrical shock in the periphery of an area where “!” is indicated on the printed circuit board due to a high voltage being generated daring operation. Therefore, be careful when working around such areas. For environmental protection, lead-free solder is used on the printed circuit boards mounted in this unit. Be sure to use lead-free solder and a soldering iron that can meet specifications for use with lead-free solders for repairs accompanied by reworking of soldering. Compared with conventional eutectic solders, lead-free solders have higher melting points, by approximately 40 C. Therefore, for lead-free soldering, the tip temperature of a soldering iron must be set to around 373 C in general, although the temperature depends on the heat capacity of the PC board on which reworking is required and the weight of the tip of the soldering iron. Compared with eutectic solders, lead-free solders have higher bond strengths but slower wetting times and higher melting temperatures (hard to melt/easy to harden). The following lead-free solders are available as service parts: Parts numbers of lead-free solder: GYP1006 1.0 in dia. GYP1007 0.6 in dia. GYP1008 0.3 in dia. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 6 1 2 3 4 1 2 3 4 C D F A B E 2. SPECIFICATIONS 2.1 SPECIFICATIONS Backup current .......................................................................................................... 3 mA or less www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 7 5 6 7 8 5 6 7 8 C D F A B E 2.2 PANEL FACILITIES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 8 1 2 3 4 1 2 3 4 C D F A B E 2.3 CONNECTION DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 9 5 6 7 8 5 6 7 8 C D F A B E 3. BASIC ITEMS FOR SERVICE 3.1 CHECK POINTS AFTER SERVICING To keep the product quality after servicing, please confirm following check points. d e m rif n o c e b o t m e tI s e r u d e c o r P . o N 1 Confirm whether the customer complain has been solved. The customer complain must not be reappeared. Audio and operations must be normal. 2 Check the output sound. Audio and operations must be normal. r e tf a e c n a r a e p p a sti n o trid r o s e h ct a r c s o N k c e h c e c n a r a e p p A 3 receiving it for service. See the table below for the items to be checked regarding audio: Item to be checked regarding audio Distortion Noise Volume too low Volume too high Volume fluctuating Sound interrupted - Lubricants and Glues List Name Grease Bond Bond Grease No. GEM1057 GEM1017 GYL1006 Remarks Applying to Heatsink Applying to capacitors and inductors Applying to thermistor Name Grease No. Remarks * You can use GEM1017 even if the color is different from the original ones. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 10 1 2 3 4 1 2 3 4 C D F A B E 4. BLOCK DIAGRAM There is no information to be shown in this chapter. 5. DIAGNOSIS 5.1 CONNECTOR FUNCTION DESCRIPTION 6. SERVICE MODE There is no information to be shown in this chapter. RCA INPUT JACK SPEAKER OUTPUT GROUND POWER SYSTEM REMOTE CONTROL WIRE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 11 5 6 7 8 5 6 7 8 C D F A B E 7. DISASSEMBLY Fig.1 Fig.2 - Removing the Case (Fig.1) - Removing the AMP Unit (Fig.2) 1 Remove the four screws and then remove the Case. Case 1 Remove the six screws and then remove the AMP Unit. Remove the four screws. AMP Unit 2 1 1 1 1 1 1 1 1 2 2 2 2 2 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 12 1 2 3 4 1 2 3 4 C D F A B E TH603, 604 T601, L301 Bonding Position 2 pts : GYL1006 6 pts : GEM1017 Adhesive Press the thermistor against the transformer and apply an adhesive as the end of the thermistor touches the transformer. Press 2 pts www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 13 5 6 7 8 5 6 7 8 C D F A B E 8. EACH SETTING AND ADJUSTMENT There is no information to be shown in this chapter. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 14 1 2 3 4 1 2 3 4 C D F A B E 9. EXPLODED VIEWS AND PARTS LIST 9.1 PACKING NOTES : Parts marked by " * " are generally unavailable because they are not in our Master Spare Parts List. The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screw adjacent to mark on the product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions,apply as you think it appropriate.) " www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 15 5 6 7 8 5 6 7 8 C D F A B E (1) PACKING SECTION PARTS LIST (2) CONTRAST TABLE GM-D7400M/XS/UC, GM-D7400M/XS/EW5, GM-D7400M/XS/ES and GM-D7400M/XU/CN5 are constructed the same except for the following: Owner's Manual,Installation Manual Mark No. Description Part No. 1 Polyethylene Bag CEG1116 2 Cord Assy YDE5010 3 Screw Assy YEA5035 * 4 Polyethylene Sheet CNM4338 5 Screw YBA5003 6 Shaft YLP5003 7 Shaft YLP5004 8 Polyethylene Bag See Contrast table(2) 9 Unit Box See Contrast table(2) 10 Contain Box See Contrast table(2) 11 Protector YHP5036 12-1 Owner's Manual See Contrast table(2) 12-2 Owner's Manual See Contrast table(2) * 12-3 Card See Contrast table(2) * 12-4 Warranty Card See Contrast table(2) Mark No. Description Part No. Mark No. Description D7400M/XS/UC D7400M/XS/EW5 D7400M/XS/ES D7400M/XU/CN5 8 Polyethylene Bag YEG5004 YEG5003 YEG5003 YEG5003 9 Unit Box YHG5172 YHG5171 YHG5170 YHG5169 10 Contain Box YHL5174 YHL5173 YHL5172 YHL5171 12-1 Owner's Manual YRD5160 YRD5159 YRD5157 YRB5070 12-2 Owner's Manual Not used Not used YRD5158 Not used * 12-3 Card ARY1048 Not used Not used Not used * 12-4 Warranty Card Not used CRY1265 Not used ARY7046 Part No. Language YRD5160 English, French, Spanish YRD5159 English, Spanish, German, French, Italian, Dutch, Russian YRD5157 English, Spanish YRD5158 Portuguese(B), Arabic YRB5070 Traditional Chinese www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 16 1 2 3 4 1 2 3 4 C D F A B E 9.2 EXTERIOR A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 17 5 6 7 8 5 6 7 8 C D F A B E (1) EXTERIOR SECTION PARTS LIST (2) CONTRAST TABLE GM-D7400M/XS/UC, GM-D7400M/XS/EW5, GM-D7400M/XS/ES and GM-D7400M/XU/CN5 are constructed the same except for the following: Mark No. Description Part No. 1 Screw BBZ30P100FTB 2 Screw BPZ30P100FTB 3 Screw(M3 x 8) CBA2011 4 Screw IBZ30P100FTC 5 Case YNB5035 6 Panel YNB5038 7 Panel See Contrast table(2) 8 Heat Sink YNR5098 9 Cover YNR5100 10 Amp Unit See Contrast table(2) 11 Screw BBZ30P080FSN 12 Screw BPZ30P100FSN 13 Screw(M3 x 8) CBA2011 14 Holder CND2466 15 Terminal(CN103) VNF1084 16 Terminal(CN301) VNF1084 17 Terminal(CN302) VNF1084 18 Terminal(CN602) VNF1084 19 Terminal(CN605) VNF1084 20 Terminal(CN606) VNF1084 21 RCA Pin Jack(CN101) YKB5009 22 Terminal(CN601) YKE5015 23 Terminal(CN303) YKE5016 24 Fuse Holder(CN603) YKR5002 25 Sub Heat Sink YNR5105 26 Sub Heat Sink YNR5106 27 Insulator YNM5045 28 Spacer YNS5118 29 LED(D606) NSPB346BS-5859 30 Choke Coil(L602, L603) CTH1362 > 31 Fuse(25 A) CEK1329 * 32 Badge YAH5041 Mark No. Description Part No. Mark No. Description D7400M/XS/UC D7400M/XS/EW5 D7400M/XS/ES D7400M/XU/CN5 7 Panel YNB5041 YNB5039 YNB5039 YNB5039 10 Amp Unit YWH5028 YWH5026 YWH5026 YWH5026 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 18 1 2 3 4 1 2 3 4 C D F A B E 10. SCHEMATIC DIAGRAM 10.1 AMP UNIT(GUIDE PAGE) A-a A A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or "ELECTRICAL PARTS LIST". CCH1813 CCH1813 CCH1813 CCH1813 -13.42 dBs -12 dBs 0.3 dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 19 5 6 7 8 5 6 7 8 C D F A B E A-b A EW5,ES,CN5 For resistors and capacitors in the circuit diagrams, their resistance values or capacitance values are expressed in codes: Ex. *Resistors Code Practical value 123 12k ohms 103 10k ohms The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. *Capacitors Code Practical value 103 0.01uF 101/10 100uF/10V > > A AMP UNIT 27.81 dBs -6.83 dBs -13.42 dBs ±VH : ±84V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 20 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-b 1 For resistors and capacitors in the circuit diagrams, their resistance values or capacitance values are expressed in codes: Ex. *Resistors Code Practical value 123 12k ohms 103 10k ohms The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. *Capacitors Code Practical value 103 0.01uF 101/10 100uF/10V A AMP UNIT 27.81 dBs -6.83 dBs ±VH : ±84V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 21 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-b 2 3 4 EW5,ES,CN5 > > www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 22 1 2 3 4 1 2 3 4 C D F A B E A-b A-a A-a A-b 1 -6.83 dBs -13.42 dBs -12 dBs 0.3 dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 23 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-b A-a 2 3 4 CCH1813 CCH1813 CCH1813 CCH1813 EW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 24 1 2 3 4 1 2 3 4 C D F A B E 11. PCB CONNECTION DIAGRAM 11.1 AMP UNIT A A AMP UNIT Capacitor Connector P.C.Board Chip Part SIDE B SIDE A NOTE FOR PCB DIAGRAMS 1.The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2.Viewpoint of PCB diagrams 1 2 3 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 25 5 6 7 8 5 6 7 8 C D F A B E A SIDE A BFC 1 3 2 1 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 26 1 2 3 4 1 2 3 4 C D F A B E A A AMP UNIT 1 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 27 5 6 7 8 5 6 7 8 C D F A B E A SIDE B 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 28 1 2 3 4 1 2 3 4 C D F A B E 12. ELECTRICAL PARTS LIST NOTE: Parts whose parts numbers are omitted are subject to being not supplied. The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Meaning of the figures and others in the parentheses in the parts list. Example) IC 301 is on the point (face A, 91 of x-axis, and 111 of y-axis) of the corresponding PC board. IC 301 (A, 91, 111) IC NJM2068V Circuit Symbol and No. Part No. Unit Number : YWH5028(UC) Unit Number : YWH5026(ES,EW5,CN5) Unit Name : Amp Unit A Unit Number : YWH5028(UC) Unit Number : YWH5026(ES,EW5,CN5) Unit Name : Amp Unit MISCELLANEOUS IC 101 (B,33,48) IC NJM2068MD IC 102 (B,48,53) IC NJM2068MD IC 103 (B,21,86) IC NJM4558MD IC 104 (B,28,106) IC NJM4558MD IC 105 (B,29,128) IC NJM4558MD IC 301 (B,31,87) IC NJM311M IC 302 (B,40,106) IC NJM311M IC 303 (B,42,78) IC TC74AC14F IC 305 (B,64,98) IC TND505MD IC 601 (A,84,77) IC PA2027A IC 602 (B,97,47) IC UPC494GS IC 603 (A,59,37) IC TA78L005AP Q 301 (B,44,90) Transistor IMT4 Q 302 (B,45,157) Transistor 2SC5565 Q 303 (B,45,148) Transistor 2SA2012 Q 304 (B,39,148) Transistor 2SC5565 Q 305 (B,39,157) Transistor 2SA2012 Q 306 (A,84,187) FET FKP250A Q 307 (A,60,187) FET FKP250A Q 601 (B,97,76) Transistor 2SC4081 Q 602 (B,94,74) Chip Transistor 2SA1576A Q 603 (B,91,66) Chip Transistor DTA114EUA Q 604 (B,87,62) Chip Transistor DTC114TUA Q 605 (A,70,66) Transistor 2SB1243 Q 606 (B,103,54) Transistor 2SC4081 Q 607 (B,106,54) Chip Transistor DTC114TUA Q 608 (B,112,38) Transistor 2SD1766 Q 609 (B,101,31) Transistor 2SB1188 Q 610 (B,112,31) Transistor 2SB1188 Q 611 (B,101,38) Transistor 2SD1766 Q 612 (A,161,6) Transistor FKV550N Q 613 (A,123,6) Transistor FKV550N Q 614 (A,148,6) Transistor FKV550N Q 615 (A,111,6) Transistor FKV550N Q 616 (A,136,6) Transistor FKV550N Q 617 (A,98,6) Transistor FKV550N Q 620 (A,46,5) Transistor 2SD2395 Q 621 (A,61,5) Transistor 2SB1566 Q 622 (A,76,5) Transistor 2SD2395 Q 691 (B,26,31) Chip Transistor DTC124EUA Q 901 (B,26,169) Transistor 2SA1579 Q 902 (B,9,162) Transistor 2SC4102 Q 903 (B,12,162) Transistor 2SC4102 Q 904 (B,9,156) Transistor 2SA1579 Q 905 (B,12,156) Transistor 2SA1579 Q 911 (B,19,160) Transistor 2SC4102 Q 912 (B,26,158) Chip Transistor 2SA1576A Q 921 (B,192,160) Transistor 2SC4081 Q 922 (B,196,156) Transistor 2SC4081 Q 923 (B,192,156) Chip Transistor 2SA1576A Q 931 (B,54,90) Transistor 2SA1579 Q 932 (B,51,95) Transistor 2SC4081 Q 933 (B,57,91) Chip Transistor DTC114YUA Q 941 (B,77,51) Transistor 2SC4081 Q 942 (B,77,56) Chip Digital Transistor DTA124EUA D 101 (B,11,64) Diode 1SR154-400 D 102 (B,20,64) Diode 1SR154-400 D 301 (B,37,137) Diode MA111 D 302 (B,40,137) Diode MA111 D 303 (B,44,70) Diode MA111 D 304 (B,47,70) Diode MA111 D 305 (B,51,77) Diode MA111 D 309 (B,75,99) Diode RF101L2S D 601 (A,183,64) Diode RM4Z-LFJ4 D 602 (B,97,82) Diode UDZS7R5(B) D 603 (B,91,78) Diode 1SR154-400 D 604 (B,87,73) Diode 1SR154-400 D 605 (B,62,77) Diode MA111 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 29 5 6 7 8 5 6 7 8 C D F A B E D 606 (A,105,96) LED NSPB346BS-5859 D 607 (B,109,53) Diode MA111 D 608 (B,103,66) Diode DAN202U D 609 (B,96,66) Diode DAN202U D 610 (A,137,186) Diode FML22S D 611 (A,164,186) Diode FML22R D 612 (B,43,24) Diode UDZS16(B) D 613 (B,62,24) Diode UDZS16(B) D 614 (B,54,34) Diode MA111 D 615 (B,80,24) Diode UDZS13(B) D 691 (B,21,31) Diode DAN202U D 901 (B,32,165) Diode MA111 D 911 (B,32,159) Diode MA111 D 921 (B,201,160) Diode MA111 D 922 (B,188,155) Diode MA111 D 941 (B,67,53) Diode MA111 ZNR101 (B,8,70) Surge Protector CSA30-201N ZNR102 (B,17,70) Surge Protector CSA30-201N L 301 (A,70,150) Choke Coil 93.75 µH YTH5009 L 601 (A,167,57) Choke Coil 50 µH YTH5010 L 602 (A,142,150) Choke Coil 320 µH CTH1362 L 603 (A,169,150) Choke Coil 320 µH CTH1362 T 601 (A,135,61) Transformer(ES,EW5,CN5) YTT5009 TH601 (A,115,184) Thermistor CCX1013 TH602 (A,88,7) Thermistor CCX1013 TH603 (A,112,58) Thermistor CCX1064 TH604 (A,50,136) Thermistor CCX1064 S 101 (A,11,52) Slide Switch(RCA/SP) CSH1042 S 102 (A,9,130) Switch(BASS BOOST) CSH1029 S 601 (A,205,159) Slide Switch(BFC) CSH1072 VR101 (A,17,109) Variable Resistor 20 kohm(C) YCS5002 VR102 (A,17,148) Volume 10 kohm(A) CCS1265 VR301 (A,39,125) Semi-fixed 10 kohm(OB) CCP1506 >FU601 Fuse 25 A CEK1329 >FU602 Fuse 25 A CEK1329 RESISTORS R 101 (A,23,37) RD1/4PU683J R 102 (A,23,47) RD1/4PU683J R 103 (B,27,37) RS1/16S471J R 104 (B,43,43) RS1/16S471J R 105 (B,35,39) RS1/16S223J R 106 (B,51,45) RS1/16S223J R 107 (B,29,47) 10 kohm CCN1152 R 108 (B,43,52) 10 kohm CCN1152 R 109 (B,37,48) 10 kohm CCN1152 R 110 (B,52,53) 10 kohm CCN1152 R 111 (B,29,51) 10 kohm CCN1152 R 112 (B,43,57) 10 kohm CCN1152 R 113 (B,32,55) 10 kohm CCN1152 R 114 (B,47,60) 10 kohm CCN1152 R 115 (B,35,55) RS1/16S222J R 116 (B,50,60) RS1/16S222J R 118 (B,15,103) RS1/16S272J R 119 (B,22,102) RS1/16S272J R 120 (B,26,99) RS1/16S182J R 121 (B,24,109) RS1/16S101J R 122 (B,14,145) RS1/16S470J R 123 (B,30,99) RS1/16S182J Circuit Symbol and No. Part No. R 124 (B,26,113) RS1/16S273J R 125 (B,30,121) RS1/16S222J R 126 (B,30,113) RS1/16S331J R 127 (B,33,121) RS1/16S472J R 131 (B,17,128) RS1/16S104J R 132 (B,17,126) RS1/16S122J R 133 (B,17,124) RS1/16S121J R 301 (B,36,132) RS1/16S223J R 302 (B,42,132) RS1/16S223J R 303 (B,38,132) RS1/16S203J R 304 (B,40,132) RS1/16S153J R 305 (B,28,135) RS1/16S332J R 306 (B,31,135) RS1/16S105J R 307 (B,36,106) RS1/16S102J R 308 (B,41,99) RS1/16S222J R 309 (B,35,87) RS1/16S223J R 310 (B,32,80) RS1/16S562J R 311 (B,27,90) RS1/16S273J R 312 (A,36,95) RD1/4PU332J R 313 (B,35,99) RS1/16S223J R 314 (B,37,99) RS1/16S104J R 315 (B,40,113) RS1/16S102J R 316 (B,44,106) RS1/16S562J R 317 (B,42,71) RS1/16S122J R 318 (B,49,77) RS1/16S122J R 319 (B,39,85) RS1/16S332J R 320 (B,41,85) RS1/16S332J R 321 (B,41,93) RS1/16S822J R 322 (B,45,97) RS1/16S822J R 323 (A,78,97) RD1/4PU1R0J R 324 (A,45,166) RD1/4PU1R0J R 325 (A,42,166) RD1/4PU1R0J R 326 (B,50,163) RS1/16S104J R 327 (B,37,163) RS1/16S104J R 328 (A,107,171) RS1/2PMF220J R 330 (A,68,171) RS1/2PMF220J R 332 (A,79,171) RS2PMF100J R 333 (A,51,171) RS2PMF100J R 334 (A,107,156) 10 mohm YCN5005 R 335 (A,91,146) 10 mohm YCN5005 R 336 (A,58,129) RS2PMF4R7J R 339 (A,50,159) RS1PMF333J R 340 (A,24,147) RS1/2PMF223J R 341 (A,30,143) RD1/4PU102J R 342 (A,35,139) RD1/4PU222J R 601 (A,204,111) RD1/4PU222J R 602 (B,99,79) RS1/16S473J R 603 (B,93,81) RS1/16S103J R 604 (B,95,79) RS1/16S103J R 605 (B,97,72) RS1/16S222J R 606 (B,94,71) RS1/16S472J R 607 (B,74,83) RS1/16S392J R 608 (B,79,83) RS1/16S392J R 609 (B,82,83) RS1/16S103J R 610 (B,71,83) RS1/16S472J R 611 (A,67,61) RD1/4PU221J R 612 (A,73,61) RD1/4PU152J R 613 (B,88,66) RS1/16S223J R 614 (B,83,66) RS1/16S223J R 615 (B,81,66) RS1/16S223J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 30 1 2 3 4 1 2 3 4 C D F A B E R 616 (A,63,74) RD1/4PU472J R 617 (A,60,69) RD1/4PU101J R 618 (A,106,71) RD1/4PU392J R 619 (A,101,77) RD1/4PU471J R 620 (A,104,84) RD1/4PU471J R 621 (B,100,54) (ES,EW5,CN5) RS1/16S105J R 622 (B,99,54) RS1/16S153J R 623 (B,93,54) RS1/16S242J R 624 (B,92,54) RS1/16S182J R 625 (B,90,54) RS1/16S273J R 626 (B,101,62) RS1/16S272J R 627 (B,103,62) RS1/16S272J R 628 (B,94,62) RS1/16S272J R 629 (B,96,62) RS1/16S272J R 630 (B,97,40) RS1/16S472J R 631 (B,95,40) RS1/16S472J R 632 (B,93,37) RS1/16S472J R 633 (B,90,42) RS1/16S683J R 634 (B,92,39) RS1/16S392J R 635 (A,96,30) RD1/4PU332J R 636 (A,108,41) RD1/4PU332J R 637 (A,105,28) RD1/4PU472J R 638 (A,115,33) RD1/4PU472J R 639 (A,123,26) RS1/2PMF121J R 640 (A,161,26) RS1/2PMF121J R 641 (A,111,26) RS1/2PMF121J R 642 (A,148,26) RS1/2PMF121J R 643 (A,98,26) RS1/2PMF121J R 644 (A,136,26) RS1/2PMF121J R 647 (A,119,33) RS1/2PMF220J R 648 (A,136,35) RS1/2PMF220J R 649 (A,116,77) RS1/2PMF220J R 650 (A,149,88) RS1/2PMF220J R 651 (A,112,76) RS1/2PMF220J R 652 (A,40,30) RS1/2PMF100J R 653 (A,69,31) RS1/2PMF100J R 654 (A,45,18) RD1/4PU222J R 655 (A,67,18) RD1/4PU222J R 656 (A,87,32) RS1PMF220J R 657 (A,85,18) RS1PMF333J R 671 (B,84,43) RS1/16S272J R 691 (B,21,27) RS1/16S683J R 901 (B,27,162) RS1/16S222J R 902 (B,29,162) RS1/16S104J R 903 (B,6,160) RS1/16S473J R 904 (B,30,169) RS1/16S104J R 905 (B,30,166) RS1/16S473J R 906 (B,6,156) RS1/16S472J R 907 (B,15,158) RS1/16S472J R 908 (B,15,162) RS1/16S473J R 909 (B,15,154) RS1/16S104J R 911 (B,21,153) RS1/16S102J R 912 (B,22,158) RS1/16S104J R 913 (B,26,155) RS1/16S103J R 914 (B,29,158) RS1/16S223J R 915 (B,30,155) RS1/16S103J R 921 (A,177,162) RD1/4PU473J R 922 (B,186,155) RS1/16S472J R 923 (B,177,166) RS1/16S104J R 924 (B,196,160) RS1/16S472J Circuit Symbol and No. Part No. R 925 (B,194,162) RS1/16S472J R 931 (B,54,86) RS1/16S332J R 932 (B,57,97) RS1/16S103J R 933 (B,50,87) RS1/16S472J R 934 (B,52,86) RS1/16S822J R 941 (B,80,54) RS1/16S472J R 942 (B,73,54) RS1/16S102J R 943 (B,71,54) RS1/16S333J CAPACITORS C 101 (A,18,42) CEAT100M50 C 102 (A,18,52) CEAT100M50 C 103 (B,30,39) CCSRCH471J50 C 104 (B,45,43) CCSRCH471J50 C 105 (A,33,36) CEAT100M50 C 106 (A,47,41) CEAT100M50 C 107 (B,6,70) CKSQYB102K50 C 108 (B,14,70) CKSQYB102K50 C 109 (B,39,48) CKSQYB223K50 C 110 (B,54,53) CKSQYB223K50 C 111 (B,27,51) CCSRCH271J50 C 112 (B,41,57) CCSRCH271J50 C 113 (B,30,55) CCSRCH271J50 C 114 (B,45,60) CCSRCH271J50 C 115 (B,36,55) CKSRYB103K50 C 116 (B,43,48) CKSRYB103K50 C 117 (B,28,43) CKSRYB103K50 C 118 (B,51,60) CKSRYB103K50 C 121 (B,25,86) CKSRYB103K50 C 122 (A,21,98) CFTNA274J50 C 123 (A,17,98) CFTLA154J50 C 124 (B,19,79) CKSRYB103K50 C 125 (A,33,97) CFTNA273J50 C 126 (A,18,119) CEAT4R7M50 C 127 (B,28,113) CKSQYB224K50 C 128 (B,35,121) CKSRYB103K50 C 129 (B,34,128) CKSRYB103K50 C 130 (B,25,128) CKSRYB103K50 C 131 (B,24,102) CKSRYB103K50 C 132 (B,31,113) CKSRYB103K50 C 301 (A,20,138) CEAT220M50 C 302 (B,32,135) CKSRYB222K50 C 303 (B,30,80) CCSRCH471J50 C 304 (B,28,80) CKSRYB103K50 C 307 (B,33,94) CKSRYB103K50 C 309 (B,42,99) CKSRYB103K50 C 310 (B,39,99) CCSRCH471J50 C 311 (B,33,80) CKSRYB103K50 C 312 (B,39,71) CKSRYB221K50 C 313 (B,42,113) CKSRYB103K50 C 314 (B,49,81) CKSRYB104K50 C 315 (B,51,81) CKSRYB221K50 C 318 (A,71,102) CEAT100M50 C 319 (A,55,96) CEAT101M16 C 320 (B,66,104) CKSYB475K25 C 321 (B,60,104) CKSRYB104K50 C 322 (B,71,99) CKSQYB104K50 C 323 (B,39,153) CKSRYB474K16 C 324 (A,51,106) CFTNA103J2A C 325 (A,48,101) CEAT100M2A Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GM-D7400M/XS/UC 31 5 6 7 8 5 6 7 8 C D F A B E C 326 (B,53,163) CKSQYB472K50 C 327 (B,35,163) CKSQYB472K50 C 328 (A,76,173) CQMA102K2E C 329 (A,54,173) CQMA102K2E C 334 (A,97,131) 4.7 µF CCE1036 C 335 (A,62,118) 4.7 µF CCE1036 C 338 (B,196,138) 2 200 pF CCG1248 C 339 (B,203,121) CKSQYB103K50 C 340 (B,201,121) CKSQYB102K50 C 341 (B,24,144) CKSRYB471K50 C 349 (B,45,153) CKSRYB474K16 C 350 (A,99,151) 1 µF CCE1035 C 351 (A,98,164) 1 µF CCE1035 C 601 (B,192,76) CKSQYB104K50 C 602 (B,194,76) CKSQYB103K50 C 603 (B,197,76) CKSQYB102K50 C 604 (B,167,44) CKSRYB103K50 C 605 (B,204,85) CKSQYB104K50 C 606 (B,202,85) CKSQYB103K50 C 607 (B,200,85) CKSQYB102K50 C 608 (B,97,79) CKSRYB103K50 C 609 (B,84,85) CKSRYB103K50 C 610 (A,80,81) CEAT100M50 C 611 (A,74,81) CEAT100M50 C 612 (A,86,81) CEAT101M16 C 613 (B,88,83) CKSRYB103K50 C 614 (B,86,66) CKSRYB104K50 C 615 (B,66,73) CKSRYB102K50 C 616 (A,62,66) CEAT220M50 C 617 (B,84,66) CKSRYB104K50 C 618 (A,78,66) CEAT220M25 C 619 (A,66,81) CEAT471M16 C 620 (B,101,96) CKSRYB104K50 C 621 (B,97,54) CKSRYB102K50 C 622 (B,95,54) CKSRYB472K50 C 623 (A,87,50) CEANP221M10 C 624 (B,100,62) CKSRYB104K50 C 625 (B,105,62) CKSRYB104K50 C 626 (B,93,62) CKSRYB104K50 C 627 (B,98,62) CKSRYB104K50 C 628 (B,90,46) CKSRYB105K16 C 629 (B,103,47) CKSRYB223K50 C 630 (A,105,44) CEAT221M16 C 631 (A,87,44) CFTLA103J50 C 632 (B,90,38) CKSQYB224K16 C 633 (A,123,39) CQMA472J50 C 634 (A,155,35) CQMA472J50 C 635 (A,167,73) 3 900 µF/16 V YCH5003(P35) C 636 (A,185,73) 3 900 µF/16 V YCH5003(P35) C 637 (A,121,86) CQMA102K2E C 638 (A,134,90) CQMA102K2E C 639 (A,112,83) CQMA102K2E C 640 (A,156,110) 3 300 µF/50 V CCH1813(P35) C 641 (A,175,110) 3 300 µF/50 V CCH1813(P35) C 642 (A,156,129) 3 300 µF/50 V CCH1813(P35) C 643 (A,175,129) 3 300 µF/50 V CCH1813(P35) C 644 (B,156,114) CKSRYB104K50 C 645 (B,182,113) CKSRYB104K50 C 646 (B,156,125) CKSRYB104K50 C 647 (B,182,125) CKSRYB104K50 Circuit Symbol and No. Part No. C 648 (A,46,22) CEAT100M50 C 649 (A,65,27) CEAT100M50 C 650 (A,40,22) CEAT470M25 C 651 (A,59,27) CEAT470M25 C 652 (B,38,24) CKSRYB103K50 C 653 (B,57,24) CKSRYB103K50 C 654 (A,53,22) CEAT470M25 C 655 (A,71,27) CEAT470M25 C 656 (B,56,33) CKSRYB103K50 C 657 (B,74,24) CKSRYB103K50 C 658 (B,62,33) CKSQYB334K50 C 659 (B,49,34) CKSRYB104K50 C 660 (A,51,37) CEAT100M50 C 671 (A,83,22) CEAT100M50 C 672 (A,77,22) CEAT470M25 C 674 (A,94,22) CEAT470M25 C 675 (B,91,24) CKSRYB473K50 C 691 (B,25,27) CKSQYB105K25 C 901 (B,25,162) CKSRYB103K50 C 902 (B,26,165) CKSRYB103K50 C 903 (B,29,166) CKSRYB104K50 C 911 (B,18,153) CKSRYB103K50 C 912 (B,19,156) CKSRYB102K50 C 913 (B,26,153) CKSRYB104K50 C 914 (B,29,155) CKSRYB104K50 C 921 (A,186,161) CEANP221M10 C 931 (B,50,90) CKSRYB473K50 C 941 (B,74,54) CKSRYB474K16 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
