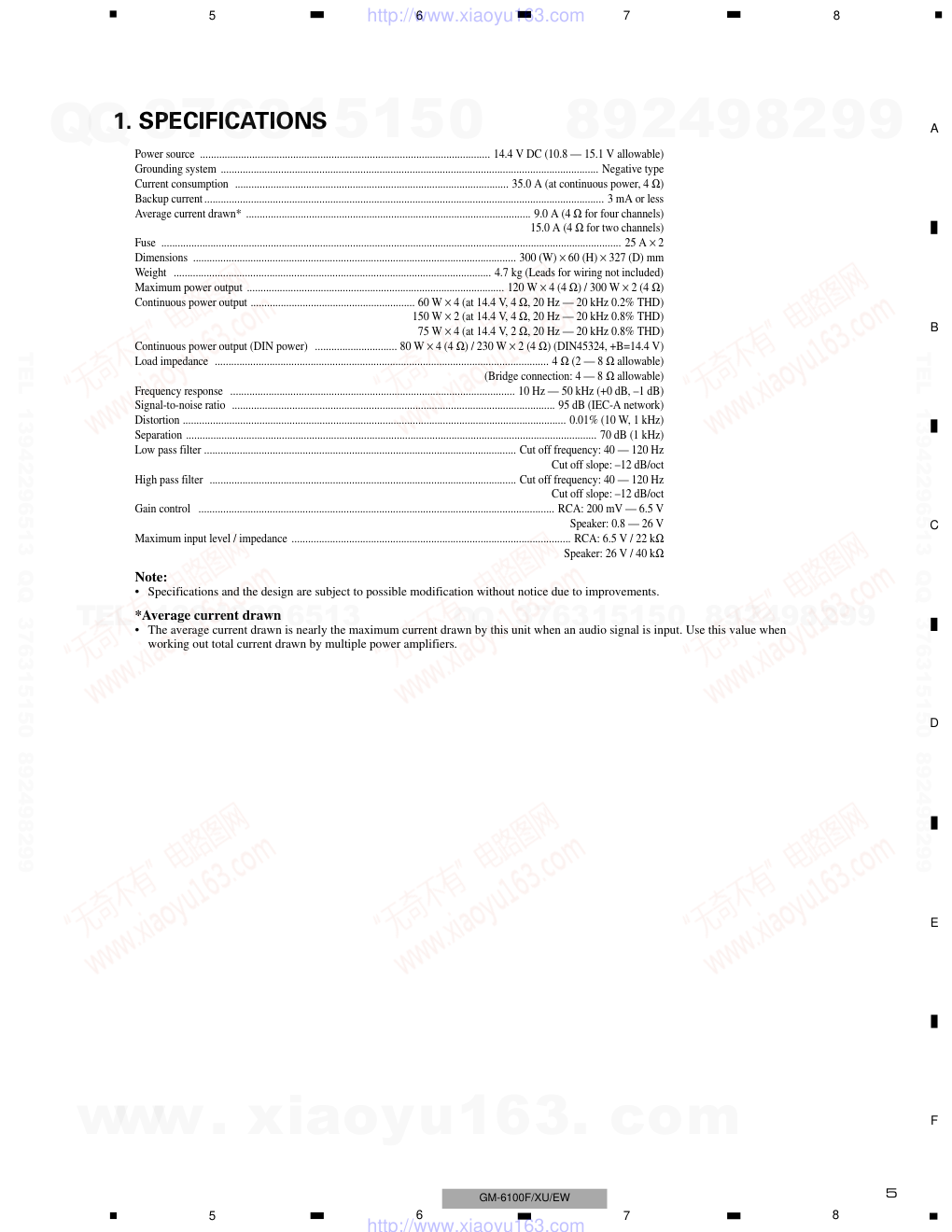

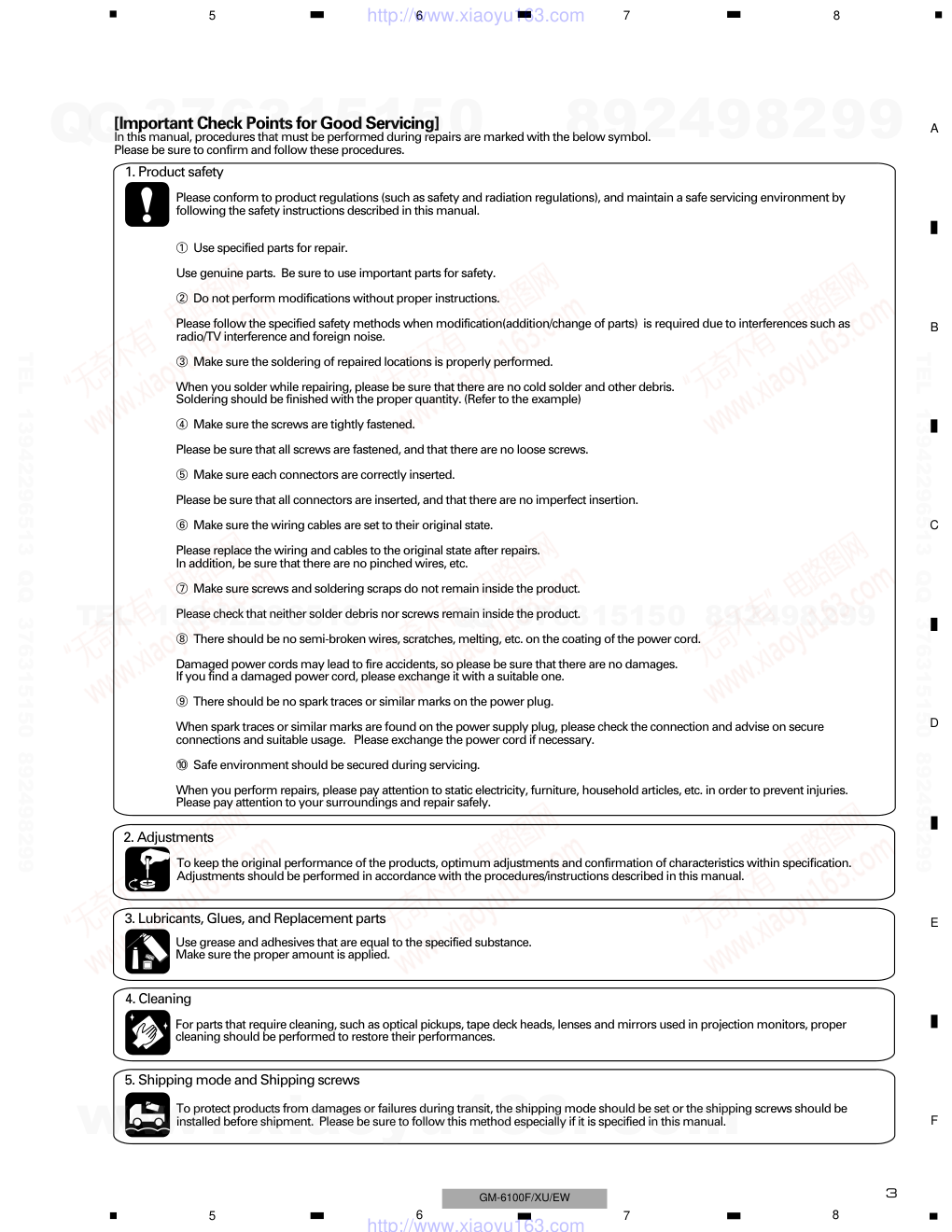

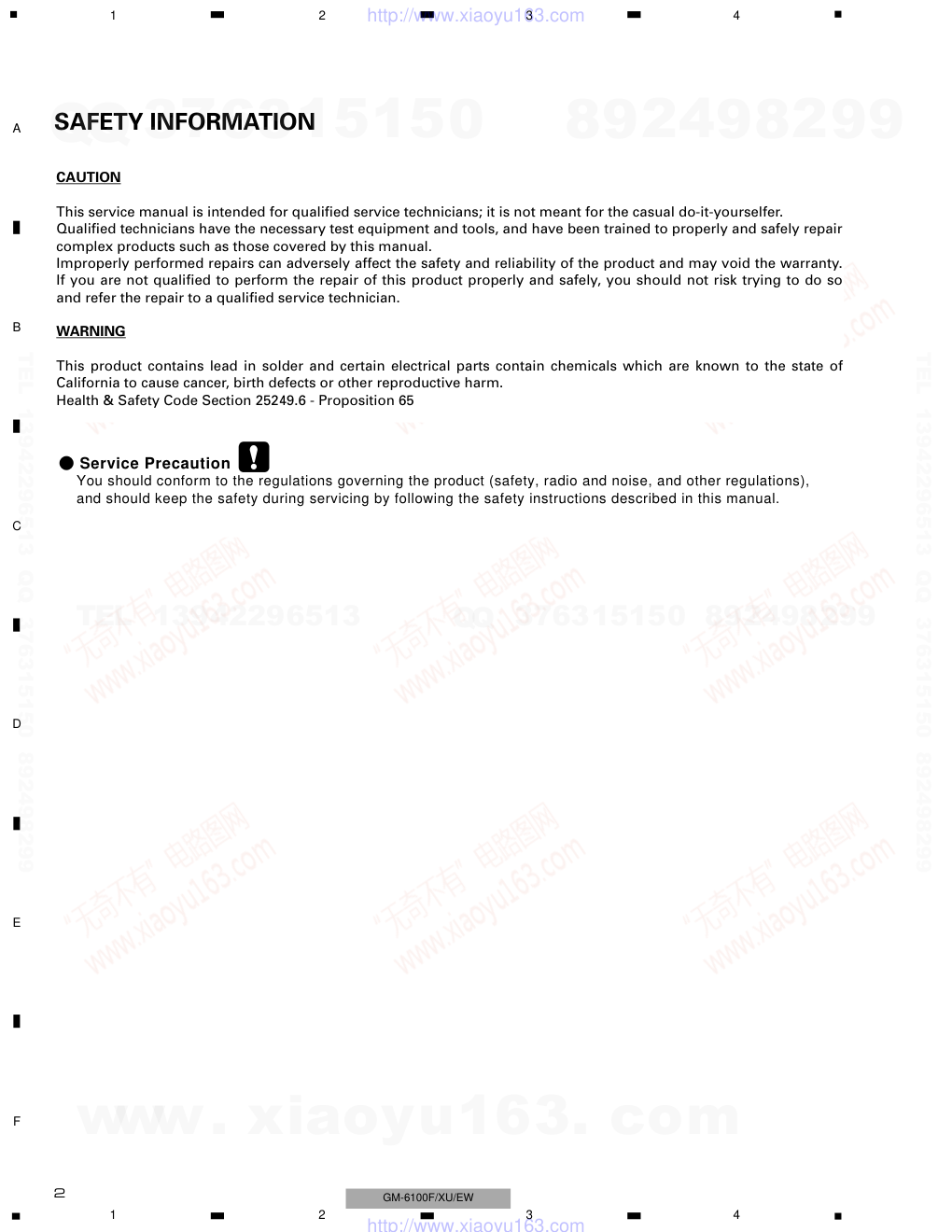

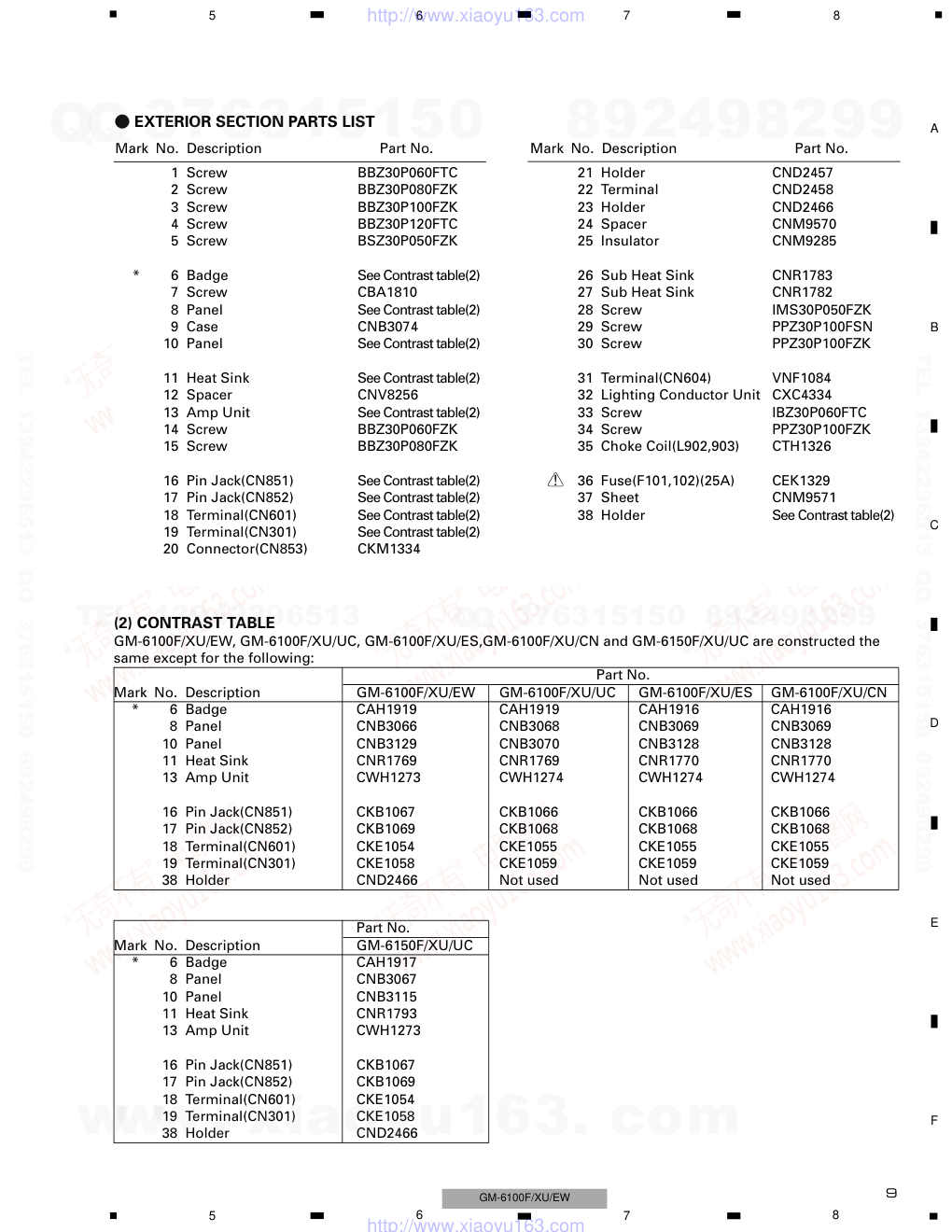

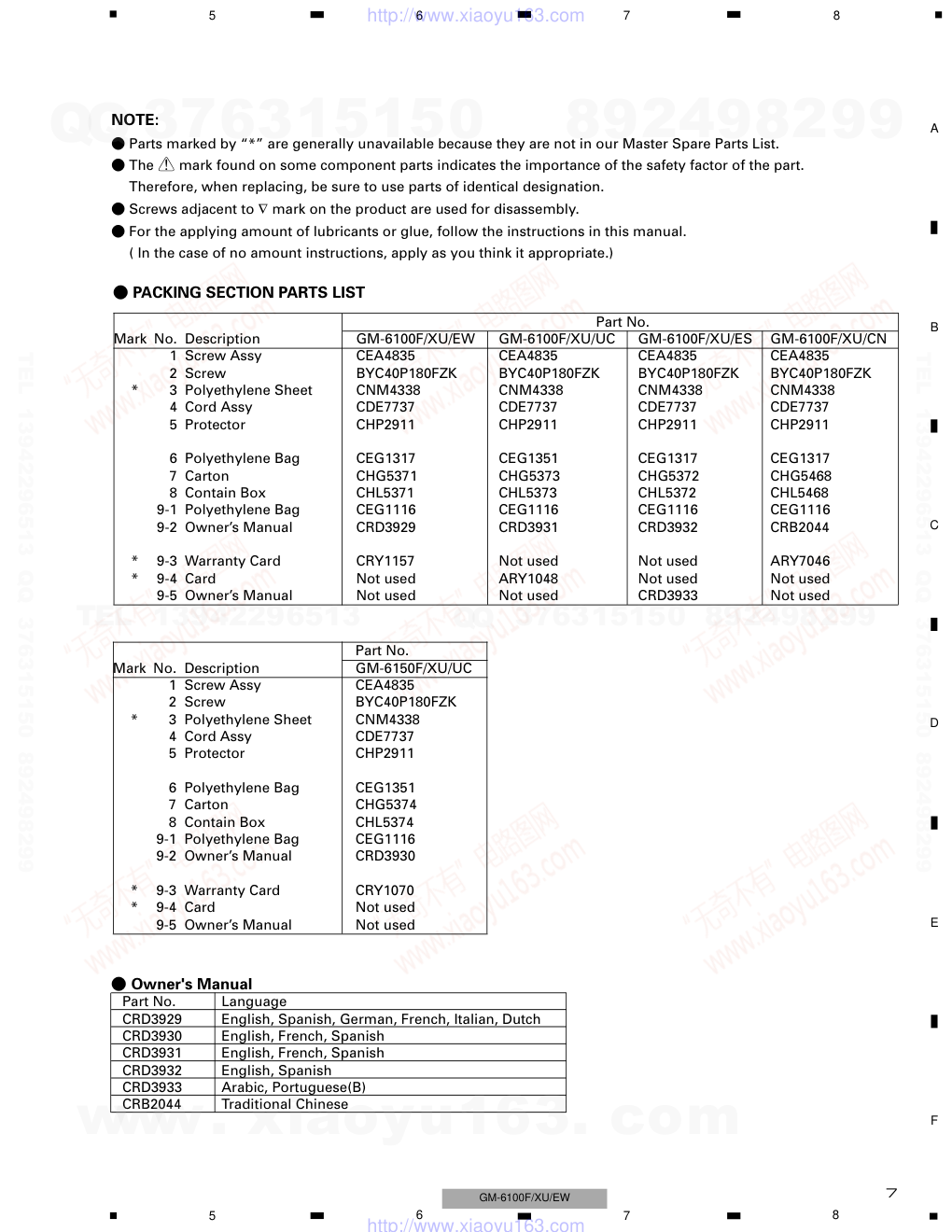

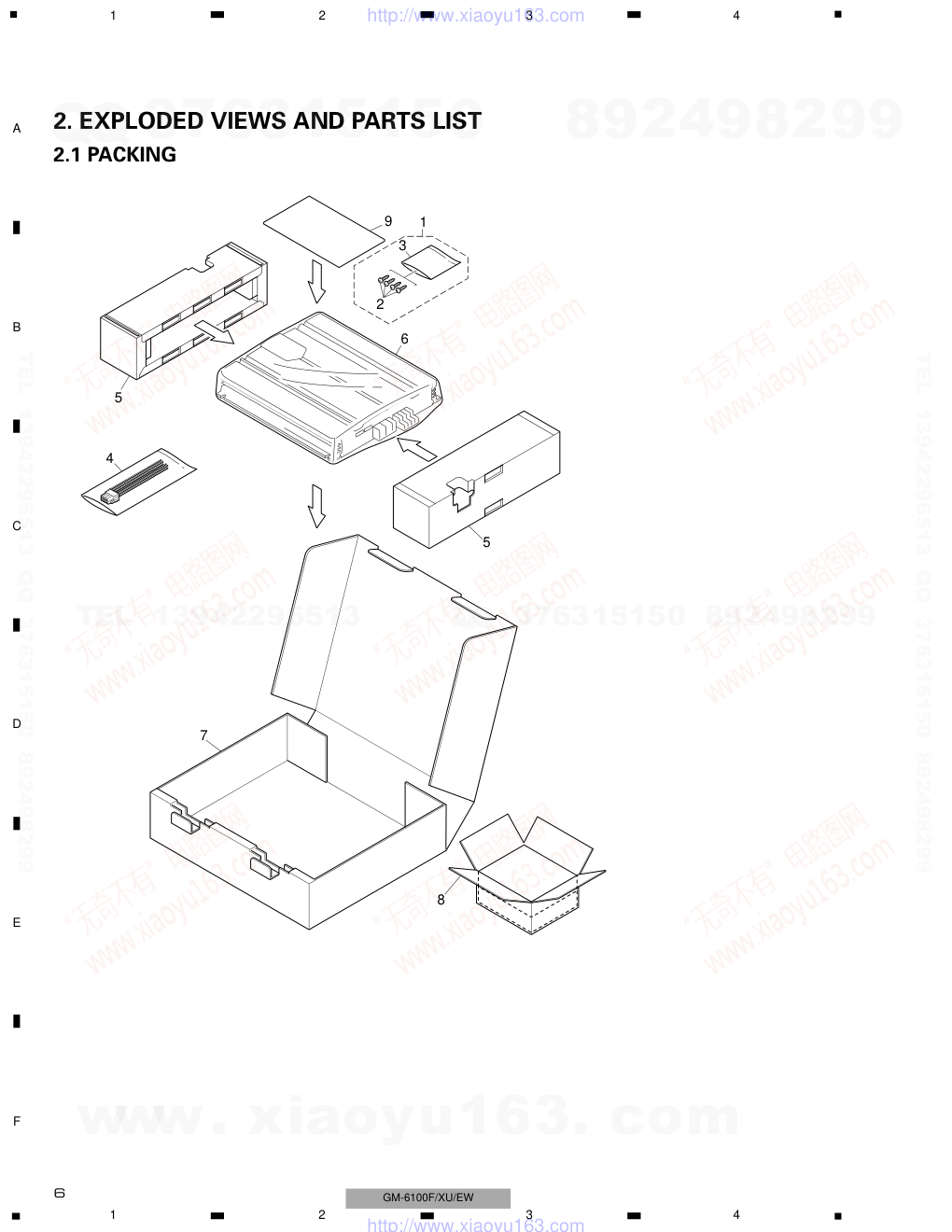

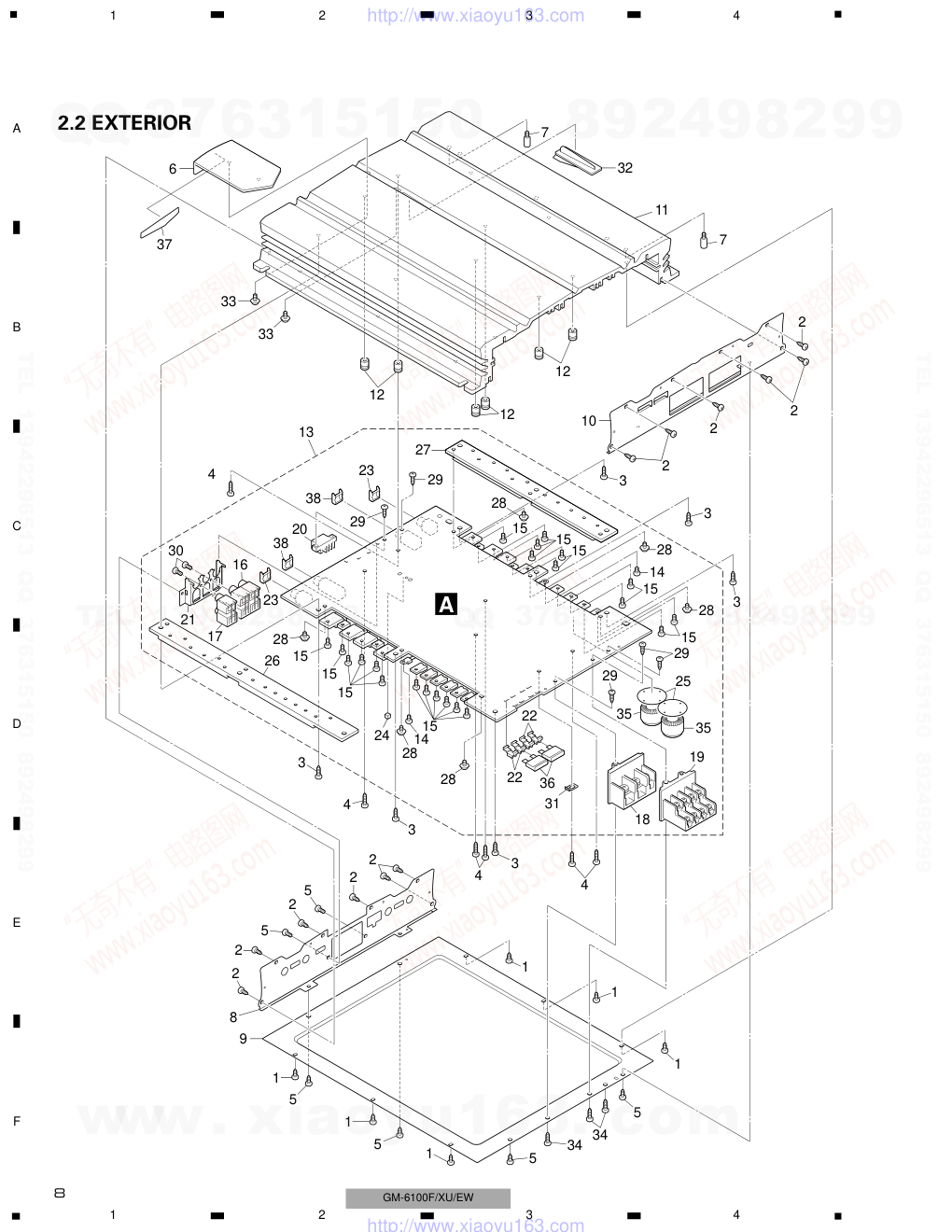

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936 C PIONEER CORPORATION 2004 K-ZZB. DEC. 2004 Printed in Japan ORDER NO. CRT3370 BRIDGEABLE FOUR-CHANNEL POWER AMPLIFIER GM-6100F/XU/EW Service Manual GM-6100F/XU/EW For details, refer to "Important check points for good servicing". GM-6100F/XU/UC GM-6100F/XU/ES GM-6100F/XU/CN GM-6150F/XU/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 F E D C B A GM-6100F/XU/EW SAFETY INFORMATION CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 - Service Precaution You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 5 6 7 8 F E D C B A 5 6 7 8 GM-6100F/XU/EW [Important Check Points for Good Servicing] In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. 0 Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 1 2 3 4 1 2 3 4 F E D C B A GM-6100F/XU/EW CONTENTS SAFETY INFORMATION............................................2 1. SPECIFICATIONS.......................................................5 2. EXPLODED VIEWS AND PARTS LIST ......................6 2.1 PACKING..............................................................6 2.2 EXTERIOR............................................................8 3. SCHEMATIC DIAGRAM...........................................10 3.1 SCHEMATIC DIAGRAM(GUIDE PAGE) ............10 4. PCB CONNECTION DIAGRAM................................16 4.1 AMP UNIT..........................................................16 5. ELECTRICAL PARTS LIST........................................20 6. ADJUSTMENT.........................................................24 7. GENERAL INFORMATION.......................................25 7.1 DIAGNOSIS .......................................................25 7.1.1 DISASSEMBLY.........................................25 7.1.2 CONNECTOR FUNCTION DESCRIPTION ......27 8. OPERATIONS...........................................................28 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 5 6 7 8 F E D C B A 5 6 7 8 GM-6100F/XU/EW 1. SPECIFICATIONS Power source .......................................................................................................... 14.4 V DC (10.8 — 15.1 V allowable) Grounding system .......................................................................................................................................... Negative type Current consumption .................................................................................................... 35.0 A (at continuous power, 4 Ω) Backup current.................................................................................................................................................. 3 mA or less Average current drawn* ........................................................................................................ 9.0 A (4 Ω for four channels) 15.0 A (4 Ω for two channels) Fuse ........................................................................................................................................................................ 25 A × 2 Dimensions ...................................................................................................................... 300 (W) × 60 (H) × 327 (D) mm Weight .................................................................................................................... 4.7 kg (Leads for wiring not included) Maximum power output .............................................................................................. 120 W × 4 (4 Ω) / 300 W × 2 (4 Ω) Continuous power output ............................................................ 60 W × 4 (at 14.4 V, 4 Ω, 20 Hz — 20 kHz 0.2% THD) 150 W × 2 (at 14.4 V, 4 Ω, 20 Hz — 20 kHz 0.8% THD) 75 W × 4 (at 14.4 V, 2 Ω, 20 Hz — 20 kHz 0.8% THD) Continuous power output (DIN power) .............................. 80 W × 4 (4 Ω) / 230 W × 2 (4 Ω) (DIN45324, +B=14.4 V) Load impedance .......................................................................................................................... 4 Ω (2 — 8 Ω allowable) (Bridge connection: 4 — 8 Ω allowable) Frequency response ........................................................................................................ 10 Hz — 50 kHz (+0 dB, –1 dB) Signal-to-noise ratio ...................................................................................................................... 95 dB (IEC-A network) Distortion ............................................................................................................................................ 0.01% (10 W, 1 kHz) Separation ...................................................................................................................................................... 70 dB (1 kHz) Low pass filter .................................................................................................................. Cut off frequency: 40 — 120 Hz Cut off slope: –12 dB/oct High pass filter ................................................................................................................ Cut off frequency: 40 — 120 Hz Cut off slope: –12 dB/oct Gain control .................................................................................................................................. RCA: 200 mV — 6.5 V Speaker: 0.8 — 26 V Maximum input level / impedance ...................................................................................................... RCA: 6.5 V / 22 kΩ Speaker: 26 V / 40 kΩ Note: • Specifications and the design are subject to possible modification without notice due to improvements. *Average current drawn • The average current drawn is nearly the maximum current drawn by this unit when an audio signal is input. Use this value when working out total current drawn by multiple power amplifiers. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 1 2 3 4 1 2 3 4 F E D C B A GM-6100F/XU/EW 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 1 9 3 2 6 5 5 8 7 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Part No. Mark No. Description GM-6100F/XU/EW GM-6100F/XU/UC GM-6100F/XU/ES GM-6100F/XU/CN 1 Screw Assy CEA4835 CEA4835 CEA4835 CEA4835 2 Screw BYC40P180FZK BYC40P180FZK BYC40P180FZK BYC40P180FZK * 3 Polyethylene Sheet CNM4338 CNM4338 CNM4338 CNM4338 4 Cord Assy CDE7737 CDE7737 CDE7737 CDE7737 5 Protector CHP2911 CHP2911 CHP2911 CHP2911 6 Polyethylene Bag CEG1317 CEG1351 CEG1317 CEG1317 7 Carton CHG5371 CHG5373 CHG5372 CHG5468 8 Contain Box CHL5371 CHL5373 CHL5372 CHL5468 9-1 Polyethylene Bag CEG1116 CEG1116 CEG1116 CEG1116 9-2 Owner’s Manual CRD3929 CRD3931 CRD3932 CRB2044 * 9-3 Warranty Card CRY1157 Not used Not used ARY7046 * 9-4 Card Not used ARY1048 Not used Not used 9-5 Owner’s Manual Not used Not used CRD3933 Not used 7 5 6 7 8 F E D C B A 5 6 7 8 GM-6100F/XU/EW - PACKING SECTION PARTS LIST NOTE: - Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List. - The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. - Screws adjacent to ∇ mark on the product are used for disassembly. - For the applying amount of lubricants or glue, follow the instructions in this manual. ( In the case of no amount instructions, apply as you think it appropriate.) - Owner's Manual Part No. Language CRD3929 English, Spanish, German, French, Italian, Dutch CRD3930 English, French, Spanish CRD3931 English, French, Spanish CRD3932 English, Spanish CRD3933 Arabic, Portuguese(B) CRB2044 Traditional Chinese Part No. Mark No. Description GM-6150F/XU/UC 1 Screw Assy CEA4835 2 Screw BYC40P180FZK * 3 Polyethylene Sheet CNM4338 4 Cord Assy CDE7737 5 Protector CHP2911 6 Polyethylene Bag CEG1351 7 Carton CHG5374 8 Contain Box CHL5374 9-1 Polyethylene Bag CEG1116 9-2 Owner’s Manual CRD3930 * 9-3 Warranty Card CRY1070 * 9-4 Card Not used 9-5 Owner’s Manual Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 32 11 7 12 2 2 2 5 2 2 2 2 2 8 9 1 1 1 5 5 5 5 1 1 1 34 34 5 2 3 3 13 27 29 28 29 20 23 38 38 23 26 24 28 15 15 15 15 14 28 28 22 36 31 18 19 35 25 15 29 29 28 28 14 15 15 15 15 35 22 21 30 16 17 4 3 3 3 4 4 4 3 10 12 12 33 33 6 A 37 8 1 2 3 4 1 2 3 4 F E D C B A GM-6100F/XU/EW 2.2 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 5 6 7 8 F E D C B A 5 6 7 8 GM-6100F/XU/EW 1 Screw BBZ30P060FTC 2 Screw BBZ30P080FZK 3 Screw BBZ30P100FZK 4 Screw BBZ30P120FTC 5 Screw BSZ30P050FZK * 6 Badge See Contrast table(2) 7 Screw CBA1810 8 Panel See Contrast table(2) 9 Case CNB3074 10 Panel See Contrast table(2) 11 Heat Sink See Contrast table(2) 12 Spacer CNV8256 13 Amp Unit See Contrast table(2) 14 Screw BBZ30P060FZK 15 Screw BBZ30P080FZK 16 Pin Jack(CN851) See Contrast table(2) 17 Pin Jack(CN852) See Contrast table(2) 18 Terminal(CN601) See Contrast table(2) 19 Terminal(CN301) See Contrast table(2) 20 Connector(CN853) CKM1334 21 Holder CND2457 22 Terminal CND2458 23 Holder CND2466 24 Spacer CNM9570 25 Insulator CNM9285 26 Sub Heat Sink CNR1783 27 Sub Heat Sink CNR1782 28 Screw IMS30P050FZK 29 Screw PPZ30P100FSN 30 Screw PPZ30P100FZK 31 Terminal(CN604) VNF1084 32 Lighting Conductor Unit CXC4334 33 Screw IBZ30P060FTC 34 Screw PPZ30P100FZK 35 Choke Coil(L902,903) CTH1326 > 36 Fuse(F101,102)(25A) CEK1329 37 Sheet CNM9571 38 Holder See Contrast table(2) Mark No. Description Part No. Mark No. Description Part No. - EXTERIOR SECTION PARTS LIST (2) CONTRAST TABLE GM-6100F/XU/EW, GM-6100F/XU/UC, GM-6100F/XU/ES,GM-6100F/XU/CN and GM-6150F/XU/UC are constructed the same except for the following: Part No. Mark No. Description GM-6100F/XU/EW GM-6100F/XU/UC GM-6100F/XU/ES GM-6100F/XU/CN * 6 Badge CAH1919 CAH1919 CAH1916 CAH1916 8 Panel CNB3066 CNB3068 CNB3069 CNB3069 10 Panel CNB3129 CNB3070 CNB3128 CNB3128 11 Heat Sink CNR1769 CNR1769 CNR1770 CNR1770 13 Amp Unit CWH1273 CWH1274 CWH1274 CWH1274 16 Pin Jack(CN851) CKB1067 CKB1066 CKB1066 CKB1066 17 Pin Jack(CN852) CKB1069 CKB1068 CKB1068 CKB1068 18 Terminal(CN601) CKE1054 CKE1055 CKE1055 CKE1055 19 Terminal(CN301) CKE1058 CKE1059 CKE1059 CKE1059 38 Holder CND2466 Not used Not used Not used Part No. Mark No. Description GM-6150F/XU/UC * 6 Badge CAH1917 8 Panel CNB3067 10 Panel CNB3115 11 Heat Sink CNR1793 13 Amp Unit CWH1273 16 Pin Jack(CN851) CKB1067 17 Pin Jack(CN852) CKB1069 18 Terminal(CN601) CKE1054 19 Terminal(CN301) CKE1058 38 Holder CND2466 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A-a A-a A-b A-b A-a A-a A-b A-b A-b A-b A-a A-a Large size SCH diagram Guide page Detailed page Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or "ELECTRICAL PARTS LIST". A-a A GM-6100F/XU/EW GM-6150F/XU/UC GM-6100F/XU/UC GM-6100F/XU/ES GM-6100F/XU/CN A B A A A A B B B B B B B B A A A A B FREQ B FREQ A FREQ A FREQ 0dB 0dB 0dB +18.5dBs(MAX) +18.3dBs +18.3dBs 10 1 2 3 4 1 2 3 4 F E D C B A GM-6100F/XU/EW 3. SCHEMATIC DIAGRAM 3.1 SCHEMATIC DIAGRAM(GUIDE PAGE) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 5 6 7 8 F E D C B A 5 6 7 8 GM-6100F/XU/EW A-b A Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. A AMP UNIT > > A GAIN B GAIN BFC -1.7dB ~ -30.5dB AMP +40dB -12.2dBs +27.8dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A-a A-b A-a A-a A-b GM-6100F/XU/EW GM-6150F/XU/UC GM-6100F/XU/UC GM-6100F/XU/ES GM-6100F/XU/CN A B A A B B B B B B A A A A A FREQ A FREQ B FREQ 0dB 0dB 0dB +18.5dBs(MAX) +18.3dBs +18.3dBs 12 1 2 3 4 1 2 3 4 F E D C B A GM-6100F/XU/EW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 5 6 7 8 F E D C B A 5 6 7 8 GM-6100F/XU/EW A-a A-b A-a A-a A-b 1 4 3 2 A A B B B FREQ B FREQ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 1 2 3 4 1 2 3 4 F E D C B A GM-6100F/XU/EW A-a A-b A-b Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. A AMP UNIT B GAIN A GAIN -1.7dB ~ -30.5dB AMP +40dB -12.2dBs +27.8dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 5 6 7 8 F E D C B A 5 6 7 8 GM-6100F/XU/EW A-a A-b A-b 1 4 3 2 > > B GAIN BFC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4. PCB CONNECTION DIAGRAM 4.1 AMP UNIT Capacitor Connector P.C.Board Chip Part A A AMP UNIT SIDE B SIDE A NOTE FOR PCB DIAGRAMS 1.The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2.Viewpoint of PCB diagrams 1 5 2 6 3 7 4 8 3 2 1 3 2 1 3 2 1 3 2 1 3 2 1 3 2 1 SPEAKER OUTPUT POWER SUPPLY 16 1 2 3 4 1 2 3 4 F E D C B A GM-6100F/XU/EW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 5 6 7 8 F E D C B A 5 6 7 8 GM-6100F/XU/EW A SIDE A 2 1 7 8 5 6 3 4 1 2 4 8 7 3 1 2 5 6 AL AR BR BL R L 6 4 5 3 B GAIN B FREQ A GAIN A FREQ INPUT SELECT B LPF/HPF SPEAKER INPUT RCA INPUT RCA OUTPUT A LPF/HPF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 1 2 3 4 1 2 3 4 F E D C B A GM-6100F/XU/EW A A AMP UNIT 1 1 R L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 5 6 7 8 F E D C B A 5 6 7 8 GM-6100F/XU/EW A SIDE B 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Unit Number : CWH1273(EW,6150F/UC) Unit Number : CWH1274(UC,ES,CN) Unit Name : Amp Unit MISCELLANEOUS IC 121 (B,279,42) IC NJM4558MD IC 122 (B,280,81) IC NJM4558MD IC 123 (B,280,164) IC NJM4558MD IC 124 (B,277,194) IC NJM4558MD IC 125 (B,283,59) IC NJM4558MD IC 126 (B,291,90) IC NJM4558MD IC 127 (B,292,164) IC NJM4558MD IC 128 (B,283,183) IC NJM4558MD IC 601 (A,148,92) IC PA2027A IC 851 (B,298,38) IC NJM2068MD IC 852 (B,275,108) IC NJM2068MD IC 853 (B,276,145) IC NJM2068MD IC 854 (B,298,196) IC NJM2068MD IC 901 (B,150,60) IC UPC494GS Q 301 (B,261,76) Transistor 2SA1163 Q 302 (B,223,92) Transistor 2SA1163 Q 303 (B,258,161) Transistor 2SA1163 Q 304 (B,221,148) Transistor 2SA1163 Q 305 (B,256,76) Transistor 2SA1163 Q 306 (B,218,92) Transistor 2SA1163 Q 307 (B,253,161) Transistor 2SA1163 Q 308 (B,215,148) Transistor 2SA1163 Q 309 (B,261,83) Transistor 2SC2713 Q 310 (B,223,100) Transistor 2SC2713 Q 311 (B,258,153) Transistor 2SC2713 Q 312 (B,221,140) Transistor 2SC2713 Q 313 (B,256,83) Transistor 2SC2713 Q 314 (B,218,100) Transistor 2SC2713 Q 315 (B,253,153) Transistor 2SC2713 Q 316 (B,216,140) Transistor 2SC2713 Q 317 (B,250,83) Transistor 2SC2713 Q 318 (B,210,100) Transistor 2SC2713 Q 319 (B,245,153) Transistor 2SC2713 Q 320 (B,206,140) Transistor 2SC2713 Q 321 (B,260,65) Transistor 2SA1163 Q 322 (B,223,81) Transistor 2SA1163 Q 323 (B,260,171) Transistor 2SA1163 Q 324 (B,222,159) Transistor 2SA1163 Q 325 (B,248,72) Transistor 2SC2713 Q 326 (B,210,89) Transistor 2SC2713 Q 327 (B,245,164) Transistor 2SC2713 Q 328 (B,207,151) Transistor 2SC2713 Q 329 (A,247,37) Transistor 2SD1684 Q 330 (A,198,37) Transistor 2SD1684 Q 331 (A,242,203) Transistor 2SD1684 Q 332 (A,193,203) Transistor 2SD1684 Q 333 (A,264,40) Transistor 2SD2439 Q 334 (A,187,40) Transistor 2SD2439 Q 335 (A,253,200) Transistor 2SD2439 Q 336 (A,176,200) Transistor 2SD2439 Q 337 (A,236,40) Transistor 2SB1588 Q 338 (A,215,40) Transistor 2SB1588 Q 339 (A,225,200) Transistor 2SB1588 Q 340 (A,204,200) Transistor 2SB1588 Q 601 (B,132,101) Transistor 2SC4081 Q 602 (B,137,98) Transistor 2SA1576A Q 603 (A,121,89) Transistor 2SB1243 Q 604 (B,131,88) Transistor DTA124EU Q 605 (B,265,90) Transistor 2SC4081 Q 606 (B,231,95) Transistor 2SC4081 Q 607 (B,264,157) Transistor 2SC4081 Q 608 (B,230,146) Transistor 2SC4081 Q 651 (B,238,72) Transistor 2SC2713 Q 652 (B,200,89) Transistor 2SC2713 Q 653 (B,237,164) Transistor 2SC2713 Q 654 (B,200,151) Transistor 2SC2713 Q 655 (B,148,183) Transistor 2SA1576A Q 656 (B,150,190) Transistor 2SC4081 Q 657 (B,152,183) Transistor 2SC4081 Q 658 (B,156,185) Transistor 2SC4081 Q 659 (B,154,194) Transistor 2SA1576A Q 701 (B,142,89) Transistor DTA114EU Q 702 (B,136,88) Transistor DTC114TU Q 703 (B,150,89) Transistor 2SC4081 Q 704 (B,152,81) Transistor DTC114TU Q 901 (B,139,72) Transistor 2SA1576A Q 902 (B,125,64) Transistor 2SD1766 Q 903 (B,133,57) Transistor 2SB1188 Q 904 (B,125,57) Transistor 2SB1188 Q 905 (B,133,64) Transistor 2SD1766 Q 906 (A,61,37) Transistor FKV550N Q 907 (A,106,37) Transistor FKV550N Q 908 (A,76,37) Transistor FKV550N Q 909 (A,121,37) Transistor FKV550N Q 910 (A,91,37) Transistor FKV550N Q 911 (A,136,37) Transistor FKV550N Q 912 (A,129,204) Transistor 2SD2395 Q 913 (A,109,204) Transistor 2SB1566 D 301 (B,246,76) Diode MA111 D 302 (B,207,93) Diode MA111 D 303 (B,244,160) Diode MA111 D 304 (B,206,147) Diode MA111 D 305 (B,246,79) Diode MA111 D 306 (B,207,95) Diode MA111 D 307 (B,244,157) Diode MA111 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A 20 1 2 3 4 1 2 3 4 F E D C B A GM-6100F/XU/EW NOTE: Parts whose parts numbers are omitted are subject to being not supplied. The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... The > mark found on some component parts indicatesthe importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Meaning of the figures and others in the parentheses in the parts list. Example) IC 301 is on the point (face A, 91 of x-axis, and 111 of y-axis) of the corresponding PC board. IC 301 (A, 91, 111) IC NJM2068V 5. ELECTRICAL PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 5 6 7 8 F E D C B A 5 6 7 8 GM-6100F/XU/EW D 308 (B,206,145) Diode MA111 D 601 (B,115,89) Diode UDZS7R5(B) D 603 (B,122,77) Diode MA111 D 604 (A,258,121) LED UB3803X D 605 (B,167,99) Diode 1SR154-400 D 606 (B,162,99) Diode 1SR154-400 D 651 (B,241,78) Diode MA111 D 652 (B,202,94) Diode MA111 D 653 (B,235,158) Diode MA111 D 654 (B,198,146) Diode MA111 D 655 (B,145,186) Diode MA111 D 701 (B,154,74) Diode MA111 D 851 (A,296,121) Diode ERA15-02VH D 852 (A,296,125) Diode ERA15-02VH D 853 (A,296,129) Diode ERA15-02VH D 854 (A,296,133) Diode ERA15-02VH D 901 (B,159,51) Diode DAN202U D 902 (A,89,203) Diode FML22S D 903 (A,69,203) Diode FML22R D 904 (B,130,196) Diode UDZS16(B) D 905 (B,123,200) Diode UDZS16(B) D 951 (A,40,84) Diode RM4Z-LFJ4 D 952 (A,106,195) Diode ERA92-02VH D 953 (A,106,186) Diode ERA92-02VH L 901 (A,57,73) Choke Coil 50µH CTH1323 L 902 (A,74,175) Choke Coil 320µH CTH1326 L 903 (A,47,175) Choke Coil 320µH CTH1326 T 601 (A,90,81) Transformer CTT1125 TH 901 (A,149,37) Thermistor CCX1013 TH 902 (A,153,203) Thermistor CCX1013 TH 903 (A,116,63) Thermistor CCX1064 S 101 (A,314,40) Switch(A LPF/HPF) CSH1029 S 102 (A,314,191) Switch(B LPF/HPF) CSH1029 S 851 (A,314,77) Slide Switch(INPUT SELECT) CSH1042 S 901 (A,9,201) Switch(BFC) HSH-156 VR 121 (A,309,50) Volume 20kΩ(E) CCS1266 (EW,6150F/UC)(A FREQ) VR 122 (A,309,178) Volume 20kΩ(E) CCS1266 (EW,6150F/UC)(B FREQ) VR 601 (A,309,28) 10kΩ(A)(A GAIN) CCS1265 VR 602 (A,309,208) 10kΩ(A)(B GAIN) CCS1265 FU 101 (A,20,73) Fuse 25A CEK1329 FU 102 (A,20,50) Fuse 25A CEK1329 AR 831 (B,316,114) Surge Protector RCCA-201Q31UA-PI AR 832 (B,316,123) Surge Protector RCCA-201Q31UA-PI AR 833 (B,316,129) Surge Protector RCCA-201Q31UA-PI AR 834 (B,316,136) Surge Protector RCCA-201Q31UA-PI RESISTORS R 101 (B,287,36) RS1/16S103J R 102 (B,286,75) RS1/16S103J R 103 (B,284,160) RS1/16S103J R 104 (B,283,191) RS1/16S103J R 105 (B,285,42) RS1/16S103J R 106 (B,286,77) RS1/16S103J R 107 (B,281,156) RS1/16S103J R 108 (B,282,194) RS1/16S103J R 109 (B,274,41) RS1/16S103J R 110 (B,279,89) RS1/16S103J R 111 (B,275,162) RS1/16S103J R 112 (B,272,193) RS1/16S103J R 113 (B,284,44) RS1/16S472J R 114 (B,286,83) RS1/16S472J R 115 (B,278,171) RS1/16S472J R 116 (B,284,198) RS1/16S472J R 117 (B,272,45) RS1/16S103J R 118 (B,279,87) RS1/16S103J R 119 (B,276,167) RS1/16S103J R 120 (B,272,196) RS1/16S103J R 121 (B,284,47) RS1/16S562J R 122 (B,286,85) RS1/16S562J R 123 (B,281,171) RS1/16S562J R 124 (B,282,198) RS1/16S562J R 125 (B,274,45) RS1/16S822J R 126 (B,289,78) RS1/16S822J R 127 (B,274,165) RS1/16S822J R 128 (B,272,198) RS1/16S822J R 129 (B,273,49) RS1/16S103J R 130 (B,283,89) RS1/16S103J R 131 (B,276,171) RS1/16S103J R 132 (B,272,191) RS1/16S103J R 133 (B,289,56) RS1/16S822J R 134 (B,290,83) RS1/16S822J R 135 (B,301,172) RS1/16S822J R 136 (B,296,180) RS1/16S822J R 139 (B,307,42) RS1/16S222J R 140 (B,285,72) RS1/16S222J R 141 (B,317,194) RS1/16S222J R 142 (B,307,195) RS1/16S222J R 151 (B,310,66) (UC,ES,CN) RS1/16S472J R 152 (B,302,67) (UC,ES,CN) RS1/16S472J R 153 (B,306,170) (UC,ES,CN) RS1/16S472J R 154 (B,271,177) (UC,ES,CN) RS1/16S472J R 155 (B,306,68) (UC,ES,CN) RS1/16S472J R 156 (B,298,67) (UC,ES,CN) RS1/16S472J R 157 (B,306,173) (UC,ES,CN) RS1/16S472J R 158 (B,296,176) (UC,ES,CN) RS1/16S472J R 301 (B,259,91) RS1/16S103J R 302 (B,225,105) RS1/16S103J R 303 (B,260,145) RS1/16S103J R 304 (B,225,134) RS1/16S103J R 305 (B,259,87) RS1/16S333J R 306 (B,221,104) RS1/16S333J R 307 (B,258,149) RS1/16S333J R 308 (B,221,134) RS1/16S333J R 309 (B,252,65) RS1/16S681J R 310 (B,215,82) RS1/16S681J R 311 (B,252,172) RS1/16S681J R 312 (B,214,159) RS1/16S681J R 317 (B,260,72) RS1/16S331J R 318 (B,222,88) RS1/16S331J R 319 (B,258,165) RS1/16S331J R 320 (B,221,152) RS1/16S331J R 321 (B,254,70) RS1/16S331J R 322 (B,217,87) RS1/16S331J R 323 (B,254,166) RS1/16S331J R 324 (B,216,153) RS1/16S331J R 325 (B,262,79) RS1/16S681J R 326 (B,224,96) RS1/16S681J R 327 (B,258,157) RS1/16S681J R 328 (B,221,144) RS1/16S681J R 329 (B,237,83) RS1/16S471J R 330 (B,216,104) RS1/16S471J R 331 (B,253,149) RS1/16S471J R 332 (B,216,136) RS1/16S471J R 333 (B,236,80) RS1/16S473J R 334 (B,216,106) RS1/16S473J R 335 (B,253,147) RS1/16S473J R 336 (B,216,134) RS1/16S473J R 337 (B,246,83) RS1/16S681J R 338 (B,206,99) RS1/16S681J R 339 (B,249,154) RS1/16S681J R 340 (B,211,141) RS1/16S681J R 341 (B,252,70) RS1/16S223J R 342 (B,215,87) RS1/16S223J R 343 (B,252,166) RS1/16S223J R 344 (B,214,153) RS1/16S223J R 349 (A,261,70) RD1/4PU101J R 350 (A,224,86) RD1/4PU101J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- > > www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 1 2 3 4 1 2 3 4 F E D C B A GM-6100F/XU/EW R 351 (A,261,167) RD1/4PU101J R 352 (A,223,154) RD1/4PU101J R 353 (B,248,65) RS1/16S472J R 354 (B,210,82) RS1/16S472J R 355 (B,246,172) RS1/16S472J R 356 (B,208,159) RS1/16S472J R 357 (B,245,65) RS1/16S222J R 358 (B,205,82) RS1/16S222J R 359 (B,243,172) RS1/16S222J R 360 (B,205,159) RS1/16S222J R 361 (A,252,79) RD1/4PU101J R 362 (A,214,90) RD1/4PU101J R 363 (A,249,163) RD1/4PU101J R 364 (A,211,145) RD1/4PU101J R 365 (A,269,46) RD1/4PU100J R 366 (A,192,46) RD1/4PU100J R 367 (A,248,194) RD1/4PU100J R 368 (A,171,195) RD1/4PU100J R 369 (A,241,46) RD1/4PU100J R 370 (A,220,46) RD1/4PU100J R 371 (A,220,194) RD1/4PU100J R 372 (A,199,194) RD1/4PU100J R 377 (A,225,47) 1Ω CCN1151 R 378 (A,176,56) 1Ω CCN1151 R 379 (A,236,193) 1Ω CCN1151 R 380 (A,187,184) 1Ω CCN1151 R 381 (A,253,56) 1Ω CCN1151 R 382 (A,204,47) 1Ω CCN1151 R 383 (A,264,184) 1Ω CCN1151 R 384 (A,215,193) 1Ω CCN1151 R 393 (A,22,203) RD1/2PM100J R 394 (A,21,139) RD1/2PM100J R 395 (A,31,180) RD1/2PM100J R 396 (A,30,158) RD1/2PM100J R 601 (A,23,122) RD1/4PU222J R 602 (B,22,116) RS1/16S473J R 603 (B,130,102) RS1/16S103J R 604 (B,130,98) RS1/16S103J R 605 (B,133,98) RS1/16S222J R 606 (B,133,96) RS1/16S472J R 607 (B,140,89) RS1/16S472J R 608 (B,137,94) RS1/16S562J R 609 (B,144,95) RS1/16S562J R 610 (B,150,96) RS1/16S103J R 612 (A,122,81) RD1/4PU472J R 613 (A,119,80) RD1/4PU101J R 614 (A,125,86) RD1/4PU221J R 615 (A,127,86) RD1/4PU102J R 616 (B,155,90) RS1/16S223J R 617 (B,126,73) RS1/16S223J R 618 (B,144,81) RS1/16S223J R 619 (A,122,69) RD1/4PU271J R 620 (A,130,73) RD1/4PU271J R 631 (B,262,88) RS1/16S472J R 632 (B,233,100) RS1/16S472J R 633 (B,262,157) RS1/16S472J R 634 (B,227,143) RS1/16S472J R 635 (B,307,40) RS1/16S680J R 636 (B,281,72) RS1/16S680J R 637 (B,317,199) RS1/16S680J R 638 (B,307,199) RS1/16S680J R 651 (B,241,65) RS1/16S333J R 652 (B,201,82) RS1/16S333J R 653 (B,236,172) RS1/16S333J R 654 (B,199,159) RS1/16S333J R 655 (B,241,83) RS1/16S564J R 656 (B,202,98) RS1/16S564J R 657 (B,235,153) RS1/16S564J R 658 (B,198,141) RS1/16S564J R 659 (B,235,83) RS1/16S473J R 660 (B,198,95) RS1/16S473J R 661 (B,237,158) RS1/16S473J R 662 (B,202,146) RS1/16S473J R 663 (A,140,185) RD1/4PU103J R 664 (B,146,193) RS1/16S104J R 665 (B,146,191) RS1/16S472J R 666 (B,153,190) RS1/16S222J R 667 (B,155,190) RS1/16S472J R 668 (A,143,185) RD1/4PU221J R 669 (B,157,190) RS1/16S222J R 670 (B,157,194) RS1/16S563J R 701 (B,147,89) RS1/16S222J R 831 (A,303,170) RD1/4PU683J R 832 (A,304,145) RD1/4PU683J R 833 (A,298,167) RD1/4PU683J R 834 (A,304,147) RD1/4PU683J R 851 (B,299,45) RS1/16S471J R 852 (B,289,106) RS1/16S471J R 853 (B,285,146) RS1/16S471J R 854 (B,301,205) RS1/16S471J R 855 (B,293,42) RS1/16S223J R 856 (B,280,108) RS1/16S223J R 857 (B,281,144) RS1/16S223J R 858 (B,302,198) RS1/16S223J R 859 (B,302,34) 10kΩ CCN1152 R 860 (B,271,108) 10kΩ CCN1152 R 861 (B,274,152) 10kΩ CCN1152 R 862 (B,302,194) 10kΩ CCN1152 R 863 (B,291,39) 10kΩ CCN1152 R 864 (B,280,106) 10kΩ CCN1152 R 865 (B,281,140) 10kΩ CCN1152 R 866 (B,292,196) 10kΩ CCN1152 R 867 (B,288,42) 10kΩ CCN1152 R 868 (B,280,111) 10kΩ CCN1152 R 869 (B,274,156) 10kΩ CCN1152 R 870 (B,288,196) 10kΩ CCN1152 R 871 (B,299,30) 10kΩ CCN1152 R 872 (B,275,102) 10kΩ CCN1152 R 873 (B,276,139) 10kΩ CCN1152 R 874 (B,306,191) 10kΩ CCN1152 R 901 (B,141,81) RS1/16S103J R 902 (B,141,78) RS1/16S223J R 903 (B,149,71) RS1/16S202J R 904 (B,139,68) RS1/16S101J R 906 (B,154,69) RS1/16S105J R 907 (B,154,67) RS1/16S153J R 908 (B,149,69) RS1/16S473J R 909 (B,136,53) RS1/16S332J R 910 (B,151,52) RS1/16S472J R 911 (B,148,51) RS1/16S472J R 912 (B,146,46) RS1/16S472J R 913 (B,155,52) RS1/16S272J R 914 (B,155,50) RS1/16S272J R 915 (B,151,50) RS1/16S272J R 916 (B,128,53) RS1/16S332J R 917 (B,150,75) RS1/16S102J R 921 (B,150,45) RS1/16S222J R 922 (B,144,51) RS1/16S184J R 923 (B,138,53) RS1/16S183J R 930 (A,66,35) RD1/2PM121J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 5 6 7 8 F E D C B A 5 6 7 8 GM-6100F/XU/EW =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- R 931 (A,111,36) RD1/2PM121J R 932 (A,81,35) RD1/2PM121J R 933 (A,126,36) RD1/2PM121J R 934 (A,96,35) RD1/2PM121J R 935 (A,141,35) RD1/2PM121J R 936 (B,121,53) RS1/16S472J R 937 (B,130,53) RS1/16S472J R 938 (A,62,55) RD1/2PM100J R 939 (A,104,54) RD1/2PM100J R 940 (A,117,109) RD1/2PM220J R 941 (A,136,109) RD1/2PM220J R 942 (A,118,92) RD1/2PM220J R 943 (A,110,194) RD1/2PM560J R 944 (A,113,194) RD1/2PM560J R 945 (A,114,199) RD1/4PU102J R 946 (A,135,194) RD1/4PU102J R 947 (A,162,145) RD1/2PM681J R 948 (A,150,145) RD1/2PM681J R 951 (A,119,194) RD1/2PM181J R 952 (A,116,194) RD1/2PM181J CAPACITORS C 101 (B,283,42) CCSRCH470J50 C 102 (B,286,79) CCSRCH470J50 C 103 (B,281,158) CCSRCH470J50 C 104 (B,284,194) CCSRCH470J50 C 105 (A,284,52) CFTNA154J50 C 106 (A,299,82) CFTNA154J50 C 107 (A,293,157) CFTNA154J50 C 108 (A,283,177) CFTNA154J50 C 109 (A,285,67) CFTNA154J50 C 110 (A,300,78) CFTNA154J50 C 111 (A,294,171) CFTNA154J50 C 112 (A,276,181) CFTNA154J50 C 301 (A,262,94) CEAT100M50 C 302 (A,229,99) CEAT100M50 C 303 (A,264,152) CEAT100M50 C 304 (A,229,141) CEAT100M50 C 305 (B,259,89) CCSRCH101J50 C 306 (B,221,105) CCSRCH101J50 C 307 (B,258,147) CCSRCH101J50 C 308 (B,221,136) CCSRCH101J50 C 309 (B,257,79) CKSRYB471K50 C 310 (B,220,96) CKSRYB471K50 C 311 (B,254,157) CKSRYB471K50 C 312 (B,216,144) CKSRYB471K50 C 317 (A,238,87) CEAT101M10 C 318 (A,212,104) CEAT101M10 C 319 (A,243,149) CEAT101M10 C 320 (A,206,136) CEAT101M10 C 321 (B,235,78) CCSRCH220J50 C 322 (B,216,108) CCSRCH220J50 C 323 (B,253,145) CCSRCH220J50 C 324 (B,216,132) CCSRCH220J50 C 325 (B,256,65) CCSRCH220J50 C 326 (B,219,82) CCSRCH220J50 C 327 (B,256,172) CCSRCH220J50 C 328 (B,218,159) CCSRCH220J50 C 329 (A,241,43) CFTNA223J50 C 330 (A,192,43) CFTNA223J50 C 331 (A,248,198) CFTNA223J50 C 332 (A,194,198) CFTNA223J50 C 333 (B,254,65) CCSRCH220J50 C 334 (B,217,82) CCSRCH220J50 C 335 (B,254,172) CCSRCH220J50 C 336 (B,216,159) CCSRCH220J50 C 337 (B,259,43) CCSRCH220J50 C 338 (B,182,42) CCSRCH220J50 C 339 (B,258,198) CCSRCH220J50 C 340 (B,181,198) CCSRCH220J50 C 341 (B,235,42) CCSRCH220J50 C 342 (B,214,42) CCSRCH220J50 C 343 (B,226,198) CCSRCH220J50 C 344 (B,206,198) CCSRCH220J50 C 345 (A,18,195) CFTNA333J50 C 346 (A,12,130) CFTNA333J50 C 347 (A,29,199) CFTNA333J50 C 348 (A,30,166) CFTNA333J50 C 349 (A,14,190) CQHA102J2A C 350 (A,17,135) CQHA102J2A C 351 (A,23,188) CQHA102J2A C 352 (A,26,157) CQHA102J2A C 361 (B,263,43) CCSRCH220J50 C 362 (B,186,42) CCSRCH220J50 C 363 (B,254,198) CCSRCH220J50 C 364 (B,177,198) CCSRCH220J50 C 365 (B,236,44) CCSRCH220J50 C 366 (B,216,44) CCSRCH220J50 C 367 (B,224,196) CCSRCH220J50 C 368 (B,204,196) CCSRCH220J50 C 601 (A,55,78) CFTNA103J50 C 602 (A,20,120) CFTNA103J50 C 603 (A,23,113) CFTNA103J50 C 604 (A,153,101) CFTNA103J50 C 605 (A,147,96) CEAT100M50 C 606 (A,141,96) CEAT100M50 C 607 (A,158,92) CFTNA103J50 C 608 (A,157,83) CEAT101M16 C 609 (A,153,92) CFTNA103J50 C 610 (A,131,81) CEAT220M25 C 611 (A,124,77) CEAT471M16 C 612 (A,148,76) CFTNA103J50 C 614 (B,257,115) CKSQYB104K50 C 651 (A,150,195) CEANP221M16 C 701 (A,138,81) CEAT220M25 C 831 (A,280,116) CEAT100M50 C 832 (A,280,122) CEAT100M50 C 833 (A,285,133) CEAT100M50 C 834 (A,280,128) CEAT100M50 C 851 (A,304,44) CEAT100M50 C 852 (A,291,109) CEAT100M50 C 853 (A,282,153) CEAT100M50 C 854 (A,305,201) CEAT100M50 C 855 (A,289,47) CFTNA223J50 C 856 (A,289,100) CFTNA223J50 C 857 (A,284,140) CFTNA223J50 C 858 (A,287,200) CFTNA223J50 C 859 (B,288,44) CCSRCH470J50 C 860 (B,280,113) CCSRCH470J50 C 861 (B,274,158) CCSRCH470J50 C 862 (B,290,196) CCSRCH470J50 C 863 (B,299,32) CCSRCH470J50 C 864 (B,275,100) CCSRCH470J50 C 865 (B,276,137) CCSRCH470J50 C 866 (B,304,191) CCSRCH470J50 C 875 (B,297,45) CKSRYB471K50 C 876 (B,284,106) CKSRYB471K50 C 877 (B,284,144) CKSRYB471K50 C 878 (B,302,202) CKSRYB471K50 C 901 (A,134,70) CEAT100M50 C 902 (A,143,68) CEAT221M16 C 903 (A,153,74) CQHA102J2A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 1 2 3 4 1 2 3 4 F E D C B A GM-6100F/XU/EW =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- C 904 (A,142,63) CFTNA105J50 C 905 (A,159,57) CEAT101M16 C 906 (A,142,54) CFTNA564J50 C 907 (A,117,56) CQHA472J2A C 908 (A,62,62) CQHA472J2A C 909 (A,122,109) CQHA102J2A C 910 (A,46,93) 3900µF/16V CCH1644(P35) C 911 (A,61,100) 3900µF/16V CCH1644(P35) C 912 (A,116,104) CFTNA103J50 C 913 (A,128,109) CFTNA103J50 C 914 (A,74,144) 3900µF/35V CCH1645(P35) C 915 (A,55,144) 3900µF/35V CCH1645(P35) C 916 (A,74,164) 3900µF/35V CCH1645(P35) C 917 (A,55,164) 3900µF/35V CCH1645(P35) C 920 (B,161,58) CKSRYB103K50 C 921 (B,146,51) CKSRYB224K16 C 934 (A,132,199) CEAT470M25 C 935 (A,121,197) CEAT470M25 C 936 (A,138,199) CEAT470M16 C 937 (A,126,194) CEAT470M16 C 939 (A,271,117) CFTNA333J50 C 940 (A,276,122) CFTNA333J50 C 941 (A,271,127) CFTNA333J50 C 942 (A,276,133) CFTNA333J50 C 951 (A,50,42) CFTNA224J50 C 952 (A,126,186) CQHA102J2A C 953 (A,134,186) CQHA102J2A C 954 (A,114,176) CEAT471M50(P45) C 955 (A,128,176) CEAT471M50(P45) 6. ADJUSTMENT There is no information to be shown in this chapter. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 5 6 7 8 F E D C B A 5 6 7 8 GM-6100F/XU/EW Removing the Case (Fig. 1) Removing the Panel (Fig. 2) Remove three black screws (M3 x 10). Remove six white screws (M3 x 6). Remove four black screws (M3 x 5). Panel for the Power Terminal side Case Panel for the RCA side Panel for the RCA side Panel for the Power Terminal side Fig. 1 Fig. 2 Remove six black screws (M3 x 8). Remove six black screws (M3 x 8). RCA Terminal (CN851,CN852) Remove two black screws (M3 x 5). (They are used to secure the RCA Holder.) 2 2 2 2 2 2 3 3 3 3 2 2 3 3 3 3 3 3 1 1 1 1 1 1 3 2 3 1 2 1 1 1 Caution) When you disassemble/re-assemble the Product with it placed upside down, take care not to damage the top surface. The Product uses several different types of screws. Take care not to confuse them during re-assembly. Panels are used for two sides individually, one for the RCA side and the other for the Power Terminal side. 1 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 DISASSEMBLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 1 2 3 4 1 2 3 4 F E D C B A GM-6100F/XU/EW Caution when re-assembling the Amp Unit and the Heat Sink Remove six black screws (M3 x 10). Remove six white screws (M3 x 12). Amp Unit Heat Sink Heat Sink Amp Unit RCA Holder Stud Move the Amp Unit Fig. 3 Stud 2 2 2 2 2 2 3 3 1 1 1 1 1 1 2 3 1 A A Removing the Amp Unit (Fig. 3) Screw holes in the PCB are printed with numbers 1 to 12. Remove screws in numerical order. Re-assembly takes the reverse order of disassembly. Remove all of the twelve screws. Then, remove the two black screws (M3 x 5). Tighten screws whose length is M3 x 8 or more into the two screw holes so as to raise the Amp Unit above the Heat Sink. Then, remove the Amp Unit. Caution) The Amp Unit is adhered on the Heat Sink with silicon grease. This means forcibly removing the Amp Unit from the Heat Sink may break the PCB. Be aware that the RCA Terminal may break unless the Amp Unit and the Heat Sink are assem-bled following the correct procedures given below. 1) Secure the RCA-side Panel on the Heat Sink with screws. (Fig. 2) 2) Place the Amp Unit on the Heat Sink aligning with two studs. (Fig. 4) 3) Move the Amp Unit until the RCA Holder on the Amp Unit comes in contact with the inside of the Panel. (Fig. 4) Caution in steps 2) and 3) When you place the Amp Unit on the Heat Sink, you will find no positioning marks to determine the direction of two panels. To position them correctly, the Amp Unit needs to be moved to the place where it comes in contact with the RCA-side panel. If you do not position them, an excessive force can be applied to the RCA Terminal. This may result in breakage. 4) Secure the RCA-side Panel and the RCA Holder with screws. (Fig. 2) 5) Secure the Amp Unit on the Heat Sink with the screws. (Fig. 3) 6) Secure the Panel for the Power Terminal side in place with screws. (Fig. 2) Fig. 4 RCA Terminal (CN851,CN852) Panel for the RCA side (Since screw threads differ, and screws cannot be used.) 1 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 5 6 7 8 F E D C B A 5 6 7 8 GM-6100F/XU/EW 7.1.2 CONNECTOR FUNCTION DESCRIPTION (GM-6100F/XU/EW) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 1 2 3 4 1 2 3 4 F E D C B A GM-6100F/XU/EW 8. OPERATIONS (GM-6100F/XU/EW) LPF (Low-Pass Filter)/HPF (High-Pass Filter) Select Switch Set the LPF/HPF select switch as follows according to the type of speaker that is connected to the speaker output connector and the car stereo system: LPF/HPF Select Audio frequency range Speaker Remarks Switch to be output Type LPF (Left) * — 40 to 120 Hz Subwoofer Connect a subwoofer. OFF (Center) Full range Full range HPF (Right) * 40 to 120 Hz — Full range Use if you want to cut the very low frequency range* because it is not necessary for the speakers you are using. * See the “Cut Off Frequency Control” section. BFC (Beat Frequency Control) Switch If you hear a beat while listening to an MW/LW broadcast with your car stereo, change the BFC switch using a small stan- dard tip screwdriver. Power Indicator The power indicator lights when the power is switched on. Gain Control Adjusting the gain controls A and B will help match the output of the car stereo to the Pioneer amplifier. Normally, set the gain con- trols to the NORMAL position. If the output is low, even when the volume of the car stereo is turned up, turn these controls clockwise. If there is distortion when the volume of the car stereo is turned up, turn these controls counter-clockwise. • If you only use one input plug, set the gain con- trols for speaker outputs A and B to the same position. • When using with an RCA equipped car stereo (standard output of 500 mV), set to the NOR- MAL position. When using with an RCA equipped Pioneer car stereo with max. output of 4 V or more, adjust level to match the car stereo output level. Input Select Switch For two-channel input, slide this switch to the left. For four-channel input, slide this switch to the right. Cut Off Frequency Control If the LPF/HPF select switch is set to LPF or HPF, you can select a cut off frequency from 40 to 120 Hz. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
