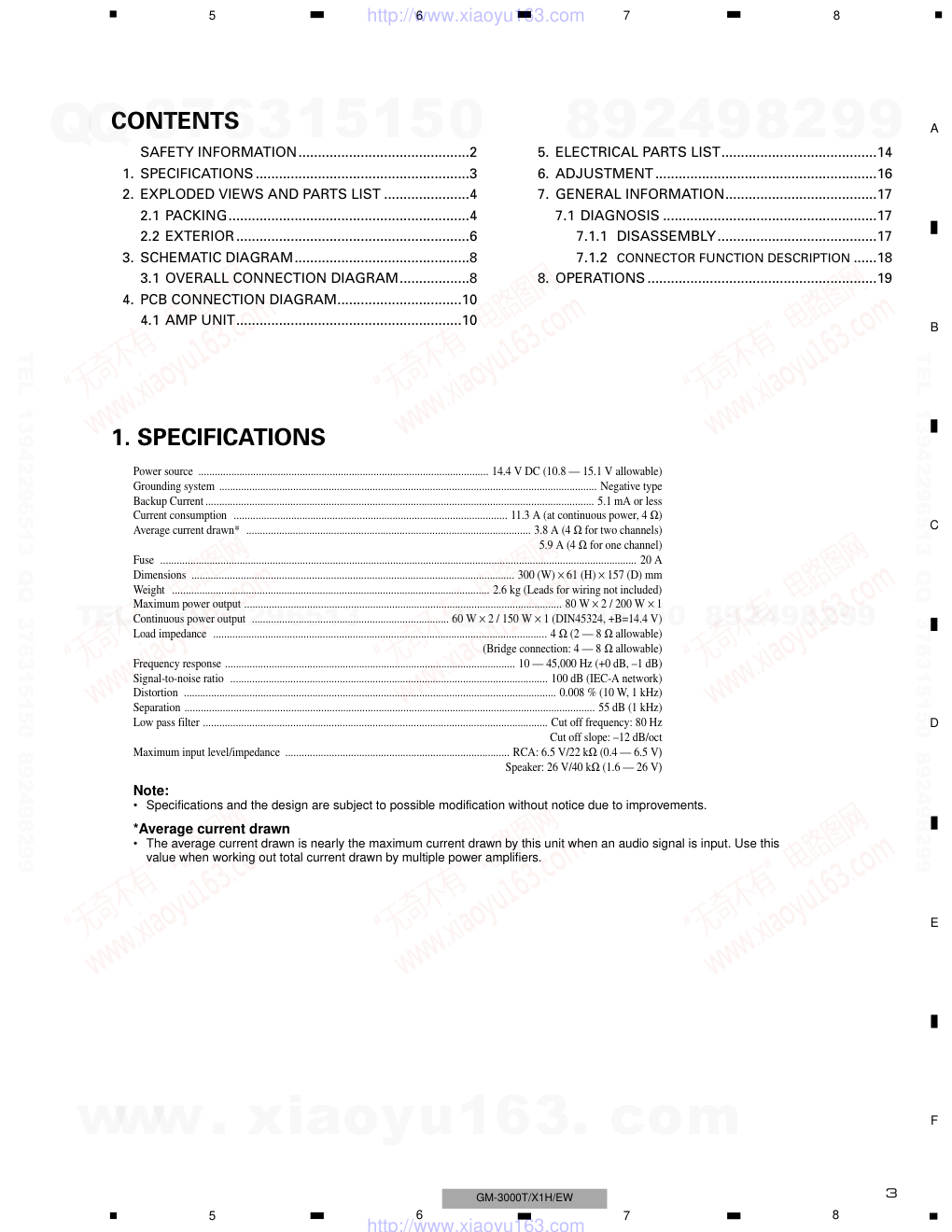

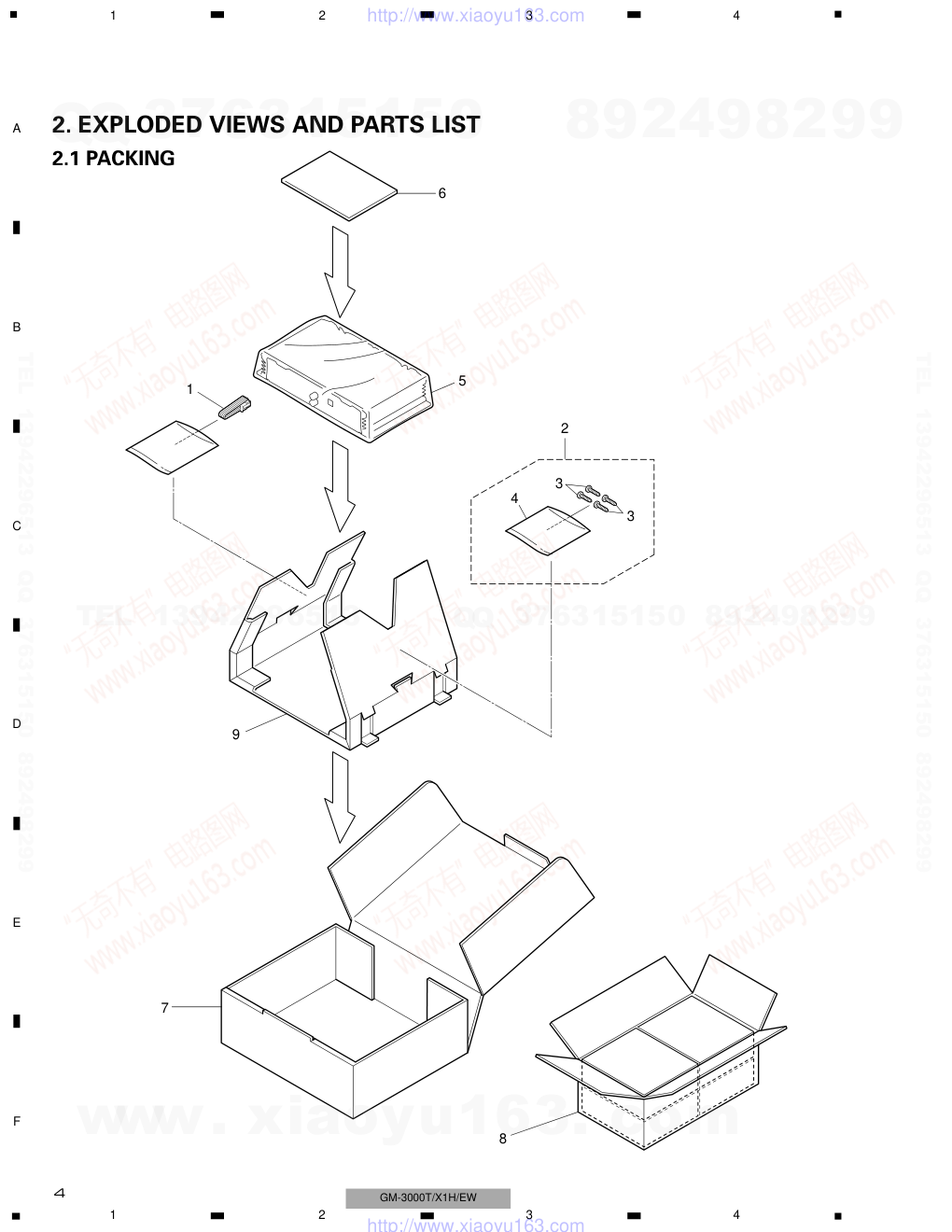

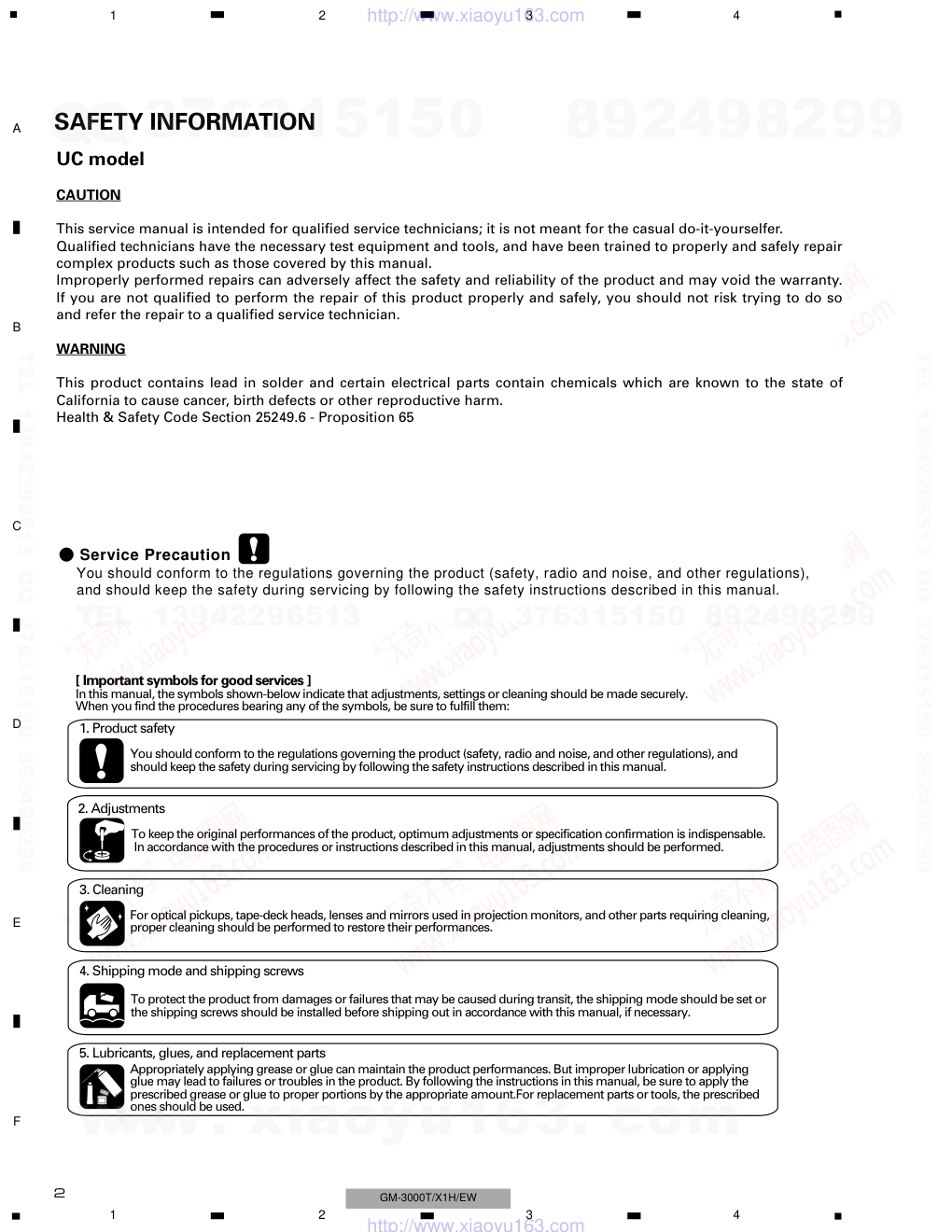

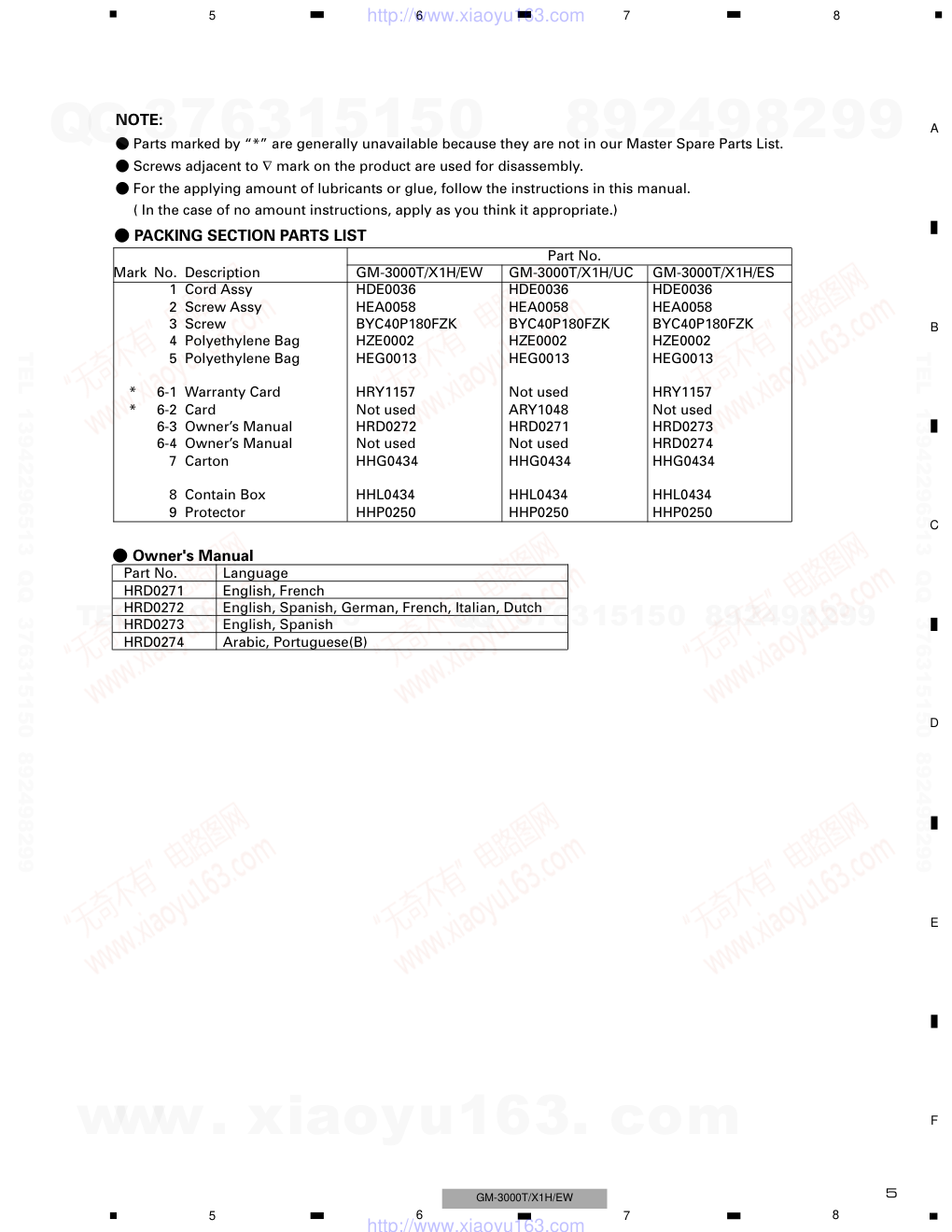

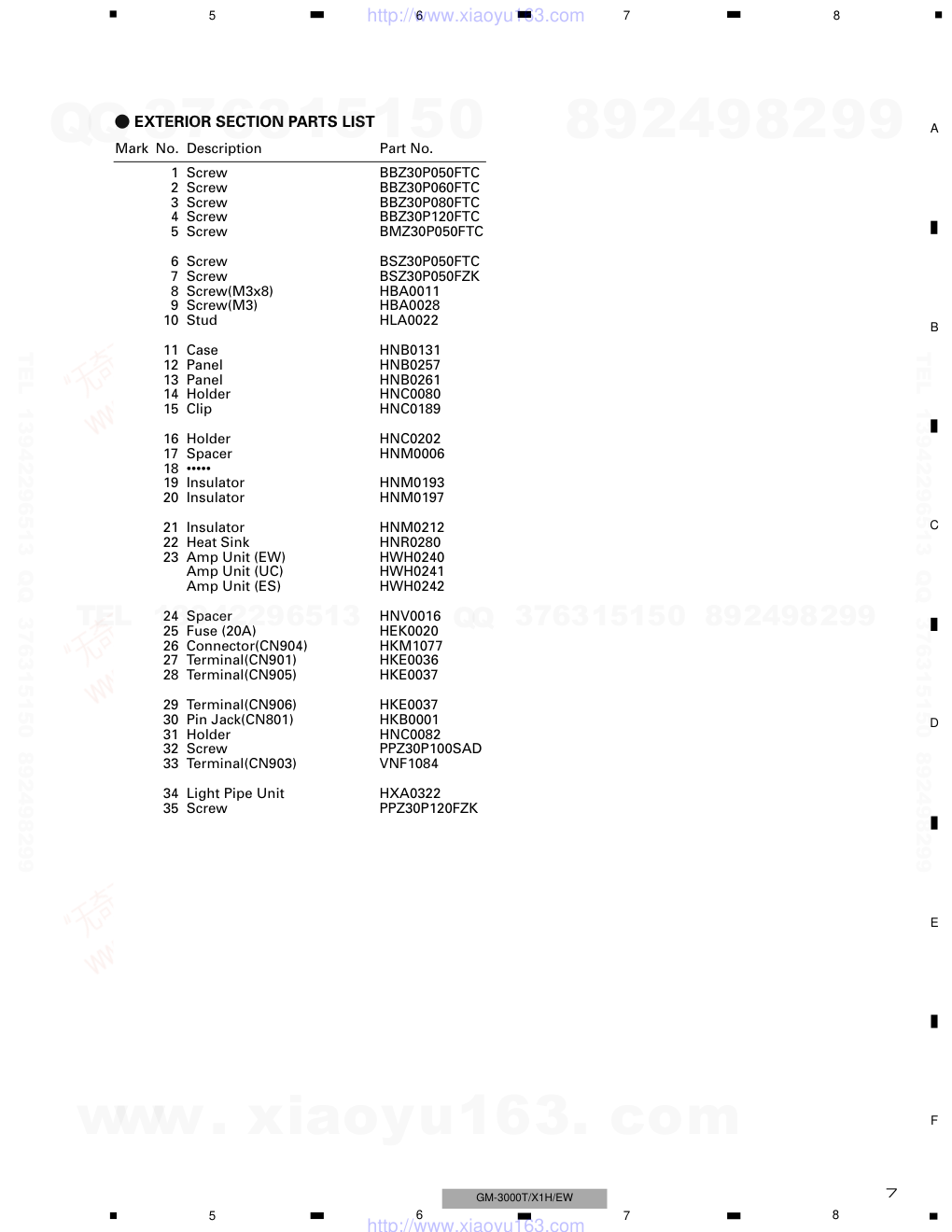

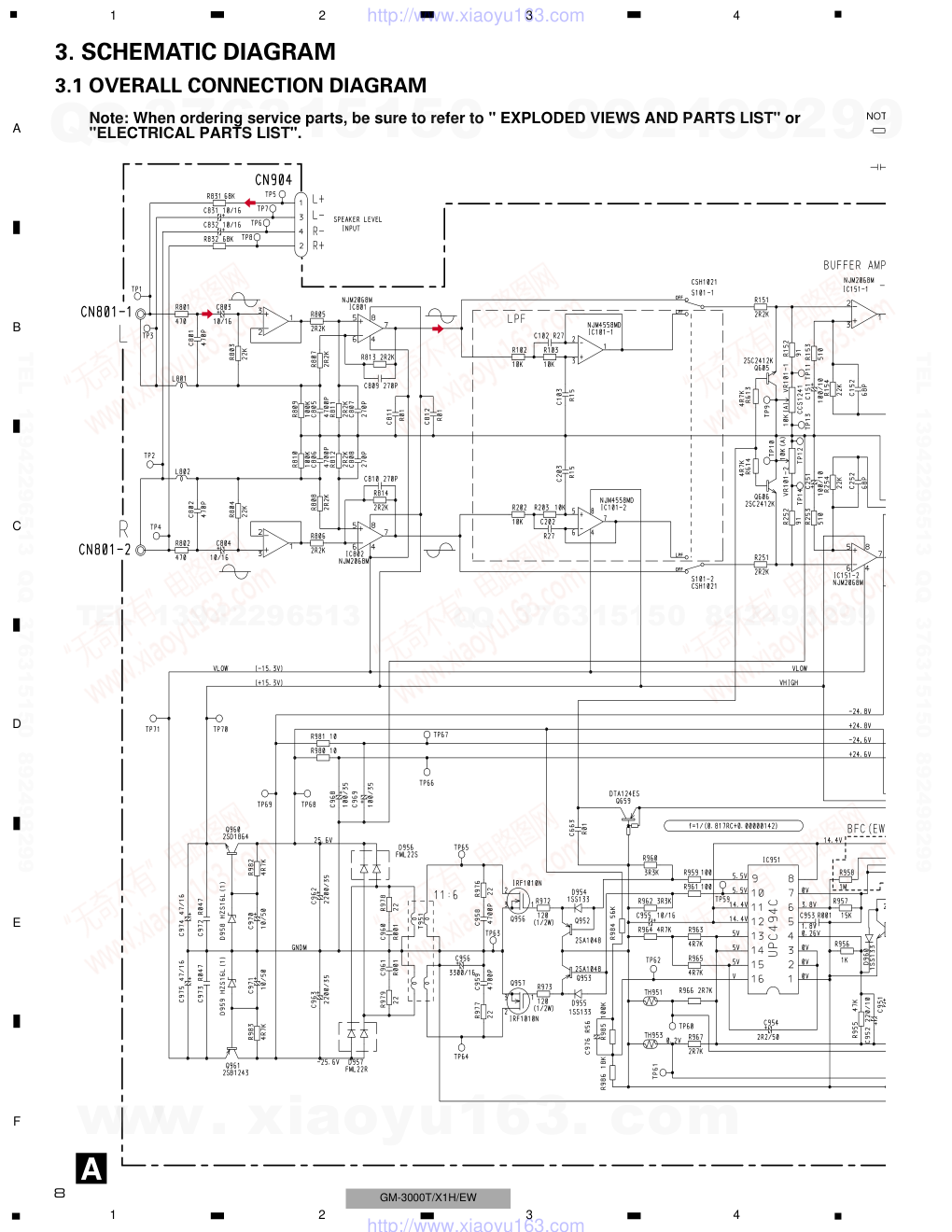

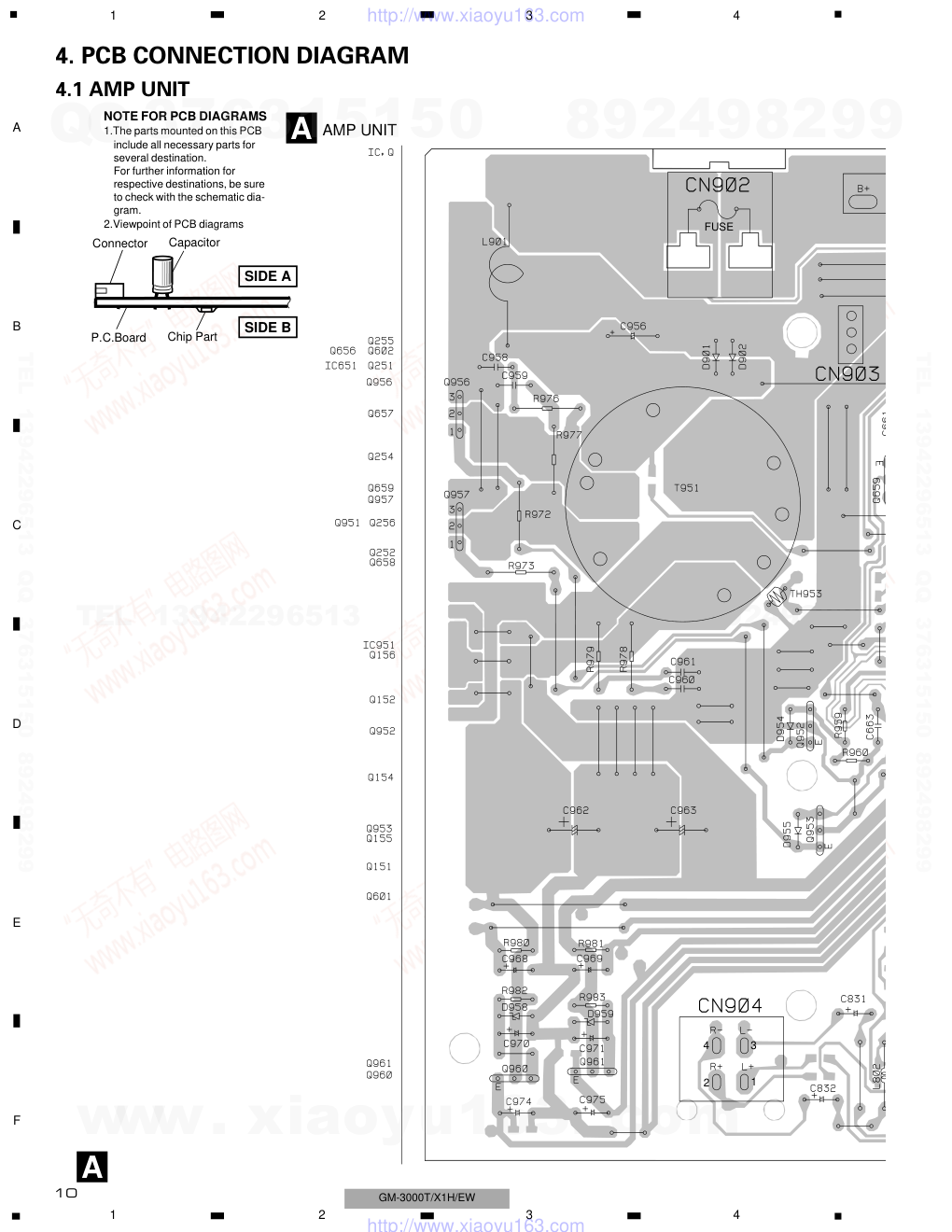

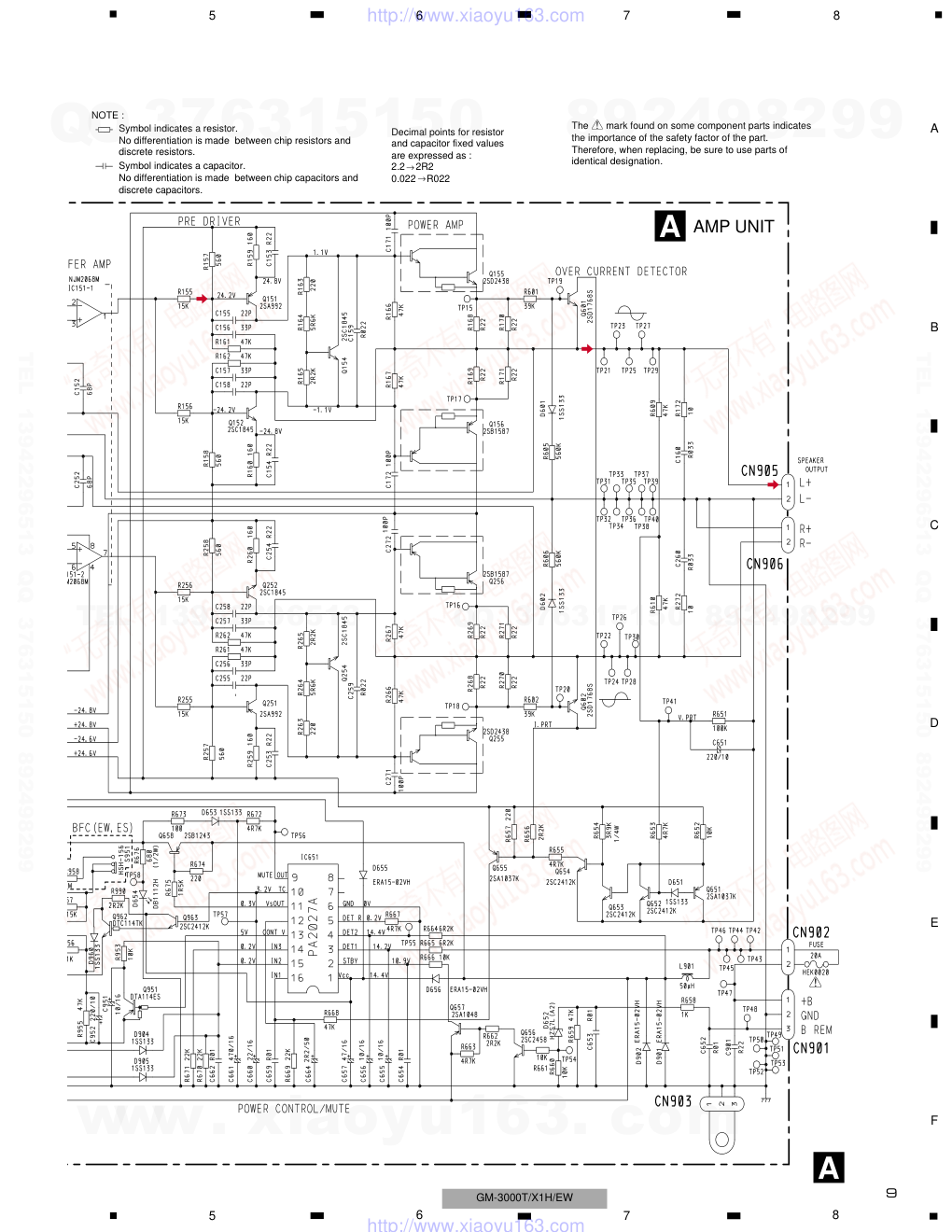

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936 C PIONEER CORPORATION 2004 K-ZZB. JUNE 2004 Printed in Japan ORDER NO. CRT3239 BRIDGEABLE POWER AMPLIFIER GM-3000T/X1H/EW Service Manual GM-3000T/X1H/EW GM-3000T/X1H/UC For details, refer to "Important symbols for good services". GM-3000T/X1H/ES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 F E D C B A GM-3000T/X1H/EW [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. SAFETY INFORMATION UC model CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 - Service Precaution You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 5 6 7 8 F E D C B A 5 6 7 8 GM-3000T/X1H/EW CONTENTS SAFETY INFORMATION............................................2 1. SPECIFICATIONS.......................................................3 2. EXPLODED VIEWS AND PARTS LIST ......................4 2.1 PACKING..............................................................4 2.2 EXTERIOR............................................................6 3. SCHEMATIC DIAGRAM.............................................8 3.1 OVERALL CONNECTION DIAGRAM..................8 4. PCB CONNECTION DIAGRAM................................10 4.1 AMP UNIT..........................................................10 5. ELECTRICAL PARTS LIST........................................14 6. ADJUSTMENT.........................................................16 7. GENERAL INFORMATION.......................................17 7.1 DIAGNOSIS .......................................................17 7.1.1 DISASSEMBLY.........................................17 7.1.2 CONNECTOR FUNCTION DESCRIPTION ......18 8. OPERATIONS...........................................................19 1. SPECIFICATIONS Power source .......................................................................................................... 14.4 V DC (10.8 — 15.1 V allowable) Grounding system .......................................................................................................................................... Negative type Backup Current.............................................................................................................................................. 5.1 mA or less Current consumption .................................................................................................... 11.3 A (at continuous power, 4 Ω) Average current drawn* ........................................................................................................ 3.8 A (4 Ω for two channels) 5.9 A (4 Ω for one channel) Fuse .............................................................................................................................................................................. 20 A Dimensions ...................................................................................................................... 300 (W) × 61 (H) × 157 (D) mm Weight .................................................................................................................... 2.6 kg (Leads for wiring not included) Maximum power output .................................................................................................................... 80 W × 2 / 200 W × 1 Continuous power output ........................................................................ 60 W × 2 / 150 W × 1 (DIN45324, +B=14.4 V) Load impedance .......................................................................................................................... 4 Ω (2 — 8 Ω allowable) (Bridge connection: 4 — 8 Ω allowable) Frequency response .......................................................................................................... 10 — 45,000 Hz (+0 dB, –1 dB) Signal-to-noise ratio .................................................................................................................... 100 dB (IEC-A network) Distortion ........................................................................................................................................ 0.008 % (10 W, 1 kHz) Separation ...................................................................................................................................................... 55 dB (1 kHz) Low pass filter .............................................................................................................................. Cut off frequency: 80 Hz Cut off slope: –12 dB/oct Maximum input level/impedance .................................................................................. RCA: 6.5 V/22 kΩ (0.4 — 6.5 V) Speaker: 26 V/40 kΩ (1.6 — 26 V) Note: • Specifications and the design are subject to possible modification without notice due to improvements. *Average current drawn • The average current drawn is nearly the maximum current drawn by this unit when an audio signal is input. Use this value when working out total current drawn by multiple power amplifiers. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 1 2 3 4 1 2 3 4 F E D C B A GM-3000T/X1H/EW 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 6 1 2 3 3 4 9 7 8 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 5 6 7 8 F E D C B A 5 6 7 8 GM-3000T/X1H/EW Part No. Mark No. Description GM-3000T/X1H/EW GM-3000T/X1H/UC GM-3000T/X1H/ES 1 Cord Assy HDE0036 HDE0036 HDE0036 2 Screw Assy HEA0058 HEA0058 HEA0058 3 Screw BYC40P180FZK BYC40P180FZK BYC40P180FZK 4 Polyethylene Bag HZE0002 HZE0002 HZE0002 5 Polyethylene Bag HEG0013 HEG0013 HEG0013 * 6-1 Warranty Card HRY1157 Not used HRY1157 * 6-2 Card Not used ARY1048 Not used 6-3 Owner’s Manual HRD0272 HRD0271 HRD0273 6-4 Owner’s Manual Not used Not used HRD0274 7 Carton HHG0434 HHG0434 HHG0434 8 Contain Box HHL0434 HHL0434 HHL0434 9 Protector HHP0250 HHP0250 HHP0250 - PACKING SECTION PARTS LIST NOTE: - Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List. - Screws adjacent to ∇ mark on the product are used for disassembly. - For the applying amount of lubricants or glue, follow the instructions in this manual. ( In the case of no amount instructions, apply as you think it appropriate.) - Owner's Manual Part No. Language HRD0271 English, French HRD0272 English, Spanish, German, French, Italian, Dutch HRD0273 English, Spanish HRD0274 Arabic, Portuguese(B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 8 13 9 20 10 17 23 24 24 24 24 24 34 22 12 8 8 8 3 3 3 14 14 1 1 1 4 4 4 11 4 4 5 15 3 35 7 7 21 19 16 30 32 32 33 31 25 28 27 29 32 26 2 2 6 6 35 35 A 6 1 2 3 4 1 2 3 4 F E D C B A GM-3000T/X1H/EW 2.2 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 5 6 7 8 F E D C B A 5 6 7 8 GM-3000T/X1H/EW 1 Screw BBZ30P050FTC 2 Screw BBZ30P060FTC 3 Screw BBZ30P080FTC 4 Screw BBZ30P120FTC 5 Screw BMZ30P050FTC 6 Screw BSZ30P050FTC 7 Screw BSZ30P050FZK 8 Screw(M3x8) HBA0011 9 Screw(M3) HBA0028 10 Stud HLA0022 11 Case HNB0131 12 Panel HNB0257 13 Panel HNB0261 14 Holder HNC0080 15 Clip HNC0189 16 Holder HNC0202 17 Spacer HNM0006 18 ••••• 19 Insulator HNM0193 20 Insulator HNM0197 21 Insulator HNM0212 22 Heat Sink HNR0280 23 Amp Unit (EW) HWH0240 Amp Unit (UC) HWH0241 Amp Unit (ES) HWH0242 24 Spacer HNV0016 25 Fuse (20A) HEK0020 26 Connector(CN904) HKM1077 27 Terminal(CN901) HKE0036 28 Terminal(CN905) HKE0037 29 Terminal(CN906) HKE0037 30 Pin Jack(CN801) HKB0001 31 Holder HNC0082 32 Screw PPZ30P100SAD 33 Terminal(CN903) VNF1084 34 Light Pipe Unit HXA0322 35 Screw PPZ30P120FZK Mark No. Description Part No. - EXTERIOR SECTION PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or "ELECTRICAL PARTS LIST". A NOT 8 1 2 3 4 1 2 3 4 F E D C B A GM-3000T/X1H/EW 3. SCHEMATIC DIAGRAM 3.1 OVERALL CONNECTION DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 5 6 7 8 F E D C B A 5 6 7 8 GM-3000T/X1H/EW A Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. > A AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4. PCB CONNECTION DIAGRAM 4.1 AMP UNIT Capacitor Connector P.C.Board Chip Part A A AMP UNIT SIDE B SIDE A NOTE FOR PCB DIAGRAMS 1.The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2.Viewpoint of PCB diagrams FUSE 2 4 3 1 10 1 2 3 4 1 2 3 4 F E D C B A GM-3000T/X1H/EW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 5 6 7 8 F E D C B A 5 6 7 8 GM-3000T/X1H/EW A SIDE A BFC R L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 1 2 3 4 1 2 3 4 F E D C B A GM-3000T/X1H/EW A A AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 5 6 7 8 F E D C B A 5 6 7 8 GM-3000T/X1H/EW A SIDE B 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 1 2 3 4 1 2 3 4 F E D C B A GM-3000T/X1H/EW Unit Number : HWH0240(EW) Unit Number : HWH0241(UC) Unit Number : HWH0242(ES) Unit Name : Amp Unit MISCELLANEOUS IC 101 IC NJM4558MD IC 151 IC NJM2068M IC 651 IC PA2027A IC 801 IC NJM2068M IC 802 IC NJM2068M IC 951 IC UPC494C Q 151 Transistor 2SA992 Q 152 Transistor 2SC1845 Q 154 Transistor 2SC1845 Q 155 Transistor 2SD2438 Q 156 Transistor 2SB1587 Q 251 Transistor 2SA992 Q 252 Transistor 2SC1845 Q 254 Transistor 2SC1845 Q 255 Transistor 2SD2438 Q 256 Transistor 2SB1587 Q 601 Transistor 2SD1768S Q 602 Transistor 2SD1768S Q 605 Transistor 2SC2412K Q 606 Transistor 2SC2412K Q 651 Transistor 2SA1037K Q 652 Transistor 2SC2412K Q 653 Transistor 2SC2412K Q 654 Transistor 2SC2412K Q 655 Transistor 2SA1037K Q 656 Transistor 2SC2458 Q 657 Transistor 2SA1048 Q 658 Transistor 2SB1243 Q 659 Transistor DTA124ES Q 951 Transistor DTA114ES Q 952 Transistor 2SA1048 Q 953 Transistor 2SA1048 Q 956 FET IRF1010N Q 957 FET IRF1010N Q 960 Transistor 2SD1864 Q 961 Transistor 2SB1243 Q 962 Transistor DTC114TK Q 963 Transistor 2SC2412K D 601 Diode 1SS133 D 602 Diode 1SS133 D 651 Diode 1SS133 D 652 Diode HZS7L(A2) D 653 Diode 1SS133 D 654 LED DB1112H D 655 Diode ERA15-02VH D 656 Diode ERA15-02VH D 901 Diode ERA15-02VH D 902 Diode ERA15-02VH D 904 Diode 1SS133 D 905 Diode 1SS133 D 954 Diode 1SS133 D 955 Diode 1SS133 D 956 Diode FML22S D 957 Diode FML22R D 958 Diode HZS16L(1) D 959 Diode HZS16L(1) D 960 Diode 1SS133 L 801 Ferri-Inductor CTF1007 L 802 Ferri-Inductor CTF1007 L 901 Choke Coil 50µH CTH1218 T 951 Transformer HTT0012 TH 951 Thermistor CCX1013 TH 953 Thermistor HCX0001 S 101 Switch CSH1021 S 951 Switch (BFC)(EW,ES) HSH-156 VR 101 Volume 10kΩ(A) CCS1241 Fuse (20A) HEK0020 RESISTORS R 102 RS1/10S103J R 103 RS1/10S103J R 151 RS1/10S222J R 152 RS1/10S910J R 153 RS1/10S511J R 154 RS1/10S223J R 155 RS1/10S153J R 156 RS1/10S153J R 157 RD1/4PU561J R 158 RD1/4PU561J R 159 RD1/4PU161J R 160 RD1/4PU161J R 161 RD1/4PU473J R 162 RD1/4PU473J R 163 RD1/4PU221J R 164 RD1/4PU562J R 165 RD1/4PU222J R 166 RD1/4PU473J R 167 RD1/4PU473J R 168 0.22Ω CCN1013 R 169 0.22Ω CCN1013 R 170 0.22Ω CCN1013 R 171 0.22Ω CCN1013 R 172 RD1/2PM100J R 202 RS1/10S103J R 203 RS1/10S103J R 251 RS1/10S222J R 252 RS1/10S910J R 253 RS1/10S511J R 254 RS1/10S223J 5. ELECTRICAL PARTS LIST NOTE: - Parts whose parts numbers are omitted are subject to being not supplied. - The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 5 6 7 8 F E D C B A 5 6 7 8 GM-3000T/X1H/EW R 255 RS1/10S153J R 256 RS1/10S153J R 257 RD1/4PU561J R 258 RD1/4PU561J R 259 RD1/4PU161J R 260 RD1/4PU161J R 261 RD1/4PU473J R 262 RD1/4PU473J R 263 RD1/4PU221J R 264 RD1/4PU562J R 265 RD1/4PU222J R 266 RD1/4PU473J R 267 RD1/4PU473J R 268 0.22Ω CCN1013 R 269 0.22Ω CCN1013 R 270 0.22Ω CCN1013 R 271 0.22Ω CCN1013 R 272 RD1/2PM100J R 601 RD1/4PU393J R 602 RD1/4PU393J R 605 RD1/4PU564J R 606 RD1/4PU564J R 609 RD1/2PM473J R 610 RD1/2PM473J R 613 RS1/10S472J R 614 RS1/10S472J R 651 RS1/10S104J R 652 RS1/10S103J R 653 RS1/10S472J R 654 RD1/4PU392J R 655 RS1/10S472J R 656 RS1/10S222J R 657 RS1/10S221J R 658 RS1/10S102J R 659 RS1/10S473J R 660 RS1/10S103J R 661 RS1/10S103J R 662 RS1/10S222J R 663 RS1/10S472J R 664 RS1/10S622J R 665 RS1/10S622J R 666 RS1/10S103J R 667 RS1/10S472J R 668 RS1/10S473J R 669 RS1/10S223J R 670 RS1/10S223J R 671 RS1/10S223J R 672 RS1/10S472J R 673 RD1/4PU101J R 674 RD1/4PU221J R 675 RD1/4PU152J R 676 RD1/2PM681J R 801 RS1/10S471J R 802 RS1/10S471J R 803 RS1/10S223J R 804 RS1/10S223J R 805 RN1/10SE2201D R 806 RN1/10SE2201D R 807 RN1/10SE2201D R 808 RN1/10SE2201D R 809 RS1/10S104J R 810 RS1/10S104J R 811 RN1/10SE2201D R 812 RN1/10SE2201D R 813 RN1/10SE2201D R 814 RN1/10SE2201D R 831 RS1/10S683J R 832 RS1/10S683J R 953 RD1/4PU103J R 955 RS1/10S473J R 956 RS1/10S102J R 957 RS1/10S153J R 958 (EW,ES) RS1/10S105J R 959 RD1/4PU101J R 960 RD1/4PU332J R 961 RD1/4PU101J R 962 RS1/10S332J R 963 RS1/10S472J R 964 RS1/10S472J R 965 RS1/10S472J R 966 RD1/4PU272J R 967 RD1/4PU272J R 972 RD1/2PM121J R 973 RD1/2PM121J R 976 RD1/2PM220J R 977 RD1/2PM220J R 978 RD1/2PM220J R 979 RD1/2PM220J R 980 RD1/4PU100J R 981 RD1/4PU100J R 982 RD1/4PU472J R 983 RD1/4PU472J R 984 RD1/4PU563J R 985 RD1/4PU104J R 986 RD1/4PU183J R 990 RS1/10S223J CAPACITORS C 102 CKSQYB274K16 C 103 CKSQYB154K16 C 151 CEAT101M10 C 152 CCSQSL680J50 C 153 CFTNA224J50 C 154 CFTNA224J50 C 155 CCSQCH220J50 C 156 CCPUSL330J50 C 157 CCPUSL330J50 C 158 CCSQCH220J50 C 159 CFTLA223J50 C 160 CFTLA333J50 C 171 CCSQCH101J50 C 172 CCSQCH101J50 C 202 CKSQYB274K16 C 203 CKSQYB154K16 C 251 CEAT101M10 C 252 CCSQSL680J50 C 253 CFTNA224J50 C 254 CFTNA224J50 C 255 CCSQCH220J50 C 256 CCPUSL330J50 C 257 CCPUSL330J50 C 258 CCSQCH220J50 C 259 CFTLA223J50 C 260 CFTLA333J50 C 271 CCSQCH101J50 C 272 CCSQCH101J50 C 651 220µF/10V CCH1036 C 652 CKSQYB103K50 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 1 2 3 4 1 2 3 4 F E D C B A GM-3000T/X1H/EW C 653 CKSQYB103K50 C 654 CKSQYB103K50 C 655 CEAT100M16 C 656 CEAT100M16 C 657 CEAT470M16 C 659 CKSQYB103K50 C 660 CEAT220M16 C 661 470µF/16V CCH1183 C 662 CKSQYB103K50 C 663 CQMA103J50 C 664 CEAT2R2M50 C 801 CKSQYB471K50 C 802 CKSQYB471K50 C 803 CEAT100M16 C 804 CEAT100M16 C 805 CKSQYB472K50 C 806 CKSQYB472K50 C 807 CCSQCH271J50 C 808 CCSQCH271J50 C 809 CCSQCH271J50 C 810 CCSQCH271J50 C 811 CKSQYB103K50 C 812 CKSQYB103K50 C 831 CEAT100M16 C 832 CEAT100M16 C 901 CFTNA224J50 C 951 CEAT100M16 C 952 CEAT221M10 C 953 CQMA102J50 C 954 CEAT2R2M50 C 955 CEAT100M16 C 956 3300µF/16V HCH0005 C 958 CQMA472J50 C 959 CQMA472J50 C 960 CQMA102J50 C 961 CQMA102J50 C 962 2200µF/35V HCH0003 C 963 2200µF/35V HCH0003 C 968 CEAT101M35 C 969 CEAT101M35 C 970 CEAT100M50 C 971 CEAT100M50 C 972 CKSQYB473K50 C 973 CKSQYB473K50 C 974 CEAT470M16 C 975 CEAT470M16 C 976 CFTNA564J50 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- 6. ADJUSTMENT There is no information to be shown in this chapter. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 5 6 7 8 F E D C B A 5 6 7 8 GM-3000T/X1H/EW 1 1 - Removing the Case (Fig.1) - Removing the Amp Unit (Fig.2) Remove the three screws. Remove the six screws and then remove the Panel. Fig.1 Fig.2 Case 2 Remove the screw. 3 Remove the six screws and then remove the Panel. 2 Remove the four screws and then remove the Case. 1 1 1 2 2 2 2 4 Remove the ten screws. 5 Remove the nine screws and then remove the Amp Unit. 1 1 1 1 2 3 3 3 3 4 4 5 5 5 5 5 5 Panel Panel Amp Unit 5 5 5 3 1 1 3 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 DISASSEMBLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 1 2 3 4 1 2 3 4 F E D C B A GM-3000T/X1H/EW 7.1.2 CONNECTOR FUNCTION DESCRIPTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 5 6 7 8 F E D C B A 5 6 7 8 GM-3000T/X1H/EW 8. OPERATIONS BFC (Beat Frequency Control) Switch If you hear a beat while listening to an MW/LW broadcast with your car stereo, change the BFC switch using a small standard tip screwdriver. Power Indicator The power indicator lights when the power is switched on. Gain Control If the sound level is too low, even when the volume of the car stereo used along with this power amplifier is turned up, turn gain control on the front of the power amplifier clockwise. If the sound distorts when the volume is turned up, turn the gain control counter-clockwise. • When using with an RCA equipped car stereo (standard output of 500 mV), set to the NORMAL position. When using with an RCA equipped Pioneer car stereo with max. output of 4 V or more, adjust level to match the car stereo output level. • If you hear too much noise when using the speaker input terminals, turn the gain control counter-clockwise. LPF (Low-Pass Filter) Select Switch Set the LPF select switch as follows according to the type of speaker that is connected to the speaker output connector and the car stereo system: LPF Select Audio frequency range Speaker Remarks Switch to be output Type LPF (left) Very Low Frequency range Subwoofer Connect a subwoofer. OFF (right) Full range Full range www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
