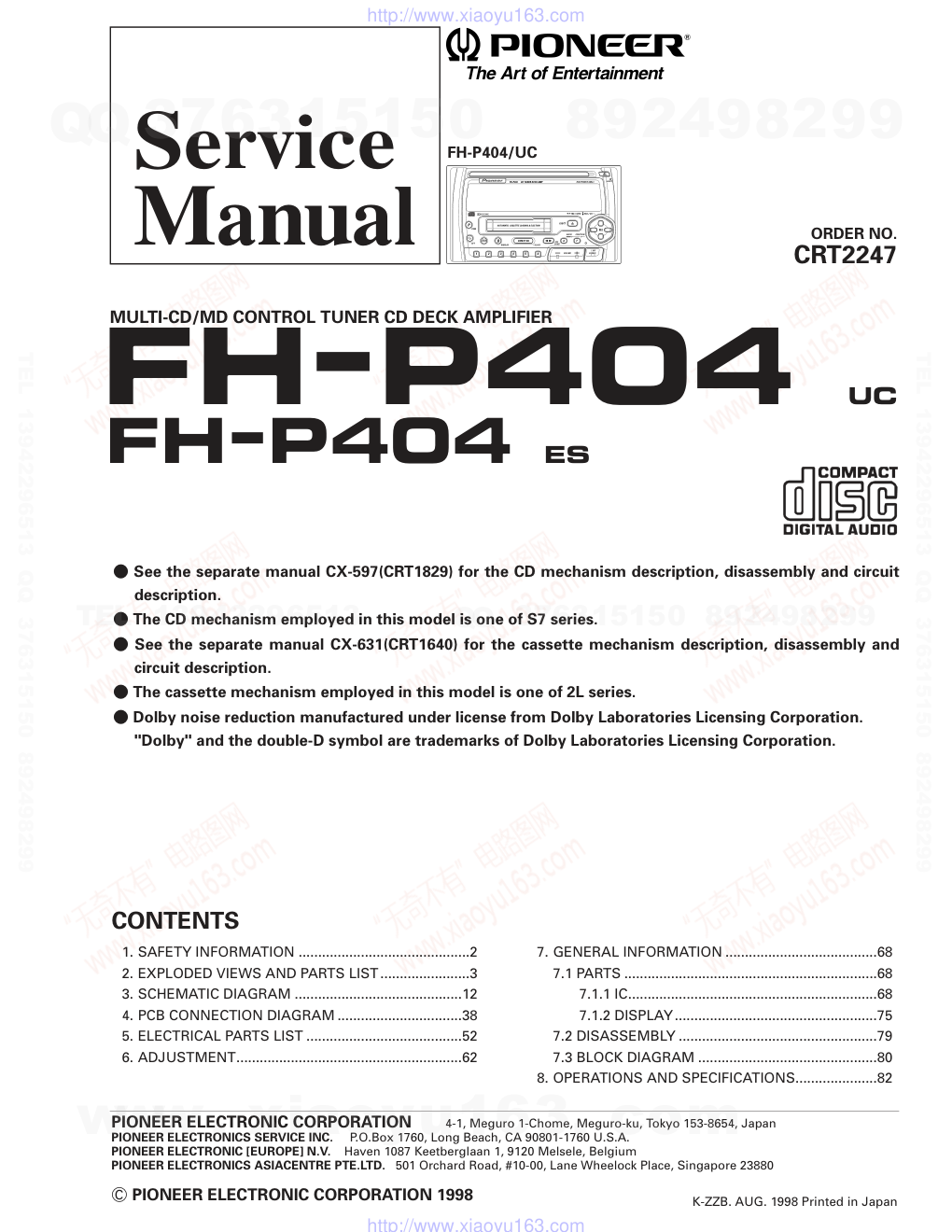

先锋PIONEER FH-P404音响电路图
MULTI-CD/MD CONTROL TUNER CD DECK AMPLIFIER
FH-P404 UC
Service
Manual
FH-P404 ES
FH-P404/UC
PGM
ATT
DISPLAY
CLOCK
ESC
BAND
AUDIO
TRK / SEEK
DISC / CH
FUNCTION
SEL
DIRECT EQ
VOLUME
OFF
SOURCE
A
F
D
S/A
1
6
5
4
3
2
P
CD
EJECT
HIGH POWER 40Wx4
CD TUNER DECK AMP
FH-P404
EJECT
AUTOMATIC CASSETTE LOADING & EJECTION
DOLBY B NR
PIONEER ELECTRONIC CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 501 Orchard Road, #10-00, Lane Wheelock Place, Singapore 23880
C PIONEER ELECTRONIC CORPORATION 1998
ORDER NO.
CRT2247
CONTENTS
1. SAFETY INFORMATION ............................................2
2. EXPLODED VIEWS AND PARTS LIST.......................3
3. SCHEMATIC DIAGRAM ...........................................12
4. PCB CONNECTION DIAGRAM ................................38
5. ELECTRICAL PARTS LIST ........................................52
6. ADJUSTMENT..........................................................62
7. GENERAL INFORMATION .......................................68
7.1 PARTS .................................................................68
7.1.1 IC................................................................68
7.1.2 DISPLAY....................................................75
7.2 DISASSEMBLY ...................................................79
7.3 BLOCK DIAGRAM ..............................................80
8. OPERATIONS AND SPECIFICATIONS.....................82
- See the separate manual CX-597(CRT1829) for the CD mechanism description, disassembly and circuit
description.
- The CD mechanism employed in this model is one of S7 series.
- See the separate manual CX-631(CRT1640) for the cassette mechanism description, disassembly and
circuit description.
- The cassette mechanism employed in this model is one of 2L series.
- Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
K-ZZB. AUG. 1998 Printed in Japan
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
2
FH-P404

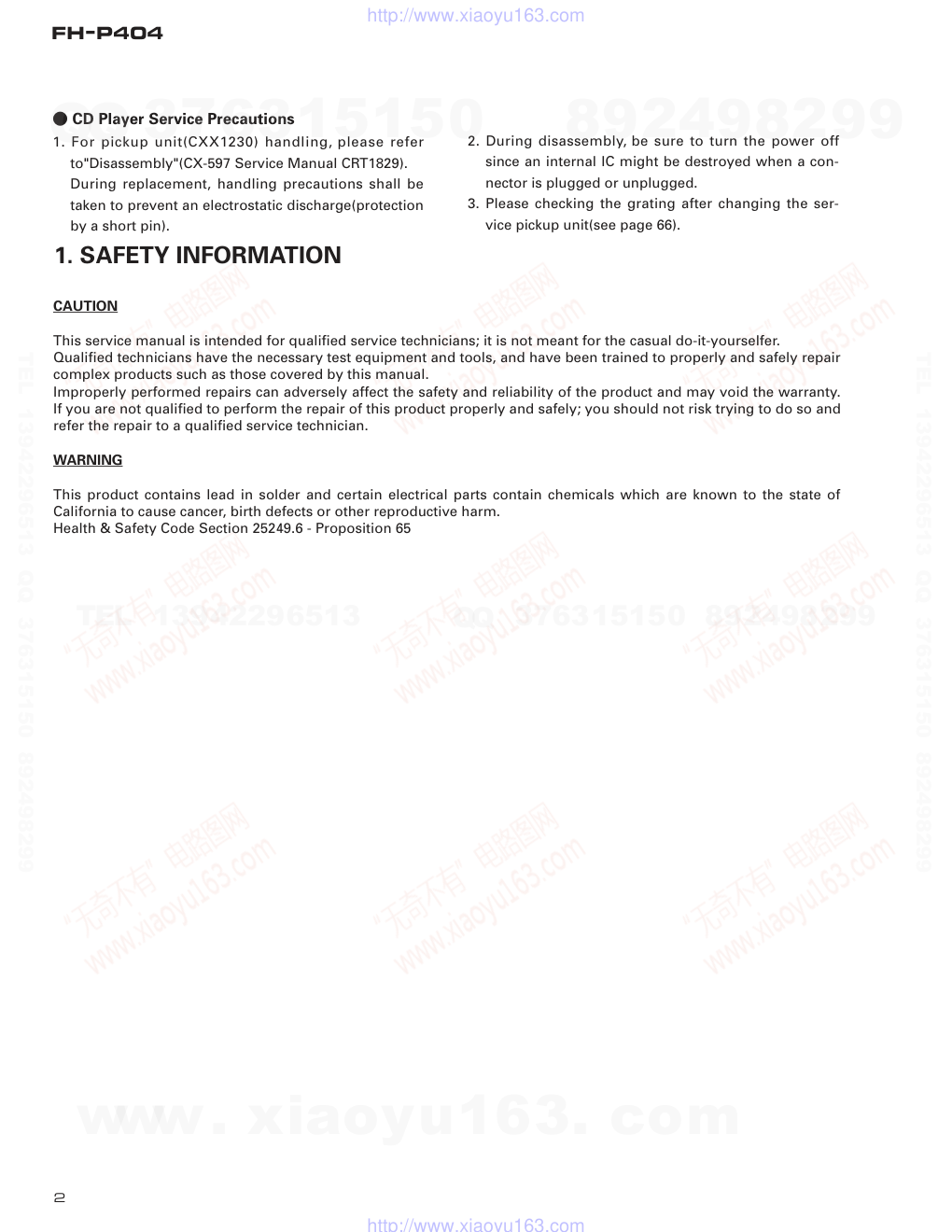

- CD Player Service Precautions
1. For pickup unit(CXX1230) handling, please refer
to"Disassembly"(CX-597 Service Manual CRT1829).
During replacement, handling precautions shall be
taken to prevent an electrostatic discharge(protection
by a short pin).
2. During disassembly, be sure to turn the power off
since an internal IC might be destroyed when a con-
nector is plugged or unplugged.
3. Please checking the grating after changing the ser-
vice pickup unit(see page 66).
CAUTION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and
refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of
California to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65
1. SAFETY INFORMATION
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
3
FH-P404
7
2
5
3
4
8
11
9
6
10
1
15
12
14
13

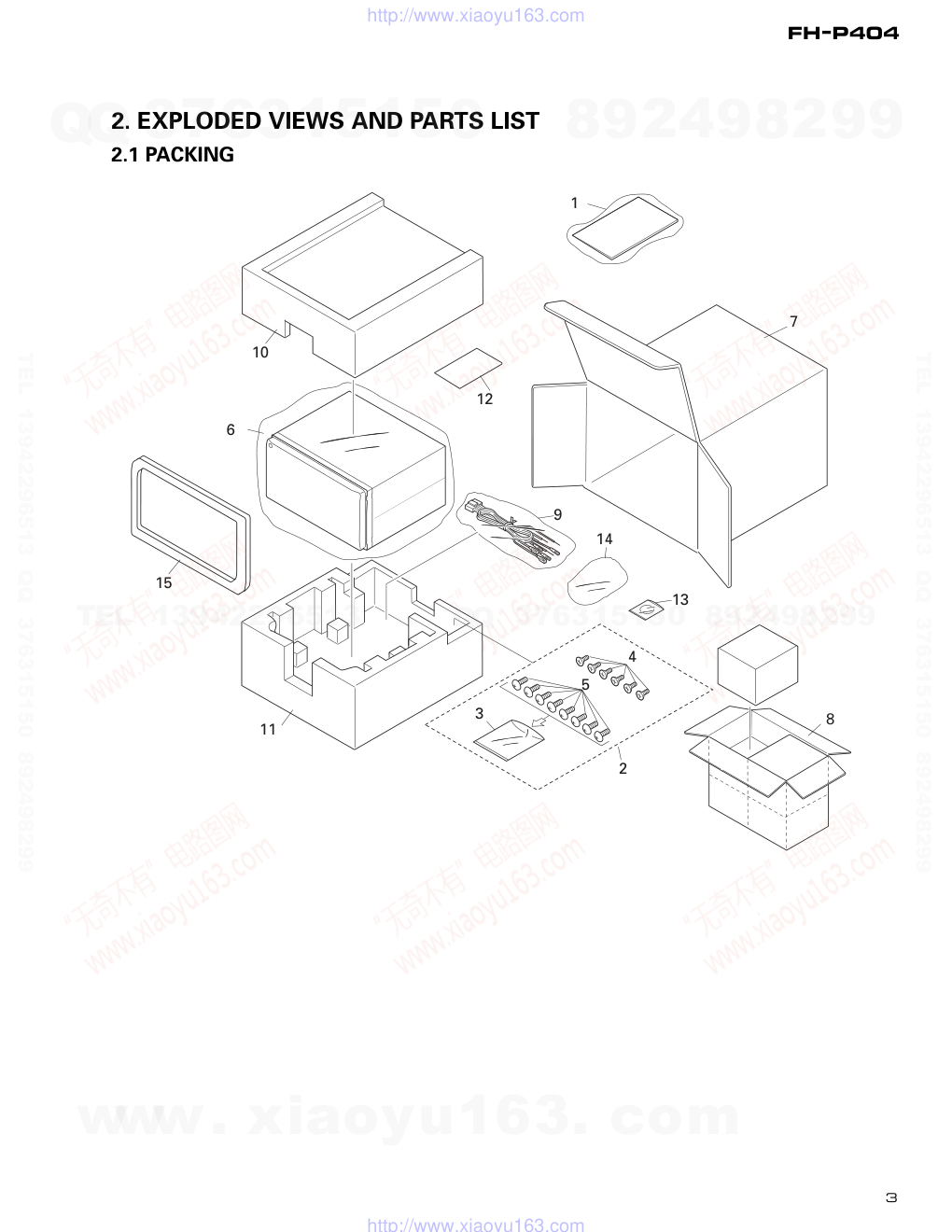

2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
4
FH-P404

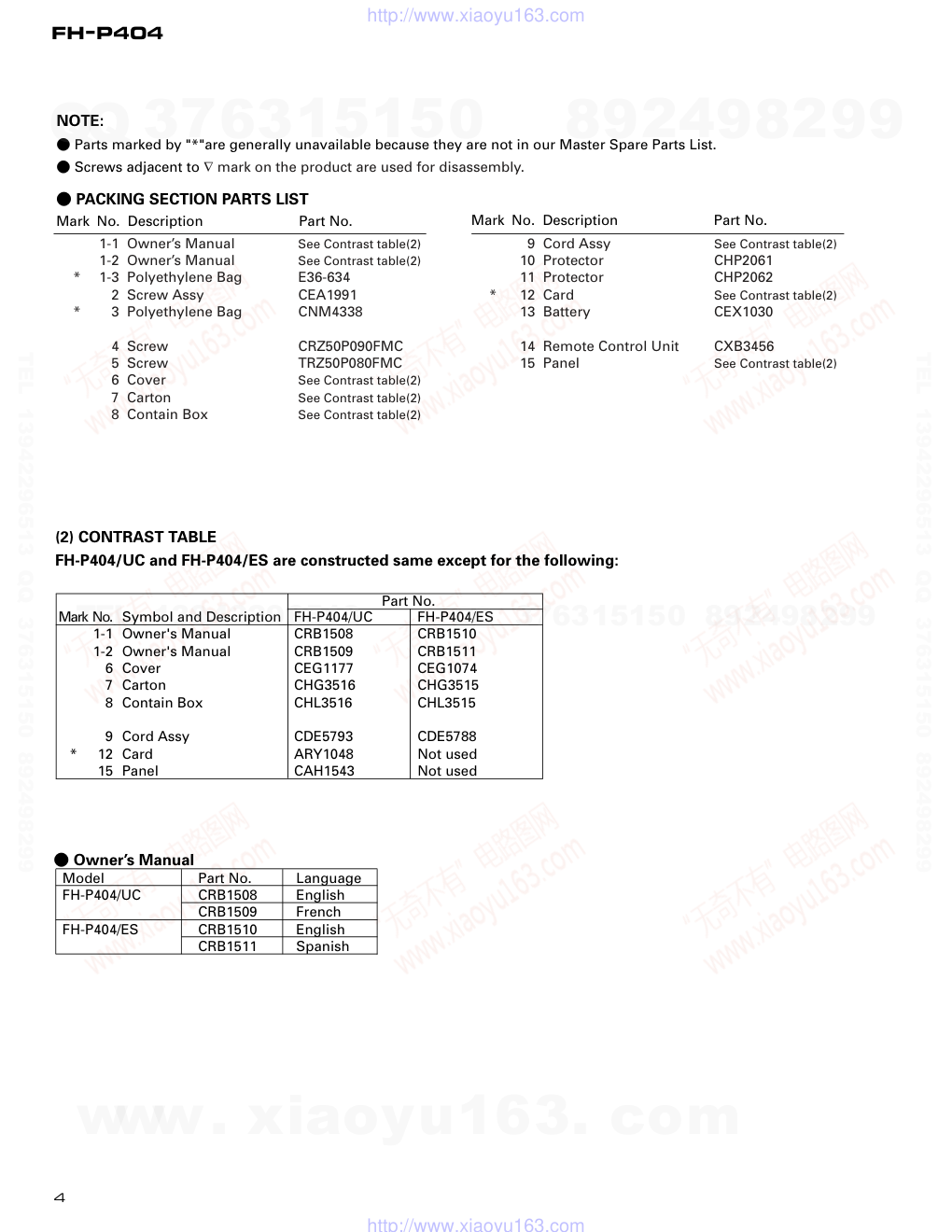

- Owner’s Manual
Model
Part No.
Language
FH-P404/UC
CRB1508
English
CRB1509
French
FH-P404/ES
CRB1510
English
CRB1511
Spanish
Part No.
Mark No. Symbol and Description
FH-P404/UC
FH-P404/ES
1-1 Owner's Manual
CRB1508
CRB1510
1-2 Owner's Manual
CRB1509
CRB1511
6 Cover
CEG1177
CEG1074
7 Carton
CHG3516
CHG3515
8 Contain Box
CHL3516
CHL3515
9 Cord Assy
CDE5793
CDE5788
*
12 Card
ARY1048
Not used
15 Panel
CAH1543
Not used
(2) CONTRAST TABLE
FH-P404/UC and FH-P404/ES are constructed same except for the following:
- PACKING SECTION PARTS LIST
Mark No. Description
Part No.
Mark No. Description
Part No.
NOTE:
- Parts marked by "*"are generally unavailable because they are not in our Master Spare Parts List.
- Screws adjacent to ∇ mark on the product are used for disassembly.
1-1 Owner’s Manual
See Contrast table(2)
1-2 Owner’s Manual
See Contrast table(2)
*
1-3 Polyethylene Bag
E36-634
2 Screw Assy
CEA1991
*
3 Polyethylene Bag
CNM4338
4 Screw
CRZ50P090FMC
5 Screw
TRZ50P080FMC
6 Cover
See Contrast table(2)
7 Carton
See Contrast table(2)
8 Contain Box
See Contrast table(2)
9 Cord Assy
See Contrast table(2)
10 Protector
CHP2061
11 Protector
CHP2062
*
12 Card
See Contrast table(2)
13 Battery
CEX1030
14 Remote Control Unit
CXB3456
15 Panel
See Contrast table(2)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
FH-P404
5
2.2 EXTERIOR
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
6
FH-P404
1 Connector(CN401)
CKS3568
2 Screw
BSZ26P060FMC
3 Screw
BSZ26P120FMC
4 Screw
BSZ30P060FMC
5 Screw
BSZ30P080FMC
6 Cable
CDE5269
7 Remote Control Unit
CXB3456
8 Cord Assy
See Contrast table(2)
9 Case
CNB2311
10 Shield
CNC8052
11 Spacer
CNM5971
12 Heat Sink
CNR1486
13 Screw
ASZ26P055FUC
14 •••••
15 Holder
CNC4963
16 Insulator
CNM5770
17 Cover
CNS4948
18 Screw
ASZ26P080FMC
19 Screw
BPZ26P080FMC
20 Cord(CN951)
CDC1039
21 Antenna Cord(CN501)
CDH1249
22 Pin Jack(CN251)
CKB1028
23 Terminal(CN502)
CKF1059
24 Terminal(CN503)
CKF1059
25 Plug(CN901)
CKM1278
26 Plug(CN281)
CKS1242
27 Connector(CN101)
CKS3408
28 Plug(CN801)
CKS3540
29 Holder
CNC7744
30 Holder
CNC7746
31 Holder
CNC7896
32 Clamper
CNV1335
33 FM/AM Tuner Unit
See Contrast table(2)
34 Holder
CNC6555
35 DD Converter Unit
CWM6152
36 Plug(CN1801)
CKS1614
37 Plug(CN1602)
CKS1624
38 Connector(CN1601)
CKS1963
39 Holder
CNC7747
40 Chassis Unit
CXB2552
41 Screw
BPZ20P080FMC
42 Button(CD EJ)
See Contrast table(2)
43 Button(EJ)
CAC5586
44 Button(TI,S/A,D)
CAC5762
45 Button(
)
CAC5597
46 Button(1-6)
See Contrast table(2)
47 Button(SOURCE)
See Contrast table(2)
48 Button(VOL)
See Contrast table(2)
49 Button(DIRECT,EQ)
CAC5592
50 Button(A,F)
CAC5593
51 Button
CAC5594
52 Button(P)
CAC5596
53 Door
CAT1955
54 Spring
CBH2211
55 Connector
CDE5642
56 Cover
CNM4369
57 Cushion
CNM5757
58 Cushion
CNM5758
59 Lighting Conductor
CNV5596
60 Lighting Conductor
CNV5595
61 Holder
CNV5349
62 Switch Unit
See Contrast table(2)
63 Connector(CN1903)
CKS2412
64 Socket(CN1901)
CKS3553
65 FL Unit
See Contrast table(2)
66 Plate
CAH1661
67 FL Tube(CN1902)
CAW1482
68 Connector(CN1904)
CKS2762
69 Tape
CNM5759
70 Cord
CDE5786
71 Grille Unit
See Contrast table(2)
72 Chassis Unit
CXB2861
73 •••••
74 CD Mechanism Module
CXK5004
75 Cassette Mechanism ModuleEXK3620
76-80 •••••
81 Fuse(10A)
CEK1136
82 Cap
CNS1472
83 Resistor
RS1/2P102JL
84 Tuner Deck Amp Unit
See Contrast table(2)
85 •••••
86 Transistor(Q351,806)
2SD2396
87 •••••
88 Transistor(Q805)
2SB1566
89 IC(IC151)
TDA7386
- EXTERIOR SECTION PARTS LIST
(1) PARTS LIST
Mark No. Description
Part No.
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
7
FH-P404
Part No.
Mark No. Symbol and Description
FH-P404/UC
FH-P404/ES
8 Cord Assy
CDE5793
CDE5788
33 FM/AM Tuner Unit
CWE1417
CWE1485
42 Button(CD EJ)
CAC5636
CAC5585
46 Button(1-6)
CAC5598
CAC5589
47 Button(SOURCE)
CAC5599
CAC5590
48 Button(VOL)
CAC5600
CAC5591
62 Switch Unit
CWM5887
CWM5884
65 FL Unit
CWM5918
CWM5917
71 Grille Unit
CXB2519
CXB2518
84 Tuner Deck Amp Unit
CWM5886
CWM5883

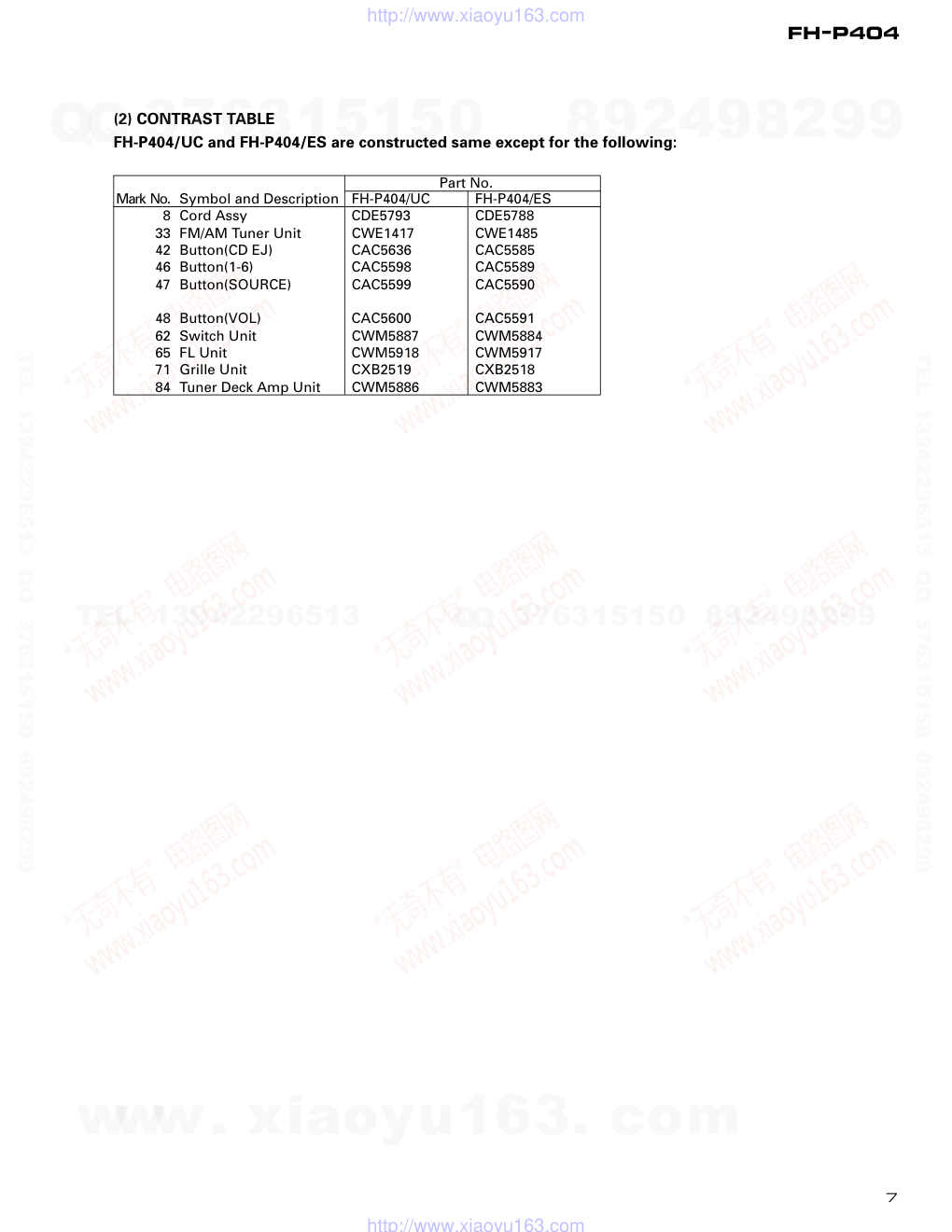

(2) CONTRAST TABLE
FH-P404/UC and FH-P404/ES are constructed same except for the following:
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
8
FH-P404

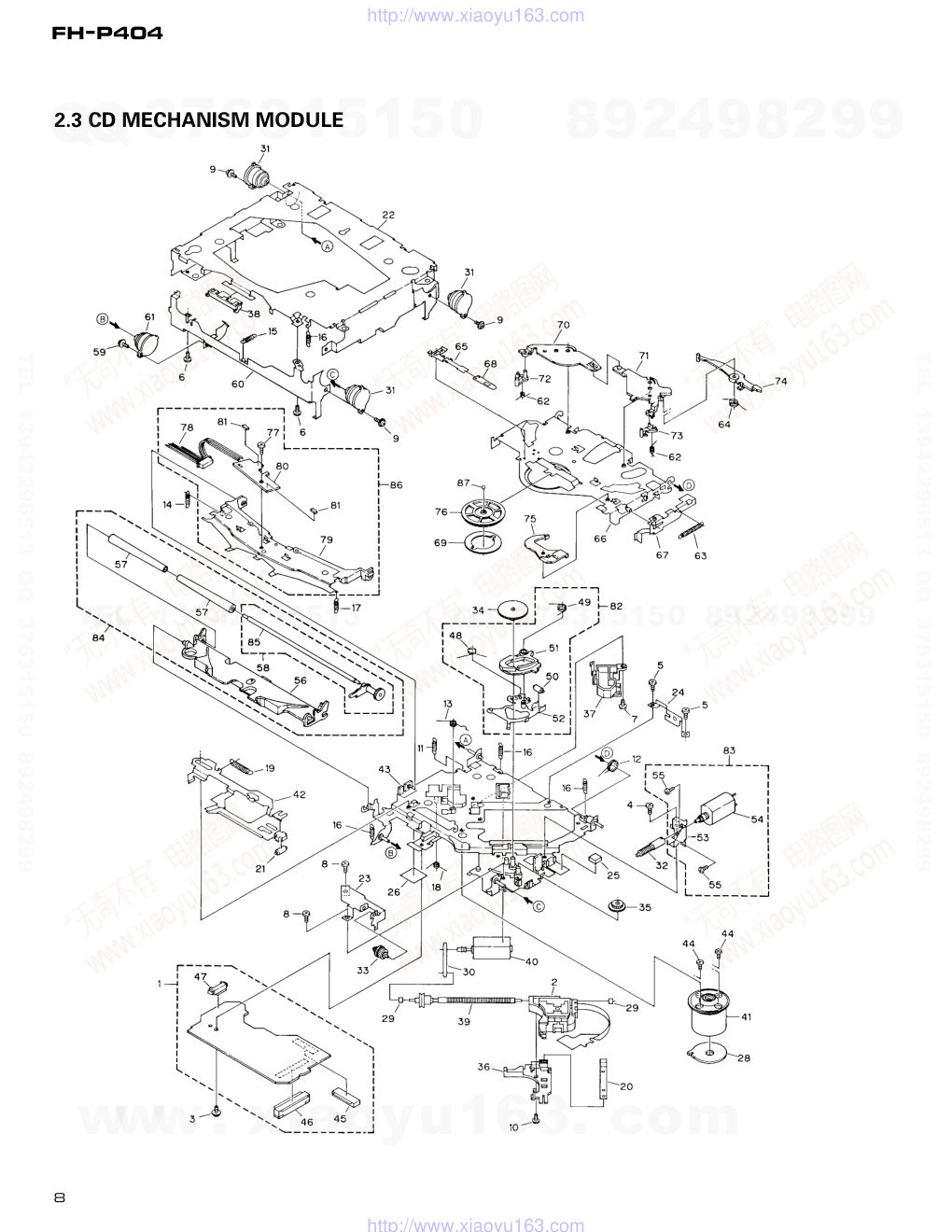

2.3 CD MECHANISM MODULE
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
9
FH-P404

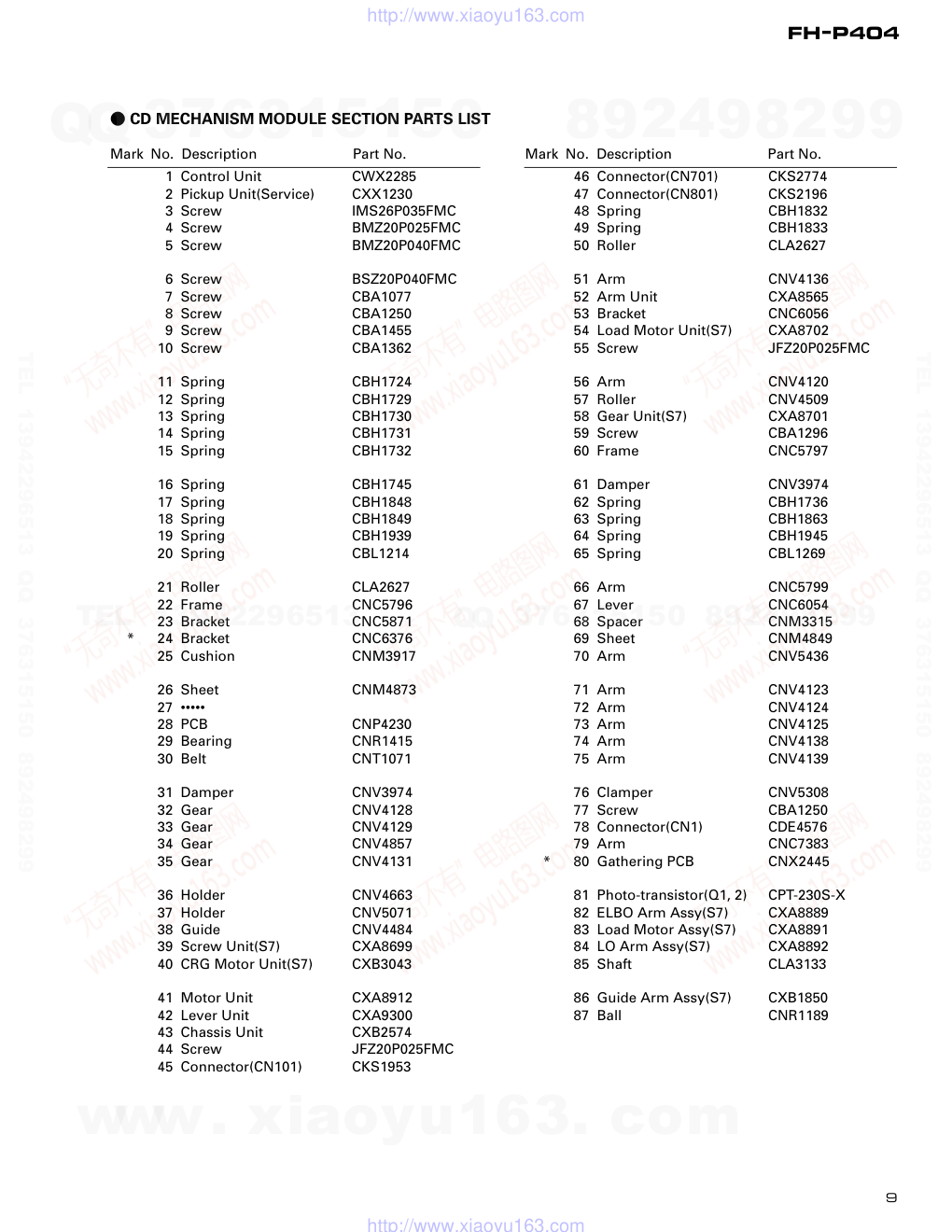

- CD MECHANISM MODULE SECTION PARTS LIST
1 Control Unit
CWX2285
2 Pickup Unit(Service)
CXX1230
3 Screw
IMS26P035FMC
4 Screw
BMZ20P025FMC
5 Screw
BMZ20P040FMC
6 Screw
BSZ20P040FMC
7 Screw
CBA1077
8 Screw
CBA1250
9 Screw
CBA1455
10 Screw
CBA1362
11 Spring
CBH1724
12 Spring
CBH1729
13 Spring
CBH1730
14 Spring
CBH1731
15 Spring
CBH1732
16 Spring
CBH1745
17 Spring
CBH1848
18 Spring
CBH1849
19 Spring
CBH1939
20 Spring
CBL1214
21 Roller
CLA2627
22 Frame
CNC5796
23 Bracket
CNC5871
*
24 Bracket
CNC6376
25 Cushion
CNM3917
26 Sheet
CNM4873
27 •••••
28 PCB
CNP4230
29 Bearing
CNR1415
30 Belt
CNT1071
31 Damper
CNV3974
32 Gear
CNV4128
33 Gear
CNV4129
34 Gear
CNV4857
35 Gear
CNV4131
36 Holder
CNV4663
37 Holder
CNV5071
38 Guide
CNV4484
39 Screw Unit(S7)
CXA8699
40 CRG Motor Unit(S7)
CXB3043
41 Motor Unit
CXA8912
42 Lever Unit
CXA9300
43 Chassis Unit
CXB2574
44 Screw
JFZ20P025FMC
45 Connector(CN101)
CKS1953
46 Connector(CN701)
CKS2774
47 Connector(CN801)
CKS2196
48 Spring
CBH1832
49 Spring
CBH1833
50 Roller
CLA2627
51 Arm
CNV4136
52 Arm Unit
CXA8565
53 Bracket
CNC6056
54 Load Motor Unit(S7)
CXA8702
55 Screw
JFZ20P025FMC
56 Arm
CNV4120
57 Roller
CNV4509
58 Gear Unit(S7)
CXA8701
59 Screw
CBA1296
60 Frame
CNC5797
61 Damper
CNV3974
62 Spring
CBH1736
63 Spring
CBH1863
64 Spring
CBH1945
65 Spring
CBL1269
66 Arm
CNC5799
67 Lever
CNC6054
68 Spacer
CNM3315
69 Sheet
CNM4849
70 Arm
CNV5436
71 Arm
CNV4123
72 Arm
CNV4124
73 Arm
CNV4125
74 Arm
CNV4138
75 Arm
CNV4139
76 Clamper
CNV5308
77 Screw
CBA1250
78 Connector(CN1)
CDE4576
79 Arm
CNC7383
*
80 Gathering PCB
CNX2445
81 Photo-transistor(Q1, 2)
CPT-230S-X
82 ELBO Arm Assy(S7)
CXA8889
83 Load Motor Assy(S7)
CXA8891
84 LO Arm Assy(S7)
CXA8892
85 Shaft
CLA3133
86 Guide Arm Assy(S7)
CXB1850
87 Ball
CNR1189
Mark No. Description
Part No.
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
10
FH-P404

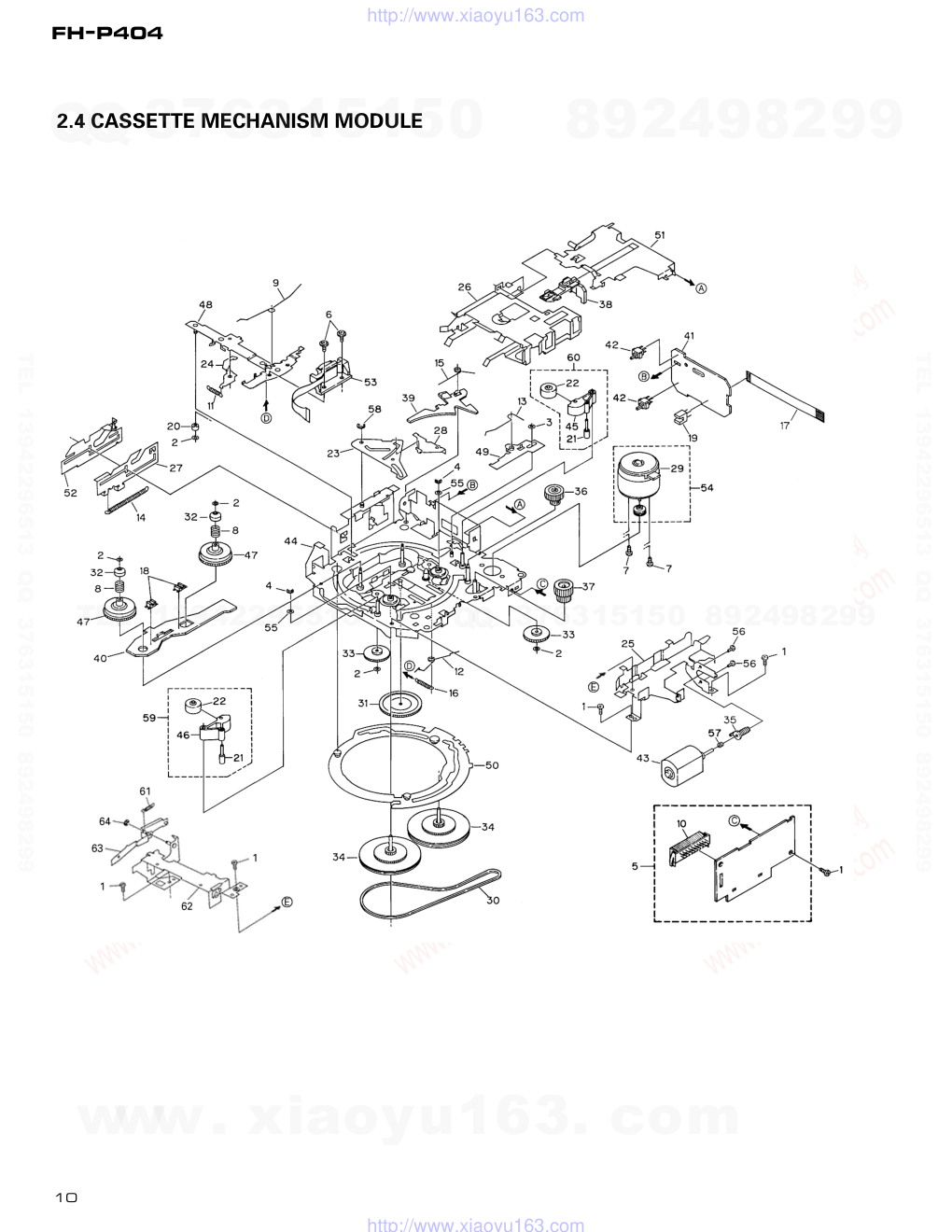

2.4 CASSETTE MECHANISM MODULE
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
11
FH-P404
- CASSETTE MECHANISM MODULE SECTION PARTS LIST
1 Screw
BSZ20P040FMC
2 Washer
CBF1037
3 Washer
CBF1038
4 Washer
CBG1003
5 Deck Unit
EWM1010
6 Screw
EBA1028
7 Screw
EBA1037
8 Spring
EBH1531
9 Spring
EBH1575
10 Plug(CN251)
CKS3540
11 Spring
EBH1515
12 Spring
EBH1587
13 Spring
EBH1517
14 Spring
EBH1518
15 Spring
EBH1519
16 Spring
EBH1537
17 Cord
EDD1020
18 Photo-interrupter(EGN2,3) EGN1006
19 Photo-interrupter(EGN1)
EGN1005
20 Roller
ENR1031
21 Shaft
ELA1373
22 Pinch Roller
ENV1518
23 Arm
ENC1489
24 Arm
ENC1397
25 Guide
ENC1481
26 Holder
ENC1417
27 Lever
ENC1448
28 Arm
ENC1488
29 Motor
EXM1028
30 Belt
ENT1027
31 Gear
ENV1347
32 Collar
ENV1508
33 Gear
ENV1350
34 Flywheel
ENV1410
35 Worm Gear
ENV1439
36 Worm Wheel
ENV1440
37 Gear
ENR1028
38 Lever
ENV1442
39 Arm
ENV1445
40 Gathering PCB
ENX1037
41 Gathering PCB
ENX1042
42 Switch(S1,2)
ESG1004
43 Motor Unit(M2)
EXA1485
44 Chassis Unit
EXA1511
45 Pinch Holder
ENV1485
46 Pinch Holder
ENV1486
47 Reel Unit
EXA1537
48 Head Base Unit
EXA1457
49 Lever Unit
EXA1438
50 Gear Unit
EXA1436
51 Frame Unit
EXA1458
52 Lever Unit
EXA1439
53 Head Assy(HD1)
EXA1506
54 Motor Unit(M1)
EXA1464
55 Washer
HBF-179
56 Screw
BMZ20P022FMC
57 Spring
EBH1545
58 Washer
YE20FUC
59 Pinch Holder Unit
EXA1529
60 Pinch Holder Unit
EXA1528
61 Spring
EBH1533
62 Guide Unit
EXA1409
63 Arm Unit
EXA1487
64 Washer
YE15FUC
Mark No. Description
Part No.
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
12
FH-P404
A
1
2
3
4
B
C
D
1
2
3
4
FM/AM TUNER UNIT
DD CONVERTER UNIT
B
D
C
/UC
/UC
/ES
/ES
A
A-a
A-b
A-a
A-b
A-b
A-a
Large size
SCH diagram
Guide page
Detailed page
A-a
3. SCHEMATIC DIAGRAM
3.1 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)
Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS
LIST”.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
13
FH-P404
5
6
7
8
A
B
C
D
5
6
7
8A
A-b
TUNER DECK AMP UNIT
SWITCH UNIT
FL UNIT
A
G
H
FILAMENT POWER
/ES
/ES
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
14
FH-P404
A
1
2
3
4
B
C
D
1
2
3
4
FM/AM TUNER UNIT
B
/UC
/UC
/ES
/ES
A-a A-b
A-a
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
15
FH-P404
5
6
7
8
A
B
C
D
5
6
7
8
SWIT
FL UN
DD CONVERTER UNIT
D
C
G
H
A-a A-b
A-a
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
16
FH-P404
A
1
2
3
4
B
C
D
1
2
3
4
A-a A-b
A-b
TUNER DECK AMP UNIT
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
17
FH-P404
5
6
7
8
A
B
C
D
5
6
7
8
A-a A-b
A-b
SWITCH UNIT
FL UNIT
FILAMENT POWER
/ES
/ES
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
18
FH-P404
A
1
2
3
4
B
C
D
1
2
3
4
A
B
B
3.2 FM/AM TUNER UNIT
- FH-P404/UC
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
19
FH-P404
5
6
7
8
A
B
C
D
5
6
7
8B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
20
FH-P404
A
1
2
3
4
B
C
D
1
2
3
4
A
- FH-P404/ES
B
B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
21
FH-P404
5
6
7
8
A
B
C
D
5
6
7
8B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
22
FH-P404
A
1
2
3
4
B
C
D
1
2
3
4
3.3 DD CONVERTER UNIT
A
CN901
I
C
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
23
FH-P404
5
6
7
8
A
B
C
D
5
6
7
8
A
C
DD CONVERTER UNIT
C
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
24
FH-P404
A
1
2
3
4
B
C
D
1
2
3
4
DECK UNIT
D
A
3.4 CASSETTE MECHANISM MODULE
D
CN401
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
25
FH-P404
5
6
7
8
A
B
C
D
5
6
7
8
PCB UNIT
REEL PCB
F
E
SWITCHES:
PCB UNIT
S1:LOAD SWITCH.........EJECT-PLAY
S2:70µs SWITCH.............ON-OFF
The underlined indicates the switch position.
D E F
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
26
FH-P404
A
1
2
3
4
B
C
D
1
2
3
4
3.5 SWITCH UNIT, FL UNIT
SWITCH UNIT
G
A
G H
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
27
FH-P404
5
6
7
8
A
B
C
D
5
6
7
8
FL UNIT
H
G H
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
28
FH-P404
A
1
2
3
4
B
C
D
1
2
3
4
I
J
3.6 CD MECHANISM MODULE(GUIDE PAGE)
A-a
A-b
A-a
A-b
A-b
A-a
Large size
SCH diagram
Guide page
Detailed page
I-a
22/6R3
BA05SFP
CXA8912
CXB3043
CXA8702
I
J
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
29
FH-P404
5
6
7
8
A
B
C
D
5
6
7
8
I-b
I
C
CN1601
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
30
FH-P404
A
1
2
3
4
B
C
D
1
2
3
4
I
I-a
I-a
I-b
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
31
FH-P404
5
6
7
8
A
B
C
D
5
6
7
8
22/6R3
BA05SFP
CXA8912
CXB3043
CXA8702
J
I-a
I-a
I-b
J
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
32
FH-P404
A
1
2
3
4
B
C
D
1
2
3
4
I-b
I-a
I-b
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
33
FH-P404
5
6
7
8
A
B
C
D
5
6
7
I-b
8
I-a
I-b
C
CN1601
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
34
FH-P404
- Waveforms
1 RFO
0.5V/div. 0.5µs/div.
Normal mode: play
1 CH1: RFO
1V/div.
2 CH2: MIRR
5V/div.
Test mode: Tracking open
0.5ms/div.
1 CH1: RFO
1V/div.
2 CH2: MIRR
5V/div.
Normal mode: The defect part
passes 800µm
0.5ms/div.
3 CH1: FIN
0.5V/div.
4 CH2: FO+
2V/div.
Test mode: No disc, Focus close
0.2s/div.
3 CH1: FIN
0.5V/div.
5 CH2: FOK
2V/div.
Normal mode: Focus close
0.2s/div.
6 CH1: FEY
0.5V/div.
7 CH2: XSI
2V/div.
Normal mode: Focus close
1ms/div.
REFO →
8 CH1: TEY
0.5V/div.
9 CH2: TIN
0.5V/div.
Test mode: 32 tracks jump (FWD)
0.5ms/div.
8 CH1: TEY
0.5V/div.
9 CH2: TIN
0.5V/div.
Test mode: Single jump (FWD)
0.5ms/div.
8 CH1: TEY
0.5V/div.
9 CH2: TIN
0.5V/div.
Test mode: 100 tracks jump (FWD)
5ms/div.
6 CH1: FEY
0.1V/div.
3 CH2: FIN
0.2V/div.
Normal mode: Play
20ms/div.
3 CH1: FIN
0.5V/div.
0 CH2: SIN
1V/div.
Normal mode: Focus close (12cm)
0.5s/div.
3 CH1: FIN
0.5V/div.
0 CH2: SIN
1V/div.
Normal mode: Focus close (8cm)
0.5s/div.
GND →
GND →
REFO →
REFO →
REFO →
REFO →
GND →
REFO →
REFO →
GND →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
Note:1. The encircled numbers denote measuring pointes in the circuit diagram.
2. Reference voltage
REFO:2.5V
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
35
FH-P404
8 CH1: TEY
0.2V/div.
9 CH2: TIN
0.2V/div.
Normal mode: play
8 CH1: TEY
0.5V/div.
! CH2: SD
0.5V/div.
5ms/div.
0 SIN
0.5V/div.
0.1s/div.
Normal mode: Play (12cm)
0 SIN
0.5V/div.
10ms/div.
Long Search (12cm)
@ EFM
1V/div.
5µs/div.
Play
8 CH1: TEY
1V/div.
# CH2: TEC
1V/div.
Test mode: Focus close
Tracking open
2ms/div.
8 CH1: TEY
0.5V/div.
6 CH2: FEY
0.5V/div.
Normal mode: AGC after focus
close
0.2s/div.
$ PLCK
2V/div.
0.5µs/div.
Play
20ms/div.
% SCKO
2V/div.
1µs/div.
Play
^ Dout
2V/div.
10µs/div.
Play
& LRCK
2V/div.
20µs/div.
* VD
5V/div.
50ms/div.
Normal mode: No disc
GND →
REFO →
REFO →
GND →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
GND →
REFO →
GND →
REFO →
GND →
REFO →
GND →
REFO →
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
36
FH-P404
( CH1: R OUT
1V/div.
) CH2: L OUT
1V/div.
Normal mode: Play (1kHz 0dB)
6 CH1: FEY
0.2V/div.
3 CH2: FIN
0.5V/div.
Normal mode: During AGC
1ms/div.
8 CH1: TEY
0.2V/div.
9 CH2: TIN
0.5V/div.
Normal mode: During AGC
1 CH1: RFO
1V/div.
⁄ CH2: HOLD
5V/div.
Normal mode: The defect part passes
800µm
0.2ms/div.
1ms/div.
0.5ms/div.
3 CH1: FIN
1V/div.
⁄ CH2: HOLD
5V/div.
Normal mode: The defect part passes
800µm
0.5ms/div.
GND →
GND →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
37
FH-P404
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
38
FH-P404
A
1
2
3
4
B
C
D
1
2
3
4
A
4. PCB CONNECTION DIAGRAM
4.1 TUNER DECK AMP UNIT
Capacitor
Connector
P.C.Board
Chip Part
SIDE A
SIDE B
CORD ASSY
CN1602
C
NOTE FOR PCB DIAGRAMS
1. The parts mounted on this PCB
include all necessary parts for
several destination.
For further information for
respective destinations, be sure
to check with the schematic dia-
gram.
2. Viewpoint of PCB diagrams
TUNER DECK AMP UNIT
A
CN1801
C
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
39
FH-P404
5
6
7
8
A
B
C
D
5
6
7
8A
SIDE A
ANT
G
B
CN1901
CN251
D
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
40
FH-P404
A
1
2
3
4
B
C
D
1
2
3
4
A
TUNER DECK AMP UNIT
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
41
FH-P404
5
6
7
8
A
B
C
D
5
6
7
8A
SIDE B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
42
FH-P404
A
1
2
3
4
B
C
D
1
2
3
4
A
B
FM/AM TUNER UNIT
B
4.2 FM/AM TUNER UNIT
SIDE A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
43
FH-P404
A
B
C
D
1
2
3
4
1
2
3
4B
FM/AM TUNER UNIT
B
SIDE B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
44
FH-P404
A
1
2
3
4
B
C
D
1
2
3
4
4.3 DD CONVERTER UNIT
DD CONVERTER UNIT
C
CN351
A
CN701
I
CN802
A
C
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
45
FH-P404
1
2
3
4
A
B
C
D
1
2
3
4
DD CONVERTER UNIT
C
C
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
46
FH-P404
A
1
2
3
4
B
C
D
1
2
3
4
4.4 CASSETTE MECHANISM MODULE
6
5
4
3
2
1
CN252
VR302
R252
C252
R265
R260
R256
R254
C254
R262
C256
R258
R266
R284
R282
R281
R283
R257
R259
R255 C253
R253
VR301
C251
R251
R263
R264
R261
C255
C301
C303
R271
R285
R321
R287
R301
R277
R288
R289
R421
R404
R286
C405
R275
C272
IC251
20
21
28
1
67
15
14
R290
E
E
Q401
Q271
R278
C304
C302
C351
R351
1
2 R401
R402
R403
C403
R276
C401
C404
IC351
1
5
6
10
11
15
16
20
1
2
3
4
5
6
7
CN253
CN255
C352
C354
R355
E
Q352
E
Q351
R375
R373
R374
R362
R358
R354
R356
R352
R353
R361
R360
C356
D351
R357
R359
C353
C355
M2
M1
ADJ
IC,Q
Q351
Q351
Q401
Q271
IC251
IC351
VR301
VR302
CN254
D
DECK UNIT
E
D
HEAD
ASSY
CN401
DECK UNIT
SIDE B
SIDE A
D
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
47
FH-P404
1
2
3
4
1
2
3
4
1
4
7
1 2 3 4 5 6
LOAD SW
S1
70µ SW
S2
MODE SENSE
EGN1
E
E
PCB UNIT
PCB UNIT
F
REEL PCB
D
F
SIDE B
SIDE A
E F
E
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
48
FH-P404
A
1
2
3
4
B
C
D
1
2
3
4
4.5 SWITCH UNIT
SIDE A
SIDE B
CN801
A
CN1904
H
SWITCH UNIT
G
G
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
49
FH-P404
1
2
3
4
A
B
C
D
1
2
3
4
4.6 FL UNIT
SIDE A
SIDE B
CD
EJ
1 3
5 4
2
CN1903
G
FL UNIT
H
H
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
50
FH-P404
A
1
2
3
4
B
C
D
1
2
3
4
TEY
4.7 CD MECHANISM MODULE
I
CONTROL UNIT
I
CN1601
C
PICKUP UNIT
(SERVICE)
I
PHOTO UNIT
J
J
SIDE A
CN801
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
51
FH-P404
A
B
C
D
1
1
2
3
4
2
3
4
J
SIDE B
CONTROL UNIT
I
I
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
52
FH-P404
5. ELECTRICAL PARTS LIST
NOTES:
- Parts whose parts numbers are omitted are subject to being not supplied.
- The part numbers shown below indicate chip components.
Chip Resistor
RS1/_S___J,RS1/__S___J
Chip Capacitor (except for CQS.....)
CKS....., CCS....., CSZS.....
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
Unit Number
: CWE1417(FH-P404/UC)
Unit Name
: FM/AM Tuner Unit
MISCELLANEOUS
IC
1
IC
PA4023B
IC
2
IC
PA4024A
Q
1
Transistor
2SC2412K
Q
2
Transistor
DTC124EU
Q
3
FET
3SK263
Q
31
Transistor
2SC2412K
Q
201
FET
2SK932
Q
202
Transistor
2SC2412K
Q
203
Transistor
DTC124EU
D
1
Diode
RD39JS
D
2
Diode
RD39JS
D
4
Diode
1SV250
D
5
Diode
KV1410-F1
D
6
Diode
MA157
D
7
Diode
KV1410-F1
D
8
Diode
KV1410-F1
D
201
Diode
MA157
D
202
Diode
MA157
D
231
Diode
SVC253
L
2
Coil
CTC1108
L
3
Inductor
LCTB2R2K2125
L
4
Coil
CTC1108
L
5
Coil
CTC1107
L
51
Ferri-Inductor
LAU150K
L
201
Ferri-Inductor
LAU4R7K
L
202
Ferri-Inductor
LAU330K
L
203
Inductor
CTF1287
L
208
Inductor
LAU121K
L
231
Inductor
LCTA3R3J3225
T
31
Coil
CTE1116
T
51
Coil
CTC1136
CF
51
Ceramic Filter
CTF1290
CF
52
Ceramic Filter
CTF1290
CF
53
Ceramic Filter
CTF1290
CF
232
Ceramic Filter
CTF1348
X
151
Resonator 920.5kHz
CSS1365
X
231
Crystal Resonator 10.26MHz
CSS1111
VR
154
Semi-fixed 150kΩ(B)
CCP1213
RESISTORS
R
1
RS1/16S225J
R
2
RS1/16S225J
R
4
RS1/16S154J
R
5
RS1/16S391J
R
6
RS1/16S223J
R
7
RS1/16S123J
R
8
RS1/16S332J
R
9
RS1/16S473J
R
10
RS1/16S223J
R
11
RS1/16S124J
R
13
RS1/16S563J
R
15
RS1/16S271J
R
16
RS1/16S104J
R
17
RS1/16S332J
R
18
RS1/16S332J
R
31
RS1/16S470J
R
32
RS1/16S822J
R
33
RS1/16S822J
R
34
RS1/16S331J
R
35
RS1/16S331J
R
51
RS1/16S271J
R
52
RS1/16S560J
R
55
RS1/16S102J
R
56
RS1/16S823J
R
61
RS1/16S392J
R
62
RS1/16S273J
R
101
RS1/16S272J
R
102
RS1/16S682J
R
103
RS1/16S333J
R
104
RS1/16S334J
R
105
RS1/16S683J
R
107
RS1/16S222J
R
151
RS1/16S222J
R
152
RS1/16S393J
R
155
RS1/16S273J
R
156
RS1/16S243J
R
157
RS1/16S203J
R
160
RS1/16S222J
R
161
RS1/16S563J
R
162
RS1/16S105J
R
163
RS1/16S223J
R
202
RS1/16S223J
R
203
RS1/16S225J
R
204
RS1/16S103J
R
206
RS1/16S220J
R
207
RS1/16S101J
R
208
RS1/16S102J
R
209
RS1/16S471J
R
214
RS1/16S822J
R
215
RS1/16S822J
R
217
RS1/16S102J
R
231
RS1/16S272J
R
232
RS1/16S473J
R
237
RS1/16S103J
R
238
RS1/16S104J
R
239
RS1/16S104J
R
240
RS1/16S332J
R
241
RS1/16S202J
R
243
RS1/16S183J
R
244
RS1/16S392J
R
247
RS1/16S123J
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
53
FH-P404
CAPACITORS
C
1
CCSQCH6R0D50
C
2
CCSRCK2R0C50
C
4
CCSRCH820J50
C
6
CCSRCH820J50
C
8
CKSRYB103K25
C
9
CKSQYB104K16
C
10
CCSRCKR50C50
C
11
CEJA1R0M50
C
12
CKSRYB222K50
C
13
CKSRYB222K50
C
14
CCSRCH220J50
C
15
CCSRCH6R0D50
C
16
CCSRCH8R0D50
C
17
CKSRYB222K50
C
18
CKSRYB103K25
C
19
CKSRYB222K50
C
20
CKSRYB222K50
C
21
CEJA100M16
C
22
CCSRTH9R0D50
C
23
CCSRTH120J50
C
24
CCSRCH471J50
C
25
CKSRYB103K25
C
26
CCSRCH101J50
C
31
CKSRYB103K25
C
32
CKSQYB472K50
C
33
CCSRCH5R0C50
C
34
CKSQYB104K16
C
36
CCSRRH201J50
C
51
CKSRYB223K25
C
52
CKSRYB103K25
C
54
CCSRCH470J50
C
55
CKSQYB223K25
C
56
CKSQYB104K16
C
57
CKSRYB472K50
C
58
CEJA330M10
C
59
CKSRYB103K25
C
60
CKSRYB102K50
C
61
CCSRCH270J50
C
62
CKSRYB103K25
C
63
CEJAR22M50
C
101
CEJANP100M10
C
102
CKSRYB182K50
C
103
CKSRYB682K25
C
104
CEJA2R2M50
C
105
CKSRYB103K25
C
106
CCSRCH151J50
C
107
CKSRYB103K25
C
151
CKSRYB472K50
C
152
CKSQYB104K16
C
153
CEJA3R3M50
C
154
CKSQYB104K16
C
157
CEJA3R3M50
C
158
CKSYB474K16
C
159
CEJA220M6R3
C
160
CKSQYB104K16
C
161
CKSQYB104K16
C
162
CEJA3R3M50
C
163
CKSRYB102K50
C
170
CCSRCH100D50
C
201
CCSRCH471J50
C
202
CCSRCH100D50
C
203
CKSRYB332K50
C
204
CKSQYB473K16
C
205
CKSQYB473K16
C
206
CKSQYB104K16
C
207
CCSRCH560J50
C
209
CKSQYB104K16
C
211
CCSRCH101J50
C
212
CEJA470M6R3
C
213
CKSRYB103K25
C
216
CCSRCH101J50
C
217
CEJA1R5M50
C
219
CCSRCH471J50
C
220
CKSRYB103K25
C
230
CKSRYB103K25
C
231
CCSRCH330J50
C
232
CCSRCH150J50
C
233
CKSQYB104K16
C
234
CEJA330M10
C
235
CKSRYB332K50
C
236
CKSQYB473K16
C
237
CCSRCH120J50
C
239
CKSRYB472K50
C
240
CEJAR47M50
C
241
CKSQYB104K16
C
242
CEJAR47M50
C
243
CEJAR33M50
C
244
CKSQYB473K16
C
245
CKSRYB333K16
C
246
CKSQYB473K16
C
250
CCSRCH471J50
Unit Number
:
CWE1485(FH-P404/ES)
Unit Name
:
FM/AM Tuner Unit
MISCELLANEOUS
IC
1
IC
PA4023B
IC
2
IC
PA4024A
Q
1
Transistor
2SC2412K
Q
2
Transistor
DTC124EU
Q
3
FET
3SK263
Q
31
Transistor
2SC2412K
Q
201
FET
2SK932
Q
202
Transistor
2SC2412K
Q
203
Transistor
DTC124EU
D
1
Diode
RD39JS
D
2
Diode
RD39JS
D
4
Diode
1SV250
D
5
Diode
KV1410-F1
D
6
Diode
MA157
D
7
Diode
KV1410-F1
D
8
Diode
KV1410-F1
D
201
Diode
MA157
D
202
Diode
MA157
D
231
Diode
SVC253
L
2
Coil
CTC1108
L
3
Inductor
LCTB2R2K2125
L
4
Coil
CTC1108
L
5
Coil
CTC1107
L
6
Inductor
LCTBR15K1608
L
51
Ferri-Inductor
LAU150K
L
201
Ferri-Inductor
LAU4R7K
L
202
Ferri-Inductor
LAU330K
L
203
Inductor
CTF1287
L
208
Inductor
LAU121K
L
231
Inductor
LCTA3R3J3225
T
31
Coil
CTE1117
T
51
Coil
CTC1136
CF
51
Ceramic Filter
CTF1290
CF
52
Ceramic Filter
CTF1290
CF
53
Ceramic Filter
CTF1290
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
54
FH-P404
CF
232
Ceramic Filter
CTF1348
X
151
Resonator 918.5Hz
CSS1365
X
231
Crystal Resonator 10.26MHz
CSS1111
VR
154
Semi-fixed 150kΩ(B)
CCP1213
RESISTORS
R
1
RS1/16S225J
R
2
RS1/16S225J
R
4
RS1/16S154J
R
5
RS1/16S391J
R
6
RS1/16S223J
R
7
RS1/16S123J
R
8
RS1/16S332J
R
9
RS1/16S473J
R
10
RS1/16S223J
R
11
RS1/16S124J
R
13
RS1/16S563J
R
15
RS1/16S271J
R
16
RS1/16S104J
R
17
RS1/16S332J
R
18
RS1/16S332J
R
31
RS1/16S470J
R
32
RS1/16S822J
R
33
RS1/16S822J
R
34
RS1/16S331J
R
35
RS1/16S331J
R
51
RS1/16S271J
R
52
RS1/16S560J
R
55
RS1/16S102J
R
56
RS1/16S823J
R
61
RS1/16S392J
R
62
RS1/16S273J
R
101
RS1/16S272J
R
102
RS1/16S682J
R
103
RS1/16S333J
R
104
RS1/16S334J
R
105
RS1/16S683J
R
107
RS1/16S222J
R
151
RS1/16S222J
R
152
RS1/16S393J
R
155
RS1/16S273J
R
156
RS1/16S243J
R
157
RS1/16S203J
R
160
RS1/16S222J
R
161
RS1/16S563J
R
162
RS1/16S105J
R
163
RS1/16S223J
R
202
RS1/16S223J
R
203
RS1/16S225J
R
204
RS1/16S103J
R
206
RS1/16S220J
R
207
RS1/16S101J
R
208
RS1/16S102J
R
209
RS1/16S471J
R
214
RS1/16S822J
R
215
RS1/16S822J
R
217
RS1/16S102J
R
231
RS1/16S272J
R
232
RS1/16S473J
R
237
RS1/16S103J
R
238
RS1/16S104J
R
239
RS1/16S104J
R
240
RS1/16S332J
R
241
RS1/16S202J
R
243
RS1/16S183J
R
244
RS1/16S392J
R
247
RS1/16S123J
CAPACITORS
C
1
CCSQCH6R0D50
C
2
CCSRCK2R0C50
C
4
CCSRCH820J50
C
6
CCSRCH820J50
C
8
CKSRYB103K25
C
9
CKSQYB104K16
C
10
CCSRCKR50C50
C
11
CEJA1R0M50
C
12
CKSRYB222K50
C
13
CKSRYB222K50
C
14
CCSRCH220J50
C
15
CCSRCH6R0D50
C
16
CCSRCH8R0D50
C
17
CKSRYB222K50
C
18
CKSRYB103K25
C
19
CKSRYB222K50
C
20
CKSRYB222K50
C
21
CEJA100M16
C
22
CCSRTH9R0D50
C
23
CCSRTH120J50
C
24
CCSRCH471J50
C
25
CKSRYB103K25
C
31
CKSRYB103K25
C
32
CKSQYB472K50
C
33
CCSRCH5R0C50
C
34
CKSQYB104K16
C
36
CCSRRH201J50
C
51
CKSRYB223K25
C
52
CKSRYB103K25
C
54
CCSRCH470J50
C
55
CKSQYB223K25
C
56
CKSQYB104K16
C
57
CKSRYB472K50
C
58
CEJA330M10
C
59
CKSRYB103K25
C
60
CKSRYB102K50
C
61
CCSRCH270J50
C
62
CKSRYB103K25
C
63
CEJAR22M50
C
101
CEJANP100M10
C
102
CKSRYB182K50
C
103
CKSRYB682K25
C
104
CEJA2R2M50
C
105
CKSRYB103K25
C
106
CCSRCH151J50
C
107
CKSRYB103K25
C
151
CKSRYB472K50
C
152
CKSQYB104K16
C
153
CEJA3R3M50
C
154
CKSQYB104K16
C
157
CEJA3R3M50
C
158
CKSYB474K16
C
159
CEJA220M6R3
C
160
CKSQYB104K16
C
161
CKSQYB104K16
C
162
CEJA3R3M50
C
163
CKSRYB102K50
C
170
CCSRCH100D50
C
201
CCSRCH471J50
C
202
CCSRCH100D50
C
203
CKSRYB332K50
C
204
CKSQYB473K16
C
205
CKSQYB473K16
C
206
CKSQYB104K16
C
207
CCSRCH560J50
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
55
FH-P404
C
209
CKSQYB104K16
C
211
CCSRCH101J50
C
212
CEJA470M6R3
C
213
CKSRYB103K25
C
216
CCSRCH101J50
C
217
CEJA1R5M50
C
219
CCSRCH471J50
C
220
CKSRYB103K25
C
230
CKSRYB103K25
C
231
CCSRCH330J50
C
232
CCSRCH150J50
C
233
CKSQYB104K16
C
234
CEJA330M10
C
235
CKSRYB332K50
C
236
CKSQYB473K16
C
237
CCSRCH120J50
C
239
CKSRYB472K50
C
240
CEJAR47M50
C
241
CKSQYB104K16
C
242
CEJAR47M50
C
243
CEJAR33M50
C
244
CKSQYB473K16
C
245
CKSRYB333K16
C
246
CKSQYB473K16
C
250
CCSRCH471J50
Unit Number :CWM5886(FH-P404/UC)
Unit Number :CWM5883(FH-P404/ES)
Unit Name
:Tuner Deck Amp Unit
MISCELLANEOUS
IC
101
IC
TA2050S
IC
102
IC
CA0008AM
IC
151
IC
TDA7386
IC
201
IC
SN761027DL
IC
251
IC
M5282FP
IC
252
IC
NJM4558MD
IC
253
IC
NJM4558MD
IC
254
IC
MC14052BF
IC
301
IC
M62412P
IC
501
IC
LC72146M
IC
601
IC
PD4947A
IC
931
IC
TPD1018F
IC
971
IC
See Contrast table
IC
981
IC
S-80734ANDYI
Q
101
Chip Transistor
2SA1162
Q
102
Transistor
DTC124EK
Q
151
Transistor
DTC124EK
Q
152
Transistor
DTA124EK
Q
153
Transistor
2SC2412K
Q
154
Transistor
DTC124EK
Q
201
Transistor
2SC2412K
Q
251
Transistor
IMH1A
Q
252
Transistor
IMD2A
Q
253
Transistor
IMH3A
Q
281
Transistor
IMH3A
Q
282
Transistor
IMH3A
Q
321
Transistor
DTA124EK
Q
322
Transistor
IMH3A
Q
351
Transistor
2SD2396
Q
352
Transistor
IMD2A
Q
501
Transistor
2SC2412K
Q
502
Transistor
2SK208
Q
503
Transistor
2SC2412K
Q
504
Transistor
See Contrast table
Q
601
Transistor
DTA114EK
Q
602
Transistor
DTC124EK
Q
801
Transistor
2SB1132
Q
802
Transistor
DTC143EK
Q
803
Transistor
2SA1797
Q
804
Transistor
DTC143EK
Q
805
Transistor
2SB1566
Q
806
Transistor
2SD2396
Q
911
Transistor
2SD1760F5
Q
921
Transistor
2SC2412K
Q
922
Transistor
2SC2412K
Q
923
Transistor
2SC2412K
Q
941
Transistor
See Contrast table
Q
951
Transistor
2SD1760F5
Q
952
Chip Transistor
2SA1162
Q
953
Transistor
DTC124EK
Q
961
Transistor
2SA1674
Q
962
Transistor
2SA1674
Q
963
Transistor
DTC143EK
Q
964
Transistor
DTC143EK
D
151
Diode
DAN202K
D
152
Diode
MA3082(L)
D
251
Diode
DAN202K
D
252
Diode
MA8047(L)
D
351
Diode
HZS9L(B1)
D
401
Diode
1SS133
D
501
Diode
DAN202K
D
502
Diode
HZS3LL(B)
D
801
Diode
MA3056(L)
D
802
Diode
HZS11L(C3)
D
803
Diode
DAN202K
D
804
Diode
MA3068(M)
D
901
Diode
ERA15-02VH
D
902
Diode
ERA15-02VH
D
911
Diode
ERA15-02VH
D
912
Diode
HZS6L(B1)
D
921
Diode
HZS7L(C3)
D
922
Diode
MA3062(H)
D
931
Diode
ERA15-02VH
D
932
Diode
ERA15-02VH
D
940
Diode
See Contrast table
D
941
Diode
See Contrast table
D
951
Diode
HZS9L(B2)
D
971
Diode
See Contrast table
D
972
Diode
See Contrast table
D
981
Diode
MA110
L
101
Ferri-Inductor
LAU2R2K
L
351
Inductor
CTF1420
L
501
Ferri-Inductor
LAU2R2K
L
503
Ferri-Inductor
LAU2R2K
L
601
Ferri-Inductor
LAU2R2K
L
602
Ferri-Inductor
LAU2R2K
L
603
Ferri-Inductor
LAU2R2K
L
604
Ferri-Inductor
LAU2R2K
L
605
Ferri-Inductor
LAU2R2K
L
606
Ferri-Inductor
LAU2R2K
L
901
Choke Coil 600mH
CTH1213
L
941
Ferri-Inductor
See Contrast table
X
501
Crystal Resonator 7.2MHz
CSS1334
X
601
Resonator 12.58291MHz
CSS1402
FU
801
Micro Fuse 1A
CEK1191
FU
802
Micro Fuse 1A
CEK1191
BZ
601
Buzzer
CPV1012
DD Converter Unit
CWM6152
FM/AM Tuner Unit
See Contrast table
RESISTORS
R
101
RS1/10S620J
R
102
RS1/10S101J
R
103
RS1/10S101J
R
104
RS1/10S222J
R
105
RS1/10S122J
R
106
RS1/10S122J
R
107
RS1/10S181J
R
108
RS1/10S181J
R
109
RS1/10S153J
R
110
RS1/10S153J
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
56
FH-P404
R
111
RS1/10S222J
R
112
RS1/10S222J
R
113
RS1/10S102J
R
114
RS1/10S102J
R
115
RS1/10S473J
R
116
RS1/10S473J
R
117
RS1/10S332J
R
118
RS1/10S682J
R
119
RS1/10S103J
R
151
RS1/10S103J
R
152
RS1/10S103J
R
153
RS1/10S331J
R
154
RS1/10S103J
R
155
RS1/10S472J
R
156
RS1/10S472J
R
157
RS1/10S103J
R
158
RS1/10S473J
R
159
RS1/10S102J
R
201
RS1/10S102J
R
202
RS1/10S473J
R
203
RS1/10S473J
R
204
RS1/10S272J
R
205
RS1/10S272J
R
206
RS1/10S151J
R
207
RS1/10S151J
R
210
RS1/10S202J
R
211
RS1/10S202J
R
212
RS1/10S102J
R
213
RS1/10S102J
R
214
RS1/10S102J
R
215
RS1/16S102J
R
216
RS1/10S222J
R
217
RS1/16S222J
R
218
RS1/10S103J
R
219
RS1/10S103J
R
220
RS1/10S272J
R
221
RS1/10S272J
R
222
RS1/10S162J
R
223
RS1/10S162J
R
224
RS1/10S104J
R
251
RS1/16S104J
R
252
RS1/16S104J
R
253
RS1/16S104J
R
254
RS1/16S683J
R
255
RS1/16S104J
R
256
RS1/16S104J
R
257
RS1/16S104J
R
258
RS1/16S103J
R
259
RS1/16S183J
R
260
RS1/16S183J
R
261
RS1/10S243J
R
262
RS1/10S0R0J
R
263
RS1/10S473J
R
264
RS1/16S105J
R
265
RS1/16S105J
R
266
RS1/16S103J
R
267
RS1/16S103J
R
268
RS1/16S821J
R
269
RS1/16S821J
R
270
RS1/10S223J
R
271
RS1/10S223J
R
272
RS1/16S301J
R
281
RS1/10S821J
R
282
RS1/10S821J
R
283
RS1/10S471J
R
284
RS1/10S471J
R
285
RS1/10S223J
R
286
RS1/10S223J
R
287
RS1/10S223J
R
288
RS1/10S223J
R
301
RS1/16S105J
R
302
RS1/10S105J
R
303
RS1/16S682J
R
304
RS1/16S682J
R
305
RS1/10S303J
R
306
RS1/10S303J
R
309
RS1/10S101J
R
310
RS1/10S101J
R
311
RS1/10S123J
R
312
RS1/10S123J
R
321
RS1/10S821J
R
322
RS1/10S821J
R
323
RS1/10S104J
R
324
RS1/10S104J
R
351
RD1/4PU221J
R
352
RS1/10S221J
R
353
RS1/10S472J
R
354
RS1/10S222J
R
401
RS1/10S222J
R
402
RS1/10S103J
R
403
RS1/10S222J
R
404
RS1/10S222J
R
405
RS1/10S103J
R
406
RA4C222J
R
407
RA4C222J
R
408
RA4C473J
R
409
RS1/10S103J
R
410
RS1/10S392J
R
501
RS1/10S102J
R
502
RS1/10S473J
R
503
RS1/10S393J
R
504
RS1/10S103J
R
505
RS1/10S223J
R
506
RS1/16S473J
R
507
RS1/10S102J
R
508
RS1/10S331J
R
509
RS1/10S103J
R
510
See Contrast table
R
511
RS1/10S472J
R
512
RS1/10S102J
R
513
RS1/10S472J
R
514
RS1/10S103J
R
515
RS1/10S152J
R
516
RS1/10S103J
R
517
RS1/10S222J
R
518
RS1/10S102J
R
519
RS1/10S222J
R
520
RA4C473J
R
521
See Contrast table
R
524
RA4C681J
R
525
See Contrast table
R
528
RS1/10S4R7J
R
530
RS1/16S222J
R
601
RS1/10S102J
R
604
RS1/10S473J
R
605
RS1/10S473J
R
606
RS1/10S472J
R
607
RS1/10S472J
R
608
RA4C473J
R
609
RS1/10S473J
R
610
See Contrast table
R
611
See Contrast table
R
612
RA4C221J
R
613
RS1/10S221J
R
614
RS1/10S473J
R
617
RA4C473J
R
621
RS1/10S102J
R
622
RS1/10S102J
R
623
RS1/10S473J
R
624
RS1/10S0R0J
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
57
FH-P404
R
625
RS1/16S473J
R
801
RS1/10S222J
R
802
RD1/4PU102J
R
803
RS1/10S222J
R
804
RD1/4PU102J
R
807
RS1/10S560J
R
808
RS1/10S0R0J
R
809
RS1/10S0R0J
R
810
RS1/10S102J
R
811
RA4C101J
R
815
RD1/4PU301J
R
816
RS1/10S103J
R
817
RS1/10S102J
R
911
RS1/8S332J
R
912
RS1/10S101J
R
921
RS1/10S103J
R
922
RS1/10S473J
R
923
RS1/10S103J
R
924
RS1/10S473J
R
925
RS1/10S472J
R
926
RS1/10S103J
R
927
RS1/10S223J
R
931
RS1/10S102J
R
941
See Contrast table
R
942
See Contrast table
R
943
See Contrast table
R
944
See Contrast table
R
951
RS1/8S151J
R
952
RS1/8S151J
R
954
RS1/10S222J
R
956
RS1/10S473J
R
961
RS1/10S472J
R
962
RD1/4PU102J
R
963
RS1/10S472J
R
964
RD1/4PU102J
R
971
See Contrast table
R
981
RS1/10S123J
R
982
RS1/10S102J
R
983
RS1/10S124J
R
984
RS1/10S102J
CAPACITORS
C
103
CKSQYB105K10
C
104
CKSQYB105K10
C
105
CKSQYB105K10
C
106
CKSQYB105K10
C
107
CEJA100M16
C
108
CKSQYB473K50
C
109
CKSQYB104K50
C
110
CKSQYB473K50
C
151
CKSYB224K16
C
152
CKSYB224K16
C
153
CKSYB224K16
C
154
CKSYB224K16
C
155
4700µF/16V
CCH1188
C
156
CKSQYB103K50
C
157
CEJA100M16
C
158
CKSQYB105K10
C
159
CKSQYB105K10
C
160
CEJA330M10
C
201
CKSQYB105K10
C
202
CEJA4R7M35
C
203
CEJA4R7M35
C
204
CEJA4R7M35
C
205
CEJA4R7M35
C
206
CEJA4R7M35
C
207
CEJA4R7M35
C
208
CEJA4R7M35
C
209
CEJA4R7M35
C
210
CKSQYB104K50
C
211
CEJA470M10
C
212
CEJA100M16
C
213
CEJA100M16
C
214
CKSQYB822K50
C
215
CKSQYB822K50
C
216
CKSQYB105K10
C
217
CKSQYB105K10
C
218
CKSQYB183K50
C
219
CKSQYB183K50
C
220
CKSQYB102K50
C
221
CKSQYB102K50
C
222
CKSYB225K16
C
223
CKSYB225K16
C
224
CKSQYB333K50
C
225
CKSQYB333K50
C
226
CEJA2R2M50
C
227
CEJA220M6R3
C
228
CKSQYB103K50
C
229
CKSQYB104K50
C
230
CKSQYB473K50
C
231
CKSQYB473K50
C
232
CKSQYB105K10
C
233
CKSQYB105K10
C
251
CKSQYB105K10
C
252
CKSQYB105K10
C
253
CKSQYB222K50
C
254
CKSQYB183K50
C
255
CKSQYB273K50
C
256
CKSQYB473K50
C
257
CKSQYB223K50
C
258
CKSQYB153K50
C
259
CKSQYB103K50
C
260
CEJANP220M10
C
261
CKSQYB472K50
C
262
CEJA101M10
C
263
CEJANP220M10
C
264
CEJA4R7M35
C
265
CKSQYB473K50
C
266
CKSQYB473K50
C
267
CKSQYB103K50
C
268
CEJA4R7M35
C
269
CEJA4R7M35
C
270
CKSQYB221K50
C
271
CKSQYB221K50
C
272
CKSQYB473K50
C
281
CEJA4R7M35
C
282
CEJA4R7M35
C
283
CEJA4R7M35
C
284
CEJA4R7M35
C
285
CKSQYB221K50
C
286
CKSQYB221K50
C
287
CKSQYB221K50
C
288
CKSQYB221K50
C
301
CEJANP100M16
C
302
CEJANP100M16
C
303
CKSQYB105K10
C
304
CKSQYB105K10
C
305
CEJANP100M16
C
306
CEJANP100M16
C
307
CKSQYB223K50
C
308
CKSQYB223K50
C
309
CKSQYB472K50
C
310
CKSQYB472K50
C
311
CKSQYB104K50
C
312
CKSQYB104K50
C
313
CEJA470M10
C
321
CEJA2R2M50
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
C
322
CEJA2R2M50
C
351
CKSQYB473K50
C
352
CKSQYB102K50
C
353
CEJA101M10
C
354
CCSQCH470J50
C
401
CEJA220M10
C
402
CEJA100M16
C
403
CEJA4R7M35
C
404
CEJA4R7M35
C
501
CKSQYB223K50
C
502
CKSQYB223K50
C
503
CKSQYB103K50
C
504
CKSQYB225K10
C
505
CKSQYB273K50
C
506
CCSQCH101J50
C
507
CKSQYB473K50
C
508
See Contrast table
C
509
CKSQYB103K50
C
510
CCSQCH101J50
C
511
CASA100M10
C
512
CCSQCH101J50
C
513
CKSQYB223K50
C
515
CKSQYB223K50
C
516
CKLSR473K16
C
517
CKSQYB103K50
C
519
CKSQYB223K50
C
520
CEJA100M16
C
521
4.7µF/16V
CCH1250
C
522
CKSQYB103K50
C
523
CCSQCH101J50
C
524
CCSQCH101J50
C
525
CCSQCH150K50
C
526
CCSQCH150K50
C
527
CCSQCH101J50
C
529
CKSQYB103K50
C
601
CCSQCH470J50
C
602
CEJA4R7M35
C
603
CCSQCH101J50
C
604
CCSQCH200J50
C
605
CCSQCH200J50
C
606
CKSQYB105K10
C
610
CCSQCH101J50
C
612
CCSQCH101J50
C
613
CCSQCH101J50
C
801
CKSYB225K16
C
803
CKSYB225K16
C
804
CKSYB225K16
C
805
CEV100M16
C
806
CKSYB225K16
C
807
CEV100M16
C
901
CKSQYB103K50
C
911
CKSQYB103K50
C
913
CKSQYB472K50
C
914
1500µF/16V
CCH1201
C
915
CEJA470M10
C
921
CEJA100M16
C
931
CKSQYB473K50
C
932
CKSYB105K16
C
951
CKSQYB103K50
C
952
CEJA100M16
C
953
CKSQYB103K50
C
954
330µF/10V
CCH1181
C
955
CEJA101M10
C
971
See Contrast table
C
972
See Contrast table
C
981
CKSQYB225K10
CONTRAST TABLE of TUNER DECK AMP UNIT
FH-P404/UC and FH-P404/ES have the same construction except
for the following:
Part No.
Symbol and Description
FH-P404/UC
FH-P404/ES
IC971
IC
Not used
TPD1018F
Q504
Transistor
Not used
DTC124EK
Q941
Chip Transistor
Not used
2SA1162
D940
Diode
Not used
DAN202K
D941
Diode
Not used
MA110
D971,972
Diode
Not used
ERA15-02VH
L941
Ferri-Inductor
Not used
LAU2R2K
R510,521
RS1/10S0R0J
Not used
R525
Not used
RS1/10S182J
R610
RS1/10S473J
RS1/10S243J
R611
RS1/10S243J
RS1/10S473J
R941
Not used
RS1/10S183J
R942
Not used
RS1/10S272J
R943
Not used
RS1/10S472J
R944,971
Not used
RS1/10S102J
C508
Not used
CKSQYB103K50
C971
Not used
CKSQYB104K50
C972
Not used
CKSYB105K16
FM/AM Tuner Unit
CWE1417
CWE1485
Unit Number :CWX2285
Unit Name
:Control Unit
MISCELLANEOUS
IC
101
IC
UPC2572GS
IC
201
IC
UPD63702AGF
IC
301
IC
BA6997FM
IC
302
IC
BA6285FP
IC
601
IC
TA2063F
IC
701
IC
BA05SFP
Q
101
Transistor
2SD1664
Q
102
Transistor
UMD2N
D
701
Diode
1SR154-400
D
801
Chip LED
CL200IRX
D
802
Chip LED
CL200IRX
X
201
Ceramic Resonator 16.93MHz
CSS1363
S
801
Switch (Home)
CSN1028
S
802
Spring Switch (Clamp)
CSN1044
RESISTORS
R
101
RS1/8S100J
R
102
RS1/8S120J
R
103
RS1/16S102J
R
104
RS1/16S822J
R
105
RS1/16S682J
R
106
RS1/16S183J
R
107
RS1/16S822J
R
108
RS1/16S333J
R
109
RS1/16S683J
R
110
RS1/16S134J
R
111
RS1/16S273J
R
112
RS1/16S222J
R
113
RS1/16S103J
R
114
RS1/16S103J
R
115
RS1/16S102J
R
116
RS1/16S163J
R
117
RS1/16S163J
R
201
RS1/16S104J
R
202
RS1/16S473J
R
501
RS1/16S0R0J
58
FH-P404
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
I
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
R
505
RS1/16S102J
R
507
RA3C102J
R
508
RA4C681J
R
601
RS1/16S102J
R
602
RS1/16S102J
R
603
RS1/16S223J
R
604
RS1/16S223J
R
801
RS1/8S751J
R
802
RS1/8S751J
CAPACITORS
C
101
CEV101M6R3
C
102
CKSQYB104K16
C
103
CEV470M6R3
C
104
CKSYB334K16
C
105
CCSRCH330J50
C
106
CKSRYB103K25
C
107
CEV4R7M35
C
108
CKSQYB273K50
C
109
CCSRCH101J50
C
110
CKSQYB104K16
C
111
CKSRYB332K50
C
112
CKSQYB473K16
C
113
CKSRYB103K25
C
114
CKSRYB391K50
C
115
CCSRCH121J50
C
116
CKSRYB682K50
C
117
CKSRYB333K16
C
118
CKSYB334K16
C
119
CKSYB334K16
C
120
CKSYB334K16
C
121
CKSYB334K16
C
122
CKSQYB104K16
C
123
CKSRYB472K50
C
124
CKSQYB104K16
C
125
CCSRCH6R0D50
C
126
CKSRYB153K25
C
127
CCSRCH102J25
C
201
CKSYB334K16
C
202
CKSQYB104K16
C
203
CKSQYB104K16
C
303
CEV470M16
C
304
CKSRYB103K25
C
305
CKSRYB103K25
C
306
CKSRYB103K25
C
307
CEV100M25
C
502
CKSRYB471K50
C
601
CEV101M6R3
C
602
CKSQYB104K16
C
603
CEV4R7M35
C
604
CEV4R7M35
C
605
CKSRYB152K50
C
606
CKSRYB152K50
C
607
CEV220M6R3
C
701
22µF/6.3V
CCH1300
C
702
CKSYB334K16
C
703
CEV101M6R3
C
901
CCSRCH471J50
C
902
CCSRCH271J50
C
903
CCSRCH471J50
C
904
CCSRCH101J50
Unit Number :
Unit Name
:Photo Unit
Q
1
Photo-transistor
CPT-230S-X
Q
2
Photo-transistor
CPT-230S-X
Unit Number :EWM1010
Unit Name
:Deck Unit
MISCELLANEOUS
IC
251
IC
HA12192F
IC
351
IC
PA2020A
Q
271
Transistor
2SC4116
Q
351
Transistor
2SB1260
Q
352
Transistor
2SC4102
Q
401
Transistor
DTC114EU
D
351
Diode
1SS355
VR
301
Semi-fixed 33kΩ(B)
CCP1280
VR
302
Semi-fixed 33kΩ(B)
CCP1280
RESISTORS
R
255
RS1/16S181J
R
256
RS1/16S181J
R
257
RS1/16S183J
R
258
RS1/16S183J
R
259
RS1/16S133J
R
260
RS1/16S133J
R
261
RS1/16S274J
R
262
RS1/16S274J
R
271
RS1/16S183J
R
275
RS1/16S473J
R
276
RS1/16S104J
R
277
RS1/16S224J
R
278
RS1/16S104J
R
281
RS1/8S0R0J
R
282
RS1/8S0R0J
R
283
RS1/8S0R0J
R
284
RS1/8S0R0J
R
285
RS1/16S0R0J
R
286
RS1/16S0R0J
R
287
RS1/16S0R0J
R
288
RS1/8S0R0J
R
289
RS1/8S0R0J
R
290
RS1/8S0R0J
R
301
RS1/16S0R0J
R
321
RS1/8S0R0J
R
351
RS1/16S102J
R
352
RS1/16S102J
R
353
RS1/16S102J
R
354
RS1/16S102J
R
355
RS1/10S274J
R
356
RS1/10S202J
R
357
RS1/10S472J
R
358
RS1/10S103J
R
359
RS1/10S103J
R
360
RS1/10S102J
R
361
RS1/10S622J
R
362
RS1/8S181J
R
373
RS1/8S0R0J
R
374
RS1/8S0R0J
R
375
RS1/8S0R0J
R
401
RS1/16S123J
R
402
RS1/16S332J
R
403
RS1/16S911J
R
404
RS1/16S274J
R
421
RS1/8S0R0J
CAPACITORS
C
251
CKSRYB391K50
C
252
CKSRYB391K50
C
253
CKSRYB391K50
C
254
CKSRYB391K50
C
255
CKSRYB103K50
59
FH-P404
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
J
D
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
C
256
CKSRYB103K50
C
271
CEJA1R0M50
C
272
CKSQYB104K16
C
301
CKSYB474K16
C
302
CKSYB474K16
C
303
CKSQYB104K16
C
304
CKSQYB104K16
C
351
CKSYB224K25
C
352
CKSQYB392K50
C
353
CKSQYB103K50
C
354
CKSQYB473K50
C
355
CKSYB104K50
C
356
CKSQYB103K50
C
401
CKSRYB472K50
C
402
CEJA1R0M50
C
403
CKSRYB223K25
C
404
CKSRYB103K50
C
405
CKSRYB333K16
Unit Number :
Unit Name
:PCB Unit
S
1
Switch(Load)
ESG1004
S
2
Switch(70µS)
ESG1004
EGN
1
Photo-interrupter
EGN1005
Unit Number :
Unit Name
:Reel PCB
EGN
2
Photo-interrupter
EGN1006
EGN
3
Photo-interrupter
EGN1006
Unit Number :CWM6152
Unit Name
:DD Converter Unit
MISCELLANEOUS
IC
1601
IC
PD4982A
IC
1801
IC
M5291FP
Q
1601
Transistor
DTA124EK
Q
1801
Transistor
2SB1198K
Q
1802
Transistor
2SC3518-Z
Q
1803
Transistor
2SD1782K
D
1801
Diode
ERA92-02VH
L
1802
Choke Coil 390mH
CTH1209
L
1803
Choke Coil 4.7mH
CTH1210
X
1601
Resonator 8.380MHz
CSS1354
RESISTORS
R
1601
RS1/10S681J
R
1602
RS1/10S102J
R
1603
RS1/10S102J
R
1604
RS1/10S102J
R
1605
RS1/10S473J
R
1606
RS1/10S473J
R
1607
RS1/10S473J
R
1608
RS1/10S222J
R
1609
RS1/10S222J
R
1610
RS1/10S103J
R
1611
RS1/10S203J
R
1612
RS1/10S473J
R
1613
RS1/10S222J
R
1614
RS1/10S221J
R
1615
RA4C221J
R
1801
RS1/10S103J
R
1802
RS1/10S103J
R
1803
RS1/10S103J
R
1804
RS1/10S222J
R
1805
RS1/10S473J
R
1806
RN1/10SE4703D
R
1807
RN1/10SE1302D
R
1808
RS1/10S103J
R
1809
RS1/10S103J
R
1810
RN1/10SE3301D
R
1811
RS1/10S333J
R
1813
RS1/2PMFR33J
R
1814
RS1/10S0R0J
R
1815
RS1/10S0R0J
CAPACITORS
C
1601
CCSQCH470J50
C
1603
CEJA4R7M35
C
1801
CEJA101M16
C
1802
100µF/50V
CCH1315
C
1803
47µF/50V
CCH1314
C
1804
CKSQYB473K50
C
1805
CCSQCH680J50
C
1806
CKSQYB102K50
C
1808
CKSQYB223K50
C
1809
CKSQYB473K50
Unit Number :CWM5918(FH-P404/UC)
Unit Number :CWM5917(FH-P404/ES)
Unit Name
:FL Unit
MISCELLANEOUS
IC
1901
IC
PD4942A
IC
1902
IC
UPD16306BGF
IC
1904
IC
TC7S04FU
IC
1905
IC
BA3834F
Q
1912
Transistor
2SD1782K
Q
1913
Transistor
2SD1782K
Q
1914
Transistor
2SD1782K
Q
1915
Transistor
2SD1782K
Q
1916
Transistor
2SD1782K
Q
1917
Transistor
2SD1782K
D
1906
LED
CL170PGCD
D
1907
LED
CL170PGCD
D
1908
LED
CL170PGCD
L
1901
Inductor
LCTB2R2K2125
L
1902
Inductor
LCTB2R2K2125
X
1901
Ceramic Resonator 4.72MHz
CSS1430
S
1923
Switch
CSG1043
FL
CAW1482
RESISTORS
R
1911
RS1/16S101J
R
1944
RS1/16S102J
R
1946
RA3C473J
R
1947
RS1/16S124J
R
1948
RS1/16S103J
R
1949
RS1/16S473J
R
1950
RS1/16S473J
R
1951
RS1/4S561J
R
1954
RS1/16S473J
R
1955
RS1/10S473J
R
1956
RA3C102J
R
1957
RA3C101J
R
1958
RA3C101J
R
1959
RS1/10S101J
R
1960
RS1/10S103J
R
1961
RS1/10S101J
R
1962
RS1/10S103J
R
1963
RS1/10S101J
R
1964
RS1/10S103J
R
1965
RS1/10S101J
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
60
FH-P404
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
E
F
C
H
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
61
FH-P404
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
R
1966
RS1/10S103J
R
1967
RS1/10S101J
R
1968
RS1/10S103J
R
1969
RS1/10S101J
R
1970
RS1/10S103J
R
1971
RS1/10S0R0J
R
1972
RS1/10S0R0J
R
1973
RS1/10S0R0J
R
1974
RS1/10S0R0J
R
1975
RS1/10S0R0J
R
1976
RS1/10S0R0J
R
1977
RS1/8S331J
CAPACITORS
C
1909
CCSRCH101J50
C
1910
CKSYB225K16
C
1912
CKSQYB104K50
C
1913
CKSQYB104K50
C
1914
CKSQYB105K10
C
1915
CKSQYB103K50
C
1916
CKSQYB105K10
C
1917
CCSRCH101J50
C
1918
CCSRCH101J50
C
1919
CKSRYB102K50
C
1922
CCSQCH101J50
C
1923
CCSQCH101J50
C
1924
CCSQCH101J50
C
1925
CCSQCH101J50
C
1926
CCSQCH101J50
C
1927
CCSQCH101J50
Unit Number :CWM5887(FH-P404/UC)
Unit Number :CWM5884(FH-P404/ES)
Unit Name
:Switch Unit
MISCELLANEOUS
IC
1903
HIC Module
RS-140
Q
1911
Transistor
XP4311
D
1901
LED
CL170SBX
D
1902
LED
CL170SBX
D
1903
LED
CL170PGCD
D
1904
LED
CL170PGCD
D
1905
LED
CL170PGCD
D
1909
LED
CL170PGCD
S
1901
Switch
CSG1107
S
1902
Switch
CSG1108
S
1903
Switch
CSG1108
S
1904
Switch
CSG1107
S
1905
Switch
CSG1108
S
1906
Switch
CSG1108
S
1907
Switch
CSG1043
S
1908
Switch
CSG1107
S
1909
Switch
CSG1108
S
1910
Switch
CSG1108
S
1911
Switch
CSG1108
S
1912
Switch
CSG1108
S
1913
Switch
CSG1108
S
1914
Switch
CSG1107
S
1915
Switch
CSG1107
S
1916
Switch
CSG1108
S
1917
Push Switch
CSG1109
S
1918
Switch
CSG1043
S
1919
Switch
CSG1043
S
1920
Switch
CSG1043
S
1921
Switch
CSG1043
S
1922
Switch
CSG1107
S
1924
Switch
CSG1043
RESISTORS
R
1901
RS1/16S101J
R
1902
RS1/16S102J
R
1903
RS1/4S561J
R
1904
RS1/4S561J
R
1905
RS1/4S561J
R
1906
RS1/4S561J
R
1907
RS1/4S561J
R
1908
RS1/4S561J
R
1909
RS1/4S102J
R
1910
RS1/4S102J
R
1914
RS1/16S472J
R
1915
RS1/16S821J
R
1916
RS1/16S122J
R
1917
RS1/16S182J
R
1918
RS1/16S302J
R
1919
RS1/16S622J
R
1920
RS1/16S223J
R
1921
RS1/16S472J
R
1922
RS1/16S821J
R
1923
RS1/16S122J
R
1924
RS1/16S182J
R
1925
RS1/16S302J
R
1926
RS1/16S622J
R
1927
RS1/16S472J
R
1928
RS1/16S821J
R
1929
RS1/16S122J
R
1930
RS1/16S182J
R
1931
RS1/16S302J
R
1932
RS1/16S622J
R
1933
RS1/16S223J
R
1934
RS1/16S472J
R
1935
RS1/16S821J
R
1936
RS1/16S122J
R
1937
RS1/16S182J
R
1938
RS1/16S302J
R
1939
RS1/16S622J
R
1940
RS1/16S223J
R
1942
RS1/4S751J
R
1943
RS1/4S751J
R
1953
RS1/16S0R0J
CAPACITORS
C
1901
CKSYB225K16
C
1902
CCSRCH101J50
C
1903
CKSQYB104K50
C
1904
CKSQYB104K50
Miscellaneous Parts List
Pickup Unit (Service)
CXX1230
M
1
Motor Unit (Spindle)
CXA8912
M
2
CRG Motor Unit
CXB3043
M
3
Load Motor Unit
CXA8702
M
1
Motor Unit (Main)
EXA1464
M
2
Motor Unit (Sub)
EXA1485
HD
1
Head Assy
EXA1506
G
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
62
FH-P404
6. ADJUSTMENT
6.1 TUNER ADJUSTMENT
- Connection Diagram
DC V
Meter(1)
Center
Meter
Pin 19
TUNER DECK AMP UNIT
4Ω
4Ω
Lch +
Lch -
Rch +
Rch -
BACK UP
ACC
GND
+14.4V
GND
Antenna Jack
FM/AM TUNER UNIT (BOTTOM VIEW)
C63
FM/AM TUNER UNIT (TOP VIEW)
L2
L5
T51
T31
Pin1
Pin13
Pin14
Pin26
mV Meter (1)
Oscilloscope
DC Regulated
Power Supply
L4
FM/AM TUNER UNIT
DC V
Meter(2)
T51
VR154
FM SSG
Stereo
Modulator
50Ω(37.5Ω)
Antenna Plug
Dummy Antenna
50Ω(75Ω)
DECK UNIT
VR302
VR301
L-CH
R-CH
Pin2
Pin3
CN251
DECK UNIT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
63
FH-P404
FM ADJUSTMENT
Modulation
M:MONO MOD., 400Hz 30%(22.5kHz Dev.)
S:STEREO MOD., 1kHz, L or R=30%(20.25kHz+7.5kHz Dev.)
NOTE:Before proceeding to further adjustments after switching power ON, let the tuner run for ten minutes to allow
the circuits to stabilize.
FM SSG
Displayed
Adjustment
Adjustment Method
No.
Frequency(MHz)
Level(dBf)
Frequency(MHz)
Point
(Switch Position)
TUN Volt
1
•••••
•••••
108.0
L5
DC V Meter(1) : 6V
IF
1
98.1 M
60
98.1
T51
Center Meter : 0
ANT Coil
1
98.1 M
5
98.1
L2
mV Meter(1) : Maximum
RF Coil
1
98.1 M
5
98.1
L4
mV Meter(1) : Maximum
IFT
1
98.1 M
5
98.1
T31
mV Meter(1) : Maximum
(STEREO MODE)
ARC
1
98.1 S
39
98.1
VR154
mV Meter(1) : Separation 5dB
(STEREO MODE)
DOLBY B NR ADJUSTMENT
No.
Test Tape
Adjustment Point
Adjustment Method
(Switch Position)
1
NCT-150
VR301(Lch),VR302(Rch)
DC V Meter(2) : –8.24dBs±1dB
(400Hz,200nwb/m)
(DOLBY NR Switch : OFF)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
64
FH-P404
1)Precautions
• This unit uses a single power supply (+5V) for the reg-
ulator. The signal reference potential, therefore, is
connected to REFO(approx. 2.5V) instead of GND.
If REFO and GND are connected to each other by mis-
take during adjustments, not only will it be impossi-
ble to measure the potential correctly, but the servo
will malfunction and a severe shock will be applied to
the pick-up. To avoid this, take special note of the fol-
lowing.
Do not connect the negative probe of the measuring
equipment to REFO and GND together. It is especially
important not to connect the channel 1 negative
probe of the oscilloscope to REFO with the channel 2
negative probe connected to GND.
Since the frame of the measuring instrument is usual-
ly at the same potential as the negative probe, change
the frame of the measuring instrument to floating sta-
tus.
If by accident REFO comes in contact with GND,
immediately switch the regulator or power OFF.
• Always make sure the regulator is OFF when connect-
ing and disconnecting the various filters and wiring
required for measurements.
• Before proceeding to further adjustments and mea-
surements after switching regulator ON, let the player
run for about one minute to allow the circuits to stabi-
lize.
• Since the protective systems in the unit's software are
rendered inoperative in test mode, be very careful to
avoid mechanical and /or electrical shocks to the sys-
tem when making adjustment.
• Test mode starting procedure
Switch ACC, back-up ON while pressing the 4 and 6
keys together.
• Test mode cancellation
Switch ACC, back-up OFF.
• Disc detection during loading and eject operations is
performed by means of a photo transistor in this
unit.Consequently, if the inside of the unit is exposed
to a strong light source when the outer casing is
removed for repairs or adjustment, the following mal-
functions may occur.
*During PLAY, even if the eject button is pressed,the
disc will not be ejected and the unit will remain in
the PLAY mode.
*The unit will not load a disc.
When the unit malfunctions this way, either re-posi-
tion the light source, move the unit or cover the
photo transistor.
• When loading and unloading discs during adjustment
procedures, always wait for the disc to be properly
clamped or ejected before pressing another key.
Otherwise, there is a risk of the actuator being
destroyed.
• Turn power off when pressing the button → or the but-
ton ← key for focus search in the test mode. (Or else
lens may stick and the actuator may be damaged.)
• SINGLE/4TRK/10TRK/32TRK will continue to operate
even after the key is released.Tracking is closed the
moment C-MOVE is released.
• JUMP MODE resets to SINGLE as soon as power is
switched OFF.
6.2 CD SECTION
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
65
FH-P404
- Flow Chart
Focus Close
4
3
Reset
( Adjustment for T.OFFSET)
CDorSOURCE
During regulator off,press the 6 key
and the system will be put into the
new test mode.
6
←
BAND
BAND
BAND
3
Power
OFF
*1
*1
S curve check
Focus EQ check
*2
*3
6
6
6
6
1
2
1
2
→
→
←
00(99)
01
02
CD player select
BAND
BAND
Single TR
91(81)
10TRK
93(83)
32TRK
94(84)
CRG Move
96(86)
4TRK
92(82)
100TRK
95(85)
Focus Mode
Select
Focus Close
/S Curve
/F.EQ Check
CRG-
版权声明
1. 本站所有素材，仅限学习交流，仅展示部分内容，如需查看完整内容，请下载原文件。
2. 会员在本站下载的所有素材，只拥有使用权，著作权归原作者所有。
3. 所有素材，未经合法授权，请勿用于商业用途，会员不得以任何形式发布、传播、复制、转售该素材，否则一律封号处理。
4. 如果素材损害你的权益请联系客服QQ：77594475 处理。
