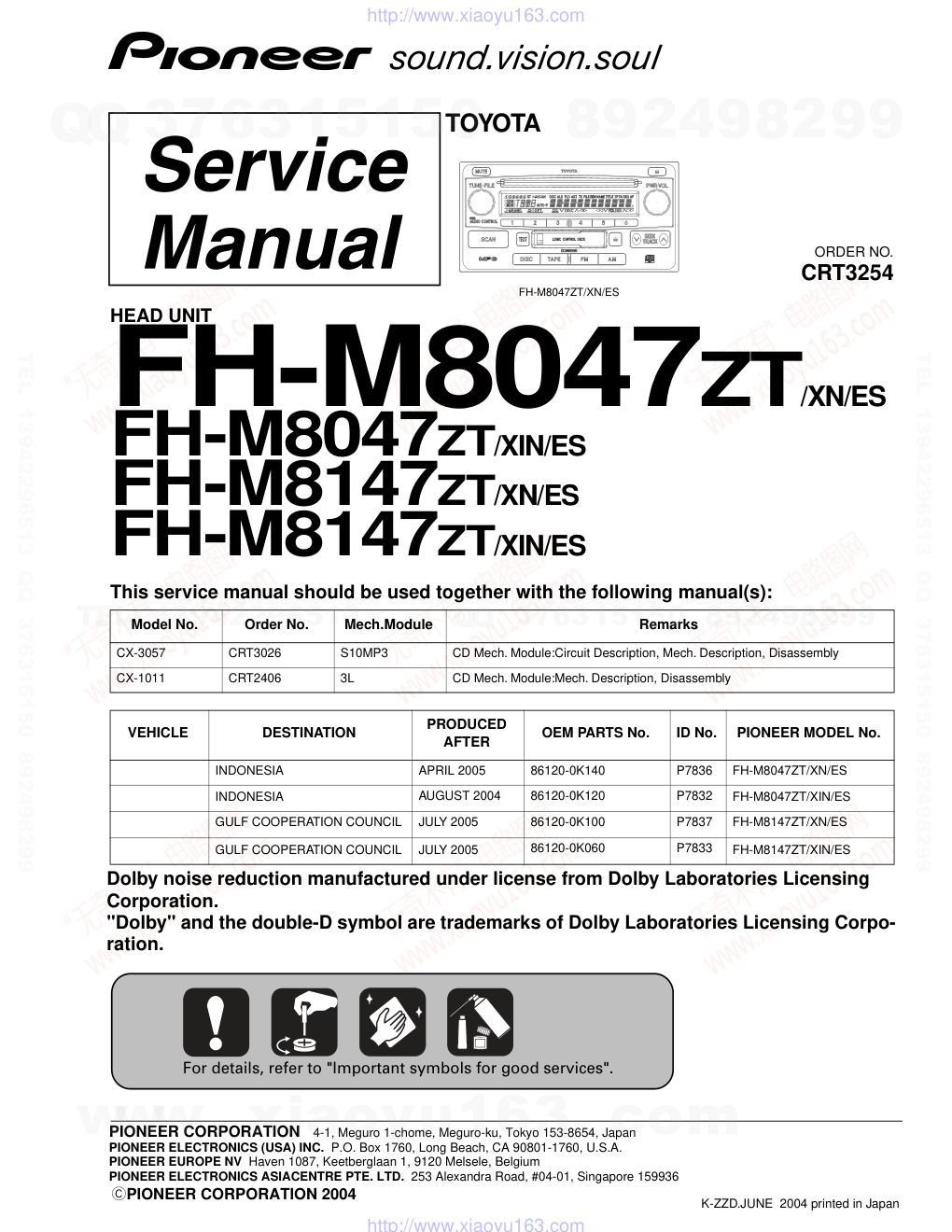

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2004 FH-M8047ZT/XN/ES CRT3254 HEAD UNIT FH-M8047ZT/XN/ES FH-M8047ZT/XIN/ES FH-M8147ZT/XN/ES FH-M8147ZT/XIN/ES This service manual should be used together with the following manual(s): Model No. Order No. Mech.Module Remarks CX-3057 CRT3026 S10MP3 CD Mech. Module:Circuit Description, Mech. Description, Disassembly CX-1011 CRT2406 3L CD Mech. Module:Mech. Description, Disassembly VEHICLE DESTINATION PRODUCED AFTER OEM PARTS No. ID No. PIONEER MODEL No. INDONESIA APRIL 2005 86120-0K140 P7836 FH-M8047ZT/XN/ES INDONESIA AUGUST 2004 86120-0K120 P7832 FH-M8047ZT/XIN/ES GULF COOPERATION COUNCIL JULY 2005 86120-0K100 P7837 FH-M8147ZT/XN/ES GULF COOPERATION COUNCIL JULY 2005 86120-0K060 P7833 FH-M8147ZT/XIN/ES For details, refer to "Important symbols for good services". K-ZZD.JUNE 2004 printed in Japan Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corpo- ration. TOYOTA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. - Service Precaution 1. You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. 2. Before disassembling the unit, be sure to turn off the power. Unplugging and plugging the connectors during power-on mode may damage the ICs inside the unit. 3. To protect the pickup unit from electrostatic discharge during servicing, take an appropriate treatment (shorting-solder) by referring to "the DISASSEMBLY" on page 72. 4. After replacing the pickup unit, be sure to check the grating. (See page 63.) [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 3 5 6 7 8 5 6 7 8 C D F A B E CONTENTS SAFETY INFORMATION......................................................................................................................................2 1. SPECIFICATIONS.............................................................................................................................................4 2. EXPLODED VIEWS AND PARTS LIST.............................................................................................................6 2.1 EXTERIOR(FH-M8047ZT/XN/ES,FH-M8047ZT/XIN/ES)...........................................................................6 2.2 EXTERIOR(FH-M8147ZT/XN/ES,FH-M8147ZT/XIN/ES)...........................................................................8 2.3 CD MECHANISM MODULE .....................................................................................................................10 2.4 CASSETTE MECHANISM MODULE .......................................................................................................12 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ..........................................................................................14 3.1 BLOCK DIAGRAM....................................................................................................................................14 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE) ..............................................................................16 3.3 KEYBOARD UNIT(FH-M8047ZT/XN/ES,FH-M8047ZT/XIN/ES)..............................................................22 3.4 KEYBOARD UNIT(FH-M8147ZT/XN/ES,FH-M8147ZT/XIN/ES)..............................................................24 3.5 CD MECHANISM MODULE(GUIDE PAGE).............................................................................................26 3.6 CASSETTE MECHANISM MODULE .......................................................................................................36 4. PCB CONNECTION DIAGRAM ......................................................................................................................38 4.1 MAIN UNIT ...............................................................................................................................................38 4.2 KEYBOARD UNIT(FH-M8047ZT/XN/ES,FH-M8047ZT/XIN/ES)..............................................................42 4.3 KEYBOARD UNIT(FH-M8147ZT/XN/ES,FH-M8147ZT/XIN/ES)..............................................................44 4.4 CD MECHANISM MODULE .....................................................................................................................46 4.5 DECK UNIT ..............................................................................................................................................48 4.6 SENSOR UNIT .........................................................................................................................................49 5. ELECTRICAL PARTS LIST .............................................................................................................................50 6. ADJUSTMENT ................................................................................................................................................60 6.1 CONNECTION DIAGRAM........................................................................................................................60 6.2 TEST MODE.............................................................................................................................................60 6.3 CD ADJUSTMENT ...................................................................................................................................61 6.4 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT.....................................................63 6.5 DOLBY B NR ADJUSTMENT...................................................................................................................66 6.6 AVC-LAN DIAGNOSIS MODE..................................................................................................................67 7. GENERAL INFORMATION .............................................................................................................................72 7.1 DIAGNOSIS..............................................................................................................................................72 7.1.1 DISASSEMBLY......................................................................................................................................72 7.1.2 CONNECTOR FUNCTION DESCRIPTION ..........................................................................................76 7.2 PARTS ......................................................................................................................................................77 7.2.1 IC ...........................................................................................................................................................77 7.2.2 DISPLAY................................................................................................................................................83 7.3 OPERATIONAL FLOW CHART................................................................................................................84 7.4 CLEANING ...............................................................................................................................................85 8. OPERATIONS .................................................................................................................................................86 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 4 1 2 3 4 1 2 3 4 C D F A B E 1. SPECIFICATIONS General Power source 13.2 V DC (10.5– 16.0 V allowable) Grounding system Negative type Max. current consumption 15 A or less Backup current 0.3 mA or less Dimensions(W x H x D) 205 x 100 x 170 Weight 1.7 kg Audio Maximum power output 16 W x 4 Load impedance 4 Ω CD player System Compact disc audio system Usable discs Compact disc Signal format Sampling frequency 44.1 kHz Number of quantization bits 16; linear Number of channels 2 (stereo) MP3 decoding format MPEG1 & 2 Audio Layer 3 Distortion 0.3 % or less S / N 65 dB or more Stereo separation 60 dB or more Cassette player Tape Compact cassette tape(C30-C90) Tape speed 4.76cm/sec.(+0.14cm/sec.,-0.05cm/sec.) Wow and flutter 0.2 % or less(WRMS) Crosstalk 40 dB or less Stereo separation 30 dB or more S / N 40 dB or more Distortion 3 % or less AM tuner Frequency range 531–1,602 kHz S / N 20dB usable sense 34 dBµV or less S / N(74 dBµV input) 45 dB or more Image interference 45 dB or more IF interference 55 dB or more FM tuner Frequency range 87.5–108.0 MHz S / N 30dB usable sense 14 dBµV or less S / N(54 dBµV input) 46 dB or more Image interference 35 dB or more IF interference 64 dB or more Selectivity 20 dB or more Stereo distortion 3.0 % or less Stereo separation(1 kHz) 25 dB or more …………………………………… ………………………… ………………… …………………………… ………………… ……………………………………………… ……………………… ……………………………………… ……………………… ………………………………… …………………………… …………………… …………………………… …………………… …………………………………… ……………………………………… ………………………… …………………… … ………………… …………………………………… ………………………… ………………………………………… ……………………………………… ………………………… ……………… ……………………… ……………………… …………………………… ……………………… ………………… ……………………… ……………………… …………………………… ………………………………… ………………………… ………………… www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 5 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 6 1 2 3 4 1 2 3 4 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST 2.1 EXTERIOR(FH-M8047ZT/XN/ES,FH-M8047ZT/XIN/ES) NOTES : • Parts marked by " * " are generally unavailable because they are not in our Master Spare Parts List. • Screw adjacent to mark on the product are used for disassembly. • For the applying amount of lobricants or glue, follow the instructions in this manual. (In the case of no amount instructions,apply as you think it appropriate.) " www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 7 5 6 7 8 5 6 7 8 C D F A B E (1) EXTERIOR SECTION PARTS LIST(FH-M8047ZT/XN/ES,FH-M8047ZT/XIN/ES) (2) CONTRAST TABLE FH-M8047ZT/XN/ES and FH-M8047ZT/XIN/ES are constructed the same except for the following: Mark No. Description Part No. 1 Screw BSZ26P060FTC 2 Screw BSZ26P140FTC 3 Screw BSZ30P080FTC 4 Connector CDE7172 5 IC(IC801) TDA7386 6 Case CNB2937 7 Heat Sink CNC9594 8 Frame CND2439 9 Main Unit CWM9213 10 Screw ASZ26P080FTC 11 Screw BPZ30P060FSN 12 Connector(CN471) CKM1222 13 Connector(CN473) CKM1350 14 Connector(CN472) CKM1351 15 Connector(CN601) CKS3837 16 Connector(CN479) CKS4573 17 86146-48030(CN501) CKX1057 18 Holder CNC9592 19 Shield CNC9595 20 Holder CND1080 21 Shield CND1118 22 Insulator CNM7823 23 Holder CNC8855 24 Terminal(CN474,475) VNF1084 25 FM/AM Tuner Unit CWE1557 26 Screw BPZ20P080FTC 27 Button Unit CXC4309 28 Door CAT2535 29 Spring CBH1371 30 Lighting Conductor CNV7941 31 Connector(CN631) CKS3568 32 Cassette Mechanism Module See Contrast table(2) 33 ••••• 34-40 ••••• 41 Earth Plate CND1990 42 Cover CNM7433 43 ••••• 44 Grille See Contrast table(2) 45 Lighting Conductor CNV7939 46 Holder CNV7946 47 Holder CNV8015 48 ••••• 49 Keyboard Unit CWM9216 50 LCD CAW1826 51 Connector(CN901) CKS4574 52 Holder CND1989 53 Sheet CNM8601 54 Lighting Conductor CNV7938 55 Rubber CNV7942 56 Rubber CNV7943 57 Rubber CNV7944 58 Connector CNV7947 59 Knob Unit CXC3300 60 Chassis Unit CXC2495 61 Chassis Unit CXC2856 62 CD Mechanism Module S10MP3TOYOTACXK5681 63 Screw ISS26P055FTC 64 Transistor(Q431,441,851) 2SB1185 Mark No. Description Part No. Mark NO Description FH-M8047ZT/XN/ES FH-M8047ZT/XIN/ES 32 Cassette Mechanism Module EXK4282 EXK4280 44 Grille CNS7980 CNS7728 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 8 1 2 3 4 1 2 3 4 C D F A B E 2.2 EXTERIOR(FH-M8147ZT/XN/ES,FH-M8147ZT/XIN/ES) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 9 5 6 7 8 5 6 7 8 C D F A B E (1) EXTERIOR SECTION PARTS LIST(FH-M8147ZT/XN/ES,FH-M8147ZT/XIN/ES) (2) CONTRAST TABLE FH-M8147ZT/XN/ES and FH-M8147ZT/XIN/ES are constructed the same except for the following: Mark No. Description Part No. 1 Screw BSZ26P060FTC 2 Screw BSZ26P140FTC 3 Screw BSZ30P080FTC 4 Connector CDE7172 5 IC(IC801) TDA7386 6 Case CNB2937 7 Heat Sink CNC9594 8 Frame CND2439 9 Main Unit CWM9213 10 Screw ASZ26P080FTC 11 Screw BPZ30P060FSN 12 Connector(CN471) CKM1222 13 Connector(CN473) CKM1350 14 Connector(CN472) CKM1351 15 Connector(CN601) CKS3837 16 Connector(CN479) CKS4573 17 86146-48030(CN501) CKX1057 18 Holder CNC9592 19 Shield CNC9595 20 Holder CND1080 21 Shield CND1118 22 Insulator CNM7823 23 Holder CNC8855 24 Terminal(CN474,475) VNF1084 25 FM/AM Tuner Unit CWE1557 26 Screw BPZ20P080FTC 27 Button Unit CXC4310 28 Door CAT2535 29 Spring CBH1371 30 Lighting Conductor CNV7941 31 Connector(CN631) CKS3568 32 Cassette Mechanism Module See Contrast table(2) 33 Holder CNV7946 34-40 ••••• 41 Earth Plate CND1990 42 Cover CNM7433 43 ••••• 44 Grille See Contrast table(2) 45 Lighting Conductor CNV7939 46 ••••• 47 Holder CNV8015 48 ••••• 49 Keyboard Unit CWM9364 50 LCD CAW1826 51 Connector(CN901) CKS4574 52 Holder CND1989 53 Sheet CNM8601 54 Lighting Conductor CNV7938 55 Rubber CNV7942 56 Rubber CNV7943 57 Rubber CNV7944 58 Connector CNV7947 59 Knob Unit CXC3300 60 Chassis Unit CXC2495 61 Chassis Unit CXC2856 62 CD Mechanism Module S10MP3TOYOTACXK5681 63 Screw ISS26P055FTC 64 Transistor(Q431,441,851) 2SB1185 Mark No. Description Part No. Mark NO Description FH-M8147ZT/XN/ES FH-M8147ZT/XIN/ES 32 Cassette Mechanism Module EXK4282 EXK4280 44 Grille CNS7981 CNS7850 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 10 1 2 3 4 1 2 3 4 C D F A B E 2.3 CD MECHANISM MODULE C 1GEM1024 2GEM1045 3GEM1035 1 1 1 1 1 1 1 1 2 2 2 2 1 1 1 1 1 2 2 1 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 11 5 6 7 8 5 6 7 8 C D F A B E CD MECHANISM MODULE SECTION PARTS LIST Mark No. Description Part No. 1 CD Core Unit(S10MP3) CWX3009 2 Connector(CN101) CKS4182 3 Connector(CN901) CKS4017 4 Screw BMZ20P035FTC 5 Screw BSZ20P040FTC 6 Screw(M2x4) CBA1362 7 Screw(M2x3) CBA1511 8 Screw(M2x3) CBA1527 9 Washer CBF1037 10 Washer CBF1038 11 Washer CBF1060 12 Spring CBH2390 13 Spring CBH2606 14 Spring CBH2607 15 Spring CBH2608 16 Spring CBH2609 17 Spring CBH2610 18 Spring CBH2611 19 Spring CBH2612 20 Spring CBH2613 21 Spring CBH2614 22 Spring CBH2615 23 Spring CBH2616 24 Spring CBH2617 25 Spring CBH2620 26 Spring CBH2621 27 Spring CBH2641 28 Spring CBH2642 29 Spring CBH2643 30 Spring CBH2659 31 Spring CBH2688 32 ••••• 33 Shaft CLA4441 34 Frame CNC9962 35 Frame CNC9963 36 Bracket CNC9966 37 Bracket CNC9967 38 Arm CNC9968 39 Arm CNC9973 40 Lever CNC9983 41 Lever CNC9984 42 Sheet CNM8134 43 Collar CNV6906 44 Guide CNV6925 45 Arm CNV7198 46 Rack CNV7199 47 Holder CNV7201 48 Holder CNV7202 49 Arm CNV7203 50 Gear CNV7207 51 Gear CNV7208 52 Gear CNV7209 53 Gear CNV7210 54 Gear CNV7211 55 Gear CNV7212 56 Rack CNV7214 57 Arm CNV7215 58 Arm CNV7216 59 Guide CNV7217 60 Roller CNV7218 61 Gear CNV7219 62 Arm CNV7221 63 Arm CNV7220 64 Arm CNV7222 65 Damper CNV7634 66 Damper CNV7633 67 Arm CNV7341 68 Arm CNV7342 69 Guide CNV7360 70 Guide CNV7361 71 Holder CNV7437 72 Arm CNV7444 73 Gear CNV7595 74 Damper CNV7632 75 Motor Unit(M1) CXB6007 76 Chassis Unit CXB8728 77 Screw Unit CXB8729 78 Gear Unit CXB8731 79 Arm Unit CXB8732 80 Arm Unit CXC3278 81 Arm Unit CXB8852 82 Motor Unit(M2) CXB8933 83 Bracket CNC9985 84 ••••• 85 Screw(M2x5) EBA1028 86 Screw JFZ20P020FTC 87 Screw JGZ17P022FTC 88 Washer YE15FTC 89 Washer YE20FTC 90 Pickup Unit(P10)(Service) CXX1664 91 Screw IMS26P030FTC Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 12 1 2 3 4 1 2 3 4 C D F A B E 2.4 CASSETTE MECHANISM MODULE D E For grease application, refer to the service manual for CX-1011 (CRT2406). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 13 5 6 7 8 5 6 7 8 C D F A B E (1) CASSETTE MECHANISM MODULE SECTION PARTS LIST (2) CONTRAST TABLE FH-M8047ZT/XN/ES, FH-M8147ZT/XN/ES, FH-M8047ZT/XIN/ES and FH-M8147ZT/XIN/ES are constructed the same except for the following: Mark No. Description Part No. 1 Screw See Contrast table(2) 2 Washer CBF1037 3 Washer CBG1003 4 Screw EBA1028 5 Screw See Contrast table(2) 6 Spring EBH1653 7 Spring EBH1642 8 Spring EBH1641 9 Spring EBH1626 10 Spring EBH1627 11 Spring EBH1648 12 Cord EDD1024 13 Photo-reflector(Q101) EGN1004 14 Arm ENC1526 15 Lever ENC1544 16 Lever See Contrast table(2) 17 Arm ENC1532 18 Frame ENC1533 19 Holder ENC1534 20 Gear ENC1535 21 Arm ENC1550 22 Roller ENR1040 23 Belt ENT1027 24 Collar ENV1508 25 Arm ENV1539 26 Arm ENV1540 27 Gear ENV1569 28 Gear ENV1547 29 Gear ENV1560 30 Worm Wheel ENV1566 31 Lever ENV1551 32 Flywheel See Contrast table(2) 33 Gathering PCB ENX1073 34 Switch(S101,S102,S103) ESG1007 35 Deck Unit EWM1040 36 Plug(CN251) CKS3540 37 Gathering PCB ENX1074 38 Motor Unit(M1) EXA1618 39 Motor EXM1035 40 Head Assy(HD1) EXA1594 41 Arm ENC1537 42 Screw See Contrast table(2) 43 Bracket ENC1558 44 Chassis Unit See Contrast table(2) 45 Pinch Holder Unit EXA1608 46 Pinch Roller ENV1518 47 Pinch Holder Unit EXA1607 48 Pinch Roller ENV1518 49 Reel Unit EXA1625 50 Head Base Unit EXA1611 51 Lever Unit EXA1587 52 Gear Unit EXA1596 53 Motor Unit(M2) See Contrast table(2) 54 Washer HBF-179 55 Spring EBH1537 56 Worm Gear ENV1564 57 ••••• 58 ••••• 59 ••••• 60 ••••• 61 ••••• 62 Spring EBH1545 63 Sensor Unit EWM1041 Mark No. Description Part No. Mark NO Description FH-M8047ZT/XN/ES FH-M8147ZT/XN/ES FH-M8047ZT/XIN/ES FH-M8147ZT/XIN/ES 1 Screw BSZ20P040FTC BSZ20P040FMC 5 Screw EBA1031 CBA1037 16 Lever ENC1531 ENC1543 32 Flywheel ENV1607 ENV1554 42 Screw BMZ20P022FTC BMZ20P022FMC 44 Chassis Unit EXA1615 EXA1635 53 Motor Unit(M2) EXA1657 EXA1627 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 14 1 2 3 4 1 2 3 4 C D F A B E 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM BRST,BRXEN,BSRQ Q602 Q603 MUTE C CN901 Q101 M LASER DIODE MONITOR DIODE CLAMP SENSE DISC SENSE FOCUS ACT. SPINDLE MOTOR M CARRIAGE MOTOR LOAD/ TRACKING ACT. LD- MD FO+ TO+ 15 5 1 4 HOLOGRAM UNIT IC 301 BA5996FM IC 201 UPD63760GJ IC 703 +3.3V REGULATOR RF-AMP,CD DECODER, MP3 DECODER, DIGITAL SERVO / DATA PROCESSOR CD DRIVER 3 VD VD 3VDD 10 LOUT 5 CN101 TOP FOP 16 SOP 15 SOM 18 LCOP 17 LCOM 22 4,5 LOEJ 35 35 LOUT 36 9 CONT 12 FOP TD/FD AC,BD F,E SD/MD 1 13 TOP HOME 12EJ SENSE 8EJ SENSE LD+ 14 142 LD 141 PD 39 38 X201 X701 DSCSNS CONT LOEJ HOME 75 77 28 26 VDD IC 203 BA033SFP +3.3V REGULATOR V3R3D 2 4 CD3VON 25 VDCONT 24 1 S-812C33AUA-C2N CD CONTROLLER IC 701 PE5427A 33 CDMUTE 4 V3R3D WINT, WAIT, RFOK DRAM IC 202 MSM51V4265EP-70TS TC74VHCT08AFT IC 702 XWINT, XWAIT, FOK 19 BDATA,BSCK VD2 2 Q701 17 ADENA 14 VCC VDD 15 5 1 4 14 CLAMP 93 VD2 VDCONT X1 X2 31 reset 15 PICKUP UNIT (SERVICE)(P10) CD CORE UNIT(S10MP3) IC 781 HA12240FP AVC-LAN DRIVER 42 SYSMUTE XOUT XIN SYSTEM CONTROL IC 701(2/2) PD5949B CN501 SWVDD AUDIO+B ANTENNA JACK 1 2 BUS- BUS+ BUS-L BUS+L 1 2 8 6 5 TX RX IPPW CN601 13 X701 15 dsprst,dsperr,IFOK,d FM LAN CD 49 SYSPW ILLPWM 28 CN473 IC 331 NJM2904M 7 5 6 IC 561 HA12181FP 9 16 3 cdej 63 AM NOISE CANCELER AM FM L Q502 LOCL PDIO A C Q561 3 10 5 4 19 2 VD Q1411 VDD BRST,BRXEN,BSRQ BDATA,BSCK VD TX1- TX1+ CN472 BU AUDIO+B Q431 Q432 BU BU 1/2VCC AMPNS AMDET Q524 LCE,LCK POWER 74 LANMUT ACC TX- TX+ Q701 46 LANMUTE VD REGULATOR 7 15 RESET MAIN UNIT FM/AM TUNER UNIT ENC1M ENC1P ENC2M ENC2P 88 87 86 85 CN631 AUDIO+B BU Lch 20 3 4 11 8 68 mtl 77 CSLOAD CS Lch B.U MTL LOAD 5 1 4 2 1 3 4 11 20 8 IC251 HA12228F IC351 PA2020A DOLBY B NR MECHANISM DRIVER CN254 CN255 CN253 6 19 FWD L-ch REV L-ch 39 32 33 18 19 3 1 5 6 8 7 10 CN256 3 1 5 6 S1 LOAD S2 MODE EGN1 REEL SENSE M M M2 SUB MOTOR M1 MAIN MOTOR 5 2 1 S3 70µs 4 15 4 DECK UNIT SENSOR UNIT D E CN251 CN252 IC 3 EEPROM 28 27 FM/AM 1ST IF 10.7MHz T51 Q51 CF51 CF52 CF53 IC1 MIXER, IF AMP, DET. 6 21 18 LDET COMP 22 25 10 14 12 15 16 8 13 2 3 4 CF202 VDD VCC DI/DO CE2 CK CE1 SDBW SL FMSD NL1 NL2 IC 2 FM MPX AMANT FMANT ATT ATT AMRF FMRF IMG ADJ RF ADJ X901 10.25MHz ANT ADJ LOCL 23 LOCH AMDET MPXREF 41kHz AM 2ND IF 450kHz 19 CREQ 11 DGND 1 STIND L ch 5 R ch 9 24 AMDET FMLOCL 20 17 7 AMPNS WC 26 RFGND AMIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 15 5 6 7 8 5 6 7 8 C D F A B E FP RIVER 12 1 bsen asen VDD BU locl 20 73 SD SL PCE1 pck PCE2 PDO 5 FL 14 RL 42 SYSMUTE SWILL+B SWVDD 3 5 19 17 FL- FL+ RL- RL+ ACC 27 25 97 LIN-1 81 LIN-3 83 LIN-2 82 LIN-4 23 2 22 1 30 29 47 FLIN 12 RLIN 15 22 4 SYSTEM CONTROL RESET POWER AMP IC 701(1/2) PD5949B NTROL /2) B IC 351 PM2010A S-80835CNNB-B8U IC 801 TDA7386 reset SWVDD Q404 1 2 TX RX IPPW TX RX1 IPPW DSP/ ELECTRONIC VOLUME/ SOURCE SELECTOR SWVDD STBY MUTE 1 3 CN479 2 Q402 dsprst,dsperr,IFOK,dspack,IFDI,IFDO,IFCLK,dspcs FM L LANL CD L Q801 49 SYSPW ILLPWM 28 +B ACC ACC RL+ FL+ RL- FL- TX RX PCE1 CN471 1 04M 7 84 AM isen 58 Q403 SYSPW cdej 4 R A SENSE M PDI 100 PDIO Q351 AUDIO+B DSP VDD (3.3V)REGULATOR VDD 3,8,18,27,37,49,76,77,96 ILL pck ce@ Q561 6,20 VCC BU S-812C56AUA-C3K IC 421 3 2 Q421 Q422 swvdd 65 VDD BU Q805 Q802 Q804 Q803 SYSPW Q441 Q442 BU SYSPW AUDIO+B Q851 Q852 BU BU Q451 Q452 SYSPW AMP 49 SYSPW IC 782 1/2VCC BU Q454 Q455 Q453 44 FMPW 45 AMPW ANT LCE,LCK,LDO,LDI POWER 17 Q701 SWVDD 46 LANMUTE LANMUT BU B SENSE I SENSE ILL ANT +B WF AMP+B AUDIO+B BU MUTE MUTE 7 RESET LPF 10 11 12 13 ENC1M ENC1P ENC2P 7 86 85 Q425 Q424 Q426 VDD BU LIN-5 85 CS L B SWILLB SWVD IC 901 LC75816WS-8722 LCD DRIVER/ KEY CONTROLLER KEY MATRIX 1 3 KEY DATA VDD 85 CN901 LCD ILLUMINATION 4 cdej EJECT LCD BACKLIGHT POWER 17 KEYBOARD UNIT S932 ENC1M ENC1P TUNE•FILE(FH-M8047ZT/XN/ES,FH-M8047ZT/XIN/ES) PWR•VOL(FH-M8147ZT/XN/ES,FH-M8147ZT/XIN/ES) S931 ENC2M ENC2P PWR•VOL(FH-M8047ZT/XN/ES,FH-M8047ZT/XIN/ES) TUNE•FILE(FH-M8147ZT/XN/ES,FH-M8147ZT/XIN/ES) Q972 Q971 Q982 Q981 KS2/P2 75 KS1/P1 74 BL ILL 10 11 12 13 ENC1M ENC1P ENC2M ENC2P LCE,LCK,LDO,LDI S933 KST4 KD4 KST4 KD4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 16 1 2 3 4 1 2 3 4 C D F A B E 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE) A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or "ELECTRICAL PARTS LIST". A-a A D CN251 C CN901 B CN901 FM/AM TUNER UNIT P P P P P P P P P P FM:-24dBs AM:-12dBs TAPE:-11dBs CD:0dBs TAPE:-11dBs FM:-27dBs AM:-28dBs CD: 0dBs P : SIGNAL LINE : POWER SUPPLY LINE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 17 5 6 7 8 5 6 7 8 C D F A B E A-b A > A MAIN UNIT Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. P P P P TAPE:+21dBs FM:+14dBs AM:+17dBs CD:+27dBs SPOUT BAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 18 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-a A-a A-b 1 2 3 4 FM/AM TUNER UNIT P P FM:-24dBs AM:-12dBs TAPE:-11dBs FM:-27dBs AM:-28dBs CD: 0dBs P : SIGNAL LINE : POWER SUPPLY LINE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 19 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-a A-a A-b 5 D CN251 C CN901 B CN901 P P P P P P P P TAPE:-11dBs CD:0dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 20 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-b 1 2 3 4 > A MAIN UNIT P P P P TAPE:+21dBs FM:+14dBs AM:+17dBs CD:+27dBs SPOUT BAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 21 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-b 5 Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 22 1 2 3 4 1 2 3 4 C D F A B E 3.3 KEYBOARD UNIT(FH-M8047ZT/XN/ES,FH-M8047ZT/XIN/ES) B DISC AM TAPE 6 5 SCAN 4 2 UP TEXT 1 3 DOWN FM TUNE•FILE PWR•VOL MUTE CD EJECT TAPE EJECT SCAN DOW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 23 5 6 7 8 5 6 7 8 C D F A B E B A B KEYBOARD UNIT CN479 SCAN UP DOWN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 24 1 2 3 4 1 2 3 4 C D F A B E 3.4 KEYBOARD UNIT(FH-M8147ZT/XN/ES,FH-M8147ZT/XIN/ES) B DISC AM TAPE 6 5 4 2 UP TEXT 1 3 DOWN FM TUNE•FILE PWR•VOL MUTE CD EJECT TAPE EJECT SCA UP DOWN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 25 5 6 7 8 5 6 7 8 C D F A B E B A B KEYBOARD UNIT CN479 SCAN SCAN UP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 26 1 2 3 4 1 2 3 4 C D F A B E 3.5 CD MECHANISM MODULE(GUIDE PAGE) C-a C SPINDLE MOTOR M1 CXB6007 LOADING/CARRIAGE MOTOR M2 CXB8933 CN101 PICKUP UNIT (P10)(SERVICE) R735 47K SWITCHES: CD CORE UNIT(S10MP3) S901 : HOME SWITCH.....ON-OFF S902 : CLAMP SWITCH....ON-OFF S903 : DSCSNS SWITCH....ON-OFF S904 : 12EJ SWITCH....ON-OFF S905 : 8EJ SWITCH....ON-OFF The underlined indicates the original switch position. 5/3.3 CD DRIVER SW 3.3 REGULATOR 1 2 3 5 6 7 8 0 ! @ # F T T F T T F F F F T T F F T T S S C T F C T F S C T F F F T T C C S S S S C C T T F F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 27 5 6 7 8 5 6 7 8 C D F A B E C-b C CD CORE UNIT(S10MP3) C A CN601 CN901 PE5427A D-RAM 3.3 REGULATOR MICRO COMPUTER 4 9 $ % ^ & * F T C S SIGNAL LINE FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 28 1 2 3 4 1 2 3 4 C D F A B E A-a C-b C-a C-a C-b CN101 PICKUP UNIT (P10)(SERVICE) 0 ! # F T T F T T F F F F T T F F T T S S C T F C T F T T F F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 29 5 6 7 8 5 6 7 8 C D F A B E A-a C-b C-a C-a C-b 1 2 3 SPINDLE MOTOR M1 CXB6007 LOADING/CARRIAGE MOTOR M2 CXB8933 R735 47K SWITCHES: CD CORE UNIT(S10MP3) S901 : HOME SWITCH.....ON-OFF S902 : CLAMP SWITCH....ON-OFF S903 : DSCSNS SWITCH....ON-OFF S904 : 12EJ SWITCH....ON-OFF S905 : 8EJ SWITCH....ON-OFF The underlined indicates the original switch position. 5/3.3 CD DRIVER SW 3.3 REGULATOR 1 2 3 5 6 7 8 @ S C T F F F T T C C S S S S C C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 30 1 2 3 4 1 2 3 4 C D F A B E C-a C-b C-b CD CORE UNIT(S10MP3) C D-RAM 9 $ % ^ F T C S SIGNAL LINE FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 31 5 6 7 8 5 6 7 8 C D F A B E C-a C-b C-b 1 2 3 A CN601 CN901 PE5427A 3.3 REGULATOR MICRO COMPUTER 4 & * www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 32 1 2 3 4 1 2 3 4 C D F A B E - Waveforms Note : 1. The encircled numbers denote measuring points in the circuit diagram. 2. Reference voltage REFO1(1.65V) 1 DSCSNS 2 CLCONT 3 LOEJ 4 VD 5V/div 5V/div 5V/div 10V/div 500ms/div When loading a 12cm CD Ref.: GND Mode: Normal 5 SIN 6 CIN 7 TIN 1V/div 500mV/div 500mV/div 2s/div When setting up after loading a 12cm CD-DA disc 5 SIN 6 CIN 7 TIN When setting up after loading a 12cm CD-ROM disc(1 session) When setting up after loading a 12cm CD-ROM disc(3 session) Ref.: REFO Mode: Normal 1 DSCSNS 2 CLCONT 3 LOEJ 4 VD 5V/div 5V/div 5V/div 10V/div 500ms/div When loading an 8cm CD Ref.: GND Mode: Normal 0 TE ! FE 500mV/div 500mV/div 200ms/div When setting up "Source On" Ref.: REFO Mode: Normal ! FE 8 FIN 0 TE 7 TIN 500mV/div 500mV/div 500mV/div 500mV/div 20ms/div Ref.: REFO Mode: Normal ! FE 8 FIN 0 TE 7 TIN 500mV/div 500mV/div 500mV/div 500mV/div 20ms/div During "Play"(CD-DA) During "Play"(CD-ROM)(Track Jump is generated periodically)(Refer to Track Jump waveform) Ref.: REFO Mode: Normal @ MDX 5 SIN 500mV/div 200mV/div 50ms/div Spindle waveform during "Play" Ref.: REFO Mode: Normal # RFAGC 500mV/div 5µs/div Ref.: REFO Mode: Normal @ MDX 5 SIN 500mV/div 1V/div 5µs/div Spindle waveform during "Play"(Magnified) RF eye pattern Ref.: REFO Mode: Normal 1V/div 500mV/div 500mV/div 2s/div 5 SIN 6 CIN 7 TIN 1V/div 500mV/div 500mV/div 2s/div When setting up "Source On"(12cm CD-DA) Ref.: REFO Mode: Normal 8 FIN 9 RFOK 5 SIN 200mV/div 2V/div 2V/div 500ms/div Ref.: REFO Mode: Normal Ref.: REFO Mode: Normal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 33 5 6 7 8 5 6 7 8 C D F A B E 8 FIN ! FE 500mV/div 500mV/div 200ms/div Focus Search Ref.: REFO Mode: TEST # RFAGC 0 TE 7 TIN 1V/div 500mV/div 500mV/div 500µs/div Ref.: REFO Mode: TEST 0 TE # RFAGC 500mV/div 500mV/div 2ms/div When "Tracking Open" 1 Track Jump Ref.: REFO Mode: TEST # RFAGC 0 TE 6 CIN 5 SIN 1V/div 1V/div 500mV/div 2V/div 200ms/div Ref.: REFO Mode: Normal $ LRCKIN % DIN ^ SCKIN 2V/div 2V/div 2V/div 2µs/div Ref.: REFO Mode: Normal $ LRCKIN % DIN ^ SCKIN 2V/div 2V/div 2V/div 10µs/div Digital Audio Digital Audio(Magnified) Ref.: GND Mode: Normal # RFAGC 0 TE 7 TIN 1V/div 500mV/div 500mV/div 1ms/div 32 Track Jump Ref.: REFO Mode: TEST # RFAGC 7 TIN 0 TE 8 FIN 1V/div 1V/div 1V/div 1V/div 500µs/div Ref.: REFO Mode: Normal # RFAGC 0 TE 7 TIN 1V/div 500mV/div 500mV/div 5ms/div 100 Track Jump When passing black dots(800µm) Ref.: REFO Mode: TEST During inside/outside search (outer circumference → inner circumference) & LOUT * ROUT 1V/div 1V/div 200µs/div Ref.: AGND Mode: Normal 1 DSCSNS 2 CLCONT 3 LOEJ 5V/div 5V/div 5V/div 10µs/div Ref.: GND Mode: Normal 1 DSCSNS 2 CLCONT 3 LOEJ 5V/div 5V/div 5V/div 500ms/div When "Eject"(12cm CD) Analog Audio(sine wave, 1kHz) When "Eject"(8cm CD) Ref.: GND Mode: Normal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 34 1 2 3 4 1 2 3 4 C D F A B E 5 SIN 6 CIN 7 TIN 1V/div 500mV/div 500mV/div 500ms/div Ref.: REFO Mode: Normal 5 SIN 6 CIN 7 TIN 1V/div 500mV/div 500mV/div 500ms/div Ref.: REFO Mode: Normal When switching to CD-ROM from CD-DA (BAND key) When switching to CD-DA from CD-ROM (BAND key) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 35 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 36 1 2 3 4 1 2 3 4 C D F A B E 3.6 CASSETTE MECHANISM MODULE DECK UNIT MUTE HA12228F 11 12 13 14 15 16 17 18 19 20 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 1 2 3 4 5 6 7 8 9 10 C253 390P C251 C256 R01 C405 R033 R404 270K R01 C404 910 R403 3R3K C255 R01 C272 R1 C401 3900P HD1 HEAD ASSY EXA1594 TEST TAPE NCT-150 (400Hz, 200nWb/m) RL RR FR FL C302 R1 C301 R1 VR301 33K(B) -8.24dBs±1dB Fwd-R Fwd-L Rev-R Rev-L NF1(R) Vref1 RIN(L) NC RIN(R) GND FIN(R) Vref2 FIN(L) NFI(L) M-OUT(L) EQOUT(L) Vref4 TAI(L) BIAS NC DET(L) MSGV(S) MUTE 120/70 ser/REP f/R MSDET MSI MAOUT MSGV(R) MOUT(R) EQOUT(R) Vref3 TAI(R) RIP PBOUT(R) NC DET(R) NR CN252 CN251 Dolby-B NR IC251 390P C252 390P C254 390P PBOUT(L) NC VCC MSOUT NC C403 R022 R402 R33 C402 15K R401 18K R271 C271 1/50 C310 R1 C309 R1 CCP1280 VR302 33K(B) CCP1280 0R0 R410 0R0 R408 0R0 R407 0R0 R406 0R0 R409 0R0 R411 D D A CN631 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 37 5 6 7 8 5 6 7 8 C D F A B E SENSOR UNIT C405 R033 270K R351 1K R352 1K R353 1K R354 1K R373 0R0 R355 270K C352 3900P R362 300 C351 R22 C353 R01 C354 R01 R374 0R0 C356 R01 C355 R1 D352 1SS355 M1 MOTOR UNIT (MAIN MOTOR) EXA1618 S101 LOAD ESG1007 S102 ESG1007 MODE REEL SENSE Q101 EGN1004 M2 MOTOR UNIT (SUB MOTOR) RS3 RS2 RS1 SC2 SC1 TAB MC CE VCC2 NC VCC MCS RRS FRS RSB C TAB MS2 NC NC MM SM1 RSB GND RS mtl MCS load CN255 CN253 CN256 CN254 MECHANISM DRIVER IC351 PA2020A C403 R022 S103 ESG1007 70µs R375 0R0 0 0 0 0 0R0 R409 L101 L102 E E D SWITCHES: SENSOR UNIT S101:LOAD SWITCH..........EJECT-PLAY S102:MODE SWITCH............ON-OFF S103:70µs SWITCH...............ON-OFF The underlined indicates the switch position. M2 FH-M8147ZT/XN/ES FH-M8147ZT/XIN/ES EXA1627 FH-M8047ZT/XN/ES FH-M8047ZT/XIN/ES EXA1657 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 38 1 2 3 4 1 2 3 4 C D F A B E 4. PCB CONNECTION DIAGRAM 4.1 MAIN UNIT Capacitor Connector P.C.Board Chip Part A A MAIN UNIT SIDE B SIDE A NOTE FOR PCB DIAGRAMS 1.The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2.Viewpoint of PCB diagrams FRONT B CN901 CAR HARNESS CAR HARNESS D CN251 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 39 5 6 7 8 5 6 7 8 C D F A B E A SIDE A FRONT C CN901 ANTENNA FM/AM TUNER UNIT CAR HARNESS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 40 1 2 3 4 1 2 3 4 C D F A B E A A MAIN UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 41 5 6 7 8 5 6 7 8 C D F A B E A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 42 1 2 3 4 1 2 3 4 C D F A B E 4.2 KEYBOARD UNIT(FH-M8047ZT/XN/ES,FH-M8047ZT/XIN/ES) B B KEYBOARD UNIT SIDE A DISC AM TAPE 6 5 SCAN 4 2 UP TEXT 1 3 DOWN FM TUNE•FILE PWR•VOL MUTE CD EJECT LCD TAPE EJECT SCAN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 43 5 6 7 8 5 6 7 8 C D F A B E B B KEYBOARD UNIT SIDE B A CN479 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 44 1 2 3 4 1 2 3 4 C D F A B E 4.3 KEYBOARD UNIT(FH-M8147ZT/XN/ES,FH-M8147ZT/XIN/ES) B B KEYBOARD UNIT SIDE A DISC AM TAPE 6 5 SCAN 4 2 UP TEXT 1 3 DOWN FM TUNE•FILE PWR•VOL MUTE CD EJECT LCD TAPE EJECT SCAN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 45 5 6 7 8 5 6 7 8 C D F A B E B B KEYBOARD UNIT SIDE B A CN479 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 46 1 2 3 4 1 2 3 4 C D F A B E 4.4 CD MECHANISM MODULE C C CD CORE UNIT(S10MP3) SIDE A A CN601 PICKUP UNIT (P10)(SERVICE) M2 LOADING /CARRIAGE MOTOR M1 SPINDLE MOTOR HOME www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 47 5 6 7 8 5 6 7 8 C D F A B E C C CD CORE UNIT(S10MP3) SIDE B CLAMP DSCSNS 8EJ 12EJ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 48 1 2 3 4 1 2 3 4 C D F A B E 4.5 DECK UNIT D D DECK UNIT D DECK UNIT SIDE A SIDE B CN251 20 18 16 14 12 10 8 6 4 2 19 17 15 13 11 9 7 5 3 1 IC,Q IC251 Q351 Q352 ADJ VR302 VR301 IC351 CN252 CN254 CN253 CN255 M1 M2 HEAD ASSY CN256 21 22 C271 1 10 11 20 21 30 31 40 5 15 25 35 CN631 A E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 49 5 6 7 8 5 6 7 8 C D F A B E 4.6 SENSOR UNIT E E SENSOR UNIT 1 2 3 4 5 6 S101 LOAD S102 MODE S103 70µs CN256 Q101 REEL SENSE L101 L102 CN253 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 50 1 2 3 4 1 2 3 4 C D F A B E 5. ELECTRICAL PARTS LIST NOTE: • Parts whose parts numbers are omitted are subject to being not supplied. • The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... Circuit Symbol and No. Part No. A Unit Number:CWM9213 Unit Name:Main Unit MISCELLANEOUS IC 331 IC NJM2904M IC 351 IC PM2010A IC 421 IC S-812C56AUA-C3K IC 561 IC HA12181FP IC 701 IC PD5949B IC 781 IC HA12240FP IC 782 IC S-80835CNNB-B8U IC 801 IC TDA7386 Q 351 Transistor 2SD1859 Q 402 Transistor DTC124TU Q 403 Transistor 2SC4081 Q 404 Transistor 2SC4081 Q 421 Transistor 2SD1760F5 Q 422 Transistor 2SA1162 Q 424 Transistor 2SB1260 Q 425 Transistor 2SC4081 Q 426 Transistor IMD3A Q 431 Transistor 2SB1185 Q 432 Transistor IMX1 Q 441 Transistor 2SB1185 Q 442 Transistor IMX1 Q 451 Transistor 2SB1260 Q 452 Transistor DTC124EU Q 453 Transistor 2SC4081 Q 454 Transistor 2SB1260 Q 455 Transistor 2SC4081 Q 502 Transistor 2SC4081 Q 524 Transistor DTC143TU Q 561 Transistor 2SC4081 Q 701 Transistor 2SA1576A Q 801 Transistor DTC143EU Q 802 Transistor 2SD1781K Q 803 Transistor 2SC4081 Q 804 Transistor DTC143EU Q 805 Transistor 2SA1576A Q 851 Transistor 2SB1185 Q 852 Transistor IMX1 Q 1411 Transistor 2SD1859 D 351 Diode HZU3R9(B2) D 402 Diode HZU8R2(B1) D 411 Diode RD8R2SL(N1) D 421 Diode UDZS16(B) D 422 Diode MPG06G-6415G50 D 423 Diode MPG06G-6415G50 D 431 Diode HZU8R2(B1) D 441 Diode HZU8R2(B1) D 451 Diode DAN202K D 452 Diode 1SS355 D 471 Diode P300JL-6059 D 472 Diode MPG06G-6415G50 D 473 Diode MPG06G-6415G50 D 474 Diode 1SS355 D 475 Diode 1SS355 D 702 Diode 1SS355 D 781 Diode UDZS18(B) D 782 Diode UDZS18(B) D 802 Diode HZU8R2(B3) D 852 Diode HZU9R1(B2) D 1411 Diode HZU6R2(B2) L 351 Inductor CTF1379 L 352 Inductor CTF1379 L 353 Inductor CTF1379 L 354 Inductor CTF1379 L 355 Inductor CTF1379 L 356 Inductor CTF1379 L 357 Inductor LCTAW2R2J2520 L 358 Inductor LCTAW2R2J2520 L 359 Inductor CTF1379 L 360 Inductor CTF1379 L 362 Inductor LCTAW2R2J2520 L 370 Inductor CTF1379 L 371 Inductor CTF1379 L 372 Inductor CTF1379 L 373 Inductor CTF1379 L 374 Inductor CTF1379 L 375 Inductor CTF1379 L 376 Inductor CTF1379 L 377 Inductor CTF1379 L 471 Choke Coil 600µH CTH1221 L 505 Ferri-Inductor LAU4R7K L 512 Inductor LAU1R0K L 514 Inductor LAU1R0K L 561 Ferri-Inductor LAU4R7K L 631 Inductor LFEA4R7J L 651 Inductor LCTAW2R2J2520 L 701 Inductor LCTAW150J2520 CG501 Surge Protector DSP-201M-S00B X 351 Radiator 33.8688MHz CSS1600 X 701 Radiator 10.0MHz CSS1577 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 51 5 6 7 8 5 6 7 8 C D F A B E FU471 Fuse 5A CEK1289 FM/AM Tuner Unit CWE1557 RESISTORS R 301 RS1/16S102J R 302 RS1/16S102J R 309 RS1/16S102J R 310 RS1/16S102J R 315 RS1/16S102J R 316 RS1/16S102J R 323 RS1/16S102J R 324 RS1/16S102J R 328 RS1/16S472J R 329 RS1/16S472J R 331 RS1/16S473J R 332 RS1/16S473J R 333 RS1/16S473J R 334 RS1/16S473J R 335 RS1/16S183J R 336 RS1/16S183J R 337 RS1/16S183J R 338 RS1/16S183J R 339 RS1/16S682J R 340 RS1/16S682J R 351 RS1/16S221J R 359 RS1/16S472J R 360 RS1/16S472J R 361 RS1/16S105J R 362 RS1/16S102J R 363 RS1/16S0R0J R 364 RS1/16S0R0J R 365 RS1/16S102J R 366 RS1/16S102J R 367 RS1/16S102J R 368 RS1/16S102J R 369 RS1/16S222J R 370 RS1/16S102J R 401 RS1/16S0R0J R 404 RS1/16S473J R 405 RS1/10S472J R 406 RS1/4S182J R 408 RS1/16S471J R 410 RS1/4S472J R 412 RS1/16S104J R 414 RS1/16S104J R 421 RS1/16S182J R 422 RS1/16S222J R 423 RS1/16S103J R 424 RS1/16S562J R 425 RS1/16S471J R 426 RS1/16S102J R 433 RS1/16S101J R 434 RS1/16S151J R 435 RS1/10S221J R 436 RS1/16S471J R 439 RS1/16S223J R 440 RS1/16S471J R 443 RS1/16S471J R 444 RS1/16S151J Circuit Symbol and No. Part No. R 445 RS1/16S561J R 447 RS1/16S223J R 448 RS1/16S472J R 451 RS1/16S472J R 452 RS1/16S223J R 453 RS1/16S103J R 455 RS1/16S103J R 456 RS1/16S223J R 457 RS1/16S823J R 458 RS1/16S561J R 459 RS1/16S561J R 460 RS1/16S561J R 463 RS1/16S102J R 471 RS1/4S101J R 472 RS1PMF680J R 522 RS1/16S222J R 524 RS1/16S222J R 525 RS1/16S473J R 526 RS1/16S681J R 527 RS1/16S681J R 528 RS1/16S681J R 529 RS1/16S103J R 530 RS1/16S681J R 531 RS1/16S473J R 532 RS1/16S473J R 533 RS1/16S472J R 534 RS1/16S393J R 535 RS1/16S473J R 536 RS1/16S473J R 537 RS1/16S473J R 538 RS1/16S681J R 539 RS1/16S681J R 541 RS1/16S0R0J R 542 RS1/16S0R0J R 543 RS1/16S472J R 544 RS1/16S472J R 545 RS1/16S152J R 546 RS1/16S152J R 561 RS1/16S104J R 562 RS1/16S123J R 564 RS1/16S103J R 565 RS1/16S562J R 566 RS1/16S153J R 567 RS1/16S123J R 568 RS1/16S222J R 569 RS1/16S164J R 570 RS1/16S333J R 571 RS1/16S473J R 611 RS1/16S0R0J R 612 RS1/16S104J R 613 RS1/16S0R0J R 614 RS1/16S104J R 631 RS1/16S392J R 632 RS1/16S103J R 633 RS1/16S392J R 634 RS1/16S103J R 635 RS1/16S102J R 636 RS1/16S473J R 637 RS1/16S102J R 638 RS1/16S102J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 52 1 2 3 4 1 2 3 4 C D F A B E R 639 RS1/16S102J R 640 RS1/16S103J R 641 RS1/16S102J R 642 RS1/16S102J R 643 RS1/16S473J R 644 RS1/16S102J R 645 RS1/16S473J R 646 RS1/16S102J R 647 RS1/16S473J R 648 RS1/16S102J R 649 RS1/16S102J R 650 RS1/16S102J R 651 RS1/16S681J R 652 RS1/16S102J R 653 RS1/16S102J R 654 RS1/16S102J R 655 RS1/16S102J R 656 RS1/16S681J R 660 RS1/16S473J R 661 RS1/16S473J R 662 RS1/16S473J R 663 RS1/16S473J R 664 RS1/16S473J R 665 RS1/16S473J R 702 RS1/16S102J R 703 RS1/16S473J R 704 RS1/16S102J R 705 RS1/16S102J R 706 RS1/16S102J R 707 RS1/16S102J R 708 RS1/16S0R0J R 709 RS1/16S0R0J R 711 RS1/16S473J R 716 RS1/16S0R0J R 717 RS1/16S473J R 718 RS1/16S102J R 719 RS1/16S0R0J R 720 RS1/16S0R0J R 721 RS1/16S0R0J R 722 RS1/16S102J R 723 RS1/16S472J R 724 RS1/16S472J R 725 RS1/16S0R0J R 726 RS1/16S471J R 727 RS1/16S0R0J R 728 RS1/16S0R0J R 729 RS1/16S102J R 731 RS1/16S332J R 732 RS1/16S0R0J R 733 RS1/16S102J R 734 RS1/16S102J R 742 RS1/16S102J R 743 RS1/16S473J R 750 RS1/16S102J R 753 RS1/16S102J R 754 RS1/16S473J R 755 RS1/16S102J R 756 RS1/16S473J R 757 RS1/16S102J R 758 RS1/16S473J Circuit Symbol and No. Part No. R 759 RS1/16S472J R 760 RS1/16S103J R 761 RS1/16S102J R 762 RS1/16S104J R 763 RS1/16S102J R 764 RS1/16S152J R 765 RS1/16S152J R 766 RS1/16S333J R 767 RS1/16S102J R 768 RS1/16S681J R 769 RS1/16S103J R 770 RS1/16S153J R 771 RS1/16S473J R 776 RS1/16S104J R 777 RS1/16S473J R 778 RS1/16S472J R 779 RS1/16S472J R 780 RS1/16S473J R 781 RS1/16S0R0J R 782 RS1/16S0R0J R 783 RS1/4S101J R 784 RS1/4S101J R 785 RS1/16S0R0J R 787 RS1/16S104J R 788 RS1/16S472J R 789 RS1/16S102J R 791 RS1/16S0R0J R 792 RS1/16S102J R 793 RS1/16S473J R 794 RS1/16S102J R 795 RS1/16S473J R 796 RS1/16S102J R 797 RS1/16S473J R 798 RS1/16S102J R 799 RS1/16S473J R 801 RS1/16S103J R 802 RS1/16S103J R 803 RS1/16S331J R 804 RS1/16S103J R 805 RS1/16S222J R 806 RS1/16S103J R 807 RS1/16S684J R 808 RS1/16S684J R 809 RS1/16S472J R 810 RS1/16S473J R 811 RS1/16S103J R 812 RS1/16S223J R 851 RS1/16S472J R 852 RS1/16S223J R 853 RS1/16S561J R 855 RS1/16S471J R 856 RS1/16S151J R 857 RS1/16S153J R 858 RS1/16S393J R 859 RS1/16S473J R 860 RS1/16S223J R 1411 RS1/16S271J CAPACITORS Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 53 5 6 7 8 5 6 7 8 C D F A B E C 307 CKSRYB222K50 C 308 CKSRYB222K50 C 309 CKSRYB222K50 C 310 CKSRYB222K50 C 321 CKSRYB222K50 C 322 CKSRYB222K50 C 323 CKSRYB222K50 C 324 CKSRYB222K50 C 327 CEAL220M10 C 328 CEAL220M10 C 329 CKSRYB104K25 C 330 CEAL220M10 C 331 CEJQ3R3M50 C 332 CEJQ3R3M50 C 333 CEJQ3R3M50 C 334 CEJQ3R3M50 C 335 CCSRCH150J50 C 336 CCSRCH150J50 C 337 CEJQ470M10 C 338 CKSRYB473K50 C 339 CEAL220M10 C 340 CKSRYB104K25 C 343 CKSRYB105K10 C 344 CKSRYB105K10 C 345 CKSRYB222K50 C 350 CKSRYB102K50 C 351 CKSRYB563K16 C 352 CKSRYB563K16 C 353 CKSRYB105K10 C 354 CKSRYB105K10 C 355 CKSRYB105K10 C 356 CKSRYB105K10 C 357 CKSRYB823K16 C 358 CKSRYB102K50 C 359 CKSRYB222K50 C 360 CEAL220M10 C 363 CEAL220M10 C 364 CCSRCH6R0D50 C 365 CCSRCH6R0D50 C 366 CKSRYB103K50 C 372 CEALNP4R7M35 C 373 CKSRYB104K25 C 374 CEALNP4R7M35 C 376 CEALNP4R7M35 C 377 CEAL101M10 C 380 CKSRYB104K25 C 381 CEALNP4R7M35 C 384 CKSRYB104K25 C 385 CKSRYB222K50 C 386 CKSRYB105K10 C 387 CKSRYB103K50 C 388 CEJQ470M10 C 390 CKSRYB104K25 C 393 CKSRYB104K25 C 397 CKSRYB104K25 C 398 CKSRYB222K50 C 399 CKSRYB222K50 C 401 CKSRYB103K50 C 403 CKSRYB103K50 C 420 470µF/16V CCH1459(P35) Circuit Symbol and No. Part No. C 421 CEJQ220M35 C 422 CKSRYB103K50 C 423 CKSRYB103K50 C 424 CEHAR101M10 C 425 CKSRYB103K50 C 432 CKSRYB473K50 C 433 CEHAZL101M25 C 434 CKSRYB103K50 C 435 470µF/16V CCH1459(P35) C 442 CKSRYB473K50 C 443 CEHAZL101M25 C 444 CKSRYB103K50 C 461 CKSRYB102K50 C 469 CCSQCH221J50 C 470 CCSQCH221J50 C 471 3300µF/16V CCH1177(P45) C 472 CKSQYB332K50 C 473 CKSQYB332K50 C 474 CKSQYB332K50 C 475 CKSQYB332K50 C 476 CKSQYB332K50 C 477 CKSQYB332K50 C 478 CKSQYB332K50 C 479 CKSQYB332K50 C 480 CKSQYB102K50 C 481 CKSQYB393K50 C 484 CCSQCH221J50 C 485 CCSQCH221J50 C 486 CKSQYB222K50 C 487 CKSQYB222K50 C 488 CKSQYB222K50 C 489 CKSQYB222K50 C 490 CKSQYB473K50 C 503 CKSQYB103K50 C 519 CKSRYB103K50 C 520 CKSRYB102K50 C 521 CEAT101M16 C 522 CKSRYB102K50 C 523 CEAT330M16 C 524 CKSRYB472K50 C 525 CKSRYB183K50 C 526 CKSRYB183K50 C 527 CKSRYB103K50 C 528 CKSRYB103K50 C 530 CCSRCH100D50 C 561 CEJQ3R3M50 C 562 CKSRYB333K25 C 563 CEJQNP1R0M50 C 564 CQMA683J50 C 565 CQMA333J50 C 566 CQMA333J50 C 567 CQMA333J50 C 568 CKSRYB224K10 C 569 CKSRYB153K50 C 570 CKSRYB153K50 C 571 CKSRYB472K50 C 572 CEJQ101M10 C 573 CKSRYB392K50 C 574 CKSRYB334K10 C 575 CKSRYB102K50 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 54 1 2 3 4 1 2 3 4 C D F A B E C 705 CCSRCH101J50 C 711 CKSRYB102K50 C 713 CSZS100M16 C 714 CKSRYB103K50 C 781 CKSRYB104K25 C 782 CKSRYB223K50 C 783 CKSRYB103K50 C 793 CCSRCH101J50 C 795 CCSRCH101J50 C 797 CCSRCH101J50 C 799 CCSRCH101J50 C 801 CFTNA104J50 C 802 CFTNA104J50 C 803 CFTNA104J50 C 804 CFTNA104J50 C 805 CKSQYB104K50 C 806 CFTNA474J50 C 807 CEJQ100M50 C 808 CEJQ1R0M50 C 809 CEJQ330M16 C 812 CKSRYB473K50 C 851 CKSRYB103K50 C 852 CEHAT101M16 C 853 CKSRYB473K50 C 1411 CKSRYB473K50 C 1412 CEAT101M16 B Unit Number:CWM9216 (FH-M8047ZT/XN/ES,FH-M8047ZT/XIN/ES) Unit Name:Keyboard unit MISCELLANEOUS IC 901 IC LC75816WS-8722 Q 971 Transistor DTC143EU Q 972 Transistor 2SB1132 Q 981 Transistor DTC143EU Q 982 Transistor 2SB1198K D 931 LED SML-310FC(JK) D 932 LED SML-310FC(JK) D 933 LED SML-310FC(JK) D 934 LED SML-310FC(JK) D 935 LED SML-310FC(JK) D 936 LED SML-310FC(JK) D 937 LED SML-310FC(JK) D 938 LED SML-310FC(JK) D 939 LED SML-310FC(JK) D 940 LED SML-310FC(JK) D 941 LED SML-310FC(JK) D 942 LED SML-310FC(JK) D 943 LED SML-310FC(JK) D 944 LED SML-310FC(JK) D 945 LED SML-310FC(JK) D 946 LED SML-310FC(JK) D 947 LED SML-310FC(JK) D 948 LED SML-310FC(JK) D 949 LED SML-310FC(JK) D 950 LED SML-310FC(JK) Circuit Symbol and No. Part No. D 951 LED SML-310FC(JK) D 952 LED SML-310FC(JK) D 953 LED SML-310FC(JK) D 954 LED SML-310FC(JK) D 955 LED SML-310FC(JK) D 956 LED SML-310FC(JK) D 957 LED SML-310FC(JK) D 958 LED SML-310FC(JK) D 959 LED SML-310FC(JK) D 960 LED SML-310FC(JK) D 961 LED SML-310FC(JK) D 962 LED SML-310FC(JK) D 963 LED SML-310FC(JK) D 964 LED SML-310FC(JK) D 965 LED SML-310FC(JK) D 966 LED SML-310FC(JK) D 967 LED SML-310FC(JK) D 968 LED SML-310FC(JK) D 971 LED GG1171F-633 D 972 LED GG1171F-633 D 974 LED SML-310FC(JK) D 977 LED SML-310FC(JK) D 978 LED SML-310FC(JK) D 981 LED GG1171F-633 D 982 LED GG1171F-633 D 983 LED GG1171F-633 D 984 LED GG1171F-633 D 985 LED GG1171F-633 D 986 LED GG1171F-633 D 987 LED GG1171F-633 D 988 LED GG1171F-633 D 989 LED GG1171F-633 D 990 LED GG1171F-633 S 931 Encoder(PWR•VOL) CSD1066 S 932 Encoder(TUNE•FILE) CSD1048 LCD CAW1826 RESISTORS R 901 RS1/16S102J R 902 RS1/16S102J R 903 RS1/16S102J R 904 RS1/16S102J R 905 RS1/16S102J R 906 RS1/16S102J R 907 RS1/16S102J R 908 RS1/16S102J R 910 RS1/16S472J R 911 RS1/16S472J R 912 RS1/16S472J R 913 RS1/16S472J R 915 RS1/16S333J R 918 RS1/16S102J R 919 RS1/16S103J R 920 RS1/16S102J R 921 RS1/16S223J R 922 RS1/16S102J R 923 RS1/16S223J R 924 RS1/16S102J R 925 RS1/16S223J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 55 5 6 7 8 5 6 7 8 C D F A B E R 928 RS1/16S0R0J R 929 RS1/16S0R0J R 930 RS1/16S0R0J R 931 RS1/16S0R0J R 932 RS1/16S0R0J R 933 RS1/16S0R0J R 941 RS1/16S560J R 942 RS1/16S390J R 943 RS1/16S390J R 944 RS1/16S560J R 945 RS1/16S560J R 946 RS1/16S560J R 947 RS1/16S560J R 948 RS1/16S560J R 949 RS1/16S560J R 950 RS1/16S560J R 951 RS1/16S820J R 952 RS1/16S820J R 961 RS1/16S0R0J R 962 RS1/16S0R0J R 963 RS1/16S0R0J R 964 RS1/16S0R0J R 965 RS1/16S0R0J R 966 RS1/16S0R0J R 977 RS1/16S681J R 978 RS1/16S681J R 979 RS1/16S223J R 981 RS1/16S820J R 982 RS1/16S680J R 983 RS1/16S820J R 984 RS1/16S680J R 985 RS1/16S820J R 986 RS1/16S820J R 987 RS1/16S820J R 988 RS1/16S820J R 989 RS1/16S820J R 990 RS1/16S820J R 995 RS1/16S332J R 996 RS1/16S223J CAPACITORS C 901 CKSRYB102K50 C 902 CKSRYB102K50 C 903 CKSRYB102K50 C 904 CKSRYB102K50 C 905 CKSRYB102K50 C 906 CKSRYB102K50 C 907 CKSRYB102K50 C 908 CKSRYB102K50 C 910 CKSRYB474K10 C 911 CKSRYB473K50 C 912 CKSRYB104K25 C 913 CKSRYB104K25 C 914 CKSRYB104K25 C 915 CCSRCH221J50 C 918 CCSRCH101J50 C 920 CCSRCH101J50 B Circuit Symbol and No. Part No. Unit Number:CWM9364 (FH-M8147ZT/XN/ES,FH-M8147ZT/XIN/ES) Unit Name:Keyboard unit MISCELLANEOUS IC 901 IC LC75816WS-8722 Q 971 Transistor DTC143EU Q 972 Transistor 2SB1132 Q 981 Transistor DTC143EU Q 982 Transistor 2SB1198K D 931 LED SML-310FC(JK) D 932 LED SML-310FC(JK) D 933 LED SML-310FC(JK) D 934 LED SML-310FC(JK) D 935 LED SML-310FC(JK) D 936 LED SML-310FC(JK) D 937 LED SML-310FC(JK) D 938 LED SML-310FC(JK) D 939 LED SML-310FC(JK) D 940 LED SML-310FC(JK) D 941 LED SML-310FC(JK) D 942 LED SML-310FC(JK) D 943 LED SML-310FC(JK) D 944 LED SML-310FC(JK) D 945 LED SML-310FC(JK) D 946 LED SML-310FC(JK) D 947 LED SML-310FC(JK) D 948 LED SML-310FC(JK) D 949 LED SML-310FC(JK) D 950 LED SML-310FC(JK) D 951 LED SML-310FC(JK) D 952 LED SML-310FC(JK) D 953 LED SML-310FC(JK) D 954 LED SML-310FC(JK) D 957 LED SML-310FC(JK) D 958 LED SML-310FC(JK) D 959 LED SML-310FC(JK) D 960 LED SML-310FC(JK) D 961 LED SML-310FC(JK) D 962 LED SML-310FC(JK) D 963 LED SML-310FC(JK) D 964 LED SML-310FC(JK) D 965 LED SML-310FC(JK) D 966 LED SML-310FC(JK) D 967 LED SML-310FC(JK) D 968 LED SML-310FC(JK) D 969 LED SML-310FC(JK) D 970 LED SML-310FC(JK) D 971 LED GG1171F-633 D 972 LED GG1171F-633 D 973 LED SML-310FC(JK) D 975 LED SML-310FC(JK) D 976 LED SML-310FC(JK) D 981 LED GG1171F-633 D 982 LED GG1171F-633 D 983 LED GG1171F-633 D 984 LED GG1171F-633 D 985 LED GG1171F-633 D 986 LED GG1171F-633 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 56 1 2 3 4 1 2 3 4 C D F A B E D 987 LED GG1171F-633 D 988 LED GG1171F-633 D 989 LED GG1171F-633 D 990 LED GG1171F-633 S 931 Encoder(TUNE•FILE) CSD1048 S 932 Encoder(PWR•VOL) CSD1066 LCD CAW1826 RESISTORS R 901 RS1/16S102J R 902 RS1/16S102J R 903 RS1/16S102J R 904 RS1/16S102J R 905 RS1/16S102J R 906 RS1/16S102J R 907 RS1/16S102J R 908 RS1/16S102J R 910 RS1/16S472J R 911 RS1/16S472J R 912 RS1/16S472J R 913 RS1/16S472J R 915 RS1/16S333J R 918 RS1/16S102J R 919 RS1/16S103J R 920 RS1/16S102J R 921 RS1/16S223J R 922 RS1/16S102J R 923 RS1/16S223J R 924 RS1/16S102J R 925 RS1/16S223J R 931 RS1/16S0R0J R 934 RS1/16S0R0J R 935 RS1/16S0R0J R 936 RS1/16S0R0J R 937 RS1/16S0R0J R 938 RS1/16S0R0J R 939 RS1/16S0R0J R 940 RS1/16S0R0J R 941 RS1/16S560J R 942 RS1/16S390J R 943 RS1/16S390J R 944 RS1/16S560J R 945 RS1/16S560J R 946 RS1/16S560J R 947 RS1/16S560J R 948 RS1/16S560J R 949 RS1/16S560J R 950 RS1/16S560J R 951 RS1/16S820J R 952 RS1/16S820J R 967 RS1/16S0R0J R 968 RS1/16S0R0J R 969 RS1/16S0R0J R 970 RS1/16S0R0J R 971 RS1/16S0R0J R 972 RS1/16S0R0J R 977 RS1/16S681J R 978 RS1/16S681J R 979 RS1/16S223J Circuit Symbol and No. Part No. R 981 RS1/16S820J R 982 RS1/16S680J R 983 RS1/16S820J R 984 RS1/16S680J R 985 RS1/16S820J R 986 RS1/16S820J R 987 RS1/16S820J R 988 RS1/16S820J R 989 RS1/16S820J R 990 RS1/16S820J R 995 RS1/16S332J R 996 RS1/16S223J CAPACITORS C 901 CKSRYB102K50 C 902 CKSRYB102K50 C 903 CKSRYB102K50 C 904 CKSRYB102K50 C 905 CKSRYB102K50 C 906 CKSRYB102K50 C 907 CKSRYB102K50 C 908 CKSRYB102K50 C 910 CKSRYB474K10 C 911 CKSRYB473K50 C 912 CKSRYB104K25 C 913 CKSRYB104K25 C 914 CKSRYB104K25 C 915 CCSRCH221J50 C 918 CCSRCH101J50 C 920 CCSRCH101J50 C Unit Number:CWX3009 Unit Name:CD Core Unit(S10MP3) MISCELLANEOUS IC 201 IC UPD63760GJ IC 202 IC MSM51V4265EP-70TS IC 203 IC BA033SFP IC 301 IC BA5996FM IC 701 IC PE5427A IC 702 IC TC74VHCT08AFT IC 703 IC S-812C33AUA-C2N Q 101 Transistor 2SB1132 Q 601 Transistor DTC323TK Q 602 Transistor DTC323TK Q 603 Transistor 2SB709A Q 701 Transistor UN2111 D 101 Diode 1SS355 D 201 Diode 1SR154-400 D 601 Diode MA152WA L 201 Inductor CTF1386 L 202 Inductor CTF1386 L 204 Inductor CTF1386 L 205 Inductor CTF1386 L 206 Inductor CTF1386 L 207 Inductor CTF1386 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 57 5 6 7 8 5 6 7 8 C D F A B E L 208 Inductor CTF1386 L 209 Inductor CTF1386 L 211 Inductor CTF1386 L 212 Inductor CTF1386 L 701 Inductor CTF1386 L 702 Inductor LCYBR22J1608 L 703 Inductor CTF1386 L 704 Inductor CTF1386 TH701 Thermistor CCX1037 X 201 Ceramic Resonator 16.934MHz CSS1603 X 701 Ceramic Resonator 16.00MHz CSS1616 S 901 Switch(HOME) CSN1051 S 902 Switch(CLAMP) CSN1051 S 903 Spring Switch(DSCSNS) CSN1052 S 904 Switch(12EJ) CSN1051 S 905 Switch(8EJ) CSN1051 RESISTORS R 101 RS1/10S1R5J R 102 RS1/10S1R5J R 103 RS1/10S1R5J R 104 RS1/10S1R5J R 105 RS1/10S1R5J R 201 RS1/16SS102J R 202 RS1/16SS333J R 203 RS1/16SS333J R 205 RS1/16SS0R0J R 207 RS1/16SS0R0J R 209 RS1/16SS0R0J R 213 RS1/16SS1002D R 214 RS1/16SS1002D R 215 RS1/16SS6801D R 216 RS1/16SS6801D R 217 RS1/16SS1002D R 218 RS1/16SS1002D R 219 RS1/16SS1002D R 220 RS1/16SS1002D R 221 RS1/16SS103J R 222 RS1/16SS103J R 223 RS1/16SS103J R 224 RS1/16SS103J R 225 RS1/16SS103J R 226 RS1/16SS393J R 227 RS1/16SS103J R 228 RS1/16SS182J R 229 RS1/16SS103J R 231 RS1/16SS0R0J R 232 RS1/16SS182J R 233 RS1/16SS0R0J R 237 RS1/16SS104J R 238 RS1/16SS473J R 239 RS1/16SS333J R 240 RS1/16SS0R0J R 242 RAB4CQ221J R 243 RAB4CQ221J R 244 RAB4CQ221J R 245 RAB4CQ221J R 246 RAB4CQ221J R 247 RAB4CQ221J Circuit Symbol and No. Part No. R 248 RS1/16SS221J R 249 RS1/16SS221J R 301 RS1/16SS183J R 302 RS1/16SS822J R 303 RS1/16SS0R0J R 304 RS1/16SS183J R 305 RS1/16SS822J R 306 RS1/16SS0R0J R 307 RS1/16SS183J R 308 RS1/16SS822J R 309 RS1/16SS183J R 310 RS1/16SS822J R 311 RS1/16SS0R0J R 601 RS1/16S101J R 602 RS1/16S101J R 603 RS1/16S223J R 604 RS1/16S223J R 605 RS1/16SS103J R 707 RS1/16SS0R0J R 708 RS1/16SS102J R 710 RS1/16SS102J R 711 RS1/16SS102J R 712 RS1/16SS102J R 713 RS1/16SS102J R 714 RS1/16SS473J R 715 RAB4CQ221J R 716 RAB4CQ221J R 717 RAB4CQ221J R 718 RAB4CQ221J R 719 RS1/16SS221J R 720 RS1/16SS471J R 723 RS1/16SS102J R 724 RN1/16SE1302D R 725 RS1/16SS222J R 726 RS1/16SS103J R 727 RS1/16SS473J R 728 RS1/16SS473J R 729 RS1/16SS223J R 730 RS1/16SS473J R 731 RS1/16SS104J R 732 RS1/16SS104J R 733 RS1/16SS104J R 735 RS1/16SS473J R 737 RAB4CQ473J R 739 RAB4CQ473J R 740 RS1/16SS473J R 742 RS1/16SS104J R 744 RS1/16SS104J R 745 RS1/16SS473J R 746 RS1/16SS104J R 747 RS1/16SS104J R 748 RS1/16SS104J R 751 RS1/16SS104J R 754 RS1/16SS102J R 755 RS1/16SS102J R 756 RS1/16SS104J R 801 RS1/16SS104J R 802 RS1/16SS473J R 803 RS1/16SS273J R 901 RS1/16SS221J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 58 1 2 3 4 1 2 3 4 C D F A B E R 902 RS1/16SS221J R 903 RS1/16SS221J R 904 RS1/16SS221J R 905 RS1/16SS221J R 906 RS1/16SS221J CAPACITORS C 101 CKSSYB104K10 C 102 CKSSYB104K10 C 103 CEV101M16 C 104 CEV101M4 C 105 CKSSYB104K10 C 106 CCSRCH101J50 C 108 CKSSYB104K10 C 109 CEV100M16 C 201 CKSSYB471K50 C 202 CKSSYB104K10 C 203 CKSSYB104K10 C 204 CEV220M6R3 C 205 CKSSYB103K16 C 206 CKSSYB103K16 C 207 CEV221M4 C 208 CKSSYB104K10 C 209 CKSSYB104K10 C 210 CKSSYB104K10 C 211 CKSSYB104K10 C 216 CKSSYB332K50 C 217 CKSSYB104K10 C 218 CKSSYB223K16 C 219 CKSSYB104K10 C 220 CKSSYB103K16 C 221 CKSSYB104K10 C 222 CCSSCH270J50 C 223 CCSSCJ3R0C50 C 224 CKSSYB104K10 C 225 CKSSYB103K16 C 226 CCSSCH680J50 C 227 CCSSCH470J50 C 228 CKSSYB682K25 C 230 CKSSYB104K10 C 232 CKSSYB104K10 C 233 47µF/6.3V CCH1436 C 234 CEV221M4 C 235 CKSRYB224K16 C 237 CKSSYB104K10 C 238 CKSSYB104K10 C 239 CCSSCH9R0D50 C 242 CKSSYB104K10 C 243 CKSSYB104K10 C 245 CKSSYB104K10 C 246 CKSSYB104K10 C 301 CKSSYB331K50 C 302 CKSSYB331K50 C 303 CKSSYB472K25 C 304 CKSSYB472K25 C 305 CEV101M16 C 306 CKSRYB224K16 C 601 CCSRCH102J50 C 602 CCSRCH102J50 Circuit Symbol and No. Part No. C 603 4.7µF/25V CCH1508 C 604 4.7µF/25V CCH1508 C 701 CKSSYB104K10 C 702 CKSSYB471K50 C 703 CKSSYB103K16 C 704 CEV1R0M50 C 705 CKSSYB104K10 C 707 CKSSYB104K10 C 708 CKSSYB104K10 C 709 CKSSYB103K16 C 710 CKSSYB104K10 C 711 10µF/10V CCH1349 C 712 CKSRYB224K16 C 713 CKSSYB104K10 C 714 CKSSYB104K10 C 715 CKSSYB103K16 C 716 CKSSYB103K16 C 901 CKSSYB104K10 C 903 CCSRCH101J50 D Unit Number:EWM1040 Unit Name:Deck Unit MISCELLANEOUS IC 251 IC HA12228F IC 351 IC PA2020A D 352 Diode 1SS355 VR301 Semi-fixed 33kΩ(B) CCP1280 VR302 Semi-fixed 33kΩ(B) CCP1280 RESISTORS R 271 RS1/16S183J R 351 RS1/16S102J R 352 RS1/16S102J R 353 RS1/16S102J R 354 RS1/16S102J R 355 RS1/16S274J R 362 RS1/8S301J R 373 RS1/16S0R0J R 374 RS1/8S0R0J R 375 RS1/16S0R0J R 401 RS1/16S153J R 402 RS1/16S332J R 403 RS1/16S911J R 404 RS1/16S274J R 406 RS1/16S0R0J R 407 RS1/8S0R0J R 408 RS1/8S0R0J R 409 RS1/8S0R0J R 410 RS1/16S0R0J R 411 RS1/16S0R0J CAPACITORS C 251 CKSRYB391K50 C 252 CKSRYB391K50 C 253 CKSRYB391K50 C 254 CKSRYB391K50 C 255 CKSRYB103K50 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 59 5 6 7 8 5 6 7 8 C D F A B E C 256 CKSRYB103K50 C 271 CEH1R0M50 C 272 CKSRYB104K16 C 301 CKSRYB104K16 C 302 CKSRYB104K16 C 309 CKSRYB104K16 C 310 CKSRYB104K16 C 351 CKSQYB224K25 C 352 CKSRYB392K50 C 353 CKSRYB103K50 C 354 CKSRYB103K50 C 355 CKSQYB104K50 C 356 CKSRYB103K50 C 401 CKSRYB392K50 C 402 CKSRYB334K10 C 403 CKSRYB223K25 C 404 CKSRYB103K50 C 405 CKSRYB333K16 E Unit Number:EWM1041 Unit Name:Sensor Unit MISCELLANEOUS Q 101 Photo-reflector EGN1004 L 101 Inductor CTF1546 L 102 Inductor CTF1546 S 101 Switch(LOAD) ESG1007 S 102 Switch(MODE) ESG1007 S 103 Switch(70µS) ESG1007 Miscellaneous Parts List M 1 Motor Unit(MAIN) EXA1618 M 2 Motor Unit(SUB)(XN/ES Model) EXA1657 M 2 Motor Unit(SUB)(XIN/ES Model) EXA1627 HD1 Head Assy EXA1594 Pickup Unit(P10)(Service) CXX1664 M 1 Motor Unit(SPINDLE) CXB6007 M 2 Motor Unit(LOADING/CARRIAGE)CXB8933 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 60 1 2 3 4 1 2 3 4 C D F A B E 6. ADJUSTMENT 6.1 CONNECTION DIAGRAM 6.2 TEST MODE GGF-146 Power supply cable Head unit FH-M8047ZT/XN/ES FH-M8147ZT/XN/ES FH-M8047ZT/XIN/ES FH-M8147ZT/XIN/ES [1] + [6] + [DISC]: 3 times DIAG IN All-element lighting [DISC] + [UP] PBUS Test Mode In PBUS TEST [DISC] CD On "CD"PICT To the CD Test Mode [3] + [DOWN] Error number displayed CD ERRXX [DISC]: for 1.7 seconds DIAG End Rest the Microcomputer to returning to the normal mode.(*1) Notes: *1) Note that the test mode is cancelled in the system microcomputer by switching the ACC OFF and ON, but that it is not in the CD microcomputer. Use the reset function for complete cancellation of the test mode. [UP] TOYOTA DIAG Mode In P190 To the Normal Mode TOYOTA DIAG Mode In [DISC]: for 1.7 seconds or ACC off DIAG End Normal display To the TOYOTA DIAG Mode www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 61 5 6 7 8 5 6 7 8 C D F A B E 6.3 CD ADJUSTMENT 1) Cautions on adjustments • In this product the single voltage (3.3V) is used for the regulator. The reference voltage is the REFO1 (1.65V) instead of the GND. If you should mistakenly short the REFO1 with the GND during adjustment, accurate voltage will not be obtained, and the servo’s misoperation will apply excessive shock to the pickup. To avoid such problems: a. Do not mix up the REFO1 with the GND when connecting the (-) probe of measuring instruments. Especially on an oscilloscope, avoid connecting the (-) probe for CH1 to the GND. b. In many cases, measuring instruments have the same potential as that for the (-) probe. Be sure to set the measuring instruments to the floating state. c. If you have mistakenly connected the REFO1 to the GND, turn off the regulator or the power immediately. • Before mounting and removing filters or leads for adjustment, be sure to turn off the regulator. • For stable circuit operation, keep the mechanism operating for about one minute or more after the regulator is turned on. • In the test mode, any software protections will not work. Avoid applying any mechanical or electrical shock to the mechanism during adjustment. • The RFI and RFO signals with a wide frequency range are easy to oscillate. When observing the signals, insert a resistor of 1k ohms in series. • The load and eject operation is not guarantied with the mechanism upside down. If the mechanism is blocked due to mistaken eject operation, reset the product or turn off and on the ACC to restore it. 2) Test mode This mode is used to adjust the CD mechanism module. • To enter the test mode. See page 60. • To exit from the test mode. Turn off the ACC and back up. Notes: a. During ejection, do not press any other keys than the EJECT key until the loaded disc is ejected. b. If you have pressed the (UP) key or (DOWN) key during focus search, turn off the power immediately to protect the actuator from damage caused by the lens stuck. c. For the TR jump modes except 100TR, the track jump operation will continue even if the key is released. d. For the CRG move and 100TR jump modes, the tracking loop will be closed at the same time when the key is released. e. When the power is turned off and on, the jump mode is reset to the single TR (91), the RF amp gain is set to 0dB, and the auto-adjustment values are reset to the default settings. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 62 1 2 3 4 1 2 3 4 C D F A B E [1] [1] [1] [1] [1] Power On (T.Offset is adjusted) TRK00 MIN00 SEC00 [4] [2] [2] Power On (T.Offset is not adjusted) TRK99 MIN99 SEC99 [3] [3] [3] Power Off TRK MIN SEC Power Off TRK MIN SEC Power Off TRK MIN SEC Power Off TRK MIN SEC Focus Close S curve check T.Close and AGC Applicable servomechanism TRK91 MIN91 SEC91 [6] [2] [4] [6] [4] Focus Mode switching TRK0xMIN0xSEC0x Tracking Servo Close TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 CRG- TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 [UP] [DOWN] [UP] [DOWN] [UP] [DOWN] CRG+ TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 T.Close Applicable servomechanism TRK?tr MIN?min SEC?sec [6] [4] TRK MIN SEC RF AGC / RF AGC coefficient display TRK?? MIN?? SEC?? CRG+ TRK8x MIN8x SEC8x or TRK9xMIN9xSEC9x CRG- TRK8x MIN8x SEC8x or TRK9xMIN9xSEC9x T.Balance adjustment / T.BAL coefficient display TRK?? MIN?? SEC?? F,T,RF AGC F.Bias display switching TRK?? MIN?? SEC?? F,T AGC / F.Bias RF AGC TRK MIN SEC CRG/TR Jump value switching TRK MIN SEC CRG/TR Jump + TRK MIN SEC CRG/TR Jump - TRK MIN SEC Tracking Open TRK8xMIN8xSEC8x or TRK9xMIN9xSEC9x Tracking Open TRK8x MIN8x SEC8x or TRK9xMIN9xSEC9x [Key] [1] [UP] [2] [3] [4] Power On / Off CRG + / TR Jump + (Direction of the external surface) CRG - / TR Jump - (Direction of the internal surface) T.CLS and AGC and Applicable servomechanism / AGC, AGC display setting RF Gain switching / Offset adjustment display / T.Balance adjustment / T.Open F.Close, S.Curve / Rough Servo and RF AGC / Test Mode Operation [KEY] Contents Display F, T, RF AGC *1) Focus Close → S.Curve check setting → F EQ measurement setting TRK 00 MIN 00 SEC 00 TRK 01 MIN 01 SEC 01 TRK 02 MIN 02 SEC 02 (TRK 99 MIN 99 SEC 99) *2) 1TR / 32TR / 100TR *3) Single TR → 32TR → 100TR → CRG Move 9x(8x) : 91(81) 92(82) 93(83) 94(84) *4) Only at the time of CRG move, 100TR jump *5) TRK/MIN/SEC → F.AGC → T.AGC → F Bias → RF AGC *6) CRG motor voltage = 2[V] [DOWN] - Flow Chart *1 *6 *6 *5 *3 *2 *2 *4 ?tr ?min ?sec ?tr ?min ?sec ?tr ?min ?sec ?tr ?min ?sec ?tr ?min ?sec [DISC] Source CD MIN SEC TRK [DISC] 1.7sec Diag off [DISC]+[UP] Test Mode In [1]+[6]+[DISC]3times Diag Mode In PBUS TEST F.Mode switching / Tracking Close / CRG•TR Jump switching [6] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 63 5 6 7 8 5 6 7 8 C D F A B E 6.4 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT • Note : The grating angle of the PU unit cannot be adjusted after the PU unit is changed. The PU unit in the CD mechanism module is adjusted on the production line to match the CD mechanism module and is thus the best adjusted PU unit for the CD mechanism module. Changing the PU unit is thus best considered as a last resort. However, if the PU unit must be changed, the grating should be checked using the procedure below. • Purpose : To check that the grating is within an acceptable range when the PU unit is changed. • Symptoms of Mal-adjustment : If the grating is off by a large amount symptoms such as being unable to close tracking, being unable to perform track search operations, or taking a long time for track searching. • Method : • Measuring Equipment • Measuring Points • Oscilloscope, Two L.P.F. • E, F, REFO1 • Disc • TCD-782 • Mode • TEST MODE • Checking Procedure 1. In test mode, load the disc and switch the 3V regulator on. 2. Using the UP and DOWN buttons, move the PU unit to the innermost track. 3. Press key 4 to close focus, the display should read "91". Press key 3 to implement the tracking balance adjustment the display should now read "81". Press key 4. The display will change, returning to "81" on the fourth press. 4. As shown in the diagram above, monitor the LPF outputs using the oscilloscope and check that the phase difference is within 75° . Refer to the photographs supplied to determine the phase angle. 5. If the phase difference is determined to be greater than 75° try changing the PU unit to see if there is any improvement. If, after trying this a number of times, the grating angle does not become less than 75° then the mechanism should be judged to be at fault. • Note Because of eccentricity in the disc and a slight misalignment of the clamping center the grating waveform may be seen to "wobble" ( the phase difference changes as the disc rotates). The angle specified above indicates the average angle. • Hint Reloading the disc changes the clamp position and may decrease the "wobble". 100kΩ 390pF 100kΩ 390pF E VREF F VREF Xch Ych L.P.F. L.P.F. REFO1 F E CD CORE UNIT(S10MP3) Oscilloscope www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 64 1 2 3 4 1 2 3 4 C D F A B E Grating waveform 45° 0° 75° 60° 30° 90° Ech → Xch 20mV/div, AC Fch → Ych 20mV/div, AC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 65 5 6 7 8 5 6 7 8 C D F A B E - Error Messages Error is displayed with number for Error cause when CD is inoperative or stops with Error during operation. The purpose is to reduce nonsense calls from users as well as to assist all related analysis and repair for defects at service station. (1) Basic Display Method 1) When CSMOD (CD mode area for system) is SERRORM, Error code will be written in DMIN (minutes area for display), DSEC (seconds area for display). The same data shall be written in DMIN and DSEC. DTNO is blank as usual. 2) Display Example of Head Unit The following is about LCD display ability. xx is Error number. 8 digits 6 digits 4 digits ERROR–xx ERR–xx E–xx (2) Error Code List Classification Contents Details • Cause 10 Electricity Carriage Home NG CRG can’t move to the inner. CRG can’t move from the inner. → HOME SW failure, CRG movement failure. 11 Electricity Focus Search NG Focus can’t be caught. → Back of Disc / Severe dirt and vibration. 23 Disc File Format NG Contents are stored in an incompatible file format. → The contents in a CD-ROM disc inserted are recorded in a file format other than ISO9660 Level-1 and 2. 22 Disc Impossible to play There is no playable MP3 or WMA file present in a disc. → No MP3 or WMA file exists in a CD-ROM disc inserted. 17 Electricity Setup NG AGC protection doesn’t work, out of Focus soon. → Scratch on Disc/Severe dirt and vibration. 12 Electricity Spindle Lock NG Not spindle, lock. Wrong subcode (can’t read). Subcode NG RF-amp NG → Defective Spindle. Scratch and dirt on Disc. Intense vibration. The appropriate gain of the RF amp cannot be obtained. → Defective spindle. → Blanc CD-R disc. Disc inserted upside down. → Scratched or dirty disc. Severe vibration. Abnormal CD signals. 30 Electricity Search Time Out Can’t reach the target address. → Defective CRG/tracking, or scratch on Disc. → All TRK Nos. In a disc inserted are specified as a track which should be skipped, in the track skip information. 44 Disc Impossible to play There is no playable TRK No. present in a disc. 50 Mecha Disc Load / Eject NG Disc loading/ejection cannot be complete. → Foreign objects entered into the mechanism. Disc caught in between during loading/ejection. A0 System Power NG Power supply (VD) isn’t connected to the ground. → Defective SW transistor. Abnormal power (failed connector) OR Err–xx Note : Error doesn’t display in mechanism only. (CD off causes mechanism off) If TOC can’t be read, error wouldn’t occur, but mechanism still continues its operation. The upper digits of error code is mainly classified by 3 kinds as follows: 1x: Setup related error, 3x: Search related error, Ax: Other errors. TOYOTA DIAG CODE ERROR DISPLAY 44 42 - - 42 42 42 - 44 48 ERROR 3 ERROR 1 NO DATA DISC NO DATA DISC ERROR 1 ERROR 1 ERROR 1 NO DATA DISC ERROR 3 ERROR 4 CD ERROR CODE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 66 1 2 3 4 1 2 3 4 C D F A B E 6.5 DOLBY B NR ADJUSTMENT VR302 mV Meter VR301 L-CH R-CH Pin2 Pin3 CN251 DECK UNIT Extension Cord GGD1121 DOLBY NR ADJUSTMENT No. Test Tape Adjustment Point Adjustment Method (Switch Position) 1 NCT-150 VR301(Lch), VR302(Rch) mv Meter : -8.24dBm(300mV)±1dB (400Hz, 200nWb/m) MAIN UNIT CN631 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 67 5 6 7 8 5 6 7 8 C D F A B E 6.6 AVC-LAN DIAGNOSIS MODE -Operations and functions (1) Key operations for Diagnosis IN (Note *1 ) (2) Key operations for Diagnosis OUT (2) Key operations for Diagnosis OUT (2) Key operations for Diagnosis OUT Normal operation mode All-element lighting mode SW check mode Service check mode The physical addresses for all devices connected to the AVC-LAN (including this product) are displayed. The current and past product conditions are checked by performing the system check and collecting the diagnosis memory data. Each address check result is displayed as follows: "OK", "Not connected", "Check", "Replace", "Old Version" or "No response". Details display mode This mode is available only when the service check result is "Check", "Replace" or "Old Version". For each physical address, the following information is displayed: - Logical address for the device where some failure occurs and the diagnosis codes (indicating details of the failure), which were obtained through system check - In addition to the above data, sub-code (indicating the device with failure), connecting confirmation no. (time stamp), and frequency of occurrence, which were obtained from diagnosis memory data Diagnosis memory clearance < From the service check mode > The diagnosis memory data (codes) for all devices connected are cleared. < From the details display mode > The diagnosis memory data for devices selected is cleared. After memory clearance is completed, the mode is automatically shifted to the service check mode. (6)Key operations for Memory clearance (6)Key operations for Memory clearance Memory clearance automatically ends. (3) Key operations for entering Service check mode (4)Key operations for entering the details display mode (5)Key operations for returning to the service check mode Note *1: To enter the diagnosis IN mode, use the buttons on the head unit. (1) Diagnosis IN While pressing the CH1 and CH6 With three times of beep sound, the mode buttons simultaneously, press the change operation completes. DISC button three times. (2) Diagnosis OUT Keep the DISC button pressed for 1.7 seconds or more and turn the ACC switch OFF. (3) Entering the Service check mode. Press the UP button. With a beep sound, the mode change completes. (4) Entering the Details display mode. Press the CH2 button. (5) Returning to the service check mode. Press the CH3 button. (6)Clearing the Memory data Keep the CH5 button pressed for 1.7 seconds or more. Change the display (forward) Press the UP button. Change the display (backward) Press the DOWN button. -Key operations All elements on the LCD are lit. (This is for checking if the LCD is lit normally.) Note : In this mode, when any key except for TUNE UP is pressed, a beep will be heard once. (You can check if pressing keys are accepted normally by hearing beeps.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 68 1 2 3 4 1 2 3 4 C D F A B E After system check completes, the check results for the devices connected to the AVC-LAN are displayed in turn in order of physical address number as follows: "Physical address" ...The smallest physical address number is displayed first, whose check result will follow it. Ex. P190 Physical address number (radio cassette) The physical address is displayed. "Check result" ...The check result is displayed. Ex. good Normal (OK) ECHn Replace CHEC Check OLd Old Version "Physical address" ...The next physical address number is displayed. "Connecting confirmation no. (current)" ...The AVC-LAN time stamp is displayed. Ex. no01 The connecting confirmation number is displayed. The current connecting confirmation number (expressed in the hexadecimal number system by using 00 to FF) The number increases by one each time one minute passes. When 256 minutes pass, the indication returns to 00. Service check mode Details display mode Details display mode (only in case of "Replace", "Check", or "Old Version") This mode is available only when the service check result is "Replace", "Check" or "Old Version". To select this mode, press the CH2 key. "Physical address (for selected devices)" The physical address number is displayed, whose check result details will follow it. Ex. P360 Physical address number (CD-CH) "Diagnosis data source" The detailed items depend on the data source. Ex. SyS The data was obtained from system check. "Logical address" The logical address number for the device with failure is displayed. Ex. 1L_63 Logical address number (CD-CH) The logical address is displayed. Serial number "Diagnosis code" The diagnosis code indicates what problem occurs. Ex. 1d_45 Diagnosis code (abnormal EJECT) The diagnosis code is displayed. If there are two or more diagnosis codes, the diagnosis data display will continue. Ex. COdE The data was obtained from diagnosis memory data. "Logical address"...The same as that for the SyS data "Diagnosis code"...The same as that for the SyS data "Sub code"...This code indicates the device with failure. Ex. 1P_190 The sub code is displayed. "Connecting confirmation number (when some failure occurs)"... AVC-LAN time stamp Ex. no01 The connecting confirmation number (expressed in the hexadecimal number system by using 00 to FF) The connecting confirmation number is displayed. "Frequency of occurrence" ...The frequency of failures occurred Ex. 1c_15 The frequency of occurrence expressed in the decimal number system. The frequency of occurrence is displayed. -Diagnosis mode display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 69 5 6 7 8 5 6 7 8 C D F A B E Physical address allocation _ 2 _ 3 Display P_ 1 _ 2 _ 3 Ex.P190 Physical address 0 1 2 3 4 5 6 7 8 9 A B C D E F _ 1 1 0 1 2 3 4 5 6 7 8 9 A B C D E 0 1 2 3 4 5 6 7 8 9 A B C D E 0 1 2 3 4 5 6 7 8 9 A B C D E 0 1 2 3 4 5 6 7 8 9 A B C D E 0 1 2 3 4 5 6 7 8 9 A B C D E F F F F F _ 1 2 _ 1 3 _ 1 4 _ 1 5 _ 1 6 0 2 4 6 8 C E 1,3,5,7, 9-B,D,F M.DISP computer New EMV New device with AV New MM ECU device with AV Audio ECU (RSA-L) Audio H/U Rear TV Rear Control SW Multi-CD decoder CD-CH commander AMP controlled radio tuner New 1-DIN TV Europe navigation DISP.M/U Rear TV with movie mode Navigation with controls MONET ECU Vehicle Information ECU 1-DIN Navigation DISPLAY with SW Europe GW ECU Consolidated inside panel Gateway ECU FM multiplex DISPLAY Steering SW Navigation remote controller Fr controlled SW Simple LCD Consolidated SW MD-CH commander Body computer 0 8 1-7, 9-F 0 8 1-7, 9-F 0 1-F 0 8 C 1-7,9-8,D-F 0 1-F Navigation computer ATIS VICS TV tuner H/W CD-CH H/W DVD-CH TEL information ECU Camera controller Radio Cassette Radio cassette with no CH controller CD-P 1DIN CD-CH MD-P MD-CH DAT DCC TEL ECU Equalizer DSP H/W AMP GPS receiver ATIS decoder FM multiplex decoder CD-CH MD-CH CD-ROM -CH MD-ROM -CH TEL information May Day A/C computer Body computer DVD deck Radio wave beacon Optical beacon DVD-P RSE-M G-BOOK RES-L1 RES-L2 D Overseas TEL ECU 1 XM radio tuner SIRIUS radio tuner Camera with controls RSA-M DTV tuner ETC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 70 1 2 3 4 1 2 3 4 C D F A B E Logical address name Logical address Diagnosis code Diagnosis details AM tuner PLL unlocked FM tuner PLL unlocked No antenna connected Antenna power supply abnormal Tuner power supply abnormal AM tuner abnormal FM tuner abnormal SW tuner abnormal TV tuner PLL unlocked FRONTEND abnormal TV divergence shifting error TV – no reception VNR screen error No antenna connected Antenna power supply abnormal SEL +B current – small SEL +B current – large Belt broken Mechanical failure or cassette broken EJECT failure TAPE jamming Dirty head Mech power supply abnormal CD Mech abnormal CD loading/unloading abnormal CD lead-in abnormal No disc loaded Incorrect disc Disc unreadable CD-ROM abnormal CD abnormal EJECT abnormal Scratches or non-recorded side CD high temperature detected Excessive current detected Tray IN/OUT abnormal Elevator abnormal Clamp abnormal MD mech abnormal MD IN/OUT abnormal MD lead-in abnormal No disc loaded Incorrect disc Disc unreadable MD-ROM abnormal MD abnormal EJECT error Scratches or non-recorded side MD high temperature detected Excessive current detected Tray IN/OUT abnormal Elevator abnormal Clamp abnormal 10 11 40 41 42 43 44 45 10 11 40 41 42 43 44 45 46 10 40 41 42 43 44 10 11 12 40 41 42 43 44 45 46 47 48 50 51 52 10 11 12 40 41 42 43 44 45 46 47 48 50 51 52 Radio TV tuner Cassette tape CD CD-P CD-CH MD MD-CH 60H 40H 61H 43H 62H 63H 64H 65H Logical address name Logical address Diagnosis code Diagnosis details No diagnosis Abnormal reset Abnormal +B Abnormal ACC Abnormal MUTE Fuse broken Microcomputer - abnormal ROM - abnormal RAM - abnormal Bus - abnormal F-ROM - abnormal V-RAM - abnormal Gate allay abnormal Paint controller abnormal Backup memory abnormal Voice output controller abnormal Internal power supply abnormal Sync signal abnormal (input) Sync signal abnormal (output) ECU not connected Transmission abnormal Connecting confirmation: abnormal Connecting confirmation: no response Registered device data missing (History of registered devices) Master unavailable Connecting confirmation: abnormal Connecting confirmation: no response Last mode abnormal Command/order: no response Mode status abnormal Transmission fault Master reset Slave reset Master abnormal Registration completion acknowledgement error Voice processor ON abnormal ON/OFF command or parameter abnormal Registration command transmission Multiple frames intermit. Diagnosis - no response 00 01 10 11 12 13 20 21 22 23 24 25 26 27 28 29 2A 30 31 D0 D1 D2 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF E0 E1 E2 E3 E4 FF Communi -cation control 01H Logical address name Logical address Diagnosis code Diagnosis details Gyroscope abnormal GPS receiver abnormal RTC abnormal SS section abnormal No Time updating TCXO abnormal PLL lock abnormal GPS antenna abnormal GPS antenna power supply abnormal Map disc reading abnormal SPD signal abnormal Player abnormal High temperature abnormal Antenna power supply abnormal Radio wave beacon - no antenna connected Optical beacon - no antenna connected No FM antenna connected FM receiver abnormal Radio wave beacon abnormal Optical beacon abnormal Voice-control activation SW abnormal Voice-control Microphone abnormal Multi-CD-CH (optical cable) abnormal Multi-CD-CH (optical cable) not connected Multi-CD-CH (CarNet) abnormal Multi-CD-CH (CarNet) not connected HIT64 communication not connected HIT64 communication abnormal HIT64 BRQ disconnection HIT64 BRQ short-circuit HIT64 disconnection CarNet communication not connected CarNet communication abnormal CarNet periodical communication abnormal Video circuit abnormal Back light abnormal (with no current) Back light abnormal (with excessive current) Panel open/close mechanical operation abnormal Front seat monitor abnormal Heater abnormal Panel SW abnormal Touch SW failure PLL Unlock CODEC Communication Error SSDEC Communication Error SSDEC No Response Error NVM Error CAP Error ANTENNA No Contact ANTENNA Short 10 11 12 13 14 15 16 40 41 42 43 44 45 41 45 46 47 4A 4B 4C 40 41 40 41 42 43 50 51 52 53 54 55 56 57 10 11 12 13 40 41 10 11 11 12 13 14 15 16 40 41 Navigation /GPS Extended communi -cation Information display/front monitors 58H 80H 02H 32H 34H Diagnosis code table FM multiplex (VICS), radio wave beacon, beacon, optical beacon, FM multiplex (data), and FM multiplex tuner 5AH 84H 5BH 83H 82H 9AH Voice control 85H SW, Audio SW, SW shifting, Command SW XM tuner 21H 23H 24H 25H C0H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 71 5 6 7 8 5 6 7 8 C D F A B E Diagnosis code table Logical address name Logical address Diagnosis code Diagnosis details PLL unlocked CDEC communication error SSDEC communication error SSDEC no response NVM error CAP error No antenna connected Antenna short-circuited Disc unreadable DVD abnormal EJECT abnormal Scratches or non-recorded side DVD high temperature detected Excessive current detected Tray IN/OUT abnormal Elevator abnormal 11 12 13 14 15 16 40 41 42 44 45 46 47 48 50 51 XM C0H DVD-CH 45H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 72 1 2 3 4 1 2 3 4 C D F A B E 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 DISASSEMBLY - Removing the CD Mechanism Module (Fig.1) 1 Fig.1 - Removing the Case (not shown) Grille Assy - Removing the Grille Assy (Fig.1) 1. Remove the Case. CD Mechanism Module 1 1 1 1 Fig.2 Frame - Removing the Frame (Fig.2) Remove the four screws and then remove the Frame. 1 Remove the four screws. Disconnect the connector and then remove the CD Mechanism Module. 2 Remove the two screws and then remove the Grille Assy. 2 2 1 1 1 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 73 5 6 7 8 5 6 7 8 C D F A B E - Removing the Heat Sink (Fig.3) 1 Fig.3 Heat Sink 2 2 2 Fig.4 Chassis - Removing the Chassis (Fig.4) Remove the six screws and then remove the Chassis. 1 Remove the two screws. 1 1 1 2 Remove the three screws and then remove the Heat Sink. 1 1 1 Fig.5 Cassette Mechanism Module - Removing the Cassette Mechanism Module (Fig.5) Remove the four screws and then remove the Cassette Mechanism Module. 1 1 1 1 1 1 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 74 1 2 3 4 1 2 3 4 C D F A B E - How to hold the Mechanism Unit 1. Hold the top and bottom frame. 2. Do not squeeze top frame's front portion too tight, because it is fragile. - Removing the Upper and Lower Frames 1. With a disc clamped, remove the four springs (A), the two springs (B), the two springs (C), and the four screws. 2. To remove the upper frame, open it on the fulcrum A. 3. While lifting the carriage mechanism, remove the three dampers. 4. With the frames removed, insert the connectors coming from the main unit and eject the disc. Caution: Before installing the carriage mechanism in the frames, be sure to apply some alcohol to the dampers and set the mechanism to the clamp mode. Do not squeeze. Lower Frame Damper Carriage Mechanism A C A B B Damper Damper C A A A Upper Frame Fig.6 Main Unit - Removing the Main Unit (Fig.6) Straighten the tabs at three locations indicated. 1 1 2 1 1 2 Remove the two screws and then remove the Main Unit. 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 75 5 6 7 8 5 6 7 8 C D F A B E - Removing the Pickup Unit 1. Apply shorting solder to the Pickup flexible cable. Disconnect the cable. 2. Set the mechanism to the clamp mode. 3. Remove the lead wires from the inner holder. 4. Remove the two washers, styling holder, change arm, and pickup lock arm. 5. While releasing from the hook of the inner holder, lift the end of the feed screw. Caution: In assembling, move the planet gear to the load/eject position before setting the feed screw in the inner holder. Planet Gear Change Arm Inner Holder Styling Holder Feed Screw Washer Pickup Lock Arm Shorting Solder www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 76 1 2 3 4 1 2 3 4 C D F A B E 7.1.2 CONNECTOR FUNCTION DESCRIPTION FM/AM ANTENNA POWER SUPPLY, SPEAKER OUTPUT AVC-LAN EXTENSION RR- RL- FR- FL- GND ANT AMP ILL ACC +B RR+ RL+ FR+ FL+ SLD R+ R- L+ L- MUTE +B GND TX+ TX- ACC GND SW1 SW2 TX1+ TX1- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 77 5 6 7 8 5 6 7 8 C D F A B E 7.2 PARTS 7.2.1 IC - Pin Functions (PD5949B) Pin No. Pin Name I/O Function and Operation 1 PDO O Tuner : Data output 2 pck O Tuner : Serial clock output 3 DEST I Model select input 4 LCE O LCD driver : Chip enable output 5 LDO O LCD driver : Data output 6 LDI I LCD driver : Data input 7 LCK O LCD driver : Clock output 8 BYTE I GND 9 CNVSS I GND 10 NC Not used 11 NC Not used 12 reset I Reset input 13 XOUT O Crystal oscillating element connection pin 14 VSS GND 15 XIN I Crystal oscillating element connection pin 16 VCC Power supply terminal 17 nmi I Not used 18 NC Not used 19 NC Not used 20 asen I ACC power sense input 21 RX2 I IP-BUS : Data input 22 PCE2 O Tuner : Chip enable 2 output 23 PCE1 O Tuner : Chip enable 1 output 24 BEEP O Beep tone output 25 SD I Tuner : SD input 26 st I Tuner : FM stereo input 27 locl O Local L output 28 ILLPW Phase width modulation output for illumination dimmer control 29 RX1 I IP-BUS : Data input 30 TX O IP-BUS : Data output 31 BSO O P-BUS : Serial data output 32 BSI I P-BUS : Serial data input 33 BSCK O P-BUS : Serial clock output 34 DSPOK I DSP : Interface monitor input 35 DSPDO O DSP : Data output 36 37 DSPCK O DSP : Serial clock output 38 DSPERR O DSP : Error detect input 39 dsprst O DSP : Reset output 40 dspcs O DSP : Chip select output 41 DSPACK I DSP : Acknowledge input 42 SYSMUTE O System mute output 43 NC Not used 44 FMPW O FM power supply control output 45 AMPW O AM power supply control output 46 LANMUTE I AVC-LAN mute input 47 IPPW O IP-BUS : Power supply control output for IP BUS interface IC 48 NC Not used 49 SYSPW O System power supply control output NC Not used 58 isen 59 ROMDATA I/O ROM correction data input / output 60 ROMCLK O ROM correction clock output 61 ROMCS O ROM correction chip select output 62 VCC Power supply terminal O XTEST O Not used 50–57 I Illumination power sense input 63 POWER I POWER key input 64 VSS GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 78 1 2 3 4 1 2 3 4 C D F A B E Pin No. Pin Name I/O Function and Operation 66 65 swvdd O Switched VDD control output 74 cdej I CD eject key sense input 75 81 TESTIN Test program mode input 82 BSREQ I P-BUS : Service request input 83 BRXEN I P-BUS : Reception enable input 84 BRST I P-BUS : Reset input 85 ENC1P I Encoder 1 + input 86 ENC1M I Encoder 1 - input 87 ENC2P I Encoder 2 + input 88 ENC2M I Encoder 2 - input 89 HDSENS I Steering wheel type select input 90 IRSEN Illumination power sense input 91 SRSSW1 I Steering switch 1 input 93 NC Not used 94 CONTRAST Contrast adjustment input 95 SRSSW2 Steering switch 2 input 96 AVSS GND 97 SL I Tuner : SD level input 98 VREF I A/D converter reference voltage 99 AVCC Analog power supply 100 PDI I Tuner : Data input 30 31 50 51 80 81 100 1 * PD5949B IC's marked by * are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction. 73 bsen I Back up power sense input 92 AVSENS I System power(SYSPWR) sense input I I 67 69 68 70 72 71 MS I Music sense input PLAY MS gain select output O mtl I Cassette mechanism tape select input O Cassette mechanism head forward/reverse select output DIR SC1 O Cassette mechanism sub motor control 1 output CM O Cassette mechanism capstan motor control output STBY O Cassette mechanism driver stand-by output 76 78 79 77 80 Tape eject sense input I CSEJ NR O Dolby NR ON/OFF select output CSLOAD POS I Cassette mechanism position sense input ES Cassette mechanism end sense input Tape loading detect input I I SC2 O Cassette mechanism sub motor control 2 output I I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 79 5 6 7 8 5 6 7 8 C D F A B E Pin No. Pin Name I/O Function and Operation 1-63 64 65 LCD segment signal output 66-73 LCD common signal output 74 COM1-COM8 75 Key scan output 76-79 KS2/P2 Key scan output 80-84 KS3-KS6 Key scan output 95 KI1-KI5 Key scan input OSCI Not used 92 VSS 85 86 VDD Power supply VLCD Power supply for LCD driver 99 100 CL Synchronizing clock input DI Chip enable input I I 96 Chip operation inhibit input inh I 97 DO Data output O 93 TEST GND I 87 88 VLCD0 LCD drive bias impressed voltage (4/4) output 89 VLCD1 LCD drive bias impressed voltage (3/4) input 90 VLCD2 LCD drive bias impressed voltage (2/4) input 91 VLCD3 LCD drive bias impressed voltage (1/4) input VLCD4 LCD drive bias impressed voltage (0/4) input O I I I I O O O O O O O I O I 94 OSCO Not used O 98 CE Chip enable input I GND S1-S63 LCD segment / common signal output S64/COM10 LCD segment / common signal output S65/COM9 KS1/P1 - Pin Functions (LC75816WS-8722) * LC75816WS-8722 25 26 50 51 75 76 100 1 S-80835CNNB-B8U 1 3 2 S1 R S2 GND BUS- BUS+ VCC STB 4 5 6 7 8 BIAS DRIVER OUTPUT + - - + COM RECEIVER OUTPUT HA12240FP VREF + 1 2 4 3 OUT VDD NC VSS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 80 1 2 3 4 1 2 3 4 C D F A B E - Pin Functions (PE5427A) Pin No. Pin Name I/O Format Function and Operation 1 BSO O C P-Bus serial data output 2 bsck I/O /C P-Bus serial clock input/output 3-5 NC Not used (Open) 6 EVDD E power supply Positive power supply 7 EVSS E power supply GND 8-10 NC Not used (Open) 11-13 MEMO0-2 O C Shock proof memory buffer quantity output 0-2 14-16 NC Not used (Open) 17 adena O C A/D reference voltage supply control output 18 IC/VPP IC : VSS direct connection/VPP : Pull-down 19 BRXEN I/O /C P-Bus reception is possible 20 bsrq I/O /C P-Bus service request demand 21 xtalen! O C CD LSI 16.9344MHz oscillation permission output 22 NC Not used (Open) 23 xrst O C CD LSI reset control output 24 VDCONT O C VD power supply control output 25 CD3VON O C CD +3.3V power supply control output 26 CONT O C Servo driver power supply control output 27 xwait I CD LSI wait control signal input 28 LOEJ O C The direction change output of LOAD/EJECT 29 CLCONT O C Driver input change output 30 CDMUTE O C CD mute control output 31 reset I System reset input 32 XT1 I Connected to the oscillator for subclock (connected to VSS via the resistor) 33 XT2 Connected to the oscillator for subclock (Open) 34 REGC Connected to the capacity stabilizing output of the regulator (an electrolytic capacitor of about 1µF) 35 X2 Oscillator connection for mainclock 36 X1 I Oscillator connection for mainclock 37 VSS GND 38 VDD Positive power supply (5V) 39 CLKOUT O C Internal system clock output (Open) 40 xwrite O CD LSI write control signal output 41, 42 NC Not used (Open) 43 xread O CD LSI read control signal output 44 XASTB O CD LSI address strobe output 45 LOCK I Spindle lock input 46 NC Not used (Open) 47-54 AD0-7 I/O /C Address/Data bus 0-7 55 BVDD B power supply Positive power supply (3.3V) 56 BVSS B power supply GND 57-64 AD8-15 I/O /C Address/Data bus 8-15 65 xcs O C CD LSI chip selection output 66 NC Not used (Open) 67, 68 DBBWRDY0, 1 I Connected to AVDD or AVSS via the resistor 69, 70 DBBRRDY0, 1 I Connected to AVDD or AVSS via the resistor 71 AVDD A power supply Positive power supply (5V) 72 AVSS A power supply GND 73 AVREF The reference voltage input for A/D converter 74 VDSENS VD power supply short sense input 75 DSCSNS Disc state sense input 76 TEMP Temperature information sense input 77 HOME I Home SW sense input 78 csens I Flap closing sense input 79 RFOKIN I RFOK input chatter count input 80-82 NC Connected to AVDD or AVSS via the resistor 83 WMAARI I Connected to AVDD or AVSS via the resistor 84 TYPE_A/D I Connected to AVDD or AVSS via the resistor 85 testin I Chip check test program starting input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 81 5 6 7 8 5 6 7 8 C D F A B E Pin No. Pin Name I/O Format Function and Operation 86 NC Connected to EVDD or EVSS via the resistor 87 xint CD LSI interruption signal input 88 wint Connected to EVDD or EVSS via the resistor 89 brst I P-Bus reset input 90 ejsw I Eject key input 91 4/16 I C DRAM 4M/16M selection (L : 4M, H : 16M) 92 NC Open 93 CLAMP I C CLAMP SW sense input 94 ROMDATA I/O /C E2PROM data input/output 95 ROMCS O C E2PROM chip selection output 96 ROMCK O C E2PROM clock output 97 FRXD I For flash rewriting (received signal) 98 FTXD O C For flash rewriting (transmitted signal) 99 NC Open 100 BSI I P-Bus serial data input * PE5427A 25 26 50 51 75 76 100 1 Format Meaning C CMOS 1 2 3 VIN VOUT VSS Reference Voltage * S-812C33AUA-C2N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 82 1 2 3 4 1 2 3 4 C D F A B E No. Symbol I/O Explain 1 STIND O stereo "Low" when the FM stereo signals are received. indicator To be pulled up to the "VDD" at 47kΩ. 2 FMSD FM station "High" when signals are received. To be pulled up to the "VDD" at 47kΩ detector Meanwhile, 10kΩ should be used when taking diver FIX trigger from here and "High: 0.9VDD or more" and "Low: 250mV or less". (Should satisfy the diver IC specifications) 3 NL1 O noise level-1 "High" when noise is received. Output for the RDS. GND at 47kΩ//1,800pF. 4 NL2 O noise level-2 "High" when noise is received. Output for the RDS. GND at 36kΩ//330pF. 5 Rch O R channel FM stereo "R-ch" signal output or AM audio output. output Add the specified de-emphasis constant. 6 Lch O L channel FM stereo "L-ch" signal output or AM audio output. output Add the specified de-emphasis constant. 7 WC write control EEPROM write control. Writing permissible at "Low". Normally open. 8 SDBW O SD bandwidth SD bandwidth signal output. For detection of detuning data for the RDS. 9 AMDET O AM detector AM detector output. r out < 100Ω output 10 VDD power Power supply pin for the digital section. supply DC 5V +/- 0.25V. Be careful about overlapping noise in the logic section. 11 DGND digital ground Grounding for the digital section. 12 CE2 I chip enable-2 EEPROM chip enable. Active a "Low" To be pulled up to the "VDD" at 47kΩ 13 SL I/O signal level Received FM/AM signal level (strength) output. Connect the specified load resistor and capacitor (10k Ω+ 39k Ω//4,700pF) 14 DI/DO I/O data input/ Data input/Data output data output To be pulled up to the "VDD" at 47kΩ 15 CK I clock Clock input To be pulled up to the "VDD" at 47kΩ 16 CE1 I chip enable-1 AF·RF chip enable. Active at "High"To be grounded at 47kΩ 17 AMPNS AM PNS IF signal IF signal output for AM PNS circuit. 18 LDET O lock detector Active at "Low". To be pulled up to the "VDD" at 47kΩ 19 CREQ I current request Active at "Low". To be grounded at 47kΩ 20 AMINI AM audio input The frequency response and the level are set by connecting an external CR network with terminal AMIN as terminal AMDET. r in = 50kΩ 21 COMP O composite signal FM composite signal output. r out < 100Ω 22 VCC power supply Analog section power supply pin.DC 8.4V +/- 0.3V 23 LOCH I local high FM local high pin. When seeking local high, apply 5V together with "LOCL". 24 FMLOCL I FM local low FM local low pin. When seeking local low, apply 5V to the base of the NPN transistor with which the specified resistor is being connected to the emitter. Keep it open in case of ordinary marketed models. 25 LOCL I local low FM/AM local low pin. When seeking local low, apply 5V to the base of the NPN transistor.Since this pin is exclusive for AM when the FMLOCL is in use, do not drive it under FM. 26 RFGND RF ground Grounding for the antenna section. 27 FMANT I FM antenna input FM antenna input. 75Ω. Surge absorber (DSP-201M-S00B) is necessary. 28 AMANT I AM antenna input AM antenna input. High impedance. Connect to the antenna through an L (LAU type) of 4.7µH.To cope with the power transmission line hums, insert a series circuit consisting of an L (a coil of about 100mH) + R (a resistor of 470 Ω to 2.2kΩ) between the GND. IC 3 EEPROM 28 27 FM/AM 1ST IF 10.7MHz T51 Q51 CF51 CF52 CF53 IC1 MIXER, IF AMP, DET. 6 21 18 LDET COMP 22 25 10 14 12 15 16 8 13 3 CF202 VDD VCC DI/DO CE2 CK CE1 SDBW SL FMSD NL1 NL2 IC 2 FM MPX AMANT FMANT ATT ATT AMRF FMRF IMG ADJ RF ADJ X901 10.25MHz ANT ADJ LOCL 23 LOCH AMDET MPXREF 41kHz AM 2ND IF 450kHz 19 CREQ 11 DGND 1 STIND L ch 5 R ch 9 24 AMDET FMLOCL 20 17 7 AMPNS WC 26 RFGND AMIN - FM/AM Tuner Unit O O 4 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 83 5 6 7 8 5 6 7 8 C D F A B E 7.2.2 DISPLAY COMMON SEGMENT - LCD(CAW1826) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 84 1 2 3 4 1 2 3 4 C D F A B E 7.3 OPERATIONAL FLOW CHART VCC=5V Pin 62 Power ON bsen=L asen=L YES VCC=5V Pin 16 bsen Pin 73 asen Pin 20 SYSPW←H Pin 49 IPPW←H Pin 47 swvdd←L Pin 65 Source keys operative Completes power-on operation. (After that, proceed to each source operation) Source ON www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 85 5 6 7 8 5 6 7 8 C D F A B E 7.4 CLEANING Before shipping out the product, be sure to clean the following portions by using the prescribed cleaning tools: Portions to be cleaned Cleaning tools CD pickup lenses Cleaning liquid : GEM1004 Cleaning paper : GED-008 Portions to be cleaned Cleaning tools Cassette heads Pinch rollers Capstans Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 86 1 2 3 4 1 2 3 4 C D F A B E 8. OPERATIONS - RADIO(FH-M8047ZT/XN/ES,FH-M8047ZT/XIN/ES) POWER ON/OFF VOLUME FILE UP/DOWN, AUDIO CONTROL - RADIO(FH-M8147ZT/XN/ES,FH-M8147ZT/XIN/ES) POWER ON/OFF VOLUME FILE UP/DOWN, AUDIO CONTROL MUTE FM AM SEEK TUNING UP DOWN MUTE SCAN / PRESET SCAN PRESET CHANNEL RECALL/ PRESET CHNNEL MEMORY PRESET CHANNEL RECALL/ PRESET CHNNEL MEMORY FM AM SEEK TUNING UP DOWN SCAN / PRESET SCAN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 87 5 6 7 8 5 6 7 8 C D F A B E - SINGLE CD(FH-M8047ZT/XN/ES,FH-M8047ZT/XIN/ES) CD TRACK /FAST/FILE UP DOWN POWER ON/OFF VOLUME FILE UP/DOWN, AUDIO CONTROL MUTE SCAN/ FOLDER SCAN FOLDER DOWN/ HOME FOLDER UP/ CD-DA•MP3 SELECT MUSIC REPEAT/FILE REPEAT/ 1-FOLDER REPEAT RANDOM/1-FOLDER RANDOM/ 1-DISC RANDOM TEXT DATA INDICATION/ TEXT DATA PAGE SELECT EJECT - SINGLE CD(FH-M8147ZT/XN/ES,FH-M8147ZT/XIN/ES) CD TRACK /FAST/FILE UP DOWN POWER ON/OFF VOLUME FILE UP/DOWN, AUDIO CONTROL MUTE SCAN/ FOLDER SCAN FOLDER DOWN/ HOME FOLDER UP/ CD-DA•MP3 SELECT MUSIC REPEAT/FILE REPEAT/ 1-FOLDER REPEAT RANDOM/1-FOLDER RANDOM/ 1-DISC RANDOM TEXT DATA INDICATION/ TEXT DATA PAGE SELECT EJECT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 88 1 2 3 4 1 2 3 4 C D F A B E - MULTI CD CONTROL(FH-M8047ZT/XN/ES,FH-M8047ZT/XIN/ES) POWER ON/OFF VOLUME MUTE - MULTI CD CONTROL(FH-M8147ZT/XN/ES,FH-M8147ZT/XIN/ES) POWER ON/OFF VOLUME MUTE MUSIC REPEAT / DISC REPEAT 1-DISC RANDOM/ALL-DISC RANDOM MULTI CD TRACK/FAST UP DOWN SCAN / DISC SCAN DISC NUMBER UP DOWN AUDIO CONTROL AUDIO CONTROL MUSIC REPEAT / DISC REPEAT 1-DISC RANDOM/ALL-DISC RANDOM MULTI CD TRACK/FAST UP DOWN SCAN / DISC SCAN DISC NUMBER UP DOWN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 89 5 6 7 8 5 6 7 8 C D F A B E - TAPE(FH-M8047ZT/XN/ES,FH-M8047ZT/XIN/ES) POWER ON/OFF VOLUME MUTE - TAPE(FH-M8147ZT/XN/ES,FH-M8147ZT/XIN/ES) POWER ON/OFF VOLUME MUSIC REPEAT TAPE REWIND AUDIO CONTROL AUDIO CONTROL AUTOMATIC PROGRAM SEARCH UP DOWN TAPE EJECT FAST FORWARD DIRECTION CHANGE DOLBY B NR MUTE MUSIC REPEAT TAPE EJECT FAST FORWARD DOLBY B NR TAPE REWIND AUTOMATIC PROGRAM SEARCH UP DOWN DIRECTION CHANGE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FH-M8047ZT/XN/ES 90 1 2 3 4 1 2 3 4 C D F A B E - Jigs List Test Disc L.P.F. Extension Cable Extension Cord Test Tape Cleaning liquid Cleaning paper TCD-782 GGF-146 GGD1121 NCT-150 GEM1004 GED-008 Checking the grating g g g Checking the grating g g g (Two pieces) ( ) Checking the operation g Connecting the deck unit g Adjusting the Dolby B NR Cleaning CD pickup lenses Cleaning CD pickup lenses, cassette heads, pinch rollers and Capstans Name Jig No. Remarks j g y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
