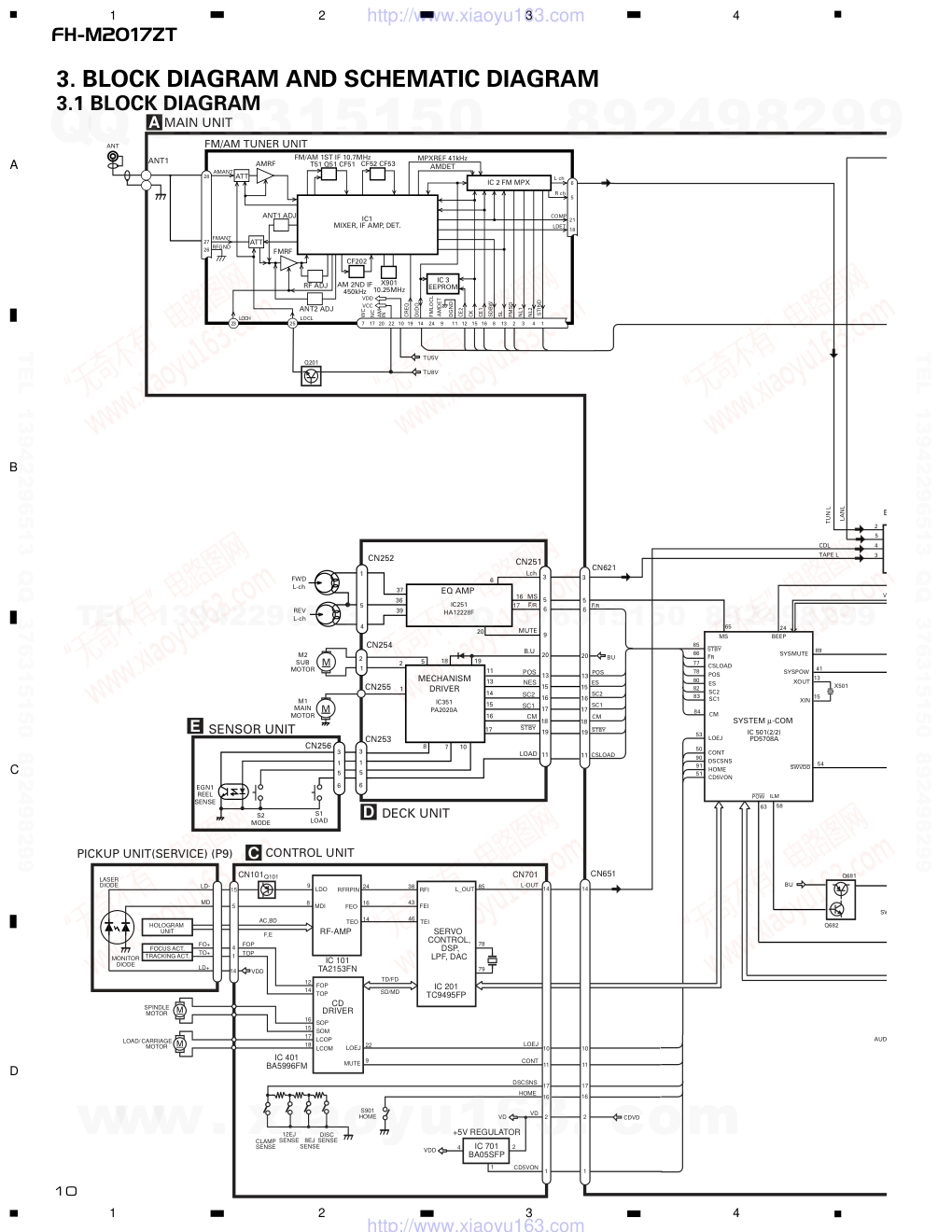

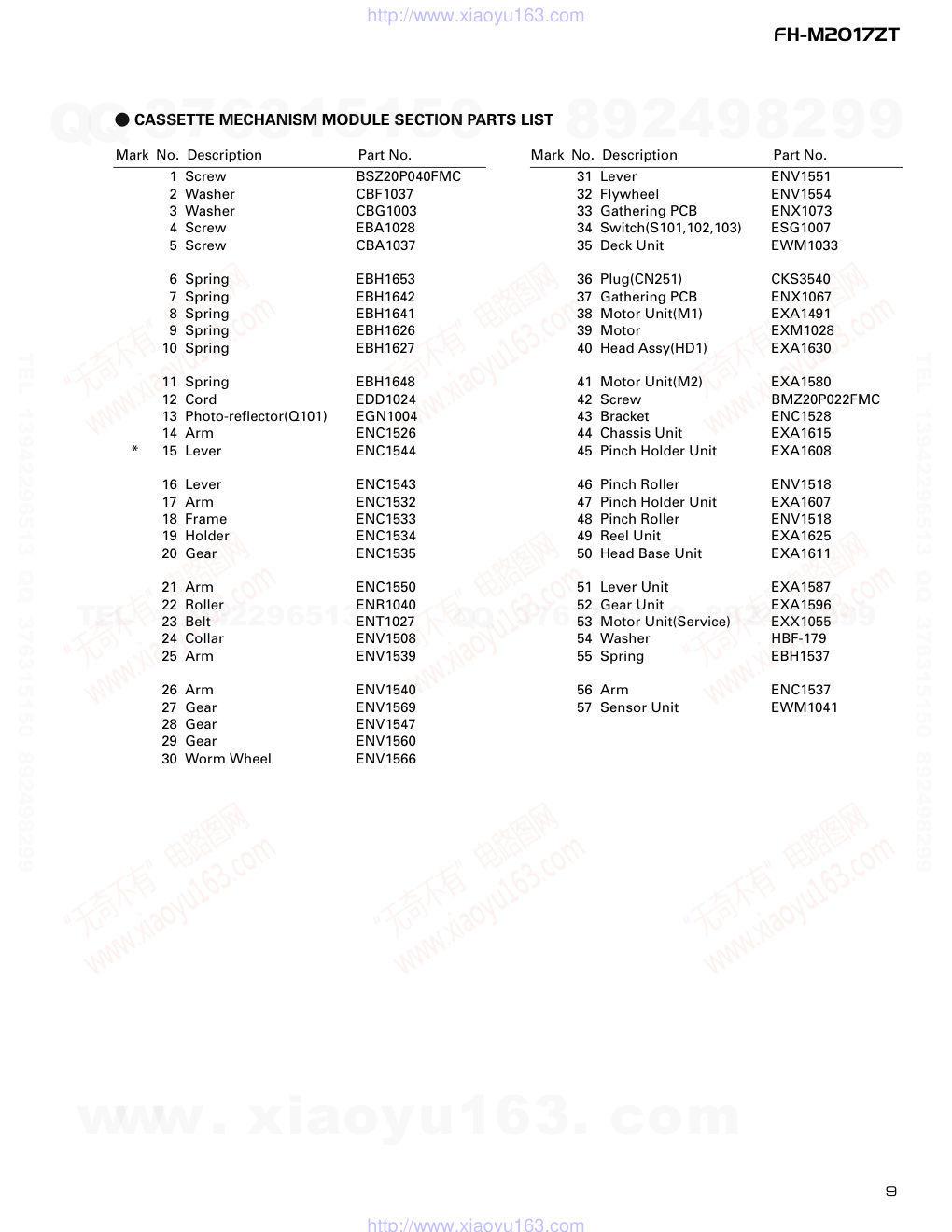

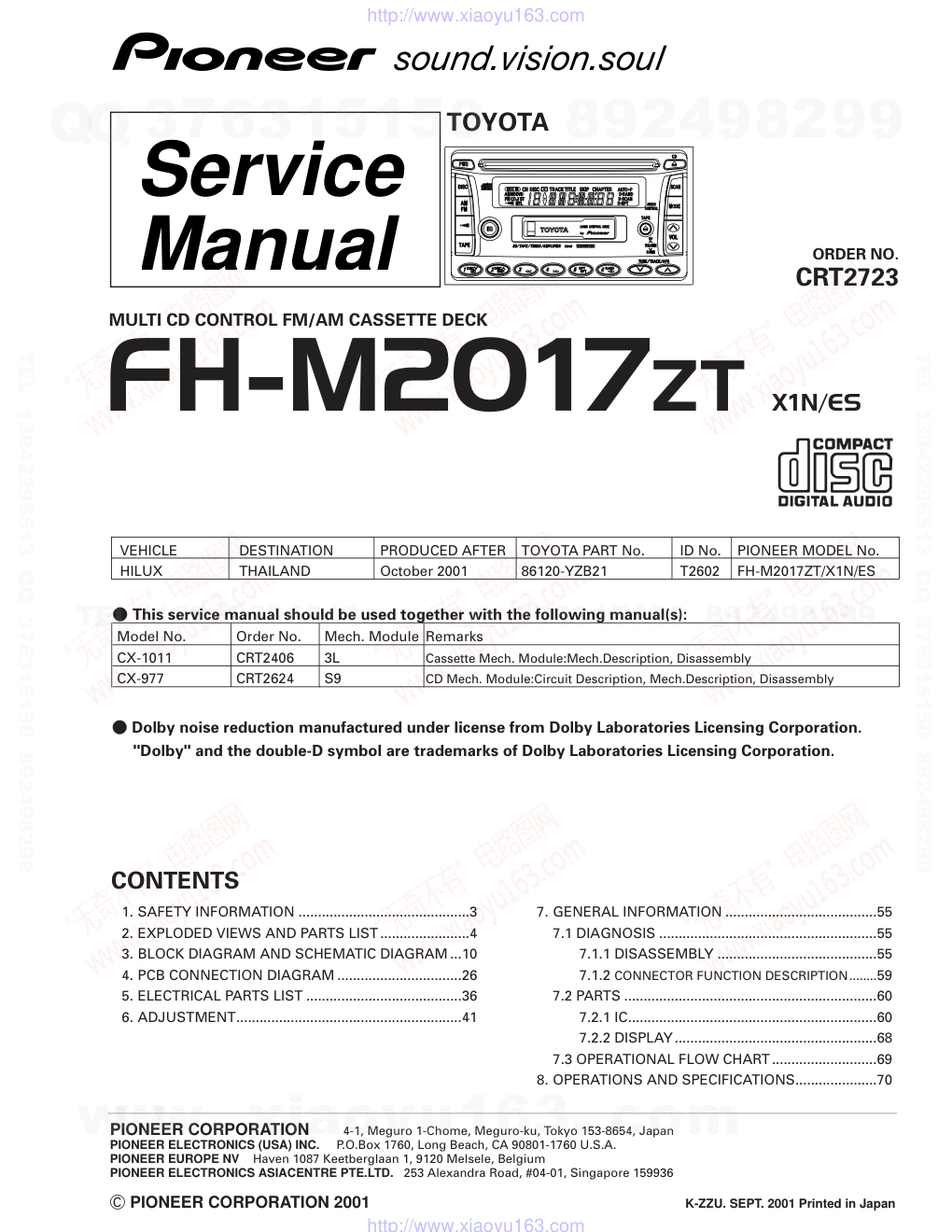

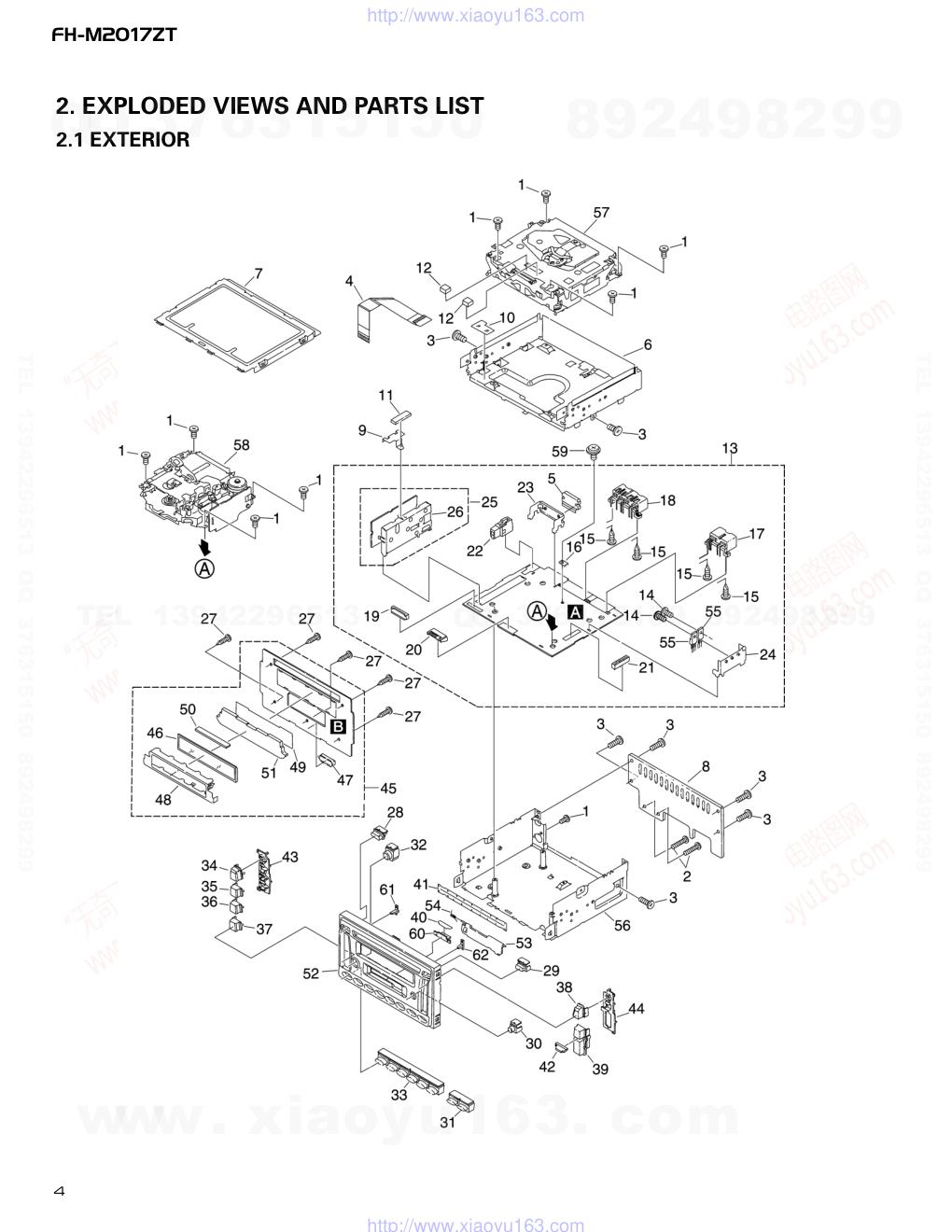

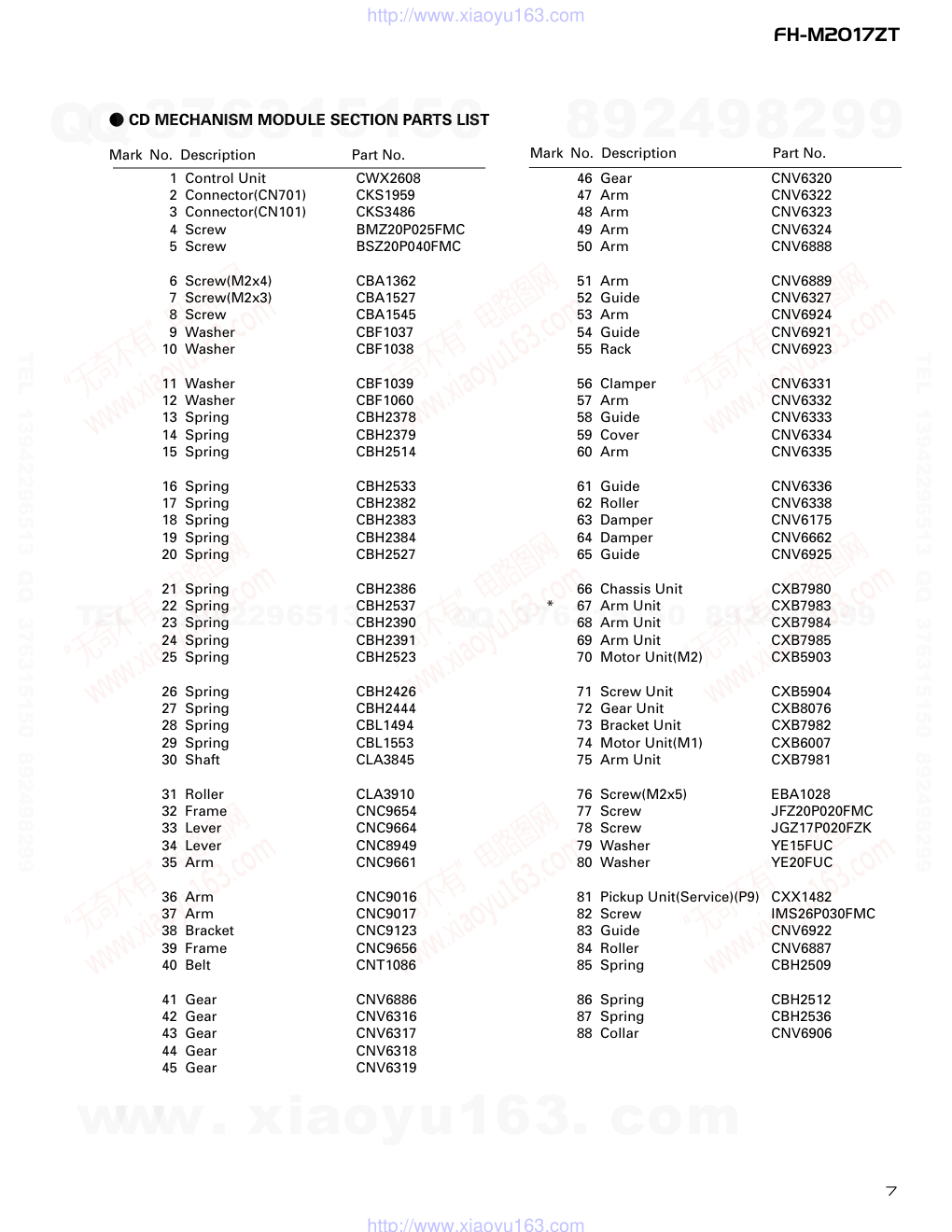

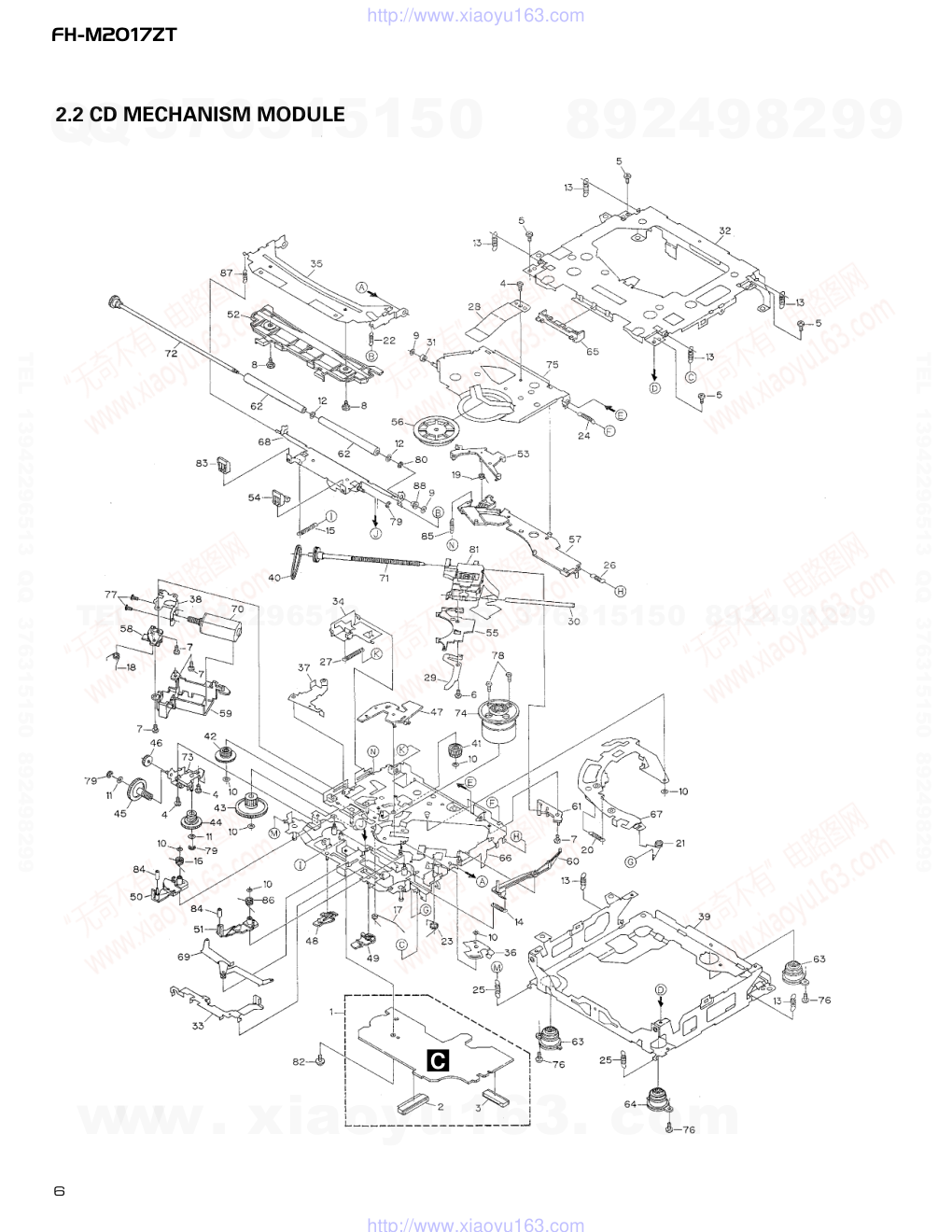

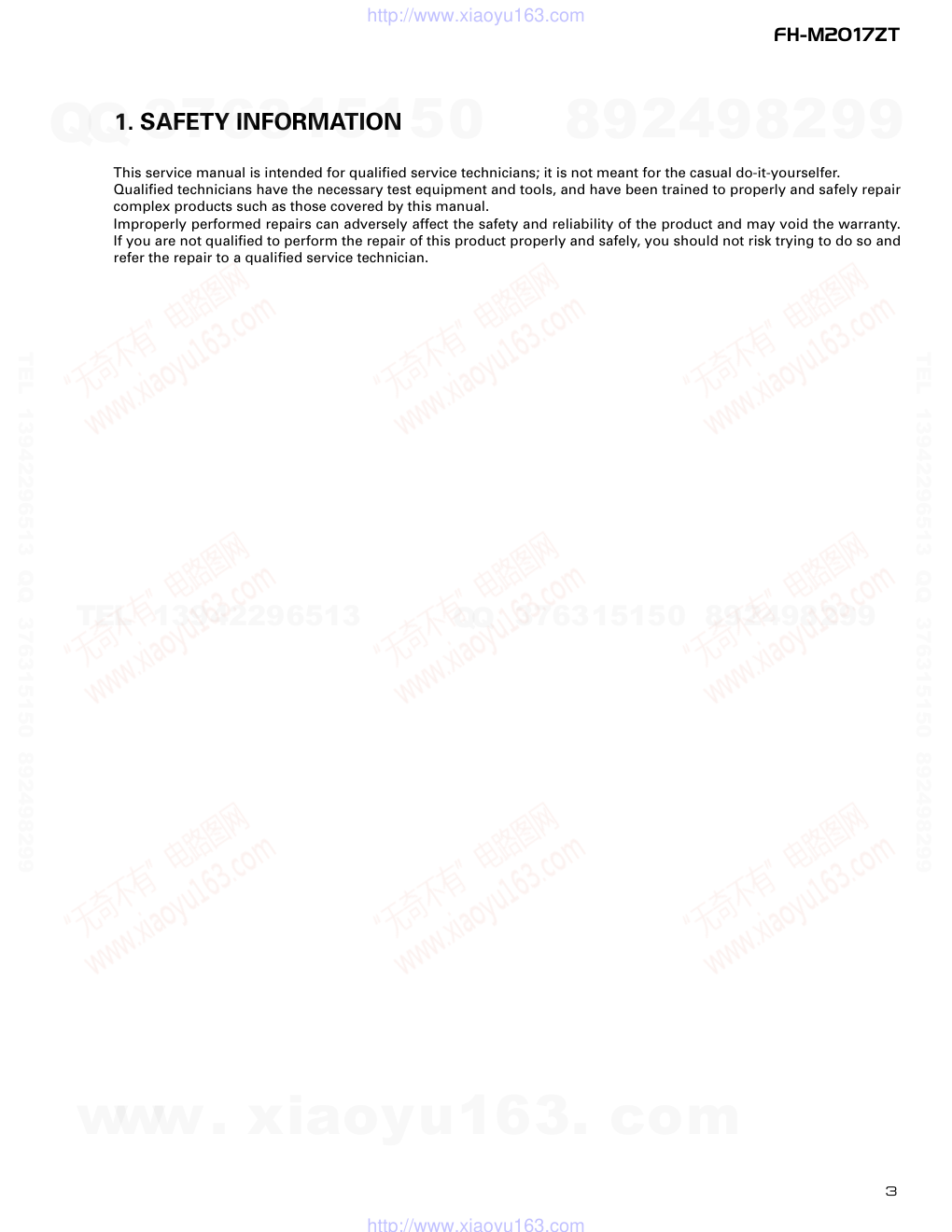

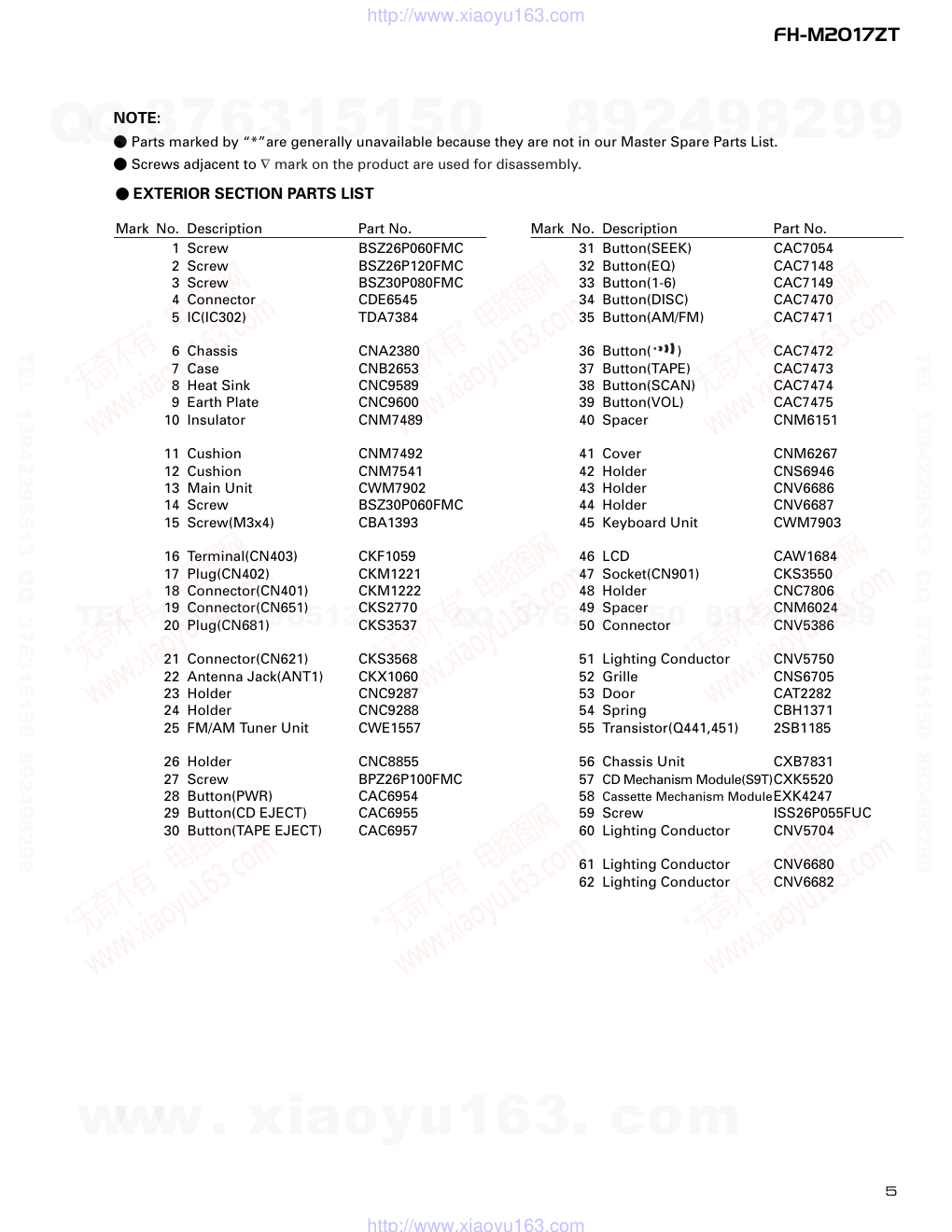

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936 C PIONEER CORPORATION 2001 K-ZZU. SEPT. 2001 Printed in Japan ORDER NO. CRT2723 MULTI CD CONTROL FM/AM CASSETTE DECK FH-M2017ZT X1N/ES TOYOTA - This service manual should be used together with the following manual(s): Model No. Order No. Mech. Module Remarks CX-1011 CRT2406 3L Cassette Mech. Module:Mech.Description, Disassembly CX-977 CRT2624 S9 CD Mech. Module:Circuit Description, Mech.Description, Disassembly CONTENTS 1. SAFETY INFORMATION ............................................3 2. EXPLODED VIEWS AND PARTS LIST.......................4 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...10 4. PCB CONNECTION DIAGRAM ................................26 5. ELECTRICAL PARTS LIST ........................................36 6. ADJUSTMENT..........................................................41 7. GENERAL INFORMATION .......................................55 7.1 DIAGNOSIS ........................................................55 7.1.1 DISASSEMBLY .........................................55 7.1.2 CONNECTOR FUNCTION DESCRIPTION........59 7.2 PARTS .................................................................60 7.2.1 IC................................................................60 7.2.2 DISPLAY....................................................68 7.3 OPERATIONAL FLOW CHART...........................69 8. OPERATIONS AND SPECIFICATIONS.....................70 - Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. VEHICLE DESTINATION PRODUCED AFTER TOYOTA PART No. ID No. PIONEER MODEL No. HILUX THAILAND October 2001 86120-YZB21 T2602 FH-M2017ZT/X1N/ES Service Manual www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 FH-M2017ZT - CD Player Service Precautions 1. For pickup unit(CXX1482) handling, please refer to"Disassembly"(see page 55). During replacement, handling precautions shall be taken to prevent an electrostatic discharge(protection by a jumper-solder). 2. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a con- nector is plugged or unplugged. 3. Please checking the grating after changing the ser- vice pickup unit(see page 44). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 FH-M2017ZT This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. 1. SAFETY INFORMATION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 FH-M2017ZT 2. EXPLODED VIEWS AND PARTS LIST 2.1 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 FH-M2017ZT 1 Screw BSZ26P060FMC 2 Screw BSZ26P120FMC 3 Screw BSZ30P080FMC 4 Connector CDE6545 5 IC(IC302) TDA7384 6 Chassis CNA2380 7 Case CNB2653 8 Heat Sink CNC9589 9 Earth Plate CNC9600 10 Insulator CNM7489 11 Cushion CNM7492 12 Cushion CNM7541 13 Main Unit CWM7902 14 Screw BSZ30P060FMC 15 Screw(M3x4) CBA1393 16 Terminal(CN403) CKF1059 17 Plug(CN402) CKM1221 18 Connector(CN401) CKM1222 19 Connector(CN651) CKS2770 20 Plug(CN681) CKS3537 21 Connector(CN621) CKS3568 22 Antenna Jack(ANT1) CKX1060 23 Holder CNC9287 24 Holder CNC9288 25 FM/AM Tuner Unit CWE1557 26 Holder CNC8855 27 Screw BPZ26P100FMC 28 Button(PWR) CAC6954 29 Button(CD EJECT) CAC6955 30 Button(TAPE EJECT) CAC6957 31 Button(SEEK) CAC7054 32 Button(EQ) CAC7148 33 Button(1-6) CAC7149 34 Button(DISC) CAC7470 35 Button(AM/FM) CAC7471 36 Button( ) CAC7472 37 Button(TAPE) CAC7473 38 Button(SCAN) CAC7474 39 Button(VOL) CAC7475 40 Spacer CNM6151 41 Cover CNM6267 42 Holder CNS6946 43 Holder CNV6686 44 Holder CNV6687 45 Keyboard Unit CWM7903 46 LCD CAW1684 47 Socket(CN901) CKS3550 48 Holder CNC7806 49 Spacer CNM6024 50 Connector CNV5386 51 Lighting Conductor CNV5750 52 Grille CNS6705 53 Door CAT2282 54 Spring CBH1371 55 Transistor(Q441,451) 2SB1185 56 Chassis Unit CXB7831 57 CD Mechanism Module(S9T)CXK5520 58 Cassette Mechanism ModuleEXK4247 59 Screw ISS26P055FUC 60 Lighting Conductor CNV5704 61 Lighting Conductor CNV6680 62 Lighting Conductor CNV6682 - EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. NOTE: - Parts marked by “*”are generally unavailable because they are not in our Master Spare Parts List. - Screws adjacent to ∇ mark on the product are used for disassembly. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 FH-M2017ZT 2.2 CD MECHANISM MODULE C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 FH-M2017ZT 1 Control Unit CWX2608 2 Connector(CN701) CKS1959 3 Connector(CN101) CKS3486 4 Screw BMZ20P025FMC 5 Screw BSZ20P040FMC 6 Screw(M2x4) CBA1362 7 Screw(M2x3) CBA1527 8 Screw CBA1545 9 Washer CBF1037 10 Washer CBF1038 11 Washer CBF1039 12 Washer CBF1060 13 Spring CBH2378 14 Spring CBH2379 15 Spring CBH2514 16 Spring CBH2533 17 Spring CBH2382 18 Spring CBH2383 19 Spring CBH2384 20 Spring CBH2527 21 Spring CBH2386 22 Spring CBH2537 23 Spring CBH2390 24 Spring CBH2391 25 Spring CBH2523 26 Spring CBH2426 27 Spring CBH2444 28 Spring CBL1494 29 Spring CBL1553 30 Shaft CLA3845 31 Roller CLA3910 32 Frame CNC9654 33 Lever CNC9664 34 Lever CNC8949 35 Arm CNC9661 36 Arm CNC9016 37 Arm CNC9017 38 Bracket CNC9123 39 Frame CNC9656 40 Belt CNT1086 41 Gear CNV6886 42 Gear CNV6316 43 Gear CNV6317 44 Gear CNV6318 45 Gear CNV6319 46 Gear CNV6320 47 Arm CNV6322 48 Arm CNV6323 49 Arm CNV6324 50 Arm CNV6888 51 Arm CNV6889 52 Guide CNV6327 53 Arm CNV6924 54 Guide CNV6921 55 Rack CNV6923 56 Clamper CNV6331 57 Arm CNV6332 58 Guide CNV6333 59 Cover CNV6334 60 Arm CNV6335 61 Guide CNV6336 62 Roller CNV6338 63 Damper CNV6175 64 Damper CNV6662 65 Guide CNV6925 66 Chassis Unit CXB7980 * 67 Arm Unit CXB7983 68 Arm Unit CXB7984 69 Arm Unit CXB7985 70 Motor Unit(M2) CXB5903 71 Screw Unit CXB5904 72 Gear Unit CXB8076 73 Bracket Unit CXB7982 74 Motor Unit(M1) CXB6007 75 Arm Unit CXB7981 76 Screw(M2x5) EBA1028 77 Screw JFZ20P020FMC 78 Screw JGZ17P020FZK 79 Washer YE15FUC 80 Washer YE20FUC 81 Pickup Unit(Service)(P9) CXX1482 82 Screw IMS26P030FMC 83 Guide CNV6922 84 Roller CNV6887 85 Spring CBH2509 86 Spring CBH2512 87 Spring CBH2536 88 Collar CNV6906 - CD MECHANISM MODULE SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 FH-M2017ZT 2.3 CASSETTE MECHANISM MODULE D E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 FH-M2017ZT 1 Screw BSZ20P040FMC 2 Washer CBF1037 3 Washer CBG1003 4 Screw EBA1028 5 Screw CBA1037 6 Spring EBH1653 7 Spring EBH1642 8 Spring EBH1641 9 Spring EBH1626 10 Spring EBH1627 11 Spring EBH1648 12 Cord EDD1024 13 Photo-reflector(Q101) EGN1004 14 Arm ENC1526 * 15 Lever ENC1544 16 Lever ENC1543 17 Arm ENC1532 18 Frame ENC1533 19 Holder ENC1534 20 Gear ENC1535 21 Arm ENC1550 22 Roller ENR1040 23 Belt ENT1027 24 Collar ENV1508 25 Arm ENV1539 26 Arm ENV1540 27 Gear ENV1569 28 Gear ENV1547 29 Gear ENV1560 30 Worm Wheel ENV1566 31 Lever ENV1551 32 Flywheel ENV1554 33 Gathering PCB ENX1073 34 Switch(S101,102,103) ESG1007 35 Deck Unit EWM1033 36 Plug(CN251) CKS3540 37 Gathering PCB ENX1067 38 Motor Unit(M1) EXA1491 39 Motor EXM1028 40 Head Assy(HD1) EXA1630 41 Motor Unit(M2) EXA1580 42 Screw BMZ20P022FMC 43 Bracket ENC1528 44 Chassis Unit EXA1615 45 Pinch Holder Unit EXA1608 46 Pinch Roller ENV1518 47 Pinch Holder Unit EXA1607 48 Pinch Roller ENV1518 49 Reel Unit EXA1625 50 Head Base Unit EXA1611 51 Lever Unit EXA1587 52 Gear Unit EXA1596 53 Motor Unit(Service) EXX1055 54 Washer HBF-179 55 Spring EBH1537 56 Arm ENC1537 57 Sensor Unit EWM1041 Mark No. Description Part No. Mark No. Description Part No. - CASSETTE MECHANISM MODULE SECTION PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 89 SYSMUTE XOUT XIN 2 4 3 SYSTEM µ-COM IC 501(2/2) PD5708A ANT1 TU5V TU8V ANT E CN621 MAIN UNIT 13 X501 15 14 1 V TUN L CDL TAPE L 41 SYSPOW fR CSLOAD POS ES SC2 66 77 78 80 82 BU 65 MS 83 SC1 85 84 CM stby f/R POS ES SC2 SC1 CM stby CSLOAD Q201 54 swvdd SW AUD Q681 Q682 BU ILM 58 CDVD 53 50 90 91 51 LOEJ CONT DSCSNS HOME CD5VON BEEP 24 LANL 5 pow 63 IC 3 EEPROM FM/AM TUNER UNIT 28 27 FM/AM 1ST IF 10.7MHz T51 Q51 CF51 CF52 CF53 IC1 MIXER, IF AMP, DET. 6 21 18 LDET COMP 22 25 10 14 12 15 16 8 13 2 3 4 CF202 VDD VCC DI/DO CE2 CK CE1 SDBW SL FMSD NL1 NL2 IC 2 FM MPX AMANT FMANT ATT ATT AMRF FMRF RF ADJ ANT2 ADJ X901 10.25MHz ANT1 ADJ LOCL 23 LOCH AMDET MPXREF 41kHz AM 2ND IF 450kHz 19 CREQ 11 DGND 1 STIND L ch 5 R ch 9 24 AMDET FMLOCL 20 17 7 AM IN NC WC 26 RFGND stby B.U MUTE LOAD 5 1 4 2 1 3 11 9 20 19 D DECK UNIT IC251 HA12228F IC351 PA2020A EQ AMP MECHANISM DRIVER CN251 CN252 CN254 CN255 CN253 6 16 MS Lch 20 FWD L-ch REV L-ch 37 36 39 18 19 17 8 7 10 CN256 S1 LOAD S2 MODE EGN1 REEL SENSE M M M2 SUB MOTOR M1 MAIN MOTOR 5 2 1 E SENSOR UNIT 6 5 17 f/R 15 13 13 11 POS NES 18 17 16 15 SC1 CM 16 14 SC2 3 11 20 19 6 5 15 13 18 17 16 3 1 5 6 3 1 5 6 A C CN701 Q101 CONTROL UNIT M LASER DIODE MONITOR DIODE CLAMP SENSE DISC SENSE FOCUS ACT. SPINDLE MOTOR M CARRIAGE MOTOR LOAD/ TRACKING ACT. LD- MD FO+ TO+ 15 5 1 4 PICKUP UNIT(SERVICE) (P9) HOLOGRAM UNIT IC 401 BA5996FM IC 201 TC9495FP IC 701 BA05SFP +5V REGULATOR SERVO CONTROL, DSP, LPF, DAC CD DRIVER 17 DSCSNS 2 VD VD VDD 11 CONT 10 LOEJ 14 L-OUT 1 CD5VON CN101 TOP FOP 16 SOP 15 SOM 17 LCOP 18 LCOM 22 1 2 LOEJ 78 85 L_OUT 79 9 MUTE 12 FOP TD/FD AC,BD F,E SD/MD 38 RFI 43 FEI 4 14 TOP S901 HOME 12EJ SENSE 8EJ SENSE HOME 16 LD+ 14 VDD 9 LDO 8 MDI IC 101 TA2153FN RFRPIN FEO TEO 24 16 14 46 TEI RF-AMP 17 2 11 10 14 1 16 CN651 10 FH-M2017ZT A 1 2 3 4 B C D 1 2 3 4 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com B 12 1 bsen asen VDD BU ST 20 19 SD SL PCE1 pck PCE2 PDI PDO 10 FL 11 RL 3 5 19 17 FL— FL+ RL— RL+ ACC 26 25 97 TUL 2 CDL 4 CSL 3 23 2 28 100 1 FLIN 12 RLIN 15 22 4 SYSTEM µ-COM RESET POWER AMP IC 501(1/2) PD5708A IC 301 PML003AM IC 551 S-80735ANDZI IC 302 TDA7384 reset CDVD Q451 Q402 SYSPW ELECTRONIC VOLUME/ SOURCE SELECTOR STBY MUTE CN681 KEYBOARD UNIT 501 2 VST,VCK,VDT AUDIO+B BU Q441 Q442 BU ACC RL+ FL+ RL- FL- Q321 MUTE CN901 Q403 Q452 VDCONT 49 AUDIO+B Q322 Q401 BU MUTE BU Q421 Q424 Q423 BU VDD SWVDD Q561 IC 901 LC75853NE LCD DRIVER KEY MATRIX KEY DATA VDD 56 LCD SWVDD AUDIO+B Q681 LCK,LCE,LDO,LDI L+ IC 571 HA12187FP BUS+ 6 BUS- 5 2 1 29 30 DOUT DIN1 RXI TX TX+ TX- BU LANL 5 LANL 1 2 10 14 13 5 S904 POWER 9 6 ILL+B SWVDD LCDBL CN401 CN402 11 FH-M2017ZT 5 6 7 8 A B C D 5 6 7 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 FH-M2017ZT A 1 2 3 4 B C D 1 2 3 4 A A-a A-a A-b A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE) Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS LIST”. A-a R353 0R0 R354 0R0 PD 47K 1R5K 1R5K 10K 56K 2200P 5600P R018 R018 4700P 4700P TUNER: -30dBs CD: 4.2dBs TAPE: -7.3dBs D CN251 C CN701 B CN901 FM/AM TUNER UNIT DECK U CONTROL UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 FH-M2017ZT 5 6 7 8 A B C D 5 6 7 8 A-b A 600µH > PML003AM D5708A R22 R22 R015 C316 R015 C315 Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. BUS DRIVER E-VOLUME MAIN UNIT E-VOL input AVC-LAN: -3.8dBs CD,MD: -3.8dBs TAPE:-9.8dBs FM:-30.7dBs FM: -11.6dBs FM: 14.4dBs AVC-LAN: 8.2dBs A NITwww. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 FH-M2017ZT A 1 2 3 4 B C D 1 2 3 4 R353 0R0 R354 0R0 47K 1R5K 1R5K 56K 2200P 5600P R018 R018 4700P 4700P TUNER: -30dBs FM/AM TUNER UNIT A-a A-b A-a 1 2 3 4 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 FH-M2017ZT 5 6 7 8 A B C D 5 6 7 8 PD5708A 10K CD: 4.2dBs TAPE: -7.3dBs D CN251 C CN701 B CN901 DECK UNIT CONTROL UNIT A-a A-b A-a 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 FH-M2017ZT A 1 2 3 4 B C D 1 2 3 4 600µH > PML003AM R22 R22 R015 C316 R015 C315 BUS DRIVER E-VOLUME MAIN UNIT E-VOL input AVC-LAN: -3.8dBs CD,MD: -3.8dBs TAPE:-9.8dBs FM:-30.7dBs FM: -11.6dBs FM: 14.4dBs AVC-LAN: 8.2dBs A A-a A-b A-b 1 2 3 4 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 FH-M2017ZT 5 6 7 8 A B C D 5 6 7 8 Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. A-a A-b A-b 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 FH-M2017ZT A 1 2 3 4 B C D 1 2 3 4 10V 8.4V 5V CN681 A PWR CD EJECT TAPE EJECT CEL1588 CEL1588 EQ CD IN 2 CD IN 1 EQ CS IN 2 CS IN 1 3.3 KEYBOARD UNIT B KEYBOARD UNIT B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 FH-M2017ZT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3.4 CD MECHANISM MODULE 20 FH-M2017ZT A 1 2 3 4 B C D 1 2 3 4 M1 CXB6007 M2 CXB5903 LOADING/CARRIAGE SPINDLE RF AMP ACT/MOTOR DRIVER 5V REGULATOR CN101 C PICKUP UNIT(SERVICE)(S9) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 FH-M2017ZT 5 6 7 8 A B C D 5 6 7 8 C 16.934MHz SERVO CONTROL/DSP/DAC/LPF ER CN701 TC9495FP SWITCHES: CONTROL UNIT S901 : HOME SWITCH.....ON-OFF S902 : CLAMP SWITCH....ON-OFF S903 : DSCSNS SWITCH....ON-OFF S904 : 12EJ SWITCH....ON-OFF S905 : 8EJ SWITCH....ON-OFF The underlined indicates the switch position. CONTROL UNIT C A CN651 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 FH-M2017ZT @ CH1:BCK 2V/div. During "Play" 1 CH1:DSCSNS 5V/div. 2 CH2:CLCONT 5V/div. 3 CH3:LOEJ 5V/div. 4 CH4:VD 10V/div. When loading (8 cm CD) 500ms/div. 5 CH1:FD 500mV/div. 6 CH2:FOK 5V/div. 7 CH3:MD 5V/div. When setting up "Source On" 500ms/div. 8 CH1:FE 500mV/div. 9 CH2:FOON 5V/div. When setting up "Source On" 500ms/div. 5 CH1:FD 500mV/div. 6 CH2:FOK 5V/div. 7 CH3:MD 5V/div. Magnified drawing for "time" 100ms/div. 1 CH1:DSCSNS 5V/div. 2 CH2:CLCONT 5V/div. 3 CH3:LOEJ 5V/div. 4 CH4:VD 10V/div. When loading (12 cm CD) Ref. : GND Mode : Normal Ref. : GND Mode : Normal Ref. : VREF Mode : Normal Ref. : VREF Mode : Normal Ref. : VREF Mode : Normal Ref. : VREF Mode : Normal Ref. : VREF Mode : Normal Ref. : VREF Mode : Normal Ref. : VREF Mode : Normal Ref. : VREF Mode : Test Ref. : VREF Mode : Normal Ref. : VREF Mode : Normal 500ms/div. 0 CH1:TE 500mV/div. 8 CH2:FE 500mV/div. When setting up "Source On" 200ms/div. 1µs/div. # CH1:LRCK 2V/div. $ CH2:DOUT 2V/div. During "Play" 10µs/div. 7 CH1:MD 500mV/div. During "Play" 10µs/div. % CH1:RFO 500mV/div. During "Play" 0.5µs/div. % CH1:RFO 500mV/div. 0 CH2:TE 500mV/div. During "Tracking Open" 2ms/div. 8 CH1:FE 500mV/div. 5 CH2:FD 500mV/div. 0 CH3:TE 500mV/div. ! CH4:TD 500mV/div. During "Play" 1ms/div. - Waveforms Note:1. The encircled numbers denote measuring pointes in the circuit diagram. 2. Reference voltage VREF:2.1V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 FH-M2017ZT % CH1:RFO 1V/div. 0 CH2:TE 500mV/div. & CH3:DFCT 5V/div. During inside/outside search 200ms/div. % CH1:RFO 1V/div. 0 CH2:TE 500mV/div. ! CH3:TD 1V/div. 1 Track Jump 500µs/div. % CH1:RFO 1V/div. 0 CH2:TE 1V/div. ! CH3:TD 1V/div. 100 Track Jump 5ms/div. % CH1:RFO 1V/div. 0 CH2:TE 1V/div. ! CH3:TD 1V/div. 32 Track Jump 5ms/div. 5 CH1:FD 1V/div. ^ CH2:FOP 2V/div. With no disk inserted During "Focus Close" 200ms/div. 1 CH1:DSCSNS 5V/div. 2 CH2:CLCONT 5V/div. 3 CH3:LOEJ 5V/div. When "Eject" (8cm CD) 200ms/div. * CH1:TEY 500mV/div. ( CH2:SD 2V/div. During inside/outside search 200ms/div. 1 CH1:DSCSNS 5V/div. 2 CH2:CLCONT 5V/div. 3 CH3:LOEJ 5V/div. When "Eject" (12 cm CD) 200ms/div. % CH1:RFO 2V/div. & CH2:DFCT 5V/div. 5 CH3:FD 1V/div. ! CH4:TD 2V/div. When reproducing black dots (800µm) 500µs/div. Ref. : VREF Mode : Test Ref. : VREF Mode : Test Ref. : VREF Mode : Normal Ref. : VREF Mode : Normal Ref. : VREF Mode : Test Ref. : VREF Mode : Test Ref. : VREF Mode : Normal Ref. : GND Mode : Normal Ref. : GND Mode : Normal ) CH1:LOUT 2V/div. ⁄ CH2:ROUT 2V/div. "Play" in 1kHz, 0dB 200µs/div. Ref. : GND Mode : Normal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 FH-M2017ZT A 1 2 3 4 B C D 1 2 3 4 3.5 CASSETTE MECHANISM MODULE D DECK UNIT MUTE HA12228F 11 12 13 14 15 16 17 18 19 20 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 1 2 3 4 5 6 7 8 9 10 C253 390P C251 C256 R01 C405 R033 R404 270K R01 C404 910 R403 3R3K C255 R01 C272 R1 C401 3900P R285 0R0 HD1 HEAD ASSY EXA1506 TEST TAPE NCT-150 (400Hz, 200nWb/m) RL RR FR FL C302 R1 C301 R1 VR301 33K(B) -8.24dBs±1dB Fwd-R Fwd-L Rev-R Rev-L NF1(R) Vref1 RIN(L) NC RIN(R) GND FIN(R) Vref2 FIN(L) NFI(L) M-OUT(L) EQOUT(L) Vref4 TAI(L) BIAS NC NC MSGV(S) MUTE 120/70 ser/REP f/R MSDET MSI MAOUT MSGV(R) MOUT(R) EQOUT(R) Vref3 TAI(R) RIP PBOUT(R) NC DET(R) NRONoff CN252 CN251 Dolby-B IC251 390P C252 390P C254 390P PBOUT(L) NC VCC MSOUT NC C403 R022 R402 R33 C402 15K R401 18K R271 C271 1/50 C310 R1 C309 R1 CCP1280 VR302 33K(B) CCP1280 D A CN621 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 FH-M2017ZT 5 6 7 8 A B C D 5 6 7 8E SENSOR UNIT SWITCHES: SENSOR UNIT S101:LOAD SWITCH..........EJECT-PLAY S102:MODE SWITCH............ON-OFF S103:70µs SWITCH............ON-OFF The underlined indicates the switch position. R351 1K R352 1K R353 1K R354 1K R373 0R0 R355 270K C352 3900P R362 300 C351 R22 C353 R01 C354 R01 R374 0R0 C356 R01 C355 R1 D352 1SS355 M1 MOTOR UNIT (MAIN MOTOR) EXA1491 S101 LOAD ESG1007 S102 ESG1007 MODE REEL SENSE Q101 EGN1004 M2 MOTOR UNIT (SUB MOTOR) EXA1580 RS3 RS2 RS1 SC2 SC1 TAB MC CE VCC2 NC VCC MCS RRS FRS RSB C TAB MS2 NC NC MM SM1 RSB GND RS mtl MCS load CN255 CN253 CN256 CN254 MECHANISM DRIVER IC351 PA2020A R022 S103 ESG1007 70µs R375 0R0 L101 L102 D E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 FH-M2017ZT A 1 2 3 4 B C D 1 2 3 4 A 4. PCB CONNECTION DIAGRAM 4.1 MAIN UNIT Capacitor Connector P.C.Board Chip Part SIDE A SIDE B NOTE FOR PCB DIAGRAMS 1. The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2. Viewpoint of PCB diagrams MAIN UNIT A C CN701 ANTENNA FM/AM TUNER UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 FH-M2017ZT 5 6 7 8 A B C D 5 6 7 8A SIDE A E E FRONT B CN901 D CN251 CAR HARNESS CAR HARNESS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 FH-M2017ZT A 1 2 3 4 B C D 1 2 3 4 A MAIN UNIT A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 FH-M2017ZT 5 6 7 8 A B C D 5 6 7 8A SIDE B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 FH-M2017ZT A 1 2 3 4 B C D 1 2 3 4 4.2 KEYBOARD UNIT B SIDE A KEYBOARD UNIT B CD EJECT TAPE EJECT DISC EQ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 FH-M2017ZT 1 2 3 4 A B C D 1 2 3 4B SIDE B KEYBOARD UNIT B A CN681 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 FH-M2017ZT A 1 2 3 4 B C D 1 2 3 4 E F VREF HOME 12EJ DSCSNS 4.3 CD MECHANISM MODULE CONTROL UNIT SIDE A C C M2 LOADING/CARRIAGE MOTOR M1 SPINDLE MOTOR PICKUP UNIT(SERVICE)(P9) CN651 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 FH-M2017ZT 1 2 3 4 A B C D 1 2 3 4 CLAMP 8EJ SIDE B CONTROL UNIT C C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com IC,Q IC251 Q351 Q352 ADJ VR302 VR301 IC351 CN252 CN254 CN253 CN255 M1 M2 HEAD ASSY CN256 21 22 CN251 C271 34 FH-M2017ZT A 1 2 3 4 B C D 1 2 3 4 D 4.4 DECK UNIT DECK UNIT D DECK UNIT D SIDE A SIDE B CN621 A E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 2 3 4 5 6 S101 LOAD S102 MODE S103 70µs CN256 Q101 REEL SENSE L101 L102 35 FH-M2017ZT 1 2 3 4 A B C D 1 2 3 4E 4.5 SENSOR UNIT SENSOR UNIT E CN253 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 FH-M2017ZT Unit Number : CWM7902 Unit Name : Main Unit MISCELLANEOUS IC 301 IC PML003AM IC 302 IC TDA7384 IC 501 IC PD5708A IC 551 IC S-80735ANDZI IC 571 IC HA12187FP Q 201 Chip Transistor 2SC2712 Q 321 Transistor DTC143EK Q 322 Transistor 2SD1468S Q 401 Chip Transistor 2SC2712 Q 402 Transistor DTC144TK Q 403 Transistor DTC124TK Q 404 Transistor DTC124TK Q 421 Transistor 2SD1767 Q 423 Transistor DTC144EK Q 424 Transistor 2SA1162 Q 431 Transistor 2SA1162 Q 432 Transistor DTC124EK Q 433 Transistor 2SB1238 Q 434 Chip Transistor 2SC2712 Q 435 Chip Transistor 2SC2712 Q 441 Transistor 2SB1185 Q 442 Transistor IMX1 Q 451 Transistor 2SB1185 Q 452 Transistor IMX1 Q 481 Transistor 2SB1198K Q 482 Transistor 2SB1260 Q 483 Transistor DTC114TK Q 501 Transistor 2SA1162 Q 561 Transistor 2SA1162 Q 681 Transistor 2SB1132 Q 682 Transistor IMX1 D 321 Diode 1SS270 D 401 Diode ERC04-04FE3 D 402 Diode ERA15-02VH D 403 Diode ERA15-02VH D 404 Diode HZS9L(A3) D 405 Diode HZS9L(A1) D 406 Diode HZS9L(A1) D 407 Diode HZS9L(A1) D 421 Diode ERA15-02VH D 422 Diode HZS6L(B1) D 423 Diode 1SS270 D 431 Diode 1SS270 D 441 Diode HZS7L(C3) D 501 Diode 1SS270 L 201 Inductor LCYAR12K3225 L 202 Inductor LCYAR12K3225 L 203 Ferri-Inductor LAU2R2K L 205 Ferri-Inductor LAU1R0M L 206 Ferri-Inductor LAU1R0M L 401 Choke Coil 600µH CTH1225 L 501 Ferri-Inductor LAU150K L 621 Inductor LFEA4R7J TH 501 Thermistor CCX1015 X 501 Radiator 10.00MHz CSS1428 FU 401 Fuse 5A CEK1195 AR 201 Arrester DSP-201M-A21F FM/AM Tuner Unit CWE1557 RESISTORS R 202 RS1/16S222J R 205 RS1/16S473J R 206 RS1/16S563J R 207 RS1/16S473J R 208 RS1/16S681J R 209 RS1/16S473J R 210 RS1/16S681J R 211 RS1/16S472J R 212 RS1/16S681J R 213 RS1/16S393J R 214 RS1/16S103J R 215 RS1/16S473J R 216 RS1/16S681J R 217 RS1/16S473J R 218 RS1/16S681J R 219 RS1/16S473J R 220 RS1/16S681J R 251 RS1/16S272J R 252 RS1/16S272J R 253 RS1/16S162J R 254 RS1/16S162J R 255 RS1/16S152J R 256 RS1/16S152J R 301 RS1/16S102J R 302 RS1/16S102J R 303 RS1/16S102J R 304 RS1/16S102J R 321 RS1/16S103J R 322 RS1/16S103J R 323 RS1/16S331J R 324 RS1/16S222J R 325 RS1/16S103J R 326 RS1/16S103J R 327 RS1/16S334J R 328 RS1/16S334J R 331 RS1/16S822J R 332 RS1/16S822J R 333 RS1/16S822J R 334 RS1/16S822J R 335 RS1/16S272J R 336 RS1/16S272J R 337 RS1/16S272J R 338 RS1/16S272J R 353 RS1/16S0R0J R 354 RS1/16S0R0J 5. ELECTRICAL PARTS LIST NOTE: - Parts whose parts numbers are omitted are subject to being not supplied. - The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 FH-M2017ZT R 401 RD1/4PU221J R 402 RS1PMF680J R 403 RS1/16S104J R 404 RS1/16S104J R 405 RS1/16S104J R 406 RS1/16S104J R 407 RD1/4PU102J R 408 RD1/4PU102J R 409 RS1/10S472J R 410 RS1/10S472J R 411 RS1/16S183J R 421 RS1/16S223J R 422 RS1/16S392J R 423 RS1/16S473J R 424 RS1/16S473J R 431 RS1/16S223J R 432 RS1/10S472J R 433 RS1/16S223J R 434 RS1/16S823J R 435 RD1/4PU431J R 436 RD1/4PU431J R 437 RS1/16S102J R 438 RS1/16S103J R 439 RS1/16S103J R 441 RS1/16S223J R 442 RS1/10S221J R 443 RS1/16S562J R 444 RS1/10S271J R 445 RS1/16S471J R 446 RS1/16S102J R 447 RS1/16S473J R 448 RS1/16S223J R 451 RS1/16S223J R 452 RS1/8S221J R 453 RS1/16S562J R 454 RS1/8S221J R 455 RS1/16S102J R 456 RS1/16S152J R 457 RS1/16S473J R 458 RS1/16S223J R 481 RS1/10S4R7J R 482 RS1/16S223J R 483 RS1/16S472J R 484 RS1/16S473J R 501 RS1/16S102J R 502 RS1/16S681J R 503 RS1/16S0R0J R 504 RS1/16S102J R 505 RS1/16S102J R 506 RS1/16S102J R 507 RS1/16S102J R 508 RS1/16S102J R 509 RS1/16S0R0J R 510 RS1/16S0R0J R 511 RS1/16S473J R 512 RS1/16S473J R 513 RS1/16S104J R 514 RS1/16S473J R 515 RS1/16S102J R 516 RS1/16S102J R 517 RS1/16S102J R 518 RS1/16S102J R 519 RS1/16S102J R 520 RS1/16S473J R 521 RS1/16S472J R 526 RS1/16S102J R 529 RS1/16S102J R 530 RS1/16S102J R 531 RS1/16S102J R 532 RS1/16S182J R 533 RS1/16S472J R 535 RS1/16S102J R 536 RS1/16S473J R 538 RS1/16S473J R 540 RS1/16S473J R 541 RS1/16S473J R 545 RS1/16S393J R 546 RS1/16S102J R 547 RS1/16S104J R 551 RS1/16S104J R 561 RS1/16S103J R 562 RS1/16S472J R 571 RD1/4PU101J R 572 RD1/4PU101J R 592 RS1/16S473J R 593 RS1/16S0R0J R 621 RS1/16S472J R 622 RS1/16S472J R 623 RS1/16S183J R 624 RS1/16S183J R 625 RS1/16S102J R 626 RS1/16S102J R 627 RS1/16S102J R 628 RS1/16S102J R 630 RS1/16S102J R 631 RS1/16S102J R 632 RS1/16S102J R 634 RS1/16S102J R 635 RS1/16S102J R 636 RS1/16S102J R 637 RS1/16S102J R 638 RS1/16S681J R 639 RS1/16S473J R 641 RS1/16S473J R 642 RS1/16S473J R 643 RS1/16S103J R 644 RS1/16S473J R 651 RS1/16S123J R 652 RS1/16S123J R 653 RS1/16S103J R 654 RS1/16S103J R 655 RS1/16S102J R 656 RS1/16S102J R 657 RS1/16S102J R 658 RS1/16S102J R 659 RS1/16S102J R 660 RS1/16S102J R 661 RS1/16S102J R 662 RS1/16S102J R 663 RS1/16S102J R 664 RS1/16S102J R 665 RS1/16S102J R 666 RS1/16S102J R 667 RS1/16S222J R 668 RS1/16S104J R 669 RS1/16S104J R 681 RS1/16S223J R 682 RS1/16S562J R 683 RS1/16S821J R 684 RS1/16S472J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 FH-M2017ZT R 685 RS1/16S472J R 686 RS1/16S102J R 687 RS1/16S102J R 689 RS1/16S102J R 690 RS1/16S0R0J R 693 RS1/16S473J CAPACITORS C 201 CCSRCH220J50 C 202 CKSQYB103K50 C 203 CKSRYB103K50 C 205 CKSRYB103K50 C 206 CEAT101M16 C 207 CKSRYB222K50 C 208 CKSRYB562K50 C 209 CKSRYB472K50 C 210 CKSRYB103K50 C 211 CEAT101M16 C 251 CKSRYB183K50 C 252 CKSRYB183K50 C 253 CKSRYB472K50 C 254 CKSRYB472K50 C 301 CKSRYB104K16 C 302 CEJQ470M10 C 303 CKSRYB224K16 C 304 CKSRYB224K16 C 305 CEJQNPR47M50 C 306 CEJQNPR47M50 C 307 CEJQNPR47M50 C 308 CEJQNPR47M50 C 309 CEJQR47M50 C 310 CEJQR47M50 C 311 CEJQR47M50 C 312 CEJQR47M50 C 313 CEJQNP4R7M16 C 314 CEJQNP4R7M16 C 315 CKSRYB153K50 C 316 CKSRYB153K50 C 317 CEJQ100M16 C 321 CFTNA224J50 C 322 CFTNA224J50 C 323 CFTNA224J50 C 324 CFTNA224J50 C 325 CEJQ330M10 C 326 CFTNA105J50 C 327 CEJQ100M16 C 328 CEJQ1R0M50 C 329 CKSQYB104K50 C 330 CKSRYB473K25 C 401 3300µF/16V CCH1177 C 402 CKSRYB102K50 C 403 CKSRYB332K50 C 404 CKSRYB332K50 C 405 CKSRYB332K50 C 406 CKSRYB332K50 C 407 CKSRYB332K50 C 408 CKSRYB332K50 C 409 CKSRYB332K50 C 410 CKSRYB332K50 C 415 CCSRCH221J50 C 416 CCSRCH221J50 C 417 CEJQ2R2M50 C 418 CEJQ2R2M50 C 419 CKSRYB103K50 C 420 CKSRYB103K50 C 421 CEAT471M16 C 422 CKSRYB103K50 C 423 CEJQ1R0M50 C 425 CKSRYB103K50 C 431 CKSRYB102K50 C 441 CKSRYB103K50 C 442 CEJQ100M16 C 443 CKSRYB473K25 C 444 CKSRYB102K50 C 451 CKSRYB103K50 C 452 CEJQ100M16 C 453 CKSRYB473K25 C 454 CKSRYB102K50 C 481 CKSRYB102K50 C 501 CEJQ101M10 C 502 CKSRYB102K50 C 504 CKSRYB102K50 C 505 CKSRYB102K50 C 507 CKSRYB102K50 C 508 CKSRYB102K50 C 509 CKSRYB102K50 C 510 CKSRYB102K50 C 551 CKSRYB103K50 C 552 CKSRYB223K25 C 561 CKSRYB103K50 C 571 CKSRYB104K16 C 681 CKSRYB103K50 C 682 CEJQ100M16 C 683 CKSRYB473K25 Unit Number : CWM7903 Unit Name : Keyboard Unit MISCELLANEOUS IC 901 IC LC75853NE D 901 Chip LED SML010FT D 902 Chip LED SML210FT D 903 Chip LED SML210FT D 904 Chip LED SML210FT D 905 Chip LED SML210FT D 906 Chip LED SML210FT D 907 Chip LED SML210FT D 908 Chip LED SML210FT D 909 Chip LED SML210FT D 910 Chip LED SML210FT D 911 Chip LED SML210FT D 912 Chip LED SML210FT D 913 Chip LED SML210FT D 914 Chip LED SML210FT D 915 Chip LED SML210FT D 916 Chip LED SML210FT D 917 Chip LED SML210FT D 918 Chip LED SML210FT D 919 Chip LED SML210FT D 920 Chip LED SML210FT D 921 Chip LED SML210FT D 922 Chip LED SML210FT D 923 Chip LED SML210FT D 924 Chip LED SML210FT S 901 Switch CSG1120 S 902 Switch CSG1120 S 903 Switch CSG1120 S 904 Switch CSG1120 S 905 Switch CSG1120 S 906 Switch CSG1120 S 907 Switch CSG1120 S 908 Switch CSG1120 S 910 Switch CSG1120 S 911 Switch CSG1120 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 FH-M2017ZT S 912 Switch CSG1120 S 913 Switch CSG1120 S 914 Switch CSG1120 S 915 Switch CSG1120 S 916 Switch CSG1120 S 917 Switch CSG1120 S 918 Switch CSG1120 S 919 Switch CSG1120 S 920 Switch CSG1120 S 921 Switch CSG1120 IL 901 Lamp 8V 80mA CEL1588 IL 902 Lamp 8V 80mA CEL1588 LCD CAW1684 RESISTORS R 901 RS1/16S103J R 902 RS1/16S683J R 904 RS1/16S102J R 905 RS1/16S102J R 906 RS1/16S102J R 907 RS1/16S102J R 911 RS1/16S4R7J R 912 RS1/16S4R7J R 928 RS1/16S560J R 934 RS1/16S560J R 936 RS1/16S560J R 938 RS1/16S560J R 940 RS1/16S560J R 942 RS1/16S560J CAPACITORS C 901 CKSRYB104K16 C 902 CCSRCH101J50 C 903 CKSRYB473K25 C 904 CKSRYB473K25 C 905 CCSRCH821J50 C 906 CKSRYB102K50 C 907 CKSRYB102K50 C 908 CKSRYB102K50 C 909 CKSRYB102K50 Unit Number : CWX2608 Unit Name : Control Unit MISCELLANEOUS IC 101 IC TA2153FN IC 201 IC TC9495FP IC 401 IC BA5996FM IC 701 IC BA05SFP Q 101 Transistor 2SD1664 Q 102 Transistor UMD2N L 201 Inductor CTF1546 L 202 Inductor CTF1546 X 301 Ceramic Resonator16.934MHz CSS1525 S 901 Spring Switch(HOME) CSN1051 S 902 Spring Switch(CLAMP) CSN1052 S 903 Spring Switch(DSCSNS) CSN1051 S 904 Spring Switch(12EJ) CSN1052 S 905 Spring Switch(8EJ) CSN1051 RESISTORS R 101 RS1/16S222J R 102 RS1/8S120J R 103 RS1/8S100J R 201 RS1/16S513J R 202 RS1/16S513J R 203 RS1/16S823J R 204 RS1/16S823J R 206 RS1/16S823J R 208 RS1/16S124J R 209 RS1/16S183J R 210 RS1/16S153J R 211 RS1/16S103J R 212 RS1/16S103J R 213 RS1/16S124J R 215 RS1/16S0R0J R 216 RS1/16S471J R 301 RS1/16S333J R 302 RS1/16S332J R 303 RS1/16S332J R 304 RS1/16S514J R 306 RS1/16S102J R 307 RS1/16S102J R 312 RS1/16S103J R 313 RS1/16S473J R 315 RS1/16S334J R 321 RS1/16S331J R 322 RS1/16S0R0J R 323 RS1/16S332J R 401 RS1/16S684J R 402 RS1/16S103J R 403 RS1/16S103J R 404 RS1/16S183J R 405 RS1/16S123J R 407 RS1/16S622J R 408 RS1/16S622J R 409 RS1/16S113J R 410 RS1/16S752J R 701 RS1/16S102J R 702 RS1/16S221J R 703 RS1/16S221J R 704 RS1/16S221J R 705 RS1/16S221J R 706 RS1/16S221J R 707 RS1/16S221J R 708 RS1/16S102J R 709 RS1/16S102J R 710 RS1/16S102J R 901 RS1/16S104J R 902 RS1/16S473J R 903 RS1/16S273J CAPACITORS C 101 CEV470M6R3 C 102 CKSRYB102K50 C 103 CKSRYB104K16 C 104 CKSRYB224K16 C 105 CEV470M6R3 C 106 CKSRYB104K16 C 107 CKSRYB105K6R3 C 201 CKSRYB104K16 C 202 CCSRCH560J50 C 204 CKSRYB224K16 C 205 CKSRYB224K16 C 206 CKSRYB273K25 C 207 CKSRYB273K25 C 208 CKSRYB104K16 C 209 CKSRYB104K16 C 210 CCSRCK2R0C50 C 211 CCSRCH220J50 C 301 CKSRYB153K25 C 302 CKSRYB104K16 C 303 CKSRYB103K50 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 FH-M2017ZT C 304 CKSRYB103K50 C 305 CKSRYB104K16 C 306 CKSRYB104K16 C 307 CKSRYB333K16 C 308 CKSRYB104K16 C 309 CKSRYB473K16 C 310 CKSRYB473K16 C 311 CKSRYB104K16 C 312 CKSRYB104K16 C 315 CEV220M6R3 C 317 CKSRYB104K16 C 318 CKSRYB104K16 C 319 CKSRYB104K16 C 320 CCSRCH470J50 C 325 CKSRYB471K50 C 328 CKSRYB472K50 C 329 CKSRYB104K16 C 330 CKSRYB104K16 C 331 CKSRYB104K16 C 401 CKSRYB221K50 C 402 CKSRYB221K50 C 403 CKSRYB153K25 C 404 CKSRYB103K50 C 405 CEV101M10 C 702 CKSRYB104K16 C 703 CKSRYB104K16 C 801 10µF/10V CCH1349 C 802 CEV101M10 C 803 CKSRYB224K16 Unit Number : EWM1033 Unit Name : Deck Unit MISCELLANEOUS IC 251 IC HA12228F IC 351 IC PA2020A D 352 Diode 1SS355 VR 301 Semi-fixed 33kΩ(B) CCP1280 VR 302 Semi-fixed 33kΩ(B) CCP1280 RESISTORS R 271 RS1/16S183J R 285 RS1/16S0R0J R 351 RS1/16S102J R 352 RS1/16S102J R 353 RS1/16S102J R 354 RS1/16S102J R 355 RS1/16S274J R 362 RS1/8S301J R 373 RS1/16S0R0J R 374 RS1/8S0R0J R 375 RS1/8S0R0J R 401 RS1/16S153J R 402 RS1/16S332J R 403 RS1/16S911J R 404 RS1/16S274J CAPACITORS C 251 CKSRYB391K50 C 252 CKSRYB391K50 C 253 CKSRYB391K50 C 254 CKSRYB391K50 C 255 CKSRYB103K50 C 256 CKSRYB103K50 C 271 1µF/50V ECH0002 C 272 CKSRYB104K16 C 301 CKSRYB104K16 C 302 CKSRYB104K16 C 309 CKSRYB104K16 C 310 CKSRYB104K16 C 351 CKSQYB224K25 C 352 CKSRYB392K50 C 353 CKSRYB103K50 C 354 CKSRYB103K50 C 355 CKSQYB104K50 C 356 CKSRYB103K50 C 401 CKSRYB392K50 C 402 CKSRYB334K10 C 403 CKSRYB223K25 C 404 CKSRYB103K50 C 405 CKSRYB333K16 Unit Number : EWM1041 Unit Name : Sensor Unit MISCELLANEOUS S 101 Switch(LOAD) ESG1007 S 102 Switch(MODE) ESG1007 S 103 Switch(70µs) ESG1007 Q 101 Photo-reflector EGN1004 L 101 Inductor CTF1546 L 102 Inductor CTF1546 Miscellaneous Parts List M 1 Motor Unit(MAIN) EXA1491 M 2 Motor Unit(SUB) EXA1580 HD 1 Head Assy EXA1630 Pickup Unit(Service)(P9) CXX1482 M 1 Motor Unit(SPINDLE) CXB6007 M 2 Motor Unit(LOADING/CARRIAGE) CXB5903 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- D E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 FH-M2017ZT 6 ADJUSTMENT 6.1 TEST MODE 1+6+[DISC]three times Diagnosis IN Segment all on TUNE UP(") TOYOTA DIAGNOSIS IN P190 TOYOTA DIAGNOSIS [DISC]1.7sec. or Acc OFF DIAGNOSIS END NORMAL DISPLAY To narmal mode TOYOTA DIAGNOSIS S9 MECHANISM TEST MODE S9 ERROR MESSAGES [DISC]+TUNE UP(") S9 MECHA. TEST MODE IN CD TEST [DISC]1.7sec. DIAGNOSIS END NORMAL DISPLAY [DISC] CD ON "CD"PICT To S9 MECHA. TEST MODE ACC OFF/ON To normal mode KEY OPERATION DISPLAY ch4+TUNE DOWN( ) S9 ERROR MESSAGES CD ERR XX " To TOYOTA DIAGNOSIS (see page XXX) OPERATION KEY OPERATION To diagnosis ch.1+ch.6+DISC(three times) CDS error messages CH.4 + TUNE DOWN on diagnosis To CDS test mode DISC + TUNE UP on diagnosis www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 FH-M2017ZT 6.2 CD ADJUSTMENT 1) Precautions • This unit uses a single power supply (+5V) for the reg- ulator. The signal reference potential, therefore, is connected to VREF(approx. 2.1V) instead of GND. If VREF and GND are connected to each other by mis- take during adjustments, not only will it be impossi- ble to measure the potential correctly, but the servo will malfunction and a severe shock will be applied to the pick-up. To avoid this, take special note of the fol- lowing. Do not connect the negative probe of the measuring equipment to VREF and GND together. It is especially important not to connect the channel 1 negative probe of the oscilloscope to VREF with the channel 2 negative probe connected to GND. Since the frame of the measuring instrument is usual- ly at the same potential as the negative probe, change the frame of the measuring instrument to floating sta- tus. If by accident VREF comes in contact with GND, immediately switch the regulator or power OFF. • Always make sure the regulator is OFF when connect- ing and disconnecting the various filters and wiring required for measurements. • Before proceeding to further adjustments and mea- surements after switching regulator ON, let the player run for about one minute to allow the circuits to stabi- lize. • Since the protective systems in the unit's software are rendered inoperative in test mode, be very careful to avoid mechanical and /or electrical shocks to the sys- tem when making adjustment. • The RFI and RFO signals are easy to oscillate because of a wide band. When observing them, insert a resis- tor of about 1 kΩ to the series. • This equipment will not guarantee the load ejection operation when the mechanical unit is turned upside down. In particular, if the ejection operation is incor- rectly performed and recovery is disabled, the recov- ery is enabled by resetting a product or turning ACC off to on. 2) Test Mode This mode is used for adjusting the CD mechanism module of the device. • After pressing the EJECT key, do not press any other key until the disk is completely ejected. • If the TUNE UP or TUNE DOWN key is pressed while focus search is in progress, immediately turn the power off (otherwise the actuator may be damaged due to adhesion of the lenses). • Jump operation of TRs other than 100TR continues after releasing the key. CRG move and 100TR jump operations are brought into the “Tracking close” sta- tus when the key is released. • Powering Off/On resets the jump mode to “Single TR(91)”, the RF AMP gain setting to 0 dB, and the automatic adjustment value to the initial value. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 FH-M2017ZT *1) +12dB TRK12 MIN12 SEC12 TYP TRK MIN SEC *2) S. curve check setting TRK01 MIN01 SEC01 Focus Close setting TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 *8) CRG motor voltage = 2 [V] *3) T.Offset Display Switch to the order of the original display F.Offset Display *7) F.AGC Gain RF AGC Gain TRK/MIN/SEC T.AGC Gain *5 Single TR TRK91 MIN91 SEC91 or TRK81 MIN81 SEC81 32TR TRK92 MIN92 SEC92 or TRK82 MIN82 SEC82 100TR TRK93 MIN93 SEC93 or TRK83 MIN83 SEC83 CRG Move TRK94 MIN94 SEC94 or TRK84 MIN84 SEC84 *4) 1TR/32TR/100TR *6) Only at the time of CRG move or 100TR jump [1] Power On (T. offset is adjusted) TRK00 MIN00 SEC00 [DISC] Source On TRK MIN [4] Power On (T. offset is not adjusted) TRK99 MIN99 SEC99 [3] RF AMP Gain switching*1 TRKGG MINGG SECGG [1] Power Off TRK MIN SEC [1] Power Off TRK MIN SEC [1] Power Off TRK MIN SEC [1] Power Off TRK MIN SEC [4] Focus Close / S. curve check TRK91 MIN91 SEC91 [6] Focus Mode switching*2 TRK0x MIN0x SEC0x [2] Tracking Servo Close TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 CRG- *8 TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 CRG+ *8 TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 [6] New Test Mode [3] Automatic adjustment value display switching *3 TRK?? MIN?? SEC?? [2] T.CLS and F,T AGC and RF AGC and Applicable servomechanism TRKxx MINxx SECxx [6] T.Close and Applicable servomechanism TRKxx MINxx SECxx [4] RF AGC / RF AGC coefficient display TRK?? MIN?? SEC?? CRG+ TRK8x MIN8x SEC8x or TRK9x MIN9x SEC9x CRG- TRK8x MIN8x SEC8x or TRK9x MIN9x SEC9x [3] T.Balance adjustment / T.Balance coefficient display TRK?? MIN?? SEC?? [2] F,T,RF AGC / F.Bias display switching*7 TRK?? MIN?? SEC?? [4] F,T AGC,F.Bias and RF AGC TRKxx MINxx SECxx [6] CRG/TR jump value *5 switching TRKxx MINxx SECxx CRG+/TR Jump+ *4 TRKxx MINxx SECxx [TUNE UP] [TUNE DOWN] [TUNE UP] [TUNE DOWN] [TUNE UP] [TUNE DOWN] CRG-/TR Jump- *4 TRK xx MINxx SEC xx [3] Tracking Open TRK8x MIN8x SEC8x or TRK9x MIN9x SEC9x [3] Tracking Open TRK8x MIN8x SEC8x or TRK9x MIN9x SEC9x F. EQ measurement setting TRK02 MIN02 SEC02 [Key] [1] [TUNE UP] [2] [3] [4] [6] - - Power On/Off CRG +/TR Jump+ (Direction of the external surface) CRG -/TR Jump- (Direction of the internal surface) T.CLS and AGC and Applicable servomechanism/ AGC,AGC display switching RF Gain switching/Offset adjustment display/ T.Balance adjustment/T.OPN F.CLS,S.Curve/Rough Servo and RF AGC/ F,T,RF AGC SPDL 1X/2X switching (Double-speed compatibility only) Error rate measurement F.Mode switching/T.CLS/CRG,TR Jump switching Test Mode New Test Mode Operation Error occurrence time/ cause display switching - - F.Bias [KEY] Contents Display [TUNE DOWN] Error occurrence time/ cause display switching - - - - - - Flow Chart www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 FH-M2017ZT • Note : The grating angle of the PU unit cannot be adjusted after the PU unit is changed. The PU unit in the CD mecha- nism module is adjusted on the production line to match the CD mechanism module and is thus the best adjusted PU unit for the CD mechanism module. Changing the PU unit is thus best considered as a last resort. However, if the PU unit must be changed, the grating should be checked using the procedure below. • Purpose : To check that the grating is within an acceptable range when the PU unit is changed. • Symptoms of Mal-adjustment : If the grating is off by a large amount symptoms such as being unable to close tracking, being unable to perform track search operations, or taking a long time for track searching. • Method : • Measuring Equipment • Oscilloscope, Two L.P.F. • Measuring Points • E, F, VREF • Disc • ABEX TCD-784 • Mode • TEST MODE • Checking Procedure 1. In test mode, load the disc and switch the 5V regulator on. 2. Using the TUNE UP and TUNE DOWN buttons, move the PU unit to the innermost track. 3. Press key 4 to close focus, the display should read "91". Press key 3 to implement the tracking balance adjust- ment the display should now read "81". Press key 4. The display will change, returning to "81" on the fourth press. 4. As shown in the diagram above, monitor the LPF outputs using the oscilloscope and check that the phase differ- ence is within 75° . Refer to the photographs supplied to determine the phase angle. 5. If the phase difference is determined to be greater than 75° try changing the PU unit to see if there is any improvement. If, after trying this a number of times, the grating angle does not become less than 75° then the mechanism should be judged to be at fault. • Note Because of eccentricity in the disc and a slight misalignment of the clamping center the grating waveform may be seen to "wobble" ( the phase difference changes as the disc rotates). The angle specified above indicates the aver- age angle. • Hint Reloading the disc changes the clamp position and may decrease the "wobble". 100kΩ 390pF 100kΩ 390pF E VREF F VREF Xch Ych L.P.F. L.P.F. VREF E F 6.3 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT CONTROL UNIT Oscilloscope www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 FH-M2017ZT Grating waveform Ech → Xch 20mV/div, AC Fch → Ych 20mV/div, AC 45° 0° 75° 60° 30° 90° www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 FH-M2017ZT 6.4 CASSETTE SECTION - Connection Diagram DOLBY B NR ADJUSTMENT No. Test Tape Adjustment Point Adjustment Method (Switch Position) 1 NCT-150 VR301(Lch),VR302(Rch) mV Meter(2) : –8.24dBm±1dB (400Hz,200nwb/m) (DOLBY NR Switch : OFF) VR302 mV Meter(2) VR301 L-CH R-CH Pin2 Pin3 CN251 DECK UNIT Extention Cord GGD1121 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 FH-M2017ZT 6.5 ERROR CODE - Error Messages If a CD is not operative or stopped during operation due to an error, the error mode is turned on and cause(s) of the error is indicated with a corresponding number. This arrangement is intended at reducing nonsense calls from the users and also for facilitating trouble analysis and repair work in servicing. (1) Basic Indication Method When SERRORM is selected for the CSMOD (CD mode area for the system), error codes are written to DMIN (min- utes display area) and DSEC (seconds display area). The same data is written to DMIN and DSEC. DTNO remains in blank as before. 2) Head unit display ERR xx (2) Error Code List Error code CD-SINGLE Error code Details Error [Err1] 11:Focus search NG Focus error Display (Failure on disc) 12:Spindle lock NG Spindle not lock Display 14:Mirror NG CD-R not recoding Display 17:Set up NG AGC protection error Display 19:Set up NG Tracking error Display 30:Search time out Don't search Display 44:ALL SKIP RW only Unconformity [Err2] CD-CH only CD-CH only Display (No magazine) Merit on match model [Err3] 10:CRG home error Mechanical error Display [Err4] A0:System error A over electric current Display [Err5] No match [Err6] No match [Wait] High temperature Condition of high Display detection temperature Priority level of error display. Remarks: Mechanical errors are not displayed (because a CD is turned off in these errors). Unreadable TOC does not constitute an error. An intended operation continues in this case. Upper digits of an error code are subdivided as shown below: 1x: Setup relevant errors, 3x: Search relevant errors, Ax: Other errors. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 FH-M2017ZT - New Test Mode S-CD plays the same way as before. If an error such as off focus, spindle unlocking, unreadable sub-code, or sound skipping occurs after setup, its cause and time occurred (in absolute time) are displayed. During setup, operational status of the control software is displayed. These displays and functions are prepared for enhancing aging in the servicing and efficiency of trouble analysis. (1) Shifting to the New Test Mode 1 Turn on the current test mode by starting the reset from the key. 2 Select S-CD for the source through the specified procedure including use of the [CD]key,[DISC]key, and inserting the disc. Then, press the [6] key while maintaining the regulator turned off. 3 After the above operations, the new test mode remains on irrespective of whether the S-CD is turned on or off. You can reset the new test mode by turning on the ACC On/Off. (2) Key Correspondence Key New test mode In-play Error Production 1 – – TUNE UP FF/TR+ – TUNE DOWN REV/TR- – 4 – Time/Err.No. switching 5 REPEAT – 6 RANDOM – – – – – – – – – – Note: Eject and CD on/off is performed in the same procedure as that for the normal mode. (3) Cause of Error and Error Code Code Class Contents Description and cause 40 Electricity Off focus detected. FOK goes low. → Damages/stains on disc, vibrations or failure on servo. 41 Electricity Spindle unlocked. LOCK = Low continued for 150 msec. → Damages/stains on disc, vibrations or failure on servo. 42 Electricity Sub-code unreadable. Sub-code was unreadable for 500 msec. → Damages/stains on disc, vibrations or failure on servo. 43 Electricity Sound skipping detected. Last address memory function was activated. → Damages/stains on disc, vibrations or failure on servo. Note: Mechanical errors during aging are not displayed. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 FH-M2017ZT (4) Display of Operational Status during Setup Status No. Contents Protective action 21 Focus search start Focus search timeout. 22 Focus search 2 Focus search timeout. 23 Focus search 3 Focus search timeout. 24 Focus search 4 Focus search timeout. 25 Focus search(Setup protection) Focus slips off. 26 Focus search(Fast recovery) Focus slips off. 27 RF detection Focus slips off. 28 Spindle rough servocontrol Focus slips off. 29 Tracking balance adjustment start Focus slips off. 30 Tracking balance adjustment 2 Focus slips off. 31 Tracking balance adjustment 3 Focus slips off. 32 Tracking close start(Spindle stationary servocontrol setting) Focus slips off. 33 Tracking close 2 Focus slips off. 34 Tracking close 3 Focus slips off. 35 Focus/Tracking AGC start Focus slips off. 36 Focus/Tracking AGC 2 Focus slips off. 37 Focus/Tracking AGC 3 Focus slips off. 38 Focus/Tracking AGC 4 Focus slips off. 39 Focus/Tracking AGC 5 Focus slips off. 40 Focus/Tracking AGC 6 Focus slips off. 41 Focus/Tracking AGC 7 Focus slips off. 42 Focus/Tracking AGC 8 Focus slips off. 43 FE bias start Focus slips off. 44 FE bias 2 Focus slips off. 45 RF AGC start Focus slips off. 46 RF AGC 2 Focus slips off. 47 Lock check start Focus slips off. 48 Lock is being checked Focus slips off. 49 Subcode check start Focus slips off, spindle lock is not performed. 50 Subcode is being checked Focus slips off, no subcode can be read. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 FH-M2017ZT (5) Display Examples 1) During Setup TNO. Min Sec 11 11' 11" 2) During Operation (TOC read, TRK search, Play, FF and REV) The same as in the normal mode. 3) When a Protection Error Occurred (A) Error display ((A)←→(B), (C) : 4 key) display example xx ' xx 43 ' 43 (B) Error occurrence timing display in track No. and Error occurrence timing display in absolute time. TNO. Min Sec 10 40' 05" www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 FH-M2017ZT -AVC-LAN DIAGNOSIS MODE -Operations and functions (1) Key operations for Diagnosis IN (Note *1 ) (2) Key operations for Diagnosis OUT (2) Key operations for Diagnosis OUT (2) Key operations for Diagnosis OUT Normal operation mode All-element lighting mode SW check mode All elements on the LCD are lit. Note : In this mode, when any switch except for the TRACK UP is pressed, a beep will be heard once. Service check mode The physical addresses for all devices connected to the AVC-LAN (including this product) are displayed. The current and past product conditions are checked by performing the system check and collecting the diagnosis memory data. Each address check result is displayed as follows: "OK", "Not connected", "Check", "Replace", "Old Version" or "No response". Details display mode This mode is available only when the service check result is "Check", "Replace" or "Old Version". For each physical address, the following information is displayed: - Logical address for the device where some failure occurs and the diagnosis codes (indicating details of the failure), which were obtained through system check - In addition to the above data, sub-code (indicating the device with failure), connecting confirmation no. (time stamp), and frequency of occurrence, which were obtained from diagnosis memory data Diagnosis memory clearance < From the service check mode > The diagnosis memory data (codes) for all devices connected are cleared. < From the details display mode > The diagnosis memory data for devices selected is cleared. After memory clearance is completed, the mode is automatically shifted to the service check mode. (6)Key operations for Memory clearance (6)Key operations for Memory clearance Memory clearance automatically ends. (3) Key operations for entering Service check mode (4)Key operations for entering the details display mode (5)Key operations for returning to the service check mode Note *1: To enter the diagnosis IN mode, use the buttons on the head unit. (1) Diagnosis IN While pressing the CH1 and CH6 With three times of beep sound, the mode buttons simultaneously, press the change operation completes. DISC button three times. (2) Diagnosis OUT Keep the DISC button pressed for 1.7 seconds or more and turn the ACC switch OFF. (3) Entering the Service check mode. Press the TRACK UP button. With a beep sound, the mode change completes. (4) Entering the Details display mode. Press the CH2 button. (5) Returning to the service check mode. Press the CH3 button. (6)Clearing the Memory data Keep the CH5 button pressed for 1.7 seconds or more. Change the display (forward) Press the TRACK UP button. Change the display (backward) Press the TRACK DOWN button. -Key operations 6.6 AVC-LAN DIAGNOSIS MODE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 FH-M2017ZT After system check completes, the check results for the devices connected to the AVC-LAN are displayed in turn in order of physical address number as follows: "Physical address" ...The smallest physical address number is displayed first, whose check result will follow it. Ex. P190 Physical address number (radio cassette) The physical address is displayed. "Check result" ...The check result is displayed. Ex. good Normal (OK) ECHn Replace CHEC Check OLd Old Version "Physical address" ...The next physical address number is displayed. "Connecting confirmation no. (current)" ...The AVC-LAN time stamp is displayed. Ex. no01 The connecting confirmation number is displayed. The current connecting confirmation number (expressed in the hexadecimal number system by using 00 to FF) The number increases by one each time one minute passes. When 256 minutes pass, the indication returns to 00. Service check mode Details display mode Details display mode (only in case of "Replace", "Check", or "Old Version") This mode is available only when the service check result is "Replace", "Check" or "Old Version". To select this mode, press the CH2 key. "Physical address (for selected devices)" The physical address number is displayed, whose check result details will follow it. Ex. P360 Physical address number (CD-CH) "Diagnosis data source" The detailed items depend on the data source. Ex. SyS The data was obtained from system check. "Logical address" The logical address number for the device with failure is displayed. Ex. 1L_63 Logical address number (CD-CH) The logical address is displayed. Serial number "Diagnosis code" The diagnosis code indicates what problem occurs. Ex. 1d_45 Diagnosis code (abnormal EJECT) The diagnosis code is displayed. If there are two or more diagnosis codes, the diagnosis data display will continue. Ex. COdE The data was obtained from diagnosis memory data. "Logical address"...The same as that for the SyS data "Diagnosis code"...The same as that for the SyS data "Sub code"...This code indicates the device with failure. Ex. 1P_190 The sub code is displayed. "Connecting confirmation number (when some failure occurs)"... AVC-LAN time stamp Ex. no01 The connecting confirmation number (expressed in the hexadecimal number system by using 00 to FF) The connecting confirmation number is displayed. "Frequency of occurrence" ...The frequency of failures occurred Ex. 1c_15 The frequency of occurrence expressed in the decimal number system. The frequency of occurrence is displayed. -Diagnosis mode display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 FH-M2017ZT Physical address allocation _ 2 _ 3 Display P_ 1 _ 2 _ 3 Ex.P190 Physical address 0 1 2 3 4 5 6 7 8 9 A B C D E F _ 1 1 0 1 2 3 4 5 6 7 8 9 A B C D E 0 1 2 3 4 5 6 7 8 9 A B C D E 0 1 2 3 4 5 6 7 8 9 A B C D E 0 1 2 3 4 5 6 7 8 9 A B C D E 0 1 2 3 4 5 6 7 8 9 A B C D E F F F F F _ 1 2 _ 1 3 _ 1 4 _ 1 5 _ 1 6 0 2 4 6 8 C E 1,3,5,7, 9-B,D,F M.DISP computer New EMV New device with AV New MM ECU device with AV Audio ECU Audio H/U Rear TV Rear Control SW Multi-CD decoder CD-CH commander AMP controlled radio tuner New 1-DIN TV Europe navigation DISP.M/U Rear TV with movie mode Navigation with controls MONET ECU Vehicle Information ECU 1-DIN Navigation DISPLAY with SW Europe GW ECU Consolidated inside panel Gateway ECU FM multiplex DISPLAY Steering SW Navigation remote controller Fr controlled SW Simple LCD Consolidated SW MD-CH commander Body computer 0 8 1-7, 9-F 0 8 1-7, 9-F 0 1-F 0 8 C 1-7,9-8,D-F 0 1-F Navigation computer ATIS VICS TV tuner H/W CD-CH H/W DVD-CH TEL information ECU Camera controller Radio Cassette Radio cassette with no CH controller CD-P 1DIN CD-CH MD-P MD-CH DAT DCC TEL ECU Equalizer DSP H/W AMP GPS receiver ATIS decoder FM multiplex decoder CD-CH MD-CH CD-ROM -CH MD-ROM -CH TEL information May Day A/C computer Body computer DVD deck Radio wave beacon Optical beacon www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 FH-M2017ZT Logical address name Logical address Diagnosis code Diagnosis details AM tuner PLL unlocked FM tuner PLL unlocked No antenna connected Antenna power supply abnormal Tuner power supply abnormal AM tuner abnormal FM tuner abnormal SW tuner abnormal TV tuner PLL unlocked FRONTEND abnormal TV divergence shifting error TV – no reception VNR screen error No antenna connected Antenna power supply abnormal SEL +B current – small SEL +B current – large Belt broken Mechanical failure or cassette broken EJECT failure TAPE jamming Dirty head Mech power supply abnormal CD Mech abnormal CD loading/unloading abnormal CD lead-in abnormal No disc loaded Incorrect disc Disc unreadable CD-ROM abnormal CD abnormal EJECT abnormal Scratches or non-recorded side CD high temperature detected Excessive current detected Tray IN/OUT abnormal Elevator abnormal Clamp abnormal MD mech abnormal MD IN/OUT abnormal MD lead-in abnormal No disc loaded Incorrect disc Disc unreadable MD-ROM abnormal MD abnormal EJECT error Scratches or non-recorded side MD high temperature detected Excessive current detected Tray IN/OUT abnormal Elevator abnormal Clamp abnormal 10 11 40 41 42 43 44 45 10 11 40 41 42 43 44 45 46 10 40 41 42 43 44 10 11 12 40 41 42 43 44 45 46 47 48 50 51 52 10 11 12 40 41 42 43 44 45 46 47 48 50 51 52 Radio TV tuner Cassette tape CD CD-P CD-CH MD MD-CH 60H 40H 61H 43H 62H 63H 64H 65H Logical address name Logical address Diagnosis code Diagnosis details No diagnosis Abnormal reset Abnormal +B Abnormal ACC Abnormal MUTE Fuse broken Microcomputer - abnormal ROM - abnormal RAM - abnormal Bus - abnormal F-ROM - abnormal V-RAM - abnormal Gate allay abnormal Paint controller abnormal Backup memory abnormal Voice output controller abnormal Internal power supply abnormal Sync signal abnormal (input) Sync signal abnormal (output) ECU not connected Transmission abnormal Connecting confirmation: abnormal Connecting confirmation: no response Registered device data missing (History of registered devices) Master unavailable Connecting confirmation: abnormal Connecting confirmation: no response Last mode abnormal Command/order: no response Mode status abnormal Transmission fault Master reset Slave reset Master abnormal Registration completion acknowledgement error Voice processor ON abnormal ON/OFF command or parameter abnormal Registration command transmission Multiple frames intermit. Diagnosis - no response 00 01 10 11 12 13 20 21 22 23 24 25 26 27 28 29 2A 30 31 D0 D1 D2 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF E0 E1 E2 E3 E4 FF Communi -cation control 01H Logical address name Logical address Diagnosis code Diagnosis details Gyroscope abnormal GPS receiver abnormal RTC abnormal SS section abnormal No Time updating TCXO abnormal PLL lock abnormal GPS antenna abnormal GPS antenna power supply abnormal Map disc reading abnormal SPD signal abnormal Player abnormal High temperature abnormal Antenna power supply abnormal Radio wave beacon - no antenna connected Optical beacon - no antenna connected No FM antenna connected FM receiver abnormal Radio wave beacon abnormal Optical beacon abnormal Voice-control activation SW abnormal Voice-control Microphone abnormal Multi-CD-CH (optical cable) abnormal Multi-CD-CH (optical cable) not connected Multi-CD-CH (CarNet) abnormal Multi-CD-CH (CarNet) not connected HIT64 communication not connected HIT64 communication abnormal HIT64 BRQ disconnection HIT64 BRQ short-circuit HIT64 disconnection CarNet communication not connected CarNet communication abnormal CarNet periodical communication abnormal Video circuit abnormal Back light abnormal (with no current) Back light abnormal (with excessive current) Panel open/close mechanical operation abnormal Front seat monitor abnormal Heater abnormal Panel SW abnormal Touch SW failure TEL ECU abnormal Communication serial lines abnormal Wireless PWR lines abnormal 10 11 12 13 14 15 16 40 41 42 43 44 45 41 45 46 47 4A 4B 4C 40 41 40 41 42 43 50 51 52 53 54 55 56 57 10 11 12 13 40 41 10 11 10 40 41 Navigation /GPS Extended communi -cation Information display/front monitors 58H 80H 02H 32H 34H Diagnosis code table FM multiplex (VICS), radio wave beacon, beacon, optical beacon, FM multiplex (data), and FM multiplex tuner 54H 84H 5BH 83H 82H 9AH Voice control 85H SW, Audio SW, SW shifting, Command SW 21H 23H 24H 25H TEL ECU, TEL 57H 68H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 FH-M2017ZT 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 DISASSEMBLY - Removing the Case (not shown) 1. Remove the Case. Fig.1 - Removing the Grille Assy (Fig.1) Remove the four crows and the Grille Assy. - Removing the CD Mechanism Module (Fig.1) Remove the four screws and then remove the CD Mechanism Module. CD Mechanism Module Grille Assy - Removing the Heat Sink (Fig.2) Remove the two screws. Remove the four screws and then remove the Heat Sink. Fig.2 Heat Sink www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 FH-M2017ZT - Removing the Chassis (Fig.3) Remove the two screws and remove the Chassis. Fig.3 Chassis - Removing the Main Unit (Fig.4) Remove the screw. Remove the screw. Straight the two tabs at location indicated. Remove the screw and then remove Main Unit. Fig.4 Main Unit - Removing the Cassette Mechanism Module (not shown) Remove the four screws and then remove the Cassette Mechanism Module. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 FH-M2017ZT - How to hold the Mechanical Unit 1.Hold the top and bottom frame. 2.Do not squeeze top frame's front portion too tight, because it is fragile. - How to remove the Top and Bottom Frame 1.When the disk is "clamp" state, unlock Spring A (6 pieces) and Spring B (2 pieces), and unscrew screws (4 pieces). 2.Unlock each 1 of pawl at the both side of the frame, then remove the top frame. 3.Remove the Carriage Mechanical part in such way that; you remove the mechanical part from 3 pieces of Damper while slowly pulling up the part. 4.Now, the top frame has been removed, and under this state, fix the genuine Connector again, and eject the disk. (Caution) When you reassemble the Carriage Mechanical part, apply a bit of alcohol to Dampers. - How to remove the Guide Arm Assy 1.Unlock the spring (1 piece) at the right side of the assembly. 2.Unscrew screws (2 pieces), then remove the Screw Gear Bracket. 3.Shift the Guide Arm Assy to the left and slowly rotate it to the upper direction. 4.When the Guide Arm Assy rotates approximately 45 degree, shift the Assy to the right side direction and remove it. Top Frame Bottom Frame Damper Spring Screw Gear Bracket Guide Arm Assy Carriage Mechanical Part Do not squeeze. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 FH-M2017ZT - How to remove the Control Unit 1.Give jumper-solder treatment to the Flexible Wire of the Pickup unit, then remove the wire from the Connector. 2.Remove all 4 points of solder-treatment on the Lead Wire. Also, unscrew the screw(1 piece). 3.Then, Remove the Control unit. (Caution) Be careful not to damage SW when you reassemble the Control Unit into the device. - How to remove the Loading Arm Assy 1.Unlock the spring (1 piece) and remove the E ring (1 piece) of the Fulcrum Shaft. 2.Shift the arm to the left side direction and unlock pins (2 pieces). - How to remove the Pickup Unit 1.Unscrew 2 pieces of screws, then remove the Pulley Cover. 2.Remove the Feed Screw unit from the pawl of the Feed Screw Guide (The pawl is located inside the guide). 3.Remove the belt from the Pulley, then remove the Pickup unit. (Caution) Make sure not to stain the belt with grease when you fix the belt. Control Unit Jumper-Solder Solder Loading Arm Assy Pickup Unit Pulley Cover Feed Screw Guide Belt Grease Application Grease Application Grease Application www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 FH-M2017ZT 7.1.2 CONNECTOR FUNCTION DESCRIPTION GND SGND TX TX (-) (+) CDL CDR CDL CDR (+) (+) (-) (-) ACC +B MUTE FL FL GND FR RL RR FR RR +B ACC RL ILL ANT ANTENNA AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 FH-M2017ZT - Pin Functions (PD5708A) Pin No. Pin Name I/O Function and Operation 1 PDO O PLL data output 2 pck O PLL data clock 3 NC Not used 4 LCE1 O LCD driver chip enable output 5 LDO O LCD driver data output 6 LDI I LCD driver data input 7 LCK O LCD driver clock output 8 BYTE GND 9 CNVSS GND 10,11 NC Not used 12 reset Reset 13 XOUT O Crystal oscillating element connection pin 14 VSS VSS 15 XIN I Crystal oscillating element connection pin 16 VCC VCC 17 nmi GND 18 isen I Illumination sense input 19 bsen I Bup sense input 20 asen I Acc sense input 21 RX2 I (BUS) 22 IPPW O BUS power supply output 23 PCE1 O PLL chip enable1 output 24 BEEP O BEEP output 25 SD I Station detector input 26 st I FM stereo input 27 LOCL O Local select control output 28 PCE2 O PLL chip enable2 output 29 RX1 I (BUS) 30 TX O (BUS) 31-40 NC Not used 41 SYSPOW O System power output 42 VST O E-VOL strobe output 43 VCK O E-VOL clock output 44 VDT O E-VOL data output 45 NC Not used 46 xce O CD LSI chip enable output 47 xrst O CD LSI reset output 48 XPCK O CD LSI clock output 49 VDCONT O VD power supply control 50 CONT O Servo driver power supply control output 51 CDVON O CD+5V power supply control output 52 CLCONT O Driver input select output 53 LOEJ O LOAD/EJECT control output 54 swvdd O Keyboard unit power supply control output 55 LANMUTE I BUS mute sense input 56 ANTP O Auto antenna power supply control output 57 NC Not used 58 ILM O Illumination control output 59 ROMDATA I/O Not used 60 ROMCLK O Not used 61 ROMCS O Not used 62 VCC VCC 63 pow I Power key input 64 VSS VSS 65 MS I Tape search input 7.2 PARTS 7.2.1 IC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 FH-M2017ZT 30 31 50 51 80 81 100 1 *PD5708A IC's marked by * are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction. Pin No. Pin Name I/O Function and Operation 66 fR O Forward/Reverse select output 67 PLAY O MS gain select output 68 mtl I Metal input 69-72 XPIO3-0 I/O CD LSI data input output 73 NC Not used 74 cdej I CDS eject sense input 75 csej I Tape eject sense input 76 NR O Dolby NR ON/OFF output 77 CSLOAD I TAPE loading sense 78 POS I Position sense input 79 NC Not used 80 ES I Tape end sense input 81 TESTIN I TEST mode input 82 SC2 O Sub motor control2 output 83 SC1 O Sub motor control1 output 84 CM O Capstan motor control output 85 stby O Tape stand by output 86-88 NC Not used 89 SYSMUTE O System mute output 90 DISCSNS I Disc sense input 91 HOME I CRG HOME sense input 92 VDSENS I VD power sense input 93 AVSENS I Audio+B sense input 94 TEMP I TEMP sense input 95 NC Not used 96 VSS VSS 97 SL I Signal level input 98 VREF SWVDD connect 99 AVCC VDD 100 PDI I PLL data input *LC75853NE 64 1 16 17 32 33 48 49 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 FH-M2017ZT - Pin Functions (LC75853NE) Pin No. Pin Name I/O Function and Operation 1-4 S1/P1-S4/P4 O Segment output 5-40 S5-S40 O Segment output 41-43 COM1-3 O Common output 44 KS1/S41 O Key scan output 45 KS2/S42 O Key scan output 46-49 KS3-KS6 O Key scan output 50-54 KI1-KI5 I Key scan input 55 TEST I GND 56-58 VDD Power supply 59 VSS Power supply 60 OSC I/O Crystal oscillator connection 61 DO O Output data 62 CE I Chip enable 63 CL I Synchro clock 64 DI I Transfer data 30 TAI(L) 29 BIAS 28 PBOUT(L) 27 NC 26 DET(L) 25 NC 31 NFI(R) 32 Vref1 33 RIN(L) 34 NC 35 RIN(R) 11 12 13 14 15 16 17 18 20 19 MUTE ON/off MSOUT 120/70 ser/REP for/REV VCC MSDET MSI MAOUT MSGv(R) 36 37 4 5 GND FIN(R) M-OUT(R) Vref3 38 6 Vref2 EQOUT(R) 39 7 FIN(L) TAI(R) 40 8 NFI(L) RIP 1 9 M-OUT(L) PBOUT(R) 2 10 EQOUT(L) NC 3 Vref4 24 23 22 21 MSGv(S) DET(R) NC NR ON/off LPF DET MUTE ON/off MUTE ON/off Dolby B-NR Dolby B-NR HA12228F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 15 16 30 63 FH-M2017ZT - Pin Functions(TA2153FN) Pin No. Pin Name I/O Function and Operation 1 VCC Power supply voltage terminal 2 RFGC I RF amplitude adjustment control signal terminal 3 GMAD I AGC amplifier frequency characteristic adjustment terminal 4 FNI I Main beam amplifier input terminal 5 FPI I Main beam amplifier input terminal 6 TPI I Sub beam amplifier input terminal 7 TNI I Sub beam amplifier input terminal 8 MDI O Monitor photodiode amplifier input terminal 9 LDO I Laser diode amplifier output terminal 10 SEL I APC circuit ON/OFF signal, LDO terminal control input terminal and bottom and peak detection frequency switching terminals 11 TEB I Tracking error balance adjustment signal input terminal 12 2VRO O Reference voltage (2VRO) output terminal 13 TEN I Tracking error signal generation amplifier reverse phase input terminal 14 TEO O Tracking error signal generation amplifier output terminal 15 SBAD O Sub beam addition signal output terminal 16 FEO O Focus error signal generation amplifier output terminal 17 FEN I Focus error signal generation amplifier reverse phase input terminal 18 SEB I RFRP generation circuit mode switching terminal 19 VRO O Reference voltage (VREF) output terminal 20 RFRP O Signal generation amplifier output terminal for track count 21 BTC I Bottom detection time constant adjustment terminal for RFCT signal generation 22 RFCT O RFRP signal center level output terminal 23 PKC I Peak detection time constant adjustment signal for RFCT signal generation 24 RFRPIN I Signal generation amplifier input terminal for track count 25 RFGO O RF signal amplitude adjustment amplifier output terminal 26 GVSW I AGC, FE or TE amplifier gain switching terminal 27 AGCIN I RF signal amplitude adjustment amplifier input terminal 28 RFO O RF signal generation amplifier output terminal 29 GND I GND terminal 30 RFN2 I RF signal generation amplifier input terminal TA2153FN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 FH-M2017ZT - Pin Functions(TC9495FP) Pin No. Pin Name I/O Function and Operation 1 TESTO Test mode terminal 2 hso O Replay speed flag output terminal 3 uhso O Replay speed flag output terminal 4 EMPH O Emphasis flag output terminal for sub code Q data 5 LRCK O Channel clock (44.1 kHz) output terminal 6 VSS Digital ground terminal 7 BCK O Bit clock output terminal 8 AOUT O Digital audio data output terminal 9 DOUT O Digital out output terminal 10 MBOV O Buffer memory over signal output terminal 11 IPF O Correction flag output terminal 12 SBOK O CRCC decision result output for sub code Q data 13 CLCK I/O Clock input/output terminal for sub code P-W data read 14 VDD Digital + power supply terminal (5 V) 15 VSS Digital ground terminal 16 DATA O Sub code P-W data output terminal 17 SFSY O Replay-system frame sync signal output terminal 18 SBSY O Sub code block sync output terminal 19 SPCK O Clock for processor status signal read 20 SPDA O Processor status signal output terminal 21 COFS O Correction-system frame clock (7.35 kHz) output terminal 22 MONIT O LSI internal signal output terminal 23 VDD Digital + power supply terminal (5 V) 24 TESIO0 I Test input/output terminal 25 P2VREF PLL-system only 2VREF terminal 26 HSSW O The VREF voltage is reached for double or quad speed. 27 ZDET O One-bit DAC zero detection flag output terminal 28 PDO O Phase error signal issue between the EFM and PLCK signals 29 TMAXS O TMAX detection result output terminal 30 TAMX O TMAX detection result output terminal 31 LPFN I Reverse input terminal of amplifier for low-pass filter 32 LPFO O Output terminal of amplifier for low-pass filter 33 PVREF PLL-system only VREF terminal 34 VCOREF I VCO center frequency reference level terminal 35 VCOF O Filter terminal for VCO 36 AVSS Analog-system ground terminal 37 SLCO O Output terminal of DAC for data slice level generation 38 RFI I RF signal input terminal 39 AVDD Analog-system power supply terminal (5 V) 40 RFCT I RFRP signal center level input terminal 41 RFZI I Input terminal for RFRP signal zero cross 42 RFRP I RF ripple signal input terminal 43 FEI I Focus error signal input terminal 44 SBAD I Sub beam addition signal input terminal 45 TSIN I Test input terminal 46 TEI I Tracking error input terminal 47 TEZI I Input terminal for tracking error or zero cross 48 FOO O Focus equalizer output terminal 49 TRO O Tracking equalizer output terminal 50 VREF Analog reference power supply terminal 51 RFGC O RF amplitude adjustment control signal output terminal 52 TEBC O Tracking balance control signal output terminal 53 FMO O Feed equalizer output terminal 54 FVO O Speed error signal or feed search EQ output 55 DMO O Disc equalizer output terminal 56 2VREF Analog reference power supply terminal 57 SEL O APC circuit ON/OFF signal output terminal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 FH-M2017ZT Pin No. Pin Name I/O Function and Operation 58-61 FLGA-D O External flag output terminal for internal signal monitor 62 VDD Digital + power supply terminal (5 V) 63 VSS Digital ground terminal 64 IO0 O RF amplifier gain switching terminal 65 IO1 O Not used 66 IO2 I HOME detection switch input terminal 67 IO3 O FocusDrv and signal output terminal 68 dmout I Field equalizer PWM output terminal for IO0 and IO1 Disc equalizer PWM output terminal for IO2 and IO3 69 ckse I Usually open 70 dact I DAC test mode terminal 71 TESIN I Test input terminal 72 TESIO1 I Test input/output terminal 73 VSS Digital ground terminal 74 PXI I DPS-system clock oscillator circuit input terminal 75 PXO O DPS-system clock oscillator circuit output terminal 76 VDD Digital + power supply terminal (5 V) 77 XVSS Ground terminal for system clock oscillator circuit 78 XI I System clock oscillator circuit input terminal 79 XO O System clock oscillator circuit output terminal 80 XVDD For system clock oscillator circuit + power supply terminal 81 DVSR R channel D/A converting unit power supply terminal 82 RO O R channel data forward rotation output terminal 83 DVDD D/A converting unit power supply terminal (5 V) 84 DVR Reference voltage terminal 85 LO O L channel forward rotation output terminal 86 DVSL L channel D/A converting unit power supply terminal 87-89 TEST1-3 I Test mode terminal 90-93 BUS0-3 I/O Data input/output terminal for microcomputer interface 94 VDD Digital + power supply terminal (5 V) 95 VSS Digital ground terminal 96 BUCK I Clock terminal for microcomputer interface 97 cee I Chip enable signal for microcomputer interface 98 TEST4 I Test mode terminal 99 tsmod I Test mode terminal 100 rst I Reset signal input terminal 30 31 50 51 80 81 100 1 *TC9495FP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 14 15 28 BA5996FM 66 FH-M2017ZT - Pin Functions(BA5996FM) Pin No. Pin Name Function and Operation 1 VR Input pin for reference voltage 2 OPIN2(+) Input pin for non-inverting input for CH2 preamplifier 3 OPIN2(-) Input pin for inverting input for CH2 preamplifier 4 OPOUT2 Output pin for CH2 preamplifier 5 OPIN1(+) Input pin for non-inverting input for CH1 preamplifier 6 OPIN1(-) Input pin for inverting input from CH1 preamplifier 7 OPOUT1 Output pin for CH1 preamplifier 8 GND Ground pin 9 MUTE Mute control pin 10 POWVCC1 Power supply pin for CH1, CH2, and CH3 at "Power" stage 11 VO1(-) Driver CH1 - Negative output 12 VO1(+) Driver CH2 - Positive output 13 VO2(-) Driver CH2 - Negative output 14 VO2(+) Driver CH2 - Positive output 15 VO3(+) Driver CH2 - Positive output 16 VO3(-) Driver CH2 - Negative output 17 VO4(+) Driver CH4 - Positive output 18 VO4(-) Driver CH4 - Negative output 19 POWVCC2 Power supply pin for CH4 at "Power" stage 20 GND Ground pin 21 CNT Control pin 22 LDIN Loading input 23 OPOUTSL Output pin for preamplifier for thread 24 OPINSL Input pin for preamplifier for thread 25 OPOUT3 CH3 preamplifier output pin 26 OPIN3(-) Input pin for inverting input for CH3 preamplifier 27 OPIN3(+) Input pin for non-inverting input for CH3 preamplifier 28 PREVCC PreVcc www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 FH-M2017ZT IC 3 EEPROM 28 27 FM/AM 1ST IF 10.7MHz T51 Q51 CF51 CF52 CF53 IC1 MIXER, IF AMP, DET. 6 21 18 LDET COMP 22 25 10 14 12 15 16 8 13 2 3 4 CF202 VDD VCC DI/DO CE2 CK CE1 SDBW SL FMSD NL1 NL2 IC 2 FM MPX AMANT FMANT ATT ATT AMRF FMRF IMG ADJ RF ADJ X901 10.25MHz ANT ADJ LOCL 23 LOCH AMDET MPXREF 41kHz AM 2ND IF 450kHz 19 CREQ 11 DGND 1 STIND L ch 5 R ch 9 24 AMDET FMLOCL 20 17 7 AMPNS WC 26 RFGND AMIN - FM/AM Tuner Unit No. Symbol I/O Explain 1 STIND O stereo "Low" when the FM stereo signals are received. indicator To be pulled up to the "VDD" at 47kΩ. 2 FMSD O FM station "High" when signals are received. To be pulled up to the "VDD" at 47kΩ detector Meanwhile, 10kΩ should be used when taking diver FIX trigger from here and "High: 0.9VDD or more" and "Low: 250mV or less". (Should satisfy the diver IC specifications) 3 NL1 O noise level-1 "High" when noise is received. Output for the RDS. GND at 47kΩ //1,800pF. 4 NL2 O noise level-2 "High" when noise is received. Output for the RDS. GND at 36kΩ //330pF. 5 Rch O R channel FM stereo "R-ch" signal output or AM audio output. output Add the specified de-emphasis constant. 6 Lch O L channel FM stereo "L-ch" signal output or AM audio output. output Add the specified de-emphasis constant. 7 WC write control EEPROM write control. Writing permissible at "Low". Normally open. 8 SDBW O SD bandwidth SD bandwidth signal output. For detection of detuning data for the RDS. 9 AMDET O AM detector AM detector output. r out < 100Ω output 10 VDD power Power supply pin for the digital section. supply DC 5V +/- 0.25V. Be careful about overlapping noise in the logic section. 11 DGND digital ground Grounding for the digital section. 12 CE2 I chip enable-2 EEPROM chip enable. Active a "Low" To be pulled up to the "VDD" at 47kΩ 13 SL I/O signal level Received FM/AM signal level (strength) output. Connect the specified load resistor and capacitor (10k Ω + 39k Ω //4,700pF) 14 DI/DO I/O data input/ Data input/Data output data output To be pulled up to the "VDD" at 47kΩ 15 CK I clock Clock input To be pulled up to the "VDD" at 47kΩ 16 CE1 I chip enable-1 AF·RF chip enable. Active at "High" To be grounded at 47kΩ 17 AMPNS O AM PNS IF signal IF signal output for AM PNS circuit. 18 LDET O lock detector Active at "Low". To be pulled up to the "VDD" at 47kΩ 19 CREQ I current request Active at "Low". To be grounded at 47kΩ 20 AMIN I AM audio input The frequency response and the level are set by connecting an external CR network with terminal AMIN as terminal AMDET. r in = 50kΩ 21 COMP O composite signal FM composite signal output. r out < 100Ω 22 VCC power supply Analog section power supply pin.DC 8.4V +/- 0.3V 23 LOCH I local high FM local high pin. When seeking local high, apply 5V together with "LOCL". 24 FMLOCL I FM local low FM local low pin. When seeking local low, apply 5V to the base of the NPN transistor with which the specified resistor is being connected to the emitter. Keep it open in case of ordinary marketed models. 25 LOCL I local low FM/AM local low pin. When seeking local low, apply 5V to the base of the NPN transistor. Since this pin is exclusive for AM when the FMLOCL is in use, do not drive it under FM. 26 RFGND RF ground Grounding for the antenna section. 27 FMANT I FM antenna input FM antenna input. 75Ω. Surge absorber (DSP-201M-S00B) is necessary. 28 AMANT I AM antenna input AM antenna input. High impedance. Connect to the antenna through an L (LAU type) of 4.7µH.To cope with the power transmission line hums, insert a series circuit consisting of an L (a coil of about 100mH) + R (a resistor of 470 Ω to 2.2kΩ) between the GND. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 FH-M2017ZT 7.2.2 DISPLAY - CAW1684 COMMON SEGMENT COM 3 COM 3 COM 2 COM 2 COM 1 COM 1 COM 3 COM 3 COM 2 COM 2 COM 1 COM 1 SEG 34 SEG 34 SEG 33 SEG 33 SEG 32 SEG 32 SEG 31 SEG 31 SEG 30 SEG 30 SEG 29 SEG 29 SEG 28 SEG 28 SEG 27 SEG 27 SEG 26 SEG 26 SEG 25 SEG 25 SEG 24 SEG 24 SEG 23 SEG 23 SEG 22 SEG 22 SEG 21 SEG 21 SEG 20 SEG 20 SEG 19 SEG 19 SEG 18 SEG 18 SEG 17 SEG 17 SEG 16 SEG 16 SEG 15 SEG 15 SEG 14 SEG 14 SEG 13 SEG 13 SEG 12 SEG 12 SEG 11 SEG 11 SEG 10 SEG 10 SEG 9 SEG 9 SEG 8 SEG 8 SEG 7 SEG 7 SEG 6 SEG 6 SEG 5 SEG 5 SEG 4 SEG 4 SEG 3 SEG 3 SEG 2 SEG 2 SEG 1 SEG 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 FH-M2017ZT 7.3 OPERATIONAL FLOW CHART VCC=5V 62pin Power ON L L VCC=5V 16pin bsen 19pin asen 20pin swvdd←L 54pin IPPW←H 22pin Source keys operative (After that, proceed to each source operation.) SYSPOW←L 41pin Source ON www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 FH-M2017ZT 8. OPERATIONS AND SPECIFICATIONS 8.1 OPERATIONS - RADIO Traffic information Preset button Tuning button Power AM/FM select button Tape button Dolby B NR Direction change Power Skip Rewind Forward Repeat Scan Tape eject button Cassette loading slot - TAPE Scan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 FH-M2017ZT 8.2 SPECIFICATIONS Power source..........................................13.2V(10.5–16.0V) Backup current.................................................1mA or less Grounding system........................................Negative type Dimensions .............................180(W)x100(H)x160(D)mm Weight..........................................................................2.0kg Cassette player Tape................................Compact cassette tape(C30-C90) Tape speed ......4.76 cm/sec.(+0.14 cm/sec.,-0.05 cm/sec.) Wow and flutter ...........................................0.09%(WRMS) Fast forward/rewinding time.....Approx. 100sec. for C-60 Frequency response ..........................................30–1500Hz Separation....................................................................40dB CD player System ...................................Compact disc audio system Usable discs ..................................................Compact disc Signal format .....................Sampling frequency : 44.1kHz .....................................Number of guantization : 16;linear S/N ..........................................(IHF-A 90dB(1kHz)Network) Dynamic range..................................................90dB(1kHz) Number of channels .............................................2(stereo) FM tuner Frequency......................................................87.5–108 MHz Usable selectivity......................................................4dBµV Frequency characteristics................................30–15000Hz S/N....................................................(IHF-A 55dB Network) Stereo separation.......................40dB(65dBf input , 1kHz) AM tuner Frequency............................................531–1602 kHz(9kHz) Usable selectivity....................................................25dBµV - CD CD loading slot CD eject button CD button Scan Repeat Random Track button Power www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
