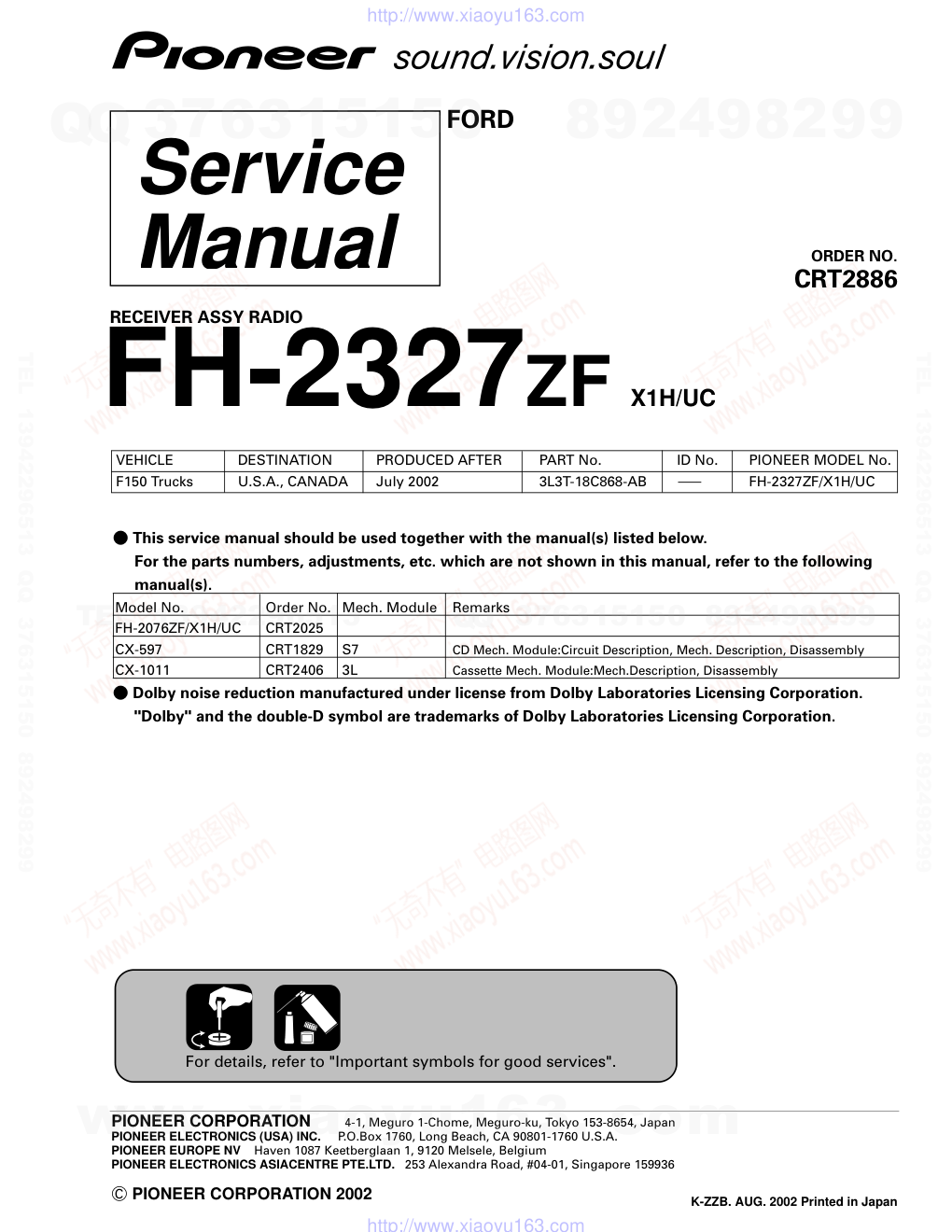

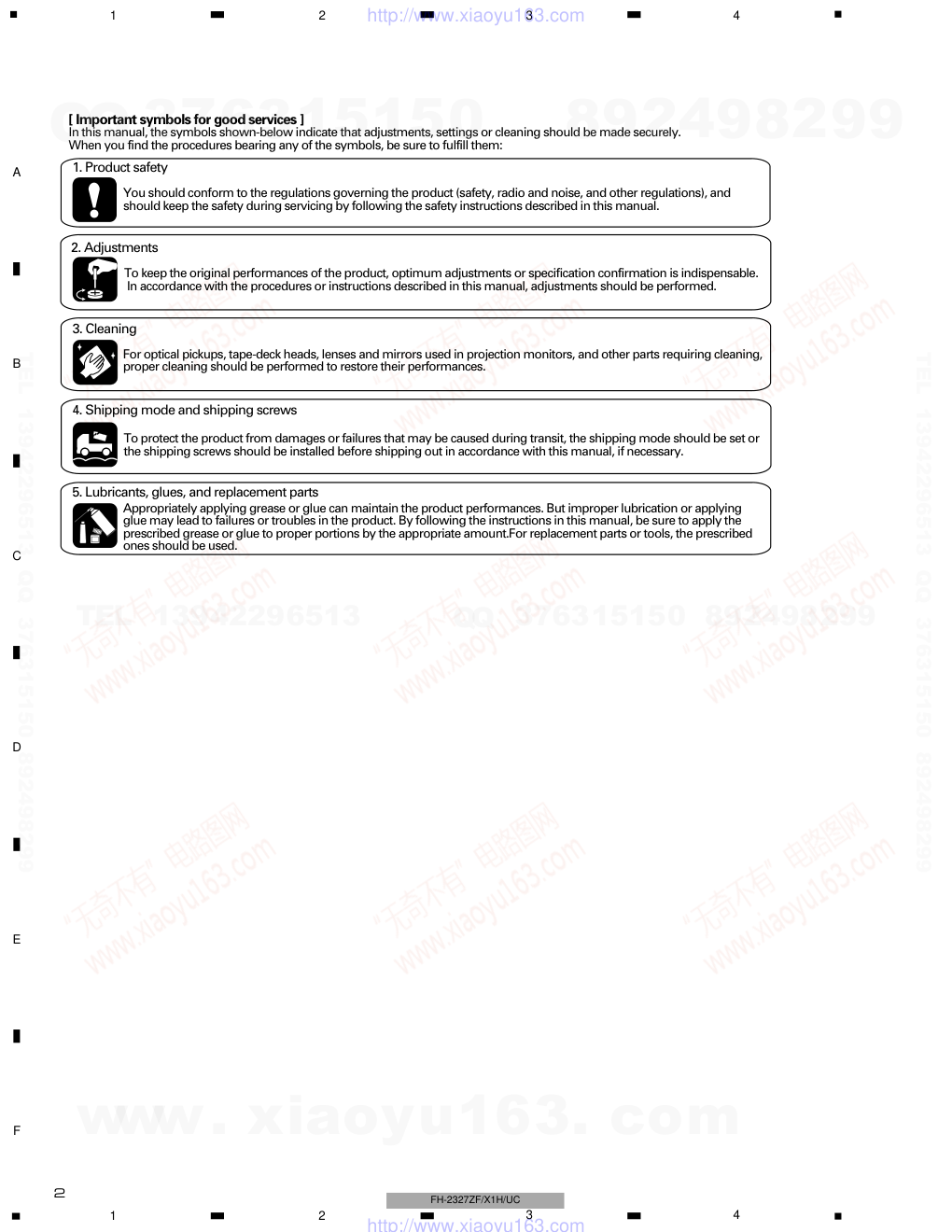

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936 C PIONEER CORPORATION 2002 K-ZZB. AUG. 2002 Printed in Japan ORDER NO. CRT2886 RECEIVER ASSY RADIO FH-2327ZF X1H/UC Service Manual FORD - This service manual should be used together with the manual(s) listed below. For the parts numbers, adjustments, etc. which are not shown in this manual, refer to the following manual(s). Model No. Order No. Mech. Module Remarks FH-2076ZF/X1H/UC CRT2025 CX-597 CRT1829 S7 CD Mech. Module:Circuit Description, Mech. Description, Disassembly CX-1011 CRT2406 3L Cassette Mech. Module:Mech.Description, Disassembly - Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. VEHICLE DESTINATION PRODUCED AFTER PART No. ID No. PIONEER MODEL No. F150 Trucks U.S.A., CANADA July 2002 3L3T-18C868-AB FH-2327ZF/X1H/UC For details, refer to "Important symbols for good services". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 F E D C B A FH-2327ZF/X1H/UC [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 5 6 7 8 F E D C B A 5 6 7 8 FH-2327ZF/X1H/UC EXPLODED VIEWS AND PARTS LIST EXTERIOR (Page 3) - EXTERIOR SECTION PARTS LIST Part No. Mark No. Description FH-2076ZF/X1H/UC FH-2327ZF/X1H/UC 6 Cassette Mechanism Module EXK3285 EXK4260 8 Case HNB2059 HNB0206 9 Insulator HNM4745 HNM0089 11 Rail Guide HNV4897 Not used 12 Mother Unit HWM4717 HWM0088 18 Connector(CN702) HKS1730 CKS3568 25 Compound Unit HWM5467 HWM0089 34 Chassis Unit HXA8841 HXA0390 61 Screw HBA1404 CBA1138 81 Bush Not used CNV4955 Mother Unit (Service) HXX1321 Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com For grease application, refer to the service manual for CX-1011 (CRT2406). 4 1 2 3 4 1 2 3 4 F E D C B A FH-2327ZF/X1H/UC CASSETTE MECHANISM MODULE I F J F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 5 6 7 8 F E D C B A 5 6 7 8 FH-2327ZF/X1H/UC 1 Screw BSZ20P040FMC 2 Washer CBF1037 3 Washer CBG1003 4 Screw EBA1028 5 Screw CBA1037 6 Spring EBH1653 7 Spring EBH1642 8 Spring EBH1641 9 Spring EBH1626 10 Spring EBH1627 11 Spring EBH1648 12 Cord EDD1024 13 Photo-reflector(Q101) EGN1004 14 Arm ENC1526 * 15 Lever ENC1544 16 Lever ENC1543 17 Arm ENC1532 18 Frame ENC1533 19 Holder ENC1547 20 Gear ENC1535 21 Arm ENC1550 22 Roller ENR1040 23 Belt ENT1027 24 Collar ENV1508 25 Arm ENV1539 26 Arm ENV1540 27 Gear ENV1569 28 Gear ENV1547 29 Gear ENR1044 30 Worm Wheel ENV1559 31 Lever ENV1551 32 Flywheel ENV1554 33 PCB ENP1196 34 Switch(S101,S102,S103) ESG1007 35 Deck Unit EWM1031 36 Plug(CN251) CKS3540 37 Gathering PCB ENX1066 38 Motor Unit(M1) EXA1491 39 Motor EXM1028 40 Head Assy(HD1) EXA1594 41 Arm ENC1537 42 Screw JGZ20P025FNI 43 Guide ENC1545 44 Chassis Unit EXA1609 45 Pinch Holder Unit EXA1608 46 Pinch Roller ENV1518 47 Pinch Holder Unit EXA1607 48 Pinch Roller ENV1518 49 Reel Unit EXA1625 50 Head Base Unit EXA1611 51 Lever Unit EXA1587 52 Gear Unit EXA1596 53 Motor Unit(M2) EXA1623 54 Washer HBF-179 55 Spring EBH1537 56 Worm Gear ENV1564 57 Spring EBH1654 58 ••••• 59 ••••• 60 Tube ENM1039 61 ••••• 62 Spring EBH1545 63 Sensor Unit EWM1036 Mark No. Description Part No. Mark No. Description Part No. - CASSETTE MECHANISM MODULE SECTION PARTS LIST NOTE: - Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List. - Screws adjacent to ∇ mark on the product are used for disassembly. - For the applying amount of lubricants or glue, follow the instructions in this manual. ( In the case of no amount instructions, apply as you think it appropriate.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 1 2 3 4 1 2 3 4 F E D C B A FH-2327ZF/X1H/UC SCHEMATIC DIAGRAM MOTHER UNIT (GUIDE PAGE) A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or "ELECTRICAL PARTS LIST". AF-a A F 7.2MHz I F CN251 C CN957 C CN958 G CN701 B FM/AM TUNER UNIT TAPE:-11.0dBs (315Hz 0dB) CD:-0.4dBs (1kHz 0dB) FM:-24.2dBs (30% 1kHz) AM:-24.4dBs (30% 1kHz) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 5 6 7 8 F E D C B A 5 6 7 8 FH-2327ZF/X1H/UC AF-b A F Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. MOTHER UNIT A F E F CN1001 D F CN201 FM:-16.7dBs AM:-15.7dBs CD: +3.3dBs TAPE: -4.2dBs PHONE: -4.2dBs TAPE:+25.8dBs PHONE:+0.5dBs 600µH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 1 2 3 4 1 2 3 4 F E D C B A FH-2327ZF/X1H/UC A-a AF-b AF-a AF-a AF-b 1 2 7.2MHz B FM/AM TUNER UNIT FM:-24.2dBs (30% 1kHz) AM:-24.4dBs (30% 1kHz) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 5 6 7 8 F E D C B A 5 6 7 8 FH-2327ZF/X1H/UC A-a AF-a AF-b AF-a AF-b 3 4 5 I F CN251 C CN957 C CN958 G CN701 TAPE:-11.0dBs (315Hz 0dB) CD:-0.4dBs (1kHz 0dB) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 1 2 3 4 1 2 3 4 F E D C B A FH-2327ZF/X1H/UC AF-b AF-a AF-b 1 2 MOTHER UNIT A F D F CN201 600µH FM:-16.7dBs AM:-15.7dBs CD: +3.3dBs TAPE: -4.2dBs PHONE: -4.2dBs TAPE:+25.8dBs PHONE:+0.5dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 5 6 7 8 F E D C B A 5 6 7 8 FH-2327ZF/X1H/UC AF-b AF-a AF-b 3 4 5 Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. E F CN1001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 1 2 3 4 1 2 3 4 F E D C B A FH-2327ZF/X1H/UC EQ PCB D F EQ PCB D F A F CN301 COMPOUND UNIT Consists of EQ PCB CONNECTOR PCB VF SUB PCB FIX EQ CIRCUIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 5 6 7 8 F E D C B A 5 6 7 8 FH-2327ZF/X1H/UC D F C225 330P C226 330P C271 330P C272 330P R256 0R0 R257 0R0 R258 0R0 R259 0R0 AUDIO LEVEL CONTROL CIRCUIT AUTO LEVEL CONTROL CIRCUIT ANALOGUE SWITCH FOR DUAL PLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CONNECTOR PCB E F E F A F CN801 COMPOUND UNIT Consists of EQ PCB CONNECTOR PCB VF SUB PCB 5V OUTPUT FOR SUBWOOFER AMPLIFIER ACP BUS TRANSCEIVER RECEIVER 14 1 2 3 4 1 2 3 4 F E D C B A FH-2327ZF/X1H/UC CONNECTOR PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 5 6 7 8 F E D C B A 5 6 7 8 FH-2327ZF/X1H/UC VF SUB PCB VF SUB PCB F F F F CN954 COMPOUND UNIT Consists of EQ PCB CONNECTOR PCB VF SUB PCB C DC/DC CONVERTOR (-39V) 6.2V REGULATOR 27kHz OSCILLATOR FOR VF FILAMENT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 1 2 3 4 1 2 3 4 F E D C B A FH-2327ZF/X1H/UC CASSETTE MECHANISM MODULE DECK UNIT MUTE HA12216F 11 12 13 14 15 16 17 18 19 20 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 1 2 3 4 5 6 7 8 9 10 R256 180 R291 0R0 C271 1/50 R283 0R0 R284 0R0 R282 0R0 C253 390P C254 390P C252 390P C251 390P R281 0R0 R255 180 C256 R01 R258 18K R402 3R3K R403 910 R322 0R0 R293 0R0 C272 R1 R287 0R0 R285 0R0 HD1 HEAD ASSY EXA1594 TEST TAPE NCT-150 (400Hz, 200nWb/m) RL RR FR FL C302 R1 VR302 33K(B) -8.24dBs(300mV)±1dB Fwd-R Fwd-L Rev-R Rev-L NFI(L) RIN(L) RIP FIN(L) GND GND FIN(R) VREF RIN(R) NFI(R) M-OUT(R) EQOUT(R) TAI(R) BIAS RAI(R) PBOUT(R) DET(L) MUTE MSGV(R) MAOUT MSI MSDET MSGV F/R 120/70 NR MOUT(L) EQOUT(L) TAI(L) NC RAI(L) PBOUT(L) NC DET(L) MSGV(S) CN252 CN251 DOLBY B NR IC251 VR301 33K(B) C310 R1 C309 R1 R321 0R0 VCC CCP1280 CCP1280 NC MSOUT NC NC R260 13K R262 270K C401 3900P R401 15K R276 100K C402 R33 C404 R01 C403 R022 R274 0R0 R273 0R0 R272 0R0 C Q271 2SC411 R292 0R0 R271 18K C301 R1 R294 0R0 R259 13K C255 R01 R257 18K R261 270K I F A F CN702 I F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 5 6 7 8 F E D C B A 5 6 7 8 FH-2327ZF/X1H/UC SENSOR UNIT SWITCHES: SENSOR UNIT S101:LOAD SWITCH..........EJECT-PLAY S102:MODE SWITCH............ON-OFF S103:70µs SWITCH...............ON-OFF The underlined indicates the switch position. R275 47K R351 1K R352 1K R353 1K R354 1K R373 0R0 R355 270K C352 3900P R362 300 C351 R22 C353 R01 C354 R01 R374 0R0 C356 R01 C355 R1 D352 1SS355 M1 MOTOR UNIT (MAIN MOTOR) EXA1491 S101 LOAD ESG1007x3 S102 MODE REEL SENSE Q101 EGN1004 M2 MOTOR UNIT (SUB MOTOR) EXA1623 RS3 RS2 RS1 SC2 SC1 TAB MC CE VCC2 NC VCC MCS RRS FRS RSB C TAB MS2 NC NC MM SM1 RSB GND RS mtl MCS load CN255 CN253 CN256 CN254 MECHANISM DRIVER IC351 PA2020A 0R0 R375 0R0 S103 70µs 100K 0R0 R404 270K C405 R033 R277 220K R278 100K Q271 2SC4116 J F J F I F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 1 2 3 4 1 2 3 4 F E D C B A FH-2327ZF/X1H/UC PCB CONNECTION DIAGRAM MOTHER UNIT Capacitor Connector P.C.Board Chip Part MOTHER UNIT SIDE B SIDE A NOTE FOR PCB DIAGRAMS 1.The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2.Viewpoint of PCB diagrams F CN701 G F A F F A F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 5 6 7 8 F E D C B A 5 6 7 8 FH-2327ZF/X1H/UC SIDE A F A F FRONT CN402 ANTENNA D F CN201 D F CN201 E F CN1001 CN957 C CN958 C CN251 B D F I F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 1 2 3 4 1 2 3 4 F E D C B A FH-2327ZF/X1H/UC MOTHER UNIT F A F F A F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 5 6 7 8 F E D C B A 5 6 7 8 FH-2327ZF/X1H/UC SIDE B F A F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EQ PCB SIDE A CN301 F D F F D F F A F 22 1 2 3 4 1 2 3 4 F E D C B A FH-2327ZF/X1H/UC EQ PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 5 6 7 8 F E D C B A 5 6 7 8 FH-2327ZF/X1H/UC EQ PCB SIDE B F D F F D F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 1 2 3 4 1 2 3 4 F E D C B A FH-2327ZF/X1H/UC CONNECTOR PCB SIDE A CONNECTOR PCB SIDE B F E F F E F F A F F E F CN801 CONNECTOR PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VF SUB PCB SIDE A VF SUB PCB SIDE B F F F F F F F F F C CN954 25 5 6 7 8 F E D C B A 5 6 7 8 FH-2327ZF/X1H/UC VF SUB PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C321 C271 19 17 15 13 11 9 7 5 3 1 16 14 12 10 8 6 4 2 20 18 CN251 26 1 2 3 4 1 2 3 4 F E D C B A FH-2327ZF/X1H/UC IC,Q IC251 Q351 Q352 ADJ VR302 VR301 IC253 CN252 CN254 CN253 CN255 M1 M2 HEAD ASSY CN256 21 22 CASSETTE MECHANISM MODULE A F CN702 J F I F DECK UNIT I F DECK UNIT SIDE B I F SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 5 6 7 8 F E D C B A 5 6 7 8 FH-2327ZF/X1H/UC 1 2 3 4 5 6 S101 LOAD S102 MODE S103 70µs CN256 Q101 REEL SENSE VR302 mV Meter(1) VR301 L-CH R-CH Pin2 Pin3 CN251 DECK UNIT Extention Cord GGD1121 I F CN253 J F SENSOR UNIT DOLBY B NR ADJUSTMENT No. Test Tape Adjustment Point Adjustment Method (Switch Position) 1 NCT-150 VR301(Lch),VR302(Rch) mV Meter(1) : –8.24dBm(300mV)±1dB (400Hz,200nWb/m) (DOLBY NR Switch : OFF) CASSETTE MECHANISM MODULE ADJUSTMENT J F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 1 2 3 4 1 2 3 4 F E D C B A FH-2327ZF/X1H/UC ELECTRICAL PARTS LIST NOTE: - Parts whose parts numbers are omitted are subject to being not supplied. - The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- Unit Number : HWM0088 Unit Name : Mother Unit MISCELLANEOUS IC 101 IC SN761027DL IC 102 IC SN761027DL IC 301 IC TDA7384 IC 302 IC NJM2068MD IC 303 IC NJM2068MD IC 501 IC LC72146MQ2 IC 601 IC PE5334A IC 602 IC PE5250A IC 604 IC TC7S86F IC 605 IC TC35096AF IC 606 IC S-29220A IC 607 IC NJM2904M IC 801 IC PAJ002A IC 802 IC PA2024A Q 301 Transistor DTC124EK Q 302 Transistor DTC124EK Q 304 Transistor FMC2A Q 307 Transistor FMC4A Q 308 Transistor FMC4A Q 311 Transistor FMC4A Q 312 Transistor FMC4A Q 313 Transistor 2SC2458 Q 315 Transistor DTC323TK Q 316 Transistor DTC323TK Q 317 Transistor DTC323TK Q 318 Transistor DTC323TK Q 319 Transistor DTA114TK Q 320 Transistor DTA114TK Q 501 Transistor DTC114TK Q 502 Transistor 2SC4081 Q 503 Transistor 2SK330 Q 505 Transistor 2SC2458 Q 506 Transistor 2SK330 Q 603 Transistor 2SB1238 Q 616 Transistor 2SA933S Q 617 Transistor DTC124EK Q 618 Transistor 2SD2396 Q 619 Transistor DTA114EK Q 620 Transistor DTC114EK Q 621 Transistor DTA124EK Q 622 Transistor DTC343TK Q 623 Transistor DTC343TK Q 625 Transistor DTC124EK Q 626 Transistor DTC114TK Q 627 Transistor DTC114TK Q 628 Transistor DTC124TK Q 629 Transistor DTC114TK Q 630 Transistor DTA114TK Q 631 Transistor DTC124EK Q 801 Transistor 2SA933S Q 802 Transistor DTC124EK Q 803 Transistor 2SA1358 Q 805 Transistor 2SA1358 Q 806 Transistor 2SC2458 Q 807 Transistor 2SC2458 D 301 Diode MA3047(M) D 302 Diode HZS6L(B2) D 303 Diode 1SS133 D 501 Diode DAN202U D 503 Diode RD3R0ES D 511 Diode RD3R0ES D 605 Diode HZS9L(B1) D 607 Chip Diode MA151WK D 613 Diode 1SS133 D 614 Diode 1SS133 D 616 Diode 1SS133 D 617 Diode 1SS133 D 618 Diode 1SS133 D 619 Diode 1SS133 D 620 Diode 1SS133 D 621 Diode 1SS133 D 622 Diode 1SS133 D 801 Diode ERC05-10B D 802 Diode ERA15-02VH D 803 Diode 1SS133 D 804 Diode 1SS133 D 1601 Diode 1SS352 L 403 Inductor LCTB4R7K2125 L 501 Inductor LAU1R0K L 502 Inductor LCTB2R2K2125 L 503 Ferri-Inductor CTF-157- L 601 Inductor LCTB2R2K2125 L 602 Inductor LCTB2R2K2125 L 801 Choke Coil 600µH CTH1171 TH 601 Thermistor CCX1015 X 501 Crystal Resonator 7.2MHz CSS1334 X 601 Crystal Resonator 4.1952MHz CSS1398 X 602 Ceramic Resonator 4.194MHz CSS1071 X 603 Radiator 32.768kHz CSS1319 EF 801 EMI Filter HCG0001 AR 402 Arrester DSP-201M-F10B35 RESISTORS R 103 RS1/10S911J R 104 RS1/10S911J R 105 RS1/10S182J R 106 RS1/10S182J R 107 RS1/10S363J R 108 RS1/10S363J R 109 RS1/10S103J R 110 RS1/10S103J R 111 RS1/10S103J R 112 RS1/10S103J A F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 5 6 7 8 F E D C B A 5 6 7 8 FH-2327ZF/X1H/UC =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- R 113 RS1/10S0R0J R 114 RS1/10S0R0J R 115 RS1/10S473J R 116 RS1/10S473J R 117 RS1/10S473J R 118 RS1/10S473J R 119 RS1/10S473J R 120 RS1/10S473J R 127 RS1/10S221J R 128 RS1/10S221J R 139 RS1/10S151J R 140 RS1/10S151J R 145 RS1/10S182J R 146 RS1/10S182J R 147 RS1/10S103J R 148 RS1/10S103J R 301 RS1/10S103J R 302 RS1/10S221J R 303 RS1/10S101J R 304 RS1/10S153J R 305 RS1/10S103J R 308 RS1/10S182J R 309 RS1/10S182J R 310 RS1/10S333J R 311 RS1/10S333J R 312 RS1/10S753J R 313 RS1/10S753J R 314 RS1/10S753J R 315 RS1/10S753J R 316 RS1/10S333J R 317 RS1/10S333J R 318 RS1/10S333J R 319 RS1/10S333J R 320 RS1/10S753J R 321 RS1/10S753J R 329 RS1/10S331J R 337 RS1/10S102J R 345 RS1/10S223J R 346 RS1/10S223J R 347 RS1/10S223J R 348 RS1/10S223J R 366 RS1/10S103J R 417 RS1/10S0R0J R 501 RS1/10S153J R 502 RS1/16S223J R 503 RS1/10S103J R 504 RS1/10S472J R 505 RS1/10S472J R 506 RS1/16S102J R 507 RS1/16S222J R 508 RS1/10S102J R 509 RS1/10S152J R 510 RS1/10S103J R 511 RS1/10S222J R 512 RS1/10S102J R 513 RS1/10S472J R 514 RS1/10S472J R 515 RS1/10S152J R 516 RS1/10S222J R 517 RS1/10S222J R 519 RS1/10S473J R 520 RS1/10S473J R 521 RS1/10S473J R 522 RS1/10S473J R 523 RS1/16S473J R 524 RS1/10S473J R 525 RS1/10S473J R 540 RS1/10S473J R 558 RS1/10S473J R 564 RS1/10S0R0J R 565 RS1/10S0R0J R 582 RS1/10S103J R 583 RS1/10S103J R 591 RS1/10S102J R 592 RS1/10S102J R 593 RS1/10S225J R 594 RS1/10S473J R 601 RS1/10S473J R 602 RS1/10S473J R 603 RS1/10S102J R 604 RS1/10S102J R 605 RS1/10S102J R 622 RS1/16S102J R 624 RS1/16S471J R 629 RS1/10S102J R 630 RS1/10S473J R 631 RS1/10S102J R 634 RS1/10S103J R 635 RS1/10S473J R 636 RS1/10S102J R 637 RS1/10S102J R 650 RS1/10S102J R 659 RS1/10S102J R 660 RS1/10S102J R 661 RS1/10S102J R 662 RS1/10S102J R 665 RS1/10S102J R 666 RS1/10S101J R 667 RS1/10S101J R 668 RS1/16S101J R 669 RS1/10S101J R 670 RS1/10S471J R 673 RS1/10S473J R 674 RS1/10S471J R 675 RS1/10S472J R 676 RS1/10S472J R 677 RS1/10S471J R 695 RS1/16S102J R 697 RS1/10S472J R 698 RS1/10S681J R 699 RS1/10S102J R 701 RS1/16S102J R 702 RS1/16S681J R 711 RS1/10S102J R 712 RS1/10S102J R 713 RS1/10S102J R 714 RS1/10S102J R 715 RS1/10S102J R 716 RS1/10S102J R 717 RS1/10S102J R 718 RS1/10S433J R 719 RS1/10S473J R 720 RS1/10S473J R 722 RS1/10S473J R 723 RS1/10S473J R 724 RS1/10S473J R 725 RS1/16S223J R 726 RS1/16S223J R 728 RS1/16S222J R 729 RS1/16S222J R 730 RS1/10S103J R 731 RS1/10S184J R 732 RS1/10S152J R 733 RS1/10S472J R 734 RS1/10S473J R 735 RS1/10S473J R 737 RS1/10S473J R 754 RS1/10S473J R 755 RS1/10S473J R 756 RS1/10S273J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 1 2 3 4 1 2 3 4 F E D C B A FH-2327ZF/X1H/UC =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- R 757 RS1/10S104J R 758 RS1/10S104J R 759 RS1/10S472J R 760 RS1/10S273J R 761 RS1/10S473J R 776 RS1/10S103J R 777 RS1/8S201J R 778 RD1/4PU221J R 779 RS1/10S221J R 780 RS1/10S472J R 781 RS1/10S103J R 782 RS1/10S223J R 783 RS1/10S471J R 784 RS1/10S102J R 785 RS1/10S473J R 786 RS1/10S392J R 787 RS1/10S472J R 788 RS1/10S471J R 789 RS1/10S471J R 790 RS1/10S471J R 791 RS1/10S471J R 792 RS1/10S102J R 793 RS1/10S472J R 794 RS1/10S103J R 795 RS1/16S471J R 796 RS1/16S471J R 797 RS1/16S471J R 798 RS1/16S471J R 799 RS1/10S472J R 801 RS1/10S152J R 802 RS1/10S103J R 803 RS1/10S103J R 804 RS1/10S822J R 805 RS1/10S823J R 806 RS1/10S823J R 807 RS1/10S103J R 808 RS1/10S333J R 809 RS1/10S363J R 810 RS1/10S103J R 811 RS1/4S4R7J R 812 RS1/10S102J R 814 RS1/10S394J R 815 RS1/10S274J R 817 RS1/10S472J R 818 RS1/10S104J R 819 RS1/4S4R7J R 820 RS1/10S152J R 821 RS1/10S222J R 822 RS1/10S102J R 823 RS1/10S105J R 824 RS1/10S473J R 825 RS1/10S103J R 826 RS1/10S273J R 1505 RD1/4PU0R0J R 1506 RD1/4PU0R0J R 1615 RS1/10S101J R 1616 RS1/10S103J R 1617 RS1/10S822J R 1618 RS1/10S103J R 1619 RS1/10S473J R 1620 RS1/10S182J R 1621 RS1/10S182J R 1622 RS1/10S102J R 1623 RS1/10S102J R 1631 RA4C102J R 1632 RA4C102J R 1633 RA4C102J R 1634 RA4C102J R 1635 RA4C102J R 1636 RA4C102J R 1637 RA4C682J R 1638 RA4C102J R 1640 RA4C102J R 1641 RA4C102J R 1642 RA4C222J R 1643 RA4C473J R 1644 RA4C473J R 1645 RA4C221J R 1648 RA4C102J R 1649 RS1/10S220J R 1650 RS1/16S102J R 1651 RS1/16S102J R 1652 RS1/16S102J R 1653 RS1/16S102J R 1654 RS1/10S512J R 1655 RS1/10S512J R 1656 RS1/10S473J CAPACITORS C 103 CEJANP100M16 C 104 CEJANP100M16 C 105 CEAL1R0M50 C 106 CEAL1R0M50 C 107 CEJANP100M16 C 108 CEJANP100M16 C 111 CKSQYB103K50 C 112 CKSQYB103K50 C 113 CKSQYB561K50 C 114 CKSQYB561K50 C 115 CEJANP3R3M25 C 116 CEJANP3R3M25 C 119 CKSQYB563K16 C 120 CKSQYB563K16 C 121 CEJANPR33M50 C 122 CEJANPR33M50 C 123 CEAL220M6R3 C 124 CEAL2R2M50 C 125 CKSQYB683K16 C 126 CKSQYB154K16 C 127 CEAL101M10 C 128 CEJANP100M16 C 129 CEJANP100M16 C 130 CEJANP100M16 C 131 CEJANP100M16 C 138 CEAL2R2M50 C 139 CEAL220M6R3 C 140 CKSQYB683K16 C 143 CEALNP1R0M50 C 144 CEALNP1R0M50 C 145 CEALNP1R0M50 C 146 CEALNP1R0M50 C 147 CEALNP1R0M50 C 148 CEALNP1R0M50 C 149 CEALNP1R0M50 C 150 CEALNP1R0M50 C 151 CEALNP1R0M50 C 152 CEALNP1R0M50 C 153 CEALNP1R0M50 C 154 CEALNP1R0M50 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 5 6 7 8 F E D C B A 5 6 7 8 FH-2327ZF/X1H/UC =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- C 155 CEALNP1R0M50 C 156 CEALNP1R0M50 C 157 CEALNP1R0M50 C 158 CEALNP1R0M50 C 159 CEAL100M16 C 160 CEAL100M16 C 161 CEAL100M16 C 162 CEAL100M16 C 163 CEAL150M10 C 164 CEAL150M10 C 165 CEAL1R0M50 C 166 CEAL1R0M50 C 189 CKSQYB273K50 C 305 CKSQYB104K50 C 306 CEAL330M10 C 307 CEAL1R0M50 C 308 CEANL1R0M50 C 309 CEAL100M16 C 314 CEAL100M16 C 315 CEAL100M16 C 316 CEAL100M16 C 317 CEAL100M16 C 318 CCSQCH470J50 C 319 CCSQCH470J50 C 320 CEAL100M16 C 321 CEAL100M16 C 322 CCSQCH101J50 C 325 CEAL100M16 C 326 CEAL331M6R3 C 331 CCSQCH470J50 C 332 CCSQCH470J50 C 333 CCSQCH101J50 C 335 CKSYB105K16 C 336 CKSYB105K16 C 337 CKSYB105K16 C 338 CKSYB105K16 C 346 CEAL4R7M16 C 347 CEAL4R7M16 C 348 CCSQCH221J50 C 349 CKSQYB103K50 C 501 CEAL100M16 C 502 CKSQYB103K50 C 504 CKSRYB223K50 C 505 CCSQCH101J50 C 506 CEAL100M16 C 507 CCSQCH101J50 C 508 CCSQCH101J50 C 509 CCSQCH101J50 C 510 CKSQYB103K50 C 511 CFTNA474J50 C 512 0.047µF/16V CCG1008 C 513 CKSQYB103K50 C 514 4.7µF/16V HCH0011 C 515 CKSQYB273K50 C 516 CKSQYB273K50 C 517 CKSQYB103K50 C 519 CKSQYB223K50 C 520 CKSRYB102K50 C 521 CCSQCH101J50 C 522 CCSQCH150J50 C 523 CCSQCH150J50 C 528 CCSQCH101J50 C 567 CCSRCH102J50 C 601 CCSQCH101J50 C 602 CCSQCH101J50 C 603 CCSQCH220J50 C 604 CCSQCH180J50 C 605 CCSQCH220J50 C 606 CCSQCH220J50 C 608 CCSQCH101J50 C 609 CCSQCH681J50 C 610 CCSQCH681J50 C 619 CEAL100M16 C 620 CEAL100M16 C 621 CEAL100M16 C 622 CCSQCH181J50 C 623 CCSQCH181J50 C 624 CASA100M6R3 C 635 CKSQYB104K16 C 636 CKSQYB473K50 C 637 CKSQYB103K50 C 645 CKSQYB102K50 C 646 CKSQYB473K50 C 651 CKSQYB103K50 C 652 CEAL1R0M50 C 653 CEAL1R0M50 C 654 CEAL101M10 C 656 CEAL100M16 C 657 CKSQYB103K50 C 659 CKSQYB103K50 C 660 CEAL2R2M50 C 661 CKSQYB472K50 C 662 CKSQYB472K50 C 663 CKSQYB104K16 C 801 4700µF/16V HCH0014 C 802 CKSQYB103K50 C 803 CKSQYB103K50 C 804 CEAS102M16 C 805 CKSQYB473K50 C 806 CEAS471M6R3 C 807 CASA100M6R3 C 808 CEAS331M10 C 809 CEAS221M10 C 810 CASA101M10 C 811 CASA470M10 C 812 CEAL101M10 C 813 CKSQYB472K50 C 814 CKSQYB103K50 C 815 CKSQYB102K50 C 816 CKSQYB102K50 C 817 CKSQYB102K50 C 818 CKSQYB102K50 C 819 CSZA220M10 C 821 CKSQYB102K50 C 822 CKSQYB102K50 C 823 CKSQYB102K50 C 824 CKSQYB102K50 C 825 CKSQYB102K50 C 826 CKSQYB102K50 C 827 CKSQYB102K50 C 828 CKSQYB102K50 C 829 2200µF/25V CCL1027 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 1 2 3 4 1 2 3 4 F E D C B A FH-2327ZF/X1H/UC =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- Compound Unit Consists of EQ PCB Connector PCB VF SUB PCB Unit Number : HWM0089 Unit Name : Compound Unit MISCELLANEOUS IC 201 IC BA14741F IC 202 IC BA14741F IC 203 IC BA14741F IC 204 IC BA4558F-P IC 205 IC BA3308F IC 207 IC BA14741F IC 208 IC BA14741F IC 209 IC BA4558F-P IC 210 IC TC4066BF IC 211 IC BA3308F IC 1001 IC DS36277 IC 1051 IC BA4558F-P IC 1052 IC SC33165ADWR2 Q 201 Transistor 2SA1037K Q 202 Transistor DTC114EK Q 1012 Transistor 2SA1037K Q 1013 Transistor DTC124EK Q 1051 Transistor DTA124EK Q 1052 Transistor DTC143EK Q 1053 Transistor 2SC3113 Q 1054 Transistor 2SD2396 Q 1055 Transistor 2SB1243 Q 1056 Transistor 2SD1859 D 1021 Diode 1SS133 D 1022 Diode MTZ5R6J(C) D 1051 Diode MTZ6R8J(B) D 1052 Diode 1SS133 D 1053 Diode MTZ5R1J(C) D 1054 Diode ERA83-006 D 1055 Diode SC016-2 L 1051 Coil CTH1202 T 1051 Transformer CTT1067 RESISTORS R 201 RS1/10S472J R 202 RS1/10S472J R 205 RS1/10S122J R 206 RS1/10S122J R 207 RS1/10S683J R 208 RS1/10S683J R 209 RS1/10S683J R 210 RS1/10S683J R 211 RS1/10S122J R 212 RS1/10S122J R 213 RS1/10S392J R 214 RS1/10S392J R 215 RS1/10S822J R 216 RS1/10S822J R 217 RS1/10S122J R 218 RS1/10S122J R 219 RS1/10S683J R 220 RS1/10S683J R 221 RS1/10S683J R 222 RS1/10S683J R 223 RS1/10S122J R 224 RS1/10S122J R 227 RS1/10S222J R 228 RS1/10S222J R 229 RS1/10S122J R 230 RS1/10S122J R 231 RS1/10S683J R 232 RS1/16S683J R 233 RS1/10S472J R 234 RS1/10S472J R 237 RS1/10S153J R 238 RS1/10S153J R 239 RS1/10S273J R 240 RS1/10S273J R 241 RS1/10S113J R 242 RS1/10S113J R 243 RS1/10S681J R 244 RS1/10S681J R 245 RS1/10S392J R 246 RS1/10S392J R 247 RS1/10S101J R 248 RS1/10S101J R 249 RS1/10S182J R 250 RS1/10S182J R 251 RS1/10S332J R 252 RS1/10S332J R 253 RS1/10S103J R 254 RS1/10S103J R 255 RS1/10S564J R 256 RS1/16S0R0J R 257 RS1/8S0R0J R 258 RS1/16S0R0J R 259 RS1/16S0R0J R 261 RS1/10S472J R 262 RS1/10S472J R 277 RS1/10S122J R 278 RS1/10S122J R 279 RS1/10S683J R 280 RS1/10S683J R 281 RS1/10S683J R 282 RS1/10S683J R 283 RS1/10S122J R 284 RS1/10S122J R 287 RS1/16S272J R 288 RS1/10S272J R 289 RS1/10S122J R 290 RS1/10S122J R 291 RS1/10S683J R 292 RS1/10S683J R 293 RS1/16S472J R 294 RS1/10S472J R 297 RS1/10S153J R 298 RS1/10S153J R 299 RS1/10S273J R 300 RS1/10S273J R 1001 RS1/8S223J R 1002 RS1/8S472J R 1003 RS1/8S472J R 1004 RS1/8S472J R 1005 RS1/8S470J R 1006 RS1/8S470J R 1011 RS1/10S473J R 1021 RD1/4PU103J R 1022 RD1/4PU101J R 1023 RD1/4PU221J D F E F F F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 5 6 7 8 F E D C B A 5 6 7 8 FH-2327ZF/X1H/UC =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- R 1024 RS1/10S822J R 1051 RS1/10S101J R 1052 RS1/10S182J R 1053 RS1/10S103J R 1054 RS1/10S392J R 1055 RS1/10S103J R 1056 RS1/10S103J R 1057 RS1/10S822J R 1058 RS1/10S332J R 1059 RS1/10S101J R 1060 RS2LMF3R3J R 1061 RS2LMF1R8J R 1062 RS2LMF2R2J R 1063 RS2PMF2R2J R 1064 RS1/10S332J R 1065 RS1/10S472J R 1066 RS1/4S102J R 1067 RS1PMFR47J R 1068 RS1/10S333J R 1069 RS1/10S112J R 1070 RS1/10S223J R 1201 RS1/10S103J R 1202 RS1/10S103J R 1203 RS1/10S332J R 1204 RS1/10S332J R 1205 RS1/10S392J R 1206 RS1/10S392J R 1207 RS1/10S101J R 1208 RS1/10S101J R 1209 RS1/10S182J R 1210 RS1/10S182J R 1211 RS1/10S332J R 1212 RS1/10S332J R 1213 RS1/10S103J R 1214 RS1/10S103J R 1215 RS1/10S472J R 1216 RS1/10S473J R 1217 RS1/10S473J R 1218 RS1/10S564J R 1261 RS1/10S392J R 1262 RS1/10S392J R 1263 RS1/10S122J R 1264 RS1/10S122J R 1271 RS1/10S471J R 1272 RS1/10S471J R 1277 RS1/10S332J R 1278 RS1/10S332J R 1285 RS1/16S392J R 1286 RS1/10S392J R 1287 RS1/16S331J R 1288 RS1/16S331J CAPACITORS C 201 CEAL220M16 C 202 CEAL220M16 C 203 CEAL220M16 C 204 CEAL220M16 C 205 CKSQYB105K16 C 206 CKSQYB105K16 C 207 CKSRYB823K16 C 208 CKSRYB823K16 C 209 CKSQYB563K16 C 210 CKSQYB563K16 C 211 CKSQYB224K16 C 212 CKSQYB224K16 C 213 CKSQYB823K50 C 214 CKSQYB823K50 C 215 CKSRYB822K50 C 216 CKSRYB822K50 C 217 CKSRYB123K50 C 218 CKSRYB123K50 C 219 CKSRYB153K25 C 220 CKSRYB153K25 C 221 CKSQYB822K50 C 222 CKSQYB822K50 C 223 CKSRYB471K50 C 224 CKSRYB471K50 C 225 CCSQCH331J50 C 226 CCSQCH331J50 C 229 CKSQYB334K16 C 230 CKSYB334K16 C 231 CKSQYB334K16 C 232 CKSQYB334K16 C 233 CEAL150M10 C 234 CEAL150M10 C 235 CEJA221M6R3 C 236 CEJA221M6R3 C 239 CKSQYB102K50 C 240 CEAL3R3M50 C 259 CKSQYB183K50 C 260 CKSQYB183K50 C 261 CKSRYB333K25 C 262 CKSRYB333K25 C 263 CKSRYB183K50 C 264 CKSRYB183K50 C 265 CKSQYB123K50 C 266 CKSQYB123K50 C 267 CKSQYB103K50 C 268 CKSQYB103K50 C 269 CKSQYB222K50 C 270 CKSQYB222K50 C 271 CCSQCH331J50 C 272 CCSQCH331J50 C 275 CKSQYB334K16 C 276 CKSQYB334K16 C 277 CKSQYB334K16 C 278 CKSQYB334K16 C 279 CEAL150M10 C 280 CEAL150M10 C 281 CEJA221M6R3 C 282 CEJA221M6R3 C 285 CKSQYB102K50 C 286 CEAL3R3M50 C 1001 CEAL220M10 C 1002 CKSQYB222K50 C 1003 CKSQYB222K50 C 1004 CCSQCH181J50 C 1005 CCSQCH181J50 C 1051 CKSQYB102K50 C 1052 CKSQYB103K50 C 1053 CKSQYB562K50 C 1054 CEJA101M16 C 1056 CASA6R8M30 C 1057 CKSQYB471K50 C 1058 CKSQYB223K50 C 1059 CEAS101M50 C 1061 CEAL100M6R3 C 1071 CKSQYB332K50 C 1081 CKSQYB102K50 C 1082 CKSQYB102K50 C 1083 CKSQYB102K50 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 2 3 4 1 2 3 4 F E D C B A FH-2327ZF/X1H/UC =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- Unit Number : EWM1031 Unit Name : Deck Unit MISCELLANEOUS IC 251 IC HA12216F IC 351 IC PA2020A Q 271 Transistor 2SC4116 D 352 Diode 1SS355 VR 301 Semi-fixed 33kΩ(B) CCP1280 VR 302 Semi-fixed 33kΩ(B) CCP1280 RESISTORS R 255 RS1/16S181J R 256 RS1/16S181J R 257 RS1/16S183J R 258 RS1/16S183J R 259 RS1/16S133J R 260 RS1/16S133J R 261 RS1/16S274J R 262 RS1/16S274J R 271 RS1/16S183J R 272 RS1/8S0R0J R 273 RS1/8S0R0J R 274 RS1/16S0R0J R 275 RS1/16S473J R 276 RS1/16S104J R 277 RS1/16S224J R 278 RS1/16S104J R 281 RS1/8S0R0J R 282 RS1/8S0R0J R 283 RS1/8S0R0J R 284 RS1/8S0R0J R 285 RS1/16S0R0J R 287 RS1/16S0R0J R 291 RS1/8S0R0J R 292 RS1/10S0R0J R 293 RS1/10S0R0J R 294 RS1/10S0R0J R 321 RS1/8S0R0J R 322 RS1/8S0R0J R 351 RS1/16S102J R 352 RS1/16S102J R 353 RS1/16S102J R 354 RS1/16S102J R 355 RS1/16S274J R 362 RS1/8S301J R 373 RS1/16S0R0J R 374 RS1/8S0R0J R 375 RS1/8S0R0J R 401 RS1/16S153J R 402 RS1/16S332J R 403 RS1/16S911J R 404 RS1/16S274J CAPACITORS C 251 CKSRYB391K50 C 252 CKSRYB391K50 C 253 CKSRYB391K50 C 254 CKSRYB391K50 C 255 CKSRYB103K50 C 256 CKSRYB103K50 C 271 1µF/50V ECH0002 C 272 CKSRYB104K16 C 301 CKSRYB104K16 C 302 CKSRYB104K16 C 309 CKSRYB104K16 C 310 CKSRYB104K16 C 351 CKSQYB224K25 C 352 CKSRYB392K50 C 353 CKSRYB103K50 C 354 CKSRYB103K50 C 355 CKSQYB104K50 C 356 CKSRYB103K50 C 401 CKSRYB392K50 C 402 CKSRYB334K10 C 403 CKSRYB223K25 C 404 CKSRYB103K50 C 405 CKSRYB333K16 Unit Number : EWM1036 Unit Name : Sensor Unit MISCELLANEOUS Q 101 Photo-reflector EGN1004 S 101 Switch(LOAD) ESG1007 S 102 Switch(MODE) ESG1007 S 103 Switch(70µS) ESG1007 Miscellaneous Parts List M 1 Motor Unit(MAIN) EXA1491 M 2 Motor Unit(SUB) EXA1623 HD 1 Head Assy EXA1594 I F J F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
