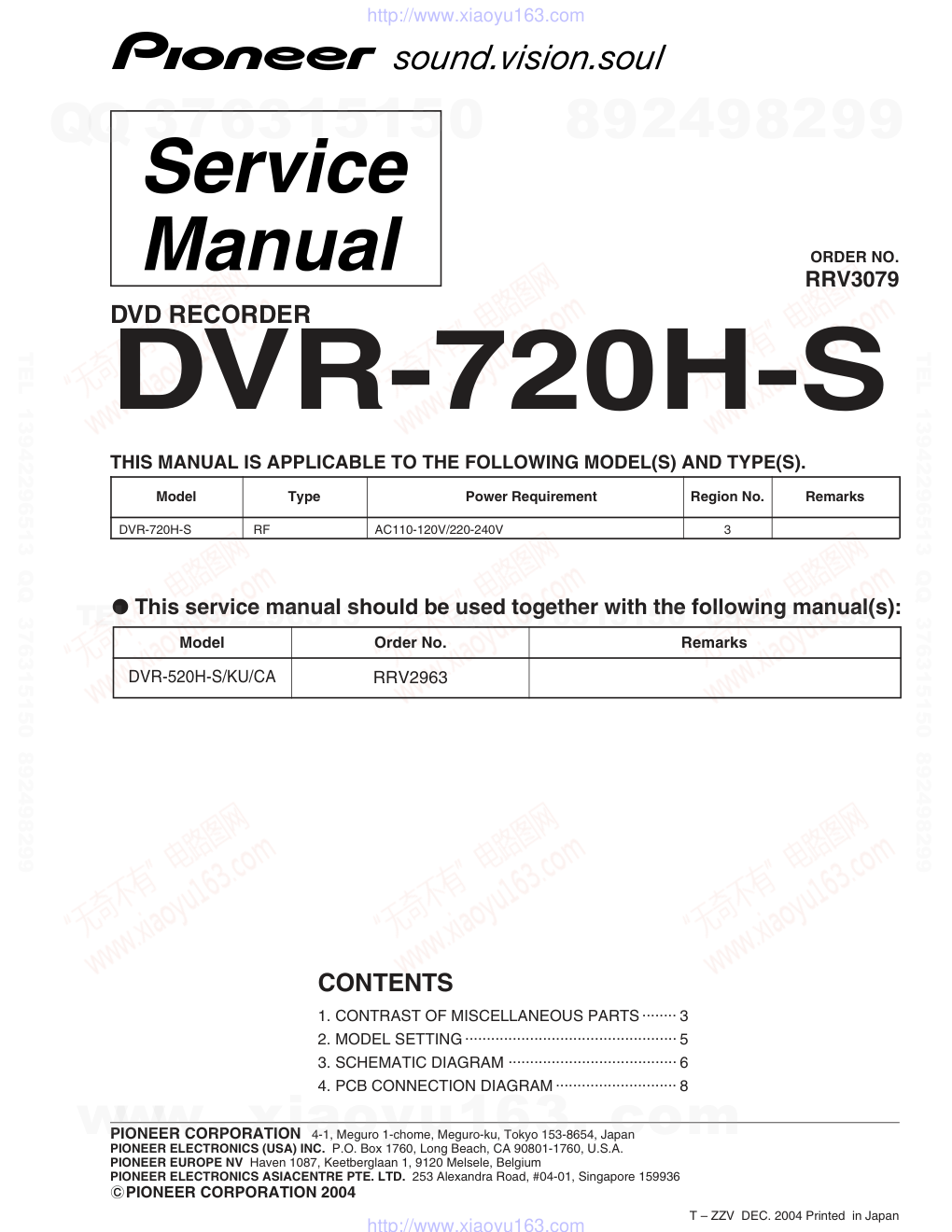

先锋PIONEER DVR-720H-S音响电路图
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2004
RRV3079
T – ZZV DEC. 2004 Printed in Japan
DVD RECORDER
DVR-720H-S
CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS ........ 3
2. MODEL SETTING ................................................. 5

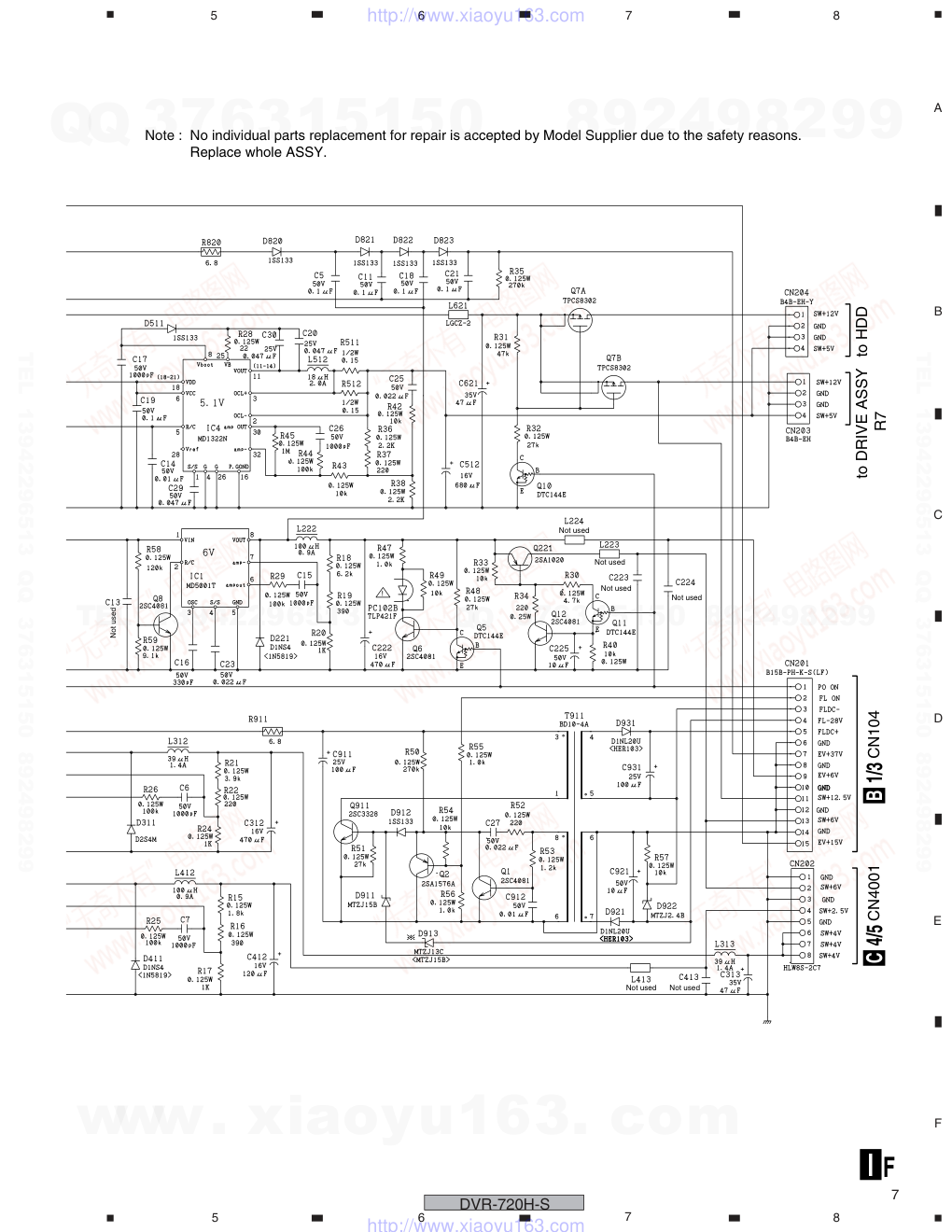

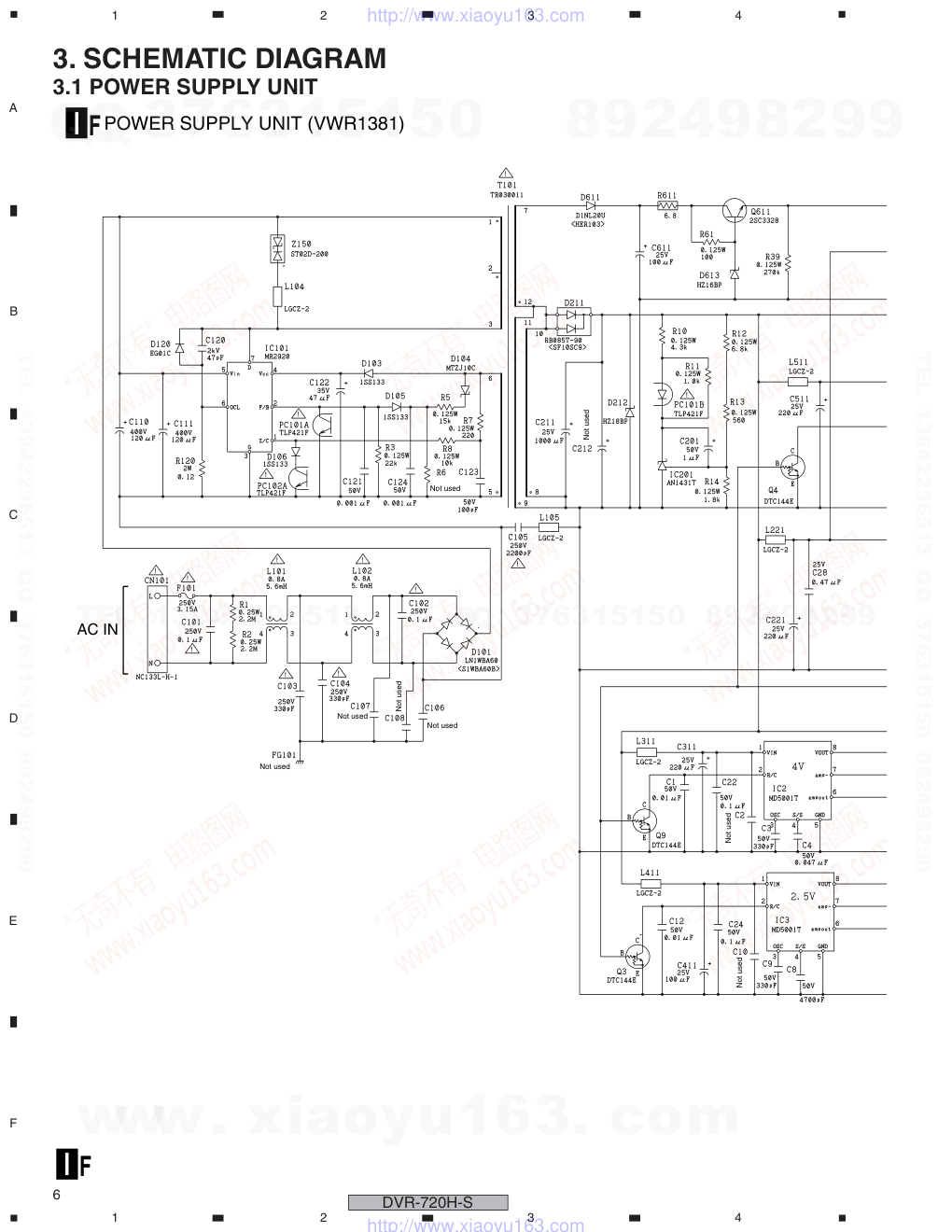

3. SCHEMATIC DIAGRAM ....................................... 6

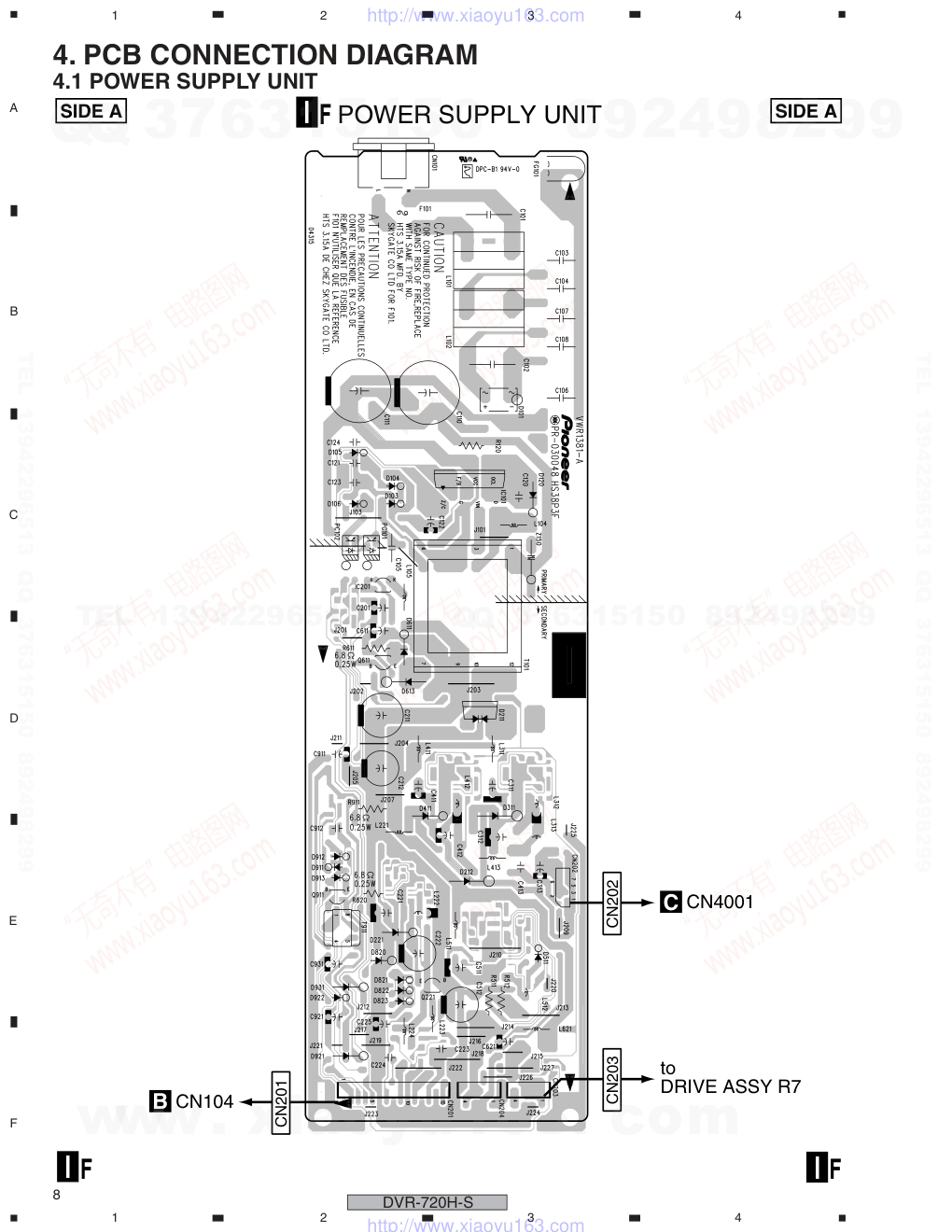

4. PCB CONNECTION DIAGRAM ............................ 8
This service manual should be used together with the following manual(s):
Remarks
Order No.
DVR-520H-S/KU/CA
RRV2963
Model
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
Type
Power Requirement
Region No.
Remarks
DVR-720H-S
RF
AC110-120V/220-240V
3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
2
1
2
3
4
1
2
3
4
C
D
F
A
B
E
DVR-720H-S
LABEL CHECK
IMPORTANT
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS 1.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PERSON.
PULL-OPEN
STANDBY/ON
DVD
HDD
OPEN/CLOSE
REC ONE TOUCH COPY
CLAMP signals for detecting the loading state are detected
by the drive CPUs, and the design prevents laser diode
oscillation when the CLAMP signal turns OFF.
In normal operation, if no disc is clamped, the laser diode
oscillation is disabled.
However, the interlock does not always operate in the test
mode.
2. When the cover is opened, close viewing of the objective
lens with the naked eye will cause exposure to a Class 3A
laser beam.
Additional Laser Caution
1. The ON/OFF(ON:low level,OFF:high level) status of the
LASER DIODE CHARACTERISTICS
MAXIMUM OUTPUT POWER: 70 mW
WAVELENGTH: 654 - 662 nm
LASER DIODE CHARACTERISTICS
MAXIMUM OUTPUT POWER: 100 mW
WAVELENGTH: 780 - 787 nm
DV IN/OUT
DRW2194
VRW2019

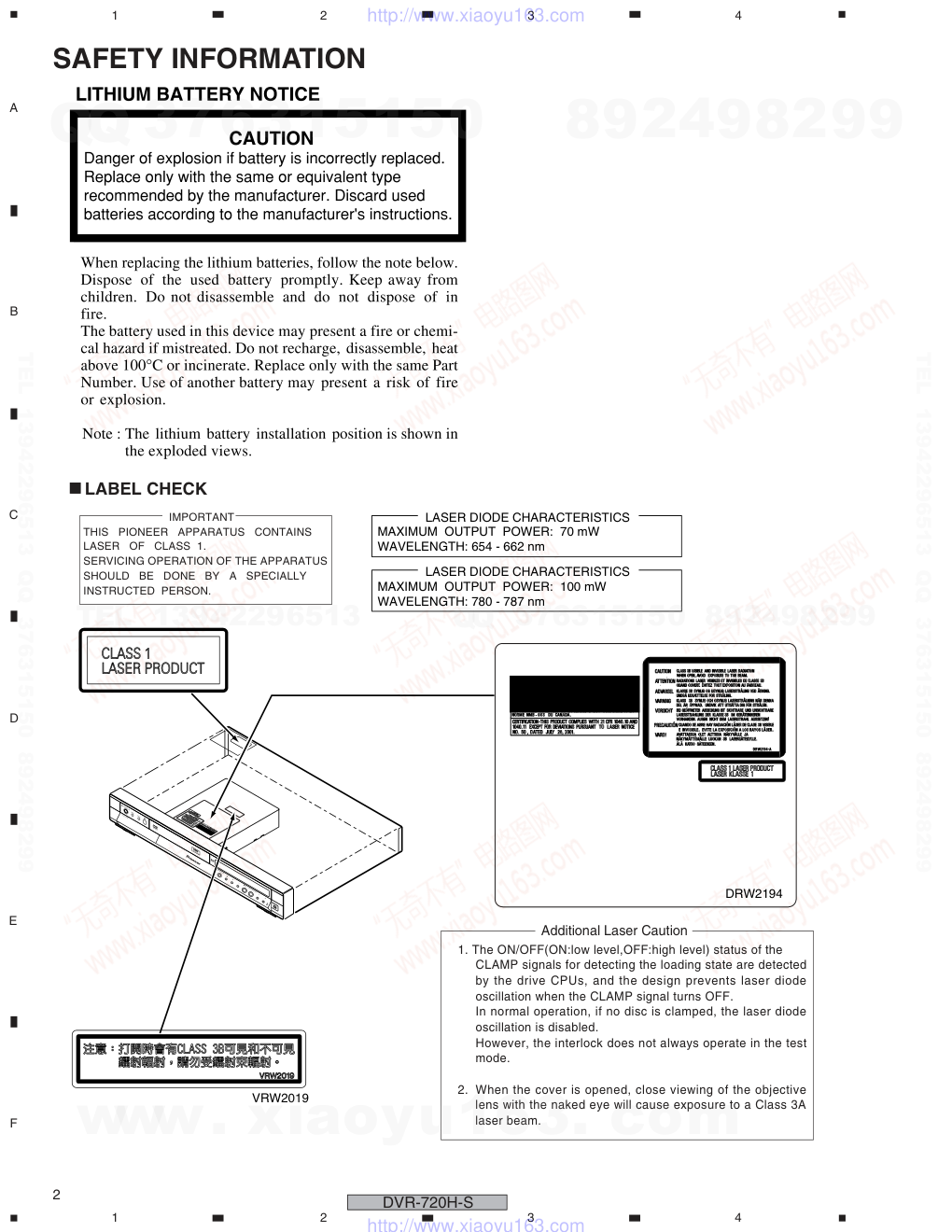

SAFETY INFORMATION
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
3
1
2
3
4
1
2
3
4
C
D
F
A
B
E
DVR-720H-S
PCB ASSEMBLIES
NSP
JACB Assy
VWM2265
VWM2289
P11- 2
JCKB Assy
VWV2023
VWV2043
P11- 8
>
POWER SUPPLY Unit
VWR1380
VWR1381
PACKING SECTION
P9- 1
>
Power Cable
ADG7021
ADG7097
P9- 3
RF Antenna Cable
VDE1025
VDE1088
P9- 4
Remote Control
VXX2932
VXX2934
P9- 6
NSP
Dry Cell Battery (R6P,AA)
VEM1031
AEX1026
P9- 7
Operating Instructions (English)
VRB1338
VRB1349
Operating Instructions (Chinese)
Not used
VRC1243
P9-11
NSP
Card
VRY1132
Not used
P9-12
NSP
Warranty Card
ARY7045
Not used
P9-18
Packing Case
VHG2545
VHG2588
EXTERIOR SECTION
P11-10
HDD 80G 4R080L0 SV
VXF1010
Not used
P11-10
HDD 160G 4R160L0 SV
Not used
VXF1028
P11-12
Ferrite Core
ATX1048
Not used
P11-14
Connector Assy (13P)
PF13PP-D47
Not used
P11-14
Housing Assy (15P)
Not used
VKP2343
P11-21
Shield Flexible Cable (40P)
VDA2033
Not used
P11-21
Flexible Cable (40P)
Not used
VDA2044
P11-52
Bonnet Label
VRW2104
VRW2148
P11-54
Rear Panel
VNA2704
VNA2779
Laser Caution Label CHH
Not used
VRW2019
*1
NSP
RPCS Label
Not used
AAX7966
Rear Panel
FRONT PANEL SECTION
P14- 5
Front Panel Assy
VXA2645
VXA2696
P14-15
NSP
FL Lens
VNK5422
VNK5638
P14-16
NSP
Front Panel
VNK5441
VNK5491
P14-17
Jack Door
VNK5494
VNK5497

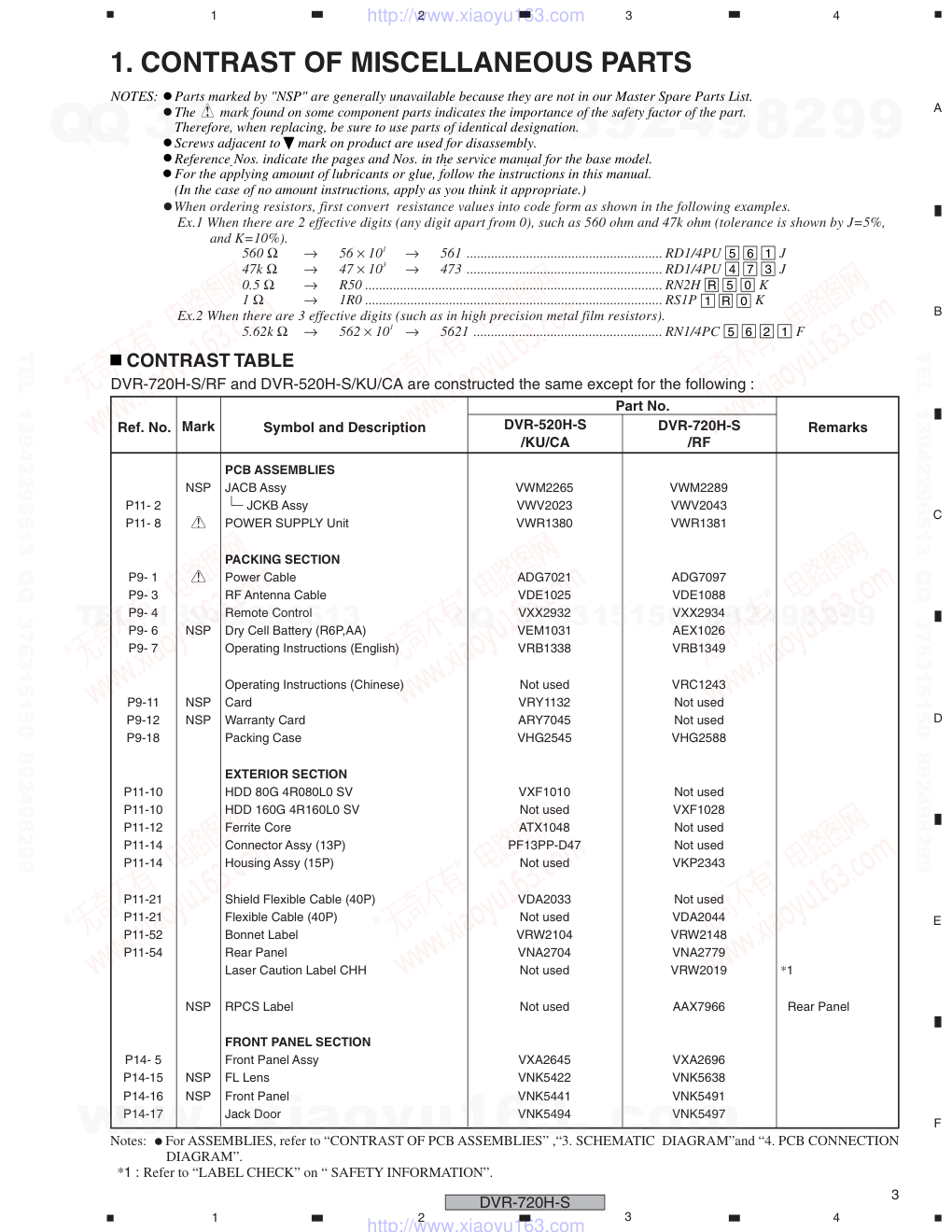

1. CONTRAST OF MISCELLANEOUS PARTS
CONTRAST TABLE
DVR-720H-S/RF and DVR-520H-S/KU/CA are constructed the same except for the following :
Notes: ÷ For ASSEMBLIES, refer to “CONTRAST OF PCB ASSEMBLIES” ,“3. SCHEMATIC DIAGRAM”and “4. PCB CONNECTION
DIAGRAM”.
Part No.
DVR-520H-S
/KU/CA
Ref. No.
Symbol and Description
Remarks
Mark
DVR-720H-S
/RF
*1 : Refer to “LABEL CHECK” on “ SAFETY INFORMATION”.
j
p
f
y
For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to mark on product are used for disassembly.
Reference Nos. indicate the pages and Nos. in the service manual for the base model.
NOTES:
•When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
560 Ω
→
56 × 10
1
→
561 ........................................................ RD1/4PU 5 6 1 J
47k Ω
→
47 × 10
3
→
473 ........................................................ RD1/4PU 4 7 3 J
0.5 Ω
→
R50 ..................................................................................... RN2H R 5 0 K
1 Ω
→
1R0 ..................................................................................... RS1P 1 R 0 K
Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).
5.62k Ω
→
562 × 10
1
→
5621 ...................................................... RN1/4PC 5 6 2 1 F
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
4
1
2
3
4
1
2
3
4
C
D
F
A
B
E
DVR-720H-S

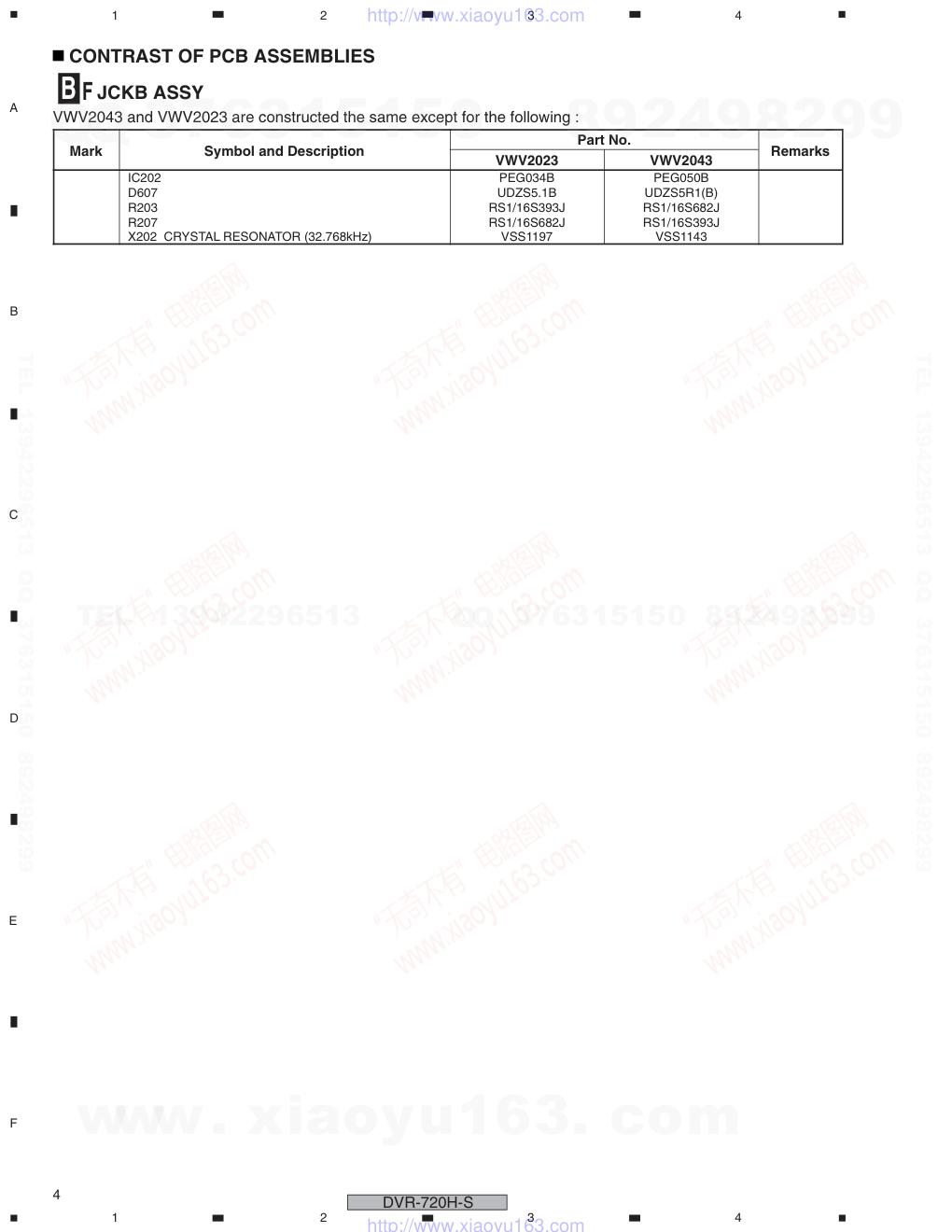

CONTRAST OF PCB ASSEMBLIES
JCKB ASSY
Mark
Symbol and Description
Part No.
Remarks
VWV2023
VWV2043
IC202
PEG034B
PEG050B
D607
UDZS5.1B
UDZS5R1(B)
R203
RS1/16S393J
RS1/16S682J
R207
RS1/16S682J
RS1/16S393J
X202 CRYSTAL RESONATOR (32.768kHz)
VSS1197
VSS1143
VWV2043 and VWV2023 are constructed the same except for the following :
F
B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
5
1
2
3
4
1
2
3
4
C
D
F
A
B
E
DVR-720H-S

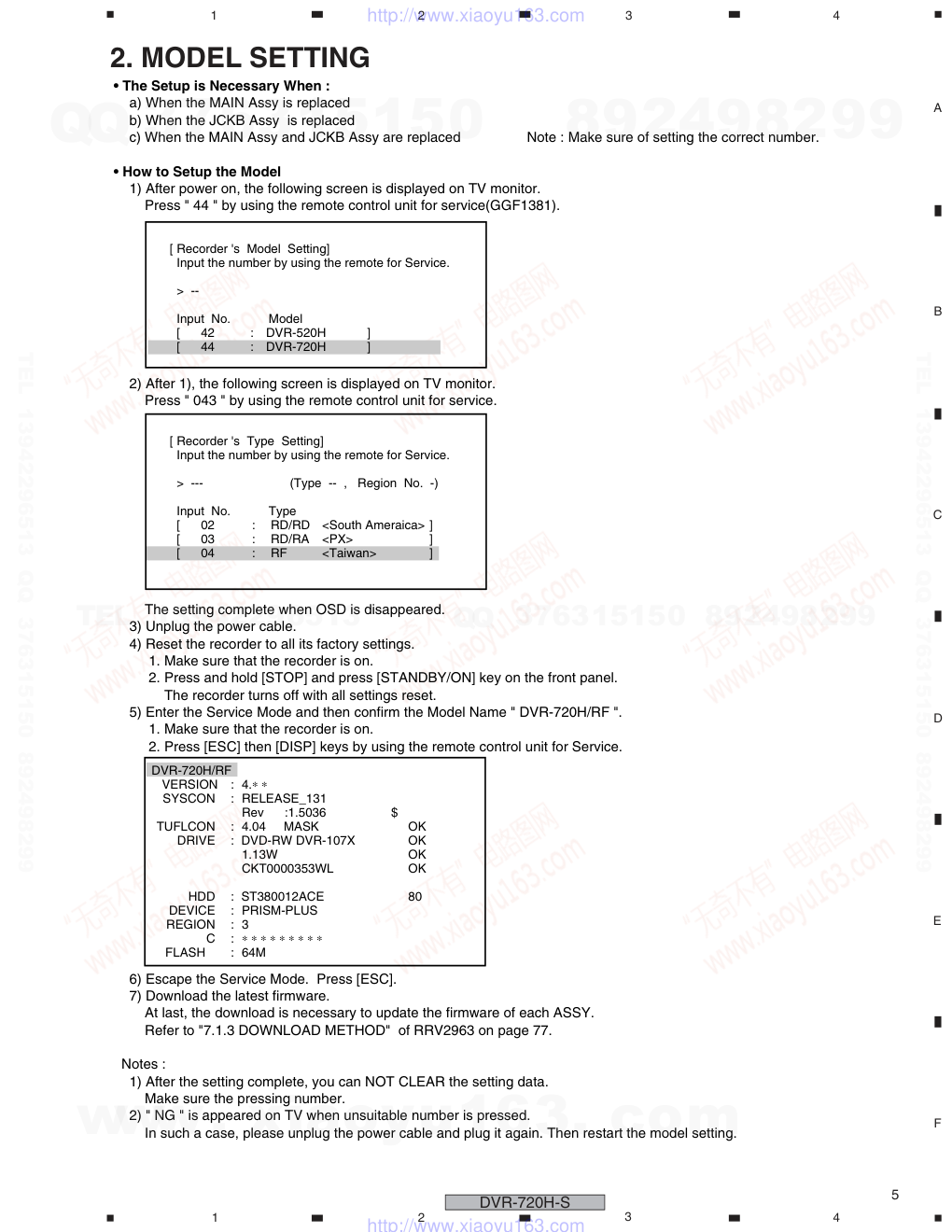

2) After 1), the following screen is displayed on TV monitor.
Press " 043 " by using the remote control unit for service.
6) Escape the Service Mode. Press [ESC].
7) Download the latest firmware.
At last, the download is necessary to update the firmware of each ASSY.
Refer to "7.1.3 DOWNLOAD METHOD" of RRV2963 on page 77.
Notes :
1) After the setting complete, you can NOT CLEAR the setting data.
Make sure the pressing number.
2) " NG " is appeared on TV when unsuitable number is pressed.
In such a case, please unplug the power cable and plug it again. Then restart the model setting.
The setting complete when OSD is disappeared.
3) Unplug the power cable.
4) Reset the recorder to all its factory settings.
1. Make sure that the recorder is on.
2. Press and hold [STOP] and press [STANDBY/ON] key on the front panel.
The recorder turns off with all settings reset.
5) Enter the Service Mode and then confirm the Model Name " DVR-720H/RF ".
1. Make sure that the recorder is on.
2. Press [ESC] then [DISP] keys by using the remote control unit for Service.
[ Recorder 's Model Setting]
Input the number by using the remote for Service.
> --
Input No. Model
[ 42
:
DVR-520H
]
[ 44
:
DVR-720H
]
[ Recorder 's Type Setting]
Input the number by using the remote for Service.
> --- (Type -- , Region No. -)
Input No. Type
[ 02
:
RD/RD
