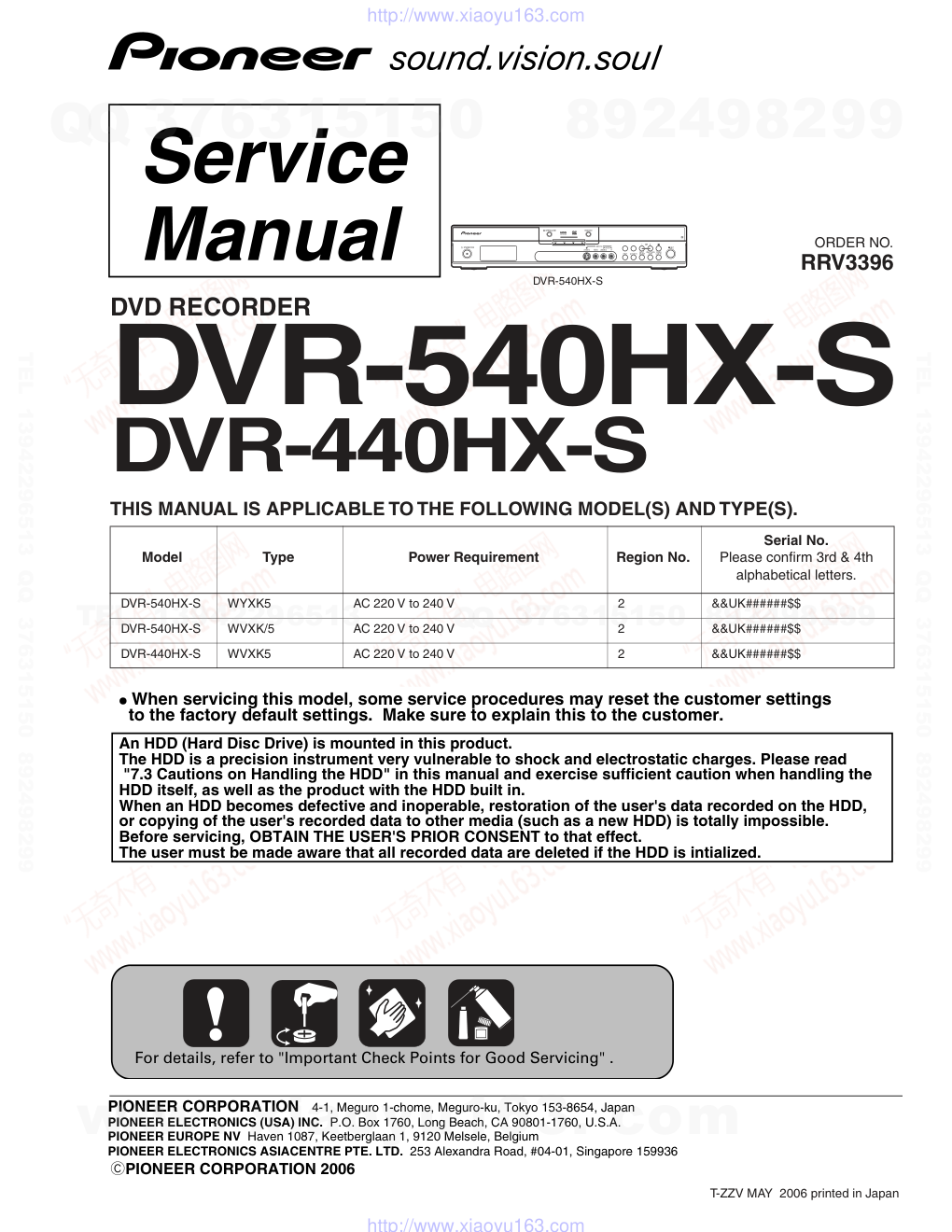

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2006 HDD/DVD OPEN/CLOSE REC STANDBY/ON ONE TOUCH COPY CH STANDBY/ON REC + – A.TV/D.TV HELP INPUT SELECT PAUSE LIVE TV PLTV DivX D.TV A.TV S-VIDEO VIDEO L(MONO) R AUDIO INPUT 2 DVR-540HX-S RRV3396 DVD RECORDER DVR-540HX-S DVR-440HX-S THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model Type Power Requirement Region No. Serial No. Please confirm 3rd & 4th alphabetical letters. DVR-540HX-S WYXK5 AC 220 V to 240 V 2 &&UK######$$ DVR-540HX-S WVXK/5 AC 220 V to 240 V 2 &&UK######$$ DVR-440HX-S WVXK5 AC 220 V to 240 V 2 &&UK######$$ ÷ When servicing this model, some service procedures may reset the customer settings to the factory default settings. Make sure to explain this to the customer. An HDD (Hard Disc Drive) is mounted in this product. The HDD is a precision instrument very vulnerable to shock and electrostatic charges. Please read "7.3 Cautions on Handling the HDD" in this manual and exercise sufficient caution when handling the HDD itself, as well as the product with the HDD built in. When an HDD becomes defective and inoperable, restoration of the user's data recorded on the HDD, or copying of the user's recorded data to other media (such as a new HDD) is totally impossible. Before servicing, OBTAIN THE USER'S PRIOR CONSENT to that effect. The user must be made aware that all recorded data are deleted if the HDD is intialized. For details, refer to "Important Check Points for Good Servicing" . T-ZZV MAY 2006 printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION LABEL CHECK IMPORTANT THIS PIONEER APPARATUS CONTAINS LASER OF CLASS 1. SERVICING OPERATION OF THE APPARATUS SHOULD BE DONE BY A SPECIALLY INSTRUCTED PERSON. CLAMP signals for detecting the loading state are detected by the drive CPUs, and the design prevents laser diode oscillation when the CLAMP signal turns OFF. In normal operation, if no disc is clamped, the laser diode oscillation is disabled. However, the interlock does not always operate in the test mode. 2. When the cover is opened, close viewing of the objective lens with the naked eye will cause exposure to a Class 3A laser beam. Additional Laser Caution 1. The ON/OFF(ON:low level,OFF:high level) status of the LASER DIODE CHARACTERISTICS MAXIMUM OUTPUT POWER: 100 mW WAVELENGTH: 654 - 662 nm LASER DIODE CHARACTERISTICS MAXIMUM OUTPUT POWER: 5 mW WAVELENGTH: 770 - 810 nm VRW2262 HDD/DVD OPEN/CLOSE REC STANDBY/ON ONE TOUCH COPY CH STANDBY/ON REC + – A.TV/D.TV HELP INPUT SELECT PAUSE LIVE TV PLTV DivX D.TV A.TV S-VIDEO VIDEO L(MONO) R AUDIO INPUT 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 3 5 6 7 8 5 6 7 8 C D F A B E [Important Check Points for Good Servicing] In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. 0 Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 4 1 2 3 4 1 2 3 4 C D F A B E CONTENTS SAFETY INFORMATION..................................................................................................................................... 2 1. SPECIFICATIONS ............................................................................................................................................ 5 2. EXPLODED VIEWS AND PARTS LIST ............................................................................................................ 8 2.1 PACKING ................................................................................................................................................... 8 2.2 EXTERIOR SECTION.............................................................................................................................. 10 2.3 SERVICE LOADER MAIN........................................................................................................................ 12 2.4 FRONT PANEL SECTION ....................................................................................................................... 14 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM.......................................................................................... 16 3.1 BLOCK DIAGRAM ................................................................................................................................... 16 3.1.1 OVERALL BLOCK DIAGRAM............................................................................................................ 16 3.2 OVERALL WIRING DIAGRAM................................................................................................................. 18 3.3 JACB ASSY (1/3) ..................................................................................................................................... 20 3.4 JACB ASSY (2/3) ..................................................................................................................................... 26 3.5 JACB ASSY (3/3) ..................................................................................................................................... 32 3.6 TUNB ASSY............................................................................................................................................. 34 3.7 DTBR ASSY (1/2) .................................................................................................................................... 36 3.8 DTBR ASSY (2/2) .................................................................................................................................... 38 3.9 FRJB, FLKY and PWSB ASSYS.............................................................................................................. 40 3.10 MAIN ASSY(1/3) .................................................................................................................................... 42 3.11 MAIN ASSY(2/3) .................................................................................................................................... 44 3.12 MAIN ASSY(3/3) .................................................................................................................................... 46 3.13 ATAB ASSY............................................................................................................................................ 48 3.14 POWER SUPPLY UNIT.......................................................................................................................... 50 3.15 WAVE FORMS ....................................................................................................................................... 52 4. PCB CONNECTION DIAGRAM ..................................................................................................................... 59 4.1 JACB ASSY ............................................................................................................................................. 60 4.2 TUNB ASSY............................................................................................................................................. 64 4.3 DTBR ASSY............................................................................................................................................. 66 4.4 FLKY and PWSB ASSYS ........................................................................................................................ 70 4.5 MAIN ASSY ............................................................................................................................................. 74 4.6 ATAB ASSY.............................................................................................................................................. 78 4.7 POWER SUPPLY UNIT............................................................................................................................ 80 5. PCB PARTS LIST ........................................................................................................................................... 82 6. ADJUSTMENT ............................................................................................................................................... 87 7. GENERAL INFORMATION............................................................................................................................. 89 7.1 DIAGNOSIS ............................................................................................................................................. 89 7.1.1 MODEL SETTING.............................................................................................................................. 91 7.1.2 CPRM ID NUMBER AND DATA SETTING......................................................................................... 92 7.1.3 FIRMWARE DOWNLOADING METHOD........................................................................................... 96 7.1.4 VIDEO ADJUSTMENT FOR SPECIFIC AREA.................................................................................. 99 7.1.5 SERVICE MODE.............................................................................................................................. 103 7.1.6 EPG SERVICE MODE ..................................................................................................................... 115 7.1.7 AGING MODE.................................................................................................................................. 117 7.1.8 HDD CHECK MODE........................................................................................................................ 119 7.1.9 DIAGNOSIS OF THE MAIN ASSY................................................................................................... 125 7.1.10 DIAGNOSIS OF THE DTBR ASSY................................................................................................ 126 7.1.11 NOTE ON REPLACEMENT OF THE SDRAM............................................................................... 127 7.1.12 SETUP SEQUENCE...................................................................................................................... 128 7.1.13 DISASSEMBLY .............................................................................................................................. 129 7.2 IC ........................................................................................................................................................... 135 7.3 CAUTIONS ON HANDLING THE HDD.................................................................................................. 150 7.4 DISC/CONTENT FORMAT .................................................................................................................... 152 8. PANEL FACILITIES ...................................................................................................................................... 155 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 5 5 6 7 8 5 6 7 8 C D F A B E 1. SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . General Power requirements 220 V to 240 V, 50 Hz / 60 Hz Power consumption 48 W Power consumption in standby mode 0.63 W (Front panel display : off) Weight 4.5 kg Dimensions 420 mm (W) x 79 mm (H) x 318 mm (D) Operating temperature +5 °C to +35 °C Operating humidity 5 % to 85 % (no condensation) TV system PAL/SECAM/NTSC (external input only) Readable discs DVD-Video, DVD-RW, DVD-R, DVD+R, DVD+RW, DVD-RAM, Video CD, Super VCD, CD, CD-R/-RW (WMA, MP3, JPEG, CD-DA) Recording discs and formats DVD-R/-RW : VR mode and Video mode DVD+R/+RW : +VR mode DVD-RAM : VR mode DVD-R DL : VR mode and Video mode DVD+R DL : +VR mode Video recording format Sampling frequency 13.5 MHz Compression format MPEG Audio recording format Sampling frequency 48 kHz Compression format Dolby Digital or Linear PCM (uncompressed) Recording time HDD (160 GB) (DVR-540HX-S) Fine (XP) Approx. 34 h Standard Play (SP) Approx. 68 h Long Play (LP) Approx. 136 h Extended Play (EP) Approx. 204 h Super Long Play (SLP) Approx. 272 h Super Extended Play (SEP) Approx. 340 h Manual Mode (MN) Approx. 34 h to 455 h HDD (80 GB) (DVR-440HX-S) Fine (XP) Approx. 17 h Standard Play (SP) Approx. 34 h Long Play (LP) Approx. 68 h Extended Play (EP) Approx. 102 h Super Long Play (SLP) Approx. 136 h Super Extended Play (SEP) Approx. 170 h Manual Mode (MN) Approx. 17 h to 227 h DVD-R/-RW, DVD+R/+RW, DVD-RAM Fine (XP) Approx. 1 h Standard Play (SP) Approx. 2 h Long Play (LP) Approx. 4 h Extended Play (EP) Approx. 6 h Super Long Play (SLP) Approx. 8 h Super Extended Play (SEP) Approx. 10 h (DVD-R/-RW, DVD-RAM only) Manual Mode (MN) DVD-R/-RW/-RAM Approx. 1 h to 13 h DVD+R/+RW Approx. 1 h to 8 h DVD-R DL/DVD+R DL Fine (XP) Approx. 1 h 51 m Standard Play (SP) Approx. 3 h 35 m Long Play (LP) Approx. 7 h 11 m Extended Play (EP) Approx. 10 h 46 m Super Long Play (SLP) Approx. 14 h 21 m Super Extended Play (SEP) Approx. 17 h 57 m (DVD-R DL only) Manual Mode (MN) DVD-R DL Approx. 1 h 51 m to 24 h DVD+R DL Approx. 1 h 51 m to 14 h 21 m Timer Programs 1 month/32 programs Clock Quartz lock (24-hour digital display) Tuner (analog) Receivable channels Tuner (digital) Receiving system DVB-T (2 K / 8 K COFDM) Tuner VHF/UHF VHF band III (170 MHz to 230 MHz) UHF band IV, V (470 MHz to 862 MHz) Auto Channel Preset 999 ch, Auto Preset Auto Label, Auto Sort Audio Stereo MPEG layer I/II This product’s digital tuner has been confirmed for use in the following countries: Belgium, France, Germany, Italy, Spain, UK. VHF (low) VHF (high) Hyper UHF VHF (low) VHF (high) Hyper UHF Channel E2 to E4 X to Z E5 to E12 S1 to S20 M1 to M10 U1 to U10 S21 to S41 E21 to E69 Frequency 47 MHz to 89 MHz 104 MHz to 300 MHz 302 MHz to 470 MHz 470 MHz to 862 MHz Channel A to C X to Z D to J 11, 13 S1 to S20 S21 to S41 E21 to E69 Frequency 44 MHz to 89 MHz 104 MHz to 300 MHz 302 MHz to 470 MHz 470 MHz to 862 MHz SECAM B/G PAL B/G PAL I Channel FB,FC1,FC F1 to F6 B to Q S21 to S41 21 to 69 Frequency 49 MHz to 65 MHz 104 MHz to 300 MHz 300 MHz to 470 MHz 470 MHz to 862 MHz Channel R1 to R5 R6 to R12 S1 to S20 S21 to S41 E21 to E69 Frequency 49 MHz to 94 MHz 104 MHz to 300 MHz 302 MHz to 470 MHz 470 MHz to 862 MHz SECAM L SECAM D/K PAL D/K STEREO B/G - A2 I - NICAM L - NICAM B/G - NICAM D/K - NICAM Specifications www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 6 1 2 3 4 1 2 3 4 C D F A B E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Input/Output Antenna 75Ω IEC 169-2 connector for VHF/UHF in/out (analog) 75Ω IEC 169-2 connector for VHF/UHF in/out (digital) Video input AV2 (Input1), Input 2 (front) Input level 1 Vp-p (75Ω) Jacks AV connector (Input 1), RCA jack (Input 2) Video output AV1, Output Output level 1 Vp-p (75Ω) Jacks AV connector (AV1) RCA jack (Output) S-Video input AV2 (Input1), Input 2 (front) Y (luminance) - Input level 1 Vp-p (75Ω) C (colour) - Input leve 300 mVp-p (75Ω) Jacks AV connector (Input 1), 4 pin mini DIN (Input 2) S-Video output AV1, Output Y (luminance) - Output level 1 Vp-p (75Ω) C (colour) - Output level 300 mVp-p (75Ω) Jacks AV connector (AV1), 4 pin mini DIN (Output) Component video output Output level Y : 1.0 Vp-p (75Ω) PB, PR : 0.7 Vp-p (75Ω) Jacks RCA jacks RGB input AV2 (Input1) Input level 0.7 Vp-p (75Ω) Jacks AV connector (Input 1) RGB output AV1 Output level 0.7 Vp-p (75Ω) Jacks AV connector (AV1) Audio input AV2 (input1), Input 2 (front) L/R Input level During audio input 2 V rms (Input impedance: more than 22 kΩ) Jacks AV connector (Input 1), RCA jacks (Input 2) Audio output AV1, Output During audio output 2 V rms (Output impedance: less than 1.5 kΩ) Jacks AV connector (AV1), RCA jacks (Output) Control input Mini jack Digital audio ouptut Coaxial G-LINK™ Mini jack AV Connectors (21-pin connector assignment) AV connector input/output 21-pin connector This connector provides the video and audio signals for connection to a compatible colour TV or monitor. PIN no. AV1(RGB)-TV / AV2(INPUT 1) 1 Audio 2/R out / Audio 2/R out 2 – / Audio 2/R in 11 G out / G in 3 Audio 1/L out / Audio 1/L out 6 – / Audio 1/L in 15 R or C out / R or C in 4 GND 17 GND 7 B out / B in 19 Video out or Y out / Video out 20 – / Video in or Y in 8 Status 21 GND Supplied accessories Remote control 1 Dry cell batteries (AA/R6P) 2 Audio / Video cable (red/white/yellow) 1 G-LINK™ cable 1 RF antenna cable 2 (1.5 m and 30 cm) Power cable 1 Operating Instructions Warranty card 1 Note : The specifications and design of this product are subject to change without notice, due to improvement. This product includes FontAvenue ® fonts licenced by NEC corporation. FontAvenue is a registered trademark of NEC Corporation. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 7 5 6 7 8 5 6 7 8 C D F A B E Accessories • Remote control ×1 (VXX3092) • RF antenna cable(PAL) ×1 (VDE1096) 30cm • RF antenna cable(PAL) ×1 (VDE1075) • Power cable ×1 (ADG1127 : WYXK5 types) • Audio / Video cable(1.5m) ×1 (red/white/yellow) (VDE1077) • G-Link Cable (3m) ×1 (VDX1010) • Dry cell batteries ×2 (AA/R6P) DVD RECORDER OPEN STANDBY/ON HOME MENU INFO PAUSE LIVE TV ENTER PREV NEXT STOP REC PLAY REC STOP TOP MENU DISC NAVIGATOR GUIDE CM SKIP CM BACK PAUSE RETURN/EDIT CHANNEL HDD/DVD (ADG7077 : WVXK/5, WVXK5 types) 1.5m www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 8 1 2 3 4 1 2 3 4 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) NOTES: 23 25 24 19 19 WYXK5 only for WYXK5 for WVXK/5 and WVXK5 5 9 8 3 6 7 19 26 17 22 2 1 1 1 4 15 16 19 10 (WYXK5 only) (WVXK/5 and WVXK5 only) 18 11 12 to 14 28 27 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 9 5 6 7 8 5 6 7 8 C D F A B E (1) PACKING SECTION PARTS LIST (2) CONTRAST TABLE DVR-540HX-S/WYXK5, WVXK/5 and DVR-440HX-S/WVXK5 are constructed the same except for the following: Mark No. Description Part No. > 1 Power Cord See Contrast table (2) 2 RF Antenna Cable (PAL) VDE1075 3 Audio/Video Cable (1.5m) VDE1077 4 RF Antenna Cable (PAL) VDE1096 5 Remote Control Unit VXX3092 6 Battery Cover VZN1004 7 Top Cover VZN1009 NSP 8 Dry Cell Battery (R6P, AA) VEM1010 9 WEEE Label VRW2231 NSP 10 Warranty Card ARY7065 11 Operating Instructions (English) See Contrast table (2) 12 Operating Instructions (French) See Contrast table (2) 13 Operating Instructions (German) See Contrast table (2) 14 Operating Instructions (Italian) See Contrast table (2) 15 Operating Instructions (Spanish) See Contrast table (2) 16 Operating Instructions (Dutch) See Contrast table (2) NSP 17 HDD Caution 8L B VRR1046 NSP 18 HDD Caution 8L VRR1047 19 Polyethylene Bag B5 VHL1051 20 • • • • • • • 21 • • • • • • • 22 G-Link Cable VDX1010 23 Front Pad VHA1408 24 Rear Pad VHA1409 25 Packing Case See Contrast table (2) 26 Mirror Sheet VHL1107 27 PLTV Caution VRR1068 28 DTV Time Caution VRR1069 Mark No. Symbol and Description DVR-540HX-S /WYXK5 DVR-540HX-S /WVXK/5 DVR-440HX-S /WVXK5 > 1 Power Cord ADG1127 ADG7077 ADG7077 11 Operating Instructions (English) Not used VRB1439 VRB1439 12 Operating Instructions (French) VRC1334 Not used Not used 13 Operating Instructions (German) VRC1335 Not used Not used 14 Operating Instructions (Italian) VRC1336 Not used Not used 15 Operating Instructions (Spanish) VRC1337 Not used Not used 16 Operating Instructions (Dutch) VRC1338 Not used Not used 25 Packing Case VHG2712 VHG2754 VHG2713 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 10 1 2 3 4 1 2 3 4 C D F A B E 2.2 EXTERIOR SECTION A A B C D D E E F F G H I I J J K K H G C B B CONTACT SIDE NON-CONTACT SIDE D C A H I 1 2 4 14 18 20 22 24 25 26 23 17 10 32 19 21 8 11 38 44 44 44 44 44 42 42 42 42 42 42 42 42 42 42 42 42 42 42 42 42 42 44 44 44 44 44 44 44 44 44 43 43 43 46 43 41 42 46 46 46 13 27 34 39 39 39 39 39 40 33 29 30 41 41 39 31 35 37 36 32 28 45 12 16 9 6 5 7 3 15 Refer to "2.4 FRONT PANEL SECTION". Refer to "2.3 SERVICE LOADER MAIN". Cleaning paper GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 11 5 6 7 8 5 6 7 8 C D F A B E (1) EXTERIOR SECTION PARTS LIST (2) CONTRAST TABLE DVR-540HX-S/WYXK5, WVXK/5 and DVR-440HX-S/WVXK5 are constructed the same except for the following: Mark No. Description Part No. 1 JACB Assy VWV2230 2 ATAB Assy VWV2231 3 FRJB Assy VWV2232 4 DTBR Assy VWV2228 5 TUNB Assy VWV2229 NSP 6 Service LOADER MAIN VXU1002 > 7 POWER SUPPLY Unit VWR1403 8 HDD See Contrast table (2) 9 Housing Assy (4P) VKP2357 10 Connector Assy (13P) PF13PP-S42 11 Flexible Cable (40P) VDA2136 12 Flexible Cable (10P) VDA2137 13 Flexible Cable (35P) VDA2138 14 Flexible Cable (19P) VDA2141 15 Flexible Cable (26P) VDA2140 16 Ferrite Core VTH1057 17 DC Fan Motor 60 VXM1125 18 PCB Support AEC1215 19 Rubber Foot VEB1349 20 Rear Panel See Contrast table (2) NSP 21 Chassis VNB1055 NSP 22 PCB Stay VNE2399 NSP 23 Bridge VNE2429 24 Earth Plate TU VBK1156 25 Earth Spring VBK1161 26 Radiation Sheet (Silicone) VEB1360 27 Rubber Spacer VEB1378 NSP 28 HDD Stay VNE2423 29 Writer Stay L VNE2433 30 Writer Stay R VNE2434 31 Heatsink VNH1077 NSP 32 Binder (BK-1) ZCA-BK1 33 Gasket 30 x 10T VEC2522 34 Aluminum Tape 150 x 25 VEF1061 35 Pioneer Name Plate VAM1148 36 Tray Sheet VEC2500 37 Tray Panel VNK5910 38 Bonnet Case S VXX3169 NSP 39 Tape ZTA-156A-19 40 Laser Caution Label VRW2262 41 Screw AMZ30P040FTC 42 Screw BBZ30P060FTC 43 Screw BPZ30P080FTC 44 Screw BSZ30P040FTC 45 #6-32 Screw DBA1125 46 Screw PBZ30P080FTC Mark No. Description Part No. Mark No. Symbol and Description DVR-540HX-S /WYXK5 DVR-540HX-S /WVXK/5 DVR-440HX-S /WVXK5 8 HDD 160G ST3160022RS VXF1086 VXF1086 Not used 8 HDD 80G ST380012R SV Not used Not used VXF1084 20 Rear Panel VNA2864 VNA2864 VNA2904 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 12 1 2 3 4 1 2 3 4 C D F A B E 2.3 SERVICE LOADER MAIN SERVICE LOADER MAIN PARTS LIST D D C C B B A A CONTACT SIDE NON-CONTACT SIDE G Reuse (*) marked parts when exachanging Service LOADER Assy. (*) (*) (*) (*) (*) (*) (*) • Silicon Sheet R9B (DEB1726) x3 • Case Screw S (DBA1250) x2 • Frontboard Screw R7C (DBA1220) x2 1 5 3 2 5 5 4 Mark No. Description Part No. 1 MAIN Assy (for service) VXX3159 2 LOADER Assy (for service) VXX3156 3 Low Case U11 DNC1761 4 FFC U11 DDX1208 NSP 5 Tape ZTA-156A-19 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 14 1 2 3 4 1 2 3 4 C D F A B E 2.4 FRONT PANEL SECTION FRJB CN302 CONTACT SIDE NON-CONTACT SIDE E F 15 15 5 3 4 7 11 15 15 1 2 5 15 15 15 12 9 10 8 (1/4) 8 (2/4) 8 (3/4) 8 (4/4) 14 13 6 Hanarl GEM1041 Lubricant Hanarl GEM1041 Lubricant Hanarl GEM1041 Lubricant Door Shaft to Door Shaft Paste lubricant hanarl (GEM1041) to salient points of both side of the door. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 15 5 6 7 8 5 6 7 8 C D F A B E (1) FRONT PANEL SECTION PARTS LIST (2) CONTRAST TABLE DVR-540HX-S/WYXK5, WVXK/5 and DVR-440HX-S/WVXK5 are constructed the same except for the following: Mark No. Description Part No. 1 FLKY Assy VWG2571 2 PWSB Assy VWG2572 3 Flexible Cable (14P) VDA2139 4 Housing Assy (2P) VKP2382 5 Door Spring VBK1159 6 Rubber Foot VEB1349 7 Main Key VNK5937 8 Key Base VNK5938 9 Key Top P VNK5939 10 Key Top R VNK5940 11 Center Lens VNK5941 12 Front Panel VNK5951 13 FL Lens PTD See Contrast table (2) 14 Door PTD See Contrast table (2) 15 Screw BPZ30P080FTC Mark No. Symbol and Description DVR-540HX-S /WYXK5 DVR-540HX-S /WVXK/5 DVR-440HX-S /WVXK5 13 FL Lens PTD VXA2742 VXA2742 VXA2798 14 Door PTD VXA2769 VXA2770 VXA2770 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 16 1 2 3 4 1 2 3 4 C D F A B E 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM 3.1.1 OVERALL BLOCK DIAGRAM HA118326 (Renesas) Audio/Video SW&Driver CVBS : 5in-1out, Y&C : 3in-1out Include Y/C MIX, RGB/YCbCr SW & MUTE, SCART SW. Without Audio Electronic Volume Connecting idea(25 Apr): L1in:AV1(CVBS),Digi-TU(Y/C) L2in:Line2 L3in:AV2(V/Y),(RGB→YC) Icc(5V+9V): Icc(5V+9V): 104mA(Min) 104mA(Min) 130mA(Typ) 130mA(Typ) 156mA(Max) 156mA(Max) SCL/SDA 15MHz RESET IC FLSTB V/Y to MAIN 32k L toMAIN R toMAIN AR Out AL Out G Out B Out R/C Out C Out Y Out R/C C toMAIN TU_RIN (Ana-TU) TU_RIN (Ana-TU) AR AL V V/Y AL AR V V/Y B G B R/C G AV2 (from STB) AV1 (to TV) TU_VIN (Ana-TU) TU_VIN (Ana-TU) FLCLK FLDATA TEXTV FL DRIVER PT6315 FL TUBE IR SEL_IR DTU_CIN(Digi-TU) DTU_YIN (Digi-TU) Tuner Control µCON LC87F05J2A RGB → Y/C CONVERT Cb/B Out Cr/R Out Y/G Out AV1_V/YIN(AV1) AV1_LIN(AV1) AV1_RIN(AV1) DTU_LIN(Digi-TU) DTU_LIN(Digi-TU) DTU_RIN(Digi-TU) DTU_RIN(Digi-TU) R/C IN G IN B IN RGB_CIN AV2_V/YIN(AV2) AV2_LIN(AV2) AV2_RIN(AV2) AR AL AL AR 45 46 44 16 30 74 73 72 71 100 1 49 48 50 12 22 90 89 94 93 76 77 53 52 51 57 55 59 61 79 80 18 86 87 43/42 C Out Y Out 36 34 Y C COMPONENT OUT Cb Out Cb Out Cr Out Cr Out Y Out Y Out 40 38 39 CY Cb Cr OUTPUT V(YC MIX) Out V(YC MIX) Out 32 V AL AR V2 V2 Y2 Y2 C2 C2 14 7 9 R2 R2 L2 L2 92 91 G-Link SR in IR SEL_IR SCL/SDA SIF VHF/UHF Tuner 4.5~6.7MHz SIF BPF 18.432M Multi Sound DECODER MSP3417 TU_LIN (Ana-TU) TU_LIN (Ana-TU) Y2 C2 INPUT2 V2 L2 R2 Key LED Key Matrix AV1_V/YOUT(AV1) AV1_LOUT AV1_ROUT AV2_LOUT AV2_ROUT RGB_YIN AV2_V/YOUT(AV2) 84 85 1 3 19 2 6 20 7 11 15 1 3 19 2 6 20 7 11 15 S OUT BLASTER IR µCON PDF015A-K VIDEO SW MM1503XN VIDEO SW MM1501XN 4.43 MHz IR Receiver IN OUT VIDEO SW MM1503XN FRJB SW for Line23 A JACB ASSY B TUNB ASSY D FRJB ASSY F PWSB ASSY E FLKY ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 17 5 6 7 8 5 6 7 8 C D F A B E EMMA2RFE DDR SDRAM 512Mbit DDR SDRAM 512Mbit Y C Y/G Cb/B Cr/R SW AMCK : 33/36M ADCCLKO COAXIAL Digitalout HDD 80GB (440HX) 160GB (540HX) ATAB DAC PCM1742 L R Euro Digita Terrestrial Tuner EMMMA2LL SPDIFI 27MHz LRCKI/BCKI/ADATAI OFDM DEM IC STV0361 SDRAM 256Mbit Flash 32Mbit A/D PCM1802 27MHz MPEG2-TS SCL/SDA AGC DAC PCM1742 LRCKO BCKO ADATAO UART/(RESET) LRCKO BCKO ADATAO AMCK GPIO Optical Signal SW SPDIFI FAN LOADER TXDGL RXDGL IN OUT DRV IC BD799 RF IC UPC3345GC -YEB Flash 64Mbit C DTBR ASSY G MAIN ASSY I POWER SUPPLY UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 18 1 2 3 4 1 2 3 4 C D F A B E 3.2 OVERALL WIRING DIAGRAM H ATAB ASSY (VWV2231) HDD (160GB : DVR-540HX-S) (80GB : DVR-440HX-S) I POWER SUPPLY UNIT (VWR1403) B TUNB ASSY (VWV2229) MAIN ASSY (VXX3159) G 1/3– G 3/3 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 19 5 6 7 8 5 6 7 8 C D F A B E F PWSB ASSY (VWG2572) E FLKY ASSY (VWG2571) D FRJB ASSY (VWV2232) JACB ASSY (VWV2230) A 1/3– A 3/3 A C 1/2– C 2/2 C DTBR ASSY (VWV2228) ÷ When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". ÷ The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÷ : The power supply is shown with the marked box. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 20 1 2 3 4 1 2 3 4 C D F A B E 3.3 JACB ASSY (1/3) CN202 I CN801 B A 2/3 A 1/3 A 1/3 A 1/3 A-b A 1/3 JACB ASSY (VWV2230) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 21 5 6 7 8 5 6 7 8 C D F A B E CN301 D A 2/3 A 1/3 A 2/3 A 2/3 A 2/3 A 2/3 A 1/3 A 1/3, A 2/3 A 2/3 A 2/3 A 1/3 A 2/3 A 1/3 A 3/3 A 3/3 A 2/3 A 3/3 A 3/3 A 2/3 A 1/3 A 3/3 A 1/3 A 1/3, A 2/3 A 1/3 A 1/3 A 2/3 A 1/3 A 2/3, A 3/3 A 1/3 A 2/3 1/2 CN103 C 3/2 CN2301 G 23 20 19 12 15 11 14 10 8 9 13 A-a A 1/3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 22 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-a Large size SCH diagram CN301 D A 1/3 A-a 1/3 JACB ASSY (VWV2230) A 2/3 A 1/3 A 2/3 A 2/3 A 3/3 A 2/3 A 3/3 A 2/3 A 1/3 A 3/3 A 1/3 A 1/3, A 2/3 A 1/3 A 1/3 A 2/3 A 1/3 A 2/3, A 3/3 A 1/3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 23 5 6 7 8 5 6 7 8 C D F A B E A-a 1/3 A 2/3 A 2/3 A 1/3 A 1/3, A 2/3 A 2/3 A 2/3 A 1/3 A 2/3 A 1/3 A 3/3 A 2/3 A 3/3 A 2/3 1/2 CN103 C 3/2 CN2301 G 23 20 19 12 15 11 14 10 8 9 13 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 24 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-b Large size SCH diagram CN202 I A-b 1/3 A 1/3 JACB ASSY (VWV2230) A 1/3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 25 5 6 7 8 5 6 7 8 C D F A B E CN801 B A-b 1/3 A 2/3 A 1/3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 26 1 2 3 4 1 2 3 4 C D F A B E 3.4 JACB ASSY (2/3) A 3/3 A 1/3 A 1/3 A 3/3 A 1/3 A 3/3 A 1/3 A 1/3 A 1/3 A 1/3 A 1/3, A 2/3 A 1/3 A 1/3 A 1/3 A 3/3 A 1/3 A 1/3 A 1/3 A 1/3 A 1/3, A 3/3 A 1/3 A 1/3 A 1/3 21 17 18 1 3 16 A 2/3 A-d A 2/3 JACB ASSY (VWV2230) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 27 5 6 7 8 5 6 7 8 C D F A B E A 1/3 A 1/3 A 1/3, A 2/3 A 1/3 A 1/3, A 2/2 A 1/3 5 2 4 7 22 6 A-c A 2/3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 28 1 2 3 4 1 2 3 4 C D F A B E A-c A-d A-c Large size SCH diagram A 2/3 JACB ASSY (VWV2230) A 1/3 A 1/3 A 1/3 2 A-c 2/3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 29 5 6 7 8 5 6 7 8 C D F A B E A 1/3, A 2/3 A 1/3 A 1/3, A 2/2 5 2 4 7 22 6 A-c 2/3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 30 1 2 3 4 1 2 3 4 C D F A B E A-c A-d A-d Large size SCH diagram A 2/3 JACB ASSY (VWV2230) A 1/3, A 2/3 A 1/3 A 1/3 A 1/3 A 3/3 A 1/3 A 1/3 A 1/3 A 1/3 A 1/3, A 3/3 A 1/3 A 1/3 A 1/3 A-d 2/3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 31 5 6 7 8 5 6 7 8 C D F A B E A 3/3 A 1/3 A 1/3 A 3/3 A 1/3 A 3/3 A 1/3 A 1/3 A 1/3 A 1/3 21 17 18 1 3 16 A-d 2/3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 32 1 2 3 4 1 2 3 4 C D F A B E 3.5 JACB ASSY (3/3) A 3/3 JACB ASSY (VWV2230) A 3/3 A 1/3 A 2/3 A 2/3 A 2/3 A 2/3 35 34 33 3132 30 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 33 5 6 7 8 5 6 7 8 C D F A B E A 3/3 A 1/3 A 1/3, A 2/3 A 1/3 A 1/3 A 1/3 A 1/3 28 36 26 27 29 25 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 34 1 2 3 4 1 2 3 4 C D F A B E 3.6 TUNB ASSY Bwww. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 35 5 6 7 8 5 6 7 8 C D F A B E 1/3 CN106 A B TUNB ASSY (VWV2229) B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 36 1 2 3 4 1 2 3 4 C D F A B E 3.7 DTBR ASSY (1/2) TSB_9 TSB_10 TSB_0 TSB_1 TSB_2 TSB_3 TSB_5 TSB_7 EA2 EA3 DADD7 DADD6 DQ7 DQ6 DQ5 DQ3 DQ2 DQ1 DQ0 DADD6 DWEB DBA0 DADD0 DQ0 DQ13 DQ7 DQM0 DADD8 DCKE DQ1 DQ2 DQ9 DCSB DADD7 DQ3 DCASB DQ5 DQ14 DQ10 DADD5 DADD3 DQ6 DADD2 DQ4 DQM1 DADD11 DBA1 DQ12 DADD1 DQ11 DRASB DADD9 DADD4 DADD10 DQ15 DQ13 DQ12 DQ11 DQ10 DQ14 DQ15 ED0 ED1 ED2 ED3 ED4 ED5 ED6 ED7 ED8 ED9 ED10 ED11 ED12 ED13 ED14 ED15 EA1 DQ8 DQ9 TSB_8 TSB_6 TSB_4 DADD12 DWEB DCASB DRASB DBA0 DBA1 DADD0 DADD2 DADD1 DQM0 DADD3 DQM1 DADD5 DADD10 DADD8 DADD4 DQ4 DCSB DQ8 DADD11 DADD9 DCKE DADD12 EA6A EA12 EA9A EA7 ED15 EA16A EA15A LLA22 EA19A EA17A EA18 EA12A ED1 ED1A EA18A EA11A ED0A EC7 ED2A EA1 EA13A ED8A ED3A EA2A ED1A ED12 ED5A EA17A ED9A ED8 ED7 EA4A ED4A ED2A EA6 EA16A ED9A EA17 ED10A EA3A ED11A EA19 ED3A EA7A ED8A ED11A ED14 EA9A ED10A ED4A EA5A ED13A ED2 ED12A EA18A ED12A ED5A EA21A ED14A ED13A EA19A EA22A ED6A ED7A EC6 EA20A ED0 ED7A LLA22A ED15A ED14A EA20 ED3 ED15A EA21 ED6 EA8 EA9 EA3 EA4 EA20A EA5 EA22A EA10 EA11 ED5 EA3A EA21A EC8 EA2A EA13A ED4 EA13 EA4A EA11A ED10 EA16 ED6A ED13 EA5A ED11 EA12A EA10A ED9 EA6A EA14 EA10A EA14A EA22 EA7A EA14A EA2 EA8A EA15 EA8A EA15A ED0A EA1A SDCLK SDCLK VKN2038-A CN102 1 2 3 4 5 6 7 8 9 10 NM CN101 1 2 3 4 5 6 7 8 9 10 11 12 13 14 470/16 C211 101/16 C144 C121 105 C128104 C104 104 C102 104 C112 104 C108 104 C109 104 C127104 C155 104 C114 104 C130104 C131104 C110 104 C124 104 C103 104 C116 104 C152 NMYB C164 NM C165 NM C139NM C146 NM C156 NM C148 020 C149 020 C213 104 C212 104 C105 105 C106 104 C107 105 C117 105 C163 NM C111 105 C113 105 C101 105 D107 NM D102 NM D103 NM D104 NM D105 NM D106 NM F106 VTF1091-A F107 VTF1091-A F202 VTF1091-A F101 VTF1091-A GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD KA5SDKAS01TSN IC104 XTB 1 NC 2 VC 3 VSS 4 5 Q0 6 VDD 7 STB 8 XT IC205 S29GL032M90TCIR30-K A15 1 A14 2 A13 3 A12 4 5 A11 6 A10 7 A9 8 A8 9 A19 10 A20 11 WE# 12 RESET 13 A21 14 WP#/ACC 15 RY/BY# 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 VSS2 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS1 47 BYTE# 48 A16 IC101 HY57V561620CT-H VDD1 1 DQ0 2 VDDQ1 3 DQ1 4 5 DQ2 6 VSSQ1 7 DQ3 8 DQ4 9 VDDQ2 10 DQ5 11 DQ6 12 VSSQ2 13 DQ7 14 VDD2 15 LDQM 16 WE 17 CAS 18 RAS 19 CS 20 BA0 21 BA1 22 A10/AP 23 A0 24 A1 25 A2 26 A3 27 VDD3 28 VSS1 29 A4 30 A5 31 A6 32 A7 33 A8 34 A9 35 A11 36 A12 37 CKE 38 CLK 39 UDQM 40 N.C/RFU 41 VSS2 42 DQ8 43 VDDQ3 44 DQ9 45 DQ10 46 VSSQ3 47 DQ11 48 DQ12 49 VDDQ4 50 DQ13 51 DQ14 52 VSSQ4 53 DQ15 54 VSS3 UPD61110 IC106 PPORT0 1 PPORT1 2 PPORT2 3 PPORT3 4 PPORT4 5 PPORT5 6 PPORT6 7 PPORT7 8 PPORT8 9 PPORT9 10 GND_1 11 GND_2 12 VDD1_1 13 PPORT10 14 PPORT11 15 RDATA0 16 RDATA1 17 RDATA2 18 RDATA3 19 RDATA4 20 RDATA5 21 RDATA6 22 RDATA7 23 RDATA8 24 RDATA9 25 RDATA10 26 VDD3_1 27 GND_3 28 RDATA11 29 RDATA12 30 RDATA13 31 RDATA14 32 RDATA15 33 RADD0 34 RADD1 35 RADD2 36 PPORT38 127 PPORT39 128 PPORT40 129 PPORT41 130 PPORT42 131 PPORT43 132 PPORT44 133 VDD1_4 134 PAGND 135 PAVDD 136 CLK27IN 137 GND_10 138 GND_11 139 VDD3_4 140 PWMOUT 141 RSTOUT 142 RSTSWB 143 NMI 144 145 RXD1B 146 TXD1B 147 JTDI 148 JTDO 149 JTMS 150 JTCK 151 JTRST 152 GND_12 153 VDD2_1 154 DQ15 155 DQ14 156 DQ13 157 DQ12 158 DQ11 159 DQ10 160 VDD2_2 161 GND_13 162 GDN_14 163 GND_15 164 GND_16 165 DQ9 166 DQ8 167 DQS1 168 NC_1 169 DQM1 170 NC_2 171 DCLK 172 DCKE 173 DADD12 174 DADD11 175 VDD2_3 176 GND17 177 VDD1_5 178 DADD9 179 DADD8 180 DADD7 181 DADD6 182 DADD5 183 DADD4 184 GND_18 185 GND_19 186 VDD2_4 187 DADD3 188 DADD2 189 DADDD1 190 DADD0 191 DADD10 192 DBA1 193 DBA0 194 GND_20 195 VDD2_5 196 DCSB 197 DRASB 198 DCASB 199 DWEB 200 DQM0 201 N?C 202 DQ7 203 DQ6 204 DQ5 205 VDD2 206 GND_21 207 VDD1_6 208 DQ4 209 DQ3 210 DQ2 211 DQ1 212 DQ0 213 VDD2_6 214 GND_22 215 GND_23 216 VDD3_5 Q100 NM R243 470 2 1 4 3 6 5 8 7 R244 470 2 1 4 3 6 5 8 7 R249 470 2 1 4 3 6 5 8 7 R241 470 2 1 4 3 6 5 8 7 R240 470 2 1 4 3 6 5 8 7 R248 470 2 1 4 3 6 5 8 7 R245 470 2 1 4 3 6 5 8 7 R247 470 2 1 4 3 6 5 8 7 R242 470 2 1 4 3 6 5 8 7 R246 470 2 1 4 3 6 5 8 7 R239 470 2 1 4 3 6 5 8 7 R194 330 2 1 4 3 6 5 8 7 R193 330 2 1 4 3 6 5 8 7 R192 330 2 1 4 3 6 5 8 7 R191 330 2 1 4 3 6 5 8 7 R190 330 2 1 4 3 6 5 8 7 R189 330 2 1 4 3 6 5 8 7 R188 330 2 1 4 3 6 5 8 7 R187 330 2 1 4 3 6 5 8 7 R186 330 2 1 4 3 6 5 8 7 R185 330 2 1 4 3 6 5 8 7 R254 470 R251 103 R253 470 R250 103 R573 223 R574 223 R199 0R0 R183 0R0 R152 NM R103 NM R106 NM R5700R0 R5690R0 R597 330 R595 330 R594 330 R182 0R0 R110 330 R111 330 R157103 R158103 R173103 R174103 R175103 R101103 R170 330 R108 NM R165 NM R102 NM R114330 R155 473 R154 473 R151 473 R150 NM R149 473 R1090R0 R153 473 R117 NM R181 103 R531 0R0 R532 0R0 R534 0R0 R533 330 R184 NM R593 0R0 R588 0R0 R587 0R0 R586 0R0 R116 103 R107 0R0 R198 0R0 NM S100 1 2 TP528 TP527 TP526 TP148 TP168 TP138 TP167 TP166 TP165 TP164 TP163 TP162 TP161 TP160 TP159 TP158 TP157 TP101 TP152 TP151 TP150 TP149 TP145 TP144 TP142 TP139 TP140 TP141 TP132 TP126 (DTB_RESET) TP102 TP103 TP123 D+3.3V D+3.3V DT+3.3V D+3.3V D+3.3V DT+3.3V D+3.3V D+3.3V D+3.3V D+3.3V D+3.3V V+1.5V D+3.3V X100 T-VSS081 BSS1123- ASC4_RXD_B ASC4_TXD_B XRESET_FLASH ED14 ED15 ED13 DTB_RESET ASC4_RXD_B ASC4_TXD_B DTB_RESET SPDIFRFE RFE/XLL EC7A EC7A EC6A EC8A XRESET_FLASH EC6A EC8A C586 100 C587 100 C588 100 GNDD C191 NM C192 NM L191 NM R197 0R0 SDRAM TMS TCK TDO TDI TRST DINT GND TCK TMS TDI TRST EJSNGEN DINTEN RST TDO GND GND JTSEL V+3 GND GND GND SPDIF GND RFE/XLL XRESET GND RDXA TDXA 27.000MHz DINT (VYW2383- /V) DTB Receiver/Decoder C 1/2 C 1/2 CN2601 G 3/3 DTBR ASSY(1/2) (VVWV2228) 1 2 3 4 6 7 8 5 11 12 13 14 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 37 5 6 7 8 5 6 7 8 C D F A B E EA16 EA15 EA13 EA12 EA11 EA10 EA9 EA4 EA5 EA6 EA7 EA8 EC7 EC6 EC8 EA22 EA21 EA20 EA19 EA18 EA17 LLA22 4Vp-p NSCLKO NSDATXO EA14 NSCSO ED12 ED11 ED10 ED9 ED8 ED7 ED6 ED5 ED4 ED3 ED2 ED1 ED0 ED13 ED15 ED14 SPDIF EC10 . . S-C S-Y 4Vp-p EC9 CN103 VKN2011-A 1 2 3 4 5 6 7 8 9 10 11 12 14 15 16 17 18 19 20 21 22 23 24 25 26 27 13 JA101 VKB1159-A 2 1 101/16 C514 101/16 C501 101/16 C503 1R0/50 C151 101/16 C167 101/16 C123 1R0/50 C133 NM C150 470/16 C115 470/16 C147 101/16 C510 C513 101 CH C516 101 CH C512 681 CH C508 106 YB C517 681CH C509 NM C520 NM C521 NM C134 104 C118 104 C141 104 C135 104 C125 104 C140 104 C120 104 C142 104 C138 104 C502 104 C504 104 C507 104 C511 104 C515 104 C166 NM C168 104 C506 NM C122 105 C153 NMYB C528 223 C522 104 C523 104 C524 104 C525 104 C119 470 C132 105 C529 NM C530 NM C531 NM C143 NM C145 NM C157 NM C158 NM C505 NM C137 105 C136 105 C126 105 C129 105 F103 VTF1091-A F104 VTF1091-A F105 VTF1091-A F504 VTF1091-A F102 VTF1091-A GNDA GNDD GNDA GNDA GNDA GNDD GNDA GNDD GNDA GNDA GNDD GNDA GNDA GNDD GNDD GNDA GNDV GNDD GNDD GNDV GNDD GNDV GNDD GNDD GNDD GNDD GNDD GNDV GNDV GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDT GNDD GNDD GNDD GNDV GNDD IC105 NM (BU4843F) VOUT 1 VDD 2 NC 3 GND 4 UPC4570G2 IC502 OUT1 1 IN-1 2 IN+1 3 VEE 4 5 IN+2 6 IN-2 7 OUT2 8 VCC IC109 TC74VHC00FT 1A 1 1B 2 1Y 3 2A 4 5 2B 6 2Y 7 GND 8 3Y 9 3A 10 3B 11 4Y 12 4A 13 4B 14 VCC PCM1742KE IC501 BCKIN 1 DATA 2 LRCKIN 3 GND 4 5 Vdd 6 Vcc 7 VoutL 8 VoutR 9 AGND 10 Vcom 11 ZEROR 12 ZEROL 13 MD 14 MC 15 ML 16 MCLK RADD3 37 RADD4 38 RADD5 39 RADD6 40 RADD7 41 GND_4 42 GND_5 43 VDD1_2 44 RADD8 45 RADD9 46 RADD10 47 RADD11 48 RADD12 49 RADD13 50 RADD14 51 RADD15 52 VDD3_2 53 GND_6 54 RADD16 55 RADD17 56 RADD18 57 RADD19 58 RADD20 59 RADD21 60 RADD22 61 FOEB 62 FWEB 63 FCSB0 64 GCSB0 65 AMCK 66 GND_7 67 GND_8 68 VDD1_3 69 ABCK 70 ATX 71 ADO 72 ALRCK 73 GRDYB 74 TEST 75 VAY 76 AGND_1 77 AVDD_1 78 VACVBS 79 AGND_2 80 AVDD_2 81 RSET0 82 REF0 83 DGND_1 84 DVDD_1 85 VAPR 86 AGND_3 87 AVDD_3 88 VAPB 89 AGND_4 90 AVDD_4 91 RSET1 92 REF1 93 DGND_2 94 DGND_3 95 DVDD_2 96 PPORT12 97 PPORT13 98 PPORT14 99 PPORT15 100 PPORT16 101 PPORT17 102 PPORT18 103 PPORT19 104 PPORT20 105 PPORT21 106 PPORT22 107 PPORT23 108 VDD3_3 109 GND_9 110 PPORT24 111 PPORT25 112 PPORT26 113 PPORT27 114 PPORT28 115 PPORT29 116 SDA0 117 SCL0 118 PPORT30 119 PPORT31 120 PPORT32 121 PPORT33 122 PPORT34 123 PPORT35 124 PPORT36 125 PPORT37 126 L101 CTF1381 (VTL1078) L129 NM L107 NM L100 NM Q103 2SC4081(QR) 2SA1576A(QR) Q101 2SA1576A(QR) Q102 R598 0R0 R171 103 R140 NM R132 NM R582 NM R581 NM R585 NM R584 NM R583 NM R196 NM R118 0R0 R119 0R0 R137 104 R136 0R0 R135 75R0 R134 151 R112 471 R530 0R0 R529 0R0 R528 0R0 R527 0R0 R565 NM R563 NM R547 223 R550 223 R596 NM R130 NM R133 681 R120 681 R179 103 R148 103 R141 103 R143 103 R142 103 R576 103 R139 103 R562 NM R156 NM R168 2200(F) R512 682 R522 682 R523 1002 (D) R525 2202 (D) R513 2202(D) R511 1002(D) R104 103 R548 NM R549 NM R160101 R159101 R578 NM R129 0R0 R521 0R0 R506 0R0 R138103 R145 103 R146 103 R147 103 R172 103 R178 103 R538 223 R537 NM R536 NM R540 223 R542 223 R544 223 R546 223 R552 NM R554 223 R556 223 R558 223 R560 223 R564 223 R535 223 R539 NM R541 NM R543 NM R545 NM R551 223 R553 NM R555 NM R557 NM R559 NM R561 223 R566 223 R568 223 R567 NM R195 0R0 R5710R0 R5720R0 R575 103 R580 103 R579 103 R167 9100(F) R501 0R0 R502 0R0 R503 0R0 R180 103 SIDE A R507 0R0 R508 0R0 R509 0R0 R514 101 R515 NM R592 0R0 R591 0R0 R590 0R0 R144 103 R589 0R0 R5770R0 R166 9100(F) R100 0R0 R125 1000(F) R126 1000(F) R128 1000(F) R123 1000(F) R124 1000(F) R127 1000(F) R122 1000(F) R121 1000(F) R169 1500(F) R505 0R0 R526 101 R520 101 R519 101 TP117 TP116 TP115 TP111 TP529 TP521 TP525 TP522 TP524 TP523 TP147 TP146 TP125 TP137 TP136 TP135 TP112 TP514 TP513 TP512 TP511 TP510 TP509 TP508 TP507 TP506 TP505 TP504 TP503 TP502 TP501 TP119 TP155 TP153 TP154 TP134 TP133 TP114 TP105 TP129 TP127 TP131 TP104 TP130 TP128 TP121 TP120 TP106 TP107 TP108 TP109 TP110 TP118 V+12A V+12A V+5A D+3.3V V+5A D+3.3V V+3.3SW A+3.3V D+3.3V D+3.3V D+3.3V D+3.3V A+3.3V D+3.3V D+3.3V V+31DT V+5.8E V+1.5V D+3.3V D+3.3V D+3.3V V+1.5SW D+3.3V D+3.3V V+12SW I2C_SDA_DTBR I2C_SCL_DTBR ALRCK AMCK ADO ABCK ALRCK IS_TEST NSDATXO NSCLKO NSCSO INT_CI XCOFDM_RESET ED13 ED15 ED14 SPDIFRFE RFE/XLL NSDATXO NSCLKO NSCSO DT_TUON ANT5V_SW DET_ANT P_CONT2 ADO TXD0B RXD0B ABCK AMCK R113 471 R115 681 R524 0R0 R510 0R0 R516 1201 (D) R517 1002 (D) R518 2202 (D) R599 NM +6dB 2ch DAC (L) CPU CONTROL BUS (L) YB FLASH,SDRAM,CARD EJTAG_MODE ENDIAN MRGMODE BHIFSYNC VRCLKSEL MCLKSEL ROMBEND BWSEL MINIBOOT BOOTSEL DSYSELB DINTEN [Strap Pin Setting] DT_L DT_R DT_C DT_Y YB GND DT_TUON DET_ANT GND ANT5V_SW P_CONT2 GND GND GND GND GND GND GND GND GND V+31V V+5.8E V+5.8E V+12SW V+3.3SW V+3.3SW V+1.5SW V+1.5SW C 1/2 CN102 A 1/3 10 28 29 9 24 25 26 30 31 27 C 2/2 C 2/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 38 1 2 3 4 1 2 3 4 C D F A B E 3.8 DTBR ASSY (2/2) IF_OP1 IF_OP2 BT T_SDA T_SCL KN301 VNE1948-A GND1 1 GND2 2 GND4 4 GND3 3 NM C321 NM C331 220/6R3 C324 NM C357 470/16 C366 NM C403 101/16 C349 470/16 C368 NM C351 470/16 C339 NM C319 100/16 C353 101/16 C307 NM C390 NM C302 470/16 C342 NM C367 470/16 C343 101/16 C346 C388 105/10 C354 C363 NM C301 105/10 YB C431 225 C306 NM C341 105/10 C316 NM C336 NM C433 NM C332 225 C362 NM C424 NM C315 475/6R3 C348 104 C347 104 C364 104 C304 105/10 YB C361 NM C309 105/10 C360 NM C340 105/10 C365 NM C371 NM C358 104 C404 225 C350 104 C308 NM C355 NM C373 225 C312 NM C323 NM C326 471 C303 105 C325 NM C352 NM C356 NM C369 102 C401 471 D310 NM D311 NM D309 NM D308 NM D301 1SR154-400 D307 NM D302 SM15T6V8A F304 NM F305 VTF1091-A F303 NM F300 VTF1091-A F310 VTF1091-A F302 VTF1091-A F309 VTF1091-A F301 VTF1091-A VXF1100-A U301 NC AGC_Mon B3 SCL SDA B2 B1 NC1 BT IF_OUT1 IF_OUT2 GNDD GNDD GNDT GNDD GNDD GNDT GNDD GNDD GNDT GNDD GNDD GNDD GNDT GNDT GNDD GNDT GNDT GNDD GNDD GNDT GNDT GNDT GNDD GNDT GNDT GNDD IC300 NM ON/OFF 1 VSS 2 NC 3 VIN 4 5 VOUT IC303 (MM1685ANRE) VIN 1 GND 2 CONT 3 NOISE 4 5 VOUT IC312 MM1685ANRE VIN 1 GND 2 CONT 3 NOISE 4 5 VOUT IC304 MM1685ANRE VIN 1 GND 2 CONT 3 NOISE 4 5 VOUT IC302 (MM1563DF-TFB) VO 1 NC 2 GND 3 CN4 5 CONT 6 SUB 7 VIN NM IC308 1 1 2 2 3 3 4 4 5 5 6 6 7 7 IC301 (MM1563DF-TFB) VO 1 NC 2 GND 3 CN4 5 CONT 6 SUB 7 VIN MM1689FHBE IC307 PS2 1 PS1 2 VIN2 3 VIN1 4 5 VO1 6 VO2 7 GND 8 NC L304 R82 L301 NM L303 NM L306 NM L302 NM Q301 2SC2411K R300 0R0 R303 0R0 R360 0R0 R354 0R0 R306 0R0 R357 0R0 R304 103 R308 682 R355 0R0 R329 NM R312 101 R350 0R0 R328 NM R307 101 R349 0R0 R305 NM R356 0R0 R309 332 R348 0R0 R310 332 R397 101 R398 101 TP540 TP539 TP538 TP537 TP536 TP535 TP534 TP532 TP333 TP531 TP327 TP326 TP520 TP322 TP334 TP324 TP336 TP338 TP332 TP315 TP339 TP328 TP335 TP329 TP320 TP340 TP319 TP301 TP323 TP331 TP325 TP337 TP330 T300 XTX1005-A-TBB IN_H 1 N.C. 2 OUT_GND 3 OUT_IN 4 5 IN_GND V+1.8D VA+5V V+12A V+5A V+3.3A V+31DT DT+3.3V V+12SW D+3.3V V+5.8E V+5TU V+3.3D V+1.5SW A+3.3V V+3.3SW V+1.8A DT+3.3V V+1.5V VA+5V DT_TUON P_CONT2 P_CONT2 R391 NM YB ! YB YB CH ! (150mA) CH YB YB (150mA) YB 11 YB CH (200mA) YB YB [PSU] YB YB CH 1 YB ! ! ! ! ! ! ! ! DIGITAL TV FRONTEND C 2/2 C 2/2 DTBR ASSY(2/2) (VWV2228) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 39 5 6 7 8 5 6 7 8 C D F A B E TSB_9 TS1_9 TSB_3 TSB_2 TSB_0 TS1_0 IF_AGC TS1_5 TSB_0 V+3.3D TSB_7 TSB_6 TS1_6 TS1_3 TS1_8 TSB_3 TSB_2 TSB_8 TS1_7 TS1_6 TSB_6 TSB_7 27MHz TS1_8 TS1_10 TSB_8 TS1_1 TSB_10 TSB_4 TS1_7 TS1_3 TS1_2 TS1_0 TSB_1 TS1_5 TSB_1 TS1_2 TSB_9 TSB_5 TSB_5 TS1_1 TSB_10 TS1_10 TS1_4 TSB_4 TS1_4 TS1_9 NM C314 470/16 C385 470/16 C395 470/16 C389 NM C387 100/16 C378 C320 NM C318 NM C422 104 C415 104 C406 225 C412 104 C397 5R0 C418 104 C384 104YB C394 104 C375 103 C379 104 C398 104 C402 5R0 C411 105 C392 225 C391 103 C383 104 C421 104 C393 225 C407 104 C417 104 C413 104 C408 103 C416 104 C420 NM C405 225 C399 104 C419 NM C409 104 C414 104 C410 103 C396 104 C400 104 C386 NM D304 1SS355 L315 XTX1001 L314 XTX1003 F317 VTF1091-A F313 VTF1091-A F316 VTF1091-A F315 NM F318 VTF1091-A F312 VTF1091-A F311 VTF1091-A VTF1188-A F319 1 2 3 4 5 GNDT GNDT GNDD GNDD GNDT GNDT GNDD GNDD GNDT GNDT GNDT GNDT GNDT GNDD GNDD GNDT GNDD GNDT GNDD GNDT UPC3221GV IC311 VCC 1 INPUT1 2 INPUT2 3 VAGC 4 5 GND2 6 OUTPUT2 7 OUTPUT1 8 GND1 TC7WB125FK IC314 OE1 1 A1 2 B2 3 GND 4 5 A2 6 B1 7 OE2 8 VCC IC315 NM OE1 1 A1 2 A2 3 A3 4 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 VCC IC316 NM OE1 1 A1 2 A2 3 A3 4 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 VCC IC313 STV0361L DGNDA 1 DVCCA1.8 2 VCCA1.8 3 GNDA1 4 REFM 5 REFP 6 VR 7 VCCA3.3 8 INM 9 INP 10 GNDA2 11 NOT_RESET 12 VDD1 13 AGC2 14 GND1 15 AGC1 16 SDA21 VDD_3.31 22 STR_OUT 23 GND2 24 D7 25 D6 26 D5 27 VDD2 28 D4 29 GND3 30 D3 31 D2 32 D1 33 D0 34 VDD_3.32 35 CLK_OUT36 GND4 37 D/NOT_P 38 VDD3 39 ERROR40 GND5 41 LOCK/OP242 LOCK/OP143 VDD_3.33 44 OP0 45 GND6 46 AUX_CLK47 CIQ/HFEC3 48 VDD_3.34 52 CS1 53 GND7 54 CS0 55 GND8 56 VDD4 57 IP0 58 GND9 59 TEST2 60 VCCXTAL1.8 61 XTALI 62 XTALO 63GNDXTAL 64 SCL 20 SDAT 19 SCLT 18 TEST1 17 HFEC 51 CCLK/HFEC1 50 CDATA/HFEC2 49 L305 NM Q305 2SC2412K(QRS) R383 0R0 2 1 4 3 6 5 8 7 R381 0R0 2 1 4 3 6 5 8 7 R382 0R0 2 1 4 3 6 5 8 7 R323 0R0 R346 NM R318 222 R340 0R0 R335 0R0 R320 222 R331 153 R344 NM R336 NM R342 392 R334 0R0 R345 0R0 R333 101 R341 392 R337 NM R327 103 R325 221 R324 NM R317 682 R322 333 R338 103 R316 472 R343 0R0 R347 0R0 R339 0R0 TP313 TP541 TP312 TP308 TP314 TP209 TP211 TP208 TP302 TP305 TP311 TP203 TP342 TP309 TP201 TP202 TP306 TP304 TP210 TP307 TP310 TP321 TP341 TP206 TP207 TP205 TP303 TP204 V+3.3D V+3.3D V+5TU V+3.3A DT+3.3V V+3.3A V+1.8A V+1.8D VA+5V V+3.3D X300 XSS1010-A SAW_SWITCH SAW_SWITCH I2C_SDA_DTBR XCOFDM_RESET I2C_SCL_DTBR R376 101 R374 101 R375 101 R377 101 R371 101 R373 101 R372 101 R370 101 R380101 R378101 R379101 SAW_SWITCH TO EMMA2LL YB YB YB YB YB YB [CI] TSFSTART 8 YB TSDAT0 TSVALID YB (150mA) [EMMA2] YB TSDAT7 1 YB (350mA) (50mA) TSDAT1 TSCLK CH YB YB CH LOOP 7 TSDAT4 B/W (MHz) [EMMA2] TSDAT3 YB 0 TSDAT6 TSDAT2 TSDAT5 FSTART Land to side A C 2/2 C 1/2 C 1/2 C 1/2 C 1/2 20 23 21 19 22 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 40 1 2 3 4 1 2 3 4 C D F A B E 3.9 FRJB, FLKY and PWSB ASSYS E FLKY ASSY (VWG2571) E CN302 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 41 5 6 7 8 5 6 7 8 C D F A B E SWITCHES S201 : Standby / On SWITCHES S101 : Open / Close S102 : Help S103 : A.TV/D.TV S104 : Input Select S105 : One Touch Copy S106 : pause Live TV S107 : HDD / DVD S108 : Play S109 : Stop S110 : Channel – S111 : Channel + S112 : REC Stop S113 : REC F PWSB ASSY (VWG2572) D FRJB ASSY (VWV2232) F D E 1/3 CN105 A CN101 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 42 1 2 3 4 1 2 3 4 C D F A B E 3.10 MAIN ASSY(1/3) DKN1404-A-TBB SCLK SCS4 T_M T_P F_M F_P WPP2 RF_M RF_P FMO OSCEN_M OSCEN_M OSCEN_P OSCEN_P W3EN_P W3EN_P W3EN_M W3EN_M W2EN_M W1EN_P W1EN_P W2EN_P W2EN_P W1EN_M W1EN_M APCV RF_P RF_M WPP2 WPP1 A B C S4 S3 S1 S2 FMO APCV ST2_P ST2_M ST1_M ST1_P OPEN CLOSE LD_P HV_M HV_P HU_M HU_P HB HW_M HW_P U V W D SIO WPP1 LD_M S1 S2 C D A B S3 S4 XRST WLDON PUTEMP WRF RDIS W3SET W2SET W1SET PUTEMP C181 475/6R3 C188 103 C187 103 C112 104 C178 475/6R3 C189 102 C101 474/10 C102 474/10 C153 475/6R3 C165 475/6R3 C184 475/6R3 C116 333 C175 104 C183 R164 0R0 R165 102 R166 102 R167 102 R142 101 R143 101 R101 0R0 R102 474 R124 182 R123 241 R181 4701 R603 102 R604 102 R115 0R0 R168 0R0 R171 332 R172 332 R601 103 R602 103 R147 0R0 R112 102 R130 0R0 L112 BTH1103-A CN502 DKN1288- 1 2 3 4 CN501 DKN1312-A-TFB 1 2 3 4 5 6 7 8 9 10 11 12 TP609 TP102 TP152 TP171 TP516 TP505 TP193 TP142 TP146 TP187 TP515 TP195 TP610 TP162 TP184 TP514 TP183 TP100 TP140 TP103 TP151 TP181 TP513 TP182 TP506 TP197 TP607 TP148 TP512 TP190 TP141 TP511 TP101 TP606 TP161 TP153 TP104 TP510 TP179 TP143 TP154 TP503 TP177 TP509 TP192 TP605 TP165 TP504 TP508 TP196 TP150 TP175 TP518 TP105 TP507 TP194 TP170 TP173 TP517 TP166 TP167 DKN1402-A CN601 1 2 3 4 5 GNDD GNDD GNDO GNDO GNDO GNDS GNDS GNDS GNDS GNDO V+3A V+12M V+3FE V+3D VREF2 V+5L V+5L VREF21 V+5M V+5M CN101 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 For Pick-Up For Stepper For FRONT For SPDL TD TR FD FR SCLK SEN SDIO VPP RESET RXW VD3V GNDD TEMP S1 S2 M1 M2 WRF WPP2 VREFPD WPP1 RF- GNDS RF+ VA5V M3 M4 S3 S4 GNDS VA5V VREFFM FMO OSCEN- OSCEN+ W3EN+ W3EN- W2EN+ W2EN- W1EN+ W1EN- RDIS W3SET W2SET W1SET RSET VO5V VO5V GNDO GNDO ST2+ ST2- ST1- ST1+ GNDD LPS2 LPS1 BLACK RED VCC HU+ HU- HV+ HV- HW+ HW- HB U V W GNDD (YB) G 1/3 MAIN ASSY G 1/3 G 2/3 (VXX3159) 1314 1112 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 43 5 6 7 8 5 6 7 8 C D F A B E SCLK SCS0 SIO OPCTRG SHWB SHWB SWRF1 SWRF2 PPALL LPP_OPID MIRR_RAMWR HOLD FOK TEC LG IPID_REC D IPID_REC D EQCK2 ROPC2 ROPC1 SHAPCW SHAPCRE SHSV RFEQO_P HU_P HU_M HV_P HV_M HW_P HW_M HB U V W F_M F_P T_M T_P ST1_M SL2 SL1 MDRV LO XDMUTE2 XDMUTE1 TDRV FDRV HDATA0 HDATA1 HDATA6 RFEQO_N TX_FE XRESET RX_FE TE FE EQCK1 n HADRS9 HDATA2 WRF W1SET W3SET W2SET XRST WLDON AWOBBLE FG C103 104 C105 475/6R3 C108 331 C109 334 C110 331 C111 334 C114 332 C117 104 C168 475/6R3 C145 222 C146 222 C148 472 C151 102 C150 104 C154 683 C155 475/6R3 C158 101 C159 101 C160 101 C161 101 C162 101 C163 104 C164 103 C157 105/1 0 C118 106 C119 103 C121 475/6R3 C122 475/6R3 C152 475/6R3 C123 475/6R3 C124 104 C125 475/6R3 C126 104 C127 104 C128 104 C129 103 C130 103 C132 104 C133 475/6R3 C144 104 C143 104 C142 103 C138 682 C169 390 C171 390 C137 182 C136 474/10 C135 475/6R3 C504 104 C511 105 C532 473 C505 104 390 C510 620 C113 DCG1029-A-T C502 DCH1165-A-T C167 104 C104 104 C141 331 C139 331 C503 104 C115 822 C156 104 C501 104 C172 104 C147 473 C107 106 R111 332 R110 681 R114 622 R103 474 R150 103 R128 101 R129 472 R108 0R0 R116 102 R118 102 R175 473 R506 102 R507 102 R504 102 R503 102 R517 102 R505 393 R515 473 R516 273 R510 2R0 R511 2R0 R174 0R0 R280 220 R281 473 R133 0R0 R109 222 R107 222 R146 0R0 R145 0R0 R144 332 R148 331 R501 DCN1160 R502 DCN1162 R117 0R0 R240 103 2 1 4 3 6 5 8 7 R254 473 2 1 4 3 6 5 8 7 L107 BTH1103-A L106 BTH1103-A UPC3345GC-YEB IC101 RF IF GND0 1 RFP 2 RFN 3 WPP1 4 WPP2 5 GND1 6 A1 7 B1 8 C1 9 D1 10 VCC2 11 REFI2 12 REFO1 13 E1 14 F1 15 G1/FOP 16 H1/FOM 17 GND2 18 HPAD 19 CAD 20 HPBC 21 CBC 22 GND3 23 PDIN 24 FPDVREF 25 APCPH 26 RREF 27 RLD 28 RLDM 29 VCC3 30 31 WREF 32 WLD 33 WLDM 34 PELD 35 P2LD 36 CREG1 37 REFO3 38 REFI 39 REFO2 40 VCC4 41 ADO 42 BCO 43 GND4 44 CDAC 45 VCC5 46 BCIN 47 ADIN 48 CBHWBL 49 CBHLPP 50 GND5 51 OUTP1 52 RST 53 SCK 54 SO 55 SI 56 CP 57 VCC6 58 WLDON 59 OPCTRG/WAGCHLD 60 SHWB/LOWZ 61 SHSV/IDGATE 62 SHAPCRE/AGCFAST 63 SHAPCW/AGCEN 64 ROPC1/VFOFP/TLIGHT 65 ROPC2/VFOEP/OPCTRG 66 GND6 67 EQCK1 68 EQCK2 69 RECD/IPID 70 SGND 71 OUTP2/LG 72 OPID/OUTP3 73 LPP/RHEAD/OPID 74 TEC 75 FOK 76 HOLD 77 MIRR/RAMWR 78 VCC33 79 CWAGC 80 CWHP 81 AWOBBLE 82 GND7 83 TECIN 84 TE2 85 TE 86 PPALL 87 FE 88 CI D 89 VCC7 90 CRC 91 CBPD 92 CBBD 93 CDEF2 94 CDEF 95 RFEQOP 96 RFEQON 97 CMIRR 98 VCC8 99 CAMIRR 100 CAGC2 101 CAGC1 102 GND8 103 REQ 104 CEQ 105 GND9 106 CDPDD 107 CDPDC 108 CDPDRF 109 CDPDB 110 CDPDA 111 VCC9 112 AGCIN 113 RFO 114 VCC1 115 SWRF1 116 SWRF2 117 WRFMON 118 MONI3 119 MONI2 120 MONI1 IC501 BD7997FS HU+ 1 HU- 2 HV+ 3 HV- 4 5 HW+ 6 HW- 7 HB 8 PGND1 9 U 10 SPVM1 11 V 12 GND1 13 GND2 14 GND3 15 GND4 16 GND5 17 PGND2 18 W 19 SPVM2 20 SPRNF 21 FG 22 CTL1 23 CTL2 24 SPIN 25 DGND 26 LDIN 27 VC 28 SLIN1 29 SLIN2 30 SLVDD 31 SLRNF1 32 SLRNF2 33 SPCNF 34 SLO2- 35 SLO2+ 36 SLO1- 37 SLO1+ 38 AGND 39 GND6 40 GND7 41 GND8 42 GND9 43 GND10 44 AVM 45 FCO- 46 FCO+ 47 TKO- 48 TKO+ 49 LDO- 50 LDO+ 51 VCC 52 TKIN 53 FCIN 54 DVCC TP254 TP5757 TP252 TP250 TP5759 TP5761 TP251 TP5762 TP253 TP121 TP139 TP119 TP130 TP120 TP155 TP117 TP118 TP174 TP106 TP107 TP131 TP132 TP116 TP115 TP111 TP114 TP188 TP138 TP113 TP133 TP112 TP129 TP134 TP128 TP123 TP122 TP109 TP135 TP110 TP201 SML-310YT D101 CN401 10FHJ-SM1-TB 1 2 3 4 5 6 7 8 9 10 GNDM GNDS GNDM GNDS GNDS GNDS GNDD GNDD GNDD GNDD V+3D V+5S V+5D V+5D VREF2 V+3D V+3D V+3FE V+3A V+5S NC(SW0) A9 D6(AG) D1(SL) D0(MA) GND XREST TX_FE RX_FE V+3D 106/16 (GNDS) ((DCH1201) ((DCH1201) (YB) (YB) ST1_P ST2_P ST2_M G 1/3 G 2/3 9 10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 44 1 2 3 4 1 2 3 4 C D F A B E 3.11 MAIN ASSY(2/3) HDATA13 HADRS22 HADRS21 HADRS1 HADRS17 HADRS0 HADRS19 HADRS18 HDATA0 HADRS7 HADRS10 HADRS8 HADRS4 HDATA15 HDATA1 HADRS6 HADRS5 HADRS3 HDATA8 HADRS9 HDATA5 HDATA3 HDATA2 HADRS15 HDATA4 HDATA7 HADRS14 HDATA6 HADRS13 HDATA9 HDATA10 HDATA11 HADRS11 HDOE HWS0 HDATA14 HADRS20 HDATA12 HCS0 HADRS16 HADRS12 HADRS2 DADRS10 DADRS0 DCLKO DADRS1 DBA1 DBA0 DDATA23 DDATA22 DDATA21 DDATA19 DDATA20 DDQS2 DDM2 DDATA17 DDATA18 DDATA25 DDATA24 DDM3 DCAS DDATA16 DDATA29 DDQS3 DDATA27 DADRS12 DDATA30 DDATA26 DRAS DADRS7 DADRS8 DDATA28 DCKE DCS DDATA31 DDATA12 DWE DADRS2 DADRS9 DCLKNO DADRS3 DADRS4 DADRS6 DDATA0 DDATA2 DADRS5 DDATA1 DDATA3 DDATA14 DADRS11 DDATA5 DDQS1 DDATA13 DDATA4 DDQS0 DDATA15 DDATA10 DDM1 DDATA6 DDM0 DDATA8 DDATA11 DDATA7 DDATA9 JTMS JTCL EDINT JTMRST JTDI JTDO ADATAO LRCKO BCKO BCKI ADATAI LRCKI SHAPCRE SHWB SHAPCW SCS4 SI O SCS0 SCLK OPCTRG SHSV LPP_OPID IPID_RECD FOK TEC FDRV SL2 LO HOLD SL1 TDRV SWRF2 JTRST_FE PPALL SWRF1 FE MIRR_RAMW R RX_FE LG OPEN RFEQO_N 2. RFEQO_P 2. CLOSE SSTtoM SSMtoT_NSDA HSMtoT NSCS LLRST_DVINT2 USB_INT USBRST_SDA RXD 0.2m m 0.2m m TE AT1BUFDIR AT1DATA1 AT1DATA0 AT1DATA2 AT1DATA3 AT1DATA4 AT1DATA5 AT1DATA6 AT1DATA7 AT1DATA8 AT1DATA9 AT1DATA10 AT1DATA11 AT1DATA12 AT1DATA13 AT1DATA14 AT1DATA15 AT1ADR2 AT1DIOW AT1DIOR AT1INTRQ AT1DMACK AT1DMARQ AT1CS0 AT1CS1 AT1IORDY AT1RESET XRESET TX_FE JTMRST JTDI JTDO JTMS JTCL EDINT AMUTE REMI EQCK1 2. EQCK2 ROPC1 ROPC2 W2EN_M W2EN_P OSCEN_P OSCEN_M W3EN_M W3EN_P W1EN_P W1EN_M TX2_GLINK RX2_GLINK ASCK_NSCK AT1ADR0_DVINT 1 AT1ADR1_DVINT 2 LEMSW HADRS5 HADRS4 HADRS16 JTRST_FE MDRV XDMUTE1 XDMUTE2 TX0 DVRST_RFEXLL TX1_DV_LL RX1_DV_LL HSTtoM IR_GLINK DVRST_RFEXLL LLRST_DVINT2 USBRST_SDA VREF_D RX0 X525P_SCL ADPOW ADPOW_DVINT1 ADPOW_DVINT1 GCSB R1411 103 2 1 4 3 6 5 8 7 R1412 103 103 R245 183 R202 822 R1421 103 R1422 103 R1811 221 R1814 330 R1813 0R0 R1812 331 R1804 330 R1802 331 R1803 0R0 R1801 221 R1045 103 R1701 103 R1002 0R0 R1423 NM R1424 NM R1902 NM R1052 6200 R1054 9100 R1703 0R0 R1056 220 R1057 220 R1404 220 R1405 220 R1406 220 R1407 220 R1401 220 R1402 220 R1403 220 R1063 101 R1410 NM R1414 220 R1415 220 R1416 220 R1413 473 R1417 103 R256 103 R1013 103 R259 331 R258 0R0 R1064 101 R1001 0R0 R1705 0R0 R1704 0R0 R1005 0R0 R1004 0R0 R1003 0R0 R1006 0R0 R1008 0R0 R1007 0R0 R1062 221 R208 103 R210 473 R216 473 R203 473 R206 222 R214 0R0 R1014 104 R1020 103 R1017 103 R1016 103 R1018 103 R1061 102 R1012 0R0 R1010 0R0 C264 680 C260 104 C261 102 C224 223 C220 472 C1421 105 C1901 180 C1902 150 C1811 105 C1812 151 C1813 101 C1801 105 C1024 105 C1025 102 C1911 150 C1912 180 C1022 102 C1021 105 C1019 102 C1018 105 C1016 102 C1015 105 C1010 102 C1009 105 C1044 105 C1046 102 C1047 105 C1049 102 C1052 105 C1054 102 C1057 102 C1055 105 C1061 105 C1059 102 C1064 102 C1062 105 C1067 102 C1065 105 C1070 105 C1068 102 C296 105 C1709 103 C1804 473 C1814 473 106 C1008 106 C1017 C1073 475/6R3 C1076 475/6R3 C1075 106 C1802 331 C1803 221 C1040 104 104 C1029 C1043 104 C1037 104 104 C1026 C1034 104 C297 681 C1704 104 C1063 104 C1082 104 C1705 104 C1053 104 C1066 104 C1056 104 C1045 104 C1069 104 C1703 104 C1051 104 C1701 104 C1060 104 C1048 104 C1002 104 C1702 104 C1058 104 C1004 104 C1707 104 C1050 104 C1007 104 C1706 104 C223 472 C221 103 C232 471 C233 471 C236 683 C230 223 C231 223 C1081 100 C1084 5R0 C1085 5R0 C1086 5R0 C1087 5R0 C1710 NM 221/4 C1001 221/4 C1005 100/16 C1708 221/4 C1020 221/4 C1014 221/4 C1003 221/4 C1071 221/4 C1074 L100 1 DTL1106-A 3 2 1 L100 L100 3 DTL1106-A 3 2 1 L1008 DTL1106-A 3 2 1 L1007 DTL1106-A 3 2 1 L1006 DTL1106-A 3 2 1 L1004 DTL1106-A 3 2 1 FG WLDON RDIS XRST AWOBBLE 232RST YI CI YOUT COUT ROUT GOUT BOUT SPDIFO JTRST DACCLKO ADCCLKO X1001 VSS1192 X1002 VSS1191 2SA1576A(QR) Q1811 2SA1576A(QR) Q1801 L1811 150 L1801 390 L1010 BTH1103-A TP1406 TP617 TP5755 TP5756 TP1011 TP8 TP1012 TP10 TP9 TP1013 TP5748 TP5749 TP5750 TP5751 TP1411 TP1404 TP5752 TP5763 TP1405 TP5753 TP615 TP1407 TP5754 TP616 TP5765 TP5766 TP5767 RT1N141U Q101 RKN1048 CN1402 1 2 3 4 5 6 7 14FHJ-SM1 CN1401 1 2 3 4 5 6 7 8 9 10 11 12 13 14 1R5V V_WP3 V+3D 2R5V VPVDD 1R5V V+DDR V+3V V+1R5 V+3D V_EP3 VREF2 V+3FE 1R5V 1R5V 3R3V V_WP3 V+3D 2R5V V+3V V_ENC VREF_D 3R3V V_ADC 3R3V V_WP1 V+5D V_EP1 V_LV3 3R3V V+3D V_WP1 V+3D VREF_V 1R5V PVDD V_AC3 V+3D V_LV3 GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD DVDR IC (EMMA2) GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD IC100 1 UPD61272F1-107KA3A- K AA1 Y1 W1 V1 U1 T1 R1 P1 N1 M1 L1 K1 J1 H1 G1 F1 E1 D1 D21 E21 F21 G21 H21 J21 K21 L21 M21 N21 P21 R21 T21 U21 V21 W21 Y21 AA21 AA20 AA19 AA18 AA17 AA16 AA15 AA14 AA13 AA12 AA11 AA10 AA9 AA8 AA7 AA6 AA5 AA4 AA3 AA2 Y2 W2 V2 U2 T2 R2 P2 N2 M2 L2 K2 J2 H2 G2 F2 E2 D2 D20 E20 F20 G20 H20 J20 K20 L20 M20 N20 P20 R20 T20 U20 V20 W20 Y20 Y19 Y18 Y17 Y16 Y15 Y14 Y13 Y12 Y11 Y10 Y9 Y8 Y7 Y6 Y5 Y4 Y3 C20 A17 A6 B19 B7 B10 A16 A5 A2 B18 B6 A15 B17 B5 A14 A3 B16 B4 A13 A4 B15 B3 A21 A12 B14 B2 A20 C2 A11 C21 A1 B13 B1 A19 A8 A10 B21 B9 B12 C1 A18 A7 A9 B20 B8 B11 C3 C4 C5 C6 C7 C8 C9 C10 C11 C12 C13 C14 C15 C16 C17 C18 C19 D19 E19 F19 G19 H19 J19 K19 L19 M19 N19 P19 R19 T19 U19 V19 W19 W18 W17 W16 W15 W14 W13 W12 W11 W10 W9 W8 W7 W6 W5 W4 W3 V3 U3 T3 R3 P3 N3 M3 L3 K3 J3 H3 G3 F3 E3 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 D17 D18 E18 F18 G18 H18 J18 K18 L18 M18 N18 P18 R18 T18 U18 V18 V17 V16 V15 V14 V13 V12 V11 V10 V9 V8 V7 V6 V5 V4 U4 T4 R4 P4 N4 M4 L4 K4 J4 H4 G4 F4 E4 E5 E6 E7 E8 E9 E10 E11 E12 E13 E14 E15 E16 E17 F17 G17 H17 J17 K17 L17 M17 N17 P17 R17 T17 U17 U16 U15 U14 U13 U12 U11 U10 U9 U8 U7 U6 U5 T5 R5 P5 N5 M5 L5 K5 J5 H5 G5 F5 J13 K13 L13 M13 N13 J12 K12 L12 M12 N12 J11 K11 L11 M11 N11 J10 K10 L10 M10 N10 J9 K9 L9 M9 N9 X201 DSS1152-A 1 2 3 to HD D to FLASH 24.576MH z 27MHz to DDR SDRAM STBY EJTAG RS-232C STBY TXD RXD DTR CTS V+5D GNDD XRESET TRST EJSNGEN TDI GND TDO DINTEN TMS GND TCK GND RST JTSEL DINT V+3 (DCH1201) (GNDS) (GNDS) (GNDS) emulator (BE) R1401 22 NM (FE) R1410 R1406 NM 22 NM 22 16.93MHz R273 G 2/3 G 1/3 G 3/3 G 3/3 G 3/3 G 3/3 16 17 15 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 45 5 6 7 8 5 6 7 8 C D F A B E AT1DATA7 AT1RESET AT1DATA8 AT1DATA9 AT1DATA10 AT1DATA11 AT1DATA12 AT1DATA13 AT1DATA14 AT1DATA0 AT1DATA1 AT1DATA2 AT1DATA3 AT1DATA4 AT1DATA5 AT1DATA6 AT1DATA15 AT1ADR0_DVINT1 AT1ADR2 AT1CS0 AT1CS1 AT1DMARQ AT1IORDY AT1INTRQ AT1DIOW AT1DIOR AT1DMACK AT1DATA1 AT1DATA3 AT1DATA10 AT1DATA7 AT1DATA4 AT1DATA15 AT1DATA9 AT1DATA5 AT1DATA12 AT1DATA14 AT1DATA6 AT1DATA8 AT1DIOR AT1DATA11 AT1DIOW AT1DMACK AT1ADR1_DVINT2 AT1CS0 AT1ADR2 AT1ADR0_DVINT1 HADRS0 HADRS1 HADRS2 HADRS5 HADRS10 HADRS11 HADRS12 HADRS15 HADRS16 HADRS18 HADRS19 HADRS17 HADRS8 HCS0 GCSB HWS0 HADRS13 HDOE HADRS17 HDATA15 HDATA7 HDATA14 HDATA6 HDATA13 HDATA5 HDATA12 HDATA4 HDATA11 HDATA3 HDATA10 HDATA2 HDATA9 HDATA1 HDATA8 HDATA0 HCS0 HADRS1 HADRS2 HADRS3 HADRS4 HADRS5 HADRS6 HADRS7 HADRS8 HADRS18 HADRS19 AT1CS1 HADRS21 HWS0 XRESET HADRS9 HADRS10 HADRS11 HADRS12 HADRS13 HADRS14 HADRS15 HADRS16 TADRS12 DDATA31 DDATA30 DDATA29 DDATA28 DDATA15 DDATA12 DDATA14 DDATA13 DDATA8 DDATA10 DDATA9 DDATA11 DDQS1 DDM1 TADRS12 TADRS11 TADRS9 TADRS8 TADRS7 TADRS6 TADRS5 TADRS4 DCLKEN DDATA27 DDATA24 DDATA26 DDATA25 TADRS8 TADRS9 TADRS11 DDM3 DCLKEN TADRS4 TADRS5 TADRS6 DDQS3 TADRS7 DCLKEN DCKE TADRS2 TADRS1 TADRS0 TADRS10 TBA1 TBA0 TCS TRAS TCAS TWE DDATA16 DDATA19 DDATA17 DDATA18 DDATA23 DDATA20 DDQS2 DDATA22 DDATA21 DDM2 DDATA3 DDATA4 TADRS10 TBA1 TBA0 DDATA7 DDATA1 DDM0 TRAS DDATA6 TADRS3 TADRS2 TCAS TWE TADRS1 DDQS0 DDATA5 DDATA2 DDATA0 TADRS0 TCS TADRS3 DADRS5 DADRS9 DADRS0 DADRS1 TADRS5 TADRS9 TADRS0 TADRS1 DADRS10 DADRS4 TADRS10 TADRS3 TADRS4 TADRS6 DADRS6 DADRS3 DADRS7 DADRS11 TADRS7 TADRS8 TADRS11 TADRS2 DADRS2 DADRS8 DRAS DWE TRAS TCAS TWE TCS DCS DCAS DCLKNO DCLKO TCLKO TCLKO DADRS12 DBA0 DBA1 TBA0 TBA0 TADRS12 TBA1 TBA1 AT1ADR1_DVINT2 AT1DATA13 AT1DATA2 AT1RESET AT1DATA0 HDATA12 HDATA15 HDATA8 HDATA9 HDATA10 HDATA11 HDOE HADRS4 HADRS6 HADRS7 HADRS9 HADRS14 HADRS3 HADRS22 HADRS22 HADRS20 PROTECT X525P_SCL X525P USBRST_SDA USB_RST TCLKNO TCLKO TCLKO TCLKNO R3810 330 RAB4CQ330J-T 2 1 4 3 6 5 8 7 R3801 223 RAB4CQ223J-T 2 1 4 3 6 5 8 7 R3811 330 RAB4CQ330J-T 2 1 4 3 6 5 8 7 R3812 330 RAB4CQ330J-T 2 1 4 3 6 5 8 7 R3813 330 RAB4CQ330J-T 2 1 4 3 6 5 8 7 330 RAB4CQ330J-T 2 1 4 3 6 5 8 7 R3802 223 RAB4CQ223J-T 2 1 4 3 6 5 8 7 R3803 223 RAB4CQ223J-T 2 1 4 3 6 5 8 7 R3804 223 RAB4CQ223J-T 2 1 4 3 6 5 8 7 R3805 223 RAB4CQ223J-T 2 1 4 3 6 5 8 7 R3806 223 RAB4CQ223J-T 2 1 4 3 6 5 8 7 R1273 330 2 1 4 3 6 7 R1255 330 2 1 4 3 6 5 8 7 R1256 330 2 1 4 3 6 5 8 7 R1274 330 2 1 4 3 6 5 8 7 R1266 330 2 1 4 3 6 5 8 7 R1265 330 2 1 4 3 6 5 8 7 R1245 330 2 1 4 3 6 5 8 7 R1246 330 2 1 4 3 6 5 8 7 R1281 560 1 4 6 5 8 7 R1282 560 2 1 4 3 6 5 8 7 R1283 560 1 4 6 5 8 7 R1287 560 2 1 4 3 6 5 8 7 R1248 560 2 1 4 3 6 5 8 7 R1261 560 2 1 4 3 6 5 8 7 R1242 560 2 1 4 3 6 5 8 7 R1269 560 2 1 4 3 6 5 8 7 R1241 560 2 1 4 3 6 5 8 7 R1249 560 2 1 4 3 6 5 8 7 R1268 560 2 1 4 3 6 5 8 7 R1262 560 2 1 4 3 6 5 8 7 R3814 820 R3818 820 R3821 820 R3820 220 R3816 220 R3817 220 R3815 562 R3819 102 R3822 103 R3831 223 R1151 103 R1152 103 R1153 103 R1154 103 R1157 103 R1159 103 R1163 103 R1164 103 R1165 103 R1169 103 R1168 103 R1172 103 R1173 103 R1174 103 R1183 103 R1182 103 R1184 103 R1181 103 R3807 223 R1107 0R0 R1110 0R0 R1127 470 R1103 0R0 R1114 103 R3823 330 R1219 R1240 330 R1252 330 R1247 330 R1258 330 R1260 330 R1257 330 R1267 330 R1272 330 R1275 330 R1276 330 R1288 330 R1289 330 R1284 560 R1285 560 R1286 560 R1301 4700 R1302 1001 R1303 1001 R1312 1001 R1313 1001 R3833 0R0 R3830 R1116 103 R1117 103 R1118 103 R1120 103 R1122 103 R1125 103 R1162 473 R1314 0R0 R1175 473 R1156 473 103 R1161 R1176 103 R1167 R1170 473 R3836 0R0 R3808 330 R1263 560 R1244 560 R1243 560 R1271 560 R1251 560 R1270 560 R1250 560 R1264 560 R3837 0R0 R3832 NM R3842 103 R3860 0R0 R3859 0R0 C1113 105 C1209 102 C1210 102 C1226 102 C1223 105 C1227 105 C1229 102 C1225 103 C1224 103 C1228 102 C1208 105 C1202 105 C1204 105 C1207 102 C1206 103 C1205 103 C1221 105 C3802 105 C3801 105 NM C1105 104 C1203 104 C1302 104 C1211 104 C1212 104 C1303 104 C1213 104 C1313 104 C1214 104 C1312 104 C1222 104 C1230 104 C3805 105 221/4 C1235 L120 1 DTL1106- A 3 2 1 IC1102 S29GL064M90TCIR20-K A15 1 A14 2 A13 3 A12 4 5 A11 6 A10 7 A9 8 A8 9 A19 10 A20 11 WE 12 RESET 13 A21 14 WP/ACC 15 RY/BY 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE 27 VSS1 28 OE 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS2 47 BYTE 48 A16 TP5744 TP5764 TP614 TP5733 TP5722 TP5745 TP5734 TP5723 TP5746 TP5735 TP5724 TP5747 TP5736 TP5725 TP5737 TP5726 TP5738 TP5727 TP5739 TP5728 TP5740 TP5729 TP5718 TP5741 TP5730 TP5719 TP5742 TP5731 TP5720 TP5743 TP5732 TP5721 TP5768 TP5769 TP5770 TP1111 TP5717 TP202 TP203 IC1301 NJM12904V 3 4 2 1 8 IC1301 NJM12904V 5 6 7 IC1221 VDD1 1 DQ0 2 VDDQ1 3 DQ1 4 5 DQ2 6 VSSQ1 7 DQ3 8 DQ4 9 VDDQ2 10 DQ5 11 DQ6 12 VSSQ2 13 DQ7 14 NC1 15 VDDQ3 16 LDQS 17 NC2 18 VDD2 19 NC 20 LDM 21 /WE 22 /CAS 23 /RAS 24 /CS 25 NC3 26 BA0 27 BA1 28 A10/AP 29 A0 30 A1 31 A2 32 A3 33 VDD3 34 VSS1 35 A4 36 A5 37 A6 38 A7 39 A8 40 A9 41 A11 42 A12 43 NC4 44 CKE 45 CK 46 /CK 47 UDM 48 VSS2 49 VREF 50 NC5 51 UDQS 52 VSSQ3 53 NC6 54 DQ8 55 VDDQ4 56 DQ9 57 DQ10 58 VSSQ4 59 DQ11 60 DQ12 61 VDDQ5 62 DQ13 63 DQ14 64 VSSQ5 65 DQ15 66 VSS3 IC1201 VDD1 1 DQ0 2 VDDQ1 3 DQ1 4 5 DQ2 6 VSSQ1 7 DQ3 8 DQ4 9 VDDQ2 10 DQ5 11 DQ6 12 VSSQ2 13 DQ7 14 NC1 15 VDDQ3 16 LDQS 17 NC2 18 VDD2 19 NC 20 LDM 21 /WE 22 /CAS 23 /RAS 24 /CS 25 NC3 26 BA0 27 BA1 28 A10/AP 29 A0 30 A1 31 A2 32 A3 33 VDD3 34 VSS1 35 A4 36 A5 37 A6 38 A7 39 A8 40 A9 41 A11 42 A12 43 NC4 44 CKE 45 CK 46 /CK 47 UDM 48 VSS2 49 VREF 50 NC5 51 UDQS 52 VSSQ3 53 NC6 54 DQ8 55 VDDQ4 56 DQ9 57 DQ10 58 VSSQ4 59 DQ11 60 DQ12 61 VDDQ5 62 DQ13 63 DQ14 64 VSSQ5 65 DQ15 66 VSS3 V+3D V+5D 3R3V V+3D V+DDR V+DDR V+3V V+3D V+3D VREF_D 3R3V V+3D VREF_D V+3D VREF_V V+2R5 VREF_D 3R3V GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD CN3801 VKN2050-A-TFB 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 C1215 FLASH Clock:166MHz to HDD RESET# GND DD7 DD8 DD6 DD9 DD5 DD10 DD4 DD11 DD3 DD12 DD2 DD13 DD1 DD14 DD0 DD15 GND KEYPIN DMARQ GND DIOW# GND DIOR# GND IORDY CSEL DMACK# GND INTRQ RESERVED DA1 PDIAG# DA0 DA2 CS0# CS1# DASP# GND K4H511638C-UCB3 HY5DU121622CTP-J 151/4(VCH1246-) VWV2215- /V :VYW2365- /V K4H511638C-UCB3 HY5DU121622CTP-J E-SATA VWV2216- /V,VWV2233- /V :VYW2366- /V 2 3 2 3 G 2/3 MAIN ASSY G 2/3 CN11 H F (VXX3159) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 46 1 2 3 4 1 2 3 4 C D F A B E 3.12 MAIN ASSY(3/3) SSMtoT_NSDA ASCK_NSCK NSCS BCKO ADATAO LRCKO AMUTE DV_BCK AD_ADATA ADPOW AD_BC K AD_LRCK LRCKI BCKI ADATAI AD_ADATA AD_LRCK AD_BCK XRESET R4523 0R0 R4524 0R0 R3214 682 R4522 0R0 R4011 682 R4012 103 R3108 0R0 R3109 0R0 R3103 0R0 R3105 0R0 R3230 470 R3227 470 R3228 470 R3222 101 R3212 101 R3211 101 R3221 101 R4561 101 R3234 104 R3216 681 R3215 223 R3208 56R0 R3223 56R0 R3210 472 R3225 472 R4527 0R0 R4520 0R0 R4521 0R0 R3209 8201 R3224 8201 R3207 1502 R3226 1502 R2401 0R0 R3113 0R0 R3217 0R0 R3229 470 R3231 470 R3232 470 R4513 0R0 R4514 0R0 R4535 0R0 R4517 0R0 R4515 0R0 R3117 0R0 R3116 0R0 R3115 0R0 100/16 C4507 101/16 C3216 101/16 C3106 101/16 C3214 101/16 C4563 102/6R3 C3212 P_CONT2 P_CONT2 AMUTE1 DACCLKO LCHOUT RCHOUT ADCCLKO LCHIN RCHIN PCM1742KE IC3201 BCKIN 1 DATA 2 LRCKIN 3 GND 4 5 Vdd 6 Vcc 7 VoutL 8 VoutR 9 AGND 10 Vcom 11 ZEROR 12 ZEROL 13 MD 14 MC 15 ML 16 MCLK AK5359ET IC3101 AINR 1 AINL 2 CKS1 3 VCOM 4 5 AGND 6 VA 7 VD 8 DGND 9 SDTO 10 LRCK 11 MCLK 12 SCLK 13 PDN 14 DIF 15 CKS2 16 CKS0 RB501V C3103 105 C3211 121 C3207 121 C4549 475/6R3 C4550 102 C4548 475/6R3 C2406 104 C2405 104 C2403 104 C2402 104 C2404 104 C2401 104 C3101 104 C3201 104 C3203 104 C3202 104 C3206 104 C3209 104 C4509 103 C4562 104 C4561 104 C4565 104 C4508 475/6R3 C3205 C3204 331 C3210 681 C3208 681 C4526 475/6R3 C4525 475/6R3 C4527 102 IC2402 CEK1285 1 2 IC2401 CEK1285 1 2 R3102 103 2 3 6 5 8 7 Q4561 2SC4081(QR) TP2419 TP73 TP2405 TP2418 TP2409 TP71 TP2403 TP2404 TP77 TP67 TP2417 TP2401 TP65 TP2402 TP2410 TP68 TP2408 TP2406 TP69 TP78 TP2407 TP2420 TP70 TP66 TP72 TP204 TP108 TP56 TP19 TP24 TP6015 TP31 TP6012 TP6011 TP6018 TP42 TP6024 TP12 TP43 TP6017 TP11 TP6019 TP6014 TP32 TP47 TP55 TP51 TP6005 TP6013 TP6022 TP6002 TP28 TP6026 TP48 TP6021 TP15 TP16 TP52 TP41 TP20 TP27 TP6008 TP6004 TP59 TP23 TP6003 TP33 TP6020 TP6016 TP6007 TP6001 TP6025 TP6023 TP44 TP60 TP6009 TP6010 TP6006 TP40 IC3202 UPC4570G2 5 6 7 IC3202 UPC4570G2 3 4 2 1 8 D3201 DAN202U CN2401 S13B-PH-K-S 1 2 3 4 5 6 7 8 9 10 11 12 13 IC4504 S-1170B50UC-OUJ-TRB ON/OFF VSS NC VIN VOUT IC4507 S-1170B33UC-OTS ON/OFF 1 VSS 2 NC 3 VIN 4 5 VOUT IC4511 S-1170B33UC-OTS ON/OFF 1 VSS 2 NC 3 VIN 4 5 VOUT GNDA GNDD GNDA GNDD GNDD GNDD GNDA GNDD GNDA GNDA GNDD GNDD GNDD GNDM GNDA GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD V+12M V+12V V+12V V+1R5_IN SW+3.33V EV+5.8V V+5S EV+5.8V V+5A V+3D V+3V V+3D V+12A SW+3.33V V+5D V+5A V+3D V+12A V+5L V+5A EV+5.8V V+5AVI V+5M V+3D EV+5.8V V+3FE V+3DV V+5A C1 B2 E2 E1 B1 C2 UMF21N-TLB C B E B2 C1 E1 B1 C2 E2 Audio DAC Audio ADC L ch R ch GNDD EV+5.8 V SW+1.53V GNDD SW+3.33V GNDD V+12V V+5M GNDM V+12M SW+1.53V SW+3.33V GND (AK5358ET) C3102 105 GNDD G 3/3 CN201 I G 2/3 G 2/3 23 24 25 19 18 20 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 47 5 6 7 8 5 6 7 8 C D F A B E XRST1 DAT_TO_M HSTtoM SSTtoM RX0 SSMtoT_NSDA ASCK_NSCK CB_OUT CR_OUT HST_TO_M RXD TX1_DV_LL RX1_DV_LL DVRST_RFEXLL HSMtoT Y_OUT Y_OUT C_OUT C_OUT XRST1 DAT_TO_M HST_TO_M CB_OUT XRESET LLRST_DVINT2 YP_OUT CR_OUT J_Y_IN YP_OUT IR_GLIN K TX2_GLINK RX2_GLINK TX0 RXD J_C_IN J_C_I N J_Y_I N R4591 0R0 R4592 0R0 R4593 0R0 R2301 682 R2305 103 R2304 0R0 R2302 0R0 R3711 0R0 R4534 0R0 R3002 0R0 R3003 0R0 R3004 0R0 R3703 101 R3704 101 R3706 101 R2510 681 R2507 681 R2513 681 R2501 681 R2504 681 R3732 562 R2502 2000 R2514 2000 R2505 2000 R2508 2000 R2511 2000 R2506 0R0 R2602 0R0 R2209 681 R2210 681 R2306 105 R2307 105 R2308 105 R2309 0R0 R2310 0R0 R2311 0R0 R3716 330 R2312 R2313 R3715 0R0 R2604 0R0 R2603 R3502 391 R3505 75R0 R3511 0R0 R3501 471 R3504 151 R3503 681 R3717 NM R3721 R3720 0R0 101/16 C2506 101/16 C4542 P_CONT2 YOUT COUT GOUT BOUT ROUT JTRST 232RST SPDIFO RCHOUT X525P LCHOUT LCHIN RCHIN AMUTE1 P_CONT2 O N CI YI D3711 RB501V D3712 RB501V C4551 105/10 C3703 105 C2501 105 C3701 103 C4552 475/6R3 C300 C2217 106 DCH1201-A-T C2210 106 DCH1201-A-T C3738 C3511 105 C3501 470 TC7WH34FU IC3701 1A 1 3Y 2 2A 3 GND 4 5 2Y 6 3A 7 1Y 8 VCC R3005 103 2 1 4 3 6 5 8 7 R3707 103 2 1 4 3 6 5 8 7 2SA1576A(QR) Q2502 C B E 2SA1576A(QR) Q2501 C B E 2SA1576A(QR) Q2504 C B E 2SA1576A(QR) Q2503 C B E 2SA1576A(QR) Q2505 C B E Q2205 2SA1576A(QR)-TLB C B E Q2206 2SA1576A(QR)-TLB C B E Q3501 2SC4081(QR)-TLB TP95 TP2311 TP99 TP81 TP87 TP84 TP96 TP86 TP2301 TP97 TP91 TP2302 TP98 TP2304 TP79 TP2305 TP2306 TP2309 TP2303 TP94 TP83 TP82 TP93 TP90 TP88 TP2300 TP89 TP92 TP85 TP2601 TP2312 TP2313 TP2314 TP2602 TP2603 TP2604 TP2605 TP2606 CN2301 VKN1439-A-TBB 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 IC4512 S-1170B25UC-OTK ON/OFF 1 VSS 2 NC 3 VIN 4 5 VOUT GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDA GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD V+12V V+5AVI V+3D V+5AVI V+1R5_IN V+2R5 V+5AVI V+1R5 SW+3.33V V+1R5 V+3D IC3707 PST3813U OUT 1 VDD 2 NC 3 GND 4 CN2601 VKN2038-A-TFB 1 2 3 4 5 6 7 8 9 10 R2211 R2212 R2208 561 R2206 561 GNDD R2314 102 R2315 102 C2301 104 C2302 104 Y_OUT C_OUT Yp_OUT Cb_OUT Cr_OUT from EMMA Y IN C IN from 232C 1.002Vpp,SYNC DC??? V P_CONT2 SW+12V GND C_OUT GND Y_OUT GND YP_OUT CB_OUT CR_OUT X525P R_OUT GND L_OUT AMUTE L_I N GNDA R_I N GND Y_I N GND C_I N XRST1 HST_TO_M DAT_TO_M DAM_TO_T ASCK HSM_TO_T MRST GND SPDIF GND from TUJB TX1 RX1 GND XRESET RFE/XLL GND PCMCLK GND SPDIF GND B_I R TXDGL RXDGL 1.002Vpp,SYNC DC??? V 0.2873Vpp,CENTER DC???V 0.7104Vpp,CENTER DC???V 0.7104Vpp,CENTER DC???V to EMMA 1.00Vpp,SYNC DC???V 0.268Vpp,CENTER DC???V (F ) 162 162 G 3/3 MAIN ASSY G 3/3 CN401 A 2/3 G 2/3 F G 2/3 G 2/3 G 2/3 G 2/3 (VXX3159) 22 21 8 7 6 4 5 26 27 3 1 2 CN102 C 1/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 48 1 2 3 4 1 2 3 4 C D F A B E 3.13 ATAB ASSY R13 R13 R13 R14 R13 R14 R14 R14 R15 R15 R15 R16 R15 R16 R16 R16 R17 R17 R17 R17 R18 R18 R18 R19 R18 R19 R19 R19 R20 R20 R20 R20 CN11 CN12 34 40 30 35 36 39 37 29 32 31 38 33 6 3 5 7 8 4 2 3 1 1 2 7 5 8 6 3 4 8 7 4 5 6 1 7 2 8 5 6 3 1 4 2 12 11 10 9 25 24 26 28 27 21 20 23 22 19 16 15 17 18 7 8 3 5 6 4 1 2 16 15 14 13 17 3 4 5 6 7 8 19 21 22 18 20 1 2 2 1 25 23 24 26 12 11 10 14 13 8 6 9 7 2 4 1 3 5 7 8 5 6 3 4 30 28 27 29 31 7 5 8 6 3 4 1 2 35 33 34 32 5 7 6 8 3 4 1 2 38 39 36 40 37 DD3 DD11 DD4 DD10 DD5 DD9 DD6 DD8 DD7 GND RESET# DD12 from MAIN DD2 GND DIOR# GND DIOW# GND DMARQ (KEYPIN) GND DD15 DD0 DD14 DD1 DD13 GND DASP# CS1# CS0# DA2 DA0 PDIAG# DA1 RESERVED INTRQ GND DMACK# CSEL IORDY GND3 ATAB ASSY (VWV2231) GND3 VKN1818- -TBB VKN1816- H H H CN3801 G 2/3 to HDD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 49 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 50 1 2 3 4 1 2 3 4 C D F A B E 3.14 POWER SUPPLY UNIT Unit Resistor Capacitor Ω/W (under 1/4W for no direction W µF/V (under 50V for no direction V POWER SUPPLY UNIT (VWR1403) I I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 51 5 6 7 8 5 6 7 8 C D F A B E I CN2401 CN401 A 1/3 G 3/3 to HDD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 52 1 2 3 4 1 2 3 4 C D F A B E 3.15 WAVE FORMS 1 IC100-pin18 (TU-VIN) (Function : Tuner 9ch) V:500mV/div. H:10µsec/div. 2 C2036+side (Y1OUT) (Function : DVD play) V:500mV/div. H:10µsec/div. 3 IC100-pin34 (C1OUT) (Function : DVD play) V:500mV/div. H:10µsec/div. 4 C2037+side (V1OUT) (Function : DVD play) V:1V/div. H:10µsec/div. 5 C2035+side (YOUT) (Function : DVD play) V:500mV/div. H:10µsec/div. 6 C2034+side (CbOUT) (Function : DVD play) V:500mV/div. H:10µsec/div. 7 C2033+side (CrOUT) (Function : DVD play) V:500mV/div. H:10µsec/div. 8 CN4002-pin19 (Y_OUT MtoT) (Function : Tuner 9ch) V:500mV/div. H:10µsec/div. 9 CN4002-pin17 (C_OUT MtoT) (Function : DVD play) V:500mV/div. H:10µsec/div. 10 CN4002-pin21 (Yp_OUT MtoT) (Function : DVD play) V:500mV/div. H:10µsec/div. 11 CN4002-pin23 (Cb_OUT MtoT) (Function : DVD play) V:500mV/div. H:10µsec/div. 12 CN4002-pin25 (Cr_OUT MtoT) (Function : DVD play) V:500mV/div. H:10µsec/div. 13 CN4002-pin21 (Y/G_OUT MtoT) (Function : DVD play) V:500mV/div. H:10µsec/div. 14 CN4002-pin23 (Cb/B_OUT MtoT) (Function : DVD play) V:500mV/div. H:10µsec/div. 15 CN4002-pin25 (Cr/R_OUT MtoT) (Function : DVD play) V:500mV/div. H:10µsec/div. 16 IC100-pin14 (2VIN) (Function : LINE2 IN) V:500mV/div. H:10µsec/div. 17 IC100-pin7 (Y2IN) (Function : LINE2 IN) V:500mV/div. H:10µsec/div. 18 IC100-pin9 (C2IN) (Function : LINE2 IN) V:500mV/div. H:10µsec/div. 19 CN4002-pin28 (Y_IN TtoM) (Function : LINE2 IN) V:500mV/div. H:10µsec/div. 20 CN4002-pin30 (C_IN TtoM) (Function : LINE2 IN) V:500mV/div. H:10µsec/div. JACB ASSY A GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND Note : The encircled numbers denote measuring point in the schematic diagram. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 53 5 6 7 8 5 6 7 8 C D F A B E 21 IC100-pin87 (TU-LIN) (Function : Tuner 9ch) V:500mV/div. H:10µsec/div. 22 C2038+side (L_OUT) Function : DVD play) V:500mV/div. H:10µsec/div. 23 CN4002-pin32 (L_IN) (Function : LINE2 IN) V:500mV/div. H:10µsec/div. 24 IC101-pin81 (TEXTV) (Function : RF IN) V:1V/div. H:10µsec/div. Measurement Condition : JACB ASSY A GND GND GND GND 25 JA801-pin15 (R/C IN) (Function : LINE1 IN) V:500mV/div. H:10µsec/div. 29 JA801-pin15 (R/C IN) (Function : LINE1 IN) V:500mV/div. H:10µsec/div. 33 CN1-pin24 (AV1_G_OUT) (Function : DVD play) V:500mV/div. H:10µsec/div. 26 JA801-pin7 (BIN) (Function : LINE1 IN) V:500mV/div. H:10µsec/div. 30 CN1-pin29 (AV1_V/Y_OUT) (Function : DVD play) V:500mV/div. H:10µsec/div. 34 CN1-pin12 (AV1_B_OUT) (Function : DVD play) V:500mV/div. H:10µsec/div. 27 JA801-pin11 (G IN) (Function : LINE1 IN) V:500mV/div. H:10µsec/div. 31 CN1-pin26 (AV1_R/C_OUT) (Function : DVD play) V:500mV/div. H:10µsec/div. 35 CN1-pin4 (AV1_L_OUT) (Function : DVD play) V:500mV/div. H:10µsec/div. 28 JA801-pin20 (AV2_V/Y IN)) (Function : LINE1 IN) V:1V/div. H:10µsec/div. 32 CN1-pin26 (AV1_R/C_OUT) (Function : DVD play) V:1V/div. H:10µsec/div. 36 JA801-pin6 (AV2_L_IN) (Function : LINE1 IN) V:1V/div. H:10µsec/div. GND GND GND GND GND GND GND GND GND GND GND GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 54 1 2 3 4 1 2 3 4 C D F A B E 1 IC101-pin16 (DNEB) H: 10ns/div V: 1v/div 2 IC101 Pin 17 (DCASB) H: 10ns/div V: 1v/div 3 IC101 Pin 18 (DRASB) H: 10ns/div V: 1v/div 4 IC101 Pin 19 (DCSB) H: 10ns/div V: 1v/div 5 IC101 Pin 38 (SDCLK) H: 2ns/div V: 1v/div 6 IC106 Pin 146 (TXD1B) H: 20ns/div V: 1v/div 7 IC106 Pin 145 (RXD1B) H: 20ns/div V: 1v/div 8 IC106 Pin 137 (CLK27IN) H: 10ns/div V: 1v/div 9 IC106 Pin 118 (SCL0) H: 4ms/div V: 1v/div 10 IC106 Pin 117 (SDA0) H: 20ms/div V: 1v/div 11 IC106 Pin 1 (CT TPS8) H: 40ns/div V: 1v/div 12 IC106 Pin 2 (CT TPS9) H: 4ms/div V: 1v/div 13 IC106 Pin 4 (CT TPS10) H: 100ns/div V: 1v/div 14 IC106 Pin 5 (CT TPS0) H: 200ns/div V: 1v/div 19 IC313 Pin 63 (X300) H: 10ns/div V: 500mv/div 20 IIC313 Pin 38 (TSVALID) H: 4ms/div V: 1v/div Measurement Condition : DTBR ASSY C GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 55 5 6 7 8 5 6 7 8 C D F A B E 21 IC313 Pin 36 (TSCLK) H: 40ns/div V: 1v/div 22 IC313 Pin 34 (TSDAT0) V:000mV/div. H:00µsec/div. 23 IC313 Pin 23 (TSFSTART) H: 100ns/div V: 1v/div 24 IC501 Pin 8 (VoutR) H: 400ms/div V: 1v/div 25 IC501 Pin 7 (VoutL) H: 400ms/div V: 1v/div 26 CN103 Pin6 (DT_L) H: 400ms/div V: 2v/div 27 CN103 Pin8 (DT_R) H: 400ms/div V: 2v/div 28 CN103 Pin 10 (DT_C) H: 10ms/div V: 500mv/div 29 CN103 Pin 12 (DT_Y) H: 10ms/div V: 500mv/div 30 IC109 Pin 13 (SPDIFRFE) H: 200ns/div V: 1v/div 31 JA101 TP112 (SPDIF) H: 200ns/div V: 500mv/div GND GND GND GND GND GND GND GND GND GND GND Measurement Condition : DTBR ASSY C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 56 1 2 3 4 1 2 3 4 C D F A B E 1 CN2301 Pin8 (Y_IN) V: 1V/div. H: 10us/div. 2 CN2301 Pin6 (C_IN) V: 1V/div. H: 10us/div. 3 CN2301 Pin_8 (CVBS_IN) V: 1V/div. H: 10us/div. 4 CN2301 Pin17 (Y_OUT) V: 0.5V/div. H: 10us/div. 5 CN2301 Pin19 (C_OUT) V: 0.5V/div. H: 10us/div. 6 CN2301 Pin15 (YP_OUT) V: 0.5V/div. H: 10us/div. 7 CN2301 Pin13 (CB_OUT) V: 0.5V/div. H: 10us/div. 8 CN2301 Pin11 (CR_OUT) V: 0.5V/div. H: 10us/div. 9 IC501 Pin22 (XDMUTE1) V: 1V/div. H: 20us/div. 10 IC501 Pin23 (XDMUTE2) V: 1V/div. H: 20us/div. 11 CN601 Pin3 (CLOSE) open → close V: 1V/div. H: 20us/div. 12 CN601 Pin3 (CLOSE) close → open V: 1V/div. H: 20us/div. 13 CN601 Pin5 (CLOSE) open → close V: 1V/div. H: 20us/div. 14 CN601 Pin5 (CLOSE) close → open V: 1V/div. H: 20us/div. 15 X201 (16.93MHz) V: 1V/div. H: 20ns/div. 16 X1001 (24.576MHz) V: 1V/div. H: 20ns/div. 17 X1002 (27MHz) V: 1V/div. H: 20ns/div. 18 IC3101 Pin11 (ADCCLKO) V: 1V/div. H: 20ns/div. 19 IC3101 Pin12 (AD_BCK) V: 1V/div. H: 100ns/div. 20 IC3101 Pin10 (AD_LRCK) V: 1V/div. H: 5us/div. Measurement Condition : No.1 - 8 : EBU Color Bar (100 / 0 / 75 / 0) MAIN ASSY G GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 57 5 6 7 8 5 6 7 8 C D F A B E 21 CN2301 Pin4 (LCH IN) V: 1V/div. H: 200us/div. 22 CN2301 Pin2 (RCH IN) V: 1V/div. H: 200us/div. 23 IC3201 Pin16 (DACCLKO) V: 1V/div. H: 20ns/div. 24 IC3201 Pin1 (DACBCKO) V: 1V/div. H: 100ns/div. 25 IC3201 Pin3 (DACLRCKO) V: 0.5V/div. H: 5us/div. 26 CN2301 Pin21 (LCH OUT) V: 2V/div. H: 200us/div. 27 CN2301 Pin23 (RCH OUT) V: 2V/div. H: 200us/div. MAIN ASSY G GND GND GND GND GND GND GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 58 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 59 5 6 7 8 5 6 7 8 C D F A B E 4. PCB CONNECTION DIAGRAM NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 60 1 2 3 4 1 2 3 4 C D F A B E 4.1 JACB ASSY 1 2 NP NP 27 1 19 1 1 30 31 50 51 80 100 81 4 6 1 3 3 4 1 6 1 12 13 24 5 4 3 1 9 8 1 16 8 1 4 5 NP 4 1 8 5 4 3 1 6 R687 R676 R R526 R527 CN104 C141 C143 C640 C506 CN301 L101 R576 R601 R596 R604 C615 C607 C616 C604 Q507 C612 R607 R605 R606 R600 Q508 R595 C613 R577 R599 C605 R594 C614 R597 R602 C617 R598 R603 R413 Q408 C419 C414 Q406 R412 C416 C417 C421 Q409 C420 C418 Q407 Q405 R411 C413 C671 C611 C627 R609 C620 R624 R623 R608 C628 R626 R625 R628 R627 C629 R630 R629 R631 R632 C624 D524 D525 D526 D527 D528 D529 D530 D531 D532 D533 D534 CN102 D535 R409 R410 C692 CN106 D536 IC501 C502 C508 C512 C521 C523 C535 C585 C586 C587 C589 C590 C591 C592 C593 C594 R563 R565 R564 R566 Q501 C519 C526 C530 C561 C560 C580 C579 R505 R508 R507 R523 R522 R521 R524 R568 R569 R570 R571 R572 R567 C511 C527 C528 C529 C531 C532 C533 C534 C504 C514 C583 C584 C550 D502 D503 D505 D501 C603 C515 IC502 C556 C553 IC503 C558 C575 C574 C555 C557 C301 R511 R543 R506 R544 C559 C509 R525 R510 C313 C312 C314 Q303 Q304 C306 R303 R305 R304 R302 C305 R307 R308 R306 C309 R301 KN101 C618 R646 C635 Q517 C645 R661 C650 R662 R647 C632 C630 Q515 C662 R675 C659 IC511 R641 R638 R636 C636 Q516 IC512 JA501 L507 IC510 C634 R683 IC513 C666 R673 R644 C658 C657 C654 R652 Q521 R634 C655 R635 C631 C641 R653 C C639 R657 C660 R655 X501 L R686 R639 R660 C643 C638 Q519 R648 R682 R645 L505 Q IC509 R664 R674 R C637 R654 R649 R680 R681 C642 R640 R656 R633 C646 C653 R669 C311 Q509 Q510 R612 D509 C621 D510 R613 R610 R614 D508 IC508 D513 D512 C626 R618 D511 R615 R616 C623 C625 R622 Q512 R617 R620 Q511 R619 Q513 R621 C543 C546 L503 R534 C538 C539 L502 C542 R531 C536 C537 R530 L501 R528 C540 R529 R684 R685 R516 R515 R501 C501 R575 C633 R668 R611 JA304 JA305 JA302 Q5 Q503 C566 C565 R901 KN103 R677 R688 R689 R690 C647 R573 Q514 R637 C649 R532 A B 3.SCL 4.SDA 5.AGC 1.STACHG 2.XRST1 _ 2.ANT5V_SW 3.DET_ANT 4.P_CONT2 21,23,25,27 6.DTU_LIN 8.DTU_RIN GND:5,7,9, 10.DTU_CIN 13,15,17,19 12.DTU_YIN 14.V+1.5SW 15.V+1.5SW 17.V+3.3SW 18.V+3.3SW 20.V+12SW 22.V+5.8E 24.V+5.8E 26.V+31V 11,13,16,19, 6.TU_RIN 8.TU_LIN 10.TU_VIN 12.V+5R1 14.V+31V 16.V+5TU 18.V+5BB GND:7,9,11, 1.FAN+ 2.FAN- SW+3R3V SW+1R5V V+5R8E V+12R1SW V+31V V+5R1 V+5BB V+5TU V+5VO V+5V V+5VI V+12R1 Q102 Q103 Q106 Q110 Q101 Q108 Q112 Q111 Q507 Q508 Q411 Q401 Q408 Q406 Q409 Q407 Q405 Q412 Q414 Q413 Q105 Q104 Q404 Q410 Q107 Q502 Q501 Q505 Q303 Q304 Q517 Q515 Q516 Q521 Q519 Q523 Q509 Q510 Q512 Q511 Q513 Q504 Q503 Q514 Q415 Q416 Q417 IC401 IC101 IC102 IC103 IC501 IC502 IC503 IC505 IC511 IC512 IC510 IC513 IC509 IC508 IC504 IC301 JACB ASSY A SIDE A A FAN MOTOR CN104 CN103 C CN102 CN801 B JA302 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 61 5 6 7 8 5 6 7 8 C D F A B E 51 80 81 100 1 30 50 31 1 3 4 5 1 9 35 1 NP 13 1 1 26 1 1 5 4 3 50 51 80 81 NP NP 5 8 1 4 1 12 13 24 9 16 8 1 4 5 LF R 24 17 16 9 8 1 32 25 NP R687 R172 D108 R200 R676 C567 C568 R335 IC401 R551 R552 R527 IC101 R148 R167 R144 R207 C129 R110 D102 R114 C100 IC102 C106 Q102 Q103 R134 R201 C101 C103 R154 C140 C133 C132 X101 R139 R141 Q106 R163 R162 R101 R131 R125 C134 C113 C108 R123 R171 R160 R202 R205 Q110 R206 R208 R175 R152 R151 R149 R143 R159 C104 R153 C127 C128 R126 R161 R133 R189 X102 R188 C112 R174 D101 R112 Q101 C110 R113 R203 C109 C149 L102 C137 R104 R132 C124 R155 C139 R138 R137 C126 C131 Q108 R169 C152 C151 R165 C150 R176 R102 R150 Q112 D107 Q111 R170 C135 C105 C136 R146 D106 R105 CN103 R124 C125 R158 R109 R103 R111 R140 R142 R156 R166 R115 R116 C111 R209 R182 R181 R180 R204 C119 R127 C102 C138 C123 C412 D405 Q411 C427 C428 C426 R416 C408 C407 C406 Q401 C405 L401 C411 R404 R403 C156 C157 R108 R106 C107 R408 R405 R401 C435 R417 C431 C432 C429 Q412 Q414 C433 R418 C434 Q413 C430 CN101 R147 Q105 Q104 C130 Q404 CN401 R414 C423 CN102 D404 Q410 C437 L402 R415 C424 C422 D406 C436 C438 C439 C323 R421 R422 R420 Q107 R135 R107 R183 R426 CN105 R211 R210 IC103 KN104 R145 KN102 C535 C585 C586 C587 R563 R565 R564 R566 Q502 C526 C561 C560 C580 C579 Q505 R539 R541 R542 C551 R523 R522 R521 R524 C527 C528 C529 C531 C532 C533 C534 C583 C584 C550 D504 D502 D503 D505 D506 C564 C563 IC502 C556 C553 IC503 C558 C575 C578 C574 IC505 C577 C576 C555 R543 R544 C559 R525 R662 C662 R675 C665 C659 C441 C552 IC511 12 IC513 C656 C666 R673 C658 Q521 1 C670 C660 L508 R686 C643 Q519 C669 L505 Q523 9 R674 R679 R680 R681 R669 10 13 10 R614 L504 C543 R535 C546 C545 R536 C544 L503 C547 C549 R537 C324 R534 C325 R684 R685 R545 R561 Q504 C566 C565 IC504 R533 R548 R677 R688 R690 C573 C400 C649 D407 IC301 Q415 Q416 Q417 R325 R326 R327 R328 R329 R330 R331 R540 X301 R197 D C IC401 TYPE 494.500NB MFD.BY LITTELFUSE INC SW+3R3V V+5R8E JACB VWV2230 VWV 1.DT_TUON 2.ANT5V_SW 3.DET_ANT 4.P_CONT2 6.DTU_LIN 8.DTU_RIN 10.DTU_CIN 12.DTU_YIN 14.V+1.5SW 15.V+1.5SW 17 V+3 3SW V+5V 1.P_CONT 2.EV+12.1V GND:3,5,7,9,11 4.EV+5.8V 1.V+5V 6.EV+5.8V 2.GND 8.SW+3.3V 3.TXD1 10.SW+3.3V 4.RXD1 12.SW+1.5V 13.SW+1.5V 1.SDET2 5.GND 3.2C 6.RESET 5.2Y 7.DBGP0 7.2V 8.DBGP1 9.2L 9.DBGP2 11.2R 1.RXDGL 13.V+5F 2.TXDGL 15.V+12R1E 14,16,24 17.IR 18.KEY1 19.KEY2 20.FLPON 21.FLDATA 22.FLCLK 23.FLSTB GND:2,4,6, 25.LED_HDD 26.LED_DVD 8,10,12, 3.B_IR 4.SPDIF 6.HST_TO_M 7.ASCK 8.DAT_TO_M 9.HSM_TO_T 10.DAM_TO_T 11.XRST1 12.SW+12R1V 13.R_OUT 14.GNDA 15.L_OUT 16.MRST 17.C_OUT 19.Y_OUT 21.YP_OUT 23.CB_OUT 25.CR_OUT 27.X525P 28.Y_IN 30.C_IN 31.P_CONT2 32.L_IN 34.R_IN 35.AMUTE1 GND:5,18,20,22, 24,26,29,33 PC V+12R1E V+5R8E V+5F V+5M SW+3R3V V+5M V+5M V+5V V+5F V+12R1E SW+3R3V V+5V V+5V V+5VI V+5R8E V+12R1SW V+5VI SW+3R3V SW+1R5V V+9V V+5V SW+3R3V SW+1R5V 1SW V+31E V+12R1SW V+5V V+5V (VNP2045-B) SIDE A A CN202 I CN401 CN301 D CN105 CN2301 G CN101 103 02 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 62 1 2 3 4 1 2 3 4 C D F A B E 9 1 1 35 1 13 1 10 20 26 LF R R196 R129 R122 R119 R195 R118 R193 R194 R173 C116 C117 C147 R157 R117 R121 R120 C114 C115 C122 C120 D104 R130 D103 C121 D403 R406 C153 R407 Q403 R402 Q402 C409 C410 C403 C402 D401 C404 C401 C425 C155 C154 R177 R178 R179 R168 R214 R215 R216 R184 R185 R217 R427 R428 R429 R430 R431 R432 R198 R199 R332 R333 R334 35.AMUTE1 34.R_IN 32.L_IN 31.P_CONT2 30.C_IN 28.Y_IN 27.X525P 25.CR_OUT 23.CB_OUT 21.YP_OUT 19.Y_OUT 17.C_OUT 16.MRST 15.L_OUT 14.GNDA 13.R_OUT 12.SW+12R1V 24,26,29,33 GND:5,18,20,22, 11.XRST1 10.DAM_TO_T 9.HSM_TO_T 8.DAT_TO_M 7.ASCK 6.HST_TO_M 4.SPDIF 3.B_IR 2.TXDGL 1.RXDGL 1.V+5V 2.GND 3.TXD1 4.RXD1 5.GND 9.DBGP2 8.DBGP1 7.DBGP0 6.RESET 26.LED_DVD 25.LED_HDD 23.FLSTB 22.FLCLK 21.FLDATA 20.FLPON 19.KEY2 18.KEY1 17.IR 15.V+12R1E 13.V+5F 11.2R 9.2L 7.2V 5.2Y 3.2C 1.SDET2 GND:2,4,6,8,10, 12,14,16,24 GND:3,5,7,9,11 13.SW+1.5V 12.SW+1.5V 10.SW+3.3V 8.SW+3.3V 6.EV+5.8V 4.EV+5.8V 2.EV+12.1V 1.P_CONT VWV VWV2230 SW+1R5V SW+3R3V V+5R8E V+12R1E V+12R1E V+5V V+5F V+5M V+5V V+5M V+5R8E V+5V V+5M V+5M V+5R8E V+5V V+5M V+5VI V+12R1SW V+12R1SW V+12R1SW V+9V V+31V V+5R8E V+12R1SW V+5R8E V+31E V+5VI V+12R V+12 V+5R8E Q109 Q403 Q518 Q402 Q301 Q302 Q506 Q522 Q520 Q305 Q306 SIDE B A CN401 CN105 CN101 JACB ASSY A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 63 5 6 7 8 5 6 7 8 C D F A B E 27 1 19 1 1 2 3 1 2 3 C693 C694 Q109 C144 C142 D109 C145 R191 R192 C146 R578 R583 R581 R582 C608 R585 R584 R579 C609 C606 R580 R642 C644 R658 R643 R651 R663 R650 R659 Q518 R589 R590 C610 R587 C695 D514 D515 D516 D517 D518 D519 D520 D521 D522 D523 C696 09 C676 C677 C678 C679 C697 R419 C680 C681 C686 C687 C698 C688 C689 C690 C691 C699 R212 R213 C507 C517 C518 C525 C562 C581 R562 R519 R518 C588 C505 C510 C513 C516 R546 R547 C582 R558 R554 R555 R559 D301 R504 D302 Q301 Q302 C304 C303 C302 R517 R512 R513 D305 D303 D304 C307 R311 C308 C310 R309 R310 D307 D308 Q506 D507 C667 C664 R671 R670 C700 L506 Q522 R665 R667 C652 Q520 R666 R672 R678 C651 C648 C663 R592 R593 C315 D306 C316 C503 R520 C317 R509 R312 R313 R314 C319 C320 C321 C322 D309 L301 Q305 Q306 R315 R316 R317 R318 R319 R320 R321 R322 R323 R324 R391 R336 R337 R338 R339 R340 R341 R503 R902 1.STACHG 2.XRST1 3.SCL 4.SDA 5.AGC 6.TU_RIN 8.TU_LIN 10.TU_VIN 12.V+5R1 14.V+31V 16.V+5TU 18.V+5BB GND:7,9, 11,13,15, 17,19 1.DT_TUON 2.ANT5V_SW 3.DET_ANT 4.P_CONT2 6.DTU_LIN 8.DTU_RIN 10.DTU_CIN 12.DTU_YIN 14.V+1.5SW 15.V+1.5SW 17.V+3.3SW 18.V+3.3SW 20.V+12SW 22.V+5.8E 24.V+5.8E 26.V+31V GND: 5,7,9,11,13, 16,19,21, 23,25,27 VWV V+5V 1.FAN+ 2.FAN- +12R1SW V+9V V+5VI V+5V V+5VO V+5V SW+3R3V SW+1R5V V+5VI V+12R1 V+31V V+5R8E V+31V V+5R8E V+12R1SW V+12R1 V+5VI V+5VI V+12R1SW V+12R1 V+12R1SW SIDE B A CN104 CN102 JA302 (VNP2045-B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 64 1 2 3 4 1 2 3 4 C D F A B E 4.2 TUNB ASSY 1 19 FC ICT R C802 L803 U801 C809 C810 C805 C807 KN801 KN802 C813 X801 C840 C842 C815 C830 C828 C831 C819 CN801 W113 W111 W101 W124 W117 W119 W107 W123 W102 W104 W106 W121 W118 W122 W110 W120 W114 W105 W116 W109 W112 W115 W103 W108 W125 1.GND 2.V+5BB 3.GND 5.GND 7.GND 9.GND 11.GND 13.GND 4.V+5TU 6.V+31V 8.V+5R1 10.TU_VIN 12.TU_LIN 14.TU_RIN 15.AGC 16.SDA 17.SCL 18.XRST1 19.STACHG GND GND GND GND GND GND GND GND GND TU_VIN V+31V V+31V V+5TU V+5TU V+5BB V+5R1 (V+5R1) (V+5R1) SDA (V+5R1) SDA SCL STACHG (V+5R1) TUNB ASS'Y 1/4 GND PC CONTACT SIDE UP SIDE A TUNB ASSY B SIDE A (VNP2046-A) CN106 A CN801 B B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 65 5 6 7 8 5 6 7 8 C D F A B E 23 33 12 22 1 11 34 44 19 1 LF R C803 L805 C808 Q802 Q801 C804 C811 L802 R805 C801 L801 L806 R808 R806 C806 C812 R804 L804 R807 R829 C853 R803 R801 R802 C829 R814 C818 C823 C816 C838 IC801 R815 R822 R824 R811 R809 C843 R825 Q803 C821 R810 C817 R812 C820 C841 L807 R813 R817 L808 R818 R820 R823 Q805 C825 L810 C836 C824 R826 C839 R828 C814 Q804 C837 R821 L809 C822 R819 C833 C834 C827 C832 R816 C826 R827 C835 C854 C855 C856 R999 R998 R997 GND GND 1.GND 3.GND 5.GND 7.GND 9.GND 11.GND 13.GND 15.AGC 17.SCL 19.STACHG 18.XRST1 16.SDA 14.TU_RIN 12.TU_LIN 10.TU_VIN 8.V+5R1 6.V+31V 4.V+5TU 2.V+5BB V+31V SDA SCL (V+5R1) V+5TU GND (V+5R1) STACHG GND GND V+5BB V+5R1 (V+5R1) (V+5R1) GND GND GND GND V+5TU GND V+31V TU_VIN SDA TUNB ASS'Y VWV2229- VWV VNP2046-A 1 17 Q802 Q801 Q803 Q805 Q804 Q803 Q803 Q803 Q802 Q802 Q802 Q801 Q801 Q801 Q804 Q804 Q804 Q805 Q805 Q805 IC801 IC801 IC801 IC801 SIDE B SIDE B TUNB ASSY B (VNP2046-A) CN801 B B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 66 1 2 3 4 1 2 3 4 C D F A B E 4.3 DTBR ASSY R239 R246 R247 R248 R249 C213 R250 R251 R253 F101 TP115 F107 TP119 F300 C424 TP126 C433 TP133 TP134 TP135 TP136 TP137 TP147 Q100 Q101 Q102 300 Q301 L100 L306 target11 IC205 R101 R102 R103 R106 R107 R108 R300 R301 R303 R304 R307 R117 R118 R119 R505 CN101 CN102 CN103 R120 R121 R122 R123 R124 R125 R126 R127 R128 R130 R132 R133 C101 C102 R527 C103 R140 R528 C104 R529 C105 C106 R145 R530 R149 C301 C302 X100 R535 C305 R536 R537 R150 R538 C308 R151 R539 R152 R153 R154 R155 R156 R540 R541 C311 R542 R543 R544 R545 C121 C315 C122 R546 C316 C123 R547 R548 S100 R161 R549 R162 R356 R163 R164 R165 R166 R167 R550 R551 C321 R552 R553 C323 R360 R554 C130 C324 R555 C131 C325 R556 R557 R170 R558 R171 R559 C139 R176 R177 C523 C524 R560 R561 C331 R562 R563 R564 R565 R566 C336 R567 R180 R568 C144 C145 R183 R184 C148 C149 R571 R572 R575 C152 C153 C347 R578 C348 target1 R579 C349 C157 target6 R196 R198 R580 C350 R581 C351 R582 C352 R583 R584 R391 R585 R586 D102 R587 C163 C357 D103 R588 C164 D104 R589 C165 D105 D106 D107 C168 R590 R591 R592 C362 R593 R596 D307 R598 D308 R599 zf1 IC101 IC104 IC105 IC109 IC300 IC301 IC303 IC308 C586 C587 C588 SIDE A C DTBR ASSY C CN102 A CN103 Q301 Q101 Q102 Q100 IC308 IC307 IC303 IC109 IC300 IC301 IC104 IC105 IC101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 67 5 6 7 8 5 6 7 8 C D F A B E U301 KN301 C402 TP304 TP305 TP306 TP307 TP308 TP309 TP310 TP311 TP312 TP313 F303 TP314 F304 F309 C431 F311 F313 F315 F316 F319 300 L305 R301 R302 R304 R305 CN103 JA101 R323 R330 R332 C303 C305 C308 R345 X300 C311 TP201 TP202 TP203 TP204 TP205 TP206 TP207 R354 TP208 R161 R355 C319 TP209 R162 R163 R164 TP210 TP211 C323 R360 R176 C522 R177 C523 C524 R370 C528 R371 R372 C336 R373 R374 R375 R376 R377 R378 R379 C340 C341 R380 R381 R382 R383 C353 R584 C356 R397 R398 C361 D301 D305 C366 D306 D307 C378 C379 C383 IC303 C385 C386 C387 IC307 C389 C397 cam22 SIDE A C (VNP2043-C) CN102 A CN103 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 68 1 2 3 4 1 2 3 4 C D F A B E C400 C401 C403 C404 C405 C406 C407 C408 TP104 C409 TP105 TP106 TP107 TP108 TP109 C410 TP300 C411 TP301 C412 TP302 C413 TP303 C414 TP110 C415 TP111 TP112 C416 TP113 C417 C418 TP114 C419 TP504 C420 TP505 C421 F301 C422 F302 TP507 TP508 TP509 TP315 F305 TP122 F306 TP124 TP319 TP510 TP511 TP512 TP513 F504 TP514 F310 TP321 TP322 F312 TP323 TP324 TP327 F317 TP328 F318 TP329 TP522 TP330 TP331 TP332 TP333 TP334 TP529 TP335 TP336 TP337 TP338 TP339 TP531 TP532 Q103 TP534 TP340 TP341 TP342 TP537 TP538 TP153 TP154 TP155 TP541 Q305 Q306 Q307 Q308 L101 Q309 Q310 L301 L302 L303 L304 L314 L315 R112 R306 R113 R308 R115 R309 R310 R311 R312 R313 CN104 R314 R315 R316 R317 R318 R319 R320 R321 R322 R324 R325 R326 R327 R134 R328 R135 R329 R136 R137 R138 R139 R522 R523 R331 R525 R526 R333 R334 R141 R335 R142 R336 R143 R337 R144 R338 R339 R148 C304 R340 R341 C306 R342 C307 R343 R344 C309 R346 R347 R348 R349 C119 C501 C503 C310 C312 C313 C314 R350 R351 R352 R353 C317 C318 R357 R358 R359 C320 C322 C517 C132 C326 R363 C133 C525 R179 C332 C5 9 C339 C530 C342 C343 C150 R576 R577 target2 C158 target7 C354 C355 C358 C359 C360 D302 C363 D303 C364 D304 C365 C367 C368 C369 D309 C370 D310 D311 C371 C372 C373 C374 C375 C377 C380 C381 IC302 C382 IC304 C384 T300 C388 IC309 C390 C391 IC311 IC312 C392 C393 IC313 C394 IC314 IC315 C395 IC316 C396 C398 C399 DTBR ASSY C SIDE B Cwww. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 69 5 6 7 8 5 6 7 8 C D F A B E R240 R241 R242 R243 R244 R245 TP101 C211 C212 TP102 TP103 TP104 TP105 TP106 TP107 R254 TP108 TP109 TP110 TP111 F102 TP113 F103 TP114 F104 F105 TP116 F106 TP117 TP118 TP501 TP502 TP503 TP504 TP505 TP506 TP507 TP508 TP120 P509 TP121 TP122 TP123 TP124 TP125 TP319 TP127 TP510 TP128 11 TP129 F504 TP320 TP130 TP325 TP131 TP326 TP132 TP138 TP520 TP521 TP139 TP523 TP524 TP525 TP526 TP527 TP528 TP140 TP141 TP142 TP144 TP145 TP146 TP148 TP149 TP534 TP535 TP536 TP150 TP539 TP151 TP152 TP153 TP154 TP155 TP157 TP540 TP158 TP159 TP160 TP161 TP162 TP163 L107 TP164 TP165 TP166 TP167 TP168 L129 R100 R104 R109 R110 R111 R114 R116 R501 R502 R503 R506 R507 4 R508 R509 R510 R129 R511 R512 R513 R514 R515 R516 R517 R518 R519 R138 R520 R139 R521 R522 R523 R524 R525 R526 R141 R142 R143 C107 R144 C108 L191 C109 R146 R147 R148 R531 R532 R533 R534 C110 C111 C112 C113 C114 C115 C116 C117 C118 C501 C502 R157 C503 R158 C504 R159 C505 C506 C507 C120 C508 C509 R160 C124 C125 C126 C127 C128 C510 C129 C511 C512 C513 R168 C514 R169 C515 C516 F202 C517 C134 C135 R172 C136 R173 C137 R174 C138 C520 R175 C521 R178 R179 C140 C529 C141 C142 C143 R181 R569 R182 C146 C147 C530 C531 R185 R186 R187 R188 R570 R189 R573 R574 C150 C151 R576 C346 R577 R190 R191 C155 C156 R192 R193 target4 R194 target5 R195 R197 R199 C166 C167 R594 R595 R597 zf3 IC106 C191 C192 IC501 IC502 (VNP2043-C) SIDE B C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 70 1 2 3 4 1 2 3 4 C D F A B E 4.4 FLKY and PWSB ASSYS 1 20 1 1 5 FC ICT S101 D111 D101 D113 D109 D103 D105 D115 D119 D117 S107 W122 W124 CN101 CN102 W121 W107 W117 W149 W145 W152 W146 W128 W120 W154 W125 W119 W104 W116 W101 W127 W153 W151 W105 W155 W129 W123 W130 W106 W126 W118 W147 W148 W103 W102 W150 W113 GND V+12V KEY1 LED_HDMI LED_REC GND V+5FL LED_PLTV LED KEY2 KEY1 KEY1 V+5FL FLSTB FLCLK LED_REC FLPON FLPON KEY1 V+12V V LED_D LED_ATV LED_DT LED_PON LED_ATT KEY1 V+5FL FLSTB RESET OUT LED_HDD V+5FL V+5FL 2 J-Aut EU-Aut OPEN/ HDD/DVD EU-Spr EU-Aut J-Aut 1.V+5FL 3.V+12V 5.IR 6.KEY1 7.KEY2 8.FLPON 9.FLDATA 10.FLCLK 11.FLSTB 13.LED_HDD 14.LED_DVD 15.LED_ATT 16.LED_REC 17.LED_PON 18.LED_HDMI 19.RESET OUT 20.LED_HDD2 GND: 3.LED_PON 4.V+12V 5.RESET OUT 2.GND 1.KEY1 2,4,12 18 14 CLOSE EU-Spr 4 GND upper side contact 5 1 R CN201 D201 S201 S202 STANDBY/ON EU-Aut J-Aut EU-Spr VWG2585 VWG VWG2572 PWSB 2/2 VWG2584 VWG2586 3.LED_PON 2.GND 1.KEY1 4 2 4.V+12V 5.RESET OUT RESET SIDE A FLKY ASSY E PWSB ASSY F (VNP2047-B) E F CN302 D CN101 CN102 CN201 IC102 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 71 5 6 7 8 5 6 7 8 C D F A B E 49 41 23 17 9 R C109 C111 V101 S102 S103 C105 IC102 L101 S105 S104 C137 C135 C131 T101 L102 D107 S106 S109 S113 S108 S110 S111 [ + ] [ – ] S112 W135 W124 W107 W131 W110 W128 W125 W143 W127 W114 W159 W160 W133 W129 W134 W130 W132 W115 W106 W126 W112 W163 W136 W138 W108 W157 W158 W137 W161 W139 W156 W111 W140 W144 W141 W109 W162 W113 W142 GND LED_PLTV KEY2 KEY1 KEY1 V+5FL LED_REC FLPON KEY1 V+12V V+12V LED_DiVX LED_ATV IR IR LED_DTV GND GND GND GND GND FLDC+ FLDC+ V+5FL V+5FL V+5FL V+5FL V+12V V+12V FLPON FLPON V-28V V-28V KEY2 1/2 V+12V FLDC- GND VWG2582 VWG2583 PC VWG PLAY HELP A.TV/D.TV INPUT SELECT ONE COPY STOP PAUSE LIVE TV REC STOP REC TOUCH VWG2580 VWG2581 FLKY VWG2571 GND V+12V SIDE A (VNP2047-B) E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 72 1 2 3 4 1 2 3 4 C D F A B E 22 23 33 34 44 1 11 12 17 23 41 49 R IC101 C112 C116 C110 R122 R121 R123 R124 R126 C119 C117 C114 C115 C113 R127 R105 C106 C103 C104 R101 R109 R107 R102 R156 Q112 D121 R161 C133 D125 D123 R163 D126 C138 C134 Q113 R160 R155 R162 R159 C132 D122 Q111 D124 R158 R157 C136 R125 R136 Q104 D108 R135 C124 R110 R111 R120 R119 R115 R166 R117 R114 R113 R167 VWG2580 REC STOP PAUSE LIVE TV ONE TOUCH INPUT STOP A.TV/D.TV HELP PLAY REC COPY SELECT VW FLKY V VW V VWG2571 1/2 [ + ] [ – ] SIDE B FLKY ASSY E (VNP2047-B) E Q106 Q112 Q111 Q107 Q105 Q104 Q102 Q103 Q101 Q108 Q110 Q109 IC101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 73 5 6 7 8 5 6 7 8 C D F A B E 1 9 20 1 5 1 LF 22 R123 R124 C118 C107 R103 C102 C126 R105 R104 C101 C120 R128 D112 Q106 R139 R140 R129 R142 Q107 D114 R141 C127 C125 R137 D110 R138 Q105 C122 R131 D104 Q102 R132 Q103 R134 R165 R164 D106 R133 C123 C121 D102 Q101 R145 Q108 D116 C128 R144 R130 R146 R143 R152 C130 D120 Q110 R153 R154 R151 R148 C129 D118 Q109 R149 R150 R147 R112 C108 VWG2580 OUT HELP PLAY HDD/DVD OPEN/CLOSE 1.KEY1 2.GND 5.RESET 4.V+12V 3.LED_PON 1.V+5FL 3.V+12V 5.IR 6.KEY1 7.KEY2 8.FLPON 9.FLDATA 10.FLCLK 11.FLSTB 13.LED_HDD 14.LED_DVD 15.LED_ATT 16.LED_REC 17.LED_PON 18.LED_HDMI 19.RESET OUT 20.LED_HDD2 GND:2,4,12 VWG2581 VWG VWG2582 VWG2583 2571 1 5 LF R R202 Q201 D202 R201 C202 C201 C203 R203 STANDBY/ON 3.LED_PON 4.V+12V 5.RESET OUT 2.GND 1.KEY1 VWG2586 VWG2584 2/2 VWG2572 VWG VWG2585 PWSB RESET SIDE B (VNP2047-B) E F CN101 CN102 CN201 Q201 PWSB ASSY F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 74 1 2 3 4 1 2 3 4 C D F A B E 4.5 MAIN ASSY R3224 R3225 R3801 R3802 R3226 R3803 R3227 R3804 R3228 R3229 R3805 R3806 R3807 R3808 R3809 R216 R3230 R3231R3232 R3234 R3810 R3811 R3812 R3813 R3816 R3817 R130 R130 R1 R3820 R3821 R130 R3822 R3823 R3824 R3825 R3826 R3827 C1911 C1912 L1001 L1003 R3831 R3834 X201 R4011 R4012 R3846 R3847 R3848 CN2301 TP109 R256 R257 R25 R259 TP110 R3851 TP11 R1 C R3852 TP11 R1912 R3853 TP113 R3854 TP114 C224 R3855 TP115 TP116 TP117 TP118 TP119 TP120 R3861 TP121 TP122 R3863 TP123 C C2505 C235 C236 TP128 Q2505 C5007 TP138 TP139 R230 R2304 R230 R2307 R2308 R2309 R2310 R2311 R2313 C260 TP155 R25 R2513 R2514 R2515 C3101 C3102 C3103 C3105 C3106 C3107 C3108 TP174 C3111 C3112 C3114 D3101 D3102 D3103 D3104 R3101 R3103 R3104 R3105 R3108 IC3101 R3109 IC3102 C1001 C1002 C1005 R3113 C1007 R3117 R R3707 C1023 R1007 C4501 C4502 C4503 C4507 C4508 C4509 D4501 D4502 CN2401 C1071 C1074 IC4503 IC4504 IC4504 IC Q C4534 C4535 C4537 R4518 TP3830 R4520 TP3831 R1065 R4521 R4522 R4523 R4524 R4525 R4526 R4527 u-guide1 zf2 C3201 C3202 C3203 C3204 C3205 C3206 C3207 C3208 C3210 C3211 C3212 C3215 CN3801 CN3802 D4581 C3221 C3222 C3223 D3201 C3803 C3806 R3202 C3807 R3205 R3207 R3208 R3209 IC3201 IC3201 R4591 IC3202 IC3202 R4592 R4593 C3811 C3812 X1002 C3813 C3814 R3210 R3211 C3816 R3212 R3217 C1301 L3102 R3220 R208 R3221 R3222 R3223 CN201 J CN2401 CN101 G CN3802 CN11 I CN3801 CN4002 A CN2301 MAIN ASSY F SIDE A Fwww. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 75 5 6 7 8 5 6 7 8 C D F A B E R210 R216 C1701 C1702 C1703 C1704 C1705 C1706 C1707 R1103 C1708 R1106 R1107 R1108 C1901 R1109 C1902 C1710 C1711 CN401 R1301 R1302 R1303 R1304 R1110 R1305 R1111 R1112 L1004 R1704 R3839 L1201 R1705 R3840 R3841 R1901 X201 R3842 R1902 TP106 TP107 R254 TP109 R256 R257 R258 R259 C220 TP110 TP111 R1911 C221 TP112 R1912 C223 TP113 TP114 C224 TP115 TP116 TP117 TP118 R3859 TP119 R3860 P120 C2501 TP121 TP122 C2503 23 R1153 C2504 R1154 C2505 Q2501 R1155 C235 R1156 C236 Q2503 R1157 R1158 Q2504 R1159 Q2505 C5003 R1160 R1161 R1162 R1163 R1164 R1165 R1166 R1167 R1168 TP138 R1169 TP139 R2301 R2302 R1170 CN5601 R2305 cam1 R1173 R1174 R1175 R1176 R1177 R1178 R2501 R2502 R2503 R2507 R2508 R2509 R1182 TP155 R2510 R2511 R2512 R2513 R2514 R2515 C3101 C3103 C3106 108 C5624 TP174 C3111 D3101 D3102 D3103 D3104 R3103 R3104 R3108 R3113 07 C1008 C1009 C1201 CN1402 R3504 C1010 C1204 C1205 C1015 C1016 C1210 C1212 C1215 C1021 C1216 C1022 C1023 C1024 C1025 C1026 R1007 R1203 R1010 C1421 R1207 C1231 C1232 C1235 C1236 C1044 R1210 R1211 C1045 C1046 R1406 R1213 C1047 C1048 C1049 R1218 C1051 R1411 C1052 C1053 R1220 R148 C1054 C1055 R1222 C1056 R1223 C1057 C1058 C1059 R1227 C1060 R1421 C1061 R1422 C1062 R1423 C1063 R1424 R1230 C1064 C1065 R1231 R1232 C1066 R1233 C1067 R1234 C1068 R1235 C1069 C1070 R1240 CN2601 R1245 R1246 R1052 R1247 C2210 R1248 R1054 R1249 C2217 R1250 IC4510 R1251 C1085 C1087 C4544 C4545 C4546 C4547 R1064 R1065 C1282 R4528 R1260 R4529 R1265 R1266 R1267 R1268 C1291 R1269 C1292 u-guide2 C1293 u-guide3 R1270 R4539 R1271 R1273 R1274 D101 R1275 R1276 R2603 C5701 Q5701 R1281 R1283 R1284 zf1 C5713 C5714 R1291 C5716 R1293 C5717 R1294 C5718 C5719 C5720 C5728 C5729 R5714 R5716 X1001 X1002 C1301 C1302 R202 C1303 R208 (VNP2038-A) CN101 H CN5601 02 SIDE A F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 76 1 2 3 4 1 2 3 4 C D F A B E TP90 TP91 C1312 R213 C1313 TP R214 C1314 IC3802 IC3802 R1101 C1709 IC1102 IC1102 D1111 R1113 R1114 IC1301 IC1301 R1116 R1117 R1118 R1119 R1312 L1002 R1313 R1120 R1314 R1121 R1122 L1006 L10 R1123 R1124 R240 R1701 R1125 R1703 R1127 R3838 C208 R245 R1706 R1321 TP100TP101TP102 TP103 TP104 TP105 TP1011 L1801 C230 R1151 C231 R1152 C232 C2502 C233 TP1404 TP1405 TP1406 C2506 Q2502 Q2502 C237 R273 TP1407 C238 R274 C5002 L1811 C5005 TP1411 R280 R281 C5011 TP140 R1171 TP141 R1172 TP142 TP143 TP146 TP148 R2500 R2504 R2505 R2506 TP150 TP151 R1181 TP152 TP153 R1183 C264 TP154 R1184 C5609 X5701 C5610 TP161 TP162 L107 C5617 L108 C5618 TP165 C5619 TP167 L110 C5621 C5622 C5623 R5605 R5606 R5607 R5608 R5609 R5610 C296 C297 TP2601 TP2602 TP2603 TP2604 D5621 TP2605 TP192 TP2606 TP193 TP194 TP195 TP196 TP197 IC3103 IC5621 IC5621 L5701 C1003 C1004 Q3711 R101 CN1401 R3501 R102 C1202 R103 C1203 IC5631 IC5631 C1206 C1207 C1208 C1014 R109 C1209 C1017 C1018 C1019 TP5701 C1211 TP5702 C1213 C1214 R115 IC3701 C1029 CN101 R1002 R1003 R1004 R1005 C1221 R1006 C1222 C1223 R1008 C1224 IC1001 IC1001 C1801 C1225 R126 C1226 C1802 R127 C1803 C1227 C1034 R128 C1804 C1228 R129 C1229 Q1801 Q1801 R1201 C1037 R1204 R1012 R1013 R1014 C1230 R1015 IC1201 IC1201 R1016 R133 R1017 R1018 C1040 R1401 R1019 IC1011 C1811 R1402 C1812 C1043 R1403 C1813 R1404 C1814 R1405 Q1811 Q1811 R1212 R1407 R1020 R1214 R1215 R1216 R1217 R1219 R1410 C1050 R145 R1412 R14 R147 R1413 R1221 R1415 R1416 R1417 C110 R1224 C111 R1801 C112 R1802 C113 R1803 R150 C114 R1804 C115 IC1221 IC1221 C116 C117 C118 C119 R156 R157 TP5748 R158 R159 TP5749 C120 C121 R1811 C122 R1812 C123 R1813 C124 TP5750 R160 R1814 R1045 TP5751 R161 C125 R162 TP5752 C126 R163 TP5753 C127 R164 C128 TP5754 R165 C129 TP5755 TP1 R166 TP2 TP5756 R167 TP3 TP5757 R168 TP4 C2208 R169 TP5759 TP5 R1241 Q2205 C2209 TP6 R1242 Q2206 TP7 R1243 C130 TP8 R1244 C131 TP9 C132 C133 IC4507 R170 TP1111 R171 TP5761 R1056 R172 TP5762 R1057 TP5763 R175 C1081 TP5765 R176 C1082 TP5766 C1083 TP5767 R178 C1084 IC4511 C1086 IC4512 R1252 C141 R1061 R1255 R1062 R1256 R1063 R1257 R1258 C1281 C1283 TP614 R1261 R1262 R1263 R1264 C152 R2206 C153 TP10 R2208 target1 IC2201 R2209 target2 IC2202 IC2202 target6 R2210 IC4531 R1272 Q4561 C5506 C5507 C5508 C165 R2601 R2602 R2604 C5702 TP250 TP251 R1282 C5512 TP252 TP253 TP254 R1285 R1286 R1287 R1288 R1289 C178 C5711 C5712 zf4 C5715 R1292 C180 R1295 IC102 C182 R1296 C183 R1297 R1298 C185 R1299 C187 C188 C189 C5721 C5722 C5723 R5507 C5724 R5508 C5725 R5509 D5702 C5726 C5727 R5701 R5702 R5703 R5706 TP2 R5707 IC5701 IC5701 IC501 IC5702 IC5702 IC Q R5711 TP2311 R5713 TP64 TP65 C3804 TP68 TP69 R5721 R5722 R5725 TP72 TP73 C1104 C1105 R5730 R5731 TP80 R203 C1111 R206 C1113 Q1111 Q1111 TP89 IC101 R4537 TP203 TP202 R5718 R1414 TP201 L5706 L5706 Q3712 R311 R3511 Q3501 Q3501 C3511 R3503 C3501 R3505 R3001 C5620 R5612 R5611 C107 R2211 R2213 R2212 R2214 L1812 R1815 L1813 R1816 C1815 C1816 F to Pick U CN101 MAIN ASSY F SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 77 5 6 7 8 5 6 7 8 C D F A B E TP90 TP91 C1312 TP92 R213 TP93 R214 TP94 TP95 TP96 TP97 TP98 R601 TP99 R602 R603 R604 R3235 R3814 C1709 R3815 R3818 R3819 IC1301 R3828 CN601 R3829 R1312 3 R3830 R3832 L1007 R3833 L1008 R3835 R3836 R1703 R3837 R245 TP104 R3856 R3857 R3858 TP1012 TP1013 TP503 TP504 TP505 TP506 TP507 TP508 C230 TP509 C231 C232 C233 C2506 Q2502 C237C238 TP510 TP511 TP129 C5001 TP512 TP513 C5004 TP514 TP515 C5005 TP516 TP517 C5008 TP518 TP130 TP131 C5009 TP132 TP133 TP134 TP135 C5010 R2306 TP146 R2500 Q101 Q102 R2504 C261 L106 TP165 TP166 TP167 L110 L112 TP170 TP171 TP173 TP175 TP177 TP179 TP2401 TP181 TP2402 TP182 TP2403 TP183 TP2404 TP184 TP2405 TP2406 TP2407 TP187 TP2408 TP188 TP2409 C3701 C3702 C3703 TP2410 TP190 604 2605 TP2606 R3102 TP2417 TP197 TP2418 TP2419 IC3103 TP2420 R3110 Q3711 R3111 R3112 R3115R3116 R101 R3501 R102 R103 R107 R108 R109 C1017 C1018 C1019 R3703 R110 R3704 R111 R3705 R112 R3706 R113 C1020 R114 IC3701 R116 R118 R501 R119 D3711 R502 IC3706 D3712 R503 C3737 R504 C1029 CN101 R505 R1001 R3711 R506 R507 R1003 R3713 R120 R1004 R3714 R121 R1005 R3715 R122 R123 R124 R125 R1009 R126 R127 TP5717 C1034 R510 R128 TP5718 R129 R511 TP5719 R515 R516 R3722 R517 R3723 R3724 TP5720 TP5721 R132 TP5722 R133 TP5723 C1040 TP5724 CN501 TP5725 CN502 TP5726 TP5727 TP5728 TP5729 C101 R3731 C102 R3732 C103 C104 TP5730 C105 TP5731 R142 TP5732 R143 TP5733 C108 R144 TP5734 C109 R145 TP5735 R146 TP5736 R147 TP5737 TP5738 TP5739 C110 C111 C112 C113 R150 C114 TP5740 R151 C115 TP5741 C116 R152 TP5742 C117 R153 TP5743 R154 TP5744 C501 C119 TP5745 R156 C502 TP5746 R157 C503 TP5747 TP3807 C504 R158 C505 R159 TP3809 C506C507C508 C120 C4525 C121 C509 C4526 22 C4527 C123 C124 C4528 R160 TP3810 R1045 R161 TP3811 R162 C126 R163 D4507 TP3813 D4508 R164 C510 TP3814 D4509 C511 TP3815 C1072 TP3816 C1073 TP3817 C2208 TP3818 C1075 Q2205 TP3819 C2209 C1076 Q2206 C131 C2402 C4536 C132 C2403 C133 IC4507 C2404 TP3820 C2405 C135 C2406 C136 TP3822 C137 R4513 TP3823 C138 R4514 R174 TP5764 TP3824 R175 C139 C1081 R4515 TP605 TP3825 TP606 C1082 TP3826 C1083 TP607 R177 TP3827 C1084 TP5768 TP3828 IC4511 R179 TP609 TP5769 TP3829 C1086 IC4512 C140 C141 R1061 R1062 C142 C143 C4548 TP610 C144 TP5770 C4549 C145 R181 C2221 C146 C2222 C147 C2223 C148 C2224 TP615 C532 TP616 TP617 C533 C4550 C534 C4551 C535 C536 C4552 C537 C4554 C538 C150 C151 R2206 R4530 C154 R2208 R4531 C155 IC2201 R2209 R4532 C156 IC2202 R4533 C157 C158 R4534 target5 R4535 C159 target8 R2210 IC4531 C4561 C4562 C4563 C160 IC2401 C161 Q4561 C4565 IC2402 C162 C163 C164 R4541 C165 R2601 R4542 C166 R2602 C167 C168 R2604 C169 C170 C171 C172 C173 C174 C175 C176 C177 C178 C3001 zf3 C180 C181 IC102 C184 R4561 C186 R4562 C187 C188 C3209 C190 TP2300 TP2301 TP2302 TP2303 TP2304 TP2305 TP2306 C3214 IC501 TP2309 C3216 TP2311 TP2312 R3002 TP2313 R3003 TP2314 R3004 R3005 TP63 TP64 C3801 TP66 C3802 TP67 R3201 C3805 R3206 TP70 TP71 TP74 TP75 TP76 TP77 TP78 TP79 R3213 R3214 R3215 R3216 TP81 TP82 TP83 TP84 TP85 R206 TP86 TP87 TP88 TP89 D3801 IC101 R3716 IC3707 C3738 TP204 R2312 R4544 R4543 C4538 R4516 TP202 C4542 R3850 R2401 R2402 C2401 C4555 R4536 TP205 C3810 C3809 C4539 C3808 R130 C5006 R4517 D3701 Q3712 R3719 R3717 R3720 R3114 R3511 Q3501 C3511 R3503 C3501 R3505 R3001 R4538 L1010 TP108 R2211 R2213 R2212 R2214 R3721 R3708 R2314 C2301 R2315 C2302 C3815 R3862 (VNP2038-B) F to Pick Up CN101 to Front CN601 SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 78 1 2 3 4 1 2 3 4 C D F A B E 4.6 ATAB ASSY GND 40 1 RESET R 1 40 LF CN12 CN11 R13 R14 R15 R16 R17 R18 R19 R20 VWV2231 VWV ATAB CONTACT BOTTOM SIDE GND PC 1 40 LF R VWV2231 VWV ATAB ASSY H CN3801 G CN12 SIDE A SIDE A (VNP2045-B) (VNP2045-B) ATAB ASSY H CN12 H H SIDE B SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 79 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 80 1 2 3 4 1 2 3 4 C D F A B E 4.7 POWER SUPPLY UNIT SIDE A SIDE A POWER SUPPLY UNIT I I I CN2401 G CN201 CN401 A CN202 to HDD CN203 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 81 5 6 7 8 5 6 7 8 C D F A B E SIDE B SIDE B POWER SUPPLY UNIT I I I CN201 CN202 CN203 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 82 1 2 3 4 1 2 3 4 C D F A B E 5. PCB PARTS LIST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 NOTES: 560 Ω 47k Ω 0.5 Ω 1 Ω RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0 561 473 5.62k Ω RN1/4PC F 562 x 10 1 5621 Mark No. Description Part No. LIST OF ASSEMBLIES 1..TUNB ASSY VWV2229 1..DTBR ASSY VWV2228 1..JACB ASSY VWM2392 NSP 2..JACB ASSY VWV2230 NSP 2..ATAB ASSY VWV2231 NSP 1..FLKB ASSY VWM2393 2..FLKY ASSY VWG2571 2..PWSB ASSY VWG2572 2..FRJB ASSY VWV2232 1..MAIN ASSY (for Service) VXX3159 > 1..POWER SUPPLY UNIT VWR1403 Mark No. Description Part No. A JACB ASSY. SEMICONDUCTORS IC0505 BA4560RF IC0102 BD4846G IC0511 BH7236AF IC0103 BU4220G >IC0401 CEK1278 IC0501 HA118326APFR IC0509 LA7213 IC0503 MM1501XN IC0502, IC0504 MM1503XN IC0301 PDF015A IC0101 PMC008A8 IC0508 SN74AHC2G53HDCT IC0513 TC4W53FU IC0510 TC74HC123AF IC0512 TC7SU04FU Q0406, Q0412, Q0415 2SA1036K Q0306, Q0503, Q0504, Q0510, Q0518 2SA1576A Q0521, Q0523 2SA1576A Q0408, Q0413, Q0416 2SC2411K Q0102, Q0111, Q0112, Q0305, Q0403 2SC4081 Q0411, Q0511-Q0513, Q0515 2SC4081 Q0519, Q0520, Q0522 2SC4081 Q0402 2SC5876 Q0105, Q0109, Q0303, Q0304, Q0502 2SD2114K Q0301, Q0506 DTA124EUA Q0110 DTA143EUA Q0108 DTC114TUA Q0101, Q0302, Q0407, Q0414, Q0417 DTC124EUA Q0501 DTC124EUA Q0404 HN1A01FU Q0514, Q0516, Q0517 HN1C01FU Q0507, Q0508 HN1C03FU Q0409 RN4903 Q0103, Q0104 UMD2N Q0405 UMF21N Q0410 UMF23N Q0509 UMH1N D0104 1SR154-400 D0101-D0103, D0106, D0107, D0109 1SS355 D0301, D0302, D0309, D0403, D0406 1SS355 D0507, D0510, D0511 1SS355 D0512, D0513 DAN217U D0108 DAP202U D0506 UDZS11(B) D0401 UDZS15(B) D0508, D0509 UDZS5R1(B) D0501 UDZS6R8(B) D0407 UDZS9R1(B) D0514-D0533 UMZ6R8N COILS AND FILTERS L0101 RADIAL INDUCTOR ATH1109 L0301 INDUCTOR CTF1306 L0506, L0507 INDUCTOR CTF1388 L0402 CHIP FERRITE BEADS CTF1399 L0508 LAU3R9J L0102 LAU470J L0505 LAU680J L0501, L0503 LCYA150J2520 L0502, L0504 LCYA180J2520 L0401 LRCA331J CAPACITORS C0111, C0112, C0149 CCSRCH100D50 C0315, C0316, C0319, C0567, C0568 CCSRCH101J50 C0694, C0696, C0698, C0700 CCSRCH102J50 C0114, C0115 CCSRCH120J50 C0658 CCSRCH220J50 C0624, C0625 CCSRCH221J50 C0651, C0652 CCSRCH270J50 C0538, C0545 CCSRCH330J50 C0107, C0656 CCSRCH331J50 C0145, C0307, C0308, C0605, C0606 CCSRCH471J50 C0608, C0609, C0613, C0614 CCSRCH471J50 C0616, C0617, C0693, C0695, C0697 CCSRCH471J50 C0699 CCSRCH471J50 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 83 5 6 7 8 5 6 7 8 C D F A B E C0540, C0547 CCSRCH680J50 C0321 CCSRCH681J50 C0537, C0544 CCSRCH7R0D50 C0539, C0546 CCSRCH820J50 C0536, C0543 CCSRCJ3R0C50 C0563, C0564 CEANP4R7M50 C0412, C0424, C0514, C0577, C0578 CEAT100M50 C0417, C0419, C0437, C0439, C0523 CEAT101M10 C0530, C0560, C0579, C0631 CEAT101M10 C0427, C0432, C0434, C0573-C0575 CEAT101M16 C0618 CEAT101M16 C0119, C0123, C0309, C0311, C0312 CEAT102M6R3 C0611, C0629 CEAT102M6R3 C0504 CEAT1R0M50 C0104 CEAT220M25 C0665, C0669 CEAT221M16 C0127, C0301, C0634, C0636, C0639 CEAT221M6R3 C0671 CEAT221M6R3 C0138, C0645 CEAT2R2M50 C0305, C0306 CEAT470M16 C0141 CEAT471M16 C0313, C0314, C0620, C0627, C0628 CEAT471M6R3 C0587, C0604, C0607, C0612, C0615 CEAT4R7M50 C0410 CKSQYF105Z50 C0310, C0509 CKSRYB103K50 C0157, C0421, C0508, C0512 CKSRYB104K16 C0517, C0518, C0525, C0535 CKSRYB104K16 C0557, C0558, C0562, C0653-C0655 CKSRYB104K16 C0110, C0502, C0507, C0510, C0511 CKSRYB105K10 C0513, C0515, C0527-C0529 CKSRYB105K10 C0531-C0534, C0550, C0552 CKSRYB105K10 C0555, C0556, C0583-C0586 CKSRYB105K10 C0589-C0594, C0603 CKSRYB105K10 C0646 CKSRYB221K50 C0105, C0106, C0109, C0120 CKSRYF104Z25 C0124-C0126, C0131-C0135 CKSRYF104Z25 C0139, C0140, C0142, C0144, C0153 CKSRYF104Z25 C0156, C0317, C0322, C0323 CKSRYF104Z25 C0401-C0404, C0420, C0426, C0428 CKSRYF104Z25 C0431, C0433, C0435, C0436, C0438 CKSRYF104Z25 C0441, C0503, C0505, C0516, C0521 CKSRYF104Z25 C0576, C0581, C0582, C0623, C0626 CKSRYF104Z25 C0630, C0632, C0633, C0635 CKSRYF104Z25 C0637, C0638, C0641, C0644, C0648 CKSRYF104Z25 C0650, C0657, C0659, C0662-C0664 CKSRYF104Z25 C0667 CKSRYF104Z25 C0422, C0425 CKSRYF104Z50 C0113, C0121, C0122, C0150, C0152 CKSRYF105Z10 C0519, C0526, C0542, C0549, C0553 CKSRYF105Z10 C0561, C0580, C0588 CKSRYF105Z10 C0647, C0649 CQMBA103J50 RESISTORS R0554, R0558 RN1/16SE1002D R0555, R0559 RN1/16SE8201D R0327, R0410, R0419, R0426-R0432 RS1/10S0R0J R0515, R0516, R0520, R0545, R0561 RS1/10S0R0J R0627 RS1/10S0R0J R0336-R0341, R0590, R0609, R0624 RS1/10S3R9J R0626, R0630 RS1/10S3R9J Mark No. Description Part No. R0420 RS1/10S471J R0611 RS1/10S561J R0309-R0314, R0589, R0608, R0623 RS1/10S68R0F R0625, R0629 RS1/10S68R0F R0504, R0506, R0511, R0587, R0592 RS1/10S75R0F R0628, R0631 RS1/10S75R0F R0633, R0644, R0652 RS1/16S1001F R0640, R0648, R0657 RS1/16S1002F R0405, R0662 RS1/16S1203F R0526, R0527 RS1/16S1800F R0689 RS1/16S1803F R0528, R0534 RS1/16S2700F R0408 RS1/16S2702F R0517 RS1/16S3304F R0690 RS1/16S4702F R0661 RS1/16S4703F R0641, R0649, R0656 RS1/16S6800F R0202 RS1/16S7500F R0642, R0650, R0658 RS1/16S82R0F Other Resistors RS1/16S###J OTHERS JA0501 RGB CONNECTOR AKB1316 CN0301 4P MINI DIN SOCKET AKP7045 CN0104 KR CONNECTOR B2B-PH-K-S X0301 (16.000 MHz) CSS1616 X0101 (15.0 MHz) CSS1653 CN0105 26P FFC CONNECTOR HLEM26S-1 JA0304, JA0305 REMOCON JACK RKN1004 JA0302 6P PINJACK VKB1233 CN0106 19P FFC CONNECTOR VKN1250 CN0102 B TO B CONNECTOR VKN2008 CN0103 9P FFC CONNECTOR VKN2015 CN0101 35P FFC CONNECTOR VKN2025 CN0401 B TOB CONNECTOR VKN2052 KN0101, KN0103, KN0104 VNF1084 WRAPPING TERMINAL X0102 (32 kHz) VSS1197 X0501 (4.433619 MHz) VSS1201 B TUNB ASSY. SEMICONDUCTORS IC0801 MSP3417G Q0801, Q0802, Q0804, Q0805 2SA1576A Q0803 2SC4081 COILS AND FILTERS L0804, L0805 INDUCTOR CTF1306 L0801, L0802, L0807, L0810 CTF1399 L0809 LCYA100J2520 L0808 LCYA101J2520 CAPACITORS C0817 CCSRCH101J50 C0825, C0826 CCSRCH220J50 C0821, C0822 CCSRCH560J50 C0836, C0839 CCSRCH561J50 C0823, C0824 CCSRCH5R0C50 C0830, C0842 CEAT100M50 C0813, C0815, C0819, C0828, C0831 CEAT101M10 C0802, C0807 CEAT102M6R3 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 84 1 2 3 4 1 2 3 4 C D F A B E C0805 CEAT220M25 C0840 CEAT3R3M50 C0818, C0834, C0837 CKSRYB103K50 C0801, C0806 CKSRYB222K50 C0835, C0838 CKSRYB392K50 C0814, C0816, C0829, C0832, C0833 CKSRYF104Z25 C0841, C0843 CKSRYF104Z25 C0820, C0827 CKSRYF105Z10 RESISTORS R0821, R0997 RS1/10S0R0J R0801, R0802 RS1/10S100J R0803, R0829 RS1/10S120J Other Resistors RS1/16S###J OTHERS U0801 TV TUNER PACK VXF1106 CN0801 19P FFC CONNECTOR VKN1279 KN0802 SCREW PLATE VNE1948 X0801 (18.432 MHz) VSS1189 C DTBR ASSY SEMICONDUCTORS IC0101 HY57V561620CT-H IC0104 KA5SDKAS01TSN IC0304, IC0312 MM1685AN IC0307 MM1689FH IC0501 PCM1742KE IC0313 STV0361L IC0109 TC74VHC00FTS1 IC0314 TC7WB125FK IC0311 UPC3221GV IC0502 UPC4570G2-A IC0106 UPD61110GM-100UEVA IC0205 VYW2383 Q0101, Q0102 2SA1576A Q0301 2SC2411K Q0305 2SC2412K Q0103 2SC4081 D0301 1SR154-400 D0304 1SS355 D0302 SM15T6V8A COILS AND FILTERS L0304 LCYAR82J2520 F0101-F0107, F0202, F0300-F0302 VTF1091 F0305, F0309-F0313, F0316-F0318 VTF1091 F0504 FERRITE CORE VTF1091 F0319 SAW FILTER VTF1188 L0315 CHIP FERRITE BEADS XTX1001 L0314 CHIP FERRITE BEADS XTX1003 TRANSFORMERS T0300 XTX1005 CAPACITORS C0513, C0516 CCSRCH101J50 C0119 CCSRCH470J50 C0326, C0401 CCSRCH471J50 C0397, C0402 CCSRCH5R0C50 C0512, C0517 CCSRCH681J50 Mark No. Description Part No. C0148, C0149 CCSRCK2R0C50 C0353, C0378 CEVW100M16 C0123, C0144, C0167, C0307, C0346 CEVW101M16 C0349, C0501, C0503, C0510, C0514 CEVW101M16 C0133, C0151 CEVW1R0M50 C0324 CEVW220M6R3 C0115, C0147, C0211, C0339 CEVW470M16 C0342, C0343, C0366, C0368, C0385 CEVW470M16 C0389, C0395 CEVW470M16 C0508 CKSQYB106K6R3 C0332, C0373, C0392, C0393 CKSQYB225K10 C0404-C0406, C0431 CKSQYB225K10 C0315 CKSQYB475K6R3 C0369 CKSRYB102K50 C0375, C0391, C0408, C0410 CKSRYB103K50 C0384, C0396, C0400, C0409, C0413 CKSRYB104K16 C0301, C0304, C0309, C0340, C0341 CKSRYB105K10 C0388, C0411 CKSRYB105K10 C0528 CKSRYB223K50 C0102-C0104, C0106, C0108-C0110 CKSRYF104Z25 C0112, C0114, C0116, C0118, C0120 CKSRYF104Z25 C0124, C0125, C0127, C0128 CKSRYF104Z25 C0130, C0131, C0134, C0135, C0138 CKSRYF104Z25 C0140-C0142, C0155, C0166, C0168 CKSRYF104Z25 C0212, C0213, C0347, C0348, C0350 CKSRYF104Z25 C0358, C0364, C0379, C0383, C0394 CKSRYF104Z25 C0398, C0399, C0407, C0412 CKSRYF104Z25 C0414-C0418, C0421, C0422, C0502 CKSRYF104Z25 C0504, C0507, C0511, C0515 CKSRYF104Z25 C0522-C0525 CKSRYF104Z25 C0101, C0105, C0107, C0111, C0113 CKSRYF105Z10 C0117, C0121, C0122, C0126, C0129 CKSRYF105Z10 C0132, C0136, C0137, C0303 CKSRYF105Z10 RESISTORS R0381-R0383 RAB4CQ0R0J R0185-R0194 RAB4CQ330J R0239-R0249 RAB4CQ470J R0511, R0517, R0523 RN1/16SE1002D R0516 RN1/16SE1201D R0513, R0518, R0525 RN1/16SE2202D R0521 RS1/10S0R0J R0121-R0128 RS1/16S1000F R0169 RS1/16S1500F R0168 RS1/16S2200F R0135 RS1/16S75R0F R0166, R0167 RS1/16S9100F Other Resistors RS1/16S###J OTHERS U301 DIGITAL TV TUNER VXF1100 X0100 (27.000MHz) BSS1123 X0300 (27MHZ) XSS1010 JA0101 1P PINJACK VKB1159 CN0103 B TO B CONNECTOR VKN2011 CN0102 10P FFC CONNECTOR VKN2038 KN0301 SCREW PLATE VNE1948 D FRJB ASSY SEMICONDUCTORS Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 85 5 6 7 8 5 6 7 8 C D F A B E D0301-D0303 UMZ6R8N CAPACITORS C0306, C0308 CCSRCH471J50 RESISTORS Other Resistors RS1/16S###J OTHERS JA0301 4P MINI DIN SOCKET AKP1238 CN0301 26P FFC CONNECTOR HLEM26S-1 JA0302 3P PINJACK VKB1208 CN0302 14P FFC CONNECTOR VKN1245 KN0301, KN0302 WRAPPING TERMINALVNF1084 E FLKY ASSY SEMICONDUCTORS IC0101 PT6315 Q0112 2SA1576A Q0113 2SC4081 Q0111 2SC5712 Q0101, Q0102 DTC124EUA D0122 1SS355 D0124, D0125 RF101L2S D0101 SLR-343BBT D0103 SLR-343DC D0105, D0115, D0117, D0119 SLR-343VC D0123 UDZS13(B) D0121 UDZS15(B) D0126 UDZS2R4(B) COILS AND FILTERS L0102 LAU220J TRANSFORMERS T0101 VTT1171 SWITCHES AND RELAYS S0101-S0113 VSG1024 CAPACITORS C0137 CEAL100M50 C0105 CEAL101M10 C0135 CEAL101M16 C0131 CEJQ101M16 C0118, C0119, C0134 CKSRYB103K50 C0133 CKSRYB223K50 C0101, C0102, C0106-C0108, C0110 CKSRYF104Z25 C0116, C0121-C0123, C0128-C0130 CKSRYF104Z25 C0132 CKSRYF104Z25 C0112 CKSRYF104Z50 RESISTORS R0129, R0130 RS1/10S182J R0161 RS1/10S221J Other Resistors RS1/16S###J OTHERS CN0102 KR CONNECTOR B2B-PH-K-S IC0102 REMOTE RECEIVER UNIT RPM7140-H9 V0101 FLUORESCENT TUBE VAW1091 CN0101 14P FFC CONNECTOR VKN1274 FL HOLDER VNF1134 Mark No. Description Part No. F PWSB ASSY SWITCHES AND RELAYS S0201 VSG1024 OTHERS CN0201 KR CONNECTOR B2B-PH-K-S G MAIN ASSY SEMICONDUCTORS IC3101 AK5359ET IC501 BD7997FS IC2401, IC2402 CEK1285 IC1201, IC1221 (*) Refer to 7.1.11 (P127) K4H511638C-UCB3 IC1301 NJM12904V IC3201 PCM1742KE IC3707 PST3813U >IC4512 S-1170B25UC-OTK >IC4507, IC4511 S-1170B33UC-OTS >IC4504 S-1170B50UC-OUJ IC3701 TC7WH34FU IC101 UPC3345GC-YEB-A IC3202 UPC4570G2-A IC1001 UPD61272F1-107KA3A IC1102 VYW2365 Q1801, Q1811, Q2205, Q2206 2SA1576A Q2501-Q2505 2SA1576A Q3501, Q4561 2SC4081 Q101 RT1N141U D3201 DAN202U D3711, D3712 RB501V-40 D101 SML-310YT COILS AND FILTERS L1010, L106, L107, L112 CHIP COIL BTH1103 L1001, L1003, L1004, L1006-L1008 DTL1106 L1201 EMI FILTER DTL1106 L1811 LCYA150J2520 L1801 LCYA390J2520 CAPACITORS C1081 CCSSCH100D50 C158-C162, C1813 CCSSCH101J50 C3207, C3211 CCSSCH121J50 C1902, C1911 CCSSCH150J50 C1812 CCSSCH151J50 C1901, C1912 CCSSCH180J50 C1803 CCSSCH221J50 C169, C171, C509 CCSSCH390J50 C3501 CCSSCH470J50 C1084-C1087 CCSSCH5R0C50 C510 CCSSCH620J50 C264 CCSSCH680J50 C3212 CEAT102M6R3 C1708, C4507 CEVW100M16 C2506, C3106, C3214, C3216, C4542 CEVW101M16 C4563 CEVW101M16 C1001, C1003, C1005, C1014, C1020 CEVW221M4 C1071, C1074, C1235 CEVW221M4 C511 CKSQYB105K16 C105, C1073, C1076, C121-C123 CKSQYB475K6R3 C125, C133, C135, C152, C153 CKSQYB475K6R3 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 86 1 2 3 4 1 2 3 4 C D F A B E C155, C165, C168, C178, C181 CKSQYB475K6R3 C184, C4508, C4525, C4526 CKSQYB475K6R3 C4548, C4549, C4552 CKSQYB475K6R3 C157, C4551 CKSRYB105K10 C109, C111 CKSRYB334K10 C101, C102, C136 CKSRYB474K10 C1009, C1015, C1018, C1021, C1024 CKSRYF105Z10 C1044, C1047, C1052, C1055 CKSRYF105Z10 C1061, C1062, C1065, C1070, C1113 CKSRYF105Z10 C1202, C1204, C1208, C1221, C1223 CKSRYF105Z10 C1227, C1421, C1801, C1811 CKSRYF105Z10 C2208, C2209, C2501, C296 CKSRYF105Z10 C3102, C3103, C3511, C3703, C3738 CKSRYF105Z10 C3801-C3805 CKSRYF105Z10 C1010, C1016, C1019, C1022, C1025 CKSSYB102K50 C1046, C1049, C1054, C1057, C1059 CKSSYB102K50 C1064, C1067, C1068, C1207 CKSSYB102K50 C1209, C1210, C1226, C1228, C1229 CKSSYB102K50 C151, C189, C261, C4527, C4550 CKSSYB102K50 C119, C1205, C1206, C1224, C1225 CKSSYB103K16 C129, C130, C142, C164, C1709 CKSSYB103K16 C187, C188, C221, C3701, C4509 CKSSYB103K16 C1026, C1029, C103, C1034, C1037 CKSSYB104K10 C104, C1040, C1043, C112, C117 CKSSYB104K10 C124, C126-C128, C132 CKSSYB104K10 C143, C144, C150, C156, C163 CKSSYB104K10 C167, C172, C175, C2301, C2302 CKSSYB104K10 C260, C3806, C504, C505 CKSSYB104K10 C137 CKSSYB182K50 C145, C146 CKSSYB222K50 C224, C230, C231 CKSSYB223K16 C108, C110, C139, C141, C1802 CKSSYB331K50 C3204 CKSSYB331K50 C114 CKSSYB332K50 C116 CKSSYB333K10 C232, C233 CKSSYB471K50 C148, C220, C223 CKSSYB472K25 C147, C1804, C1814, C532 CKSSYB473K10 C297, C3208, C3210 CKSSYB681K50 C138 CKSSYB682K25 C154, C236 CKSSYB683K10 C115 CKSSYB822K16 C1002, C1004, C1007, C1045, C1048 CKSSYF104Z16 C1050, C1051, C1053, C1056, C1058 CKSSYF104Z16 C1060, C1063, C1066, C1069, C1082 CKSSYF104Z16 C1105, C1203, C1211-C1214, C1222 CKSSYF104Z16 C1230, C1302, C1303, C1312, C1313 CKSSYF104Z16 C1701-C1707, C2401-C2406, C3101 CKSSYF104Z16 C3201-C3203, C3206, C3209 CKSSYF104Z16 C4561, C4562, C4565, C501, C503 CKSSYF104Z16 C113 (2.2/10) DCG1040 C502 (10/16) DCH1165 C1008, C1017, C107, C1075, C118 DCH1201 C2210, C2217 (10/10) DCH1201 C1215 (150/4) VCH1246 RESISTORS R501 (0.47/1/4W) DCN1160 R502 (0.68/1/4W) DCN1162 R1411, R240, R3005, R3102, R3707 RAB4CQ103J Mark No. Description Part No. R3801-R3806 RAB4CQ223J R1245, R1246, R1255, R1256 RAB4CQ330J R1265, R1266, R1273, R1274 RAB4CQ330J R3810-R3813, R3824 RAB4CQ330J R254 RAB4CQ473J R1241, R1242, R1248, R1249 RAB4CQ560J R1261, R1262, R1268, R1269 RAB4CQ560J R1281-R1283, R1287 RAB4CQ560J R3208, R3223 RN1/16SC56R0D R3207, R3226 RN1/16SE1502D R3209, R3224 RN1/16SE8201D R1001, R1002, R133, R2401 RS1/10S0R0J R4513, R4514, R4520-R4524, R4527 RS1/10S0R0J R4591-R4593 RS1/10S0R0J R1302, R1303, R1312, R1313 RS1/16S1001F R2502, R2505, R2508, R2511, R2514 RS1/16S2000F R1301 RS1/16S4700F R1052 RS1/16S6200F R3505 RS1/16S75R0F R1054 RS1/16S9100F R181 RS1/16SS4701F R510, R511 RS1/4SA2R0J Other Resistors RS1/16S###J OTHERS CN502 4P CONNECTOR DKN1288 CN501 CONNECTOR DKN1312 CN601 5P CONNECTOR DKN1402 CN101 CONNECTOR DKN1404 X201 (16.93MHz) OSC DSS1152 CN1402 07P CONNECTOR RKN1048 CN2401 KR CONNECTOR S13B-PH-K CN2301 35P CONNECTOR VKN1439 CN401 CONNECTOR VKN2029 CN1401 CONNECTOR VKN2030 CN2601 CONNECTOR VKN2038 CN3801 CONNECTOR VKN2050 X1002 (27 MHz) CRYSTAL VSS1191 X1001 (24.576 MHz) CRYSTAL VSS1192 H ATAB ASSY RESISTORS R13-R20 RAB4C0R0J OTHERS CN12 40P ATA CONECTOR VKN1816 CN11 40P CONNECTOR VKN1818 I POWER SUPPLY UNIT POWER SUPPLY UNIT has no service part. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 87 5 6 7 8 5 6 7 8 C D F A B E 6. ADJUSTMENT Special tool for adjusting the LD power Special tool for adjusting the LD power The right side (see the figure below) of the connector is for connection of the flexible cable. Connect the 10-pin flexible cable to the lower part of CN401. Main Assy and writer Main Assy CN5601 CN1402 CN1401 HDD POWER SUPPLY Unit Note: Before adjusting the LD power, disconnect the power to the HDD and the flexible cable for ATA (40-pin). • To which the special tool for adjusting the LD power is connected • Setting of the switches on the special tool for adjusting the LD power Set all five switches to ON. GGF1559 [Purpose] If the combination of MAIN Assy and LOADER Assy is changed, the adjusted value for LD power will be shifted, and stable playback or recording of a disc will become impossible. Therefore, when the combination of MAIN Assy and LOADER Assy is changed, LD power adjustment and adjustment for disc judgment will be necessary. Be sure to do this adjustment at following cases. • When replacing MAIN Assy • When replacing LOADER Assy [Tools to be used] • Special tool for adjusting the LD power (GGF1559) • 10-pin FFC flexible cable (GGD1477) • CD-ROM test disc: CDT-313 (GGV1054) • DVD dual-layer test disc: DVDT-002 (GGV1036) [Notes] Never turn the power off while any of the following operations is in progress: • While laser diode (LD) power adjustment is being performed normally by the unit • While adjustment for disc judgment is being performed [Connections] • Connections for adjusting the LD power GGD1477 GGF1559 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 88 1 2 3 4 1 2 3 4 C D F A B E [Procedures] 1. Connect the special tool for adjusting the LD power, as shown on the previous page. 2. Turn on the DVD recorder. ("POWER ON" will be indicated on the FL display.) 3. The tray opens. Make sure that powered opening of the tray is working. If the tray does not open under power: a. Flexible cables or other cables may not be connected. (Connection of cables to the HDD is not necessary.) b. Wrong setting of the switches on the special tool for adjusting the LD power, or failure in the special tool or the 10-pin flexible cable, is suspected. c. Failure in the loader, MAIN Assy, or POWER SUPPLY Unit is suspected. Make sure that the LED next to CN401 is lit. If the LED flashes: a. Wrong setting of the switches on the special tool for adjusting the LD power, or failure in the special tool or the 10-pin flexible cable, is suspected. 4. Manually close the tray. Adjust the LD power. Make sure that the LED next to CN401 is lit. If the LED flashes three or four times in a burst: a. The PU flexible cable may not be connected. b. Failure in the Traverse Mechanism or MAIN Assy is suspected. 5. After adjusting the LD power, invoke powered opening of the tray. (LD power adjusting time : about 60 sec.) Make sure that the LED next to CN401 flashes once per burst. 6. Load the DVDT-002 on the tray. The tray automatically closes after 15 seconds. The tray repeatedly closes and opens automatically until a disc is loaded. 7. After adjustment for judging the DVD disc, the tray automatically opens. Make sure that the LED next to CN401 flashes twice in a burst. (DVD disc discrimination adjusting time : about 25 sec.) If the LED flashes only once per burst: a. A disc other than the DVDT-002 may be loaded. Be sure to load the DVDT-002. 8. Replace the DVDT-002 with the CDT-313. The tray automatically closes after 15 seconds. The tray repeatedly closes and opens automatically until a disc is loaded. 9. After adjustment for judging the CD disc, the tray automatically opens. Make sure that the LED next to CN401 is unlit. (CD disc discrimination adjusting time : about 25 sec.) If the LED flashes twice in a burst: a. A disc other than the CDT-313 may be loaded. Be sure to load the CDT-313. 10. Unload the CDT-313 and manually close the tray. 11. Turn off the recorder by holding the POWER button pressed for several seconds. 12. Disconnect the 10-pin FFC cable from the MAIN Assy. 13. Set the power sources for the HDD and the flexible connecting cable for ATA (40-pin) to their original statuses. [ Points to be confirmed ] 1. Make sure that real-time recording on a DVD-R/-RW/RAM will finish normally. 2. Play back a recorded disc and make sure that playback is performed without a problem. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 89 5 6 7 8 5 6 7 8 C D F A B E 7. GENERAL INFORMATION 7.1 DIAGNOSIS Jigs and Tools to be used Service Mode List 1. Setting type Remote control unit for serving (GGF1381) DVD Recorder Data Disc (Type 2)(*) Download disc Test disc (GGV1025) DVD-RW (Commercial goods) 7.1.1 Model setting 7.1.2 CPRM ID number and data 7.1.3 Firmware downloading method 7.1.4 Video Adjustment for Specific Area 7.1.5 (5) OSD Filter Setting • When replacing MAIN ASSY or JACB ASSY. • When "CPRM ERROR" is displayed on the display screen. • After the MAIN ASSY or HDD replaced. • After model setting (After replacing MAIN ASSY, JACB ASSY). • After the HDD is replaced. • When NG is displayed for the version infomation in Service mode. • When a flicker appears on the tuner display like a horizontal or vertial out-of-sync symptom • When a character flicker appears on the OSD depending on the monitor. Item When to perform Necessary procedure List when replacing Assys Following is the surely necessary procedures and the produet state after changing when replacing next ASSYs. MAIN ASSY JACB ASSY HDD 1. Model setting 2. LD power adjustment 3. CPRM setting 4. Firmwave download 1. CPRM setting 2. Firmwave download Replaced ASSY Necessary setting State after replacing User setting HDD contents 2. Diagnosis type 7.1.5 Service Mode First screen : Version, Simple diagnosis of the RF level, Simple error rate measurement, HDD information. Second screen : ATA/ATAPI debug screen, LD degration judgement Fourth screen : VR-recording-related error loss 7.1.6 EPG Service Mode 7.1.7 Aging Mode 7.1.8 HDD Check Mode • When confirming version infomation • When confirming the state of LOADER Assy. When EPG data cannnot be or can be only partially obtained. When a claimed sympton is difficult to reproduce. When checking the quality of HDD. (*) Be sure to use the latest disc (Type 2). In April, 2006, the latest disc is GGV1238. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 90 1 2 3 4 1 2 3 4 C D F A B E SERVICE MODE MAP Operation ESC STEREO Mode / Name DISP DIG/ANA CPRM ID number and data setting < First screen > Version info, etc < First screen subscreen 1 > Simple diagnosis of the RF level < First screen subscreen 2 > Simple error rate Measurement < First screen subscreen 3 > HDD information < First screen subscreen 4 > OSD Filter setting CHP/TIM DIG/ANA 1 1 2 Video Adjustment For Specific Area 1 General Setting mode 2 Specific-channel Setting mode Firmware Download 1 Holding user setting data 2 Shipping mode 2 DIG/ANA DIG/ANA DIG/ANA DISP 2 2 times SEARCH < Second screen subscreen 3 > writer maintenance information of ATA/ATAPI DEBUG OSD < Second screen subscreen 4 > LD degration judgement of ATA/ATAPI DEBUG OSD DIG/ANA DIG/ANA DISP 4 3 times DIG/ANA DIG/ANA < Fourth screen subscreen 4 > VR-Recording-Related Error Logs SEARCH DISP 7 EPG Service Mode EPG Detail Screen CX 0 1 HDD check mode Aging mode (DVD) Aging mode (HDD)*3 Load the Recordable Disc Select the Recordable Input Function A.TV/D.TV (*2) Stop(*2) , then press , then press Stop(*2) Open/Close(*2) Load the DL Disc(*1) to tray *1 DL Disc : Download Disc *2 Key on the front panel HDD HDD/DVD REP.B ESC PLAY DVD REP.B ESC PLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 91 5 6 7 8 5 6 7 8 C D F A B E 7.1.1 MODEL SETTING When the MAIN Assy and/or TUJB Assy that are(is) commonly used with another model are(is) replaced, they(it) must recognize the model of this unit. Items to be set: The model number, destination, and region No. must be set. • Once the setting has been made, it can never be changed. Be sure to make the setting correctly. • As this setting resets the Assy(s) in question to the factory-preset status, it is recommended that you obtain the customer's consent beforehand. After power on, the following screen is displayed on TV monitor. Press four digits properly (for example " 0133 ") by using the remote control unit for service, according to the screen information. Disconnect then reconnect the AC power cord of the unit. Be careful not to impart vibration to the unit immediately after the AC power cord is disconnected. [Procedures] [Purposes] [Tool to be used] [Notes] 1 2 3 Reset the recorder to all its factory settings. (Make sure that the recorder is on. Press and hold 7 (STOP) key and press (STANDBY/ON) key on the front panel.) The recorder turns off with all settings reset. 4 Press [ESC] then [DISP] keys by using the remote control unit for servicing, and then confirm each Model Name (for example " DVR-540HX/WV "). End 5 Remote control unit for servicing (GGF1381) DVR-540HX/WV VERSION : 1.∗∗ SYSCON : RELEASE_100 Rev :1.1000 TUNERCON : 198.000 OK DRIVE : DVD-RW DVR-L11X OK 1.00 OK HDD : WDC WD1600BB-xxGUCx 160 IRCON : 1.00 OK DEVICE : E2R-FE 1.2 FLASH : 64M REGION : 2 C : ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ DTB H : 410 DTB S :100a OK [Recorder's Model Setting] Input the number using the remote for Service. > - - - Input No. Model [ 0132 : DVR-540HX/WYXK5 ] [ 0133 : DVR-540HX/WVXK5 ] [ 0232 : DVR-540HX/YXKSN5 ] [ 0233 : DVR-440HX/WVXK5 ] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 92 1 2 3 4 1 2 3 4 C D F A B E 7.1.2 CPRM ID NUMBER AND DATA SETTING For the DVD recorder,it is necessary with the recoding/playback of DVD–RW disc to set an individual number (ID number) and ID data to each recorder. If the number and data are not set correctly with the following procedure, cannot work with residual quantity 0:00 or operations in the future may not be guaranteed with RW disc. You will find the ID number to be set on the ID label on the rear panel. The Input is Necessary When: • " CPRM ERR" is displayed on the FL display immediately after the power is turned on or in Stop mode. • When the MAIN ASSY or the HDD is exchanged. Important: If no ID label is found on the rear panel, write down the specified ID number by checking it according to "How to confirm the ID number" shown below. • Input the ID number while the unit is in Stop mode. • After the data are read from the data disc (Type 2), the disc will automatically be unloaded. [Purposes] [Tools to be used] [Notes] Remote control unit supplied with the unit (VXX3092) Remote control unit for servicing (GGF1381) DVD Recorder Data Disc (Type 2) Be sure to use the latest disc (Type 2). In May, 2006, the latest disc is GGV1273. DVD RECORDER OPEN STANDBY/ON HOME MENU INFO PAUSE LIVE TV ENTER PREV NEXT STOP REC PLAY REC STOP TOP MENU DISC NAVIGATOR GUIDE CM SKIP CM BACK PAUSE RETURN/EDIT CHANNEL HDD/DVD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 93 5 6 7 8 5 6 7 8 C D F A B E HDD information is not correct. HDD information is not correct. Execute HDD Initialize from the Disc Setup menu. CPRM information is not correct. When displayed following message at Power on FL Tube : [HDD ERR] CRT display : When displayed following message at Power on FL Tube : [HDD ERR] CRT display : When displayed following message at Power on FL Tube : [CPRM ERR] CRT display : Power → ON When displayed "CPRM ERR" • When exchanging HDD or MAIN Assy, or both exchanged • When exchanging HDD Initialize Start Basic Initialize Finalize Initialize HDD Disc Setup Input Flow of the ID No. and ID data when exchanging HDD or MAIN Assy Confirmation of the CPRM ID No. Normal operation mode All recorded data are deleted if the HDD is intialized. Take care that restoration of the user's data recorded on the HDD is totally impossible. Before servicing, OBTAIN THE USER'S PRIOR CONSENT to that effect. *Use Remote Control of the unit *Goes to normal operation with no caution New HDD/when there is error on recorded contents Exchanging to the original HDD(when there is no error on the recorded contents.) [CAUTION] End End Deletion of the CPRM ID No.(when ID No. is registered.) Input of the CPRM ID No. and ID data Power → OFF → ON Execute HOME MENU → Disc Setup → Intialize HDD → Initialize → Start After OSD displaying "Finished" after initilaization, reboot. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 94 1 2 3 4 1 2 3 4 C D F A B E To enter the input mode, press ESC + STEREO keys sequentially in a status with no ID number set, such as after FLASH-ROM downloading. How to Input the ID Number and ID Data [Recorder's ID Number Setting] ID Number ? > - - - - - - - - - Exit Input ID Number ! 1 As number input is enabled when the unit enters the input mode, input the 9-digit ID number. (The entered number is also displayed on the FL display.) 2 2 [Recorder's ID Data Setting] Exit Insert The ID Data Disc ! When the ID number has been registered, the unit enters the ID data input mode. (The FL display indicates "INSERT ID.") In this condition, place the ID data disc on the tray and close the tray using the CLOSE key "7/0" on the player. 4 4 [Recorder's ID Data Setting] Loading The ID Data Disc ! While the data are being read, the message shown in the figure at left is displayed on the screen. (The FL display indicates "LOAD ID.") 5 5 [Recorder's ID Number Setting] ID Number ? > 0 0 0 0 0 0 0 0 1 OK ? Compare Mode

Enter Input ID Number ! After inputting the number, press SEARCH keys to register the ID number. 3 3 [Recorder's ID Data Setting] Wait Rom Writing ! When the ID data have been read, the data are written to the FLASH-ROM. (The FL display indicates "WRITE ID.") 6 6 [Recorder's ID Data Setting] Rom Write OK ! Exit When the ID data have been written to the FLASH-ROM, the message "Rom Write OK" is displayed on the screen. (The FL display indicates "ID OK.") After confirming this message, press CLEAR key to exit the input mode. 7 8 7 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 95 5 6 7 8 5 6 7 8 C D F A B E [How to Confirm the ID Number] [How to Clear the ID Number] [Recorder's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1] Compare > * * * * * * * * * Exit Input ID Number ! Press ESC + STEREO keys sequentially with an ID number already set, and the unit enters the ID number confirmation mode. The set ID number is displayed on the screen (and on the FL display), permitting you to confirm it. To exit this mode, press CLEAR key. 1 2 3 2 3 Press ESC + STEREO keys sequentially with an ID number already set, and the unit enters the ID number confirmation mode. Input the same number as the ID number you have set. 1 2 [Recorder's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1] Compare > * * * * * * * * * Exit ID Data Setting Mode ID Data Setting Mode Input ID Number ! 2 ID Data Setting Mode After inputting the number, press STOP key. Only when the entered number matches the set ID number, the ID number is cleared and the unit exits this mode. If the numbers do not match, you must return to step 2. ( STOP key is not accepted until 9 digits are entered.) 3 [Recorder's ID Number Setting] ID Number ? [ 0 0 0 0 0 0 0 0 1] Compare > 0 0 0 0 0 0 0 0 1 OK ? Enter Memory Clear Input ID Number ! 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 96 1 2 3 4 1 2 3 4 C D F A B E 7.1.3 FIRMWARE DOWNLOADING METHOD 1 Open a disc tray by pressing the "OPEN/CLOSE" button. 2 Put the download disc on the tray. Press a " A.TV/D.TV " button while pressing a "Stop" button on the frontpanel. * The disc tray closes automatically and the disc is loaded. * The disc tray opens automatically after loading. 3 Take out the Download Disc. FL display 1. DISC DOWNLOAD [Procedure] [Notes] Remote control unit for servicing (GGF1381) Download DISC Be sure NOT to turn off the unit during downloading. If the unit is turned off during downloading, the SYSCON, TUNERCON, DRIVE and IR Blaster programs may not be properly rewritten, in which case the unit may not be able to initialize itself normally when turned on again. 1. When the main board is replaced, the firmware versions for the system control computer, drive, IR microcom- puter and the TUFL microcomputer do not match, and operations of the unit may be destabilized. To match the versions for the above four, firmware downloading is necessary in the following two cases: 1 After the model setting 2 When NG is displayed on the first screen (version information, etc.) of Service mode 3 After changing MAIN Assy or TUJB Assy 2. Rewriting the firmware to the latest version may ameliorate the symptoms claimed by the customer. There are the following two methods for downloading: disc download and serial download [Purposes] [Tools to be used] * After download is completed, the power turns off, and turns on and a disc tray closes automatically. * It takes for about 7-8 minutes until download is completed. L O A D S C D I D W L D W N L D O O A D - 2 W N L D O O A D - 3 W N L D O O A D - 4 W N L D O O A D - 5 W N L D O O A D - 6 W N L D O O ∗ ∗ ∗ Syscon download Tunercon download Countdown display IRcon download DTBcon download It takes about 6 min.. Frontend download www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 97 5 6 7 8 5 6 7 8 C D F A B E [Tips] If the power is not correctly turned on or when the power is shut off during downloading, proceed as follows before performing download again: • In a case where downloading was incorrectly terminated while "DOWNLOAD-2" was displayed on the FL display: The SYSCON program will not function correctly. If the program cannot be downloaded from the disc or through serial communication, replace the MAIN ASSY. • In a case where downloading was incorrectly terminated while "DOWNLOAD-3" was displayed on the FL display: The DRIVE program will not function correctly. If the program cannot be downloaded from the disc or through serial communication, replace the MAIN Assy. • In a case where downloading was incorrectly terminated while "DOWNLOAD-4" was displayed on the FL display The program for the tuner microcomputer will not function correctly. If the program cannot be downloaded from the disc, replace the TUNERCON microcomputer (IC101 : JACB ASSY). • In a case where downloading was incorrectly terminated while "DOWNLOAD-5" was displayed on the FL display The program for the IR Blaster microcomputer will not function correctly. If the program cannot be downloaded from the disc, replace the IR Blaster microcomputer (IC301 : JACB ASSY). • In a case where downloading was incorrectly terminated while "DOWNLOAD-6" was displayed on the FL display The program for the IDTB microcomputer will not function correctly. If the program cannot be downloaded from the disc, replace the DTB microcomputer (IC106 : DTBR ASSY). The setting way to shipping mode (Reference) At 2 lines of the [Procedures], press "OPEN/CLOSE" button while pressing "STOP" button. 4 Press and hold a " ESC " button, then press " DISP " button on the remote control unit for servicing. 5 Confirm a firmware release version. 6 Press " ESC " button on the remote control unit for servicing in order to exit the test mode. (1) (2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 98 1 2 3 4 1 2 3 4 C D F A B E 1 Connect the 232C I/F jigs above way. 2 Turn on the PC and start the " UFU.exe ". 3 Select the Firmware file. ("sz0" file) 4 Turn the DVD recorder on and start the download program. " Target Device is connected " is appeared on the screen. 5 Select the Communication Speed (Baud Rate) a) Base Speed 115,200 b) Data Send Speed 115,200 6 START • Even if you click "START" button, sometimes "Communication Error" may come out one to twice, and download may fail. In this case, please click "START" again. • Other factors can be considerd if download fails 3 times or more. • And it takes about 20 minutes for updating the firmware. * TUNERCON, IR con and DTB con program is not downloaded this way, so do disc-download for TUNERCON, IR con and DTB con. 2. SERIAL DOWNLOAD [Procedures] [Connection] Connect as follows: * PC with serial port * RS-232C straight cable * RS-232C I/F jig (GGF1348) * 7P FFC (VDA1681) * Download program (UFU.exe) * Firmware [Tools to be used] [Purposes] 1. When the main board is replaced, the firmware versions for the system control computer, drive, and the TUFL microcomputer do not match, and operations of the unit may be destabilized. In such a case, the versions for the above three must be matched. 2. This method is used when disc downloading fails. PC This unit RS-232C I/F RS-232C cable 7P FFC 5 4 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 99 5 6 7 8 5 6 7 8 C D F A B E 7.1.4 VIDEO ADJUSTMENT FOR SPECIFIC AREA [When specific channel setting have NOT been made] [When specific channel setting have been made] Depending on the area, if a flicker may appear in a picture received by the tuner, it can be corrected or reduced with this setting. 1 Select a channel or line input (L1-L3) on which a specific setting is to be made. 2 Press the ESC then CHP/TIM keys on the remote control unit for servicing. "General Setting mode" is displayed. 3 Press the DIG/ANA key in General Setting mode. Specific-Channel Setting mode is entered. [Purposes] [Tools to be used] 1. Specific-Channel Setting mode [How to enter this mode] Press the ESC key on the remote control unit for servicing to return the Normal mode. [How to exit] Setting is in effect only during recording/playback stop. [Note] The setting examples in Specific-Channel Setting mode are shown below. For details on each setting item, see "Table 1: Key operations in Specific-Area Setting mode." [Setting examples] • If a channel that does not have specific settings is displayed, the setting figures are displayed as hyphens (- -). • If the setting figures are not displayed as hyphens, those settings have been specifically set even if they are identical to the default settings or those of General Setting mode. • The setting indicated with an asterisk (*) is the default. • The channels to be indicated for "Input Channel" are as shown below: Line inputs: L1-L3, DV (DV is not valid for specific-area settings.) Tuner channels: Channels received by the tuner (channels to be set in Specific-Channel Setting mode, etc.) [Tips] Remote control unit for servicing (GGF1381) In this mode, specific settings can be made for up to 12 channels. For channels that do not have specific settings, the settings of General Setting mode are applied. General setting data Specific channel setting data Specific Area Mode Input - [ TUNER ] Sync AGC : ON * H Threshold Level : 12 * V Threshold Level : 10 EPG EQ : OFF * RGB Line Mask : 28 * Individual setting state Input Channel - [ 1CH ] Sync AGC : --- H Threshold Level : ------ V Threshold Level : --- Specific Area Mode Input - [ TUNER ] Sync AGC : ON * H Threshold Level : 12 * V Threshold Level : 10 * EPG EQ : OFF * RGB Link Mask : 28 * Individual setting state Input Channel - [ 1CH ] Sync AGC : ON * H Threshold Level : 14 V Threshold Level : 7 Remote control unit supplied with the unit (VXX3092) DVD RECORDER OPEN STANDBY/ON HOME MENU INFO PAUSE LIVE TV ENTER PREV NEXT STOP REC PLAY REC STOP TOP MENU DISC NAVIGATOR GUIDE CM SKIP CM BACK PAUSE RETURN/EDIT CHANNEL HDD/DVD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 100 1 2 3 4 1 2 3 4 C D F A B E 2. General Setting mode [General Setting mode screen] *: Setting is the default. [Display in General Setting mode when the channel currently displayed has specific settings] • Indication when the maximum number (12) of channels have individual settings If a channel that does not have specific settings is currently selected, the indication will be as shown below, and individual data items cannot be set for that channel. To set individual data items for the currently selected channel, you must clear any specific-channel settings for one or more channels. [H Threshold Level] The slice level setting for the horizontal(H)-sync separation circuit can be changed. By your changing the slice level, horizontal sync disturbance may be ameliorated. Set the slice level to a value with which the least sync disturbance is seen. [V Threshold Level] The slice level setting for the vertical(V)-sync separation circuit can be changed. By your changing the slice level, vertical sync disturbance may be ameliorated. Set the slice level to a value with which the least sync disturbance is seen. [Receiver sensitivity setting for an electronic program guide (EPG)] The sensitivity when receiving an electronic program guide can be selected. Set the sensitivity to "High" only if reception is unstable. [Tips] • To shift from Specific-Channel Setting mode: Each time the DIG/ANA key is pressed, Specific-Channel Setting mode and General Setting mode are alternately selected. • To shift from Normal mode (recording/playback stop): Press the ESC then CHP/TIM keys. [How to enter this mode] Press the ESC key to return the normal mode. [How to exit] Show setting example on the General Setting mode screen to the following. Regarding setting of actual each item, refer to table 1 (key operations in specific-area setting mode). [Setting examples] • General Setting mode can be entered only during recording/playback stop. • The currently selected input mode (TUNER or LINE) is displayed for "Input." • If L1, L2, L3, or DV is selected for input, general settings for the line input can be made (DV is not valid for specific-area settings), and if TUNER is selected, general settings for the tuner input can be made. [Tips] Specific Area Mode Input - [ TUNER ] Sync AGC : ON * H Threshold Level : 12 * V Threshold Level : 10 * EPG EQ : OFF * RGB Line Mask : 28 * Individual setting state Sorry ! You can store only 12 channels for Specific Area mode. Specific Area Mode Input - [ TUNER ] Sync AGC : ON * H ThresholdLevel : 12 * V Threshold Level : 10 * EPG EQ : OFF * RGB Line Mask : 28 * Specific Area Mode Input - [ TUNER ] Sync AGC : ON * H ThresholdLevel : 12 * V Threshold Level : 10 * EPG EQ : OFF * RGB Line Mask : 28 * This channel is set up individually. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 101 5 6 7 8 5 6 7 8 C D F A B E Key Operation Switching (*: Default) Used in Specific- Channel Setting mode Used in General Setting mode Remarks [INPUT SELECT], [CHANNEL +/-] (Remote control unit supplied with this unit) – Switches inputs or channels. [ SIDE A ] , [ SIDE B ] ON(*) / OFF Sets SyncAGC. [ DIG/ANA ] – – – Switches General setting mode and Specific setting mode. [ Rev ×3 ], [ ×3 Fwd ] [ Rev ×3 ] : Decreasing 1 by 1 in the range 0 to 15. (Cyclic operation) [ Rev CHAPTER SKIP ] : Decreasing 1 by 1 in the range 0 to 15. (Cyclic operation) [ CHAPTER SKIP Fwd ] : Increasing 1 by 1 in the range 0 to 15. (Cyclic operation) [ ×3 Fwd ] : Increasing 1 by 1 in the range 0 to 15. (Cyclic operation) 0 – 15 (Default : 12) Sets H Threshold. [ Rev CHAPTER SKIP ] [ CHAPTER SKIP Fwd ] 0 – 15 (Default : 10) Sets V Threshold Level. ON : The sync level is set to an appropriate value. OFF : Cancel the Sync AGC. Table 1: key operations in specific-Area setting mode (1/2) Key operations in Specific Area Setting mode of the remote control units are shown in the table below (the keys are of the remote control unit for servicing unless otherwise stated): www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 102 1 2 3 4 1 2 3 4 C D F A B E [ CLEAR ] – [ PAUSE ] – Sets Line Mask setting at RGB signal is inputted. 22 - 40 (Default: 28) [ ESC ] – – [ PLAY ] [<<|| STILL STEP], [STILL STEP ||>>] – All channels that have specific setting data will be canceled, and the specific data will be initialized. The General Setting data will not be changed. Key Operation Switching (*: Default) Used in Specific- Channel Setting mode Used in General Setting mode Remarks Table 1: key operations in specific-Area setting mode (2/2) Notes: • Each key listed in Table 1 above is active only while the tuner is completely stopped. • The setting values will not be reset to default even if resetting to the state at the time of shipment is performed. Specific-Channel Setting mode: If the currently selected channel has its specific setting, that setting will be canceled. (By canceling the specific setting for that channel, the number of remaining channels that can have specific settings will be increased by one.) General Setting mode: Settings of General Setting mode are initialized. Specific-Channel Setting mode: All specific data are initialized. The General Setting data will not be changed. General Setting mode: All general setting data are reset to default. The specific setting data will not be changed (will be retained). The specific-channel-setting data for the currently selected channel are reset to default. To quit Setting mode for a specific area and clear the on-screen display. The General Setting data will not be changed (will be retained). [ <<|| STILL STEP ] : Decreasing 1 by 1 in the range 22 to 40. (Cyclic operation) [ STILL STEP ||>> ] : Increasing 1 by 1 in the range 22 to 40. (Cyclic operation) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 103 5 6 7 8 5 6 7 8 C D F A B E 7.1.5 SERVICE MODE To check the versions of the system control computer, TUNER microcomputer, and firmware for the drive, simple measurement of the RF level for the U/V tuner, results of the simple error rate measuremen, HDD information, and OSD Filter setting While the GUI screen is not displayed, press the ESC then DISP keys. How to enter and change subscreens of the first screen: While the first screen is displayed, press the DIG/ANA key repeatedly until your desired subscreen is displayed. The subscreens change [Purposes] [Tools to be used] 1. Version information, etc. (First screen) [How to enter] Press the ESC key. [How to quit] To be used to check the status of the product and to collect the information for failure diagnosis. The following information to be used for servicing is displayed: [1] First screen : Version, HDD information, etc. [2] Second screen : ATA/ATAPI debug screen (Writer information) [4] Fourth screen : VR-recording-related error logs Each screen has sublevel screens. Overview and purposes After entering any Service mode screen, to shift to another Service mode screen, first quit that Service mode screen then enter another Service mode screen. [Note] Remote control unit for servicing (GGF1381) Aluminum-coated test disc (GGV1025) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 104 1 2 3 4 1 2 3 4 C D F A B E 1 Model name/destination 2 Version of the recorder software 3 Revision No. of the system-control computer software 4 Version No. of the tuner microcomputer Result of the combination ckeck with system u-com 5 Information on the built-in drive (Model name, version No., model type) 6 Data of the built-in HDD, capacity of the HDD 7 DEVICE information (EMMA type, ES No.) 8 FLASH ROM information 9 Region No. 0 CPRM information (CPRM key No.) - IR Blaster u-com information (Version when operated by IR Blaster u-com) (*)(TUNERCON when operated by TUFL Con) = DTB hardware information (Version) 06EU : 410 ~ DTB u-com information (Version) OK : Appropriate version compared with that of the firmware of the system control computer NG- : The version of the TUNER microcomputer is older. Measures to be taken: • Download the firmware. OK : Appropriate version compared with that of the firmware of the system control computer NG- : The version of the drive microcomputer is older. Measures to be taken: Download the firmware. OK : Appropriate version of the IRCON (when operated by IR u-com) NG+ : The version of the drive IR blaster computer is advanced. Measures to be taken: Download the firmware. NG- : The version of the IR blaster microcomputer is older. Measures to be taken: Download the firmware. OK : Appropriate version of the TUNERCON (when operated by TUFL u-com) OK : Appropriate version of the DTBCON NG+ : The version of the drive DTB microcomputer is advanced. Measures to be taken: Download the firmware. NG- : The version of the DTB microcomputer is older. Measures to be taken: Download the firmware. OK : The appropriate drive is mounted. NG : An inappropriate drive is mounted. Measures to be taken: Download the firmware. DVR-540HX/WV VERSION : 1.∗∗ SYSCON : RELEASE_100 Rev :1.1000 TUNERCON : 198.000 OK DRIVE : DVD-RW DVR-L11X OK 1.00 OK HDD : WDC WD1600BB-xxGUCx 160 IRCON : 1.00 (TUNERCON) (*) OK DEVICE : E2R-FE FLASH : 64M REGION : 2 C : ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ DTB H : 410 DTB S : 100a OK 1 2 4 5 6 7 8 9 10 13 11 12 3 (1) First screen [Description] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 105 5 6 7 8 5 6 7 8 C D F A B E If an error indication in the HDD data does not disappear even after the above measures were taken, refer to another sheet of "HDD Service Mode." To check the RF signal of the U/V tuner by checking the input frequency difference and AGC voltage in this debug mode While the User Setting display is displayed, press the ESC , DISP , then DIG/ANA keys, in that order. Press the ESC key. [Purposes] [How to enter] [How to quit] (2) Simple diagnosis of the RF level (Subscreen 1) [Description] Input frequency difference Subscreen 1 AGC voltage Input channel • Details on HDD data are described below: HDD : WDC10234564 # 160 Name of manufacturer, part No. by manufacturer HDD identification error indication Capacity of the HDD (unit: Gbytes) If any abnormality exists in HDD connection, the indications shown in Table 1 below are displayed. Table 1: HDD recognition status represented by the HDD data display HDD identification conditions Example of HDD data to be displayed Remarks Failure in physical identification of HDD (no connection, defective HDD, interface error) Blank space Physical identification of HDD possible, but not identified (CPRM ID is not input.) WDC 10234564 # 160 • Input the CPRM ID. • Check the connection to the ATA connector. • Replace the ATA flexible cable and connector. • Replace the HDD. • Replace the resistor in the ATA communication line. Physical identification of HDD possible, HDD identified, but failure in logical formatting WDC 10234564 ! 160 "!" represents an HDD-recognition error. • Initialize the HDD or erase all titles. Physical identification of HDD possible, HDD identified, and correct logical formatting (HDD correctly identified) WDC 10234564 160 DVR-540HX/WV VERSION : 1.∗∗ SYSCON : RELEASE_∗∗∗ Rev :1.∗∗∗∗∗∗ TUNERCON : 198.000 OK DRIVE : DVD-RW DVR-L11X OK 1.00 OK HDD : WDC WD1600BB-xxGUCx 160 DEVICE : E2R-FE FLASH : 64M REGION : 2 C : ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ DTB H : 410 DTB S :100a OK Input CH : ∗∗ ch Freq Diff : Low 1 AGC Volt : ∗∗∗∗ mV www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 106 1 2 3 4 1 2 3 4 C D F A B E ERR RATE : ∗.∗e-∗ • While the User Operation screen is displayed, press the ESC then DISP keys, then the DIG/ANA key twice, in that order. • While subscreen 1 of the first screen is displayed, press the DIG/ANA key. [How to enter] Press the ESC key. [How to quit] (3) Simple Error Rate Measurement (Subscreen 2) [Measurement procedures] 1 Display subscreen 2. 2 Load the Test disc (GGV1025). 3 Judge the results of the error rate measurement by referring to Table 1 on page 89. [Tips] During VR mode playback, the average value of the past 10 VOBUs is displayed. During DVD-Video or Video mode playback, the average value of the past 256 sectors is displayed. During VR mode playback, the speed ratio of the drive (/: normal, no indication: double speed) is also displayed. Subscreen 2 1) Frequency Difference (Freg Diff) How much tuning is off is monitored, as shown below: 2) AGC voltage (AGC Volt) The gain controlled by the tuner is monitored to infer the input electric field intensity. (The accuracy of inference differs depending on the product.) Field Intensity AGC VOL Intense field area (Clear image) Less intense field area (Noise may be generated.) Weak field area (Much noise. EPG/VPS/PDC sometimes cannot be obtained.) Very weak field area (Image damaged. EPG/VPS/PDC cannot be obtained.) 70 dBµ or more 3100 mV or less 50 dBµ or more 70 dBµ or less 3100 - 4400mV 30 dBµ or more 50 dBµ or less 4400 mV or more (It is unable to discriminate under the weak field area.) 30 dBµ or less 4400 mV or more (It is unable to discriminate.) Tips: For good reception, the field intensity must be 50 dBµ or more (AGC Volt 4400 mV or less). For accurate measurement, use a field intensity meter. High (within 200kHz) Input Frequency Display Low Just Tune Faraway High 1~5 Low 1~5 Low 7 Center High 7 within 200kHz over 200kHz www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 107 5 6 7 8 5 6 7 8 C D F A B E HDD Info Life Time: 87599h 09m 05s [How to enter] [How to quit] (4) HDD information (Subscreen 3) Cumulative HDD-on time [Mode description] [Tips] • How the data on cumulative HDD-on time are processed in memory Storage place: FLASH ROM Timing of referring to the data on cumulative HDD-on time: When the power is turned on, fails, the FLASH ROM is referred to. Timing of updating the data on cumulative HDD-on time: While the HDD is on, the data on cumulative HDD-on time in the RAM is updated every 3 seconds, and every time updating is executed the data are stored in the Backup SRAM. When the power is turned off, the data are stored in the FLASH ROM. • How to clear the data on cumulative HDD-on time FLASH ROM: When the HDD Identification Setting is performed, the data on cumulative HDD-on time are automatically cleared. The HDD Identification Setting is automatically performed when the CPRM setting is performed on the CPRM setting screen (to display the CPRM setting screen, press the ESC then the STEREO keys). Notes: • The data on cumulative HDD-on time are not cleared when resetting to factory-preset values is performed. • The data on cumulative HDD-on time are not cleared when the system-control computer software is downloaded. Subscreen 3 • While the User Operation screen is displayed, press the ESC then DISP keys, then the DIG/ANA key three times, in that order. • While subscreen 2 of the first screen is displayed, press the DIG/ANA key. Press the ESC key. Table 1: Thresholds when determining OK or Error − − 8.0×10-4 Disc type Recording mode Reference value Finalized or not finalized DVD-VIDEO Video mode Finalized 1.0×10-3 Not finalized 1.0×10-3 DVD-R Video mode Finalized 1.0×10-3 Not finalized 1.0×10-3 DVD-RW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 108 1 2 3 4 1 2 3 4 C D F A B E OSD Filter Setting OSD FILTER : 4 • While the User Operation screen is displayed, press the then keys, then the key four times, in that order. • While subscreen 3 of the first screen is displayed, press the key. [How to enter] Press the key. [How to quit] (5) OSD FILTER SETTING (SUB screen 4) ESC DISP DIG/ANA ESC Depending on the monitor used, the character flicker on the OSD may stand out. If a system, such as charavter flicker, appears on the monitor, select the filter response. [Purpose] DIG/ANA [Setting procedures] 1 Display subscreen 4. 2 Select the setting from the key operation table. [Tips] As the setting value becomes greater, jitter is reduced on a CRT display. However, as lines for characters appear thick, complex characters may become difficult to read. On the contrary, as the setting value becomes smaller, jitter increases on a CRT display. However, as lines for characters become sharper, complex characters become more legible. Note: Use the remote control unit for servicing. Note: A new setting becomes active as soon as it is made. As a new setting is stored in nonvolatile memory, it will be retrieved when the unit it turned on the next time. Note: After the factory-preset values are downloaded, the setting value for the OSD Filter will be the default value (4). Subscreen 4 [Tools to be used] Remote control unit for servicing (GGF1381) [(Table 2) Key operation of OSD Filter setting] Key Operation Setting value Remarks 0 - 4 (Default value: 4) [ Rev x 3 ], [SPEED+] [ x 3 Fwd], [SPEED-] [ Rev x 3 ], [SPEED+] : The setting value increases by 1. [ x 3 Fwd ], [SPEED-] : The setting value decreases by 1. Changing the setting value for the OSD Filter The setting value is reset to default. [ESC] [CLEAR] – – To exit the OSD Filter Setting and clear the screen (Appears the tuner screen.) – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 109 5 6 7 8 5 6 7 8 C D F A B E A T A / A T A P I Writer MaintenanceInfo Power ON 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 2 : 5 6 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 D V D 0 2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R 0 0 5 3 : 4 8 0 3 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 W 0 0 2 2 : 1 6 0 4 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 C D 0 5 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R 0 0 3 4 : 0 4 0 6 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 W 0 0 0 0 : 0 0 0 7 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0- 0 0 Error log for the Writer (Not for Service) 1 2 3 4 5 1 Power-on time/cumulative power-on time 2 Duration of emission of the laser diode (LD) for DVD-R/DVD while reading 3 Duration of emission of the LD for DVD-W/DVD while writing 4 Duration of emission of the LD for CD-R/CD while reading 5 Duration of emission of the LD for CD-W/CD while writing (This function is not used for this model.) To be used as a rough guide to judge whether the pickup unit is all right or not • Dirt on the pickup lens • Degradation of the laser diodes for reading CDs and reading/writing to/from DVDs • While the User Operation display is displayed, press the ESC , DISP , then 2 keys, in that order. • While any subscreen of the second screen is displayed, press the DIG/ANA key repeatedly. The subscreens change cyclically. [Purposes] [Tools to be used] 2. ATA/ATAPI Debug Screen (Second screen) [How to enter] [How to quit] Remote control unit for servicing (GGF1381) [How to enter] [How to quit] Aluminum-coated test disc (GGV1025) Update the display by pressing the SEARCH key while subscreen 3 is displayed. [Procedures] 2 If the total hours of duration of emission of the laser diode (LD) for DVDs while reading 2 and that of emission of the LD for DVDs while writing 3 exceed 4,700 hours, the LDs may be degraded. Perform an LD degradation judgment, using subscreen 4. Press the ESC key. Press the ESC key. • While the User Operation screen is displayed, press the ESC , DISP then 2 keys, then the DIG/ANA key twice, in that order. (1) Writer maintenance information of ATA/ATAPI DEBUG OSD (Subscreen 3) MTTF hours for each LD DVD: 4,700 hours CD: 11,000 hours The ATA/ATAPI Writer Maintenance Info is obtained each time the power is turned on. Thereafter, the data on the subscreen is updated each time the SEARCH key is pressed (the updating command is sent) while this subscreen is displayed. Care must be taken when updating this subscreen, because an undesired command is inserted if it is executed while recording, etc. [Note on lighting time data for each LD] Since data on lighting time of each laser diode (LD) are stored in the flash ROM on the MAIN Assy, after the MAIN Assy is replaced, the data will be cleared. However, after the LOADER Assy is replaced, data on lighting time of each LD will be retained in the MAIN Assy. Therefore, before either the MAIN Assy or LOADER Assy is to be replaced, it is recommended that you write down the lighting time data. [Tips] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 110 1 2 3 4 1 2 3 4 C D F A B E 1 2 3 4 5 6 A T A / A T A P I - LD Degrade C D : 0 0 7 0 1 0 4 % O K D V D : 0 0 6 8 9 6 % O K T M P : 0 0 A 3 4 1 °C A D J : 0 0 67 2 6 °C RF : 3 D 7 0 TLT : F F D 5 (2) LD degration judgment of ATA/ATAPI DEBUG OSD (Subscreen 4) [How to enter] [How to quit] To update the value for each item, press the SEARCH key while subscreen 4 is displayed. For details on each item and the conditions of updating the values, see Table 2 below. [Procedures] If the results of degradation of the LDs for CDs and DVDs are both NG, replace the drive. • For correct measurement of items 1 to 4 indicated in the display below, leave the unit at room temperature (25°C) for a while before turning it on, and do not load a disc. • For RF measurement (item 5), it is recommended to use the Test disc (GGV1025). As the RF level differs depending on the characteristics of the pickup from product to product, it cannot be used for judging degradation of the LD. Use the RF level as a rough guide to know the difference between before and after lens cleaning. [Notes] • While the User Operation screen is displayed, press the ESC , DISP then 2 keys, then the DIG/ANA key three times, in that order. Press the ESC key. Table 2: Description of each item and conditions for updating data No. Item Description Conditions for updating by pressing the SEARCH key 1 CD Degradation judgment of LD for CD. Regarded as NG when the value is 120% or higher (same standard as for the PC drive) No disc inserted in the disc tray 2 DVD Degradation judgment of LD for DVD. Regarded as NG when the value is 120% or higher (same standard as for the PC drive) No disc inserted in the disc tray 3 TMP Current temperature inside the Writer No disc inserted in the disc tray 4 ADJ Temperature (approx. 25°C) inside the Writer during adjustment No disc inserted in the disc tray 5 RF RF level (16-bit data, proportional calculation performed using the actual RF level value with 2.5 V = 0xFFFF as the maximum value, displayed in 4-digit hexadecimal) During playback of disc medium (GGV1025) 6 TLT Writer adjustment data for straight (non-HDD) model (FFFF is diplayed when the writer is not adjusted.) No condition www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 111 5 6 7 8 5 6 7 8 C D F A B E • Errors related to recording are displayed on the lines "Rec Err:," as shown below. For details on errors, see "Table 1: Description of VR-recording-related errors." 1 There are two error-log screens, on which up to 9 logs per screen are displayed. (generation time [year-month-day, hour:minute:second], error data in simplified description) RunFnc : ---- Ecl : **** Rate : ** ---------------------- ---------------------- ---------------------- ---------------------- ---------------------- ---------------------- R e c o r d i n g E r r o r H i s t o r y D i s p l a y 0 1 – 0 6 – 0 1 2 0 : 0 5 : 3 0 N o S y s H d r I N 0 1 – 0 6 – 0 2 0 0 : 2 2 : 1 0 W r i t e E r r o r 1 To roughly determine in which category shown below a symptom that is difficult to reproduce belongs. For details on the categories of error logs displayed, see "Table 1: Description of VR-recording-related errors." • Errors related to the MPEG Encoder • Errors related to the drive system • Errors related to copying • Errors related to others • Errors related to the HDD [Purposes] [Tool to be used] 3. VR-Recording-Related Error Logs (Fourth screen) [How to enter] [How to quit] (1) VR-Recording-Related Error Logs (Subscreen 1) (2) Subscreen 2 and 3 (3) VR-Recording-Related Error Logs (Subscreen 4) (4) Subscreen 5 to 11 [Description of each subscreen] Remote control unit for servicing (GGF1381) • The two error-log screens can be switched by pressing the SPEED+ or SPEED- key. • For details on error messages, see Table 1 "Description of VR-recording-related errors". [Tips] Recording-related errors are displayed. Press the ESC key. • While the User Operation display is displayed, press the ESC , DISP , then 4 keys, in that order. • While any subscreen of the fourth screen is displayed, press the DIG/ANA key repeatedly. The subscreens change cyclically. (These subscreens are not for service use.) (These subscreens are not for service use.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 112 1 2 3 4 1 2 3 4 C D F A B E Table 1: Description of VR-recording-related errors Error related to MPEG Encoder Error related to Dubbing Error related to Drive system In a case of an error in the drive system, scratches or dirt on a disc, or a problem of the drive itself (dirty pickup) may be suspected. Any error message marked with ∗ is displayed "RecErr : ---------" on the Subscreen 1 of the fourth screen. Error Message Description IN Encode * Changes cannot be made in the process of encoding Failure to start encoding (reasons not clear) No SysHdr IN System packet is not input periodically Stm Start NG AVEncoder failed AVEnc Hang Inappropriate input stream data Stream NG Timeout waiting for system packet input at the beginning Strm Start NG Error Message Description Mech No Res No response from the mechanical-control computer Bdr Opn NG Open Border failed Fail Repair Repair failed OPC NG OPC failed Read Err Reading failed, ECC failed, etc. PCA Full PCA has been used up. Drv TimeOut Timeout waiting for drive operation Video Mode VTSI Write Error (After Layer Change) Video Mode Close Rzone failure Close Rzone failed at dual layer disc Format failed May be +VR disc, but no RSAT Close RZone failed Video Mode VTSI BUP Write Error Reserve RZone failed MKB Invalid MKB reading error VTSI2 Wr Err BUF Overflow Overflow of the Stream Buffer CLS Rzon Fail NWA surpassed and impossible to use NWA Exhaust DLVR trace NG Format NG May Be PVR V Final fail Abnormal process occurred when finalizing Video mode Write Err The Drive failed to write and could not be recovered. Rzn Cls NG Repair RZone failed Rzn Rpr NG Video Mode VTSI BUP Write Error (After Layer Change) VTSI_B2 Wr Err RMA Full RMA has been used up. TMP-VMG WrErr Video Mode TMP VMGI Write Error VTSI_B Wr Err Rzn Rsv NG Close Border failed Bdr Cls NG The Drive is hung up. Drive Hang General error of the drive Drv Err Abnormality in the drive hardware or firmware Drv Hard Err May Be V mode Although TMP_VMGI is not written, it may be Video Mode disc. Because some data are invalid, data cannot be written ReadOnly DISC * VTSI Wr Err Video Mode VTSI Write Error RSAT : Reserved Space Allocation Table Error Message Description VC Pck Anl NG Analizing Video Mode Copy Pack failed Mem get NG Video Mode Copy Memory has not ensured. VC HDD Inf NG No information on Video Mode Copy HDD VC HDD C Err Obtaining Video Mode Copy HDD Cell information failed Video Mode Copy Tracon tranfer has not been completed. Format failed Strm TransfNG Video Mode Copy Stream Transfer NG Tracon Trn NG VC HDD Info NG Other NG HDD →DVD copy H2D CP SomeNG Maximum number for Video Mode copy Cells exceeded VC Cell Max Video Mode Copy Copy Cancel VC CopyCancel Video Mode Copy Flush Cache NG VC FlushC NG VC Idling NG Video Mode Copy idling NG www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 113 5 6 7 8 5 6 7 8 C D F A B E Other Errors Error related to Dubbing (continued) Error Message Description DRAM NG Abnormality in access to the Work DRAM Already open Extension file is already opened. Dir Depth Err Tree of Directory is too deep. F Alrdy Exst Extension file is already exist. FileNot Exist Extension file is not exist. File cansel Extension file is canseled. CPRM IC NG Inappropriate CPRM IC Error in gaining data Backup RAM data has not been wrtten on the File Sys. Inappropriate stream data to the Ouroboros input No video input (not locked) No further data can be written because the disc is full. No more space in the internal work-management area Invalid parameter In the process of the emergency processing Invalid VMG content Invalid TMP_VMGI content Drive Destroy The drive has crashed. MKB REVOKED BK BATT Down Backup RAM data has been erased. BK FSYS Dirty Ourob Strm NG Encoder routine is hung up. EncModul Hang No Video Disc Full No More Info * No Permission * No permission to write to the disc Limit Over * Standard maximum limit exceeded Invalid Param * VTSI information of +VR is unusual. Invalid VTSI Now Busy * Invalid Disc * The disc cannot be recognized. Invalid UDF * Invalid UDF content Invalid VMG * Invalid TMVMG Cancellation Abort * Some bugs BUG Bus Reset has been excecuted. BusReset Done Cell Close NG Cell Close NG DRAM CLR Err Video Mode DRAM (Stream Buffer) Clear failure Formatting has been executed. Format Excec Irr Action * Incorrect action NV Pck MK Err NV Pck DMA Er Error in creating NaviPack Inappropriate NaviPack DMA Over Heat Abnormal temperatute PARAM NO ACCP Recording parameter is not matched. Source to be recorded is copy-protected. Protect Src * Process Over Process is overfull. Rec Pause * No operation permitted during recording pause Relocation Do VR-recording data was relocated Error Message Description V2H V Reso NG VR →HDD Video resolution NG VC TSO BLK NG Video Mode Copy TSO Block transfer has not been completed. V2H SRC Prot VR →HDD copy prohibitted material H2D TO SPRO HDD →DVD (VR) TimeOut at internal processing H2D TO DVDWR HDD →DVD (VR) TimeOut at HDD recording side V2H Aud Stm N VR →HDD Audio Stream number NG Video Mode Copy Reserve Rzone failed VR →HDD other NG H2D CP NoSpac HDD →DVD insufficient free space for copy VC VOBU SizeE Video Mode Copy VOBU Size NG V Rsv RzoneNG HDD →DVD (VR) TimeOut at HDD playing side H2D TO HDDRD V2H Unknown Video Mode Copy Transfer Stop VC Transf Stp VR → HDD APP FLG is OFF V2H APP FL NG VR →HDD Audio Channel NG V2H Aud Ch NG VR →HDD Audio Mode NG V2H Aud Md NG V2H VOBU TMNG VR →HDD Play back time of each VOBU is different www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 114 1 2 3 4 1 2 3 4 C D F A B E Other Errors (continued) No Error Error Message Description Non Err * Normal Error related to HDD Abbreviations: ECC = 4 byte Code for Error Correction UDF = Universal Disc Format PCA = Power Calibration Area OPC = Optical Power Control NWA = Next Writable Address VMG = Video Manager RMA = Recording Management Area MKB = Media Key Block TMP_VMGI = Temporary Video Manager Information Border = from Lead-in to Lead-out Error Message Description V Ext MAX Ovr Count Max exceeded Something * Undetermined error VBR-SRAM NG Abnormality in VBR SRAM Virgin DISC Virgin Disc WaterMark Det Watermark detected VOBU Info NG Inappropriate VOBU information Unmatch Stamp * Impossible to modify because of nonmatching time stamp Abnormality in change of statuses Inappropriate Category ID Information of +VR is NG. (VRMI) V ExtToo Big The extension file is too large. SRAM NG Abnormality in access to the backup work SRAM Status NG * Type NG V Ext TY NG V Categ ID NG Invalid VRMI Param Short Editting Error (Clear A-B) Repairing has been executed. Repair Excec Switch to +VR playback process SW PVR Switching to video playback routine is required. SW Vpb mode * Switching to video recording routine is required. SW Vrec mode * V Cate Inf NG Inappropriate Category information WM Cracked WM Cracked Error Message Description HDDReset Done HDD Reset executed ESFSYS CORUPT easyfsys error HDD Initialize HDD initialized HDD SMART NG Inappropriate HDD SMART HDD unauthor Inconsistent HDD serial No. HDD Trans Err DMA error in HDD copy transfer HDD INFO BAD Incorrect HDD Management Data Delete the title moving on the way inside HDD High-level process executed for the HDD Buffer Abnormal power off Title recording time full Program file installed in HDD is NG. Invalid HDD target No. is directed. HDD ROMSUM NG Rom-code check sum NG HDD DEL OC TT ESFSYS INIT easyfsys initializing HDD Buff High Inconsistent HDD Management Data Magic HDD SIG NG HDD IRRG POFF TT Rec Over Delete the title by HDD recovery. HDD DEL TT Task No Activ Task has not been activated. extHDD Ignore External HDD is dismounted. HDD PFile NG HDD WRONG TGT Do nothing for demand. Do nothing HDD deflag finished HDD DEF DONE HDD deflag error HDD DEF ERR HDD is not recognized on the bus. HDD Destroy HDD MBR NG Inconsistent MBR data MBR was witten HDD Zero WR HDD DEL PL Delete the dubbing list by HDD recovery. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 115 5 6 7 8 5 6 7 8 C D F A B E 7.1.6 EPG SERVICE MODE (EPG EURO) Next Data Download Time : 14:00 Duration : 01h30m Gemster Data Fail Count : 00 EPG Data Receive Err Summary Date Start End MD CH RcvPkt TotalErr 03/31 13:00 13:30 DL 03 001853 000000 03/31 09:00 11:00 DL 03 001192 000000 03/31 08:00 08:05 HS -- 000645 000000 03/31 00:00 00:00 000000 000000 03/31 00:00 00:00 000000 000000 03/31 00:00 00:00 000000 000000 012345678901234567890123456789012345678901234567 0 1 2 3 4 1. Summary screen 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 Reasons for the following malfunctions can be inferred by checking the conditions for obtaining the past EPG data: 1 EPG data cannot be obtained. 2 Some EPG data obtained are missing. [Purposes] [Tool to be used] [How to enter] [How to quit] [Description of the mode] [Tips] Remote control unit for servicing (GGF1381) In a case where only "HS" is displayed in the MD column of the logs, the host channel has not been found. It is necessary to check the country and postal-code settings in the user settings. Press the ESC key. • Press the ESC , DISP , 7 keys, in that order. Lines 01-02 The next download starting time for the EPG data is displayed. Next Data Download Time: Starting time Duration: Duration required for acquiring the EPG data Lines 03 The Gemster EPG data cannot be found. Number times of Host Scan and Schedule Download, DT models only Lines 09-14 The 6 latest error logs when EPG data were received are displayed, with the latest one at the top. Date Start End MD CH RcvPkt Total Err : Month/day when reception started : Time when reception started : Time when reception ended : Method for acquiring the EPG data (HS: Host scanning process, DL: Downloading pro- cess of the EPG data) : Data-receiving channel : Total number of received packages. A number 999,999 or greater is displayed as "999999." : Total errors during reception. The sum of Hamming Err, Trans Err and InvLine Err numbers indicated on the Detail screen. A number 999,999 or greater is displayed as "999999." www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 116 1 2 3 4 1 2 3 4 C D F A B E Press the ESC key. (EPG EURO) EPG Data Receive Err Details - 1 Date : 03/31 Start Time : 13:00 END Time : 13:30 Host CH : 03 P-ON Kind : Download Data Receive Part Total Err : 000000 Pkt Rcv Num : 001853 Pkt Snd Num : 001853 Inv Line Err : 000000 Slice Cont : Auto EQ : OFF LV : --h Temporary Buffer Information Pool Num : 000000 Max Store : 000000 Discard Pkt : 000000 Use Num : 000000 012345678901234567890123456789012345678901234567 0 1 2 3 4 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 [How to quit] [Description of the Detail screens] Press the DIG/ANA key while the Summary screen is displayed. Up to 6 detail screens (1 to 6) are displayed, one each time the DIG/ANA key is pressed. Each detail screen 1 to 6 corresponds with the EPG reception error logs from the top on the Summary screen. [How to enter] Line Display item Description Remarks 2. Detail screen Note: The data on lines 12-14 are for software development, not for service use. Line 01 Lines 03-05, Reception conditions Lines 07-10, details on errors during reception EPG Data Receive Err Details-X Date Start Time END Time Host CH P-ON Kind Total Err Pkt Rcv Num Pkt Snd Num InvLine Err The rightmost figure represents the number of the current detail screen. This number corresponds to the order of the EPG reception error log from the top. : Month/day when reception started : Time when reception started : Time when reception ended : Data-receiving channel : Methods for acquiring the EPG data (host scanning and downloading) : Total numbers of errors during reception. The total number of Hamming Err, Trans Err and InvLine Err indicated on the Detail screen. A number 999,999 or greater is displayed as "999999." : Total number of received packages. A number 999,999 or greater is displayed as "999999." : Total number of packages that were sent to the application program among all the received packages. A number 999,999 or greater is displayed as "999999." Only during initialization, host scanning is automatically executed to find the host broadcast. Total Errors: If the total number of errors reaches two digits or greater, it is likely that EPG data acquisition failed. Display subscreen 1 of the first screen and check the electric field intensity from the AGC level. If the total number of received packages is 0, it is likely that the country and postal-code settings are wrong. : Total number of errors that were gene- rated by receiving data from invalid lines. A number 999,999 or greater is display- ed as "999999." Slice Cont : Slice level control Auto-Tu Con, Manual - Syscon. EQ : Equalizer setting (ON, OFF) LV : Slice level (10~30 hex) (Only when the slice Cont is Manual.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 117 5 6 7 8 5 6 7 8 C D F A B E 7.1.7 AGING MODE Aging for the DVD-RW/+RW/-RAM Aging for the DVD-R/+R During Aging mode, the following operations are repeated in the order shown below. 1 The tray opens. 2 The tray closes. 3 Initialization 4 Recording for 60 minutes 5 Playback for 45 minutes The initialization process in step 3 follows the setting specified in "Setting of the main unit--Recording-- Auto initialization of a DVD-RW." The initialization process in step 3 is the same as that described in "Disc setting--Initialization-- Initialization of a DVD+RW." In the initialization process in step 3, physical formatting is performed, if required. During Aging, the number of loops is indicated on the FL display, as shown below. [AGING 0001] If an error is generated, the aging operation stops. Note: Indications on the FL display are retained, and this information is also retained as an OSD. During Aging mode, the following operations are repeated in the order shown below. 1 The tray opens. 2 The tray closes. 3 Recording for 1 minute 4 Recording pause for 6 minutes 5 Recording stops. 6 Playback for 1 minute 7 Playback pause for 6 minutes 8 Playback stops. Note: A continuous test of the above operations is possible for approximately 23 hours. After 2 the tray closes, disc detection is performed, In step 2, if the disc is judged to have recorded up to 99 titles, the operation stops at that point. If the disc is judged to have recorded up to 49 titles, the operation stops at that point. On the FL display, the number of loops is retained. On the OSD display, the error indication is retained. During Aging, the number of loops is indicated on the FL display, as shown below. [AGING 0001] If an error is generated, the aging operation stops. Note: Indications on the FL display are retained, and this information is also retained as an OSD. Note: Recording time depends on the recording rate set. For example, if the recording rate is MN32, only up to 60 titles can be registered. Check the setting for recording rate before performing aging. Remote control unit for servicing (GGF1381) Commercially available, recordable DVD-R/+R and DVD-RW/+RW/ -RAM discs If symptoms regarding recording/ playback of discs and/or the HDD that your customer claimed are difficult to reproduce, they can be reproduced with a long-time test in Aging mode. • When aging for the DVD-RW/+RW/-RAM and HDD is executed, all recorded data on them will be erased. • Commands from the remote control unit are accepted during Aging mode. • If Aging mode is quit using the ESC key, indications on the FL display will return to normal display. • Cancel timer settings before entering Aging mode. • Set the recording rate beforehand. It cannot be changed during Aging mode. [Purposes] [Tools to be used] [Notes] Press the ESC key on the remote control unit for servicing to quit Aging mode and return to Normal mode. Notes: • If during recording: Recording is stopped. • If during playback: Playback is paused. (aging for ±RW/-RAM only) • If during initialization: The unit stops after initialization is finished. • If the tray is being opened/closed: The unit stops after the tray is opened/closed. [How to quit] 1 Press the DVD key to switch to DVD. 2 Load a recordable disc. 3 Select the input function of a recordable source. 4 After disc detection is performed, press the ESC then REP.B , and then PLAY keys on the remote control unit for servicing to enter Aging mode. [How to enter] [Description of operation] Aging for the DVD-RW/DVD-R Remote control unit supplied with the unit (VXX3092) DVD RECORDER OPEN STANDBY/ON HOME MENU INFO PAUSE LIVE TV ENTER PREV NEXT STOP REC PLAY REC STOP TOP MENU DISC NAVIGATOR GUIDE CM SKIP CM BACK PAUSE RETURN/EDIT CHANNEL HDD/DVD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 118 1 2 3 4 1 2 3 4 C D F A B E Press the ESC key on the remote control unit for servicing to quit Aging mode and return to Normal mode. Notes: • If during recording: Recording is stopped. • If during playback: Playback is paused. • If during erasure of all memory data from the HDD, the unit stops after all memory data have been erased. [How to quit] 1 Press the HDD key to switch to HDD. 2 Press the ESC key then the REP.B , and then the PLAY keys on the remote control unit for servicing to enter Aging mode. [How to enter] During Aging mode, the following operations are repeated in the order shown below. 1 Erasure of all the memory data from the HDD 2 Recording for 60 minutes 3 Playback for 60 minutes [Description of operation] During Aging, the number of loops is indicated on the FL display, as shown below. [AGING 0001] If an error is generated, the aging operation stops. Note: Indications on the FL display are retained, and this information is also retained as an OSD. [Tips] [Aging for the HDD] * Take caution as all recorded data of the HDD is deleted. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 119 5 6 7 8 5 6 7 8 C D F A B E 7.1.8 HDD CHECK MODE How to diagnose failure of the hard disc drive (HDD) 1. Flow of HDD diagnosis (1) Flowchart of HDD diagnosis Purpose: With use of the HDD-diagnostic program contained in the product itself, physical errors on the HDD can be diagnosed. Use this program to diagnose whether or not the HDD is in failure when one of the symptoms indicated below is recognized, or when a failure in the HDD is suspected. Symptoms of failure in HDD: (1) HDD Error (2) Failure in HDD recording or playback (3) HDD not recognized Tool to be used: Remote control unit for servicing (GGF1381) Check the HDD Information. Is something wrong? No Yes Execute Self-Test. Has an error occurred? No Yes Execute Extended Self-Test. Has an error occurred? No Yes Execute HDD Read/Write Check. Has an error occurred? Execute writing test, if required. Result of the diagnosis: No abnormality No Yes Result of the diagnosis: Failure in HDD Measures to be taken: Replacement of HDD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 120 1 2 3 4 1 2 3 4 C D F A B E (2) Overview of the diagnosis items How to start/terminate the diagnostic program HDD Information SELF TEST EXTENDED SELF TEST HDD Read / Write Check Use the remote control unit for servicing. How to start: Press the "ESC", "CX", "0", and "1" keys simultaneously. How to terminate: Press the "ESC" key. Do NOT perform other operations on the unit while the HDD diagnosis is in progress. Although the diagnostic program is designed to function independently from the unit's functions, an operation on the unit during a diagnosis may cause a malfunction. The status of the unit recommended during diagnosis is as follows: All stop, no timer recording (including auto-recording), and Input selection to L1-L3. 2. How to start or terminate the diagnostic program This is a display for checking the HDD information, such as the model name of the HDD, continuous power-on time, authentication status, and results of the diagnosis on the end of service life. This is a simplified diagnosis for the HDD. A serious failure in the HDD can be detected with this test. Time required for testing: Approx. 60 sec. This is a reading test across all sectors of the HDD. Data recorded on the HDD will not be erased, because no writing operation is performed. Time required for testing: Approx. 2 hours/160 GB 1 hours/80 GB This is a writing, reading, and comparing test across all sectors of the HDD. All data recorded on the HDD will be erased, because all the data are to be overwritten. Be sure to obtain your client's consent beforehand. Time required for testing: Approx. 6.4 hours/160 GB 3.2 hours/80 GB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 121 5 6 7 8 5 6 7 8 C D F A B E 3. Diagnosis procedures 1 Display the menu on the screen. The menu indicated below is displayed when the diagnostic program is started. To enter each mode, press the corresponding key "1"-"4" on the remote control unit for servicing. Tests to be executed 1 HDD Information: Check of the HDD information 2 S.M.A.R.T. DST: Executing a simplified test or a reading test of all data 3 HDD R/W Check: Executing a writing/reading test of all data. All data on the HDD will be erased if this test is executed. Note: "2. S.M.A.R.T. Attribute . . ." is not to be used. 2 Check the HDD information. Press the "1" key on the remote control unit for servicing. Check the following data: Model: Is the correct model name of the HDD displayed? Recog. No: Is a positive value displayed? SMART threshold: Is "not exceeded" displayed? To return to the menu screen, press the "Clear" key. Detailed description 1 Model: For the correct model name, refer to the display of the unit. 2 Recog. No: Positive value: The HDD has been authenticated. Negative value: The HDD has not been authenticated. 3 SMART threshold: exceeded: The HDD has come to the end or near the end of its service life. not exceeded: The HDD has not reached the end of its service life. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 122 1 2 3 4 1 2 3 4 C D F A B E 3 Execute Self-Test. Press the "3" key on the remote control unit for servicing while the menu screen is displayed. When the following screen is displayed, press the "1" key to start the Self-Test. The progress of the test is displayed on the screen. The percentage remaining of the test is displayed on the screen, and the test is terminated when the percentage reaches 00%. Check whether or not an error has occurred after the test is finished. To return to the menu screen, press the "Clear" key. Example: No error Example: With an error Diagnosis results • Without an error: ". . . Completed" is displayed. Then, proceed to the Extended Self-Test. • With an error: ". . . Error" is displayed. Look at the number in Test Result. If the place value for tens is 1 or 2, execute the Self-Test again. If it is from 3 to 7, the HDD must be replaced. Note: If the result of the second test is the same, replacement of the HDD is required. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 123 5 6 7 8 5 6 7 8 C D F A B E 4 Execute the Ext (Extended) Self-Test. Press the "3" key while the menu screen is displayed, then the "2" key on the remote control unit for servicing. The Extended Self-Test starts. The percentage remaining of the test is displayed on the screen, and the test is terminated when the percentage reaches 00%. Check whether or not an error has occurred after the test is finished. To return to the menu screen, press the "Clear" key. Example: No error Example: With an error Diagnosis results • Without an error: ". . . Completed" is displayed. If no error occurs up until this stage, HDD operations are normal except for writing operations. If the unit has a failure in HDD playback, a block other than the HDD may be in failure. If the unit's failure is in HDD recording, however, the next HDD Read/Write Check must be executed to test writing operations. • With an error: ". . . Error" is displayed. Look at the number in Test Result. If the place value for tens is 1 or 2, execute the Ext Self-Test again. If it is from 3 to 7, the HDD must be replaced. Note: If the result of the second test is the same, replacement of the HDD is required. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 124 1 2 3 4 1 2 3 4 C D F A B E 5 Execute the HDD R/W Check. Before executing this test, be sure to obtain your client's consent for erasure of HDD data. Press the "4" key while the menu screen is displayed then the "SKIP ¢" key to start the HDD R/W Check. To stop executing the test (OFF) while it is in progress, press the "SKIP 4" key. The display on the left indicates the progress of the test. The percentage of the test progress is displayed on the screen, and the test is finished when the percentage reaches 100%. Diagnosis results • If no error occurs in any of the Write/Read/Compare items, the HDD is in normal condition and is not required to be replaced. A block other than the HDD is in failure. • If any error occurs, the HDD must be replaced. To terminate the diagnostic program, press the "ESC" key. Detailed description on each item on the screen • Write Error: Number of write errors • Read Error: Number of read errors • Compare Error: Number of comparison errors • Current LBA: The address during testing • Max LBA: Highest address number of the HDD • Progress: Percentage of test progress (%) • Remain Time: Estimated time required for finishing the test across all sectors. Estimated time: 6.4 hours/160 GB 3.2 hours/80 GB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 125 5 6 7 8 5 6 7 8 C D F A B E 7.1.9 DIAGNOSIS OF THE MAIN ASSY Power ON Does a desired screen appear when selected a tuner? Video recording and playback by HDD 1 Failure in the periphery of CN2301 (Poor contact with the TUJB Assy.) 2 Failure in the periphery of CN2401 (Power supply is not supplied from the POWER SUPPLY Unit.) 3 Failure in the periphery of IC4504, IC4507, IC4511 and IC4512 (Power supply is not supplied to each IC.) Yes No No Does a desired audio output it? 1 Failure in the periphery of CN2301 (Poor contact with the TUJB Assy.) 2 Failure in the periphery of IC3101 (Failure in the periphery of AUDIO ADC for input audio.) 3 Failure in the periphery of IC3201 (Failure in the periphery of AUDIO DAC for output audio.) No No No No No Yes No Video recording and playback by DVD DVD recording End Can the video recording and playback of HDD? 1 Failure in the periphery of CN3801 (Poor contact with the HDD.) 2 To the HDD check mode Yes No Can record desired video and audio? 1 Failure in the periphery of CN101 (Poor contact with the Pickup Assy.) 2 Failure in the periphery of IC101 (Failure in the periphery of the RF IC.) Failure in the periphery of IC101 (There is possibility of failure of the EMMA2RFE chip.) Yes No Does the tray open? 1 Failure in the periphery of CN601 (Poor contact with the FRONT Assy.) 2 Failure in the periphery of IC501 (Failure in the periphery of the Driver IC.) Yes No Do play back desired video and audio? 1 Failure in the periphery of CN2301 (Poor contact with the TUJB Assy.) 2 Failure in the periphery of IC3101 (Failure in the periphery of AUDIO ADC for input audio.) 3 Failure in the periphery of IC3201 (Failure in the periphery of AUDIO DAC for output audio.) Yes No Insert a disc and close the tray, then playback it Do recognize a disc? 1 Failure in the periphery of CN101 (Poor contact with the Pickup Assy.) 2 Failure in the periphery of IC101 (Failure in the periphery of the RF IC.) 3 Failure in the periphery of CN501 (Poor contact with the SPDL.) 4 Failure in the periphery of CN502 (Poor contact with the STEPPER.) Yes No www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 126 1 2 3 4 1 2 3 4 C D F A B E 7.1.10 DIAGNOSIS OF THE DTBR ASSY The DTB (Digital Terrestrial Board) does not function Only the signals from the DTB are not output, even though other external input signals are output. No channel is displayed. Is the Signal Check screen called from the HOME MENU displayed? Are Signal Strength and Signal Quality Good (in green) or, in a rare case, Fair (in yellow)? Only pay channels (channels that require a CI module for receiving) cannot be displayed. In addition to [A], a failure in the CAM, card, or the CI connector is possible. Is the Software Update-Technical Info screen called from the HOME MENU displayed? (The version is displayed) Failure in the line from the AV output from IC106 (analog output section) to the JACB input section Yes Yes Yes Yes Yes Possible causes are the antenna cable, ambient surroundings, the RF system from the tuner to the TS input of IC106 via IC313 and IC201, and TS. = [B] IC106 and its periphery are likely to be defective. Yes No No No Possible causes are the antenna cable, ambient surroundings, and a stream- related problem. = [A] No Possible causes are a failure in upgrading software, failure in communication between CN102 and CN2601, and defective IC106 and its periphery. No ∗ On the screen in Test mode, NG- must be displayed for the item DTB S. • Except when the local regulator is in failure, a power failure (blown a fuse, etc.) makes other input systems abnormal. • If mosaic images are often displayed, check the items in [B]. • If the audio from only the DTB is defective, check the items in [B] and the line from the audio output from IC106 (analog output section) to the JACB input section. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 127 5 6 7 8 5 6 7 8 C D F A B E 7.1.11 NOTE ON REPLACEMENT OF THE SDRAM Note when replacing the SDRAM When replacement of the SDRAM (IC1201 or IC1221) on the MAIN Assy is required, identify the manufacturer of the SDRAM. If the SDRAM that needs replacement was manufactured by HYNIX, both IC1201 and IC1221 must be replaced at the same time. SDRAMs for service are manufactured by SAMSUNG. How to identify the manufacturer Confirm the name of the manufacturer stamped on the surface of the part. Measures to be taken 1 If the SDRAM that needs replacement was manufactured by HYNIX: Replace both IC1201 and IC1221 at the same time. 2 If the SDRAM that needs replacement was manufactured by SAMSUNG: Replacement of only the defective SDRAM (IC1201 or IC1221) is possible. Possible malfunctions If SDRAMs made by different manufacturers are mounted on the MAIN Assy, the following malfunctions may occur: 1 The power does not come on. 2 High-speed dubbing disabled 3 Other malfunctions related to the SDRAM By HYNIX (replacement of both SDRAMs required) By SAMSUNG (replacement of only the defective SDRAM possible) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 128 1 2 3 4 1 2 3 4 C D F A B E 7.1.12 SETUP SEQUENCE Tuner/FL microcomputer System Codec IC (Initial Program Loader) System Codec IC (Firmware) DTB microcomputer Is ID check of drive OK? Yes Power ON ? No Yes OK OK FLASH check ? NG NG Stop Tray Open Yes No "CPRM ERR" displayed on FL display Request for power off of system-control computer made to Tuner/FL microcomputer System-control computer is turned off (entering standby) following request from Tuner/FL microcomputer Obtaining LD temperature data from drive. Is temperature below 59°C? No Yes Repair process Is disc in? Is starting/ID check of HDD OK? No Yes Is disc valid? Yes Repair required? Yes Yes No No No No Playback Playback requested? Yes "HDD ERR" displayed on FL display ∗1: If both the drive ID check and starting/ID check of HDD failed, "CPRM ERR" is first displayed on FL display. Tuner/FL microcomputer starts up. Connect the power cord. System microcomputer starts up. Downloading through RS232C required. FLASH check is NG when "POWER ON" displayed for over 1 minutes on the FL display. Jumping to developed firmware. "POWER ON" displayed on the FL display. Key input and channel data transmitted to the system controller. And make displayed data by instructions from the system controller, and switch a channel. DTB microcomputer starts up. Firmware stored in Flash memory is developed in SD-RAM expanding the compressed data. Initialization of the peripheral circuit register and RAM, etc. Waiting for communication to be established. Yes No Initialization of the peripheral circuit register and RAM, etc. DVD-R/RW Drive Has command arrived ? Yes No Drive microcomputer starts up. ATA/ATAPI command processing Initialization of the peripheral circuit register and RAM, etc. Initialization of the peripheral circuit register and RAM, etc. Clock displayed on the FL display. Power ON/Release the reset Communication start with the Tuner/FL microcomputer. Communication start with the DTB microcomputer. ∗1 ∗1 Waiting for communication to be established. Channel data, etc, trans- mitted to the system controller. And switch a channel by instructions from the system controller, etc. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 129 5 6 7 8 5 6 7 8 C D F A B E 7.1.13 DISASSEMBLY 1 Remove the three screws. 2 Remove the two screws. 3 Remove the bonnet case S. Bonnet Case S 1 Tray Panel 2 Bonnet case S 3 2 2 1 1 1 Rear view 3 2 2 4 4 Tray panel Tray Emergency disc ejection rod (GGF1529) LOADER Assy LOADER Assy Diagnosis Note 1: Do NOT look directly into the pickup lens. The laser beam may cause eye injury. Note 2: Even if the unit shown in the photos and illustrations in this manual may differ from your product, the procedures described here are common. Note 3: For performing the diagnosis shown below, the following jigs for service is required: • Emergency disc ejection rod (GGF1529) • Jig cable for service (VKP2291) • Extension board (GGF1533 (A)), (GGF1533 (B)) + Extension cable (GGD1437) 1 Press the � STANDBY/ON button to turn on the power. 2 Press the 0 OPEN/CLOSE button to open the tray. 3 Remove the tray panel. 4 Press the 0 OPEN/CLOSE button to close the tray. 5 Press the � STANDBY/ON button to turn off the power. How to open the tray when the power cannot be turned on When the tray cannot be opened because the power cannot be turned on, it can be opened using the emergency disc ejection rod (GGF1529). (A long, thin rod about 1 mm in diameter can be used in place of the rod.) 1 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 130 1 2 3 4 1 2 3 4 C D F A B E 1 Unhook the four hooks. 2 Disconnect the one flexible cable. CN302 3 Remove the front panel section. FRJB Assy Front panel section Front Panel Section 3 TUNB Assy 1 1 1 Bottom view 1 2 2 3 1 Remove the two screws. 2 Remove the TUNB Assy. TUNB Assy 4 1 1 Rear view B D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 131 5 6 7 8 5 6 7 8 C D F A B E ATAB Assy HDD MAIN Assy LOADER Assy HDD and LOADER Assy 5 3 1 Remove the two screws. 2 Remove the two screws. 3 Remove the HDD with the ATAB Assy and the HDD stay. (Disconnect cables, as required.) HDD 1 Remove the two screws. 2 Remove the two screws. 3 Remove the LOADER Assy with the writer stays L and R. (Disconnect cables, as required.) LOADER Assy 1 1 2 2 1 1 2 3 5 5 5 4 5 2 DTBR Assy JACB Assy 6 1 Remove the one screw. 2 Remove the one screw. 3 Remove the one screw. 4 Disconnect the connector. 5 Remove the four screws. 6 Remove the DTBR Assy. DTBR Assy 6 1 2 3 Rear view CN103 CN102 H G C A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 132 1 2 3 4 1 2 3 4 C D F A B E 3 Front panel section ATAB Assy HDD LOADER Assy MAIN Assy DTBR Assy TUNB Assy Extension board (GGF1533) + Extension cable (GGD1437) JACB Assy FRJB Assy POWER SUPPLY Unit 1 Connect the jig cable for service. 2 Connect the extension boards and extension cable. 3 Reassembling the front panel section. 4 Arrange the unit as shown in the photo below. Diagnosis 7 Diagnosis Jig cable for service (VKP2291) 1 CN103 CN102 3 B A I C G D H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 133 5 6 7 8 5 6 7 8 C D F A B E Access to the MAIN Assy, Cleanning the Pickup Lens Bottom view Rear view 1 Remove the two screws. 2 Remove the heatsink. 3 Remove the two screws. 4 Remove the writer stay L. 5 Remove the two screws. 6 Remove the writer stay R. Heatsink 1 Remove the two screws. 2 Remove the two screws. Writer Stay L and R 1 2 1 2 2 1 1 Heatsink Front side Front side 3 5 5 3 4 6 Writer stay L Writer stay R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 134 1 2 3 4 1 2 3 4 C D F A B E Bottom view Bottom view 1 Remove the two tapes. 2 Remove the four screws. 3 Remove the low case U11. 4 Remove the UP case S. Low Case U11 and UP Case S 2 3 4 2 2 2 Low case U11 MAIN Assy UP case S Pickup lens Before shipment, be sure to clean the pickup lens, using the following cleaning materials: Cleaning liquid : GEM1004 Cleaning paper : GED-008 1 Tape 1 Tape G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 135 5 6 7 8 5 6 7 8 C D F A B E 7.2 IC PMC008A8 (JACB ASSY : IC101) • TUNER Microcomputer Pin Function • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. List of IC No. Mark Pin Name I/O Pin Function 1 PA3/SO8 FLDATA O Communication line with FL driver From tuner controller to FL driver 2 PA4/SI8/SB8 FLSTB O Communication strobe signal with FL driver 3 PA5/SCK8 FLCLK O Communication clock with FL driver 4 P70/INT0/T0LCP WDT I WDT for microcomputer runaway detection RC is external connection. H: Forced reset 5 P71/INT1/T0HCP ACDET I Existence detection of AC power Level interrupt 6 P72/INT2/T0IN/T0LCP HS_MTOT I System controller communication handshake From system controller to Tuner controller 7 P73/INT3/T0IN/T0HCP IR I Pulse input of the remote control unit 8 RES# XTRESET I Reset input 9 XT1 XT1 I Sub clock connection 32.768kHz 10 XT2 XT2 O Sub clock connection 11 VSS1 GND − Ground 12 CF1 CF1 I Main clock connection 15MHz 13 CF2 CF2 O Main clock connection 14 VDD1 VDD1 − Power supply 15 P80/AN0 MODEL1 AI Input 1 for destination judgment 16 P81/AN1 MODEL2 AI Input 2 for destination judgment 17 P82/AN2 KEY1 AI Main unit key input 1 18 P83/AN3 KEY2 AI Main unit key input 2 19 P84/AN4 KEY3 AI Main unit key input 3 20 P85/AN5 AGC AI AGC voltage input from the tuner For simple check 21 P86/AN6 BATTERY AI Input for battery voltage check Can measure only during 5V operation 22 P87/AN7 FUNC AI SCART Function signal input 23 P10/SO0 SDET3 I Plug detection of S terminal 3 24 P11/SI0/SB0 SDET2 I Plug detection of S terminal 2 25 P12/SCK0 SDET1 I Plug detection of S terminal 1 26 P13/SO1 AVLOUT O NexTViewLink output signal Negative logic Reverse on the SCART terminal 27 P14/SI1/SB1 SDA O/D IIC communication (data) 28 P15/SCK1 SCL O/D IIC communication (clock) 29 P16/T1PWML XSYSRST O IC reset signal of whole system 30 P17/T1PWMH/BUZ TUDET I The old and the new distinction of the tuner pack L: New tuner, H: Old tuner 31 PE0/AN12 MUTEV O CVBS for video driver IC and Y/C mute signal L: Mute, H: Release Fix to L because mute does not control. 32 PE1/AN13 IRB_EN I IR blaster function valid selection Open: IR blaster invalidity, GND: IR blaster is valid 33 PE2/AN14 AMUTE2 O Audio mute signal of output stage Negative logic H: Release, L: Mute 34 PE3/AN15 SELV1 O Input switch of video selector Not used 35 PE4 SELV2 O Input switch of video selector Not used 36 PE5 SELV3 O Video switch for digital tuner 37 PE6 YVSEL O CVBS or Y/C switch of video selector YOUT-SEL of LA73031 38 PE7 SWSTBY O Standby mode switch of video selector Not used 39 VSS4 GND − Ground 40 VDD4 VDD4 − Power supply PMC008A8, UPD61272F1-107KA3A, PCA9557PW, AK5359ET, BH7236AF, UPD6110GM-100UEVA, STV0361L, TC7WB125FK, UPC3221GV, MM1689FH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 136 1 2 3 4 1 2 3 4 C D F A B E No. Mark Pin Name I/O Pin Function 51 SI2P2/SCK2 SCK2 O SIO2 communication clock Not used. 52 SI2P3/SCK20 RFTHRU O RF through switch of the tuner Control with the main unit setting during standby. 53 PWM1 NC O Non connection 54 PWM0 FANCTRL O Radiation of heat fan rotating speed control H: Top speed, L: Stop Intermediate speed realizes by PWM 55 VDD2 VDD2 − Power supply 56 VSS2 GND − Ground 57 P00 P_CONT2 O Power supply control of the main board For controlling 2.5V and 3.3V 58 P01 MUTECTL O Mute invalidity control Port to suppress last stage mute 59 P02 EPGEXT O Equalizer switch of slicer input video 60 P03 TUON O Power supply control of the tuner section There is a case to turn on the power during standby independently. 61 P04 SWVION O Power supply control of Japan/North America video system Non connection in Europe and General 62 P05/CKO P_CONT O Power supply control of the whole system 63 P06/T6O FLPON O Power supply control of the FL tube 64 P07/T7O XP_SAVE O Power supply control of Europe video system Set to SWVION on the source. 65 P20/INT4/T1IN/T0LCP/T0HCP/INT6/T0LCP1/SSGI0 STATCHG I Multiplex status change detection of MSP D_CTR_I/O_1 of MSP 66 P21/INT4/T1IN/T0LCP/T0HCP J_CLOCK I Input audio for Just Clock Pulse input of the tuner audio Not used 67 P22/INT4/T1IN/T0LCP/T0HCP/HCTR CSYNCIN I C-Sync for Auto-Rec 68 P23/INT4/T1IN/T0LCP/T0HCP XCHECKER I Unit checker mounting distinction 69 P24/INT5/T1IN/T0LCP/T0HCP/INT7/T0HCP1/SSGI1 MRST I Main board power failure detection Edge interrupt 70 P25/INT5/T1IN/T0LCP/T0HCP AVLIN I NexTViewLink input line 71 P26/INT5/T1IN/T0LCP/T0HCP X525P I 525P output signal from the system controller Not used. 72 P27/INT5/T1IN/T0LCP/T0HCP BLANKIN I BLANK signal input of the SCART 73 P30/PWM4 LED_DVD O DVD Indicator 74 P31/PWM5 TU_DCCON O DC/DC converter For +32V generation 200kHz, 2(H): PWM output of 1 (L) 75 P32/UTX1 TXD1 O Transmission for RS-232C terminal 76 P33/URX1 RXD1 I Reception for RS-232C terminal 77 P34/UTX2 TXD2 O UART2 transmission Not used. 78 P35/URX2 RXD2 O UART2 reception Not used. 79 P36 HS_TTOM O System controller communication handshake From tuner controller to system controller 80 VDDODA VDDODA − Power supply 41 PF0 LET/FUNC_ON O Letter-box output superimposed signal Function output signal for Europe model 42 PF1 SQU O Squeeze output superimposed signal 43 PF2 CONDET I Electric discharge detection of capacitor for power supply backup Readout after cold-start immediately. If it was L, reduce the voltage. 44 PF3 S1 O S1/S2 switching signal 45 PF4/IRP IROUT O Pulse output for IR blaster 46 PF5 P_SAVE2 O Power save mode switch of HA118326 47 PF6 PSMUTE O Audio mute control of SCART 48 PF7 XAVLTH O Through switch of AV.Link communication line 49 SI2P0/SO2 SO2 O SIO2 transmission Not used. 50 SI2P1/SI2/SB2 SI2 O SIO2 reception Not used. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 137 5 6 7 8 5 6 7 8 C D F A B E No. Mark Pin Name I/O Pin Function 81 PB6/CVD/CSYNC CVBSIN I Input video for data slicer 1.0Vpp 82 VSSVCO GND − Ground 83 PB4/FILTSLC FILTSLC I External filter for slicer PLL 84 VDDVCO VDDVCO − Power supply 85 PB2 DT_TUON O Power control for DTB 86 PB1 ANT5V_SW O Antenna power control for digital broadcasting 87 PB0/DS1FLD DET_ANT O Shortcircuit detection for antenna power line 88 VSS3 GND − Ground 89 VDD3 VDD3 − Power supply 90 PC7/DBGP2 DBGP2 O/D Control port for on-chip debugger 91 PC6/DBGP1 DBGP1 O/D Control port for on-chip debugger 92 PC5/DBGP0 DBGP0 O/D Control port for on-chip debugger 93 PC4/AN11 LED_HDD O HDD Indicator 95 PC2/AN9 NC O Non Connection 94 PC3/AN10 NC O Non Connection 96 PC1/AN8 NC O Non Connection 97 PC0/OCSYNC NC O Non Connection 98 PA0/SO7 SD_TTOM O System controller communication data line From tuner controller to system controller 99 PA1/SI7/SB7 SD_MTOT I System controller communication data line From system controller to tuner controller 100 PA2/SCK7 SCK_MTOT I System controller communication clock From system controller to tuner controller www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 138 1 2 3 4 1 2 3 4 C D F A B E UPD61272F1-107KA3A (MAIN ASSY : IC1001) (EMMA2RFE) • DVDR IC BLOCK DIAGRAM IR In TIMER GPIO Peripheral I/F HS I/F 2nd ATA I/F Host I/F MIPS CPU MIPS CPU DSP ROM/GIO I/F JTAG HDD Flash Memory 10 bits ADC V850 MCU Audio Enc. MPEG Stream Processor DMAC Audio I/O Drive Controller Video Encoder 5 ch DAC Arbiter ASP Unified memory bus CVBS/Y C Y/Cb/Cr Digital AV Switch DDR SDRAM I/F Audio ADC Audio PCM Audio DAC 2 ch audio Digital Audio (S/PDIF) DDR SDRAM 256/512/1024 Mb CD/DVD Data Processor Buffer I/F ATAPI I/F Servo DSP ROM/GIO Bus Other LSI Host I/F Y/C 8 bis ADC 2/3DYC Separator Video & Decoder MPEG2 MP@ML Video Enc. V850 MCU Alpha Blending NR De-Interlacer Bit blt Engine OSD x 2 Sub-Picture dec 1st ATA I/F I2C I/F IR Out FUART x 2 x 2 x 2 CSI MPEG2 MP@ML AV Enc. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 139 5 6 7 8 5 6 7 8 C D F A B E PCA9557PW (MAIN ASSY : IC3802) • 8Bit IIC to PARA IC PIN LAYOUT PIN FUNCTION BLOCK DIAGRAM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 SCL SDA A0 A1 A2 I/O0 I/O1 VSS VDD RESET I/O7 I/O6 I/O5 I/O4 I/O3 I/O2 Pin No. Name Function 1 SCL Serial clock line 2 SDA Serial data line 3 A0 Address input 0 4 A1 Address input 1 5 A2 Address input 2 6 I/O0 I/O0 (open drain) 7 I/O1 I/O1 8 VSS Supply ground 9±14 I/O2±I/O7 I/O2 to I/O7 15 RESET Active-LOW reset input 16 VDD Supply voltage POWER-ON RESET INPUT FILTER I2C/SMBus CONTROL INPUT/ OUTPUT PORTS WRITE pulse READ pulse A0 A1 A2 SCL SDA VDD VSS 8-BIT I/O0 I/O1 I/O2 I/O3 I/O4 I/O5 I/O6 I/O7 RESET PCA9557 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 140 1 2 3 4 1 2 3 4 C D F A B E No. Pin Name I/O Pin Function AK5359ET (MAIN ASSY : IC3101) • AD Converter Pin Arrangement Block Diagram Pin Function 1 2 3 4 5 6 7 I I I O – – – AINR AINL CKS1 VCOM AGND VA VD Rch Analog Input Pin Lch Analog Input Pin Mode Select 1 Pin Common Voltage Output Pin, VA/2 Bias voltage of ADC input. Analog Ground Pin Analog Power Supply Pin, 4.5 – 5.5V Digital Power Supply Pin, 3.0 – 5.5V 8 9 – O DGND SDTO Digital Ground Pin Audio Serial Data Output Pin 10 11 12 13 I/O I I/O I LRCK MCLK SCLK PDN "L" Output at Power-down mode. Output Channel Clock Pin "L" Output in Master Mode at Power-down mode. Master Clock Input Pin Audio Serial Data Clock Pin 15 16 I I CKS2 CKS0 Mode Select 2 Pin Mode Select 0 Pin "L" Output in Master Mode at Power-down mode. Power Down Mode & Reset Pin "H" : Power up, "L" : Power down & Reset 14 I DIF The AK5359 must be reset once upon power-up. Audio Interface Format Pin "H" : 24bit I2S Compatible, "L" : 24bit MSB justified Modulator ∆∑ ∆∑ MCLK AINL LRCK SCLK SDTO DIF VCOM Clock Diviv AINR AGND VA Decimation Filter Serial I/O Interface Voltage Reference CKS1 DGND VD CKS2 Modulator Decimation Filter PDN CKS0 CKS1 VCOM VD DGND AINR AINL AGND VA Top View 8 7 6 5 4 3 2 1 9 10 11 12 13 14 15 16 DIF PDN LRCK MCLK SCLK CKS2 CKS0 SDTO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 141 5 6 7 8 5 6 7 8 C D F A B E BH7236AF (JACB ASSY : IC511) • Color TV Signal Encoder PIN FUNCTION BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 142 1 2 3 4 1 2 3 4 C D F A B E UPD6110GM-100UEVA (DTBR ASSY : IC106) • DTB Receiver/Decoder Block Diagram Pin Function ROM I/F TS-DEMUX with optional descrambling DMA Controller MPEG Video Decoder Audio Controller Video Encoder Unified Memory Controller Command Bus Memory Bus GIO I/F IEEE 1394 link Stream input CVBS Y/C RGB Digital PCM (L+R) SPDIF SDRAM JTAG/N-Wire Main CPU Sub- CPU Timers Graphics & Display Host I/F Peripherals Interfaces Table 1 : Power and Ground Pin name Pin nos. Description GND 11, 12, 28, 42, 43, 54, 67, 68, 110, 138, 139, 152, 161, 162, 163, 164, 176, 184, 185, 194, 206, 214, 215 Main supply ground DGND 84, 94, 95 Digital Ground for video DACs AGND 77, 80, 87, 90 Analog Ground for Video DACs PAGND 135 Ground for PLL 1.5V supply DVDD 85, 96 Digital VDD (1.5V) for video DACs VDD1 13, 44, 69, 134, 177, 207 1.5V supply (core) VDD2 153, 160, 175, 186, 195, 205, 213 3.3V for Unified Memory I/F IO buffers VDD3 27, 53, 109, 140, 216 3.3V for IO buffers AVDD 78, 81, 88, 91 3.3V supply for Video DACs PAVDD 136 1.5V supply for PLL Table 2 : System Pin name Pin no. Description In/Out CLK27IN 137 27MHz Input clock from VCXO I RSTOUT 142 RESET out from Watch Dog Timer O RSTSWB 143 Hardware RESET I NMI 144 Non Maskable Interrupt (see note A in table8 below) I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 143 5 6 7 8 5 6 7 8 C D F A B E Table 3 : PCR Table 4 : JTAG Table 5 : Test Table 6 : Unified Memory Interface Pin name Pin no. Description In/Out PWMOUT 141 PWM output to control the 27MHz VCXO O Pin name Pin no. Description In/Out JTDI 147 EJTAG data input I JTCK 150 EJTAG clock I JTDO 148 EJTAG data output O JTMS 149 EJTAG mode select I JTRST 151 EJTAG reset I EDINT 144A A : In normal use, pin 144 is exclusive to the NMI input. In debugging mode, pin144 is the EDINT input. Debug interrupt I Pin name Pin no. Description In/Out TEST 75 For test use only. Connect to GND. I Pin name Pin nos. Description In/Out DADD0~DADD12 190 (DADD0), 189, 188, 187, 183, 182, 181, 180, 179, 178, 191, 174, 173 (DADD12) Address Bus O DQ0~DQ15 212 (DQ0), 211, 210, 209, 208, 204, 203, 202, 166, 165, 159, 158, 157, 156, 155, 154 (DQ15) Data Bus I/O DCSB 196 Chip select O DRASB 197 RAS signal O DCASB 198 CAS signal O DWEB 199 Command write enable O DQM0~DQM1 200, 169 Data mask O DBA0~1 193, 192 Bank address O DCKE 172 Clock enable O DQS1 167 Connect to DCLK I DCLK 171 Clock output O Table 7 : Audio Output Pin name Pin no. Description In/Out AMCK 66 PCM Audio Master Clock O ALRCK 73 PCM Audio L/R Clock O ABCK 70 PCM Audio Data Clock O ADO 72 PCM Audio Data – L/R O ATX 71 SPDIF Digital audio output O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 144 1 2 3 4 1 2 3 4 C D F A B E Table 8 : I2C Interface Table 9 : Video DAC outputsA Pin name Pin no. Description In/Out SDA0 117 I2C-0 Serial Data I/O SCL0 118 I2C-0 Serial Clock I/O Pin name Pin no. Description VACVBS 79 Composite video (analog) VAY 76 Y signal (analog) VAPR 86 Pr signal VAPB 89 Pb signal RSET0 82 Resistor for adjusting full scale currents RSET1 92 REF0 83 External voltage reference REF1 93 Unused pins Pin name Pin no. Disposition N/C 168 Connect to ground N/C 170 Not connected N/C 201 Connect to ground www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 145 5 6 7 8 5 6 7 8 C D F A B E STV0361L (DTBR ASSY : IC313) • COFDM IC Pin Arrangement (Top view) Block Diagram FEC Viterbi Reed- Channel correction FFT Adjacent Carrier recovery loop Timing recovery loop TS output INP INM XTALI XTALO PLL AGC1 SCL SDA SCLT SDAT I2C General and lock purposv OP0 LOCK/OP2 LOCK/OP1 IP0 STV0361 COFDM demodulator/DVB-T indicators estimation/ Symbol Demapper Bit de-interleaver de-interleaver decoder decoder De-interleaver Descrambler Interface Monitoring BER monitoring ADC AGC2 display Lock Constellation display Sample rate converter Symbol recovery loop AGC Dual indicators on OP1/OP2 Solomon De-interleaver I/Os and Co channel suppression DP, D0 to D7, CLK_OUT STR_OUT (ERROR) ADC RF level monitor Impulsive noise removal IP0 Control 1k impedance Derotator EPQ auto loop Impulsive noise suppression XTALO GNDXTAL TEST XTALI D2 GND SDA STR_OUT GND D7 D6 VDD D4 SCLT SDAT SCL TEST AGC1 AGC2 INP DGNDA DVCCA1.8 GNDA D1 LOCK/OP2 GND AUX_CLK GND OP0 CIQ/HFEC3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 64 62 61 60 59 58 57 56 55 63 54 53 52 51 50 49 17 19 20 21 22 23 24 25 26 18 27 28 29 30 31 32 D5 VCCA1.8 REFP GNDA NOT_RESET VDD VDD_3.3 LOCK/OP1 GND ERROR VDD D/NOT_P CLK_OUT VDD_3.3 D0 D3 VDD_3.3 VCCXTAL1.8 VR VCCA3.3 REFM INM GND IP0 VDD GND CS0 CS1 GND VDD_3.3 HFEC0 CCLK/HFEC1 CDATA/.HFEC2 VDD_3.3: 3.3V output buffer supply VDD : 1.8V core and input buffer supply GND : both core and buffer ground TQFP64 STV0361 VDD GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 146 1 2 3 4 1 2 3 4 C D F A B E Pin Function Pin number Name Type Description Drive (mA) Clock and resets 12 NOT_RESET Input1 Hardware reset, active low – 62 XTALI Analog Crystal oscillator input/external clock (1.8 V) – 63 XTALO Analog Crystal oscillator output – 61 VCCXTAL1.8 Supply Analog oscillator supply (1.8 V) – 64 GNDXTAL Ground Analog oscillator ground – Analog interface 2 DVCCA1.8 Supply Analog part digital supply (1.8V) – 5 REFM Analog Internal negative reference – 6 REFP Analog Internal positive reference 3 VCCA1.8 Supply Analog supply (1.8V) – 9 INM Analog Negative analog input – 10 INP Analog Positive analog input – 4, 11 GNDA Supply Analog supply – 1 DGNDA Ground Analog ground – 7 VR Analog Reference – 8 VCCA3.3 Supply Analog supply (3.3V) I2C interface 21 SDA I/O2 Serial data (open drain and 5 V tolerant) 8 20 SCL Input Serial clock (open drain and 5 V tolerant) – 19 SDAT I/O SDA tuner (open drain and 5 V tolerant) 4 18 SCLT Input SCL tuner (5 V tolerant) MPEG interface 25, 26, 27, 29, 31, 32, 33, 34 D7/0 Output3 Serial D7, MPEG data 8/4 36 CLK_OUT Output MPEG byte or bit clock 4 23 STR_OUT Output MPEG first byte sync 2 38 D/NOT_P Output MPEG data valid/parity 4 40 ERROR Output MPEG packet error 2 51 HFEC0 Output Hierarchical FEC output bit 0 2 50 CCLK/HFEC1 Output Hierarchical FEC output bit 1 or clock for constellation display 2 49 CDATA/HFEC2 Output Hierarchical FEC output bit 2 or data for constellation display 2 48 CIQ/HFEC3 Output Hierarchical FEC output bit 3 or IQ validation for constellation display 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 147 5 6 7 8 5 6 7 8 C D F A B E Front end controls 16 AGC1 I/O RF AGC control ∆∑(5 V tolerant) 4 14 AGC2 I/O IF AGC control ∆∑(5 V tolerant) 4 17, 60 TEST Reserved test mode, must be grounded 58 IP0 Input General-purpose input port 0 and ADC input for RF level monitoring - 45 OP0 I/O General-purpose output port 0 4 43 LOCK/OP1 I/O General-purpose output port 1 or lock indicator 4 42 LOCK/OP2 Output General-purpose output port 2 or lock indicator 4 47 AUX_CLK I/O Auxiliary clock 8 55 CS0 Input Chip select LSB - 53 CS1 Input Chip select MSB - Power supply 13, 28, 39, 57 VDD Supply Digital core supply 22, 35, 44, 52 VDD_3.3 Supply Digital I/O supply 15, 24, 30, 37, 41, 46, 54, 56, 59 GND Ground 1. All inputs are 3.3V compatible. 2. All bidirectional pads are 3.3V capable. 3. All outputs are 3.3V capable. Pin number Name Type Description Drive (mA) TC7WB125FK (DTBR ASSY : IC314) • Dual BUS Switch Pin Arrangement (Top view) Truth Table Inputs A port = B port Disconnect OE Function L H VCC 8 OE2 B1 A2 7 6 5 OE1 1 2 3 4 GND A1 B2 W B 1 2 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 148 1 2 3 4 1 2 3 4 C D F A B E UPC3221GV (DTBR ASSY : IC311) • IF AGC IC Pin Arrangement (Top view) Pin Function 1 2 3 4 8 7 6 5 VCC INPUT1 INPUT2 VAGC GND1 OUTPUT1 OUTPUT2 GND2 AGC AMP. Video AMP. AGC Control Pin No. Pin Name Applied Voltage (V) Pin Voltage (V) Note Function and Application 1 VCC 4.5 to 5.5 – Power supply pin. This pin should be externally equipped with bypass capacitor to minimize ground impedance. 2 INPUT1 – 1.29 Signal input pins to AGC amplifier. This pin should be coupled with capacitor for DC cut. 3 INPUT2 – 1.29 4 VAGC 0 to VCC – Gain control pin. This pin's bias govern the AGC output level. Minimum Gain at VAGC : 0 to 0.5 V Maximum Gain at VAGC : 3 to 3.5 V Recommended to use AGC voltage with externally resister (example: 1 kΩ). 5 GND2 0 – Ground pin. This pin should be connected to system ground with minimum inductance. Ground pattern on the board should be formed as wide as possible. 6 OUTPUT2 – 2.28 Signal output pins of video amplifier. This pin should be coupled with capacitor for DC cut. 7 OUTPUT1 – 2.28 8 GND1 0 – Ground pin. This pin should be connected to system ground with minimum inductance. Ground pattern on the board should be formed as wide as possible. All ground pins must be connected together with wide ground pattern to decrease impedance difference. Note : Pin voltage is measured at VCC = 5.0 V. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 149 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name Pin Function MM1689FH (DTBR ASSY : IC307) • Dual Regulator Pin Arrangement (Top view) Block Diagram Pin Function 1 2 3 PS2 PS1 VIN2 ON/OFF Control pin Cont pin must be connected with Vin pin, if it is not used. ON/OFF Control pin Input pin The capacitor is required to connect with input pin more than 1 µ F. 4 5 VIN1 VOUT1 Input pin Output pin 6 7 8 VOUT2 GND NC The capacitor must be connected with output pin more than 1 µ F. Output pin Ground No connection Cont H L Vo On OFF 8 NC GND Vo2 Vo1 1 PS2 PS1 VIN2 VIN1 Heat Spreader Bottom 2 3 4 7 6 5 4 VIN1 PS1 GND VIN2 PS2 Bias Driver Driver Current Limitter Thermal shutdown Thermal shutdown Current Limitter Bias Reference Reference 2 7 3 1 5 6 VO2 VO1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-540HX-S 150 1 2 3 4 1 2 3 4 C D F A B E 7.3 CAUTIONS ON HANDLING THE HDD Reference: Main specifications on damage to the HDD The HDD is about 10 times as sensitive to shock during operation than during nonoperation. During operation During nonoperation Shock G (acceleration)
