ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2003
DVR-3100-S
RRV2843
DVD RECORDER
DVR-3100-S
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
Type
Power Requirement
Region No.
Serial No.
Please confirm 3rd & 4th
alphabetical letters.
DVR-3100-S
WY
AC220-240V
2
&&TT######$$
DVR-3100-S
WYXU
AC220-240V
2
&&PG######$$
DVR-3100-S
WVXU
AC220-240V
2
&&PG######$$
÷ When servicing this model, some service procedures may reset the settings that customer
set (*) to the factory default settings. Make sure to explain this to the customer.
(*) : Initial Setup (Clock Setting, Remote Control Set, Channel settings, Video Out settings,
Audio In settings, Audio Out settings, Language settings)
Refer to the chapter 12 of the Operating Instructions for more details.
For details, refer to "Important symbols for good services" .
T-ZZV OCT. 2003 printed in Japan
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
2
1
2
3
4
1
2
3
4
C
D
F
A
B
E

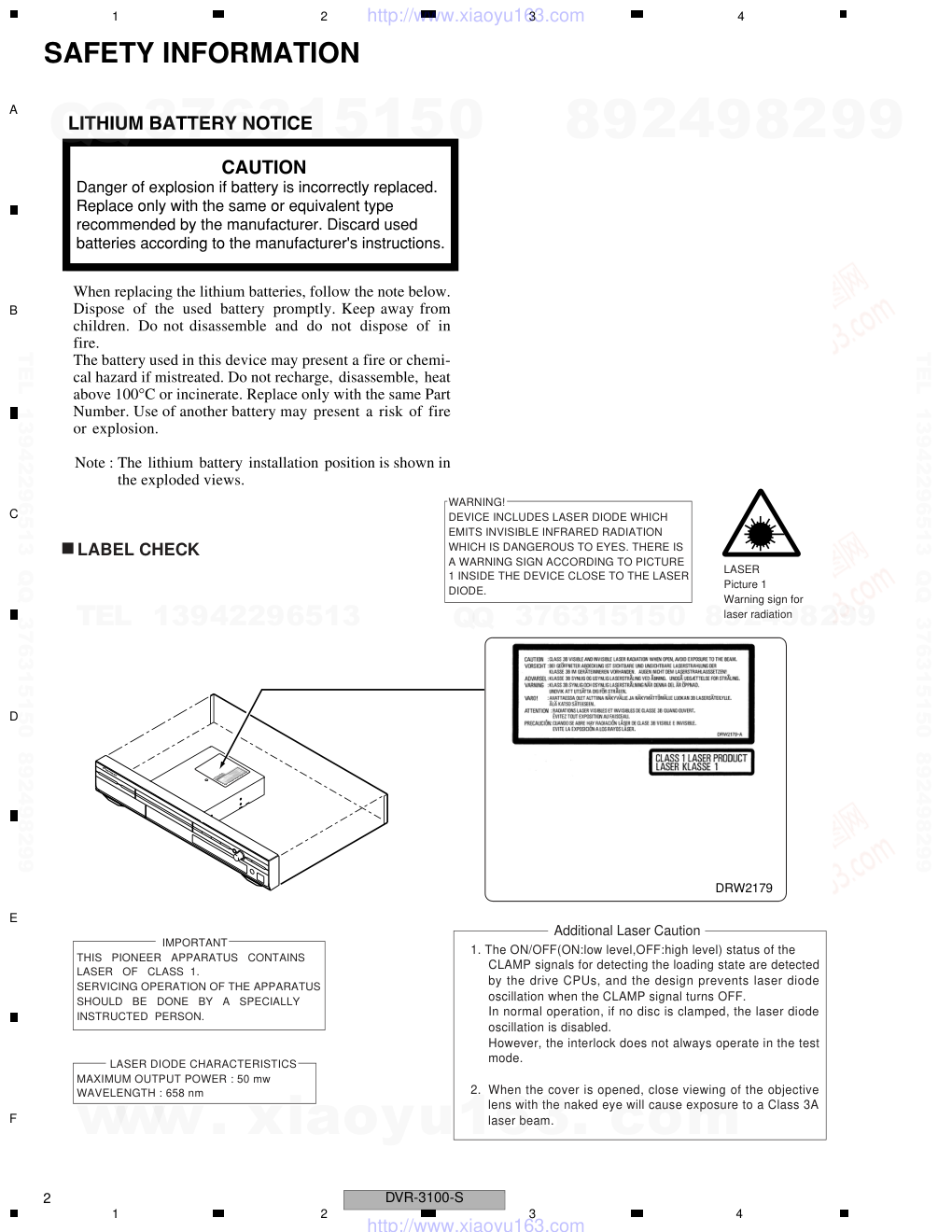

SAFETY INFORMATION
WARNING!
DEVICE INCLUDES LASER DIODE WHICH
EMITS INVISIBLE INFRARED RADIATION
WHICH IS DANGEROUS TO EYES. THERE IS
A WARNING SIGN ACCORDING TO PICTURE
1 INSIDE THE DEVICE CLOSE TO THE LASER
DIODE.
LASER
Picture 1
Warning sign for
laser radiation
LASER DIODE CHARACTERISTICS
MAXIMUM OUTPUT POWER : 50 mw
WAVELENGTH : 658 nm
1. The ON/OFF(ON:low level,OFF:high level) status of the
CLAMP signals for detecting the loading state are detected
by the drive CPUs, and the design prevents laser diode
oscillation when the CLAMP signal turns OFF.
In normal operation, if no disc is clamped, the laser diode
oscillation is disabled.
However, the interlock does not always operate in the test
mode.
2. When the cover is opened, close viewing of the objective
lens with the naked eye will cause exposure to a Class 3A
laser beam.
Additional Laser Caution
IMPORTANT
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS 1.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PERSON.
LABEL CHECK
DRW2179
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
3
5
6
7
8
5
6
7
8
C
D
F
A
B
E

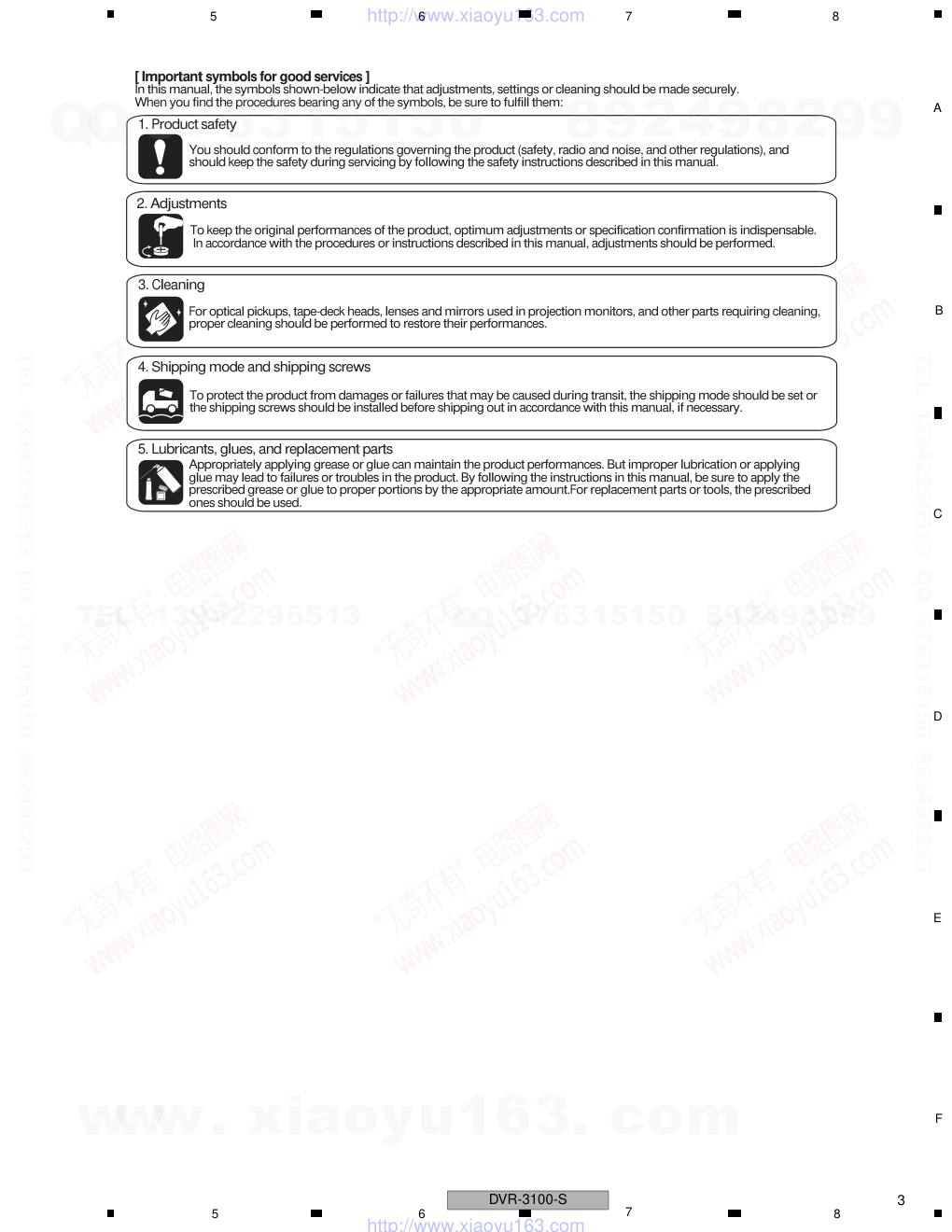

[ Important symbols for good services ]
In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely.
When you find the procedures bearing any of the symbols, be sure to fulfill them:
2. Adjustments
To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable.
In accordance with the procedures or instructions described in this manual, adjustments should be performed.
3. Cleaning
For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning,
proper cleaning should be performed to restore their performances.
5. Lubricants, glues, and replacement parts
Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying
glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the
prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed
ones should be used.
4. Shipping mode and shipping screws
To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or
the shipping screws should be installed before shipping out in accordance with this manual, if necessary.
1. Product safety
You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and
should keep the safety during servicing by following the safety instructions described in this manual.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
4
1
2
3
4
1
2
3
4
C
D
F
A
B
E

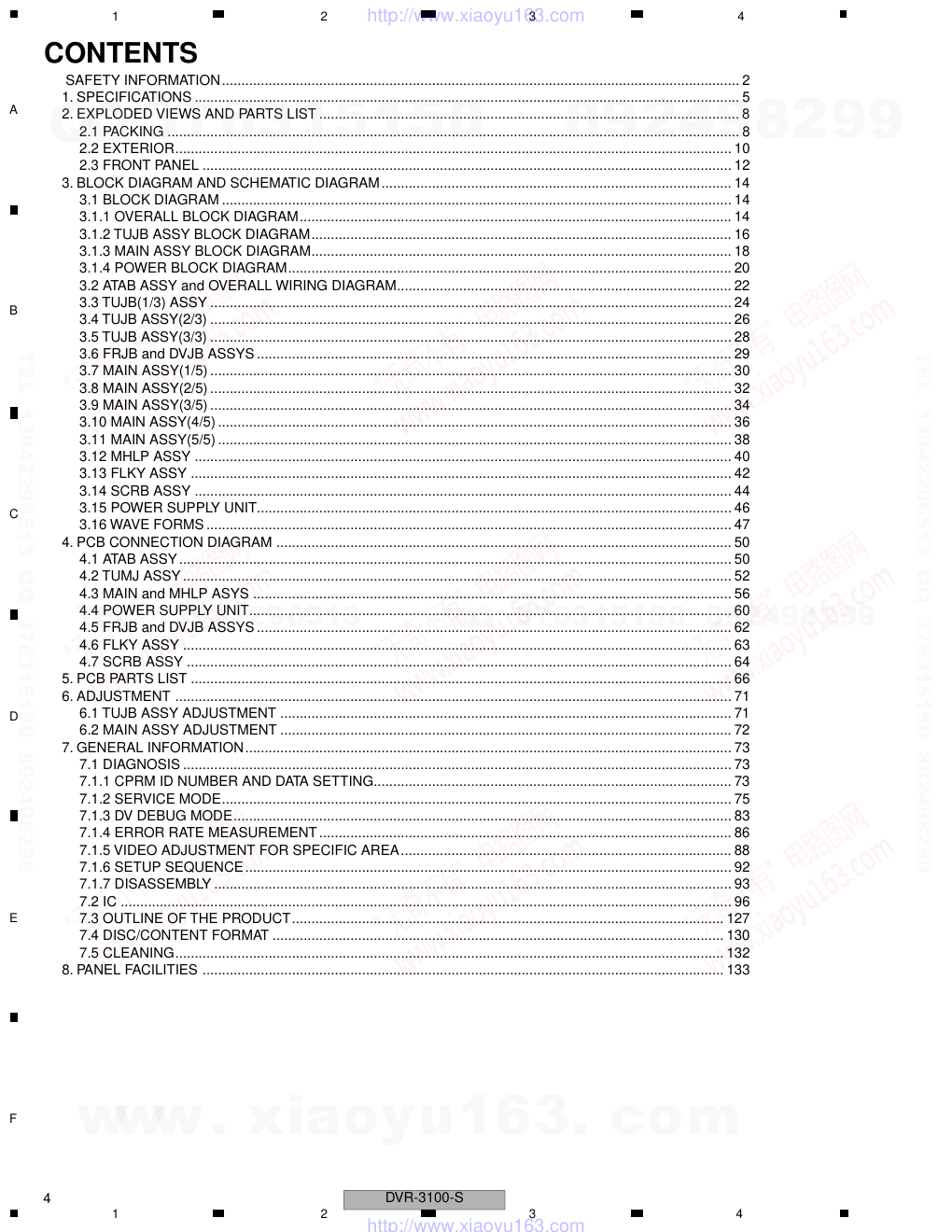

CONTENTS
SAFETY INFORMATION..................................................................................................................................... 2
1. SPECIFICATIONS ............................................................................................................................................ 5
2. EXPLODED VIEWS AND PARTS LIST ............................................................................................................ 8
2.1 PACKING ................................................................................................................................................... 8
2.2 EXTERIOR............................................................................................................................................... 10
2.3 FRONT PANEL ........................................................................................................................................ 12
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM.......................................................................................... 14
3.1 BLOCK DIAGRAM ................................................................................................................................... 14
3.1.1 OVERALL BLOCK DIAGRAM............................................................................................................... 14
3.1.2 TUJB ASSY BLOCK DIAGRAM............................................................................................................ 16
3.1.3 MAIN ASSY BLOCK DIAGRAM............................................................................................................ 18
3.1.4 POWER BLOCK DIAGRAM.................................................................................................................. 20
3.2 ATAB ASSY and OVERALL WIRING DIAGRAM...................................................................................... 22
3.3 TUJB(1/3) ASSY ...................................................................................................................................... 24
3.4 TUJB ASSY(2/3) ...................................................................................................................................... 26
3.5 TUJB ASSY(3/3) ...................................................................................................................................... 28
3.6 FRJB and DVJB ASSYS .......................................................................................................................... 29
3.7 MAIN ASSY(1/5) ...................................................................................................................................... 30
3.8 MAIN ASSY(2/5) ...................................................................................................................................... 32
3.9 MAIN ASSY(3/5) ...................................................................................................................................... 34
3.10 MAIN ASSY(4/5) .................................................................................................................................... 36
3.11 MAIN ASSY(5/5) .................................................................................................................................... 38
3.12 MHLP ASSY .......................................................................................................................................... 40
3.13 FLKY ASSY ........................................................................................................................................... 42
3.14 SCRB ASSY .......................................................................................................................................... 44
3.15 POWER SUPPLY UNIT.......................................................................................................................... 46
3.16 WAVE FORMS ....................................................................................................................................... 47
4. PCB CONNECTION DIAGRAM ..................................................................................................................... 50
4.1 ATAB ASSY.............................................................................................................................................. 50
4.2 TUMJ ASSY ............................................................................................................................................. 52
4.3 MAIN and MHLP ASYS ........................................................................................................................... 56
4.4 POWER SUPPLY UNIT............................................................................................................................ 60
4.5 FRJB and DVJB ASSYS .......................................................................................................................... 62
4.6 FLKY ASSY ............................................................................................................................................. 63
4.7 SCRB ASSY ............................................................................................................................................ 64
5. PCB PARTS LIST ........................................................................................................................................... 66
6. ADJUSTMENT ............................................................................................................................................... 71
6.1 TUJB ASSY ADJUSTMENT .................................................................................................................... 71
6.2 MAIN ASSY ADJUSTMENT .................................................................................................................... 72
7. GENERAL INFORMATION............................................................................................................................. 73
7.1 DIAGNOSIS ............................................................................................................................................. 73
7.1.1 CPRM ID NUMBER AND DATA SETTING............................................................................................ 73
7.1.2 SERVICE MODE................................................................................................................................... 75
7.1.3 DV DEBUG MODE................................................................................................................................ 83
7.1.4 ERROR RATE MEASUREMENT.......................................................................................................... 86
7.1.5 VIDEO ADJUSTMENT FOR SPECIFIC AREA..................................................................................... 88
7.1.6 SETUP SEQUENCE............................................................................................................................. 92
7.1.7 DISASSEMBLY ..................................................................................................................................... 93
7.2 IC ............................................................................................................................................................. 96
7.3 OUTLINE OF THE PRODUCT............................................................................................................... 127
7.4 DISC/CONTENT FORMAT .................................................................................................................... 130
7.5 CLEANING............................................................................................................................................. 132
8. PANEL FACILITIES ...................................................................................................................................... 133
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
5
5
6
7
8
5
6
7
8
C
D
F
A
B
E

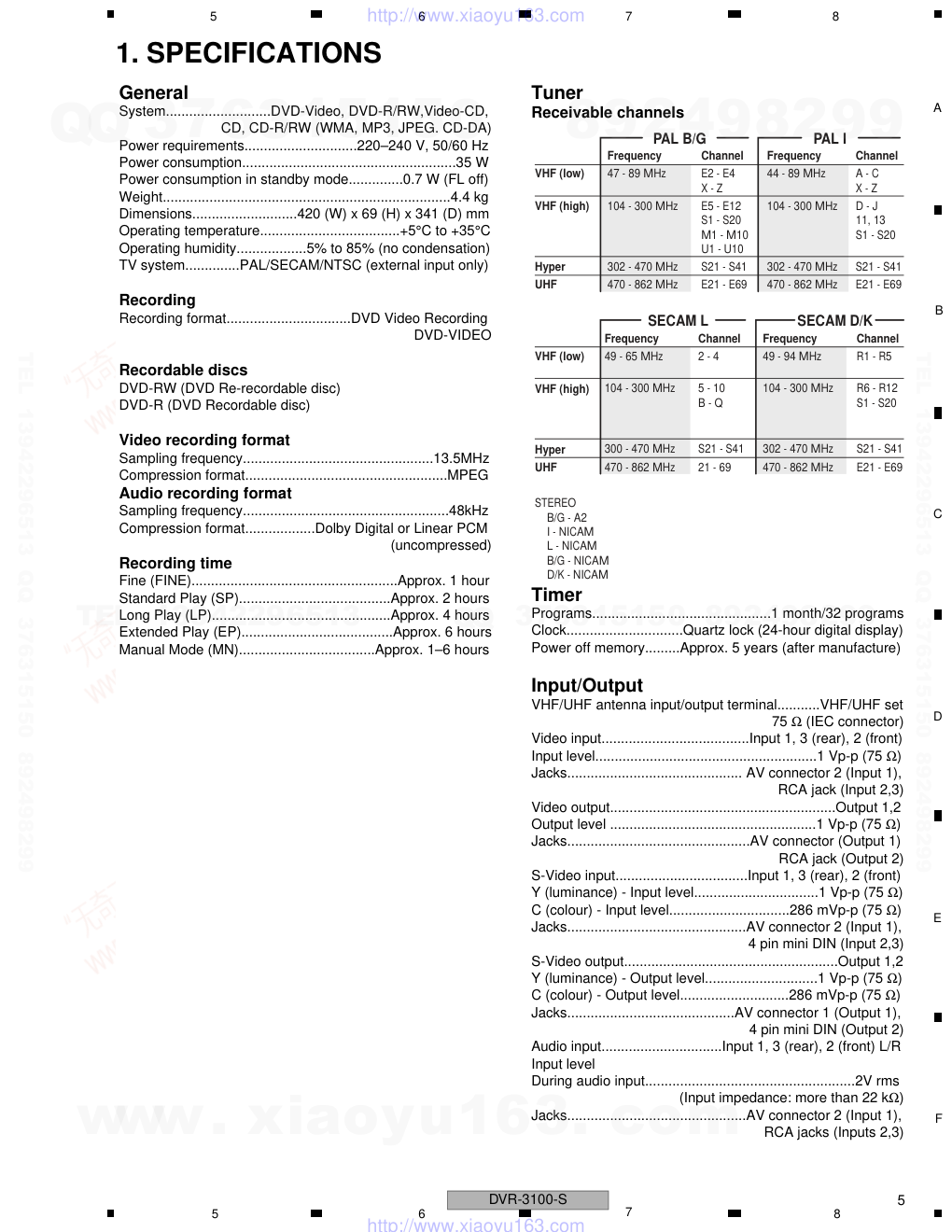

1. SPECIFICATIONS
VHF (low)
VHF (high)
Hyper
UHF
VHF (low)
VHF (high)
Hyper
UHF
STEREO
B/G - A2
I - NICAM
L - NICAM
B/G - NICAM
D/K - NICAM
Channel
E2 - E4
X - Z
E5 - E12
S1 - S20
M1 - M10
U1 - U10
S21 - S41
E21 - E69
Frequency
47 - 89 MHz
104 - 300 MHz
302 - 470 MHz
470 - 862 MHz
Channel
A - C
X - Z
D - J
11, 13
S1 - S20
S21 - S41
E21 - E69
Frequency
44 - 89 MHz
104 - 300 MHz
302 - 470 MHz
470 - 862 MHz
PAL B/G
PAL I
Channel
2 - 4
5 - 10
B - Q
S21 - S41
21 - 69
Frequency
49 - 65 MHz
104 - 300 MHz
300 - 470 MHz
470 - 862 MHz
Channel
R1 - R5
R6 - R12
S1 - S20
S21 - S41
E21 - E69
Frequency
49 - 94 MHz
104 - 300 MHz
302 - 470 MHz
470 - 862 MHz
SECAM L
SECAM D/K
General
System...........................DVD-Video, DVD-R/RW,Video-CD,
CD, CD-R/RW (WMA, MP3, JPEG. CD-DA)
Power requirements.............................220–240 V, 50/60 Hz
Power consumption.......................................................35 W
Power consumption in standby mode..............0.7 W (FL off)
Weight..........................................................................4.4 kg
Dimensions...........................420 (W) x 69 (H) x 341 (D) mm
Operating temperature....................................+5°C to +35°C
Operating humidity..................5% to 85% (no condensation)
TV system..............PAL/SECAM/NTSC (external input only)
Recording
Recording format................................DVD Video Recording
DVD-VIDEO
Recordable discs
DVD-RW (DVD Re-recordable disc)
DVD-R (DVD Recordable disc)
Video recording format
Sampling frequency.................................................13.5MHz
Compression format....................................................MPEG
Audio recording format
Sampling frequency.....................................................48kHz
Compression format..................Dolby Digital or Linear PCM
(uncompressed)
Recording time
Fine (FINE).....................................................Approx. 1 hour
Standard Play (SP).......................................Approx. 2 hours
Long Play (LP)..............................................Approx. 4 hours
Extended Play (EP).......................................Approx. 6 hours
Manual Mode (MN)...................................Approx. 1–6 hours
Tuner
Receivable channels
Timer
Programs..............................................1 month/32 programs
Clock..............................Quartz lock (24-hour digital display)
Power off memory.........Approx. 5 years (after manufacture)
Input/Output
VHF/UHF antenna input/output terminal...........VHF/UHF set
75 Ω (IEC connector)
Video input......................................Input 1, 3 (rear), 2 (front)
Input level.........................................................1 Vp-p (75 Ω)
Jacks............................................. AV connector 2 (Input 1),
RCA jack (Input 2,3)
Video output..........................................................Output 1,2
Output level .....................................................1 Vp-p (75 Ω)
Jacks...............................................AV connector (Output 1)
RCA jack (Output 2)
S-Video input..................................Input 1, 3 (rear), 2 (front)
Y (luminance) - Input level................................1 Vp-p (75 Ω)
C (colour) - Input level...............................286 mVp-p (75 Ω)
Jacks..............................................AV connector 2 (Input 1),
4 pin mini DIN (Input 2,3)
S-Video output.......................................................Output 1,2
Y (luminance) - Output level.............................1 Vp-p (75 Ω)
C (colour) - Output level............................286 mVp-p (75 Ω)
Jacks...........................................AV connector 1 (Output 1),
4 pin mini DIN (Output 2)
Audio input...............................Input 1, 3 (rear), 2 (front) L/R
Input level
During audio input......................................................2V rms
(Input impedance: more than 22 kΩ)
Jacks..............................................AV connector 2 (Input 1),
RCA jacks (Inputs 2,3)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
6
1
2
3
4
1
2
3
4
C
D
F
A
B
E
Accessories
• Remote control ×1
(VXX2884 : WYXU/WY types)
(VXX2883 : WVXU type)
• RF antenna cable(PAL) ×1
(VDE1075)
• Power cable ×1
(ADG1154 : WYXU/WY types)
• Audio / Video cable(1.5m) ×1
(red/white/yellow)
(VDE1077)
• Dry cell batteries ×2
(AA/R6P)
Audio output....................................................Output 1,2 L/R
During audio output.....................................................2V rms
(Output impedance: less than 1.5 kΩ)
Jacks............................................AV connector 1 (output 1),
RCA jacks (output 2)
Control input.............................................................Mini jack
DV input/output...............................................................4 pin
(i.LINK/IEEE 1394 standard)

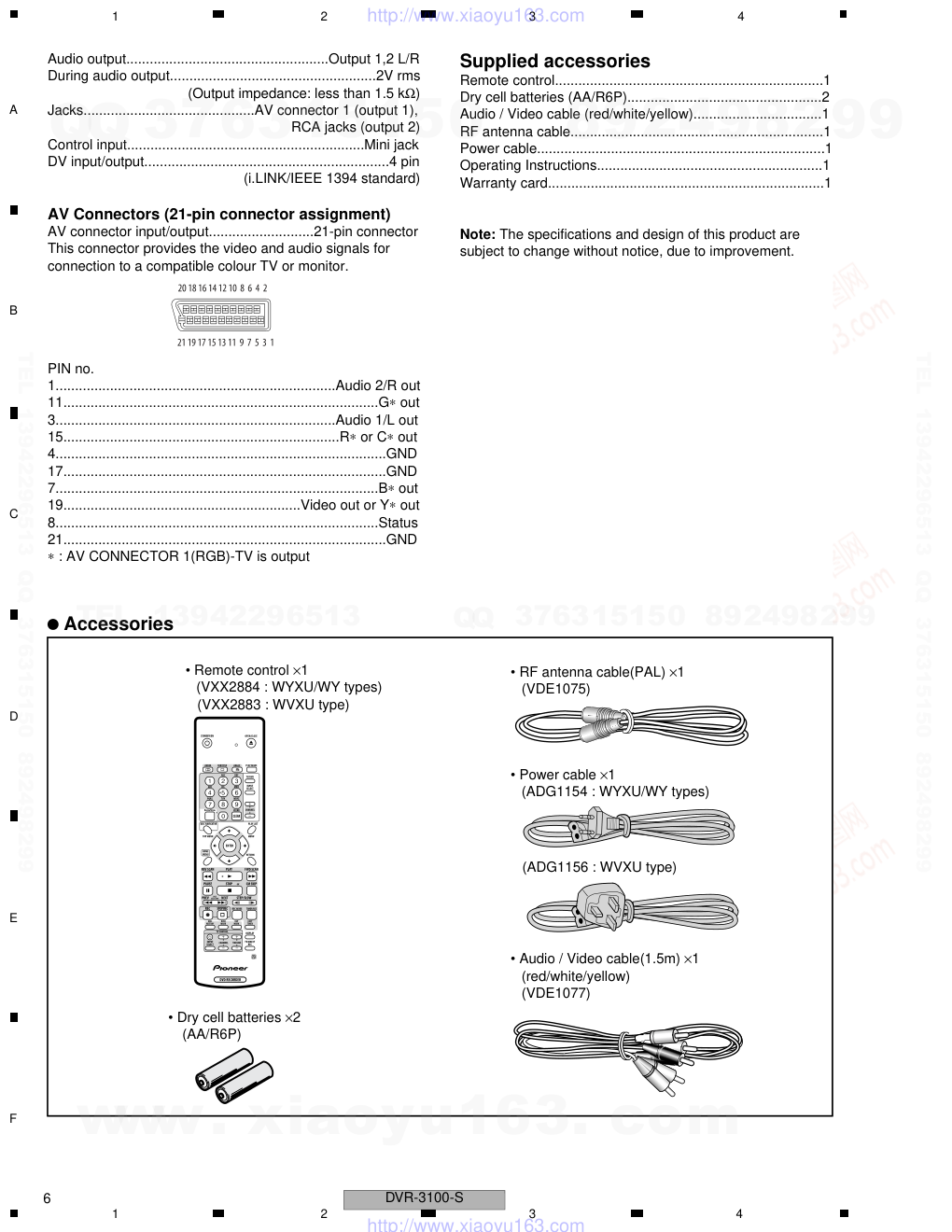

AV Connectors (21-pin connector assignment)
AV connector input/output...........................21-pin connector
This connector provides the video and audio signals for
connection to a compatible colour TV or monitor.
PIN no.
1........................................................................Audio 2/R out
11.................................................................................G∗ out
3........................................................................Audio 1/L out
15.......................................................................R∗ or C∗ out
4.....................................................................................GND
17...................................................................................GND
7...................................................................................B∗ out
19.............................................................Video out or Y∗ out
8...................................................................................Status
21...................................................................................GND
∗ : AV CONNECTOR 1(RGB)-TV is output
Supplied accessories
Remote control.....................................................................1
Dry cell batteries (AA/R6P)..................................................2
Audio / Video cable (red/white/yellow).................................1
RF antenna cable.................................................................1
Power cable..........................................................................1
Operating Instructions..........................................................1
Warranty card.......................................................................1
Note: The specifications and design of this product are
subject to change without notice, due to improvement.
(ADG1156 : WVXU type)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
7
5
6
7
8
5
6
7
8
C
D
F
A
B
E
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
8
1
2
3
4
1
2
3
4
C
D
F
A
B
E
2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to mark on product are used for disassembly.
For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
NOTES:
for WYXU/WY types
for WVXU type
20
18
16
19
5
4
17
17
15
14
7
15
15
15
15
10
15
15
9
12
6
2
13
8
11
3
1
1
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
9
5
6
7
8
5
6
7
8
C
D
F
A
B
E

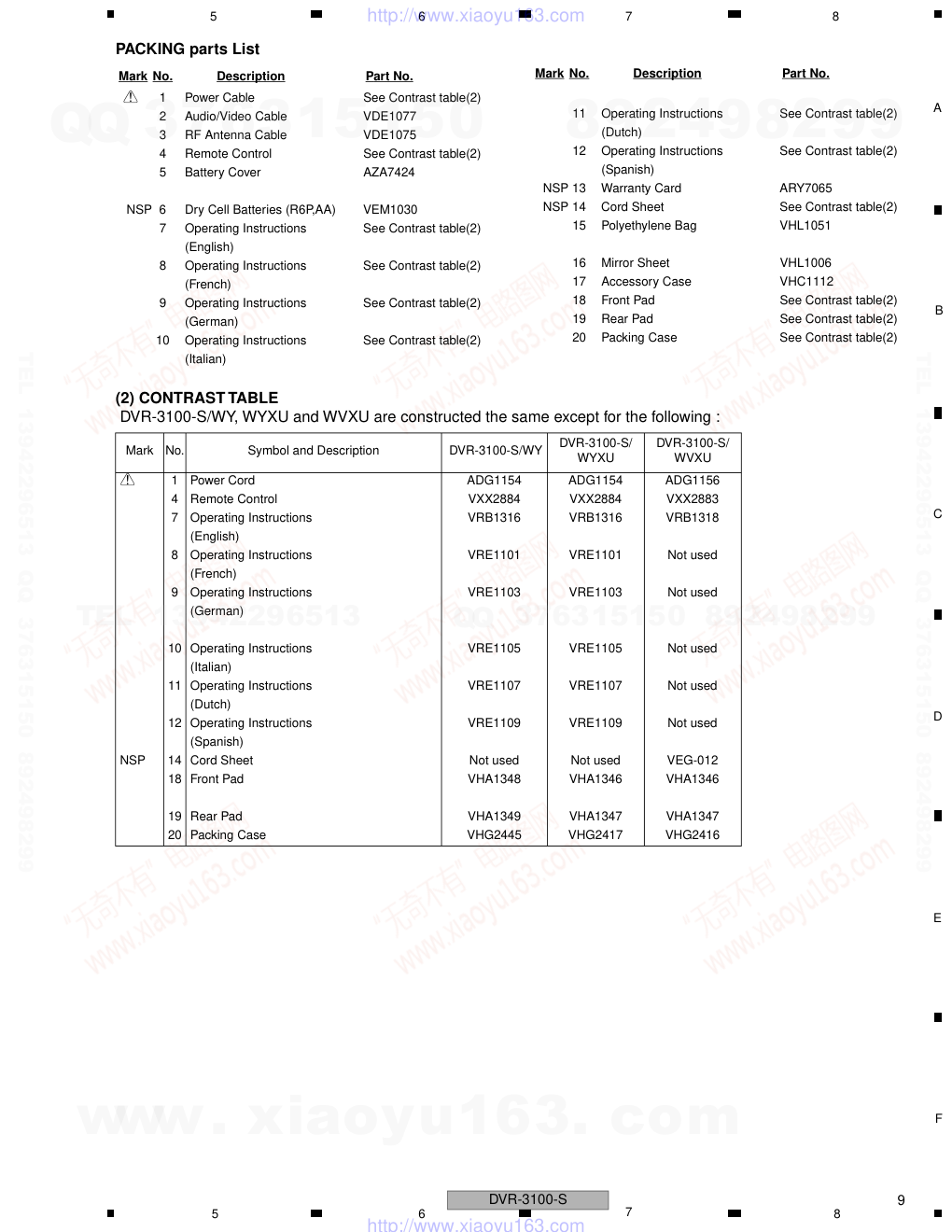

PACKING parts List
(2) CONTRAST TABLE
DVR-3100-S/WY, WYXU and WVXU are constructed the same except for the following :
Mark No.
Description
Part No.
>
1
Power Cable
See Contrast table(2)
2
Audio/Video Cable
VDE1077
3
RF Antenna Cable
VDE1075
4
Remote Control
See Contrast table(2)
5
Battery Cover
AZA7424
NSP 6
Dry Cell Batteries (R6P,AA)
VEM1030
7
Operating Instructions
See Contrast table(2)
(English)
8
Operating Instructions
See Contrast table(2)
(French)
9
Operating Instructions
See Contrast table(2)
(German)
10
Operating Instructions
See Contrast table(2)
(Italian)
11
Operating Instructions
See Contrast table(2)
(Dutch)
12
Operating Instructions
See Contrast table(2)
(Spanish)
NSP 13
Warranty Card
ARY7065
NSP 14
Cord Sheet
See Contrast table(2)
15
Polyethylene Bag
VHL1051
16
Mirror Sheet
VHL1006
17
Accessory Case
VHC1112
18
Front Pad
See Contrast table(2)
19
Rear Pad
See Contrast table(2)
20
Packing Case
See Contrast table(2)
Mark No.
Description
Part No.
Mark
No.
Symbol and Description
DVR-3100-S/WY
DVR-3100-S/
WYXU
DVR-3100-S/
WVXU
>
1
Power Cord
ADG1154
ADG1154
ADG1156
4
Remote Control
VXX2884
VXX2884
VXX2883
7
Operating Instructions
VRB1316
VRB1316
VRB1318
(English)
8
Operating Instructions
VRE1101
VRE1101
Not used
(French)
9
Operating Instructions
VRE1103
VRE1103
Not used
(German)
10 Operating Instructions
VRE1105
VRE1105
Not used
(Italian)
11 Operating Instructions
VRE1107
VRE1107
Not used
(Dutch)
12 Operating Instructions
VRE1109
VRE1109
Not used
(Spanish)
NSP
14 Cord Sheet
Not used
Not used
VEG-012
18 Front Pad
VHA1348
VHA1346
VHA1346
19 Rear Pad
VHA1349
VHA1347
VHA1347
20 Packing Case
VHG2445
VHG2417
VHG2416
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
10
1
2
3
4
1
2
3
4
C
D
F
A
B
E
2.2 EXTERIOR
K
C
N
M
G
A
F
N
E
F
G
C
H
A
H
I
J
J
I
K
M
B
B
E
E
H
D
B
I
G
A
C
52
1
16
49
49
36
49
49
49
38
49
49
18
31
31
48
48
22
22
15
11 10
8
6
37
52
33
49
55
49
7
31
31
49
41
49
49
49
61
62
59
60
61
58
49
49
13
12
49
4
49
49
49
49
49
49
49
49
42
44
43
57
45
43
49
3
49
35
49
49
9
49
53
54
56
23
26
21
27
28
29
39
20
25
30
40
5
19
17
14
34
24
49
49
49
51
50
50
50
32
2
49
50
25
21
47
46
46
CONTACT SIDE
NON-CONTACT
SIDE
Lithium
Battery
Acetate Tape
(Taping for No.14 FFC)
Refer to "2.3 FRONT PANEL".
31
Bond Lock process
(Use GYA1011 or GYL1005)
Paste the bond both to the aluminum
tape and the side chassis of the
DRIVE Assy.( part)
The paste point is only this aluminum tape.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
11
5
6
7
8
5
6
7
8
C
D
F
A
B
E
EXTERIOR parts List
(2) CONTRAST TABLE
DVR-3100-S/WY, WYXU and WVXU are constructed the same except for the following :
Mark No.
Description
Part No.
1
ATAB ASSY
VWV1968
2
TUJB ASSY
VWV1962
3
FRJB ASSY
VWV1965
4
MAIN ASSY
VWV1971
5
MHLP ASSY
VWV1991
>
6
POWER SUPPLY UNIT
VWR1374
7
DRIVE ASSY R6
VXX2898
8
DC FAN Motor
VXM1109
9
DVJB ASSY
VWV1967
10
Connector Assy
PF08EE-D25
11
Connector Assy
PF13PP-D25
12
Flexible Cable (32P)
VDA1975
13
Flexible Cable (21P)
VDA1976
14
Flexible Cable (40P)
VDA1977
15
Flexible Cable (15P)
VDA1980
16
Housing Assy (4P)
VKP2313
17
Housing Assy (8P)
VKP2314
18
Housing Assy (2P)
VKP2315
19
Leg Assy
AEC7113
NSP 20
PCB Holder
PNW1706
NSP 21
P. Plate Holder
PNY-405
22
Earth Plate
VBK1148
23
Radiation Sheet
VEB1360
24
Card Spacer
VEC1708
NSP 25
Clamp
VEC2362
26
Heatsink Cushion
VEC2363
27
Gasket A
VEC2382
28
Gasket B
VEC2393
29
Gasket Sheet
VEC2394
30
M Cushion A
VEC2398
31
Aluminum tape
VEF1056
32
Rear Panel
See Contrast table(2)
33
Bonnet Case
VXX2897
NSP 34
Base Chassis
See Contrast table(2)
35
PCB Base
VNE2278
NSP 36
Writer Stay R
VNE2318
NSP 37
Writer Stay L
VNE2319
NSP 38
HDD Stay
VNE2320
NSP 39
Bonnet Angle
VNE2321
NSP 40
Heatsink
VNH1070
41
Cable Holder
VNK5330
42
Pioneer Name Plate
VAM1136
43
Tray Sheet A
VEC2346
44
Tray Sheet B
VEC2358
45
Tray Sheet C
VEC2395
46
Tray Sheet D
VEC2396
47
Tray Panel Assy
VXA2602
48
Screw
AMZ30P060FMC
49
Screw
BBZ30P060FMC
50
Screw
BPZ30P080FZK
51
Screw
PPZ30P080FMC
52
Screw
BCZ40P060FN
53
Flexible Cable (7P)
VDA1979
NSP 54
DV Angle
VNE2322
55
Bonnet Label
See Contrast table(2)
56
Screw
VBA1088
NSP 57
Front Panel Assy
See Contrast table(2)
58
SCRB ASSY
VWV1958
59
Flexible Cable(35P)
VDA1982
60
Flexible Cable(15P)
VDA1983
NSP 61
Spacer 40
PNW2488
62
Earth Plate
VBK1149
Mark No.
Description
Part No.
Mark
No.
Symbol and Description
DVR-3100-S/WY
DVR-3100-S/
WYXU
DVR-3100-S/
WVXU
32 Rear Panel
VNA2674
VNA2610
VNA2610
NSP
34 Base Chassis
VNB1040
VNB1039
VNB1039
55 Bonnet Label
VRW1990
VRW1990
VRW1987
NSP
57 Front Panel Assy
VXA2634
Not used
Not used
(WYXU and WVXU types are individual parts.)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
12
1
2
3
4
1
2
3
4
C
D
F
A
B
E
2.3 FRONT PANEL
F
16
15
20
18
11
14
17
8
9
3 5
5
25
24
24
24
4
6
19
2
1
7
10
12
23
13
21
22
CONTACT SIDE
NON-CONTACT
SIDE
11
Daifree
GEM1036
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
13
5
6
7
8
5
6
7
8
C
D
F
A
B
E
FRONT PANEL parts List
(2) CONTRAST TABLE
DVR-3100-S/WY, WYXU and WVXU are constructed the same except for the following :
Mark No.
Description
Part No.
1
FLKY ASSY
VWG2443
2
Flexible Cable (19P)
VDA1974
3
Rubber Sheet
AEB7054
4
Door Spring
VBK1144
5
Rubber Foot
VEB1349
6
Drive Sheet
VEC2345
7
FL Lens
VEC2352
8
Door Lens
See Contrast table(2)
9
Jack Sheet
VEC2381
10
FL Filter
VEC2354
11
Jack Door
VNK5309
12
JOG Dial S
VNK5316
13
JOG Base
VNK5317
14
Hologram Label
VRW1962
15
Flont Panel Assy
VXA2616
NSP 16
Front Panel
VNK5361
17
Front Cover R
VNK5360
18
Front Cover L
VNK5358
19
Main Key S
VNK5312
20
Power Key S
VNK5313
21
Rec Key
VNK5314
22
Stop Key S
VNK5315
23
Function Cover
VNK5318
24
Screw
BPZ30P080FZK
25
DV Cover
VNK5355
Mark No.
Description
Part No.
Mark
No.
Symbol and Description
DVR-3100-S/WY
DVR-3100-S/
WYXU
DVR-3100-S/
WVXU
8
Door Lens
VEC2377
VEC2377
VEC2376
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
14
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM
3.1 BLOCK DIAGRAM
3.1.1 OVERALL BLOCK DIAGRAM
SPDL
MOTOR
LD
DRIVE
Pickup
LOADING
MOTOR
STEPPIONG
MOTOR
TV TUNER MODULE
U3001 VXF1023
ANT
INPUT3
VIDEO
Y/C
L
R
(15P)
CN1301
(15P)
(35P)
CN3002
CN210(1/2)
(35P)
CN203(1/2)
FRJB
ASSY
SCRB
ASSY(1/2)
TUJB ASSY(1/3)
TUJB ASSY
(2/3)
D
C
I 1/2
MAIN ASSY
DRIVE ASSY
M
14
2
4
6
6
12
10
IF
OUT
Y
L
R/C
L
L
C
V/Y
V/Y
V/Y
C
UVL
SIF
IN
L
OUT
LIN2
LIN1
LIN3
L
V/Y
C
RF IN
RF
OUT
V/Y
UVV
3V
3Y
1Y
2Y
3C
1C
2C
2V
C
Y/Comp
Selector
IC3301
LA73030
IC2801
LC75342M
IC4001 MSP3417G
IC3903 TDA9818TS
IC101(1/2)
LA73026AV
13
5
11
14
12
32
34
24
36
1
3
15
17
19
5
7
9
LPF
1 Chip
Sysytem Codec
Stereo
Decoder
VIF/SIF
IC
Audio Selector with Electirc ATT
2
27
16
12
JA1302
JA1301
VIN2
YIN2
CIN2
10
LIN2
INPUT3
PICKUP
ASSY
Y
C
JA2832
VIDEO
Y/C
L
R
LIN3
VIN3
YIN3
M
(40P)
[ATAPI]
DVD-VR
DVD-Video
DVD-VR
DVD-Video
CD Digital
CD Digital
CN4401
1
CN201
(2P)
CN2009 (2P)
CN101
(45P)
8
CIN3
CN501
CN502
(12P)
33
39
A
B
C
D
S4
S3
S2
S1
5
4
3
2
1/3
B
2/3
B
PB DVD/CD
IC1001
M65672WG
IC201
UPD63620
IC501
M63028FP
IC101
UPC3320GC
RF IC
IC301
M30700FJLGP
IC202
SDRAM
16Mbit
7-10
13-16
(40P)
CN401
(21P)
(21P)
CN2008
(1/2)
DSP
48
37
40
36
38
34
35
LPF
IC1401
IC1421
ATA SDRAM
256Mbit×2
CPU SDRAM
128Mbit
IC1102
IC1101
Flash
64Mbit
IC1103
SRAM
4Mbit
2
8
8
Writer
CPU
26
6CH
Driver
2
IC203
DS90LV027ATM
LVDS
Driver
26
28
LPF
201
76
CN3001
(1/2)
1,2
23,24
PIF
SAW
Trap
SIF
SAW
11
AV1(TV) AV2(STB)
31
15
9
5
5
39
21
27
23
28
33
36
JA101
JA102
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
15
5
6
7
8
5
6
7
8
C
D
F
A
B
E
F FLKY
ASSY
SCRB
ASSY
(2/2)
I 2/2
H
E
MHLP ASSY
L
Control
Data
IC1301
IC3201
PCM1742KE
IC1001 PT6315
V1001
IC3101
AK5381VT
IC3301
AD1895AYRS
IC5101
UPD72852AGB-8EU
IEEE1394
Physical IC
IC5202
UPD72893AGD-LML
IEEE1394
Link IC
Audio
A/D
2
SEL.L
VOUT
L
L
V/Y
V/Y
V/Y
V/Y
L
L
R/C
R/C
G
G
B
B
IC4001 Pin27
IC3903 Pin16
(19P)
CN2005
(19P)
CN1001
DVJB ASSY
YOUT
COUT
LOUT
(32P)
CN3001(1/2)
24
SEL.V/Y
26
SEL.C
C IN
V/Y IN
CN1302
(7P)
CN5102
(7P)
JA1303
(32P)
(30P)
(30P)
(21P) (21P)
CN2001
(2/2)
(32P)
CN3001
(2/2)
CN2008(2/2)
38 39 37 36
1,3
2
6
7
XTPA
TPA
TPB
XTPB
XTPB
TPB
XTPA
TPA
1,3
2
6
7
1
2
3
4
Audio
D/A Conv.
PLD
ALTERA
SCART Interface
MIX
FL Driver
FL
Key
SW
IC3501
LA73054
Sampling Rate
Converter
7
C
Y
G
R
B
C OUT
Y OUT
G OUT
B OUT
C
Y
G
B
R
L
TU_V
TU_L
R OUT
6
4
8
10
12
CN3001(2/2)
CN2
CN4702
6
4
8
10
12
29 27 25 19 17 13
5
3
L OUT
16
16
SPDIF
20
20
3
2
1
IC3251-1/2
UPC4570G2
Y
C
V
Tuner U-com
JA3081
OPTICAL
AC-3/PCM
DIGITAL
AUDIO
OUT
LINE
OUT 2
VIDEO
JA3551
JA101
JA102
Y
C
L
R
: Recording system signal route
• R ch is same as L ch.
: Playback system signal route
DV TERMINAL
(32P)
CN2001
(1/2)
24
28
26
48KHz 20Bit
TUJB ASSY(3/3)
3/3
B
ENC
SDRAM
128Mbit
IC1201
IC1
PDY081A
DEC
SDRAM
64Mbit
IC5204
DV SDRAM
16Mbit
8
6
28
31
33
IC2001
PD5947A8
Tuner
U-com
IC2251
BR24L32F-W
EEPROM
IC2271
RS5C372A
Real
Time
Clock
28
9
10
12
1-3
F5
D2
AE24
AG25
AD21
AF23
AG24
T26
V27
• MPEG2 PS Encode
• AC-3/Linear PCM
Audio Encode
• 2ch ATA/ATAPI Interface
• MPEG2 PS Decode
• AC-3/MPEG1/Linear
PCM Audio Decode
AV1(TV)
AV2(STB)
IC101(2/2)
LA73026AV
25
26
30
42
7
18
23
28
2
16
33
36
IC103
4
2
6
IC114
4
2
6
IC102
1
12
15
14
13
2
IC106
4
2
6
IC107
4
2
6
IC113
12
13
14
IC105
4
2
6
7
9
11 17 19 23 31 33
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
16
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.1.2 TUJB ASSY BLOCK DIAGRAM
U3001
V/U Tuner Module
VXF 1023-
SCL
SDA
SCL
SDA
AFT
AGC
TUON
+32V
Reg.
+6V
SW.
+5V
Ripple Filter
IC3301
LA73030
Video
Selector
IC3903
TDA9818TS
VIF/SIF
IC
EVOLCLK
EVOLDATA
EVOLCE
LC75342M
IC2801
Audio Selector
with
Electric A.T.T
Audio Input Circuit
Output Circuit
Video Input Circuit
SDET2
IC3903 Pin16
SDET3
LAMUTE
RAMUTE
(Discrete)
R
L
Comp
C
Y
V
C
Y
C
Y
G
B
R
L
R
TU_L
TU_CVBS
TU_R
Muting
OUT2
JA1301
JA1302
IN3
(Rear)
IN2
(Front)
JA2832
V
Y
Y
IF
AGC
AGC
C
C
V
Y
C
S
S
L
R
L
R
L
R
JA3551
IC3501
LA73054
Video Driver
with LPF
SELV1
SELV2
SELV3
YVSEL
SWSTBY
R
L
V/Y
C
SYNC
LPF
Trap
PIF
SAW
SIF
SAW
LPF
Sync-Sepa
13.5MHz
LPF
13.5MHz
LPF
C
V/Y
24
16
12
11
1,2
23,24
26
28
2
5
28
31
33
6
8
26
TUJB ASSY (VWV1962)
B
FRJB ASSY (VWV1965)
SCRB ASSY
(2/2)
(VWV1958)
C
I 2/2
CN1301
CN3002
CN210(2/2)
CN203(2/2)
8
8
6
10
6
10
2
14
12
4
JA3081
Optical
OUT
12
4
13
11
3
1
17
19
27
29
25
23
25
33
5
31
35
19
17
9
7
11
SCRB ASSY
(1/2)
(VWV1958)
I 1/2 CN203
(1/2)
CN210(1/2)
29
21
5
27
7
15
31
9
Stereo
Decoder
MSP3417G
IC4001
SYNCAFT
SYNCMAIN
SYNC
SIF
SIF
Q3344
Q3342
Q3362
Comparator
Q3371
Q4001-Q4004
AFC
AGC
15kHz LPF
6.5MHz
LPF
13.5MHz
Trap
6.5MHz
LPF
13.5MHz
LPF
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
17
5
6
7
8
5
6
7
8
C
D
F
A
B
E
+6V
SW
FL Driver
PT6315
Front Keys
IR Detector
FAN
Driver
FAN
EEPROM
Battery
Ceramic
Resonator
EVOLCLK
EVOLDATA
EVOLCE
SPDIF
PCMOUT
PCMOUT
LAMUTE
RAMUTE
FLKY
ASSY
(VWG2443)
FLPON
SELIR
BUP
BUP
JOGA, JOGB
KEY1, KEY2
KEY1_2
FLCLK, FLDATA, FLSTB
IC2001
CN1001
CN2005
Tuner/FL
Control U-com
PD5947A8
XINTRA
SCL
XIN, XOUT
XRESETIN
SDA
Other Devices
SCLEEP
SDAEEP
BR24L32F-W
IC2271
Real-Time
Clock
RS5C372A
U-com I/F
Y
24
23
22
21
20
19
18
30
29
28
27
26
25
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
C
Y/G
Cb/B
Cr/R
R
L
SYNCMAIN
SELC
CN2008
< from/to MAIN >
CN2009
< from DRIVE >
SELV/Y
SELR
SELL
20
21
3
5
8
2
F
SYNCAFT
PSAVEBS
IC1001
Q1001
Q2640
IC2251
BT2271
X2001
Reset IC
PST3245
IC2521
IC1002
S1001-S1008
S1003
SR In
JOG
JA2201
FL Display
V1001
SYNC
LM/LDASH
TUON
FUNC
AVLO
ASCK
SST to M
SSM to T
HST to M
HSM to TSYS
XRESET
AVLIN
BLANK
XP_SAVE
AGC
DCTR1
STBYQ
SELV1
SELV2
SELV3
SWSTBY
SDET1
SDET2
SDET3
< to/from MAIN >
CN3001
SCART
Control
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
18
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.1.3 MAIN ASSY BLOCK DIAGRAM
To Writer
IC1401
ATA SDRAM
CN4401
ATA BUS
IC1102
FLASH
IC1103
IC1301
ENC
SDRAM
MT48LC4M32B2TG-6
K4S561632D-TC75
IC1201
DEC
SDRAM
W986416DH-6
VYW2116
CY62148VLL-70ZI
ARCLK0
DCLK0
ECLK0
IC3201
PCM1742KE
DAC
IC3101
A/D
AK5381VT
ADCCLKO
IC3403
AUDIO LR OUT
AUDIO LR IN
IC3251
CN2001
CN3001
CN1901
SERIAL
MAIN ASSY
(VWV1971)
D
IC1001
M65672WG
1 Chip System Codec
• MPEG2 PS Encode
• AC-3/Linear PCM Audio Encode
• 2ch ATA/ATAPI Interface
• MPEG2 PS Decode
• AC-3/MPEG1/Linear PCM Audio Decode
Backup
SRAM
IC3001
Q2402,Q2403
Q2101-Q2105
IC2301,IC2331,Q2203
Q2222
VIDEO Y,C,Yp,Cb,Cr OUT
VIDEO Y,C IN
TO TUNER u-COM
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
19
5
6
7
8
5
6
7
8
C
D
F
A
B
E
HOST BUS
DV
IC1101
CPU SDRAM
IC5202
UPD72893AGD-LML
UPD72852AGB-8EU
LINK/DV CODEC
IC5101
Phy
CN5102
CN2
CN4702
IC5204
DV SDRAM
K4S281632E-TC75
K4S161622D
MCLK
VCLKI
SCLK
HCLK0
IC3301
SRC
SRC**O
SRC**I
IC4205
TC7WHU04FU
AD1895AYRS
Play Mster clock
IC4206
AMCLK2
IC3402
PLL IC
27M
24
VMCLKI
AMCLK1
33M
36M
33/36M
X4102
VSS1195
VCXO
Input Mster
clock
ADMCLKI
27M
IC4101
DVPLLCK(ADMCLKI)
DVVPWM
IC4009
DVVCLKO
SM8707KV
IC1
PDY081A
ALTERA
MHLP ASSY
(VWV1991)
E
Master Clock
Free Run
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
20
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.1.4 POWER BLOCK DIAGRAM
LIVE
FLDC (–)
AC IN
F1
T4A/250V
NEUTRAL
1
2
3
5
4
7
9
11
13
3
5
4
7
9
11
13
FLDC (+)
FL–28V
EV+37V
V+37E
EV+15V
EV+6V
SW+13
SW+12V
1
4
1
SW+5V
SW+12V
1
4
SW+5V
DRIVE ASSY
R6
DC FAN
MOTOR
CN1
CN204
(4P)
CN203
(4P)
CN201
(13P)
SW+4V
V+13FAN
V+4SW
V+4SW
V+2_4SW
V+2_4SW
CN2001
(8P)
CN2006
(2P)
CN2003
(8P)
CN4001
(8P)
2
3
5
7
2
4
6
8
2
4
6
8
2
3
5
7
V+6SW
V+6SW
V+13SW
V+13SW
Q2640
Q2532
Q2531
Q2621
SW+4V
SW+2.4V
SW+6V
CN202
(8P)
CN2
(30P)
16
17
18
19
16
17
18
19
CN4702
(30P)
POWER SUPPLY UNIT
G
FLKY ASSY
F
TUJB ASSY
B
MAIN ASSY
D
MHLP ASSY
E
CN2004
(13P)
V–28V
V+13SW
V+6SW
V+2_4SW
V+4SW
VEE
1
2
3
14
18
19
18
17
6
2
V+5VO
V+5VI
CN3001
(32P)
CN2001
(32P)
1
1
V+5VO
CN2008
(21P)
CN3001
(21P)
1
1
V+5VI
FLDC –
FLDC +
V+13SW (NC)
V+5E
V+5E
CN1001
(19P)
CN2005
(19P)
V+15E
V+6E V+13SW
IC2551
5V REG.
V+6E
V+5M
V+5E
IC2541
3.3V REG.
V1001
FL TUBE
IC1001
FL Driver
V+6E
V+6SW
V+6E
V+3_3E
V+5VO
V+13V
V+4V
V+4V
V+6V
V+1R2V
V+5VO
V+12A
V+5VI
V+5RP
IC2581
9V REG.
V+13SW
V+9
1
1
6
3
1
3
30
IC4001
12V REG.
5
8
V+5A
IC4004
5V REG.
5
1
V+6V
V+5D
IC4006
5V REG.
5
1
V+3D
IC4002
3.3V REG.
1
3
V+3D
V+2R5
IC5002
2.5V REG.
7
1
V+1R2V
V+PRA
V+3D
V+3D
IC4008
1.2V REG.
1
3
V+4V
V+3V
IC4007
3.3V REG.
5
4
V+3D
V+3D
V+3D
V+3D
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
21
5
6
7
8
5
6
7
8
C
D
F
A
B
E
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
22
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.2 ATAB ASSY and OVERALL WIRING DIAGRAM
MAIN ASSY
(VWV1971)
D 1/5 - D 5/5
D
MHLP ASSY
(VWV1991)
E
POWER SUPPLY
UNIT
(VWR1374)
G
TUJB ASSY (VWV1962)
B 1/3 - B 3/3
B
WHT
YEL
POWER CORD
: ADG1154 for WYXU and WY types
ADG1156 for WVXU type
DVJB ASSY
(VWV1967)
H
SCRB ASSY
(VWV1958)
I
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
23
5
6
7
8
5
6
7
8
C
D
F
A
B
E
A
FRJB ASSY
(VWV1965)
C
FLKY ASSY
(VWG2443)
F
ATAB ASSY
(VWV1968)
A
DRIVE ASSY R6
(VXX2898)
DISC NAVI
POWER
CKS4052
VKN1805
JA3551
JA2832
JA3081
U3001
DC FAN MOTOR
: VXM1109
Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST".
OUTPUT X1
VKB1184-
INPUT X1
VKB1192-
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
24
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.3 TUJB(1/3) ASSY
CN2001
CN2004
JA2832
CN2006
CN2003
B 1/3
CN202
G
CN201
G
DC FAN
MOTOR
: S VIDEO SIGNAL ROUTE (Y)
(Y)
(Y)
(Y)
: S VIDEO SIGNAL ROUTE (C)
(C)
(C)
(C)
: VIDEO SIGNAL ROUTE
: AUDIO SIGNAL ROUTE (L ch)
CN4001
D 4/5
B 3/3
B 2/3
B 2/3
B 2/3
B 2/3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
25
5
6
7
8
5
6
7
8
C
D
F
A
B
E
CN2005
JA2201
CN2007
CN211
Lithium Battery
EEPROM
RTC
TUFL U-com
B 1/3
B 1/3 TUJB ASSY (VWV1962)
: The power supply is shown with the marked box.
CN1001
F
CN204
I
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
26
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.4 TUJB ASSY(2/3)
LOGIC
LOGIC
R3913 is mounted on C3913.
CN3002
CN1301
C
(Y)
(Y)
(C)
(Y)
(V)/(Y)
(C)
(AFT)
(AFT)
(SIF)
(SIF)
B 3/3
B 1/3
B 1/3
B 1/3
B 2/3
1
3
4
470
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
27
5
6
7
8
5
6
7
8
C
D
F
A
B
E
CN3001
CN2008
CN2009
JA3081
JA3551
CN210
CN203
I
B 2/3
TUJB ASSY (VWV1962)
to DRIVE ASSY R6 CN9021
CN2001
D 2/5
CN3001
D 3/5
: S VIDEO SIGNAL ROUTE
(Y)/(C)
(C)
(Y)
(G)
(G)
(Y)
(C)
(B)
(B)
(B)
(R)
(R)
(R)
(Y)
(Y)
(C)
(C)
(D)
(G)
(Y)
(C)
(C)
(G)
(V)/(Y)
(D)
(C)
(B)
(R)
(V)/(Y)
(C)
: COMPONENT VIDEO SIGNAL
ROUTE
(G)/(B)/(R)
: VIDEO SIGNAL ROUTE
(D)
: AUDIO SIGNAL ROUTE (L ch)
B 1/3
B 1/3
B 3/3
B 1/3
B 1/3
B 2/3
7 9
5
6
8
10
11
19
16
17
20
12
18
15
14
13
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
28
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.5 TUJB ASSY(3/3)
Stereo Decoder IC
B 3/3
B 3/3
B 3/3 TUJB ASSY (VWV1962)
B 2/3
B 1/3
B 1/3,2/3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
29
5
6
7
8
5
6
7
8
C
D
F
A
B
E
3.6 FRJB and DVJB ASSYS
DV Terminal
CN1301
JA1301
JA1302
FRJB ASSY (VWV1965)
C
CN3002
B 2/3
Switches
S1201 : Standby On
S1202 : Disc Navigator
C H
H
C
: S VIDEO SIGNAL ROUTE (Y)
(Y)
(Y)
(Y)
: S VIDEO SIGNAL ROUTE (C)
(C)
(C)
(C)
: VIDEO SIGNAL ROUTE
: AUDIO SIGNAL ROUTE (L ch)
CN5102
D 5/5
DVJB ASSY
(VWV1967)
H
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
30
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.7 MAIN ASSY(1/5)
D 1/5
3/5
D
4/5
D
4/5
D
5/5
D
5/5
D
2/5
D
2/5
D
2/5
D
3/5
D
3/5
D
4/5
D
5/5
D
(D)
(D)
(AT)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
31
5
6
7
8
5
6
7
8
C
D
F
A
B
E
D 1/5
D 1/5 MAIN ASSY
(VWV1971)
2/5-5/5
D
4/5
D
4/5
D
3/5
D
5/5
D
3/5
D
4/5, 5/5
D
3/5, 4/5
D
2/5
D
: ATA DATA SIGNAL ROUTE
(AT)
(D)
: AUDIO SIGNAL ROUTE (DIGITAL)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
32
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.8 MAIN ASSY(2/5)
D 2/5
D 2/5 MAIN ASSY (VWV1971)
D 1/5
D 1/5
D 1/5
D 1/5
D 1/5
D 1/5
D 1/5
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
33
5
6
7
8
5
6
7
8
C
D
F
A
B
E
D 2/5
CN3001
B 2/2
D 1/5
D 3/5
D 3/5
D 3/5
D 1/5
D 1/5
D 1/5
17
15
10
13
12
11
16
9
8
: AUDIO SIGNAL ROUTE (L ch)
3
5
6
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
34
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.9 MAIN ASSY(3/5)
D 3/5
D 3/5 MAIN ASSY (VWV1971)
CN2008
B 2/2
D 1/5
D 2/5
D 2/5
D 3/5
D 4/5
D 1/5
D 1/5
D 4/5
D 1/5
14
18
(D)
(D)
(D)
(D)
(D)
(D)
(D)
(D)
(D)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
35
5
6
7
8
5
6
7
8
C
D
F
A
B
E
D 3/5
D 1/5
D 2/5
D 1/5
: AUDIO SIGNAL ROUTE (L ch)
(D)
: AUDIO SIGNAL ROUTE (DIGITAL)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
36
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.10 MAIN ASSY(4/5)
D 4/5
CN2003
B 1/2
D 3/5
D 5/5
D 1/5
D 1/5
D 5/5
D 1/5
D 3/5
D 3/5
1
2
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
37
5
6
7
8
5
6
7
8
C
D
F
A
B
E
D 4/5
D 4/5 MAIN ASSY (VWV1971)
CN12
A
CN2
E
CN2
E
D 1/5
D 1/5
D 1/5
D 1/5
D 1/5
D 1/5
D 1/5
D 3/5
: ATA DATA SIGNAL ROUTE
(AT)
(AT)
(AT)
: The power supply is shown with the marked box.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
38
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.11 MAIN ASSY(5/5)
D 5/5
D 5/5 MAIN ASSY (VWV1971)
D 1/5
D 1/5
CN1302
H
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
39
5
6
7
8
5
6
7
8
C
D
F
A
B
E
D 5/5
D 1/5
D 4/5
D 1/5
D 4/5
D 1/5
D 1/5
: The power supply is shown with the marked box.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
40
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.12 MHLP ASSY
E
MHLP ASSY (VWV1991)
E
CN4702
D 4/5
CN4702
D 4/5
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
41
5
6
7
8
5
6
7
8
C
D
F
A
B
E
E
: The power supply is shown with the marked box.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
42
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.13 FLKY ASSY
F
CN2005
B 1/2
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
43
5
6
7
8
5
6
7
8
C
D
F
A
B
E
F
FLKY ASSY (VWG2443)
F
Switches
S1001 : REC
S1002 : PLAY
S1003 : SMART JOG
S1004 : OPEN/CLOSE
S1005 : FUNCTION
S1006 : STOP
S1007 : PAUSE
S1008 : REC STOP
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
44
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.14 SCRB ASSY
I
CN203
CN204
B 2/3
CN210
B 1/3 CN211
(C)
(C)
(C)
(Y)
(Y)
(G)
(G)
(G)
(Y)
(B)
(B)
(B)
(R)
(C)/(R)
(R)
(R)
(R)
1
8
9
3
13
2
11
12
10
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
45
5
6
7
8
5
6
7
8
C
D
F
A
B
E
SCART Connector
SCART Connector
SCRB ASSY (VWV1958)
I
I
JA101
JA102
: S VIDEO SIGNAL ROUTE
(Y)/(C)
: COMPONENT VIDEO SIGNAL
ROUTE
(G)/(B)/(R)
: VIDEO SIGNAL ROUTE
: AUDIO SIGNAL ROUTE (L ch)
SCART Interface IC
(G)
(G)
(B)
(B)
(R)
(R)
(B)
(G)
(R)
17
18
16
15
14
19
5
6
4
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
46
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.15 POWER SUPPLY UNIT
G
G
CN1
CN201
CN203
CN202
CN204
LIVE
NEUTRAL
7
9
1
2
8
6
4
5
3
1
2
2
3
3
4
11
12
10
13
EV+37V
EV+18V
PO. ON
EV+6V
FL. ON
GND
GND
GND
GND
FL–28V
FLDC (+)
SW+13
SW+12V
GND
GND
GND
GND
GND
GND
GND
GND
SW+5V
SW+5V
SW+6V
SW+4V
SW+4V
SW+2.4V
SW+12V
FLDC (–)
4
1
3
2
5
1
4
6
8
7
POWER SUPPLY UNIT (VWR1374)
G
AC IN
F1
(T4AH 250V)
C1
Z1
R1
L1
L2
D12
D14
D13
D11
C51
Q71
R71
R70
R75
R73
R77
R72
R76
R74
T1
D71
C7
CN901
C6
Q1 R19
R5
D7
D6
D17
Q22
Q23
Q2
Q21
R7
R6
R2
R30
R16
C10
D4
C73 C72
PC1
C15
R33
C9
R8
R31
R12
D5
R11
R13
D9
R17
D8
R10
C11
C52
BEA51
BEA1
Q51
R59
R55
Q91
R85
R24
PC3
R79
D73
R78
Q72
R81
C60
D57
D54
R57
R55
R56
R62
D55
Q52
C59
R58
R61
R63
R59
PC51
D50
R50
C51
R67
D56
D501
D504
D401
R504
C501 R501
C601 R601
L501
C602 C502
NTC1
D72
R9
D30
R90
C90
C91
D101
D470
D301
C102
C471
C302
T51
C353
D351
C470
C101
R101
IC101
PC51
R105 C110
VR101
R102
R103
L101
P101
P201
D201
R106
C351
D302
C301
L470
L351
D801
D701
C801
C701
Q801
D802
D811
Q701
R801
C702
Q703
R704 R703
D703
D704
R404
R705
D707
D706
D708
Q402
R408
R407
IC403
C409
R413
C410
PC1
VR401
D402
C401
R402
R401
R403
L401
P401
R557
PC3
R412
C411
R457
C403
Q451
R560
Q403
R411
R551
R552
R555
R556
R553
R554
C404
Q404
Q401
R434
R451
R452
R453
R454
R455
R456
R433
R432
R810
R811
C703
R710
C802
R435
R437
R436
C352
P403
P404
D202
C103
C406
C405
C201
P101 : AEK7050 (3A)
P201, P401, P403, P404 : AEK7067 (2A)
CN2004
To
DRIVE ASSY
R6 CN9022
B 1/2
CN2001
B 1/2
• NOTE FOR FUSE REPLACEMENT
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE WITH SAME TYPE AND RATINGS ONLY.
CAUTION -
CAUTION : FOR CONTINUED PROTECTION
AGAINST RISK OF FIRE.
REPLACE ONLY WITH SAME TYPE
NO. 491003 FOR P101 MFD, BY
LITTELFUSE INC.
CAUTION : FOR CONTINUED PROTECTION
AGAINST RISK OF FIRE.
REPLACE ONLY WITH SAME TYPE
NO. 491002 FOR P201, P401, P403
and P404 MFD, BY LITTELFUSE INC.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
47
5
6
7
8
5
6
7
8
C
D
F
A
B
E
3.16 WAVE FORMS
Measurement condition ;
No.1 to No.6
: 75% Color-bar
No.7 to No.17 : 75% Color-bar, AXP disc 1-24
No.18
: 1kHz, 2Vrms
No.19, No.20 : 1kHz, 2Vrms, AXP disc 1-1
TUJB ASSY
B
1
UVIN jumper as same as C3306
(UVIN) (Function : 1 ch)
V: 500mV/div. H: 10µsec/div.
2
BSIN jumper as same as C3309
(BSIN) (Function : BS9 ch)
V: 500mV/div. H: 10µsec/div.
3
IC3301-pin 24 (Y) (Function : L1)
V: 500mV/div. H: 10µsec/div.
4
IC3301-pin 26 (C) (Function : L1)
V: 500mV/div. H: 10µsec/div.
5
CN3001-pin 24 (Y) (Function : L1)
V: 500mV/div. H: 10µsec/div.
6
CN3001-pin 26 (C) (Function : L1)
V: 500mV/div. H: 10µsec/div.
7
CN3001-pin 4 (Y) (Function : PLAY)
V: 500mV/div. H: 10µsec/div.
8
CN3001-pin 6 (C) (Function : PLAY)
V: 500mV/div. H: 10µsec/div.
9
CN3001-pin 8 (G)
(Function : PLAY)
V: 500mV/div. H: 10µsec/div.
10 CN3001-pin 10 (B)
(Function : PLAY)
V: 500mV/div. H: 10µsec/div.
12 Foot of C3511 + side (Y)
(Function : PLAY)
V: 500mV/div. H: 10µsec/div.
13 CN210-pin25 (G)
(Function : PLAY)
V: 500mV/div. H: 10µsec/div.
14 CN210-pin19 (B)
(Function : PLAY)
V: 500mV/div. H: 10µsec/div.
15 CN210-pin17 (R)
(Function : PLAY)
V: 500mV/div. H: 10µsec/div.
16 Foot of C3507 + side (CVBS)
(Function : PLAY)
V: 500mV/div. H: 10µsec/div.
11 CN3001-pin 12 (R)
(Function : PLAY)
V: 500mV/div. H: 10µsec/div.
17 Rear Jack Cout (C)
(Function : PLAY)
V: 500mV/div. H: 10µsec/div.
18 CN3001-pin 28 (Audio Lch)
(Function : L1)
V: 500mV/div. H: 200µsec/div.
19 CN3001-pin 16 (Audio Lch)
(Function : PLAY)
V: 2V/div. H: 200µsec/div.
20 Foot of C3552 + side (Audio Lch)
(Function : PLAY)
V: 2V/div. H: 200µsec/div.
21 L4 line (Audio Lch)
(Function : 1ch)
V: 1V/div. H: 200µsec/div.
GND
(Not terminated)
(75Ω termi-
nated)
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Note : The encircled numbers denote measuring point in the schematic diagram.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
48
1
2
3
4
1
2
3
4
C
D
F
A
B
E
MAIN ASSY
D
1
X4102 - pin 4 (ADMCLKI)
V: 1V/div. H: 20nsec/div.
(Function : P.ON)
2
R4205 (VMCLK)
V: 1V/div. H: 20nsec/div.
(Function : P. ON)
3
Q2103 - B (G)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
5
Q2104 - B (B)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
6
Q2105 - B (R)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
8
CN2001-pin 10 (B Out)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
9
CN2001-pin 16 (Lch Out)
V: 2V/div. H: 200µsec/div.
(Function : PLAY)
10
CN2001-pin 12 (R Out)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
11 CN2001-pin 4 (Y Out)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
12 CN2001-pin 6 (C Out)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
13 CN2001-pin 8 (G Out)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
14
CN3001-pin 8 (PCMAIN)
V: 1V/div. H: 400nsec/div.
(Function : PLAY)
15
CN2001-pin 24 (SEL Y/V)
V: 500mV/div. H: 10µsec/div.
(Function : L1)
16
CN2001-pin 26 (SEL C)
V: 500mV/div. H: 10µsec/div.
(Function : L1)
17
CN2001-pin 28 (SEL L)
V: 500mV/div. H: 200µsec/div.
(Function : L1)
18
IC3402-pin 7 (27MCLK)
V: 1V/div. H: 20nsec/div.
(Function : P.ON)
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Measurement condition ;
No.3 to No.8, No.10 to No.13 : 75% Color-bar, AXP disc 1-24
No.15 ,No.16
: 75% Color-bar
No.9, No.14
: 1kHz, 2Vrms, AXP disc 1-1
No.17
: 1kHz, 2Vrms
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
49
5
6
7
8
5
6
7
8
C
D
F
A
B
E
SCRB ASSY
I
1
CN203 - pin 5 (Y In)
V: 500mV/div. H: 10µsec/div.
(Function : AV2/L1)
2
CN203 - pin 21 (C In)
V: 500mV/div. H: 10µsec/div.
(Function : AV2/L1)
3
CN203 - pin 27 (Lch In)
V: 1.0V/div. H: 200µsec/div.
(Function : AV2/L1)
4
JA101 - pin 20 (Y In)
V: 500mV/div. H: 10µsec/div.
(Function : AV2/L1)
5
JA101 - pin 15 (C In)
V: 500mV/div. H: 10µsec/div.
(Function : AV2/L1)
6
JA101 - pin 6 (Lch In)
V: 500mV/div. H: 10µsec/div.
(Function : AV2/L1)
8
CN203-pin 9 (Y)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
9
CN203-pin 7 (C)
V: 500V/div. H: 10µsec/div.
(Function : PLAY)
10
CN203-pin 11 (G)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
11 CN203-pin 17 (B)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
12 CN203-pin 19 (R)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
13 CN203-pin 23 (Lch)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
14 JA102-pin 19 (Y Out)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
19 JA102-pin 3 (Lch Out)
V: 2.0V/div. H: 200µsec/div.
(Function : PLAY)
15
JA102-pin 15 (C Out)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
16 JA102-pin 11 (G Out)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
17 JA102-pin 7 (B Out)
V: 500mV/div. H: 200µsec/div.
(Function : PLAY)
18 JA102-pin 15 (R Out)
V: 500mV/div. H: 10µsec/div.
(Function : PLAY)
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Measurement condition ;
No.8 to No.12, No.14 to No.18 : 75% Color-bar, AXP disc 1-24
No.1, No.2, No.4, No.5
: 75% Color-bar
No.13, No.19
: 1kHz, 2Vrms, AXP disc 1-1
No.3, No.6
: 1kHz, 2Vrms
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
50
1
2
3
4
1
2
3
4
C
D
F
A
B
E
4. PCB CONNECTION DIAGRAM
4.1 ATAB ASSY
1
40
1
40
R16
R17
R18
R14
R13
R12
R11
R15
CN12
E119697
VNP1937-A
VWV1968-
ATAB
BOTTOM SIDE
CONTACT
1
2
40
39
1
2
39
40
CN11
20
10
15
5
30
35
25
SIDE A
SIDE B
A
A
CN4401
To DRIVE ASSY R6
CN9003
D
CN12
CN11
ATAB ASSY
A
ATAB ASSY
A
(VNP1937-A)
(VNP1937-A)
NOTE FOR PCB DIAGRAMS :
1. Part numbers in PCB diagrams match those in the schematic
diagrams.
2. A comparison between the main parts of PCB and schematic
diagrams is shown below.
3. The parts mounted on this PCB include all necessary parts for
several destinations.
For further information for respective destinations, be sure to
check with the schematic diagram.
4. View point of PCB diagrams.
Symbol In PCB
Diagrams
Symbol In Schematic
Diagrams
Part Name
B C E
D
D
G
G
S
S
B C E
B
C
E
D
G
S
B
C
E
B
C
E
B
C
E
Transistor
Transistor
with resistor
Field effect
transistor
Resistor array
3-terminal
regulator
Capacitor
Connector
P.C.Board
Chip Part
SIDE A
SIDE B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
51
5
6
7
8
5
6
7
8
C
D
F
A
B
E
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
52
1
2
3
4
1
2
3
4
C
D
F
A
B
E
4.2 TUMJ ASSY
88
116
30
58
1
29
59
87
4
1
5
8
1
4
5
8
1
1
9
1
1
10
15
1
1
3
4
6
1
2
3
4
5
7
8
9
10
12
13
14
15
18
1
15
1
2
14
1
7
8
1
8
1 2
13
+
-
C2115
R2119
X2001
C2106
C2105
R2007
R2004
C2104
C2103
C2102
R2102
C2101
R2101
R2038
R2118
IC2001
C2111
X2271
IC2251
C2251
C2622
C2623
C2626
IC2351
R2357
C2356
X2351
CN2006
C2642
R2305
R2012
R2011
R2303
KN2003
C2534
C2533
R2361
C2254
C2354
R2355
Q2351
R9004
R9005
R9006
R9007
R9008
CN2007
C2107
C2108
C2109
R2115
JA2201
R2113
C2355
C2357
R2360
C2358
R2359
R2358
C2353
R2354
C2352
R2352
R2353
R2351
C2351
R2103
L2642
C203
R2356
R2251
R2252
C2253
C2252
R2001
R2002
R2003
R2005
R2013
R2081
R2084
R2086
R2087
R2085
R2083
R2079
R2071
C2119
R2043
R2066
R2016
IC2551
C2553
R2551
KN2007
R2048
CN211
CN2009
C2544
IC2541
R2309
R2311
L2301
R2317
R2315
R2316
C2303
R2318
C2302
Q2306
C2505
R3
R335
C3316
R3348
L3342
R3346
L3341
R3342
R3345
R3344
Q3341
C3346
C3341
C3343
C3344
C3345
C3301
R3343
C3518
C3517
C3516
C3511
C3515
C3507
C3504
C3083
JA3081
C3552
C3554
C3555
JA3551
C3364
R3561
Q3554
Q3556
C3354
CN3002
C3356
R3349
JA3582
C3533
R2205
CN3003
R2108
C2204
R3597
C2140
R2301
R2058
C2141
R2145
C2142
R2146
R2059
R2109
ST2271
R2140
R3599
C2118
Q2640
C2640
C2152
C2153
C2154
R2057
L2039
R2078
IC2003
R2110
R2029
R2080
Q3565
Q3564
R3574
R3573
C2082
R2017
R2253
CN2001
CN2004
C2210
R2209
Q2205
R2210
R3643
BT2271
R2254
WARNING
AGC2
TUJB ASSY
FC DC
PC
CONTACT UPPER SIDE
4
1
8
5
V+5E
V+3.3SW
V+6E
V+13SW
V+6SW
V+13SW
V+5VO
V+5VI
V+6SW
V+5M
V+5VO
V+5E
13
1
15
1
1
9
15
1
CMKD-P3X
8
1
58
1
29
59
87
88
116
30
1
1
1
25249.6 - PROPOSITION 65
HEALTH & SAFETY CODE SECTION
DEFECTS OR OTHER REPRODUCTIVE H
OF CALIFORNIA TO CAUSE CANCER,BIR
CHEMICALS WHITCH ARE KNOWN TO TH
AND CERTAIN ELECTRICAL PARTS CON
THIS PRODUCT CONTAINS LEAD IN SOL
8
1
5
4
1
3
4
6
1
2
1
7
8
14
-
+
SIDE A
B
IC2003
IC4001
IC2541
IC2551
IC2351
IC2581
IC2251
IC2001
Q3452
Q2205
Q3451
Q3564
Q3565
Q2640
Q4002
Q4001
Q4003
Q4004
Q3906
Q3004
Q3913
Q3099
Q3916
Q3915
Q3556
Q3554
Q3006
Q3404
Q3407
Q3341
Q3342
Q3343
Q3344
Q2306
Q2351
CN3002
CN1301
C
CN2004
CN201
G
CN2001
CN202
G
CN2007
DOWN LOAD
CN211
CN204
I
CN
C
F
TUJB ASSY
B
Lithium
Battery
to SIDE B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
53
5
6
7
8
5
6
7
8
C
D
F
A
B
E
1 2
8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
18
1
10
19
1
1
19
15
18
1
2
3
4
6
1
10
20
30
35
1
32
1
11
12
22
23
33
34
44
R3949
C2582
C2584
IC2581
C2801
C2803
C2813
C2811
C2807
C2812
C2810
C2804
C2802
C2806
CN2003
KN2002
KN2001
JA2832
C2815
C2814
CN2005
009
C2817
C2816
C2516
CN2008
C2505
C2506
R3354
Q3344
L3344
L3343
R3351
R3357
Q3343
R3352
R3350
C3353
C3349
C3347
C3350
C3351
C3352
R3355
C3316
D3304
D3303
C3315
C3314
C3310
D3302
D3301
C3311
C3308
Q3342
R3348
L3342
L3341
R3342
R3345
R3344
Q3341
C3307
C3346
C3343
C3344
C3345
C3301
R3343
C3029
C3028
C3026
C3022
R3023
C3015
C3013
C3006
C3009
C3001
U3001
R3442
Q3407
R3435
R3436
R3432
R3423
C3419
R3424
R3420
Q3404
L3403
C3415
R3421
R3405
L3401
C3403
C3552
C3554
A3551
64
R3026
Q3006
L3005
C3427
R3304
C3354
C3355
L3409
L3407
L3405
C3935
C3936
C3931
C3934
C3929
Q3915
R3937
R3941
C3932
C3930
C3933
Q3916
R3933
C3928
VR3902
F3903
R3909
VR3901
F3901
C3904
L4002
Q3099
R3099
R3098
L3098
C3099
C3201
R3908
R3931
Q3913
R3930
F3902
R3925
C3357
F3911
F3912
R3910
F3904
R3922
R3921
CN210
F3906
R3945
R3944
C4033
CN3001
L3099
R3935
R3934
R3942
R3915
R3356
R3349
Q3004
L3909
L3910
L3911
L3912
Q3906
C3010
R202
Q4004
C4028
R4019
C4027
R4018
R4017
C4026
R4016
C4023
Q4003
C4022
R4014
R4013
R4012
X4001
R4015
C4024
R4011
C4016
C4015
R4010
C4014
C4013
C4012
C4011
C4019
C4020
C4017
Q4001
R4008
R4006
R4007
Q4002
C4009
C4008
C4006
C4007
C4004
C4003
C4010
R4003
C4001
R4005
IC4001
C4002
R3998
R3005
C4032
R1000
D3306
R3457
D3305
R1001
C3641
R2017
Q3451
R3643
R3642
C3642
Q3452
L3451
R3456
R3452
R3453
R3454
R3455
CVBS2
ARNING
AFT2
ARM2T
L`AFC
Adjust
AGC
FC DC
1C
1V
3V
Adjust
Adjust
AFC
19
1
33
34
12
22
23
44
1
11
8
1
E
B C2
C B2 E2
V+5E
V+5VI
V+5E
V+5VO
V+15E
V+5VI
V+15E
V+5VI
V+6E
V+13SW
V+6SW
V+37E
V+5TU
35
1
2
21
1
34
1
1
19
- PROPOSITION 65
& SAFETY CODE SECTION
TS OR OTHER REPRODUCTIVE HARM.
FORNIA TO CAUSE CANCER,BIRTH
ALS WHITCH ARE KNOWN TO THE STATE
RTAIN ELECTRICAL PARTS CONTAIN
ODUCT CONTAINS LEAD IN SOLDER
1
32
SIDE A
B
CN2003
CN4001
D
CN210
CN203
I
CN2008
CN3001
D
CN3001
CN2001
D
CN2005
CN1001
F
(VNP1933-C)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
54
1
2
3
4
1
2
3
4
C
D
F
A
B
E
1
15
16
30
1
18
19
36
1
12
13
24
R3956
R3955
R3954
R3953
R3952
R3951
R3950
R3021
R3020
C2581
C2583
R2810
R2804
C2808
IC2801
C2809
R2808
R2811
C2507
C2508
Q3003
L3920
C3922
C3923
R2505
R2802
R2806
R2805
C2805
R2812
R2813
R2814
R2801
R2803
R2807
R2809
C2820
C2819
C2818
C2821
R2815
R2818
R2817
R2821
R2819
R2820
R2816
C3312
C3313
C3306
C3305
C3303
C3302
R3302
IC3301
C3017
C3014
C3012
D3002
C3005
Q3001
Q3410
R3444
R3443
R3441
R3447
Q3409
C3431
Q3408
R3440
C3430
C3426
R3438
R3445
C3420
C3425
R3433
R3430
Q3406
C3424
R3428
R3426
R3427
Q3405
C3418
C3411
R3417
R3418
Q3403
R3415
R3416
C3414
R3412
C3412
C3408
C3410
R3402
Q3402
R3408
R3406
R3403
R3404
Q3401
C3407
C3406
C3405
R3401
C3401
C3404
R3409
R3575
R3341
R
Q3002
R3014
R3013
R3003
C3007
L3003
C3409
C3413
C3421
C3432
R3018
R3019
C3021
C3020
R3303
R3305
C3317
C3428
C3422
C3416
C3429
C3423
C3417
C3924
R3926
R3932
IC3903
R3907
Q3904
R3916
Q3909
L3903
R3901
C3909
R3904
C3908
C3907
R3929
C3905
Q3912
C3921
L3902
R3201
C3202
R3202
D3901
L3906
L3908
D3902
C3917
L3907
R3924
R3918
R3928
C3925
C3918
Q3920
R3923
R3927
C3920
L3957
C3958
Q3901
R3905
C3902
R3920
R3911
L3904
R3912
R3917
C3916
C3906
R3940
Q3914
L3004
Q3911
C3910
R3939
Q3908
Q3905
Q3917
Q3918
R3373
Q3371
D3001
C3023
C3903
R3902
Q3902
R3903
R3906
R3946
R3913
C3912
C3911
R3582
R3936
L3913
R3623
R2822
R2823
R3943
R3948
Q3903
C4030
R4023
R4022
C4029
R4020
R4021
C4021
C4018
D4001
R4009
R4004
R4001
C4031
R4024
L4001
R4025
R30
R9001
C3919
R2504
R9009
C3562
R3999
C2825
C2823
C2824
C4034
R3598
R3458
C2822
R3375
R3957
C3901
R3958
Q4005
R3959
R3002
Q3453
L3960
C3960
R3644
R3641
R3451
C3451
TUAR_T_to_S
TUCVBS_T_to_S
AL_T_to_S
1
CSYNC
BT_to_S
AGC1
L1-Y
L3-Rch
L1-Rch
R
L3-Lch
L3-V
L1-Lch
L1-V
L3-C
L3-Y
CT_to_S
18
15
1
36
YT_to_M
ALM_to_T
ARM_to_T
AFT1
AGC2
SIF
CUBS1
SIF2
PIF
AFT2
SIF3
GS_to_T
YT_to_S
V/YS to T
L1-C
CT_to_M
TU_R
TU_L
IN
16
GT_to_S
BS_to_T
RT_to_S
AR_T_to_S
AR_S_to_T
TUAL_T_to_S
19
ALM_to_T
ARM_to_T
Cr/RM_to_T
Cb/B
Y/GM_to_T
CM_to_T
Y/VM_to_T
GND
ALT_to_M
ART_to_M
SPDIF
ASCKSYS
HST_TO_M
SST_TO_M
SSM_TO_TSYS
HSM_TO_SYS
PCMOUT
X525P
MRST
XRESET
RAMUTE
LAMUTE
BUP
V+5VI
SW+4V
SW+2.4V
SW+6V
SW+13V
EV+6V
EV+
EV+37E
30
VW
13
12
24
1
V+5VO
V+5VI
EV+15E
1
32
V+9
OUT
FL-28V
FLDC-
FLDC+
GND
JOGB
JOGA
KEY2
IR
KEY1
KEY1 2
2Y
2L
2R
TU_V
TUON
STBYQ
RESETQ
VW
35
30
20
10
1
21
1
1
19
SIDE B
B
CN2003
CN210
CN2008
CN3001
CN2005
TUJB ASSY
B
IC3903
IC3081
IC3501
IC3301
IC2521
IC2801
IC2271
Q3453
Q2152
Q2151
Q4005
Q2641
Q202 Q201
Q3903
Q3902
Q3559 Q3562
Q3561
Q3563
Q3551
Q3371
Q3918
Q3917
Q3905
Q3908
Q3911
Q3914
Q3901
Q3920
Q3912
Q3909
Q3904
Q3363
Q3362
Q3002
Q3401
Q3402
Q3403
Q3405
Q3406
Q3408
Q3409
Q3410
Q3001
Q2305
Q2531
Q2621
Q2642
Q2532
Q3003
Q2203
Q2201
Q2202
Q2204
(VNP1933-C)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
55
5
6
7
8
5
6
7
8
C
D
F
A
B
E
4
5
8
1
18
19
1
18
19
36
1
3
4
6
R2010
R2009
C2114
C2113
R2037
R2036
R2033
R2032
R2031
R2077
R2076
C202
C2110
R2208
C2271
IC2271
C2273
C2274
R2274
D2271
D2272
R2271
R2272
C2621
C2624
C2625
Q2204
Q2202
Q2201
Q2203
R2204
R2207
C2112
R2206
C2641
C2511
C2512
C2515
C2501
C3532
C2535
Q2532
C2532
R2532
C2531
R2533
R2531
R2645
Q2642
C2510
C2509
C2545
Q2621
R2104
R2106
R2107
R2105
R2621
R2802
R2203
D2201
C2201
R2201
C2202
R2202
D2640
C201
Q2531
R2501
R2502
R2503
R2116
R2117
R2014
R2015
R2082
R2025
R2024
R2023
IC2521
C2521
R2521
C2522
C2552
C2551
C2502
R201
C2272
R2275
C2543
C2542
C2541
C2821
2815
R2817
Q2305
R2313
C2301
R2312
R2314
C3312
C3313
C3304
R3302
R3301
R3551
D3506
C3519
D3505
D3504
C3514
C3520
C3512
C3513
D3502
D3503
C3508
C3510
C3506
C3505
R3504
R3503
IC3501
C3503
R3502
R3589
R3591
R3587
R3083
R3082
R3084
C3084
R2039
IC3081
C3081
R3081
R3563
R3560
R3570
R3565
R3559
R3575
D3551
R3562
R3558
C3551
R3555
C3521
R3370
C3365
R3367
R3368
C3362
R3372
Q3362
Q3363
R3369
R3004
R3576
C3556
C3557 C3559
C3558
R3572
R3305
R218
R217
R3373
Q3371
R3374
Q3551
Q3563
Q3561
Q3562
Q3559
R3577
R3582
R3569
R3568
R3571
R3001
R3308
R3550
C3531
C3530
C3560
R9003
D3560
R2150
D201
Q201
Q202
R2302
R2144
C2001
C3562
C2610
R2141
R2143
D2641
C2211
C2646
R3596
R3598
R2304
Q2641
L2641
R2641
R2642
R2643
R2644
C2643
C2087
R3375
C3561
C3553
R9002
C2546
R2306
R3085
R2147
Q2151
C2212
R2148
Q2152
R3002
R2610
R3376
C2645
1
2
SDA
V+6E
EV+15
AVLIN
SRAMUTE
8
15
GND
AL_T_to_S
BT_to_S
L1-Y
C
Y
Y
C
V
R
V
L
L3-Y
L
R
SLAMUTE
CT_to_S
18
1
2Y
Cr
Y
Cb
GS_to_T
YT_to_S
AVLO
V/YS_to_T
2C
L1-C
19
18
1
36
C
E
B
E2
B2
CC B2
C2
E
B
B
E
C
VWV1963
VWV1962
VWV1978
GT_to_S
BLANK
BS_to_T
RT_to_S
AR_T_to_S
XP_SAVE
V+5SM
FUNC
XTHROU
SCL
NC
P_CONT
19
V
EV+15E
2V
2R
2L
SDET2
KEY1_2
FLON
PON
FLDC-
FLDC+
GND
GND
FL-28V
EV+37E
EV+15E
EV+6V
GND
GND
GND
SW+13V
SW+6V
SW+2.4V
SW+4V
GND
1
10
GND
GND
GND
VWV1977
VWV
LF
FL-28V
FLDC-
FLDC+
GND
JOGB
JOGA
KEY2
IR
KEY1
KEY1_2
PCMOUT
FLCLK
FLDATA
V+13SW
FLPON
GND
GND
V+5E
GND
FLSTB
GND
V+5M
V+5M
SW+13V
SW+13V
V+5SC
2C
2V
2Y
2L
2R
AGC
GND
1
VWV
15
1
35
1
4
8
5
5
1
1
1
9
1
1
1
3
4
5
1
13
SIDE B
B
CN3002
CN2004
CN2001
CN2007
CN211
N2005
from SIDE A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
56
1
2
3
4
1
2
3
4
C
D
F
A
B
E
4.3 MAIN and MHLP ASYS
30
16
15
1
CN2
VNP1953-A
MHLPB
VWV1991-
VWV1991- -U
1
21
30
15
D 1 1 1 1
R5104
C 1 0 6 1
C5111
5
CN5102
C 5 1 0 1
C 5 1 3 1
C 5 1 3 5
C4033
C4032
TP4015
C5102
F5101
L 5 1 0 1
L 5 1 0 2
IC4007
3
1
4
R5103
R5108
R5107
R5106
R5105
7
1
C5105
C5110
C4035
C5132
C5138
C5137
C5136
C 4 0 3 4
L5103
L5104
L5106
L5105
TP1026
TP4305
C 1 0 1 3
Q 2 1 0 4
Q 2 1 0 5
R1102
C2265
R 2 1 0 9
R 1 0 1 1
C 1 0 1 6
R 4 1 1 0
R 4 1 0 9
V R 1 0 0 1
1
4
R 4 1 0 5
C 1 0 1 1
R1071
R 1 1 1 1
R1052
R 1 0 1 2
C 1 1 1 4
C 4 1 0 7
C4102
C4105
R 4 1 0 8
R 1 0 0 7
R 1 0 0 1
C 1 0 5 4
TP1060
Q1102
C4106
VR2104
X 4 1 0 2
3
2
29
C1104
R4106
R4107
R 2 1 1 2
R2115
R1024
R1023
R1022
R1021
R4104
R4103
R 4 1 0 2R 4 1 0 1
R 2 1 1 3
R2114
R2116
R 5 2 6 5
R2266
C 4 1 0 3
C 4 1 0 4
TP28
TP4708
TP4707
TP4706
TP4702
041
TP1050
TP1051
I C 4 1 0 1
1
4
5
8
V R 2 1 0 5
V R 1 0 0 2
Q 2 1 0 3
TP4701
TP4703
TP4302
R 2 1 0 7
C N 4 7 0 2
R 2 1 0 2
R 2 1 0 3
TP4705
Q 2 1 0 2
Q 2 1 0 1
R2106
R2105
C2246
C 2 1 0 5
C 2 1 0 6
R2252
TP1002
C1017
TP4709
TP4711
TP4710
TP4718
TP4719
R4306
1
7
2
8
R2111
C 2 1 0 2
C 2 1 0 3
C 2 1 0 4
C1012
C1018
C1019
TP4304
TP4307
TP4704
TP4712
TP4713
R4305
1
7
2
8
C N 4 3 0 1
8
2
7
1
R4304
8
2
7
1
R4303
TP4717
TP4716
TP4715
TP4714
TP4303
TP4301
C2101
C1021
C1022
C1023
C 1 0 2 4
C2225
R 1 9 0 5
R2306
1
8
2
7
1
R4302
8
2
7
1
R1048
2
7
1
R1045
8
2
7
1
R1043
R 1 0 8 0
C2221
TP4306
TP1027
TP1028
TP1029
TP1032
TP1031
TP1033
TP1024
C 4 2 0 6
Q 2 3 1 1
Q 2 2 2 2
R1902
C 4 2 0 3
C2222
R2233
R2235
R 4 2 0 2
R4206
R4211
R4212
R2311
R1901
R1903
R1904
C 2 3 1 7
1
3
C 1 9 0 1
Q2312
R2239
R4207
R4208
209
R2313
R2314
R2312
R2221
C N 1 9 0 1
C4207
IC4206 4
5
C 2 3 3 4
8
5
4
1
I C 2 3 0 1
1
3
4
6
I C 2 3 3 1
32
Q2402
TP50
TP49
TP48
TP47
TP46
TP45
C 2 4 0 5
Q2403
C2333
C 2 3 1 1
C2305
C 2 3 3 2
R2331
R2332
R2333
R2411
R 2 4 1 2
R 2 4 0 6
R2405
R2407
R 2 4 0 9
R2408
R2404
C 2 4 0 7
C 2 3 1 9
C 2 4 0 6
1
7
44
34
33
23
22
12
11
1
C1
C3
R3
CN1
R2
R5
C2
C4
C6
C8
D1
C5
R4
IC1
C7
R1
VWV1991- -U
VWV1991-
GCMK-G3X
1
7
1
11
12
22
23
33
34
44
Q2103
Q2311
Q2222
Q2312
IC4206
IC2301
IC2331
Q2403
Q2402
SIDE A
SIDE A
SIDE B
D E
MAIN ASSY
D
MHLP ASSY
E
MHLP ASSY
E
IC4007
Q1102
IC4101
Q2105
Q2101
Q2102
Q2104
VR2104
VR2105
VR1002
VR1001
IC1
B
C
(VNP1953-A)
(VNP1953-A)
CN1
CN1901
CN4301
CN5102
CN4702
CN2
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
57
5
6
7
8
5
6
7
8
C
D
F
A
B
E
R5104
IC5101
C5111
R5236
R 5 1 2 1
R 5 1 1 0
C 5 1 0 1
TP34
TP36
8
2
7
1
R5247
8
2
7
1
R5249
8
2
7
1
R 5 2 6 3
R 5 2 6 2
R 5 2 6 0
R 5 1 2 0
R 5 1 1 6
R 5 1 2 2
R 5 1 1 4
R 5 2 5 3
R 5 2 5 4
R 5 2 5 6
R 5 2 5 7
C 5 2 1 0
C5121
C5122
C5124
C 5 2 0 9
C 5 2 1 2
C 5 2 0 4
C 5 2 0 6
C 5 2 1 4
R5102
R5208
TP35
TP
C5102
F5101
C5207
R5252
1
7
2
8
R5251
R5103
R5108
R5107
R5106
R5105
1
208
157
156
X5101
33
32
17
16
R5235
R5216
R5217
R5231
R 5 1 0 9
R5125
R5128
R 5 1 1 7
R 5 1 1 5
R5126
R5129
R5232
R5214
R5233
R5215
R5234
C5103
C5105
C5110
C 5 1 1 2
C5127
C 5 1 2 0
C5216
TP31
TP32
TP33
TP37
TP38
TP5202
TP5201
C5104
1
2
1
TP1026
TP3303
TP3301
R5292
R 1 0 0 5
C5231
C5224
C5229
C
R5298
R5297
R4504
R 1 0 7 4
53
R 4 4 0 5
C5205
Q 2 1 0 4
Q 2 1 0 5
TP5204
F 1 0 0 1
C 5 2 1 8
R5283
R 2 1 0 9
R 1 0 1 1
C 1 0 4 1
C 1 0 3 7
C 1 0 3 4
C 1 0 2 8
C 1 0 2 7
C 1 0 2 5
C 1 0 1 6
R 5 1 2 4
R 5 1 2 3
R5286
C 5 1 1 8
C 5 1 1 9
C 5 1 2 3
C5227
V R 1 0 0 1
20
C N 4 6 0 1
R5272
R5130
IC5202
64
49
48
1
8
2
7
1
R5275
8
7
R5218
8
2
7
1
R5219
8
2
7
1
R5220
8
2
7
1
R5221
8
2
7
1
R5274
8
2
7
1
R5273
C 1 0 1 4
R5237
R5238
R 5 1 3 2
R 5 1 3 1
R1071
R 5 1 1 2
R 5 1 1 3
R5127
R5276
C5113
C5125
C5126
C5226
C5217
C5215
C 1 0 5 4
TP1060
T P 5 1 0 6
1
R1024
R1023
R1022
R1021
105
104
5 2
2
1
2
1
R5290
8
2
7
1
R5289
8
2
7
1
R 5 2 2 9
2
1
8
2
7
1
R 5 2 3 0
C 1 0 5 0
C 1 0 0 4
C 1 0 0 3
C 1 0 0 2
C 1 0 0 1
C 1 5 0 8
C 1 5 0 9
R5280
R5281
R5228
R5224
R5288
R5225
R5278
R5279
C 1 5 1 0
R5227
R4403
R4402
R2114
R211
R5277
R5287
R5282
R5313
R5314
C5228
F 1 0 0 7
R 1 0 0 3
R 1 0 0 9
C1060
TP1041
TP1050
TP1051
V R 1 0 0 2
R1031
Q 2 1 0 3
C5321
R 1 0 0 4
C1006
R 2 1 0 7
C 5 2 2 5
R 2 1 0 3
Q 2 1 0 2
Q 2 1 0 1
R 4 4 0 7
1
2
R 5 2 9 5
R 5 2 9 6
R 5 2 4 2
R 5 2 4 0
R 5 2 4 1
R 5 2 4 3
R 5 2 4 8
R2106
R2105
R1034
C 5 3 2 9
C 5 2 1 3
C 5 2 1 1
C 5 2 0 8
C 2 1 0 5
R5284
R5285
R 5 2 4 4
R 5 2 4 5
R 5 2 4 6
R 5 2 3 9
R 5 2 6 1
TP1002
C 1 0 4 2
C1017
F 1 0 0 5
R 1 0 0 6
C1057
7
8
R5259
1
7
2
8
R5258
1
7
2
8
R5250
1
7
2
8
R5255
1
7
2
8
7
8
R 4 4 0 6
1
7
2
8
R2111
8
2
7
C5230
C5223
C5222
C3307
C 2 1 0 3
C 2 1 0 4
R3307
R 3 3 0 6
R 3 3 0 5
R1066
R5293
R5294
C1005
C1051
C1052
C1012
C1044
C1045
C1018
C1019
R3303
C1055
C 3 3 0 9
C N 4 4 0 1
7
8
R 4 4 0 8
1
15
28
IC3301
C 1 0 5 6
C 1 0 5 9
IC5204
8
2
7
1
R 4 4 3 6
4 0
3 9
D4401
C5221
TP1013
TP3302
C2101
C1058
R 1 0 0 8
F 1 0 0 6
F 1 0 0 4
C1021
C1048
C1047
R3310
R4435
R4432
R4429
R4428
R 3 3 0 8
R 4 4 2 7
C1022
C1023
C 1 0 2 4
C 1 0 2 6
C 1 0 3 0
C 1 0 2 9
C 1 0 3 5
C 1 0 3 8
C 1 0 3 6
C1049
C1039
C3308
C4401
F 1 0 0 3
F 3 1 0 2
D 3 1 0 2
D 3 1 0 1
D 3 1 0 4
D 3 1 0 3
R 4 0 0 1
C 4 2 1 3
C 4 2 1 2
C 4 0 0 6
C4005
IC4008
R 4 2 0 1
4
1
X 4 2 0 1
1
F 4 2 0 1
C 4 2 0 1
C 4 2 0 2
R 4 0 1 7
C 4 0 2 8
D4001
14
C4036
C 3 4 0 3
R 3 4 1 1
8
2
7
1
R 4 5 0 8
8
2
7
1
R 4 5 0 9
8
2
7
1
R 4 5 0 7
2
1
8
2
7
1
R1048
8
2
7
1
R1045
8
2
7
1
R1043
8
5 IC3403
2
3
VC4201
C3107
F 3 4 0 1
F 3 4 0 3
9
16
IC3402
C 4 2 1 1
C 3 4 0 4
C 3 4 0 5
C 3 4 0 7
C3302
C3303
C3108
C 3 4 0 8
C 1 0 5 3
C 1 0 4 0
R3309
R2227
R 3 4 0 5
R 3 4 0 6
R 3 4 0 7
R 3 4 0 3
R3304
R 4 5 0 5
R4440
R 4 2 0 5
R5223
R5222
R 1 0 8 0
R3102
R3301
C 3 3 0 1
TP3401
TP4202
TP1012
TP1027
TP1028
TP1029
TP1030
TP1032
TP1031
TP1033
TP1024
D 4 2 0 2
C 4 2 0 6
R 4 2 0 4
C 3 1 0 5
C 4 2 0 8
C 4 2 0 3
F3402
5
C4014
TP3402
TP3403
R 3 4 1 0
R 4 2 0 2
R4206
R 4 2 1 0
R4211
R4212
R3409
R3107
R3106
R3108
R3105
R4531
R4530
C 3 1 0 1
C 3 4 0 6
C 4 2 0 9
C3106
F 4 0 0 4
8
I C 3 1 0 1
8
9
4
1
L 4 2 0 1
1
3
I C 4 2 0 5
1
4
8
C N 4 5 0 1
R 4 5 1 0
1
7
2
8
R 3 4 0 8
L4202
C3402
TP4201
TP4008
R4015
F 4 0 0 1
C4031
C 4 0 1 8
C4027
R4207
R4208
R4209
R 3 1 0 3
R 3 1 0 4
R4534
R4537
C 4 2 1 0
C4207
D 4 2 0 1
F 4 2 0 2
C3102
16
1
IC4206 4
5
IC4004
1
3
4
5
R 4 5 3 8
1
7
2
8
IC4207
L 2 1 0 1
R 4 2 1 3
4 0
3 9
1
CN2001
8
1
CN4001
IC4003
IC4005
21
1
CN3001
D4501
20
11
10
1
IC3001
Q2001
Q3202
Q3201
Q2402
D3001
D3002
TP44
TP43
TP42
TP41
TP40
TP39
TP4001
TP4009
TP4003
TP4002
TP4010
C4004
R 4 0 1 4
R4010
R 4 0 0 9
R 3 0 0 2
R 2 0 1 7
C 4 0 1 0
C 4 0 2 1
C 4 0 2 4
C4023
C4013
R 2 0 4 1
R 2 0 4 2
R 2 0 4 3
R 2 0 4 4
R 2 0 4 5
R 2 0 4 6
R 3 2 7 1
R 3 2 7 0
R2019
R3022
R4541
R 3 0 1 0
R3001
R3003
R3012
R2411
R 2 4 1 2
R 2 4 0 6
R2405
R 2 0 1 2
R 2 0 1 1
R 2 0 1 3
R 2 0 1 5
R 2 0 1 4
R3023
R3024
R 3 2 0 2
R 4 0 0 4
R 4 0 0 8
R2404
R3025
F 4 0 0 3
C 2 4 0 7
C 3 0 0 4
C3002
C 3 0 0 1
C 2 4 0 6
Q2103
IC4206
IC3001
IC4207
IC4205
VC4201
IC3101
IC3301
IC3403
IC3402
IC4008
IC4004
Q3201
Q3202
IC4003
IC4005
Q2001
IC5204
Q2402
SIDE A
D
(VNP1931-A)
05
1
Q2102
Q2104
VR1002
VR1001
IC5101
IC5202
CN2003
B
CN4001
CN2008
B
CN3001
CN3001
B
CN2001
CN12
A
CN4601
CN4401
CN4501
This PCB is six layer structure.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
58
1
2
3
4
1
2
3
4
C
D
F
A
B
E
C 1 3 0 1
IC5203
16
8
2
7
1
R1306
8
2
7
1
R1305
8
2
7
1
R1304
8
2
7
1
R1303
C5219
C5203
TP5203
TP1
TP5
TP2
TP6
TP3
TP7
TP4
TP8
R 5 2 0 7
R5291
R1421
R1301
C 5 2 2 0
IC1301
1
43
C 1 3 0 2
C 1 3 0 3
C 1 3 0 4
C 1 3 0 5
C 1 3 0 7
C 1 3 0 9
C 1 3 1 0
C 1 3 1 3
I C 5 0 0 2
IC4006
C5006
R 4 4 0 4
TP1017
R1065
TP4405
R 1 4 2 5
TP4601
C 5 3 1 0
C 5 3 4 2
R5310
R1079
R5307
17
C1421
C5341
8
2
7
1
R 1 4 2 6
8
7
8
2
7
1
R 1 4 2 4
8
2
7
1
R 1 4 2 3
8
2
7
1
R1310
8
2
7
1
TP4606
TP4607
TP4604
TP4605
TP4602
TP4603
C 5 3 1 1
C5308
C1422
C1423
C1424
C1425
C1426
C 1 3 0 6
C 1 3 0 8
C 1 3 1 1
C1312
44
86
1
54
TP4608
R 1 3 0 2
R5305
R5306
R5311
R5309
R5308
R5312
R 5 3 0 4
8
C 1 5 0 7
C 1 5 0 6
C 1 5 0 5
C 1 5 0 4
TP1049
TP1034
P1063
TP1064
16
9
I C 5 3 0 1
5
4
3
1
R1307
1
7
2
8
R1308
1
7
2
8
R1309
R4603
R 5 3 4 2
R 5 3 4 1
2
1
8
2
7
1
R 4 4 0 1
2
1
TP4403
TP4401
R5301
C5343
C1427
C1428
I C 1 4 2 1
TP4609
R 5 3 4 3
C 5 3 0 9
C5301
L 5 3 0 1
IC5341
1
8
R4430
R5330
TP4419
C 5 3 2 5
C1406
R 5 3 2 7
R 1 4 0 7
R4426
R4425
R1032
D5322
D5321
8
2
7
1
R 4 4 1 6
8
2
7
1
R 4 4 1 0
8
7
TP4402
TP4404
TP4406
TP4407
TP4408
TP4409
TP4411
TP4412
TP4413
TP4414
TP4410
TP4416
TP4417
TP4415
TP4418
R5321
C 5 3 0 6
C5326
C 5 3 2 7
C 1 4 2 9
C1405
C1404
C1403
IC1001
27
28
1
54
R1033
R 5 3 2 3
R5326
R5325
TP1016
TP101
C5322
C5307
IC5321
5
4
3
1
R 1 4 0 4
1
7
2
8
R 1 4 0 5
1
7
2
8
7
8
R4433
R4434
R4431
R 5 3 2 8
7
1
8
2
7
1
R 1 4 0 8
8
2
7
1
R 4 4 2 3
8
2
7
1
R 4 4 1 7
TP4421
TP4422
TP4420
TP4424
TP4425
TP4423
TP4427
TP4428
TP4429
TP4430
TP4426
R 5 3 2 2
R5209
C 5 3 2 3
C5328
C4025
C1407
C 1 4 0 8
I C 1 4 0 1
R1402
R4501
R5324
R5329
R 5 2 6 4
C4019
TP5003
I C 5 3 2 2
1
4
5
8
C5324
L5321
5
1
R 1 4 0 6
1
7
2
8
1
2
R3259
TP4526
C 3 2 5 8
C 4 0 0 8
2
1
R 4 5 1 8
2
I C 3 2 0 1
C4026
TP4517
TP4514
R 3 2 6 2
R 1 0 5 3
TP1014
R 1 0 7 5
C 1 4 0 1
F3201
5
4
8
2
7
1
R 1 4 0 9
8
2
7
1
R 1 4 1 0
8
2
7
1
R 1 4 1 1
8
2
7
1
R 4 5 1 2
8
2
7
1
R 4 5 0 6
8
2
7
1
R 4 5 0 2
8
2
7
1
R1050
8
2
8
2
7
1
8
7
1
3
4
C4002
16
1
8
5
C5008
R 1 4 0 1
C5007
C4012
C4020
C 1 4 0 9
C 1 2 0 5
C 1 2 0 7
C1402
C 1 2 0 2
27
28
C 3 2 0 3
TP4512
TP4511
TP4513
TP4507
TP4506
TP4510
TP4509
TP4508
TP4502
TP4505
TP4504
TP4503
TP4501
R 1 2 0 2
R 1 0 5 5
R 3 2 6 3
R4503
TP1010
TP1011
TP1015
TP5004
TP1066
C3204
C5005
GND
R3264
R3255
R4527
R4528
IC4002
R3254
R4011
R4012
R 3 2 6 6 R 3 2 6 5
R3253
R3251
8
2
7
1
R 4 5 2 5
8
2
7
1
R 4 5 1 9
8
7
7
1
R1049
R1206
R1204
9
8
C4011
4
1
IC4001
C 4 0 0 7
C3208
C3207
54
IC1201
C3257
C 3 2 0 5
C 3 2 0 2
C 3 2 5 3
C3254
TP4524
TP4525
TP4522
TP4521
TP4523
TP4519
TP4520
TP4516
TP4518
TP4515
TP3251
TP3253
TP4014
R3268
R4535
R4536
R4532
R4533
C3206
C3201
C4029
TP3252
TP4011
1
7
R3258
R3261
R3267
R4013
R3269
C4015
C4003
TP4529
TP4530
TP4527
TP4528
R 4 0 1 6
R 4 0 0 6
R 3 2 5 2
R 3 2 0 1
C 4 0 3 0
C 4 5 0 1
C4017
C4016
C3006
C3003
C3252
C 1 2 0 8
C 1 2 0 6
C 1 2 0 4
C 1 2 0 3
1
C3256
TP4004
TP4006
TP4013
TP4012
R3257
R3256
R3260
R4529
C3255
C3251
IC3251
C4009
IC3002
8
14
F 4 0 0 2
R1203
1
7
2
8
R1205
1
7
2
8
TP3013
TP3007
TP3002
TP3003
TP3005
TP3010
TP3006
TP3001
TP3008
TP3009
TP3011
TP3012
TP3004
TP2017
TP2007
TP2005
TP2006
TP2008
TP2009
TP2010
TP2011
TP2013
TP2012
TP2014
TP2015
C 3 0 0 5
TP3014
TP2022
TP2023
TP2024
TP2025
TP2021
TP2020
TP2019
TP4005
TP4007
TP9
TP10
TP11
TP12
TP13
TP14
R 3 0 1 7
R 3 0 1 5
R 3 0 1 4
R 3 0 1 1
R 3 0 0 9
R3013
R3016
R 3 0 1 9
R2026
C4022
C4001
SIDE B
D
MAIN ASSY
D
IC5301
IC5203
IC5341
IC5321
IC5002
IC4006
IC4001
IC4002
IC3002
IC3251
IC3201
IC1401
IC1421
IC1301
IC1001
IC1201
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
59
5
6
7
8
5
6
7
8
C
D
F
A
B
E
R 1 1 1 8
R 1 1 1 3
R 1 1 1 2
R 1 1 0 8
R 1 1 1 0
R 1 1 0 9
TP23
TP21
C 1 5 1 2
R 1 1 0 3
1
16
IC1103
6
4
3
1
Q 1 1 0 1
TP5105
TP5103
TP5104
TP5102
TP5101
R 1 1 0 4
TP27
TP26
TP25
TP24
C 5 1 3 4
C 5 1 3 3
C1112
C 5 1 0 6
C 5 1 0 7
C 5 1 0 8
C 5 1 0 9
C 5 1 1 7
C 5 1 1 6
C 5 1 1 5
C 5 1 1 4
1
C 1 1 0 8
C 1 3 0 3
C 1 3 0 4
R 1 1 1 6
2
1
R1002
R1079
17
32
8
2
7
1
R1026
8
2
7
1
R 1 0 2 5
C 1 5 1 1
86
TP22
R1078
R1015
R 1 0 1 6
R1017
R 1 1 0 6R 1 1 0 7
C 1 5 0 1
C 1 5 0 2
C 1 5 0 7
C 1 5 0 3
C 1 5 0 6
C 1 5 0 5
C 1 5 0 4
TP1043
TP1044
TP1045
TP1046
TP1047
TP1048
TP1049
TP1034
TP1063
TP1064
R1072
1
7
2
8
R1073
1
7
2
8
R1307
1
7
2
8
I C 1 1 0 2
C1062
8
2
7
1
R 1 0 7 7
8
2
7
1
R 1 0 7 6
C1009
C1008
C1007
TP1040
TP1037
TP1052
TP1053
TP1054 TP1055
TP1056
TP1057
TP1058
TP1059
R1063
TP1007
R1060
R1059
R1058
TP1003
C 1 1 1 3
C 1 1 0 5
C1111
C 1 0 1 0
IC1001
27
28
R1057
R1056
TP1001
TP1004 TP1005
TP1008
TP1020
F1002
R 1 0 6 9
1
7
2
8
R 1 0 6 8
7
8
R1061
R1062
2
1
C1110
C1109
I C 1 1 0 1
R1064
R1105
TP1006
TP1009
TP1042
R 1 0 5 4
1
7
2
8
C 2 2 0 8
Q2302
R 2 2 0 4
TP1907
C 2 2 0 5
TP1903
T P 1 0 3 6
T P 1 0 2 2
T P 1 0 6 1
8
2
7
1
R 1 1 1 7
8
2
7
1
R 1 1 1 5
8
2
7
1
R 1 1 1 4
8
7
8
2
7
1
R 1 0 5 1
2
1
C1107
C1106
C1103
C1102
C 1 2 0 7
C 1 2 0 2
1
54
R 1 2 0 2
R 1 0 7 0
R 1 0 8 1
T P 1 0 3 5
T P 1 0 3 8
T P 1 0 1 9
T P 1 0 6 2
T P 1 0 6 5
TP1066
C1101
8
2
7
1
R1046
8 2
7
1
R1044
8
2
7
1
R1042
R120
C 2 3 0 1
TP1902
TP1901
TP1904
TP1905
R1101
R 1 2 0 1
C2209
28
IC1201
C2202
TP1906
R 2 3 0 1
R2302
R 2 2 0 3
R 2 2 0 2
R2201
R 2 2 0 5R 2 2 0 7
R 2 2 0 6
R2210
C2204
TP1039
TP1018
TP1023
Q2201
Q 2 2 0 2
C 1 2 0 1
C 1 2 0 9
C 1 2 0 8
27
C2201
C 2 2 0 6
C2306
R2303
R2304
R 2 3 0 5
R2307
R 2 2 0 9
R 2 2 0 8
R 2 3 3 4
Q2301
Q2203
Q2204
C 2 3 3 1
R1205
1
7
2
8
C 2 3 0 8
TP2004
TP2003
TP2007
TP2002
TP2001
TP2005
TP2006
TP2008
TP2009
TP2016
TP2
T
TP2021
TP2020
TP2018
TP15
TP16
TP17
TP18
TP19
TP20
R 2 0 2 5
R 2 0 4 0
SIDE B
D
(VNP1931-A)
IC1103
Q1101
IC1001
IC1201
Q2202
Q2203
Q2204
Q2201
IC1101
IC1102
Q2302
Q2301
This PCB is six layer structure.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
60
1
2
3
4
1
2
3
4
C
D
F
A
B
E
4.4 POWER SUPPLY UNIT
SIDE A
G
POWER SUPPLY UNIT
G
AC IN
Q71
Q2
Q81
Q51
Q52
Q21
Q1
IC403
CN1
LIVE
NEUTRAL
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
61
5
6
7
8
5
6
7
8
C
D
F
A
B
E
SIDE A
G
CN2004
B
51
IC101
Q703
Q701
Q801
Q403
VR401
VR101
IC403
CN201
CN2001
B
CN202
CN203
To
DRIVE
ASSY R6
CN9022
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
62
1
2
3
4
1
2
3
4
C
D
F
A
B
E
4.5 FRJB and DVJB ASSYS
R1304
C1305
C1308
C1303
R1201
C1301
R1306
R1301
C1302
R1355
R1350
R1311
R1302
R1202
C1309
C1307
R1312
C1306
R1307
R1308
C1304
R1303
D1304
D1301
R1309
R1305
D1302
D1303
R1310
GND
GND
V
Y
S_DET
KEY1_2
DISC NAVI
C
TPA
R
Y
GND
C
Lch
GND
C
L
S-Video
S_DET
Rch
POWER
Y
S_DET
HDD/DVD
S_DET
V
Video
KEY1_2
GND
TPB
XTPB
XTPA
L
GND
15
1
1
7
LF
LF
1
15
1
7
1
2
3
4
1
2
3
4
5
6
7
1
2
3
4
W715
W707
S1202
CN1301
CN1302
W709
W713
JA1303
W706
W712
KN1303
W705
W710
JA1301
S1201
W704
KN1302
W714
JA1302
W703
W711
W708
W701
KN1301
W702
GND
Contact
GND
V
S_DET
Upper Side
L
HDD/DVD
Video
C
Y
KEY1_2
Y
VWV1967
DVJB ASSY
S-Video
KEY1_2
GND
DC
FC
Rch
Lch
GND
V
C
S_DET
GND
L
Y
S_DET
POWER
S_DET
C
FRJB ASSY
VWV1965
PC
DISC NAVI
R
PYKC F4
PYKC F4
15
1
7
1
SIDE A
SIDE A
SIDE B
SIDE B
I
I
DVJB ASSY
H
DVJB ASSY
H
FRJB ASSY
C
FRJB ASSY
C
CN5102
D
(VNP1936-B)
(VNP1936-B)
(VNP1936-B)
(VNP1936-B)
CN1302
CN1302
CN3002
B
CN1301
CN1301
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
63
5
6
7
8
5
6
7
8
C
D
F
A
B
E
4.6 FLKY ASSY
2
1
LF
19
1
2
1
49
41
33
27
9
1
C1003
R1502
R1030
R1006
R1501
Q1002
R1503
Q1001
R1029
C1001
Q1009
C1500
R1013
R1012
C1502
R1011
R1101
C1017
R1504
R1010
C1007
C1019
R1009
R1008
C1008
R1016
R1032
R1004
IC1001
R1003
R1500
C1011
R1505
R1015
C1016
C1014
R1033
Q1007
R1001
GND
GND
JOGA
IR
FLSTB
FLCLK
FLDATA
FLPON
KEY1
KEY2
JOGB
FLDC+
FLDC-
FL-28V
GND
KEY1_2
LEDHDD
GND
V+5V
D1102
C1002
C1006
R1005
C1018
R1002
R1014
C1009
Q1008
C1501
C1013
R1031
C1004
R1007
33
V+5FL
V-28V
GND
GND
V+5FL
FLDC-
V+5FL
FLDC+
V+5FL
44
PYKC F4
23
34
V+5FL
12
22
V-28V
GND
GND
PYKC F4
11
LF
GND
1
1
GND
44
34
33
23
22
12
11
1
1
2
1
19
2
1
49
41
9
33
27
1
S1004
S1001
W1006
S1007
C1012
W1030
W1016
CN1002
W1009
W1019
C1015
W1010
L1002
W1023
W1017
W1011
W1004
S1008
S1003
W1003
C1005
IC1002
W1008
W1022
W1026
W1013
W1007
W1012
W1018
CN1001
CN1101
W1029
W1015
W1014
S1005
D1101
L1001
C1010
V1001
S1006
KN1001
S1002
W1002
W1005
PLAY
FC
REC STOP
V+5FL
GND
PC
GND
REC
FUNCTION
V+5FL
VWG2433
FLDC-
FLDC+
V+5FL
OPEN/CLOSE
PAUSE
VWG2443
V+5FL
GND
Contact upper side
STOP
LED
VWG2434
GND
GND
VWG
VWG2432
VWG2444
GND
LEDB
V-28V
GND
FLKY ASSY
V-28V
2
1
1
3
2
1
19
1
2
1
9
1
32
35
SIDE A
SIDE A
SIDE B
SIDE B
F
F
FLKY ASSY
F
FLKY ASSY
F
LEDB ASSY
?
LEDB ASSY
?
(VNP1934-A)
IC1001
Q1009 Q1007
Q1002
Q1001
Q1008
(VNP1934-A)
(VNP1934-A)
(VNP1934-A)
CN2005
B
CN1001
CN1001
CN1002
CN1002
CN1101
CN1101
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
64
1
2
3
4
1
2
3
4
C
D
F
A
B
E
4.7 SCRB ASSY
1
5
6
10
1
6
4
3
1
6
4
3
1
6
4
3
44
23
22
1
1
10
15
1
10
20
30
35
1
8
4
5
D142
D144
D132
D130
R1019
R155
R1006
D139
D160
R278
R274
R270
R272
R271
R273
R276
R275
R277
RY101
R121
R151
R147
R225
R224
R207
R203
R202
R201
R200
R115
R107
R106
Q122
Q121
Q120
Q118
Q110
Q109
Q106
Q105
L103
JA101
IC107
IC106
IC103
IC101
D129
D128
D127
D126
D125
D124
D123
D122
D121
D120
D119
D118
D117
D116
D115
D114
D112
D111
D110
D109
D108
D107
D106
D105
D104
D103
D102
D101
CN204
CN203
C228
C227
C221
C220
C219
C218
C214
C212
C209
C208
C207
C204
C183
C182
C170
C169
C168
C167
C166
C165
C161
C160
C159
C158
C156
C155
C152
C151
C149
C146
C141
C140
C139
C138
C137
C136
C135
C134
C133
C132
C131
C128
C127
C126
C125
C124
C123
C121
C120
C119
C118
C117
C116
C115
C112
C111
C110
C107
C106
C105
C104
C103
C102
D134
JA102
D135
R290
R1008
D140
C402
D131
D133
R1055
R1005
R1004
R1003
R1047
D150
R141
C401
D147
R1036
D138
R1024
R1056
R1034
R289
D141
R1041
KN101
KN102
R1018
R1017
R1016
R1009
C303
C188
R1045
R110
R1035
D148
D146
D145
R1058
D149
D136
D143
IC104
C148
C147
D159
R1046
D137
R160
R161
R162
R159
R288
R1043
R1039
R1029
R291
Q289
15.P_CONT
14.BLANKIN
13.XTHROU
12.COMPMUTE
to TV
29.AR_StoT
11.SNL_IN
10.SNL_O
9.FUNC
8.SCL
7.SDA
6.GND
5.XP_SAVE
4.GND
3.V+5SM
2.EV+15
1.V+6E
1.SLAMUTE
13.G_StoT
11.G_TtoS
9.Y_TtoS
7.C_TtoS
5.V/Y_StoT
3.SRAMUTE
27.AL_StoT
25.AR_TtoS
23.AL_TtoS
21.R/C_StoT
19.R_TtoS
35.TUAR_TtoS
33.TUAL_TtoS
17.B_TtoS
15.B_StoT
18.GNDV
17.GNDV
20.V-YIN
19.V/Yout
16.BLANK
15.R/Cout
6.LIN
7.Bout
13.GNDV
10.N-LINK
14.GNDV
12.NC
9.GNDV
11.Gout
8.FUNCTION
5.GNDV
3.Lout
4.GNDA
1.Rout
2.RIN
21.GNDV
21.GNDV
20.V-YIN
19.V/Yout
18.GNDV
17.GNDV
16.BLANK
6.LIN
13.GNDV
10.N-LINK
14.GNDV
3.Lout
7.BIN
12.NC
15.R/CIN
9.GNDV
2.RIN
11.GIN
8.FUNCTION
V+5SC
1.Rout
GNDA
GNDV
V+12SC
AV1
from STB
4.GNDA
SCRB ASSY
PYKC F4X
31.TUCVBS_TtoS
5.GNDV
AV2
Contact Side
Contact Side
PC
FC DC
V+12SC
V+12SC
V+5SC
1
E
B
E
C2
B
C
C B2 E2
35
44
23
22
1
3
1
6
4
3
1
6
4
3
1
6
4
15
1
NP
NP
NP
NP
5
8
1
4
NP
SIDE A
SIDE A
I
I
SCRB ASSY
I
CN210
B
(VNP1935-B)
CN203
CN211
B
CN204
IC104
IC101
IC103
IC106
IC107
Q289
Q105
Q106
Q109
Q110
Q118
Q120
Q121
Q122
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
65
5
6
7
8
5
6
7
8
C
D
F
A
B
E
3
4
1
6
8
1
9
16
3
4
1
6
16
9
8
1
16
9
8
1
R1002
R1001
D151
R117
D157
D184
R279
R280
R1023
R281
R269
R268
R122
R123
R243
R242
R241
R240
R239
R238
R237
R236
R235
R234
R233
R148
R232
R231
R230
R229
R228
R227
R226
R146
R223
R222
R221
R220
R219
R145
R218
R144
R217
R216
R215
R214
R143
R213
R212
R208
R140
R139
R205
R204
R136
R135
R132
R164
R131
R130
R126
R125
R124
R116
R114
R109
R108
R105
R104
R101
Q123
Q119
Q104
Q102
Q101
IC114
IC113
IC105
IC102
D182
D181
D113
C226
C225
C224
C223
C222
C217
C215
C213
C206
C205
C203
C201
C200
C199
C181
C180
C164
C162
C157
C154
C153
C150
C145
C144
C143
C142
C130
C129
C114
C113
C109
R152
R153
D188
R1007
D154
R156
R158
R282
D155
D156
R314
R313
R312
R311
R310
R309
R308
R307
C171
Q309
Q308
Q307
IC301
D307
C309
C308
R157
C307
C301
D158
R315
R1025
Q115
D187
D152
C231
C232
D153
R154
R1031
R1032
C283
D185
D186
R1033
C229
C230
Q124
R119
R112
R283
Q281
GNDV
BLANK
RIN
Lout
GNDV
Rout
LIN
V/Yout
V-YIN
GNDV
Rout
RIN
GNDA
Lout
15.P_CONT
13.XTHROU
11.SNL_IN
9.FUNC
7.SDA
14.BLANKIN
12.COMPMUTE
10.SNL_O
8.SCL
5.XP_SAVE
6.GND
R/CIN
GNDV
GNDV
GNDV
BIN
LIN
GNDV
GNDA
N-LINK
GNDV
FUNC
GIN
NC
Bout
4.GND
FUNC
N-LINK
Gout
NC
GNDV
3.V+5SM
2.EV+15
GNDV
V-YIN
GNDV
V/Yout
GNDV
BLANK
GNDV
R/Cout
GNDV
AV2
from STB
C
7.C_TtoS
E
9.Y_TtoS
B
GNDA
GNDV
1.SLAMUTE
V+5SC
V+12SC
11.G_TtoS
29.AR_StoT
31.TUCVBS_TtoS
33.TUAL_TtoS
35.TUAR_TtoS
23.AL_TtoS
25.AR_TtoS
27.AL_StoT
13.G_StoT
15.B_StoT
17.B_TtoS
19.R_TtoS
21.R/C_StoT
to TV
3.SRAMUTE
5.V/Y_StoT
1.V+6E
AV1
E
B C2
E2
B2
C
VWV1958-
V+12SC
V+5SC
V+12SC
V+5SC
V+5SC
LF
21
20
2
1
1
6
3
4
9
8
1
16
1
6
3
4
1
16
8
9
15
10
1
35
30
20
10
1
20
21
2
1
1
16
9
8
NP
SIDE B
SIDE B
I
I
SCRB ASSY
I
(VNP1935-B)
CN203
CN204
IC301
IC102
IC105
IC113
IC114
Q281
Q124
Q115
Q307
Q308
Q309
Q101
Q102
Q104
Q119
Q123
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
66
1
2
3
4
1
2
3
4
C
D
F
A
B
E
5. PCB PARTS LIST
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).
5 6 1
4 7 3
R 5 0
1 R 0
5 6 2 1
NOTES:
560 Ω
47k Ω
0.5 Ω
1 Ω
RD1/4PU J
RD1/4PU J
RN2H K
RS1P K
56 x 10 1
47 x 10 3
R50
1R0
561
473
5.62k Ω
RN1/4PC F
562 x 10 1
5621
Mark No. Description
Part No.
LIST OF ASSEMBLIES
1..ATAB ASSY
VWV1968
1..TUJB ASSY
VWV1962
NSP
1..FJDB ASSY
VWM2206
2..FRJB ASSY
VWV1965
2..DVJB ASSY
VWV1967
1..MAIN ASSY
VWV1971
2..MHLP ASSY
VWV1991
1..FLKB ASSY
VWM2212
2..FLKY ASSY
VWG2443
>
1..POWER SUPPLY UNIT
VWR1374
1..SCRB ASSY
VWV1958
Mark No. Description
Part No.
AATAB ASSY
OTHERS
CN12 CONECTOR
CKS4052
CN11 40P ATA CONECTOR
VKN1805
BTUJB ASSY
SEMICONDUCTORS
IC2551
BA05FP
IC2251
BR24L32F-W
IC3301
LA73030
IC3501
LA73054
IC2801
LC75342M
IC4001
MSP3417G
IC2581
NJM78M09FA
IC2001
PD5947A8
IC2541
PQ1K333M2ZP
IC2521
PST3245
IC2271
RS5C372A
IC2003
TC74HCT7007AF
IC2351
TC7WU04FU
IC3903
TDA9818TS
Q3002, Q3342, Q3344, Q3363, Q3371
2SA1576A
Q3402, Q3404, Q3406, Q3408, Q3410
2SA1576A
Q3452, Q3909, Q4001-Q4004
2SA1576A
Q2640
2SB1238X
Q2532, Q2621
2SC2411K
Q2203, Q2205, Q2351, Q2641, Q3001
2SC4081
Q3453, Q3901, Q3902, Q3904, Q3905
2SC4081
Q3915, Q3916
2SC4081
Q3912, Q3920
2SC4082
Q4005
2SD1664
Q2202
2SD2114K
Q2151, Q2201, Q2305, Q3559, Q3562
DTA124EUA
Q3903, Q3906
DTA124EUA
Q2204, Q2642, Q3451
DTC124EUA
Q3362
HN1B04FU
Q2306
HN1C01FU
Q3554, Q3556
HN1C03FU
Q2152
RN1901
Q3914
RN1903
Q201, Q202, Q3004, Q3561, Q3563
RN4903
Q2531, Q3006, Q3099
UMF21N
D2640
1SR154-400
D2271
1SS352
D201-D203, D2201, D3001, D3551
1SS355
D3560, D4001
1SS355
D3901
1SS356
D3301-D3304
DA204K
D2272
RB501V-40
D3002
UDZS33B
COILS AND FILTERS
L3005 RADIAL INDUCTOR
ATH1109
L3341, L3343
LAU180J
L3401, L3403, L3405, LL3407, L3409
LAU220J
L3451
LAU2R2J
L2301
LAU470J
L3957
LCKAWR22J2520
L3960
LCKAWR47J2520
L2641, L3342, L3344
LCYA100J2520
L3903, L3909, L3912
LCYA150J2520
L3911
LCYA4R7J2520
L3910
LCYA8R2J2520
L3907, L3920
LCYAR68J2520
L2642 INDUCTOR
LTA102J
F3902 SAW FILTER
VTF1177
F3901 SAW FILTER
VTF1179
F3912 IF TRAP FILTER
VTF1180
F3911 IF TRAP FILTER
VTF1181
F3903 TRAP FILTER
VTF1183
L2039, L2359, L3018, L3019
VTL1081
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
67
5
6
7
8
5
6
7
8
C
D
F
A
B
E
CHIP BEAD
L3003, L3004, L3099, L3902
VTL1096
CHIP BEAD
L4002 VCO COIL
VTL1164
CAPACITORS
C3356, C3357
CCSRCH100D50
C2118, C2119, C2545, C2546
CCSRCH101J50
C2818-C2820, C3362, C3365
CCSRCH101J50
C2141, C2142, C2822, C2823, C4016
CCSRCH102J50
C4022, C4023, C4028
CCSRCH102J50
C3932
CCSRCH121J50
C3917
CCSRCH150J50
C3345, C3352, C3404, C3410, C3416
CCSRCH180J50
C3422, C3428
CCSRCH180J50
C3935
CCSRCH181J50
C2357, C2358, C4029, C4030
CCSRCH220J50
C2645
CCSRCH221J50
C3343, C3350, C3960
CCSRCH270J50
C2301, C3020, C3021
CCSRCH330J50
C3405, C3412, C3417, C3423, C3429
CCSRCH390J50
C2101, C2105, C2106, C2201, C3933
CCSRCH470J50
C3561, C3562
CCSRCH471J50
C4017, C4019
CCSRCH560J50
C2354
CCSRCH561J50
C3905, C4018
CCSRCH5R0C50
C3344, C3351, C3451, C3936
CCSRCH680J50
C3901, C4021
CCSRCH6R0D50
C3341, C3347
CCSRCH8R0D50
C2273
CCSRCH4R0C50
C2353, C2801, C2802, C2810-C2817
CEAT100M50
C3001, C3364, C3641, C3642, C4007
CEAT100M50
C4012
CEAT100M50
C203, C2111, C2254, C2533, C2534
CEAT101M10
C2544, C2553, C2622, C2623, C2626
CEAT101M10
C3083, C3301, C3310, C3349, C3403
CEAT101M10
C3504, C3518, C4011, C4013
CEAT101M10
C4032, C4033
CEAT101M10
C2582, C2584, C2642, C2804, C2807
CEAT101M16
C3555, C3928, C4002, C4004
CEAT101M16
C3013, C3507, C3511
CEAT102M6R3
C3552, C3554
CEAT220M25
C3533
CEAT221M16
C3201
CEAT330M25
C4009
CEAT3R3M50
C2640
CEAT471M16
C3010, C3904
CEAT471M6R3
C3911, C3912
CKSQYB225K10
C3918, C3920, C3921, C3923, C3925
CKSRYB102K50
C2104, C2355, C2821, C3317, C3902
CKSRYB103K50
C3906, C3907, C3930, C4010, C4024
CKSRYB103K50
C2102, C2103, C3302, C3305-C3308
CKSRYB104K16
C3311, C3314-C3316, C3505, C3508
CKSRYB104K16
C3909
CKSRYB104K16
C3012, C3023, C3908, C3916
CKSRYB222K50
C3924
CKSRYB224K10
C4015, C4027
CKSRYB472K50
C2112, C2140, C2202, C2204, C2210
CKSRYF104Z25
C2251, C2302, C2303, C2351, C2352
CKSRYF104Z25
C2356, C2521, C2522, C2531, C2532
CKSRYF104Z25
Mark No. Description
Part No.
C2535, C2541-C2543, C2551, C2552
CKSRYF104Z25
C2581, C2583, C2621, C2624, C2625
CKSRYF104Z25
C2641, C2643, C2646, C2808, C2809
CKSRYF104Z25
C3017, C3084, C3304, C3312, C3313
CKSRYF104Z25
C3346, C3353, C3407, C3415, C3419
CKSRYF104Z25
C3425, C3431, C3503, C3506, C3514
CKSRYF104Z25
C3519, C3521, C3530-C3532, C3551
CKSRYF104Z25
C3903, C3910, C3929, C3931, C3934
CKSRYF104Z25
C4001, C4003, C4006, C4008, C4014
CKSRYF104Z25
C4020, C4026, C4031, C4034
CKSRYF104Z25
C3005
CKSRYF104Z50
C2110, C2113-C2115, C2152, C2154
CKSRYF105Z10
RESISTORS
R4001, R4004
RS1/10S0R0J
R4009
RS1/10S100J
R3098
RS1/10S150J
R3346, R3349, R3352, R3356
RS1/16S5600F
R3406, R3418, R3428, R3438, R3443
RS1/16S6800F
R2815, R2817, R2818, R3303-R3305
RS1/16S75R0F
R3451, R3568, R3569, R3571
RS1/16S75R0F
VR3901 (10K)
VCP1156
Other Resistors
RS1/16S###J
OTHERS
U3001 TV TUNER MODULE
VXF1023
X2271 (32kHz)
VSS1143
X2351 (4.433619MHz)
VSS1176
X2001 (10MHz)
VSS1188
X4001 (18.432MHz)
VSS1189
CN2006, CN2009 KR CONNECTOR
B2B-PH-K
CN3003 2P TOP POST
B2P-SHF-1AA
CN2003 KR CONNECTOR
B8B-PH-K
CN211 15P FFC CONNECTOR
HLEM15S-1
CN2005 19P FFC CONNECTOR
HLEM19S-1
CN210 35P FFC CONNECTOR
HLEM35S-1
CN2007 9P FFC CONNECTORE
HLEM9S-1
JA3081 OPTICAL LINK OUT
JFJ1001
JA2201 REMOTE CONTROL JACK
RKN1004
CN2004 KR CONNECTOR
S13B-PH-K
CN2001 8P SIDE POST
S8B-EH
0 PCB BINDER
VEF1040
BT2271 LITHIUM BATTERY
VEM1034
JA2832 JACK
VKB1192
JA3551 JACK
VKB1193
CN2008 21P FFC CONNECTOR
VKN1252
CN3001 32P FFC CONNECTOR
VKN1263
CN3002 15P FFC CONNECTOR
VKN1275
ST2271 BATTERY SOCKET
VKX1015
2007 SCREW PLATE
VNE1948
KN2001-KN2003
VNF1084
WRAPPING TERMINAL
CFRJB ASSY
SEMICONDUCTORS
D1301-D1304
UDZS5.6B
SWITCHES AND RELAYS
S1201, S1202
VSG1009
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
68
1
2
3
4
1
2
3
4
C
D
F
A
B
E
CAPACITORS
C1308, C1309
CCSRCH471J50
RESISTORS
Other Resistors
RS1/16S###J
OTHERS
JA1302 3P JACK
VKB1189
JA1301 Y/C CONNECTOR
VKB1190
CN1301 15P FFC CONNECTOR
VKN1275
KN1301-KN1303
VNF1084
WRAPPING TERMINAL
DMAIN ASSY
SEMICONDUCTORS
IC3301
AD1895AYRS
IC3101
AK5381VT
IC2301
BA7655AF
IC1103
CY62148VLL-70ZI
IC5204
K4S161622D-TC80
IC1101
K4S281632E-TC75
IC1401
K4S561632D-TC75
IC1001
M65672WG-C
IC2331
MM1508XN
IC5002
MM1562FF
IC1301
MT48LC4M32B2TG-6
IC4001
NJM2370R12
IC4004, IC4006
NJM2872F05
> IC4007
NJM2880U1-33
IC4206, IC5301, IC5321
NJU7013F
IC3201
PCM1742KE
IC4008
PQ012FZ01ZP
IC4002
PQ070XZ02ZP
IC4003
PST3428U
IC4005
PST3809U
IC3402
SM8707KV
IC4101
SN74AHC2G53HDCT
IC3001
TC74LCX541FT
IC3002
TC74VHC14FT
IC5341
TC74VHC157FT
IC3403, IC4205, IC5322
TC7WHU04FU
IC3251
UPC4570G2
IC5101
UPD72852AGB-8EU
IC5202
UPD72893AGD-LML
IC1102
VYW2116
IC1201
W986416DH-6
Q2101-Q2105, Q2201, Q2203, Q2301
2SA1576A
Q2312
2SA1576A
Q2202, Q2222
2SC4081
Q2302, Q2311
DTC114EUA
Q2402, Q2403
HN1B04FU
Q1101
HN1K03FU
Q3201, Q3202
RN1903
Q1102
RN4982
Q2001
UMF21N
D3001, D3002, D3101-D3104
1SS355
D5321
HVC359
D5322
HVC362
D4201
MA2ZV05
D1111, D4001
RB521S-30
Mark No. Description
Part No.
COILS AND FILTERS
F3102, F3401-F3403, F4004, F4201
DTF1069
F5101 CHIP BEAD
DTF1069
L5301, L5321
LCYA100J2520
L4202
LCYA1R2J2520
F3201 CHIP SOLID INDUCTOR
VTF1096
L5101, L5102 CHOKE COIL
VTH1043
L2101 CHIP COIL
VTL1067
L4201 CHIP BEAD
VTL1079
L5103-L5106
VTL1082
CAPACITORS
C5311, C5329
CCSRCH100D50
C3253, C3258
CCSRCH101J50
C5105
CCSRCH271J50
C5325, C5327
CCSRCH330J50
C3207
CCSRCH331J50
C4208
CCSRCH390J50
C5131-C5138
CCSRCH4R0C50
C5326
CCSRCH5R0C50
C3254, C3257
CCSRCH681J50
C5121, C5122
CCSRCH8R0D50
C2208, C2317, C4002, C4034, C5203
CEVW100M16
C5322
CEVW100M16
C3251, C3255, C4001, C4004, C4029
CEVW101M16
C2101, C2221, C2331, C2405, C2501
CEVW101M6R3
C3201, C3204, C3206, C3301, C3309
CEVW101M6R3
C2301, C5102
CEVW220M6R3
C1054, C1055, C1057, C1058
CEVW221M4
C1060, C1061, C4022
CEVW221M4
C3106
CEVW2R2M50
C5321
CEVW470M16
C2308, C3102, C3107, C4003, C5205
CEVW470M6R3
C5207, C5221, C5341
CEVW470M6R3
C5301
CEVW4R7M35
C2204, C2334, C4206, C5309
CKSQYB105K10
C1901, C4014, C4019, C4033, C4036
CKSQYB225K10
C5006
CKSQYB225K10
C1501-C1507
CKSQYB475K6R3
C1004, C1012, C1014, C1029, C1034
CKSRYB102K50
C1040, C1044, C1049, C1051
CKSRYB102K50
C1110-C1112, C1207, C1208, C1307
CKSRYB102K50
C1311, C1313, C1407, C1408, C3303
CKSRYB102K50
C3307, C3408
CKSRYB102K50
C1003, C1027, C1037, C1052, C1109
CKSRYB103K50
C1206, C1305, C1308, C1310, C1406
CKSRYB103K50
C2305, C3003, C3004, C4018, C4020
CKSRYB103K50
C4207, C5214, C5222, C5224
CKSRYB103K50
C1508-C1510, C2225, C2311, C4104
CKSRYB104K16
C5306
CKSRYB104K16
C4103
CKSRYB223K50
C5328
CKSRYB473K25
C2202
CKSRYB563K16
C1002, C1005, C1007-C1010, C1016
CKSRYF104Z25
C1018, C1019, C1021-C1023
CKSRYF104Z25
C1025, C1026, C1028, C1030, C1035
CKSRYF104Z25
C1038, C1041, C1042, C1047, C1102
CKSRYF104Z25
C1105, C1106, C1108, C1114, C1202
CKSRYF104Z25
C1204, C1302, C1304, C1312, C1402
CKSRYF104Z25
C1404, C2102-C2106, C2201, C2206
CKSRYF104Z25
C2222, C2306, C2319, C2332
CKSRYF104Z25
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
69
5
6
7
8
5
6
7
8
C
D
F
A
B
E
C2406, C2407, C2502-C2506, C3001
CKSRYF104Z25
C3006, C3101, C3105, C3108
CKSRYF104Z25
C3202, C3203, C3205, C3252, C3256
CKSRYF104Z25
C3302, C3308, C4006-C4008, C4010
CKSRYF104Z25
C4012, C4013, C4017, C4021
CKSRYF104Z25
C4024-C4026, C4032, C4035, C4107
CKSRYF104Z25
C4202, C4203, C4209, C5101, C5103
CKSRYF104Z25
C5111-C5113, C5118-C5120
CKSRYF104Z25
C5123-C5127, C5204, C5206
CKSRYF104Z25
C5208-C5213, C5215-C5218
CKSRYF104Z25
C5225-C5230, C5308, C5310, C5323
CKSRYF104Z25
C5342, C5343
CKSRYF104Z25
C1001, C1006, C1011, C1013, C1017
CKSRYF105Z10
C1024, C1036, C1039, C1045, C1048
CKSRYF105Z10
C1050, C1053, C1103, C1107, C1113
CKSRYF105Z10
C1203, C1205, C1209, C1303, C1306
CKSRYF105Z10
C1309, C1403, C1405, C1409, C2507
CKSRYF105Z10
C3404-C3407, C4027, C4028
CKSRYF105Z10
C4030, C4031, C4105, C4201, C4401
CKSRYF105Z10
C4501, C5110, C5231
CKSRYF105Z10
C1056, C1059, C1062, C1101, C1104
CKSYF106Z10
C1201, C1301, C1401, C3402, C3403
CKSYF106Z10
C4015
CKSYF106Z10
VC4201 (10pF)
VCM1012
RESISTORS
R1025, R1026, R1042-R1046
RAB4CQ103J
R1048-R1051, R1054, R1068, R1069
RAB4CQ103J
R1072, R1073, R5218-R5221
RAB4CQ103J
R5229, R5230, R5247, R5249-R5252
RAB4CQ103J
R5255, R5258, R5259, R5273-R5275
RAB4CQ103J
R5289, R5290
RAB4CQ103J
R1408-R1411, R4302-R4306
RAB4CQ220J
R4401, R4404, R4410, R4416, R4417
RAB4CQ223J
R4423, R4502, R4506, R4512
RAB4CQ223J
R4518, R4519, R4525
RAB4CQ223J
R1114-R1117, R4405-R4408, R4436
RAB4CQ330J
R1303-R1310, R1404-R1407
RAB4CQ560J
R1203-R1206
RAB4CQ680J
R5103
RN1/16SE5101D
R5108
RN1/16SE9101D
R1001-R1009, R1101, R1102, R1201
RS1/10S0R0J
R1301, R1401, R2017,
RS1/10S0R0J
R3002, R3102, R3201, R3252, R3301
RS1/10S0R0J
R3303, R4001, R4006, R4009, R4014
RS1/10S0R0J
R4016, R4108, R4109, R5102
RS1/10S0R0J
R5207-R5209, R5292, R5322
RS1/10S0R0J
R5321
RS1/10S101J
R4013
RS1/16S1001F
R3254, R3266
RS1/16S1002F
R3253, R3265
RS1/16S1201F
R4011
RS1/16S1501F
R4012
RS1/16S1800F
R1021, R1023
RS1/16S2201F
R3251, R3269
RS1/16S2202F
R2105, R2106, R2111, R2112, R2115
RS1/16S3300F
R5104-R5107
RS1/16S56R0D
Other Resistors
RS1/16S###J
Mark No. Description
Part No.
OTHERS
CN4001 PH CONNECTOR
S8B-PH-SM3
CN1901 7P FFC CONNECTOR
VKN1299
CN2501, CN5102 7P FFC CONNECTOR VKN1411
CN3001 21P FFC CONNECTOR
VKN1425
CN4301 29P FFC CONNECTOR
VKN1433
CN2001 32P FFC CONNECTOR
VKN1436
CN4401 40P FFC CONNECTOR
VKN1794
KN3 EARTH METAL FITTING
VNF1109
X4201 (27.000MHz)
VSS1146
X5101 (24.576MHz)
VSS1184
X4102 (27MHz) VCXO
VSS1195
EMHLP ASSY
SEMICONDUCTORS
IC1
PDY081A
D1
RB521S-30
CAPACITORS
C1
CEVW101M6R3
C2-C6
CKSRYF104Z25
C7
CKSRYF105Z10
RESISTORS
R3
RAB4C0R0J
R2
RAB4C102J
R1
RS1/16S0R0J
Other Resistors
RS1/10S###J
OTHERS
CN1 7P FFC CONNECTOR
VKN1411
CN2 B TO B CONNECTOR 30P
VKN1571
FFLKY ASSY
SEMICONDUCTORS
IC1001
PT6315
COILS AND FILTERS
L1001
LAU220J
SWITCHES AND RELAYS
S1001, S1002, S1004-S1008
VSG1009
S1003
VSX1004
CAPACITORS
C1012
CEJQ101M6R3
C1010
CEJQ220M35
C1015
CEJQ470M16
C1001-C1004, C1006-C1009, C1011
CKSRYB103K50
C1013, C1016
CKSRYB103K50
RESISTORS
Other Resistors
RS1/16S###J
OTHERS
CN1001 19P FFC CONNECTOR
9607S-19F
IC1002 REMOTE RECEIVER UNIT
RPM7140-H4
V1001 FL TUBE
VAW1081
RUBBER SPACER
VEB1357
1001 FL HOLDER
VNF1120
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
70
1
2
3
4
1
2
3
4
C
D
F
A
B
E
GPOWER SUPPLY UNIT
OTHERS
> P101 PROTECTOR(3A)
AEK7050
> P201, P401, P403, P404
AEK7067
PROTECTOR(2A)
HDVJB ASSY
OTHERS
JA1303 DV-TERMINAL
VKB1186
CN1302 7P FFC CONNECTOR
VKN1238
ISCRB ASSY
SEMICONDUCTORS
IC104
BA4558F-HT
IC113
BU4052BCF
IC101
LA73026AV
IC114
MM1503XN
IC103, IC106, IC107
MM1506XN
IC105
MM1511XN
IC102, IC301
TC74HC4053AF
Q101, Q120-Q122, Q124
2SA1576A
Q118
2SC1740S
Q104, Q307-Q309
2SC4081
Q109, Q110
DTA124EUA
Q115, Q123
DTC124EUA
Q105, Q106
HN1C03FU
Q281, Q289
RN2903
Q102, Q119
RN4903
D113-D117, D130-D133, D181
1SS355
D184, D187, D188, D307
1SS355
D134
RB501V-40
D182
UDZS12B
D101-D112, D118-D121
UDZS5.6B
D123-D127, D129, D135-D150
UDZS5.6B
D185, D186
UDZS5.6B
COILS AND FILTERS
L103
LCYA220J2520
SWITCHES AND RELAYS
RY101
VSR1017
CAPACITORS
C142-C145
CCSRCH102J50
C225, C226
CCSRCH220J50
C307, C308
CCSRCH221J50
C113, C114, C127-C130
CCSRCH471J50
C203-C206
CCSRCH471J50
C115, C116, C227, C228
CEANP100M16
C158, C159, C165, C166
CEAT100M50
C168, C169, C212, C219-C221
CEAT100M50
C156, C161, C182
CEAT101M10
C103-C105, C147, C209, C214
CEAT101M16
C218
CEAT101M16
C151, C152, C160, C167, C170
CEAT102M6R3
C138
CEAT1R0M50
C102, C117, C118, C123-C126
CEAT220M25
C139-C141, C149
CEAT220M25
Mark No. Description
Part No.
C207, C208
CKSQYB105K16
C110
CKSQYF105Z16
C121, C146, C150, C153, C162
CKSRYB103K50
C222-C224
CKSRYB105K10
C109, C135-C137, C148
CKSRYF104Z25
C154, C155, C157, C164, C180
CKSRYF104Z25
C200, C201, C213, C217, C301
CKSRYF104Z25
C303, C309, C401, C402
CKSRYF104Z25
C111, C112
CKSRYF105Z10
RESISTORS
R121, R126, R140, R143-R148
RS1/16S75R0F
R151, R207
RS1/16S75R0F
Other Resistors
RS1/16S###J
OTHERS
CN204 15P FFC CONNECTOR
HLEM15S-1
CN203 35P FFC CONNECTOR
HLEM35S-1
JA101, JA102 SCART CONNECTOR
VKB1157
101, 102 SCREW PLATE
VNE1948
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
71
5
6
7
8
5
6
7
8
C
D
F
A
B
E
6. ADJUSTMENT
6.1 TUJB ASSY ADJUSTMENT
The solder land named
"AFT2" (upper side)
Q3901-Emitter
CN3003 Pin1
(AGC)
1.90V ± 0.20V
Note1
3.80V ± 0.20V
2
Terrestrial tuner input /through output.
Any channel, RF Input ≥ 60dBu
System = B/G, I or D/K
Manual Adjust (in GUI of Manual Ch
Setting) = ON
Note1
Terrestrial tuner input
Ch = E9(203.25MHz), Video= Blackburst
RF Input = 60.0 ± 1.0dBu
System = B/G, I or D/K
Note 1 : The adjustment spec. is defined without the thermal drift after the power on.
Therefore, start the adjustment at least 10 minutes after the power on.
No.
Adjustment Name
Adj. Point Measurement Point
Adjustment Value
Adjustment State
1
VCO freerun frequency (AFC voltage)
adjustment
AGC start point adjustment
L4002
VR3901
* It is not necessary to adjust the ASSY normaly when exchanging the ASSY. But the adjustment is
necessary when exchanging the Tuner Module and IC3003 VIF/SIF IC.
88
116
30
58
1
29
59
87
4
1
5
8
1
4
5
8
1
1 2
8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
18
1
9
1
10
19
1
10
15
1
1
3
4
6
1
19
1
2
3
4
5
7
8
9
10
12
13
14
15
18
1
15
1
2
3
4
6
1
10
20
30
35
1
32
1
11
12
22
23
33
34
44
1
2
14
1
7
8
1
8
1 2
13
+
-
C2115
R2119
X2001
C2106
C2105
R2007
R2004
C2104
C2103
C2102
R2102
C2101
R2101
R2038
R2118
R3949
IC2001
C2111
X2271
IC2251
C2251
C2582
C2584
C2622
C2623
C2626
IC2581
IC2351
R2357
C2356
X2351
CN2006
C2801
C2803
C2813
C2811
C2807
C2812
C2810
C2804
C2802
C2806
C2642
R2305
R2012
R2011
R2303
CN2003
KN2003
KN2002
KN2001
C2534
C2533
R2361
C2254
JA2832
C2354
R2355
Q2351
R9004
R9005
R9006
R9007
R9008
CN2007
C2107
C2108
C2109
R2115
JA2201
R2113
C2355
C2357
R2360
C2358
R2359
R2358
C2353
R2354
C2352
R2352
R2353
R2351
C2351
R2103
L2642
C203
R2356
C2815
C2814
R2251
R2252
C2253
C2252
R2001
R2002
R2003
R2005
R2013
R2081
R2084
R2086
R2087
R2085
R2083
R2079
R2071
C2119
R2043
R2066
R2016
IC2551
C2553
R2551
KN2007
CN2005
R2048
CN211
CN2009
C2544
IC2541
R2309
C2817
C2816
C2516
R2311
L2301
R2317
R2315
R2316
C2303
R2318
C2302
Q2306
CN2008
C2505
C2506
R3354
Q3344
L3344
L3343
R3351
R3357
Q3343
R3352
R3350
C3353
C3349
C3347
C3350
C3351
C3352
R3355
C3316
D3304
D3303
C3315
C3314
C3310
D3302
D3301
C3311
C3308
Q3342
R3348
L3342
R3346
L3341
R3342
R3345
R3344
Q3341
C3307
C3346
C3341
C3343
C3344
C3345
C3301
R3343
C3029
C3028
C3026
C3022
R3023
C3015
C3013
C3006
C3009
C3001
U3001
R3442
Q3407
R3435
R3436
R3432
R3423
C3419
R3424
R3420
Q3404
L3403
C3415
R3421
R3405
L3401
C3403
C3518
C3517
C3516
C3511
C3515
C3507
C3504
C3083
JA3081
C3552
C3554
C3555
JA3551
C3364
R3026
Q3006
L3005
C3427
R3561
Q3554
Q3556
R3304
C3354
C3355
CN3002
L3409
L3407
L3405
C3935
C3936
C3931
C3934
C3929
Q3915
R3937
R3941
C3932
C3930
C3933
Q3916
R3933
C3928
VR3902
F3903
R3909
VR3901
F3901
C3904
L4002
Q3099
R3099
R3098
L3098
C3099
C3201
R3908
R3931
Q3913
R3930
F3902
R3925
C3357
C3356
F3911
F3912
R3910
F3904
R3922
R3921
CN210
F3906
R3945
R3944
C4033
CN3001
L3099
R3935
R3934
R3942
R3915
R3356
R3349
Q3004
L3909
L3910
L3911
L3912
Q3906
C3010
R202
JA3582
Q4004
C4028
R4019
C4027
R4018
R4017
C4026
R4016
C4023
Q4003
C4022
R4014
R4013
R4012
X4001
R4015
C4024
R4011
C4016
C4015
R4010
C4014
C4013
C4012
C4011
C4019
C4020
C4017
Q4001
R4008
R4006
R4007
Q4002
C4009
C4008
C4006
C4007
C4004
C4003
C4010
R4003
C4001
R4005
IC4001
C4002
C3533
R3998
R2205
R3005
CN3003
R2108
C2204
R3597
C4032
C2140
R2301
R2058
C2141
R2145
R1000
C2142
R2146
R2059
R2109
ST2271
R2140
D3306
R3599
C2118
Q2640
C2640
R3457
C2152
C2153
C2154
R2057
D3305
R1001
L2039
R2078
C3641
IC2003
R2110
R2029
R2080
Q3565
Q3564
R3574
R3573
C2082
R2017
R2253
CN2001
CN2004
Q3451
C2210
R2209
Q2205
R2210
R3643
R3642
C3642
Q3452
L3451
R3456
R3452
R3453
R3454
R3455
BT2271
R2254
CVBS2
WARNING
AGC2
AFT2
ARM2T
TUJB ASSY
L`AFC
Adjust
AGC
FC DC
PC
1C
1V
3V
Adjust
CONTACT UPPER SIDE
Adjust
AFC
19
1
33
34
12
22
23
44
1
11
8
1
4
1
8
5
E
B C2
C B2 E2
V+5E
V+3.3SW
V+6E
V+13SW
V+6SW
V+13SW
V+5VO
V+5VI
V+6SW
V+5M
V+5VO
V+5E
V+5VO
V+15E
V+5VI
V+15E
V+5VI
V+6E
V+13SW
V+6SW
V+37E
V+5TU
13
1
15
1
1
9
15
1
CMKD-P3X
35
1
2
8
1
21
1
58
1
29
59
87
88
116
30
34
1
1
1
19
25249.6 - PROPOSITION 65
HEALTH & SAFETY CODE SECTION
DEFECTS OR OTHER REPRODUCTIVE HARM.
OF CALIFORNIA TO CAUSE CANCER,BIRTH
CHEMICALS WHITCH ARE KNOWN TO THE STATE
AND CERTAIN ELECTRICAL PARTS CONTAIN
THIS PRODUCT CONTAINS LEAD IN SOLDER
8
1
5
4
1
3
4
6
1
32
1
2
1
7
8
14
-
+
TUJB ASSY
B
SIDE A
VR3901
L4002
Fig.1 Adjustment Points (TUJB ASSY)
CN3003 Pin1
AFT2
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
72
1
2
3
4
1
2
3
4
C
D
F
A
B
E
6.2 MAIN ASSY ADJUSTMENT
MAIN ASSY
IC3402 Pin8 (XTO)
(SM8707KV)
No.
Adjustment Name
Adj. Point
Measurement Point
Adjustment Value
Adjustment State
1
27.000000MHZ
± 130Hz
Master clock free-running adjustment
(Clock system adjustment)
VC4201
No signal input
* It is not necessary to adjust the ASSY normaly when exchanging the ASSY but confirm the data.
D1111
R5104
IC5101
C1061
C5111
R5236
5
CN5102
R5121
R5110
C5101
C5131
C5135
TP34
TP36
C4033
8
2
7
1
R5247
8
2
7
1
R5249
8
2
7
1
R5263
R5262
R5260
R5120
R5116
R5122
R5114
R5253
R5254
R5256
R5257
C5210
C5121
C5122
C5124
C5209
C5212
C5204
C5206
C5214
C4032
R5102
R5208
TP35
TP4015
C5102
F5101
C5207
R5252
1
7
2 8
R5251
L5101
L5102
IC4007
3
1
4
R5103
R5108
R5107
R5106
R5105
1
208
157
156
X5101
7
1
33
32
17
16
R5235
R5216
R5217
R5231
R5109
R5125
R5128
R5117
R5115
R5126
R5129
R5232
R5214
R5233
R5215
R5234
C5103
C5105
C5110
C5112
C5127
C5120
C5216
C4035
C5132
C5138
C5137
C5136
TP31
TP32
TP33
TP37
TP38
TP5202
TP5201
C5104
C4034
L5103
L5104
L5106
L5105
1
2
1
TP1026
TP4305
TP3303
TP3301
R5292
R1005
C5231
C5224
C5229
C1013
R5298
R5297
R4504
R1074
53
R4405
C5205
Q2104
Q2105
TP5204
R1102
F1001
C2265
C5218
R5283
R2109
R1011
C1041
C1037
C1034
C1028
C1027
C1025
C1016
R4110
R5124
R5123
R5286
C5118
C5119
C5123
C5227
R4109
VR1001
1
4
20
CN4601
R4105
R5272
R5130
IC5202
64
49
48
1
8
2
7
1
R5275
8
7
R5218
8
2
7
1
R5219
8
2
7
1
R5220
8
2
7
1
R5221
8
2
7
1
R5274
8
2
7
1
R5273
C1011
C1014
R5237
R5238
R5132
R5131
R1071
R5112
R5113
R5127
R5276
R1111
R1052
R1012
C5113
C5125
C5126
C5226
C5217
C5215
C1114
C4107
C4102
C4105
R4108
R1007
R1001
C1054
TP1060
TP5106
Q1102
C4106
VR2104
X4102
3
2
29
1
C1104
R4106
R4107
R2112
R2115
R1024
R1023
R1022
R1021
105
104
52
2
1
2
1
R5290
8
2
7
1
R5289
8
2
7
1
R5229
2
1
8
2
7
1
R5230
C1050
C1004
C1003
C1002
C1001
C1508
C1509
R4104
R4103
R4102
R4101
R5280
R5281
R5228
R5224
R5288
R5225
R5278
R5279
C1510
R5227
R2113
R4403
R4402
R2114R2116
R5277
R5287
R5282
R5313
R5314
R5265
R2266
C5228
C4103
C4104
F1007
R1003
R1009
C1060
TP28
TP4708
TP4707
TP4706
TP4702
TP1041
TP1050
TP1051
IC4101
1
4
5
8
VR2105
VR1002
R1031
Q2103
TP4701
TP4703
TP4302
C5321
R1004
C1006
R2107
CN4702
C5225
R2102
R2103
TP4705
Q2102
Q2101
R4407
1
2
R5295
R5296
R5242
R5240
R5241
R5243
R5248
R2106
R2105
R1034
C2246
C5329
C5213
C5211
C5208
C2105
C2106
R2252
R5284
R5285
R5244
R5245
R5246
R5239
R5261
TP1002
C1042
C1017
F1005
R1006
C1057
TP4709
TP4711
TP4710
TP4718
TP4719
7
8
R5259
1
7
2
8
R5258
1
7
2
8
R5250
1
7
2
8
R5255
1
7
2
8
R4306
1
7
2
8
7
8
R4406
1
7
2 8
R2111
8
2
7
C5230
C5223
C5222
C3307
C2102
C2103
C2104
R3307
R3306
R3305
R1066
R5293
R5294
C1005
C1051
C1052
C1012
C1044
C1045
C1018
C1019
R3303
C1055
C3309
TP4304
TP4307
TP4704
TP4712
TP4713
CN4401
R4305
1
7
2
8
7
8
R4408
1
CN4301
15
28
IC3301
C1056
C1059
IC5204
8
2
7
1
R4436
8
2
7
1
R4304
8
2
7
1
R4303
40
39
D4401
C5221
TP1013
TP4717
TP4716
TP4715
TP4714
TP4303
TP4301
TP3302
C2101
C1058
R1008
F1006
F1004
C1021
C1048
C1047
R3310
R4435
R4432
R4429
R4428
R3308
R4427
C1022
C1023
C1024
C1026
C1030
C1029
C1035
C1038
C1036
C1049
C1039
C3308
C4401
F1003
F3102
D3102
D3101
D3104
D3103
R4001
C2225
C4213
C4212
C4006
C4005
R1905
R2306
IC4008
R4201
4
1
X4201
1
F4201
C4201
C4202
R4017
C4028
D4001
1
14
C4036
C3403
R3411
8
2
7
1
R4508
8
2
7
1
R4509
8
2
7
1
R4507
8
2
7
1
R4302
2
1
8
2
7
1
R1048
8
2
7
1
R1045
8
2
7
1
R1043
8
5IC3403
2
3
VC4201
C3107
F3401
F3403
9
16
IC3402
C4211
C3404
C3405 C3407
C3302
C3303
C3108
C3408
C1053
C1040
R3309
R2227
R3405
R3406
R3407
R3403
R3304
R4505
R4440
R4205
R5223
R5222
R1080
R3102
R3301
C3301
C2221
TP3401
TP4202
TP4306
TP1012
TP1027
TP1028
TP1029
TP1030
TP1032
TP1031
TP1033
TP1024
D4202
C4206
Q2311
Q2222
R4204
R1902
C3105
C4208
C4203
F3402
5
C4014
TP3402
TP3403
C2222
R2233
R2235
R3410
R4202
R4206
R4210
R4211R4212
R3409
R3107
R3106
R3108
R3105
R2311
R1901
R4531
R4530
R1903
R1904
C3101
C3406
C4209
C3106
C2317
F4004
8
IC3101
8
9
4
1
L4201
1
3
IC4205
1
4
8
CN4501
R4510
1
7
2
8
R3408
L4202
C3402
C1901
Q2312
TP4201
TP4008
R4015
F4001
C4031
C4018
C4027
R2239
R4207
R4208
R4209
R3103
R3104
R2313
R2314
R2312
R4534
R4537
R2221
CN1901
C4210
C4207
D4201
F4202
C3102
16
1
IC4206
4
5
IC4004
1
3
4
5
R4538
1 7
2
8
IC4207
C2334
8
5
4
1
IC2301
1
3
4
6
IC2331
L2101
R4213
40
39
1
32
CN2001
8
1
CN4001
IC4003
IC4005
21
1
CN3001
D4501
20
11
10
1
IC3001
Q2001
Q3202Q3201
Q2402
D3001
D3002
TP50
TP49
TP48
TP47
TP46
TP45
TP44
TP43
TP42
TP41
TP40
TP39
TP4001
TP4009
TP4003 TP4002
TP4010
C4004
C2405
R4014
R4010
R4009
R3002
R2017
Q2403
C2333
C2311
C2305
C2332
C4010
C4021
C4024
C4023
C4013
R2041
R2042
R2043
R2044
R2045
R2046
R2331
R2332R2333
R3271
R3270
R2019
R3022
R4541
R3010
R3001
R3003
R3012
R2411
R2412
R2406
R2405
R2407
R2409
R2408
R2012
R2011
R2013
R2015
R2014
R3023
R3024
R3202
R4004
R4008
R2404
R3025
F4003
C2407
C2319
C3004
C3002
C3001
C2406
MAIN ASSY
D
SIDE A
VC4201
IC3402 Pin8
Fig.2 Adjustment Point (MAIN ASSY)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
73
5
6
7
8
5
6
7
8
C
D
F
A
B
E
7. GENERAL INFORMATION
7.1 DIAGNOSIS
7.1.1 CPRM ID NUMBER AND DATA SETTING
Entering the ID Number and ID Data for DVD Recorder
To enter the input mode, press ESC + STEREO sequentially in
a status with no ID number set, such as after FLASH-ROM
downloading.
• " CPRM ERR" is displayed on the FL display immediately after the power is turned on or in Stop mode.
• When the MAIN ASSY , DRIVE ASSY or the FLASH ROM is exchanged.
Important: If no ID label is found on the rear panel, write down the specified ID number by checking it according to "How to
confirm the ID number" shown below.
Note:
Be sure to enter the ID number in Stop mode.
Use the service remote control (GGF1381) for operations. Only opening/closing of the tray are performed from the player.
The ID data disc is swept out automatically after the recorder has read the data from it.
For the DVD recorder,it is necessary with the recoding/playback of DVD–RW disc to set an individual number (ID number) and ID data to
each recorder. If the number and data are not set correctly with the following procedure, operations in the future may not be guaranteed.
You will find the ID number to be set on the ID label on the rear panel.
Use DVD Recorder DATA DISC [GGV1134] and Service Remote Control Unit [GGF1381]
The Input is Necessary When:
How to Input the ID Number and ID Data
[Recorder's ID Number Setting]
ID Number ?
> - - - - - - - - -
Exit
Input ID Number !
1
As number input is enabled when the unit enters the input
mode, input the 9-digit ID number.
(The entered number is also displayed on the FL display.)
2
2
[Recorder's ID Data Setting]
Exit
Insert The ID Data Disc !
When the ID number has been registered, the unit enters the ID
data input mode. (The FL display indicates "INSERT ID.")
In this condition, place the ID data disc on the tray and close the
tray using the CLOSE key "7/0" on the player.
4
4
[Recorder's ID Data Setting]
Loading The ID Data Disc !
While the data are being read, the message shown in the figure
at left is displayed on the screen.
(The FL display indicates "LOAD ID.")
5
5
[Recorder's ID Number Setting]
ID Number ?
> 0 0 0 0 0 0 0 0 1 OK ?
Compare Mode
Enter
Input ID Number !
After inputting the number, press SEARCH to register the ID
number.
3
3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
74
1
2
3
4
1
2
3
4
C
D
F
A
B
E
How to Confirm the ID Number
How to Clear the ID Number
[Recorder's ID Data Setting]
Wait Rom Writing !
When the ID data have been read, the data are written to the
FLASH-ROM.
(The FL display indicates "WRITE ID.")
6
6
[Recorder's ID Data Setting]
Rom Write OK !
Exit
When the ID data have been written to the FLASH-ROM, the
message "Rom Write OK" is displayed on the screen.
(The FL display indicates "ID DATA OK.")
After confirming this message, press CLEAR to exit the input
mode.
7
8
7
8
[Recorder's ID Number Setting]
ID Number ?
[ 0 0 0 0 0 0 0 0 1]
Compare
> * * * * * * * * *
Exit
Input ID Number !
Press ESC + STEREO sequentially with an ID number already
set, and the unit enters the ID number confirmation mode.
The set ID number is displayed on the screen (and on the FL
display), permitting you to confirm it.
To exit this mode, press CLEAR .
1
Press ESC + STEREO sequentially with an ID number already
set, and the unit enters the ID number confirmation mode.
Input the same number as the ID number you have set.
1
2
2
3
2
3
[Recorder's ID Number Setting]
ID Number ?
[ 0 0 0 0 0 0 0 0 1]
Compare
> * * * * * * * * *
Exit
ID Data Setting Mode
ID Data Setting Mode
Input ID Number !
2
After inputting the number, press STOP .
Only when the entered number matches the set ID number, the
ID number is cleared and the unit exits this mode.
If the numbers do not match, you must return to step 2.
( STOP is not accepted until 9 digits are entered.)
3
[Recorder's ID Number Setting]
ID Number ?
[ 0 0 0 0 0 0 0 0 1]
Compare
> 0 0 0 0 0 0 0 0 1 OK ?
Enter
Memory Clear
Input ID Number !
3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
75
5
6
7
8
5
6
7
8
C
D
F
A
B
E
7.1.2 SERVICE MODE
For service operations, use the GGF1381 remote control unit for service.
The Service-mode screens consist of nine mode screens, which are classified into such rough categories as recording system and VR
playback system, and their subscreens.
• How to enter Service mode : Press the ESC then DISP keys in turn while no GUI is displayed. The first screen (version
information, etc.) shown below is displayed.
• How to exit Service mode
: Press the ESC key.
• How to advance to the next Service-mode screen
: While the first screen is displayed, press directly one of the keys 1-9. For service, use the
keys 2, 4 or 5, as shown below.
• How to advance to a subscreen within the same Service-mode screen
: Press the DIG/ANA key. Pressing the DIG/ANA key repeatedly will change the subscreens
within the same Service-mode screen cyclically.
The Service-mode screens to be used for service are as follows:
1 = First screen: Version information, etc.
2 = Second screen: ATA/ATAPI debug screen (Writer data)
4 = Fourth screen: Error log for the VR recording system
5 = Fifth screen: Error log for the VR playback system
Note: After entering one of the Service-mode screens, if you wish to shift to another Service-mode screen, exit Service mode first,
then reenter Service mode and select your desired Service-mode screen.
DVR-3100-S/WY
SYSCON
: 2.00
ComRev
: 1.1140.2.6 $
FirmRev
: 1.2834.2.4 $
AppRev
: 1.3873.2.8 $
TUFLCON
: 2.18
F
OK
DRIVE
: DVD-RW DVR-106
OK
1.01L
CBT0900720WL
OK
H D D
: ----
DEVICE
: PRISM=ES 2.0C
REGION
: 2
C
: ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗
Description of Each Service-mode screen
• Subscreen: Result of error-rate measurement
ERR RATE
: x.xe-x/
1
2
4
5
6
7
8
3
OK
: OK (proper combination)
OK+ : Version of the tuner microcomputer too advanced
NG– : Version of the tuner microcomputer too old
NG! : "Type"(e.g. J type, WY type) of Syscom's and TUFL
microcomputers are mismatching.
OK
: OK (proper combination)
OK+ : Version of the drive too advanced
NG– : Version of the drive too old
OK
: Serial No. of the drive already registered
NG
: Serial No. of the drive not registered
1 Model name/destination
2 Version of the recorder software
3 Revision No. of the system-control computer software
(Edition administration No. [from top to bottom, common
software, firmware, application software])
4 Version No. of the tuner microcomputer, Mask or
flash (M: Mask type, F: FLASH type)
5 Information on the built-in drive
(Model name, version No., serial No.)
6 Version No. of PRISM
7 Region No.
8 CPRM data (CPRM key No.)
While the first screen shown above is displayed, press the DIG/ANA key to enter the subscreen shown below.
Note: Each time the DIG/ANA key is pressed, the display changes between the first screen and its subscreen.
Note: Be sure to start playback after displaying this subscreen
to calculate the error rate.
1. First screen (version information, etc.)
During playback in VR mode, the average error rate of the past 10 VOBUs is displayed, and during playback in DVD-Video or
Video mode, the average error rate of the past 256 sectors is displayed. During playback in VR mode, the rotation rate of the
drive (/: normal speed, no display = double speed) is also displayed.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
76
1
2
3
4
1
2
3
4
C
D
F
A
B
E
• Subscreen 1: Command log (ALL) of ATA/ATAPI DEBUG OSD
Subscreen 1 of the second screen is displayed when the ESC, DISP, then "2" keys are pressed, in that order.
Note: Each time the DIG/ANA key is pressed, the display changes cyclically among subscreens 1 to 4.
The cumulative power-on time and error log that are administered by the writer are displayed. Such information is obtained when the power
is turned on. Thereafter, each time the SEARCH key on the remote control unit for service is pressed while subscreen 3 is displayed, the
updating command is sent, and the data on the subscreen are updated. Care must be taken when updating this subscreen, because an
undesired command is inserted if it is executed while recording, etc.
A T A / A T A P I History - ALL
3 2 0 1 0 0 0 0 0 0 0 0 0 0 A 0 0 0
OK
3 2 2 A 0 0 0 0 0 D E B B 0 0 0 0 6 3 0 0 0
OK
3 2 2 A 0 0 0 0 0 D F 1 E 0 0 0 0 6 3 0 0 0
OK
3 2 2 A 0 0 0 0 0 D F 8 1 0 0 0 0 6 3 0 0 0
OK
3 2 2 A 0 0 0 0 0 D F E 4 0 0 0 0 6 2 0 0 0
OK
3 2 2 A 0 0 0 0 0 E 0 4 6 0 0 0 0 6 3 0 0 0
OK
3 2 2 A 0 0 0 0 0 E 0 A 9 0 0 0 0 6 3 0 0 0
OK
3 2 2 A 0 0 0 0 0 E 1 0 C 0 0 0 0 6 3 0 0 0
OK
> 3 2 2 A 0 0 0 0 0 E 1 6 F 0 0 0 0 6 2 0 0 0 2 3 A 0 0
• Subscreen 3: Writer mentenance information of ATA/ATAPI DEBUG OSD
A T A / A T A P I Writer MaintenanceInfo
Power ON
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 1 0 2 : 5 6
0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D V D
0 2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
R 0 0 5 3 : 4 8
0 3 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
W 0 0 2 2 : 1 6
0 4 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
C D
0 5 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
R 0 0 3 4 : 0 4
0 6 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
W 0 0 0 0 : 0 0
0 7 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0- 0 0
• Subscreen 2: Command log (ERROR) of ATA/ATAPI DEBUG OSD
Error log for the Writer
1
2
3
4
5
1 Power-on time/cumulative power-on time
2 Duration of emission of the laser diode (LD) for DVD-R/DVD while reading
3 Duration of emission of the LD for DVD-W/DVD while writing
4 Duration of emission of the LD for CD-R/CD while reading
5 Duration of emission of the LD for CD-W/CD while writing
2. Second screen (ATA/ATAPI debug screen)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
77
5
6
7
8
5
6
7
8
C
D
F
A
B
E
The degrees of degradation of the LD (laser diode) for the writer (LDs for CD and DVD separately), temperature, and RF level are
displayed. To update the data on the subscreen, press the SEARCH key on the remote control unit for service while subscreen 4 is
displayed. See Table 1 below for a description of each item and the conditions for updating data.
• Subscreen 4: ATA/ATAPI DEBUG OSD_LD degradation judgment
1
2
3
4
5
A T A / A T A P I - LD Degrade
C D
: 0 0 7 0
1 0 4 %
O K
D V D : 0 0 6 8
9 6 %
O K
T M P : 0 0 A 3
4 1 °C
A D J : 0 0 67
2 6 °C
RF
: 3 D 7 0
Table 1: Description of each item and conditions for updating data
No.
Item
Description
Conditions for updating by
pressing the SEARCH key
Remarks
1
CD
Degradation judgment of LD for CD. Regarded as NG when the value
is 120% or higher (same standard as for the PC drive)
No disc inserted in the disc tray
∗1
2
DVD
Degradation judgment of LD for DVD. Regarded as NG when the
value is 120% or higher (same standard as for the PC drive)
No disc inserted in the disc tray
∗1
3
TMP
Current temperature inside the Writer
No disc inserted in the disc tray
∗1
4
ADJ
Temperature (approx. 25°C) inside the Writer during adjustment
No disc inserted in the disc tray
∗1
5
RF
RF level (16-bit data, proportional calculation performed using the
actual RF level value with 2.5 V = 0xFFFF as the maximum value,
displayed in 4-digit hexadecimal)
During playback of disc medium
∗1 : For correct judgment, after leaving the unit at a normal temperature for some time, judgment must be performed immediately after the
unit is turned on with no disc loaded.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
78
1
2
3
4
1
2
3
4
C
D
F
A
B
E
• Subscreen 1:
• Subscreens 2 and 3:
• Subscreens 5 to 11:
• Subscreen 4: Error log for VR recording
Subscreen 1 of the fourth screen is displayed when the ESC, DISP, then "4" keys are pressed, in that order.
Note: Each time the DIG/ANA key is pressed, the display changes cyclically among subscreens 1 to 11.
1 Recording-related error log for the last 18 errors, divided
into 2 screens
(generation time [year-month-day, hour:minute:second],
error data in simplified description)
RunFnc : ---- Ecl : **** Rate : **
----------------------
----------------------
----------------------
----------------------
----------------------
----------------------
R e c o r d i n g E r r o r H i s t o r y D i s p l a y
0 1 – 0 6 – 0 1 2 0 : 0 5 : 3 0 N o S y s H d r I N
0 1 – 0 6 – 0 2 0 0 : 2 2 : 1 0 W r i t e E r r o r
1
Notes:
• For details on error messages, see Table 2 "Description of VR-recording-related errors".
• The two error-log screens can be switched by pressing the SPEED+ or SPEED- key.
These subscreens are not for service use.
These subscreens are not for service use.
3. Fourth screen (VR-recording-related error log)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
79
5
6
7
8
5
6
7
8
C
D
F
A
B
E
• Subscreen 1:
• Subscreens 3 and 4:
• Subscreen 2: Error log for VR playback
Subscreen 1 of the fifth screen is displayed when the ESC, DISP, then "5" keys are pressed, in that order.
Note: Each time the DIG/ANA key is pressed, the display changes cyclically among subscreens 1 to 4.
1 Data on location of the display
Original(G)/play list (L), title No., chapter No. (X:XX-XX),
time of the display (min, sec, frame [XXmXXsXX]), busy
mark of the virtual mechanical-control computer (#),
error rate of the transfer data (X.XeXX), playback logical
address (ID [XXXXXXXX])
2 Error message log
Original(G)/play list (L), title No., time of generation (min,
sec [XXX:XXXX]), playback-related error log for the last
13 errors (XX:XXXXXXX)
G : 0 1–0 1 0 0 m 0 0 s 0 0 # –. – e – – 0 0 . 0 0 M
Tgt : STOP Now : STOP Spd : 0
Man : STOP Sub : 0 VBF : 000 ABF : 00
TrMd : STOP TrSt : 0 TNo : Ver : 00
RvMd : STOP RvSt : 0 DNo : Aer : 00
CcSt : STOP ld : 00000000
Stc : 00000000 Tpp-Av1 : +-0 V-A : +-0
MPEG2 720x480 A0 AC-3 2ch 0256k
NT ASP : 43 CGMS : 0 APS : 0 Src : 0
END : 00m00s00 Cell : 000
G : 0 1–0 1 0 0 m 0 0 s 0 0 # –. – e – – 0 0 0 0 0 0 0 0
m s M e s s a g e
m s E r
G01 : 0 0 0 0
Tr : N u l l b l k
L 02 : 1 2 3 0
Tr : S c h L a t e
L 02 : 4 1 0 3
Tp : V o b D i f +
L 02 : 4 1 0 4
Tp : V o b D o f –
1
2
These subscreens are not for service use.
4. Fifth screen (Error log for VR playback)
Notes:
• For details on error messages, see Table 1 "Description of VR-playback-related errors".
• If a VR-playback-related error is generated, a problem in data reading from the disc may be suspected.
(The possibility of a problem on the drive side is high.)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
80
1
2
3
4
1
2
3
4
C
D
F
A
B
E
e
g
a
s
s
e
M
r
o
rr
E
n
o
it
p
ir
c
s
e
D
kl
B
llu
N
:
r
T
k
c
olb
p
o
t
e
h
t
t
a
L
L
U
N
:k
s
a
t
r
e
fs
n
a
r
T
).s
s
e
c
o
r
p
n
oitc
e
t
o
r
p
g
nitr
a
ts
d
n
a
s
eir
e
s
0
0
0
1
-
R
V
D
e
h
t
t
a
e
d
a
m
m
a
e
rts
G
N
g
nitc
e
t
e
D
(
rr
E
d
a
e
R
:
r
T
r
o
rr
e
d
a
e
r
A
T
A
:k
s
a
t
r
e
fs
n
a
r
T
e
t
a
L
h
c
S
:
r
T
e
t
al
h
c
r
a
e
s
A
T
A
:k
s
a
t
r
e
fs
n
a
r
T
r
v
O
T
m
e
S
:
r
T
)
y
alp
sid
e
h
t
h
ti
w
n
oit
a
zin
o
r
h
c
n
y
s
o
n
(
e
r
o
h
p
a
m
e
s
g
ninia
g
r
o
f
t
u
o
e
m
i
T
:k
s
a
t
r
e
fs
n
a
r
T
rr
E
iv
a
N
:
r
T
I
V
A
N
la
u
tc
a
d
n
a
a
t
a
d
t
n
e
m
e
g
a
n
a
m
f
o
)r
o
t
a
giv
a
n
(
I
V
A
N
n
e
e
w
t
e
b
y
c
n
e
tsis
n
o
c
n
I
:k
s
a
t
r
e
fs
n
a
r
T
r
E
r
e
d
r
O
:
r
T
r
e
d
r
o
t
n
e
tsis
n
o
c
n
I
:k
s
a
t
r
e
fs
n
a
r
T
g
n
a
H
1
v
A
:
n
M
y
r
e
v
o
c
e
r
str
a
ts
d
n
a
r
e
d
o
c
e
d
V
A
f
o
p
u
-
g
n
a
h
stc
e
t
e
D
:k
s
a
t
nia
M
!
V
C
R
_
R
R
E
y
r
e
v
o
c
e
r
str
a
ts
d
n
a
r
e
d
o
c
e
d
V
A
f
o
p
u
-
g
n
a
h
stc
e
t
e
D
:k
s
a
t
P
P
T
+
fi
D
b
o
V
:
p
T
.r
u
o
h
U
B
O
V
1
y
b
s
e
c
n
a
v
d
a
C
T
S
r
e
d
o
c
e
d
e
h
T
:k
s
a
t
P
P
T
-fi
D
b
o
V
:
p
T
s
e
c
n
a
v
d
a
n
oit
a
m
r
o
f
nit
n
e
m
e
g
a
n
a
m
e
h
t
f
o
C
T
S
e
h
T
:k
s
a
t
P
P
T
L
L
U
N
di
m
:
p
T
.
L
L
U
N
s
a
w
d
e
t
a
n
gis
e
d
r
e
t
nio
p
n
oit
a
m
r
o
f
nit
n
e
m
e
g
a
n
a
m
e
h
T
:k
s
a
t
P
P
T
g
N
n
a
c
S
:
p
T
.
d
ele
c
n
a
c
s
a
w
g
nin
n
a
c
s
n
e
h
w
y
r
o
m
e
m
P
P
T
e
h
t
t
e
s
o
t
e
r
ulia
F
:k
s
a
t
P
P
T
r
E
p
e
t
S
R
:
p
T
.
d
e
t
a
c
ol
s
a
w
lle
c
p
o
t
e
h
t
e
s
u
a
c
e
b
d
e
t
a
ni
m
r
e
t
ylbic
r
o
f
s
a
w
n
oit
a
r
e
p
o
e
h
t
,
d
elia
f
d
a
h
p
e
ts
e
s
r
e
v
e
r
e
h
t
h
g
u
o
h
tl
A
:k
s
a
t
P
P
T
rr
E
p
p
t
:
p
T
.
d
e
rr
u
c
c
o
y
c
n
e
tsis
n
o
c
n
I
:k
s
a
t
P
P
T
r
v
O
T
ts
1
:
v
R
g
nid
o
c
e
d
g
nitr
a
ts
r
e
tf
a
yle
t
aid
e
m
m
i
U
B
O
V
p
o
t
e
h
t
o
t
n
oit
p
u
rr
e
t
ni
r
o
f
g
nitia
w
r
o
f
t
u
o
e
m
i
T
:k
s
a
t
k
c
a
b
y
alp
e
s
r
e
v
e
R
r
v
O
T
n
p
O
:
v
R
g
nid
o
c
e
d
g
nitr
a
ts
r
e
tf
a
yle
t
aid
e
m
m
i
P
O
G
n
e
p
o
e
h
t
f
o
e
r
u
tcip
-
B
r
o
f
g
nitia
w
r
o
f
t
u
o
e
m
i
T
:k
s
a
t
k
c
a
b
y
alp
e
s
r
e
v
e
R
r
v
O
T
lp
O
:
v
R
g
nid
o
c
e
d
g
nitr
a
ts
r
e
tf
a
yle
t
aid
e
m
m
i
P
O
G
n
e
p
o
e
h
t
f
o
e
r
u
tcip
-I
r
o
f
g
nitia
w
r
o
f
t
u
o
e
m
i
T
:k
s
a
t
k
c
a
b
y
alp
e
s
r
e
v
e
R
r
v
O
T
k
n
L
:
v
R
k
nil
r
o
f
g
nitia
w
r
o
f
t
u
o
e
m
i
T
:k
s
a
t
k
c
a
b
y
alp
e
s
r
e
v
e
R
lia
F
k
n
L
:
v
R
e
r
ulia
f
k
nil
g
nitc
e
t
e
d
y
b
n
oit
a
s
n
e
p
m
o
c
str
a
t
S
:k
s
a
t
k
c
a
b
y
alp
e
s
r
e
v
e
R
r
v
O
T
F
2
R
:
v
R
e
s
u
a
p
d
r
a
w
r
o
f
o
t
e
s
u
a
p
e
s
r
e
v
e
r
m
o
rf
t
u
o
e
m
it
g
nitc
e
t
e
d
r
e
tf
a
lairt
e
r
str
a
t
S
:k
s
a
t
k
c
a
b
y
alp
e
s
r
e
v
e
R
r
E
b
V
p
o
T
:
v
R
k
c
a
b
y
alp
la
m
r
o
n
e
s
r
e
v
e
r
g
nir
u
d
a
t
a
d
p
o
t
e
h
t
f
o
r
o
rr
e
elbis
s
o
p
a
f
o
e
s
u
a
c
e
b
n
oit
a
ni
m
r
e
t
d
e
c
r
o
F
:k
s
a
t
k
c
a
b
y
alp
e
s
r
e
v
e
R
r
E
r
e
d
r
O
:
v
R
r
e
d
r
o
t
n
e
tsis
n
o
c
n
I
:k
s
a
t
k
c
a
b
y
alp
e
s
r
e
v
e
R
r
v
O
T
C
/
B
:
v
A
t
u
o
e
m
it
r
a
elc
-r
e
ff
u
B
:
1
V
A
r
v
O
m
rt
S
:
v
A
y
d
a
e
r
m
a
e
rts
r
o
f
g
nitia
w
r
o
f
t
u
o
e
m
i
T
:
1
V
A
r
v
O
T
m
p
T
:
v
A
e
g
n
a
h
c
e
d
o
m
P
T
r
o
f
t
u
o
e
m
i
T
:
1
V
A
r
v
O
T
m
p
S
:
v
A
d
n
a
m
m
o
c
p
e
ts
a
r
o
f
t
u
o
e
m
i
T
:
1
V
A
R
R
E
_
S
O
_
C
C
r
o
rr
e
S
O
:k
s
a
t
n
oit
p
a
c
d
e
s
ol
C
Table 1: Description of VR-playback-related errors
Abbreviations:
STC = System Time Clock
VOBU = Video Object Unit
GOP = Group Of Picture
B-picture = Bidirectionally predictive-picture
I-picture = Intra-picture
P-picture = Predictive-picture
TP mode change = AV1 term (Trick Play mode change)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
81
5
6
7
8
5
6
7
8
C
D
F
A
B
E
Table 2: Description of VR-recording-related errors
Error
Message
Description
Error
Message
Description
Non Err ∗
Normal
Invalid TMVMG
Invalid TMP_VMGI content
DRAM NG
Abnormality in access to the work DRAM
Unmatch Stamp ∗
Impossible to modify because of nonmatching
time stamps
SRAM NG
Abnormality in access to the backup work SRAM
Virgin DISC
Blank disc
CPRM IC NG
Inappropriate CPRM IC
Fail Repair
Repair failed
Drive Destroy
The drive has crashed.
ReadOnly DISC ∗
Because some data are invalid, data cannot be
written.
MKB REVOKED
Error in gaining data
Rzn Rsv NG
R-zone reserve failed.
WM Cracked
WM cracked
Rzn Cls NG
R-zone Closure failed.
VBR-SRAM NG
Abnormality in VBR SRAM
Rzn Rpr NG
R-zone repair failed.
BK BATT Down
Backup RAM data has been erased.
Bdr Opn
Opening of border failed.
BK FSYS Dirty
Backup RAM data has been written on the file
system.
Bdr Cls
Closing of border failed.
Stream NG
Inappropriate input stream data
Format NG
Formatting failed.
Stm Start NG
Failure to start encoding (reasons not clear)
OPC NG
OPC failed.
AVEnc Hang
Inappropriate MPEG encoder
PCA Full
PCA has been used up.
No SysHdr IN
System packet is not input periodically.
RMA Full
RMA has been used up.
Strm Start NG
Timeout waiting for system packet input at the
beginning
SW Vrec mode ∗
Switching to video recording routine is required.
IN Encode ∗
Changes cannot be made in the process of
encoding
SW Vpb mode ∗
Switching to video playback routine is required.
EncModul Hang
Encoder routine is hung up.
NV Pck MK Err
Error in creating NAVI pack
Ourob Strm NG
Inappropriate stream data to the Ouroboros input
NV Pck DMA Err
Inappropriate NAVI pack DMA
WaterMark Det
Watermark detected
Cell Close NG
Cell closure failed.
BUF Overflow
Overflow of the stream buffer
Something ∗
Undetermined error
Drive Hang
The drive is hung up.
Status NG ∗
Abnormality in change of statuses
Write Err
The drive failed to write and could not be
recovered.
Irr Action ∗
Incorrect action
Read Err
Reading failed, ECC failed, etc.
Abort ∗
Cancellation
Drv Hard Err
Abnormality in the drive hardware or firmware
Repair Exec
Repairing has been executed.
Mech No Res
No response from the mechanical-control
computer
Format Exec
Formatting has been executed.
Drv TimeOut
Timeout waiting for drive operation
BUG
Some bugs
NWA Exhaust
NWA surpassed and impossible to use
BusReset Done
Bus Reset has been executed.
MKB Invalid
MKB reading error
Task No Activ
Task has not been activated.
Drv Err
General error of the drive
Mem get NG
Video mode memory has not been ensured.
DISC Full
No further data can be written because the disc is
full.
V Rsv RzoneNG
Video mode reserve R-zone failed.
No More Info ∗
No more space in the internal work-management
area
Tracon Tm NG
Video Mode Tracon transfer has not been
completed.
No Perm ∗
No permission to write to the disc
DRAM CLR Err
Video Mode DRAM (Stream Buffer) clear failure
Limit Over ∗
Standard maximum limit exceeded
VTSI_B Wr Err
Video Mode VTSI BUP write error
Rec Pause ∗
No operation permitted during recording pause
VTSI Wr Err
Video Mode write error
No Video ∗
No video input (not locked)
TMP-VMG WrErr
Video Mode TMP VMGI write error
Relocation Do
VR-recording data was relocated.
CLS Rzon Fail
Video Mode Closure R-zone failure
Invalid Param ∗
Invalid parameter
V Categ ID NG
Inappropriate Category ID
Protect Src ∗
Source to be recorded is copy-protected.
V Cate Inf NG
Inappropriate Category information
Now Busy ∗
In the process of the emergency processing
V Ext TY NG
Typing error
Invalid Disc ∗
The disc cannot be recognized.
V Ext MAX Ovr
Count MAX exceeded
Invalid UDF ∗
Invalid UDF content
V ExtfToo Big
The extension file is too large.
Invalid VMG ∗
Invalid VMG content
HDD Destroy
HDD not recognized on the bus.
Notes;
• Any error message marked with ∗ is displayed "RecErr : ---------"
on the Subscreen 1 of the fourth screen.
•
: Indicates an error of the MPEG encoder
: Indicates an error of the drive system
• In a case of an error in the drive system, scratches or dirt on a disc,
or a problem of the drive itself (dirty pickup) may be suspected.
Abbreviations:
ECC = 4 byte Code for Error Correction
UDF = Universal Disc Format
PCA = Power Calibration Area
OPC = Optical Power Control
NWA = Next Writable Address
VMG = Video Manager
RMA = Recording Management Area
MKB = Media Key Block
TMP_VMGI = Temporary Video Manager
Information
Border = from Lead-in to Lead-out
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
82
1
2
3
4
1
2
3
4
C
D
F
A
B
E
Table 3: List of Key Codes
How to enter each check mode
Test mode remote control unit : [A8**]
Remote control unit supplied with the DVR : [AB**]
No.
Check Item
Key Input
Operation / purpose
Remarks
1
EE system
(same as preview)
[ESC] → [A.MON]
Turns on/off EE mode cyclically
Make sure that CGMS = 11 becomes when
CGMS = 10 is input.
EE mode: Simulation mode for recording status
[PLAY]
Starts the EE system in EE mode
(main-unit setting rate)
[STOP]
Stops the EE system in EE mode
2
Error-rate measurement
[ESC] → [SIDEB]
V-mode recording:
After recording for 10 seconds, the
unit starts playback while
displaying the error rate.
DVD-Video:
The error rate is automatically
measured, then the result will be
displayed.
For details, see
" 7.1.4 ERROR RATE MEASUREMENT ".
3
Settings for specific areas
[ESC] → [CHP/TIM]
Enters Adjustment mode for AVIO
settings
Settings are made for the selected input
(TUNER, LINE).
For details, see
" 7.1.5 SETTINGS FOR SPECIFIC AREAS ".
[ESC]
Determines the settings, then exits
Adjustment mode
How the ESC code is processed
• When the ESC code is received, ESCAPE mode is entered, but in combination with the code(s) that follow(s), a specific meaning is added.
• If ESC codes are received continuously, ESCAPE mode is retained.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
83
5
6
7
8
5
6
7
8
C
D
F
A
B
E
7.1.3 DV DEBUG MODE
(DV/1394) Init:OK AV:01 DV:01
INT4:02
[Recoder] GUID:00E036000160001 IRM
iPCR:C03F0000 oPCR:0000007A
[DV] GUID:0080880303480E96
VN:VICTOR MN:GR-D50K
TM:C3 TS:75 CT:32 WP:01 PS:FF OS:00
[DVdecoder:Yes]
TC:00h20m35s02f RD:02/02/05 RT:10h34m50s
ASPECT:4:3 CGMS:000000 APSTB:00 DEC:525-60
SF:32kHz QU:12bit AMODE:4) Stereo
[DVencode:No]
TC:--h--m--s--f RD:--/--/--/-- RT:--h--m--s
ASPECT:-------- CGMS:-- APSTB:--
1
2
4
5
6
7
8
9
10
11
12
13
3
Press the ESC, DISP, then "8" keys, in that order.
Boldface alphanumerics
: Fixed indications
Nonboldface alphanumerics : Variable indications
No.
Item
Description
Remarks
1
Init
Whether the initialization of uPD72893A
(1394LINK & DVcodec IC) has been completed
(OK) or not (NG)
In a case of NG, communication with uPD72893A may have
failed.
AV
Number of AV devices on the local bus
DV
Number of DV devices on the local bus
If the number does not become 01 even if a DV device is
connected, identification of that device fails.
INT4
Number of executing INT4(PIO) interrupt
processing routines until a POWER ON
notification arrives from uPD72893A (normally, 02)
2
GUID
GUID set in ConfigROM of the unit
In a case of ROOT (IRM), IRM is displayed at the rightmost of
the GUID indication
3
iPCR
iPCR value of the unit
oPCR
oPCR value of the unit
4
GUID
GUID set in ConfigROM of the connected DV
device
Data are displayed only if one DV device is identified. If the
connected DV device is ROOT (IRM), IRM is displayed at the
rightmost of the GUID indication
5
VN
Vendor name set in ConfigROM of the connected
DV device
Data are displayed only if one DV device is identified.
(Depending on the device, the vendor name may not be set in
ConfigROM.)
MN
Model name set in ConfigROM of the connected
DV device
Data are displayed only if one DV device is identified.
(Depending on the device, the vendor name may not be set in
ConfigROM.)
6
TM
Transport Mode data obtained from the DV device
Data are displayed only if one DV device is identified.
TS
Transport State data obtained from the DV device
CT
Cassette Type data obtained from the DV device
WP
Copy-protection data obtained from the DV device
PS
Power-state data obtained from the DV device
OS
Output signal mode data obtained from the DV
device
7
[DVdecode:XXX]
Whether Yes (in the process of requesting DV
input) or No is indicated in XXX
Normally, Yes is indicated only when CH is set to DV
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
84
1
2
3
4
1
2
3
4
C
D
F
A
B
E
No.
Item
Description
Remarks
8
TC
Time-code data of the DVdecode Stream, or
response data of the Time Code command
Stream time-code data are obtained when playback in
the forward direction is performed. Otherwise, time-code
data are obtained through an AV/C command.
RD
Rec Date of DVdecode Stream
RT
Rec Time of DVdecode Stream
9
ASPECT
Aspect Ratio of DVdecode Stream
CGMS
CGMS of DVdecode Stream (from left to right,
CGMS data of bits 5-4: Audio ch2, bits 3-2:
Audio ch1, and bits 1-0: Video)
Recording of DV input cannot be performed unless the
value of CGMS is 00.
APSTB
APS trigger bit of DVdecode stream
DEC
With/without DVdecode stream input
With input: Signal type (525-60, 625-50, 1125-60, 1250-
50, or Invalid) is indicated, Without input: "No" is
indicated.
0
SF
Sampling Frequency of DVdecode Stream
If SF is 44 kHz, it is considered that 44.1-kHz audio is
input, and sound is muted on the unit.
QU
QUANTIZATION of DVdecode Stream
AMODE
AUDIO MODE of DVdecode Stream
-
[DVencode:XXX]
Whether Yes (in the process of requesting DV
output) or No is indicated in XXX
Normally, Yes is indicated only with HDD or DVD
playback
=
TC
TIME CODE of DVencode stream
RD
REC DATE of DVencode stream
RT
REC TIME of DVencode stream
~
ASPECT
Aspect Ratio of DVencode stream
CGMS
CGMS of DVencode stream (common to
video, audio ch1 and audio ch2)
Normally, sources other than CGMS=00 are not output.
APSTB
APS trigger bit of DVencode stream
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
85
5
6
7
8
5
6
7
8
C
D
F
A
B
E
Simple Diagnosis
Symptoms
Location in the
Debug Screen
Items to be Checked, and Conditions
Possible causes
No operation for either DV
input or output
1
Check the init indication:
OK: Initialization of DV-related LSIs (IC5101, IC5202) appropriately completed
NG: Communication failure between DV-related LSIs (IC5101, IC5202) and
HOST microcomputer (IC1001). Initialization of DV-related LSIs (IC5101,
IC5202) has not been completed properly.
Defective IC, defective soldering, defective power supply,
etc.
Check the number of DV devices when one DV device is connected to the
recorder:
01:
The connected DV device is correctly identified.
Other than 01: The connected DV device is not correctly identified.
Defective DV terminals, improper connection of the
DV-terminal board, defective IC, defective cables, an
IEEE 1394 device other than the DV device connected
No picture nor sound for DV
input
7
Check of DV decoding when the recorder channel is set to DV:
Yes: The recorder is in the process of a DV input operation
No:
The recorder is not executing a DV input operation
Defective IC, defective soldering, defective power supply,
etc.
9
Check DEC:
525-60: An NTSC DV signal is input from the DV device.
625-50: A PAL DV signal is input from the DV device.
No:
No DV signal is input from the DV device.
Defective DV terminals, improper connection of the
DV-terminal board, defective IC, defective source device
Note: As to a model having the Input Line System
setting, if the setting and the actual input signal
system do not match, no picture appears.
DV input recording impossible
9
Check CGMS:
00:
A copy-permitted source is being input.
Other than 00: A copy-protected source is being input.
Recording cannot be performed for a copy-protected
source.
No sound for DV input
0
Check SF:
32 khz: An audio signal with 32-kHz sampling frequency is being input.
48 khz: An audio signal with 48-kHz sampling frequency is being input.
44 khz: An audio signal with 44.1-kHz sampling frequency is being input.
An audio signal with 44.1-kHz sampling frequency is
muted.
No picture nor sound for DV
output
-
Check DVencode during DVD/HDD playback:
Yes: The recorder is in the process of a DV output operation
No:
The recorder is not executing a DV output operation
(No is also displayed during playback of copy-prohibited sources or
simultaneous-recording/playback.)
Defective IC, defective soldering, defective power supply,
etc.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
86
1
2
3
4
1
2
3
4
C
D
F
A
B
E
7.1.4 ERROR RATE MEASUREMENT
How to enter Error-Rate Measurement mode
Press the ESC key then the SIDE-B key of the remote control unit for service to enter Error-Rate Measurement mode. During playback of
DVD-VIDEO, Error-Rate Measurement mode can also be entered by pressing the ESC key then the PLAY key.
How to exit Error-Rate Measurement mode
Press the ESC key. The error-rate display disappears, and Error-Rate Measurement mode is exited.
Note: The error rate cannot be measured in VR mode or during CD playback.
Functions
1 Video-mode recording (recording medium)
In this mode, DVD recording is automatically performed for 10 seconds, the recorded DVD title is played back while the error rate is
being measured, then as soon as playback of the recorded DVD title is finished, playback stops.*1 After error-rate measurement is
finished, the average error rate will be displayed on the FL display and OSD. Only in a case in which the calculation of the average error
rate fails, the tray will open.
2 DVD-VIDEO (playback medium)
Only during playback, when the ESC key then the SIDE-B key (or the ESC key then the PLAY key) are pressed, the error rate is
calculated and displayed on the FL display and OSD.(∗2) Only in a case in which the calculation of the average error rate fails, the tray
will open.
Changes of display
Table 1: Video mode (recording medium)
E R R O R
R A T E
E R R O R
R A T E
x x x x x
E R
x . x E - x
E R
x . x E - x
E R R R A T E : x . x E - x -
E R R R A T E : x . x E - x * O K
Operation
Display
FL Display
OSD (On Screen Display)
"ERROR RATE" is displayed on the FL display for an instant.
DVD recording starts.
DVD recording is performed for 10 seconds.
The recorded DVD title is played back while the error rate is being measured,
then as soon as playback is finished it stops.
After error-rate measurement is finished (∗1), the average error rate, the
measurement-finish mark (∗), and the OK/NG-judgment result (∗3) will be
displayed on the FL display and OSD.
(If the tray opens as a result of NG judgment, the display on the FL display
and OSD will be retained.)
Table 2: DVD-Video (playback medium)
E R
x . x E - x
E R
x . x E - x
E R R R A T E : x . x E - x -
E R R R A T E : x . x E - x - O K
Operation
Display
FL Display
OSD (On Screen Display)
Only during playback, when the corresponding keys are pressed, the error rate
is calculated and displayed on the FL display and OSD. (∗2)
After error-rate measurement is finished (∗1), the average error rate, the
measurement-finish mark (∗), and the OK/NG-judgment result (∗3) will be
displayed on the FL display and OSD.
(If the tray opens as a result of NG judgment, the display on the FL display and
OSD will be retained.)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
87
5
6
7
8
5
6
7
8
C
D
F
A
B
E
∗1 : Whether error-rate measurement is finished or not is judged, as shown in Table 3 below.
∗2 : During DVD-VIDEO error-rate measurement, even after error-rate measurement is finished, playback continues, and the display of the
error rate results is retained. In this playback mode, if Error-Rate Measurement mode is exited by pressing the ESC key, then it is
reentered by pressing the ESC and SIDE-B keys (or ESC and PLAY keys), the error rate will not be updated, and the previous value is
displayed. To reset the previous error rate, stop disc playback.
∗3 : OK/NG judgment
In DVD/VIDEO and Video Mode recording, OK/NG judgment is displayed under the following conditions:
Table 3: On judgment whether error-rate measurement is finished or not
Table 4: List of OK/NG threshold values
Recording Mode
Judgment whether error-rate
measurement is finished or not
Recording/playback duration required
for error-rate measurement
Video mode
After playback of a certain amount (∗) of data
Measurement of the 16 ECC blocks is performed 16 times,
then the grand sum is used for calculation of the error rate.
The capacity is as follows:
16 ECC blocks × 16 sectors × 2048 bytes × 16 times
= 8388608 bytes
= 67108864 bits
The time required for completion of error-rate
measurement varies, depending on the input video
signal to be recorded.
(The more the motion in the input video signal to be
recorded is animated, the shorter the playback time
required for completion of error-rate measurement
becomes.)
Disc Type
Recording Mode
Finalized or not finalized
Reference Value
Display
DVD-VIDEO
8.0 × 10
OK / NG
DVD-R
Video mode
Finalized
1.0 × 10
OK / NG
Not finalized
1.0 × 10
OK / NG
DVD-RW
Video mode
Finalized
1.0 × 10
OK / NG
Not finalized
1.0 × 10
OK / NG
– 4
– 3
– 3
– 3
– 3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
88
1
2
3
4
1
2
3
4
C
D
F
A
B
E
7.1.5 VIDEO ADJUSTMENT FOR SPECIFIC AREA
Purposes: Depending on the area, jitter may appear in a picture received by the tuner, as conditions of signals received by
the tuner are different from area to area. To correct this kind of problem, the function of the System Codec AVIO
control section for adjusting signals received by the tuner can be used.
How to enter setting modes: To enter General Setting mode, press the ESC key then the CHP/TIM key of the remote control
unit for service. To enter Specific Channel Setting mode, press the DIG/ANA key in General
Setting mode.
How to exit setting modes: Press the ESC key. The setting mode is exited, the OSD disappears.
1. General Setting mode
This mode can be entered only during recording/playback stop. In this mode, each item and its current settings are displayed on the OSD.
The currently selected input mode (TUNER or LINE) is displayed. If L1, L2, L3 or DV is selected for input, general settings for the line
input can be made, and if TUNER is selected, general settings for the tuner input can be made.
AVIO Specific Area Mode
Input - [ TUNER ]
Sync AGC
: ON
∗
Threshold
: Manual Threshold Level
Threshold Level
: 0
∗
[General Setting mode] (∗2)
∗ : setting is the default.
Table 1: Key operations in General Setting mode (effective only during recording/playback stop)
∗R: Refers to keys on the remote control unit supplied with this unit. The keys without "R" refer to the remote control unit for service.
Key
Operation
Setting (∗: Default)
Remarks
INPUT SELECT,
CHANNEL +/–
(∗R)
Switches inputs or channels.
–
–
2 ×3, ×3 3 (∗1)
Sets Sync AGC.
ON (∗) / OFF
–
4 CHAPTER SKIP,
CHAPTER SKIP ¢
(∗1)
Sets Threshold.
(∗) Normal
Auto Threshold Level
Manual Threshold Level
Pedestal Level
–
e STILL STEP,
STILL STEP E
(∗1)
Sets Threshold level.
According to the setting of Threshold,
the values can be changed within the
range mentioned below.
–
• Normal:
The value is fixed, with no display of
the value.
–
• Auto Threshold Level:
0-8 (Default: 0)
The value can be changed with the
e or E key.
• Manual Threshold Level:
0-8 (Default: 0)
The value can be changed with the
e or E key.
• Pedestal Level:
0-8 (Default: 0)
The value can be changed with the
e or E key.
CLEAR (∗1)
Initializes the setting of General
Setting mode.
–
Pressing the key resets all settings
of General Setting mode to the
initial values. Settings of Specific
Channel Setting mode are not
affected (they are retained).
ESC
Exits AVIO setting for specific areas,
clearing the OSD.
–
–
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
89
5
6
7
8
5
6
7
8
C
D
F
A
B
E
[Display in General Setting mode when the channel currently displayed has specific settings]
∗1 : When a setting value is changed, that value is immediately displayed and is stored in nonvolatile memory.
• Settings made will not be reset to the default settings even if resetting to the factory-preset values is performed.
∗2 : In General Setting mode, if the channel displayed has specific settings, the following will be displayed.
AVIO Specific Area Mode
Input - [ TUNER ]
Sync AGC
: ON
*
Threshold
: Manual Threshold Level
Threshold Level
: 0
*
This channel is set up
individually.
[Display in Specific Channel Setting mode]
This mode is entered when the DIG/ANA key is pressed in General Setting mode. In this mode, specific settings can be made for up to 12
channels. For channels that do not have specific settings, the settings of General Setting mode are applied.
Display in Specific Channel Setting mode (A picture from the tuner can be viewed using the semitransparent OSD display.)
2. Specific Channel Setting mode
AVIO Specific Area Mode
Input - [ TUNER ]
Sync AGC
: ON
*
Threshold
: Manual Threshold Level
Threshold Level
: 0
*
Individual setting state
Input Channel - [ 1CH]
Sync AGC
: ---
Threshold
: ------
Threshold Level
: --h
[When specific channel settings have NOT
been made]
[When specific channel settings have
been made]
General Setting data
Specific Channel
Setting data
AVIO Specific Area Mode
Input - [ TUNER ]
Sync AGC
: ON
*
Threshold
: Manual Threshold Level
Threshold Level
: 2
Individual setting state
Input Channel - [ 1CH]
Sync AGC
: ON
Threshold
: Manual Threshhold Level
Threshold Level
: 3
∗ : setting is the default.
• If a channel that does not have specific settings is displayed, the setting figures are displayed as hyphens (--).
If the setting figures are not displayed as hyphens, those settings have been specifically set even if they are identical to the default settings
or those of General Setting mode.
• The channels to be displayed in "Input Channel" are as follows:
• In a case of line input: L1-L3,DV
• In a case of tuner input: Received channel (a channel to be set in specific channel settings)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
90
1
2
3
4
1
2
3
4
C
D
F
A
B
E
Table 2: Key operations in Specific Channel Setting mode
(effective only during recording/playback stop)
Key
Operation
Setting (∗: Default)
Remarks
DIG/ANA
Switches cyclically between General
Setting mode and Specific Channel
Setting mode.
–
–
INPUT SELECT,
CHANNEL +/–
(∗R)
Switches inputs or channels.
–
–
2 ×3, ×3 3 (∗1)
Sets Sync AGC.
ON (∗) / OFF
–
4 CHAPTER SKIP,
CHAPTER SKIP ¢
Sets Threshold.
(∗) Normal
Auto Threshold Level
Manual Threshold Level
Pedestal Level
–
e STILL STEP,
STILL STEP E
Sets Threshold level.
According to the setting of Threshold,
the values can be changed within the
range mentioned below.
–
• Normal:
The value is fixed, with no display of
the value.
–
• Auto Threshold Level:
0-8 (Default: 0)
The value can be changed with the
e or E key.
• Manual Threshold Level:
0-8 (Default: 0)
The value can be changed with the
e or E key.
• Pedestal Level:
0-8 (Default: 0)
The value can be changed with the
e or E key.
PLAY
All channels assigned to have specific
settings are canceled, and the
specific settings are reset to their
default values.
–
Settings of General Setting mode
are not affected.
CLEAR
If the channel currently selected is
assigned to have specific settings,
that assignment is canceled.
(If that channel is canceled, the
number of remaining channels for
which specific channel settings can
be made increases by 1.)
–
Pressing the key resets the settings
of Specific Channel Setting mode for
that channel to the initial values.
Settings of General Setting mode
are not affected.
PAUSE
The specific-setting data for the
currently selected channel are reset
to their default values.
(But the assignment of a channel
having specific settings is not
canceled.)
–
Pressing the key resets the settings
of Specific Channel Setting mode for
that channel to the initial values.
Settings of General Setting mode
are not affected (retained).
ESC
Exits AVIO setting for specific areas,
clearing the OSD.
–
–
∗R: Refers to keys on the remote control unit supplied with this unit. The keys without "R" refer to the remote control unit for service.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
91
5
6
7
8
5
6
7
8
C
D
F
A
B
E
• Settings made will not be reset to the default settings even if resetting to the factory-preset values is performed.
• Screen display when Specific Channel settings are made on 12 (maximum) channels: In such a case. If a channel which does not have
specific settings is selected, the individual setting state for that channel is not displayed, as shown in the figure below, and the settings
cannot be modified. In such a case, if you wish to make Specific Channel Settings for the currently selected channel, you must clear the
Specific Channel Settings for one or more channels beforehand.
AVIO Specific Area Mode
Input - [ TUNER ]
Sync AGC
: ON
*
Threshold
: Manual Threshold Level
Threshold Level
: 3
Individual setting state
Sorry !
You can store only 12 channels
for Specific Area mode.
[With 12 channels having specific settings,
when the currently selected channel does not have specific settings]
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
92
1
2
3
4
1
2
3
4
C
D
F
A
B
E
7.1.6 SETUP SEQUENCE
DVD-R/RW Drive
Tuner/FL U-com
System Codec IC (Inital Program Loader)
System Codec IC (Firmware)
Connect power cord.
Tuner/FL microcomputer starts up.
System microcomputer starts up.
Initialization of peripheral-circuit
register, RAM, etc.
Initialization of peripheral-circuit
register, RAM, etc.
Starting communication
with Tuner/FL microcomputer
Request for power off of
system-control computer made to
Tuner/FL microcomputer
System-control computer is turned off
(entering standby) following request
from Tuner/FL microcomputer
Repair process
Playback
Clock indication on FL display
Power ON ?
Waiting
for communication to be
established
Is ID check of drive OK?
Is disc in?
Obtaining LD
temperature data from drive.
Is temperature below
62°C?
LSI Check
No
No
Yes
Yes
Power ON, cancellation of reset
OK
NG
NG
NG
Has command arrived?
Yes
No
FLASH Check
OK
OK
"POWER ON" displayed
on FL display
Key-input and channel data
transmitted to the system-control
computer, and responding to
instructions from it,
indication displayed on FL
display and channel switching
performed
Firmware stored in Flash memory
is developed in SD-RAM.
Yes
Is disc valid?
Yes
Repair required?
Yes
Yes
No
No
No
No
Playback requested?
Yes
Stop
Tray Open
Jumping to developed firmware
Downloading through
RS232C required.
"MONITOR" displayed
on FL display
LSI NG displayed
on FL display
Drive microcomputer starts up.
ATA/ATAPI command processing
Initialization of peripheral-circuit
register, RAM, etc.
No
"CPRM ERR" displayed on FL display
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
93
5
6
7
8
5
6
7
8
C
D
F
A
B
E
7.1.7 DISASSEMBLY
1 Remove the bonnet by removing the eight screws.
2 Press the STANDBY/ON button to turn on the power.
3 Press the 0 button to open the tray.
5 Press the 0 button to close the tray.
4 Remove the tray panel assy.
Bonnet S, Tray Panel Assy
1
1 Remove the two screws.
2 Remove the four hooks.
3 Remove the front panel section.
Front Panel Section
2
1 Remove the one screw.
2 Remove the three screws.
3 Remove the HDD stay.
HDD Stay
3
3
3
5
1
4
1
2
3
Tray panel assy
Front panel section
long thin pole
HDD stay
Emergency eject hole
Jack door
6 Press the STANDBY/ON button to turn off the power.
6
2
5
3
How to open the tray when the power cannot be on
When the player cannot eject disc tray due to power failure or
any other reasons, open the jack door, and use a long thin pole
and push the emergency eject hole under the tray panel to eject.
1
2
2
2
2
2
2
Note: This photograph shows other models.
However, the work method is the same.
Note: This photograph shows other models.
However, the work method is the same.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
94
1
2
3
4
1
2
3
4
C
D
F
A
B
E
1 Remove the two screws.
2 Remove the five screws.
3 Disconnect the connector.
4 Remove the DRIVE Assy R6.
DRIVE Assy R6
4
4
1
1
1
1
3
2
1
1
2
3
2
2
2
2
1 Remove the four screws.
2 Disconnect the flexible cable from DVJB Assy.
3 Stand the MAIN Assy.
DRIVE Assy R6
CN2009
DRIVE Assy R6
POWER SUPPLY Unit
TUJB Assy
FRJB Assy
Insulation sheet
IC1001
MAIN Assy
DVJB Assy
MAIN Assy
MAIN Assy
5
1 Insert the insulation sheet between the MAIN Assy and chassis.
2 Arrange the unit as shown in the photo below.
Caution: MAIN IC (IC1001) on the MAIN Assy generate heat to around 80 degrees.
Be careful when works.
Diagnosis
6
DVJB Assy
1
D
H
B
SCRB Assy
I
G
C
Note: This photograph shows other models.
However, the work method is the same.
Note: This photograph shows other models.
However, the work method is the same.
Note:
This photograph shows other mod-
els. However, the work method is
the same.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
95
5
6
7
8
5
6
7
8
C
D
F
A
B
E
1 Remove the four aluminium tape.
2 Remove the four screws.
5 Remove the bonnet.
6 Remove the clamper holder by removing the four screws.
7 Clean the pickup lens.
3 Remove the one screw.
4 Remove the front bezel by removing the two hooks.
Hook
Front bezel
Hook
DRIVE Assy R6 (DVD-R/RW WRITER)
7
1
2
1
1
1
2
2
5
Bonnet
DRIVE Assy R6
Clamper holder
Pickup lens
3
4
4
2
4
6
7
6
6
6
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
96
1
2
3
4
1
2
3
4
C
D
F
A
B
E
7.2 IC
PD5947A8 (TUJB ASSY : IC2001)
• TUFL Microcomputer
PD5947A8, RS5C372A, LC75342M, AK5381VT, PST3428U, PST3809U, NJM2880U1-33, M65672WG-C,
UPD72852AGB-8EU, UPD72893AGD-LML, TDA9818TS, LA73026AV
No.
Pin Name
Signal Name
I/O
Function
Active
1
P95/ANEX0/CLK4
FLCLK
O
FL Driver communication line CLK
−
2
P94/DA1/TB4in
SYNC
I
C-Sync of input video
↑
3
P93/DA0/TB3in
AVLINKIN
I
Input line of NexTViewLink
−
4
P92/TB2in/Sout3
IR
I
Pulse input of remote control
−
5
P91/TB1in/Sin3
J_CLOCK
I
6
P90/TB0in/CLK3
SYNCAFT
I
C-Sync of input video
↑
7
BYTE
BYTE
I
8
CNVss
PGM
I
Communication line
9
P87/XCin
NC
(O)
−
10
P86/XCout
NC
(O)
−
11
-RESET
XRESETIN
I
u-Con Reset
12
Xout
XOUT
I
13
Vss
GND
−
14
Xin
XIN
I
15
Vcc
VCC
−
16
P85/-NMI
NMI
I
↓
17
P84/-INT2
JOGA
I
Phase VOL input
↑ ↓
18
P83/-INT1
SLICEONFB
I
Feedback from SLICEON pin
↑ ?
19
P82/-INT0
XINTRA
I
Alarm/interval interruption
↓
20
P81/TA4in
NC
(O)
−
21
P80/TA4out
NC
(O)
−
22
P77/TA3in
NC
(O)
−
23
P76/TA3out
FANPWM
O
FAN power control
H
24
P75/TA2in
JOGB
I
Phase VOL input
↑ ↓
25
P74/TA2out
NC
(O)
−
26
P73/-CTS2/-RTS2/TA1in
IICRST
O
Reset output to I2C microcomputer
L
27
P72/CLK2/TA1out
AVLINKOUT
O
Output line of NextViewLink
H
28
P71/RxD2/SCL/TA0in/TB5in SCL
I/O
I2C communication (clock)
−
29
P70/TxD2/SDA/TA0out
SDA
I/O
I2C communication (data)
−
30
Vss2
GND
−
31
LP2
LP2
O
32
LP3
LP3
O
33
LP4
LP4
O
34
Vdd2
VDD2
−
35
M2
M2
I
Mode switch
36
M1
M1
I
37
P11/SLICEON
SLICEON
O
Slicer operating signal
H?
38
P67/TxD1
TXD
O
Communication line for firmware download/monitor
−
39
P66/RxD1
RXD
I
Communication line for firmware download/monitor
−
40
P65/CLK1
SCLK
(O)
Communication line for firmware download/monitor
−
Pin Function
• The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams.
List of IC
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
97
5
6
7
8
5
6
7
8
C
D
F
A
B
E
No.
Pin Name
Signal Name
I/O
Function
Active
41
P64/-CTS1/-RTS1/CLKS1
BUSY
O
Communication line for firmware download/monitor
−
42
P63/TxD0
SSTTOM
O
SYS controller communication line (Tuner → Main)
−
43
P62/RxD0
SSMTOT
I
SYS controller communication line (Main → Tuner)
−
44
P61/CLK0
SCK
I
SYS controller communication line (clock)
↑
45
P60/-CTS0/-RTS0
HSTTOM
O
Tuner → SYS handshake
L
46
P57/-RDY/CLKout
DLCONT
O
Voltage supply SW of FLASH-ROM writing
L
47
P56/ALE
WRT
O
Write signal
H
48
P55/-HOLD
SDAEEP
I/O
SDA line for EEPROM
−
49
P54/-HLDA
SCLEEP
O
SCL line for EEPROM
−
50
P53/BCLK
VOLCE
O
Communication line CE
H
51
P52/-RD
VOLDATA
O
Communication line DATA
−
52
P51/-WRH/-BHE
VOLCLK
O
Communication line CLK
−
53
P50/-WRL/-WR
DLCE
I
Signal for serial I/O mode selection
−
54
P47/-CS3
S1
O
55
P46/-CS2
LET
O
Letterbox signal add
H
56
P45/-CS1
SQU
O
Squeeze signal add
−
57
P44/-CS0
BLANK
I
BLANK signal input
−
58
P43/A19
XTHROU
O
Through control of SCART1/2
L
59
P42/A18
NC
(O)
−
60
P41/A17
SEL1
O
Parallel control (for audio switch)
−
61
P40/A16
SWVION
O
Independent source SW for video I/O output circuit
H
62
P37/A15
SWSTBY
O
Standby mode of video input selector
H
63
P36/A14
BS15ON
O
64
P35/A13
BS15SRT
I
65
P34/A12
SCTHRU
O
SCART loop through control during power OFF
L
66
P33/A11
BS15IN
I
67
P32/A10
SDET3
I
S terminal detection of Video input 3
L
68
P31/A9
SDET2
I
−
−
S terminal detection of Video input 2
L
69
Vcc
VCC
70
P30/A8
SDET1
I
S terminal detection of Video input 1
L
71
Vss
GND
72
P27/A7
SELV1
O
Parallel control
−
73
P26/A6
SELV2
O
Parallel control
−
74
P25/A5
SELV3
O
Parallel control
−
75
P24/A4
YVSEL
O
CVBS/YC switch of Video input selector
−
76
P23/A3
P_SAVEBS
O
RF through output switch
H
77
P22/A2
FOMO
O
−
78
P21/A1
M1ONTA
O
−
79
P20/A0
P_CONT
O
System Power ON
H
80
P17/D15/-INT5
NC
(O)
−
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
98
1
2
3
4
1
2
3
4
C
D
F
A
B
E
No.
Pin Name
Signal Name
I/O
Function
Active
81
P16/D14/-INT4
HSMTOT
I
SYS → Tuner handshake
↓
82
P15/D13/-INT3
DCTRI
I
Change detection of audio condition
↑
83
P14/D12
MUTE
O
MUTE control
H
84
P13/D11
SU/SAPID
I
85
P12/D10
ST/STID
I
86
P11/D9
XRESET
O
System Reset output
L
87
P10/D8
LDASH
O
ColorSystem distinction signal
H
88
P07/D7
STBYQ
O
EU multiplex decoder standby mode
L
89
P06/D6
LM/
O
ColorSystem distinction signal
H
90
P05/D5
I/BG
O
ColorSystem distinction signal
H
91
P04/D4
XP_SAVE
O
Power save control (SCART)
L
92
P03/D3
TUON
O
Tuner power
H
93
P02/D2
YCSW
O
94
P01/D1
RSTCTL
O
Reset signal mask from the system controller
L
95
P00/D0
FLPON
O
FL Driver Power ON
H
96
P107/AN7/-KI3
MODEL1
A/D IN Input for destination judgment
−
97
P106/AN6/-KI2
MODEL2
A/D IN Input for destination judgment
−
98
P105/AN5/-KI1
AGC
A/D IN Field intensity detection
−
99
P104/AN4/-KI0
FUNC
A/D IN Function signal input
−
100
P103/AN3
KEY2
A/D IN Main unit key input
−
101
P102/AN2
KEY1
A/D IN Main unit key input
−
102
P101/AN1
C/N
A/D IN
−
103
Avss
GND
104
P100/AN0
AFT
A/D IN AFT voltage input
−
105
VREF
VREF
106
AVcc
AVCC
107
P97/-ADTRG/Sin4
FLSTB
O
−
−
−
−
−
−
−
I
Communication line strobe of FL driver
L
108
Vdd1
VDD1
109
SYNCIN
SYNCTEXT
I
Video input for sync. sep.
110
SVREF
SLICE
I
Slice level input
111
Vss1
GND
112
Vdd3
VDD3
113
CVIN1
CVIN1
I
Video input for teletext
114
Vss3
GND
115
FSCIN
FSCIN
Fsc input
116
P96/ANEX1/Sout4
FLDATA
O
Communication line data of FL driver
−
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
99
5
6
7
8
5
6
7
8
C
D
F
A
B
E
• Real Time Clock IC
32kHz Output
Control
Address
Decoder
Address
Resister
I/O
Control
OSC
Detect
Driver
Correction
Time Counter
(SEC, MIN, HOUR, WEEK, DAY, MONTH, YEAR)
OSC
OSCIN
DIV
Comparator_B
Comparator_A
Shift Resister
Interrupt Control
Alarm_B Register
(WEEK, MIN, HOUR)
Alarm_A Register
(WEEK, MIN, HOUR)
7
OSCOUT
6
/INTRA
5
SCL
2
VSS
4
VDD
8
SDA
3
/INTRB
1
No.
Pin Name
I/O
Function
1
/INTRB
O
Interruption output B
The output of 32.768kHz (in 32768Hz crystal use), cycled interrupt for CPU, or output alarm interrupt
(ALARM_B). This pin output 32.768kHz when activated power from 0V.
Nch open drain output.
2
SCL
I
Shift clock input
Synchronize with this clock, and input and output data from a SDA terminal.
Exceed VDD, and can input to 6V.
3
SDA
I/O
Serial input and output
Synchronize with SCL, and input and output writing data or readout data.
Exceed VDD, and can input to 6V. Nch open drain output in the output.
4
VSS
−
Ground pin
5
/INTRA
O
Interruption output A
Cycled interrupt for CPU, or output alarm interruption (ALARM_A, ALARM_B).
This pin becomes an OFF state when activated power from 0V. N ch open drain output.
6
OSCOUT
O
Oscillation circuit output
Connect a crystal resonator of 32.768kHz or 32.000kHz between OSCIN and
OSCOUT, and constitute oscillation circuit.
(component parts of oscillation circuit except crystal resonator have it built-in.)
7
OSCIN
I
Oscillation circuit input
8
VDD
−
Positive supply input
RS5C372A (TUJB ASSY : IC2271)
Pin Function
Block Diagram
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
100
1
2
3
4
1
2
3
4
C
D
F
A
B
E
• Electric Volume IC
11
10
L4
LSELO
9
LIN
8
LTRE
7
LBASS1
8
LBASS2
5
4
LOUT
TEST
2
CE
3
VSS
1
DI
30 CL
28 Vref
27 NC
29 VDD
12
L3
13
L2
14
L1
15
NC
20
R4
19
R3
18
R2
17
R1
16
NC
21
RSELO
22
RIN
23
RTRE
24
RBASS1
25
RBASS2
26
ROUT
Control
Circuit
Logic
Circuit
CCB
Interface
LVref
RVref
Control
Circuit
No.
Pin Name
Function
No.
Pin Name
Function
1
DI
Serial data input for control
16
NC
Not connected
2
CE
Chip enable pin
Data are written in the internal latch by a timing
of "H" → "L", and each analog switch works.
Data transfer is enabled by "H" level.
17
R1
Input signal pin
3
VSS
Ground pin
18
R2
4
TEST
Pin for electronic volume test
Set to VSS electric potential.
19
R3
5
LOUT
Volume and equalizer output pin
20
R4
6
LBASS2
Capacitor and resistor connection pins for bus
bandpass filter
21
RSELO
Input selector output pin
7
LBASS1
22
RIN
Volume and equalizer input pin
8
LTRE
Capacitor connection pin for treble bandpass
filter
23
RTRE
Capacitor connection pin for treble bandpass
filter
9
LIN
Volume and equalizer input pin
24
RBASS1
Capacitor and resistor connection pins for bus
bandpass filter
10
LSELO
Input selector output pin
25
RBASS2
11
L4
Input signal pins
26
ROUT
Volume and equalizer output pin
12
L3
27
NC
Not connected
13
L2
28
Vref
0.5XVDD voltage generation block
14
L1
29
VDD
Power supply pin
15
NC
Not connected
30
CL
Clock input pin for control
LC75342M (TUJB ASSY : IC2801)
Pin Function
Block Diagram
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
101
5
6
7
8
5
6
7
8
C
D
F
A
B
E
• 96kHz 24 bit ∆∑ ADC
AINL
AINR
1
∆∑
Modulator
2
AINR
∆∑
Modulator
1
VCOM
DIF
SCLK
SDTO
LRCK
MCLK
Voltage
Reference
Decimation
Filter
Decimation
Filter
Serial I/O
Interface
Clock
Divider
4
14
10
12
9
11
DGND
8
VD
7
AGND
5
VA
6
PDN
13
CKS0
16
CKS1
3
CKS2
15
AINL
2
CKS1
3
VCOM
4
AGND
5
VA
6
VD
7
DGNS
8
16
CKS0
15
CKS2
14
DIF
13
PDN
12
SCLK
11
MCLK
10
LRCK
9
SDTO
No.
Pin Name
I/O
Function
1
AINR
I
R ch analog input
2
AINL
I
L ch analog input
3
CKS1
I
Mode select 1
4
VCOM
O
Common voltage output, bias voltage of VA/2 and ADC input
5
AGND
−
Analog ground
6
VA
−
Analog power supply, 4.5V to 5.5V
7
VD
−
Digital power supply, 2.7 to 5.5V (fs = 4k to 48kHz), 3.0 to 5.5V (fs = 48k to 96kHz)
8
DGND
−
Digital ground
9
SDTO
O
Audio serial data output, outputs "L" in the power down mode.
10
LRCK
I/O
Channel clock I/O, outputs "L" by master mode in the power down mode.
11
MCLK
I
Master clock input
12
SCLK
I/O
Audio serial data clock, outputs "L" by master mode in the power down mode.
13
PDN
I
Power down mode "H": power up, "L": power down
14
DIF
I
Audio interface format, "H" : 24 bit I2S compatibility, "L" : 24 bit MSB justify
15
CKS2
I
Mode select 2
16
CKS0
I
Mode select 0
AK5381VT (MAIN ASSY : IC3101)
Pin Function
Pin Arrangement (Top view)
Block Diagram
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
102
1
2
3
4
1
2
3
4
C
D
F
A
B
E
• Reset IC
VDD
VOUT
VOUT
1
Vref
2
1
VSS
4
VDD
2
4
VSS
3
NC
No.
Pin Name
Function
1
VOUT
Reset signal output
2
VDD
Power supply / voltage detection
3
NC
Not connected
4
VSS
VSS
PST3428U (MAIN ASSY : IC4003)
Pin Function
Pin Arrangement (Top view)
Block Diagram
VDD
OUT
OUT
1
Vref
2
1
GND
4
VDD
2
4
GND
3
NC
No.
Pin Name
Function
1
OUT
Reset signal output
2
VDD
Power supply / voltage detection
3
NC
Not connected
4
GND
Ground
• Reset IC
PST3809U (MAIN ASSY : IC4005)
Pin Function
Pin Arrangement (Top view)
Block Diagram
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
103
5
6
7
8
5
6
7
8
C
D
F
A
B
E
VIN
5
4
1
3
1 : CONTROL (Active High)
2 : GND
3 : NOISE BYPASS
4 : VOUT
5 : VIN
2
5
4
CONTROL
VOUT
3
NOISE BYPASS
Bandgap
Reference
Thermal
Protection
1
GND
2
• Regulator IC
NJM2880U1-33 (MAIN ASSY : IC4007)
Pin Arrangement (Top view)
Block Diagram
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
104
1
2
3
4
1
2
3
4
C
D
F
A
B
E
A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
B
C
D
E
F
G
H
J
K
L
M
N
P
R
T
U
V
W
Y AA AB AC AD AE AF AG AH
Buffer Name
Main Function
Remarks
PDIDGZ
Input buffer (5V tolerant)
PDUDGZ
Input buffer (5V tolerant), pull-up
PDDDGZ
Input buffer (5V tolerant), pull-down
PDO04CDG
Output buffer, 4mA
PDO08CDG
Output buffer, 8mA
PDO0204DGZ
Output buffer, 2/4mA
PDO0406DSGZ
Output buffer, 4/6mA
For SDRAM IF
PDO0406DSGZ×2
Output buffer, 8/12mA
For SDRAM IF
PDT0204DGZ
3 state output buffer, 2/4mA
PDB04DGZ
Bidirectional buffer, 4mA
PDB08DGZ
Bidirectional buffer, 8mA
PDB0204DGZ
Bidirectional buffer, 2/4mA
PDB0406DSGZ
Bidirectional buffer, 4/6mA
For SDRAM IF
• Signal Processing IC for DVD Recorder
M65672WG-C (MAIN ASSY : IC1001)
Pin Arrangement (Top view)
I/O buffer list
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
105
5
6
7
8
5
6
7
8
C
D
F
A
B
E
VDD
EDATA[23]
EDATA[22]
EDATA[20]
EDATA[18]
EDATA[16]
EADRS[0]
EBS[0]
ERAS
EDQM
EDATA[6]
EDATA[3]
EDATA[0]
AVDDAD8
BG8
VRB8
AVDDAD8
VRM10
AVDDAD10
PACKETEN
WM2DTO[2]
VDD
WMCLKO
WM1DTO[4]
WM1DTI[1]
WM1DTI[3]
HKEYPLS
VDD
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
T
U
V
W
Y
AA
AB
AC
AD
AE
AF
AG
AH
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
T
U
V
W
Y
AA
AB
AC
AD
AE
AF
AG
AH
AT1DATA[12]
EDATA[24]
EDATA[25]
EDATA[21]
EDATA[19]
EDATA[17]
EADRS[1]
EBS[1]
ECS
EWE
EDATA[7]
EDATA[4]
EDATA[1]
AVSSAD8
GIN
VRT8
DVSSAD10
CVBSIN
VBGR10
STREAM
WM2DTQ[4]
WM2DTO[6]
WM1DTO[1]
WM1DTO[6]
WM1DTI[4]
PEDCTL
REC656O[1]
REC656O[3]
AT1DATA[8]
AT1DATA[13] AT1DATA[15]
EDATA[26]
EDATA[29]
EDATA[30]
EADRS[2]
EADRS[10]
EADRS[11]
ECAS
EDATA[8]
EDATA[5]
EDATA[2]
DVSSAD8
CRIN
CIN
VRBD10
VRT10
NBC10
SYNC
WM2DTO[3]
WM1DTO[0]
WM1DTO[5]
WM1DTI[2]
WM1DTI[7]
ACCCTL
REC656O[2]
AVDD2DA10
AT1DATA[7]
AT1DATA[6]
AT1DATA[14]
EDATA[27]
EDATA28]
EDATA[31]
EADRS[4]
EADRS[6]
EADRS[8]
ECLKEN
EDATA[9]
EDATA[11]
EDATA[13]
DVDDAD8
AVDDAD8
AVSSAD8
VRB10
AVSSAD10
TSRW
WM2DTO[0]
WM2DTO[7]
WM1DTO[2]
WM1DTI[0]
WM1DTI[6]
AGCCTL
REC656O[5]
YOUT
AVSS2DA10
AT1DATA[2]
AT1DATA[1]
AT1DATA[5]
AT1DATA[10] AT1DATA[14]
EDATA[3]
EADRS[5]
EADRS[7]
EADRS[9]
ECLKO
EDATA[10]
EDATA[12]
EDATA[14]
EDATA[15]
AVSSAD8
DVDDAD10
VRTD10
TSCLK
WM2DTO[1]
WM2DTO[4]
WM1DTO[3]
WM2DTC[1]
WM1DTI[5]
REC656O[0]
COUT
IREF[1]
ROUT
AVDD1DA10
AT1DIOW
AT1DMACK
AT1DATA[0]
AT1DATA[3]
AT1DATA[9]
GND
VDD3
VDD
GND
VDD3
VDD
GND
VDD3
VDD
GND
VDD2
VDD
GND
VDD2
VDD
GND
VDD3
VDD
REC656O[4]
AVDD1DA10
BOUT
DVACK
DVREQ
AT1ADR[1]
AT1INTRQ
AT1DIOR
AT1RESET
AT1DATA4]
VDD3
VDD3
IREF[0]
AVSS1DA10
REC656O[6]
DVVIDEO[0]
DVVIDEO[1]
AT1CS[0]
AT1CS[1]
AT1ADR[0]
AT1IORDY
AT1DMARQ
VDD
VDD
GOUT
REC656O[7]
DVVIDEO[3]
DVVIDEO[4]
PLL2AVSS
AT2DATA[11] AT2DATA[12] AT1DATA[13] AT2DATA[14]
AT1ADR[2]
GND
GND
DVVIDEO[2]
ADMCLKI
PLL2AVDD
DVVCLKI
DVVIDEO[7]
AT2DATA[6]
AT2DATA[7]
AT2DATA[8]
AT2DATA[10] AT2DATA[15]
VDD3
VDD3
R656CLKI
DVVIDEO[5]
REC656I[0]
REC656I[1]
REC656I[2]
AT2DATA[1]
AT2DATA[2]
AT2DATA[4]
AT2DATA[5]
AT2DATA[9]
VDD
VDD
DVVIDEO[6]
REC656I[3]
REC656I[4]
REC656I[6]
REC656I[7]
AT2DIOW
AT2DMARQ
AT2RESET
AT2DATA[0]
AT2DATA[3]
GND
GND
GND
GND
GND
GND
GND
GND
REC656I[5]
PXCLK
DVVCLKO
PLLRST
TRST
AT2ADR[2]
AT2INTRQ
AT2IORDY
AT2DIOR
AT2DMACK
VDD3
GND
GND
GND
GND
GND
GND
VDD3
TCK
TDI
TDO
TMS
PLLON
AT2MODE
AT2CS[0]
AT2CS[1]
AT2ADR[0]
AT2ADR[1]
VDD
GND
GND
GND
GND
GND
GND
VDD
VIPWM
CSYNC
TESTMOD[0] TESTMOD[1] TESTMOD[2]
RESET
VDD
DBI
TRACE
VDD
GND
GND
GND
GND
GND
GND
GND
VDD
TESTMOD[6]
VDD
TESTMOD[5] TESTMOD[4] TESTMOD[3]
PCO
PLL3AVSS
PLL3AVDD
VMCLK
PLL1AVDD
VDD3
GND
GND
GND
GND
GND
GND
VDD3
HADRS[28]
HADRS[29]
HADRS[24]
HADRS[25]
HADRS[26]
PLL1AVSS
ADCCLKO
VDD
DVAMCLKO
DVAMCLKI
VDD
GND
GND
GND
GND
GND
GND
GND
HADRS[27]
HADRS[19]
HADRS[18]
HADRS[23]
HADRS[22]
DACCLKO
AMCLK1
AMCLK2
ARDATA[1]
ARDATA[0]
GND
VDD
HADRS[15]
HADRS[16]
HADRS[17]
HADRS[20]
HADRS[21]
ARDATA[14]
ARDATA[15]
ARDATA[4]
ARDATA[3]
ARDATA[2]
VDD2
VDD3
HDCS[1]
HDCS[0]
HCAS
HRAS
HCLKEN
ARDATA[11]
ARDATA[12]
ARDATA[13]
ARDATA[6]
ARDATA[5]
VDD
GND
HDATA[7]
HDWE
DQMWS[0]
DQMWS[1]
HCLKO
ARDATA[10]
ARDATA[9]
ARWE
ARDQM[0]
ARDATA[7]
GND
VDD
HDATA[6]
HDATA[5]
HDATA[4]
HDATA[8]
HDATA[9]
ARDATA[8]
ARDQM[1]
ARCS[0]
ARRAS
ARCAS
VDD3
VDD3
HADRS[9]
HDATA[2]
HDATA[3]
HDATA11]
HDATA[10]
ARCLKO
ARADRS[12] ARADRS[13] ARADRS[14]
ARCS[1]
VDD
VDD3
GND
VDD
VDD3
VDD
GND
VDD3
VDD
GND
VDD3
VDD
GND
VDD3
VDD
GND
VDD3
VDD
HADRS[10]
HDATA[1]
HDATA[0]
HDATA[12]
HDATA[13]
ARADRS[11]
ARADRS[9]
ARADRS[1]
ARADRS[0]
ARADRS[10]
SPDIFI
ACMOD[0]
BCKO
DVDADT[4]
DVDAADR[0]
SCIDATA[0]
SPIDATAO
DDATA[11]
DDATA[8]
DCLKO
DADRS[9]
DADRS[8]
INT[7]
INT[1]
CTS[2]
RTS[0]
TX[3]
HWAIT
HCS[5]
HADRS[11]
HADRS[12]
HDATA[15]
HDATA[14]
ARADRS[8]
ARADRS[3]
ARADRS[2]
SRCBCKI
SRCDATAO
ACMOD[1]
LRCKO
DVDADT[3]
DVDAREQ
SCIDATA[1]
SPICS
DDATA[14]
DDATA[12]
DDATA[9]
DDQM[1]
DADRS[11]
DADRS[7]
DADRS[6]
INT[6]
INT[2]
CTS[1]
RX[3]
TX[2]
HDACK[0]
VDD
HCS[0]
HADRS[13]
HADRS[14]
ARADRS[7]
ARADRS[6]
SRCLRCKI
SRCLRCKO
DVBCK
ADATAI
DVDADT[5]
DVDADT[1]
DVDAACK
VDD
SPIDATAI
DDATA[15]
DDATA[13]
DDATA[10]
DWE
DCS
DADRS[10]
DADRS[5]
DADRS[4]
INT[3]
SCLK[0]
CTS[0]
RX[2]
TX[1]
HDREQ[0]
HCS[3]
HCS[2]
HADRS[30]
ARADRS[5]
ARADRS[4]
SRCBCKO
SPDIFO
BCKI
DVDADT[7]
DVDADT[6]
DVDADT[0]
SCICS[1]
SCICLK[1]
SPICLK
DDATA[2]
DDATA[3]
DDATA[6]
DDQM[0]
DRAS
DBS[1]
DADRS[1]
DADRS[2]
INT[4]
SCLK[1]
RTS[3]
RTS[2]
RX[1]
HDACK[1]
HOE
HCS[4]
HCS[1]
VDD
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
SRCDATAI
DVLRCK
DVADATA
LRCKI
ADATAO
DVDADT[2]
DVDAADR[1]
SCICS[0]
SCICLK[0]
DDATA[0]
DDATA[1]
DDATA[4]
DDATA[5]
DDATA[7]
DCAS
DBS[0]
DADRS[0]
DADRS[3]
INT[5]
INT[0]
CTS[3]
RTS[1]
RX[0]
TX[0]
HDREQ[1]
NC
NC
VDD
VDD3
GND
: 1.2V Power supply
: 3.3V Power supply
: Ground
Pin Name list
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
106
1
2
3
4
1
2
3
4
C
D
F
A
B
E
No.
BALL
Address
Pin Name
I/O
Function
No.
BALL
Address
Pin Name
I/O
Function
1
VDD3
VDD3
−
3.3V I/O power supply
56
V26
VRT10
−
2
GND
GND
−
Ground
57
V28
VRM10
−
3
VDD
VDD
−
1.2V LOGIC power supply
58
U25
VRB10
−
4
AH28
VDD
−
1.2V LOGIC power supply
59
U26
VRBD10
−
5
AF26
ACCCTL
O
60
U27
DVSSAD10
−
6
AF27
PEDCTL
O
VIDEO-Analog, Output buffer
61
T24
DVDDAD10
−
7
AG28
HKEYPLS
O
VIDEO-Analog, Output buffer
62
GND
GND
−
Ground
8
GND
GND
−
Ground
63
VDD
VDD
−
1.2V LOGIC power supply
VIDEO-Analog
VIDEO-Analog
VIDEO-Analog
VIDEO-Analog
VIDEO-Analog
VIDEO-Analog
VIDEO-Analog
VIDEO-Analog
VIDEO-Analog
VIDEO-Analog
9
AE26
WM1DTI[7]
I/O
WM/VWM, Bidirectional buffer
64
U28
AVDDAD8
−
10
AD25
WM1DTI[6]
I/O
WM/VWM, Bidirectional buffer
65
T25
AVSSAD8
−
11
AC24
WM1DTI[5]
I/O
WM/VWM, Bidirectional buffer
66
T26
CIN
I
12
AE27
WM1DTI[4]
I/O
WM/VWM, Bidirectional buffer
67
T27
VRT8
−
13
AF28
WM1DTI[3]
I/O
WM/VWM, Bidirectional buffer
68
T28
VRB8
−
14
AD26
WM1DTI[2]
I/O
WM/VWM, Bidirectional buffer
69
R25
AVDDAD8
−
15
AE28
WM1DTI[1]
I/O
WM/VWM, Bidirectional buffer
70
R24
AVSSAD8
−
16
AC25
WM1DTI[0]
I/O
WM/VWM, Bidirectional buffer
71
R26
CRIN
I
17
AB24
WM1DTO[7]
I/O
WM/VWM, Bidirectional buffer
72
R28
BG8
−
18
VDD
VDD
−
1.2V LOGIC power supply
73
P28
AVDDAD8
−
19
GND
GND
−
Ground
74
P27
AVSSAD8
−
20
AD27
WM1DTO[6]
I/O
WM/VWM, Bidirectional buffer
75
R27
GIN
I
21
AC26
WM1DTO[5]
I/O
WM/VWM, Bidirectional buffer
76
P26
DVSSAD8
−
22
AD28
WM1DTO[4]
I/O
WM/VWM, Bidirectional buffer
77
P25
DVDDAD8
−
23
AA24
WM1DTO[3]
I/O
WM/VWM, Bidirectional buffer
78
GND
GND
−
Ground
24
AB25
WM1DTO[2]
I/O
WM/VWM, Bidirectional buffer
79
P24
EDATA[15]
I/O
SDRAM ENC, Bidirectional buffer
25
VDD
VDD
−
1.2V LOGIC power supply
80
VDD3
VDD3
−
3.3V I/O power supply
26
AC27
WM1DTO[1]
I/O
WM/VWM, Bidirectional buffer
81
N28
EDATA[0]
I/O
SDRAM ENC, Bidirectional buffer
27
GND
GND
−
Ground
82
N27
EDATA[1]
I/O
SDRAM ENC, Bidirectional buffer
28
AC28
WMCLKO
O
WM/VWM, Output buffer
83
N26
EDATA[2]
I/O
SDRAM ENC, Bidirectional buffer
29
VDD3
VDD3
−
3.3V I/O power supply
84
VDD
VDD
−
1.2V LOGIC power supply
30
AB26
WM1DTO[0]
I/O
WM/VWM, Bidirectional buffer
85
N25
EDATA[13]
I/O
SDRAM ENC, Bidirectional buffer
31
AA25
WM2DTO[7]
O
WM/VWM, Output buffer
86
GND
GND
−
Ground
32
AB27
WM2DTO[6]
O
WM/VWM, Output buffer
87
M28
EDATA[3]
I/O
SDRAM ENC, Bidirectional buffer
33
AB28
VDD
−
1.2V LOGIC power supply
88
GND
GND
−
Ground
34
Y24
WM2DTO[5]
O
WM/VWM, Output buffer
89
N24
EDATA[14]
I/O
SDRAM ENC, Bidirectional buffer
35
AA27
WM2DTO[4]
O
WM/VWM, Output buffer
90
M27
EDATA[4]
I/O
SDRAM ENC, Bidirectional buffer
36
AA26
WM2DTO[3]
O
WM/VWM, Output buffer
91
M26
EDATA[5]
I/O
SDRAM ENC, Bidirectional buffer
37
AA28
WM2DTO[2]
O
WM/VWM, Output buffer
92
VDD3
VDD3
−
3.3V I/O power supply
38
W24
WM2DTO[1]
O
WM/VWM, Output buffer
93
M25
EDATA[11]
I/O
SDRAM ENC, Bidirectional buffer
39
GND
GND
−
Ground
94
L28
EDATA[6]
I/O
SDRAM ENC, Bidirectional buffer
40
Y25
WM2DTO[0]
O
WM/VWM, Output buffer
95
L27
EDATA[7]
I/O
SDRAM ENC, Bidirectional buffer
41
GND
GND
−
Ground
96
VDD
VDD
−
1.2V LOGIC power supply
42
Y26
SYNC
I/O
TS OUT, Bidirectional buffer
97
M24
EDATA[12]
I/O
SDRAM ENC, Bidirectional buffer
43
Y27
STREAM
I/O
TS OUT,Bidirectional buffer
98
GND
GND
−
Ground
44
Y28
PACKETEN
I/O
TS OUT,Bidirectional buffer
99
L26
EDATA[8]
I/O
SDRAM ENC, Bidirectional buffer
45
VDD3
VDD3
−
3.3V IO power supply
100
GND
GND
−
Ground
46
W25
TSRW
O
TS OUT,Output buffer
101
L25
EDATA[9]
I/O
SDRAM ENC, Bidirectional buffer
47
GND
GND
−
Ground
102
K28
EDQM
O
SDRAM ENC, Output buffer
48
V24
TSCLK
O
TS OUT,Output buffer
VIDEO-Analog
VIDEO-Analog
VIDEO-Analog
VIDEO-Analog
103
K27
EWE
O
SDRAM ENC, Output buffer
49
VDD3
VDD3
−
3.3V I/O power supply
104
VDD3
VDD3
−
3.3V I/O power supply
50
W26
NBC10
−
105
K26
ECAS
O
SDRAM ENC, Output buffer
51
W27
VBGR10
−
106
L24
EDATA[10]
I/O
SDRAM ENC, Bidirectional buffer
52
W28
AVDDAD10
−
107
K25
ECLKEN
O
Output buffer, 4/6mA
53
V25
AVSSAD10
−
108
VDD
VDD
−
1.2V LOGIC power supply
54
V27
CVBSIN
I
109
J28
ERAS
O
SDRAM ENC, Output buffer
55
U24
VRTD10
−
110
GND
GND
−
Ground
Pin Function
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
107
5
6
7
8
5
6
7
8
C
D
F
A
B
E
No.
BALL
Address
Pin Name
I/O
Function
No.
BALL
Address
Pin Name
I/O
Function
111
J27
ECS
O
SDRAM ENC, Output buffer
166
VDD3
VDD3
−
3.3V I/O power supply
112
GND
GND
−
Ground
167
C25
AT1DATA[11]
I/O
ATAPI-DVD, Bidirectional buffer
113
J26
EADRS[11]
O
SDRAM ENC, Output buffer
168
D24
AT1DATA[10]
I/O
ATAPI-DVD, Bidirectional buffer
114
J25
EADRS[8]
O
SDRAM ENC, Output buffer
169
E23
AT1DATA[9]
I/O
ATAPI-DVD, Bidirectional buffer
115
GND
GND
−
Ground
170
GND
GND
−
Ground
116
K24
ECLKO
O
SDRAM ENC, Output buffer
171
A26
AT1DATA[8]
I/O
ATAPI-DVD, Bidirectional buffer
117
VDD3
VDD3
−
3.3V I/O power supply
172
A25
AT1DATA[7]
I/O
ATAPI-DVD, Bidirectional buffer
118
H28
EBS[0]
O
SDRAM ENC, Output buffer
173
B25
AT1DATA[6]
I/O
ATAPI-DVD, Bidirectional buffer
119
H27
EBS[1]
O
SDRAM ENC, Output buffer
174
GND
GND
−
Ground
120
H26
EADRS[10]
O
SDRAM ENC, Output buffer
175
C24
AT1DATA[5]
I/O
ATAPI-DVD, Bidirectional buffer
121
VDD
VDD
−
1.2V LOGIC power supply
176
VDD3
VDD3
−
3.3V I/O power supply
122
G28
EADRS[0]
O
SDRAM ENC, Output buffer
177
E22
AT1DATA[4]
I/O
ATAPI-DVD, Bidirectional buffer
123
GND
GND
−
Ground
178
VDD
VDD
−
1.2V LOGIC power supply
124
J24
EADRS[9]
O
SDRAM ENC, Output buffer
179
D23
AT1DATA[3]
I/O
ATAPI-DVD, Bidirectional buffer
125
GND
GND
−
Ground
180
A24
AT1DATA[2]
I/O
ATAPI-DVD, Bidirectional buffer
126
G27
EADRS[1]
O
SDRAM ENC, Output buffer
181
B24
AT1DATA[1]
I/O
ATAPI-DVD, Bidirectional buffer
127
H25
EADRS[6]
O
SDRAM ENC, Output buffer
182
GND
GND
−
Ground
128
G26
EADRS[2]
O
SDRAM ENC, Output buffer
183
C23
AT1DATA[0]
I/O
ATAPI-DVD, Bidirectional buffer
129
VDD3
VDD3
−
3.3V I/O power supply
184
D22
AT1RESET
O
Output buffer,8mA
130
F27
EDATA[17]
I/O
SDRAM ENC, Bidirectional buffer
185
E21
AT1DMARQ
I
ATAPI-DVD, Input buffer
131
F28
EDATA[16]
I/O
SDRAM ENC, Bidirectional buffer
186
GND
GND
−
Ground
132
H24
EADRS[7]
O
SDRAM ENC, Output buffer
187
B23
AT1DMACK
O
ATAPI-DVD, Output buffer
133
VDD
VDD
−
1.2V LOGIC power supply
188
VDD3
VDD3
−
3.3V I/O power supply
134
G25
EADRS[4]
O
SDRAM ENC, Output buffer
189
A23
AT1DIOW
O
ATAPI-DVD, Output buffer
135
GND
GND
−
Ground
190
VDD
VDD
−
1.2V LOGIC power supply
136
F26
EDATA[30]
I/O
SDRAM ENC, Bidirectional buffer
191
C22
AT1DIOR
O
ATAPI-DVD, Output buffer
137
GND
GND
−
Ground
192
D21
AT1IORDY
I
ATAPI-DVD, Input buffer
138
E27
EDATA[19]
I/O
SDRAM ENC, Bidirectional buffer
193
B22
AT1INTRQ
I
ATAPI-DVD, Input buffer
139
E28
EDATA[18]
I/O
SDRAM ENC, Bidirectional buffer
194
GND
GND
−
Ground
140
F25
EDATA[31]
I/O
SDRAM ENC, Bidirectional buffer
195
E20
AT1ADR[2]
O
ATAPI-DVD, Output buffer
141
VDD3
VDD3
−
3.3V I/O power supply
196
A22
AT1ADR[1]
O
ATAPI-DVD, Output buffer
142
E26
EDATA[29]
I/O
SDRAM ENC, Bidirectional buffer
197
C21
AT1ADR[0]
O
ATAPI-DVD, Output buffer
143
G24
EADRS[5]
O
SDRAM ENC, Output buffer
198
GND
GND
−
Ground
144
D28
EDATA[20]
I/O
SDRAM ENC, Bidirectional buffer
199
B21
AT1CS[1]
O
ATAPI-DVD, Output buffer
145
VDD
VDD
−
1.2V LOGIC power supply
200
VDD3
VDD3
−
3.3V I/O power supply
146
D27
EDATA[21]
I/O
SDRAM ENC, Bidirectional buffer
201
A21
AT1CS[0]
O
ATAPI-DVD, Output buffer
147
GND
GND
−
Ground
202
VDD
VDD
−
1.2V LOGIC power supply
148
C28
EDATA[22]
I/O
SDRAM ENC, Bidirectional buffer
203
E19
AT2DATA[15]
I/O
ATAPI-HDD, Bidirectional buffer
149
GND
GND
−
Ground
204
D20
AT2DATA[14]
I/O
ATAPI-HDD, Bidirectional buffer
150
F24
EADRS[3]
O
SDRAM ENC, Output buffer
205
C20
AT2DATA[13]
I/O
ATAPI-HDD, Bidirectional buffer
151
E25
EDATA[28]
I/O
SDRAM ENC, Bidirectional buffer
206
GND
GND
−
Ground
152
D26
EDATA[26]
I/O
SDRAM ENC, Bidirectional buffer
207
B20
AT2DATA[12]
I/O
ATAPI-HDD, Bidirectional buffer
153
VDD3
VDD3
−
3.3V I/O power supply
208
A20
AT2DATA[11]
I/O
ATAPI-HDD, Bidirectional buffer
154
B28
EDATA[23]
I/O
SDRAM ENC, Bidirectional buffer
209
D19
AT2DATA[10]
I/O
ATAPI-HDD, Bidirectional buffer
155
C27
EDATA[25]
I/O
SDRAM ENC, Bidirectional buffer
210
GND
GND
−
Ground
156
B27
EDATA24]
I/O
SDRAM ENC, Bidirectional buffer
211
E18
AT2DATA[9]
I/O
ATAPI-HDD, idirectional buffer
157
VDD
VDD
−
1.2V LOGIC power supply
212
VDD3
VDD3
−
3.3V I/O power supply
158
D25
EDATA[27]
I/O
SDRAM ENC, Bidirectional buffer
213
C19
AT2DATA[8]
I/O
ATAPI-HDD, Bidirectional buffer
159
GND
GND
−
Ground
214
VDD
VDD
−
1.2V LOGIC power supply
160
C26
AT1DATA[15]
I/O
ATAPI-DVD, Bidirectional buffer
215
B19
AT2DATA[7]
I/O
ATAPI-HDD, Bidirectional buffer
161
E24
AT1DATA[14]
I/O
ATAPI-DVD, Bidirectional buffer
216
A19
AT2DATA[6]
I/O
ATAPI-HDD, Bidirectional buffer
162
GND
GND
−
Ground
217
D18
AT2DATA[5]
I/O
ATAPI-HDD, Bidirectional buffer
163
A28
VDD
−
1.2V LOGIC power supply
218
GND
GND
−
Ground
164
B26
AT1DATA[13]
I/O
ATAPI-DVD, Bidirectional buffer
219
C18
AT2DATA[4]
I/O
ATAPI-HDD, Bidirectional buffer
165
A27
AT1DATA[12]
I/O
ATAPI-DVD, Bidirectional buffer
220
E17
AT2DATA[3]
I/O
ATAPI-HDD, Bidirectional buffer
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
108
1
2
3
4
1
2
3
4
C
D
F
A
B
E
No.
BALL
Address
Pin Name
I/O
Function
No.
BALL
Address
Pin Name
I/O
Function
221
B18
AT2DATA[2]
I/O
ATAPI-HDD, Bidirectional buffer
276
VDD3
VDD3
−
3.3V I/O power supply
222
GND
GND
−
Ground
277
C11
AMCLK2
I
CLOCK, Input buffer
223
A18
AT2DATA[1]
I/O
ATAPI-HDD, Bidirectional buffer
278
GND
GND
−
Ground
224
VDD3
VDD3
−
3.3V I/O power supply
279
D11
ARDATA[1]
I/O
SDRAM-ATAPI, Bidirectional buffer
225
D17
AT2DATA[0]
I/O
ATAPI-HDD, Bidirectional buffer
280
VDD3
VDD3
−
3.3V I/O power supply
226
VDD
VDD
−
1.2V LOGIC power supply
281
A10
ARDATA[14]
I/O
SDRAM-ATAPI, Bidirectional buffer
227
C17
AT2RESET
I/O
ATAPI-HDD, Bidirectional buffer
282
VDD
VDD
−
1.2V LOGIC power supply
228
B17
AT2DMARQ
I
ATAPI-HDD, Input buffer
283
B10
ARDATA[15]
I/O
SDRAM-ATAPI, Bidirectional buffer
229
E16
AT2DMACK
O
ATAPI-HDD, Output buffer
284
E11
ARDATA[0]
I/O
SDRAM-ATAPI, Bidirectional buffer
230
GND
GND
−
Ground
285
C10
ARDATA[4]
I/O
SDRAM-ATAPI, Bidirectional buffer
231
A17
AT2DIOW
O
ATAPI-HDD, Output buffer
286
GND
GND
−
Ground
232
D16
AT2DIOR
O
ATAPI-HDD, Output buffer
287
D10
ARDATA[3]
I/O
SDRAM-ATAPI, Bidirectional buffer
233
C16
AT2IORDY
I
ATAPI-HDD, Input buffer
288
A9
ARDATA[11]
I/O
SDRAM-ATAPI, Bidirectional buffer
234
GND
GND
−
Ground
289
B9
ARDATA[12]
I/O
SDRAM-ATAPI, Bidirectional buffer
235
B16
AT2INTRQ
I
ATAPI-HDD, Input buffer
290
GND
GND
−
Ground
236
VDD3
VDD3
−
3.3V I/O power supply
291
C9
ARDATA[13]
I/O
SDRAM-ATAPI, Bidirectional buffer
237
A16
AT2ADR[2]
I/O
ATAPI-HDD, Bidirectional buffer
292
E10
ARDATA[2]
I/O
SDRAM-ATAPI, Bidirectional buffer
238
VDD
VDD
−
1.2V LOGIC power supply
293
D9
ARDATA[6]
I/O
SDRAM-ATAPI, Bidirectional buffer
239
E15
AT2ADR[1]
I/O
ATAPI-HDD, Bidirectional buffer
294
VDD3
VDD3
−
3.3V I/O power supply
240
GND
GND
−
Ground
295
A8
ARDATA[10]
I/O
SDRAM-ATAPI, Bidirectional buffer
241
D15
AT2ADR[0]
I/O
ATAPI-HDD, Bidirectional buffer
296
B8
ARDATA[9]
I/O
SDRAM-ATAPI, Bidirectional buffer
242
VDD
VDD
−
1.2V LOGIC power supply
297
C8
ARWE
O
SDRAM-ATAPI, Output buffer
243
C15
AT2CS[1]
O
ATAPI-HDD, Output buffer
298
VDD
VDD
−
1.2V LOGIC power supply
244
GND
GND
−
Ground
299
A7
ARDATA[8]
I/O
SDRAM-ATAPI, Bidirectional buffer
245
B15
AT2CS[0]
O
ATAPI-HDD, Output buffer
300
E9
ARDATA[5]
I/O
SDRAM-ATAPI, Bidirectional buffer
246
VDD
VDD
−
1.2V LOGIC power supply
301
D8
ARDQM[0]
O
SDRAM-ATAPI, Output buffer
247
A15
AT2MODE
I
ATAPI-HDD, Input buffer
302
GND
GND
−
Ground
248
GND
GND
−
Ground
303
B7
ARDQM[1]
O
SDRAM-ATAPI, Output buffer
249
GND
GND
−
Ground
304
C7
ARCS[0]
O
SDRAM-ATAPI, Output buffer
250
A14
RESET
I
Input buffer (5V tolerant)
305
VDD3
VDD3
−
3.3V I/O power supply
251
VDD3
VDD3
−
3.3V I/O power supply
306
A6
ARCLKO
O
SDRAM-ATAPI, Output buffer
252
B14
VDD
−
1.2V LOGIC power supply
307
GND
GND
−
Ground
253
C14
DBI
I
TEST, Input buffer
308
B6
ARADRS[12]
O
SDRAM-ATAPI, Output buffer
254
GND
GND
−
Ground
309
E8
ARDATA[7]
I/O
SDRAM-ATAPI, Bidirectional buffer
255
D14
TRACE
I
TEST, Input buffer
310
D7
ARRAS
O
SDRAM-ATAPI, Output buffer
256
E14
VDD
−
1.2V LOGIC power supply
311
VDD3
VDD3
−
3.3V I/O power supply
257
A13
PCO
O
CLOCK, 3 state output buffer
312
A5
ARADRS[11]
O
SDRAM-ATAPI, Output buffer
258
GND
GND
−
Ground
313
C6
ARADRS[13]
O
SDRAM-ATAPI, Output buffer
259
B13
PLL3AVSS
−
314
B5
ARADRS[9]
O
SDRAM-ATAPI, Output buffer
260
C13
PLL3AVDD
−
315
VDD
VDD
−
1.2V LOGIC power supply
261
D13
VMCLK
I
CLOCK, Input buffer
316
E7
ARCAS
O
SDRAM-ATAPI, Output buffer
262
E13
PLL1AVDD
−
317
D6
ARADRS[14]
O
SDRAM-ATAPI, Output buffer
263
A12
PLL1AVSS
−
318
C5
ARADRS[1]
O
SDRAM-ATAPI, Output buffer
264
VDD3
VDD3
−
3.3V I/O power supply
319
GND
GND
−
Ground
265
B12
ADCCLKO
O
CLOCK, Output buffer
320
B4
ARADRS[3]
O
SDRAM-ATAPI, Output buffer
266
GND
GND
−
Ground
321
A4
ARADRS[8]
O
SDRAM-ATAPI, Output buffer
267
C12
VDD
−
1.2V LOGIC power supply
322
A3
ARADRS[7]
O
SDRAM-ATAPI, Output buffer
268
VDD3
VDD3
−
3.3V I/O power supply
323
GND
GND
−
Ground
269
D12
DVAMCLKO
O
CLOCK, Output buffer
324
E6
ARCS[1]
O
SDRAM-ATAPI, Output buffer
270
GND
GND
−
Ground
325
D5
ARADRS[0]
O
SDRAM-ATAPI, Output buffer
271
A11
DACCLKO
O
CLOCK, Output buffer
326
C4
ARADRS[2]
O
SDRAM-ATAPI, Output buffer
272
VDD3
VDD3
−
3.3V I/O power supply
327
VDD3
VDD3
−
3.3V I/O power supply
273
E12
DVAMCLKI
I
AUDIO CLOCK, Input buffer
328
A2
ARADRS[5]
O
SDRAM-ATAPI, Output buffer
274
GND
GND
−
Ground
329
B3
ARADRS[6]
O
SDRAM-ATAPI, Output buffer
275
B11
AMCLK1
I
CLOCK, Input buffer
330
B2
ARADRS[4]
O
SDRAM-ATAPI, Output buffer
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
109
5
6
7
8
5
6
7
8
C
D
F
A
B
E
No.
BALL
Address
Pin Name
I/O
Function
No.
BALL
Address
Pin Name
I/O
Function
331
GND
GND
−
Ground
386
VDD
VDD
−
1.2V LOGIC power supply
332
E5
ARADRS[10]
O
SDRAM-ATAPI, Output buffer
387
GND
GND
−
Ground
333
D4
SRCBCKI
I
AUDIO, Input buffer
388
L3
SPIDATAI
I/O
HOST, Bidirectional buffer
334
VDD3
VDD3
−
3.3V I/O power supply
389
VDD
VDD
−
1.2V LOGIC power supply
335
C3
SRCLRCKI
I
AUDIO, Input buffer
390
M5
SPIDATAO
I/O
HOST, Bidirectional buffer
336
B1
SRCDATAI
I
AUDIO, Input buffer
391
GND
GND
−
Ground
337
A1
VDD
−
1.2V LOGIC power supply
392
L2
SPICLK
I/O
HOST, Bidirectional buffer
338
GND
GND
−
Ground
393
GND
GND
−
Ground
339
C2
SRCBCKO
O
AUDIO, Output buffer
394
L1
DDATA[0]
I/O
SDRAM-DEC, Bidirectional buffer
340
VDD
VDD
−
1.2V LOGIC power supply
395
VDD3
VDD3
−
3.3V I/O power supply
341
D3
SRCLRCKO
O
AUDIO, Output buffer
396
M4
DDATA[14]
I/O
SDRAM-DEC, Bidirectional buffer
342
E4
SRCDATAO
O
AUDIO, Output buffer
397
M3
DDATA[15]
I/O
SDRAM-DEC, Bidirectional buffer
343
F5
SPDIFI
I
AUDIO, Input buffer
398
M2
DDATA[2]
I/O
SDRAM-DEC, Bidirectional buffer
344
D2
SPDIFO
O
AUDIO, Output buffer
399
VDD
VDD
−
1.2V LOGIC power supply
345
C1
DVLRCK
I/O
AUDIO, Bidirectional buffer
400
N5
DDATA[11]
I/O
SDRAM-DEC, Bidirectional buffer
346
E3
DVBCK
I/O
AUDIO, Bidirectional buffer
401
GND
GND
−
Ground
347
D1
DVADATA
I/O
AUDIO, Bidirectional buffer
402
M1
DDATA[1]
I/O
SDRAM-DEC, Bidirectional buffer
348
F4
ACMOD[1]
I
AUDIO, Input buffer
403
GND
GND
−
Ground
349
G5
ACMOD[0]
I
AUDIO, Input buffer
404
N4
DDATA[12]
I/O
SDRAM-DEC, Bidirectional buffer
350
E1
LRCKI
I
AUDIO, Input buffer
405
N3
DDATA[13]
I/O
SDRAM-DEC, Bidirectional buffer
351
E2
BCKI
I
AUDIO, Input buffer
406
N2
DDATA[3]
I/O
SDRAM-DEC, Bidirectional buffer
352
GND
GND
−
Ground
407
VDD3
VDD3
−
3.3V I/O power supply
353
F3
ADATAI
I
AUDIO, Input buffer
408
N1
DDATA[4]
I/O
SDRAM-DEC, Bidirectional buffer
354
GND
GND
−
Ground
409
P5
DDATA[8]
I/O
SDRAM-DEC, Bidirectional buffer
355
G4
LRCKO
O
AUDIO, Output buffer
410
P4
DDATA[9]
I/O
SDRAM-DEC, Bidirectional buffer
356
VDD
VDD
−
1.2V LOGIC power supply
411
VDD
VDD
−
1.2V LOGIC power supply
357
H5
BCKO
O
AUDIO, Output buffer
412
P3
DDATA[10]
I/O
SDRAM-DEC, Bidirectional buffer
358
F1
ADATAO
O
DVD-AUDIO, Output buffer
413
GND
GND
−
Ground
359
F2
DVDADT[7]
O
DVD-AUDIO, Output buffer
414
P2
DDATA[6]
I/O
SDRAM-DEC, Bidirectional buffer
360
G2
DVDADT[6]
O
DVD-AUDIO, Output buffer
415
GND
GND
−
Ground
361
G3
DVDADT[5]
O
DVD-AUDIO, Output buffer
416
P1
DDATA[5]
I/O
SDRAM-DEC, Bidirectional buffer
362
J5
DVDADT[4]
O
DVD-AUDIO, Output buffer
417
R1
DDATA[7]
I/O
SDRAM-DEC, Bidirectional buffer
363
H4
DVDADT[3]
O
DVD-AUDIO, Output buffer
418
R2
DDQM[0]
O
SDRAM-DEC, Output buffer
364
G1
DVDADT[2]
O
DVD-AUDIO, Output buffer
419
VDD3
VDD3
−
3.3V I/O power supply
365
H3
DVDADT[1]
O
DVD-AUDIO, Output buffer
420
R3
DWE
O
SDRAM-DEC, Output buffer
366
H2
DVDADT[0]
O
DVD-AUDIO, Output buffer
421
VDD
VDD
−
1.2V LOGIC power supply
367
H1
DVDAADR[1]
O
DVD-AUDIO, Output buffer
422
R4
DDQM[1]
O
SDRAM-DEC, Output buffer
368
K5
DVDAADR[0]
O
DVD-AUDIO, Output buffer
423
GND
GND
−
Ground
369
J4
DVDAREQ
I/O
DVD-AUDIO, Bidirectional buffer
424
R5
DCLKO
O
SDRAM-DEC, Output buffer
370
GND
GND
−
Ground
425
VDD3
VDD3
−
3.3V I/O power supply
371
J3
DVDAACK
O
DVD-AUDIO, Output buffer
426
VDD
VDD
−
1.2V LOGIC power supply
372
VDD
VDD
−
1.2V LOGIC power supply
427
T1
DCAS
O
SDRAM-DEC, Output buffer
373
J2
SCICS[1]
I/O
HOST, Bidirectional buffer
428
GND
GND
−
Ground
374
VDD3
VDD3
−
3.3V I/O power supply
429
T2
DRAS
−
SDRAM-DEC, Output buffer
375
J1
SCICS[0]
I/O
HOST, Bidirectional buffer
430
GND
GND
−
Ground
376
VDD
VDD
−
1.2V LOGIC power supply
431
T3
DCS
O
SDRAM-DEC, Output buffer
377
K4
SCIDATA[1]
I/O
HOST, Bidirectional buffer
432
T4
DADRS[11]
O
SDRAM-DEC, Output buffer
378
GND
GND
−
Ground
433
U1
DBS[0]
O
SDRAM-DEC, Output buffer
379
L5
SCIDATA[0]
I/O
HOST, Bidirectional buffer
434
VDD3
VDD3
−
3.3V I/O power supply
380
K3
VDD
−
1.2V LOGIC power supply
435
T5
DADRS[9]
O
SDRAM-DEC, Output buffer
381
K2
SCICLK[1]
I/O
HOST, Bidirectional buffer
436
U2
DBS[1]
O
SDRAM-DEC, Output buffer
382
GND
GND
−
Ground
437
U3
DADRS[10]
O
SDRAM-DEC, Output buffer
383
K1
SCICLK[0]
I/O
HOST, Bidirectional buffer
438
VDD
VDD
−
1.2V LOGIC power supply
384
GND
GND
−
Ground
439
U4
DADRS[7]
O
SDRAM-DEC, Output buffer
385
L4
SPICS
I/O
HOST, Bidirectional buffer
440
GND
GND
−
Ground
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
110
1
2
3
4
1
2
3
4
C
D
F
A
B
E
No.
BALL
Address
Pin Name
I/O
Function
No.
BALL
Address
Pin Name
I/O
Function
441
V1
DADRS[0]
O
SDRAM-DEC, Output buffer
496
VDD
VDD
−
1.2V LOGIC power supply
442
GND
GND
−
Ground
497
AD4
HDACK[0]
O
Output buffer, 4mA
443
V2
DADRS[1]
O
SDRAM-DEC, Output buffer
498
AF1
HDREQ[1]
I
HOST, Input buffer
444
VDD
VDD
−
1.2V LOGIC power supply
499
AE3
HDREQ[0]
I
HOST, Input buffer
445
U5
DADRS[8]
O
SDRAM-DEC, Output buffer
500
AC5
HWAIT
I
HOST, Input buffer
446
GND
GND
−
Ground
501
AF2
HOE
O
HOST, Output buffer
447
V3
DADRS[5]
O
SDRAM-DEC, Output buffer
502
VDD3
VDD3
−
3.3V I/O power supply
448
VDD3
VDD3
−
3.3V I/O power supply
503
GND
GND
−
Ground
449
V4
DADRS[6]
O
SDRAM-DEC, Output buffer
504
AE4
VDD
−
1.2V LOGIC power supply
450
W1
DADRS[3]
O
SDRAM-DEC, Output buffer
505
AD5
HCS[5]
O
HOST, Output buffer
451
W2
DADRS[2]
O
SDRAM-DEC, Output buffer
506
AG2
HCS[4]
O
HOST, Output buffer
452
VDD
VDD
−
1.2V LOGIC power supply
507
AF3
HCS[3]
O
HOST, Output buffer
453
W3
DADRS[4]
O
SDRAM-DEC, Output buffer
508
AG3
HCS[2]
O
HOST, Output buffer
454
GND
GND
−
Ground
509
AH2
HCS[1]
O
HOST, Output buffer
455
GND
GND
−
Ground
510
GND
GND
−
Ground
456
GND
GND
−
Ground
511
AF4
HCS[0]
O
HOST, Output buffer
457
V5
INT[7]
I/O
HOST, Bidirectional buffer
512
VDD
VDD
−
1.2V LOGIC power supply
458
VDD
VDD
−
1.2V LOGIC power supply
513
AD6
HADRS[10]
I/O
HOST, Bidirectional buffer
459
W4
INT[6]
I/O
HOST, Bidirectional buffer
514
GND
GND
−
Ground
460
Y1
INT[5]
I/O
HOST, Bidirectional buffer
515
AE5
HADRS[11]
I/O
HOST, Bidirectional buffer
461
Y2
INT[4]
I/O
HOST, Bidirectional buffer
516
AG4
HADRS[13]
I/O
HOST, Bidirectional buffer
462
VDD3
VDD3
−
3.3V I/O power supply
517
AH3
HADRS[30]
I/O
HOST, Bidirectional buffer
463
Y3
INT[3]
I/O
HOST, Bidirectional buffer
518
VDD3
VDD3
−
3.3V I/O power supply
464
GND
GND
−
Ground
519
AF5
HADRS[12]
I/O
HOST, Bidirectional buffer
465
Y4
INT[2]
I/O
HOST, Bidirectional buffer
520
GND
GND
−
Ground
466
VDD
VDD
−
1.2V LOGIC power supply
521
AH4
HADRS[14]
I/O
HOST, Bidirectional buffer
467
W5
INT[1]
I/O
HOST, Bidirectional buffer
522
AE6
HDATA[1]
I/O
HOST, Bidirectional buffer
468
AA1
INT[0]
I/O
HOST, Bidirectional buffer
523
AD7
HADRS[9]
I/O
HOST, Bidirectional buffer
469
AA2
SCLK[1]
I/O
HOST, Bidirectional buffer
524
VDD3
VDD3
−
3.3V I/O power supply
470
AA3
SCLK[0]
I/O
HOST, Bidirectional buffer
525
AG5
HDATA[15]
I/O
HOST, Bidirectional buffer
471
AB1
CTS[3]
I/O
HOST, Bidirectional buffer
526
GND
GND
−
Ground
472
GND
GND
−
Ground
527
AH5
HDATA[14]
I/O
HOST, Bidirectional buffer
473
Y5
CTS[2]
I/O
HOST, Bidirectional buffer
528
GND
GND
−
Ground
474
GND
GND
−
Ground
529
AF6
HDATA[0]
I/O
HOST, Bidirectional buffer
475
AA4
CTS[1]
I/O
HOST, Bidirectional buffer
530
AD8
HDATA[6]
I/O
HOST, Bidirectional buffer
476
VDD
VDD
−
1.2V LOGIC power supply
531
AE7
HDATA[2]
I/O
HOST, Bidirectional buffer
477
AB3
CTS[0]
I/O
HOST, Bidirectional buffer
532
VDD3
VDD3
−
3.3V I/O power supply
478
AB2
RTS[3]
I/O
HOST, Bidirectional buffer
533
AG6
HDATA[12]
I/O
HOST, Bidirectional buffer
479
AC2
RTS[2]
I/O
HOST, Bidirectional buffer
534
VDD
VDD
−
1.2V LOGIC power supply
480
AC1
RTS[1]
I/O
HOST, Bidirectional buffer
535
AH6
HDATA[13]
I/O
HOST, Bidirectional buffer
481
AA5
RTS[0]
I/O
HOST, Bidirectional buffer
536
AG7
HDATA[11]
I/O
HOST, Bidirectional buffer
482
VDD3
VDD3
−
3.3V I/O power supply
537
AF7
HDATA[3]
I/O
HOST, Bidirectional buffer
483
AB4
RX[3]
I/O
HOST, Bidirectional buffer
538
GND
GND
−
Ground
484
GND
GND
−
Ground
539
AE8
HDATA[5]
I/O
HOST, Bidirectional buffer
485
AC3
RX[2]
I/O
HOST, Bidirectional buffer
540
GND
GND
−
Ground
486
VDD
VDD
−
1.2V LOGIC power supply
541
AD9
HDATA[7]
I/O
HOST, Bidirectional buffer
487
AD2
RX[1]
I/O
HOST, Bidirectional buffer
542
AF8
HDATA[4]
I/O
HOST, Bidirectional buffer
488
AD1
RX[0]
I/O
HOST, Bidirectional buffer
543
AH7
HDATA[10]
I/O
HOST, Bidirectional buffer
489
AB5
TX[3]
I/O
HOST, Bidirectional buffer
544
VDD3
VDD3
−
3.3V I/O power supply
490
AC4
TX[2]
I/O
HOST, Bidirectional buffer
545
AG8
HDATA[8]
I/O
HOST, Bidirectional buffer
491
AD3
TX[1]
I/O
HOST, Bidirectional buffer
546
VDD
VDD
−
1.2V LOGIC power supply
492
GND
GND
−
Ground
547
AH8
HDATA[9]
I/O
HOST, Bidirectional buffer
493
AE1
TX[0]
I/O
HOST, Bidirectional buffer
548
AE9
HDWE
O
HOST, Output buffer
494
GND
GND
−
Ground
549
AF9
DQMWS[0]
O
HOST, Output buffer
495
AE2
HDACK[1]
O
HOST, Output buffer
550
GND
GND
−
Ground
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
111
5
6
7
8
5
6
7
8
C
D
F
A
B
E
No.
BALL
Address
Pin Name
I/O
Function
No.
BALL
Address
Pin Name
I/O
Function
551
AD10
HDCS[1]
O
HOST, Output buffer
606
AG16
TMS
I
TEST, nput buffer
552
GND
GND
−
Ground
607
GND
GND
−
Ground
553
AG9
DQMWS[1]
O
HOST, Output buffer
608
AF16
TDO
O
TEST, Output buffer
554
VDD3
VDD3
−
3.3V I/O power supply
609
VDD
VDD
−
1.2V LOGIC power supply
555
AH9
HCLKO
O
HOST, Output buffer
610
AE16
TDI
I
TEST, Input buffer
556
GND
GND
−
Ground
611
VDD3
VDD3
−
3.3V I/O power supply
557
AE10
HDCS[0]
O
HOST, Output buffer
612
AH17
TRST
I
TEST, Input buffer
558
VDD3
VDD3
−
3.3V I/O power supply
613
GND
GND
−
Ground
559
AD11
HADRS[15]
I/O
HOST, Bidirectional buffer
614
AD16
TCK
I
TEST, Input buffer
560
VDD
VDD
−
1.2V LOGIC power supply
615
VDD3
VDD3
−
3.3V I/O power supply
561
AF10
HCAS
O
HOST, Output buffer
616
AG17
PLLRST
I
CLOCK, Input buffer
562
AG10
HRAS
O
HOST, Output buffer
617
GND
GND
−
Ground
563
AH10
HCLKEN
O
HOST, Output buffer
618
AF17
DVVCLKO
O
CLOCK, Output buffer
564
GND
GND
−
Groud
619
VDD3
VDD3
−
3.3V I/O power supply
565
AE11
HADRS[16]
I/O
HOST, Bidirectional buffer
620
AE17
PXCLK
O
CLOCK, Output buffer
566
GND
GND
−
Ground
621
GND
GND
−
Ground
567
AF11
HADRS[17]
I/O
HOST, Bidirectional buffer
622
AH18
REC656I[7]
I
VIDEO-Digital, Input buffer
568
AD12
HADRS[27]
I/O
HOST, Bidirectional buffer
623
VDD
VDD
−
1.2V LOGIC power supply
569
AG11
HADRS[20]
I/O
HOST, Bidirectional buffer
624
AG18
REC656I[6]
I
VIDEO-Digital, Input buffer
570
VDD3
VDD3
−
3.3V I/O power supply
625
GND
GND
−
Ground
571
AH11
HADRS[21]
I/O
HOST, Bidirectional buffer
626
AD17
REC656I[5]
I
VIDEO-Digital, Input buffer
572
VDD
VDD
−
1.2V LOGIC power supply
627
AF18
REC656I[4]
I
VIDEO-Digital, Input buffer
573
AE12
HADRS[19]
I/O
HOST, Bidirectional buffer
628
AE18
REC656I[3]
I
VIDEO-Digital, Input buffer
574
AF12
HADRS[18]
I/O
HOST, Bidirectional buffer
629
AH19
REC656I[2]
I
VIDEO-Digital, Input buffer
575
AG12
HADRS[23]
I/O
HOST, Bidirectional buffer
630
AG19
REC656I[1]
I
VIDEO-Digital, Input buffer
576
GND
GND
−
Ground
631
AF19
REC656I[0]
I
VIDEO-Digital, Input buffer
577
AD13
HADRS[28]
I/O
HOST, Bidirectional buffer
632
AH20
DVVIDEO[7]
I/O
VIDEO-Digital, Bidirectional buffer
578
VDD
VDD
−
1.2V LOGIC power supply
633
AD18
DVVIDEO[6]
I/O
VIDEO-Digital, Bidirectional buffer
579
AH12
HADRS[22]
I/O
HOST, Bidirectional buffer
634
AE19
DVVIDEO[5]
I/O
VIDEO-Digital, Bidirectional buffer
580
GND
GND
−
Ground
635
VDD3
VDD3
−
3.3V I/O power supply
581
AE13
HADRS[29]
I/O
HOST, Bidirectional buffer
636
AG20
DVVCLKI
I
CLOCK, Input buffer
582
VDD
VDD
−
1.2V LOGIC power supply
637
AF20
PLL2AVDD
−
583
AF13
HADRS[24]
I/O
HOST, Bidirectional buffer
638
AH21
PLL2AVSS
−
584
VDD3
VDD3
−
3.3V I/O power supply
639
AD19
R656CLKI
I
CLOCK, Input buffer
585
AG13
HADRS[25]
I/O
HOST, Bidirectional buffer
640
GND
GND
−
Ground
586
GND
GND
−
Ground
641
AE20
ADMCLKI
I
CLOCKl, Input buffer
587
AH13
HADRS[26]
I/O
HOST, Bidirectional buffer
642
VDD3
VDD3
−
3.3V I/O power supply
588
GND
GND
−
Ground
643
AG21
DVVIDEO[4]
I/O
VIDEO-Digital, Bidirectional buffer
589
GND
GND
−
Ground
644
AF21
DVVIDEO[3]
I/O
VIDEO-Digital, Bidirectional buffer
590
AD14
TESTMOD[6]
I
TEST, Input buffer
645
AD20
DVVIDEO[2]
I/O
VIDEO-Digital, Bidirectional buffer
591
AE14
VDD
−
1.2V LOGIC power supply
646
AH22
DVVIDEO[1]
I/O
VIDEO-Digital, Bidirectional buffer
592
AF14
TESTMOD[5]
I
TEST, Input buffer
647
AG22
DVVIDEO[0]
I/O
VIDEO-Digital, Bidirectional buffer
593
GND
GND
−
Ground
648
AE21
REC656O[7]
O
VIDEO-Digital, Output buffer
594
AG14
TESTMOD[4]
I
TEST, Input buffer
649
AF22
REC656O[6]
O
VIDEO-Digital, Output buffer
595
VDD
VDD
−
1.2V LOGIC power supply
650
VDD
VDD
−
1.2V LOGIC power supply
596
AH14
TESTMOD[3]
I
TEST, Input buffer
651
AH23
DVREQ
I
VIDEO-Digital, Input buffer
597
GND
GND
−
Ground
652
GND
GND
−
Ground
598
AH15
TESTMOD[2]
I
TEST, Input buffer
653
AG23
DVACK
O
VIDEO-Digital, Output buffer
VIDEO-Analog
VIDEO-Analog
VIDEO-Analog
599
VDD
VDD
−
1.2V LOGIC power supply
654
GND
GND
−
Ground
600
AG15
TESTMOD[1]
I
TEST, Input buffer
655
AE22
AVSS1DA10
−
601
GND
GND
−
Ground
656
AD21
GOUT
O
602
AF15
TESTMOD[0]
I
TEST, Input buffer
657
AH24
AVDD1DA10
−
603
AE15
CSYNC
I
CLOCK, Input buffer
658
AF23
BOUT
O
604
AD15
VIPWM
O
CLOCK, Output buffer
659
AE23
AVDD1DA10
−
605
AH16
PLLON
I
TEST, Input buffer
660
AG24
ROUT
O
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
112
1
2
3
4
1
2
3
4
C
D
F
A
B
E
No.
BALL
Address
Pin Name
I/O
Function
No.
BALL
Address
Pin Name
I/O
Function
661
AD22
IREF[0]
−
669
AD23
REC656O[4]
O
VIDEO-Digital, Output buffer
662
AF24
IREF[1]
−
670
AH27
REC656O[3]
O
VIDEO-Digital, Output buffer
663
AG25
YOUT
O
671
AG26
REC656O[2]
O
VIDEO-Digital, Output buffer
664
AH25
AVSS2DA10
−
672
AG27
REC656O[1]
O
VIDEO-Digital, Output buffer
665
AE24
COUT
O
673
GND
GND
−
Ground
666
AH26
AVDD2DA10
−
674
AD24
REC656O[0]
O
VIDEO-Digital, Output buffer
VIDEO-Analog
667
GND
GND
−
Ground
675
AE25
AGCCTL
O
668
AF25
REC656O[5]
O
VIDEO-Digital, Output buffer
BALL
Address
Pin Name
BALL
Address
Pin Name
BALL
Address
Pin Name
BALL
Address
Pin Name
AA23
GND
P12
GND
AC11
VDD
AB23
VDD3
AA6
GND
P13
GND
AC14
VDD
AB6
VDD3
AC12
GND
P14
GND
AC6
VDD
AC10
VDD3
AC17
GND
P15
GND
AC8
VDD
AC13
VDD3
AC20
GND
P16
GND
L6
VDD
AC16
VDD3
AC9
GND
P17
GND
AC11
VDD
AC19
VDD3
F11
GND
R12
GND
AC14
VDD
AC22
VDD3
F14
GND
R13
GND
AC6
VDD
AC7
VDD3
F17
GND
R14
GND
AC8
VDD
F10
VDD3
F20
GND
R15
GND
L6
VDD
F13
VDD3
F23
GND
R16
GND
P6
VDD
F16
VDD3
F8
GND
R17
GND
U6
VDD
F19
VDD3
H6
GND
R23
GND
Y6
VDD
F22
VDD3
J23
GND
R6
GND
F12
VDD
F7
VDD3
M12
GND
T12
GND
F6
VDD
G23
VDD3
M13
GND
T13
GND
F9
VDD
G6
VDD3
M14
GND
T14
GND
J6
VDD
K23
VDD3
M15
GND
T15
GND
AC15
VDD
K6
VDD3
M16
GND
T16
GND
AC18
VDD
N23
VDD3
M17
GND
T17
GND
AC21
VDD
N6
VDD3
M23
GND
U12
GND
AC23
VDD
T23
VDD3
M6
GND
U13
GND
F15
VDD
T6
VDD3
N12
GND
U14
GND
F18
VDD
W23
VDD3
N13
GND
U15
GND
F21
VDD
W6
VDD3
N14
GND
U16
GND
H23
VDD
N15
GND
U17
GND
L23
VDD
N16
GND
V23
GND
P23
VDD
N17
GND
V6
GND
U23
VDD
Y23
VDD
Others
VIDEO-Analog
VIDEO-Analog
VIDEO-Analog
VIDEO-Analog
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
113
5
6
7
8
5
6
7
8
C
D
F
A
B
E
UPD72852AGB-8EU (MAIN ASSY : IC5101)
• IEEE1394 Physical IC
Pin Arrangement
DGND
1
SCLK
2
IC (DL)
3
DVDD
4
CTL0
5
CTL1
6
DGND
7
D0
8
D1
9
DVDD
10
D2
11
D3
12
DGND
13
D4
14
D5
15
DGND
16
D6
17
D7
18
SUS/RES
19
DVDD
20
DGND
21
XO
22
XI
23
AGND
24
AVDD
25
PC0
26
PC1
27
PC2
28
IC (AL)
29
CMC
30
AVDD
31
CPS
32
48
TpBias1
47
AVDD
46
TpA1p
45
TpA1n
44
TpB1p
43
TpB1n
42
AGND
41
TpBias0
40
AVDD
39
TpA0p
38
TpA0n
37
TpB0p
36
TpB0n
35
AGND
34
RI1
33
AGND
64
DGND
63
LREQ
62
FNSel
61
SPD/BDB
60
DVDD
59
LPS
58
LKON
57
DGND
56
DVDD
55
RESETB
54
AVDD
53
AGND
52
AGND
51
IC (AL)
50
DIRECT
49
AGND
Block Diagram
30
39
38
CMC
TpA0p
TpA0n
26
PC0
27
PC1
28
PC2
19
SUS/RES
63
LREQ
59
LPS
50
DIRECT
2
SCLK
58
32
LKON
Link
Interface
I/O
5
CTL0
6
CTL1
8
D0
9
D1
11
D2
12
D3
14
D4
15
D5
17
D6
18
D7
CPS
55
RESETB
Arbitration
and
Control State
Machine
Logic
Cable
Port 0
Receive Data
Decoder
and
Retimer
Voltage
and
Current
Generator
Crystal Oscillator
PLL System
and
Transmit Clock
Generator
Transmit Data
Encoder
Cable
Power
Status
37
36
TpB0p
TpB0n
46
45
TpA1p
TpA1n
Cable
Port 1
44
43
TpB1p
TpB1n
41 TpBias0
48 TpBias1
34 RI1
23 XI
22 XO
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
114
1
2
3
4
1
2
3
4
C
D
F
A
B
E
Pin Function
• Cable Interface Pins
• Link Interface Pins
No.
Pin Name
I/O
Function
39
TpA0p
I/O
Port 0 twisted pair cable A positive phase I/O
38
TpA0n
I/O
Port 0 twisted pair cable A negative phase I/O
37
TpB0p
I/O
Port 0 twisted pair cable B positive phase I/O
36
TpB0n
I/O
Port 0 twisted pair cable B negative phase I/O
46
TpA1p
I/O
Port 1 twisted pair cable A positive phase I/O
45
TpA1n
I/O
Port 1 twisted pair cable A negative phase I/O
44
TpB1p
I/O
Port 1 twisted pair cable B positive phase I/O
43
TpB1n
I/O
Port 1 twisted pair cable B negative phase I/O
19
SUS/RES
I
Suspend/Resume function select
1 : Suspend/Resume on (IEEE1394a-2000 compliant)
0 : Suspend/Resume off (P1394a draft 1.3 compliant)
32
CPS
I
Cable power status
Connect to the cable through a 390 kΩ resistor and to the GND through a 100 kΩ resistor.
0 : Cable power fail
1 : Cable power on
No.
Pin Name
I/O
Function
8
D0
I/O
Data input/output (bit 0)
9
D1
I/O
Data input/output (bit 1)
11
D2
I/O
Data input/output (bit 2)
12
D3
I/O
Data input/output (bit 3)
14
D4
I/O
Data input/output (bit 4)
15
D5
I/O
Data input/output (bit 5)
17
D6
I/O
Data input/output (bit 6)
18
D7
I/O
Data input/output (bit 7)
5
CTL0
I/O
Link interface control (bit 0)
6
CTL1
I/O
Link interface control (bit 1)
63
LREQ
I
Link request input
2
SCLK
O
Link control output clock
LPS 1 : 49.152 MHz output
LPS 0 : Clamp to 0 (The clock signal will be output within 25 µsec after change to "0")
59
LPS
I
Link power status input
0 : Link power off
1 : Link power on (PHY/Link direct connection)
58
LKON
O
Link-on signal output
Link-on signal is 6.1444 MHz clock output.
50
DIRECT
I
PHY/Link isolation barrier control input
0 : Isolation barrier
1 : PHY/Link direct connection
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
115
5
6
7
8
5
6
7
8
C
D
F
A
B
E
• Control Pins
• IC
No.
Pin Name
I/O
Function
26
PC0
I
Power class set input
This pin status will be loaded to Pwr_class bit which allocated to PHY register 4H.
IEEE1394a-2000 chapter [4.3.4.1]
27
PC1
I
28
PC2
I
30
CMC
I
Configuration manager capable setting
This pin status will be loaded to Contender bit which allocated to PHY register 4H.
0 : Non contender
1 : Contender
55
RESETB
I
Power on reset input
Connect to GND through a 0.1 µF capacitor.
0 : Reset
1 : Normal
61
SPD/BDB
I
FNSel = 0
Speed select (UPD72852GB)
0 : MAX. S200
1 : MAX. S400
O
FNSel = 1
BIAS Detected output (Logical Inverse)
0 : BIAS is coming from some port.
1 : BIAS is not coming from any port.
No.
Pin Name
I/O
Function
29, 51 IC (AL)
−
Internally Connected (Low Clamped)
Connected to GND.
3
IC (DL)
−
Internally Connected (Low Clamped)
Connected to GND.
• Power Supply Pins
No.
Pin Name
I/O
Function
25, 31, 40, 47, 54
AVDD
−
Analog power
24, 33, 35, 42, 49, 52, 53
AGND
−
Analog GND
4, 10, 20, 56, 60
DVDD
−
Digital VDD
1, 7, 13, 16, 21, 57, 64
DGND
−
Digital GND
• Other Pins
No.
Pin Name
I/O
Function
41
TpBias0
O
Port 0 twisted pair output
48
TpBias1
O
Port 1 twisted pair output
34
RI1
−
Resistor connection pin 1 for reference current generator
Please connect to GND pin through the 9.1 kΩ resistor.
23
XI
−
Crystal oscillator connection XI
22
XO
−
Crystal oscillator connection XO
62
FNSel
I
Function Select
0 : #61 acts as SPD (UPD72852GB compliant)
1 : #61 acts as BDB
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
116
1
2
3
4
1
2
3
4
C
D
F
A
B
E
UPD72893AGD-LML (MAIN ASSY : IC5202)
• IEEE1394 Link IC
Pin Arrangement
RESETB
1
PHY_D7
2
PHY_D6
3
PHY_D5
4
3.3VDD
5
PHY_D4
6
PHY_D3
7
PHY_D2
8
3.3GND
9
PHY_D1
10
PHY_D0
11
CTL1
12
CTL0
13
2.5VDD
14
SCLK
15
LREQ
16
LPS
17
LINKON
18
STREAM10
19
STREAM11
20
STREAM12
21
STREAM13
22
STREAM14
23
STREAM15
24
STREAM16
25
STREAM17
26
PACKETEN1
27
TSERROR1
28
TSRW1
29
SYNC1
30
3.3VDD
31
TSSUB1
32
PACKETEN2/VSYNC
33
TSERROR2/HSYNC
34
3.3GND
35
TSRW2/FLD
36
SYNC2
37
TSSUB2
38
2.5GND
39
STREAM20/VD0
40
STREAM21/VD1
41
STREAM22/VD2
42
STREAM23/VD3
43
STREAM24/VD4
44
STREAM25/VD5
45
STREAM26/VD6
46
STREAM27/VD7
47
AFS1
48
AFS2
49
VCLKI
50
VCLKO
51
3.3VDD
52
VPWM
53
MD0
54
MD1
55
3.3GND
56
MD2
57
MD3
58
MD4
59
MD5
60
MD6
61
MD7
62
3.3VDD
63
MD8
64
MD9
65
MD10
66
2.5VDD
67
3.3GND
68
MD11
69
MD12
70
MD13
71
MD14
72
MD15
73
MWE
74
MCAS
75
MRAS
76
MCLK
77
3.3VDD
78
MA0
79
MA1
80
MA2
81
3.3GND
82
MA3
83
MA4
84
MA5
85
MA6
86
MA7
87
MA8
88
MA9
89
MA10
90
2.5GND
91
MA11
92
ALRCK
93
ABCK
94
3.3VDD
95
PCM1
96
PCM2
97
AEMP1
98
3.3GND
99
IC (O)
100
AMCLKO
101
APWM
102
AMCLK44
103
AMCLK48
104
A1
156
BR_MON
155
IC (PL)
154
DV_INT
153
IC (PL)
152
SCS
151
RXD
150
TXD
149
3.3GND
148
SCK
147
SI
146
SO
145
2.5GND
144
P_D15
143
P_D14
142
P_D13
141
3.3VDD
140
P_D12
139
P_D11
138
P_D10
137
P_D9
136
P_D8
135
P_D7
134
P_D6
133
P_D5
132
3.3GND
131
P_D4
130
P_D3
129
P_D2
128
3.3VDD
127
P_D1
126
P_D0
125
INT
124
IOCHRDY
123
IC (O)
122
IC (H)
121
IOR
120
RWZ
119
2.5VDD
118
CS
117
AD10
116
AD9
115
AD8
114
AD7
113
AD6
112
AD5
111
AD4
110
AD3
109
AD2
108
AD1
107
PSSEL1
106
PSSEL0
105
IFIROME
208
IC (L)
207
IC (L)
206
IC (L)
205
IC (PL)
204
IC (L)
203
HS_CLK
202
PLLDGND
201
PLLAGND
200
PLLAVDD
199
PLLDVDD
198
IC (L)
197
D15
196
2.5GND
195
D14
194
D13
193
D12
192
D11
191
D10
190
D9
189
3.3GND
188
3.3VDD
187
D8
186
D7
185
D6
184
D5
183
D4
182
D3
181
D2
180
D1
179
D0
178
WRZ
177
RDZ
176
A17
175
A16
174
3.3GND
173
A15
172
A14
171
2.5VDD
170
A13
169
A12
168
A11
167
3.3VDD
166
A10
165
A9
164
A8
163
A7
162
A6
161
A5
160
A4
159
A3
158
A2
157
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
117
5
6
7
8
5
6
7
8
C
D
F
A
B
E
Block Diagram
149
1
76
TXD
150
RXD
Host
Interface
RESETB
202
HS_CLK
208
IFIROME
PHY_D [7 : 0]
CTL [1 : 0]
15
SCLK
16
LREQ
17
LPS
18
LINKON
STREAM [7 : 0]
TSRW
PACKETEN
SYNC
TSSUB
VD [7 : 0]
VSYNC
HSYNC
FLD
117
CS
119
RWZ
120
IOR
123
IOCHRDY
AD [10 : 1]
116-107
106, 105
47-40
12, 13
143-141, 139-132,
130-128, 126, 125
2-4, 6-8,
10, 11
P_D [15 : 0]
175, 174, 172, 171,
169-167, 165-156
196, 194-189,
186-178
A [17 : 0]
D [15 : 0]
92, 90-83,
81-79
MA [11 : 0]
73-69, 66-64,
62-57, 55, 54
MD [15 : 0]
RDZ
124
INT
PSSEL [1 : 0]
System
Control
Test
Block
Host
Inteface
IEEE1394 Link Core
DV Codec Core
External
Flash ROM
Interface
SDRAM
Interface
Audio
Interface
Parallel Interface
Stream
Interface
16-bit Timer
Unit D
CPU Core
High-speed
Internal ROM
192 kbytes
151
SCS
147
SCK
145
SO
146
176
WRZ
177
104
103
102
101
SI
MRAS
EEPROM
Interface
High-speed
Internal ROM
60 kbytes
Memory
Controller
INTC
77 MCLK
75 MCAS
74 MWE
AMCLK44
AMCLK48
APWM
AMCLKO
97 PCM2
96 PCM1
98 AEMP1
93 ALRCK
94 ABCK
36 TSRW2 / FLD
33 PACKETEN2 / VSYNC
37 SYNC2
34 TSERROR2 / HSYNC
38 TSSUB2
29 TSRW1
27 PACKETEN1
30 SYNC1
28 TSERROR1
32 TSSUB1
50 VCLKI
51 VCLKO
STREAM2 [7 : 0] / VD [7 : 0]
26-19
STREAM1 [7 : 0]
53 VPWM
Selector
Selector
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
118
1
2
3
4
1
2
3
4
C
D
F
A
B
E
(1) Link relation
No.
Pin Name
I/O
Function
Active
18
LINKON
I
Link-on signal input
Clock input
When LPS is active, input 0.
−
17
LPS
O
Link power status output
Link power OFF : 0
Link power ON : 2.7 MHz pulse output (20 dividing of host clock 54 MHz)
−
16
LREQ
O
Link request output
−
15
SCLK
I
Clock input for Link control
LPS is active : 49.152 MHz input
LPS = 0 0 : fixed
−
12, 13
CTL [1 : 0]
I/O
PHY/Link control signal input/output
−
2-4, 6-8, 10,11 PHY_D [7 : 0]
I/O
Data input/output between PHY-Link
−
26-19
STREAM1 [7 : 0]
I/O
ISO data bus of stream interface 1
−
27
PACKETEN1
I/O
Packet enable signal input/output of stream interface 1
H/L
28
TSERROR1
I/O
Packet error signal input/output of stream interface 1
H/L
29
TSRW1
I/O
Data read/write enable signal input/output of stream interface 1
−
30
SYNC1
I/O
Frame synchronous signal input/output of stream interface 1
H/L
32
TSSUB1
I/O
Not used Connect to VDD or GND through a resistor.
H/L
47-40
STREAM2 [7 : 0]
I/O
ISO data bus of stream interface 2
−
33
PACKETEN2
I/O
Packet enable signal input/output of stream interface 2
H/L
34
TSERROR2
I/O
Packet error signal input/output of stream interface 2
H/L
36
TSRW2
I/O
Data read/write enable signal input/output of stream interface 2
−
37
SYNC2
I/O
Frame synchronous signal input/output of stream interface 2
H/L
38
TSSUB2
O
Not used Set to open.
−
(2) Video interface pins
No.
Pin Name
I/O
Function
Active
50
VCLKI
I
Video clock input (27 MHz)
−
51
VCLKO
O
Video clock output (27 MHz)
−
47-40
VD [7 : 0]
I/O
Video data signal
−
33
VSYNC
I/O
Video vertical sync. signal
L
34
HSYNC
I/O
Video horizontal sync. signal
L
36
FLD
I/O
Field index signal
−
53
VPWM
O
PWM signal for video PLL
−
Pin Function
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
119
5
6
7
8
5
6
7
8
C
D
F
A
B
E
(3) Audio interface pins
No.
Pin Name
I/O
Function
Active
104
AMCLK48
I
Audio master clock input for sampling frequency 48 kHz
−
103
AMCLK44
I
Audio master clock input for sampling frequency 44 kHz
−
101
AMCLKO
O
Audio master clock output
−
96
PCM1
I/O
Audio PCM serial data
At 2ch : System 1 (data of audio block 1)
At 4ch : System 1
The above is default setting value. Input/output data of PCM 1 and PCM 2 is replaced
by Channel swap setting of an AUDIO_FUNC register.
−
97
PCM2
I/O
Audio PCM serial data
At 2ch : Mute
At 4ch : System 2 (data of audio block 2)
The above is default setting value. Input/output data of PCM 1 and PCM 2 is replaced
by Channel swap setting of an AUDIO_FUNC register.
Note: Cannot use it in DV decode.
−
98
AEMP1
O
PCM1 emphasis ON/OFF in PCM 1 output
H
93
ALRCK
I/O
Audio LR clock
L ch : High
R ch : Low
−
94
ABCK
I/O
Audio bit clock
−
49, 48
AFS [2 : 1]
O
Audio sampling frequency
AFS2
AFS1
44.1 kHz
0
1
48 kHz
0
0
32 kHz
1
0
−
102
APWM
O
PWM signal for audio PLL
−
(4) SDRAM interface pins
No.
Pin Name
I/O
Function
Active
77
MCLK
O
CLK pin connection of SDRAM
−
76
MRAS
O
RAS pin connection of SDRAM
−
75
MCAS
O
CAS pin connection of SDRAM
−
74
MWE
O
WE pin connection of SDRAM
−
92, 90-83,
81-79
MA [ 11 : 0]
O
Address pin connection of SDRAM
−
73-69, 66-64,
62-57, 55, 54
MD [ 15 : 0]
I/O
Data pin connection of SDRAM
Note: Process of pull-up or pull down is necessary.
So connect it to SDRAM directly.
−
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
120
1
2
3
4
1
2
3
4
C
D
F
A
B
E
(a) Parallel interface pins
(5) Host interface pins
No.
Pin Name
I/O
Function
Active
117
CS
I
Chip select input of parallel interface
L
119
RWZ
I
Read and write control input of parallel interface
ISA type bus, SH-1 bus: Write strobe
68000 bus : Read/write selection signal
L
120
IOR
I
IO read control input of parallel interface
ISA type bus, SH-1 bus : Read strobe
68000 bus : Data strobe (DS)
L
123
IOCHRDY
O
Ready output of parallel interface
L
116-107
AD [ 10 : 1]
I
Address input of parallel interface
−
143-141, 139-132,
130-128, 126, 125 P_D [15 : 0]
I/O
Data input/output of parallel interface
−
(b) Serial interface pins
No.
Pin Name
I/O
Function
Active
149
TXD
I/O
Serial transmission data output of unsynchronous serial interface (UART)
−
150
RXD
I/O
Serial transmission data input of unsynchronous serial interface (UART)
−
(c) Others
No.
Pin Name
I/O
Function
Active
124
INT
O
Interrupt output to the outside
H
106, 105
PSSEL [1 : 0]
I
Parallel/serial interface selection
Input signal to select the outside interface which of parallel interface or serial interface.
PSSEL [1 : 0]
Select
00
Serial interface (UART)
01
Parallel interface (ISA type bus)
10
Parallel interface (68000 bus)
11
Parallel interface (SH-1 bus)
−
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
121
5
6
7
8
5
6
7
8
C
D
F
A
B
E
(a) Flash ROM interface pins
(6) External ROM connection pins
No.
Pin Name
I/O
Function
Active
196, 194-189,
186-178
D [15 : 0]
I/O
External ROM data bus
Data bus in the external ROM access.
Process of pull-up or pull down is necessary.
−
175, 174, 172,
171, 169-167,
165-156
A [17 : 1]
O
External ROM address bus
Address bus in the external ROM access.
Can addressing the 256k byte space.
−
176
RDZ
O
ROM read
Strobe signal which shows a read cycle for external ROM.
It becomes the inactive in the idle state.
L
177
WRZ
O
ROM write
Strobe signal which shows a write cycle for external ROM.
L
(b) EEPROM interface pins
No.
Pin Name
I/O
Function
Active
145
SO
I/O
Serial transmit data output of clock-synchronous system serial interface (CSI)
−
146
SI
I/O
Serial receive data input of clock-synchronous system serial interface (CSI)
−
147
SCK
I/O
Clock output of clock-synchronous system serial interface (CSI)
−
151
SCS
I/O
Chip select output of clock-synchronous system serial interface (CSI)
−
(7) Clock and reset pins
No.
Pin Name
I/O
Function
Active
1
RESETB
I
Reset
RESETB input is asynchronous input. When a signal of fixed low-level width is input
without relation to an operation clock, take precedence of all operation, and reset the
system. Note: RESETB is low-active.
L
202
HS_CLK
I
Host clock
Clock input pin which is supplied to CPU core and built-in peripheral I/O.
Please input 27 MHz clock. Perform 2 multiply with internal PLL by 27 MHz clock, 54
MHz clock is supplied to CPU core and internal peripheral I/O.
−
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
122
1
2
3
4
1
2
3
4
C
D
F
A
B
E
(8) Power supply and ground pins
No.
Pin Name
I/O
Function
Active
5, 31, 52, 63,
78, 95, 127,
140, 166, 187
3.3VDD
−
3.3V power supply
3.3V positive power supply pins. Power supply for 3.3V interface I/O.
−
14, 67,
118, 170
2.5VDD
−
2.5V power supply
2.5V positive power supply pins. Power supply for internal each block.
−
39, 91,
144, 195
2.5GND
−
Ground pins
Connect all GND pins to the common ground.
−
9, 35, 56, 68,
82, 99, 131,
148, 173, 188
3.3GND
−
199
PLLAVDD
−
Analog power supply for multiply circuit
Analog positive power supply pin for PLL. Supply 2.5V.
−
200
PLLAGND
−
Analog ground for multiply circuit
Analog ground for PLL
−
198
PLLDVDD
−
Digital power supply for multiply circuit
Digital positive power supply pin for PLL. Supply 2.5V.
−
201
PLLDGND
−
Digital ground for multiply circuit
Digital ground for PLL
−
121
IC (H)
−
Internally connected pin
Connect to VDD directly.
−
197, 203,
205-207
IC (L)
−
Internally connected pin
Connect to ground directly.
−
152, 154, 204
IC (PL)
−
Internally connected pin
Connect to ground through a resistor.
−
100, 122
IC (O)
−
Internally connected pin
Set to open.
−
(9) Others
No.
Pin Name
I/O
Function
Active
153
DV_INT
I/O
Interrupt pin to the outside for the DV status read out.
H
155
BR_MON
I/O
Shows the bus reset occurred. There is some delay after real bus reset occurred
because of set by the built-in firmware.
H
208
IFIROME
I
ROM operation selection input
Set to 1 normally.
−
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
123
5
6
7
8
5
6
7
8
C
D
F
A
B
E
QSS MIXER
INTERCARRIER MIXER
AM DEMODULATOR
SIF AMPLIFIER
SIF
AGC
intercarrier
mode
INTERCARRIER
MODE SWITCH
FM-PLL
DEMODULATOR
9
mute
switch
standards
selection
switch
CSAGC
Cde-em
Vde-em
CDEC
13
FMin
QSS
STD
12
3(1)
5
10
11
audio
video
CVBS
1 V (p-p)
1.1 V (p-p)
8
16
20
21
17
18
19
7(1)
6
15(1)
4
22
AFC
AF
2 × fpc
L/L accent switch
and adjust
TPLL
CVAGC
CBL
TOP
LADJ VCO2
VCO1
VP
GND
VIF AMPLIFIER
FPLL
VIF
SAW
SIF
SAW
24
23
2
1
14
VCO
TWD
5.5 MHz
VIDEO
DEMODULATOR
AND AMPLIFIER
SOUND
TRAP
AFC
DETECTOR
VOLTAGE
REFERENCE
TUNER
AGC
TAGC
VIF1
VIF2
SIF1
SIF2
VIF
AGC
TDA9818
MHA663
• VIF/SIF IC
TDA9818TS (TUJB ASSY : IC3903)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
124
1
2
3
4
1
2
3
4
C
D
F
A
B
E
PIN FUNCTION
SYMBOL
PIN
DESCRIPTION
VIF1
1
VIF differential input signal voltage 1
VIF2
2
VIF differential input signal voltage 2
STD
3
standards selection switch; note 1
CVAGC
4
VIF AGC capacitor
CSAGC
5
SIF AGC capacitor
TPLL
6
PLL filter
LADJ
7
L/L accent switch and adjust
AF
8
audio output
Vde-em
9
de-emphasis output
Cde-em
10
de-emphasis input
CDEC
11
decoupling capacitor
QSS
12
single reference QSS/intercarrier
output voltage
FMin
13
sound intercarrier input voltage
TAGC
14
tuner AGC output
CBL
15
black level detector
CVBS
16
composite video output voltage
AFC
17
AFC output
VCO1
18
VCO1 resonance circuit
VCO2
19
VCO2 resonance circuit
GND
20
ground
VP
21
supply voltage
TOP
22
tuner AGC takeover point adjust
SIF1
23
SIF differential input signal voltage 1
SIF2
24
SIF differential input signal voltage 2
TDA9818
1
2
3
4
5
6
7
8
9
10
11
12
VIF1
VIF2
STD
CVAGC
CSAGC
TPLL
LADJ
AF
Vde-em
Cde-em
CDEC
QSS
SIF2
SIF1
TOP
VP
GND
VCO2
VCO1
AFC
CVBS
CBL
TAGC
FMin
24
23
22
21
20
19
18
17
16
15
14
13
PIN LAYOUT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
125
5
6
7
8
5
6
7
8
C
D
F
A
B
E
No.
Pin Name
DC Voltage
Function
1
2
10
11
15
16
33
34
36
37
AIN1R
AIN1L
AIN2R
AIN2L
AIN3R
AIN3L
AIN4L
AIN4R
AIN5L
AIN5R
5.58V
Audio input terminal
3
4
19
35
EXTCTL1
EXTCTL2
EXTCTL3
EXTCTL4
2.5mA, ON
→0.75V
OFF
→OPEN
5
VOUT
6
17
27
32
38
GND
GND
EXT-75ΩDR-GND
DEC-75Ω-GND
GND
0V
7
13
18
23
28
VIN1
VIN2
VIN3
VIN4
VIN5
1.8V
1.10V
Video input terminal
Sync-tip clamp
Input/Hi-impedance
General purpose output
Opencollector
Video output terminal
Push-pull output/Low-impedance
8
PWRSAV
0.2V
Power save mode select pin
OPEN : L
9
AUMUTE
0.05V
Control terminal for audio mute
OPEN : L
Video driver output terminal
Push-pull output/Low-impedance
Audio output terminal
Push-pull output/Low-impedance
Audio output terminal
Push-pull output/Low-impedance
Output terminal of audio muting
FSS control terminal
Output H, M, L
3 values with serial control
Terminal for Ref_DC ripple removing
Vcc for audio
Confirmed to IIC BUS. Data input terminal
Confirmed to IIC BUS. Clock input terminal
Control Vcc for Video
Always VCC for Video
12
REFFIL
4.94V
14
VCC12
20
FSSOUT
H : Vcc-0.5V
M : 6V
L : 0V
21
DATA
22
CLOCK
24
VCC5A
25
26
VOUT75A
VOUT75B
1.10V
29
VCC5B
30
31
42
43
AOUT2L
AOUT2R
AOUT3L
AOUT3R
4.91V
39
40
AOUT1L
AOUT1R
4.91V
41
44
PWRMUTE1
PWRMUTE2
0V
Pin Function
• Dual SCART Interface IC
LA73026AV (SCRB ASSY : IC101)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
126
1
2
3
4
1
2
3
4
C
D
F
A
B
E
Block Diagram
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
127
5
6
7
8
5
6
7
8
C
D
F
A
B
E
7.3 OUTLINE OF THE PRODUCT
Main newly developed technologies
1. Pickup
The pickup supports quadruple-speed recording for the DVD-
R/RW.
A liquid-crystal tilt servo system is adopted for the pickup.
2. Recording-signal-processing LSI
• UPD3320GC (DRIVE Assy: IC101)
The recording-signal-processing module of conventional models
consists of two chips, but this has been integrated into a
single newly developed recording-signal-processing LSI, enabling
stable performance and cost reduction.
3. AV-signal-processing LSI
• M65672WG-B (MAIN Assy: IC1001)
The AV-signal-processing module of conventional models
consists
of eleven chips, but this has been integrated into a single
newly developed AV-signal-processing LSI, enabling large-scale
cost reduction while maintaining the conventional functions. In
the new LSI, all the basic functions necessary for a DVD
recorder have been integrated. Like conventional models, this
model is designed to support multitasking. The main functions
are as follows:
• 3-D Y/C separation
• Video decoding
• Frame TBC
• MPEG video encoding
• Dolby Digital Consumer Encoding
• ATA/ATAPI I/F (2 ch)
• Main CPU (32-bit RISC, 54 MHz)
• Graphics engine (OSD, scaling, mixing)
• MPEG video decoding
• Audio decoding (AC-3, MPEG)
• Video encoding
• Progressive conversion
• Audio I/F
• 3-D DNR for playback
4. DV-signal-processing LSI
The DV-signal-processing LSI consists of the following two
chips:
• UPD72862AGB-SEU (MAIN Assy: IC5101)
A 400-Mbps two-port PHY LSI in compliance with the
IEEE1394a-
2000 standards
• UPD72893AGD-LML (MAIN Assy: IC5202)
An EEE1394 link controller LSI having DV (digital video)
encoding/decoding functions. Encoding/decoding of digital video
signals in compliance with the SD specifications (NTSC/PAL) of
the DV standard is supported. The 32-bit RISC CPU is built in
for controlling the IEEE1394 bus and sending/receiving AV/C
commands.
Fig.1 MAIN Assy
IC1001
(SIDE B)
IC5202
(Side A)
IC5101
(Side A)
SIDE B
MAIN ASSY
D
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
128
1
2
3
4
1
2
3
4
C
D
F
A
B
E
System configuration
In each signal-processing LSI of the main function blocks,
various processes have been integrated into one chip, which
enables simpler system configuration. With the AV-signal-
processing LSI at the center, video inputs/outputs, audio
inputs/outputs, DV inputs/outputs, writer, HDD, and various
memory cells are connected to it.
Fig2. System configuration
1394 (DV)
CVBS/YC/YCbCr
Analog Audio
DIF
Playback
Record
Tuner / Line
Select
IC2001
Tuner / FL
Control
CPU
IC1001
AV Signal
Processing
LSI
Drive Assy
(DVD-R/RW)
IC5101
1394 Phy
IC1102
Flash
IC1103
SRAM
IC1101, IC1201, IC1301
IC1401 SDRAM
IC5202
1394 Link /
DV Codec
FL
Video : IC3301 LA73030
Audio : IC2801 LC75342M
IC3101
Audio A/D
AK5381VT
IC3201
Audio D/A
PCM1742KE
UPD72893AGD-LML
UPD72852AGB-8EU
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
129
5
6
7
8
5
6
7
8
C
D
F
A
B
E
New functions and specifications
In this model, the following new functions and specifications
have been included in addition to those of conventional models:
1. Improved multitasking functions
This model supports DVD multitasking (only in VR mode),
which was impossible with conventional models.
a Pursuit playback
Playback of the title being recorded by the DVD drive in VR
mode .
b Simultaneous recording/playback
Playback of a title other than that being recorded by the DVD
drive in VR mode.
2. Advanced disc NAVI
In the conventional disc NAVI function, recorded titles are
displayed with still pictures as a list. In the advanced disc
NAVI function, the title selected with the cursor is displayed
as an animated picture with sound.
3. Improved Still Picture menu in Video mode
The disc NAVI function, which enables displaying a list of
recorded titles with still pictures, is enabled in Video mode
with this model. Selection from among nine title menus is also
supported.
4. Adoption of MPEG2 SIF
In MN1-6 modes, MPEG2 SIF has been adopted, instead of the
MPEG1 SIF of conventional models. This enables higher-quality
recording for longer hours.
5. Improved editing functions
For DVD, the original/play-list editing in DVD-VR mode
available with conventional models is provided.
The automatic-chapter-mark-insertion function in response to a
change in audio type (stereo, monaural, bilingual) makes
commercial-cutting editing easier.
5. Various-format playback
Playback of WMA, MP3, and JPEG formats is supported.
6. Other functions and specifications
The following main functions and specifications adopted with
conventional models are also provided with this model:
• 192-kHz, 24-bit DAC
• 48-kHz, 20-bit ADC
• Digital 3-D Y/C separation circuit
• Digital frame TBC
• 3-D DNR
• DV (iLink) input/output
• Built-in BS tuner
• Playback with commercials skipped
• CD/video-CD playback
• Picture creation
• Recording with 3/4-D1 and 2/3-D1 resolutions
• Recording mode with 32-step MNs
• LPCM recording
• High-resolution GUI
• Progressive output
• SRS TruSurround
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
130
1
2
3
4
1
2
3
4
C
D
F
A
B
E
7.4 DISC/CONTENT FORMAT
Disc / content format playback
compatibility
General disc compatibility
This recorder was designed and engineered to be
compatible with software bearing one or more of the
following logos:
Also compatible with KODAK Picture CD
is a trademark of Fuji Photo Film Co. Ltd.
Other formats, including but not limited to the following,
are not playable in this recorder:
DVD-Audio / SACD / DVD-RAM
DVD-ROM / CD-ROM*
* Except those that contain WMA, MP3 or JPEG. See also
Compressed audio compatibility and JPEG file
compatibility below.
DVD-R/RW and CD-R/RW discs recorded using a DVD
recorder, CD recorder or personal computer may not be
playable in this recorder. This may be caused by a
number of possibilities, including but not limited to: the
type of disc used; the type of recording; damage, dirt or
condensation on either the disc or the pick-up lens. See
below for notes about particular software and formats.
DVD-R/RW compatibility
This recorder will play and record DVD-R/RW discs that
use DVD-Video format (Video mode), and DVD-RW discs
that use the Video Recording (VR) format. It is compatible
with DVD-RW Ver. 1.1 and Ver. 1.1 / 2x, and DVD-R Ver.
2.0 and Ver. 2.0 / 4x.
CD-R/RW compatibility
This recorder will play CD-R and CD-RW discs recorded
in CD Audio or Video CD format, or as a CD-ROM
containing MP3, WMA or JPEG files. However, any other
content may cause the disc not to play, or create noise/
distortion in the output.
This recorder cannot record CD-R or CD-RW discs.
PC-created disc compatibility
If you record a disc using a personal computer, even if it
is recorded in a "compatible format" as listed above, there
will be cases in which the disc may not be playable in this
recorder due to the setting of the application software
used to create the disc. In these particular instances,
check with the software publisher for more detailed
information.
Check the DVD-R/RW or CD-R/RW software disc boxes
for additional compatibility information.
WMA (Windows Media Audio) compatibility
The Windows Media logo printed on the box indicates
that this recorder can playback WMA data.
WMA is short for Windows Media Audio and refers to an
audio compression technology developed by Microsoft
Corporation. WMA data can be encoded by using
Windows Media Player version 9 (or less) or Windows
Media Player for Windows XP.
Windows Media, and the Windows logo are trademarks,
or registered trademarks of Microsoft Corporation in the
United States and/or other countries.
Compressed audio compatibility
This recorder will play CD-ROM, CD-R, and CD-RW discs
containing files saved in the MPEG-1 Audio Layer 3 (MP3)
or Windows Media Audio (WMA) format with a sampling
rate of 44.1 or 48kHz. Incompatible files will not play and
the message Cannot play this file format will be
displayed (CAN’T PLAY in the front panel display).
Fixed bit-rate MP3 files are recommended. Variable bit-
rate (VBR) MP3 files are playable, but playing time may
not be shown correctly.
This recorder is compatible with 44.1 and 48 kHz WMA
files encoded with Windows Media Codec 8. Files
encoded using Windows Media Codec 9 may be playable,
but some parts of the specification are not supported
(specifically, Pro, Lossless, Voice and VBR WMA files).
WMA files encoded with DRM (Digital Rights
Management) copy protection will not play and the
message Cannot play this file format will be displayed
(CAN’T PLAY in the front panel display).
DVD-Video
DVD-R
DVD-RW
Video CD
Fujicolor CD
Audio CD
CD-R
CD-RW
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
131
5
6
7
8
5
6
7
8
C
D
F
A
B
E
The CD-ROM used to compile your WMA/MP3 files must
be ISO 9660 Level 1 or 2 compliant. CD physical format:
Mode1, Mode2 XA Form1. Romeo and Joliet file systems
are both compatible with this recorder.
Use CD-R or CD-RW media for recording your files. The
disc must be finalized (i.e. the session must be closed) in
order to play in this recorder.
This recorder only plays tracks that are named with the
file extension .MP3 or .WMA (upper or lower-case).
When naming MP3 and WMA files, add the
corresponding file name extension (.mp3 or .wma). Files
are played according to the file extension. To prevent
noise and malfunctions, do not use these extensions for
other kinds of files.
This recorder can recognize up to 99 folders and 999 files
(WMA/MP3). If a disc exceeds these limits, only files and
folders up to these limits will be playable. Files and
folders are read/displayed in alphabetical order. Note
that if the file structure is very complex, you may not be
able to read/play all files on the disc.
Folder, track and file names (excluding the file extension)
are displayed.
There are many different recording bit-rates available to
encode MP3 files. This recorder has been designed to be
compatible with all of them. Audio encoded at 128Kbps
should sound close to regular CD Audio quality. This
recorder will play lower bit-rate files, but please note that
the sound quality becomes noticeably worse at lower bit-
rates.
JPEG file compatibility
This recorder is compatible with Fujicolor CD and Kodak
Picture CD formats, as well as CD-R/RW/ROM discs
containing JPEG files.
Baseline JPEG and EXIF 2.2*1 still image files are
supported (horizontal resolution from 160–5120 pixels;
vertical resolution between 120–3840 pixels).
*1 File format used by digital still cameras
The CD-ROM used to compile your JPEG files must be
ISO 9660 Level 1 or 2 compliant. CD physical format:
Mode1, Mode2 XA Form1. Romeo and Joliet file systems
are both compatible with this recorder.
This recorder only displays files that are named with the
file extension .jpg, .jpeg, .jif, or .jfif (upper or lower-case).
The recorder can load up to 99 folders and 999 files at one
time. If there are more files/folders than this on the disc
then more can be reloaded.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
132
1
2
3
4
1
2
3
4
C
D
F
A
B
E
7.5 CLEANING
Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools:
Position to be cleaned
Cleaning tools
Pickup lenses
Cleaning liquid : GEM1004
Cleaning paper : GED-008
Position to be cleaned
Cleaning tools
Fans
Cleaning paper : GED-008
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
133
5
6
7
8
5
6
7
8
C
D
F
A
B
E
8. PANEL FACILITIES
8.1 FRONT SECTION
1 STANDBY/ON
Press to switch the recorder on/into standby.
2
DISC NAVIGATOR
Press to directly access the Disc Navigator screen.
3
DVD disc tray
4
0 OPEN/CLOSE
Press to open/close the disc tray.
5
7 STOP
Press to stop playback.
6
8 PAUSE
Press to pause/restart playback or recording.
7
3 PLAY
Press to start or restart playback.
8
FUNCTION
Press repeatedly to set the function of the SMART JOG
dial. The function is shown in the display.
9
SMART JOG dial
10 & STOP REC
Press to stop recording.
11 ¶ REC
Press to start recording.
12 Front panel inputs
Pull the cover down where indicated to access the front
panel input jacks. Especially convenient for connecting
camcorders and other portable equipment.
13 Front panel display
See Display for details.
14 IR remote sensor
15 DV IN/OUT jack
Digital input/output jack for use with a DV camcorder.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
134
1
2
3
4
1
2
3
4
C
D
F
A
B
E
8.2 DISPLAY
1
3 PLAY
Lights during playback; blinks when paused.
2
¶ REC
Lights during recording; blinks when recording is paused.
3
PL
Lights when a VR mode disc is loaded and the recorder is
in Play List mode.
4
2 3
Shows the remote control mode (if nothing is displayed,
the remote control mode is 1).
5
REM
Lights when the character display is showing the remaining
available recording time.
6
V
Lights when an unfinalized Video mode disc is loaded.
7
R / RW
Indicates the type of recordable DVD loaded: DVD-R or
DVD-RW.
8
Lights when a timer recording has been set.
(Indicator blinks if the timer has been set but there
isn't a recordable disc loaded.)
AUTO
Lights when Auto Start Recording has been set, and
during Auto Start Recording.
9
Recording quality indicators
FINE
Lights when the recording mode is set to FINE
(best quality).
SP
Lights when the recording mode is set to SP
(standard play).
LP
Lights when the recording mode is set to LP (long play).
EP
Lights when the recording mode is set to EP
(extended play).
MN
Lights when the recording mode is set to MN
(manual recording level) mode.
10 Character display
11
Indicates which channels of a bilingual broadcast are
recorded.
12 VPS / PDC
Lights when receiving a VPS/PDC broadcast during a
VPS/PDC-enabled timer recording.
13 NTSC
Lights when the video output is NTSC format.
14 OVER
Lights when the analog audio input level is too high.
L R
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
135
5
6
7
8
5
6
7
8
C
D
F
A
B
E
8.3 REAR PART
1
ANTENNA IN/OUT
Connect your TV antenna to the ANTENNA IN jack. The
signal is passed through to the ANTENNA OUT jack for
connection to your TV.
2
AV2/(INPUT 1/DECODER) AV connector
Audio/video input SCART-type connector for connecting
to a VCR, or other equipment with a SCART connector.
The input accepts video and S-video.
3
AV1(RGB)-TV AV connector
Audio/video output SCART-type connector for connecting to
a TV or other equipment with a SCART connector. The
video output is switchable between video, S-video and
RGB.
4
DIGITAL OUT OPTICAL
For connecting to an AV receiver, Dolby Digital/DTS/
MPEG decoder or other equipment with optical digital input.
5
CONTROL IN
Use to control this recorder from the remote sensor of
another Pioneer component with a CONTROL OUT
terminal and bearing the Pioneer Î mark. Connect the
CONTROL OUT of the other component to the CONTROL
IN of this recorder using a mini-plug cord.
6
AC IN – Power inlet
7
INPUT 3/AUTO START REC jacks
Audio/video inputs (stereo analog audio; video and S-video)
that you can use to connect to a satellite receiver, TV, VCR
or other source component for recording.
8
OUTPUT jacks
Audio/video outputs (stereo analog audio; video and
S-video) that you can use to connect to a TV, monitor, AV
receiver or other equipment.
Front panel connections
On the left side of the front panel a flip-down cover hides
a second audio/video input, consisting of a video and
S-video jack, and stereo analog audio jacks. (You can also
connect a mono source using just the L(MONO) jack.)
On the right side is the DV input/output i.LINK connector.
This is for connection to a DV camcorder.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
136
1
2
3
4
1
2
3
4
C
D
F
A
B
E
8.4 REMOTE CONTROL
1
Remote control indicator
Lights when setting up the remote control for use with a TV
and when setting the remote control mode
2 STANDBY/ON
Press to switch the recorder on/into standby.
3
0 OPEN/CLOSE
Press to open/close the disc tray.
4
DVD playback functions
AUDIO
Changes the audio language or channel. (When the
recorder is stopped, press to change the tuner audio.)
SUBTITLE
Displays/changes the subtitles included in multilingual
DVD-Video discs.
ANGLE
Switches camera angles on discs with multi-angle
scenes.
5
PLAY MODE
Press to display the Play Mode menu (for features such as
search, repeat and program play).
6
TV/DVD
Press to switch between 'TV mode', in which you get
the picture and sound from the TV's tuner, and 'DVD
mode', in which you get picture and sound from the
recorder's tuner (or an external input).
7
Alphanumeric buttons and CLEAR
Use the number buttons for track/chapter/title selection;
channel selection, and so on. The same buttons can also
be used to enter names for titles, discs and so on.
Use CLEAR to clear an entry and start again.
8
INPUT SELECT
Press to change the input to use for recording.
9
CHANNEL +/–
Press to change the channel of the built-in TV tuner.
10 SHOWVIEW(for WYXU and WY types)
Press, then use the number buttons to enter a ShowView
programming number for timer recording.
VIDEO Plus+(for WVXU type)
Press, then use the number buttons to enter a PlusCode
programming number for timer recording.
11 DISC NAVIGATOR / TOP MENU
Press to display the Disc Navigator screen, or the top menu
if a DVD-Video disc is loaded.
12 PLAY LIST / MENU
Press to switch between Original and Play List content on
VR mode discs, or display the disc menu if a DVD-Video
disc is loaded.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVR-3100-S
137
5
6
7
8
5
6
7
8
C
D
F
A
B
E
13 » / « / | / \ (cursor buttons) and ENTER
Used to navigate all on-screen displays. Press ENTER to
select the currently highlighted option.
14 HOME MENU
Press to go display the Home Menu, from which you can
navigate all the functions of the recoder.
15 RETURN
Press to go back one level in the on-screen menu or
display.
16 Playback controls
1 REV SCAN / FWD SCAN ¡
Press to start reverse or forward scanning. Press again
to change the speed.
3 PLAY
Press to start playback.
8 PAUSE
Press to pause playback or recording.
7 STOP
Press to stop playback.
CM SKIP
Press to skip 30 seconds forward on the disc (about the
length of a typical TV commercial); press repeatedly to
skip up to 4 minutes.
4 PREV / NEXT ¢
Press to skip to the previous or next title / chapter /
track / folder; or to display the previous or next menu
page.
e STEP/SLOW E
During playback, press to start slow-motion playback;
while paused, press to show the previous or next video
frame.
17 Recording controls
¶ REC
Press to start recording. Press repeatedly to set the
recording time in blocks of 30 mins.
& STOP REC
Press to stop recording.
REC MODE
Press repeatedly to change the recording mode (picture
quality).
TIMER REC
Press to set a timer recording from the standard Timer
Recording screen.
EASY TIMER
Press to set a timer recording from the Easy Timer
screen.
18 DISC HISTORY
Press to display summary information (disc name,
recording time left, etc.) from the last 30 recordable
discs loaded.
NAVI MARK
Press to select a thumbnail picture for the current title
for use in the Disc Navigator screen.
CHP MARK
Press to insert a chapter marker when playing/
recording a VR mode DVD-RW disc.
19 DISPLAY
Displays/changes the on-screen information displays.
20 TV CONTROL
After setting up, use these controls to control your TV.
21 TV DIRECT REC
Press to start recording whatever channel your TV is set to.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
