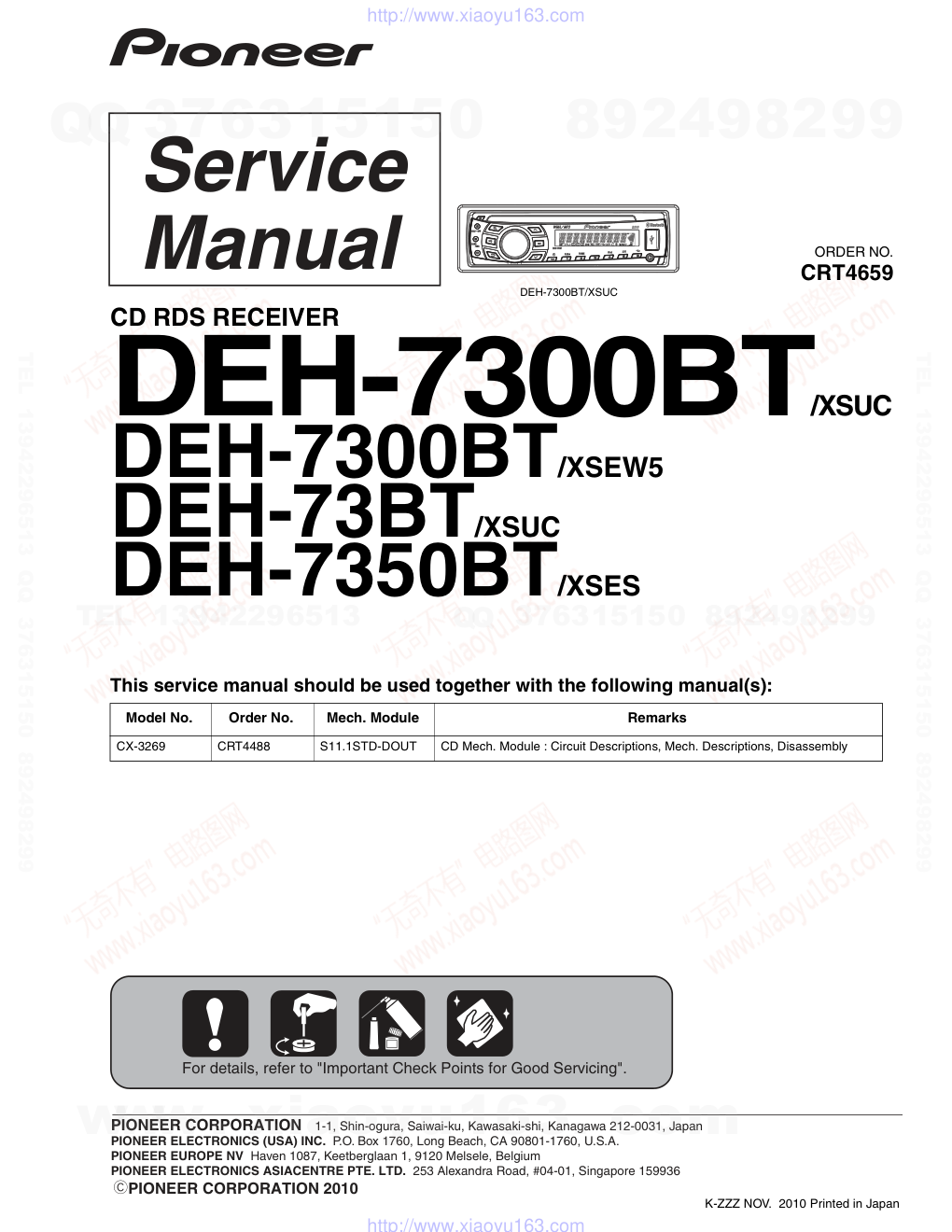

ORDER NO. PIONEER CORPORATION 1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2010 DEH-7300BT/XSUC CRT4659 CD RDS RECEIVER DEH-7300BT/XSUC DEH-7300BT/XSEW5 DEH-73BT/XSUC DEH-7350BT/XSES This service manual should be used together with the following manual(s): Model No. Order No. Mech. Module Remarks CX-3269 CRT4488 S11.1STD-DOUT CD Mech. Module : Circuit Descriptions, Mech. Descriptions, Disassembly For details, refer to "Important Check Points for Good Servicing". K-ZZZ NOV. 2010 Printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION CAUTION Where in a manufacturer’s service documentation, for example in circuit diagrams or lists of components, a symbol is used to indicate that a specific component shall be replaced only by the component specified in that documentation for safety reasons, the following symbol shall be used: This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. - Safety Precautions for those who Service this Unit. When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results. Caution: 1. During repair or tests, minimum distance of 13 cm from the focus lens must be kept. 2. During repair or tests, do not view laser beam for 10 seconds or longer. WARNING This product may contain a chemical known to the State of California to cause cancer, or birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 WARNING! The AEL (accessible emission level )of the laser power output is less than CLASS 1 but the laser component is capable of emitting radiation exceeding the limit for CLASS 1. A specially instructed person should do servicing operation of the apparatus. CAUTION This product is a class 1 laser product classi- fied under the Safety of laser products, IEC 60825-1:2007, and contains a class 1M laser module. To ensure continued safety, do not re- move any covers or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel. CAUTION—CLASS 1M INVISIBLE LASER RADIATION WHEN OPEN, DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 3 5 6 7 8 5 6 7 8 C D F A B E Laser diode characteristics Wave length : 785 nm to 814 nm Maximum output : 1 190 µW(Emitting period : unlimited) Additional Laser Caution Transistors Q101 in PCB drive the laser diodes. When Q101 is shorted between their terminals, the laser diodes will radiate beam. If the top cover is removed with no disc loaded while such short-circuit is continued, the naked eyes may be exposed to the laser beam. CAUTION Danger of explosion if battery is incorrectly replaced. Replaced only with the same or equivalent type recommended by the manufacture. Discord used batteries according to the manufacture's instructions. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 4 1 2 3 4 1 2 3 4 C D F A B E [Important Check Points for Good Servicing] In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. a Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 5 5 6 7 8 5 6 7 8 C D F A B E CONTENTS SAFETY INFORMATION .....................................................................................................................................2 1. SERVICE PRECAUTIONS................................................................................................................................6 1.1 SERVICE PRECAUTIONS .........................................................................................................................6 1.2 NOTES ON SOLDERING...........................................................................................................................8 2. SPECIFICATIONS.............................................................................................................................................9 2.1 SPECIFICATIONS ......................................................................................................................................9 2.2 DISC/CONTENT FORMAT.......................................................................................................................12 2.3 PANEL FACILITIES...................................................................................................................................12 2.4 CONNECTION DIAGRAM........................................................................................................................15 3. BASIC ITEMS FOR SERVICE ........................................................................................................................19 3.1 CHECK POINTS AFTER SERVICING .....................................................................................................19 3.2 PCB LOCATIONS.....................................................................................................................................19 3.3 JIGS LIST .................................................................................................................................................20 3.4 CLEANING ...............................................................................................................................................20 4. BLOCK DIAGRAM ..........................................................................................................................................22 4.1 BLOCK DIAGRAM....................................................................................................................................22 5. DIAGNOSIS ....................................................................................................................................................24 5.1 OPERATIONAL FLOWCHART.................................................................................................................24 5.2 ERROR CODE LIST.................................................................................................................................25 5.3 CONNECTOR FUNCTION DESCRIPTION .............................................................................................27 6. SERVICE MODE.............................................................................................................................................28 6.1 DISPLAY TEST MODE.............................................................................................................................28 6.2 CD TEST MODE.......................................................................................................................................29 7. DISASSEMBLY ...............................................................................................................................................30 8. EACH SETTING AND ADJUSTMENT............................................................................................................36 8.1 CD ADJUSTMENT ...................................................................................................................................36 8.2 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT ....................................................37 8.3 PCL OUTPUT CONFIRMATION...............................................................................................................39 9. EXPLODED VIEWS AND PARTS LIST ..........................................................................................................40 9.1 PACKING ..................................................................................................................................................40 9.2 EXTERIOR ...............................................................................................................................................44 9.3 CD MECHANISM MODULE .....................................................................................................................46 10. SCHEMATIC DIAGRAM................................................................................................................................48 10.1 TUNER AMP ASSY (GUIDE PAGE).......................................................................................................48 10.2 KEYBOARD ASSY .................................................................................................................................54 10.3 CD CORE UNIT (S11.1STD-DOUT) ......................................................................................................56 10.4 BT UNIT..................................................................................................................................................58 10.5 WAVEFORMS.........................................................................................................................................59 11. PCB CONNECTION DIAGRAM....................................................................................................................62 11.1 TUNER AMP ASSY................................................................................................................................62 11.2 KEYBOARD ASSY .................................................................................................................................66 11.3 CD CORE UNIT (S11.1STD-DOUT) ......................................................................................................68 11.4 BT UNIT..................................................................................................................................................70 12. ELECTRICAL PARTS LIST...........................................................................................................................71 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 6 1 2 3 4 1 2 3 4 C D F A B E 1. SERVICE PRECAUTIONS 1.1 SERVICE PRECAUTIONS 1. You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. 2. Before disassembling the unit, be sure to turn off the power. Unplugging and plugging the connectors during power-on mode may damage the ICs inside the unit. 3. To protect the pickup unit from electrostatic discharge during servicing, take an appropriate treatment (shorting-solder) by referring to "the DISASSEMBLY". 4. After replacing the pickup unit, be sure to check the grating. 5. Be careful in handling ICs. Some ICs such as MOS type are so fragile that they can be damaged by electrostatic induction. 6. area and a heat sink becomes hot areas. Be careful not to burn yourself. 7. Software update The software of this product is stored in IC671. Please replace IC671 when making the version upgrade of software. 8. How to Handle Infrared Detecting unit for Remote Control of Grille The infrared detecting unit for remote control of keyboard unit is not fixed with cushion, etc. When external force is applied on the infrared detecting unit for remote control, the light receiving sensitivity might be deteriorated since the lead bents and attaching angle of the light receiving part may be varied. Please do not apply external force onto the infrared detecting unit for remote control. If any external force is applied by mistake, please confirm whether lead bending may exist or not. If the lead is bent, please correct the angle between the lead and the light receiving part to be 90 degrees or replace the infrared detecting unit for remote control (GP1UXC14RK). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 7 5 6 7 8 5 6 7 8 C D F A B E 10. Capacitor Bond Lock (ES) Silicon Glue (GEM1017) Place the capacitor in the center of the silk print, and confirm it does not touch to the connector. Then, apply silicon glue. OK NG 9. Capacitor Bond Lock (UC, EW5) Acetate Tape (GYH1026) 1 Please stick acetate tape along white line. 2 Please confirm line hiding with acetate tape. * length of tape : 24 ± 4 mm 1 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 8 1 2 3 4 1 2 3 4 C D F A B E 1.2 NOTES ON SOLDERING For environmental protection, lead-free solder is used on the printed circuit boards mounted in this unit. Be sure to use lead-free solder and a soldering iron that can meet specifications for use with lead-free solders for repairs accompanied by reworking of soldering. Compared with conventional eutectic solders, lead-free solders have higher melting points, by approximately 40 C. Therefore, for lead-free soldering, the tip temperature of a soldering iron must be set to around 373 C in general, although the temperature depends on the heat capacity of the PC board on which reworking is required and the weight of the tip of the soldering iron. Compared with eutectic solders, lead-free solders have higher bond strengths but slower wetting times and higher melting temperatures (hard to melt/easy to harden). The following lead-free solders are available as service parts: Parts numbers of lead-free solder: GYP1006 1.0 in dia. GYP1007 0.6 in dia. GYP1008 0.3 in dia. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 9 5 6 7 8 5 6 7 8 C D F A B E 2. SPECIFICATIONS 2.1 SPECIFICATIONS General Power source ...................14.4 V DC (10.8 V to 15.1 V al- lowable) Grounding system............Negative type Maximum current consumption .................................10.0 A Dimensions (W × H × D): DIN Chassis.............. 178 mm × 50 mm × 165 mm (7 in. × 2 in. × 6-1/2 in.) Nose .................. 188 mm × 58 mm × 17 mm (7-3/8 in.× 2-1/4 in.× 5/8 in.) D Chassis.............. 178 mm × 50 mm × 165 mm (7 in.× 2 in.× 6-1/2 in.) Nose .................. 170 mm × 46 mm × 17 mm (6-3/4 in.× 1-3/4 in.× 5/8 in.) Weight ............................. 1.2 kg (2.64 lbs) Audio Maximum power output ... 50 W × 4 Continuous power output .................................22 W × 4 (50 Hz to 15 000 Hz, 5 % THD, 4 Ω load, both chan- nels driven) Load impedance .............4 Ω (4 Ω to 8 Ω allowable) Preout maximum output level ................................2.0 V Tone controls: Bass Frequency.......... 100 Hz Gain .................. ±12 dB Mid Frequency.......... 1 kHz Gain .................. ±12 dB Treble Frequency.......... 10 kHz Gain .................. ±12 dB Subwoofer (mono): Frequency................ 50/63/80/100/125 Hz Slope ...................... –18 dB/oct Gain ........................+6 dB to –24 dB Phase ......................Normal/Reverse CD player System .......................... Compact disc audio system Usable discs ...................Compact disc Signal-to-noise ratio ......... 94 dB (1 kHz)(IHF-A network) Number of channels ........ 2 (stereo) WMA decoding format ..... Ver. 7, 7.1, 8, 9, 10, 11, 12 (2ch audio) (Windows Media Player) MP3 decoding format ...... MPEG-1 & 2 Audio Layer 3 WAV signal format ...........Linear PCM & MS ADPCM (Non-compressed) USB USB standard specification ..................................USB 2.0 full speed Maximum current supply ..................................500 mA USB Class .......................MSC (Mass Storage Class) File system.......................FAT12, FAT16, FAT32 WMA decoding format ..... Ver. 7, 7.1, 8, 9, 10, 11, 12 (2ch audio) (Windows Media Player) MP3 decoding format ...... MPEG-1 & 2 Audio Layer 3 WAV signal format ...........Linear PCM & MS ADPCM (Non-compressed) FM tuner Frequency range ............. 87.9 MHz to 107.9 MHz Usable sensitivity .............9 dBf (0.8 µV/75 Ω, mono, S/N: 30 dB) Signal-to-noise ratio .........72 dB (IHF-A network) AM tuner Frequency range .............. 530 kHz to 1 710 kHz Usable sensitivity ............. 25 µV (S/N: 20 dB) Signal-to-noise ratio ......... 62 dB (IHF-A network) Bluetooth Version ............................Bluetooth 2.0 certified Output power ................... +4 dBm Max. (Power class 2) CEA2006 Specifications Power output ..................14 W RMS × 4 Channels (4Ω and 1 % THD+N) S/N ratio ........................91 dBA(reference: 1 W into 4 Ω) Note Specifications and the design are subject to modifications without notice. <= • DEH-7300BT/XSUC, DEH-73BT/XSUC Backup current .............. 5.0 mA or less www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 10 1 2 3 4 1 2 3 4 C D F A B E Backup current..........................3.0 mA or less • DEH-7300BT/XSEW5 General Power source.............................14.4 V DC (10.8 V to 15.1 V allowable) Grounding system...................Negative type Maximum current consumption ....................................................10.0 A Dimensions (W × H × D): DIN Chassis.....................178 mm × 50 mm × 165 mm Nose...........................188 mm × 58 mm × 17 mm D Chassis.....................178 mm × 50 mm × 165 mm Nose...........................170 mm × 46 mm × 17 mm Weight .........................................1.2 kg Audio Maximum power output .......50 W × 4 Continuous power output ...22 W × 4 (50 Hz to 15 000 Hz, 5 % THD, 4 Ωload, both channels driven) Load impedance..................... 4 Ω (4 Ω to 8 Ω allowable) Preout maximum output level ...................................................2.0 V Tone controls: Bass Frequency................100 Hz Gain...........................±12 dB Mid Frequency................1 kHz Gain...........................±12 dB Treble Frequency................10 kHz Gain...........................±12 dB Subwoofer (mono): Frequency.........................50/63/80/100/125 Hz Slope...................................–18 dB/oct Gain.....................................+6 dB to –24 dB Phase .................................Normal/Reverse CD player System.........................................Compact disc audio system Usable discs .............................Compact disc Signal-to-noise ratio...............94 dB (1 kHz) (IEC-A net- work) Number of channels ..............2 (stereo) WMA decoding format .........Ver. 7, 7.1, 8, 9, 10, 11, 12 (2ch audio) (Windows Media Player) MP3 decoding format ...........MPEG-1 & 2 Audio Layer 3 WAV signal format..................Linear PCM & MS ADPCM (Non-compressed) USB USB standard specification ...................................................USB 2.0 full speed Maximum current supply ....500 mA USB Class..................................MSC (Mass Storage Class) File system.................................FAT12, FAT16, FAT32 WMA decoding format .........Ver. 7, 7.1, 8, 9, 10, 11, 12 (2ch audio) (Windows Media Player) MP3 decoding format ...........MPEG-1 & 2 Audio Layer 3 WAV signal format..................Linear PCM & MS ADPCM (Non-compressed) FM tuner Frequency range......................87.5 MHz to 108.0 MHz Usable sensitivity.....................9 dBf (0.8 µV/75 Ω, mono, S/N: 30 dB) Signal-to-noise ratio...............72 dB (IEC-A network) MW tuner Frequency range......................531 kHz to 1 602 kHz Usable sensitivity.....................25 µV (S/N: 20 dB) Signal-to-noise ratio...............62 dB (IEC-A network) LW tuner Frequency range......................153 kHz to 281 kHz Usable sensitivity.....................28 µV (S/N: 20 dB) Signal-to-noise ratio...............62 dB (IEC-A network) Note Specifications and the design are subject to mod- ifications without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 11 5 6 7 8 5 6 7 8 C D F A B E General Rated power source .........14.4 V DC (allowable voltage range: 12.0 V to 14.4 V DC) Grounding system............Negative type Maximum current consumption .................................10.0 A Dimensions (W × H × D): DIN Chassis.............. 178 mm × 50 mm × 165 mm Nose .................. 188 mm × 58 mm × 17 mm D Chassis.............. 178 mm × 50 mm × 165 mm Nose .................. 170 mm × 46 mm × 17 mm Weight ...........................1.2 kg Audio Maximum power output ... 50 W × 4 70 W × 1/2 Ω (for subwoofer) Continuous power output .................................22 W × 4 (50 Hz to 15 000 Hz, 5 % THD, 4 Ω load, both chan- nels driven) Load impedance .............4 Ω (4 Ω to 8 Ω allowable) Preout maximum output level ................................2.0 V Tone controls: Bass Frequency.......... 100 Hz Gain .................. ±12 dB Mid Frequency.......... 1 kHz Gain .................. ±12 dB Treble Frequency.......... 10 kHz Gain .................. ±12 dB Subwoofer (mono): Frequency................ 50/63/80/100/125 Hz Slope .......................–18 dB/oct Gain ........................+6 dB to –24 dB Phase ......................Normal/Reverse CD player System .......................... Compact disc audio system Usable discs ...................Compact disc Signal-to-noise ratio ......... 94 dB (1 kHz)(IEC-A network) Number of channels ........ 2 (stereo) WMA decoding format ..... Ver. 7, 7.1, 8, 9, 10, 11, 12 (2ch audio) (Windows Media Player) MP3 decoding format ...... MPEG-1 & 2 Audio Layer 3 WAV signal format ...........Linear PCM & MS ADPCM (Non-compressed) USB USB standard specification .................................USB 2.0 full speed Maximum current supply .................................500 mA USB Class ......................MSC (Mass Storage Class) File system......................FAT12, FAT16, FAT32 WMA decoding format ..... Ver. 7, 7.1, 8, 9, 10, 11, 12 (2ch audio) (Windows Media Player) MP3 decoding format ...... MPEG-1 & 2 Audio Layer 3 WAV signal format ...........Linear PCM & MS ADPCM (Non-compressed) FM tuner Frequency range ............. 87.5 MHz to 108.0 MHz Usable sensitivity ............ 9 dBf (0.8 µV/75 Ω, mono, S/N: 30 dB) Signal-to-noise ratio ........ 72 dB (IEC-A network) AM tuner Frequency range ............. 531 kHz to 1 602 kHz (9 kHz) 530 kHz to 1 640 kHz (10 kHz) Usable sensitivity ............ 25 µV (S/N: 20 dB) Signal-to-noise ratio ........ 62 dB (IEC-A network) Bluetooth Version .......................... Bluetooth 2.0 certified Output power ..................+4 dBm Max. (Power class 2) Infrared remote control Wavelength.....................940 nm ±50 nm Output ...........................typ; 12 mw/sr per Infrared LED Note Specifications and the design are subject to modifications without notice. Backup current.................5.0 mA or less • DEH-7350BT/XSES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 12 1 2 3 4 1 2 3 4 C D F A B E 2.2 DISC/CONTENT FORMAT 2.3 PANEL FACILITIES The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Pioneer Corporation is under license. Other trademarks and trade names are those of their respective owners. Head unit 1 2 4 5 6 3 78 a b c e d 9 Part Part 1 S (SRC/OFF) 8 (phone/on hook) 2  (eject) 9 (Back/display/ scroll) 3 (list) a /// 4 MULTI-CONTROL (M.C.) b (clock) 5 Disc loading slot c 1 to 6 6 USB port d AUX input jack (3.5 mm stereo jack) 7 B (BAND/ESC) e Detach button CAUTION  Use an optional Pioneer USB cable (CD- U50E) to connect the USB audio player/USB memory as any device connected directly to the unit will protrude out from the unit and may be dangerous.  Do not use unauthorized products. Remote control f l j g i h k 7 1 a Part Operation f VOLUME Press to increase or decrease volume. g MUTE Press to mute. Press again to unmute. h AUDIO Press to select an audio func- tion. i DISP/SCRL Press to select different dis- plays. Press and hold to scroll through the text information. j  Press to pause or resume play- back. k FUNC- TION Press to select functions. Press and hold to recall the ini- tial setting menu when the sources are off. l LIST/ ENTER Press to display the disc title, track title, folder, or file list de- pending on the source. While in the operating menu, press to control functions. • DEH-7300BT/XSUC, DEH-73BT/XSUC, DEH-7350BT/XSES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 13 5 6 7 8 5 6 7 8 C D F A B E Display indication 4 5 6 3 8 a c 9 1 2 7 b d Indicator State 1 Main dis- play sec- tion  Tuner: band and frequency  Built-in CD, USB storage device and iPod: elapsed playback time and text in- formation 2  An upper tier of the folder or menu exists. 3  A lower tier of the folder or menu exists. This flashes when a song/ album related to the song cur- rently playing is selected from the iPod. 4 (list) The list function is being oper- ated. 5 (artist) The artist name is displayed. Artist search refinement of the iPod browsing function is in use. 6 (disc) The disc (album) name is dis- played. Album search refinement of the iPod browsing function is in use. Indicator State 7 (song) The track (song) name is dis- played. A playable audio file has been selected during operation of the list. Song search refinement of the iPod browsing function is in use. 8 LOC Local seek tuning is on. 9 (re- peat) Track or folder repeat is on. a (ran- dom/shuf- fle) Random play is on. The iPod source is selected and the shuffle or shuffle all function is on. b (auto answer) Shows when the automatic an- swering function is on. c (Blue- tooth indi- cator) Connected to a Bluetooth de- vice. d (sound re- triever) The sound retriever function is on. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 14 1 2 3 4 1 2 3 4 C D F A B E Head unit 1 2 4 5 6 3 78 a b c e d 9 tr a P tr a P 1 S (SRC/OFF) 8 (phone/on hook) 2  (eject) 9 (Back/display/ scroll) 3 (list) a /// 4 MULTI-CONTROL (M.C.) b (clock) 5 Disc loading slot c 1 to 6 6 USB port d AUX input jack (3.5 mm stereo jack) 7 B (BAND/ESC) e Detach button CAUTION  Use an optional Pioneer USB cable (CD-U50E) to connect the USB audio player/USB mem- ory as any device connected directly to the unit will protrude out from the unit and may be dangerous.  Do not use unauthorized products. Display indication 4 5 6 3 8 c e 9 1 2 7 b a d f Indicator State 1 Main dis- play sec- tion  Tuner: band and frequency  RDS: program service name, PTY information and other lit- eral information  Built-in CD, USB storage de- vice and iPod: elapsed play- back time and text information 2  An upper tier of the folder or menu exists. 3  A lower tier of the folder or menu exists. This flashes when a song/album related to the song currently play- ing is selected from the iPod. 4 (list) The list function is being oper- ated. 5 (artist) The disc (track) artist name is dis- played. Artist search refinement of the iPod browsing function is in use. 6 (disc) The disc (album) name is dis- played. Album search refinement of the iPod browsing function is in use. 7 (song) The track (song) name is dis- played. A playable audio file has been se- lected during operation of the list. Song search refinement of the iPod browsing function is in use. 8 LOC Local seek tuning is on. 9 (TA) TA function is on. a (TP) A TP station is tuned in. b (repeat) Track or folder repeat is on. c (ran- dom/shuf- fle) Random play is on. The iPod source is selected and the shuffle or shuffle all function is on. d (auto answer) Shows when the automatic an- swering function is on. e (Blue- tooth indi- cator) Connected to a Bluetooth device. The line is on hold. f (sound re- triever) The sound retriever function is on. • DEH-7300BT/XSEW5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 15 5 6 7 8 5 6 7 8 C D F A B E 2.4 CONNECTION DIAGRAM This unit 1 3 2 6 7 8 4 5 1 Power cord input 2 Microphone input 3 Microphone 4 Rear output or subwoofer output 5 Front output 6 Antenna input 7 Fuse (10 A) 8 Wired remote input Hard-wired remote control adaptor can be connected (sold separately). Power cord Perform these connections when not connect- ing a rear speaker lead to a subwoofer.         1 8 9 c d 6 3 2 4 5 7 a b e f h g R L F R Perform these connections when using a sub- woofer without the optional amplifier.           1 8 9 c d 6 3 2 4 7 a b a b e f h g R L F SW i j d c k l 1 To power cord input 2 Left 3 Right 4 Front speaker 5 Rear speaker 6 White 7 White/black 8 Gray 9 Gray/black a Green b Green/black c Violet d Violet/black e Black (chassis ground) Connect to a clean, paint-free metal location. f Yellow Connect to the constant 12 V supply termi- nal. g Red Connect to terminal controlled by ignition switch (12 V DC). h Blue/white Connect to system control terminal of the power amp or auto-antenna relay control ter- minal (max. 300 mA 12 V DC). i Subwoofer (4 Ω) DEH-73BT/XSUC, DEH-7300BT/XSUC, DEH-7350BT/XSES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 16 1 2 3 4 1 2 3 4 C D F A B E j When using a subwoofer of 70 W (2 Ω), be sure to connect the subwoofer to the violet and violet/black leads of this unit. Do not connect anything to the green and green/ black leads. k Not used. l Subwoofer (4 Ω) × 2 Notes  With a 2 speaker system, do not connect any- thing to the speaker leads that are not con- nected to speakers.  Change the initial setting of this unit. Refer to SW CONTROL (rear output and subwoofer setting). The subwoofer output of this unit is monau- ral. Power amp (sold separately) Perform these connections when using the op- tional amplifier.         1 1 3 2 4 5 5 3 2 6 7 7 1 System remote control Connect to Blue/white cable. 2 Power amp (sold separately) 3 Connect with RCA cables (sold separately) 4 To Rear output or subwoofer output 5 Rear speaker or subwoofer 6 To Front output 7 Front speaker Securing the front panel If you do not plan to detach the front panel, the front panel can be fastened with the supplied screw. Screw UC : BPZ20P060FTC ES : XXX7020 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 17 5 6 7 8 5 6 7 8 C D F A B E This unit 1 3 2 6 7 8 5 4 9 1 Power cord input 2 Microphone input 3 Microphone 4 Rear output 5 Front output 6 Antenna input 7 Fuse (10 A) 8 Wired remote input Hard-wired remote control adaptor can be connected (sold separately). 9 Subwoofer output Power cord 1 3 3 2 4 4 5 5 6 6 b 8 9 7 a d c 1 To power cord input 2 Depending on the kind of vehicle, the function of 3 and 5 may be different. In this case, be sure to connect 4 to 5 and 6 to 3. 3 Yellow Back-up (or accessory) 4 Yellow Connect to the constant 12 V supply terminal. 5 Red Accessory (or back-up) 6 Red Connect to terminal controlled by ignition switch (12 V DC). 7 Connect leads of the same color to each other. 8 Black (chassis ground) 9 Blue/white The pin position of the ISO connector will dif- fer depending on the type of vehicle. Connect 9 and b when Pin 5 is an antenna control type. In another type of vehicle, never connect 9 and b. a Blue/white Connect to system control terminal of the power amp (max. 300 mA 12 V DC). b Blue/white Connect to auto-antenna relay control term- inal (max. 300 mA 12 V DC). c Speaker leads White: Front left  White/black: Front left  Gray: Front right  Gray/black: Front right  Green: Rear left  or subwoofer  Green/black: Rea  or subwoofer  Violet: Rear right  or subwoofer  Violet/black: Rear right  or subwoofer  d ISO connector In some vehicles, the ISO connector may be divided into two. In this case, be sure to con- nect to both connectors. Notes  Change the initial setting of this unit (refer to the Operation Manual). The subwoofer output of this unit is monaural.  When using a subwoofer of 70 W (2 Ω), be sure to connect the subwoofer to the violet and violet/black leads of this unit. Do not con- nect anything to the green and green/black leads. DEH-7300BT/XSEW5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 18 1 2 3 4 1 2 3 4 C D F A B E Securing the front panel If you do not plan to detach the front panel, the front panel can be fastened with the supplied screw. Screw EW5 : XXX7020 Power amp (sold separately) Perform these connections when using the optional amplifier.             1 1 3 2 4 3 8 5 5 3 2 6 7 7 9 9 2 1 1 System remote control Connect to Blue/white cable. 2 Power amp (sold separately) 3 Connect with RCA cable (sold separately) 4 To Rear output 5 Rear speaker 6 To Front output 7 Front speaker 8 To subwoofer output 9 Subwoofer www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 19 5 6 7 8 5 6 7 8 C D F A B E 3. BASIC ITEMS FOR SERVICE 3.1 CHECK POINTS AFTER SERVICING 3.2 PCB LOCATIONS To keep the product quality after servicing, please confirm following check points. d e m rif n o c e b o t m e tI s e r u d e c o r P . o N 1 Confirm whether the customer complain has been solved. If the customer complain occurs with the specific media, use it for the operation check. The customer complain must not be reappeared. Display, audio and operations must be normal. 2 CD Play back a CD. (Track search) No malfunction on display, audio and operation. 3 FM/AM tuner Check FM/AM tuner action. (Seek, Preset) Switch band to check both FM and AM. Display, audio and operations must be normal. 4 Check whether no disc is inside the product. The media used for the operating check must be ejected. r e tf a e c n a r a e p p a sti n o trid r o s e h ct a r c s o N k c e h c e c n a r a e p p A 5 receiving it for service. See the table below for the items to be checked regarding audio: Item to be checked regarding audio Distortion Noise Volume too low Volume too high Volume fluctuating Sound interrupted A D BT Unit CD Core Unit (S11.1STD-DOUT) C Tuner Amp Assy B Keyboard Assy A:DEH-7300BT/XSUC B:DEH-7300BT/XSEW5 C:DEH-73BT/XSUC D:DEH-7350BT/XSES Unit Number : YWM5486(A,C) : YWM5482(B) : YWM5483(D) Unit Name : Tuner Amp Assy Unit Number : YWM5492(A,C) : YWM5488(B) : YWM5489(D) Unit Name : Keyboard Assy Unit Number : CWX3985 Unit Name : CD Core Unit(S11.1STD-DOUT) Unit Number : YWM5539(A,B,C) : YWM5494(D) Unit Name : BT Unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 20 1 2 3 4 1 2 3 4 C D F A B E 3.3 JIGS LIST 3.4 CLEANING - Jigs List - Grease List Name Grease Grease Grease Grease Silicon Glue Grease No. GEM1024 GEM1038 GEM1043 GEM1045 GEM1017 Remarks CD Mechanism Module CD Mechanism Module CD Mechanism Module CD Mechanism Module Capacitor Bond Lock Name Grease No. Remarks Name 16P FFC Test Disc L.P.F. Acetate Tape Jig No. GGD1310 TCD-782 GYH1026 Remarks Tuner Amp Unit - CD Core Unit Checking the grating Checking the grating (Two pieces) Capacitor Bond Lock Before shipping out the product, be sure to clean the following portions by using the prescribed cleaning tools: Portions to be cleaned Cleaning tools CD pickup lenses Cleaning liquid : GEM1004 Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 21 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 22 1 2 3 4 1 2 3 4 C D F A B E 4. BLOCK DIAGRAM 4.1 BLOCK DIAGRAM NJM4558MD 1 2 3 - + 1 2,3 B.UP BT MODULE ILMB ILMPW 160 VDD3.3V 8 SWVD SW5V 9 6 SYSPW SWVDD 1 11 173 156 7 3 CDRST 9 RESET 144 2 B.UP 4 10 SYS+B SWVDD VDD12 SW5V SYS+B BSENS SW5VCNT +B PVIN VIN SW VIN EN OC +BUP VDDCONT SYSPW 5 VBUS(US5V) USB5V VOUT 5 SYNC USBCTL USBFLG CPPWR CPRST 23 5 2 8 1 22 VBUS 70 1 3 24 4 B.UP 15 16 VDCONT 18 VDSENS 83 MECHA VD VD B.UP VDD BD9008F SYNC EN/ BD2226G SYST CO R5S7 REGULATOR IC BA49182-V12 5 2 142 VDD3.3V VDD3.3V 13 4 VCC I2C_SDA nRESET MODE1 CP_SDA CP_SCL 12 137 140 138 BTRST BTTX BTRX 150 154 151 I2C_SCL iPod CP 341S2162 RF FRONT END IC TDA7706 5 FMMIXIN1 16 PINDIN 18 LNAIN SYSTEM MICRO COMPUTER (1/2) R5S7267ZD144FP VDD1.2V VDD3.3V VDD 8 7 TUNSDA TUNSCL 33 34 57 135 136 TUNRES 31 131 KEYAD 85 KEYD 157 I2CSDA RSTN I2CSCL DACOUTL RESET 1 2 46 RESET ILMPW S-80827CNMC-B8M USB5V BT3V 1 5 BT3V REGULATOR S-1132B33-U5 14 13 MC LRCK MD BCK 1 DAC PCM1753DBQ 2 DATA SCK 3 16 ML DACBSCK DACLRCK DACBDATA DACSCK DACDATA AUDIO_XOUT DACCS 15 105 107 111 108 109 104 148 7 VOUTL FLASH ROM PEA018A8: PEA017A8: PEA019A8: CD CORE UNIT(S11.1 STD-DOUT) M LD MD SPINDLE M LOADING/CARRIAGE LD- MD 15 5 HOLOGRAM RF AMP, CD DECODER, MP3&WMA DECODER 2 VD VD 9 16 VO3- 15 VO3+ 18 VO4- 17 VO4+ 21 CNT 9 MUTE TD,FD AC,BD,E,F SD,MD LD+ 14 1 LD 2 PD CONT CLCONT HOME 35 40 39 VDD 1 VDD VDD 15 5 FOCUS ACT. TRACKING ACT. FOP TOP 2 1 TOP FOP 11 VO1- 14 VO2+ 2 1 14 DSCSNS 38 29 RESET 8 RESET 8 8 VREF REFO 93 REFOUT 3 3 FOM FOM 12 VO1+ 4 4 TOM TOM 13 VO2- 22 LDIN LOEJ 41 54 PUEN V+3A VDD UNIT MOTOR MOTOR ACTUATOR/ MOTOR DRIVER BA5839FP HOME DSCSNS PE5756A DIGITAL SERVO/DATA • PROCESSOR CPU, USB HOST CONTROLLER BT UNIT V+3A 12 12 VCC PD 7 9 10 U1OUT 6 U1IN 3 SPK1P 2 SPK1N 12 7 5 4 8 11 12 2 14 12 11 1 3 4 9 NRST_CPU MIC1N MIC1P U1OUT U1IN SPK1P SPK1N NRST_CPU MIC1N MIC1P REFO LD+ SOP SOM LCOP LCOM PICKUP UNIT (P10.5)(SERVICE) GND CD DATA (CDSRQ,CDSTBY,SKIP, SCL,SDA,DATA,BCLK,LRCK,WAIT) CD DATA (CDSRQ,CDSTBY,SKIP, SCL,SDA,DATA,BCLK,LRCK,WAIT) TUNER AMP ASSY 2 3 1 USB5V REGULATOR WIRED REMOTE KEYAD KEYD GND 5 4 BSENS IC971 JA401 CN701 Q871 Q751 Q752 IC502 IC501 IC912 IC551 IC401 JA971 Q872 IC601 IC651 IC891 IC231 IC671 CN701 Q101 CN101 Q102 IC301 S901 S903 IC201 CN971 CN2 CN1 Q551 C D A BTTEL U1OUT U1IN SPK1P SPK1N NRST_CPU MIC1N MIC1P :D :D :D A B C :D D RMIC 6 MIC1N MIC1P 5 VCC 9 2 VCC VCC VOUT ISOLATOR 4 SW VIN US5V REGULATOR ANTENNA A B D C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 23 5 6 7 8 5 6 7 8 C D F A B E B.UP 25 MUTE 175 ASENS 9 7 3 5 FL- FL+ RL- RL+ FL- FL+ RL- RL+ BREM ACC 22 MUTE ASENS 13 7 5 1 3 18 18 10 8 SOURCE DPDT KYDT SSENS 174 ROT0 159 ROT1 158 DPDT 36 KYDT 37 FLIn 11 20 DSENS DSENS 168 DM 68 DP 69 RLIn 12 MUTE 25 B.REM 14 SYSPW SWVDD 173 156 7 CDRST 144 4 6 B.UP 5 AUXL 19 SYNC USBCTL USBFLG 23 5 22 VBUS 70 24 UP VDCONT 18 VDSENS 83 F YNC EN/ SYSTEM MICRO COMPUTER (2/2) R5S7267ZD144FP AMP PAL007E IN2_L IN1_L 2 1 7 FRONT_L 8 REAR_L 6 POUT_L E-VOL PML022A IN4+_L 4 CLK STB 14 15 DATA VCK VST VDT 13 38 34 39 11 VBUS(US5V) 4 6 ROT0 ROT1 DM DP 13 15 4 2 TC7SET08FUS1 ILMB 3 SWVD SW5V TUNL CD_Lch IN3_L 3 AUXL BTTEL LATOR RCA OUT POWER CONNECTOR FL/FL RL 2 FR/SWL KEYBOARD ASSY FRONT_AUX USB 10 7 BSENS AUXL AUXGND SOURCE 2 1 3 4 KYDT DPDT 10 8 KEY MATRIX 4 6 2 1 5 4 3 AUXL SOURCE ROT0 ROT1 KDT2 KST1 18 19 AUXR ILM+B LCD DRIVER/ KEY CONTROLLER MULTI-CONTROL PD6340A LCD USB5V DM DP 18 20 DPDT KYDT 17 REM 28 KST4 11 KST3 12 KST2_1 13 KST1 14 KST0 26 KDT3 25 KST2_2 16 KDT1 15 KDT0 11 13 15 5 SW5V 3 2 3 4 USB5V DM DP DSENS 20 GP1UXC14RK SENSOR 1 REMOTE CONTROL Q931 CN801 JA901 IC601 IC301 Q351 Q352 JA251 Q253 Q252 Q251 IC201 P251 IC801 CN1901 CN1821 S1845 IC1801 V1801 CN1911 S1841 D1913 IC1802 B D1851,D1852,D1853,D1854, D1855,D1856,D1857,D1858, D1859,D1860,D1861,D1862, D1863,D1864,D1865,D1866, D1867 :DEH-7300BT/XSUC :DEH-7300BT/XSEW5 :DEH-73BT/XSUC A B C :DEH-7350BT/XSES D ILM+B SWL FL RL B.UP SYS+B 4 STBY B 5 SWL/FR B A C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 24 1 2 3 4 1 2 3 4 C D F A B E 5. DIAGNOSIS 5.1 OPERATIONAL FLOWCHART Vcc = 1.2 V Pin 5 PVcc = 3.3 V Pin 1 BSENS Pin 173 ASENS Pin 175 DSENS Pin 168 BSENS = L DSENS = L Starts communication with Grille microcomputer. SWVDD <- H Pin 156 Source keys operative Source ON SYSPW <- H Pin 7 300 ms 300 ms In case of the above signal, the communication with Grille microcomputer may fail. If the time interval is not 300 msec, the oscillator may be defective. Completes power-on operation. (After that, proceed to each source operation) Power ON ASENS = L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 25 5 6 7 8 5 6 7 8 C D F A B E 5.2 ERROR CODE LIST 8-digit display 6-digit display 4-digit display ERROR-xx ERR-xx E-xx (2) LIST OF CD ERROR CODES (Error Mode: 0xFD) Code Classification Error code to be displayed Details and possible causes 10 Servo Carriage Home NG The CRG cannot move toward the inner track. The CRG cannot move from the inner track. --> Defective HOME SW; Failure in CRG movement. 7 Servo TOC reading NG TOC information cannot be read. --> The partial disk or TOC content is illegal. 11 Servo Focus Search NG Focusing not available --> Disc placed upside-down; Stains on the disc; excessive vibration. 17 Servo Setup NG AGC protection does not work. Focus can be easily lost. --> Scratches or stains on the disc; excessive vibration. 15 Servo Failure in RF data RF not read --> A CD-R disc that does not contain data loaded --> A CD-RW disc that does not contain data loaded 12 Servo Spindle Lock NG Subcode NG RF-amp NG Spindle not locked. Subcode not readable. Proper RF AMP gain not obtained. --> Defective spindle; Scratches or stains on the disc; excessive vibration. --> A CD-R disc that does not contain data loaded, or in a rare case, disc placed upside-down. --> CD signal error. 30 Servo Search Time Out Failed to reach a target address --> CRG tracking error; Scratches on the disc; Stains on the disc 50 Mechanism Failure in ejection Load NG Disc ejection not completed Disc loading not completed --> A foreign object inserted in the mechanism; Disc jammed. 51 Mechanism Failure in retried turning for ejection Disc could not be ejected even after disc turning had been retried. --> A foreign object inserted in the mechanism; Disc jammed. NOTES • Indications of error codes are available only during disc operations, because CD operations are unavailable if a mechanical error is generated. • If the TOC cannot be read, this is not processed as an error, and operation continues accordingly. • If you design a new head unit, be sure to use one of the display formats indicated in “Display example of the main unit.” ERROR CODES (1) DISPLAY METHOD If “0xFD” error mode is displayed in CD MODE (CD MODE area for display), an error code will be displayed in the MIN (minute display) and SEC (second display) areas. The same code is displayed in the MIN and SEC areas. The TNO area is blank (#0FFH), as it conventionally was. • Display example of the main unit Depending on the display capability of LCDs, the display format varies, as shown below. XX denotes an error number. Note: In a case of an OEM product, the error display format is subject to the specifications used by the equipment manufacturer. If a CD memory device is inoperable, or operation of such media is stopped by an error, the error mode is established and a cause of the error is displayed by an error code. Indication of error codes is intended to reduce the number of calls from customers and facilitate failure analysis and repair work in servicing. • The 2 high-order digits of an error code denote the main classification, shown below. 0x: Servo-related errors 1x: Servo-related errors 3x: Servo-related errors 5x: Mechanism-related errors • How to restore from each error is shown below. 0x, 1x and 3x: ACC-OFF then ON, CD-OFF then ON, Disc ejection 5X: ACC-OFF then ON, Disc ejection, Disc reloading www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 26 1 2 3 4 1 2 3 4 C D F A B E USB storage device/iPod Message Cause Action NO DEVICE When plug and play is off, no USB storage de- vice or iPod is connected.  Turn the plug and play on.  Connect a com- patible USB stor- age device/iPod. FRMT READ Sometimes there is a delay between the start of playback and when you start to hear any sound. Wait until the message disap- pears and you hear sound. NO AUDIO There are no songs. Transfer the audio files to the USB storage device and connect. The connected USB storage de- vice has secur- ity enabled Follow the USB storage device in- structions to dis- able the security. SKIPPED The connected USB storage de- vice contains files embedded with Windows Media DRM 9/ 10 Play an audio file not embedded with Windows Media DRM 9/10. PROTECT All the files in the USB storage device are em- bedded with Windows Media DRM 9/10 Transfer audio files not em- bedded with Windows Media DRM 9/10 to the USB storage de- vice and connect. N/A USB The connected USB storage de- vice is not sup- ported by this unit.  Connect a USB Mass Storage Class compliant device.  Disconnect your device and replace it with a compatible USB storage device. CHECK USB The USB con- nector or USB cable has short- circuited. Check that the USB connector or USB cable is not caught in some- thing or dam- aged. The connected USB storage de- vice consumes more than 500 mA (maximum allowable cur- rent). Disconnect the USB storage de- vice and do not use it. Turn the ignition switch to OFF, then to ACC or ON and then connect only compliant USB storage devices. The iPod oper- ates correctly but does not charge Make sure the connection cable for the iPod has not shorted out (e.g., not caught in metal objects). After checking, turn the ignition switch OFF and back ON, or dis- connect the iPod and reconnect. Message Cause Action ERROR-19 Communication failed.  Perform one of the following op- erations. –Turn the ignition switch OFF and back ON. –Disconnect the USB storage de- vice. –Change to a dif- ferent source. Then, return to the USB source.  Disconnect the cable from the iPod. Once the iPod's main menu is displayed, re- connect the iPod and reset it. iPod failure Disconnect the cable from the iPod. Once the iPod's main menu is displayed, re- connect the iPod and reset it. ERROR-23 USB storage de- vice was not for- matted with FAT12, FAT16 or FAT32 USB storage de- vice should be for- matted with FAT12, FAT16 or FAT32. ERROR-16 The iPod firm- ware version is old Update the iPod version. iPod failure Disconnect the cable from the iPod. Once the iPod's main menu is displayed, re- connect the iPod and reset it. STOP There are no songs in the current list. Select a list that contains songs. NOT FOUND No related songs Transfer songs to the iPod. Bluetooth Telephone Message Cause Action ERROR-10 The power failed for the Blue- tooth module of this unit. Turn the ignition switch OFF and then to ACC or ON. If the error mes- sage is still dis- played after performing the above action, please contact your dealer or an authorized Pioneer Service Station. ™ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 27 5 6 7 8 5 6 7 8 C D F A B E 5.3 CONNECTOR FUNCTION DESCRIPTION REAR OUTPUT or SUBWOOFER OUTPUT ANTENNA DEH-73BT/XSUC, DEH-7300BT/XSUC, DEH-7350BT/XSES DEH-7300BT/XSEW5 FRONT OUTPUT 1 FL+ 2 FR+ 3 FL- 4 FR- 5 RL+ 6 RR+ 7 RL- 8 RR- 9 NC 10 NC 11 NC 12 NC 13 ACC 14 B.REM 15 B.UP 16 GND 16 14 12 10 8 6 4 2 15 13 11 9 7 5 3 1 WIRED REMOTE CONTROL MICROPHONE ANTENNA 1 FL+ 2 FR+ 3 FL- 4 FR- 5 RL+ 6 RR+ 7 RL- 8 RR- 9 NC 10 NC 11 NC 12 NC 13 ACC 14 B.REM 15 B.UP 16 GND 16 14 12 10 8 6 4 2 15 13 11 9 7 5 3 1 WIRED REMOTE CONTROL FRONT OUTPUT REAR OUTPUT SUBWOOFER OUTPUT MICROPHONE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 28 1 2 3 4 1 2 3 4 C D F A B E 6. SERVICE MODE 6.1 DISPLAY TEST MODE * Initial condition S $ $ $ $ # # # $ PD number For Ver.7.01, "701" is displayed For PEA010A, "010A" is displayed # System microcomputer version 1 + 3 On (state when entering test mode) Press “ 1 ” and “ 3 ” keys simultaneously to start resetting. [Operation key] [How to enter Test mode] [Test items] Start display test mode (2). (Press “ 1 ” + “ 3 ” keys simultaneously to start resetting.) Display is normally updated Display update is stopped Product operation is performed as usual, in appearance. The screen gets still when entering this item. On (an initial value) On (lighting condition of normal times) On (an initial value or setting value of default menu) On (an initial value or setting value of default menu) On (an initial value or setting value of default menu) Off All off All off All off Remarks Key Illumination Operation key Processing Icon Enter display test mode (2) Switch to next test mode The information such as the system microcomputer version is checked. Switching to next display by pressing “ 1 ” + “ 3 ” keys simultaneously. Switching to next display by pressing “ 1 ” + “ 3 ” keys simultaneously. Switching to next display by pressing “ 1 ” + “ 3 ” keys simultaneously. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 29 5 6 7 8 5 6 7 8 C D F A B E 6.2 CD TEST MODE [Key] Contents Display [BAND] Power On (T.Offset is adjusted) TRK MIN SEC 00 00 00 [2] RF AMP Gain switching GG GG GG *1 [3] Focus Close S curve check TRK MIN SEC 91 91 91 [6] Focus Mode switching 0X 0X 0X *2 [1] Tracking Servo Close 00 00 00 or 99 99 99 [<] CRG + [2] Self-adjusting switching TRK MIN SEC ?? ?? ?? *3 *8 [>] CRG - *8 [BAND] Power Off TRK MIN SEC [BAND] Power Off TRK MIN SEC [BAND] Power Off TRK MIN SEC [BAND] Power Off TRK MIN SEC [1] T.Close & AGC Applicable servomechanism TRK MIN SEC ?tr ?min ?sec [3] RF AGC / RF AGC coefficient display [<] CRG + 8X 8X 8X or 9X 9X 9X [2] T.Balance adjustment / T.BAL coefficient display TRK MIN SEC ?? ?? ?? [>] CRG - ?? ?? ?? [1] F,T,RF AGC F.Bias display switching TRK MIN SEC TRK MIN SEC TRK MIN SEC [3] [<] CRG/TR Jump + [2] Tracking Open [>] CRG/TR Jump - ?tr ?min ?sec TRK MIN SEC TRK MIN SEC 00 00 00 or 99 99 99 TRK MIN SEC ?tr ?min ?sec 8X 8X 8X or 9X 9X 9X 8X 8X 8X or 9X 9X 9X 00 00 00 or 99 99 99 TRK MIN SEC ?tr ?min ?sec ?? ?? ?? *7 F,T AGC / F.Bias RF AGC 8X 8X 8X or 9X 9X 9X [2] Tracking Open *6 *4 *4 Operation [Key] Test Mode [BAND] Power On/Off [<] CRG + / TR Jump + (Direction of the external surface) [>] CRG - / TR Jump - (Direction of the internal surface) [1] T. CLS & AGC & Applicable servomechanism / AGC,AGC display setting [2] RF Gain switching / Offset adjustment display / T.Balance adjustment / T. Open [3] F. Close,S. Curve / Rough Servo and RF AGC / F,T,RF AGC [6] F. Mode switching / Tracking Close After the [EJECT] key is pressed keys other than the [EJECT] key should not be pressed, until disc ejection is complete. When the key [2] or [3] is pressed during the Focus Search, the power supply should be immediately turned off (otherwise the lens sticks to Wall, causing the actuator to be damaged). 100TR Jump, the mechanism shall be set to the Tracking Close mode when the key is released. When the power is turned on/off the gain of the RFAMP is reset to 0 dB. At the same time all the self-adjusting values shall return to the default setting. Do not do Tracking Servo Close before doing Focus Servo Close. (Because the overcurrent flows) - Flow Chart [CD] or [SOURCE] Source ON TRK MIN [4] + [6] -> BUP + ACC ON Test Mode IN *1) TYP t + 6 dB t + 12 dB TRK MIN SEC TRK06MIN06SEC06 TRK12MIN12SEC12 *2) Focus Close t S. Curve t F EQ measurement setting TRK00MIN00SEC00 TRK01MIN01SEC01 TRK02MIN02SEC02 (TRK99MIN99SEC99) *3) F.Offset Display t T.Offset Display t Switch to the order of the original display *4) 100TR Jump *7) TRK/MIN/SEC t F.AGC t T.AGC Gain t F.Bias t RF AGC *8) CRG motor voltage = 2 [V] *9) TYP (1X) t 2X t 1X TRK MIN SEC TRK22MIN22SEC22 TRK11MIN11SEC11 *10) OFF(TYP) t FORCUS t TRACKING TRK MIN SEC TRK70MIN70SEC70 TRK71MIN71SEC71 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 30 1 2 3 4 1 2 3 4 C D F A B E 7. DISASSEMBLY 2 3 Fig.1 Fig.2 Fig.3 1 - Removing the Panel Assy (Fig.1) Remove the two hooks and then remove the Panel Assy. Remove the two hooks. 1 2 Remove the two screws. Remove the screw. Lift off the Tuner Amp Assy from the Heat sink side. 4 - Removing the CD Mechanism Module (Fig.2, 3, 4) The CD Mechanism Module side is made a bottom. Fig.4 5 6 Push the area and remove the two hooks. Slide the Tuner Amp Assy in the direction of the arrow and then remove the hooks of upper and lower. The Tuner Amp Assy is fixed into the ditch. Disconnect the FFC and then remove the CD Mechanism Module. Panel Assy 2 2 CD Mechanism Module While the photograph shown is slightly different from this model in shape, the disassembly procedure is the same. 3 3 1 Heat sink side CD Mechanism Module Tuner Amp Assy 5 5 6 1 2 2 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 31 5 6 7 8 5 6 7 8 C D F A B E 3 Fig.5 1 - Removing the BT Unit and the Tuner Amp Assy (Fig.5) Straighten the tabs at two locations indicated and then remove the Tuner Amp Assy. 2 Remove the two screws. Remove the two screws. - Attention of removing (Fig.6) Fig.6 Don't remove this screws excluding the dismantlement of the CD Mechanism Module. Straighten the tabs at three locations indicated and then remove the BT Unit. Disconnect the FFC. 4 5 Tuner Amp Assy 1 2 2 2 3 3 4 4 5 5 BT Unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 32 1 2 3 4 1 2 3 4 C D F A B E Fig.7 Fig.8 Fig.9 Fig.10 - Disassembling the Panel Part (Fig.7, 8) 2. Press the upside hook and the bottom side hook of the button at the same time, and pull out the button. 1. Remove the arm while bending the rib of the panel upward. - Assembling the Panel Part (Fig.9, 10, 11) 1. Attach the button from the front side of the panel. 2. Attach the spring to the arm as shown in the figure. Hitch the spring to the groove. The bended tip of the spring is set to this side. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 33 5 6 7 8 5 6 7 8 C D F A B E Fig.11 3. Fit the spring in the groove at the position shown in the figure. 4. Fit the boss on the lower side of the arm in the lower hole of the panel, and then warp the rib on the panel in the direction shown in the figure and fit the boss of the arm in the panel. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 34 1 2 3 4 1 2 3 4 C D F A B E Correct way of holding the unit Incorrect way of holding the unit How to carry the mecha unit 1. Hold the designated points (shown with dashed lines) of the upper chassis and the front/rear bracket. 2. Be careful not to hold the solid line portions or the CRG mecha part or insert foreign substances, to prevent distortion. 3. When holding the sides of the upper chassis, do not apply excessive force to prevent distortion. (Approx. 8N or less) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 35 5 6 7 8 5 6 7 8 C D F A B E Slide toward inner circumference Normal built-in state The spring is below a resin flange and is built inside the sheet metal bending. [Incorrect built-in state] The chassis is not nipped between the PU case and the PU rack. Outer holder Rear end of feeding screw Fig 1 Fig 3 Fig 4 Fig 2a Fully-hooked state B Tentatively-hooked state Fig 2b A How to remove the PU unit 1. Create an empty-clamp state according to “How to create empty clamp state (motor drive)”. 2. Hook the feeding screw biasing spring to a tentative hooking portion (Fig 2b). Be careful not to get injured by the spring edge. 3. Hold the PU at the position A as shown in Fig 1. Slide the PU as far as possible toward the holder in the feeding screw so that a joint on the outer end of the feeding screw is loosened. 4. As shown in Fig 3, move the rear end of the feeding screw laterally and then upward, to remove it from the outer holder. 5. Lift the PU unit to disengage it from Part B of the chassis (Fig 4), and remove the PU unit. (Cautions) When re-installing the PU, be sure to first nip the chassis and the PU unit (Fig 4) at the position B. Also, make sure to fully hook the feeding screw biasing spring (Fig 2a). Please follow the service manual for adjustment of the PU unit after the re-installation. How to move the PU to the outer circumference 1. Create an empty clamp state according to “How to create empty clamp state of mecha module”. 2. Apply 1.5 V to the CRG motor and move the PU to the outer circumference. (Caution) After moving the PU to the outer circumference and performing necessary treatment, make sure to solder the lead wires. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 36 1 2 3 4 1 2 3 4 C D F A B E 8. EACH SETTING AND ADJUSTMENT 8.1 CD ADJUSTMENT 1) Cautions on adjustments In this product the single voltage (3.3 V) is used for the regulator. The reference voltage is the REFO1 (1.65 V) instead of the GND. If you should mistakenly short the REFO1 with the GND during adjustment, accurate voltage will not be obtained, and the servo’s misoperation will apply excessive shock to the pickup. To avoid such problems: a. Do not mix up the REFO1 with the GND when connecting the (-) probe of measuring instruments. Especially on an oscilloscope, avoid connecting the (-) probe for CH1 to the GND. b. In many cases, measuring instruments have the same potential as that for the (-) probe. Be sure to set the measuring instruments to the floating state. c. If you have mistakenly connected the REFO1 to the GND, turn off the regulator or the power immediately. Before mounting and removing filters or leads for adjustment, be sure to turn off the regulator. For stable circuit operation, keep the mechanism operating for about one minute or more after the regulator is turned on. In the test mode, any software protections will not work. Avoid applying any mechanical or electrical shock to the mechanism during adjustment. The RFAGC and RFO signals with a wide frequency range are easy to oscillate. When observing the signals, insert a resistor of 1k ohms in series. The load and eject operation is not guarantied with the mechanism upside down. If the mechanism is blocked due to mistaken eject operation, reset the product or turn off and on the ACC to restore it. 2) Test mode This mode is used to adjust the CD mechanism module. To enter the test mode. [4] + [6] -> BUP + ACC ON To exit from the test mode. Turn off the ACC and back up. Notes: a. During ejection, do not press any other keys than the EJECT key until the loaded disc is ejected. b. If you have pressed the (→) key or (←) key during focus search, turn off the power immediately to protect the actuator from damage caused by the lens stuck. c. For the TR jump modes except 100TR, the track jump operation will continue even if the key is released. d. For the CRG move and 100TR jump modes, the tracking loop will be closed at the same time when the key is released. e. When the power is turned off and on, the jump mode is reset to the single TR (91), the RF amp gain is set to 0 dB, and the auto-adjustment values are reset to the default settings. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 37 5 6 7 8 5 6 7 8 C D F A B E 8.2 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT F E REFO1 CD CORE UNIT Note : The grating angle of the PU unit cannot be adjusted after the PU unit is changed. The PU unit in the CD mechanism module is adjusted on the production line to match the CD mechanism module and is thus the best adjusted PU unit for the CD mechanism module. Changing the PU unit is thus best considered as a last resort. However, if the PU unit must be changed, the grating should be checked using the procedure below. Purpose : To check that the grating is within an acceptable range when the PU unit is changed. Symptoms of Mal-adjustment : If the grating is off by a large amount symptoms such as being unable to close tracking, being unable to perform track search operations, or taking a long time for track searching. Method : Measuring Equipment Measuring Points Oscilloscope, Two L.P.F. E, F, REFO1 Disc TCD-782 Mode TEST MODE Checking Procedure 1. In test mode, load the disc and switch the 3 V regulator on. 2. Using the right and left buttons, move the PU unit to the innermost track. 3. Press key 3 to close focus, the display should read "91". Press key 2 to implement the tracking balance adjustment the display should now read "81". Press key 3. The display will change, returning to "81" on the fourth press. 4. As shown in the diagram above, monitor the LPF outputs using the oscilloscope and check that the phase difference is within 75 . Refer to the photographs supplied to determine the phase angle. 5. If the phase difference is determined to be greater than 75 try changing the PU unit to see if there is any improvement. If, after trying this a number of times, the grating angle does not become less than 75 then the mechanism should be judged to be at fault. Note Because of eccentricity in the disc and a slight misalignment of the clamping center the grating waveform may be seen to "wobble" ( the phase difference changes as the disc rotates). The angle specified above indicates the average angle. Hint Reloading the disc changes the clamp position and may decrease the "wobble". 100 kohm 390 pF 100 kohm 390 pF E VREF F VREF Xch Ych L.P.F. L.P.F. Oscilloscope www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 38 1 2 3 4 1 2 3 4 C D F A B E Grating waveform 45 degrees 0 degrees 75 degrees 60 degrees 30 degrees 90 degrees Ech -> Xch 20 mV/div, AC Fch -> Ych 20 mV/div, AC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 39 5 6 7 8 5 6 7 8 C D F A B E 8.3 PCL OUTPUT CONFIRMATION - PCL output With the TESTIN (26 pin) status of IC601 to be “H”, it is shifted to PCL Output Test mode after reset started. Check that square wave of 600.0 kHz is output from PCL (8 Pin) of IC601. If clock signal is out of this range, this resonator (X601) must be changed for a new one. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 40 1 2 3 4 1 2 3 4 C D F A B E 9. EXPLODED VIEWS AND PARTS LIST 9.1 PACKING 73BTUC 73BTUC 73BTUC UC, ES EW5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 41 5 6 7 8 5 6 7 8 C D F A B E (1) PACKING SECTION PARTS LIST (2) CONTRAST TABLE DEH-7300BT/XSUC, DEH-7300BT/XSEW5, DEH-73BT/XSUC and DEH-7350BT/XSES are constructed the same except for the following: Mark No. Description Part No. 1 Polyethylene Bag See Contrast table (2) 2 Microphone Assy CPM1083 3 Holder CZN7192 4 Cushion CZN7193 5 Remote Control Unit See Contrast table (2) 6 Cord Assy See Contrast table (2) 7 Protector See Contrast table (2) 8 Protector See Contrast table (2) * 9 Accessory Assy See Contrast table (2) 10 Screw See Contrast table (2) 11 Cord Clamper Assy CEA4636 12 Polyethylene Bag CEG1160 13 Handle QNC3021 14 Screw Assy See Contrast table (2) * 15 Polyethylene Bag See Contrast table (2) 16 Screw See Contrast table (2) 17 Screw See Contrast table (2) 18 Unit Box See Contrast table (2) 19 Contain Box See Contrast table (2) 20 Case Assy See Contrast table (2) 21 IM CD-ROM See Contrast table (2) 22-1 Owner's Manual See Contrast table (2) 22-2 Installation Manual See Contrast table (2) 22-3 Quick Start Guide See Contrast table (2) * 22-4 Warranty Card See Contrast table (2) * 22-5 Caution Card See Contrast table (2) * 22-6 Caution Card See Contrast table (2) * 22-7 Passport See Contrast table (2) * 22-8 Caution Card See Contrast table (2) Mark No. Description Part No. Mark No. Description DEH-7300BT/XSUC DEH-7300BT/XSEW5 DEH-73BT/XSUC DEH-7350BT/XSES 1 Polyethylene Bag CEG1173 QEG3001 CEG1173 QEG3001 5 Remote Control Unit CXE3669 Not used CXE3669 CXE3669 6 Cord Assy QDP3013 QDP3014 QDP3013 QDP3013 7 Protector QHP3016 QHP3016 CHP4103 QHP3016 8 Protector QHP3016 QHP3016 CHP4104 QHP3016 * 9 Accessory Assy YEA5100 YEA5101 YEA5100 YEA5099 10 Screw BPZ20P060FTC Not used BPZ20P060FTC Not used 14 Screw Assy YEA5072 Not used YEA5072 YEA5082 * 15 Polyethylene Bag CEG-127 Not used CEG-127 CEG-127 16 Screw CRZ50P090FTC Not used CRZ50P090FTC Not used 17 Screw TRZ50P080FTC Not used TRZ50P080FTC TRZ50P080FTC 18 Unit Box YHG5573 YHG5572 YHG5575 YHG5574 19 Contain Box YHL5573 YHL5572 YHL5575 YHL5574 20 Case Assy Not used QXA3129 Not used QXA3129 21 IM CD-ROM Not used YPJ5010 Not used Not used 22-1 Owner's Manual YRD5324 Not used YRD5324 YRD5325 22-2 Installation Manual Not used YRD5336 Not used Not used 22-3 Guide Not used YRD5334 Not used Not used * 22-4 Warranty Card CRY1276 CRY1316 CRY1276 Not used * 22-5 Caution Card Not used CRP1389 Not used Not used * 22-6 Caution Card Not used CRP1438 Not used Not used * 22-7 Passport Not used CRY1268 Not used Not used * 22-8 Caution Card Not used YRP5025 Not used Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 42 1 2 3 4 1 2 3 4 C D F A B E Owner's Manual,Installation Manual CONTENTS OF CD-ROM (Operation Manual), YPJ5010 All operation manuals are supplied in PDF files by the CD-ROM. Regarding the availability of paper manual, contact Pioneer Service representative in your region. Part No. Language YRD5324 English, French, Spanish(Espanol) YRD5325 English, Spanish(Espanol), Portuguese(B), Traditional Chinese, Arabic, Persian YRD5336 English, French, Italian, Spanish(Espanol), German, Dutch, Russian YRD5334 English, French, Italian, Spanish(Espanol), German, Dutch, Russian Part No. Language *YRB5184 English *YRB5185 French *YRB5186 Spanish(Espanol) *YRB5187 Italian *YRB5188 German *YRB5189 Dutch *YRB5190 Russian *YRB5191 Swedish *YRB5192 Norwegian *YRB5193 Finnish *YRB5194 Danish *YRB5195 Portuguese *YRB5196 Greek *YRB5197 Turkish www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 43 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 44 1 2 3 4 1 2 3 4 C D F A B E 9.2 EXTERIOR EW5 EW5 UC, ES B A A A D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 45 5 6 7 8 5 6 7 8 C D F A B E (1) EXTERIOR SECTION PARTS LIST (2) CONTRAST TABLE DEH-7300BT/XSUC, DEH-7300BT/XSEW5, DEH-73BT/XSUC and DEH-7350BT/XSES are constructed the same except for the following: Mark No. Description Part No. 1 Cord Assy See Contrast table (2) 2 Screw ASZ26P050FTC 3 Screw BSZ26P060FTC 4 Screw BSZ26P080FTC 5 Screw BSZ26P120FTC 6 Cable CDE9337 7 Remote Control Unit See Contrast table (2) 8 Cover See Contrast table (2) 9 Panel Unit CXE3805 10 Cover CNN1665 11 Spring QBH3001 12 Panel QNS3126 13 Arm QNV3025 14 Button QNV3026 15 CD Mechanism Module(S11.1) CXK5802 16 Holder QNC3020 17 Panel QNS3127 18 Cable YDE5068 19 Case YNB5068 20 Tuner Amp Assy See Contrast table (2) 21 Screw BPZ26P080FTC 22 Screw BSZ26P060FTC 23 Screw BSZ26P120FTC 24 Heat Sink QNR3002 > 25 Fuse(10 A) YEK5001 26 Holder See Contrast table (2) 27 BT Unit See Contrast table (2) 28 Bluetooth Module CWX3981 29 Detach Grill Assy See Contrast table (2) 30 Screw BPZ20P100FTC 31 Button(LIST, RPT, UP DOWN) CAI3204 32 Door(USB) CAT2921 33 Spring CBH2210 34 Knob Unit CXE3692 35 Spring YBL5010 36 Button(RIGHT, -, 1-6) QAC3052 37 Button(DETACH) QAC3053 38 Cover QNS3125 39 Button(SRC, BAND ,TEL) YAC5422 40 Keyboard Assy See Contrast table (2) 41 LCD(V1801) CAW1998 42 Holder QNC3018 43 Lighting Conductor QNV3022 44 Rubber QNV3023 45 Connector YNV5192 46 Grille Unit See Contrast table (2) * 47 Seal See Contrast table (2) Mark No. Description Part No. Mark No. Description DEH-7300BT/XSUC DEH-7300BT/XSEW5 DEH-73BT/XSUC DEH-7350BT/XSES 1 Cord Assy QDP3013 QDP3014 QDP3013 QDP3013 7 Remote Control Unit CXE3669 Not used CXE3669 CXE3669 8 Cover CNS7068 Not used CNS7068 CNS7068 20 Tuner Amp Assy YWM5486 YWM5482 YWM5486 YWM5483 26 Holder YND5051 YND5050 YND5051 YND5051 27 BT Unit YWM5539 YWM5539 YWM5539 YWM5494(BT Assy) 29 Detach Grill Assy YXA5728 YXA5724 YXA5728 YXA5725 40 Keyboard Assy YWM5492 YWM5488 YWM5492 YWM5489 46 Grille Unit YXA5732 YXA5731 YXA5732 YXA5733 * 47 Seal Not used Not used CAN3984 Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 46 1 2 3 4 1 2 3 4 C D F A B E 9.3 CD MECHANISM MODULE A C D C A B B C D (A) : GEM1045 (B) : GEM1038 (C) : GEM1024 (D) : GEM1043 (C) (C) (A) (A) (D) (D) (A) (A) (D) (A) (A) (A) (A) (A) (C) (C) (C) (C) (B) (C) (C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 47 5 6 7 8 5 6 7 8 C D F A B E CD MECHANISM MODULE SECTION PARTS LIST Mark No. Description Part No. 1 ..... 2 Screw BSZ20P040FTC 3 Screw(M2 x 4) CBA1835 4 Washer CBF1038 5 Spring CBH3010 6 Spring CBH2855 7 Spring CBH2856 8 Spring CBH2860 9 Screw BSZ26P060FTC 10 Spring CBH3011 11 Spring CBH3012 12 Spring CBH3014 13 Spring CBH3015 14 Spring CBH3016 15 Spring CBH3017 16 Spring CBH3086 17 Spring CBH3019 18 ..... 19 Spring CBL1822 20 Pickup Unit(P10.5)(Service) CXX1942 21 Bracket CND4553 22 Arm CND4555 23 Bracket CND5709 24 Bracket CND5710 25 Lever CND5398 26 Sheet CNN2280 27 Rack CNV8342 28 Guide CNW1171 29 Roller CNW1172 30 Arm CNW2157 31 Arm CNW1174 32 Roller CNW1175 33 Lever CNW1176 34 Arm CNW1177 35 Arm CNW1178 36 Gear CNW1180 37 Gear CNW1181 38 ..... 39 Gear CNW1183 40 Rack CNW1184 41 Gear CNW1185 42 Gear CNW1186 43 Gear CNW1187 44 Gear CNW1188 45 Clamper CNW1190 46 Arm CNW1192 47 Holder CNW1193 48 Holder CNW1194 49 Damper CNW1197 50 Damper CNW1198 51 Arm CNW1726 52 Motor Unit(M2)(LOAD/CRG) CXC4026 53 Screw Unit CXC8894 54 Arm Assy CXE3849 55 Washer CBF1037 56 Washer CBF1038 57 Arm CND5886 58 Collar CNV6906 59 Roller CNW1196 60 Gear Unit CXC8893 61 Washer YE15FTC 62 Chassis Unit CXE3818 63 Motor Unit(M1)(SPDL) CXE2273 64 Screw JFZ20P025FTC 65 Screw JGZ17P022FTC 66 Screw EBA1028 67 CD Core Unit (S11.1STD-DOUT) CWX3985 68 Chassis CNA3181 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 48 1 2 3 4 1 2 3 4 C D F A B E 10. SCHEMATIC DIAGRAM 10.1 TUNER AMP ASSY (GUIDE PAGE) A A-a A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or "ELECTRICAL PARTS LIST". ZEROR/ZEROA ZEROL/NA NRST_CPU KYDT2 SRC2 ROT0_2 ROT1_2 CP_SDA CP_SCL CPPW VDSENS 7.4V ILMB SYSPW VDCONT USBCTL CDDATAIN CDLRCKIN CPPW CDRST CDWAIT VDDCONT CDSTBY CDRST CDWAIT CDDATAIN CDLRCKIN BCK DATA LRCK ML MC MD SCK DM2 TUNR TUNL USBCTL FLG SYNC BTRX CPRST KEYD VST KYDT ROT1 KEYD CPRST BTTX CP_SCL DPDT BTRST CDSKIP CDSRQ CP_SDA CDSCKIN DATA KEYAD CDSTBY CD_SCL CD_SDA BTTX ASENS ROT0 BTTEL BCK ILMPW MUTE FLG MD MC CDSRQ CD_SCL CD_SDA VDCONT ML KYDT2 BTRST BTRX BSENS SSENS AUXG2 AUXR2 ROT1_2 AUXL2 DPDT2 ILMB ROT0_2 DPDT2 DM2 VBUS DP2 SRC2 CDSCKIN LRCK SCK SYNC AUXL2 AUXR2 AUXG2 CDSKIP DP2 R501 470 R503 6.8k R811 2.2k R812 2.2k R813 2.2k R807 2.2k R806 2.2k DGND SWVD SRC AUXR AUXL ILM ROT1 ROT0 KYDT GND US5V DM DP USGND FLG USBCTL SYNC DSENS C809 0.1u/16 C812 1u/16 D801 DZ2S068C D802 DZ2S068C D804 DZ2S068C D805 DZ2S068C D803 DZ2S068C C804 0.1u/16 C808 0.1u/16 CN801 CKS6288-A 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R504 10k R502 47k R801 100 R802 100 AUXG DSENS1 R603 100k R602 47k IC501 BD2226G VIN 1 GND 2 EN 3 /OC 4 5 VOUT C501 1u/10 GND C504 1u/10 ILMG GND GND GND GND IC801 TC7SET08FUS1 INB 1 INA 2 GND 3 OUTY 4 5 Vcc C817 0 1 /10 GN L802 CTF1713-A 1 1 2 2 3 3 4 4 R808 8.2k GND R810 R809 C234 CCG C233 CCG1192-A L C232 0.01u/16 GND C235 NM 220u/6.3 C503 GND USB5V L501 CTH1475-A GND D501 RB160L-40 BD9008F IC502 PVIN 1 SW 2 FB 3 INV 4 5 EN/SYNC 6 RT 7 GND 8 VIN C508 22p/50 R505 18k C506 0.015u/16 R506 51k R507 NM GND D502 CRG03 220u/16 C505 C507 NM GND L551 NM R551 47k 341S2162 IC551 NC1 1 MODE1/SPI_nSS 2 NC2 3 nRESET 4 VCC 5 NC3 6 NC4 7 NC5 8 NC6 9 NC7 10 VSS 11 I2C_SCL/SPI_SIMO 12 I2C_SDA/SPI_SOMI 13 MODE0/SPI_CLK 14 NC8 15 NC9 16 NC10 17 NC11 18 NC12 19 NC13 20 LSA1576UB(QRS) Q551 R557 4.7k R556 2.7k C551 0.1u/10 R552 10k R558 4.7k R560 100 R559 100 R553 10k C552 0.1u/10 GND R508 10k JA401 1 2 3 GND TUNGND M2R6TP_GND KN401 R753 820 R754 NM C751 CCG1192-A R751 47k C754 0.1u/10 R752 10k D751 RKZ8.2KG(B2) Q751 2SD2396(K) GND C753 NM NM C752 VDCONT VKN1192-A CN701 1 2 3 4 5 6 7 8 9 0 1 1 1 2 1 3 1 4 1 5 1 6 1 RESET SDA SKIP CDSRQ BCLK A T A D K C R L SCL DGND1 VDD4 CDSTBY PGND WAIT R716 220 GND C704 NM C706 NM R717 100k R713 150 R714 150 R715 150 GND C705 NM GND VD1 R707 220 R708 220 R709 100 R710 220 R711 100 R712 1k R701 47k R702 100k R703 100k C701 0.01u/16 L701 NM C702 6p/50 C703 NM GND IC671 A,C : PEA018A8 B : PEA017A8 D : PEA019A8 CE# 1 SO 2 WP# 3 VSS 4 5 SI 6 SCK 7 HOLD# 8 VDD R671 47k C671 0.1u/10 GND R672 47k C604 0.1u/10 C606 0.1u/10 R608 47k RAM_MON C608 0.1u/10 C610 0.1u/10 R601 10k D601 RB551V-30 R610 2.2k C614 NM TESTIN R615 100k C616 0.1u/10 C618 0.1u/10 R612 47k TESTCLK C620 0.1u/10 X601 CSS1603-A 1 1 2 2 3 3 R617 220 R616 NM R613 100 R611 100 R609 100 C612 NM C609 0.1u/10 C613 NM C615 NM C617 NM C607 0.1u/10 C602 0.1u/10 C603 0.1u/10 C601 0.1u/16 IC231 BCK 1 DATA 2 LRCK 3 DGND 4 5 NC 6 VCC 7 VOUTL 8 VOUTR 9 AGND 10 VCOM 11 12 13 MD 14 MC 15 ML 16 SCK M2R6TP_GND KN601 GND R614 NM R605 NM ROM DACBSSK DACBDATA CPSDA CPSCL CPRST ILMPW P401 IMSA-6802-01Y900 C401 33p/50 L401 0.15u C402 6p/50 C403 0.01u/16 D401 KP2311E D402 KP2311E C406 0.01u/16 L404 0.27u R401 220 R402 750 C413 0.01u/16 GND C409 0.01u/16 C414 1u/10 GND GND C404 0.1u/10 C407 0.1u/10 C410 0.01u/16 C405 0.1u/10 C411 0.01u/16 GND C412 CCG1192-A GND GND L406 22u R403 1.5k R405 1M C415 0.01u/16 GND C418 CCG1192-A C420 0.1u/10 C422 0.1u/10 C423 0.01u/16 C421 100p/50 R407 33 R406 470 GND L409 47u GND R408 680 C427 82p/50 GND C434 1000p/50 R410 8.2 C430 0.47u/10 C433 NM C438 NM C436 C439 NM GND C440 0.1u/10 GND GND C442 C441 CCG1205-A C437 0.1u/10 GND C432 CCG1205-A C435 C431 0.1u/10 C426 0.1u/10 R409 NM C429 10p/50 GND GND C424 4700p/25 C425 4700p/25 GND C419 1u/10 C417 0.1u/10 C416 0.22u/16 X401 CSS1806-A X1 1 GND1 2 GND2 4 X2 3 R977 22k GND C976 470p/50 R976 22k NJM4558MD IC971 OUT1 1 IN-1 2 IN+1 3 GND 4 5 IN+2 6 IN-2 7 OUT2 8 VCC D971 NM R973 10k R971 10k C978 1u/10 GND C975 470p/50 R974 22k C983 NM GND R985 1k L971 NM C972 NM R975 22k VA974 VR105C5R0AAA GND MIC1PF VA972 VR105C5R0AAA MIC1N KEYD1 JA971 YKS5035-A 2 4 1 3 5 6 R993 1k VA971 VR105C5R0AAA KEYAD1 VA973 VR105C5R0AAA R994 1k GND C971 NM C605 0.1u/10 C611 NM USB5V C619 0.1u/10 R987 1k BT3V GND VA804 EZJP0V270RM-T VA805 EZJP0V270RM-T C639 0.1u/10 C448 NM C446 NM DPDT0 R704 4.7k R705 4.7k R706 4.7k RN4983 Q752 E1 1 B1 2 C2 3 E2 4 5 B2 6 C1 R606 47k R634 47k R635 47k R636 47k R637 47k R638 47k PCL C973 CCG1192-A C640 0.1u/10 C977 1u/10 C445 0.022u/16 L418 NM L417 NM R413 1M C449 NM C974 220p/50 R972 0 SYS+B R418 NM R417 NM R419 10k R420 10k GND C450 NM GND MOSI RSPCK MISO SSL R421 R986 NM IPODCP33 LF1 LFREF C447 1000p/50 VKN1189-A CN971 1 2 3 4 5 6 7 8 9 10 11 12 13 C239 NM IC401 TDA7706 FMPINDRV 1 FMPINDDEC 2 FMMIXDEC 3 FMMIXIN2 4 FMMIXIN1 5 GNDRF 6 TCAM 7 VCCRF 8 CK_SEL 9 GNDVCO 10 LFREF 11 LF1 12 VCCVCO 13 TCAM2 14 PINDDEC 15 PINDIN 16 LNAIN2 21 LNAOUT2 22 LNADEC2 23 AMMIXIN1 24 AMMIXIN2 25 GNDSLINK 26 VDIG 27 VCCREG1V2 28 REG1V2 29 VREG3V3 30 RSTN 31 RDSINT 32 I2CSDA 33 I2CSCL 34 VDD3V3 35 GND3V3 36 GPIO8 37 GPIO7 38 GPIO6 39 GPIO5 40 GPIO4 41 GPIO3 42 GPIO2 43 GPIO1 44 GPIO0 45 GND1V2 46 VDD_CORE 47 TEST 48 OSCIN 52 OSCOUT 53 GND-REF 54 VREFDEC 55 GND-ADC_DAC 56 DACOUTL 57 DACOUTR 58 VCC-ADC_DAC 59 VCC-PLL 60 GND-PLL 61 PLLTEST 62 TCFM 63 TVDAC 64 LNAOUT 20 LNADEC 19 LNAIN 18 GNDLNA 17 VCC-REF 51 VDDIO1V2 50 VDDPLL1V2 49 R412 8.2 C428 10p/50 C451 C444 NM C408NM C502 NM C641 NM R814 100 D808 DZ2S068C GND R646 NM R821 22k R822 22k C509 1u/16 R427 1k L402 CTF1786-A L403 CTF1786-A L407 CTF1786-A L408 CTF1786-A L410 NM L412 NM L413 NM L414 NM L415 CTF1786-A L416 L419 NM L671 CTF1786-A-T L411 NM R5S7267ZD144FP PVCC1 1 NC1 2 VSS1 3 NC2 4 VCC1 5 NC3 6 SYSPW 7 PCL 8 NC4 9 PVCC2 10 NC5 11 VSS2 12 NC6 13 NC7 14 ROM 15 RAM_MON 16 PVCC3 17 VDCONT 18 VSS3 19 NC8 20 VCC2 21 USBCTL 22 SYNC 23 USBFLG 24 MUTE 25 TESTIN 26 NC9 27 NC10 28 PVCC4 29 NC11 30 VSS4 31 NC12 32 VCC3 33 VST 34 NC13 35 DPDT 36 KYDT 37 AUDIO X1 96 NC22 97 PVCC7 98 NC23 99 VSS8 100 NC24 101 VCC4 102 NC25 103 AUDIO_XOUT 104 DACBSCK 105 CDSKIP 106 DACBDATA 107 DACDATA 108 DACLRCK 109 PVCC8 110 DACSCK 111 VSS9 112 CDDATAIN 113 VCC5 114 CDLRCKIN 115 CDSCKIN 116 NC26 117 NC27 118 119 PVCC9 120 NC29 121 VSS10 122 NC30 123 MISO 124 MOSI 125 PVCC10 126 SSL 127 VSS11 128 RSPCK 129 VCC6 130 TUNRES 131 NC31 132 CD_SDA 133 CD_SCL 134 TUNSDA 135 TUNSCL 136 CP_SDA 137 CP_SCL 138 NC32 139 CPRST 140 PVCC11 141 CPPWR 142 VSS12 143 CDRST 144 145 CDSRQ 146 CDSTBY 147 CDWAIT 148 DACCS 149 NC33 150 BTTX 151 BTRX 152 PVCC12 153 VSS13 154 BTRST 155 NC34 156 SWVDD 157 KEYD 158 ROT1 159 ROT0 160 ILMPW 161 NC35 162 PVCC13 163 NC36 164 VSS14 165 NC37 166 NC38 167 NC39 168 DSENS 169 NC40 170 PVCC14 171 NC41 172 VSS15 173 BSENS 174 SSENS 175 ASENS 176 NC42 R691 2.2k D810 DZ2S068C D811 DZ2S068C C453 1000p/50 L443 C707 10p/50 R415 1k R414 1k R416 NM C454 NM GND C708 NM C443 R604 NM L405 CTF1389-A C801 1000p/50 R428 68 GND B.UP SYSTEM MICRO GRILL ILM+B AUXR DM DGND DP SW5V USGND DSENS USGND ILMGND AUX L AUX G ROT1 ROT0 DPDT KYDT SOURCE ipod CP CD FLASH ROM MECHA VD 10U/10 USB&USB5V P VDD3.3V B.UP ILM DAC D RF TUNER LRCK GND GND VDD PGND WAIT VD SDA BCLK CDSTBY DATA VD SCL CDSRQ RESET SKIP IC601 VDD3.3V RF A RF A RF RF RF RF A D D D D A A 1/4W ISO DACA (W/R) (RMIC) VCC SPK1P U1IN VSS SPK1N MIC1P MIC1N VSS U1OUT D A ILM WIRED REMOTE & RMIC BT module orRFGND VBUS ILMclr1 ILMclr2 SW5V USB 36.48MHz 16.934MHz 1/4W CEJQ221M16 NC A RDS_INT D YKS5041 50W 50W C A BLUE D LED 50W REMCON MAESTR03 MAESTR03 AMP RED BLUE E.VOL X PRE OUT MAESTR03 MAESTR03 Optional X 3 2 2 50W BLUE 2 B X CTH1420-A CSS1805-A CKX1070 RF RF RF *1 *1 *1 *1 *1 *1 L416 B A,C,D CTF1786 NM R421 NM L443 68n NM 0.01u/16 C443 NM NM C451 0 2p/50 C442 1u/10 NM C435 0.1u/10 NM C436 470p/50 NM *1 C CN701 D CN2 B CN1821 A : DEH-7300BT/XSUC B : DEH-7300BT/XSEW5 C : DEH-73BT/XSUC D : DEH-7350BT/XSES CD:+5.1 dBs (UC,ES) CD:+5.0 dBs (EW5) FM(30%): -15.0 dBs (UC,ES) AM(30%): -15.0 dBs (UC,ES) FM(30%): -11.0 dBs (EW5) AM(30%): -11.0 dBs (EW5) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 49 5 6 7 8 5 6 7 8 C D F A B E A A-b ZEROR/ZEROA ZEROL/NA ASENS ROT1 ROT0 SSENS KYDT DP VCK TUNR TUNL AUXL AUXR ILMPW VBUS VDSENS BCK DATA LRCK ML MC SCK VST KYDT VCK DP DM DPDT CDSKIP DATA MUTE KEYAD MD MC BSENS DPDT SYSPW BTTEL AUXG VDDCONT SWVD VDT VST SCK DM AUXL AUXR AUXG MUTE VDT R934 1k R874 10k R255 22k R256 22k R258 22k R931 22k R257 22k R933 R932 47k R873 5.6k R253 820 R254 820 R251 820 R252 820 R851 NM R811 2.2k R812 2.2k R813 2.2k LSA1576UB(QRS) Q871 C851 NM C852 NM GND C255 NM C256 NM C257 NM C258 NM GND GND C310 CCG1205-A GND C311 CCG1205-A GND GND GND GND MUTE DPDT RCAG RL RR RR2 RL2 RR1 RL1 FR2 FL2 FR1 FL1 BUP1 GND1 GND2 ACC BREM BUP2 SYSB SWVDD IC301 PAL007E 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 VDD MUTE1 D931 FL FR GND GND GND GND Q931 LSC4081UB(QRS) BSENS SYSPW VDDCONT SW5V +B AC-GND STBY ACGND C312 0.1u/16 P251 CEK1286-A 1 2 C923 1000p/50 BA49182-V12 IC912 1 BSENS 2 SYSPW 3 SW5VCNT 4 +B 5 SYS+B 6 SW5V 7 VDD 8 VDD12 9 SWVDD 10 +BUP 11 VDDCONT 12 GND C302 0.47u/10 C304 0.47u/10 C303 0.47u/10 C301 0.47u/10 C871 0.1u/16 R871 NM L851 NM C305 0.47u/10 C307 0.47u/10 C308 0.47u/10 C306 0.47u/10 C309 0.1u/16 C921 0.1u/16 R331 470 R332 470 R333 470 R334 470 C331 NM C332 NM C333 NM C334 NM GND CCH1732-A C901 C918 CCG1201-A JA901 CKM1586-A 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 10u/16 C313 L901 CTH1432-A 1 2 C314 10p/50 C315 10p/50 C919 1000p/50 LTC114EUB Q872 D302 CRG03 D301 CRG03 D912 1SR154-400 D911 1SR154-400 R622 47k R302 NM RN1910 Q252 E1 1 B1 2 C2 3 E2 4 5 B2 6 C1 RN1910 Q251 E1 1 B1 2 C2 3 E2 4 5 B2 6 C1 R629 1k C254 CCG1201-A C251 CCG1201-A C252 CCG1201-A C253 CCG1201-A R303 10k GND IC801 TC7SET08FUS1 INB 1 INA 2 GND 3 OUTY 4 5 Vcc C817 0.1u/10 GND A 2 2 3 3 R810 8.2 R809 8.2 C234 CCG1192-A C238 1800p/50 C237 1800p/50 GND C233 CCG1192-A L231 NM R231 820 C232 0.01u/16 C231 1u/16 GND R232 820 C235 NM TCK TMS TDI ASEMD TDO ASEBRK TRST C916 CCG1201-A C917 CCG1201-A C915 NM 1000u/16 C922 C210 1u/10 C208 1u/10 C206 1u/10 TUR C207 1u/10 C209 1u/10 C205 1u/10 R206 NM R205 NM C212 0.22u/16 C211 0.22u/16 C204 10p/50 C203 CCG1192-A C202 10p/50 C201 CCG1192-A GND L201 NM TUL RST GND C651 1u/10 R651 100k D651 NM C636 NM C634 NM GND C637 NM C635 NM GND TESTIN R615 100k C616 0.1u/10 C618 0.1u/10 TESTCLK R620 47k GND C631 NM GND R625 NM R624 47k C628 0.1u/10 X602 CSS1813-A X1 1 NC1 2 NC2 4 X2 3 C633 12p/50 C632 12p/50 R623 1.5k C627 0.1u/10 R633 100 R632 10k C638 1u/10 R626 5.6k GND C625 0.1u/10 C624 0.1u/10 C630 0.1u/10 D602 RB751S-40 R628 10k GND R621 47k C622 0.1u/10 R618 NM C620 0.1u/10 X601 CSS1603-A 1 1 2 2 3 3 R617 220 R616 NM NM C617 NM IC201 PML022A IN1_L 1 IN2_L 2 IN3_L 3 IN4+_L 4 5 IN4-_L 6 POUT_L 7 FRONT_L 8 REAR_L 9 NC1 10 VCC 11 VREF 12 GND 13 DATA 14 CLK 15 STB 16 NC2 17 REAR_R 18 FRONT_R 19 POUT_R 20 IN4-_R 21 IN4+_R 22 IN3_R 23 IN2_R 24 IN1_R PCM1753DBQ IC231 BCK 1 DATA 2 LRCK 3 DGND 4 5 NC 6 VCC 7 VOUTL 8 VOUTR 9 AGND 10 VCOM 11 12 13 MD 14 MC 15 ML 16 SCK R631 R630 R614 NM MODEL DACBSSK DACBDATA C913 1000p/50 R207 NM ASEN1 ASEN2 C911 NM BT3V NM C891 IC891 S-1132B33-U5 VOUT 1 VSS 2 NC 3 SW 4 5 VIN BT3V GND C894 NM C892 CCG1192-A C893 NM D891 NM GND USB5V VDD12 P891 NM 1 2 C619 0.1u/10 C629 0.1u/10 C626 0.1u/10 C623 0.1u/10 C621 0.1u/10 SYS+B C264 NM C263 NM R259 820 RN1910 Q253 E1 1 B1 2 C2 3 E2 4 5 B2 6 C1 R261 22k R262 22k R260 820 SWR SWL R263 0 R265 0 R266 0 R264 0 R351 1k GND RT1N241M Q352 R353 220 R354 10k R352 10k GND C895 1u/10 C261 CCG1201-A C260 CCG1201-A RN4983 Q351 E1 1 B1 2 C2 3 E2 4 5 B2 6 C1 C351 CCG1192-A R639 47k C214 1u/10 C213 1u/10 R304 47k GND BTTELL BTTELR GND R640 47k R641 47k R642 47k R643 47k R201 0 R202 1k R203 0 GND C215 NM C239 NM C240 2200p/50 R627 NM R645 47k R644 NM IC651 S-80827CNMC-B8M OUT 1 VDD 2 VSS 3 NC1 4 5 NC2 GND C927 NM C926 1000p/50 C920 CCG1201-A R912 1 NM C924 C912 NM C914 CCG1201-A NM C925 C931 0.1u/16 JA251 1 2 3 4 5 6 7 8 9 10 C652 NM L601 CTF1786-A L602 CTF1786-A C872 NM R872 NM MUTE TESTIN 26 NC9 27 NC10 28 PVCC4 29 NC11 30 VSS4 31 NC12 32 VCC3 33 VST 34 NC13 35 DPDT 36 KYDT 37 VCK 38 VDT 39 PVCC5 40 CKIO 41 VSS5 42 NC14 43 NMI 44 PLLVCC 45 RESET 46 PLLVSS 47 MD_CLK0 48 MD_BOOT0 49 EXTAL 50 XTAL 51 NC15 52 NC16 53 BTTESTIN 54 BTTESTMD 55 VSS6 56 PVCC6 57 NC17 58 VSS7 59 RTC_X1 60 RTC_X2 61 NC18 62 USB_X1 63 USB_X2 64 ASEMD 65 USBDPVCC 66 USBDPVSS 67 DM 68 DP 69 VBUS 70 USBDVCC 71 USBDVSS 72 REFRIN 73 USBAPVSS 74 USBAPVCC 75 USBAVCC 76 USBAVSS 77 USBUVCC 78 USBUVSS 79 MODELAD 80 NC19 81 NC20 82 VDSENS 83 AVSS 84 KEYAD 85 AVREF 86 NC21 87 AVCC 88 TRST 89 ASEBRK 90 TDO 91 TDI 92 TMS 93 TCK 94 AUDIO_X2 95 AUDIO_X1 96 NC22 97 PVCC7 98 NC23 99 VSS8 100 NC24 101 VCC4 102 NC25 103 AUDIO_XOUT 104 DACBSCK 105 CDSKIP 106 DACBDATA 107 DACDATA C259 1000p/50 C316 NM D901 1SR154-400 D902 1SR154-400 R911 1 C216 NM C317 NM C318 10p/50 C319 10p/50 C320 10p/50 C321 10p/50 L603 CTF1389-A SYS+B B.UP TAB P-GND2 RR- STBY RR+ VCC FR- P-GND1 FR+ SVR FRIn RRIn AGND RLIn FLIn AC-GND FL+ P-GND3 FL- VCC RL+ MUTE RL- P-GND4 B.REM RR FL RL FR CRO RCA AMP PW CONNECT MUTE IC REGULATOR ASENS B.UP GND ACC BREM TEL RR- RL- RR+ RL+ FR- FL- FR+ FL+ 14.4V SWVD VDD3.3V FLch FRch RLch RRch SWVD ILMPW A.ANT ILM RESET 3.2V E-VOL VDD3.3V B.UP ILM LPF DAC A D USB VDD1.2V USBA A 3.3V BT3V REG SWLch SWRch GND GND B : 3P/O YKB5016- A,C,D : 2P/O YKB5011- SW5V SWR FL SWL A,C,D ----- ----- 16.934MHz 12MHz RF FR GND GND GND GND GND GND SWR FL FR B RR RL SWL NM 47k YSS5005-A EVOL 201 - 230 RCA 251 - 300 AMP 301 - 400 TUNER 401 - 500 USB&USB5V 501 - 550 UCOM 601 - 650 CD MECHA 701 - 750 GRILL 801 - 850 PW CONNECT 901 - 910 IC REG 911 - 930 ASENS 931 - 940 W.REM 961 - 970 A.ANT 951 - 960 DAC 231 - 250 I-POD 551 - 600 MECHA VD 751 - 800 BT3V REG 891 - 900 RESET 651 - 670 TELIN 941 - 950 SWVD 851 - 870 FLASH ROM 671 - 690 DSENS 691 - 700 ILMPW 871 - 890 BT MOD 971 - 999 > modelad:0V A,C,D : HZU7L(A1) B : HZU7L(C3) A,C,D : 4.7k B : 47k B only R263 R264 R265 R266 A,C,D B NM NM 0 0 *2 *2 *2 The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. NM : No Mount 600uH A TUNER AMP ASSY 3A YEK5001 (10A) > FUSE 1 dBs (UC,ES) 0 dBs (EW5) FM(30%): -15.0 dBs (UC,ES) AM(30%): -15.0 dBs (UC,ES) FM(30%): -11.0 dBs (EW5) AM(30%): -11.0 dBs (EW5) CD/USB:+5.1 dBs (UC,ES) CD/USB:+5.0 dBs (EW5) BT: -1.8 dBs AUX:+2.2 dBs FM(30%): -5.9 dBs (UC,ES) AM(30%): -5.9 dBs (UC,ES) FM(30%): -1.9 dBs (EW5) AM(30%): -1.9 dBs (EW5) CD/USB:+10.2 dBs (UC,ES) CD/USB:+10.1 dBs (EW5) BT: +10.3 dB AUX:+10.3 dBs FM(30%): -5.9 dBs (UC,ES) AM(30%): -5.9 dBs (UC,ES) FM(30%): -1.9 dBs (EW5) AM(30%): -1.9 dBs (EW5) CD/USB:+10.2 dBs (UC,ES) CD/USB:+10.1 dBs (EW5) BT: +10.3 dB AUX:+10.3 dBs FM(30%):+20.1 dBs (UC,ES) AM(30%):+20.1 dBs (UC,ES) FM(30%):+24.1 dBs (EW5) AM(30%):+24.1 dBs (EW5) CD/USB:+36.2 dBs (UC,ES) CD/USB:+36.1 dBs (EW5) BT:+36.3 dB AUX:+36.3 dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 50 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-b ZEROR/ZEROA ZEROL/NA VCK TUNR TUNL AUXL AUXR VBUS VDSENS DP DM KEYAD BTTEL AUXG VDT VST R255 22k R256 22k R258 22k R257 22k R253 820 R254 820 R251 820 R252 820 C255 NM C256 NM C257 NM C258 NM GND C310 CCG1205-A C311 CCG1205-A GND MUTE RCAG RL RR IC301 PAL007E 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 FL FR GND GND GND GND AC-GND STBY ACGND 12 16 P251 CEK1286-A 1 2 C302 0.47u/10 C304 0.47u/10 C303 0.47u/10 C301 0.47u/10 C305 0.47u/10 C307 0.47u/10 C308 0.47u/10 C306 0.47u/10 C309 0.1u/16 R331 470 R332 470 R333 470 R334 470 C331 NM C332 NM C333 NM C334 NM GND CCH1732-A C901 10u/16 C313 C314 10p/50 C315 10p/50 D302 CRG03 01 G03 R622 47k R302 NM RN1910 Q252 E1 1 B1 2 C2 3 E2 4 5 B2 6 C1 RN1910 Q251 E1 1 B1 2 C2 3 E2 4 5 B2 6 C1 C254 CCG1201-A C251 CCG1201-A C252 CCG1201-A C253 CCG1201-A R303 10k C234 CCG1192-A C238 1800p/50 C237 1800p/50 GND C233 CCG1192-A L231 NM R231 820 C232 0.01u/16 C231 1u/16 D R232 820 C235 NM TCK TMS TDI ASEMD TDO ASEBRK TRST C210 1u/10 C208 1u/10 C206 1u/10 TUR C207 1u/10 C209 1u/10 C205 1u/10 R206 NM R205 NM C212 0.22u/16 C211 0.22u/16 C204 10p/50 C203 CCG1192-A C202 10p/50 C201 CCG1192-A GND L201 NM TUL C636 NM C634 NM GND C637 NM C635 NM GND C627 0.1u/10 R633 100 R632 10k C638 1u/10 R626 5.6k GND C625 0.1u/10 C624 0.1u/10 C630 0.1u/10 D602 RB751S-40 R628 10k GND R621 47k C622 0.1u/10 R618 NM C620 0.1u/10 X601 CSS1603-A 1 1 2 2 3 3 IC201 PML022A IN1_L 1 IN2_L 2 IN3_L 3 IN4+_L 4 5 IN4-_L 6 POUT_L 7 FRONT_L 8 REAR_L 9 NC1 10 VCC 11 VREF 12 GND 13 DATA 14 CLK 15 STB 16 NC2 17 REAR_R 18 FRONT_R 19 POUT_R 20 IN4-_R 21 IN4+_R 22 IN3_R 23 IN2_R 24 IN1_R PCM1753DBQ NC 6 VCC 7 VOUTL 8 VOUTR 9 AGND 10 VCOM 11 R631 R630 MODEL R207 NM C626 0.1u/10 C623 0.1u/10 C264 NM C263 NM R259 820 RN1910 Q253 E1 1 B1 2 C2 3 E2 4 5 B2 6 C1 R261 22k R262 22k R260 820 SWR SWL R263 0 R265 0 R266 0 R264 0 R351 1k Q352 R353 220 R354 10k R352 10k C261 CCG1201-A C260 CCG1201-A RN4983 Q351 E1 1 B1 2 C2 3 E2 4 5 B2 6 C1 C351 CG1192-A C214 1u/10 C213 1u/10 R304 47k GND BTTELL BTTELR GND R640 47k R641 47k R642 47k R643 47k R201 0 R202 1k R203 0 GND C215 NM C239 NM C240 2200p/50 JA251 1 2 3 4 5 6 7 8 9 10 L601 CTF1786-A L602 CTF1786-A 64 ASEMD 65 USBDPVCC 66 USBDPVSS 67 DM 68 DP 69 VBUS 70 USBDVCC 71 USBDVSS 72 REFRIN 73 USBAPVSS 74 USBAPVCC 75 USBAVCC 76 USBAVSS 77 USBUVCC 78 USBUVSS 79 MODELAD 80 NC19 81 NC20 82 VDSENS 83 AVSS 84 KEYAD 85 AVREF 86 NC21 87 AVCC 88 TRST 89 ASEBRK 90 TDO 91 TDI 92 TMS 93 TCK 94 AUDIO_X2 95 AUDIO_X1 96 NC22 97 PVCC7 98 NC23 99 C259 1000p/50 C316 NM C216 NM C317 NM 0 0 SYS+B B.UP TAB P-GND2 RR- STBY RR+ VCC FR- P-GND1 FR+ SVR FRIn RRIn AGND RLIn FLIn AC-GND FL+ P-GND3 FL- VCC RL+ MUTE RL- P-GND4 B.REM RR FL RL FR RCA AMP MUTE VDD3.3V FLch FRch RLch RRch 3.2V E-VOL VDD3.3V LPF A VDD1.2V USBA A SWLch SWRch GND GND B : 3P/O YKB5016- A,C,D : 2P/O YKB5011- SW5V SWR FL SWL A,C,D ----- ----- 16.934MHz FR GND GND GND GND GND GND SWR FL FR B RR RL SWL NM 47k > modelad:0V B only R263 R264 R265 R266 A,C,D B NM NM 0 0 *2 *2 *2 A TUNER AMP ASSY 3A FM(30%): -15.0 dBs (UC,ES) AM(30%): -15.0 dBs (UC,ES) FM(30%): -11.0 dBs (EW5) AM(30%): -11.0 dBs (EW5) CD/USB:+5.1 dBs (UC,ES) CD/USB:+5.0 dBs (EW5) BT: -1.8 dBs AUX:+2.2 dBs FM(30%): -5.9 dBs (UC,ES) AM(30%): -5.9 dBs (UC,ES) FM(30%): -1.9 dBs (EW5) AM(30%): -1.9 dBs (EW5) CD/USB:+10.2 dBs (UC,ES) CD/USB:+10.1 dBs (EW5) BT: +10.3 dB AUX:+10.3 dBs FM(30%): -5.9 dBs (UC,ES) AM(30%): -5.9 dBs (UC,ES) FM(30%): -1.9 dBs (EW5) AM(30%): -1.9 dBs (EW5) CD/USB:+10.2 dBs (UC,ES) CD/USB:+10.1 dBs (EW5) BT: +10.3 dB AUX:+10.3 dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 51 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-b ASENS ROT1 ROT0 SSENS KYDT DP ILMPW VBUS VST KYDT VCK DP DM DPDT BSENS DPDT SYSPW VDDCONT SWVD DM AUXL AUXR AUXG MUTE VDT R934 1k R874 10k R931 22k R933 R932 47k R873 5.6k R851 NM R811 2.2k R812 2.2k R813 2.2k LSA1576UB(QRS) Q871 C851 NM C852 NM GND GND GND GND GND GND GND DPDT RR2 RL2 RR1 RL1 FR2 FL2 FR1 FL1 BUP1 GND1 GND2 ACC BREM BUP2 SYSB SWVDD 17 18 19 20 21 22 23 24 25 VDD MUTE1 D931 GND Q931 LSC4081UB(QRS) BSENS SYSPW VDDCONT SW5V +B C312 0.1u/16 C923 1000p/50 BA49182-V12 IC912 1 BSENS 2 SYSPW 3 SW5VCNT 4 +B 5 SYS+B 6 SW5V 7 VDD 8 VDD12 9 SWVDD 10 +BUP 11 VDDCONT 12 GND C871 0.1u/16 R871 NM L851 NM C309 0.1u/16 C921 0.1u/16 CCH1732-A C901 C918 CCG1201-A JA901 CKM1586-A 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 L901 CTH1432-A 1 2 C315 10p/50 C919 1000p/50 LTC114EUB Q872 D302 CRG03 D301 CRG03 D912 1SR154-400 D911 1SR154-400 R622 47k R629 1k GND US1 NB 1 NA 2 GND 3 C817 0.1u/10 GND R810 8.2 R809 8.2 ASEMD C916 CCG1201-A C917 CCG1201-A C915 NM 1000u/16 C922 RST GND C651 1u/10 R651 100k D651 NM 0.1u/10 TESTCLK R620 47k GND C631 NM GND R625 NM R624 47k C628 0.1u/10 X602 CSS1813-A X1 1 NC1 2 NC2 4 X2 3 C633 12p/50 C632 12p/50 R623 1.5k C627 0.1u/10 R633 100 R632 10k C638 1u/10 R626 5.6k GND C913 1000p/50 ASEN1 ASEN2 C911 NM BT3V NM C891 IC891 S-1132B33-U5 VOUT 1 VSS 2 NC 3 SW 4 5 VIN BT3V GND C894 NM C892 CCG1192-A C893 NM D891 NM GND USB5V VDD12 P891 NM 1 2 C629 0.1u/10 C626 0.1u/10 C621 0.1u/10 SYS+B R351 1k GND RT1N241M Q352 R353 220 R354 10k R352 10k GND C895 1u/10 RN4983 Q351 E1 1 B1 2 C2 3 E2 4 5 B2 6 C1 C351 CCG1192-A R639 47k R627 NM R645 47k R644 NM IC651 S-80827CNMC-B8M OUT 1 VDD 2 VSS 3 NC1 4 5 NC2 GND C927 NM C926 1000p/50 C920 CCG1201-A R912 1 NM C924 C912 NM C914 CCG1201-A NM C925 C931 0.1u/16 C652 NM C872 NM R872 NM VST 34 NC13 35 DPDT 36 KYDT 37 VCK 38 VDT 39 PVCC5 40 CKIO 41 VSS5 42 NC14 43 NMI 44 PLLVCC 45 RESET 46 PLLVSS 47 MD_CLK0 48 MD_BOOT0 49 EXTAL 50 XTAL 51 NC15 52 NC16 53 BTTESTIN 54 BTTESTMD 55 VSS6 56 PVCC6 57 NC17 58 VSS7 59 RTC_X1 60 RTC_X2 61 NC18 62 USB_X1 63 USB_X2 64 ASEMD 65 USBDPVCC 66 USBDPVSS 67 DM 68 DP 69 VBUS 70 USBDVCC 71 USBDVSS 72 REFRIN 73 USBAPVSS D901 1SR154-400 D902 1SR154-400 R911 1 C318 10p/50 C319 10p/50 C320 10p/50 C321 10p/50 L603 CTF1389-A RR- RR+ FR- FR+ P-GND3 VCC MUTE P-GND4 B.REM PW CONNECT MUTE IC REGULATOR ASENS B.UP GND ACC BREM TEL RR- RL- RR+ RL+ FR- FL- FR+ FL+ 14.4V SWVD SWVD ILMPW A.ANT ILM RESET B.UP ILM USB USBA 3.3V BT3V REG 12MHz RF YSS5005-A EVOL 201 - 230 RCA 251 - 300 AMP 301 - 400 TUNER 401 - 500 USB&USB5V 501 - 550 UCOM 601 - 650 CD MECHA 701 - 750 GRILL 801 - 850 PW CONNECT 901 - 910 IC REG 911 - 930 ASENS 931 - 940 W.REM 961 - 970 A.ANT 951 - 960 DAC 231 - 250 I-POD 551 - 600 MECHA VD 751 - 800 BT3V REG 891 - 900 RESET 651 - 670 TELIN 941 - 950 SWVD 851 - 870 FLASH ROM 671 - 690 DSENS 691 - 700 ILMPW 871 - 890 BT MOD 971 - 999 A,C,D : HZU7L(A1) B : HZU7L(C3) A,C,D : 4.7k B : 47k The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. NM : No Mount 600uH YEK5001 (10A) > FUSE FM(30%):+20.1 dBs (UC,ES) AM(30%):+20.1 dBs (UC,ES) FM(30%):+24.1 dBs (EW5) AM(30%):+24.1 dBs (EW5) CD/USB:+36.2 dBs (UC,ES) CD/USB:+36.1 dBs (EW5) BT:+36.3 dB AUX:+36.3 dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 52 1 2 3 4 1 2 3 4 C D F A B E A-b A-a A-a A-b ZEROR/ZEROA ZEROL/NA CP_SDA CP_SCL CPPW VDSENS 7.4V CDDATAIN CDLRCKIN CPPW CDRST CDWAIT VDDCONT CDSTBY CDRST CDWAIT CDDATAIN CDLRCKIN BCK DATA LRCK ML MC MD SCK TUNR TUNL CPRST KEYD CPRST BTTX CP_SCL BTRST CDSKIP CDSRQ CP_SDA CDSCKIN DATA CDSTBY CD_SCL CD_SDA BCK MD MC CDSRQ CD_SCL CD_SDA VDCONT ML BTRX CDSCKIN LRCK SCK CDSKIP R602 47k C234 CCG1192-A C238 C237 C233 CCG1192-A L231 NM R231 820 C232 0.01u/16 C231 1u/16 GND R232 820 C235 NM TCK TMS TDI TDO L551 NM R551 47k 341S2162 IC551 PI_nSS NC4 NC5 8 NC6 9 NC7 10 VSS 11 CL/SPI_SIMO 12 DA/SPI_SOMI 13 DE0/SPI_CLK 14 NC8 15 NC9 16 NC10 17 NC11 18 NC12 LSA1576UB(QRS) Q551 C551 0.1u/10 R552 10k R558 4.7k R560 100 R559 100 R553 10k JA401 1 2 3 GND TUNGND M2R6TP_GND KN401 R753 820 R754 NM C751 CCG1192-A R751 47k C754 0.1u/10 R752 10k D751 RKZ8.2KG(B2) Q751 2SD2396(K) GND C753 NM NM C752 VDCONT VKN1192-A CN701 1 2 3 4 5 6 7 8 9 0 1 1 1 2 1 3 1 4 1 5 1 6 1 RESET SDA SKIP CDSRQ BCLK A T A D K C R L SCL DGND1 VDD4 CDSTBY PGND WAIT R716 220 GND C704 NM C706 NM R717 100k R713 150 R714 150 R715 150 GND C705 NM GND VD1 R707 220 R708 220 R709 100 R710 220 R711 100 R712 1k R701 47k R702 100k R703 100k C701 0.01u/16 L701 NM C702 6p/50 C703 NM GND IC671 A,C : PEA018A8 B : PEA017A8 D : PEA019A8 CE# 1 SO 2 WP# 3 VSS 4 5 SI 6 SCK 7 HOLD# 8 VDD R671 47k C671 0.1u/10 GND R672 47k R601 10k D601 RB551V-30 R618 NM C620 0.1u/10 X601 CSS1603-A 1 1 2 2 3 3 R617 220 R616 NM R613 100 R611 100 R609 100 C612 NM C609 0.1u/10 C613 NM C615 NM C617 NM C607 0.1u/10 C602 0.1u/10 C601 0.1u/16 PCM1753DBQ IC231 BCK 1 DATA 2 LRCK 3 DGND 4 5 NC 6 VCC 7 VOUTL 8 VOUTR 9 AGND 10 VCOM 11 12 13 MD 14 MC 15 ML 16 SCK M2R6TP_GND KN601 GND R614 NM R605 NM DACBSSK DACBDATA CPSDA CPSCL CPRST P401 IMSA-6802-01Y900 C401 33p/50 L401 0.15u C402 6p/50 C403 0.01u/16 D401 KP2311E D402 KP2311E C406 0.01u/16 L404 0.27u R401 220 R402 750 C413 0.01u/16 GND C409 0.01u/16 C414 1u/10 GND GND C404 0.1u/10 C407 0.1u/10 C410 0.01u/16 C405 0.1u/10 C411 0.01u/16 GND C412 CCG1192-A GND GND L406 22u R403 1.5k R405 1M C415 0.01u/16 GND C418 CCG1192-A C420 0.1u/10 C422 0.1u/10 C423 0.01u/16 C421 100p/50 R407 33 R406 470 GND L409 47u GND R408 680 C427 82p/50 GND C434 1000p/50 R410 8.2 C430 0.47u/10 C433 NM C438 NM C436 C439 NM GND C440 0.1u/10 GND GND C442 C441 CCG1205-A C437 0.1u/10 GND C432 CCG1205-A C435 C431 0.1u/10 C426 0.1u/10 R409 NM C429 10p/50 GND GND C424 4700p/25 C425 4700p/25 GND C419 1u/10 C417 0.1u/10 C416 0.22u/16 X401 CSS1806-A X1 1 GND1 2 GND2 4 X2 3 MIC1PF C605 0.1u/10 C611 NM C619 0.1u/10 C448 NM C446 NM R704 4.7k R705 4.7k R706 4.7k RN4983 Q752 E1 1 B1 2 C2 3 E2 4 5 B2 6 C1 R606 47k C640 0.1u/10 C445 0.022u/16 L418 NM L417 NM R413 1M C449 NM R418 NM R417 NM R419 10k R420 10k GND C450 NM MOSI RSPCK MISO SSL R421 R640 47k R641 47k IPODCP33 LF1 LFREF C447 1000p/50 C239 NM C240 2200p/50 IC401 TDA7706 FMPINDRV 1 FMPINDDEC 2 FMMIXDEC 3 FMMIXIN2 4 FMMIXIN1 5 GNDRF 6 TCAM 7 VCCRF 8 CK_SEL 9 GNDVCO 10 LFREF 11 LF1 12 VCCVCO 13 TCAM2 14 PINDDEC 15 PINDIN 16 LNAIN2 21 LNAOUT2 22 LNADEC2 23 AMMIXIN1 24 AMMIXIN2 25 GNDSLINK 26 VDIG 27 VCCREG1V2 28 REG1V2 29 VREG3V3 30 RSTN 31 RDSINT 32 I2CSDA 33 I2CSCL 34 VDD3V3 35 GND3V3 36 GPIO8 37 GPIO7 38 GPIO6 39 GPIO5 40 GPIO4 41 GPIO3 42 GPIO2 43 GPIO1 44 GPIO0 45 GND1V2 46 VDD_CORE 47 TEST 48 OSCIN 52 OSCOUT 53 GND-REF 54 VREFDEC 55 GND-ADC_DAC 56 DACOUTL 57 DACOUTR 58 VCC-ADC_DAC 59 VCC-PLL 60 GND-PLL 61 PLLTEST 62 TCFM 63 TVDAC 64 LNAOUT 20 LNADEC 19 LNAIN 18 GNDLNA 17 VCC-REF 51 VDDIO1V2 50 VDDPLL1V2 49 R412 8.2 C428 10p/50 C451 C444 NM C408NM C641 NM GND R646 NM R427 1k L402 CTF1786-A L403 CTF1786-A L407 CTF1786-A L408 CTF1786-A L410 NM L412 NM L413 NM L414 NM L415 CTF1786-A L416 L419 NM L671 CTF1786-A-T L411 NM R5S7267ZD144FP U U U U ASEBRK TDO 91 TDI 92 TMS 93 TCK 94 AUDIO_X2 95 AUDIO_X1 96 NC22 97 PVCC7 98 NC23 99 VSS8 100 NC24 101 VCC4 102 NC25 103 AUDIO_XOUT 104 DACBSCK 105 CDSKIP 106 DACBDATA 107 DACDATA 108 DACLRCK 109 PVCC8 110 DACSCK 111 VSS9 112 CDDATAIN 113 VCC5 114 CDLRCKIN 115 CDSCKIN 116 NC26 117 NC27 118 119 PVCC9 120 NC29 121 VSS10 122 NC30 123 MISO 124 MOSI 125 PVCC10 126 SSL 127 VSS11 128 RSPCK 129 VCC6 130 TUNRES 131 NC31 132 CD_SDA 133 CD_SCL 134 TUNSDA 135 TUNSCL 136 CP_SDA 137 CP_SCL 138 NC32 139 CPRST 140 PVCC11 141 CPPWR 142 VSS12 143 CDRST 144 145 CDSRQ 146 CDSTBY 147 CDWAIT 148 DACCS 149 NC33 150 BTTX 151 BTRX 152 PVCC12 153 VSS13 154 BTRST 155 NC34 156 SWVDD 157 C453 1000p/50 L443 C707 10p/50 R415 1k R414 1k R416 NM C454 NM GND C708 NM C443 L405 CTF1389-A R428 68 GND B B.UP SYSTEM MICRO CD FLASH ROM MECHA VD 10U/10 P V VDD3.3V B.UP DAC D RF TUNER LRCK GND GND VDD PGND WAIT VD SDA BCLK CDSTBY DATA VD SCL CDSRQ RESET SKIP IC601 VDD3.3V RF A RF A RF RF RF RF A D D D D A A 1/4W WIRED REMOTE & RMIC orRFGND S SW5V 36.48MHz 16.934MHz 1/4W A RDS_INT D YKS5041 50W 50W C A BLUE D LED 50W REMCON MAESTR03 MAESTR03 AMP RED BLUE E.VOL X PRE OUT MAESTR03 MAESTR03 Optional X 3 2 2 50W BLUE 2 B X CSS1805-A CKX1070 RF RF RF *1 *1 *1 *1 *1 *1 L416 B A,C,D CTF1786 NM R421 NM L443 68n NM 0.01u/16 C443 NM NM C451 0 2p/50 C442 1u/10 NM C435 0.1u/10 NM C436 470p/50 NM *1 C CN701 A : DEH-7300BT/XSUC B : DEH-7300BT/XSEW5 C : DEH-73BT/XSUC D : DEH-7350BT/XSES CD:+5.1 dBs (UC,ES) CD:+5.0 dBs (EW5) FM(30%): -15.0 dBs (UC,ES) AM(30%): -15.0 dBs (UC,ES) FM(30%): -11.0 dBs (EW5) AM(30%): -11.0 dBs (EW5) FM(30 AM(30 FM(30 AM(30 CD/U CD/U A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 53 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-b A-a NRST_CPU ROT1 ROT0 SSENS KYDT2 SRC2 ROT0_2 ROT1_2 KYDT DP CP_SDA CP_SCL ILMB SYSPW VDCONT USBCTL CDWAIT VDDCONT DM2 USBCTL FLG SYNC BTRX CPRST KEYD VST KYDT VCK ROT1 KEYD BTTX DPDT BTRST KEYAD BTTX ASENS ROT0 BTTEL ILMPW MUTE FLG ML KYDT2 DPDT BTRST BTRX BSENS SSENS AUXG2 AUXR2 ROT1_2 AUXL2 DPDT2 ILMB ROT0_2 DPDT2 DM2 VBUS DP2 SRC2 DM AUXL AUXR AUXG SYNC AUXL2 AUXR2 AUXG2 DP2 VDT R501 470 R503 6.8k R811 2.2k R812 2.2k R813 2.2k R807 2.2k R806 2.2k DGND SWVD SRC AUXR AUXL ILM ROT1 ROT0 KYDT DPDT GND US5V DM DP USGND FLG USBCTL SYNC DSENS C809 0.1u/16 C812 1u/16 D801 DZ2S068C D802 DZ2S068C D804 DZ2S068C D805 DZ2S068C D803 DZ2S068C C804 0.1u/16 C808 0.1u/16 CN801 CKS6288-A 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R504 10k R502 47k R801 100 R802 100 AUXG DSENS1 R603 100k R602 47k IC501 BD2226G VIN 1 GND 2 EN 3 /OC 4 5 VOUT C501 1u/10 GND C504 1u/10 ILMG GND GND GND GND IC801 TC7SET08FUS1 INB 1 INA 2 GND 3 OUTY 4 5 Vcc C817 0.1u/10 GND L802 CTF1713-A 1 1 2 2 3 3 4 4 R808 8.2k GND R810 8.2 R809 8.2 220u/6.3 C503 GND USB5V L501 CTH1475-A GND D501 RB160L-40 BD9008F IC502 PVIN 1 SW 2 FB 3 INV 4 5 EN/SYNC 6 RT 7 GND 8 VIN C508 22p/50 R505 18k C506 0.015u/16 R506 51k R507 NM GND D502 CRG03 220u/16 C505 C507 NM GND R 341S2162 IC551 NC1 1 MODE1/SPI_nSS 2 NC2 3 nRESET 4 VCC 5 NC3 6 NC4 7 NC5 8 NC6 9 NC7 10 VSS 11 I2C_SCL/SPI_SIMO 12 I2C_SDA/SPI_SOMI 13 MODE0/SPI_CLK 14 NC8 15 NC9 16 NC10 17 NC11 18 NC12 19 NC13 20 R557 4.7k R556 2.7k C 0.1 R552 10k R560 100 R559 100 R553 10k C552 0.1u/10 GND R508 10k C604 0.1u/10 C606 0.1u/10 R608 47k RAM_MON C608 0.1u/10 C610 0.1u/10 R601 10k D601 RB551V-30 R610 2.2k C614 NM TESTIN R615 100k C616 0.1u/10 C618 0.1u/10 R612 47k TESTCLK C602 0.1u/10 C603 0.1u/10 R605 NM ROM ILMPW R977 22k GND C976 470p/50 R976 22k NJM4558MD IC971 OUT1 1 IN-1 2 IN+1 3 GND 4 5 IN+2 6 IN-2 7 OUT2 8 VCC D971 NM R973 10k R971 10k C978 1u/10 GND C975 470p/50 R974 22k C983 NM GND R985 1k L971 NM C972 NM R975 22k VA974 VR105C5R0AAA GND MIC1PF VA972 VR105C5R0AAA MIC1N KEYD1 JA971 YKS5035-A 2 4 1 3 5 6 R993 1k VA971 VR105C5R0AAA KEYAD1 VA973 VR105C5R0AAA R994 1k GND C971 NM USB5V C621 0.1u/10 R987 1k BT3V GND VA804 EZJP0V270RM-T VA805 EZJP0V270RM-T C639 0.1u/10 DPDT0 R606 47k R634 47k R635 47k R636 47k R637 47k R638 47k PCL C973 CCG1192-A C977 1u/10 C974 220p/50 R972 0 SYS+B GND R986 NM VKN1189-A CN971 1 2 3 4 5 6 7 8 9 10 11 12 13 C502 NM R814 100 D808 DZ2S068C R821 22k R822 22k C509 1u/16 R5S7267ZD144FP PVCC1 1 NC1 2 VSS1 3 NC2 4 VCC1 5 NC3 6 SYSPW 7 PCL 8 NC4 9 PVCC2 10 NC5 11 VSS2 12 NC6 13 NC7 14 ROM 15 RAM_MON 16 PVCC3 17 VDCONT 18 VSS3 19 NC8 20 VCC2 21 USBCTL 22 SYNC 23 USBFLG 24 MUTE 25 TESTIN 26 NC9 27 NC10 28 PVCC4 29 NC11 30 VSS4 31 NC12 32 VCC3 33 VST 34 NC13 35 DPDT 36 KYDT 37 VCK 38 VDT 39 PVCC5 40 CKIO 41 VSS5 42 M B B U U U CDWAIT 148 DACCS 149 NC33 150 BTTX 151 BTRX 152 PVCC12 153 VSS13 154 BTRST 155 NC34 156 SWVDD 157 KEYD 158 ROT1 159 ROT0 160 ILMPW 161 NC35 162 PVCC13 163 NC36 164 VSS14 165 NC37 166 NC38 167 NC39 168 DSENS 169 NC40 170 PVCC14 171 NC41 172 VSS15 173 BSENS 174 SSENS 175 ASENS 176 NC42 R691 2.2k D810 DZ2S068C D811 DZ2S068C R604 NM C801 1000p/50 L603 CTF1389-A SYSTEM MICRO GRILL ILM+B AUXR DM DGND DP SW5V USGND DSENS USGND ILMGND AUX L AUX G ROT1 ROT0 DPDT KYDT SOURCE ipod CP USB&USB5V B.UP ILM IC601 ISO DACA (W/R) (RMIC) VCC SPK1P U1IN VSS SPK1N MIC1P MIC1N VSS U1OUT D A ILM WIRED REMOTE & RMIC BT module VBUS ILMclr1 ILMclr2 USB CEJQ221M16 NC CTH1420-A D CN2 B CN1821 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 54 1 2 3 4 1 2 3 4 C D F A B E 10.2 KEYBOARD ASSY B CAW1998- COM0 COM1 COM2 COM3 SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12 SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 SEG19 SEG20 SEG21 SEG22 SEG23 SEG24 SEG26 SEG27 SEG28 SEG29 SEG30 SEG31 SEG32 SEG33 SEG34 SEG35 SEG36 SEG37 SEG38 SEG39 SEG25 SEG0 KDT2 SOURCE KDT0 KST4 SEG19 SEG18 SEG17 SEG16 SEG15 SEG14 SEG13 SEG12 SEG11 SEG10 SEG9 SEG8 SEG7 SEG6 SEG5 SEG4 SEG3 SEG2 SEG1 SEG0 COM3 COM2 COM1 COM0 KST3 KST2 KST1 KST0 KDT0 KDT1 KDT2 KDT3 KST4 SEG39 SEG38 SEG37 SEG36 SEG35 SEG34 SEG33 SEG32 SEG31 SEG30 SEG29 SEG28 SEG27 SEG26 SEG25 SEG24 SEG23 SEG22 SEG21 SEG20 KST1 KDT1 KST0 KST2 KST3 C1859 NM C1857 NM C1802 1u/10 C1801 CCG1192-A C1867 NM C1866 NM C1865 NM C1868 NM C1863 NM C1862 NM C1861 NM C1855 NM C1858 NM C1860 NM C1856 NM C1852 NM C1853 NM C1854 NM C1864 NM D1863 D1867 D1866 D1858 D1855 D1864 D1865 D1860 SMLXA4WBETW1(Z1) D1913 D1857 D1856 D1861 D1862 D1859 D1854 D1851 D1852 D1853 DGND ILMGND IL DGND DGND DGND IC1801 PD6340A SEG4 1 SEG3 2 SEG2 3 SEG1 4 SEG0 5 COM3 6 COM2 7 COM1 8 COM0 9 VLCD 10 KST3 11 KST2_1 12 KST1 13 KST0 14 KDT0 15 KDT1 16 MODA 21 X0 22 X1 23 VSS 24 KST2_2 25 KDT3 26 NC2 27 KST4 28 SEG39 29 SEG38 30 SEG37 31 SEG36 32 SEG35 33 SEG34 34 SEG33 35 SEG32 36 SEG31 37 SEG30 38 SEG29 39 SEG28 40 SEG27 41 SEG26 42 SEG25 43 SEG24 44 SEG23 45 SEG22 46 SEG21 47 SEG20 48 SEG16 52 SEG15 53 SEG14 54 SEG13 55 VDD 56 SEG12 57 SEG11 58 SEG10 59 SEG9 60 SEG8 61 SEG7 62 SEG6 63 SEG5 64 KYDT 20 NC1 19 DPDT 18 REM 17 SEG17 51 SEG18 50 SEG19 49 GP1UXC14RK IC1802 1 REM 2 GND 3 VCC L1801 NM R1882 R1802 NM R1881 R1860 R1883 NM R1892 10k R1891 10k R1858 R1851 NM R1853 NM R1854 NM R1855 NM R1884 R1864 R1866 R1868 NM R1852 R1824 0 R1885 R1826 NM R1823 0 R1889 R1825 NM R1801 NM R1803 NM R1804 100 R1862 R1805 2.2k R1806 2.2k R1880 270 R1856 S1823 1 2 S18 1 S1840 1 2 S1841 1 2 S1829 1 2 S1831 1 2 S1830 1 2 S1825 1 2 S1826 1 2 S1837 1 2 S1822 1 2 S1824 1 2 S1 2 S18 1 S1839 1 2 S18 1 S1833 1 2 S1836 1 2 S18 1 S183 1 S1821 1 2 S1834 1 2 S184 1 V1801 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 16 16 17 17 18 18 19 19 20 20 21 21 22 22 23 23 24 24 25 25 26 26 27 27 28 28 29 29 30 30 31 31 32 32 33 33 34 34 35 35 36 36 37 37 38 38 39 39 40 40 41 41 42 42 43 43 44 44 X1801 CSS1547-A R1899 270 COLOR2 CENTER BA 4 5 6 1 2 3 DI SRC EJECT CLOCK LIST PHONE 1/4W 1/4W 1/4W 1/10W 1/10W 1/10W 1/10W 1/4W 1/10W 1/10W 1/4W 1/4W 1/4W 1/4W 0 5.00MHz NM *1 LCD D1851-D1867 R1858 R1856 R1862 R1860 R1866 R1868 R1864 R1885 R1884 R1882 R1881 R1852 1.8k SML-D12V8W(PQ) 680 NM 1.2k 1.8k NM CL-197HB1-D(CDE) NM 0 0 NM NM 0 0 NM 1.8k 1k NM 1k NM 3.3k 3.3k 2.2k 2.2k 2.2k A : DEH-7300BT/XSUC B : DEH-7300BT/XSEW5 C : DEH-73BT/XSUC D : DEH-7350BT/XSES A,C,D B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 55 5 6 7 8 5 6 7 8 C D F A B E B KDT2 SOURCE KDT3 CN1911 1 2 3 4 5 6 CKS6287-A CN1821 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 NM NM NM C1901 NM NM C1902 NM D1874 D1875 D1872 D1878 D1867 D1866 D1858 D1868 D1871 D1869 D1856 D1880 D1881 D1882 D1879 D1876 D1870 D1877 D1873 D1883 D1802 NM D1801 NM D1912 NM D1911 NM DGND DGND DGND USBGND ILMGND DGND ILMGND CN1901 1 2 3 4 L1911 NM 1 1 2 2 3 3 4 4 Q1851 IMX9 E1 6 B1 5 C2 4 E2 3 2 B2 1 C1 R1882 R1875 NM R1872 NM R1860 R1895 R1894 R1897 R1892 10k R1891 10k R1890 10k R1868 NM R1821 NM R1873 NM R1898 R1889 R1874 NM R1871 NM R1896 R1822 27k R1893 10k R1888 R1902 NM R1901 NM S1835 1 2 825 2 1826 2 S1828 1 2 S1827 1 2 839 2 S1843 1 2 S1832 1 2 S1838 1 2 S1842 1 2 S1845 CSD1168-A 1 1 2 2 3 3 4 4 5 5 VA1901 NM VA1903 NM VA1902 NM VA1904 NM C1903 NM DGND ILMGND USB5V ILM+B USBGND SW5V DPDT KYDT DP ILMCLR2 AUXGND SOURCE ILMCLR1 ROT1 ROT0 AUXL AUXR DSENS COLOR1 DM 5V NTER BAND 4 3 DISP LOCK 1/4W 1/4W 1/4W 1/4W 1/10W 1/10W 1/10W 1/10W 1/10W 1/4W 1/10W YKN5001-B CKS6266-A 1/4W UCON&LCD 1801-1820 SWITCH&CONNENCTOR 1821-1850 LED 1851-1900 FRONT AUX 1901-1910 USB IN 1911-1920 NM 0 MULTI-CONTROL NM USB AUX A CN801 B KEYBOARD ASSY AUX:+2.2 dBs USB:+5.1 dBs (UC,ES) USB:+5.0 dBs (EW5) NM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 56 1 2 3 4 1 2 3 4 C D F A B E 10.3 CD CORE UNIT (S11.1STD-DOUT) C C101 C102 C110 C111 C204 C207 C235 C239 C301 C307 C308 C701 C702 C703 C705 C707 C708 D101 TH201 Q201 C240 C281 C282 C283 C284 C601 C602 R106 R297 R246 R603 R604 R710 R711 R281 R282 R283 R291 R292 R293 R299 R601 R602 R606 R225 R722 R242 R243 R707 R721 R723 C205 C206 CN702 FOP FOM TOM TOP TD FD SOM SOP LCOM LCOP LOEJ TOM FOM FOP TOP E BD SD CONT SOM SOP LCOM LCOP HOME 8SNS DSCSNS MD LD PD LD CLCONT BD F E AC AC PD F V+3A RESET REFO PUEN IC301 BA5839FP VR 1 OPIN2+ 2 OPIN2- 3 OPOUT2 4 5 OPIN1+ 6 OPIN1- 7 OPOUT1 29 FIN1 9 MUTE 10 PowVcc1 11 VO1- 12 VO1+ 13 VO2- 14 VO2+ 8 GND1 15 VO3+ 17 VO4+ 18 VO4- 19 PowVcc2 20 GND2 21 CNT 22 LDIN 23 OPOUTSL 24 OPINSL 25 OPOUT3 26 OPIN3- 27 OPIN3+ 28 PreVcc 16 VO3- 30 FIN2 SIN CIN TIN FIN CSN1080 S901 1 2 3 4 NM S905 1 2 3 4 HOME 8SNS DSCSNS BLK RED PL OG NM C301 MDY MDX LOEJ CONT D101 NM TOP FOP TOM FOM R101 2.4 R102 2.4 R103 2.7 LD LD1 C104 4.7u/6.3 (2125) ADCIN FE TE TEC RFO RFAGC ATEST V+3A PD CLCONT M2 LOAD/CRG MOTOR CXC4026 M1 SPDL MOTOR CXE2273 FOCUS ACT 1 TOP 2 FOP 3 FOM 4 TOM 5 MD 6 A+C 7 VR 8 VREF 9 P1+P6 10 GND 11 P5+P10 12 VCC 13 B+D 14 LD+ 15 LD- VCC TRK ACT C101 NM C102 NM C215 C221 0.1u/10 C220 0.1u/10 C219 0.1u/10 C222 0.1u/10 C225 0.01u/16 C217 56p/50 C223 68p/50 C224 47p/50 C216 1800p/50 C304 4700p/25 C305 0.022u/16 R108 1M R106 NM R305 18k R306 18k R307 18k R308 18k R218 4.7k R216 1.2k R217 5.6k 2SA1577(QR) Q101 E F BD AC RST INTQ ASY EFM CSN1081 S903 1 2 3 4 REFO1 REFO2 C307 NM (1608) CN702 CKS5766-A 1 VDD 2 3 CVDD 4 5 ICECK 6 SO 7 SCK 8 SI C229 0.1u/10 C236 0.1u/10 C306 1u/10 (1608) C110 NM C218 4p/50 C111 NM V3R3 CKS4808-A CN101 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 R109 2.2k C239 NM NM C308 LTA123JUB Q102 C214 0.047u/10 R215 39k R214 10k C213 3300p/50 LD 1 PD 2 /RST 3 INTQ(INT1) 4 5 71 AD.Vdd 72 EFM 73 ASY 74 ATEST 75 A.Vdd1 76 A.GND1 77 RFI 78 AGCO 79 C3T 80 AGCI 81 RFO 82 EQ2 83 EQ1 84 RF2- 85 RF- 86 A.GND2 87 A.Vdd2 88 A 89 B 90 F 91 E 92 REFOUT 93 FE- 94 FEO 95 ADCIN 96 TE- 97 TEO 98 TE2 99 TEC 100 C228 27p/50 R229 470 E:P5+P10 F:P1+P6 HOLOGRAM UNIT PICKUP UNIT(P10.5)(SERVICE) CXX1942 F.ACT: Applying positive voltage to FOP, the lens approaches DISC. T.ACT: Applying positive voltage to TOP, the lens moves outer circumference of DISC. CLCONT MOTOR DRIVER LOGIC TABLE LOEJ CONT LOAD EJ PLAY OFF H H L L - L - H L L H L VDD GND PGND VD REFO REFO REFO * (1/10SR,1608) * * * * * * * * * A D I P C209 C238 C240 C306 C307 R243 R246 R101 R102 R103 C104 1608:PARTS 2125:PARTS R606 Parts with Polarity IC201 IC301 D101 Q101 Q102 Q201 C205 C301 C308 * D A I P * CIRCUIT No. (1/10W) C708 Digital Out model only Analog Out model only IIC-BUS model only P-BUS model only HOME 8EJ DSCSNS SWITCHES: CD CORE UNIT S901:HOME SWITCH.........ON-OFF S903:DSCSNS SWITCH.....ON-OFF S905:8EJ SWITCH..............ON-OFF The underlined indicates the switch position. F T T F F T T F F T T F F T F T F T C C S S S C C S C S 1 2 3 9 a 7 8 4 5 f c d e www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 57 5 6 7 8 5 6 7 8 C D F A B E C P A A A D I P P A A P I D D D D D D P SCL MD SD LOEJ SKIP /CDSRQ ADENA CLCONT TEMP VDSENS CONT RESET ADENA TEMP /CDSTBY /WAIT VPP ICECK DSCSNS 8SNS SCK ICECK SCK FD HOME TD BCLK LRCK DATA SDA VPP PUEN CVDD CVDD SKIP /CDSRQ VDSENS /CDSTBY RESET /WAIT LRCK DATA SCL SDA DATA /WAIT BCLK LRCK BCLK RESET VDD VD PGND GND CDSRQ CDSTBY SCL SKIP SDA RESET LRCK BCLK DATA X201 CSS1603-A 1 2 3 PUEN ATEST TESTIN R246 NM (1608) VDSENS TEMP C203 0.1u/10 C207 NM C210 0.1u/10 C211 0.1u/10 C212 0.1u/10 C215 0.1u/10 C206 NM C235 NM C710 1000p/50 C232 1000p/50 C231 1000p/50 R264 1k R254 100k R253 NM R260 10k R235 10k R236 10k R263 4.7k R262 4.7k NM TH201 NM Q201 RST INTQ A0 STB SCK SO SI ICEMD VPP CVDD ICECK C16M MONI0 MONI1 MONI2 ASY EFM VD2 VD1 VDD1 GND1 GND2 GND3 R242 NM R245 100k C233 0.01u/16 R237 220 R240 47k C705 NM VDD2 CN702 CKS5766-A 1 VDD 2 3 CVDD 4 5 ICECK 6 SO 7 SCK 8 SI 9 VPP 10 GND R296 0 C204 NM C707 NM C702 NM C209 0.1u/16 (1608) C238 NM (1608) C240 NM (1608) C708 NM (1608) R283 0 C281 NM C282 NM NM C205 R294 470 C701 NM C703 NM WAIT NM C283 NM C284 NM R243 NM (1608) PGND1 PGND2 ADENA C299 NM R706 220 R702 100 R701 100 R297 NM C601 NM C602 NM R723 NM R721 NM R707 NM R606 NM (1608) R722 0 R709 0 R708 0 R299 0 C214 0.047u/10 R215 39k R214 10k C213 3300p/50 CKS6146-A CN701 1 VD 2 VD 3 /CDSRQ 4 /CDSTBY 5 SCL 6 SKIP 7 SDA 8 RESET 9 VDD 10 GND 11 DATA 12 BCLK 13 LRCK 14 GND 15 PGND 16 WAIT AAGND1 AAGND2 R225 0 R292 0 R293 0 R710 NM R711 NM IC201 PE5756A LD 1 PD 2 /RST 3 INTQ(INT1) 4 A0 5 /STB 6 /SCK 7 SO 8 SI 9 D.Vdd 10 D.GND 11 REG16 12 REGS 13 DA.Vdd1 14 ROUT 15 DA.GND1 16 REGC 17 DA.GND 18 LOUT 19 DA.Vdd 20 ICEMD 21 X.Vdd 22 /XTAL 23 X.GND 24 XTAL 25 Vpp 26 C.Vdd 27 C.GND 28 RESET 29 IO.GND1 30 IO.Vdd1 31 ICECK 32 /CDSTBY 33 34 HOME 35 12SNS 36 8SNS 37 DSCSNS 38 CONT 39 CLCONT 40 LOEJ 41 PA7 42 DOUT 43 SCKO 44 LRCK 45 TX/EMPH 46 /WAIT 47 SCL 48 SDA 49 PC3 50 /TESTIN 51 /CDSRQ 52 SKIP 53 54 /ADENA 55 56 57 TEMP 58 Monitor0 59 Monitor1 60 Monitor2 61 Monitor3 62 SD2 63 IO.GND2 64 IO.Vdd2 65 FD 66 TD 67 SD 68 MD 69 TEST 70 AD.GND 71 AD.Vdd 72 EFM 73 ASY 74 ATEST 75 A.Vdd1 76 A.GND1 77 RFI 78 AGCO 79 C3T 80 AGCI 81 RFO 82 EQ2 83 EQ1 84 RF2- 85 RF- 86 A.GND2 87 A.Vdd2 88 A 89 B 90 F 91 E 92 REFOUT 93 FE- 94 FEO 95 ADCIN 96 TE- 97 TEO 98 TE2 99 TEC 00 R232 0 BSCK0 LRCK0 EJSW R601 NM R602 NM R603 NM R604 NM R281 56 R282 56 R291 56 NO MOUNT PARTS (NM) * Land for manual soldering BLE OFF L - L GND GND GND 3.3V 7.5V 7.5V I/O VDD GND GND EJSW VDCONT VDSENS * * * * * * * * * * * * * * * * (ROUT) (LOUT) (AGND) * * * R294 Mask Flash 470 0 Mask R232 Flash 10k 0 PUEN * * * * * * Mask Flash R281 R282 R291 56 56 56 22 22 22 16.934MHz A CN701 C CD CORE UNIT(S11.1STD-DOUT) F SIGNAL LINE FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE T C S S T F C 6 i h g b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 58 1 2 3 4 1 2 3 4 C D F A B E 10.4 BT UNIT D NRST_CPU CKS6192-A CN1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 47u/16 C1 C2 NM C3 1u/10 BT3V C5 NM 330u/6.3 C4 D1 DZ2S068C D2 DZ2S068C D3 DZ2S068C R1 NM R2 NM R4 NM R5 NM U3OUT U3IN NBOOTS VKN1189-A CN2 1 2 3 4 5 6 7 8 9 10 11 12 13 L1 CTF1389-A D4 DZ2S068C C6 100p/50 R6 0 L2 NM VSS SPK1N U1IN VSS SPK1P U1OUT GND VCC MIC1P MIC1N MIC1N VCC_MIC NRST_CPU U3OUT U1OUT VSS NBOOTS U3IN VSS MIC1P U1IN VCC SPK1N SPK1P BTGND BTAGND GND NC BT MODULE CWX3981 A : DEH-7300BT/XSUC B : DEH-7300BT/XSEW5 C : DEH-73BT/XSUC D : DEH-7350BT/XSES A CN971 D BT UNIT BT: -1.8 dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 59 5 6 7 8 5 6 7 8 C D F A B E 10.5 WAVEFORMS - CD CORE UNIT Note : 1. The encircled numbers denote measuring points in the circuit diagram. 2. Reference voltage REFO1(1.65 V) 500 ms/div 5 V/div 5 V/div 5 V/div 10 V/div 1DSCSNS 5CLCONT 4LOEJ 6VD 5 V/div 5 V/div 5 V/div 5 V/div 1DSCSNS 28SNS 4LOEJ 3HOME 5 V/div 5 V/div 5 V/div 5 V/div 500 ms/div 1DSCSNS 28SNS 4LOEJ 3HOME 500 mV/div 500 mV/div 200 ms/div cTE dFE 200 mV/div 2 V/div 2 V/div 500 ms/div aFIN bRFOK(MONI_3) 7SIN 1 V/div 500 mV/div 500 mV/div 2 s/div 500 ms/div 7SIN 8CIN 9TIN 2 V/div 500 mV/div 5 μs/div eMDX 7SIN 2 V/div 500 mV/div 50 ms/div eMDX 7SIN 500 mV/div 500 mV/div 500 mV/div 500 mV/div 20 ms/div dFE aFIN cTE 9TIN 1 V/div 500 mV/div 500 mV/div 500 μs/div fRFAGC cTE 9TIN 500 mV/div 500 mV/div 2 ms/div cTE fRFAGC 500 mV/div 500 mV/div 200 ms/div aFIN dFE Source On setup operation 12 cm CD-DA Source On setup operation CD-DA Play operation Spindle waveform during play operation Spindle waveform during play operation (Wider) Focus Search waveform Track Open waveform 100 Track Jump waveform (32 Track Jump x 3) 12 cm CD-DA setup operation after loading 12 cm CD Loading operation 12 cm CD Loading operation 8 cm CD Loading operation Ref.: GND Mode: Normal Ref.: GND Mode: Normal Ref.: GND Mode: Normal Ref.: REFO Mode: Normal Ref.: REFO Mode: Normal Ref.: REFO Mode: Normal Ref.: REFO Mode: TEST Ref.: REFO Mode: TEST Ref.: REFO Mode: TEST Ref.: REFO Mode: Normal Ref.: REFO Mode: Normal Ref.: REFO Mode: Normal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 60 1 2 3 4 1 2 3 4 C D F A B E 2 V/div 2 V/div 2 V/div 10 μs/div gLRCK hBCLK iDATA 1 V/div 1 V/div 500 mV/div 2 V/div 200 ms/div fRFAGC cTE 8CIN 7SIN 1 V/div 500 mV/div 500 mV/div 2 ms/div fRFAGC cTE 9TIN 5 V/div 5 V/div 5 V/div 5 V/div 500 ms/div 1DSCSNS 28SNS 4LOEJ 3HOME 5 V/div 5 V/div 5 V/div 5 V/div 500 ms/div 1DSCSNS 28SNS 4LOEJ 3HOME 5 V/div 5 V/div 5 V/div 500 ms/div 1DSCSNS 5CLCONT 4LOEJ 1 V/div 1 V/div 1 V/div 1 V/div 500 μs/div fRFAGC 9TIN cTE aFIN 12 cm CD Eject operation 8 cm CD Eject operation Black Dot (800 μm) during play 12 cm CD Eject operation 32 Tracks Jump waveform (Zoom of 100 Track Jump waveform) Search operation(Outter to Inner) Digital Out waveform Ref.: REFO Mode: TEST Ref.: GND Mode: Normal Ref.: REFO Mode: Normal Ref.: REFO Mode: Normal Ref.: REFO Mode: Normal Ref.: GND Mode: Normal Ref.: AGND Mode: Normal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 61 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 62 1 2 3 4 1 2 3 4 C D F A B E 11. PCB CONNECTION DIAGRAM 11.1 TUNER AMP ASSY A A TUNER AMP ASSY Capacitor Connector P.C.Board Chip Part SIDE B SIDE A NOTE FOR PCB DIAGRAMS 1.The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2.Viewpoint of PCB diagrams 1 3 7 10 9 8 5 2 4 6 1 1 1 5 2 6 3 4 1 5 10 15 1 5 1 1 1 R251 R252 R253 R254 R255 R256 R257 R258 R259 R260 R261 R262 R263 R264 R265 R266 JA251 C251 C252 C253 C254 C255 C256 C257 C258 C259 C260 C261 C263 C264 L501 R501 R502 R503 R504 R505 R506 R507 R331 R332 R333 R334 C301 C302 C303 C304 C305 C306 C307 C308 C502 C503 C505 C506 C313 C507 C508 C314 C509 C316 C317 C331 C333 C334 VA971 VA972 VA973 VA974 P251 D501 D502 JA971 R993 R994 IC301 IC502 Q251 Q252 Q253 10 20 30 40 50 60 70 80 X 150 140 130 120 110 100 90 80 70 60 50 40 30 20 10 0 Y FRO RCA C CN701 D CN2 WIRED REMOTE & RMIC P 25 > www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 63 5 6 7 8 5 6 7 8 C D F A B E A SIDE A 1 5 10 15 20 1 E E 1 5 1 5 0 2 0 1 1 1 5 1 1 1 5 10 15 20 1 5 10 15 20 25 30 35 40 45 50 55 60 1 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170 175 1 1 5 1 5 10 15 1 E E E E 1 1 1 5 10 15 15 5 1 10 1 5 1 1 5 10 5 10 15 20 25 1 1 1 0 1 5 1 R401 R402 R403 R405 D751 R406 R407 R408 R409 R601 R602 R603 R410 R604 R605 R606 R412 R413 R608 R414 R609 R415 R416 R417 R418 R801 IC551 R419 R802 R610 L851 R611 R612 R806 R613 R807 R614 R808 R420 R809 R615 JA401 R421 R616 R617 R618 R231 R232 R427 R810 R428 R811 Q871 R812 Q872 R813 R620 R814 R621 R622 R623 R624 D971 R625 L671 C201 R626 C202 R627 C203 R628 C204 R629 CN801 C205 C206 C207 C208 C209 R821 R822 R630 R631 C401 R632 C402 R633 C403 C210 C404 R634 C211 C405 R635 C212 C406 R636 C407 C213 R637 C408 C214 R638 C409 R639 C215 C216 C601 C602 C603 C410 C604 R640 X401 C411 C605 R641 C412 C606 R642 C413 C607 R643 C414 C608 R644 IC971 C415 C609 R645 C416 R646 C417 C418 C419 C801 C804 C610 C611 X601 C612 X602 C613 C420 C614 C808 C421 C615 C809 R651 C422 C616 C423 C617 C424 C618 C425 C619 C231 C426 C232 C427 C233 C428 C234 C429 C235 C812 C237 C620 C238 R851 C621 C239 C622 C623 C817 C430 C624 C431 C625 C432 C626 C433 C627 C434 C628 C240 C435 C629 C436 C437 C438 C439 C630 C631 C632 C633 C440 C634 C441 C635 R671 C442 C636 R672 C637 C443 C638 C444 C639 C445 C446 C447 C448 C449 C640 R871 C641 R872 R873 R874 C450 C451 C453 C454 C651 C652 D401 R691 D402 C851 C852 D601 D602 IC201 D801 D802 D803 D804 D805 C671 D808 IC401 L701 D810 C871 D811 C872 IC601 L901 IC801 IC231 C891 Q351 Q352 C892 C893 C894 C895 Q931 Q551 R302 R303 R304 D651 Q751 Q752 L551 R508 R701 R702 R703 R704 R705 R706 R707 R708 R709 IC651 R710 R711 R712 R713 R714 R715 R716 R717 R331 R332 R333 R334 CN701 R911 R912 C301 C302 C303 C304 C305 P401 C306 C307 C308 C309 IC671 JA901 L971 C501 KN401 C310 C504 C311 C312 C313 D891 C315 R351 R352 R353 R354 C318 C701 KN601 R931 C319 R932 C702 C703 R933 R934 C704 C705 C706 C707 C708 C320 R551 C321 R552 R553 C901 R556 R557 R558 R559 R751 R752 R753 R560 R754 C331 C332 C333 C334 IC891 C911 C912 C913 C914 C915 C916 C917 C918 C919 C920 C921 C922 C923 C924 C925 C926 C927 C351 C931 R971 R972 R973 R974 R975 C551 R976 C552 R977 D301 D302 C751 C752 C753 C754 R985 L201 R986 R987 CN971 L401 L402 L403 L404 L405 L406 L407 L408 L409 IC301 L601 D901 L602 D902 L603 L410 L411 L412 L413 L414 L415 IC501 L416 L417 L418 L419 L802 C971 D911 C972 D912 C973 C974 C975 C976 C977 C978 L231 C983 P891 D931 IC912 R201 R202 R203 L443 VA804 VA805 R205 R206 R207 70 80 90 100 110 120 130 140 150 160 FRONT POWER SUPPLY ANTENNA B CN1821 2 P 251 (A,6,127) Fuse 3 A CEK1286 > 16 9 6 2 13 14 18 17 FUSE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 64 1 2 3 4 1 2 3 4 C D F A B E A A TUNER AMP ASSY 8 90 100 110 120 130 140 150 160 1 1 1 1 1 TESTIN PCL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 65 5 6 7 8 5 6 7 8 C D F A B E A SIDE B 10 20 30 40 50 60 70 80 90 X 150 140 130 120 110 100 90 80 70 60 50 40 30 20 10 0 Y 1 1 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 66 1 2 3 4 1 2 3 4 C D F A B E 11.2 KEYBOARD ASSY B SIDE A B KEYBOARD ASSY 1 5 1 1 40 35 30 25 20 15 10 5 1 CN1901 CN1911 D1913 IC1802 R1823 C1852 C1853 C1854 C1855 C1856 C1857 C1858 C1859 C1860 C1861 C1862 C1863 C1865 C1866 C1867 C1868 S1821 S1822 S1823 S1824 S1825 S1826 S1827 S1828 S1829 D1851 D1852 D1853 D1854 D1855 D1856 D1857 S1830 D1858 S1831 D1859 S1832 S1833 S1834 S1835 S1836 S1837 D1860 S1838 D1861 S1839 D1862 D1863 D1864 D1865 D1866 D1867 S1840 D1868 S1841 D1869 S1842 S1843 S1845 D1870 D1871 D1872 D1873 D1874 D1875 D1876 D1877 D1878 D1879 D1880 D1881 D1882 D1883 R1883 V1801 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 X 40 30 20 10 0 Y 160 USB AUX 6 5 4 3 2 1 CLOCK RIGHT UP DOWN LIST LEFT DISP MULTI-CONTROL PHONE BAND SRC EJECT LCD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 67 5 6 7 8 5 6 7 8 C D F A B E B SIDE B B KEYBOARD ASSY 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 X 40 30 20 10 0 Y 160 1 5 1 5 1 20 10 1 1 1 5 10 15 20 25 30 35 40 45 50 55 60 5 1 1 X1801 C1901 C1902 C1903 R1901 R1902 D1911 D1912 L1801 C1801 C1802 CN1821 D1801 D1802 R1801 R1802 R1803 R1804 R1805 R1806 IC1801 R1821 R1822 R1824 R1825 R1826 Q1851 L1911 C1864 R1851 R1852 R1853 R1854 R1855 R1856 R1858 R1860 R1862 R1864 R1866 R1868 R1871 R1872 R1873 R1874 R1875 R1880 R1881 R1882 R1884 R1885 R1888 R1889 R1890 R1891 R1892 R1893 R1894 R1895 R1896 R1897 R1898 R1899 VA1901 VA1902 VA1903 VA1904 A CN801 1 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 68 1 2 3 4 1 2 3 4 C D F A B E 11.3 CD CORE UNIT (S11.1STD-DOUT) C SIDE A C CD CORE UNIT (S11.1STD-DOUT) 1 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 1 5 10 15 1 5 10 15 1 5 10 1 0 1 5 1 15 20 25 29 30 1 R214 R215 R216 R217 R218 R225 R229 R232 R235 R236 C203 C204 TH201 C207 C209 R246 C210 X201 C211 C212 C213 C214 C215 C216 C217 C218 C219 C221 C222 C223 C224 C225 R262 R263 C228 R264 C235 C238 C240 R281 R282 R294 IC201 C299 R305 R306 R307 R308 CN101 R707 R708 R709 R710 C102 CN701 CN702 C304 C305 C306 C307 C701 C702 S901 D101 IC301 10 20 30 40 50 60 70 X 60 50 40 30 20 10 0 Y A CN701 PICKUP UNIT(P10.5)(SERVICE) F E REFO1 M1 SPINDLE MOTOR M2 LOADING/CARRIAGE MOTOR HOME www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 69 5 6 7 8 5 6 7 8 C D F A B E C SIDE B C CD CORE UNIT (S11.1STD-DOUT) 70 60 50 40 30 20 10 X 60 50 40 30 20 10 0 Y E E 1 1 E R601 R602 R603 R604 R606 R237 R240 C205 C206 R242 R243 R245 R253 R254 C601 C602 C220 R260 C229 C231 C232 C233 C236 C239 R283 R291 R292 R293 Q101 Q102 R296 R297 R299 C281 C282 C283 C284 R101 R102 R103 R106 R108 R109 R701 R702 R706 R711 C101 C104 R721 R722 R723 C301 C110 C111 C308 C703 C705 C707 C708 C710 S903 S905 Q201 8EJ DSCSNS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 70 1 2 3 4 1 2 3 4 C D F A B E 11.4 BT UNIT D SIDE A D BT UNIT SIDE B D BT UNIT 1 5 10 1 5 10 C1 C2 C3 C4 C5 C6 D1 D2 D3 D4 L1 L2 R1 R2 R4 R5 R6 CN1 CN2 10 20 30 40 X 40 30 20 10 0 Y 10 20 30 40 X 10 20 30 40 0 Y 1 A CN971 BT MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 71 5 6 7 8 5 6 7 8 C D F A B E 12. ELECTRICAL PARTS LIST Circuit Symbol and No. Part No. A:DEH-7300BT/XSUC B:DEH-7300BT/XSEW5 C:DEH-73BT/XSUC D:DEH-7350BT/XSES Unit Number: YWM5486(A,C) : YWM5482(B) : YWM5483(D) Unit Name : Tuner Amp Assy Unit Number: YWM5492(A,C) : YWM5488(B) : YWM5489(D) Unit Name : Keyboard Assy Unit Number: CWX3985 Unit Name : CD Core Unit(S11.1STD-DOUT) Unit Number: YWM5539(A,B,C) : YWM5494(D) Unit Name : BT Unit A Unit Number: YWM5486(A,C) : YWM5482(B) : YWM5483(D) Unit Name : Tuner Amp Assy MISCELLANEOUS IC 201 (A,98,108) IC PML022A IC 231 (A,97,85) D/A Converter PCM1753DBQ IC 301 (A,78,142) IC PAL007E IC 401 (A,150,91) IC TDA7706 IC 501 (A,88,96) IC BD2226G IC 502 (A,20,114) IC BD9008F IC 551 (A,121,42) IC 341S2162 IC 601 (A,124,66) IC R5S7267ZD144FP IC 651 (A,146,72) IC S-80827CNMC-B8M IC 671 (A,120,29) IC(A,C) PEA018A8 (A,120,29) IC(B) PEA017A8 (A,120,29) IC(D) PEA019A8 IC 801 (A,107,18) L-MOS And Gate TC7SET08FUS1 IC 891 (A,101,62) Regulator IC S-1132B33-U5 IC 912 (A,145,28) IC BA49182-V12 IC 971 (A,107,36) IC NJM4558MD Q 251 (A,24,131) Chip Transistor(B) RN1910 Q 252 (A,9,131) Chip Transistor RN1910 Q 253 (A,37,133) Chip Transistor RN1910 Q 351 (A,92,127) Chip Transistor RN4983 Q 352 (A,110,112) Transistor RT1N241M Q 551 (A,121,47) Transistor LSA1576UB Q 751 (A,142,139) Transistor 2SD2396 Q 752 (A,136,132) Chip Transistor RN4983 Q 871 (A,124,22) Transistor LSA1576UB Q 872 (A,119,22) Transistor LTC114EUB Q 931 (A,124,112) Transistor LSC4081UB D 301 (A,100,127) Diode CRG03 D 302 (A,98,127) Diode CRG03 D 401 (A,158,106) Diode KP2311E D 402 (A,158,100) Diode KP2311E D 501 (A,29,109) Diode RB160L-40 D 502 (A,22,125) Diode CRG03 D 601 (A,125,50) Diode RB551V-30 D 602 (A,116,84) Diode RB751S-40 D 751 (A,139,130) Diode RKZ8.2KG(B2) D 801 (A,109,13) Diode DZ2S068C D 802 (A,112,13) Diode DZ2S068C D 803 (A,119,16) Diode DZ2S068C D 804 (A,113,16) Diode DZ2S068C D 805 (A,115,13) Diode DZ2S068C D 808 (A,104,13) Diode DZ2S068C D 810 (A,101,13) Diode DZ2S068C D 811 (A,98,13) Diode DZ2S068C D 901 (A,137,114) Diode 1SR154-400 D 902 (A,134,114) Diode 1SR154-400 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 72 1 2 3 4 1 2 3 4 C D F A B E D 911 (A,157,63) Diode 1SR154-400 D 912 (A,157,60) Diode 1SR154-400 D 931 (A,122,115) Diode(A,C,D) HZU7L(A1) (A,122,115) Diode(B) HZU7L(C3) L 401 (A,159,103) Chip Coil LCTAWR15J2520 L 402 (A,151,102) Inductor CTF1786 L 403 (A,147,104) Inductor CTF1786 L 404 (A,155,104) Chip Coil LCTAWR27J2520 L 405 (A,142,104) Inductor CTF1389 L 406 (A,140,101) Inductor LCTAW220J2520 L 407 (A,162,96) Inductor CTF1786 L 408 (A,162,95) Inductor CTF1786 L 409 (A,139,92) Chip Coil LCTAW470J2520 L 415 (A,151,80) Inductor CTF1786 L 416 (A,154,80) Inductor(B) CTF1786 L 443 (A,146,107) Inductor(A,C,D) LCYB68NJ1005 L 501 (A,34,110) Coil CTH1475 L 601 (A,148,58) Inductor CTF1786 L 602 (A,146,59) Inductor CTF1786 L 603 (A,131,94) Inductor CTF1389 L 671 (A,113,28) Inductor CTF1786 L 802 (A,111,13) Inductor CTF1713 L 901 (A,112,141) Choke Coil 600 uH CTH1432 X 401 (A,161,88) Oscillator 36.48 MHz CSS1805 X 601 (A,107,74) Ceramic Resonator 16.934 MHz CSS1603 X 602 (A,130,84) Oscillator 12 MHz YSS5005 > P251 (A,6,127) Fuse 3 A CEK1286 P 401 (A,155,109) Surge Protector IMSA-6802-01Y900 VA804 (A,105,14) Varistor EZJP0V270RM VA805 (A,107,12) Varistor EZJP0V270RM VA971 (A,51,134) Varistor VR105C5R0AAA VA972 (A,49,134) Varistor VR105C5R0AAA VA973 (A,52,133) Varistor VR105C5R0AAA VA974 (A,48,133) Varistor VR105C5R0AAA CN701 (A,91,39) Connector VKN1192 CN801 (A,109,4) Connector CKS6288 CN971 (A,93,61) Connector VKN1189 JA251 (A,19,141) Pin Jack(A,C,D) YKB5011 (A,19,141) Pin Jack(B) YKB5016 JA401 (A,158,129) Antenna Jack YKS5041 JA901 (A,113,141) Plug CKM1586 JA971 (A,42,141) Jack YKS5035 > Fuse(10 A) YEK5001 RESISTORS R 201 (A,113,104) RS1/16SS0R0J R 202 (A,115,105) RS1/16SS102J R 203 (A,113,106) RS1/16SS0R0J R 231 (A,94,81) RS1/16SS821J R 232 (A,94,82) RS1/16SS821J R 251 (A,29,127) (B) RS1/16SS821J R 252 (A,29,128) (B) RS1/16SS821J R 253 (A,10,128) RS1/16SS821J R 254 (A,12,129) RS1/16SS821J R 255 (A,22,131) (B) RS1/16SS223J R 256 (A,27,132) (B) RS1/16SS223J R 257 (A,7,131) RS1/16SS223J R 258 (A,11,131) RS1/16SS223J R 259 (A,47,127) RS1/16SS821J R 260 (A,47,131) RS1/16SS821J Circuit Symbol and No. Part No. R 261 (A,41,132) RS1/16SS223J R 262 (A,34,132) RS1/16SS223J R 263 (A,18,131) (B) RS1/16SS0R0J R 264 (A,15,130) (B) RS1/16SS0R0J R 265 (A,17,130) (A,C,D) RS1/16SS0R0J R 266 (A,17,131) (A,C,D) RS1/16SS0R0J R 303 (A,108,108) RS1/16SS103J R 304 (A,113,109) RS1/10SR473J R 331 (A,74,127) RS1/16SS471J R 332 (A,81,127) RS1/16SS471J R 333 (A,75,127) RS1/16SS471J R 334 (A,80,126) RS1/16SS471J R 351 (A,94,127) RS1/16SS102J R 352 (A,107,111) RS1/16SS103J R 353 (A,111,113) RS1/16SS221J R 354 (A,111,111) RS1/16SS103J R 401 (A,161,106) RS1/16SS221J R 402 (A,161,100) RS1/16SS751J R 403 (A,140,103) RS1/16SS152J R 405 (A,143,99) RS1/16SS105J R 406 (A,138,96) RS1/16SS471J R 407 (A,140,95) RS1/16SS330J R 408 (A,138,91) RS1/16SS681J R 410 (A,141,84) RS1/4SA8R2J R 412 (A,138,84) RS1/4SA8R2J R 413 (A,146,108) RS1/16SS105J R 414 (A,153,74) RS1/10SR102J R 415 (A,151,74) RS1/10SR102J R 419 (A,149,74) RS1/16SS103J R 420 (A,150,74) RS1/16SS103J R 421 (A,153,80) (A,C,D) RS1/16SS0R0J R 427 (A,144,84) RS1/16SS102J R 428 (A,157,81) RS1/16SS680J R 501 (A,21,121) RS1/10SR471J R 502 (A,23,118) RS1/16SS4702F R 503 (A,21,118) RS1/16SS682J R 504 (A,20,120) RS1/16SS1002F R 505 (A,26,114) RS1/16SS183J R 506 (A,15,114) RS1/16SS513J R 508 (A,143,66) RS1/16SS103J R 551 (A,126,44) RS1/16SS473J R 552 (A,115,46) RS1/16SS103J R 553 (A,115,47) RS1/16SS103J R 556 (A,119,39) RS1/16SS272J R 557 (A,117,40) RS1/16SS472J R 558 (A,118,48) RS1/16SS472J R 559 (A,117,45) RS1/16SS101J R 560 (A,114,48) RS1/16SS101J R 601 (A,127,50) RS1/16SS103J R 602 (A,128,48) RS1/16SS473J R 603 (A,129,50) RS1/16SS104J R 606 (A,119,49) RS1/16SS473J R 608 (A,141,62) RS1/16SS473J R 609 (A,109,66) RS1/16SS101J R 610 (A,139,66) RS1/16SS222J R 611 (A,105,68) RS1/16SS101J R 612 (A,139,68) RS1/16SS473J R 613 (A,105,69) RS1/16SS101J R 615 (A,141,69) RS1/16SS104J R 617 (A,109,70) RS1/16SS221J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 73 5 6 7 8 5 6 7 8 C D F A B E R 620 (A,139,76) RS1/16SS473J R 621 (A,112,82) RS1/16SS473J R 622 (A,125,82) RS1/16SS473J R 623 (A,131,81) RS1/16SS152J R 624 (A,133,81) RS1/16SS473J R 626 (A,121,83) RS1/16SS5601F R 628 (A,114,85) RS1/16SS103J R 629 (A,138,78) RS1/16SS102J R 631 (A,117,82) RS1/16SS473J R 632 (A,121,86) RS1/16SS103J R 633 (A,122,87) RS1/16SS101J R 634 (A,143,54) RS1/16SS473J R 635 (A,140,53) RS1/16SS473J R 636 (A,139,53) RS1/16SS473J R 637 (A,138,53) RS1/16SS473J R 638 (A,142,61) RS1/16SS473J R 639 (A,130,81) RS1/16SS473J R 640 (A,105,77) RS1/16SS473J R 641 (A,105,78) RS1/16SS473J R 642 (A,105,79) RS1/16SS473J R 643 (A,105,80) RS1/16SS473J R 645 (A,134,82) RS1/16SS473J R 651 (A,139,77) RS1/16SS104J R 671 (A,113,31) RS1/10SR473J R 672 (A,117,33) RS1/10SR473J R 691 (A,126,15) RS1/4SA222J R 701 (A,96,45) RS1/16SS473J R 702 (A,95,39) RS1/16SS104J R 703 (A,99,41) RS1/16SS104J R 704 (A,96,24) RS1/16SS472J R 705 (A,96,25) RS1/16SS472J R 706 (A,96,26) RS1/16SS472J R 707 (A,94,24) RS1/16SS221J R 708 (A,95,44) RS1/16SS221J R 709 (A,95,43) RS1/16SS101J R 710 (A,95,42) RS1/16SS221J R 711 (A,95,41) RS1/16SS101J R 712 (A,96,39) RS1/16SS102J R 713 (A,95,37) RS1/16SS151J R 714 (A,98,35) RS1/16SS151J R 715 (A,95,35) RS1/16SS151J R 716 (A,96,31) RS1/16SS221J R 717 (A,96,32) RS1/16SS104J R 751 (A,95,47) RS1/16SS473J R 752 (A,97,47) RS1/16SS103J R 753 (A,139,133) RS1/10SR821J R 801 (A,118,18) RS1/10SR101J R 802 (A,114,20) RS1/10SR101J R 806 (A,105,16) RS1/10SR222J R 807 (A,107,14) RS1/10SR222J R 808 (A,105,18) RS1/16SS822J R 809 (A,111,18) RS1/10SR8R2J R 810 (A,109,18) RS1/10SR8R2J R 811 (A,123,13) RS1/10SR222J R 812 (A,102,15) RS1/10SR222J R 813 (A,101,15) RS1/10SR222J R 814 (A,116,16) RS1/10SR101J R 821 (A,117,16) RS1/16SS223J R 822 (A,113,18) RS1/16SS223J R 873 (A,121,22) RS1/16SS562J Circuit Symbol and No. Part No. R 874 (A,126,22) RS1/16SS103J R 911 (A,140,42) RS1/10SR1R0J R 912 (A,148,42) RS1/10SR1R0J R 931 (A,125,115) RS1/16SS223J R 932 (A,121,113) RS1/16SS473J R 933 (A,120,113) (A,C,D) RS1/16SS472J (A,120,113) (B) RS1/16SS473J R 934 (A,117,115) RS1/4SA102J R 971 (A,112,35) RS1/10SR103J R 972 (A,114,35) RS1/10SR0R0J R 973 (A,109,32) RS1/10SR103J R 974 (A,106,32) RS1/10SR223J R 975 (A,104,40) RS1/10SR223J R 976 (A,104,46) RS1/10SR223J R 977 (A,104,47) RS1/10SR223J R 985 (A,95,49) RS1/16SS102J R 987 (A,95,50) RS1/16SS102J R 993 (A,59,135) RS1/10SR102J R 994 (A,57,135) RS1/10SR102J CAPACITORS C 201 (A,107,103) 10 uF CCG1192 C 202 (A,102,102) CCSSCH100D50 C 203 (A,104,103) 10 uF CCG1192 C 204 (A,101,103) CCSSCH100D50 C 205 (A,94,102) CKSRYB105K10 C 206 (A,94,114) CKSRYB105K10 C 207 (A,97,102) CKSRYB105K10 C 208 (A,99,116) CKSRYB105K10 C 209 (A,99,103) CKSRYB105K10 C 210 (A,100,116) CKSRYB105K10 C 211 (A,97,100) CKSRYB224K16 C 212 (A,96,115) CKSRYB224K16 C 213 (A,93,106) CKSRYB105K10 C 214 (A,102,116) CKSRYB105K10 C 231 (A,92,79) CKSRYB105K16 C 232 (A,91,84) CKSSYB103K16 C 233 (A,92,84) 10 uF CCG1192 C 234 (A,102,80) 10 uF CCG1192 C 237 (A,99,79) CCSRCH182J50 C 238 (A,99,81) CCSRCH182J50 C 240 (A,107,84) CKSSYB222K50 C 251 (A,32,127) 4.7 uF(B) CCG1201 C 252 (A,31,129) 4.7 uF(B) CCG1201 C 253 (A,12,127) 4.7 uF CCG1201 C 254 (A,19,128) 4.7 uF CCG1201 C 259 (A,5,127) CKSRYB102K50 C 260 (A,50,127) 4.7 uF CCG1201 C 261 (A,50,131) 4.7 uF CCG1201 C 301 (A,74,129) CKSRYB474K10 C 302 (A,81,129) CKSRYB474K10 C 303 (A,75,129) CKSRYB474K10 C 304 (A,79,129) CKSRYB474K10 C 305 (A,73,132) CKSRYB474K10 C 306 (A,81,132) CKSRYB474K10 C 307 (A,76,132) CKSRYB474K10 C 308 (A,79,132) CKSRYB474K10 C 309 (A,136,135) CKSRYB104K16 C 310 (A,84,130) 2.2 uF CCG1205 C 311 (A,87,128) 2.2 uF CCG1205 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 74 1 2 3 4 1 2 3 4 C D F A B E C 312 (A,99,124) CKSRYB104K16 C 313 (A,69,130) CEVW100M16 C 314 (A,65,132) CCSRCH100D50 C 315 (A,85,128) CCSRCH100D50 C 318 (A,106,129) CCSRCH100D50 C 319 (A,103,129) CCSRCH100D50 C 320 (A,95,132) CCSRCH100D50 C 321 (A,92,137) CCSRCH100D50 C 351 (A,113,112) 10 uF CCG1192 C 401 (A,155,107) CCSSCH330J50 C 402 (A,158,105) CCSSCH6R0D50 C 403 (A,160,105) CKSSYB103K16 C 404 (A,150,101) CKSSYB104K10 C 405 (A,147,101) CKSSYB104K10 C 406 (A,159,101) CKSSYB103K16 C 407 (A,148,101) CKSSYB104K10 C 409 (A,161,101) CKSSYB103K16 C 410 (A,148,100) CKSSYB103K16 C 411 (A,145,102) CKSSYB103K16 C 412 (A,144,101) 10 uF CCG1192 C 413 (A,155,101) CKSSYB103K16 C 414 (A,153,103) CKSRYB105K10 C 415 (A,142,98) CKSSYB103K16 C 416 (A,158,96) CKSRYB224K16 C 417 (A,160,97) CKSSYB104K10 C 418 (A,139,98) 10 uF CCG1192 C 419 (A,158,93) CKSRYB105K10 C 420 (A,140,96) CKSSYB104K10 C 421 (A,138,95) CCSSCH101J50 C 422 (A,143,97) CKSSYB104K10 C 423 (A,137,94) CKSSYB103K16 C 424 (A,162,92) CKSSYB472K25 C 425 (A,162,93) CKSSYB472K25 C 426 (A,158,91) CKSSYB104K10 C 427 (A,138,90) CCSSCH820J50 C 428 (A,161,90) CCSSCH100D50 C 429 (A,161,85) CCSSCH100D50 C 430 (A,142,84) CKSRYB474K10 C 431 (A,159,83) CKSSYB104K10 C 432 (A,157,83) 2.2 uF CCG1205 C 434 (A,141,89) CKSSYB102K50 C 435 (A,157,85) (A,C,D) CKSSYB104K10 C 436 (A,144,77) (A,C,D) CCSRCH471J50 C 437 (A,156,82) CKSSYB104K10 C 440 (A,149,83) CKSSYB104K10 C 441 (A,151,82) 2.2 uF CCG1205 C 442 (A,151,83) (A,C,D) CKSRYB105K10 C 443 (A,146,106) (B) CKSSYB103K16 C 445 (A,143,101) CKSSYB223K16 C 447 (A,145,82) CKSSYB102K50 C 451 (A,142,103) (A,C,D) CCSSCK2R0C50 C 453 (A,140,89) CKSSYB102K50 C 501 (A,88,101) CKSRYB105K10 C 503 (A,33,119) CEVQW221M6R3 C 504 (A,88,94) CKSRYB105K10 C 505 (A,12,121) CEJQ221M16 C 506 (A,27,113) CKSSYB153K16 C 508 (A,25,115) CCSSCH220J50 C 509 (A,23,110) CKSRYB105K16 C 551 (A,126,45) CKSSYB104K10 Circuit Symbol and No. Part No. C 552 (A,127,46) CKSSYB104K10 C 601 (A,118,51) CKSRYB104K16 C 602 (A,124,51) CKSSYB104K10 C 603 (A,130,51) CKSSYB104K10 C 604 (A,139,55) CKSSYB104K10 C 605 (A,109,56) CKSSYB104K10 C 606 (A,139,57) CKSSYB104K10 C 607 (A,109,58) CKSSYB104K10 C 608 (A,139,63) CKSSYB104K10 C 609 (A,109,64) CKSSYB104K10 C 610 (A,139,65) CKSSYB104K10 C 616 (A,139,69) CKSSYB104K10 C 618 (A,140,70) CKSSYB104K10 C 619 (A,110,71) CKSSYB104K10 C 620 (A,105,74) CKSSYB104K10 C 621 (A,139,75) CKSSYB104K10 C 622 (A,113,81) CKSSYB104K10 C 623 (A,118,81) CKSSYB104K10 C 624 (A,119,81) CKSSYB104K10 C 625 (A,120,81) CKSSYB104K10 C 626 (A,122,81) CKSSYB104K10 C 627 (A,124,81) CKSSYB104K10 C 628 (A,127,81) CKSSYB104K10 C 629 (A,137,79) CKSSYB104K10 C 630 (A,114,81) CKSSYB104K10 C 632 (A,129,86) CCSSCH120J50 C 633 (A,131,86) CCSSCH120J50 C 638 (A,121,84) CKSRYB105K10 C 639 (A,139,60) CKSSYB104K10 C 640 (A,110,61) CKSSYB104K10 C 651 (A,148,74) CKSRYB105K10 C 671 (A,121,33) CKSSYB104K10 C 701 (A,98,41) CKSSYB103K16 C 702 (A,95,29) CCSSCH6R0D50 C 707 (A,94,39) CCSSCH100D50 C 751 (A,141,125) 10 uF CCG1192 C 754 (A,140,133) CKSSYB104K10 C 801 (A,124,15) CKSRYB102K50 C 804 (A,99,16) CKSRYB104K16 C 808 (A,95,18) CKSRYB104K16 C 809 (A,121,13) CKSRYB104K16 C 812 (A,117,13) CKSRYB105K16 C 817 (A,108,15) CKSSYB104K10 C 871 (A,122,17) CKSRYB104K16 C 892 (A,99,66) 10 uF CCG1192 C 895 (A,97,62) CKSRYB105K10 C 901 (A,133,125) 3 300 uF/16 V CCH1732 C 913 (A,140,40) CKSSYB102K50 C 914 (A,140,43) 4.7 uF CCG1201 C 916 (A,153,43) 4.7 uF CCG1201 C 917 (A,137,41) 4.7 uF CCG1201 C 918 (A,158,43) 4.7 uF CCG1201 C 919 (A,148,44) CKSSYB102K50 C 920 (A,151,43) 4.7 uF CCG1201 C 921 (A,133,41) CKSRYB104K16 C 922 (A,159,53) CEAT102M16(P30) C 923 (A,159,43) CKSSYB102K50 C 926 (A,135,41) CKSRYB102K50 C 931 (A,119,112) CKSRYB104K16 C 973 (A,109,41) 10 uF CCG1192 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 75 5 6 7 8 5 6 7 8 C D F A B E C 974 (A,109,31) CCSRCH221J50 C 975 (A,106,31) CCSRCH471J50 C 976 (A,103,40) CCSRCH471J50 C 977 (A,102,46) CKSRYB105K10 C 978 (A,102,47) CKSRYB105K10 B Unit Number: YWM5492(A,C) : YWM5488(B) : YWM5489(D) Unit Name : Keyboard Assy MISCELLANEOUS IC 1801 (B,87,23) IC PD6340A IC 1802 (A,160,35) Remote IC GP1UXC14RK D 1851 (A,11,40) LED(A,C,D) CL-197HB1-D(CDE) (A,11,40) LED(RED) (B) SML-D12V8W(PQ) D 1852 (A,6,33) LED(A,C,D) CL-197HB1-D(CDE) (A,6,33) LED(RED) (B) SML-D12V8W(PQ) D 1853 (A,6,23) LED(A,C,D) CL-197HB1-D(CDE) (A,6,23) LED(RED) (B) SML-D12V8W(PQ) D 1854 (A,72,5) LED(A,C,D) CL-197HB1-D(CDE) (A,72,5) LED(RED) (B) SML-D12V8W(PQ) D 1855 (A,7,12) LED(A,C,D) CL-197HB1-D(CDE) (A,7,12) LED(RED) (B) SML-D12V8W(PQ) D 1856 (A,55,29) LED(A,C,D) CL-197HB1-D(CDE) (A,55,29) LED(RED) (B) SML-D12V8W(PQ) D 1857 (A,59,20) LED(A,C,D) CL-197HB1-D(CDE) (A,59,20) LED(RED) (B) SML-D12V8W(PQ) D 1858 (A,55,8) LED(A,C,D) CL-197HB1-D(CDE) (A,55,8) LED(RED) (B) SML-D12V8W(PQ) D 1859 (A,18,20) LED(A,C,D) CL-197HB1-D(CDE) (A,18,20) LED(RED) (B) SML-D12V8W(PQ) D 1860 (A,84,6) LED(A,C,D) CL-197HB1-D(CDE) (A,84,6) LED(RED) (B) SML-D12V8W(PQ) D 1861 (A,96,6) LED(A,C,D) CL-197HB1-D(CDE) (A,96,6) LED(RED) (B) SML-D12V8W(PQ) D 1862 (A,108,6) LED(A,C,D) CL-197HB1-D(CDE) (A,108,6) LED(RED) (B) SML-D12V8W(PQ) D 1863 (A,144,8) LED(A,C,D) CL-197HB1-D(CDE) (A,144,8) LED(RED) (B) SML-D12V8W(PQ) D 1864 (A,132,7) LED(A,C,D) CL-197HB1-D(CDE) (A,132,7) LED(RED) (B) SML-D12V8W(PQ) D 1865 (A,120,7) LED(A,C,D) CL-197HB1-D(CDE) (A,120,7) LED(RED) (B) SML-D12V8W(PQ) D 1866 (A,21,11) LED(A,C,D) CL-197HB1-D(CDE) (A,21,11) LED(RED) (B) SML-D12V8W(PQ) D 1867 (A,23,32) LED(A,C,D) CL-197HB1-D(CDE) (A,23,32) LED(RED) (B) SML-D12V8W(PQ) D 1913 (A,68,22) White LED SMLXA4WBETW1(Z1) X 1801 (B,76,22) Ceramic Resonator 5.00 MHz CSS1547 S 1845 (A,39,18) Encoder(MULTI-CONTROL) CSD1168 CN1821 (B,108,9) Connector CKS6287 CN1901 (A,153,7) Jack YKN5001 CN1911 (A,154,22) Connector CKS6266 V 1801 (A,143,32) LCD CAW1998 RESISTORS R 1804 (B,146,29) RS1/10SR101J Circuit Symbol and No. Part No. R 1805 (B,74,18) RS1/10SR222J R 1806 (B,73,15) RS1/10SR222J R 1822 (B,54,27) RS1/10SR273J R 1823 (A,145,4) RS1/10SR0R0J R 1824 (B,24,19) RS1/10SR0R0J R 1852 (B,39,8) (A,C,D) RS1/4SA102J R 1856 (B,15,23) (A,C,D) RS1/10SR332J R 1858 (B,14,9) (A,C,D) RS1/10SR332J (B,14,9) (B) RS1/10SR122J R 1860 (B,23,15) (A,C,D) RS1/4SA102J R 1862 (B,22,10) (A,C,D) RS1/10SR222J (B,22,10) (B) RS1/10SR182J R 1864 (B,49,6) (A,C,D) RS1/10SR222J (B,49,6) (B) RS1/10SR182J R 1866 (B,141,15) (A,C,D) RS1/10SR222J (B,141,15) (B) RS1/10SR182J R 1868 (B,37,6) (B) RS1/10SR681J R 1880 (B,56,20) RS1/4SA271J R 1881 (B,19,20) (A,C,D) RS1/10SR0R0J R 1882 (B,21,20) (B) RS1/10SR0R0J R 1884 (B,12,24) (B) RS1/10SR0R0J R 1885 (B,15,24) (A,C,D) RS1/10SR0R0J R 1889 (B,54,26) RS1/10SR0R0J R 1899 (B,60,12) RS1/4SA271J CAPACITORS C 1801 (B,149,33) 10 uF CCG1192 C 1802 (B,97,24) CKSRYB105K10 C Unit Number : CWX3985 Unit Name : CD Core Unit(S11.1STD-DOUT) MISCELLANEOUS IC 201 (A,28,33) IC PE5756A IC 301 (A,64,27) IC BA5839FP Q 101 (B,8,56) Transistor 2SA1577 Q 102 (B,21,51) Chip Digital Transistor LTA123JUB X 201 (A,15,27) Ceramic Resonator 16.934 MHz CSS1603 S 901 (A,42,53) Switch(HOME) CSN1080 S 903 (B,21,12) Switch(DSCSNS) CSN1081 CN101 (A,16,58) Connector CKS4808 CN701 (A,37,10) Connector CKS6146 RESISTORS R 101 (B,6,59) RS1/10SR2R4J R 102 (B,7,59) RS1/10SR2R4J R 103 (B,8,59) RS1/10SR2R7J R 108 (B,19,53) RS1/16SS105J R 109 (B,11,52) RS1/16SS222J R 214 (A,38,41) RS1/16SS103J R 215 (A,38,40) RS1/16SS393J R 216 (A,30,44) RS1/16SS122J R 217 (A,33,46) RS1/16SS562J R 218 (A,30,46) RS1/16SS472J R 225 (A,33,23) RS1/16SS0R0J R 229 (A,31,44) RS1/16SS471J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-7300BT/XSUC 76 1 2 3 4 1 2 3 4 C D F A B E R 232 (A,19,21) RS1/16SS0R0J R 235 (A,45,32) RS1/16SS103J R 236 (A,46,32) RS1/16SS103J R 237 (B,24,25) RS1/16SS221J R 240 (B,26,30) RS1/16SS473J R 245 (B,28,30) RS1/16SS104J R 254 (B,29,30) RS1/16SS104J R 260 (B,41,21) RS1/16SS103J R 262 (A,44,32) RS1/16SS472J R 263 (A,47,32) RS1/16SS472J R 264 (A,44,25) RS1/16SS102J R 281 (A,31,22) RS1/16SS560J R 282 (A,30,22) RS1/16SS560J R 283 (B,32,18) RS1/16SS0R0J R 291 (B,31,17) RS1/16SS560J R 292 (B,32,16) RS1/16SS0R0J R 293 (B,32,11) RS1/16SS0R0J R 294 (A,18,28) RS1/16SS471J R 296 (B,32,30) RS1/16SS0R0J R 299 (B,31,13) RS1/16SS0R0J R 305 (A,60,34) RS1/16SS183J R 306 (A,61,37) RS1/16SS183J R 307 (A,58,34) RS1/16SS183J R 308 (A,58,36) RS1/16SS183J R 701 (B,37,21) RS1/16SS101J R 702 (B,38,20) RS1/16SS101J R 706 (B,43,11) RS1/16SS221J R 708 (A,40,22) RS1/16SS0R0J R 709 (A,40,21) RS1/16SS0R0J R 722 (B,37,22) RS1/16SS0R0J CAPACITORS C 104 (B,11,55) CKSQYB475K6R3 C 203 (A,18,35) CKSSYB104K10 C 209 (A,17,28) CKSRYB104K16 C 210 (A,21,21) CKSSYB104K10 C 211 (A,24,23) CKSSYB104K10 C 212 (A,38,33) CKSSYB104K10 C 213 (A,40,41) CKSSYB332K50 C 214 (A,40,40) CKSSYB473K10 C 215 (A,38,37) CKSSYB104K10 C 216 (A,36,46) CKSSYB182K50 C 217 (A,31,46) CCSSCH560J50 C 218 (A,29,46) CCSSCH4R0C50 C 219 (A,32,43) CKSSYB104K10 C 220 (B,32,41) CKSSYB104K10 C 221 (A,35,43) CKSSYB104K10 C 222 (A,29,43) CKSSYB104K10 C 223 (A,25,44) CCSSCH680J50 C 224 (A,23,44) CCSSCH470J50 C 225 (A,20,43) CKSSYB103K16 C 228 (A,32,46) CCSSCH270J50 C 229 (B,28,40) CKSSYB104K10 C 231 (B,44,28) CKSSYB102K50 C 232 (B,45,28) CKSSYB102K50 C 233 (B,25,25) CKSSYB103K16 C 236 (B,26,41) CKSSYB104K10 C 238 (A,15,35) CKSRYB104K16 C 299 (A,17,33) CKSSYB104K10 Circuit Symbol and No. Part No. C 304 (A,60,35) CKSSYB472K25 C 305 (A,58,35) CKSSYB223K16 C 306 (A,68,20) CKSRYB105K10 C 710 (B,43,10) CKSSYB102K50 D Unit Number : YWM5539(A,B,C) : YWM5494(D) Unit Name : BT Unit MISCELLANEOUS D 1 (A,7,39) Diode DZ2S068C D 2 (A,5,39) Diode DZ2S068C D 3 (A,6,44) Diode DZ2S068C D 4 (A,32,37) Diode DZ2S068C L 1 (A,36,36) Inductor CTF1389 CN1 (A,35,31) Connector CKS6192 CN2 (A,43,29) Connector VKN1189 RESISTORS R 6 (A,10,45) RS1/10SR0R0J CAPACITORS C 1 (A,26,41) Capacitor CEVW470M16 C 3 (A,23,45) CKSRYB105K10 C 4 (A,37,43) CEVW331M6R3 C 6 (A,31,38) CCSRCH101J50 Miscellaneous Parts List M 1 Motor Unit(SPDL) CXE2273 M 2 Motor Unit(LOAD/CRG) CXC4026 Pickup Unit(P10.5)(Service) CXX1942 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
