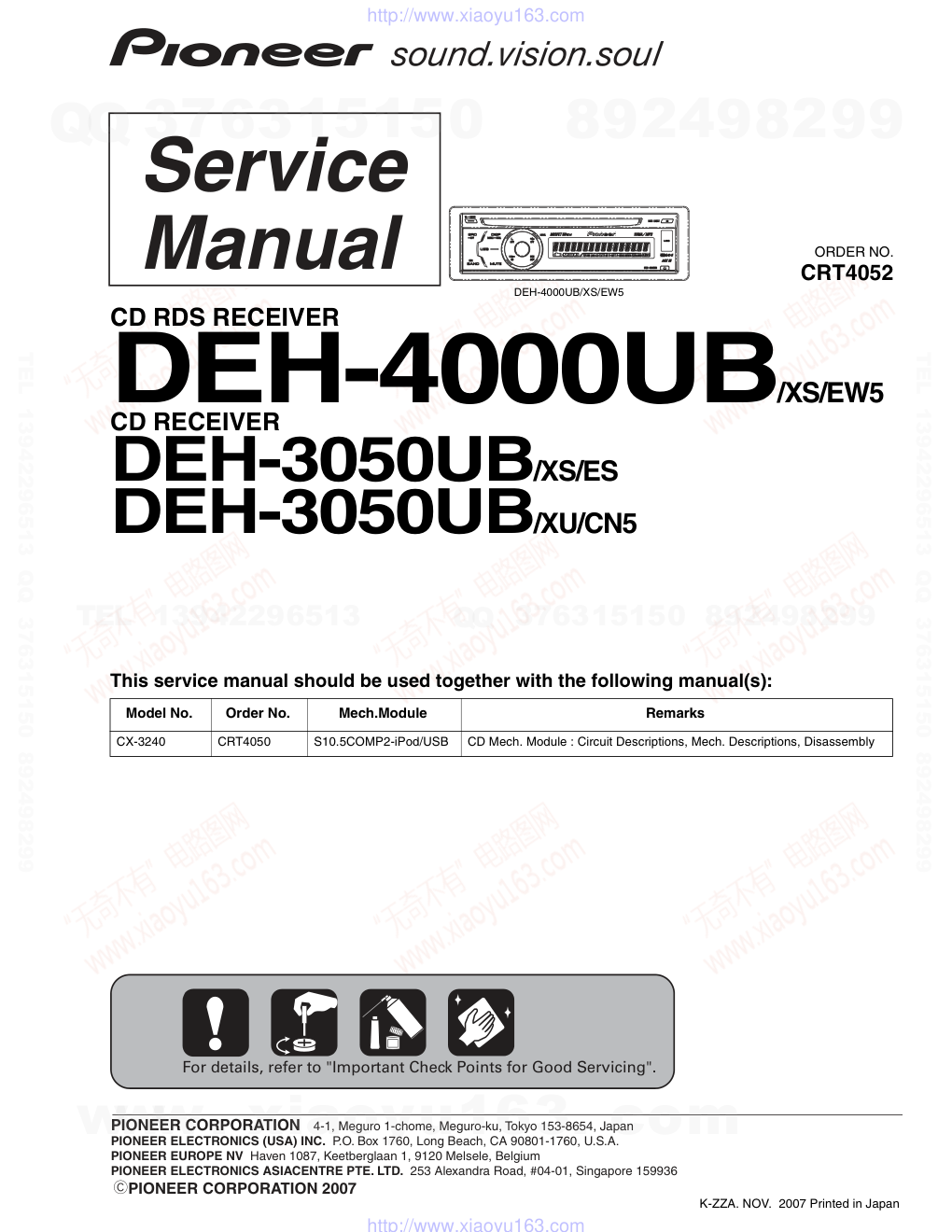

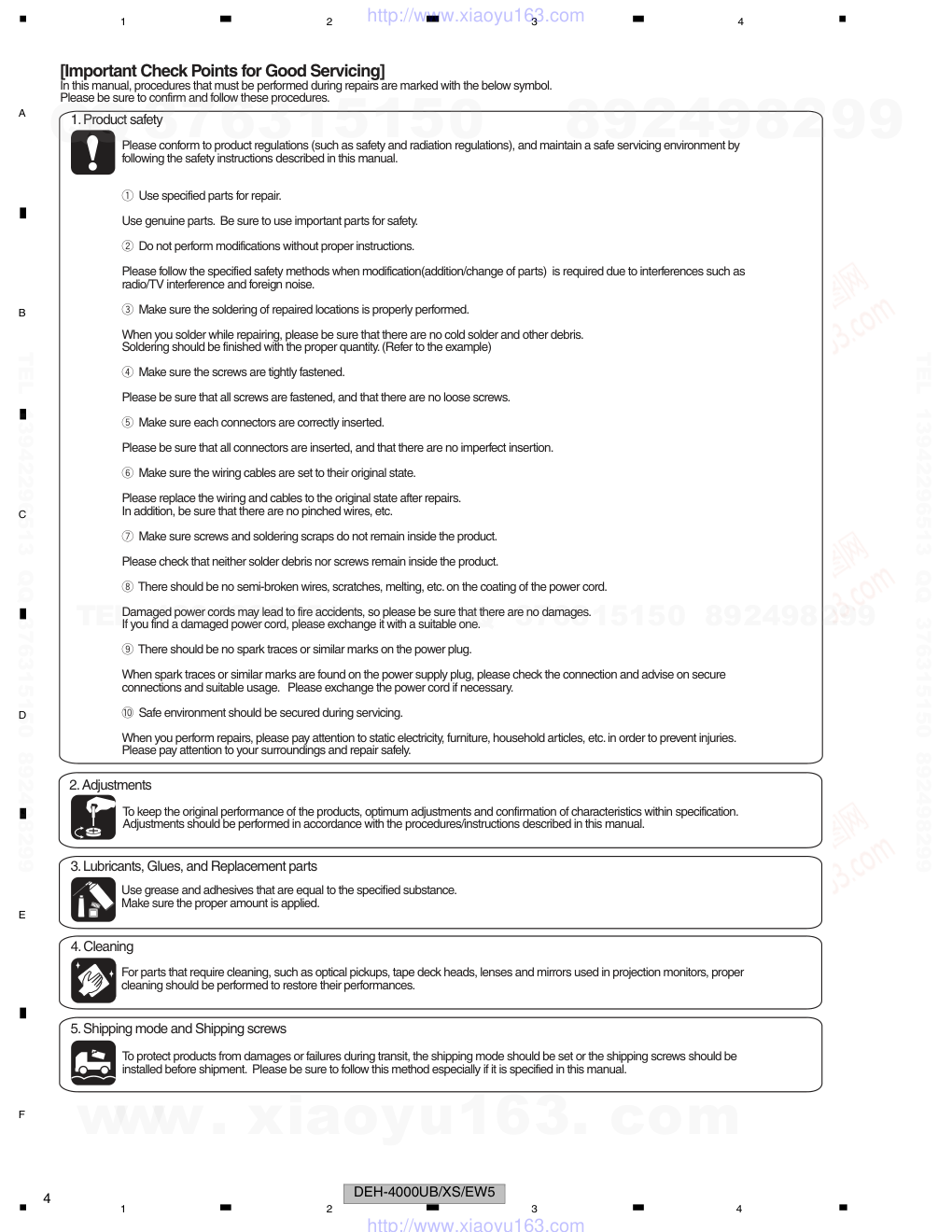

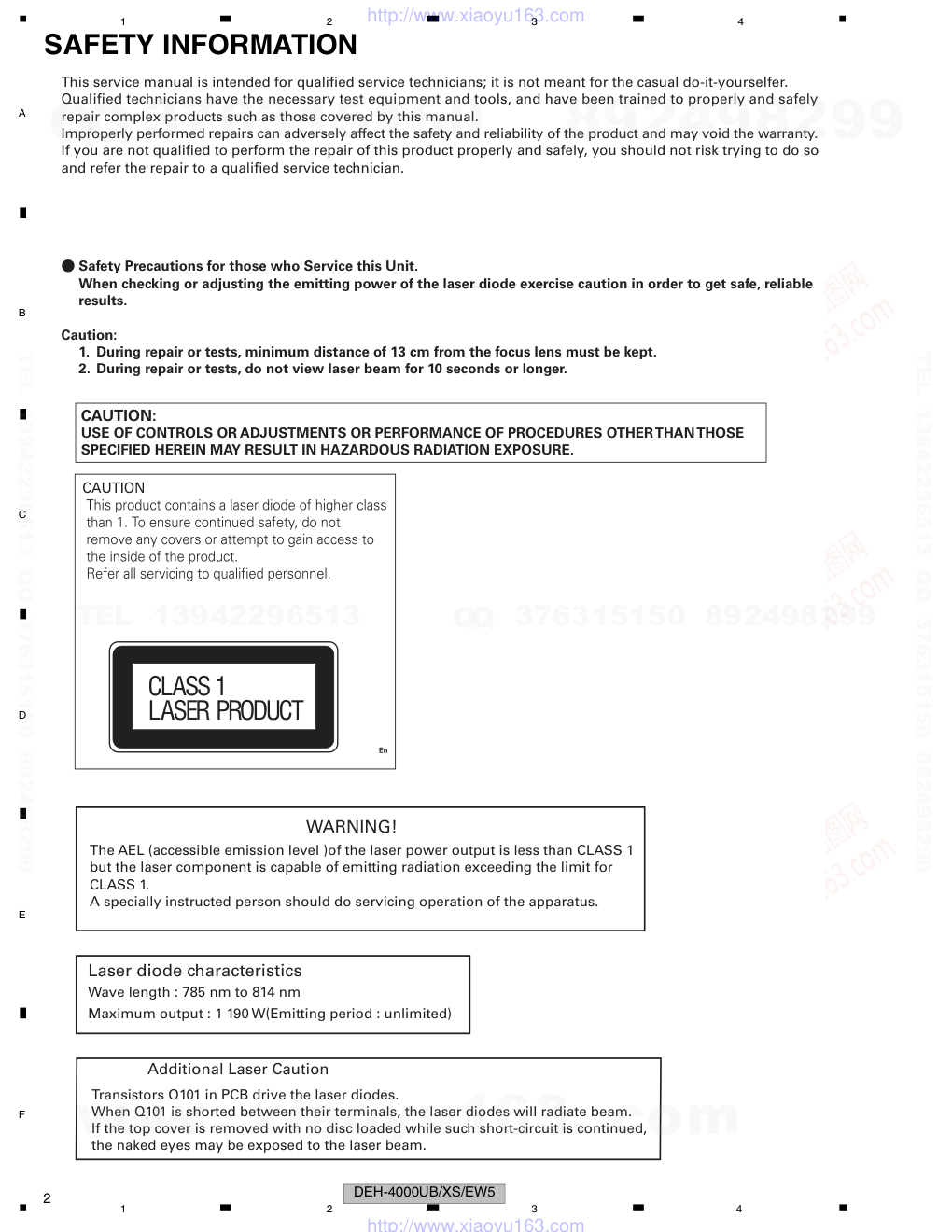

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2007 DEH-4000UB/XS/EW5 CRT4052 CD RDS RECEIVER DEH-4000UB/XS/EW5 CD RECEIVER DEH-3050UB/XS/ES DEH-3050UB/XU/CN5 This service manual should be used together with the following manual(s): Model No. Order No. Mech.Module Remarks CX-3240 CRT4050 S10.5COMP2-iPod/USB CD Mech. Module : Circuit Descriptions, Mech. Descriptions, Disassembly For details, refer to "Important Check Points for Good Servicing". K-ZZA. NOV. 2007 Printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. CLASS 1 LASER PRODUCT WARNING! The AEL (accessible emission level )of the laser power output is less than CLASS 1 but the laser component is capable of emitting radiation exceeding the limit for CLASS 1. A specially instructed person should do servicing operation of the apparatus. Laser diode characteristics Wave length : 785 nm to 814 nm Maximum output : 1 190 W(Emitting period : unlimited) Additional Laser Caution Transistors Q101 in PCB drive the laser diodes. When Q101 is shorted between their terminals, the laser diodes will radiate beam. If the top cover is removed with no disc loaded while such short-circuit is continued, the naked eyes may be exposed to the laser beam. - Safety Precautions for those who Service this Unit. When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results. Caution: 1. During repair or tests, minimum distance of 13 cm from the focus lens must be kept. 2. During repair or tests, do not view laser beam for 10 seconds or longer. This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 3 5 6 7 8 5 6 7 8 C D F A B E CAUTION Danger of explosion if battery is incorrectly replaced. Replaced only with the same or equivalent type recommended by the manufacture. Discord used batteries according to the manufacture's instructions. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 4 1 2 3 4 1 2 3 4 C D F A B E [Important Check Points for Good Servicing] In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. a Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 5 5 6 7 8 5 6 7 8 C D F A B E CONTENTS SAFETY INFORMATION .....................................................................................................................................2 1. SERVICE PRECAUTIONS................................................................................................................................6 1.1 SERVICE PRECAUTIONS.........................................................................................................................6 1.2 NOTES ON SOLDERING...........................................................................................................................6 2. SPECIFICATIONS.............................................................................................................................................7 2.1 SPECIFICATIONS......................................................................................................................................7 2.2 DISC/CONTENT FORMAT.........................................................................................................................9 2.3 PANEL FACILITIES ..................................................................................................................................10 2.4 CONNECTION DIAGRAM........................................................................................................................13 3. BASIC ITEMS FOR SERVICE ........................................................................................................................15 3.1 CHECK POINTS AFTER SERVICING .....................................................................................................15 3.2 PCB LOCATIONS.....................................................................................................................................15 3.3 JIGS LIST .................................................................................................................................................16 3.4 CLEANING ...............................................................................................................................................16 4. BLOCK DIAGRAM ..........................................................................................................................................18 4.1 BLOCK DIAGRAM....................................................................................................................................18 5. DIAGNOSIS ....................................................................................................................................................23 5.1 OPERATIONAL FLOWCHART.................................................................................................................23 5.2 ERROR CODE LIST.................................................................................................................................24 5.3 CONNECTOR FUNCTION DESCRIPTION .............................................................................................26 6. SERVICE MODE.............................................................................................................................................27 6.1 CD TEST MODE.......................................................................................................................................27 7. DISASSEMBLY...............................................................................................................................................30 8. EACH SETTING AND ADJUSTMENT............................................................................................................35 8.1 PCL OUTPUT CONFIRMATION ..............................................................................................................35 8.2 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT ....................................................36 9. EXPLODED VIEWS AND PARTS LIST ..........................................................................................................38 9.1 PACKING..................................................................................................................................................38 9.2 EXTERIOR(1)...........................................................................................................................................40 9.3 EXTERIOR(2)...........................................................................................................................................42 9.4 CD MECHANISM MODULE .....................................................................................................................44 10. SCHEMATIC DIAGRAM................................................................................................................................46 10.1 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)............................................................................46 10.2 KEYBOARD UNIT ..................................................................................................................................52 10.3 CD MECHANISM MODULE(GUIDE PAGE)...........................................................................................54 10.4 WAVEFORMS.........................................................................................................................................60 11. PCB CONNECTION DIAGRAM ....................................................................................................................64 11.1 TUNER AMP UNIT .................................................................................................................................64 11.2 KEYBOARD UNIT...................................................................................................................................68 11.3 CD CORE UNIT(S10.5COMP2-USB).....................................................................................................70 12. ELECTRICAL PARTS LIST...........................................................................................................................72 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 6 1 2 3 4 1 2 3 4 C D F A B E 1. SERVICE PRECAUTIONS 1.1 SERVICE PRECAUTIONS 1.2 NOTES ON SOLDERING - Service Precaution 1. You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. 2. Before disassembling the unit, be sure to turn off the power. Unplugging and plugging the connectors during power-on mode may damage the ICs inside the unit. 3. To protect the pickup unit from electrostatic discharge during servicing, take an appropriate treatment (shorting-solder) by referring to "the DISASSEMBLY". 4. After replacing the pickup unit, be sure to check the grating. 5. Be careful in handling ICs. Some ICs such as MOS type are so fragile that they can be damaged by electrostatic induction. 6. The sheet (Mechanism cover) can not be reused if you removed it. For environmental protection, lead-free solder is used on the printed circuit boards mounted in this unit. Be sure to use lead-free solder and a soldering iron that can meet specifications for use with lead-free solders for repairs accompanied by reworking of soldering. Compared with conventional eutectic solders, lead-free solders have higher melting points, by approximately 40 C. Therefore, for lead-free soldering, the tip temperature of a soldering iron must be set to around 373 C in general, although the temperature depends on the heat capacity of the PC board on which reworking is required and the weight of the tip of the soldering iron. Compared with eutectic solders, lead-free solders have higher bond strengths but slower wetting times and higher melting temperatures (hard to melt/easy to harden). The following lead-free solders are available as service parts: Parts numbers of lead-free solder: GYP1006 1.0 in dia. GYP1007 0.6 in dia. GYP1008 0.3 in dia. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 7 5 6 7 8 5 6 7 8 C D F A B E 2. SPECIFICATIONS 2.1 SPECIFICATIONS - EW5 Model Backup current .................................... 5 mA or less www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 8 1 2 3 4 1 2 3 4 C D F A B E - ES Model Backup current .................................... 5 mA or less www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 9 5 6 7 8 5 6 7 8 C D F A B E 2.2 DISC/CONTENT FORMAT - CN5 Model Backup current .................................... 5 mA or less www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 10 1 2 3 4 1 2 3 4 C D F A B E 2.3 PANEL FACILITIES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 11 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 12 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 13 5 6 7 8 5 6 7 8 C D F A B E 2.4 CONNECTION DIAGRAM - EW5 Model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 14 1 2 3 4 1 2 3 4 C D F A B E - ES, CN5 Model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 15 5 6 7 8 5 6 7 8 C D F A B E 3. BASIC ITEMS FOR SERVICE 3.1 CHECK POINTS AFTER SERVICING 3.2 PCB LOCATIONS To keep the product quality after servicing, please confirm following check points. No. Procedures Item to be confirmed 1 Confirm whether the customer complain has been solved. If the customer complain occurs with the specific media, use it for the operation check. The customer complain must not be reappeared. Display, audio and operations must be normal. 2 CD Play back a CD. (Track search) No malfunction on display, audio and operation. Display, audio and operations must be normal. 3 FM/AM tuner Check FM/AM tuner action. (Seek, Preset) Switch band to check both FM and AM. Display, audio and operations must be normal. 4 Check whether no disc is inside the product. The media used for the operating check must be ejected. 5 Appearance check No scratches or dirt on its appearance after receiving it for service. See the table below for the items to be checked regarding audio: Item to be checked regarding audio Distortion Noise Volume too low Volume too high Volume fluctuating Sound interrupted A B Keyboard Unit C Tuner Amp Unit CD Core Unit (S10.5COMP2-USB) Unit Number : YWM5203(EW5) Unit Number : YWM5205(ES) Unit Number : YWM5207(CN5) Unit Name : Tuner Amp Unit Unit Number : (EW5) Unit Number : (ES) Unit Name : Keyboard Unit Unit Number : (CN5) Unit Name : Keyboard Unit Unit Number : CWX3527 Unit Name : CD Core Unit (S10.5COMP2-USB) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 16 1 2 3 4 1 2 3 4 C D F A B E 3.3 JIGS LIST 3.4 CLEANING - Jigs List Name Test Disc L.P.F. Jig No. TCD-782 Remarks Checking the grating Checking the grating (Two pieces) Name Jig No. Remarks - Grease List Name Grease Grease Grease No. GEM1024 GEM1045 Remarks CD Mechanism Module CD Mechanism Module Name Grease No. Remarks Before shipping out the product, be sure to clean the following portions by using the prescribed cleaning tools: Portions to be cleaned Cleaning tools CD pickup lenses Cleaning liquid : GEM1004 Cleaning paper : GED-008 - Jigs List Name Test Disc L.P.F. Jig No. TCD-782 Remarks Checking the grating Checking the grating (Two pieces) Name Jig No. Remarks - Grease List Name Grease Grease Grease No. GEM1024 GEM1045 Remarks CD Mechanism Module CD Mechanism Module Name Grease No. Remarks Before shipping out the product, be sure to clean the following portions by using the prescribed cleaning tools: Portions to be cleaned Cleaning tools CD pickup lenses Cleaning liquid : GEM1004 Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 17 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 18 1 2 3 4 1 2 3 4 C D F A B E 4. BLOCK DIAGRAM 4.1 BLOCK DIAGRAM 40 MUTE 49 SYSTEM CONTROLLER IC 601(2/2) CN401 1 2,3 SWVDD TUNER AMP UNIT VST,VCK TUNL CDL 35 DPDT 36 KYDT 51 ILMPW A VDD ANTENNA VDD CN701 VDD VDD3.3V 19 DSENS CDL VD 7.5V REGULATOR VD VDCONT B.UP Q702 Q701 BRST,BRXEN,BSRQ,BDATA,BSCK 11 7 18 12 TUNPDO TUNPCK TUNPDI CDRST 19 25 AUXL 28 24 SYNC USBCTL FLG B.UP IC702 NJM2885DL1-33 ILM CD 3.3V REGULATOR 3 1 CDRST 23 22 VCC REAR AUX AUXL AUXGND 5 4 6 CN621 34 94 KEY1 KEY2 KEYD KEYAD 2 1 3 WIRED REMOTE 7 1 EN VIN F INV SW 3 4 DP DM CDVDD SYSPW 48 AUXGND B. UP Q841 Q842 USB5V REGUL IC501 BD9781HF LDET A B , C DEH-4000UB/XS/EW5 DEH-3050UB/XS/ES DEH-3050UB/XU/CN5 A : B : C : 4 3 82 ROT0 ROT1 JOYST E D CE1 CE2 SL PEG475A: PEG409A: A A VD FMRF ANT adj RF adj FM ANT T51 CF52 RFGND OSCGND DGND AUDIOGND NC VCC VDD_3.3 3.3V 2.5V IC4 3.3V 2.5V IC2 2.5V NC CE2 ROM_VDD SL DI CK CE1 LDET DO RDS_CK RDS_DATA RDS_LOCK RDS_HSLK 7 6 13 5 10 9 8 11 14 18 19 20 21 1 3 2 12 15 22 16 4 17 IC1 3.3V AM ANT FMRF ATT LPF OSC IC3 EEPROM 5.0V IC5 5V 3.3V ATT MIXER, IF AMP DET, FM MPX, RDS DECODER 23 Lch FM/AM TUNER UNIT → → PICKUP UNIT (P10.5)(SERVICE) CD CORE UNIT(S10.5COMP2-USB) C BRST,BRXEN,BSRQ CN701 Q101 M LASER DIODE MONITOR DIODE S903 DSCSNS SPINDLE MOTOR M CARRIAGE MOTOR LOAD/ LD- MD 15 5 HOLOGRAM UNIT IC301 BA5839FP IC201 PE5611B RF-AMP, CD DECODER, MP3/WMA DECODER, DIGITAL SERVO / DATA PROCESSOR CPU, USB HOST CONTROLLER CD DRIVER 2 VD VD 13 LOUT 9 CN101 16 SOP 15 SOM 18 LCOP 17 LCOM 21 CLCONT 55 LOUT 9 CONT TD,FD AC,BD,E,F SD,MD S901 HOME S904 12EJ S905 8EJ LD+ 14 141 LD 142 PD 12EJ CONT CLCONT HOME 8 9 20 41 VDD 1 VDD2 BDATA,BSCK VDD 15 5 FOCUS ACT. TRACKING ACT. FOP TOP 2 1 TOP FOP 11 FOP 14 TOP 2 1 14 8EJ 7 DSCSNS 10 16 /RESET 8 /RESET 8 8 VREF REFO 133 REFOUT 3 3 FOM FOM 12 FOM 4 4 TOM TOM 13 TOM 22 LOEJ LOEJ 28 52 50 X201 XTAL /XTAL 16.93MHz VDSENS 11 VD 16 17 DP DM 4 5 DM DP 2 1 X205 48MHz USBXTAL /USBXTAL VDD2 Q102 39 /PUEN VCC VDD2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 19 5 6 7 8 5 6 7 8 C D F A B E FL− FL+ RL− RL+ BACK UP GND RR + RR − FR + FR − FL + FL − RL + RL − ACC GND BACK UP B. REM ACC B.REM BSENS ASENS B.UP 75 18 10 Front_L 11 Rear_L 40 MUTE ILM+ SWVDD 23 21 3 5 FL- FL+ RL- RL+ ACC IN2_L 49 IN1_L 7 FLIN 14 RLIN 12 22 4 POWER AMP IC151 PML018A IC 301 PAL007C VDD Q931 ELECTRONIC VOLUME/ SOURCE SELECTOR WVDD STBY MUTE Q851 Q852 VST,VCK,VDT TUNL CDL DPDT 35 DPDT 36 KYDT KYDT MUTE Q451 RCFL Pre/SW_L 10 2 5 6 51 MPW MUTE Q453 TELIN 42 25 B.REM BSENS ASENS TEL MUTE Q951 CN901 B.UP CN351 SL TUNPCE2 TUNPCE1 TUNPDI TUNPDO 97 65 66 68 69 TUNPCK 67 CE2 CE1 TUNPDO TUNPDI TUNPCK DALMON 47 BUP 6,20 Q353 SWL FL VDD CN803 SL 14 19 SENS TEL B.UP VCC FL- FL2 FL+ FL1 RL- RL2 RL+ RL1 BREM 25 14 8 6 5 7 16 9 11 15 14 8 6 5 7 16 9 11 15 2 IN5+_L 6 AUXL 28 24 SYNC BCTL FLG B.UP ILM DSENS SWVDD 12 6 PEE 26 BZ601 BUZZER XIN XOUT 15 X601 15MHz 13 IC401 NJM2885DL1-33 1 3 VCC 3.3V REGULATOR VDD3.3V Q351 5 MUTE SWL 7 1 EN VIN FB INV SW 6 5 2 IC251 R5523N001B 1 EN 3 FLG 4 VIN 5 VOUT US5V IN5-_L 1 VCC B.UP VCC8.4V REGULATOR 1 2 IC921 NJM2388F84 4 YSPW 48 AUXGND B. UP Q841 Q842 USB5V REGULATOR IC501 BD9781HFP RCA OUT 11 13 Q402 Q401 RDS_CK RDS_LOCK 76 RCK 77 RDSDT 73 RDS57K 78 RDSLK RDS_DATA RDS_HSLK LDET LDET 74 8 9 3 4 3 82 ROT0 ROT1 OYST 12 D E DM DP B , C A 12 1 VDD RESET IC961 S-80835CNMC-B8U RESET 2 SYSTEM CONTROLLER IC 601(1/2) A B , C PEG475A: PEG409A: Q912 Q911 VDD REGULATOR JOYST ROT0 ROT1 23 Lch ROTARY COMMANDER ILM+ SWVDD LCD DRIVER/ KEY CONTROLLER IC1801 PD6538A 10 2 14 CN1801 5 DPDT KYDT IC1802 GP1UX51RK REMOTE CONTROL SENSOR OPT IN 3 1 57 REM 50 49 SI SO S1827 10 1 Phase_A Phase_B X0 X1 54 X1801 5MHz 55 6 46 47 V3 VDD 11 13 US5V 2 1 CN1802 DSENS JOYST KEY MATRIX S1810 S1805 S1806 RDM S1809 S Rtrv S1807 S1808 S1802 S1803 S1804 S1801 SOURSE EJECT LIST BAND/ESC REGION1 DISP/BACK REGION2 RPT KST1-4 KDT1-3 LCD LCD1801 ROT0 ROT1 8 9 3 (GREEN) (RED) A , B C ILLUMI 12 3 USDM USDP KEYBOARD UNIT B USB B , C A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 20 1 2 3 4 1 2 3 4 C D F A B E No. Symbol I/O Explain 1 AMANT I AM antenna input AM antenna input high impedance AMANT pin is connected with an all antenna by way of 4.7 µH. (LAU type inductor) A series circuit including an inductor and a resistor is connected with RF ground for the countermeasure against the hum of power transmission line. 2 RFGND RF ground Ground of antenna block 3 FMANT I FM antenna input Input of FM antenna 75 ohm Surge absorber(DSP-201M-S00B)is necessary. 4 VCC power supply The power supply for analog block. D.C 8.4 V ± 0.3 V 5 SL O signal level Output of FM/AM signals level 6 CE2 I chip enable-2 Chip enable for EEPROM ”Low” active 7 NC non connection Not used 8 CE1 I chip enable-1 Chip enable for AF•RF ”High” active 9 CK I clock Clock 10 DI I data in Data input 11 LDET O lock detector “Low” active 12 OSCGND osc ground Ground of oscillator block 13 ROM_VDD power supply Power supply for EEPROM pin 13 is connected with a power supply of micro computer. 14 DO O data out Data output 15 DGND digital ground Ground of digital block 16 NC non connection Not used 17 VDD_3.3 power supply The power supply for digital block. 3.3 V ± 0.2 V 18 RDS_CK O RDS clock Output of RDS clock(2.5 V) 19 RDS_DATA O RDS data Output of RDS data(2.5 V) 20 RDS_LOCK O RDS lock Output unit “High” active(2.5 V) (RDS_LOCK turns over by the external transistor . “Low” active) 21 RDS_HSLK O RDS high speed Output unit “High” active(2.5 V)(RDS_HSLK turns over by the lock external transistor. “Low” active) 22 AUDIOGND audio ground Ground of audio block 23 L ch O L channel output FM stereo “L-ch” signal output or AM audio output 24 R ch O R channel output FM stereo “R-ch” signal output or AM audio output FMRF ANT adj RF adj FM ANT T51 CF52 RFGND OSCGND DGND AUDIOGND NC VCC VDD_3.3 3.3V 2.5V IC 4 3.3V 2.5V IC 2 2.5V NC CE2 ROM_VDD SL DI CK CE1 LDET DO RDS_CK RDS_DATA RDS_LOCK RDS_HSLK 7 6 13 5 10 9 8 11 14 18 19 20 21 1 3 2 12 15 22 16 4 17 IC 1 3.3V AM ANT FMRF ATT LPF OSC IC 3 EEPROM 5.0V IC 5 5V t 3.3V ATT MIXER, IF AM P DET, FM MPX, RDS DECODER 24 23 Rch Lch - FM/AM Tuner Unit (EW5) t www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 21 5 6 7 8 5 6 7 8 C D F A B E No. Symbol I/O Explain 1 AMANT I AM antenna input AM antenna input high impedance AMANT pin is connected with an all antenna by way of 4.7 µH. (LAU type inductor) A series circuit including an inductor and a resistor is connected with RF ground for the countermeasure against the hum of power transmission line. 2 RFGND RF ground Ground of antenna block 3 FMANT I FM antenna input Input of FM antenna 75 ohm Surge absorber (DSP-201M-S00B) is necessary. 4 VCC power supply The power supply for analog block. D.C 8.4 V ± 0.3 V 5 SL O signal level Output of FM/AM signals level 6 CE2 I chip enable-2 Chip enable for EEPROM ”Low” active 7 NC non connection Not used 8 CE1 I chip enable-1 Chip enable for AF•RF ”High” active 9 CK I clock Clock 10 DI I data in Data input 11 NC non connection Not used 12 OSCGND osc ground Ground of oscillator block 13 ROM_VDD power supply Power supply for EEPROM pin 13 is connected with a power supply of micro computer. 14 DO O data out Data output 15 DGND digital ground Ground of digital block 16 NC non connection Not used 17 VDD_3.3 power supply The power supply for digital block. 3.3 V ± 0.2 V 18 NC non connection Not used 19 NC non connection Not used 20 NC non connection Not used 21 NC non connection Not used 22 AUDIOGND audio ground Ground of audio block 23 L ch O L channel output FM stereo “L-ch” signal output or AM audio output 24 R ch O R channel output FM stereo “R-ch” signal output or AM audio output FMRF ANT adj RF adj FM ANT T51 CF52 RFGND OSCGND DGND AUDIOGND NC VCC VDD_3.3 3.3 V 2.5 V IC 2 2.5 V NC CE2 ROM_VDD SL DI CK CE1 NC DO NC NC NC NC 7 6 13 5 10 9 8 11 14 18 19 20 21 1 3 2 12 15 22 16 4 17 IC 1 3.3 V AM ANT FMRF AT T LPF OSC IC 3 EEPROM 5.0 V IC 5 5 V 3.3 V AT T MIXER, IF AM P DET, FM MPX 24 23 Rch Lch - FM/AM Tuner Unit (ES, CN5) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 22 1 2 3 4 1 2 3 4 C D F A B E - LCD(YAW5091) SEGMENT COMMON www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 23 5 6 7 8 5 6 7 8 C D F A B E 5. DIAGNOSIS 5.1 OPERATIONAL FLOWCHART SWVDD Vcc = 5 V Pin 16 Power ON bsens = L DSENS = L bsens Pin 18 asens Pin 75 asens = L DSENS Pin 19 H Pin 49 Source keys operative Completes power-on operation.(After that, proceed to each source operation.) SYSPW H Pin 48 ASENBO H Pin 40 Starts communication with Grille microcomputer. Source ON 300 ms 300 ms In case of the above signal, the communication with Grille microcomputer may fail. If the time interval is not 300 msec, the oscillator may be defective. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 24 1 2 3 4 1 2 3 4 C D F A B E 5.2 ERROR CODE LIST - Error Messages If a CD is not operative or stopped during operation due to an error, the error mode is turned on and cause(s) of the error is indicated with a corresponding number. This arrangement is intended at reducing nonsense calls from the users and also for facilitating trouble analysis and repair work in servicing. (1) Basic Indication Method 1) When SERRORM is selected for the CSMOD (CD mode area for the system), error codes are written to DMIN (minutes display area) and DSEC (seconds display area). The same data is written to DMIN and DSEC. DTNO remains in blank as before. 2) Head unit display examples Depending on display capability of LCD used, display will vary as shown below. xx contains the error number. 8-digit display 6-digit display 4-digit display ERROR-xx ERR-xx E-xx (2) Error Code List Code Class Displayed error code Description of the code and potential cause(s) 10 Electricity Carriage Home NG CRG can't be moved to inner diameter. SERVO LSI Com- CRG can't be moved from inner diameter. munication Error -> Failure on home switch or CRG move mechanism. Communication error between microcomputer and SERVO LSI. 11 Electricity Focus Servo NG Focusing not available. -> Stains on rear side of disc or excessive vibrations on REWRITABLE. 12 Electricity Spindle Lock NG Spindle not locked. Sub-code is strange (not readable). Subcode NG -> Failure on spindle, stains or damages on disc, or excessive vibrations. A disc not containing CD-R data is found. Turned over disc are found, though rarely. CD signal error. 17 Electricity Setup NG AGC protection doesn't work. Focus can be easily lost. -> Damages or stains on disc, or excessive vibrations on REWRITABLE. 30 Electricity Search Time Out Failed to reach target address. -> CRG tracking error or damages on disc. 44 Electricity ALL Skip Skip setting for all track. (CD-R/RW) 50 Mechanism CD On Mech Error Mechanical error during CD ON. -> Defective loading motor, mechanical lock and mechanical sensor. A0 System Power Supply NG Power (VD) is ground faulted. -> Failure on SW transistor or power supply (failure on connector). Remarks: Mechanical errors are not displayed (because a CD is turned off in these errors). Unreadable TOC does not constitute an error. An intended operation continues in this case. Upper digits of an error code are subdivided as shown below: 1x: Setup relevant errors, 3x: Search relevant errors, Ax: Other errors. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 25 5 6 7 8 5 6 7 8 C D F A B E Message Cause Action USB error No songs in the USB device Transfer the songs to the USB device. USB memory with security enabled is connected Follow the USB memory instructions to disable the security. TRK SKIPPED The connected USB device contains WMA files that are protected by DRM Play an audio file not protected by DRM. PROTECT All the files in the USB device are protected by DRM Transfer the songs not protected by DRM to the USB device. N/A USB The connected USB device is not supported by this unit Connect a USB device that is compliant as a Mass Storage Class. The USB connector or the USB cable is short-circuited Confirm the USB connector or the USB cable. The connected USB device consumes more than 500 mA (max. allowable current) Confirm the USB device. Turn the ignition switch OFF and ON. Disconnect the USB device, and connect it again. Change to a different source. Then, return to the USB. ERROR-23 USB device is not formatted with FAT16 or FAT32 Format the USB device with FAT16 or FAT32. Communication failure ERROR-19 NO AUDIO CHK USB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 26 1 2 3 4 1 2 3 4 C D F A B E 5.3 CONNECTOR FUNCTION DESCRIPTION EW5 ES,CN5 POWER SUPPLY 1. FR+ 2. RR+ 3. FR- 4. RR- 5. FL+ 6. RL+ 7. FL- 8. RL- 1 3 5 7 9 11 13 15 2 4 6 8 10 12 14 16 9. TEL 10. NC 11. B.REM 12. NC 13. NC 14. ACC 15. GND 16. B.UP POWER SUPPLY 1. FR+ 2. RR+ 3. FR- 4. RR- 5. FL+ 6. RL+ 7. FL- 8. RL- 1 3 5 7 9 11 13 15 2 4 6 8 10 12 14 16 9. TEL 10. NC 11. B.REM 12. NC 13. NC 14. ACC 15. GND 16. B.UP ANTENNA ANTENNA WIRED REMOTE INPUT AUX AUX FRONT OUTPUT REAR OUTPUT OR SUBWOOFER OUTPUT REAR OUTPUT OR SUBWOOFER OUTPUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 27 5 6 7 8 5 6 7 8 C D F A B E 6. SERVICE MODE 6.1 CD TEST MODE 1) Cautions on adjustments In this product the single voltage (3.3 V) is used for the regulator. The reference voltage is the REFO1 (1.65 V) instead of the GND. If you should mistakenly short the REFO1 with the GND during adjustment, accurate voltage will not be obtained, and the servo’s misoperation will apply excessive shock to the pickup. To avoid such problems: a. Do not mix up the REFO1 with the GND when connecting the (-) probe of measuring instruments. Especially on an oscilloscope, avoid connecting the (-) probe for CH1 to the GND. b. In many cases, measuring instruments have the same potential as that for the (-) probe. Be sure to set the measuring instruments to the floating state. c. If you have mistakenly connected the REFO1 to the GND, turn off the regulator or the power immediately. Before mounting and removing filters or leads for adjustment, be sure to turn off the regulator. For stable circuit operation, keep the mechanism operating for about one minute or more after the regulator is turned on. In the test mode, any software protections will not work. Avoid applying any mechanical or electrical shock to the mechanism during adjustment. The RFI and RFO signals with a wide frequency range are easy to oscillate. When observing the signals, insert a resistor of 1k ohms in series. The load and eject operation is not guarantied with the mechanism upside down. If the mechanism is blocked due to mistaken eject operation, reset the product or turn off and on the ACC to restore it. 2) Test mode This mode is used to adjust the CD mechanism module. To enter the test mode. While pressing the SOURCE and RPT keys at the same time, reset. To exit from the test mode. Turn off the ACC and back up. Notes: a. During ejection, do not press any other keys than the EJECT key until the loaded disc is ejected. b. If you have pressed the (->) key or (<-) key during focus search, turn off the power immediately to protect the actuator from damage caused by the lens stuck. c. For the TR jump modes except 100TR, the track jump operation will continue even if the key is released. d. For the CRG move and 100TR jump modes, the tracking loop will be closed at the same time when the key is released. e. When the power is turned off and on, the jump mode is reset to the single TR (91), the RF amp gain is set to 0 dB, and the auto-adjustment values are reset to the default settings. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 28 1 2 3 4 1 2 3 4 C D F A B E • How to issue the 1 - 6 keys in the 08 model's slave test: The specification of the 08 model does not include the 1 - 6 keys issuance function for H/U and the remote control unit. Therefore, in order to issue commands in a slave test, use the direct FUNCTION keys alternatively to enable the equal key command sending function to the existing models. Outline) Use the direct FUNCTION keys to display, select, or issue the KEY 1 - 6. • For convenience, a name of each direct FUNCTION key is shown as "A", "B", and "C". • How to issue the 1 - 6 keys for the CDS source: (The areas below are overwritten and displayed on character strings for the normal mode display.) 1 During the slave test mode, the key name "K1" is shown at the left by default. In this condition, press the A key to toggle K1 - K6, and select a command to be sent to the slave. C O M P A C T D I S C K 1 ! T - ! ! ! ! ! ! • The one-line model shows only the bottom column. D N O C E S E T U N I M K R T R E D L O F C O M P A C T D I S C K 6 T 2 During the K1 - K6 key names are displayed, press the B key and issue the selected command. C O M P A C T D I S C Send a key command selected by K 1 T pressing the KEY 1. B key 3 Press the C key to change display/non-display of key names. When the non-display mode is selected for the K1 - K6 key names, "A key" and "B key" are invalid. C O M P A C T D I S C K 1 T C key C O M P A C T D I S C F - ! T • Pressing the A key or B key does not work. RDM/SHFL/FUNC2 Issuing a key command C Switching a screen B Direct FUNCTION key Normal mode Slave test mode A Selecting a key command LOCAL/RPT/FUNC3 ASR/SAT/FUNC1 ! - ! ! ! ! ! ! ! - ! ! ! ! ! ! ! - ! ! ! ! ! ! ! - ! ! ! ! ! ! A key www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 29 5 6 7 8 5 6 7 8 C D F A B E [Key] Contents Display [SOURCE] + [RPT] + Reset or [SOURCE] + [RPT] + BU + ACC Test Mode In [CD] or [SOURCE] Source On TRK MIN SEC [BAND] Power On (T.Offset is adjusted) TRK MIN SEC 00 00 00 [3] Power On (T.Offset is not adjusted) 99 99 99 [2] RF AMP Gain switching GG GG GG *1 [4] SPINDLE Speed switching SP SP SP *9 [3] Focus Close S curve check TRK MIN SEC 91 91 91 [6] Focus Mode switching 0X 0X 0X *2 [1] Tracking Servo Close 00 00 00 or 99 99 99 [>] CRG + [2] Self-adjusting switching TRK MIN SEC ?? ?? ?? *3 *8 [<] CRG - *8 [BAND] Power Off TRK MIN SEC [BAND] Power Off TRK MIN SEC [BAND] Power Off TRK MIN SEC [BAND] Power Off TRK MIN SEC [1] T.Close & AGC Applicable servomechanism TRK MIN SEC ?tr ?min ?sec [6] [3] RF AGC / RF AGC coefficient display [>] CRG + 8X 8X 8X or 9X 9X 9X [2] T.Balance adjustment / T.BAL coefficient display TRK MIN SEC ?? ?? ?? [<] CRG - T.Close Applicable servomechanism ?? ?? ?? [1] F,T,RF AGC F.Bias display switching TRK MIN SEC TRK MIN SEC TRK MIN SEC TRK MIN SEC ?tr ?min ?sec TRK MIN SEC [3] [6] CRG/TR jump value switching [>] CRG/TR Jump + [2] Tracking Open [<] CRG/TR Jump - ?tr ?min ?sec TRK MIN SEC TRK MIN SEC TRK MIN SEC ?tr ?min ?sec 00 00 00 or 99 99 99 TRK MIN SEC TRK MIN SEC ?tr ?min ?sec 8X 8X 8X or 9X 9X 9X 8X 8X 8X or 9X 9X 9X 00 00 00 or 99 99 99 TRK MIN SEC ?tr ?min ?sec ?? ?? ?? *7 F,T AGC / F.Bias RF AGC 8X 8X 8X or 9X 9X 9X [2] Tracking Open *6 *5 *4 *4 Operation [Key] Test Mode [BAND] Power On/Off [>] CRG + / TR Jump + (Direction of the external surface) [<] CRG - / TR Jump - (Direction of the internal surface) [1] T. CLS & AGC & Applicable servomechanism / AGC,AGC display setting [2] RF Gain switching / Offset adjustment display / T.Balance adjustment / T. Open [3] F. Close,S Curve / Rough Servo and RF AGC / F,T,RF AGC [4] SPDL 1X/2X switching As for the double speed(2x), audio output cannot be supported. [5] Error Rate measurement ON : ERR 30 Counts Start BER display data[%] [6] F. Mode switching / Tracking Close / CRG•TR Jump Switching • As for the double speed (2x), audio output cannot be supported • After the [Eject] key is pressed keys other than the [Eject] key should not be pressed, until disc ejection is complete. • When the key [2] or [3] is pressed during the Focus Search, the power supply should be immediately turned off (otherwise the lens sticks to Wall, causing the actuator to be damaged). • In the case of TR jump other than to 100TR, the function shall continue to be processed even if the TR jump key is released. As for the CRG Move and 100TR Jump, the mechanism shall be set to the Tracking Close mode when the key is released. • When the power is turned on/off the jump mode is reset to the Single TR (91) while the gain of the RFAMP is reset to 0 dB. At the same time all the self-adjusting values shall return to the default setting. *10 TRK MIN SEC [5] Gop Mode Gop Mode switching OL OL OL - Flow Chart *1) TYP -> + 6 dB -> + 12 dB TRK MIN SEC TRK06MIN06SEC06 TRK12MIN12SEC12 *2) Focus Close -> S.Curve -> F EQ measurement setting TRK00MIN00SEC00 TRK01MIN01SEC01 TRK02MIN02SEC02 (TRK99MIN99SEC99) *3) F.Offset Display -> RF.Offset -> T.Offset Display -> Switch to the order of the original display *4) 1TR/4TR/10TR/32TR/100TR *5) Single -> 4TR -> 10TR -> 32TR -> 100TR -> CRG Move 9x(8x):91(81) 92(82) 93(83) 94(84) 95(85) 96(86) *6) Only at the time of CRG move, 100TR jump *7) TRK/MIN/SEC -> F.AGC -> T.AGC Gain -> F Bias -> RF AGC *8) CRG motor voltage = 2 [V] *9) TYP (1X) -> 2X -> 1X TRK MIN SEC TRK22MIN22SEC22 TRK11MIN11SEC11 *10) OFF(TYP) -> FORCUS -> TRACKING TRK MIN SEC TRK70MIN70SEC70 TRK71MIN71SEC71 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 30 1 2 3 4 1 2 3 4 C D F A B E 7. DISASSEMBLY Fig.1 Fig.2 - Removing the Keyboard Unit (Fig.1) - Removing the Holder (Fig.2) 1 Remove the four screws. Remove the Cover and then remove the Keyboard Unit. Take off the pick of left and right and then a holder slide to the arrow course. Cover Fig.3 - Removing the Case and Panel (Fig.3,4) Remove the Case.(Fig.3) Case Fig.4 Holder Pick Panel Take off four picks of the part of the arrow and then remove the Panel.(Fig.4) 1 1 1 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 31 5 6 7 8 5 6 7 8 C D F A B E Fig.7 - Removing the Panel Assy (Fig.5,6) Fig.5 Push the place of the arrows and then remove the Panel Assy. Fig.6 Panel Assy - Removing the CD Mechanism Module (Fig.7) Disconnect the cable and then remove the CD Mechanism Module. Remove the four screws. CD Mechanism Module 1 1 1 1 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 32 1 2 3 4 1 2 3 4 C D F A B E - Removing the Tuner Amp Unit (Fig.8,9) Fig.8 Fig.9 Remove the three screws.(Fig.8) 2 3 Straighten the tabs at four locations indicated.(Fig.9) Remove the screw and then remove the Tuner Amp Unit.(Fig.9) Tuner Amp Unit 1 1 1 2 2 2 2 3 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 33 5 6 7 8 5 6 7 8 C D F A B E A A B B B B B a B Upper Frame Lower Frame Damper Carriage Mechanism Damper Do not squeeze this area. - How to hold the Mechanism Unit - Removing the Upper and Lower Frames 1. With a disc inserted and clamped in the mechanism, remove the two Springs (A), the six Springs (B), and the four Screws. 2. Turn the Upper Frame using the part "a" as a pivot, and remove the Upper Frame. 3. While lifting the Carriage Mechanism, remove it from the three Dampers. Caution: When assembling, be sure to apply some alcohol to the Dampers and assemble the mechanism in a clamped state. 1. Hold the Upper and Lower Frames. 2. Do not hold the front portion of the Upper Frame, because it is not very solid. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 34 1 2 3 4 1 2 3 4 C D F A B E Screw Shorting Solder CD Core Unit Solder - How to remove the CD Core Unit 1. Apply Shorting Solder to the flexible cable of the Pickup, and disconnect it from the connector. 2. Unsolder the four leads, and loosen the Screw. 3. Remove the CD Core Unit. Caution: When assembling the CD Core Unit, assemble it with the SW in a clamped state so as not to damage it. Chassis Pickup Rack Pickup Poly Washer Change Arm Pickup Lock Arm Feed Screw Inner Holder Planet Gear - How to remove the Pickup Unit 1. Make the system in the carriage mechanism mode, and have it clamped. 2. Remove the CD Core Unit and remove the leads from the Inner Holder. 3. Remove the Poly Washer, Change Arm, and Pickup Lock Arm. 4. While releasing from the hook of the Inner Holder, lift the end of the Feed Screw. Caution: When assembling, move the Planet Gear to the load/eject position before setting the Feed Screw in the Inner Holder. Assemble the sub unit side of the Pickup, taking the plate (Chassis) in-between. When treating the leads of the Load Carriage Motor Assy, do not make them loose over the Feed Screw. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 35 5 6 7 8 5 6 7 8 C D F A B E 8. EACH SETTING AND ADJUSTMENT 8.1 PCL OUTPUT CONFIRMATION - PCL Output In the normal operation mode (with the detachable panel installed, the ACC switched ON, the standby mode cancelled), shift the TESTIN IC601(Pin 63) terminal to H. The clock signal is output from the PCL terminal IC601(Pin 39). The frequency of the clock signal is 468 750 Hz that is one 32th of the fundamental frequency. The clock signal should be 468 750 Hz (-10 Hz, +15 Hz) If the clock signal out of the range, the X’tal (X601) should be replaced with new one. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 36 1 2 3 4 1 2 3 4 C D F A B E 8.2 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT CD CORE UNIT Note : The grating angle of the PU unit cannot be adjusted after the PU unit is changed. The PU unit in the CD mechanism module is adjusted on the production line to match the CD mechanism module and is thus the best adjusted PU unit for the CD mechanism module. Changing the PU unit is thus best considered as a last resort. However, if the PU unit must be changed, the grating should be checked using the procedure below. Purpose : To check that the grating is within an acceptable range when the PU unit is changed. Symptoms of Mal-adjustment : If the grating is off by a large amount symptoms such as being unable to close tracking, being unable to perform track search operations, or taking a long time for track searching. Method : Measuring Equipment Measuring Points Oscilloscope, Two L.P.F. E, F, REFO1 Disc TCD-782 Mode TEST MODE Checking Procedure 1. In test mode, load the disc and switch the 3 V regulator on. 2. Using the -> and <- buttons, move the PU unit to the innermost track. 3. Press key 3 to close focus, the display should read "91". Press key 2 to implement the tracking balance adjustment the display should now read "81". Press key 3. The display will change, returning to "81" on the fourth press. 4. As shown in the diagram above, monitor the LPF outputs using the oscilloscope and check that the phase difference is within 75 degrees. Refer to the photographs supplied to determine the phase angle. 5. If the phase difference is determined to be greater than 75 degrees try changing the PU unit to see if there is any improvement. If, after trying this a number of times, the grating angle does not become less than 75 degrees then the mechanism should be judged to be at fault. Note Because of eccentricity in the disc and a slight misalignment of the clamping center the grating waveform may be seen to "wobble" ( the phase difference changes as the disc rotates). The angle specified above indicates the average angle. Hint Reloading the disc changes the clamp position and may decrease the "wobble". 100 kohm 390 pF 100 kohm 390 pF E VREF F VREF Xch Ych L.P.F. L.P.F. Oscilloscope F E REFO1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 37 5 6 7 8 5 6 7 8 C D F A B E Grating waveform 45 degrees 0 degrees 75 degrees 60 degrees 30 degrees 90 degrees Ech -> Xch 20 mV/div, AC Fch -> Ych 20 mV/div, AC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 38 1 2 3 4 1 2 3 4 C D F A B E 9. EXPLODED VIEWS AND PARTS LIST 9.1 PACKING NOTES : Parts marked by " * " are generally unavailable because they are not in our Master Spare Parts List. The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screw adjacent to mark on the product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions,apply as you think it appropriate.) " www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 39 5 6 7 8 5 6 7 8 C D F A B E (1) PACKING SECTION PARTS LIST (2) CONTRAST TABLE DEH-4000UB/XS/EW5, DEH-3050UB/XS/ES and DEH-3050UB/XU/CN5 are constructed the same except for the following: Owner's Manual,Installation Manual Mark No. Description Part No. 1 Cord Assy See Contrast table(2) 2 Polyethylene Bag See Contrast table(2) * 3 Attachment Assy See Contrast table(2) 4 Screw See Contrast table(2) 5 Screw Assy CEA3849 6 Screw CBA1650 * 7 Polyethylene Bag CEG-127 8 Screw CRZ50P090FTC 9 Screw TRZ50P080FTC 10 Polyethylene Bag CEG1160 11 Handle CND3707 12 Bush CNV3930 13 Unit Box See Contrast table(2) 14 Contain Box See Contrast table(2) 15 Protector YHP5039 16 Protector YHP5040 17 Case Assy YXB5009 18-1 Owner's Manual See Contrast table(2) 18-2 Owner's Manual See Contrast table(2) 18-3 Owner's Manual See Contrast table(2) 18-4 Owner's Manual See Contrast table(2) 18-5 Installation Manual See Contrast table(2) * 18-6 Warranty Card See Contrast table(2) 18-7 Caution Card See Contrast table(2) 19 Grip YNV5150 20 Cord Assy See Contrast table(2) 21 Remote Control Assy See Contrast table(2) * 22 Battery See Contrast table(2) 23 Cord Assy See Contrast table(2) Mark No. Description Part No. Mark No. Description DEH-4000UB/XS/EW5 DEH-3050UB/XS/ES DEH-3050UB/XU/CN5 1 Cord Assy CDP1015 Not used Not used 2 Polyethylene Bag CEG-162 CEG1373 CEG1373 * 3 Attachment Assy YEA5036 YEA5037 YEA5037 4 Screw BPZ20P060FTC Not used Not used 13 Unit Box YHG5400 YHG5402 YHG5406 14 Contain Box YHL5400 YHL5402 YHL5410 18-1 Owner's Manual YRB5071 YRD5184 YRB5072 18-2 Owner's Manual YRD5180 YRD5185 Not used 18-3 Owner's Manual YRD5181 Not used Not used 18-4 Owner's Manual YRD5182 Not used Not used 18-5 Installation Manual YRD5189 YRD5190 Not used * 18-6 Warrnty Card CRY1265 Not used ARY7046 18-7 Caution Card Not used CRP1310 CRP1310 20 Cord Assy Not used Not used YDP5011 21 Remote Control Assy Not used CXC8885 CXC8885 * 22 Battery Not used CEX1065 CEX1065 23 Cord Assy Not used CDP1017 CDP1017 Part No. Language YRD5180 English, Spanish YRD5181 German, French YRD5182 Italian, Dutch YRB5071 Russian YRD5189 English, Spanish, German, French, Italian, Dutch, Russian YRD5184 English, Spanish, Portuguese(B) YRD5185 Traditional Chinese, Arabic YRD5190 English, Spanish, Portuguese(B), Traditional Chinese, Arabic YRB5072 Simplified Chinese www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 40 1 2 3 4 1 2 3 4 C D F A B E 9.2 EXTERIOR(1) A A A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 41 5 6 7 8 5 6 7 8 C D F A B E (1) EXTERIOR(1) SECTION PARTS LIST (2) CONTRAST TABLE DEH-4000UB/XS/EW5, DEH-3050UB/XS/ES and DEH-3050UB/XU/CN5 are constructed the same except for the following: Sheet, #4 has to be replaced if it is removed. Mark No. Description Part No. 1 Screw BSZ26P060FTC 2 Screw BSZ30P060FTC 3 Screw BSZ30P200FTC 4 Sheet See Contrast table(2) 5 Earth Plate CNC8915 6 Cushion CNM8890 7 CD Mechanism Module(S10.5) CXK5771 8 Cable YDE5030 9 Insulator YNM5062 10 Chassis Unit See Contrast table(2) 11 Button(DETACH) CAC4836 12 Spring CBH2367 13 Spring CBH2961 14 Spring CBH2962 15 Cover CNN1665 16 Arm CNV9311 17 Arm CNV9312 18 Panel YNS5305 19 Tuner Amp Unit See Contrast table(2) 20 Screw BPZ26P080FTC 21 Screw BSZ26P060FTC 22 Screw BSZ26P200FTC 23 ••••• 24 Pin Jack(CN351) See Contrast table(2) 25 Plug(CN901) CKM1376 26 Connector(CN701) CKS3833 27 Connector(CN803) CKS5664 28 Antenna Jack(CN401) CKX1056 29 FM/AM Tuner Unit(Y401) See Contrast table(2) 30 Holder CND4324 31 ••••• 32 Holder XNC7030 > 33 Fuse(10 A) YEK5001 34 Jack(CN621) See Contrast table(2) 35 Holder See Contrast table(2) 36 Heat Sink YNR5031 37 IC(IC301) PAL007C 38 IC(IC921) NJM2388F84 39 Transistor(Q702, Q911) 2SD2396 Mark No. Description Part No. Mark No. Description DEH-4000UB/XS/EW5 DEH-3050UB/XS/ES DEH-3050UB/XU/CN5 NOTE 4 Sheet Not used Not used CNM9404 10 Chassis Unit YXA5359 YXA5196 YXA5196 19 Tuner Amp Unit YWM5203 YWM5205 YWM5207 24 Pin Jack(CN351) CKB1057 CKB1051 CKB1051 29 FM/AM Tuner Unit (Y401) CWE2097 CWE2098 CWE2098 34 Jack (CN621) YKS5001 YKS5017 YKS5017 35 Holder YNC5054 YNC5055 YNC5055 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 42 1 2 3 4 1 2 3 4 C D F A B E 9.3 EXTERIOR(2) B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 43 5 6 7 8 5 6 7 8 C D F A B E (1) EXTERIOR(2) SECTION PARTS LIST (2) CONTRAST TABLE DEH-4000UB/XS/EW5, DEH-3050UB/XS/ES and DEH-3050UB/XU/CN5 are constructed the same except for the following: Mark No. Description Part No. 1 Holder CND3598 2 Remote Control Assy See Contrast table(2) 3 Cover See Contrast table(2) 4 Cord Assy See Contrast table(2) 5 Case YNB5014 6 Panel YNS5307 7 Detachable Assy See Contrast table(2) 8 Screw BPZ20P100FTB 9 Spring CBH2210 10 Button(TA/NEWS) YAC5256 11 Button(EJECT) YAC5258 12 Button(DETACH) YAC5259 * 13 Plate YNS5295 14 Cover YNS5304 15 Lighting Conductor YNV5137 16 Connector(CN1801) CKS5663 17 LCD (LCD1801) YAW5091 18 Connector(CN1802) YKS5027 19 Holder YND5015 20 Sheet YNM5105 21 Lighting Conductor YNV5136 22 Connector YNV5140 23 Grille Unit See Contrast table(2) 24 Knob Unit(MULTI-CONTROL) See Contrast table(2) 25 Spring YBL5013 26 Button Unit (SRC/OFF, DISP/ See Contrast table(2) BACK/SCRL, BAND/ESC, MUTE) 27 Cushion See Contrast table(2) 28 IC(IC1802) See Contrast table(2) 29 Cord Assy See Contrast table(2) 30 Pin See Contrast table(2) Mark No. Description Part No. Mark No. Description DEH-4000UB/XS/EW5 DEH-3050UB/XS/ES DEH-3050UB/XU/CN5 2 Remote Control Assy Not used CXC8885 CXC8885 3 Cover Not used CNS7068 CNS7068 4 Cord Assy Not used CDP1017 CDP1017 7 Detachable Assy YXA5353 YXA5354 YXA5355 23 Grille Unit YXA5345 YXA5346 YXA5346 24 Knob Unit (MULTI-CONTROL) YXA5350 YXA5351 YXA5351 26 Button Unit (SRC/OFF, DISP/BACK/ SCRL, BAND/ESC, MUTE) YXA5364 YXA5365 YXA5365 27 Cushion Not used YNM5029 YNM5029 28 IC(IC1802) Not used GP1UX51RK GP1UX51RK 29 Cord Assy CDP1015 Not used Not used 30 Pin CKX-003 Not used Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 44 1 2 3 4 1 2 3 4 C D F A B E 9.4 CD MECHANISM MODULE B C A B C D E 5 19 A 19 5 5 5 19 19 27 48 29 13 13 66 44 44 72 8 15 60 46 33 62 38 39 40 28 4 47 17 37 14 12 35 6 45 52 53 65 64 18 32 41 5 61 49 8 51 55 51 56 59 43 10 20 57 16 25 58 31 23 69 71 70 70 63 73 21 7 19 24 19 24 67 4 36 68 50 (1) (1) (1) (1) (1) (1) (1) E 30 34 22 42 11 26 (1) (1) (1) (1) (1) (1) (1) (1) (1) (1) (1) (2) (2) (2) (1) (1) (2) (1) (2) (1) (1): GEM1024 : GEM1045 (2) (2) 1 2 3 74 D C 54 9 9 (1) (2) (2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 45 5 6 7 8 5 6 7 8 C D F A B E CD MECHANISM MODULE SECTION PARTS LIST Mark No. Description Part No. 1 CD Core Unit(S10.5COMP2-USB) CWX3527 2 Connector(CN101) CKS4911 3 Connector(CN701) CKS4915 4 Screw BMZ20P025FTC 5 Screw BSZ20P040FTC 6 Screw(M2 x 3) CBA1511 7 Screw(M2 x 4) CBA1835 8 Washer CBF1038 9 Roller CNV9499 10 Spring CBH2609 11 Spring CBH2612 12 Spring CBH2614 13 Spring CBH2616 14 Spring CBH2617 15 Spring CBH2620 16 Spring CBH2855 17 Spring CBH2937 18 Spring CBH2735 19 Spring CBH2854 20 Spring CBH2642 21 Spring CBH2856 22 Spring CBH2857 23 Spring CBH2860 24 Spring CBH2861 25 Spring CBL1686 26 Arm CND1909 27 Frame CND2582 28 Bracket CND2583 29 Arm CND3831 30 Lever CND2585 31 Arm CND2586 32 Bracket CND2587 33 Arm CND2588 34 Lever CND2589 35 Holder CNV9522 36 Gear CNV7207 37 Gear CNV9513 38 Gear CNV7209 39 Gear CNV9514 40 Gear CNV9515 41 Gear CNV9516 42 Rack CNV9517 43 Arm CNV7216 44 Roller CNV8189 45 Gear CNV9518 46 Guide CNV9519 47 Gear CNV7595 48 Guide CNV9520 49 Arm CNV7805 50 Rack CNV8342 51 Roller CNV8343 52 Holder CNV8344 53 Arm CNV8345 54 Guide CNV9498 55 Arm CNV8348 56 Arm CNV8349 57 Arm CNV8350 58 Clamper CNV8365 59 Arm CNV8386 60 Guide CNV8396 61 Arm CNV9521 62 Collar CNV8447 63 Motor Unit(M2) CXC4026 64 Arm Unit CXC4027 65 Chassis Unit CXC4028 66 Gear Unit CXC4029 67 Frame Unit CXC4031 68 Motor Unit(M1) CXC7134 69 Screw Unit CXC6359 70 Screw JFZ20P025FTC 71 Screw JGZ17P022FTC 72 Washer YE20FTC 73 Pickup Unit(P10.5)(Service) CXX1942 74 Screw IMS26P030FTC Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 46 1 2 3 4 1 2 3 4 C D F A B E 10. SCHEMATIC DIAGRAM 10.1 OVERALL CONNECTION DIAGRAM(GUIDE PAGE) A-a A A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or "ELECTRICAL PARTS LIST". RDS-HSLK RDS-CK RDS-LOCK RDS-DATA TUNPDO TUNPCK CE1 TUNPDI LDET CE2 VDCONT /BSRQ /BRST BSCK BRXEN BDATA CDRST TUNR TUNL AUXR AUXL ROT1 ROT0 TX VDCONT KYDT ASENBO SYSPW DALMON RX RX RST CE1 CE2 VST VCK BDATA BDATA DPDT SL /BSENS FLG CDRST BSCK MUTE TELIN /BRST BRXEN /BSRQ SWVDD OELPW ILMPW IPPW VDT TUNPCK TUNPDO TUNPDI /ASENS RDS-LOCK RDS-DATA LDET USBCTL SYNC RDS-HSLK KEY1 ANTPW ILMPW RDS-CK ISENS FLG USDP USDM KEY2 KEY1 /DSENS AUXR AUXL USBCTL SYNC AUXGND AUXGND GND ILM2 TUNR TUNL Y401 1 AM_ANT 2 RF_GND 3 FM_ANT 4 VCC 5 SL 6 CE2 7 WC 8 CE1 9 CK 10 DI 11 LDET 12 OSCGND 13 ROM_VDD 14 DO 15 DGND 16 COMP 17 VDD_3.3 18 RDS_CK 19 RDS_DATA 20 RDS_LOCK 21 RDS_HSLK 22 BEGND 23 Lch 24 Rch UMH1N Q401 E1 1 B1 2 C2 3 E2 4 5 B2 6 C1 UMH1N Q402 E1 1 B1 2 C2 3 E2 4 5 B2 6 C1 R408 22K R409 22K R410 22K R411 22K R413 220 R415 220 R402 680 R403 680 R404 680 R405 680 R406 680 R421 0R0 R407 C402 R01 C403 R01 C406 R1 C411 47P C407 R01 C410 R47 C404 4R7 L401 L403 L402 CN401 1 2 3 ZNR401 IMSA-6801-01Y901 22/10 C408 100/10 C405 VCC VCC GND GND VDD GND GND GND GND R842 4R7K 2SA1036K Q841 RT1N141M-11 Q842 GND R841 10K R816 1 B.UP C704 1 C705 1 GND R708 220 R710 220 R712 220 R713 220 GND NJM2885DL1-33 IC702 1 IN 2 GND 3 OUT C709 1 22/10 C708 C710 R47 GND GND Q702 2SD2396 100/10 C703 C701 R047 D701 HZS7L(C3) GND Q701 RT3T22M 2E 1 2B 2 1C 3 1E 4 5 1B 6 2C R701 270 R703 4R7K R704 100K R705 4R7K R706 100K R714 100K R707 100K GND C154 1 C156 1 C159 1 CPV1062 BZ601 1 1 2 2 GND R618 1K R616 47K R602 10K C601 18P C602 18P R967 1K GND C604 1 10/16 C605 R604 680 R607 680 C609 47P R603 10K VDD GND GND GND GND R808 100K R804 2R2K R815 1K R813 100K R VDD R811 47K R849 10K NJM2885DL1-33 IC401 1 IN 2 GND 3 OUT CN803 1 2 3 4 5 6 7 8 9 10 11 12 13 14 CN701 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 GND C252 R1 VDD C251 R1 R257 10K IC251 R5523N001B EN 1 GND 2 FLG 3 VIN 4 5 VOUT GND GND GND GND C504 1 R506 68K R503 33K R511 470 R502 33K R505 8R2K D501 RB060L-40 C505 100P GND B.UP R610 47K GND R605 680 R619 0R0 R617 47K R510 82K IC151 IN5-_L 1 IN5+_L 2 IN4+_L 3 IN4-_L 4 5 IN3_L 6 IN2_L 23 IN1 R 24 IN2_R 25 IN3_R 26 IN4-_R 27 IN4+_R 28 IN5+_R 47/6R3 C401 R711 220 C506 3300P C503 220P C507 R1 RCH LCH BEG RHSLK RLK RDAT RCK T3V TUNG DO T5V OSCG LDET DI CK CE1 CE2 SL T8V FM RFG AM FLG USBCTL SYNC RT SW B F V 5 B S U INV VD BSRQ BRST BSCK BRXEN BDATA CDRST CDVDD UG CDR AG CDL PG DP DM USGND3 R626 22K AUXL CN621 2 4 1 3 5 6 R627 1K AUXGND R628 100K WREM1 R621 1K R629 100K R622 1K WREM2 C621 4700P C622 4700P GND WREMG AUXR R625 22K RST PCL TEST SW5V TP1 TP2 DPDT KYDT IMG TP3 TP4 ILMB TP5 TP6 TP7 DSEN DG US5V GND R836 0R0 GND B.UP C155 R22 C153 R22 D621 EZJZ1V270RM D622 EZJZ1V270RM D623 EZJZ1V270RM R414 4R7(1/4W) X601 YSS5002 R631 100 R632 100 R814 1K R709 1K D502 S5688G C623 R1 BD9781HFP IC501 1 VIN 2 SW 3 RT 4 GND 5 FB 6 INV 7 EN R401 680 D809 EZJZ1V270RM D810 EZJZ1V270RM D801 EZJZ1V270RM D802 EZJZ1V270RM D803 EZJZ1V270RM D804 EZJZ1V270RM D805 EZJZ1V270RM D806 EZJZ1V270RM R805 2R2K R806 2R2K R807 2R2K VDD VCC1 R633 0R0 C253 R01 R254 680 R507 2R2K GND R512 0R0 GND C720 1 C412 1 GNDGND R620 0R0 150/6R3 C501 L601 C508 1 R513 2R2K L501 220/16 C502 IC601 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 (1/4W) VD VD BSRQ BRST BSCK BRXEN BDATA CDRST CDVDD CDGND CDR AGND CDL CDGND PGND DP DM USBGND USBGND RDS USB5V BUZZER 15MHz FOR WIRED REM. EXCEPT WIRED REM. WIRED REM. WIRED REM. DSENS US5V ROT0 JOYST ILM+ SWVDD DGND ILMGND DPDT DP KYDT ROT1 DM USBGND ILM JUMPER USB EW5:CWE2097 ROT1 ROT0 NC NC NC BYTE CNVSS NC DSENS RESET XOUT VSS XIN VCC NMI BSENS NC NC RX2 VDCONT CDRST USBCTL FLG PEE NC SYNC RX TX BSO BSI BSCK KEYD DPDT KYDT ILM2 NC PCL ASENBO MUTE TELIN BRST BRXEN BSRQ ANTPW DALMON SYSPW ILMPW NC ISENS IPPW VST VCK VDT ROMDATA ROMCK ROMCS NC VCC TESTIN VSS TUNPCE2 TUNPCE1 TUNPCK TUNPDI TUNPDO NC NC NC RCK LDET ASENS RDSLK RDSDT RDS57K NC NC NC NC NC JOYST NC RGBDT RGBCK RGBST NC NC NC SSENS NC KEYAD MODEL AVSS SL VREF AVCC NC NC NC EW5:PEG475A ES,CN5:PEG409A SYSTEM CONTROLLER REAR AUX IN 5V 14.1V EW5 EW5 EW5 EW5 EW5 EW5 ES,CN5 ES ES,CN5 EW5:1K ES,CN5:0R0 ES,CN5 REAR AUX SWVDD OELPW ES,CN5:CWE2098 B CN1801 C CN701 FM/AM TUNER UNIT FM(10%):-29.5dBs(EW5) -33.5dBs(ES,CN5) AM(15%):-26.0dBs(EW5) -30.0dBs(ES,CN5) AUX1:+2.2dBs CD/USB: +0.6dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 47 5 6 7 8 5 6 7 8 C D F A B E A-b A FR1 FR2 FL1 FL2 RL2 RL1 RR2 RR1 VDT VCK VST TUNR TUNL AUXR AUXL RST ROT1 ROT0 SL KEY2 ROT1 ROT0 /ASENS /BSENS /ASENS RDS-LOCK RDS-DATA LDET SWVDD RDS-HSLK ILMPW SSENS DALMON TELIN JOYST RGBDT RGBCK RGBST SYSPW RL2 FL2 RL1 FL1 RR2 FR2 RR1 FR1 MUTE JOYST DPDT KYDT /DSENS AUXGND USDM USDP RT3N66M Q351 E1 1 B1 2 C2 3 E2 4 5 B2 6 C1 R360 22K R359 22K CN351 1 2 3 4 5 6 7 8 9 10 R351 820 R356 820 R352 0R0 2R2/50 C352 2R2/50 C351 R355 820 R364 22K RT3N66M Q353 E1 1 B1 2 C2 3 E2 4 5 B2 6 C1 2R2/50 C355 R363 22K R358 820 2R2/50 2 8 3 R 6 5 3 C 0R0 R381 0R0 R384 0R0 GND FU353 CEK1286 1 R394 0R0 R393 0R0 D931 HZS7L(C3) D932 HZS7L(A1) R934 47K R935 47K R936 47K R931 100K R932 100K R933 100K R937 4R7K Q931 E1 1 B1 2 C2 3 E2 4 5 B2 6 C1 GND GND R951 47K R952 1K R953 4R7K D951 MC2848-11 L951 GND GND NJM2388F84 IC921 1 VIN 2 VOUT 3 GND 4 CONTROL C921 R01 C924 R01 R922 47K 100/16 C923 220/10 C922 GND L901 GND Q911 2SD2396 D912 HZS6L(B2) 1000/16 C913 R911 22K C912 R01 Q912 RT3T22M 2E 1 2B 2 1C 3 1E 4 5 1B 6 2C 47/10 C911 GND VDD VCC GND GND GND R851 15K R853 2R2K 2SA1036K Q851 R852 4R7K RT1N141M-11 Q852 L852 GND C851 R1 VDD C704 1 C705 1 C901 R1 GND R151 1K R152 1K R153 1K GND C154 1 C156 1 C159 1 10/16 C160 10/16 C165 47/10 C162 C163 R1 R180 0R0 VCC L161 10/16 C311 C309 2R2 GND C310 2R2 Q453 RT3T22M 2E 1 2B 2 1C 3 1E 4 5 1B 6 2C D454 1SS133 R454 1K(1/4W) B.UP GND GND GND RT1N241M Q451 R451 10K R453 15K R452 220 33/10 C451 10/16 C962 IC961 S-80835CNMC-B8U OUT 1 VDD 2 VSS 3 N.C1 4 5 N.C2 R962 8R2K C961 R047 VCC R309 15K(1/4W) VDD L602 C604 1 10/16 C605 C606 R1 10/16 C607 R606 10K R613 100K GND VDD B.UP R609 100K R608 100K GND R813 100K R825 1K R811 47K R849 10K VDD VDD 0R0 VDD IC151 PML018A IN5-_L 1 IN5+_L 2 IN4+_L 3 IN4-_L 4 5 IN3_L 6 IN2_L 7 IN1_L 8 Vref 9 Vcc 10 Front_L 11 Rear_L 12 Pre/SW_L 13 Vp 14 Pref 15 PGND 16 Pre/SW_R 17 Rear_R 18 Front_R 19 DATA 20 CLK 21 STB 22 GND 23 IN1_R 24 IN2_R 25 IN3_R 26 IN4-_R 27 IN4+_R 28 IN5+_R 2SA1037K Q951 PAL007C IC301 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 C316 R47 C317 R47 C318 R47 C315 R47 C305 R47 C306 R47 C307 R47 C308 R47 3300/16 C313 CN901 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 BUP1 BUP2 GND1 GND2 12V BUP3 BS1 BS2 AS2AS1 R627 1K RCRR RCRL SWR SWL RCFR RCFL RCG1 US5V R837 0R0 R848 0R0 GND C155 R22 C153 R22 13V VCC1 R938 1K(1/4W) ND R955 15K(1/4W) R912 1R5K(1/4W) R847 0R0 R846 0R0 R301 470 R303 470 R304 470 R306 470 D911 S5688G D901 S5688G D902 S5688G D903 S5688G D904 S5688G 01 1 2 3 4 5 6 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 TEL MUTE 8.4V VDD ASENS BSENS SWVDD RESET MUTE FOR 2P/O FOR 3P/O FOR 2P/O FOR WIRED REM. SWR SWL FR FL TAB PGND RL- STBY RL+ VCC RR- PGND RR+ SVR RRIN RLIN AGND FLIN FRIN ACGND FR+ PGND FR- VCC FL+ MUTE FL- PGND B.REM B.UP ROT1 ROT0 NC NC NC LDET ASENS RDSLK RDSDT RDS57K NC NC NC NC NC JOYST NC RGBDT RGBCK RGBST NC NC NC SSENS NC KEYAD MODEL AVSS SL VREF AVCC NC NC NC 5V 8.4V 5V 3A 600 H EW5 EW5 ES,CN5 ES,CN5 ES,CN5 EW5,ES:RT3CLLM CN5:UMX1N 2 A TUNER AMP UNIT Decimal points for resistor and capacitor fixed values are expressed as : 2.2 t 2R2 0.022 t R022 The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. > RR + RR - FR + FR - FL + FL - RL + RL - ACC GND BACK UP B. REM GND B.REM ACC RL- RL+ FL- FL+ TEL RR- RR+ FR- FR+ BUP 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 CEK1208 > 10A FM(10%): -12.0dBs(EW5), -16.0dBs(ES,CN5) AM(15%): -7.5dBs(EW5), -11.5dBs(ES,CN5) CD/USB: -9.3dBs AUX1: -9.7dBs FM(10%):+13.98dBs(EW5), +9.98dBs(ES,CN5) AM(15%):+18.48dBs(EW5), +14.48dBs(ES,CN5) CD/USB:+16.7dBs AUX1:+16.3dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 48 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-b 1 3 2 FR1 FR2 FL1 FL2 RL2 RL1 RR2 RR1 VDT VCK VST TUNL SL KEY2 SSENS RGBDT RGBCK RGBST MUTE JOYST RT3N66M Q351 E1 1 B1 2 C2 3 E2 4 5 B2 6 C1 R360 22K R359 22K CN351 1 2 3 4 5 6 7 8 9 10 R351 820 R356 820 R352 0R0 2R2/50 C352 2R2/50 C351 R355 820 R364 22K RT3N66M Q353 E1 1 B1 2 C2 3 E2 4 5 B2 6 C1 2R2/50 C355 R363 22K R358 820 2R2/50 2 8 3 R 6 5 3 C 0R0 R381 0R0 R384 0R0 GND FU353 CEK1286 1 R394 0R0 R393 0R0 NJM2388F84 IC921 1 VIN 2 VOUT 3 GND 4 CONTROL L901 VCC GND GND GND C901 R1 GND R151 1K R152 1K R153 1K GND 1 10/16 C160 10/16 C165 47/10 C162 C163 R1 R180 0R0 VCC L161 10/16 C311 C309 2R2 GND C310 2R2 Q453 RT3T22M 2E 1 2B 2 1C 3 1E 4 5 1B 6 2C D454 1SS133 R454 1K(1/4W) B.UP GND GND RT1N241M Q451 R451 10K R453 15K R452 220 33/10 C451 IC961 NMC-B8U UT DD SS N.C1 4 5 N.C2 VCC R309 15K(1/4W) L602 C604 1 10/16 C605 C606 R1 10/16 C607 R606 10K VDD B.UP R609 100K R608 100K PML018A IN5+_L IN4+_L 3 IN4-_L 4 5 IN3_L 6 IN2_L 7 IN1_L 8 Vref 9 Vcc 10 Front_L 11 Rear_L 12 Pre/SW_L 13 Vp 14 Pref 15 PGND 16 Pre/SW_R 17 Rear_R 18 Front_R 19 DATA 20 CLK 21 STB 22 GND 23 IN1_R 24 IN2_R 25 IN3_R 26 IN4-_R IN4+_R PAL007C IC301 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 C316 R47 C317 R47 C318 R47 C315 R47 C305 R47 C306 R47 C307 R47 C308 R47 3300/16 C313 16 BUP1 BUP2 GND1 GND2 12V RCRR RCRL SWR SWL RCFR RCFL RCG1 GND C155 R22 VCC1 R301 470 R303 470 R304 470 R306 470 S5688G D903 S5688G D904 S5688G 8.4V MUTE FOR 2P/O FOR 3P/O FOR 2P/O FOR WIRED REM. SWR SWL FR FL TAB PGND RL- STBY RL+ VCC RR- PGND RR+ SVR RRIN RLIN AGND FLIN FRIN ACGND FR+ PGND FR- VCC FL+ MUTE FL- PGND B.REM B.UP 3A 600 H EW5 ES,CN5 ES,CN5 ES,CN5 2 A TUNER AMP UNIT > G BUP 16 CEK1208 > 10A FM(10%): -12.0dBs(EW5), -16.0dBs(ES,CN5) AM(15%): -7.5dBs(EW5), -11.5dBs(ES,CN5) CD/USB: -9.3dBs AUX1: -9.7dBs FM(10%):+13.98dBs(EW5), +9.98dBs(ES,CN5) AM(15%):+18.48dBs(EW5), +14.48dBs(ES,CN5) CD/USB:+16.7dBs AUX1:+16.3dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 49 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-b 3 4 6 5 RST ROT1 ROT0 /ASENS /BSENS SWVDD DALMON TELIN JOYST RGBDT RGBCK RGBST SYSPW RL2 FL2 RL1 FL1 RR2 FR2 RR1 FR1 MUTE JOYST DPDT KYDT /DSENS USDM USDP D931 HZS7L(C3) D932 HZS7L(A1) R934 47K R935 47K R936 47K R931 100K R932 100K R933 100K R937 4R7K Q931 E1 1 B1 2 C2 3 E2 4 5 B2 6 C1 GND GND R951 47K R952 1K R953 4R7K D951 MC2848-11 L951 GND GND NJM2388F84 IC921 1 VIN 2 VOUT 3 GND 4 CONTROL C921 R01 C924 R01 R922 47K 100/16 C923 220/10 C922 GND L901 GND Q911 2SD2396 D912 HZS6L(B2) 1000/16 C913 R911 22K C912 R01 Q912 RT3T22M 2E 1 2B 2 1C 3 1E 4 5 1B 6 2C 47/10 C911 GND VDD VCC GND R851 15K R853 2R2K 2SA1036K Q851 R852 4R7K RT1N141M-11 Q852 L852 GND C851 R1 VDD GND GND RT1N241M Q451 R451 10K R453 15K R452 220 33/10 C451 10/16 C962 IC961 S-80835CNMC-B8U OUT 1 VDD 2 VSS 3 N.C1 4 5 N.C2 R962 8R2K C961 R047 VCC VDD R606 10K R613 100K GND B.UP GND R825 1K VDD VDD VDD 2SA1037K Q951 CN901 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 BUP1 BUP2 GND1 GND2 BUP3 BS1 BS2 AS2AS1 US5V R837 0R0 R848 0R0 13V R938 1K(1/4W) R955 15K(1/4W) R912 1R5K(1/4W) R847 0R0 R846 0R0 D911 S5688G D901 S5688G D902 S5688G D903 S5688G D904 S5688G TEL MUTE 8.4V VDD ASENS BSENS SWVDD RESET FOR WIRED REM. B.UP 5V 8.4V 5V 600 H EW5 EW5 EW5,ES:RT3CLLM CN5:UMX1N Decimal points for resistor and capacitor fixed values are expressed as : 2.2 t 2R2 0.022 t R022 The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. RR + RR - FR + FR - FL + FL - RL + RL - ACC GND BACK UP B. REM GND B.REM ACC RL- RL+ FL- FL+ TEL RR- RR+ FR- FR+ BUP 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 CEK1208 > 10A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 50 1 2 3 4 1 2 3 4 C D F A B E A-b A-a A-a A-b 1 3 2 RDS-HSLK RDS-CK RDS-LOCK RDS-DATA TUNPDO TUNPCK CE1 TUNPDI LDET CE2 VDCONT /BSRQ /BRST BSCK BRXEN BDATA CDRST TUNR TUNL AUXR AUXL ROT1 ROT0 TX VDCONT KYDT ASENBO SYSPW DALMON RX RX RST BDATA BDATA DPDT SL /BSENS FLG CDRST BSCK MUTE TELIN /BRST BRXEN /BSRQ SWVDD OELPW USBCTL SYNC KEY1 ANTPW USDP USDM KEY2 KEY1 /DSENS AUXR AUXL AUXGND AUXGND GND ILM2 TUNR TUNL Y401 1 AM_ANT 2 RF_GND 3 FM_ANT 4 VCC 5 SL 6 CE2 7 WC 8 CE1 9 CK 10 DI 11 LDET 12 OSCGND 13 ROM_VDD 14 DO 15 DGND 16 COMP 17 VDD_3.3 18 RDS_CK 19 RDS_DATA 20 RDS_LOCK 21 RDS_HSLK 22 BEGND 23 Lch 24 Rch UMH1N Q401 E1 1 B1 2 C2 3 E2 4 5 B2 6 C1 UMH1N Q402 E1 1 B1 2 C2 3 E2 4 5 B2 6 C1 R408 22K R409 22K R410 22K R411 22K R413 220 R415 220 R402 680 R403 680 R404 680 R405 680 R406 680 R421 0R0 R407 C402 R01 C403 R01 C406 R1 C411 47P C407 R01 C410 R47 C404 4R7 L401 L403 L402 CN401 1 2 3 ZNR401 IMSA-6801-01Y901 22/10 C408 100/10 C405 VCC VCC GND GND VDD GND GND GND GND C704 1 C705 1 GND R708 220 R710 220 R712 220 R713 220 GND NJM2885DL1-33 IC702 1 IN 2 GND 3 OUT C709 1 22/10 C708 C710 R47 GND GND Q702 2SD2396 100/10 C703 C701 R047 D701 HZS7L(C3) GND Q701 RT3T22M 2E 1 2B 2 1C 3 1E 4 5 1B 6 2C R701 270 R703 4R7K R704 100K R705 4R7K R706 100K R714 100K R707 100K GND GND C154 1 C156 1 C159 1 10/16 C160 C163 R1 VCC L161 CPV1062 BZ601 1 1 2 2 GND R618 1K R616 47K R602 10K C601 18P C602 18P R967 1K GND L602 C604 1 10/16 C605 R603 10K VDD GND NJM2885DL1-33 IC401 1 IN 2 GND 3 OUT CN701 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 IC151 IN5-_L 1 IN5+_L 2 IN4+_L 3 IN4-_L 4 5 IN3_L 6 IN2_L 7 IN1_L 8 Vref 9 Vcc 10 Front_L 19 DATA 20 CLK 21 STB 22 GND 23 IN1_R 24 IN2_R 25 IN3_R 26 IN4-_R 27 IN4+_R 28 IN5+_R 47/6R3 C401 R711 220 RCH LCH BEG RHSLK RLK RDAT RCK T3V TUNG DO T5V OSCG LDET DI CK CE1 CE2 SL T8V FM RFG AM VD BSRQ BRST BSCK BRXEN BDATA CDRST CDVDD UG CDR AG CDL PG DP DM USGND3 R626 22K AUXL CN621 2 4 1 3 5 6 R627 1K AUXGND R628 100K WREM1 R621 1K R629 100K R622 1K WREM2 C621 4700P C622 4700P GND WREMG AUXR R625 22K RST PCL US5V GND B.UP GND C155 R22 C153 R22 D621 EZJZ1V270RM D622 EZJZ1V270RM D623 EZJZ1V270RM R414 4R7(1/4W) X601 YSS5002 R631 100 R632 100 R709 1K C623 R1 R401 680 VDD VCC1 R633 0R0 GND GND C720 1 C412 1 GNDGND L601 IC601 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 (1/4W) VD VD BSRQ BRST BSCK BRXEN BDATA CDRST CDVDD CDGND CDR AGND CDL CDGND PGND DP DM USBGND USBGND RDS BUZZER 15MHz FOR WIRED REM. EXCEPT WIRED REM. WIRED REM. WIRED REM. JUMPER USB EW5:CWE2097 ROT1 ROT0 NC NC NC BYTE CNVSS NC DSENS RESET XOUT VSS XIN VCC NMI BSENS NC NC RX2 VDCONT CDRST USBCTL FLG PEE NC SYNC RX TX BSO BSI BSCK KEYD DPDT KYDT ILM2 NC PCL ASENBO MUTE TELIN BRST BRXEN BSRQ ANTPW DALMON SYSPW ILMPW NC ISENS IPPW VST VCK VDT ROMDATA ROMCK ROMCS NC VCC TESTIN VSS TUNPCE2 TUNPCE1 TUNPCK TUNPDI TUNPDO NC NC NC RCK LDET ASENS RDSLK RDSDT RDS57K NC NC NC NC NC JOYST NC RGBDT RGBCK RGBST NC NC NC SSENS NC KEYAD MODEL AVSS SL VREF AVCC NC NC NC EW5:PEG475A ES,CN5:PEG409A SYSTEM CONTROLLER REAR AUX IN EW5 EW5 EW5 EW5 EW5 ES,CN5 ES ES,CN5 EW5:1K ES,CN5:0R0 ES,CN5 REAR AUX SWVDD OELPW ES,CN5:CWE2098 C CN701 FM/AM TUNER UNIT FM(10%):-29.5dBs(EW5) -33.5dBs(ES,CN5) AM(15%):-26.0dBs(EW5) -30.0dBs(ES,CN5) AUX1:+2.2dBs CD/USB: +0.6dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 51 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-b A-a 3 4 6 5 SYSPW DALMON CE1 CE2 VST VCK TELIN /BRST BRXEN /BSRQ SWVDD OELPW ILMPW IPPW VDT TUNPCK TUNPDO TUNPDI /ASENS RDS-LOCK RDS-DATA LDET RDS-HSLK ANTPW ILMPW RDS-CK ISENS FLG USBCTL SYNC R842 4R7K R853 2SA1036K Q841 RT1N141M-11 Q842 GND R841 10K R816 1 B.UP R613 100K R604 680 R607 680 C609 47P GND GND GND R808 100K R804 2R2K R815 1K R813 100K R825 1K VDD R811 47K R849 10K CN803 1 2 3 4 5 6 7 8 9 10 11 12 13 14 GND C252 R1 VDD C251 R1 R257 10K IC251 R5523N001B EN 1 GND 2 FLG 3 VIN 4 5 VOUT GND GND GND GND C504 1 R506 68K R503 33K R511 470 R502 33K R505 8R2K D501 RB060L-40 C505 100P GND B.UP R610 47K GND R605 680 R619 0R0 R617 47K R510 82K C506 3300P C503 220P C507 R1 FLG USBCTL SYNC RT SW B F V 5 B S U INV TEST SW5V TP1 TP2 DPDT KYDT IMG TP3 TP4 ILMB TP5 TP6 TP7 DSEN DG US5V GND R836 0R0 R814 1K D502 S5688G BD9781HFP IC501 1 VIN 2 SW 3 RT 4 GND 5 FB 6 INV 7 EN D809 EZJZ1V270RM D810 EZJZ1V270RM D801 EZJZ1V270RM D802 EZJZ1V270RM D803 EZJZ1V270RM D804 EZJZ1V270RM D805 EZJZ1V270RM D806 EZJZ1V270RM R805 2R2K R806 2R2K R807 2R2K C253 R01 R254 680 R507 2R2K R512 0R0 R620 0R0 150/6R3 C501 C508 1 R513 2R2K L501 220/16 C502 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 SWV USB5V DSENS US5V ROT0 JOYST ILM+ SWVDD DGND ILMGND DPDT DP KYDT ROT1 DM USBGND ILM TELIN BRST BRXEN BSRQ ANTPW DALMON SYSPW ILMPW NC ISENS IPPW VST VCK VDT ROMDATA ROMCK ROMCS NC VCC TESTIN VSS TUNPCE2 TUNPCE1 TUNPCK TUNPDI TUNPDO NC NC NC RCK LDET ASENS RDSLK RDSDT RDS57K NC NC NC NC NC JOYST NC RGBDT RGBCK RGBST NC ES,CN5:PEG409A SYSTEM CONTROLLER 5V 5V 14.1V EW5 SWVDD OELPW B CN1801 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 52 1 2 3 4 1 2 3 4 C D F A B E 10.2 KEYBOARD UNIT B 560 560 560 560 10K 10 120 100K R1 R1 R1 EJECT SRC/OFF LIST BAND/ESC RDM DISP/BACK/SCRL REGION1 REGIO RPT/LO S.Rt REGION1 REGION2 BUTTON TA/NEWS MUTE CLOCK SW/BASS EW5 ES,CN5 5.00MHz EW5 LCD DRIVER/ KEY CONTROLLER ES,CN5 EW E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 53 5 6 7 8 5 6 7 8 C D F A B E B 33K 47K 3R3K 2R2K 8R2K 2R2K 2R2K 470 470 470 470 470 1R5K 560 560 560 560 RL REGION2 RPT/LOCAL S.Rtrv REGION2 MUTE SW/BASS MC2848-11 MC2846-11 B KEYBOARD UNIT A CN803 EW5,ES EW5,ES CN5 CN5 USB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 54 1 2 3 4 1 2 3 4 C D F A B E 10.3 CD MECHANISM MODULE(GUIDE PAGE) C-a C SWITCHES: CD CORE UNIT(S10.5COMP2-USB) S901:HOME SWITCH.........ON-OFF S903:DSCSNS SWITCH.....ON-OFF S904:12EJ SWITCH............ON-OFF S905:8EJ SWITCH..............ON-OFF The underlined indicates the switch position. M1 CXC7134 SPINDLE MOTOR M2 CXC4026 LOADING/CARRIAGE MOTOR PICKUP UNIT(P10.5)(SERVICE) CD DRIVER F F F F T T T T T T F F F T C S S C T F F F T T S S C C C C S S F F T T 1 2 3 4 5 7 8 9 a d e f c P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 55 5 6 7 8 5 6 7 8 C D F A B E C-b C C CD CORE UNIT(S10.5COMP2-USB) A CN701 F SIGNAL LINE FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE T C S 6 b g h i j PE5611B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 56 1 2 3 4 1 2 3 4 C D F A B E C-a C-b C-b 1 2 PE5611B C CD CORE UNIT(S10.5COMP2-USB) F SIGNAL LINE FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE T C S b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 57 5 6 7 8 5 6 7 8 C D F A B E C-a C-b C-b 3 A CN701 6 g h i j www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 58 1 2 3 4 1 2 3 4 C D F A B E C-b C-a C-a C-b 1 2 SWITCHES: CD CORE UNIT(S10.5COMP2-USB) S901:HOME SWITCH.........ON-OFF S903:DSCSNS SWITCH ON-OFF PICKUP UNIT(P10.5)(SERVICE) F F F F T T T T T T F F F T C S F F T T c d f www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 59 5 6 7 8 5 6 7 8 C D F A B E C-a C-b C-b C-a 3 SWITCHES: CD CORE UNIT(S10.5COMP2-USB) S901:HOME SWITCH.........ON-OFF S903:DSCSNS SWITCH.....ON-OFF S904:12EJ SWITCH............ON-OFF S905:8EJ SWITCH..............ON-OFF The underlined indicates the switch position. M1 CXC7134 SPINDLE MOTOR M2 CXC4026 LOADING/CARRIAGE MOTOR CD DRIVER S C T F F F T T S S C C C C S S 1 2 3 4 5 7 8 9 a e www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 60 1 2 3 4 1 2 3 4 C D F A B E 10.4 WAVEFORMS - CD CORE UNIT Note : 1. The encircled numbers denote measuring points in the circuit diagram. 2. Reference voltage REFO1(1.65 V) 500 ms/div 5 V/div 5 V/div 5 V/div 10 V/div 1DSCSNS 5CLCONT 4LOEJ 6VD 5 V/div 5 V/div 5 V/div 5 V/div 1DSCSNS 28SNS 312SNS 4LOEJ 5 V/div 5 V/div 5 V/div 5 V/div 500 ms/div 1DSCSNS 28SNS 312SNS 4LOEJ 500 mV/div 500 mV/div 200 ms/div @TE #FE 200 mV/div 2 V/div 2 V/div 500 ms/div 0FIN !RFOK(MONI_3) 7SIN 1 V/div 500 mV/div 1 V/div 1 s/div 500 ms/div 7SIN 8CIN 9TIN 2 V/div 500 mV/div 5 μs/div $MDX 7SIN 2 V/div 500 mV/div 200 ms/div $MDX 7SIN 500 mV/div 500 mV/div 500 mV/div 500 mV/div 20 ms/div #FE 0FIN @TE 9TIN 1 V/div 500 mV/div 500 mV/div 500 μs/div %RFAGC @TE 9TIN 500 mV/div 500 mV/div 2 ms/div @TE %RFAGC 500 mV/div 500 mV/div 200 ms/div 0FIN #FE Source On setup operation 12 cm CD-DA Source On setup operation CD-DA Play operation Spindle waveform during play operation Spindle waveform during play operation (Wider) Focus Search waveform Track Open waveform 1 Track Jump waveform 12 cm CD-DA setup operation after loading 12 cm CD Loading operation 12 cm CD Loading operation 8 cm CD Loading operation Ref.: GND Mode: Normal Ref.: GND Mode: Normal Ref.: GND Mode: Normal Ref.: REFO Mode: Normal Ref.: REFO Mode: Normal Ref.: REFO Mode: Normal Ref.: REFO Mode: TEST Ref.: REFO Mode: TEST Ref.: REFO Mode: TEST Ref.: REFO Mode: Normal Ref.: REFO Mode: Normal Ref.: REFO Mode: Normal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 61 5 6 7 8 5 6 7 8 C D F A B E 1 V/div 500 mV/div 500 mV/div 2 ms/div %RFAGC @TE 9TIN 1 V/div 500 mV/div 500 mV/div 500 µs/div %RFAGC @TE 9TIN 1 V/div 500 mV/div 500 mV/div 500 µs/div %RFAGC @TE 9TIN 5 V/div 5 V/div 5 V/div 5 V/div 500 ms/div 1DSCSNS 28SNS 312SNS 4LOEJ 1 V/div 1 V/div 200 µs/div ^LOUT &ROUT 1 V/div 1 V/div 1 V/div 2 V/div 200 ms/div %RFAGC @TE 8CIN 7SIN 1 V/div 1 V/div 1 V/div 1 V/div 500 µs/div %RFAGC 9TIN @TE 0FIN 5 V/div 5 V/div 5 V/div 5 V/div 500 ms/div 1DSCSNS 28SNS 312SNS 4LOEJ 5 V/div 5 V/div 5 V/div 500 ms/div 1DSCSNS 5CLCONT 4LOEJ 12 cm CD Eject operation Analog audio waveform 12 cm CD Eject operation 8 cm CD Eject operation Black dot(800 µm) during play Search operation(Outter to Inner) 4 Tracks Jump waveform 10 Tracks Jump waveform 32 Tracks Jump waveform Ref.: REFO Mode: TEST Ref.: REFO Mode: TEST Ref.: REFO Mode: TEST Ref.: GND Mode: Normal Ref.: REFO Mode: Normal Ref.: GND Mode: Normal 2 V/div 2 V/div 50 ms/div *DP (DM 2 V/div 2 V/div 50 ms/div *DP (DM 1 V/div 1 V/div 50 ns/div *DP (DM USB Play USB device inserting to USB connector. CD Play with USB device connecting. Ref.: REFO Mode: Normal Ref.: GND Mode: Normal Ref.: AGND Mode: Normal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 62 1 2 3 4 1 2 3 4 C D F A B E 2 V/div 2 V/div 50 ms/div *DP (DM ACC OFF with USB device connecting. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 63 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 64 1 2 3 4 1 2 3 4 C D F A B E 11. PCB CONNECTION DIAGRAM 11.1 TUNER AMP UNIT A A TUNER AMP UNIT Capacitor Connector P.C.Board Chip Part SIDE B SIDE A NOTE FOR PCB DIAGRAMS 1.The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2.Viewpoint of PCB diagrams 1 1 10 1 5 16 15 2 1 1 5 E E 1 1 10 15 IC921 L852 D971 CN803 CN621 CN251 BZ601 L101 Q702 L501 Q911 L901 CN101 R701 L951 CN701 R912 CN901 C501 C502 C313 C703 C708 C911 C913 R955 C922 C923 D502 D701 D901 D9 D903 D904 D911 D912 D931 D932 D551 D552 5 5 10 20 30 40 50 60 70 X 150 140 130 120 110 100 90 80 70 60 50 40 30 20 10 0 Y B CN1801 C CN701 WIRED REM.(EW5) CORD ASSY REAR AUX www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 65 5 6 7 8 5 6 7 8 C D F A B E A SIDE A 1 10 2 1 1 5 10 15 20 1 1 5 10 1 10 15 20 25 D171 D181 R414 CN401 D971 3 C401 C405 C408 CN622 C605 C607 R454 X601 R843 C451 C842 L101 Y401 D454 D841 D842 L161 R309 L171 L951 1 C311 CN351 R955 C351C352 C353 C160 C354 C355 C162 C356 C165 C172 C174 C177 C183 L401 L403 IC301 L601 D901 D902 C962 L602 C971 D551 5 70 80 90 100 110 120 130 140 150 160 170 FRONT RCA ANTENNA FM/AM TUNER UNIT SSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 66 1 2 3 4 1 2 3 4 C D F A B E A A TUNER AMP UNIT 170 160 150 140 130 120 110 100 90 8 1 5 10 15 20 25 1 5 1 1 1 1 15 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 1 1 1 1 E 1 E E E 1 1 1 E 1 E E 1 E IC151 R401 D172 R402 R403 D173 R404 R405 R406 R407 R408 R409 R601 R602 R603 R410 R604 D951 R411 R605 R412 R606 R413 R607 R608 R415 R609 R803 R610 R804 R611 R805 R612 R613 R614 R808 R421 R809 IC171 R619 R811 R813 R620 R814 R815 R816 R819 R627 R824 R631 C402 R632 C403 C404 IC961 R829 C406 C407 R830 C601 R831 C602 C R833 C410 C604 R834 C411 R835 C412 C606 R837 C608 R451 C609 R452 R453 R841 R842 R844 R845 C623 FU353 C841 ZNR401 IC401 D IC601 D621 IC602 D622 D623 Q351 Q352 Q353 R301 R302 R303 R304 Q171 R305 R306 Q172 R113 R307 R308 R507 Q951 Q181 Q182 Q971 C301 C302 C303 C304 C305 C307 C308 R151 C309 R152 R153 C310 R351 C315 R352 C316 R353 C317 R354 C318 R930 R355 R931 R356 R932 R358 C704 R359 C705 R360 R361 R362 R363 R364 R171 R172 R173 R174 R175 R176 R177 R178 R180 R951 R181 R952 R953 R954 R381 C151 R382 C152 C153 R383 R384 C154 R385 C155 R386 R962 C156 C157 C158 C159 R967 R391 R392 R393 C163 C357 R394 C358 C359 C360 C361 C362 C171 Q401 Q402 C173 C175 C176 C178 C179 C181 C182 L402 C961 Q451 Q453 Q841 Q842 Q843 Q844 C306 5 10 20 1 1 TEST PCL >FU353 (B,131,132) Fuse 3 A CEK1286 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 67 5 6 7 8 5 6 7 8 C D F A B E A SIDE B 90 80 70 60 50 40 X 150 140 130 120 110 100 90 80 70 60 50 40 30 20 10 0 Y 30 20 10 E E 1 10 E E 1 1 15 25 30 35 40 45 1 1 1 E 1 5 1 5 1 1 Q851 Q852 R601 R602 IC551 R805 R806 R807 R808 R616 R617 R618 R811 R813 R814 R621 R815 R622 R623 R624 R819 R625 R626 R628 R629 R825 R633 R253 R254 R255 C601 R256 C602 R832 R257 C603 R836 C801 R846 R847 R848 R849 R851 C621 R852 C622 R853 C251 C252 C253 Q101 Q102 C851 Q701 D801 D802 D803 D804 D805 D806 D807 D808 D809 D810 Q912 D251 D252 Q931 R101 R102 R103 R104 R105 R106 R107 R108 R109 R110 R111 R112 R113 R114 R116 R117 R118 IC251 R502 R503 R505 R506 R507 R508 R509 R703 R510 R704 R511 R705 R512 R706 R513 R707 R708 R709 R710 R711 R712 R713 R714 C101 C102 C103 C104 R911 Q971 R922 C503 C504 C505 C506 C507 C508 R931 C701 C702 R933 R934 R935 R936 C706 R937 C707 R938 C709 C901 C710 C711 C715 C716 C912 C720 C721 C921 C924 R967 C931 R971 R972 C551 C552 D501 IC101 IC501 IC702 L251 5 5 10 20 1 1 1 1 1 PCL 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 68 1 2 3 4 1 2 3 4 C D F A B E 11.2 KEYBOARD UNIT B SIDE A B KEYBOARD UNIT EJECT USB TA/NEWS (EW5) CLOCK (ES, CN5) DISP/BACK/SCRL LIST S.Rtrv RDM RPT/LOCAL MULTI-CONTROL MUTE (EW5) SW/BASS (ES, CN5) SRC/OFF BAND/ESC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 69 5 6 7 8 5 6 7 8 C D F A B E B SIDE B B KEYBOARD UNIT A CN803 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 70 1 2 3 4 1 2 3 4 C D F A B E 11.3 CD CORE UNIT(S10.5COMP2-USB) C SIDE A C CD CORE UNIT(S10.5COMP2-USB) A CN701 PICKUP UNIT(P10.5)(SERVICE) HOME M LOADING/CARRIAGE MOTOR M SPINDLE MOTOR E F REFO1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 71 5 6 7 8 5 6 7 8 C D F A B E C SIDE B C CD CORE UNIT(S10.5COMP2-USB) 12EJ 8EJ DSCSNS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 72 1 2 3 4 1 2 3 4 C D F A B E 12. ELECTRICAL PARTS LIST NOTE: Parts whose parts numbers are omitted are subject to being not supplied. The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Meaning of the figures and others in the parentheses in the parts list. Example) IC 301 is on the point (face A, 91 of x-axis, and 111 of y-axis) of the corresponding PC board. IC 301 (A, 91, 111) IC NJM2068V Circuit Symbol and No. Part No. Unit Number : YWM5203(EW5) Unit Number : YWM5205(ES) Unit Number : YWM5207(CN5) Unit Name : Tuner Amp Unit Unit Number : (EW5) Unit Number : (ES) Unit Name : Keyboard Unit Unit Number : (CN5) Unit Name : Keyboard Unit Unit Number : CWX3527 Unit Name : CD Core Unit(S10.5COMP2-USB) A Unit Number : YWM5203(EW5) Unit Number : YWM5205(ES) Unit Number : YWM5207(CN5) Unit Name : Tuner Amp Unit MISCELLANEOUS IC 151 (B,135,85) IC PML018A IC 251 (B,44,69) IC R5523N001B IC 301 (A,105,139) IC PAL007C IC 401 (B,165,29) IC NJM2885DL1-33 IC 501 (B,16,32) Regulator IC BD9781HFP IC 601 (B,96,57) IC(EW5) PEG475A (B,96,57) IC(ES,CN5) PEG409A IC 702 (B,58,29) IC NJM2885DL1-33 IC 921 (A,6,120) IC NJM2388F84 IC 961 (B,98,33) IC S-80835CNMC-B8U Q 351 (B,166,125) Transistor RT3N66M Q 353 (B,135,125) Transistor(ES,CN5) RT3N66M Q 401 (B,156,40) Transistor(EW5) UMH1N Q 402 (B,156,45) Transistor(EW5) UMH1N Q 451 (B,117,119) Transistor RT1N241M Q 453 (B,116,116) Transistor RT3T22M Q 701 (B,20,60) Transistor RT3T22M Q 702 (A,7,70) Transistor 2SD2396 Q 841 (B,131,23) Transistor 2SA1036K Q 842 (B,139,17) Transistor RT1N141M-11 Q 851 (B,33,15) Transistor 2SA1036K Q 852 (B,24,16) Transistor RT1N141M-11 Q 911 (A,7,104) Transistor 2SD2396 Q 912 (B,16,73) Transistor RT3T22M Q 931 (B,64,94) Transistor(EW5,ES) RT3CLLM (B,64,94) Transistor(CN5) UMX1N Q 951 (B,112,106) Transistor(EW5) 2SA1037K D 454 (A,94,105) Diode 1SS133 D 501 (B,22,44) Diode RB060L-40 D 502 (A,16,58) Diode S5688G D 621 (B,111,90) Varistor EZJZ1V270RM D 622 (B,111,94) Varistor EZJZ1V270RM D 623 (B,111,91) Varistor EZJZ1V270RM D 701 (A,26,65) Diode HZS7L(C3) D 801 (B,63,6) Varistor EZJZ1V270RM D 802 (B,64,6) Varistor EZJZ1V270RM D 803 (B,68,6) Varistor EZJZ1V270RM D 804 (B,69,6) Varistor EZJZ1V270RM D 805 (B,74,6) Varistor EZJZ1V270RM D 806 (B,78,6) Varistor EZJZ1V270RM D 809 (B,80,14) Varistor EZJZ1V270RM D 810 (B,60,6) Varistor EZJZ1V270RM D 901 (A,74,110) Diode S5688G D 902 (A,78,107) Diode S5688G D 903 (A,62,103) Diode S5688G D 904 (A,59,103) Diode S5688G D 911 (A,16,80) Diode S5688G D 912 (A,16,75) Diode HZS6L(B2) D 931 (A,55,96) Diode HZS7L(C3) D 932 (A,54,93) Diode HZS7L(A1) D 951 (B,108,109) Diode(EW5) MC2848-11 ZNR401 (B,165,113) Surge Protector IMSA-6801-01Y901 L 161 (A,122,99) Inductor LAU2R2K L 401 (A,150,90) Inductor LAU1R0K Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 73 5 6 7 8 5 6 7 8 C D F A B E L 402 (B,159,106) Inductor LCTAW220J2520 L 403 (A,156,34) Inductor LAU1R0K L 501 (A,29,40) Inductor YTF5003 L 601 (A,94,41) Ferri-Inductor LAU100K L 602 (A,104,34) Inductor LAU2R2K L 852 (A,37,16) Inductor LAU2R2K L 901 (A,39,102) Choke Coil 600 µH CTH1280 L 951 (A,70,103) Inductor(EW5) LAU2R2K X 601 (A,84,44) Oscillator 15 MHz YSS5002 >FU353 (B,131,132) Fuse 3 A CEK1286 BZ601 (A,29,16) Buzzer(ES,CN5) CPV1062 Y 401 (A,163,101) FM/AM Tuner Unit(EW5) CWE2097 (A,163,101) FM/AM Tuner Unit(ES,CN5) CWE2098 > Fuse 10 A YEK5001 RESISTORS R 151 (B,146,88) RS1/16S102J R 152 (B,147,87) RS1/16S102J R 153 (B,145,86) RS1/16S102J R 180 (B,120,97) RS1/16S0R0J R 254 (B,45,72) RS1/16S681J R 257 (B,58,52) RS1/16S103J R 301 (B,124,111) RS1/16S471J R 303 (B,128,109) RS1/16S471J R 304 (B,140,109) RS1/16S471J R 306 (B,134,109) RS1/16S471J R 309 (A,98,106) RD1/4PU153J R 351 (B,159,114) RS1/16S821J R 352 (B,156,120) RS1/16S0R0J R 355 (B,136,121) (ES,CN5) RS1/16S821J R 356 (B,132,97) RS1/16S821J R 358 (B,131,129) (ES,CN5) RS1/16S821J R 359 (B,163,133) RS1/16S223J R 360 (B,159,132) RS1/16S223J R 363 (B,134,129) (ES,CN5) RS1/16S223J R 364 (B,137,129) (ES,CN5) RS1/16S223J R 381 (B,136,129) (ES,CN5) RS1/16S0R0J R 382 (B,140,125) (ES,CN5) RS1/16S0R0J R 384 (B,148,117) RS1/16S0R0J R 393 (B,141,128) (ES,CN5) RS1/16S0R0J R 394 (B,144,128) RS1/16S0R0J R 401 (B,152,54) RS1/16S681J R 402 (B,158,78) (EW5) RS1/16S681J R 403 (B,156,85) RS1/16S681J R 404 (B,157,88) RS1/16S681J R 405 (B,157,90) RS1/16S681J R 406 (B,156,91) RS1/16S681J R 407 (B,156,93) (EW5) RS1/16S102J (B,156,93) (ES,CN5) RS1/16S0R0J R 408 (B,142,46) (EW5) RS1/16S223J R 409 (B,147,49) (EW5) RS1/16S223J R 410 (B,147,46) (EW5) RS1/16S223J R 411 (B,142,43) (EW5) RS1/16S223J R 413 (B,156,36) (EW5) RS1/16S221J R 414 (A,157,23) RD1/4PU4R7J R 415 (B,156,42) (EW5) RS1/16S221J R 421 (B,155,86) RS1/16S0R0J R 451 (B,121,117) RS1/16S103J R 452 (B,119,121) RS1/16S221J Circuit Symbol and No. Part No. R 453 (B,121,125) RS1/16S153J R 454 (A,117,111) RD1/4PU102J R 502 (B,26,25) RS1/16S3302F R 503 (B,24,27) RS1/16S333J R 505 (B,28,31) RS1/16S8201F R 506 (B,27,31) RS1/16S683J R 507 (B,82,57) RS1/16S222J R 510 (B,28,45) RS1/16S823J R 511 (B,28,22) RS1/10SR471J R 512 (B,53,21) RS1/16S0R0J R 513 (B,32,22) RS1/16S222J R 602 (B,83,49) RS1/16S103J R 603 (B,98,86) (EW5) RS1/16S103J R 604 (B,109,62) RS1/16S681J R 605 (B,113,59) RS1/16S681J R 606 (B,103,28) (EW5) RS1/16S103J R 607 (B,110,60) RS1/16S681J R 608 (B,107,40) (ES,CN5) RS1/16S104J R 609 (B,105,43) RS1/16S104J R 610 (B,106,65) RS1/16S473J R 613 (B,110,83) RS1/16S104J R 616 (B,36,27) RS1/16S473J R 617 (B,42,64) RS1/16S473J R 618 (B,74,59) (ES,CN5) RS1/16S102J R 619 (B,115,53) (EW5) RS1/16S0R0J R 620 (B,109,66) RS1/16S0R0J R 621 (B,14,139) (EW5) RS1/16S102J R 622 (B,12,139) (EW5) RS1/16S102J R 625 (B,20,141) RS1/16S223J R 626 (B,18,141) RS1/16S223J R 627 (B,114,92) RS1/16S102J R 628 (B,13,136) (ES,CN5) RS1/16S104J R 629 (B,14,136) (ES,CN5) RS1/16S104J R 631 (B,114,91) RS1/16S101J R 632 (B,114,94) RS1/16S101J R 633 (B,24,142) RS1/16S0R0J R 701 (A,16,63) RD1/4PU271J R 703 (B,49,43) RS1/16S472J R 704 (B,32,26) RS1/16S104J R 705 (B,49,46) RS1/16S472J R 706 (B,49,48) RS1/16S104J R 707 (B,36,29) RS1/16S104J R 708 (B,47,50) RS1/16S221J R 709 (B,36,24) RS1/16S102J R 710 (B,49,45) RS1/16S221J R 711 (B,37,40) RS1/16S221J R 712 (B,49,42) RS1/16S221J R 713 (B,35,25) RS1/16S221J R 714 (B,46,53) RS1/16S104J R 804 (B,96,30) RS1/16S222J R 805 (B,89,31) RS1/16S222J R 806 (B,62,17) RS1/16S222J R 807 (B,62,18) RS1/16S222J R 808 (B,82,39) RS1/16S104J R 811 (B,88,37) RS1/16S473J R 813 (B,92,37) RS1/16S104J R 814 (B,87,37) RS1/16S102J R 815 (B,85,37) RS1/16S102J R 816 (B,118,19) RS1/16S1R0J R 825 (B,77,49) RS1/16S102J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 74 1 2 3 4 1 2 3 4 C D F A B E R 836 (B,44,11) RS1/16S0R0J R 837 (B,109,48) RS1/16S0R0J R 841 (B,134,23) RS1/16S103J R 842 (B,135,23) RS1/16S472J R 846 (B,58,44) RS1/16S0R0J R 847 (B,59,42) RS1/16S0R0J R 848 (B,58,50) RS1/16S0R0J R 849 (B,45,20) RS1/16S103J R 851 (B,34,19) RS1/16S153J R 852 (B,24,19) RS1/16S472J R 853 (B,44,8) RS1/16S222J R 911 (B,20,71) RS1/16S223J R 912 (A,16,78) RD1/4PU152J R 922 (B,11,110) RS1/16S473J R 931 (B,82,50) RS1/16S104J R 932 (B,113,78) RS1/16S104J R 933 (B,64,96) RS1/16S104J R 934 (B,64,98) RS1/16S473J R 935 (B,61,91) RS1/16S473J R 936 (B,60,98) RS1/16S473J R 937 (B,63,117) RS1/16S472J R 938 (B,59,125) RS1/4SA102J R 951 (B,106,106) RS1/16S473J R 952 (B,106,104) (EW5) RS1/16S102J R 953 (B,115,107) (EW5) RS1/16S472J R 955 (A,73,103) (EW5) RD1/4PU153J R 962 (B,102,32) RS1/16S822J R 967 (B,90,36) RS1/16S102J CAPACITORS C 153 (B,159,74) CKSRYB224K10 C 154 (B,145,78) CKSRYB105K10 C 155 (B,163,71) CKSRYB224K10 C 156 (B,119,80) CKSRYB105K10 C 159 (B,119,79) CKSRYB105K10 C 160 (A,124,83) CEJQ100M16 C 162 (A,124,89) CEJQ470M10 C 163 (B,124,86) CKSRYB104K25 C 165 (A,135,97) CEJQ100M16 C 251 (B,50,68) CKSRYB104K25 C 252 (B,44,63) CKSRYB104K25 C 253 (B,42,65) CKSRYB103K50 C 305 (B,135,113) CKSQYB474K25 C 306 (B,127,113) CKSQYB474K25 C 307 (B,129,113) CKSQYB474K25 C 308 (B,132,113) CKSQYB474K25 C 309 (B,125,134) CKSQYB225K10 C 310 (B,127,132) CKSQYB225K10 C 311 (A,103,127) CEJQ100M16 C 313 (A,51,123) 3 300 µF/16 V CCH1494 C 315 (B,134,117) CKSRYB474K10 C 316 (B,125,114) CKSRYB474K10 C 317 (B,123,114) CKSRYB474K10 C 318 (B,131,117) CKSRYB474K10 C 351 (A,130,97) CEJQ2R2M50 C 352 (A,141,97) CEJQ2R2M50 C 355 (A,130,103) (ES,CN5) CEJQ2R2M50 C 356 (A,147,103) (ES,CN5) CEJQ2R2M50 C 401 (A,155,55) CEJQ470M6R3 C 402 (B,158,56) CKSRYB103K50 Circuit Symbol and No. Part No. C 403 (B,157,37) CKSRYB103K50 C 404 (B,164,24) (EW5) CKSYB475K10 C 405 (A,154,102) CEJQ101M10 C 406 (B,167,94) CKSRYB104K25 C 407 (B,159,68) CKSRYB103K50 C 408 (A,157,29) CEJQ220M10 C 410 (B,157,25) (ES,CN5) CKSRYB474K10 C 411 (B,167,92) (ES) CCSRCH470J50 C 412 (B,128,135) CKSRYB105K10 C 451 (A,119,126) CEJQ330M10 C 501 (A,29,27) 150 µF/6.3 V CCH1781 C 502 (A,17,50) CEJQ221M16 C 503 (B,24,23) CCSRCH221J50 C 504 (B,17,53) CKSRYB105K16 C 505 (B,25,31) CCSRCH101J50 C 506 (B,27,35) CKSRYB332K50 C 507 (B,28,43) CKSRYB104K25 C 508 (B,29,22) CKSRYB105K10 C 601 (B,83,46) CCSRCH180J50 C 602 (B,87,46) CCSRCH180J50 C 604 (B,101,43) CKSRYB105K10 C 605 (A,103,40) CEJQ100M16 C 606 (B,112,33) CKSRYB104K25 C 607 (A,97,37) CEJQ100M16 C 609 (B,110,64) CCSRCH470J50 C 621 (B,21,141) CKSRYB472K50 C 622 (B,17,141) CKSRYB472K50 C 623 (B,111,93) CKSRYB104K25 C 701 (B,21,57) CKSRYB473K25 C 703 (A,24,53) CEJQ101M10 C 704 (B,145,67) CKSRYB105K10 C 705 (B,127,84) CKSRYB105K10 C 708 (A,39,27) CEJQ220M10 C 709 (B,48,29) CKSRYB105K10 C 710 (B,45,27) CKSRYB474K10 C 720 (B,39,52) CKSRYB105K10 C 851 (B,25,12) CKSRYB104K25 C 901 (B,54,117) CKSRYB104K25 C 911 (A,15,68) CEJQ470M10 C 912 (B,21,73) CKSRYB103K50 C 913 (A,24,74) CEAT102M16 C 921 (B,12,112) CKSRYB103K50 C 922 (A,18,99) CEJQ221M10 C 923 (A,16,117) CEJQ101M16 C 924 (B,15,115) CKSRYB103K50 C 961 (B,101,36) CKSRYB473K25 C 962 (A,93,33) CEJQ100M16 B Unit Number : (EW5) Unit Number : (ES) Unit Name : Keyboard Unit MISCELLANEOUS IC 1801 (B,30,113) IC PD6538A IC 1802 (A,30,161) Remote IC(ES) GP1UX51RK D 1801 (B,32,149) Diode MC2848-11 D 1802 (B,32,146) Diode MC2846-11 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 75 5 6 7 8 5 6 7 8 C D F A B E D 1803 (A,26,156) White LED NESW505C-5273 D 1823 (B,12,148) Varistor EZJZ1V800AM D 1824 (B,11,148) Varistor EZJZ1V800AM D 1827 (A,15,29) LED SML-310VT D 1828 (A,15,9) LED SML-310VT D 1829 (A,5,8) LED SML-310VT D 1830 (A,39,8) LED SML-310VT D 1831 (A,37,17) LED SML-310VT D 1832 (A,26,12) LED SML-310VT D 1833 (A,18,57) LED SML-310VT D 1834 (A,5,144) LED SML-310VT D 1835 (A,5,161) LED SML-310VT D 1836 (A,36,57) LED SML-310VT D 1837 (A,33,35) LED SML-310VT D 1838 (A,39,28) LED SML-310VT D 1839 (A,17,39) LED SML-310VT D 1840 (A,18,17) LED SML-310VT D 1841 (A,26,26) LED SML-310VT L 1801 (B,11,151) Inductor CTF1713 X 1801 (B,40,124) Ceramic Resonator 5.00 MHz CSS1547 S 1801 (A,8,161) Push Switch CSG1155 S 1802 (A,18,8) Push Switch CSG1155 S 1803 (A,15,35) Push Switch CSG1155 S 1804 (A,36,8) Push Switch CSG1155 S 1805 (A,8,7) Push Switch CSG1155 S 1806 (A,18,28) Push Switch CSG1155 S 1807 (A,39,60) Push Switch CSG1155 S 1808 (A,36,28) Push Switch CSG1155 S 1809 (A,15,60) Push Switch CSG1155 S 1810 (A,39,35) Push Switch CSG1155 S 1827 (A,27,47) Switch (MULTI-CONTROL) CSX1120 LCD1801 (A,18,69) LCD YAW5091 RESISTORS R 1801 (B,29,74) RS1/16S222J R 1802 (B,30,74) RS1/16S222J R 1803 (B,26,150) RS1/4SA152J R 1812 (B,12,14) RS1/4SA561J R 1813 (B,28,10) RS1/4SA561J R 1814 (B,8,150) RS1/4SA561J R 1815 (B,25,19) RS1/4SA561J R 1817 (B,18,20) RS1/4SA561J R 1822 (B,35,38) RS1/16S222J R 1823 (B,37,38) RS1/16S332J R 1824 (B,37,40) RS1/16S822J R 1825 (B,37,41) RS1/16S333J R 1831 (B,35,41) RS1/16S473J R 1832 (B,36,143) (ES) RS1/16S103J R 1833 (B,40,144) (ES) RS1/16S2R2J R 1834 (B,38,144) (EW5) RS1/16S104J R 1835 (B,36,145) (ES) RS1/16S121J R 1838 (B,30,33) RS1/16S0R0J CAPACITORS C 1801 (B,38,141) (ES) CKSYF106Z10 C 1802 (B,34,140) CKSRYF104Z25 C 1803 (B,32,140) CKSRYF104Z25 C 1804 (B,31,140) CKSRYF104Z25 Circuit Symbol and No. Part No. B Unit Number : (CN5) Unit Name : Keyboard Unit MISCELLANEOUS IC 1801 (B,30,113) IC PD6538A IC 1802 (A,30,161) Remote IC GP1UX51RK D 1801 (B,32,149) Diode MC2848-11 D 1802 (B,32,146) Diode MC2846-11 D 1803 (A,26,156) White LED NESW505C-5273 D 1805 (A,15,30) LED SML-310PT D 1806 (A,15,8) LED SML-310PT D 1807 (A,5,7) LED SML-310PT D 1808 (A,39,9) LED SML-310PT D 1809 (A,36,17) LED SML-310PT D 1810 (A,28,12) LED SML-310PT D 1811 (A,17,56) LED SML-310PT D 1812 (A,6,144) LED SML-310PT D 1813 (A,5,162) LED SML-310PT D 1814 (A,37,56) LED SML-310PT D 1815 (A,34,36) LED SML-310PT D 1816 (A,39,27) LED SML-310PT D 1817 (A,18,38) LED SML-310PT D 1818 (A,17,17) LED SML-310PT D 1819 (A,28,26) LED SML-310PT D 1823 (B,12,148) Varistor EZJZ1V800AM D 1824 (B,11,148) Varistor EZJZ1V800AM L 1801 (B,11,151) Inductor CTF1713 X 1801 (B,40,124) Ceramic Resonator 5.00 MHz CSS1547 S 1801 (A,8,161) Push Switch CSG1155 S 1802 (A,18,8) Push Switch CSG1155 S 1803 (A,15,35) Push Switch CSG1155 S 1804 (A,36,8) Push Switch CSG1155 S 1805 (A,8,7) Push Switch CSG1155 S 1806 (A,18,28) Push Switch CSG1155 S 1807 (A,39,60) Push Switch CSG1155 S 1808 (A,36,28) Push Switch CSG1155 S 1809 (A,15,60) Push Switch CSG1155 S 1810 (A,39,35) Push Switch CSG1155 S 1827 (A,27,47) Switch (MULTI-CONTROL) CSX1120 LCD1801 (A,18,69) LCD YAW5091 RESISTORS R 1801 (B,29,74) RS1/16S222J R 1802 (B,30,74) RS1/16S222J R 1803 (B,26,150) RS1/4SA561J R 1804 (B,12,11) RS1/4SA471J R 1805 (B,28,8) RS1/4SA471J R 1806 (B,5,150) RS1/4SA471J R 1807 (B,28,20) RS1/4SA471J R 1809 (B,21,21) RS1/4SA471J R 1822 (B,35,38) RS1/16S222J R 1823 (B,37,38) RS1/16S332J R 1824 (B,37,40) RS1/16S822J R 1825 (B,37,41) RS1/16S333J R 1831 (B,35,41) RS1/16S473J R 1832 (B,36,143) RS1/16S103J R 1833 (B,40,144) RS1/16S2R2J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 76 1 2 3 4 1 2 3 4 C D F A B E R 1835 (B,36,145) RS1/16S121J R 1837 (B,41,18) RS1/16S0R0J CAPACITORS C 1801 (B,38,141) CKSYF106Z10 C 1802 (B,34,140) CKSRYF104Z25 C 1803 (B,32,140) CKSRYF104Z25 C 1804 (B,31,140) CKSRYF104Z25 C Unit Number : CWX3527 Unit Name : CD Core Unit (S10.5COMP2-USB) MISCELLANEOUS IC 201 (A,36,46) IC PE5611B IC 301 (A,29,15) IC BA5839FP Q 101 (B,58,70) Transistor 2SA1577 Q 102 (B,49,58) Chip Transistor 2SB1689 X 201 (A,23,38) Ceramic Resonator 16.934 MHz CSS1603 X 205 (B,34,63) Oscillator 48.000 MHz CSS1753 S 901 (A,55,37) Switch(HOME) CSN1067 S 903 (B,20,59) Switch(DSCSNS) CSN1067 S 904 (B,41,68) Switch(12EJ) CSN1068 S 905 (B,25,70) Switch(8EJ) CSN1068 RESISTORS R 101 (B,61,74) RS1/10SR2R4J R 102 (B,61,72) RS1/10SR2R4J R 103 (B,61,71) RS1/10SR2R7J R 104 (B,54,67) RS1/16SS222J R 105 (B,45,58) RS1/16SS102J R 107 (B,52,60) RS1/16SS105J R 202 (A,27,33) RS1/16SS473J R 203 (A,51,44) RS1/16S473J R 204 (A,24,58) RS1/16SS221J R 206 (B,10,27) RS1/16SS104J R 209 (B,19,53) RS1/16SS103J R 210 (B,10,23) RS1/16SS102J R 214 (B,50,50) RS1/16SS472J R 216 (B,49,49) RS1/16SS472J R 221 (A,51,48) RS1/16SS103J R 222 (A,51,46) RS1/16SS103J R 223 (B,14,43) RS1/16SS473J R 225 (A,51,50) RS1/16SS103J R 226 (A,51,51) RS1/16SS393J R 227 (B,48,52) RS1/16SS562J R 228 (B,45,52) RS1/16SS122J R 229 (B,47,54) RS1/16SS472J R 230 (B,22,25) RS1/16SS0R0J R 232 (B,46,52) RS1/16SS122J R 233 (B,26,59) RS1/16SS103J R 234 (B,23,26) RS1/16SS473J R 235 (A,26,59) RS1/16SS473J R 237 (A,24,35) RS1/16SS151J R 240 (B,14,26) RS1/16S473J R 241 (B,14,25) RS1/16SS103J R 244 (B,22,55) RS1/16SS473J R 254 (A,26,64) RS1/16SS104J Circuit Symbol and No. Part No. R 255 (A,26,63) RS1/16SS104J R 256 (A,26,62) RS1/16SS104J R 259 (A,28,66) RS1/16SS0R0J R 261 (A,26,65) RS1/16SS104J R 262 (A,30,60) RS1/16SS0R0J R 263 (A,28,63) RS1/16SS0R0J R 280 (B,26,52) RS1/16SS103J R 282 (A,30,61) RS1/16SS240J R 283 (A,29,61) RS1/16SS240J R 284 (B,30,63) RS1/16SS153J R 285 (B,28,63) RS1/16SS153J R 290 (B,19,47) RS1/16SS103J R 291 (B,43,62) RS1/16SS272J R 294 (A,32,63) RS1/16SS471J R 307 (A,35,19) RS1/16SS183J R 308 (A,38,19) RS1/16SS183J R 309 (A,35,21) RS1/16SS183J R 310 (A,38,22) RS1/16SS183J R 601 (B,30,31) RS1/16SS0R0J R 602 (B,27,31) RS1/16SS0R0J R 606 (B,28,23) RS1/16S0R0J R 701 (B,12,37) RS1/16SS221J R 702 (A,24,56) RS1/16SS221J R 708 (B,15,37) RS1/16S0R0J R 712 (B,15,54) RS1/16SS0R0J R 713 (B,15,53) RS1/16SS0R0J CAPACITORS C 106 (B,57,67) CKSQYB475K6R3 C 202 (A,28,57) CKSSYB104K10 C 204 (A,24,59) CKSSYB103K16 C 205 (B,27,41) CKSQYB475K6R3 C 206 (A,23,41) CKSSYB104K10 C 207 (A,25,38) CKSRYB104K16 C 209 (B,36,35) CEVW220M6R3 C 210 (B,29,37) CKSSYB104K10 C 211 (A,28,35) CKSSYB104K10 C 212 (A,29,30) CKSRYB104K16 C 213 (A,46,39) CKSSYB104K10 C 214 (A,29,34) CKSSYB104K10 C 216 (A,51,52) CKSSYB332K50 C 217 (A,48,52) CKSSYB104K10 C 218 (A,50,52) CKSSYB473K10 C 219 (A,47,54) CKSSYB104K10 C 220 (A,48,54) CKSSYB182K50 C 221 (A,46,54) CKSSYB104K10 C 222 (B,46,54) CCSSCH560J50 C 223 (B,48,54) CCSSCH4R0C50 C 224 (A,45,56) CKSSYB104K10 C 226 (A,42,59) CCSSCH680J50 C 227 (A,42,61) CCSSCH470J50 C 228 (B,41,62) CKSSYB103K16 C 229 (B,48,60) CKSSYB104K10 C 236 (A,50,58) CKSSYB104K10 C 239 (B,47,52) CCSSCH220J50 C 240 (A,38,61) CKSSYB104K10 C 243 (B,22,41) CKSQYB475K6R3 C 250 (A,52,48) CKSSYB102K50 C 251 (A,52,46) CKSSYB102K50 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-4000UB/XS/EW5 77 5 6 7 8 5 6 7 8 C D F A B E C 260 (A,28,61) CKSSYB104K10 C 261 (B,34,67) CCSSCH8R0D50 C 262 (B,32,66) CCSSCH8R0D50 C 293 (B,44,61) CKSSYB102K50 C 303 (A,36,19) CKSSYB472K25 C 304 (A,36,21) CKSSYB223K16 C 307 (A,22,11) CKSRYB104K16 C 308 (B,11,18) CKSRYB105K10 C 703 (B,15,35) CCSSCH101J50 C 704 (B,12,36) CKSSYB102K50 C 711 (A,31,25) CKSSYB104K10 Miscellaneous Parts List Pickup Unit(P10.5)(Service) CXX1942 M 1 Motor Unit(SPINDLE) CXC7134 M 2 Motor Unit(LOADING/CARRIAGE) CXC4026 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
