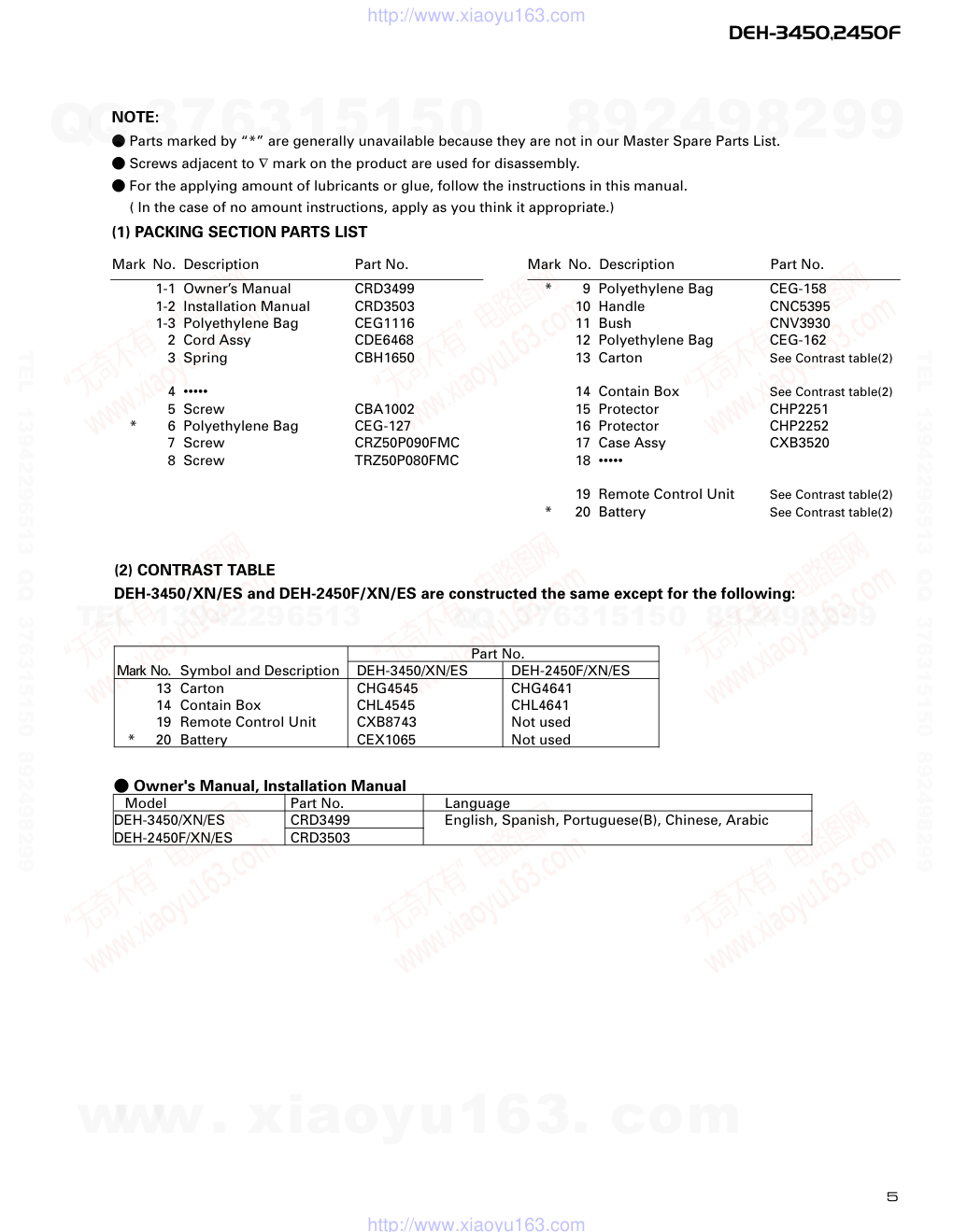

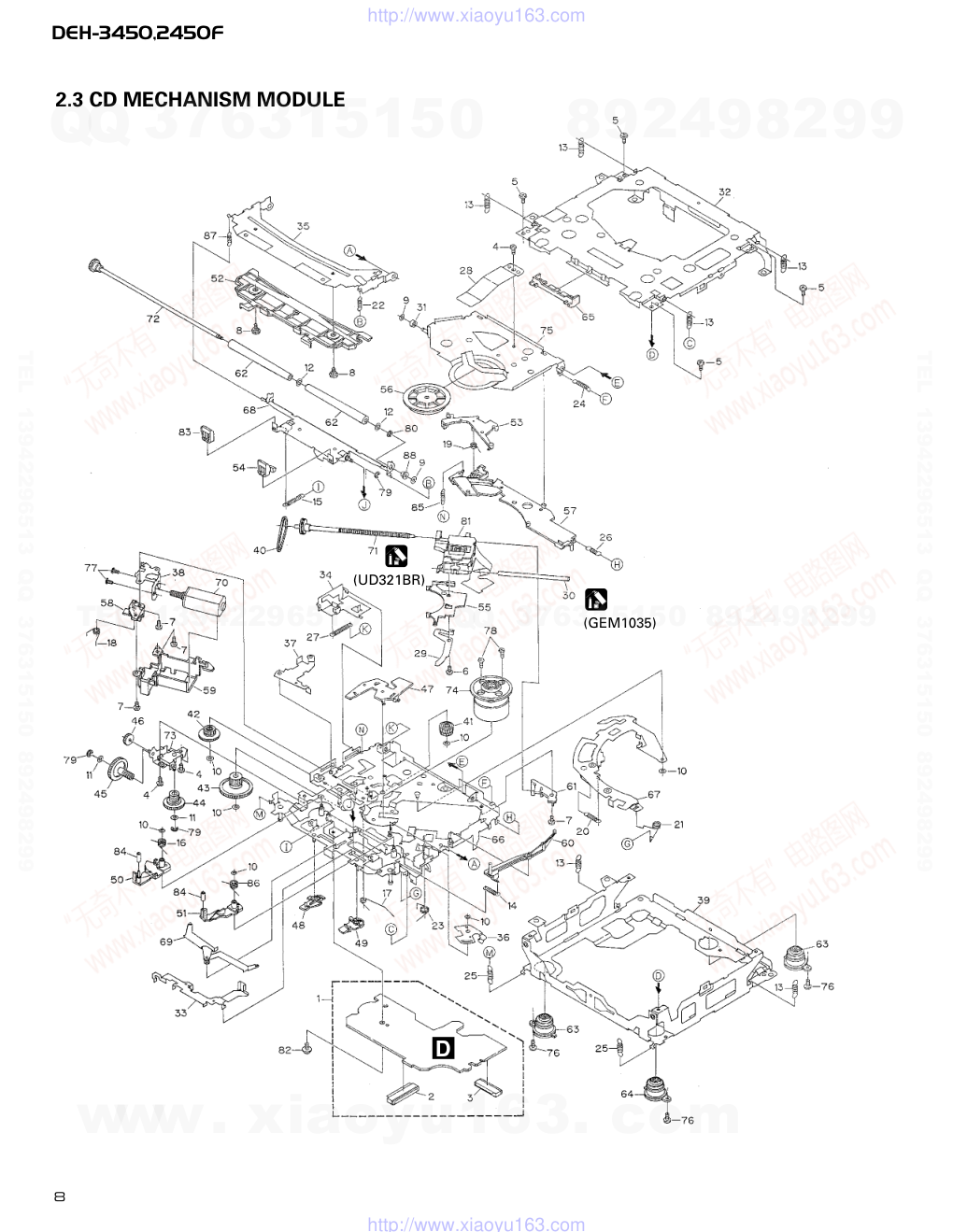

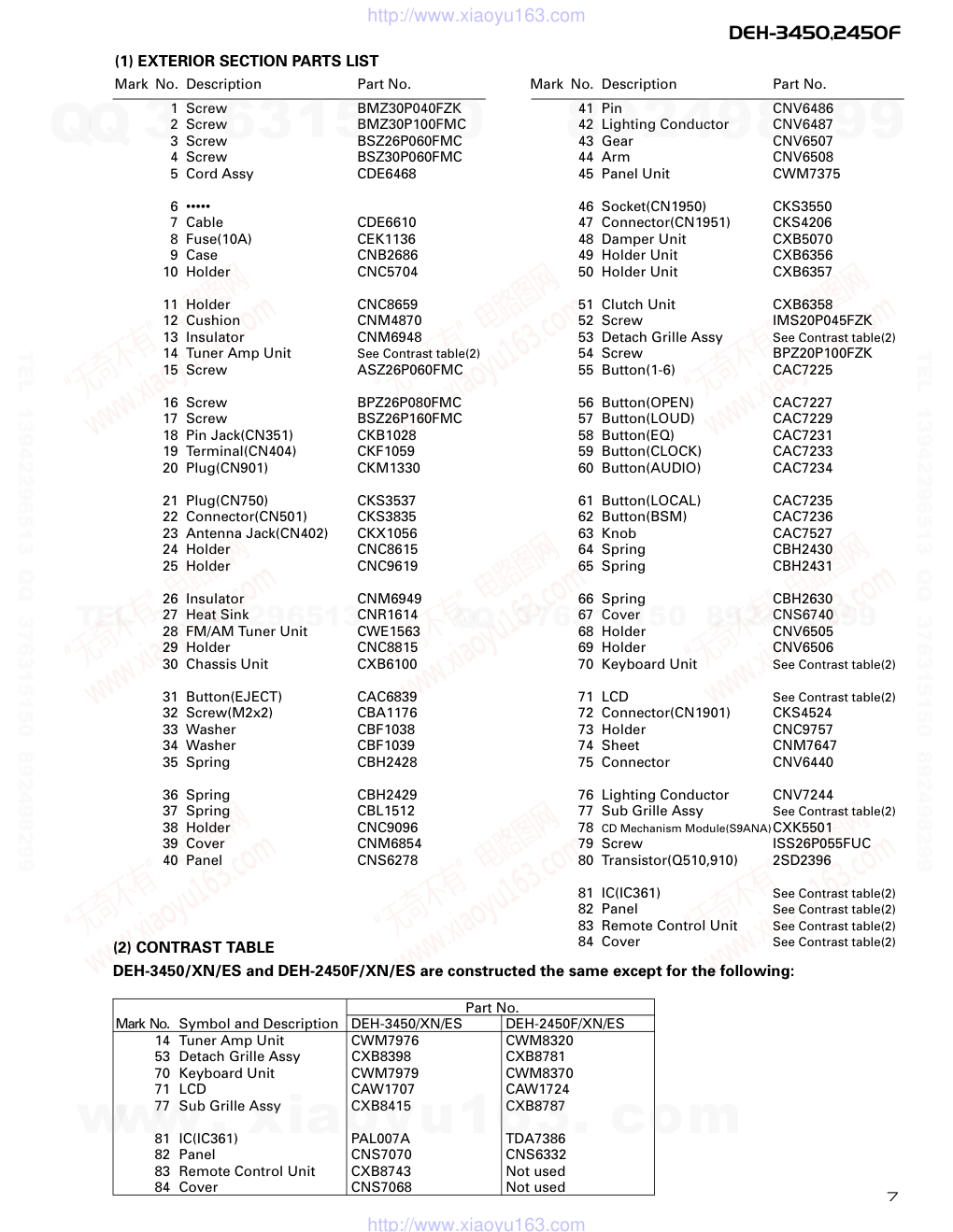

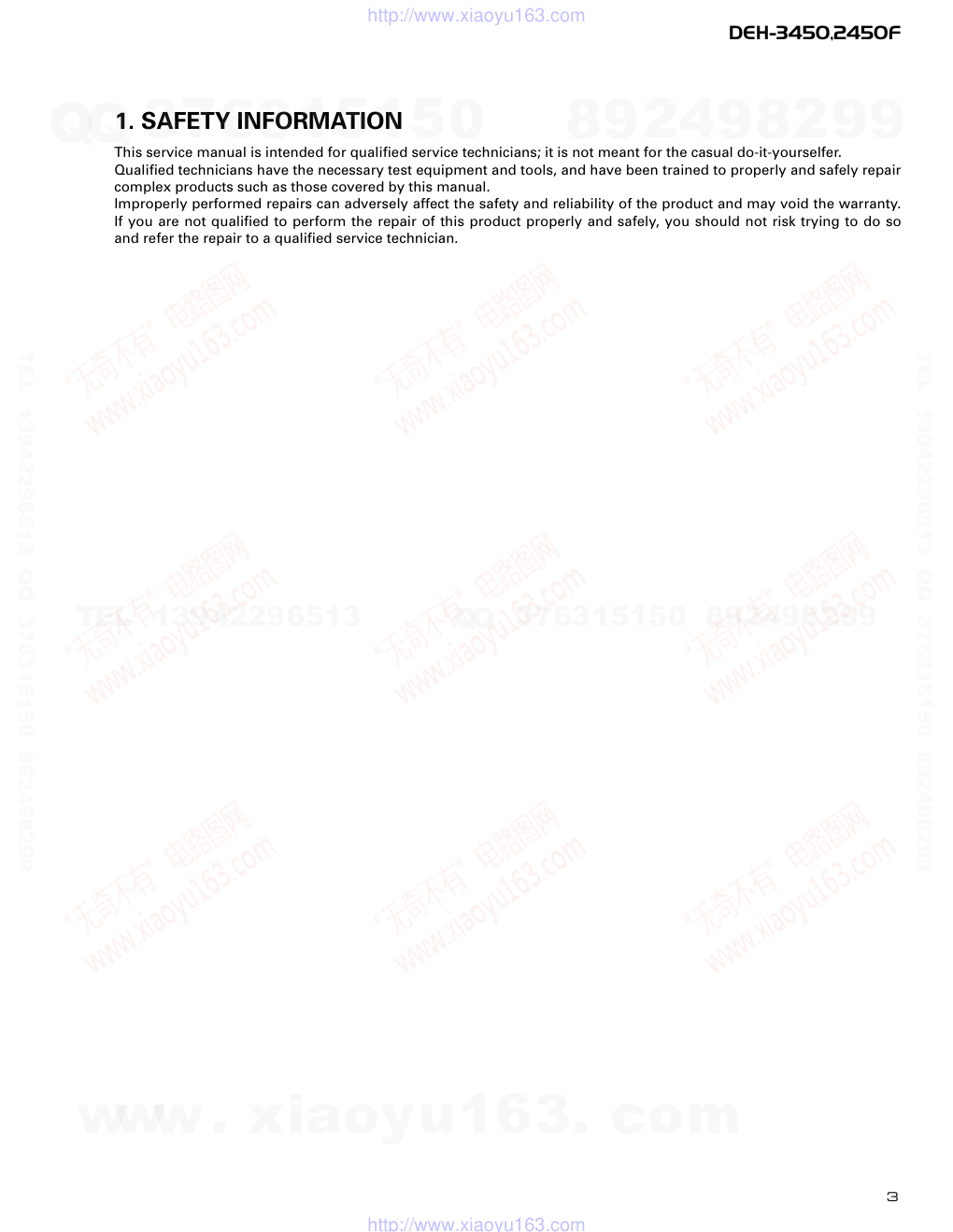

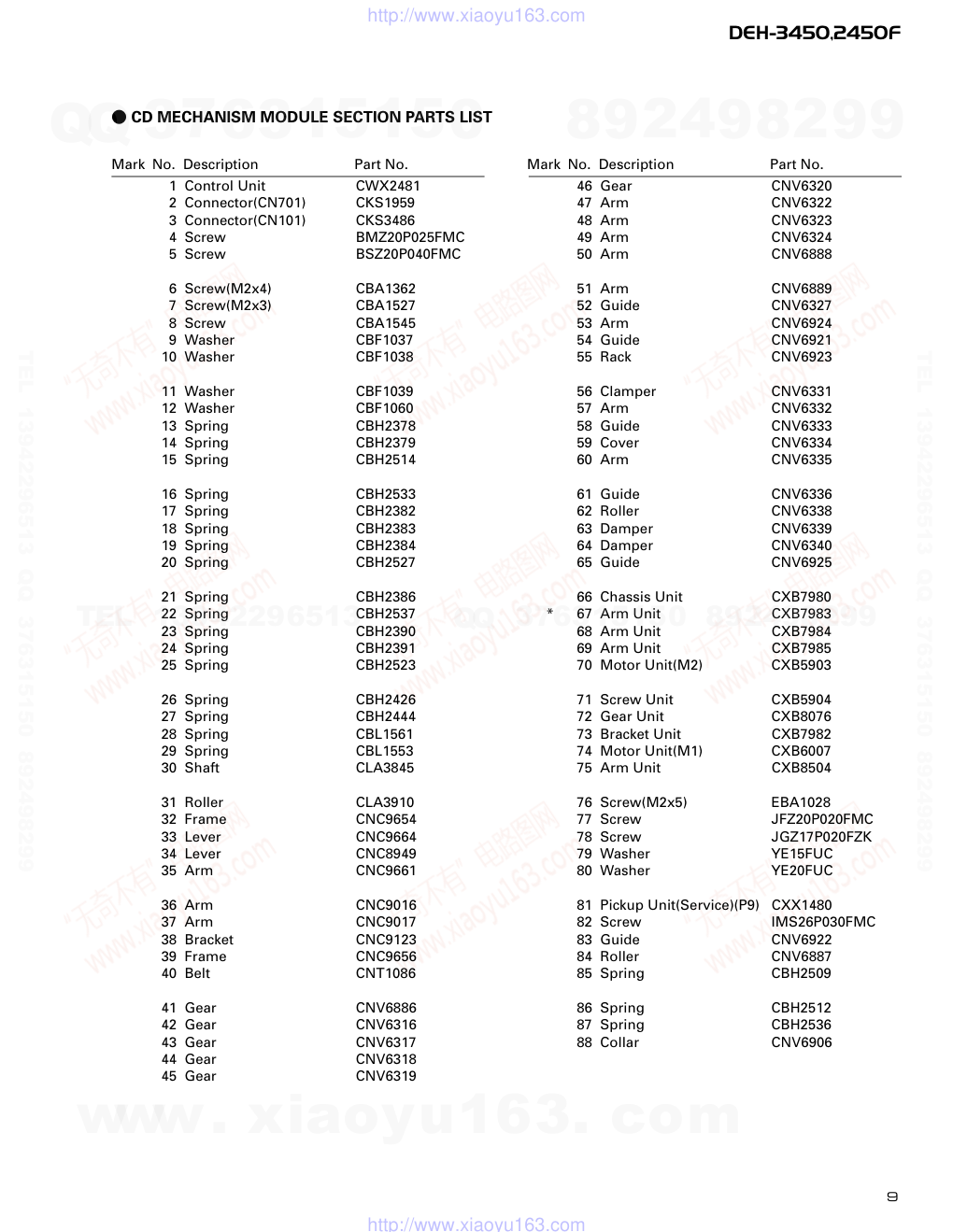

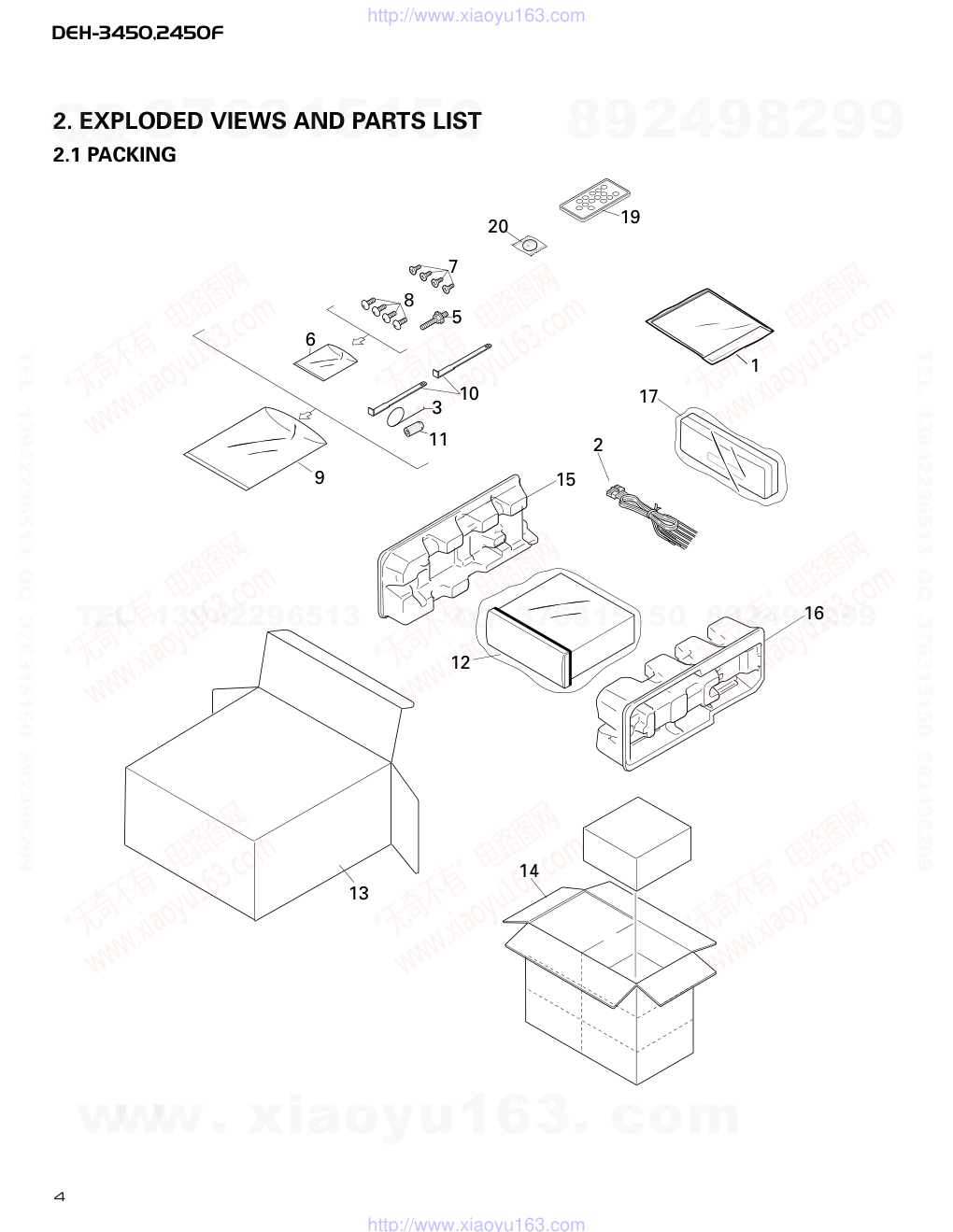

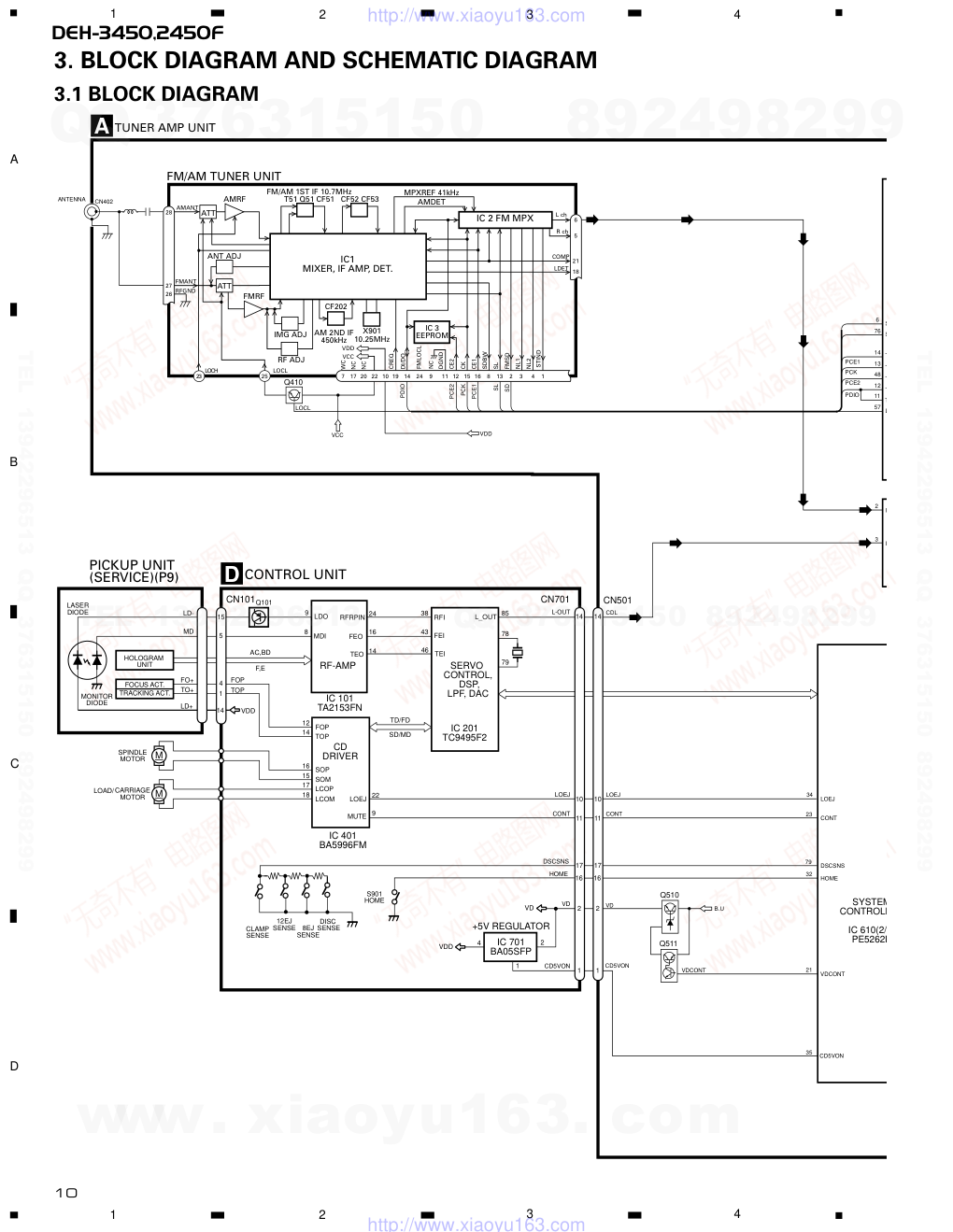

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936 C PIONEER CORPORATION 2001 K-ZZD. NOV. 2001 Printed in Japan ORDER NO. CRT2758 HIGH POWER CD PLAYER WITH FM/AM TUNER DEH-3450 XN/ES Service Manual DEH-3450/XN/ES CONTENTS 1. SAFETY INFORMATION ............................................3 2. EXPLODED VIEWS AND PARTS LIST.......................4 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...10 4. PCB CONNECTION DIAGRAM ................................24 5. ELECTRICAL PARTS LIST ........................................32 6. ADJUSTMENT..........................................................38 7. GENERAL INFORMATION .......................................42 7.1 DIAGNOSIS ........................................................42 7.1.1 DISASSEMBLY .........................................42 7.1.2 CONNECTOR FUNCTION DESCRIPTION.......45 7.2 PARTS .................................................................46 7.2.1 IC................................................................46 7.2.2 DISPLAY....................................................55 7.3 OPERATIONAL FLOW CHART...........................56 7.4 CLEANING ..........................................................57 8. OPERATIONS AND SPECIFICATIONS.....................58 - This service manual should be used together with the following manual(s): Model No. Order No. Mech. Module Remarks CX-977 CRT2624 S9 CD Mech. Module:Circuit Description, Mech.Description, Disassembly DEH-2450F XN/ES For details, refer to "Important symbols for good services" on the next page. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 DEH-3450,2450F - CD Player Service Precautions 1. For pickup unit(CXX1480) handling, please refer to"Disassembly"(see page 42). During replacement, handling precautions shall be taken to prevent an electrostatic discharge(protection by a jumper-solder). 2. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a con- nector is plugged or unplugged. 3. Please checking the grating after changing the pickup unit(see page 39). 4. In this product, because the memory capacity of the microcomputer is insufficient, the test mode is not installed. However grating of the pickup unit can be confirmed. [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 DEH-3450,2450F This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. 1. SAFETY INFORMATION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 DEH-3450,2450F 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 19 20 16 15 12 14 13 2 17 1 10 3 11 7 8 5 9 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 DEH-3450,2450F Part No. Mark No. Symbol and Description DEH-3450/XN/ES DEH-2450F/XN/ES 13 Carton CHG4545 CHG4641 14 Contain Box CHL4545 CHL4641 19 Remote Control Unit CXB8743 Not used * 20 Battery CEX1065 Not used (2) CONTRAST TABLE DEH-3450/XN/ES and DEH-2450F/XN/ES are constructed the same except for the following: - Owner's Manual, Installation Manual Model Part No. Language DEH-3450/XN/ES CRD3499 English, Spanish, Portuguese(B), Chinese, Arabic DEH-2450F/XN/ES CRD3503 1-1 Owner’s Manual CRD3499 1-2 Installation Manual CRD3503 1-3 Polyethylene Bag CEG1116 2 Cord Assy CDE6468 3 Spring CBH1650 4 ••••• 5 Screw CBA1002 * 6 Polyethylene Bag CEG-127 7 Screw CRZ50P090FMC 8 Screw TRZ50P080FMC * 9 Polyethylene Bag CEG-158 10 Handle CNC5395 11 Bush CNV3930 12 Polyethylene Bag CEG-162 13 Carton See Contrast table(2) 14 Contain Box See Contrast table(2) 15 Protector CHP2251 16 Protector CHP2252 17 Case Assy CXB3520 18 ••••• 19 Remote Control Unit See Contrast table(2) * 20 Battery See Contrast table(2) Mark No. Description Part No. Mark No. Description Part No. (1) PACKING SECTION PARTS LIST NOTE: - Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List. - Screws adjacent to ∇ mark on the product are used for disassembly. - For the applying amount of lubricants or glue, follow the instructions in this manual. ( In the case of no amount instructions, apply as you think it appropriate.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 DEH-3450,2450F A B C 2.2 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 DEH-3450,2450F 1 Screw BMZ30P040FZK 2 Screw BMZ30P100FMC 3 Screw BSZ26P060FMC 4 Screw BSZ30P060FMC 5 Cord Assy CDE6468 6 ••••• 7 Cable CDE6610 8 Fuse(10A) CEK1136 9 Case CNB2686 10 Holder CNC5704 11 Holder CNC8659 12 Cushion CNM4870 13 Insulator CNM6948 14 Tuner Amp Unit See Contrast table(2) 15 Screw ASZ26P060FMC 16 Screw BPZ26P080FMC 17 Screw BSZ26P160FMC 18 Pin Jack(CN351) CKB1028 19 Terminal(CN404) CKF1059 20 Plug(CN901) CKM1330 21 Plug(CN750) CKS3537 22 Connector(CN501) CKS3835 23 Antenna Jack(CN402) CKX1056 24 Holder CNC8615 25 Holder CNC9619 26 Insulator CNM6949 27 Heat Sink CNR1614 28 FM/AM Tuner Unit CWE1563 29 Holder CNC8815 30 Chassis Unit CXB6100 31 Button(EJECT) CAC6839 32 Screw(M2x2) CBA1176 33 Washer CBF1038 34 Washer CBF1039 35 Spring CBH2428 36 Spring CBH2429 37 Spring CBL1512 38 Holder CNC9096 39 Cover CNM6854 40 Panel CNS6278 41 Pin CNV6486 42 Lighting Conductor CNV6487 43 Gear CNV6507 44 Arm CNV6508 45 Panel Unit CWM7375 46 Socket(CN1950) CKS3550 47 Connector(CN1951) CKS4206 48 Damper Unit CXB5070 49 Holder Unit CXB6356 50 Holder Unit CXB6357 51 Clutch Unit CXB6358 52 Screw IMS20P045FZK 53 Detach Grille Assy See Contrast table(2) 54 Screw BPZ20P100FZK 55 Button(1-6) CAC7225 56 Button(OPEN) CAC7227 57 Button(LOUD) CAC7229 58 Button(EQ) CAC7231 59 Button(CLOCK) CAC7233 60 Button(AUDIO) CAC7234 61 Button(LOCAL) CAC7235 62 Button(BSM) CAC7236 63 Knob CAC7527 64 Spring CBH2430 65 Spring CBH2431 66 Spring CBH2630 67 Cover CNS6740 68 Holder CNV6505 69 Holder CNV6506 70 Keyboard Unit See Contrast table(2) 71 LCD See Contrast table(2) 72 Connector(CN1901) CKS4524 73 Holder CNC9757 74 Sheet CNM7647 75 Connector CNV6440 76 Lighting Conductor CNV7244 77 Sub Grille Assy See Contrast table(2) 78 CD Mechanism Module(S9ANA)CXK5501 79 Screw ISS26P055FUC 80 Transistor(Q510,910) 2SD2396 81 IC(IC361) See Contrast table(2) 82 Panel See Contrast table(2) 83 Remote Control Unit See Contrast table(2) 84 Cover See Contrast table(2) (1) EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. Part No. Mark No. Symbol and Description DEH-3450/XN/ES DEH-2450F/XN/ES 14 Tuner Amp Unit CWM7976 CWM8320 53 Detach Grille Assy CXB8398 CXB8781 70 Keyboard Unit CWM7979 CWM8370 71 LCD CAW1707 CAW1724 77 Sub Grille Assy CXB8415 CXB8787 81 IC(IC361) PAL007A TDA7386 82 Panel CNS7070 CNS6332 83 Remote Control Unit CXB8743 Not used 84 Cover CNS7068 Not used (2) CONTRAST TABLE DEH-3450/XN/ES and DEH-2450F/XN/ES are constructed the same except for the following: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 DEH-3450,2450F 2.3 CD MECHANISM MODULE D (GEM1035) (UD321BR) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 DEH-3450,2450F Mark No. Description Part No. Mark No. Description Part No. 1 Control Unit CWX2481 2 Connector(CN701) CKS1959 3 Connector(CN101) CKS3486 4 Screw BMZ20P025FMC 5 Screw BSZ20P040FMC 6 Screw(M2x4) CBA1362 7 Screw(M2x3) CBA1527 8 Screw CBA1545 9 Washer CBF1037 10 Washer CBF1038 11 Washer CBF1039 12 Washer CBF1060 13 Spring CBH2378 14 Spring CBH2379 15 Spring CBH2514 16 Spring CBH2533 17 Spring CBH2382 18 Spring CBH2383 19 Spring CBH2384 20 Spring CBH2527 21 Spring CBH2386 22 Spring CBH2537 23 Spring CBH2390 24 Spring CBH2391 25 Spring CBH2523 26 Spring CBH2426 27 Spring CBH2444 28 Spring CBL1561 29 Spring CBL1553 30 Shaft CLA3845 31 Roller CLA3910 32 Frame CNC9654 33 Lever CNC9664 34 Lever CNC8949 35 Arm CNC9661 36 Arm CNC9016 37 Arm CNC9017 38 Bracket CNC9123 39 Frame CNC9656 40 Belt CNT1086 41 Gear CNV6886 42 Gear CNV6316 43 Gear CNV6317 44 Gear CNV6318 45 Gear CNV6319 46 Gear CNV6320 47 Arm CNV6322 48 Arm CNV6323 49 Arm CNV6324 50 Arm CNV6888 51 Arm CNV6889 52 Guide CNV6327 53 Arm CNV6924 54 Guide CNV6921 55 Rack CNV6923 56 Clamper CNV6331 57 Arm CNV6332 58 Guide CNV6333 59 Cover CNV6334 60 Arm CNV6335 61 Guide CNV6336 62 Roller CNV6338 63 Damper CNV6339 64 Damper CNV6340 65 Guide CNV6925 66 Chassis Unit CXB7980 * 67 Arm Unit CXB7983 68 Arm Unit CXB7984 69 Arm Unit CXB7985 70 Motor Unit(M2) CXB5903 71 Screw Unit CXB5904 72 Gear Unit CXB8076 73 Bracket Unit CXB7982 74 Motor Unit(M1) CXB6007 75 Arm Unit CXB8504 76 Screw(M2x5) EBA1028 77 Screw JFZ20P020FMC 78 Screw JGZ17P020FZK 79 Washer YE15FUC 80 Washer YE20FUC 81 Pickup Unit(Service)(P9) CXX1480 82 Screw IMS26P030FMC 83 Guide CNV6922 84 Roller CNV6887 85 Spring CBH2509 86 Spring CBH2512 87 Spring CBH2536 88 Collar CNV6906 - CD MECHANISM MODULE SECTION PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 DEH-3450,2450F A 1 2 3 4 B C D 1 2 3 4 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM VDCONT Q510 Q511 B.U ANTENNA CN402 LOCL Q410 VCC VDD PCE2 PCK PCE1 SL SD PDIO S S T T T T L I I 6 76 14 13 48 12 57 2 3 CN501 CDL SYSTEM CONTROLL IC 610(2/ PE5262B CD5VON 34 23 79 32 21 35 VDCONT HOME DSCSNS LOEJ CONT LOEJ CONT T 11 PDIO TUNER AMP UNIT VD CD5VON IC 3 EEPROM FM/AM TUNER UNIT 28 27 FM/AM 1ST IF 10.7MHz T51 Q51 CF51 CF52 CF53 IC1 MIXER, IF AMP, DET. 6 21 18 LDET COMP 22 25 10 14 12 15 16 8 13 2 3 4 CF202 VDD VCC DI/DO CE2 CK CE1 SDBW SL FMSD NL1 NL2 IC 2 FM MPX AMANT FMANT ATT ATT AMRF FMRF IMG ADJ RF ADJ X901 10.25MHz ANT ADJ LOCL 23 LOCH AMDET MPXREF 41kHz AM 2ND IF 450kHz 19 CREQ 11 DGND 1 STIND L ch 5 R ch 9 24 NC FMLOCL 20 17 7 NC NC WC 26 RFGND CN701 Q101 M LASER DIODE MONITOR DIODE CLAMP SENSE DISC SENSE FOCUS ACT. SPINDLE MOTOR M CARRIAGE MOTOR LOAD/ TRACKING ACT. LD- MD FO+ TO+ 15 5 1 4 PICKUP UNIT (SERVICE)(P9) HOLOGRAM UNIT IC 401 BA5996FM IC 201 TC9495F2 IC 701 BA05SFP +5V REGULATOR SERVO CONTROL, DSP, LPF, DAC CD DRIVER 17 DSCSNS 2 VD VD VDD 11 CONT 10 LOEJ 14 L-OUT 1 CD5VON CN101 TOP FOP 16 SOP 15 SOM 17 LCOP 18 LCOM 22 1 2 LOEJ 78 85 L_OUT 79 9 MUTE 12 FOP TD/FD AC,BD F,E SD/MD 38 RFI 43 FEI 4 14 TOP S901 HOME 12EJ SENSE 8EJ SENSE HOME 16 LD+ 14 VDD 9 LDO 8 MDI IC 101 TA2153FN RFRPIN FEO TEO 24 16 14 46 TEI RF-AMP CONTROL UNIT 17 2 11 10 14 1 16 A D PCE1 PCK PCE2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-3450,2450F 5 6 7 8 A B C D 5 6 7 8 11 DEH-3450/XN/ES KYDT DPDT IC 1900 PD6340A 5 3 8 14 11 10 KEY MATRIX SD SL TUNPCE TUNPCK TUNPCE2 TUNPDO LOCL IN2_L IN3_L 6 76 14 13 48 12 57 2 3 SYSTEM CONTROLLER IC 610 (1/2) PE5262B VST VCK VDT B.U VDD Q913 B.U BACKUP FL- FL+ RL- RL+ ACC 2 1 10 12 9 11 3 ELECTRONIC VOLUME IC 301 PML003AM SYSTEM CONTROLLER IC 610(2/2) PE5262B ASENS 64 BSENS 63 TELIN 38 SYSPW 42 MUTE 44 KYDT 8 DPDT 9 RESET 60 SWVDD 41 Frontout_L 10 Rearout_L 11 POWER AMP IC 361 14 12 22 4 5 3 21 23 FL MUTE STBY RL B.U bsens asens Q920 Q361 MUTE Q921 KEYBOARD UNIT CN1901 CN750 LCD 20 18 Q750 RESET IC 603 S-80834ANY VDD 1 2 SYSPW 6 B.REM FUSE 10A CD5VON 34 23 79 32 21 35 VDCONT HOME DSCSNS LOEJ CONT TUNPDI 11 PDIO VST/ VCK/ VDT VDD VDD VLCD 56 10 CN901 Q 351 CN351 REAR L CH Q359 BACK UP FL- FL+ RL- RL+ B.REM ACC GND C PCE1 PCK PCE2 ANTIN 52 KYDT DPDT SW5V KEY CONTROL LCD DRIVER 2 1 10 12 9 11 3 6 SYSPW Q910 Q911 B.U VCC Q912 RESET IC 603 S-80834ANY 1 2 VCC REGULATOR VDD REGULATOR 14 11 10 CN1950 8 10 5 CN1951 13 13 8 8 S1950 EJECT EJECTS 53 12 12 9 4 7 6 S1922 VOLUME ROT0 ROT1 ROT0 ROT1 ROT0 ROT1 37 36 IC1902 RS-140 4 1 REM 17 REMOTE CONTROL SENSOR OPT IN PANEL UNIT B 25 S750 DSENS Q751 B.U Q753 B.U Q752 9 9 6 6 5 5 7 7 4 4 3 10 CSENS ILB+ FILM+ FILM- EJECT µGND CSENS KYDT DPDT IL+B SW+5V 9 4 ILLUMINATION ILLUMINATION ILMPW 40 FLPILM 20 DSENS 64 CSENS 80 DEH-3450/XN/ES DEH-2450F/XN/ES PAL007A TDA7386 IC 361 B.REMOTE IC 901 TPD1018F 6 1 DEH-2450F/XN/ES DEH-3450/XN/ES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 DEH-3450,2450F A 1 2 3 4 B C D 1 2 3 4 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE) Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS LIST”. A-a A-b A-a A-a A-b A-b A-b A-b A-a A-a Large size SCH diagram Guide page Detailed page A FM(100%):-19.5dBs AM(30%):-30dBs D CONTROL UNIT FM/AM TUNER UNIT A A C KEYBOARD UNIT B PANEL UNIT 183 183 162 162 272 272 393 104 CSS1023 4.194MHz 0R0 R791 DSENS EJECT For resistors and capacitors in the circuit diagrams, their resistance values or capacitance values are expressed in codes: Ex. *Resistors Code Practical value 123 12k ohms 103 10k ohms *Capacitors Code Practical value 103 0.01uF 101/10 100uF/10V ANTENNA JACK SYST ELECTRONIC A-a B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 DEH-3450,2450F 5 6 7 8 A B C D 5 6 7 8A FM(100%):+3.6dBs AM(30%):-6.9dBs CD:+10.2dBs CD:+9.4dBs FM(100%):+29.6dBs AM(30%):+19.1dBs CD:+36.2dBs A TUNER AMP UNIT RR+ RR- FR+ FR- FL+ FL- RL+ RL- ACC GND B.REM BACK UP DEH-3450/XN/ES DEH-2450F/XN/ES DEH-3450/XN/ES DEH-2450F/XN/ES DEH-3450/XN/ES CEK1136 > 10A RR RL PRE OUT 600µH EM CONTROLLER MUTE POWER AMP VOLUME VDD REGULATOR SYS+B REGULATOR BACK UP SENSE ACC SENSE B.REMOTE VCC REGULATOR A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 DEH-3450,2450F A 1 2 3 4 B C D 1 2 3 4 A-a A-a A-b FM(100%):-19.5dBs AM(30%):-30dBs FM/AM TUNER UNIT 183 183 162 162 272 272 4 CSS1023 4.194MHz 0R0 R791 ANTENNA JACK SYSTEM CO ELECTRONIC VOLU 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 DEH-3450,2450F 5 6 7 8 A B C D 5 6 7 8 A-a A-b D CONTROL UNIT A A- C KEYBOARD UNIT B PANEL UNIT 393 104 DSENS EJECT For resistors and capacitors in the circuit diagrams, their resistance values or capacitance values are expressed in codes: Ex. *Resistors Code Practical value 123 12k ohms 103 10k ohms *Capacitors Code Practical value 103 0.01uF 101/10 100uF/10V 6 5 2 3 4 7 A-a B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 DEH-3450,2450F A 1 2 3 4 B C D 1 2 3 4 A-a A-b A-b FM(100%):+3.6dBs AM(30%):-6.9dBs CD:+10.2dBs CD:+9.4dBs FM(100%):+29.6dBs AM(30%):+19.1dBs CD:+36.2dBs A TUNER AMP UNIT H-3450/XN/ES H-2450F/XN/ES RR RL PRE OUT 600µH TEM CONTROLLER MUTE POWER AMP C VOLUME 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 DEH-3450,2450F 5 6 7 8 A B C D 5 6 7 8 A-b A-a A-b FM(100%):+29.6dBs AM(30%):+19.1dBs CD:+36.2dBs RR+ RR- FR+ FR- FL+ FL- RL+ RL- ACC GND B.REM BACK UP DEH-3450/XN/E DEH-2450F/XN/ DEH-3450/XN/ES DEH-2450F/XN/ES DEH-3450/XN/ES CEK1136 > 10A VDD REGULATOR SYS+B REGULATOR BACK UP SENSE ACC SENSE B.REMOTE VCC REGULATOR 6 5 2 3 4 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 DEH-3450,2450F A 1 2 3 4 B C D 1 2 3 4 3.3 KEYBOARD UNIT CLOC ← ← LCD 5 DEH-3450/XN/ES RS-140 CAW1707 Not used 121 2R2 100/6R3 IC1902 LCD R1900 R1905 R1965 C1901 DEH-2450F/XN/ES Not used CAW1724 473 Not used Not used Not used KEY CONTROL AND DISPLAY DRIVER REMOTE CON C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-3450,2450F 5 6 7 8 A B C D 5 6 7 8 19 B CN1951 C KEYBOARD UNIT CLOCK ← ← ← ← LOUD BSM SML-310PT SML-310PT NSSW440-9159 NSSW440-9159 VOLUME 5 EQ 3 2 SOURCE 1 4 6 BAND AUDIO LOCAL CSG1111 CSG1111 CSD1077 E CONTROL SENSOR S1900-1906,1908-1916 : CSG1107 C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 DEH-3450,2450F A 1 2 3 4 B C D 1 2 3 4 3.4 CD MECHANISM MODULE D M1 CXB6007 M2 CXB5903 LOADING/CARRIAGE SPINDLE RF AMP S ACT/MOTOR DRIVER 5V REGULATOR CN101 D CONTROL UNIT PICKUP UNIT(SERVICE)(P9) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-3450,2450F 5 6 7 8 A B C D 5 6 7 8 21 D 16.934MHz SERVO CONTROL/DSP/DAC/LPF ER CN701 SWITCHES: CONTROL UNIT S901 : HOME SWITCH.....ON-OFF S902 : CLAMP SWITCH....ON-OFF S903 : DSCSNS SWITCH....ON-OFF S904 : 12EJ SWITCH....ON-OFF S905 : 8EJ SWITCH....ON-OFF The underlined indicates the switch position. A CN501 Decimal points for resistor and capacitor fixed values are expressed as : 2.2→2R2 0.022→R022 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 DEH-3450,2450F @ CH1:BCK 2V/div. During "Play" 1 CH1:DSCSNS 5V/div. 2 CH2:CLCONT 5V/div. 3 CH3:LOEJ 5V/div. 4 CH4:VD 10V/div. When loading (8 cm CD) 500ms/div. 5 CH1:FD 500mV/div. 6 CH2:FOK 5V/div. 7 CH3:MD 5V/div. When setting up "Source On" 500ms/div. 8 CH1:FE 500mV/div. 9 CH2:FOON 5V/div. When setting up "Source On" 500ms/div. 5 CH1:FD 500mV/div. 6 CH2:FOK 5V/div. 7 CH3:MD 5V/div. Magnified drawing for "time" 100ms/div. 1 CH1:DSCSNS 5V/div. 2 CH2:CLCONT 5V/div. 3 CH3:LOEJ 5V/div. 4 CH4:VD 10V/div. When loading (12 cm CD) Ref. : GND Mode : Normal Ref. : GND Mode : Normal Ref. : VREF Mode : Normal Ref. : VREF Mode : Normal Ref. : VREF Mode : Normal Ref. : VREF Mode : Normal Ref. : VREF Mode : Normal Ref. : VREF Mode : Normal Ref. : VREF Mode : Normal Ref. : VREF Mode : Test Ref. : VREF Mode : Normal Ref. : VREF Mode : Normal 500ms/div. 0 CH1:TE 500mV/div. 8 CH2:FE 500mV/div. When setting up "Source On" 200ms/div. 1µs/div. # CH1:LRCK 2V/div. $ CH2:DOUT 2V/div. During "Play" 10µs/div. 7 CH1:MD 500mV/div. During "Play" 10µs/div. % CH1:RFO 500mV/div. During "Play" 0.5µs/div. % CH1:RFO 500mV/div. 0 CH2:TE 500mV/div. During "Tracking Open" 2ms/div. 8 CH1:FE 500mV/div. 5 CH2:FD 500mV/div. 0 CH3:TE 500mV/div. ! CH4:TD 500mV/div. During "Play" 1ms/div. - Waveforms Note:1. The encircled numbers denote measuring pointes in the circuit diagram. 2. Reference voltage VREF:2.1V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 DEH-3450,2450F % CH1:RFO 1V/div. 0 CH2:TE 500mV/div. & CH3:DFCT 5V/div. During inside/outside search 200ms/div. % CH1:RFO 1V/div. 0 CH2:TE 500mV/div. ! CH3:TD 1V/div. 1 Track Jump 500µs/div. % CH1:RFO 1V/div. 0 CH2:TE 1V/div. ! CH3:TD 1V/div. 100 Track Jump 5ms/div. % CH1:RFO 1V/div. 0 CH2:TE 1V/div. ! CH3:TD 1V/div. 32 Track Jump 5ms/div. 5 CH1:FD 1V/div. ^ CH2:FOP 2V/div. With no disk inserted During "Focus Close" 200ms/div. 1 CH1:DSCSNS 5V/div. 2 CH2:CLCONT 5V/div. 3 CH3:LOEJ 5V/div. When "Eject" (8cm CD) 200ms/div. ) CH1:LOUT 2V/div. ⁄ CH2:ROUT 2V/div. "Play" in 1kHz, 0dB 200µs/div. * CH1:TEY 500mV/div. ( CH2:SD 2V/div. During inside/outside search 200ms/div. 1 CH1:DSCSNS 5V/div. 2 CH2:CLCONT 5V/div. 3 CH3:LOEJ 5V/div. When "Eject" (12 cm CD) 200ms/div. % CH1:RFO 2V/div. & CH2:DFCT 5V/div. 5 CH3:FD 1V/div. ! CH4:TD 2V/div. When reproducing black dots (800µm) 500µs/div. Ref. : VREF Mode : Test Ref. : VREF Mode : Test Ref. : VREF Mode : Normal Ref. : VREF Mode : Normal Ref. : VREF Mode : Test Ref. : VREF Mode : Test Ref. : VREF Mode : Normal Ref. : GND Mode : Normal Ref. : GND Mode : Normal Ref. : GND Mode : Normal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 DEH-3450,2450F A 1 2 3 4 B C D 1 2 3 4 NOTE FOR PCB DIAGRAMS 1. The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2. Viewpoint of PCB diagrams A Capacitor Connector P.C.Board Chip Part SIDE A SIDE B 2 3 4 5 6 7 8 9 10 11 12 13 14 1 15 16 DSENS A A TUNER AMP UNIT C CN701 CORD ASSY 4. PCB CONNECTION DIAGRAM 4.1 TUNER AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-3450,2450F 5 6 7 8 A B C D 5 6 7 8 25 A 1 3 4 5 6 7 8 2 ANTENNA JACK PRE OUT FL FR RL RR B CN1950 SSY FM/AM TUNER UNIT FRONT SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 DEH-3450,2450F A 1 2 3 4 B C D 1 2 3 4 A 1 3 6 4 1 3 6 4 4 6 3 1 A A TUNER AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-3450,2450F 5 6 7 8 A B C D 5 6 7 8 27 4 6 3 1 4 6 3 1 4 6 3 1 A SIDE B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 DEH-3450,2450F A 1 2 3 4 B C D 1 2 3 4 B PANEL UNIT B PANEL UNIT A CN750 EJECT 1 3 5 7 9 11 2 4 6 8 1012 C CN1901 4.2 PANEL UNIT B SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-3450,2450F 1 2 3 4 A B C D 1 2 3 4 29 1 3 5 7 9 11 2 4 6 8 10 12 ← ← ← ← AUDIO BAND LOUD 6 5 4 3 2 1 SOURCE VOLUME CLOCK EQ LCD B CN1951 C LOCAL C KEYBOARD UNIT C KEYBOARD UNIT BSM 4.3 KEYBOARD UNIT SIDE A SIDE B C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 DEH-3450,2450F A 1 2 3 4 B C D 1 2 3 4 E F VREF HOME 12EJ DSCSNS 4.4 CD MECHANISM MODULE CONTROL UNIT SIDE A D D M2 LOADING/CARRIAGE MOTOR M1 SPINDLE MOTOR PICKUP UNIT(SERVICE)(P9) CN501 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-3450,2450F 1 2 3 4 A B C D 1 2 3 4 31 CLAMP 8EJ SIDE B CONTROL UNIT D D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 DEH-3450,2450F 5. ELECTRICAL PARTS LIST NOTES: - Parts whose parts numbers are omitted are subject to being not supplied. - The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- Unit Number : CWM7976(DEH-3450/XN/ES) Unit Name : Tuner Amp Unit MISCELLANEOUS IC 301 IC PML003AM IC 361 IC PAL007A IC 603 IC S-80834ANY IC 610 IC PE5262A Q 351 Transistor IMH3A Q 359 Transistor DTA124EK Q 361 Transistor DTC124EK Q 410 Transistor 2SC2412K Q 510 Transistor 2SD2396 Q 511 Transistor RN46A1 Q 750 Transistor 2SA1037K Q 751 Transistor 2SA1036K Q 752 Transistor DTC114EK Q 753 Transistor DTC114EK Q 909 Transistor RN46A1 Q 910 Transistor 2SD2396 Q 911 Transistor 2SB1243 Q 912 Transistor DTC114EK Q 913 Transistor 2SD1859 Q 920 Transistor IMX1 Q 921 Transistor DTA124EK D 361 Diode S5688G D 362 Diode S5688G D 510 Diode HZS9L(B1) D 750 Diode 1SS270 D 751 Diode 1SS270 D 752 Diode 1SS270 D 753 Diode 1SS270 D 754 Diode 1SS270 D 755 Diode 1SS270 D 756 Diode 1SS270 D 757 Diode Network DA204U D 758 Diode 1SS270 D 759 Diode MA152WA D 767 Diode 1SS270 D 768 Diode 1SS270 D 910 Diode HZS9L(B3) D 911 Diode HZS6L(B2) D 912 Diode S5688G D 913 Diode HZS7L(C2) D 914 Diode HZS7L(A1) D 919 Diode S5688G D 920 Diode S5688G D 921 Diode DAN202U L 310 Inductor LAU1R0K L 361 Choke Coil 600µH CTH1221 L 410 Ferri-Inductor LAU4R7K L 411 Ferri-Inductor LAU2R2K L 412 Ferri-Inductor LAU2R2K L 617 Ferri-Inductor LAU101K L 618 Ferri-Inductor LAU2R2K L 750 Ferri-Inductor LAU2R2K X 610 Crystal Resonator 4.194304MHz CSS1023 S 750 Switch(DSENS) CSN1039 FM/AM Tuner Unit CWE1563 AR 410 Surge Protector DSP-201M-S00B RESISTORS R 310 RS1/16S101J R 311 RS1/16S101J R 314 RS1/16S101J R 315 RS1/16S101J R 351 RD1/4PU821J R 352 RS1/16S821J R 353 RS1/16S223J R 354 RS1/16S223J R 355 RS1/16S0R0J R 361 RS1/16S103J R 362 RS1/16S103J R 363 RS1/16S331J R 364 RD1/4PU153J R 410 RS1/16S222J R 411 RS1/16S222J R 413 RS1/16S473J R 414 RS1/16S473J R 415 RS1/16S393J R 417 RS1/16S681J R 418 RS1/16S681J R 419 RS1/16S681J R 420 RS1/16S103J R 421 RS1/16S681J R 422 RD1/4PU473J R 423 RD1/4PU472J R 424 RD1/4PU473J R 429 RS1/16S681J R 430 RS1/16S681J R 431 RS1/16S473J R 432 RS1/16S473J R 437 RS1/16S0R0J R 438 RS1/16S0R0J R 445 RS1/16S272J R 446 RS1/16S272J R 447 RS1/16S162J R 448 RS1/16S162J R 490 RS1/16S0R0J R 510 RD1/4PU221J R 511 RD1/4PU221J R 512 RD1/4PU472J R 513 RD1/4PU222J R 516 RS1/16S104J R 517 RD1/4PU222J R 519 RD1/4PU102J R 520 RS1/16S0R0J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 DEH-3450,2450F R 521 RS1/16S0R0J R 522 RS1/16S0R0J R 523 RS1/16S0R0J R 525 RS1/16S0R0J R 527 RS1/16S0R0J R 531 RD1/4PU222J R 532 RD1/4PU222J R 536 RD1/4PU102J R 537 RS1/16S104J R 538 RS1/16S0R0J R 612 RS1/16S0R0J R 613 RD1/4PU102J R 614 RS1/16S821J R 615 RS1/16S473J R 616 RS1/16S682J R 617 RS1/16S473J R 618 RS1/16S223J R 622 RD1/4PU104J R 623 RD1/4PU393J R 625 RS1/16S0R0J R 712 RD1/4PU104J R 750 RD1/4PU104J R 751 RS1/16S103J R 752 RS1/16S153J R 753 RS1/16S153J R 754 RS1/16S222J R 756 RS1/16S473J R 757 RS1/16S104J R 758 RS1/16S102J R 760 RD1/4PU222J R 761 RD1/4PU472J R 762 RD1/4PU222J R 763 RD1/4PU222J R 765 RS1/16S1R0J R 766 RD1/4PU102J R 767 RS1/16S103J R 768 RD1/4PU102J R 769 RS1/16S102J R 771 RS1/16S104J R 772 RD1/4PU222J R 773 RD1/4PU222J R 774 RS1/16S0R0J R 775 RS1/16S1R0J R 777 RS1/16S152J R 778 RS1/16S152J R 779 RD1/4PU103J R 781 RS1/16S104J R 783 RD1/4PU391J R 784 RD1/4PU222J R 786 RS1/16S102J R 787 RD1/4PU222J R 791 RS1/16S0R0J R 910 RS1/16S1R0J R 911 RD1/4PU220J R 912 RD1/4PU132J R 913 RD1/4PU122J R 914 RS1/16S103J R 915 RS1/16S222J R 916 RD1/4PU153J R 917 RS1/16S104J R 918 RS1/16S104J R 919 RS1/16S104J R 920 RS1/16S473J R 921 RS1/16S103J R 922 RS1/16S473J R 923 RD1/4PU102J R 924 RS1/16S472J R 927 RS1/16S102J R 928 RS1/16S473J R 937 RS1/16S152J R 939 RS1/16S0R0J CAPACITORS C 307 CEJQ470M10 C 308 CEJQ100M16 C 309 CKSRYB104K25 C 310 CKSRYB105K6R3 C 311 CKSRYB104K25 C 312 CKSRYB104K25 C 313 CKSRYB105K6R3 C 314 CEJQ4R7M35 C 315 CEJQ4R7M35 C 316 CKSRYB153K25 C 321 CKSRYB153K25 C 324 CCSRCH100D50 C 326 CCSRCH100D50 C 327 CCSRCH100D50 C 329 CCSRCH100D50 C 351 CEJQ2R2M50 C 352 CEJQ2R2M50 C 361 3300µF/16V CCH1368 C 362 CKSRYB104K25 C 363 CKSQYB474K16 C 364 CKSQYB474K16 C 365 CKSQYB474K16 C 366 CKSQYB474K16 C 367 CKSQYB474K16 C 368 CKSQYB474K16 C 369 CKSQYB474K16 C 370 CKSQYB474K16 C 371 CEJQ330M10 C 373 CKSQYB225K10 C 374 CKSQYB225K10 C 375 CEJQ100M16 C 410 CKSQYB103K25 C 412 CKSRYB223K50 C 413 CKSRYB102K50 C 414 CEJQ220M10 C 415 CKSRYB223K50 C 417 CKSRYB472K50 C 418 CEJQ101M6R3 C 419 CKSRYB473K50 C 424 CKSRYB183K25 C 425 CKSRYB183K25 C 510 CKSRYB473K50 C 511 CKSRYB102K50 C 512 CEJQ101M10 C 515 CKSRYB102K50 C 516 CKSRYB102K50 C 614 CKSRYB473K50 C 615 CEJQ2R2M50 C 616 CKSRYB104K25 C 617 CCSRCH101J50 C 618 CEJQ4R7M35 C 619 CKSRYB473K50 C 620 CCSRCH150J50 C 621 CCSRCH150J50 C 750 CKSRYB103K50 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-3450,2450F C 751 CKSRYB104K25 C 910 330µF/16V CCH1326 C 911 CKSRYB103K50 C 912 CEJQ101M16 C 913 CEJQ101M10 C 914 CKSRYB473K50 C 915 CKSRYB103K50 C 916 470µF/16V CCH1331 Unit Number : CWM8320(DEH-2450F/XN/ES) Unit Name : Tuner Amp Unit MISCELLANEOUS IC 301 IC PML003AM IC 361 IC TDA7386 IC 603 IC S-80834ANY IC 610 IC PE5262A IC 901 IC TPD1018F Q 351 Transistor IMH3A Q 359 Transistor DTA124EK Q 361 Transistor DTC124EK Q 410 Transistor 2SC2412K Q 510 Transistor 2SD2396 Q 511 Transistor RN46A1 Q 750 Transistor 2SA1037K Q 751 Transistor 2SA1036K Q 752 Transistor DTC114EK Q 753 Transistor DTC114EK Q 909 Transistor RN46A1 Q 910 Transistor 2SD2396 Q 911 Transistor 2SB1243 Q 912 Transistor DTC114EK Q 913 Transistor 2SD1859 Q 920 Transistor IMX1 Q 921 Transistor DTA124EK D 510 Diode HZS9L(B1) D 750 Diode 1SS270 D 751 Diode 1SS270 D 752 Diode 1SS270 D 753 Diode 1SS270 D 754 Diode 1SS270 D 755 Diode 1SS270 D 756 Diode 1SS270 D 757 Diode Network DA204U D 758 Diode 1SS270 D 759 Diode MA152WA D 767 Diode 1SS270 D 768 Diode 1SS270 D 910 Diode HZS9L(B3) D 911 Diode HZS6L(B2) D 912 Diode S5688G D 913 Diode HZS7L(C2) D 914 Diode HZS7L(A1) D 919 Diode S5688G D 920 Diode S5688G D 921 Diode DAN202U D 923 Diode S5688G D 924 Diode S5688G L 310 Inductor LAU1R0K L 361 Choke Coil 600µH CTH1221 L 410 Ferri-Inductor LAU4R7K L 411 Ferri-Inductor LAU2R2K L 412 Ferri-Inductor LAU2R2K L 617 Ferri-Inductor LAU101K L 618 Ferri-Inductor LAU2R2K L 750 Ferri-Inductor LAU2R2K X 610 Crystal Resonator 4.194304MHz CSS1023 S 750 Switch(DSENS) CSN1039 FM/AM Tuner Unit CWE1563 AR 410 Surge Protector DSP-201M-S00B RESISTORS R 310 RS1/16S101J R 311 RS1/16S101J R 314 RS1/16S101J R 315 RS1/16S101J R 351 RD1/4PU821J R 352 RS1/16S821J R 353 RS1/16S223J R 354 RS1/16S223J R 355 RS1/16S0R0J R 361 RS1/16S103J R 362 RS1/16S103J R 363 RS1/16S331J R 364 RD1/4PU153J R 410 RS1/16S222J R 411 RS1/16S222J R 413 RS1/16S473J R 414 RS1/16S473J R 415 RS1/16S393J R 417 RS1/16S681J R 418 RS1/16S681J R 419 RS1/16S681J R 420 RS1/16S103J R 421 RS1/16S681J R 422 RD1/4PU473J R 423 RD1/4PU472J R 424 RD1/4PU473J R 429 RS1/16S681J R 430 RS1/16S681J R 431 RS1/16S473J R 432 RS1/16S473J R 437 RS1/16S0R0J R 438 RS1/16S0R0J R 445 RS1/16S272J R 446 RS1/16S272J R 447 RS1/16S162J R 448 RS1/16S162J R 490 RS1/16S0R0J R 510 RD1/4PU221J R 511 RD1/4PU221J R 512 RD1/4PU472J R 513 RD1/4PU222J R 516 RS1/16S104J R 517 RD1/4PU222J R 519 RD1/4PU102J R 520 RS1/16S0R0J R 521 RS1/16S0R0J R 522 RS1/16S0R0J R 523 RS1/16S0R0J R 525 RS1/16S0R0J R 527 RS1/16S0R0J R 531 RD1/4PU222J R 532 RD1/4PU222J R 536 RD1/4PU102J R 537 RS1/16S104J R 538 RS1/16S0R0J R 612 RS1/16S0R0J R 613 RD1/4PU102J R 614 RS1/16S821J R 615 RS1/16S473J R 616 RS1/16S682J R 617 RS1/16S473J R 618 RS1/16S223J R 622 RD1/4PU104J R 623 RD1/4PU393J R 625 RS1/16S0R0J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A 34 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 DEH-3450,2450F R 712 RD1/4PU104J R 750 RD1/4PU104J R 751 RS1/16S103J R 752 RS1/16S153J R 753 RS1/16S153J R 754 RS1/16S222J R 756 RS1/16S473J R 757 RS1/16S104J R 758 RS1/16S102J R 760 RD1/4PU222J R 761 RD1/4PU472J R 762 RD1/4PU222J R 763 RD1/4PU222J R 765 RS1/16S1R0J R 766 RD1/4PU102J R 767 RS1/16S103J R 768 RD1/4PU102J R 769 RS1/16S102J R 771 RS1/16S104J R 772 RD1/4PU222J R 773 RD1/4PU222J R 774 RS1/16S0R0J R 775 RS1/16S1R0J R 777 RS1/16S152J R 778 RS1/16S152J R 779 RD1/4PU103J R 781 RS1/16S104J R 783 RD1/4PU391J R 784 RD1/4PU222J R 786 RS1/16S102J R 787 RD1/4PU222J R 791 RS1/16S0R0J R 910 RS1/16S1R0J R 911 RD1/4PU220J R 912 RD1/4PU132J R 913 RD1/4PU122J R 914 RS1/16S103J R 915 RS1/16S222J R 916 RD1/4PU153J R 917 RS1/16S104J R 918 RS1/16S104J R 919 RS1/16S104J R 920 RS1/16S473J R 921 RS1/16S103J R 922 RS1/16S473J R 923 RD1/4PU102J R 924 RS1/16S472J R 927 RS1/16S102J R 928 RS1/16S473J R 929 RS1/16S0R0J R 930 RS1/16S0R0J R 931 RS1/16S0R0J R 937 RS1/16S152J R 939 RS1/16S0R0J CAPACITORS C 307 CEJQ470M10 C 308 CEJQ100M16 C 309 CKSRYB104K25 C 310 CKSRYB105K6R3 C 311 CKSRYB104K25 C 312 CKSRYB104K25 C 313 CKSRYB105K6R3 C 314 CEJQ4R7M35 C 315 CEJQ4R7M35 C 316 CKSRYB153K25 C 321 CKSRYB153K25 C 324 CCSRCH100D50 C 326 CCSRCH100D50 C 327 CCSRCH100D50 C 329 CCSRCH100D50 C 351 CEJQ2R2M50 C 352 CEJQ2R2M50 C 361 CCH1368 C 362 CKSRYB104K25 C 363 CKSQYB474K16 C 364 CKSQYB474K16 C 365 CKSQYB474K16 C 366 CKSQYB474K16 C 367 CKSQYB474K16 C 368 CKSQYB474K16 C 369 CKSQYB474K16 C 370 CKSQYB474K16 C 371 CEJQ330M10 C 372 CEJQ2R2M50 C 373 CKSQYB225K10 C 374 CKSQYB225K10 C 375 CEJQ100M16 C 410 CKSQYB103K25 C 412 CKSRYB223K50 C 413 CKSRYB102K50 C 414 CEJQ220M10 C 415 CKSRYB223K50 C 417 CKSRYB472K50 C 418 CEJQ101M6R3 C 419 CKSRYB473K50 C 424 CKSRYB183K25 C 425 CKSRYB183K25 C 510 CKSRYB473K50 C 511 CKSRYB102K50 C 512 CEJQ101M10 C 515 CKSRYB102K50 C 516 CKSRYB102K50 C 614 CKSRYB473K50 C 615 CEJQ2R2M50 C 616 CKSRYB104K25 C 617 CCSRCH101J50 C 618 CEJQ4R7M35 C 619 CKSRYB473K50 C 620 CCSRCH150J50 C 621 CCSRCH150J50 C 750 CKSRYB103K50 C 751 CKSRYB104K25 C 910 330µF/16V CCH1326 C 911 CKSRYB103K50 C 912 CEJQ101M16 C 913 CEJQ101M10 C 914 CKSRYB473K50 C 915 CKSRYB103K50 C 916 470µF/16V CCH1331 C 918 CKSQYB473K50 C 919 CKSRYB103K50 Unit Number : CWM7979(DEH-3450/XN/ES) Unit Name : Keyboard Unit MISCELLANEOUS IC 1900 IC PD6340A IC 1902 IC RS-140 D 1901 Diode MA152WK D 1902 Diode MA152WA D 1917 LED NSSW440-9159 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-3450,2450F D 1918 LED NSSW440-9159 D 1919 LED SML-310PT D 1920 LED SML-310PT X 1900 Ceramic Resonator CSS1573 S 1900 Switch CSG1107 S 1901 Switch CSG1107 S 1902 Switch CSG1107 S 1903 Switch CSG1107 S 1904 Switch CSG1107 S 1905 Switch CSG1107 S 1906 Switch CSG1107 S 1907 Push Switch CSG1111 S 1908 Switch CSG1107 S 1909 Switch CSG1107 S 1910 Switch CSG1107 S 1911 Switch CSG1107 S 1912 Switch CSG1107 S 1913 Switch CSG1107 S 1914 Switch CSG1107 S 1915 Switch CSG1107 S 1916 Switch CSG1107 S 1917 Push Switch CSG1111 S 1922 Switch(VOLUME) CSD1077 LCD CAW1707 RESISTORS R 1901 RS1/16S222J R 1902 RS1/16S222J R 1903 RS1/16S470J R 1904 RS1/16S470J R 1905 RS1/16S121J R 1910 RS1/16S151J R 1911 RS1/16S181J R 1912 RS1/16S151J R 1913 RS1/16S181J R 1914 RS1/16S181J R 1915 RS1/16S181J R 1917 RS1/16S121J R 1919 RS1/16S121J R 1920 RS1/16S121J R 1927 RS1/16S472J R 1935 RS1/16S104J R 1936 RS1/16S151J R 1939 RS1/16S151J R 1941 RS1/16S121J R 1942 RS1/16S151J R 1943 RS1/16S151J R 1950 RS1/16S104J R 1954 RS1/16S151J R 1955 RS1/16S181J R 1956 RS1/16S181J R 1957 RS1/16S181J R 1958 RS1/16S151J R 1959 RS1/16S181J R 1960 RS1/16S151J R 1961 RS1/16S181J R 1962 RS1/16S181J R 1963 RS1/16S121J R 1964 RS1/16S121J R 1965 RS1/16S2R2J R 1970 RS1/16S181J R 1971 RS1/16S151J R 1972 RS1/16S181J CAPACITORS C 1901 CSZS100M6R3 C 1902 CKSRYB104K25 C 1923 CKSQYF104Z50 C 1930 CKSQYF104Z50 Unit Number : CWM8370(DEH-2450F/XN/ES) Unit Name : Keyboard Unit MISCELLANEOUS IC 1900 IC PD6340A D 1901 Diode MA152WK D 1902 Diode MA152WA D 1917 LED NSSW440-9159 D 1918 LED NSSW440-9159 D 1919 LED SML-310PT D 1920 LED SML-310PT X 1900 Ceramic Resonator 4.97MHz CSS1573 S 1900 Switch CSG1107 S 1901 Switch CSG1107 S 1902 Switch CSG1107 S 1903 Switch CSG1107 S 1904 Switch CSG1107 S 1905 Switch CSG1107 S 1906 Switch CSG1107 S 1907 Push Switch CSG1111 S 1908 Switch CSG1107 S 1909 Switch CSG1107 S 1910 Switch CSG1107 S 1911 Switch CSG1107 S 1912 Switch CSG1107 S 1913 Switch CSG1107 S 1914 Switch CSG1107 S 1915 Switch CSG1107 S 1916 Switch CSG1107 S 1917 Push Switch CSG1111 S 1922 Switch(VOLUME) CSD1077 LCD CAW1724 RESISTORS R 1900 RS1/16S473J R 1901 RS1/16S222J R 1902 RS1/16S222J R 1903 RS1/16S470J R 1904 RS1/16S470J R 1910 RS1/16S151J R 1911 RS1/16S181J R 1912 RS1/16S151J R 1913 RS1/16S181J R 1914 RS1/16S181J R 1915 RS1/16S181J R 1917 RS1/16S121J R 1919 RS1/16S121J R 1920 RS1/16S121J R 1927 RS1/16S472J R 1935 RS1/16S104J R 1936 RS1/16S151J R 1939 RS1/16S151J R 1941 RS1/16S121J R 1942 RS1/16S151J R 1943 RS1/16S151J R 1950 RS1/16S104J R 1954 RS1/16S151J R 1955 RS1/16S181J R 1956 RS1/16S181J R 1957 RS1/16S181J R 1958 RS1/16S151J R 1959 RS1/16S181J R 1960 RS1/16S151J R 1961 RS1/16S181J R 1962 RS1/16S181J R 1963 RS1/16S121J R 1964 RS1/16S121J R 1970 RS1/16S181J R 1971 RS1/16S151J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- 36 C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 DEH-3450,2450F R 1972 RS1/16S181J CAPACITORS C 1902 CKSRYB104K25 C 1923 CKSQYF104Z50 C 1930 CKSQYF104Z50 Unit Number : CWM7375 Unit Name : Panel Unit D 1950 LED CL220PGC S 1950 Push Switch(EJECT) CSG1112 R 1952 RS1/16S101J R 1953 RS1/16S101J Unit Number : CWX2481 Unit Name : Control Unit MISCELLANEOUS IC 101 IC TA2153FN IC 201 IC TC9495F2 IC 401 IC BA5996FM IC 701 IC BA05SFP Q 101 Transistor 2SD1664 Q 102 Transistor UMD2N L 201 Inductor CTF1546 L 202 Inductor CTF1546 X 301 Ceramic Resonator 16.934MHz CSS1525 S 901 Spring Switch(HOME) CSN1051 S 902 Spring Switch(CLAMP) CSN1052 S 903 Spring Switch(DSCSNS) CSN1051 S 904 Spring Switch(12EJ) CSN1052 S 905 Spring Switch(8EJ) CSN1051 RESISTORS R 101 RS1/16S222J R 102 RS1/8S120J R 103 RS1/8S100J R 201 RS1/16S513J R 202 RS1/16S513J R 203 RS1/16S823J R 204 RS1/16S823J R 206 RS1/16S823J R 208 RS1/16S124J R 209 RS1/16S183J R 210 RS1/16S153J R 211 RS1/16S103J R 212 RS1/16S103J R 213 RS1/16S124J R 215 RS1/16S0R0J R 216 RS1/16S471J R 301 RS1/16S333J R 302 RS1/16S332J R 303 RS1/16S332J R 304 RS1/16S514J R 306 RS1/16S102J R 307 RS1/16S102J R 312 RS1/16S103J R 313 RS1/16S473J R 315 RS1/16S334J R 321 RS1/16S331J R 322 RS1/16S0R0J R 323 RS1/16S332J R 401 RS1/16S684J R 402 RS1/16S103J R 403 RS1/16S103J R 404 RS1/16S183J R 405 RS1/16S123J R 407 RS1/16S622J R 408 RS1/16S622J R 409 RS1/16S113J R 410 RS1/16S752J R 701 RS1/16S102J R 702 RS1/16S221J R 703 RS1/16S221J R 704 RS1/16S221J R 705 RS1/16S221J R 706 RS1/16S221J R 707 RS1/16S221J R 708 RS1/16S102J R 709 RS1/16S102J R 710 RS1/16S102J R 901 RS1/16S104J R 902 RS1/16S473J R 903 RS1/16S273J CAPACITORS C 101 CEV470M6R3 C 102 CKSRYB102K50 C 103 CKSRYB104K16 C 104 CKSRYB224K16 C 105 CEV470M6R3 C 106 CKSRYB104K16 C 107 CKSRYB105K6R3 C 201 CKSRYB104K16 C 202 CCSRCH560J50 C 204 CKSRYB224K16 C 205 CKSRYB224K16 C 206 CKSRYB273K25 C 207 CKSRYB273K25 C 208 CKSRYB104K16 C 209 CKSRYB104K16 C 210 CCSRCK2R0C50 C 211 CCSRCH220J50 C 301 CKSRYB153K25 C 302 CKSRYB104K16 C 303 CKSRYB103K50 C 304 CKSRYB103K50 C 305 CKSRYB104K16 C 306 CKSRYB104K16 C 307 CKSRYB333K16 C 308 CKSRYB104K16 C 309 CKSRYB473K16 C 310 CKSRYB473K16 C 311 CKSRYB104K16 C 312 CKSRYB104K16 C 315 CEV220M6R3 C 317 CKSRYB104K16 C 318 CKSRYB104K16 C 319 CKSRYB104K16 C 320 CCSRCH470J50 C 325 CKSRYB471K50 C 328 CKSRYB472K50 C 329 CKSRYB104K16 C 330 CKSRYB104K16 C 331 CKSRYB104K16 C 401 CKSRYB221K50 C 402 CKSRYB221K50 C 403 CKSRYB153K25 C 404 CKSRYB103K50 C 405 CEV101M10 C 702 CKSRYB104K16 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- B D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 DEH-3450,2450F C 703 CKSRYB104K16 C 801 10µF/10V CCH1349 C 802 CEV101M10 C 803 CKSRYB224K16 Miscellaneous Parts List Pickup Unit(Service)(P9) CXX1480 M 1 Motor Unit(SPINDLE) CXB6007 M 2 Motor Unit(LOADING/CARRIAGE) CXB5903 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- 6. ADJUSTMENT 6.1 CD ADJUSTMENT 1) Precautions • This unit uses a single power supply (+5V) for the reg- ulator. The signal reference potential, therefore, is connected to VREF(approx. 2.1V) instead of GND. If VREF and GND are connected to each other by mis- take during adjustments, not only will it be impossi- ble to measure the potential correctly, but the servo will malfunction and a severe shock will be applied to the pick-up. To avoid this, take special note of the fol- lowing. Do not connect the negative probe of the measuring equipment to VREF and GND together. It is especially important not to connect the channel 1 negative probe of the oscilloscope to VREF with the channel 2 negative probe connected to GND. Since the frame of the measuring instrument is usual- ly at the same potential as the negative probe, change the frame of the measuring instrument to floating sta- tus. If by accident VREF comes in contact with GND, immediately switch the regulator or power OFF. • Always make sure the regulator is OFF when connect- ing and disconnecting the various filters and wiring required for measurements. • Before proceeding to further adjustments and mea- surements after switching regulator ON, let the player run for about one minute to allow the circuits to stabi- lize. • Since the protective systems in the unit's software are rendered inoperative in test mode, be very careful to avoid mechanical and /or electrical shocks to the sys- tem when making adjustment. • The RFI and RFO signals are easy to oscillate because of a wide band. When observing them, insert a resis- tor of about 1 kΩ to the series. • This equipment will not guarantee the load ejection operation when the mechanical unit is turned upside down. In particular, if the ejection operation is incor- rectly performed and recovery is disabled, the recov- ery is enabled by resetting a product or turning ACC off to on. 2) Test Mode This mode is used for adjusting the CD mechanism module of the device. • Test mode starting procedure Reset while pressing the 4 and 6 keys together. • Test mode cancellation Switch ACC, back-up OFF. • After pressing the EJECT key, do not press any other key until the disk is completely ejected. • If the ] or [ key is pressed while focus search is in progress, immediately turn the power off (otherwise the actuator may be damaged due to adhesion of the lenses). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 DEH-3450,2450F • Note : The grating angle of the PU unit cannot be adjusted after the PU unit is changed. The PU unit in the CD mecha- nism module is adjusted on the production line to match the CD mechanism module and is thus the best adjusted PU unit for the CD mechanism module. Changing the PU unit is thus best considered as a last resort. However, if the PU unit must be changed, the grating should be checked using the procedure below. • Purpose : To check that the grating is within an acceptable range when the PU unit is changed. • Symptoms of Mal-adjustment : If the grating is off by a large amount symptoms such as being unable to close tracking, being unable to perform track search operations, or taking a long time for track searching. • Method : • Measuring Equipment • Oscilloscope, Two L.P.F. • Measuring Points • E, F, VREF • Disc • ABEX TCD-784 • Mode • TEST MODE • Checking Procedure 1. In test mode, load the disc and switch the 5V regulator on. 2. The display will change, returning to "81" on the fourth press. 3. As shown in the diagram above, monitor the LPF outputs using the oscilloscope and check that the phase differ- ence is within 75° . Refer to the photographs supplied to determine the phase angle. 4. If the phase difference is determined to be greater than 75° try changing the PU unit to see if there is any improvement. If, after trying this a number of times, the grating angle does not become less than 75° then the mechanism should be judged to be at fault. • Note Because of eccentricity in the disc and a slight misalignment of the clamping center the grating waveform may be seen to "wobble" ( the phase difference changes as the disc rotates). The angle specified above indicates the aver- age angle. • Hint Reloading the disc changes the clamp position and may decrease the "wobble". 100kΩ 390pF 100kΩ 390pF E VREF F VREF Xch Ych L.P.F. L.P.F. VREF E F 6.2 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT CONTROL UNIT Oscilloscope www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 DEH-3450,2450F Grating waveform Ech → Xch 20mV/div, AC Fch → Ych 20mV/div, AC 45° 0° 75° 60° 30° 90° www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 DEH-3450,2450F 6.3 ERROR MODE - Error Messages If a CD is not operative or stopped during operation due to an error, the error mode is turned on and cause(s) of the error is indicated with a corresponding number. This arrangement is intended at reducing nonsense calls from the users and also for facilitating trouble analysis and repair work in servicing. (1) Basic Indication Method 1) When SERRORM is selected for the CSMOD (CD mode area for the system), error codes are written to DMIN (min- utes display area) and DSEC (seconds display area). The same data is written to DMIN and DSEC. DTNO remains in blank as before. 2) Head unit display examples Depending on display capability of LCD used, display will vary as shown below. xx contains the error number. 8-digit display 6-digit display 4-digit display ERROR–xx ERR–xx E–xx (2) Error Code List Code Class Displayed error code Description of the code and potential cause(s) 10 Electricity Carriage Home NG CRG can't be moved to inner diameter. SERVO LSI Com- CRG can't be moved from inner diameter. munication Error → Failure on home switch or CRG move mechanism. Communication error between microcomputer and SERVO LSI. 11 Electricity Focus Servo NG Focusing not available. → Stains on rear side of disc or excessive vibrations on REWRITABLE. 12 Electricity Spindle Lock NG Spindle not locked. Sub-code is strange (not readable). Subcode NG → Failure on spindle, stains or damages on disc, or excessive vibrations. A disc not containing CD-R data is found. Turned over disc are found, though rarely. CD signal error. 17 Electricity Setup NG AGC protection doesn't work. Focus can be easily lost. → Damages or stains on disc, or excessive vibrations on REWRITABLE. 30 Electricity Search Time Out Failed to reach target address. → CRG tracking error or damages on disc. 44 Electricity ALL Skip Skip setting for all track. (CD-R/RW) 50 Mechanism CD On Mech Error Mechanical error during CD ON. → Defective loading motor, mechanical lock and mechanical sensor. A0 System Power Supply NG Power (VD) is ground faulted. → Failure on SW transistor or power supply (failure on connector). Remarks: Mechanical errors are not displayed (because a CD is turned off in these errors). Unreadable TOC does not constitute an error. An intended operation continues in this case. Upper digits of an error code are subdivided as shown below: 1x: Setup relevant errors, 3x: Search relevant errors, Ax: Other errors. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 DEH-3450,2450F 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 DISASSEMBLY - Removing the Tuner Amp Unit (Fig.2) Remove the two screws. Remove the three screws. Straight the tabs at three locations indicated. Remove the screw and then remove the Tuner Amp Unit. - Removing the Case (not shown) 1. Remove the Case. - Removing the Panel Assy (Fig.1) Remove the two screws and then remove the Panel Assy. - Removing the CD Mechanism Module (Fig.1) Remove the four screws and then remove the CD Mechanism Module. Fig.1 Fig.2 Tuner Amp Unit CD Mechanism Module Panel Assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 DEH-3450,2450F - How to hold the Mechanical Unit 1.Hold the top and bottom frame. 2.Do not squeeze top frame's front portion too tight, because it is fragile. - How to remove the Top and Bottom Frame 1.When the disk is in "clamp" state, unlock Spring A (6 pieces) and Spring B (2 pieces), and unscrew screws (4 pieces). 2.Unlock each 1 of pawl at the both side of the frame, then remove the top frame. 3.Remove the Carriage Mechanical part in such way that; you remove the mechanical part from 3 pieces of Damper while slowly pulling up the part. 4.Now, the top frame has been removed, and under this state, fix the genuine Connector again, and eject the disk. (Caution) When you reassemble the Carriage Mechanical part, apply a bit of alcohol to Dampers. - How to remove the Guide Arm Assy 1.Unlock the spring (1 piece) at the right side of the assembly. 2.Unscrew screws (2 pieces), then remove the Screw Gear Bracket. 3.Shift the Guide Arm Assy to the left and slowly rotate it to the upper direction. 4.When the Guide Arm Assy rotates approximately 45 degree, shift the Assy to the right side direction and remove it. Top Frame Bottom Frame Damper Spring Screw Gear Bracket Guide Arm Assy Carriage Mechanical Part Do not squeeze. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 DEH-3450,2450F - How to remove the Control Unit 1.Give jumper-solder treatment to the Flexible Wire of the Pickup unit, then remove the wire from the Connector. 2.Remove all 4 points of solder-treatment on the Lead Wire. Also, unscrew the screw(1 piece). 3.Then, Remove the Control unit. (Caution) Be careful not to damage SW when you reassemble the Control Unit into the device. - How to remove the Loading Arm Assy 1.Unlock the spring (1 piece) and remove the E ring (1 piece) of the Fulcrum Shaft. 2.Shift the arm to the left side direction and unlock pins (2 pieces). - How to remove the Pickup Unit 1.Unscrew 2 pieces of screws, then remove the Pulley Cover. 2.Remove the Feed Screw unit from the pawl of the Feed Screw Guide (The pawl is located inside the guide). 3.Remove the belt from the Pulley, then remove the Pickup unit. (Caution) Make sure not to stain the belt with grease when you fix the belt. Control Unit Jumper-Solder Solder Loading Arm Assy Pickup Unit Pulley Cover Feed Screw Guide Belt Grease (UD321BR) Grease (GM1035) Grease (GM1035) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 DEH-3450,2450F 7.1.2 CONNECTOR FUNCTION DESCRIPTION 5 7 9 1 3 4 6 8 2 10 12 14 16 11 13 15 PRE OUT ANTENNA 1. GND 2. BACK UP 3. ACC 4. NC 5. NC 6. B.REM 7. NC 8. NC 9. RL- 10. FL- 11. RL+ 12. FL+ 13. RR- 14. FR- 15. RR+ 16. FR+ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-3450,2450F 46 7.2 PARTS 7.2.1 IC - Pin Functions(PE5262A) Pin No. Pin Name I/O Format Function and Operation 1 MODEL1 I Model select input 2,3 NC Not used 4 AVSS I A/D GND 5 ST I FM stereo input 6 SD I SD input 7 AVREF1 A/D converter reference voltage 8 KYDT I Key data input 9 DPDT O C Display data output 10 SDBW I SDBW input 11 TUNPDI I PLL IC data input 12 TUNPDO O C PLL IC data output 13 TUNPCK O C PLL IC clock output 14 TUNPCE O C PLL IC chip enable output 15 currq O Tuner voltage FIX output 16 LOCL O C Local L output 17 NC Not used 18 fm/AM O C FM/AM power select output 19 NC Not used 20 FLPILM O C Inside of flap illumination output 21 VDCONT O C VD control output 22 NC Not used 23 CONT O C Servo driver power supply control output 24 XCE O C CD LSI chip enable output 25 xrst O C CD LSI reset output 26 XPCK O C CD LSI clock output 27-30 XPI0-3 I/O C CD LSI data input/output 31 CLCONT O C Driver input select output 32 HOME I C Home position detector input 33 VSS GND 34 LOEJ O C CD load motor LOAD/EJECT direction exchange output 35 CD5VON O C CD +5V power supply control output 36,37 ROT1-0 I Rotary encoder data input 38 TELIN I Telephone mute input 39 NC Not used 40 ILMPW O C Illumination power supply control output 41 swvdd O C Keyboard unit power supply control output 42 SYSPW O C System power supply control output 43 VST O C Strobe pulse output for electronic volume 44 mute O C System mute output 45 PEE O C Beep tone output 46 LOCH O C Local H output 47 NC Not used 48 TUNPCE2 O C EEPROM chip enable output 49 PCL O C Clock adjustment output 50 VCK O C Clock output for electronic volume 51 VDT O C Data output for electronic volume 52 ANTPW O Antenna output 53 EJECTS I Eject key input pin 54 DALMON O C Stand-by output 55–59 NC Not used 60 reset I Reset input 61,62 NC Not used 63 bsens I Back up power sense input 64 asens I ACC power sense input 65 dsens I Grille detach sense 66 ADPW O C A/D converter power supply output 67 NC Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 DEH-3450,2450F Pin No. Pin Name I/O Format Function and Operation 68 VDD Power supply 69 X2 Crystal oscillator connection pin 70 X1 I Crystal oscillator connection pin 71 IC(VPP) Connect to GND 72 NC Not used 73 TESTIN I Test program mode input 74 AVDD Positive power supply terminal for analog circuit 75 AVREF0 A/D converter reference voltage 76 SL I SD level input from tuner 77 TEMP I CD temperature sense input 78 VDSENS I VD power supply voltage sense input 79 DISCSNS I CD DISC sense input 80 CSENS I Flap open/close sense input 80 1 20 21 40 41 60 61 *PE5262A IC's marked by * are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction. Output Format Meaning C C MOS output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 DEH-3450,2450F - Pin Functions (PD6340A) Pin No. Pin Name I/O Function and Operation 1-5 SEG4-0 O LCD segment output 6-9 COM3-0 O LCD common output 10 VLCD LCD drive power supply 11-14 KST3-0 O Key strobe output 15,16 KDT0,1 I Key data input (analogue input) 17 REM I Remote control reception 18 DPDT I Display data input 19 NC Not used 20 KYDT O Key data output 21 MODA GND 22 X0 Crystal oscillator connection pin 23 X1 Crystal oscillator connection pin 24 VSS GND 25,26 KDT2,3 I Key data input 27 NC Not used 28 KST4 O Key strobe output 29-32 NC Not used 33-55 SEG35-13 O LCD segment output 56 VDD Power supply 57-64 SEG12-5 O LCD segment output *PD6340A 49 48 33 32 17 16 1 64 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 DEH-3450,2450F - Pin Functions(TA2153FN) Pin No. Pin Name I/O Function and Operation 1 VCC Power supply voltage terminal 2 RFGC I RF amplitude adjustment control signal terminal 3 GMAD I AGC amplifier frequency characteristic adjustment terminal 4 FNI I Main beam amplifier input terminal 5 FPI I Main beam amplifier input terminal 6 TPI I Sub beam amplifier input terminal 7 TNI I Sub beam amplifier input terminal 8 MDI O Monitor photodiode amplifier input terminal 9 LDO I Laser diode amplifier output terminal 10 SEL I APC circuit ON/OFF signal, LDO terminal control input terminal and bottom and peak detection frequency switching terminals 11 TEB I Tracking error balance adjustment signal input terminal 12 2VRO O Reference voltage (2VRO) output terminal 13 TEN I Tracking error signal generation amplifier reverse phase input terminal 14 TEO O Tracking error signal generation amplifier output terminal 15 SBAD O Sub beam addition signal output terminal 16 FEO O Focus error signal generation amplifier output terminal 17 FEN I Focus error signal generation amplifier reverse phase input terminal 18 SEB I RFRP generation circuit mode switching terminal 19 VRO O Reference voltage (VREF) output terminal 20 RFRP O Signal generation amplifier output terminal for track count 21 BTC I Bottom detection time constant adjustment terminal for RFCT signal generation 22 RFCT O RFRP signal center level output terminal 23 PKC I Peak detection time constant adjustment signal for RFCT signal generation 24 RFRPIN I Signal generation amplifier input terminal for track count 25 RFGO O RF signal amplitude adjustment amplifier output terminal 26 GVSW I AGC, FE or TE amplifier gain switching terminal 27 AGCIN I RF signal amplitude adjustment amplifier input terminal 28 RFO O RF signal generation amplifier output terminal 29 GND I GND terminal 30 RFN2 I RF signal generation amplifier input terminal 1 15 16 30 TA2153FN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 DEH-3450,2450F - Pin Functions(TC9495F2) Pin No. Pin Name I/O Function and Operation 1 TESTO Test mode terminal 2 hso O Replay speed flag output terminal 3 uhso O Replay speed flag output terminal 4 EMPH O Emphasis flag output terminal for sub code Q data 5 LRCK O Channel clock (44.1 kHz) output terminal 6 VSS Digital ground terminal 7 BCK O Bit clock output terminal 8 AOUT O Digital audio data output terminal 9 DOUT O Digital out output terminal 10 MBOV O Buffer memory over signal output terminal 11 IPF O Correction flag output terminal 12 SBOK O CRCC decision result output for sub code Q data 13 CLCK I/O Clock input/output terminal for sub code P-W data read 14 VDD Digital + power supply terminal (5 V) 15 VSS Digital ground terminal 16 DATA O Sub code P-W data output terminal 17 SFSY O Replay-system frame sync signal output terminal 18 SBSY O Sub code block sync output terminal 19 SPCK O Clock for processor status signal read 20 SPDA O Processor status signal output terminal 21 COFS O Correction-system frame clock (7.35 kHz) output terminal 22 MONIT O LSI internal signal output terminal 23 VDD Digital + power supply terminal (5 V) 24 TESIO0 I Test input/output terminal 25 P2VREF PLL-system only 2VREF terminal 26 HSSW O The VREF voltage is reached for double or quad speed. 27 ZDET O One-bit DAC zero detection flag output terminal 28 PDO O Phase error signal issue between the EFM and PLCK signals 29 TMAXS O TMAX detection result output terminal 30 TAMX O TMAX detection result output terminal 31 LPFN I Reverse input terminal of amplifier for lowpass filter 32 LPFO O Output terminal of amplifier for lowpass filter 33 PVREF PLL-system only VREF terminal 34 VCOREF I VCO center frequency reference level terminal 35 VCOF O Filter terminal for VCO 36 AVSS Analog-system ground terminal 37 SLCO O Output terminal of DAC for data slice level generation 38 RFI I RF signal input terminal 39 AVDD Analog-system power supply terminal (5 V) 40 RFCT I RFRP signal center level input terminal 41 RFZI I Input terminal for RFRP signal zero cross 42 RFRP I RF ripple signal input terminal 43 FEI I Focus error signal input terminal 44 SBAD I Sub beam addition signal input terminal 45 TSIN I Test input terminal 46 TEI I Tracking error input terminal 47 TEZI I Input terminal for tracking error or zero cross 48 FOO O Focus equalizer output terminal 49 TRO O Tracking equalizer output terminal 50 VREF Analog reference power supply terminal 51 RFGC O RF amplitude adjustment control signal output terminal 52 TEBC O Tracking balance control signal output terminal 53 FMO O Feed equalizer output terminal 54 FVO O Speed error signal or feed search EQ output 55 DMO O Disc equalizer output terminal 56 2VREF Analog reference power supply terminal 57 SEL O APC circuit ON/OFF signal output terminal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 DEH-3450,2450F Pin No. Pin Name I/O Function and Operation 58-61 FLGA-D O External flag output terminal for internal signal monitor 62 VDD Digital + power supply terminal (5 V) 63 VSS Digital ground terminal 64 IO0 O RF amplifier gain switching terminal 65 IO1 O Not used 66 IO2 I HOME detection switch input terminal 67 IO3 O FocusDrv and signal output terminal 68 dmout I Field equalizer PWM output terminal for IO0 and IO1 Disc equalizer PWM output terminal for IO2 and IO3 69 ckse I Usually open 70 dact I DAC test mode terminal 71 TESIN I Test input terminal 72 TESIO1 I Test input/output terminal 73 VSS Digital ground terminal 74 PXI I DPS-system clock oscillator circuit input terminal 75 PXO O DPS-system clock oscillator circuit output terminal 76 VDD Digital + power supply terminal (5 V) 77 XVSS Ground terminal for system clock oscillator circuit 78 XI I System clock oscillator circuit input terminal 79 XO O System clock oscillator circuit output terminal 80 XVDD For system clock oscillator circuit + power supply terminal 81 DVSR R channel D/A converting unit power supply terminal 82 RO O R channel data forward rotation output terminal 83 DVDD D/A converting unit power supply terminal (5 V) 84 DVR Reference voltage terminal 85 LO O L channel forward rotation output terminal 86 DVSL L channel D/A converting unit power supply terminal 87-89 TEST1-3 I Test mode terminal 90-93 BUS0-3 I/O Data input/output terminal for microcomputer interface 94 VDD Digital + power supply terminal (5 V) 95 VSS Digital ground terminal 96 BUCK I Clock terminal for microcomputer interface 97 cee I Chip enable signal for microcomputer interface 98 TEST4 I Test mode terminal 99 tsmod I Test mode terminal 100 rst I Reset signal input terminal 30 31 50 51 80 81 100 1 *TC9495F2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 DEH-3450,2450F - Pin Functions(BA5996FM) Pin No. Pin Name Function and Operation 1 VR Input pin for reference voltage 2 OPIN2(+) Input pin for non-inverting input for CH2 preamplifier 3 OPIN2(-) Input pin for inverting input for CH2 preamplifier 4 OPOUT2 Output pin for CH2 preamplifier 5 OPIN1(+) Input pin for non-inverting input for CH1 preamplifier 6 OPIN1(-) Input pin for inverting input from CH1 preamplifier 7 OPOUT1 Output pin for CH1 preamplifier 8 GND Ground pin 9 MUTE Mute control pin 10 POWVCC1 Power supply pin for CH1, CH2, and CH3 at "Power" stage 11 VO1(-) Driver CH1 - Negative output 12 VO1(+) Driver CH2 - Positive output 13 VO2(-) Driver CH2 - Negative output 14 VO2(+) Driver CH2 - Positive output 15 VO3(+) Driver CH2 - Positive output 16 VO3(-) Driver CH2 - Negative output 17 VO4(+) Driver CH4 - Positive output 18 VO4(-) Driver CH4 - Negative output 19 POWVCC2 Power supply pin for CH4 at "Power" stage 20 GND Ground pin 21 CNT Control pin 22 LDIN Loading input 23 OPOUTSL Output pin for preamplifier for thread 24 OPINSL Input pin for preamplifier for thread 25 OPOUT3 CH3 preamplifier output pin 26 OPIN3(-) Input pin for inverting input for CH3 preamplifier 27 OPIN3(+) Input pin for non-inverting input for CH3 preamplifier 28 PREVCC PreVcc 1 14 15 28 BA5996FM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 DEH-3450,2450F 1 TAB 2 P-GND2 3 OUT2- 4 STBY 5 OUT2+ 6 VCC 7 OUT1- 8 P-GND1 9 OUT1+ 10 SVR 11 IN1 12 IN2 13 S-GND 14 IN4 15 IN3 16 AC-GND 17 OUT3+ 18 P-GND3 19 OUT3- 20 VCC 21 OUT4+ 22 MUTE 23 OUT4- 24 P-GND4 SWITCH 25 + - + - Offset Detection + - + - Offset Detection + - + - Offset Detection + - + - Offset Detection Protector; Over current limit sw_vcc stby Protector; Short circuit Mute circuit amp_vcc Stand-by Circuit Protector; Over voltage sw_vcc Protector; Thermal Reference amp_vcc PAL007A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 DEH-3450,2450F No. Symbol I/O Explain 1 STIND O stereo "Low" when the FM stereo signals are received. indicator To be pulled up to the "VDD" at 47kΩ. 2 FMSD O FM station "High" when signals are received. To be pulled up to the "VDD" at 47kΩ detector Meanwhile, 10kΩ should be used when taking diver FIX trigger from here and "High: 0.9VDD or more" and "Low: 250mV or less". (Should satisfy the diver IC specifications) 3 NL1 O noise level-1 "High" when noise is received. Output for the RDS. GND at 47kΩ //1,800pF. 4 NL2 O noise level-2 "High" when noise is received. Output for the RDS. GND at 36kΩ //330pF. 5 Rch O R channel FM stereo "R-ch" signal output or AM audio output. output Add the specified de-emphasis constant. 6 Lch O L channel FM stereo "L-ch" signal output or AM audio output. output Add the specified de-emphasis constant. 7 WC write control EEPROM write control. Writing permissible at "Low". Normally open. 8 SDBW O SD bandwidth SD bandwidth signal output. For detection of detuning data for the RDS. 9 NC Not used 10 VDD power Power supply pin for the digital section. supply DC 5V +/- 0.25V. Be careful about overlapping noise in the logic section. 11 DGND digital ground Grounding for the digital section. 12 CE2 I chip enable-2 EEPROM chip enable. Active a "Low" To be pulled up to the "VDD" at 47kΩ 13 SL I/O signal level Received FM/AM signal level (strength) output. Connect the specified load resistor and capacitor (10k Ω + 39k Ω //4,700pF) 14 DI/DO I/O data input/ Data input/Data output data output To be pulled up to the "VDD" at 47kΩ 15 CK I clock Clock input To be pulled up to the "VDD" at 47kΩ 16 CE1 I chip enable-1 AF·RF chip enable. Active at "High" To be grounded at 47kΩ 17 NC Not used 18 LDET O lock detector Active at "Low". To be pulled up to the "VDD" at 47kΩ 19 CREQ I current request Active at "Low". To be grounded at 47kΩ 20 NC Not used 21 COMP O composite signal FM composite signal output. r out < 100Ω 22 VCC power supply Analog section power supply pin.DC 8.4V +/- 0.3V 23 LOCH I local high FM local high pin. When seeking local high, apply 5V together with "LOCL". 24 FMLOCL I FM local low FM local low pin. When seeking local low, apply 5V to the base of the NPN transistor with which the specified resistor is being connected to the emitter. Keep it open in case of ordinary marketed models. 25 LOCL I local low FM/AM local low pin. When seeking local low, apply 5V to the base of the NPN transistor. Since this pin is exclusive for AM when the FMLOCL is in use, do not drive it under FM. 26 RFGND RF ground Grounding for the antenna section. 27 FMANT I FM antenna input FM antenna input. 75Ω. Surge absorber (DSP-201M-S00B) is necessary. 28 AMANT I AM antenna input AM antenna input. High impedance. Connect to the antenna through an L (LAU type) of 4.7µH.To cope with the power transmission line hums, insert a series circuit consisting of an L (a coil of about 100mH) + R (a resistor of 470 Ω to 2.2kΩ) between the GND. IC 3 EEPROM 28 27 FM/AM 1ST IF 10.7MHz T51 Q51 CF51 CF52 CF53 IC1 MIXER, IF AMP, DET. 6 21 18 LDET COMP 22 25 10 14 12 15 16 8 13 2 3 4 CF202 VDD VCC DI/DO CE2 CK CE1 SDBW SL FMSD NL1 NL2 IC 2 FM MPX AMANT FMANT ATT ATT AMRF FMRF IMG ADJ RF ADJ X901 10.25MHz ANT ADJ LOCL 23 LOCH AMDET MPXREF 41kHz AM 2ND IF 450kHz 19 CREQ 11 DGND 1 STIND L ch 5 R ch 9 24 NC FMLOCL 20 17 7 NC NC WC 26 RFGND - FM/AM Tuner Unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 DEH-3450,2450F 0 2 3 4 5 6 7 8 9 0 0 9 8 7 6 5 4 3 2 1 0 9 8 7 6 5 4 3 2 1 9 8 7 5 4 3 2 1 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 COM0B 36 1 COM1B COM2E COM3B COM2D COM3A COM2C COM0A COM2B COM1A COM2A COM0B COM1B COM2E COM3B COM2D COM3A COM2C COM0A COM2B COM1A COM2A COMMON SEGMENT 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 21 1 47 46 45 44 43 42 41 39 38 50 49 48 40 51 7.2.2 DISPLAY - CAW1707(DEH-3450/XN/ES), CAW1724(DEH-2450F/XN/ES) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 DEH-3450,2450F 7.3 OPERATIONAL FLOW CHART VDD=5V Pin 68 Power ON BSENS=L ASENS=L DSENS=L bsens Pin 63 asens Pin 64 dsens Pin 65 ADPW←H Pin 66 swvdd←L Pin 41 Source keys operative Completes power-on operation.(After that, proceed to each source operation.) SYSPW←H Pin 42 Starts communication with Grille microcomputer. Source ON 300ms 300ms In case of the above signal, the communication with Grille microcomputer may fail. If the time interval is not 300msec, the oscillator may be defective. CSENS Pin 80 2V
