PIONEER CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC.
P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV
Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD.
253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2000
K-ZZA. OCT. 2000 Printed in Japan
ORDER NO.
CRT2559
HIGH POWER CD PLAYER WITH FM/AM TUNER
DEH-2350
X1M/ES
Service
Manual
CONTENTS
1. SAFETY INFORMATION ............................................2
2. EXPLODED VIEWS AND PARTS LIST.......................2
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM .....8
4. PCB CONNECTION DIAGRAM ................................24
5. ELECTRICAL PARTS LIST ........................................32
6. ADJUSTMENT..........................................................35
7. GENERAL INFORMATION .......................................39
7.1 DIAGNOSIS ........................................................39
7.1.1 TEST MODE..............................................39
7.1.2 DISASSEMBLY .........................................42
7.1.3 CONNECTOR FUNCTION DESCRIPTION.......46
7.2 PARTS .................................................................47
7.2.1 IC................................................................47
7.2.2 DISPLAY....................................................54
7.3 OPERATIONAL FLOW CHART...........................55
8. OPERATIONS AND SPECIFICATIONS.....................56
DEH-1350
X1M/ES
DEH-2350/X1M/ES
- This service manual should be used together with the following manual(s):
Model No.
Order No.
Mech. Module Remarks
CX-958
CRT2423
S8.1
CD Mech. Module:Circuit Description, Mech.Description, Disassembly
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
2
DEH-2350,1350

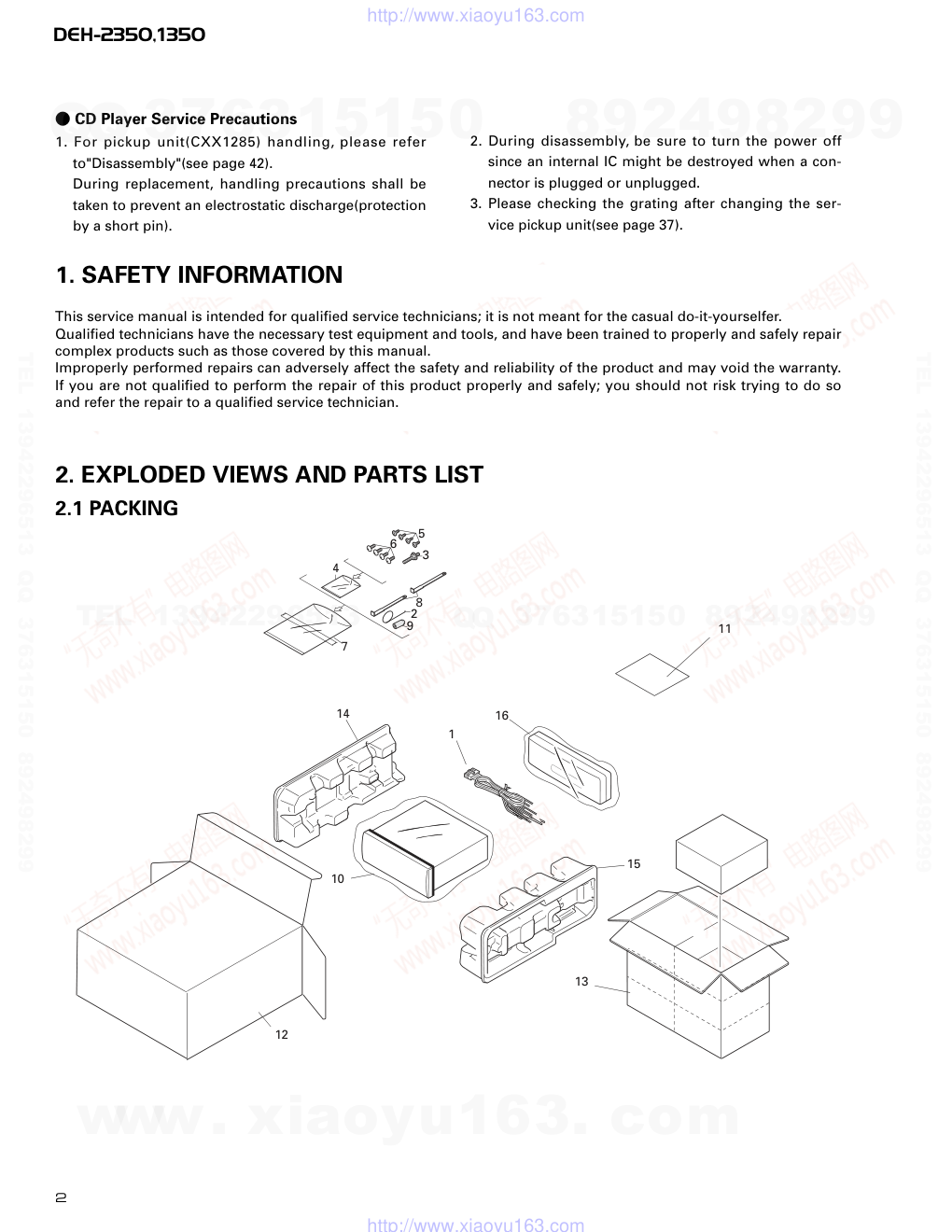

- CD Player Service Precautions
1. For pickup unit(CXX1285) handling, please refer
to"Disassembly"(see page 42).
During replacement, handling precautions shall be
taken to prevent an electrostatic discharge(protection
by a short pin).
2. During disassembly, be sure to turn the power off
since an internal IC might be destroyed when a con-
nector is plugged or unplugged.
3. Please checking the grating after changing the ser-
vice pickup unit(see page 37).
1. SAFETY INFORMATION
2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
14
1
16
10
12
13
15
11
5
9
2
8
7
6
4
3
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so
and refer the repair to a qualified service technician.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
3
DEH-2350,1350
1 Cord Assy
CDE6468
2 Spring
CBH1650
3 Screw
CBA1002
*
4 Polyethylene Bag
CEG-127
5 Screw
CRZ50P090FMC
6 Screw
TRZ50P080FMC
*
7 Polyethylene Bag
CEG-158
8 Handle
CNC5395
9 Bush
CNV3930
10 Polyethylene Bag
CEG-162
11-1 •••••
11-2 Owner’s Manual
CRD3281
11-3 Installation Manual
CRD3283
12 Carton
See Contrast table(2)
13 Contain Box
See Contrast table(2)
14 Protector
CHP2346
15 Protector
CHP2347
16 Case Assy
See Contrast table(2)
Mark No. Description
Part No.
Mark No. Description
Part No.
(1) PACKING SECTION PARTS LIST
NOTE:
- Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.
- Screws adjacent to ∇ mark on the product are used for disassembly.
Part No.
Mark No. Symbol and Description
DEH-2350/X1M/ES
DEH-1350/X1M/ES
12 Carton
CHG4150
CHG4157
13 Contain Box
CHL4150
CHL4157
16 Case Assy
CXB3520
Not used
(2) CONTRAST TABLE
DEH-2350/X1M/ES and DEH-1350/X1M/ES are constructed the same except for the following:
- Owner's Manual, Installation Manual
Model
Part No.
Language
DEH-2350/X1M/ES
CRD3281
English, Spanish, Portuguese(B),
DEH-1350/X1M/ES
CRD3283
Chinese, Arabic
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
4
DEH-2350,1350

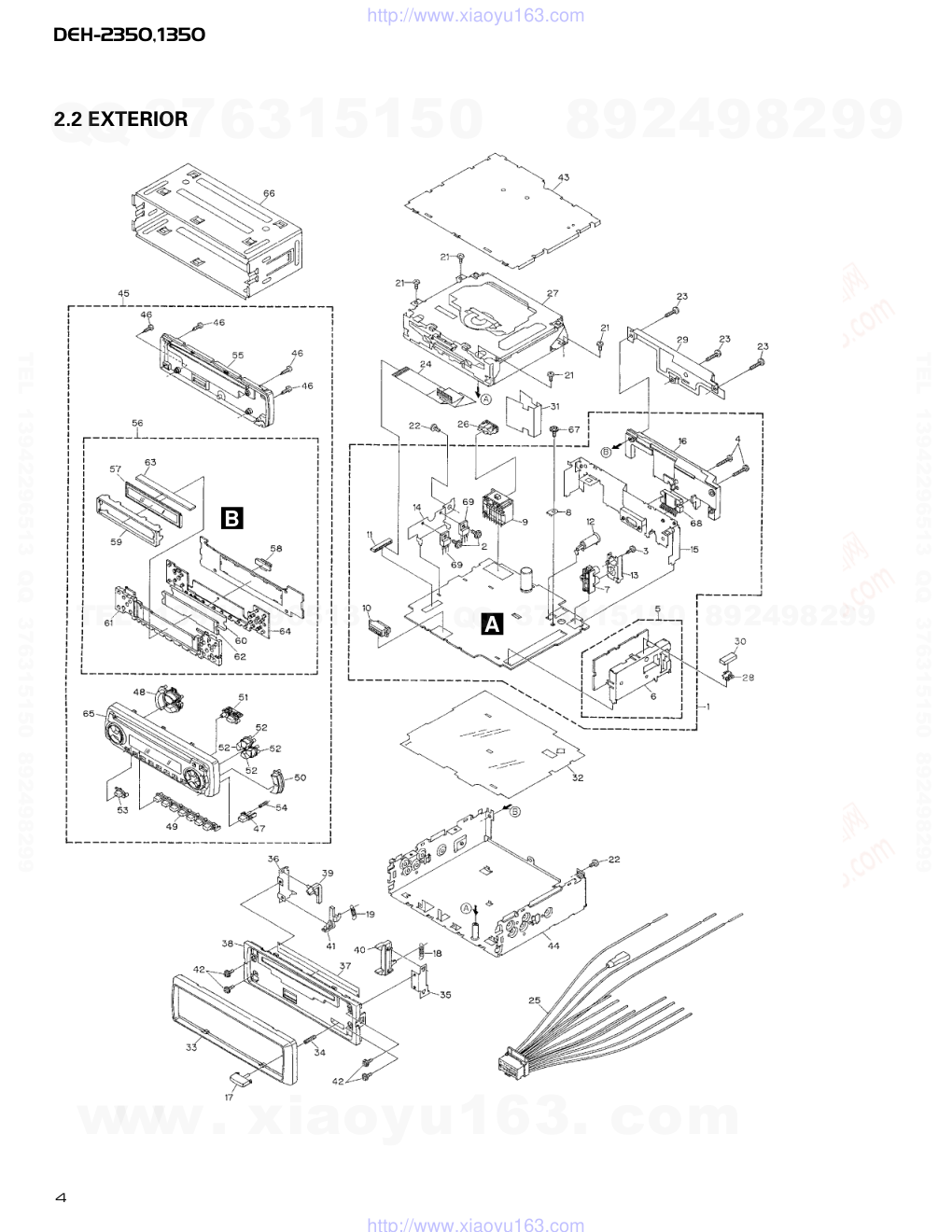

2.2 EXTERIOR
B
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
5
DEH-2350,1350
1 Tuner Amp Unit
See Contrast table(2)
2 Screw
ASZ26P080FMC
3 Screw
BPZ26P080FMC
4 Screw
BSZ26P160FMC
5 FM/AM Tuner Unit
CWE1563
6 Holder
CNC8815
7 Pin Jack(CN301)
CKB1041
8 Terminal(CN403)
CKF1059
9 Plug(CN901)
CKM1330
10 Connector(CN601)
CKS3581
11 Connector(CN605)
CKS3838
12 Antenna Jack(CN402)
CKX1056
13 Holder
CNC8041
14 Holder
CNC8043
15 Holder
CNC9128
16 Heat Sink
CNR1589
17 Button
CAC4836
18 Spring
CBH1835
19 Spring
CBH2208
20 •••••
21 Screw
BSZ26P060FMC
22 Screw
BSZ30P060FMC
23 Screw
BSZ30P120FMC
24 Cable
CDE6160
25 Cord Assy
CDE6468
26 Fuse(10A)
CEK1136
27 CD Mechanism Module(S8.1) CXK5203
28 Holder
CNC5704
29 Cover
CNC9127
30 Cushion
CNM5210
31 Insulator
CNM6224
32 Insulator
CNM6386
33 Panel
CNS6344
34 Spring
CBH2367
35 Bracket
CNC6791
36 Holder
CNC8042
37 Cover
CNM6276
38 Panel
CNS5355
39 Arm
CNV4692
40 Arm
CNV4728
41 Arm
CNV5576
42 Screw
IMS20P030FZK
43 Case Unit
CXB4033
44 Chassis Unit
CXB4625
45 Detach Grille Assy
See Contrast table(2)
46 Screw
BPZ20P100FZK
47 Button(DETACH)
CAC5789
48 Button(+/-, EQ, LD)
CAC6821
49 Button(1-6, CLK)
CAC6822
50 Button(A, B)
CAC6823
51 Button(EJECT/BSM)
CAC6824
52 Button(CROSS)
CAC6825
53 Button(SOURCE)
CAC6851
54 Spring
CBH2210
55 Cover
CNS6114
56 Keyboard Unit
See Contrast table(2)
57 LCD
See Contrast table(2)
58 Connector(CN1801)
CKS3580
59 Holder
CNC9078
60 Sheet
CNM7057
61 Lighting Conductor
CNV6475
62 Lighting Conductor
CNV6476
63 Rubber
CNV6477
64 Rubber
CNV6478
65 Grille Unit
See Contrast table(2)
66 Holder Unit
CXB6681
67 Screw
ISS26P055FUC
68 IC(IC302)
PAL006A
69 Transistor(Q904, 981)
2SD2396
(1) EXTERIOR SECTION PARTS LIST
Mark No. Description
Part No.
Mark No. Description
Part No.
Part No.
Mark No. Symbol and Description
DEH-2350/X1M/ES
DEH-1350/X1M/ES
1 Tuner Amp Unit
CWM7293
CWM7297
45 Detach Grille Assy
CXB6146
CXB6150
56 Keyboard Unit
CWM7303
CWM7307
57 LCD
CAW1606
CAW1633
65 Grille Unit
CXB7182
CXB7186
(2) CONTRAST TABLE
DEH-2350/X1M/ES and DEH-1350/X1M/ES are constructed the same except for the following:
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
6
DEH-2350,1350
2.3 CD MECHANISM MODULE
C
D
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
7
DEH-2350,1350
Mark No. Description
Part No.
Mark No. Description
Part No.
1 Control Unit
CWX2411
2 Connector(CN802)
CKS2192
3 Connector(CN801)
CKS2193
4 Connector(CN701)
CKS2773
5 Connector(CN101)
CKS3486
6 Screw
BMZ20P030FMC
7 Screw
BSZ20P040FMC
8 Screw(M2x3)
CBA1077
9 Screw(M2x5)
EBA1028
10 Screw
CBA1243
11 Screw(M2x4)
CBA1362
12 Washer
CBF1037
13 Washer
CBF1038
14 Washer
CBF1060
15 •••••
16 Spring
CBH2079
17 Spring
CBH2117
18 Spring
CBH2314
19 Spring
CBH2110
20 Spring
CBH2282
21 Spring
CBH2318
22 •••••
23 Spring
CBH2324
24 Spring
CBH2118
25 Spring
CBH2161
26 Spring
CBH2163
27 Spring
CBH2189
28 Spring
CBH2377
29 Spring
CBH2260
30 Spring
CBH2262
31 Bracket
CNC8568
32 Spring
CBL1369
33 Connector
CDE5531
34 Connector
CDE5532
35 Shaft
CLA3894
36 Screw(M2.6x6)
CBA1458
37 Frame
CNC8565
38 Frame
CNC8749
39 Lever
CNC9265
40 Arm
CNC8663
41 Bracket
CNC8567
42 •••••
43 Spacer
CNM3315
44 Sheet
CNM6659
45 •••••
46 •••••
47 Ball
CNR1189
48 Belt
CNT1086
49 Roller
CNV4509
50 Arm
CNV6037
51 Arm
CNV5247
52 Arm
CNV5248
53 Arm
CNV5249
54 Guide
CNV5254
55 Guide
CNV5255
56 Gear
CNV5257
57 Gear
CNV5256
58 Guide
CNV6272
59 Damper
CNV6174
60 Arm
CNV6096
61 Arm
CNV6031
62 Arm
CNV6211
63 Guide
CNV6012
64 Guide
CNV5510
65 •••••
66 Guide
CNV5751
67 Clamper
CNV6013
68 Gear
CNV5813
69 Motor Unit(M1)
CXB2190
70 Screw Unit
CXB5892
71 Chassis Unit
CXB4797
72 Gear Unit
CXB4728
73 Arm Unit
CXB5753
74 Motor Unit(M2)
CXB2195
75 Lever Unit
CXB4730
76 Arm Unit
CXB4731
77 Motor Unit(M3)
CXB2562
78 Arm Unit
CXB4732
79 Bracket Unit
CXB4795
80 Screw
JFZ20P025FMC
81 Screw
JGZ17P025FZK
82 Washer
YE20FUC
83 Pickup Unit(Service)(P8)
CXX1285
84 Screw
IMS26P030FMC
*
85 PCB
CNX2982
86 Photo-transistor(Q1, 2)
CPT230SX-TU
87 Damper
CNV6175
88 Rack
CNV6014
89 Spring
CBH2315
- CD MECHANISM MODULE SECTION PARTS LIST
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
8
DEH-2350,1350
1
2
3
4
1
2
3
4
D
C
B
A
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM
3.1 BLOCK DIAGRAM
M
M
M
LD
MD
HOLOGRAM
UNIT
FOCUS ACT
TRACKING ACT
LD+
MD
FO+
TO+
14
5
4
3
SPINDLE
MOTOR
CARRIAGE
MOTOR
LOADING
MOTOR
1
2
3
4
3
1
2
SELECT
SENSE
DISC SENSE
D
CN801
CN802
D802
D801
VD
S802
CLAMP
6
5
11
22
23
21
1
28
21
CDLOAD
CDEJET
CONT
EJTSNS
DSCSNS
CLAMP
CD5VON
VDCONT
VDD
IC 701
BA05SFP
IN
+5V REGULATOR
2
4
1
VD
Q981
Q982
B.U
ANTENNA
CN402
A
LOCL
Q411
VCC
VDD
PCE2
PCK
PCE1
SL
SD
PDIO
C
Q101
CN101
FOP
TOP
A+C/F
B+D/E
98 LD
L_OUT
PD
HOME
97
24
23
39
X201
TD/FD
SD/MD
RF-AMP, DSP,
SERVO, DAC
IC 201
UPD63711GC
16
CN701
CN605
17
1
8
24
CDL
IC 301
BA5985FM
S801
HOME
12
16
18
11
14
13
10
9
SOP
TOP
FOP
SOM
COP
COM
LOP
LOM
FWD
REV
MUTE
CD DRIVER
7
18
19
20
14
3
2
4
CLAMP
DINC
EJTD
CDLOAD
EJET
CONT
PDIO
TUNER AMP UNIT
CONTROL UNIT
PICKUP UNIT(SERVICE)(P8)
PHOTO UNIT(S8)
4
VD
CD5VON
IC 3
EEPROM
FM/AM TUNER UNIT
28
27
FM/AM 1ST IF 10.7MHz
T51 Q51 CF51
CF52 CF53
IC1
MIXER, IF AMP, DET.
6
21
18
LDET
COMP
22
25
10
14
12
15 16
8
13
2
3
4
CF202
VDD
VCC
DI/DO
CE2
CK
CE1
SDBW
SL
FMSD
NL1
NL2
IC 2 FM MPX
AMANT
FMANT
ATT
ATT
AMRF
FMRF
IMG ADJ
RF ADJ
X901
10.25MHz
ANT ADJ
LOCL
23
LOCH
AMDET
MPXREF 41kHz
AM 2ND IF
450kHz
19
CREQ
11
DGND
1
STIND
L ch
5
R ch
9
24
NC
FMLOCL
20
17
7
NC
NC
WC
26 RFGND
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
9
DEH-2350,1350
5
6
7
8
5
6
7
8
D
C
B
A
KYDT
DPDT
KEY CONT.
LCD DRIVER
IC 1801
PD6340A
3
4
5
3
4
5
KEY MATRIX
SD
SL
PCE
PCK
TUNPCE2
PDO
LOCL
IN2_L
IN3_L
6
76
14
13
48
12
57
2
3
SYSTEM
CONTROLLER
IC 601(1/2)
PE5196A
VST
VCK
VDT
B.U
VDD
Q903
B.U
BACKUP
FL—
FL+
RL—
RL+
ACC
2
1
9
11
10
12
4
E.VOL
FIE/EQ
IC 301
PML003AM
SYSTEM
CONTROLLER
IC 601(2/2)
PE5196A
ASENS
63
BSENS
64
SYSPW
42
MUTE
44
KYDT
8
DPDT
9
RESET
60
SWVDD
41
Frontout_L
10
Rearout_L
11
POWER AMP
IC 302
PAL006A
14
12
22
4
5
3
21
23
FL
MUTE
STBY
25
B.REM
RL
B.U
bsens
asens
Q902
Q351 MUTE
Q350
B KEYBOARD UNIT
CN1801
CN601
LCD
22
23
X1801
20
18
Q650
RESET
IC 602
S—80834ANY
VDD
1
2
SYSPW
GND
5
B.REM
FUSE
10A
CD5VON
31
34
23
80
79
27
22
35
VDCONT
CLAMP
DSCSNS
EJTSNS
CDLOAD
CDEJET
CONT
PDI
11
PDIO
VST/ VCK/ VDT
Q901
VDD
VDD
VLCD
56
10
CN901
Q346
CN301
REAR L CH
Q363
BACK UP
FL–
FL+
RL–
RL+
B.REM
ACC
GND
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
10
DEH-2350,1350
1
2
3
4
1
2
3
4
D
C
B
A

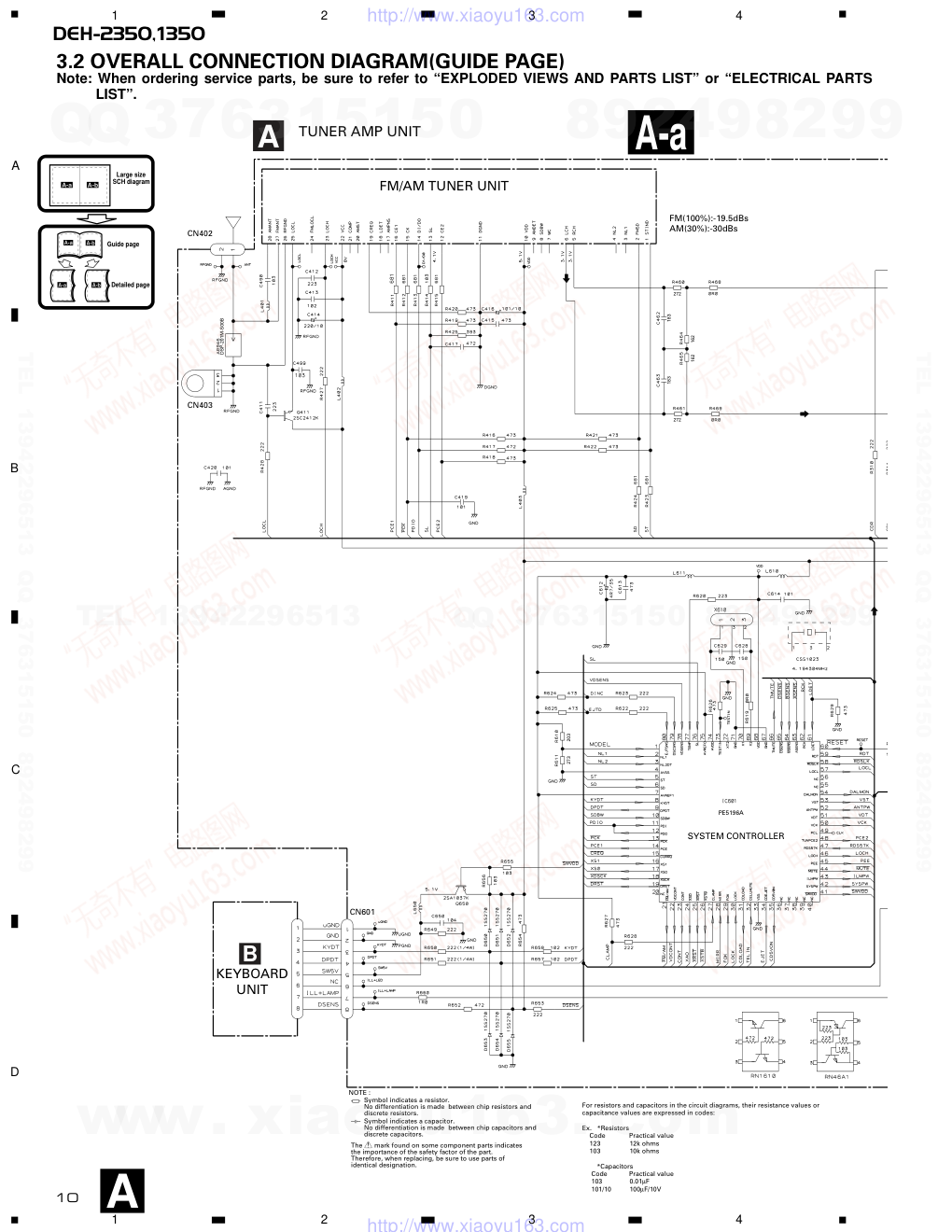

3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)
Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS
LIST”.
A-a
A-b
A-a
A-a
A-b
A-b
A-b
A-b
A-a
A-a
Large size
SCH diagram
Guide page
Detailed page
A
DSP-201M-S00B
183
162
162
183
272
272
273
203
PE5196A
CN601
CN403
CN402
FM(100%):-19.5dBs
AM(30%):-30dBs
SYSTEM CONTROLLER
For resistors and capacitors in the circuit diagrams, their resistance values or
capacitance values are expressed in codes:
Ex. *Resistors
Code Practical value
123 12k ohms
103 10k ohms
*Capacitors
Code Practical value
103 0.01µF
101/10 100µF/10V
The > mark found on some component parts indicates
the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of
identical designation.
Symbol indicates a resistor.
No differentiation is made between chip resistors and
discrete resistors.
NOTE :
Symbol indicates a capacitor.
No differentiation is made between chip capacitors and
discrete capacitors.
KEYBOARD
UNIT
B
FM/AM TUNER UNIT
A-a
TUNER AMP UNIT
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
11
DEH-2350,1350
5
6
7
8
5
6
7
8
D
C
B
A
A
332/16
B.REM(DEH-2350/X1M/ES)
NC(DEH-1350/X1M/ES)
Pin 25 :
PAL006A(DEH-2350/X1M/ES)
TDA7386(DEH-1350/X1M/ES)
600µH
331/16
CN901
CN301
CN605
CEK1136
>
(DEH-2350/X1M/ES)
(DEH-2350/X1M/ES)
(DEH-1350/X1M/ES)
FM(100%):+3.6dBs
AM(30%):-6.9dBs
CD:+10.2dBs
FM(100%):+29.6dBs
AM(30%):+19.1dBs
CD:+36.2dBs
CD:+4.1dBs
CD:+9.4dBs
RESET
E.VOL
FIE/EQ
POWER AMP
A.SENS
B.SENS
CONTROL UNIT
C
A-b
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
12
DEH-2350,1350
1
2
3
4
1
2
3
4
D
C
B
A
A-a
A-a A-b
1
DSP-201M-S00B
183
162
162
183
272
272
CN403
CN402
FM(100%):-19.5dBs
AM(30%):-30dBs
FM/AM TUNER UNIT
TUNER AMP UNIT
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
13
DEH-2350,1350
5
6
7
8
5
6
7
8
D
C
B
A
A-a
A-a A-b
273
203
PE5196A
CN601
SYSTEM CONTROLLER
RESE
For resistors and capacitors in the circuit diagrams, their resistance values or
capacitance values are expressed in codes:
Ex. *Resistors
Code Practical value
123 12k ohms
103 10k ohms
*Capacitors
Code Practical value
103 0.01µF
101/10 100µF/10V
The > mark found on some component parts indicates
the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of
identical designation.
Symbol indicates a resistor.
No differentiation is made between chip resistors and
discrete resistors.
NOTE :
Symbol indicates a capacitor.
No differentiation is made between chip capacitors and
discrete capacitors.
KEYBOARD
UNIT
B
CONTROL UNIT
C
2
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
14
DEH-2350,1350
1
2
3
4
1
2
3
4
D
C
B
A
A-a A-b
A-b
332/16
B.REM(DEH-2350/X1M/ES)
NC(DEH-1350/X1M/ES)
Pin 25 :
PAL006A(DEH-2350/X1M/ES)
TDA7386(DEH-1350/X1M/ES)
600µH
CN901
CN301
CEK1136
>
(DEH-2350/X1M/ES)
FM(100%):+3.6dBs
AM(30%):-6.9dBs
CD:+10.2dBs
FM(100%):+29.6dBs
AM(30%):+19.1dBs
CD:+36.2dBs
CD:+9.4dBs
E.VOL
FIE/EQ
POWER AMP
1
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
15
DEH-2350,1350
5
6
7
8
5
6
7
8
D
C
B
A
A-b
A-a A-b
600µH
331/16
CN605
CEK1136
(DEH-2350/X1M/ES)
(DEH-1350/X1M/ES)
CD:+4.1dBs
RESET
A.SENS
B.SENS
CONTROL UNIT
C
2
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
16
DEH-2350,1350
1
2
3
4
1
2
3
4
D
C
B
A
3.3 KEYBOARD UNIT
KEYBOARD UNIT
LCD CAW1606(DEH-2350/X1M/ES), CAW1633(DEH-1350/X1
LCD DRIVER
KEY CONTROLLER
B
B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
17
DEH-2350,1350
5
6
7
8
5
6
7
8
D
C
B
A
A CN601
50/X1M/ES)
IL1801, 1802:CEL1651(14V 40mA)
R1708, 1710, 1712:151
D1701-1708:SML210PT
CLK
BSM
EQ
LOUD
B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DEH-2350,1350
1
2
3
4
1
2
3
4
D
C
B
A
BA05SFP
(SERVICE)(P8)
PICKUP UNIT
PHOTO UNIT(S8)
CONTROL UNIT
SPINDLE MOTOR
Q2 CPT230SX-TU
Q1 CPT230SX-TU
M3 CXB2562
CARRIAGE MOTOR
M1 CXB2190
M2 CXB2195
LOADING MOTOR
RF-AMP, SE
5V REGULATOR
CD DRIVER
CN101
CN802
CN801
CL203IRXTU
CL203IRXTU
3.4 CD MECHANISM MODULE
D
D
C
18 C
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DEH-2350,1350
5
6
7
8
5
6
7
8
D
C
B
A
MP, SERVO, DSP, DAC, LPF
SWITCHES:
CONTROL UNIT
S801 : HOME SWITCH.....ON-OFF
S802 : CLAMP SWITCH....ON-OFF
The underlined indicates the switch position.
CN701
CN605
A
19
C
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
20
DEH-2350,1350
1 RFI
0.5V/div. 0.5µs/div.
Normal mode: play
1 CH1: RFI
1V/div.
2 CH2: MIRR
5V/div.
Test mode: Tracking open
0.5ms/div.
1 CH1: RFI
1V/div.
2 CH2: MIRR
5V/div.
Normal mode: The defect part
passes 800µm
0.5ms/div.
3 CH1: FD
0.5V/div.
4 CH2: FO+
2V/div.
Test mode: No disc, Focus close
0.2s/div.
3 CH1: FD
0.5V/div.
5 CH2: FOK
2V/div.
Normal mode: Focus close
0.2s/div.
6 CH1: FE
0.5V/div.
7 CH2: XSI
2V/div.
Normal mode: Focus close
1ms/div.
REFO →
8 CH1: TE
0.5V/div.
9 CH2: TD
0.5V/div.
Test mode: 32 tracks jump (FWD)
0.5ms/div.
8 CH1: TE
0.5V/div.
9 CH2: TD
0.5V/div.
Test mode: Single jump (FWD)
0.5ms/div.
8 CH1: TE
0.5V/div.
9 CH2: TD
0.5V/div.
Test mode: 100 tracks jump (FWD)
5ms/div.
6 CH1: FE
0.1V/div.
3 CH2: FD
0.2V/div.
Normal mode: Play
20ms/div.
3 CH1: FD
0.5V/div.
0 CH2: MD
1V/div.
Normal mode: Focus close (12cm)
0.5s/div.
3 CH1: FD
0.5V/div.
0 CH2: MD
1V/div.
Normal mode: Focus close (8cm)
0.5s/div.
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
GND →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
- Waveforms
Note:1. The encircled numbers denote measuring pointes in the circuit diagram.
2. Reference voltage
REFO:2.5V
REFO →
REFO →
REFO →
REFO →
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
21
DEH-2350,1350
8 CH1: TE
0.2V/div.
9 CH2: TD
0.2V/div.
Normal mode: play
8 CH1: TE
0.5V/div.
! CH2: SD
0.5V/div.
TEST mode: 100 Tracks jump(FWD)
5ms/div.
0 MD
0.5V/div.
0.1s/div.
Normal mode: Play (12cm)
0 MD
1V/div.
10ms/div.
Normal mode:
Long Search (12cm)
@ EFM
1V/div.
5µs/div.
Normal mode: play
8 CH1: TE
1V/div.
# CH2: TEC
1V/div.
Test mode: Focus close
Tracking open
2ms/div.
8 CH1: TE
0.5V/div.
6 CH2: FE
0.5V/div.
Normal mode: AGC after focus close
0.2s/div.
$ PLCK
2V/div.
0.5µs/div.
Normal mode: play
20ms/div.
% SCKO
2V/div.
1µs/div.
Normal mode: play
^ Dout
2V/div.
10µs/div.
Normal mode: play
& LRCK
2V/div.
20µs/div.
Normal mode: play
* VD
5V/div.
50ms/div.
Normal mode: No disc
GND →
REFO →
REFO →
GND →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
GND →
REFO →
GND →
REFO →
GND →
REFO →
GND →
REFO →
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
22
DEH-2350,1350
( CH1: R OUT
1V/div.
) CH2: L OUT
1V/div.
Normal mode: Play (1kHz 0dB)
6 CH1: FE
0.2V/div.
3 CH2: FD
0.5V/div.
Normal mode: During AGC
1ms/div.
8 CH1: TE
0.2V/div.
9 CH2: TD
0.5V/div.
Normal mode: During AGC
1 CH1: RFI
1V/div.
⁄ CH2: HOLD
5V/div.
Normal mode: The defect part passes
800µm(B.D)
0.2ms/div.
1ms/div.
0.5ms/div.
3 CH1: FD
0.5V/div.
⁄ CH2: HOLD
5V/div.
Normal mode: The defect part passes
800µm(B.D)
0.5ms/div.
9 CH1: TD
0.1V/div.
⁄ CH2: HOLD
5V/div.
Normal mode: The defect part passes
800µm(B.D)
0.5ms/div.
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
23
DEH-2350,1350
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
24
DEH-2350,1350
1
2
3
4
1
2
3
4
D
C
B
A
NOTE FOR PCB DIAGRAMS
1. The parts mounted on this PCB
include all necessary parts for
several destination.
For further information for
respective destinations, be
sure to check with the
schematic diagram.
2. Viewpoint of PCB diagrams
A
Capacitor
Connector
P.C.Board
Chip Part
SIDE A
SIDE B
1
3
5
7
9
11
13
15
2
4
6
8
10
12
14
16
CN1801
B
CN701
C
CORD ASSY
4. PCB CONNECTION DIAGRAM
4.1 TUNER AMP UNIT
A TUNER AMP UNIT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
25
DEH-2350,1350
5
6
7
8
5
6
7
8
D
C
B
A
A
FRONT
1
2
3
1
2
FM/AM TUNER UNIT
SIDE A
ANTENNA
PRE OUT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
26
DEH-2350,1350
1
2
3
4
1
2
3
4
D
C
B
A
A
456
321
123
654
A
TUNER AMP UNIT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
27
DEH-2350,1350
5
6
7
8
5
6
7
8
D
C
B
A
A
123
654
456
321
FRONT
SIDE B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
28
DEH-2350,1350
1
2
3
4
1
2
3
4
D
C
B
A
LOUD
VOL-
VOL-
SOURCE
SOURCE
1
2
3
4
5
6
CLK
BSM
EJECT
BAND
AUDIO
←
→
↑
↓
VOL+
VOL+
EQ
4.2 KEYBOARD UNIT
SIDE A
KEYBOARD UNIT
B
B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
29
DEH-2350,1350
1
2
3
4
1
2
3
4
D
C
B
A
B
B
CN601
A
SIDE B
KEYBOARD UNIT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
30
DEH-2350,1350
1
2
3
4
1
2
3
4
D
C
B
A
4.3 CD MECHANISM MODULE
CONTROL UNIT
HOME
M1 CARRIAGE MOTOR
M2 LOADING MOTOR
M3 SPINDLE MOTOR
PICKUP UNIT(SERVICE)(P8)
CN802
CN605
321
PHOTO UNIT(S8)
SIDE A
D
D
C
C
C
D
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
31
DEH-2350,1350
1
2
3
4
1
2
3
4
D
C
B
A
CLAMP
SIDE B
CONTROL UNIT
C
C
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
32
DEH-2350,1350
5. ELECTRICAL PARTS LIST
NOTES:
- Parts whose parts numbers are omitted are subject to being not supplied.
- The part numbers shown below indicate chip components.
Chip Resistor
RS1/_S___J,RS1/__S___J
Chip Capacitor (except for CQS.....)
CKS....., CCS....., CSZS.....
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
Unit Number : CWM7293(DEH-2350/X1M/ES)
: CWM7297(DEH-1350/X1M/ES)
Unit Name
: Tuner Amp Unit
MISCELLANEOUS
IC
301
IC
PML003AM
IC
302
IC(DEH-2350/X1M/ES)
PAL006A
IC
302
IC(DEH-1350/X1M/ES)
TDA7386
IC
601
IC
PE5196A
IC
602
IC
S-80834ANY
IC
970
IC(DEH-1350/X1M/ES)
TPD1018F
Q
346
Transistor
RN1610
Q
350
Transistor
DTA124EK
Q
351
Transistor
DTC114EK
Q
353
Transistor
DTA124EK
Q
411
Transistor
2SC2412K
Q
650
Transistor
2SA1037K
Q
901
Transistor
2SC2412K
Q
902
Transistor
2SC2412K
Q
903
Transistor
2SD1859
Q
904
Transistor
2SD2396
Q
905
Transistor
2SB1243
Q
906
Transistor
DTC114EK
Q
920
Transistor
RN46A1
Q
981
Transistor
2SD2396
Q
982
Transistor
RN46A1
D
650
Diode
1SS270
D
651
Diode
1SS270
D
652
Diode
1SS270
D
653
Diode
1SS270
D
654
Diode
1SS270
D
655
Diode
1SS270
D
901
Diode
HZS7L(C2)
D
902
Diode
S5688G
D
903
Diode
S5688G
D
904
Diode
HZS7L(A1)
D
905
Diode
S5688G
D
906
Diode
HZS6L(B2)
D
907
Diode
HZS9L(B3)
D
941
Diode
S5688G
D
942
Diode
S5688G
D
981
Diode
HZS9L(B1)
L
310
Ferri-Inductor
LAU1R0M
L
401
Ferri-Inductor
LAU4R7K
L
402
Ferri-Inductor
LAU2R2K
L
403
Inductor
LAU100K
L
610
Ferri-Inductor
LAU101K
L
611
Ferri-Inductor
LAU2R2K
L
650
Ferri-Inductor
LAU2R2K
L
901
Choke Coil 600µH
CTH1221
X
610
Crystal Resonator 4.194304MHz
CSS1023
AR
946
Arrester
DSP-201M-S00B
FM/AM Tuner Unit
CWE1563
RESISTORS
R
310
RD1/4PU222J
R
311
RD1/4PU222J
R
332
RS1/16S221J
R
333
RS1/16S221J
R
334
RS1/16S221J
R
335
RS1/16S221J
R
342
RS1/16S681J
R
343
RS1/16S681J
R
344
RS1/16S223J
R
345
RS1/16S223J
R
346
RS1/16S0R0J
R
351
RS1/16S102J
R
352
RS1/16S103J
R
353
RS1/16S103J
R
354
RS1/16S331J
R
360
RD1/4PU153J
R
411
RS1/16S681J
R
412
RS1/16S681J
R
413
RS1/16S681J
R
414
RS1/16S103J
R
415
RS1/16S681J
R
416
RD1/4PU473J
R
417
RD1/4PU472J
R
418
RS1/16S473J
R
419
RS1/16S473J
R
420
RS1/16S473J
R
421
RS1/16S473J
R
422
RS1/16S473J
R
423
RS1/16S681J
R
424
RS1/16S681J
R
425
RS1/16S393J
R
427
RS1/16S222J
R
428
RS1/16S222J
R
460
RS1/16S272J
R
461
RS1/16S272J
R
464
RS1/16S162J
R
465
RS1/16S162J
R
468
RS1/16S0R0J
R
469
RS1/16S0R0J
R
610
RD1/4PU203J
R
611
RS1/16S273J
R
619
RS1/16S0R0J
R
620
RS1/16S223J
R
622
RD1/4PU222J
R
623
RD1/4PU222J
R
624
RS1/16S473J
R
625
RS1/16S473J
R
626
RS1/16S473J
R
627
RS1/16S473J
R
628
RD1/4PU222J
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
33
DEH-2350,1350
R
629
RS1/16S473J
R
630
RS1/16S822J
R
631
RD1/4PU102J
R
649
RS1/16S222J
R
650
RD1/4PU222J
R
651
RD1/4PU222J
R
652
RS1/16S472J
R
653
RD1/4PU222J
R
654
RS1/16S473J
R
655
RS1/16S103J
R
656
RS1/16S103J
R
657
RD1/4PU102J
R
658
RD1/4PU102J
R
660
RS1/16S1R0J
R
681
RD1/4PU681J
R
682
RS1/16S102J
R
683
RS1/16S102J
R
684
RS1/16S102J
R
901
RS1/16S104J
R
902
RD1/4PU104J
R
903
RD1/4PU103J
R
904
RS1/16S473J
R
905
RD1/4PU102J
R
906
RS1/16S473J
R
907
RS1/16S473J
R
908
RS1/16S472J
R
909
RD1/4PU103J
R
910
RS1/16S0R0J
R
911
RS1/16S122J
R
912
RD1/4PU103J
R
913
RS1/16S101J
R
914
RD1/4PU152J
R
916
RS1/16S221J
R
918
RS1/16S1R0J
R
944
RD1/4PU152J
R
971
(DEH-1350/X1M/ES)
RS1/16S103J
R
981
RS1/16S472J
R
982
RS1/16S222J
R
983
RD1/4PU221J
R
984
RD1/4PU221J
CAPACITORS
C
310
CKSRYB105K6R3
C
311
CKSRYB104K16
C
313
CKSRYB105K6R3
C
314
CKSRYB104K16
C
315
CKSRYB102K50
C
316
CKSRYB102K50
C
330
CEJA470M10
C
331
CEJA100M16
C
332
CKSRYB104K16
C
333
CEJA4R7M35
C
334
CEJA4R7M35
C
336
CKSRYB153K25
C
337
CKSRYB153K25
C
340
CEAL2R2M50
C
341
CEJA2R2M50
C
346
CCSRCH100D50
C
347
CCSRCH100D50
C
348
CCSRCH100D50
C
349
CCSRCH100D50
C
350
CEJA330M10
C
361
CEJA2R2M50
C
362
CKSQYB225K10
C
363
CEJA100M16
C
364
CKSQYB474K16
C
365
CKSQYB474K16
C
366
CKSQYB474K16
C
367
CKSQYB474K16
C
368
CKSQYB474K16
C
369
CKSQYB474K16
C
370
CKSQYB474K16
C
371
CKSQYB474K16
C
372
CKSQYB225K10
C
373
(DEH-2350/X1M/ES)
CKSRYB473K25
C
390
CKSRYB104K16
C
391
3300µF/16V
CCH1368
C
411
CKSRYB223K25
C
412
CKSRYB223K25
C
413
CKSRYB102K50
C
414
CEJA220M10
C
415
CKSRYB473K16
C
416
CEAL101M10
C
417
CKSRYB472K50
C
419
CCSRCH101J50
C
420
CCSRCH101J50
C
462
CKSRYB183K25
C
463
CKSRYB183K25
C
490
CKSQYB103K50
C
499
CKSRYB103K50
C
612
CEJA4R7M35
C
613
CKSRYB473K16
C
614
CCSRCH101J50
C
628
CCSRCH150J50
C
629
CCSRCH150J50
C
630
CKSRYB473K16
C
631
CEAL2R2M50
C
650
CKSRYB104K16
C
901
CEJA101M10
C
902
CKSRYB473K16
C
903
470µF/16V
CCH1331
C
904
CKSRYB473K16
C
905
330µF/16V
CCH1326
C
906
CKSRYB103K50
C
907
CEJA101M16
C
941
CKSRYB473K16
C
971
(DEH-1350/X1M/ES)
CKSRYB103K50
C
972
(DEH-1350/X1M/ES)
CKSRYB473K16
C
981
CEJA101M10
C
982
CKSRYB102K50
C
983
CKSRYB473K16
Unit Number : CWM7303(DEH-2350/X1M/ES)
: CWM7307(DEH-1350/X1M/ES)
Unit Name
: Keyboard Unit
MISCELLANEOUS
IC
1801
IC
PD6340A
D
1701
LED
SML210PT
D
1702
LED
SML210PT
D
1703
LED
SML210PT
D
1704
LED
SML210PT
D
1705
LED
SML210PT
D
1706
LED
SML210PT
D
1707
LED
SML210PT
D
1708
LED
SML210PT
D
1801
Diode
MA152WK
D
1802
Diode
MA152WA
D
1811
LED
NSSW440-9159
D
1812
LED
NSSW440-9159
X
1801
Ceramic Resonator 4.97MHz
CSS1422
IL
1801
Lamp 14V 40mA
CEL1651
IL
1802
Lamp 14V 40mA
CEL1651
LCD(DEH-2350/X1M/ES)
CAW1606
LCD(DEH-1350/X1M/ES)
CAW1633
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
34
DEH-2350,1350
RESISTORS
R
1701
RS1/16S151J
R
1702
RS1/16S181J
R
1703
RS1/16S181J
R
1704
RS1/16S181J
R
1705
RS1/16S181J
R
1706
RS1/16S151J
R
1707
RS1/16S151J
R
1708
RS1/16S151J
R
1709
RS1/16S181J
R
1710
RS1/16S151J
R
1711
RS1/16S181J
R
1712
RS1/16S151J
R
1713
RS1/16S131J
R
1801
RS1/16S222J
R
1802
RS1/16S222J
R
1803
RS1/16S471J
R
1804
RS1/16S471J
R
1805
RS1/16S471J
R
1806
RS1/16S471J
CAPACITORS
C
1801
CKSRYB103K50
C
1811
CKSQYF104Z25
C
1812
CKSQYF104Z25
Unit Number : CWX2411
Unit Name
: Control Unit
MISCELLANEOUS
IC
201
IC
UPD63711GC
IC
301
IC
BA5985FM
IC
701
IC
BA05SFP
Q
101
Transistor
2SB1132
D
801
LED
CL203IRXTU
D
802
LED
CL203IRXTU
X
201
Ceramic Oscillator 16.934MHz
CSS1456
S
801
Spring Switch(HOME)
CSN1051
S
802
Spring Switch(CLAMP)
CSN1052
RESISTORS
R
101
RS1/8S120J
R
102
RS1/8S100J
R
103
RS1/16S222J
R
201
RS1/16S104J
R
202
RS1/16S103J
R
203
RS1/16S393J
R
204
RS1/16S103J
R
205
RS1/16S103J
R
206
RS1/16S182J
R
207
RS1/16S123J
R
302
RS1/16S153J
R
303
RS1/16S103J
R
501
RS1/16S102J
R
502
RA4C681J
R
601
RS1/16S102J
R
602
RS1/16S102J
R
605
RS1/16S0R0J
R
606
RS1/16S0R0J
R
801
RS1/8S751J
R
803
RS1/8S751J
R
902
RS1/16S0R0J
R
906
RS1/16S0R0J
CAPACITORS
C
101
CKSRYB102K50
C
102
CKSRYB104K16
C
103
CEV101M6R3
C
104
CEV470M6R3
C
105
CKSQYB334K16
C
106
CKSQYB334K16
C
107
CKSQYB334K16
C
201
CKSRYB104K16
C
202
CKSRYB471K50
C
203
CKSRYB104K16
C
205
CEV101M6R3
C
206
CKSRYB104K16
C
207
CKSRYB104K16
C
208
CKSRYB104K16
C
209
CKSRYB104K16
C
210
CKSRYB332K50
C
211
CKSRYB104K16
C
212
CKSRYB104K16
C
213
CKSRYB392K50
C
214
CKSRYB104K16
C
215
CKSRYB104K16
C
216
CCSRCJ3R0C50
C
217
CCSRCH270J50
C
218
CKSRYB104K16
C
219
CCSRCH181J50
C
220
CCSRCH510J50
C
221
CKSRYB682K25
C
222
CEV220M6R3
C
223
CKSRYB103K25
C
224
CKSRYB224K10
C
301
CEV101M10
C
603
CCSQSL152J50
C
604
CCSQSL152J50
C
702
10µF/10V
CCH1349
C
703
CKSQYB334K16
Unit Number :
Unit Name
: Photo Unit(S8)
Q
1
Photo-transistor
CPT230SX-TU
Q
2
Photo-transistor
CPT230SX-TU
Miscellaneous Parts List
Pickup Unit(Service)(P8)
CXX1285
M
1
Motor Unit(CARRIAGE)
CXB2190
M
2
Motor Unit(LOADING)
CXB2195
M
3
Motor Unit(SPINDLE)
CXB2562
Fuse(10A)
CEK1136
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
C
D
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
35
DEH-2350,1350
1) Precautions
• This unit uses a single power supply (+5V) for the reg-
ulator. The signal reference potential, therefore, is
connected to REFO(approx. 2.5V) instead of GND.
If REFO and GND are connected to each other by mis-
take during adjustments, not only will it be impossi-
ble to measure the potential correctly, but the servo
will malfunction and a severe shock will be applied to
the pick-up. To avoid this, take special note of the fol-
lowing.
Do not connect the negative probe of the measuring
equipment to REFO and GND together. It is especially
important not to connect the channel 1 negative
probe of the oscilloscope to REFO with the channel 2
negative probe connected to GND.
Since the frame of the measuring instrument is usual-
ly at the same potential as the negative probe, change
the frame of the measuring instrument to floating sta-
tus.
If by accident REFO comes in contact with GND,
immediately switch the regulator or power OFF.
• Always make sure the regulator is OFF when connect-
ing and disconnecting the various filters and wiring
required for measurements.
• Before proceeding to further adjustments and mea-
surements after switching regulator ON, let the player
run for about one minute to allow the circuits to stabi-
lize.
• Since the protective systems in the unit's software are
rendered inoperative in test mode, be very careful to
avoid mechanical and /or electrical shocks to the sys-
tem when making adjustment.
• Disc detection during loading and eject operations is
performed by means of a photo transistor in this
unit.Consequently, if the inside of the unit is exposed
to a strong light source when the outer casing is
removed for repairs or adjustment, the following mal-
functions may occur.
*During PLAY, even if the eject button is
pressed,the disc will not be ejected and the unit
will remain in the PLAY mode.
*The unit will not load a disc.
When the unit malfunctions this way, either re-posi-
tion the light source, move the unit or cover the photo
transistor.
2) Test Mode
This mode is used for adjusting the CD mechanism
module of the device.
• Test mode starting procedure
Reset while pressing the 4 and 6 keys together.
• Test mode cancellation
Switch ACC, back-up OFF.
• After pressing the EJECT key, do not press any other
key until the disk is completely ejected.
• If the ] or [ key is pressed while focus search is in
progress, immediately turn the power off (otherwise
the actuator may be damaged due to adhesion of the
lenses).
• Jump operation of TRs other than 100TR continues
after releasing the key. CRG move and 100TR jump
operations are brought into the “Tracking close” sta-
tus when the key is released.
• Powering Off/On resets the jump mode to “1TR”, and
the automatic adjustment value to the initial value.
6. ADJUSTMENT
6.1 CD ADJUSTMENT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
36
DEH-2350,1350
- Flow Chart
4
3
Reset
SOURCE
New test mode
6
[
BAND
BAND
BAND
BAND
BAND
3
*2
*1
6
6
6
6
1
2
1
2
]
]
[
Select CD
Focus Mode
Select
Focus Close/
S Curve Check
CRG-
Auto Adjustment
Display Select
CRG+
RF AGC Coefficient Display/
Rough Servo and RF AGC
Tracking
Open
Tracking
Open
T. Close and
Fit Servo
]
[
1
3
Display
2
3
Display
or
8x 8x 8x
TRK
SEC
MIN
9x 9x 9x
TRK
SEC
MIN
or
CRG-
CRG+
T.Balance
Adjustment
*4
F, T, RF AGC/
F.Bias Display Select
F, T AGC and
RF AGC
Power ON
(Adjustment for T.Offset)
*5
*6
*6
*7
CRG/TR Jump NO.
Select
CRG+/TR Jump+
CRG-/TR Jump-
Power OFF
Display
Display
Display
T.Close and
F,T AGC and
RF AGC and
Fit Servo
Power ON
(Not adjustment for T.Offset)
Display
Display
2
Power OFF
Power OFF
Power OFF
8x 8x 8x
TRK
SEC
MIN
9x 9x 9x
TRK
SEC
MIN
8x 8x 8x
TRK
SEC
MIN
9x 9x 9x
TRK
SEC
MIN
or
8x 8x 8x
TRK
SEC
MIN
9x 9x 9x
TRK
SEC
MIN
or
00 00 00
TRK
SEC
MIN
99 99 99
TRK
SEC
MIN
or
00 00 00
TRK
SEC
MIN
99 99 99
TRK
SEC
MIN
or
00 00 00
TRK
SEC
MIN
99 99 99
TRK
SEC
MIN
or
91 91 91
TRK
SEC
MIN
0x 0x 0x
TRK
SEC
MIN
00 00 00
TRK
SEC
MIN
99 99 99
TRK
SEC
MIN
Test Mode In
*3
*1
*3
*6
*2
*5
*7
*4
F.Cancel
T.Offset
The original display
1TR/4TR/10TR/32TR/100TR
"00", "99"→Focus Close / "01"→S.Curve
1TR
4TR
91(81)
92(82)
CRG Move
96(86)
100TR
95(85)
32TR
94(84)
10TR
93(83)
Focus Close
00(99)
LD Off
02
S.Curve
01
CRG Move,100TR Jump
TRK, MIN, SEC
F.AGC Gain
T.AGC Gain
F.Bias
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
37
DEH-2350,1350
• Note :
The grating angle of the PU unit cannot be adjusted after the PU unit is changed. The PU unit in the CD mecha-
nism module is adjusted on the production line to match the CD mechanism module and is thus the best adjusted
PU unit for the CD mechanism module. Changing the PU unit is thus best considered as a last resort. However, if
the PU unit must be changed, the grating should be checked using the procedure below.
• Purpose :
To check that the grating is within an acceptable range when the PU unit is changed.
• Symptoms of Mal-adjustment :
If the grating is off by a large amount symptoms such as being unable to close tracking, being unable to perform
track search operations, or taking a long time for track searching.
• Method :
• Measuring Equipment
• Oscilloscope, Two L.P.F.
• Measuring Points
• E, F, REFOUT
• Disc
• ABEX TCD-784
• Mode
• TEST MODE
• Checking Procedure
1. In test mode, load the disc and switch the 5V regulator on.
2. Using the ] and [ buttons, move the PU unit to the innermost track.
3. Press key 3 to close focus, the display should read "91". Press key 2 to implement the tracking balance adjust-
ment the display should now read "81". Press key 3 2 times. The display will change, returning to "81" on the
fourth press.
4. As shown in the diagram above, monitor the LPF outputs using the oscilloscope and check that the phase differ-
ence is within 75° . Refer to the photographs supplied to determine the phase angle.
5. If the phase difference is determined to be greater than 75° try changing the PU unit to see if there is any
improvement. If, after trying this a number of times, the grating angle does not become less than 75° then the
mechanism should be judged to be at fault.
• Note
Because of eccentricity in the disc and a slight misalignment of the clamping center the grating waveform may be
seen to "wobble" ( the phase difference changes as the disc rotates). The angle specified above indicates the aver-
age angle.
• Hint
Reloading the disc changes the clamp position and may decrease the "wobble".
F
REFO
E
100kΩ
390pF
100kΩ
390pF
E
REFO
F
REFO
L.P.F.
L.P.F.
CONTROL UNIT
Xch
Ych
Oscilloscope
6.2 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
38
DEH-2350,1350
Grating waveform
Ech → Xch 20mV/div, AC
Fch → Ych 20mV/div, AC
45°
0°
75°
60°
30°
90°
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
39
DEH-2350,1350
7. GENERAL INFORMATION
7.1 DIAGNOSIS
7.1.1 TEST MODE
- Error Messages
If a CD is not operative or stopped during operation due to an error, the error mode is turned on and cause(s) of the
error is indicated with a corresponding number. This arrangement is intended at reducing nonsense calls from the
users and also for facilitating trouble analysis and repair work in servicing.
(1) Basic Indication Method
1) When SERRORM is selected for the CSMOD (CD mode area for the system), error codes are written to DMIN (min-
utes display area) and DSEC (seconds display area). The same data is written to DMIN and DSEC. DTNO remains
in blank as before.
2) Head unit display examples
Depending on display capability of LCD used, display will vary as shown below. xx contains the error number.
8-digit display
6-digit display
4-digit display
ERROR–xx
ERR–xx
E–xx
OR
Err–xx
(2) Error Code List
Code
Class
Displayed error code
Description of the code and potential cause(s)
10
Electricity
Carriage Home NG
CRG can't be moved to inner diameter.
CRG can't be moved from inner diameter.
→ Failure on home switch or CRG move mechanism.
11
Electricity
Focus Servo NG
Focusing not available.
→ Stains on rear side of disc or excessive vibrations on REWRITABLE.
12
Electricity
Spindle Lock NG
Spindle not locked. Sub-code is strange (not readable).
→ Failure on spindle, stains or damages on disc, or excessive vibrations.
Subcode NG
A disc not containing CD-R data is found. Turned over disc are found,
though rarely.
→ Failure on home switch or CRG move mechanism.
RF AMP NG
An appropriate RF AMP gain can't be determined.
→ CD signal error.
17
Electricity
Setup NG
APC protection doesn't work. Focus can be easily lost.
→ Damages or stains on disc, or excessive vibrations.
30
Electricity
Search Time Out
Failed to reach target address.
→ CRG tracking error or damages on disc.
A0
System
Power Supply NG
Power (VD) is ground faulted.
→ Failure on SW transistor or power supply (failure on connector).
Remarks: Mechanical errors are not displayed (because a CD is turned off in these errors).
Unreadable TOC does not constitute an error. An intended operation continues in this case.
A newly designed head unit must conform to the example given above.
Upper digits of an error code are subdivided as shown below:
1x: Setup relevant errors, 3x: Search relevant errors, 3x: Search relevant errors, Ax: Other errors.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
40
DEH-2350,1350
- New Test Mode
S-CD plays the same way as before.
If an error such as off focus, spindle unlocking, unreadable sub-code, or sound skipping occurs after setup, its
cause and time occurred (in absolute time) are displayed.
During setup, operational status of the control software (internal RAM: CPOINT) is displayed.
These displays and functions are prepared for enhancing aging in the servicing and efficiency of trouble analysis.
(1) Shifting to the New Test Mode
1 Turn on the current test mode by starting the reset from the key.
2 Select S-CD for the source through the specified procedure including use of the [SOURCE] key, and inserting the
disc. Then, press the [Jump Mode Selector] key while maintaining the regulator turned off.
3 After the above operations, the new test mode remains on irrespective of whether the S-CD is turned on or off.
You can reset the new test mode by turning on the reset start.
* With some products, the new test mode can be reset through the same operations as that employed for shifting to
the STBY mode (while maintaining the Acc turned off).
(2) Key Correspondence
Key
Test mode
New test mode
(Example)
Power Off
Power On
In-play
Error Production
BAND
To power on
To power off
–
Time/Err.No. switching
(offset adjustment performed)
]
–
FWD-Kick
FF/TR+
–
[
–
REV-Kick
REV/TR-
–
1
–
T.Close (AGC performed)
Scan
–
/parameter display switching
2
–
T.BAL adjustment
Mode
–
/T.Open
3
To power on
F.Close/RF AGC/AGC
–
–
(offset adjustment not performed)
6
–
Mode switching
Auto/Manu –
/T.Close (no AGC)/Jump switching
Note: Eject and CD on/off is performed in the same procedure as that for the normal mode.
(3) Cause of Error and Error Code
Code
Class
Contents
Description and cause
40
Electricity
Off focus detected.
FOK goes low.
→ Damages/stains on disc, vibrations or failure on servo.
41
Electricity
Spindle unlocked.
FOK = Low continued for 50 msec.
→ Damages/stains on disc, vibrations or failure on servo.
42
Electricity
Sub-code unreadable.
Sub-code was unreadable for 50 msec.
→ Damages/stains on disc, vibrations or failure on servo.
43
Electricity
Sound skipping detected.
Last address memory function was activated.
→ Damages/stains on disc, vibrations or failure on servo.
Note: Mechanical errors during aging are not displayed.
The error codes should be indicated in the same way as in the normal mode.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
41
DEH-2350,1350
(4) Display of Operational Status (CPOINT) during Setup
Status No. Contents
Protective action
01
Carriage move to home position started.
None
02
Carriage is moving toward inner diameter.
Specified 10 seconds has been passed or failure
on home switch.
03
Carriage is moving toward outer diameter.
Specified 10 seconds has been passed or failure
on home switch.
05
Carriage outer diameter feed (1 second) in progress.
None
11
Setup started.
None
12
Spindle rotation and focus search started.
None
13
Waiting for focus close (XSI=Low).
Specified focus search time has been passed.
14
Waiting for focus close (FOK=High). (After AGC)
Specified focus search time has been passed.
15
Waiting for focus close (FOK=High). (Before AGC)
Specified focus search time has been passed.
16
Rough AGC in progress.
Off focus.
17
Setup (1/2) before T balance adjustment is started.
Off focus.
18
Setup (2/2) before T balance adjustment is started.
Off focus.
24
T balance adjustment (1/2).
Off focus.
25
T balance adjustment (2/2).
Off focus.
26
Standing by after spindle rough servo is over.
Off focus.
27
Setup before RF AGC (first) is started.
Off focus.
28
RF AGC (first) in progress.
Off focus.
29
Setup before RF AGC (second) is started.
Off focus.
30
RF AGC (second) in progress.
Off focus.
31
Tracking close in progress.
Off focus.
32
Standing by after tracking is closed.
Off focus.
33
Focus AGC started.
Off focus.
34
Focus AGC in progress. Tracking AGC started.
Off focus.
35
Tracking AGC in progress.
Off focus.
Spindle processes applicable servo.
36
Check of MIRR and LOCK pin. RF AGC in progress.
Off focus. Spindle not locked.
CRG close in progress. Check of sub-code.
Sub-code unreadable.
(5) Display Examples
1) During Setup (When status no. = 11)
TRK No.
MIN.
SEC.
11
11'
11"
2) During Operation (TOC read, TRK search, Play, FF and REV)
The same as in the normal mode.
3) When a Protection Error Occurred
Switch to the following displays (A) and (B) using the [BAND] switch:
(A) Error occurrence timing display in absolute time.
An example: Error occurred in 12th tune at 34'56" in absolute time.
TRK No.
MIN.
SEC.
12
34'
56"
(B) Error No. display
An example: Error #40 (Off focus is detected)
ERROR-40
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
42
DEH-2350,1350
- Removing the Tuner Amp Unit
Remove the three screws and then remove
the Cover. (Fig.2)
Remove the two screws. (Fig.2)
Remove the screw. (Fig.3)
Straight the tabs at fore locations indicated
and then remove the Tuner Amp Unit.
(Fig.3)
- Removing the Case Unit (not shown)
1. Remove the Case Unit.
- Removing the CD Mechanism Module (Fig.1)
Remove the four screws.
Disconnect the connector and then remove the CD
Mechanism Module (not shown).
- Removing the Panel Assy (not shown)
1.Disconnect the two stoppers and then remove the
Panel Assy.
Fig.1
Fig.2
Fig.3
Tuner Amp Unit
Cover
CD Mechanism Module
7.1.2 DISASSEMBLY
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
43
DEH-2350,1350
- Removing the Upper Frame
1. Remove six Springs A, two Springs B and four
Screws.
2. Remove two Tabs situated on rear side of the Upper
Frame, remove two Arms on the front side, then
remove two Tabs on the front side.
- Removing the Carriage Mechanism
1. Disengage the Carriage Mechanism from the two
dampers situated in the front side by driving it up,
then disengage and remove the mechanism from the
one damper by driving it up aslant into front side
direction.
Note : When assembling the Carriage Mechanism, coat
the dampers with alcohol prior to the assembly.
- Removing the Clamp Arm Assy
1. Remove a Spring A, a B and a Spring C.
2. Drive the Clamp Arm Assy up into rear side direction,
then disengage the arm from its current position
Finally, drive the assembly approximately 45 degrees
upward, then slide the assembly toward right side to
remove it.
B
A
B
A
A
A
Arm
Arm
A
B
C
Upper Frame
Carriage Mechanism Section
Clamp Arm Assy Section
A
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
44
DEH-2350,1350
- Removing the Guide Arm Assy
1. Remove a connector, a spring A and B
2. Drive the Guide Arm Assy up aslant into rear side
direction, then remove it from a Pin. Finally, drive the
assembly approximately 45 degrees upward, then
slide the assembly toward left side to remove it.
Note : When assembling the guide arm assembly, route
the cord inside the assembly. In this operation,
care must be exercised so that cord may be
caught by the gear.
- Removing the LO Arm Assy
1. Remove two Pins to dismount the LO Arm Assy.
- Removing the Control Unit and the Spindle
Motor
1. Remove from the connector after mounting the short
pin on the flexible PCB of the pickup unit.
2. Remove two Soldered joints, then remove two
Screws A.
3. Remove two connectors and a Screw B.
4. Disengage the Control Unit from two Tabs, then dis-
mount the unit by sliding it toward left.
5. Dismount the Spindle Motor.
A
Guide Arm Assy Section
B
Pin
LO Arm Assy Section
Spindle Motor
A
A
Control Unit
Short Pin
B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
45
DEH-2350,1350
- Removing the Loading Motor and Carriage
Motor
1. Remove the Spring and two Screws A.
2. Dismount the Loading Motor.
3. Remove the Belt, a Screw B, two Screws C, a Guide
and a Screw Unit.
4. Dismount the Carriage Motor.
Note : When assembling the Belt, use care so that it
may not be contaminated by grease.
- Removing the Pickup Unit
1. Remove two Screws and a Shaft.
2. Dismount the Pickup Unit.
Pickup Unit
Shaft
C
Guide
B
Screw Unit
Carriage Motor
A
A
C
Belt
Loading Motor
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
46
DEH-2350,1350
7.1.3 CONNECTOR FUNCTION DESCRIPTION
5
7
9
1
3
4
6
8
2
10
12
14
16
11
13
15
1. BACK UP
2. GND
3. NC
4. ACC
5. B.REM
6. NC
7. NC
8. NC
9. FL-
10. RL-
11. FL+
12. RL+
13. FR-
14. RR-
15. FR+
16. RR+
PRE OUT
ANTENNA
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
47
DEH-2350,1350
7.2 PARTS
7.2.1 IC
- Pin Functions(PE5196A)
Pin No.
Pin Name
I/O
Format
Function and Operation
1
MODEL1
I
Model select input
2
NL1
I
Noise level input
3
NL2DT
I
Noise level input 2
4
AVSS
AVSS
5
ST
I
Stereo input
6
SD
I
SD signal input
7
AREF1
AVREF1
8
KYDT
I
Key data input
9
DPDT
O
C
Key data output
10
SDBW
I
SDBW input
11
TUNPDI
I
PLL IC data input
12
TUNPDO
O
C
PLL IC data output
13
TUNPCK
O
C
PLL IC clock output
14
TUNPCE
O
C
PLL IC chip enable output
15
currq
O
C
Tuner voltage FIX output
16
XSI
I
C
CD LSI serial data input(TSI)
17
XSO
O
C
CD LSI serial data output(TSO)
18
XSCK
O
C
CD LSI serial clock output(TSCK)
19
drst
O
C
RDS decoder reset output
20
ADPW
O
C
A/D converter power output
21
fm/AM
O
C
Tuner power supply control output
22
VDCONT
O
C
VD power supply control output
23
CONT
O
C
Servo driver power control output
24
XAO
O
C
CD LSI command / data control output
25
xrst
O
C
CD LSI reset control output
26
xstb
O
C
CD LSI strobe output
27
CLAMP
I
Disc clamp sense input
28
MIRR
I
Mirror detection input
29
FOK
I
Focus OK signal input
30
LOCK
I
Spindle lock detector input
31
CDLOAD
O
LOAD motor loading control output
32
TELIN
I
Cellular mute input
33
VSS
VSS
34
CDEJECT
O
LOAD motor eject control output
35
CD5VON
O
C
CD +5V power supply control output
36–39
NC
Not used
40
RECIEVE
O
C
RDS decoder receiving output
41
swvdd
O
C
Grille microcomputer power supply control output
42
SYSPW
O
C
System power supply control output
43
ILMPW
O
C
Illumination power output
44
mute
O
C
Mute output
45
PEE
O
C
Beep tone output
46
LOCH
O
C
LOCH output
47
RDS57K
I
57kHzBP-OUT sense input
48
TUNPCE2
O
C
EEPROM chip enable output
49
PCL
O
C
Test mode clock adjustment output
50
VCK
O
C
Clock output for electronic volume
51
VDT
O
C
Data output for electronic volume
52
ANTPW
O
Antenna power output
53
VST
O
Strobe pulse output for electronic volume
54
DALMON
O
Stand-by output
55,56
NC
Not used
57
LOCL
O
LOCL output
58
rdslk
I
RDSLK input
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
48
DEH-2350,1350
Pin No.
Pin Name
I/O
Format
Function and Operation
59
RDT
I
RDS data input
60
reset
Reset
61
LDET
I
PLL lock detection input
62
RCK
I
RDS clock input
63
asens
I
ACC power sense input
64
bsens
I
Back up power sense input
65
dsens
I
Grille detach sense input
66
TMUTE
O
C
Tuner mute output
67
NC
Not used
68
VDD
VDD
69
X2
Crystal oscillator connection pin
70
X1
Crystal oscillator connection pin
71
IC(VPP)
IC(VPP)
72
NC
Not used
73
TESTIN
I
Test program mode input
74
AVDD
AVDD
75
AVREF0
AVREF0
76
SL
I
Signal level input
77
TEMP
I
Temperature detection input
78
VDSENS
I
VD power supply sense input
79
DINC
I
Disc detection input
80
EJTD
I
Disc eject position detect input
80
1
20
21
40
41
60
61
*PE5196A
Output Format
Meaning
C
C MOS output
IC's marked by* are MOS type.
Be careful in handing them because they are very liable
to be damaged by electrostatic induction.
S-80834ANY
1
2
3
1
OUT
VDD
VSS
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
49
DEH-2350,1350
- Pin Functions (PD6340A)
Pin No.
Pin Name
I/O
Function and Operation
1-5
SEG4-0
O
LCD segment output
6-9
COM3-0
O
LCD common output
10
VLCD
LCD drive power supply
11-14
KST3-0
O
Key strobe output
15,16
KDT0,1
I
Key data input (analogue input)
17
REM
I
Remote control reception
18
DPDT
I
Display data input
19
NC
Not used
20
KYDT
O
Key data output
21
MODA
GND
22
X0
Crystal oscillator connection pin
23
X1
Crystal oscillator connection pin
24
VSS
GND
25,26
KDT2,3
I
Key data input
27
NC
Not used
28
KST4
O
Key strobe output
29-32
NC
Not used
33-55
SEG35-13
O
LCD segment output
56
VDD
Power supply
57-64
SEG12-5
O
LCD segment output
*PD6340A
49
48
33
32
17
16
1
64
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
50
DEH-2350,1350
- Pin Functions (UPD63711GC)
Pin No.
Pin Name
I/O
Function and Operation
1
D.GND
Logic circuit GND
2
RFOK
O
RFOK signal output
3
rst
I
Reset signal input
4
A0
I
Command/parameter identification signal input
5
stb
I
Data strobe signal input
6
sck
I
Clock signal input for serial data input/output
7
SO
O
Serial data and status signal output
8
SI
I
Serial data input
9
xtalen
I
Crystal oscillation control pin
10
D.VDD
Positive power supply terminal to logic circuit
11
DA.VDD
Positive power supply terminal to D/A converter
12
R_OUT
O
Right channel audio output signal
13
DA.GND
D/A converter GND
14
REGC
I
The outside putting capacitor connection pin for SCF regulator
15
DA.GND
D/A converter GND
16
L_OUT
O
Left channel audio output signal
17
DA.VDD
Positive power supply terminal to D/A converter
18
R+
O
Right channel audio data output
19
R-
O
Right channel audio data output
20
L-
O
Left channel audio data output
21
L+
O
Left channel audio data output
22
X.VDD
Positive power supply terminal to crystal oscillation circuit
23
XTAL
I
Crystal oscillator connect pin
24
xtal
O
Crystal oscillator connect pin
25
X.GND
Crystal oscillation circuit GND
26
D.VDD
Positive power supply terminal to logic circuit
27
EMPH
O
Output pin for the pre-emphasis data in the sub-Q code
28
FLAG
O
Flag output pin to indicate that audio data currently being output consists
of noncorrectable data
29
DIN
I
Serial data input to internal DAC
30
DOUT
O
Serial audio data output
31
SCKIN
I
Serial clock input to internal DAC
32
SCKO
O
Audio data that is output from DOUT changes at rising edge of this clock
33
LRCKIN
I
LRCK signal input to internal DAC
34
LRCK
O
Signals to distinguish the right and left channels of the audio data output
from DOUT
35
HOLD
O
Defect detection output
36
TX
O
Digital audio interface data output
37
D.GND
Logic circuit GND
38
C16M
O
Oscillator clock buffering output
39
LIMIT
I
Status of the pin is output at Bit 5 of the status output
40
D.VDD
Positive power supply terminal to logic circuit
41
LOCK
O
EFM synchronous detection signal
42
RFCK
O
Frame synchronous signal of XTAL-system
43
MIRR
O
MIRR output
44
PLCK
O
Monitor pin of bit clock
45
D.GND
Logic circuit GND
46
C1D1
O
Output pin for indicating the C1 error correction results
47
C1D2
O
Output pin for indicating the C1 error correction results
48
C2D1
O
Output pin for indicating the C2 error correction results
49
C2D2
O
Output pin for indicating the C2 error correction results
50
C2D3
O
Output pin for indicating the C2 error correction results
51
D.VDD
Positive power supply terminal to logic circuit
52
PACK
O
CD-TEXT PACK synchronous signal
53
TSO
O
CD-TEXT data serial output
54
TSI
I
CD-TEXT control parameter serial input
55
tsck
I
CD-TEXT serial clock input
56
TSTB
I
CD-TEXT parameter strobe signal input
57
D.GND
Logic circuit GND
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
51
DEH-2350,1350
Pin No.
Pin Name
I/O
Function and Operation
58
TEST0
I
Test pin
59
TEST1
I
Test pin
60
ATEST
O
Test pin
61
A.GND
Analog circuit GND
62
FD
O
Focus drive output
63
TD
O
Tracking drive output
64
SD
O
Sled drive output
65
MD
O
Spindle drive output
66
DAC0
O
DAC output for adjustment
67
DAC1
O
DAC output for adjustment
68
DAC2
O
DAC output for adjustment
69
DAC3
O
DAC output for adjustment
70
A.VDD
Positive power supply terminal to analog circuit
71
EFM
O
EFM signal output
72
ASY
I
EFM comparator reference voltage input
73
C3T
3T detection capacitor additional pin
74
RFI
I
RF signal input for EFM data regulation
75
AGCO
O
RF signal output of after gain adjustment
76
AGCI
I
RF-AGC amplifier input
77
RFO
O
RF summing amplifier output
78
EQ2
RF amplifier equalizer parts additional pin
79
EQ1
RF amplifier equalizer parts additional pin
80
RF-
I
RF summing amplifier inverted input
81
A.GND
Analog circuit GND
82
A
I
Photo detector A input
83
C
I
Photo detector C input
84
B
I
Photo detector B input
85
D
I
Photo detector D input
86
F
I
Photo detector F input
87
E
I
Photo detector E input
88
A.VDD
Positive power supply terminal to analog circuit
89
REFOUT
O
Reference electric potential output
90
FE-
I
Focus error amplifier inverted input
91
FEO
O
Focus error amplifier output
92
TE-
I
Tracking error amplifier inverted input
93
TEO
O
Tracking error amplifier output
94
TE2
O
Tracking error output of after amplification
95
TEC
I
Tracking comparator input
96
A.GND
Analog circuit GND
97
PD
I
PD detection signal input for LD output monitor
98
LD
O
LD control current output
99
PN
I
APC circuit control polarity set pin
100
A.VDD
Positive power supply terminal to analog circuit
20
21
40
41
60
61
80
1
100
76
26
1
25
75
51
50
*UPD63711GC
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
52
DEH-2350,1350
1
TAB
2
P-GND2
3
OUT2-
4
STBY
5
OUT2+
6
VCC
7
OUT1-
8
P-GND1
9
OUT1+
10
SVR
11
IN1
12
IN2
13
S-GND
14
IN4
15
IN3
16
AC-GND
17
OUT3+
18
P-GND3
19
OUT3-
20
VCC
21
OUT4+
22
MUTE
23
OUT4-
24
P-GND4
SWITCH
25
+ -
+
-
Offset
Detection
+ -
+
-
Offset
Detection
+ -
+
-
Offset
Detection
+ -
+
-
Offset
Detection
Protector;
Over current limit
sw_vcc
stby
Protector;
Short circuit
Mute circuit
amp_vcc
Stand-by
Circuit
Protector;
Over voltage
sw_vcc
Protector;
Thermal
Reference
1CM
1CM
1CM
1CM
amp_vcc
PAL006A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
53
DEH-2350,1350
No. Symbol I/O Explain
1 STIND
O
stereo
"Low" when the FM stereo signals are received.
indicator
To be pulled up to the "VDD" at 47kΩ.
2 FMSD
O
FM station
"High" when signals are received. To be pulled up to the "VDD" at 47kΩ
detector
Meanwhile, 10kΩ should be used when taking diver FIX trigger from here
and "High: 0.9VDD or more" and "Low: 250mV or less".
(Should satisfy the diver IC specifications)
3 NL1
O
noise level-1
"High" when noise is received. Output for the RDS. GND at 47kΩ //1,800pF.
4 NL2
O
noise level-2
"High" when noise is received. Output for the RDS. GND at 36kΩ //330pF.
5 Rch
O
R channel
FM stereo "R-ch" signal output or AM audio output.
output
Add the specified di-emphasis constant.
6 Lch
O
L channel
FM stereo "L-ch" signal output or AM audio output.
output
Add the specified di-emphasis constant.
7 WC
write control
EEPROM write control. Writing permissible at "Low". Normally open.
8 SDBW
O
SD bandwidth
SD bandwidth signal output. For detection of detuning data for the RDS.
9 NC
Not used
10 VDD
power
Power supply pin for the digital section.
supply
D.C. 5V +/- 0.25V. Be careful about overlapping noise in the logic section.
11 DGND
digital ground
Grounding for the digital section.
12 CE2
I
chip enable-2
EEPROM chip enable. Active a "Low"
To be pulled up to the "VDD" at 47kΩ
13 SL
I/O signal level
Received FM/AM signal level (strength) output.
Connect the specified load resistor and capacitor (10k Ω + 39k Ω //4,700pF)
14 DI/DO
I/O data input/
Data input/Data output
data output
To be pulled up to the "VDD" at 47kΩ
15 CK
I
clock
Clock input To be pulled up to the "VDD" at 47kΩ
16 CE1
I
chip enable-1
AF·RF chip enable. Active at "High" To be grounded at 47kΩ
17 NC
Not used
18 LDET
O
lock detector
Active at "Low". To be pulled up to the "VDD" at 47kΩ
19 CREQ
I
current request
Active at "Low". To be grounded at 47kΩ
20 NC
Not used
21 COMP
O
composite signal
FM composite signal output. r out < 100Ω
22 VCC
power supply
Analog section power supply pin.D.C.8.4V +/- 0.3V
23 LOCH
I
local high
FM local high pin. When seeking local high, apply 5V together with "LOCL".
24 FMLOCL I
FM local low
FM local low pin. When seeking local low, apply 5V to the base of the NPN
transistor with which the specified resistor is being connected to the emitter.
Keep it open in case of ordinary marketed models.
25 LOCL
I
local low
FM/AM local low pin. When seeking local low, apply 5V to the base of the
NPN transistor. Since this pin is exclusive for AM when the FMLOCL is in use,
do not drive it under FM.
26 RFGND
RF ground
Grounding for the antenna section.
27 FMANT
I
FM antenna input FM antenna input. 75Ω. Serge absorber (DSP-201M-S00B) is necessary.
28 AMANT I
AM antenna input AM antenna input. High impedance.
Connect to the antenna through an L (LAU type) of 4.7µH.To cope with the
power transmission line hums, insert a series circuit consisting of an L
(a coil of about 100mH) + R (a resistor of 470 Ω to 2.2kΩ) between the GND.
IC 3
EEPROM
FM/AM TUNER UNIT
28
27
FM/AM 1ST IF 10.7MHz
T51 Q51 CF51
CF52 CF53
IC1
MIXER, IF AMP, DET.
6
21
18
LDET
COMP
22
25
10
14
12
15 16
8
13
2
3
4
CF202
VDD
VCC
DI/DO
CE2
CK
CE1
SDBW
SL
FMSD
NL1
NL2
IC 2 FM MPX
AMANT
FMANT
ATT
ATT
AMRF
FMRF
IMG ADJ
RF ADJ
X901
10.25MHz
ANT ADJ
LOCL
23
LOCH
AMDET
MPXREF 41kHz
AM 2ND IF
450kHz
19
CREQ
11
DGND
1
STIND
L ch
5
R ch
9
24
NC
FMLOCL
20
17
7
NC
NC
WC
26 RFGND
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
54
DEH-2350,1350
SEG37
SEG35
SEG34
SEG33
SEG32
SEG31
SEG30
SEG29
SEG28
SEG27
SEG26
SEG25
SEG24
SEG23
SEG22
SEG21
SEG20
SEG18
SEG17
SEG16
SEG15
SEG14
SEG13
SEG12
SEG11
SEG10
SEG9
SEG8
SEG7
SEG6
SEG5
SEG4
SEG3
SEG2
NC
NC
SEG19
SEG36
COM2B
COM0A
COM2C
COM3B
COM2D
COM1B
COM0B
SEG39
SEG38
COM3A
COM2A
COM1A
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
21
1
47
46
45
44
43
42
41
39
38
50
49
48
40
COM2B
COM0A
COM2C
COM3B
COM2D
COM1B
COM0B
COM3A
COM2A
COM1A
SEGMENT
COMMON
7.2.2 DISPLAY
- CAW1606(DEH-2350/X1M/ES), CAW1633(DEH-1350/X1M/ES)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DEH-2350,1350
55
7.3 OPERATIONAL FLOW CHART
VDD=5V
68pin
Power ON
BSENS=L
ASENS=L
DSENS=L
bsens
64pin
asens
63pin
dsens
65pin
ADPW←H
20pin
SWVDD←L
41pin
Source keys
operative
Completes power-on operation.(After that, proceed to each source operation.)
SYSPW←H
42pin
Starts communication with Grille microcomputer.
Source ON
300ms
300ms
In case of the above signal, the communication
with Grille microcomputer may fail.
If the time interval is not 300msec, the oscillator
may be defective.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
56
DEH-2350,1350
8. OPERATIONS AND SPECIFICATIONS
8.1 OPERATIONS
Key Finder
Buttons 1–6
EJECT button
CD loading slot
AUDIO button
5/∞/2/3 buttons
SOURCE button
+/– buttons
BAND button
LOCAL/BSM button
Detach button
EQ button
LOUD button
CLOCK button
Head Unit
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
57
DEH-2350,1350
Basic Operation
To Listen to Music
The following explains the initial operations required before you can listen to music.
Note:
• Loading a disc in this product.
1. Select the desired source (e.g. Tuner).
Each press of the SOURCE button selects the desired source in the following order:
Built-in CD player = Tuner
Note:
• When no disc is set in this product, built-in CD player source will not change.
• When this product’s blue/white lead is connected to the car’s Auto-antenna relay control terminal,
the car’s Auto-antenna extends when this product’s source is switched ON. To retract the antenna,
switch the source OFF.
2. Raise or lower the volume.
3. Turn the source OFF.
Hold for 1 second
Each press changes the Source ...
Basic Operation of Tuner
Reset the AM tuning step from 9 kHz (the factory preset step) to 10 kHz when using the
tuner in North, Central or South America.
Preset Number Indicator
Band Indicator
Frequency Indicator
Manual and Seek Tuning
• You can select the tuning method by changing the length of time you
press the 2/3 button.
Manual Tuning (step by step)
0.5 seconds or less
Seek Tuning
0.5 seconds or more
Note:
• If you continue pressing the button for longer than 0.5 seconds, you can skip broadcast
stations. Seek Tuning starts as soon as you release the button.
• Stereo indicator “” lights when a stereo station is selected.
Preset Tuning
• You can memorize broadcast stations in buttons 1
through 6 for easy, one-touch station recall.
Preset station recall
2 seconds or less
Broadcast station preset memory
2 seconds or more
Note:
• Up to 18 FM stations (6 in FM1, FM2 and FM3) and 6 AM stations
can be stored in memory.
• You can also use the 5 or ∞ buttons to recall broadcast stations
memorized in buttons 1 through 6.
Band
FM1 = FM2
= FM3 = AM
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
58
DEH-2350,1350
Basic Operation of Built-in CD Player
Track Number Indicator
Play Time Indicator
Eject
Note:
• The CD function can be turned ON/OFF
with the disc remaining in this product.
• A disc left partially inserted after ejection
may incur damage or fall out.
CD Loading Slot
Note:
• The built-in CD player plays one standard 12 cm
or 8 cm (single) CD at a time. Do not use an
adapter when playing 8 cm CD.
• Don’t insert any materials except for CD into CD
loading slot.
Track Search and Fast Forward/Reverse
• You can select between Track Search or Fast Forward/Reverse by press-
ing the 2/3 button for a different length of time.
Track Search
0.5 seconds or less
Fast Forward/Reverse
Continue pressing
Note:
• If a disc cannot be inserted fully or playback fails, make sure the recorded side is down.
Push the EJECT button and check the disc for damage before reinserting it.
• If a disc is inserted with the recorded side up, it will be ejected automatically after a few
moments.
• If the built-in CD player cannot operate properly, an error message (such as “ERR-14”)
appears on the display. Refer to “Built-in CD Player’s Error Message”.
Basic Operation
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
59
DEH-2350,1350
+
≠
+
≠
+
≠
+
≠
+
≠
+
≠
8. Blue/white
To system control terminal of the power amp or Auto-antenna
relay control terminal (max. 300 mA 12 V DC).
9. Connecting cords with RCA pin plugs
(sold separately)
11. System remote control
24. Front speaker (Right)
25. Rear speaker (Right)
16. White
20. Gray
17. White/black
18. Green
19. Green/black
21. Gray/black
22. Violet
23. Violet/black
14. Front speaker (Left)
15. Rear speaker (Left)
13. Perform these connections when using
a different amp (sold separately).
12. With a 2 speaker system, do not connect
anything to the speaker leads that are not
connected to speakers.
2. Rear output
1. This product
3. Antenna jack
4. Fuse
5. Yellow
To terminal always supplied
with power regardless of
ignition switch position.
7. Black (ground)
To vehicle (metal) body.
6. Red
To electric terminal controlled
by ignition switch (12 V DC) ON/OFF.
10. Power amp
(sold separately)
15. Rear speaker (Left)
25. Rear speaker (Right)
Connection Diagram
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DEH-2350,1350
8.2 SPECIFICATIONS
General
Power source .......... 14.4 V DC (10.8 – 15.1 V allowable)
Grounding system ........................................ Negative type
Max. current consumption ...................................... 10.0 A
Dimensions
(DIN) (chassis) ...... 178 (W) × 50 (H) × 159 (D) mm
(nose) ............ 188 (W) × 58 (H) × 19 (D) mm
(D)
(chassis) ...... 178 (W) × 50 (H) × 164 (D) mm
(nose) ............ 170 (W) × 48 (H) × 14 (D) mm
Weight ...................................................................... 1.4 kg
Electrode dark current .................................... 6mA or less
Amplifier
Continuous power output is 22 W per channel min. into 4
ohms, both channels driven 50 to 15,000 Hz with no more
than 5% THD. (DEH-2350)
Continuous power output is 20 W per channel min. into 4
ohms, both channels driven 50 to 15,000 Hz with no more
than 5% THD. (DEH-1350)
Maximum power output
(DEH-2350).................................................. 50 W × 4
(DEH-1350).................................................. 45 W × 4
Load impedance .......................... 4 Ω (4 – 8 Ω allowable)
Preout maximum output
level/output impedance ............................ 2.2 V/1 kΩ
Equalizer (3-Band Equalizer)
(Low) .................................................. Level: ±12 dB
(Mid) .................................................... Level: ±12 dB
(High) .................................................. Level: ±12 dB
Loudness contour
(Low) .................. +3.5 dB (100 Hz), +3 dB (10 kHz)
(Mid) ................ +10 dB (100 Hz), +6.5 dB (10 kHz)
(High) ................ +11 dB (100 Hz), +11 dB (10 kHz)
(volume: –30 dB)
CD player
System .................................... Compact disc audio system
Usable discs .................................................. Compact disc
Signal format .................... Sampling frequency: 44.1 kHz
Number of quantization bits: 16; linear
Frequency characteristics .............. 5 – 20,000 Hz (±1 dB)
Signal-to-noise ratio ...... 94 dB (1 kHz) (IEC-A network)
Dynamic range ............................................ 92 dB (1 kHz)
Number of channels ............................................ 2 (stereo)
FM tuner
Frequency range ...................................... 87.5 – 108 MHz
Usable sensitivity ...................................................... 9 dBf
(0.8 µV/75 Ω, mono, S/N: 30 dB)
50 dB quieting sensitivity .... 15 dBf (1.5 µV/75 Ω, mono)
Signal-to-noise ratio ...................... 70 dB (IEC-A network)
Distortion .......................... 0.3% (at 65 dBf, 1 kHz, stereo)
Frequency response ...................... 30 – 15,000 Hz (±3 dB)
Stereo separation .......................... 40 dB (at 65 dBf, 1 kHz)
AM tuner
Frequency range ........................ 531 – 1,602 kHz (9 kHz)
530 – 1,640 kHz (10 kHz)
Usable sensitivity .............................. 18 µV (S/N: 20 dB)
Selectivity .................................................. 50 dB (±9 kHz)
50 dB (±10 kHz)
Note:
• Specifications and the design are subject to possi-
ble modification without notice due to improve-
ments.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
