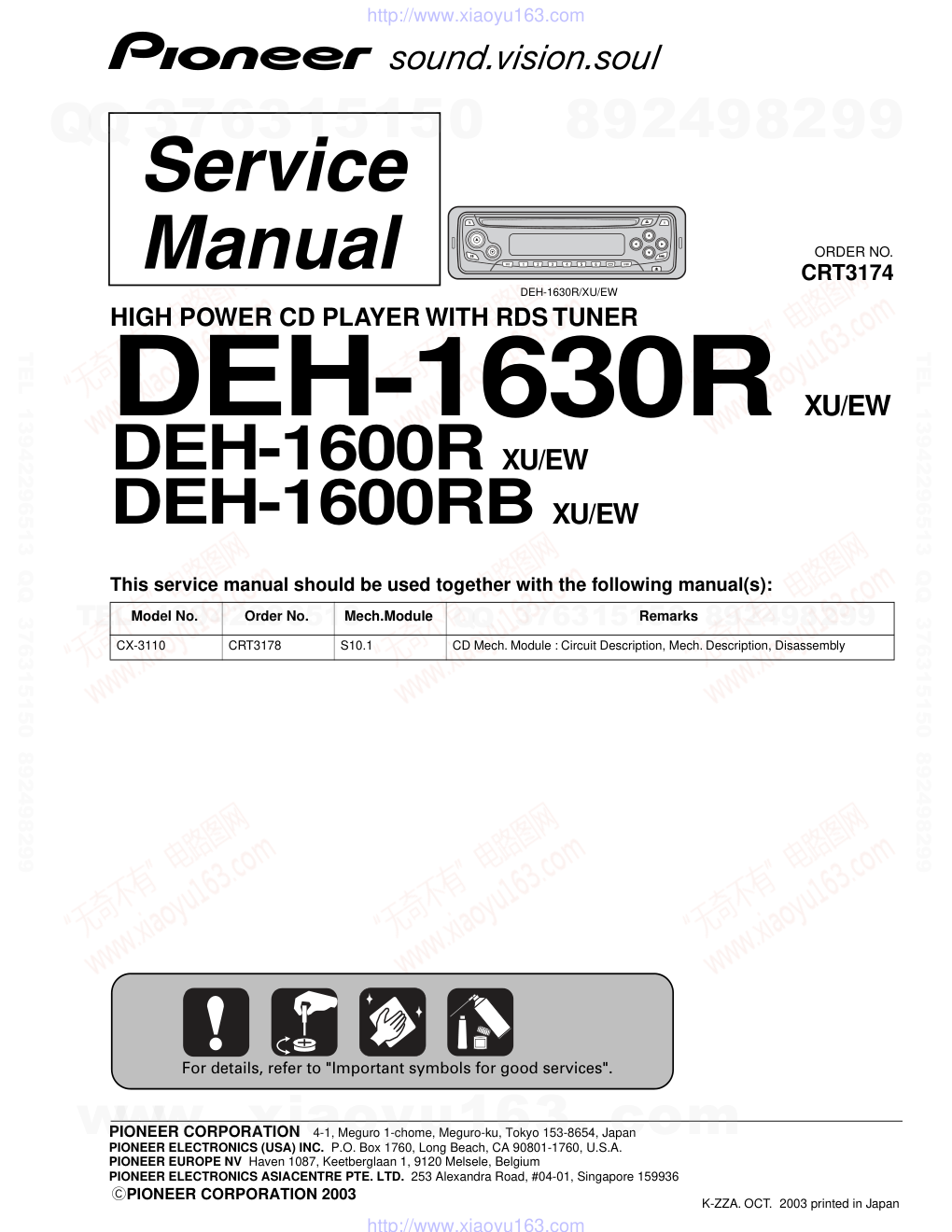

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2003 DEH-1630R/XU/EW CRT3174 HIGH POWER CD PLAYER WITH RDS TUNER DEH-1630R XU/EW DEH-1600R XU/EW DEH-1600RB XU/EW This service manual should be used together with the following manual(s): Model No. Order No. Mech.Module Remarks CX-3110 CRT3178 S10.1 CD Mech. Module : Circuit Description, Mech. Description, Disassembly For details, refer to "Important symbols for good services". K-ZZA. OCT. 2003 printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. 1. Safety Precautions for those who Service this Unit. • When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results. Caution: 1. During repair or tests, minimum distance of 13cm from the focus lens must be kept. 2. During repair or tests, do not view laser beam for 10 seconds or longer. 2. A “CLASS 1 LASER PRODUCT” label is affixed to the bottom of the player. 3. The triangular label is attached to the mechanism unit frame. 4. Specifications of Laser Diode Specifications of laser radiation fields to which human access is possible during service. Wavelength = 800 nanometers CLASS 1 LASER PRODUCT - CD Section Precaution 1. Before disassembling the unit, be sure to turn off the power. Unplugging and plugging the connectors during power-on mode may damage the ICs inside the unit. 2. To protect the pickup unit from electrostatic discharge during servicing, take an appropriate treatment (shorting-solder) by referring to "the DISASSEMBLY" on page 44. 3. After replacing the pickup unit, be sure to check the grating. (See p.41.) 4. In this product, because the memory capacity of the microcomputer is insufficient, the test mode is not installed. However grating of the pickup unit can be confirmed. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 3 5 6 7 8 5 6 7 8 C D F A B E [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 4 1 2 3 4 1 2 3 4 C D F A B E CONTENTS SAFETY INFORMATION..................................................................................................................................... 2 1. SPECIFICATIONS ............................................................................................................................................ 5 2. EXPLODED VIEWS AND PARTS LIST ............................................................................................................ 6 2.1 PACKING ................................................................................................................................................... 6 2.2 EXTERIOR................................................................................................................................................. 8 2.3 CD MECHANISM MODULE..................................................................................................................... 12 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM.......................................................................................... 14 3.1 BLOCK DIAGRAM ................................................................................................................................... 14 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE).............................................................................. 16 3.3 KEYBOARD UNIT.................................................................................................................................... 22 3.4 CD MECHANISM MODULE..................................................................................................................... 24 4. PCB CONNECTION DIAGRAM ..................................................................................................................... 28 4.1 TUNER AMP UNIT................................................................................................................................... 28 4.2 KEYBOARD UNIT.................................................................................................................................... 32 4.3 CD MECHANISM MODULE..................................................................................................................... 34 5. ELECTRICAL PARTS LIST ............................................................................................................................ 36 6. ADJUSTMENT ............................................................................................................................................... 40 6.1 CD ADJUSTMENT................................................................................................................................... 40 6.2 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT .................................................... 41 6.3 ERROR MODE ........................................................................................................................................ 43 7. GENERAL INFORMATION............................................................................................................................. 44 7.1 DIAGNOSIS ............................................................................................................................................. 44 7.1.1 DISASSEMBLY ..................................................................................................................................... 44 7.1.2 CONNECTOR FUNCTION DESCRIPTION.......................................................................................... 48 7.2 PARTS...................................................................................................................................................... 49 7.2.1 IC .......................................................................................................................................................... 49 7.2.2 DISPLAY ............................................................................................................................................... 56 7.3 OPERATIONAL FLOW CHART ............................................................................................................... 58 7.4 CLEANING............................................................................................................................................... 59 8. OPERATIONS ................................................................................................................................................ 60 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 5 5 6 7 8 5 6 7 8 C D F A B E 1. SPECIFICATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 6 1 2 3 4 1 2 3 4 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING (1) PACKING SECTION PARTS LIST NOTES : • Parts marked by " * " are generally unavailable because they are not in our Master Spare Parts List. • Screw adjacent to mark on the product are used for disassembly. • For the applying amount of lobricants or glue, follow the instructions in this manual. (In the case of no amount instructions,apply as you think it appropriate.) " 10 1 12 6 8 9 11 7 4 3 5 2 13 14 Mark No. Description Part No. 1 Cord Assy CDE7059 2 Screw CBA1650 3 Handle CNC5395 4 Bush CNV3930 * 5 Polyethylene Bag CEG1160 6 Polyethylene Bag CEG-162 7-1 Owner's Manual YRD5001 7-2 Installation Manual YRD5006 * 7-3 Passport CRY1013 * 7-4 Warranty Card CRY1157 8 Carton See Contrast table(2) 9 Contain Box See Contrast table(2) 10 Protector CHP2663 11 Protector CHP2664 12 Case Assy CXB3520 13 Fixing Screw(M2x4) CBA1488 14 Accessory Assy CEA3865 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 7 5 6 7 8 5 6 7 8 C D F A B E (2) CONTRAST TABLE DEH-1630R/XU/EW, DEH-1600R/XU/EW and DEH-1600RB/XU/EW are constructed the same except for the fol- lowing: Mark NO Description DEH-1630R/XU/EW DEH-1600R/XU/EW DEH-1600RB/XU/EW 8 Carton YHG5002 YHG5001 YHG5009 9 Contain Box YHL5002 YHL5001 YHL5009 - Owner's Manual, Installation Manual Model DEH-1630R/XU/EW DEH-1600R/XU/EW DEH-1600RB/XU/EW Part No. YRD5001 YRD5006 Language English, Spanish, German, French, Italian, Dutch English, Spanish, German, French, Italian, Dutch www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 8 1 2 3 4 1 2 3 4 C D F A B E 2.2 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 9 5 6 7 8 5 6 7 8 C D F A B E (1) EXTERIOR SECTION PARTS LIST Mark No. Description Part No. 1 Screw BSZ26P060FTC 2 Screw BSZ30P060FTC 3 Screw BSZ30P200FTC 4 Cord Assy CDE7059 5 Cap CKX-003 6 Cable CDE7113 7 Case CNB2793 8 Holder CNC8659 9 Earth Plate CNC8915 10 Insulator CNM8059 11 Insulator CNM8174 12 Cushion CNM8890 13 Button CAC4836 14 Spring CBH1835 15 Spring CBH2208 16 Spring CBH2367 17 Bracket CNC6791 18 Holder CNC8042 19 Cover CNM6276 20 Arm CNV4692 21 Arm CNV4728 22 Arm CNV5576 23 Screw IMS20P030FZK 24 Panel See Contrast table(2) 25 CD Mechanism Module(S10.1) CXK5602 26 Screw ISS26P055FTC 27 Tuner Amp Unit See Contrast table(2) 28 Screw ASZ26P060FTC 29 Screw BPZ26P080FTC 30 Screw BSZ26P160FTC 31 Fuse(10A) CEK1208 32 Pin Jack(CN352) CKB1057 33 Terminal(CN402) CKF1059 34 Plug(CN901) CKM1376 35 Connector(CN831) CKS3581 36 Connector(CN651) CKS3835 37 Connector(CN621) CKS4124 38 Antenna Jack(CN401) CKX1056 39 Holder CND1328 40 Heat Sink CNR1668 41 FM/AM Tuner Unit CWE1645 42 Holder CND1054 43 Holder YNC5002 44 Detach Grille Assy See Contrast table(2) 45 Screw BPZ20P100FZK 46 Spring CBH2210 47 Button(CD EJECT) YAC5001 48 Button(TA, EQ) YAC5003 49 Button(UP) See Contrast table(2) 50 Button(DOWN) See Contrast table(2) 51 Button(SRC) YAC5011 52 Button(1-6) YAC5012 53 Button(LOUD) YAC5014 54 Button(UP, DOWN) See Contrast table(2) 55 Button(LEFT, RIGHT) See Contrast table(2) 56 Button(A, BAND) YAC5021 57 Button(DETACH) YAC5023 58 Cover See Contrast table(2) 59 Keyboard Unit See Contrast table(2) 60 LCD(LCD1801) See Contrast table(2) 61 Connector(CN1801) CKS3580 62 Sheet CNM7932 63 Lens CNV7060 64 Connector CNV7369 65 Holder YNC5001 66 Lighting Conductor YNV5001 67 Rubber YNV5003 68 Grille Unit See Contrast table(2) 69 Chassis Unit See Contrast table(2) 70 Transistor(Q911, 921, 991) 2SD2396 71 IC(IC302) TDA7386 72 Sheet See Contrast table(2) Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 10 1 2 3 4 1 2 3 4 C D F A B E (2) CONTRAST TABLE DEH-1630R/XU/EW, DEH-1600R/XU/EW and DEH-1600RB/XU/EW are constructed the same except for the fol- lowing: Mark NO Description DEH-1630R/XU/EW DEH-1600R/XU/EW DEH-1600RB/XU/EW 24 Panel YNS5031 YNS5032 YNS5031 27 Tuner Amp Unit YWM5007 YWM5001 YWM5019 44 Detach Grille Assy YXA5026 YXA5014 YXA5032 49 Button(UP) YAC5007 YAC5005 YAC5007 50 Button(DOWN) YAC5010 YAC5008 YAC5010 54 Button(UP, DOWN) YAC5017 YAC5015 YAC5017 55 Button(LEFT, RIGHT) YAC5020 YAC5018 YAC5020 58 Cover YNS5020 YNS5021 YNS5020 59 Keyboard Unit YWM5008 YWM5002 YWM5020 60 LCD(LCD1801) CAW1779 CAW1731 YAW5006 68 Grille Unit YXA5002 YXA5001 YXA5013 69 Chassis Unit YXA5036 YXA5035 YXA5037 72 Sheet Not used Not used CNM7881 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 11 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 12 1 2 3 4 1 2 3 4 C D F A B E 2.3 CD MECHANISM MODULE A D H L M N O Q R A B C D E F G H I J K L M N O Q B 16 25 13 83 42 68 28 82 4 71 23 J K 38 23 59 87 86 5 13 34 5 5 13 44 5 C 52 53 36 4 73 29 51 18 64 76 50 10 72 75 49 77 67 27 78 60 90 48 8 17 46 6 60 11 89 43 70 14 31 65 85 66 85 31 35 14 74 85 1 2 3 R 91 12 33 61 63 21 79 57 58 62 80 13 4 86 I 45 28 7 24 47 P 41 20 40 69 39 30 P 19 56 F E 22 81 15 G 26 4 54 37 55 93 92 10 C 1GEM1024 2GEM1045 3GEM1035 1 1 1 1 1 1 1 1 2 2 2 2 1 1 1 1 1 2 2 1 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 13 5 6 7 8 5 6 7 8 C D F A B E CD MECHANISM MODULE SECTION PARTS LIST Mark No. Description Part No. 1 CD Core Unit(S10.1) CWX2947 2 Connector(CN101) CKS4182 3 Connector(CN701) CKS4188 4 Screw BMZ20P035FTC 5 Screw BSZ20P040FTC 6 Screw(M2x4) CBA1362 7 Screw(M2x3) CBA1511 8 Screw(M2x3) CBA1527 9 ••••• 10 Washer CBF1038 11 Washer CBF1060 12 Spring CBH2390 13 Spring CBH2606 14 Spring CBH2607 15 Spring CBH2608 16 Spring CBH2609 17 Spring CBH2610 18 Spring CBH2735 19 Spring CBH2612 20 Spring CBH2613 21 Spring CBH2614 22 Spring CBH2615 23 Spring CBH2616 24 Spring CBH2617 25 Spring CBH2620 26 Spring CBH2621 27 Spring CBH2641 28 Spring CBH2642 29 Spring CBH2643 30 Spring CBH2659 31 Spring CBH2688 32 ••••• 33 Shaft CLA4441 34 Frame CNC9962 35 Frame CNC9963 36 Bracket CNC9966 37 Bracket CND1895 38 Arm CNC9968 39 Arm CND1909 40 Lever CND2032 41 Lever CNC9984 42 Sheet CNM8134 43 Collar CNV7798 44 Guide CNV7799 45 Arm CNV7800 46 Rack CNV7199 47 Holder CNV7201 48 Holder CNV7202 49 Arm CNV7203 50 Gear CNV7207 51 Gear CNV7208 52 Gear CNV7209 53 Gear CNV7210 54 Gear CNV7211 55 Gear CNV7212 56 Rack CNV7214 57 Arm CNV7215 58 Arm CNV7216 59 Guide CNV7217 60 Roller CNV7218 61 Gear CNV7219 62 Arm CNV7221 63 Arm CNV7220 64 Arm CNV7222 65 Damper CNV7313 66 Damper CNV7314 67 Arm CNV7341 68 Arm CNV7342 69 Guide CNV7360 70 Guide CNV7361 71 Holder CNV7437 72 Arm CNV7805 73 Gear CNV7595 74 Damper CNV7618 75 Motor Unit(M1) CXB6007 76 Chassis Unit CXC2318 77 Screw Unit CXB8729 78 Gear Unit CXC2397 79 Arm Unit CXC2316 80 Arm CND1896 81 Arm CND1894 82 Motor Unit(M2) CXB8933 83 Bracket CNC9985 84 ••••• 85 Screw(M2x5) EBA1028 86 Screw JFZ20P020FTC 87 Screw JGZ17P022FTC 88 ••••• 89 Washer YE20FTC 90 Pickup Unit(P10)(Service) CXX1647 91 Screw IMS26P030FTC 92 Spring CBL1635 93 Clamper CNV7197 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 14 1 2 3 4 1 2 3 4 C D F A B E 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM CN701 CN101 Q101 M LASER DIODE MONITOR DIODE CLAMP HOME X201 12EJ 8EJ DSCSNS FOCUS ACT. SPINDLE MOTOR M CARRIAGE MOTOR LOADING/ TRACKING ACT. LD+ MD FOP TOP 14 5 4 1 PICKUP UNIT (SERVICE)(P10) HOLOGRAM UNIT IC 301 BA5996FP IC 201 UPD63712AGC IC 701 NJM2391DL1-33 3.3V REGULATOR SERVO CONTROL, DSP, LPF, DAC ACT,MOTOR DRIVER 1 VD VD 3R3V 7 CONT 11 CLMP 5 LOEJ 6 DSCSNS 8 LOUT TOP FOP 16 SOP 15 SOM 17 LCOM 18 LCOP 22 1 LOEJ 23 20 LOUT XTAL xtal 24 9 CONT 12 FOP FD, TD, SD, MD AC, F, E, BD 1 LD 2 PD 42 LIMIT 3 13 TOP D CD CORE UNIT(S10.1) C 2 16 SO 12 XSI 3R3V 48 mute X1 X2 2 21 3 SYSTEM CONTROLLER IC 601(2/2) PE5329B CN401 1 2 swvdd B.UP VDD B.UP CN651 Q Q Q Q992 Q991 TUNER AMP UNIT 70 X601 69 VST,VCK,VDT TUN L CD L 9 DPDT 8 KYDT 43 SYSPW 22 ILMPW 65 dsens A 20 15 11 17 16 14 21 RDS_CK RDS_LO RDS_DA RDS_HS LOEJ 29 CONT 28 DSCSNS 79 CLAMPSW 27 TUN 3V VCC VDD 41 VDCONT CLMP 80 STRKEY1 46 KEY2 TC7SET08FU IC 652 2 4 XSI 16 6 78 VDSENS VDSENS ANTENNA FMRF ANT adj RF adj FM ANT T51 CF52 CF51 RFGND OSCGND DGND AUDIOGND NC VCC VDD_3.3 3.3V 2.5V IC 4 3.3V 2.5V ← IC 2 2.5V WC CE2 ROM_VDD SL DI CK CE1 LDET DO RDS_CK RDS_DATA RDS_LOCK RDS_HSLK 7 6 13 5 10 9 8 11 14 18 19 20 21 1 3 2 12 15 22 16 4 17 IC 1 3.3V AM ANT FMRF ATT LPF OSC IC 3 EEPROM 5.0V IC 5 5V 3.3V ← ATT MIXER, IF AMP DET, FM MPX, RDS DECODER 24 23 Rch Lch FM/AM TUNER UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 15 5 6 7 8 5 6 7 8 C D F A B E 60 1 BSENS ASENS VDD B.UP 63 64 10 FL 11 RL 48 ute X1 X2 ILL SW5V ILM SWDVDD 23 21 3 5 FL- FL+ RL- RL+ ACC IN1-L 2 IN2-L 3 FLIN 14 RLIN 12 22 4 RESET POWER AMP IC 601(1/2) PE5329B R IC 151 PML003AM IC 961 S-80834CNY IC 302 TDA7386 reset VDD Q911 Q931 SYSPW ELECTRONIC VOLUME/ SOURCE SELECTOR B.UP VDD STBY MUTE IC 1801 PD6340A LCD DRIVER/ KEY CONTROLLER KEY MATRIX 7 5 KEY DATA VDD 56 CN1801 Q821 Q822 Q801 KEYBOARD UNIT 70 X601 69 2 VST,VCK,VDT TUN L CD L DPDT 4 3 DPDT KYDT VCC B.UP Q922 Q923 43 PW Q452 MUTE RL RL Q352 7 5 4 3 KYDT 18 20 DPDT KTDT LCD MUTE SYSTEM CONTROLLER Q951 VDD TELIN 34 FL- FL+ RL- RL+ VDD REGULATOR BACKUP SENSE ACC SENSE TELEPHONE MUTE SYS 8.4V REGULATOR 14 8 6 5 7 16 9 11 14 8 6 5 7 16 9 11 15 15 B CN901 CN352 BACK UP GND RR + RR - FR + FR - FL + FL - RL + RL - ACC GND BACK UP B. REM FUSE 10A ACC TELMUTE B.REM ldet SL TUNPCE2 TUNPCE1 TUNPDI TUNPDO 61 76 55 56 11 12 TUNPCK 13 CE2 CE1 Q401 Q402 RDS_CK RDS_LOCK 58 RCK 62 RDT 57 RDS57K 59 RDSLK RDS_DATA RDS_HSLK 2 NJM2391DL1-33 IC 981 1 3 VCC TUN 3V TUNER 3.3V REGULATOR Q921 DO DI CK Q912 DALMON 32 B.UP 6,20 VLCD 10 8 8 CN621 1 3 2 80 EY1 46 EY2 KEY1 KEY2 PRE OUT WIRED REMOTE CN831 Q453 DSENS DSENS 1 5 B REMOTE IC 551 TPD1018F B.UP 6 SYSPW 43 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 16 1 2 3 4 1 2 3 4 C D F A B E 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE) A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or "ELECTRICAL PARTS LIST". A-a A SYSTEM CONTROLLER For resistors and capacitors in the circuit diagrams, their resistance values or capacitance values are expressed in codes: Ex. *Resistors Code Practical value 123 12k ohms 103 10k ohms *Capacitors Code Practical value 103 0.01uF 101/10 100uF/10V The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. B CN1801 C CN701 FM/AM TUNER UNIT FM:-15.5dBs AM:-26.0dBs CD:+0.35dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 17 5 6 7 8 5 6 7 8 C D F A B E A-b A 332/16 TDA7386 2R2/50 600µH REAR L CH REAR R CH > > FUSE CEK1208 10A A TUNER AMP UNIT RR + RR - FR + FR - FL + FL - RL + RL - ACC GND B. REM BACK UP RR+ RR- FR+ FR- FL+ FL- RL+ RL- ACC GND B.REM BACK UP TEL MUTE 3A FM: +6.6dBs AM: -2.9dBs CD:+10.45dBs FM: +32.6dBs AM: +23.1dBs CD:+36.45dBs Jack for the wired remote control www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 18 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-a A-a A-b 1 2 C CN701 FM/AM TUNER UNIT FM:-15.5dBs AM:-26.0dBs CD:+0.35dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 19 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-a A-a A-b 3 SYSTEM CONTROLLER For resistors and capacitors in the circuit diagrams, their resistance values or capacitance values are expressed in codes: Ex. *Resistors Code Practical value 123 12k ohms 103 10k ohms *Capacitors Code Practical value 103 0.01uF 101/10 100uF/10V The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. B CN1801 TUNER UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 20 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-b 1 2 332/16 TDA7386 2R2/50 600µH REAR L CH REAR R CH > > FUSE CEK1208 10A A TUNER AMP UNIT GND BACK UP 3A FM: +6.6dBs AM: -2.9dBs CD:+10.45dBs FM: +32.6dBs AM: +23.1dBs CD:+36.45dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 21 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-b 3 600µH > FUSE CEK1208 10A RR + RR - FR + FR - FL + FL - RL + RL - ACC GND B. REM BACK UP RR+ RR- FR+ FR- FL+ FL- RL+ RL- ACC GND B.REM BACK UP TEL MUTE Jack for the wired remote control FM: +32.6dBs AM: +23.1dBs CD:+36.45dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 22 1 2 3 4 1 2 3 4 C D F A B E 3.3 KEYBOARD UNIT B DEH-1600RB/XU/EW DEH-1600R/XU/EW IL1801,1802 D1803-18 ILM COLOUR DEH-1630R/XU/EW For resistors and capacitors in the circuit diagrams, their resistance values or capacitance values are expressed in codes: Ex. *Resistors Code Practical value 123 12k ohms 103 10k ohms *Capacitors Code Practical value 103 0.01uF 101/10 100uF/10V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 23 5 6 7 8 5 6 7 8 C D F A B E B CL-490S-WF-SD CL-490S-WF-SD 803-1809 R1816-1818 40mA, 14V LCD1801 YAW5006 CAW1779 CAW1731 B KEYBOARD UNIT A CN831 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 24 1 2 3 4 1 2 3 4 C D F A B E 3.4 CD MECHANISM MODULE C PICKUP UNIT(P10)(SERVICE) BA5835FP R1 R1 R1 M1 CXB6007 SPINDLE MOTOR M2 CXB8933 LOADING/CARRIAGE MOTOR RF MOTOR DRIVER 3.3V REGULATOR F F F F F F F F F F F F F T S C T T S S C C C C S S T T T T T T T T T T 1 7 8 3 6 5 @ 9 0 ! # www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 25 5 6 7 8 5 6 7 8 C D F A B E C SWITCHES: CD CORE UNIT (S10.1) S901 : HOME SWITCH.........ON-OFF S902 : CLAMP SWITCH.......ON-OFF S903 : DSCSNS SWITCH.....ON-OFF S904 : 12EJ SWITCH............ON-OFF S905 : 8EJ SWITCH..............ON-OFF The underlined indicates the switch position. A C CN651 CD CORE UNIT(S10.1) RF AMP / SERVO / DSP / DAC / LPF SIGNAL LINE FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE F T C S S C C S C T F S C T F 3 6 5 @ $% 4 2 9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 26 1 2 3 4 1 2 3 4 C D F A B E - Waveforms Note : 1. The encircled numbers denote measuring points in the circuit diagram. 2. Reference voltage REFO1(1.65V) 1 DSCSNS 2 CLCONT 3 LOEJ 4 VD 5V/div 5V/div 5V/div 10V/div 500ms/div When loading a 12cm CD Ref.: GND Mode: Normal 5 SIN 6 CIN 7 TIN 1V/div 500mV/div 500mV/div 2s/div When setting up after loading a 12cm CD-DA disc Ref.: REFO Mode: Normal 1 DSCSNS 2 CLCONT 3 LOEJ 4 VD 5V/div 5V/div 5V/div 10V/div 500ms/div When loading an 8cm CD Ref.: GND Mode: Normal @ MDX 5 SIN 500mV/div 1V/div 5ms/div Spindle waveform during "Play" Ref.: REFO Mode: Normal # RFAGC 500mV/div 0.5µs/div Ref.: REFO Mode: Normal @ MDX 5 SIN 500mV/div 1V/div 5µs/div Spindle waveform during "Play"(Magnified) RF eye pattern Ref.: REFO Mode: Normal 8 FIN ! FE 500mV/div 500mV/div 200ms/div Focus Search Ref.: REFO Mode: TEST # RFAGC 0 TE 7 TIN 1V/div 500mV/div 500mV/div 500µs/div Ref.: REFO Mode: TEST 0 TE # RFAGC 500mV/div 500mV/div 2ms/div When "Tracking Open" 1 Track Jump Ref.: REFO Mode: TEST 8 FIN 9 RFOK 5 SIN 200mV/div 2V/div 2V/div 500ms/div When setting up "Source On"(12cm CD-DA) During "Play"(CD-DA) Ref.: REFO Mode: Normal ! FE 8 FIN 0 TE 7 TIN 500mV/div 500mV/div 500mV/div 500mV/div 20ms/div Ref.: REFO Mode: Normal 0 TE ! FE 500mV/div 500mV/div 200ms/div When setting up "Source On" Ref.: REFO Mode: Normal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 27 5 6 7 8 5 6 7 8 C D F A B E # RFAGC 0 TE 7 TIN 1V/div 500mV/div 500mV/div 500ms/div 32 Track Jump Ref.: REFO Mode: TEST # RFAGC 7 TIN 0 TE 8 FIN 1V/div 1V/div 1V/div 1V/div 500µs/div Ref.: REFO Mode: Normal # RFAGC 0 TE 7 TIN 1V/div 500mV/div 500mV/div 5ms/div 100(32x3) Track Jump When reproducing black dots(1mm) Ref.: REFO Mode: TEST $ LOUT % ROUT 1V/div 1V/div 200µs/div Analog Audio Ref.: AGND Mode: Normal 1 DSCSNS 2 CLCONT 3 LOEJ 5V/div 5V/div 5V/div 200ms/div Ref.: GND Mode: Normal 1 DSCSNS 2 CLCONT 3 LOEJ 5V/div 5V/div 5V/div 200ms/div When "Eject"(12cm CD) When "Eject"(8cm CD) Ref.: GND Mode: Normal # RFAGC 0 TE 6 CIN 5 SIN 1V/div 1V/div 500mV/div 2V/div 500µs/div When reproducing scratch(1mm) During inside/outside search (outer circumference → inner circumference) Ref.: REFO Mode: Normal # RFAGC 0 TE 6 CIN 5 SIN 1V/div 1V/div 500mV/div 2V/div 500µs/div Ref.: REFO Mode: Normal # RFAGC 0 TE 6 CIN 5 SIN 1V/div 1V/div 500mV/div 2V/div 5ms/div When reproducing fingerprint(65µm) Ref.: REFO Mode: Normal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 28 1 2 3 4 1 2 3 4 C D F A B E 4. PCB CONNECTION DIAGRAM 4.1 TUNER AMP UNIT A A TUNER AMP UNIT Capacitor Connector P.C.Board Chip Part SIDE B SIDE A NOTE FOR PCB DIAGRAMS 1.The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2.Viewpoint of PCB diagrams CORD ASSY B C CN701 JACK FOR THE WIRED REMOTE CONTROL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 29 5 6 7 8 5 6 7 8 C D F A B E A SIDE A FRONT B CN1801 FM/AM TUNER UNIT ANTENNA JACK REAR OUTPUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 30 1 2 3 4 1 2 3 4 C D F A B E A A TUNER AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 31 5 6 7 8 5 6 7 8 C D F A B E A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 32 1 2 3 4 1 2 3 4 C D F A B E 4.2 KEYBOARD UNIT B B KEYBOARD UNIT B KEYBOARD UNIT SIDE A SIDE B A CN831 TA VOL+ EQ EQ VOL- VOL- 1 SOURCE VOL+ 2 3 5 6 4 LOUD [ BAND BAND AUDIO EJECT EJECT ' ' ' [ ' ] ] LOCAL/BSM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 33 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 34 1 2 3 4 1 2 3 4 C D F A B E 4.3 CD MECHANISM MODULE C C CD CORE UNIT(S10.1) SIDE A A CN651 PICKUP UNIT(P10)(SERVICE) M1 SPINDLE MOTOR M2 LOADING /CARRIAGE MOTOR HOME www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 35 5 6 7 8 5 6 7 8 C D F A B E C C CD CORE UNIT(S10.1) SIDE B CLAMP DSCSNS 8EJ 12EJ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 36 1 2 3 4 1 2 3 4 C D F A B E 5. ELECTRICAL PARTS LIST NOTE: • Parts whose parts numbers are omitted are subject to being not supplied. • The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... Circuit Symbol and No. Part No. A Unit Number:YWM5007(DEH-1630R/XU/EW) Unit Number:YWM5001(DEH-1600R/XU/EW) Unit Number:YWM5019(DEH-1600RB/XU/EW) Unit Name:Tuner Amp Unit MISCELLANEOUS IC 151 IC PML003AM IC 302 IC TDA7386 IC 551 IC TPD1018F IC 601 IC PE5329B IC 652 IC TC7SET08FU IC 961 IC S-80834CNY IC 981 IC NJM2391DL1-33 Q 352 Transistor IMH3A Q 401 Transistor IMH1A Q 402 Transistor IMH1A Q 452 Transistor DTC124EU Q 453 Transistor DTA124EU Q 801 Transistor 2SA1036K Q 821 Transistor 2SA1036K Q 822 Transistor DTC114EU Q 911 Transistor 2SD2396 Q 912 Transistor IMD2A Q 921 Transistor 2SD2396 Q 922 Transistor 2SB1243 Q 923 Transistor DTC114EU Q 931 Transistor IMX1 Q 951 Transistor 2SA1037K Q 991 Transistor 2SD2396 Q 992 Transistor IMD2A D 452 Diode DAN202U D 551 Diode S5688G D 552 Diode S5688G D 831 Diode 1SS133 D 832 Diode 1SS133 D 833 Diode 1SS133 D 834 Diode 1SS133 D 835 Diode 1SS133 D 836 Diode 1SS133 D 901 Diode S5688G D 902 Diode S5688G D 911 Diode S5688G D 912 Diode HZS6L(B2) D 921 Diode HZS9L(B3) D 931 Diode HZS7L(C3) D 932 Diode HZS7L(A1) D 951 Diode DAN202U D 981 Diode S5688G D 982 Diode S5688G D 983 Diode S5688G D 991 Diode HZS9L(B1) L 151 Inductor LAU2R2K L 401 Inductor LAU1R0K L 402 Inductor LAU1R0K L 404 Ferri-Inductor LAU4R7K L 601 Inductor LAU1R0K L 801 Inductor LAU2R2K L 901 Choke Coil 600µH CTH1280 L 951 Inductor LAU2R2K X 601 Radiator 12.58291MHz CSS1402 FU352 Fuse 3A CEK1286 AR401 Surge Protector DSP-201M-S00B Fuse 10A CEK1208 FM/AM Tuner Unit CWE1645 RESISTORS R 153 RS1/16S101J R 154 RS1/16S101J R 155 RS1/16S101J R 156 RS1/16S101J R 157 RAB4C102J R 301 RD1/4PU153J R 353 RS1/16S821J R 354 RS1/16S821J R 357 RS1/16S223J R 358 RS1/16S223J R 401 RS1/16S223J R 402 RS1/16S223J R 403 RS1/16S223J R 404 RS1/16S223J R 405 RS1/16S681J R 406 RS1/16S681J R 407 RS1/16S681J R 408 RS1/16S681J R 409 RS1/16S681J R 410 RS1/16S681J R 414 RS1/16S102J R 418 RD1/4PU221J R 420 RS1/16S681J R 454 RS1/16S103J R 455 RS1/16S153J R 456 RS1/16S221J R 457 RD1/4PU681J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 37 5 6 7 8 5 6 7 8 C D F A B E R 601 RS1/16S473J R 603 RS1/16S103J R 604 RS1/16S103J R 605 RS1/16S221J R 606 RS1/16S104J R 607 RD1/4PU222J R 608 RS1/16S0R0J R 609 RD1/4PU473J R 610 RD1/4PU681J R 611 RS1/16S473J R 621 RD1/4PU102J R 622 RD1/4PU102J R 633 RS1/16S104J R 653 RS1/16S104J R 654 RS1/16S102J R 661 RS1/16S221J R 801 RS1/16S153J R 802 RS1/16S153J R 803 RS1/16S222J R 821 RD1/4PU222J R 823 RS1/16S103J R 833 RD1/4PU222J R 834 RD1/4PU222J R 836 RD1/4PU104J R 837 RD1/4PU103J R 838 RD1/4PU102J R 841 RS1/16S1R0J R 848 RD1/4PU102J R 851 RD1/4PU102J R 911 RS1/16S223J R 912 RD1/4PU152J R 921 RS1/16S0R0J R 923 RD1/4PU681J R 924 RD1/4PU122J R 925 RS1/16S103J R 931 RS1/16S473J R 932 RS1/16S104J R 933 RD1/4PU102J R 934 RS1/16S472J R 935 RS1/16S473J R 936 RS1/16S223J R 940 RS1/16S104J R 941 RS1/16S104J R 951 RD1/4PU153J R 952 RS1/16S472J R 953 RS1/16S472J R 954 RS1/16S102J R 955 RS1/16S473J R 961 RS1/16S102J R 962 RS1/16S822J R 971 RS1/16S0R0J R 981 RD1/4PU1R8J R 991 RD1/4PU221J R 992 RD1/4PU221J R 993 RS1/16S222J R 994 RS1/16S472J CAPACITORS C 151 CKSRYB224K16 Circuit Symbol and No. Part No. C 152 CKSRYB224K16 C 153 CKSRYB105K10 C 154 CKSRYB105K10 C 155 CEJQ4R7M35 C 156 CEJQ4R7M35 C 157 CKSRYB153K50 C 158 CKSRYB153K50 C 161 CCSRCH100D50 C 162 CCSRCH100D50 C 163 CCSRCH100D50 C 164 CCSRCH100D50 C 165 CKSRYB104K16 C 166 CEJQ470M10 C 167 CEJQ100M16 C 301 CFTNA224J50 C 302 CFTNA224J50 C 303 CFTNA224J50 C 304 CFTNA224J50 C 309 CKSQYB225K10 C 310 CKSQYB225K10 C 311 CEJQ2R2M50 C 312 CEJQ100M16 C 313 CKSRYB104K16 C 353 CEJQ2R2M50 C 354 CEJQ2R2M50 C 401 CKSRYB103K50 C 402 CKSRYB103K50 C 403 CEJQ470M6R3 C 404 CEJQ101M10 C 405 CKSRYB103K50 C 420 CCSRCH470J50 C 451 CEJQ330M10 C 551 CKSQYB103K50 C 552 CKSQYB103K50 C 601 CKSRYB103K50 C 604 CCSRCH200J50 C 605 CCSRCH200J50 C 610 CEJQ4R7M35 C 611 CKSRYB224K16 C 612 CCSRCH470J50 C 654 CKSRYB104K16 C 801 CKSRYB104K16 C 901 3300µF/16V CCH1494 C 911 CEJQ470M10 C 912 CKSRYB103K50 C 913 470µF/16V CCH1331 C 921 330µF/16V CCH1326 C 922 CEJQ101M16 C 923 CKSRYB103K50 C 961 CKSRYB473K50 C 963 CEJQ100M16 C 981 CKSYB475K10 C 982 CKSRYB103K50 C 983 CEJQ220M16 C 991 CKSRYB473K50 C 992 CEJQ101M10 B Unit Number:YWM5008(DEH-1630R/XU/EW) Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 38 1 2 3 4 1 2 3 4 C D F A B E Unit Number:YWM5020(DEH-1600RB/XU/EW) Unit Name:Keyboard unit MISCELLANEOUS IC 1801 IC PD6340A D 1801 Diode MA152WK D 1802 Diode MA152WA D 1803 LED SML-310VT D 1804 LED SML-310VT D 1805 LED SML-310VT D 1806 LED SML-310VT D 1807 LED SML-310VT D 1808 LED SML-310VT D 1809 LED SML-310VT D 1810 LED CL-490S-WF-SD D 1811 LED CL-490S-WF-SD X 1801 Ceramic Resonator 5.00MHz CSS1547 IL 1801 Lamp 40mA 14V CEL1662 IL 1802 Lamp 40mA 14V CEL1662 LCD1801 LCD(DEH-1630R) CAW1779 LCD1801 LCD(DEH-1600RB) YAW5006 RESISTORS R 1801 RS1/16S222J R 1802 RS1/16S222J R 1803 RS1/16S471J R 1804 RS1/16S471J R 1805 RS1/16S471J R 1806 RS1/16S471J R 1807 RS1/16S151J R 1808 RS1/16S181J R 1809 RS1/16S181J R 1810 RS1/16S181J R 1811 RS1/16S151J R 1812 RS1/16S181J R 1813 RS1/16S181J R 1814 RS1/16S181J R 1815 RS1/16S151J R 1816 RS1/16S181J R 1817 RS1/16S181J R 1818 RS1/16S181J R 1819 RS1/16S131J R 1820 RS1/16S131J CAPACITORS C 1801 CKSRYB103K50 C 1811 CKSRYF104Z25 C 1812 CKSRYF104Z25 B Unit Number:YWM5002(DEH-1600R/XU/EW) Unit Name:Keyboard unit MISCELLANEOUS IC 1801 IC PD6340A D 1801 Diode MA152WK D 1802 Diode MA152WA D 1803 LED SML-310PT D 1804 LED SML-310PT Circuit Symbol and No. Part No. D 1805 LED SML-310PT D 1806 LED SML-310PT D 1807 LED SML-310PT D 1808 LED SML-310PT D 1809 LED SML-310PT D 1810 LED CL-490S-WF-SD D 1811 LED CL-490S-WF-SD X 1801 Ceramic Resonator 5.00MHz CSS1547 IL 1801 Lamp 40mA 14V CEL1651 IL 1802 Lamp 40mA 14V CEL1651 LCD1801 LCD CAW1731 RESISTORS R 1801 RS1/16S222J R 1802 RS1/16S222J R 1803 RS1/16S471J R 1804 RS1/16S471J R 1805 RS1/16S471J R 1806 RS1/16S471J R 1807 RS1/16S151J R 1808 RS1/16S181J R 1809 RS1/16S181J R 1810 RS1/16S181J R 1811 RS1/16S151J R 1812 RS1/16S181J R 1813 RS1/16S181J R 1814 RS1/16S181J R 1815 RS1/16S151J R 1816 RS1/16S151J R 1817 RS1/16S151J R 1818 RS1/16S151J R 1819 RS1/16S131J R 1820 RS1/16S131J CAPACITORS C 1801 CKSRYB103K50 C 1811 CKSRYF104Z25 C 1812 CKSRYF104Z25 C Unit Number:CWX2947 Unit Name:CD CORE UNIT(S10.1) MISCELLANEOUS IC 201 IC UPD63712AGC IC 301 IC BA5835FP IC 701 IC NJM2391DL1-33 Q 101 Transistor 2SB1132 D 101 Diode 1SS355 D 701 Diode 1SR154-400 X 201 Ceramic Resonator 16.934MHzCSS1603 S 901 Switch(HOME) CSN1051 S 902 Switch(CLAMP) CSN1051 S 903 Spring Switch(DSCSNS) CSN1052 S 904 Switch(12EJ) CSN1051 S 905 Switch(8EJ) CSN1051 RESISTORS Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 39 5 6 7 8 5 6 7 8 C D F A B E R 101 RS1/10S1R5J R 102 RS1/10S1R5J R 103 RS1/10S1R5J R 104 RS1/10S1R5J R 105 RS1/10S1R5J R 201 RS1/16S102J R 202 RS1/16S1002D R 203 RS1/16S1002D R 204 RS1/16S1002D R 205 RS1/16S1002D R 206 RS1/16S1002D R 207 RS1/16S1002D R 208 RS1/16S1002D R 209 RS1/16S1002D R 214 RS1/16S103J R 215 RS1/16S393J R 216 RS1/16S122J R 217 RS1/16S562J R 218 RS1/16S472J R 234 RS1/16S0R0J R 235 RS1/16S103J R 236 RS1/16S103J R 301 RS1/16S183J R 302 RS1/16S822J R 303 RS1/16S183J R 304 RS1/16S822J R 305 RS1/16S183J R 306 RS1/16S183J R 307 RS1/16S183J R 308 RS1/16S183J R 501 RS1/16S102J R 503 RS1/16S102J R 505 RS1/16S102J R 506 RS1/16S221J R 507 RS1/16S221J R 508 RS1/16S221J R 509 RS1/16S221J R 601 RS1/16S101J R 602 RS1/16S101J R 603 RS1/16S0R0J R 901 RS1/16S104J R 902 RS1/16S473J R 903 RS1/16S273J CAPACITORS C 101 CKSRYB104K16 C 102 CKSRYB104K16 C 103 100µF/16V CCH1504 C 104 47µF/6.3V CCH1506 C 108 CKSRYB104K16 C 109 CKSRYB104K16 C 201 CKSRYB104K16 C 202 CKSRYB471K50 C 205 22µF/6.3V CCH1507 C 206 CKSRYB103K25 C 207 CKSRYB104K16 C 209 CKSRYB104K16 C 210 CKSRYB104K16 C 211 CKSRYB104K16 Circuit Symbol and No. Part No. C 212 CKSRYB104K16 C 213 CKSRYB332K50 C 214 CKSRYB473K25 C 215 CKSRYB104K16 C 216 CKSRYB103K25 C 217 CCSRCH560J50 C 218 CCSRCH5R0C50 C 219 CKSRYB104K16 C 220 CKSRYB104K16 C 221 CKSRYB104K16 C 222 CKSRYB103K25 C 223 CCSRCH680J50 C 224 CCSRCH470J50 C 225 CKSRYB682K50 C 231 CKSRYB102K50 C 232 CKSRYB102K50 C 301 100µF/16V CCH1504 C 302 CCSRCH221J50 C 303 CCSRCH221J50 C 304 CKSRYB472K50 C 305 CKSRYB103K25 C 306 CKSRYB104K16 C 501 CKSRYB103K25 C 502 CKSRYB103K25 C 702 100µF/16V CCH1504 C 703 CKSRYB104K16 C 705 10µF/6.3V CCH1470 Miscellaneous Parts List Pickup Unit(P10)(Service) CXX1647 M 1 Motor Unit(SPINDLE) CXB6007 M 2 Motor Unit(LOADING/CARRIAGE)CXB8933 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 40 1 2 3 4 1 2 3 4 C D F A B E 6. ADJUSTMENT 6.1 CD ADJUSTMENT 1) Cautions on adjustments • In this product the single voltage (3.3V) is used for the regulator. The reference voltage is the REFO1 (1.65V) instead of the GND. If you should mistakenly short the REFO1 with the GND during adjustment, accurate voltage will not be obtained, and the servo’s misoperation will apply excessive shock to the pickup. To avoid such problems: a. Do not mix up the REFO1 with the GND when connecting the (-) probe of measuring instruments. Especially on an oscilloscope, avoid connecting the (-) probe for CH1 to the GND. b. In many cases, measuring instruments have the same potential as that for the (-) probe. Be sure to set the measuring instruments to the floating state. c. If you have mistakenly connected the REFO1 to the GND, turn off the regulator or the power immediately. • Before mounting and removing filters or leads for adjustment, be sure to turn off the regulator. • For stable circuit operation, keep the mechanism operating for about one minute or more after the regulator is turned on. • In the test mode, any software protections will not work. Avoid applying any mechanical or electrical shock to the mechanism during adjustment. • The RFI and RFO signals with a wide frequency range are easy to oscillate. When observing the signals, insert a resistor of 1k ohms in series. • The load and eject operation is not guarantied with the mechanism upside down. If the mechanism is blocked due to mistaken eject operation, reset the product or turn off and on the ACC to restore it. 2) Test mode This mode is used to adjust the CD mechanism module. • To enter the test mode. While pressing the 4 and 6 keys at the same time, reset. • To exit from the test mode. Turn off the ACC and back up. Notes: a. During ejection, do not press any other keys than the EJECT key until the loaded disc is ejected. b. If you have pressed the (→) key or (←) key during focus search, turn off the power immediately to protect the actuator from damage caused by the lens stuck. c. For the TR jump modes except 100TR, the track jump operation will continue even if the key is released. d. For the CRG move and 100TR jump modes, the tracking loop will be closed at the same time when the key is released. e. When the power is turned off and on, the jump mode is reset to the single TR (91), the RF amp gain is set to 0dB, and the auto-adjustment values are reset to the default settings. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 41 5 6 7 8 5 6 7 8 C D F A B E 6.2 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT • Note : The grating angle of the PU unit cannot be adjusted after the PU unit is changed. The PU unit in the CD mechanism module is adjusted on the production line to match the CD mechanism module and is thus the best adjusted PU unit for the CD mechanism module. Changing the PU unit is thus best considered as a last resort. However, if the PU unit must be changed, the grating should be checked using the procedure below. • Purpose : To check that the grating is within an acceptable range when the PU unit is changed. • Symptoms of Mal-adjustment : If the grating is off by a large amount symptoms such as being unable to close tracking, being unable to perform track search operations, or taking a long time for track searching. • Method : • Measuring Equipment • Measuring Points • Oscilloscope, Two L.P.F. • E, F, REFO1 • Disc • ABEX TCD-782 • Mode • TEST MODE • Checking Procedure 1. In test mode, load the disc and switch the 3V regulator on. 2. Using the → and ← buttons, move the PU unit to the innermost track. 3. Press key 3 to close focus, the display should read "91". Press key 2 to implement the tracking balance adjustment the display should now read "81". Press key 3. The display will change, returning to "81" on the fourth press. 4. As shown in the diagram above, monitor the LPF outputs using the oscilloscope and check that the phase difference is within 75° . Refer to the photographs supplied to determine the phase angle. 5. If the phase difference is determined to be greater than 75° try changing the PU unit to see if there is any improvement. If, after trying this a number of times, the grating angle does not become less than 75° then the mechanism should be judged to be at fault. • Note Because of eccentricity in the disc and a slight misalignment of the clamping center the grating waveform may be seen to "wobble" ( the phase difference changes as the disc rotates). The angle specified above indicates the average angle. • Hint Reloading the disc changes the clamp position and may decrease the "wobble". 100kΩ 390pF 100kΩ 390pF E VREF F VREF Xch Ych L.P.F. L.P.F. REFO1 F E CD CORE UNIT(S10.1) Oscilloscope www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 42 1 2 3 4 1 2 3 4 C D F A B E Grating waveform 45° 0° 75° 60° 30° 90° Ech → Xch 20mV/div, AC Fch → Ych 20mV/div, AC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 43 5 6 7 8 5 6 7 8 C D F A B E 6.3 ERROR MODE - Error Messages If a CD is not operative or stopped during operation due to an error, the error mode is turned on and cause(s) of the error is indicated with a corresponding number. This arrangement is intended at reducing nonsense calls from the users and also for facilitating trouble analysis and repair work in servicing. (1) Basic Indication Method 1) When SERRORM is selected for the CSMOD (CD mode area for the system), error codes are written to DMIN (minutes display area) and DSEC (seconds display area). The same data is written to DMIN and DSEC. DTNO remains in blank as before. 2) Head unit display examples Depending on display capability of LCD used, display will vary as shown below. xx contains the error number. 8-digit display 6-digit display 4-digit display ERROR–xx ERR–xx E–xx (2) Error Code List Code Class Displayed error code Description of the code and potential cause(s) 10 Electricity Carriage Home NG CRG can't be moved to inner diameter. SERVO LSI Com- CRG can't be moved from inner diameter. munication Error → Failure on home switch or CRG move mechanism. Communication error between microcomputer and SERVO LSI. 11 Electricity Focus Servo NG Focusing not available. → Stains on rear side of disc or excessive vibrations on REWRITABLE. 12 Electricity Spindle Lock NG Spindle not locked. Sub-code is strange (not readable). Subcode NG → Failure on spindle, stains or damages on disc, or excessive vibrations. A disc not containing CD-R data is found. Turned over disc are found, though rarely. CD signal error. 17 Electricity Setup NG AGC protection doesn't work. Focus can be easily lost. → Damages or stains on disc, or excessive vibrations on REWRITABLE. 30 Electricity Search Time Out Failed to reach target address. → CRG tracking error or damages on disc. 44 Electricity ALL Skip Skip setting for all track. (CD-R/RW) 50 Mechanism CD On Mech Error Mechanical error during CD ON. → Defective loading motor, mechanical lock and mechanical sensor. A0 System Power Supply NG Power (VD) is ground faulted. → Failure on SW transistor or power supply (failure on connector). Remarks: Mechanical errors are not displayed (because a CD is turned off in these errors). Unreadable TOC does not constitute an error. An intended operation continues in this case. Upper digits of an error code are subdivided as shown below: 1x: Setup relevant errors, 3x: Search relevant errors, Ax: Other errors. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 44 1 2 3 4 1 2 3 4 C D F A B E 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 DISASSEMBLY - Removing the CD Mechanism Module (Fig.1) 1 Fig.1 - Removing the Case (not shown) Grille Assy - Removing the Grille Assy (Fig.1) 1. Remove the Case. CD Mechanism Module 1 1 1 1 Fig.2 Tuner Amp Unit - Removing the Tuner Amp Unit (Fig.2) Remove the screw. 1 Remove the four screws. Disconnect the connector and then remove the CD Mechanism Module. 2 Release the two latchs and then remove the Grille Assy. 2 2 1 2 2 2 3 3 3 4 Remove the three screws. 2 Straighten the tabs at three locations indicated. 3 Remove the screw and then remove the Tuner Amp Unit. 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 45 5 6 7 8 5 6 7 8 C D F A B E - How to assemble Keyboard Unit 1. Assemble them in order from "1" to "8". (See the figure below.) 2. After that, bend the crows (7 in total) until they get the right angles with the marks printed on "8". Note) If "5" is not set collectly, defective contact may occur on "6". To avoid this problem, hold "5" using "7" just before putting "8". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 46 1 2 3 4 1 2 3 4 C D F A B E - How to hold the Mechanism Unit 1. Hold the top and bottom frame. 2. Do not squeeze top frame's front portion too tight, because it is fragile. - Removing the Upper and Lower Frames 1. With a disc clamped, remove the four springs (A), the two springs (B), the two springs (C), and the four screws. 2. To remove the upper frame, open it on the fulcrum A. 3. While lifting the carriage mechanism, remove the three dampers. 4. With the frames removed, insert the connectors coming from the main unit and eject the disc. Caution: Before installing the carriage mechanism in the frames, be sure to apply some alcohol to the dampers and set the mechanism to the clamp mode. Do not squeeze. Lower Frame Damper Carriage Mechanism A C A B B Damper Damper C A A A Upper Frame www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 47 5 6 7 8 5 6 7 8 C D F A B E - Removing the Pickup Unit 1. Apply shorting solder to the Pickup flexible cable. Disconnect the cable. 2. Set the mechanism to the clamp mode. 3. Remove the lead wires from the inner holder. 4. Remove the washer, styling holder, change arm, and pickup lock arm. 5. While releasing from the hook of the inner holder, lift the end of the feed screw. Caution: In assembling, move the planet gear to the load/eject position before setting the feed screw in the inner holder. Shorting Solder Planet Gear Change Arm Inner Holder Styling Holder Feed Screw Washer Pickup Lock Arm www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 48 1 2 3 4 1 2 3 4 C D F A B E 7.1.2 CONNECTOR FUNCTION DESCRIPTION 1 0 A 1 3 5 7 9 11 13 15 2 4 6 8 10 12 14 16 Pin No. 1 2 3 4 5 6 7 8 FR+ RR+ FR- RR- FL+ RL+ FL- RL- Pin No. 9 10 11 12 13 14 15 16 MUTE - B.REMOTE - - ACC GND B.UP ANTENNA JACK REAR OUTPUT JACK FOR THE WIRED REMOTE CONTROL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 49 5 6 7 8 5 6 7 8 C D F A B E 7.2 PARTS 7.2.1 IC Pin No. 1 2,3 4 5,6 7 8 9 10 11 12 13 14 15 16 17 18 19,20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35,36 37 38,39 40 41 42 43 44 45 46 47 48 49,50 51 52 53 54 55 56 57 58 59 60 61 62 63 Function and Operation Model port 1 Not used A/D GND Not used A/D converter reference voltage Key data input Display data output Not used PLL IC data input PLL IC data output PLL IC clock output Clock adjustment output Test program mode input Serial data input Serial data output Serial data clock output Not used Keyboard unit power supply control output Illumination power supply control output Not used CD LSI reset output CD LSI identification control signal output CD LSI strobe output Disc clamp switch output (CD) Servo driver power supply control output CD load motor LOAD/EJECT direction exchange output Driver input select output Not used Stand-by output GND Telephone mute output Not used ROM collection data output Not used During RDS data reception output VD control output Not used System power supply control output Not used Beep tone output Key data input (Remote control) Not used System mute output Not used Strobe pulse output for electronic volume Data output for electronic volume Clock output for electronic volume Not used EEPROM chip enable output 2 EEPROM chip enable output 1 RDS demodulation data input RDS LK signal input RDS 57kHz pulse count input Reset input PLL lock sense input RDS demodulation clock input ACC sense input Pin Name MODEL1 NC AVSS NC AVREF1 KYDT DPDT NC TUNPDI TUNPDO TUNPCK PCL TESTIN XSI XSO XSCK NC swvdd ILMPW NC XRST XA0 XSTB CLAMSW CONT LOEJ CLCONT NC DALMON VSS1 TELIN NC ROMDATA NC RECIEVE VDCONT NC SYSPW NC PEE KEY2 NC MUTE NC VST VDT VCK NC TUNPCE2 TUNPCE1 RDT RDSLK RDS57K reset LDET RCK ASENS I/O I O I O O O I I O O O O O O O O O O O O O O O O O I O O O O O O O I I I I I I - Pin Functions(PE5329B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 50 1 2 3 4 1 2 3 4 C D F A B E 20 21 40 41 60 61 80 1 * PE5329B Pin No. 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 Pin Name BSENS DSENS INTRQ VSS0 VDD1 X2 X1 IC(VPP) NC XT1 VDD0 AVDD SL NC VDSENS DISCSENS STRKEY1 I/O I I I I I I Function and Operation Back up sense input Grille detach sense input ATAPI HOST interrupt request input GND Power supply Crystal oscillator connection pin Crystal oscillator connection pin Connect to GND Not used Connect to GND Power supply Positive power supply terminal for analog circuit SD level input from tuner Not used VD power supply voltage sense input CD DISC sense input Key data (Remote control) IC's marked by * are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 51 5 6 7 8 5 6 7 8 C D F A B E - Pin Functions(PD6340A) Pin No. Pin Name I/O Function and Operation 1-5 SEG4-0 O LCD segment output 6-9 COM3-0 O LCD common output 10 VLCD LCD drive power supply 11-14 KST3-0 O Key strobe output 15,16 KDT0,1 I Key data input (analogue input) 17 REW I Remote control reception input 18 DPDT I Display data input 19 NC Not used 20 KYDT O Key data output 21 MODA GND 22 X0 Crystal oscillator connection pin 23 X1 Crystal oscillator connection pin 24 VSS GND 25,26 KDT2,3 I Key data input 27 NC Not used 28 KST4 O Key strobe output 29-32 NC Not used 33-55 SEG35-13 O LCD segment output 56 VDD Power supply 57-64 SEG12-5 O LCD segment output * PD6340A 49 48 33 32 17 16 1 64 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 52 1 2 3 4 1 2 3 4 C D F A B E - Pin Functions(UPD63712AGC) Pin No. Pin Name I/O Function and Operation 1 LD O Output of LD 2 PD I Input of PD 3 PN I Assignment of pickup polarity 4 AVDD Power supply for the analog system 5 DGND Ground for digital circuits 6 RFOK O Output of RFOK 7 INTQ O Interruption signals to the external microcomputer 8 rst I Input of reset 9 A0 I Command/Parameter discrimination signal input 10 stb I Data strobe signal input 11 sck I Serial data clock input 12 SO O Serial data output 13 SI I Serial data input 14 DVDD Power supply for digital circuits 15 DAVDD Power supply for DAC 16 ROUT O Output of audio for the right channel 17 DAGND GND for DAC 18 REGC Connected to the capacitor for band gap 19 DAGND GND for DAC 20 LOUT O Output of audio for the left channel 21 DAVDD Power supply for DAC 22 XVDD Power supply for the crystal oscillator 23 xtal O Connected to the crystal oscillator 24 XTAL I Connected to the crystal oscillator 25 XGND Ground for the crystal oscillator 26 DVDD Power supply for digital circuits 27 C1D1 O Information on error correction 28 C1D2 O Information on error correction 29 C2D1 O Information on error correction 30 C2D2 O Information on error correction 31 C2D3 O Information on error correction 32 LOCK O Output of LOCK 33 MIRR O MIRR signal 34 HOLD O HOLD signal 35 PLCK O Output of PLCK 36 C16M O Output of 16.9344MHz 37 DGND Ground for digital circuits 38 TX O DAI output 39 EMPH O Pre-emphasis information output 40 FLAG O The flag for which output sound data cannot be corrected is outputted 41 DVDD Power supply for digital circuits 42 LIMIT I Signal is inputted when the register can be read 43 xtalen I Permission to oscillate 44 DGND Ground for digital circuits 45 DIN I Input of audio data 46 DOUT O Output of audio data 47 SCKIN I Clock input for audio data 48 SCKO O Clock output for audio data 49 LRCKIN I Input of LRCK for audio data 50 LRCK O Output LRCK for audio data 51 DVDD Power supply for digital circuits 52 FD+ O Output of focus drive PWM 53 FD- O Output of focus drive PWM 54 TD+ O Output of tracking drive PWM 55 TD- O Output of tracking drive PWM 56 SD+ O Output of thread drive PWM 57 SD- O Output of thread drive PWM 58 MD+ O Output of spindle drive PWM 59 MD- O Output of spindle drive PWM 60 DGND Ground for digital circuits www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 53 5 6 7 8 5 6 7 8 C D F A B E Pin No. Pin Name I/O Function and Operation 61 TESTEN I Connected to GND 62-66 TEST4-0 I Connected to GND 67 ADGND GND for DAC 68 EFM O Output of EFM signals 69 ASY I Input of asymmetry 70 ADVDD Power supply for DAC 71 RFI I Input of RF 72, 73 EQ2, 1 Equalizer 2, 1 74 RF- I Reversal input of RF 75 RF2- I Reversal input of RF2 76 AGCO O Output of RF 77 AGCI I Input of AGC 78 RFO O Output of RF 79 ATEST O Analog tests 80 C3T Connection to the capacitor for detecting 3T 81 AGND Ground for the analog system 82 A I Input of A 83 C I Input of C 84 B I Input of B 85 D I Input of D 86 F I Input of F 87 E I Input of E 88 VREFIN I Photo-detector input bias voltage 89 AVDD Power supply for the analog system 90 REFOUT O Output of reference voltage 91 REFC Connected to the capacitor for output of REFOUT 92 FE- I Reversal input of FE 93 FEO O Output of FE 94 ADCIN I TEST 95 TE- I Reversal input of TE 96 TEO O Output of TE 97 TE2 O TE2 98 TEC I TEC 99 AGND Ground for the analog system 100 PWMSW I Servo PWM mode switching * UPD63712AGC 25 26 50 51 75 76 100 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 54 1 2 3 4 1 2 3 4 C D F A B E - Pin Functions(BA5835FP) Pin No. Pin Name Function and Operation 1 VR Input pin for reference voltage 2 OPIN2(+) Input pin for non-inverting input for CH2 preamplifier 3 OPIN2(-) Input pin for inverting input for CH2 preamplifier 4 OPOUT2 Output pin for CH2 preamplifier 5 OPIN1(+) Input pin for non-inverting input for CH1 preamplifier 6 OPIN1(-) Input pin for inverting input from CH1 preamplifier 7 OPOUT1 Output pin for CH1 preamplifier 8 GND Ground pin 9 MUTE Mute control pin 10 POWVCC1 Power supply pin for CH1, CH2, and CH3 at "Power" stage 11 VO1(-) Driver CH1 - Negative output 12 VO1(+) Driver CH2 - Positive output 13 VO2(-) Driver CH2 - Negative output 14 VO2(+) Driver CH2 - Positive output 15 VO3(+) Driver CH2 - Positive output 16 VO3(-) Driver CH2 - Negative output 17 VO4(+) Driver CH4 - Positive output 18 VO4(-) Driver CH4 - Negative output 19 POWVCC2 Power supply pin for CH4 at "Power" stage 20 GND Ground pin 21 CNT Control pin 22 LDIN Loading input 23 OPOUTSL Output pin for preamplifier for thread 24 OPINLSL Input pin for preamplifier for thread 25 OPOUT3 CH3 preamplifier output pin 26 OPIN3(-) Input pin for inverting input for CH3 preamplifier 27 OPIN3(+) Input pin for non-inverting input for CH3 preamplifier 28 PREVCC PreVcc BA5835FP 1 14 15 28 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 55 5 6 7 8 5 6 7 8 C D F A B E No. Symbol I/O Explain 1 AMANT I AM antenna input AM antenna input high impedance AMANT pin is connected with an all antenna by way of 4.7µH. (LAU type inductor) A series circuit including an inductor and a resistor is connected with RF ground for the countermeasure against the ham of power transmission line. 2 RFGND RF ground Ground of antenna block 3 FMANT I FM antenna input Input of FM antenna 75Ω Surge absorber(DSP-201M-S00B) is necessary. 4 VCC power supply The power supply for analog block. D.C 8.4V ± 0.3V 5 SL O signal level Output of FM/AM signals level 6 CE2 I chip enable-2 Chip enable for EEPROM ”Low” active 7 WC I write control You can write EEPROM, when EEPROM write control is “Low”. Ordinary non connection 8 CE1 I chip enable-1 Chip enable for AF•RF ”High” active 9 CK I clock Clock 10 DI I data in Data input 11 LDET O lock detector “Low” active 12 OSCGND osc ground Ground of oscillator block 13 ROM_VDD power supply Power supply for EEPROM pin 13 is connected with a power supply of micro computer. 14 DO O data out Data output 15 DGND digital ground Ground of digital block 16 NC non connection Not used 17 VDD_3.3 power supply The power supply for digital block. 3.3V ± 0.2V 18 RDS_CK O RDS clock Output of RDS clock(2.5V) 19 RDS_DATA O RDS data Output of RDS data(2.5V) 20 RDS_LOCK O RDS lock Output unit “High” active(2.5V) (RDS_LOCK turns over by the external transistor. “Low” active) 21 RDS_HSLK O RDS high speed Output unit “High” active(2.5V)(RDS_HSLK turns over by the lock external transistor. “Low” active) 22 AUDIOGND audio ground Ground of audio block 23 L ch O L channel output FM stereo “L-ch” signal output or AM audio output 24 R ch O R channel output FM stereo “R-ch” signal output or AM audio output FMRF ANT adj RF adj FM ANT T51 CF52 CF51 RFGND OSCGND DGND AUDIOGND NC VCC VDD_3.3 3.3V 2.5V IC 4 3.3V 2.5V ← IC 2 2.5V WC CE2 ROM_VDD SL DI CK CE1 LDET DO RDS_CK RDS_DATA RDS_LOCK RDS_HSLK 7 6 13 5 10 9 8 11 14 18 19 20 21 1 3 2 12 15 22 16 4 17 IC 1 3.3V AM ANT FMRF ATT LPF OSC IC 3 EEPROM 5.0V IC 5 5V 3.3V ← ATT MIXER, IF AMP DET, FM MPX, RDS DECODER 24 23 Rch Lch - FM/AM Tuner Unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 56 1 2 3 4 1 2 3 4 C D F A B E 7.2.2 DISPLAY COMMON SEGMENT - LCD(CAW1779(DEH-1630R/XU/EW), CAW1731(DEH-1600R/XU/EW)) 1 2 3 4 5 6 7 8 9 0 33 34 36 37 38 COM3 COM2 COM1 COM0 COM3 COM2 COM1 COM0 35 39 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 57 5 6 7 8 5 6 7 8 C D F A B E COMMON SEGMENT - LCD(YAW5006(DEH-1600RB/XU/EW)) COM3 COM2 COM1 COM0 0 COM3 COM2 COM1 COM0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 58 1 2 3 4 1 2 3 4 C D F A B E 7.3 OPERATIONAL FLOW CHART VDD1=5V Pin 68 Power ON BSENS=L ASENS=L DSENS=L BSENS Pin 64 ASENS Pin 63 DSENS Pin 65 swvdd←L Pin 21 Source keys operative Completes power-on operation.(After that, proceed to each source operation.) SYSPW←H Pin 43 Starts communication with Grille microcomputer. Source ON 300ms 300ms In case of the above signal, the communication with Grille microcomputer may fail. If the time interval is not 300msec, the oscillator may be defective. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 59 5 6 7 8 5 6 7 8 C D F A B E 7.4 CLEANING Before shipping out the product, be sure to clean the following portions by using the prescribed cleaning tools: Portions to be cleaned Cleaning tools CD pickup lenses Cleaning liquid : GEM1004 Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 60 1 2 3 4 1 2 3 4 C D F A B E 8. OPERATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 61 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 62 1 2 3 4 1 2 3 4 C D F A B E CBA1488 CBA1488 About the fixing screws for the front front panel panel Fixing screw If you do not operate the Removing and Attaching the use the sup- plied fixing fixing f scr s fi the front panel to this unit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DEH-1630R/XU/EW 63 5 6 7 8 5 6 7 8 C D F A B E - CONNECTION DIAGRAM 8. Cap (1*) When not using this terminal, do not remove the cap. 14. ISO connector Note: In some vehicles, the ISO connector may be divided into two. In this case, be sure to connect to both connectors. 1* 2* 4* 3* 5* 10. Yellow (2*) To terminal always supplied with power regardless of ignition switch position. 12. Red (4*) To electric terminal controlled by ignition switch (12 V DC) ON/OFF. 9. Yellow (3*) Back-up (or accessory) 11. Red (5*) Accessory (or back-up) 7. Connect leads of the same color to each other. 19. Blue/white To system control terminal of the power amp (max. 300 mA 12 V DC). 21. Blue/white (7*) To Auto-antenna relay control terminal (max. 300 mA 12 V DC). Note: Depending on the kind of vehicle, the function of 3* and 5* may be different. In this case, be sure to connect 2* to 5* and 4* to 3*. 6. 2. This Product 3. Antenna jack 15. Yellow/black If you use a cellular telephone, connect it via the Audio Mute lead on the cellular telephone. If not, keep the Audio Mute lead free of any connections. 17. Connecting cords with RCA pin plugs (sold separately) 22. Blue/white (6*) 23. The pin position of the ISO connector will differ depends on the type of vehicle. Connect 6* and 7* when Pin 5 is an antenna control type. In another type of vehicle, never connect 6* and 7*. 1. Rear output 13. Black (ground) To vehicle (metal) body. 27. 24. Left 25. Right 26. Rear Speaker 26. Rear Speaker 18. Power amp (sold separately) 20. System remote control Perform these connections when using the optional amplifier. 5. Jack for the Wired Remote Control. 4. Fuse 16. Speaker leads White: Front left + White/black: Front left ≠ Gray: Front right + Gray/black: Front right ≠ Green: Rear left + Green/black: Rear left ≠ Violet: Rear right + Violet/black: Rear right ≠ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
