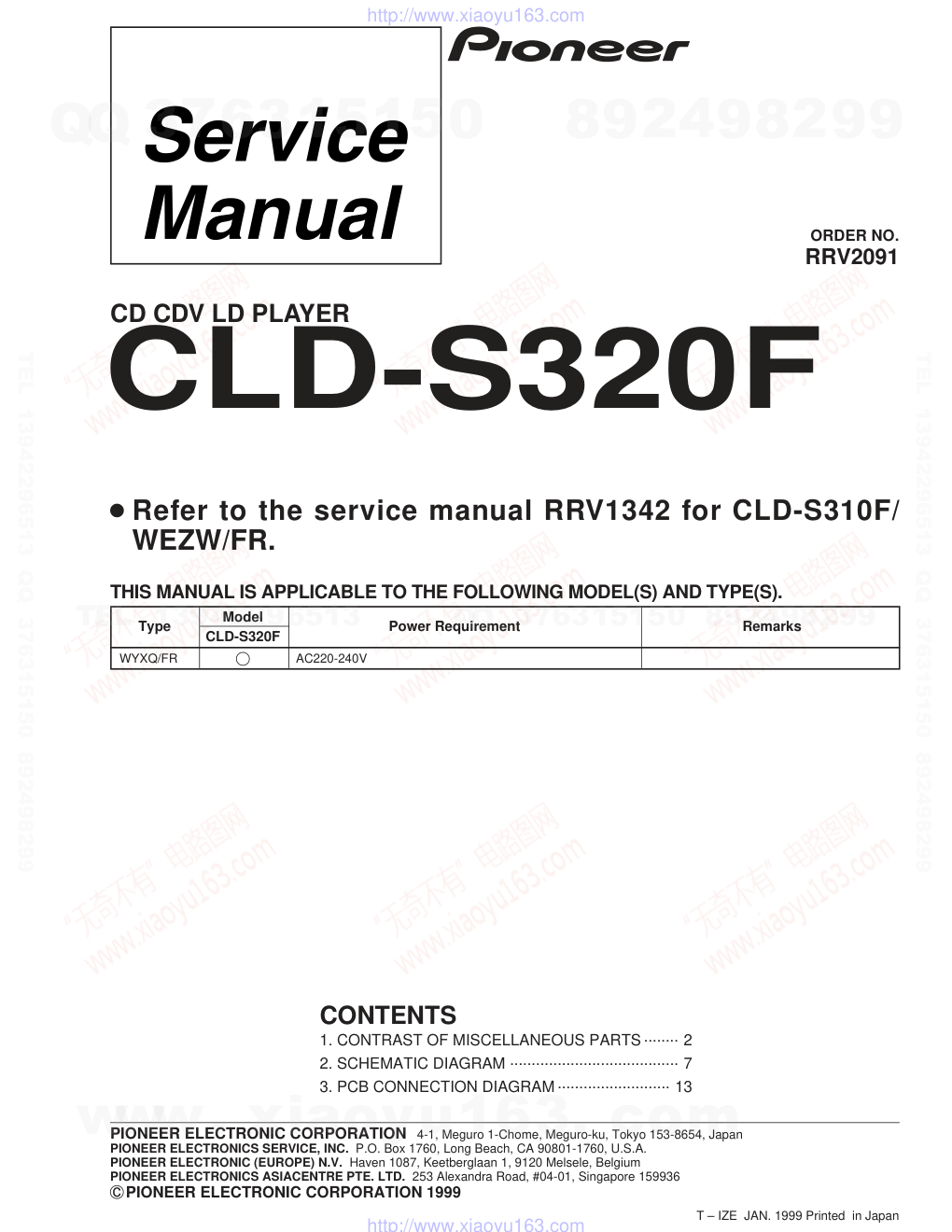

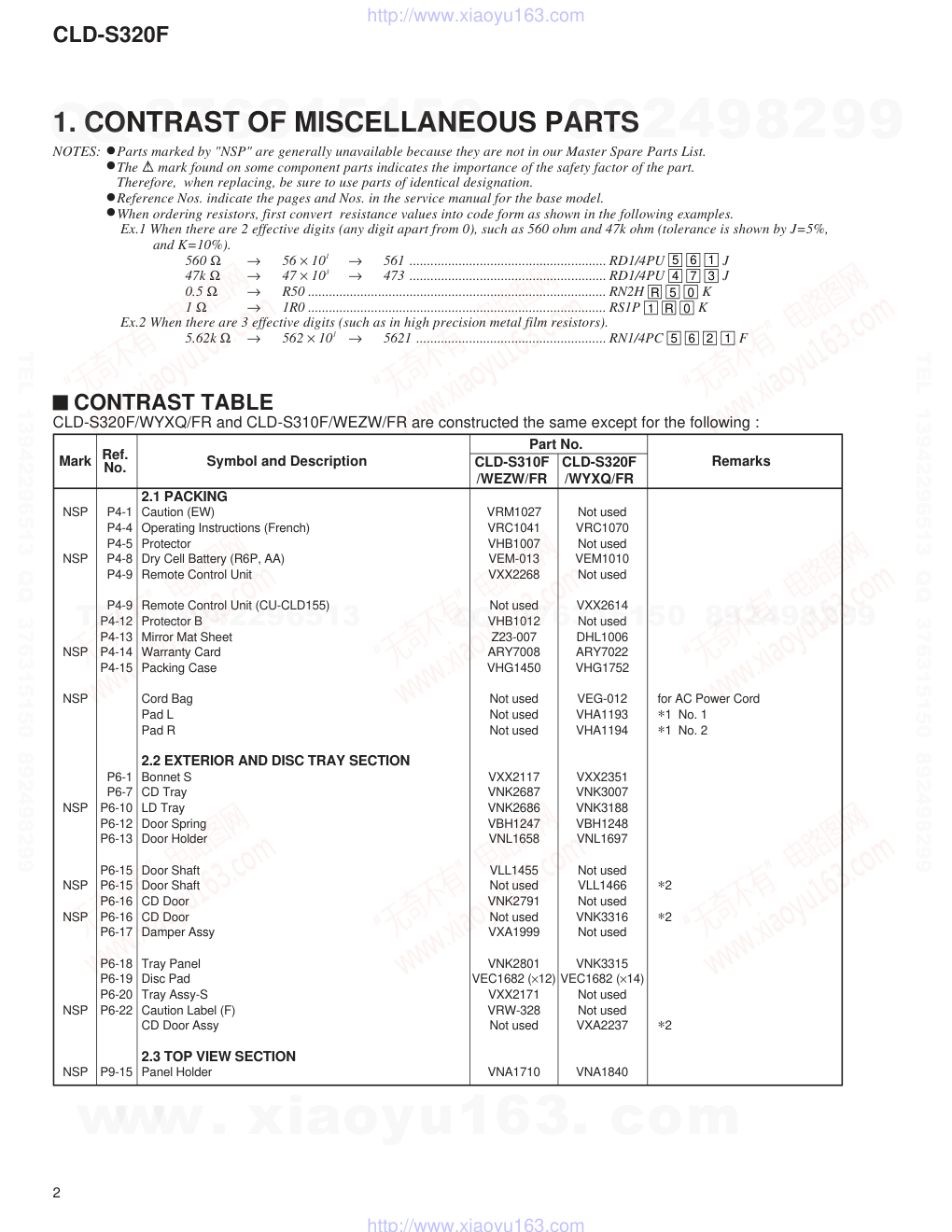

ORDER NO. PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER ELECTRONIC CORPORATION 1999 c CLD-S320F RRV2091 1. CONTRAST OF MISCELLANEOUS PARTS ........ 2 2. SCHEMATIC DIAGRAM ....................................... 7 3. PCB CONNECTION DIAGRAM .......................... 13 CONTENTS T – IZE JAN. 1999 Printed in Japan Type Model Power Requirement Remarks CLD-S320F WYXQ/FR AC220-240V THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). CD CDV LD PLAYER Refer to the service manual RRV1342 for CLD-S310F/ WEZW/FR. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 CLD-S320F Mark No. Description Part No. Mark No. Description Part No. 1. CONTRAST OF MISCELLANEOUS PARTS NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. •The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. •Reference Nos. indicate the pages and Nos. in the service manual for the base model. •When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω → 56 × 10 1 → 561 ........................................................ RD1/4PU 5 6 1 J 47k Ω → 47 × 10 3 → 473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω → R50 ..................................................................................... RN2H R 5 0 K 1 Ω → 1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω → 562 × 10 1 → 5621 ...................................................... RN1/4PC 5 6 2 1 F Mark Ref. Symbol and Description Part No. Remarks CLD-S310F CLD-S320F No. /WEZW/FR /WYXQ/FR 2.1 PACKING NSP P4-1 Caution (EW) VRM1027 Not used P4-4 Operating Instructions (French) VRC1041 VRC1070 P4-5 Protector VHB1007 Not used NSP P4-8 Dry Cell Battery (R6P, AA) VEM-013 VEM1010 P4-9 Remote Control Unit VXX2268 Not used P4-9 Remote Control Unit (CU-CLD155) Not used VXX2614 P4-12 Protector B VHB1012 Not used P4-13 Mirror Mat Sheet Z23-007 DHL1006 NSP P4-14 Warranty Card ARY7008 ARY7022 P4-15 Packing Case VHG1450 VHG1752 NSP Cord Bag Not used VEG-012 for AC Power Cord Pad L Not used VHA1193 ∗1 No. 1 Pad R Not used VHA1194 ∗1 No. 2 2.2 EXTERIOR AND DISC TRAY SECTION P6-1 Bonnet S VXX2117 VXX2351 P6-7 CD Tray VNK2687 VNK3007 NSP P6-10 LD Tray VNK2686 VNK3188 P6-12 Door Spring VBH1247 VBH1248 P6-13 Door Holder VNL1658 VNL1697 P6-15 Door Shaft VLL1455 Not used NSP P6-15 Door Shaft Not used VLL1466 ∗2 P6-16 CD Door VNK2791 Not used NSP P6-16 CD Door Not used VNK3316 ∗2 P6-17 Damper Assy VXA1999 Not used P6-18 Tray Panel VNK2801 VNK3315 P6-19 Disc Pad VEC1682 (×12) VEC1682 (×14) P6-20 Tray Assy-S VXX2171 Not used NSP P6-22 Caution Label (F) VRW-328 Not used CD Door Assy Not used VXA2237 ∗2 2.3 TOP VIEW SECTION NSP P9-15 Panel Holder VNA1710 VNA1840 CONTRAST TABLE CLD-S320F/WYXQ/FR and CLD-S310F/WEZW/FR are constructed the same except for the following : www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 CLD-S320F Mark No. Description Part No. Mark No. Description Part No. Mark Ref. Symbol and Description Part No. Remarks CLD-S310F CLD-S320F No. /WEZW/FR /WYXQ/FR 2.4 FRONT PANEL SECTION NSP P8-1 Front Panel VNK3195 Not used P8-1 Front Panel Not used VNK4305 ∗1 No. 1 P8-2 Pioneer Badge PAM1608 PAM1776 ∗1 No. 2 P8-3 FL Lens VEC1791 VEC2002 ∗1 No. 3 P8-4 Key A VNK2793 Not used P8-6 PW Button VNK2329 Not used P8-7 L Key VNK2812 Not used P8-8 Main Key VNK3181 Not used P8-10 FLKY Assy VWG1657 VWG1965 ∗1 No. 4 NSP P8-11 KEYB Assy VWG1627 Not used Key K Not used VNK2998 ∗1 No. 5 LD Key Not used VNK4087 ∗1 No. 6 CD Key Not used VNK4088 ∗1 No. 7 10 Key Not used VNK4201 ∗1 No. 8 Lens Holder Not used VNK4266 ∗1 No. 9 Play Key Not used VNK4306 ∗1 No. 10 Skip Key Not used VNK4307 ∗1 No. 11 Stop Key Not used VNK4308 ∗1 No. 12 NSP KALB Assy Not used VWG1964 ∗1 No. 13 2.5 BOTTOM VIEW SECTION P10-1 MOTHER Assy VWS1198 VWS1372 P10-3 SYPS Assy VWR1234 VWR1275 P10-4 AC Power Cord VDG1061 ADG1154 P10-5 Cord Stopper CM-22B Not used P10-7 Rear Panel R VNA1598 VNA1977 P10-12 Insulator PNW1912 (×4) PNW1912 (×2) ∗1 No. 1 (for Front) NSP P10-14 Base Chassis VNA1461 VNA1564 NSP P10-15 Rear Panel L VNA1580 Not used P10-15 Rear Panel L Not used VNA1976 NSP P10-20 SCRB Assy VWV1432 VWV1656 Insulator Assy Not used VXA2295 (×2) ∗1 No. 2 (for Rear) Power Joint Not used VNK4302 ∗1 No. 3 ∗1 : The numbers in the remarks column correspond to the numbers on the "EXPLODED VIEWS". ∗2 : CD Door Assy VXA2237 NSP Door Shaft VLL1466 NSP CD Door VNK3316 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 CLD-S320F Mark No. Description Part No. Mark No. Description Part No. EXPLODED VIEWS No. 1 No. 2 No. 5 No. 6 No. 2 No. 1 No. 3 No. 1 No. 1 Packing Note : The numbers on the exploded views correspond to the numbers on the "CONTRAST TABLE". Front Panel Section Bottom View Section No. 3 No. 9 No. 13 No. 12 No. 4 No. 7 Screw (BBZ30P080FMC) Screw (BBZ30P100FMC) Screw (BBZ30P080FMC) No. 6 No. 10 No. 8 No. 11 Screw (BBZ30P100FMC) Screw (BBZ30P080FMC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 CLD-S320F Mark No. Description Part No. Mark No. Description Part No. PCB PARTS LIST Mark Symbol and Description Part No. Remarks CLD-S310F CLD-S320F /WEZW/FR /WYXQ/FR NSP MACB ASSY VWM1507 VWM1507 NSP LMSB ASSY VWG1554 VWG1554 NSP PKSB ASSY VWG1555 VWG1555 NSP FG ASSY VWG1556 VWG1556 NSP FLKB ASSY VWM1592 Not used NSP KEYB ASSY VWG1627 Not used FLKY ASSY VWG1657 Not used NSP FLKB ASSY Not used VWM1844 NSP KALB ASSY Not used VWG1964 FLKY ASSY Not used VWG1965 MOTHER ASSY VWM1601 VWM1899 MOTHER ASSY VWS1198 VWS1372 NSP SCRB ASSY VWV1432 VWV1656 SYPS ASSY VWR1234 VWR1275 LIST OF WHOLE PCB ASSEMBLIES MOTHER ASSY VWS1372 and VWS1198 are constructed the same except for the following : Mark Symbol and Description Part No. Remarks VWS1198 VWS1372 IC400 PAC005B LA7133 IC801 PAC002A LA9425 IC901 PAC003A LA9420M Q103,Q161,Q207,Q901,Q910 UN2212 DTC124EK Q209,Q514,Q515 UN2112 DTA124EK Q152 2SC3802K 2SC3082K C444,C917 CEAS100M50 CEAT100M50 C424,C543,C565 CEAS101M10 CEAT101M10 C300 Not used CEAT102M6R3 Refer to page 12. C904 CEAS1R0M50 CEAT1R0M50 C274,C275,C465,C922,C967,C968,C987 CEAS220M25 CEAT220M25 C519,C532,C576,C974,C975 CEAS221M10 CEAT221M10 C845,C902,C926 CEAS2R2M50 CEAT2R2M50 C101,C207,C225,C226,C270,C271,C422,C450,C458 CEAS470M10 CEAT470M10 C508,C516,C527,C530,C542,C547,C549,C553,C555 CEAS470M10 CEAT470M10 C558,C562,C564,C569,C801,C803,C833,C842,C844 CEAS470M10 CEAT470M10 C893,C927,C933 CEAS470M10 CEAT470M10 C210,C216 CEAS471M10 CEAT471M10 C850,C870 CEAS4R7M50 CEAT4R7M50 R106 RS1/10S104J RS1/10S103J R220,R222 (4.7Ω, 1/6W) DCN1001 RFA1/6PU4R7J VR450 (2.2kΩ) RCP1019 VCP1123 VR603 (4.7kΩ) RCP1020 VCP1154 VR604,VR607,VR612 (47kΩ) RCP1047 VCP1160 SCRB ASSY VWV1656 is the same as that of VWV1432. G H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 CLD-S320F Mark No. Description Part No. Mark No. Description Part No. PKSB ASSY SWITCHES S104,S105 DSG1017 FG ASSY SEMICONDUCTOR D101 GP1S24 LMSB ASSY SWITCHES S101-S103 DSG1017 OTHERS CN101 10P FFC CONNECTOR 52044-1045 SYPS ASSY SEMICONDUCTORS IC201 HA17431P IC210 ICP-N15 IC211 ICP-N20 IC202 UPC358C Q207,Q208,Q214 2SA933S Q205,Q206,Q210 2SC1740S Q102,Q103 2SC3377 Q213 2SD2395 Q203,Q204 T7F4S Q201,Q202 T7F4T Q209 VZF1040 Q101 VZF1041 D104 1SS270A D209-D212,D216 AG01Z-VO D101 D2SB60F4004 D102 EG01C D103 MTZJ2.7B D218 MTZJ8.2B D200 PS2561L1-1VM D106 RD18FB2 D207 RD33FB2 D206 VZF1039 D202,D203 VZF1042 D204 VZF1043 RESISTORS R257 (68Ω, 1/4W) VCN1048 R258 (10Ω, 1/4W) VCN1051 R256 (0.22Ω, 1/4W) VCN1055 OTHERS F101 FUSE (T1.6A/H250V) REK1033 F205 FUSE (2A) VEK1033 F201,F202 FUSE VEK1034 F203,F204 FUSE (1.0A/125V) VEK1036 FLKY ASSY SEMICONDUCTORS IC101 PD3389A IC102 S-806D Q102 DTA144ES Q101 DTC114ES D101 1SS254 SWITCHES S113-S119 ASG1034 S101-S112,S120,S121 RSG1034 CAPACITORS C105,C109 CEAL100M16 C101,C103 CEAL470M6R3 C111-C113 CKPUYB101K50 C110 CKPUYB102K50 C108 CKPUYF223Z25 C102,C104,C106 CKPUYY103N16 RESISTORS All Resistors RD1/4PU J OTHERS CN102 6P CONNECTOR 06R-FJ CN101 FFC CONNECTOR 16P 52492-1620 X101 CERAMIC RESONATOR EFOEC8004A4 (8.00MHz) REMOTE RECEIVER UNIT GP1U28X V101 FL TUBE VAW1045 SPACER VEC1599 FL HOLDER VNF1085 KALB ASSY SEMICONDUCTOR D303 SLR-342VCT31 SWITCHES S301,S302 ASG1034 RESISTORS All Resistors RD1/4PU J OTHERS CN301 FJ CONNECTOR 6P 06P-FJ A B C D E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CLD-S320F 7 A B C D 1 2 3 4 1 2 3 4C Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". 2. SCHEMATIC DIAGRAM 2.1 OVERALL CONNECTIONS, PKSB, FG and LMSB ASSEMBLIES 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 M M MTR GND MGND TILT/LOAD DRV SW3 SW1 SW2 GND OUTER INNER LED PD PD LED GND OUTER S103 S101 S102 S105 D101 GP1S24 S104 INNER GND OUTER INNER GND PD LED GND LED + + A 1 10 TOP VIEW Q101 C102 1µ R101 10k 2SC4081 C101 TRKG DRV GND FOCUS DRV GND LASER DIODE MONITOR DETECTOR 0.047µ R102 1.5k VR 1.5k CN202 CN101 CN201 CN102 CN103 CN101 CN101 CN101 CN105 CN102 CN103 CN104 CARRIAGE ASSY VWT1141 : RF SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE MACB ASSY VWM1507 LMSB ASSY VWG1554 FG ASSY VWG1556 PKSB ASSY VWG1555 C B1 B2 B3 B4 SLIDER MOTOR ASSY VXX2472 LOADING MOTOR ASSY VXX2045 M SPINDLE MOTOR ASSY VXA2271 AC220V - 240V 50 / 60Hz AC POWER CORD ADG1154 PD PD MTR DRV TRK DRV TRK RTN FCS RTN FCS DRV OUTER INNER TILT LED LD GND LD MPD NC -5V +5V RF RF GND C A B4 B3 B2 B1 MTR GND MTR DRV TRK DRV TRK RTN FCS RTN FCS DRV OUTER INNER TILT LED LD GND LD MPD NC -5V +5V RF RF GND C A B4 B3 B2 B1 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 AC CN121 CN101 -29V AC AC EV+5V GND POWER ON XSCK S-FTOM S-MTOF XCS XRESET FSX EFLG SHAKE SEL IR IR -29V AC AC EV+5V GND POWER ON XSCK S-FTOM S-MTOF XCS XRESET FSX EFLG SHAKE SEL IR IR AC -27V GND EV5V P-ON GND -12V +12V GND GND SW+5V(C) SW+5V(B) SW+5V(A) SW-5V GND(M) GND(R) RET+ ACCEL BRAKE RET- SPDL M+ SPDL M- NEUTRAL LIVE MGND TILT/LOAD DRV SW3 SW1 SW2 GND OUTER INNER LED PD 1 2 3 4 5 6 7 8 9 10 C SYPS ASSY VWR1275 D G FLKB ASSY VWM1844 MOTHER ASSY VWS1372 1/2 G 2/2 G FLKY ASSY VWG1965 KALB ASSY VWG1964 E F B A 1 2 3 3 2 1 2 1 2 1 1 2 3 3 2 1 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 23 22 21 20 19 18 10 9 8 7 6 5 4 3 2 1 1 2 3 4 5 6 7 8 9 10 12 14 16 11 13 15 1 2 3 4 5 6 7 8 9 10 12 14 16 11 13 15 ! ! 3 4 5 6 2 1 3 4 5 6 2 1 CN102 CN301 EV+5V SINGLE PBC STDBY KIN2 GND SCRB ASSY VWV1656 H 3 4 5 6 2 1 3 4 5 6 2 1 CN206 CN601 VIDEO +10V STUS GND AUDIO R GND AUDIO L B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CLD-S320F 8 A B C D 1 2 3 4 1 2 3 4 2.2 SYPS ASSY D SYPS ASSY (VWR1275) NOTE OF SPARE PARTS IN POWER SUPPLY (SYPS) ASSY • In case of repairing, use the described parts only to prevent an accident. • Please write the red mark on the board when the primary section of POWER SUPPLY (SYPS) Assy is repaired. • Please take care to keep the space, not touching other parts when replacing the parts. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. ICP-N15 MFD. BY ROHM CO., LTD. FOR IC210. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. ICP-N20 MFD. BY ROHM CO., LTD. FOR IC211. SPINDLE MOTOR ASSY VXA2271 CN102 1/2 G F201 VEK1034 F202 VEK1034 F205 VEK1033 Q209 VZF1040 IC210 ICP-N15 F204 VEK1036 F203 VEK1036 D210 AG01Z-VO D212 AG01Z-VO D211 AG01Z-VO D209 AG01Z-VO 1/2 2/2 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CLD-S320F 9 A B C D 5 6 7 8 5 6 7 8 • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - AC POWER CORD ADG1154 F101 REK1033 D101 D2SBA60F4004 Q101 VZF1041 D216 AG01Z-VO D206 VZF1039 D204 VZF1043 D203 VZF1042 D202 VZF1042 D207 RD33FB2 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CLD-S320F 10 A B C D 1 2 3 4 1 2 3 4 2.3 FLKY and KALB ASSEMBLIES E FLKY ASSY (VWG1965) CN121 1/2 G REMOTE RECEIVER UNIT E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CLD-S320F 11 A B C D 5 6 7 8 5 6 7 8 F KALB ASSY (VWG1964) Q101 DTC114ES Q102 DTA144ES D303 SLR-342VCT31 D101 1SS254 F E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CLD-S320F 12 A B C D 1 2 3 4 1 2 3 4 2.4 MOTHER ASSY 1/2 G 1/2 MOTHER ASSY (VWS1372) (1/2) FTS and AUDIO SECTION G 1/2 G 2/2 G XCS 6 7 17 5 4 1 3 2 M GND C300 1000/6.3 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 CN102 R GND 18 19 J I 8 SI XSCK ACCELL (DRV B) BRAKE (DRV A) RET– ACCELL BRAKE RET+ GND (R) GND (M) SW–5V SW+5V SW+5V SW+5V GND GND +12V –12V GND POWER ON EVER +5V GND –29V AC AC RF CN202 D 2/2 G Schematic diagram of MOTHER Assy (VWS1372) shows only the part which is added to against the, MOTHER Assy (VWS1198). The mark of the schematic diagram was changed as follows. Base manual This manual SCH-2 SCH-3 H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CLD-S320F 13 A B C D 1 2 3 4 1 2 3 4C B A NOTE FOR PCB DIAGRAMS : 3. PCB CONNECTION DIAGRAM 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE A SIDE B 3.1 PKSB, FG and LMSB ASSEMBLIES (VNP1479-E) LOADING MOTOR ASSY CN101 G LMSB ASSY C PKSB ASSY A FG ASSY B M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CLD-S320F 14 A B C D 1 2 3 4 1 2 3 4 SIDE A SIDE B 3.2 FLKY and KALB ASSEMBLIES IC101 Q102 Q101 IC103 Q105 IC102 KALB ASSY F KALB ASSY F F E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CLD-S320F 15 A B C D 5 6 7 8 5 6 7 8 (VNP1680-A) Q104 Q103 CN121 G FLKY ASSY E FLKY ASSY E E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CLD-S320F 16 A B C D 1 2 3 4 1 2 3 4 SIDE A 3.3 MOTHER and SCRB ASSEMBLIES VR608 VR607 VR603 VR604 IC400 Q513 Q512 Q162 Q834 IC801 IC206 IC207 IC902 Q205 Q204 VR450 MOTHER ASSY G SCRB ASSY H CARRIAGE ASSY CN101 H G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CLD-S320F 17 A B C D 5 6 7 8 5 6 7 8 SIDE A VR612 VC503 VC501 IC101 IC803 VC502 (VNP1679-A) CN101 E CN101 C CN202 D G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CLD-S320F 18 A B C D 1 2 3 4 1 2 3 4 SIDE B IC500 Q510 Q511 Q505-Q507 IC401 Q405 IC502 Q504 Q503 IC802 Q514 Q415 Q402 Q4 Q102 Q103 Q915 IC905 Q908 Q917 IC901 Q90 IC906 Q840 Q916 IC903 Q910 Q907 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CLD-S320F 19 A B C D 5 6 7 8 5 6 7 8 SIDE B IC401 Q405 Q414 Q408-Q412 415 Q402 Q404 Q406 Q230 Q407 Q413 IC201 Q201 IC205 Q901 Q903 Q925 Q918 IC804 Q206-Q212 Q805 Q803 Q152 03 Q910 Q907 Q904 Q161 Q913 Q231 Q202 IC202 (VNP1679-A) MOTHER ASSY G SCRB ASSY H H G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CLD-S320F 20 A B C D 1 2 3 4 1 2 3 4 Q101 Q103 IC201 IC210 Q201 Q204 Q213 Q209 Q214 Q210 IC211 IC202 Q205 Q208 SIDE A CN102 G AC POWER CORD SPINDLE MOTOR ASSY SYPS ASSY D 3.4 SYPS ASSY D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
