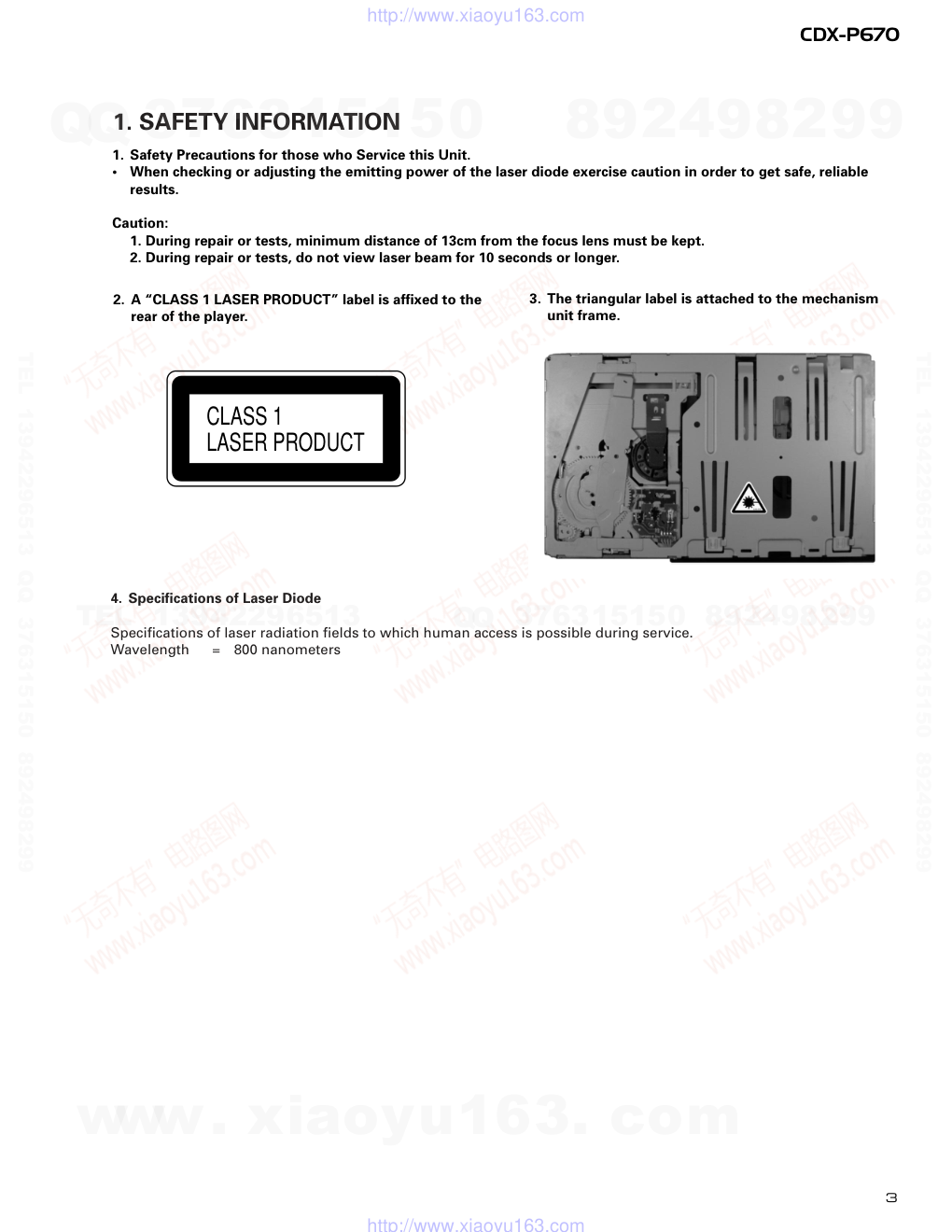

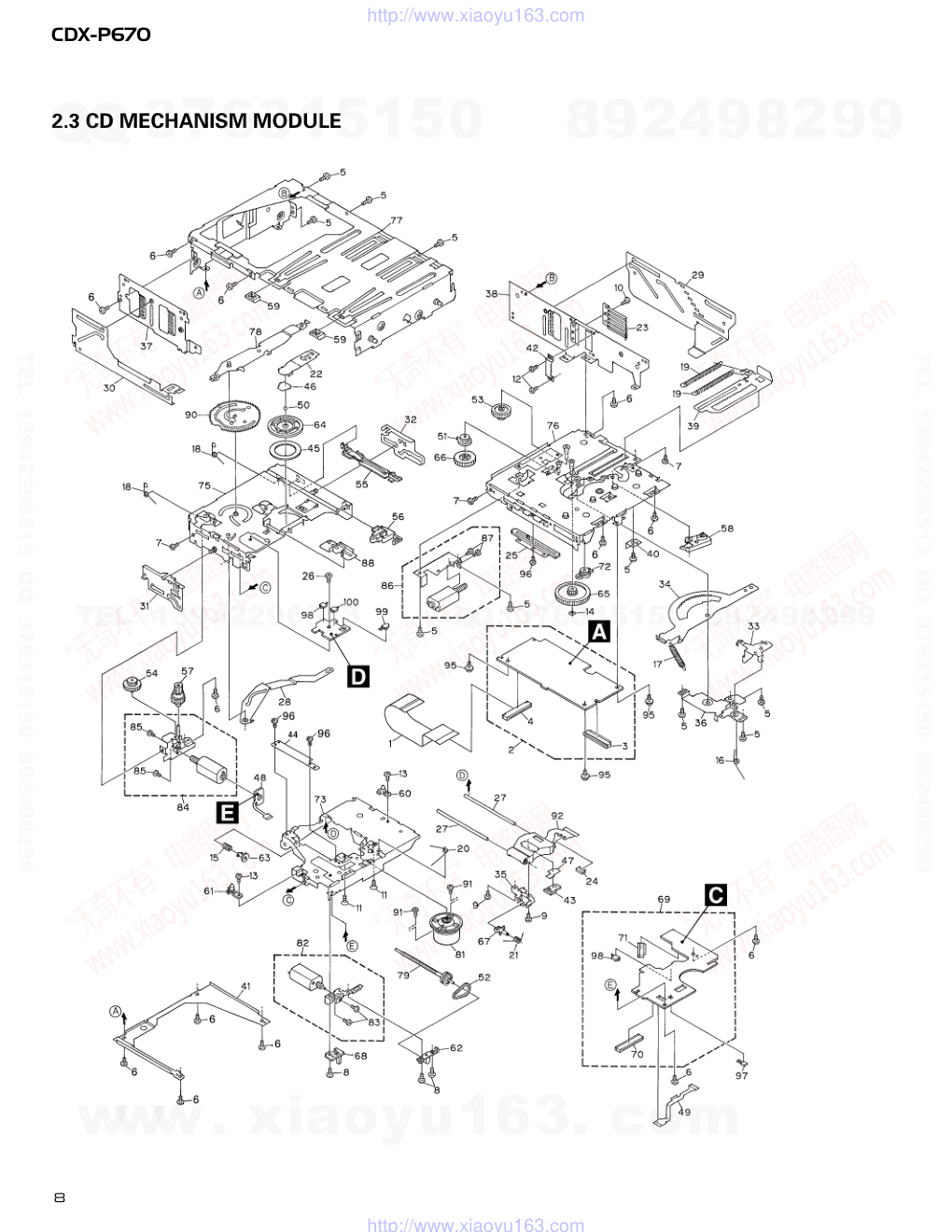

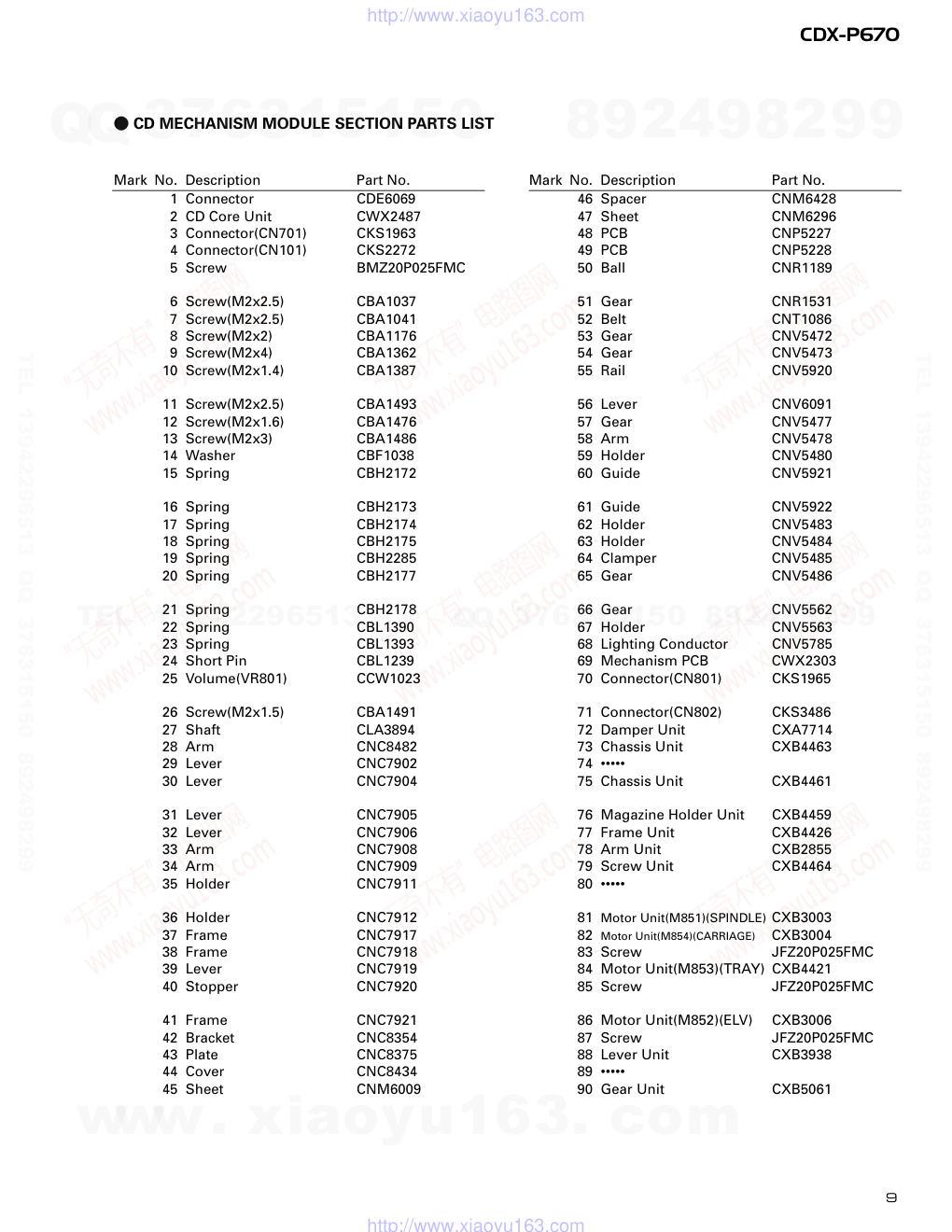

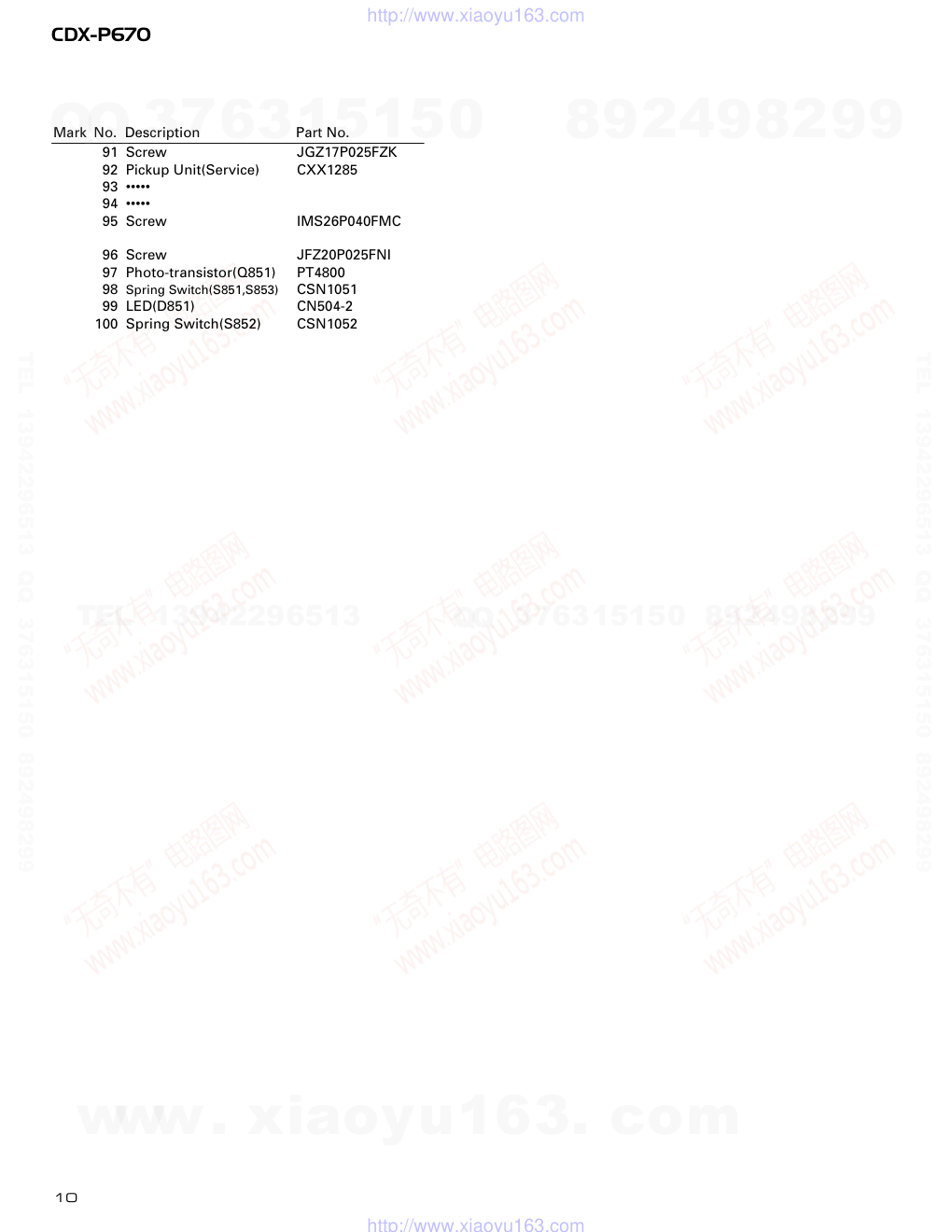

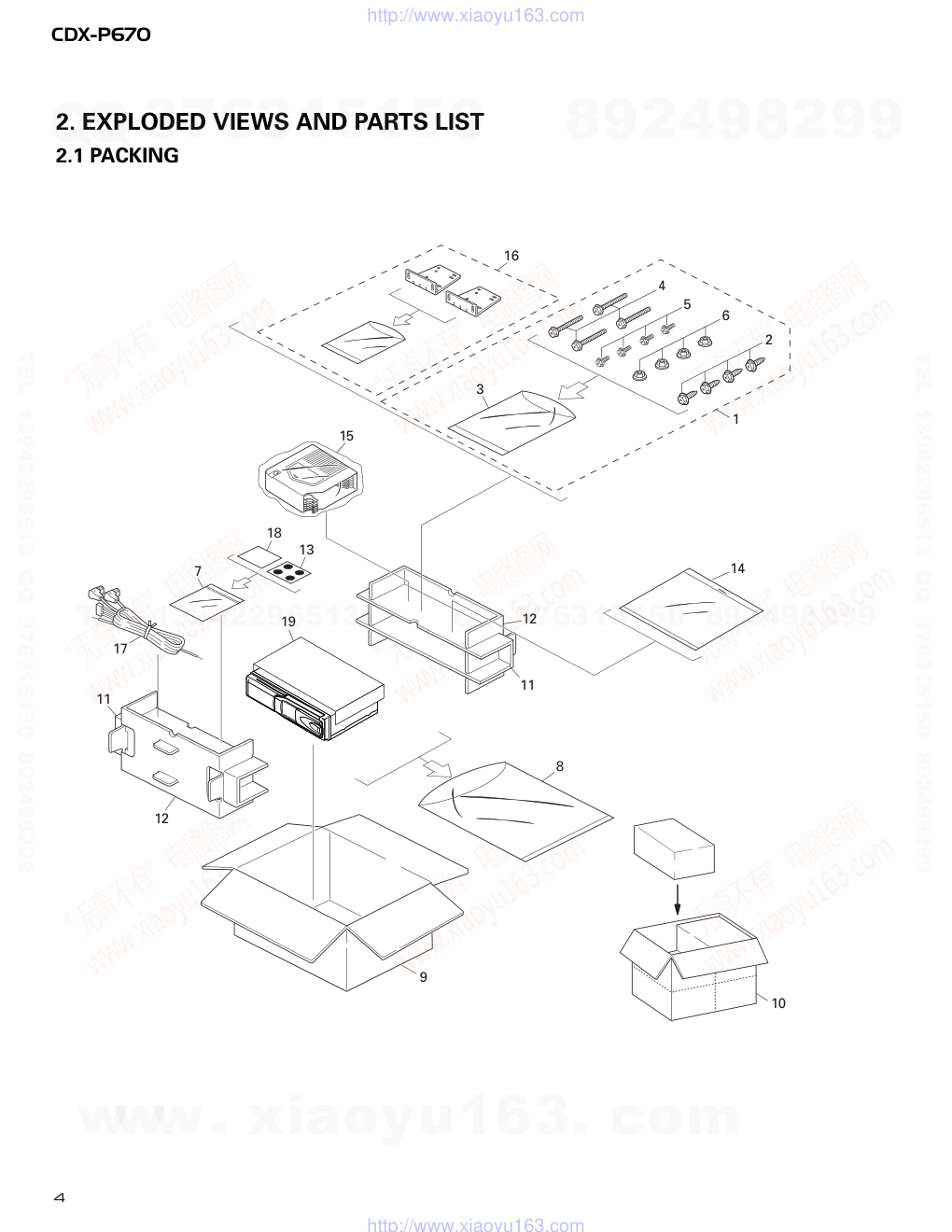

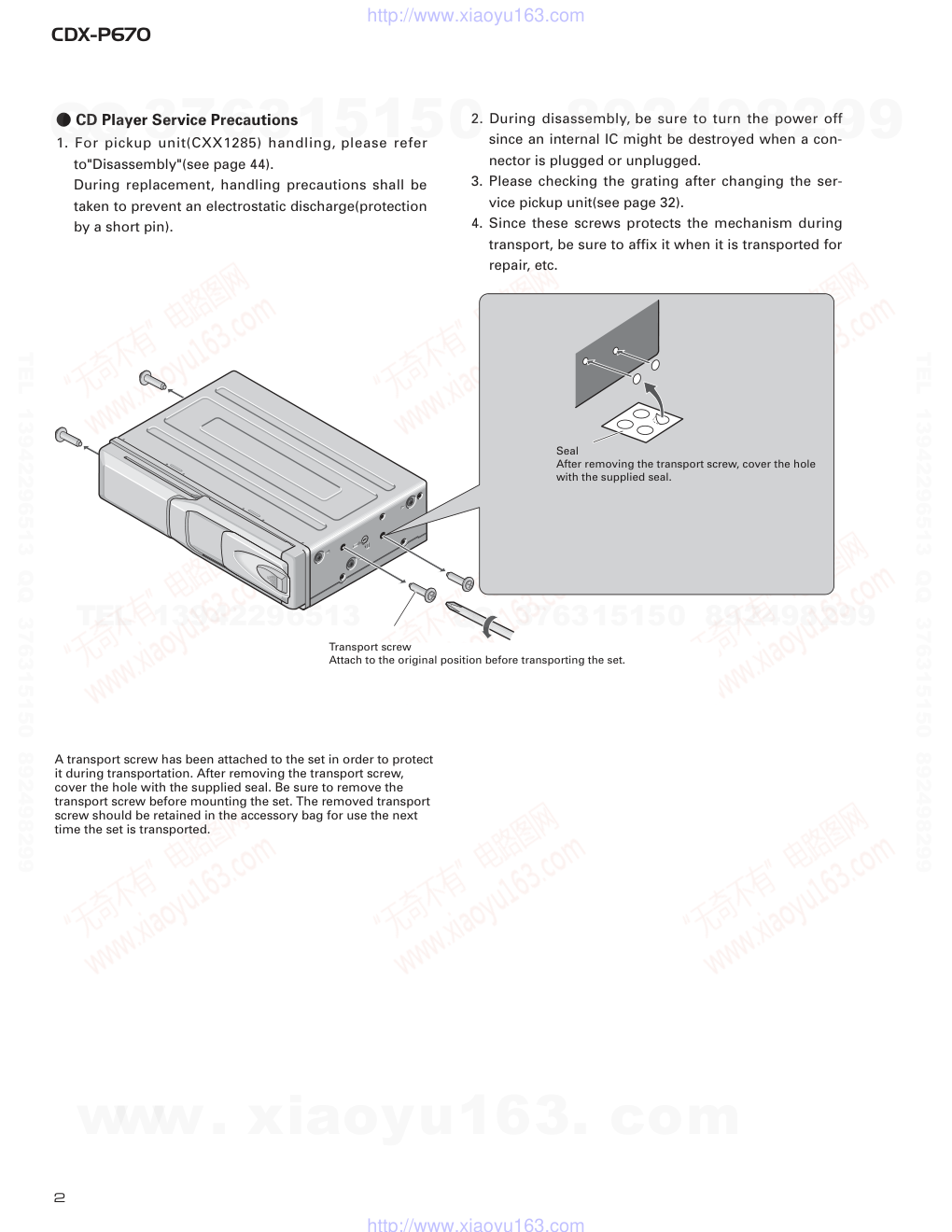

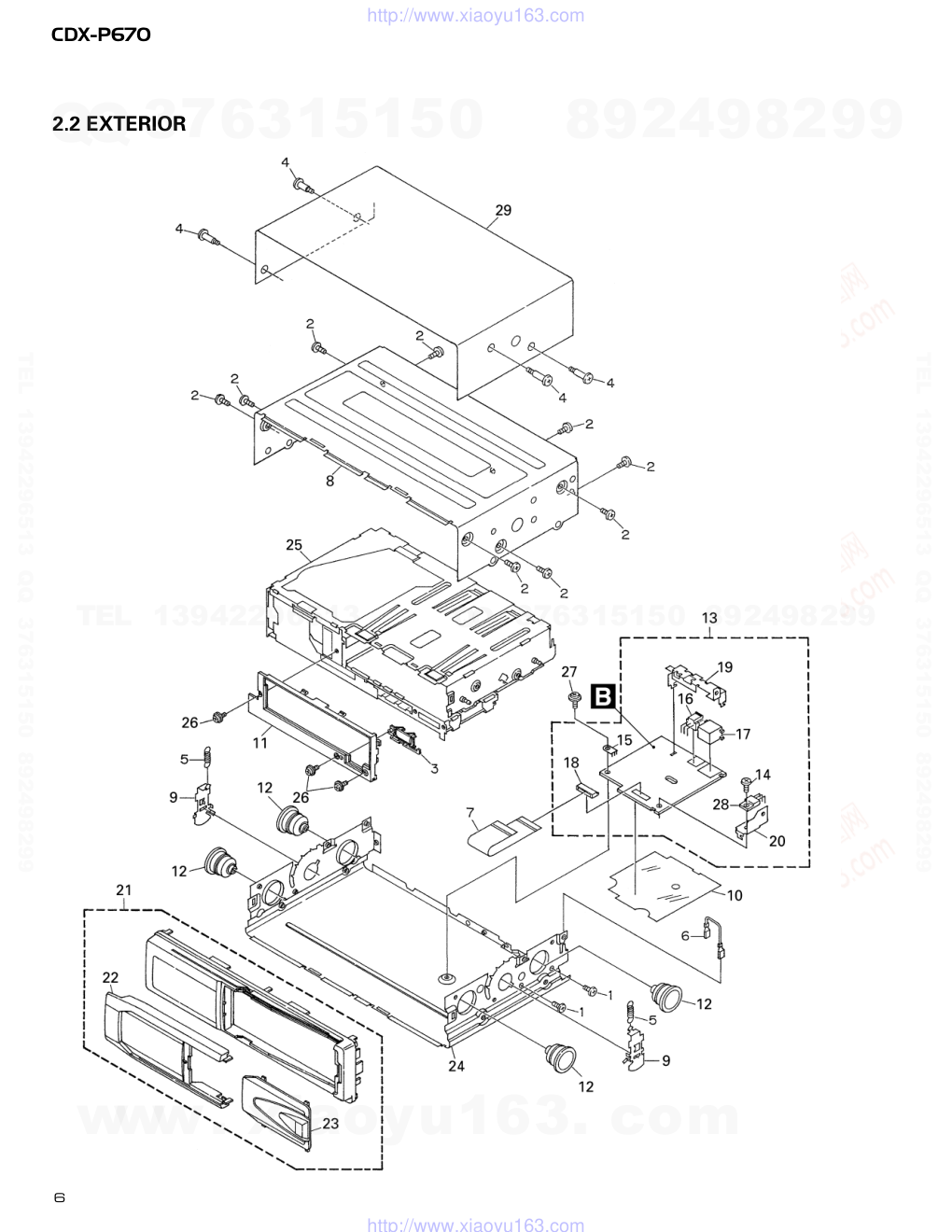

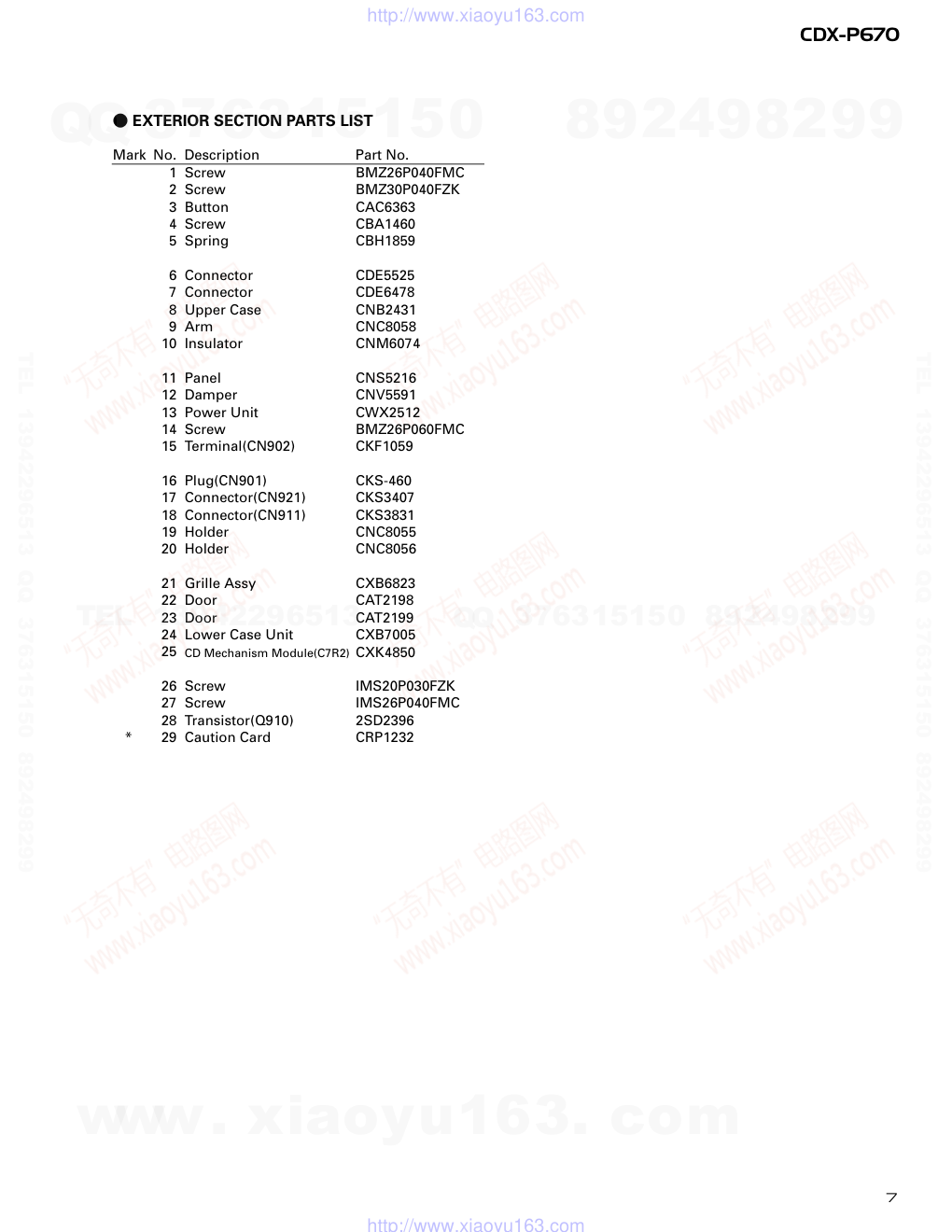

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936 C PIONEER CORPORATION 2000 K-ZZY. NOV. 2000 Printed in Japan ORDER NO. CRT2589 MULTI-COMPACT DISC PLAYER CDX-P670 X1N/EW Service Manual - This service manual should be used together with the following manual(s): Model No. Order No. Mech. Module Remarks CX-892 CRT2356 C7 CD Mech. Module:Circuit Description, Mech. Description, Disassembly CONTENTS 1. SAFETY INFORMATION ............................................3 2. EXPLODED VIEWS AND PARTS LIST.......................4 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...12 4. PCB CONNECTION DIAGRAM ................................22 5. ELECTRICAL PARTS LIST ........................................28 6. ADJUSTMENT..........................................................31 7. GENERAL INFORMATION .......................................38 7.1 DIAGNOSIS ........................................................38 7.1.1 TEST MODE..............................................38 7.1.2 DISASSEMBLY .........................................44 7.1.3 CONNECTOR FUNCTION DESCRIPTION46 7.2 IC .........................................................................47 7.3 OPERATIONAL FLOW CHART...........................49 8. OPERATIONS AND SPECIFICATIONS.....................50 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 CDX-P670 A transport screw has been attached to the set in order to protect it during transportation. After removing the transport screw, cover the hole with the supplied seal. Be sure to remove the transport screw before mounting the set. The removed transport screw should be retained in the accessory bag for use the next time the set is transported. Transport screw Attach to the original position before transporting the set. Seal After removing the transport screw, cover the hole with the supplied seal. - CD Player Service Precautions 1. For pickup unit(CXX1285) handling, please refer to"Disassembly"(see page 44). During replacement, handling precautions shall be taken to prevent an electrostatic discharge(protection by a short pin). 2. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a con- nector is plugged or unplugged. 3. Please checking the grating after changing the ser- vice pickup unit(see page 32). 4. Since these screws protects the mechanism during transport, be sure to affix it when it is transported for repair, etc. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 CDX-P670 1. Safety Precautions for those who Service this Unit. • When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results. Caution: 1. During repair or tests, minimum distance of 13cm from the focus lens must be kept. 2. During repair or tests, do not view laser beam for 10 seconds or longer. 2. A “CLASS 1 LASER PRODUCT” label is affixed to the rear of the player. 3. The triangular label is attached to the mechanism unit frame. CLASS 1 LASER PRODUCT 4. Specifications of Laser Diode Specifications of laser radiation fields to which human access is possible during service. Wavelength = 800 nanometers 1. SAFETY INFORMATION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 CDX-P670 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 9 8 11 12 11 15 12 19 17 10 7 13 5 4 3 1 6 2 14 18 16 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 CDX-P670 NOTE: - Parts marked by “*”are generally unavailable because they are not in our Master Spare Parts List. - Screws adjacent to ∇ mark on the product are used for disassembly. 1 Screw Assy CEA1962 2 Screw CBA1295 * 3 Polyethylene Sheet CNM5158 4 Screw HMB60P500FMC 5 Screw HMF40P080FZK 6 Nut NF60FMC 8 Polyethylene Bag CEG1042 * 7 Polyethylene Bag CEG1099 9 Carton CHG4278 10 Contain Box CHL4278 11 Protector CHP2133 12 Protector CHP2134 13 Seal CNM5599 14-1 Owner’s Manual CRD3318 14-2 Owner’s Manual CRD3319 * 14-3 Warranty Card CRY1157 15 Magazine Assy CXB6518 16 Angle Assy CXB3591 17 Cord CDE5830 * 18 Caution Card CRP1090 * 19 Caution Card CRP1232 - PACKING SECTION PARTS LIST Mark No. Description Part No. - Owner’s Manual Part No. Language CRD3318 English, Italian, French CRD3319 German, Dutch, Spanish www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 CDX-P670 2.2 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 CDX-P670 1 Screw BMZ26P040FMC 2 Screw BMZ30P040FZK 3 Button CAC6363 4 Screw CBA1460 5 Spring CBH1859 6 Connector CDE5525 7 Connector CDE6478 8 Upper Case CNB2431 9 Arm CNC8058 10 Insulator CNM6074 11 Panel CNS5216 12 Damper CNV5591 13 Power Unit CWX2512 14 Screw BMZ26P060FMC 15 Terminal(CN902) CKF1059 16 Plug(CN901) CKS-460 17 Connector(CN921) CKS3407 18 Connector(CN911) CKS3831 19 Holder CNC8055 20 Holder CNC8056 21 Grille Assy CXB6823 22 Door CAT2198 23 Door CAT2199 24 Lower Case Unit CXB7005 25 CD Mechanism Module(C7R2) CXK4850 26 Screw IMS20P030FZK 27 Screw IMS26P040FMC 28 Transistor(Q910) 2SD2396 * 29 Caution Card CRP1232 - EXTERIOR SECTION PARTS LIST Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 CDX-P670 2.3 CD MECHANISM MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 CDX-P670 1 Connector CDE6069 2 CD Core Unit CWX2487 3 Connector(CN701) CKS1963 4 Connector(CN101) CKS2272 5 Screw BMZ20P025FMC 6 Screw(M2x2.5) CBA1037 7 Screw(M2x2.5) CBA1041 8 Screw(M2x2) CBA1176 9 Screw(M2x4) CBA1362 10 Screw(M2x1.4) CBA1387 11 Screw(M2x2.5) CBA1493 12 Screw(M2x1.6) CBA1476 13 Screw(M2x3) CBA1486 14 Washer CBF1038 15 Spring CBH2172 16 Spring CBH2173 17 Spring CBH2174 18 Spring CBH2175 19 Spring CBH2285 20 Spring CBH2177 21 Spring CBH2178 22 Spring CBL1390 23 Spring CBL1393 24 Short Pin CBL1239 25 Volume(VR801) CCW1023 26 Screw(M2x1.5) CBA1491 27 Shaft CLA3894 28 Arm CNC8482 29 Lever CNC7902 30 Lever CNC7904 31 Lever CNC7905 32 Lever CNC7906 33 Arm CNC7908 34 Arm CNC7909 35 Holder CNC7911 36 Holder CNC7912 37 Frame CNC7917 38 Frame CNC7918 39 Lever CNC7919 40 Stopper CNC7920 41 Frame CNC7921 42 Bracket CNC8354 43 Plate CNC8375 44 Cover CNC8434 45 Sheet CNM6009 46 Spacer CNM6428 47 Sheet CNM6296 48 PCB CNP5227 49 PCB CNP5228 50 Ball CNR1189 51 Gear CNR1531 52 Belt CNT1086 53 Gear CNV5472 54 Gear CNV5473 55 Rail CNV5920 56 Lever CNV6091 57 Gear CNV5477 58 Arm CNV5478 59 Holder CNV5480 60 Guide CNV5921 61 Guide CNV5922 62 Holder CNV5483 63 Holder CNV5484 64 Clamper CNV5485 65 Gear CNV5486 66 Gear CNV5562 67 Holder CNV5563 68 Lighting Conductor CNV5785 69 Mechanism PCB CWX2303 70 Connector(CN801) CKS1965 71 Connector(CN802) CKS3486 72 Damper Unit CXA7714 73 Chassis Unit CXB4463 74 ••••• 75 Chassis Unit CXB4461 76 Magazine Holder Unit CXB4459 77 Frame Unit CXB4426 78 Arm Unit CXB2855 79 Screw Unit CXB4464 80 ••••• 81 Motor Unit(M851)(SPINDLE) CXB3003 82 Motor Unit(M854)(CARRIAGE) CXB3004 83 Screw JFZ20P025FMC 84 Motor Unit(M853)(TRAY) CXB4421 85 Screw JFZ20P025FMC 86 Motor Unit(M852)(ELV) CXB3006 87 Screw JFZ20P025FMC 88 Lever Unit CXB3938 89 ••••• 90 Gear Unit CXB5061 Mark No. Description Part No. Mark No. Description Part No. - CD MECHANISM MODULE SECTION PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 CDX-P670 91 Screw JGZ17P025FZK 92 Pickup Unit(Service) CXX1285 93 ••••• 94 ••••• 95 Screw IMS26P040FMC 96 Screw JFZ20P025FNI 97 Photo-transistor(Q851) PT4800 98 Spring Switch(S851,S853) CSN1051 99 LED(D851) CN504-2 100 Spring Switch(S852) CSN1052 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 CDX-P670 2.4 MAGAZINE ASSY 1 Magazine Assy CXB6518 2 Label CRW1415 3 Tray CNV5341 - MAGAZINE ASSY SECTION PARTS LIST Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PICKUP UNIT (SERVICE) (P8) MECHANISM PCB HOLOGRAM UNIT FOCUS ACT. TRACKING ACT. FO+ 14 9 98 39 AC/F/E/BD FD/TD/SD/MD I13/I04/I02 97 11 16 15 17 18 3 5 10 12 DISC TRP DSP DISC TRP DSP 92 95 91 LD(–) LASER DIODE CARRIAGE MOTOR MONITOR DIODE MD TO+ +5V M SPINDLE MOTOR M TRY MOTOR HOME SW TRPSW DSPSW VR802 EJECT SW MAG SW M ELV MOTOR M 17 12 27 16 15 11 8 9 2 1 4 3 7 5 10 Q101 Q701 VD PD LIMIT xtal XTAL L_OUT LD VREF adena cs 23 16 24 IPIN IPOUT IPPW POWER XIN XOUT 13 15 98 asens bsens reset CDMUTE ELVREF CONT ELVPVO ejsw mag disk TRP DSP 11 94 93 74 75 3 X202 16.93MHz X701 10.00MHz IC 301 BA5986FM IC 302 LB1836M VDD IC 701 PD5638A A CD CORE UNIT Q851 D851 D SWITCH PCB E MOTOR PCB C S853 S801 S803 V EVREF GND EPVO L 4 3 7 5 11 8 9 2 1 10 17 12 27 16 15 5 15 4 3 4CH SERVO DRIVER MOTOR DRIVER SYSTEM CONTROLLER CN101 CN801 CN802 S852 S851 RF AMP, SERVO, DSP, DAC IC 201 UPD63711GC 12 CDX-P670 1 2 3 4 1 2 3 4 D C B A 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 12 13 VD 5V cs IPIN IPOUT IPPW POWER 48 4 2 1 2 1 30 22 10 BUSP 15 CDMUTE LOUT BUSM asens bsens reset 9 BATT +B BSENIN ASENB 5 18 10 11 14 19 9 SVC 2 5 6 12 7 4 3 1 RESET SW 5V REGULATOR 29 CDMUTE 76 8 5 6 20 ELVPVO IC 202 BA05FP Q771 Q770 VDD IC 705 TC7SH32F IC 702 LC35256FT-70U SRAM IC 703 HA12187FP IP-BUS DRIVER IC 704 PAJ002A CN701 16 B POWER UNIT 10 7 1 Q942 Q911 BUP Q941 BUP BUP BUP Q910 LOUT 3 CDMUTE 6 BP BUSP LCH 5 BUSM 8 ASENB 5 BM 7 ASNB 4 SVC 1 VD POWER VD VD VD POWER 9 +B 13 BSENIN CN911 IP-BUS OUT CN921 L901 BUP GND BATT. GND 3 2 1 CN901 FUSE 2A 10 8 2 17 16 Q912 S802 VR801 EPVO LINEAR POSITION SENSOR ER 1 2 3 CN902 13 CDX-P670 5 6 7 8 5 6 7 8 D C B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 CDX-P670 1 2 3 4 1 2 3 4 D C B A 1kΩ(B) 10kΩ(B) 1 12 6 13 10 4 8 VR801 CCW1023 LINEAR POSITION SENSOR M852 CXB3006 RF AMP, SE MOTO 4CH SER CN801 CN802 M853 CXB4421 M851 CXB3003 M854 CXB3004 CSN1052 CSN1051 CSN1051 CN504-2 PT4800 PICKUP UNIT(SERVICE) CXX1285 C MECHANISM PCB SWITCH PCB D MOTOR PCB E 3.2 CD MECHANISM MODULE Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS LIST”. A1/2 C D E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 CDX-P670 5 6 7 8 5 6 7 8 D C B A 18 7 2 5 19 20 15 17 16 21 3 9 11 10 MP, SERVO, DSP, DAC MOTOR DRIVER H SERVO DRIVER CD CORE UNIT A A 2/2 Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. A1/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 CDX-P670 1 2 3 4 1 2 3 4 D C B A SYSTEM CONTROLLER A 1/2 A2/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 CDX-P670 5 6 7 8 5 6 7 8 D C B A SRAM IP-BUS DRIVER B CN911 A2/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 CDX-P670 1 RFI 0.5V/div. 0.5µs/div. Normal mode: play 1 CH1: RFI 1V/div. 2 CH2: MIRR 5V/div. Test mode: Tracking open 0.5ms/div. 1 CH1: RFI 1V/div. 2 CH2: MIRR 5V/div. Normal mode: The defect part passes 800µm 0.5ms/div. 3 CH1: FD 0.5V/div. 4 CH2: FOR 2V/div. Test mode: No disc, Focus close 0.2s/div. 3 CH1: FD 0.5V/div. 5 CH2: FOK 2V/div. Normal mode: Focus close 0.2s/div. 6 CH1: FE 0.5V/div. 7 CH2: XSI 2V/div. Normal mode: Focus close 1ms/div. REFO → 8 CH1: TE 0.5V/div. 9 CH2: TD 0.5V/div. Test mode: 32 tracks jump (REV) 0.5ms/div. 8 CH1: TE 0.5V/div. 9 CH2: TD 0.5V/div. Test mode: Single jump (REV) 0.5ms/div. 8 CH1: TE 0.5V/div. 9 CH2: TD 0.5V/div. Test mode: 100 tracks jump (REV) 5ms/div. 6 CH1: FE 0.1V/div. 3 CH2: FD 0.2V/div. Normal mode: Play 20ms/div. 3 CH1: FD 0.5V/div. 0 CH2: MD 1V/div. Normal mode: Focus close (12cm) 0.5s/div. 3 CH1: FD 0.5V/div. 0 CH2: MD 1V/div. Normal mode: Focus close (8cm) 0.5s/div. REFO → REFO → REFO → REFO → REFO → REFO → GND → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → - Waveforms Note:1. The encircled numbers denote measuring pointes in the circuit diagram. 2. Reference voltage REFO:2.5V REFO → REFO → REFO → REFO → www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 CDX-P670 8 CH1: TE 0.2V/div. 9 CH2: TD 0.2V/div. Normal mode: play 8 CH1: TE 0.5V/div. ! CH2: SD 0.5V/div. TEST mode:100Tracks jump(FWD) 5ms/div. 0 MD 0.5V/div. 0.1s/div. Normal mode: Play (12cm) 0 MD 1V/div. 10ms/div. Long Search (12cm) @ EFM 1V/div. 5µs/div. Normal mode: Play 8 CH1: TE 1V/div. # CH2: TEC 1V/div. Test mode: Focus close Tracking open 2ms/div. 8 CH1: TE 0.5V/div. 6 CH2: FE 0.5V/div. Normal mode: AGC after focus close 0.2s/div. 20ms/div. % SCKO 2V/div. 1µs/div. Normal mode: Play ^ DOUT 2V/div. 10µs/div. Normal mode: Play & LRCK 2V/div. 20µs/div. Normal mode: Play * VD 5V/div. 50ms/div. Normal mode: No disc GND → REFO → REFO → GND → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → GND → REFO → GND → REFO → GND → REFO → www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 CDX-P670 ( CH1: R OUT 2V/div. ) CH2: L OUT 2V/div. Normal mode: Play (1kHz 0dB) 6 CH1: FE 0.2V/div. 3 CH2: FD 0.5V/div. Normal mode: During AGC 1ms/div. 8 CH1: TE 0.2V/div. 9 CH2: TD 0.5V/div. Normal mode: During AGC 1 CH1: RFI 1V/div. ⁄ CH2: HOLD 5V/div. Normal mode: The defect part passes 800µm(B.D) 500µs/div. 1ms/div. 0.5ms/div. 3 CH1: FD 1V/div. ⁄ CH2: HOLD 5V/div. Normal mode: The defect part passes 800µm(B.D) 0.5ms/div. 9 CH1: TD 0.1V/div. ⁄ CH2: HOLD 5V/div. Normal mode: The defect part passes 800µm(B.D) 0.5ms/div. REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8V REG. MUTE CN701 B POWER UNIT A 2/2 3.3 POWER UNIT CEK1033 21 CDX-P670 1 2 3 4 1 2 3 4 D C B A B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 CDX-P670 1 2 3 4 1 2 3 4 D C B A Capacitor Connector P.C.Board Chip Part SIDE A SIDE B 2. Viewpoint of PCB diagrams SIDE A CD CORE UNIT A 4. PCB CONNECTION DIAGRAM 4.1 CD CORE UNIT NOTE FOR PCB DIAGRAMS 1. The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. E E IC, Q ADJ M M852 ELV B CN911 C CN801 E F REFO EREF EPVO 1 25 26 50 51 75 76 100 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 CDX-P670 1 2 3 4 1 2 3 4 D C B A E E E IC, Q RESET EJECT MAG SIDE B CD CORE UNIT A A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 CDX-P670 1 2 3 4 1 2 3 4 D C B A B SIDE A 4.2 POWER UNIT A CN701 IP-BUS POWER UNIT B CORD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 CDX-P670 1 2 3 4 1 2 3 4 D C B A B SIDE B POWER UNIT B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 CDX-P670 1 2 3 4 1 2 3 4 D C B A 4.4 SWITCH PCB SWITCH PCB D C 4.3 MECHANISM PCB A CN101 E D MECHANISM PCB C M M854 CRG M M851 SPDL HOME TRP DSP D851 PICKUP UNIT (SERVICE) C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 CDX-P670 1 2 3 4 1 2 3 4 D C B A 4.5 MOTOR PCB MOTOR PCB E E C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 CDX-P670 Unit Number : CWX2487 Unit Name : CD Core Unit MISCELLANEOUS IC 201 IC UPD63711GC IC 202 IC BA05FP IC 301 IC BA5986FM IC 302 IC LB1836M IC 701 IC PD5638A IC 702 IC LC35256FT-70U IC 703 IC HA12187FP IC 704 IC PAJ002A IC 705 IC TC7SH32F Q 101 Transistor 2SB1132 Q 701 Transistor DTA144EK Q 770 Transistor 2SB1184F5 Q 771 Transistor 2SC2412K D 730 Diode 1SS356 D 770 Diode 1SS355 X 202 Ceramic Resonator 16.93MHz CSS1536 X 701 Radiator 10.00MHz CSS1428 S 801 Push Switch(EJECT) CSG1139 S 802 Push Switch(RESET) CSG1139 S 803 Spring Switch(MAG) CSN1044 VR 802 Semi-fixed 1kΩ(B) CCP1338 RESISTORS R 101 RS1/8S120J R 102 RS1/8S100J R 103 RS1/16S222J R 201 RS1/16S104J R 202 RS1/16S0R0J R 205 RS1/16S103J R 206 RS1/16S393J R 207 RS1/16S182J R 213 RS1/16S103J R 214 RS1/16S103J R 215 RS1/16S123J R 231 RS1/16S821J R 232 RS1/16S821J R 253 RS1/16S681J R 254 RS1/16S681J R 256 RS1/16S681J R 257 RS1/16S681J R 258 RS1/16S681J R 259 RS1/16S102J R 260 RS1/16S681J R 298 RS1/16S681J R 301 RS1/16S103J R 302 RS1/16S153J R 303 RS1/16S103J R 304 RS1/16S103J R 305 RS1/16S103J R 306 RS1/16S752J R 307 RS1/16S103J R 308 RS1/16S752J R 309 RAB4C332J R 311 RS1/16S102J R 701 RS1/16S681J R 702 RS1/16S102J R 703 RS1/16S222J R 704 RS1/16S104J R 705 RS1/16S104J R 706 RS1/16S222J R 707 RS1/16S104J R 708 RS1/16S0R0J R 715 RS1/16S473J R 716 RS1/16S103J R 717 RS1/16S473J R 718 RS1/16S681J R 719 RS1/16S0R0J R 721 RS1/16S222J R 722 RS1/16S222J R 724 RS1/16S681J R 725 RS1/16S222J R 726 RS1/16S104J R 727 RS1/16S513J R 729 RS1/16S473J R 730 RS1/16S473J R 731 RS1/16S222J R 732 RS1/16S683J R 733 RS1/16S222J R 734 RS1/16S473J R 735 RS1/16S222J R 736 RS1/16S103J R 737 RS1/16S433J R 738 RS1/16S104J R 739 RS1/8S1R0J R 740 RS1/8S2R0J R 741 RS1/16S102J R 742 RS1/16S104J R 743 RS1/16S104J R 744 RS1/16S223J R 745 RS1/16S104J R 747 RS1/16S472J R 750 RAB4C473J R 751 RAB4C473J R 752 RS1/16S3602D R 753 RS1/16S6801D R 754 RS1/16S221J R 755 RS1/16S104J R 756 RS1/16S221J R 759 RS1/16S472J R 760 RS1/16S104J R 761 RS1/16S104J R 764 RS1/16S473J R 768 RS1/8S220J 5. ELECTRICAL PARTS LIST NOTE: - Parts whose parts numbers are omitted are subject to being not supplied. - The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 CDX-P670 R 801 RS1/10S221J R 802 RS1/10S271J R 804 RS1/16S562J R 805 RS1/16S562J R 806 RS1/16S102J CAPACITORS C 101 CKSRYB102K50 C 102 CKSRYB104K16 C 103 CEV101M6R3 C 104 CEV470M6R3 C 105 CKSRYB224K16 C 106 CKSRYB224K16 C 107 CKSRYB224K16 C 201 CKSRYB104K16 C 202 CEV101M6R3 C 203 CKSRYB104K16 C 204 CKSRYB332K50 C 205 CKSRYB104K16 C 206 CKSRYB392K50 C 207 CKSRYB104K16 C 208 CCSRCH270J50 C 209 CCSRCJ3R0C50 C 210 CCSRCH181J50 C 211 CCSRCH510J50 C 212 CKSRYB682K50 C 213 CKSRYB104K16 C 214 CKSRYB104K16 C 215 CKSRYB104K16 C 216 CKSRYB104K16 C 217 CKSRYB104K16 C 218 CKSRYB104K16 C 219 CKSQYB334K16 C 220 CKSRYB104K16 C 234 CKSRYB224K16 C 235 CEV220M6R3 C 236 CCSQSL152J50 C 237 CCSQSL152J50 C 238 CKSRYB103K25 C 253 CKSRYB471K50 C 271 CEV101M6R3 C 272 10µF/16V CCH1399 C 273 CKSRYB224K16 C 301 CEV101M10 C 302 CKSRYB224K16 C 701 CKSRYB104K16 C 702 CKSRYB473K16 C 703 CKSRYB473K16 C 707 CKSRYB103K25 C 708 CKSRYB104K16 C 710 CKSRYB103K25 C 711 CKSRYB102K50 C 712 CKSRYB102K50 C 714 CKSRYB104K16 C 715 22µF/10V CCH1403 C 717 CKSRYB103K25 C 718 CKSRYB103K25 C 719 CKSRYB102K50 C 720 CKSRYB102K50 C 721 CKSRYB103K25 C 722 CKSRYB103K25 C 724 CKSRYB471K50 C 801 CKSRYB103K25 C 802 CKSRYB104K16 C 803 CKSRYB103K25 Unit Number : CWX2512 Unit Name : Power Unit MISCELLANEOUS Q 910 Transistor 2SD2396 Q 911 Transistor IMD2A Q 912 Transistor IMX1 Q 941 Transistor FMG12 Q 942 Transistor IMD2A D 901 Diode 1SR139-400 D 902 Diode 1SR139-400 D 910 Diode HZS6L(B1) D 941 Diode MA152WA L 901 Choke Coil 1mH CTH1047 RESISTORS R 901 RS1/16S204J R 902 RS1/16S104J R 903 RS1/4SA101J R 910 RS1/8S431J R 911 RS1/16S681J R 912 RS1/8S101J R 913 RS1/16S512J R 914 RS1/16S132J R 915 RD1/4PU151J R 921 RS1/16S101J R 922 RS1/16S101J R 923 RS1/16S102J R 924 RS1/16S473J R 941 RS1/16S181J R 942 RS1/16S181J R 943 RS1/16S472J R 944 RS1/16S472J R 945 RS1/10S472J CAPACITORS C 901 CKSRYB224K16 C 902 CEAT471M16 C 903 CKSRYB223K25 C 904 CEAT471M16 C 906 0.1F/5.5V CCL1054 C 907 CKSRYB224K16 C 910 CKSRYB103K50 C 911 CKSRYB103K50 C 912 CEJA220M10 C 913 CKSRYB103K50 C 920 CCSRCH471J50 C 921 CCSRCH471J50 C 941 CEJA330M10 C 942 CEJA330M10 C 943 CCSRCH471J50 C 944 CCSRCH471J50 Unit Number : Unit Name : Mechanism PCB Q 851 Photo-transistor PT4800 S 853 Spring Switch(HOME) CSN1051 Unit Number : Unit Name : Switch PCB D 851 LED CN504-2 S 851 Spring Switch(TAP) CSN1051 S 852 Spring Switch(DSP) CSN1052 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 CDX-P670 Unit Number : Unit Name : Motor PCB M 853 Motor Unit(TRAY) CXB4421 Miscellaneous Parts List Pickup Unit(P8)(Service) CXX1285 M 851 Motor Unit(SPINDLE) CXB3003 M 852 Motor Unit(ELV) CXB3006 M 854 Motor Unit(CARRIAGE) CXB3004 VR 801 Volume 10kΩ(B) CCW1023 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 CDX-P670 - Precautions • This unit uses a single power supply (+5V) for the reg- ulator. The signal reference potential, therefore, is connected to REFO(approx. 2.5V) instead of GND. If REFO and GND are connected to each other by mis- take during adjustments, not only will it be impossi- ble to measure the potential correctly, but the servo will malfunction and a severe shock will be applied to the pick-up. To avoid this, take special note of the fol- lowing. Do not connect the negative probe of the measuring equipment to REFO and GND together. It is especially important not to connect the channel 1 negative probe of the oscilloscope to REFO with the channel 2 negative probe connected to GND. Since the frame of the measuring instrument is usual- ly at the same potential as the negative probe, change the frame of the measuring instrument to floating sta- tus. If by accident REFO comes in contact with GND, immediately switch the regulator or power OFF. • Always make sure the regulator is OFF when connect- ing and disconnecting the various filters and wiring required for measurements. • Before proceeding to further adjustments and mea- surements after switching regulator ON, let the player run for about one minute to allow the circuits to stabi- lize. • Since the protective systems in the unit's software are rendered inoperative in test mode, be very careful to avoid mechanical and /or electrical shocks to the sys- tem when making adjustment. • Disc detection during tray extraction and return oper- ations is performed by means of the photo transistor in this unit. Consequently, if the inside of the unit is exposed to a strong light source with the outer casing removed for repairs or adjustment, the following mal- functions may occur: *Even with a disc loaded, the unit detects "no disc" and cannot start play. *Although a 12-cm disc is loaded, the unit detects "8cm disc" mistakenly. When the unit malfunctions this way, either re-posi- tion the light source, move the unit or cover the photo transistor. • During exchanging discs, do not press the keys for the discs to be exchanged. Key to adjustment text HEAD UNIT (6 keys type) inside (12 keys type) BAND BAND TRK+/FF TRK+/FF TRK-/REV TRK-/REV 7 1 8 2 9 3 10 4 11 5 12 6 DISC- DISC- SOURCE ON/OFF SOURCE ON/OFF 6. ADJUSTMENT 6.1 CD ADJUSTMENT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 CDX-P670 • Note : CD mechanism modules the grating angle of the pickup unit cannot be adjusted after the pickup unit is changed. The pickup unit in the CD mechanism module is adjusted on the production line to match the CD mechanism module and is thus the best adjusted pickup unit for the CD mechanism module. Changing the pickup unit is thus best considered as a last resort. However, if the pickup unit must be changed, the grating should be checked using the procedure below. • Purpose : To check that the grating is within an acceptable range. • Symptoms of Mal-adjustment : If the grating is off by a large amount symptoms such as being unable to close tracking, being unable to perform track search operations, or track searching taking a long time, may appear. • Method : • Measuring Equipment • Oscilloscope, Two L.P.F. • Measuring Points • E, F, REFO • Disc • ABEX TCD-784 • Mode • TEST MODE • Checking Procedure 1. Enter Test mode, then select Multi-CD player and switch the 5V regulator on. 2. Using the TRK+ and TRK- buttons, move the pickup unit to the innermost track. 3. Press key 9 to close focus, the display should read "91". Press key 9 2 times. Enter Rough Servo mode. Press key 8 to implement the tracking balance adjustment the display should now read "81". 4. As shown in the diagram above, monitor the LPF outputs using the oscilloscope and check that the phase differ- ence is within 75° . Refer to the photographs supplied to determine the phase angle. 5. If the phase difference is determined to be greater than 75° try changing the pickup unit to see if there is any improvement. If, after trying this a number of times, the grating angle does not become less than 75° then the mechanism should be judged to be at fault. • Note Because of eccentricity in the disc and a slight misalignment of the clamping center the grating waveform may be seen to "wobble" ( the phase difference changes as the disc rotates). The angle specified above indicates the aver- age angle. • Hint Change the disc changes the clamp position and may decrease the "wobble". REFO E F E F L.P.F. L.P.F. CD CORE UNIT Xch Ych Oscilloscope 100kΩ 100kΩ 390pF 390pF 6.2 CHECKING THE GRATING - Checking the Grating After Changing the Pickup Unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 CDX-P670 Grating waveform 45˚ 0˚ 75˚ 60˚ 30˚ 90˚ Echt Xch 20mV/div, AC Fcht Ych 20mV/div, AC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 CDX-P670 • Note : This mechanisms is detects the height of the stage using slide-variable resistance. To absorb dislocation of the stage height caused by differences in the mechanism and the CD core unit, adjustment must be made for each CD-mechanism module using a variable resistor. Normally, readjustment is not needed, as this has been adjusted at the factory. However, adjustment of elevation is required according to the procedure explained below if an elevation error has occurred or if the CD core unit has been removed. • Purpose : To adjust and confirm whether or not elevation operates correctly. • Adjustment Method : • Measuring Equlpment: Oscilloscope, One L.P.F. • Measuring Points : EREF, EPVO • Setting : Without a magazine in Test mode With the mechanism placed upside-down (Place the CD mechanism module so that the CD core unit is above.) • Confirmation Procedure 1. Enter Test mode, then select Multi-CD player. 2. Press key 7 to enter Mechanism Test mode. 3. Press key 12 twice to specify the amount of movement. 6.3 ADJUSTMENT OF ELEVATION WHEN THE CD CORE UNIT HAS BEEN REMOVED FOR MAINTENANCE - Adjustment When Error Code 60 is Displayed Because of Malfunctioning Elevation TRACK FUNCTION ' " TRACK FUNCTION 72 00' 00" EREF EPVO Oscilloscope CD CORE UNIT L.P.F. 47kΩ 1µF Examples of display TRACK FUNCTION 72 00' 02" TRACK FUNCTION 72 00' 01" The amount of movement changes each time key 12 is pressed. maximum movement i Key 12 i during movement i Key 12 i minimum movement TRACK FUNCTION 72 00' 00" i i Key 12 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 CDX-P670 4. Press key 9 to set ELV/TRAY mode to TRAY. 5. Press key FF to release the clamp and return the tray to the magazine. 6. Press key 9 to enter Elevation Move mode. 7. Use key FF/REV to operate elevation and set if to the graduation of the third step (Fig. 1). 8. Make the adjustment. Use VR802 to adjust the difference in potential between EREF and EPVO to 0 ±10 mV. 9. When adjustment is completed, press key BAND to exit Mechanism Test mode. 10. Confirm operation of the mechanism. Place the mechanism horizontally (CD core unit below). Take care not to short-cir- cuit the PCB. 11. Confirm the height of the stage. Use the DISC± key to select Disc No.3. Check if the stopper bend of the clamp lever is engaged in the groove of the frame stopper (Fig. 2-4). • Note : The stopper bend will be pressed downward into the groove for final clamping. Confirm the engagement position of the stopper bend. • If the stopper bend is engaged in the center and pressed downward, adjustment is completed. Go to step 15. • If the stopper bend is dislocated, check the amount of dislocation by following steps 12 to 14. TRACK FUNCTION 72 00' 02" TRACK FUNCTION 72 00' 02" TRACK FUNCTION ' " TRACK FUNCTION 04 00' 00" Examples of display TRACK FUNCTION 72 01' 02" Release the clamp www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 CDX-P670 12. To see the amount of dislocation, place the mechanism upside-down. If the stopper bend has been dislocated in the direction of the first CD, turn VR802 to the left(Fig. 2). To lower the stage toward the sixth step by 0.1 mm, reduce the volt- age of EREF (adjusted in step 8) by 20 mV. If the stopper bend has been dislocated in the direction of the sixth CD, turn VR802 to the right(Fig. 4). To raise the stage toward the first step by 0.1 mm, increase the volt- age of EREF (adjusted in step 8) by 20 mV. 13. Place the mechanism horizontal. Go back to step 11 to reconfirm the stage height. 14. When adjustment of the stage height is completed, proceed as fol- lows: 15. Press the EJECT switch. 16. Once operation of the mechanism has stopped, turn the power OFF. 17. Wait more than one minute after the power is turned off, then turn the power ON and insert a magazine. 18. Check if the mechanism operates correctly with the first and fourth CDs. 19. If the mechanism operates properly, adjustment is completed. If the mechanism operates improperly, make the adjustment again. GND EREF VR802 1µF 47kΩ Oscilloscope L.P.F. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 CDX-P670 NG Stopper bend of the clamp lever Frame stopper OK Engaged in the center and pressed downward. NG Fig. 1 Dislocated toward the first CD. Adjust the insertion gate of magazine to the third scale. E 1 2 3 4 6 Dislocated toward the sixth CD. Fig. 2 Fig. 3 Fig. 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 CDX-P670 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 TEST MODE - CD Test mode This mode is used for adjusting the CD mechanism module of the device. • Test mode starting procedure Reset while pressing the 4 and 6 keys together. • Test mode cancellation Switch ACC, back-up OFF. • If the 8 or 9 key is pressed while focus search is in progress, immediately turn the power off (otherwise the actuator may be damaged due to the lens stuck). • Jump operation of TRs other than 100TR continues after releasing the key. CRG move and 100TR jump operations are brought into the “Tracking close” sta- tus when the key is released. • Powering Off/On resets the jump mode to “Single TR (91)”, the RF AMP gain setting to 0 dB, and the auto- matic adjustment value to the initial value. • During exchanging discs, do not press the keys for the discs to be exchanged. • The following head units are exceptional so that their entering ways to the test mode are different from oth- ers. Test mode starting procedure Reset while pressing the 3 and 5 keys together. KEH-P5010R/X1M/EW KEH-4011/X1M/EE KEH-P5011/X1M/EE KEH-4010R/X1M/EW KEH-P4010RB/X1M/EW KEH-P4013R/X1M/EW KEH-5015/X1M/ES KEH-P4010/X1M/UC KEH-P4015/X1M/ES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 CDX-P670 Focus Close *2 S Curve Check 01 01 01 00 00 00 (99 99 99) Display TYP 4 9 Reset SOURCE New test mode 6 TRK- BAND 9 *2 *1 +6dB +12dB *4 *5 12 12 12 12 7 8 7 8 TRK+ TRK+ TRK- 06 06 06 12 12 12 Sourse CD Single TR 9x(8x):91(81) 32TRK 92(82) CRG Move 94(84) 100TRK 93(83) Focus Mode Select Focus Close/ S Curve Check CRG− Auto Adjustment Display Select CRG+ RF AGC Coefficient Display/ Rough Servo and RF AGC Tracking Open Display Tracking Open T. Close and Fit Servo *3 F.Offset Display RF.Offset Display F.Cansel Display *7 Single TR/32TR/100TR Voltage of CRG Motor = 2 [V] (F,T.AGC Gain = (Present Value/Initial Value) × 20) *6 TRK+ TRK- 7 9 Display 8 9 Display or 8x 8x 8x TRK SEC MIN 9x 9x 9x TRK SEC MIN or CRG− CRG+ T.Balance Adjustment *7 F, T, RF AGC/ F.Bias Display Select F, T AGC and RF AGC CRG Move, 100TR Jump Only TRK, MIN, SEC F.AGC Gain RF AGC Gain T.AGC Gain *8 Power ON (Adjustment for T.Offset) *5 *4 *4 *6 CRG/TR Jump NO. Select CRG+/TR Jump+ CRG−/TR Jump− Power OFF Display Display Display T.Close and F,T AGC and RF AGC and Fit Servo Display Power ON (Not adjustment for T.Offset) Display Display 8 RF AMP Gain Select 8 Power OFF Power OFF Power OFF 8x 8x 8x TRK SEC MIN 9x 9x 9x TRK SEC MIN 8x 8x 8x TRK SEC MIN 9x 9x 9x TRK SEC MIN or 8x 8x 8x TRK SEC MIN 9x 9x 9x TRK SEC MIN or 00 00 00 TRK SEC MIN 99 99 99 TRK SEC MIN or 00 00 00 TRK SEC MIN 99 99 99 TRK SEC MIN or 00 00 00 TRK SEC MIN 99 99 99 TRK SEC MIN or 91 91 91 TRK SEC MIN 0x 0x 0x TRK SEC MIN 00 00 00 TRK SEC MIN 99 99 99 TRK SEC MIN GG GG GG TRK SEC MIN Test Mode In *1 *8 *3 *8 F.Cancel Value = {Top Rank 8bit of Set Value (7F [H] to 80 [H] ) + 128} / 4 = 63 [D] to (32 [D] ) to 00 [D] BAND BAND BAND BAND 9 12 FF 7 REV BAND Display < Mechanism test mode in > Display *9 *12 *11 *10 72 00 00 TRK SEC MIN TRK SEC MIN 0X 00 72 *9 ELV motor select *10 Display TRAY motor select 0X 10 72 00 00 72 01 00 72 02 00 72 8ms pulse drive Display 24ms pulse drive DC drive *11 00 10 72 01 10 72 02 10 72 48ms pulse drive Display 100ms pulse drive DC drive ELV select : ELV dowm (Disc 12 → 1) TRAY select : TRAY out *12 ELV select : ELV up (Disc 1 → 12) TRAY select : TRAY in - Flow Chart www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 CDX-P670 - Error Messages If a CD is not operative or stopped during operation due to an error, the error mode is turned on and cause(s) of the error is indicated with a corresponding number. This arrangement is intended at reducing nonsense calls from the users and also for facilitating trouble analysis and repair work in servicing. (1) Basic Indication Method 1) When SERRORM is selected for the CSMOD (CD mode area for the system), error codes are written to DMIN (min- utes display area) and DSEC (seconds display area). The same data is written to DMIN and DSEC. DTNO remains in blank as before. 2) Head unit display examples Depending on display capability of LCD used, display will vary as shown below. xx contains the error number. 8-digit display 6-digit display 4-digit display ERROR–xx ERR–xx E–xx OR Err–xx * When the system is manufactured for an OEM basis, the error display will be configured according to the customer specification. (2) Error Code List Code Class Displayed error code Description of the code and potential cause(s) 10 Electricity Carriage Home NG CRG can't be moved to inner diameter. CRG can't be moved from inner diameter. → Failure on home switch or CRG move mechanism. 11 Electricity Focus Servo NG Focusing not available. → Stains on rear side of disc or excessive vibrations on REWRITABLE. 12 Electricity Spindle Lock NG Spindle not locked. Sub-code is strange (not readable). → Failure on spindle, stains or damages on disc, or excessive vibrations. Subcode NG A disc not containing CD-R data is found. Turned over disc are found, though rarely. → Failure on home switch or CRG move mechanism. RF AMP NG An appropriate RF AMP gain can't be determined. → CD signal error. 17 Electricity Setup NG APC protection doesn't work. Focus can be easily lost. → Damages or stains on disc, or excessive vibrations. 30 Electricity Search Time Out Failed to reach target address. → CRG tracking error or damages on disc. A0 System Power Supply NG Power (VD) is ground faulted. → Failure on SW transistor or power supply (failure on connector). A1 System Mechanism power Mechanism elevation reference voltage is out of failure prescription. →EREF adjustment VR and/or power abnormal. 50 Mecha- An error upon MAG switch release time has time out. nism ejection Elevation time out when eject. 60 Mecha- An error while putti- Tray in / out time has time out. nism ng in and out the tray Tray is caught when put in. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 CDX-P670 Code Class Displayed error code Description of the code and potential cause(s) 70 Mecha- An error upon Elevation time has time out. nism elevation 80 Mecha- An error with an em- No disc is available. nism pty magazine inserted Remarks: Unreadable TOC does not constitute an error. An intended operation continues in this case. A newly designed head unit must conform to the example given above. Upper digits of an error code are subdivided as shown below: 1x: Setup relevant errors, 3x: Search relevant errors, 3x: Search relevant errors, Ax: Other errors. - New Test Mode M-CD plays the same way as before. If an error such as off focus, spindle unlocking, unreadable sub-code, or sound skipping occurs after setup, its cause and time occurred (in absolute time) are displayed. During setup, operational status of the control software (internal RAM: CPOINT) is displayed. These displays and functions are prepared for enhancing aging in the servicing and efficiency of trouble analysis. (1) Shifting to the New Test Mode 1 Turn on the current test mode by starting the reset from the 4 and 6 keys together. 2 Select M-CD for the source through the specified procedure including use of the [SOURCE] key. Then, press the 12 key while maintaining the regulator turned off. 3 After the above operations, the new test mode remains on irrespective of whether the M-CD is turned on or off. You can reset the new test mode by turning on the reset start. * With some products, the new test mode can be reset through the same operations as that employed for shifting to the STBY mode (while maintaining the Acc turned off). (2) Key Correspondence Key Test mode New test mode (Example) Power Off Power On In-play Error Production BAND To power on To power off – Time/Err.No. switching (offset adjustment performed) UP – FWD-Kick FF/TR+ – DOWN – REV-Kick REV/TR- – 7 – T.Close (AGC performed) Scan – /parameter display switching 8 RF AMP gain switching Parameter display switching Mode – /T.BAL adjustment/T.Open 9 To power on F.Close/RF AGC/F.T.AGC – – (offset adjustment not performed) 10 – F.Open – – 11 – Jump Off – – 12 – F.Mode switching Auto/Manu T.No./Time switching /T.Close (no AGC)/Jump switching www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 CDX-P670 Key Mechanism Test Mode (Example) BAND Back to the test mode UP Playing the mechanism DOWN Playing the mechanism 7 Mechanism test mode in 8 – 9 TRAY/ELV select 10 – 11 – 12 Operation step select Note: Eject and CD on/off is performed in the same procedure as that for the normal mode. (3) Cause of Error and Error Code Code Class Contents Description and cause 40 Electricity Off focus detected. FOK goes low. → Damages/stains on disc, vibrations or failure on servo. 41 Electricity Spindle unlocked. FOK = Low continued for 50 msec. → Damages/stains on disc, vibrations or failure on servo. 42 Electricity Sub-code unreadable. Sub-code was unreadable for 50 msec. → Damages/stains on disc, vibrations or failure on servo. 43 Electricity Sound skipping detected. Last address memory function was activated. → Damages/stains on disc, vibrations or failure on servo. Note: Mechanical errors during aging are not displayed. The error codes should be indicated in the same way as in the normal mode. (4) Display of Operational Status (CPOINT) during Setup Status No. Contents Protective action 00 CD+5V ON process in progress. None 01 Servo LSI initialization (1/3) in progress. None 02 Servo LSI CRAM initialization in progress. None 03 Servo LSI initialization (2/3) in progress. None 04 Offset adjustment (1/3) in progress. None 05 Offset adjustment (2/3) in progress. None 06 Offset adjustment (3/3) in progress. None 07 FZD adjustment in progress. None 08 Servo LSI initialization (3/3) in progress. None 10 Carriage move to home position started. None 11 Carriage move to home position started. None 12 Carriage is moving toward inner diameter. Specified 10 seconds has been passed or failure on home switch. 13 Carriage is moving toward outer diameter. Specified 10 seconds has been passed or failure on home switch. 14 Carriage outer kick in progress. None 15 Carriage outer diameter feed (1 second) in progress. None 20 Servo close started. None 21 Pre-processing for focus search started. None 22 Spindle rotation and focus search started. None 23 Waiting for focus close (XSI=Low). Specified focus search time has been passed. 24 Standing by after focus close is over. Specified focus search time has been passed. 25 Focus search preprocessing is in None progress while setup protection is turned on. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 CDX-P670 Status No. Contents Protective action 26 Focus search preprocessing is in None progress while focus recovery is turned on. 27 Wait time after focus close is set up. Off focus. 28 Standing by after focus close is over. Off focus. 29 Setup (1/2) before T balance adjustment is started. Off focus. 30 Setup (2/2) before T balance adjustment is started. Off focus. 31 T balance adjustment started. Off focus. 32 T balance adjustment (1/2). Off focus. 33 T balance adjustment (2/2). Off focus. 34 Waiting for spindle rotation to end. Off focus. Spindle rough servo. 35 Standing by after spindle rough servo is over. Off focus. 36 RF AGC started. Off focus. 37 RF AGC started. Off focus. 38 RF AGC ending process in progress. Off focus. 39 Tracking close in progress. Off focus. 40 Standing by after tracking is closed. Off focus. Carriage closing in progress. 41 Focus/tracking AGC started. Off focus. 42 Focus AGC started. Off focus. 43 Focus AGC in progress. Off focus. 44 Tracking AGC in progress. Off focus. 45 Standing by after focus/tracking AGC are over. Off focus. 46 Spindle processes applicable servo. Off focus. 47 Check for servo close is started. Off focus. 48 Check of LOCK pin started. Off focus or spindle not locked. 49 RF AGC started. Off focus. 50 RF AGC in progress. Off focus. 51 Standing by after RF AGC is over. Off focus. (5) Display Examples 1) During Setup (When status no. = 11) TRK No. MIN. SEC. 11 11' 11" 2) During Operation (TOC read, TRK search, Play, FF and REV) The same as in the normal mode. 3) When a Protection Error Occurred Switch to the following displays (A) and (B) using the [BAND] switch: (A) Error occurrence timing display in absolute time. An example: Error occurred in 12th tune at 34'56" in absolute time. TRK No. MIN. SEC. 12 34' 56" (B) Error No. display An example: Error #40 (Off focus is detected) ERROR-40 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 CDX-P670 7.1.2 DISASSEMBLY - Removing the Power Unit (Fig.6) Remove the two screws. Remove the screw. Straight the tabs at location indicated and then remove the Power Unit. - Removing the Upper Case (not shown) 1. Remove the nine screws. 2. Remove the Upper Case. - Removing the CD Mechanism Module (Fig.5) Remove the four dampers. Remove the two springs. Disconnect the connector and then remove the CD Mechanism Module. Fig.6 CD Mechanism Module Fig.5 Power Unit - Removing the Door 1. Remove the Door(A) in the direction of arrow2 while pushing the Grille in the direction of arrow1, the slide is done as it is in the direction of arrow3 and remove the Door(A). (Fig.7) Fig.7 Door(A) Grille www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 CDX-P670 2. The slide is done in the direction of arrow5 and remove the Door(B) while spread out the Door(A) in the direction of arrow4. (Fig.8) *) The illustration of the text for 12-Disc type but disas- sembling method is the same for 6-Disc type. Fig.8 Door(A) Door(B) - Removing the Pickup Unit 1. Insert the short pin from the pickup unit in the flexible PCB. 2. Remove the flexible PCB from the connector. 3. Remove the flexible card from the connector. 4. Remove the lead wires to which the spindle motor and carriage motor assy were soldered. 5. Remove the two screws and lift the mechanism PCB up as shown in the figure on the upper right. At this time, make sure that the motor PCB and flexible relay card are not pulled excessively. 6. Remove screw A and then remove the carriage motor assy, lighting conductor, feed screw holder, feed screw and belt (see Fig.10). 7. Remove screw B on the main side and the pickup unit together with the guide shaft (see Fig.10). Fig.9 Flexible card Erect Flexible relay card (han- dle with care) Motor PCB (handle with care) Short Pin Mechanism PCB Screw A Motor bracket CRG motor Screw A Feed screw holder Feed screw Guide shaft (main) Guide shaft (sub) Belt Screw B Pickup unit Fig.10 Lighting conductor Flexible PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 CDX-P670 7.1.3 CONNECTOR FUNCTION DESCRIPTION 8 9 10 11 5 6 7 1 2 3 4 1.BUS+ 2.GND 3.GND 4.NC 5.BUS- 6.GND 7.LCH 8.ASENB 9.RCH 10.SGNDR 11.SGNDL 1 2 3 1.GND 2.ACC 3.BATT IP-BUS POWER SUPPLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 CDX-P670 7.2. IC - Pin Functions (PD5638A) Pin No. Pin Name I/O Format Function and Operation 1,2 NC Not used 3 adena O C A/D reference voltage output 4 TXTSTB O C TEXT parameter output 5 TXTSO O C TEXT control parameter serial output 6 TXTSI I TEXT data serial input 7 TXTSCK O C TEXT clock output 8 BYTE I VCC joint 9 CNVSS I VSS joint 10 POWER O C CD +5V control output 11 CONT O C Servo driver output control 12 reset I Reset input 13 XOUT O Crystal oscillating element connection pin 14 VSS GND 15 XIN I Crystal oscillating element connection pin 16 VCC VDD 17 nmi I Pull up 18 bsens I Back up power sense input 19 asens I Acc sense input 20 TXTPACK I TEXT PACK interrupt input 21 IPTA4IN I IPIN joint 22 IPPW O C Power supply control output for IP-BUS interface IC 23 NC Not used 24 OPTSEL I Pull down 25 SRAMSW I ”L” 26 FMPCB I Pull down 27 SIMUKE I Pull down 28 NC Not used 29 IPIN I Data input from IP-BUS interface IC 30 IPOUT O C Data output for IP-BUS interface IC 31,32 NC Not used 33 FMIPSW I ”H” 34 testin I Test program mode input 35 XSO O C CD LSI data output 36 XSI I CD LSI data input 37 XSCK O C CD LSI clock output 38 M6M12 I 6/12 disc select input 39–43 NC Not used 44 rd O C SRAM enable output 45 NC Not used 46 wr O C SRAM write enable output 47 SYSPW O C System power supply control output 48 cs O C SRAM chip select output 49 XAO O C CD LSI data discernment control signal output 50 xstb O C CD LSI strobe output 51 xrst O C CD LSI reset output 52 NC Not used 53 LOCK I Spindle lock detector input 54 FOK I FOK signal input 55 NC Not used 56 A11 O C SRAM address bus output 57 A9 O C SRAM address bus output 58 A8 O C SRAM address bus output 59 A13 O C SRAM address bus output 60 A14 O C SRAM address bus output 61 A12 O C SRAM address bus output 62 VCC VDD 63 A7 O C SRAM address bus output 64 VSS GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 CDX-P670 Pin No. Pin Name I/O Format Function and Operation 65–68 A6-A3 O C SRAM address bus output 69 A10 O C SRAM address bus output 70 A2 & (EPSK) O C SRAM address bus output and (E2PROM clock output) 71 A1 & (EPDI) O/I C SRAM address bus output and (E2PROM data input) 72 A0 & (EPDO) O C SRAM address bus output and (E2PROM data output) 73 asensfm I Pull up 74 ejsw I Eject key switch interrupt input 75 mag I Magazine lock switch interrupt input 76 CDMUTE O C CD mute output 77 NC Not used 78 I13 O C Motor driver control output 79 I2 O C Motor driver control output 80 I4 O C Motor driver control output 81–88 D0-D7 I/O C SRAM data bus input/output 89,90 NC Not used 91 DSP I DISC detect timing input 92 disk Disc detector input 93 ELVPVO Voltage input from ELV position sense 94 ELVREF ELV reference voltage input 95 TRP I Tray position input 96 AVSS A/D GND 97 VDIN Power supply short sensor input 98 VREF I A/D converter reference voltage input 99 AVCC A/D VCC 100 EPCS I/O C E2PROM detect input , Chip select output *PD5638A Format Meaning C C MOS 30 31 50 51 80 81 100 1 LC35256FT-70U 1 2 3 4 5 6 7 8 9 10 11 12 13 14 28 27 26 25 24 23 22 21 20 19 18 17 16 15 A14 A12 A7 A6 A5 A4 A3 A2 A1 A0 IO1 IO2 IO3 GND VDD WE A13 A8 A9 A11 OE A10 CS IO8 IO7 IO6 IO5 IO4 A0-A14 : Address input IO1-IO8 : Data input/output VDD : Power supply GND : GND CS: Chip select OE : Output enable WE : Write enable TC7SH32F 1 IN B 2 IN A 3 GND 4 OUT Y 5 VCC IC's marked by* are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 CDX-P670 VDD=5V Pin16 BATT ON bsens Pin18 mag Pin75 bsens=L POWER←H Pin10 adena←L Pin3 VD IN Pin96 1.3V VD IN 2.1V mag=L DISC Search POWER←L Pin10 asens Pin19 POWER←H Pin10 adena←L Pin3 VD IN Pin96 1.3V VD IN 2.1V POWER←L Stand-by Error message "A0" Error message "A0" Start the CD player Source=Multi-CD YES asens=L 7.3 OPERATIONAL FLOW CHART www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDX-P670 IP-BUS cable To prevent incorrect connection, the input side of the IP-BUS connector is colored in blue, and the output side in black. Connect the connectors of the same colors correctly. Yellow To the terminal always supplied with power regardless of ignition switch position. Black (ground) To the vehicle (metal) body. IP-BUS(black) Fuse holder IP-BUS output (black) Connect the black connector of the cable to this connector. Connecting the Units Multi-CD controller 600 cm Cords for this product and those for other products may be different colors even if they have the same function. When connecting this product to another product, refer to the supplied Installation manuals of both products and connect cords that have the same function. General System ..................................................... Compact disc audio system Usable discs .................................................................... Compact Disc Signal format ....................................... Sampling frequency: 44.1 kHz Number of quantization bits: 16; linear Power source ......................................................................... 14.4 V DC (10.8 — 15.1 V allowable) Max. current consumption ........................................................... 1.0 A Weight ............................................................................ 1.9 kg (4.2 lbs.) Dimensions .......................................... 248 (W) × 66 (H) × 168 (D) mm [9-3/4 (W) × 2-5/8 (H) × 6-5/8 (D) in.] Backup current ................................................................... 1mA or less Audio Frequency characteristics ................................ 5 — 20,000 Hz (± 1 dB) Signal-to-noise ratio ............................ 92 dB (1 kHz) (IHF-A Network) Distortion ................................................................................... 0.006 % Dynamic range ................................................................. 90 dB (1 kHz) Output level ...................................................... 1,000 mV (1 kHz, 0 dB) Number of channels .............................................................. 2 (stereo) Note: Specifications and design are subject to possible modification with- out prior notice due to improvements. 8. OPERATIONS AND SPECIFICATIONS 8.1 OPERATIONS 8.2 SPECIFICATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
