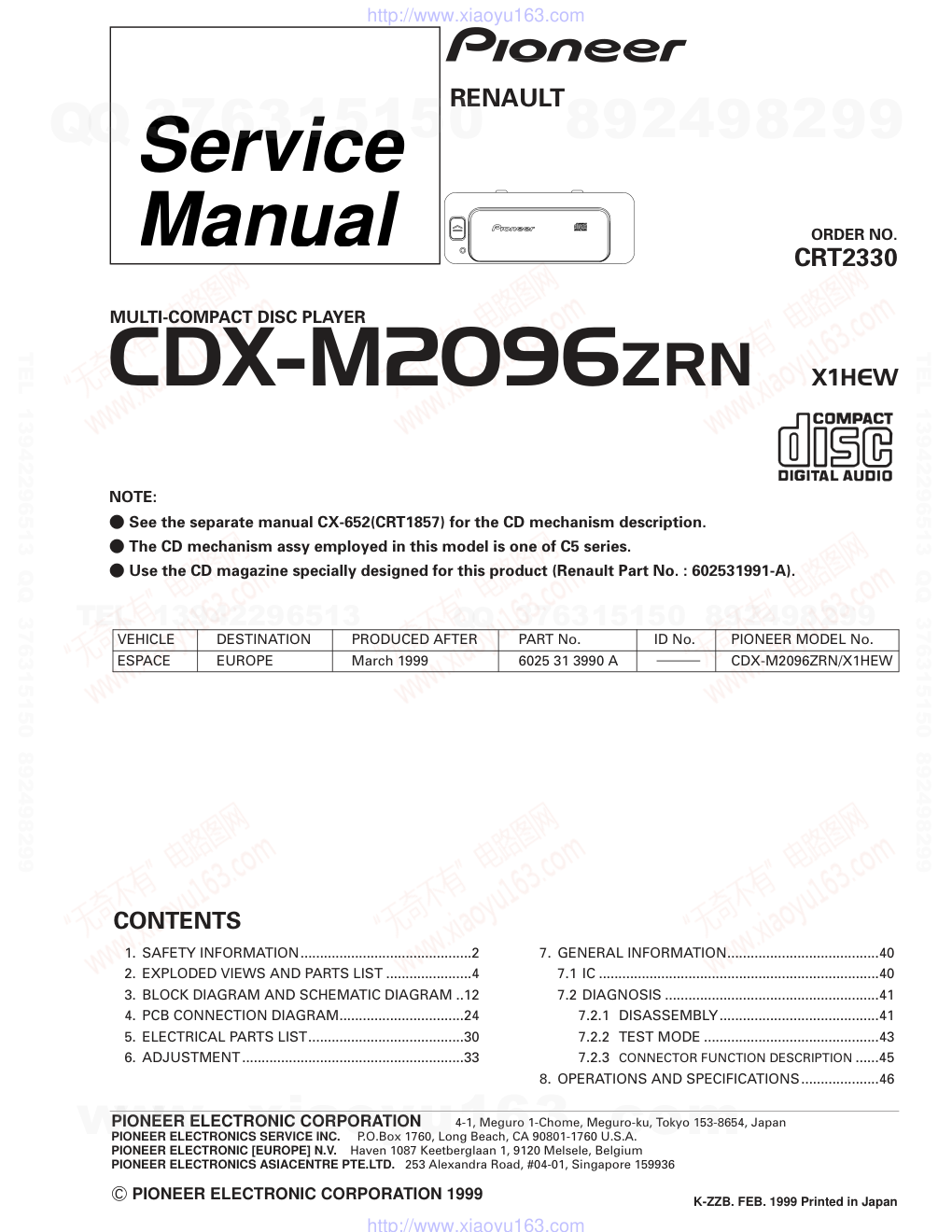

MULTI-COMPACT DISC PLAYER
CDX-M2096ZRN�X1HEW
Service
Manual
CONTENTS
1. SAFETY INFORMATION............................................2
2. EXPLODED VIEWS AND PARTS LIST ......................4
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ..12
4. PCB CONNECTION DIAGRAM................................24
5. ELECTRICAL PARTS LIST........................................30
6. ADJUSTMENT.........................................................33
7. GENERAL INFORMATION.......................................40
7.1 IC ........................................................................40
7.2 DIAGNOSIS .......................................................41
7.2.1 DISASSEMBLY.........................................41
7.2.2 TEST MODE .............................................43
7.2.3 CONNECTOR FUNCTION DESCRIPTION ......45
8. OPERATIONS AND SPECIFICATIONS....................46
NOTE:
- See the separate manual CX-652(CRT1857) for the CD mechanism description.
- The CD mechanism assy employed in this model is one of C5 series.
- Use the CD magazine specially designed for this product (Renault Part No. : 602531991-A).
VEHICLE
DESTINATION
PRODUCED AFTER
PART No.
ID No.
PIONEER MODEL No.
ESPACE
EUROPE
March 1999
6025 31 3990 A
CDX-M2096ZRN/X1HEW
RENAULT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
2
CDX-M2096ZRN

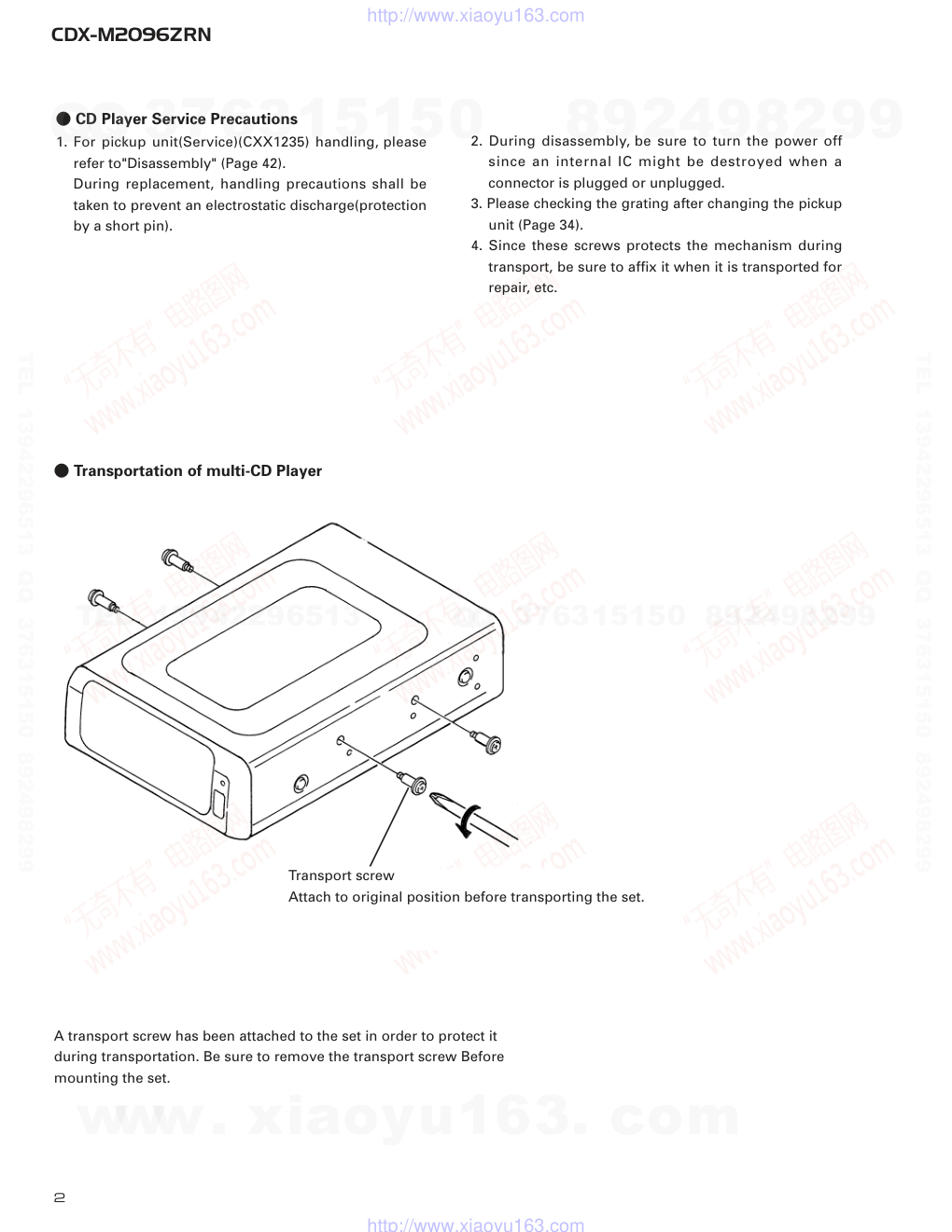

- CD Player Service Precautions
1. For pickup unit(Service)(CXX1235) handling, please
refer to"Disassembly" (Page 42).
During replacement, handling precautions shall be
taken to prevent an electrostatic discharge(protection
by a short pin).
2. During disassembly, be sure to turn the power off
since an internal IC might be destroyed when a
connector is plugged or unplugged.
3. Please checking the grating after changing the pickup
unit (Page 34).
4. Since these screws protects the mechanism during
transport, be sure to affix it when it is transported for
repair, etc.
- Transportation of multi-CD Player
Transport screw
Attach to original position before transporting the set.
A transport screw has been attached to the set in order to protect it
during transportation. Be sure to remove the transport screw Before
mounting the set.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
3
CDX-M2096ZRN
2. A “CLASS 1 LASER PRODUCT” label is affixed to the
rear of the player.
3. The triangular label is attached to the mechanism
unit frame.

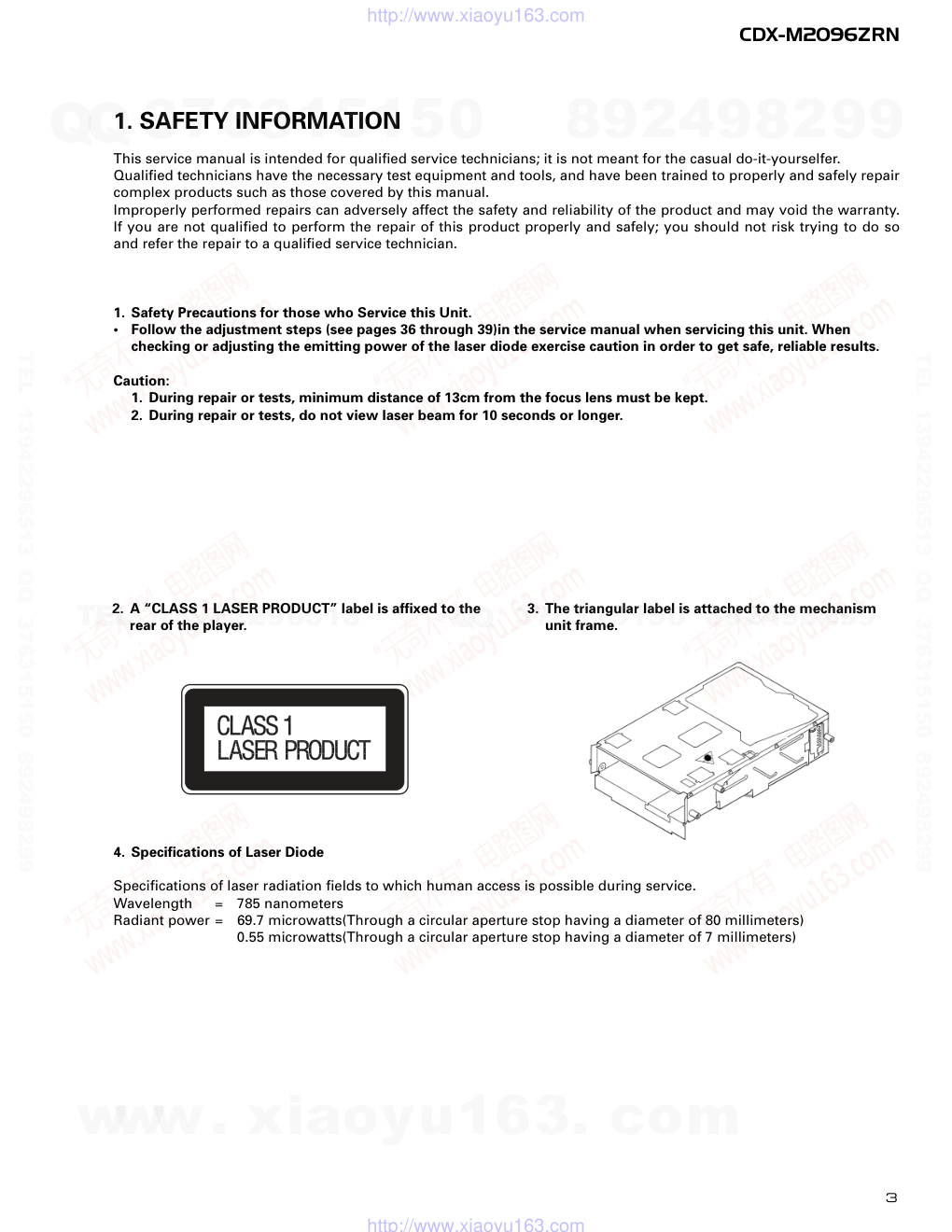

1. SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so
and refer the repair to a qualified service technician.
1. Safety Precautions for those who Service this Unit.
•
Follow the adjustment steps (see pages 36 through 39)in the service manual when servicing this unit. When
checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results.
Caution:
1. During repair or tests, minimum distance of 13cm from the focus lens must be kept.
2. During repair or tests, do not view laser beam for 10 seconds or longer.
4. Specifications of Laser Diode
Specifications of laser radiation fields to which human access is possible during service.
Wavelength
=
785 nanometers
Radiant power =
69.7 microwatts(Through a circular aperture stop having a diameter of 80 millimeters)
0.55 microwatts(Through a circular aperture stop having a diameter of 7 millimeters)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
4
CDX-M2096ZRN
NOTE:
- Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.
- Screws adjacent to ∇ mark on the product are used for disassembly.
1 Polyethylene Bag
CEG1026
2 Cover
HHW1584
3 Contain Box
HHL3682
4 Protector
HHP2132
5 Protector
HHP2131
- PACKING SECTION PARTS LIST
Mark No. Description
Part No.
Mark No. Description
Part No.
2. EXPLODED VIEWS AND PARTS LIST

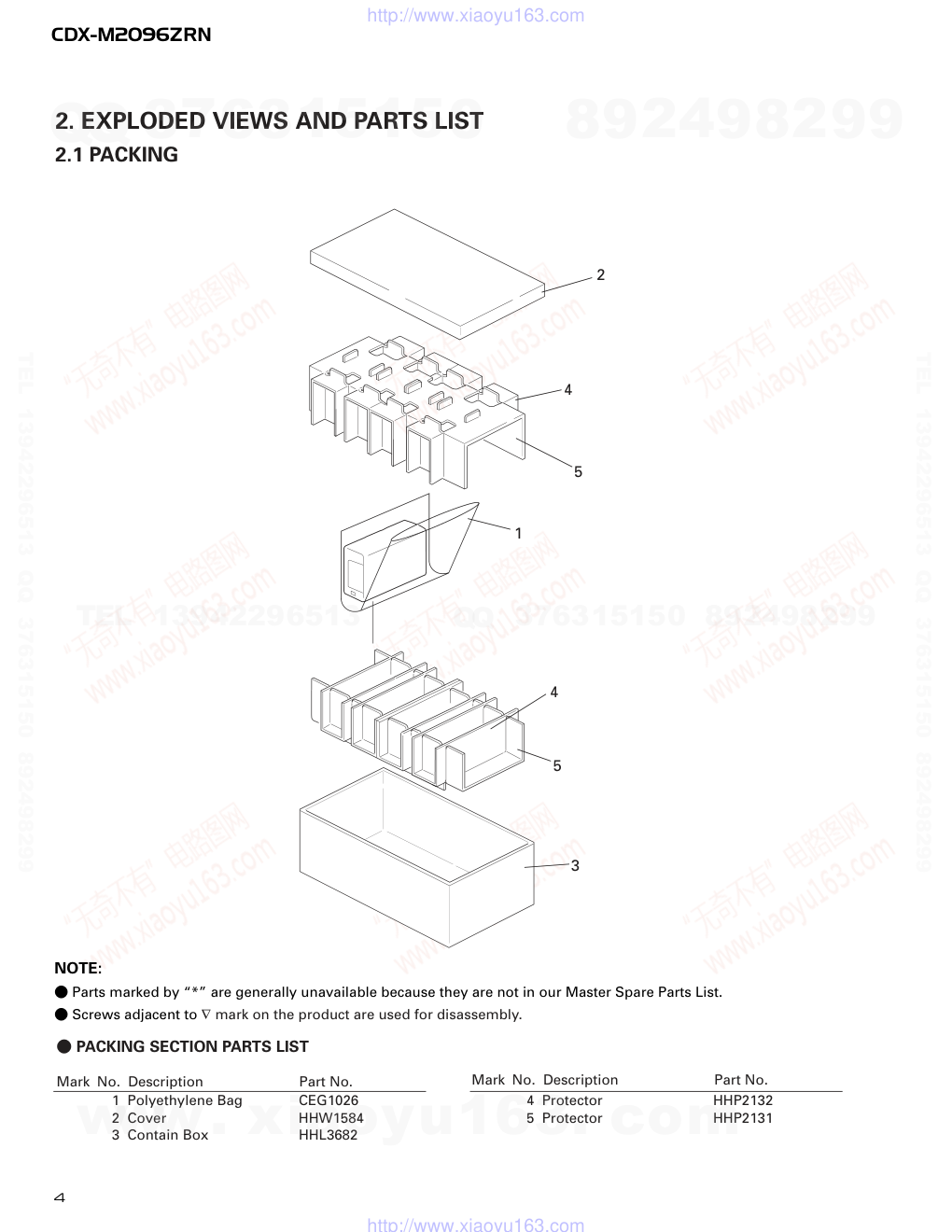

2.1 PACKING
1
2
3
4
5
4
5
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
5
CDX-M2096ZRN
2.2 EXTERIOR
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
1 Screw
BMZ26P040FMC
2 Screw
BMZ30P040FMC
3 Screw
BMZ30P040FZK
4 Screw
CBA1353
5 Spring
CBH2209
6 Connector
CDE5205
7 Cord Assy
CDE5367
8 Lower Case
CNB2349
9 Holder
CNC7111
10 Sub Chassis
CNC8091
11 Seal
CNM6179
12 Sheet
CNM6180
13 PCB
CNP4760
14 Damper
CNV5465
15 Frame L Assy
CXB1621
16 Frame R Assy
CXB1622
17 Upper Case Unit
CXB3040
18 CD Mechanism Module(C5) CXK4485
19 Clamper
HEF-102
20 Chassis L
HNC7985
21 Chassis R
HNC7986
22 Extension Unit
HWX2308
23 Screw
BMZ26P060FMC
24 Plug(CN702)
CKS1036
25 Plug(CN703)
CKS1633
26 Connector(CN101)
CKS2101
27 Plug(CN901)
CKS2372
28 Connector(CN701)
CKS2779
29 Holder
HNC7984
30 Screw
BPZ26P080FMC
31 Spring
CBH1426
32 Spring
CBH1983
33 Shaft
CLA1949
34 Shaft
CLA2038
35 Spring Holder
CNC3972
36 Sheet
CNM6020
37 Cushion
CNM6342
38 Button
HAC5780
39 Door
HAT1986
40 Grille
HNS5107
41 Lever
HNV5516
42 Screw
IMS30P040FMC
43 Transistor(Q903)
2SB1335A

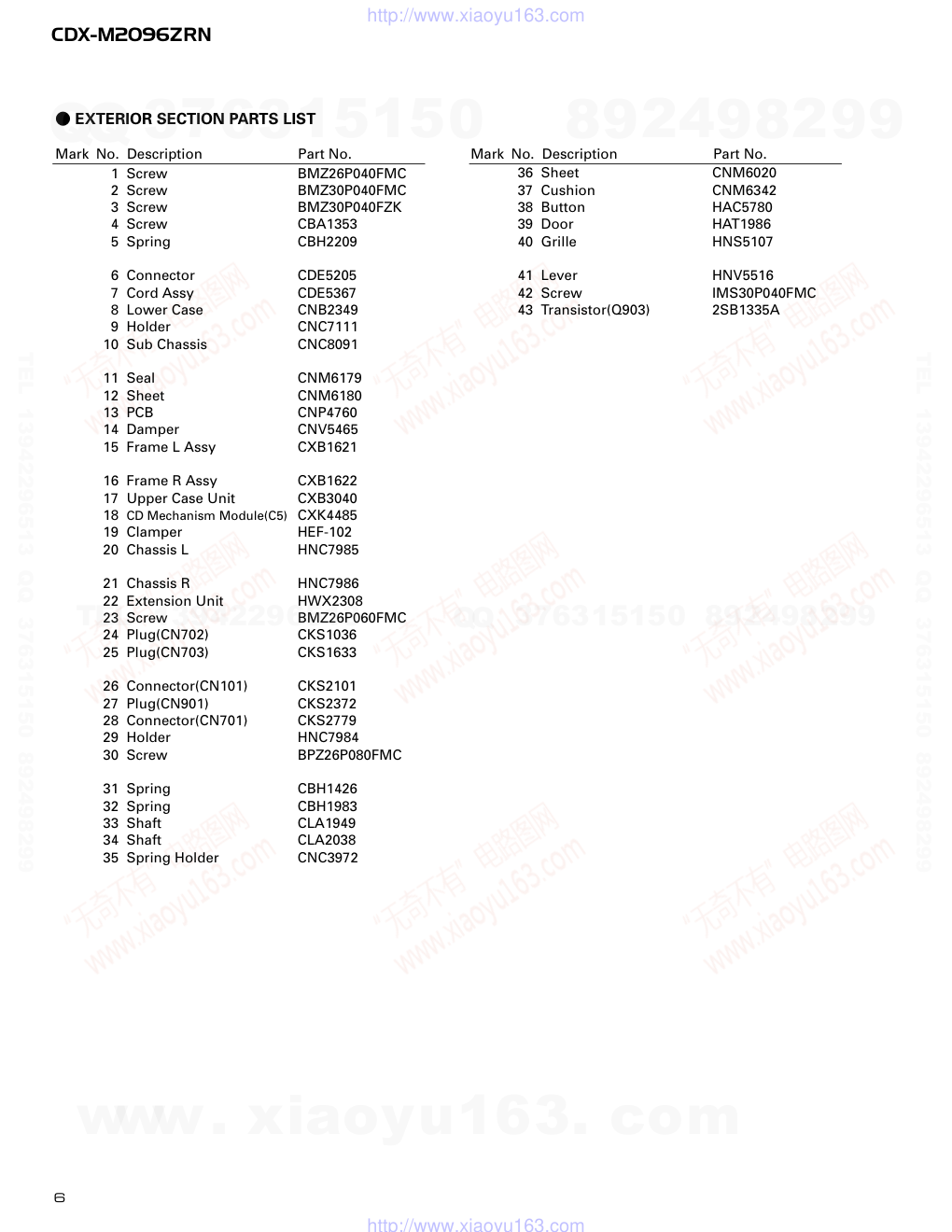

- EXTERIOR SECTION PARTS LIST
Mark No. Description
Part No.
Mark No. Description
Part No.
6
CDX-M2096ZRN
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
CDX-M2096ZRN

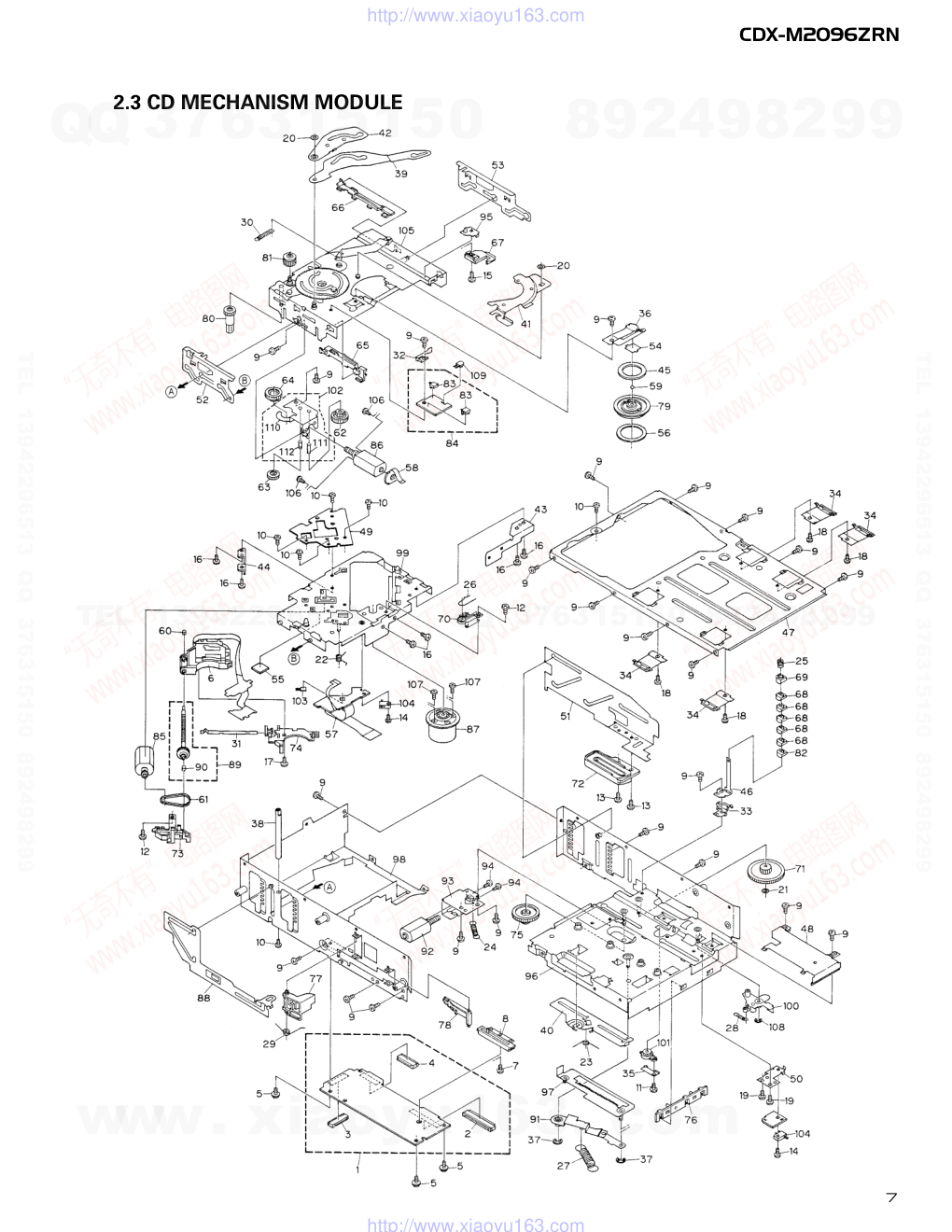

2.3 CD MECHANISM MODULE
7
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
8
CDX-M2096ZRN

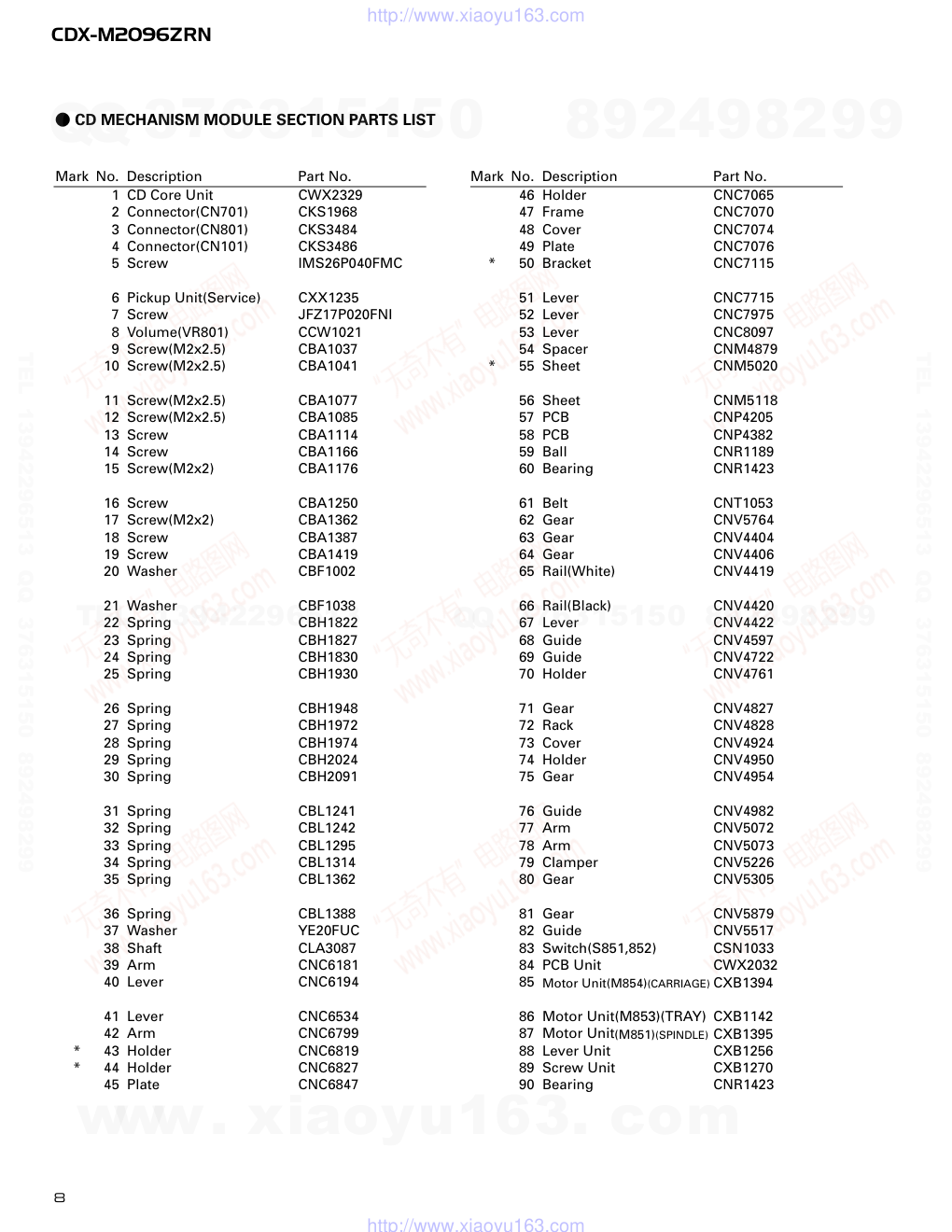

1 CD Core Unit
CWX2329
2 Connector(CN701)
CKS1968
3 Connector(CN801)
CKS3484
4 Connector(CN101)
CKS3486
5 Screw
IMS26P040FMC
6 Pickup Unit(Service)
CXX1235
7 Screw
JFZ17P020FNI
8 Volume(VR801)
CCW1021
9 Screw(M2x2.5)
CBA1037
10 Screw(M2x2.5)
CBA1041
11 Screw(M2x2.5)
CBA1077
12 Screw(M2x2.5)
CBA1085
13 Screw
CBA1114
14 Screw
CBA1166
15 Screw(M2x2)
CBA1176
16 Screw
CBA1250
17 Screw(M2x2)
CBA1362
18 Screw
CBA1387
19 Screw
CBA1419
20 Washer
CBF1002
21 Washer
CBF1038
22 Spring
CBH1822
23 Spring
CBH1827
24 Spring
CBH1830
25 Spring
CBH1930
26 Spring
CBH1948
27 Spring
CBH1972
28 Spring
CBH1974
29 Spring
CBH2024
30 Spring
CBH2091
31 Spring
CBL1241
32 Spring
CBL1242
33 Spring
CBL1295
34 Spring
CBL1314
35 Spring
CBL1362
36 Spring
CBL1388
37 Washer
YE20FUC
38 Shaft
CLA3087
39 Arm
CNC6181
40 Lever
CNC6194
41 Lever
CNC6534
42 Arm
CNC6799
*
43 Holder
CNC6819
*
44 Holder
CNC6827
45 Plate
CNC6847
46 Holder
CNC7065
47 Frame
CNC7070
48 Cover
CNC7074
49 Plate
CNC7076
*
50 Bracket
CNC7115
51 Lever
CNC7715
52 Lever
CNC7975
53 Lever
CNC8097
54 Spacer
CNM4879
*
55 Sheet
CNM5020
56 Sheet
CNM5118
57 PCB
CNP4205
58 PCB
CNP4382
59 Ball
CNR1189
60 Bearing
CNR1423
61 Belt
CNT1053
62 Gear
CNV5764
63 Gear
CNV4404
64 Gear
CNV4406
65 Rail(White)
CNV4419
66 Rail(Black)
CNV4420
67 Lever
CNV4422
68 Guide
CNV4597
69 Guide
CNV4722
70 Holder
CNV4761
71 Gear
CNV4827
72 Rack
CNV4828
73 Cover
CNV4924
74 Holder
CNV4950
75 Gear
CNV4954
76 Guide
CNV4982
77 Arm
CNV5072
78 Arm
CNV5073
79 Clamper
CNV5226
80 Gear
CNV5305
81 Gear
CNV5879
82 Guide
CNV5517
83 Switch(S851,852)
CSN1033
84 PCB Unit
CWX2032
85 Motor Unit(M854)(CARRIAGE) CXB1394
86 Motor Unit(M853)(TRAY) CXB1142
87 Motor Unit(M851)(SPINDLE) CXB1395
88 Lever Unit
CXB1256
89 Screw Unit
CXB1270
90 Bearing
CNR1423
Mark No. Description
Part No.
Mark No. Description
Part No.
- CD MECHANISM MODULE SECTION PARTS LIST
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
9
CDX-M2096ZRN

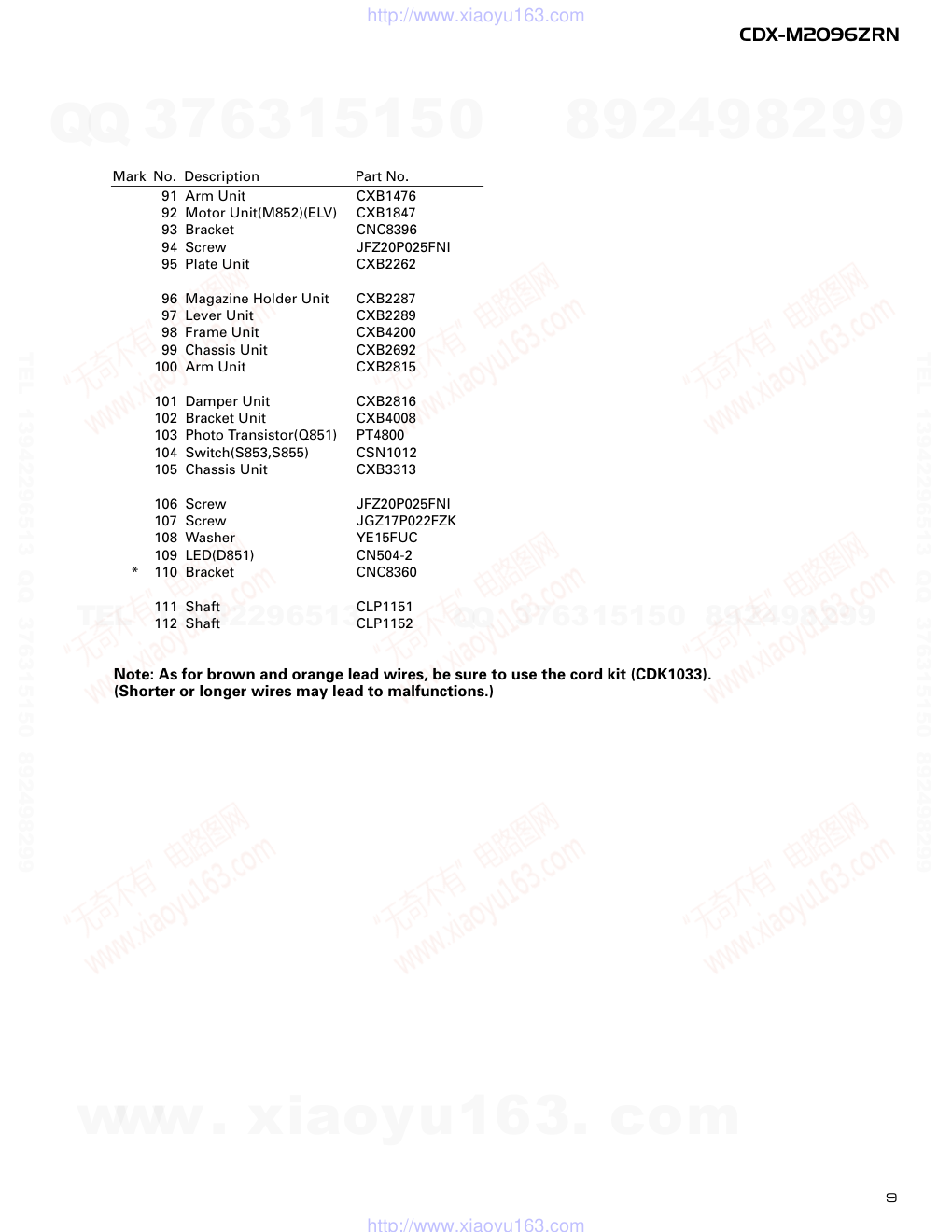

91 Arm Unit
CXB1476
92 Motor Unit(M852)(ELV)
CXB1847
93 Bracket
CNC8396
94 Screw
JFZ20P025FNI
95 Plate Unit
CXB2262
96 Magazine Holder Unit
CXB2287
97 Lever Unit
CXB2289
98 Frame Unit
CXB4200
99 Chassis Unit
CXB2692
100 Arm Unit
CXB2815
101 Damper Unit
CXB2816
102 Bracket Unit
CXB4008
103 Photo Transistor(Q851)
PT4800
104 Switch(S853,S855)
CSN1012
105 Chassis Unit
CXB3313
106 Screw
JFZ20P025FNI
107 Screw
JGZ17P022FZK
108 Washer
YE15FUC
109 LED(D851)
CN504-2
*
110 Bracket
CNC8360
111 Shaft
CLP1151
112 Shaft
CLP1152
Note: As for brown and orange lead wires, be sure to use the cord kit (CDK1033).
(Shorter or longer wires may lead to malfunctions.)
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
10
CDX-M2096ZRN
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
E
E
E
E
E

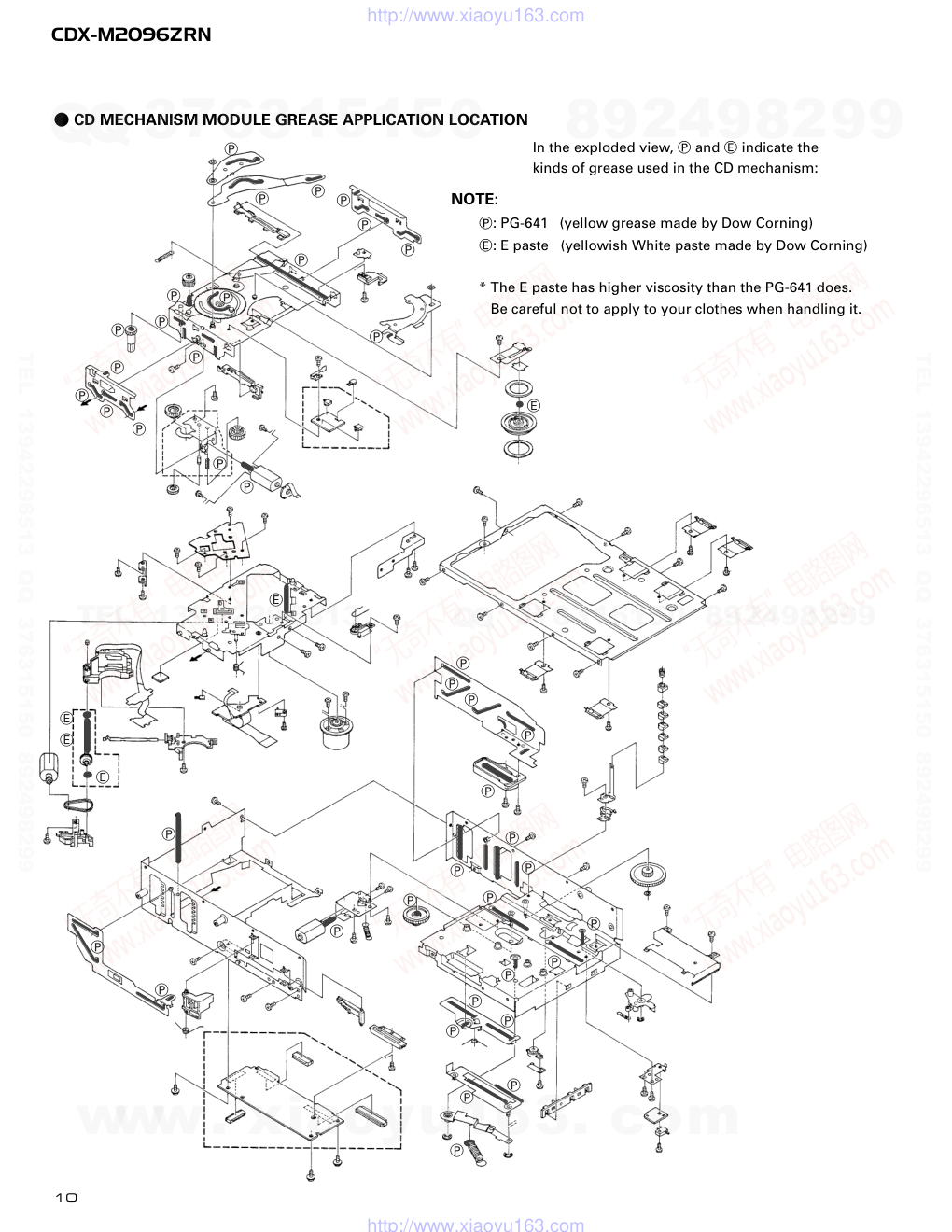

- CD MECHANISM MODULE GREASE APPLICATION LOCATION
In the exploded view, P and E indicate the
kinds of grease used in the CD mechanism:
NOTE:
P: PG-641 (yellow grease made by Dow Corning)
E: E paste (yellowish White paste made by Dow Corning)
* The E paste has higher viscosity than the PG-641 does.
Be careful not to apply to your clothes when handling it.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
11
CDX-M2096ZRN
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM
3.1 BLOCK DIAGRAM
A
B
C
D
E
F
G
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
12
CDX-M2096ZRN
A
1
2
3
4
B
C
D
1
2
3
4
3.2 EXTENSION UNIT
Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS
LIST”.
A
CN701
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
EXTENSION UNIT
Consists of
EXTENSION PCB
BUTTON PCB
1
2
3
6
5
4
A
G
G
B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
13
CDX-M2096ZRN
5
6
7
8
A
B
C
D
5
6
7
8
A
OUT PUT LEVEL
=500+/-100mV
1
2
3
4
5
6
7
8
9
10
11
12
13
1
2
3
1
2
3
6
4
G
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
14
CDX-M2096ZRN
A
1
2
3
4
B
C
D
1
2
3
4
CCP1338
CCW1021
S851,S852:CSN1033
B
C
F
D
E
3.3 CD MECHANISM MODULE(GUIDE PAGE)
B-a
B-b
B-a
B-b
B-b
B-a
Large size
SCH diagram
Guide page
Detailed page
B-a
B C D E F
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
15
CDX-M2096ZRN
5
6
7
8
A
B
C
D
5
6
7
CSS1456
DIG
A CN701
B-b
B
8
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
16
CDX-M2096ZRN
A
1
2
3
4
B
C
D
1
2
3
4
CCP1338
CCW1021
B
B-a
B-a B-b
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
17
CDX-M2096ZRN
5
6
7
8
A
B
C
D
5
6
7
8
S851,S852:CSN1033
C
F
D
E
B-a
B-a B-b
C D E F
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
18
CDX-M2096ZRN
A
1
2
3
4
B
C
D
1
2
3
4
CSS1456
DIG
B-a B-b
B-b
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
A CN701
19
CDX-M2096ZRN
5
6
7
8
A
B
C
D
5
6
7
B-b
B-a B-b
8
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
20
CDX-M2096ZRN
- Waveforms
1
RFO
0.5V/div. 0.5µs/div.
Normal mode: play
1
CH1: RFO
1V/div.
2
CH2: MIRR
5V/div.
Test mode: Tracking open
0.5ms/div.
1
CH1: RFO
1V/div.
2
CH2: MIRR
5V/div.
Normal mode: The defect part
passes 800µm
0.5ms/div
3
CH1: FD
0.5V/div.
4
CH2: FOP
2V/div.
Test mode: No disc, Focus close
0.2s/div.
3
CH1: FD
0.5V/div.
5
CH2: FOK
2V/div.
Normal mode: Focus close
0.2s/div.
6
CH1: FEY
0.5V/div.
7
CH2: XSI
2V/div.
Normal mode: Focus close
1ms/div.
REFO →
8
CH1: TEY
0.5V/div.
9
CH2: TD
0.5V/div.
Test mode: 32 tracks jump (FWD)
0.5ms/div.
8
CH1: TEY
0.5V/div.
9
CH2: TD
0.5V/div.
Test mode: Single jump (FWD)
0.5ms/div.
8
CH1: TEY
0.5V/div.
9
CH2: TD
0.5V/div.
Test mode: 100 tracks jump (FWD)
5ms/div.
6
CH1: FEY
0.1V/div.
3
CH2: FD
0.2V/div.
Normal mode: Play
20ms/div.
3
CH1: FD
0.5V/div.
10 CH2: MDYA
1V/div.
Normal mode: Focus close (12cm)
0.5s/div.
3
CH1: FD
0.5V/div.
10 CH2: MDYA
1V/div.
Normal mode: Focus close (8cm)
0.5s/div.
GND →
GND →
REFO →
REFO →
REFO →
REFO →
GND →
REFO →
REFO →
GND →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
Note:1. The encircled numbers denote measuring pointes in the circuit diagram.
2. Reference voltage
REFO:2.5V
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
21
CDX-M2096ZRN
8
CH1: TEY
0.2V/div.
9
CH2: TD
0.2V/div.
Normal mode: play
8
CH1: TEY
0.5V/div.
11 CH2: SD
0.5V/div.
Normal mode: Track search
5ms/div.
10 MDYA
0.5V/div.
0.1s/div.
Normal mode: Play (12cm)
10 MDYA
0.5V/div.
10ms/div.
Long Search (12cm)
12 EFM
1V/div.
5µs/div.
Play
8
CH1: TEY
1V/div.
13 CH2: TEC
1V/div.
Test mode: Focus close
Tracking open
2ms/div.
8
CH1: TEY
0.5V/div.
6
CH2: FEY
0.5V/div.
Normal mode: AGC after focus close
0.2s/div.
20ms/div.
14 SCKO
2V/div.
1µs/div.
Play
15 Dout
2V/div.
10µs/div.
Play
16 LRCK
2V/div.
20µs/div.
18 CH1: R OUT
1V/div.
17 CH2: L OUT
1V/div.
Normal mode: Play (1kHz 0dB)
6
CH1: FEY
0.2V/div.
3
CH2: FD
0.5V/div.
Normal mode: During AGC
1ms/div.
0.2ms/div.
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
GND →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
GND →
REFO →
GND →
REFO →
GND →
REFO →
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
22
CDX-M2096ZRN
8
CH1: TEY
0.2V/div.
9
CH2: TD
0.5V/div.
Normal mode: During AGC
1
CH1: RFO
1V/div.
19 CH2: HOLD
5V/div.
Normal mode: The defect part passes
800µm
1ms/div.
0.5ms/div.
3
CH1: FD
1V/div.
19 CH2: HOLD
5V/div.
Normal mode: The defect part passes
800µm
0.5ms/div.
GND →
GND →
REFO →
REFO →
REFO →
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
23
CDX-M2096ZRN
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
24
CDX-M2096ZRN
A
1
2
3
4
B
C
D
1
2
3
4
A
CN701
EXTENSION PCB
4. PCB CONNECTION DIAGRAM
4.1 EXTENSION PCB
NOTE FOR PCB DIAGRAMS
1. The parts mounted on this PCB
include all necessary parts for
several destination.
For further information for
respective destinations, be sure
to check with the schematic
diagram.
2. Viewpoint of PCB diagrams
Capacitor
Connector
P.C.Board
Chip Part
SIDE A
SIDE B
A
B
SIDE A
CN703
G
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
25
CDX-M2096ZRN
1
2
3
4
A
B
C
D
1
2
3
4A
EXTENSION PCB
A
SIDE B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
26
CDX-M2096ZRN
A
1
2
3
4
B
C
D
1
2
3
4
4.2 CD CORE UNIT
EPVO
EREF
REFO
E
F
B
B
CD CORE UNIT
C
SIDE A
CN701
A
PICKUP UNIT
(SERVICE)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
27
CDX-M2096ZRN
1
2
3
4
A
B
C
D
1
2
3
4
B
SIDE B
B
CD CORE UNIT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
CDX-M2096ZRN
A
1
2
3
4
B
C
D
1
2
3
4
C
28
PCB UNIT
D
C
4.3 PHOTO PCB
4.4 PCB UNIT
PHOTO PCB
C
1
5
10
13
1
2
3
M
SPINDLE
M851
2
1
M
CARRIAGE
M854
GY
YL
BL
BL
Q851
HOME
S853
B
CN801
D
F
E
D
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
29
CDX-M2096ZRN
1
2
3
4
A
B
C
D
1
2
3
4G
C
MAG
C
A
CN702
MOTOR PCB
E
4.5 MOTOR PCB
SWITCH PCB
F
4.6 SWITCH PCB
BUTTON PCB
G
4.7 BUTTON PCB
F
E
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
R
709
RS1/16S102J
R
710
RS1/10S103J
R
711
RS1/10S823J
R
712
RS1/10S222J
R
713
RS1/16S223J
R
714
RS1/10S473J
R
777
RS1/10S104J
R
901
RN1/10SE2003D
R
902
RN1/10SE1003D
R
904
RS1/8S3R9J
R
905
RS1/10S102J
R
907
RS1/10S473J
R
908
RS1/10S473J
R
909
RS1/10S101J
R
910
RS1/10S223J
R
911
RS1/8S121J
R
912
RS1/8S101J
R
913
RS1/10S122J
R
914
RS1/10S182J
CAPACITORS
C
101
CEJA100M16
C
102
CEJA100M16
C
103
CEJA330M10
C
104
CEJA330M10
C
107
CEJA101M10
C
108
CEAL4R7M16
C
401
CCSRCH221J50
C
402
CCSRCH221J50
C
403
CCSRCH221J50
C
404
CKSRYB103K50
C
405
CKSRYB103K50
C
701
CKSRYB103K50
C
702
CKSRYB102K50
C
703
CKSQYB103K50
C
704
CKSQYB104K50
C
705
CKSRYB102K50
C
706
CKSQYB473K50
C
707
CKSQYB473K50
C
708
CCSQCH102J50
C
777
CKSRYB104K16
C
778
CKSQYB103K50
C
901
470µF/25
CCH1127
C
902
470µF/25
CCH1127
C
904
CKSQYB103K50
C
905
CKSQYB103K50
C
906
CSZST330M10
C
907
CKSQYB473K50
C
908
CEJA220M16
C
987
CKSQYB103K50
30
CDX-M2096ZRN
5. ELECTRICAL PARTS LIST
NOTE:
- Parts whose parts numbers are omitted are subject to being not supplied.
- The part numbers shown below indicate chip components.
Chip Resistor
RS1/_S___J,RS1/__S___J
Chip Capacitor (except for CQS.....)
CKS....., CCS....., CSZS.....
EXTENSION UNIT
Consists of
EXTENSION PCB
BUTTON PCB
Unit Number : HWX2308
Unit Name
: Extension Unit
MISCELLANEOUS
IC
101
IC
BA3121F
IC
701
IC
PD5498A
IC
901
IC
PAJ002A
Q
101
Transistor
DTC323TK
Q
102
Transistor
DTC323TK
Q
103
Transistor
IMD2A
Q
701
Transistor
DTA124EK
Q
901
Transistor
2SB1260
Q
902
Transistor
DTA124EK
Q
903
Transistor
2SB1335A
Q
904
Transistor
IMX1
D
102
Chip Diode
MA151WA
D
103
Diode
MA111
D
401
Diode
MA157A
D
402
Diode
MA157A
D
403
Diode
MA157A
D
404
Diode
MA157A
D
405
Diode
MA157A
D
901
Diode
ERA15-02VH
D
903
Diode
ERA15-02VH
L
901
Choke Coil 1.4mH
CTH1129
X
701
Ceramic Resonator 6.29MHz
CSS1310
SW
701
Switch (EJECT)
CSG1004
SW
702
Switch (RESET)
CSG1124
RESISTORS
R
101
RS1/10S182J
R
102
RS1/10S182J
R
103
RS1/10S122J
R
104
RS1/10S122J
R
109
RS1/16S102J
R
110
RS1/16S122J
R
402
RA4C473J
R
403
RS1/16S104J
R
404
RS1/10S681J
R
405
RS1/10S681J
R
406
RS1/10S681J
R
407
RS1/10S681J
R
408
RS1/10S681J
R
701
RN1/10SE4302D
R
702
RN1/10SE1002D
R
704
RS1/10S102J
R
705
RA4C222J
R
706
RA4C104J
R
707
RS1/16S222J
R
708
RS1/16S222J
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
A G
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
31
CDX-M2096ZRN
Unit Number :
CWX2329
Unit Name
:
CD Core Unit
MISCELLANEOUS
IC
101
IC
UPC2572GS
IC
201
IC
UPD63702AGF
IC
301
IC
BA6997FM
IC
302
IC
LB1836M
IC
601
IC
BA4560F
IC
602
IC
BA4560F
IC
604
IC
TA78L05F
IC
701
IC
PQ05TZ51
Q
101
Transistor
2SD1664
Q
102
Transistor
UMD2N
D
701
Diode
1SR154-400
D
702
Diode
1SR154-400
X
201
Crystal Resonator 16.934MHz
CSS1456
VR
802
Semi-fixed 1kΩ(B)
CCP1338
RESISTORS
R
101
RS1/8S100J
R
102
RS1/8S120J
R
103
RS1/16S102J
R
104
RS1/16S822J
R
105
RS1/16S682J
R
106
RS1/16S183J
R
107
RS1/16S822J
R
108
RS1/16S333J
R
109
RS1/16S683J
R
110
RS1/16S134J
R
111
RS1/16S273J
R
113
RS1/16S222J
R
114
RS1/16S103J
R
115
RS1/16S103J
R
116
RS1/16S102J
R
117
RS1/16S163J
R
118
RS1/16S163J
R
201
RS1/16S104J
R
202
RS1/16S104J
R
301
RA4C332J
R
504
RS1/16S102J
R
505
RS1/16S221J
R
506
RA3C221J
R
511
RS1/16S102J
R
601
RS1/16S103J
R
602
RS1/16S103J
R
603
RS1/16S103J
R
604
RS1/16S103J
R
605
RS1/16S912J
R
606
RS1/16S912J
R
607
RS1/16S912J
R
608
RS1/16S912J
R
609
RS1/16S153J
R
610
RS1/16S153J
R
611
RN1/16SE1502D
R
612
RN1/16SE1502D
R
613
RN1/16SK5601D
R
614
RN1/16SK5601D
R
615
RN1/16SK5601D
R
616
RN1/16SK5601D
R
617
RS1/16S562J
R
618
RS1/16S562J
R
619
RS1/16S101J
R
620
RS1/16S101J
R
801
RS1/10S681J
R
804
RS1/16S622J
R
805
RS1/16S562J
CAPACITORS
C
101
CEV101M6R3
C
102
CKSQYB104K16
C
103
CEV470M6R3
C
104
CKSQYB334K16
C
105
CCSRCH330J50
C
106
CKSRYB103K25
C
107
CEV4R7M35
C
108
CKSQYB273K25
C
109
CCSRCH101J50
C
110
CKSQYB104K16
C
111
CKSRYB332K50
C
112
CKSQYB473K25
C
113
CKSRYB103K25
C
114
CKSRYB391K50
C
115
CCSRCH121J50
C
116
CKSRYB682K25
C
117
CKSQYB333K25
C
118
CKSQYB334K16
C
119
CKSQYB334K16
C
120
CKSQYB224K16
C
121
CKSQYB224K16
C
122
CKSQYB104K16
C
123
CKSRYB472K50
C
124
CKSQYB104K16
C
125
CCSRCH6R0D50
C
126
CKSRYB153K25
C
201
CKSQYB334K16
C
202
CKSQYB104K16
C
205
CEV101M6R3
C
206
CKSQYB224K16
C
207
CKSRYB102K50
C
208
CKSQYB224K16
C
301
CEV101M10
C
302
CKSQYB224K16
C
601
CCSRCH181J50
C
602
CCSRCH181J50
C
603
CCSRCH820J50
C
604
CCSRCH820J50
C
605
CCSRCH820J50
C
606
CCSRCH820J50
C
607
CKSRYB222K50
C
608
CKSRYB222K50
C
609
CCSRCH331J50
C
610
CCSRCH331J50
C
611
CKSQYB104K16
C
612
CKSQYB104K16
C
613
CKSQYB104K16
C
614
CKSQYB104K16
C
615
CEV101M10
C
701
22µF/6.3V
CCH1233
C
702
CKSQYB334K16
C
703
CEV101M6R3
C
801
CKSRYB103K25
C
802
CKSQYB104K16
Unit Number :
Unit Name
:
Photo PCB
Q
851
Photo-transistor
PT4800
S
853
Switch(HOME)
CSN1012
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
B
C
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
32
CDX-M2096ZRN
Unit Number :
CWX2032
Unit Name
:
PCB Unit
S
851
Switch(TRP)
CSN1033
S
852
Switch(DSP)
CSN1033
R
851
RS1/8S473J
R
852
RS1/8S753J
Unit Number :
Unit Name
:
Motor PCB
M
853
Motor Unit(TRAY)
CXB1142
Unit Number :
Unit Name
:
Switch PCB
S
855
Switch(MAG)
CSN1012
Miscellaneous Parts List
D
851
LED
CN504-2
M
851
Motor Unit(SPINDLE)
CXB1395
M
852
Motor Unit(ELV)
CXB1847
M
854
Motor Unit(CARRIAGE)
CXB1394
VR
801
10kΩ
CCW1021
Pickup Unit(Service)
CXX1235
=====Circuit Symbol and No.===Part Name
Part No.
---
------
------------------------------------------
-------------------------
D
E
F
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
33
CDX-M2096ZRN
6. ADJUSTMENT
6.1 CD ADJUSTMENT
1)Precautions
• This unit uses a single power supply (+5V) for the
regulator. The signal reference potential, therefore, is
connected to REFO(approx. 2.5V) instead of GND.
If REFO and GND are connected to each other by
mistake during adjustments,not only will it be
impossible to measure the potential correctly,but the
servo will malfunction and a severe shock will be
applied to the pick-up. To avoid this,take special note
of the following.
Do not connect the negative probe of the measuring
equipment to REFO and GND together. It is especially
important not to connect the channel 1 negative
probe of the oscilloscope to REFO with the channel 2
negative probe connected to GND.
Since the frame of the measuring instrument is
usually at the same potential as the negative
probe,change the frame of the measuring instrument
to floating status.
If by accident REFO comes in contact with
GND,immediately switch the regulator or power OFF.
• Always make sure the regulator is OFF when
connecting and disconnecting the various filters and
wiring required for measurements.
• Before proceeding to further adjustments and
measurements after switching regulator ON,let the
player run for about one minute to allow the circuits
to stabilize.
• Since the protective systems in the unit’s software are
rendered inoperative in test mode,be very careful to
avoid mechanical and /or electrical shocks to the
system when making adjustment.
• This unit is adjusted in a combination with the CD
control unit (KEH-M9100ZRN/EW). Each regulator key
should be operated at the unit.
With the KEH-M9100ZRN/EW taken up for reference,
a description will be given below concerning how to
enter into the test mode, including key operations.
The key in the adjustment text is also one of the KEH-
M9100ZRN/EW keys.
• How to enter into the test mode
Switch ACC,back-up ON while pressing the AF and 6
keys together.
• Resetting the test mode
Switch ACC,back-up Off.
• Disc detection during loading and eject operations is
performed by means of a photo transistor in this
unit.Consequently,if the inside of the unit is exposed
to a strong light source when the outer casing is
removed for repairs or adjustment,the following
malfunctions may occur.
*During PLAY, even if the eject button is pressed,the
disc will not be ejected and the unit will remain in
the PLAY mode.
*The unit will not load a disc.
When the unit malfunctions this way,either re-
position the light source,move the unit or cover the
photo transistor.
• When loading and unloading discs during adjustment
procedures,always wait for the disc to be properly
clamped or ejected before pressing another key.
Otherwise, there is a risk of the actuator being
destroyed.
• Turn power off when pressing the button FWD or the
button REV key for focus search in the test mode. (Or
else lens may stick and the actuator may be
damaged.)
• SINGLE/4TRK/10TRK/32TRK will continue to operate
even after the key is released.Tracking is closed the
moment C-MOVE is released.
• JUMP MODE resets to SINGLE as soon as power is
switched off.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
34
CDX-M2096ZRN
•Note :
Unlike previous CD mechanism modules the grating angle of the pickup unit cannot be adjusted after the pickup
unit is changed. The pickup unit in the CD mechanism module is adjusted on the production line to match the CD
mechanism module and is thus the best adjusted pickup unit for the CD mechanism module. Changing the pickup
unit is thus best considered as a last resort. However, if the pickup unit must be changed, the grating should be
checked using the procedure below.
•Purpose :
To check that the grating is within an acceptable range.
•Symptoms of Mal-adjustment :
If the grating is off by a large amount symptoms such as being unable to close tracking, being unable to perform
track search operations, or track searching taking a long time, may appear.
•Method :
•Measuring Equipment
•Oscilloscope, Two L.P.F.
•Measuring Points
•E, F, REFOUT
•Disc
•ABEX TCD-784
•Mode
•TEST MODE
•Checking Procedure
1. In test mode, load the disc and switch the 5V regulator on.
2. Using the FWD and REV buttons, move the pickup unit to the innermost track.
3. Press key B to close focus, the display should read "11". Press key A to implement the tracking balance
adjustment the display should now read "5".
4. As shown in the diagram above, monitor the LPF outputs using the oscilloscope and check that the phase
difference is within 75° . Refer to the photographs supplied to determine the phase angle.
5. If the phase difference is determined to be greater than 75° try changing the pickup unit to see if there is any
improvement. If, after trying this a number of times, the grating angle does not become less than 75° then the
mechanism should be judged to be at fault.
•Note
Because of eccentricity in the disc and a slight misalignment of the clamping center the grating waveform may be
seen to "wobble" ( the phase difference changes as the disc rotates). The angle specified above indicates the
average angle.
•Hint
Reloading the disc changes the clamp position and may decrease the "wobble".
6.2 CHECKING THE GRATING
- Checking the Grating After Changing the Pickup Unit
REFO
E
F
REFO
REFO
E
F
L.P.F.
L.P.F.
CD CORE UNIT
Xch
Ych
Oscilloscope
100kW
100kW
390pF
390pF
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
35
CDX-M2096ZRN
Grating waveform
45
0
75
60
30
90
Ech → Xch 20mV/div, AC
Fch → Ych 20mV/div, AC
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
36
CDX-M2096ZRN
•Note :
Unlike the conventional mechanisms, the new mechanism detects the height of the stage using slide-variable
resistance.
To absorb dislocation of the stage height caused by differences in the mechanism and the CD core unit,
adjustment must be made for each CD-mechanism module using a variable resistor.
Normally, readjustment is not needed, as this has been adjusted at the factory. However, adjustment of elevation
is required according to the procedure explained below if an elevation error has occurred or if the CD core unit
has been removed.
•Purpose :
To adjust and confirm whether or not elevation operates correctly.
•Adjustment Method :
•Measuring Equipment:
Millivoltmeter
•Measuring Points :
EREF, EPVO
•Setting :
Without a magazine in Test mode
With the mechanism placed upside-down (Place the CD mechanism module so that the
CD core unit is above.)
•Confirmation Procedure
1.
Enter Test mode, then select Multi-CD player.
2. Press key A to enter Mechanism Test mode.
3.
Press key A twice to specify the amount of movement.
6.3 ADJUSTMENT OF ELEVATION WHEN THE CD CORE UNIT HAS BEEN REMOVED
FOR MAINTENANCE
- Adjustment When Error Code 60 is Displayed Because of Malfunctioning Elevation
TRACK
TRACK
73
EREF
EPVO
mV meter
CD CORE UNIT
Examples of display
The amount of movement
changes each time key A is
pressed.
maximum movement
Key A
during movement
Key A
minimum movement
Key A
TRACK
75
TRACK
74
TRACK
73
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
37
CDX-M2096ZRN
4.
Press key B to set ELV/TRAY mode to TRAY.
5.
Press key FWD to release the clamp and return the tray to
the magazine.
6.
Press key B to enter Elevation Move mode.
7.
Use key FWD/REV to operate elevation and set if to the graduation of the fourth
step (Fig. 1).
8.
Make the adjustment.
Use VR802 to adjust the difference in potential between EREF and EPVO to 0 ±20
mV.
9.
When adjustment is completed, press key BAND/REL to exit
Mechanism Test mode.
10. Confirm operation of the mechanism.
Place the mechanism horizontally (CD core unit below). Take
care not to short-circuit the PCB.
11. Confirm the height of the stage. Use the 6 key to select Disc No.6.
Check if the stopper bend of the clamp lever is engaged in the groove of the frame
stopper (Fig. 2-4).
•Note :
The stopper bend will be pressed downward into the groove for final clamping. Confirm the engagement position
of the stopper bend.
•If the stopper bend is engaged in the center and pressed downward, adjustment is completed. Go to step 15.
•If the stopper bend is dislocated, check the amount of dislocation by following step 12.
Examples of display
TRACK
76
TRACK
73
TRACK
77
TRACK
74
TRACK
78
TRACK
75
TRY mode
ELV mode
↔
↔
↔
key B
TRACK
7X
TRACK
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
38
CDX-M2096ZRN
12. To see the amount of dislocation, place the mechanism upside-down.
If the stopper bend has been dislocated in the direction of the first
CD, turn VR802 to the left(Fig. 2).
To lower the stage toward the sixth step by 0.1 mm, reduce the
voltage of EREF (adjusted in step 8) by 20 mV.
If the stopper bend has been dislocated in the direction of the sixth
CD, turn VR802 to the right(Fig. 4).
To raise the stage toward the first step by 0.1 mm, increase the
voltage of EREF (adjusted in step 8) by 20 mV.
13. Place the mechanism horizontal. Go back to step 11 to reconfirm the
stage height.
14. When adjustment of the stage height is completed, proceed as
follows:
15. Press the EJECT switch.
16. Once operation of the mechanism has stopped, turn the power OFF.
17. Wait more than one minute after the power is turned off, then turn the power ON and insert a magazine.
18. Check if the mechanism operates correctly with the first and fourth CDs.
19. If the mechanism operates properly, adjustment is completed. If the mechanism operates improperly, make the
adjustment again.
GND
EREF
VR802
mV meter
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
39
CDX-M2096ZRN
E
6
5
4
Adjust to the graduation of the fourth CD.
NG
Fig. 2
Stopper bend of the
clamp lever
Frame stopper
OK
Fig. 3
Engaged in the center and pressed downward.
NG
Fig. 4
Dislocated toward the sixth CD.
Fig. 1
Dislocated toward the first CD.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
- Pin Functions (PD5498A)
Pin No.
Pin Name
I/O
Format
Function and Operation
1
VDIN
I
Power supply short sensor input
2–5
NC
Not used
6
XA0
O
NM
Control signal distinguishing data from microcomputer
7
xsck
O
NM
LSI clock output
8
XSO
O
NM
LSI data output
9
XSI
I
LSI data input
10
xstb
O
C
CD LSI strobe output
11
xrst
O
C
CD LSI reset output
12–14
NC
Not used
15
bsens
I
Back up power sense input
16
brst
I
P-BUS reset input
17
bsrq
O
C
P-BUS service request output pin
18
brxen
I/O
C
P-BUS reception enable input/output pin
19
bsck
I/O
C
P-BUS serial clock input/output
20
BSO
O
C
P-BUS serial data output
21
BSI
I
P-BUS serial data input
22
ejsw
I
Eject signal input
23
mag
I
Magazine lock switch
24
CNVSS
I
GND
25
reset
I
Reset input
26
power
O
C
CD +5V control
27
CONT
O
C
Server driver power control output (CD)
28
XIN
I
Crystal oscillating element connection pin
29
XOUT
O
Crystal oscillating element connection pin
30
VSS
GND
31–57
NC
Not used
58
MIRR
I
Mirror detector input
59
LOCK
I
Spindle lock detector input
60
FOK
I
FOK signal input
61–64
NC
Not used
65
I1X3
O
C
Motor driver control output
66
I2
O
C
Motor driver control output
67
I4
O
C
Motor driver control output
68
CDMUTE
O
C
CD mute output
69
adena
O
C
A/D reference voltage output
70
testin
I
Test program mode input
71
VCC
5V
72
VREF
I
A/D converter reference voltage input
73
AVSS
I
A/D GND
74,75
NC
Not used
76
DISK
I
Disc detector input
77
EPVO
I
Voltage input from ELV position sense
78
EREF
I
Voltage input from ELV
79
MSW
I
Disc sense timing input and tray position input
80
TEMP
I
Temperature detector
40
CDX-M2096ZRN
7. GENERAL INFORMATION
7.1 IC
*PD5498A
80
1
20
21
40
41
60
61
Format
Meaning
C
C MOS
NM
Middle N channel open drain
IC's marked by* are MOS type.
Be careful in handling them because they are very
liable to be damaged by electrostatic induction.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
41
CDX-M2096ZRN
7.2 DIAGNOSIS
7.2.1 DISASSEMBLY
Note : Before disassembling the CD mech module, turn the spring holder so that the spring is positioned
horizontally. After reassembling, return the spring to the vertical position.
- Removing the Case (not shown)
1.Remove the eight screws and then remove the
upper case.
- Removing the Extension PCB
1.Remove the two connectors.
2.Stretch the claw indicated by arrow and then
remove the extension PCB.
EXTENSION PCB
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
42
CDX-M2096ZRN
- Removing the Pick-up Unit
1.Attach the Short Pin onto the Flexible PCB of the
Pick-up Unit. (Fig.5)
2.Remove the Flexible PCB from the connector. (Fig.6)
3.Remove the Torsion Spring which is pressed against
the leading edge of the Feed Screw. (Fig.6)
4.Remove the Screw and Pulley Cover. (Fig.6)
5.Remove the Belt and the Pick-up Unit with the Feed
Screw still attached. (Fig.6)
6.Lift the Tabs of the rack section of the Holder and
remove the Feed Screw. While doing so, be careful
not to lose the Bearings on the ends of the Feed
Screw. (Fig.6)
- Removing the CD Core Unit (Fig.6)
1.After procedures 1 and 2 for removing the Pick-up
Unit, remove the connector.
2.Remove the Elevation Motor Assy lead wires marked
with an arrow which are soldered onto the CD Core
Unit.
3.Remove screw (A), screw (B) and screws (C)(2
screws), then remove the CD Core Unit.
Fig. 5
Fig. 6
PCB
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
43
CDX-M2096ZRN
AF
6
SO
A
A
Display
TRACK
73
Display
TRACK
C
BAND/REL
BAND/REL
Operation time
select
Elevation mode
73: 8ms
74: 24ms
75: While this key
is pressed
Tray in/out mode
76: 48ms
77: 200ms
78: While this key
is pressed
TRACK
7X
Display
B
74: Elevation
(24ms)
77: Tray in/out
(200ms)
TRACK
7X
Display
FWD
Operation start
(Elevation mode)
(Tray in/out mode)
Operation mode
select
73: Elevation
(8ms)
76: Tray in/out
(48ms)
75: Elevation
(While this key
is pressed)
78: Tray in/out
(While this key
is pressed)
REV
Operation start
(Elevation mode)
(Tray in/out mode)
Display
TRACK
0
版权声明
1. 本站所有素材，仅限学习交流，仅展示部分内容，如需查看完整内容，请下载原文件。
2. 会员在本站下载的所有素材，只拥有使用权，著作权归原作者所有。
3. 所有素材，未经合法授权，请勿用于商业用途，会员不得以任何形式发布、传播、复制、转售该素材，否则一律封号处理。
4. 如果素材损害你的权益请联系客服QQ：77594475 处理。
