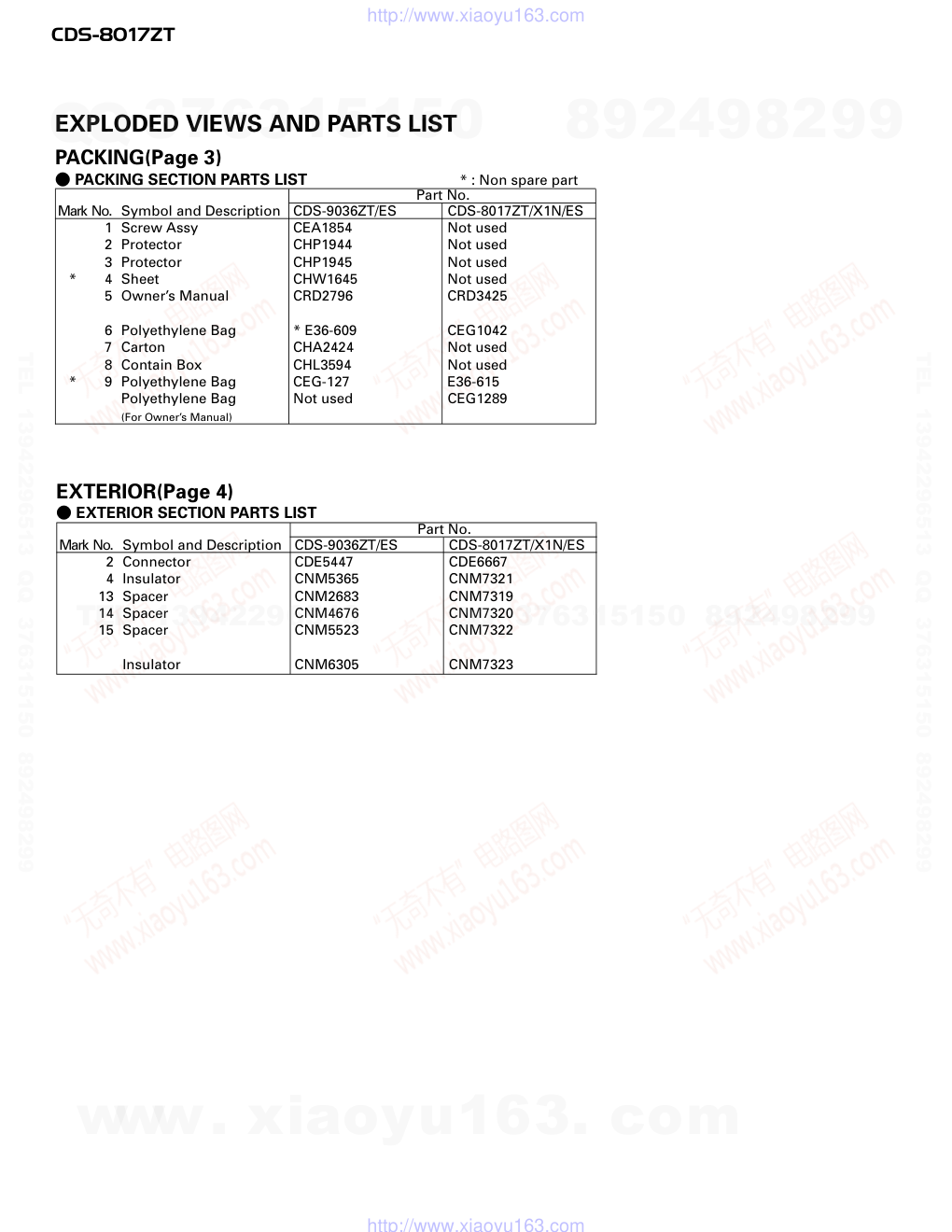

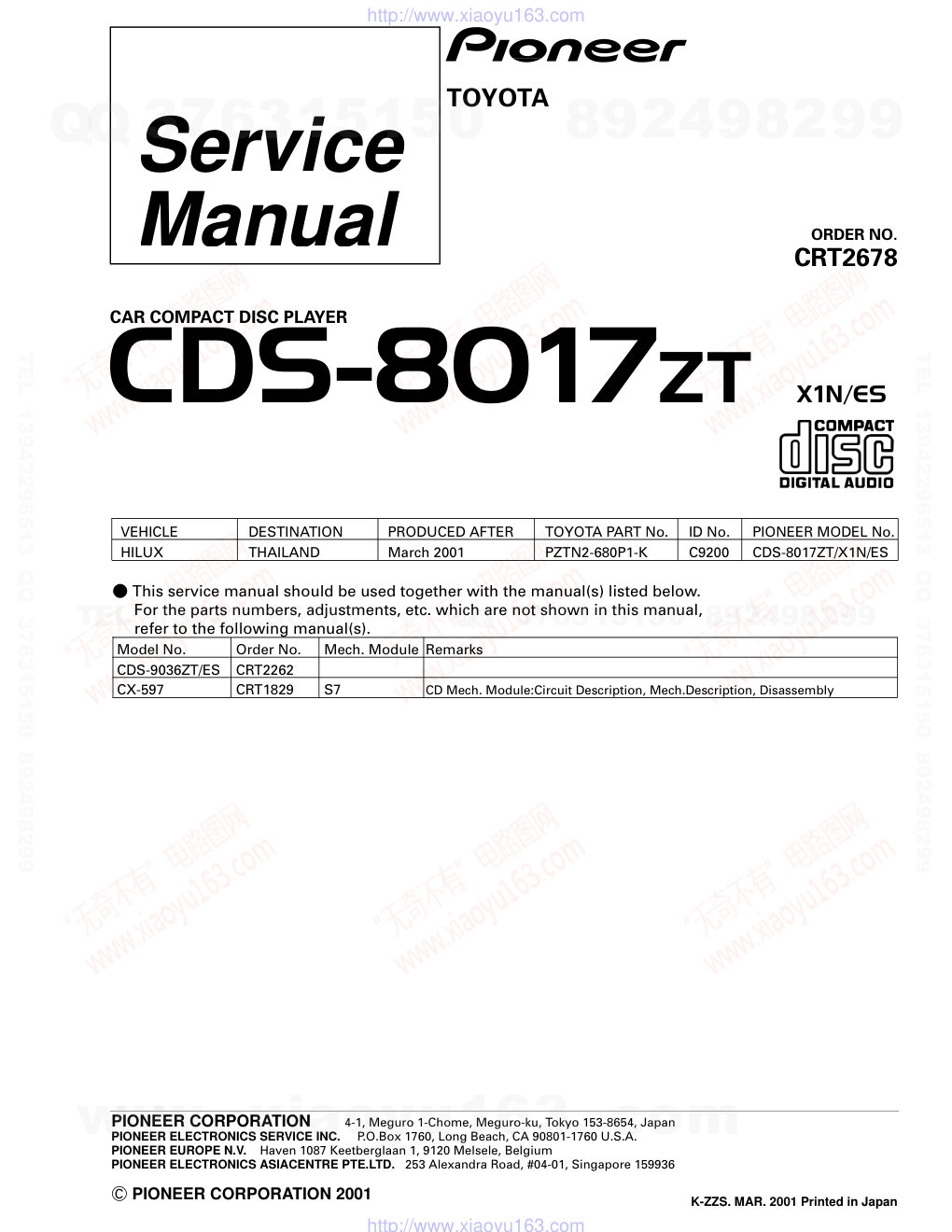

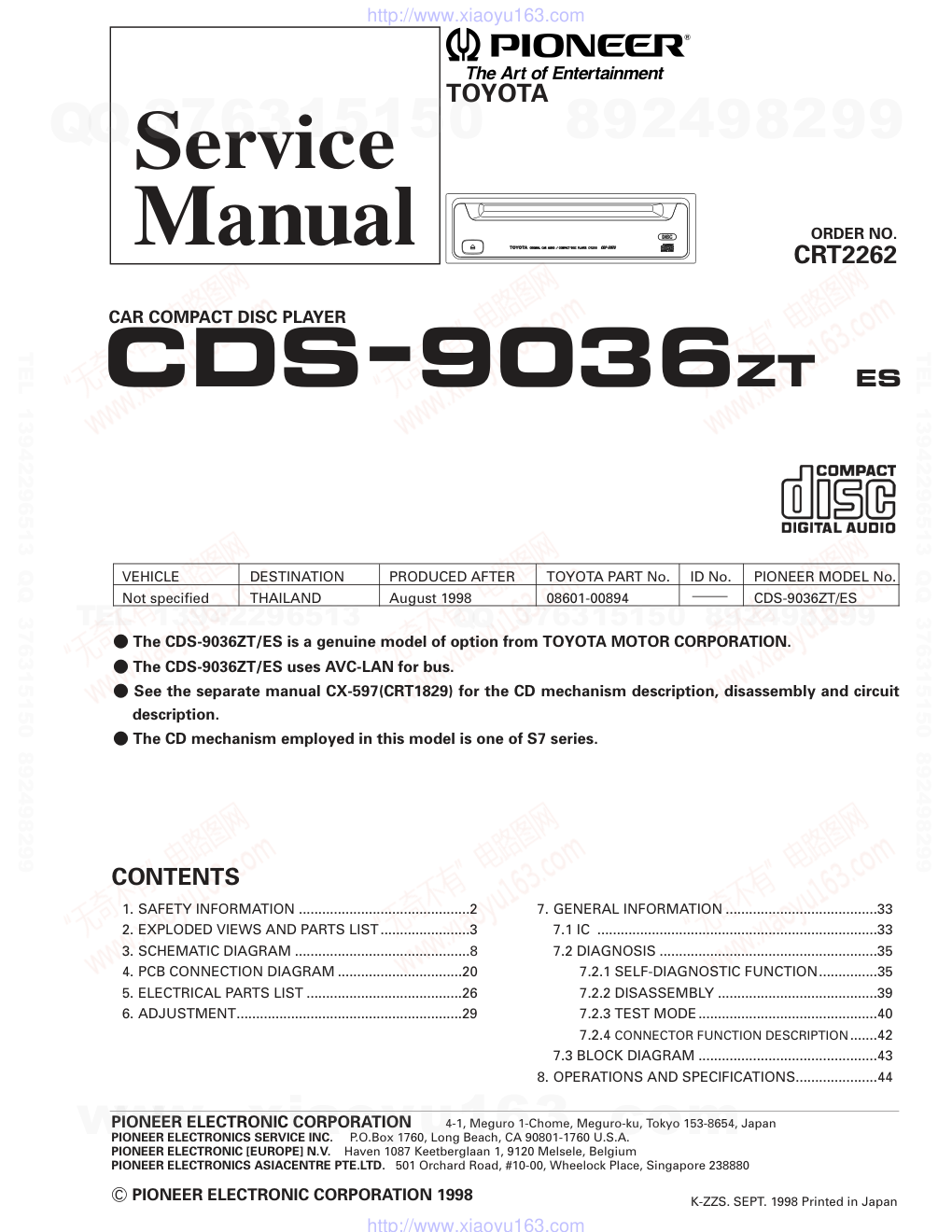

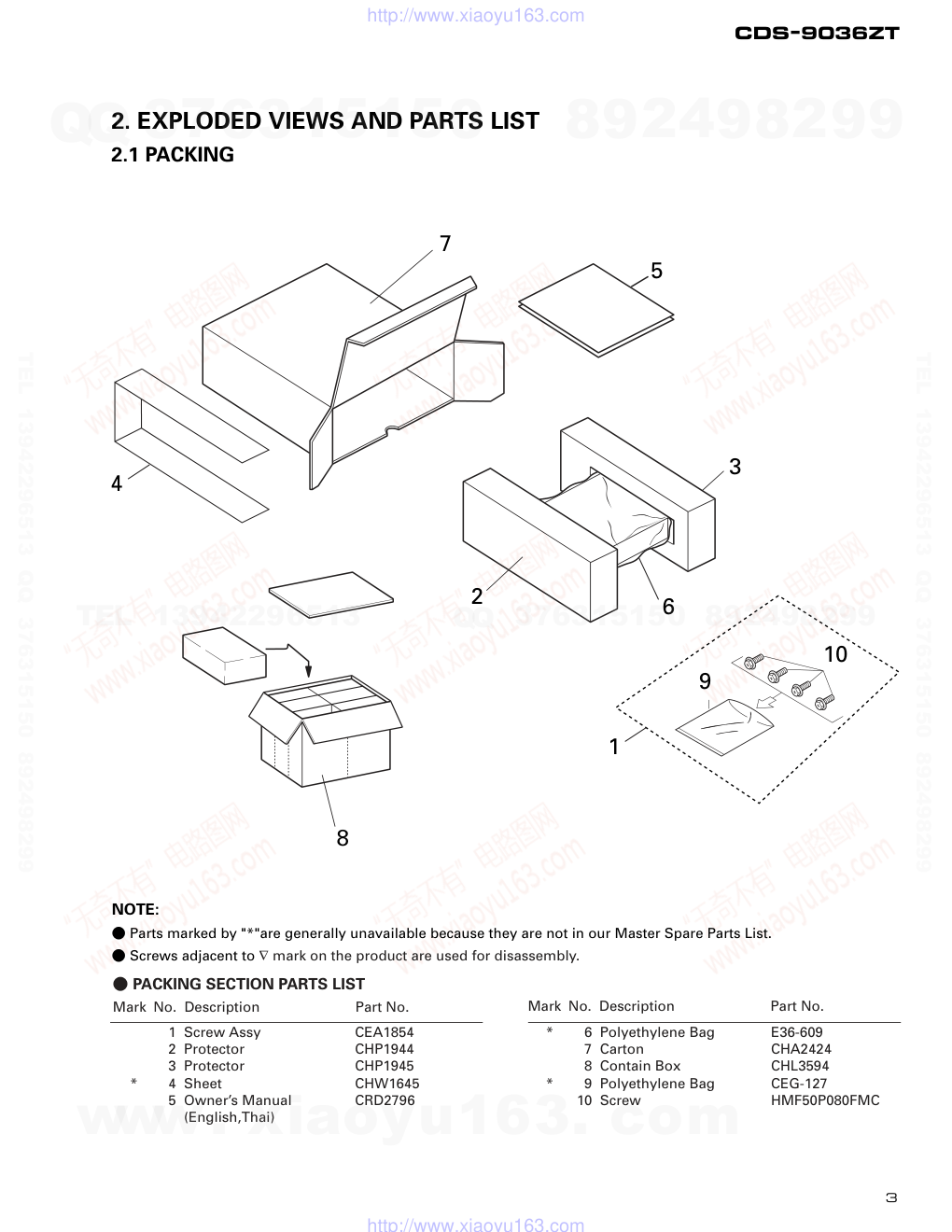

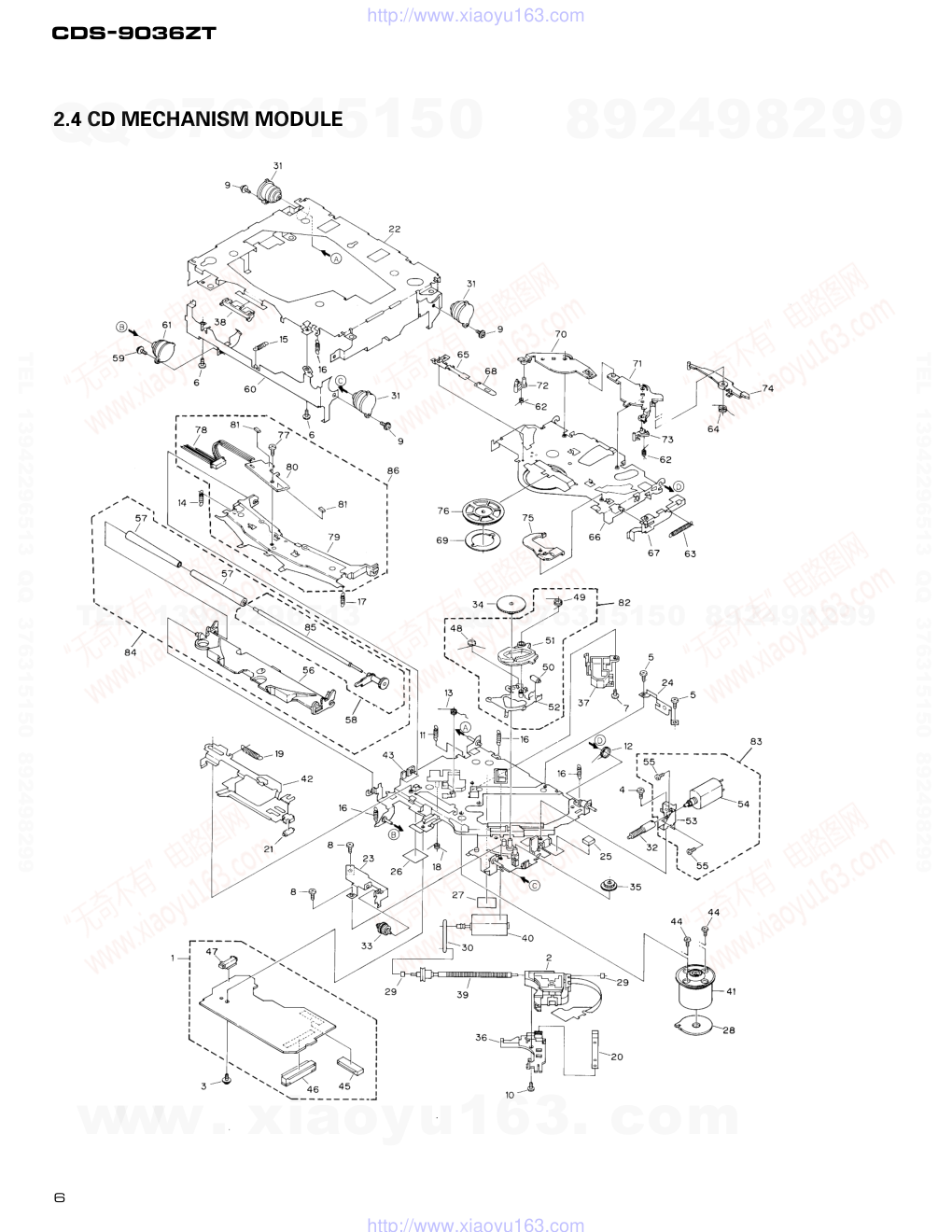

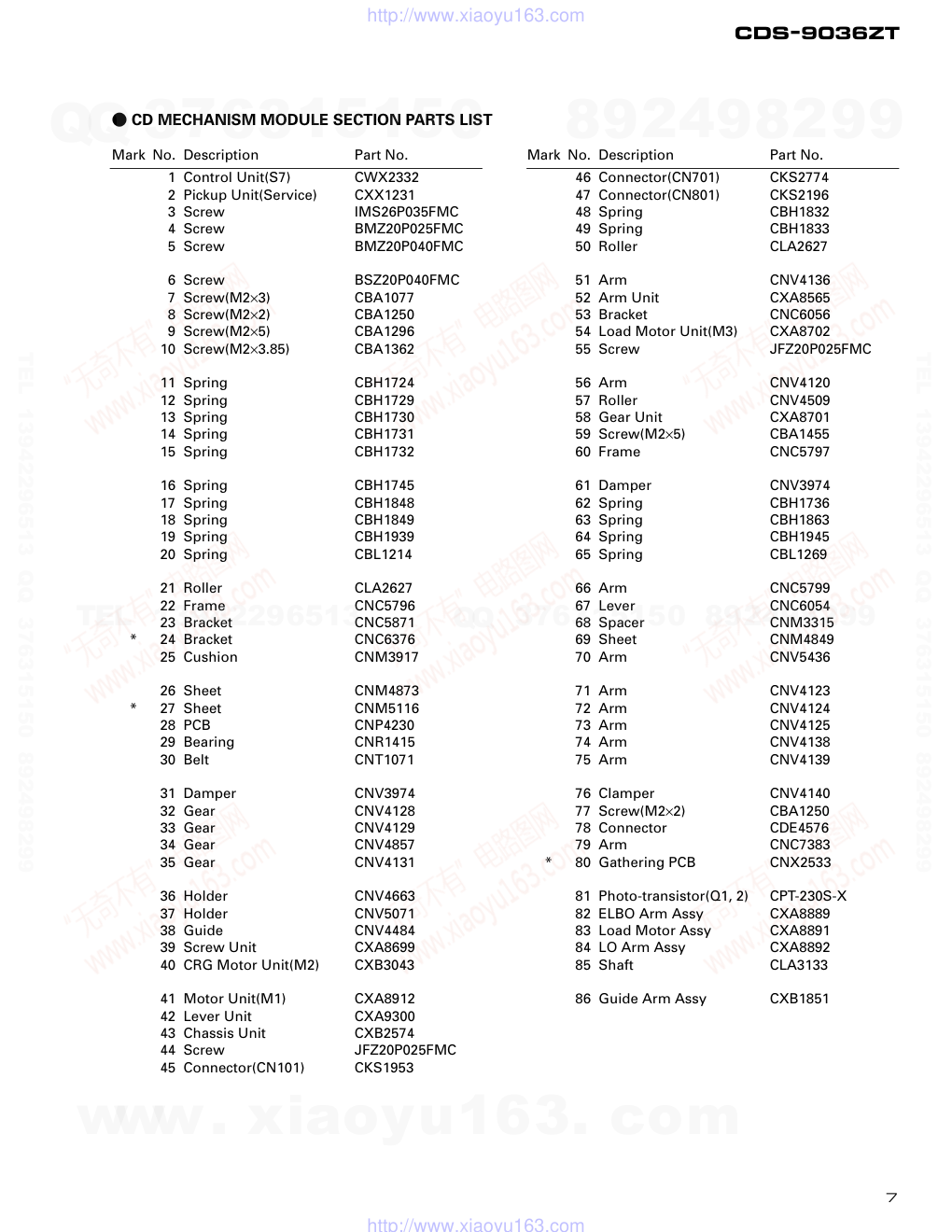

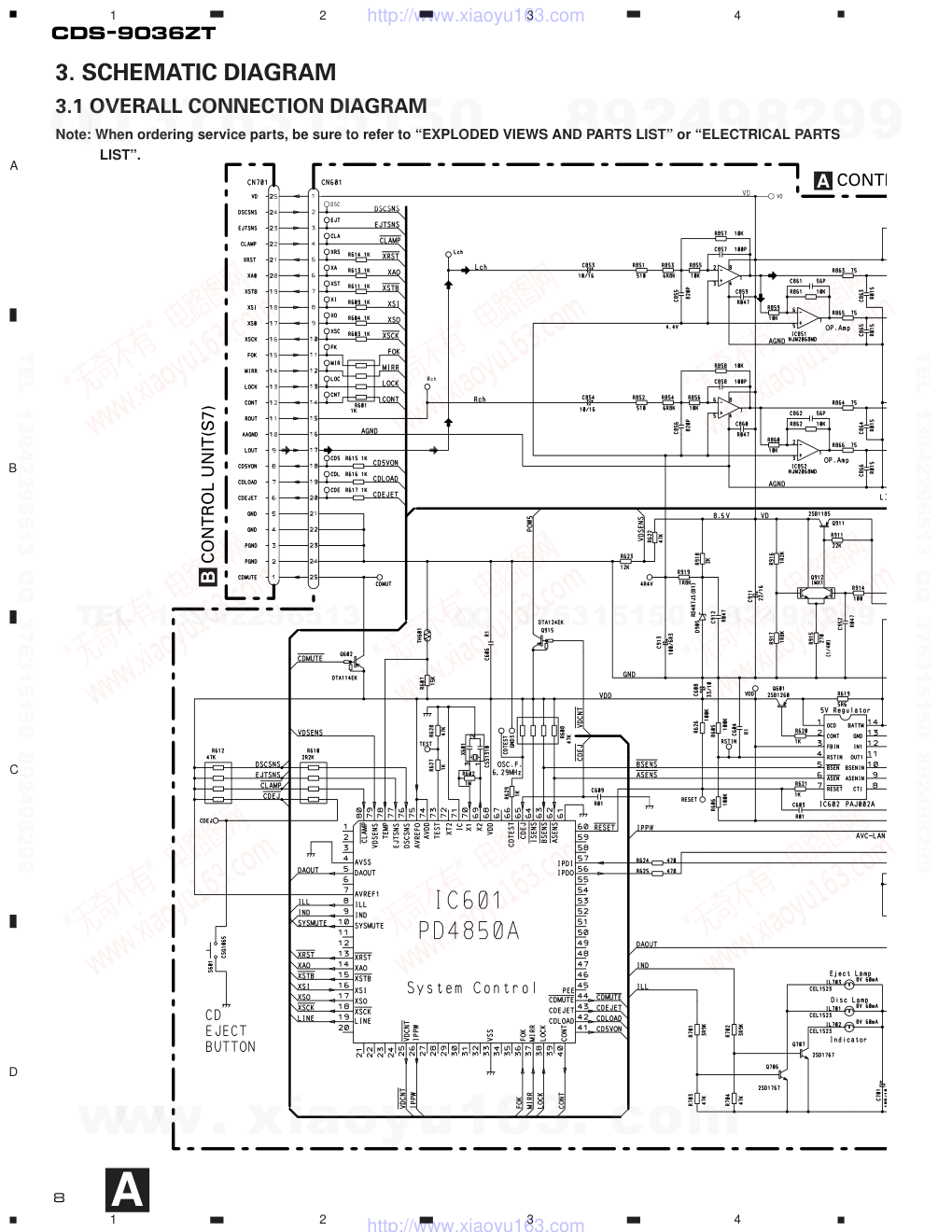

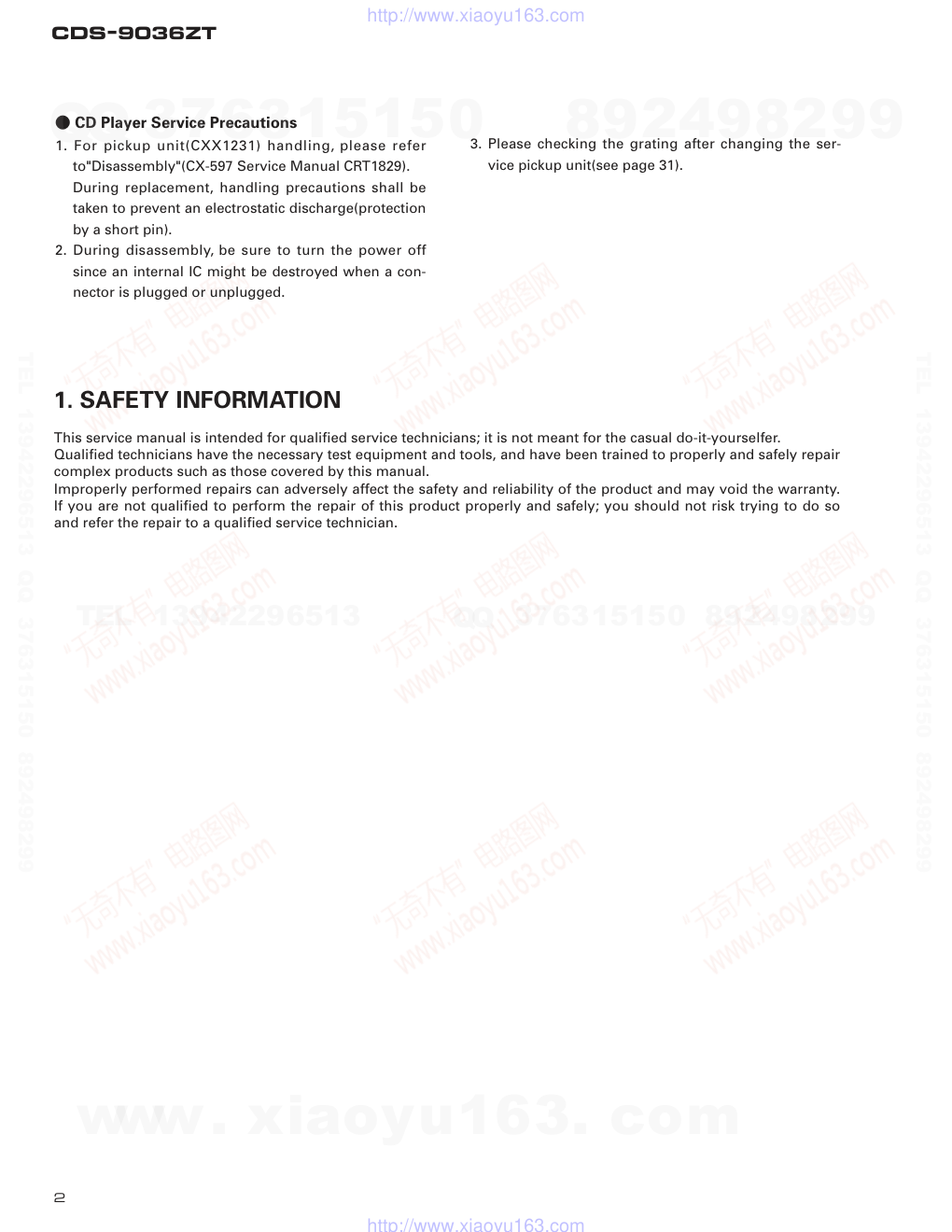

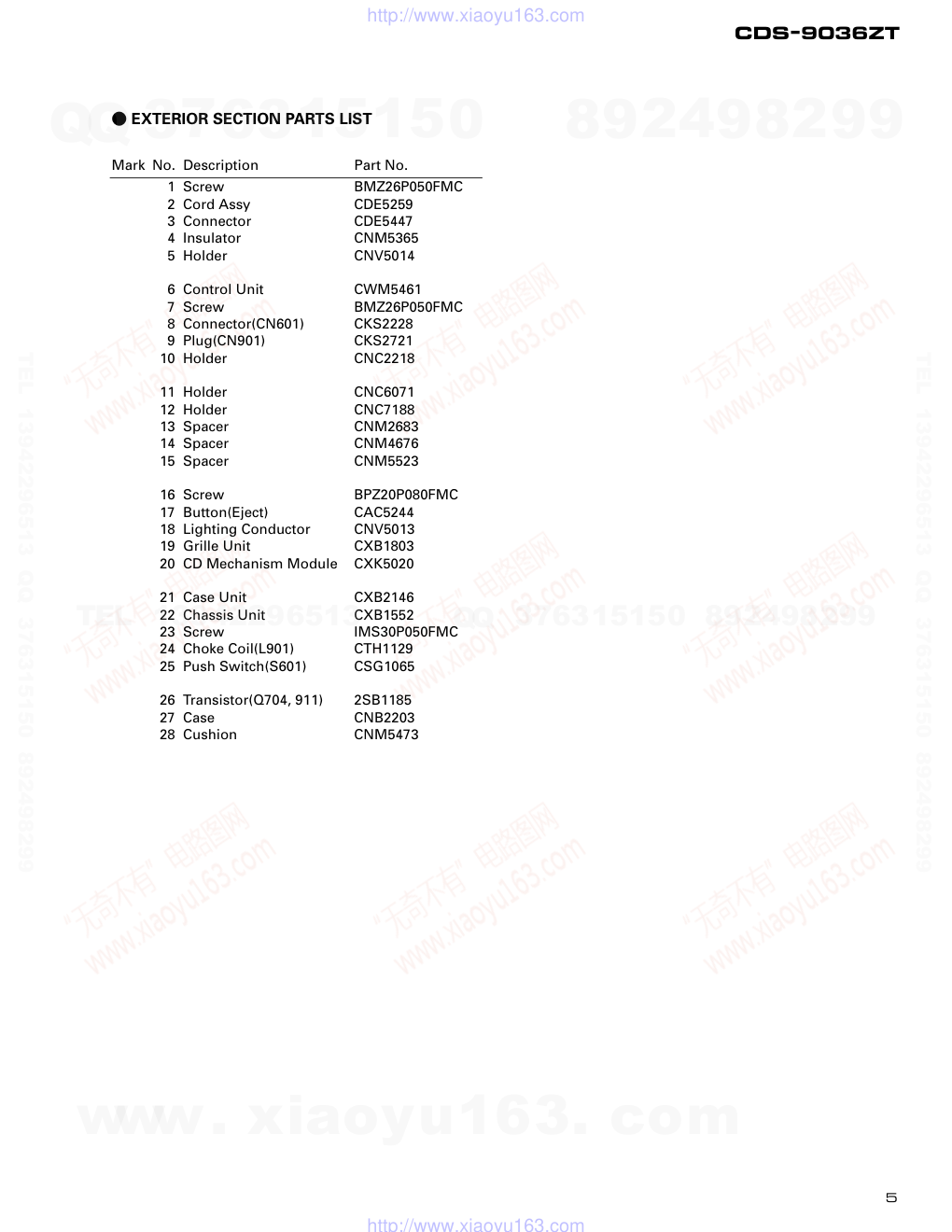

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER EUROPE N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936 C PIONEER CORPORATION 2001 K-ZZS. MAR. 2001 Printed in Japan ORDER NO. CRT2678 CAR COMPACT DISC PLAYER CDS-8017ZT X1N/ES Service Manual TOYOTA VEHICLE DESTINATION PRODUCED AFTER TOYOTA PART No. ID No. PIONEER MODEL No. HILUX THAILAND March 2001 PZTN2-680P1-K C9200 CDS-8017ZT/X1N/ES - This service manual should be used together with the manual(s) listed below. For the parts numbers, adjustments, etc. which are not shown in this manual, refer to the following manual(s). Model No. Order No. Mech. Module Remarks CDS-9036ZT/ES CRT2262 CX-597 CRT1829 S7 CD Mech. Module:Circuit Description, Mech.Description, Disassembly www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDS-8017ZT EXPLODED VIEWS AND PARTS LIST PACKING(Page 3) - PACKING SECTION PARTS LIST * : Non spare part Part No. Mark No. Symbol and Description CDS-9036ZT/ES CDS-8017ZT/X1N/ES 1 Screw Assy CEA1854 Not used 2 Protector CHP1944 Not used 3 Protector CHP1945 Not used * 4 Sheet CHW1645 Not used 5 Owner’s Manual CRD2796 CRD3425 6 Polyethylene Bag * E36-609 CEG1042 7 Carton CHA2424 Not used 8 Contain Box CHL3594 Not used * 9 Polyethylene Bag CEG-127 E36-615 Polyethylene Bag Not used CEG1289 (For Owner’s Manual) EXTERIOR(Page 4) - EXTERIOR SECTION PARTS LIST Part No. Mark No. Symbol and Description CDS-9036ZT/ES CDS-8017ZT/X1N/ES 2 Connector CDE5447 CDE6667 4 Insulator CNM5365 CNM7321 13 Spacer CNM2683 CNM7319 14 Spacer CNM4676 CNM7320 15 Spacer CNM5523 CNM7322 Insulator CNM6305 CNM7323 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CAR COMPACT DISC PLAYER CDS-9036ZT ES Service Manual TOYOTA PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 501 Orchard Road, #10-00, Wheelock Place, Singapore 238880 C PIONEER ELECTRONIC CORPORATION 1998 ORDER NO. CRT2262 K-ZZS. SEPT. 1998 Printed in Japan VEHICLE DESTINATION PRODUCED AFTER TOYOTA PART No. ID No. PIONEER MODEL No. Not specified THAILAND August 1998 08601-00894 CDS-9036ZT/ES - The CDS-9036ZT/ES is a genuine model of option from TOYOTA MOTOR CORPORATION. - The CDS-9036ZT/ES uses AVC-LAN for bus. - See the separate manual CX-597(CRT1829) for the CD mechanism description, disassembly and circuit description. - The CD mechanism employed in this model is one of S7 series. CONTENTS 1. SAFETY INFORMATION ............................................2 2. EXPLODED VIEWS AND PARTS LIST.......................3 3. SCHEMATIC DIAGRAM .............................................8 4. PCB CONNECTION DIAGRAM ................................20 5. ELECTRICAL PARTS LIST ........................................26 6. ADJUSTMENT..........................................................29 7. GENERAL INFORMATION .......................................33 7.1 IC ........................................................................33 7.2 DIAGNOSIS ........................................................35 7.2.1 SELF-DIAGNOSTIC FUNCTION...............35 7.2.2 DISASSEMBLY .........................................39 7.2.3 TEST MODE..............................................40 7.2.4 CONNECTOR FUNCTION DESCRIPTION.......42 7.3 BLOCK DIAGRAM ..............................................43 8. OPERATIONS AND SPECIFICATIONS.....................44 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 CDS-9036ZT 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. - CD Player Service Precautions 1. For pickup unit(CXX1231) handling, please refer to"Disassembly"(CX-597 Service Manual CRT1829). During replacement, handling precautions shall be taken to prevent an electrostatic discharge(protection by a short pin). 2. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a con- nector is plugged or unplugged. 3. Please checking the grating after changing the ser- vice pickup unit(see page 31). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 CDS-9036ZT 7 5 3 2 6 10 9 4 8 1 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING NOTE: - Parts marked by "*"are generally unavailable because they are not in our Master Spare Parts List. - Screws adjacent to ∇ mark on the product are used for disassembly. - PACKING SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 1 Screw Assy CEA1854 2 Protector CHP1944 3 Protector CHP1945 * 4 Sheet CHW1645 5 Owner’s Manual CRD2796 (English,Thai) * 6 Polyethylene Bag E36-609 7 Carton CHA2424 8 Contain Box CHL3594 * 9 Polyethylene Bag CEG-127 10 Screw HMF50P080FMC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 CDS-9036ZT 2.2 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 CDS-9036ZT 1 Screw BMZ26P050FMC 2 Cord Assy CDE5259 3 Connector CDE5447 4 Insulator CNM5365 5 Holder CNV5014 6 Control Unit CWM5461 7 Screw BMZ26P050FMC 8 Connector(CN601) CKS2228 9 Plug(CN901) CKS2721 10 Holder CNC2218 11 Holder CNC6071 12 Holder CNC7188 13 Spacer CNM2683 14 Spacer CNM4676 15 Spacer CNM5523 16 Screw BPZ20P080FMC 17 Button(Eject) CAC5244 18 Lighting Conductor CNV5013 19 Grille Unit CXB1803 20 CD Mechanism Module CXK5020 21 Case Unit CXB2146 22 Chassis Unit CXB1552 23 Screw IMS30P050FMC 24 Choke Coil(L901) CTH1129 25 Push Switch(S601) CSG1065 26 Transistor(Q704, 911) 2SB1185 27 Case CNB2203 28 Cushion CNM5473 - EXTERIOR SECTION PARTS LIST Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 CDS-9036ZT 2.4 CD MECHANISM MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 Control Unit(S7) CWX2332 2 Pickup Unit(Service) CXX1231 3 Screw IMS26P035FMC 4 Screw BMZ20P025FMC 5 Screw BMZ20P040FMC 6 Screw BSZ20P040FMC 7 Screw(M2×3) CBA1077 8 Screw(M2×2) CBA1250 9 Screw(M2×5) CBA1296 10 Screw(M2×3.85) CBA1362 11 Spring CBH1724 12 Spring CBH1729 13 Spring CBH1730 14 Spring CBH1731 15 Spring CBH1732 16 Spring CBH1745 17 Spring CBH1848 18 Spring CBH1849 19 Spring CBH1939 20 Spring CBL1214 21 Roller CLA2627 22 Frame CNC5796 23 Bracket CNC5871 * 24 Bracket CNC6376 25 Cushion CNM3917 26 Sheet CNM4873 * 27 Sheet CNM5116 28 PCB CNP4230 29 Bearing CNR1415 30 Belt CNT1071 31 Damper CNV3974 32 Gear CNV4128 33 Gear CNV4129 34 Gear CNV4857 35 Gear CNV4131 36 Holder CNV4663 37 Holder CNV5071 38 Guide CNV4484 39 Screw Unit CXA8699 40 CRG Motor Unit(M2) CXB3043 41 Motor Unit(M1) CXA8912 42 Lever Unit CXA9300 43 Chassis Unit CXB2574 44 Screw JFZ20P025FMC 45 Connector(CN101) CKS1953 46 Connector(CN701) CKS2774 47 Connector(CN801) CKS2196 48 Spring CBH1832 49 Spring CBH1833 50 Roller CLA2627 51 Arm CNV4136 52 Arm Unit CXA8565 53 Bracket CNC6056 54 Load Motor Unit(M3) CXA8702 55 Screw JFZ20P025FMC 56 Arm CNV4120 57 Roller CNV4509 58 Gear Unit CXA8701 59 Screw(M2×5) CBA1455 60 Frame CNC5797 61 Damper CNV3974 62 Spring CBH1736 63 Spring CBH1863 64 Spring CBH1945 65 Spring CBL1269 66 Arm CNC5799 67 Lever CNC6054 68 Spacer CNM3315 69 Sheet CNM4849 70 Arm CNV5436 71 Arm CNV4123 72 Arm CNV4124 73 Arm CNV4125 74 Arm CNV4138 75 Arm CNV4139 76 Clamper CNV4140 77 Screw(M2×2) CBA1250 78 Connector CDE4576 79 Arm CNC7383 * 80 Gathering PCB CNX2533 81 Photo-transistor(Q1, 2) CPT-230S-X 82 ELBO Arm Assy CXA8889 83 Load Motor Assy CXA8891 84 LO Arm Assy CXA8892 85 Shaft CLA3133 86 Guide Arm Assy CXB1851 7 CDS-9036ZT - CD MECHANISM MODULE SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 CDS-9036ZT 1 2 3 4 1 2 3 4 D C B A 3. SCHEMATIC DIAGRAM 3.1 OVERALL CONNECTION DIAGRAM Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS LIST”. CONTR A CONTROL UNIT(S7) B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 CDS-9036ZT 5 6 7 8 5 6 7 8 D C B A CONTROL UNIT A Connector No Description 1 R+ 2 L+ 3 SGND 4 MUTE 5 +B 6 R≠ 7 L≠ 8 GND 9 TX≠ 10 TX+ 11 NC 12 ACC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 CDS-9036ZT 1 2 3 4 1 2 3 4 D C B A 3.2 CD MECHANISM MODULE(GUIDE PAGE) CONTROL UNIT(S7) B PICKUP UNIT(SERVICE) C PHOTO UNIT CXB3043 A-a A-b A-a A-a A-b A-b A-b A-b A-a A-a Large size SCH diagram Guide page Detailed page C B B-a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 CDS-9036ZT 5 6 7 8 5 6 7 8 D C B A A B B-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 CDS-9036ZT 1 2 3 4 2 3 4 D C B A 1B-a B-a B-b CONTROL UNIT(S7) B PICKUP UNIT(SERVICE) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 CDS-9036ZT 5 6 7 8 5 6 7 D C B A 8 B-a C B-a B-b C PHOTO UNIT CXB3043 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 CDS-9036ZT 1 2 3 4 2 3 4 D C B A 1B-b B-a B-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 CDS-9036ZT 5 6 7 8 5 6 7 D C B A 8 B-b B-a B-b A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 CDS-9036ZT - Waveforms Note:1. The encircled numbers denote measuring pointes in the circuit diagram. 2. Reference voltage REFO:2.5V 1 RFO 0.5V/div. 0.5µs/div. Normal mode: play 1 CH1: RFO 1V/div. 2 CH2: MIRR 5V/div. Test mode: Tracking open 0.5ms/div. 1 CH1: RFO 1V/div. 2 CH2: MIRR 5V/div. Normal mode: The defect part passes 800µm 0.5ms/div. 3 CH1: FIN 0.5V/div. 4 CH2: FO+ 2V/div. Test mode: No disc, Focus close 0.2s/div. 3 CH1: FIN 0.5V/div. 5 CH2: FOK 2V/div. Normal mode: Focus close 0.2s/div. 6 CH1: FEY 0.5V/div. 7 CH2: XSI 2V/div. Normal mode: Focus close 1ms/div. REFO → 8 CH1: TEY 0.5V/div. 9 CH2: TIN 0.5V/div. Test mode: 32 tracks jump (FWD) 0.5ms/div. 8 CH1: TEY 0.5V/div. 9 CH2: TIN 0.5V/div. Test mode: Single jump (FWD) 0.5ms/div. 8 CH1: TEY 0.5V/div. 9 CH2: TIN 0.5V/div. Test mode: 100 tracks jump (FWD) 5ms/div. 6 CH1: FEY 0.1V/div. 3 CH2: FIN 0.2V/div. Normal mode: Play 20ms/div. 3 CH1: FIN 0.5V/div. 0 CH2: SIN 1V/div. Normal mode: Focus close (12cm) 0.5s/div. 3 CH1: FIN 0.5V/div. 0 CH2: SIN 1V/div. Normal mode: Focus close (8cm) 0.5s/div. GND → GND → REFO → REFO → REFO → REFO → GND → REFO → REFO → GND → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 CDS-9036ZT 8 CH1: TEY 0.2V/div. 9 CH2: TIN 0.2V/div. Normal mode: play 8 CH1: TEY 0.5V/div. ! CH2: SD 0.5V/div. 5ms/div. 0 SIN 0.5V/div. 0.1s/div. Normal mode: Play (12cm) 0 SIN 1V/div. 10ms/div. Long Search (12cm) @ EFM 1V/div. 5µs/div. Play 8 CH1: TEY 1V/div. # CH2: TEC 1V/div. Test mode: Focus close Tracking open 2ms/div. 8 CH1: TEY 0.5V/div. 6 CH2: FEY 0.5V/div. Normal mode: AGC after focus close 0.2s/div. $ PLCK 2V/div. 0.5µs/div. Play 20ms/div. % SCKO 2V/div. 1µs/div. Play ^ Dout 2V/div. 10µs/div. Play & LRCK 2V/div. 20µs/div. * VD 5V/div. 50ms/div. Normal mode: No disc GND → REFO → REFO → GND → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → REFO → GND → REFO → GND → REFO → GND → REFO → GND → REFO → www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 CDS-9036ZT ( CH1: R OUT 1V/div. ) CH2: L OUT 1V/div. Normal mode: Play (1kHz 0dB) 6 CH1: FEY 0.2V/div. 3 CH2: FIN 0.5V/div. Normal mode: During AGC 1ms/div. 8 CH1: TEY 0.2V/div. 9 CH2: TIN 0.5V/div. Normal mode: During AGC 1 CH1: RFO 1V/div. ⁄ CH2: HOLD 5V/div. Normal mode: The defect part passes 800µm 0.2ms/div. 1ms/div. 0.5ms/div. 3 CH1: FIN 1V/div. ⁄ CH2: HOLD 5V/div. Normal mode: The defect part passes 800µm 0.5ms/div. GND → GND → REFO → REFO → REFO → REFO → REFO → REFO → www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 CDS-9036ZT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 CDS-9036ZT 1 2 3 4 2 3 4 D C B A 1 4. PCB CONNECTION DIAGRAM 4.1 CONTROL UNIT CONTROL UNIT A A CD EJECT B CN701 CD TEST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 CDS-9036ZT 5 6 7 8 5 6 7 D C B A 8 SIDE A Capacitor Connector P.C.Board Chip Part SIDE A SIDE B NOTE FOR PCB DIAGRAMS 1. The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic diagram. 2. Viewpoint of PCB diagrams A N701 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 CDS-9036ZT 1 2 3 4 2 3 4 D C B A 1 CONTROL UNIT A A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 CDS-9036ZT 5 6 7 8 5 6 7 D C B A 8 SIDE B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 CDS-9036ZT 1 2 3 4 1 2 3 4 D C B A 4.2 CONTROL UNIT(S7),PHOTO UNIT SIDE A B C CONTROL UNIT(S7) B PHOTO UNIT C PICKUP UNIT(SERVICE) A CN601 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 CDS-9036ZT D C B A 1 2 3 4 1 2 3 4 SIDE B B CONTROL UNIT(S7) B C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDS-9036ZT 5. ELECTRICAL PARTS LIST NOTES: - Parts whose parts numbers are omitted are subject to being not supplied. - The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- Unit Number :CWX2332 Unit Name :Control Unit(S7) IC 101 IC UPC2572GS IC 201 IC UPD63702GF IC 301 IC BA6997FP IC 302 IC BA6285FP IC 601 IC TA2063F IC 701 IC PQ05TZ51 Q 101 Transistor 2SD1664 Q 102 Transistor UMD2N Q 601 Transistor 2SD1781K Q 602 Transistor 2SD1781K Q 603 Transistor 2SB709A D 601 Chip Diode MA151WA D 701 Diode 1SR154-400 D 702 Diode 1SR154-400 D 801 Chip LED CL200IRX D 802 Chip LED CL200IRX D 803 Chip LED CL200IRX X 201 Ceramic Resonator 16.93MHz CSS1363 S 801 Switch(Home) CSN1028 S 802 Switch(Clamp) CSN1028 RESISTORS R 101 RS1/8S100J R 102 RS1/8S120J R 103 RS1/16S102J R 104 RS1/16S822J R 105 RS1/16S682J R 106 RS1/16S183J R 107 RS1/16S822J R 108 RS1/16S333J R 109 RS1/16S683J R 110 RS1/16S134J R 111 RS1/16S273J R 112 RS1/16S222J R 113 RS1/16S103J R 114 RS1/16S103J R 115 RS1/16S102J R 116 RS1/16S163J R 117 RS1/16S163J R 201 RS1/16S104J R 202 RS1/16S473J R 304 RS1/16S0R0J R 501 RS1/16S0R0J R 505 RS1/16S102J R 507 RA4C102J R 508 RA4C681J R 601 RS1/16S102J R 602 RS1/16S102J R 603 RS1/16S223J R 604 RS1/16S223J R 605 RS1/16S162J R 606 RS1/16S162J R 607 RS1/16S103J R 801 RS1/8S751J R 802 RS1/8S751J R 803 RS1/8S751J CAPACITORS C 101 CEV101M6R3 C 102 CKSQYB104K16 C 103 CEV470M6R3 C 104 CKSYB334K16 C 105 CCSRCH330J50 C 106 CKSRYB103K25 C 107 CEV4R7M35 C 108 CKSQYB273K50 C 109 CCSRCH101J50 C 110 CKSQYB104K16 C 111 CKSRYB332K50 C 112 CKSQYB473K16 C 113 CKSRYB103K25 C 114 CKSRYB391K50 C 115 CCSRCH121J50 C 116 CKSRYB682K25 C 117 CKSRYB333K16 C 118 CKSYB334K16 C 119 CKSYB334K16 C 120 CKSYB334K16 C 121 CKSYB334K16 C 122 CKSQYB104K16 C 123 CKSRYB472K50 C 124 CKSQYB104K16 C 125 CCSRCH6R0D50 C 126 CKSRYB153K25 C 127 CCSRCH102J25 C 201 CKSYB334K16 C 202 CKSQYB104K16 C 203 CKSQYB104K16 C 303 CEV470M16 C 304 CKSRYB103K25 C 305 CKSRYB103K25 C 306 CKSRYB103K25 C 307 CEV100M25 C 502 CKSRYB471K50 C 601 CEV101M6R3 C 602 CKSQYB104K16 C 603 CEV4R7M35 C 604 CEV4R7M35 C 605 CKSRYB272K50 C 606 CKSRYB272K50 C 607 CEV220M6R3 C 701 22µF/6.3V CCH1233 C 702 CKSYB334K16 C 703 CEV101M6R3 C 901 CCSRCH471J50 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- B 26 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C 902 CCSRCH271J50 C 903 CCSRCH471J50 C 904 CCSRCH101J50 Unit Number :CWM5461 Unit Name :Control Unit MISCELLANEOUS IC 501 IC CA0008AM IC 601 IC PD4850A IC 602 IC PAJ002A IC 851 IC NJM2068MD IC 852 IC NJM2068MD IC 853 IC MC74HC4066F Q 601 Transistor 2SB1260 Q 602 Transistor DTA114EK Q 703 Transistor IMX1 Q 704 Transistor 2SB1185 Q 706 Transistor 2SD1767 Q 707 Transistor 2SD1767 Q 854 Transistor IMD2A Q 901 Transistor 2SC2458 Q 911 Transistor 2SB1185 Q 912 Transistor IMX1 Q 915 Transistor DTA124EK D 501 Diode RD18JS D 502 Diode RD18JS D 854 Zener Diode RD10ES(B2) D 856 Zener Diode RD10ES(B2) D 858 Zener Diode RD10ES(B2) D 860 Zener Diode RD10ES(B2) D 861 Diode 1SS133 D 901 Diode SM-3-02 D 902 Diode ERA15-02VH D 903 Diode RD18JS D 904 Diode RD18JS D 905 Diode RD4R7JS(B1) L 901 Choke Coil 1.4mH CTH1129 TH 601 Thermistor CCX1015 X 601 Ceramic Resonator 6.29MHz CSS1310 S 601 Switch(CD Eject) CSG1065 IL 701 Lamp 8V60mA CEL1523 IL 702 Lamp 8V60mA CEL1523 IL 703 Lamp 8V60mA CEL1523 RESISTORS R 501 RD1/4PU101J R 502 RD1/4PU101J R 601 RA4C102J R 602 RS1/10S105J R 603 RS1/10S102J R 604 RS1/10S102J R 605 RS1/10S104J R 606 RS1/10S104J R 607 RS1/10S153J R 608 RA4C473J R 609 RS1/10S102J R 610 RA4C222J R 611 RS1/10S102J R 612 RA4C473J R 613 RS1/10S102J R 614 RS1/10S102J R 615 RS1/10S102J R 616 RS1/10S102J R 617 RS1/10S102J R 618 RS1/10S103J R 619 RS1/10S5R6J R 620 RS1/10S102J R 621 RS1/10S102J R 622 RS1/10S473J R 623 RS1/10S123J R 624 RS1/10S471J R 625 RS1/10S471J R 626 RS1/10S104J R 627 RS1/10S102J R 628 RS1/10S473J R 629 RS1/10S102J R 701 RS1/10S392J R 702 RS1/10S392J R 703 RS1/10S473J R 704 RS1/10S473J R 705 RS1/10S152J R 706 RS1/10S242J R 707 RS1/10S681J R 708 RS1/10S223J R 709 RS1/10S472J R 710 RD1/4PU3R9J R 711 RD1/4PU3R9J R 851 RS1/10S511J R 852 RS1/10S511J R 853 RS1/10S682J R 854 RS1/10S682J R 855 RS1/10S103J R 856 RS1/10S103J R 857 RS1/10S103J R 858 RS1/10S103J R 859 RS1/10S103J R 860 RS1/10S103J R 861 RS1/10S103J R 862 RS1/10S103J R 863 RS1/10S750J R 864 RS1/10S750J R 865 RS1/10S750J R 866 RS1/10S750J R 867 RS1/8S101J R 868 RS1/8S101J R 869 RS1/8S101J R 870 RS1/8S101J R 871 RS1/10S102J R 873 RS1/10S103J R 901 RS1/10S184J R 902 RS1/10S753J R 903 RD1/4PU242J R 904 RN1/10SE1001D R 905 RS1/10S102J R 911 RS1/10S223J R 914 RS1/10S101J R 915 RD1/4PU271J R 916 RS1/10S122J R 917 RS1/10S182J R 918 RS1/10S202J R 919 RS1/10S182J R 921 RD1/4PU221J R 922 RS1/10S223J R 923 RS1/10S103J CAPACITORS C 501 CKSQYB221K50 C 502 CKSQYB221K50 C 503 CKSQYB104K50 C 601 CKSQYB103K50 C 602 CKSQYB103K50 C 603 CKSQYB103K50 C 604 CKSQYB104K50 C 606 CKSQYB104K50 C 608 CSZST330M10 C 609 CKSQYB103K50 27 CDS-9036ZT =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C 701 CEJA101M10 C 702 CKSQYB103K50 C 853 CEJA100M16 C 854 CEJA100M16 C 855 CCSQCH821J50 C 856 CCSQCH821J50 C 857 CCSQCH101J50 C 858 CCSQCH101J50 C 859 CKSQYB473K50 C 860 CKSQYB473K50 C 861 CCSQCH560J50 C 862 CCSQCH560J50 C 863 CKSQYB153K50 C 864 CKSQYB153K50 C 865 CKSQYB153K50 C 866 CKSQYB153K50 C 867 CEJANP100M16 C 868 CEJANP100M16 C 869 CEJANP100M16 C 870 CEJANP100M16 C 871 CKSQYB224K16 C 901 1000µF/16V CCH1149 C 902 1000µF/16V CCH1149 C 907 CKSQYB102K50 C 911 CEJA220M16 C 912 CKSQYB473K50 C 913 CEJA101M6R3 C 950 CEJA1R5M50 C 952 CKSQYB473K50 Unit Number : Unit Name :Photo Unit Q 1 Photo-transistor CPT-230S-X Q 2 Photo-transistor CPT-230S-X Q 3 Photo-transistor CPT-230S-X Miscellaneous Parts List Pickup Unit(Service) CXX1231 M 1 Motor Unit(Spindle) CXA8912 M 2 CRG Motor Unit(S7)(Carriage) CXB3043 M 3 Load Motor Unit(S7)(Loading) CXA8702 28 CDS-9036ZT =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 CDS-9036ZT 1)Precautions • This unit uses a single power supply (+5V) for the reg- ulator. The signal reference potential, therefore, is connected to REFO(approx. 2.5V) instead of GND. If REFO and GND are connected to each other by mis- take during adjustments, not only will it be impossi- ble to measure the potential correctly, but the servo will malfunction and a severe shock will be applied to the pick-up. To avoid this, take special note of the fol- lowing. Do not connect the negative probe of the measuring equipment to REFO and GND together. It is especially important not to connect the channel 1 negative probe of the oscilloscope to REFO with the channel 2 negative probe connected to GND. Since the frame of the measuring instrument is usual- ly at the same potential as the negative probe, change the frame of the measuring instrument to floating sta- tus. If by accident REFO comes in contact with GND, immediately switch the regulator or power OFF. • Always make sure the regulator is OFF when connect- ing and disconnecting the various filters and wiring required for measurements. • Before proceeding to further adjustments and mea- surements after switching regulator ON, let the player run for about one minute to allow the circuits to stabi- lize. • Since the protective systems in the unit's software are rendered inoperative in test mode, be very careful to avoid mechanical and /or electrical shocks to the sys- tem when making adjustment. • Disc detection during loading and eject operations is performed by means of a photo transistor in this unit.Consequently, if the inside of the unit is exposed to a strong light source when the outer casing is removed for repairs or adjustment, the following mal- functions may occur. *During PLAY, even if the eject button is pressed,the disc will not be ejected and the unit will remain in the PLAY mode. *The unit will not load a disc. When the unit malfunctions this way, either re-posi- tion the light source, move the unit or cover the photo transistor. • When loading and unloading discs during adjustment procedures, always wait for the disc to be properly clamped or ejected before pressing another key. Otherwise, there is a risk of the actuator being destroyed. • Turn power off when pressing the button /FF or the button REV key for focus search in the test mode. (Or else lens may stick and the actuator may be dam- aged.) 2)Test Mode The CDS-9036ZT/ES is used together with a CD con- trol unit(KEH-M8276ZT/X1N/ES) to make adjustment. For adjustment, keys of the CD control unit are used. For your reference, how to enter Test mode and oper- ate keys when using a CD control unit are shown be- low. The keys mentioned in the explanation of adjust- ment are of a CD control unit(KEH-M8276ZT/X1N/ES). • Entering Test mode Short-circuit the probes indicated as "CD TEST" on the substrate of the CDS-9036ZT/ES, then set ACC or BACK UP to ON. • Cancelling Test mode Set ACC or BACK UP to OFF. • SINGLE/4TRK/10TRK/32TRK will continue to operate even after the key is released.Tracking is closed the moment C-MOVE is released. • JUMP MODE resets to SINGLE as soon as power is switched OFF. 6. ADJUSTMENT 6.1 CD CD TEST CONTROL UNIT(SIDE A) Short-circuit these two probes. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 CDS-9036ZT - Flow Chart RAND CD Carriage move or T. jump Carriage move or T. jump SCAN SCAN TRACK+ C RAND TRACK+ TRACK- RPT RPT RPT RPT RPT TRACK+ RAND SCAN TRACK+ TRACK- TRACK- TRACK+ TRACK- SCAN TRACK+ RAND TRACK- TRACK- 1- CD 1-99 CD 1-00 CD 1-91 CD 1-01 CD CD TEST ACC, Back-up ON Regulator OFF Display CD Player Select Regulator ON Display Power ON Regulator ON Display During regulator off, press the SCAN key and the system will be put into the new test mode. *1 *1 Display Tracking Close CRG+ CRG– Power OFF Power OFF Focus Close *1 Focus Mode Select Power OFF Tracking Close Tracking Close Auto Adjustment Display *4 Display CRG+ CRG– Tracking Balance Adjustment Tracking Open AGC *2 AGC Display Select Power OFF (in the case of continuous jumping) Tracking Open Single 91(81) 10TRK 93(83) 32TRK 94(84) C.MOVE 96(86) 4TRK 92(82) 100TRK 95(85) T.JUMP MODE Select Display Normal focus close 100 TRK jump and carriage move Normal display *1 S curve check Focus EQ check *2 Focus gain Track gain *3 00 01 02 Tracking Close in a little while the keys are released Focus bias Normal display *4 Focus cancel Tracking offset Tracking balance Spindle Close : Rough Display (99) *3 Test Point Short www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 CDS-9036ZT • Note : Unlike previous CD mechanism modules the grating angle of the pickup unit cannot be adjusted after the pickup unit is changed. The pickup unit in the CD mechanism module is adjusted on the production line to match the CD mechanism module and is thus the best adjusted pickup unit for the CD mechanism module. Changing the pickup unit is thus best considered as a last resort. However, if the pickup unit must be changed, the grating should be checked using the procedure below. • Purpose : To check that the grating is within an acceptable range. • Symptoms of Mal-adjustment : If the grating is off by a large amount symptoms such as being unable to close tracking, being unable to perform track search operations, or track searching taking a long time, may appear. • Method : • Measuring Equipment • Oscilloscope, Two L.P.F. • Measuring Points • E, F, REFOUT • Disc • ABEX TCD-784 • Mode • TEST MODE • Checking Procedure 1. In test mode, load the disc and switch the 5V regulator on. 2. Using the TRACK+ and TRACK- buttons, move the pickup unit to the innermost track. 3. Press key RAND to close focus, the display should read "91". Press key TRACK- to implement the tracking bal- ance adjustment the display should now read "8x". Press key RAND 4 times. The display will change, returning to "8x" on the fourth press. 4. As shown in the diagram above, monitor the LPF outputs using the oscilloscope and check that the phase differ- ence is within 75° . Refer to the photographs supplied to determine the phase angle. 5. If the phase difference is determined to be greater than 75° try changing the PU unit to see if there is any improvement. If, after trying this a number of times, the grating angle does not become less than 75° then the mechanism should be judged to be at fault. • Note Because of eccentricity in the disc and a slight misalignment of the clamping center the grating waveform may be seen to "wobble" ( the phase difference changes as the disc rotates). The angle specified above indicates the aver- age angle. • Hint Reloading the disc changes the clamp position and may decrease the "wobble". 100kΩ 390pF 100kΩ 390pF E REFOUT F REFOUT Xch Ych OSCILLOSCOPE L.P.F. L.P.F. CONTROL UNIT(S7) 6.2 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 CDS-9036ZT Grating waveform Ech → Xch 20mV/div, AC Fch → Ych 20mV/div, AC 45° 0° 75° 60° 30° 90° www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 CDS-9036ZT 7. GENERAL INFORMATION 7.1 IC - Pin Functions(PD4850A) Pin No. Pin Name I/O Format Function and Operation 1-3 NC Not used 4 AVSS GND 5 DAOUT O Luminance adjustment output 6 NC Not used 7 AVREF1 I D/A converter reference voltage input 8 ILL O C Key illumination output 9 IND O C Indicator output 10 MUTE O C System mute output 11, 12 NC Not used 13 xrst O C LSI reset output for CD 14 XA0 O C LSI data identification control signal output for CD 15 xstb O C LSI strobe output for CD 16 XSI/TSI I LSI serial data input for CD 17 XSO/TSO O C LSI serial data output for CD 18 xsck/tck O C LSI serial clock output for CD 19 LINE O C Audio line output (analog SW) 20-24 NC Not used 25 vdcnt O C VD (CD module power) control output 26 IPPW O C IP-Bus driver power control output 27-32 NC Not used 33 VSS GND 34, 35 NC Not used 36 FOK I Focus OK input 37 MIRR I Mirror detector input 38 LOCK I Spindle lock detector input 39 NC Not used 40 CONT O C Servo driver power control output 41 CD5VON O C CD 5V power supply control output 42 CDLOAD O C Load motor load control output 43 CDEJET O C Load motor eject control output 44 cdmute O C CD mute output 45-55 NC Not used 56 IPDO O Data output for IP-Bus controller 57 IPDI I Data input for IP-Bus controller 58, 59 NC Not used 60 reset I Reset 61 NC GND 62 asens I ACC sense input 63 bsens I BACK UP sense input 64 isens I Illumination sense input 65 cdej I CD eject SW input 66 testcd CD test 67 NC Not used 68 VDD Microcomputer power supply 69 X2 O Oscillator output 70 X1 I Oscillator input 71 IC Connect to GND 72 XT2 Open 73 TEST/ten I Test mode/Test mode enable 74 AVDD I A/D converter analog power supply 75 AVREF0 I A/D converter reference voltage input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 CDS-9036ZT IC's marked by* are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction. *PD4850A 20 21 40 41 60 80 1 61 Pin No. Pin Name I/O Format Function and Operation 76 DSCSNS I Disc detect input 77 EJTSNS I Disc eject sense input 78 TEMP I Temperature detector input 79 VDSENS I VD overvoltage, ground-fault sensing input 80 clamp I Disc clamp sense input BA6997FP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 CDS-9036ZT 7.2 DIAGNOSIS 7.2.1 SELF-DIAGNOSTIC FUNCTION Normal mode System Check mode The system runs a self-diagnosis and displays the results (diagnostic codes). •Max. 6 Diagnostic codes for each physical address (for each connected device) •Displays the current status (past errors not displayed) Diagnosis Memory mode The system displays historical operational errors recorded for each physical address (for each device) during normal operation in the past. •Max. 6 Diagnostic codes for each physical address (for each connected device) LAN CHECK mode The system displays the physical address of each device connected to AVC-LAN. •The device's own physical address is included. Diagnosis Memory Clear The system clears Diagnosis Memory (the codes). •After completing clearing, the sys- tem goes to LAN CHECK mode. 6Memory Clear Complete clearing (automatic) 2End Diagnosis 3Go to System Check 4Return to LAN CHECK 5Go to Diagnosis Memory 4Return to LAN CHECK 2End Diagnosis 1Go to Diagnosis 2End Diagnosis - Operation Specifications KEH-M8276ZT/X1N/ES 1Go to Diagnosis Press the AM/SW key three times, while holding down CH1 or CH6. 2End Diagnosis AM/SW key (Press and hold for 1.7 seconds.) ACC OFF/ON 3Go to System Check CH1 4Return to LAN CHECK CH6 5Go to Diagnosis Memory CH2 6Memory Clear CH5 (Press and hold for 1.7 seconds.) •Page up TRACK+ •Page down TRACK- - AVC-LAN Diagnosis Mode - Flowchart and Functions www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 CDS-9036ZT 1 0 1 2 3 4 5 6 7 8 9 A B C D E F 1 3 2 Display 1 — 123 Serial No. Physical address Example:2—190 The second device connected is an “audio H/U.” 1Device groups 1 : Controllers 2 : Video output devices 3 : Audio output devices 4 : Audio processing devices 5 : Information output devices 6 : Vehicle devices - Physical Address Assignment M.DISP computer AV machine 1DIN -TV EMV CD-ROM navigation Audio ECU Audio H/U Rear seat TV Display with SW Rear control SW CD-CH commander MD-CH commander 0 8 1-8 A-F 1 0 1 2 3 4 5 6 7 8 9 A B C D E F 2 Navigation computer ATIS FM multiple TV tuner CD-CH with video 0 1-F 1 0 1 2 3 4 5 6 7 8 9 A B C D E F 3 Radio Cassette Radio/cas- sette with- out CH controller CD-P CD-CH MD-P MD-CH DAT DCC TEL ECU 0 8 1-7 9-F 1 0 1 2 3 4 5 6 7 8 9 A B C D E F 4 Equalizer DSP H. W AMP 0 1-F 1 0 1 2 3 4 5 6 7 8 9 A B C D E F 5 GPS receiver ATIS decoder FM mul- tiplex decoder CD-CH MD-CH CD-ROM -CH MD-ROM -CH 0 1-F 1 0 1 2 3 4 5 6 7 8 9 A B C D E F 6 A/C computer Body computer 0 1-F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 CDS-9036ZT 1 2 - Assignment of Diagnostic Codes Display 1  12 Serial No. Diagnostic code Example: 3D2 The third content of Diagnosis is "No response to periodical communications." NOTES: *1 Instruction to check for an error in periodical communications is interrupted. - Items corresponding each model • CDS-9036ZT/ES(CD-P) D1, D4, 60 • CDS-9036ZT/ES(CD-P) No Diagnostic code assigned 00 Common Diagnostic code among devices Diagnostic code specific to a particular device Diagnostic code for communications NO ERR +B error ACC error MUTE error Micropro- cessor error ROM error RAM error AM tuner error FM tuner error TV tuner error Cassette deck error Cassette deck EJT failure Tape entan- gled in the cassette deck Dirt in cassette deck head Broken cassette deck belt CD deck or CD-CH error CD, CH EJT failure Dirt, scar and upside- down in CD, CH Detected P.U tem- perature in CD, CH Detected overcur- rent in CD, CH CH tray error CH elevator error CD, CH clamp error MD deck or MD-CH error MD, CH r MD, CH r MD, CH r MD, CH r MD, CH recording function error CH r MD, CH r Amplifier error DSP error EQ error LCD error Switch error Antenna error Main antenna error Sub antenna error TV antenna error Antenna selector error AUDIO ECU error No response to commu- nications Commu- nications failure No response to periodical communica- tions *1 No response to Diagnosis 0 1 2 3 4 5 6 7 8 9 A B C D E F 0 1 2 3 4 5 6 7 8 9 A B C D/E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 CDS-9036ZT LAN-CHECK mode System Check mode Diagnosis Memory mode Beep Display • The system displays the physical address of each device connected to AVC-LAN in sequence from the lowest address. Example: 1 — 1E0 Serial No. Physical address (CD commander) • When changing to another mode Blinking "SYS" is displayed. • After completing System Check Displays a physical address. ••Identifies the device. Example: H 150 Physical address (1DIN-TV) Distinguishes from LAN-CHECK. Displays a Diagnostic code. ••Identifies the type of error. Example: 1 — d2 Serial No. Diagnostic code (no response to periodical communications) Max. 6 for each physical address Displays an auxiliary code ••Identifies the device involved in the error. Example: 1 — 360 Serial No. Physical address (CD-CH) 1DIN-TV has recorded an error indicating there is no response to periodical communications in CD-CH. 1 — — — — When there is no physical address: Displays a physical address. The next lowest physical address • When there is no Diagnostic code after completion of System Check 00 The system changes as shown above, as this unit does not include System Check. • The system beeps three times when changing to another mode. • The system beeps once every time a physical address is displayed. • When changing to another mode Blinking "CODE" is displayed. • Then, "Latest periodical communications num- ber" is displayed. ••Elapsed time at the current point is displayed. Example: 1F Elapsed time (31 minutes) • The system displays a number from 00 to FF (increases a digit every minute). • When 256 minutes are reached, the system returns to 00. • Displays the details of Diagnosis. Displays a physical address. (Same as the left.) Displays a periodical communications num- ber. ••Displays the time when the error occurred. Example: 1 — 02 Serial No. Elapsed time (2 minutes) Displays Diagnostic code. (Same as the left.) Displays an auxiliary code. (Same as the left.) Displays a physical address. • When there is no Diagnostic data: 00 • The system beeps three times when changing to another mode. • The system beeps once every time a physical address is displayed. • The system beeps three times when starting up Diagnosis. - Go to Diagnosis (Beep and Display) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 CDS-9036ZT 7.2.2 DISASSEMBLY - Removing the Case(Not shown) 1.Insert and turn a flat screwdriver to remove the case. - Removing the CD Mechanism Module 1.Remove the four screws. 2.Disconnect the connector. 3.Remove the CD Mechanism Module. - Removing the Grille Assy 1.Disconnect the four stoppers indicated by arrows, and then remove the Grille Assy. - Removing the Control Unit 1.Remove the two screws. 2.Stretch the four claws, and then remove the Control Unit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 CDS-9036ZT 7.2.3 TEST MODE - Error Number Indication If the CD should fail to operate in CD multi player or if an error has taken place during the operation and resulted in an error, the player will enter into the error mode. And the cause of such error is numerically indicated. This is armed at assisting an analysis or repair. Error mode ............................... Mode (A), Mode (B) (1) Examples of Display • Mode (A) ............................... ErrX • Mode (B) ............................... ErrXX (2) Error Codes *1 *2 Classification Description Cause/Detail 3 10 ELECTRIC Carriage home failure Carriage doesn't move to or from the innermost position →Home switch failed and/or carriage immobile 1 11 ELECTRIC Focus failure Focus failed →Defects, disc upside-down, severe vibration 12 ELECTRIC SETUP failure Spindle failed to lock or subcode unreadable Subcode failure →Spindle defective, defect, severe vibration 14 ELECTRIC Mirror failure Unrecorded CD-R The disc is upside-down, defects, vibration 17 ELECTRIC Set up failure AGC protect failed →Defects, disc upside-down, severe vibration 30 ELECTRIC Search time out Failed to reach target address →Carriage/tracking defective and/or defects 4 A0 SYSTEM Power failure Power overvoltage or short circuit detected →Switching transistor defective and/or power abnormal • *1 ........................................... Mode (A) error code • *2 ........................................... Mode (B) error code • CDS-9036ZT/ES : Mode (B)(Not used) Normal play Mode(A): Displays an error code Error - New Test Mode(aging operation and setup analysis) The single CD player plays in normal mode. After being set up, it will display FOK (focus), LOCK (spindle), subcode, sound skip, protection against a mechanical error or the like, occurrence of an error, cause and time of an expiry, if any, (and disc number). During the setup, the CD software operation status (internal RAM and C-point)is displayed. (1) How to enter NEW TEST Mode See the test mode flow chart Page 30. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 CDS-9036ZT (2) Relations of keys between TEST and NEW TEST Modes Keys Test Mode New Test Mode Regulator OFF Regulator ON PLAY in progress Error Occurred, Protection Activated RPT Regulator ON Regulator OFF RPT Time of occurrence / cause of error select TRACK+/FF  FWD-KICK TRACK+/FF  TRACK-/REV  REV-KICK TRACK-/REV  TRACK+  TRACKING CLOSE TRACK+  TRACK-  TRACKING OPEN TRACK-  RAND  FOCUS CLOSE RAND  SCAN To New Test FOCUS MODE SCAN  Mode Select Operations, such as EJECT, CD ON/OFF, etc. are performed normally. (3) Error Cause (Error Number) Code Error Code Classification Mode Description Cause Detail 40 ELECTRIC PLAY FOK=L 100ms Put out of focus Scratch, 41 ELECTRIC PLAY LOCK=L 100ms Spindle unlock Stain, 42 ELECTRIC PLAY Subcode Failed to read subcode Vibration, unacceptable 500ms Servo defect, 43 ELECTRIC PLAY Sound skipped Last address memory etc... operated (4) Indicating an Operation Status During Setup Status No. Description Protection operation 01 Carriage home mode started None 02 Carriage moving inwards 10-second time out, Home switch failed 03 Carriage moving outwards 10-second time out, Home switch failed 05 Carriage moving outwards None 11 Setup started None 12 Spindle turn/Focus search started None 13 Waiting for focus closure (XSI=L) Failure to close focus 10,14 Waiting for focus closure (FOK=H) Failure to close focus 15, 16, 17 Focus closed, Tracking open Focus disrupted 18 During focus AGC Focus disrupted Subcode waiting 19 During tracking AGC Disrupted focus 20 Waiting for MIRR, LOCK or subcode read Focus disrupted, MIRR NG, Failure to lock, Carriage closed, SPINDLE=ADAPTIVE Failed to read subcode (5) Example of Display. • SET UP in progress • Operation (PLAY, SEARCH, etc.) in progress perfectly identical with that in the normal mode. • Protection/Error upon occurrence (a) Error number indicated (b) Track number and absolute time indicated CD 11'11 CD 40'05 CD XX'XX Select the display with the RPT key. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 CDS-9036ZT 7.2.4 CONNECTOR FUNCTION DESCRIPTION Connector No Description 1 R+ 2 L+ 3 SGND 4 MUTE 5 +B 6 R≠ 7 L≠ 8 GND 9 TX≠ 10 TX+ 11 NC 12 ACC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 CDS-9036ZT 7.3 BLOCK DIAGRAM B A C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 CDS-9036ZT 8. OPERATIONS AND SPECIFICATIONS 8.1 OPERATIONS C9200 CD loading slot CD eject button DISC indicator light 12P 12P 6P 10P 10P 6P CD player AM/FM tuner/cassette player Antenna plug(car side) Wire harness(car side) Connection diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 CDS-9036ZT 8.2 SPECIFICATIONS Power source .................................... 13.2 V DC (10.5 – 16.0 V allowable) Grounding system ................................................................ Negative type Dimensions ................................................ 180 (W) x 50 (H) x 160 (D) mm System .......................................................... Compact disc audio system Usable discs .......................................................................... Compact disc Signal format .............................................. Sampling frquency: 44.1 kHz ................................................Number of quantization bits: 16; linear Frequency characteristics ........................................ 5 – 20,000 Hz (±1 dB) Number of channel ...................................................................... 2 (stereo) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
