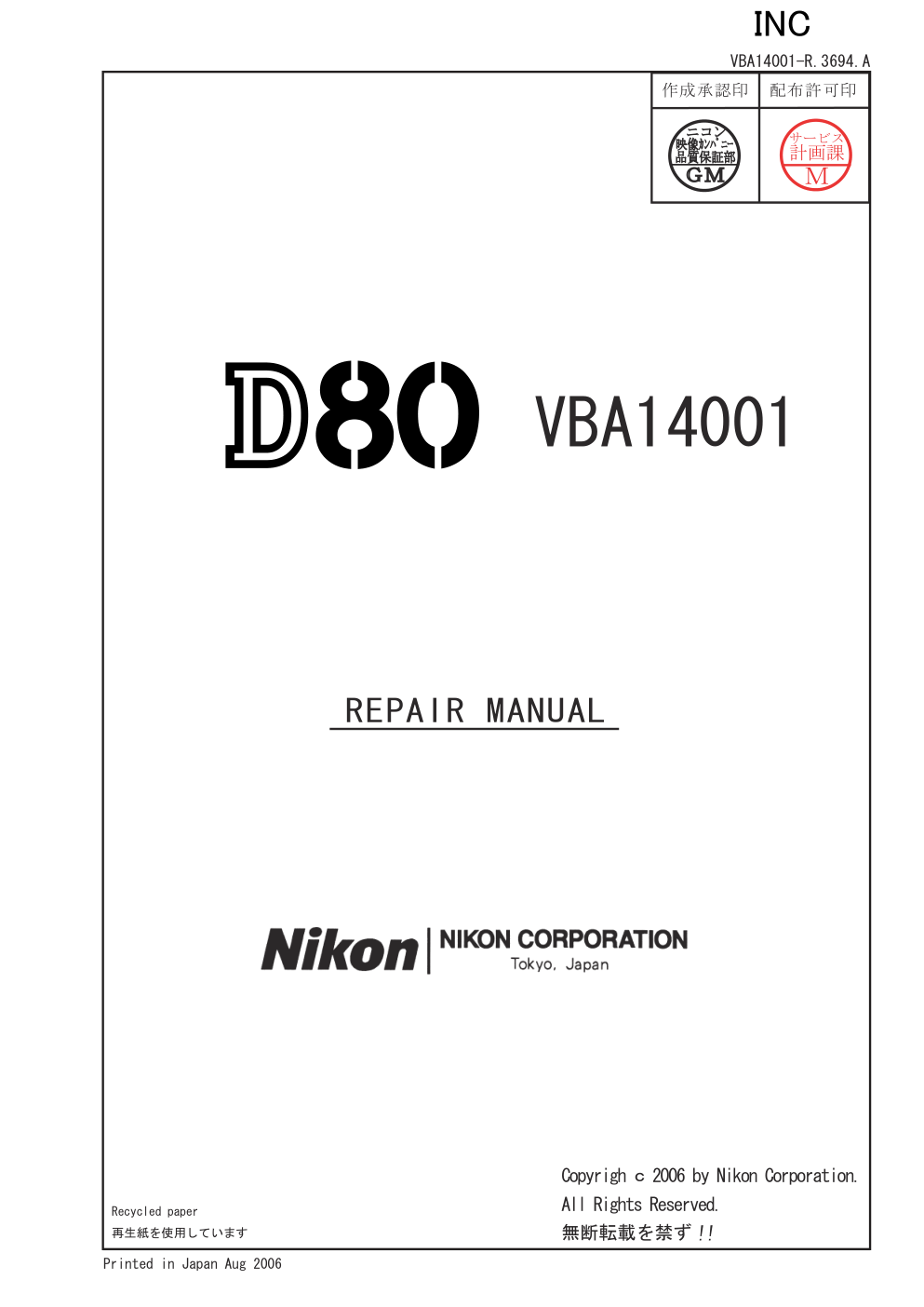

尼康D80数码相机维修手册
作成承認印
配布許可印
VBA14001-R.3694.A
VBA14001
Copyrigh ｃ 2006 by Nikon Corporation.
All Rights Reserved.
無断転載を禁ず !!
Printed in Japan Aug 2006
Recycled paper
再生紙を使用しています
Q0340グラフィック用ロゴ
060411_デザイン部伊藤
REPAIR MANUAL
Ｍ
サービス
計画課
INC
VBA14001-R.3694.A
- Ｍ ･ -

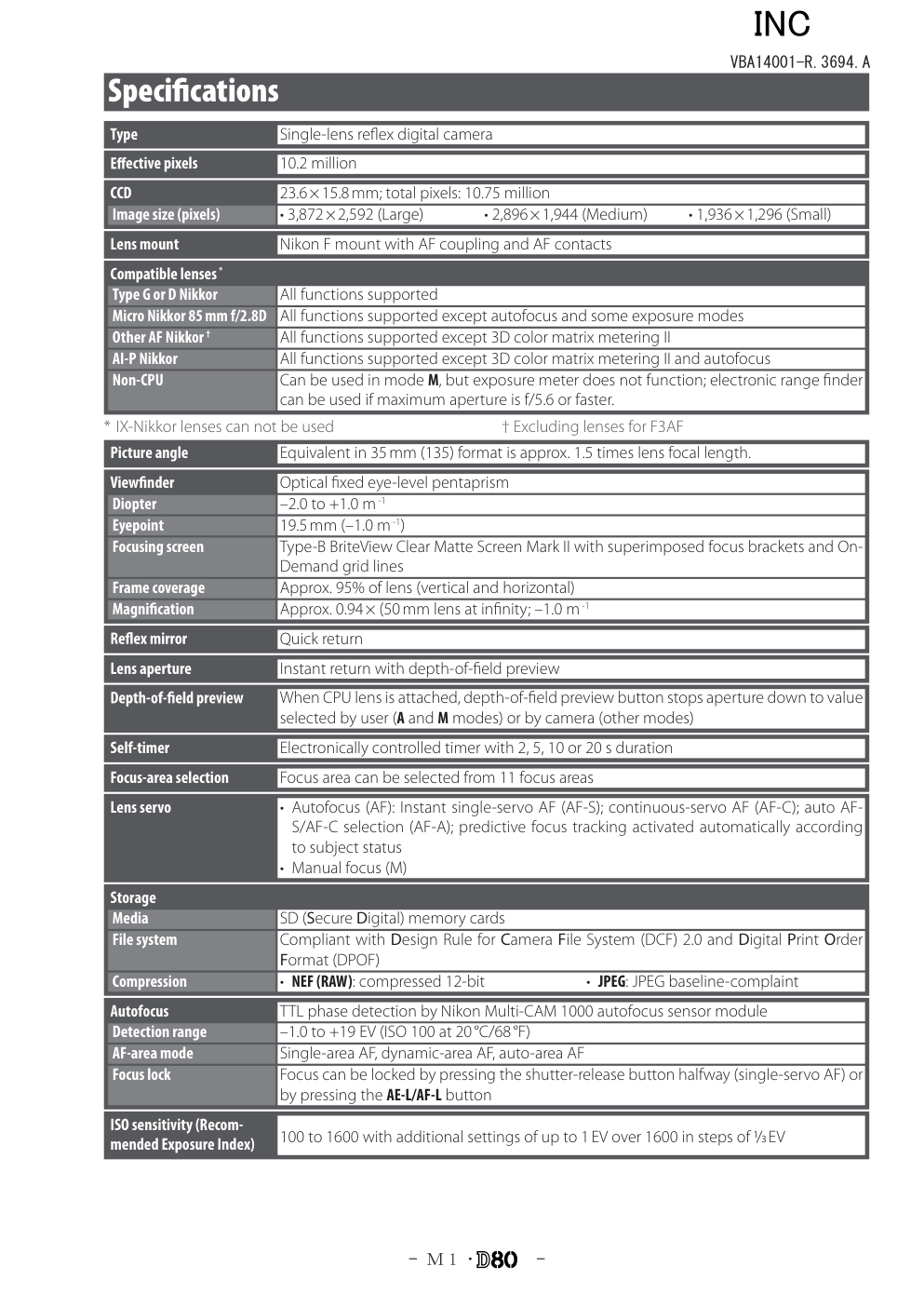

S
cations
Type
Single-lens refex digital camera
ective pixels
10.2 million
CCD
23.6×15.8mm; total pixels: 10.75 million
Image size (pixels)
• 3,872×2,592 (Large)
• 2,896×1,944 (Medium)
• 1,936×1,296 (Small)
Lens mount
Nikon F mount with AF coupling and AF contacts
Compatible lenses *
Type G or D Nikkor
All functions supported
Micro Nikkor 85mm f/2.8D All functions supported except autofocus and some exposure modes
AI-P Nikkor
All functions supported except 3D color matrix metering II and autofocus
Non-CPU
Can be used in mode M, but exposure meter does not function; electronic range fnder
can be used if maximum aperture is f/5.6 or faster.
Other AF Nikkor †
All functions supported except 3D color matrix metering II
* IX-Nikkor lenses can not be used
† Excluding lenses for F3AF
Picture angle
Equivalent in 35mm (135) format is approx. 1.5 times lens focal length.
View nder
Diopter
–2.0 to +1.0 m -1
Eyepoint
19.5mm (–1.0 m -1)
Frame coverage
Approx. 95% of lens (vertical and horizontal)
Approx. 0.94× (50mm lens at infnity; –1.0 m -1
Focusing screen
Type-B BriteView Clear Matte Screen Mark II with superimposed focus brackets and On-
Demand grid lines
Optical fxed eye-level pentaprism
Quick return
Lens aperture
Instant return with depth-of-feld preview
When CPU lens is attached, depth-of-feld preview button stops aperture down to value
selected by user (A and M modes) or by camera (other modes)
Self-timer
Electronically controlled timer with 2, 5, 10 or 20 s duration
Focus-area selection
Focus area can be selected from 11 focus areas
Lens servo
• Autofocus (AF): Instant single-servo AF (AF-S); continuous-servo AF (AF-C); auto AF-
S/AF-C selection (AF-A); predictive focus tracking activated automatically according
to subject status
• Manual focus (M)
Storage
Media
SD (Secure Digital) memory cards
File system
Compliant with Design Rule for Camera File System (DCF) 2.0 and Digital Print Order
Format (DPOF)
Compression
• NEF (RAW): compressed 12-bit
• JPEG: JPEG baseline-complaint
ISO sensitivity (Recom-
mended Exposure Index)
100 to 1600 with additional settings of up to 1EV over 1600 in steps of 1/3EV
Autofocus
Detection range
–1.0 to +19 EV (ISO 100 at 20°C/68°F)
AF-area mode
Single-area AF, dynamic-area AF, auto-area AF
Focus lock
Focus can be locked by pressing the shutter-release button halfway (single-servo AF) or
by pressing the AE-L/AF-L button
TTL phase detection by Nikon Multi-CAM 1000 autofocus sensor module
INC
VBA14001-R.3694.A
- Ｍ ･ -

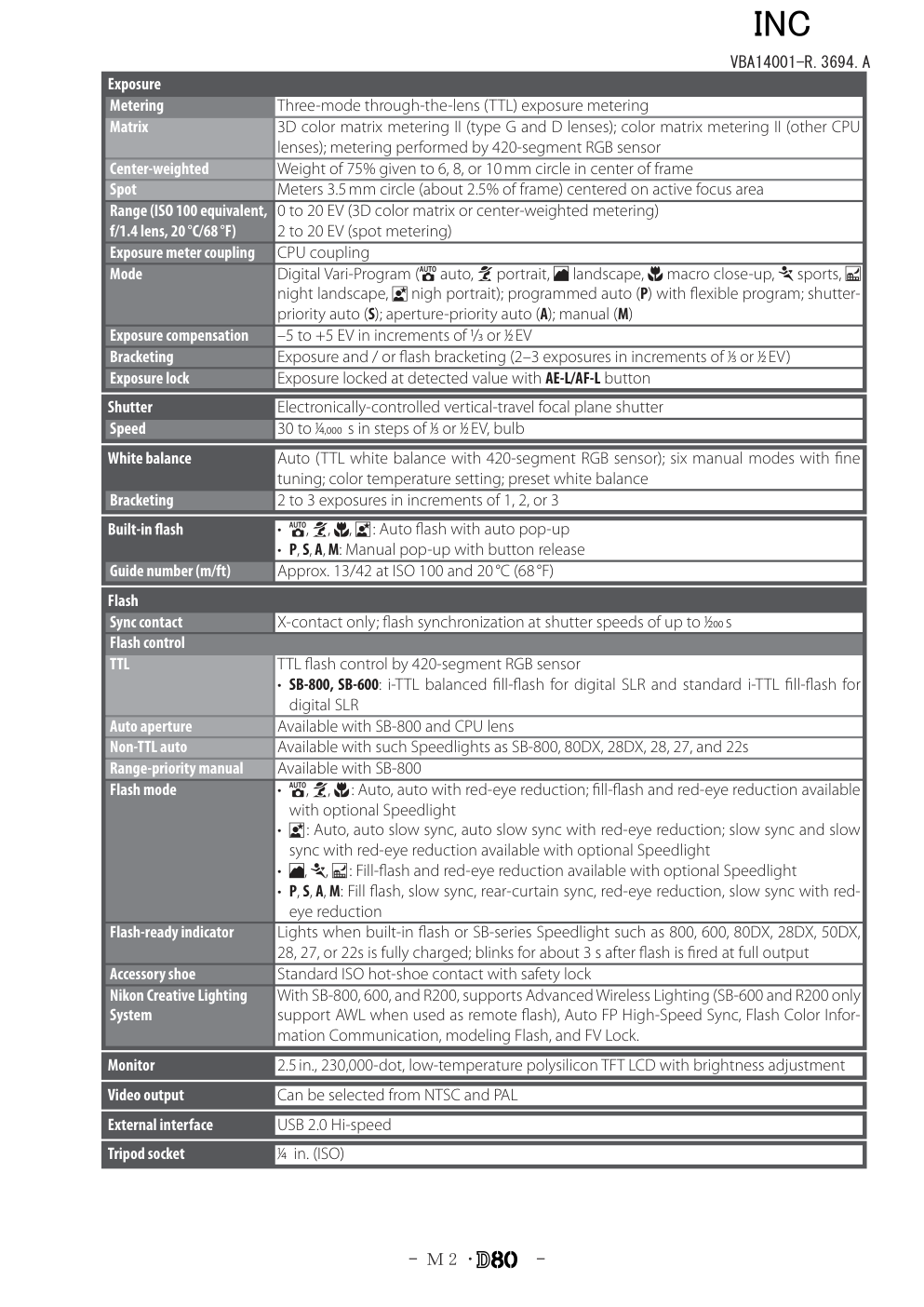

Metering
Exposure
Three-mode through-the-lens (TTL) exposure metering
Matrix
3D color matrix metering II (type G and D lenses); color matrix metering II (other CPU
lenses); metering performed by 420-segment RGB sensor
Spot
Meters 3.5mm circle (about 2.5% of frame) centered on active focus area
Range (ISO 100 equivalent,
f/1.4 lens, 20°C/68°F)
0 to 20 EV (3D color matrix or center-weighted metering)
2 to 20 EV (spot metering)
Center-weighted
Weight of 75% given to 6, 8, or 10mm circle in center of frame
Exposure meter coupling
CPU coupling
Mode
Digital Vari-Program (
auto,
portrait,
landscape,
macro close-up,
sports,
night landscape,
nigh portrait); programmed auto (P) with fexible program; shutter-
priority auto (S); aperture-priority auto (A); manual (M)
Exposure compensation
–5 to +5 EV in increments of 1/3 or 1⁄2EV
Bracketing
Exposure and / or fash bracketing (2–3 exposures in increments of 1⁄3 or 1⁄2EV)
Exposure lock
Exposure locked at detected value with AE-L/AF-L button
Shutter
Electronically-controlled vertical-travel focal plane shutter
Speed
30 to 1⁄4,000 s in steps of 1⁄3 or 1⁄2EV, bulb
White balance
Auto (TTL white balance with 420-segment RGB sensor); six manual modes with fne
tuning; color temperature setting; preset white balance
Bracketing
2 to 3 exposures in increments of 1, 2, or 3
•
,
,
,
: Auto fash with auto pop-up
• P, S, A, M: Manual pop-up with button release
Guide number (m/ft)
Approx. 13/42 at ISO 100 and 20°C (68°F)
Sync contact
Flash
X-contact only; fash synchronization at shutter speeds of up to 1⁄200s
Flash control
Auto aperture
Available with SB-800 and CPU lens
Non-TTL auto
Available with such Speedlights as SB-800, 80DX, 28DX, 28, 27, and 22s
TTL
TTL fash control by 420-segment RGB sensor
• SB-800, SB-600: i-TTL balanced fll-fash for digital SLR and standard i-TTL fll-fash for
digital SLR
Range-priority manual
Available with SB-800
Flash mode
•
,
,
: Auto, auto with red-eye reduction; fll-fash and red-eye reduction available
with optional Speedlight
•
: Auto, auto slow sync, auto slow sync with red-eye reduction; slow sync and slow
sync with red-eye reduction available with optional Speedlight
•
,
,
: Fill-fash and red-eye reduction available with optional Speedlight
• P, S, A, M: Fill fash, slow sync, rear-curtain sync, red-eye reduction, slow sync with red-
eye reduction
Flash-ready indicator
Lights when built-in fash or SB-series Speedlight such as 800, 600, 80DX, 28DX, 50DX,
28, 27, or 22s is fully charged; blinks for about 3 s after fash is fred at full output
Accessory shoe
Standard ISO hot-shoe contact with safety lock
Nikon Creative Lighting
System
With SB-800, 600, and R200, supports AdvancedWireless Lighting (SB-600 and R200 only
support AWL when used as remote fash), Auto FP High-Speed Sync, Flash Color Infor-
mation Communication, modeling Flash, and FV Lock.
Monitor
2.5in., 230,000-dot, low-temperature polysilicon TFT LCD with brightness adjustment
Video output
Can be selected from NTSC and PAL
External interface
USB 2.0 Hi-speed
Tripod socket
1⁄4 in. (ISO)
INC
VBA14001-R.3694.A
- Ｍ ･ -

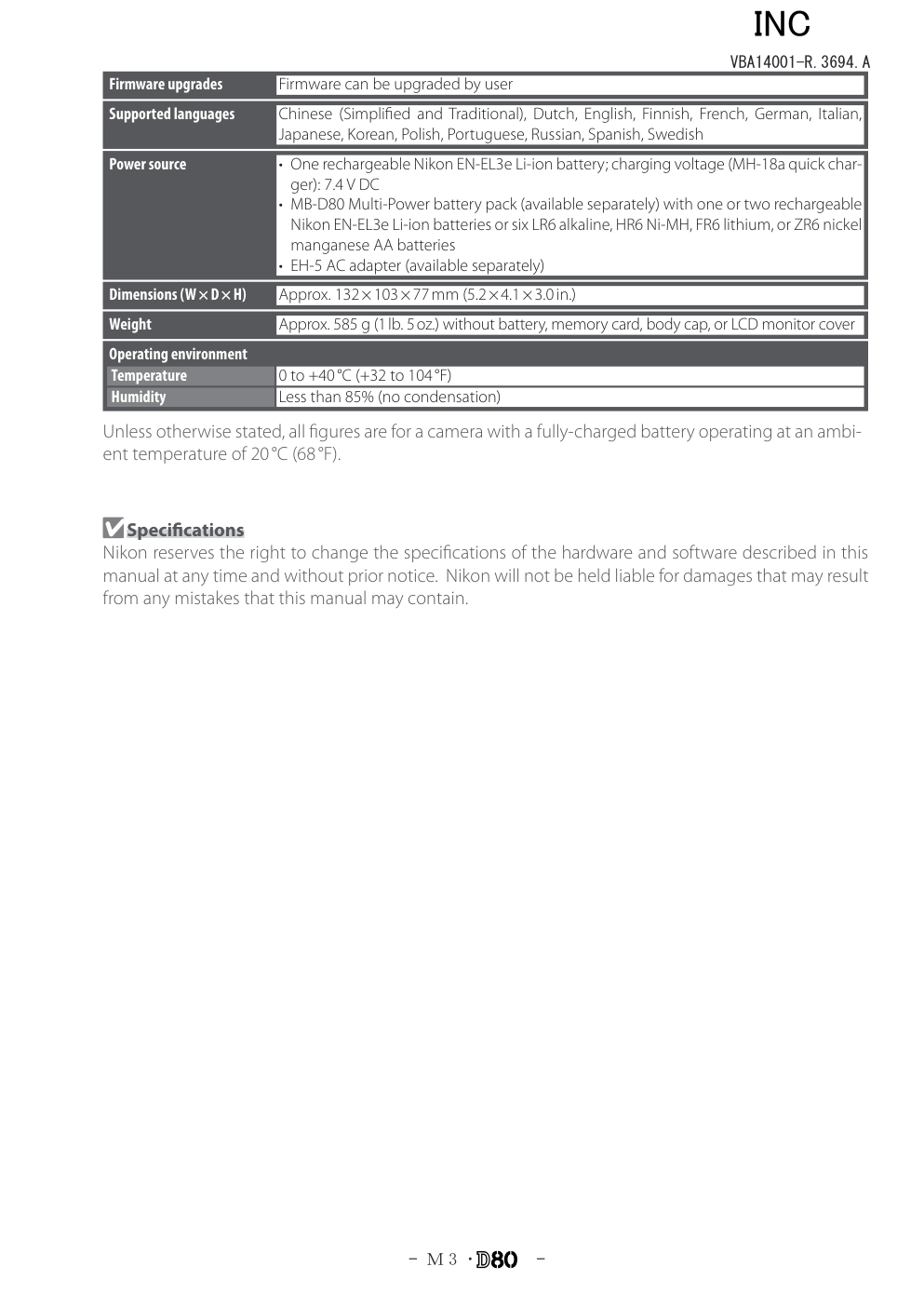

Firmware upgrades
Firmware can be upgraded by user
Supported languages
Chinese (Simplifed and Traditional), Dutch, English, Finnish, French, German, Italian,
Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish
Power source
• One rechargeable Nikon EN-EL3e Li-ion battery; charging voltage (MH-18a quick char-
ger): 7.4 V DC
• MB-D80 Multi-Power battery pack (available separately) with one or two rechargeable
Nikon EN-EL3e Li-ion batteries or six LR6 alkaline, HR6 Ni-MH, FR6 lithium, or ZR6 nickel
manganese AA batteries
• EH-5 AC adapter (available separately)
Dimensions (W×D×H)
Approx. 132×103×77mm (5.2×4.1×3.0in.)
Weight
Approx. 585 g (1lb. 5oz.) without battery, memory card, body cap, or LCD monitor cover
Operating environment
Temperature
0 to +40°C (+32 to 104°F)
Humidity
Less than 85% (no condensation)
Unless otherwise stated, all fgures are for a camera with a fully-charged battery operating at an ambi-
ent temperature of 20°C (68°F).
Specifcations
Nikon reserves the right to change the specifcations of the hardware and software described in this
manual at any time and without prior notice. Nikon will not be held liable for damages that may result
from any mistakes that this manual may contain.
INC
- Ｄ ･ -
VBA14001-R.3694.A
�
内部に高電圧部あり。カバーを外す時は感電に注意すること。
カバーを外した後は、修理指針の指示に従ってメインコンデン
サーの放電を必ず行うこと。
警告
Caution:
Whenever "Separation of Front and rear bodies", "Disassembly of CCD/FPC unit", or
"Disassembly of Bayonet" are performed, be sure to perform "RESET AF-DEFOCUS
COMPENSATION" of camera adjustment software after reassembling.

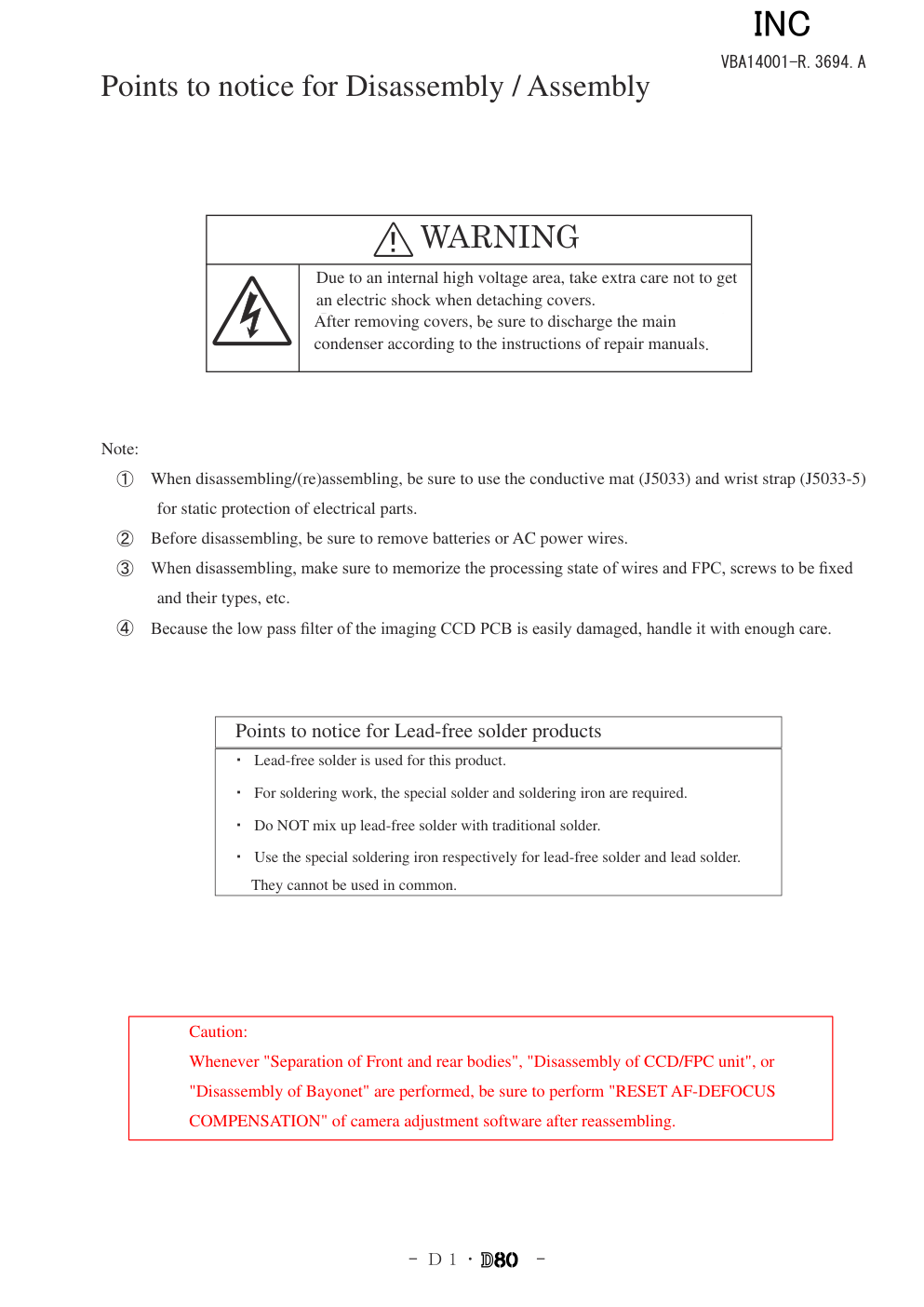

Points to notice for Disassembly / Assembly
WARNING
Due to an internal high voltage area, take extra care not to get
an electric shock when detaching covers.
After removing covers, be sure to discharge the main
condenser according to the instructions of repair manuals.
Note:
① When disassembling/(re)assembling, be sure to use the conductive mat (J5033) and wrist strap (J5033-5)
for static protection of electrical parts.
② Before disassembling, be sure to remove batteries or AC power wires.
③ When disassembling, make sure to memorize the processing state of wires and FPC, screws to be fixed
and their types, etc.
④ Because the low pass filter of the imaging CCD PCB is easily damaged, handle it with enough care.
Points to notice for Lead-free solder products
・ Lead-free solder is used for this product.
・ For soldering work, the special solder and soldering iron are required.
・ Do NOT mix up lead-free solder with traditional solder.
・ Use the special soldering iron respectively for lead-free solder and lead solder.
They cannot be used in common.
INC
- Ｄ ･ -
VBA14001-R.3694.A
Rear cover
・ Take out two screws (#657) and two screws (#656).
・ Remove the rear cover.

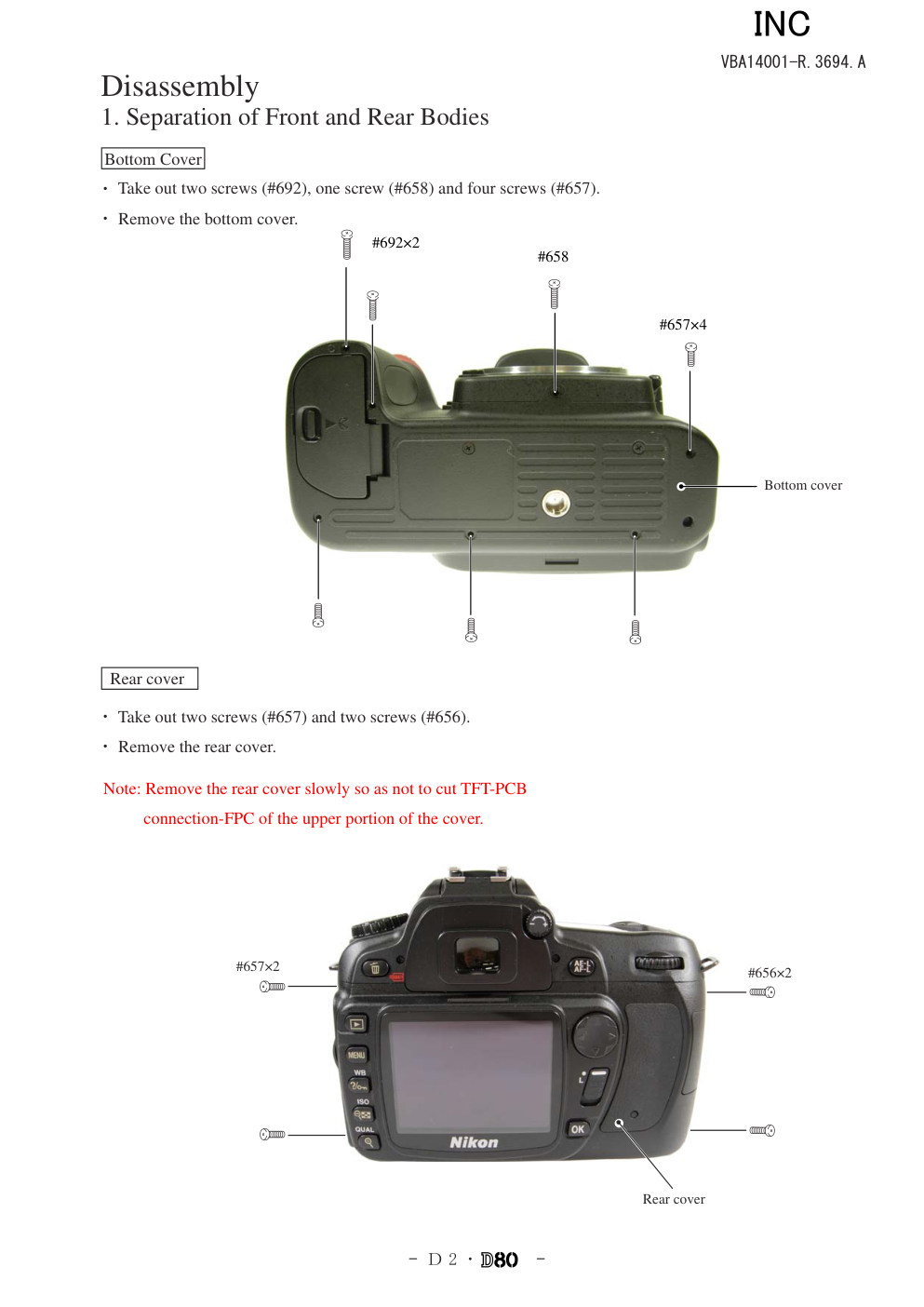

Disassembly
1. Separation of Front and Rear Bodies
Bottom Cover
・ Take out two screws (#692), one screw (#658) and four screws (#657).
・ Remove the bottom cover.
#692×2
Bottom cover
#658
#657×4
#657×2
Rear cover
#656×2
Note: Remove the rear cover slowly so as not to cut TFT-PCB
connection-FPC of the upper portion of the cover.
INC
- Ｄ ･ -
VBA14001-R.3694.A

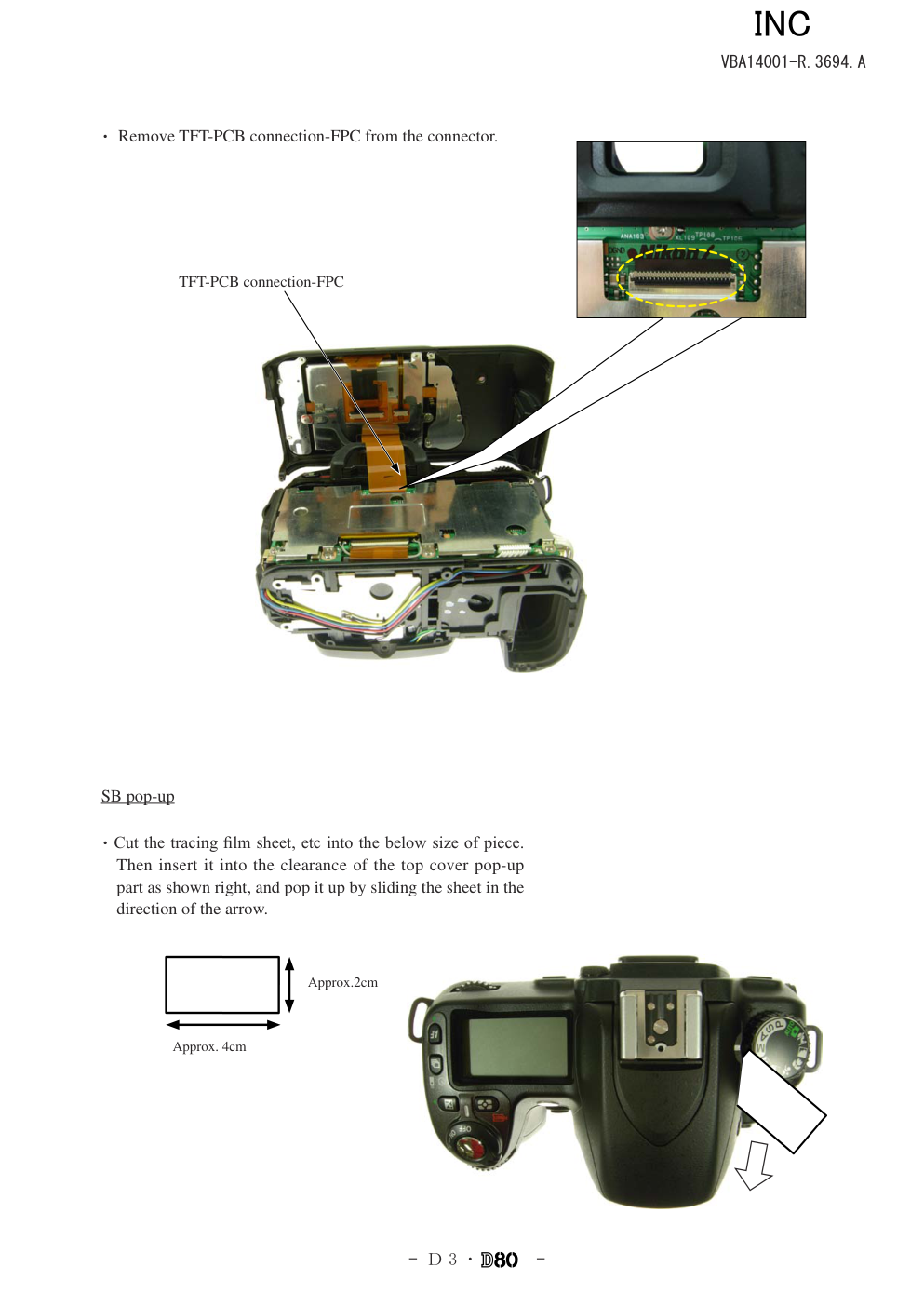

TFT-PCB connection-FPC
・ Remove TFT-PCB connection-FPC from the connector.
SB pop-up
・Cut the tracing film sheet, etc into the below size of piece.
Then insert it into the clearance of the top cover pop-up
part as shown right, and pop it up by sliding the sheet in the
direction of the arrow.
Approx.2cm
Approx. 4cm
INC
- Ｄ ･ -
VBA14001-R.3694.A

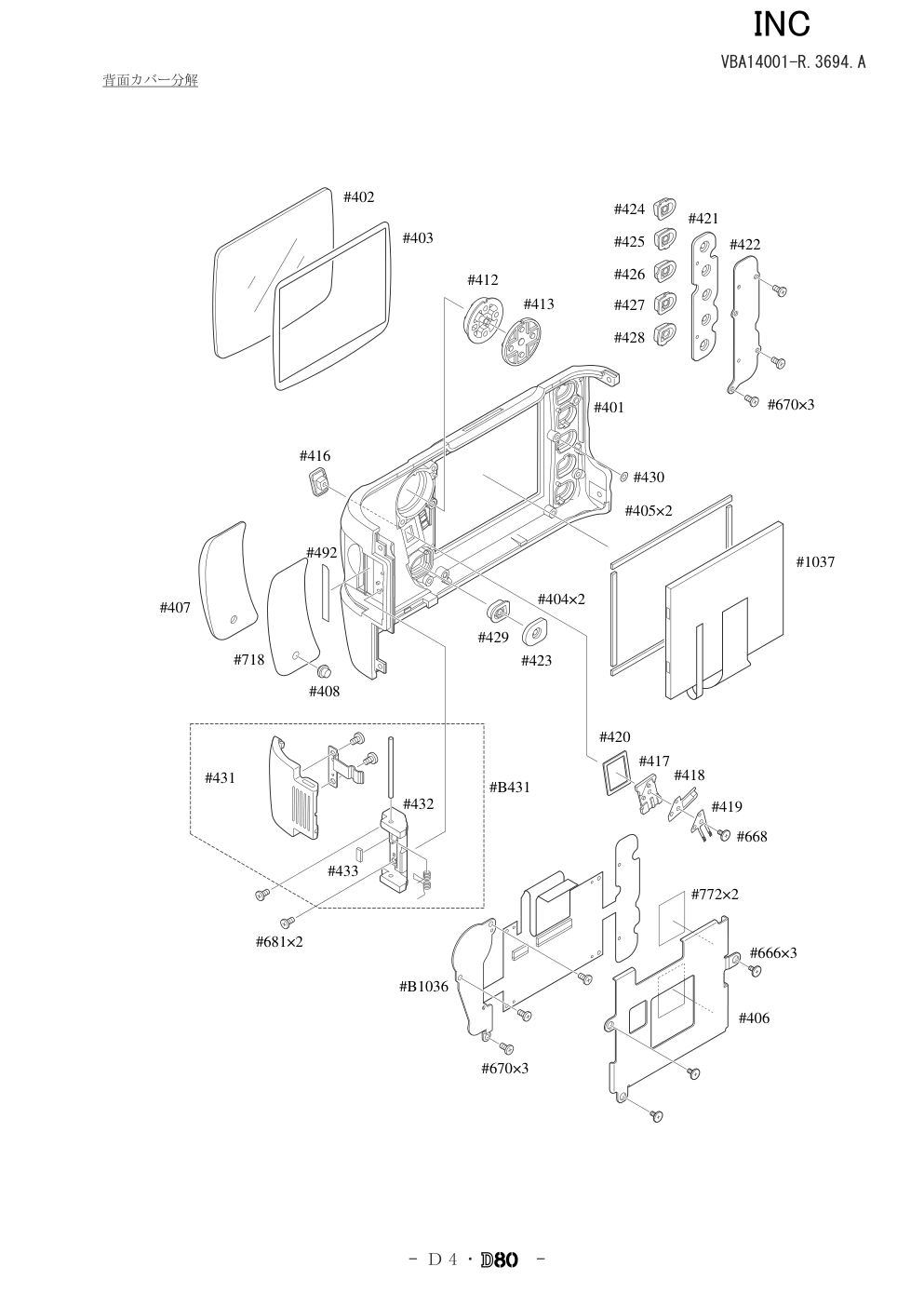

背面カバー分解
#402
#403
#412
#413
#416
#407
#718
#408
#492
#429
#423
#401
#405×2
#424
#425
#426
#427
#428
#421
#422
#670×3
#430
#1037
#420
#417
#418
#419
#668
#406
#B1036
#B431
#431
#433
#432
#404×2
#681×2
#670×3
#666×3
#772×2
INC
- Ｄ ･ -
VBA14001-R.3694.A
AUTO
�
内部に高電圧部あり。カバーを外す時は感電に注意すること。
カバーを外した後は、修理指針の指示に従ってメインコンデン
サーの放電を必ず行うこと。
警告
#691×2
#638
#28
#121
#659
#124
#691×2
#618
#B24
#B26
#71
#70
#755
Main
condenser
2KΩ/5W
WARNING
Due to an internal high voltage area, take extra care not to get an
electric shock when detaching covers.
After removing the covers, be sure to discharge the main
condenser according to the instructions of repar manuals.

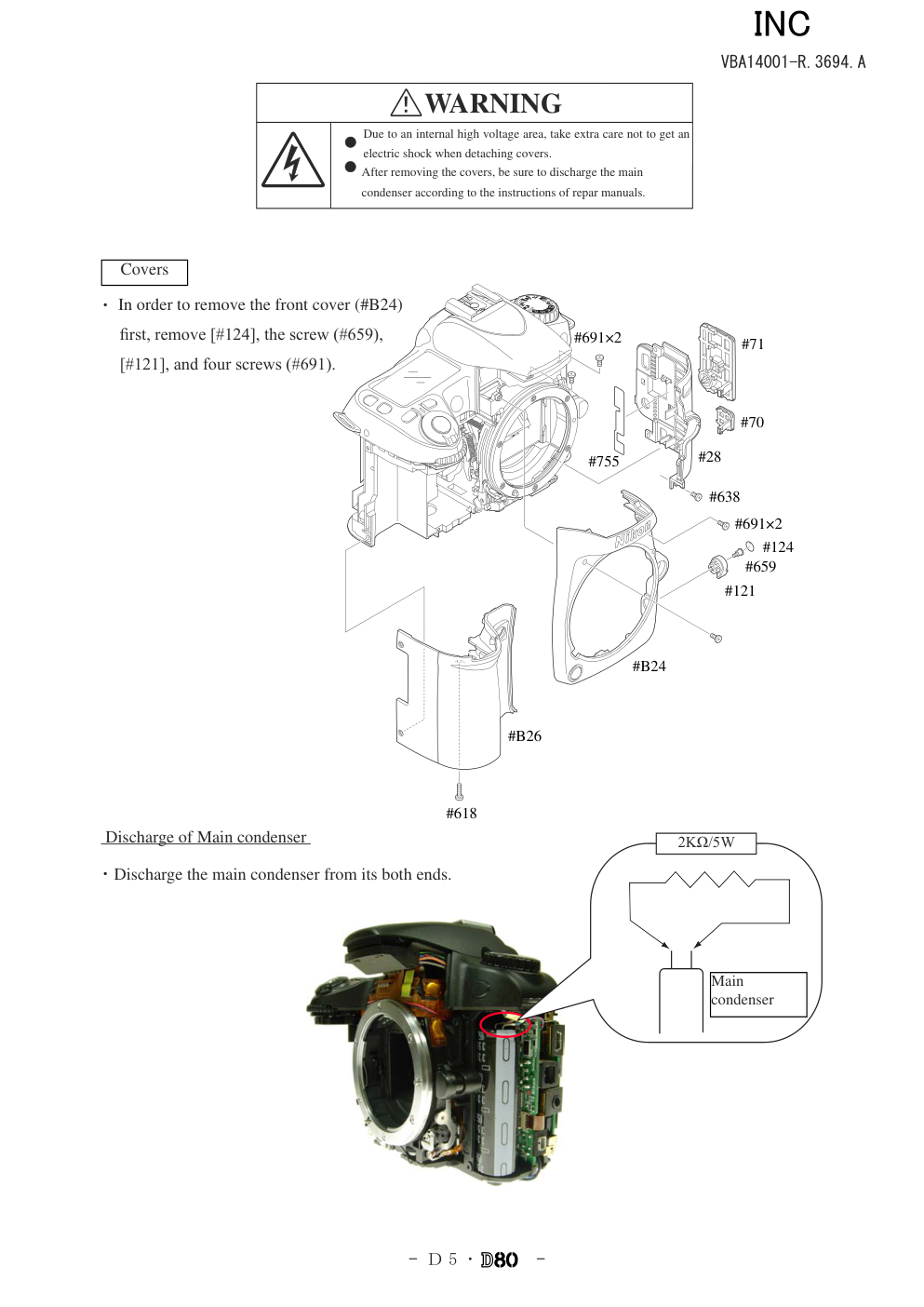

・ In order to remove the front cover (#B24)
first, remove [#124], the screw (#659),
[#121], and four screws (#691).
Covers
Discharge of Main condenser
・Discharge the main condenser from its both ends.
INC
- Ｄ ･ -
VBA14001-R.3694.A

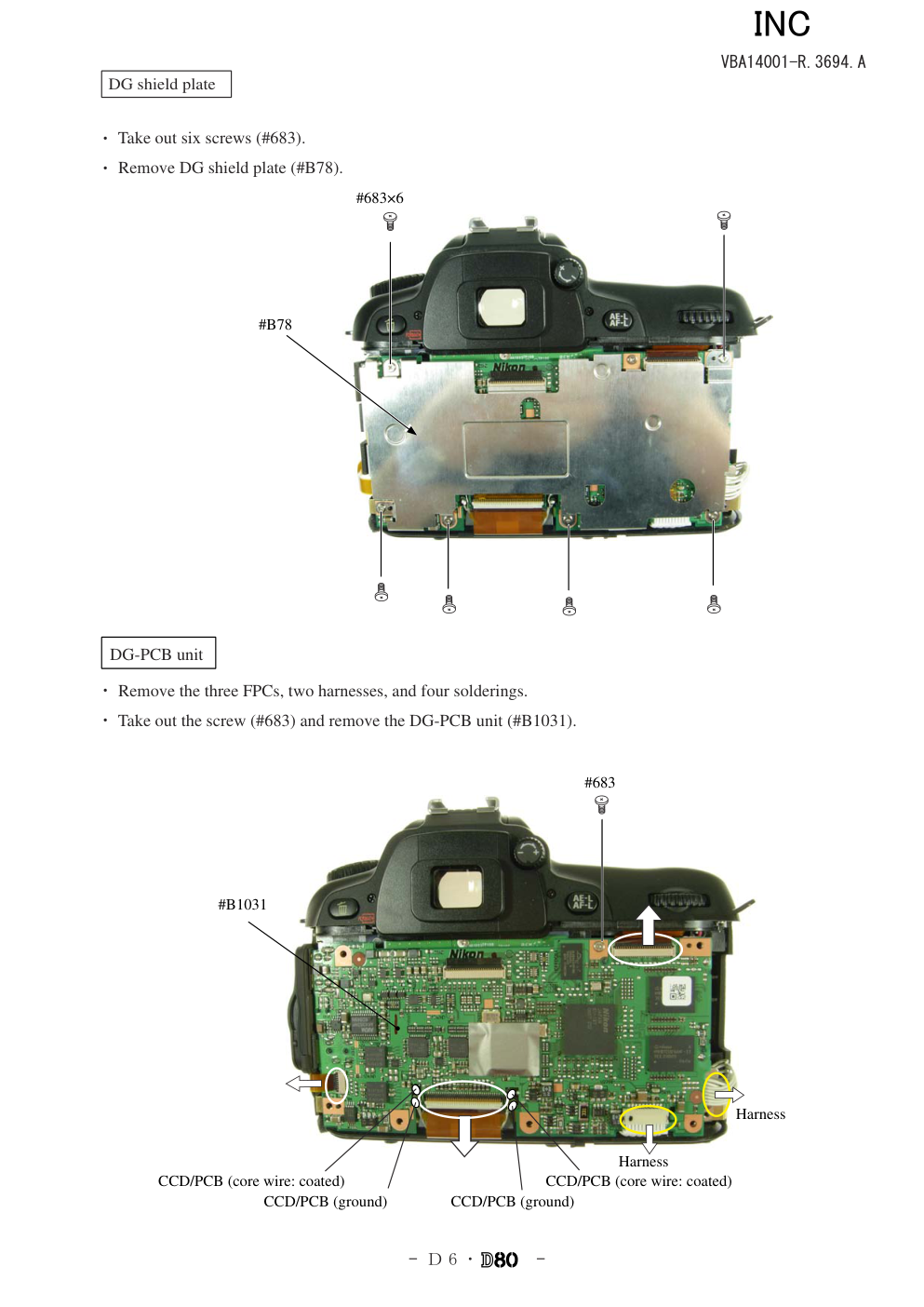

・ Remove the three FPCs, two harnesses, and four solderings.
・ Take out the screw (#683) and remove the DG-PCB unit (#B1031).
・ Take out six screws (#683).
・ Remove DG shield plate (#B78).
#683×6
#683
#B1031
Harness
Harness
#B78
DG shield plate
DG-PCB unit
CCD/PCB (core wire: coated)
CCD/PCB (core wire: coated)
CCD/PCB (ground)
CCD/PCB (ground)
INC
- Ｄ ･ -
VBA14001-R.3694.A
・ Take out three screws (#680) and remove the CCD/PCB unit (#B1032).
#680×3
#B1032
・ Remove two stickers (#826 and #762).
・ Remove four wires.
・ Take out the screw (#627). The preview
SW unit and the preview SW come off.
Preview switch unit
#826
#762
Yellow
Green
Blue
Black
Preview SW/FminGND wire
Caution:
Some bodies have already washer(s) attached on
the mounting surface of CCD/PCB unit.
#627
CCD/PCB unit
Preview SW
INC
- Ｄ ･ -
VBA14001-R.3694.A
・ Unsolder six wires that are connected from the top cover.
・ Take out screws (#656,#629,and #624) and two screws (#686).
・ Remove the adjustable diopter unit (#280, 288, 282, 287, 281).
Black
Green
Orange
Gray
Blue
Red
#629
#624
#686×2
#280
#288
#282
#287
#281
Adjustable diopter unit
・ Remove the top cover FPC (#1007) from the connector.
#1007
#656
Top cover
INC
- Ｄ ･ -
VBA14001-R.3694.A
#629×2
Pop-up lever A part
SB upper case (#301)
Claw
・ Press the pop-up lever A part of the top cover unit so that the built-in SB pops up.
・ Take out two screws (#629).
Disassembly of Top cover
SB upper case
・ Take out two screws (#629).
・ Release the two claws. House the built-in SB and remove the SB upper case (#301).
INC
- Ｄ 0 ･ -
VBA14001-R.3694.A
#B1056
#607
Bundled wires
Green:
SB pop-up SW wire
Accessory shoe contacts×5
Yellow:
SB pop-up SW wire
M/D FPC
・ Remove the M/D FPC.
・ Unsolder two SB pop-up SW wires.
・ Remove five solders of the accessory shoe contacts.
Top cover FPC / Wiring
・ Remove the screw (#607).
・ Remove the remote control unit (#B1056).
・ Remove the bundled wires.
INC
- Ｄ ･ -
VBA14001-R.3694.A
2 hooks
#305
#650
AUTO
#308
#306
#B341
#B342
#B2302
Caution:Be careful NOT to deform
the SB POP-UP switch.
Flash-up spring
・Unhook the Flash-up spring (#305).
・Take out the screw (#650) and remove the flash-up spring (#305).
・Pull each wire out of holes.
・Loosen two hooks of the collar (#308), and remove [#308].
・Remove the SB-case rotate shaft (#306).
・Detach the SB lower case unit (#B2302) from the top cover.
・ Remove [#B341] and [#B342].
SB lower case unit
INC
- Ｄ ･ -
VBA14001-R.3694.A
AUTO
#B2455
#640×3
#398
#399
#640
#B2455
Solder
Solder
#B367
#B377
#610×2
#607×2
#B377
#B367
・ Take out three screws (#640), and remove the M/DFPC unit (#B2455).
・ Remove the delete-button rubber SW (#399) and the delete button (#398).
M/DFPC unit
・ Unsolder the command dial (#B367 and #B377).
・ Take out the two screws (#610) of [#B367].
・ Take out the two screws (#607) of [#B377].
・ Remove the command dials (#B367 and #B377).
AF-assist illuminator window / Command dial
INC
- Ｄ ･ -
VBA14001-R.3694.A
#611
#612
#610×4
#B11007
AUTO
#399
#381
#825
#825
#B11007
#331
#1136
#334
#771
#332×2
#330
#805
#333
#1044
#1135
#806
#1017
#738
#611
#610×4
#612
#B1011
#1077
#840
・ Take out four screws (#610).
・ Take out the screw (#612).
・ Take out the screw (#611).
・ Remove the top cover FPC unit (#B11007).
・ Remove the AE-L rubber SW (#399) and AE-L button (#381).
・ Remove the light-leak prevention sponge (#825).
Top cover FPC unit
INC
- Ｄ ･ -
VBA14001-R.3694.A
#460
#461
#380
#348
#454
#398
#722
#351
#338
#346
#340
#387×2
#335
#350
#339
#384
#383
#690×2
#349
#347
#399
#345
AUTO
Release button / other small parts
INC
- Ｄ ･ -
VBA14001-R.3694.A
#452
#451
#654×4
#322
#640
#336×2
#337×2
#453
#326
#B317
#316
#318
#321
#142
#463
#605×3
#758×2
#756×2
Outer LCD window / shoe mold unit / accessory shoe / other small parts
INC
- Ｄ ･ -
VBA14001-R.3694.A
・Disconnect the sub-PCB unit (#1002) from the underneath connector of the main PCB.
・ AF-assist illuminator unit (#B325) comes off.
・ Remove two FPCs.
・ Remove four wires.
Sub-PCB unit
Sub-PCB unit (#1002)
・ Unsolder three wires.
・ Disconnect three FPCs from each connector.
・ Take out the screw (#623) and two screws (#640).
#640
#640
#623
Black
Front body FPC unit
Blue
SQ unit
Red
Front body FPC unit
Orange
SQ unit
Black
AF-assist illuminator
Black
AF-assist illuminator
Gray
FG/ID connect spring
Main PCB connector
AF-assist illuminator unit
(#B325)
Main PCB unit (#B1001)
Sub-PCB unit (#1002)
INC
- Ｄ ･ -
VBA14001-R.3694.A
Separation of Front and Rear bodies
#634×4
・ Take out two screws (#615), and remove the eyepiece mold (#291).
・ Take out two screws (#699), four screws (#634), two screws (#615) and one screw (#621). Then remove
the front body.
#699×2
#615×2
#621
#291
#615×2
INC
- Ｄ ･ -
VBA14001-R.3694.A
Main PCB unit
#695×2
Main PCB unit (#B1001)
GND-plate C unit
#607×2
#610
#B109
・ Take out two screws (#607) and one
screw (#610). Then remove [#B109].
・ Remove connection-FPC (#1023).
・ Unsolder two wires of electronic buzzer unit.
・ Disconnect the FPC of the main PCB from the DC/DC connector.
・ Take out two screws (#695).
・ Remove the main PCB unit(#B1001).
Connection-FPC
(#1023)
Black
Electronic buzzer
Black
Electronic buzzer
3. Rear body
FPC of Main PCB
DC/DC connector
Connection-FPC (#1023)
INC
- Ｄ ･ -
VBA14001-R.3694.A
・ Remove the FPC.
・ Remove six wires.
SB PCB
Pink
Red
Black
Yellow
Blue
FPC
・ Remove [#110].
・ Unsolder six wires.
・ Disconnect the rechargeable-battery wire (#1059) from the connector.
・ Remove two harnesses.
・ Take out the screw (#610).
・ Remove DC/DC PCB unit (#1030).
#110
#610
Harness
Black: battery-contact spring
Blue:
SB-PCB
Red: battery-contact spring
Yellow:
SB-PCB
Red:
SB-PCB
Black:
SB-PCB
Rechargeable-battery wire
(#1059)
Blue
DC/DC PCB unit
DC/DC PCB unit (#1030)
INC
- Ｄ 0 ･ -
VBA14001-R.3694.A
・ Detach the four wires from the bosses.
SB PCB
・ Remove the main condenser (#1043) from the adhesive
double-coated tape.
・ Take out two screws (#608).
・ Remove SB/IF-PCB unit (#B1041).
・ Remove SB/IF-PCB GND plate (#75).
Main condenser
(#1043)
#608×2
Blue
Red
Black
Yellow
#608×2
#763
SB/IF PCB unit
(#B1041)
Adhesive double-
coated tape (#753)
#754
SB/IF PCB unit
(#B1041)
#75
SB/IF PCB GND plate
Bottom wires
INC
- Ｄ ･ -
VBA14001-R.3694.A
・ Take out the screw (#607), and remove [#108].
・ Remove [#102].
・ Take out two screws (#633), and remove [#107].
#607
#108
#102
#107
#633×2
・ Take out the screw (#603) and remove [#106].
#603
#106
GND plate
INC
- Ｄ ･ -
VBA14001-R.3694.A
OP FPC unit, Electronic buzzer unit, Clock battery unit, other small parts
#619
#693
#619
#157
#80
#517
#607
#162
#754
#1059
#617×2
#145
#149
#694×3
#B1016
#1055
#617×2
#146
#150
#760
#828
#764×2
#788
#761×2
INC
- Ｄ ･ -
VBA14001-R.3694.A
3. Front Body
・ Remove two fingers (#136).
・ Remove the gasket (#481).
・ Remove the tracing film sheet (#783).
・ Take out four screws (#642) and remove the P-BOX section.
#642×4
#481
#783
P-BOX section
#136× 2
P-BOX section
INC
- Ｄ ･ -
VBA14001-R.3694.A
In-finder LCD FPC unit
Metering FPC unit
Eyepiece lens unit
#644×3
#522
#523
#11
・ Disconnect the in-finder LCD FPC from the connector.
・ Take out two screws (#626), and remove the in-finder LCD FPC unit (#B1010).
#B11008
#642×2
・ Take out three screws (#644), and remove the metering FPC unit (#B11008).
・ Take out two screws (#642), and remove the eyepiece lens unit.
Eyepiece lens unit
Eyepiece lens unit
#7
#277
#B276
#274
#279
#275
#5
#272
#782
#290
#603
#284
#283
#278
#603
#286
#271
#774
In-finder LCD FPC unit
P-BOX unit
#626×2
#B1010
#1045
#509
#508
In-finder LCD FPC unit
INC
- Ｄ ･ -
VBA14001-R.3694.A
・ Disconnect SI-FPC (#1022) from the connector of [#1021].
・ Remove the soldering bridge that joints [#1021] and [#1027].
#268×2
#839
#1021
#1027
#776
#270
#775
#267
#269
#298
#535,535B,C
#264
#502×2
#504×2
#503×2
#610×2
#532
#8
#521
#610×2
#532
#4
Soldering bridge
SI-FPC
#1022
Connector
Penta unit
INC
- Ｄ ･ -
VBA14001-R.3694.A
#1022
#529
#530
#501
#527
#266A,B×0 ～ 1
#3
#265
#511
#1046
#263
#534
#510
#507
#526×2
#777
#RP-B261
INC
- Ｄ ･ -
VBA14001-R.3694.A
・ Remove the tape (#734).
・ Remove AFCCD-FPC.
・ Take out three screws (#173) with Hexagonal wrench (φ1.5mm) to remove AFCCD FPC unit (#B2163).
・ Three springs (#170) come off, too.
#734
#173×3
#170×3
AF CCD-FPC
AF CCD FPC unit
(#B2163)
AFCCD FPC unit
INC
- Ｄ ･ -
VBA14001-R.3694.A
Shutter unit
・ Remove the tape [TA-0009(22×30)].
・ Unsolder the five wires.
Orange
Green
White
Violet
Gray
・ Remove the sponge (#824).
・ Deactivate the preview latch lever. Then, rotate "A" in the direction of the arrow and raise the mirror.
・ Take out two screws (#638), and remove the shutter unit (#B31).
TA-0009(22×30)
#638×2
#B31
#824
A
Rotation direction
Deactivation
Preview latch lever
INC
- Ｄ ･ -
VBA14001-R.3694.A
・ Unsolder four wires.
・ Remove the two soldering bridges .
・ Remove the sponge (#822).
・ Remove the soldering bridges, and remove the
front body FPC.
Yellow:
Yellow:
Black:
Black:
Soldering bridge
Soldering bridge
AM-change SW wire
AF motor wire
AM-change SW wire
AF motor wire
Soldering bridges
#709
Red:
Main PCB
Black:
Main PCB
Front body FPC
#822
Front body FPC unit
INC
- Ｄ 0 ･ -
VBA14001-R.3694.A
Procedure
1. Remove two wires.
2. Take out two screws (#624) and one screw (#698).
3. Press down the aperture lever with finger, and move the aperture
coupling lever (#207) the direction of arrow ( ① ).
4. In state of 3., while letting the arm of [#RP-B241] escape, remove
the aperture control unit (#RP-B241) by pulling it in the direction
indicated by arrow ( ② ).
Black:
Fmin SW
Brown:
Fmin SW
Arrow ①
Arrow ②
#207
Arm of [#RP-B241]
Aperture lever
#624
#624
#698
#RP-B241
Aperture control unit
INC
- Ｄ ･ -
VBA14001-R.3694.A
Aperture control PCB
SQ unit
#1109
#1110
#TA-0009
#214
#628
#630
#B91
#RP-B241
INC
- Ｄ ･ -
VBA14001-R.3694.A
・ Remove the horizontal lever (#193), and remove the AF motor PCB (#B172).
・ Remove the vertical lever (#191), and remove the release-button holder (#B116).
#642
#191
#625
#115
#119
#B116
#637×2
#B172
#630
#122
#123
#607
#185
#195
#652
#630
#193
AF driving unit
Lens release button /
Vertical lever /
Horizontal lever areas
INC
- Ｄ ･ -
VBA14001-R.3694.A
#1115
#648×5
#1116
#642
#126
#B125
#B2113
#642×2
#235
#120
#689×2
#237
#238
#114
#818
#132
#131
#135
#1134
#112×3
#660
Bayonet /
A/M-change SW /
Lens-contact areas
#111
INC
- Ｄ ･ -
VBA14001-R.3694.A
Aperture lever /
F-min SW /
Preview locking-lever areas
#206
#1122
#1121
#642
#134
#B133
#639
#208
#210
#207
#209
#205
#212
#203
#204
#213
#240×2
#236
#198
#197
#199
#B2231
#624
#202
#221
#224
#222
#223
Mirror unit
・Note that two pins (#240) and
the pin (#236) are attached with
the Super X.
INC
- Ａ ･ -
VBA14001-R.3694.A
#240 × 2
#236
#198
#197
#199
#B2231
#236
Adhesive Super X
Adhesive
Super X
Apply the adhesive only
on 1/4 periphery of the
pin on mount side.
Do NOT allow the adhesive to be
forced out on the head of #240.
・ NOTE: For undescribed tapes and sponges here
in"Assembly", refer to PARTS LIST.
Assembly/ Adjustment
1. Front body
Mirror unit
・ With being mirror-up as shown right,
assemble the pins and apply the
adhesive (Super X) on each pin.
INC
- Ａ ･ -
VBA14001-R.3694.A
#205
#212
#213
#205
#212
(Short)
Long (thick)
Long (thin)
Grease: LEN317A
Grease: LEN317A
Aperture lever
F-min SW areas
Apply Grease: LEN317A to the
inner diameter surface of #203, #207, and #208.
Apply Grease: MZ-800S to
the overall of #209 and #210.
Position for hooking spring
Brown
Black
#204
#203
#206
#B133
#134
#642
#1121
#1122
#205
#212
#639
#208
#210
#207
#209
#213
INC
- Ａ ･ -
VBA14001-R.3694.A
Preview latch lever
Aperture control unit
SQ unit
#624
#202
#221
#223
#224
#222
Hold the one part of the spring,
then wind and hook it to the
protrusion of [#221].
#1109
#1110
#TA-0009
#214
#628
#630
#B91
#RP-B241
Grease: LEN317A
INC
- Ａ ･ -
VBA14001-R.3694.A
1. Turn the below [1] all the way to the end. Then press [2] in the direction to lock. (ref. Fig. ① )
2. Insert the arm between [#207] and [#203]. (ref. Fig. ② )
3. Tighten two screws (#624) and one screw (#698). (ref. Fig. ③ and ④）
Fig. ②
Note: Be careful not to bend contact blade of F-min SW.
#624×2
#698
#207
#203
Arm
Fig. ①
Fig. ③
Fig. ④
Direction for positioning
Direction for positioning
Aperture control unit
Aperture control unit
１
２
INC
- Ａ ･ -
VBA14001-R.3694.A
・ Mount the AF motor PCB (#B172) by following the direction for positioning, and fix it with two screws (#637).
#637×2
Direction for positioning
#642
#B125
#126
#B116
#B172
AF driving unit
A/M change SW
Lens release button
INC
- Ａ ･ -
VBA14001-R.3694.A
・ Assemble by the following order.
#122→#191→#630
#191
#630
#122
・ Put the coupling shaft (#185).
・ Put the horizontal-lever spring (#195), and hook it to the hooking part.
・ Set the horizontal lever (#193) to be engaged in the groove of [#185].
・ Fix the horizontal lever (#193) with the screw (#630).
Note: Be careful NOT to bend contact
blade of the lens release SW.
・ Unhook [#195] and hook it to [#193] again.
#193
#185
#185
[#185] must be engaged.
#630
Horizontal-lever
spring (#195)
Hooking part
#195
#193
Grease: LEN317A
#193
[#191] comes under when assembled.
Grease: LEN317A
Vertical lever
Horizontal lever
INC
- Ａ ･ -
VBA14001-R.3694.A
Grease: LEN317A
#112×3
#648×5
#B2113
#642×2
#235
#120
#689×2
#237
#238
#114
#818
#132
#131
#135
#1134
#112×3
#660
#123
#607
②
①
③
④
⑤
⑥
Bayonet
AF lens contacts areas
・ Fix [#123] with the screw (#607).
・ Fix the lens contacts unit (#B2113) with two screws (#642).
・ Put the Fmin spring (#132) and Fmin coupling block (#131) so that they can be fit in the groove.
・ Attach [#135], and arrange the wire (#1134) inside the groove.
・ Attach [#114].
・ Attach three plate springs [#112].
・ Fix the bayonet (#111) with the screw (#660) and five screws (#648), in the order from ① to ⑥ .
・ Hook the spring (#132).
#132
#132
#131
#111
INC
- Ａ ･ -
VBA14001-R.3694.A
#625
#642
#119
#115
A/M change SW cover area
Yellow:Front body FPC
Black:Front body FPC
#B125
#114
・ Solder two wires.
[Make soldering bridge to joint the black wire, AM change SW
unit (#B125) and the mount GND spring (#114).]
・ Insert [#119].
・ Mount [#115], and tighten the screws (#642 and #625).
INC
- Ａ ･ -
VBA14001-R.3694.A
#652
#185
Bayonet
1.7±0.15mm
Height adjustment of AF coupling shaft
① Set the A/M change cam (#122) to
AF side. [i.e. The coupling shaft
(#185) sticks out of the bayonet.]
② Adjust the height of the coupling shaft
(#185) with the screw (#652) so that
it becomes 1.7±0.15mm.
③ After the adjustment, fix the screw
(#652) with screwlock.
#122
A/M change cam
Adhesive: Screw lock
Height adjustment of Aperture lever
・Measure the height of the aperture lever by using the tool (J18004).
Standard: 3.4±0.1mm
In case the value is out of standard, make an adjustment by bending the circled part.
Caution: Be careful NOT to bend the inner part of the lever when adjusting.
3.4±0.1mm
Aperture lever
INC
- Ａ 0 ･ -
VBA14001-R.3694.A
・ Mount the front-body FPC unit (#1009) by fitting in eight bosses.
・ Bend the FPC of the lens contacts unit (#B2113) toward bayonet side, and attach it by fitting in two bosses.
Soldering bridge
#822
#709
Red wire:
Main PCB
Black wire:
Main PCB
Front body FPC unit (#1009)
・ Make soldering bridge to joint [#1009] and the FPC of the lens contacts unit (#B2113).
・ Attach the sponge (#822).
FPC of lens contacts unit (#B2113)
Front body FPC
INC
- Ａ ･ -
VBA14001-R.3694.A
・ Set [#1014].
・ Pass [#1014] and [#1012] through the holes, and make soldering bridges.
・ Solder four wires.
Yellow wire:
AM change SW wire
Yellow wire:
AF motor wire
Black wire:
AM change SW wire
Black wire:
AF motor wire
Soldering bridge
Soldering bridge
#1014
#1012
INC
- Ａ ･ -
VBA14001-R.3694.A
・ Deactivate the preview latch lever. Rotate "A" in the direction of the arrow, and raise the mirror.
・ Mount the shutter unit (#B31). Tighten two screws (#638) in the order from ① to ② .
・ Attach the sponge (#824).
・ Rotate "A" in the direction of the arrow, and let the mirror down.
・ Rotate "A" as shown so that the index falls within the range of the initial position.
・ Solder seven wires.
・ Attach the tape [TA-0009 (22×30)].
#638×2
#B31
#824
①
②
Gray wire:
Shutter
TA-0009(22×30)
White wire:
Shutter
Violet wire:
Shutter
Green wire:
Shutter
Orange wire:
Shutter
Rotation direction
Range of initial
position
Index
A
Black wire:
Fmin SW
Brown wire:
Fmin SW
Deactivation
Preview latch lever
A
Shutter unit
Rotation
direction
INC
- Ａ ･ -
VBA14001-R.3694.A
AF CCD FPC unit
・ Put three springs (#170).
・ Mount the AF CCD FPC unit (#B2163), and
turn the three screws (#173) softly all the
way to the end with the hexagonal wrench
(φ1.5mm), then give it approx. four turns
counterclockwise.
#734
AF CCD FPC
#173×3
#170×3
AF CCD FPC unit
#B2163
・ Connect the AF CCD FPC to the connector.
・ Attach the tape (#734).
INC
- Ａ ･ -
VBA14001-R.3694.A
・ Attach [#8].
・ Attach the two [#503] with the two [#502], and assemble the two [#502].
・ Mount [#1021] and [#1027], which were jointed by soldering bridges, on [#RP-B261]. Then fix them with the two [#532]
and tighten two screws (#610).
・ Mount the finder field frame (#264).
・ Mount the prism (#4).
・Attach [#298] and [#535].
・ Mount [#269], [#267], and [#270] in order.
・ Fix with the two penta prism-retaining springs (#268).
・ Attach [#1021].
#268×2
#839
#1021
#1027
#776
#270
#775
#267
#269
#298
#535,535B,C
#264
#502×2
#504×2
#503×2
#610×2
#532
#8
#521
#610×2
#532
#4
Soldering bridge
SI-FPC
#1022
Connector
Penta unit
#RP-B261
INC
- Ａ ･ -
VBA14001-R.3694.A
・ Attach [#511].
・ Assemble ※ and [#265].
・ Assemble [#266] and [#3], and hold them with [#265].
・ Connect the SI-FPC (#1022) to the connector of the penta FPC unit (#1021).
#1022
#529
#530
#501
#527
#266A,B×0 ～ 1
#3
#265
#511
#1046
#263
#534
#510
#507
#526×2
#777
#RP-B261
※
Direction for positioning
INC
- Ａ ･ -
VBA14001-R.3694.A
#626×2
#B1010
#509
#508
In-finder LCD FPC unit
Metering FPC unit
Eyepiece lens unit
・ Fix the eyepiece lens unit with two screws (#642).
・ Fix the metering FPC unit (#B11008) with three screws (#644).
#644×3
#522
#523
#11
#B11008
#642×2
Eyepiece lens unit
In-finder LCD FPC unit
#B261RP
・ Fix the in-finder LCD FPC unit (#B1010) with two screws (#626).
・ Connect the in-finder LCD FPC to the connector.
#1045
In-finder LCD FPC unit
Eyepiece lens unit
#7
#277
#B276
#274
#279
#275
#5
#272
#782
#290
#603
#284
#283
#278
#603
#286
#271
#774
[#272] must NOT stick out
of [#271]. Align the grooves
of [#278] and
[#283], and
assemble them.
INC
- Ａ ･ -
VBA14001-R.3694.A
・ Fix the P-BOX section with four screws (#642).
・ Press-contact "A" part into the two bosses.
・ Attach the tracing film sheet (#783).
・ Put the gasket (#481).
・ Attach two fingers (#136).
#642×4
#481
#783
P-BOX section
Prism box section
#136× 2
Ａ
INC
- Ａ ･ -
VBA14001-R.3694.A
J0
J
J
(J18037-2)
(J18409)
(J18389)
Device:
1.Main mirror 45° inspection and adjustment
2.Sub-mirror 59° inspection and adjustment
Angle inspection and adjustment of Main mirror and sub-mirror
① Collimator (J19110)
② Reflection mirror (J18389)
③ Optical parallel (J18037-2)
④ Hexagonal wrench
Main mirror
Eccentric pin for
the main mirror
Collimator
Bayonet
① Collimator (J19110)
② 59° mirror tool (J18409)
③ Hexagonal wrench
Sub-mirror
Eccentric pin for
the sub-mirror
Collimator
Bayonet
Standard:
Main mirror
Sub-mirror
Left-right
deviation
± 25’
＿＿
Up-down
deviation
± 10’
+5 ± 5’
Distortion
8’or less
8’or less
Up-down
Left-right
Reference line
Width of line indicates deviation
Caution:
・Before and after the adjustment, check the accuracy by moving the main mirror up- and downwards a few
times.
・ Check for the up-down deviation. In case the result is out of standard, make an adjustment by turning the
eccentric pin with Hexagonal wrench.
・ In case the the result of checking up-downward and right-leftward deviation is out of standard, the front plate
area or mirror unit should be defective.
・In case inspection and adjustment are made only with the front body, check again after assembling the front
body into the rear body.
INC
- Ａ ･ -
VBA14001-R.3694.A
#619
#693
#619
#157
#80
#517
#607
#162
#754
#1059
#617×2
#145
#149
#694×3
#B1016
#1055
#617×2
#146
#150
#760
#828
#764×2
#788
#761×2
・ Lastly, fix [#B1016] with three screws (#694).
#619
#693
#619
Arrange the wire
in the space of the
groove.
Pass the wires through
the hole, and arrange
them between bosses.
#162
#1059
Groove
OP FPC unit, Electronic buzzer unit, Clock battery unit, other small parts
2. Rear body
INC
- Ａ 0 ･ -
VBA14001-R.3694.A
・ Attach the tape (#763), and put the SB/IF PCB GND plate (#75).
・ Mount the SB/IF PCB unit (#B1041).
・ Tighten two screws (#608).
・ Position the main condenser (#1043) in the direction of the
arrow, and fix it with the adhesive double-coated tape (#753
and #754).
Main condenser
(#1043)
#608×2
#608×2
#75
SB/IF PCB GND plate
#763
SB/IF PCB unit
(#B1041)
#753
#754
SB/IF PCB unit
(#B1041)
Direction for positioning
SB PCB
INC
- Ａ ･ -
VBA14001-R.3694.A
・ Put [#102] and [#108], and tighten the screw (#607).
・ Put [#107], and tighten two screws (#633).
GND plate
#607
#108
#102
#107
#633×2
・ Put the bottom conductive plate (#106), and tighten the screw (#603).
Bottom conductive plate
#603
Bottom conductive
plate (#106)
INC
- Ａ ･ -
VBA14001-R.3694.A
・ Mount the DC/DC PCB unit (#B1030).
・ Connect the two harnesses to each connector.
・ Tighten the screw (#610).
・ Connect the rechargeable battery wire (#1059).
・ Solder six wires.
・ Attach [#110].
#110
#610
Harness
Black wire:
Battery contacts spring ( － )
Blue wire:
SB PCB
Red wire:
Battery contacts spring ( ＋ )
Yellow wire:
SB PCB
Red wire:
SB PCB
Black wire:
SB PCB
Rechargeable battery wire
(#1059)
#607×2
#610
#B109
・ Fix [#B109] with two screws (#607)
and one screw (#610).
DC/DC PCB unit
(#B1030)
DC/DC PCB unit
GND-plate C unit
INC
- Ａ ･ -
VBA14001-R.3694.A
・ Arrange four wires among bosses.
Blue wire
Red wire
Black wire
Yellow wire
・ Solder six wires.
・ Connect the FPC to the connector.
Pink wire:
Main condenser
Red wire:
DC/DC PCB
Black wire:
DC/DC PCB
Yellow wire:
DC/DC PCB
Blue wire:
DC/DC PCB
FPC
Blue wire:
Main condenser
① Put two wires each on either side of the rib/protrusion.
② Put each wire between bosses.
③ Put each wire between bosses.
Wires must NOT be hooked here.
Bottom wires
SB PCB
INC
- Ａ ･ -
VBA14001-R.3694.A
#695×2
Main PCB unit (#B1001)
・ Mount the main PCB unit (#B1001).
・ Tighten two screws (#695).
・ Solder the two wires of the electronic buzzer unit.
・ Connect the main PCB-FPC (#B1001) to the connector of the DC/DC PCB.
・ Connect the connection-FPC (#1023) to the connector, and pass it through the groove.
Main PCB unit FPC (#B1001)
Connection-FPC (#1023)
Black wire:
Electronic buzzer unit
Black wire:
Electronic buzzer unit
Groove
Connection-FPC (#1023)
Be careful of the
direction of the
convex portion.
Connection-FPC (#1023)
Main PCB unit
INC
- Ａ ･ -
VBA14001-R.3694.A
・ Mount the front body on the rear body.
・ Tighten the screw (#621) and two screws (#615) in the order from ① to ③ .
・ Tighten four screws (#634) in the order from ① to ④ .
・ Tighten two screws (#699) in the order from ① to ② .
・ Attach the eyepiece mold (#291) and fix it with two screws (#615).
#634×4
#615×2
#621
#291
#615×2
①
②
③
④
②
①
③
②
#699×2
①
3. Mounting of Front body on Rear body
Mount the front body on the rear body
INC
- Ａ 26 ･ -
VBA14001-R.3694.A
Measuring point
10
20
0
10
20
40
80
70
60
50
30
90
Inspection and Adjustment of Body back
＊ "0" positioning of the dial gauge
0" position of D80
Surface plate
① Put the tool (J18001-1) on the surface plate, and set the dial gauge to "0".
② Turn the index ring in the direction of the arrow, and set to the scale "17" from "0" that was set in ① . (This
is "0"-position of D80.)
③ Measure the body back based on "0" reference position of the index ring.
・ Measure three parts from the bayonet face to the CCD-
PCB attaching face.
Standard:48.50±0.015mm/ Parallelism: within 0.015mm
・In case it is out of standard, make an adjustment
by loosening screws that attach the front and rear bodies,
or by putting the washer(s) on the contact surface between
the front body and rear body.
Note: For some bodies, washer(s) are already put on the attaching face of the CCD-bracket.
There are two cases as follows.
1. Purpose：To adjust the height of the camera body
There are indications by color marker (washer thickness) on the camera body side of the CCD-PCB attach-
ing face.
{Blue =0.02mm (#63A), Red ＝ 0.01mm (#63B), Green ＝ 0.06mm (#63C)}
＊ By adding the measured value to the thickness of washers, check if it is within the standard (48.50±0.015mm).
2. Purpose：To adjust the height of the CCD bracket
There are indications by red marker of the CCD-bracket attaching face.
{Red circle ＝ 0.1 mm (#63B)} (Washers are equally put on the three locations.)
＊ When the CCD PCB is replaced, remove the washers.
Changed page △× 2
Ｍ
サービス
計画課
Nov.27.2006
△ (Revision)
△ (Revision)
on
There are indications by color marker on the CCD-PCB attaching face or under this attaching face
of the camera body side. e.g.) Two blue markings : 0.02mm-thick two washers are put on.
INC
- Ａ ･ -
VBA14001-R.3694.A
Sub-PCB unit
・ Tighten one screw (#623) and two screws (#640).
・ Solder three wires.
・ Connect three FPCs to each connector.
Sub-PCB unit (#1002)
#640
#0
#623
Black wire:
AF-assist illuminator
Black wire:
AF-assist illuminator
Gray:
FG/ID contacts spring
・ Solder four wires.
・ Connect the two FPCs to the connector.
・ Mount the AF-assist illuminator unit (#B325).
・ Mount the sub-PCB unit (#1002) by connecting to the main
PCB-connector.
Black wire:
Front body FPC unit
Blue wire:
SQ unit
Red wire:
Front body FPC unit
Orange wire:
SQ unit
Sub-PCB unit (#1002)
Main PCB connector
AF-assist illuminator #B325
Possible to solder other
way round
INC
- Ａ ･ -
VBA14001-R.3694.A
#452
#451
#654×4
#322
#640
#336×2
#337×2
#453
#326
#B317
#316
#318
#321
#142
#463
#605×3
#758×2
#756×2
Do NOT leave any gap
between [#336] and
[#337] when attached.
Do NOT let the
sponge run off the
inside edge of the
window.
Adhesive: Super X
Back side of [#142]
Apply to all circumferences
of clicking area
Grease: LEN317A
Grease: LEN317A
Oil barrier: OS-30MF
Grease: MZ-800S
Assembly of Top cover
Outer LCD window / shoe mold unit / accessory shoe / other small parts
INC
- Ａ ･ -
VBA14001-R.3694.A
#460
#461
#380
#348
#454
#398
#722
#351
#338
#346
#340
#387×2
#335
#350
#339
#384
#383
#690×2
#349
#347
#399
#345
AUTO
Release button / other small parts
INC
- Ａ 0 ･ -
VBA14001-R.3694.A
#611
#612
#610×4
#B11007
AUTO
#399
#381
#825
#825
#B11007
#331
#1136
#334
#771
#332×2
#330
#805
#333
#1044
#1135
#806
#1017
#738
#611
#610×4
#612
#B1011
#1077
#840
・ Attach the AE-L rubber SW (#399) and AE-L button (#381).
・ Mount the top cover FPC unit (#B11007).
・ Tighten the screw (#611).
・ Tighten the screw (#612).
・ Tighten four screws (#610).
・ Attach the light-leak prevention sponge (#825).
Top cover FPC unit
INC
- Ａ ･ -
VBA14001-R.3694.A
AUTO
#B2455
#640×3
#398
#399
#0
#B2455
・ Attach the command dials (#B367 and #B377).
・ Tighten the two screws (#607) of [#B377].
・ Position [#B367] in the direction of the arrow, and tighten two screws (#610).
・ Solder the command dials (#B367 and #B377).
・ Attach the delete-button rubber SW (#399) and the delete button (#398).
・ Mount the M/DFPC unit (#B2455).
・ Tighten three screws (#640).
Solder
Solder
#B367
#B377
#610×2
#607×2
#B377
#B367
Oil barrier: OS-30MF
AF-assist illuminator window / Command dial
M/DFPC unit
Direction for
positioning
#B367
INC
- Ａ ･ -
VBA14001-R.3694.A
・ Put the flash-up spring (#305).
・ Fix it with the screw (#650).
・ Hook the flash-up spring (#305) by following the direction of the arrow.
#308
AUTO
#306
#B341
#B342
#B2302
・ Attach [#B341] and [#B342].
・ Mount the SB lower case unit (#B2302) on the top cover.
・ Insert the SB-case rotate shaft (#306) in the top cover.
・ Insert the collar (#308) in the top cover, and fix it by hooking at two places.
・ Pass each wire through the hole (#308).
Arrangement of built-in SB wires
Be careful so that the wires do NOT
touch the SB POP UP SW.
#305
#650
2 hooks
Grease: MZ-800S
Grease: MZ-800S
Dipping
Grease: MZ-800S
SB lower case unit
Flash-up spring
INC
- Ａ ･ -
VBA14001-R.3694.A
Green:
SB pop-up SW wire
Accessory shoe contacts×5
Yellow:
SB pop-up SW wire
M/D FPC
Bundled wires
#B1056
#607
・ Arrange the bundled wires.
・ Mount the remote control unit (#B1056).
・ Tighten the screw (#607).
・ Solder the accessory shoe contacts at five places.
・ Solder the two SB pop-up SW wires.
・ M/D FPC to the connector.
Wiring / Top cover FPC
INC
- Ａ ･ -
VBA14001-R.3694.A
#629×2
Pop-up lever A part
Caution: Be careful NOT to deform the SB POP-UP switch.
SB upper case (#301)
SB lower case unit
Claw
・ Mount the SB upper case (#301) on the SB lower case unit.
・ Press the pop-up lever A part of the top cover unit, in order to pop the built-in SB up.
・ Tighten two screws (#629).
SB upper case
Caution: Both ends of the SB flash unit are just
inserted in each part without any adhesive.
SB flash unit
INC
- Ａ ･ -
VBA14001-R.3694.A
#1007
#629
#
#686×2
#280
#288
#282
#287
#281
#656
＊ When AE-CCD positioning adjustment is made, assemble temporarily up to Page A38
without attaching the screws to the top cover, putting the diopter adjustment unit, and
soldering six wires.
Top cover
・ Connect the top cover-FPC (#1007) to the connector, and set the top cover.
・ Tighten the screws (#656, #629, and #624) and two screws (#686).
・ Put the diopter adjustment unit (#281, #287, #282, #288, and #280).
Diopter adjustment unit
＊ After setting the top cover, slide the diopter adjustment lever, and
check the movement of the diopter-correcting lens.
INC
- Ａ ･ -
VBA14001-R.3694.A
・ Solder six wires that are connected from the top cover.
Black wire
Green wire
Orange wire
Gray wire
Blue wire
Red wire
・ Put the preview SW (#227) and preview SW unit (#B228), and fix them with the screw (#627).
・ Solder four wires.
・ Attach two stickers (#826 and #762).
Preview SW section
#826
#762
Yellow wire
Green wire
Blue wire
Black:FminSW
Preview SW/Fmin GND wire
#627
#627
#B228
#227
INC
- Ａ ･ -
VBA14001-R.3694.A
・ Mount the CCD/PCB unit (#B1032) and tighten three screws (#680).
CCD/PCB unit
#680×3
#B1032
Caution:
Some bodies have already washer(s) inserted on the
CCD/PCB unit mounting surface.
(ref. Page A26 for details)
Direction for positioning
Preview SW adjustment
① Press the lever (#221) with a screwdriver, etc, from the bottom
of the body all the way to the end.
② In the state of ① , adjust by turning the screw (#652) so that
[#227] and "A" part slightly touch with each other.
③ Adhere the screw (#652) with the screwlock.
Caution:
Perform the work that follows with care, because the
preview SW segment can be easily bent.
#652
Ａ
Apply Screwlock
#227
Press this portion of [#221]
all the way to the end.
Contact zone
INC
- Ａ ･ -
VBA14001-R.3694.A
DG-PCB unit
・ Connect the FPC of ※ and two harnesses to each connector.
・ Mount the DG-PCB unit (#B1031), and tighten the screw (#683).
・ Solder the shield wires at four places.
・ Connect two FPCs to each connector.
#683
#B1031
Harness
Harness
DG shield plate
・ Mount the DG shield plate (#B78).
・ Tighten six screws (#683).
#683×6
#B78
CCD/PCB (core wire: coated)
CCD/PCB (ground)
CCD/PCB (ground)
CCD/PCB(core wire: coated)
※
INC
- Ａ ･ -
VBA14001-R.3694.A
�
内部に高電圧部あり。カバーを外す時は感電に注意すること。
カバーを外した後は、修理指針の指示に従ってメインコンデン
サーの放電を必ず行うこと。
警告
Approx. 0.7 ｍ
AF50/1.4 Ｄ
＊ Under the environment where the AE-CCD positioning is adjusted, use the reference body (and change the
environment depending on measured results).
・ In case the measured value is out of standard, check if there is no misalignment of the grid lines.
・ In case the measured value is out of standard, change the environment of measurements. (e.g. setting place/
direction, room brightness, etc)
Procedure
① Make temporary assembly of the following four parts: Top cover (connected only with the FPC without
tightening the screws), grip cover, I/F cover, and bottom cover (with the tripod base plate being attached.)
② Mount "AF50/1.4D" on the camera, and fix them on the tripod horizontally.
③ Connect the camera and PC via USB cable (UC-E4).
④ Connect the AC adapter EH-5.
Caution: Be careful NOT to cause a short-circuit at uncovered portions.
⑤ Attach the AE-CCD positioning tool (J15428) in the color viewer (J63070), and turn power ON.
⑥ Keep the 0.7-m distance between the front face of the AE-CCD positioning tool and the reference surface
of the camera. Set the camera AF to manual, and the focus ring to "0.7 m" by rotating it.
⑦ Start up the inspection and adjustment software for D80 (J18412), and select "Inspection and Adjustment
for AE CCD POSITION" then "Set Camera for AE CCD POSITION".
Looking through the viewfinder, move the camera so that the grid lines of the camera coincide with the
extension lines of the AE-CCD positioning tool.
＊ Set the camera and AE-CCD positioning tool horizontally.
⑧ Select "Inspection and Adjustment for AE CCD POSITION".
＊ Cover the camera with a black cloth, etc, when measured.
⑨ Attach the metering FPC unit with three screws (#514) lightly, then give each screw two turns. By follow-
ing instructions on PC, make the position adjustment of AE-CCD by the screws (a:#514, b:#514).
⑩ Fix the three screws with screw lock.
⑪ After completing the adjustment,fix the top cover with the screw and inspect the accuracy. If the result is
out of standard, make readjustment.
Inspection and adjustment of AE CCD Alignment
AE-CCD positioning
tool (J15428)
Attaching surface of the imaging-PCB
Color viewer (J63070)
WARNING
Take extra care not to get an electric shock when detaching
covers.
After removing covers, be sure to discharge the main
condenser according to the instructions of repair manuals.
INC
- Ａ 0 ･ -
VBA14001-R.3694.A
Discharge of Main condenser
・ Discharge currents from both terminals of the main condenser.
Main
condenser
2KΩ/5W
⑫ When the adjustment is completed, remove the temporality attached each cover. Then fix the top cover unit
with the screw and solder six wires.
Standard → Reference screw
X-direction → a: Screw
Y-direction → b: Screw
Ｘ -direction (a)
loosening
Y-direction (b) loosening
Ｘ -direction (a)
tightening
Y-direction (b)
tightening
(#B11008) Metering FPC unit
Adhesive: Screwlock
Reference screw
b:#514
a:#514
INC
- Ａ ･ -
VBA14001-R.3694.A
・ Mount [#28] and tighten the screw (#638).
・ Mount [#B26] and tighten the screw (#618).
・ Mount [#B24], and tighten four screws (#691).
・ Put the AM change lever (#121), and tighten the screw (#659) and attach [#124].
AUTO
#691×2
#638
#28
#121
#659
#124
#691×2
#618
#B24
#B26
#71
#70
#755
Covers
Gap adjustment of SB lighting unit
・In case it is out of standard, pop the SB unit up and
make an adjustment by turning the adjusting dial with
Hexagonal wrench.
Standard：0 ～ 0.5mm
Adjusting dial
INC
- Ａ ･ -
VBA14001-R.3694.A
Assembly of Rear cover
#402
#403
#412
#413
#416
#407
#718
#408
#492
#429
#423
#401
#405×2
#424
#425
#426
#427
#428
#421
#422
#670×3
#430
#1037
#420
#417
#418
#419
#668
#406
#B1036
#B431
#431
#433
#432
#404×2
#681×2
#670×3
#666×3
#772×2
Direction for positioning
Grease: LEN317A
Direction for positioning
Direction for positioning
INC
- Ａ ･ -
VBA14001-R.3694.A
TFT-PCB connection FPC
・ Mount the rear cover, and fix it with two screws (#657) and two screws (#656).
#657×2
Rear cover
#656×2
Rear cover
・ Connect TFT-PCB connection FPC to the connector of the DG-PCB.
INC
- Ａ ･ -
VBA14001-R.3694.A
AF50/1.4D
★
★
★
AF28/2.8D
Shutter tester (The illustration shows "EF-8000".）
USB cable: UC-E4
AC adapter: EH-5
Accuracy inspection and adjustment (Camera body)
★ : New tool
Stabilized power supply
Set value ＝ 7.4V 0.3Ω 5.0A
or AC adapter EH-5
Battery tool
J61213
J18412
D80 inspection and adjustment software
To RS232C terminal
Commercially available straight cable
Use [9pin-25pin] conversion connector for a
computer with 9-pin RS-232C terminal.
RJ is not available, so use a commercial item.
Flash meter
Not prepared as RJ
AE-CCD positioning tool (J15428)
Set up in front of color viewer (J63070)
J61199
Light receiving adapter (in common with D100)
Measuring adapter (APS) for shutter
speed
Traditional adapter for camera
When Ｍ 1/4000 is adjusted, use the measuring adapter (APS) for shutter speed and the light receiving adapter (J61199).
Caution: When the inspection and adjustment are made with the shutter tester, turn the tester ON to light a lamp, and carry
out the aging for 3-5 minutes.
＊ Note:
When inspecting/adjusting the shutter speed and when adjusting “battery
check” voltage, be sure to use the battery tool (J61213).
When communications are made by RS232C, supply power from the bat-
tery tool.
SW-ON sets to communication mode.
INC
- Ａ ･ -
VBA14001-R.3694.A
＜ File ＞
D80.exe Application execution file
NkdPTP.dll Library file: USB communication application extension file for Windows XP
NkdPTPDi.dll Library file: USB communication application extension file for Windows 2000
PTP Driver file storing folder for PTP: for Windows 2000
D80 Inspection and Adjustment Software (J18412)
This inspection and adjustment software runs on Windows.
Install the software by following the below procedure.
版权声明
1. 本站所有素材，仅限学习交流，仅展示部分内容，如需查看完整内容，请下载原文件。
2. 会员在本站下载的所有素材，只拥有使用权，著作权归原作者所有。
3. 所有素材，未经合法授权，请勿用于商业用途，会员不得以任何形式发布、传播、复制、转售该素材，否则一律封号处理。
4. 如果素材损害你的权益请联系客服QQ：77594475 处理。
