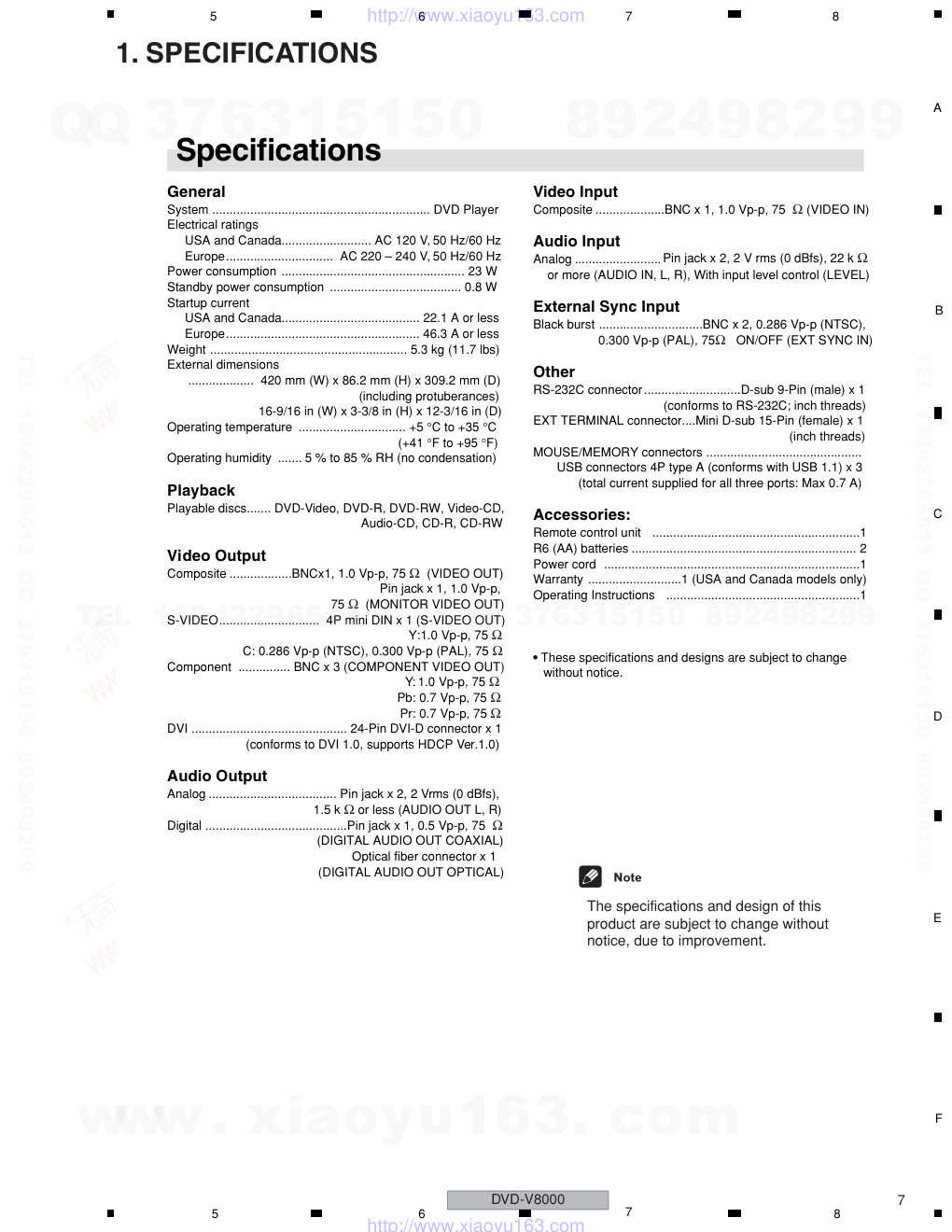

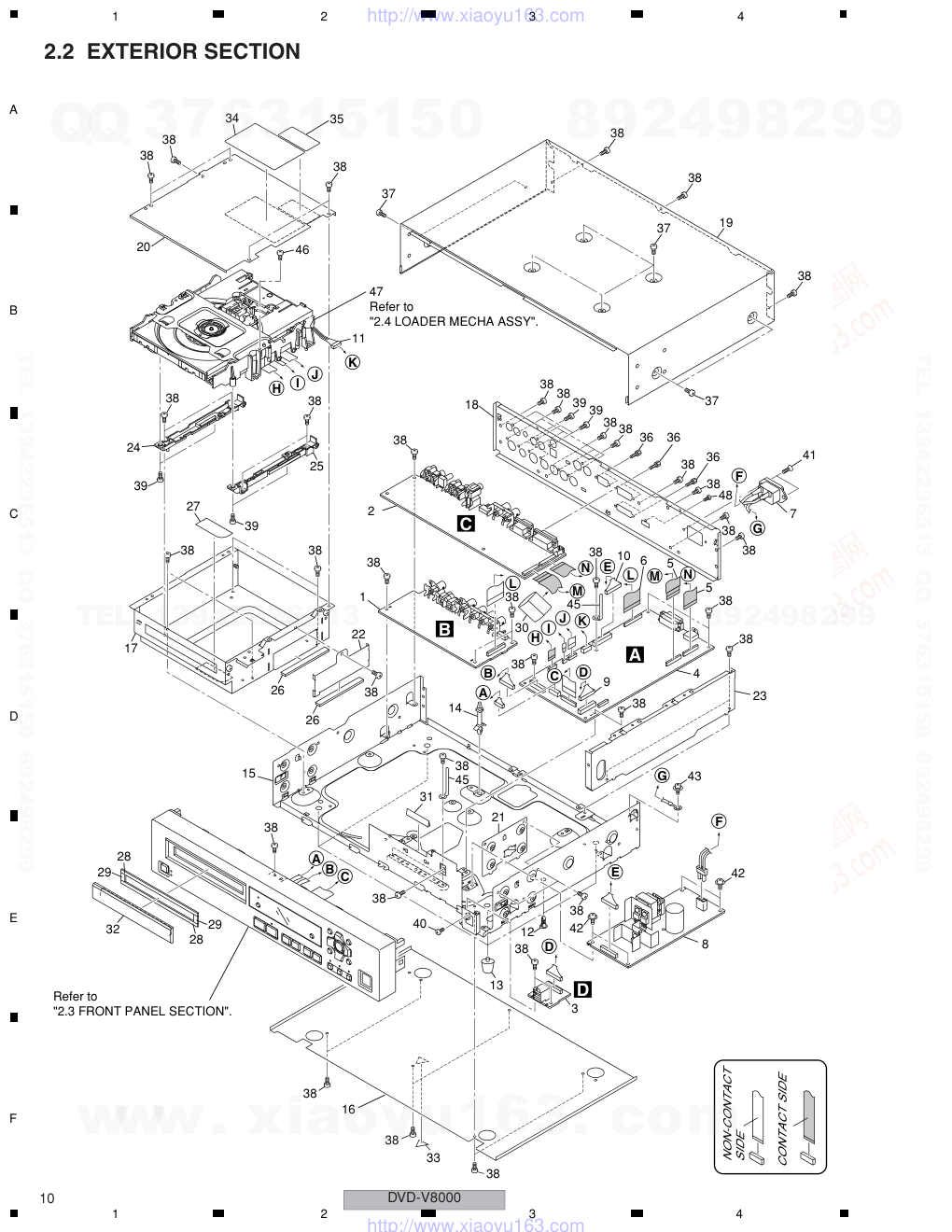

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2006 DVD-V8000 RRV3389 DVD PLAYER DVD-V8000 RACK MOUNT KIT CB-A802 XJ/WL5 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model Type Power Requirement Region No. Remarks DVD-V8000 KUCXJ AC120 V 1 DVD-V8000 WYXJ5 AC 220 V to 240 V 2 CB-A802 XJ/WL5 – For details, refer to "Important symbols for good services". T-ZZR JULY 2006 printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to causecancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (waterpipe , conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5mA. (FOR USA MODEL ONLY) Leakage current tester Reading should not be above 0.5mA Device under test Test all exposed metal surfaces Also test with plug reversed (Using AC adapter plug as required) Earth ground AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 3 5 6 7 8 5 6 7 8 C D F A B E WARNING ! THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS. LASER DIODE CHARACTERISTICS FOR DVD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 650 nm FOR CD : MAXIMUM OUTPUT POWER : 7 mW WAVELENGTH : 780 nm LABEL CHECK (Printed on the Rear Panel) Additional Laser Caution ∗ : See page 87. 1. Loading-status detection switch (S101 on the LOAB assy) are detected by the microprocessor (IC601 in the DVDM assy). • To permit the laser diode to oscillate, it is required to set the loading- status detection switch for the clamp position (the center terminal of S101 is shorted to +3V). When the voltage of IC101-pin 21 is +3V, IC601 (microprocessor) -pin 83 is +3V and IC601-pin 84 is +3V, 650nm laser diode for DVD oscillates in the DVDM Assy. When the voltage of IC101-pin 21 is +3V, IC601 (microprocessor) -pin 83 is 0V (GND) and IC601-pin 84 is +3V, 780nm laser diode for CD oscillates in the DVDM Assy. In the test mode * , the laser diode oscillates when microprocessor detects a PLAY signal, or when the PLAY key is pressed (S9043 ON in the KEYB assy), with the above requirements satisfied. 2. When the cover is open, close viewing through the objective lens with the naked eye will cause exposure to the laser beam. This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WYXJ5 KUCXJ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 4 1 2 3 4 1 2 3 4 C D F A B E [Important Check Points for Good Servicing] In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. 0 Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 5 5 6 7 8 5 6 7 8 C D F A B E ¶ Steps to be taken during repair The steps and care to be taken when Assys are replaced for repair or inspection are described here. First, copy the user setting data to a USB memory device. Before repair, inspection, or downloading of the firmware, the files indicated below must be copied to a USB memory device just in case the user setting data are accidentally reset to default: • SETUP menu and ADV. SETUP menu (***.set): SAVE SETUP • Command stack (***.cmd): SAVE COMMAND STACK The Error History must be also copied to a USB memory device. (Data on the serial number and accumulated playback time will also be obtained.) • Error History (***.err): SAVE ERROR LOG For detailed operation, see the operating instructions. When the pickup or the part that contains the pickup, such as the Traverse mechanism, is to be replaced • For replacement, follow the procedures described in "7.6 DISASSEMBLY." • For adjustment, follow the procedures described in "6. ADJUSTMENT." • Perform only "How to reset playback time B" in "7.1.7." When the POWER SUPPLY Unit is to be replaced • Perform only "How to reset Power-on time B" in "7.1.7." When the DVDM Assy is to be replaced Replace the Assy, following the procedures described in "7.6 DISASSEMBLY." • Before disconnecting the FFC cable between the Pickup Assy and the DVDM Assy (CN111), be sure to short-circuit the short-circuiting land of the pickup with Sn-Ag-Cu alloy. • If the AJKB Assy is to be replaced at the same time, resetting of the ID number and copying of ID data are required. • See "7. GENERAL INFORMATION." When the AJKB Assy is to be replaced • Copying of ID data is required. Also, destination setting and input of the serial number are required. • See "7. GENERAL INFORMATION." • If the DVDM Assy is to be replaced at the same time, besides the settings mentioned above, resetting of the ID number is also required. • See "7. GENERAL INFORMATION." When downloading the firmware If you download the firmware via the RS-232C serial port after failing to upgrade it using the CD-R disc, settings, such as SETUP, ADV.SETUP, and the command stack, are all reset to default. • See "7. GENERAL INFORMATION." www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 6 1 2 3 4 1 2 3 4 C D F A B E CONTENTS SAFETY INFORMATION..................................................................................................................................... 2 1. SPECIFICATIONS ............................................................................................................................................ 7 2. EXPLODED VIEWS AND PARTS LIST ............................................................................................................ 8 2.1 PACKING ................................................................................................................................................... 8 2.2 EXTERIOR SECTION.............................................................................................................................. 10 2.3 FRONT PANEL SECTION ....................................................................................................................... 12 2.4 LOADER MECHA. ASSY......................................................................................................................... 14 2.5 TRAVERSE MECHA. ASSY-S ................................................................................................................. 16 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM.......................................................................................... 18 3.1 BLOCK DIAGRAM ................................................................................................................................... 18 3.2 LOAB ASSY and OVERALL WIRING DIAGRAM..................................................................................... 20 3.3 DVDM ASSY 1/6 [FTS BLOCK] ............................................................................................................... 22 3.4 DVDM ASSY 2/6 [FR BLOCK] ................................................................................................................. 26 3.5 DVDM ASSY 3/6 [EBY/AV1 BLOCK] ....................................................................................................... 30 3.6 DVDM ASSY 4/6 [VIDEO BLOCK]........................................................................................................... 34 3.7 DVDM ASSY 5/6 [USB/SUBCPU BLOCK]............................................................................................... 38 3.8 DVDM ASSY 6/6 ...................................................................................................................................... 42 3.9 VJKB and USBB ASSYS ......................................................................................................................... 44 3.10 AJKB ASSY ........................................................................................................................................... 48 3.11 KEYBY and PWSB ASSYS ................................................................................................................... 52 3.12 SYPS ASSY........................................................................................................................................... 54 3.13 WAVEFORMS ........................................................................................................................................ 56 4. PCB CONNECTION DIAGRAM ..................................................................................................................... 59 4.1 LOAB ASSY............................................................................................................................................. 59 4.2 DVDM ASSY ............................................................................................................................................ 60 4.3 AJKB ASSY ............................................................................................................................................. 64 4.4 VJKB and USBB ASSYS ......................................................................................................................... 68 4.5 KEYB and PWSB ASSYS........................................................................................................................ 72 4.6 SYPS ASSY............................................................................................................................................. 76 5. PCB PARTS LIST ........................................................................................................................................... 77 6. ADJUSTMENT ............................................................................................................................................... 81 6.1 ADJUSTMENT ITEMS AND LOCATION ................................................................................................. 81 6.2 JIGS AND MEASURING INSTRUMENTS............................................................................................... 81 6.3 NECESSARY ADJUSTMENT POINTS ................................................................................................... 82 6.4 TEST MODE ............................................................................................................................................ 83 6.5 MECHANISM ADJUSTMENT.................................................................................................................. 84 6.6 ELECTRICAL ADJUSTMENT.................................................................................................................. 86 7. GENERAL INFORMATION............................................................................................................................. 87 7.1 DIAGNOSIS ............................................................................................................................................. 87 7.1.1 SELF-DIAGNOSIS FUNCTION OF PICKUP DEFECTIVE ............................................................... 87 7.1.2 TEST MODE SPECIFICATIONS ....................................................................................................... 88 7.1.3 SELF-DIAGNOSIS FUNCTION......................................................................................................... 90 7.1.4 FUNCTIONAL SPECIFICATION OF THE SERVICE MODE ............................................................. 92 7.1.5 ERROR DISPLAY.............................................................................................................................. 93 7.1.6 ERROR HISTORY ............................................................................................................................. 96 7.1.7 ACCUMULATED POWER-ON TIME AND PLAYBACK TIME............................................................ 98 7.1.8 TROUBLE SHOOTING...................................................................................................................... 99 7.1.9 POWER ON SEQUENCE................................................................................................................ 101 7.1.10 FAILURE JUDGMENT OF THE HDMI TRANSMITTER IC............................................................ 103 7.2 UPGRADING ......................................................................................................................................... 104 7.2.1 UPGRADING OF THE FIRMWARE ................................................................................................ 104 7.2.2 IF UPGRADING OF THE FIRMWARE FAILS.................................................................................. 105 7.3 SETTING THE DESTINATION............................................................................................................... 106 7.4 SETTING THE ID NUMBER AND COPYING THE ID DATA.................................................................. 107 7.5 SERIAL NUMBER SETTING ................................................................................................................. 108 7.6 DISASSEMBLY ...................................................................................................................................... 109 7.7 PIN FUNCTION OF THE PCB ASSY .................................................................................................... 120 7.8 PARTS.................................................................................................................................................... 130 7.8.1 IC ..................................................................................................................................................... 130 7.8.2 LCD MODULE ................................................................................................................................. 158 7.9 DISC / CONTENT FORMAT PLAYBACK COMPATIBILITY ................................................................... 159 8. PANEL FACILITIES ...................................................................................................................................... 160 9. RACK MOUNT KIT (CB-A802) ..................................................................................................................... 164 9.1 PACKING SECTION .............................................................................................................................. 164 9.2 INSTALLATION PROCEDURES............................................................................................................ 166 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 7 5 6 7 8 5 6 7 8 C D F A B E 1. SPECIFICATIONS The specifications and design of this product are subject to change without notice, due to improvement. Specifications General System ............................................................... DVD Player Electrical ratings USA and Canada.......................... AC 120 V, 50 Hz/60 Hz Europe............................... AC 220 – 240 V, 50 Hz/60 Hz Power consumption ..................................................... 23 W Standby power consumption ...................................... 0.8 W Startup current USA and Canada........................................ 22.1 A or less Europe........................................................ 46.3 A or less Weight ......................................................... 5.3 kg (11.7 lbs) External dimensions ................... 420 mm (W) x 86.2 mm (H) x 309.2 mm (D) (including protuberances) 16-9/16 in (W) x 3-3/8 in (H) x 12-3/16 in (D) Operating temperature ............................... +5 °C to +35 °C (+41 °F to +95 °F) Operating humidity ....... 5 % to 85 % RH (no condensation) Playback Playable discs....... DVD-Video, DVD-R, DVD-RW, Video-CD, Audio-CD, CD-R, CD-RW Video Output Composite ..................BNCx1, 1.0 Vp-p, 75 Ω (VIDEO OUT) Pin jack x 1, 1.0 Vp-p, 75 Ω (MONITOR VIDEO OUT) S-VIDEO............................. 4P mini DIN x 1 (S-VIDEO OUT) Y:1.0 Vp-p, 75 Ω C: 0.286 Vp-p (NTSC), 0.300 Vp-p (PAL), 75 Ω Component ............... BNC x 3 (COMPONENT VIDEO OUT) Y: 1.0 Vp-p, 75 Ω Pb: 0.7 Vp-p, 75 Ω Pr: 0.7 Vp-p, 75 Ω DVI ............................................. 24-Pin DVI-D connector x 1 (conforms to DVI 1.0, supports HDCP Ver.1.0) Audio Output Analog ..................................... Pin jack x 2, 2 Vrms (0 dBfs), 1.5 k Ω or less (AUDIO OUT L, R) Digital .........................................Pin jack x 1, 0.5 Vp-p, 75 Ω (DIGITAL AUDIO OUT COAXIAL) Optical fiber connector x 1 (DIGITAL AUDIO OUT OPTICAL) Video Input Composite ....................BNC x 1, 1.0 Vp-p, 75 Ω (VIDEO IN) Audio Input Analog ......................... or more (AUDIO IN, L, R), With input level control (LEVEL) External Sync Input Black burst ..............................BNC x 2, 0.286 Vp-p (NTSC), 0.300 Vp-p (PAL), 75Ω ON/OFF (EXT SYNC IN) Other RS-232C connector............................D-sub 9-Pin (male) x 1 (conforms to RS-232C; inch threads) EXT TERMINAL connector....Mini D-sub 15-Pin (female) x 1 (inch threads) MOUSE/MEMORY connectors ............................................. USB connectors 4P type A (conforms with USB 1.1) x 3 (total current supplied for all three ports: Max 0.7 A) Accessories: Remote control unit ............................................................1 R6 (AA) batteries ................................................................. 2 Power cord ..........................................................................1 Warranty ...........................1 (USA and Canada models only) Operating Instructions ........................................................1 • These specifications and designs are subject to change without notice. Pin jack x 2, 2 V rms (0 dBfs), 22 k Ω www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 8 1 2 3 4 1 2 3 4 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) NOTES: 2 1 3 4 12 13 5 6 11 9 7 8 10 (/WYXJ5) (/KUCXJ) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 9 5 6 7 8 5 6 7 8 C D F A B E PACKING parts List (2) CONTRAST TABLE DVD V8000/KUCXJ and DVD-V8000/WYXJ5 are construccted the same except for following: Mark No. Description Part No. 1 Mirror Mat (850 x 750) DHL1156 2 Pad (Top) DHA1704 3 Pad (Bottom) DHA1703 4 Packing Case See contrast table (2) NSP 5 Polyethylene Bag AHG7117 6 Instruction Manual DRE1031 (English, French) > 7 Power Cord See contrast table (2) 8 Remote Control Unit DXX2574 NSP 9 Bettery (R6P, AA) VEM1031 10 Label (WEEE) See contrast table (2) NSP 11 Warranty Card PUSA See contrast table (2) NSP 12 Label VRW1629 13 Spacer DHA1719 Mark No. Description Part No. Mark No. Symbol and Description DVD-V8000 /KUCXJ DVD-V8000 /WYXJ5 4 Packing Case DHG2601 DHG2600 > 7 Power Cord ADG1215 ADG1214 10 Label (WEEE) Not used ARW7322 NSP 11 Warranty Card PUSA DRY1240 Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 10 1 2 3 4 1 2 3 4 C D F A B E 2.2 EXTERIOR SECTION C D D E F F G G H H I I J J K K L N N M M L E A A B B CONTACT SIDE NON-CONTACT SIDE C Refer to "2.3 FRONT PANEL SECTION". 47 Refer to "2.4 LOADER MECHA ASSY". 34 38 38 46 38 25 38 24 39 27 38 39 38 22 38 28 28 38 15 38 40 32 13 12 38 3 38 42 42 43 8 38 9 45 38 10 6 5 5 38 23 4 38 38 38 48 38 38 38 38 39 39 38 38 38 2 1 38 18 36 41 7 36 36 38 14 38 45 21 31 38 30 29 29 26 26 17 11 37 38 20 35 38 38 38 19 37 37 38 33 38 38 16 C B D A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 11 5 6 7 8 5 6 7 8 C D F A B E EXTERIOR SECTION parts List (2) CONTRAST TABLE DVD-V8000/KUCXJ and DVD-V8000/WYXJ5 are construccted the same except for following: Mark No. Description Part No. 1 VJKB Assy DWZ1175 2 AJKB Assy DWZ1176 3 USBB Assy DWZ1179 4 DVDM Assy DWS1364 5 FFC (24P) DDD1294 6 FFC (29P) DDD1296 > 7 AC Inlet Assy DKP3770 > 8 SYPS Assy DWR1401 9 Connector Assy PF12PP-D12 10 Connector Assy PF13PP-D35 11 Connector Assy PG05KK-E30 12 Spacer AEC1065 13 Leg Assy SX (PLS) AEC7113 14 PCB Support AEC7513 NSP 15 Base Shassis DNA1330 16 Bottom Plate DNA1331 17 Mecha Case (Bottom) DNA1332 18 Rear Panel See contrast table (2) 19 Bonnet Case S DXX2576 20 Mecha Case (Top) DNH2702 21 Hole Cover DNH2705 22 Mecha Case (Side) DNH2727 23 Barrier DNH2758 24 Adapter 3 L (ABS) VNL1958 25 Adapter 3 R (ABS) VNL1959 26 Cable Packing DEC2885 27 Eject Hole Sheet DEC2891 28 Tray Packing A DEC2894 29 Tray Packing B DEC2895 30 EMI Sheet B DEC2960 NSP 31 Sheet VEX1024 32 Tray Panel DNK4535 NSP 33 Caution Label DRW1975 34 Service Caution Label DRW2306 35 Laser Caution (PAP) VRW2257 36 Hexagon Head Screw BBA1051 37 Screw BBT40P080FTB 38 Screw BBZ30P060FTB 39 Screw BPZ30P080FCC 40 Screw CBA1805 41 Screw CBZ30P080FTB 42 Screw IBZ30P060FCC 43 Screw PMB40P080FTC 45 Cord Clamper RNH-184-0 46 Screw VBA1094 NSP 47 LOADER MECHA ASSY VWT1229 48 Screw PMZ25P050FTC Mark No. Description Part No. Mark No. Symbol and Description DVD-V8000 /KUCXJ DVD-V8000 /WYXJ5 NSP 18 Rear Panel DNC1781 DNC1780 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 12 1 2 3 4 1 2 3 4 C D F A B E 2.3 FRONT PANEL SECTION DVDM CN1504 DVDM CN1501 DVDM CN1502 A A CONTACT SIDE NON-CONTACT SIDE 2 15 16 16 11 5 6 4 7 8 12 14 Solder the No."4" together with the No."7". 15 8 13 9 9 1 15 15 15 3 10 F E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 13 5 6 7 8 5 6 7 8 C D F A B E FRONT PANEL SECTION parts List Mark No. Description Part No. 1 KEYB ASSY DWZ1177 2 PWSB ASSY DWZ1178 3 FFC (24P) DDD1297 4 Connector DKN1418 5 Connector Assy DKP3746 6 Connector Assy DKP3747 7 LCD Module DWG1590 8 Tray Packing C DEC2896 9 Tray Packing D DEC2897 10 EMI Sheet A DEC2959 11 Display Sheet A DEC2971 12 Display Sheet B DEC2972 13 Display Window DAH2429 14 Front Panel Assy DXA2066 15 Screw BPZ30P080FCC 16 Screw IPZ30P080FTC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 14 1 2 3 4 1 2 3 4 C D F A B E 2.4 LOADER MECHA. ASSY LOADER MECHA. ASSY parts List A A 22 1 2 4 3 10 21 11 15 19 14 20 13 12 20 20 18 16 17 7 8 9 5 6 6 6 6 Refer to "2.5 TRAVERSE MECHA. ASSY-S". Lubricating Oil GYA1001 Daifree GEM1036 Cleaning paper GED-008 Refer to " Application of Lubricant". Note : Lubricating Oil GYA1001 To DVDM CN101 (Pickup Assy-S) To DVDM CN104 (Stepping Motor) To DVDM CN105 (Spindle Motor) 23 G Mark No. Description Part No. 1 Traverse Mecha. Assy-S VXX3125 2 Loading Motor Assy VXX2912 3 Motor Pulley PNW1634 NSP 4 Motor VXM1107 5 Flexible Cable (24P) VDA2135 6 Floating Rubber VEB1351 7 Belt VEB1358 8 Stabilizer VNE2253 9 Loading Base VNL1917 10 Float Base DVD VNL1918 11 Drive Cam VNL1919 12 Gear Pulley VNL1921 13 Loading Gear VNL1922 14 Drive Gear VNL1923 15 SW Lever VNL1925 16 Clamper Plate VNE2342 17 Bridge VNE2343 18 Clamper VNL1924 19 Screw JGZ17P028FTC 20 Screw VBA1094 21 Tray VNL1920 NSP 22 LOAB Assy VWG2426 23 Connector Assy (2P) VKP2253 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 15 5 6 7 8 5 6 7 8 C D F A B E Application of Lubricant Lubricating Oil GYA1001 Around the shaft No. 9 Loading Base No. 21 Tray No. 11 Drive Cam No. 11 Drive Cam No. 21 Tray Front View Rear View Daifree GEM1036 Inner side of a ditch Concave of unevenness Top View Bottom View Daifree GEM1036 Daifree GEM1036 Side of the rib Lubricating Oil GYA1001 Concave of unevenness Daifree GEM1036 Concave of unevenness Daifree GEM1036 Lubricating Oil GYA1001 Lubricating Oil GYA1001 Lubricating Oil GYA1001 Inner side of a ditch Lubricating Oil GYA1001 Inner side of a ditch Lubricating Oil GYA1001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 16 1 2 3 4 1 2 3 4 C D F A B E 2.5 TRAVERSE MECHA. ASSY-S To DVDM CN104 (Stepping Motor) To DVDM CN105 (Spindle Motor) To DVDM CN101 (Pickup Assy) CONTACT SIDE NON-CONTACT SIDE 3 7 8 1 17 16 17 10 13 17 10 6 11 14 16 2 9 15 (Torque : 0.15 ± 0.01 N•m) 15 (Torque : 0.15 ± 0.01 N•m) 4 (Adjustment screw) 5 (Adjustment spring) Screw Tight GYL1001 Silicone Adhesive GEM1037 Silicone Adhesive GEM1037 Cleaning paper GED-008 Cleaning liquid GEM1004 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 17 5 6 7 8 5 6 7 8 C D F A B E TRAVERSE MECHA. ASSY-S parts List Mark No. Description Part No. 1 Spindle Motor VXM1112 2 Stepping Motor VXM1113 3 Pickup Assy-S OXX8018 4 Skew Screw VBA1091 5 Skew Spring VBH1335 6 Guide Bar VLL1514 7 Sub Guide Bar VLL1515 8 Leaf Spring VNC1023 9 Joint Spring VNC1019 10 Support Spring VNC1020 NSP 11 Mecha.Chassis VNE2344 12 Damper Sheet VEB1335 13 Spacer VNL1913 14 Joint 03 VNL1949 15 Tapping Screw VBA1092 16 Screw BBZ20P050FTC 17 Screw PMA26P100FTC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 18 1 2 3 4 1 2 3 4 C D F A B E 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM 36MEBY PD0-PD7 BD0-BD7 AIN BCKA0 LD(650) AD00 LD(780) XDFSO0 CDDATA LRCKA0 A ROMXA XDFSCK0 DATAI DOUT0 C PH CSYNC B1 BH D8 ~ D15, D0 ~ D15, PD B2 TE 36MEBY 33MEBY A0 ~ A16 A1 ~ A11 B3 FE DSPRF 27MAV1 22/24AV1 B4 D0 ~ D15,A1 ~ A20 TRKG DRV FDO TRKG RTN TDO FOCS DRV LDDRV D8 ~ D15,A3 FOCS RTN ST1 ST2 D8 ~ D15,A0 ~ A18 16MDSP D0 ~ D15,A0 ~ A22 H3- H3+ OSD_CS,OSD_CLK,OSD_DATA,OSD_RST H2- SPDO H2+ H1- X601 H1+ 16.5 MHz SDA1 A1 SCL1 A2 A3 XCSDF0 SLDPOS SLDPOS STEPPING ST2- LODPOS MOTOR ST2+ (Slider) ST1+ ST1- LT1 XRD LOAD- SSCK LOAD+ D8 ~ D15,A0 ~ A11 SO V+3D SI SW2 X471 GNDS 13.824MHz X1201 DP1,2,3 LOADING V+5V 6MHz MP1,2,3 JAMMER MOTOR LOAB A ~ Z ASSY 27MAV1 X1501 36MEBY 5MHz 33MEBY1 REL_DA 16MEBY REL_CK EV6V(B) 16MDSP REL_CS EV6V(A) 22/24AV1 RST SW+5V 22/24M U_CON 22/24HDM +5V GND x3 IR GND DB0 ~ 7 p_CON GND SW+12V GND Ev+4V GND Keyi SW+3.3 DB0 ~ 7 LCD_VR LCD_VR DB0 ~ 7 RS,R/XW/E VLED,VLEDG AC Inlet Key GND IC9001 IR POWER_SW POWER_LED V+5E IC101 LA9704WS1 RFIC IC351 M56788AFP FTS DRIVER IC201 LC78652W SERVO DSP IC701 PE5286B EBY CHIP IC601 PD6345A FR IC741 16M SDRAM IC751 M65776B AV1 IC1201 UHC124BF USB CONT IC202 BA6664FM SPDL DRIVER IC1202,3,4 UPD16876 P.CONT IC x3 IC1505 PST3228 RESET IC OEIC Mecha ASSY LOADING ABCDEFGHIJKL 123456789012 DVDM ASSY SYPS ASSY PU ASSY IC603 16M FLASH IC602 4M S-RAM IC781 64M SDRAM - + IC481 CY22389 CLK IC - + KEYB ASSY PWSB ASSY LCD MODULE 7 9 $ ^ # @ ( * 4 3 2 1 % # 8 6 9 0 3 4 * ( ) _ CN602 CN111 Q101 Q102 IC102 TC7W53FU 7 6 1 = % - 5 6 7 4 ” Q602 Q602 172 39 3 185 ^ ] — › ‹ 33 32 31 30 47 48 3 & = ~ 9 0 46 * 9 8 7 6 5 4 3 2 1 = ! ~ = - 0 9 7 4 2 4 3 2 1 32 31 35 34 @ ! 1 2 3 4 5 57 1 2 3 4 5 2 1 $ ≠ £ 49 47 48 ! 4 5 194 163 162 106 172 176 164 159 170 178 177 134 135 FRDTR 98 FRTXD 123 97 FRCTS 122 FRRXD 172 32 31 93 95 7 6 1 8 = ~ 7 4 - 0 9 $ % # Ú ” ’ LCD KEY CN115 CN114 CN103 CN401 CN1501 CN1502 CN9002 CN9501 CN101 189 LIVE 71 Host Bus POWER KEY ON LED STANDBY LED Stop/Open KEY Disp KEY Play/Pouse Key KEY SCAN/SKIP KEY PLAY LED Key Lock LED STILL/STEP KEY SELECT_M KEY SELECT_V KEY 1 2 3 4 5 6 7 8 9 0 - = ~ 1 2 3 4 5 6 7 8 9 0 - = ~ 1 2 3 4 1 2 3 4 CHASSIS GND NEUTRAL IC473 ANALOG SW 62 SPDL MOTOR IC1501 PE5557-B SUB CPU A H F E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 19 5 6 7 8 5 6 7 8 C D F A B E CV IN PD0-PD7 PB0-PB9 BCKA0 PC0-PC9 AD00 PPD0-PPD7 OSD_RST (P/A/N) LRCKA0 OSD_CS DOUT0 SDA1 6dB UP OSD_CK CSYNC SCL1 OSD_DATA PD 75 Ω DRIVER OSD OUT AV1 OSD_CS,OSD_CLK,OSD_DATA,OSD_RST OSD_RST OSD_CS Cvout OSD_CK SDA1 OSD_DATA V CV OUT SCL1 V V CV V_out S_C S_C S_C S_C S_Y S_Y S_Y S_Y Y Y Y Y Cb Cb Cb Cb C_out S OUT Cr Cr Cr Cr Y_out Y/G_out Td0+,- Cb_out ATA,OSD_RST PB0-PB9 Td1+,- Cr_out Y OUT PC0-PC9 Td2+,- SDA1 PPD0-PPD7 TCLK+,- DVI-D SCL1 24PIN DDCDA Cb OUT DDCCL QB2-QB9 22/24HDM QG2-QG9 DP3 Cr OUT QR2-QR9 MP3 SDA1 +5V USB SCL1 (MOUSE MEMORY) LT1 XRD SSCK 22/24M PCMCLK 22/24M SO XDFSO0 MD MD V+3V SI XDFSCK0 MC MC LCX157 D-SUB9 XCSDF0 ML ML RXD RXD SDA1 SDA1 SDA1 RXD TXD TXD JAMMER SCL1 SCL1 SCL1 DTR DTR A ~ Z BCKA1 BCK BCKA1 AO0 DATA AO0 CTS LRCKA1 LRCK LRCKA1 REL_DA DOUT0 DOUT0 IC8701 D-SUB15 REL_CK RXD REL_CS FRRXD RXD CTS JAMMER FRCTS CTS A ~ Z FRTXD TXD DTR DTR FRDTR DTR TXD TXD IR JAMMER A ~ D,X,Y,Z,E SPDIF OUT REL_DA RTC_DATA REL_DA REL_CK RTC_CLK REL_CK REL_CS RTC_CS REL_CS Keyin1 ~ 4 Keyout1 ~ 5 LED CSYNC CSYNC_IN MD MC 6dB UP DP1,2 ML +5V MP1,2 LOUT L OUT BCKA1 AO0 LEDG DP1,2 LRCKA1 ROUT R OUT MP1,2 6dB UP +5VUSB V+3E 22/24 M L IN LIN 0.22Fx 2 superC Keyin1 ~ 4 Keyout1 ~ 5 LED 6dB UP RIN R IN REL_DA 6dB UP REL_CK EXT SYNC IN REL_CS X8801 32.768 kHz USB(MOUSE,MEMORY) EXT SYNC IN 75 IC786 BUF IC901 CD0040AF PRO-U IC903 ADV7320KSTZ VIDEO ENCODER IC1051 SII9190CTG64 HDMI Trs IC1301 LM1881 M SYNC SEP. IC7101 LA73054 Video AMP IC7301 PDC084B OSD IC VJKB ASSY IC8703 SP232EEN RS232C DRIVER RECEIVER IC8101 PCM1742K AUDIO DAC - + AJKB ASSY USBB ASSY H M IC8802 32k EEPROM IC902 16M SDRAM IC1001 PD0280B T-REX IC1101 3V→5V BUF IC8702 SP232EEN RS232C DRIVER RECEIVER - + - + - + - + - + IC8801 S-35190A RTC - + - + 72 176 164 159 170 178 177 @ # 49 50 21 22 135 136 44 42 43 39 38 37 $ % # ’ ) 9 0 9 @ 2 # 6 8 - ! 4 6 2 3 6 7 ~ 21 31 28 25 23 33 5 6 4 2 3 = ! ~ 7 8 8 ~ ! ! 7 9 9 = - - 0 0 ~ ! @ 1 2 3 7 3 5 # 7 8 ! = ~ 5 1 3 02 CN1504 CN9001 CN1201 CN9701 CN8701 CN1503 CN551 CN8001 CN7001 CN901 LECT_V KEY SELECT_A KEY @ 7 5 3 $ - ~ % ^ 9 @ 7 5 3 $ - ~ % ^ 9 = 9 4 3 2 0 - 7 = 9 4 3 2 0 - 7 * ) ( & = 0 8 6 4 2 9 0 % & ( _ ¡ £ 7 8 B D C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 20 1 2 3 4 1 2 3 4 C D F A B E 3.2 LOAB ASSY and OVERALL WIRING DIAGRAM LCD MODULE (DWG1590) DVDM ASSY (DWS1364) A 1/6 - A 6/6 A D USBB ASSY (DWZ1179) H SYPS ASSY (DWR1401) C AJKB ASSY (DWZ1176) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 21 5 6 7 8 5 6 7 8 C D F A B E SPINDLE MOTOR (VXM1112) Pickup ASSY-S (OXX8088) LOAB B VJKB ASSY (DWZ1175) E KEYB ASSY (DWZ1177) F PWSB ASSY (DWZ1178) G Loading Mecha ASSY (VWT1229) Traverse Mecha ASSY-S (VXX3125) G CN601 CN602 S101 LOAB ASSY (VWG2426) ÷ When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". ÷ The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÷ : The power supply is shown with the marked box. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 22 1 2 3 4 1 2 3 4 C D F A B E 3.3 DVDM ASSY 1/6 [FTS BLOCK] 1/2 2/2 1/2 Large size SCH diagram : RF SIGNAL ROUTE : RF (VIDEO) SIGNAL ROUTE : RF (AUDIO) SIGNAL ROUTE : AUDIO DATA SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : STEPPING SERVO LOOP LINE 1/6 A 1/6 A (RF) (RF_V) (RF_A) (AD) (F) (T) (S) (RF) (RF) (RF) (RF) (RF) (RF) (S) (F) (F) (F) (T) (T) A 1/6 DVDM ASSY (DWS1364) (1/2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 23 5 6 7 8 5 6 7 8 C D F A B E 1/6, A 2/6 A 1/6 A (RF_V) (RF_A) (RF) (RF) (RF) (RF) (S) (S) (S) (S) (F) (F) (T) (T) (RF) 1 2 4 The following waveforms were measured at the point of the corresponding balloon number in the schematic diagram and PCB diagram. NOTE: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 24 1 2 3 4 1 2 3 4 C D F A B E 1/2 2/2 2/2 Large size SCH diagram 3/6 A 1/6 A 3/6 A (F) (T) (RF_A) ( (RF (RF ( A 1/6 A 1/6 DVDM ASSY (DWS1364) (2/2) The following waveforms were measured at the point of the corresponding balloon number in the schematic diagram and PCB diagram. NOTE: 5 7 8 9 11 10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 25 5 6 7 8 5 6 7 8 C D F A B E : RF SIGNAL ROUTE : RF (VIDEO) SIGNAL ROUTE : RF (AUDIO) SIGNAL ROUTE : AUDIO DATA SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : STEPPING SERVO LOOP LINE 1/6 A 4/6 A 3/6 A 3/6 A (RF_V) (RF_V) (AD) (AD) (RF) (RF_V) (RF_A) (AD) (F) (T) (S) A 1/6 5 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 26 1 2 3 4 1 2 3 4 C D F A B E 3.4 DVDM ASSY 2/6 [FR BLOCK] 1/2 2/2 1/2 Large size SCH diagram 5/6 5/6 4/6 2/6 4/6 2/6 4/6 4/6 1/6 A 2/6 DVDM ASSY (DWS1364) (1/2) A A A A A A A A A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 27 5 6 7 8 5 6 7 8 C D F A B E 1/6 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 28 1 2 3 4 1 2 3 4 C D F A B E : The Power supply is shown with the marked box. CN101 2/6 5/6 A 2/6 A 2/6 DVDM ASSY (DWS1364) (2/2) H A A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 29 5 6 7 8 5 6 7 8 C D F A B E 1/2 2/2 2/2 Large size SCH diagram 3/6 3/6 3/6 3/6 1/6 3/6 5/6 5/6 3/6 2/6 5/6 2/6 2/6 3/6 TC7W53FU-TRB A 2/6 A A A A A A A A A A A A A A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 30 1 2 3 4 1 2 3 4 C D F A B E 3.5 DVDM ASSY 3/6 [EBY/AV1 BLOCK] 1/2 2/2 1/2 Large size SCH diagram (AD) (AD) (RF_V) (RF_V) A 3/6 DVDM ASSY (DWS1364) (1/2) A 1/6 A 1/6 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 31 5 6 7 8 5 6 7 8 C D F A B E (VD) (AD) (VD) (AD) (D) (D) (AD) (AD) (RF_V) : RF (VIDEO) SIGNAL ROUTE (VD) : VIDEO DATA SIGNAL ROUTE (AD) : AUDIO DATA SIGNAL ROUTE (D) : AUDIO (DIGITAL) SIGNAL ROUTE 2/6 A 1/6 A 2/6 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 32 1 2 3 4 1 2 3 4 C D F A B E 1/2 2/2 2/2 Large size SCH diagram A 3/6 DVDM ASSY (DWS1364) (2/2) 2/6 A A 3/6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 33 5 6 7 8 5 6 7 8 C D F A B E (RF_V) : RF (VIDEO) SIGNAL ROUTE (VD) : VIDEO DATA SIGNAL ROUTE (AD) : AUDIO DATA SIGNAL ROUTE (D) : AUDIO (DIGITAL) SIGNAL ROUTE (D) (VD) (VD) (AD) (D) (D) (D) (D) (D) (D) (D) 1/6 A 5/6 A 2/6 A 4/6 A 2/6 A 2/6 A A 3/6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 34 1 2 3 4 1 2 3 4 C D F A B E 3.6 DVDM ASSY 4/6 [VIDEO BLOCK] 1/2 2/2 1/2 Large size SCH diagram (VD) : VIDEO DATA SIGNAL ROUTE (V) : V SIGNAL ROUTE (S_Y) : S_Y SIGNAL ROUTE (S_C) : S_C SIGNAL ROUTE (Y) : Y SIGNAL ROUTE (Cb) : Cb SIGNAL ROUTE (Cr) : Cr SIGNAL ROUTE (VD) (VD) (VD) (VD) (VD) (VD) (VD) (VD) A 4/6 DVDM ASSY (DWS1364) (1/2) 3/6 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 35 5 6 7 8 5 6 7 8 C D F A B E (VD) (VD) (VD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 36 1 2 3 4 1 2 3 4 C D F A B E 1/2 2/2 2/2 Large size SCH diagram (VD) : VI (VD) (V) : V (S_Y) : S_ (S_C) : S_ (Y) : Y (Cb) : Cb (Cr) : C (VD) (VD) (VD) (V) (S_Y) (S_C) (Y) (Cb) (Cr) CN7001 B A 4/6 18 19 20 12 13 14 15 16 17 The following waveforms were measured at the point of the corresponding balloon number in the schematic diagram and PCB diagram. NOTE: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 37 5 6 7 8 5 6 7 8 C D F A B E (VD) : VIDEO DATA SIGNAL ROUTE (VD) (V) : V SIGNAL ROUTE (S_Y) : S_Y SIGNAL ROUTE (S_C) : S_C SIGNAL ROUTE (Y) : Y SIGNAL ROUTE (Cb) : Cb SIGNAL ROUTE (Cr) : Cr SIGNAL ROUTE (VD) (VD) (VD) (VD) A 4/6 DVDM ASSY (DWS1364) (2/2) 2/6 A 2/6 A 2/6 A 2/6 A 1/6 A A 4/6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 38 1 2 3 4 1 2 3 4 C D F A B E 3.7 DVDM ASSY 5/6 [USB/SUBCPU BLOCK] 1/2 2/2 1/2 Large size SCH diagram (D) (D) (D) (D) : AUDIO (DIGITAL) SIGNAL ROUTE 26 25 24 23 A 5/6 DVDM ASSY (DWS1364) (1/2) CN8001 C 3/6 A 2/6 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 39 5 6 7 8 5 6 7 8 C D F A B E CN9701 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 40 1 2 3 4 1 2 3 4 C D F A B E 1/2 2/2 2/2 Large size SCH diagram A 5/6 DVDM ASSY (DWS1364) (2/2) CN8701 C CN9001 E 5/6 A 5/6 A 5/6 A 2/6 A 2/6 A A 5/6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 41 5 6 7 8 5 6 7 8 C D F A B E UDZS5R6(B)-TRB Flash Mask Flash Mask 5/6 A 5/6 A 5/6 A 2/6 A 2/6 A 5/6 A 5/6 A 5/6 A A 5/6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 42 1 2 3 4 1 2 3 4 C D F A B E 3.8 DVDM ASSY 6/6 A 6/6 DVDM ASSY (DWS1364) A 6/6 A 4/6 A 3/6 A 3/6 A 4/6 A 4/6 A 5/6 A 5/6 A 4/6 A 4/6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 43 5 6 7 8 5 6 7 8 C D F A B E A 6/6 A 3/6 A 1/6 A 1/6 A 1/6 A 1/6 A 2/6 A 3/6 A 3/6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 44 1 2 3 4 1 2 3 4 C D F A B E 3.9 VJKB and USBB ASSYS 1/2 2/2 1/2 Large size SCH diagram (V) : V SIGNAL ROUTE (S_Y) : S_Y SIGNAL ROUTE (S_C) : S_C SIGNAL ROUTE (Y) : Y SIGNAL ROUTE (Cb) : Cb SIGNAL ROUTE (Cr) : Cr SIGNAL ROUTE (Ex_V) : Ex_VIDEO SIGNAL ROUTE (V) (S_C) (S_Y) (Y) (Cb) (Cr) sync 0.7 V sync 2.3 V DC 2.8 V sync 2.3 V DC 2.9 V FRONT USB INTERFACE SECTION CN1201 A 4/6 CN901 A B VJKB ASSY (DWZ1175) (1/2) D USBB ASSY (DWZ1179) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 45 5 6 7 8 5 6 7 8 C D F A B E (V) (Ex_V) (V) (Ex_V) (V/Ex_V) (V/Ex_V) sync 1.1 V sync 1.3 V sync 1.4 V sync 0.7 V CN901 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 46 1 2 3 4 1 2 3 4 C D F A B E 1/2 2/2 2/2 Large size SCH diagram (V) : V SIGNAL ROUTE (S_Y) : S_Y SIGNAL ROUTE (S_C) : S_C SIGNAL ROUTE (Y) : Y SIGNAL ROUTE (Cb) : Cb SIGNAL ROUTE (Cr) : Cr SIGNAL ROUTE (Ex_V) : Ex_VIDEO SIGNAL ROUTE (V/Ex_V) (S_C) (S_Y) (Y) (Cb) (Cr) sync 1.35 V DC 2.4 V sync 1.35 V DC 2.5 V B B VJKB ASSY (DWZ1175) (2/2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 47 5 6 7 8 5 6 7 8 C D F A B E (Ex_V) (V/Ex_V) (V/Ex_V) (V/Ex_V) sync 1.35 V sync 0.8 V sync 0.8 V Wave sync 1.35 V Wave B 22 21 21 The following waveforms were measured at the point of the corresponding balloon number in the schematic diagram and PCB diagram. NOTE: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 48 1 2 3 4 1 2 3 4 C D F A B E 3.10 AJKB ASSY 1/2 2/2 1/2 Large size SCH diagram PCMCKK BCK DATA LRCK AUDIO Output SECTION 4/6 CN551 A (D) : AUDIO (DIGITAL) SIGNAL ROUTE (L/R) : AUDIO (ANALOG) SIGNAL ROUTE (ExL/ExR) : Ex_AUDIO SIGNAL ROUTE (L) (R) (D) (D) PCMCKK BCK DATA LRCK C AJKB ASSY (DWZ1176) (1/2) 23 24 25 26 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 49 5 6 7 8 5 6 7 8 C D F A B E EXT Interface SECTION 5/6 CN1503 A The following waveforms were measured at the point of the corresponding balloon number in the schematic diagram and PCB diagram. NOTE: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 50 1 2 3 4 1 2 3 4 C D F A B E 1/2 2/2 2/2 Large size SCH diagram (D) : AUDIO (DIGITAL) SIGNAL ROUTE (L/R) : AUDIO (ANALOG) SIGNAL ROUTE (ExL/ExR) : Ex_AUDIO SIGNAL ROUTE (ExL) (ExR) (L/ExL) (L/ExL) (R/ExR) (R/ExR) (ExL) (ExR) (L) (R) C C AJKB ASSY (DWZ1176) (2/2) 27 28 NOTE: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 51 5 6 7 8 5 6 7 8 C D F A B E UTE UTE C The following waveforms were measured at the point of the corresponding balloon number in the schematic diagram and PCB diagram. NOTE: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 52 1 2 3 4 1 2 3 4 C D F A B E 3.11 KEYBY and PWSB ASSYS 5/6 CN1504 A E KEYB ASSY (DWZ1177) E CN9501 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 53 5 6 7 8 5 6 7 8 C D F A B E CN9002 E F PWSB ASSY (DWZ1178) F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 54 1 2 3 4 1 2 3 4 C D F A B E 3.12 SYPS ASSY H SYPS ASSY (DWR1401) [Figure of reference] H AC INLET ASSY • This assembly has no service part. • Please exchange assembly. LIVE NEUTRAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 55 5 6 7 8 5 6 7 8 C D F A B E H CN401 A 2/6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 56 1 2 3 4 1 2 3 4 C D F A B E 3.13 WAVEFORMS 1 IC101-pin3 (RFP) V:200 mV/div. H:0.1 µsec/div. 2 IC101-pin60 (RFO) V:500 mV/div. H:0.1 µsec/div. 4 IC101-pin42 (TE) V:500 mV/div. H:2 msec/div. 5 IC201-pin39 (EFMIN) V:0.5 V/div. H:0.2 µsec/div. 6 IC201-pin1 (EFMOUT) V:1 V/div. H:0.2 µsec/div. 7 IC202-pin24 (FG) V:1 V/div. H:5 msec/div. 8 IC701-pin147 (FPWM) V:1 V/div. H:10 µsec/div. 9 IC701-pin146 (VPWM) V:1 V/div. H:10 µsec/div. 10 IC701-pin143 (PPWM) V:1 V/div. H:0.2 msec/div. 11 IC701-pin142 (RERR) V:1 V/div. H:5 msec/div. 12 CN901-pin18 (CV) V:200 mV/div. H:10 µsec/div. 13 CN901-pin20 (S_C) V:200 mV/div. H:10 µsec/div. 14 CN901-pin22 (S_Y) V:200 mV/div. H:10 µsec/div. 15 CN901-pin24 (Y) [INTERLACE] V:200 mV/div. H:10 µsec/div. 16 CN901-pin26 (Cb) [INTERLACE] V:200 mV/div. H:10 µsec/div. 17 CN901-pin28 (Cr) [INTERLACE] V:200 mV/div. H:10 µsec/div. 18 CN901-pin24 (Y) [PROGRESSIVE] V:200 mV/div. H:10 µsec/div. 19 CN901-pin26 (Cb) [PROGRESSIVE] V:200 mV/div. H:10 µsec/div. 20 CN901-pin28 (Cr) [PROGRESSIVE] V:200 mV/div. H:10 µsec/div. DVDM ASSY A GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND AC MODE DC MODE DC MODE DC MODE DC MODE DC MODE DC MODE DC MODE AC MODE AC MODE AC MODE AC MODE AC MODE AC MODE AC MODE AC MODE AC MODE AC MODE AC MODE Note: The numbers for the waveform photos (circled) are identical to those for the schematic diagrams, PCB diagrams, and troubleshooting flowcharts. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 57 5 6 7 8 5 6 7 8 C D F A B E 21 IC7201-pin2 (MO1) V:500 mV/div. H:10 µsec/div. 22 IC7302-pin2 (MO2) V:500 mV/div. H:10 µsec/div. 27 IC8101-pin7 (VOUTL) V:1000 mV/div. H:0.5 msec/div. 28 IC8204-pin7 (L3) V:2000 mV/div. H:0.5 msec/div. VJKB ASSY B DVDM ASSY A AJKB ASSY C GND GND GND GND DC MODE 23 CN551-pin9 (PCMCLK) V:1000 mV/div. H:20 nsec/div. 24 CN551-pin7 (BCK) V:1000 mV/div. H:0.1 µsec/div. 25 CN551-pin5 (DATA) V:1000 mV/div. H:5 µsec/div. 26 CN551-pin3 (LRCK) V:1000 mV/div. H:5 µsec/div. GND GND GND GND DC MODE DC MODE DC MODE DC MODE DC MODE DC MODE DC MODE Note: The numbers for the waveform photos (circled) are identical to those for the schematic diagrams, PCB diagrams, and troubleshooting flowcharts. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 58 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 59 5 6 7 8 5 6 7 8 C D F A B E 4. PCB CONNECTION DIAGRAM 4.1 LOAB ASSY SIDE A SIDE B G G C101 C102 V+3D SW2 (V+5D) LOAD- LOAD+ PYKC F6 GND 5 1 5 1 CN601 CN602 1 2 CN601 CN602 S101 VNP1912- VWG LOAB VWG2426- 5 1 1 2 1 5 (VNP1912-A) LOAB ASSY G LOADING MOTOR ASSY M CN103 A CN601 CN602 CN602 CN601 NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 60 1 2 3 4 1 2 3 4 C D F A B E 4.2 DVDM ASSY FC ICT R R134 C123 C328 C321 C125 R331 C108 C254 R252 C252 C255 C128 C122 C120 R135 C121 C114 R120 R121 C106 R119 R118 C107 C110 C109 R126 R129 R128 C103 Q1504 R1582 R1583 R117 R106 R105 R342 R345 C330 C333 C335 R333 C105 R138 R131 R130 R343 L330 C256 R257 IC101 64 1 16 17 32 33 49 48 IC304 4 5 1 3 C358 R258 R259 R124 R125 R137 TP1 TP2 C101 C241 R241 IC202 C250 C249 C248 R256 C247 C246 R255 C245 R254 C251 C253 C258 R251 R391 C391 C112 C390 CN103 5 1 C126 C393 R101 R102 R103 R104 R108 R107 R110 R109 C113 R132 R133 C115 C116 R136 R127 C111 C118 C119 R123 R116 R115 R151 R154 R153 R152 R122 R155 R156 R157 R158 C133 C134 Q103 Q106 Q104 CN111 CN115 12 1 CN114 1 4 C461 R150 C117 R159 C124 R165 R166 R164 R163 R162 R161 C100 C127 R167 R171 R172 KN2 R253 C662 R609 R642 C658 C657 C614 C616 4 C603 R676 615 IC601 1 176 133 132 R626 X601 R645 R298 C297 C650 R681 R650 C629 C666 R612 R630 R620 R619 R623 R615 R637 R625 C623 C608 C618 481 20 11 L481 R627 C442 R206 C441 C423 C421 0 R639 R616 R640 R667 R665 R666 R662 R689 R659 R693 R695 R694 R696 C693 C695 R683 13 C422 IC403 R628 R457 R610 1 R621 4 R633 R632 R664 R663 R661 C438 C440 D402 D401 R652 C485 C488 R631 R651 R613 R618 C667 R205 C617 R454 D407 D408 D405 R734 IC701 104 105 156 157 208 1 52 53 C708 C701 R710 R461 R706 C714 C710 R709 C439 R160 IC411 R703 R711 C711 C709 C707 C706 C704 C735 C713 C712 C715 C718 C720 C722 C726 C727 C730 C731 C732 C733 C729 C728 C725 C724 C723 C721 C719 C716 R702 IC410 4 1 7 5 R712 R713 R716 R717 C702 R722 R725 R727 R726 C703 R636 C620 C612 R643 646 R736 C456 Q105 C437 R176 R175 C402 R737 R738 R705 C737 C738 C627 4 C444 C443 R174 C1301 C1302 C1303 C1304 C1305 C1306 C1501 C1502 C1503 C1504 C1505 C1506 R169 R170 CN1201 12 1 CN1501 CN1502 1 10 CN1504 CN1505 1 9 D1502 D1505 R483 IC1301 8 5 1 4 IC1501 IC1502 11 20 1 10 IC1504 11 20 1 10 IC1505 4 5 1 3 Q1301 C445 C446 R1301 R1302 R1306 R1307 R1308 R1501 D1510 F406 C482 R1516 R1517 R1257 R1528 R1529 R1530 R1531 R1532 R455 C257 C624 C454 R465 R177 C129 R715 R1558 R1559 R1562 R1563 R173 KN5 KN3 R564 R1102 L1203 L1204 L1501 L1502 L1577 L600 L701 L718 L721 C1225 C1226 C1227 C1228 C1229 C1230 C1231 C1232 F1206 F405 F1207 R3340 R4611 X1501 X471 R648 R638 R735 R1103 R1115 R731 R733 R732 R1114 R656 1 24 20 1 80 61 40 41 DWS1364- DVDM SIDE A(SECOND) contact production code DNP2203-B Side 1.GNDD (B) Side contact FE TE EFM RFO EFMO B2 B1 A C / J B3 B4 2 23 21 28 1.A3 2.A2 3.A1 4.H1+ 5.H1- 6.H2+ 5.SW1 10. 2.V+3A 3.DM2 4.DP2 5.DM1 6.DP1 12.GNDD 10.+5V_U1 1.GNDD 2.SOF 3.SIF 4.CKF XRESET 8.VPP 5.V+5E 3.POWER_LED 1.PWR_KEY 16.V+3E 2.V+5 4.KEYLOCK_LED 6.PLAY_LED 7.KEY_OUT5 9.KEY_OUT4 11.KEY_OUT3 13.KEY_ 15.KEY _IN4 20.SEL_M_LED 19.KEY 18.IR 22.SEL_V_LED 24.SEL_A_LED _IN2 23.KEY_IN1 OUT2 _IN3 21.KEY 1.VSS 2.VDD 3.VO 4.RS 5.R/XW 6.E 1 6 SLDPOS 7.H2- 8.H3+ 9.H3- 10.GNDD 11.V+5S 12. 1.ST1- 2.ST1+ 3.ST2+ 4.ST2- 23.FOCS DRV 24.FOCS RTN 22.TRKG RTN 21.TRKG DRV 20.VSHF 19.GNDD 18.LD(650) 17.PD 16.LD(780) 15.GNDD 14.VR780 13.VRCOM 12.VR650 11.VREF(2.5V) 10.B2 9.B1 1.DB0 2.DB1 3.DB2 4.DB3 5.DB4 6.DB5 7.DB6 8.DB7 9.BLA BLK 8.A 7.OEICG 6.C 5.780/650 4.B4 3.B3 2.VCC 1.GNDD 1.LOAD- 2.LOAD+ 3.V+3D 4.SW2 1.EV6V 2.EV6V(A) 3.SW+5V 4.U_CON 5.GND5V 6.GND(GNDM) 7.P_CON 8.GND 9.SW+12V 10.GND 11.EV+4V 12.GND 13.SW+3.3 29 11.GNDD 9.+5V_U1 _U2 8.+5V 7.+5V _U2 NP NP CN111 contact Side contact Side (GNDS) CN401 6. 60 24 23 2 1 14 15 30 1 8.GND 10.GND 12.GND 14.GND _OUT1 17.KEY SIDE A A DVDM ASSY A to SPINDLE MOTOR to CARRIAGE MOTOR to PU SYSTEM CN115 CN114 CN111 to LOAB CN103 to LCD MODULE CN1502 CN1501 C H CN601 G CN CN9001 E CN1504 CN9701 D CN1201 5 6 8 9 10 11 1 4 7 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 61 5 6 7 8 5 6 7 8 C D F A B E CN1 C483 C461 C1066 KN1 R642 C658 C657 C614 C616 C604 C603 C615 1 176 133 132 89 88 45 44 C602 C601 R626 C605 C607 C613 R645 R617 C610 R605 R606 R607 R630 R R623 R641 R614 R637 R625 C608 C618 R647 IC481 1 20 11 10 C481 L481 R481 R627 R403 R1012 C410 C403 R639 R640 C484 R635 R R R R689 R693 R695 R694 R696 C693 C695 C405 R655 R492 CN401 13 1 C418 C414 C417 IC402 4 1 5 7 C415 C416 C413 R628 R457 R610 R611 R624 R C1016 C1015 C1012 C1013 C1011 C1009 C1008 C1005 C1007 C1004 C1017 C1019 C1020 C438 C485 C488 R631 C1052 C427 C617 C606 R454 R547 R546 R1073 R545 R543 L1051 L1053 R541 L1052 D403 D406 R1079 R1081 R461 IC401 C435 C434 R955 R949 C1058 R952 C1021 C1057 C626 C620 C612 R957 R959 R646 R958 R963 R964 R965 R960 C942 C941 R579 R563 C946 R556 R570 R576 R577 R969 R968 CN901 29 1 C456 R982 C437 C436 CN551 R565 C945 C947 C948 C1003 C1001 R737 R738 R1016 R1017 R1018 R1014 R1006 R1005 IC1001 60 61 90 91 120 1 31 30 Q1052 NP R1009 R1013 L1054 R1010 R1057 R1056 C1061 R604 C1060 C1022 C1201 C1202 C1203 C1205 C1207 C1055 C1208 C1211 C1212 C1213 C1214 C1215 C1217 C1302 C1304 C130 C1402 C1403 C1404 C1405 C1406 C1407 C473 C474 C475 C476 R468 CN1202 1 CN1503 23 24 1 2 D1201 D1202 D1402 IC1201 49 48 33 32 17 1 64 R483 IC1203 IC1204 5 8 1 4 IC1402 7 5 4 1 R941 R491 R942 IC473 8 1 4 5 IC474 4 5 8 1 R1204 R945 R1206 R1208 R1209 R1215 R1216 R1217 R1218 R1219 R1220 R1225 R1230 R1246 R1307 R1308 D471 F406 C1069 C465 C463 C482 C1014 C1010 C1006 C1018 R455 R1074 R544 R540 C1051 C1056 C624 C1054 C454 R465 C1002 C1053 R1015 R1007 IC1051 17 16 1 64 49 48 32 33 R1554 R1555 R1003 R1557 R1011 R1058 R1054 R475 R476 R477 R478 R479 R480 R487 R488 R489 R490 R548 C1059 CN1001 R467 R943 R1641 R1931 L1201 L1202 C1067 C1068 KN4 C943 L1001 L1002 L1055 L1056 L1057 L1058 L1059 L482 L600 L601 C4280 C4469 C4470 F1205 F403 F405 C1219 C1220 R5501 R5502 R5503 R4468 R4611 VR1 X1201 X471 R638 R1064 R1063 R622 R657 R656 R654 R658 C984 C985 R1075 Q1056 R1076 R1065 23.V+5V 21.JAMMAZ 19.JAMMAY (H-Sync) 16. 8.NC Shield 21.NC _DETECT 19.T d0/ 24.TCLK- 23.TCLK+ 22.TCLK contact Side 4Shield 5Shield 4.VSEL3 (B) LF 19.SCL1 17.DOUT 15.MD 13.MC 11.ML 9.PCMCLK 7.BCK 5.DATA 3.LRCK 1.XAMUTE (RGB GND) (T d5+) 27.NC(B) 1.T d2- 2 CN901 17.JAMMAB 3.T d2/ 4.NC(T d4-) 6.DDC CLK 7.DDC DATA 9.T d1- 10.T d1+ 12.NC(T d3-) 1 13.NC(T d3+) 14.+5V 15.GND HOT_PLUG 17.T d0- 18.T d0+ 20.NC(T d5-) 2.T d2+ 1.2. EV+6 3. V+12 24.V+12 5.EXT_VIN 6.SEL_TV 7.OSD_RST 8.OSD_CS 9.OSD_CLK 10.OSD_DATA 21.V+3D 11.VSEL1 12. 13.SQUEEZE 14.LETTER 15.V_OFF 16.P/XI 17.GND 20.S_C 21.GND 22.S_Y 23.GND 24.Y 25.GND 26.Cb 27.GND 28.Cr 29.GND 18.CV 19.GND 22.V+3D 23.V+12 27MHz 18.SDA1 16.GND 14. 12. 1.V+3E 2.RTC_CS 3.RTC_CLK 4.RTC_DATA 5.STOP_ST 6.GNDD 7.SYNC_IN 8.GNDD 9.DTR 10.RXD 11.CTS 12.TXD 13.SEL_RS 14.POWER_IN 15.JAMMAD 16.JAMMAC 24.V+5V 18.JAMMAA 22.JAMMAE 23 1 GND GND 24 10.GND 8.GND 6.GND 4.GND 2.ASEL 1.EV6V 2.EV6V(A) 3.SW+5V 4.U_CON 5.GND5V 6.GND(GNDM) 7.P_CON 8.GND 9.SW+12V 10.GND 9 8 VSEL2 contact Side contact Side 20.JAMMAX 5 4 1 8 25.NC(R) 29.NC 17 26.NC(G) 25 29 26 28.NC 5.NC(T d4+) (V-Sync) 11.T d1/3Shield 20.WP SIDE A A Q1504 Q103 Q106 Q104 Q105 Q1052 Q1301 Q1056 IC101 IC304 IC202 IC601 IC481 IC403 IC402 IC701 IC411 IC401 IC410 IC1001 IC1201 IC1203 IC1204 IC1301 IC1402 IC1501 IC1502 IC1504 IC1505 IC473 IC474 IC1051 (DNP2203-B) CN101 H CN401 CN7001 B CN901 CN8001 C CN551 CN8701 C CN1503 15 18 16 19 17 20 14 12 13 NOTE : The encircled numbers denote measuring point. 23 24 25 26 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 62 1 2 3 4 1 2 3 4 C D F A B E 4 1 8 5 C320 C322 L304 R139 R329 R332 R330 R389 R390 IC302 8 5 4 1 C319 R318 R317 R316 C313 C317 R328 R322 C315 R313 R312 C314 R311 R310 R314 R221 C221 C222 R222 R223 C225 R224 C227 R229 C231 C217 C216 R C C R210 R209 C220 R219 C226 C207 C205 R C C326 R211 76 75 51 50 C R344 R212 C329 R334 C336 D302 C392 C324 IC303 3 1 5 4 D303 R335 R336 R242 R141 C429 R301 R280 R220 R240 C312 C223 C224 R111 R113 C622 IC603 48 25 24 1 D601 R682 C609 C619 R414 C426 R410 Q601 R684 R685 IC602 16 1 32 17 C621 R452 Q1054 NP C411 C1071 C408 C412 C419 C559 C558 D409 R1080 Q107 4 6 1 3 IC405 IC781 27 28 54 1 C782 C781 R704 R781 R707 C791 25 26 C741 IC751 208 1 52 53 105 104 156 157 C759 C760 C763 C764 C769 C770 C773 C774 C775 C776 C777 C778 C779 C780 C772 C771 C765 C762 C761 C757 C758 C755 C756 C753 C754 C766 C752 C751 R761 C785 C786 C787 C788 C789 C783 C784 R762 C797 IC786 20 11 10 1 C798 R977 R971 C625 R559 R560 R561 R934 R935 R939 R938 R932 R931 C453 Q108 C944 C953 C954 C955 R9904 Q909 R9905 R966 C971 R961 R9906 R9907 C970 R937 R940 R936 R933 R944 C979 R950 R953 C980 R951 Q908 C976 C977 C978 R9903 R992 R9901 C969 C968 C975 C974 R9902 C967 C973 C972 Q907 R989 IC903 16 17 32 33 48 49 1 64 C964 C966 R947 R948 R991 R990 R988 C959 C961 C960 R924 C962 C963 R929 R930 R922 C965 C983 R925 Q906 C919 R914 R915 R926 R928 R987 R986 R984 R985 C918 C930 C920 C921 C922 C923 C929 R975 Q905 R978 C917 C937 R983 R981 C916 C928 Q904 C927 R973 C981 R967 R974 R912 R910 R913 R911 C926 C935 C958 R920 R970 C982 C933 C949 R917 R918 C925 IC902 26 25 1 50 R908 C915 C924 C914 IC901 1 144 109 108 73 72 37 36 C932 C931 C904 C913 C903 C902 C905 C906 C907 C908 C909 C910 C911 C912 R904 R903 R902 R1096 C570 Q1055 R972 R976 C739 R729 C628 R730 R765 C1204 C1206 R786 R962 C1209 C1210 C1216 C1218 IC1202 IC6001 R1202 R1207 R1210 R1211 R1212 R1213 R1214 R1221 R1222 R1223 R1224 R1226 R1227 R1228 R1229 IC1101 C1102 C1101 IC1102 R787 R1097 R766 R1533 R1091 R1092 R1534 R1535 IC752 3 1 5 4 R1536 R1537 R1538 R956 R1539 R1540 R1541 R1095 R1093 R1556 R1094 C734 R6001 R680 R788 R789 R764 C1070 L1101 L603 L608 L728 L756 L757 L758 L759 L760 L763 L786 L907 L916 L919 L921 L923 L927 R653 F401 F402 F404 TH1 R4467 R1580 R1581 R979 R668 R980 R649 R993 R1098 R751 R752 R660 C1072 C560 C939 C951 R1077 IC1052 4 5 1 3 5 3 1 4 11 10 1 4 3 2 1 5 20 5 3 1 4 SIDE B A DVDM ASSY A CN11 CN103 CN401 CN901 CN551 CN1503 17 20 16 19 15 18 14 13 12 NOTE : The encircled numbers denote measuring point. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 63 5 6 7 8 5 6 7 8 C D F A B E 1 0 1 2 3 4 5 6 7 8 9 0 1 2 3 0 0 1 C B A R139 R390 IC302 8 5 4 1 C319 R318 R317 R316 C313 R221 C221 C222 C230 C215 R222 R223 C225 R224 C227 R229 R231 R232 C231 C217 C201 R268 R261 R262 R263 R264 C261 C216 R208 C212 C213 R210 R209 R201 C204 C220 R219 C226 IC261 4 1 8 5 R266 R270 R271 C263 C265 R269 C205 R204 C208 R202 R272 C266 R211 C206 R203 R114 IC201 76 75 51 50 26 25 100 1 C299 R246 C332 R344 R214 R213 R212 C214 C329 C336 R4 R2 R1 D302 C236 C237 C392 R3 C324 D1512 1 5 D303 R353 C359 R358 R359 C360 R351 C357 R357 R360 C351 C353 IC351 42 1 21 22 C365 R372 R363 R373 R368 C361 R364 R361 R362 R354 C354 R355 C355 R356 C356 R371 C371 R370 C370 C366 C369 C368 R112 R374 R375 R369 R242 C242 R341 R141 R142 R140 C200 C202 C130 R301 R236 R280 R220 R240 R260 C102 C104 R350 C312 C223 C224 C264 Q241 C431 Q101 NP Q102 NP R215 R111 R113 R408 R462 C426 R413 R412 R411 R409 R401 C409 C407 C401 C406 IC404 4 5 1 3 C404 IC602 16 1 D404 Q107 4 6 1 3 C432 R707 C791 IC741 1 50 25 26 C745 C743 C742 C741 C746 C747 C744 C797 86 20 11 C748 Q108 C131 IC102 1 8 5 4 C628 R786 C1507 C1511 D1501 IC1503 R1231 R1232 R1233 R1234 R1235 R1236 R1237 R1238 R1239 R1240 R1241 R1242 R1243 C1513 D1511 R1507 R1502 R1503 R787 R1504 R1505 R1506 R1509 R1510 C430 R1511 R1512 R1513 R1514 R1515 R1518 R1519 R1520 R1521 R1522 R1523 R1524 R1525 R1526 R1566 IC752 C460 R1543 R1544 R1545 R1546 R1547 R1548 R1549 R1550 R1551 R1552 R1553 R1560 R1561 R1564 R1565 R1579 R2203 R788 R789 C538 C1221 C1222 C1223 C1224 L1244 L1503 L1504 L1505 L1506 L1507 L1508 L1566 L1567 L1568 L1569 L1570 L1571 L1572 L1573 L1574 L1575 L1576 L1578 L1579 L1580 L1581 L1582 L1583 L1584 L1585 L1586 L1587 L1588 L1589 L1590 L1591 L1592 L1593 L741 L786 R1577 C1508 C1509 C1510 D1506 D1507 D1508 D1509 IC1506 1 8 5 4 Q1505 Q1506 Q1507 Q1508 R1584 R1585 R1586 R1587 R1588 R1589 R1590 R1591 R1592 R1593 C1128 IC1103 4 1 8 5 IC506 3 1 5 4 SIDE B(FIRST) LF 20 11 10 1 SIDE B Q241 Q101 Q102 Q601 Q1054 Q107 Q108 Q909 Q908 Q907 Q906 Q905 Q904 Q1055 Q1505 Q1506 Q1507 Q1508 IC302 IC261 IC201 IC303 IC351 IC603 IC404 IC602 IC405 IC781 IC741 IC751 IC786 IC903 IC902 IC901 IC102 IC1202 IC1503 IC6001 IC1101 IC1102 IC752 IC1506 IC1103 IC506 IC1052 A (DNP2203-B) CN115 CN114 CN111 CN1502 CN1501 CN1504 CN1201 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 64 1 2 3 4 1 2 3 4 C D F A B E 4.3 AJKB ASSY 1 24 1 24 1 4 8 5 C8652 C8653 1 4 8 5 LF R R8012 R8020 R8008 C8002 C8007 R8712 R8709 R8710 Q8706 R8014 Q8705 D8709 C8728 Q8703 Q8704 D8706 R8711 C8702 IC8601 D8601 D8719 D8722 D8720 D8721 D8723 D8718 CN8703 D8707 D8703 D8705 CN8702 Q8708 D8704 Q8707 Q8702 C8726 IC8702 R8006 R8016 R8010 IC8703 C8729 IC8701 C8727 R8018 Q8709 D8701 C8701 C8001 D8702 D8708 C8604 C8605 C8725 C8730 R8713 C8009 JA8701 D8717 D8713 D8712 D8716 D8711 D8715 D8710 D8714 CN8001 CN8701 R8707 KN8001 IC8801 D8651 R8702 R8703 R8704 R8705 Q8710 C8734 C8733 C8732 R8730 Q8701 R8901 IC8802 X8801 OF A Z Y X E D C B DTR0 RxD0 TxD0 D.LOAD RxD1 TxD1 DTR1 SEL_RS V+3D V+5D V+12 SYNCIN 16 9 8 1 CONTACT SIDE UPPER Word Side DWM2222- JC DWZ1176- 1.V+3E 2.RTC_CS 3.RTC_CLK 4.RTC_DATA 5.STOP_ST 6.GND 7.SYNC_IN 8.GND 9.DTR 11.CTS 10.RxD 12.TxD 13.SEL_RS 14.POWER_IN 15.JAMMAD 16.JAMMAC 17.JAMMAB 18.JAMMAA 19.JAMMAY 20.JAMMAX 21.JAMMAZ 22.JAMMAE 23.V+5D 24.V+5D 24.V+12 23.V+12 22.V+3D 21.V+3D 17.DOUT 19.SCL1 15.MD 20.WP 13.MC 10.GND 11.ML 12.GND 2.ASEL 1.XAMUTE 6.GND 4.GND 8.GND 3.LRCK 18.SDA1 5.DATA 16.GND 7.BCK 14.GND 9.PCMCLK CN8001 CN8701 8 1 16 9 DWZ 8 1 16 9 AJKB ASSY C CN551 A CN8001 CN1503 A CN8701 SIDE A C IC8802 IC8601 IC8701 IC8703 IC8801 Q8705 Q8710 Q8704 Q8703 Q8702 Q8709 Q8708 Q8707 Q8706 Q8701 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 65 5 6 7 8 5 6 7 8 C D F A B E FC ICT 1 4 5 8 R IC8203 C8512 C8225 C8229 Q8314 Q8312 Q8311 D8601 D8509 D8510 Q8304 C8110 C8108 C8106 Q8315 C8109 IC8101 D8602 Q8303 Q8302 C8230 C8231 C8232 Q8501 D8507 D8508 D8505 D8506 C8107 Q8305 C8604 C8603 C8608 C8511 VR8501 D8502 D8503 D8501 D8504 IC8202 C8222 C8223 C8220 IC8201 C8227 Q8301 Q8313 Q8201 D8724 C8725 C8730 D8725 S8701 JA8503 JA8504 D8603 KN8002 IC8204 C8734 Q8701 JA8505 IC8205 C8202 C8209 OFF L3 R3 R1 L1 R2 L2 ExL2 ExL1 ExR1 ExR2 SYNCIN ON Word Side Production code DWM2222- JCKB DWZ1176- AJKB DNP2204- 16 9 8 1 A DWZ 8 1 9 16 5 4 1 8 5 4 1 8 5 4 1 8 (DNP2204-B) SIDE A C IC8101 IC8203 IC8202 IC8205 Q8701 Q8302 Q8303 Q8304 Q8301 Q8201 Q8501 Q8311 Q8312 Q8313 Q8314 Q8315 Q8305 27 28 NOTE : The encircled numbers denote measuring point. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 66 1 2 3 4 1 2 3 4 C D F A B E 1 0 1 2 3 4 5 6 7 8 9 0 1 2 3 0 0 1 C B A C8101 C8105 C8216 C8103 R8508 R8504 R8506 C8506 R8503 R8507 R8505 C8508 C8104 C8219 C8211 C8212 C8215 R8213 C8507 R8314 R8313 R8312 R8604 R8305 R8315 R8316 C8510 R8512 R8219 R8601 R8218 R8304 R8303 R8302 R8216 R8217 R8215 C8217 C8218 C8102 R8209 R8212 R8211 C8509 R8306 R8210 R8511 C8601 C8602 C8606 R8603 R8502 C8505 R8501 R8509 R8510 C8201 C8205 C8206 C8513 C8514 C8213 C8204 C8207 C8208 C8203 R8301 R8311 R8214 R8220 R8728 R8721 C8723 R8722 R8726 R8727 R8202 R8204 R8205 R8203 R8206 R8201 C8502 C8503 C8504 C8501 C8724 R8513 R8514 SIDE B AJKB ASSY C C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 67 5 6 7 8 5 6 7 8 C D F A B E 8 1 9 15 LF C8804 C8803 C8709 C8710 C8715 R8717 R8718 R8715 R8724 R8723 C8708 C8713 C8707 C8704 C8716 R8719 C8717 R8720 C8718 C8719 C8721 R8725 C8722 C8720 R8716 C8731 C8711 C8705 C8703 C8706 R8002 C8714 C8601 C8602 R8004 R8728 R8721 C8723 R8722 R8726 R8727 C8006 C8005 R8019 C8724 R8803 R8804 R8801 C8802 C8801 R8652 C8651 R8651 C8712 R8729 R8653 R8805 R8806 R8807 R8808 1 5 9 6 SIDE B (DNP2204-B) C CN8001 CN8701 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 68 1 2 3 4 1 2 3 4 C D F A B E 4.4 VJKB and USBB ASSYS LF R C7504 C7507 D7517 D7506 D7515 D7505 D7507 D7518 D7508 C7506 C7112 C7508 C7503 IC7101 C7111 D7503 D7513 D7514 D7504 D7516 C7606 IC7601 D7601 L7301 C7502 X7301 IC7301 C7313 Q7901 JA7505 C7207 C7203 C7205 C7206 C7208 IC7202 C7311 C7307 C7914 JA7502 D7512 D7502 D7511 D7501 C7308 JA7501 JA7503 R7928 R7927 KN7002 C7501 C7312 IC7201 IC7302 C7920 L7508 L7507 CN7504 Q7904 C7706 IC7701 Q7701 C7215 C7216 36 19 18 1 5 4 1 8 DVD EXT DWZ1175- VJKB 12 13 1 24 4 6 3 1 4 6 3 1 8 4 1 5 5 1 7 4 Cv1 SY1 SC1 Y1 Cb1 Cr1 Cv2 SY2 Y2 Cb2 Cr2 SC2 SCDC MO2 EXT DVD MO1 V+5V C DWZ VJKB ASSY B SIDE A B IC7302 IC7101 IC7301 IC7201 IC7202 IC7701 IC7601 Q7904 Q7701 Q7901 22 21 NOTE : The encircled numbers denote measuring point. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 69 5 6 7 8 5 6 7 8 C D F A B E LF R D D7506 D7 C7506 C7002 C7001 D7516 C7606 C7605 IC7601 D7601 R7023 7001 J R7022 R7021 R7019 R7018 R7020 R7016 R7015 R7017 R7014 S7401 CN7001 R7024 KN7001 D9708 KN9701 CN9701 C9712 C9711 D9706 D9707 D9705 JA9702 Q770 R7025 R7026 A B GND CONTACT SIDE DWZ1179- USBB 1.GND 2.Cr 3.GND 4.Cb 5.GND 6.Y 7.GND 8.S_Y 9.GND 10.S_C 11.GND 12.Cv 13.GND 14.P/XI 15.V_OFF 16.LETTER 17.SQUEEZE 19.VSEL1 20.OSD_DATA 21.OSD_CLK 22.OSD_CS 23.OSD_RST 18.VSEL2 24.SEL_TV 25.Vin_ST 26.VSEL3 27.V+12 28.V+6E 29.V+6E 5 1 7 4 29 1 12 1 R Y2 V+5V A B CN7001 A P N GND +5V_U1 +5V_U2 V+3D USBB ASSY D CN901 A CN7001 CN1201 A CN9701 (DNP2204-B) (DNP2204-B) SIDE A B D IC7601 7701 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 70 1 2 3 4 1 2 3 4 C D F A B E LF C7515 R7503 C7513 C7514 R7505 C7505 C7517 R7507 R7508 C7104 C7109 C7518 C7105 C7106 C7110 R7504 R7102 C7107 C7108 C7101 C7516 R7506 C7103 C7102 R7104 R7509 C7604 R7603 R7602 C7602 C7601 R7601 C7603 R7502 R7404 R7403 R7401 R7402 C7512 R7101 R7103 C7201 C7202 C7310 R7512 C7701 C7702 C7703 C7704 C7705 R7701 R7702 R7703 R7704 R7705 R7706 R7707 R7708 SIDE B B CN7001 VJKB ASSY B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 71 5 6 7 8 5 6 7 8 C D F A B E LF C7306 R7302 C7304 R7502 R7301 C7302 C7305 C7303 C7903 C7902 R7501 C7512 C7511 C7301 C7201 C7202 C7310 R7908 R7911 R7924 R7925 R7511 C7309 C9701 R9704 C9706 R9701 R9702 C9705 R9703 C9702 C9703 C9704 R7512 SIDE B B D CN9701 (DNP2204-B) (DNP2204-B) USBB ASSY D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 72 1 2 3 4 1 2 3 4 C D F A B E 4.5 KEYB and PWSB ASSYS LF LF FC ICT S9044 S9043 S9042 S9031 S9041 D9004 S9045 CN9002 W101 W102 W103 D9005 S9501 D9505 W109 W112 W111 W105 W106 W107 W108 W104 CN9001 W110 W113 D9501 CN9501 1 4 CN9002 DISPLAY KEY LOCK 1.GND 2.POWER_SW 3.POWER_LED 4.V+5E DNP2235- DWM2262- FRKB CN9001 6.KEY_IN3 5.SEL_M_LED 4.KEY_IN2 3.SEL_V_LED 2.KEY_IN1 1.SEL_A_LED DWZ DWZ1177- KEYB 2/2 CONTACT SIDE UPPER 24.POWE 23.V+5D 22.POWE 21.KEYL 20.V+5E 19.PLAY 18.KEY_OUT5 17.GND 16.KEY_OUT4 15.GND 14.KEY_OUT3 13.GND 12.KEY_OUT2 11.GND 10.KEY_OUT1 9.V+3E 8.KEY_IN4 7.IR 1 24 DWZ 4.V+5E 3.POWER_LED 2.POWER_SW 1.GND CN9501 DWZ1178- PWSB 2/2 1 4 SIDE A E F PWSB ASSY F (DNP2235-A) CN1504 A CN90001 IC9001 CN9501 CN9002 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 73 5 6 7 8 5 6 7 8 C D F A B E LF S9031 D9002 D9001 S9033 S9032 S9034 S9035 D9003 W109 W112 W111 S9025 IC9001 9001 W110 W113 W117 W118 W120 W116 W114 S9015 S9013 S9012 S9011 S9022 C9002 S9023 W119 W115 S9014 S9024 S9021 9002 VIDEO MONITOR AUDIO UPPER 24.POWER_SW 23.V+5D 22.POWER_LED 21.KEYLOCK_LED 20.V+5E 19.PLAY_LED KEY_OUT5 GND KEY_OUT4 GND KEY_OUT3 GND LCD 1 ENTER SETUP RETURN TOP MENU MENU Production code SIDE A E KEYB ASSY E (DNP2235-A) N1504 90001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 74 1 2 3 4 1 2 3 4 C D F A B E LF R LF 1 0 1 2 3 4 5 6 7 8 9 0 1 2 3 0 0 1 C B A D9031 Q9001 D9034 D9032 Q9002 D9033 Q9003 D9035 L9001 C9003 D9007 C9004 D9008 R9017 D9013 R9019 D9025 C9001 R9032 D9022 D9023 R9018 R9031 Q9012 Q9011 C9005 D9009 D9015 R9021 D9014 D9024 D9012 D9021 R9022 R9023 D9011 Q9013 A B C 9 8 7 6 5 4 3 2 1 0 2 3 1 0 0 0 F MONITOR VIDEO AUDIO LCD G A ENTER SETUP TOP MENU H I MENU RETURN Q9001 Q9002 Q9003 Q9004 Q9005 Q9015 Q9014 Q9012 Q9011 Q9013 Q9501 Q9502 Q9503 SIDE B E F KEYB ASSY E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 75 5 6 7 8 5 6 7 8 C D F A B E LF F R D9045 D9043 D9044 D9041 D9042 D9031 C9008 D9016 R9029 R9503 D9018 C9007 Q9004 R9028 R9501 Q9005 C9503 R9025 Q9015 Q9014 L9001 R9032 C9502 D9504 C9501 Q9501 D9503 R9502 Q9502 D9502 Q9503 R9027 D F DNP2235- B 4 1 CN9002 4.V+5E 2.POWER_SW 3.POWER_LED E C 1.GND 15.GND 14.KEY_OUT3 13.GND 2.KEY_IN1 3.SEL_V_LED 4.KEY_IN2 5.SEL_M_LED 6.KEY_IN3 7.IR 8.KEY_IN4 16.KEY_OUT4 24.POWER_SW 23.V+5D 22.POWER_LED 21.KEYLOCK_LED 20.V+5E 18.KEY_OUT5 12.KEY_OUT2 11.GND 10.KEY_OUT1 9.V+3E 17.GND 19.PLAY_LED KEY LOCK DISPLAY DWZ1178- PWSB 2/2 J 1.SEL_A_LED CN9001 DWZ LCD DWZ1177- KEYB DWM2262- FRKB 1 24 2/2 4 1 K CN9501 1.GND 2.P_SW 3.P_LED 4.V+5E SIDE B E (DNP2235-A) (DNP2235-A) PWSB ASSY F CN90001 CN9501 CN9002 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 76 1 2 3 4 1 2 3 4 C D F A B E 4.6 SYPS ASSY H H SIDE A SIDE B [DWR1401] SYPS ASSY H AC INLET ASSY CN1 CN1 CN101 CN401 A CN101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 77 5 6 7 8 5 6 7 8 C D F A B E 5. PCB PARTS LIST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 NOTES: 560 Ω 47k Ω 0.5 Ω 1 Ω RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0 561 473 5.62k Ω RN1/4PC F 562 x 10 1 5621 Mark No. Description Part No. LIST OF ASSEMBLIES 1..DVD M ASSY DWS1364 NSP 1..JCKB ASSY DWM2222 2..AJKB ASSY DWZ1176 2..VJKB ASSY DWZ1175 2..USBB ASSY DWZ1179 NSP 1..FRKB ASSY DWM2262 2..KEYB ASSY DWZ1177 2..PWSB ASSY DWZ1178 NSP 1..LOADER MECHA ASSY VWT1229 NSP 2..LOAB ASSY VWG2426 > 1..SYPS ASSY DWR1401 Mark No. Description Part No. A DVDM ASSY SEMICONDUCTORS IC0903 ADV7320KSTZ IC0261, IC0302 BA4510F IC0202 BA6664FM IC0901 CD0040AF IC0481 CY22389ZXC-15 IC0602 CY62148VLL-70ZI IC0603 DYW1749 IC0741, IC0902 HY57V161610ETP-8 IC0781 K4S641632H-TC75 IC0101 LA9704WS1 IC0201 LC78652W IC1301 LM1881M IC0351 M56788AFP IC0751 M65776BFP > IC0404 MM1385EN > IC0410 MM1561JF > IC0402, IC1402 MM1565AF IC0474 NJM2100M > IC0405 NJM2880U1-05 IC1506 NJM2904M IC1001 PD0280B IC0601 PD6345A IC0701 PE5286B IC1501 PE5557B > IC0403, IC0411 PQ025EZ01ZP > IC0401 PQ033EZ01ZP IC1505 PST3228 IC1051 SII9190CTG64 IC1504 TC74LCX245FTS1 IC0786, IC1101 TC74VHC541FTS1 IC1502, IC1503 TC74VHCT541AFTS1 IC6001 TC7SET00FS1 IC0506 TC7SH08FUS1 IC0752, IC1102 TC7SZ32FU IC0303, IC0304 TC7SZU04FU IC0102, IC0473 TC7W53FU IC1103 TC7WH34FU IC1201 UHC124BF IC1202–IC1204 UPD16876G Q0904–Q0909, Q1055 2SA1576A Q1505 2SC2412K Q1506 2SD1664 Q1504 DTA124EK Q1056 DTA124EUA Q0108, Q0241, Q1301 DTC114EUA Q1507, Q1508 DTC124EK Q0101, Q0102, Q0106 HN1A01F Q0103, Q0105 HN1B04FU Q0104, Q0601, Q1054 HN1C01FU Q0107 UM5K1N Q1052 UM6K1N D1501, D1502, D1506-D1509 1SS355 D1201, D1202 DAN217 D0302, D0303 KV1870S-G D0401, D0402 RB051L-40 D0403, D0404, D0406, D0408, D0409 RB501V-40 D0471, D0601, D1402 RB501V-40 D1512 UDZS5R6 (B) > TH0001 MINISMDC110F COILS AND FILTERS L1051–L1054 ATH7022 L0481, L0482, L0600, L0601, L0603 CTF1305 L0608, L0701, L0718, L0721, L0728 CTF1305 L0741, L0756–L0760, L0763, L0786 CTF1305 L0907, L0916, L0919, L0921, L0923 CTF1305 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 78 1 2 3 4 1 2 3 4 C D F A B E L0927, L1001, L1002, L1055–L1059 CTF1305 L1101, L1201, L1244, L1501–L1508 CTF1305 L1566–L1593 CTF1306 F0401–F0406, F1205–F1207 CTF1661 L1202–L1204 DTH1197 L0304 LCYA1R2J2520 CAPACITORS C0101 (47/6.3) ACH7174 C0662 CCSRCH100D50 C0121 CCSRCH121J50 C0314 CCSRCH150J50 C0100, C0134 CCSRCH151J50 C1207, C1208 CCSRCH220J50 C0120, C0133 CCSRCH221J50 C0324, C0391, C0392, C0941–C0948 CCSRCH331J50 C0109 CCSRCH391J50 C1211–C1214, C1225–C1232 CCSRCH470J50 C1303 CCSRCH471J50 C0241 CCSRCH560J50 C0107, C0360 CCSRCH681J50 C0977 CCSRCH821J50 C0123, C0254, C0358, C0369, C0414 CEHVW101M16 C0422, C0981, C1220 CEHVW101M16 C0103 CEHVW220M6R3 C0443 CEHVW221M6R3 C1407 CEVW101M16 C0407, C0408, C0416, C0484, C1403 CKSQYB225K10 C4280, C4470 CKSQYB225K10 C0216, C0313, C0351, C0412, C0427 CKSRYB102K50 C0559, C0606, C0617, C0703, C0733 CKSRYB102K50 C0748, C0967, C0975, C0985, C1059 CKSRYB102K50 C1068, C1069, C1503 CKSRYB102K50 C0110, C0113, C0220, C0225, C0261 CKSRYB103K50 C0320–C0322, C0330, C0404, C0426 CKSRYB103K50 C0619, C1204, C1206, C1511 CKSRYB103K50 C0108, C0111, C0114, C0115 CKSRYB104K16 C0212, C0213, C0227, C0231 CKSRYB104K16 C0248–C0251, C0255, C0263, C0315 CKSRYB104K16 C0317, C0332, C0474, C0476 CKSRYB104K16 C1201–C1203, C1205, C1302 CKSRYB104K16 C1304, C1305, C1501, C1504–C1506 CKSRYB104K16 C1508–C1510 CKSRYB104K16 C0102, C0104, C0105, C0116, C0127 CKSRYB105K6R3 C0223, C0224, C0264, C0312, C0972 CKSRYB105K6R3 C0106 CKSRYB152K50 C0208 CKSRYB222K50 C0266 CKSRYB224K10 C0475 CKSRYB332K50 C1009 CKSRYB334K10 C0978 CKSRYB392K50 C0206, C0214, C0242, C0357, C0473 CKSRYB472K50 C0353, C0359, C0365, C0366, C0410 CKSRYF104Z25 C0609, C0723, C0973, C0976 CKSRYF104Z25 C1070, C1071, C1507 CKSRYF104Z25 C0112, C0118, C0122, C0125, C0126 CKSRYF105Z10 C0129-C0131, C0200, C0202, C0204 CKSRYF105Z10 C0215, C0217, C0221, C0222, C0226 CKSRYF105Z10 Mark No. Description Part No. C0230, C0236, C0253, C0256, C0258 CKSRYF105Z10 C0265, C0299, C0319, C0328, C0329 CKSRYF105Z10 C0390, C0393, C0409, C0411 CKSRYF105Z10 C0418, C0419, C0438, C0442, C0482 CKSRYF105Z10 C0485, C0538, C0558, C0602–C0605 CKSRYF105Z10 C0607, C0608, C0610, C0613–C0616 CKSRYF105Z10 C0618, C0621, C0622, C0628 CKSRYF105Z10 C0657, C0658, C0704, C0706–C0710 CKSRYF105Z10 C0712–C0716, C0718–C0722 CKSRYF105Z10 C0724–C0732, C0735, C0741–C0744 CKSRYF105Z10 C0746, C0747, C0753-C0765 CKSRYF105Z10 C0769–C0780, C0782–C0789, C0791 CKSRYF105Z10 C0797, C0903, C0905–C0910 CKSRYF105Z10 C0912–C0918, C0920–C0929, C0931 CKSRYF105Z10 C0933, C0935, C0937, C0949 CKSRYF105Z10 C0958–C0963, C0965, C0968, C0969 CKSRYF105Z10 C0974, C0982, C0983, C1002 CKSRYF105Z10 C1004–C1007, C1010–C1014 CKSRYF105Z10 C1017–C1022, C1052–C1058 CKSRYF105Z10 C1060, C1061, C1066, C1101, C1102 CKSRYF105Z10 C1128, C1219, C1221, C1223, C1301 CKSRYF105Z10 C1404 CKSRYF105Z10 C0368, C0403, C0405, C1306 DCH1242 C0421, C0434, C0437, C0439, C0444 VCH1246 C0446 VCH1246 C0128, C0401, C0413, C0436, C1406 VCH1252 C4469 VCH1252 C0119, C0205, C0237, C0326, C0483 VCH1258 C0488, C0560, C0601, C0623, C0625 VCH1258 C0701, C0702, C0711, C0737–C0739 VCH1258 C0745, C0751, C0752, C0781, C0904 VCH1258 C0911, C0932, C0939, C0951, C0964 VCH1258 C1001, C1003, C1051, C1067 VCH1258 C0117, C0201 VCH1259 RESISTORS R0737, R0738 RAB4C0R0J R0729, R0730 RAB4C101J R0631, R0713, R1202, R1204 RAB4C103J R0111, R0931, R0932, R1013–R1018 RAB4C220J R0113, R0926, R0935, R0938, R0939 RAB4C470J R0976, R0977 RAB4C470J R0487 RN1/16SE1602D R0492 RN1/16SE6201D R0138, R0160, R0205, R0206, R0220 RS1/10S0R0J R0240, R0260, R0280, R0301, R0350 RS1/10S0R0J R0401, R0403, R1079, R1080, R1581 RS1/10S0R0J R0341 RS1/10S101J R0364, R0369, R0373, R0375 RS1/16S1003F R0123 RS1/16S1202F R0358, R0361 RS1/16S1503F R0990, R9902, R9906 RS1/16S2700F R0947, R0951 RS1/16S2701F R0970, R0981, R0986 RS1/16S3000F R0948, R0953 RS1/16S3300F R0132 RS1/16S4702F R0357, R0362, R0363, R0368, R0372 RS1/16S6802F R0374 RS1/16S6802F R0257 RS1/4SA1R0J R0258, R0259, R1589, R1590 RS1/4SA2R2J Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 79 5 6 7 8 5 6 7 8 C D F A B E VR0001 Variable Resistor(10 k) CCP1396 Other Resistors RS1/16S###J MISCELLANEOUS CN0103 PH CONNECTOR 5P AKM1276 CN1501 PH CONNECTOR 6P AKM1277 CN1502 PH CONNECTOR 10P AKM1281 CN1201 PH CONNECTOR 12P AKM1283 CN0401 PH CONNECTOR 13P AKM1284 CN1001 DVI CONNECTOR 24P DKN1405 CN1202 USB CONNECTOR DKN1416 X0471 CRYSTAL RESONATOR DSS1117 X1201 CRYSTAL RESONATOR DSS1136 CN0114 FFC CONNECTOR 4P VKN1409 CN0115 FFC CONNECTOR 12P VKN1416 CN0901 FFC CONNECTOR 29P VKN1433 CN0551 FFC CONNECTOR 24P VKN1510 CN1503 FFC CONNECTOR 24P VKN1510 CN1504 FFC CONNECTOR 24P VKN1510 CN1505 ZH CONNECTOR 9P VKN1935 CN0111 FFC CONNECTOR 24P VKN2045 KN0001–KN0005 EARTH METAL FITTING VNF1109 X1501 CHIPCERAMIC RESONATOR VSS1102 X0601 CERAMIC RESONATOR VSS1160 B VJKB ASSY SEMICONDUCTORS IC7101 LA73054 IC7201 MM1504XN IC7202 MM1117XF IC7301 PDC084B IC7302 MM1507XN > IC7601 MM1565AF IC7701 LM1881M Q7901 2SA1576A Q7904 2SC2412K D7501–7508,7511–7518 UDZS5R1(B) D7601 RB501V-40 MISCELLANEOUS L7301 INDUCTOR LCKAW330J2520 L7507,7508 INDUCTOR CTF1389 JA7501,7503 BNC CONNECTOR DKN1267 JA7502 1P PIN JACK VKB1122 JA7505 BNC CONNECOR DKN1268 KN7001,7002 TERMINAL VNF1084 S7401 SWITCHE VSH1020 X7301 CRYSTAL RESONATOR ASS1056 CN7001 29P FFC CONNECTOR VKN1433 CN7504 4P MINI DIN SOCKET AKP7179 RESISTORS R7501 RS1/10S75R0F R7502–7508 RS1/10S68R0D R7512 RS1/10S1R0J Other Resistors RS1/16S###J Mark No. Description Part No. CAPACITORS C7001,7602 CKSRYF105Z10 C7002,7306 CKSRYB102K50 C7101–7106,7505 CKSRYB104K16 C7107–7110,7201,7202 CKSRYB105K6R3 C7111,7207,7208,7308 CEVW101M16 C7112,7507,7508 CEAT471M6R3 C7203,7205,7206,7215 CEVW100M10 C7216,7307,7313,7914 CEVW100M10 C7301,7309,7310 CKSRYB105K6R3 C7302 CCSRCH150J50 C7303 CCSRCH180J50 C7304,7305 CCSRCH240J50 C7311,7605 CEVW101M16 C7502–7504,7506 CEAT102M6R3 C7604 CKSQYB225K10 C7606 CEVW221M6R3 C7702 CCSRCH471J50 C7703–7705,7903 CKSRYB104K16 C7706,7920 CEHVKW470M16 C AJKB ASSY SEMICONDUCTORS IC8101 PCM1742KE IC8201 LOGIC IC BU4052BCFV IC8202–8205 NJM4565M > IC8601 NJM78M05FA IC8701 TC74LCX157FTS1 IC8702,8703 SP232EEN IC8801 S-35190A-T8 IC8802 EEPROM BR24L32F-W Q8201,8301–8303 DTC114YK Q8304,8314 2SA1037K Q8305,8315 2SD2114K Q8311–8313, 8710 DTC114YK Q8501 2SC2412K Q8701 2SC1740S Q8702–8709 DTA124EK D8501–8508,8603 UDZS6R2 (B) D8509, 8510, 8601,8651 1SS355 D8701 UDZS3R3 (B) D8702–8709 UDZS5R1 (B) D8724, 8725 1SS355 MISCELLANEOUS JA8503, 8504 2P PIN JACK PKB1034 JA8505 MULTI JACK VKX1013 JA8701 BNC CONNECTOR DKN1400 KN8001 SCREW TERMINAL VNE1948 KN8002 TERMINAL VNF1084 VR8501 TURN TYPE VR DCS1090 S8701 SLIDE SWITCH DSH1064 X8801 CRYSTAL RES.(32.768MHz) BSS1115 CN8001, 8701 24P FFC CONNECTOR VKN1814 CN8702 D-SUB 15P CONNECTOR DKN1435 CN8703 9P D-SUB SOCKET AKP1213 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 80 1 2 3 4 1 2 3 4 C D F A B E RESISTORS R8201, 8206, 8209, 8217 RN1/16SE4302D R8202, 8204, 8212, 8215 RN1/16SE2202D R8727 RS1/10S75R0F R8901 RS1/10S0R0J Other Resistors RS1/16S###J CAPACITORS C8001, 8005, 8102, 8701 CKSRYB102K50 C8002, 8501, 8504, 8505 CKSRYB105K6R3 C8006, 8101, 8103, 8104 CKSRYB104K16 C8007, 8107, 8220, 8222 CEVW101M16 C8009, 8726, 8734 CEAT471M6R3 C8108, 8110, 8604 CEVW221M6R3 C8109, 8229, 8232 CEHVKW470M16 C8201, 8202, 8205, 8206 CKSRYB104K16 C8203, 8208, 8212, 8219 CCSRCH330J50 C8204, 8207, 8215, 8218 CCSRCH271J50 C8209, 8211, 8213, 8216 CKSRYB104K16 C8217, 8506, 8601, 8602 CKSRYB104K16 C8223, 8225, 8227, 8230 CEVW101M16 C8231, 8511, 8605, 8608 CEVW101M16 C8502, 8503 CCSRCH221J50 C8509, 8510 CCSRCH331J50 C8512 CEAT1R0M50 C8513, 8514 CKSRYB105K6R3 C8606, 8651, 8702 CKSRYB104K16 C8652, 8653 DCH1243 C8713–8724,8731,8733 CKSRYB104K16 C8727, 8730 CEVW101M16 C8732 CKSRYB102K50 C8801 CCSRCH180J50 C8802, 8803 CKSRYB104K16 C8804 CCSRCH150J50 D USBB ASSY SEMICONDUCTORS D9705-9708 DAN217 MISCELLANEOUS JA9702 USB CONNECTOR DKN1417 KN9701 TERMINAL VNF1084 CN9701 12P PH CONNECTOR AKM1283 All Resistors RS1/16S###J CAPACITORS C9701–9704 CCSRCH470J50 C9705, 9706 CKSRYB105K6R3 C9711, 9712 CEAT101M16 E KEYB ASSY SEMICONDUCTORS IC9001 RPM7240-H4 Q9001–9005,9011-9015 DTA124EK D9001–9004 SLI-343DCW (STU) D9005 SLR-343EBT (KLMN) D9011–9015,9021–9025 1SS355 Mark No. Description Part No. D9031–9035,9041–9045 1SS355 MISCELLANEOUS S9011–9015,9021–9025 SW VSG1024 S9031–9035,9041–9045 SW VSG1024 CN9001 24P FFC CONNECTOR VKN1284 CN9002 CONNECTOR CKS2977 All Resistors RS1/16S###J CAPACITORS C9001 CKSRYB105K6R3 C9002 CEAT470M10 F PWSB ASSY SEMICONDUCTORS Q9501–9503 DTA124EK D9501 SLI-343DCW(STU) D9503 1SS355 D9505 TLGE68TG(NP) MISCELLANEOUS S9501 TAKT SWITCHE VSG1024 CN9501 CONNECTOR CKS2977 All Resistors RS1/16S###J CAPACITORS C9501 CKSRYB105K6R3 G LOAB ASSY [VWG2426] SWITCHES and RELAYS S101 REAF SWITCH VSK1011 MISCELLANEOUS CN601 KR CONNCTOR S5B-PH-K-S CN602 KR CONNCTOR S2B-PH-K-S PRINTED CIRCUT BOARD(LOAB) VNP1912 H SYPS ASSY [DWR1401] SYPS assembly has no service part. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 81 5 6 7 8 5 6 7 8 C D F A B E 6. ADJUSTMENT 6.1 ADJUSTMENT ITEMS AND LOCATION 6.2 JIGS AND MEASURING INSTRUMENTS 1 1 2 2 Tangential adjustment screw 1 2 Radial adjustment screw Adjustment Items [Mechanism Part] [Electrical Part] Tangential and Radial Height Coarse Adjustment 1 27.000 MHz Clock Adjustment DVD Jitter Adjustment Adjustment Points (Mechanism Part) Cautions: After adjustment, adjustment screw locks with the Screw tight. Screwdriver (large) TV monitor Precise screwdriver DVD test disc (GGV1025) Test mode remote control unit (GGF1381) Screw tight (GYL1001) Screwdriver (medium) Soldering iron Frequency counter Display digit ≥ 8-digit Screwdriver (small) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 82 1 2 3 4 1 2 3 4 C D F A B E 6.3 NECESSARY ADJUSTMENT POINTS ∗ After adjustment, screw locks with the Screw tight. ∗ After adjustment, screw locks with the Screw tight. Note: 1 is already adjusted. ~, Ÿ, ! Ÿ Mechanical point Electric point Mechanical point Electric point Mechanical point Electric point Mechanical point Electric point LOAB and DVDM ASSYS Exchange Parts of Mechanism Assy Exchange PCB Assy When Adjustment Points Exchange the Pickup Exchange the Traverse Mechanism Exchange the Spindle Motor Exchange PC Board ! www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 83 5 6 7 8 5 6 7 8 C D F A B E 6.4 TEST MODE TEST MODE: ON TEST MODE: DISC SET DSC - &&& GGF1381 Test mode remote control unit GGF1381 Test mode remote control unit REP • A TEST MODE: PLAY TEST MODE: OFF OR ESC 030000 TV/LDP REP • A ESC TEST CHECK DVD, CD POWER ON DVD disc POWER STANDBY For example, when playback with # 30000 During PLAY Press keys in order < When playback with the target address of disc (DVD)> +10 3 0 0 0 0 CHP/TIM An address is displayed CAUTION: Perform only trace, video and audio outputs are nothing. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 84 1 2 3 4 1 2 3 4 C D F A B E 6.5 MECHANISM ADJUSTMENT • Remove the Loading Mecha. Assy. • Remove a Spacer for height adjustment attached to the back side (shaded area) of the Loading Mecha. Assy (Float Base) with nippers. Cautions: Keep spacer for future use. (used only for 2003 models) Put a spacer between a Tangential (or Radial) adjustment screw and Mechanism Base and turn each screw to adjust the height. (Refer to "6.1 ADJUSTMENT ITEMS AND LOCATION".) START Tangential and Radial Height Coarse Adjustment 1 Loading Mecha. Assy 7.3mm Turn a flat side into bottom Spacer for Height adjustment Float Base Note: Before removing the flexible cable for the pickup, soldering of the pickup circuit is necessary. For details, see "7.6 DISASSEMBLY". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 85 5 6 7 8 5 6 7 8 C D F A B E Player Monitor • Test mode • Play the DVD test disc at outer track (around #200000) • Play the DVD test disc at inner track (around #30000) • Play the DVD test disc at outer track (around #200000) Traverse Mechanism Assy Adjust the Tangential Adjustment Screw so that jitter becomes minimum. Traverse Mechanism Assy Readjust the Tangential Adjustment Screw so that jitter becomes minimum. Traverse Mechanism Assy Adjust the Radial Adjustment Screw so that jitter becomes minimum. Use disc: GGV1025 START DVD Jitter Adjustment 2 3 J : - - - - J : Min J : Min Test mode end J : Min ESC Disc playback normally. • The measurement of block error rate If error rate is OK, locks a root of tangential and radial adjustment screws with the Screw tight. Screw tight: GYL1001 Turn the POWER OFF in case of NG once, and perform the adjustment once again. Confirm the error rate that is displayed "OK" (Example ERROR RATE: 6.6oe - 6 OK ) 5 ESC CHECK NG OK • Playback method of inner and outer address for the purpose is refererd to "6.4 TEST MODE". • Jitter indication of the monitor is refererd to "7.1.2 TEST MODE SPECIFICATIONS". • Reset Playback time B, referring to "7.1.7 Accumulated Power-on Time and Playback Time." www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 86 1 2 3 4 1 2 3 4 C D F A B E 6.6 ELECTRICAL ADJUSTMENT DVDM ASSY Note: If adjustments of the Traverse mechanism are inappropriate: • The magnitude of jitter and the error rate increase. • The playability of a disc is deteriorated. • In some cases, block noise may appear. SIDE A IC701 PE5286B EBY-CHIP IC601 PD6345A FR IC1001 PD0280B T-REX IC1051 SII9190 HDMI CTL IC1501 PE5557A LDC CTL IC202 BA6664FM SPDLDRV IC101 LA9704 RF IC1201 UHC124BF USB CTL CN901 CN401 CN103 CN111 CN114 CN115 CN1502 CN1501 CN1504 CN1201 CN1503 CN551 VR1 CN1001 CN1202 27 MHz Measuring and Adjustment Points Adjustment 1 27.000 MHz Clock Adjustment • Normal mode • Power ON Frequency counter Player VR 1 DVDM ASSY 27.000 MHz ± 130 Hz or less START • If adjustments are inappropriate, color dislocation occurs. DVDM ASSY 27 MHz TEST POINT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 87 5 6 7 8 5 6 7 8 C D F A B E 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 SELF-DIAGNOSIS FUNCTION OF PICKUP DEFECTIVE Character in bold : Item name : Information display Laser diode current value Test mode screen Symptom • "No Disc" displays in LCD. • Player does not playback, etc.. This unit can confirm the laser diode current value (DVD: 650 nm, CD: 780 nm) of pickup on the Test Mode screen. (Press the ESC → TEST keys in order on the test mode remote control unit (GGF1381) to enter the test mode.) Note : When a DVD disc or a CD disc is played in the test mode, this function is effective. Procedure of Self-Diagnosis 1 Enter the Test mode. 2 When diagnosing the 650 nm laser diode: Press the → keys in order, and turn on the laser diode (It light-up for nine seconds.). When diagnosing the 780 nm laser diode: Press the → keys in order, and turn on the laser diode (It light-up for nine seconds.). When let it turn on once again after performed 2 once, After pressed REP.B key once 650 nm: Press the → keys in order 780 nm: Press the → keys in order 3 Confirm the indicated value of the laser diode current (LDI). (Refer to following figure.) 4 When indicated value is more than 140, pickup is defective. → Replacement is necessary Replace the Traverse Mechanism Assy or Pickup. TEST 1 TEST 1 TEST 4 TEST 4 It's effective in case of the following condition. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 88 1 2 3 4 1 2 3 4 C D F A B E 7.1.2 TEST MODE SPECIFICATIONS Display Specification of the Test Mode Character in bold : Item name : Information display 1 5 6 10 21 22 23 24 11 8 9 3 2 12 17 18 19 20 16 13 14 15 1 Address indication The address being traced is displayed in number. (as for the DVD, indication of decimal number is possible.) DVD : ID indication (hexadecimal number, 8 digits) [∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] CD : A-TIME (min. sec.) [0 0 0 0 ∗ ∗ ∗ ∗] 2 Code indication of remote control unit [R – ∗ ∗ ∗ ∗] In case of double code, display a 2nd code. 3 Main unit keycode indication [K – ∗ ∗] 5 Tracking status [TRKG – ∗ ∗ ∗] Tracking on : [ON] Tracking off : [OFF] Laser diode current value [LDI - ∗ ∗ ∗] 6 Spindle status [SPDL – ∗ ∗ ∗] Spindle accelerator and brake, free-runnimg [A/B] FG servo [FG] Rough, velocity phase servo [SRV] Offset addition, rough, velocity phase servo [O_S] AFB status [AFB - ∗ ∗] ON [ON] OFF [OFF] 7 Mechanism (loading) position value [M – ∗ ∗] Open state : [01] During opening : [02] Close state : [03] 8 Slider position [S – ∗ ∗ ∗ ∗] Inside SW ON : [IN ] Inside SW OFF : [CD] 9 Output video system [V – ∗ ∗ ∗ ∗] NTSC system : [NTSC] PAL system : [PAL] Automatic setting : [AUTO] 0 Disc sensing [DSC – ∗ ∗ ∗] The type of discs loaded is displayed. Unknown : [NON] DVD : [DVD] CD : [ CD] - Jitter value [J – ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] = Version of the AV-1 chip / version of firmware [AV: ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗] ~ Version of the sub microcomputer [FL: ∗ ∗ ∗ ∗] ! Region setting of the player [REG: ∗ ∗] @ Destination setting [MDL: ∗ ∗ ∗ ∗ / ∗ ∗ ] Four characters in the front represent the type of model. Three characters in the back represent the destination code. V8KJ: /J, K: /KU, R: /NK, WY: /WY # Part number of the flash ROM and system controller [∗ ∗ ∗ ∗ ∗ ∗ / ∗ ∗ ∗ ∗ ∗ ∗] $ Version of the flash ROM [V: ∗. ∗ ∗ ∗] Flash ROM size [FLSH = 16] % Revision of the system controller [S: ∗ . ∗ ∗ ∗ / ∗ ∗ ∗ ] ^ Revision of the DVD mechanism controller [M: ∗ . ∗ ∗ ∗] & Fixed indication of version of the Host microcomputer [H: ∗ . ∗ ∗ ∗] Host CPU for iLink does not load, because this unit is non correspondence for iLink. * AGC setting [AGC – ∗ ∗ ∗ [∗] ] AGC on : [ON] AGC off : [OFF] ( FTS servo IC information DSP coefficient indication[KS – [∗ ∗ ∗ ∗] ∗ ∗ ∗ ∗ ] Displays the address (four digits) of the specified coefficient and the setting value (four digits) with [TEST] and [9] keys. ) Error rate indication 1 C1 error value of CD [ER – C1 ∗ ∗ ∗ ∗ ] 2 C1 error value of DVD [ER – ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ] _ Internal operation mode of mechanism controller [MM – ∗ ∗ : ∗ ∗] Internal mechanism mode (2 digits) and internal mechanism 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 89 5 6 7 8 5 6 7 8 C D F A B E Test Mode Functional Specification 1 Test mode entry In the power ON state, press the [ESC] (A8-5F) key and [TEST] (A8-5E) key in order of the Test mode remote control unit. • Light the LCD and all LEDs, and goes out the LCD and LEDs when pressing the keys of something. • OSD displays during test mode, refer to the "Display Specification of the Test Mode". 2 Release the Test mode • Turn off the power. • Press the [ESC] (A8-5F) key of the Test mode remote control unit. 3 Tray open / close • Press the [REPEAT A-B] (A8 - 48) key of the Test mode remote control unit. 4 Playback stop 1. Press the [REPEAT] (A8 - 44) key of the Test mode remote control unit from the playback state. 2. Press the [STOP] key of the Test mode remote control unit from the playback state. 5 LD ON DVD : Press the [TEST] (A8-5E) and [1] (A8-01) keys in order, and turn on the laser diode (650 nm). CD : Press the [TEST] (A8-5E) and [4] (A8-04) keys in order, and turn on the laser diode (780 nm). 6 Focus on / sweep 1. Lock the focus by pressing the [TEST] (A8-5E) and [2] (A8-02) keys in order. 2. Repeat focus sweep by pressing the [TEST] (A8-5E) and [3] (A8-03) keys in order. 7 Spindle FG servo Press the [TEST] (A8-5E) and [5] (A8-05) keys in order,then rise up the spindle and FG servo becomes on. 8 Tracking open / close 1. Open tracking by pressing the [STEP FWD] (A8-54) key of the Test mode remote control unit in the play state. 2. Close tracking by pressing the [STEP REV] (A8-50) key of the Test mode remote control unit in the play state. 9 Slider in / out Slider in : In the tracking off state, press the [SCAN REV] (A8-11) key of the Test mode remote control unit. Slider out : In the tracking off state, press the [SCAN FWD] (A8-10) key of the Test mode remote control unit. 0 Play (perform only the ID search and trace to the specified location) Press the [TV/LDP] (A8-0F) key of the Test mode remote control unit from the stop state. Perform only trace, video and audio outputs are nothing. - Screen display ON/OFF 1. Turn off the display by pressing the [A. MON] (A8-1E) key of the Test mode remote control unit. 2. Turn on the display by pressing the [DISPLAY] (A8-43) key of the Test mode remote control unit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 90 1 2 3 4 1 2 3 4 C D F A B E 7.1.3 SELF-DIAGNOSIS FUNCTION SELF-DIAGNOSIS Two types of self-diagnosis are provided with this unit: (1) Self-diagnosis that is performed each time the power is turned on (2) Self-diagnosis upon request, activated using the remote control unit 1. Diagnostic items and result indications when self-diagnosis is performed when the unit is turned on When the player is started up after it is turned on, whether the peripheral devices of the microcomputer are operating normally is checked. Any error detected will be displayed on the LCD. The diagnostic items are as shown below: 1 Are data written properly in the flash memory (IC603)? 2 Is Servo DSP (IC101: LC78652W) operating properly? 3 Is the video encoder (IC903: ADV7320KSTZ, IC901: CD0040AF) operating properly? (Check the communication of the 12C bus.) 4 Is the EBY chip (IC701: PE5286B) operating properly? (Check writing to and reading from the register.) 5 Can writing to and reading from the SDRAM of the EBY chip performed properly? 6 Is the AV decoder (IC751: M65776BFP) operating properly? (Check writing to and reading from the register.) 7 Can writing on and reading from the SDRAM of the AV decoder performed properly? 8 Is DMA between the EBY chip and the AV decoder performed properly? 9 Is the HDMI transmitter (IC1051: SII9190CTG64) operating properly? (Check the communication of the I2C bus.) 0 Is the T-REX (IC1001: PD0280B) operating properly? (Check the communication of the I2C bus.) - Can writing to and reading from the external SRAM (IC602: CY62148VLL-70ZI) of the system computer performed properly? = Is the USB controller (IC1201: UHC124BF) operating properly? (Check writing to and reading from the register.) If any error is detected during the above-mentioned self-diagnosis, the indications shown below will be displayed on the LCD: In a case of an error for Item 1 In a case of an error for Item 2 A hardware failure of the flash memory may be the cause. Replace the DVDM Assy. If the same error indication appears after downloading the firmware (using the RS-232C port), replace the DVDM Assy. In a case of an error for Item 3 In a case of an error for Item 4 In a case of an error for Item 5 FLASH RD SDSP RWER VIDEO ENCODER NG ADV VIDEO ENCODER NG PROU F.E REGISTER ACCESS NG F.E SDRAM ACCESS NG FLASH SIG FLASH ID FLASH SUM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 91 5 6 7 8 5 6 7 8 C D F A B E 2. Self-diagnosis activated, using the remote control unit When the procedures described in "7.1.6 Error History" are followed to display the error history, self-diagnosis of the peripheral devices is also performed, and its results are indicated at the same time. The diagnostic items are: 1 Writing to then reading from the register of the AV decoder 2 Writing to then reading from the external SDRAM of the AV decoder 3 DMA transfer from the front end (EBY-CHIP) to the AV decoder 4 Writing to then reading from the register of the video encoder 5 I2C communication with the HDMI transmitter 6 I2C communication with the T-REX 7 Reading from the register of the USB controller 8 Writing to then reading from the EEPROM The indications to be displayed in the error history are as follows: AV_1 : Result of Item 1 (OK/HOST BUS NG) AV_2 : Result of Item 2 (OK/AV1-SDRAM BUS NG) F.E. : Result of Item 3 (OK/FE-AV1 DMA NG) Ve : Result of Item 4 (OK/NG ADV, >ADV, >PRO) DVI : Result of Item 5 (OK/NG) TREX : Result of Item 6 (OK/NG) USB : Result of Item 7 (OK/NG) PROM : Result of Item 8 (OK/NG) In a case of an error for Item 6 In a case of an error for Item 7 In a case of an error for Item 8 In a case of an error for Item 9 In a case of an error for Item 0 In a case of an error for Item - In a case of an error for Item = ~ If the data stored in the EEPROM cannot be read, the indications shown below will be displayed (this failure is not generated during self-diagnosis): AV DECODER REG. ACCESS NG AV DECODER SDRAM ACCESS NG F.E -> AV DECODER DMA NG HDMI TRANSMITTER ACCESS NG T-REX ACCESS NG SYSCON SRAM ACCESS NG USB CONTROLER ACCESS NG EEPROM READ NG www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 92 1 2 3 4 1 2 3 4 C D F A B E 7.1.4 FUNCTIONAL SPECIFICATION OF THE SERVICE MODE • LCD indication of EDC / ID error (short cut function) Indicate it in LCD with the "ESC"+"CX" keys (LD remote control unit). Indication is released with the "ESC" key during display. LCD indication contents 0 0 / 0 0 / 0 1 ∗ Indicate number of the location that caused EDC and ID errors Retry number of times at having caused ID error (error is indicated only in the occurring moment) Retry number of times at having caused EDC error (error is indicated only in the occurring moment) ∗ Mark: When even once causes AV1 error, lights. • Screen display of the service mode Indicate to the screen with the "ESC"+"CHP/TIM" keys. Release the indication with the "ESC" key. Indication contents 1 ID Address 2 DVD in playback: Error rate regular indication and exponent indication CD/VCD in playback indicates the number of correct frame of C1 error /5 seconds. 3 Self diagnosis indication Indicate the self diagnosis result. Self Check : During diagnoses Self Check OK : Abnormality is not found. Self Check Error : Abnormality is found. Indicate the mechanism error history and self diagnosis result by pressing the "CHP / TIM" key once again. Afterwards press the "CHP / TIM" key with toggle and change the display. Indication of the mechanism error history and self diagnosis result refer to "7.1.3 Self diagnosis function". 4 Error information indication of the AV decoder (a: The left half of 4-10 lines) When a retry occurred in reading from the disc, a history indicates the occurrence location and the occurrence reason. History is indicated to past seven times. Eight columns of the beginning show the physical address which occurred of retry. As for four columns of next, bitmap indicates EDC status. LSB shows the first sector during a block and MSB shows a last sector. Following field indicates the retry number of times. One digit in front of " / " shows number of times of the retry by EDC Error which occurred in the same block in succession. One digit after " / " shows number of times of the retry by ID Check Error which occurred in the same block in succession. " * " of last one digit shows the EDC Check NG Count Over. " # " shows the ID Check NG Count Over. When " * " and " # " are not indicated, show that data were rightly readable by retry process. (b: The right half of 4-10 lines) Indicate the error information that detected with the Audio/Video Decoder. When error occurred, a history indicates the occurrence time and the occurrence reason. History is indicated to past seven times. Field in front of ":" indicates the error information of Audio/Video Decoder. • Specification for the Audio/Video Decoder bit 7: VLD Fatal Error detection bit 6: VLD Not Fatal Error detection bit 5: Number of Macro Block mismatch bit 4: Decode error bit 3: VLD Sequence Layer Fatal Error detection bit 2: VLD Picture Layer Fatal Error detection bit 1: VLD Slice Layer Fatal Error detection bit 0: Start-up Sequence Time-out Error detection Following field in " : " indicates a value of STC (System Time Clock) which detected the above Audio/Video Decoder error. ∗ When often perform the switch of debug screen, an error history will be increased. As for this, CPU power is used for update of OSD drawing, symptoms occur so that control of VBR Buffer is not in time. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 93 5 6 7 8 5 6 7 8 C D F A B E 7.1.5 ERROR DISPLAY LCD Display Possible causes Operation of the unit AV1 VER AV-1 chip is not a match with the program of system controller The sound may not out with the specific audio. FLASH ID Difference in versions of the internal ROM of the system controller and of the flash ROM, or bus line failure or reverse installation No operation FLASH WRP Write protect error of the flash ROM No operation FLASH SIG Difference in part number of the flash ROM (When the ROM which could't be used was used.) No operation FLASH SUM Check sum error of the flash ROM (It exceeds the regular size.) or reverse installation (Hardware is unusual.) No operation FLASH SIZ Size error of the flash ROM (Use 4 or 8 M-bit.) No operation ILLGAL The system controller fetched a code other than an operation code (Hardware is unusual.) No operation RESERVE Undefined interrupt (Hardware is unusual.) No operation LCD Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit 11 Search timeout Search could not be complete within 7 seconds. Search could not be complete within 7 seconds, and it could not enter the target area within 7 seconds by VCD scan. CD : Stops, DVD: Continues operation 12 Search retry error More beyond the target while the read-in search was converging. A search could not be completed after 3 retries while the unit was tracing 11 tracks. A search could not be completed after retry when timeout occurs at read-in. CD: Stops, DVD: Continues operation 19 Tracing timeout while converging Timeout (10.5 seconds) while tracing at the stage of convergence of a search. Stop 1B Index 0 search error During Track (Index) Search, the search for the beginning of a program could not be completed within 3 seconds (20 seconds in the case of Index Search) after positioning based on the TOC data was completed. Stop 1C Embossment plunge error (only a model corresponding to RW) Plunged into unreadable embossment of DVD-RW player. 1. In wobble nothing (error distinction) : search to address 2E400h 2. In wobble existence: Tray open 22 Timeout of slider inner circumference Inside switch could not ON within 3 seconds. Stop 23 Timeout of slider outer circumference Inside switch could not OFF within the following times: at ATB: 2 seconds, at Backup: 2 or 2.02 seconds. Stop 33 No FOK pulse during playback When the focus was deviated continuously 20 times. Adjusts focus at the innermost circumference and tries to return to its position where the error was generated (for 3 times),then opens. If the same error persists after one retry, the tray opens. (No FOK pulse) 38 Disc-type- sensing error Were not able to playback from the disc distinction process. PLAY or STOP was not completed by backup operation of the disc distinction. Distinguished it from the blank disc in the ATB process completion. Open Error codes that are displayed on the LCD display without using the remote control unit Error codes that are displayed on the LCD display by using the remote control unit (Mechanism controller error) To display: ESC + DISPLAY + DISPLAY; Location of the display: At the two digits of center of the LCD display To display the error history: ESC + DISPLAY + One shot; Location of the display: TV screen www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 94 1 2 3 4 1 2 3 4 C D F A B E LCD Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit 39 SGC converge timeout SGC could not converge during detects the peak Open 41 Spindle timeout The unit did not enter Stop mode within 10 seconds of issuance of a Stop command. Disc distinction is not completed even if passes for 10 seconds after the spindle turned. Stop 48 Spindle FG transition timeout Did not reach to the rotating speed that ATB was possible for less than 10 seconds. Did not reach aim CAV lock speed (high: 10%, low: 50%) for less than 10 seconds. CAV process passed more than 5 seconds or abnormal speed was detected. Spindle does not lock for less than 3 seconds in the BCA read start or end. Stop (FG timeout) 49 Spindle PLL transition timeout CAV process passed more than 5 seconds. Abnormal speed was detected. Stop ("73" is displayed during starting process.) 4A Spindle lock timeout Spindle could not lock more than 1.5 seconds before start the AFB. Stop ("73" is displayed during starting process.) 51 Auto sequence timeout of peak detection ABUSY did not return within 1 second after the DDTCT (peak detection) command was sent. Stop 52 Auto sequence timeout of focus jump down ABUSY did not return within 30 mS after the FJMPD (Focus jump 1 to 0) command was sent. Open 53 Auto sequence timeout of focus jump up ABUSY did not return within 30 mS after the FJMPU (Focus jump 0 to 1) command was sent. Open 54 Auto sequence timeout of play AGC ABUSY did not return within 50 mS after the GSUMON (play-AGC-measuring) command was sent. Stop 55 Auto sequence timeout of disc-type- sensing ABUSY did not return within 2 seconds after the DJSRT (disc-sensing) command was sent. Stop 56 Auto sequence timeout of ATB2 ABUSY did not return within 1 second after the TBLOFS (Internal ATB after the completion of external ATB) command was sent. Stop 57 Auto sequence timeout of tracking servo ON ABUSY did not return within 0.5 sec. after the TSON (tracking servo ON) command was sent. Stop 58 Auto sequence timeout of ATB1 ABUSY did not return within 0.2 sec. after the TBL (external ATB) command was sent. Stop 59 Auto sequence timeout of focus gain adjustment ABUSY did not return within 2 seconds after the FGN (focus gain adjustment) command was sent. Stop 5A Auto sequence timeout of tracking gain adjustment ABUSY did not return within 2 seconds after TGN (tracking gain adjustment) command was sent. Stop 5B Auto sequence timeout of offset adjustment ABUSY did not return within 1 second after the AVE (offset adjustment) command was sent. Stop 5C Auto sequence timeout of modulation factor measurement ABUSY did not return within 200 mS after the ADJMIR (modulation factor measurement) command was sent. Stop 5D Auto sequence timeout of auto focus bias ABUSY did not return within 2 seconds after the AFB (auto focus bias) command was sent. Stop 5F Auto sequence already busy A command could not be sent because ABUSY was low. ABUSY did not return within 200 mS after TLV command was sent. Stop 62 Pause retry error Pause mode could not be restored within three retries after it had been released. Continues operation 71 ID reading check during playback An ID could not be read for 1 second or more. Stop 72 Subcode check failure during playback No frame could be read for 3 seconds or more. Stop 73 ID can not read during startup An ID could not be read within 1 second after the AFB tracking on. Open (ID readout failure) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 95 5 6 7 8 5 6 7 8 C D F A B E FL Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit 74 Subcode check failure during startup Subcode could not be read within 1 second after the tracking on. Open (Subcode readout failure) A1 Communication timeout of DSP command A command could not be issued to DSP because Command Busy (XCBUSY) was in force (XCBUSY = L) for a specified time (about 200 µS). Open A2 Communication timeout for reading DSP coefficient Command Busy (XCBUSY) was in force for a specified time (about 200 µS) before and after a coefficient read command was issued to DSP, or the address echo-back after command issuance did not match the setup address. Open A4 Communication timeout for continuously writing DSP coefficient Command Busy (XCBUSY) was in force for 200 µS during continuous coefficient writing, or before and after a continuous write command was issued to DSP. Open B1 Timeout error for backup In the backup sequence, codes could not be read for fixed time. Stop B2 Retry error for backup Cannot close tracking even if performs backup fixed number of times. Stop B3 Retry error for trace During tracing, do not restore after the runaway detection backup was performed several times. Stop C3 Detection of tracking overcurrent During playback, the overcurrent detection port was at L for 300 ms or more continuously. Stop (the mechanical controller operates independently). (C5) Short-circuit test corresponding error After the overcurrent detection (C3 error), furthermore the overcurrent detection port was at L for 300 mS or more continuously. Turns off the power instantly (No indication on the LCD display and no writing to flash memory) F5 Tray being pushed The tray switch that had been Open mode was forcibly changed to a mode other than Open by an external force. Close F6 Code reading NG (PRD) In the CD starting, when a subcode of TOC part was not readable, but the subcode of the program area was readable. Search, scan and special playback prohibition, Playback as playback CD- R (PRD mode) as it is. F8 Loading timeout Loading or unloading could not be completed within a specified time (about 10 seconds). Though a portable cover is opening, when a close command was issued from the system controller. Reverses the loading direction. It timeout is repeated upon retry, the unit stops. FC Focus • Focus ON sequence could not be completed more than two seconds. • Auto sequence command was finished, actually focus ON was not completed. • Focus did not enter even if retried it eight times. Stops wherever possible then opens (stops in the case of side B). LCD Description of Error Causes if with a DVD Causes if with a CD Operation of the Unit No operation or it becomes debugging indication if the power is able to ON. bit3=1 08 etc. AV1 access error (read, write NG) bit2=1 04 etc. EBY-CHIP access error bit0=1 01 etc. SRAM access error Error codes that are displayed on the LCD display by using the remote control unit (Device error) To display: ESC + DISPLAY + DISPLAY; Location of the display: At the two digits of left of the LCD display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 96 1 2 3 4 1 2 3 4 C D F A B E 7.1.6 ERROR HISTORY How to display the error history Use the dedicated remote control unit for service. Press the ESC then CHP/TIM keys. The measured error rate value, results of self-diagnosis, and time data read from the real-time clock are displayed on the screen, as shown below: How to translate the indications of the error history The 2-digit hexadecimal number (F8, C3 or F8, in the above example) represents an error code, and the subsequent time indication (000123:45, 000079:41, or 000052:17, in the above example) represents the accumulated power-on time when a respective error was generated. The 2-digit number following the time indication is the number of times the respective error was generated. As to an error that was generated consecutively several times, the time indication is that for the last one. The bottom two lines are used for indicating the meaning of the latest error. In the above example, • An F8 error (loading error) was generated twice consecutively, and the accumulated power-on time upon generation of the second F8 error was 52 hours 17 minutes. • Then a new error (C3: detection of the tracking excess current) was generated consecutively three times, and the accumulated power-on time upon generation of the last C3 error was 79 hours 41 minutes. • A new F8 error (loading error) was generated at 123 hours 45 minutes. Specifications of storage of the error history If the same error is consecutively generated, as shown in the above example, the error counter counts the number of times it was generated, and the last generation time is stored in memory (as shown with the first F8 error generated twice). If another type of error is generated, its error code and time of generation are separately stored in memory. If that error is generated consecutively several times, the error counter counts the number of times it was generated, and the latest generation time is stored in memory (as shown with the second C3 error generated three times). Then if any error other than C3 is generated, its error code and time of generation are separately stored in memory, even if the same error code (F8 error, in the above example) already exists in the error history. A maximum of 16 logs of errors can be recorded. The maximum count of generations per log is 255. In the above example, 3 logs are recorded (nonconsecutive F8 errors that were generated for the first and third times are counted as two errors.) If the error count exceeds 16, the oldest error will be erased each time a new error is added. As the maximum number of errors that can be displayed on one page is 8, if the number of errors is 9 or more, switch between Page 1 (No. 1-8 logs) and Page 2 (No. 9-16 logs) by pressing the CHP/TIM key. Press the CHP/TIM key again to display the detailed information of the error history and results of self-diagnosis. In the example below, the part enclosed with the solid line ( ) is the error history, and the part enclosed with the dotted line ( ) is the results of self-diagnosis. (For details on the results of self-diagnosis, see "Self-diagnosis.") Example: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 97 5 6 7 8 5 6 7 8 C D F A B E How to clear data of the error history The data of the error history can be cleared by issuing the "EE0016EC" RS-232C command. How to copy data of the error history to a USB memory device The data of the error history can be copied to a USB memory device, using SAVE ERROR LOG in the ADV.SETUP menu. Filename : The filename is the serial number of the product (excluding two characters that represent the destination), and its extension is err. File format : Text Content of the file : The following data are recorded: 1 Serial number of the product 2 Accumulated power-on and playback time when copying to a USB memory device is performed 3 Content that is indicated on the screen, i.e., error code, accumulated power-on time when the error is generated, and the number of times the error was generated Example: FAMP000009.txt www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 98 1 2 3 4 1 2 3 4 C D F A B E 7.1.7 ACCUMULATED POWER-ON TIME AND PLAYBACK TIME Displaying the accumulated power-on time and playback time The accumulated power-on time and playback time are displayed on the screen and the LCD when the POWER key on the main unit is pressed while the DISPLAY key is held pressed. Two meter systems are provided with this unit: one that cannot be reset (hereinafter called power-on/playback time A) and another that can be reset (hereinafter called power-on/playback time B). Screen display On the screen, both power-on/playback time A and B are displayed, as shown below: LCD display Only Power-on/playback time A is displayed on the LCD display. How to reset Power-on/playback time B The power-on time (POWER ON) and playback time (PLAY) can be separately reset. You can, for example, reset only the power-on time when the POWER SUPPLY Unit is replaced, and reset only the playback time when the Mechanism Assy is replaced. How to reset 1 Press the POWER key on the main unit while holding the DISPLAY key pressed to display the accumulated power-on time and playback time on the screen and the LCD. 2 Press the CX key on the remote control unit for service once. 3 Press the CX key once or twice so that the meter count you wish to reset flashes. Then press the SEARCH key on the remote control unit for service. The display becomes that for reset confirmation. (In the following example, only the playback time is to be reset.) To execute resetting, press the SEARCH key again. To exit this mode without resetting, press the ESC key on the remote control unit for service. Power-on time Playback time Power-on/playback time B Power-on/playback time A Flashes. Flashes. Flashes. Or, press the CX key on the remote control unit for service twice. Or www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 99 5 6 7 8 5 6 7 8 C D F A B E 7.1.8 TROUBLE SHOOTING START Is LCD turn on ? Is tray open ? Is the indication of LCD normal ? Power ON Yes Yes Yes No No No Turn on the power again after 2 - 3 minutes. • Blow out micro-fuse on the POWER SUPPLY Unit. (P202 and P301) LCD indication is dark or flickers. Indicates the error message Refer to the section "7.1.5 ERROR DISPLAY". • Remote control unit or IR signal line damaged. (When key input of the remote control unit is not completed) • Blow out fuse of the primary side • Blow out micro-fuse on the POWER SUPPLY Unit. (Check the each voltage.) P202 or P301 of the POWER SUPPLY Unit is damaged. Is a voltage of CN101-pin 7 (P-CONT) of the POWER SUPPLY Unit about 3.3 V? • Check the following connections : POWER SUPPLY Unit - DVDM Assy DVDM Assy - AJKB Assy DVDM Assy - VJKB Assy DVDM Assy - FLKY Assy • Check each voltage regulators of DVDM Assy : IC401-pin 3 (+3.3V), IC402-pin 1 (+5V), IC403-pin 3 (+2.5V), IC404-pin 4 (+3V), IC405-pin 4 (+5V), IC410-pin 1 (+1.8V), IC411-pin 3 (+2.5V) • Check each voltage (EV+6V, EV+4V, SW+3.3V, SV+12V, IC402-pin 1 (+5V) and SW+5V) (If above voltage are not supplied, check the micro-fuse P101, P201, P202, P301.) Are not there short and open-circuit between output connector of CN101 of POWER SUPPLY Unit and CN401 of DVDM Assy? • LCD module is damaged. • Check the address bus and data bus of signal interface between LCD microcomputer (IC1501) – AV1 (IC751), FR CPU (IC601), Eby-Chip (IC701) and Servo DSP (IC201) on the DVDM Assy. • Check each voltage regulators of DVDM Assy : IC401 (+3.3V) and IC403 (+2.5V) Clock generator IC481 or crystal resonator X471 is damaged. Check waveform of each pin whether IC481 does oscillation. • Check the following connections : DVDM Assy (CN103)- LOAB Assy (CN601) DVDM Assy CN115-pin 12 (INSIDE SW signal) • Check the loading drive signal : IC351-pin 14, 15 and 16 • Check the +6V and +12V power supply voltage (If above voltage is not supplied, check the micro-fuse P202 and P301.) A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 100 1 2 3 4 1 2 3 4 C D F A B E Do the video and sound come on? or beeing damaged? (noisy) Yes No Refer to the section "7.1.5 ERROR DISPLAY". Indicate the error message. Carriage does not move. (Stepping positioning) Yes Yes • Laser diode does not light. • Focus does not in. Yes No No Spindle does not turn. No OK • Check the following connections and FTS drive IC (IC351) : DVDM Assy CN114 (4P flexible cable) Check the Stepping motor signals, IC351-pin 31, 32, 34, 35 and IC601-pin 47, 48. • Check the +6V and +12V power supply voltage (If above voltage is not supplied, check the micro-fuse P202 and P301.) • Check the following connections and Spindle drive IC (IC251) : DVDM Assy CN115 (12P flexible cable) Check the Spindle motor signals and IC251-each pins of the DVDM Assy. • Check the +6V and +12V power supply voltage (If above voltage is not supplied, check the micro-fuse P202 and P301.) • Check the following connections : DVDM Assy - VJKB Assy DVDM Assy - AJKB Assy • Check voltage regulator of VJKB Assy IC7601-pin 1 (+5V) for Video circuit, AJKB Assy IC8601 (+5V) for Audio circuit. • Check the following communications of the DVDM Assy : 16M SDRAM (IC741) – Eby-chip (IC701) 64M SDRAM (IC781) – AV1 (IC751). • Check digital data of video and audio signals (audio signals: 3 line data, video signals: 8 bit data) shown to each schematic diagram and an analog signal line. In addition, check CLK. Audio system: 22/24 MHz, Video system: 27 MHz • Check the following connection, IC351, IC101, IC201 : DVDM Assy CN111 - Pickup Assy (24P flexible cable) IC351-pin 9, 10, IC101-pin 41 and IC201-pin 32, 47 for Focus Drive • Check the +6V and +12V power supply voltage (If +6V voltage is not supplied, check the micro-fuse P101 and P102.) • Check it whether the pickup is defectiveness. Perform the section "7.1.3 SELF-DIAGNOSIS FUNCTION" and check the LD current value. C101 (for DVD LD) and C103 (for CD LD) of the DVDM Assy are missing. • Regarding DVD LD (650 nm) : Check each signals of CN111-pin 17 (PD), pin 18 (LD Drive), IC101-pin 17 and Q101 Regarding CD LD (780 nm) : Check each signals of CN111-pin 17 (PD), pin 16 (LD Drive), IC101-pin 17 and Q102 PD: Power Diode (signal output) A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 101 5 6 7 8 5 6 7 8 C D F A B E 7.1.9 POWER ON SEQUENCE Flash check Initialization of the port, register, and devices OK? OK? EEPROM Read? Is the destination setting correct? Servo DSP OK? Yes Yes An error indication is displayed on the LCD. If the indication is "FLASH SUM" or "FLASH ID," connect the dedicated cable for downloading to the 15-pin D-SUB connector and download the firmware. Sequences after power is on No No No Read out the setting data from the flash memory. Is initialization of each device properly done? Is the communication with the sub-microcomputer established? Yes Read out the setting data from the EEPROM on the AJKB Assy. • Destination • CPRM ID/KEY • Serial number • Accumulated power-on time and playback time, etc. "SDSP RWER" is displayed on the LCD. Do not proceed to the next step. Replace the DVDM Assy. Power ON Initialization of the settings No Yes An error indication is displayed on the LCD. No No Yes Yes An error indication is displayed on the LCD. Acquiring data from the real-time clock : "EEPROM READ NG" : See "7.1.3 Self-diagnosis Function." : If the communication with the sub-microcomputer is not established, a reset signal is issued from the sub-microcomputer every 5 seconds. : LCD "NO AREA" : OSD "No Area Information" Setting of the destination is required. No Yes An error indication is displayed on the screen and the LCD. A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 102 1 2 3 4 1 2 3 4 C D F A B E Tray open? Is the Power-on-Start setting made? No No Is an error detected? Is it a start time programmed by the timer? Yes Yes No Is a disc installed? Yes Tray close Stop The unit will be stopped, and an error indication will be displayed on the LCD. No Timer start? No Power on start? No Is there a First Play PGC? Yes Yes The target that has been programmed is searched for and playback will start. Yes Playback starts according to the navigation. No Yes Set the address of the target. No Yes Set the address of the target. Disc judgment : If there is a problem in closing of the tray, an error indication is displayed on the LCD. A Stop www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 103 5 6 7 8 5 6 7 8 C D F A B E 7.1.10 FAILURE JUDGMENT OF THE HDMI TRANSMITTER IC Is the analog video signal output? Yes No OK NG Does the monitor support HDCP? Purpose: To check if there is any problem with the HDMI output line (including the connectors.) Failure judgment of the T-REX (IC1001: DVDM Assy) Probe R1013-R1018 (22 ohms × 4, 6 sets) with an oscilloscope to check if the amplitude of the waveform of each signal during VCD playback changes between H (3.3 V) and L. Also probe R1009 (27-MHz clock) to check if the 27-MHz clock signal is properly output. NG Failure in the T-REX or the line between the T-REX and IC1001 (Failure in the resistors mentioned above, defective soldering, short-circuited signal, broken cable, etc. Replace the T-REX.) Replace the DVDM Assy. Check if there is any problem with the initialization processes, including HDCP initialization. (Connect a Pioneer plasma display that is equipped with the HDMI input for checking. The HDMI-DVI conversion cable is required for the connection.) Yes OK Replace the DVDM Assy. A failure in IC901 (DVDM Assy) or its peripheral circuits is suspected. No A failure in ICs in the HDCP process block is suspected. Failure in IC1001 or the line between IC1001 and the output terminal The monitor owned by the user may not be compatible with the unit. Check the maker of the monitor, model name, and detailed information on the failure, and check past similar cases or consult the Design Department. In some cases, upgrading of software and/or the firmware of the DVD player and the monitor may solve the problem. • See "7.6 DISASSEMBLY" when replacing the DVDM Assy. When the DVI video signal is not output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 104 1 2 3 4 1 2 3 4 C D F A B E 7.2 UPGRADING 7.2.1 UPGRADING OF THE FIRMWARE Upgrading of the firmware is performed, using the CD-R for upgrading. 1 Install the CD-R for upgrading in the tray and press the STOP/OPEN/CLOSE key on the main unit or the OPEN/CLOSE key on the remote control unit. 2 After the disc is loaded and data on the disc are read, "DOWNLOAD" is displayed on the LCD. Then press the PLAY/PAUSE on the main unit or the PLAY key on the remote control unit. The disc is ejected, and downloading will start. 3 The indications on the LCD change from ERASE, WRITE, to DL OK. Then the unit will be automatically reset and will restart. Display the SETUP menu and check that the version of the firmware is upgraded. If upgrading fails, for example, because a power failure occurred during downloading, downloading via the serial port, by connecting a PC is required. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 105 5 6 7 8 5 6 7 8 C D F A B E 7.2.2 IF UPGRADING OF THE FIRMWARE FAILS 1 Execute the UFU.exe file. Select "Full" in Mode Select, then click on the File Select button. 2 In File Select window, assign the *.sz0 file to be used for downloading. The following window will open: 3 Select the COM port to which the player is connected. Confirm that Data Transfer Rate is set to 115,200 (default). If the setting is other than 115,200, set it to 115,200. 4 Click on the "START" button to start downloading. • Downloading may fail, because of a communication error. In such a case, click on the Start button again. • If downloading fails after the third attempt, a cause other than a communication error is suspected. • It takes about 5 minutes to download the firmware. 5 The player will automatically restart after downloading is completed. [Procedures] [Connection] • PC with a serial port • Dedicated cable for downloading (GGD1204) • Downloading program (UFU.exe) • Firmware (*.sz0) Operating environment for the UFU.exe file IBM-PC/AT compatible personal computer with Windows 9x/Me/2000/XP installed CPU : Pursuant to the recommended operating environment for Windows Memory : Pursuant to the recommended operating environment for Windows RS-232C port (1) Serial port built into the PC as standard equipment (2) PCI serial port extension board • CONTEC RS-232C communication board (COM-2, COM-4, COM-8) • I/O data RS-232C extension serial board (RSA-PCI2, RSA-PCI2/P4) (3) Serial I/O PC card • CONTEC RS-232C serial I/O PC card (COM-1, COM-2) • Adtec System Science RS-232C serial adapter (AXP-SI01, AXP-SI21) Note: The USB-RS-232C conversion adapter is not supported. [Tools to be used] [Purposes] If upgrading of the firmware (using the CD-R) fails, upgrading via the serial port is required. This method of upgrading is explained here. PC This unit Dedicated cable for downloading (GGD1204) DSUB 15P Serial port 3 1 2 4 SERIAL DOWNLOAD Connect as follows: Note: Settings, such as SETUP, ADV.SETUP, and command stack, will be all initialized once this upgrading procedure is performed. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 106 1 2 3 4 1 2 3 4 C D F A B E 7.3 SETTING THE DESTINATION In conventional models, as many number of sub-microcomputer units as that of destinations were designed, because a port set for each destination was provided with a sub-microcomputer unit. However, with this model, the sub-microcomputer unit is common to all destinations. The data on the destination were written to the EEPROM on the AJKB Assy on the production line. When the AJKB Assy (or the EEPROM) is replaced for service, writing of data on the destination is also required. Procedures for destination setting If the AJKB Assy is replaced, as the data on destination is not available, "No Area Information!!!" flashes on the screen. Press the ESC then SPEED – keys to enter Destination Setting mode. Press the ESC key to exit Destination Setting mode without setting a destination area. Press the SEARCH key to determine the selected destination area, write the data to the EEPROM, and terminate Destination Setting mode. When Destination Setting mode is terminated, ID Setting mode is automatically entered if the CPRM ID is not set yet. Note: When the destination was set once, other destination cannot modify. Select a destination area with a numeric key. For example, if the 1 key is pressed, the display will be as shown below: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 107 5 6 7 8 5 6 7 8 C D F A B E 7.4 SETTING THE ID NUMBER AND COPYING THE ID DATA The ID number is stored in the flash memory on the DVDM Assy and the EEPROM on the AJKB Assy. The ID data are stored in the EEPROM on the AJKB Assy. When these Assys are replaced, setting of the ID number and copying of the ID data may be required, as indicated below: (1) When only the DVDM Assy is replaced: Setting of the ID number and copying of the ID data are not required. Copying of the ID number is automatically performed from the EEPROM on the AJKB Assy to the flash memory on the DVDM Assy. (2) When only the AJKB Assy is replaced: Copying of the ID data is required. Copying of the ID number is automatically performed from the flash memory on the DVDM Assy to the EEPROM on the AJKB Assy. (3) When both the DVDM and AJKB Assys are replaced: Both setting of the ID number and copying of the ID data are required. (ID data disc to be used: GGV1174) 1 Press the ESC then STEREO keys to enter Input mode. 2 Enter a 9-digit ID number (it is also displayed on the LCD). The ID number is indicated on the label attached on the rear panel. 3 Press the SEARCH key to registrer the entered ID number. 5 While data are being read, the indication shown below will be displayed. ("RD ID DATA" is displayed on the LCD.) 6 The data will be written in the EEPROM after reading of the ID data is finished. ("WR ID DATA" is displayed on the LCD.) 7 After writing of the data to the EEPROM is finished, "Rom Write OK!" will be displayed. ("ID DATA OK" is displayed on the LCD.) 8 After confirming the above indications, press the CLEAR key to terminate Setting mode. 4 After the ID number is set, the unit is ready for ID data input. ("IN ID DATA" is displayed on the LCD.) Install the ID data disc in the disc tray and press the Close key on the main unit. Data will be read from the disc. How to enter the ID number and copy the ID data 2 3 4 5 6 7 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 108 1 2 3 4 1 2 3 4 C D F A B E 7.5 SERIAL NUMBER SETTING The serial number of this unit is stored in the EEPROM on the AJKB Assy. When the AJKB Assy is replaced, serial number setting is also required. The remote control unit for service is used for setting. Press ESC then the 9 key to enter Serial Number Setting mode. Move the cursor to a digit where an alphanumeric is to be entered, using the REP.A or REP.B keys. Enter an alphanumeric, using the SPEED – or SPEED + keys. After all necessary alphanumerics are entered, press the SEARCH key. The indications shown below will be displayed. If the setting is correct, press the SEARCH key again. The serial number will be written to the EEPROM. To exit Serial Number Setting mode without writing the set serial number to the EEPROM, press the CLEAR key. Note: As a serial number, from the first to the 4th and 11th to 12th digits from the left are reserved for uppercase alphabetics only, and from the 5th to 10th digits are reserved for numerics only. How to set www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 109 5 6 7 8 5 6 7 8 C D F A B E 7.6 DISASSEMBLY 1 Remove the bonnet by removing the eleven screws. Bonnet and Tray Panel 1 2 Press the � STANDBY ON button to turn on the power. 3 Press the 7 / 0 STOP OPEN/CLOSE button to open the tray. 4 Remove the tray panel. 5 Press the 7 / 0 STOP OPEN/CLOSE button to close the tray. 6 Press the � STANDBY ON button to turn off the power. 1 Remove the six screws. 2 Remove the bottom plate. 4 Pull the tray by a hand. 3 Insert a · screwdriver (small) into the slit, and slide the drive cam in the direction of the arrow. Diagnosis of the DVDM Assy Note 1: Do NOT look directly into the pickup lens. The laser beam may cause eye injury. Note 2: Even if the unit shown in the photos and illustrations in this manual may differ from your product, the procedures described here are common. Note 3: For performing the diagnosis shown below, the following jigs for service is required: • Jig flexible cable 24P (GGD1111) + Extension board (GGF1575) 4 1 3 5 3 5 2 6 Tray panel Bottom plate Tray Tray Hook Hook How to open the tray when the power cannot be on Bottom view Bottom view Bottom view Bottom view Slit Drive cam 1 1 1 2 1 1 3 4 · Screwdriver (small) · Screwdriver (small) 3 Note: To remove the tray panel, disengage it from the hooks by slowly bending it toward you in order not to damage the hooks, then pull it up. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 110 1 2 3 4 1 2 3 4 C D F A B E 1 Disconnect the one flexible cable. Front Panel Section 2 2 Disconnect the two connectors. 3 Remove the one screw. 4 Unhook the five hooks. DVDM Assy CN1504 CN1501 CN1502 5 Remove the front panel section. Bottom view 4 4 4 4 4 3 1 2 2 Front panel section 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 111 5 6 7 8 5 6 7 8 C D F A B E 1 Remove the three screws. AJKB Assy 3 2 Remove the two screws. 3 Remove the two hex. screws. 4 Remove the two hex. screws. 5 Remove the one screw. 6 Remove the PCB spacer. 7 Remove the AJKB Assy. 1 Remove the one screw. DVDM Assy 4 2 Remove the two hex. screws. 3 Disconnect the one connector. 4 Remove the five screws. 5 Remove the DVDM Assy. 1 1 1 1 2 2 2 4 4 3 2 3 Rear view Rear view 5 6 7 4 3 4 4 4 4 5 AJKB Assy DVDM Assy CN1201 Note: Be sure to use a Bit Size No. 1 Phillips screwdriver. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 112 1 2 3 4 1 2 3 4 C D F A B E Diagnosis 5 1 Connect the jig flexible cable 24P and extension board. 2 Insert the two insulation sheet. 3 Arrange the unit as shown in the photo. Diagnosis CN1504 CN1501 CN1502 Extension board (GGF1575) Insulation sheet Insulation sheet Jig flexible cable 24P (GGD1111) 1 1 1 2 2 3 3 3 3 1 2 DVDM Assy 2 AJKB Assy 1 Hex. screw (inch) : 2 3 × 8 P tight (copper) : 3 3 × 6 B tight (black) : Tips on the types of screws: The indications for the types of screws, as shown below, are printed on the rear panel. Refer to them when reassembling. Note: Be sure to use a Bit Size No. 1 Phillips screwdriver. Note: Be sure to use a Bit Size No. 1 Phillips screwdriver. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 113 5 6 7 8 5 6 7 8 C D F A B E 1 Remove the five screws. Note: For clarity, the front panel section was removed for the photo, but the actual work can be done without removing it. Note: After replacement, connect the flexible cable, then remove the soldered joint (open). 2 Remove the mecha. case (top). 3 Short-circuit two points of C and D by soldering. 4 Remove the one screw. 5 Remove the mecha. case (side). LOADER MECHA. Assy LOADER MECHA. Assy 1 1 4 5 1 1 1 1 Mecha. case (top) Mecha. case (side) 2 Rear view 3 C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 114 1 2 3 4 1 2 3 4 C D F A B E 6 Disconnect the three flexible cables, and the one connector. 7 Remove the four screws. 8 Remove the LOADER MECHA. Assy. 6 6 6 6 7 7 7 7 LOADER MECHA. Assy DVDM Assy 8 CN115 CN114 CN111 CN103 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 115 5 6 7 8 5 6 7 8 C D F A B E 1 Remove the one screw. Bridge and Tray 2 2 Remove the bridge. 3 Pull out the tray, then remove it by pressing the hook. When reinserting the tray, first align the triangle printed on the loading base and the pin of the drive cam, then insert the tray. 3 -1 3 -2 Hook Bridge Tray Pin Triangle Pickup lens Front side Loading base Drive cam 1 2 Note when reinserting the tray Cleanning Before shipment, be sure to clean the pickup lens, using the following cleaning materials: Cleaning liquid : GEM1004 Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 116 1 2 3 4 1 2 3 4 C D F A B E 1 Dislodge the flexible cables from their factory placement. 2 Remove the four hooks. 3 Remove the Traverse Mecha. Assy-S. Traverse Mecha. Assy-S 3 × 2 Bottom view Traverse Mecha. Assy-S Flexible cable for the pickup Flexible cable for the spindle motor 1 1 1 2 3 Flexible cable for the stepping motor Front side × 2 2 Cleaning paper GED-008 Cleaning liquid GEM1004 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 117 5 6 7 8 5 6 7 8 C D F A B E 1 Dislodge the flexible cable for the pickup from its packaged placement. 2 Remove the flexible cable for the pickup. 3 Remove the two adjustment screws and two adjustment springs. 4 Remove the Pickup Assy-S. Pickup Assy-S 4 Note: The Pickup Assy-S can be removed without removing the Traverse Mecha. Assy-S. (shown as Step π.) Bottom view Flexible cable for the pickup 1 4 3 3 1 2 Front side Pickup Assy-S Adjustment screw (Skew screw) Adjustment screw (Skew screw) Adjustment spring (Skew spring) Adjustment spring (Skew spring) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 118 1 2 3 4 1 2 3 4 C D F A B E 5 5 5 Remove the two screws. Silicone adhesive GEM1037 Silicone adhesive GEM1037 Pickup Assy-S Note: The screws are secured with the silicone adhesive. Make sure to apply the silicone adhesive after reattaching the screws. Leaf spring Joint spring Joint 03 : Conductive surface Hook Hook Arrangement of the flexible cable for the spindle motor : Conductive surface Arrangement of the flexible cable for the stepping motor Front side Front side Bottom view Bottom view www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 119 5 6 7 8 5 6 7 8 C D F A B E Front Side Note: Be sure to move the Pickup Assy-S to the innermost perimeter. : Conductive surface Arrangement of the flexible cable (use a 24P flexible cable: VDA2135) for the pickup 2 2 1 3 7 Attach the flexible cable of the pickup to the connector. 1 Fold the flexible cable inward at the position of the reference line. 3 Fold the flexible cable of the pickup with the backing inward. 7 Pass the flexible cable below the hook, and fold it back. 8 Fold the flexible cable back at the hook. 4 Pass the flexible cable through the hook not allowing any slack. 6 Hook the part folded in Step 1 to the hook. 5 Fold the flexible cable as indicated in the photo. Hook Bottom view 5 6 Make sure there is no slack in the cable Reference line Reference line Backing 97mm ± 2mm Reference line Hook Pass the cable below the hook Hook 8 Hook Make sure that the cable does not have any slack Make sure that the cable is loose 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 120 1 2 3 4 1 2 3 4 C D F A B E 7.7 PIN FUNCTION OF THE PCB ASSY No. I/O Pin Name Pin Function No. I/O Pin Name Pin Function 1 − GND GND 16 I LETTER 0 V: OFF, 3.3 V: ON 2 I Cr V.ENCout Cr 17 I SQEEZE 0 V: OFF, 3.3 V: ON 3 − GND GND 18 I VSEL2 VIDEO OUT select 4 I Cb V.ENCout Cb 19 I VSEL1 Monitor OUT select 5 − GND GND 20 I OSD_DATA Data signal for OSD 6 I Y V.ENCout Y 21 I OSD_CLK Clock signal for OSD 7 − GND GND 22 I OSD_CS Chip select signal for OSD 8 I S_Y V.ENCout S-Y 23 I OSD_RST Reset signal for OSD 9 − GND GND 24 O SEL_TV NTSC/PAL/AUTO select 10 I S_C V.ENCout S-C 25 O Vin_ST EXT Video sync signal 11 − GND GND 26 I VSEL3 VIDEO OUT mute select 12 I Cv V.ENCout Composite 27 I V+12 +12 V 13 − GND GND 28 I V+6E EVER+6 V 14 I P/XI 0 V:INTER 3.3 V:PROGRE 29 I V+6E EVER+6 V 15 I V_OFF Video Driver mute signal No. Pin Name Low (0V) Hi (+3.3V) 19 VSEL1 Video_out outputs DVD video signal Video-out outputs Ext_In Video signal 18 VSEL2 Monitor-out outputs DVD video signal Monitor-out outputs Ext_In Video signal 26 VSEL3 Video-out can be output (mute off) Video-out is not output. (mute on) No. I/O Pin Name Pin Function No. I/O Pin Name Pin Function 1 I XAMUTE 0 V: ON, 3.3 V: OFF 13 I MC A-DAC mode control clock 2 I ASEL 0 V: DVD, 3.3 V: EXT 14 − GND GNDD 3 I LRCK A-DAC LR latch 15 I MD A-DAC mode control data 4 − GND GNDD 16 − GND GNDD 5 I DATA A-DAC audio digital data 17 I DOUT D.Audio :0.5 Vp-p 6 − GND GNDD 18 I/O SDA1 Data signal for EEPROM 7 I BCK A-DAC bit clock 19 I SCL1 Clock signal for EEPROM 8 − GND GNDD 20 I WP EEPROM Write-Protection 9 I PCMCLK A-DAC system clock 21 I V+3D +3.3 V 10 − GND GNDD 22 I V+3D +3.3 V 11 I ML A-DAC mode cont latch 23 I V+12 +12 V 12 − GND GNDD 24 I V+12 +12 V No. Pin Name Low (0V) Hi (+3.3V) 2 ASEL Audio_out outputs DVD Audio signal Audio-out outputs Ext_In Audio signal. 1 XAMUTE Audio-out is not output. (mute on) Audio-out can be output. (mute off) (1) CN7001 (VKN1433): VJKB Assy → CN901 (VKN1433): DVDM Assy (2) CN8001 (VKN1814): AJKB Assy → CN551 (VKN1510): DVDM Assy Internal Connection • The status of video-switch port • The status of audio-switch port www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 121 5 6 7 8 5 6 7 8 C D F A B E (3) CN8701 (VKN1814): AJKB Assy → CN1503 (VKN1510): DVDM Assy (5) CN9001 (VKN1284): KEYB Assy → CN1504 (VKN1510): DVDM Assy (4) CN9701 (AKM1283): USBB Assy → CN1201 (AKM1283): DVDM Assy (6) CN9002 (CKS2977): KEYB Assy → CN9501 (CKS2977): PWSB Assy (7) CN9501 (CKS2977): PWSB Assy → CN9002 (CKS2977): KEYB Assy No. I/O Pin Name Pin Function No. I/O Pin Name Pin Function 1 I V+3E EVER+3.3 V 13 I SEL_RS H: D-SUB 15 pin, L: D-SUB 9 pin 2 I RTC_CS Chip select signal for RTC 14 O POWER_IN POWER ON: +5 V keep 0.1 sec 3 I RTC_CLK Clock signal for RTC 15 O JAMMAD JAMMA (L: 0 V, H: +3.3 V) 4 I/O RTC_DATA Data signal for RTC 16 O JAMMAC JAMMA (L: 0 V, H: +3.3 V) 5 I STOP_ST Stop flag singnal 17 O JAMMAB JAMMA (L: 0 V, H: +3.3 V) 6 − GND GNDD 18 O JAMMAA JAMMA (L: 0 V, H: +3.3 V) 7 O SYNC_IN Ext-sync (Black burst) 19 O JAMMAY JAMMA (L: 0 V, H: +3.3 V) 8 − GND GNDD 20 O JAMMAX JAMMA (L: 0 V, H: +3.3 V) 9 I DTR DTR (L: 0 V, H: +3.3 V) 21 O JAMMAZ JAMMA (L: 0 V, H: +3.3 V) 10 O RXD RXD (L: 0 V, H: +3.3 V) 22 O JAMMAE JAMMA (L: 0 V, H: +3.3 V) 11 O CTS CTS (L: 0 V, H: +3.3 V) 23 I V+5D +5 V 12 I TXD TXD (L: 0 V, H: +3.3 V) 24 I V+5D +5 V No. I/O Pin Name Pin Function No. I/O Pin Name Pin Function 1 − GND GNDD 7 I +5 V_U2 +5 V for USB port2 2 I V+3D +3.3 V 8 I +5 V_U2 +5 V for USB port2 3 I/O DM2 D- signal for USB port2 9 I +5 V_U1 +5 V for USB port1 4 I/O DP2 D+ signal for USB port2 10 I +5 V_U1 +5 V for USB port1 5 I/O DM1 D- signal for USB port1 11 − GND GNDD 6 I/O DP1 D+ signal for USB port1 12 − GND GNDD No. I/O Pin Name Pin Function No. I/O Pin Name Pin Function 1 I SEL_A_LED Audio select Indication 13 − GND GNDD 2 O KEY_IN1 Key matrix signal IN1 14 I KEY_OUT3 Key matrix signal OUT3 3 I SEL_V_LED Video select Indication 15 − GND GNDD 4 O KEY_IN2 Key matrix signal IN2 16 I KEY_OUT4 Key matrix signal OUT4 5 I SEL_M_LED Monitor select Indication 17 − GND GNDD 6 O KEY_IN3 Key matrix signal IN3 18 I KEY_OUT5 Key matrix signal OUT5 7 O IR Remote control signal 19 I PLAY_LED Play Indication 8 O KEY_IN4 Key matrix signal IN4 20 I V+5E EVER +5 V 9 I V+3E +3.3 V 21 I KEYLOCK_LED Keylock Indication 10 I KEY_OUT1 Key matrix signal OUT1 22 I POWER_LED L(0 V): stand by LED, 11 − GND GNDD 23 I V+5D +5 V 12 I KEY_OUT2 Key matrix signal OUT2 24 O POWER_SW Power SW signal No. I/O Pin Name Pin Function No. I/O Pin Name Pin Function 1 − GND GNDD 3 O POWER_LED L (0 V): Standby LED, H (3.3 V): Power ON LED 2 I POWER_SW Power SW signal 4 O V+5E EVER +5 V No. I/O Pin Name Pin Function No. I/O Pin Name Pin Function 1 − GND GNDD 3 I POWER_LED L (0 V): Standby LED, H (3.3 V): Power ON LED 2 O POWER_SW Power SW signal 4 I V+5E EVER +5 V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 122 1 2 3 4 1 2 3 4 C D F A B E (1) JA7501 (DKN1267): VJKB Assy → Video output products (2) JA7502 (VKB1122): VJKB Assy → Composite Video Monitor (3) JA7503 (DKN1267): VJKB Assy → Composite Video Monitor (4) CN7504 (AKP7179): VJKB Assy → S Video Monitor (5) JA7505 (DKN1268): VJKB Assy → Conponent Video Monitor (6) JA8503 (PKB1034): AJKB Assy → Audio output products (7) JA8504 (PKB1034): AJKB Assy → Audio input products (8) JA8505 (VKX1013): AJKB Assy → Digital Audio input products External Connection No. I/O Pin Name Pin Function No. I/O Pin Name Pin Function 1 I Ext In Video Composite Video in: 1 Vp-p 2 − GND GNDA No. I/O Pin Name Pin Function No. I/O Pin Name Pin Function 1 O Monitor Composite Video out: 1 Vp-p 2 − GND GNDA No. I/O Pin Name Pin Function No. I/O Pin Name Pin Function 1 O CVBS Composite Video out:1 Vp-p 2 − GND GNDA No. I/O Pin Name Pin Function No. I/O Pin Name Pin Function 1 − GND GNDA 4 O S-C S Video C out: 0.286 Vp-p, setup: 0.265 Vp-p 2 − GND GNDA 5 − Shield GND GNDA 3 O S-Y S Video Y out: 1 Vp-p No. I/O Pin Name Pin Function No. I/O Pin Name Pin Function 1 O Y Component Video Y out: 1 Vp-p 4 − GND GNDA 2 O Cb Component Video Cb out: 0.7 Vp-p setup: 0.645 Vp-p 5 − GND GNDA 3 O Cr Component Video Cr out: 0.7 Vp-p setup: 0.645 Vp-p 6 − GND GNDA No. I/O Pin Name Pin Function No. I/O Pin Name Pin Function 1 I Ext In Audio Rch Audio in Rch: 2 Vrms 3 I Ext In Audio Lch Audio in Lch:2 Vrms 2 − GND GNDA 4 − GND GNDA No. I/O Pin Name Pin Function No. I/O Pin Name Pin Function 1 O Audio out Rch Audio out Rch: 2 Vrms 3 O Audio out Lch Audio in Lch: 2 Vrms 2 − GND GNDA 4 − GND GNDA No. I/O Pin Name Pin Function No. I/O Pin Name Pin Function 3 O D-OUT Optical Digital Audio output (Optical) 5 − GND GNDD 4 O D-OUT Coaxial Digital Audio output (Coaxial) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 123 5 6 7 8 5 6 7 8 C D F A B E (9) JA8701 (DKN1400): AJKB Assy → Black Burst signal generator (10) CN8702 (DKN1435): AJKB Assy → Controller, Computer (RS-232C) (11) CN8703 (AKP1213): AJKB Assy → Computer (RS-232C) (12) JA9702 (DKN1417): USBB Assy → USB Mouse / USB Memory No. I/O Pin Name Pin Function No. I/O Pin Name Pin Function 1 I Ext_sync IN1 Ext-sync (Black burst) 3 I Ext_sync IN2 Ext-sync (Black burst) 2 − GND GNDD 4 − GND GNDD No. I/O Pin Name Pin Function No. I/O Pin Name Pin Function 1 − GND GNDD 9 I SW4 JAMMA KEY signal 4 2 O TXD TXD output (TIA/EIA-232E) 10 I SW5 JAMMA KEY signal 5 3 I RXD RXD input (TIA/EIA-232E) 11 I SW6 JAMMA KEY signal 6 4 O DTR DTR output (TIA/EIA-232E) 12 I SW7 JAMMA KEY signal 7 5 I POWER_IN Short time +5 V: POWER ON 13 I SW8 JAMMA KEY signal 8 6 I SW1 JAMMA KEY signal 1 14 I D.LOAD CTS input (TIA/EIA-232E) 7 I SW2 JAMMA KEY signal 2 15 O STOP_ST Stop flag signal 8 I SW3 JAMMA KEY signal 3 No. I/O Pin Name Pin Function No. I/O Pin Name Pin Function 1 − NC No use 6 − NC No use 2 I RXD RXD input (TIA/EIA-232E) 7 O RTS CTS Loop back output 3 O TXD TXD output (TIA/EIA-232E) 8 I CTS CTS input (TIA/EIA-232E) 4 O DTR DTR output (TIA/EIA-232E) 9 − NC No use 5 − GND GNDD No. I/O Pin Name Pin Function No. I/O Pin Name Pin Function 1 I V_USB (U) +5 V for USB port 1 5 I V_USB (D) +5 V for USB port 2 2 I/O D- (U) D- signal for USB port 1 6 I/O D- (D) D- signal for USB port 2 3 I/O D+ (U) D+ signal for USB port 1 7 I/O D+ (D) D+ signal for USB port 2 4 − GND (U) GNDD for USB port 1 8 − GND (D) GNDD for USB port 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 124 1 2 3 4 1 2 3 4 C D F A B E Internal Connection and Pin Function of the DVDM Assy (DWS1364) IC741 16M SDRAM 16MEBY D8-D15 A0-A15 IC701 PE5286B EBY CHIP IC751 M65776B AV1 PD0-PD7 BCKA0 ADO0 IRCKA0 DOUT0 CSYNC IC781 SDRAM CDDATA DATA1 33MEBY 36MEBY AIN ROMXA DSPRF Q602 IC101 LA9704WS1 RFIC PH TE FE BH IC201 LC78652W SERVO DSP 16MDSP FDO TDO LDDRV ST1 ST2 TRKG DRV TRKG RTN FOCS DRV FOCS RTN A C B1 B2 B3 B4 LD(650) LD(780) H3- H3+ H2- H2+ H1- H1+ A1 A2 A3 SLDPOS ST2- ST2+ ST1+ ST1- LOAD- LOAD+ V+3D SW2 GNDD V+5V EV6V(B) EV6V(A) SW+5V U_CON GND GND P_CON GND SW+12V GND EV+4V GND SW+3.3 IC351 M56788AFP FTS DRV IC202 BA6664FM SPDL DRV IC481 CY22389 CLK IC 13.824MHz 27MAV1 36MEBY 33MEBY 16MEBY 16MDSP 22/24AV1 22/24M 22/24HDM IC601 PD6345A FR IC1201 UHC124BF USB CONT IC1501 PE5557A SUB CPU IC1201,2,4 UPD16876 P.CONT IC IC1505 PST3228 RESET IC IC786 BUF IC1101 3V 5V BUF IC603 FLASH IC602 4M S-RAM IC901 CD0040AF PRO- U IC902 16M SDRAM IC903 ADV7320KSTZ VIDEO ENCODER IC1001 PD0280B T-REX IC1051 SII9190CTG64 HDMI Trs IC1301 LM1881M SYNC SEP. D0-D15 A1-A11 27MAV1 22/24AV1 PD D0- D15 A1- A20 D8-D15 A10-A18 D0-D15 A0-A22 D8-D15 A3 SPDO X601 16.5MHz D8- D15 A0- A11 DP1,2,3 MP1,2,3 X1501 5MHz +5V 3 RST LCD VR DB0-7 KeyIN1-4 KeyOUT1-5 LED +5V DP1,2 MP1,2 +5V DP3 MP3 PB0-PB9 PC0- PC9 PPD0-PPD7 PB0- PB9 PC0-PC9 PPD0-PPD7 SDA1 SCL1 SDA1 SCL1 SDA1 SCL1 SDA1 SCL1 SDA1 SCL1 22/24HDM QB2-QB9 QG2-QG9 QR2-QR9 Td0+,- Td1+,- Td2+,- TCLK+,- V Cr S_C S_Y Y Cb OSD_DATA,OSD_RST OSD_CS,OSD_CLK XDFSI LRCKA XDFSCK XCSDF0 BCKA1 AO0 DOUT0 FRTXD FRRXD FRDTR FRCTS REL_CS REL_DATA REL_CLK CSYNC JAMMER A-Z IR REL_CS REL_DATA REL_CLK LT1 XRD SSCK SO SI OSD_DATA,OSD_RST OSD_CS,OSD_CLK - + - + • Block Diagram • Servo system control • System control • MPEG data decode • Analog video output and Digial audio output • DVI output control • USB signal control Uses www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 125 5 6 7 8 5 6 7 8 C D F A B E (1) CN401 (AKM1284) For power supply input (2) CN901(VKN1433) For VJKB Assy connection (video) (3) CN103 (AKM1276) For LOAB Assy connection (4) CN114 (VKN1409) For carriage motor Pin (Signal) Function of the DVDM Assy (DWS1364) No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 1 EV6V(B) − +6 V power supply 8 GND − Ground 2 EV6V(A) − +6 V power supply 9 SW+12V − +12 V power supply 3 SW+5V − USB port power supply 10 GND − Ground 4 U_CON − USB power control signal 11 EV+4V − +4 V power supply 5 GND − Ground 12 GND − Ground 6 GND − Ground 13 SW+3.3 − +3.3 V power supply 7 P_CON I Power control signal No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 1 EV+6 − +6 V power supply 16 P/XI O Progressive / Interlace switch 2 EV+6 − +6 V power supply 17 GND − Ground 3 V+12 − +12 V power supply 18 CV O Composite output signal 4 VSEL3 O Mute select signal of video signal 19 GND − Ground 5 EXT_VIN I SYNC input of video signal 20 S_C O Video encoder output 6 SEL_TV O NTSC/PAL/AUTO switching signal 21 GND − Ground 7 OSD_RST O Reset signal for OSD 22 S_Y O Video encoder output 8 OSD_CS O OSD select signal 23 GND − Ground 9 OSD_CLK O Clock signal for OSD 24 Y O Video encoder output 10 OSD_DATA O OSD data 25 GND O Ground 11 VSEL1 O Monitor output select signal 26 Cb O Video encoder output 12 VSEL2 O Video output select signal 27 GND − Ground 13 SQUEEZE O C_DC switch 28 Cr O Video encoder output 14 LETTER O C_DC switch 29 GND − Ground 15 V_OFF O Video driver mute signal No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 1 LOAD- O Loading non-inverting output 4 SW2 I Tray closing position input 2 LOAD+ O Loading inverting output 5 SW1(GNDS) − Ground 3 V+3D − +3.3 V power supply No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 1 ST1- − Motor control 1 (-) 3 ST2+ − Motor control 2 (+) 2 ST1+ − Motor control 1 (+) 4 ST2- − Motor control 2 (-) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 126 1 2 3 4 1 2 3 4 C D F A B E (6) CN115 (VKN1416) For spindle motor (5) CN111 (VKN2045) For pickup connection (7) CN1501 (AKM1277) For LCD module connection (8) CN1502 (AKM1281) For LCD module connection No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 1 GNDD − Ground 13 VRCOM O Monitoring voltage 2 VCC − +5 V power supply 14 VR780 O − − − − Monitor diode VR for CD 3 B3 I PU-B3 input 15 GNDD Ground 4 B4 I PU-B4 input 16 LD(780) O 780 nm LD drive signal 5 780/650 I LD switching control signal 17 PD Monitoring voltage 6 C I Beam C input 18 LD(650) O 650 nm LD drive signal 7 OEICG O Gain control signal 19 GNDD Ground 8 A I Beam A input 20 VSHF Ground connection 9 B1 I PU-B1 input 21 TRKGDRV O Tracking inverting output 10 B2 I PU-B2 input 22 TRKGRTN O Tracking non-inverting output 11 VREF(2.5V) O Reference power supply 23 FOCSDRV O Focus non-inverting output 12 VR650 O Monitor diode VR for DVD 24 FOCSRTN O Focus inverting output No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 1 A3 O Monitor output 7 H2- I Holl sensor input (-) 2 A2 O Monitor output 8 H3+ I Holl sensor input (+) 3 A1 O Monitor output 9 H3- I Holl sensor input (-) 4 H1+ I Holl sensor input (+) 10 GNDM − Ground 5 H1- I Holl sensor input (-) 11 V+5S − +5 V power supply 6 H2+ I Holl sensor input (+) 12 INSIDE I Slider position input No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 1 VSS − Ground 4 RS O Code and data switching signal 2 VDD − +5 V power supply 5 R/XW O Read/write signal 3 VO − LCD display density adjustment 6 E O Enable signal No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 1 DB0 I/O LCD data bus 6 DB5 I/O LCD data bus 2 DB1 I/O LCD data bus 7 DB6 I/O LCD data bus 3 DB2 I/O LCD data bus 8 DB7 I/O LCD data bus 4 DB3 I/O LCD data bus 9 BLA − Backlight anode 5 DB4 I/O LCD data bus 10 BLK − Backlight cathode www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 127 5 6 7 8 5 6 7 8 C D F A B E (9) CN1201 (AKM1283) For USBB Assy connection (11) CN1503 (VKN1510) For AJKB Assy connection (JAMMAER) (10) CN1202 (DKN1416) For rear side USB (12) CN1504 (VKN1510) For KEYB Assy connection No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 1 GNDD − Ground 7 +5V_U2 − CH2 +5 V supply line 2 V+3A − +3 V power supply 8 +5V_U2 − CH2 +5 V supply line 3 DM2 I/O CH2 communication signal 9 +5V_U1 − CH1 +5 V supply line 4 DP2 I/O CH2 communication signal 10 +5V_U1 − CH1 +5 V supply line 5 DM1 I/O CH1 communication signal 11 GNDD − Ground 6 DP1 I/O CH1 communication signal 12 GNDD − Ground No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 1 V+5USB − CH3 +5 V supply line 3 DP3 I/O CH3 communication signal 2 MP3 I/O CH3 communication signal 4 GNDD − Ground No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 1 V+3E − Ever 3 V power supply 13 SEL_RS O RS-232C output connector select 2 RTC_CS O Select signal of real time clock 14 POWER_IN I Power ON signal input 3 RTC_CLK O Clock signal of real time clock 15 JAMMAD I JAMMAER signal input 4 RTC_DATA I/O Data signal of real time clock 16 JAMMAC I JAMMAER signal input 5 STOP_ST O Stop flag input 17 JAMMAB I JAMMAER signal input 6 GNDD − Ground 18 JAMMAA I JAMMAER signal input 7 SYNC_IN I External synch. input 19 JAMMAY I JAMMAER signal input 8 GNDD − Ground 20 JAMMAX I JAMMAER signal input 9 DTR O RS-232C signal 21 JAMMAZ I JAMMAER signal input 10 RXD I RS-232C signal 22 JAMMAE I JAMMAER signal input 11 CTS I RS-232C signal 23 V+5V − +5 V power supply 12 TXD O RS-232C signal 24 V+5V − +5 V power supply No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 1 PWR_KEY I Power ON key input 13 KEY_OUT2 O Key matrix output 2 2 V+5V − +5 V power supply 14 GND − Ground 3 PWR_LED O Power ON LED lights output 15 KEY_OUT1 O Key matrix output 1 4 KEYLOCK_LED O Key lock LED lights output 16 V+3E − Ever 3 V power supply 5 V+5E − Ever 5 V power supply 17 KEY_IN4 I Key matrix input 4 6 PLAY_LED O Play LED lights output 18 IR I Remote control signal input 7 KEY_OUT5 O Key matrix output 5 19 KEY_IN3 I Key matrix input 3 8 GND − Ground 20 SEL_M_LED O Monitor select LED output 9 KEY_OUT4 O Key matrix output 4 21 KEY_IN2 I Key matrix input 2 10 GND − Ground 22 SEL_V_LED O Video select LED output 11 KEY_OUT3 O Key matrix output 3 23 KEY_IN1 I Key matrix input 1 12 GND − Ground 24 SEL_A_LED O Audio select LED output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 128 1 2 3 4 1 2 3 4 C D F A B E (13) CN551 (VKN1510) For AJKB Assy connection (audio) (14) CN1001 (DKN1405) For DVI-D output No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 1 XAMUTE O Audio mute signal 13 MC O Audio DAC mode clock signal 2 ASEL O Audio select signal 14 GND − Ground 3 LRCK O L/R clock signal 15 MD O Audio DAC mode data signal 4 GND − Ground 16 GND − Ground 5 DATA O Audio data signal 17 DOUT O Digital audio output signal 6 GND − Ground 18 SDA1 I/O I2C bus signal 7 BCK O Audio bit clock signal 19 SCL1 I/O I2C bus clock 8 GND − Ground 20 WP O EEPROM write protect signal 9 PCMCLK O Audio system clock signal 21 V+3D − +3 V power supply 10 GND − Ground 22 V+3D − +3 V power supply 11 ML O Audio DAC mode latch signal 23 V+12 − +12 V power supply 12 GND − Ground 24 V+12 − +12 V power supply No. Pin Name I/O Pin Function No. Pin Name I/O Pin Function 1 Td2- O TMDS data 2 - 16 HOT_PULG _DETECT I Live-line desorption signal 2 Td2+ O TMDS data 2 + 17 Td0- O TMDS data 0- 3 Td2/4Shield − Ground 18 Td0+ O TMDS data 0+ 4 NC − Not used 19 Td0/5Shield − Ground 5 NC − Not used 20 NC − Not used 6 DDCCLK I/O Communication clock signal 21 NC − Not used 7 DDCDATA I/O Communication data signal 22 TCLKShield − Ground 8 NC − Not used 23 TCLK+ O TMDS clock + 9 Td1- O TMDS data 1- 24 TCLK- O TMDS clock - 10 Td1+ O TMDS data 1+ 25 NC − Not used 11 Td1/3Shield − Ground 26 NC − Not used 12 NC − Not used 27 NC − Not used 13 NC − Not used 28 NC − Not used 14 +5V − +5 V power supply 29 NC − Not used 15 GND − Ground www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 129 5 6 7 8 5 6 7 8 C D F A B E ¶ Clock generator input frequency Sampling Input of Clock Generator 44 x 48 H 44.1 KHz L 48 KHz ¶ Interlace/progressive Component Output P/XI H Progressive (AV-1 output) L Interlace (IC801 output) ¶ RS-232C input D-sub connector Selection SEL_RS H Pin 15 L Pin 9 ¶ LD drive output LD Drive Selection 780/650 H 650 LD drive L 780 LD drive ¶ OEIC gain up ¶ C_DC output OEIC Gain OEICG H 6 dB up L Normal ¶ Monitor output switch Monitor Output VSEL1 H External monitor L ¶ Composite output switch Composite Output VSEL2 H External mode L ¶ Audio output switch Audio Output ASEL H External mode L ¶ External sync. switch External Sync. SY_SEL H External mode L ¶ Power supply control Power Supply Except Ever (except USB power supply) P_CON H ON L OFF ¶ USB power supply control USB Power Supply U_CON H ON L OFF ¶ Disc type switch Disc Type SEL_TV 0 V PAL 3 V AUTO 1.25 V NTSC ¶ LCD mode switch Control Mode Selection RS H Data input L Instruction code input ¶ LCD read/write Read/write Switch R/XW H Read mode L Write mode The selecting signal logic of the principal switch section SQUEEZE LETTER C_DC Output L L V (0 V)_In 4 : 3 mode L H M (2.2 V)_In letter box mode H L H (5 V)_In squeeze mode H H Inhibit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 130 1 2 3 4 1 2 3 4 C D F A B E 7.8 PARTS 7.8.1 IC LA9704WS1, PD6345A, PE5286B, M65776BFP, PD0280B, CD0040AF, SII9190CTG64, UHC124BF, PE5557B, LC78652W • RF IC Pin Function LA9704WS1 (DVDM ASSY: IC101) ¥ The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. List of IC No. Pin Name I/O Pin Functions 1 RFN I RF- input 2 VCC − Power supply (for DPD) 3 RFP I RF+ input 4 PD1 I Pickup signal input 5 PD2 I Pickup signal input 6 PD3 I Pickup signal input 7 PD4 I Pickup signal input 8 GND − Ground (for DPD) 9 PIN1 I Pickup signal input 10 PIN2 I Pickup signal input 11 TIN1 I Pickup signal input 12 TIN2 I Pickup signal input 13 FIN1 I Pickup signal input 14 FIN2 I Pickup signal input 15 LDD1 O APC 1 output 16 LDS1 I APC 1 monitor input 17 LDD2 O APC 2 output 18 LDS2 I APC 2 monitor input 19 GND − Ground (Servo system) 20 LDTH I APC 1 threshold switch 21 LDON I Laser ON terminal 22 LDSEL I APC change terminal 23 AGOF I RF AGC off terminal 24 BCA I PH electric discharge coefficient change 25 GU I RF servo signal gain up 26 DVD/CD I RF- equalizer bandwidth switch 27 DPD/TE I TE output switch 28 PP/TE I TS output switch 29 VCC − Power supply (Servo system) 30 EQSCT I EQ switch for CD 31 WO/BH I BHMIX switch 32 RFSEL I RF amplifier gain switch 33 LDDM I LDD monitor 34 TH I Tracking hold 35 XHTR I Tracking, Bottom bandwidth switch 36 SGC I Servo gain control 37 FEBL I FE balance adjustment 38 TEBL I TE balance adjustment 39 CP I Connection terminal of a resistor and a capacitor for charge pump gain setting 40 THC I Capacitor connection terminal for tracking hold 41 FE O Focus error output 42 TE O Tracking error output 43 PPN I Resistor connection terminal for push-pull gain setting 44 PP O Push-pull output 45 TS O Tracking cross signal output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 131 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Functions 46 TESI I TES comparator input 47 TES O TES output 48 DEF O Deffect detection 49 BHMIX O PH, BH, wobble switching output 50 BHACI I BH–AC input 51 BH O RF bottom detection output 52 PH O RF peak detection output 53 WOC I Capacitor connection terminal for DC cut 54 ISET I Resistor connection terminal for BPF center frequency setting 55 BCAI I Rersistor connection terminal for peak hold detection fixed number setting 56 PHC I PH detection capacitor connection terminal for RF-AGC 57 LPC I Capacitor connection terminal for RF DC servo 58 DEFC I Capacitor connection terminal for deffect detection 59 GND − Ground (for RF) 60 RFO O RF output 61 REF O Reference output 62 EQC1 I Equalizer setting terminal for CD 63 VCC − Power supply (RF system) 64 EQC2 I Equalizer setting terminal for CD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 132 1 2 3 4 1 2 3 4 C D F A B E • FR Pin Function PD6345A (DVDM ASSY: IC601) No. Pin Name I/O Pin Functions 1 D16 I/O Data bus 2 D17 I/O Data bus 3 D18 I/O Data bus 4 D19 I/O Data bus 5 D20 I/O Data bus 6 D21 I/O Data bus 7 D22 I/O Data bus 8 D23 I/O Data bus 9 D24 I/O Data bus 10 D25 I/O Data bus 11 D26 I/O Data bus 12 D27 I/O Data bus 13 D28 I/O Data bus 14 D29 I/O Data bus 15 D30 I/O Data bus 16 D31 I/O Data bus 17 GND − Ground 18 A00 O Address bus 19 A01 O Address bus 20 A02 O Address bus 21 A03 O Address bus 22 A04 O Address bus 23 A05 O Address bus 24 A06 O Address bus 25 A07 O Address bus 26 V3R3 − Power supply (+ 3.3 V) 27 V2R2 − Power supply (+ 2.5 V) 28 A08 O Address bus 29 A09 O Address bus 30 A10 O Address bus 31 A11 O Address bus 32 A12 O Address bus 33 A13 O Address bus 34 A14 O Address bus 35 A15 O Address bus 36 GND − Ground 37 A16 O Address bus 38 A17 O Address bus 39 A18 O Address bus 40 A19 O Address bus 41 A20 O Address bus 42 A21 O Address bus 43 A22 O Address bus 44 WBL O For Wobble detection corresponding to DVD R/W (main) 45 GND − Ground 46 V3R3 − Power supply (+ 3.3 V) 47 STEP1 D/A For stepping motor control 48 STEP2 D/A For stepping motor control www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 133 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Functions 49 LODRV D/A Loading, motor drive 50 SEL_TV A/D NTSC/PAL/AUTO switching signal 51 AN1 A/D Not used 52 AN2 A/D Not used 53 XOEM A/D OEM model protection input 54 LDREAD A/D Input for LD current value indication 55 AN5 A/D Not used 56 AN6 A/D Not used 57 LODPOS A/D Loading clamp position SW input 58 AVCC − Power supply (+ 3.3 V) 59 AVRH − Power supply (+ 3.3 V) 60 AGND − Analog ground 61 GND − Ground 62 SLDPOS I SW input of slider inside position 63 GSW O Gain up at ACBR (at ACBR: H, others: L) 64 EXT_VIN I VSYNC input of the external input video 65 GU O RF servo signal gain up output 66 XMON O Mute of DRV (spindle motor ON: H) 67 XDRVMUT O FTS driver mute output 68 LT1_3V O Communication response to the sub CPU 69 XRDY_3V I Communication request from the sub CPU 70 V3R3 − Power supply (+ 3.3 V) 71 V2R5 − Power supply (+ 2.5 V) 72 DSPCUR I Actuator over-current detection input 73 XCBUSY I Busy signal of command process 74 XDSPRST I Servo DSP reset 75 BCA O BCA read signal (at BCA read: H) 76 HDMIINT I Interrupt input of HDMI CONT 77 PPCNT O Switch of TZC in WBL traversal (at PP: H) 78 XDFINH I/O Defect signal control 79 DPD/TE O H=1 beam, L=3 beams 80 GND − Ground 81 DVD/XCD O RF EQ switching signal at DVD/CD 82 AGOFF O H": Turn off AGC of RFI 83 650X780 O 780 nm/650 nm switching signal 84 LD_ON O ON/OFF control signal of laser diode 85 WP O EEPROM write protect 86 RFSEL O RF amplifier gain switching output 87 XCD2X O For VCD double speed playback 88 OEICG O H": Gain of OEIC up to 6 dB 89 SEL_ADO O AUDIO output switch 90 U_CON O USB Power supply control signal 91 V_SEL1 O MONITOR output switch 92 V_SEL2 O VIDEO output switch 93 SDA1 I/O I2C control lines 94 SDA0 − Not used 95 SCL1 I/O I2C control lines 96 SCL0 − Not used 97 CTS_3V I RS-232C clear to send input 98 DTR O RS-232C data terminal ready output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 134 1 2 3 4 1 2 3 4 C D F A B E No. Pin Name I/O Pin Functions 99 LOAD_ON O FLASH MEMORY write protect release 100 GND − Ground 101 XPROURST O VIDEO reset signal 102 VOFF O VIDEO amplifier mute signal 103 HDMIRST O Reset signal of HDMI CONT 104 SY_SEL O External sync. switch 105 44X48 O DAC and DASP supply clock fs 44/48 selection 106 CSYNC_FR I External sync. input detect 107 SEL_RS O RS232C port switching signal 108 P/XI O Progressive/Interrace switching signal 109 V3R3 − Power supply (+ 3.3 V) 110 V2R5 − Power supply (+ 2.5 V) 111 XINT0 I AV1 interrupt input 112 XINT1 I AV1 interrupt input 113 XIRQ10 I EBY Chip interrupt #0 114 XIRQ11 I EBY Chip interrupt #1 115 XABUSY I Busy signal of DSP process operation "L" 116 THLD I Playback speed monitoring signal 117 SBSY I Sync. signal of subcode block 118 USBINT I USB CONT interrupt input 119 SSI I Serial bus data input 120 SSO_3V O Serial bus data output 121 SSCK_3V I Serial bus clock input 122 RXD_3V I RS-232C reception 123 TXD_3V O RS-232C transmission 124 FILM O Repeat-first field flag output 125 OSD_CS O Select signal for OSD 126 OSD_DATA O Data for OSD 127 OSD_CLK O Clock for OSD 128 MD0 I GND fixed 129 MD1 I GND fixed 130 MD2 I GND fixed 131 GND − Ground 132 V2R5 − Power supply (+ 2.5 V) 133 GND − Ground 134 X1 − Clock connection 135 X0 − Clock connection 136 V3R3 − Power supply (+ 3.3 V) 137 RESET1 − Not used 138 STOP_ST O Operating state output of disc 139 XCSDF2 O Not used 140 XDREQ0 I DMA request input from the EBY CHIP 141 DACK0 O DMA response output to the EBY CHIP 142 PB2 − Not used 143 XDREQ1 I DMA request input from the AV-1 CHIP 144 XDACK1 O DMA response output to the AV-1 CHIP 145 EN_FLOW − Not used 146 DDC_ON O Communication enable signal of the HDMI CONT 147 XDFCS3 − Not used 148 GND − Ground www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 135 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Functions 149 XCSFLSH O Chip select output to Flash ROM 150 XCSAV1 O Chip select of the AV-1 CHIP 151 XCSEBY O Chip select of the EBY Chip 152 XCS3 O Chip select of the servo DSP 153 XCSSRAM O Chip select of the 4M SRAM 154 XCS5 − Not used 155 XCSUSB − Chip select of the USB CONT 156 XCS7 − Not used 157 V3R3 − Power supply (+ 3.3 V) 158 V2R5 − Power supply (+ 2.5 V) 159 NMIX − + 3.3 V fixed 160 HSTX − + 2.5 V fixed 161 HXRST I Reset from the sub CPU 162 XWAIT I Read/write completion of data Acknowledge signal input 163 XAMUTE O Last stage mute of 2 ch audio output 164 XMMUTE O Audio multi ch mute 165 XRD O Control signal (read) 166 XWRL O Control signal (write lower) 167 XWRH O Control signal (write upper) 168 GND − Ground 169 SYSCLK − Not used 170 DFRST0 O DAC reset (for front L/R) 171 DFRST1 O Not used 172 XCSDF0 O DAC (front) chip select or latch 173 P94 − Not used 174 P95 − Not used 175 P96 − Not used 176 TM_ENT − Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 136 1 2 3 4 1 2 3 4 C D F A B E • EBY-Chip IC Pin Function PE5286B (DVDM ASSY: IC701) No. Pin Name I/O Pin Function 1 GND − Ground 2 GND − Ground 3 VDD3.3 − Power supply (+ 3.3 V) 4 DMCK I System clock of the DVD/CD-ROM decoder 5 DMACKI I 33 MHz input 6 BUNRI I GND fixed 7 DSPA0 − Not used 8 DSPA1 − Not used 9 DSPA2 − Not used 10 XAWR − Not used 11 XASACK − Not used 12 ASREQ − Not used 13 SDATA7 O Data bus 7 for VIDEO_DMA channel 14 SDATA6 O Data bus 6 for VIDEO_DMA channel 15 VDD2.5 − Power supply (+ 2.5 V) 16 GND − Ground 17 GND − Ground 18 VDD2.5 − Power supply (+ 2.5 V) 19 SDATA5 O Data bus 5 for VIDEO_DMA channel 20 SDATA4 O Data bus 4 for VIDEO_DMA channel 21 SDATA3 O Data bus 3 for VIDEO_DMA channel 22 SDATA2 O Data bus 2 for VIDEO_DMA channel 23 SDATA1 O Data bus 1 for VIDEO_DMA channel 24 SDATA0 O Data bus 0 for VIDEO_DMA channel 25 XSACK O Transfer response pin to VIDEO_DMA channel 26 GND − Ground 27 VDD2.5 − Power supply (+ 2.5 V) 28 XWR O Strobe signal output for VIDEO_DMA channel 29 SREQ I Data transfer request pin from VIDEO_DMA channel 30 XAVTRM − Not used 31 XDFSCK O Clock output for data transmission 32 XDFSO O Data transmission pin 33 PA5 − Not used 34 PA4 − Not used 35 CDD0 − Not used 36 DIFOUT − Not used 37 CKE O Enable signal output of SDCLK 38 CSB O Chip select signal output for SDRAM 39 DD15 I/O Data bus 15 for DRAM 40 VDD3.3 − Power supply (+ 3.3 V) 41 GND − Ground 42 DD14 I/O Data bus 14 for DRAM 43 DD13 I/O Data bus 13 for DRAM 44 DD12 I/O Data bus 12 for DRAM 45 DD11 I/O Data bus 11 for DRAM 46 DD10 I/O Data bus 10 for DRAM 47 DD9 I/O Data bus 9 for DRAM 48 DD8 I/O Data bus 8 for DRAM 49 DD7 I/O Data bus 7 for DRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 137 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Function 50 VDD3.3 − Power supply (+ 3.3 V) 51 GND − Ground 52 GND − Not used 53 VDD2.5 − Power supply (+ 2.5 V) 54 VDD3.3 − Power supply (+ 3.3 V) 55 DD6 I/O Data bus 6 for DRAM 56 DD5 I/O Data bus 5 for DRAM 57 DD4 I/O Data bus 4 for DRAM 58 DD3 I/O Data bus 3 for DRAM 59 DD2 I/O Data bus 2 for DRAM 60 DD1 I/O Data bus 1 for DRAM 61 DD0 I/O Data bus 0 for DRAM 62 SDCLK O Operating clock output for SDRAM 63 GND − Ground 64 VDD2.5 − Power supply (+ 2.5 V) 65 XDWE O WE signal for DRAM 66 XDOE O OE signal for DRAM 67 XDCAS O CAS signal for DRAM 68 XCASH O Upper 8 bit CAS signal output of 16 bit DRAM 69 XDRAS O RAS signal for DRAM 70 DA13 − Not used 71 DA12 − Not used 72 DA11 O Address bus 11 for DRAM 73 GND − Ground 74 VDD2.5 − Power supply (+ 2.5 V) 75 DA10 O Address bus 10 for DRAM 76 DA9 O Address bus 9 for DRAM 77 DA8 O Address bus 8 for DRAM 78 VDD2.5 − Power supply (+ 2.5 V) 79 GND − Ground 80 DA7 O Address bus 7 for DRAM 81 DA6 O Address bus 6 for DRAM 82 DA5 O Address bus 5 for DRAM 83 DA4 O Address bus 4 for DRAM 84 VDD3.3 − Power supply (+ 3.3 V) 85 PDO3 − Not used 86 DA3 O Address bus 3 for DRAM 87 DA2 O Address bus 2 for DRAM 88 DA1 O Address bus 1 for DRAM 89 DA0 O Address bus 0 for DRAM 90 TCM1 I GND fixed 91 GND − Ground 92 VDD2.5 − Power supply (+ 2.5 V) 93 SDACK I DMA response signal input 94 XSDREQ O DMA request output 95 XSWAIT O Wait signal output 96 XSCL1 I Chip select input 97 XSRD I Read signal input 98 XSWR I Write signal input 99 SAD7 I/O Data bus D15 100 SAD6 I/O Data bus D14 101 SAD5 I/O Data bus D13 102 SAD4 I/O Data bus D12 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 138 1 2 3 4 1 2 3 4 C D F A B E No. Pin Name I/O Pin Function 103 VDD3.3 − Power supply (+ 3.3 V) 104 VDD2.5 − Power supply (+ 2.5 V) 105 GND − Ground 106 GND − Ground 107 VDD3.3 − Power supply (+ 3.3 V) 108 SAD3 I/O Data bus D11 109 SAD2 − Data bus D10 110 SAD1 − Data bus D9 111 SAD0 − Data bus D8 112 XIRQ10 O Interruption request output 113 XIRQ11 O Interruption request output 114 SA0 I Address bus A0 115 SA1 I Address bus A1 116 SA2 I Address bus A2 117 SA3 I Address bus A3 118 SA4 I Address bus A4 119 SA5 I Address bus A5 120 SA6 I Address bus A6 121 SA7 I Address bus A7 122 SA8 I Address bus A8 123 SA9 I/O Address bus A9 124 SA10 I/O Address bus A10 125 SA11 I/O Address bus A11 126 SA12 I/O Address bus A12 127 SA13 I/O Address bus A13 128 SA14 I/O Address bus A14 129 SA15 I/O Address bus A15 130 VDD2.5 − Power supply (+ 2.5 V) 131 GND − Ground 132 SA16 I/O Address bus A16 133 SA17 I/O GND fixed 134 SA18 I/O GND fixed 135 SA19 I/O GND fixed 136 FSX I FSX signal input from the CD decoder 137 EFLG I EFLG signal input from the CD decoder 138 NCO − Not used 139 LETTER O LETTER signal output 140 SQUEEZE O SQUEEZE signal output 141 FGPL I Spindle motor rotation pulse input 142 RERR O Control output for rough servo 143 PPWM O PWM output for phase servo 144 GND − Ground 145 VDD3.3 − Power supply (+ 3.3 V) 146 VPWM O 5-bit PWM output for velocity servo 147 FPWM O 7-bit PWM output for FG servo 148 TCM2 I GND fixed 149 VCOCLK I System clock of the spindle demodulator 150 GND − Ground 151 DUTY50 O Pulse output of duty 50 % 152 AFC O Output frequency error of VCOCLK and reference clock as a PWD pulse 153 APC O Output a PLL phase error as a PWD pulse 154 VDD3.3 − Power supply (+ 3.3 V) 155 GND − Ground www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 139 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Function 156 GND − Ground 157 VDD2.5 − Power supply (+ 2.5 V) 158 VDD3.3 − Power supply (+ 3.3 V) 159 ATC O Output a direct current error of a RF signal as a PWD pulse 160 ASC O Output frequency error of a sync period as a PWD pulse 161 XRESET I Reset input 162 T_DET − Not used 163 DEFECT I External defect input 164 VDD2.5 − Power supply (+ 2.5 V) 165 AVDD − Power supply apply for built-in A/D converter (+ 2.5 V) 166 AVDD − Power supply apply for built-in A/D converter (+ 2.5 V) 167 NC − GND fixed 168 VRT I Reference voltage input for built-in A/D converter 169 VRTS O VRT connection fixed 170 VRC O Center voltage output of the built-in A/D converter 171 NC O GND fixed 172 AIN I Analog RF signal input 173 VRBS O VRB connection fixed 174 VRB I Reference voltage input for built-in A/D converter 175 NC − GND fixed 176 AGND − Ground for built-in A/D converter 177 AGND − Ground for built-in A/D converter 178 GND − Ground 179 SBSO I Subcode data input of CD 180 SCOR I Subcode sync input of CD 181 WFCK I Frame clock input of CD 182 GND − Ground 183 VDD2.5 − Power supply (+ 2.5 V) 184 EXCK O Shift clock output for subcode data 185 CDDT I Audio data input from the CD decoder 186 CDLR I LRCK signal input from the CD decoder 187 CDBCK I Bit clock input from the CD decoder 188 C2FI I C2 error flag input from the CD decoder 189 CKCD I Audio I/F master clock (16.9 MHz) 190 PD5 O Digital pixel data 5 191 VDD2.5 − Power supply (+ 2.5 V) 192 BCK O Bit clock output to DAC 193 LRCK O LRCK signal output to DAC 194 ADATA0 O Serial data output to DAC 195 RWDIN I/O Mirror detecting signal input/output 196 BCA I/O Mirror detecting signal input/output 197 VREQEN − Not used 198 AREQEN − Not used 199 ASDATA7 − Not used 200 ASDATA6 − Not used 201 ASDATA5 − Not used 202 ASDATA4 − Not used 203 ASDATA3 − Not used 204 ASDATA2 − Not used 205 ASDATA1 − Not used 206 ASDATA0 − Not used 207 VDD3.3 − Power supply (+ 3.3 V) 208 VDD2.5 − Power supply (+ 2.5 V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 140 1 2 3 4 1 2 3 4 C D F A B E • AV-1 IC Pin Function M65776BFP (DVDM ASSY: IC751) No. Pin Name I/O Pin Function 1 GND − Ground 2 BCLK I Strobe signal of BD pin 3 BDEN I Ground fixed 4 BDREQ O Data request signal 5 BSECH I Ground fixed 6 D0 I/O Data bus 7 D1 I/O Data bus 8 D2 I/O Data bus 9 D3 I/O Data bus 10 D4 I/O Data bus 11 D5 I/O Data bus 12 VDD18 − Power supply (+ 1.8 V) 13 VDD33 − Power supply (+ 3.3 V) 14 D6 I/O Data bus 15 D7 I/O Data bus 16 D8 I/O Data bus 17 D9 I/O Ground 18 D10 I/O Data bus 19 D11 I/O Data bus 20 GND − Ground 21 D12 I/O Data bus 22 D13 I/O Data bus 23 D14 I/O Data bus 24 D15 I/O Data bus 25 A0 I Address bus 26 A1 I Address bus 27 VDD18 − Power supply (+ 1.8 V) 28 VDD33 − Power supply (+ 3.3 V) 29 A2 I Address bus 30 A3 I Address bus 31 A4 I Address bus 32 A5 I Address bus 33 A6 I Address bus 34 A7 I Address bus 35 GND − Ground 36 A8 I Address bus 37 A9 I Address bus 38 A10 I Address bus 39 A11 I Address bus 40 XCSAV1 I AV1 chip select 41 XRD I Control signal (read) 42 VDD18 − Power supply (+ 1.8 V) 43 VDD33 − Power supply (+ 3.3 V) 44 XWRH I Control signal (write upper) 45 XWRL I Control signal (write lower) 46 XWAIT TO Read/write completion of data Acknowledge signal input 47 XINT0 O Interruption request 0 48 XINT1 O Interruption request 1 49 XINT2 O Interruption request 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 141 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Function 50 GND − Ground 51 XDREQ 1 O DMA request signal for OSD bit map transfer 52 XDACK10 I DMA acknowledge signal for OSD bit map transfer 53 MA3 O Address bus 3 for SDRAM 54 MA4 O Address bus 4 for SDRAM 55 MA2 O Address bus 2 for SDRAM 56 VDD18 − Power supply (+ 1.8 V) 57 VDD33 − Power supply (+ 3.3 V) 58 MA5 O Address bus 5 for SDRAM 59 MA1 O Address bus 1 for SDRAM 60 MA6 O Address bus 6 for SDRAM 61 MA0 O Address bus 0 for SDRAM 62 MA7 O Address bus 7 for SDRAM 63 MA10 O Address bus 10 for SDRAM 64 GND − Ground 65 MA8 O Address bus 8 for SDRAM 66 MBA1 O SDRAM bank selection 1 67 MA9 O Address bus 9 for SDRAM 68 MBA0 O SDRAM bank selection 0 69 MA11 O Address bus 11 for SDRAM 70 DCS O Not Used 71 VDD18 − Power supply (+ 1.8 V) 72 VDD33 − Power supply (+ 3.3 V) 73 DCS2 O Not Used 74 DCS3 O SDRAM chip select 75 DCS4 O Not Used 76 DCS5 O Not Used 77 RAS O RAS (Row Address Strobe) control signal of SDRAM 78 CAS O CAS (Column Address Strobe) control signal of SDRAM 79 MCLK O Operating clock of SDRAM 80 DWE O Write Enable signal of SDRAM 81 GND − Ground 82 DQMU O DQM control line (Upper Byte mask) of SDRAM 83 DQML O DQM control line (Lower Byte mask) of SDRAM 84 MD7 I/O Data bus 7 for SDRAM 85 MD8 I/O Data bus 8 for SDRAM 86 MD6 I/O Data bus 6 for SDRAM 87 MD9 I/O Data bus 9 for SDRAM 88 VDD18 − Power supply (+ 1.8 V) 89 VDD33 − Power supply (+ 3.3 V) 90 MD5 I/O Data bus 5 for SDRAM 91 MD10 I/O Data bus 10 for SDRAM 92 MD4 I/O Data bus 4 for SDRAM 93 MD11 I/O Data bus 11 for SDRAM 94 MD3 I/O Data bus 3 for SDRAM 95 MD12 I/O Data bus 12 for SDRAM 96 GND − Ground 97 MD2 I/O Data bus 2 for SDRAM 98 MD13 I/O Data bus 13 for SDRAM 99 MD1 I/O Data bus 1 for SDRAM 100 MD14 I/O Data bus 14 for SDRAM 101 MD0 I/O Data bus 0 for SDRAM 102 MD15 I/O Data bus 15 for SDRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 142 1 2 3 4 1 2 3 4 C D F A B E No. Pin Name I/O Pin Function 103 VDD18 − Power supply (+ 1.8 V) 104 VDD33 − Power supply (+ 3.3 V) 105 CLKO − Not Used 106 27MAV1 I System clock input (27 MHz) 107 AVDD18 − Analog power supply (+ 1.8 V) 108 AGND18 − Analog ground (1.8 V) 109 NCO − Not Used 110 NCO − Not Used 111 NCO − Not Used 112 GND − Ground 113 AVDD33 − Analog power supply (+ 3.3 V) 114 DAOUTB AO Analog ground fixed 115 AVRI AI Reference voltage input 116 PAB AO Analog current output (for Pb) 117 IREF AI Reference current input 118 BIAS2 AI Bias voltage apply 2 of the power source 119 PAY AO Analog current output (for Y) 120 BIAS1 AI Bias voltage apply 1 of the power source 121 AVDD33 − Analog power supply (+ 3.3 V) 122 PAR AO Analog current output (for Pr) 123 AVDD33 − Analog power supply (+ 3.3 V) 124 AGND33 − Analog ground (3.3 V) 125 GND − Ground 126 NCO − Not Used 127 NCO − Not Used 128 NCO − Not Used 129 NCO − Not Used 130 NCO − Not Used 131 NCO − Not Used 132 NCO − Not Used 133 NCO − Not Used 134 VDD18 − Power supply (+ 1.8 V) 135 VDD33 − Power supply (+ 3.3 V) 136 NCO − Not Used 137 NCO − Not Used 138 NCO − Not Used 139 NCO − Not Used 140 NCO − Not Used 141 NCO − Not Used 142 NCO − Not Used 143 NCO − Not Used 144 NCO − Not Used 145 GND − Ground 146 NCO − Not Used 147 NCO − Not Used 148 NCO − Not Used 149 NCO − Not Used 150 NCO − Not Used 151 NCO − Not Used 152 NCO − Not Used 153 NCO − Not Used 154 NCO − Not Used 155 VDD18 − Power supply (+ 1.8 V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 143 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Function 156 VDD33 − Power supply (+ 3.3 V) 157 PDR[8] O Not Used 158 PDR[9] O Not Used 159 LRCLK O Clock for channel distinction (L/R) of PCM audio data 160 CDLRCK I L/R clock which is input from CDDSP 161 CDBCK I PCM bit clock which is input from CDDSP 162 CDDATA I Digital audio interface input for CDDA through 163 CDDIN I PCM audio data which is input from CDDSP 164 AO0 O Serial PCM data for DAC (Lf/Rf data) 165 GND − Ground 166 AO1 O Serial PCM data for DAC (C/Sw data) 167 AO2 O Serial PCM data for DAC (Ls/Rs data) 168 AOD O Serial PCM data for DAC (down mix output) 169 AAD O Not Used 170 DOUT0 O Digital audio interface output 171 DOUT1 O Not Used 172 22/24AV1 I Audio clock input 173 DACCLK O Not Used 174 VDD18 − Power supply (+ 1.8 V) 175 VDD33 − Power supply (+ 3.3 V) 176 DOCLK O PCM bit clock 177 PWD TO Not Used 178 CSYNC I Ground fixed 179 OSDKEY O Not Used 180 VSYNC O Not Used 181 HSYNC O Not Used 182 PXCLKP O Not Used 183 AV1CLK O 27 MHz pixel clock 184 PD0 O Digital pixel data 0 185 PD1 O Digital pixel data 1 186 PD2 O Digital pixel data 2 187 GND − Ground 188 PD3 O Digital pixel data 3 189 PD4 O Digital pixel data 4 190 PD5 O Digital pixel data 5 191 PD6 O Digital pixel data 6 192 PD7 O Digital pixel data 7 193 HXRST I Hardware reset pin 194 HMODE0 I Operating mode setting (Ground fixed) 195 HMODE1 I Operating mode setting (+ 3.3 V fixed) 196 TEST0 I Ground fixed 197 TEST1 I Ground fixed 198 VDD18 − Power supply (+ 1.8 V) 199 VDD33 − Power supply (+ 3.3 V) 200 TEST2 I Ground fixed 201 BD0 I Bit stream data input 0 202 BD1 I Bit stream data input 1 203 BD2 I Bit stream data input 2 204 BD3 I Bit stream data input 3 205 BD4 I Bit stream data input 4 206 BD5 I Bit stream data input 5 207 BD6 I Bit stream data input 6 208 BD7 I Bit stream data input 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 144 1 2 3 4 1 2 3 4 C D F A B E • T-REX IC Pin Function PD0280B (DVDM ASSY: IC1001) No. Pin Name I/O Pin Functions 1 VSS − Digital ground 2 XTCK1 I Test exclusive use input pin 3 XSM I Test exclusive use input pin 4 XTST I Test exclusive use input pin 5 MST I Test exclusive use input pin 6 SMCK I Test exclusive use input pin 7 DC9 I Color signal input 8 DC8 I Color signal input 9 DC7 I Color signal input 10 VDDI − VDD for Core (+ 2.5 V) 11 VSS − Digital ground 12 DC6 I Color signal input 13 DC5 I Color signal input 14 DC4 I Color signal input 15 DC3 I Color signal input 16 VDDE − VDD for I/O (+ 3.3 V) 17 DC2 I Color signal input 18 DC1 I Color signal input 19 DC0 I Color signal input 20 DY0 I Luminance signal input 21 VSS − Digital ground 22 DY1 I Luminance signal input 23 DY2 I Luminance signal input 24 DY3 I Luminance signal input 25 DY4 I Luminance signal input 26 DY5 I Luminance signal input 27 DY6 I Luminance signal input 28 DY7 I Luminance signal input 29 DY8 I Luminance signal input 30 DY9 I Luminance signal input 31 VSS − Digital ground 32 DI0 I Through data input 33 DI1 I Through data input 34 DI2 I Through data input 35 DI3 I Through data input 36 DI4 I Through data input 37 DI5 I Through data input 38 DI6 I Through data input 39 DI7 I Through data input 40 VDDI − VDD for Core (+ 2.5 V) 41 VSS − Digital ground 42 DI8 I Through data input 43 DI9 I Through data input 44 DH I Horizontal sync. signal input 45 DV I Vertical sync. signal input 46 VDDE − VDD for I/O (+ 3.3 V) 47 F1 I Field identification signal input 48 ALSB I I2C slave address setting pin www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 145 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Functions 49 SDA I/O I2C data I/O 50 SCL I I2C clock input 51 VSS − Digital ground 52 NRST I System reset input 53 TEST0 I Test exclusive use input pin (Connect to ground) 54 TEST1 I Test exclusive use input pin (Connect to ground) 55 TEST2 I Test exclusive use input pin (Connect to ground) 56 TEST3 I Test exclusive use input pin (Connect to ground) 57 QB0 O Video data B output 58 QB1 O Video data B output 59 OVDDE1 − VDD for I/O (+ 3.3 V) 60 VDDI − VDD for Core (+ 2.5 V) 61 VSS − Digital ground 62 QB2 O Video data B output 63 QB3 O Video data B output 64 QB4 O Video data B output 65 QB5 O Video data B output 66 QB6 O Video data B output 67 QB7 O Video data B output 68 QB8 O Video data B output 69 QB9 O Video data B output 70 VDDI − VDD for Core (+ 2.5 V) 71 VSS − Digital ground 72 QG0 O Video data G output 73 QG1 O Video data G output 74 QG2 O Video data G output 75 QG3 O Video data G output 76 VDDE − VDD for I/O (+ 3.3 V) 77 QG4 O Video data G output 78 QG5 O Video data G output 79 QG6 O Video data G output 80 QG7 O Video data G output 81 VSS − Digital ground 82 QG8 O Video data G output 83 QG9 O Video data G output 84 QR0 O Video data R output 85 QR1 O Video data R output 86 QR2 O Video data R output 87 QR3 O Video data R output 88 QR4 O Video data R output 89 QR5 O Video data R output 90 QR6 O Video data R output 91 VSS − Digital ground 92 OVDDE2 − VDD for I/O (+ 3.3 V) 93 QR7 O Video data R output 94 QR8 O Video data R output 95 QR9 O Video data R output 96 QV O Vertical sync. signal output 97 QH O Horizontal sync. signal output 98 QDE O Data enable signal output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 146 1 2 3 4 1 2 3 4 C D F A B E No. Pin Name I/O Pin Functions 99 QCLK O Video clock output 100 VDDI − VDD for Core (+ 2.5 V) 101 VSS − Digital ground 102 EXCLK I Video clock input in external PLL use 103 OVDDE3 − VDD for I/O (+ 3.3 V) 104 PH1 O Signal output 1 for external PLL comparator 105 NC − Not used 106 AVS1 − Analog ground for PLL 107 AVD1 − Analog VDD for PLL (3.3 V) 108 CPO O Built-in PLL charge pump output 109 NC − Not used 110 VCI I Built-in PLL VCO input 111 AVS2 − Analog ground for PLL 112 AVD2 − Analog VDD for PLL (3.3 V) 113 NC − Not used 114 PH2 O Signal output 2 for external PLL comparator 115 PLLEN I Built-in PLL/external PLL selection 116 OVDDE4 − VDD for I/O (+ 3.3 V) 117 DCLK I 27 MHz clock input 118 OVSS1 − Digital ground 119 DCLKP I DCLK polarity setting pin 120 VDDI − VDD for Core (+ 2.5 V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 147 5 6 7 8 5 6 7 8 C D F A B E • PRO-U (Video Encoder) IC Pin Function CD0040AF (DVDM ASSY: IC901) No. Pin Name I/O Pin Functions 1 OVDD − VDD for I/O (+ 3.3 V) 2 CLKI I 27 MHz clock input 3 TEST7 I Test input (connect to ground) 4 PLL_EN I PLL enable input 5 PI0 I/O ITU-R BT.656/601 input 6 PI1 I/O ITU-R BT.656/601 input 7 PI2 I/O ITU-R BT.656/601 input 8 PI3 I/O ITU-R BT.656/601 input 9 PI4 I/O ITU-R BT.656/601 input 10 PI5 I/O ITU-R BT.656/601 input 11 PI6 I/O ITU-R BT.656/601 input 12 PI7 I/O ITU-R BT.656/601 input 13 PI8 I/O ITU-R BT.656/601 input 14 PI9 I/O ITU-R BT.656/601 input 15 NHSI I Horizontal sync. input 16 NVSI I Vertical sync. input 17 OVSS − Digital ground for I/O 18 THMD I Through mode setting 19 CVSS − Digital ground for core 20 NVSO O Horizontal sync. output 21 NHSO O Vertical sync. output 22 PO9 I/O ITU-R BT.656/601 output 23 PO8 I/O ITU-R BT.656/601 output 24 PO7 I/O ITU-R BT.656/601 output 25 PO6 I/O ITU-R BT.656/601 output 26 OVDD − VDD for I/O (+ 3.3 V) 27 OVSS − Digital ground for I/O 28 PO5 I/O ITU-R BT.656/601 output 29 PO4 I/O ITU-R BT.656/601 output 30 PO3 I/O ITU-R BT.656/601 output 31 PO2 I/O ITU-R BT.656/601 output 32 PO1 I/O ITU-R BT.656/601 output 33 PO0 I/O ITU-R BT.656/601 output 34 TEST0 I Test input (connect to ground) 35 OVSS − Digital ground for I/O 36 OVDD − VDD for I/O (+ 3.3 V) 37 CVDD − VDD for core (+ 2.5 V) 38 TEST1 I Test input (connect to ground) 39 TEST2 I Test input (connect to ground) 40 CLKO O 27 MHz clock output 41 YO9 O ANSI/SMPTE293M output (Y) 42 YO8 O ANSI/SMPTE293M output (Y) 43 YO7 O ANSI/SMPTE293M output (Y) 44 YO6 O ANSI/SMPTE293M output (Y) 45 YO5 O ANSI/SMPTE293M output (Y) 46 OVDD − VDD for I/O (+ 3.3 V) 47 OVSS − Digital ground for I/O 48 YO4 O ANSI/SMPTE293M output (Y) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 148 1 2 3 4 1 2 3 4 C D F A B E No. Pin Name I/O Pin Functions 49 YO3 O ANSI/SMPTE293M output (Y) 50 YO2 O ANSI/SMPTE293M output (Y) 51 YO1 O ANSI/SMPTE293M output (Y) 52 YO0 O ANSI/SMPTE293M output (Y) 53 OVDD − VDD for I/O (+ 3.3 V) 54 CVSS − Digital ground for core 55 OVSS − Digital ground for I/O 56 CO0 O ANSI/SMPTE293M output (Cb/Cr) 57 CO1 O ANSI/SMPTE293M output (Cb/Cr) 58 CO2 O ANSI/SMPTE293M output (Cb/Cr) 59 CO3 O ANSI/SMPTE293M output (Cb/Cr) 60 CO4 O ANSI/SMPTE293M output (Cb/Cr) 61 OVDD − VDD for I/O (+ 3.3 V) 62 OVSS − Digital ground for I/O 63 CO5 O ANSI/SMPTE293M output (Cb/Cr) 64 CO6 O ANSI/SMPTE293M output (Cb/Cr) 65 CO7 O ANSI/SMPTE293M output (Cb/Cr) 66 CO8 O ANSI/SMPTE293M output (Cb/Cr) 67 CO9 O ANSI/SMPTE293M output (Cb/Cr) 68 FILM O Film detection flag output 69 RFFI I MPEG information input 70 OVSS − Digital ground for I/O 71 CVDD − VDD for core (+ 2.5 V) 72 IVDD − VDD for I/O (+ 3.3 V) 73 OVDD − VDD for I/O (+ 3.3 V) 74 MD19 I/O SDRAM data I/O 75 MD18 I/O SDRAM data I/O 76 MD17 I/O SDRAM data I/O 77 MD16 I/O SDRAM data I/O 78 OVDD − VDD for I/O (+ 3.3 V) 79 OVSS − Digital ground for I/O 80 MA3 O SDRAM address output 81 MA4 O SDRAM address output 82 MA2 O SDRAM address output 83 MA5 O SDRAM address output 84 OVDD − VDD for I/O (+ 3.3 V) 85 OVSS − Digital ground for I/O 86 MA1 O SDRAM address output 87 MA6 O SDRAM address output 88 MA0 O SDRAM address output 89 MA7 O SDRAM address output 90 OVSS − Digital ground for I/O 91 IVSS − Digital ground for I/O 92 CVSS − Digital ground for core 93 OVDD − VDD for I/O (+ 3.3 V) 94 MA10 O SDRAM address output 95 MA8 O SDRAM address output 96 MA11 O SDRAM address output 97 MA9 O SDRAM address output 98 OVDD − VDD for I/O (+ 3.3 V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 149 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Functions 99 OVSS − Digital ground for I/O 100 RAS O Command output of SDRAM Row Address Strobe 101 DQM O SDRAM DQM output 102 CAS O Command output of SDRAM Column Address Strobe 103 MCLK O SDRAM clock output (54 MHz) 104 WE O SDRAM Write Enable output 105 TEST3 I Test input (connect to ground) 106 TEST4 I Test input (connect to ground) 107 OVSS − Digital ground for I/O 108 OVDD − VDD for I/O (+ 3.3 V) 109 CVDD − VDD for core (+ 2.5 V) 110 MD7 I/O SDRAM data I/O 111 MD8 I/O SDRAM data I/O 112 MD6 I/O SDRAM data I/O 113 MD9 I/O SDRAM data I/O 114 OVDD − VDD for I/O (+ 3.3 V) 115 OVSS − Digital ground for I/O 116 MD5 I/O SDRAM data I/O 117 MD10 I/O SDRAM data I/O 118 MD4 I/O SDRAM data I/O 119 MD11 I/O SDRAM data I/O 120 OVDD − VDD for I/O (+ 3.3 V) 121 OVSS − Digital ground for I/O 122 MD3 I/O SDRAM data I/O 123 MD12 I/O SDRAM data I/O 124 MD2 I/O SDRAM data I/O 125 MD13 I/O SDRAM data I/O 126 OVSS − Digital ground for I/O 127 CVSS − Digital ground for core 128 OVDD − VDD for I/O (+ 3.3 V) 129 MD1 I/O SDRAM data I/O 130 MD14 I/O SDRAM data I/O 131 MD0 I/O SDRAM data I/O 132 MD15 I/O SDRAM data I/O 133 SLV I Slave address setting input of MPU Interface 134 RFFO O MPEG information output 135 SDA I/O MPU Interface data I/O 136 SCL I MPU Interface clock input 137 SRN I System reset input 138 OVSS − Digital ground for I/O 139 CVDD − VDD for I/O (+ 3.3 V) 140 PLL_VDD − VDD for PLL (+ 2.5 V) 141 VPDX I Connect to ground 142 TEST6 I Test input (connect to ground) 143 PLL_GND − Ground for PLL 144 IVDD − VDD for I/O (+ 3.3 V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 150 1 2 3 4 1 2 3 4 C D F A B E • HDMI Transmitter IC Pin Function SII9190CTG64 (DVDM ASSY: IC1051) No. Pin Name I/O Pin Functions 1 VCC − Digital VCC (+ 3.3 V) 2 D1 I 12 bit input pixel data bus 3 D0 I 12 bit input pixel data bus 4 DE I Data enable 5 HSYNC I Horizontal sync input control signal 6 VSYNC I Vertical sync input control signal 7 SPDIF I S/PDIF audio input 8 MCLK I Audio input master clock 9 HPD I Hot plug detect input 10 RSVDL I Reserved for use by silicon,and must be tied LOW 11 INT O Interrupt output 12 VCC − Digital VCC (+ 3.3 V) 13 GND − Digital ground 14 RESET# I Reset pin 15 SCL I I2C clock 16 SDA I/O I2C data 17 PGND1 − PLL ground 18 PVCC1 − PLL power supply (+ 3.3 V) 19 EXT_SWING I Voltage swing adjust 20 AGND − Analog ground 21 TXC- O TMDS output clock 22 TXC+ O TMDS output clock 23 AVCC − Analog VCC (+ 3.3 V) 24 TX0- O TMDS output data 25 TX0+ O TMDS output data 26 AGND − Analog ground 27 TX1- O TMDS output data 28 TX1+ O TMDS output data 29 AVCC − Analog VCC (+ 3.3 V) 30 TX2- O TMDS output data 31 TX2+ O TMDS output data 32 AGND − Analog ground 33 PVCC2 − PLL power supply (+ 3.3 V) 34 PGND2 − PLL ground 35 VCC − Digital VCC (+ 3.3 V) 36 GND − Digital ground 37 D23 I 12 bit input pixel data bus 38 D22 I 12 bit input pixel data bus 39 D21 I 12 bit input pixel data bus 40 D20 I 12 bit input pixel data bus 41 D19 I 12 bit input pixel data bus 42 VCC − Digital VCC (+ 3.3 V) 43 GND − Digital ground 44 D18 I 12 bit input pixel data bus 45 D17 I 12 bit input pixel data bus www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 151 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Functions 46 D16 I 12 bit input pixel data bus 47 D15 I 12 bit input pixel data bus 48 GND − Digital ground 49 VCC − Digital VCC (+ 3.3 V) 50 D14 I 12 bit input pixel data bus 51 D13 I 12 bit input pixel data bus 52 D12 I 12 bit input pixel data bus 53 D11 I 12 bit input pixel data bus 54 D10 I 12 bit input pixel data bus 55 D9 I 12 bit input pixel data bus 56 D8 I 12 bit input pixel data bus 57 IDCK I Input data clock 58 D7 I 12 bit input pixel data bus 59 D6 I 12 bit input pixel data bus 60 D5 I 12 bit input pixel data bus 61 D4 I 12 bit input pixel data bus 62 D3 I 12 bit input pixel data bus 63 D2 I 12 bit input pixel data bus 64 GND − Digital ground www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 152 1 2 3 4 1 2 3 4 C D F A B E • USB Driver IC Pin Function UHC124BF (DVDM ASSY: IC1201) No. Pin Name I/O Pin Functions 1 VDD − 3.3 V power supply 2 A0 I Address bus 3 A1 I Address bus 4 A2 I Address bus 5 A3 I Address bus 6 A4 I Address bus 7 A5 I Address bus 8 A6 I Address bus 9 A7 I Address bus 10 A8 I Address bus 11 A9 I Address bus 12 A10 I Address bus 13 A11 I Address bus 14 MODE I Memory access mode 15 XCS I Chip select 16 VSS − Ground 17 OSC1 I Oscillator input 18 OSC2 O Oscillator output 19 LPF I PLL filter 20 VDD − 3.3 V power supply 21 TEST0 I/O Not used 22 TEST1 I/O Not used 23 TEST2 I/O Not used 24 TEST3 I/O Not used 25 X0VC11 I Over current indicator 26 X0VC12 I Over current indicator 27 X0VC13 I Over current indicator 28 X0VC14 I Over current indicator 29 XPWR1 O Power on switch 30 XPWR2 O Power on switch 31 XPWR3 O Power on switch 32 XPWR4 O Power on switch 33 VDD − 3.3 V power supply 34 DP1 I/O Port data for USB I/O 35 DM1 I/O Port data for USB I/O 36 VSS − Ground 37 DP2 I/O Port data for USB I/O 38 DM2 I/O Port data for USB I/O 39 DP3 I/O Port data for USB I/O 40 DM3 I/O Port data for USB I/O 41 DP4 I/O Port data for USB I/O 42 DM4 I/O Port data for USB I/O 43 TEST4 I/O Not used 44 D0 I/O Data bus 45 D1 I/O Data bus www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 153 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Functions 46 D2 I/O Data bus 47 D3 I/O Data bus 48 VDD − 3.3 V power supply 49 VSS − Ground 50 D4 I/O Data bus 51 D5 I/O Data bus 52 D6 I/O Data bus 53 D7 I/O Data bus 54 XRESET I Master reset 55 XWR I Memory write strobe 56 XRD I Memory read strobe 57 TMS0 I Not used 58 TMS1 I Not used 59 TMS2 I Not used 60 TMS3 I Not used 61 XINT O Interrupt 62 ADS I Address/ data select 63 VSS − Ground 64 VSS − Ground www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 154 1 2 3 4 1 2 3 4 C D F A B E • LCD Control IC Pin Function PE5557B (DVDM ASSY: IC1501) No. Pin Name I/O Pin Functions 1 KEY_OUT2 O Key matrix output 2 KEY_OUT3 O Key matrix output 3 KEY_OUT4 O Key matrix output 4 AVSS − Analog ground 5 LCD_VR O LCD display density adjustment 6 P131 − Not used 7 AVREF1 − A/D reference voltage input 8 SI2 − Not used 9 SO2 − Not used 10 XSCK2 − Not used 11 S_MTOF I FR microcomputer communication 12 S_FITOM O FR microcomputer communication 13 SSCK O FR microcomputer communication 14 XREDY_3V O FR microcomputer communication control 15 LT1_3V I FR microcomputer communication control 16 REL_CS O Real time clock select signal 17 REL_DATA I/O Real time clock data 18 REL_CLK O Real time clock signal 19 DB0 I/O LCD data bus 20 DB1 I/O LCD data bus 21 DB2 I/O LCD data bus 22 DB3 I/O LCD data bus 23 DB4 I/O LCD data bus 24 DB5 I/O LCD data bus 25 DB6 I/O LCD data bus 26 DB7 I/O LCD data bus 27 E O LCD enable signal 28 R/XW O LCD read/write signal 29 RS O LCD mode select signal 30 KRY_OUT5 O Key matrix output 31 P54 I State setting input 32 P55 I State setting input 33 VSS1 − Digital ground 34 P56 I State setting input 35 P57 I State setting input 36 XBRIGHT − Not used 37 P61 − Not used 38 PWR_KEY I Power on key input 39 XLCDON O LCD backlight lighting signal 40 P64 − Not used 41 P65 − Not used 42 P66 − Not used 43 P67 − Not used 44 P30 − Not used 45 P31 − Not used 46 P32 − Not used 47 HXRST O System reset signal 48 P_CON O Power control signal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 155 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Functions 49 POWER_LED O POWER key LED lighting signal 50 KEYLOCK_LED O Key lock LED lighting signal 51 PLAY_LED O Play LED lighting signal 52 JAMMAA I JAMMAER input 53 JAMMAB I JAMMAER input 54 JAMMAC I JAMMAER input 55 JAMMAD I JAMMAER input 56 JAMMAE I JAMMAER input 57 JAMMAX I JAMMAER input 58 JAMMAY I JAMMAER input 59 JAMMAZ I JAMMAER input 60 XRESET I RESET input 61 IR I Remote control signal input 62 POWER_IN I External POWER ON signal input 63 LED_OUT1 O Monitor select LED output 64 LED_OUT2 O Video select LED output 65 LED_OUT3 O Audio select LED output 66 P05 − Not used 67 VSS0 − Digital ground 68 VDD1 − Power supply (+ 3.3 V) 69 X2 − Connect an external clock 70 X1 − Connect an external clock 71 IC − Not used 72 XT2 − Not used 73 P07 − Not used 74 VDD0 − Power supply (+ 3.3 V) 75 AVREF0 − A/D reference voltage input 76 KEY_IN1 I Key matrix input 77 KEY_IN2 I Key matrix input 78 KEY_IN3 I Key matrix input 79 KEY_IN4 I Key matrix input 80 KEY_OUT1 O Key matrix output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 156 1 2 3 4 1 2 3 4 C D F A B E • Servo DSP IC Pin Function LC78652W (DVDM ASSY: IC201) No. Pin Name I/O Pin Function 1 EFMOUT O Status output after binarization of EMF 2 C2F O C2 flag output 3 ROMXA O CD-ROM data output 4 ROMCK O Shift clock output for CD-ROM data output 5 LRSY O L/R clock output for CD-ROM data output 6 XHSMOVE O Tracking bottom bandwidth switch output 7 XABUSY O Busy signal output of DSP processing operation 8 XTALOUT − Not used 9 FSX O Frame sync signal output of CD1 10 SBCK I Subcode read clock input 11 SFSY O Frame sync signal output of subcode 12 PW O Outputs of subcode P, Q, R, S, T, U, V, W 13 VSS − Ground 14 XIN I Clock input (16.934 MHz) 15 XOUT − Not used 16 VDD − Power supply (+ 3.3 V) 17 EMPH − Not used 18 SBSY O Sync signal output of subcode block 19 DOUT O Audio EIAJ data output 20 EFLG O Error correction state monitor pin of C1 and C2 21 FSEQ − Not used 22 THLD O Playback speed monitoring pin 23 V_PB − Not used 24 CURENT O Focus monitoring pin 25 TEST3 I Test input pin 26 TES I Tracking error signal input 27 TEST2 I Test input pin 28 JITT I Quantity of jitter detection signal input of EFM PLL 29 TILTE I Tilt error signal input 30 RF_PH I RF peak hold signal input 31 RF_BH I RF bottom hold signal input 32 TE I Tracking error signal input 33 FE I Focus error signal input 34 SLCIST1 − Current setting pin 1 of the constant current charge pump for SCL 35 SLCIST2 − Current setting pin 2 of the constant current charge pump for SCL 36 SLCO1 O Control output 1 for SLC 37 SLCO2 O Control output 2 for SLC 38 TEST1 I Test input pin 39 EFMIN I EFM/EFM+ input 40 VDD − +5 V power supply of A/D and D/A for servo 41 VSS − Ground of A/D and D/A for servo 42 AUXO O D/A auxiliary output 43 TILTDO O Tilt control output 44 TBAL O Tracking balance control signal output 45 SLDO − Not used 46 SPDO − Not used 47 FDO O Focus control signal output 48 TDO O Tracking control signal output 49 VREF − D/A reference level for servo www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 157 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Pin Function 50 TEST4 I Test input pin 51 HFL I/O Mirror detection signal I/O 52 JT/XRR − Not used 53 DEFIN I Defect signal control 54 DEFOUT O LDD monitor output 55 FG I FG counter input 56 CTRF I Status input after binarization of EMF 57 RESB I Reset input 58 CSB I Chip select input 59 RDB I Read signal input 60 WRB I Write signal input 61 VDD − Power supply (+ 5.0 V) 62 VSS − Ground 63 D0 I/O Data bus 0 64 D1 I/O Data bus 1 65 D2 I/O Data bus 2 66 D3 I/O Data bus 3 67 D4 I/O Data bus 4 68 D5 I/O Data bus 5 69 D6 I/O Data bus 6 70 D7 I/O Data bus 7 71 VSS − Ground 72 VDD − Power supply (+ 3.3 V) 73 BUSYB O Busy signal output 74 SQOUT − Not used 75 CQCKB I Shift clock input of subcode Q data output 76 RWC I Update permission input of subcode Q 77 WRQ − Not used 78 VSS − Ground 79 VRPFR − VCO oscillation range setting of PLL for system clock 80 VCOC I PLL filter connection pin for system clock 81 VPDO O PLL filter connection pin for system clock 82 VDD − Power supply (+ 5.0 V) 83 PDO1 I/O PLL filter connection pin 1 for EFM playback 84 PDO2 I/O PLL filter connection pin 2 for EFM playback 85 PDO3 − Not used 86 VSS − Ground 87 PCKIST1 − Current setting pin 1 of PLL charge pump for EFM playback 88 PCKIST2 − Current setting pin 2 of PLL charge pump for EFM playback 89 VDD − Power supply (+ 5.0 V) 90 DVDFR − VCO oscillation range setting pin 1 of PLL for EFM playback 91 CDFR − VCO oscillation range setting pin 2 of PLL for EFM playback 92 JV O Jitter output of PLL clock for EFM playback 93 PCK − Not used 94 LCHP I Address input 95 LCHN I Sync concordance pulse input of DVD 96 RCHP I Sync signal input of DVD 97 RCHN − Not used 98 DVDD2 − Power supply (+ 3.3 V) 99 DVSS − Ground 100 LEFM − Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 158 1 2 3 4 1 2 3 4 C D F A B E 7.8.2 LCD MODULE Pin Function Block Diagram LCD Module (DWG1590) No. Symbol Level Pin Function 1 VSS 0V Ground 2 VDD 5.0V Supply voltage for logic 3 V0 − Input voltage for LCD 4 RS H/L H: Data, L: Instruction code 5 R/W H/L H: Read mode, L: Write mode 6 E H, H → L Chip enable signal 7 DB0 H/L Data bit 0 8 DB1 H/L Data bit 1 9 DB2 H/L Data bit 2 10 DB3 H/L Data bit 3 11 DB4 H/L Data bit 4 12 DB5 H/L Data bit 5 13 DB6 H/L Data bit 6 14 DB7 H/L Data bit 7 15 LED+ 4.2V Back light anode 16 LED- 0V Back light cathode DB7 " DBO E R/W RS VO VDD VSS CONTROLLER LSI S6A0070A01-COCX or EQU]V, SEG40 COM16 LCD PANEL LED LIGHT-BOX LED+ LED- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 159 5 6 7 8 5 6 7 8 C D F A B E 7.9 DISC / CONTENT FORMAT PLAYBACK COMPATIBILITY General disc compatibility This player was designed and engineered to be compatible with software bearing one or more of the following logos: DVD-Video DVD-R DVD-RW Video CD Audio CD CD-R CD-RW This player can play discs recorded in either PAL or NTSC format. Use those discs which indicates “NTSC” or “PAL” on the jacket. Other formats, including but not limited to the following, are not playable in this player: DVD-Audio / SACD / DVD-RAM DVD-ROM / CD-ROM • DVD-R/RW and CD-R/RW discs (Audio CDs and Video CDs) recorded using a DVD recorder, CD recorder or personal computer may not be playable on this unit. This may be caused by a number of possibilities, including but not lim- ited to: the type of disc used; the type of recording; dam- age, dirt or condensation on either the disc or the player’s pick-up lens. DVD-R/RW compatibility • This unit will play DVD-R/RW discs recorded using the DVD-Video format that have been finalized using a DVD- recorder. • This unit will play DVD-RW discs recorded using the Video Recording (VR) format. • When playing a VR format DVD-RW discs that was edited on a DVD recorder, the screen may go momentarily black at edited points and/or you may see scenes from immedi- ately before the edited point. • This unit cannot record DVD-R/RW discs. • Unfinalized DVD-R/RW discs cannot be played in this player. • This unit does not support CPRM compliant DVD-R discs. CD-R/RW compatibility • This unit will play CD-R and CD-RW discs recorded in CD Audio or Video CD format. However, any other content may cause the disc not to play, or create noise/distortion in the output. • This unit cannot record CD-R or CD-RW discs. • This unit cannot play CD-R/RW discs that have not been finalized. is a trademark of DVD Format/Logo Licensing Corpora- tion. Disc / Content Format Playback Compatibility Personal computer-created disc compatibility • If you record a disc using a personal computer, even if it is recorded in a “compatible format” as listed above, there will be cases in which the disc may not be playable in this machine due to the setting of the application software used to create the disc. In these particular instances, check with the software publisher for more detailed information. Due to the unique construction of DVD-R/RW and CD-R/ RW discs, leaving them for extended periods of time in the pause/still mode at a single place on the disc, or dis- playing a single menu page may result in the discs’ be- coming difficult to play at that location on the disc. When playing discs containing important data, users are recom- mended to construct backup archive discs. DVD-Video regions All DVD-Video discs carry a region mark on the case some- where that indicates which region(s) of the world the disc is compatible with. Your DVD player also has a region mark, which you can find on the rear panel. Discs from incompat- ible regions will not play in this player. Discs marked ALL will play in any player. 2 1 ALL 1 2 2 5 5 6 3 2 1 4 4 Copy controlled CDs This player is designed to comply with music CD standards. Operation and playback of CDs that do not comply with mu - sic CD standards cannot be guaranteed. Playback of “DualDisc” media “DualDisc” media are discs with video or audio data comply- ing with DVD standards recorded on one side, and with audio data recorded on the other side intended for playback on CD players. The audio side opposite to the DVD side of these discs do not meet the physical standards of normal CDs, and may not play properly on this unit. The playback of the DVD side of “DualDisc” media is supported, but DVD-audio media can- not be played. Refer to the manufacturer or your dealer for more informa- tion on the specifications and standards of “DualDisc” me- dia. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 160 1 2 3 4 1 2 3 4 C D F A B E 8. PANEL FACILITIES Controls and Displays Front panel 1 2 3 4 5 6 7 8 9 10 11 12 13 17 18 19 14 15 16 20 21 22 23 24 1 STANDBY/ON button ( ) Press to turn the player ON or set to standby mode. 2 STANDBY indicator Lights during standby mode. 3 ON indicator Lights when power is turned ON. 4 Disc tray 5 STOP OPEN/CLOSE button (�/� ) Press to stop the disc. In stop mode, press to open or close the disc tray. 6 PLAY/PAUSE button (� ) Press to start or resume playback. In the play mode, press to pause playback; press again to resume play. 7 Playback indicator Lights up during playback. 8 SCAN/SKIP button (�/ �) Press to jump to the previous chapter or track. Press and hold for fast reverse scanning. 9 SCAN/SKIP button (�/ �) Press to jump to the next chapter or track. Press and hold for fast forward scanning. 10 STILL/STEP button (� ) During playback, press to pause playback and display still image; press and hold for reverse slow-motion playback. Press during still image for frame reverse. Press during slow-mo- tion playback to change reverse playback speed. (Enabled only during DVD playback.) 11 STILL/STEP button ( �) During playback, press to pause playback and display still image; press and hold to perform slow-motion playback. Press during still image for frame advance. Press during slow-mo- tion playback to change playback speed. 12 PASS THROUGH button/indicator (MONITOR, VIDEO, AUDIO) Use to switch settings for monitor, video, and audio output MONITOR: When the button is pressed so that the indicator lights, video signals input to the VIDEO IN connectors are output at MONI- TOR VIDEO OUT. VIDEO: When the button is pressed so that the indicator lights, video signals input to the VIDEO IN connectors are output at VIDEO OUT. AUDIO: When the button is pressed so that the indicator lights, audio signals input to the AUDIO IN connectors are output at AU- DIO OUT after audio input level adjustment. 13 USB port (MOUSE/MEMORY) Use to connect a USB mouse, tablet or USB memory device. 14 KEY LOCK indicator The indicator will flash when a prohibited operation is re- quested during key lock mode. 15 DISPLAY button Press to display disc information. 16 LCD display 17 LCD button Use to switch the information appearing in the main unit dis- play. 18 Remote control sensor 19 SETUP button Press to display the SETUP menu. Press and hold for one second to open the ADV. SETUP menu. Press again to close the SETUP menu or ADV. SETUP menu. 20 TOP MENU button Press to display the top menu of a DVD disc. 21 Cursor buttons ( , , , ) Use to select/change items, or to move the cursor. 22 ENTER button Press to execute the setting or selected item. 23 MENU button When playing DVD video software, press to display the disc menu. For DVD-RW media, Video CDs or music CDs, press to dis- play the Disc Navigator. 24 RETURN button Press to return to previous menu screens when in screens such as SETUP menu screen or menu screen. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 161 5 6 7 8 5 6 7 8 C D F A B E Rear panel 75 1 2 3 4 5 6 18 17 16 15 14 13 12 11 7 8 10 9 1 Power cord connector (AC IN) 2 Extend Terminal connector (EXT TERMINAL) External switches can be connected to control the DVD-V8000. The connector can also be used as an RS-232C interface. 3 RS-232C interface connector Acomputer can be connected to allow serial-port control of the DVD-V8000 . 4 External sync signal input connector (EXT SYNC IN) Input/output terminals for external sync signals . 5 External sync signal terminator switch (75 Ω ON/OFF) This switch is used to terminate an external sync signal . (Default position: ON) 6 Coaxial digital audio output jack (DIGITAL AUDIO OUT COAXIAL) Outputs coaxial digital audio signals. 7 Optical digital audio output connector (DIGITAL AUDIO OUT OPTICAL) Outputs optical digital audio signals. 8 Audio output jacks (AUDIO OUT L, R) Outputs analog audio signals. 9 AUDIO IN LEVEL adjustment dial Use to adjust the level of audio signals input to the audio input connectors. Factory default setting is at the center po- sition;rotating the dial to the left (MIN) side reduces the sound level, and rotating the dial to the right (MAX) side increases the sound level. Important • The DVD-V8000 is provided with video and audio input connectors, and supports the use of 1 Vp-p composite video signals and 2 Vrms (0 dBfs) analog audio signals. If signals are input with levels greatly exceeding these val- ues, the through output signals may generate video noise and audio distortion. • The range of adjustment possible with the external audio input level dial is from – ∞to +6 dB. However, it should be used only to the degree that the through audio output sig- nal level is 2 Vrms (0 dBfs) or less. Allowing signal levels greater than 2 Vrms may cause sound distortion. 10 AUDIO IN jacks (L, R) Outputs analog audio signals. 11 USB port (MOUSE/MEMORY) Can be used to connect a USB mouse/pen tablet, or USB memory device. 12 DVI output connector (DVI-D) Outputs DVI video. 13 TV system switch (TV SYSTEM NTSC/PAL/AUTO) When playing video discs, this control changes the output television signal format to match the signal format recorded on the disc. (Default: AUTO) 14 Component video output jacks (COMPONENT VIDEO OUT, Y, PB, PR) Outputs component video signals. 15 S-VIDEO output terminal (S-VIDEO OUT) Outputs S-video signals. 16 Composite video output jack (VIDEO OUT) Outputs composite video signals. 17 Monitor video output jack (MONITOR VIDEO OUT) Outputs monitor video signals. 18 Composite video input jack (VIDEO IN) Use to input composite video signals from an external source. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 162 1 2 3 4 1 2 3 4 C D F A B E Remote control unit 9 REV SCAN button (�) Press for fast reverse scanning. Scanning speed will change in 3 levels each time the button is pressed. 10 PLAY button (�) Press to start playback. 11 PAUSE button ( �) During playback, press to pause playback of video/audio. Press again to resume normal playback. 12 PREV button (�) Press to jump to the beginning of the current chapter or track, then to previous chapters/tracks. 13 NEXT button (�) Press to jump to the next chapter or track. 14 AUDIO button Press to switch the audio of the currently playing track. 15 SUBTITLE button Press to select a subtitle display. 16 OPEN/CLOSE button (�) Press to open or close the disc tray. 17 DISPLAY button Press to display disc information. 18 TITLE/CHP FRM/TIME button Press to perform title/chapter/frame/time search. 19 FRM/TIME button Press to perform frame/time search. 20 RECALL button Press to display the COMMAND STACK call-up menu. 21 MEMORY button Press to display COMMAND STACK input menu. 22 CLEAR button Press to clear repeat playback, random playback, program playback and other settings. 23 MENU button Press to display DVD disc menu, or the Disc Navigator if a DVD-RW, music CD or Video CD disc is loaded. 24 ENTER button Press to execute the selected setting or item . 25 RETURN button Press to return to previous menu screens when in screens such as SETUP menu screen or menu screen. 26 FWD SCAN button (�) Press to perform fast forward scanning. Scanning speed will change in 3 levels each time the button is pressed. 27 STOP button (�) Press to stop disc playback. 28 FWD STILL/STEP button (� ) During playback, press to pause playback and display still image; press and hold to perform slow-motion playback. Press during still image for frame advance. Press during slow-mo- tion playback to change playback speed. 1 2 11 8 9 12 13 14 15 10 25 27 26 28 29 30 31 3 4 5 6 7 16 17 18 19 20 21 23 24 22 1 STANDBY/ON button ( ) Press to turn the player ON and OFF (standby mode). 2 RPT A-B button Press to repeat play the specified section. 3 REPEAT button Press to perform repeat play of individual chapters (or tracks), individual titles or all titles. 4 SEARCH button Commences search. 5 Number buttons (0 to 9, >10) Press to specify and play the desired title/chapter/track. Press to select an item in the menu screen. To select a 2-digit number, first press >10, and then enter the desired numbers. 6 TOP MENU button Press to display the top menu of a DVD disc. 7 Cursor buttons ( , , , ) Selects/changes items, or moves the cursor. 8 SETUP button Press to open the SETUP menu. Press and hold for one second to open the ADV. SETUP menu. Press again to close the SETUP or ADV. SETUP menu. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 163 5 6 7 8 5 6 7 8 C D F A B E Operation using a mouse In addition to the remote control unit, a mouse can also be used to operate the DVD-V8000 if desired. A USB mouse can be connected to either of the MOUSE/ MEMORY ports located in the front and rear panels. The following operations can be performed by using a mouse: � Using the scroll wheel during image playback The DVD-V8000 supports the use of the mouse’s scroll wheel to perform operations during video playback. (1) Clicking the scroll wheel Click the scroll wheel during playback to display still image. Click the scroll wheel during still image display to resume normal playback. (2) Scrolling backwards Rotate the scroll wheel backwards to fast-forward the play- back. Scroll the wheel backwards during still image display to perform frame advance. (3) Scrolling forwards Rotate the scroll wheel forwards to fast-reverse the playback. Scroll the wheel forwards during still image display to per- form frame reverse (DVD disc only). Note • The same operations can be performed when playing CDs. Clicking the mouse wheel during playback engages the pause mode, and clicking the wheel during the pause re- leases the pause and resumes playback. Rotating the mouse wheel during playback engages the fast forward and fast reverse functions; rotating the wheel, however, has no ef- fect when the player is in the pause mode. 29 REV STILL/STEP button ( � ) During playback, press to pause playback and display still image; Press and hold for reverse slow-motion playback. Press during still image for frame reverse. Press during slow-mo- tion playback to change reverse playback speed. (Enabled only during DVD playback.) 30 PLAY MODE button Press to display the Play Mode menu. 31 ANGLE button ( ) Press to change the camera angle during DVD multi-angle scene playback. Loading batteries in the remote control unit Open the battery compartment cover on the back of the remote control unit and insert two AA/R6P batteries. • Insert the batteries properly so that the positive (+) and negative (–) polarities of the batteries are aligned with the diagram in the compartment. Important • Do not mix new and old batteries together . • Do not use different kinds of batteries together—al- though they may look similar, different batteries may have different voltages. • Remove batteries when not using a device for a month or more, to prevent the batteries from leaking. In the cases of battery leakage, thoroughly wipe off leaked liquid and insert new batteries. When disposing of used batteries, please comply with governmental regulations or environmental public instruction’s rules that apply in your country/area. D3-4-2-3-1_En WARNING Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries. D3-4-2-3-3_En � Operating range of remote control unit Point the remote control unit toward the remote control sensor on the front panel of the main unit to operate. The remote control has a range of up to approximately 7 m, and can be operated in angles up to 30° to left or right from the front of the remote control sensor. • The remote control unit may not operate correctly if a strong light such as daylight or a fluorescent light shines directly on the remote control sensor. Play/Still image During playback: � During still image: � During playback: � During still image: � (DVD only) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 164 1 2 3 4 1 2 3 4 C D F A B E 9. RACK MOUNT KIT (CB-A802) 9.1 PACKING SECTION x8 x10 7 3 11 6 12 4 1 10 2 8 4 9 9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 165 5 6 7 8 5 6 7 8 C D F A B E • PACKING SECTION Parts list Mark No. Description Part No. NSP 1 Rack Mount Bracket (FE) DNH2706 2 Screw AMZ40P080FTB 3 Instruction Manual (RM) DRE1037 NSP 4 Packing Case (RM) (Paper) DHG2655 NSP 5 Master Carton RM (Paper) DHG2656 6 Mirror Mat Sheet (300 * 330) DHL1161 7 Vinyl Bag Z21-013 8 Poly Bag DHL1162 NSP 9 Master Spacer (Paper) DHA1724 10 Recycle Label M DRW2307 NSP 11 Top Pad (Paper) DHA1725 NSP 12 Round Pad (Paper) DHA1727 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 166 1 2 3 4 1 2 3 4 C D F A B E 9.2 INSTALLATION PROCEDURES 1. Disconnect all cords and cables (including power cord) attached to the player. • To preserve data, be sure that no disc is loaded in the player. 2. Use the accessory screws to attach the mounting brackets to the right and left sides of the player, using the matching screw holes (see accompanying illustration). • When attaching the brackets, first insert the four screws and hand tighten (so the bracket can be moved slightly by hand). After confirming that the brackets are mounted in the proper positions, tighten the screws securely. Accessory mounting screws (four for each side) Rack mount bracket Player Mounting holes inside of player Precautions during installation • The rack mount brackets are identical for right and left sides. • During installation, place the player on a flat, level, and stable table surface. When installing the brackets, raise the player's side some 10 mm or more above the table surface to allow easy installation of the brackets. Attempting to forcibly attach the brackets without raising the player's sides may result in damage to the player. • Use only the mounting screws provided as accessories with this product. Attempting to use other screws may result in damage to the player, or the player may fall. 3. After confirming that the screws installed in step 2 are tightened securely, install the player on the rack. [Caution] • Do not attempt installation before confirming that the rack is strong enough to sustain the weight of the player and is proper for the installation location. • Screws indicated with a star ( ) in the illustration are not provided for attaching the rack mount brackets to the rack itself. Select mounting screws that are appropriate in length and strength for the weight of the unit, installation conditions, and the rack specifications. The position of the rack mount bracket holes are shown in this document's "Dimensional Diagram". Also, in order to assure safe and secure mounting of the player in the rack, be sure to place screws in all four holes provided in each rack mount bracket. • Installation to the rack should always be performed by two or more persons. • During installation, take care not to pinch your fingers or other objects between rack mount brackets and the rack sides. 4. Confirm that the screws inserted in step 3 are tightened securely before completing the installation • After installation, if the accessory rack mount bracket screws or the rack mounting screws become loose, vibration caused by the player's disc rotation or produced by other components may cause distortion in sound reproduction, as well as leading to the danger of the player's accidental falling. Be sure to confirm that all screws are tightened securely. Player Rack (EIAcompliant) Rack mount installation screw holes Rack mount brackets Screws ( ) Screws ( ) Installation Procedures Dimensional Diagram 465.1 482.3 76.2 88 3 116 296.8 elongate hole 6 x 10 (4places) unit : mm www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 167 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD-V8000 168 1 2 3 4 1 2 3 4 C D F A B E Service Remote Control Unit GGF1381 DVD Data Disc GGV1174 adjustment, diagnosis Name Jig No. Remarks diagnosis (ID data setting) 24P Flexible Cable GGD1111 Extension Board GGF1575 Diagnosis of DVDM Assy Diagnosis of DVDM Assy DVD Test Disc (DVD-Video) GGV1025 Check of DVD-Video Cable fo download GGD1204 for serial download 7 Jigs list Lubricants and Glues list Cleaning Dyefree GEM1036 (ME-913A) Refer to "2.4 LOADER MECHA ASSY" Grease GYA1001 (PN-397) Refer to "2.4 LOADER MECHA ASSY" Grease GEM1018 (G-478B) Refer to "2.4 LOADER MECHA ASSY" Sillicone Adhesive GEM1037 Refer to "2.5 TRAVERSE MECHA ASSY-S" Screw Tight GYL1001 Refer to "2.5 TRAVERSE MECHA ASSY-S" Name Lubricants and Glues No. Remark Name Lubricants and Glues No. Remark • Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools: Pickup leneses Cleaning liquid : GEM1004 Cleaning paper : GED-008 Refer to "2.5 TRAVERSE MECHA ASSY-S" , "7.6 DISASSEMBLY". Position to be cleaned Cleaning tools Remark Position to be cleaned Cleaning tools Remark www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
