先锋PIONEER C-AX10音响电路原理图

分类：电子电工 日期： 点击：0
先锋PIONEER C-AX10音响电路原理图-0 先锋PIONEER C-AX10音响电路原理图-1 先锋PIONEER C-AX10音响电路原理图-2 先锋PIONEER C-AX10音响电路原理图-3 先锋PIONEER C-AX10音响电路原理图-4 先锋PIONEER C-AX10音响电路原理图-5 先锋PIONEER C-AX10音响电路原理图-6 先锋PIONEER C-AX10音响电路原理图-7 先锋PIONEER C-AX10音响电路原理图-8 先锋PIONEER C-AX10音响电路原理图-9

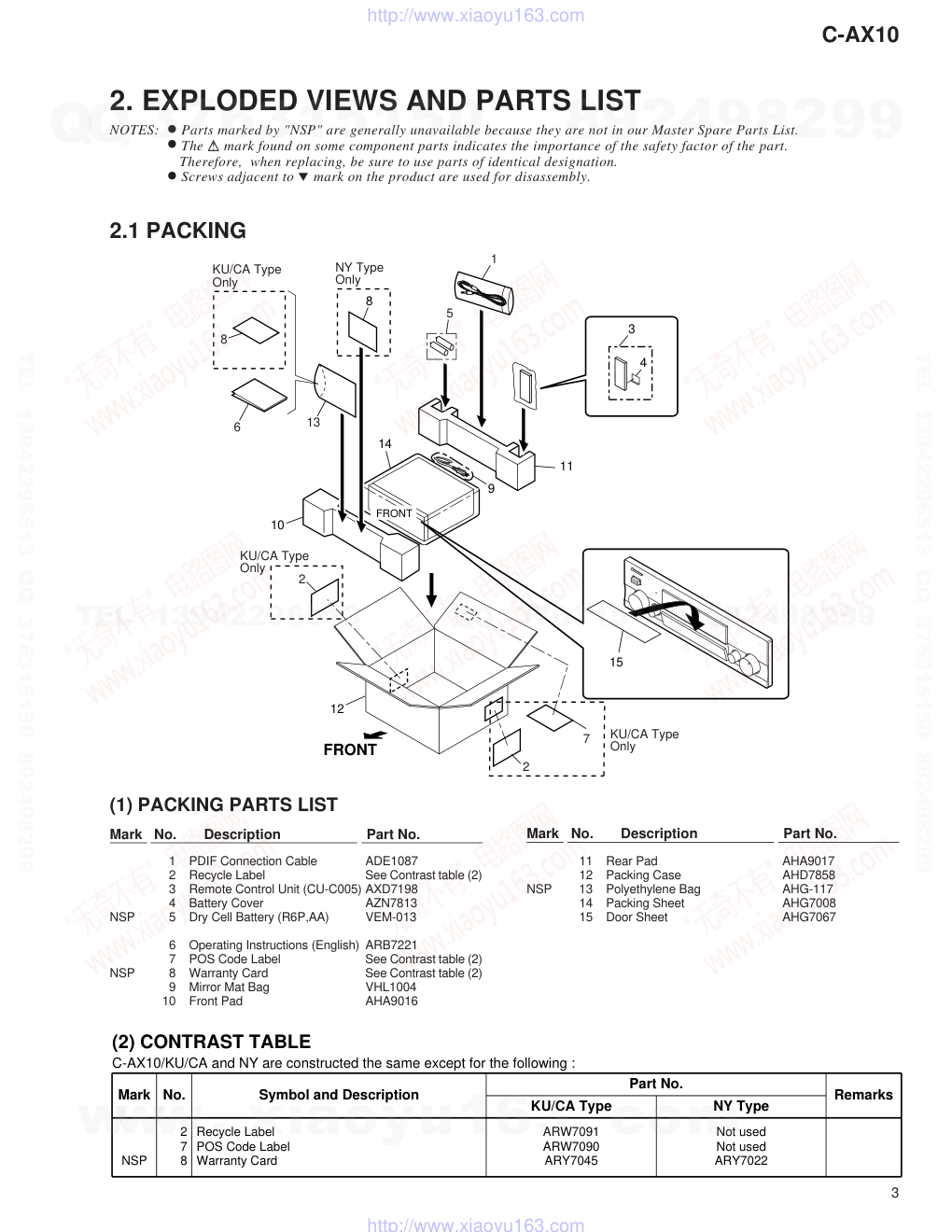

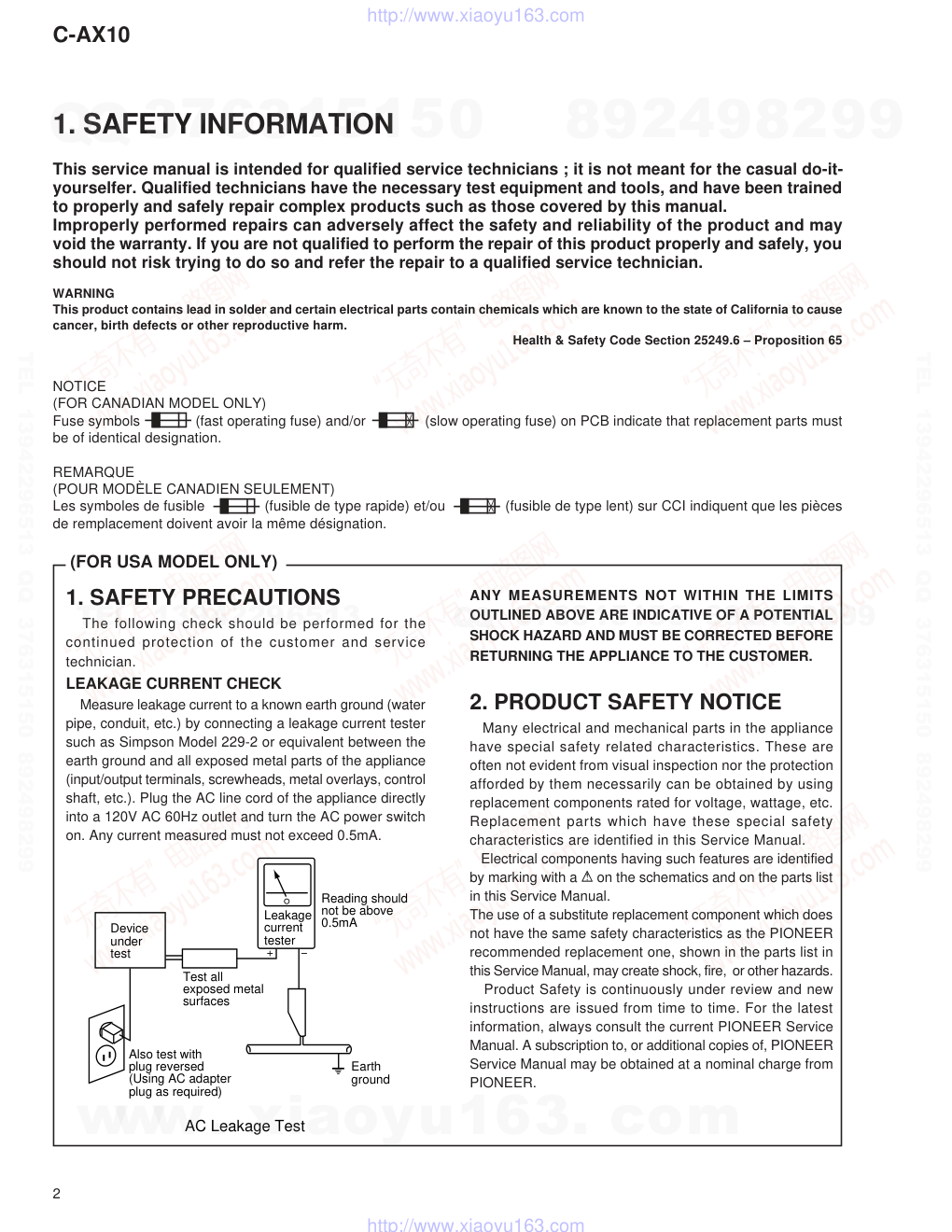

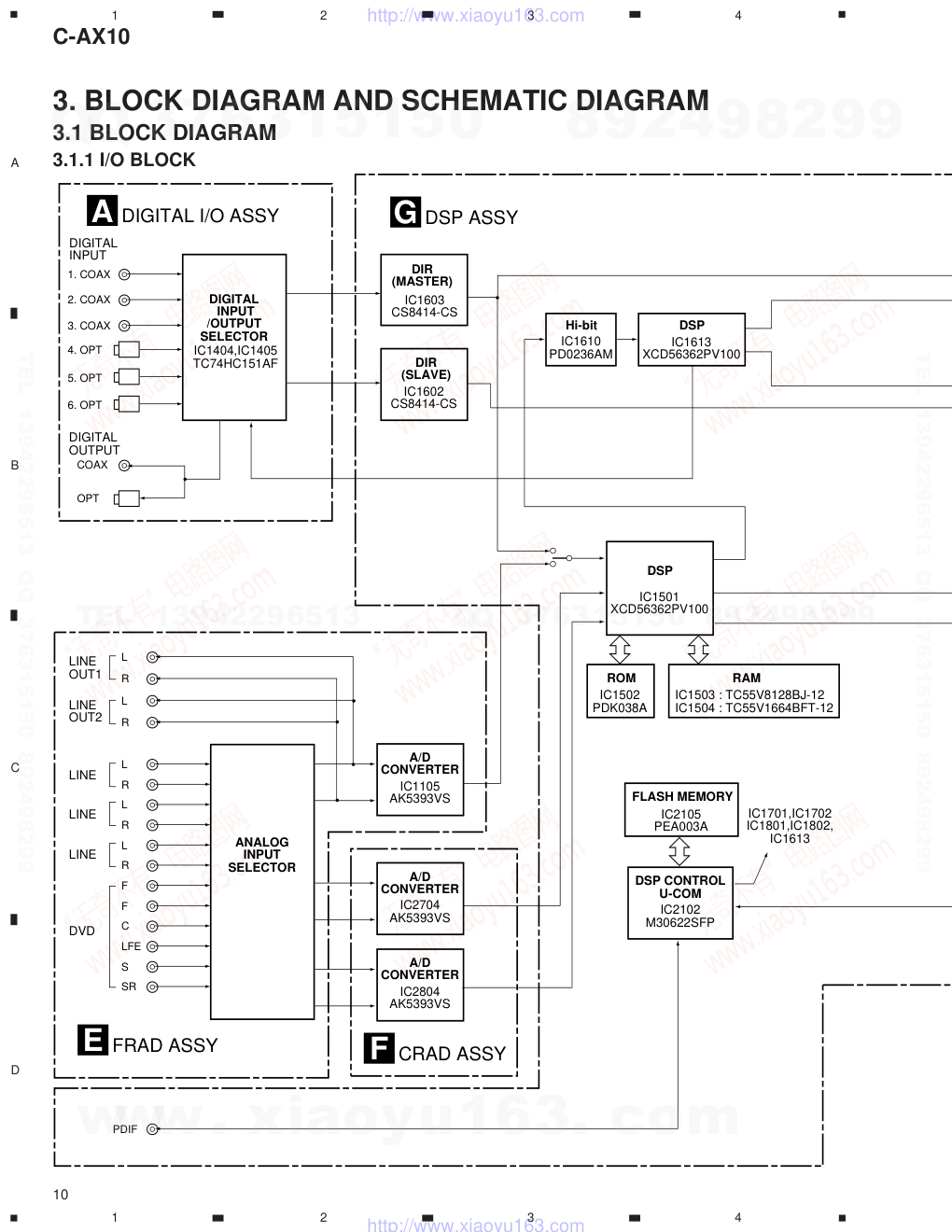

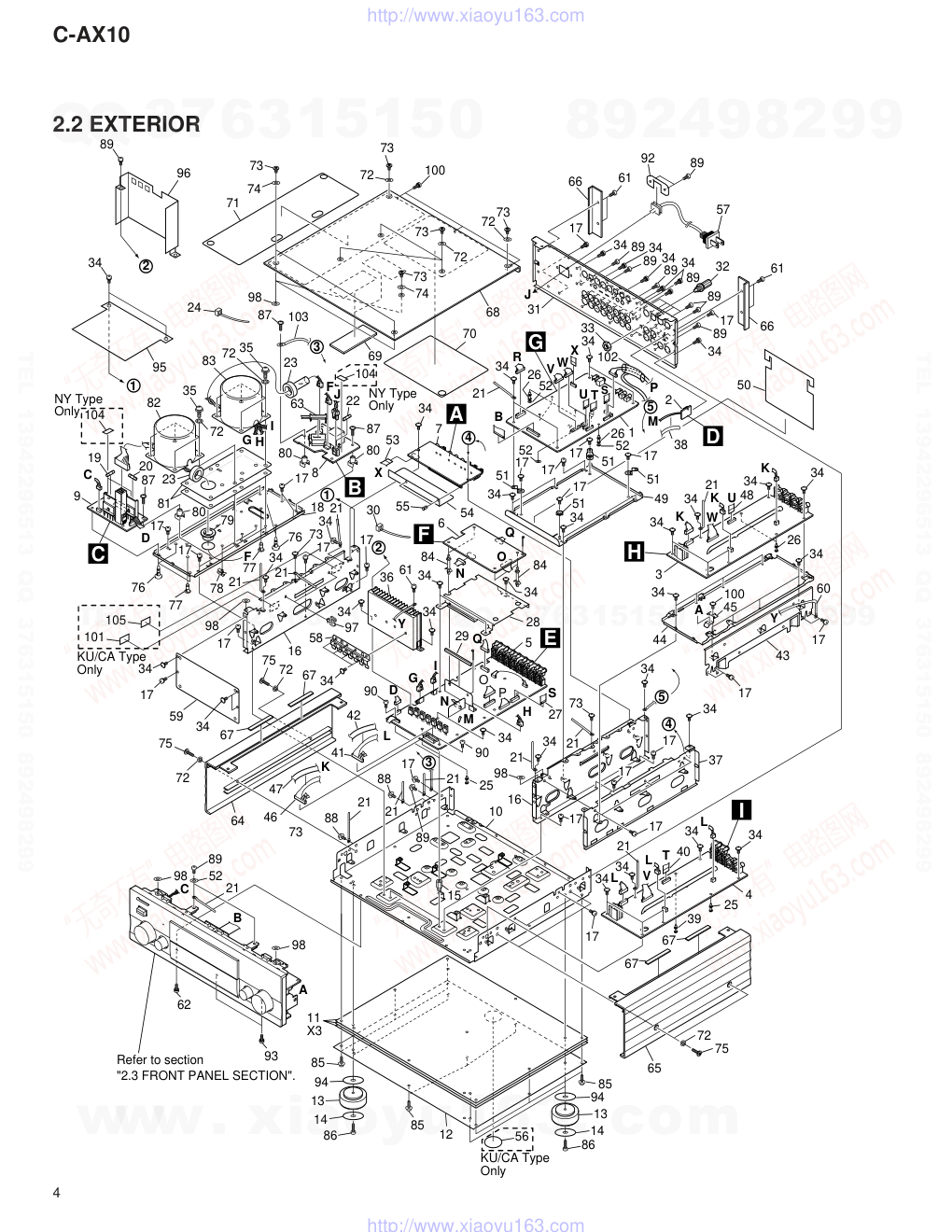

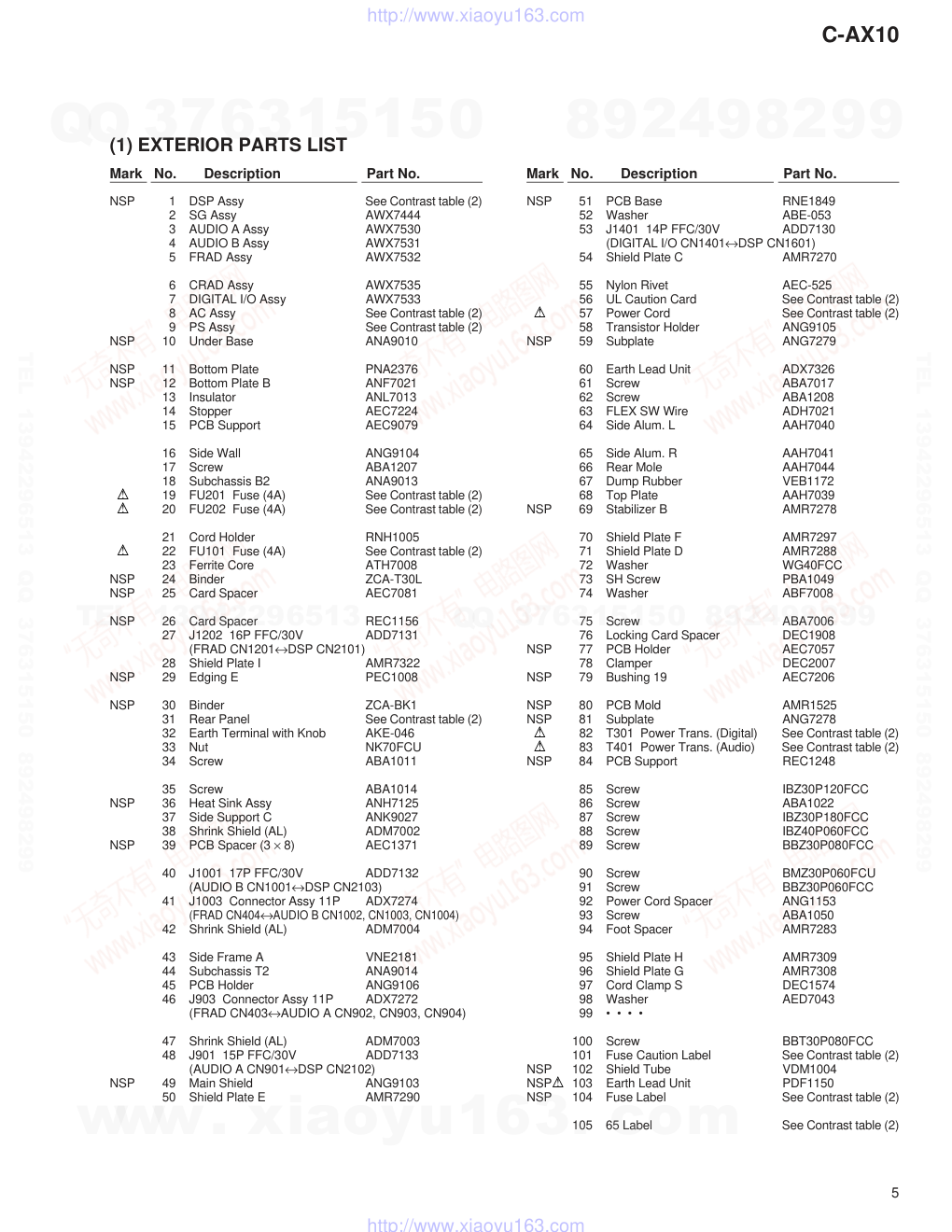

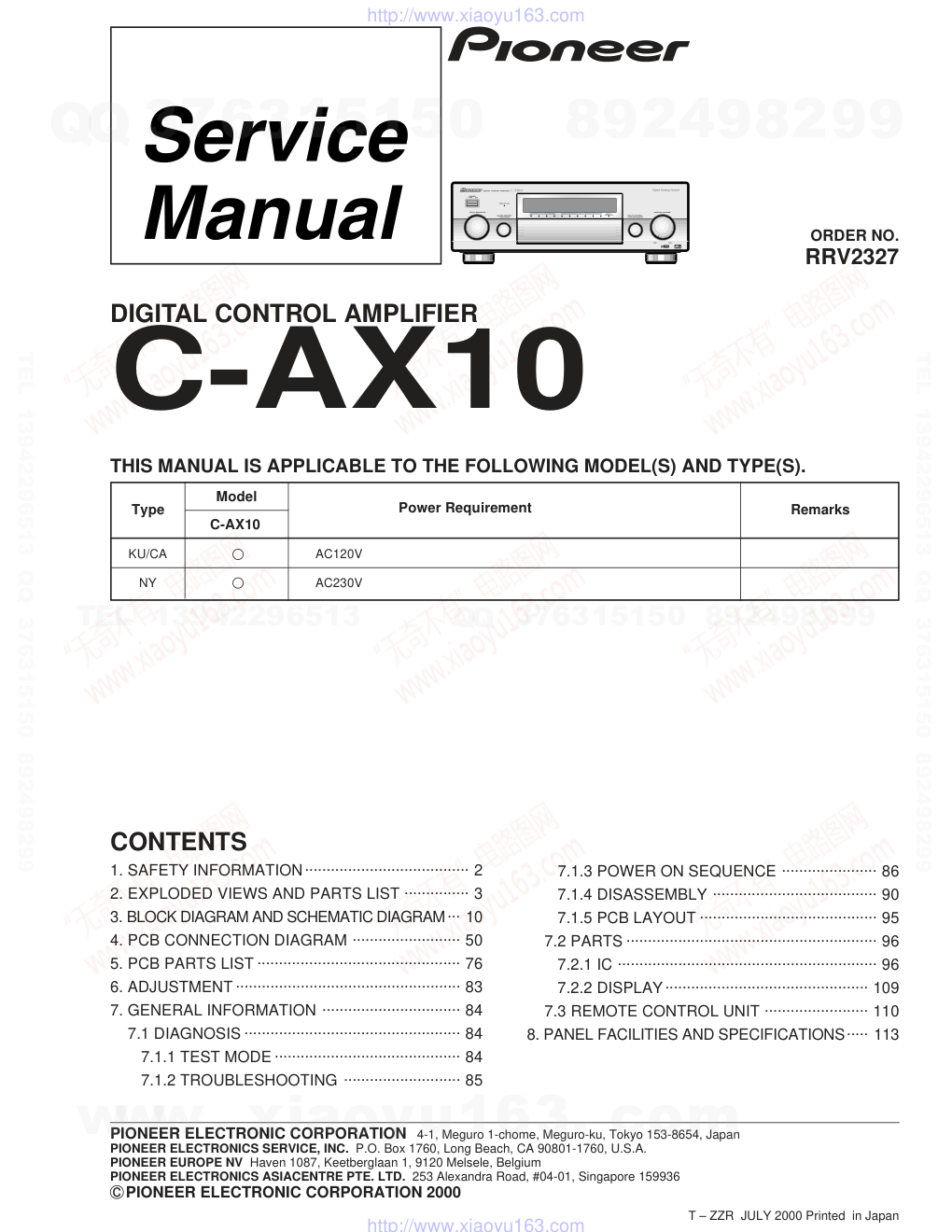

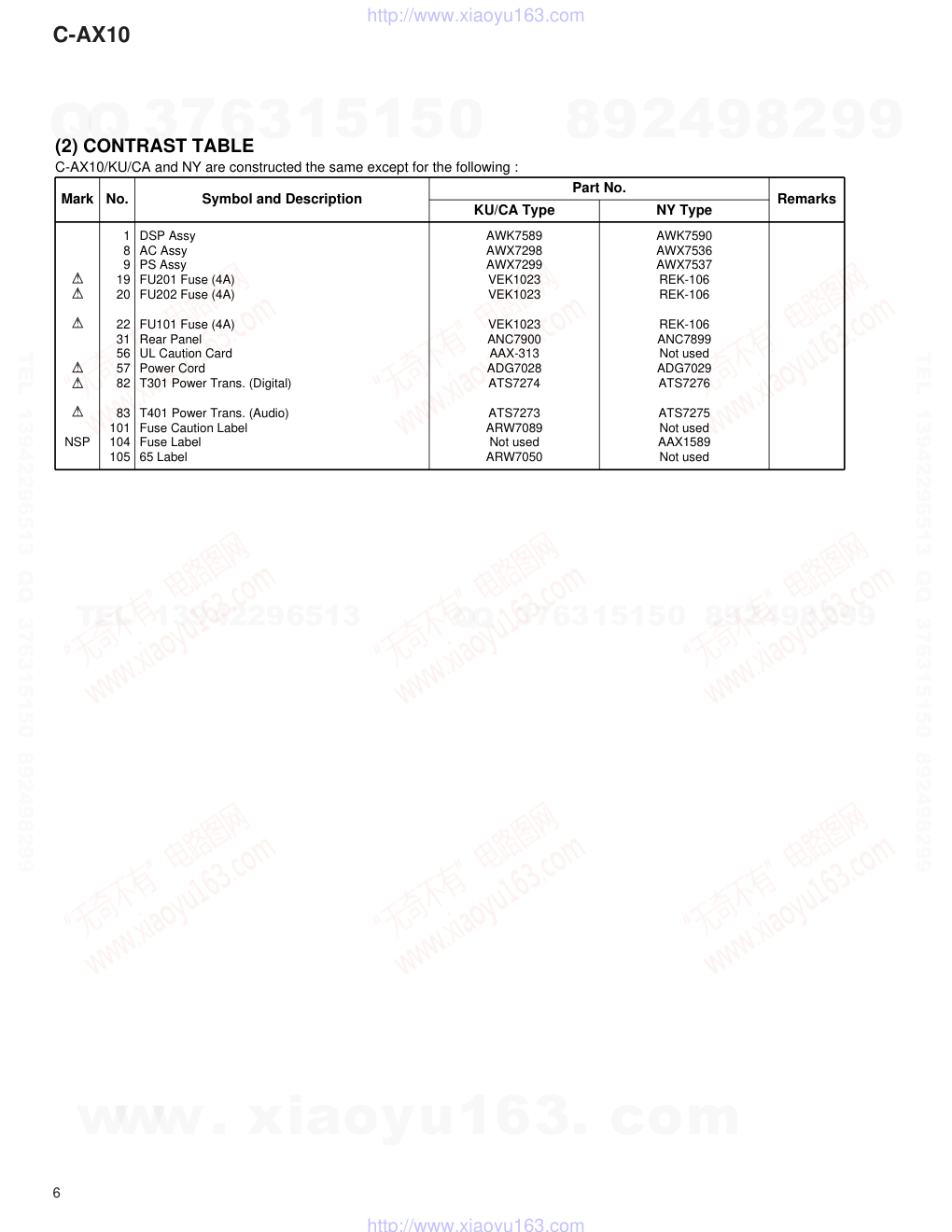

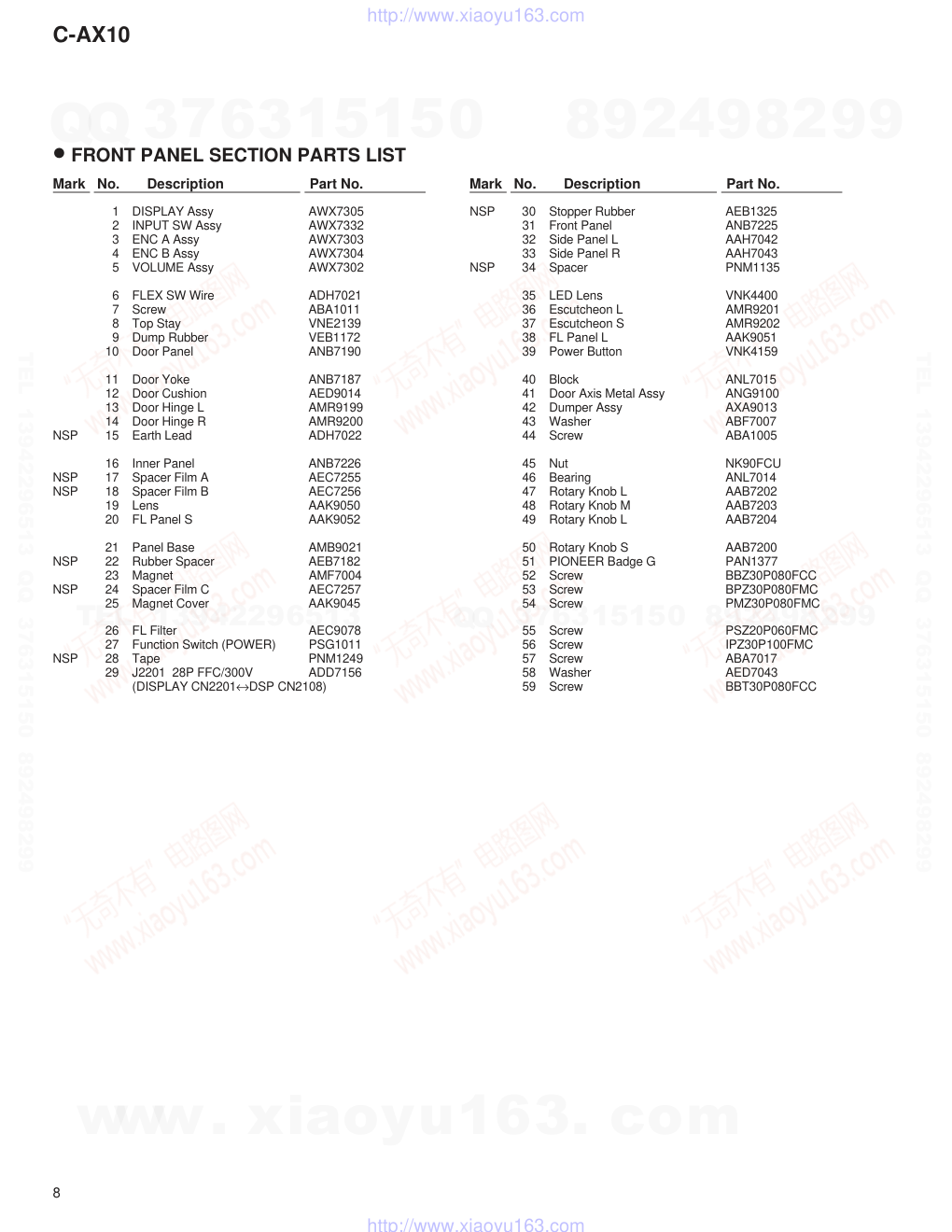

ORDER NO. PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER ELECTRONIC CORPORATION 2000 c C-AX10 RRV2327 1. SAFETY INFORMATION...................................... 2 2. EXPLODED VIEWS AND PARTS LIST ............... 3 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM... 10 4. PCB CONNECTION DIAGRAM ......................... 50 5. PCB PARTS LIST ............................................... 76 6. ADJUSTMENT .................................................... 83 7. GENERAL INFORMATION ................................ 84 7.1 DIAGNOSIS .................................................. 84 7.1.1 TEST MODE ........................................... 84 7.1.2 TROUBLESHOOTING ........................... 85 CONTENTS 7.1.3 POWER ON SEQUENCE ...................... 86 7.1.4 DISASSEMBLY ...................................... 90 7.1.5 PCB LAYOUT ......................................... 95 7.2 PARTS .......................................................... 96 7.2.1 IC ............................................................ 96 7.2.2 DISPLAY............................................... 109 7.3 REMOTE CONTROL UNIT ........................ 110 8. PANEL FACILITIES AND SPECIFICATIONS..... 113 T – ZZR JULY 2000 Printed in Japan DIGITAL CONTROL AMPLIFIER DOLBY D I G I T A L THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model C-AX10 Type Power Requirement Remarks KU/CA AC120V NY AC230V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 C-AX10 1. SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5mA. (FOR USA MODEL ONLY) Leakage current tester Reading should not be above 0.5mA Device under test Test all exposed metal surfaces Also test with plug reversed (Using AC adapter plug as required) Earth ground AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 C-AX10 1 PDIF Connection Cable ADE1087 2 Recycle Label See Contrast table (2) 3 Remote Control Unit (CU-C005) AXD7198 4 Battery Cover AZN7813 NSP 5 Dry Cell Battery (R6P,AA) VEM-013 6 Operating Instructions (English) ARB7221 7 POS Code Label See Contrast table (2) NSP 8 Warranty Card See Contrast table (2) 9 Mirror Mat Bag VHL1004 10 Front Pad AHA9016 11 Rear Pad AHA9017 12 Packing Case AHD7858 NSP 13 Polyethylene Bag AHG-117 14 Packing Sheet AHG7008 15 Door Sheet AHG7067 2.1 PACKING (1) PACKING PARTS LIST Mark No. Description Part No. 2. EXPLODED VIEWS AND PARTS LIST NOTES: • Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. • The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Screws adjacent to mark on the product are used for disassembly. Mark No. Description Part No. (2) CONTRAST TABLE C-AX10/KU/CA and NY are constructed the same except for the following : Mark No. Symbol and Description Part No. Remarks KU/CA Type NY Type NSP 2 7 8 Recycle Label POS Code Label Warranty Card ARW7091 ARW7090 ARY7045 Not used Not used ARY7022 FRONT 11 15 14 9 10 12 FRONT 8 8 13 5 1 7 2 6 KU/CA Type Only KU/CA Type Only KU/CA Type Only NY Type Only 4 3 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 C-AX10 J M X W V R B U T S P J F I G H F D C L D G I Q O H S A Y P M N K K K K U W L L L V T A B C N O Q X 2 3 5 4 2 1 1 5 3 4 73 72 71 100 68 24 35 35 83 82 19 20 87 81 9 23 23 72 72 63 22 87 87 80 80 79 17 76 77 78 17 77 76 17 34 34 21 18 55 30 17 16 17 34 17 59 34 75 72 75 72 67 34 34 34 34 34 40 21 34 34 17 4 25 39 67 67 75 72 65 85 85 85 93 62 Refer to section "2.3 FRONT PANEL SECTION". 89 13 94 11 X3 14 86 12 58 34 97 Y 34 36 34 34 28 29 90 90 25 10 16 15 21 17 21 89 21 88 21 88 34 27 5 61 84 84 6 54 67 64 47 46 41 42 17 8 80 53 7 34 69 70 73 61 61 66 66 17 34 89 3434 34 34 34 50 31 26 26 102 52 52 17 17 52 51 17 51 17 51 34 34 34 48 21 34 34 34 60 17 43 17 17 17 17 37 17 44 34 100 45 3 26 49 38 2 17 51 34 34 21 1 33 32 89 89 89 89 17 89 72 73 73 73 74 74 72 98 98 52 98 98 103 98 104 NY Type Only KU/CA Type Only NY Type Only 101 105 104 89 96 95 34 73 21 21 34 73 21 73 21 89 92 56 13 94 14 86 KU/CA Type Only 57 E I H F D G B C A 2.2 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 C-AX10 NSP 1 DSP Assy See Contrast table (2) 2 SG Assy AWX7444 3 AUDIO A Assy AWX7530 4 AUDIO B Assy AWX7531 5 FRAD Assy AWX7532 6 CRAD Assy AWX7535 7 DIGITAL I/O Assy AWX7533 8 AC Assy See Contrast table (2) 9 PS Assy See Contrast table (2) NSP 10 Under Base ANA9010 NSP 11 Bottom Plate PNA2376 NSP 12 Bottom Plate B ANF7021 13 Insulator ANL7013 14 Stopper AEC7224 15 PCB Support AEC9079 16 Side Wall ANG9104 17 Screw ABA1207 18 Subchassis B2 ANA9013 19 FU201 Fuse (4A) See Contrast table (2) 20 FU202 Fuse (4A) See Contrast table (2) 21 Cord Holder RNH1005 22 FU101 Fuse (4A) See Contrast table (2) 23 Ferrite Core ATH7008 NSP 24 Binder ZCA-T30L NSP 25 Card Spacer AEC7081 NSP 26 Card Spacer REC1156 27 J1202 16P FFC/30V ADD7131 (FRAD CN1201↔DSP CN2101) 28 Shield Plate I AMR7322 NSP 29 Edging E PEC1008 NSP 30 Binder ZCA-BK1 31 Rear Panel See Contrast table (2) 32 Earth Terminal with Knob AKE-046 33 Nut NK70FCU 34 Screw ABA1011 35 Screw ABA1014 NSP 36 Heat Sink Assy ANH7125 37 Side Support C ANK9027 38 Shrink Shield (AL) ADM7002 NSP 39 PCB Spacer (3 × 8) AEC1371 40 J1001 17P FFC/30V ADD7132 (AUDIO B CN1001↔DSP CN2103) 41 J1003 Connector Assy 11P ADX7274 (FRAD CN404↔AUDIO B CN1002, CN1003, CN1004) 42 Shrink Shield (AL) ADM7004 43 Side Frame A VNE2181 44 Subchassis T2 ANA9014 45 PCB Holder ANG9106 46 J903 Connector Assy 11P ADX7272 (FRAD CN403↔AUDIO A CN902, CN903, CN904) 47 Shrink Shield (AL) ADM7003 48 J901 15P FFC/30V ADD7133 (AUDIO A CN901↔DSP CN2102) NSP 49 Main Shield ANG9103 50 Shield Plate E AMR7290 NSP 51 PCB Base RNE1849 52 Washer ABE-053 53 J1401 14P FFC/30V ADD7130 (DIGITAL I/O CN1401↔DSP CN1601) 54 Shield Plate C AMR7270 55 Nylon Rivet AEC-525 56 UL Caution Card See Contrast table (2) 57 Power Cord See Contrast table (2) 58 Transistor Holder ANG9105 NSP 59 Subplate ANG7279 60 Earth Lead Unit ADX7326 61 Screw ABA7017 62 Screw ABA1208 63 FLEX SW Wire ADH7021 64 Side Alum. L AAH7040 65 Side Alum. R AAH7041 66 Rear Mole AAH7044 67 Dump Rubber VEB1172 68 Top Plate AAH7039 NSP 69 Stabilizer B AMR7278 70 Shield Plate F AMR7297 71 Shield Plate D AMR7288 72 Washer WG40FCC 73 SH Screw PBA1049 74 Washer ABF7008 75 Screw ABA7006 76 Locking Card Spacer DEC1908 NSP 77 PCB Holder AEC7057 78 Clamper DEC2007 NSP 79 Bushing 19 AEC7206 NSP 80 PCB Mold AMR1525 NSP 81 Subplate ANG7278 82 T301 Power Trans. (Digital) See Contrast table (2) 83 T401 Power Trans. (Audio) See Contrast table (2) NSP 84 PCB Support REC1248 85 Screw IBZ30P120FCC 86 Screw ABA1022 87 Screw IBZ30P180FCC 88 Screw IBZ40P060FCC 89 Screw BBZ30P080FCC 90 Screw BMZ30P060FCU 91 Screw BBZ30P060FCC 92 Power Cord Spacer ANG1153 93 Screw ABA1050 94 Foot Spacer AMR7283 95 Shield Plate H AMR7309 96 Shield Plate G AMR7308 97 Cord Clamp S DEC1574 98 Washer AED7043 99 • • • • 100 Screw BBT30P080FCC 101 Fuse Caution Label See Contrast table (2) NSP 102 Shield Tube VDM1004 NSP 103 Earth Lead Unit PDF1150 NSP 104 Fuse Label See Contrast table (2) 105 65 Label See Contrast table (2) (1) EXTERIOR PARTS LIST Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 C-AX10 (2) CONTRAST TABLE C-AX10/KU/CA and NY are constructed the same except for the following : Mark No. Symbol and Description Part No. Remarks KU/CA Type NY Type NSP 1 8 9 19 20 22 31 56 57 82 83 101 104 105 DSP Assy AC Assy PS Assy FU201 Fuse (4A) FU202 Fuse (4A) FU101 Fuse (4A) Rear Panel UL Caution Card Power Cord T301 Power Trans. (Digital) T401 Power Trans. (Audio) Fuse Caution Label Fuse Label 65 Label AWK7589 AWX7298 AWX7299 VEK1023 VEK1023 VEK1023 ANC7900 AAX-313 ADG7028 ATS7274 ATS7273 ARW7089 Not used ARW7050 AWK7590 AWX7536 AWX7537 REK-106 REK-106 REK-106 ANC7899 Not used ADG7029 ATS7276 ATS7275 Not used AAX1589 Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 C-AX10 2.3 FRONT PANEL SECTION A B C C C A B 7 7 31 46 45 46 51 34 32 57 17 17 54 22 52 9 52 40 39 28 27 6 53 44 53 53 53 29 12 11 10 11 12 53 1 55 55 13 42 42 41 43 43 41 53 53 4 7 5 59 52 14 15 3 52 2 26 53 22 23 24 25 52 50 45 16 18 19 20 30 21 35 56 58 36 Tighten a screw of No. 56 from the left side. 36 52 52 57 30 30 33 37 37 48 49 45 8 8 48 47 38 30 J N K L M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 C-AX10 1 DISPLAY Assy AWX7305 2 INPUT SW Assy AWX7332 3 ENC A Assy AWX7303 4 ENC B Assy AWX7304 5 VOLUME Assy AWX7302 6 FLEX SW Wire ADH7021 7 Screw ABA1011 8 Top Stay VNE2139 9 Dump Rubber VEB1172 10 Door Panel ANB7190 11 Door Yoke ANB7187 12 Door Cushion AED9014 13 Door Hinge L AMR9199 14 Door Hinge R AMR9200 NSP 15 Earth Lead ADH7022 16 Inner Panel ANB7226 NSP 17 Spacer Film A AEC7255 NSP 18 Spacer Film B AEC7256 19 Lens AAK9050 20 FL Panel S AAK9052 21 Panel Base AMB9021 NSP 22 Rubber Spacer AEB7182 23 Magnet AMF7004 NSP 24 Spacer Film C AEC7257 25 Magnet Cover AAK9045 26 FL Filter AEC9078 27 Function Switch (POWER) PSG1011 NSP 28 Tape PNM1249 29 J2201 28P FFC/300V ADD7156 (DISPLAY CN2201↔DSP CN2108) NSP 30 Stopper Rubber AEB1325 31 Front Panel ANB7225 32 Side Panel L AAH7042 33 Side Panel R AAH7043 NSP 34 Spacer PNM1135 35 LED Lens VNK4400 36 Escutcheon L AMR9201 37 Escutcheon S AMR9202 38 FL Panel L AAK9051 39 Power Button VNK4159 40 Block ANL7015 41 Door Axis Metal Assy ANG9100 42 Dumper Assy AXA9013 43 Washer ABF7007 44 Screw ABA1005 45 Nut NK90FCU 46 Bearing ANL7014 47 Rotary Knob L AAB7202 48 Rotary Knob M AAB7203 49 Rotary Knob L AAB7204 50 Rotary Knob S AAB7200 51 PIONEER Badge G PAN1377 52 Screw BBZ30P080FCC 53 Screw BPZ30P080FMC 54 Screw PMZ30P080FMC 55 Screw PSZ20P060FMC 56 Screw IPZ30P100FMC 57 Screw ABA7017 58 Washer AED7043 59 Screw BBT30P080FCC • FRONT PANEL SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 C-AX10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 10 A B C D 1 2 3 4 1 2 3 4 DIGITAL INPUT /OUTPUT SELECTOR IC1404,IC1405 TC74HC151AF DIR (MASTER) IC1603 CS8414-CS DIR (SLAVE) IC1602 CS8414-CS A/D CONVERTER IC1105 AK5393VS Hi-bit IC1610 PD0236AM DSP IC1613 XCD56362PV100 DSP ROM IC1501 XCD56362PV100 IC1502 PDK038A FLASH MEMORY IC2105 PEA003A IC1701,IC1702 IC1801,IC1802, IC1613 RAM IC1503 : TC55V8128BJ-12 IC1504 : TC55V1664BFT-12 A DIGITAL I/O ASSY G DSP ASSY F CRAD ASSY E FRAD ASSY DIGITAL INPUT DIGITAL OUTPUT LINE OUT1 LINE OUT2 LINE LINE LINE DVD 1. COAX 2. COAX 3. COAX 4. OPT A/D CONVERTER IC2704 AK5393VS A/D CONVERTER IC2804 AK5393VS DSP CONTROL U-COM IC2102 M30622SFP ANALOG INPUT SELECTOR L R L R L R L R L R F F C LFE S SR PDIF COAX 5. OPT 6. OPT OPT 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM 3.1.1 I/O BLOCK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 11 A B C D 5 6 7 8 5 6 7 8 EEPROM IC2106 AT24C16N-10SI2.5 FLASH MEMORY IC2110 PEA004A DSP IC1701 XCD56362PV100 DSP IC1801 XCD56362PV100 DSP DAC IC1702 XCD56362PV100 DSP Hi-bit Hi-bit IC1802 XCD56362PV100 IC2001 PD0236AM IC1901 PD0236AM DIGITAL FILTER IC1703 SM5847AF DAC VR IC901 AD7564BR PCM1704U-J IC501 IC502 IC601 IC602 IC801 IC802 IC701 IC702 PCM1704U-J PCM1704U-J PCM1704U-J PCM1704U-J PCM1704U-J PCM1704U-J PCM1704U-J DIGITAL FILTER IC1803 SM5847AF DIGITAL FILTER IC2002 DF1704E DIGITAL FILTER IC1902 DF1704E SYSTEM CONTROL U-COM CLOCK GENERATOR OPERATION BUTTONS INPUT SELECTOR SOUND MEMORY OUTPUT MODE MULTI CONTROL MASTER VOLUME REMOTE CONTROL FL LED IC2109 M38079SFP I AUDIO B ASSY H AUDIO A ASSY J DISPLAY ASSY F L (HIGH) F L (LOW) F R (HIGH) F R (LOW) CENTER SUB WOOFER DAC VR IC1001 AD7564BR SL SR DAC VR IC902 AD7564BR DAC VR IC1002 AD7564BR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 12 A B C D 1 2 3 4 1 2 3 4 B AC ASSY C PS ASSY H AUDIO A ASSY E FRAD ASSY I AUDIO B ASSY 3.1.2 POWER SUPPLY BLOCK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 13 A B C D 1 2 3 4 1 2 3 4 E FRAD ASSY F CRAD ASSY 24.576MHz (24.576MHz) 3.1.3 A/D BLOCK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 14 A B C D 1 2 3 4 1 2 3 4 H AUDIO A ASSY 3.1.4 D/A BLOCK (AUDIO A ASSY) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 15 A B C D 1 2 3 4 1 2 3 4 I AUDIO B ASSY 3.1.5 D/A BLOCK (AUDIO B ASSY) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 16 A B C D 1 2 3 4 1 2 3 4 A DIGITAL I/O ASSY B DSP ASSY 3.1.6 DIGITAL SIGNAL BLOCK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 17 A B C D 5 6 7 8 5 6 7 8 to D/A SECTION Hi-bit Hi-bit Hi-bit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 18 A B C D 1 2 3 4 1 2 3 4 A E F Hi-bit Hi-bit Hi-bit FRONT 3.1.7 µ-COM PORT BLOCK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 19 A B C D 5 6 7 8 5 6 7 8 I AUDIO B ASSY H AUDIO A ASSY K M N L VOLUME ASSY J DISPLAY ASSY G DSP ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 20 A B C D 1 2 3 4 1 2 3 4 VDD5 VDD5 MEMORY0 MEMORY1 MEMORY2 GNDD GNDD BCS_XRST GADCD VDSP+5 GNDP VDSP+5 INPUT J201 ADX7263 AC120V 60Hz (KU/CA) AC230V 50/60Hz (NY) G 1/6- G 6/6 DSP ASSY (KU/CA : AWK7589) (NY : AWK7590) G E 1/3- E 3/3 FRAD ASSY (AWX7532) E DIGITAL I/O ASSY (AWX7533) A AC ASSY (KU/CA : AWX7298) (NY : AWX7536) B SG ASSY (AWX7444) D PS ASSY (KU/CA : AWX7299) (NY : AWX7537) C ENC A ASSY (AWX7303) L INPUT SW ASSY (AWX7332) M CRAD ASSY (AWX7535) F J2903 J403 FU201, FU202 (4A 125V) KU/CA : VEK1023 NY : REK-106 FU101 (4A 125V) KU/CA : VEK1023 NY : REK-106 T301 (DIGITAL) KU/CA : ATS7274 NY : ATS7276 T401 (AUDIO) KU/CA : ATS7273 NY : ATS7275 AC POWER CORD KU/CA : ADG7028 NY : ADG7029 GND D VF+5PLLD CN2109 B3B-PH-SM3 J2102 ADX7348 VF+5PLLA VOLK+3 3.2 OVERALL WIRING DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 21 A B C D 5 6 7 8 5 6 7 8 MENUP MENU1 MENU0 VDD5 GNDD VC18L1 GCLK(S) VC18R1 VE18R1 VC18R2 VE18R2 VE18L1 VC18L2 VE18L2 C/L_WCLK C/L_BCLK REAR_WCLK DISPLAY ASSY (AWX7305) J AUDIO B ASSY (AWX7531) I AUDIO A ASSY (AWX7530) H ENC B ASSY (AWX7304) N VOLUME ASSY (AWX7302) K Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 22 A B C D 1 2 3 4 1 2 3 4 DIGITAL I/O ASSY (AWX7533) A +5.1V +8.1V CN1601 G2/6 J301 E 1/3 2 1 : The power supply is shown with the marked box. VTL1099 : DIGITAL AUDIO SIGNAL ROUTE : DIGITAL (PDIF) AUDIO SIGNAL ROUTE (P) (P) (P) (P) (P) (P) (P) (P) 3.3 DIGITAL I/O ASSY A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 23 A B C D 1 2 3 4 1 2 3 4 AC IN AC ASSY (KU/CA : AWX7298) (NY : AWX7536) PS ASSY (KU/CA : AWX7299) (NY : AWX7537) B C +45.8V +39.2V +4.9V +3.2V +7.9V J201 ADX7263 PCB BINDER VEF1040 PCB BINDER VEF1040 J2202 J CN301 E 1/3 CN407 CN405 CN406 E 1/3 AC ASSY S101 : POWER • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.630 MFD, BY LITTELFUSE INC. FOR IC201-IC203 (AEK7006). FU101 (4A 125V) KU/CA : VEK1023 NY : REK-106 C101, C102 KU/CA : ACE7014 : 0.01 NY : ACE7034 : 330p FU201 (4A 125V) KU/CA : VEK1023 NY : REK-106 FU202 (4A 125V) KU/CA : VEK1023 NY : REK-106 T301 (DIGITAL) KU/CA : ATS7274 NY : ATS7276 T401 (AUDIO) KU/CA : ATS7273 NY : ATS7275 AC120V 60Hz (KU/CA) AC230V 50/60Hz (NY) AC POWER CORD KU/CA : ADG7028 NY : ADG7029 ACG7043 0.01 C103 W117 W116 KU/CA:W116, W117 NY : C103 C B 3.4 AC and PS ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 24 A B C D 1 2 3 4 1 2 3 4 E 1/3 FRAD ASSY (AWX7532) SG ASSY (AWX7444) D CN1402 A J201 C T401 T401 T401 PCB BINDER VEF1040 PCB BINDER VEF1040 PCB BINDER VEF1040 +25.4V +17.8V +10V +5V +5V +5V +11.8V -25.4V -19.8V -10.3V HEAT SINK (3.15A) 3.5 SG and FRAD (1/3) ASSYS 1/3 E D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 25 A B C D 5 6 7 8 5 6 7 8 J403 ADX7269 CN1003 CN1002 CN1004 I CN903 CN902 CN904 H CN2901 F CN2107 G1/6 CN2104 G1/6 -5.5V +5.3V +5V +5.6V +3.3V PCB BINDER VEF1040 : The power supply is shown with the marked box. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.630 MFD, BY LITTELFUSE INC. FOR IC304, IC411-IC413 (AEK7006). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 4911.25 MFD, BY LITTELFUSE INC. FOR IC405 (AEK7010). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 4913.15 MFD, BY LITTELFUSE INC. FOR IC403 (AEK7016). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.REPLACE ONLY WITH SAME TYPE NO. 491.200 MFD, BY LITTELFUSE INC. FOR IC408 (AEK7023). 1/3 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 26 A B C D 1 2 3 4 1 2 3 4 E 3/3 PCB BINDER VEF1040 PCB BINDER VEF1040 RY1101 - RY1109 : VSR1008 D1101 - D1118 : 1SS355 C1171 470p ACE7018 C1172 470p ACE7018 E 2/3 FRAD ASSY (AWX7532) DTF1070 F1102 DTF1070 F1101 DTF1070 F1101 DTL1019 DTL1019 DTL1019 DTL1019 DTL1019 DTL1019 DTL1019 DTL1019 3.6 FRAD ASSY (2/3) 2/3 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 27 A B C D 5 6 7 8 5 6 7 8 CN2101 G1/6 CN1602 G2/6 J2903 F PCB BINDER VEF1040 Q1101 - Q1109 : DTC124EK ANALOG IN +3.3V ANALOG IN : 0V DIGITAL IN : +5V G+-6 INPUT GAIN G-06 +5.0V -6V +5.0V 0V 0V 0V +5.0V +6V 0V ANALOG 3 XPHN LINE +5.0V PHONO 0V DTL1019 L1204 DTF1070 F1202 DTF1070 DTL1019 F1201 L1202 VCLK+3 : ANALOG AUDIO SIGNAL ROUTE (FRONT) : ANALOG AUDIO SIGNAL ROUTE (Multi) (M) (M) (M) (M) 2/3 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 28 A B C D 1 2 3 4 1 2 3 4 E 2/3 PCB BINDER VEF1040 F (M) (M) (M) (M) (M) (M) (M) E 3/3 FRAD ASSY (AWX7532) CRAD ASSY (AWX7535) DTL1019 L1303 DTL1019 L1304 DTL1019 L1302 DTL1019 L1301 3.7 FRAD (3/3) and CRAD ASSYS 3/3 E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 29 A B C D 5 6 7 8 5 6 7 8 CN1202 E 2/3 J403 E 1/3 J2903 ADX7270 : ANALOG AUDIO SIGNAL ROUTE (Multi) (M) (M) (M) (M) (M) (M) (M) (M) (M) (M) : The power supply is shown with the marked box. F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 30 A B C D 1 2 3 4 1 2 3 4 CN901 H CN1201 E 2/3 CN1001 I G2/6 G4/6, 5/6 G3/6 G6/6 IC SOCKET (IC9001) IC160-0324-230 3.8 DSP ASSY (1/6) 1/6 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 31 A B C D 5 6 7 8 5 6 7 8 CN2201 J G 1/6 DSP ASSY (KU/CA : AWK7589) (NY : AWK7590) J301 E 1/3 : The power supply is shown with the marked box. IC SOCKET (IC9002) IC160-0324-230 NY ONLY KU/CA ONLY G6/6 J2102 ADX7348 1/6 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 32 A B C D 1 2 3 4 1 2 3 4 G1/6 G3/6 CN1401 A J1201 E 2/3 PDIF : +5V OTHERS : 0V ANALOG IN : 0V DIGITAL IN : +5V ANALOG IN , DIGITAL IN(fs=96.88k) : +5V DIGITAL IN (fs=48.44k) Hi-Bit ON : +5V OFF : 0V DTL1019 DTL1103 L1603 L1604 (P) (P) (P) (P) (P) (P) (P) (P) (P) (P) 3 3 3 4 5 4 4 5 5 6 6 7 3.9 DSP ASSY (2/6) 2/6 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 33 A B C D 5 6 7 8 5 6 7 8 G3/6 G4/6 G5/6 G6/6 G 2/6 DSP ASSY (KU/CA : AWK7589) (NY : AWK7590) : DIGITAL AUDIO SIGNAL ROUTE : DIGITAL (PDIF) AUDIO SIGNAL ROUTE (P) (P) (P) (P) (P) : ANALOG AUDIO SIGNAL ROUTE : AUDIO SIGNAL ROUTE 8 8 2/6 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 34 A B C D 1 2 3 4 1 2 3 4 G1/6 G4/6 G5/6 G6/6 G2/6 G 3/6 DSP ASSY (KU/CA : AWK7589) (NY : AWK7590) F1508 DTF1070 3.10 DSP ASSY (3/6) 3/6 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 35 A B C D 5 6 7 8 5 6 7 8 : AUDIO SIGNAL ROUTE 9 +3.3V +3.3V x2 (1/10W) 3/6 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 36 A B C D 1 2 3 4 1 2 3 4 G2/6 G6/6 G3/6 10 10 G 4/6 DSP ASSY (KU/CA : AWK7589) (NY : AWK7590) 3.11 DSP ASSY (4/6) 4/6 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 37 A B C D 5 6 7 8 5 6 7 8 : AUDIO SIGNAL ROUTE G1/6 11 11 4/6 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 38 A B C D 1 2 3 4 1 2 3 4 G2/6 G6/6 G3/6 G 5/6 DSP ASSY (KU/CA : AWK7589) (NY : AWK7590) 3.12 DSP ASSY (5/6) 5/6 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 39 A B C D 5 6 7 8 5 6 7 8 G1/6 5/6 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 40 A B C D 1 2 3 4 1 2 3 4 G5/6 G4/6 G3/6 G2/6 G1/6 15 14 PDIF (192k) : +5V OTHERS : 0V G1/6 : J2102 CN2109 B38-PH-SW3 3.13 DSP ASSY (6/6) 6/6 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 41 A B C D 5 6 7 8 5 6 7 8 : AUDIO SIGNAL ROUTE 12 12 13 16 J902 H J1002 I L1804 L1803 L1802 L1801 L1801-L1804 : VTL1083 L1704 L1703 L1702 L1701 L1701-L1704 : VTL1083 G 6/6 DSP ASSY (KU/CA : AWK7589) (NY : AWK7590) TC7WH08FU TC7WH08FU VTL1105 L1706 VTL1105 L1705 VTL1105 L1806 VTL1105 L1805 6/6 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 42 A B C D 1 2 3 4 1 2 3 4 17 CN1703 G6/6 CN2102 G1/6 CN403 E 1/3 AUDIO A ASSY (AWX7530) H PCB BINDER VEF1040 PCB BINDER VEF1040 PCB BINDER VEF1040 PCB BINDER VEF1040 FIR/IIR NORMAL 2ch MULTI 2ch MULTI 2DIV 5V 0V 0V 0V X2CB 0V 5V 0V 5V X2NR 0V 0V 5V 0V XDIV 0V 0V 5V 5V Base of Q901-Q904 DTF1070 F901 R905 3.14 AUDIO A ASSY H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 43 A B C D 5 6 7 8 5 6 7 8 : AUDIO SIGNAL ROUTE PCB BINDER VEF1040 DIRECT 2ch/ALL :0V OFF : 5V DIRECT ALL :0V 2ch/OFF : 5V UNLOCK :0V 2ch :0V MULTI :5V UNLOCK :0V NORMAL :5V : The power supply is shown with the marked box. H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 44 A B C D 1 2 3 4 1 2 3 4 AUDIO B ASSY (AWX7531) I PCB BINDER VEF1040 PCB BINDER VEF1040 CN1803 G 6/6 CN2103 G1/6 CN404 E 1/3 BINDER BINDER DTF1070 F1001 R1007 3.15 AUDIO B ASSY I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 45 A B C D 5 6 7 8 5 6 7 8 PCB BINDER VEF1040 : The power supply is shown with the marked box. I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 46 A B C D 1 2 3 4 1 2 3 4 DISPLAY ASSY (AWX7305) J CN2108 G 1/6 CN202 C FL ON : 5V FL OFF : 0V FIR : 0V IIR : 1V OFF : 1.9V NORM : 3.8V DIRECT : 0.7V MIDNIGHT : 1.4V Hi-Bit : 2.1V DNR : 2.8V 95/48 : 3.6V PARA CHECK : 0V TONE : 0.7V EACH/ALL : 1.4V BAL : 2.1V SYS SETUP : 2.8V NTW SETUP : 3.6V MENU ENTER : 4.3V : The power supply is shown with the marked box. 3.16 DISPLAY, VOLUME, ENC A, INPUT SW and ENC B ASSYS J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 47 A B C D 5 6 7 8 5 6 7 8 ENC A ASSY (AWX7303) L INPUT SW ASSY (AWX7332) M ENC B ASSY (AWX7304) N VOLUME ASSY (AWX7302) K PCB BINDER VEF1040 PCB BINDER AEF7006 OPTION : 0V DIMMER : 0.7V 2ch/MULTI : 1.4V INPUT GAIN : 2.1V REC SEL : 2.8V CHAR : 3.6V SOUND MEMORY ENTER : 4.3V DISPLAY ASSY S2202 : PARAMETER CHECK S2203 : Ÿ/DTS S2204 : DIRECT S2205 : TONE S2206 : DIMMER S2207 : MIDNIGHT S2208 : EACH/ALL S2209 : DVD INPUT 2ch/multi S2210 : Hi-bit S2211 : BALANCE S2212 : INPUT GAIN INPUT SW ASSY S2301 : INPUT SELECTOR ENC A ASSY S2401 : SOUND MEMORY (PUSH NEXT/ENTER) ENC B ASSY S2501 : MULTI CONTROL (PUSH NEXT/ENTER) S2213 : DIGITAL NR S2214 : SYSTEM SETUP S2215 : REC SELECTOR (DIGITAL) S2216 : fs (96k/48k) S2217 : NETWORK SETUP S2218 : CHARACTER INPUT S2219 : OUTPUT MODE FIR – IIR – OFF – NORM 10k-A ±10% 10k-C ±10% Ÿ/DTS N M L K J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 48 A DIGITAL I/O ASSY G DSP ASSY 1 -1 COAX OUT (JA1407-pin 1) fs=96kHz V: 500mV/div. H: 0.1µsec/div. 2 DIGITAL IN : RX (CN1401-pin 5) V: 5V/div. H: 0.1µsec/div. 3 DIR OUT (IC1603-pin 11 :FSYNC, pin 12 :SCK, pin 26 :SDATA, pin 19 :MCK) V: 5V/div. H: 1µsec/div. 4 Front A/D Converter and MCLK outputs (IC1608-pin 2 :SCLK, pin 5 :LRCK, pin 11 :F_DATA, IC1611-pin 1 :MCLK) V: 5V/div. H: 1µsec/div. Rear A/D Converter output (IC1608-pin 2 :SCLK, pin 5 :LRCK, pin 11 :F_DATA, IC1611-pin 1 :MCLK) V: 5V/div. H: 1µsec/div. 5 MCLK (IC1611-pin 1 :MCLK) V: 5V/div. H: 20nsec/div. 4 Front Hi-bit output (IC1610-pin 5 :LRCKO, pin 7 :BCKO, pin 8 :DATAO) V: 5V/div. H: 1µsec/div. 6 1 -2 COAX OUT (JA1407-pin 1) fs=48kHz V: 500mV/div. H: 0.1µsec/div. -1 -2 FSYNC SCK SDATA MCK LRCK SCLK F_DATA MCLK LRCKO BCKO DATAO LRCK SCLK F_DATA MCLK WAVEFORMS Note : The encircled numbers denote measuring point in the schematic diagram. Measurement condition ; No. 1-1 : DIGITAL OUT, fs = 96kHz No. 1-2 : DIGITAL OUT, fs = 48kHz No. 2 and 3 : DIGITAL IN, fs = 96kHz, 20 bit (data support to 16 through 24 bit.) No. 4 : ANALOG IN No. 5, 14 to 16 : ANALOG IN, multi No. 6 : ANALOG IN (24 bit data output with Hi-bit "ON" at DIGITAL IN) No. 7 and 9 : ANALOG IN (data support to 16 through 24 bit.) No. 8, 10 to 13 : ANALOG IN (DIGITAL IN is the same) No. 17 : DIRECT : ON at full scale output No. 12-2 : ANALOG IN at DIGITAL IN (96k, 48k, 192k) 8 DF DSP OUT (IC1613-pin 12 :FST, pin 14 :SCKT, pin 4 :SDO0) V: 5V/div. H: 2µsec/div. Front Hi-bit input (IC1610-pin 11 :LRCKI, pin 15 :BCKI, pin 14 :DATAI) V: 5V/div. H: 1µsec/div. 7 LRCKI BCKI DATAI FST SCKT SDO0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 49 H AUDIO A ASSY 12 13 Center DSP input (IC1501-pin 12 :FST, pin 14 :SCKT, pin 10 :SDI1) V: 5V/div. H: 1µsec/div. 14 Rear Hi-bit input (IC1901-pin 11 :LRCKI, pin 14 :DATAI, pin 15 :BCKI) V: 5V/div. H: 1µsec/div. 10 Front 1st DSP output (IC1701-pin 12 :MPX1, pin 14 :BCK1, pin 4 :SDO0, pin 5 :SDO1) V: 5V/div. H: 2µsec/div. Front DF input (IC1703-pin 19 :LRCI, pin 21 :BCKI, pin 27 :DTLH, pin 16 :XTI(37MHz) ) V: 5V/div. H: 1µsec/div. 12 Front DF input XTI (37MHz) (IC1703-pin 16 : XTI(37MHz) ) V: 5V/div. H: 10nsec/div. Front DF output (IC1703-pin 4 :WCKO, pin 5 :BCKO, pin 2 :DOR) V: 5V/div. H: 0.2µsec/div. Rear DF output (IC1902-pin 23 :DOR, pin 25 :WCKO, pin 26 :BCKO) V: 5V/div. H: 0.2µsec/div. 16 DAC output (f=1kHz) (IC503-pin 1) V: 5V/div. H: 0.2msec/div. 17 15 Rear Hi-bit output (IC1901-pin 5 :LRCKO, pin 7 :BCKO, pin 8 :DATAO) V: 5V/div. H: 1µsec/div. 11 Front 2nd DSP output (IC1702-pin 12 :MPX2, pin 14 :BCK2, pin 4 :DTLH) V: 5V/div. H: 2µsec/div. 9 -1 -2 LRCI WCKO BCKO DOR BCKI DTLH XTI WCKO BCKO DOR LRCKI BCKI DATAI LRCKO BCKO DATAO FST SCKT SDI1 MPX1 MPX2 BCK2 DTLH BCK1 SDO0 SDO1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 50 A B C D 1 2 3 4 1 2 3 4 B PS ASSY C AC ASSY B (ANP7293-A) (ANP7293-A) IC203 IC201 IC204 IC202 IC205 IC206 Q201 SIDE A CN301 E J2202 J CN405 – CN407 E AC INLET ASSY T301 T401 4.1 AC, PS ASSYS C 4. PCB CONNECTION DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 51 A B C D 1 2 3 4 1 2 3 4 PS ASSY C (ANP7293-A) SIDE B NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 52 A B C D 1 2 3 4 1 2 3 4 DIGITAL I/O ASSY A (ANP7292-B) SIDE A CN1601 G J301- pins 1, 2 E 4.2 DIGITAL I/O ASSY A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 53 A B C D 1 2 3 4 1 2 3 4 DIGITAL I/O ASSY A (ANP7292-B) IC1406 IC1401 IC1402 IC1403 IC1404 IC1405 SIDE B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 54 A B C D 1 2 3 4 1 2 3 4 FRAD ASSY E SIDE A CN1602 G CN2101 G J2903 F T IC1106 IC1202 IC1101 IC1102 IC1103 IC1105 IC1104 IC1204 IC1201 IC1203 IC412 IC41 J2901 F 4.3 SG, FRAD ASSYS E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 55 A B C D 5 6 7 8 5 6 7 8 SG ASSY D (ANP7292-B) (ANP7292-B) 903 CN2901 F T401 CN903 H CN902 H CN1003 I CN1002 I CN1004 I CN904 H IC412 IC413 IC1405 – IC1409 IC404 IC411 IC403 IC402 Q416 Q402 Q401 Q407 Q417 Q418 IC306 IC410 IC304 IC304 IC304 IC302 IC301 IC305 IC303 IC401 CN1402 A J201 C T401 T401 CN2107 G CN2104 G D E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 56 A B C D 1 2 3 4 1 2 3 4 SG ASSY D FRAD ASSY E Q406 Q405 Q408 Q419 Q420 Q404 Q403 Q409 Q421 Q422 D E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 57 A B C D 5 6 7 8 5 6 7 8 (ANP7292-B) IC1105 IC1203 IC1204 IC1201 IC1202 Q1108 Q1107 Q1201 Q1101 Q1109 Q1102 Q1104 Q1301 Q1106 Q1302 Q1103 Q1105 SIDE B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 58 A B C D 1 2 3 4 1 2 3 4 CRAD ASSY F (ANP7292-B) IC2802 IC2803 IC2801 IC2702 IC2703 IC2701 SIDE A CN1301 E J403 E CN1202 E 4.4 CRAD ASSY F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 59 A B C D 1 2 3 4 1 2 3 4 CRAD ASSY F (ANP7292-B) IC2804 IC2704 Q2801 Q2802 Q2702 Q2701 SIDE B F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 60 A B C D 1 2 3 4 1 2 3 4 DSP ASSY G CN1201 E I J902 H J1201 E SIDE A IC1612 IC1513 IC1603 IC1602 IC1505 IC1510 IC1512 IC1616 IC1613 IC1507 IC1509 IC1702 IC19 IC1 IC1701 IC1511 IC1506 IC1607 IC1501 IC1611 CN1401 A 4.5 DSP ASSY G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 61 A B C D 5 6 7 8 5 6 7 8 CN1001 I 902 CN901 H J1002 I (ANP7290-E) IC1702 IC1903 IC1703 IC1803 IC1704 IC1804 IC2003 IC2116 IC2109 IC9003 IC2102 Q2101 IC1802 IC1801 IC1701 CN2201 J J301 E G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 62 A B C D 1 2 3 4 1 2 3 4 DSP ASSY G SIDE B IC2104 IC2113 IC2114 IC2106 IC2115 IC9001 IC2108 IC9002 IC2118 IC2101 IC2001 IC2110 IC2107 IC2002 IC1 IC1 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 63 A B C D 5 6 7 8 5 6 7 8 (ANP7290-E) IC1901 IC1625 IC1610 IC1624 IC1632 IC1614 IC1605 IC2103 IC1601 IC1622 IC1621 IC1620 IC1615 IC1623 IC1606 IC1618 IC1619 IC1902 IC2112 IC2111 IC1508 IC1504 IC1502 IC1503 IC1608 IC1609 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 64 A B C D 1 2 3 4 1 2 3 4 AUDIO A ASSY H CN403-pins 1 to 7 E CN403-pins 10,11 E CN G CN1703 G SIDE A IC903 IC702 IC704 IC701 IC703 IC502 IC504 IC501 IC503 4.6 AUDIO A ASSY H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 65 A B C D 5 6 7 8 5 6 7 8 CN403-pins 8,9 E CN2102 G IC501 IC705 IC706 IC505 IC506 IC707 IC708 IC507 IC902 IC901 IC508 IC503 (ANP7291-D) H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 66 A B C D 1 2 3 4 1 2 3 4 AUDIO A ASSY H SIDE B Q910 Q912 Q908 Q902 Q901 Q907 Q903 H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 67 A B C D 5 6 7 8 5 6 7 8 Q901 Q905 Q906 Q904 907 Q903 (ANP7291-D) H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 68 A B C D 1 2 3 4 1 2 3 4 AUDIO B ASSY I CN404-pins 1 to 7 E CN404-pins 10,11 E CN1803 G SIDE A IC1003 IC802 IC804 IC801 IC803 IC602 IC604 IC601 IC603 4.7 AUDIO B ASSY I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 69 A B C D 5 6 7 8 5 6 7 8 CN404-pins 8,9 E CN2103 G IC601 IC805 IC806 IC605 IC606 IC808 IC807 IC607 IC1002 IC1001 IC608 IC603 (ANP7291-D ) I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 70 A B C D 1 2 3 4 1 2 3 4 AUDIO B ASSY I SIDE B Q1013 Q1003 Q1007 Q1002 Q100 Q1008 Q1015 Q1011 I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 71 A B C D 5 6 7 8 5 6 7 8 Q1003 Q1007 Q1001 Q1005 Q1006 Q1004 Q1009 (ANP7291-D) I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 72 A B C D 1 2 3 4 1 2 3 4 DISPLAY ASSY J ENC A ASSY L INPUT SW ASSY M CN202 C SIDE A (ANP7293-A) (ANP7293-A) FRONT PANEL FRONT PANEL 4.8 DISPLAY, VOLUME, ENC A, INPUT SW, ENC B ASSYS J L M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 73 A B C D 5 6 7 8 5 6 7 8 VOLUME ASSY K ENC B ASSY N CN2108 G (ANP7293-A) (ANP7293-A) (ANP7293-A) FRONT PANEL J K N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 74 A B C D 1 2 3 4 1 2 3 4 DISPLAY ASSY J VOLUME ASSY K ENC B ASSY N SIDE B IC2202 IC2203 (ANP7293-A) (ANP7293-A) J K N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 75 A B C D 5 6 7 8 5 6 7 8 ENC A ASSY L INPUT SW ASSY M (ANP7293-A) IC2201 Q2202 Q2201 Q2204 Q2205 Q2206 Q2203 (ANP7293-A) (ANP7293-A) J L M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 C-AX10 Mark No. Description Part No. Mark No. Description Part No. 5. PCB PARTS LIST NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. •The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. •When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω → 56 × 10 1 → 561 ........................................................ RD1/4PU 5 6 1 J 47k Ω → 47 × 10 3 → 473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω → R50 ..................................................................................... RN2H R 5 0 K 1 Ω → 1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω → 562 × 10 1 → 5621 ...................................................... RN1/4PC 5 6 2 1 F LIST OF WHOLE PCB ASSEMBLIES Mark Symbol and Description Part No. Remarks KU/CA Type NY Type NSP NSP NSP NSP PSAD ASSY DIGITAL I/O ASSY SG ASSY FRAD ASSY CRAD ASSY CONTROL ASSY AC ASSY PS ASSY DISPLAY ASSY VOLUME ASSY ENC A ASSY INPUT SW ASSY ENC B ASSY DSP ASSY AUDIO ASSY AUDIO A ASSY AUDIO B ASSY AWM7490 AWX7533 AWX7444 AWX7532 AWX7535 AWM7467 AWX7298 AWX7299 AWX7305 AWX7302 AWX7303 AWX7332 AWX7304 AWK7589 AWM7489 AWX7530 AWX7531 AWM7490 AWX7533 AWX7444 AWX7532 AWX7535 AWM7491 AWX7536 AWX7537 AWX7305 AWX7302 AWX7303 AWX7332 AWX7304 AWK7590 AWM7489 AWX7530 AWX7531 AC ASSY AWX7298 and AWX7536 are constructed the same except for the following : B Mark Symbol and Description Part No. Remarks AWX7298 AWX7536 C101, C102 C103 (4700pF/250V) CAPACITOR COVER ACE7014(0.01µF/275V) Not used Not used ACE7034(3300pF/275V) ACG7043 VEC-063 DSP ASSY AWK7589 and AWK7590 are constructed the same except for the following : G Mark Symbol and Description Part No. Remarks AWK7589 AWK7590 R2142 R2143 Not used RS1/16S473J RS1/16S473J Not used PS ASSY Althrough AWX7299 and AWX7537 are different in part number, they consist of the same components. C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 C-AX10 Mark No. Description Part No. Mark No. Description Part No. Mark No. Description Part No. Mark No. Description Part No. PCB PARTS LIST FOR C-AX10/KU/CA UNLESS OTHERWISE NOTED DIGITAL I/O ASSY SEMICONDUCTORS IC1407 BA05T IC1404,IC1405 TC74HC151AF IC1402,IC1406 TC74HCU04AF IC1401,IC1403 TC7WU04F COILS AND FILTERS F1401-F1409 CHIP BEAD DTF1070 L1401-L1403 LFEA470J L1406 PULSE TRANS. PTL1003 L1405 CHOKE COIL PTL1017 L1404,L1408 CHIP SOLID INDUCTOR QTL1015 L1407,L1409 CHIP BEAD VTL1099 CAPACITORS C1405,C1412,C1419 CCSQCH220J50 C1404,C1411,C1418 CCSQCH470J50 C1402,C1409,C1416,C1434 CEBA330M25 C1401,C1408,C1415,C1433 CKSQYB103K50 C1406,C1413,C1420,C1423,C1425 CKSQYB104K25 C1427,C1429-C1431,C1436,C1438 CKSQYB104K25 C1445 CKSQYB104K25 C1443 CKSQYB334K16 C1432 (0.1µF) OCG1014 C1444 (1000µF/16V) PCH1122 C1407,C1414,C1421,C1422,C1424 PCH1128 (220µF/25V) C1426,C1428,C1437,C1439 PCH1128 (220µF/25V) C1440 (1000µF/16V) PCH1141 RESISTORS All Resistors RS1/10S J OTHERS JA1401-JA1403,JA1407 AKB7102 1P PIN JACK JA1404-JA1406 TORX176(HS) OPTICAL RECEIVER MODULE JA1408 TOTX176(HS) OPTICAL SEND MODULE CN1401 14P FFC CONNECTOR VKN1274 AC ASSY FILTER F101 EMC FILTER ATF7023 SWITCH S101 PSA1004 CAPACITORS C101,C102 (0.01µF/275V) ACE7014 A B OTHERS H101,H102 FUSE CLIP AKR1004 CN102 2P VH CONNECTOR B2P3-VH CN103 2P VH CONNECTOR B2P3-VH-E CN101 SOCKET FOR AC CORD RKP1751 KN101 EARTH METAL FITTING VNF1084 PS ASSY SEMICONDUCTORS IC201-IC203 AEK7006 IC205 PQ3RF23 Q201 2SC4793 D208,D209 LN6SB60-4000 D201 S2VB20F D206 UDZ20B D205 UDZ22B D207 UDZS7.5B FILTERS F201,F203-F206 CHIP BEAD DTF1070 CAPACITORS C209,C215 (1µF/100V) ACH1237 C205 CEBA471M63 C210,C211,C217,C218 CKSQYB103K50 C204 CKSQYB104K25 C214 CKSQYB334K16 C201-C203 CQMA103K2E C206-C208,C216 (47µF/50V) PCH1124 C212 (10000µF/16V) VCH1054 RESISTORS R201 RS1LMF222J Other Resistors RS1/10S J OTHERS J201 CONNECTOR ASSY 6P ADX7263 H201-H204 FUSE CLIP AKR1004 202,203 HEAT SINK B ANH1021 201 HEAT SINK ANH7121 CN202 KR CONNECTOR B4B-PH-K-S CN201 9P TOP POST B9P-VH PCB BINDER VEF1040 KN201 EARTH METAL FITTING VNF1084 SG ASSY OTHERS 3001 SCREW TERMINAL VNE1948 C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 C-AX10 Mark No. Description Part No. Mark No. Description Part No. FRAD ASSY SEMICONDUCTORS IC304,IC411-IC413 AEK7006 IC405 AEK7010 IC403 AEK7016 IC408 AEK7023 IC1105 AK5393VS IC306 BA05T IC401,IC402,IC407,IC409,IC410 ICP-N25 IC406 LM317T IC1101,IC1102,IC1106 M5220P IC404 NJM7812FA IC1103,IC1104 OP275GP IC302 PQ05RR12 IC1204 TC74VHC157F IC1203 TC74VHC244F IC1202 TC74VHC74F IC1201 TC74VHCU04F Q404,Q406,Q420,Q422 2SA1037K Q402,Q418 2SB1375 Q403,Q405,Q408,Q409,Q419 2SC2412K Q421 2SC2412K Q416 2SC4793 Q401,Q407,Q417 2SD2012 Q1101-Q1109,Q1201,Q1301,Q1302 DTC124EK D407,D409 11DF2 D408,D410 11DF2FD D1101-D1118,D1301-D1304 1SS355 D402,D404,D412,D414 31DF2-FC5 D401,D403,D411,D413 31DF2-FC6 D1119,D1120,D301 DAN202K D1121,D1122 DAP202K D415,D419,D420 HZS3CLL D405,D406 HZS5CLL D418 UDZS5.6B COILS AND FILTERS F1101-F1103,F1201,F1202 DTF1070 CHIP BEAD L1104-L1111,L1202,L1204 DTL1019 CHIP BEAD FILTER L1301-L1304 CHIP BEAD FILTER DTL1019 L404 FERRITE BEAD PTH1015 L1101-L1103,L1201,L1203,L1205 RTF1167 NOISE FILTER L301,L401-L403 NOISE FILTER RTF1167 RELAYS RY1101-RY1109,RY1301,RY1302 VSR1008 CAPACITORS C1123,C1124,C1171,C1172 (470pF) ACE7018 C401,C402,C415,C418,C419 ACH1237 (1µF/100V) C403,C404 (3300µF/35V) ACH7107 C420,C421 (4700µF/16V) ACH7108 C301 (12000µF/16V) ACH7127 C411,C412 (10µF/50V) ACH7133 C1175,C1203 CCSQCH100D50 C1155,C1156,C1161,C1162 CCSQCH101J50 C409,C410,C427,C443,C444 CCSQCH121J50 C1202 CCSQCH5R0C50 C1152 CEGA100M50 C1125-C1128 CEGA220M50 C1119-C1122,C1159,C1160 CEGANP470M16 C303,C430,C435,C436 CEHAZL470M25 C413,C414,C438 CEHAZL561M35 C1117,C1118,C428,C445,C446 CENA100M50 C305,C405,C406,C425 CENA1R0M50 C439,C440 CENA1R0M50 C1307-C1310,C437 CENA470M25 C1210 CKSQYB102K50 C1211,C1212,C451-C454 CKSQYB103K50 C1141,C1142,C1145,C1146,C1151 CKSQYB104K25 C1153,C1154,C1173,C1174 CKSQYB104K25 C1204-C1206,C1208,C422 CKSQYB104K25 C1129,C1130 CKSQYB222K50 C1143,C1144 CKSQYB224K16 C302,C306 CKSQYB334K16 C1131,C1132,C1135,C1136 CKSQYB473K50 C1163-C1166,C1169,C1170 CKSQYB473K50 C1150 (0.1µF) OCG1014 C304,C307,C417,C424,C429 PCH1122 (1000µF/16V) C447,C448 (1000µF/16V) PCH1122 C416 (3300µF/25V) PCH1125 C407,C408,C426,C441,C442 PCH1126 (100µF/50V) C1133,C1134,C1137,C1138 PCH1128 (220µF/25V) C1167,C1168,C1209,C423 PCH1128 (220µF/25V) C1139,C1140,C1201 (47µF/10V) RCH1139 C1147-C1149 (10µF/6.3V) VCH1155 RESISTORS R1207 RD1/4PU470J R401,R402 RDR1/4PM100J R1117-R1120 RDR1/4PM104J R1121,R1122,R1133,R1134 RDR1/4PM1101F R1127,R1128,R1131,R1132 RDR1/4PM1801F R1123,R1124 RDR1/4PM1802F R1137-R1140 RDR1/4PM3901F R1141-R1144 RDR1/4PM51R0F R1129,R1130 RDR1/4PM5601F R1109,R1110,R1113-R1116 RN1/10SE1001D R1163,R1164 RN1/10SE1001D R1149-R1152 RN1/10SE1002D R1159-R1162,R1305-R1312 RN1/10SE1003D R433-R437 RN1/10SE1003D R1135,R1136 RN1/10SE1201D R1165,R1166 RN1/10SE1502D R1167,R1168 RN1/10SE1601D R405,R406 RN1/10SE1802D R411 RN1/10SE2400D R1111,R1112 RN1/10SE2702D R414,R429,R430 RN1/10SE3001D R410 RN1/10SE3900D R1145-R1148 RN1/10SE3901D R407,R408 RN1/10SE7501D R415,R431,R432 RN1/10SE9101D R1125,R1126,R1153-R1156 RS1/10S510J R403,R404 RS1LMF222J Other Resistors RS1/10S J E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 C-AX10 Mark No. Description Part No. Mark No. Description Part No. OTHERS J405 CONNECTOR ASSY 1P ADX7265 J401 CONNECTOR ASSY 1P ADX7266 J1201 CONNECTOR ASSY 12P ADX7267 J403 CONNECTOR ASSY 8P ADX7269 J1203 CONNECTOR ASSY 4P ADX7318 J301 CONNECTOR ASSY 12P ADX7327 JA1101,JA1104 2P PIN JACK AKB7104 JA1102,JA1103,JA1301 AKB7105 4P PIN JACK 402 HEAT SINK ANH7100 CN1202 KR CONNECTOR B13B-PH-K-S CN406 2P VH CONNECTOR B2P-VH CN407 3P VH CONNECTOR B3P-VH CN405 3P VH CONNECTOR B3P-VH-BL X1201 CRYSTAL RESONATOR RSS1047 (24MHz) CN1201 FFC CONNECTOR SLW16S-1C7 PCB BINDER VEF1040 CRAD ASSY SEMICONDUCTORS IC2704,IC2804 AK5393VS IC2703,IC2803 M5220P IC2701,IC2702,IC2801,IC2802 NJM5532DD Q2701,Q2702,Q2801,Q2802 DTC124EK D2701-D2704,D2801-D2804 1SS355 D2705,D2706,D2805,D2806 DAN202K D2707,D2708,D2807,D2808 DAP202K COILS L2701,L2702,L2801,L2802,L2901 RTF1167 NOISE FILTER RELAYS RY2701,RY2702,RY2801,RY2802 VSR1008 CAPACITORS C2737,C2738,C2837,C2838 CCSQCH101J50 C2705,C2706,C2805,C2806 CCSQCH471J50 C2730,C2830 CEGA100M50 C2707-C2710,C2807-C2810 CENA220M25 C2703,C2704,C2803,C2804 CENA470M25 C2702,C2802 CKSQYB102K50 C2719,C2720,C2723,C2724,C2729 CKSQYB104K25 C2731,C2732,C2819,C2820 CKSQYB104K25 C2823,C2824,C2829,C2831,C2832 CKSQYB104K25 C2711,C2712,C2811,C2812 CKSQYB222K50 C2721,C2722,C2821,C2822 CKSQYB224K16 C2713,C2714,C2733-C2736 CKSQYB473K50 C2813,C2814,C2833-C2836 CKSQYB473K50 C2728,C2828 (0.1µF) OCG1014 C2715,C2716,C2815,C2816,C2901 PCH1128 (220µF/25V) C2717,C2718,C2817,C2818 RCH1139 (47µF/10V) C2725-C2727,C2825-C2827 VCH1155 (10µF/6.3V) RESISTORS R2725-R2728,R2825-R2828 RN1/10SC51R0D R2733-R2736,R2833-R2836 RN1/10SE1002D R2709,R2710,R2717,R2718 RN1/10SE1101D R2809,R2810,R2817,R2818 RN1/10SE1101D R2719,R2720,R2819,R2820 RN1/10SE1201D R2711,R2712,R2715,R2716 RN1/10SE1801D R2811,R2812,R2815,R2816 RN1/10SE1801D R2705,R2706,R2805,R2806 RN1/10SE1802D R2721-R2724,R2729-R2732 RN1/10SE3901D R2821-R2824,R2829-R2832 RN1/10SE3901D R2713,R2714,R2813,R2814 RN1/10SE5601D R2737,R2738,R2837,R2838 RS1/10S510J Other Resistors RS1/10S J OTHERS J2901 CONNECTOR ASSY 7P ADX7268 J2903 CONNECTOR ASSY13P ADX7270 PCB BINDER VEF1040 DSP ASSY SEMICONDUCTORS IC2106 AT24C16N-10SI2.5 IC2101,IC2107,IC2108,IC2118 BU4094BCFV IC1602,IC1603 CS8414-CS IC1902,IC2002 DF1704E IC1610,IC1901,IC2001 PD0236AM IC1502 PDK038A IC2105 PEA003A IC2110 PEA004A IC1511,IC1513,IC1607 PQ3DZ13 IC1703,IC1803 SM5847AF IC1504 TC55V1664BFT-12 IC1503 TC55V8128BJ-12 IC2111,IC2112 TC74HC125AF IC1609 TC74HCT08AF IC1507 TC74HCT244AF IC2116 TC74HCU04AF IC1612,IC2117 TC74VHC00FT IC1624,IC1625 TC74VHC08FT IC1614 TC74VHC153FT IC1510,IC1601,IC1608,IC1632,IC1704 TC74VHC157FT IC1804,IC1903,IC2003 TC74VHC157FT IC1620 TC74VHC163FT IC1506 TC74VHC244FT IC1505 TC74VHC257FT IC2113 TC74VHC32FT IC1606,IC1623 TC74VHC4040FT IC1512,IC1622 TC74VHC74FT IC1509,IC1619 TC74VHCU04FT IC2104 TC7S66FU IC1616 TC7SET08F IC2103,IC2114 TC7W126FU IC1508,IC1615,IC2115 TC7WH04FU IC1904,IC2004 TC7WH08FU IC1611,IC1621 TC7WH74FU IC1605 TC7WT74FU F G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 C-AX10 Mark No. Description Part No. Mark No. Description Part No. IC1618 TC9246F IC1501,IC1613,IC1701,IC1702 XCD56362PV100 IC1801,IC1802 XCD56362PV100 Q2101 2SA1037K D2106 1SS254 D1601,D1602,D2101,D2102 1SS355 D2104,D2105 1SS355 D1701,D1702,D1801,D1802 DA204K D1901,D1902,D2001,D2002 DA204K D2103 DAN202K COILS AND FILTERS F1501-F1505,F1507,F1508 DTF1070 CHIP BEAD F1601-F1612,F1614,F1701-F1703 DTF1070 CHIP BEAD F1801-F1803,F1901,F1902,F2001 DTF1070 CHIP BEAD F2101-F2105,F2108-F2110 DTF1070 CHIP BEAD L1603 CHIP BEAD FILTER DTL1019 L1601,L1602 QTL1015 CHIP SOLID INDUCTOR L1701-L1704,L1801-L1804 VTL1083 CHIP BEAD L1604 CHIP BEAD VTL1103 L1705,L1706,L1805,L1806 VTL1105 CHIP BEAD CAPACITORS C1501,C1502,C1602,C1612,C1628 ACH7109 (56µF/10V) C1668,C1670,C1681,C1757,C1760 ACH7109 (56µF/10V) C1857,C1860,C1901,C1905,C2001 ACH7109 (56µF/10V) C2128 (56µF/10V) ACH7109 C1663,C1685,C1686,C1690,C1770 ACH7126 (330µF/16V) C1870 (330µF/16V) ACH7126 C1766-C1769,C1866-C1869 CCSRCH100D50 C1504,C1514,C1518,C1525,C1531 CCSRCH101J50 C1544,C1548,C1635,C1641,C1645 CCSRCH101J50 C1651,C1657,C1705,C1712,C1715 CCSRCH101J50 C1721,C1727,C1732,C1739,C1742 CCSRCH101J50 C1748,C1754,C1805,C1812,C1815 CCSRCH101J50 C1821,C1827,C1832,C1839,C1842 CCSRCH101J50 C1848,C1854 CCSRCH101J50 C1508,C1509,C1664 CCSRCH150J50 C2124,C2143,C2145,C2146,C2148 CCSRCH330J50 C2152-C2154 CCSRCH330J50 C1701,C1702,C1801,C1802,C1907 CEV101M16 C2120-C2122,C2149 CEV101M16 C1511,C1534,C1536,C1539,C1542 CEV470M6R3 C1546,C1553,C1555,C1606,C1615 CEV470M6R3 C1619,C1622,C1627,C1629,C1631 CEV470M6R3 C1660,C1683,C1684,C2102,C2104 CEV470M6R3 C2108,C2111,C2117,C2132,C2137 CEV470M6R3 C1608,C1617 CFHS473J16 C2160 CKSQYB104K25 C1552,C1554,C1624 CKSQYB334K16 C1516,C1640,C1665,C1711,C1738 CKSQYB474K16 C1811,C1838 CKSQYB474K16 C1503,C1505-C1507,C1513,C1517 CKSRYB103K50 C1519-C1524,C1526-C1530 CKSRYB103K50 C1532,C1533,C1540,C1543,C1547 CKSRYB103K50 C1604,C1605,C1609,C1610 CKSRYB103K50 C1633,C1634,C1636-C1638 CKSRYB103K50 C1643,C1644,C1646-C1650 CKSRYB103K50 C1652-C1656,C1658,C1659,C1666 CKSRYB103K50 C1672,C1673,C1703,C1704 CKSRYB103K50 C1706,C1707,C1709,C1713,C1714 CKSRYB103K50 C1716-C1720,C1722-C1726 CKSRYB103K50 C1728-C1731,C1733,C1734,C1736 CKSRYB103K50 C1740,C1741,C1743-C1747 CKSRYB103K50 C1749-C1753,C1755,C1756 CKSRYB103K50 C1803,C1804,C1806,C1807,C1809 CKSRYB103K50 C1813,C1814,C1816-C1820 CKSRYB103K50 C1822-C1826,C1828-C1831 CKSRYB103K50 C1833,C1834,C1836,C1840,C1841 CKSRYB103K50 C1843-C1847,C1849-C1853 CKSRYB103K50 C1855,C1856,C2125-C2127 CKSRYB103K50 C2130,C2131,C2139 CKSRYB103K50 C1515,C1642,C1710,C1737,C1810 CKSRYB682K50 C1837 CKSRYB682K50 C1510,C1535,C1537,C1538 CKSRYF104Z25 C1549-C1551,C1601,C1603,C1607 CKSRYF104Z25 C1611,C1613,C1614,C1616,C1618 CKSRYF104Z25 C1620,C1621,C1623,C1625,C1626 CKSRYF104Z25 C1630,C1632,C1661,C1662,C1669 CKSRYF104Z25 C1671,C1674-C1680,C1687 CKSRYF104Z25 C1692,C1693,C1758,C1759 CKSRYF104Z25 C1761-C1765,C1858,C1859 CKSRYF104Z25 C1861-C1865,C1902-C1904,C1906 CKSRYF104Z25 C2002-C2005,C2101,C2103 CKSRYF104Z25 C2105-C2107,C2109,C2110,C2112 CKSRYF104Z25 C2114-C2116,C2118,C2119,C2123 CKSRYF104Z25 C2129,C2133-C2136,C2138 CKSRYF104Z25 C2140-C2142,C2144,C2147 CKSRYF104Z25 C2150,C2151,C2156,C2158,C2159 CKSRYF104Z25 C2161-C2165 CKSRYF104Z25 RESISTORS R2132,R2152,R2156 RA4C101J R2117,R2145 RA4C103J R2118,R2146 RA4C220J R2101,R2102,R2158,R2159 RA4C473J R1673,R1675,R1677-R1684,R1709 RS1/10S0R0J R1723-R1727,R1729,R1731,R1733 RS1/10S0R0J R1809,R1823-R1827,R1829,R1831 RS1/10S0R0J R1833,R1917,R1918,R1920 RS1/10S0R0J R2017,R2018,R2020,R2163,R2165 RS1/10S0R0J R2167,R2169,R2170,R2189 RS1/10S0R0J R1722,R1728,R1730,R1732,R1734 RS1/10S101J R1822,R1828,R1830,R1832,R1834 RS1/10S101J R2002 RS1/10S470J R1550,R1551 RS1/10S473J Other Resistors RS1/16S J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 C-AX10 Mark No. Description Part No. Mark No. Description Part No. OTHERS IC9001,IC9002 IC SOCKET IC160-0324-230 J2102 CONNECTOR ASSY 3P ADX7348 X1501 CRYSTAL RESONATOR ASS7023 (20MHz) X2101,X2102 ASS7026 CERAMIC RESONATOR (7.7MHz) CN1602 CONNECTOR 12P B12B-ZR-SM3 CN2104 PH CONNECTOR B2B-PH-SM3 CN2109 PH CONNECTOR B3B-PH-SM3 CN2107 PH CONNECTOR B8B-PH-SM3 J2101 STEREO MINI JACK QKN1004 JA2101,JA2102 RKN1004 REMOTE CONTROL JACK CN2105,CN2106 VKN1299 7P FFC CONNECTOR CN1601 14P FFC CONNECTOR VKN1418 CN2102 15P FFC CONNECTOR VKN1419 CN2101 16P FFC CONNECTOR VKN1420 CN2103 17P FFC CONNECTOR VKN1421 CN2108 28P FFC CONNECTOR VKN1432 CN1703 14P CONNECTOR VKN1549 CN1803 15P CONNECTOR VKN1550 2105,2106 SCREW TERMINAL VNE1948 KN2101-KN2104 VNF1109 EARTH METAL FITTING AUDIO A ASSY SEMICONDUCTORS IC901,IC902 AD7564BR IC503-IC506,IC703-IC706 NJM2114D-D IC903 NJM7812FA IC507,IC508,IC707,IC708 OP275GP IC501,IC502,IC701,IC702 PCM1704U-J Q901-Q908,Q910,Q912 DTC124EK D901-D920 1SS355 COILS AND FILTER F901 CHIP BEAD DTF1070 L501-L504,L701-L704 RTF1167 NOISE FILTER L901,L902 NOISE FILTER RTF1167 RELAYS RY901-RY910 VSR1008 CAPACITORS C519,C520,C719,C720 (100pF) ACE7015 C531-C534,C733,C734 (150pF) ACE7016 C731,C732 (330pF) ACE7017 C529,C530 (1800pF) ACE7019 C729,C730 (3300pF) ACE7020 C543,C544,C557,C558 (100µF/50V) ACH7122 C743,C744,C757,C758 (100µF/50V) ACH7122 C545-C548,C745-C748 CCSQCH100D50 C513,C514,C713,C714 CEGA101M16 C511,C512,C711,C712,C907 CEHAZA101M25 C909 CEHAZA101M25 C905 CENA100M50 C505,C506,C509,C510 CENA101M25 C705,C706,C709,C710 CENA101M25 C563,C564,C566,C568-C572 CKSQYB103K50 C765,C766,C771-C774 CKSQYB103K50 C507,C508,C559,C560 CKSQYB104K25 C707,C708,C759,C760 CKSQYB104K25 C916,C917 CKSQYB104K25 C501,C502,C523,C524 CKSQYB473K50 C527,C528,C537,C538 CKSQYB473K50 C541,C542,C551,C552 CKSQYB473K50 C555,C556,C701,C702 CKSQYB473K50 C723,C724,C727,C728 CKSQYB473K50 C737,C738,C741,C742 CKSQYB473K50 C751,C752,C755,C756,C908 CKSQYB473K50 C910-C912 CKSQYB473K50 C565,C567,C767-C770 CKSRYB103K50 C503,C504,C703,C704,C902 PCH1122 (1000µF/16V) C906,C914,C915 (1000µF/16V) PCH1122 C521,C522,C525,C526 (100µF/25V) PCH1126 C721,C722,C725,C726 (100µF/25V) PCH1126 C535,C536,C539,C540 (220µF/25V) PCH1128 C549,C550,C553,C554 (220µF/25V) PCH1128 C735,C736,C739,C740 (220µF/25V) PCH1128 C749,C750,C753,C754 (220µF/25V) PCH1128 C903,C904 (220µF/25V) PCH1128 C515-C518,C715-C718 (47µF/10V) RCH1139 RESISTORS R503,R504,R703,R704 RDM1/2P3901F R543,R544,R739,R740 RDM1/2P51R0F R561,R562 RDR1/4PM1201F R560,R563,R753,R754 RDR1/4PM2401F R559,R564,R751,R752 RDR1/4PM4701F R521-R524,R545,R546 RN1/10SE1001D R717,R718,R723,R724 RN1/10SE1001D R745,R746 RN1/10SE1001D R515,R516,R709-R712 RN1/10SE1201D R529,R530,R725,R726 RN1/10SE1501D R525,R526,R721,R722 RN1/10SE1801D R541,R542,R737,R738 RN1/10SE2702D R517-R520,R713-R716,R903 RN1/10SE3601D R505-R508,R531-R534 RS1/10S510J R537-R540,R705-R708 RS1/10S510J R727-R730,R733-R736 RS1/10S510J Other Resistors RS1/10S J OTHERS J902 CONNECTOR ASSY 14P ADX7271 JA501,JA502,JA701,JA702 AKB7102 1P PIN JACK 902 HEAT SINK ANH7100 CN901 FFC CONNECTOR SLW15S-1C7 PCB BINDER VEF1040 901 BUS LINE B VNF1113 AUDIO B ASSY SEMICONDUCTORS IC1001,IC1002 AD7564BR IC603-IC606,IC803-IC806 NJM2114D-D IC1003 NJM7812FA IC607,IC608,IC807,IC808 OP275GP IC601,IC602,IC801,IC802 PCM1704U-J I H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 C-AX10 Mark No. Description Part No. Mark No. Description Part No. Q1001-Q1009,Q1011,Q1013,Q1015 DTC124EK D1001-D1024 1SS355 COILS AND FILTER F1001 CHIP BEAD DTF1070 L1001,L1002,L601-L604 RTF1167 NOISE FILTER L801-L804 NOISE FILTER RTF1167 RELAYS RY1009 VSR1006 RY1001-RY1008,RY1010-RY1012 VSR1008 CAPACITORS C619,C620,C819,C820 (100pF) ACE7015 C631-C634,C833,C834 (150pF) ACE7016 C831,C832 (330pF) ACE7017 C629,C630 (1800pF) ACE7019 C829,C830 (3300pF) ACE7020 C643,C644,C657,C658 (100µF/50V) ACH7122 C843,C844,C857,C858 (100µF/50V) ACH7122 C1016,C645-C648,C845-C848 CCSQCH100D50 C613,C614,C813,C814 CEGA101M16 C1007,C1009,C611,C612 CEHAZA101M25 C811,C812 CEHAZA101M25 C1005 CENA100M50 C605,C606,C609,C610 CENA101M25 C805,C806,C809,C810 CENA101M25 C663,C664,C666,C668-C672 CKSQYB103K50 C865,C866,C871-C874 CKSQYB103K50 C1017,C1018,C607,C608 CKSQYB104K25 C659,C660,C807,C808 CKSQYB104K25 C859,C860 CKSQYB104K25 C1008,C1010-C1012,C601,C602 CKSQYB473K50 C623,C624,C627,C628 CKSQYB473K50 C637,C638,C641,C642 CKSQYB473K50 C651,C652,C655,C656 CKSQYB473K50 C801,C802,C823,C824 CKSQYB473K50 C827,C828,C837,C838 CKSQYB473K50 C841,C842,C851,C852 CKSQYB473K50 C855,C856 CKSQYB473K50 C665,C667,C867-C870 CKSRYB103K50 C1002,C1006,C1014,C1015 PCH1122 (1000µF/16V) C603,C604,C803,C804 PCH1122 (1000µF/16V) C621,C622,C625,C626 (100µF/25V) PCH1126 C821,C822,C825,C826 (100µF/25V) PCH1126 C1003,C1004,C635,C636 PCH1128 (220µF/25V) C639,C640,C649,C650 (220µF/25V) PCH1128 C653,C654,C835,C836 (220µF/25V) PCH1128 C839,C840,C849,C850 (220µF/25V) PCH1128 C853,C854 (220µF/25V) PCH1128 C615-C618,C815-C818 (47µF/10V) RCH1139 RESISTORS R603,R604,R803,R804 RDM1/2P3901F R643,R644,R839-R842 RDM1/2P51R0F R661,R664 RDR1/4PM1201F R662,R663,R855,R856 RDR1/4PM2401F R659,R660,R853,R854 RDR1/4PM4701F R621-R624,R645,R646 RN1/10SE1001D R817,R818,R823,R824 RN1/10SE1001D R847-R849,R851 RN1/10SE1001D R1004 RN1/10SE1102D R615,R616,R809-R812 RN1/10SE1201D R629,R630,R825,R826 RN1/10SE1501D R625,R626,R821,R822 RN1/10SE1801D R641,R642,R837,R838 RN1/10SE2702D R1003,R617-R620,R813-R816 RN1/10SE3601D R1005 RN1/10SE5101D R605-R608,R631-R634 RS1/10S510J R637-R640,R805-R808 RS1/10S510J R827-R830,R833-R836 RS1/10S510J Other Resistors RS1/10S J OTHERS J1002 CONNECTOR ASSY 14P ADX7273 JA601,JA602 1P PIN JACK AKB7102 JA801,JA802 2P PIN JACK AKB7104 1002 HEAT SINK ANH7100 CN1002 2P TOP POST B2B-EH CN1003 3P TOP POST B3B-EH CN1001 FFC CONNECTOR SLW17S-1C7 PCB BINDER VEF1040 1001 BUS LINE B VNF1113 DISPLAY ASSY SEMICONDUCTORS IC2201 BU2092F IC2202 TC74HC123AF IC2203 TC7S32F Q2203 2SA1036K Q2202 2SC2412K Q2205,Q2206 2SD2114K Q2201,Q2204 DTC124EK D2201 1SS355 D2203-D2213 SLP6118C51H D2202 SLR-343VC(NPQ) FILTERS F2201-F2204 CHIP BEAD DTF1070 SWITCHES S2219 ASD7013 S2202-S2218 VSG1009 CAPACITORS C2205 (3.3µF/25V) ACH7027 C2220,C2226 CEWAS100M50 C2201,C2203,C2224 CEWAS470M16 C2227 CKCYF103Z50 C2202,C2204,C2206-C2219 CKSQYB104K25 C2221-C2223 CKSQYB104K25 C2225 CKSQYB473K50 RESISTORS R2242 RD1/2LMF103J Other Resistors RS1/10S J J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 C-AX10 Mark No. Description Part No. Mark No. Description Part No. ENC B ASSY SWITCH S2501 ASX7022 CAPACITORS C2503 CKSQYB104K25 C2501,C2502 CKSQYB473K50 RESISTORS All Resistors RS1/10S J OTHERS CN2501 KR CONNECTOR S5B-PH-K-S OTHERS CN2201 FFC CONNECTOR 28P 28FMZ-ST V2201 FL TUBE AAV7065 J2202 CONNECTOR ASSY 4P ADX7275 J2203 CONNECTOR ASSY 12P ADX7276 2201 REMOTE RECEIVER UNIT GP1U27X PCB BINDER VEF1040 VOLUME ASSY SEMICONDUCTORS IC2601 TA8409S D2601 1SS355 COILS AND FILTERS F2601,F2602 CHIP BEAD DTF1070 L2601,L2602 LFEA220J CAPACITORS C2606,C2607 CEBA100M50 C2601,C2602,C2604,C2605,C2608 CKSQYB104K25 C2603 (220µF/25V) PCH1128 RESISTORS VR2601 MOTOR VOLUME ACX7036 Other Resistors RS1/10S J OTHERS CN2601 KR CONNECTOR S7B-PH-K-S KN2601 EARTH METAL FITTING VNF1084 ENC A ASSY SWITCH S2401 ASX7022 CAPACITORS C2403 CKSQYB104K25 C2401,C2402 CKSQYB473K50 RESISTORS All Resistors RS1/10S J OTHERS J2401 CONNECTOR ASSY 8P ADX7277 INPUT SW ASSY SWITCH S2301 ASD7012 RESISTORS All Resistors RS1/10S J OTHERS PCB BINDER AEF7006 J2302 EARTH LEAD UNIT DE005WE0 M N L K 6. ADJUSTMENT There is no information to be shown in this chapter. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 C-AX10 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 Test Mode (1) How to enter the test mode Turn the OUTPUT MODE switch to "OFF" in the POWER OFF state, and turn the POWER ON. Enter the test mode that continues pressing "DIGITAL NR", "TONE" and "REC SELECTOR" keys together for two seconds after passing afterwards more than 15 seconds (In the meantime, because do not accept key operation). Indicate it with "TEST MODE" in FL. Set all states to the factory setting state except destination code. SACD , HDCD lights during test mode. (2) FL All lights / All lights out Enter the FL and LED light confirmation mode when pressing the "NETWORK SETUP + DIRECT" keys during test mode. Change the FL indication and LED indication as follows whenever pressing the "NETWORK + DIRECT" keys. Normal indication → FL, LED all light → FL, LED all light out → Normal indication → ... (3) Delay confirmation FL indicates it with "DELAY CHECK" when pressing the "NETWORK SETUP + Hi-bit" keys during test mode and it beomes following setting. • INPUT selector set to the MULTI-ch mode with the DVD. • As for the setting of delay, FRONT ch and CENTER ch are 3.0m (10 feet), SURROUND ch is 1.5m (5 feet), and SURROUND ch delays 5 msec only. Note: Please turn a little MASTER VOLUME after this. (4) Gain switching confirmation in TONE on/off Enter the gain switching confirmation mode of analog circuit when pressing the "NETWORK SETUP + MIDNIGHT" keys during test mode. Switch as follows whenever pressing the "NETWORK + MID NIGHT" keys. Gain +6dB (last state) → gain 0dB → gain +6dB → ... (5) Master VOLUME operation confirmation Enter the operation confirmation mode of master VOLUME when pressing the "NETWORK SETUP + DIGITAL NR" keys during test mode. Switch as follows whenever pressing the "NETWORK+DIGITAL NR" keys. Last state → - ∞ → -12dB → - ∞ → ... (6) Communication confirmation with dts ROM Enter the communication confirmation mode with dts ROM when pressing the "NETWORK SETUP + fs 96k/48k" keys during test mode. INPUT SELECTOR becomes "DIGITAL 6", then repeat virtual OPTION: on/off whenever pressing the "NETWORK + fs" keys. Indicate it with "DTS ON" at on, and decode of compression audio is possible. Perform the decode operation when inputs the dts signal in this state. If a communication with the dts ROM is performed, outputs it correctly decoded. Note: Please turn a little MASTER VOLUME after this. (7) How to cancel the test mode Turn the POWER OFF, then finish the above operations and cancel the test mode. (8) Microcomputer version confirmation Turn the OUTPUT MODE switch to "OFF" and turn the POWER ON. Indicates the version of the microcomputer (system controller and DSP controller) in the FL indicator that continues pressing "PARAMETER CHECK", "MIDNIGHT" and "REC SELECTOR" keys together for two seconds after passing afterwards more than 15 seconds. Indication example: (System controller) SYS: ∗∗∗ (DSP controller) DSP: ∗∗∗ (9) Key list of the main unit to use DIGITAL NR + TONE + REC SELECTOR : Enter the test mode NETWORK SETUP + DIRECT : FL, LED all light / all light out confirmation mode NETWORK SETUP + Hi-bit : Delay confirmation mode NETWORK SETUP + MIDNIGHT : TONE gain switching confirmation mode NETWORK SETUP + DIGITAL NR : Master VOLUME operation confirmation NETWORK SETUP + fs 96k/48k : dts ROM operation confirmation PARAMETER CHECK + MIDNIGHT + REC SELECTOR : Microcomputer version confirmation (MIN) (MIN) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 85 C-AX10 Firstly confirm that connection of each connector and FFC are correctly. Analog input or digital input ? Analog Digital Do lock it (IC2102-pin 19) ? Does a sound come out with digital input ? Yes Yes DIGITAL I/O ASSY DSP ASSY AUDIO A (B) ASSY DSP ASSY FRAD (CARD) ASSY DSP ASSY Yes Yes Yes Yes Yes Yes Yes Yes L ch : #1700- R ch : #1800- No No No No No No No No No No Is digital input (CN1401-pin 5) normal ? Is a clock (CN1602-pin 2) normal? Is control signal (CN2101) normal ? Is master clock (IC1703-pin 16) normal ? Is DF output (CN1703) normal ? Is control signal (CN2102,CN2103) normal ? Is control signal normal even if dis- connect CN2101 ? Is control signal normal even if dis- connect CN2102 and CN2103 ? FU101 VEK1023 (4A 125V) REK-106 (T4AL250V) Primary side AC ASSY FU201 VEK1023 (4A 125V) REK-106 (T4AL250V) DSP winding PS ASSY FU202 VEK1023 (4A 125V) REK-106 (T4AT250V) Digital winding PS ASSY IC201 AEK7006 (630mA) AEK7006 (630mA) FLAC winding PS ASSY IC202 AEK7006 (630mA) AEK7006 (630mA) FLAC winding PS ASSY IC203 AEK7006 (630mA) AEK7006 (630mA) FL winding PS ASSY IC304 AEK7006 (630mA) AEK7006 (630mA) P-OFF FRAD ASSY IC401 ICP-N25 (1A) ICP-N25 (1A) Audio +25V (VC25) FRAD ASSY IC402 ICP-N25 (1A) ICP-N25 (1A) Auidio -25V (VE25) FRAD ASSY IC403 AEK7016 (3.15A) AEK7016 (3.15A) Relay winding FRAD ASSY IC405 AEK7010 (1.25A) AEK7010 (1.25A) Regulator input (VC9) for A/D +3.3V FRAD ASSY IC407 ICP-N25 (1A) ICP-N25 (1A) Regulator input (VC9) for A/D +5V FRAD ASSY IC408 AEK7023 (200mA) AEK7023 (200mA) Regulator input (VV5) for DAC VOL +5V FRAD ASSY IC409 ICP-N25 (1A) ICP-N25 (1A) Regulator input (VC9) for D/A +5V FRAD ASSY IC410 ICP-N25 (1A) ICP-N25 (1A) Regulator input (VC9) for D/A -5V FRAD ASSY IC411 AEK7006 (630mA) AEK7006 (630mA) Relay (analog input) +17V (VR17) FRAD ASSY IC412 AEK7006 (630mA) AEK7006 (630mA) Relay (analog output L ch) +17V (VR17) FRAD ASSY IC413 AEK7006 (630mA) AEK7006 (630mA) Relay (analog output R ch) +17V (VR17) FRAD ASSY Confirm the power supply at first if reached to each Assy, and confirm the FUSE/ICP if it is NG. (Refer to the use point table.) Use point table of FUSE/ICP FUSE/ICP No. Part No. KU/CA Type NY Type Use Point Assy Name 7.1.2 Troubleshooting www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 86 C-AX10 AC check 7.1.3 Power ON Sequence Hardware register setting of system controller RAM initial setting Destination check RAM initial setting by the destination Data initial setting of the output data at the power ON LED initial setting UART/FL bus switch setting External interrupt start FL lights process start Continue Destination check Initial setting of the expansion IC (IC2107, IC2108) Port 70 (I/O ST) Destination H KU/CA L NY Port 12 (XVUP) of IC2107 In normal use H In memory rewriting L Data initial setting of the output data at the power ON Expansion IC initialized LED data initialized UART/FL bus switch Port Setting 24 DISPOFF H 66 OE L Port Setting 4 Q1 MT10 L 5 Q2 MT20 L 6 Q3 MT1I L 7 Q4 MT3I L 11 Q8 L 12 Q7 XVUP L 13 Q6 MT2I L 14 Q5 MTDI L Distinction of the speaker distance "m" and "feet". L : Lights out H : Lights Use port 70 as a destination port only in the power ON state, and use it as a strobe port of the expansion IC in normal state. IC2107 Port Setting 5 Q0 DG5I L 6 Q1 DG4I L 7 Q2 DG3I L 8 Q3 DG2I L 9 Q4 DG6I L 10 Q5 DIFI L 11 Q6 DG1I L 12 Q7 AN3I L 13 Q8 AN2I L 14 Q9 AN1I L 15 Q10 DVDI L 16 Q11 DISP L IC2107 Port Setting 4 Q1 DOFF L 5 Q2 G+-6 L 6 Q3 XPHN L 7 Q4 G-06 L 11 Q8 VOL- L 12 Q7 VOL+ L 13 Q6 LFEG L 14 Q5 XDIV L IC2108 Main Microcomputer (1/2) (IC2109) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 87 C-AX10 DSP µCOM RESET Port 8 (RST) : H Initial setting of DSP µCOM Port 12 (CS) : H communication Port 14 (REQ) : H MASTER volume motor start IC2108 Port 11 : H Port 12 : L Data transfer of each setting to the DSP µCOM DATA1 (16byte) DATA2 (16byte) Volume DATA (16byte) FL lights and LED flashes FL normal indication start NETWORK setting indication start LED lights Each SW relay setting of output side IC2108-port 4, IC2107-port 11 IC2108-port 14 IC2108-port 13 MUTE OFF Ports 28, 29, 63, 64 IC2107-ports 4, 5 Each SW relay setting of input side IC2107-ports 6, 7, 13, 14 IC2108-ports 5, 6, 7 Yes No OUTPUT MODE new ? Yes No Are DIR and digital filters locked ? Yes Yes Yes Yes During MUTING ? No No No No During the MASTER VOLUME motor operation ? During non-audio data input ? During OUTPUT MODE OFF ? Yes No OUTPUT MODE new ? To the normal routine Main Microcomputer (2/2) (IC2109) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 88 C-AX10 Legato DSP setup Center DSP setup Center DSP setup Front DSP coefficient transmission Front DSP coefficient transmission fs check A/D calibration Cancel the mute Cancel the mute Front DSP setup • POWER ON DIR lock ? & PLL lock ? No Yes From the system control microcomputer (IC2109) • Cancel the reset (IC2102-pin 12) : L to H • Data reception of each setting IC1613 Transmit the program and coefficient IC1501 Transmit the program and coefficient IC1501 Transmit the program and coefficient DIR : IC1603-pin 25 = "L" ? PLL : IC1618-pin 15 = "H" ? State of IC1603-pins 2, 3 and 27 (However, this state is between 50 ms since DIR locks.) IC1701, IC1702, IC1801 and IC1802 Transmit the program and coefficient IC1701, IC1702, IC1801 and IC1802 Transmit the coefficient IC1701, IC1702, IC1801 and IC1802 Transmit the coefficient IC2118-pin 7 X24M = L (24MHz oscillation) IC1105, IC2704 and IC2804 pin 10 = L to H Front ch : IC1703 and IC1803 pins 42 and 43 = L Excepting front ch : IC1902 and IC2002 pin 15 = H Front ch : IC1703 and IC1803 pins 42 and 43 = L Excepting front ch : IC1902 and IC2002 pin 15 = H Start End Analog Digital DSP Control Microcomputer (IC2102) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 89 C-AX10 Mute ON Input switch Center DSP setup A/D power down Front DSP coefficient transmission fs check Cancel the mute DIR initialized DIR lock ? & PLL lock ? No Yes Receive a switching data from the system control microcomputer (IC2109). IC1603-pin 9 Input "L" to RX. IC1501 Transmit the program and coefficient DIR : IC1603-pin 25 = "L" ? PLL : IC1618-pin 15 = "H" ? State of IC1603-pins 2, 3 and 27 (However, this state is between 50 ms since DIR locks.) IC1701, IC1702, IC1801 and IC1802 Transmit the coefficient IC2118-pin 4 XADC = H IC1405-pins 9 to 11 Control the SELA to SELC. Front ch : IC1703 and IC1803 pins 42 and 43 = L Excepting front ch : IC1902 and IC2002 pin 15 = H IC1105, IC2704 and IC2804 pin 10 = L to H Start End Mute ON A/D calibration Center DSP setup Front DSP coefficient transmission Cancel the mute Input switch Receive a switching data from the system control microcomputer (IC2109). IC1501 Transmit the program and coefficient IC1701, IC1702, IC1801 and IC1802 Transmit the coefficient IC2118-pin 4 XADC = L Front ch : IC1703 and IC1803 pins 42 and 43 = H Excepting front ch : IC1902 and IC2002 pin 15 = L Front ch : IC1703 and IC1803 pins 42 and 43 = L Excepting front ch : IC1902 and IC2002 pin 15 = H Start End IC2118-pin 7 X24M = L (24MHz oscillation) IC1105, IC2704 and IC2804 pin 10 = L to H • Input switch (Analog to Digital) • Input switch (Digital to Analog) Front ch : IC1703 and IC1803 pins 42 and 43 = L Excepting front ch : IC1902 and IC2002 pin 15 = H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 90 C-AX10 ×4 ×2 Top Plate Side Alum. L Rear Mole To disasembly of each Assy Side Alum. R 1 1 ×3 1 ×2 4 ×2 4 3 6 5 5 ×6 1 ×4 2 4 5 5 6 6 It is easy to remove it by lifting front side of the AUDIO A ASSY. AUDIO A ASSY Stand the AUDIO A ASSY, and tighten a screw from the Rear Panel and diagnose it. DSP ASSY Tighten a screw Caution: • Reonnect FFC to the DSP ASSY after removing it once. • Connect the bus bar and chassis on the PC Board with lead wires (for earth). AUDIO A ASSY 7.1.4 Disassembly Top Plate, Side Alum. L and R AUDIO A ASSY ×3 2 To AUDIO B ASSY 3 H H G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 91 C-AX10 ×4 ×2 Remove a PCB Holder after removing two screws. 2 3 6 1 ×6 5 ×2 4 8 ×4 8 9 ×6 12 13 11 10 7 Remove the Sub Chassis and Side Frame A together. Remove a Nut. 14 Stand the AUDIO B ASSY and diagnose it. (AUDIO B ASSY works even if removes the AUDIO A ASSY.) Loosen two screws and remove a Rotary Knob L. Remove the AUDIO A ASSY. Caution: • Fix the SG ASSY to the suitable place with a screw (for earth). • Reconnect FFC to the DSP ASSY after removing it once. VOLUME ASSY AUDIO B ASSY SG ASSY Caution: Perform styling if possible to under side. (do not seem to rise to upper side) Screw Hook it on a cut part of the Rear Panel. AUDIO B ASSY Pass the lead wires through the front side of heat sink. Heat Sink Front side Bind Bind (AUDIO B ASSY only) Watch it from the front side, and perform styling in the left side of Bus Bar. Bus bar Fall two capacitors to the rear side. Upper side: AUDIO A ASSY Under side: AUDIO B ASSY Styling in installation (AUDIO A and AUDIO B ASSYS) Power Cord K I D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 92 C-AX10 ×8 8 9 7 1 ×2 2 4 ×2 3 5 4 12 10 10 11 Stand the DSP ASSY and diagnose it. Install the DSP ASSY. When diagnosing one section of the microcomputer and digital input and output system When diagnosing the analog input and output system When diagnosing the A/D section of the FRAD ASSY Fix the PC Board with a screw in " s For service" on the Rear panel. Fix the PC Board with a screw in " s For service" on the Rear panel. (DIGITAL I/O ASSY) (DSP ASSY) DIGITAL I/O ASSY Shield Plate H DIGITAL I/O ASSY DSP ASSY Connect DSP ASSY Remove all connectors to connect the AUDIO A and AUDIO B ASSYS. Main Shield DSP ASSY Connect all connectors to the DISPLAY ASSY. Connect all connectors to the FRAD ASSY. May remove the connectors to the AUDIO A and AUDIO B ASSYS. DIGITAL I/O and DSP ASSYS ×4 6 ×5 All diagnoses are completed when connects the DIGITAL I/O ASSY. Connect all connectors from the AUDIO A and AUDIO B ASSYS. To FRAD ASSY Hook it on a cut part of the Rear Panel. Power Cord A A G G G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 93 C-AX10 4 5 4 ×2 2 ×2 2 3 6 10 12 11 Note: Slide the PC Board to rear slide (2 or 3 cm away) after removing screws, connectors, Heat Sink ASSY and Rear Panel. And PC Board can lift to upper side when matches a projection part of the Side Wall with a cut part of the PC Board. Unhook Unhook CRAD ASSY Remove the Shield Plate B where is in the bottom of CRAD ASSY. (Three screws) 1 Remove the DIGITAL I/O ASSY, DSP ASSY and Main Shield. Heat Sink Assy Side Wall Remove a CN101 from the Power Cord. Remove all screws. Power Cord Remove four connectors. Note: Do not remove a screw of the SG ASSY. FRAD ASSY CN405 Front side CN406 CN407 CN301 FRAD ASSY ×3 7 9 8 Caution: Perform styling so that each wire does not come near. Pass a wire through a slit of the shield plate every one set (three sets). Note: It becomes an equal interval wires of each group. Front side CN1803 Bind in upper side of CN1803. Keep distance with wire of CN1803 and FFC away and bind it. DSP ASSY FFC CN2109 J2102 Bind Bind Bind two pairs of wires in the player. DIGITAL I/O ASSY Clamp the wires to connect the DIGITAL I/O ASSY Styling in installation (DSP ASSY) Clamp two wires (Gray and Black). Power Cord G F E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 94 C-AX10 ×2 ×7 ×4 AC ASSY PS ASSY Unhook three PCB Supports. Remove two connectors. Unhook two PCB Supports. AC ASSY Subchassis B2 Cut a Binder (ZCA-BK1). T301 (Digital) Unhook UL Tube (KU/CA type only) 19 10 12 14 15 ×3 18 16 19 17 11 7 7 9 8 13 5 6 1 2 3 Remove the DIGITAL I/O ASSY, DSP ASSY and Main Shield. Front side Remove three connectors. CN405 CN406 CN407 T401 (Audio) CN101 Remove CN102. FRAD ASSY Power Transformer (T301, T401) 4 ×4 When replacing the Analog Transformer (T401) ( to ) When replacing the Digital Transformer (T301) ( to ) 1 5 Caution: Keep Blue/Black wires, Green/Brown wires and other five wires away each other, and perform styling. Front side T301 (Digital) Diode PS ASSY Press down five wires except blue and black wires to under side with a binder of PS ASSY. Bind two wires (Green/Brown) (Be careful not to touch the diode.) Bind two wires (Blue/Black). Styling in installation (PS ASSY) I B B C C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 95 C-AX10 Remove a binder. Front Panel Section Diagnosis 1 ×2 2 3 Unhook Unhook 3 ×3 5 Remove a wire. Install the Door by the opened state when installing the Front Panel. (so that an installed earth wire is caught between the Door, and there is the case that the Door does not opend.) ENC A ASSY INPUT SW ASSY Door DISPLAY ASSY ENC B ASSY VOLUME ASSY 6 4 Caution in installation J M L N K O P 79 E I H F D G B C A DSP ASSY Main Shield Subchassis T2 Side Frame A Side Support Shield Plate I AUDIO B ASSY Side Wall Under Base Side Alum.R Side Alum.L Front Panel Assy Side Wall Power Trans. PS ASSY AC ASSY Subchassis B2 Rear Panel DIGITAL I/O ASSY FRAD ASSY AUDIO A ASSY CRAD ASSY SG ASSY 7.1.5 PCB LAYOUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 96 C-AX10 • List of IC TC74VHC257FT, TC74VHC244F, TC7WT74FU, TC74VHC4040FT, TC74VHC153FT, TC74VHC157F, TC74VHC163FT, DF1704E, BC4094BCFV, TC7W126FU, AT24C16N-10SI2.5, M30622SFP, M38079SFP, AK5393VS 1 2 3 4 5 6 7 11 10 9 14 13 12 15 1Y 2Y 3Y 4Y OE 4B 4A 3B 3A 2B 2A 1B 1A SELECT INPUTS OUTPUTS OE SELECT A B H X X X Z L L L X L L L H X H L H X L L L H X H H X : Don't Care Z : High Impedance Vcc 2G 1Y1 2A4 1Y2 2A3 1Y3 2A2 1Y4 2A1 1G 1A1 2Y4 1A2 2Y3 1A3 2Y2 1A4 2Y1 GND INPUTS OUTPUTS G An Yn L L L L H H H X Z X : Don't Care Z : High Impedance Yn : TC74VHC244F 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. TC74VHC257FT (DSP ASSY : IC1505) • Quad 2-Channel Multiplexer (3-state) • Block Diagram 7.2 PARTS 7.2.1 IC • Truth Table TC74VHC244F (DSP ASSY : IC1506) • Octal Bus Buffer • Pin Arrangement (Top view) • Truth Table www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 97 C-AX10 Vcc C D PR CLR Q S R CK D Q GND INPUTS OUTPUTS FUNCTION CLR PR D CK Q Q L H X X L H CLEAR H L X X H L PRESET L L X X H H H H L L H H H H H L H H X Qn Qn NO CHANGE X : Don't Care 1 2 3 4 8 7 6 5 CK CLR Output State X H All outputs "L" L Don't change L Go to the next state X : Don't Care 9 1 11 10 15 CK CLR D CK R Q D CK R Q Q12 Q1 Q2 Q3 Q4 Q5 Q6 Q11 Q10 Q9 Q8 Q7 7 D CK R Q 14 D CK R Q 12 D CK R Q 13 D CK R Q 4 D CK R Q D CK R Q 6 D CK R Q 5 D CK R Q 3 D CK R Q 2 D CK R Q TC7WT74FU (DSP ASSY : IC1605) • D-type Flip Flop with Present and Clear • Block Diagram • Truth Table TC74VHC4040FT (DSP ASSY : IC1606, IC1623) • 12-stage Ripple-carry Binary Counter • Pin Arrangement (Top view) • Truth Table www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 98 C-AX10 14 A S0 S0 S0 S1 S1 S2 S2 S3 S3 2 B 6 7 1C0 1Y 5 1C1 9 2Y Same as abobe block S1 4 1C2 S2 3 1C3 S3 1 1G 10 2C0 11 2C1 12 2C2 13 2C3 15 2G SELECT INPUTS DATA INPUTS STROBE OUTPUT B A C0 C1 C2 C3 G Y X X X X X X H L L L L X X X L L L L H X X X L H L H X L X X L L L H X H X X L H H L X X L X L L H L X X H X L H H H X X X L L L H H X X X H L H X : Don't Care 2 4 1A ST SELECT A B H X X X L L L L X L L L H X H L H X L L L H X H H X : Don't Care 3 1B 1Y 5 7 2A 6 2B 2Y 11 9 3A 10 3B 3Y 14 12 4A 13 4B 1 SELECT 15 ST 4Y OUTPUT INPUTS TC74VHC153FT (DSP ASSY : IC1614) • Dual 4-channel Multiplexer • Block Diagram • Truth Table TC74VHC157F (DSP ASSY : IC1704, IC1804, IC1903, IC2003) • Quad 2-channel Multiplexer • Block Diagram • Truth Table www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 99 C-AX10 1 L 7 10 9 3 14 CLR ENP ENT LOAD A B C D CK QA L D CK R Q Q X H L H L L L H H L H L X X * * X : Don't Care * : No Change L E E E E E E D CK R Q Q 15 CARRY OUT L L 4 13 QB L D CK R Q Q E E L 5 12 QC L D CK R Q Q E E L 6 11 QD 2 L D CK R Q Q TC74VHC163FT (DSP ASSY : IC1620) • Synchronous Presettable 4-bit Counter • Block Diagram • Truth Table www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 100 C-AX10 Serial Input I/F Crystal OSC SCK Power Supply Output I/F 8X Oversampling Digital Filter with Fuction Controller Mode Control I/F 3 2 1 11 12 13 10 15 14 16 17 18 27 6 4 5 IIS SF0SF1 SRO XTI XTO CLKOVDD Vss DOR DOL WCKO BCKO BCKIN LRCIN DIN MD/CKO MC/LRIP ML/RESV MODE MUTE RST DEM IW0 IW1 19 OW0 OW1 7 9 22 23 24 25 26 20 28 8 No. Pin Name I/O Pin Function 1 DIN I Serial audio data input 2 BCKIN I Bit clock input for serial audio data 3 IIS I Format selection of input audio data 4 IW0 I Word selection of input audio data 5 IW1 I Word selection of input audio data 6 XTI I Connect an oscillator or external clock input 7 XTO O Oscillator output 8 Vss − Ground 9 CLKO O Buffer output of system clock 10 MODE I Mode control selection ( H: Software mode, L: hardware mode) 11 MD/CKO I Mode control, data / 1/2 divided clock selection 12 MC/LRIP I Mode control, clock / LRCIN polarity selection 13 ML/RESV I Mode control, latch, clock / Not used 14 RST I Reset It becomes reset state during this pin is L. 15 MUTE I Mute control 16 DEM I Deemphasis control 17 SF0 I Deemphasis Sampling rate selection 18 SF1 I Deemphasis Sampling rate selection 19 OW0 I Data word selection of output audio 20 OW1 I Data word selection of output audio 21 NC − Non connection 22 VDD − Power supply +5V 23 DOR O Serial audio data output of R ch 24 DOL O Serial audio data output of L ch 25 WCKO O Word clock output for serial audio data output 26 BCKO O Bit clock output for serial audio data output 27 SRO I Filter characteristic selection 28 LRCIN I L/R clock input (fs) DF1704E (DSP ASSY : IC1902, IC2002) • Digital Filter • Block Diagram • Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 101 C-AX10 2 10 DATA 3 CLOCK 1 STROBE 15 OUTPUT ENABLE 8-STAGE SHIFT REGISTER Q1 Qn Qs Q's ± L X X Z Z Qs No Chg. ≠ L X X Z Z No Chg. Qs ± H L X No Chg. No Chg. Q7 No Chg. ± H H L L Qn-1 Q7 No Chg. ± H H H H Qn-1 Q7 No Chg. ≠ H X X No Chg. No Chg. No Chg. Qs X : Don't Care Z : High Impedance Q's 9 Qs SERIAL OUTPUT PARALLEL OUTPUT 4 Q1 Q8 14 CLOCK OUTPUT ENABLE STROBE DATA PARALLEL OUTPUTS SERIAL OUTPUTS 8-BIT LATCHES 3-STATE OUTPUTS . o N k r a M e m a N n i P O /I n o it c n u F n i P 1 _ E B O R T S B T S I ) 3 2 nip 2 0 1 2 C I( t u p ni e b o rt S 2 N I L A I R E S A T A D I ) 1 2 nip 2 0 1 2 C I( t u p ni a t a d lair e S 3 K C O L C K C O L C I ) 2 2 nip 2 0 1 2 C I( t u p ni k c olc lair e S 4 1 Q 1 L E S T U P N I O 1 r o tc ele s T U P N I 5 2 Q 2 L E S T U P N I 2 r o tc ele s T U P N I 6 3 Q 3 L E S T U P N I 3 r o tc ele s T U P N I 7 4 Q z H K 2 9 1 O la n gis z H k 2 9 1 F I D P : H k c a b y alp z H k 2 9 1 8 S S V S S V − S S V 9 S Q S Q O 8 1 1 2 C I f o ) A T A D ( 2 nip o t tc e n n o C 0 1 ' S Q ' S Q O d e s u t o N 1 1 8 Q T I B -I H O k c a b y alp tib -i H : H k c a b y alp tib -i H 2 1 7 Q 3 L E S C E R O 3 r o tc ele s C E R 3 1 6 Q 2 L E S C E R 2 r o tc ele s C E R 4 1 5 Q 1 L E S C E R 1 r o tc ele s C E R 5 1 E L B A N E T U P T U O E O I ) 8 2 nip 2 0 1 2 C I( t u p ni elb a n e pih C 6 1 D D V D D V − D D V BU4094BCFV (DSP ASSY : IC2101, IC2107, IC2108, IC2118) • Port Expander • Block Diagram • Truth Table • Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 102 C-AX10 G1 A1 Y2 GND A2 Y1 G2 VCC INPUTS OUTPUTS G A Y L X Z H L L H H H X : Don't Care Z : High Impedance 5 6 7 8 4 3 2 1 6 SCL 7 WP 5 SDA 3 A2 2 A1 1 A0 8 VCC 4 GND LOAD COMP LOAD R/W DOUT DIN EN INC START STOP LOGIC DEVICE ADDRESS COMPARATOR SERIAL CONTROL LOGIC DOUT/ACK LOGIC DATA WORD ADDR/COUNTER Y DEC H.V. PUMP/TIMING DATA RECOVERY SERIAL MUX EEPROM X DEC No. Pin Name Pin Function 1 A0 Address input 2 A1 3 A2 4 GND Ground 5 SDA Serial data 6 SCL Serial clock input 7 WP Write protect 8 VCC Power supply TC7W126FU (DSP ASSY : IC2103, IC2114) • Dual Bus Buffer • Pin Arrangement (Top view) • Truth Table AT24C16N-10SI2.5 (DSP ASSY : IC2106) • 2-wire Serial CMOS EEPROM • Block Diagram • Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 103 C-AX10 . o N k r a M e m a N n i P O /I n o it c n u F n i P 1 4 T U O S / 1 X E N A / 6 9 P I S O M P S D O ( t u p t u o a t a d n oit a cin u m m o c P S D → ) P S D 2 4 K L C / 0 X E N A / 5 9 P K C S P S D O t u p t u o k c olc n oit a cin u m m o c P S D 3 N I 4 B T / 1 A D / 4 9 P M E D F D O N O sis a h p m e e D : H ) 2 0 0 2 C I d n a 2 0 9 1 C I( r e t n e C d n a d n u o rr u S f o lo rt n o c sis a h p m e e D 4 N I 3 B T / 0 A D / 3 9 P 1 Q E R H P S D I ( y d a e r n oit a cin u m m o c P S D ← y s u b n oit a cin u m m o C : H ) P S D r e t n e c 5 3 T U O S / N I 2 B T / 2 9 P t u o A T A D O ( r e t u p m o c o r ci m f o t u p t u o a t a d n oit a c n u m m o C → )r e t u p m o c o r ci m nia m 6 3 N I S / N I 1 B T / 1 9 P ni A T A D I ( r e t u p m o c o r ci m f o t u p ni a t a d n oit a c n u m m o C ← )r e t u p m o c o r ci m nia m 7 3 K L C / N I 0 B T / 0 9 P K C O L C I r e t u p m o c o r ci m f o t u p ni k c olc n oit a c n u m m o C 8 E T Y B E T Y B I )tib 8 : h t g n el a t a d ( C O V 9 S S V N C S S V N C I ) e d o m e s u y r o m e m la n r e tx e ( C C V o t p u -llu P 0 1 N I C X / 7 8 P Y D A E R O ( y d a e r n oit a cin u m m o c r e t u p m o c o r ci M → y s u b n oit a cin u m m o C : H )r e t u p m o c o r ci m nia m 1 1 T U O C X / 6 8 P 2 S C H O ( ts e u q e r a t a d n oit a cin u m m o c r e t u p m o c o r ci M → ts e u q e r a t a D : L )r e t u p m o c o r ci m nia m 2 1 _ T E S E R T E S E R I ( t u p ni t e s e R ← )r e t u p m o c o r ci m nia m 3 1 T U O X T U O X O r o t a n o s e r ci m a r e c z H M 7 . 7 a tc e n n o C 4 1 S S V S S V − S S V 5 1 N I X N I X I r o t a n o s e r ci m a r e c z H M 7 . 7 a tc e n n o C 6 1 C C V C C V − C C V 7 1 _ I M N / 5 8 P I M N I ) d e s u t o N ( → C C V o t p u -llu P 8 1 _ 2 T N I/ 4 8 P 1 S C H I ( ts e u q e r a t a d n oit a cin u m m o c r e t u p m o c o r ci M ← ts e u q e r a t a D : L )r e t u p m o c o r ci m nia m 9 1 _ 1 T N I/ 3 8 P M F R E I k c oln u : H r o rr e ) 3 0 6 1 C I( R I D r e ts a M 0 2 _ 0 T N I/ 2 8 P S F R E I k c oln u : H r o rr e ) 2 0 6 1 C I( R I D e v al S 1 2 _ U / N I 4 A T / 1 8 P A T A D S O t u p t u o a t a d lair e S 2 2 U / T U O 4 A T / 0 8 P K C O L C S O t u p t u o k c olc lair e S 3 2 N I 3 A T / 7 7 P B T S X E O N O e b o rt S : L ) 8 1 1 2 C I d n a 1 0 1 2 C I( C I n ois n a p x e f o t u p t u o e b o rt S 4 2 T U O 3 A T / 6 7 P A R A P D A O t u p ni h c 2 g ola n A : L n oit a r e p o lella r a p - 3 ) 4 0 8 2 C I d n a 4 0 7 2 C I , 5 0 1 1 C I( D / A 5 2 _ W / N I 2 A T / 5 7 P D P D A F O n w o d r e w o P : L n w o d r e w o p ) 5 0 1 1 C I( D / A t n o r F 6 2 W / T U O 2 A T / 4 7 P F D S S O N O e b o rt S : L e b o rts n oit a cin u m m o c ) 3 1 6 1 C I( P S D o t a g e L 7 2 _ 2 S T R / _ 2 S T C / 3 7 P _ V / N I 1 A T / L E S S H O le n n a h c -itlu m tib 4 2 /z H k 8 4 F I D P : H ) 1 0 5 1 C I( P S D r e t n e c f o n oitc ele s K L C 8 2 V / T U O 1 A T / 2 K L C / 2 7 P E O P X E O elb a n e t u p t u O : H ) 8 1 1 2 C I d n a 1 0 1 2 C I( C I n ois n a p x e f o elb a n e t u p t u O 9 2 L C S / 2 D X R / 1 7 P N I 5 B T / N I 0 A T / H C 2 X O t e s e R : L r e t n e c d n a d n u o rr u s f o t e s e r ) 3 0 0 2 C I d n a 3 0 9 1 C I( r e tlif la tigi D 0 3 T U O 0 A T / A D S / 2 D X T / 0 7 P F I D P I tsix e elb a C : H n oitc e t e d elb a c F I D P 1 3 1 D X T / 7 6 P T S R D D O t e s e R : L t e s e r ) 3 1 6 1 C I( P S D o t a g e L 2 3 1 D X R / 6 6 P T S R D F O t e s e R : L t e s e r ) 2 0 8 1 C I d n a 1 0 8 1 C I , 2 0 7 1 C I , 1 0 7 1 C I( P S D t n o r F 3 3 1 K L C / 5 6 P P U R E V O p u n ois r e V : L lo rt n o c ) 2 1 1 2 C I( F A 5 2 1 C H 4 7 C T 4 3 _ 1 S T R / _ 1 S T C / 4 6 P 1 S K L C / _ 0 S T C / S T C I ← y d a e r n oit a cin u m m o C : L ) p u n ois r e v ( ts e u q e r a t a d C / P 5 3 0 D X T / 3 6 P D X T /t u o A T A D ) T R A U ( O ( t u p t u o a t a D → ) p u n ois r e v ( t u p t u o a t a d / ) 0 1 X A - V D f o n oit a cifitr e c la u t u m F I D P 6 3 0 D X R / 2 6 P D X R / ni A T A D ) T R A U ( I ( t u p ni a t a D ← ) p u n ois r e v ( t u p ni a t a d / ) 0 1 X A - V D f o n oit a cifitr e c la u t u m F I D P 7 3 0 K L C / 1 6 P O ) d e s u t o N ( 8 3 _ 0 S T R / _ 0 S T C / 0 6 P S T R O → y d a e r n oit a cin u m m o C : L ) p u n ois r e v ( ts e u q e r a t a d C / P 9 3 T U O K L C / _ Y D R / 7 5 P _ Y D R I ) d e s u t o N ( → C C V o t p u -llu P 0 4 E L A / 6 5 P E L A O ) d e s u t o N ( 1 4 _ D L O H / 5 5 P _ D L O H I ) d e s u t o N ( → C C V o t p u -llu P 2 4 _ A D L H / 4 5 P _ A D L H O ) d e s u t o N ( 3 4 K L C B / 3 5 P K L C B 4 4 _ D R / 2 5 P # E O O elb a n e t u p t u O : L ) 5 0 1 2 C I( y r o m e m h s al F f o elb a n e t u p t u O 5 4 _ E H B / _ H R W / 1 5 P _ E H B O ) d e s u t o N ( 6 4 _ R W / _ L R W / 0 5 P # E W O elb a n e e tir W : L ) 5 0 1 2 C I( y r o m e m h s al F f o elb a n e e tir W 7 4 _ 3 S C / 7 4 P O ) d e s u t o N ( 8 4 _ 2 S C / 6 4 P 9 4 _ 1 S C / 5 4 P L E S F C O tc ele s S C : H n oitc ele s _ q e rf/ S C ) 3 0 6 1 C I( R I D 0 5 _ 0 S C / 4 4 P S C H S L F O elb a n e pih C : L ) 5 0 1 2 C I( y r o m e m h s al F f o lo rt n o c S C M30622SFP (DSP ASSY : IC2102) • DSP Microcomputer • Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 104 C-AX10 . o N k r a M e m a N n i P O /I n o it c n u F n i P 1 5 9 1 A / 3 4 P 9 1 A O ) d e s u t o N ( 2 5 8 1 A / 2 4 P 8 1 A O ) 5 0 1 2 C I( y r o m e m h s al F f o t u p t u o s s e r d d a n oit a cin u m m o C 3 5 7 1 A / 1 4 P 7 1 A 4 5 6 1 A / 0 4 P 6 1 A 5 5 5 1 A / 7 3 P 5 1 A 6 5 4 1 A / 6 3 P 4 1 A 7 5 3 1 A / 5 3 P 3 1 A 8 5 2 1 A / 4 3 P 2 1 A 9 5 1 1 A / 3 3 P 1 1 A 0 6 0 1 A / 2 3 P 0 1 A 1 6 9 A / 1 3 P 9 A 2 6 C C V C C V − C C V 3 6 ) 7 D /-/( 8 A / 0 3 P 8 A O ) 5 0 1 2 C I( y r o m e m h s al F f o t u p t u o s s e r d d a n oit a cin u m m o C 4 6 S S V S S V − S S V 5 6 ) 6 D / 7 D /( 7 A / 7 2 P 7 A O ) 5 0 1 2 C I( y r o m e m h s al F f o t u p t u o s s e r d d a n oit a cin u m m o C 6 6 ) 5 D / 6 D /( 6 A / 6 2 P 6 A 7 6 ) 4 D / 5 D /( 5 A / 5 2 P 5 A 8 6 ) 3 D / 4 D /( 4 A / 4 2 P 4 A 9 6 ) 2 D / 3 D /( 3 A / 3 2 P 3 A 0 7 ) 2 D / 2 D /( 2 A / 2 2 P 2 A 1 7 ) 0 D / 1 D /( 1 A / 1 2 P 1 A 2 7 )-/ 0 D /( 0 A / 0 2 P 0 A 3 7 _ 5 T N I/ 5 1 D / 7 1 P T S R F D O t e s e R : L t e s e r ) 3 0 8 1 C I d n a 3 0 7 1 C I( r e tlif la tigid t n o r F 4 7 _ 4 T N I/ 4 1 D / 6 1 P 2 F / e C R I D I 2 tr o p e r q e rf / e S C ) 3 0 6 1 C I( R I D 5 7 _ 3 T N I/ 3 1 D / 5 1 P K C O L I k c oln u L L P : H t u p ni K C O L L L P 6 7 2 1 D / 4 1 P 1 F / d C R I D I 1 tr o p e r q e rf / d S C ) 3 0 6 1 C I( R I D 7 7 1 1 D / 3 1 P 0 F /c C R I D I 0 tr o p e r q e rf / c S C ) 3 0 6 1 C I( R I D 8 7 0 1 D / 2 1 P 2 E / b C R I D I 2 n oitid n o c r o rr e / b S C ) 3 0 6 1 C I( R I D 9 7 9 D / 1 1 P 1 E / a C R I D I 1 n oitid n o c r o rr e / a S C ) 3 0 6 1 C I( R I D 0 8 8 D / 0 1 P 0 E / _ 0 C R I D I 0 n oitid n o c r o rr e / _ 0 S C ) 3 0 6 1 C I( R I D 1 8 7 D / 7 0 P 7 Q D O /I ) 5 0 1 2 C I( y r o m e m h s al F f o t u p t u o / t u p ni a t a d n oit a cin u m m o C 2 8 6 D / 6 0 P 6 Q D 3 8 5 D / 5 0 P 5 Q D 4 8 4 D / 4 0 P 4 Q D 5 8 3 D / 3 0 P 3 Q D 6 8 2 D / 2 0 P 2 Q D 7 8 1 D / 1 0 P 1 Q D 8 8 0 D / 0 0 P 0 Q D 9 8 _ 3 I K / 7 N A / 7 0 1 P D P D A R C O n w o d r e w o P : L n w o d r e w o p ) 4 0 8 2 C I d n a 4 0 7 2 C I( D / A d n u o rr u s d n a r e t n e C 0 9 _ 2 I K / 6 N A / 6 0 1 P E T U M P S D O N O e t u M : H e t u m ) 2 0 0 2 C I d n a 2 0 9 1 C I , 3 0 8 1 C I , 3 0 7 1 C I( r e tlif la tigi D 1 9 _ 1 I K / 5 N A / 5 0 1 P T S R D C O t e s e R : L t e s e r ) 1 0 5 1 C I( P S D r e t n e C 2 9 _ 0 I K / 4 N A / 4 0 1 P 1 R S S P S D O N O e b o rt S : L ) 1 0 8 1 C I( 1 R P S D t n o rf f o e b o rts n oit a cin u m m o C 3 9 3 N A / 3 0 1 P 1 L S S P S D O N O e b o rt S : L ) 1 0 7 1 C I( 1 L P S D t n o rf f o e b o rts n oit a cin u m m o C 4 9 2 N A / 2 0 1 P 2 R S S P S D O N O e b o rt S : L ) 2 0 8 1 C I( 2 R P S D t n o rf f o e b o rts n oit a cin u m m o C 5 9 1 N A / 1 0 1 P 2 L S S P S D O N O e b o rt S : L ) 2 0 7 1 C I( 2 L P S D t n o rf f o e b o rts n oit a cin u m m o C 6 9 S S V A S S V A − S S V 7 9 0 N A / 0 0 1 P T C S S P S D O N O e b o rt S : L ) 1 0 5 1 C I( P S D r e t n e c f o e b o rts n oit a cin u m m o C 8 9 F E R V F E R V − C C V 9 9 C C V A C C V A 0 0 1 4 N I S / _ G R T D A / 7 9 P O S I M P S D I ( t u p ni a t a d n oit a cin u m m o c P S D ← ) P S D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 105 C-AX10 . o N e m a N n i P O /I n o it c n u F n i P 1 7 N A / 2 6 P D A t u p ni y e k tin u nia M 2 6 N A / 1 6 P 3 5 N A / 0 6 P 4 4 N A / 7 7 P D A d e s u t o N 5 3 N A / 6 7 P D A r e d o c n E 6 2 N A / 5 7 P I 7 1 N A / 4 7 P I 8 0 N A / 2 y d r S / 3 7 P O )t e s e r( s u b C M P S D 9 2 klc S / 2 7 P O ) k c olc ( s u b e s o p r u p -la r e n e G 0 1 2 t u o S / 1 7 P O )t u o a t a d ( s u b e s o p r u p -la r e n e G 1 1 2 ni S / 0 7 P I ) nia t a ( s u b C M P S D 2 1 2 A D / 7 5 P O ) s c ( s u b C M P S D 3 1 1 A D / 6 5 P I ) y d a e r( s u b C M P S D 4 1 1 R T N C / 5 5 P I )ts e u q e r( )t p u rr e t ni( s u b C M P S D 5 1 0 R T N C / 4 5 P I )t p u rr e t ni( t u p nila n gis R S 6 1 4 T N I/ 3 5 P I )t p u rr e t ni( n oitc e t e d k c ol r e tlif la tigi D 7 1 3 T N I/ 2 5 P I )t p u rr e t ni( n oitc e t e d k c ol R I D 8 1 2 T N I/ 2 p m c S / 1 5 P I r e d o c n E 9 1 t u o T / 0 5 P 0 2 1 y d r S / 7 4 P O ))I( stc/t al( s u b T R A U s u b L F 1 2 1 klc S / 6 4 P )) O ( rt d /k c ol( s u b T R A U s u b L F 2 2 D x T / 5 4 P ) d xt/t u o a t a d ( s u b T R A U s u b L F 3 2 D x R / 4 4 P I ) d x r/ nia t a d ( s u b T R A U s u b L F 4 2 1 T N I/ 3 4 P )ff o p sid ( lo rt n o c e nil V 0 4 L F 5 2 0 T N I/ 2 4 P I )t p u rr e t ni( t u p ni C A 6 2 s s V N C k 1 h ti w n w o d -llu p ( n oitc e n n o c S S V Ω k 0 1 o t Ω) 7 2 T E S E R t u p ni t e s e R 8 2 nic X / 1 4 P O ) F ( y ale r t u p t u O 9 2 t u o c X / 0 4 P ) W S ( y ale r t u p t u O 0 3 ni X t u p ni r o t allic s O 1 3 t u o X t u p t u o r o t allic s O 2 3 s s V − D N G 3 3 7 B D / 7 2 P O ) 0 b d o t 7 b d ( M O R h s al F f o s u b a t a D 4 3 6 B D / 6 2 P 5 3 5 B D / 5 2 P 6 3 4 B D / 4 2 P 7 3 3 B D / 3 2 P 8 3 2 B D / 2 2 P 9 3 1 B D / 1 2 P 0 4 0 B D / 0 2 P M38079SFP (DSP ASSY : IC2109) • System Microcomputer • Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 106 C-AX10 . o N e m a N n i P O /I n o it c n u F n i P 1 4 5 1 D A / 7 1 P O ) 2 d a o t 5 1 d a ( M O R h s al F f o s u b s s e r d d A 2 4 4 1 D A / 6 1 P 3 4 3 1 D A / 5 1 P 4 4 2 1 D A / 4 1 P 5 4 1 1 D A / 3 1 P 6 4 0 1 D A / 2 1 P 7 4 9 D A / 1 1 P 8 4 8 D A / 0 1 P 9 4 7 D A / 7 0 P 0 5 6 D A / 6 0 P 1 5 5 D A / 5 0 P 2 5 4 D A / 4 0 P 3 5 3 D A / 3 0 P 4 5 2 D A / 2 0 P 5 5 1 D A / 1 0 P O ) 0 d a o t 1 d a ( M O R h s al F f o s u b s s e r d d A 6 5 0 D A / 0 0 P 7 5 D R / 7 3 P I ) d a e r( M O R h s al F 8 5 R W / 6 3 P O ) e tir w ( M O R h s al F 9 5 C N Y S / 5 3 P O ) c n y s ( M O R h s al F 0 6 /t u o k C / 4 3 P φ O ) k c olc ( M O R h s al F 1 6 t u o T E S E R / 3 3 P O )t e s e r( M O R h s al F 2 6 W N O / 2 3 P I ) w n c ( M O R h s al F 3 6 7 P T R / 1 3 P O ) C ( y ale r t u p t u O 4 6 6 P T R / 0 3 P O ) R S / L S ( y ale r t u p t u O 5 6 5 P T R / 7 8 P O ) k b ( s u b L F 6 6 4 P T R / 6 8 P O E O L X 2 9 0 1 U B r o f elb a n e t u p t u O 7 6 3 P T R / 5 8 P O nisf ) s u b e s o p r u p -la r e n e g ( L O V C A D 8 6 2 P T R / 4 8 P O c a dl ) s u b e s o p r u p -la r e n e g ( L O V C A D 9 6 1 P T R / 3 8 P O e b o rts ) s u b e s o p r u p -la r e n e g ( r e vir d D E L 0 7 0 P T R / 2 8 P O e b o rts ) s u b e s o p r u p -la r e n e g ( r e d n a p x e O /I 1 7 2 1 N A / 4 A D / 1 8 P O p u k c a b M O R P E E 2 7 1 1 N A / 3 A D / 0 8 P O p u k c a b M O R P E E 3 7 c c V − V 0 . 5 e g a tlo v ylp p u s r e w o P 4 7 f e r V D A r e tr e v n o c D / A r o f t u p nii H e g a tlo v e c n e r e f e R 5 7 s s V A r e tr e v n o c D / A r o f t u p ni w o L e g a tlo v e c n e r e f e R 6 7 0 1 N A /f e r V A D / 5 6 P D A e m ulo v nia M f o 1 t u p ni tc e t e d n oitis o P 7 7 9 N A /f e r P M C / 4 6 P D A e m ulo v nia M f o 0 t u p ni tc e t e d n oitis o P 8 7 8 N A / ni P M C / 3 6 P D A t u p ni W S W N D 9 7 t u o P M C − d e s u t o N 0 8 c c V P M C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 107 C-AX10 2 GNDL 4 AINL+ 5 AINL- 25 AINR+ 24 AINR- 3 VCOML 6 ZCAL 1 VREFL 14 11 12 13 16 15 SMODE1 SMODE2 SCLK LRCK FSYNC SDATA 19 HPFE 17 MCLK 18 10 DFS RST 9 CAL 21 BGND 22 AGND 23 VA 7 VD 8 DGND 26 VCOMR Voltage Reference 27 GNDR 28 VREFR Voltage Reference Delta-Sigma Modulator Decimation Filter Serial Output Interface HPF HPF Decimation Filter Controller Calibration SRAM Delta-Sigma Modulator . o N e m a N n i P O /I n o it c n u F n i P 1 F E R V O V 5 7 . 3 , h c L r o f nip t u p t u o e g a tlo v e c n e r e f e R 0 1 n a tc e n n o C µ 1 . 0 a d n a r o tic a p a c citylo rtc ele F µ . L D N G d n a nip sih t n e e w t e b r o tic a p a c ci m a r e c F 2 L D N G − V 0 , h c L r o f nip d n u o r g e c n e r e f e R 3 L M O C V O V 5 7 . 2 , h c L r o f nip e g a tlo v n o m m o C 4 + L N I A I h c L r o f nip t u p ni e vitis o p g ola n A 5 - L N I A I h c L r o f nip t u p ni e vit a g e n g ola n A 6 L A C Z I . n oit a r bila c t e sff o e h t g nis u r o f la n gis e c n e r e f e r e h t stc ele S n oit a r bila c o r e Z N I A ( nip t u p ni g ola n A :" H " , R M O C V , L M O C V :" L " ± R N I A , ±) 7 D V − V 3 . 3 , n oitc e s la tigid r o f nip ylp p u s r e w o P 8 D N G D − n oitc e s la tigid r o f nip d n u o r G 9 L A C O nip T S R n e h w n oit a r bila c e h t str a t S ." H " t a n oit a r bila c t e sff o g nir u d e h t t a h t s e t a cid n I nip s u t a ts n oit a r bila C . L = S F D t a d elc y c K C R L 4 0 7 8 r e tf a " L " s e m o e b ti d n a ," H " s e m o c e b . H = S F D t a d elc y c K C R L 8 0 4 7 1 r e tf a " L " s e m o c e b tI 0 1 T S R I nip t e s e R . d e tr a ts si n oit a r bila c t e sff o e h t ," H " s e m o c e b ti n e h W ." L " t a d e n w o d r e w o p si n oitc e s la tigi D . e c n o n oitc ejni ylp p u s r e w o p ni n oit a r bila c e h t e t a vitc a e s a el P 1 1 2 E D O M S I nip tc ele s e d o m e c a fr e t nilair e S t n e m elp m o c S '2 ,ts rif B S M 2 1 1 E D O M S 3 1 K C R L O /I n oitc ele s le n n a h c R / L f o nip k c ol C .t e s e r e h t ni " H " = 2 E D O M S n e h w " L " s e m o c e b fi d n a ," L " = 2 E D O M S n e h w " H " s e m o c e b ti ," H " = 1 E D O M S t A 2 E D O M S 1 E D O M S E D O M K C R L L L n e tr o h s t n o r F : e d o m e v al S L / H L H I is a u Q : e d o m r e ts a M 2S L / H H L I : e d o m e v al S 2S H / L H H I : e d o m r e ts a M 2S H / L AK5393VS (FRAD ASSY : IC1105 and CRAD ASSY : IC2704, IC2804) • Enhanced Dual-bit 108kHz 24-bit 2ch ADC • Block Diagram • Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 108 C-AX10 . o N e m a N n i P O /I n o it c n u F n i P 4 1 K L C S O /I . nip sih t f o e g d e g nilla f t a tib - 1 st u p t u o a t a d t u p t u O nip k c olc a t a d lair e S y r a s s e c e n si sf 8 4 n a h t e r o m k c olc : e d o m e v al S " L " = t e s e r t A s k c olc )" H " = S F D ( sf 4 6 d n a )" L " = S F D ( sf 8 2 1 t u p t u O : e d o m r e ts a M 5 1 A T A D S O " L " = t e s e r t A t n e m elp m o c S '2 ,ts rif B S M nip t u p t u o a t a d lair e S 6 1 C N Y S F O /I nip k c olc s u o n o r h c n y s e m a r F " H " t a d elb a n e si t u p t u o A T A D S : e d o m e v al S " L " = t e s e r t A t u p t u o k c olc sf 2 : e d o m r e ts a M 7 1 K L C M I " H " = S F D t a sf 8 2 1 ," L " = S F D t a sf 6 5 2 nip t u p ni k c olc r e ts a M 8 1 S F D I d e e p s elb u o D :" H " , d e e p s la m r o N :" L " nip tc ele s e d o m g nilp m a s d e e p s elb u o D 9 1 E F P H I N O :" H " , F F O :" L " nip elb a n e F P H 0 2 T S E T I . D N G D o t tc e n n o C nip ts e T 1 2 D N G B − V 0 , nip d n u o r g B C P 2 2 D N G A − V 0 , n oitc e s g ola n a r o f nip d n u o r G 3 2 A V − V 5 , n oitc e s g ola n a r o f nip ylp p u s r e w o P 4 2 - R N I A I h c R r o f nip t u p ni e vitis o p g ola n A 5 2 + R N I A I h c R r o f nip t u p ni e vit a g e n g ola n A 6 2 R M O C V O V 5 . 2 , h c R r o f nip e g a tlo v n o m m o C 7 2 R D N G − V 0 , h c R r o f nip d n u o r g e c n e r e f e R 8 2 R F E R V O V 5 7 . 3 , h c R r o f nip t u p t u o e g a tlo v e c n e r e f e R 0 1 n a tc e n n o C µ 1 . 0 a d n a r o tic a p a c citylo rtc ele F µ . R D N G d n a nip sih t n e e w t e b r o tic a p a c ci m a r e c F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 109 C-AX10 72 1 • Pin Assignment • Grid Assignment • Pin Connection c d G1 G16 G15 G14 G13 G12 G11 G10 G9 G8 G7 G6 G5 G4 G3 G2 Pin No. Connection 1 F1 2 F1 3 F1 4 - 58 NP 59 SI 60 VDD1 61 SO BD system pin out 62 LAT 63 BK 64 CLK 65 VSS 66 VSS 67 VDD2 68 NP 69 NP 70 F2 71 F2 72 F2 a b G1 7.2.2 Display AAV7065 (DISPLAY ASSY : V2201) • FL Display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 110 C-AX10 1 Filter AZA7340 2 Rubber Sheet AZA7372 3 Name Plate A AZA7373 4 Name Plate B AZA7374 5 Case A AZN7810 6 Slide Case AZN7812 7 Case B AZN7811 : Hook points (×14) 3 4 6 5 2 Diffusion Plate 9 8 12 1 7 11 10 8 Terminal A (+) AZB7141 9 Terminal B (-) AZB7142 10 Contact Spring AZB7143 11 Battery Cover AZN7813 12 PCB for Remote Control AZW7256 Unit (AXD7198) Expladed View Parts List Mark No. Description Part No. Mark No. Description Part No. 7.3.1 Exploded View and Parts List 7.3 REMOTE CONTROL UNIT (CU-C005) NOTES: • Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. • The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Screws adjacent to mark on the product are used for disassembly. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 111 A B C D 1 2 3 4 1 2 3 4 29 XX 30 31 32 40 48 25 26 27 28 39 47 21 22 23 24 38 46 17 18 19 20 37 45 13 14 15 16 36 44 52 9 10 11 12 35 43 51 5 6 7 8 34 42 50 2 3 4 33 41 49 KEY No. BATTERY 3V 3.84MHz R02 22 R01 1(1/4W) D01 SID303C-01 Q01 2SC3265 C02 0.1µF C01 10µF X1 Vss 1 E2 2 E1 3 XIN 4 XOUT 5 E0 6 G0 7 G1 8 G2 9 G3 10 20 VDD 19 CARR 18 D0 17 D1 16 D2 15 D3 14 D4 13 D5 12 D6 11 D7 IC01 M34280M1-352FP SWITCHES KEY No. NAME 2 : DIGITAL NR 3 : Hi-bit 4 : MID-NIGHT 5 : DIRECT 6 : SOUND MEMORY A 7 : SOUND MEMORY B 8 : SOUND MEMORY C 9 : MEMO 10 : M1 11 : M2 12 : M3 13 : M4 14 : M5 15 : M6 16 : M7 17 : M8 18 : DIGITAL IN 1 19 : DIGITAL IN 2 20 : DIGITAL IN 3 21 : DIGITAL IN 4 22 : DIGITAL IN 5 23 : DIGITAL IN 6 24 : ANALOG1 25 : ANALOG2 26 : ANALOG3 KEY No. NAME 27 : DVD 28 : 2ch/multi ch 29 : DIMMER 30 : CH LEVEL + 31 : CH LEVEL - 32 : CH SELECT 33 : VOL + 34 : VOL - 35 : MUTING 36 : SYSTEM 37 : NETWORK 38 : CHECK 39 : TEST TONE 40 : 5 41 : 2 42 : 3 43 : ∞ 44 : ENTER 45 : REMOTE ON/OFF 46 : BALANCE - L 47 : BALANCE - R 48 : INPUT GAIN 49 : ALL 50 : FRONT 51 : CENTER 52 : SURR. 7.3.2 Schematic Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C-AX10 112 A B C D 1 2 3 4 1 2 3 4 7.3.3 PCB Diagram 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 20 19 18 23 22 21 26 25 24 29 28 27 33 34 32 35 30 31 36 38 37 40 39 41 42 44 43 45 46 47 48 49 50 51 52 J02 Q01 R01 R02 J02 1 20 11 10 IC01 M34280M1-XXXFP D01 C01 C02 X01 3.84M T01 BAT T02 T03 SIDE A SIDE B PCB for Remote Control Unit (AXD7198) PCB for Remote Control Unit (AXD7198) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 113 C-AX10 1 Power switch (POWER —OFF/_ON) Press the power switch to turn the amplifier on and off. 2 DISPLAY OFF indicator This indicator turns on when the display is turned off by the Brightness Selection button (-). 3 Remote control sensor Point the remote control towards this sensor when op- erating the amplifier. 4 Display 5 INPUT SELECTOR This is used to select the input signal. 6 SOUND MEMORY jog dial You can save and recall up to 16 tone control setting patterns and 8 speaker setup patterns and change the memory number display. 7 Front flip-down door Press lightly on the bottom of this door to open it. 8 MULTI CONTROL jog dial This jog dial is used to make various settings. Turn the dial to select the setting, and then press to enter (ENTER/NEXT). Refer to the page of the specific function for more details. DOLBY D I G I T A L 1 2 4 5 6 7 8 9 3 8. PANEL FACILITIES AND SPECIFICATIONS 8.1 PANEL FACILITIES 9 MASTER VOLUME knob This knob is used to adjust the volume. Turning this knob adjusts the volume for all channels simulta- neously. 0 2/DTS button When this mode is selected, Dolby Digital, Dolby Pro Logic, or DTS Surround Mode is turned on automati- cally according to the input signal. - Brightness Selection button (DIMMER) The display brightness can be adjusted to four levels including Display Off. When Display Off is selected, the Display Off indicator (2) turns on. = DVD Input Selector button (DVD INPUT 2 ch/multi ch) When DVD-A input is selected, this button is used to choose either two-channel input or multichannel (six channel) input. ~ Sampling Frequency Selector button (fs 96k/48k) When an analogue input signal is output from the digi- tal output jack (DIGITAL OUT), this button is used to select whether the sampling frequency (fs) remains un- modified at 96 kHz or drops down to 48 kHz. ! DIGITAL NR button This button is used to select the Digital NR function mode. @ Hi-bit button This button is used to turn the Hi-bit function on and off. # MIDNIGHT button This button turns the Midnight function on and off. $ DIRECT button This button is used to select the Direct function mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 114 C-AX10 DOLBY D I G I T A L 0-= ~ !@ #$ %^ & *() _ + ¡�™� % CHARACTER INPUT button8 This button is used to enter the Character Input mode for changing the input signal or sound memory setting to a user-selected name. ^ Digital REC Selector button (REC SELECTOR [DIGITAL] )8 This button is used to enter the mode for selecting the REC OUT signal that is output from the digital output jack. & INPUT GAIN button8 This button is used to enter the mode for adjusting the analogue input and digital input gain. * PARAMETER CHECK button8 This button is used to enter the mode for checking the current settings. ( Tone Control button (TONE)8 This button is used to enter Tone Control mode. ) Tone Control Channel button (EACH/ALL)8 This button is used to switch between EACH mode and ALL mode. ÷ EACH mode : The front, centre, and surround channels can each be set individu- ally. ÷ ALL mode : The front, centre, and surround channels are set to the same set- tings. _ Balance Control button (BALANCE)8 This button is used to enter the mode for adjusting the balance of the front left and right channels. + SYSTEM SET UP button8 This button is used to enter System Setup mode for speaker setup or selecting modes. ¡ NETWORK SET UP button8 This button is used to enter Network Setup mode when the OUTPUT MODE selector (™) is set to Digital Net- work FIR mode or Digital Network IIR mode. ™ OUTPUT MODE selector This selector is used to set to one of the following four modes. ÷ Digital Network FIR mode ÷ Digital Network IIR mode ÷ Normal mode ÷ OFF (Output off) 8 After pressing the buttons in % to ¡, use the MULTI CONTROL jog dial 8 to make the settings and adjust- ments. When the front flip-down door is opened www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 115 C-AX10 DIGITAL CONTROL AMPLIFIER REMOTE CONTROL UNIT CU-005 SOUND MEMORY DIGITAL INPUT ANALOG INPUT TONE CONTROL BALANCE NETWORK L R ENTER SETUP ALL SYSTEM CHECK TEST TONE INPUT GAIN REMOTE ON/OFF DIGITAL NR DIRECT Hi-bit MEMO MID- NIGHT FRONT MUTING CH SELECT DIMMER 2ch/ multi ch CH LEVEL VOLUME CENTER SURR. 1 A M1 M2 M3 M4 M5 M6 M7 M8 B C 2 3 4 5 6 1 DVD 2 3 Remote Control Unit (CU-C005) This figure shows the remote control when the slide cover has been pulled down. To open the slide cover, press on the fi mark on the cover and the indentation on the back of the remote control, and then pull the cover down slightly so that the lock releases with a clicking sound. 1 Hi-bit button This button is used to turn the Hi-bit function on and off. 2 DIGITAL NR button This button is used to select the Digital NR function mode. 3 SOUND MEMORY buttons These buttons are used to save and recall up to 16 tone control setting patterns and 8 speaker setup pat- terns. The three buttons A, B, and C can be selected within the eight buttons M1 to M8. 4 Digital Input selector (DIGITAL INPUT 1 to 6) These buttons are used to select the digital input sig- nal. 5 Analogue Input selector (ANALOG INPUT 1 to 3, DVD) These buttons are used to select the analogue input signal. 6 2ch/multi ch (2/DTS) button When DVD-A input is selected, this button is used to select two-channel input, multichannel (six channel) in- put, or multichannel output after conversion of the two- channel signal to Dolby Pro Logic. If an input other than DVD-A input is selected, OFF (2ch) and ON (multi) for Dolby Digital, Dolby Pro Logic, DTS, and Surround Mode are set according to the sig- nal that is input. 7 Channel Level buttons (CHANNEL LEVEL +, –) 8 Channel Select buttons (CH SELECT) To adjust the channel level, use this button to choose the channel, and then use the CHANNEL LEVEL + and – buttons (7) to adjust the level. 9 SYSTEM SET UP button This button is used to enter System Setup mode for speaker setup or selecting modes. 0 CHECK button This button is used to enter the mode for checking the current settings. - 2/3/5/∞ buttons These buttons are used to make selections and set- tings. = Balance Control buttons (BALANCE L, R) These buttons are used to adjust the balance of the front left and right channels. ~ REMOTE ON/OFF button This button is used to select whether the amplifier can receive operations from the remote control (ON) or not (OFF). Set to OFF when more than one Pioneer ampli- fier is operating at the same time. When set to OFF, the amplifier can be operated only from the amplifier unit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 116 C-AX10 ! All Tone Control button (ALL) This button is used to perform total tone control at the same settings for the front, centre, and surround chan- nels. @ Front Tone Control button (FRONT) This button is used to perform tone control for the front channels. # MIDNIGHT button This button turns the Midnight function on and off. $ DIRECT button This button is used to select the Direct function mode. % Memory button (MEMO) This button is used when saving the sound memory settings. ^ Brightness Selection button (DIMMER) The display brightness can be adjusted to four levels including Display Off. & Master Volume buttons (VOLUME +, –) These buttons are used to adjust the volume. * Muting button (MUTING) This button is used to temporarily turn off the sound. ( NETWORK SET UP button This button is used to enter Network Setup mode when the Output mode is set to Digital Network (IIR or FIR). ) TEST TONE button This button is used to adjust the level using the test tone. _ ENTER button This button is used to enter selections and make set- tings. + INPUT GAIN button This button is used to enter the mode for adjusting the analogue input and digital input gain. ¡ Surround Tone Control button (SURR.) This button is used to perform tone control for the sur- round channels. ™ Centre Tone Control button (CENTER) This button is used to perform tone control for the cen- tre channel. Operating Range of the Remote Control When using the remote control to operate the amplifier, point the remote control towards the remote control sensor on the front panel. • The remote control may not operate when there are ob- jects between the remote control and amplifier or when the remote control is used at a wide angle from the sen- sor. • The amplifier may malfunction if sunlight, fluorescent lights, or other strong lighting shines directly on the re- mote control sensor. • The amplifier may malfunction if it is used near devices that emit infrared beams or when other remote control devices that use infrared beams are used. Conversely, this remote control can also cause other similar devices to malfunction when used in the same area. Remote control sensor www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 117 C-AX10 ANALOG INPUT 1 - = ! ~ 2 3 4 5 6 7 8 9 0�������� Display 1 OVER indicator This indicator turns on when the input level of the ana- logue signal is too high or when the signal level during the internal DSP operation is too high. Adjust the input gain when this indicator turns on. 2 MIDNIGHT indicator This indicator turns on when the Midnight function is on. 3 Hi-bit indicator This indicator turns on when the Hi-bit function is on. 4 DIRECT indicator This indicator turns on when the Direct function is on. 5 NETWORK indicator This indicator turns on when the amplifier is set to Digi- tal Network (Channel Divider) mode. 6 DNR indicator This indicator turns on when the digital NR function is on. 7 Character display This display shows alphanumeric characters and sym- bols to convey various types of information. 8 LFE indicator The LFE indicator turns on when LFEs (low frequency effect) are contained in the playback software. When LFE signals are actually played back (LFE signals do not exist in the entire sound track), the ÷ mark next to the LFE indicator turns on. 9 Program Format indicator The channel indicators corresponding to the input sig- nals turn on when a PDIF connection is made or when a Dolby Digital or DTS signal is input. L: Front left channel C: Centre channel R: Front right channel LS: Surround left channel S: Surround channel (monaural) RS: Surround right channel LFE: LFE signal 0 UNLOCK indicator This indicator turns on when the digital input signal is cut off. - Sampling Frequency indicator This indicator displays the sampling frequency (fs) of the digital REC OUT signal selected in the section “Se- lecting the Digital Output Sampling Frequency during Analogue Input”. 96 : 96 kHz 48 : 48 kHz = Input indicator The indicator for the input signal selected by the INPUT SELECTOR turns on. ~ 2 Surround/DTS Mode indicator DTS: This indicator turns on when DTS signals are input while Ÿ/DTS mode is on. DOLBY DIGITAL: This indicator turns on when play- ing back Dolby digital signals while Dolby Surround/ mode is on. However, DOLBY PRO LOGIC turns on when playing back Dolby Digital signals re- corded in two channels. DOLBY PRO LOGIC: This indicator turns on when play- ing back a two-channel source in DOLBY PRO LOGIC while Dolby Surround/DTS button is on. ! DIGITAL INTERFACE indicator This indicator turns on when using the INPUT SELEC- TOR to choose the input signals when a PDIF connec- tion is made. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 118 C-AX10 1 2 34 5 6 7 = - 0 9 8 7 REAR PANEL 1 Front output jacks (FRONT OUT) These are the front channel output jacks. In Normal mode, OUT 1 and OUT 2 have the same out- put. In Network mode, OUT 1 has high range (HIGH) output and OUT 2 has low range (LOW) output. 2 Centre output jacks (CENTER OUT) These are the centre channel output jacks during multi- channel (six channel) output. Both 1 and 2 have the same output. 3 Surround output jacks (SURROUND OUT) These are the surround channel output jacks during multichannel (six channel) output. 4 Subwoofer output jacks (SUB WOOFER OUT) These are the subwoofer channel output jacks during multichannel (six channel) output. Both 1 and 2 have the same output. 5 Control input/output jacks (CONTROL IN, OUT) These jacks are used for controlling multiple Pioneer devices having the Î mark from the remote control sensor of a single device. 6 Digital input jacks (PCM/2/DTS DIGITAL IN) Jacks 1 to 3 are for coaxial cables (COAX) and jacks 4 to 6 are for fiber-optic cables (OPT). In a PDIF connection, the PDIF jack, 1 COAX jack and 2 COAX jack are used. For details, see page 47. 7 Digital output jacks (PCM/2/DTS DIGITAL OUT) These output jacks are for a coaxial cable (COAX) and a fiber-optic cable (OPT). 8 Signal ground terminal (SIGNAL GND) Use this terminal when using an analogue record player or other device where a signal ground is re- quired. CAUTION This terminal is provided to reduce noise. It is not a safety ground. 9 ANALOG 3/PHONO input jacks These jacks are used to select line input or phono in- put. See page 45 for the selection method. 0 ANALOG 2 input/output jacks These jacks are used for making analogue connec- tions to recording or playback devices through the line input/output jacks. - ANALOG 1 input/output jacks These jacks are used for making analogue connec- tions to recording or playback devices through the line input/output jacks. = DVD multichannel input jacks (DVD MULTI CH IN) These jacks are used to connect to a DVD-Audio player having 6-channel output or a DVD player or other device having 5.1 channel output. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 119 C-AX10 8.2 SPECIFICATIONS 7Digital preamplifier Number of quantizing bits Digital input ..................................................... 16 – 24 bits/linear Analogue input ....................................................... 24 bits/linear Sampling frequency Digital input ....................... 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, (automatic 96 kHz, 176.4 kHz, 192 kHz detection) (176.4 kHz and 192 kHz are possible only when using PDIF connections.) Analogue input ................................................................. 96 kHz Frequency characteristics (Direct function is on) Digital input ...........................................................5 Hz – 44 kHz ..................................................... (Sampling frequency: 96 kHz) Analogue input LINE .........................................5 Hz – 44 kHz PHONO (MM) ...................................... 20 Hz – 20 kHz ±0.3 dB S/N ratio (Normal, 2-channel mode) Digital input .............................118 dB min. (acoustic correction) Analogue input LINE ........................................115 dB min. (acoustic correction) PHONO(MM) ............ 84 dB min. (IHF A network, short circuit) ................................................................... (when 6 mV is input) Dynamic range (Direct function is on, Normal, 2-channel mode) Digital input .............................................................. 110 dB min. Analogue input ........................108 dB min. (except for PHONO) Total harmonic distortion (Direct function is on, Normal, 2-channel mode) Digital input .......................................................... 0.0010% max. Analogue input .................... 0.0012% max. (except for PHONO) Channel separation (Normal and 2-channel mode) Digital input ............................................... 115 dB min. (20 kHz) Tone control .......................................................±6 dB 0.5 dB-steps BASS ................................................................. 150 Hz, 300 Hz MID ............. 400 Hz, 500 Hz, 630 Hz, 800 Hz, 1.0 kHz, 1.2 kHz TREBLE ................................................................ 3 kHz, 10 kHz Analogue maximum allowable input (Input gain: –6 dB) LINE ....................................................................................... 5 V PHONO (MM) ...................................................... 45 mV (1 kHz) 7Input/output jacks Analogue input jack........... RCA 4-line(Input impedance: 50 kΩ) ......................... (one of these lines supports multichannel input) Analogue output jacks Preout [Output impedance: 100 Ω ( max.)] ................. Front:2 RCA lines .................................................................. Surround: 1 RCA line .................................................................... Centre: 2 RCA lines .............................................................. Subwoofer: 2 RCA lines ..................................................................REC out: 2 RCA lines ........................................................... (Output impedance: 1 kΩ) Digital input jacks Coaxial 3-line: ........................ 0.5 Vp-p(Input impedance: 75 Ω) Optical 3-line Digital output jacks Coaxial 1-line: ..................... 0.5 Vp-p (Output impedance: 75 Ω) Optical 1-line ÷ The signal format during PDIF mode is Pioneer’s own custom format, and it does not conform to the IEC60958 standards. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 120 C-AX10 7�Accessories ÷�PDIF Connection Cable (ADE1087) ÷�Remote control unit (CU-C005) (AXD7198) ÷�Dry Cell Batteries (R6P) 7Power supply/miscellaneous Supply voltage ........... AC 230 V, 50/60Hz (For European model) ......................................... AC 120V, 60Hz (For American model) Power consumption ............................................................. 52 W Dimensions ........................... 440 (W)  150 (H)  410 (D) mm ............................................. 17 5/16 (W)  5 7/8 (H)  16 1/8 (D) in. Weight ....................................... 22.2 kg48.9 lbs(without package) 7Accessories Operating instructions ................................................................ 1 Warranty .............................................................................1 Remote control............................................................................ 1 AA batteries (R6P) ..............................................................2 PDIF connection cable (stereo mini-plug) .............................. 1 8 The audio characteristics are values measured at a sampling frequency of 96 kHz and 24 bits. ÷ The above specifications and product appearance are subject to change without notice for incorporating product improvements. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
