先锋PIONEER AVR-W6100音响电路原理图

分类:电子电工 日期: 点击:0
先锋PIONEER AVR-W6100音响电路原理图-0 先锋PIONEER AVR-W6100音响电路原理图-1 先锋PIONEER AVR-W6100音响电路原理图-2 先锋PIONEER AVR-W6100音响电路原理图-3 先锋PIONEER AVR-W6100音响电路原理图-4 先锋PIONEER AVR-W6100音响电路原理图-5 先锋PIONEER AVR-W6100音响电路原理图-6 先锋PIONEER AVR-W6100音响电路原理图-7 先锋PIONEER AVR-W6100音响电路原理图-8 先锋PIONEER AVR-W6100音响电路原理图-9

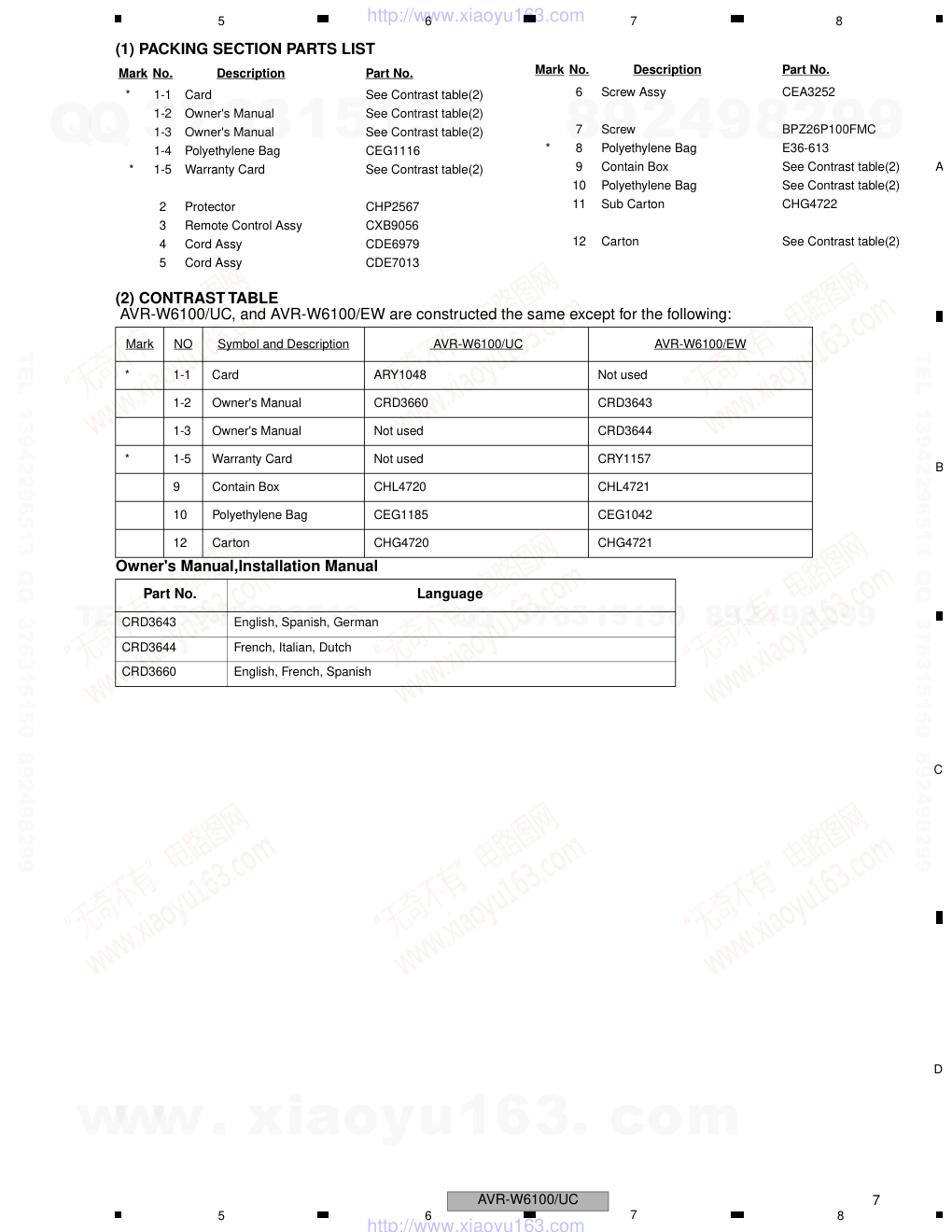

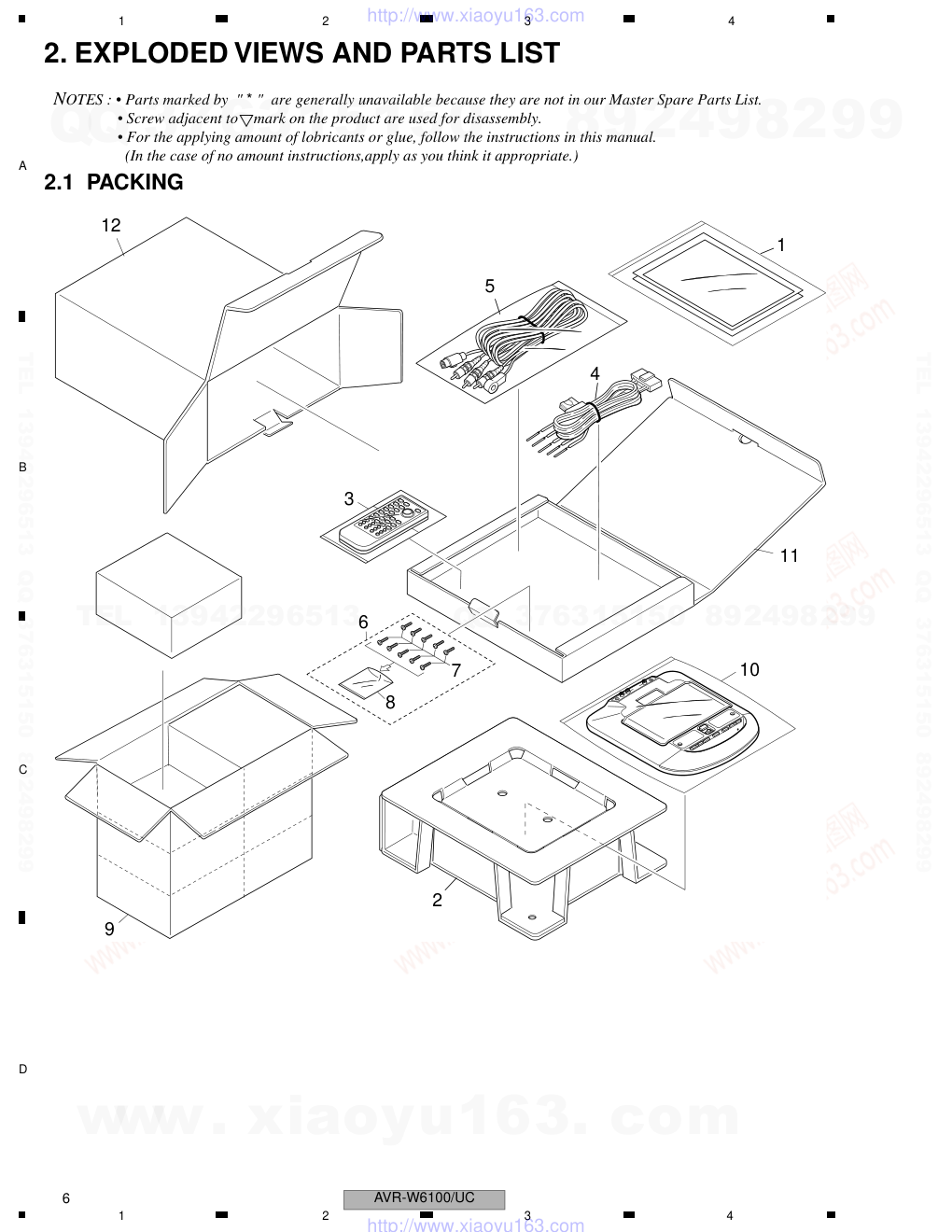

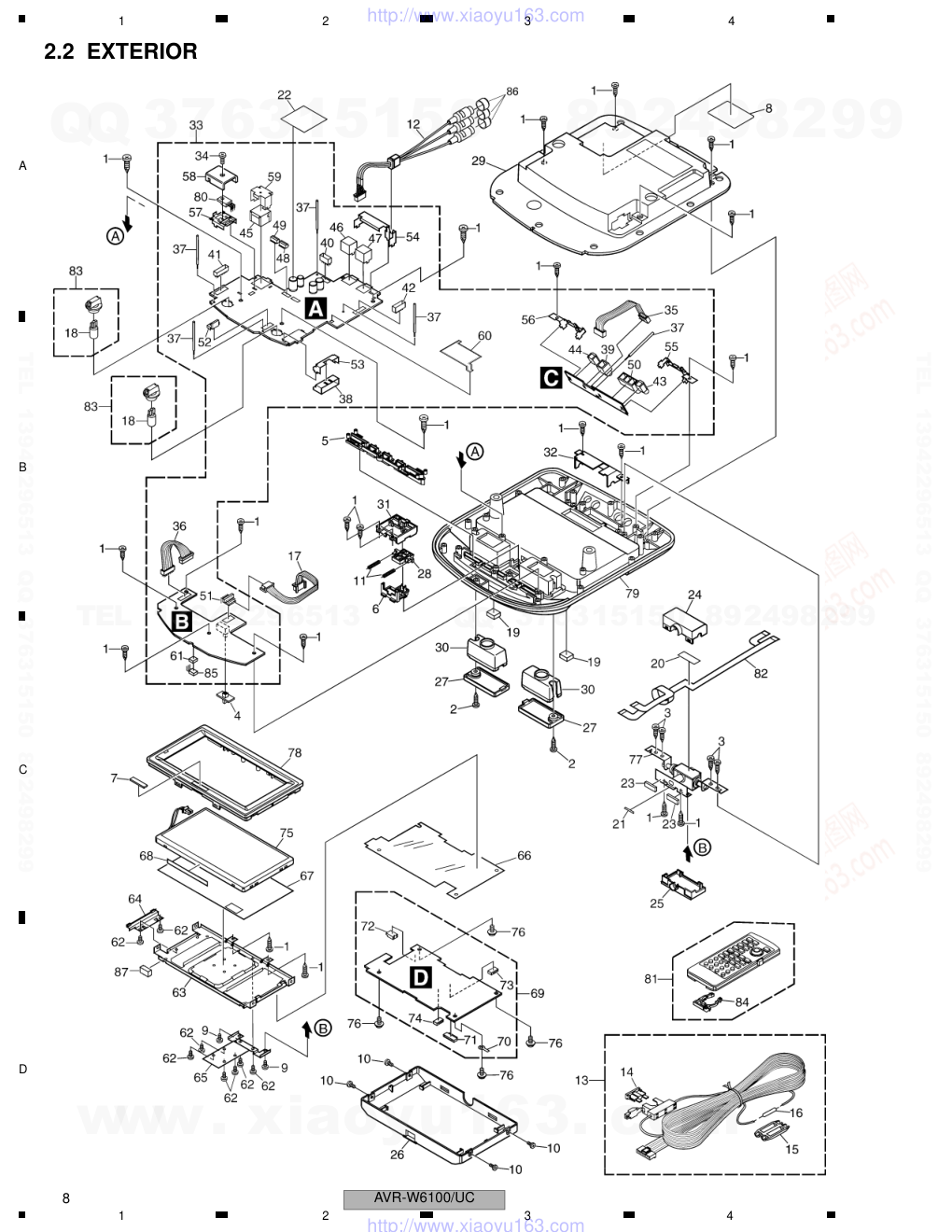

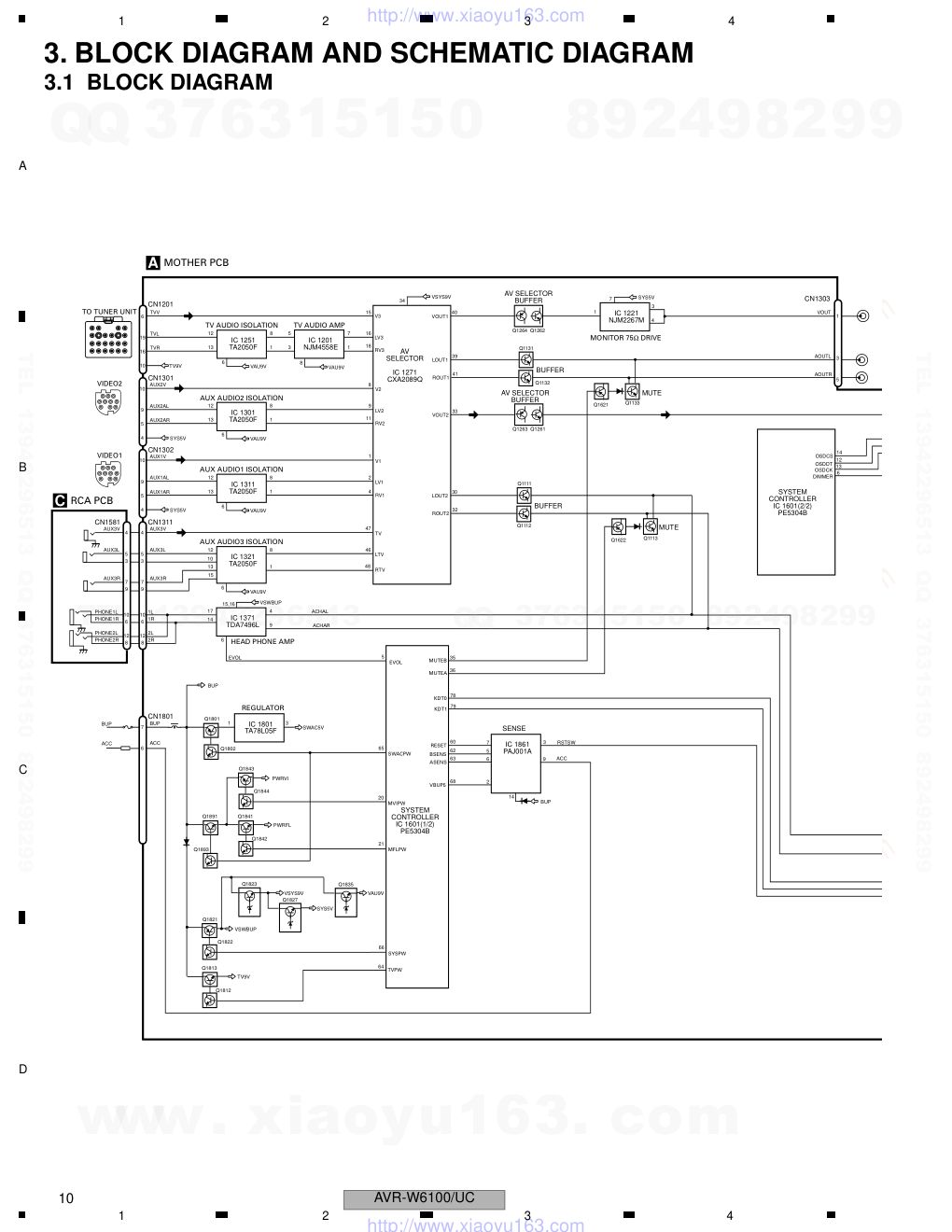

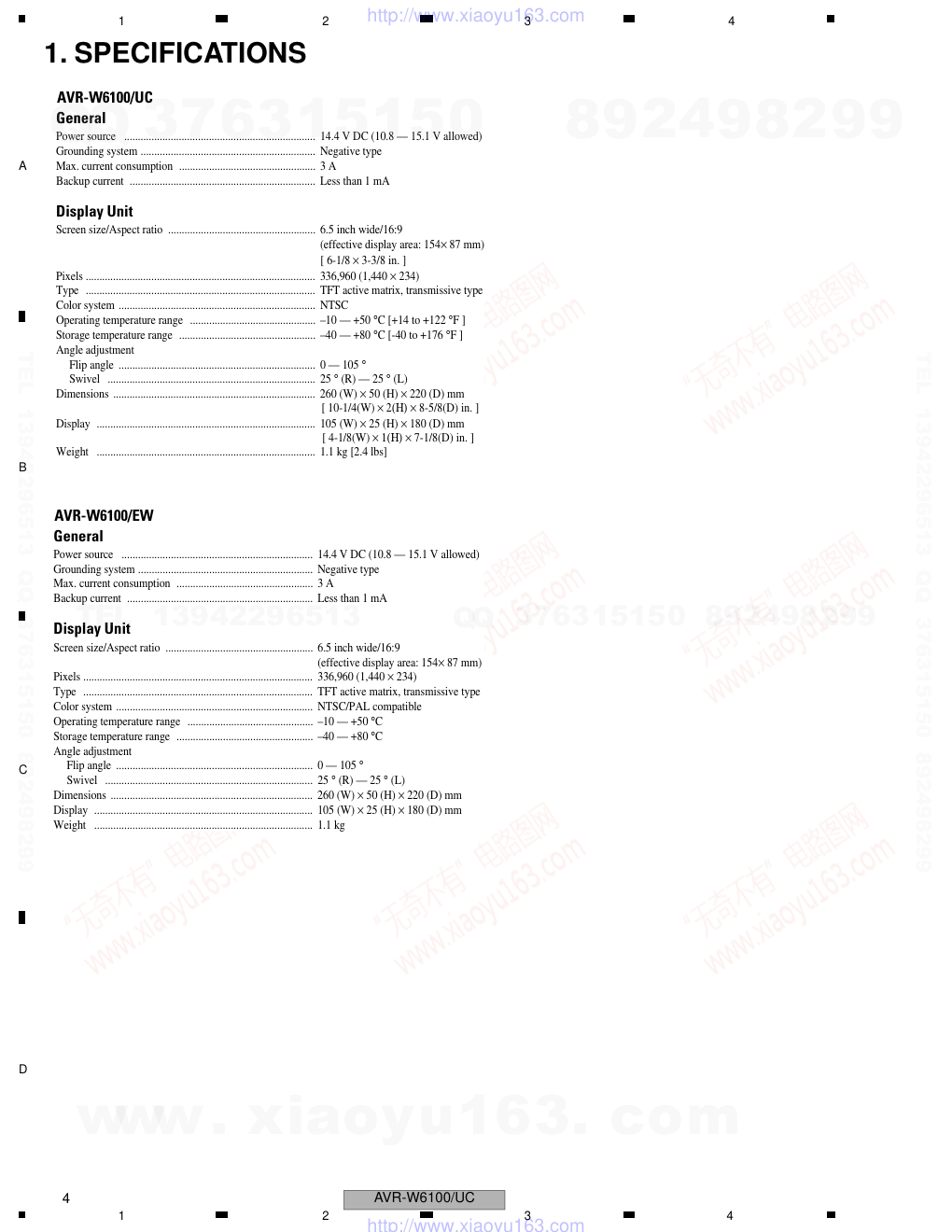

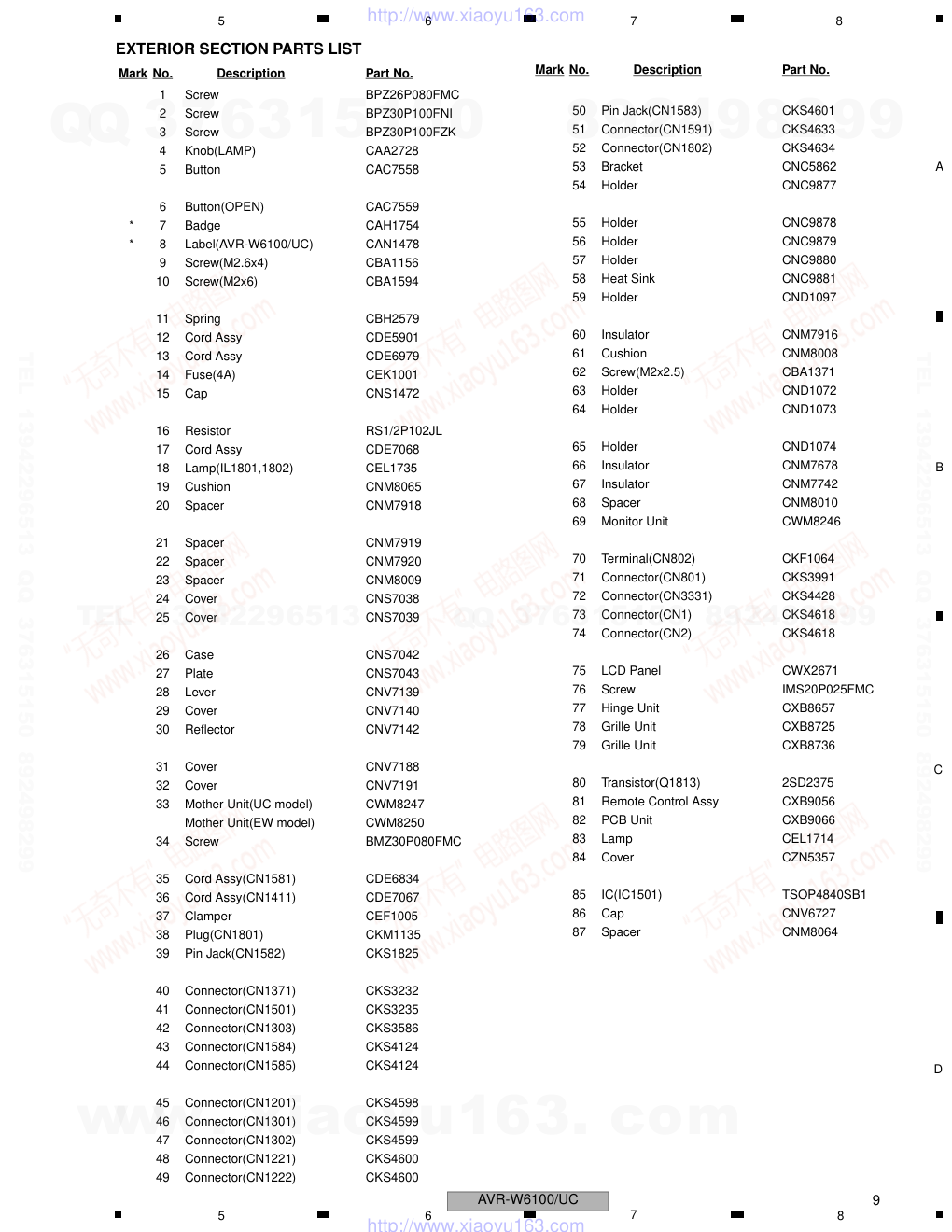

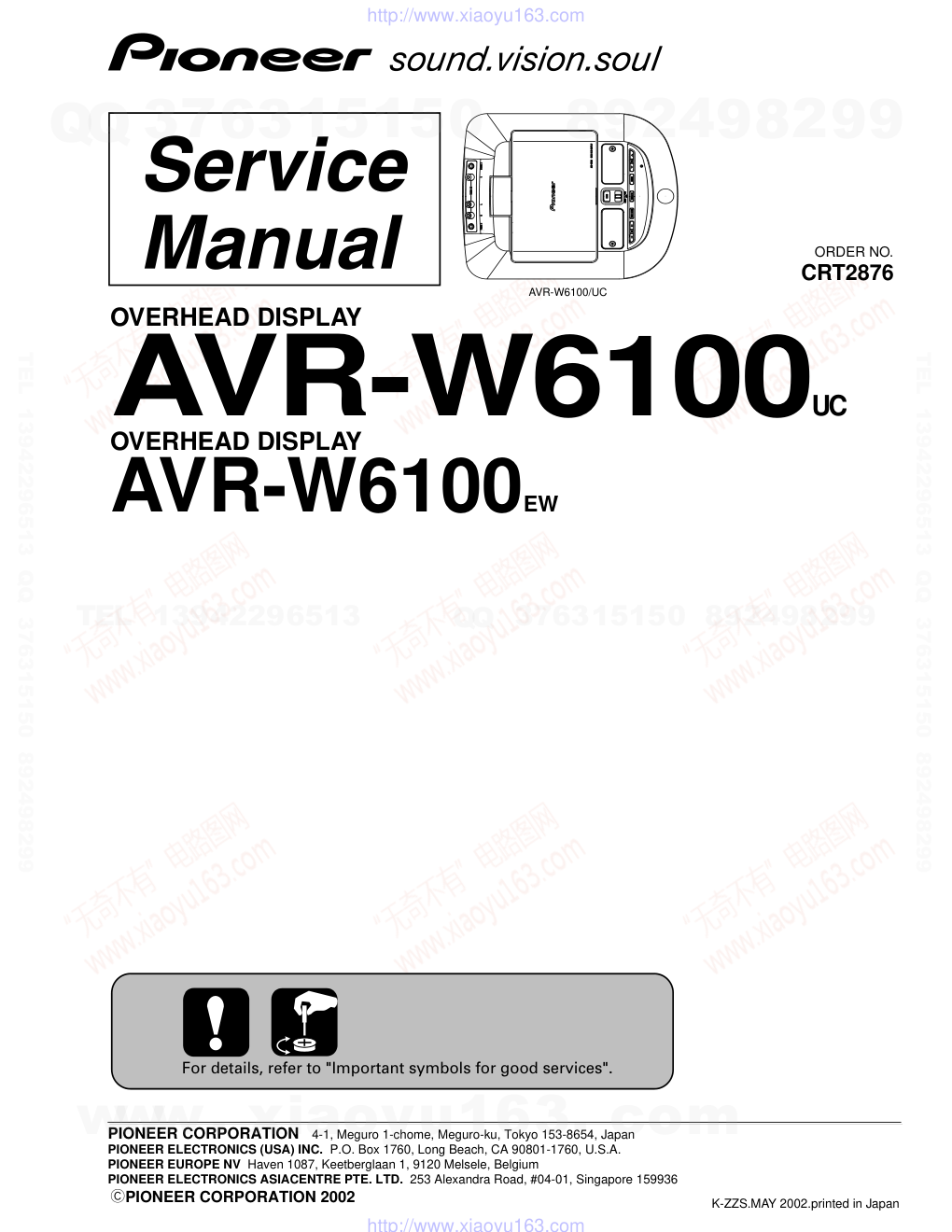

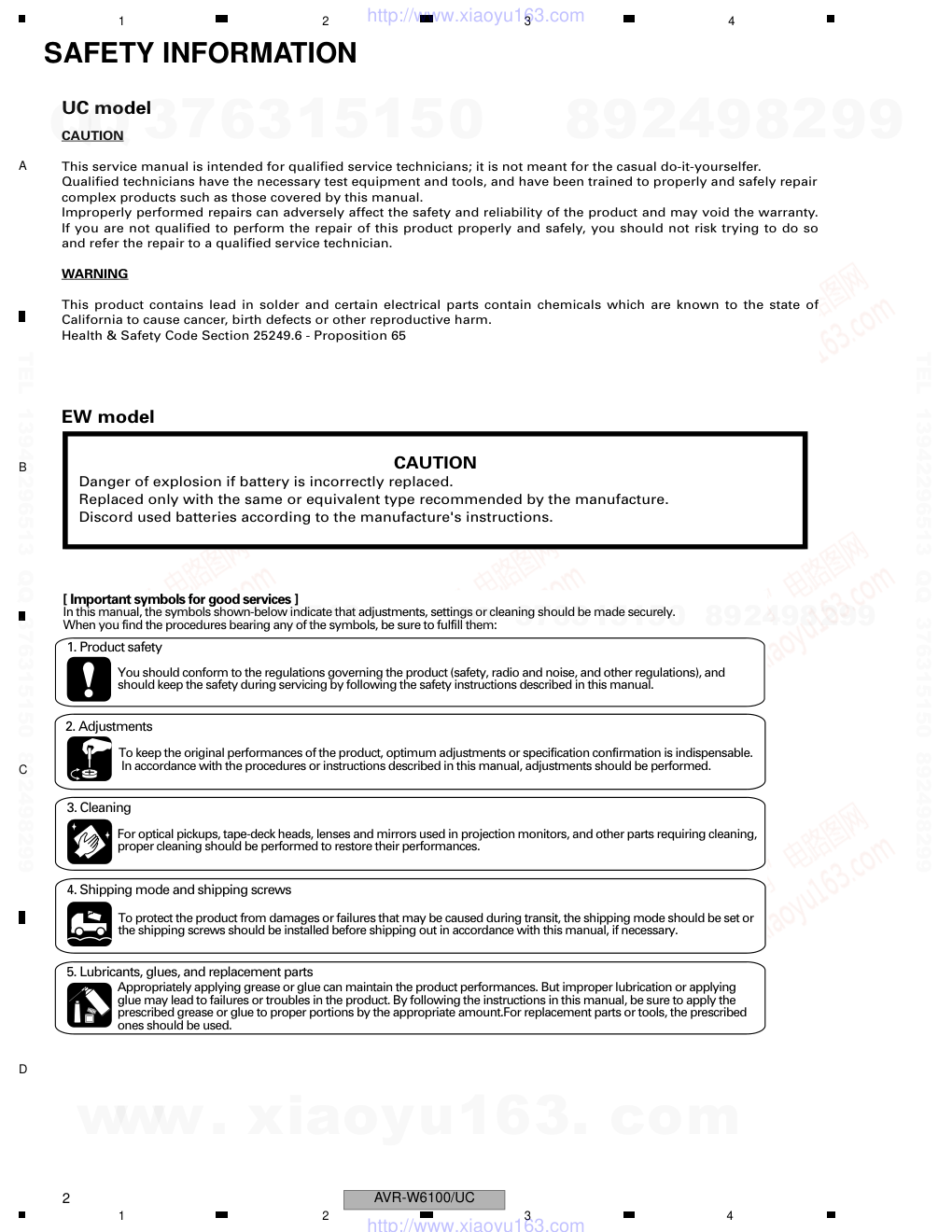

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2002 AVR-W6100/UC CRT2876 OVERHEAD DISPLAY AVR-W6100UC OVERHEAD DISPLAY AVR-W6100EW For details, refer to "Important symbols for good services". K-ZZS.MAY 2002.printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 2 SAFETY INFORMATION CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 CAUTION Danger of explosion if battery is incorrectly replaced. Replaced only with the same or equivalent type recommended by the manufacture. Discord used batteries according to the manufacture's instructions. UC model EW model [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 3 CONTENTS SAFETY INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 1. SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 2. EXPLODED VIEWS AND PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2.1 PACKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2.2 EXTERIOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . .10 3.1 BLOCK DIAGRAM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 3.2 OVERALL CONNECTION DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . .12 3.3 MOTHER PCB(GUIDE PAGE). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 3.4 IR PCB,RCA PCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 3.5 MONITOR UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 4. PCB CONNECTION DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 4.1 MOTHER PCB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 4.2 IR PCB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 4.3 MONITOR UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 4.4 RCA PCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34 5. ELECTRICAL PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 6. ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45 6.1 MOTHER PCB ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46 6.2 IR PCB ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48 6.3 MONITOR SECTION ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . .50 6.4 EEPROM SETTING MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54 7. GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57 7.1 DIAGNOSIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57 7.1.1 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57 7.1.2 CONNECTOR FUNCTION DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . .59 7.2 IC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60 7.3 OPERATIONAL FLOW CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68 8. OPERATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 4 1. SPECIFICATIONS General Power source ...................................................................... 14.4 V DC (10.8 — 15.1 V allowed) Grounding system ................................................................ Negative type Max. current consumption .................................................. 3 A Backup current .................................................................... Less than 1 mA Display Unit Screen size/Aspect ratio ...................................................... 6.5 inch wide/16:9 (effective display area: 154× 87 mm) Pixels .................................................................................... 336,960 (1,440 × 234) Type .................................................................................... TFT active matrix, transmissive type Color system ........................................................................ NTSC Operating temperature range .............................................. –10 — +50 °C [+14 to +122 °F ] Storage temperature range .................................................. –40 — +80 °C [-40 to +176 °F ] Angle adjustment Flip angle ........................................................................ 0 — 105 ° Swivel ............................................................................ 25 ° (R) — 25 ° (L) Dimensions .......................................................................... 260 (W) × 50 (H) × 220 (D) mm Display ................................................................................ 105 (W) × 25 (H) × 180 (D) mm Weight ................................................................................ 1.1 kg [2.4 lbs] AVR-W6100/UC General Power source ...................................................................... 14.4 V DC (10.8 — 15.1 V allowed) Grounding system ................................................................ Negative type Max. current consumption .................................................. 3 A Backup current .................................................................... Less than 1 mA Display Unit Screen size/Aspect ratio ...................................................... 6.5 inch wide/16:9 (effective display area: 154× 87 mm) Pixels .................................................................................... 336,960 (1,440 × 234) Type .................................................................................... TFT active matrix, transmissive type Color system ........................................................................ NTSC/PAL compatible Operating temperature range .............................................. –10 — +50 °C Storage temperature range .................................................. –40 — +80 °C Angle adjustment Flip angle ........................................................................ 0 — 105 ° Swivel ............................................................................ 25 ° (R) — 25 ° (L) Dimensions .......................................................................... 260 (W) × 50 (H) × 220 (D) mm Display ................................................................................ 105 (W) × 25 (H) × 180 (D) mm Weight ................................................................................ 1.1 kg AVR-W6100/EW [ 6-1/8 × 3-3/8 in. ] [ 10-1/4(W) × 2(Η) × 8-5/8(D) in. ] [ 4-1/8(W) × 1(Η) × 7-1/8(D) in. ] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 6 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING NOTES : • Parts marked by " * " are generally unavailable because they are not in our Master Spare Parts List. • Screw adjacent to mark on the product are used for disassembly. • For the applying amount of lobricants or glue, follow the instructions in this manual. (In the case of no amount instructions,apply as you think it appropriate.) " 1 2 3 4 5 6 7 8 9 10 11 12 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 7 (1) PACKING SECTION PARTS LIST (2) CONTRAST TABLE AVR-W6100/UC, and AVR-W6100/EW are constructed the same except for the following: Owner's Manual,Installation Manual Mark No. Description Part No. * 1-1 Card See Contrast table(2) 1-2 Owner's Manual See Contrast table(2) 1-3 Owner's Manual See Contrast table(2) 1-4 Polyethylene Bag CEG1116 * 1-5 Warranty Card See Contrast table(2) 2 Protector CHP2567 3 Remote Control Assy CXB9056 4 Cord Assy CDE6979 5 Cord Assy CDE7013 6 Screw Assy CEA3252 7 Screw BPZ26P100FMC * 8 Polyethylene Bag E36-613 9 Contain Box See Contrast table(2) 10 Polyethylene Bag See Contrast table(2) 11 Sub Carton CHG4722 12 Carton See Contrast table(2) Mark No. Description Part No. Mark NO Symbol and Description AVR-W6100/UC AVR-W6100/EW * 1-1 Card ARY1048 Not used 1-2 Owner's Manual CRD3660 CRD3643 1-3 Owner's Manual Not used CRD3644 * 1-5 Warranty Card Not used CRY1157 9 Contain Box CHL4720 CHL4721 10 Polyethylene Bag CEG1185 CEG1042 12 Carton CHG4720 CHG4721 Part No. Language CRD3643 English, Spanish, German CRD3644 French, Italian, Dutch CRD3660 English, French, Spanish www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 8 2.2 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 9 EXTERIOR SECTION PARTS LIST Mark No. Description Part No. 1 Screw BPZ26P080FMC 2 Screw BPZ30P100FNI 3 Screw BPZ30P100FZK 4 Knob(LAMP) CAA2728 5 Button CAC7558 6 Button(OPEN) CAC7559 * 7 Badge CAH1754 * 8 Label(AVR-W6100/UC) CAN1478 9 Screw(M2.6x4) CBA1156 10 Screw(M2x6) CBA1594 11 Spring CBH2579 12 Cord Assy CDE5901 13 Cord Assy CDE6979 14 Fuse(4A) CEK1001 15 Cap CNS1472 16 Resistor RS1/2P102JL 17 Cord Assy CDE7068 18 Lamp(IL1801,1802) CEL1735 19 Cushion CNM8065 20 Spacer CNM7918 21 Spacer CNM7919 22 Spacer CNM7920 23 Spacer CNM8009 24 Cover CNS7038 25 Cover CNS7039 26 Case CNS7042 27 Plate CNS7043 28 Lever CNV7139 29 Cover CNV7140 30 Reflector CNV7142 31 Cover CNV7188 32 Cover CNV7191 33 Mother Unit(UC model) CWM8247 Mother Unit(EW model) CWM8250 34 Screw BMZ30P080FMC 35 Cord Assy(CN1581) CDE6834 36 Cord Assy(CN1411) CDE7067 37 Clamper CEF1005 38 Plug(CN1801) CKM1135 39 Pin Jack(CN1582) CKS1825 40 Connector(CN1371) CKS3232 41 Connector(CN1501) CKS3235 42 Connector(CN1303) CKS3586 43 Connector(CN1584) CKS4124 44 Connector(CN1585) CKS4124 45 Connector(CN1201) CKS4598 46 Connector(CN1301) CKS4599 47 Connector(CN1302) CKS4599 48 Connector(CN1221) CKS4600 49 Connector(CN1222) CKS4600 50 Pin Jack(CN1583) CKS4601 51 Connector(CN1591) CKS4633 52 Connector(CN1802) CKS4634 53 Bracket CNC5862 54 Holder CNC9877 55 Holder CNC9878 56 Holder CNC9879 57 Holder CNC9880 58 Heat Sink CNC9881 59 Holder CND1097 60 Insulator CNM7916 61 Cushion CNM8008 62 Screw(M2x2.5) CBA1371 63 Holder CND1072 64 Holder CND1073 65 Holder CND1074 66 Insulator CNM7678 67 Insulator CNM7742 68 Spacer CNM8010 69 Monitor Unit CWM8246 70 Terminal(CN802) CKF1064 71 Connector(CN801) CKS3991 72 Connector(CN3331) CKS4428 73 Connector(CN1) CKS4618 74 Connector(CN2) CKS4618 75 LCD Panel CWX2671 76 Screw IMS20P025FMC 77 Hinge Unit CXB8657 78 Grille Unit CXB8725 79 Grille Unit CXB8736 80 Transistor(Q1813) 2SD2375 81 Remote Control Assy CXB9056 82 PCB Unit CXB9066 83 Lamp CEL1714 84 Cover CZN5357 85 IC(IC1501) TSOP4840SB1 86 Cap CNV6727 87 Spacer CNM8064 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 10 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM 12 8 13 1 MOTHER PCB A AV SELECTOR IC 1271 CXA2089Q V3 15 LV3 16 RV3 18 TVV TVL TVR 6 19 16 10 IC 1251 TA2050F TV AUDIO ISOLATION CN1201 5 7 3 1 IC 1201 NJM4558E TV AUDIO AMP TV9V VAU9V 6 VAU9V 8 12 8 13 1 8 9 11 AUX2V AUX2AL AUX2AR 10 9 5 4 IC 1301 TA2050F AUX AUDIO2 ISOLATION SYS5V VAU9V 6 TO TUNER UNIT VIDEO2 CN1301 V2 LV2 RV2 12 8 13 1 1 2 4 AUX1V AUX1AL AUX1AR 10 9 5 4 IC 1311 TA2050F AUX AUDIO1 ISOLATION SYS5V VAU9V 6 VIDEO1 CN1302 V1 LV1 RV1 VSYS9V 34 12 8 13 1 47 46 48 AUX3V AUX3L AUX3R 4 5 3 7 9 IC 1321 TA2050F AUX AUDIO3 ISOLATION VAU9V 6 CN1311 TV LTV RTV 17 4 14 9 1L 1R 2L 2R 10 6 12 8 IC 1371 TDA7496L HEAD PHONE AMP 6 15,16 VSWBUP AUX3V AUX3L AUX3R 4 5 3 7 9 CN1581 PHONE1L PHONE1R PHONE2L PHONE2R 10 6 12 8 Q1264 Q1262 AV SELECTOR BUFFER VOUT1 40 1 IC 1221 NJM2267M MONITOR 75Ω DRIVE 7 SYS5V 3 4 Q1131 Q1132 BUFFER LOUT1 39 ROUT1 41 RCA PCB C 1 3 5 CN1303 VOUT AOUTL AOUTR Q1133 Q1263 Q1261 AV SELECTOR BUFFER VOUT2 33 Q1111 Q1112 BUFFER LOUT2 30 ROUT2 32 Q1113 MUTE MUTE SYSTEM CONTROLLER IC 1601(1/2) PE5304B Q1622 Q1621 MUTEB 35 MUTEA 36 EVOL 5 EVOL ACHAL ACHAR KDT0 78 KDT1 79 IC 1861 PAJ001A SENSE 7 60 RESET 5 62 BSENS 6 63 ASENS 2 68 VBUP5 BUP 14 3 RSTSW 9 ACC SYSTEM CONTROLLER IC 1601(2/2) PE5304B OSDCS 14 OSDDT 12 OSDCK 13 DIMMER 6 BUP 7 6 CN1801 Q1801 Q1802 IC 1801 TA78L05F SWAC5V REGULATOR SWACPW 65 Q1891 Q1893 Q1841 Q1842 BUP PWRFL Q1843 Q1844 PWRVI Q1813 Q1812 TV9V Q1821 Q1822 VSWBUP Q1823 VSYS9V Q1827 SYS5V Q1835 VAU9V ACC MVIPW 20 MFLPW 21 SYSPW 66 BUP ACC 10 15 1 3 TVPW 64 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 11 14 9 10 11 12 CN1221 7 1 15 16 17 18 14 CN1501 ACHAL ACHAR VSWBUP KEY0 KEY1 RSTSW CN1222 SWAC5 PWRFL PWRVI CN1411 Q156 V8VCC CN801 Q153 7 34 Q152 1 VR Q155 VG Q154 VB VCOM 36 4 Q151 14 38 1 101 Q182 Q183 V8VCC IC 151 NJM2138V RGB AMP 28 27 26 CN1 CVBS 17 X1 42MHz IC 1 TC90A64AF OSD IC 601 PD5582A 82 83 ROUT CVI1 65 GOUT BOUT OSC1 SCKE X0 X1 IC 181 NJM082BV VCOM AMP 6 28 POLC 1 IC 92 TC7S08FU 4 1 Q101 Q103 Q102 CS- SIN SCK 3 5 4 LCD LCD BACK LIGHT LCD MODULE MONITOR UNIT D CN3331 FL1 FL2 IC 3331 OZ960IS 20 11 10 T3331 Q3333 Q3334 Q3332 Q3331 3 1 5,14,15 7 IC 3332 TA78L05F FU3311 1 14 2 INVERTER FOR BACK LIGHT 2 SCREEN IC IC 851 LT1376CS8 2 V33VCC 14.4V 3 IC 841 R1130H251B 2 V25VCC IC 861 MAX1748EUE 4 V18VCC V33VCC V33VCC 1 7 V8VCC VM12VCC 15 8 V8VCC Q835 V5VCC POWER SUPPLY VFLVCC IC82 TC7WH34FU 5 2 7 3 6 1 CSDCS OSDDT OSDCK 9 10 11 CN2 V14VCC 10 11 1 2 3 IC 901 NJM2903V 6 7 12 DIMMER R,G,B 10 11 1 2 3 PWRVI PWRFL KEY MATRIX IR PCB B 7 1 15 16 17 18 14 Q1451 IC1411 BA3308FV 9 13 7 1 Q1431 IC1471 TC7W04FU 1 3 Q1441 7 5 Q1481 Q1482 Q1491 Q1492 IC1501 TSOP4840SB1 AMP AMP REMOTE CONTROL SENSOR 3 S1531 RESET V8VCC 8 VM12VCC 4 V25VCC 6,12 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 12 3.2 OVERALL CONNECTION DIAGRAM B C A IR PCB RCA PCB MOTHER PCB VIDEO3 & HP OUTPUT VIDEO3 OPTION TV TUNER GEX-6100TV/UC GEX-6100TVP/EW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 13 D PCB MONITOR PCB LCD MODULE BACK LIGHT SUB OUT POWER SUPPLY VIDEO2 VIDEO1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 14 3.3 MOTHER PCB(GUIDE PAGE) A-a A-b A-a A-a A-b A-b A-b A-b A-a A-a Large size SCH diagram Guide page Detailed page Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or "ELECTRICAL PARTS LIST". A-a A > > > > > > > > > > B CN1591 C CN1581 CEK1001 4A 1K > IL1801 CEL1735 IL1802 CEL1735 12V, 5W BU 17 18 19 20 13 14 15 16 7 8 9 10 11 12 1 2 3 4 5 6 2 1 4 5 8 9 10 6 7 3 2 1 4 5 8 9 10 6 7 3 VIDEO2 ISOLATOR VIDEO1 ISOLATOR VIDEO3 ISOLATOR SENSE TV AUDIO ISOLATOR TV AUDIO AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 15 A-b A MUTE1 MUTE2 CRSW IICRST MUTEX NC NC MOTHER UNIT Consists of MOTHER PCB IR PCB RCA PCB 1-2 1-1 Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. > > B CN1411 D CN2 D CN1 A MOTHER PCB SYSTEM CONTROLLER PWRVI PWRFL VAU9 IICDA IICCK 2L 1L 2R 1R HEADPHONE AMP : Video Signal : Audio Signal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 16 A-a A-b A-a A-a A-b 1 2 3 4 > > > > > > > VAU9 17 18 19 20 13 14 15 16 7 8 9 10 11 12 1 2 3 4 5 6 2 1 4 5 8 9 10 6 7 3 2 1 4 5 8 9 10 6 7 3 VIDEO2 ISOLATOR VIDEO1 ISOLATOR TV AUDIO ISOLATOR TV AUDIO AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 17 A-a A-b A-a A-a A-b 5 6 7 > > > B CN1591 C CN1581 CEK1001 4A 1K > IL1801 CEL1735 IL1802 CEL1735 12V, 5W BU PWRVI PWRFL VAU9 VIDEO3 ISOLATOR SENSE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 18 A-a A-b A-b 1 2 3 4 MOTHER UNIT Consists of MOTHER PCB IR PCB RCA PCB B CN1411 D CN2 D CN A MOTHER PCB VAU9 IICDA IICCK 2L 1L 2R 1R HEADPHONE AMP : Video Signal : Audio Signal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 19 A-a A-b A-b 5 6 7 MUTE1 MUTE2 CRSW IICRST MUTEX NC NC 1-2 1-1 Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. D CN1 SYSTEM CONTROLLER PWRVI PWRFL VAU9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 20 3.4 IR PCB,RCA PCB B . . A CN1501 CN1802 10.5V 9.3V 5V LAMP SWITCH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 21 B C RESET B IR PCB C RCA PCB A CN1371 2-2 2-1 REMOTE CONTROL SENSOR MOTHER UNIT Consists of MOTHER PCB IR PCB RCA PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 22 3.5 MONITOR UNIT D DIMMER INVERTER EEP-ROM 5→3V CONVERT LIGHT SENSE OSD OSD Interface Y/C SEP. NT FILTER and SYNC AMP LCD MODULE > A CN1222 A CN1221 10-1 10-2 2-3 2-1 2-2 7-2 7-4 7-3 9-2 9-4 9-3 3-1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 23D OSD nterface Y/C SEP. NTSC Dec P in P Video Processor TFT Controller VCOM AMP RGB AMP 2 SCREEN IC SYNC AMP POWER SUPPLY > : The power supply is shown with the marked box. D MONITOR UNIT LCD MODULE 8V 18.5V -12V 5V 2.5V 3.3V 3-2 3-3 9-1 1-1 1-2 1-3 1-4 3-4 5-3 5-2 6-2 8-3 5-4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 24 CH1 : 1- 1 CVBS CH2 : 1- 2 REOUT Note: The encircled numbers denote measuring points in the circuit diagram. CH1 : 2- 1 IRL CH2 : 2- 2 IRR - Mother PCB - IR PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 25 CH1 : 1-1 IC851 Pin3 CH1 : 1-2 IC861 Pin15 CH3 : 1-3 IC861 Pin12 CH2 : 1-4 IC861 Pin10 CH1 : Input (10 step VTRIN) CH3 : 3-3 GOUT CH2 : 3-1 CVBS CH4 : 3-4 VG CH1 : 9-1 V33 CH3 : 9-3 PIPCK CH2 : 9-2 PIPRST CH4 : 9-4 PIPDA CH1 : 2-1 DIMAC CH3 : 2-3 DIMDTY CH2 : 2-2 IC901 Pin 6 CH1 : Input (10 step VTRIN) CH3 : 3-2 CVBS2 CH2 : 3-1 CVBS Note: The encircled numbers denote measuring points in the circuit diagram. - Monitor Unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 26 CH1 : 9-1 V33 CH3 : 9-3 PIPCK CH2 : 9-2 PIPRST CH4 : 9-4 PIPDA CH1 : Input (10 step VTRIN) CH3 : 7-3 OSDV CH2 : 7-4 POL CH4 : 7-2 P0 CH1 : Input (10 step VTRIN) CH3 : 7-3 OSDV CH2 : 7-4 POL CH4 : 7-2 P0 CH1 : Input (10 step VTRIN) CH3 : 8-3 VCOM CH2 : 7-4 POL CH4 : 3-4 VG CH1 : Input (10 step VTRIN) CH3 : 5-3 STH1 CH2 : 5-2 CX CH4 : 3-4 VG CH1 : Input (10 step VTRIN) CH3 : 5-4 STV1 CH2 : 5-2 CX CH4 : 3-4 VG www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 27 CH1 : Input (10 step VTRIN) CH3 : 3-4 VG CH2 : 6-2 CPH CH1 : 10-1 D3333 Cathode CH1 : 10-2 FL2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 28 4. PCB CONNECTION DIAGRAM 4.1 MOTHER PCB A A MOTHER PCB SIDE A Capacitor Connector P.C.Board Chip Part SIDE B SIDE A NOTE FOR PCB DIAGRAMS 1.The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2.Viewpoint of PCB diagrams VIDEO2 VIDEO1 SUB OUT POWER SUPPLY C CN1581 D CN2 D CN1 B CN1591 B CN1411 CORD CORD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 29A A MOTHER PCB SIDE B CVBS EPRTST REM40 AUX3VO TP1827 TP1823 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 30 4.2 IR PCB B B IR PCB SIDE A ADJ TC1431 TC1441 LAMP RESET SOURCE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 31B B IR PCB SIDE B A CN1501 A CN1802 IRL IRR VIR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 32 4.3 MONITOR UNIT D D MONITOR UNIT SIDE A LCD MODULE A CN1222 A CN1221 LCD MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 33D D MONITOR UNIT SIDE B VB VG VR VCOM VM12 V18 V8 V25 V33 V5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 34 4.4 RCA PCB C C RCA PCB C RCA PCB SIDE A SIDE B 1 3 5 7 9 11 4 6 8 10 12 A CN1371 PHONE1 R L V PHONE2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 35 5. ELECTRICAL PARTS LIST NOTE: • Parts whose parts numbers are omitted are subject to being not supplied. • The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... Circuit Symbol and No. Part Name Part No. D Unit Number:CWM8246 Unit Name:Monitor Unit MISCELLANEOUS IC 1 IC TC90A64AF IC 81 IC PD5582A IC 82 IC TC7WH34FU IC 92 IC TC7S08FU IC 151 IC NJM2138V IC 181 IC NJM082BV IC 651 IC S-29131AFJ IC 811 IC NJM062V IC 841 IC R1130H251B IC 851 IC LT1376CS8 IC 861 IC MAX1748EUE IC 901 IC NJM2903V IC 3331 IC OZ960IS IC 3332 IC TA78L05F Q 2 Transistor 2SC4617 Q 101 Transistor 2SC4617 Q 102 Transistor 2SA1774 Q 103 Transistor 2SC4617 Q 151 Transistor UMZ1N Q 152 Transistor UMZ1N Q 153 Transistor UMZ1N Q 154 Transistor UMZ1N Q 155 Transistor UMZ1N Q 156 Transistor UMZ1N Q 182 Transistor UMZ1N Q 183 Transistor UMZ1N Q 835 Transistor 2SD1664 Q 901 Transistor 2SA1036K Q 902 Transistor DTC144EK Q 3331 Transistor 2SC4081 Q 3332 Transistor DTA144EE Q 3333 FET SI6544DQ Q 3334 FET SI6544DQ Q 3335 Transistor 2SC4617 Q 3336 Transistor 2SC4617 D 81 Diode 1SS355 D 811 AM-30-21 D 835 Diode HZU5R6(B2) D 851 Diode RB500V-40 D 852 Diode U2FWJ44N D 861 Diode RB160M-30 D 862 Diode RB500V-40 D 863 Diode RB500V-40 D 864 Diode RB500V-40 D 865 Diode RB500V-40 D 866 Diode RB500V-40 D 867 Diode RB500V-40 D 868 Diode RB500V-40 D 869 Diode RB500V-40 D 3331 Diode HZU6R2(B3) D 3332 Diode HZU6R2(B3) D 3333 Diode MA143 D 3334 Diode MA143 D 3335 Diode HZU6R2(B3) D 3336 Diode UDZS6R2(B) L 1 Inductor CTF1306 L 2 Inductor CTF1306 L 3 Inductor CTF1306 L 4 Inductor CTF1306 L 5 Inductor-Array CTF1421 L 6 Inductor-Array CTF1421 L 7 Inductor CTF1306 L 8 Inductor CTF1306 L 11 Inductor CTF1306 L 15 Inductor CTF1306 L 71 Inductor LCKA100J2520 L 74 Inductor LCKA100J2520 L 75 Inductor LCKB100K2520 L 78 Inductor LCKA100J2520 L 79 Inductor CTF1306 L 81 Inductor LCKA101J2520 L 91 Inductor CTF1306 L 101 Inductor LCKB100K2520 L 151 Inductor LCKA100J2520 L 152 Inductor LCKB100K2520 L 181 Inductor LCKA101J2520 L 182 Inductor LCKA101J2520 L 601 Inductor LCKA100J2520 L 801 Inductor LCKA100J2520 L 802 Inductor LCKA100J2520 L 803 Inductor LCKA100J2520 L 804 Inductor LCKA100J2520 L 811 Inductor LCTB100K1608 L 841 Choke Coil 10µH CTH1249 L 851 Choke Coil 10µH CTH1259 L 852 Choke Coil 18µH CTH1250 L 861 Choke Coil 10µH CTH1249 L 862 Choke Coil 6.8µH CTH1248 L 863 Inductor LCTB100K1608 L 864 Inductor LCKB100K2520 L 865 Inductor LCKA100J2520 L 901 Inductor LCKB100K2520 L 3311 Inductor CTH1256 T 3331 Transformer CTT1103 X 1 Crystal Resonator 42MHz CSS1541 FU831 Fuse 630mA CEK1210 FU3311 Fuse 1.25A CEK1205 Circuit Symbol and No. Part Name Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 36 FB13 Ferrite Beed CTF1528 FB16 Ferrite Beed CTF1528 FB12 Ferrite Beed CTF1528 FB14 Ferrite Beed CTF1528 FB9 Ferrite Beed CTF1528 RESISTORS R 1 RS1/16S101J R 2 RS1/16S470J R 3 RS1/16S101J R 4 RS1/16S101J R 5 RS1/16S473J R 6 RS1/16S392J R 9 RS1/16S152J R 10 RS1/16S331J R 12 RS1/16SS105J R 13 RS1/16S391J R 18 RS1/16S101J R 22 RS1/16S101J R 23 RS1/16S0R0J R 24 RS1/16S333J R 25 RS1/16S101J R 27 RS1/16S101J R 28 RS1/16S101J R 29 RS1/16S101J R 30 RS1/16S101J R 65 RS1/16S470J R 66 RS1/16S470J R 67 RS1/16S470J R 81 RS1/16S102J R 83 RS1/16S473J R 93 RS1/16S0R0J R 96 RS1/16S101J R 97 RS1/16S101J R 98 RS1/16S101J R 101 RS1/16S1502F R 102 RS1/16S1003F R 103 RS1/16S681J R 104 RS1/16S331J R 105 RS1/16S0R0J R 107 RS1/16S0R0J R 108 RS1/16S331J R 109 RS1/16S391J R 110 RS1/16S391J R 150 RS1/16S183J R 152 RS1/16S3901F R 153 RS1/16S1501F R 154 RS1/16S102J R 155 RS1/16S102J R 156 RS1/16S1501F R 157 RS1/16S3901F R 160 RS1/16S1002F R 161 RS1/16S1802F R 162 RS1/16S102J R 163 RS1/16S3901F R 164 RS1/16S1501F R 165 RS1/16S102J R 166 RS1/16S272J R 167 RS1/16S102J R 168 RS1/16S272J R 169 RS1/16S102J R 170 RS1/16S272J R 171 RS1/16S331J R 172 RS1/16S103J Circuit Symbol and No. Part Name Part No. R 174 RS1/16S331J R 175 RS1/16S103J R 177 RS1/16S331J R 178 RS1/16S103J R 180 RS1/16S243J R 181 RS1/16S3002F R 182 RS1/16S223J R 183 RS1/16S1203F R 184 RS1/16S1602F R 185 RS1/16S1502F R 186 RS1/16S1002F R 187 RS1/16S1002F R 188 RS1/16S101J R 189 RS1/16S153J R 190 RS1/16S100J R 191 RS1/16S153J R 192 RS1/16S100J R 193 RS1/16S0R0J R 651 RS1/16S470J R 652 RS1/16S470J R 653 RS1/16S470J R 654 RS1/16S470J R 655 RS1/16S470J R 656 RS1/16S473J R 803 RS1/16S333J R 804 RS1/16S0R0J R 805 RS1/16S0R0J R 806 RS1/16S0R0J R 809 RS1/16S0R0J R 811 RS1/16S685J R 812 RS1/16S105J R 813 RS1/16S393J R 814 RS1/16S103J R 815 RS1/16S470J R 835 RS1/16S121J R 851 RS1/16S182J R 852 RS1/16S512J R 861 RS1/16S104J R 862 RS1/16S102J R 863 RS1/16S1102F R 864 RS1/16S2001F R 865 RS1/16S3302F R 866 RS1/16S2401F R 867 RS1/16S5602F R 868 RS1/16S2703F R 869 RS1/16S5602F R 901 RS1/16S103J R 902 RS1/16S103J R 903 RS1/16S392J R 904 RS1/16S912J R 905 RS1/16S2003F R 906 RS1/16S153J R 907 RS1/16S153J R 908 RS1/16S153J R 909 RS1/16S472J R 3331 RS1/16S105J R 3332 RS1/16S473J R 3333 RS1/16S363J R 3334 RS1/16S102J R 3335 RS1/16S304J R 3336 RS1/16S513J R 3337 RS1/16S105J R 3338 RS1/16S103J R 3339 RN1/16SC6202D Circuit Symbol and No. Part Name Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 37 R 3340 RS1/16S103J R 3342 RS1/16S561J R 3344 RS1/16S473J R 3345 RS1/16S104J R 3346 RS1/16S473J CAPACITORS C 1 CKSRYB105K10 C 2 CKSSYF104Z16 C 3 CKSSYF104Z16 C 4 CKSSYF104Z16 C 5 CKSSYF104Z16 C 6 CKSSYF104Z16 C 7 CKSSYF104Z16 C 8 CKSSYF104Z16 C 9 CKSSYF104Z16 C 10 CKSSYF104Z16 C 11 CKSSYF104Z16 C 12 CKSSYF104Z16 C 13 CKSRYB392K50 C 15 CKSRYB105K10 C 16 CKSSYF104Z16 C 17 CKSSYF104Z16 C 21 CKSSYF104Z16 C 22 CKSSYF104Z16 C 23 CKSSYF104Z16 C 24 CKSSYF104Z16 C 25 CKSSYF104Z16 C 26 CKSSYF104Z16 C 27 CKSSYF104Z16 C 28 CKSSYF104Z16 C 29 CKSSYF104Z16 C 30 CKSRYB104K16 C 31 CKSSYF104Z16 C 32 CKSSYF104Z16 C 33 CKSSYF104Z16 C 34 CKSSYF104Z16 C 35 CKSRYB103K25 C 36 CCSRCH4R0C50 C 37 CKSSYF104Z16 C 38 CKSSYF104Z16 C 39 CKSSYF104Z16 C 40 CKSSYF104Z16 C 41 CKSSYF104Z16 C 42 CCSRCH181J50 C 45 CCSRCH8R0D50 C 46 CCSRCH8R0D50 C 47 CKSSYF104Z16 C 48 CKSSYF104Z16 C 49 CKSSYF104Z16 C 50 CKSRYB105K10 C 51 CKSSYF104Z16 C 52 CKSSYF104Z16 C 54 CCSRCH101J50 C 55 CKSRYF104Z25 C 65 CCSRCH101J50 C 66 CCSRCH101J50 C 67 CCSRCH101J50 C 71 CSZS100M10 C 75 CKSRYB105K10 C 76 68µF/6.3V CCH1440 C 81 CSZS100M10 C 82 CKSRYF104Z25 C 83 CKSRYB105K10 Circuit Symbol and No. Part Name Part No. C 85 CKSRYF104Z25 C 94 CKSRYF104Z25 C 96 CCSRCH271J50 C 97 CCSRCH271J50 C 98 CCSRCH271J50 C 101 CKSYF106Z10 C 102 CCSRCH470J50 C 103 CCSRCH470J50 C 104 CKSRYF104Z25 C 105 CSZS100M10 C 151 CSZSR330M10 C 152 CKSRYB103K25 C 153 CCSRCH4R0C50 C 154 CCSRCH4R0C50 C 155 CCSRCH4R0C50 C 156 CKSRYF104Z25 C 160 CKSRYF104Z25 C 161 CKSRYF104Z25 C 162 CKSRYF104Z25 C 163 CKSRYB105K10 C 164 CKSRYB105K10 C 165 CKSRYB105K10 C 166 CKSRYF104Z25 C 167 CKSRYF104Z25 C 168 CKSRYF104Z25 C 169 CKSRYB103K25 C 170 CSZSR330M10 C 171 CSZSR330M10 C 181 CSZSR330M10 C 182 CKSRYF104Z25 C 183 CSZSR4R7M16 C 184 CKSRYF104Z25 C 186 CKSRYF104Z25 C 188 CKSRYF104Z25 C 651 CKSRYF104Z25 C 652 CCSRCH101J50 C 653 CCSRCH101J50 C 654 CCSRCH101J50 C 655 CCSRCH101J50 C 656 CCSRCH101J50 C 801 CSZSR4R7M16 C 802 CKSRYF104Z25 C 803 CSZS100M10 C 804 CKSRYF104Z25 C 805 CSZSR330M10 C 806 CKSRYF104Z25 C 807 CSZSR33M25 C 808 CKSRYF104Z25 C 809 CKSSYF104Z16 C 810 CKSSYF104Z16 C 811 CKSRYB104K16 C 812 CKSRYF104Z25 C 813 CKSRYF104Z25 C 814 CKSRYF104Z25 C 815 CKSRYF104Z25 C 817 CKSRYF104Z25 C 831 CKSSYF104Z16 C 832 CKSRYF104Z25 C 835 CKSRYB104K16 C 836 CKSRYB104K16 C 841 CKSRYB105K10 C 843 CSZS100M10 C 844 CKSRYF104Z25 C 851 47µF/16V CCH1446 Circuit Symbol and No. Part Name Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 38 C 852 68µF/6.3V CCH1440 C 853 CKSRYB104K16 C 854 CKSRYB104K16 C 855 10µF CCG1170 C 856 CKSRYB332K50 C 858 10µF CCG1170 C 859 CKSRYB104K16 C 860 CKSYB106K6R3 C 861 CKSYB106K6R3 C 862 CCSRCH100D50 C 863 CKSRYB683K16 C 864 CKSRYB104K16 C 865 CKSRYB471K50 C 866 CKSRYB224K16 C 867 CKSRYB104K16 C 868 CKSRYB104K16 C 869 CKSRYB104K16 C 870 CKSRYB224K16 C 871 CKSRYB224K16 C 872 CKSRYB104K16 C 873 CKSQYB105K16 C 874 CKSQYB474K25 C 875 CKSRYB104K16 C 876 CKSQYB474K25 C 877 CKSQYB105K16 C 878 CKSRYB104K16 C 879 22µF/12V CCH1359 C 881 CKSRYF104Z25 C 882 CKSRYF104Z25 C 883 CKSRYF104Z25 C 884 CKSRYB104K16 C 885 68µF/6.3V CCH1440 C 901 CKSRYF104Z25 C 902 CSZSR220M10 C 903 CFHSQ562J16 C 904 CSZSR330M10 C 905 CCSRCH102J50 C 3311 47µF/16V CCH1446 C 3332 10µF CCG1170 C 3333 10µF CCG1170 C 3334 CKSRYF104Z25 C 3335 CKSQYB105K16 C 3336 CKSRYB105K10 C 3337 CKSQYB105K16 C 3338 CKSQYB225K10 C 3339 CKSQYB105K16 C 3340 CKSRYB392K50 C 3341 CKSRYB152K50 C 3343 CKSRYB473K25 C 3344 CCSRCH221J50 C 3345 CKSRYB473K25 C 3346 CKSRYB103K25 C 3347 10µF CCG1170 C 3348 10µF CCG1170 C 3349 CKSQYB105K16 C 3350 CKSQYB105K16 C 3351 22pF CCG1140 C 3352 CKSRYB223K50 C 3353 CKSRYF104Z25 C 3354 CKSRYB104K16 C 3355 CKSRYB104K16 Circuit Symbol and No. Part Name Part No. A B C Mother Unit Consists of Mother PCB IR PCB RCA PCB Unit Number: CWM8247 (AVR-W6100/UC) :CWM8250 (AVR-W6100/EW) Unit Name:Mother Unit MISCELLANEOUS IC 1201 IC NJM4558E IC 1221 IC NJM2267M IC 1251 IC TA2050F IC 1271 IC CXA2089Q IC 1301 IC TA2050F IC 1311 IC TA2050F IC 1321 IC TA2050F IC 1371 IC TDA7496L IC 1411 IC BA3308FV IC 1471 IC TC7W04FU IC 1501 IC TSOP4840SB1 IC 1521 IC NJM555V IC 1522 IC TC7S66FU IC 1531 IC TC7W02FU IC 1601 IC PE5304B IC 1801 IC TA78L05F IC 1861 IC PAJ001A Q 1111 Transistor 2SC2412K Q 1112 Transistor 2SC2412K Q 1113 Transistor FMG12 Q 1131 Transistor 2SC2412K Q 1132 Transistor 2SC2412K Q 1133 Transistor FMG12 Q 1141 Transistor 2SC2412K Q 1142 Transistor 2SC2412K Q 1151 Transistor 2SC2412K Q 1261 Transistor 2SC2412K Q 1262 Transistor 2SC2412K Q 1263 Transistor 2SA1037K Q 1264 Transistor 2SA1037K Q 1291 Transistor 2SA1036K Q 1292 Transistor DTC114EK Q 1351 Transistor 2SA1037K Q 1352 Transistor 2SC2412K Q 1401 Transistor 2SD1664 Q 1431 Transistor 2SC2412K Q 1441 Transistor 2SC2412K Q 1451 Transistor 2SC3518-Z Q 1461 Transistor 2SD1664 Q 1481 Transistor 2SC2411K Q 1482 Transistor 2SC2411K Q 1491 Transistor 2SC3647 Q 1492 Transistor 2SC3647 Q 1621 Transistor DTA144EK Q 1622 Transistor DTA144EK Q 1801 Transistor 2SA1036K Q 1802 Transistor 2SC2412K Q 1811 Transistor 2SA1036K Q 1812 Transistor DTC114EK Q 1813 Transistor 2SD2375 Circuit Symbol and No. Part Name Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 39 Q 1821 Transistor 2SA1385-Z Q 1822 Transistor DTC114EK Q 1823 Transistor 2SD1760F5 Q 1827 Transistor 2SD1664 Q 1835 Transistor 2SC3518-Z Q 1841 Transistor 2SA1615-Z Q 1842 Transistor DTC114EK Q 1843 Transistor 2SB1260 Q 1844 Transistor DTC114EK Q 1862 Transistor DTC114EK Q 1891 Transistor 2SC3518-Z Q 1892 Transistor 2SA1036K Q 1893 Transistor DTC114EK D 1111 Diode MA152WA D 1131 Diode MA152WA D 1201 Diode HZU5R6(B2) D 1203 Diode HZU5R6(B2) D 1204 Diode HZU5R6(B2) D 1206 Diode HZU2R0(B) D 1207 Diode HZU5R6(B2) D 1209 Diode HZU5R6(B2) D 1213 Diode HZU5R6(B2) D 1214 Diode HZU5R6(B2) D 1216 Diode HZU5R6(B2) D 1218 Diode HZU5R6(B2) D 1219 Diode HZU5R6(B2) D 1226 Diode HZU2R0(B) D 1231 Diode MA153 D 1236 Diode HZU5R6(B2) D 1239 Diode HZU5R6(B2) D 1271 Diode HZU2R0(B) D 1272 Diode HZU2R0(B) D 1275 Diode HZU2R0(B) D 1276 Diode HZU2R0(B) D 1301 Diode HZU5R6(B2) D 1302 Diode HZU5R6(B2) D 1303 Diode HZU5R6(B2) D 1304 Diode HZU5R6(B2) D 1311 Diode HZU5R6(B2) D 1312 Diode HZU5R6(B2) D 1313 Diode HZU5R6(B2) D 1314 Diode HZU5R6(B2) D 1321 Diode HZU5R6(B2) D 1322 Diode HZU5R6(B2) D 1323 Diode HZU5R6(B2) D 1324 Diode HZU5R6(B2) D 1331 Diode HZU2R0(B) D 1332 Diode HZU2R0(B) D 1333 Diode HZU2R0(B) D 1334 Diode HZU2R0(B) D 1352 Diode MA153 D 1353 Diode 1SS355 D 1401 Diode HZU5R6(B2) D 1431 Diode HVU200A D 1441 Diode HVU200A D 1451 Diode HZU11(B2) D 1461 Diode UDZ10(B) D 1489 Diode 1SS355 D 1490 Diode 1SS355 D 1491 LED DNP318U-2 D 1492 LED DNP318U-2 D 1493 LED DNP318U-2 D 1494 LED DNP318U-2 D 1495 LED DNP318U-2 Circuit Symbol and No. Part Name Part No. D 1496 LED DNP318U-2 D 1497 LED DNP318U-2 D 1498 LED DNP318U-2 D 1499 LED DNP318U-2 D 1500 LED DNP318U-2 D 1551 Diode HZU5R6(B2) D 1553 Diode HZU5R6(B2) D 1561 LED CL191G1C D 1562 LED CL191G1C D 1563 Chip LED CL190SDCD D 1564 LED CL191G1C D 1565 Chip LED CL190SDCD D 1569 LED CL191G1C D 1801 Diode SC016-2 D 1811 Diode UDZ10(B) D 1823 Diode UDZ10(B) D 1827 Diode HZU5R6(B2) D 1835 Diode UDZ10(B) D 1861 Diode SC016-2 D 1862 Diode UDZS18(B) D 1891 Diode PTZ18A L 1221 Inductor LCKA150J2520 L 1271 Inductor LCKA100J2520 L 1371 Inductor CTH1256 L 1431 Inductor LCYC100K2125 L 1432 Inductor LCKA680J2520 L 1441 Inductor LCYC100K2125 L 1442 Inductor LCKA470J2520 L 1471 Inductor LCKB100K2520 L 1491 Inductor LCKB6R8M2520 L 1501 Inductor LCKA101J2520 L 1521 Inductor LCKA100J2520 L 1601 Inductor CTF1306 L 1602 Inductor CTF1306 L 1661 Inductor LCKA150J2520 L 1662 Inductor LCKA150J2520 L 1663 Inductor LCKA150J2520 L 1664 Inductor LCKA2R2J2520 L 1801 Choke Coil 2.4mH CTH1101 L 1819 Choke Coil 2.2mH CTH1277 L 1841 Choke Coil 100µH CTH1140 L 1842 Inductor CTH1256 TC1431 Trimmer CCL1057 TC1441 Trimmer CCL1057 X 1601 Radiator 12.58MHz CSS1601 S 1531 Push Switch CSG1111 S 1561 Push Switch CSG1111 S 1562 Push Switch CSG1111 S 1564 Push Switch CSG1111 S 1565 Push Switch CSG1111 S 1566 Push Switch CSG1111 S 1567 Push Switch CSG1111 S 1568 Push Switch CSG1111 S 1591 Switch(LAMP) CSH1061 S 1601 Push Switch(DEG0) CSG1153 VR1261 Semi-fixed 4.7kΩ(B) CCP1446 VR1361 Semi-fixed 3.3kΩ(B) CCP1445 FU1201 Fuse 630mA CEK1210 FU1291 Fuse 200mA CEK1189 FU1301 Fuse 2A CEK1190 FU1302 Fuse 200mA CEK1189 FU1311 Fuse 2A CEK1190 FU1312 Fuse 200mA CEK1189 FU1331 Fuse 2A CEK1190 Circuit Symbol and No. Part Name Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 40 FU1332 Fuse 2A CEK1190 FU1841 Fuse 630mA CEK1210 FU1842 Fuse 2A CEK1190 EF1621 Filter CCG1067 EF1622 Filter CCG1067 EF1671 Filter CCG1067 EF1672 Filter CCG1067 EF1679 Filter CCG1067 BZ1601 Buzzer CPV1050 RESISTORS R 1101 RS1/16S182J R 1102 RS1/16S182J R 1111 RS1/16S471J R 1112 RS1/16S471J R 1113 RS1/16S821J R 1114 RS1/16S821J R 1115 RS1/16S104J R 1116 RS1/16S104J R 1117 RS1/16S821J R 1118 RS1/16S821J R 1121 RS1/16S182J R 1122 RS1/16S182J R 1131 RS1/16S471J R 1132 RS1/16S471J R 1133 RS1/16S821J R 1134 RS1/16S821J R 1135 RS1/16S104J R 1136 RS1/16S104J R 1137 RS1/16S821J R 1138 RS1/16S821J R 1141 RS1/10S0R0J R 1142 RS1/16S223J R 1143 RS1/16S223J R 1145 RS1/16S102J R 1146 RS1/16S102J R 1147 RS1/16S220J R 1148 RS1/16S332J R 1149 RS1/16S0R0J R 1151 RS1/16S223J R 1152 RS1/16S223J R 1153 RS1/16S222J R 1154 RS1/16S471J R 1155 RS1/16S471J R 1201 RS1/16S182J R 1202 RS1/16S182J R 1203 RS1/16S103J R 1204 RS1/16S103J R 1205 RS1/16S822J R 1206 RS1/16S822J R 1207 RS1/16S223J R 1208 RS1/16S103J R 1209 RS1/16S103J R 1210 RS1/16S103J R 1213 RS1/16S750J R 1224 RS1/16S0R0J R 1231 RS1/16S105J R 1232 RS1/16S750J R 1251 RS1/16S101J R 1252 RS1/16S101J R 1253 RS1/16S223J R 1254 RS1/16S223J R 1255 RS1/16S102J R 1256 RS1/16S102J Circuit Symbol and No. Part Name Part No. R 1261 RS1/16S123J R 1262 RS1/16S471J R 1263 RS1/16S103J R 1264 RS1/16S471J R 1265 RS1/16S103J R 1266 RS1/16S562J R 1267 RS1/16S102J R 1268 RS1/16S102J R 1269 RS1/16S104J R 1271 RS1/16S562J R 1272 RS1/16S562J R 1273 RS1/16S470J R 1274 RS1/16S562J R 1275 RS1/16S562J R 1276 RS1/16S470J R 1277 RS1/16S562J R 1278 RS1/16S562J R 1279 RS1/16S470J R 1280 RS1/16S562J R 1281 RS1/16S562J R 1282 RS1/16S470J R 1285 RS1/16S101J R 1286 RS1/16S101J R 1287 RS1/16S750J R 1288 RS1/16S750J R 1289 RS1/16S271J R 1291 RS1/16S223J R 1292 RS1/16S332J R 1301 RS1/16S101J R 1302 RS1/16S101J R 1303 RS1/16S223J R 1304 RS1/16S223J R 1305 RS1/16S102J R 1306 RS1/16S102J R 1311 RS1/16S101J R 1312 RS1/16S101J R 1313 RS1/16S223J R 1314 RS1/16S223J R 1315 RS1/16S102J R 1316 RS1/16S102J R 1321 RS1/16S101J R 1322 RS1/16S101J R 1323 RS1/16S223J R 1324 RS1/16S223J R 1325 RS1/16S102J R 1326 RS1/16S102J R 1333 RS1/16S750J R 1352 RS1/16S473J R 1353 RS1/16S473J R 1354 RS1/16S473J R 1355 RS1/16S473J R 1356 RS1/16S472J R 1371 RS1/16S334J R 1372 RS1/16S103J R 1373 RS1/10S101J R 1374 RS1/10S101J R 1375 RS1/10S101J R 1376 RS1/10S101J R 1377 RS1/16S0R0J R 1401 RS1/16S821J R 1411 RS1/16S183J R 1412 RS1/16S183J R 1413 RS1/16S561J R 1414 RS1/16S561J Circuit Symbol and No. Part Name Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 41 R 1415 RS1/16S124J R 1416 RS1/16S124J R 1417 RS1/16S221J R 1418 RS1/16S221J R 1419 RS1/16S222J R 1420 RS1/16S222J R 1421 RS1/16S564J R 1422 RS1/16S184J R 1423 RS1/16S184J R 1431 RS1/16S103J R 1432 RS1/16S104J R 1433 RS1/16S473J R 1435 RS1/16S393J R 1437 RS1/16S101J R 1438 RS1/16S0R0J R 1439 RS1/16S102J R 1441 RS1/16S103J R 1442 RS1/16S104J R 1443 RS1/16S473J R 1445 RS1/16S393J R 1447 RS1/16S101J R 1448 RS1/16S0R0J R 1449 RS1/16S102J R 1451 RS1/10S681J R 1461 RS1/10S681J R 1471 RS1/16S222J R 1472 RS1/16S222J R 1473 RS1/16S125J R 1474 RS1/16S125J R 1475 RS1/16S0R0J R 1476 RS1/16S0R0J R 1477 RS1/16S222J R 1481 RS1/16S272J R 1482 RS1/16S272J R 1483 RS1/16S391J R 1484 RS1/16S391J R 1485 RS1/10S6R8J R 1486 RS1/10S6R8J R 1487 RS1/10S6R8J R 1488 RS1/10S6R8J R 1491 RS1/4S0R0J R 1492 RS1/4S0R0J R 1493 RS1/10S101J R 1494 RS1/10S101J R 1495 RS1/10S152J R 1496 RS1/10S331J R 1497 RS1/10S152J R 1498 RS1/10S331J R 1521 RS1/16S473J R 1522 RN1/16SE1302D R 1523 RN1/16SE1001D R 1524 RN1/16SE8201D R 1525 RN1/16SE4700D R 1526 RN1/16SE1501D R 1527 RS1/16S0R0J R 1531 RS1/10S0R0J R 1533 RS1/16S101J R 1534 RS1/16S101J R 1537 RS1/16S0R0J R 1551 RS1/10S102J R 1552 RS1/10S102J R 1553 RS1/10S102J R 1554 RS1/10S102J R 1555 RS1/4S181J Circuit Symbol and No. Part Name Part No. R 1556 RS1/10S0R0J R 1557 RS1/10S0R0J R 1558 RS1/10S0R0J R 1562 RS1/16S152J R 1563 RS1/16S332J R 1564 RS1/16S103J R 1566 RS1/16S152J R 1567 RS1/16S332J R 1568 RS1/16S103J R 1601 RS1/16S472J R 1602 RS1/16S472J R 1604 RS1/16S681J R 1605 RS1/16S471J R 1609 RAB4CQ681J R 1610 (AVR-W6100/UC) RS1/16S473J R 1611 (AVR-W6100/EW) RS1/16S473J R 1612 RS1/16S473J R 1613 RS1/16S473J R 1615 RS1/16S681J R 1621 RS1/16S681J R 1622 RS1/16S681J R 1623 RS1/16S681J R 1624 RAB4CQ681J R 1628 RS1/16S473J R 1629 RS1/16S473J R 1630 RS1/16S473J R 1631 RS1/16S272J R 1632 RS1/16S272J R 1634 RS1/16S681J R 1635 RS1/16S473J R 1636 RS1/16S681J R 1637 RS1/16S681J R 1638 RS1/16S471J R 1639 RS1/16S470J R 1640 RS1/16S470J R 1641 RAB4CQ681J R 1642 RS1/16S470J R 1643 RS1/16S470J R 1644 RAB4CQ681J R 1645 RAB4CQ681J R 1646 RS1/16S103J R 1647 RS1/16S103J R 1648 RS1/16S0R0J R 1649 RS1/16S473J R 1661 RAB4CQ681J R 1662 RAB4CQ681J R 1663 RS1/16S0R0J R 1664 RS1/16S681J R 1665 RS1/16S471J R 1666 RS1/16S0R0J R 1671 RS1/16S681J R 1672 RS1/16S681J R 1676 RS1/16S103J R 1679 RS1/16S681J R 1695 RS1/16S473J R 1801 RS1/16S0R0J R 1802 RS1/16S562J R 1803 RS1/16S153J R 1804 RS1/16S473J R 1805 RS1/16S473J R 1811 RS1/16S223J R 1812 RS1/16S182J R 1813 RS1/10S102J R 1816 RS1/10S104J Circuit Symbol and No. Part Name Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 42 R 1821 RS1/16S153J R 1822 RS1/4S301J R 1823 RS1/4S301J R 1824 RS1/10S681J R 1827 RS1/10S681J R 1829 RS1/4S0R0J R 1830 RS1/4S0R0J R 1835 RS1/10S681J R 1841 RS1/16S153J R 1842 RS1/4S301J R 1843 RS1/4S301J R 1844 RS1/16S153J R 1845 RS1/4S152J R 1863 RN1/10SE1001D R 1864 RS1/16S223J R 1865 RS1/16S103J R 1866 RS1/16S104J R 1867 RS1/16S104J R 1868 RS1/16S104J R 1870 RS1/16S101J R 1871 RS1/16S104J R 1872 RS1/16S563J R 1873 RS1/16S393J R 1874 RS1/16S363J R 1875 RS1/16S753J R 1884 RS1/16S473J R 1890 RS1/16S473J R 1891 RS1/4S100J R 1892 RS1/10S103J R 1893 RS1/10S103J R 1894 RS1/4S100J CAPACITORS C 1101 CKSRYB222K50 C 1102 CKSRYB222K50 C 1103 CKSRYB104K25 C 1111 CEV100M16 C 1112 CEV100M16 C 1113 CKSRYB222K50 C 1114 CKSRYB222K50 C 1121 CKSRYB222K50 C 1122 CKSRYB222K50 C 1123 CKSRYB104K25 C 1131 CEV100M16 C 1132 CEV100M16 C 1133 CKSRYB222K50 C 1134 CKSRYB222K50 C 1141 CKSQYB103K50 C 1142 10µF/16V CCG1138 C 1143 CKSQYB105K16 C 1144 CCSRCH100D50 C 1151 CCSRCH101J50 C 1201 CKSRYB222K50 C 1202 CKSRYB222K50 C 1203 CCSRCH101J50 C 1204 CCSRCH101J50 C 1205 100µF/16V CCH1228 C 1206 CKSRYB104K25 C 1207 100µF/16V CCH1228 C 1211 10µF/16V CCG1138 C 1212 10µF/16V CCG1138 C 1221 CKSRYB103K50 C 1225 100µF/16V CCH1228 C 1226 CKSRYB103K50 Circuit Symbol and No. Part Name Part No. C 1231 CEV4R7M35 C 1235 CEV220M16 C 1236 100µF/16V CCH1228 C 1251 CKSRYB105K10 C 1252 CKSRYB105K10 C 1253 CKSRYB105K10 C 1254 CKSRYB105K10 C 1255 100µF/16V CCH1228 C 1256 10µF/16V CCG1138 C 1257 CCSRCH471J50 C 1261 CCSRCH8R0D50 C 1262 CCSRCH120J50 C 1271 CKSRYB105K10 C 1272 CKSRYB105K10 C 1273 CKSRYB474K10 C 1274 CKSRYB105K10 C 1275 CKSRYB105K10 C 1276 CKSRYB474K10 C 1277 CKSRYB105K10 C 1278 CKSRYB105K10 C 1279 CKSRYB474K10 C 1280 CKSRYB105K10 C 1281 CKSRYB105K10 C 1282 CKSRYB474K10 C 1286 CKSRYB103K50 C 1287 CEV220M16 C 1288 CEV100M16 C 1289 CCSRCH221J50 C 1290 CCSRCH101J50 C 1301 CKSRYB105K10 C 1302 CKSRYB105K10 C 1303 CKSRYB105K10 C 1304 CKSRYB105K10 C 1305 CEV220M16 C 1306 CEV100M16 C 1307 CCSRCH471J50 C 1308 CCSRCH471J50 C 1311 CKSRYB105K10 C 1312 CKSRYB105K10 C 1313 CKSRYB105K10 C 1314 CKSRYB105K10 C 1315 CEV220M16 C 1316 CEV100M16 C 1317 CCSRCH471J50 C 1318 CCSRCH471J50 C 1321 CKSRYB105K10 C 1322 CKSRYB105K10 C 1323 CKSRYB105K10 C 1324 CKSRYB105K10 C 1325 CEV220M16 C 1326 CEV100M16 C 1327 CCSRCH471J50 C 1328 CCSRCH471J50 C 1351 CKSRYB103K50 C 1371 CEHAT102M16 C 1372 CKSQYB104K50 C 1373 CKSQYB474K25 C 1374 CKSQYB474K25 C 1375 CKSQYB104K50 C 1376 CEHAT331M16 C 1377 CKSQYB105K16 C 1378 CEHAT471M25 C 1379 CEHAT471M25 C 1401 CKSRYB105K10 Circuit Symbol and No. Part Name Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 43 C 1402 CKSRYB103K50 C 1403 100µF/16V CCH1228 C 1405 100µF/16V CCH1228 C 1411 CCSRCH221J50 C 1412 CCSRCH221J50 C 1413 CCSRCH101J50 C 1414 CCSRCH101J50 C 1415 CKSRYB393K16 C 1416 CKSRYB393K16 C 1417 CEV4R7M25 C 1418 CEV4R7M25 C 1421 CEV470M16 C 1422 100µF/16V CCH1228 C 1423 CKSRYB103K50 C 1431 CKSRYB103K50 C 1432 CCSRCH471J50 C 1434 CCSRCH240J50 C 1435 CCSRCH221J50 C 1436 CCSRCH221J50 C 1437 CKSRYB223K50 C 1438 CKSQYB225K10 C 1441 CKSRYB103K50 C 1442 CCSRCH471J50 C 1444 CCSRCH240J50 C 1445 CCSRCH221J50 C 1446 CCSRCH221J50 C 1447 CKSRYB223K50 C 1448 CKSQYB225K10 C 1451 100µF/16V CCH1228 C 1452 CKSRYB103K50 C 1453 CKSRYB103K50 C 1454 100µF/16V CCH1228 C 1461 100µF/16V CCH1228 C 1462 CKSRYB103K50 C 1463 CKSRYB103K50 C 1464 100µF/16V CCH1228 C 1471 CCSRCH470J50 C 1472 CCSRCH470J50 C 1473 CCSRCH330J50 C 1474 CCSRCH330J50 C 1475 100µF/16V CCH1228 C 1476 CKSRYB103K50 C 1477 CKSRYB562K50 C 1478 CKSRYB562K50 C 1481 CCSRCH101J50 C 1482 CCSRCH101J50 C 1491 CKSYB105K25 C 1492 CKSRYB103K50 C 1493 CKSRYB182K50 C 1494 CKSRYB182K50 C 1495 CKSQYB105K10 C 1496 CKSQYB105K10 C 1501 CEV470M16 C 1502 CKSRYB104K25 C 1503 CCSRCH471J50 C 1521 CKSRYB103K50 C 1522 CFHSQ821J50 C 1523 CEV220M16 C 1531 CKSRYB103K50 C 1533 CCSRCH331J50 C 1534 CCSRCH331J50 C 1601 CKSRYB103K50 C 1661 CKSRYB104K25 C 1662 100µF/16V CCH1228 C 1663 CKSRYB103K50 Circuit Symbol and No. Part Name Part No. C 1664 CKSRYB104K25 C 1665 CKSRYB103K50 C 1666 CKSRYB103K50 C 1667 CKSRYB103K50 C 1668 CKSRYB103K50 C 1669 CKSRYB103K50 C 1670 CCSRCH102J50 C 1671 CCSRCH102J50 C 1801 3300µF/16V CCH1125 C 1802 CKSRYF104Z25 C 1803 CKSRYF104Z25 C 1804 CKSRYF104Z25 C 1805 100µF/16V CCH1228 C 1806 CKSRYB103K50 C 1811 100µF/16V CCH1228 C 1812 100µF/16V CCH1228 C 1813 CKSRYF104Z25 C 1819 CEHAT471M25 C 1821 100µF/16V CCH1228 C 1822 CKSRYB103K50 C 1823 100µF/16V CCH1228 C 1824 CKSRYB103K50 C 1825 CKSRYB103K50 C 1826 100µF/16V CCH1228 C 1827 100µF/16V CCH1228 C 1828 CKSRYB103K50 C 1829 CKSRYB103K50 C 1830 100µF/16V CCH1228 C 1835 100µF/16V CCH1228 C 1836 CKSRYB103K50 C 1837 100µF/16V CCH1228 C 1838 CKSRYB103K50 C 1840 100µF/16V CCH1228 C 1841 CEHAT102M16 C 1842 CKSRYF104Z25 C 1843 100µF/16V CCH1228 C 1844 CKSRYF104Z25 C 1845 100µF/16V CCH1228 C 1846 CKSRYF104Z25 C 1847 100µF/16V CCH1228 C 1848 CKSRYF104Z25 C 1861 CKSRYB103K50 C 1862 CKSRYB104K25 C 1863 CEV100M16 C 1864 100µF/16V CCH1228 C 1871 CKSRYB103K50 C 1872 2200µF/16V CCH1012 C 1873 CKSRYB103K50 C 1874 CKSRYB103K50 C 1891 CEV330M25 C 1892 CKSRYB104K25 C 1893 CKSRYB104K25 C 1894 CKSRYB104K25 C 1899 100µF/16V CCH1228 MISCELLANEOUS PARTS LIST Lamp 12V 5W CEL1735 Circuit Symbol and No. Part Name Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 44 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 45 6. ADJUSTMENT [Preparation] 1) In the normal mode Supply 14.4V to the BU and ACC lines via the unit connectors. Press the Power button on the unit or on the remote control to start the normal mode. Input the video signal to the VIDEO3 RCA terminal on the unit. Select the VIDEO3 by switching the source. When the video signal of 2Vp-p (via 75ohms, white 100%) is applied, the video signal waveform of 1Vp-p will be obtained at the test point AUX3V0 as shown on the adjustment item 2.1. After completing the preparation, follow each adjustment method. 2) In the TEST mode Shift the probe land EPRTST to "L" on the Mother PCB. Supply 14.4V to the BU and ACC lines via the unit connectors. Press the Power button on the unit or on the remote control to start the EPROM TEST mode. Input the video signal to the VIDEO3 RCA terminal on the unit. When the video signal of 2Vp-p (via 75ohms) is applied, the video signal waveform of 1Vp-p will be obtained at the test point AUX3V0 as shown on the adjustment item 2.1. After completing the preparation, follow each adjustment method. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 46 6.1 MOTHER PCB ADJUSTMENT MOTHER PCB(SIDE B) CVBS EPRTST REM40 AUX3VO TP1827 TP1823 Oscilloscope Frequency Counter Oscilloscope Connection Diagram DC V Meter DC V Meter www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 47 Step 1 1.1 Mother PCB adjustment preparation SYS9V verification BU, ACC, 14.4V Adjustment item Mode VTR Measuring instruments Specs Adjusting point Input (input test pin,specs, other conditions) Output (measuring point, waveform) Measuring point :TP1823 DC V Meter 9.5V ± 0.5V 1.2 SYS5V verification VTR Measuring point : TP1827 DC V Meter 5.0 ± 0.5V Step 2 2.1 2.2 Mother PCB adjustment preparation Main video level CARRIER frequency (1) The Video level (Vlevel) is out of spec. When the Vlevel is more than 0.75Vp-p, the images become whitish. When the Vlevel is less than 0.75Vp-p, the images become blackish. (2) The CARRIER frequency is out of spec. Between -2kHz and +2kHz: Normal operation -2kHz to -3kHz or +2kHz to +3 kHz: Normal operation but poor sensitivity Lower than -3kHz or higher than +3kHz: No remote control Input test pin: 100 IRE (white 100%), 1.0Vp-p, (input via 75ohms) Shift the 11 pin of IC1601 to "H" or select "TYPE1"as "CARRER TYPE" on the MENU screen. Measuring point: TP REM40 or TP REM40A or the 3 pin of IC1521 Mother PCB adjustment Mode VTR Measuring instruments Specs Adjusting point Input (input test pin,specs, other conditions) Output (measuring point, waveform) Measuring point: CVBS Oscilloscope Frequency counter 0.75V ± 0.03Vp-p Measure between the sync tip and 100 IRE (top level). 40kHz ± 200Hz VR1261 VR1361 BU, ACC, 14.4V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 48 6.2 IR PCB ADJUSTMENT IR PCB(SIDE B) VIR IRL IRR Connection Diagram Frequency Counter Frequency Counter DC V Meter www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 49 Step 1 1.1 IR adjustment Input level verification Adjustment item Measuring instruments Specs Adjusting point or VR preset position Input (input test pin,specs, other conditions) Probe VVI: 14.4V Input signal: OFF Input signal: OFF Output (measuring point, waveform) Measuring point: TP VIR DC V Meter 10.5V ± 1.0V 1.2 LCH frequency Measuring point: TP IRL Frequency counter 2.3MHz ± 0.05MHz TC1431 TC1441 1.3 RCH frequency Measuring point: TP IRR Frequency counter 2.8MHz ± 0.05MHz BU, ACC, 14.4V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 50 6.3 MONITOR SECTION ADJUSTMENT [Preparation] Shift the probe land EPRTST on the Mother PCB to "L". Aupply 14.4V to the BU and ACC lines via the unit connectors. Press the Power button on the unit or on the remote control to start the EPROM TEST mode. Input the video signal to the VIDEO3 RCA terminal on the unit. When the video signal of 2Vp-p (via 75 ohms) is applied, the prescribed level will be obtained at the test point CVBS in the adjustment items 8 and after. The video source VIDEO3 should be switched depending on the items to be adjusted. After completing the preparation, follow each adjustment method. VB VG VR VCOM MONITOR UNIT (SIDE B) Connection Diagram Oscilloscope Oscilloscope Oscilloscope Oscilloscope V25 DC V Meter V5 DC V Meter V8 DC V Meter V33 V18 VM12 DC V Meter DC V Meter DC V Meter www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 51 Notes: 1) When the power supply for TC90A64AF(IC1) is OFF, be careful not to apply any voltage to its terminals except for IIC lines(SDA and SCL). The IIC lines can accept a maximum of 5V. 2) In the following table, SA**h is a sub-address of TC90A64AF.(IC1) No Adjustment item Measuring point 1 2 3 4 5 6 3.3V power supply verification 2.5V power supply verification C852 hot side (TP V33) V33 : 3.3V ± 0.3V V25 : 2.5V ± 0.2V IC841 (TP V25) (TP V5) (TP V8) (TP V18) (TP VM12) Input Apply 14.4V to TP VVI. Apply 14.4V to TP VVI. 5V power supply verification V5 : 5.0V ± 0.3V Apply 14.4V to TP VVI. 8V power supply verification V8 : 8.0V ± 0.6V Apply 14.4V to TP VVI. 18.5V power supply verification V18 : 18.5V ± 0.8V Apply 14.4V to TP VVI. -12V power supply verification VM12 : -12.0V ± 0.6V Apply 14.4V to TP VVI. Adjusting point Measuring method and specs. Remarks www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 52 No Adjustment item Input Vcom check Any input signal 7 4.50 ± 0.20V Adjusting point Measuring method and specs. Remarks Measuring point R193 (TP VCOM) Input waveform verification (composite) Apply a white 100% signal toTP CVBS. 8 TP CVBS The signal generator shouldbe used via 75 ohms. RGB amp output voltage waveform verification Apply a black signal to TP CVBS. (Video level:0%) 9 10 TP VG The input signal has no setup. Gamma 0 verification Apply a 10-step signal to TP CVBS. TP VG The input 10-step signal has no setup. 0.75V ± 0.02V 3.9 ± 0.2V The first-step A = 0.50V ± 0.1V A1 A= (A1+A2)/2 A2 11 Gamma 2 verification Apply a 10-step signal to TP CVBS. TP VG The input 10-step signal has no setup. If the measured value is out of specs, change the setting of SA24h D11 - 8 (γ2 inflection point: GAMMA2 in the line adjustment 1 mode) (Register setting specs: 4 ± 1) The 10th-step A = 3.10V ± 0.15V A1 A= (A1+A2)/2 A2 Notes: 1) When the power supply for TC90A64AF (IC1) is OFF, be careful not to apply any voltage to its terminals except for IIC lines(SDA and SCL). The IIC lines can accept a maximum of 5V. 2) In the following table, SA**h is a sub-address of TC90A64AF (IC1). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 53 No Adjustment item Input B SUB BRIGHT R SUB BRIGHT Apply a 10-step signal to TP CVBS. 12 Adjust the first step levels of the G waveform and the B waveform. Adjusting point Measuring method and specs. Remarks Measuring point TP VG and VB Register setting of SA39h D11 - 8 Register setting of SA26h D7 - 1 Register setting of SA39h D15 - 12 Register setting of SA26h D15 - 9 Register setting of SA22h D15 - 8 B SUB CONTRAST R SUB CONTRAST Apply a 10-step signal to TP CVBS. 13 TP VG and VB Register setting specs : 8 ± 2 (specs in designing: 8 ± 1) In the Line adjustment 2 mode, SUB BRI B can be used as the adjusting point. Register setting specs: 64 ± 3 (specs in designing: 64 ± 2) In the Line adjustment 2 mode, SUB CON B can be used as the adjusting point. Apply a 10-step signal to TP CVBS. 14 15 TP VG and VR Register setting specs: 8 ± 2 (specs in designing: 8 ± 1) In the Line adjustment 2 mode, SUB BRI R can be used as the adjusting point. Register setting specs: 64 ± 3 (specs in designing: 64 ± 2) In the Line adjustment 2 mode, SUB CON R can be used as the adjusting point. The luminance level of the input signal: 50%. In the flicker adjustment mode, COM DC can be used as the adjusting point. Adjust the first step levels of the G wave form and the R waveform. Adjust the 10th step levels of the G waveform and the R waveform. Keep the unit in the operation mode for 30 minutes or longer. Adjust so that the flickers become minimum in all Apply a 10-step signal to TP CVBS. TP VG and VR Adjust the 10th step levels of the G waveform and the B waveform. 16 Aging Any input signal 17 Flicker Input a signal for alternate white and black lines to TP CVBS. Screen Notes: 1) When the power supply for TC90A64AF is OFF, be careful not to apply any voltage to its terminals except for IIC lines(SDA and SCL). The IIC lines can accept a maximum of 5V. 2) In the following table, SA**h is a sub-address of TC90A64AF. Flicker adjustment has been deviated. The images flicker. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 54 6.4 EEPROM SETTING MODE 00H 01H 02H 03H 04H 05H 06H 07H 08H 09H 0AH 0BH 0CH 0DH 0EH 0FH 10H 11H 12H 1FH 20H 21H 22H 23H 3FH Dimmer external light threshold (high) Dimmer external light threshold (low) Backlight output (upper limit) Backlight output (lower limit) Common reverse output center (COM DC) Common reserve output amplitude (COM AMP) Output clamp DC (RGB BIAS) γ 0 inflection point (GAMMA 0) γ 3 inflection point (GAMMA 3) γ 2 inflection point (GAMMA 2) γ 1 inflection point (GAMMA 1) Output sub contrast R (SUB CON R) Output sub contrast B (SUB CON B) Sub brightness R after γ circuit (SUB BRI R) Sub brightness B after γ circuit (SUB BRI B) Clock phase adjustment (DOT CLK) Sharpness (SHARPNESS) Check sum for 00H to 10H Not used External light for dimmer adj. coordinates (high) External light for dimmer adj. coordinates (middle) External light for dimmer adj. coordinates (low) Backlight for dimmer adj. coordinates (high) Backlight for dimmer adj. coordinates (middle) Backlight for dimmer adj. coordinates (low) Not used Memory array Bank 1 Bank 2 EEPROM address Memory item CS (Check Sum) [Preparation] The operation is possible only with the remote control (CXB9056) supplied with the AVR-W6100, which uses remote control codes for the rear monitor. Any key inputs from the main unit are not acceptable. [Operations] To enter the setting mode, while keeping the EPRTEST terminal (probe land EPRTSTA) at "Low", turn on the power. To switch between the adjustment modes, use the MENU button. Flicker adjustment mode Line adjustment 1 mode Line adjustment 2 mode Dimmer parameter setting mode [ ↑ ↓ ] button: Used to select a desired adjustment item in each mode [ ←→ ] button: Used to adjust the selected item Notes: 1) The setting values are written in the EEPROM,and then the read-out data is displayed on the screen. WRITE and READ operations are processed by the block data of 16 bits. The total bits for the settings depend on adjusting items. 2) For CS (Check Sum) items, when the settings are changed, the CS value is written in 8 bits by applying the exclusive OR (XOR). The CS value is first written in the EEPROM, and then the read-out data is displayed. If the written data is different from the read-out data, the letter color for the read-out data is changed. Notes: 1) The Bank 1 (with memory protection) items can be adjusted only in the line adjustment modes. 2) For the Bank 2 (without memory protection) items, the initial values are written in the line adjustment modes, and then are adjustable by the user. [Memory items and addresses on the EEPROM (S-29131AFJ: IC651)] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 55 (1) Flicker adjustment mode (2) Line adjustment 1 mode [0 - 255] 255 COM DC Adjustment item Common reverse output center Adjustable name Adjustment range Settings or written data (DEC) Adjustment item Bright (SA22: B7-2) Contrast (SA25: B7-1) Common reverse output center Common reverse output amplitude Output clamp DC γ 0 inflection point γ 3 inflection point γ 2 inflection point γ 1 inflection point Adjustable range Adjustment item Settings or written data (DEC) [0 - 63] [0 - 127] [0-255] [0-63] [0-63] [0-15] [0-15] [0-15] [0-31] 63 127 255 63 63 15 15 15 31 BRIGHT CONTRAST COM DC COM AMP RGB BIAS GAMMA0 GAMMA3 GAMMA2 GAMMA1 LINE1 FF CS [Displays in each mode] In the following figures, the letters and numbers surrounded by a large square are for OSD examples. On the screen, the adjustment names and the settings (or written data) are listed. The settings (or written data) will change when some adjustments are made in each mode. (The following examples show the maximum values.) Notes: 1) CONTRAST data The CONTRAST data is adjustable, and used as reference data for other adjustment items, which is not memorized in the EEPROM. 2) BRIGHT and COM AMP data The BRIGHT and COM AMP adjustments are made by using the same 2-screen IC register (SA22h B7-2: common reverse output amplitude). Therefore, adjusting one of the data will change the other one. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 56 (3) Line adjustment 2 mode (4) Dimmer parameter setting mode [0 - 63] [0 - 127] [0 - 127] [0 - 127] [0 - 15] [0 - 15] [0 - 3] 63 127 127 127 15 15 3 BRIGHT CONTRAST SUB CON R SUB CON B SUB BRI R SUB BRI B SHARPNESS Adjustment item Bright (SA22: B7-2) Contrast (SA25: B7-1) Output sub contrast R Output sub contrast B Sub brightness R after γ circuit Sub brightness B after γ circuit Sharpness Adjustable name Adjustment range Settings or written data (DEC) Adjustment item Backlight output (MAX) Backlight output(MIN) Dimmer threshold (high) Dimmer threshold (low) External light point (high) External light point (middle) External light point (low) Backlight point (high) Backlight point (middle) Backlight point (low) Adjustable range Adjustment item Settings or written data (DEC) [0 - 255] [0 - 255] [0 - 255] [0 - 255] [0 - 255] [0 - 255] [0 - 255] [0 - 255] [0 - 255] [0 - 255] FF FF FF FF FF FF FF FF FF FF BL MAX BL MIN REF H REF L LUM H LUM M LUM L BL H BL M BL L DIMMER LINE2 FF CS FF CS Notes: 1) CONTRAST data The CONTRAST data is adjustable, and used as reference data for other adjustment items, which is not memorized in the EEPROM. 2) SUB BRI R and SUB BRI B data The displayed value or EEPROM written data is different from the setting value for the 2-screen IC register (TC90A64F: IC1). (Before displayed on the screen, the setting value is converted via some software.) Note: The dimmer point data is memorized in the EEPROM, but not treated as a CS item. It's because the settings are adjustable by the user. (MAX) (TIP) (MIN) Displayed value (adjusting value) (DEC) 15 14 9 8 7 1 0 15 14 9 8 7 1 0 0111 0110 0001 0000 1111 1001 1000 EEPROM written value. (DEC) 2-screen IC register setting (BIN) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 57 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 DISASSEMBLY - Removing the Mother PCB(Fig.2) 1 Fig.1 - Removing the Cover (Fig.1) Fig.2 Remove the four screws and then remove the Cover. 1 Cover 1 1 1 1 Remove the three screws. Disconnect the connector and then remove the Mother PCB. 1 1 1 2 2 2 2 3 3 - Removing the IR PCB(Fig.2) 2 Remove the four screws. Disconnect the connector and then remove the IR PCB. - Removing the RCA PCB(Fig.2) 3 Remove the two screws. Disconnect the connector and then remove the RCA PCB. Mother PCB IR PCB RCA PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 58 - Removing the Monitor Unit (Fig.4) 1 Fig.3 - Removing the Case (Fig.3) Fig.4 Remove the four screws and then remove the Case. 1 Case Monitor Unit Remove the four screws. Disconnect the connector and then remove the Monitor Unit. 1 1 1 1 1 1 1 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 59 7.1.2 CONNECTOR FUNCTION DESCRIPTION 17 18 19 20 13 14 15 16 7 8 9 10 11 12 1 2 3 4 5 6 1. SDA 2. GND75 3. BRSDK 4. BRSGI 5. GNDTV 6. TVV 7. SCL 8. NC 9. TVARI 10. TV9V 11. GVDTV 12. GNDV 13. NC 14. SL 15. TV9V 16. TVR 17. NC 18. SD 19. TVL 20. GNDA 2 1 4 5 8 9 10 6 7 3 1. REM2+ 2. REM- 3. GNDV 4. SYS5V 5. AUXAR 6. AUXLG 7. AUXVG 8. AUXRG 9. AUXAL 10. AUXV 1 2 3 4 5 6 7 8 1. GNDL 2. DORR 3. VLAMP 4. NC 5. NC 6. ACC 7. BUP 8. GND VIDEO OUTPUT(YELLOW) AUDIO OUTPUT(WHITE) AUDIO OUTPUT(RED) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 60 7.2 IC - Pin Functions (PE5304B) Pin No. Pin Name I/O Format Function and Operation 1 KDT2 Open 2 DORN Open 3 VI5SENS Open 4 AVss A/D converter (GND) 5 EVOL O C Volume output for headphone 6 DIMMER O Backlight control output 7 AVREF1 D/A converter reference voltage input 8,9 MUTE1,2 O C headphone mute output 10 NC Open 11 CRSW O C Frequency change output (37:L, 40:H) 12 OSDDT O C OSD serial data output 13 OSDCK O C OSD serial clock output 14 OSDCS O C OSD chip select output 15 TESTIN I Chip test input 16 TSI I Test mode data input 17 TSO O C Test mode data output 18 TSCK O C Test mode clock output 19 MUTEV Open 20 MVIPW O C Video power supply control output 21 MFLPW O C Backlight power supply control output 22 PWIND O C PW indicator ON signal output 23 EPRDO O C EEPROM serial data output 24 EPRCS O C EEPROM chip select output 25 EPRCK O C EEPROM serial clock output 26 EPRPROT O C EEPROM memory protect output 27 EPRDI I EEPROM serial data input 28 EPRRST I EEPROM data initialize mode input 29 EPRTEST I EEPROM data set up mode input 30 SCL O ZL I2C-BUS clock output 31 SDA I/O /ZL I2C-BUS data input / output 32 IICRST O C I2C-BUS reset output 33 Vss GND 34 ILMPW O O Illumination power supply control output 35 MUTEAA O C Stereo audio mute output (A ch) 36 MUTEAB O C Stereo audio mute output (B ch) 37 MUTEX O C AUXI/O change mute output 38 NC Open 39 OVICHK I Backlight overcurrent protection input 40 DEG0SW I AV flap 0° detect switch input 41 NC Open 42 BRSBGI O C TV tuner country cord output for BDI 43 BRSDK O C TV tuner country cord output for DK 44 MAIN/SUB O C MAIN/SUB change output 45 BEEP O C Beep sound output 46 TVSDA O C TV tuner data output 47 TVSCL O C TV tuner clock output (IIC) 48 SCE O C TV tuner PLL chip select output 49 SEEK O C SEEK output 50 SD I SD input 51 ST Open 52 BILSEN Not used 53 TVSENS I TV sense input 54 OPSEN Not used 55-57 NC Open 58 PBSEN Open 59 ILMSEN Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 61 Pin No. Pin Name I/O Format Function and Operation 60 RESET I Reset input 61 REMIN I Remote control input 62 BSENS I Back up sense input 63 ASENS I ACC sense input 64 TVPW O C TV power supply control output 65 SWACPW O C Key power supply control output 66 SYSPW O C System power supply control output 67 Vss0 GND (µcom) 68 VDD Power supply (µcom) 69 X2 Crystal oscillator connection pin 70 X1 Crystal oscillator connection pin 71 IC(GND) IC test terminal 72 XT2(NC) Open 73 XT1(GND) Sub clock input (GND) 74 VDD0 Power supply (Port) 75 AVDD A/D converter power supply 76 SL I Signal level input 77 TVCHK I TV tuner discrimination input 78,79 KDT0,1 I Key sense input 80 LSENS I Light sense input 1 20 21 40 41 60 61 80 *PE5304B IC's marked by * are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction. Format Meaning C C MOS ZL Hi-z / Low change ALC Vcc 1 2 3 4 5 6 7 14 13 12 11 10 9 8 + + − − N.C. N.C. N.C. N.C. N.C. BA3308FV www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 62 - Pin Functions(PD5582A) Pin No. Pin Name I/O Function and Operation 1 OSC1 I External terminal of oscillator circuit for display 2 OSC2 O External terminal of oscillator circuit for display 3 cs I Chip select input 4 SCK I Serial clock input 5 SI I Serial data input 6 ac I Auto clear input 7-10 P6-P9 O Port output 11 VSS GND 12 P0 O Port output 13 P1/R O Port output or R output 14 P2 O Port output 15 P3/G O Port output or G output 16 P4 O Port output 17 P5/B O Port output or B output 18 HOR I Horizontal synchronous signal input 19 VERT I Vertical synchronous signal input 20 VDD Positive power supply terminal 1 10 11 20 *PD5582A GND GND GND INL VAROUT_L VAROUT_R VOLUME N.C. INR 1 3 2 4 5 6 7 8 9 MUTE GND OUTR VS VS OUTL GND GND GND 20 19 18 17 16 14 15 13 12 SVR 10 STBY 11 VOLUME OP AMP + - MUTE/STBY PROTECTIONS VOLUME OP AMP + - TDA7496L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 63 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 CTIMR OVP ENA SST VDDA GNDA REF RT1 FB CMP NDR_B PDR_A CT RT PGND LCT DIM LPWM PDR_C NDR_D Protection NDR_B PDR_A ZVS Phase-Shift Controller HF OSC PDR_C NDR_D Burst- Mode Control OVP ENA hys. COMP hys. COMP 1.5V 2V + - + - Reference OPLAMP - + EA - + Ignition 1.25V 2V 2.50V sub. POFF POFF I=3uA I=6uA Soft Start ACTIVE "HIGH" *OZ960IS OUT GND VCC PIN 1 2 3 Control Circuit Band Pass AGC Input Demodu- lator *TSOP4840SB1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 64 1 3 2 A OUTPUT A -INPUT A +INPUT V- B +INPUT B -INPUT B OUTPUT V+ 4 5 6 7 8 + + NJM4558E GND TRIGGER OUTPUT RESET V+ DISCHARGE THRESHOLD CONTROL 1 2 3 4 5 6 7 8 TIMER NJM555V 6 4 1 3 2 7 5 9 11 14 12 13 8 10 D OUTPUT D -INPUT D +INPUT V- C +INPUT C -INPUT C OUTPUT A OUTPUT A -INPUT A +INPUT V+ B +INPUT B -INPUT B OUTPUT NJM2138V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 65 – + – + – + – + S 2.9V BIAS REGULATOR 500kHz OSCILLATOR FREQUENCY SHIFT CIRCUIT SLOPE COMP INTERNAL VCC CURRENT SENSE AMPLIFIER SHUTDOWN COMPARATOR CURRENT COMPARATOR ERROR AMPLIFIER FOLDBACK CURRENT LIMIT CLAMP RS FLIP-FLOP DRIVER CIRCUITRY S R 0.9V LOCKOUT COMPARATOR 0.4V 3.5mA Q2 Q1 POWER SWITCH 2.38V 2.42V – + 1 2 3 4 6 7 8 5 BOOST VIN Vsw BIAS Vc FB/SENSE GND shdn LT1376CS8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 66 VOUT GND CE 1 3 5 Current Limit + - VREF VDD 2 NC 4 *R1130H251B LX shdn PGND 1.25V rdy Q R S I LIM INTG + + + - + - - Gm - + - 15 14 1 3 OSC DRVP GND 2 4 5 6 7 8 9 10 11 12 13 16 TGND SUPP SUPN DRVN FB IN REF FBP FBN *MAX1748EUE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 67 99 98 97 96 95 94 92 93 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 37 38 39 40 41 42 43 44 45 46 47 48 49 50 10 11 12 13 14 15 16 17 18 19 20 30 1 2 3 4 5 6 7 8 9 R Signal Out D/A Bias 3 D/A Bias Out Analog Vss G Signal Out Main A/D Verf.Low R I N 1 G I N 1 B I N 1 Main A/D Verf.High A/D Bais.5 A/D Verf.Low C.Video Signal IN2 A/D Vref.High R I N 2 G I N 2 B I N 2 Reset IN Bus Data I/O Bus Serial Clock IN RGB Over lay Cont.IN Digital VDD(2.5V) OSD Blank IN OSD R IN X'tal IN X'tal OUT OSD G IN OSD B IN Digital Vss C.Video Signal IN1 Buffer Vss A/D A/D A/D A/D 8bit XO Digtal PLL Sub Timing Pulse Gene H/V Sep NTSC:2line Y/C Sep PAL:LPF/BPF Color Decode 2M Memory PIP Process Matrix Control NGOE CPV CX CPH POLS STV1 STV2 STH1 STH2 POLC FNAVI CLMPO γ Process Signal Polarity D/A OSD NDSH NDSV SCKE Bus Inter Face Inter Face Color Palette Output Switch Y U V C R G B C.Sync1 C.Sync2 VD2 HD2 x 4 HD2 VD2 C.Video RGB Side OSD Side Side D/A 8bit 10bit VCO 48M PD1/PD2 Analog 1/ 5 1/ 2 1/ 6 Ped.Clamp(63.5LSB) 1/ 2 Analog PLL 31 32 33 34 35 36 21 22 23 24 25 26 27 28 29 100 101 102 103 104 105 106 107 108 109 110 111 112 113 1 1 4 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 Analog Vss Analog VDD(2.5V) Analog VDD(2.5V) Buffer Vss Buffer VDD(3.5V) Digital VDD(2.5V) Clock D/A Bias Clock D/A Vref. Digital VDD(2.5V) D/A 42M 13. 5M 27M Vss Vss Vss Vss Vss Vss Vss VDD VDD VDD VDD VDD R G B Analog Vss Analog VDD(2.5V) Analog VDD(2.5V) Analog Vss Digital Vss DRAM Vss DRAM VDD (DR.2.5V) D.RAM Test Dispaly Mute Test mode2 Test mode3 Digital VSS Digital VDD(2.5V) Digtal Vss Buffer VDD(3.3V) Buffer Vss D/A Bias 1 Common Polality Out Analog VDD(2.5V) Ext.Clamp Bias Out D/A Bias.4 B.Signal Out Vref.IN PLL Digital VDD(2.5V) PLL Analog VDD(2.5V) H.PLL Filter Out H.PLL Filter IN A.G.S.1 PLL Analog Vss PLL Digital Vss Analog VDD(2.5V) A/D Bais.6 Analog Vss CK D/A Analog VDD(2.5V) Sub PLL Filter Sub PLL Analog VDD(2.5V) Sub PLL Digital VDD(2.5V) Sub PLL IN A.G.S.2 Sub PLL Analog Vss Sub PLL Digital Vss C.Video Sync IN DRAM Vss DRAM VDD(DR.2.5V) Buffer VDD(3.3V) Gate Enable Out Gate Clock Out H.Sampling Start1 H.Sampling Start2 Signal Polality Out Output Signal Clamp Pulse Gate Scan Start 1 Gate Scan Start 2 H.Sampling Latch Select H.Sampling Clock Analog Vss VCO Moniter H.Sync IN V.Sync IN RGB 2 C.V.Sync IN Ext.PLL Clock Ext.PLL H.ref. Ext.PLL Select OSD Clock Out OSD V.Sync Out OSD H.Sync Out Test 9 Test 10 Test 11 Test 12 Test 13 Test 14 Test 15 Test 17 Test 18 Test 19 Test 20 Test 21 Test 22 Test 23 Test 24 Test 26 Test 27 Test 28 Test 29 Test 30 Test 16 Test 25 Vss VCOM VDD Vss VDD VDD Vss VDD VDD AGS VCO 54M PC1,CP1 1/ 4 1/ 2 Li m Vss VDD Vss AGS1 1/ 3048 CP1/CP2 H/V Sep PLL 8. 0M 9. 6M 4. 8M VDD HD1 VD1 CKP HREF CKPSEL 1/ 3050 REFO Red Green Blue Vss Vss Vss VDD VDD VDD VCO Monitor Vss VDD Nagative ACK Out ACK Clock D/A Out CK D/A Analog Vss Test mode1 Test mode0 C.Video Signal IN1 Cl amp Out1 C.Video Signal IN2 Cl amp Out1 Vss Ped.Clamp(8LSB) Ped.Clamp(8LSB) Cont./Bright RGB OSD Cont./Bright C.Video VDD Mute VDD VDD VDD Vss Test 8 Test 6 Test 5 Test 4 Test 3 Test 2 Test 1 Test 0 Test 7 D/A D/A D/A Main Timing Pulse Gene *TC90A64AF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 68 7.3 OPERATIONAL FLOW CHART VDD=5V Pin 68,74 Power ON bsens=L asens=L BSENS Pin 62 ASENS Pin 63 SWACPW←H Pin 65 SYSPW←H Pin 66 POWER keys operative Completes power-on operation. (After that, proceed to each source operation) MFLPW←H Pin 21 POWER ON MVIPW←H Pin 20 DEG0SW= H The flap is open? CloseDEG0SW= L Open www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 69 8. OPERATIONS Key Finder Remote Control Point the Remote Control towards @9. To Operate This Product Set the remote control operation mode switch to “DISP/TV”. To Operate Pioneer DVD player Set the remote control operation mode switch to “DVD”. Note: • For details concerning Pioneer DVD Player operation, refer to the Pioneer DVD Player’s manual. !2 !4 !5 !6 !7 !8 !9 !3 !1 @0 @2 e r t y u o !0 w i q @1 w VOLUME buttons u 2/3 buttons i MENU button !1 SUB SOURCE button !2 SOURCE button !3 BACK button !5 CH CALL button !6 Remote control operation mode switch !7 5/∞ buttons !8 POWER button !9 BAND button @0 WIDE button q Remote control code selection switch w VOLUME buttons e MENU button r AUDIO button t SUBTITLE button y ANGLE button u FORWARD/REVERSE buttons i PLAY/PAUSE button o PREVIOUS/NEXT buttons !0 Number buttons !1 TOP MENU button !2 SOURCE button !3 RETURN button !4 Joystick !5 DISPLAY button !6 Remote control operation mode switch !7 STEP buttons !8 POWER button @1 STOP button @2 CLEAR button www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 70 This Product Note: • Obstacles between the wireless headphones and output section may prevent reception. #1 w @8 @6 @7 #0 !2 !8 @4 @5 @3 @9 @3 RESET button @4 WIDE/MENU button @5 CH button @6 Dome Light switch @7 OPEN button @8 Dome Light @9 Remote control signal sensor #0 Wireless headphone output section #1 Optical sensor www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 71 Turn On Power Remember to start the car engine before turning on the power to preserve battery life. 1. Start the car engine. 2. Pull down the display. 3. Open the display to a position where it is easy to see, and adjust the direction it is pointing in. 4. Turn on the system. Each press of the POWER button, the power of the system ON/OFF. Note: • Press the remote control’s POWER button to switch ON/OFF. A C C O N L O C K S T A R T Basic Operation www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 72 Volume Adjustment Adjust the volume of audio output from the wired headphones. For details concerning volume adjustment with wireless headphones, refer to the instruc- tions included with the headphones. • Raise or lower the wired headphone volume. The volume of the headphone can be adjusted in a range of 0 to 30. (The volume level will be displayed for about 4 seconds.) Selecting the Source You can select a source you want to view or listen to. • Select the desired source. Each press changes the source ... Icons indicate the selected sources. Each press of the SOURCE button selects the desired source in the following order: [TV] = [VIDEO1] = [VIDEO2] = [VIDEO3] = Exit to [TV] Notes: • In the following cases, the source will not change: * When a product corresponding to each source is not connected to this product. * When the [VIDEO2] and [VIDEO3] is set to OFF. • When the [SUB SOURCE SETTING] is [AUTO], video and audio output from the RCA output also change. • When the [SUB SOURCE SETTING] is [AUTO], if you switch the RCA output source with the SUB SOURCE button, this product’s source also changes. VIDEO1 VOL 12 14 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 73 Changing the Wide Screen Mode You can change the way in which normal video (aspect ratio 4:3) enlarges to wide video (16:9). Select wide modes to suit the kind of video you are viewing, such as news pro- grams and movies. 1. Display video to view. 2. Select a wide mode. Each press changes the mode ... Each press of the WIDE/MENU button selects the wide mode in the following order: [FULL] = [JUST] = [CINEMA] = [ZOOM] = [NORMAL] = Exit to [FULL] Notes: • Settings are stored for each source. • The setup menu screen always appears in FULL mode. • When video is viewed in a wide mode that does not match its original aspect ratio, it may appear differently. • Remember that using the wide mode feature of this system for commercial or public viewing pur- poses may constitute an infringement on the author’s rights protected by the Copyright Law. JUST Basic Operation www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 74 Wide Modes Available Note: • Video will appear roughened when viewed in CINEMA or ZOOM mode (When PAL video is dis- played). NORMAL Video with an aspect ratio of 4:3 appears without enlarging. Enjoy viewing TV in the same video as it is broadcast. ZOOM Video with an aspect ratio of 4:3 enlarges with the same aspect ratio in both vertical and horizontal directions. This wide mode is suit- ed for horizontally long video, such as movies, in which titles overlap the video. CINEMA Video enlarges vertically with an aspect ratio falling between FULL and ZOOM. This wide mode is suited for horizontally long video, such as movies, in which titles are displayed in black areas outside the video. JUST Video appears more extended hor- izontally as it gets closer to both edges of the screen. Because video appears in about the same size as regular video around the middle of the screen, enjoy viewing it with- out feeling out of place. FULL Video with an aspect ratio of 4:3 enlarges only horizontally. Enjoy viewing video widened without missing parts. 16 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 5 6 7 8 5 6 7 8 75 Connecting the System Connecting the Power Cable Power cable Fuse holder (4 A) Light green/black Connect to the Dome Light Switch’s – lead wire. White/yellow Connect to the Door Switch. Light green/red Connect to the Dome Light Switch’s + lead wire. Yellow To the terminal always supplied with power regardless of ignition switch position. Red To the electric terminal controlled by the igni- tion switch (12 V DC) ON/OFF. Do not connect this lead to power source termi- nals to which power is continuously supplied. If the lead is connected to such terminals, the battery may be drained. Black (ground) To vehicle (metal) body. Fuse resistor This product 30 cm 30 cm 30 cm 6 m 6 m 1.5 m www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVR-W6100/UC A B C D 1 2 3 4 1 2 3 4 76 WARNING Make sure the RCA cable connected to VIDEO3 does not obstruct the driver’s field of vision. Commercially available portable video component with RCA output VIDEO3 RCA audio input (white, red) VIDEO3 RCA video input (yellow) Commercial RCA cable (sold separately) This product Connection Diagram (VIDEO input) Usually [VIDEO1] is ON, so connect the cord supplied with this product to the VIDEO1 input. Supplied or separately sold CD-AR600 Remote control signal transmitter For transmission of an auxiliary components remote con- trol signals, perform Remote Control Setting. Also, be sure to locate the remote control signal transmitter so that the auxiliary component can receive signals from it. 6m 6m VIDEO2 VIDEO1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
