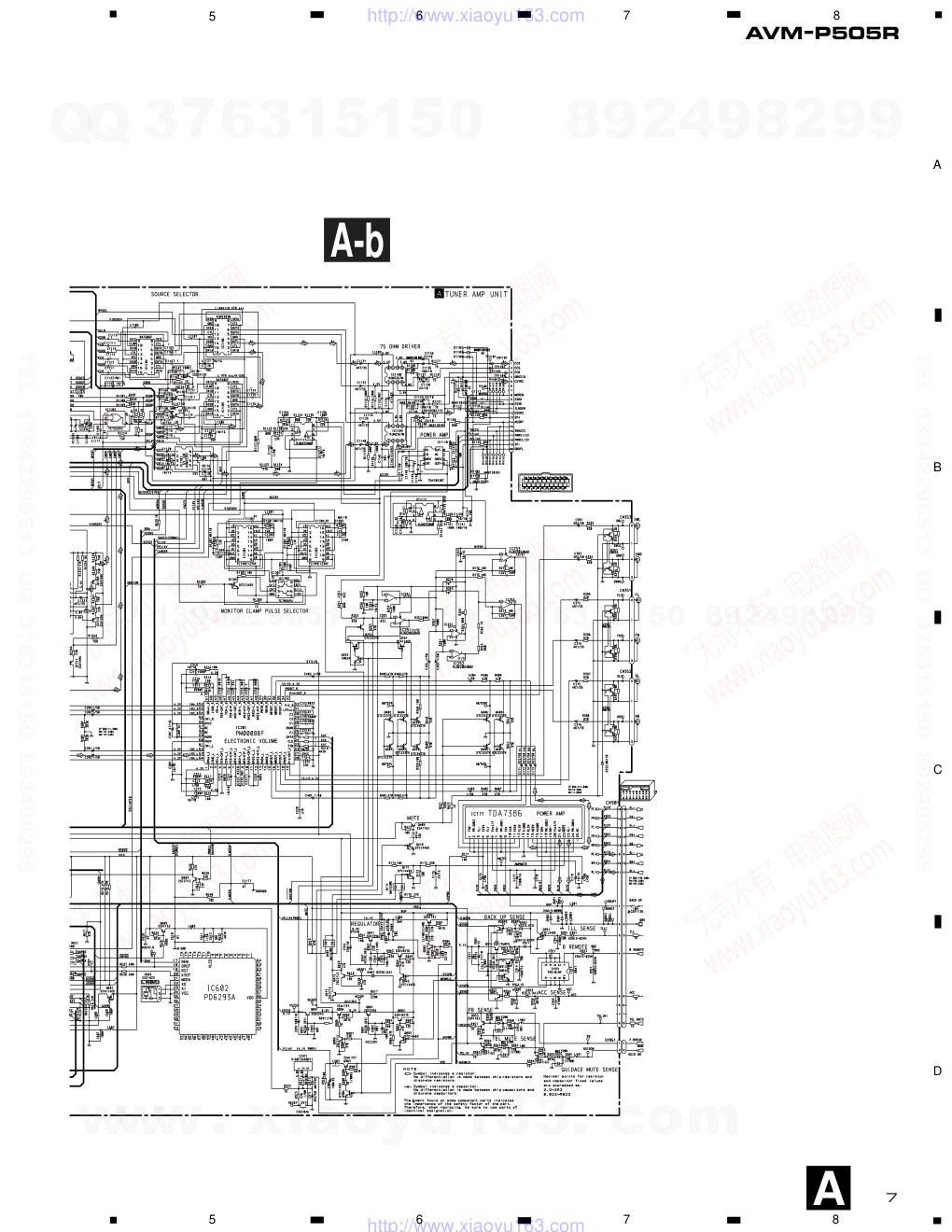

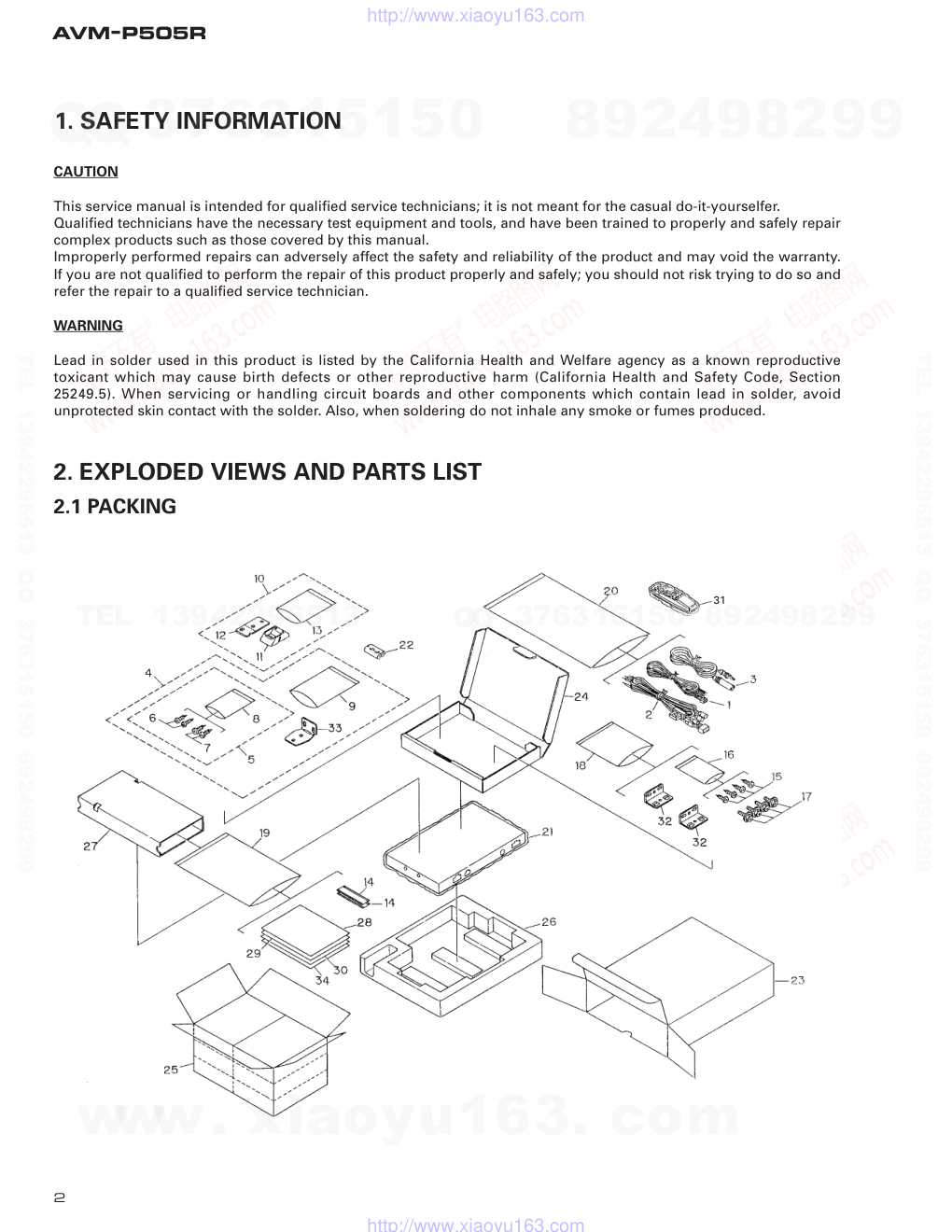

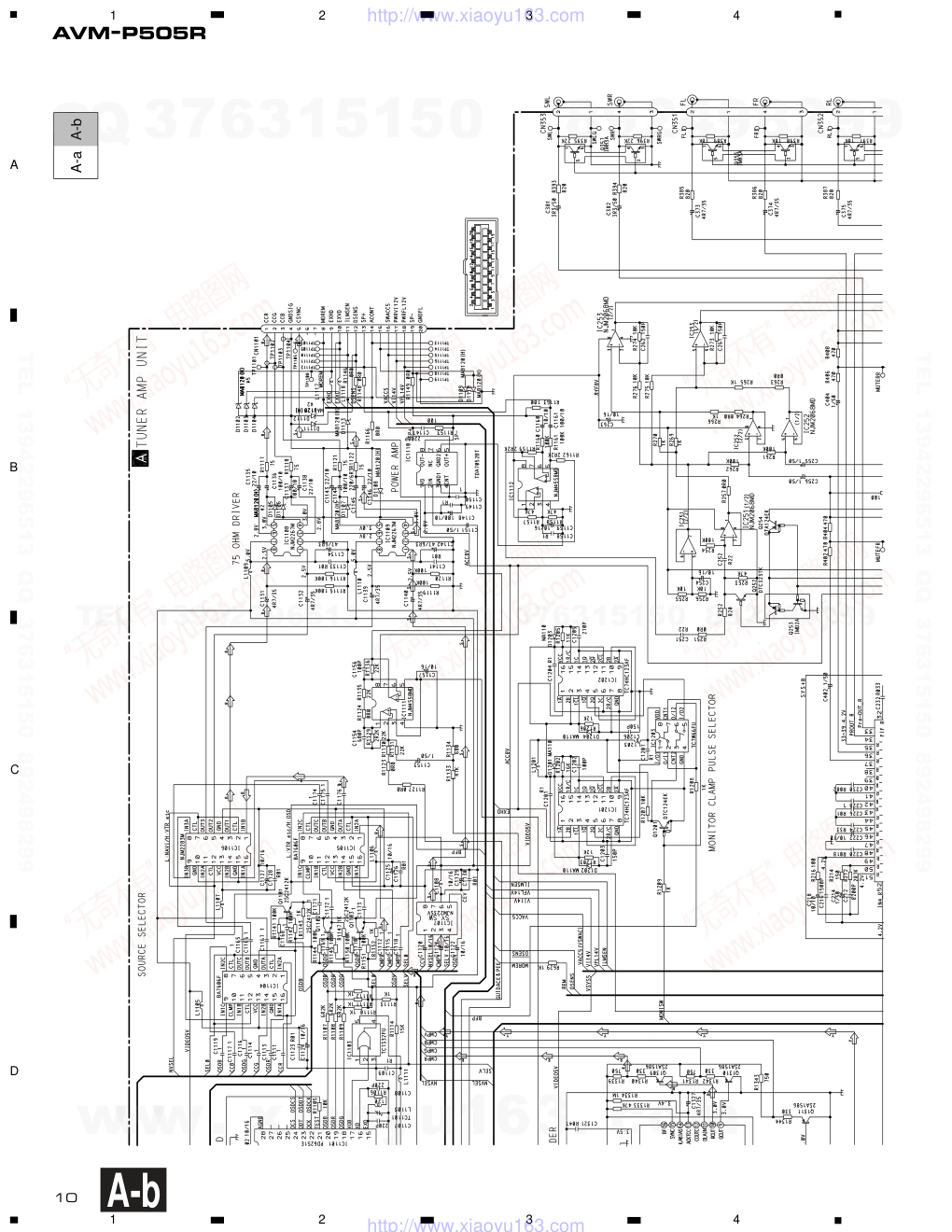

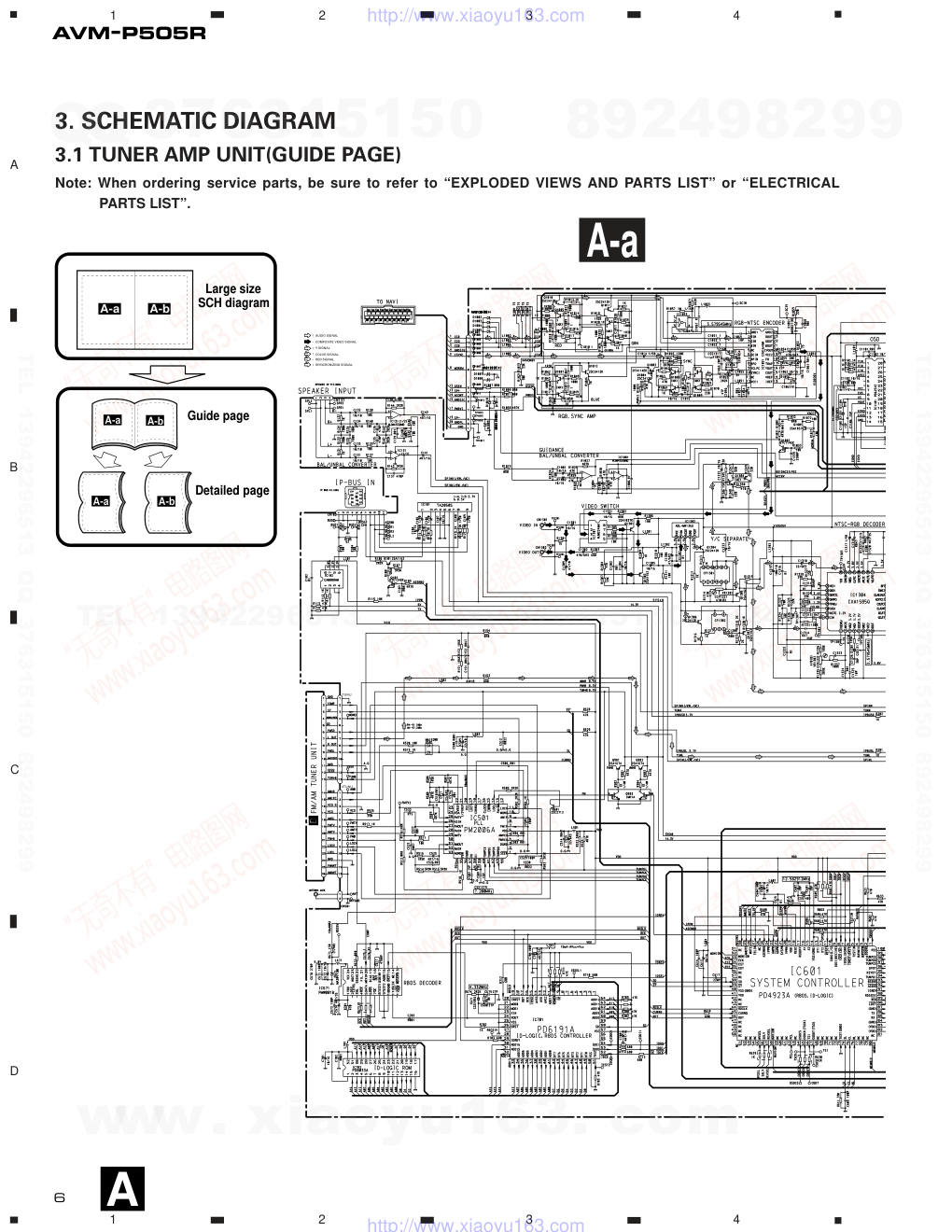

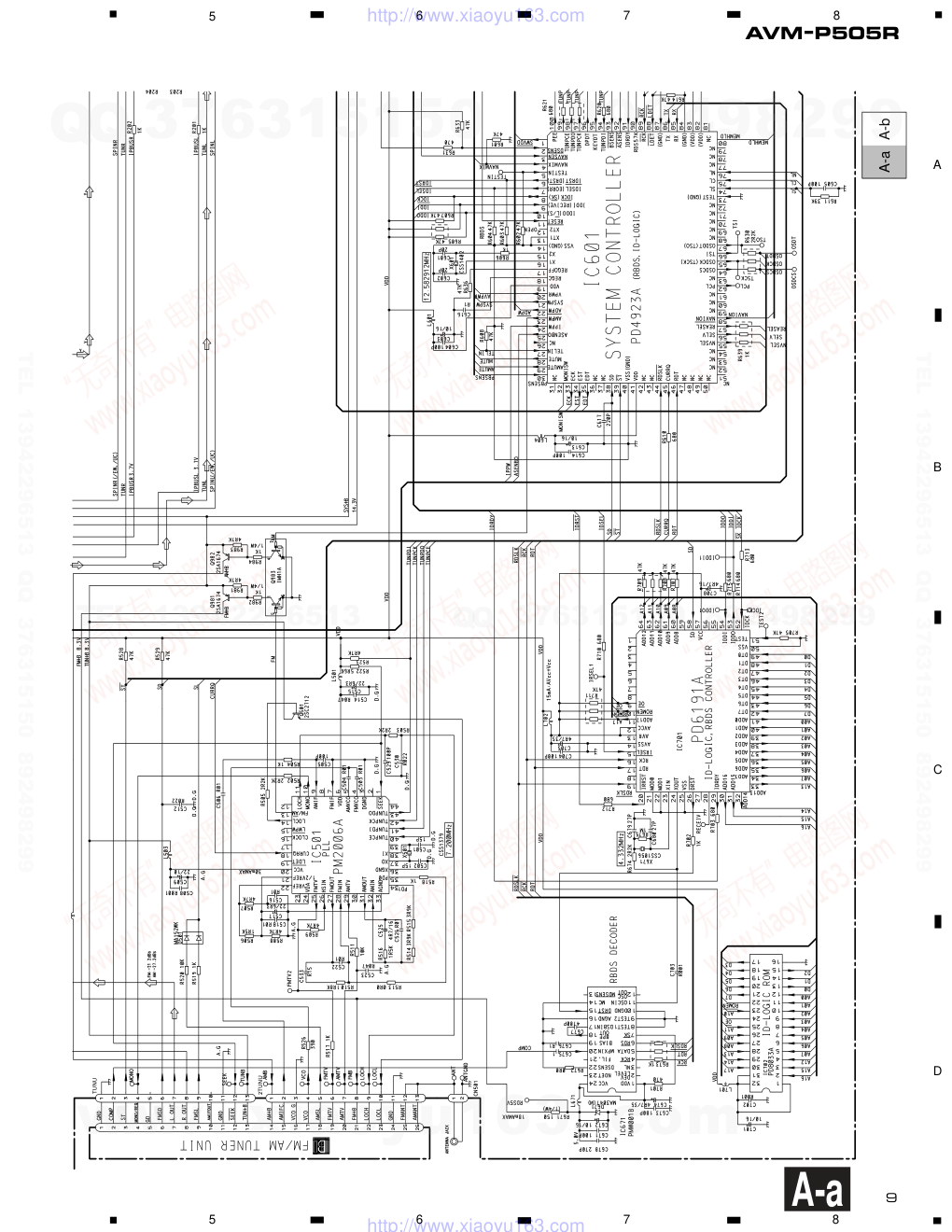

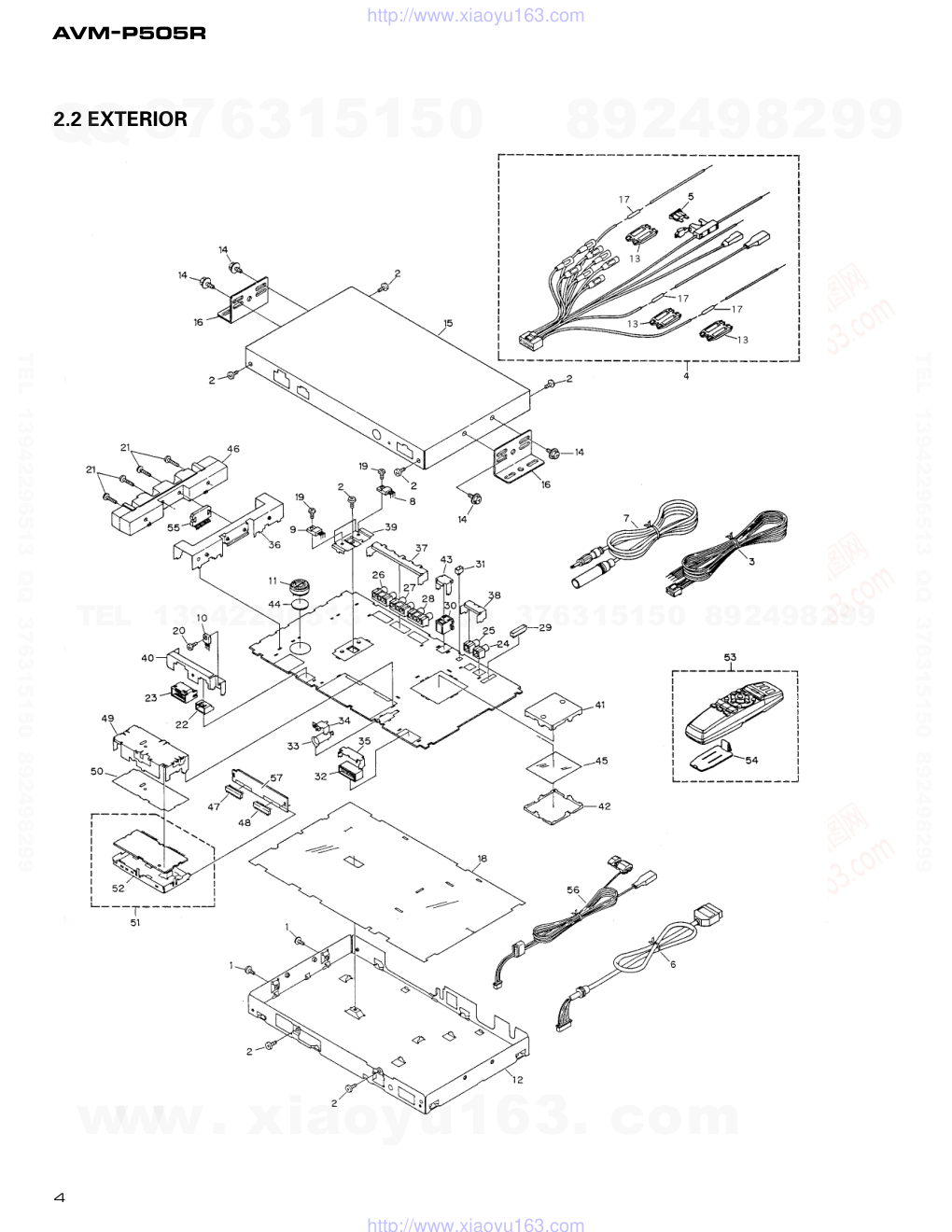

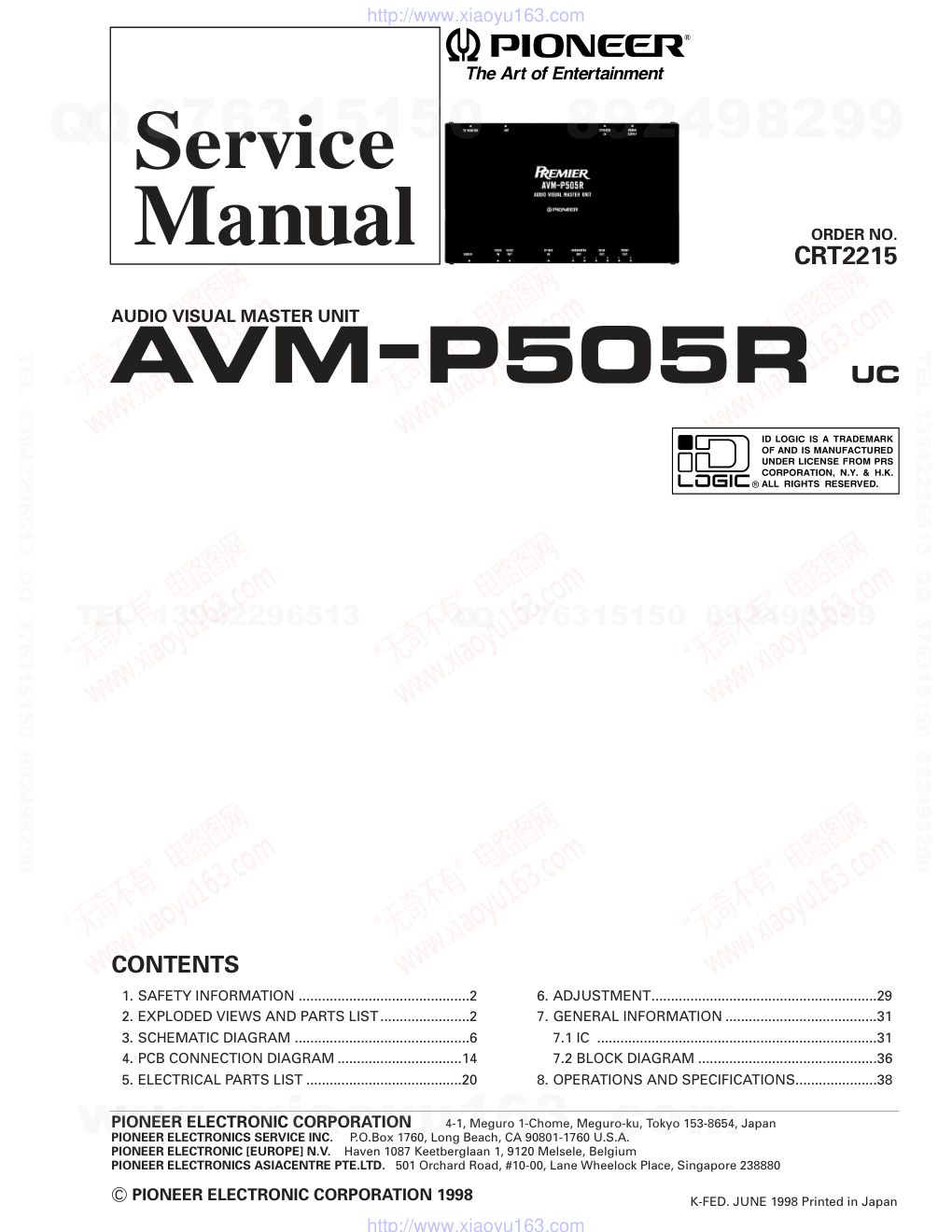

AUDIO VISUAL MASTER UNIT AVM-P505R UC Service Manual PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 501 Orchard Road, #10-00, Lane Wheelock Place, Singapore 238880 C PIONEER ELECTRONIC CORPORATION 1998 ORDER NO. CRT2215 CONTENTS 1. SAFETY INFORMATION ............................................2 2. EXPLODED VIEWS AND PARTS LIST.......................2 3. SCHEMATIC DIAGRAM .............................................6 4. PCB CONNECTION DIAGRAM ................................14 5. ELECTRICAL PARTS LIST ........................................20 6. ADJUSTMENT..........................................................29 7. GENERAL INFORMATION .......................................31 7.1 IC ........................................................................31 7.2 BLOCK DIAGRAM ..............................................36 8. OPERATIONS AND SPECIFICATIONS.....................38 K-FED. JUNE 1998 Printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 AVM-P505R 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 31 CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. WARNING Lead in solder used in this product is listed by the California Health and Welfare agency as a known reproductive toxicant which may cause birth defects or other reproductive harm (California Health and Safety Code, Section 25249.5). When servicing or handling circuit boards and other components which contain lead in solder, avoid unprotected skin contact with the solder. Also, when soldering do not inhale any smoke or fumes produced. 1. SAFETY INFORMATION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 AVM-P505R NOTE: - Parts marked by “*”are generally unavailable because they are not in our Master Spare Parts List. - Screws adjacent to Ñ mark on the product are used for disassembly. 1 Cord CDE5579 2 Cord Assy CDE5583 3 Antenna Cable CDH1248 4 Bracket Assy CEA2346 5 Screw Assy CZE3198 6 Screw BNC40P120FZK 7 Screw BPZ30P100FZK * 8 Polyethylene Bag CEG-127 * 9 Polyethylene Bag CZE3201 10 Base Assy CEA2426 * 11 Base CNS5031 * 12 Sheet CZA3371 13 Polyethylene Bag CZE3188 14 Fastener CNM3728 15 Screw BNC40P120FZK * 16 Polyethylene Bag CEG1158 17 Screw HMF40P080FZK * 18 Polyethylene Bag CEG1101 19 Polyethylene Bag CEG1116 20 Polyethylene Bag CEG1162 21 Polyethylene Bag CEG1185 22 Battery CEX1006 23 Carton CHG3512 24 Sub Carton CHG3521 25 Contain Box CHL3512 26 Protector CHP2055 27 Inner Box CHW1712 28 Owner’s Manual CRD2715 (English, French) 29 Installation Manual CRD2716 (English, French) * 30 Warranty Card CRY1070 31 Remote Control Assy CXB2657 32 Angel CNB2351 33 Bracket CZN6467 34 Caution Card CRP1188 - PACKING SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 AVM-P505R 2.2 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 AVM-P505R 1 Screw BMZ30P060FMC 2 Screw BSZ30P060FZK 3 Cord CDE5579 4 Cord Assy CDE5583 5 Fuse CEK1136 6 Cord Assy CDE5677 7 Antenna Cable CDH1248 8 Transistor(Q941) 2SD2396 9 Transistor(Q881) 2SD2396 10 Transistor(Q891) 2SD2343 11 Coil(L901) CTH1170 12 Chassis CNA2035 13 Cap CNS1472 14 Screw HMF40P080FZK 15 Case CNB2290 16 Angle CNB2351 17 Resistor RS1/2PMF102J 18 Insulator CNM5700 19 Screw BMZ26P060FMC 20 Screw BSZ26P080FZK 21 Screw BSZ26P160FMC 22 Plug(CN131) CKM1131 23 Plug(CN901) CKM1278 24 Pin Jack(CN1301) CKS1825 25 Pin Jack(CN1302) CKS1825 26 Pin Jack(CN351) CKS3144 27 Pin Jack(CN352) CKS3144 28 Pin Jack(CN353) CKS3144 29 Plug(CN1001) CKS3282 30 Connector(CN102) CKS3414 31 Connector(CN961) CKS3582 32 Connector(CN1101) CKS3644 33 Antenna Jack(CN501) CKX1056 34 Holder CNC4569 35 Holder CNC7047 36 Holder CNC7630 37 Holder CNC7632 38 Holder CNC7633 39 Holder CNC7634 40 Holder CNC7635 41 Shield CNC7636 42 Shield CNC7637 43 Holder CNC7838 44 Insulator CNM3634 45 Insulator CNM5699 46 Heat Sink CNR1472 47 Plug(CN1402) CKS1621 48 Plug(CN1403) CKS1621 49 Holder CNC7631 50 Insulator CNM4684 51 FM/AM Tuner Unit CWE1472 52 Holder CNC6554 53 Remote Control Assy CXB2657 54 Battery Cover CNS5032 55 IC(IC171) TDA7386 56 Cord Assy CDE5581 * 57 Gathering PCB CNX2873 - EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 AVM-P505R A 1 2 3 4 B C D 1 2 3 4 AUDIO SIGNAL COMPOSITE VIDEO SIGNAL Y SIGNAL COLOR SIGNAL RED SIGNAL SIYNCRONIZING SIGNAL TUNU 2TUNU A-a A-b A-a A-a A-b A-b A-b A-b A-a A-a Large size SCH diagram Guide page Detailed page 3. SCHEMATIC DIAGRAM 3.1 TUNER AMP UNIT(GUIDE PAGE) Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS LIST”. A A-a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 AVM-P505R 5 6 7 8 A B C D 5 6 7 8 100µH A A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 AVM-P505R A 1 2 3 4 B C D 1 2 3 4 AUDIO SIGNAL COMPOSITE VIDEO SIGNAL Y SIGNAL COLOR SIGNAL RED SIGNAL SIYNCRONIZING SIGNAL TUNU A-a A-b A-a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 AVM-P505R 5 6 7 8 A B C D 5 6 7 8 TUNU 2TUNU A-a A-a A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 AVM-P505R A 1 2 3 4 B C D 1 2 3 4 A-a A-b A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 AVM-P505R 5 6 7 8 A B C D 5 6 7 8 100µH A-b A-a A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 AVM-P505R A 1 2 3 4 B C D 1 2 3 4 A B 3.2 FM/AM TUNER UNIT B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 AVM-P505R 5 6 7 8 A B C D 5 6 7 8B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com IP-BUS O VIDEO IN VIDEO OUT TO MONITOR ANT RESET 14 AVM-P505R A 1 2 3 4 B C D 1 2 3 4 4. PCB CONNECTION DIAGRAM 4.1 TUNER AMP UNIT A TUNER AMP UNIT A B NAVI CORD ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FRONT OUT L R REAR OUT L R SUBWOOFER OUT L R P-BUS OUT 15 AVM-P505R 5 6 7 8 A B C D 5 6 7 8 NOTE FOR PCB DIAGRAMS 1. The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic diagram. Capacitor Connector P.C.Board Chip Part SIDE A SIDE B 2. Viewpoint of PCB diagrams A SIDE A B SPEAKER INPUT CORD ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 AVM-P505R A 1 2 3 4 B C D 1 2 3 4 TUNER AMP UNIT A A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 AVM-P505R 5 6 7 8 A B C D 5 6 7 8 SIDE B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 AVM-P505R A 1 2 3 4 B C D 1 2 3 4 A B FM/AM TUNER UNIT B 4.2 FM/AM TUNER UNIT SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 AVM-P505R 1 2 3 4 A B C D 1 2 3 4B FM/AM TUNER UNIT B SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 AVM-P505R Unit Number : CWM5804 Unit Name : Tuner Amp Unit MISCELLANEOUS IC 101 IC TA2050S IC 102 IC CA0008AM IC 131 IC NJM4558MD IC 171 IC TDA7386 IC 201 IC PM0008BF IC 251 IC NJM2068MD IC 252 IC NJM2068MD IC 253 IC NJM2068MD IC 501 IC PM2006A IC 601 IC PD4923A IC 602 IC PD6293A IC 671 IC PMW001B IC 701 IC PD6191A IC 702 IC PD8033A IC 921 IC TPD1018F IC 971 IC S-80734ANDYI IC 1001 IC NJM4558MD IC 1051 IC CXA1645M IC 1053 IC TC7SU04FU IC 1101 IC PD6251E IC 1103 IC TC7S32FU IC 1104 IC BA7606F IC 1105 IC BA7606F IC 1106 IC NJM2283M IC 1107 IC NJM2235V IC 1108 IC NJM2267M IC 1109 IC NJM2267M IC 1110 IC TDA7052BT IC 1111 IC NJM4558MD IC 1112 IC NJM4558MD IC 1201 IC TC74HC123AF IC 1202 IC TC74HC123AF IC 1203 IC TC7W66FU IC 1301 IC NJM2246M IC 1302 ADL-MN136U IC 1304 IC CXA1585Q Q 101 Chip Transistor 2SA1162 Q 102 Transistor DTC124EK Q 171 Transistor DTC144EK Q 252 Transistor DTC323TK Q 253 Transistor IMD2A Q 254 Transistor DTA124EK Q 255 Transistor DTC343TK Q 256 Transistor DTC343TK Q 355 Transistor IMH3A Q 356 Transistor IMH3A Q 357 Transistor IMH3A Q 401 Transistor DTC323TK Q 402 Transistor DTC323TK Q 403 Transistor DTC323TK Q 404 Transistor DTC323TK Q 405 Transistor DTC323TK Q 406 Transistor DTC323TK Q 407 Transistor DTC323TK Q 408 Transistor DTC323TK Q 409 Chip Transistor 2SA1162 Q 410 Transistor DTC144EK Q 412 Transistor 2SC2712 Q 413 Transistor 2SC2712 Q 501 Transistor 2SC2712 Q 601 Transistor DTA114EK Q 602 Chip Transistor 2SA1162 Q 603 Transistor 2SC2712 Q 881 Transistor 2SD2396 Q 882 Transistor 2SA1037K Q 883 Transistor DTC144EK Q 884 Transistor 2SA1797 Q 885 Transistor 2SC2712 Q 891 Transistor 2SD2343 Q 901 Transistor 2SA1797 Q 902 Transistor 2SC2712 Q 903 Transistor 2SA1797 Q 904 Transistor DTC114EK Q 911 Transistor 2SD1760F5 Q 912 Transistor IMD2A Q 941 Transistor 2SD2396 Q 942 Transistor 2SA1037K Q 943 Transistor DTC144EK Q 951 Transistor DTC124EK Q 952 Transistor IMX1 Q 953 Chip Transistor 2SA1162 Q 961 Chip Transistor 2SA1162 Q 981 Transistor 2SA1674 Q 982 Transistor 2SA1674 Q 983 Transistor IMH1A Q 991 Chip Transistor 2SA1162 Q 1001 Transistor 2SA1037K Q 1002 Transistor DTC114EK Q 1003 Transistor DTA114EK Q 1004 Transistor 2SC2412K Q 1005 Transistor IMX1 Q 1006 Transistor IMX1 Q 1007 Transistor IMX1 Q 1008 Transistor IMX1 Q 1009 Transistor IMX1 Q 1010 Transistor 2SC2412K Q 1011 Transistor 2SC2412K Q 1012 Transistor 2SC2412K Q 1101 Transistor 2SC2412K Q 1102 Transistor 2SC2412K Q 1103 Transistor 2SC2412K Q 1201 Transistor DTC124EK Q 1301 Transistor 2SA1037K Q 1303 Chip Transistor 2SA1162 Q 1304 Transistor 2SC2412K =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- 5. ELECTRICAL PARTS LIST NOTE: - Parts whose parts numbers are omitted are subject to being not supplied. - The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 AVM-P505R Q 1305 Chip Transistor 2SA1162 Q 1306 Transistor 2SC2412K Q 1307 Chip Transistor 2SA1162 Q 1308 Transistor IMZ1 Q 1309 Transistor 2SA1586 Q 1310 Transistor 2SA1586 Q 1311 Transistor 2SA1586 D 171 Diode MA152WK D 352 Diode MA110 D 401 Diode MA152WK D 402 Diode HZS9L(A2) D 501 Diode MA152WK D 671 Diode MA3047(M) D 881 Diode HZS9L(B3) D 891 Diode HZS6L(B1) D 901 Diode ERA15-02VH D 902 Diode ERA15-02VH D 903 Diode ERA15-02VH D 911 Diode ERA15-02VH D 912 Diode HZS6L(B1) D 921 Diode ERA15-02VH D 922 Diode ERA15-02VH D 941 Diode HZS9L(B3) D 951 Diode ERA15-02VH D 952 Diode HZS7L(C3) D 953 Diode HZS7L(A1) D 954 Diode MA152WK D 961 Diode MA152WK D 971 Diode MA152K D 991 Diode MA152WK D 1001 Diode MA110 D 1002 MA8120(H) D 1003 MA8120(H) D 1004 MA8120(H) D 1005 MA8120(H) D 1007 MA8120(H) D 1008 MA8120(H) D 1009 MA8120(H) D 1010 MA8210(H) D 1011 MA8210(H) D 1051 Diode MA8027(H) D 1102 MA8120(H) D 1103 MA8120(H) D 1104 MA8120(H) D 1105 MA8120(H) D 1106 MA8120(H) D 1107 MA8120(H) D 1108 MA8120(H) D 1109 MA8120(H) D 1110 MA8120(H) D 1111 MA8120(H) D 1112 MA8120(H) D 1113 MA8120(H) D 1201 Diode MA110 D 1202 Diode MA110 D 1203 Diode MA110 D 1204 Diode MA110 L 101 Inductor LAU3R3K L 501 Ferri-Inductor LAU2R2K L 502 Ferri-Inductor LAU2R2K L 503 Ferri-Inductor LAU2R2K L 601 Ferri-Inductor LAU2R2K L 602 Inductor LCTB2R2K2125 L 603 Ferri-Inductor LAU2R2K L 604 Ferri-Inductor LAU2R2K L 605 Inductor LCTB2R2K2125 L 671 Ferri-Inductor LAU2R2K L 701 Ferri-Inductor LAU1R0M L 702 Ferri-Inductor LAU101K L 901 Coil CTH1170 L 902 Ferri-Inductor LAU2R2K L 903 Choke Coil 100µH CTH1157 L 904 Choke Coil 2mH CTH1074 L 961 Ferri-Inductor LAU2R2K L 991 Ferri-Inductor LAU2R2K L 1002 Inductor LCTB2R2K2125 L 1003 Inductor LCTB2R2K2125 L 1004 Inductor LCTB2R2K2125 L 1005 Inductor LCTB2R2K2125 L 1051 LCTA2R2J3225 L 1052 LCTA2R2J3225 L 1053 Inductor LCTA680J3225 L 1055 Inductor LCTB2R2K2125 L 1101 Inductor LCTA4R7J3225 L 1102 Inductor LCTA4R7J3225 L 1103 Inductor LCTB4R7K2125 L 1105 Inductor LCTB2R2K2125 L 1106 Inductor LCTB2R2K2125 L 1107 Inductor LCTB2R2K2125 L 1108 Inductor LCTB2R2K2125 L 1109 Inductor LCTA680J3225 L 1110 Inductor LCTA680J3225 L 1111 Inductor LCTB2R2K2125 L 1117 Inductor LCTB2R2K2125 L 1118 Inductor LCTB2R2K2125 L 1201 Inductor LCTA101J3225 L 1203 Inductor LCTB2R2K2125 L 1301 Inductor LCTB2R2K2125 L 1302 Inductor LCTA150K3225 L 1303 Inductor LCTA150K3225 TC 1051 Trimmer CCG1034 TC 1101 Trimmer CCG1039 CF 1301 LPF CTF1366 CF 1302 CTF1341 X 501 Crystal Resonator 7.200MHz CSS1379 X 601 Crystal Resonator 12.58291MHz CSS1402 X 602 Crystal Resonator 5.00MHz CSS1423 X 671 Crystal Resonator 4.332MHz CSS1056 X 1051 Crystal Resonator 3.579545MHz CSS1317 X 1101 Crystal Resonator 14.31818MHz CSS1093 X 1301 Crystal Resonator 3.579545MHz CSS1317 S 971 Switch(RESET) CSG1046 VR 1301 Semi-fixed 470½(B) CCP1221 VR 1302 Semi-fixed 470½(B) CCP1221 RESISTORS R 103 RS1/10S101J R 104 RS1/10S101J R 105 RS1/10S620J R 106 RS1/10S222J R 107 RS1/10S332J R 108 RS1/10S562J R 109 RS1/10S472J R 111 RS1/10S102J R 112 RS1/10S102J R 113 RS1/10S473J R 114 RS1/10S473J R 115 RS1/10S103J R 116 RS1/10S181J R 117 RS1/10S223J R 118 RS1/10S102J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 AVM-P505R R 119 RS1/10S102J R 120 RS1/10S223J R 121 RS1/10S181J R 131 RS1/10S102J R 132 RS1/10S102J R 133 RS1/10S104J R 134 RS1/10S104J R 135 RS1/10S104J R 136 RS1/10S104J R 137 RN1/10SE1002D R 138 RN1/10SE1002D R 139 RN1/10SE1002D R 140 RN1/10SE1002D R 141 RN1/10SE2201D R 142 RN1/10SE2201D R 143 RN1/10SE2201D R 144 RN1/10SE2201D R 145 RS1/10S103J R 146 RS1/10S103J R 151 RS1/10S162J R 152 RS1/10S162J R 153 RS1/10S0R0J R 154 RS1/10S0R0J R 171 RS1/10S103J R 172 RS1/10S331J R 173 RS1/10S103J R 174 RS1/10S103J R 175 RS1/10S273J R 201 RS1/10S102J R 202 RS1/10S102J R 203 RS1/10S332J R 204 RS1/10S332J R 211 RS1/10S272J R 212 RS1/10S272J R 213 RS1/10S151J R 214 RS1/10S151J R 215 RS1/10S101J R 216 RS1/10S101J R 218 RA3C472J R 251 RS1/10S0R0J R 252 RS1/10S821J R 253 RS1/10S473J R 254 RS1/10S104J R 255 RS1/10S103J R 256 RS1/10S103J R 257 RS1/10S0R0J R 259 RS1/10S101J R 260 RS1/10S101J R 261 RS1/10S104J R 262 RS1/10S104J R 263 RS1/10S0R0J R 264 RS1/10S0R0J R 265 RS1/10S102J R 266 RS1/10S102J R 269 RS1/10S102J R 270 RS1/10S102J R 273 RS1/10S103J R 274 RS1/10S103J R 275 RS1/10S103J R 276 RS1/10S103J R 385 RS1/10S821J R 386 RS1/10S821J R 387 RS1/10S821J R 388 RS1/10S821J R 389 RS1/10S183J R 390 RS1/10S183J R 391 RS1/10S183J R 392 RS1/10S183J R 393 RS1/10S821J R 394 RS1/10S821J R 395 RS1/10S223J R 396 RS1/10S223J R 401 RS1/10S471J R 402 RS1/10S471J R 403 RS1/10S471J R 404 RS1/10S471J R 405 RS1/10S471J R 406 RS1/10S471J R 407 RS1/10S471J R 408 RS1/10S471J R 409 RS1/10S473J R 410 RS1/10S473J R 411 RS1/10S473J R 412 RS1/10S473J R 413 RS1/10S103J R 414 RS1/10S333J R 415 RS1/10S102J R 416 RS1/10S473J R 417 RS1/10S224J R 418 RS1/10S473J R 419 RS1/10S103J R 420 RS1/10S473J R 421 RS1/10S152J R 502 RS1/10S222J R 503 RS1/10S222J R 504 RS1/10S102J R 505 RS1/10S222J R 506 RS1/10S152J R 507 RS1/10S472J R 508 RS1/10S472J R 509 RS1/10S472J R 510 RS1/10S182J R 511 RS1/10S103J R 513 RS1/10S0R0J R 514 RS1/10S392J R 515 RS1/10S392J R 516 RS1/10S152J R 517 RS1/10S102J R 518 RS1/10S102J R 519 RS1/10S102J R 520 RS1/10S103J R 522 RS1/10S562J R 523 RS1/10S472J R 526 RS1/10S391J R 528 RS1/10S473J R 529 RS1/10S473J R 601 RS1/10S473J R 602 RS1/10S473J R 603 RS1/10S473J R 604 RS1/10S473J R 605 RA2CQ473J R 606 RS1/10S102J R 607 RS1/10S473J R 608 RS1/10S473J R 610 RS1/10S681J R 611 RS1/10S393J R 614 RS1/10S473J R 615 RS1/10S473J R 616 RS1/10S473J R 617 RS1/10S473J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 AVM-P505R R 618 RS1/10S393J R 619 RS1/10S473J R 620 RS1/10S681J R 621 RA3C681J R 624 RS1/10S223J R 625 RS1/10S682J R 626 RS1/10S473J R 627 RS1/10S223J R 628 RS1/10S223J R 629 RS1/10S102J R 630 RA3C222J R 631 RS1/10S471J R 632 RS1/10S472J R 633 RS1/10S473J R 636 RS1/10S473J R 637 RS1/10S681J R 638 RS1/10S681J R 639 RA3C102J R 640 RS1/10S103J R 671 RD1/4PU151J R 672 RS1/10S0R0J R 673 RA3C102J R 674 RS1/10S222J R 675 RS1/10S105J R 701 RS1/10S471J R 702 RS1/10S102J R 703 RS1/10S681J R 705 RS1/10S473J R 707 RS1/10S473J R 708 RS1/10S473J R 709 RA3C473J R 710 RS1/10S681J R 711 RA3C473J R 712 RS1/10S681J R 713 RS1/16S681J R 714 RS1/16S681J R 715 RS1/16S681J R 881 RS1/10S561J R 882 RS1/10S223J R 883 RS1/10S473J R 884 RS1/10S473J R 885 RS1/10S472J R 886 RS1/10S102J R 887 RS1/10S273J R 888 RS1/10S273J R 891 RS1/10S271J R 901 RS1/10S472J R 902 RD1/4PU271J R 903 RD1/4PU271J R 904 RS1/10S822J R 905 RS1/10S822J R 906 RS1/8S102J R 907 RS1/10S472J R 908 RS1/8S102J R 909 RS1/10S103J R 910 RS1/10S103J R 911 RS1/10S752J R 912 RS1/10S101J R 913 RS1/10S392J R 921 RS1/10S102J R 941 RS1/10S1R0J R 942 RD1/4PU221J R 943 RS1/10S821J R 944 RS1/10S473J R 945 RS1/10S223J R 951 RS1/10S103J R 952 RS1/10S103J R 953 RS1/10S473J R 954 RS1/10S103J R 955 RS1/10S473J R 956 RS1/10S472J R 957 RS1/10S102J R 958 RS1/10S472J R 959 RS1/10S473J R 960 RS1/8S103J R 962 RS1/8S153J R 963 RS1/10S472J R 964 RS1/10S472J R 965 RS1/10S102J R 971 RS1/10S822J R 972 RS1/10S102J R 973 RS1/8S471J R 981 RS1/10S472J R 982 RD1/4PU102J R 983 RS1/10S472J R 984 RD1/4PU102J R 991 RS1/8S153J R 992 RS1/10S472J R 993 RS1/10S472J R 994 RS1/10S102J R 1001 RS1/10S750J R 1002 RS1/10S750J R 1003 RS1/10S750J R 1004 RS1/10S750J R 1005 RS1/10S132J R 1006 RS1/10S102J R 1007 RS1/10S0R0J R 1008 RS1/10S104J R 1009 RS1/10S0R0J R 1010 RS1/10S104J R 1011 RS1/10S0R0J R 1012 RS1/10S102J R 1013 RS1/10S104J R 1014 RS1/10S104J R 1015 RS1/10S0R0J R 1016 RS1/10S132J R 1017 RS1/10S102J R 1018 RS1/10S132J R 1019 RS1/10S333J R 1020 RS1/10S102J R 1021 RS1/10S103J R 1022 RS1/10S104J R 1023 RS1/10S473J R 1024 RS1/10S101J R 1025 RS1/10S473J R 1026 RS1/10S473J R 1027 RS1/10S472J R 1028 RS1/10S472J R 1029 RS1/10S473J R 1030 RS1/10S473J R 1031 RS1/10S472J R 1032 RS1/10S0R0J R 1033 RS1/10S103J R 1034 RS1/10S103J R 1035 RS1/10S104J R 1036 RS1/10S104J R 1037 RS1/10S102J R 1038 RS1/10S104J R 1039 RS1/10S104J R 1040 RS1/10S132J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 AVM-P505R R 1041 RS1/10S102J R 1042 RS1/10S132J R 1043 RS1/10S102J R 1044 RS1/10S104J R 1045 RS1/10S104J R 1046 RS1/10S102J R 1047 RS1/10S104J R 1048 RS1/10S104J R 1049 RS1/10S132J R 1050 RS1/10S102J R 1051 RS1/16S332J R 1052 RS1/10S222J R 1053 RS1/10S750J R 1054 RS1/10S750J R 1055 RN1/10SE2002D R 1056 RS1/10S473J R 1057 RS1/16S105J R 1058 RS1/8S472J R 1059 RS1/10S221J R 1062 RS1/10S222J R 1063 RS1/10S471J R 1064 RS1/10S102J R 1065 RS1/10S104J R 1066 RS1/10S104J R 1067 RS1/10S102J R 1068 RS1/10S103J R 1069 RS1/10S472J R 1070 RS1/10S221J R 1071 RS1/16S222J R 1072 RS1/10S103J R 1073 RS1/10S103J R 1101 RS1/10S102J R 1102 RS1/10S102J R 1103 RS1/10S102J R 1104 RS1/16S511J R 1105 RS1/10S103J R 1106 RS1/16S121J R 1107 RS1/10S622J R 1108 RS1/10S622J R 1109 RS1/10S622J R 1110 RS1/10S102J R 1111 RS1/10S102J R 1112 RS1/10S102J R 1113 RS1/10S102J R 1114 RS1/10S153J R 1115 RS1/10S104J R 1116 RS1/10S104J R 1117 RS1/10S750J R 1118 RS1/10S750J R 1119 RS1/10S104J R 1120 RS1/10S104J R 1121 RS1/10S750J R 1122 RS1/10S750J R 1123 RS1/10S0R0J R 1124 RS1/10S0R0J R 1127 RS1/10S0R0J R 1129 RS1/10S222J R 1130 RS1/10S223J R 1131 RS1/10S223J R 1133 RS1/10S473J R 1134 RS1/10S681J R 1135 RS1/10S223J R 1136 RS1/10S223J R 1141 RS1/10S104J R 1142 RS1/10S104J R 1143 RS1/10S102J R 1144 RS1/10S104J R 1145 RS1/10S104J R 1146 RS1/10S0R0J R 1147 RS1/10S102J R 1148 RS1/10S0R0J R 1149 RS1/10S0R0J R 1150 RS1/10S104J R 1151 RS1/10S104J R 1152 RS1/10S102J R 1153 RS1/10S101J R 1157 RS1/10S473J R 1158 RS1/10S473J R 1159 RS1/10S222J R 1160 RS1/10S104J R 1161 RS1/10S104J R 1162 RS1/10S222J R 1163 RS1/10S101J R 1166 RS1/10S0R0J R 1202 RS1/10S163J R 1203 RS1/10S123J R 1205 RS1/10S113J R 1206 RS1/10S123J R 1207 RS1/10S103J R 1208 RS1/10S102J R 1209 RS1/10S102J R 1301 RS1/10S750J R 1302 RS1/10S0R0J R 1303 RS1/10S680J R 1304 RS1/10S473J R 1305 RS1/10S681J R 1306 RS1/10S101J R 1307 RS1/10S393J R 1308 RS1/10S103J R 1309 RS1/10S102J R 1310 RS1/10S103J R 1311 RS1/10S103J R 1312 RS1/10S102J R 1313 RS1/10S102J R 1314 RS1/10S471J R 1315 RS1/10S102J R 1316 RS1/10S102J R 1317 RS1/10S102J R 1318 RS1/10S202J R 1319 RS1/10S202J R 1320 RS1/10S102J R 1323 RS1/10S103J R 1324 RS1/10S103J R 1325 RS1/10S223J R 1326 RS1/10S103J R 1327 RS1/10S153J R 1328 RS1/10S393J R 1329 RS1/10S393J R 1330 (RN1/10SE2402D) GGC1318 R 1331 RS1/10S184J R 1332 RS1/10S514J R 1333 RS1/10S473J R 1335 RS1/10S392J R 1336 RS1/10S182J R 1337 RS1/10S104J R 1338 RS1/10S152J R 1339 RS1/10S751J R 1340 RS1/10S331J R 1341 RS1/10S751J R 1342 RS1/10S331J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 AVM-P505R R 1343 RS1/10S751J R 1344 RS1/10S331J R 1345 RS1/10S333J R 1346 RS1/10S153J R 1347 RS1/10S561J R 1348 RS1/10S221J R 1349 RS1/10S221J R 1350 RS1/10S471J CAPACITORS C 101 CKSQYB104K16 C 102 CKSQYB104K16 C 103 CKSQYB102K50 C 104 CEJA100M16 C 105 CEJA1R0M50 C 106 CEJA1R0M50 C 107 CEJA100M16 C 108 CEJA1R0M50 C 109 CEJA1R0M50 C 131 CEJANP100M10 C 132 CEJANP100M10 C 133 CEJANP100M10 C 134 CEJANP100M10 C 135 CCSQCH471J50 C 136 CCSQCH471J50 C 137 CCSQCH471J50 C 138 CCSQCH471J50 C 139 CKSQYB103K50 C 140 CEJA101M10 C 141 CEJANP4R7M16 C 142 CEJANP4R7M16 C 151 CKSQYB473K50 C 152 CKSQYB473K50 C 171 CEJAR22M50 C 172 CEJAR22M50 C 173 CEJAR22M50 C 174 CEJAR22M50 C 175 CEJA330M16 C 176 CEHAR010M50 C 177 3300µF/16V CCH1125 C 178 CKSQYB104K50 C 179 CEHAR100M16 C 180 CEHAR010M50 C 201 CEJA1R0M50 C 202 CEJA1R0M50 C 203 CEJA1R0M50 C 204 CEJA1R0M50 C 207 CEJA470M10 C 208 CKSQYB104K50 C 209 CEJA100M16 C 211 CKSQYB822K50 C 212 CKSQYB822K50 C 213 CEJA1R0M50 C 214 CEJA1R0M50 C 215 CKSQYB152K50 C 216 CKSQYB152K50 C 217 CEJANP100M10 C 218 CEJANP100M10 C 219 CKSQYB183K50 C 220 CKSQYB183K50 C 221 CEJANP100M10 C 222 CEJANP100M10 C 223 CKSYB334K16 C 224 CKSYB334K16 C 225 CKSQYB103K50 C 226 CKSQYB103K50 C 227 CKSYB105K16 C 228 CKSYB105K16 C 229 CKSQYB823K50 C 230 CKSQYB823K50 C 231 CKSQYB333K50 C 232 CKSQYB333K50 C 233 CKSQYB104K50 C 234 CKSQYB473K50 C 235 CKSQYB562K50 C 236 CKSQYB104K50 C 238 CCSQCH470J50 C 251 CKSYB224K16 C 252 CKSYB224K16 C 254 CEJA100M16 C 255 CEJA1R0M50 C 256 CEJA1R0M50 C 261 CCSQCH151J50 C 262 CCSQCH151J50 C 263 CEJA100M16 C 373 CEJA4R7M35 C 374 CEJA4R7M35 C 375 CEJA4R7M35 C 376 CEJA4R7M35 C 381 CEJA3R3M50 C 382 CEJA3R3M50 C 401 CEJA1R0M50 C 402 CEJA1R0M50 C 403 CEJA1R0M50 C 404 CEJA1R0M50 C 501 CCSQCH150J50 C 502 CCSQCH150J50 C 503 CKSQYB103K50 C 504 CKSQYB103K50 C 505 CCSQCH101J50 C 506 CKSQYB103K50 C 508 CKSQYB102K50 C 509 CEJA220M10 C 512 CKSQYB223K50 C 514 CKSQYB473K50 C 515 CEJA220M6R3 C 516 CKSQYB103K50 C 517 CEJA220M6R3 C 518 CKSQYB103K50 C 522 CKSQYB103K50 C 523 CKLSR473K16 C 525 4.7µF/16V CCH1250 C 526 CKSQYB103K50 C 529 CCSQCH101J50 C 530 CKSQYB223K50 C 533 CKSYB154K16 C 601 CCSQCH200J50 C 602 CCSQCH200J50 C 603 CEJA100M16 C 604 CCSQCH101J50 C 605 CCSQCH101J50 C 607 CCSQCH101J50 C 608 CCSQCH101J50 C 610 CKSQYB104K50 C 611 CEJA1R0M50 C 612 CKSQYB103K50 C 613 CEJA100M16 C 614 CCSQCH101J50 C 616 CKSQYB104K16 C 617 CCSQCH221J50 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 AVM-P505R C 618 CKSQYB104K16 C 671 CCSQCH101J50 C 672 CEJA100M16 C 673 CCSQCH181J50 C 674 CEJA4R7M35 C 675 CKSYB105K16 C 676 CKSQYB104K16 C 677 CKSQYB472K50 C 678 CCSQCH271J50 C 679 CCSQCH270J50 C 680 CCSQCH270J50 C 701 CEJA100M16 C 702 CKSQYB102K50 C 703 CKSQYB102K50 C 704 CCSQCH101J50 C 705 CEJA4R7M35 C 708 CASA4R7M16 C 882 CKSQYB103K50 C 883 CEJA101M16 C 891 CEJA101M10 C 892 CKSQYB103K50 C 901 CEAS101M25 C 902 CEAS471M25 C 903 CEJA220M10 C 911 CKSQYB103K50 C 912 CEJA470M10 C 913 CKSQYB472K50 C 914 1500µF/16V CCH1312 C 921 CKSQYB104K50 C 922 CKSQYB473K50 C 941 330µF/10V CCH1181 C 942 CKSQYB103K50 C 943 CEJA101M16 C 951 CKSQYB472K50 C 952 CKSYB103K50 C 955 CKSYB472K50 C 971 CEJA2R2M50 C 1001 CEJA100M16 C 1002 CEJA100M16 C 1004 CKSQYB104K16 C 1005 CEJA100M16 C 1006 CKSQYB104K16 C 1008 CKSQYB105K10 C 1009 CKSQYB105K10 C 1010 CKSQYB105K10 C 1011 CKSQYB105K10 C 1012 CKSQYB105K10 C 1013 CKSQYB105K10 C 1014 CEJA1R0M50 C 1015 CEJA100M16 C 1051 CKSQYB105K10 C 1052 CKSQYB105K10 C 1053 CKSQYB105K10 C 1054 CCSQCH200J50 C 1055 CKSQYB104K16 C 1056 CCSQCH470J50 C 1057 CKSQYB103K50 C 1058 470µF/6.3V CCH1182 C 1059 CCSQCH220J50 C 1060 CEJA100M16 C 1061 CKSQYB103K50 C 1062 CEJA100M16 C 1063 CKSQYB104K50 C 1064 CEJA100M16 C 1065 CCSQCH200J50 C 1067 CKSQYB104K50 C 1068 CKSQYB103K50 C 1069 CCSQCH180J50 C 1101 CKSQYB103K50 C 1102 CEV100M16 C 1103 CEV100M16 C 1104 CKSQYB103K50 C 1105 CCSQCH150J50 C 1106 CCSQCH150J50 C 1107 CCSQUJ221J50 C 1108 CCSQUJ221J50 C 1109 CKSQYB104K16 C 1111 CKSQYB105K10 C 1112 CKSQYB105K10 C 1113 CKSQYB105K10 C 1114 CKSQYB105K10 C 1115 CKSQYB105K10 C 1116 CKSQYB105K10 C 1117 CKSQYB105K10 C 1118 CKSQYB105K10 C 1119 CKSQYB105K10 C 1120 CEV100M16 C 1121 CEV100M16 C 1122 CEV100M16 C 1123 CKSQYB103K50 C 1124 CEV100M16 C 1125 CEV100M16 C 1126 CKSQYB103K50 C 1127 CEV100M16 C 1128 CKSQYB103K50 C 1129 CEV100M16 C 1130 CKSQYB103K50 C 1131 CEJA4R7M35 C 1132 CEJA4R7M35 C 1133 CKSQYB103K50 C 1134 CEJA470M6R3 C 1135 CEJA220M10 C 1136 CEJA101M10 C 1137 CEJA101M10 C 1138 CEJA220M10 C 1139 CEJA4R7M35 C 1140 CEJA4R7M35 C 1141 CKSQYB103K50 C 1142 CEJA470M6R3 C 1143 CEJA220M10 C 1144 CEJA101M10 C 1145 CEJA221M6R3 C 1146 CEJA220M10 C 1147 CKSQYB222K50 C 1148 CEJA101M10 C 1149 CKSQYB104K16 C 1150 CKSYB105K16 C 1151 CEJANP1R0M50 C 1153 CEJA1R0M50 C 1154 CCSQCH681J50 C 1156 CCSQCH101J50 C 1157 CEJA100M16 C 1158 CKSQYB104K16 C 1159 CEJA100M16 C 1160 CEJANP100M10 C 1161 CEJANP100M10 C 1165 CKSQYB105K10 C 1166 CKSQYB105K10 C 1167 CKSQYB105K10 C 1168 CKSQYB105K10 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 AVM-P505R C 1169 CKSQYB105K10 C 1170 CKSQYB105K10 C 1171 CKSQYB105K10 C 1172 CKSQYB105K10 C 1173 CKSQYB105K10 C 1174 CKSQYB105K10 C 1175 CKSQYB105K10 C 1176 CKSQYB105K10 C 1177 CKSQYB104K10 C 1201 CKSQYB104K16 C 1202 CCSQCH101J50 C 1203 CCSQCH151J50 C 1204 CKSQYB104K16 C 1205 CCSQCH271J50 C 1206 CCSQCH151J50 C 1207 CKSQYB104K50 C 1301 CEJA100M16 C 1302 470µF/6.3V CCH1182 C 1303 CKSQYB103K50 C 1304 CEJA100M16 C 1305 CEJA100M16 C 1306 CEJA470M6R3 C 1307 CKSQYB104K16 C 1308 CKSQYB102K50 C 1309 CEJA470M10 C 1310 CEJA220M6R3 C 1311 CKSQYB104K16 C 1312 CKSQYB104K16 C 1313 CKSQYB474K16 C 1314 CKSQYB474K16 C 1315 CEJA101M10 C 1316 CKSQYB104K16 C 1317 CEJA1R0M50 C 1318 CKSQYB473K16 C 1319 CKSQYB473K16 C 1320 CEJA4R7M35 C 1321 CKSQYB473K50 C 1322 CKSQYB104K50 C 1323 CKSQYB105K10 C 1324 CKSQYB104K16 C 1325 CCSQCH100D50 C 1326 CCSQCH300J50 C 1327 CEJA4R7M35 C 1331 CEJA100M16 C 1332 CEJA100M16 C 1333 CEJA100M16 C 1339 CKSQYB222K50 Unit Number : CWE1472 Unit Name : FM/AM Tuner Unit MISCELLANEOUS IC 1 IC PA4023B IC 2 IC PA4024A Q 1 Transistor 2SC2412K Q 2 Transistor DTC124EU Q 3 FET 3SK263 Q 31 Transistor 2SC2412K Q 201 FET 2SK932 Q 202 Transistor 2SC2412K Q 203 Transistor DTC124EU D 1 Diode RD39JS D 2 Diode RD39JS D 4 Diode 1SV250 D 5 Diode KV1410-F1 D 6 Diode MA157 D 7 Diode KV1410-F1 D 8 Diode KV1410-F1 D 201 Diode MA157 D 202 Diode MA157 D 231 Diode SVC253 L 2 Coil CTC1126 L 3 Inductor LCTB2R2K2125 L 4 Coil CTC1126 L 5 Coil CTC1125 L 51 Ferri-Inductor LAU150K L 201 Ferri-Inductor LAU4R7K L 202 Ferri-Inductor LAU330K L 203 Inductor CTF1287 L 208 Inductor LAU121K L 231 Inductor LCTA3R3J3225 T 31 Coil CTE1117 T 51 Coil CTC1159 CF 51 Ceramic Filter CTF1292 CF 52 Ceramic Filter CTF1292 CF 53 Ceramic Filter CTF1292 CF 232 Ceramic Filter CTF1348 X 151 Resonator 918.5Hz CSS1365 X 231 Crystal Resonator 10.26MHz CSS1111 VR 154 Semi-fixed 150k½(B) CCP1213 RESISTORS R 1 RS1/16S225J R 2 RS1/16S225J R 4 RS1/16S154J R 5 RS1/16S391J R 6 RS1/16S223J R 7 RS1/16S123J R 8 RS1/16S332J R 9 RS1/16S473J R 10 RS1/16S223J R 11 RS1/16S124J R 13 RS1/16S563J R 15 RS1/16S271J R 16 RS1/16S104J R 17 RS1/16S332J R 18 RS1/16S332J R 31 RS1/16S470J R 32 RS1/16S822J R 33 RS1/16S822J R 34 RS1/16S331J R 35 RS1/16S331J R 51 RS1/16S271J R 52 RS1/16S560J R 55 RS1/16S102J R 56 RS1/16S823J R 61 RS1/16S392J R 62 RS1/16S273J R 101 RS1/16S272J R 102 RS1/16S682J R 103 RS1/16S333J R 104 RS1/16S334J R 105 RS1/16S683J R 107 RS1/16S222J R 151 RS1/16S222J R 152 RS1/16S393J R 155 RS1/16S273J R 156 RS1/16S243J R 157 RS1/16S203J R 160 RS1/16S222J R 161 RS1/16S563J R 162 RS1/16S105J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 AVM-P505R R 163 RS1/16S223J R 202 RS1/16S223J R 203 RS1/16S225J R 204 RS1/16S103J R 206 RS1/16S220J R 207 RS1/16S101J R 208 RS1/16S102J R 209 RS1/16S471J R 214 RS1/16S822J R 215 RS1/16S822J R 217 RS1/16S102J R 231 RS1/16S272J R 232 RS1/16S473J R 237 RS1/16S103J R 238 RS1/16S104J R 239 RS1/16S104J R 240 RS1/16S332J R 241 RS1/16S202J R 243 RS1/16S183J R 244 RS1/16S392J R 247 RS1/16S123J CAPACITORS C 1 CCSQCH6R0D50 C 2 CCSRCK2R0C50 C 4 CCSRCH820J50 C 6 CCSRCH820J50 C 8 CKSRYB103K25 C 9 CKSQYB104K16 C 10 CCSRCKR50C50 C 11 CEJA1R0M50 C 12 CKSRYB222K50 C 13 CKSRYB222K50 C 14 CCSRCH220J50 C 15 CCSRCH6R0D50 C 16 CCSRCH8R0D50 C 17 CKSRYB222K50 C 18 CKSRYB103K25 C 19 CKSRYB222K50 C 20 CKSRYB222K50 C 21 CEJA100M16 C 22 CCSRTH9R0D50 C 23 CCSRTH120J50 C 24 CCSRCH471J50 C 25 CKSRYB103K25 C 26 CCSRCH101J50 C 31 CKSRYB103K25 C 32 CKSQYB472K50 C 33 CCSRCH5R0C50 C 34 CKSQYB104K16 C 36 CCSRRH201J50 C 51 CKSRYB223K25 C 52 CKSRYB103K25 C 54 CCSRCH470J50 C 55 CKSQYB223K25 C 56 CKSQYB104K16 C 57 CKSRYB472K50 C 58 CEJA330M10 C 59 CKSRYB103K25 C 61 CCSRCH270J50 C 62 CKSRYB103K25 C 63 CEJAR22M50 C 101 CEJANP100M10 C 102 CKSRYB182K50 C 103 CKSRYB682K25 C 104 CEJA2R2M50 C 105 CKSRYB103K25 C 106 CCSRCH151J50 C 107 CKSRYB103K25 C 151 CKSRYB472K50 C 152 CKSQYB104K16 C 153 CEJA3R3M50 C 154 CKSQYB104K16 C 157 CEJA3R3M50 C 158 CKSYB474K16 C 159 CEJA220M6R3 C 160 CKSQYB104K16 C 161 CKSQYB104K16 C 162 CEJA3R3M50 C 163 CKSRYB102K50 C 170 CCSRCH100D50 C 201 CCSRCH471J50 C 202 CCSRCH100D50 C 203 CKSRYB332K50 C 204 CKSQYB473K16 C 205 CKSQYB473K16 C 206 CKSQYB104K16 C 207 CCSRCH560J50 C 209 CKSQYB104K16 C 211 CCSRCH101J50 C 212 CEJA470M6R3 C 213 CKSRYB103K25 C 216 CCSRCH101J50 C 217 CEJA1R5M50 C 219 CCSRCH471J50 C 220 CKSRYB103K25 C 230 CKSRYB103K25 C 231 CCSRCH330J50 C 232 CCSRCH150J50 C 233 CKSQYB104K16 C 234 CEJA330M10 C 235 CKSRYB332K50 C 236 CKSQYB473K16 C 237 CCSRCH120J50 C 239 CKSRYB472K50 C 240 CEJAR47M50 C 241 CKSQYB104K16 C 242 CEJAR47M50 C 243 CEJAR33M50 C 244 CKSQYB473K16 C 245 CKSRYB333K16 C 246 CKSQYB473K16 C 250 CCSRCH471J50 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 AVM-P505R Antenna Jack Dummy Antenna 50½(37.5½) 50½(75½) Antenna Plug FM SSG Stereo Modulator FM/AM TUNER UNIT mV Meter(1) Oscilloscope(1) DC Regulated Power Supply +14.4V GND BACK UP ACC GND Lch + Lch - Rch + Rch - 4½ 4½ TC1051 VR1302 TC1101 VR1301 TUNER AMP UNIT FM/AM TUNER UNIT(TOP VIEW) FM/AM TUNER UNIT(BOTTOM VIEW) L2 L4 T31 L5 VR154 T51 C63 T51 Pin 26 Pin 14 Pin 13 Pin 1 Pin 19 DC V Meter(1) Center Meter MONITOR VIDEO IN Color Pattern Generator CN1101 75½ Pin 1 Pin 2 Pin 3 Pin 5 S1 Oscilloscope(2) S2 Pin 32 Frequency Counter(1) Pin 5 IC1304 IC1051 Frequency Counter(2) Pin 6 CN901 CN1301 6. ADJUSTMENT - Connection Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 AVM-P505R FM ADJUSTMENT Modulation M:MONO MOD., 400Hz 30%(22.5kHz Dev.) S:STEREO MOD., 1kHz, L or R=30%(20.25kHz+7.5kHz Dev.) NOTE:Before proceeding to further adjustments after switching power ON, let the tuner run for ten minutes to allow the circuits to stabilize. FM SSG Displayed Adjustment Adjustment Method No. Frequency(MHz) Level(dBf) Frequency(MHz) Point (Switch Position) TUN Volt 1 ••••• ••••• 107.9 L5 DC V Meter(1) : 6V IF 1 98.1 M 60 98.1 T51 Center Meter : 0 ANT Coil 1 98.1 M 5 98.1 L2 mV Meter(1) : Maximum RF Coil 1 98.1 M 5 98.1 L4 mV Meter(1) : Maximum IFT 1 98.1 M 5 98.1 T31 mV Meter(1) : Maximum (STEREO MODE) ARC 1 98.1 S 40 98.1 VR154 mV Meter(1) : Separation 5dB (STEREO MODE) VIDEO ADJUSTMENT Adjustment Color Pattern Adjustment Adjustment Method Method Generator Point (Switch Position) OSD ••••• TC1101 Monitor : a=Minimum Bright Level White 100% , or 75% VR1301 Oscilloscope(2) : Non Color Burst Signal (S1 : ON) Clock White 100% VR1302 Frequency Counter(1) :3.579545MHz ± 20Hz Non Color Burst Signal (S2 : ON) Sub-carrier for Encoder ••••• TC1051 Frequency Counter(2) :3.579545MHz ± 20Hz a 700mV ± 35mV (White : 100%) 530mV ± 35mV (White : 75%) LCD Panel Source Screen www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 AVM-P505R 7. GENERAL INFORMATION 7.1 IC PM0008BF VDA 24 25 Bip - + I/O-3 9 10 I/O-2 FMOUT 27 IN HS - + NC AMTV 30 - + Bip AMIN 32 33 - + 34 PD1 PD REF 36 X-GND XI 39 38 MODE SW IF FM 7 8 4 5 FM VCO AM VCO I/F 40 CE 41 DI 42 CK 43 DO 2 NC NC 1 37 XO 44 28 29 FMIN 11 NC 23 VCO CRESET IN3 REG (22bit) A-GND VDD 6 PD0 VREF2 MOS I/O-1 VREF2 VREFP 17 18 IF 35 VREF2 MOS OUT AM 12 13 14 15 16 I/O-5 I/O-4 NC O-7 O-6 CUR REQUEST 20 LDET 21 22 19 VCC OUT1 SEL OUT2 SEL IN1 REG (31bit) (4) 31 DIVIDER PROGRAMABLE DIVIDER NC COUNTER 3 D-GND NC DATA REGISTER 26 IF AM COUNTER BAND GAP FMTV Bip + - NC µCOM Vcc 10kW 35kW 28kW 14kW PM2006A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 AVM-P505R - Pin Functions (PD4923A) Pin No. Pin Name I/O Function and Operation 1 swvdd O Key board unit power supply control output 2 dsens I Grille detach sense input 3 navsen I Navigation sense input 4 NAVMIX I Guidance sound switching input 5 TESTIN I Test program mode input 6 idrst O ID-LOGIC reset output 7 IDSEL O ID-LOGIC select output 8 idck I/O ID-LOGIC clock input/output 9 IDDI I ID LOGIC communication data input 10 IDDO O ID LOGIC communication data output 11 reset I Reset input 12 XT2 Not used 13 XT1 Connect to GND 14 VSS GND 15 X2 Crystal oscillator connection pin 16 X1 Crystal oscillator connection pin 17 REGOFF Not used 18 REGC Capacitor for regulator connect pin 19 VDD Power supply 20 VPWR O Monitor power supply control output 21 SYSPW O System power control output 22 adpw O A/D converter power supply control output 23 AMPW O AM power supply control output 24 IPPW O Power supply control output for IP BUS interface IC 25 ASENBO O Slave power supply control output 26 NC Not used 27 TELIN I Telephone mute input 28 MUTE O System mute output 29 AMUTE O All system mute output 30 PBSENS I Parking brake sense input 31 NC Not used 32 MONISW O Front monitor select output 33 ECK O Clock output for electronic volume 34 EST O Strobe pulse output for electronic volume 35 EDT O Data output for electronic volume 36 TMUTE O Tuner mute output 37 NC Not used 38 SD I SD input 39 st I FM stereo input 40 VSS GND 41 VDD Power supply 42–54 NC Not used 55 VSEL0 O Visual source select 0 output 56 VSEL1 O Visual source select 1 output 57 RMSEL O Rear monitor select output 58 navion O Guidance sound control output 59–61 NC Not used 62 PCL O Clock adjustment output 63 NC Not used 64 OSDCS O Chip select output for OSD IC 65 OSDCK O Serial clock output for OSD IC 66 TSI I Test program serial input 67 OSDDT O Data output for OSD IC 68–72 NC Not used 73 TEST I Test terminal 74 SL I Signal level input from tuner 75–79 NC Not used 80 MEMHLD O Memory hold output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 AVM-P505R - Pin Functions (PD6293A) Pin No. Pin Name I/O Function and Operation 1–9 NC Not used 10 VLCD Not used 11-16 NC Not used 17 REM I Remote control data input 18 DPDT I Display data input 19 RST Not used 20 KYDT O Key data output 21 MODA Not used 22 X0 O Crystal oscillator connection pin 23 XI I Crystal oscillator connection pin 24 VSS GND 25–55 NC Not used 56 VDD Power supply 57–64 NC Not used 30 31 50 51 80 1 100 81 16 17 32 49 64 1 33 48 *PD6293A Pin No. Pin Name I/O Function and Operation 81 NC Not used 82 VDD A/D converter power supply 83 VDD A/D converter reference voltage 84 GND A/D converter ground 85 RX I IP BUS data input 86 TX O IP BUS data output 87 GND GND 88 ldet I PLL lock sense input 89 rck I RDS demodulation clock input 90 rds%&k I 57kHz BP-OUT sense input 91 IDRDY I ID-LOGIC ready input 92 asens I ACC power sense input 93 bsens I Back up power sense input 94 TUNPDI I PLL IC data input 95 KEYDT I Display data input 96 DPDT O Display data output 97 TUNPCK O PLL IC clock output 98 TUNPDO O PLL IC data output 99 TUNPCE O PLL IC chip enable output 100 PEE O Beep tone output * IC's marked by* are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction. *PD4923A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 AVM-P505R Format Meaning C C MOS 19 20 32 33 51 1 64 52 *PD6191A - Pin Functions (PD6191A) Pin No. Pin Name I/O Format Function and Operation 1-8 OPEN Open 9 oe O ROM output control 10 romen O ROM enable 11 ADD17 O ROM address 12 AVCC Analog power supply 13 AVR 5V power supply 14 AVSS Connect to GND 15 irsel I Select input 16 RCK I RDS demodulation clock input 17 RDT I RDS demodulation data input 18 OPEN Open 19 rdslk I RDS LK signal input 20 irrst I Reset input 21 MOD0 I Connect to GND 22 MOD1 I Connect to GND 23 XIN I Crystal oscillating element connection pin 24 XOUT O Crystal oscillating element connection pin 25 VSS GND 26 drst O C Reset output 27,28 OPEN Open 29 IRRDY O C Communication ready output 30-33 ADD16-13 O ROM address 34-41 ADD7-0 O ROM address 42-49 DT7-0 I ROM data input 50 VSS GND 51 TEST I Test terminal 52 irsck Communication clock input 53 IRDO O C Communication data output 54 IRDI I Communication data input 55,56 OPEN Open 57 VCC 5V 58 SD I SD signal input 59 OPEN Open 60-64 ADD8-12 O ROM address 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 NC A16 A15 A12 A7 A6 A5 A4 A3 A2 A1 A0 D0 D1 D2 VSS VCC A18 A17 A14 A13 A8 A9 A11 OE A10 CE D7 D6 D5 D4 D3 A0-A18 : Address input D0-D7 : Data output ce : Chip enable oe : Output enable Vcc,Vss : Power supply voltage NC : Not used PD8033A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 AVM-P505R PD6251E TC7W66FU 1 OUT/IN 1 2 CONT 2 3 8 6 VCC OUT/IN 2 IN/OUT 1 GND 4 5 IN/OUT 2 7 CONT 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 AVM-P505R 7.2 BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 AVM-P505R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 AVM-P505R 8. OPERATIONS AND SPECIFICATIONS 8.1 OPERATIONS Blue/yellow Used to confirm that the vehicle is stopped. Please be sure to connect to the parking brake switch’s + side lead wire. + side Earth side This product + ≠� + ≠� + ≠� + ≠� With a 2 speaker system, do not connect anything to the speaker leads that are not connected to speakers. Fuse resistor Fuse holder Fuse resistor Antenna jack Front speaker Rear speaker Front speaker Rear speaker Green Gray Left Right Green/black Green/red Black/green Gray/black Gray/red Black/gray RGB RGB output Green RGB input To a Pioneer unit that has a 20 pin RGB output terminal. Cable Fuse resistor Insert the parking break switch’s + side lead wire. Pinch tightly with pliers. Multi-CD player (sold separately) IP-Bus cable IP-Bus input (Blue) Monitor [AVX-505] or [AVD-505] Orange To terminal always supplied with power regardless of ignition switch position. Red To electric terminal controlled by ignition switch (12 V DC) ON/OFF. Black (ground) To vehicle (metal) body. Yellow To lighting switch terminal. Blue To system control terminal of the power amp. (Max. 300 mA 12 V DC.) Yellow/black If you use a cellular telephone, connect it via the Audio Mute lead on the cellular telephone. If not, keep the Audio Mute lead free of any connections. Yellow/black Connect to a muting line of Pioneer unit that has a 20 pin RGB output terminal. How to connect Green Basic System Connection www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 AVM-P505R Key Finder Remote Controller DISP button ATT button F.SEEK button Buttons 1 – 6 PGM button AUDIO button FUNCTION button SOURCE button +/– button BAND button CLOCK button RT button V.SEL button / buttons / buttons www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 AVM-P505R Basic Operation Switching Power ON/OFF • Select the desired source (such as the tuner). - Remote Controller Each press of the SOURCE button selects the desired source in the following order: Tuner ® Multi-CD player ® AUX ® SP INPUT To switch the sources OFF, hold down the SOURCE button for 1 second or more. Note: • In the following cases, the sound source will not change: * No Multi-CD player is connected to this product. (When “M-CD” display is OFF.) * No magazine is set in the Multi-CD player. * AUX (external input) is set to OFF. * SP INPUT is set to OFF. Tuner Operation Basic Operation of Tuner 1. Select Tuner. 2. Select the desired band. 3. Tune the receiver to a higher or lower frequency. Manual Tuning (step by step) 0.3 seconds or less Seek Tuning (automatically) 0.3 – 2 seconds Manual Tuning (continuously) 2 seconds or more “” indicator lights when a stereo station is selected. FM1®FM2®FM3®AM This product’s tuner lets you select the tuning by changing the length of time you press the button. Each press changes the source www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 AVM-P505R 4. Raise or lower the volume. 5. Turn the source OFF. Note: • During FORMAT SEEK, reception will not be possible if the frequency is changed. Tuner Operation Hold for 1 second Entering the Function Menu In this menu you can select tuner functions. • In modes other than LOCAL, you can use RDS/ID LOGIC functions. Refer to “Using RDS/ID LOGIC” for details and instructions on how to use these functions. • Select the desired mode in the Function Menu. Each press of the FUNCTION button selects the mode in the following order: FORMAT-SCAN ® FORMAT-BSM ® APF ® MULTI ST.* ® LOCAL ® TA**® TA SEEK **® SEEK-SELECT * The setting of the “MULTI–ST.” can be changed only when the multi-station is being received. ** During AM reception, you cannot switch to the TA mode. To cancel the Function Menu, press the BAND button. Note: • After entering the Function Menu, if you do not perform an operation within about 30 seconds, the Function Menu is automatically canceled. Each press changes the Mode... www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 AVM-P505R This product can control one or more multi-CD players. Basic Operation of Multi-CD Players 1. Select the multi-CD player source. Note: • The multi-CD player may perform a preparatory operation, such as verifying the presence of a disc or reading disc information, when the power is turned ON or a new disc is selected for playback. “READY” is displayed. • If the multi-CD player cannot operate properly, an error message such as “ERROR-14” is displayed. Refer to the multi-CD player owner’s manual. • If there are no disc in the multi-CD player magazine, “NO DISC” is displayed. 2. Select the desired disc. Disc number (Button Number) If a disc title has been input, the title will be displayed. Using Multi-CD Players Each press changes the Source... “6”, “12” or “50” is displayed according to the connected multi CD player type. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 AVM-P505R 3. Select the desired track (or fast-foward/reverse, per the chart below). Track search 0.5 seconds or less Fast-forward/Reverse Continue pressing 4. Raise or lower the volume. 5. Turn the source OFF. Using Multi-CD Players This product lets you select the track search function or fast- forward/reverse function by changing the length of time you press the button. Hold for 1 second Playing Discs on a 50-Disc Type Multi-CD Player When a magazine is loaded into a 50-Disc type multi-CD player, information on all the discs in the magazine is read. Read out will not function if the data for all discs has not already been read in. If you start playing a disc on a 50-Disc type multi-CD player before reading of information on all discs has been completed, reading of information stops part way through. This will prevent you from using a number of functions. If this happens, reading of information begins again when you switch to a component other than the 50-Disc type Multi-CD Player. Switching the Multi-CD Player It is possible to connect up to three multi-CD players by means of a multiple installation adapter. When two or more multi-CD players are installed, their priorities must be specified. Follow the multi-CD player instructions carefully, and set the address switches properly. • Select the multi-CD player you want to use. Disc Number Search Disc Number Search (for 6-Disc, 12-Disc types) You can select discs directly with the 1 to 6 buttons. Just press the number corresponding to the disc you want to listen to. Note: • When a 12-Disc Multi-CD Player is connected and you want to select disc 7 to 12, press the 1 to 6 buttons for 2 seconds or longer. • Select the desired disc. (eg. Press button 3.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 AVM-P505R Audio Adjustment Entering the Audio Menu • Select the mode you want to adjust in Audio Menu. Each press of the AUDIO button selects the mode in the following order: FADER ® BASS/MID/TREBLE ® LOUD ® SUBWOOFER1 ® SUBWOOFER2 ® FIE ® SLA:0 To cancel the Audio Menu, press the BAND button. Note: • You can select the “SUBWOOFER2” mode only when sub-woofer output is switched ON in the SUBWOOFER1. Initially, sub-woofer output is ON. • After entering the Audio Menu, if you do not perform an operation which 30 seconds, the Audio Menu is automatically canceled. Each press changes the Mode... www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 AVM-P505R Audio Adjustment Balance Adjustment This function allows you to select a Fader/Balance setting that provides ideal listening conditions in all occupied seats. 1. Select the Fader/Balance mode (FADER) in the Audio Menu. 2. Shift the balance progressively to the front or rear speakers. 3. Shift the balance to the left or right speaker, respectively. To cancel the Audio Menu, press the BAND button. Note: • When using 2-speaker system, set FADER to “0”. “RIGHT +9” – “LEFT +9” is displayed as it moves from left to right. “FRONT +15” – “REAR +15” is displayed as it moves from front to rear. Bass/Middle/Treble Adjustment This product is equipped with three tone adjustment modes, the Bass (BASS), Middle (MID) and Treble (TREBLE) modes. 1. Select bass (BASS) / middle (MID) / treble (TREBLE) in the Audio Menu. 2. Increase or decrease the intensity of the Bass, Middle or Treble, whichever is selected. 3. Repeat steps 1–2 above for the other Bass, Middle or Treble Adjustment. To cancel the Audio Menu, press the BAND button. The display shows “+6” – “–6”. The tone for adjustment is displayed in red. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 AVM-P505R Audio Adjustment Loudness Adjustment The Loudness function compensates for deficiencies in the low and high sound ranges at low volume. 1. Select the Loudness mode (LOUD) in the Audio Menu. 2. Switch the Loudness function ON or OFF. To cancel the Audio Menu, press the BAND button. “LOUD” www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 AVM-P505R General Power source 14.4 V DC (10.8 – 15.1 V allowable) Grounding system............................................ Negative type Max. current consumption............................................. 10 A Dimensions (mounting size) ...................................... .307 (W) ´ 28 (H) ´ 182 (D) mm [12-1/8 (W) ´ 1-1/8 (H) ´ 7-1/8 (D) in] Weight............................................................ 1.7 kg (3.7 lbs) Amplifier Continuous power output is 20 W per channel min. into 4 ohms, both channels driven 50 to 15,000 Hz with no more than 5% THD. Maximum power output...........................................40 W ´ 4 Load impedance............................... 4 W (4 – 8 W allowable) Preout output level/output impedance................ 500 mV/1 k½ Sub-woofer output Crossover frequency........................50 Hz, 80 Hz, 125 Hz Crossover slope .............................................. –18 dB/oct Tone controls (Bass)........................................................±12 dB (80 Hz) (MID) ...........................................................±12 dB (400 Hz) (Treble)........................................... ±12 dB (10 kHz) Loudness contour .............................+10 dB (100 Hz), +7 dB (10 kHz) (volume: –30 dB) FM tuner Frequency range ....................................... 87.9 – 107.9 MHz Usable sensitivity ........................................................11 dBf (1.0 mV/75 W, mono, S/N: 30 dB) 50 dB quieting sensitivity .............................................16 dBf (1.7 mV/75 W, mono) Signal-to-noise ratio......................... 70 dB (IHF-A network) Distortion............................. 0.3% (at 65 dBf, 1 kHz, stereo) Frequency response ......................... 30 – 15,000 Hz (±3 dB) Stereo separation.............................40 dB (at 65 dBf, 1 kHz) Selectivity........................................................70 dB (2ACA) Three-signal intermodulation (desired signal level).............................................. 30 dBf (two undesired signal level: 100 dBf) AM tuner Frequency range............................ 530 – 1,710 kHz (10kHz) Usable sensitivity.................................... 18 mV (S/N: 20 dB) Selectivity.................................................... 50 dB (±10 kHz) Video Composit input level................................. 1V/75 ½ (±0.2 V) Composit output level............................... 1V/75 ½ (±0.2 V) 8.2 SPECIFICATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
