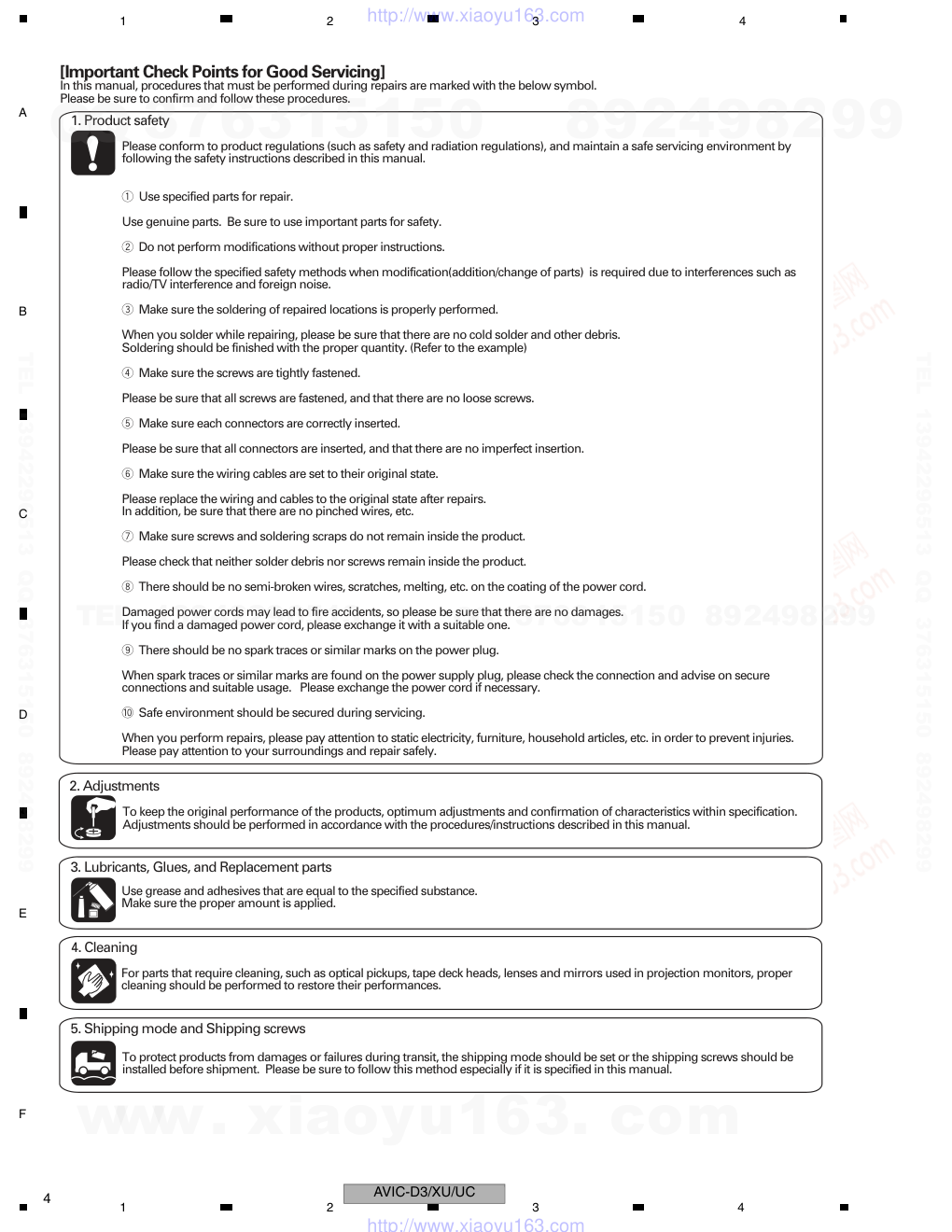

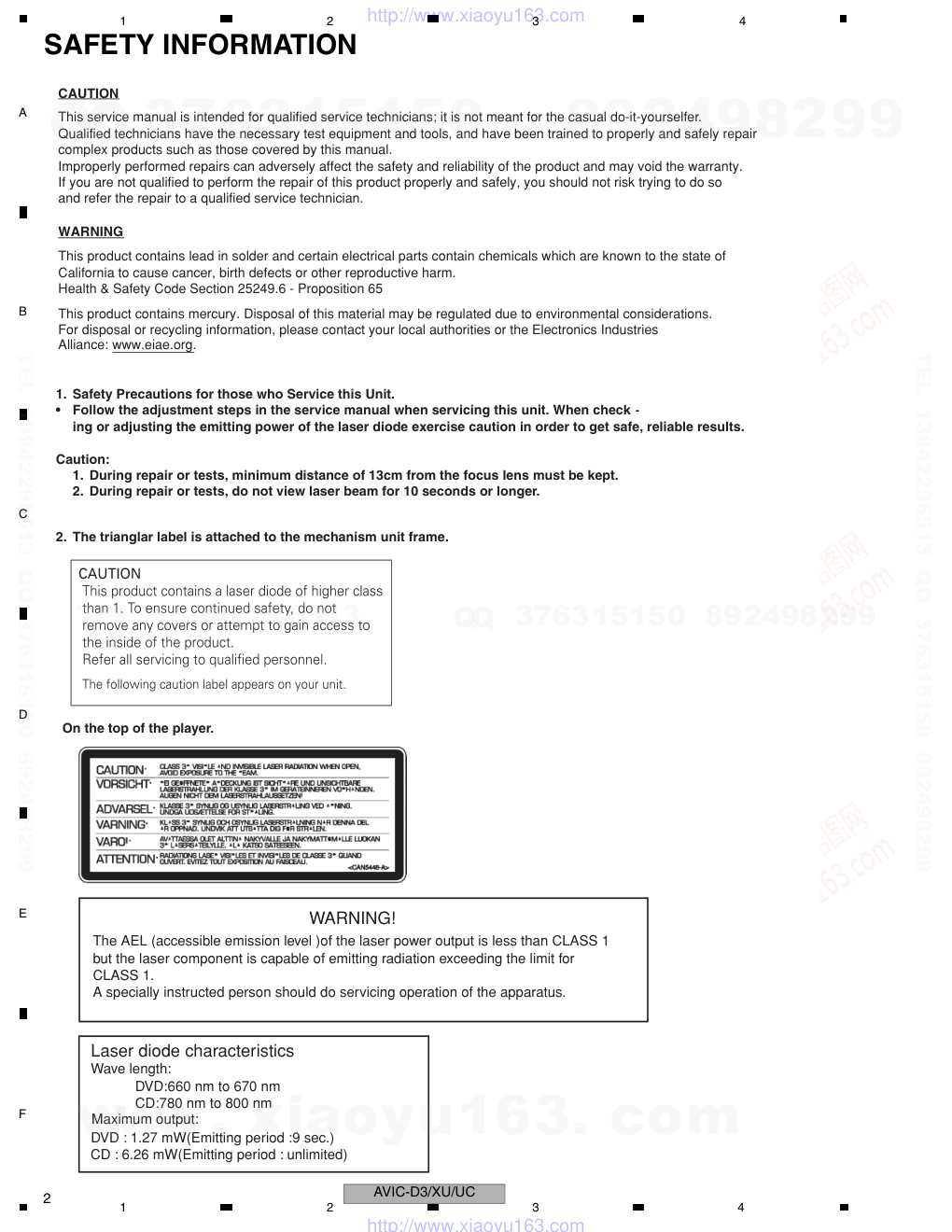

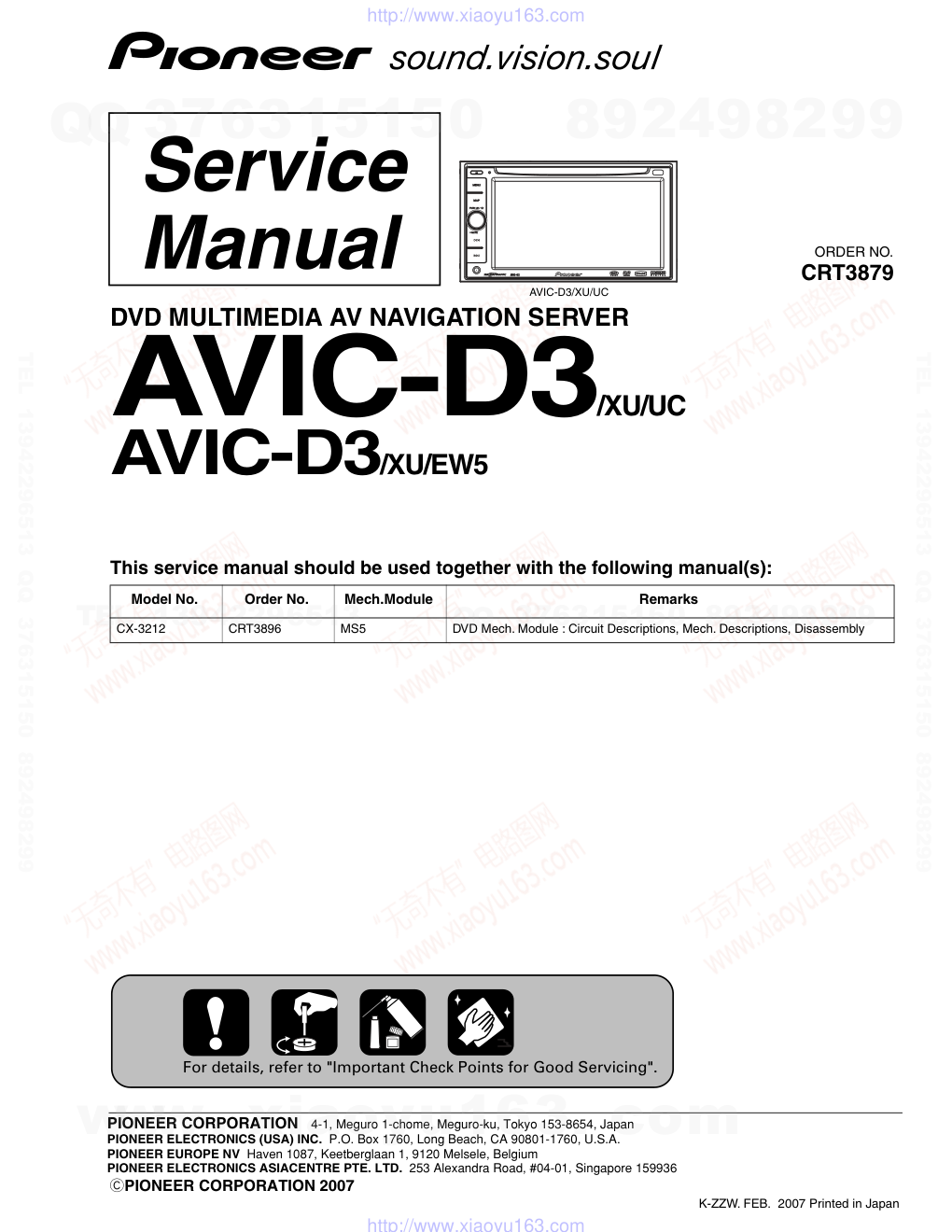

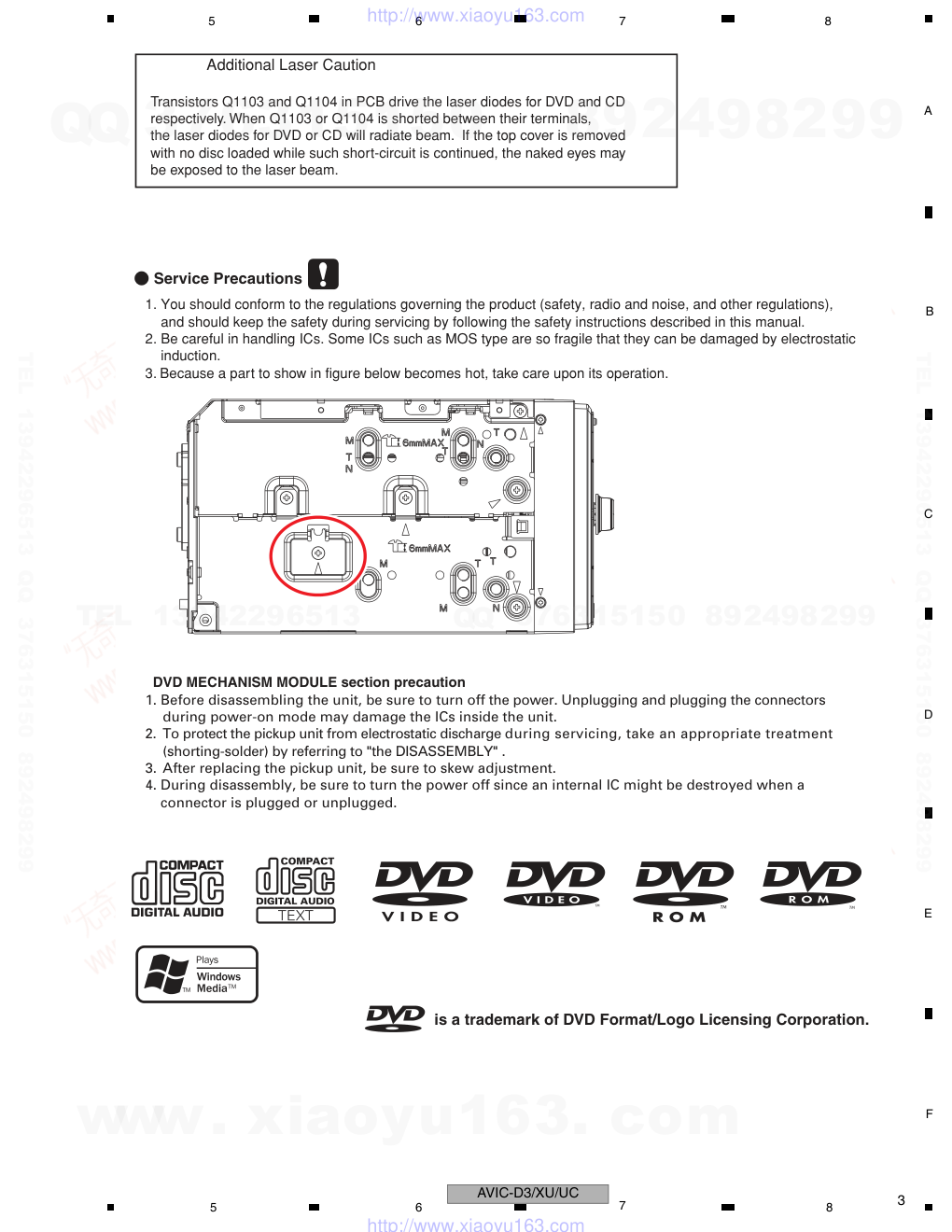

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2007 AVIC-D3/XU/UC CRT3879 DVD MULTIMEDIA AV NAVIGATION SERVER AVIC-D3/XU/UC AVIC-D3/XU/EW5 This service manual should be used together with the following manual(s): Model No. Order No. Mech.Module Remarks CX-3212 CRT3896 MS5 DVD Mech. Module : Circuit Descriptions, Mech. Descriptions, Disassembly For details, refer to "Important Check Points for Good Servicing". K-ZZW. FEB. 2007 Printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION 1. Safety Precautions for those who Service this Unit. • Follow the adjustment steps in the service manual when servicing this unit. When check - ing or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results. Caution: 1. During repair or tests, minimum distance of 13cm from the focus lens must be kept. 2. During repair or tests, do not view laser beam for 10 seconds or longer. CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 This product contains mercury. Disposal of this material may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronics Industries Alliance: www.eiae.org. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so 2. The trianglar label is attached to the mechanism unit frame. On the top of the player. WARNING! The AEL (accessible emission level )of the laser power output is less than CLASS 1 but the laser component is capable of emitting radiation exceeding the limit for CLASS 1. A specially instructed person should do servicing operation of the apparatus. Laser diode characteristics Wave length: DVD:660 nm to 670 nm CD:780 nm to 800 nm DVD : 1.27 mW(Emitting period :9 sec.) CD : 6.26 mW(Emitting period : unlimited) Maximum output: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 3 5 6 7 8 5 6 7 8 C D F A B E Additional Laser Caution Transistors Q1103 and Q1104 in PCB drive the laser diodes for DVD and CD respectively. When Q1103 or Q1104 is shorted between their terminals, the laser diodes for DVD or CD will radiate beam. If the top cover is removed with no disc loaded while such short-circuit is continued, the naked eyes may be exposed to the laser beam. DVD MECHANISM MODULE section precaution 1. Before disassembling the unit, be sure to turn off the power. Unplugging and plugging the connectors during power-on mode may damage the ICs inside the unit. 2. To protect the pickup unit from electrostatic discharge during servicing, take an appropriate treatment (shorting-solder) by referring to "the DISASSEMBLY" . 3. After replacing the pickup unit, be sure to skew adjustment. 4. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a connector is plugged or unplugged. - Service Precautions 1. You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. 2. Be careful in handling ICs. Some ICs such as MOS type are so fragile that they can be damaged by electrostatic induction. 3. Because a part to show in figure below becomes hot, take care upon its operation. is a trademark of DVD Format/Logo Licensing Corporation. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 4 1 2 3 4 1 2 3 4 C D F A B E [Important Check Points for Good Servicing] In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. 0 Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 5 5 6 7 8 5 6 7 8 C D F A B E CONTENTS SAFETY INFORMATION......................................................................................................................................2 1. SPECIFICATIONS.............................................................................................................................................6 2. EXPLODED VIEWS AND PARTS LIST...........................................................................................................10 2.1 PACKING (UC) .........................................................................................................................................10 2.2 PACKING (EW5).......................................................................................................................................12 2.3 EXTERIOR (1)..........................................................................................................................................14 2.4 EXTERIOR (2)..........................................................................................................................................16 2.5 EXTERIOR (3)..........................................................................................................................................18 2.6 DVD MECHANISM MODULE...................................................................................................................20 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ..........................................................................................22 3.1 BLOCK DIAGRAM....................................................................................................................................22 3.2 OVERALL CONNECTION DIAGRAM ......................................................................................................40 3.3 NAVI MOTHER UNIT (CPU, ASIC, SDRAM)(GUIDE PAGE) ...................................................................42 3.4 NAVI MOTHER UNIT (ROM, SRAM, BUS-BUFFER)...............................................................................48 3.5 NAVI MOTHER UNIT (GRAPHIC)(GUIDE PAGE)....................................................................................50 3.6 NAVI MOTHER UNIT (MAIN, CC I/F).......................................................................................................56 3.7 NAVI MOTHER UNIT (SYSTEM uCOM)(GUIDE PAGE)..........................................................................58 3.8 NAVI MOTHER UNIT (I/F)(GUIDE PAGE)................................................................................................64 3.9 NAVI MOTHER UNIT (PS)(GUIDE PAGE) ...............................................................................................70 3.10 GPS UNIT(GUIDE PAGE) ......................................................................................................................76 3.11 AV UNIT (PS, I/F) ...................................................................................................................................82 3.12 AV UNIT (A/V)(GUIDE PAGE) ................................................................................................................84 3.13 AV UNIT (TUNER)..................................................................................................................................90 3.14 DVD CORE UNIT (1/2)(GUIDE PAGE)...................................................................................................92 3.15 DVD CORE UNIT (2/2) ...........................................................................................................................98 3.16 COMPOUND UNIT(A), COMPOUND UNIT(B).....................................................................................102 3.17 MONITOR UNIT (VIDEO)(GUIDE PAGE).............................................................................................104 3.18 MONITOR UNIT (INVERTER)..............................................................................................................110 3.19 KEY PCB ..............................................................................................................................................114 3.20 AV MINI JACK PCB ..............................................................................................................................116 4. PCB CONNECTION DIAGRAM ....................................................................................................................118 4.1 NAVI MOTHER UNIT..............................................................................................................................118 4.2 AV UNIT..................................................................................................................................................122 4.3 DVD CORE UNIT....................................................................................................................................126 4.4 COMPOUND UNIT(A), COMPOUND UNIT(B).......................................................................................130 4.5 GPS UNIT...............................................................................................................................................131 4.6 MONITOR UNIT .....................................................................................................................................132 4.7 KEY PCB ................................................................................................................................................136 4.8 AV MINI JACK PCB ................................................................................................................................137 5. ELECTRICAL PARTS LIST ...........................................................................................................................138 6. ADJUSTMENT ..............................................................................................................................................164 6.1 JIG CONNECTION DIAGRAM ...............................................................................................................164 6.2 DVD ADJUSTMENT ...............................................................................................................................165 6.3 MONITOR UNIT ADJUSTMENT ............................................................................................................196 6.4 SERVICE ADJUSTMENT.......................................................................................................................205 6.5 EEPROM ADJUSTMENT.......................................................................................................................207 6.6 PHASE ADJUSTMENT ..........................................................................................................................213 6.7 RGB ILLUMINATION ADJUSTMENT.....................................................................................................215 6.8 TOUCH PANEL TEST MODE .................................................................................................................217 6.9 NAVIGATION TEST MODE ....................................................................................................................223 6.10 USING THE TEST DISC.......................................................................................................................242 7. GENERAL INFORMATION ...........................................................................................................................254 7.1 DIAGNOSIS............................................................................................................................................254 7.1.1 DISASSEMBLY....................................................................................................................................254 7.1.2 CONNECTOR FUNCTION DESCRIPTION ........................................................................................260 7.2 IC ............................................................................................................................................................261 7.3 EXPLANATION.......................................................................................................................................293 7.3.1 CIRCUIT DESCRIPTIONS ..................................................................................................................293 7.3.2 OPERATIONAL FLOW CHART...........................................................................................................294 8. OPERATIONS ...............................................................................................................................................296 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 6 1 2 3 4 1 2 3 4 C D F A B E 1. SPECIFICATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 7 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 8 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 9 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 10 1 2 3 4 1 2 3 4 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING (UC) NOTES : • Parts marked by " * " are generally unavailable because they are not in our Master Spare Parts List. • The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Screw adjacent to mark on the product are used for disassembly. • For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions,apply as you think it appropriate.) " 19 7 8 9 10 21 23 22 12 13 11 14 17 16 6 1 5 4 2 3 15 20 24 18 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 11 5 6 7 8 5 6 7 8 C D F A B E PACKING (UC) SECTION PARTS LIST Owner's Manual,Installation Manual Mark No. Description Part No. 1 Polyethylene Bag CEG1383 2 Unit Box CHG6065 3 Contain Box CHL6065 4 Protector CHP3376 5 Protector CHP3315 6 Protector CHP3316 7 Cord CDE5044 8 Cord CDE6825 9 Cord Assy CDP1063 10 Cord Assy CDP1064 11 Screw Assy CEA3797 12 Screw BMZ50P060FTC * 13 Polyethylene Bag CEG-127 14 Screw CMZ50P060FTC 15 Polyethylene Bag CEG1116 16 Sub Unit Box CHG6064 17 Panel CNS9008 18 Pen CNV8969 19 DVD-ROM CPJ1183 20-1 Owner's Manual CRB2325 20-2 Owner's Manual/POC/FRE CRB2326 20-3 Owner's Manual CRB2327 20-4 Owner's Manual/POC/FRE CRB2328 20-5 Installation Manual CRD4167 20-6 Caution Card CRP1310 * 20-7 Warranty Card CRY1246 * 20-8 Registration Card CRY1263 21 GPS Antenna Assy CXC4864 22 Water Proof Pad CZN5442 23 Sheet CZN7008 24 Connector CKX1049 Mark No. Description Part No. Part No. Language CRB2325, CRB2327 English CRB2326, CRB2328 French CRD4167 English, French www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 12 1 2 3 4 1 2 3 4 C D F A B E 2.2 PACKING (EW5) 11 18 14 12 13 7 8 9 10 21 22 23 16 6 1 5 2 3 4 15 20 24 19 17 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 13 5 6 7 8 5 6 7 8 C D F A B E PACKING (EW5) SECTION PARTS LIST Owner's Manual,Installation Manual Mark No. Description Part No. 1 Polyethylene Bag CEG1382 2 Unit Box CHG6066 3 Contain Box CHL6066 4 Protector CHP3376 5 Protector CHP3317 6 Protector CHP3318 7 Cord CDE5044 8 Cord CDE6825 9 Cord Assy CDP1062 10 Cord Assy CDP1064 11 Screw Assy CEA7395 12 Screw CBA2081 13 Bush CNV3930 * 14 Polyethylene Bag E36-615 15 Polyethylene Bag CEG1116 16 Sub Unit Box CHG6064 17 Panel CNS8665 18 Panel CNS9007 19 Pen CNV8969 20-1 Owner's Manual/PEE/ENG CRB2329 20-2 Owner's Manual/PEE/SPE CRB2330 20-3 Owner's Manual/PEE/GER CRB2331 20-4 Owner's Manual/PEE/FRE CRB2332 20-5 Owner's Manual/PEE/ITA CRB2333 20-6 Owner's Manual/PEE/DUT CRB2334 20-7 Owner's Manual/PEE/ENG CRB2335 20-8 Owner's Manual/PEE/SPE CRB2336 20-9 Owner's Manual/PEE/GER CRB2337 20-10 Owner's Manual/PEE/FRE CRB2338 20-11 Owner's Manual/PEE/ITA CRB2339 20-12 Owner's Manual/PEE/DUT CRB2340 20-13 Installation Manual CRD4169 20-14 Caution Card CRP1310 * 20-15 Warranty Card CRY1157 21 GPS Antenna Assy CXC4864 22 Water Proof Pad CZN5442 23 Sheet CZN7008 24 Connector CKX1049 Mark No. Description Part No. Part No. Language CRB2329, CRB2335 English CRB2330, CRB2336 Spanish CRB2331, CRB2337 German CRB2332, CRB2338 French CRB2333, CRB2339 Italian CRB2334, CRB2340 Dutch CRD4169 English, Spanish, German, French, Italian, Dutch www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 14 1 2 3 4 1 2 3 4 C D F A B E 2.3 EXTERIOR (1) 53 18 13 1 1 40 31 39 30 34 33 38 36 32 35 43 29 46 48 44 45 47 7 1 1 37 50 42 1 14 1 2 2 2 2 2 3 2 2 2 28 2 2 6 24 52 6 17 2 2 20 16 2 2 2 20 16 10 5 5 5 9 8 5 2 5 22 51 27 2 5 26 5 5 23 21 5 2 2 11 4 19 4 4 4 41 49 25 41 54 15 15 A B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 15 5 6 7 8 5 6 7 8 C D F A B E (1) EXTERIOR (1) SECTION PARTS LIST (2) CONTRAST TABLE AVIC-D3/XU/UC and AVIC-D3/XU/EW5 are constructed the same except for the following: Mark No. Description Part No. 1 Screw ASZ26P050FTC 2 Screw BMZ26P050FTC 3 Screw BMZ26P160FTB 4 Screw See Contrast table(2) 5 Screw(M2 x 3) CBA2096 6 Screw(M3 x 10) CBA2097 7 Cord Assy CDE8156 8 FFC CDE8312 9 FFC CDE8313 10 Cord Assy CDE8339 11 FFC CDE8340 12 ••••• 13 Gasket CNN1805 14 Gasket CNN1804 15 Cushion CNN1807 16 Screw See Contrast table(2) 17 Chassis CNA2964 18 Case CNB3357 19 Holder See Contrast table(2) 20 Holder See Contrast table(2) 21 Shield CND3692 22 Bracket CND3697 23 Bracket CND3698 24 Cover CND3917 25 Insulator CNN1404 26 Sheet CNN1449 27 Flexible PCB CNP8272 28 Heat Sink CNR1888 29 Navi Mother Unit See Contrast table(2) 30 Jack(CN2063) CKN1043 31 Connector(CN2065) CKS3408 32 Connector(CN2068) CKS4674 33 Connector(CN2059) CKS4822 34 Connector(CN2061) CKS4823 35 Connector(CN2) CKS5075 36 Connector(CN2057) CKS5075 37 Connector(CN2055) CKS5110 38 Connector(CN2060) CKS5205 39 Connector(CN2066) CKS5598 40 Holder CND3696 41 Sheet CNM9933 42 Sheet CNN1449 43 GPS Unit See Contrast table(2) 44 Connector(CN504) CKS4432 45 Connector(CN461) CKS5204 46 Shield CNC9191 47 Shield CNC9192 48 Holder CND1535 49 Shield Assy CXC7020 50 Shield Assy CXC7021 51 DVD Mechanism Module(MS5) CXK6601 52 Fan Motor CXM1320 53 Label See Contrast table(2) 54 Shield CNN1806 Mark No. Description Part No. Mark No. Description AVIC-D3/XU/UC AVIC-D3/XU/EW5 4 Screw Not used BMZ30P060FTC 16 Screw Not used CMZ50P060FTC 19 Holder Not used CND3430 20 Holder Not used CND3431 29 Navi Mother Unit CWN2189 CWN2089 43 GPS Unit CWX3446 CWX3447 53 Label Not used CAN5448 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 16 1 2 3 4 1 2 3 4 C D F A B E 2.4 EXTERIOR (2) A A 1 1 23 12 1 25 33 10 14 11 24 17 21 18 26 13 15 16 22 31 30 1 1 1 20 27 28 29 8 34 6 7 2 3 4 5 5 5 5 5 9 33 19 32 35 36 C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 17 5 6 7 8 5 6 7 8 C D F A B E (1) EXTERIOR (2) SECTION PARTS LIST (2) CONTRAST TABLE AVIC-D3/XU/UC and AVIC-D3/XU/EW5 are constructed the same except for the following: Mark No. Description Part No. 1 Screw ASZ26P050FTC 2 Cord Assy See Contrast table(2) 3 Cap See Contrast table(2) 4 Cord Assy CDP1064 5 Cap CNV6727 6 Chassis See Contrast table(2) 7 Sheet CNM9933 8 Insulator CNN1403 9 AV Unit See Contrast table(2) 10 Screw BMZ26P060FTC 11 Plug(CN1651) CKM1376 12 Connector(CN1701) CKM1460 13 Jack(CN1721) CKN1042 14 Connector(CN1652) CKS4674 15 Connector(CN1711) CKS5110 16 Connector(CN1661) CKS5486 17 Connector(CN1621) CKS5683 18 Antenna Jack(CN1401) CKX1060 19 Holder CNC9921 20 Shield CND3004 21 Holder CND3181 22 Shield See Contrast table(2) 23 Holder CND3693 24 Holder CND3694 25 Holder CND3695 26 Shield See Contrast table(2) 27 Sheet CNM9805 28 FM/AM Tuner Unit(Y1431) See Contrast table(2) 29 Holder CND1054 30 Tuner Unit(Y1452) See Contrast table(2) 31 Shield Assy CXC7172 32 IC(IC1201) PAL007C 33 IC(IC1821,1841) BA00C0WCP-V5 34 Screw BMZ26P050FTC > 35 Fuse(10A) CEK1208 36 Cord Assy See Contrast table(2) Mark No. Description Part No. Mark No. Description AVIC-D3/XU/UC AVIC-D3/XU/EW5 2 Cord Assy Not used CDP1062 3 Cap Not used CKX-003 6 Chassis CNA2971 CNA2963 9 AV Unit CWN2190 CWN2090 22 Shield Not used CND3188 26 Shield Not used CND3769 28 FM/AM Tuner Unit(Y1431) CWE1952 CWE1951 30 Tuner Unit(Y1452) Not used CWE2023 36 Cord Assy CDP1063 Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 18 1 2 3 4 1 2 3 4 C D F A B E 2.5 EXTERIOR (3) 33 26 24 25 28 33 33 31 37 29 30 27 33 33 21 18 18 18 18 20 19 8 15 17 14 12 36 10 13 6 6 34 35 5 9 4 9 6 6 2 2 2 16 7 32 36 23 22 1 3 11 38 38 39 40 G H I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 19 5 6 7 8 5 6 7 8 C D F A B E (1) EXTERIOR (3) SECTION PARTS LIST (2) CONTRAST TABLE AVIC-D3/XU/UC and AVIC-D3/XU/EW5 are constructed the same except for the following: Mark No. Description Part No. 1 Screw BMZ26P030FTC 2 Screw BPZ20P080FTC 3 Button CAC9994 4 Button CAC9995 5 Button CAC9996 6 Screw(M2 x 3) CBA1797 7 FFC CDE8341 8 Cord Assy CDE8343 9 Cushion CNN1429 10 Cover CNN1432 11 Lighting Conductor CNV9371 12 Holder CNV9375 13 Touch Panel CSX1114 14 Jack(CN5552) CKN1046 15 Connector(CN4825) CKS4825 16 Connector(CN5503) CKS5037 17 Holder CND3755 18 Screw(M2 x 2) CBA1771 19 Holder CND3757 20 Holder CND3758 21 Holder CND3759 22 Insulator CNN1431 23 Insulator CNN1444 24 Monitor Unit See Contrast table(2) 25 Connector(CN5006) CKS4428 26 Connector(CN5004) CKS4825 27 Connector(CN5002) CKS5033 28 Connector(CN5003) CKS5037 29 Connector(CN5007) CKS5050 30 Connector(CN5001) CKS5054 31 Cushion CNN1445 32 LCD Module CWX3435 33 Screw PMB20P040FTC 34 Grille Assy See Contrast table(2) 35 Knob Assy CXC7160 36 Screw IMS26P040FTC 37 REMOTE IC(IC5307) GP1UX51RK 38 Cushion CNN1704 39 Shield CNN1731 40 Shield CND3932 Mark No. Description Part No. Mark No. Description AVIC-D3/XU/UC AVIC-D3/XU/EW5 24 Monitor Unit CWN2188 CWN2091 34 Grille Assy CXC7159 CXC7158 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 20 1 2 3 4 1 2 3 4 C D F A B E 2.6 DVD MECHANISM MODULE : (A) GEM1045 : (B) GEM1043 : (C) GEM1024 : (D) GEM1050 (C) (A) B B C D E (A) D E C F F (A) (A) (A) (A) (C) (B) (C) (B) (B) (B) (C) (A) (B) (B) (A) (A) (A) (C) (A) (A) (A) (C) F A (D) D 55 56 58 16 59 17 37 51 57 16 60 78 87 33 45 47 42 30 50 41 20 88 12 48 48 85 34 11 67 28 84 52 13 73 21 14 81 32 31 8 86 8 8 71 72 46 29 74 75 19 79 24 23 53 49 19 14 18 26 35 36 54 89 23 61 50 77 82 8 63 65 65 64 66 27 8 80 8 62 1 6 5 3 2 7 4 90 90 64 38 83 9 9 87 22 (A) (B) 87 A 8 25 8 43 39 8 8 68 70 15 69 70 87 40 87 E 76 10 (A) 44(1/2) 44(2/2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 21 5 6 7 8 5 6 7 8 C D F A B E DVD MECHANISM MODULE SECTION PARTS LIST Mark No. Description Part No. 1 DVD Core Unit CWX3401 2 Connector(CN1852) CKS4817 3 Connector(CN1101) CKS4841 4 Connector(CN1301) CKS5017 5 Connector(CN1201) CKS5043 6 Connector(CN1901) CKS5054 7 Connector(CN2001) CKS5054 8 Screw BMZ20P020FTC 9 Screw BMZ20P025FNI 10 Screw CBA1787 11 Washer CBF1038 12 Washer CBF1064 13 Spring CBH2586 14 Spring CBH2588 15 Spring CBH2589 16 Spring CBH2590 17 Spring CBH2591 18 Spring CBH2592 19 Spring CBH2593 20 Spring CBH2596 21 Spring CBH2597 22 Spring CBL1726 23 Spring CBH2599 24 Spring CBH2600 25 Spring CBH2601 26 Spring CBH2926 27 Spring CBH2604 28 Spring CBH2605 29 Spring CBH2710 30 Spring CBH2711 31 Spring CBH2935 32 Spring CBH2890 33 Spring CBL1689 34 Spring CBH2898 35 Shaft CLA4206 36 Shaft CLA4701 37 Lever CNC9933 38 Holder CND2643 39 Frame CND2250 40 Holder CND2251 41 Holder CND2642 42 Sheet CNM6883 43 Sheet CNM8697 44 Sheet CNM9658 45 Sheet CNM9407 46 Cam CNV7156 47 Clamper CNV7158 48 Roller CNV7165 49 Rack CNV7175 50 Damper CNV9061 51 Damper CNV9062 52 Collar CNV8845 53 Lever CNV8865 54 Rack CNV9063 55 Arm CNV8867 56 Arm CNV8868 57 Arm CNV9577 58 Arm CNV8870 59 Arm CNV8871 60 Arm CNV8872 61 Arm CNV8873 62 Gear CNV8874 63 Gear CNV8875 64 Gear CNV8876 65 Gear CNV8877 66 Gear CNV8878 67 Gear CNV8879 68 Lever CNV8903 69 Lever CNV8904 70 Roller CNV8905 71 Lever CNV8908 72 Arm CNV8909 73 Guide CNV8910 74 Arm CNV9116 75 Arm CNV9117 76 Compound Unit(A) CWX3154 77 Compound Unit(B) CWX3394 * 78 Arm Unit CXC7872 79 Frame Unit CXC6442 80 Bracket Unit CXB8685 81 Chassis Unit CXC6443 82 Motor Unit(LOAD)(M1) CXC4912 83 Motor(STEPPING)(M2) CXM1364 84 Arm Unit CXC5486 85 Roller Unit CXC5708 86 Motor(SPDL)(M3) CXM1362 87 Screw JFZ20P018FTC 88 Washer YE20FTC 89 Pickup Unit(Service) CXX2118 90 Screw IMS20P030FTC Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 22 1 2 3 4 1 2 3 4 C D F A B E 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM D0-15 D16-31 D0-7 D8-15 D16-23 D24-31 BD0-7 BD8-15 BD16-23 BD24-31 A1-23 D0-31 CPU IC2 UPD705103 GM-180S1 4 11 XCS5 56 57 X2 X1 78 84 PORTB0/TI PORTB6/INTP02 PORTA6/DMARQ3 X1 30.000MHz SDRAM IC1 K4S561632H-UL75 BUS BUFFER IC103 TC74LCX245FTS1 IC104 TC74LCX245FTS1 IC3 HY57V561620FLTP-H 13 XCS6 95 5 XCS7 108 109 105 96 2 XCS4 CKE 13 1 XCS2 IC4 TC7SZ08FU IC102 TC7SH04FUS1 IC105 TC74LCX245FTS1 BUS BUFFER BUS BUFFER BUS BUFFER IC106 TC74LCX245FTS1 IC107 TC74LCX541FTS1 IC108 TC74LCX541FTS1 IC109 TC74LCX541FTS1 1 2 R/W IC101 TC74LCX08FTS1 2 4 4 D D C DIR 99 GDC_INT 1 19 XBCYST XCS4 XMRD XMWR XLLBEN XLUBEN XULBEN XUUBEN GDC_DMARQ GDC_DMAACK XTC 115 114 116 179 117 118 119 120 98 107 108 ASIC IC5(2/2) PD6336C 33 CPU_CLKASIC CPU_CLK 169 XBCYST 238 XCS5 171 XCS3 170 XCS2 88 XMRD XMWR 163 164 XLLBEN 231 90 XIOWR 165 XIORD XLUBEN 29 30 27 110 26 107 127 UART2_TX UART2_RX UART3_TX UART3_RX UART4_TX UART4_RX PIO13 CPU_CLKGDC 113 97 XCS6 XIORD XIOWR XCS6 IOWR R/W CS6 IORD 89 88 DREQ0 DREQ1 PORTA2/DMARQ1 87 DREQ2 PORTA4/DMARQ2 PORTA0/DMARQ0 82 77 INT2 INT3 PORTB3/INTP13 PORTB2/INTP00 106 85 XREADY INT0 PORTB7/INTP03 READY HYOKA IRQPWR PORTA7/DMAAK3 90 86 GDC_DMAACK GDC_DMARQ 94 XTC 98 XCS4 107 XBCYST 115 XMRD 114 XMWR 113 XLLBEN 112 XLUBEN 111 XULBEN 110 XUUBEN CLKOUT 46 CPU_CLKGDC CPU_CLKASIC TC/STOPAK CS4 CS7 5 XRAS 3 XCS0 12 SDCKOUT 14 XCAS 4 XWE WE 9 15 LLDQM LDQM 8 39 LUDQM UDQM 7 15 ULDQM LDQM 6 39 16 17 18 19 38 37 UUDQM UDQM CAS RAS CS0 SDCLKOUT WE CAS RAS CS CLK CKE 63 RST3 RESET MWR MRD OE BCYST LLBEN LUBEN ULBEN UUBEN 83 100 97 99 GDC_INT PORTB4/INTP01 XCS2 CS2 XCS5 CS5 XCS3 CS3 BD0-31 A1-8 A9-16 A17-23 BA1-8 BA9-16 BA17-23 39 XLLBEN 40 XLUBEN 41 XMRD 17 XMWR 28 XMRD XMWR 11 BD0-15 BD16-31 BD0-15 XCS7 26 A NAVI MOTHER UNIT(1/2) CTOGPS GPSTOC MTOC CTOM XMSRS CPUWDT5 CTOSYS5 CCRST5 CPUWDT5 CTOSYS CPUWDT SYSTOC IRQPWR SYSTOC5 IRQPW5 1 3 5 6 7 8 13 11 12 16 15 17 18 20 19 21 22 GSENS CTOGPS CTG GPSREV GPSRQ GPSTOC GTC RXDD TXDD PULSE POUT GYRO GSNS IRQPW5 MUTE CN2060 5V→3V IC2084 TC7SH04FUS1 IC2052 TC7S32FU 5V→3V IC2051 TC7WH32FU 5V→3V IC2053 TC7WH08FU GYRO GY1 3V→5V IC2050 TC74VHCT08AFTS1 3 5 VCC5 6 8 3 4,5 1,2 7 5,6 3 9,10 1,2 4 2 3 5 6 7 1 2 TMCDET TMCSD TMCCE GTOTMC TMCCK TMCTOG TMCSL 30 27 29 CCD3 10 28 26 SWBUP BUP3 VCC5 B CN461 4 8 G Sensor GY4 Q2052 IC2058 NJM2904M SPEED SENSE 5 1 IC2055 BD5335FVE RESET 3 1 1 RESET 2 4 PIO29 2 2 1 IC309 TC7SH08FUS1 XRSTMS3 RST3 4 108 XRESET C 23 105 21 104 UART6_TX UART6_RX UART7_TX UART7_RX CTOETC ETCTOC CTOEX EXTOC EXTOD DTOEX 12 9 13 10 11 8 19 22 18 21 20 23 1 4 2 5 8 6 7 CN2066 RS232C DRIVER IC2078 UPD4723GSS1 GTOEX CTOEX EXTOG EXTOC HYOKA CTOETC ETCTOC Rout2 Din2 Rout3 Din3 Rout1 Din1 Rin2 Dout2 Rin3 Dout3 Rin1 Dout1 TO EXTENSION A 48 MS5STBY1 PIO12 XBCYST XCS5 XCS3 XCS2 XMRD XMWR XLLBEN XLUBEN XIOWR XIORD XCS6 49 PIO14 MSCCSTBY 13 12 2A,2B 3A,3B 1A,1B 4B 4A OFFOK 11 3Y 1Y 2Y 4Y MS5STBY1 A2-16 A2-16 14 PDO PDI BA2-23 BA1-17 BA2-23 BA2-23 TO 2/2 TO 2/2 EXTOD DTOEX www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 23 5 6 7 8 5 6 7 8 C D F A B E X202 14.31818MHz 124 128 1 3 | 18 21 23 25 27 29 31 33 35 36 37 38 ATA_XRESET 114 RESET ATA_DMARQ 182 DMARQ ATA_XDIOW 109 DIOWB ATA_XDIOR 246 DIORB ATA_IORDY 181 IORDY ATA_XDMACK 180 DMACKB ATA_INT 179 INTRQ ATA_DA1 178 DA1 ATA_DA0 177 DA0 ATA_DA2 191 DA2 ATA_XCS0 257 CS1FXB ATA_XCS1 192 CS3FXB RST3 1 CCD3C XRST 44 S XINT XRDY XBS XCS 129 AOUTR 152 AOUTG 147 AOUTB 143 56 DAC_LRCK 97 99 GDC_INT AOUTBLUE CSYNC 204 NVSYNC AOUTGREEN AOUTRED NVBLUE NVGREN NVRED GDC_WT XBCYST XCS4 XMRD XMWR XLLBEN XLUBEN XULBEN XUUBEN GDC_DMARQ GDC_DMAACK XTC 115 114 XRD 116 A24 179 XWE0 117 XWE1 118 XWE2 119 XWE3 120 DREQ 98 DRACK 107 DTACK 108 ASIC IC5(1/2) PD6336C GDC_WT 101 134 55 135 126 PIO11 14 129 PIO17 GUIDEMUTE PBSNS REM_IN IR_RX CN2 CPU_CLKGDC BCLKI OSCOUT CLK 113 1 DACOUTL GUIDE 11 2 DAC_MCLK DAC_DATA DAC_BCLK 176 175 94 172 173 240 174 XREADY INT0 INT2 INT3 DREQ0 DREQ1 DREQ2 DAC IC304 AK4388VT MCLK AOUTL BICK 3 SDTI 4 LRCK ATA_DMARQ ATA_DD0-15 ATA_XRESET ATA_XDIOW ATA_XDIOR ATA_IORDY ATA_XDMACK ATA_INT ATA_DA1 ATA_DA0 ATA_DA2 ATA_XCS0 ATA_XCS1 ATA_DD0-15 D0-31 BD0-31 C 18 16 XTAL0 EXTAL0 X2 33.000MHz 60 58 XTAL1 EXTAL1 X3 33.8688MHz IC114 TC7SH08FUS1 SCARLET IC201 MB86291 APFVS-G-DL WE CE FLASH ROM IC110 IC111 SRAM IC113 M5M5V216 ATP-70HI 39 XLLBEN 40 XLUBEN 41 XMRD 17 XMWR 28 12 XMRD RST3 XMWR 11 OE RESET IC112 TC7SH00FUS1 4 4 2 6 2 SRAM_CSE 1 11 XCS_SRAM 44 PIO4 S BD0-15 BD16-31 BD0-15 CS7 26 Q201 RSTIN SRCMUTE SPEED GPSREV SPEED CN2055 (1/2) 1 3 5 6 7 8 13 32 29 24 23 21 22 20 4 CN2057 8 1 5 7 CN2065 MVDD5 CVBS DVDV SLVSTS CTOM HSTCMD MTOC IRQPWR XRES XMSRS TMCDET TMCSD TMCCE GTOTMC TMCCK TMCTOG TMCSL ANALOUT DVDL AMUTE ASENBO IPBUS+ IPBUS- IPL+ IPL ASENB 47 IRQPWR SYSTOC CPUWDT RST3 CTOSYS ASENBO 130 88 BKSNS 89 IPPW IPPW 90 IPTOSYS RX 91 113 118 SYSTOIPBUS TX BUS- BUS+ 98 MUTE 40 RESET 1 DIN1 2 ROUT 8 STBY IC2068 HA12241FP SYSTEM-uCOM IC2056(1/2) IPBUS+ IPBUS- 6 5 103 106 SYSTOC5 CCRST5 117 CTOSYS5 CPUWDT5 IRQPW5 REVSNS SYSREV GPSREV 51 75 RESET RSTIN 65 SRCMUTE IP-BUS IN C CN1711 VDD5 ASENB Q2091 Q2054 IC2058 NJM2904M PEED SENSE 5 IC2055 BD5335FVE RESET 3 AMUTE 54 32 PDI TMCTOG 24 PCK TMCCK 26 PDO GTOTMC 34 PCE TMCCE 36 SD TMCSD 30 DETOUT TMCDET 28 SL TMCSL 56 IPL 48 DVDL 73 DVDV I17 15 VD8 VDD8(DRY) VDD8(REG) I3 1 21 70 64 REMIN PKB 5V→3V IC2083 TC7SH14FUS1 PARKING SENSE Q2055 Q2068 Q2069 Q2070 49 NVSYNC 13 NVBLUE 7 NVGREN 9 NVRED 11 PBSNS 129 2 4 PBSNS 79 VDD5 A A A2-12,23 PDO PDI 25 STANBY MS5STBY1 BA2-23 BA1-17 BA2-23 BA2-23 A B PEH078B PEH104B A B PEH077B PEH103B D CN1901 XREADY INT0 INT2 INT3 DREQ0 DREQ1 DREQ2 MUTE RESET 105 XCCSTBY OFFOK Q2089 KBUP A AVIC-D3/XU/EW5 B AVIC-D3/XU/UC TO 2/2 C TO 2/2 5 C TO 2/2 RSTIN D CN2001 A B PE5581A PE5580A OE WE BC1 BC2 IC2065 TC7SH04FUS1 4 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 24 1 2 3 4 1 2 3 4 C D F A B E A Q2099 132 OPTSNS 120 OPTON DRAMPW 78 FCONT 67 DD8CONT 34 84 VSEL2 85 VSEL1 86 BCVSW 53 NOSELL 109 SWACPW 62 SYSPWR 58 TELIN 64 ANTON 126 11 MUTEVO 76 ACONTA 9 VDT 77 ACONTB 10 VCK 61 SREMOTE 12 VST 29 137 WREMIN 124 PPW 116 125 123 PID 135 TUNSL 101 TUNCE2 107 MTOSYS 100 TUNCE1 108 SYSTOM 48 TUNCLK 133 47 TUNDO 45 LDET 46 TUNDI 13 ROT1 14 ROT0 65 XVMUTE 57 RCK 23 RDT 25 RDSLK 24 RDS57K 112 TXIPOD 111 RXIPOD SYSTEM-uCOM IC2056(2/2) RSTOUT 104 CCON 79 69 BSENS BSENS BLSENS Q2088 Q2090 BUP KBUP NAVI MOTHER UNIT(2/2) 73 74 X2 X1 X2050 Q2059 Q2053 Q2051 Q2098 Q2097 Q2096 A SYSRST CCON RST3 2 5 6 CCD3C RESET GEN. IC301 M51957BFP Q301 Cd IN1 RSTOUT IC302 TC7SH08FUS1 TO 1/2 2 1 4 C 63 FANCONT ILLSNS WCONT IC2 TC7SET OPTSNS 96 ASENS ASENS FANUP 1 2 IC2061 TC7SH08FUS 1,2 4 5 TC7 DALMON 33 Q2102 Q2104 Q2103 Q2105 Q Q Q Q BUP3 UVDD5 Q2093 BUP VD8 SRVDD FU1931 KBUP FU1913 FU2060 SD3VC FU1908 FCONT Q2094 CCON Q2092 FCONT 8.0V D/D CONVERTER IC1931 TPS5103IDB 3.3V D/D CONVERTER IC1903 TPS5103IDB KBUP KBUP FU1903 CCON FCONT 5.0V / 2.5V D/D CONVERTER IC1901 TPS5120DBT CCD3C Q2071 Q2072 Q1935 Q2101 VDD5 UVDD5 MVDD5 CCD5 CCD5C FU1901 CCD25C FU1902 CCD3 BUP3 BUP3C 1 4 5 IC2070 S-814A50AUC-BDO VCC5 VD8 VCC5 REG. 5 1 IC2076 BD3931HFP VDD5 REG. 5 1,3 IC2075 S-L2980A33MC-C6S BUP3 REG. PSENS PSENSG DVEJKY A AVIC-D3/XU/EW5 13 VCC 14 VCC-SENSE 5 RT 10 STBY Q1931 19 18 17 LL OUT_U OUT_D 3 FB 2 INV Q1934 19 18 17 LL OUT_U OUT_D 3 FB 2 INV 10 STBY 9 RWMSKIP 5 RT 13 VCC 14 VCC-SENSE Q1903 17 19 LL2 OUT2_U OUT2_D 14 FB2 15 INV2 Q1902 29 28 27 LL1 OUT1_U OUT1_D 2 FB1 1 INV1 24 VCC 6 5V-STBY 5 CT 10 STBY2 9 STBY1 18 Q2095 Q2100 SWBUP REG. BUP SWBUP B AVIC-D3/XU/UC TO 1/2 C A B PE5581A PE5580A A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 25 5 6 7 8 5 6 7 8 C D F A B E Q2099 FU2051 78 VSEL2 46 CCON 76 VSEL1 74 BCVSW 71 GMUTEL 63 SWACPW 61 SYSPWR 59 MUTEIN TELMUTE 55 ANTON 53 ILMSNS 44 MUTEVO 43 ACONTA 42 VDT 41 ACONTB 40 VCK 39 SREMOT 38 VST 37 WCONT 35 WREMIN 33 PPW 27 ACCPW 25 ACCDET 23 ACCID 22 FMSL 20 FMCE2 19 MTOSYS 18 FMCE1 17 SYSTOM 16 FMCLK 15 DVEJKY 14 STOFM 12 HLDET 10 FMTOS 5 ROT1 3 ROT0 1 XVMUTE 2 HRHSLK 4 HRLK 6 HRDT 8 HRCK 31 SYSTOI 29 68 45 ITOSYS CN2059 2 1 FAN C CN1711 Q2059 Q2053 Q2051 Q2098 Q2097 Q2096 A CN2063 IC2067 TC7SET08FUS1 CN2061 DIGITAL OUT OPTSNS ASENS FANUP FANUP ASENS DIN FNV 1 2 4 1 IC2061 TC7SH08FUS1 1,2 4 5 IC2062 TC7SET08FUS1 4 5 1,2 Q2102 Q2104 Q2103 Q2105 Q2056 | Q2058 Q2060 | Q2062 CN2055 (2/2) KBUP VD8 CN2068 BUP I10 9 I8 5 I4 1 3 2 1 C CN1652 D CN1852 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 26 1 2 3 4 1 2 3 4 C D F A B E 42 10 18 17 11 AUXL CLK FLOUT DATA IN3L RLOUT 20 19 VDT VCK MUTEVO VST STB MUTE 41 FML IN2L PREOUTL 43 IPL POMUTE RSTMUTE IN4+L 12 C 8 GUIDE MIX IC1131 NJM2060V Lch MUTE ISOLATOR, LPF AMP CAPTAIN IC1061 PML009A FL 13 FL RL SWL 3 7 IC1111 BA4558RFVM GUIDE GMUTEL GMUTE 3 AV1VIN 1 AV1V IC1301 NJM2137V ISOLATOR 2 KBUP NBUP CN1401 FM/AM TUNER UNIT Y1431 VDD_3.3 VCC ROM_VDD DI DO CE1 CK SL CE2 STOFM FMTOS FMCE1 FMCLK FMSL FMCE2 Lch FML AM_ANT FM_ANT RDS-LOCK RDS-HSLK RDS-CK RDS-DATA LDET HRLK HRHSLK HRCK HRDT HLDET 1 3 23 5 6 8 9 10 14 11 18 19 20 21 4 13 17 AV8 VDD5 TMC8 TU3 GUIDE GUIDEMUTE GMUTE GMUTEL FM TUNER UNIT Y1452 STUNB SPLL SCMP SBSL SBDI SBCE SBDO SBCK SFMANT SBSD TMCDET TXiPod SYSTOI RXiPod ITOSYS ACCID ACCPW ACCDET TMCSL TMCTOG TMCCE GTOTMC TMCCK TMCSD 1 6 13 14 15 16 7 9 10 11 ANTENA IN SREMOTE SRCMUTE DVDV VSEL2 VSEL1 XVMUTE SYSPWR CCON SWACPW SWACPW VDD5 F/W PWR ACONTA CN1711 VST VDT MUTEVO VCK FANUP ACONTB IPL DETOUT TMCDET SL SD TMCSD PCK PDO PCE PDI HRCK HRDT HLDET HRLK HRHSLK TMCSL TMCCK GTOTMC TMCCE CTL TMCTOG 4 38 12 39 2 79 37 40 42 36 24 48 46 54 44 56 50 52 78 76 74 72 68 17 19 34 1 Q1331 CN2055 A AV UNIT B Q1402 AV8 D A A A A Q1401 T1403 T1402 T1401 Q1403 Q1451 Q1452 FL Q1092 Q1205 Q1206 3 1 DVD LPF IC1001 NJM4558V 5 2 1 10 VTR2L iPodL VTR1L AUDIO SELECTOR IC1051 TC4052BFT 3 AUXL ACONTA Q1052 9 ACONTB Q1051 1 3 ISOLATOR IC1021(1/2) BA4558RFVM C FL Q1112 Q1114 Q1204 Q1001 Q1002 Q1201 | Q1203 40 DVDL1 DVDLS AMUTE IN1L 1 1 VIDEO SELECT IC1331 BA7649AF IN1 8 IN3 3 AV2VIN 6 AV2V IC1316 NJM2136V ISOLATOR 10 IN4 VSEL1 3 CTLA VSEL2 4 CTLB 5 CTLC 4 IPODVS 1 IC1381 NJM2505F ISOLATOR 6 IN2 VOUT DVDV 7 STOFM FMTOS FMCE1 FMCLK FMSL FMCE2 58 60 62 64 66 70 SYSTOI 49 ITOSYS 51 ACCID 57 ACCPW 53 ACCDET 55 DVDL 32 AMUTE 26 LOUT IPODLS CN1621 3 5 VOUT IPODVS 7 11 2 10 4 6 16 10 9 SREMOT SRCMUTE 41 15 NBUP TU3 REG. 2 4 1 NBUP TU3 IC1841 BA00CC0WCP-V5 CTL C FM DISTRIBUTION TO iPod SREMOTE B A NBUP IPODV www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 27 5 6 7 8 5 6 7 8 C D F A B E 14 5 12 3 21 23 FL 22 4 SREMOTE MUT POWER AMP IC1201 PAL007C IN2 OUT2+ OUT2- IN4 OUT4+ OUT4- B-REMOTE 25 MUTE STBY VTR1L POMUTE 8 GUIDE MIX IC1131 NJM2060V RL+ FANUP RL- FL+ FL- Q1093 13 FL RL SWL SWL BREMOTE Q1711 (1/2) Q1711 (2/2) TMC8 REG. FireWire PWR V1V 1 3,4 IC1876 NJM2125F AV8 AU5 AU5 REG. 2 1 4 KBUP TMC8 F/W PWR NBUP IC1891 BA00CC0WFP 4 2,3 7 3 1 2 SELECTOR IC1351 NJM2235M 75 DRIVER IC1361 TK15405BMI CN1701 BREM SWL 13 12 1 19 17 23 21 BCV BCVIN AV2V AV2L AV2VIN AV2LS REARVOUT RVOUT WCONT WREMIN TELMUTE VTR1V AV1VIN VTR1L AV1LS 9 5 FL RL PFL PRL CN1651 FL- RL- RL+ 6 8 5 7 13 9 11 14 10 12 15 16 KBUP NBUP AANT ANTON FL+ PULSE SPEED PKB REV ILM BUP ACC 1 6 IC1601 TPD1018F AUTO ANT PWRVI VIDEO5 MFLPW SWACPW HDRST MONVBS MONVBS BCVIN VDV ROT0 CN1661 CN1721 WIRED REMOTE (BLACK) MTOSYS MOREM NVR DISCEJ SYSTOM MTOS STOM NVB ROT1 NVG 36 37 34 30 15 16 19 5 1 17 21 18 22 23 31 28 32 33 14 ILMB VDD5 RSTMUTE RVOUT NVGREN NVG NVRED BCVSW REMIN MOREM MTOSYS SYSTOM MTOS STOM ROT1 NVSYNC NVBLUE NVR NVB XVMUTE SPEED REVSNS REV PKB DVEJKY CCON ANTON RESET RSTIN MUTEIN TELM WCONT WREMIN 75 63 61 59 69 71 73 79 67 31 29 33 34 25 21 6 43 5 65 45 ILMSNS ILM SENS Q1603 ASENS Q1602 ASENS ILM ACC 27 35 REV SENS Q1601 Q1331 D 055 CN5001 G 1 4 IC1341 NJM2505F ISOLATOR A KBUP ILMB CN1652 NBUP BUP CN2068 A I10 9 I8 5 I4 1 PRL PFL Q1092 Q1091 205 VTR2L LECTOR 51 2BFT 3 AUXL 3 1 ISOLATOR IC1031(1/2) BA4558RFVM 3 1 ISOLATOR IC1041(1/2) BA4558RFVM A AVIC-D3/XU/EW5 B AVIC-D3/XU/UC PWRFL PWRFL NBUP MFLPW FU1864 Q1861 Q1862 PWRVI PWRVI NBUP SWACPW FU1865 Q1851 Q1852 Q1204 Q1801 | Q1805 ACC5V PWRFL I12 10 1 14 VIDEO SELECTOR IC1331 BA7649AF IN1 8 IN3 V2V 10 IN4 SEL1 3 CTLA SEL2 4 CTLB 5 CTLC 6 IN2 VOUT PPW 47 AV8 REG. 2 4 1 NBUP AV8 SWACPW VIDEO5 IC1821 BA00CC0WCP-V5 CTL Q1831 | Q1833 TU3 ODV VIDEO5 REG. RL BUP Vehicle I/F TELM DVEJKY NVSYNC 25 2 3 1 ROT0 77 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 28 1 2 3 4 1 2 3 4 C D F A B E Q5300 MONITOR CPU IC5300 PE5584A TH5300 TEMP. SENSOR 80 76 62 8 9 30 5 CN5001 PWRVI ACC5V MTOSYS SYSTOM MOREM REMCON NVR NVG NVB AV2V AV2L AV2V AV2L AV2V AV2L ANR ANG ANB 4 5 7 26 27 22 36 40 13 25 24 23 9 8 11 10 18 19 20 2 1 DIMDTY INVBST Q5301 V14 MONVBS ROT1 ROT0 HDRST DISCEJ VACC5 SWACPW ILMB TEMPSEN KDT0 61 REMIN 32 MFLPW MFLPW 77 KDT1 VDDSENS RXD/TSI TXD/TSO INVBST DIMMER MVIPW X1 X2 11 X5300 12.58MHz 70 69 MONITOR UNIT G SWACPW 44 INVPUL VACC5 RESET 60 1 EPRCS 49 1 EPRCK 48 2 EPRDO 47 3 EPRDI 46 4 2 EEP-ROM IC5303 S-93C46BD0I-J8 IC5304 S-80835CNNB-B8U IC5681 NJM2903V POWER ON RESET YV XV CN5002 ADX ADY 7 5 6 4 3 2 9 8 24 25 3 2 PNLXV PNLYV PNLADY PNLADX TOUCH PANEL Q5364 Q5362 26 PNLVD Q5360 (2/2) Q5360 (1/2) VACC5 VACC5 Q5363 Q5361 VACC5 FL1 FL2 5 3 1 DIMDTY INVPUL INVBST 11 14 15 5 3 7 LCT 3 ENA 7 V2500 9 FB 18 CT DIM VDDA NDRV_D 12 PDRV_C 20 NDRV_B 19 PDRV_A 2 OVP Q5900 Q5901 Q5904 Q5902 Q5908 Q5905 | Q5907 Q5903 5V REG. IC5900 TA78L05F LCD DRIVE IC5902 OZ961ISN 10 COMP 6 T5900 PWRFL I 29 31 PWRFL I OSDDT OSDCK OSDCS HSY 17 18 19 OSDDISP 31 25 12 24 26 IC5650 PD6567A LCDDT 12 LCDCK 13 LCDCS 14 MODS 34 16 MODW 35 MODN 36 MDS MDW MDN FREQSW 43 20 21 LEDDT 52 LEDCK 53 LEDCS 54 BLKDRV 15 RGBSEL 27 PSAVE 28 COLSYS 29 SIN SCLK DISP OSDTRE 16 23 TRE ROUT(C1) GOUT(C2) DOCKI VOB1 IOUT(C3) BOUT(C0) 8 16 20 18 19 17 CS HSYNC 13 VSYNC IC5100 LZ9FE30 MDW MDN VSYNC 64 12 VSY MDS VSC SPIO SPS CLS VR MOD2 MOD1 CTR CLD HR SPO PDP SYN FRPT NTPC HSY AV MINI JACK PCB I IC5901 TC7SH08FUS1 4 1,2 CN1661 C IC5651 TC7SH08FUS1 2 1 4 14 OSC OSCO REMOTE IC5307 GP1UX51RK 1 3 REM A AVIC-D3/XU/EW5 CN5552 CN5004 CN4825 5 2 5 2 NVSYNC 16 1 2 4 3 DI SK DO CS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 29 5 6 7 8 5 6 7 8 C D F A B E CN5003 KDT0 X5010 4.43MHz IC5011 RB5P0090M 35 34 33 KDT1 CN5007 RED LCDR GREEN V53 CS VGL COM BLUE 21 29 30 31 32 12 19 15 1 17 26 28 23 24 9 10 7 8 6 25 20 LCDG LCDB VCOM COMS 30 29 ROUT RIN1 GIN1 BIN1 GOUT VCO_OUT(PAL) VCO_IN(PAL) X5011 3.58MHz 27 26 VCO_OUT(NTSC) VCO_IN(NTSC) BOUT 37 COM_DC 39 COMOUT ANR ANG ANB 15 14 13 LCD MODULE MVIPW Q5650 J8 IC5101 NJM2107F 9 4 IC5060 TC74VHC221AFTS1 CN5006 FL1 FL2 FL1 FL2 1 2 1,2,5,6 1,2,5,6 V14 FREQSW 3 4 3 4 D/D CONVERTER IC5181 BD6171KV 5V REG. 11 6 PVCC1 PVCC2 32 EN1 OUT2 7 VS2 4 PVCC3 PVCC4 PVCC5 23 48 37 OUT1 10 OUT5 38 OUT4 47 V8 V5 V15 OUT3 22 V53 VM10 Q5210 8V REG. Q5200 41 PVCC 42 VCC VS1 13 7 6 900 14 7 8 2 3 6 5 11 10 9 VSHA2 VSHA1 VCC SPIO SPS CLS VRV MODE2 MODE1 CTR CLD HRV HR SPOI RIN2 GIN2 BIN2 SW2 OSDOVR 18 17 16 11 12 C5650 D6567A 16 20 21 4 6 1 41 42 BLK_IN PSAVE NTSC/PAL_OUT BLKDRV COLSYS 43 4 10 45 COLSYS 2 10 MASK 1 11 DI CLK CS SYNC_SW LCDDT LCDCK LCDCS RGBSEL 47 46 48 6 ROUT(C1) GOUT(C2) DOCKI VOB1 IOUT(C3) BOUT(C0) 8 16 20 18 19 17 OSDRGB IC5700 M62343FP 6 DI A01 1 7 CLK A02 2 8 LD A03 3 HSYNC C IC5100 LZ9FE30 MDW MDN 12 VSY MDS VSC 37 1 SPIO 58 SPS 57 CLS 59 VR 32 MOD2 60 MOD1 36 CTR 47 CLD 33 HR 28 SPOI 38 PDP 7 SYNI FRPT NTPC HSY FRP 2 SYNCCT SYNC_OUT 4 SYNC_IN1 COM_FRP HSY_IN D5501 RESET S5506 EJECT S5505 Q5703 | Q5705 Q5700 | Q5702 CN5503 KEY PCB H KEY MATRIX ROT0 KDT1 LEDR S5501 RIGHT S5502 LEFT S5503 MAP S5504 MENU S5507 SOURCE(enter) ROT1 KDT0 ROT0 ROT1 12 1 4 5 6 9 10 8 7 13 LEDG LEDB LEDR LEDG LEDB RED GREEN BLUE ILMB HDRST DISCEJ HDRST DISCEJ Q5180 44 RT IC5010 TC7SH32FUS1 44 OSCI 43 OSCO + ILMB LEDDT LEDCK LEDCS A V15 VGH 4 2 IC5012 TC7SH04FUS1 SYNC_IN2 3 NVSYNC PSAVE SW1 12 Q5100 4 1 VR MOD2 MOD1 ILMB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 30 1 2 3 4 1 2 3 4 C D F A B E D0-15 A1-18 D0-15 A1-18 D0-15 A1-17 GPS UNIT B 22 IC402 UPB1027GS RF_MIXin 2ndIFout 19 17 REFin LOOUT IC503 M5M5V216ATP-70HI 5 30 26 27 29 28 22 18 21 20 19 17 15 12 13 11 10 16 8 7 6 5 3 1 TXDD RXDD GPSTOC CTOGPS REVSNS RQ 5 SPEED 9 6 7 8 133 132 CN461 CN504 ANTVCC AD5V VCC3 BUP3 BUP3 11 86 WE 12 1 RESETB 6 28 87 26 OE WE OE CERAM 97 17 41 6 WE OE 120 140 DRAGON IC501 PD3390A WRLB RDB CS1B CEROM 89 CS0B RESETB BOWWOWB RTCVCC 110 CRCK PIN0 IF PIN2 PIN3 RXD0 TXD0 RXD1 TXD1 SPEED GSNSIN 13 ADRXD GYROIN 10 ADCSB VSNS 12 ADTXD 11 19 18 20 21 3 2 4 ADSCK XRTCIN XRTCOUT 143 GPS ANTENNA X401 F401 POWER ON RESET IC504 MAX6364PUT29 Q441 130 PIN1 131 ANTVCC 4 1 IC401 UPC2749T 4 2 7 1 3 2 5 6 IC441 NJM2100V OE WE CE OE 64 HBS 40 A0 BC2 85 LBS 39 WRHB BC1 WE S RESET IC461 ADC12H034CIMSAS1 CS DI DO SCLK 15 22 ADIO0 CCLK 14 16 ADSRX EOC CH2 CH1 CH3 X501 102 103 X532 15 16 PSWOUT 17 ADIO2 14 FLASHWE 112 PC0 PDI 25 PLRX PCK 23 PLSCK PDO 24 PLTX SD 28 PLIO2 PCE 22 PLCE SL 1 CH0 35 DDIO1 29 DDINT 33 DDRX 24 22 25 BCLOCK DINT DDO IC532 LC72720YVSS1 DO RDS-ID SYNC 31 DDSCK 30 DDCE 32 DDTX 26 29 28 DCL DCE DDI DI CL CE 36 DDIO2 34 DDIO0 30 DSTB DRST SYR XOUT XIN DETIN 2 MPXIN CN2060 A +- +- VCC3 104 5 A A AVIC-D3/XU/EW5 XAUXIN XAUXOUT X502 20.0MHz 128 129 AN FM ANT 1 3 AM ANT ATT AT AN FM ANT 1 3 AM ANT ATT AT C C FM/AM FM/AM B AVIC-D3/XU/UC IC502 PEH101A8 PEH100A8 A B VCC3 4 3 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 31 5 6 7 8 5 6 7 8 C D F A B E FMRF ANT adj RF adj FM ANT T51 CF52 RFGND OSCGND DGND AUDIOGND NC VCC VDD_3.3 3.3V 2.5V IC 4 3.3V 2.5V ← IC 2 2.5V NC CE2 ROM_VDD SL DI CK CE1 NC DO NC NC NC NC 7 6 13 5 10 9 8 11 14 18 19 20 21 1 3 2 12 15 22 16 4 17 IC 1 3.3V AM ANT FMRF ATT LPF OSC IC 3 EEPROM 5.0V IC 5 5V 3.3V ← ATT MIXER, IF AMP DET, FM MPX 24 23 Rch Lch FMRF ANT adj RF adj FM ANT T51 CF52 RFGND OSCGND DGND AUDIOGND NC VCC VDD_3.3 3.3V 2.5V IC 4 3.3V 2.5V ← IC 2 2.5V NC CE2 ROM_VDD SL DI CK CE1 LDET DO RDS_CK RDS_DATA RDS_LOCK RDS_HSLK 7 6 13 5 10 9 8 11 14 18 19 20 21 1 3 2 12 15 22 16 4 17 IC 1 3.3V AM ANT FMRF ATT LPF OSC IC 3 EEPROM 5.0V IC 5 5V 3.3V ← ATT MIXER, IF AMP DET, FM MPX, RDS DECODER 24 23 Rch Lch C C C C C C C C FM/AM TUNER UNIT(AVIC-D3/XU/UC) FM/AM TUNER UNIT(AVIC-D3/XU/EW5) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 32 1 2 3 4 1 2 3 4 C D F A B E MA0-11 MDQ0-31 DQM0-3 HDD0-15 A16-19 AD0-15 VIDEO+AUDIO IC1501 MN2DS0016AAUB A SRCK LRCK ADOUT3 SDODAC LTDAC SCKDAC DACCK 174 173 175 91 74 90 172 DACCLK SRCK ADOUT3 SDODAC LRCK LTDAC SCKDAC DACCLK DRV3 95 CONT1 MD CONT2 84 97 85 LOADIN 93 FD 150 TD 149 LDIN FG HOME TEMP VIN1RF VIN3RF VIN4RF VIN2RF VIN5 VIN6 DVDMPD RFINN F+H_G+H CDMPD E+G_E+F LPCO2 LPCO1 99 98 145 123 121 120 122 VIN2 142 136 137 A C D B FE1 FE2 128 116 134 130 135 131 129 RF Cr Cb Y Comp 152 153 154 161 STANDBY 78 HOSTCMD 80 SLVSTS 79 IRQPWR 89 AMUTE 87 DSCSNS 147 PHOTOSNS 144 (CR) (CB) (Y) (COMPOSIT) CR CB Y COMPOSIT DRV2 96 NRES OSCO OSCI X1501 169 170 STANBY CMDCOMN STSCOMN IECOUT 179 A16-19 A0-15 A0-15 AD0-15 AD0-15 XRD NRES 28 50 NEXOE 101 NRST 77 XCSSR 51 NEXCE 62 NEXWE XCSSR 26 12 XWR1 11 48 CE OE WE RESET 2 1 VSENS VOLTAGE DETECT IC1003 S-80859CNNB-B9K VD8 OUT VDD 88 VSENCE SDRAM IC1481 EDS1232AATA-75 20 68 CS CLK XWE 17 3 NWE XCAS 18 4 NCAS XRAS 19 5 NRAS XCSM 6 NCSM 22 8 BA0 23 10 BA1 BA0 BA1 MCK 234 MCK 232 MCKI 194 NRESET 216 DMARQ 217 NIOWR 218 NIORD 219 IORDY 193 MASTER 222 NDMACK 223 INTRQ 224 DA1 225 NPDIAG 226 DA0 227 DA2 228 NCS1FX 229 NCS3FX 230 NDASP CAS RAS WE 92 P0 VIN1 143 VIN3 140 VIN4 141 FLASH 16M IC1401 CWW1428 LATCH IC1352 TC74LCX16373FT IC1351 TC7SZ08FU IC1403 TC7SZ32FU XCSFM 26 11 XWR2 CE WE IC1402 CWW1429 4 1 2 4 1 2 XCSFM 1LE 25 2LE CN2001 1 HRST 21 23 25 27 29 31 33 35 36 37 38 DMARQ NIOWR NIORD IORDY NDMACK INTRQ DA1 DA0 DA2 NCS0 NCS1 34 NPDIAG 28 MASTER 39 DASP HRST NCS0 NCS1 DASP DVD CORE UNIT D VREF 132 VREFH VHALF 133 VHALF CLAMP 94 VDD5 VCC 18 STB 19 SEL1 1 PVCC 12 PVCC 8 DC/DC C IC BD98 CN2 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 33 5 6 7 8 5 6 7 8 C D F A B E AVCC5 VOUTL 7 BCK LRCK DATA MD 1 3 2 13 AUDIO 2CH ANALOG OUT IC1801 PCM1753DBQ LOUT ML MC SCK 15 14 16 SRCK ADOUT3 SDODAC LRCK LTDAC SCKDAC DACCLK 20 18 CTL2 3 ACO2+ 4 MOTOR DRIVER IC1201 BD7996EFV 2 1 TOM TOP FOM FOP ACO1+ 21 CTL1 25 SLIN2 26 29 SPIN 10 LDIN 13 FG DISC DET IC1301 TC7SZ125FU VDD5 CN1201 17 SLO2+ 16 15 SLO1+ 42 V COILV 39 W COILW 44 U COILU 36 HB HBM 30 HWM 31 HW+ HWP 32 HVM 33 HV+ HVP 34 HUM 35 HU+ HUP 20 18 15 14 17 1 2 3 4 9 10 7 12 11 8 13 16 5 6 Q1104 Q1102 VREF VCC5 CN1101 LD(CD) F+ T+ FOM TH TEMP B FOP TOM TOP LPCO2 25 20 19 1 2 3 4 10 11 8 14 12 9 15 21 17 22 24 5 7 Q1103 Q1101 LD(DVD) VCC LPCO1 4 DSCSNS 2,3 51 ACTIN1 50 ACTIN2 5 1 3 VIN VOUT ON/OFF AVCC5 REG. IC1005 S-L2980A50MC-C7J VCC5 VDD5 VD8 4 5 1 VIN VOUT CONT VCC5 REG. IC1004 NJM2880U1-05 A C D FE1 FE2 78MD CDMPD 65MD DVDMPD RF F+H/G+H F+H_G+H E+G/E+F E+G_E+F 1 DRV3 SLIN1 DRV2 CONT1 CONT2 MD FD TD CR IECOUT CB Y COMPOSIT STANBY SLVSTS HSTCMD STSCOMN CMDCOMN IRQPWR AMUTE VD8 XRESET NRES WAKE UP B+ COIL_V COIL_W COIL_U ANALOG LOUT DiscDetect 8cm 12cm 8cm Photo PHOTOSNS CN1901 40 21 4 29 38 36 23 22 25 20 24 15|17 3|1 34 32 CN1852 1 CN1301 3 4 1 5 2 A+ SWITCH HOME HALL_W+ HALL_V+ HALL_U+ HALL_BIAS+ 4 COMPOUND UNIT(A) E S1203 S1204 DISC SENS 3 S1202 8cm S1201 2 12cm 5 S1205 8cm 6 Q1299 CLAMP1 TP1 COMPOUND UNIT(B) F S1206 CLAMP Q1003 VCC12 VCC33 5 VCC INV2 FB2 11 18 STB 19 6 16 INV1 FB1 15 SEL1 1 PVCC1 12 PVCC2 8 OUT1 Q1001 9 OUT2 DC/DC CONVERTER IC1001 BD9851EFV VAREF CN2057 A CN2061 A PICKUP UNIT(SERVICE) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 34 1 2 3 4 1 2 3 4 C D F A B E +B TUNER REG AUDIO REG FM/AM TUNER UNIT TU3V = 3.3 V AV8V = 8.3 V FM DISTRIBUTOR TMC8 REG TMC TUNER UNIT (UC NM) ZENER DIODE TMC8 = 8.2 V VCC3V = 3.3 V CAPTAIN4 PML009A AV2 AUDIO ISORATOR BA4558RFV AUDIO MUTE IMD3A GUIDE ISOLATOR BA4558RFV VIDEO5 REG AV1 AUDIO ISOLATOR BA4558RFV IPOD AUDIO ISOLATOR BA4558RFV GUIDE MUTE IMD3A GUIDE MIX NJM2060V VIDEO SELECTOR BA7649AF IPOD VIDEO ISOLATOR NJM2505F AUTO ANT TPD1018F SRC MUTE FW PWR SW PWR VI SW PWR FL SW POWER AMP PAL007C INVERTER OZ961ISN BACK LIGHT DC/DC CONVERTER BD6171KV V5 = 5 V V15 = 15 V VM10 = -10 V V53V = 5.3 V 5V REG TA78L05F INV PUL TC7SH08FUS1 CCON SWACPW OR SYSPWR SWACPW OR SYSPWR SWACPW AV UNIT SREMOTE PPW SWACPW MFLPWR V8V = 8 V A B C - Power supply system figure www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 35 5 6 7 8 5 6 7 8 C D F A B E O OR FV R FV UTE IX 0V AUDIO SELECTOR TC4052BFT GUIDE ISOLATOR BA4558RFV DVD AUDIO LPF NJM4558V AU5 REF NJM2125F AV1 VIDEO ISOLATOR NJM2137V AV2 VIDEO ISOLATOR NJM2136V VIDEO SELECTOR BA7649AF IPOD VIDEO ISOLATOR NJM2505F B CAMERA ISOLATOR NJM2505F 75 Ω DRIVER TK154058BMI VIDEO SELECTOR NJM2235 VSW5V MONITOR UCOM PE5584A RESET IC S-80835 EEPROM UCOM MEMORY S-93C46BD0I EEPROM ROM COLLECT S-93C56BDOI THERMISTOR CCX1051 TIMING ADJUSTMENT TC74VHC221AFTS1 OR TC7SH32FUS1 OSD SW AND TC7SH08FUS1 LED DRIVER M62343 DIMMER OSC NJM2903V VIDEO I/F IC RB5P0090M REMCON GP1UX51RK TOUCH PANEL CSX1114 6.1 inch LCD TIMING CONTROL IC LZ9FE30 V5 = 5 V V15 = 15 V VM10 = -10 V V53V = 5.3 V OSD IC PD6567 MULTI COLOR LED NSSM025 MONITOR UNIT KEY UNIT V8V = 8 V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 36 1 2 3 4 1 2 3 4 C D F A B E VDD5 REG IPBUS DRIVER HA12241FP SYSTEM UCOM uPD703089YGJ RST INV 5 3 TC7SH04FUS1 MUTE OR TC7S32FU ROM COLLECTION S-93C568DOI-J8 RESET IC BD5335FVE TR SW CTOSYS WDT OFFOK RST 3 5 AND TC74VHCT08AFTS1 LC FILTER UVDD5 DC/DC 8 V TPS5103IDB VCC5 REG SWBUP SW FAN CNT DC/DC 5 V TPS5120BT MS5 ASENS IPBUS POWER W TC SY A OPTON TC7SET08FUS1 SPEED PULSE NJM2904M LC FILTER RGB BUFFER K MODE (EW NM) PB SNS T NAVI MOTHER UNIT ASENBO VDD5 = 5 V ASENS FANCONT FANUP CCON VD8 = 8.2 V VCC5V UVDD5 = 5 V CCON DD8CONT CCON DALMON FAN 7.5 V to 10.5 V TC A B C D E E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 37 5 6 7 8 5 6 7 8 C D F A B E ROM OLLECTION C568DOI-J8 ESET IC 5335FVE TR SW IPOD TO SYS 3 5 TC7SET08FUS1 BUP3 S-L2980A33MC-C6S SYS TO IPOD 5 3 TC7SH08FUS1 TR SW VCC5 REG GYRO CSX1122 G SENSOR CSX1118 MS5 RST IC MAX6364PUT29 GPS 2M SRAM M5M5V216ATP DRAGON PD3390A 4Mbit FLASH ADC ADC12H034CIMSA DIAGNOSIS NJM2100V TCXO CWX2381 RF AMP UPC2749T GPS ANNTENA RDS DECODER LC72720YVS (UC/NM) WDT IRQ OR 5 3 TC7WH32FU SYSTOC IRQ AND 5 3 RS232C DRIVER UPD4723GSS1 REM INV 5 3 TC7SH14FUS1 SYNC INV TC7SH04FUS1 GPS UNIT BUP3 = 3.3 V RF IC UPB1027GS DALMON TC7WH08FU www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 38 1 2 3 4 1 2 3 4 C D F A B E DC/DC 3.3 V TPS5103IDB TR SW RST3 AND TC7WH08FUS1 CKE SDRAM AND TC7SZ08FU SDRAM*2 K4S561632E HY57V561620 ASIC PD6336B DATA BUFFER* TC74LCX24 Xtal CWX2795 CHIP SE AND TC74LCX08F ADDRESS BUFFER*3 TC74LCX541FTS1 64MBIT FLASH*2 R/W INV TC7SH04FU RST3 M51957BFP DC/DC 2.5 V TPS5120BT DRAMPW & CCON CCD5 CCON CCD3 = 3.3 V CCD25 = 2.5 V SRAM M5M5V216 XCS SRA NAND TC7SH00F RST SRAM AND TC7SH08F DAC AK4388VT C D E E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 39 5 6 7 8 5 6 7 8 C D F A B E DATA BUFFER*4 TC74LCX245FT CHIP SEL AND TC74LCX08FTS1 R/W INV TC7SH04FUS1 RST3 M51957BFP MS5 RESET AND TC7SH08FUS1 BUFFER TC74LVX4245 SCARLET MB86291APFVS CPU UPD705103GM180S1 SRAM M5M5V216ATP XCS SRAM NAND TC7SH00FUS1 RST SRAM CS AND TC7SH08FUS1 CC SECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 40 1 2 3 4 1 2 3 4 C D F A B E 3.2 OVERALL CONNECTION DIAGRAM NAVI MOTHER UNIT A 1/7 A CPU,ASIC,SDRAM 2/7 A ROM,SRAM,BUS-BUFFER 3/7 A GRAPHIC 4/7 A MAIN,CC I/F 5/7 A SYSTEM uCOM 6/7 A I/F 7/7 A PS AV UNIT C 1/3 C PS,I/F 2/3 C A/V 3/3 C TUNER KEY PCB H AV MINI JACK P I DVD MECHANISM MODULE(MS5) D E F TOUCH PANEL AVIC-D3/XU/EW5 AVIC-D3/XU/UC Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or "ELECTRICAL PARTS LIST". CN2001 CN1901 CN1852 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 41 5 6 7 8 5 6 7 8 C D F A B E GPS UNIT B UNIT PS,I/F A/V TUNER MONITOR UNIT G 1/2 G VIDEO 2/2 G INVERTER KEY PCB H MINI JACK PCB LCD MODULE TOUCH PANEL TUNER UNIT (AVIC-D3/XU/EW5) FM/AM TUNER UNIT GPS ANTENNA FAN MOTOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 42 1 2 3 4 1 2 3 4 C D F A B E 3.3 NAVI MOTHER UNIT (CPU, ASIC, SDRAM)(GUIDE PAGE) A-a 1/7 A 1/7 A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page 4/7 A 3/7 A 2/7 A Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. 3.3V 3.3V 3.3V 3.3V 2.5V 2.5V 2.5V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 43 5 6 7 8 5 6 7 8 C D F A B E A-b 1/7 A 1/7 CN2001 2/2 D 4/7 A NAVI MOTHER UNIT (CPU, ASIC, SDRAM) 1/7 A 3.3V 2.5V 3.3V 3.3V 3.3V 3.3V 2.5V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 44 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-b 1/7 1 CN2001 2/2 D 4/7 A NAVI MOTHER UNIT (CPU, ASIC, SDRAM) 1/7 A 3.3V 3.3V 3.3V 2.5V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 45 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-b 1/7 2 3.3V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 46 1 2 3 4 1 2 3 4 C D F A B E A-b A-a A-a 1/7 A-b 1/7 1 4/7 A Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. 3.3V 3.3V 3.3V 3.3V 2.5V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 47 5 6 7 8 5 6 7 8 C D F A B E A-b A-a A-a 1/7 A-b 1/7 2 3/7 A 2/7 A 2.5V 2.5V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 48 1 2 3 4 1 2 3 4 C D F A B E 3.4 NAVI MOTHER UNIT (ROM, SRAM, BUS-BUFFER) 2/7 A 1/7 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 49 5 6 7 8 5 6 7 8 C D F A B E 2/7 A NAVI MOTHER UNIT (ROM, SRAM, BUS-BUFFER) 2/7 A 3/7 A 4/7 A 3.3V 3.3V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 50 1 2 3 4 1 2 3 4 C D F A B E 3.5 NAVI MOTHER UNIT (GRAPHIC)(GUIDE PAGE) A-a 3/7 A 3/7 2/7 A 1/7 A 2.5V 2.5V 3.3V 3.3V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 51 5 6 7 8 5 6 7 8 C D F A B E A-b 3/7 A 3/7 NAVI MOTHER UNIT (GRAPHIC) 3/7 A 4/7 A 2.5V 2.5V 2.5V 2.5V 3.3V 3.3V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 52 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-b 3/7 1 2 NAVI MOTHER UNIT (GRAPHIC) 3/7 A 4/7 A 2.5V 2.5V 3.3V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 53 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-b 3/7 3 2.5V 2.5V 3.3V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 54 1 2 3 4 1 2 3 4 C D F A B E A-b A-a A-a 3/7 A-b 3/7 1 2 1/7 A 2.5V 3.3V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 55 5 6 7 8 5 6 7 8 C D F A B E A-b A-a A-a 3/7 A-b 3/7 3 2/7 A 2.5V 3.3V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 56 1 2 3 4 1 2 3 4 C D F A B E 3.6 NAVI MOTHER UNIT (MAIN, CC I/F) 4/7 A 1/7 A 2/7 A 3/7 A 5.1V 3.3V 2.5V 3.3V 3.3V 2.5V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 57 5 6 7 8 5 6 7 8 C D F A B E 4/7 A NAVI MOTHER UNIT (MAIN, CC I/F) 4/7 A 7/7 A 6/7 A 3.3V 2.5V 3.3V 3.3V 5.1V 5.1V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 58 1 2 3 4 1 2 3 4 C D F A B E 3.7 NAVI MOTHER UNIT (SYSTEM uCOM)(GUIDE PAGE) A-a 5/7 A 5/7 CN1901 2/2 D CN1711 2/3 C SYSTEM CONTROLL 5.1V 8.1V 3.3V 5.0V 5.0V 3.3V 5.0V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 59 5 6 7 8 5 6 7 8 C D F A B E A-b 5/7 A 5/7 NAVI MOTHER UNIT (SYSTEM uCOM) 5/7 A 6/7 A 7/7 A YSTEM CONTROLLER 3.3V 5.1V 8.1V 5.0V 3.3V 5.0V 3.3V 5.0V 5.0V 3.3V 5.0V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 60 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-b 5/7 1 2 3 NAVI MOTHER UNIT (SYSTEM uCOM) 5/7 A 6/7 A 7/7 A 3.3V 5.1V 8.1V 5.0V 3.3V 5.0V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 61 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-b 5/7 SYSTEM CONTROLLER 3.3V 5.0V 5.0V 3.3V 5.0V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 62 1 2 3 4 1 2 3 4 C D F A B E A-b A-a A-a 5/7 A-b 5/7 1 2 3 CN1901 2/2 D CN1711 2/3 C 5.1V 8.1V 3.3V 5.0V 3.3V 5.0V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 63 5 6 7 8 5 6 7 8 C D F A B E A-b A-a A-a 5/7 A-b 5/7 CN1711 2/3 C SYSTEM CON 5.0V 3.3V 5.0V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 64 1 2 3 4 1 2 3 4 C D F A B E 3.8 NAVI MOTHER UNIT (I/F)(GUIDE PAGE) A-a 6/7 A 6/7 B CN461 5/7 A 4/7 A 5.1V 3.3V 3.3V 5.0V 5.0V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 65 5 6 7 8 5 6 7 8 C D F A B E A-b 6/7 A 6/7 NAVI MOTHER UNIT (I/F) 6/7 A > CN1852 2/2 D 7/7 A 7/7 A 5.1V 5.0V 5.1V 3.3V 3.3V 5.1V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 66 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-b 6/7 1 2 NAVI MOTHER UNIT (I/F) 6/7 A 7/7 A 5.1V 5.1V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 67 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-b 6/7 3 > CN1852 2/2 D 7/7 A 5.0V 5.1V 3.3V 3.3V 5.1V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 68 1 2 3 4 1 2 3 4 C D F A B E A-b A-a A-a 6/7 A-b 6/7 1 2 B CN461 5/7 A 4/7 A 5 3.3V 3.3V 5.0V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 69 5 6 7 8 5 6 7 8 C D F A B E A-b A-a A-a 6/7 A-b 6/7 3 5.0V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 70 1 2 3 4 1 2 3 4 C D F A B E 3.9 NAVI MOTHER UNIT (PS)(GUIDE PAGE) A-a 7/7 A 7/7 > > > > 6/7 A 5/7 A 4/7 A 5/7 A 6/7 A 2.5V 3.3V 5.1V 3.3V 3.3V 5.1V 5.1V 8.1V 5.0V 5.0V 3.3V 5.1V 5.0V 5.0V 3.3V 2.5V 5.1V 3.3V 5.1V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 71 5 6 7 8 5 6 7 8 C D F A B E A-b 7/7 A 7/7 > > > > CN1652 1/3 C NAVI MOTHER UNIT (PS) 7/7 A FAN MOTOR CXM1320 5.0V 5.1V 8.1V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 72 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-b 7/7 1 2 3 4 > > CN1652 1/3 C NAVI MOTHER UNIT (PS) 7/7 A 5.1V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 73 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-b 7/7 4 5 > > FAN MOTOR CXM1320 5.0V 8.1V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 74 1 2 3 4 1 2 3 4 C D F A B E A-b A-a A-a 7/7 A-b 7/7 1 2 3 4 > > > 6/7 A 5/7 A 4/7 A 5/7 A 2.5V 3.3V 5.1V 3.3V 3.3V 5.1V 5.1V 2.5V 5.1V 5.1V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 75 5 6 7 8 5 6 7 8 C D F A B E A-b A-a A-a 7/7 A-b 7/7 4 5 > 6/7 A 5.1V 8.1V 5.0V 5.0V 3.3V 5.1V 5.0V 5.0V 3.3V 3.3V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 76 1 2 3 4 1 2 3 4 C D F A B E 3.10 GPS UNIT(GUIDE PAGE) B-a B CN2060 6/7 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 77 5 6 7 8 5 6 7 8 C D F A B E B-b B B GPS UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 78 1 2 3 4 1 2 3 4 C D F A B E B-a B-b B-b 1 B GPS UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 79 5 6 7 8 5 6 7 8 C D F A B E B-a B-b B-b 2 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 80 1 2 3 4 1 2 3 4 C D F A B E B-b B-a B-a B-b 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 81 5 6 7 8 5 6 7 8 C D F A B E B-a B-b B-b B-a 2 3 CN2060 6/7 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 82 1 2 3 4 1 2 3 4 C D F A B E 3.11 AV UNIT (PS, I/F) 1/3 C > > 3/3 C 2/3 C CN5001 1/2 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 83 5 6 7 8 5 6 7 8 C D F A B E 1/3 C > FUSE CEK1208(10A) AV UNIT (PS, I/F) 1/3 C 2/3 C CN2068 7/7 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 84 1 2 3 4 1 2 3 4 C D F A B E 3.12 AV UNIT (A/V)(GUIDE PAGE) C-a 2/3 C 2/3 3/3 C 1/3 C 3/3 C CN2055 5/7 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 85 5 6 7 8 5 6 7 8 C D F A B E C-b 2/3 C 2/3 (4A) (4A) NC(Reserved?) > > 1/3 C AV UNIT (A/V) 2/3 C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 86 1 2 3 4 1 2 3 4 C D F A B E C-a C-b C-b 2/3 1 2 AV UNIT (A/V) 2/3 C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 87 5 6 7 8 5 6 7 8 C D F A B E C-a C-b C-b 2/3 3 4 5 (4A) (4A) NC(Reserved?) > > 1/3 C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 88 1 2 3 4 1 2 3 4 C D F A B E C-b C-a C-a 2/3 C-b 2/3 1 2 3/3 C 1/3 C CN2055 5/7 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 89 5 6 7 8 5 6 7 8 C D F A B E C-b C-a C-a 2/3 C-b 2/3 3 4 5 3/3 C CN2055 5/7 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 90 1 2 3 4 1 2 3 4 C D F A B E 3.13 AV UNIT (TUNER) 3/3 C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 91 5 6 7 8 5 6 7 8 C D F A B E 3/3 C 2/3 C 1/3 C 2/3 C AV UNIT (TUNER) 3/3 C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 92 1 2 3 4 1 2 3 4 C D F A B E 3.14 DVD CORE UNIT (1/2)(GUIDE PAGE) D-a 1/2 D 1/2 2/2 D 2/2 D F RF SIGNAL FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE T C S F T RF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 93 5 6 7 8 5 6 7 8 C D F A B E D-b 1/2 D 1/2 DVD CORE UNIT (1/2) 2/2 D 1/2 D 2/2 D 2/2 D 2/2 D PICKUP UNIT(SERVICE) STEPPING MOTOR M2:CXM1364 M1:CXC4912 F E SPINDLE MOTOR M3:CXM1362 F T F T T F T F C S C S S S S RF RF RF 1 2 5 3 4 3 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 94 1 2 3 4 1 2 3 4 C D F A B E D-a D-b D-b 1/2 1 2 DVD CORE UNIT (1/2) 2/2 D 1/2 D 2/2 D PICKUP UNIT(SERVICE) F T T F S S RF RF RF 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 95 5 6 7 8 5 6 7 8 C D F A B E D-a D-b D-b 1/2 2/2 D 2/2 D STEPPING MOTOR M2:CXM1364 M1:CXC4912 F E SPINDLE MOTOR M3:CXM1362 F T T F F C S C S S 2 5 3 4 3 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 96 1 2 3 4 1 2 3 4 C D F A B E D-b D-a D-a 1/2 D-b 1/2 1 2 2/2 D 2/2 D F T www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 97 5 6 7 8 5 6 7 8 C D F A B E D-b D-a D-a 1/2 D-b 1/2 F RF SIGNAL FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE T C S RF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 98 1 2 3 4 1 2 3 4 C D F A B E 3.15 DVD CORE UNIT (2/2) 2/2 D 1/2 D 1/2 D 1/2 D 1/2 D 1/2 D 1/2 D CN2061 6/7 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 99 5 6 7 8 5 6 7 8 C D F A B E 2/2 D DVD CORE UNIT(2/2) 2/2 D 1/2 D 1/2 D CN2 1/7 A CN2057 5/7 A : The power supply is shown with the marked box. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 100 1 2 3 4 1 2 3 4 C D F A B E 1 RF 2 TD1 3 A+, A- 4 B+, B- 5 FD1 1RF 0.2 V/div(AC) 1RF 0.2 V/div(AC) 50 ns/div 1RF 0.2 V/div(AC) 50 ns/div CDRF(x 4 CLV) CDRF(x 20 CAV Inner peripheral) CDRF(x 20 CAV Peripheral) 1RF 0.2 V/div(AC) 50 ns/div 1RF 0.2 V/div(AC) 50 ns/div 1RF 0.2 V/div(AC) 50 ns/div DVDRF(x 1.3 ZCAV) DVDRF(x 5 CAV Inner peripheral) DVDRF(x 5 CAV Peripheral) 1RF 0.5 V/div 2TD1 0.1 V/div 2TD1 0.1 V/div DVDRF(BD1 mm) Interval FWD Interval REV VHALF VHALF 2.2 Vt - Waveforms Note:1. The encircled number denote measuring points in the circuit diagram. 2. Reference voltage: 1.65 V(TD1,FD1)(=VHALF) 2.2 V(RF)(=VREF) In the waveform, it is seeing on the GND standard. Offset of 1.65 V or 2.2 V is put in. 100 µs/div 100 µs/div 100 µs/div 0.1 µs/div www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 101 5 6 7 8 5 6 7 8 C D F A B E 2TD1 0.1 V/div 2TD1 0.1 V/div 2CH1 : TD1 0.5 V/div 10 ms/div Multi 32 FWD Multi 32 REV 3CH2 : A+-A- 10.0 V/div 10 ms/div 4CH3 : B+-B- 10.0 V/div 10 ms/div Traverse 900 FWD(Short) VHALF 0t VHALF VHALF 0t 2CH1 : TD1 0.5 V/div 10 ms/div 2CH1 : TD1 0.5 V/div 20 ms/div 2CH1 : TD1 0.5 V/div 20 ms/div 3CH2 : A+-A- 10.0 V/div 10 ms/div 3CH2 : A+-A- 10.0 V/div 20 ms/div 3CH2 : A+-A- 10.0 V/div 20 ms/div 4CH3 : B+-B- 10.0 V/div 10 ms/div 4CH3 : B+-B- 10.0 V/div 20 ms/div 4CH3 : B+-B- 10.0 V/div 20 ms/div Traverse 900 REV(Short) Traverse 5 000 FWD(Long) Traverse 5 000 REV(Long) VHALF VHALF VHALF 0t 0t 0t 0t 0t 0t 3CH : A+-A- 10 V/div 50 ms/div 2TD1 0.5 Vdiv 20 ms/div 5FD1 0.5 V/div 1 ms/div 4CH2 : B+-B- Play TD Focus Close ID search Inside t Outside VHALF VHALF 0t 0t (LPF of the oscilloscope is set to 10 kHz) (LPF of the oscilloscope is set to 10 kHz) (LPF of the oscilloscope is set to 10 kHz) (LPF of the oscilloscope is set to 10 kHz) (LPF of the oscilloscope is set to 10 kHz) (LPF of the oscilloscope is set to 10 kHz) (LPF of the oscilloscope is set to 10 kHz) (LPF of the oscilloscope is set to 10 kHz) 5FD1 0.5 V/div 20 ms/div 5FD1 0.5 V/div Play FD Focus Jump L0tL1 VHALF VHALF VHALF 5FD1 0.5 V/div Focus Jump L1tL0 500 µs/div 500 µs/div 500 µs/div 500 µs/div www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 102 1 2 3 4 1 2 3 4 C D F A B E 3.16 COMPOUND UNIT(A), COMPOUND UNIT(B) E F F E COMPOUND UNIT(B) COMPOUND UNIT(A) CLAMP D 1/2 S1201 Q1299 S1202 S1204 S1203 R1298 0R0 1 2 3 4 5 6 S1205 R1299 0R0 CPT231SCTD CSN1069 CSN1069 CSN1069 CSN1067 CSN1070 CSN1070 12cm 8cm DISC SENS DISC SENS 8cm CN1301 D 1/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 103 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 104 1 2 3 4 1 2 3 4 C D F A B E 3.17 MONITOR UNIT (VIDEO)(GUIDE PAGE) G-a 1/2 G 1/2 68/10 CN1661 TOUCH PANEL 1/3 C 2/2 G 5.3V 5.0V 5.0V 5.0V 5.0V 5.0V 15.0V 5.0V 330P 1 ¤ ⁄ ) ( ! 5 ‹ 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 105 5 6 7 8 5 6 7 8 C D F A B E G-b 1/2 G 1/2 H CN5503 I CN4825 LCD MODULE MONITOR UNIT (VIDEO) 1/2 G 5.0V 5.0V 8.0V 5.0V -10.0V 5.3V 15.0V RGB (NAVI) RGB (OSD) 330P 7 $ ^ 6 % # * @ 8 2 3 4 0 & 9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 106 1 2 3 4 1 2 3 4 C D F A B E G-a G-b G-b 1/2 1 2 3 4 LCD MODULE MONITOR UNIT (VIDEO) 1/2 G -10.0V 5.3V 15.0V RGB (NAVI) RGB (OSD) 330P 7 $ ^ 6 @ 8 2 3 4 0 & 9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 107 5 6 7 8 5 6 7 8 C D F A B E G-a G-b G-b 1/2 4 6 5 H CN5503 I CN4825 LCD MODULE 5.0V 5.0V 8.0V 5.0V % # * 2 3 4 0 & 9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 108 1 2 3 4 1 2 3 4 C D F A B E G-b G-a G-a 1/2 G-b 1/2 1 2 3 4 68/10 CN1661 TOUCH PANEL 1/3 C 2/2 G 5.3V 5.0V 5.0V 15.0V 5.0V 330P 1 ¤ ⁄ ) ( ! 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 109 5 6 7 8 5 6 7 8 C D F A B E G-b G-a G-a 1/2 G-b 1/2 4 6 5 TOUCH PANEL 5.0V 5.0V 5.0V 5.0V ‹ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 110 1 2 3 4 1 2 3 4 C D F A B E 3.18 MONITOR UNIT (INVERTER) 2/2 G 1/2 G › fi 5.0V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 111 5 6 7 8 5 6 7 8 C D F A B E 2/2 G MONITOR UNIT (INVERTER) 2/2 G LCD MODULE fl www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 112 1 2 3 4 1 2 3 4 C D F A B E DVD TEST DISC : State of color bar display 1 CH1 : MONVBS 3 CH3 : LCDR 2 CH2 : LCDB 4 CH4 : LCDG DVD TEST DISC : State of color bar display 1 CH1 : MONVBS 6 CH3 : HSY 5 CH2 : SYNCCT 7 CH4 : COMS DVD TEST DISC : State of color bar display 1 CH1 : MONVBS 9 CH3 : SPIO 8 CH2 : CLS 0 CH4 : CTR DVD TEST DISC : State of color bar display 1 CH1 : MONVBS ! CH3 : HSYNC 9 CH2 : SPIO DVD TEST DISC : State of color bar display 1 CH1 : MONVBS # CH3 : VSYNC @ CH2 : SPS DVD TEST DISC : State of color bar display 1 CH1 : MONVBS % CH3 : IOUT(C3) $ CH2 : OSDOVR ^ CH4 : OSD RGB - Waveforms The encircled number denote measuring pointes in the circuit diagram. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 113 5 6 7 8 5 6 7 8 C D F A B E DVD TEST DISC : State of color bar display & CH1 : CLD * CH2 : DOCKI ( CH1 : OUT1 ⁄ CH3 : OUT4 ) CH2 : OUT2 ¤ CH4 : OUT5 ‹ CH1 : INVPUL fi CH3 : PDRV_C › CH2 : NDRV_B fl CH4 : FL2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 114 1 2 3 4 1 2 3 4 C D F A B E 3.19 KEY PCB H CN5003 1/2 G VOLUME www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 115 5 6 7 8 5 6 7 8 C D F A B E H H KEY PCB KEYBOARD UNIT Consists of KEY PCB AV MINI JACK PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 116 1 2 3 4 1 2 3 4 C D F A B E 3.20 AV MINI JACK PCB I CN5004 1/2 G I AV MINI JACK PCB KEYBOARD UNIT Consists of KEY PCB AV MINI JACK PCB MINI JACK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 117 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 118 1 2 3 4 1 2 3 4 C D F A B E 4. PCB CONNECTION DIAGRAM 4.1 NAVI MOTHER UNIT A A NAVI MOTHER UNIT Capacitor Connector P.C.Board Chip Part SIDE B SIDE A NOTE FOR PCB DIAGRAMS 1.The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2.Viewpoint of PCB diagrams 10 20 30 40 50 60 70 8 X 140 130 120 110 100 90 80 70 60 50 40 30 20 10 0 Y D CN1852 D CN1901 B CN461 D CN2001 FAN MOTOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 119 5 6 7 8 5 6 7 8 C D F A B E A SIDE A 70 80 90 100 110 120 130 140 150 160 170 FRONT DIGITAL OUT EXTENSION IP-BUS 1 2 3 4 5 6 7 8 9 10 11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 120 1 2 3 4 1 2 3 4 C D F A B E A A NAVI MOTHER UNIT 7 80 90 100 110 120 130 140 150 160 170 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 121 5 6 7 8 5 6 7 8 C D F A B E A SIDE B 10 20 30 40 50 60 70 80 X 140 130 120 110 100 90 80 70 60 50 40 30 20 10 0 Y C CN1652 C CN1711 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 122 1 2 3 4 1 2 3 4 C D F A B E 4.2 AV UNIT C C AV UNIT 10 20 30 40 50 60 70 80 90 X 0 140 130 120 110 100 90 80 70 60 50 40 30 20 10 Y A CN2068 A CN2055 CORD ASSY CORD ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 123 5 6 7 8 5 6 7 8 C D F A B E C SIDE A 80 90 100 110 120 130 140 150 160 170 G CN5001 WIRED REMOTE CONTROLLER iPod 1 2 9 5 4 3 6 13 8 12 7 11 10 ANTENNA FM/AM TUNER UNIT TUNER UNIT(EW5) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 124 1 2 3 4 1 2 3 4 C D F A B E C C AV UNIT 80 90 100 110 120 130 140 150 160 170 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 125 5 6 7 8 5 6 7 8 C D F A B E C SIDE B 140 130 120 110 100 90 80 70 60 50 40 30 20 10 Y 10 20 30 40 50 60 70 80 90 X 0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 126 1 2 3 4 1 2 3 4 C D F A B E 4.3 DVD CORE UNIT D D DVD CORE UNIT 10 20 30 40 10 20 30 40 50 60 70 80 0 X Y A CN2061 PICKUP UNIT(SERVICE) M2,M3 M1 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 127 5 6 7 8 5 6 7 8 C D F A B E D SIDE A 40 50 60 70 80 90 NIT(SERVICE) A CN2057 A CN2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 128 1 2 3 4 1 2 3 4 C D F A B E D D DVD CORE UNIT 50 60 70 80 90 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 129 5 6 7 8 5 6 7 8 C D F A B E D SIDE B 10 20 30 40 50 10 20 30 40 50 60 70 80 0 X Y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 130 1 2 3 4 1 2 3 4 C D F A B E 4.4 COMPOUND UNIT(A), COMPOUND UNIT(B) F E F E D D CLAMP 12cm S1201 R1298 R1299 Q1299 CN1301 1 6 DISC SENS S1204 DISC SENS S1203 8cm S1202 8cm S1205 COMPOUND UNIT(B) COMPOUND UNIT(A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 131 5 6 7 8 5 6 7 8 C D F A B E 4.5 GPS UNIT B SIDE A B GPS UNIT SIDE B B GPS UNIT 10 20 30 40 50 60 X 30 20 10 0 Y 10 20 30 40 50 60 X 10 20 30 0 Y A CN2060 GPS ANTENNA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 132 1 2 3 4 1 2 3 4 C D F A B E 4.6 MONITOR UNIT G G MONITOR UNIT 10 20 30 40 50 60 70 X 90 80 70 60 50 40 30 20 10 0 Y LCD MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 133 5 6 7 8 5 6 7 8 C D F A B E G SIDE A 70 80 90 100 110 120 130 140 C CN1661 I CN4825 H CN5503 LCD MODULE TOUCH PANEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 134 1 2 3 4 1 2 3 4 C D F A B E G G MONITOR UNIT 70 80 90 100 110 120 130 140 FL1 FL2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 135 5 6 7 8 5 6 7 8 C D F A B E G SIDE B 10 20 30 40 50 60 70 X 90 80 70 60 50 40 30 20 10 0 Y COM V5 V53 VM10 V15 V8 LCDG LCDR LCDB HSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 136 1 2 3 4 1 2 3 4 C D F A B E 4.7 KEY PCB H SIDE B SIDE A H KEY PCB H KEY PCB 10 20 X 80 70 60 50 40 30 20 10 0 Y 10 20 X 80 70 60 50 40 30 20 10 0 Y G CN5003 RESET EJECT MENU MAP VOLUME www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 137 5 6 7 8 5 6 7 8 C D F A B E 4.8 AV MINI JACK PCB I SIDE B SIDE A I AV MINI JACK PCB I AV MINI JACK PCB 10 X 20 10 0 Y 10 X 20 10 0 Y G CN5004 MINI JACK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 138 1 2 3 4 1 2 3 4 C D F A B E 5. ELECTRICAL PARTS LIST NOTE: • Parts whose parts numbers are omitted are subject to being not supplied. • The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... • The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Meaning of the figures and others in the parentheses in the parts list. Example) IC 301 is on the point (face A, 91 of x-axis, and 111 of y-axis) of the corresponding PC board. IC 301 (A, 91, 111) IC NJM2068V Circuit Symbol and No. Part No. Unit Number: CWN2189(UC) Unit Number: CWN2089(EW5) Unit Name : Navi Mother Unit Unit Number: CWX3446(UC) Unit Number: CWX3447(EW5) Unit Name : GPS Unit Unit Number: CWN2190(UC) Unit Number: CWN2090(EW5) Unit Name : AV Unit Unit Number: CWN2188(UC) Unit Number: CWN2091(EW5) Unit Name : Monitor Unit Unit Number: Unit Name : Keyboard Unit Unit Number: CWX3401 Unit Name : DVD Core Unit Unit Number: CWX3154 Unit Name : Compound Unit(A) Unit Number: CWX3394 Unit Name : Compound Unit(B) A Unit Number: CWN2189(UC) Unit Number: CWN2089(EW5) Unit Name : Navi Mother Unit MISCELLANEOUS IC 1 (B,135,30) IC K4S561632H-UL75 IC 2 (A,138,50) IC UPD705103GM-180S1 IC 3 (B,151,30) IC HY57V561620FLTP-H IC 4 (A,154,20) IC TC7SZ08FU IC 5 (B,143,54) IC PD6336C IC 101 (A,131,17) IC TC74LCX08FTS1 IC 102 (A,133,11) IC TC7SH04FUS1 IC 103 (A,131,27) IC TC74LCX245FTS1 IC 104 (A,139,27) IC TC74LCX245FTS1 IC 105 (A,148,27) IC TC74LCX245FTS1 IC 106 (A,156,27) IC TC74LCX245FTS1 IC 107 (A,159,37) IC TC74LCX541FTS1 IC 108 (A,159,45) IC TC74LCX541FTS1 IC 109 (A,159,54) IC TC74LCX541FTS1 IC 110 (B,114,39) IC(UC) PEH103B (B,114,39) IC(EW5) PEH077B IC 111 (B,114,23) IC(UC) PEH104B (B,114,23) IC(EW5) PEH078B IC 112 (B,103,61) IC TC7SH00FUS1 IC 113 (B,115,57) IC M5M5V216ATP-70HI IC 114 (B,103,58) IC TC7SH08FUS1 IC 201 (A,101,24) IC MB86291APFVS-G-DL IC 301 (A,141,18) IC M51957BFP IC 302 (A,138,10) IC TC7SH08FUS1 IC 304 (A,105,52) IC AK4388VT IC 309 (A,118,48) IC TC7SH08FUS1 IC 1901 (B,57,57) IC TPS5120DBT IC 1903 (B,73,83) IC TPS5103IDB IC 1931 (B,56,96) IC TPS5103IDB IC 2050 (A,20,38) IC TC74VHCT08AFTS1 IC 2051 (A,38,37) IC TC7WH32FU IC 2052 (A,10,40) IC TC7S32FU IC 2053 (A,39,46) IC TC7WH08FU IC 2055 (A,13,34) IC BD5335FVE IC 2056 (B,23,46) IC(UC) PE5580A (B,23,46) IC(EW5) PE5581A IC 2058 (B,9,126) IC NJM2904M IC 2061 (B,9,22) IC TC7SH08FUS1 IC 2062 (B,6,22) L-MOS AND Gate TC7SET08FUS1 IC 2065 (B,63,29) IC TC7SH04FUS1 IC 2067 (A,86,114) L-MOS AND Gate TC7SET08FUS1 IC 2068 (A,13,24) IC HA12241FP IC 2070 (A,29,77) IC S-814A50AUC-BDO Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 139 5 6 7 8 5 6 7 8 C D F A B E IC 2075 (A,147,103) IC S-L2980A33MC-C6S IC 2076 (B,28,93) IC BD3931HFP IC 2078 (B,115,109) IC UPD4723GSS1 IC 2083 (A,33,38) IC TC7SH14FUS1 IC 2084 (A,41,36) IC TC7SH04FUS1 Q 201 (A,122,10) Transistor UMD2N Q 301 (A,147,21) Transistor DTC114EUA Q 1902 (B,66,48) FET SP8K10S Q 1903 (B,66,65) FET SP8K10S Q 1931 (B,55,83) FET SP8K10S Q 1934 (B,74,97) FET SP8K2 Q 1935 (B,49,56) FET 2SK1827 Q 2050 (A,126,87) Transistor 2SA1576A Q 2051 (B,19,28) Transistor 2SA1576A Q 2052 (B,7,135) Transistor DTC114WK Q 2053 (A,47,26) Transistor DTC124EUA Q 2054 (B,13,128) Transistor DTC114EUA Q 2055 (A,28,24) Transistor 2SA1576A Q 2056 (B,48,120) Transistor DTA114EUA Q 2057 (B,38,117) Transistor DTC114EUA Q 2058 (B,35,120) Transistor 2SA1587 Q 2059 (A,45,26) Transistor DTC124EUA Q 2060 (B,40,123) Transistor IMX1 Q 2061 (B,31,117) Transistor DTC114EUA Q 2062 (B,36,129) Transistor 2SD1760F5 Q 2068 (B,58,17) Transistor 2SA1576A Q 2069 (B,58,21) Transistor 2SA1576A Q 2070 (B,58,24) Transistor 2SA1576A Q 2071 (B,94,86) Transistor 2SA1834F5 Q 2072 (B,105,82) Transistor 2SC4081 Q 2088 (A,33,94) Transistor 2SC4081 Q 2089 (B,37,108) Transistor DTC114EUA Q 2090 (A,37,95) Transistor 2SC4081 Q 2091 (B,35,113) Transistor 2SA1576A Q 2092 (B,67,74) Transistor DTC114EUA Q 2093 (B,54,105) Transistor DTC114EUA Q 2094 (B,77,75) Transistor DTC114EUA Q 2095 (B,49,117) Transistor 2SC4081 Q 2096 (B,43,36) Transistor(EW5) DTC124EUA Q 2097 (B,43,33) Transistor(EW5) DTC124EUA Q 2098 (B,43,30) Transistor(EW5) DTC124EUA Q 2099 (B,43,27) Transistor(EW5) DTC124EUA Q 2100 (A,50,128) Transistor 2SA1576A Q 2101 (B,49,59) Transistor DTC114EUA Q 2102 (B,12,25) Transistor 2SA1576A Q 2103 (B,5,28) Transistor 2SA1576A Q 2104 (B,18,22) Transistor DTC114EUA Q 2105 (B,6,32) Transistor DTC114EUA D 1901 (B,65,59) Diode RB160M-40 D 1902 (B,65,54) Diode RB160M-40 D 1916 (B,78,89) Diode RB400D D 1918 (A,68,96) Diode RB060L-40 D 1931 (B,51,90) Diode RB160M-40 D 1933 (A,50,95) Diode RB083L-20 D 2050 (A,28,53) Diode DAN202U D 2051 (B,14,118) Diode 1SS355 D 2052 (A,31,25) Diode 1SS355 D 2054 (B,39,120) Diode RB500V-40 D 2055 (B,28,123) Diode RB500V-40 D 2056 (B,28,119) Diode HZU8R2(B1) Circuit Symbol and No. Part No. D 2057 (B,27,128) Diode HZU11(B2) D 2059 (B,12,90) Diode EDZ5R6(B) D 2060 (B,110,120) Diode EDZ13(B) D 2061 (B,108,121) Diode EDZ13(B) D 2062 (B,109,123) Diode EDZ13(B) D 2063 (B,108,125) Diode EDZ13(B) D 2064 (B,112,123) Diode EDZ13(B) D 2065 (B,111,125) Diode EDZ13(B) D 2066 (B,115,123) Diode EDZ13(B) D 2067 (B,114,125) Diode EDZ13(B) D 2069 (B,118,123) Diode EDZ13(B) D 2070 (B,117,125) Diode EDZ13(B) D 2072 (B,121,125) Diode EDZ13(B) D 2073 (B,120,127) Diode EDZ13(B) D 2078 (A,94,122) Diode EDZ5R6(B) D 2079 (B,148,122) Diode UDZS18(B) D 2081 (B,89,131) Diode EDZ5R6(B) D 2082 (B,148,125) Diode UDZS18(B) D 2084 (A,108,120) Diode EDZ6R8(B) D 2085 (B,148,124) Diode UDZS18(B) D 2096 (A,40,83) Diode HZU7R5(B3) D 2097 (A,40,81) Diode RB500V-40 D 2098 (A,38,79) Diode RB500V-40 D 2099 (A,36,81) Diode EDZ20(B) D 2100 (B,130,125) Diode MALS068X D 2101 (B,148,120) Diode MALS068X D 2102 (B,130,124) Diode MALS068X D 2103 (B,130,122) Diode MALS068X D 2104 (A,54,105) Diode RB500V-40 L 1 (B,127,16) Inductor CTF1558 L 2 (B,142,17) Inductor CTF1558 L 3 (A,154,16) Inductor CTF1410 L 5 (A,135,32) Inductor CTF1556 L 6 (A,123,33) Inductor CTF1295 L 7 (B,157,53) Inductor CTF1558 L 8 (A,144,67) Inductor CTF1556 L 101 (A,128,15) Chip Ferrite Bead CTF1557 L 102 (A,129,11) Chip Ferrite Bead CTF1557 L 103 (A,135,27) Chip Ferrite Bead CTF1557 L 104 (A,144,26) Chip Ferrite Bead CTF1557 L 105 (A,152,26) Chip Ferrite Bead CTF1557 L 106 (A,160,26) Chip Ferrite Bead CTF1557 L 107 (A,159,33) Chip Ferrite Bead CTF1557 L 108 (A,159,41) Chip Ferrite Bead CTF1557 L 109 (A,159,49) Chip Ferrite Bead CTF1557 L 110 (B,102,37) Inductor CTF1556 L 111 (B,102,21) Inductor CTF1556 L 112 (B,103,54) Inductor CTF1556 L 113 (B,105,59) Chip Ferrite Bead CTF1557 L 114 (B,105,54) Chip Ferrite Bead CTF1557 L 201 (A,122,28) Inductor CTF1556 L 203 (A,82,9) Inductor CTF1556 L 204 (A,101,44) Inductor CTF1488 L 205 (A,120,20) Inductor CTF1556 L 206 (A,85,44) Inductor CTF1556 L 207 (A,91,42) Inductor CTF1379 L 301 (A,137,18) Chip Ferrite Bead CTF1557 L 302 (A,141,12) Chip Ferrite Bead CTF1557 L 305 (A,99,53) Inductor CTF1556 L 308 (A,106,58) Inductor CTF1334 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 140 1 2 3 4 1 2 3 4 C D F A B E L 312 (A,117,51) Inductor CTF1410 L 619 (A,125,79) Inductor CTF1306 L 620 (A,123,83) Inductor CTF1306 L 621 (A,124,83) Inductor CTF1306 L 622 (A,122,79) Inductor CTF1334 L 623 (A,122,83) Inductor CTF1387 L 624 (A,121,79) Inductor CTF1334 L 625 (A,103,79) Inductor CTF1306 L 626 (A,101,79) Inductor CTF1306 L 627 (A,124,79) Inductor CTF1306 L 628 (A,119,79) Inductor CTF1306 L 630 (A,114,83) Inductor CTF1306 L 631 (A,117,83) Inductor CTF1334 L 632 (A,117,79) Inductor CTF1334 L 633 (A,116,83) Inductor CTF1334 L 634 (A,115,79) Inductor CTF1334 L 635 (A,118,79) Inductor CTF1306 L 636 (A,119,83) Inductor CTF1334 L 637 (A,114,79) Inductor CTF1306 L 638 (A,113,83) Inductor CTF1306 L 639 (A,112,83) Inductor CTF1306 L 640 (A,111,79) Inductor CTF1306 L 644 (A,109,83) Inductor CTF1306 L 645 (A,108,79) Inductor CTF1306 L 646 (A,107,83) Inductor CTF1334 L 647 (A,107,79) Inductor CTF1334 L 648 (B,69,18) Inductor CTF1378 L 649 (B,69,22) Inductor CTF1378 L 650 (B,69,26) Inductor CTF1378 L 651 (B,66,29) Inductor CTF1378 L 652 (A,106,83) Inductor CTF1334 L 653 (A,105,79) Inductor CTF1467 L 744 (A,110,79) Inductor CTF1334 L 793 (A,126,83) Inductor CTF1334 L 1901 (A,67,47) Inductor CTH1257 L 1902 (A,67,66) Inductor CTH1257 L 1903 (A,55,64) Inductor CTH1253 L 1904 (A,75,94) Inductor CTH1255 L 1907 (A,71,82) Inductor CTH1257 L 1931 (A,54,86) Inductor CTH1255 L 1932 (A,58,97) Inductor CTH1257 L 2000 (B,42,72) Inductor CTF1357 L 2001 (A,13,42) Inductor CTF1410 L 2002 (A,16,34) Inductor CTF1410 L 2003 (A,36,42) Inductor CTF1410 L 2004 (B,36,34) Inductor CTF1410 L 2005 (B,19,33) Inductor CTF1410 L 2006 (A,35,66) Inductor CTF1463 L 2007 (A,31,41) Inductor CTF1410 L 2009 (A,32,64) Inductor CTF1306 L 2010 (A,35,63) Inductor CTF1306 L 2011 (A,32,62) Inductor CTF1306 L 2012 (A,33,48) Inductor CTF1410 L 2013 (A,35,62) Inductor CTF1306 L 2014 (A,42,63) Inductor CTF1306 L 2015 (A,32,61) Inductor CTF1306 L 2016 (A,33,59) Inductor CTF1306 L 2017 (A,33,57) Inductor CTF1306 L 2018 (A,42,57) Inductor CTF1306 L 2019 (A,35,45) Inductor CTF1410 Circuit Symbol and No. Part No. L 2020 (B,37,46) Inductor CTF1410 L 2021 (B,9,53) Inductor CTF1410 L 2022 (B,23,61) Inductor CTF1410 L 2023 (B,35,63) Inductor CTF1410 L 2025 (B,5,119) Inductor CTF1334 L 2027 (B,14,130) Inductor CTF1334 L 2028 (B,17,123) Inductor CTF1334 L 2030 (B,8,25) Inductor CTF1410 L 2031 (B,6,25) Inductor CTF1410 L 2050 (A,32,73) Inductor CTF1453 L 2051 (A,93,82) Inductor CTF1453 L 2151 (A,91,108) Inductor CTF1453 L 2220 (A,110,83) Inductor CTF1334 L 2221 (A,112,79) Inductor CTF1334 L 2234 (B,7,95) Inductor CTF1334 L 2235 (B,7,96) Inductor CTF1334 L 2236 (B,7,98) Inductor CTF1334 L 2237 (B,7,99) Inductor CTF1334 L 2238 (B,7,86) Inductor(EW5) CTF1334 L 2239 (B,7,88) Inductor(EW5) CTF1334 L 2240 (B,7,89) Inductor(EW5) CTF1334 L 2241 (B,7,91) Inductor(EW5) CTF1334 L 2242 (B,7,93) Inductor(EW5) CTF1334 L 2245 (A,14,63) Inductor CTF1334 L 2246 (B,17,102) Inductor CTF1334 L 2247 (B,18,99) Inductor CTF1334 L 2248 (B,15,103) Inductor CTF1463 L 2249 (B,16,89) Inductor(EW5) CTF1334 L 2250 (B,13,89) Inductor(EW5) CTF1334 L 2251 (B,14,94) Inductor CTF1334 L 2252 (B,14,96) Inductor CTF1334 L 2253 (B,14,97) Inductor CTF1334 L 2254 (B,14,99) Inductor CTF1334 L 2257 (A,40,107) Inductor CTF1334 L 2262 (B,122,99) Inductor CTF1410 L 2263 (B,59,31) Inductor CTF1410 L 2264 (B,116,115) Inductor CTF1334 L 2265 (B,115,115) Inductor CTF1334 L 2266 (B,113,115) Inductor CTF1334 L 2267 (B,112,115) Inductor CTF1334 L 2268 (B,111,115) Inductor CTF1334 L 2269 (B,109,115) Inductor CTF1334 L 2270 (A,14,29) Inductor LCYC2R2K1608 L 2271 (A,134,117) Inductor CTF1334 L 2272 (A,137,117) Inductor CTF1334 L 2273 (A,138,117) Inductor CTF1334 L 2274 (A,133,117) Inductor CTF1334 L 2276 (A,91,115) Inductor CTF1379 L 2400 (A,105,91) Inductor CTF1393 L 2401 (A,142,103) Chip Ferrite Bead CTF1399 L 2402 (B,77,43) Inductor CTF1393 L 2403 (B,102,78) Inductor CTF1393 L 2404 (A,22,80) Inductor CTF1393 L 2405 (A,35,78) Inductor CTF1357 L 2406 (B,53,10) Inductor CTF1410 L 2407 (A,41,41) Inductor CTF1410 X 1 (A,139,71) Radiator 30.000 MHz CSS1633 X 2 (B,131,60) Radiator 33.000 MHz CSS1634 X 3 (B,157,48) Radiator 33.868 8 MHz CSS1551 X 202 (A,122,20) Radiator 14.318 18 MHz CSS1632 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 141 5 6 7 8 5 6 7 8 C D F A B E X 2050 (B,6,38) Radiator 18.874 368 MHz CSS1622 >FU1901 (A,76,68) Fuse 2 A CEK1257 >FU1902 (A,76,46) Fuse 2 A CEK1257 >FU1903 (A,53,73) Fuse 2.5 A CEK1258 >FU1908 (A,77,101) Fuse 2.5 A CEK1258 >FU1913 (A,79,79) Fuse 2.5 A CEK1258 >FU1931 (A,50,101) Fuse 2.5 A CEK1258 >FU2051 (A,31,126) Fuse 1 A CEK1254 >FU2052 (B,114,130) Fuse 2 A CEK1257 >FU2060 (A,50,79) Fuse 3.15 A CEK1259 GY1 (A,10,69) Sensor CSX1122 GY4 (A,35,111) Sensor CSX1118 EF2052 (B,33,78) EMI Filter CCG1172 EF2053 (B,32,74) EMI Filter CCG1172 RESISTORS R 1 (B,127,33) RS1/16S0R0J R 3 (B,127,36) RS1/16S0R0J R 5 (A,110,58) RS1/16S473J R 6 (A,117,62) RS1/16S473J R 7 (A,152,47) RS1/16S220J R 8 (A,116,69) RS1/16S473J R 9 (A,119,66) RS1/16S473J R 10 (A,148,69) RS1/16S104J R 11 (A,151,69) RAB4C473J R 12 (A,141,66) RS1/16S105J R 13 (A,139,66) RS1/16S151J R 14 (B,143,33) RS1/16S0R0J R 16 (B,143,36) RS1/16S0R0J R 19 (A,117,67) RS1/16S473J R 20 (A,131,68) RS1/16S101J R 21 (A,134,65) RS1/16S101J R 22 (A,132,68) RS1/16S101J R 23 (B,133,58) RS1/16S105J R 24 (B,133,61) RS1/16S151J R 25 (A,130,68) RS1/16S101J R 26 (A,134,68) RS1/16S101J R 27 (A,130,65) RS1/16S101J R 28 (A,133,65) RS1/16S101J R 29 (A,129,65) RS1/16S101J R 30 (A,128,65) RS1/16S101J R 31 (A,128,68) RS1/16S101J R 32 (B,133,52) RS1/16S473J R 33 (A,127,68) RS1/16S473J R 34 (B,154,49) RS1/16S105J R 35 (A,123,47) RS1/16S104J R 36 (A,122,58) RS1/16S101J R 37 (A,122,59) RS1/16S101J R 38 (A,122,61) RS1/16S101J R 39 (A,122,62) RS1/16S101J R 40 (A,122,45) RS1/16S470J R 45 (B,126,54) RS1/16S104J R 46 (B,126,60) RS1/16S104J R 47 (B,156,46) RS1/16S104J R 48 (B,155,64) RS1/16S104J R 49 (B,156,64) RS1/16S104J R 50 (B,158,64) RS1/16S104J R 51 (B,80,24) RS1/16SS101J R 52 (B,80,25) RS1/16SS101J R 53 (B,80,26) RS1/16SS101J Circuit Symbol and No. Part No. R 54 (B,80,27) RS1/16SS101J R 55 (B,80,29) RS1/16SS101J R 57 (B,80,28) RS1/16SS101J R 59 (B,80,30) RS1/16SS101J R 60 (B,80,31) RS1/16SS101J R 61 (A,57,17) RS1/16SS0R0J R 62 (B,80,33) RS1/16SS101J R 63 (B,80,32) RS1/16SS101J R 64 (B,82,37) RS1/16SS101J R 65 (B,80,35) RS1/16SS101J R 66 (A,72,33) RS1/16SS101J R 67 (A,71,32) RS1/16SS101J R 68 (A,71,33) RS1/16SS101J R 69 (A,70,32) RS1/16SS101J R 70 (A,69,33) RS1/16SS101J R 71 (A,69,32) RS1/16SS101J R 72 (A,68,33) RS1/16SS101J R 73 (A,68,32) RS1/16SS101J R 74 (A,67,33) RS1/16SS101J R 75 (A,67,32) RS1/16SS101J R 76 (A,66,33) RS1/16SS101J R 77 (A,66,32) RS1/16SS101J R 78 (A,65,33) RS1/16SS101J R 79 (A,64,32) RS1/16SS101J R 80 (A,64,33) RS1/16SS101J R 81 (A,63,32) RS1/16SS101J R 82 (A,63,33) RS1/16SS101J R 84 (B,80,36) RS1/16SS562J R 85 (B,82,30) RS1/16SS103J R 87 (B,156,62) RS1/16S104J R 88 (B,128,47) RS1/16S104J R 89 (B,132,45) RS1/16S0R0J R 90 (B,132,44) RS1/16S0R0J R 93 (B,130,43) RS1/16S153J R 94 (B,134,43) RS1/16S153J R 95 (B,130,48) RS1/16S153J R 96 (B,130,47) RS1/16S153J R 97 (A,118,55) RS1/16S473J R 98 (A,155,60) RS1/16S473J R 101 (B,102,35) RS1/16S473J R 102 (B,102,20) RS1/16S473J R 103 (B,101,58) RS1/16S473J R 104 (A,131,21) RS1/16S220J R 151 (B,127,31) RS1/16S0R0J R 152 (B,158,34) RS1/16S0R0J R 153 (B,142,43) RS1/16S471J R 154 (A,116,55) RS1/16S473J R 155 (A,113,55) RS1/16S473J R 156 (A,105,65) RS1/16S473J R 158 (A,118,51) RS1/16S473J R 159 (B,126,56) RS1/16S473J R 160 (A,119,60) RS1/16S473J R 161 (A,105,68) RS1/16S103J R 162 (B,131,56) RS1/16S473J R 163 (A,122,57) RS1/16S560J R 164 (A,112,65) RS1/16S473J R 165 (A,122,68) RS1/16S473J R 166 (A,104,68) RS1/16S473J R 167 (A,117,63) RS1/16S473J R 170 (A,107,65) RS1/16S473J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 142 1 2 3 4 1 2 3 4 C D F A B E R 171 (A,109,65) RS1/16S473J R 172 (A,108,65) RS1/16S473J R 174 (A,122,66) RS1/16S473J R 175 (A,122,67) RS1/16S473J R 176 (A,122,55) RS1/16S0R0J R 177 (A,117,64) RS1/16S473J R 180 (A,145,65) RS1/16S101J R 181 (A,114,55) RS1/16S473J R 182 (A,117,55) RS1/16S473J R 183 (A,114,62) RS1/16S473J R 184 (A,114,58) RS1/16S473J R 185 (A,112,62) RS1/16S473J R 186 (A,113,58) RS1/16S473J R 187 (A,112,58) RS1/16S473J R 188 (A,107,68) RS1/16S473J R 189 (A,108,68) RS1/16S473J R 190 (A,109,68) RS1/16S473J R 191 (B,126,63) RS1/16S473J R 192 (A,113,62) RS1/16S473J R 193 (A,123,64) RS1/16S473J R 194 (A,146,67) RS1/16S390J R 196 (A,112,68) RS1/16S473J R 198 (A,124,63) RS1/16S473J R 201 (A,120,40) RN1/16SE1502D R 202 (A,120,39) RN1/16SE1202D R 210 (A,99,41) RS1/16S104J R 211 (A,97,41) RS1/16S104J R 212 (A,90,42) RS1/16S104J R 213 (A,88,42) RS1/16S104J R 217 (A,121,35) RS1/16S272J R 220 (A,122,7) RS1/16S223J R 221 (A,121,25) RS1/16S105J R 222 (A,122,16) RS1/16S151J R 224 (A,79,15) RS1/16S0R0J R 225 (A,117,8) RS1/16S104J R 226 (A,118,8) RS1/16S104J R 227 (A,79,18) RS1/16S104J R 228 (A,80,18) RS1/16S104J R 229 (B,115,15) RS1/16S560J R 230 (A,80,12) RS1/16S104J R 232 (A,82,12) RS1/16S104J R 237 (B,112,15) RS1/16S104J R 238 (B,114,15) RS1/16S330J R 240 (A,114,7) RS1/16S104J R 301 (A,136,18) RS1/16S123J R 302 (A,136,21) RS1/16S103J R 303 (A,137,15) RS1/16S473J R 320 (A,106,56) RS1/16S103J R 329 (A,110,49) RS1/16SS821J R 330 (A,110,52) RS1/16SS221J R 331 (A,110,51) RS1/16SS221J R 332 (A,110,50) RS1/16SS472J R 349 (B,156,43) RS1/16S473J R 350 (B,147,42) RS1/16S473J R 356 (A,109,55) RS1/16S0R0J R 360 (B,97,59) RS1/16SS473J R 361 (B,97,46) RS1/16SS473J R 362 (B,97,58) RS1/16SS473J R 363 (B,97,47) RS1/16SS473J R 364 (B,97,51) RS1/16SS473J Circuit Symbol and No. Part No. R 365 (B,97,50) RS1/16SS473J R 366 (B,97,49) RS1/16SS473J R 367 (B,99,48) RS1/16SS473J R 368 (B,99,50) RS1/16SS473J R 369 (B,97,57) RS1/16SS473J R 370 (A,89,71) RS1/8S0R0J R 629 (A,120,83) RS1/16S681J R 781 (B,59,32) RS1/16S0R0J R 2000 (B,15,28) RS1/16S0R0J R 2001 (A,19,16) RS1/16S0R0J R 2002 (B,20,24) RS1/16S0R0J R 2003 (A,20,11) RS1/16S0R0J R 2004 (B,21,21) RS1/16S0R0J R 2005 (A,21,16) RS1/16S0R0J R 2006 (B,21,24) RS1/16S0R0J R 2007 (A,22,11) RS1/16S0R0J R 2008 (B,22,21) RS1/16S0R0J R 2009 (B,26,31) RS1/16S0R0J R 2010 (B,23,24) RS1/16S0R0J R 2011 (B,24,31) RS1/16S0R0J R 2012 (B,24,21) RS1/16S0R0J R 2014 (B,24,24) RS1/16S0R0J R 2015 (A,25,11) RS1/16S0R0J R 2016 (B,25,21) RS1/16S0R0J R 2017 (A,25,16) RS1/16S0R0J R 2018 (B,26,24) RS1/16S0R0J R 2019 (A,26,11) RS1/16S0R0J R 2020 (B,27,21) RS1/16S0R0J R 2021 (A,27,16) RS1/16S0R0J R 2022 (B,27,24) RS1/16S0R0J R 2023 (A,28,11) RS1/16S0R0J R 2024 (B,28,21) RS1/16S0R0J R 2025 (A,28,16) RS1/16S0R0J R 2026 (B,29,24) RS1/16S0R0J R 2027 (A,29,11) RS1/16S0R0J R 2028 (B,30,21) RS1/16S0R0J R 2029 (A,30,16) RS1/16S0R0J R 2030 (B,30,24) RS1/16S0R0J R 2031 (A,31,11) RS1/16S0R0J R 2032 (B,31,21) RS1/16S0R0J R 2033 (A,18,16) RS1/16S0R0J R 2034 (A,32,11) RS1/16S0R0J R 2035 (B,33,21) RS1/16S0R0J R 2036 (A,33,16) RS1/16S0R0J R 2037 (B,33,24) RS1/16S0R0J R 2038 (A,34,11) RS1/16S0R0J R 2039 (B,34,21) RS1/16S0R0J R 2040 (A,34,16) RS1/16S0R0J R 2041 (B,35,24) RS1/16S0R0J R 2042 (A,35,11) RS1/16S0R0J R 2043 (B,14,20) (EW5) RS1/16S0R0J R 2044 (A,36,16) RS1/16S0R0J R 2045 (B,17,19) (EW5) RS1/16S0R0J R 2046 (A,37,11) RS1/16S0R0J R 2047 (B,36,21) (EW5) RS1/16S0R0J R 2048 (A,37,16) RS1/16S0R0J R 2049 (B,14,19) (EW5) RS1/16S0R0J R 2050 (A,38,11) RS1/16S0R0J R 2051 (B,17,18) (EW5) RS1/16S0R0J R 2052 (A,39,16) RS1/16S0R0J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 143 5 6 7 8 5 6 7 8 C D F A B E R 2053 (B,14,17) (EW5) RS1/16S0R0J R 2054 (A,40,11) RS1/16S0R0J R 2055 (B,17,16) (EW5) RS1/16S0R0J R 2056 (A,40,16) RS1/16S0R0J R 2057 (B,36,24) RS1/16S0R0J R 2058 (A,41,11) RS1/16S0R0J R 2059 (B,37,21) RS1/16S0R0J R 2060 (A,42,16) RS1/16S0R0J R 2061 (B,38,24) RS1/16S0R0J R 2062 (A,43,11) RS1/16S0R0J R 2063 (B,39,21) RS1/16S0R0J R 2064 (A,43,16) RS1/16S0R0J R 2065 (B,40,25) RS1/16S0R0J R 2066 (B,59,28) RS1/16S0R0J R 2067 (B,41,21) RS1/16S0R0J R 2068 (B,65,16) RS1/16S0R0J R 2069 (B,42,21) RS1/16S0R0J R 2070 (B,64,20) RS1/16S0R0J R 2071 (B,44,21) (EW5) RS1/16S0R0J R 2072 (B,65,24) RS1/16S0R0J R 2073 (B,44,24) (EW5) RS1/16S0R0J R 2074 (A,47,11) RS1/16S0R0J R 2075 (B,45,22) (EW5) RS1/16S0R0J R 2076 (A,48,16) RS1/16S0R0J R 2077 (B,46,24) (EW5) RS1/16S0R0J R 2078 (A,29,65) RS1/16S104J R 2079 (B,15,34) RS1/16S104J R 2081 (B,43,25) RS1/16S471J R 2082 (B,41,25) RS1/16S471J R 2083 (B,36,30) RS1/16S471J R 2084 (B,22,31) (EW5) RS1/16S223J R 2085 (B,23,33) (EW5) RS1/16S681J R 2086 (B,27,31) (EW5) RS1/16S681J R 2087 (B,31,30) RAB4C104J R 2088 (B,16,28) RS1/16S472J R 2089 (A,13,31) RS1/16S102J R 2090 (B,19,31) RS1/16S472J R 2091 (B,6,45) RS1/16S104J R 2093 (B,22,29) RS1/16S102J R 2094 (B,24,28) RS1/16S473J R 2095 (B,8,45) RS1/16S104J R 2096 (A,36,48) RS1/16S104J R 2097 (B,37,39) RS1/16S102J R 2098 (B,37,40) RS1/16S103J R 2099 (B,36,43) (EW5) RAB4C681J R 2100 (B,8,47) RS1/16S220J R 2101 (B,8,48) RS1/16S220J R 2102 (B,40,43) (EW5) RAB4C223J R 2103 (B,37,49) RAB4C681J R 2104 (A,45,16) RS1/16S822J R 2105 (A,46,11) RS1/16S822J R 2107 (B,37,59) RS1/16S104J R 2108 (B,10,56) RS1/16S220J R 2110 (B,38,59) RS1/16S104J R 2111 (B,11,59) RS1/16S220J R 2113 (B,40,59) RS1/16S104J R 2114 (B,8,50) RS1/16S104J R 2115 (B,10,53) RS1/16S104J R 2116 (B,26,60) RS1/16S102J R 2118 (B,41,59) RS1/16S104J Circuit Symbol and No. Part No. R 2119 (B,31,60) RS1/16S104J R 2120 (B,15,60) RS1/16S681J R 2121 (B,37,54) RAB4C0R0J R 2122 (A,26,54) RS1/16S681J R 2123 (B,20,61) RS1/16S220J R 2124 (B,18,60) RS1/16S220J R 2125 (B,17,61) RS1/16S220J R 2126 (A,28,56) RS1/16S0R0J R 2127 (B,43,58) RS1/16S473J R 2129 (B,34,63) RS1/16S104J R 2130 (B,26,64) RAB4C104J R 2132 (B,15,61) RS1/16S103J R 2135 (B,30,63) RS1/16S103J R 2137 (B,28,60) RS1/16S102J R 2138 (B,22,66) RS1/16S104J R 2139 (B,37,64) RS1/16S104J R 2141 (B,7,131) RS1/16S104J R 2142 (B,8,115) RS1/16S473J R 2143 (B,10,131) RS1/16S563J R 2144 (B,9,132) RS1/16S513J R 2145 (B,9,121) RS1/16S104J R 2146 (B,9,118) RS1/16S513J R 2147 (B,11,121) RS1/16S513J R 2148 (B,6,120) RS1/16S102J R 2149 (B,6,117) RS1/16S102J R 2150 (A,49,23) RS1/16S102J R 2151 (A,18,42) RS1/16SS0R0J R 2152 (A,20,44) RS1/16SS0R0J R 2157 (A,47,23) RS1/16S104J R 2160 (B,10,44) RS1/16SS0R0J R 2162 (B,12,119) RS1/16S564J R 2163 (B,14,115) RS1/16S202J R 2164 (B,11,115) RS1/16S822J R 2166 (B,15,123) RS1/16S203J R 2169 (B,15,120) RS1/16S333J R 2172 (A,25,24) RS1/16S101J R 2173 (A,28,21) RS1/16S471J R 2174 (A,30,23) RS1/16S103J R 2177 (A,31,21) RS1/16S272J R 2182 (B,42,119) RS1/16S472J R 2183 (B,46,124) RS1/16S103J R 2185 (B,32,120) RS1/16S103J R 2187 (B,7,20) RS1/16S102J R 2188 (B,35,117) RS1/16S512J R 2189 (B,43,122) RS1/16S224J R 2190 (B,37,123) RS1/16S472J R 2191 (A,45,23) RS1/16S393J R 2192 (A,45,20) RS1/16S514J R 2193 (B,45,120) RS1/10S221J R 2194 (B,32,123) RS1/4S471J R 2196 (A,43,21) RS1/16S472J R 2197 (A,41,21) RS1/16S104J R 2198 (A,40,20) RS1/16S472J R 2228 (A,9,63) RS1/16S104J R 2229 (A,9,61) RS1/16S202J R 2232 (B,18,94) RS1/16S104J R 2242 (B,12,92) RS1/16S1001D R 2244 (B,14,93) RS1/16S1001D R 2247 (B,17,92) RS1/16S1101D R 2266 (A,29,113) RS1/16S0R0J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 144 1 2 3 4 1 2 3 4 C D F A B E R 2272 (A,29,111) RS1/16S0R0J R 2274 (A,128,90) RS1/16S103J R 2277 (B,114,102) RS1/16S101J R 2278 (B,113,99) RS1/16S101J R 2279 (B,113,102) RS1/16S101J R 2280 (B,112,99) RS1/16S101J R 2281 (B,111,102) RS1/16S101J R 2282 (B,110,99) RS1/16S101J R 2285 (A,7,29) RS1/16S472J R 2286 (B,65,18) RS1/10S1000F R 2287 (B,62,17) RS1/16S100J R 2288 (A,82,119) RS1/16S221J R 2289 (B,68,16) RS1/16S102J R 2290 (B,62,16) RS1/16S0R0J R 2291 (A,83,117) RS1/16S621J R 2292 (A,8,26) RS1/16S101J R 2293 (A,6,26) RS1/16S101J R 2295 (A,83,114) RS1/16S473J R 2296 (B,65,22) RS1/10S1000F R 2297 (B,61,21) RS1/16S100J R 2298 (B,67,20) RS1/16S102J R 2299 (B,61,20) RS1/16S0R0J R 2302 (B,65,26) RS1/10S1000F R 2303 (B,61,25) RS1/16S100J R 2304 (A,19,26) RS1/16S102J R 2305 (A,19,23) RS1/16S101J R 2306 (A,19,22) RS1/16S101J R 2307 (B,68,24) RS1/16S102J R 2308 (B,62,24) RS1/16S0R0J R 2309 (A,21,22) RS1/16S620J R 2310 (A,87,118) RS1/16S121J R 2313 (A,117,120) RS1/16S681J R 2314 (A,116,120) RS1/16S681J R 2315 (A,115,120) RS1/16S681J R 2316 (A,113,120) RS1/16S681J R 2317 (A,110,120) RS1/16S101J R 2318 (A,112,120) RS1/16S681J R 2319 (A,111,120) RS1/16S681J R 2400 (B,103,85) RS1/10S330J R 2401 (B,102,82) RS1/16S330J R 2402 (B,102,81) RS1/16S330J R 2405 (B,105,85) RS1/16S102J R 2406 (B,101,85) RS1/16S103J R 2410 (B,102,79) RS1/16S392J R 2413 (A,94,106) RS1/16S0R0J R 2414 (A,59,73) RS1/4SA561J R 2416 (B,38,114) RS1/16S222J R 2419 (B,54,119) RS1/4S182J R 2420 (A,42,91) RS1/16S473J R 2423 (B,38,110) RS1/16S682J R 2424 (A,39,95) RS1/16S103J R 2426 (A,40,84) RS1/16S104J R 2427 (B,36,111) RS1/16S332J R 2428 (A,42,96) RS1/16S103J R 2430 (A,108,85) RS1/10S0R0J R 2431 (A,72,119) RS1/10S0R0J R 2432 (A,29,67) RS1/10S0R0J R 2433 (A,29,71) RS1/10S0R0J R 2434 (A,27,71) RS1/10S0R0J R 2435 (A,22,66) RS1/10S0R0J Circuit Symbol and No. Part No. R 2503 (B,58,47) RS1/16S0R0J R 2504 (B,56,46) RS1/16S1800D R 2505 (B,53,46) RS1/16S1801D R 2506 (B,51,47) RS1/16S1001D R 2507 (B,58,66) RS1/16S0R0J R 2508 (B,56,67) RS1/16S3900D R 2509 (B,53,67) RS1/16S4701D R 2510 (B,51,66) RS1/16S1001D R 2511 (B,53,47) RS1/16S122J R 2512 (B,53,66) RS1/16S132J R 2513 (B,51,82) RS1/16S331J R 2514 (B,80,100) RS1/10S0R0J R 2515 (B,79,97) RS1/16S5600D R 2516 (B,79,94) RS1/16S2401D R 2517 (B,79,92) RS1/16S1601D R 2518 (B,52,49) RS1/16S332J R 2519 (B,52,52) RS1/16S104J R 2520 (B,50,80) RS1/16S0R0J R 2521 (B,50,82) RS1/16S5600D R 2522 (B,50,85) RS1/16S8201D R 2523 (B,50,87) RS1/16S1501D R 2524 (B,52,64) RS1/16S332J R 2525 (B,78,97) RS1/16S101J R 2526 (B,78,77) RS1/16S332J R 2527 (B,78,82) RS1/16S104J R 2528 (B,50,102) RS1/16S332J R 2529 (B,50,98) RS1/16S104J R 2531 (B,80,85) RS1/16S473J R 2532 (B,73,77) RS1/16S1503D R 2533 (B,56,102) RS1/16S1503D R 2534 (B,56,44) RS1/16S473J R 2535 (B,52,62) RS1/16S104J R 2537 (B,78,100) RS1/10S100J R 2538 (B,66,82) RS1/16S100J R 2540 (B,51,79) RS1/10S100J R 2541 (B,57,90) RS1/16S184J R 2543 (B,68,55) RS1/10S150J R 2544 (B,68,59) RS1/10S150J R 2545 (B,72,89) RS1/16S184J R 2546 (B,56,49) RS1/16S224J R 2547 (B,56,64) RS1/16S224J R 2548 (B,63,98) RS1/16S100J R 2549 (A,79,87) RS1/16S105J R 2550 (A,57,105) RS1/16S105J R 2552 (A,26,62) RS1/16S104J R 2553 (B,58,42) RS1/4S101J R 2554 (A,81,66) RS1/4S221J R 2555 (B,70,74) RS1/16S8203D R 2556 (B,57,104) RS1/16S8203D R 2557 (B,125,23) RS1/16SS0R0J R 2558 (B,49,112) RS1/16S104J R 2559 (B,52,116) RS1/16S104J R 2560 (A,7,59) RS1/16S0R0J R 2561 (A,146,81) (EW5) RS1/16S0R0J R 2562 (A,146,79) (UC) RS1/16S0R0J R 2564 (B,4,45) RS1/16S473J R 2565 (B,32,24) RS1/16S0R0J R 2567 (A,107,89) RS1/8S0R0J R 2568 (B,28,65) RS1/16S472J R 2569 (A,27,46) RS1/16S0R0J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 145 5 6 7 8 5 6 7 8 C D F A B E R 2571 (B,39,34) RS1/16S104J R 2574 (B,5,18) RS1/16S104J R 2575 (B,126,38) RS1/16SS0R0J R 2577 (A,50,130) RS1/16S473J R 2579 (B,49,63) RS1/16S104J R 2581 (A,35,54) RS1/16S104J R 2584 (B,20,64) RS1/16S104J R 2585 (B,41,67) RS1/16S0R0J R 2586 (B,37,95) RS1/10S0R0J R 2587 (B,15,25) RS1/16S472J R 2588 (B,17,26) RS1/16S472J R 2589 (B,6,30) RS1/16S472J R 2590 (B,8,28) RS1/16S472J R 2591 (B,139,86) (EW5) RS1/16S0R0J R 2592 (B,139,88) (UC) RS1/16S0R0J R 2594 (B,10,28) RS1/16S104J R 2595 (A,28,59) RS1/16S104J R 2596 (A,128,86) RS1/16S471J R 2597 (A,128,88) RS1/16S101J R 2766 (B,57,26) RS1/16SS101J R 2768 (B,42,129) RS1/16S0R0J R 2770 (B,55,7) RS1/10S0R0J R 2776 (B,57,27) RS1/16SS473J CAPACITORS C 1 (B,128,18) CKSRYB104K16 C 2 (B,127,21) CKSRYB104K16 C 3 (B,127,24) CKSRYB104K16 C 4 (B,127,29) CKSRYB104K16 C 5 (B,127,41) CKSRYB104K16 C 6 (A,148,36) CKSRYB104K16 C 7 (A,152,44) CKSRYB104K16 C 8 (A,152,49) CKSRYB104K16 C 9 (A,152,52) CKSRYB104K16 C 10 (A,152,55) CKSRYB104K16 C 11 (A,152,60) CKSRYB104K16 C 12 (B,132,17) CKSQYB106K6R3 C 13 (B,142,25) CKSRYB104K16 C 14 (B,142,28) CKSRYB104K16 C 15 (A,143,35) CKSRYB104K16 C 16 (A,141,35) CKSRYB104K16 C 17 (A,143,66) CKSRYB104K16 C 18 (A,141,68) CCSRCH100D50 C 19 (A,138,68) CCSRCH100D50 C 20 (B,145,17) CKSRYB104K16 C 21 (B,144,21) CKSRYB104K16 C 22 (B,144,24) CKSRYB104K16 C 23 (B,144,29) CKSRYB104K16 C 24 (B,143,40) CKSRYB104K16 C 25 (A,137,36) CKSRYB104K16 C 26 (A,137,65) CKSRYB104K16 C 27 (B,148,17) CKSQYB106K6R3 C 28 (B,153,15) CKSRYB104K16 C 29 (B,158,27) CKSRYB104K16 C 30 (A,154,18) CKSRYF104Z25 C 31 (B,128,58) CCSRCH9R0D50 C 32 (B,128,62) CCSRCH9R0D50 C 33 (A,132,36) CKSRYB104K16 C 35 (A,132,65) CKSRYB104K16 C 36 (A,126,64) CKSRYB104K16 Circuit Symbol and No. Part No. C 38 (A,131,32) CKSQYB106K6R3 C 39 (A,123,40) CKSRYB104K16 C 40 (A,122,42) CKSRYB104K16 C 41 (A,123,50) CKSRYB104K16 C 42 (B,137,44) CKSRYB104K16 C 44 (B,133,56) CKSRYB104K16 C 47 (B,141,65) CKSRYB104K16 C 49 (B,139,44) CKSRYB104K16 C 51 (A,144,35) CKSRYB224K10 C 54 (B,80,37) CCSRCH121J50 C 55 (B,144,44) CKSRYB104K16 C 57 (B,147,44) CKSRYB104K16 C 60 (B,149,65) CKSRYB104K16 C 63 (B,154,46) CKSRYB104K16 C 64 (B,154,51) CKSRYB104K16 C 66 (B,154,54) CKSRYB104K16 C 67 (B,156,54) CKSQYB106K6R3 C 68 (A,127,35) 22 µF CCG1178 C 69 (A,127,33) 22 µF CCG1178 C 70 (A,126,29) 22 µF CCG1178 C 71 (B,125,60) CKSRYF103Z50 C 72 (B,159,51) CKSRYF103Z50 C 73 (B,157,51) CKSRYF104Z25 C 74 (B,154,61) CKSRYF104Z25 C 75 (A,152,17) CKSRYF104Z25 C 76 (B,127,27) CKSRYB103K16 C 77 (B,135,17) CKSRYB103K16 C 78 (B,142,20) CKSRYB103K16 C 79 (B,158,29) CKSRYB103K50 C 80 (B,151,16) CKSRYB103K50 C 81 (B,143,39) CKSRYB224K10 C 82 (B,158,22) CKSRYB103K50 C 96 (B,160,22) CKSRYB224K10 C 97 (B,160,27) CKSRYB224K10 C 98 (B,160,29) CKSRYB224K10 C 101 (A,127,17) CKSRYB104K16 C 102 (A,131,11) CKSRYB104K16 C 103 (A,135,25) CKSRYB104K16 C 104 (A,144,29) CKSRYB104K16 C 105 (A,152,29) CKSRYB104K16 C 106 (A,160,29) CKSRYB104K16 C 107 (A,156,33) CKSRYB104K16 C 108 (A,156,41) CKSRYB104K16 C 109 (A,156,49) CKSRYB104K16 C 110 (B,102,42) CKSQYB106K6R3 C 111 (B,102,39) CKSRYB104K16 C 112 (B,102,34) CKSRYF224Z16 C 113 (B,102,26) CKSQYB106K6R3 C 114 (B,102,23) CKSRYB104K16 C 115 (B,102,18) CKSRYF224Z16 C 116 (B,115,64) CKSRYF104Z25 C 117 (B,103,51) CKSQYB106K6R3 C 118 (B,103,49) CKSRYB104K16 C 119 (B,115,49) CKSRYF104Z25 C 120 (B,105,61) CKSRYF104Z25 C 121 (B,105,56) CKSRYF104Z25 C 122 (B,100,38) CKSRYF104Z25 C 123 (B,102,54) CKSRYF103Z50 C 124 (B,126,41) CCSRCH101J50 C 125 (A,162,33) CKSRYF104Z25 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 146 1 2 3 4 1 2 3 4 C D F A B E C 126 (A,162,49) CKSRYF104Z25 C 201 (A,120,37) CKSRYB104K16 C 202 (A,115,42) CKSRYB104K16 C 203 (A,113,42) CKSRYB104K16 C 204 (A,118,37) CKSRYB104K16 C 205 (A,107,42) CKSRYB104K16 C 206 (A,102,41) CKSRYB104K16 C 207 (A,96,41) CKSRYB104K16 C 208 (A,92,42) CKSRYB104K16 C 209 (A,83,37) CKSRYB104K16 C 211 (A,118,34) CKSRYB104K16 C 213 (A,118,31) CKSRYB104K16 C 214 (A,119,32) CKSRYB104K16 C 215 (A,83,35) CKSRYB104K16 C 216 (A,83,31) CKSRYB104K16 C 217 (A,83,30) CKSRYB104K16 C 220 (A,121,32) CKSQYB106K6R3 C 221 (A,118,29) CKSRYB104K16 C 222 (A,118,26) CKSRYB104K16 C 223 (A,120,8) CKSRYB224K10 C 224 (A,118,24) CKSRYB104K16 C 225 (A,120,28) CKSRYB104K16 C 227 (A,83,28) CKSRYB104K16 C 228 (A,83,24) CKSRYB104K16 C 230 (A,123,25) CCSRCH150J50 C 231 (A,123,16) CCSRCH120J50 C 232 (A,118,21) CKSRYB104K16 C 233 (A,118,18) CKSRYB104K16 C 234 (A,83,19) CKSRYB104K16 C 235 (A,84,18) CKSRYB104K16 C 237 (A,119,15) CKSRYB104K16 C 238 (A,119,13) CKSRYB104K16 C 239 (A,84,16) CKSRYB104K16 C 240 (A,84,14) CKSRYB104K16 C 241 (A,84,12) CKSRYB104K16 C 242 (A,112,7) CKSRYB104K16 C 243 (A,108,7) CKSRYB104K16 C 244 (A,105,7) CKSRYB104K16 C 245 (A,102,7) CKSRYB104K16 C 246 (A,98,7) CKSRYB104K16 C 247 (A,94,7) CKSRYB104K16 C 248 (A,89,7) CKSRYB104K16 C 249 (A,85,9) CKSQYB106K6R3 C 250 (A,104,42) CKSQYB106K6R3 C 251 (A,120,25) CKSQYB106K6R3 C 252 (A,85,42) CKSQYB106K6R3 C 253 (A,121,13) CKSRYF104Z25 C 255 (A,83,33) CKSRYB103K50 C 256 (A,83,27) CKSRYB103K50 C 257 (A,83,25) CKSRYB103K50 C 258 (A,83,22) CKSRYB103K50 C 259 (A,83,21) CKSRYB103K50 C 260 (A,84,15) CKSRYB103K50 C 261 (B,81,8) CKSRYB103K50 C 262 (B,79,8) CKSRYB103K50 C 301 (A,137,21) CKSRYF104Z25 C 302 (A,144,21) CKSRYB334K10 C 303 (A,138,12) CKSRYF104Z25 C 306 (A,116,48) CKSRYF104Z25 C 323 (A,103,56) CKSQYB106K6R3 Circuit Symbol and No. Part No. C 328 (A,100,50) CKSRYB104K16 C 329 (A,99,50) 10 µF CCG1203 C 341 (A,156,18) CCSRCH101J50 C 342 (A,136,13) CKSRYF104Z25 C 344 (B,142,11) CKSRYF103Z50 C 345 (B,140,11) CKSRYF104Z25 C 346 (B,126,11) CKSRYF103Z50 C 347 (B,115,9) CKSRYF103Z50 C 348 (B,114,8) CKSRYF104Z25 C 349 (B,92,7) CKSRYF103Z50 C 1917 (A,76,52) 330 µF/6.3 V CCH1366 C 1918 (A,76,61) 330 µF/10 V CCH1623 C 1925 (A,58,48) 27 µF/20 V CCH1744 C 1941 (A,58,77) 220 µF/10 V CCH1409 C 1998 (A,68,102) 330 µF/6.3 V CCH1366 C 2000 (B,40,73) CKSRYB104K25 C 2001 (A,36,72) CKSRYB104K25 C 2002 (A,42,71) CKSRYF104Z25 C 2003 (A,34,72) CKSRYF104Z25 C 2004 (A,36,39) CKSRYB104K16 C 2005 (A,12,40) CKSRYB104K16 C 2006 (A,16,31) CKSRYB153K50 C 2007 (A,20,34) CKSRYB104K16 C 2008 (A,36,68) CKSRYF104Z25 C 2010 (B,36,36) CKSRYB104K16 C 2011 (B,18,33) CKSRYB104K50 C 2012 (B,34,34) CKSRYB105K10 C 2013 (A,31,46) CKSRYB104K16 C 2014 (A,13,36) CKSRYB104K16 C 2015 (B,10,38) CCSRCH7R0D50 C 2016 (B,10,36) CCSRCH6R0D50 C 2017 (A,31,38) CKSRYB104K50 C 2018 (A,39,44) CKSRYB104K16 C 2019 (B,40,46) CKSRYB104K16 C 2020 (B,9,56) CKSRYB104K16 C 2023 (B,24,61) CKSRYB104K16 C 2024 (B,34,61) CKSRYB104K16 C 2025 (B,31,63) CKSRYB104K16 C 2028 (B,34,60) CKSRYB104K16 C 2029 (B,5,122) CKSRYB104K50 C 2030 (B,9,119) CKSRYB102K50 C 2033 (B,13,123) CKSRYB104K50 C 2034 (B,12,125) CKSRYB103K50 C 2035 (B,14,125) CKSRYB823K16 C 2037 (B,45,124) CKSRYB104K50 C 2038 (B,7,23) CKSRYB104K50 C 2040 (B,37,124) CKSRYB472K50 C 2041 (B,4,25) CKSRYB104K50 C 2043 (B,28,129) CKSRYB103K50 C 2044 (B,28,131) CKSRYB103K50 C 2091 (A,46,113) CEVW470M16 C 2093 (A,46,121) CEVW101M16 C 2130 (B,117,99) CSZSR330M10 C 2151 (A,99,88) CEVW101M16 C 2168 (A,77,42) CSZSR101M6R3 C 2170 (A,23,76) CEVW100M16 C 2205 (A,12,62) CKSRYB104K50 C 2206 (B,12,102) CKSRYB102K50 C 2207 (B,18,97) CKSRYB102K50 C 2209 (B,19,102) CKSRYB102K50 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 147 5 6 7 8 5 6 7 8 C D F A B E C 2210 (A,11,60) CKSRYB474K16 C 2225 (A,40,109) CKSRYB104K50 C 2227 (A,149,113) CEVW100M16 C 2235 (A,125,90) CKSRYB104K50 C 2236 (A,29,83) CEVW101M16 C 2237 (B,118,101) CKSRYB105K6R3 C 2238 (B,121,107) CKSQYB105K16 C 2239 (B,120,102) CKSQYB105K16 C 2240 (B,116,102) CKSQYB105K16 C 2241 (B,59,29) CKSRYB104K16 C 2242 (B,119,115) CKSQYB105K16 C 2243 (B,123,111) CKSQYB105K16 C 2244 (A,83,116) CCSRCH150J50 C 2245 (A,14,27) CKSRYB472K50 C 2247 (A,89,114) CKSRYB104K16 C 2248 (B,108,119) CKSRYB102K50 C 2249 (B,110,125) CKSRYB102K50 C 2250 (B,113,125) CKSRYB102K50 C 2251 (B,116,125) CKSRYB102K50 C 2252 (B,119,125) CKSRYB102K50 C 2253 (B,122,127) CKSRYB102K50 C 2256 (B,148,127) CKSRYB104K50 C 2400 (A,104,93) CKSRYB104K50 C 2401 (B,78,41) CKSRYB104K50 C 2402 (A,142,102) CKSRYB104K50 C 2404 (A,92,91) CKSRYB104K16 C 2405 (A,100,106) CKSRYF104Z25 C 2407 (A,101,106) CKSRYF103Z50 C 2409 (A,101,104) CKSRYF103Z50 C 2410 (A,98,106) CKSRYF104Z25 C 2411 (A,97,106) CKSRYF103Z50 C 2412 (A,95,106) CKSRYF103Z50 C 2413 (A,95,109) CKSRYB104K50 C 2414 (B,105,79) CKSRYB104K50 C 2415 (A,28,88) CKSRYB103K50 C 2416 (A,21,72) CKSRYB104K16 C 2417 (B,63,42) CCSRCH680J50 C 2418 (A,24,82) CKSRYB104K16 C 2419 (A,35,81) CKSRYB334K10 C 2422 (A,151,110) CKSRYB104K16 C 2423 (A,150,103) CKSRYB104K16 C 2424 (B,32,87) CKSYB105K16 C 2425 (B,35,100) CKSYB105K25 C 2427 (B,33,71) CKSRYB104K50 C 2428 (B,34,81) CKSRYB104K50 C 2500 (B,56,47) CKSRYB103K50 C 2501 (B,56,66) CKSRYB472K50 C 2502 (B,51,85) CKSRYB103K25 C 2503 (B,54,49) CCSRCH101J50 C 2504 (B,52,50) CKSRYB224K16 C 2505 (B,54,64) CCSRCH221J50 C 2506 (B,52,63) CKSRYB104K50 C 2507 (B,78,94) CKSRYB103K25 C 2508 (B,78,80) CCSRCH102J50 C 2509 (B,51,100) CCSRCH101J50 C 2510 (B,49,53) 15 pF CCG1240 C 2511 (B,79,80) CKSRYB104K16 C 2512 (B,50,100) CKSRYB104K50 C 2513 (B,52,54) 27 pF CCG1241 C 2514 (B,52,59) CKSRYB104K50 Circuit Symbol and No. Part No. C 2515 (B,76,77) CKSRYB473K50 C 2516 (B,74,77) 30 pF CCG1252 C 2517 (B,71,77) CKSRYB105K10 C 2518 (B,53,102) CKSRYB473K50 C 2519 (B,54,102) 30 pF CCG1252 C 2520 (B,57,102) CKSRYB105K10 C 2521 (B,52,53) CKSRYB473K50 C 2522 (B,52,56) CKSRYB105K10 C 2523 (B,52,60) CKSRYB473K50 C 2524 (B,67,78) 4.7 µF CCG1111 C 2525 (B,78,85) CKSQYB475K10 C 2526 (B,57,89) CKSRYF104Z25 C 2527 (B,51,95) 4.7 µF CCG1222 C 2528 (B,59,52) CKSRYF474Z16 C 2529 (B,64,57) 4.7 µF CCG1222 C 2530 (B,59,62) CKSRYF474Z16 C 2531 (B,75,89) CKSRYF474Z16 C 2532 (B,54,90) CKSRYF474Z16 C 2533 (B,72,90) CKSRYB104K16 C 2534 (B,56,50) CKSRYF104Z25 C 2535 (B,56,63) CKSRYF104Z25 C 2536 (B,61,101) 4.7 µF CCG1222 C 2537 (B,69,99) 10 µF CCG1223 C 2538 (B,69,96) 10 µF CCG1223 C 2539 (B,60,81) 4.7 µF CCG1111 C 2542 (B,69,93) 10 µF CCG1223 C 2543 (B,60,84) 4.7 µF CCG1111 C 2546 (B,60,87) 4.7 µF CCG1111 C 2547 (A,61,89) 10 µF CCG1223 C 2549 (B,59,77) 4.7 µF CCG1111 C 2640 (B,62,48) 4.7 µF CCG1111 C 2641 (B,62,64) 4.7 µF CCG1111 C 2644 (B,71,47) 4.7 µF CCG1111 C 2645 (B,71,66) 4.7 µF CCG1111 C 2648 (A,59,54) 10 µF CCG1223 C 2650 (A,59,57) 10 µF CCG1223 C 2900 (B,122,98) CKSRYB105K6R3 C 2903 (A,30,111) CKSRYB334K10 C 2908 (B,49,114) CKSQYB105K10 C 2909 (B,51,9) CKSRYB104K50 C 2910 (B,56,10) CKSRYB104K50 C 2913 (A,18,30) CKSRYB104K25 C 2914 (A,41,39) CKSRYB104K50 C 2915 (A,93,91) CKSRYB104K50 C 2916 (B,55,13) 100 µF/6.3 V DCH1164 C 2920 (A,9,59) CKSRYB474K16 C 2921 (B,71,24) CKSRYB104K16 C 2922 (B,71,20) CKSRYB104K16 C 2923 (B,70,16) CKSRYB104K16 B Unit Number: CWX3446(UC) Unit Number: CWX3447(EW5) Unit Name : GPS Unit MISCELLANEOUS IC 401 (A,25,16) IC UPC2749T IC 402 (B,20,27) IC UPB1027GS Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 148 1 2 3 4 1 2 3 4 C D F A B E IC 441 (A,33,30) IC NJM2100V IC 461 (B,29,10) IC ADC12H034CIMSAS1 IC 501 (B,50,25) IC PD3390A IC 502 (B,48,9) IC(UC) PEH100A8 (B,48,9) IC(EW5) PEH101A8 IC 503 (A,50,29) IC M5M5V216ATP-70HI IC 504 (A,31,14) IC MAX6364PUT29 IC 532 (A,47,15) IC(EW5) LC72720YVSS1 Q 441 (A,32,22) Transistor 2SB1132 D 401 (B,11,27) Diode 1SV314 D 501 (B,35,30) Diode RB751V-40 L 401 (B,12,29) Inductor CTF1549 L 402 (B,26,22) Inductor LCYC1R2K1608 L 403 (B,27,26) Inductor LCYC1R2K1608 L 404 (A,21,22) Inductor LCSA3N3R1608 L 405 (B,13,24) Inductor LCYB22NJ1608 L 406 (B,15,20) Inductor LCYB22NJ1608 L 407 (A,19,32) Inductor CTF1410 L 408 (B,26,31) Inductor(UC) CTF1556 (B,26,31) Inductor(EW5) CTF1410 L 409 (B,19,12) Inductor LCYC1R0K2125 L 410 (B,26,17) Inductor CTF1547 L 412 (A,25,27) Inductor CTF1547 L 413 (A,25,26) Inductor CTF1547 L 414 (A,25,32) Inductor CTF1547 L 415 (A,26,29) Inductor CTF1547 L 416 (A,27,28) Inductor CTF1547 L 417 (B,25,20) Inductor CTF1547 L 418 (A,14,33) Inductor CTF1410 L 441 (B,32,20) Inductor CTF1410 L 442 (A,29,25) Inductor CTF1410 L 461 (A,29,9) Inductor CTF1410 L 462 (A,31,8) Inductor CTF1410 L 467 (B,33,17) Inductor CTF1547 L 468 (B,32,17) Inductor CTF1547 L 469 (A,32,11) Inductor CTF1410 L 501 (B,38,17) Inductor CTF1410 L 502 (B,36,32) Inductor CTF1410 L 503 (B,59,6) Inductor CTF1410 L 504 (A,38,33) Inductor CTF1410 L 531 (A,53,17) Inductor CTF1410 X 401 (A,14,27) TCXO 16.368 MHz CWX2381 X 501 (A,38,26) Radiator 32.768 kHz CSS1319 X 502 (B,36,26) Radiator 20.00 MHz CSS1549 X 532 (A,58,15) Radiator 4.332 MHz(EW5) CSS1550 F 401 (A,23,23) Filter CTF1548 RESISTORS R 401 (B,11,26) RS1/16SS472J R 402 (B,12,30) RS1/16SS472J R 403 (B,14,32) RS1/16SS122J R 404 (B,14,30) RS1/16SS622J R 405 (A,23,26) RS1/16SS100J R 406 (B,27,29) RS1/16S271J R 407 (B,25,18) RS1/16S2R2J R 441 (A,30,27) RN1/16SC10R0D R 442 (B,33,24) RN1/16SE1501D R 443 (B,31,24) RN1/16SE2402D R 444 (B,31,26) RN1/16SE3302D Circuit Symbol and No. Part No. R 445 (B,32,33) RN1/16SE4702D R 446 (B,30,32) RN1/16SE4702D R 447 (A,33,25) RS1/16S432J R 448 (B,32,30) RN1/16SE1002D R 449 (B,33,32) RN1/16SE2202D R 450 (B,32,32) RN1/16SE3302D R 451 (A,29,32) RS1/16S103J R 452 (B,34,27) RS1/16SS102J R 454 (B,34,26) RS1/16SS102J R 460 (B,22,13) RS1/16S0R0J R 461 (A,37,5) RS1/16SS102J R 462 (A,38,9) RS1/16SS102J R 463 (B,36,12) RAB4CQ102J R 464 (A,35,12) RAB4CQ333J R 465 (A,39,8) RS1/16SS102J R 468 (A,58,8) (EW5) RS1/16SS471J R 469 (A,58,6) (EW5) RAB4CQ471J R 470 (B,35,7) RAB4CQ471J R 471 (B,35,4) RAB4CQ104J R 477 (B,31,17) RS1/16SS222J R 478 (B,30,16) RS1/16SS222J R 479 (B,28,15) RS1/16SS222J R 480 (B,29,17) RS1/16SS332J R 481 (B,30,17) RS1/16SS332J R 482 (A,38,6) RS1/16SS223J R 483 (A,38,5) RS1/16SS473J R 501 (B,39,27) RS1/16SS0R0J R 502 (B,38,29) RS1/16SS102J R 503 (B,39,26) RS1/16SS154J R 508 (B,60,14) (UC) RS1/16SS103J (B,60,14) (EW5) RS1/16SS472J R 509 (B,34,15) RS1/16SS473J R 510 (A,38,7) RS1/16SS102J R 511 (A,34,19) RS1/16SS103J R 512 (B,39,30) RS1/16SS473J R 513 (B,60,16) RS1/16SS103J R 514 (B,39,29) RS1/16SS473J R 515 (A,30,12) RS1/16SS473J R 517 (B,39,22) RS1/16SS103J R 519 (B,39,21) RS1/16SS473J R 521 (B,37,29) RS1/16SS473J R 532 (A,43,10) (EW5) RS1/16SS104J R 533 (A,40,18) (UC) RS1/16SS103J (A,40,18) (EW5) RS1/16SS332J R 534 (A,41,19) RS1/16SS103J R 535 (A,38,13) RS1/16SS103J R 536 (A,39,18) RS1/16SS0R0J R 537 (A,38,15) (EW5) RS1/16S0R0J R 538 (A,38,17) (EW5) RS1/16SS0R0J CAPACITORS C 401 (A,25,13) CCSRCH100D50 C 402 (A,24,20) CCSSCH101J50 C 403 (A,27,16) CKSSYB104K10 C 404 (A,20,24) CCSSCH101J50 C 405 (B,14,27) CCSRUJ220J50 C 406 (B,14,29) CCSRUJ220J50 C 407 (B,13,32) CKSSYB333K16 C 408 (B,12,32) CKSSYB182K50 C 409 (A,21,29) CSZS100M6R3 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 149 5 6 7 8 5 6 7 8 C D F A B E C 410 (B,28,32) CKSSYB103K16 C 411 (A,21,27) CKSSYB102K50 C 412 (A,21,28) CKSSYB102K50 C 413 (A,20,31) CKSSYB104K10 C 414 (A,24,32) CKSSYB104K10 C 415 (A,25,30) CKSSYB104K10 C 416 (A,24,28) CKSSYB104K10 C 417 (B,25,22) CKSSYB104K10 C 418 (A,21,32) CKSSYB102K50 C 419 (B,39,32) CKSSYB104K10 C 420 (A,14,32) CKSSYB104K10 C 421 (B,26,27) CKSSYB102K50 C 422 (B,25,26) CKSSYB103K16 C 423 (B,26,24) CKSSYB104K10 C 424 (B,27,22) CCSRCH102J50 C 425 (B,29,23) CCSRCH271J50 C 426 (B,28,26) CCSRCH102J50 C 427 (B,25,25) CKSSYB104K10 C 428 (B,15,24) CKSSYB103K16 C 429 (B,12,24) CCSRCH301J50 C 430 (B,13,22) CCSSCH120J50 C 431 (B,14,20) CCSRCH301J50 C 432 (B,16,22) CKSSYB103K16 C 433 (B,19,9) CCSRCH101J50 C 434 (B,19,14) CKSSYB102K50 C 435 (B,20,14) CKSSYB103K16 C 436 (B,31,22) CKSSYB104K10 C 441 (B,31,28) CKSRYB104K16 C 442 (A,30,29) CCSRCH101J50 C 443 (A,30,32) CKSRYB104K16 C 444 (B,33,22) CKSSYB103K16 C 445 (A,29,30) CKSSYB104K10 C 461 (A,28,5) 22 µF/6.3 V CCH1408 C 462 (A,31,9) CKSRYB104K16 C 463 (A,27,9) CKSRYB104K16 C 464 (B,31,5) CKSSYB103K16 C 465 (B,31,4) CKSSYB103K16 C 466 (B,32,4) CKSSYB103K16 C 467 (B,33,4) CKSSYB103K16 C 468 (A,30,11) CKSSYB104K10 C 469 (B,27,4) CSZS100M10 C 470 (B,26,15) CKSSYB104K10 C 471 (B,37,6) CCSSCH101J50 C 501 (B,39,19) CKSSYB104K10 C 502 (B,37,22) CCSRCH150J50 C 503 (B,38,22) CCSRCH150J50 C 504 (B,40,17) CKSSYB104K10 C 506 (B,60,19) CKSSYB104K10 C 507 (B,60,21) CKSSYB104K10 C 508 (B,60,26) CKSSYB104K10 C 509 (B,60,30) CKSSYB104K10 C 511 (B,41,34) CKSSYB104K10 C 512 (B,38,31) CKSSYB104K10 C 514 (A,31,17) CSZS100M6R3 C 515 (B,39,24) CKSSYB104K10 C 516 (B,59,11) CKSSYB104K10 C 517 (A,51,21) CKSSYB104K10 C 518 (A,39,32) CKSSYB104K10 C 535 (A,55,15) (EW5) CSZS100M6R3 C 539 (A,55,19) (EW5) CCSRCH100D50 Circuit Symbol and No. Part No. C 540 (A,53,12) (EW5) CCSRCH100D50 C 541 (A,47,10) (EW5) CCSRCH561J50 C 542 (A,45,10) (EW5) CKSSYB104K10 C 543 (A,40,12) (EW5) CSZS100M6R3 C 544 (A,50,10) (EW5) CCSRCH331J50 C 545 (A,53,15) (EW5) CKSSYB104K10 C Unit Number: CWN2190(UC) Unit Number: CWN2090(EW5) Unit Name : AV Unit MISCELLANEOUS IC 1001 (A,46,43) IC NJM4558V IC 1021 (A,72,43) IC BA4558RFVM IC 1031 (A,56,43) IC BA4558RFVM IC 1041 (A,64,43) IC BA4558RFVM IC 1051 (B,66,43) IC TC4052BFT IC 1061 (B,81,65) IC PML009A IC 1111 (B,41,43) IC BA4558RFVM IC 1131 (B,81,79) IC NJM2060V IC 1201 (A,84,139) IC PAL007C IC 1301 (A,15,30) IC NJM2137V IC 1316 (B,16,25) IC NJM2136V IC 1331 (B,24,56) IC BA7649AF IC 1341 (B,8,44) IC NJM2505F IC 1351 (B,18,46) IC NJM2235M IC 1361 (A,6,47) IC TK15405BMI IC 1381 (A,32,43) IC NJM2505F IC 1601 (B,36,102) IC TPD1018F IC 1821 (A,9,99) IC BA00CC0WCP-V5 IC 1841 (A,9,88) IC BA00CC0WCP-V5 IC 1876 (A,38,56) IC NJM2125F IC 1891 (B,97,67) Regulator(EW5) BA00CC0WFP Q 1001 (A,37,50) Transistor IMD3A Q 1002 (A,40,43) Transistor FMG12 Q 1051 (B,59,42) Transistor DTC114EUA Q 1052 (B,57,42) Transistor DTC114EUA Q 1091 (A,91,91) Transistor FMG12 Q 1092 (A,81,91) Transistor FMG12 Q 1093 (A,71,91) Transistor FMG12 Q 1112 (B,49,60) Transistor IMD3A Q 1114 (B,45,60) Transistor DTC323TK Q 1201 (A,84,112) Transistor UMD2N Q 1202 (A,87,112) Transistor UMD2N Q 1203 (A,78,103) Transistor 2SC4081 Q 1204 (B,92,100) Transistor UMD2N Q 1205 (A,81,106) Transistor DTC124EUA Q 1206 (A,84,106) Transistor DTC114EUA Q 1331 (B,24,62) Transistor DTC114EUA Q 1401 (B,138,93) Transistor(EW5) 2SC3357 Q 1402 (B,142,87) Transistor(EW5) 2SC3127 Q 1403 (A,135,75) Transistor(EW5) 2SC3130 Q 1451 (A,105,74) Transistor(EW5) DTC144EK Q 1452 (A,105,77) Transistor(EW5) DTC144EK Q 1601 (A,53,115) Transistor 2SC4116 Q 1602 (B,57,111) Transistor 2SC4116 Q 1603 (B,57,100) Transistor DTC114EUA Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 150 1 2 3 4 1 2 3 4 C D F A B E Q 1711 (B,45,12) Transistor IMD2A Q 1801 (A,123,117) Transistor 2SA1797 Q 1802 (A,117,117) Transistor 2SA1162 Q 1803 (B,117,117) Transistor 2SC4081 Q 1804 (B,113,104) Transistor 2SA1797 Q 1805 (B,114,119) Transistor DTC114EUA Q 1831 (B,20,76) Transistor 2SD1760F5 Q 1832 (B,25,68) Transistor DTA114EUA Q 1833 (B,27,68) Transistor DTC114EUA Q 1851 (A,109,24) Transistor 2SA1797 Q 1852 (A,118,32) Transistor 2SC4081 Q 1861 (A,102,34) Transistor 2SA1385-ZS1 Q 1862 (A,102,49) Transistor 2SC4081 D 1001 (A,36,43) Diode DAP202K D 1111 (B,49,64) Diode DAN202K D 1161 (B,91,96) Diode DAP202K D 1201 (A,82,125) Diode MA111 D 1202 (A,82,110) Diode UDZS8R2(B) D 1205 (A,83,103) Diode DAN202U D 1206 (A,81,103) Diode DAN202U D 1451 (A,96,57) Diode(EW5) HZU3R3(B1) D 1601 (A,56,118) Diode UDZS5R1(B) D 1602 (B,59,115) Diode HZU8R2(B1) D 1603 (A,59,105) Diode UDZS18(B) D 1604 (A,59,103) Diode UDZS18(B) D 1605 (B,58,104) Diode 1SR154-400 D 1606 (A,59,107) Diode 1SS355 D 1607 (B,36,109) Diode 1SR154-400 D 1609 (B,36,112) Diode 1SR154-400 D 1610 (A,60,109) Diode PTZ18A D 1621 (A,128,126) Diode EDZ6R8(B) D 1622 (A,128,129) Diode EDZ6R8(B) D 1623 (B,131,116) Diode EDZ6R8(B) D 1624 (B,135,116) Diode EDZ6R8(B) D 1625 (B,138,116) Diode EDZ6R8(B) D 1626 (B,140,116) Diode MALS068X D 1627 (B,145,116) Diode MALS068X D 1628 (A,147,126) Diode MALS068X D 1629 (B,143,116) Diode MALS068X D 1630 (B,148,116) Diode MALS068X D 1651 (B,44,83) Diode KS926S2 D 1652 (A,38,119) Diode 5KP22A D 1701 (A,9,129) Diode MALS068X D 1702 (B,13,143) Diode EDZ6R8(B) D 1703 (A,13,129) Diode MALS068X D 1704 (A,26,117) Diode 1SR154-400 D 1705 (B,18,143) Diode MALS068X D 1706 (B,20,143) Diode MALS068X D 1707 (A,18,129) Diode MALS068X D 1708 (A,22,129) Diode MALS068X D 1709 (A,21,115) Diode 1SS355 D 1710 (B,16,129) Diode MALS068X D 1711 (B,16,143) Diode MALS068X D 1712 (A,14,117) Diode PTZ27(B) D 1713 (A,19,115) Diode 1SS355 D 1714 (A,16,113) Diode DAN202U D 1715 (A,23,117) Diode PTZ20(B) D 1716 (B,13,144) Diode EDZ20(B) D 1721 (A,121,131) Diode UDZS5R6(B) D 1722 (A,121,128) Diode UDZS5R6(B) Circuit Symbol and No. Part No. D 1801 (A,123,111) Diode RB060L-40 D 1802 (B,132,116) Diode UDZS27(B) D 1821 (B,28,77) Diode DAN202U D 1824 (A,30,95) Diode RB060L-40 D 1831 (B,22,67) Diode UDZS5R6(B) D 1844 (A,30,82) Diode RB060L-40 D 1876 (A,39,59) Diode EDZ4R3(B) D 1877 (A,42,56) Diode 1SS355 D 1878 (B,110,116) Diode UDZS22(B) ZNR1401 (B,163,116) Surge Protector RCCA-201Q31UA-PI L 1061 (A,85,59) Inductor LCYA2R2J2520 L 1301 (A,12,28) Inductor CTF1410 L 1316 (B,13,28) Inductor CTF1410 L 1331 (B,25,49) Inductor CTF1410 L 1351 (B,11,46) Inductor CTF1410 L 1361 (A,10,59) Inductor LCTAW100J3225 L 1401 (B,149,102) Inductor(EW5) LCTAWR12J2520 L 1402 (B,147,97) Inductor(EW5) LCYCR10K2125 L 1404 (A,145,78) Inductor(EW5) LCTAW101J2520 L 1405 (B,144,89) Inductor(EW5) LCTCR22K2125 L 1406 (B,149,92) Inductor(EW5) LCTCR10K2125 L 1407 (A,139,74) Inductor(EW5) LCTCR15K2125 L 1408 (B,145,78) Inductor(EW5) LCTAW101J2520 L 1410 (A,145,72) Chip Coil(EW5) LCTAW1R0J2520 L 1431 (B,160,95) Chip Coil LCTAW4R7J2520 L 1432 (A,143,43) Inductor LCTAW2R2J3225 L 1433 (A,146,36) Inductor LCTAW2R2J2520 L 1434 (A,143,35) Chip Ferrite Bead CTF1399 L 1435 (A,145,19) Inductor LCTAW2R2J3225 L 1451 (A,106,64) Chip Coil(EW5) LCTAW1R0J2520 L 1452 (A,106,58) Inductor(EW5) LCTAW2R2J2520 L 1453 (A,91,57) Chip Ferrite Bead(EW5) CTF1557 L 1454 (A,95,67) Chip Ferrite Bead(EW5) CTF1557 L 1601 (A,56,125) Inductor CTF1410 L 1602 (A,65,109) Inductor CTF1410 L 1603 (A,63,107) Inductor CTF1410 L 1651 (A,44,106) Choke Coil 600 µH CTH1347 L 1661 (A,102,24) Inductor CTH1256 L 1662 (A,94,14) Inductor CTF1306 L 1701 (A,16,116) Inductor LCTC2R2K1608 L 1702 (A,17,119) Inductor CTF1556 L 1721 (A,27,25) Inductor CTF1379 L 1722 (A,119,126) Inductor CTF1334 L 1723 (A,119,133) Inductor CTF1334 T 1401 (A,140,93) Coil(EW5) CTC1194 T 1402 (A,142,84) Coil(EW5) CTC1193 T 1403 (A,132,84) Coil(EW5) CTC1192 >FU1701 (A,24,123) Fuse 4 A CEK1260 >FU1702 (A,26,129) Fuse 4 A CEK1260 >FU1855 (A,108,31) Fuse 400 mA CEK1250 >FU1864 (A,95,48) Fuse 1 A CEK1254 Y 1452 (A,115,67) Tuner Unit(EW5) CWE2023 Y 1431 (A,157,80) FM/AM Tuner Unit(UC) CWE1952 (A,157,80) FM/AM Tuner Unit(EW5) CWE1951 EF1701 (A,11,130) EMI Filter CCG1067 EF1702 (A,17,130) EMI Filter CCG1067 EF1703 (A,20,130) EMI Filter CCG1067 EF1704 (B,18,129) EMI Filter CCG1067 EF1705 (B,22,129) EMI Filter CCG1067 EF1706 (B,27,129) EMI Filter CCG1067 EF1707 (A,8,130) EMI Filter CCG1067 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 151 5 6 7 8 5 6 7 8 C D F A B E EF1708 (B,20,129) EMI Filter CCG1067 EF1709 (B,24,129) EMI Filter CCG1067 EF1710 (B,29,129) EMI Filter CCG1067 EF1711 (A,14,130) EMI Filter CCG1067 > Fuse 10 A CEK1208 RESISTORS R 1001 (A,44,36) RS1/16S473J R 1002 (A,47,37) RS1/16S473J R 1003 (A,47,38) RS1/16S473J R 1004 (A,44,37) RS1/16S473J R 1005 (A,44,51) RS1/16S473J R 1006 (A,47,49) RS1/16S473J R 1007 (A,47,48) RS1/16S473J R 1008 (A,44,49) RS1/16S473J R 1009 (A,41,39) RS1/16S182J R 1010 (A,41,47) RS1/16S182J R 1011 (A,41,46) RS1/16S473J R 1012 (A,41,40) RS1/16S473J R 1023 (A,70,37) RS1/16S103J R 1024 (A,73,38) RS1/16S103J R 1025 (A,73,39) RS1/16S103J R 1026 (A,70,38) RS1/16S103J R 1027 (A,70,50) RS1/16S103J R 1028 (A,73,48) RS1/16S103J R 1029 (A,73,47) RS1/16S103J R 1030 (A,70,48) RS1/16S103J R 1033 (A,54,36) RS1/16S103J R 1034 (A,57,38) RS1/16S103J R 1035 (A,57,39) RS1/16S103J R 1036 (A,55,38) RS1/16S103J R 1037 (A,55,50) RS1/16S103J R 1038 (A,57,48) RS1/16S103J R 1039 (A,57,47) RS1/16S103J R 1040 (A,55,48) RS1/16S103J R 1043 (A,62,37) RS1/16S103J R 1044 (A,65,38) RS1/16S103J R 1045 (A,65,39) RS1/16S103J R 1046 (A,62,38) RS1/16S103J R 1047 (A,62,50) RS1/16S103J R 1048 (A,65,48) RS1/16S103J R 1049 (A,65,47) RS1/16S103J R 1050 (A,62,48) RS1/16S103J R 1051 (B,65,37) RS1/16S104J R 1052 (B,67,37) RS1/16S104J R 1053 (B,68,50) RS1/16S104J R 1054 (B,66,50) RS1/16S104J R 1055 (B,64,50) RS1/16S473J R 1056 (B,65,50) RS1/16S473J R 1061 (B,85,47) RS1/16S181J R 1062 (B,78,47) RS1/16S181J R 1063 (B,86,47) RS1/16S223J R 1064 (B,76,47) RS1/16S223J R 1065 (B,87,47) RS1/16S102J R 1066 (B,75,47) RS1/16S102J R 1067 (B,73,56) RS1/16S0R0J R 1068 (A,80,46) RS1/16S331J R 1069 (A,83,46) RS1/16S331J R 1091 (A,93,89) RS1/16S821J Circuit Symbol and No. Part No. R 1092 (A,88,89) RS1/16S821J R 1093 (A,83,89) RS1/16S821J R 1094 (A,78,89) RS1/16S821J R 1095 (A,73,89) RS1/16S821J R 1096 (A,68,89) RS1/16S821J R 1097 (A,93,91) RS1/16S223J R 1098 (A,83,91) RS1/16S223J R 1099 (A,73,91) RS1/16S223J R 1100 (A,88,91) RS1/16S223J R 1101 (A,78,91) RS1/16S223J R 1102 (A,68,91) RS1/16S223J R 1103 (A,95,91) RS1/16S471J R 1104 (A,85,91) RS1/16S471J R 1105 (A,75,91) RS1/16S471J R 1106 (A,87,91) RS1/16S471J R 1107 (A,77,91) RS1/16S471J R 1108 (A,67,91) RS1/16S471J R 1111 (B,39,37) RS1/16S103J R 1112 (B,39,38) RS1/16S103J R 1113 (B,39,40) RS1/16S103J R 1114 (B,42,38) RS1/16S103J R 1115 (B,41,52) RS1/16S102J R 1116 (B,41,49) RS1/16S104J R 1117 (B,38,48) RS1/16S104J R 1118 (B,38,47) RS1/16S683J R 1119 (B,41,47) RS1/16S473J R 1121 (B,43,57) RS1/16S821J R 1123 (B,43,60) RS1/16S104J R 1124 (B,59,57) RS1/16S0R0J R 1131 (B,90,80) RS1/16S472J R 1132 (B,73,80) RS1/16S562J R 1133 (B,72,80) RS1/16S472J R 1134 (B,88,80) RS1/16S562J R 1135 (B,75,80) RS1/16S472J R 1136 (B,87,80) RS1/16S472J R 1137 (B,88,78) RS1/16S472J R 1138 (B,73,78) RS1/16S472J R 1139 (B,87,78) RS1/16S472J R 1140 (B,75,78) RS1/16S472J R 1201 (A,82,121) RS1/16S391J R 1202 (A,82,119) RS1/16S391J R 1203 (A,77,106) RS1/16S473J R 1204 (A,79,106) RS1/16S223J R 1205 (A,80,110) RS1/16S103J R 1206 (B,90,104) RS1/10S102J R 1207 (A,86,107) RS1/16S103J R 1208 (A,87,105) RS1/16S221J R 1209 (A,86,105) RS1/16S103J R 1210 (B,76,116) RS1/16S101J R 1211 (B,72,116) RS1/16S101J R 1212 (B,74,116) RS1/16S101J R 1213 (B,79,116) RS1/16S101J R 1214 (B,89,126) RS1/16S103J R 1215 (B,87,126) RS1/16S103J R 1216 (B,90,126) RS1/16S103J R 1217 (A,87,107) RS1/16S101J R 1302 (A,13,34) RS1/16S750J R 1303 (A,17,34) RS1/16S103J R 1304 (A,15,34) RS1/16S103J R 1305 (A,22,32) RS1/16S4701D Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 152 1 2 3 4 1 2 3 4 C D F A B E R 1306 (A,21,32) RS1/16S4701D R 1307 (A,20,32) RS1/16S4701D R 1308 (A,20,30) RS1/16S4701D R 1309 (A,20,27) RS1/16S101J R 1310 (A,9,30) RS1/16S102J R 1311 (A,10,30) RS1/16S563J R 1312 (A,10,33) RS1/16S473J R 1316 (B,14,22) RS1/16S750J R 1317 (B,18,22) RS1/16S103J R 1318 (B,16,22) RS1/16S103J R 1319 (B,21,26) RS1/16S4701D R 1320 (B,21,24) RS1/16S4701D R 1321 (B,21,23) RS1/16S4701D R 1322 (A,15,25) RS1/16S4701D R 1323 (A,10,25) RS1/16S101J R 1333 (B,27,63) RS1/16S104J R 1338 (B,22,50) RS1/16S105J R 1341 (B,7,57) RS1/16S750J R 1342 (B,7,55) RS1/16S473J R 1343 (B,7,53) RS1/16S473J R 1344 (B,7,51) RS1/16S101J R 1345 (B,9,51) RS1/16S101J R 1351 (B,20,42) RS1/16S105J R 1352 (B,20,41) RS1/16S105J R 1353 (B,20,40) RS1/16S105J R 1354 (B,16,41) RS1/16S105J R 1361 (A,8,50) RS1/16S105J R 1362 (A,17,50) RS1/16S750J R 1372 (A,21,38) RS1/16S0R0J R 1381 (A,30,33) RS1/16S750J R 1382 (A,30,34) RS1/16S473J R 1383 (A,30,37) RS1/16S473J R 1385 (A,32,36) RS1/16S101J R 1386 (A,34,36) RS1/16S101J R 1401 (B,151,103) (EW5) RS1/16S105J R 1402 (B,155,94) (UC) RS1/4S0R0J R 1403 (A,135,94) (EW5) RS1/16S821J R 1404 (A,135,97) (EW5) RS1/16S330J R 1405 (A,142,78) (EW5) RS1/16S332J R 1406 (A,132,80) (EW5) RS1/16S101J R 1407 (B,139,81) (EW5) RS1/16S151J R 1408 (B,139,84) (EW5) RS1/16S680J R 1409 (B,142,85) (EW5) RS1/16S152J R 1410 (B,144,83) (EW5) RS1/16S681J R 1411 (A,131,73) (EW5) RS1/16S151J R 1412 (A,133,76) (EW5) RS1/16S680J R 1413 (B,146,89) (EW5) RS1/16S181J R 1414 (A,139,76) (EW5) RS1/16S152J R 1415 (A,141,74) (EW5) RS1/16S681J R 1416 (A,140,71) (EW5) RS1/16S151J R 1431 (B,149,63) RS1/16S681J R 1432 (B,149,62) RS1/16S681J R 1433 (B,149,61) RS1/16S681J R 1434 (B,149,59) RS1/16S681J R 1435 (B,149,58) RS1/16S681J R 1436 (B,149,57) (EW5) RS1/16S681J R 1438 (B,146,37) RS1/16S681J R 1439 (B,147,20) RS1/16S0R0J R 1440 (B,147,17) RS1/16S0R0J R 1443 (B,80,41) RS1/16S0R0J Circuit Symbol and No. Part No. R 1444 (B,82,41) RS1/16S0R0J R 1445 (B,149,56) RS1/16S223J R 1451 (A,107,71) (EW5) RS1/16S473J R 1455 (B,136,54) (EW5) RS1/16S221J R 1456 (A,93,55) (EW5) RS1/10S391J R 1601 (A,56,116) RS1/16S473J R 1602 (A,53,118) RS1/16S104J R 1603 (B,57,113) RS1/16S473J R 1604 (B,57,114) RS1/16S104J R 1605 (B,60,102) RS1/16S103J R 1606 (A,56,121) RS1/16S102J R 1607 (A,53,121) RS1/16S472J R 1608 (A,55,123) RS1/4S102J R 1609 (B,65,117) RS1/4S102J R 1610 (B,65,123) RS1/4S472J R 1611 (B,65,113) RS1/4S102J R 1612 (B,65,120) RS1/4S472J R 1613 (A,62,116) RS1/4S472J R 1621 (A,139,119) RS1/16S0R0J R 1622 (A,138,116) RS1/16S0R0J R 1623 (A,140,116) RS1/16S0R0J R 1624 (A,142,119) RS1/16S0R0J R 1625 (A,144,115) RS1/16S0R0J R 1626 (A,148,115) RS1/16S0R0J R 1627 (A,140,119) RS1/16S0R0J R 1628 (A,141,116) RS1/16S0R0J R 1629 (A,144,121) RS1/16S0R0J R 1655 (A,107,8) (EW5) RS1/10S0R0J R 1656 (A,110,8) (UC) RS1/10S0R0J R 1660 (A,29,72) RS1/16S473J R 1661 (A,76,15) RS1/16S0R0J R 1662 (A,79,15) RS1/16S0R0J R 1663 (A,82,15) RS1/16S0R0J R 1664 (A,77,15) RS1/16S0R0J R 1665 (A,88,15) RS1/16S0R0J R 1666 (A,89,15) RS1/16S101J R 1667 (A,74,12) RS1/16S0R0J R 1668 (A,72,12) RS1/16S0R0J R 1669 (A,90,15) RS1/16S0R0J R 1670 (B,105,7) RS1/16S0R0J R 1671 (B,94,14) RS1/16S0R0J R 1672 (A,80,15) RS1/16S0R0J R 1673 (A,71,9) RS1/8S0R0J R 1674 (A,71,7) RS1/8S0R0J R 1675 (A,66,7) RS1/8S0R0J R 1703 (A,16,119) RS1/16S153J R 1704 (A,19,119) RS1/10S103J R 1721 (A,16,19) RS1/16S0R0J R 1722 (A,16,20) RS1/16S0R0J R 1723 (A,16,21) RS1/16S0R0J R 1724 (B,26,13) RS1/16S0R0J R 1725 (A,16,23) RS1/16S0R0J R 1726 (A,20,17) RS1/16S0R0J R 1727 (A,24,22) RS1/16S0R0J R 1729 (A,25,25) RS1/16S0R0J R 1731 (A,26,22) RS1/16S0R0J R 1734 (A,27,22) RS1/16S0R0J R 1735 (B,28,17) RS1/16S0R0J R 1736 (A,28,25) RS1/16S0R0J R 1737 (B,29,20) RS1/16S0R0J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 153 5 6 7 8 5 6 7 8 C D F A B E R 1738 (A,29,22) RS1/16S0R0J R 1739 (B,30,17) RS1/16S0R0J R 1740 (A,30,25) RS1/16S0R0J R 1741 (B,30,20) RS1/16S0R0J R 1742 (A,30,22) RS1/16S0R0J R 1743 (B,31,17) RS1/16S0R0J R 1744 (A,31,25) RS1/16S0R0J R 1745 (B,32,20) RS1/16S0R0J R 1746 (A,32,22) RS1/16S0R0J R 1747 (B,32,17) RS1/16S0R0J R 1748 (A,33,25) RS1/16S0R0J R 1749 (B,33,20) RS1/16S0R0J R 1750 (A,33,22) RS1/16S0R0J R 1751 (B,34,17) RS1/16S0R0J R 1752 (A,34,25) RS1/16S0R0J R 1753 (B,34,20) RS1/16S0R0J R 1754 (A,35,22) RS1/16S0R0J R 1755 (B,35,17) RS1/16S0R0J R 1756 (A,36,25) RS1/16S0R0J R 1757 (B,36,20) RS1/16S0R0J R 1758 (A,36,22) RS1/16S0R0J R 1759 (B,37,17) RS1/16S0R0J R 1760 (A,37,25) RS1/16S0R0J R 1761 (B,37,20) RS1/16S0R0J R 1762 (A,38,22) (EW5) RS1/16S0R0J R 1763 (B,38,17) RS1/16S0R0J R 1764 (A,38,25) (EW5) RS1/16S0R0J R 1766 (A,39,22) (EW5) RS1/16S0R0J R 1768 (A,40,25) (EW5) RS1/16S0R0J R 1770 (A,40,22) (EW5) RS1/16S0R0J R 1772 (A,41,25) (EW5) RS1/16S0R0J R 1774 (A,42,22) (EW5) RS1/16S0R0J R 1776 (A,43,25) RS1/16S0R0J R 1778 (A,43,22) RS1/16S0R0J R 1780 (A,44,25) RS1/16S0R0J R 1782 (A,45,22) RS1/16S0R0J R 1784 (A,45,25) RS1/16S0R0J R 1786 (A,46,22) (EW5) RS1/16S0R0J R 1788 (A,47,25) RS1/16S0R0J R 1790 (A,47,22) (EW5) RS1/16S0R0J R 1792 (A,48,25) (EW5) RS1/16S0R0J R 1794 (A,49,22) (EW5) RS1/16S0R0J R 1796 (A,50,25) (EW5) RS1/16S0R0J R 1801 (A,120,118) RS1/16S103J R 1802 (A,114,117) RS1/4SA271J R 1803 (A,112,117) RS1/4SA271J R 1804 (A,120,116) RS1/16S102J R 1805 (A,111,111) RS2PMFR47J R 1806 (A,117,114) RS1/16S103J R 1807 (B,116,104) RS1/16S103J R 1808 (B,110,110) RS1/4SA271J R 1809 (B,115,116) RS1/16S103J R 1810 (B,112,110) RS1/4SA271J R 1811 (B,114,116) RS1/16S103J R 1812 (B,112,120) RS1/16S222J R 1813 (B,107,104) RS1/8S0R0J R 1814 (B,110,120) RS1/16S124J R 1817 (A,132,115) RS1/8S0R0J R 1821 (B,18,101) RN1/16SE1002D R 1822 (B,18,99) RN1/16SE2701D Circuit Symbol and No. Part No. R 1823 (B,18,96) RN1/16SE2201D R 1825 (B,18,94) RS1/16S104J R 1831 (B,21,84) RS1/8S0R0J R 1832 (B,25,71) RS1/16S471J R 1841 (B,18,90) RS1/16S8200D R 1842 (B,18,88) RS1/16S1201D R 1843 (B,18,85) RS1/16S1201D R 1851 (A,99,13) RS1/16S153J R 1852 (A,112,24) RS1/4SA331J R 1853 (A,112,29) RS1/4SA331J R 1854 (A,108,28) RS1/16S153J R 1855 (A,118,30) RS1/16S103J R 1856 (A,115,29) RS1/16S153J R 1861 (A,102,43) RS1/4SA151J R 1862 (A,102,45) RS1/4SA151J R 1863 (A,102,41) RS1/16S153J R 1864 (A,107,49) RS1/16S123J R 1865 (A,102,47) RS1/4SA151J R 1866 (A,104,49) RS1/16S103J R 1876 (A,44,56) RS1/16S102J R 1891 (B,96,57) (EW5) RS1/16S5601D R 1892 (B,96,56) (EW5) RS1/16S1000D R 1893 (B,96,54) (EW5) RS1/16S1001D R 1894 (B,106,70) (EW5) RS1/8S0R0J R 1895 (B,99,60) (EW5) RS1/16S103J CAPACITORS C 1001 (A,48,34) 10 µF CCG1203 C 1002 (A,47,52) 10 µF CCG1203 C 1003 (A,48,52) 10 µF CCG1203 C 1004 (A,44,38) CCSRCH330J50 C 1005 (A,43,43) CKSRYB104K50 C 1006 (A,44,48) CCSRCH330J50 C 1007 (A,38,39) 10 µF CCG1203 C 1008 (A,38,47) 10 µF CCG1203 C 1009 (A,47,34) 10 µF CCG1203 C 1021 (A,72,35) 10 µF CCG1203 C 1022 (A,74,35) 10 µF CCG1203 C 1023 (A,72,51) 10 µF CCG1203 C 1024 (A,74,51) 10 µF CCG1203 C 1025 (A,70,39) CCSRCH100D50 C 1026 (A,69,43) CKSRYB104K50 C 1027 (A,70,47) CCSRCH100D50 C 1031 (A,56,36) 10 µF CCG1203 C 1032 (A,57,36) 10 µF CCG1203 C 1033 (A,55,52) 10 µF CCG1203 C 1034 (A,57,52) 10 µF CCG1203 C 1035 (A,55,39) CCSRCH100D50 C 1036 (A,53,43) CKSRYB104K50 C 1037 (A,55,47) CCSRCH100D50 C 1041 (A,64,34) 10 µF CCG1203 C 1042 (A,63,52) 10 µF CCG1203 C 1043 (A,65,52) 10 µF CCG1203 C 1044 (A,62,39) CCSRCH100D50 C 1045 (A,61,43) CKSRYB104K50 C 1046 (A,62,47) CCSRCH100D50 C 1047 (A,62,34) 10 µF CCG1203 C 1051 (B,69,43) CKSRYB104K50 C 1061 (B,86,51) 10 µF CCG1203 C 1062 (B,85,54) 10 µF CCG1203 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 154 1 2 3 4 1 2 3 4 C D F A B E C 1063 (B,84,51) 10 µF CCG1203 C 1064 (B,83,54) CKSQYB105K16 C 1065 (B,82,51) 10 µF CCG1203 C 1066 (B,81,54) 10 µF CCG1203 C 1067 (B,80,51) CKSQYB105K16 C 1068 (B,79,54) 10 µF CCG1203 C 1069 (B,78,51) 10 µF CCG1203 C 1070 (B,77,54) 10 µF CCG1203 C 1071 (A,85,64) CEVW100M16 C 1072 (A,82,62) CKSRYB104K25 C 1073 (A,81,62) CKSRYB104K25 C 1074 (A,79,62) CKSRYB104K25 C 1075 (B,91,60) CKSQYB475K10 C 1076 (B,71,60) CKSQYB475K10 C 1077 (B,91,62) CKSQYB475K10 C 1078 (B,71,62) CKSQYB475K10 C 1079 (B,91,64) CKSQYB475K10 C 1080 (B,71,64) CKSQYB475K10 C 1081 (B,91,66) CKSQYB475K10 C 1082 (B,71,66) CKSQYB475K10 C 1083 (B,90,77) CKSQYB475K10 C 1084 (B,72,77) CKSQYB475K10 C 1085 (A,85,70) CEVW100M16 C 1086 (A,77,71) CKSRYB104K25 C 1087 (B,78,73) CKSRYB104K25 C 1088 (A,80,48) CKSRYB103K50 C 1089 (A,83,48) CKSRYB103K50 C 1091 (A,93,84) CEVW100M16 C 1092 (A,88,84) CEVW100M16 C 1093 (A,83,84) CEVW100M16 C 1094 (A,78,84) CEVW100M16 C 1095 (A,73,84) CEVW100M16 C 1096 (A,68,84) CEVW100M16 C 1097 (A,95,89) CKSRYB222K50 C 1098 (A,85,89) CKSRYB222K50 C 1099 (A,75,89) CKSRYB222K50 C 1100 (A,87,89) CKSRYB222K50 C 1101 (A,77,89) CKSRYB222K50 C 1102 (A,67,89) CKSRYB222K50 C 1111 (B,37,37) CKSRYB105K10 C 1112 (B,37,38) CKSRYB105K10 C 1113 (B,42,40) CCSRCH221J50 C 1114 (B,43,43) CKSRYB104K25 C 1115 (B,41,51) CKSRYB103K50 C 1116 (B,36,47) CKSRYB104K50 C 1117 (B,41,48) CCSRCH151J50 C 1118 (B,36,48) CCSRCH151J50 C 1119 (B,43,47) CKSRYB105K10 C 1131 (B,88,83) CKSRYB105K10 C 1132 (B,76,80) CCSRCH221J50 C 1133 (B,86,80) CCSRCH221J50 C 1134 (B,82,75) CKSRYB104K25 C 1135 (A,81,77) CEVW101M16 C 1136 (B,86,78) CCSRCH221J50 C 1137 (B,76,78) CCSRCH221J50 C 1138 (B,73,83) CKSRYB105K10 C 1201 (B,93,104) CKSRYB104K50 C 1202 (A,89,117) CEVW470M16 C 1203 (A,92,108) CEVW330M10 C 1205 (A,96,130) CKSRYB104K50 Circuit Symbol and No. Part No. C 1209 (B,76,119) CKSQYB105K16 C 1210 (B,72,119) CKSQYB105K16 C 1211 (B,74,119) CKSQYB105K16 C 1212 (B,79,119) CKSQYB105K16 C 1215 (B,76,122) CKSRYB105K10 C 1216 (B,72,122) CKSRYB105K10 C 1217 (B,74,122) CKSRYB105K10 C 1218 (B,79,122) CKSRYB105K10 C 1219 (A,26,113) CKSRYB104K50 C 1220 (B,91,126) CKSRYB105K10 C 1221 (A,73,130) CKSQYB225K10 C 1222 (A,77,130) CKSYB225K16 C 1223 (A,73,123) CEVW100M16 C 1301 (A,16,34) CKSRYB473K50 C 1302 (A,20,36) 10 µF CCG1203 C 1303 (A,20,34) 10 µF CCG1203 C 1304 (A,21,30) CCSRCH5R0C50 C 1305 (A,15,28) CKSRYB104K16 C 1306 (A,9,33) CKSRYB105K10 C 1316 (B,17,22) CKSRYB473K50 C 1317 (B,21,20) 10 µF CCG1203 C 1318 (B,21,21) 10 µF CCG1203 C 1319 (A,15,27) CCSRCH5R0C50 C 1320 (B,15,28) CKSRYB104K16 C 1331 (A,30,64) CEVWNP100M10 C 1332 (A,25,64) CEVWNP100M10 C 1333 (A,30,56) CEVWNP100M10 C 1334 (A,25,56) CEVWNP100M10 C 1338 (B,25,50) CKSRYB104K25 C 1339 (B,22,51) CKSRYB104K25 C 1341 (B,7,56) CKSRYB473K50 C 1342 (B,7,48) 10 µF CCG1203 C 1343 (B,9,48) 10 µF CCG1203 C 1344 (B,7,41) CKSRYB104K25 C 1351 (A,25,48) CEVWNP100M10 C 1352 (A,20,48) CEVWNP100M10 C 1353 (B,13,46) CKSRYB104K25 C 1354 (B,16,42) CKSRYB104K25 C 1361 (A,20,56) CEVWNP100M10 C 1362 (A,11,54) CEVW101M16 C 1363 (A,6,50) CKSRYB104K25 C 1364 (A,13,47) CEVW220M16 C 1365 (A,13,40) CEVW221M10 C 1374 (A,26,34) CEVQW101M10 C 1382 (A,31,39) 10 µF CCG1203 C 1383 (A,33,39) 10 µF CCG1203 C 1384 (A,31,46) CKSRYB104K25 C 1402 (B,151,100) (EW5) CCSRCH270J50 C 1403 (B,149,99) (EW5) CCSRCH220J50 C 1404 (B,147,100) (EW5) CCSRCH270J50 C 1405 (B,145,98) (EW5) CCSRCH330J50 C 1406 (B,145,95) (EW5) CCSRCH470J50 C 1407 (A,135,93) (EW5) CKSRYB103K50 C 1408 (A,135,95) (EW5) CKSRYB103K50 C 1409 (A,143,78) (EW5) CKSRYB103K50 C 1410 (A,137,83) (EW5) CKSRYB222K50 C 1411 (B,138,81) (EW5) CKSRYB222K50 C 1412 (A,131,76) (EW5) CKSRYB222K50 C 1413 (B,142,83) (EW5) CKSRYB222K50 C 1415 (B,148,89) (EW5) CCSRCH150J50 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 155 5 6 7 8 5 6 7 8 C D F A B E C 1416 (B,144,82) (EW5) CKSRYB103K50 C 1417 (A,138,76) (EW5) CKSRYB222K50 C 1418 (B,151,89) (EW5) CCSRCH270J50 C 1419 (A,137,71) (EW5) CCSRCH220J50 C 1420 (A,143,73) (EW5) CKSRYB103K50 C 1431 (A,144,61) CEVW221M10 C 1432 (A,144,50) CEVW221M10 C 1433 (B,141,65) CKSRYB103K50 C 1434 (A,147,43) CKSRYB103K50 C 1435 (A,148,33) CKSRYB103K50 C 1437 (A,147,31) 10 µF CCG1203 C 1438 (A,145,25) CEVW470M16 C 1441 (A,162,73) (UC) CCSRCH101J50 C 1451 (A,107,74) (EW5) CKSRYB103K50 C 1453 (A,108,58) (EW5) CKSRYB103K50 C 1454 (A,102,65) (EW5) CEVW220M16 C 1455 (A,98,65) (EW5) CKSRYB103K50 C 1456 (A,102,57) (EW5) CEVW100M16 C 1457 (A,102,77) (EW5) CKSRYB473K50 C 1458 (A,97,56) (EW5) CKSRYB473K50 C 1459 (B,136,52) (EW5) CCSRCH221J50 C 1603 (B,57,102) CKSQYB105K16 C 1604 (A,56,119) CKSRYB102K50 C 1606 (B,57,115) CKSRYB104K50 C 1607 (B,37,106) CKSRYB104K50 C 1608 (B,57,107) CKSRYB102K50 C 1609 (B,35,106) CKSRYB102K50 C 1610 (A,53,125) CKSRYB102K50 C 1611 (B,37,115) CKSRYB102K50 C 1612 (A,60,111) CKSRYB102K50 C 1652 (A,48,74) CEAT103M16 C 1653 (A,47,91) 3 300 µF/16 V CCH1018 C 1661 (A,93,22) CEVW221M16 C 1701 (B,31,129) CKSRYB102K50 C 1702 (A,17,116) CKSRYF103Z50 C 1703 (B,22,143) CKSRYB104K25 C 1711 (B,44,9) CKSRYB104K25 C 1712 (B,47,9) CKSRYB104K25 C 1721 (A,119,131) CKSRYB102K50 C 1722 (A,119,128) CKSRYB102K50 C 1802 (B,134,116) CKSRYB102K50 C 1803 (A,103,116) 10 µF CCG1223 C 1804 (A,103,105) 10 µF CCG1223 C 1821 (A,15,99) CCSRCH102J50 C 1822 (A,19,99) 100 µF/16 V CCH1565 C 1824 (A,15,96) CKSRYB104K50 C 1831 (B,19,69) CKSRYB104K50 C 1832 (A,17,64) CEVW101M16 C 1833 (B,22,69) CKSRYB104K50 C 1841 (A,19,88) 100 µF/16 V CCH1565 C 1842 (A,15,88) CKSRYB103K50 C 1846 (A,15,85) CKSRYB104K50 C 1851 (A,99,14) CKSRYB104K50 C 1852 (A,110,18) CEVW101M16 C 1853 (A,118,29) CKSRYB683K50 C 1861 (A,95,36) CKSRYB104K50 C 1863 (A,91,48) CKSRYB104K50 C 1864 (A,93,42) CEVW101M25 C 1865 (A,105,49) CKSRYB104K50 C 1866 (A,93,31) CEVW101M25 Circuit Symbol and No. Part No. C 1876 (A,39,60) CKSRYB103K50 C 1877 (A,39,63) CEVW100M16 C 1878 (A,41,56) CKSRYB104K50 C 1891 (A,94,62) (EW5) CEVW101M16 C 1892 (B,97,60) (EW5) CKSRYB103K50 C 1894 (B,102,66) (EW5) CKSRYB104K50 G Unit Number: CWN2188(UC) Unit Number: CWN2091(EW5) Unit Name : Monitor Unit MISCELLANEOUS IC 5010 (A,20,42) 1 Chip or Gate TC7SH32FUS1 IC 5011 (A,27,51) IC RB5P0090M IC 5012 (A,28,35) IC TC7SET04FUS1 IC 5060 (A,77,33) IC TC74VHC221AFTS1 IC 5100 (A,54,36) IC LZ9FE30 IC 5101 (B,65,32) IC NJM2107F IC 5181 (A,31,15) IC BD6171KV IC 5300 (A,111,34) IC PE5584A IC 5303 (A,124,23) IC S-93C46BD0I-J8 IC 5304 (B,121,46) IC S-80835CNNB-B8U IC 5307 (B,12,86) Remote IC GP1UX51RK IC 5650 (A,57,57) IC PD6567A IC 5651 (A,68,52) IC TC7SH08FUS1 IC 5681 (A,71,72) IC NJM2903V IC 5700 (A,132,32) IC M62343FP IC 5900 (B,103,51) IC TA78L05F IC 5901 (B,77,67) IC TC7SH08FUS1 IC 5902 (A,80,65) IC OZ961ISN Q 5100 (A,70,34) Transistor 2SC2411K Q 5180 (B,47,15) Transistor DTC114EUA Q 5200 (A,29,25) FET RSQ035P03 Q 5210 (A,24,21) FET RSQ035P03 Q 5300 (A,95,17) Transistor 2SC4617 Q 5301 (B,112,25) Transistor 2SC4617 Q 5360 (A,110,18) Transistor FMG12 Q 5361 (A,107,18) Transistor DTA123JU Q 5362 (A,113,18) Transistor DTA123JU Q 5363 (B,108,18) Transistor DTC114EUA Q 5364 (B,113,17) Transistor DTC114EUA Q 5650 (B,55,70) Transistor 2SC4617 Q 5700 (B,133,51) Transistor UMX1N Q 5701 (B,127,49) Transistor UMX1N Q 5702 (B,129,30) Transistor UMX1N Q 5703 (B,128,42) Transistor UMX1N Q 5704 (B,121,34) Transistor UMX1N Q 5705 (B,135,30) Transistor UMX1N Q 5900 (B,94,56) Transistor 2SC4617 Q 5901 (B,92,56) Transistor 2SC4617 Q 5902 (B,83,62) Transistor DTA144EE Q 5903 (A,89,68) FET TS8M1 Q 5904 (A,89,61) FET TS8M1 Q 5905 (A,111,73) Transistor 2SC4617 Q 5906 (A,114,73) Transistor 2SC4617 Q 5907 (A,119,76) Transistor UMX2N Q 5908 (B,85,60) Transistor 2SC4617 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 156 1 2 3 4 1 2 3 4 C D F A B E D 5060 (A,75,28) Diode 1SS355 D 5061 (A,73,39) Diode 1SS355 D 5100 (A,47,28) Diode RB500V-40 D 5101 (A,61,29) Diode UDZS5R1(B) D 5102 (A,67,38) Diode RB548W D 5103 (A,64,29) Diode MA335 D 5104 (B,70,27) Diode UDZS5R1(B) D 5105 (B,67,19) Diode RB500V-40 D 5183 (A,41,18) Diode RB548W D 5184 (A,38,19) Diode RB548W D 5185 (A,41,14) Diode RB548W D 5186 (A,41,12) Diode RB548W D 5187 (A,41,9) Diode RB548W D 5200 (A,33,27) Diode RB160M-30 D 5210 (A,20,26) Diode RSX201L-30 D 5231 (A,32,8) Diode RB500V-40 D 5233 (A,32,6) Diode RB500V-40 D 5234 (A,28,7) Diode RB500V-40 D 5360 (B,109,16) Diode MA111 D 5361 (B,116,13) Diode UDZS5R6(B) D 5364 (B,114,13) Diode UDZS5R6(B) D 5650 (A,53,48) Diode 1SS355 D 5900 (B,98,56) Diode UDZS6R2(B) D 5902 (B,78,60) Diode RB751V-40 D 5903 (B,93,66) Diode HZU6R2(B3) D 5904 (B,93,61) Diode HZU6R2(B3) D 5905 (A,109,75) Diode UDZS8R2(B) D 5906 (A,132,55) Diode MA147 D 5907 (A,122,54) Diode HZU6R2(B3) D 5908 (A,128,55) Diode MA147 L 5010 (A,11,59) Chip Coil LCTAW100J2520 L 5011 (A,17,34) Chip Coil LCTAW100J2520 L 5012 (A,13,44) Chip Coil LCTAW100J2520 L 5013 (A,22,33) Chip Coil LCTAW100J2520 L 5014 (A,24,37) Inductor CTF1334 L 5060 (A,75,22) Chip Coil LCTAW100J2520 L 5100 (A,44,27) Chip Coil LCTAW100J2520 L 5101 (A,63,41) Inductor LCTAW150J2520 L 5102 (A,70,28) Inductor LCTAW2R7J2520 L 5103 (B,65,20) Chip Inductor(10U) DTL1096 L 5104 (B,65,22) Chip Inductor(10U) DTL1096 L 5105 (B,65,18) Inductor LCTC120K2125 L 5106 (B,52,18) Inductor LCTC120K2125 L 5181 (A,42,16) Chip Inductor(10U) DTL1096 L 5200 (A,68,6) Inductor CTF1488 L 5203 (A,37,25) Choke Coil 68 µH CTH1318 L 5207 (A,44,9) Inductor CTF1635 L 5214 (A,19,19) Choke Coil 18 µH CTH1250 L 5230 (A,24,11) Inductor CTF1635 L 5300 (A,85,19) Inductor CTF1635 L 5650 (A,42,45) Chip Coil LCTAW100J2520 L 5651 (A,58,73) Inductor LCKBW100K2520 L 5700 (A,129,27) Chip Coil LCTAW100J2520 T 5900 (A,116,64) Transformer CTT1130 TH5300 (B,107,40) Thermistor CCX1051 X 5010 (A,22,68) Radiator 4.43 MHz(EW5) CSS1726 X 5011 (A,36,66) Radiator 3.58 MHz CSS1725 X 5300 (A,111,45) Radiator 12.58 MHz CSS1601 VR5101 (A,68,25) Semi-fixed 2.2 kΩ(OB) CCP1485 VR5900 (A,79,57) Semi-fixed 15 kΩ(OB) CCP1490 Circuit Symbol and No. Part No. RESISTORS R 5010 (A,32,41) RS1/16S9100D R 5011 (A,32,40) RS1/16S1301D R 5013 (B,23,49) RS1/16S102J R 5014 (B,24,45) RS1/16S103J R 5015 (B,25,49) RS1/16S474J R 5016 (A,28,40) RS1/16S0R0J R 5017 (A,19,46) RS1/16S101J R 5018 (A,26,40) RS1/16S561J R 5019 (B,43,47) RS1/16S1501D R 5020 (B,41,47) RS1/16S1501D R 5021 (B,43,50) RS1/16S1501D R 5023 (B,23,51) RS1/16S103J R 5026 (B,24,54) RS1/16S0R0J R 5027 (B,27,45) RS1/16S1802F R 5028 (B,26,52) RS1/16S0R0J R 5029 (B,28,50) RS1/16S0R0J R 5030 (A,14,58) RS1/16S103J R 5031 (A,23,61) RS1/16S101J R 5032 (A,24,61) RS1/16S101J R 5033 (A,26,61) RS1/16S101J R 5034 (A,38,52) RS1/16S105J R 5035 (A,38,57) RS1/16S105J R 5036 (A,26,64) RS1/16S681J R 5037 (A,30,62) RS1/16S222J R 5038 (B,29,55) RS1/16S822J R 5039 (B,30,58) RS1/16S562J R 5040 (A,24,35) RS1/16S391J R 5042 (B,49,47) RS1/16S6200D R 5043 (B,46,48) RS1/16S6200D R 5044 (B,49,49) RS1/16S6200D R 5045 (B,42,43) RS1/16S0R0J R 5060 (A,80,39) RS1/16S0R0J R 5061 (A,80,36) RS1/16S101J R 5062 (A,75,26) RS1/16S104J R 5063 (A,77,38) RS1/16S101J R 5064 (A,74,37) RS1/16S3001D R 5065 (A,71,37) RS1/16S82R0F R 5092 (A,77,44) RS1/16S0R0J R 5100 (A,42,39) RS1/16S0R0J R 5101 (B,42,39) RS1/16S0R0J R 5102 (A,42,38) RS1/16S0R0J R 5103 (B,42,38) RS1/16S0R0J R 5104 (A,42,36) RS1/16S0R0J R 5106 (A,46,40) RS1/16S1003F R 5107 (A,45,39) RS1/16S101J R 5108 (B,45,39) RS1/16S101J R 5109 (A,45,38) RS1/16S101J R 5110 (B,45,38) RS1/16S101J R 5111 (A,44,36) RS1/16S101J R 5112 (B,48,34) RS1/16S0R0J R 5113 (A,50,44) RS1/16S5101D R 5114 (A,47,47) RS1/16S0R0J R 5115 (B,59,37) RS1/16S224J R 5116 (A,54,28) RS1/16S101J R 5117 (A,54,27) RS1/16S0R0J R 5118 (B,51,38) RS1/16S0R0J R 5119 (B,51,40) RS1/16S101J R 5120 (B,52,40) RS1/16S101J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 157 5 6 7 8 5 6 7 8 C D F A B E R 5121 (A,56,28) RS1/16S101J R 5122 (A,57,26) RS1/16S0R0J R 5123 (B,54,40) RS1/16S101J R 5124 (A,58,28) RS1/16S101J R 5125 (B,54,38) RS1/16S0R0J R 5126 (B,55,40) RS1/16S101J R 5127 (B,59,28) RS1/16S101J R 5128 (B,59,26) RS1/16S0R0J R 5129 (B,55,38) RS1/16S0R0J R 5130 (B,58,30) RS1/16S101J R 5131 (B,58,27) RS1/16S0R0J R 5132 (A,63,34) RS1/16S105J R 5133 (B,60,32) RS1/16S0R0J R 5134 (A,62,39) RS1/16S391J R 5136 (B,61,24) RS1/16S103J R 5137 (A,61,26) RS1/16S3901D R 5138 (B,61,30) RS1/16S3901D R 5139 (A,62,33) RS1/16S4702D R 5140 (A,62,32) RS1/16S243J R 5141 (A,65,32) RS1/16S6802D R 5142 (A,67,37) RS1/16S564J R 5143 (A,67,42) RS1/16S564J R 5144 (A,69,32) RS1/16S683J R 5145 (B,70,30) RS1/16S105J R 5146 (A,69,41) RS1/16S0R0J R 5147 (A,67,29) RS1/16S103J R 5148 (B,66,26) RS1/16S272J R 5149 (B,65,34) RS1/16S272J R 5150 (B,70,33) RS1/16S332J R 5151 (B,65,35) RS1/16S101J R 5152 (B,70,35) RS1/16S331J R 5153 (A,46,13) RS1/16S103J R 5154 (A,44,6) RS1/16S273J R 5155 (B,57,20) RS1/16S333J R 5156 (B,69,24) RS1/16S152J R 5157 (B,61,37) RS1/16S101J R 5158 (B,62,39) RS1/16S0R0J R 5159 (A,71,26) RS1/16S0R0J R 5160 (A,65,34) RS1/16S0R0J R 5180 (B,39,16) RS1/16S2703D R 5181 (B,40,19) RS1/16S3303D R 5182 (B,38,20) RS1/16S2202F R 5183 (B,38,18) RS1/16S1601F R 5184 (B,37,16) RS1/16S6202D R 5185 (A,38,7) RS1/16S3300F R 5186 (A,38,9) RS1/16S3302F R 5187 (A,36,9) RS1/16S1002F R 5188 (B,29,20) RS1/16S563J R 5189 (B,42,17) RS1/16S223J R 5191 (B,31,24) RS1/16S150J R 5192 (A,28,23) RS1/16S150J R 5193 (B,27,20) RS1/16S273J R 5194 (A,20,14) RS1/16S1500F R 5195 (A,18,14) RS1/16S1201F R 5196 (A,20,12) RS1/16S1500F R 5197 (B,43,15) RS1/16S0R0J R 5200 (A,70,4) RS1/16S0R0J R 5201 (B,24,16) RS1/16S682J R 5204 (A,135,19) RS1/16S0R0J R 5216 (A,24,17) RS1/16S333J Circuit Symbol and No. Part No. R 5217 (A,22,14) RS1/16S102J R 5218 (B,23,12) RS1/16S684J R 5219 (B,35,30) RS1/16S6801F R 5220 (B,21,16) RS1/16S1001F R 5221 (B,24,19) RS1/16S2000D R 5222 (B,22,13) RS1/16S182J R 5230 (A,26,9) RS1/16S2001F R 5231 (A,24,7) RS1/16S4700F R 5300 (A,128,50) RS1/16S473J R 5301 (A,128,49) RS1/16S473J R 5302 (A,92,16) RS1/16S473J R 5303 (A,92,18) RS1/16S223J R 5304 (A,104,18) RS1/16S473J R 5305 (A,100,33) RAB4C471J R 5306 (A,122,28) RS1/16S471J R 5308 (A,123,36) RAB4C471J R 5309 (A,115,23) RAB4C471J R 5310 (A,124,41) RS1/16S473J R 5311 (B,100,25) RAB4C473J R 5312 (B,107,42) RS1/16S153J R 5313 (A,107,46) RAB4C123J R 5314 (A,111,23) RS1/16S473J R 5315 (B,112,23) RS1/16S103J R 5316 (B,112,40) RS1/16S473J R 5317 (A,112,23) RS1/16S471J R 5320 (B,109,23) RS1/16S102J R 5321 (A,118,45) RS1/16S0R0J R 5322 (A,123,15) RS1/16S102J R 5323 (A,120,46) RS1/16S0R0J R 5324 (B,116,35) RS1/16S473J R 5325 (A,109,23) RS1/16S471J R 5326 (A,101,39) RS1/16S103J R 5329 (B,101,33) RS1/16S0R0J R 5330 (A,123,33) RAB4C102J R 5331 (B,63,29) RS1/16S104J R 5338 (B,119,49) RS1/16S0R0J R 5341 (B,121,49) RS1/16S103J R 5343 (A,120,22) RS1/16S473J R 5344 (A,100,29) RAB4C471J R 5345 (A,99,39) RS1/16S471J R 5346 (A,98,38) RS1/16S471J R 5350 (A,122,30) RS1/16S103J R 5351 (A,127,46) (EW5) RS1/16S473J R 5352 (A,128,46) (UC) RS1/16S473J R 5353 (A,131,46) RS1/16S473J R 5360 (A,104,10) RS1/16S102J R 5365 (A,103,10) RS1/16S102J R 5366 (B,108,13) RS1/16S105J R 5367 (B,112,13) RS1/16S105J R 5650 (B,56,67) RS1/16S362J R 5651 (B,59,66) RS1/16S362J R 5652 (B,57,67) RS1/16S182J R 5653 (B,51,71) RS1/16S102J R 5654 (B,55,72) RS1/16S103J R 5655 (B,60,66) RS1/16S362J R 5656 (B,59,68) RS1/16S182J R 5657 (B,57,69) RS1/16S103J R 5658 (B,61,66) RS1/16S362J R 5659 (B,62,68) RS1/16S182J R 5660 (B,63,66) RS1/16S362J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 158 1 2 3 4 1 2 3 4 C D F A B E R 5661 (B,64,70) RS1/16S301J R 5662 (B,47,67) RS1/16S101J R 5665 (A,53,50) RS1/16S474J R 5672 (B,57,60) RS1/16S471J R 5674 (B,61,60) RS1/16S0R0J R 5675 (B,63,60) RS1/16S101J R 5676 (A,14,75) RS1/16S470J R 5678 (A,66,49) RS1/16S101J R 5680 (A,66,72) RS1/16S153J R 5681 (A,64,74) RS1/16S153J R 5682 (A,66,76) RS1/16S912J R 5683 (A,64,76) RS1/16S392J R 5684 (A,67,76) RS1/16S2703F R 5685 (A,74,72) RS1/16S103J R 5693 (A,15,75) RS1/16S470J R 5702 (B,136,50) RS1/16S224J R 5703 (B,125,39) RS1/16S102J R 5704 (B,138,50) RS1/16S222J R 5705 (B,129,49) RS1/16S224J R 5706 (B,123,38) RS1/16S102J R 5707 (B,131,49) RS1/16S222J R 5709 (B,130,46) RS1/16S101J R 5710 (B,127,30) RS1/16S224J R 5711 (B,129,32) RS1/16S102J R 5712 (B,126,30) RS1/16S222J R 5713 (B,130,37) RS1/10S121J R 5714 (B,128,35) RS1/10S101J R 5717 (B,119,37) RS1/16S101J R 5720 (B,21,49) RS1/16S101J R 5721 (B,23,45) RS1/16S0R0J R 5724 (B,120,32) RS1/10S121J R 5725 (B,124,32) RS1/10S151J R 5728 (B,132,30) RS1/16S101J R 5730 (B,133,29) RS1/10S151J R 5731 (B,131,27) RS1/10S181J R 5751 (B,132,12) RS1/16S0R0J R 5752 (B,134,14) RS1/16S0R0J R 5753 (B,131,14) RS1/16S0R0J R 5754 (B,131,16) RS1/16S0R0J R 5755 (A,128,10) RS1/16S0R0J R 5900 (B,96,56) RS1/16S103J R 5901 (B,95,54) RS1/16S104J R 5902 (B,97,54) RS1/16S473J R 5903 (B,90,56) RS1/16S105J R 5904 (B,85,58) RS1/16S102J R 5905 (B,86,56) RS1/16S473J R 5906 (B,83,65) RS1/16S363J R 5907 (B,84,70) RS1/16S513J R 5908 (B,132,55) RS1/16S105J R 5909 (B,77,63) RS1/16S102J R 5910 (A,83,57) RS1/16S5602D R 5911 (B,93,68) RS1/16S103J R 5912 (B,92,63) RS1/16S103J R 5913 (A,108,73) RS1/16S103J R 5914 (A,109,73) RS1/16S104J R 5915 (A,113,76) RS1/16S621J R 5916 (A,109,77) RS1/16S473J R 5917 (A,116,75) RS1/16S621J R 5918 (A,120,73) RS1/16S101J R 5919 (A,118,73) RS1/16S101J Circuit Symbol and No. Part No. R 5920 (A,120,54) RS1/16S821J R 5922 (A,124,55) RS1/16S4700D R 5935 (A,98,55) RS1/16S0R0J R 5997 (A,43,75) (EW5) RS1/10S0R0J R 5998 (A,48,75) (UC) RS1/10S0R0J CAPACITORS C 5010 (A,17,58) 10 µF CCG1203 C 5012 (A,21,37) 47 µF CCG1233 C 5014 (B,26,45) CCSRCH821J50 C 5015 (A,25,42) CKSRYB105K10 C 5016 (B,29,45) CKSRYB104K50 C 5019 (A,33,43) 10 µF CCG1203 C 5020 (A,15,48) CEVW100M25 C 5021 (B,21,54) CKSRYB104K50 C 5022 (A,37,47) CKSRYB104K16 C 5023 (B,37,48) CKSRYB104K16 C 5024 (A,37,49) CKSRYB104K16 C 5025 (B,37,50) CKSRYB104K50 C 5026 (A,37,50) CKSRYB104K50 C 5027 (B,37,51) CKSRYB104K50 C 5028 (A,15,54) CEVW100M25 C 5029 (A,38,53) CKSRYB105K10 C 5030 (A,38,54) CKSRYB682K25 C 5031 (A,38,56) CKSRYB104K50 C 5032 (A,32,60) CKSRYB103K50 C 5033 (B,28,58) CKSRYB103K50 C 5034 (B,29,58) CKSRYB474K16 C 5035 (B,24,57) CKSRYB104K50 C 5036 (A,24,64) CCSRCH8R0D50 C 5037 (A,33,62) CCSRCH8R0D50 C 5039 (A,26,33) CKSRYB104K50 C 5060 (A,78,27) CCSRCH391J50 C 5061 (A,76,38) 330 pF CCG1247 C 5062 (A,75,25) CKSRYB105K10 C 5100 (B,50,42) CKSRYB104K50 C 5101 (B,48,40) CKSRYB104K50 C 5103 (A,45,43) CKSRYB222K50 C 5104 (A,44,34) 10 µF CCG1203 C 5105 (A,47,44) CKSRYB104K50 C 5106 (A,54,46) 330 pF CCG1247 C 5107 (B,51,43) CKSRYB104K50 C 5108 (B,54,28) CKSRYB104K50 C 5109 (B,53,31) CKSRYB104K50 C 5110 (A,54,44) CKSRYB104K50 C 5111 (B,54,34) CKSRYB104K50 C 5112 (B,57,39) CKSRYB224K16 C 5113 (B,56,29) CKSRYB104K50 C 5114 (B,55,31) CKSRYB104K50 C 5115 (B,57,42) CKSRYB104K50 C 5116 (B,59,42) CKSRYB104K50 C 5117 (B,59,41) CKSRYB104K50 C 5118 (B,59,39) CKSRYB104K50 C 5119 (B,57,36) CKSRYB104K50 C 5120 (B,57,34) CKSRYB104K50 C 5121 (A,59,28) CKSRYB105K10 C 5122 (A,63,36) CKSRYB104K50 C 5123 (A,63,39) CCSRCH330J50 C 5124 (A,65,39) CCSRCH330J50 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 159 5 6 7 8 5 6 7 8 C D F A B E C 5125 (A,68,43) CCSRCH102J50 C 5126 (B,69,30) CCSRCH561J50 C 5127 (A,69,30) CKSRYB104K50 C 5128 (B,62,32) CKSRYB104K50 C 5129 (B,66,28) CKSRYB104K50 C 5130 (B,59,35) CKSRYB105K10 C 5131 (A,71,31) CCSRCH102J50 C 5132 (A,73,31) CCSRCH101J50 C 5133 (B,67,26) CKSRYB104K50 C 5134 (A,67,34) CCSRCH221J50 C 5135 (B,70,34) CCSRCH331J50 C 5136 (B,69,18) 10 µF CCG1203 C 5137 (A,16,38) 10 µF CCG1223 C 5138 (A,11,38) CEVW101M16 C 5139 (A,64,27) CCSRCK2R0C50 C 5142 (B,61,20) CKSRYB105K10 C 5143 (B,61,22) CKSRYB105K10 C 5144 (B,54,20) CKSRYB104K50 C 5145 (B,61,18) CKSRYB105K10 C 5181 (B,43,18) CKSQYF105Z25 C 5182 (B,35,18) CKSQYF105Z25 C 5183 (A,38,17) CKSRYB104K25 C 5184 (A,38,16) CKSQYF105Z25 C 5188 (B,50,12) CKSQYB105K16 C 5190 (B,54,12) CKSQYF225Z16 C 5191 (A,43,13) CKSQYF225Z16 C 5192 (B,35,13) CKSQYF105Z25 C 5193 (A,38,12) CKSRYF474Z16 C 5194 (A,38,13) CKSRYF474Z16 C 5195 (B,31,14) CKSYF475Z16 C 5196 (A,40,20) CKSRYB472K50 C 5197 (A,41,20) CKSRYB472K50 C 5199 (A,38,10) CKSRYF474Z16 C 5200 (B,52,12) CKSQYB105K16 C 5201 (A,36,30) 33 µF/10 V CCH1586 C 5202 (A,36,33) CKSRYB104K25 C 5203 (B,29,29) CKSRYB103K50 C 5204 (A,29,29) 10 µF CCG1223 C 5205 (B,33,19) CKSRYB103K50 C 5206 (B,32,19) CKSRYB105K10 C 5207 (A,41,6) CKSQYF105Z25 C 5208 (B,30,17) CCSRCH102J50 C 5209 (B,30,20) CKSRYB104K25 C 5210 (A,70,7) CKSQYF224Z25 C 5211 (B,31,22) CKSRYB105K10 C 5212 (A,24,28) 10 µF CCG1223 C 5213 (B,26,20) CKSRYB104K25 C 5214 (A,24,24) 10 µF CCG1223 C 5215 (A,14,25) CKSRYB104K25 C 5216 (A,16,27) 68 µF/10 V CCH1635 C 5217 (A,23,17) CCSRCH101J50 C 5218 (B,24,26) CKSRYB103K50 C 5219 (B,26,18) CKSRYB103K50 C 5221 (A,21,14) CCSRCH331J50 C 5223 (B,28,17) CKSRYB393K16 C 5224 (B,22,10) CKSRYB103K50 C 5226 (B,22,16) CKSRYB473K50 C 5228 (B,26,16) CKSRYB393K16 C 5230 (B,32,12) CCSRCH102J50 C 5231 (A,21,10) CKSRYB104K25 Circuit Symbol and No. Part No. C 5232 (A,22,11) 10 µF CCG1203 C 5233 (B,26,14) CKSRYB105K10 C 5234 (A,23,9) CKSRYB104K25 C 5235 (B,31,16) CKSRYB103K50 C 5242 (B,30,12) CKSRYB104K25 C 5247 (B,28,12) CKSRYB104K25 C 5249 (B,27,12) CKSRYB104K25 C 5300 (A,87,28) CEVW330M10 C 5301 (B,107,25) CKSRYF104Z16 C 5302 (B,95,24) CKSRYF104Z16 C 5303 (B,105,25) CKSRYF104Z16 C 5304 (B,107,39) CKSRYB104K25 C 5306 (B,112,22) CKSRYB105K6R3 C 5307 (B,112,27) CKSRYF104Z50 C 5308 (A,114,45) CKSRYF104Z16 C 5312 (B,119,46) CKSRYB103K50 C 5313 (B,123,46) CKSRYF104Z16 C 5314 (B,121,21) CKSRYF104Z16 C 5360 (A,104,12) CKSRYB473K50 C 5361 (A,103,12) CKSRYB473K50 C 5362 (B,117,13) CKSRYB102K50 C 5363 (B,119,13) CKSRYB102K50 C 5364 (B,105,18) CKSRYB104K10 C 5366 (B,110,13) CKSRYB102K50 C 5367 (B,111,13) CKSRYB102K50 C 5651 (B,61,70) 10 µF CCG1203 C 5652 (B,53,71) CKSRYB104K16 C 5654 (A,43,56) 10 µF CCG1203 C 5655 (A,47,54) CKSRYB104K50 C 5659 (A,55,50) CKSRYB474K10 C 5660 (B,59,62) CKSRYB104K50 C 5661 (A,43,48) 10 µF CCG1203 C 5663 (B,19,42) CKSRYB104K50 C 5665 (A,67,72) CCSRCH102J50 C 5666 (B,68,71) CFHXSQ562J16 C 5667 (A,60,73) 10 µF CCG1203 C 5668 (A,62,67) CEVW330M10 C 5669 (A,68,55) CKSRYB105K10 C 5670 (A,17,75) CKSRYB104K16 C 5700 (B,137,52) CKSQYB475K6R3 C 5702 (A,132,29) 10 µF CCG1203 C 5705 (B,130,51) CKSQYB475K6R3 C 5707 (B,126,28) CKSQYB475K6R3 C 5708 (B,134,22) CKSRYB102K50 C 5709 (B,134,20) CKSRYB102K50 C 5901 (A,94,52) 10 µF CCG1223 C 5902 (B,100,54) CKSRYB104K25 C 5903 (B,99,49) CKSRYB105K10 C 5904 (B,88,59) CKSRYB104K25 C 5905 (A,73,64) CKSRYB104K25 C 5906 (A,75,69) CKSRYB105K10 C 5907 (A,73,67) CKSRYB474K10 C 5908 (A,73,66) CKSRYB105K10 C 5909 (A,75,62) CKSRYB562K50 C 5910 (A,76,60) CKSRYB152K50 C 5911 (B,79,67) CKSRYB104K25 C 5912 (B,88,64) CKSRYB473K50 C 5913 (B,134,55) CKSRYB103K50 C 5914 (A,80,59) CKSRYB221K50 C 5915 (B,89,69) CKSRYB473K50 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 160 1 2 3 4 1 2 3 4 C D F A B E C 5916 (A,89,57) 10 µF CCG1223 C 5917 (A,89,64) 10 µF CCG1223 C 5918 (A,95,70) CKSQYB105K16 C 5919 (A,95,72) CKSQYB105K16 C 5920 (A,116,73) CKSRYB104K25 C 5921 (A,137,58) 15 pF CCG1194 C 5922 (B,137,55) CKSRYB153K50 Keyboard Unit Consists of Key PCB AV Mini Jack PCB HI Unit Number: Unit Name : Keyboard Unit MISCELLANEOUS D 5501 (A,12,60) LED NSSM025-6502 D 5551 (B,5,6) Diode MALS068X D 5552 (B,8,18) Diode MALS068X D 5553 (B,11,6) Diode MALS068X D 5554 (B,8,6) Diode MALS068X S 5501 (A,11,26) Push Switch CSG1155 S 5502 (A,12,6) Push Switch CSG1155 S 5503 (A,12,47) Push Switch CSG1155 S 5504 (A,11,68) Push Switch CSG1155 S 5505 (A,12,74) Push Switch CSG1155 S 5506 (A,23,76) Push Switch CSG1155 S 5507 (A,12,37) Rotary Switch(VOLUME) CSD1142 RESISTORS R 5501 (A,16,46) RS1/16S303J R 5502 (A,14,66) RS1/16S303J R 5503 (A,11,8) RS1/16S183J R 5504 (A,12,20) RS1/16S103J R 5505 (A,12,18) RS1/16S822J R 5506 (B,10,50) RS1/16S102J R 5507 (B,14,50) RS1/16S102J CAPACITORS C 5503 (A,11,54) CKSRYB104K25 C 5504 (A,12,56) CKSRYB104K25 C 5505 (B,11,50) CKSRYB103K50 C 5506 (B,13,50) CKSRYB103K50 D Unit Number: CWX3401 Unit Name : DVD Core Unit MISCELLANEOUS IC 1001 (B,79,55) IC BD9851EFV IC 1003 (B,72,42) IC S-80859CNNB-B9K IC 1004 (B,75,48) Regulator IC NJM2880U1-05 IC 1005 (B,61,58) IC S-L2980A50MC-C7J IC 1201 (A,26,15) IC BD7996EFV Circuit Symbol and No. Part No. IC 1301 (B,90,27) IC TC7SZ125FU IC 1351 (B,86,27) IC TC7SZ08FU IC 1352 (B,79,14) IC TC74LCX16373FT IC 1401 (B,61,32) Flash ROM Unit CWW1428 IC 1402 (B,37,10) Flash ROM Unit CWW1429 IC 1403 (B,47,29) IC TC7SZ32FU IC 1481 (B,60,12) IC EDS1232AATA-75 IC 1501 (A,60,19) IC MN2DS0016AAUB IC 1801 (A,70,53) D/A Converter PCM1753DBQ Q 1001 (B,77,67) FET RSQ030P03 Q 1003 (B,85,67) FET QS5U27 Q 1101 (B,62,50) Transistor 2SC4081 Q 1102 (B,68,50) Transistor 2SC4081 Q 1103 (B,60,45) Transistor 2SB1260 Q 1104 (B,67,45) Transistor 2SB1260 D 1001 (B,80,64) Chip Diode RB050L-40 D 1002 (A,89,67) Diode 1SR154-400 D 1301 (B,13,10) Chip LED CL205IRXTU L 1001 (B,73,62) Inductor CTF1678 L 1002 (B,83,72) Inductor CTF1677 L 1003 (B,86,62) Inductor CTF1681 L 1004 (B,63,60) Inductor CTF1558 L 1005 (B,81,49) Inductor CTF1558 L 1101 (B,66,54) Inductor CTF1305 L 1482 (B,77,29) Inductor CTF1473 L 1502 (A,71,47) Inductor CTF1378 L 1503 (A,60,47) Inductor CTF1487 L 1504 (A,35,10) Inductor CTF1387 L 1511 (A,63,3) Inductor CTF1680 L 1601 (A,41,23) Inductor CTF1473 L 1602 (A,55,42) Inductor CTF1473 L 1603 (A,54,42) Inductor CTF1473 L 1604 (A,52,42) Inductor CTF1473 L 1605 (A,38,32) Inductor CTF1395 L 1671 (A,41,19) Inductor CTF1473 L 1672 (A,41,20) Inductor CTF1473 L 1673 (A,41,21) Inductor CTF1473 L 1801 (A,70,61) Inductor CTF1473 L 1901 (A,91,73) Inductor CTF1487 L 1902 (A,91,62) Inductor CTF1558 X 1501 (A,40,16) Clystal 27.000 MHz CSS1714 VR1671 (A,35,20) Semi-fixed 10 kΩ(B) CCP1448 EF1501 (A,68,47) Chip EMI Filter DTL1106 EF1502 (A,61,45) Chip EMI Filter DTL1106 EF1901 (A,87,74) Chip EMI Filter DTF1106 EF1903 (A,91,65) Chip EMI Filter DTL1106 RESISTORS R 1001 (B,70,55) RS1/16SS101J R 1002 (B,72,51) RS1/16SS103J R 1003 (B,72,55) RS1/16SS122J R 1005 (B,72,52) RS1/16SS153J R 1006 (B,73,54) RS1/16SS471J R 1007 (B,73,55) RS1/16SS8201D R 1008 (B,70,56) RS1/16SS4702D R 1009 (B,72,56) RS1/16SS561J R 1010 (B,74,51) RS1/16SS472J R 1011 (B,72,40) RS1/16SS104J R 1013 (B,87,54) RS1/16SS682J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 161 5 6 7 8 5 6 7 8 C D F A B E R 1017 (B,88,54) RS1/16SS1002D R 1018 (B,88,53) RS1/16SS472J R 1019 (B,87,53) RS1/16SS2202D R 1020 (B,87,52) RS1/16SS102J R 1021 (B,87,51) RS1/16SS101J R 1026 (B,78,61) RS1/16SS100J R 1027 (B,77,61) RS1/16SS100J R 1101 (B,63,53) RS1/16SS391J R 1102 (B,63,47) RS1/16SS511J R 1103 (B,67,53) RS1/16SS391J R 1104 (B,69,47) RS1/16SS561J R 1107 (B,61,53) RS1/16SS6R8J R 1108 (B,65,53) RS1/16SS6R8J R 1109 (B,58,41) RS1/10S1R5J R 1110 (B,63,41) RS1/10S1R5J R 1111 (B,70,41) RS1/10S1R5J R 1112 (B,65,41) RS1/10S1R5J R 1113 (B,61,41) RS1/10S1R5J R 1114 (B,59,41) RS1/10S1R5J R 1115 (B,66,41) RS1/10S1R5J R 1116 (B,68,41) RS1/10S1R5J R 1117 (B,64,49) RS1/16SS104J R 1118 (B,70,49) RS1/16SS104J R 1202 (A,19,12) RS1/16SS221J R 1203 (A,19,11) RS1/16SS221J R 1210 (A,30,27) RS1/16SS101J R 1211 (B,26,18) RS1/16SS3R9J R 1212 (B,27,18) RS1/16SS3R9J R 1214 (B,28,18) RS1/16SS3R9J R 1215 (B,29,18) RS1/16SS3R9J R 1216 (B,30,18) RS1/16SS3R9J R 1217 (B,31,18) RS1/16SS3R9J R 1219 (A,20,27) RS1/16SS101J R 1223 (A,19,4) RS1/16SS753J R 1225 (A,19,7) RS1/16SS753J R 1227 (B,13,21) RS1/16SS3R9J R 1228 (B,14,21) RS1/16SS3R9J R 1229 (B,15,21) RS1/16SS3R9J R 1230 (B,16,21) RS1/16SS3R9J R 1231 (B,17,21) RS1/16SS3R9J R 1232 (B,18,21) RS1/16SS3R9J R 1233 (B,19,21) RS1/16SS3R9J R 1234 (B,20,21) RS1/16SS3R9J R 1240 (B,32,18) RS1/16SS3R9J R 1241 (B,33,18) RS1/16SS3R9J R 1242 (B,34,18) RS1/16SS3R9J R 1243 (B,38,18) RS1/16SS3R9J R 1244 (B,36,18) RS1/16SS3R9J R 1245 (B,35,18) RS1/16SS3R9J R 1301 (B,14,14) RS1/16SS391J R 1302 (B,16,14) RS1/16SS471J R 1304 (B,87,23) RS1/16SS563J R 1305 (B,86,23) RS1/16SS243J R 1306 (B,85,23) RS1/16SS683J R 1307 (B,88,23) RS1/16SS243J R 1314 (B,86,21) RAB4CQ822J R 1351 (B,84,25) RS1/16SS331J R 1401 (B,72,33) RS1/16SS221J R 1402 (B,50,27) RS1/16SS104J R 1405 (B,48,10) RS1/16SS221J Circuit Symbol and No. Part No. R 1406 (B,26,4) RS1/16SS104J R 1407 (B,26,6) RS1/16SS104J R 1410 (B,47,32) RS1/16SS104J R 1501 (B,71,3) RAB4CQ560J R 1503 (A,72,3) RS1/16SS560J R 1505 (B,68,3) RAB4CQ560J R 1507 (B,65,3) RAB4CQ560J R 1512 (B,59,3) RAB4CQ560J R 1513 (A,44,4) RS1/16SS102J R 1515 (A,43,3) RS1/16SS102J R 1520 (A,35,8) RS1/16SS221J R 1521 (A,41,12) RAB4CQ101J R 1522 (B,56,3) RAB4CQ560J R 1523 (A,39,11) RS1/16SS101J R 1524 (A,39,13) RS1/16SS101J R 1525 (B,53,3) RAB4CQ560J R 1526 (A,36,11) RS1/16SS270J R 1528 (A,43,14) RS1/16SS101J R 1529 (B,54,22) RAB4CQ560J R 1530 (A,43,15) RS1/16SS105J R 1531 (B,50,22) RAB4CQ560J R 1532 (A,77,23) RS1/16SS103J R 1533 (A,76,27) RS1/16SS103J R 1534 (A,77,26) RS1/16SS103J R 1535 (A,63,36) RS1/16SS221J R 1537 (A,67,41) RS1/16SS221J R 1538 (A,66,41) RS1/16SS221J R 1540 (A,71,44) RS1/16SS102J R 1541 (A,64,41) RS1/16SS472J R 1542 (A,60,36) RS1/16SS223J R 1543 (A,59,38) RS1/16SS332J R 1544 (A,57,41) RS1/16SS183J R 1545 (A,61,36) RS1/16SS223J R 1546 (A,59,42) RS1/16SS104J R 1547 (A,59,41) RS1/16SS473J R 1548 (A,59,36) RS1/16SS104J R 1554 (A,60,40) RS1/16SS221J R 1555 (A,58,38) RS1/16SS221J R 1556 (A,43,8) RS1/16SS104J R 1557 (A,57,40) RS1/16SS104J R 1559 (A,63,41) RS1/16SS221J R 1560 (A,68,42) RAB4CQ104J R 1562 (A,64,38) RAB4CQ104J R 1565 (A,73,36) RS1/16SS103J R 1566 (A,72,36) RS1/16SS103J R 1567 (B,68,22) RAB4CQ560J R 1568 (B,65,22) RAB4CQ560J R 1569 (B,62,3) RAB4CQ560J R 1570 (B,60,22) RAB4CQ560J R 1571 (B,57,22) RAB4CQ560J R 1572 (A,47,3) RS1/16SS103J R 1573 (B,63,20) RS1/16SS560J R 1582 (A,82,26) RS1/16SS103J R 1583 (A,82,28) RS1/16SS103J R 1584 (A,77,28) RS1/16SS103J R 1601 (A,41,25) RS1/16SS123J R 1602 (A,39,24) RS1/16SS123J R 1607 (A,41,27) RS1/16SS105J R 1609 (A,37,29) RN1/16SE1002D R 1610 (A,43,29) RS1/16SS222J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 162 1 2 3 4 1 2 3 4 C D F A B E R 1613 (A,39,29) RS1/16SS223J R 1614 (A,46,36) RS1/16SS105J R 1615 (A,43,33) RS1/16SS105J R 1616 (A,53,36) RS1/16SS2002D R 1672 (A,43,21) RS1/16SS303J R 1673 (A,38,22) RS1/16SS183J R 1674 (A,34,23) RS1/16SS562J R 1705 (A,55,57) RS1/16SS0R0J R 1706 (A,52,57) RS1/16SS201J R 1707 (A,55,51) RS1/16SS0R0J R 1708 (A,52,50) RS1/16SS201J R 1715 (A,60,56) RS1/16SS201J R 1716 (A,63,57) RS1/16SS0R0J R 1719 (A,60,50) RS1/16SS201J R 1720 (A,63,51) RS1/16SS0R0J R 1803 (A,72,56) RS1/16SS821J R 1804 (A,74,56) RS1/16SS821J R 1805 (A,72,62) RS1/16SS104J R 1806 (A,74,62) RS1/16SS104J R 1903 (A,89,52) RS1/16SS0R0J R 2001 (A,77,8) RS1/16SS820J R 2003 (A,78,12) RS1/16SS820J R 2004 (A,77,14) RS1/16SS820J R 2005 (A,77,17) RS1/16SS220J R 2006 (A,81,31) RS1/16SS101J R 2007 (A,80,7) RAB4CQ820J R 2009 (A,80,11) RAB4CQ330J R 2010 (A,80,14) RAB4CQ330J R 2011 (A,80,19) RAB4CQ330J R 2012 (A,80,22) RAB4CQ330J R 2014 (A,85,3) RS1/16SS103J R 2015 (A,77,19) RS1/16SS103J R 2017 (A,78,7) RS1/16SS103J R 2018 (A,87,4) RS1/16SS103J R 2019 (A,85,5) RS1/16SS103J R 2020 (A,89,4) RS1/16SS103J R 2021 (A,76,9) RS1/16SS220J R 2022 (A,77,9) RS1/16SS820J R 2023 (A,78,9) RS1/16SS220J CAPACITORS C 1001 (B,68,60) 10 µF CCG1171 C 1002 (B,68,59) 10 µF CCG1171 C 1003 (B,73,57) CKSRYB103K50 C 1004 (B,72,54) CKSSYB681K50 C 1005 (B,73,56) CKSSYB103K16 C 1006 (B,74,52) CCSSCH820J50 C 1007 (B,75,57) CKSSYB104K10 C 1008 (B,80,67) 10 µF CCG1192 C 1009 (B,82,67) 10 µF CCG1192 C 1010 (B,85,54) CKSSYB222K50 C 1011 (B,84,51) CKSSYB104K10 C 1012 (B,84,58) CKSSYB104K10 C 1014 (B,85,52) CKSRYB105K10 C 1015 (B,81,61) 10 µF CCG1171 C 1016 (B,86,57) CKSRYB472K50 C 1017 (B,88,52) CKSSYB681K50 C 1018 (B,81,60) 10 µF CCG1171 C 1019 (B,58,59) CCSSCH101J50 C 1020 (B,58,57) CKSSYB104K10 Circuit Symbol and No. Part No. C 1021 (B,60,60) CKSRYB105K10 C 1022 (B,79,47) CKSSYB103K16 C 1023 (B,79,49) CKSSYB104K10 C 1024 (B,71,48) CKSQYB475K10 C 1025 (B,64,58) CKSRYB105K10 C 1029 (B,70,54) CKSSYB104K10 C 1030 (B,88,51) CKSSYB104K10 C 1031 (B,86,55) CKSRYB474K10 C 1101 (B,61,54) 10 µF CCG1192 C 1102 (B,59,50) 100 µF CCG1232 C 1103 (B,65,50) 100 µF CCG1232 C 1104 (B,63,44) CKSSYB104K10 C 1105 (B,70,44) CKSSYB104K10 C 1106 (B,63,46) CKSSYB103K16 C 1107 (B,70,45) CKSSYB103K16 C 1108 (A,35,36) CKSSYB103K16 C 1109 (A,36,34) CKSRYB105K10 C 1110 (A,35,37) CKSSYB103K16 C 1111 (A,39,34) CKSRYB105K10 C 1201 (B,21,11) CEVW101M16 C 1202 (B,15,17) CKSYB475K16 C 1207 (B,16,11) CKSQYB225K10 C 1209 (A,32,17) CKSSYB104K10 C 1210 (A,32,19) CKSSYB471K50 C 1211 (A,19,17) CKSSYB103K16 C 1212 (A,19,8) CKSSYB104K10 C 1213 (A,19,10) CKSSYB104K10 C 1301 (B,90,25) CKSSYB104K10 C 1302 (B,88,25) CKSSYB104K10 C 1351 (B,86,25) CKSSYB104K10 C 1352 (B,76,19) CKSSYB104K10 C 1353 (B,81,19) CKSSYB104K10 C 1354 (B,74,8) CKSSYB104K10 C 1355 (B,86,8) CKSSYB104K10 C 1356 (B,84,28) CKSYB106K6R3 C 1401 (B,72,31) CKSSYB103K16 C 1402 (B,49,33) CKSSYB104K10 C 1403 (B,81,27) CKSQYB475K6R3 C 1405 (B,48,8) CKSSYB103K16 C 1406 (B,26,15) CKSSYB104K10 C 1407 (B,74,27) CKSQYB475K6R3 C 1408 (B,47,27) CKSSYB104K10 C 1481 (B,73,5) CKSSYB104K10 C 1482 (B,73,8) CKSSYB104K10 C 1483 (B,67,5) CKSSYB104K10 C 1484 (B,63,5) CKSSYB104K10 C 1485 (B,56,5) CKSSYB104K10 C 1486 (B,53,5) CKSSYB104K10 C 1487 (B,51,5) CKSSYB104K10 C 1488 (B,49,5) CKSSYB104K10 C 1490 (B,68,20) CKSSYB104K10 C 1491 (B,77,27) CKSQYB106K6R3 C 1492 (B,55,20) CKSSYB104K10 C 1493 (B,52,20) CKSSYB104K10 C 1494 (B,65,20) CKSSYB104K10 C 1496 (B,65,5) CKSSYB102K50 C 1497 (B,61,20) CKSSYB102K50 C 1498 (B,77,26) CKSSYB102K50 C 1499 (B,49,4) CKSSYB102K50 C 1501 (A,68,45) CKSQYB106K6R3 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 163 5 6 7 8 5 6 7 8 C D F A B E C 1502 (A,58,44) CKSQYB106K6R3 C 1503 (A,55,3) CKSSYB104K10 C 1504 (A,58,3) CKSSYB104K10 C 1505 (A,53,3) CKSSYB104K10 C 1506 (A,60,3) CKSSYB104K10 C 1507 (A,68,3) CKSSYB104K10 C 1508 (A,65,3) CKSSYB104K10 C 1509 (A,70,3) CKSSYB104K10 C 1510 (A,43,11) CKSSYB104K10 C 1511 (A,77,7) CKSSYB104K10 C 1512 (A,76,11) CKSSYB104K10 C 1513 (A,43,10) CKSSYB104K10 C 1514 (A,76,17) CKSSYB104K10 C 1515 (A,43,16) CKSSYB104K10 C 1516 (A,76,15) CKSSYB104K10 C 1517 (A,43,17) CKSSYB104K10 C 1518 (A,37,15) CCSSCH8R0D50 C 1519 (A,37,16) CCSSCH8R0D50 C 1520 (A,49,3) CCSSCH181J25 C 1521 (A,76,24) CKSSYB104K10 C 1522 (A,77,24) CKSSYB104K10 C 1523 (A,58,36) CKSSYB104K10 C 1524 (A,58,37) CKSSYB103K16 C 1525 (A,66,36) CKSSYB104K10 C 1526 (A,62,40) CKSSYB103K16 C 1527 (A,63,35) CKSSYB471K50 C 1528 (A,65,36) CKSSYB104K10 C 1529 (A,60,38) CKSSYB103K16 C 1530 (A,59,40) CKSSYB224K6R3 C 1531 (A,57,42) CKSSYB123K16 C 1536 (A,76,20) CKSSYB104K10 C 1537 (A,55,44) CKSSYB102K50 C 1538 (A,53,44) CKSSYB102K50 C 1539 (A,57,36) CKSSYB104K10 C 1540 (A,61,38) CKSSYB103K16 C 1560 (A,51,3) CKSSYB104K10 C 1577 (A,77,31) CKSSYB104K10 C 1601 (A,41,24) CCSSCH101J50 C 1602 (A,43,24) CCSSCH101J50 C 1603 (A,38,23) CCSSCH680J50 C 1604 (A,39,25) CCSSCH680J50 C 1608 (A,41,26) CKSSYB103K16 C 1609 (A,43,27) CKSSYB103K16 C 1610 (A,53,39) CCSSCH101J50 C 1611 (A,54,38) CKSSYB562K25 C 1612 (A,55,36) CKSSYB224K6R3 C 1613 (A,55,38) CKSSYB224K6R3 C 1614 (A,56,38) CKSSYB333K16 C 1615 (A,41,30) CKSRYB105K10 C 1616 (A,48,36) CKSSYB104K10 C 1617 (A,49,38) CKSSYB104K10 C 1618 (A,51,38) CKSSYB104K10 C 1619 (A,51,36) CKSSYB104K10 C 1620 (A,50,36) CKSSYB104K10 C 1621 (A,50,38) CKSSYB104K10 C 1622 (A,53,38) CKSSYB104K10 C 1623 (A,52,39) CKSSYB104K10 C 1624 (A,43,28) CKSSYB103K16 C 1625 (A,56,36) CKSSYB104K10 C 1626 (A,41,31) CKSRYB105K10 Circuit Symbol and No. Part No. C 1627 (A,43,23) CKSSYB104K10 C 1628 (A,54,36) CKSSYB104K10 C 1629 (A,49,36) CKSSYB104K10 C 1630 (A,38,30) CKSQYB106K6R3 C 1671 (A,43,18) CKSSYB104K10 C 1672 (A,43,19) CKSSYB104K10 C 1673 (A,38,21) CKSSYB104K10 C 1674 (A,39,22) CKSSYB104K10 C 1675 (A,39,19) CKSRYB105K10 C 1676 (A,38,19) CKSRYB105K10 C 1677 (A,43,22) CKSSYB104K10 C 1801 (A,75,52) CKSSYB104K10 C 1802 (A,67,58) 10 µF CCG1192 C 1803 (A,67,56) CKSSYB104K10 C 1804 (A,70,58) 10 µF CCG1192 C 1805 (A,70,56) CKSSYB104K10 C 1808 (A,72,57) CCSRCH182J50 C 1809 (A,75,57) CCSRCH182J50 C 1810 (A,72,59) CKSQYB475K6R3 C 1811 (A,74,59) CKSQYB475K6R3 C 1901 (A,84,74) CKSSYB102K50 E Unit Number: CWX3154 Unit Name : Compound Unit(A) Q 1299 Photo-taransistor CPT231SCTD S 1201 Spring Switch(12cm) CSN1069 S 1202 Spring Switch(8cm) CSN1069 S 1203 Spring Switch(DISC SENS) CSN1069 S 1204 Spring Switch(DISC SENS) CSN1070 S 1205 Spring Switch(8cm) CSN1070 R 1298 RS1/16S0R0J R 1299 RS1/16S0R0J F Unit Number: CWX3394 Unit Name : Compound Unit(B) S 1206 Switch(CLAMP) CSN1067 Miscellaneous Parts List Pickup Unit(Service) CXX2118 M 1 Motor Unit(LOADING) CXC4912 M 2 Motor(STEPPING) CXM1364 M 3 Motor(SPINDLE) CXM1362 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 164 1 2 3 4 1 2 3 4 C D F A B E 6. ADJUSTMENT 6.1 JIG CONNECTION DIAGRAM DVD Mechanism Module(MS5) Navi Mother Unit GGD1284 GGD1284 GGD1327 GGD1406 GGD1170 Monitor Unit AV Unit - Jigs List Name 40P FFC BBR 40P FFC BBR 20P Extension Cable 80P FPC 40P FFC BB TEST DISC Remote Control Uint TORX driver (T2) Bond Bond (Produced by THREE BOND) TEST DISC Jig No. GGD1284 GGD1284 GGD1327 GGD1406 GGD1170 GGV1303 CXC6317 GGK1095 GEM1033 1401M GGV1018 Remarks DVD Core Unit (CN2001) <---> Navi Mother Unit (CN2) DVD Core Unit (CN1901) <---> Navi Mother Unit (CN2057) Navi Mother Unit (CN2068) <---> AV Unit (CN1652) Navi Mother Unit (CN2055) <---> AV Unit (CN1711) Monitor Unit (CN5001) <---> AV Unit (CN1661) Operation check Operation for adjustment SKEW adjustment (DVD) SKEW adjustment (DVD) SKEW adjustment (DVD) SKEW adjustment (DVD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 165 5 6 7 8 5 6 7 8 C D F A B E 6.2 DVD ADJUSTMENT 1) Precautions This product uses 5 V and 3.3 V as standard voltages. The electrical potential that is the reference for signals, is not GND, but VREF (approximately 2.2 V) and VHALF (approximately 1.65 V). During product adjustments, if the reference voltage is mistakenly taken as GND, and a grounding contact is made, not only would it be impossible to measure the accurate electrical potential, but also the servo motor would malfunction, resulting in the application of a strong impact on the pick up. The following precaution- ary measures should be strictly adhered to, in order to avoid such problems. The reference voltage and GND should not be confused when using the minus probe of a measurement device. When an oscilloscope is being used special care should be taken to make sure that the reference voltage is not connected to the probe of ch1 (on the minus side), while the probe of ch2 (on the minus side), is connected to GND. Further, since the body frame of most mea- surement devices have the same electrical potential as the minus side of the probe, the body frame of the mea- surement device should be set to floating ground. If the reference voltage is connected to GND by mis- take, turn the regulator OFF immediately, or turn the power OFF. • Remove the filters and wires used for measurements only after the regulator has been turned OFF. • • Whenever the product is in the test mode, the software will not take any protective action. For this reason, special care should be taken to make sure that no mechanical or electrical shock could be applied to the product when taking measurements in the test mode. • Whenever the EJECT key is pressed to eject the disk, no other keys, other than the EJECT key, should be pressed until the disk eject action has been complet- ed. • If the product hangs up turn the power OFF immedi- ately. • Laser didoes may be damaged, if the volume switch for the laser power adjustment of the pick up unit, is turned. Attention) • Test mode starting procedure Please select "MS5 check" to start test mode. • Test mode stopping procedure ACC and Backup OFF. For stable circuit operation, keep the mechanism operating for about one minute or more after the regulator is turned on. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 166 1 2 3 4 1 2 3 4 C D F A B E Image of the test mode. [Note] Higher level 4 characters only. Lower level 4 characters are spaces. (1) (2) Start of the test mode. TEST FE test selection EDC1 test selection Hereafter, to FE test mode image. Hereafter, to EDC1 test mode image. [Note] In order to move on to another test after selecting a test (FE/EDC1/EDC2), it is necessary to restart the DVD mechanism in the test mode. (3) EDC2 test selection Hereafter, to EDC2 test mode image. (4) LD power on time mode selection Hereafter, to LD power on time mode image. Legend: ··· Key operation ··· Operation state ··· The content displayed on the DVD mechanism (video only) 8 characters data is sent to the product side (HOST) by UART communication. Image of the front end test mode. (2) FE test mode Disc type DVD1 layer FE offset coefficient TE offset coefficient AS offset coefficient ENV offset coefficient TG offset coefficient DBAL coefficient VIN1 offset cancel value VIN2 offset cancel value VIN3 offset cancel value VIN4 offset cancel value VIN5 offset cancel value VIN6 offset cancel value VIN7 offset cancel value VIN8 offset cancel value VIN9 offset cancel value VIN10 offset cancel value Power on 0000 0000 0FFF 0000 0 x 00 0000 Legend: ··· Key operation ··· Operation state ··· The content displayed on the DVD mechanism (video only) 8 characters data is sent to the product side (HOST) by UART communication. (4) (5) Disc type DVD2 layer Disc type CD 0100 0000 0200 0000 Disc type CD-RW 0300 0000 EJECT EJECT [Note] If no action is taken for approximately 10 seconds after LD-ON, it will become LO-OFF automatically. If F close is selected during LD-OFF, it will become an error. During focus search (S character measurement mode), too, safety regulation applies if LD_OFF is not selected within 10 seconds. Therefore, even if focus search is selected after LD-ON, it will become LD-OFF after 9 seconds. In order to F close after focus search (S character measurement mode), set to Power_OFF first then power on again before F close. FEMAX level FEMIN level ASMAX level ENVMAX level FE normalization coefficient Spindle gain coefficient TEMAX level indication TEMIN level indication (2) Focus close state (1) (2) S curve measurement (2) F close F search 1A00 0000 F search 1100 0000 1FFF 0000 (3),(4) CRG+/- Activates while the key is being pressed. 1B00 0000 : CRG+ 1C00 0000 : CRG- (5) (6) LD-ON/OFF When LO-ON: 1100 0000 When LD-OFF: 1000 000 CRG_HOME 1D00 0000 (8) Power_OFF (1) (3) a b 1 x 00 0000 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 167 5 6 7 8 5 6 7 8 C D F A B E (2) (1) (2) Tracking balance TBAL coefficient (layer 0) TBAL coefficient (layer 1) TE normalization coefficient (layer 0) TE normalization coefficient (layer 1) Off track adjustment result Focus Jump When L0 layer: 2000 0000 When L1 layer: 2100 0000 2 x 00 0000 2FFF 0000 (3),(4) CRG +/- It operates while the key is being pressed. 2B00 0000 : CRG+ 2C00 0000 : CRG- 3000 0000 (8) Power_OFF (8) Power_OFF (5) Performed including the tracking close processing. FBAL coefficient (layer 0) FBAL coefficient (layer 1) Focus gain coefficient (layer 0) Focus gain coefficient (layer 1) Tracking gain coefficient (layer 0) Tracking gain coefficient (layer 1) AS normalization adjustment value (layer 0) AS normalization adjustment value (layer 1) RF level value 3FFF 0000 Tracking close state (1) (2) (1) Error rate measurement Error rate Focus gain coefficient (layer 0) Focus gain coefficient (layer 1) Tracking gain coefficient (layer 0) Tracking gain coefficient (layer 1) AS normalization adjustment value (layer 0) AS normalization adjustment value (layer 1) RF level value indication start 5000 0000 RF level is informed every 500msec. RF level value indication end (7) (8) To (2) T.OPEN Power_OFF (1) (3),(4) Tracking close CRG +/- It operates while the key is being pressed. 3B00 0000 : CRG+ 3C00 0000 : CRG- 3FFF 0000 a b (1) (2) Tracking close state Error rate measurement FBAL coefficient (layer 0) FBAL coefficient (layer 1) Focus gain coefficient (layer 0) Focus gain coefficient (layer 1) Tracking gain coefficient (layer 0) Tracking gain coefficient (layer 1) AS normalization adjustment value (layer 0) AS normalization adjustment value (layer 1) Playback speed switching 4000 0000 4 x 00 0000 (5) Error rate Focus gain coefficient (layer 0) Focus gain coefficient (layer 1) Tracking gain coefficient (layer 0) Tracking gain coefficient (layer 1) AS normalization adjustment value (layer 0) AS normalization adjustment value (layer 1) Focus Jump DVDX1.3~ 1.6CAV CDX4CLV: 4x00 0000 When L0 layer: 4x00 0000 When L1 layer: 4x00 0000 (8) Error display Power_OFF Error occurrence L0 layer DVD X 1.3~1.6CAV, CD X 4CLV :4000 0000 L1 layer DVD X 1.3~1.6CAV :4100 0000 [Note] If an error occurs at Power_OFF, reset cannot be made. In such a case, it is necessary to turn the power off and start the test mode once again. Error occurrence at Power_OFF Error display The number for designation of the track number shall be selected from the track numbers previously prepared. Switch to cyclic by (3). Fix by (4). For CD: Tracks 1, 4, 10, 11 and 32 For DVD: Tracks 1, 4, 10, 11, 32, 64 and 100 Change the method for ID address designation. Designation of digit by command (1) and (2). UP/DOWN of numbers by command (3) and (4). Fix by command (5). The higher 2 digits of the designated ID are the value showing the test state. The lower 6 digits show the ID. Example) If 300000 is desired to be designated as the ID, designated ID: 4A03 0000. (7) (8) To (2) T.OPEN Power_OFF (6) (3),(4) (1)-(4) (3) (5) (5) ID Search T.Jump+/- 4A00 0000 Jump+ : 4B00 0000 Jump- : 4C00 0000 ID designation ID display Track number designation Track number indication Search start Jump start www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 168 1 2 3 4 1 2 3 4 C D F A B E EDC. Image of the test mode [Note] Image is the same for both EDC1 and EDC2. (1) (2) EDC1/2 test mode 0000 0000 Layer 0 selection Layer 1 selection 0000 0000 0100 0000 1003 0000 1103 0000 (5) [Note] The display is updated at 0.5 seconds interval until 0/1 layer is selected or Eject is effected. (1)-(4) ID designation EDC1/2 start Layer 0: 10** **** Layer 1: 11** **** [Note] ** **** is the ID designation value Layer 0: 20** **** Layer 1: 21** **** [Note] ** **** is the present ID designation value **** **** [Note] **** **** is the present ID designation value Legend: ··· Key operation ··· Operational state ··· The content displayed on the DVD mechanism (video only) 8 characters data is sent to the product side (HOST) by UART communication. [Note] Eject can be effected any time during the EDC test mode. However, disc exist/non-exist bit of BD of UART communication is not fixed. Eject After completion of EJECT operation EJECT operation Test mode Eject Image of the LD power on time mode. LD power on time mode 0000 0000 CD LD power on time indication DVD LD power on time indication 10** **** [Note] ** **** is the CD LD power on time. 20** **** [Note] ** **** is the DVD LD power on time. (1) (2) CD LD power on time setting Setting time designation 30** **** [Note] ** **** is the setting time. Setting time registration DVD LD power on time setting Setting time designation 40** **** [Note] ** **** is the setting time. (5) (6) (1)-(4) (1)-(4) (5) (5) (8) 10** **** [Note] ** **** is the CD LD power on time. Setting time registration (8) 20** **** [Note] ** **** is the DVD LD power on time. [Note] If the power on time is 999999 hours or more, it is always reported as 999999 hours. [Note] If the power on time is " *E** **** ", the value may not be correct due to the life of the flash memory. [Method of setting time designation] Designate the digit by command (1) and (2). UP/DOWN of numbers by command (3) and (4). Fix by command (5). Cancel by command (8). Legend: ··· Key operation ··· Operational state ··· The content displayed on the DVD mechanism (video only) 8 characters data is sent to the product side (HOST) by UART communication. Not for service use www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 169 5 6 7 8 5 6 7 8 C D F A B E Error status Open Read Error Focus Error(Focus Error in mechanism set up) Surface Error Address not found (Invalid Track) Spindle Lock Carriage HOME ID/SUBCODE Read Error AV CHIP decode Error AV CHIP Recovery NG Error of PLAY BACK Mode Status Disc Data Error No Disc (including Disc loading and ejecting) Media Error Temp Error (In Case of High Temperature) OSD *1 It is a disc unable to be played back. NON-PLAYABLE DISC (No display) ERROR-02-99 ERROR-02-90 ERROR-02-9E ERROR-02-80 ERROR-02-91 ERROR-02-92 ERROR-02-94 ERROR-02-9A ERROR-02-9B ERROR-02-9C Temperature protection circuit is being activated. THERMAL PROTECTION IN MOTION (No display) (No display) UART *2 10h 20h 21h 22h 23h 24h 25h 26h 2Ah 2Bh 2Ch 2Dh 40h 00h 30h Meaning Door open error Transfer start error Focus error Focus error during set up (A focus has never been achieved with that disc.) Address not found. Spindle lock NG (the disc cannot rotate) Carriage home NG (The pick up tries to return to carriage home, but it cannot go back and stopped.) ID/SUBCODE Read Error (ID/SUBCODE cannot be read due to scratch or stain.) AV CHIP decode NG (AV chip cannot be decoded.) AV CHIP recovery NG Playback state error (An error due to software bug.) Disc Data NG Disc has not been inserted. (Including Load in process or Eject in process.) Loading mechanism error (The disc cannot be clamped.) A disc containing the unplayable Format only. High temperature (Playback is stopped because the pick up temperature is 89 C or higher.) ACC Off/On Source Off/On Eject Play Key * * * * X X X X X X X X X X X X X X X X X X X X * X X - X X X - - Method of reset - - X X X X X X X X * - - - - X X X X X X X X * X X - X X X X X X X X X X * - - - - - ERROR-02-9D Loading_Mecha Error 50h REQUEST error Failure in issuing read command (chip dependent) Adjustment of L0 is NG. Adjustment of L1 is NG. LD system NG Gain adjustment system NG. Gain determining system NG. Servo initial setting related items NG. Disc is not clamped yet. Tracking system NG. Media setting system NG. Focus Error Error of PLAY BACK Mode Status Error of PLAY BACK Mode Status Undefined Error DRM Error Region code Error NG CPPM*3 Key Error *4 AWM*5 Error *4 It is a protected disc. PROTECTED DISC Region code is incorrect. DIFFERENT REGION DISC It is a disc unable to be played back. NON-PLAYABLE DISC ERROR-02-A0 ERROR-02-A1 ERROR-02-A2 ERROR-02-A3 ERROR-02-A4 ERROR-02-A5 ERROR-02-A6 ERROR-02-A7 ERROR-02-A8 ERROR-02-A9 ERROR-02-AA ERROR-02-AB ERROR-02-B0 ERROR-02-B1 ERROR-FF-FF A0h A1h A2h A3h A4h A5h A6h A7h A8h A9h AAh ABh B0h B1h FFh 70h 90h 91h *6 REQUEST error Failure in issuing the read command L0 adjustment is NG. L1 adjustment is NG LD system NG Gain adjustment system NG. Gain determining system NG. Servo initial setting related items NG. Disc is not clamped yet. Tracking system NG Media setting system NG JUMP over layers NG Navigation command error Retry over Undefined error DRM error (All music cannot be played back due to DRM.) Region code NG (Unable to be played back due to incorrect mechanism region.) Playback the illegally copied disc by DVD-A (Mute the sound on the mechanism side.) Key Error for playback - - X - CPRM Key Error *7 NON-PLAYABLE DISC 93h Key Error for playback X X X X X X X X X X X X X X X X X X - X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X: Cancel the error by operation. -: Error is not cancelled by operation. *: No setting *1 A content displayed on OSD. As for the items having multiple display patterns, the upper row is for the Japanese version Full GUI, and the lower row is for the Touch Panel model and Full GUI (English version). *2 A parameter of UART command, such as "receipt error notice", that the DVD mechanism transmits. *3 CPPM(Content Protection for Prerecorded Media) : A copyright protection technique used in DVD-A. The protection is realized by using the keys recorded on the media and the device key held by the player. *4 DVD-A compatible model only. When an error has occurred, only the audio output will be muted but playback operation will continue. Furthermore, acceptance of the user operation will be the same as usual. *5 AWM (Audio WaterMark): Electronic watermark. Information on the copyright owner or CCI (copy control information) are recorded so that illegally copied discs can be identified. *6 Notice as an error status will not be given *7 CPRM(Content Protection for Recordable Media) : A copyright protection technique for digital contents used for re-writable DVD or memory card. (DVD-VR model only) (No display) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 170 1 2 3 4 1 2 3 4 C D F A B E - SKEW adjustment When one of the following replacements has taken place, SKEW adjustment for the pick up will be required. (1) Replacement of the pick up unit (2) Replacement of the spindle motor (3) Replacement of the carriage chassis (4) Replacement of the main shaft of the pick up unit (5) Replacement of the sub shaft of the pick up unit Measurement equipment and tools/jigs: Oscilloscope Driver for SKEW adjustment t TORX driver (T2) (GGK1095) Bond for fixing the SKEW (GEM1033) Bond for locking the screw (Locking agents (1401M : produced by THREE BOND)) Disc used: GGV1018 Measurement reference: AGND2 Measurement point: RF Connection drawing DVD core unit Enlargement Symptom in case the adjustment is not adequate: Worsening of the error rate 10-3 (Normally 10-4 or less.) Large RF jitter RF waveform distortion Tracking drawing/Unstable servo * Caution: Do not look into the laser light during adjustment. Oscilloscope RF AGND2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 171 5 6 7 8 5 6 7 8 C D F A B E There are two methods for adjustment, a method whereby the adjustment is made while monitoring the RF waveform using the oscilloscope (method 1) and a method whereby the adjustment is made while checking the RF level in value by OSD (method 2). The adjustment procedure is shown below. Refer to the paragraph for the service test mode regarding entering of the test mode and the operation procedure. Adjustment procedure: 1. Turn the DVD mechanism module upside down so that the pick up can be adjusted. When the module is turned upside down, there is a possibility that the disc is rubbed. So, first place a coin with the thickness of approximately 1.5mm on a desk, and set the module upside down in a way that section 1 in the illustration below comes right above the coin. 2. Install the pick up. (Refer to the section regarding removal of the pick up from the mechanism unit.) As for the precautions in handling the pick up, refer to the precautions in handling the PU as described below. 3. Method 1: Connect the oscilloscope by referring to the connection drawing so that the RF signal can be monitored with AGND2 as the reference. Method 2: There is no need for setting of any equipment. Proceed to step 4. 4. Turn the power ON, and load the disc for adjustment.(GGV1018) 5. After setting the disc type to DVD layer 1 in the front end test mode, turn the power ON, and move the pick up to the inner periphery. (CRG - Home) 6. Turn the LD ON. 7. Set to focus close, and make auto adjustment for all items under that state, then set to tracking close. And make auto adjustment for all items under that state as well. 8. Make an intermediate periphery (ID: 100 000) search, and move the PU to intermediate periphery. 9. Method 1: Proceed to step 10. Method 2: After setting to Tracking Open, make all auto adjustments, and set to Tracking Close this time with a command that can be RF displayed. Make auto adjustment for all items under that state as well. 10. Use TORX driver (T2) (GGK1095) for the following. Method 1: While monitoring the RF waveform on the oscilloscope, turn SKEW adjustment screw A just a little bit in a way that the level will reach the maximum. While the pick up is at the intermediate periphery, turn SKEW adjustment screw B just a little bit in a way that the level will reach the maximum. While the pick up is at the intermediate periphery, turn SKEW adjustment screw A just a little bit in a way that the level will reach the maximum. (Make adjustment in the order of A -> B -> A, Please end the each adjustment by turning screw clockwise. ) Method 2: While monitoring the RF level value on the OSD display, turn the SKEW adjustment screw A just a little bit in a way that the level will reach the maximum. While the pick up is at the intermediate periphery, turn SKEW adjustment screw B just a little bit in a way that the level will reach the maximum. While the pick up is at the intermediate periphery, turn SKEW adjustment screw A just a little bit in a way that the level will reach the maximum. (Make adjustment in the order of A -> B -> A, Please end the each adjustment by turning screw clockwise. ) If the error rate is not good, please perform Method again. 11. Turn the power OFF in the test mode, and after confirming that the disc has stopped, eject the disc. 12. Apply adhesive for fixing the SKEW and lock the screw. Refer to the illustration below for the adhesion points. 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 172 1 2 3 4 1 2 3 4 C D F A B E SKEW adjustment locations. A B A B SKEW adhesive locations (GEM1033) RAD-SKEW adhesive locations Cross section of R-SKEW adhesive locations. * Caution: Make a cross link to both the resin section and the sheet metal section. C Adhesive application locations Sheet metal (yoke base) section Resin (suspension support) section PU case Sheet metal (yoke base) section * Caution: Make a cross link to both the case section and the sheet metal section. Adhesive application locations TAN-SKEW adhesive locations D & E PU case C D E 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 173 5 6 7 8 5 6 7 8 C D F A B E Screw locking adhesive location (1401M : produced by THREE BOND) Screw locking adhesive location Apply the locking agent for more than half of the screw head circumference. * Caution: The locking agent shall not overflow to outside of the PU case. Precautions in handling the PU. * Caution: Do not touch the shaded section in the drawing below. RF level adjustment section Do not touch the optical parts. Hologram (be careful for the static electricity) GRT adjustment section Do not touch the springs. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 174 1 2 3 4 1 2 3 4 C D F A B E Is the image in error? Go to FE related repair process. Is FE section normal? BACK END section flow Can the playback start? Is the sound in error? Repair the defective part. Normal? NO YES NO YES YES YES YES YES YES Go to FE section check. YES YES NO NO NO NO NO NO NO FE section check. Go to FE section check. NO NO NO Replace the unit. YES YES Go to FE section check. NO YES YES NO START END NO NO NO NO Replace the unit. YES Normal? YES NO END NO YES YES YES YES YES Does the operation take time? Is the life of flash memory OK? Conduct check item 12. Standby OK? Execute check 1. Is VDD5 (VCC33, VCC12) power supply voltage OK? Execute check 2. Reset OK? Execute check 3. Is VD8, VCC5 power supply voltage OK? Execute check 7. Is SDRAM IF OK? Execute check 6. Is VSENS OK? Execute check 4. Is 27 MHz OK? Execute check 5. Is AVCC5 voltage OK? Execute check 8. Is DACCLK normal? Execute check 9. Is the audio circuit OK? Execute check 10. Is the video circuit OK? Execute check 11. Is AVCC5 voltage OK? Execute check 8. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 175 5 6 7 8 5 6 7 8 C D F A B E Check 1: Standby OK? Check the voltage at the "STANBY" test point while the power is on. Use the "DGND1" test point at the reference. NO. Check point Module No. Specification value Unit STANBY-DGND1 ALL VCC33 V- 0.6 V or more V Fig 1.1: STANBY check point STANBY DGND1 Side A 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 176 1 2 3 4 1 2 3 4 C D F A B E Check 2: Is VDD5 (VCC33, VCC12) power supply voltage OK? VDD5 VCC33 (= 3.3 V ) VDD5 VCC12 (= 1.2 V ) IC1401 FLASH power supply (Data) IC1402 FLASH power supply (Program) IC1481 SDRAM power supply IC1501 DVD-LSI power supply IC1501 DVD-LSI power supply IC1001 DC/DC converter VCC 3.3 V/1.2 V output F.E. driver control system NO. Check point Module No. Specification value Unit 1 2 3 VDD5_3 - DGND1 VCC33_3 - DGND1 VCC12_1 - DGND1 ALL ALL ALL 5.0 ± 0.4 3.3 ± 0.15 1.2 ± 0.12 V V V Side A VCC33_3 VDD5_3 VCC12_1 DGND1 Fig 2.2: VDD5, VCC33, VCC12 voltage check points Fig 2.1: Power supply configuration Check the voltage at the "VDD5_3, VCC33_3 and VCC12_1" test point while the power is on. Use the "DGND1" test point at the reference. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 177 5 6 7 8 5 6 7 8 C D F A B E Check 3: Reset OK? NO. Check point Module No. Specification value Unit 1 XRES-DGND1 ALL VCC33 x 0.7 or more V Side A Fig 3.1: RESET check point XRES DGND1 Check the voltage at the "XRES" test point while the power is on. Use the "DGND1" test point at the reference. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 178 1 2 3 4 1 2 3 4 C D F A B E Check 4: Is VSENS OK? CN1901 HOST I/F VD8 VSENS VCC33 VDD5 VCC12 STANBY XRES Fig 4.1: Power supply configuration and VSENS NO. Check point IC1501 DVD-LSI IC1001 DC/DC converter IC1003 detection IC Side A Fig 4.2: VSENS check point VSENS DGND1 Module No. Specification value Unit VSENS - DGND1 ALL VCC33 x 0.7 or more V 1 Check the voltage at the "VSENS" test point while the power is on. Use the "DGND1" test point at the reference. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 179 5 6 7 8 5 6 7 8 C D F A B E Check 5: 27 MHz Normal? Each clock is created inside the IC1501 using the 27 MHz master crystal oscillator (X1501). OSCO OSCI Fig 5.1: Clock configuration IC1501 DVD-LSI X1501 27 MHz crystal VCC33 VCC12 Turn the power on, and check with DGND being the reference. In case of NG, check the applicable line, periphery of IC1501, soldering of the peripheral components and defective components. NO. Check point Module No. Specification value Unit 2 IC1501 169pin ALL 27 MHz ± 50 ppm ppm GND Fig 5.2: Clock specification value Side A Fig 5.3: 27 MHz check point Specification value DGND1 IC1501 169pin www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 180 1 2 3 4 1 2 3 4 C D F A B E Check 6: Is SDRAM I/F OK? In order to secure the MPEG stream data as the buffer, the capacity of communication I/F SDRAM between the LSI and the memory is 128Mbit. Be careful as XCSM, XWE, XCAS, XRAS and XSCM of IC1481 are called differently in IC1501, namely NCSM, NWE, NCAS, NRAS, NCSM. MA0~11 MDQ0~31 MCK XWE (NWE) XCAS (NCAS) XRAS (NRAS) XCSM (NCSM) DQM0 DQM1 DQM2 DQM3 BA0 BA1 Fig 6.1: SDRAM I/F IC 1481 SDRAM IC1501 DVD-LSI www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 181 5 6 7 8 5 6 7 8 C D F A B E 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 MA0 MA1 MA2 MA3 MA4 MA5 MA6 MA7 MA8 MA9 MA10 MA11 MDQ0 MDQ1 MDQ2 MDQ3 MDQ4 MDQ5 MDQ6 MDQ7 MDQ8 MDQ9 MDQ10 MDQ11 MDQ12 MDQ13 MDQ14 MDQ15 MDQ16 MDQ17 MDQ18 MDQ19 MDQ20 MDQ21 MDQ22 MDQ23 MDQ24 MDQ25 MDQ26 MDQ27 MDQ28 MDQ29 MDQ30 MDQ31 MCK XWE XCAS XRAS XCSM DQM0 DQM1 DQM2 DQM3 BA0 BA1 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 0.17 Ω ± or lower 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % 56 Ω ± 5 % IC1481 25pin IC1481 26pin IC1481 27pin IC1481 60pin IC1481 61pin IC1481 62pin IC1481 63pin IC1481 64pin IC1481 65pin IC1481 66pin IC1481 24pin IC1481 21pin IC1481 2pin IC1481 4pin IC1481 5pin IC1481 7pin IC1481 8pin IC1481 10pin IC1481 11pin IC1481 13pin IC1481 74pin IC1481 76pin IC1481 77pin IC1481 79pin IC1481 80pin IC1481 82pin IC1481 83pin IC1481 85pin IC1481 31pin IC1481 33pin IC1481 34pin IC1481 36pin IC1481 37pin IC1481 39pin IC1481 40pin IC1481 42pin IC1481 45pin IC1481 47pin IC1481 48pin IC1481 50pin IC1481 51pin IC1481 53pin IC1481 54pin IC1481 56pin IC1481 68pin IC1481 17pin IC1481 18pin IC1481 19pin IC1481 20pin IC1481 16pin IC1481 71pin IC1481 28pin IC1481 59pin IC1481 22pin IC1481 23pin IC1501 16pin IC1501 18pin IC1501 20pin IC1501 22pin IC1501 21pin IC1501 19pin IC1501 17pin IC1501 15pin IC1501 11pin IC1501 9pin IC1501 14pin IC1501 7pin IC1501 237pin IC1501 239pin IC1501 241pin IC1501 243pin IC1501 248pin IC1501 250pin IC1501 252pin IC1501 254pin IC1501 253pin IC1501 251pin IC1501 249pin IC1501 244pin IC1501 242pin IC1501 240pin IC1501 238pin IC1501 236pin IC1501 29pin IC1501 31pin IC1501 33pin IC1501 37pin IC1501 39pin IC1501 41pin IC1501 43pin IC1501 45pin IC1501 44pin IC1501 42pin IC1501 40pin IC1501 38pin IC1501 34pin IC1501 32pin IC1501 30pin IC1501 28pin IC1501 234pin IC1501 3pin IC1501 4pin IC1501 5pin IC1501 6pin IC1501 255pin IC1501 256pin IC1501 26pin IC1501 27pin IC1501 8pin IC1501 10pin Check the conductivity at "check point 1" and "check point 2" without power. In case of NG, check the soldering and defective components throughout the "output t input" of the applicable section. NO. Signal name Check point 1 Check point 2 Specification value www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 182 1 2 3 4 1 2 3 4 C D F A B E Side B Check point 1 (IC1481) Side A Check point 2 (IC1501) Fig 6.2: SDRAM I/F check point www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 183 5 6 7 8 5 6 7 8 C D F A B E Check 7: Is VD8, VCC5 power supply voltage OK? VD8_1 VD VCC5 (= 5.0V ) Fig 7.1: Power supply configuration F.E. driver system DISC detection LED Power supply for PU IC1004 REG IC for VCC 5V. NO. Check point Module No. Specification value Unit 1 2 3 VD8_1 - PGND3 VD - PGND3 VCC5_1- AGND1 ALL ALL ALL 8.0 ± 0.4 8.0 ± 0.4 5.0 ± 0.1 V V V Side A VD8_1 PGND3 VCC5_1 AGND1 VD Fig 7.2: VD8, VCC5 voltage check points Check the voltage at the "VD8_1, VD and VCC5_1" test point while the power is on. Use the "PGND3 and AGND1" test point at the reference. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 184 1 2 3 4 1 2 3 4 C D F A B E Check 8: Is AVCC5 voltage OK? VD AVCC5 (= 5.0 V ) Fig 8.1: Power supply configuration Playback DVD-REF-A1 TITLE 1 and check the voltage at the stylus. Check with PGND and GNDAU being the reference. NO. Check point VD - PGND_3 AVCC5 - GNDAU1 IC1801 Audio-DAC IC1005 REG IC for AVCC 5 V. Module No. Specification value Unit 1 2 ALL ALL 8.0 ± 0.4 5.0 ± 0.1 V V Side A Fig 8.2: VD8, AVCC5 voltage check points GNDAU AVCC5 VD PGND3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 185 5 6 7 8 5 6 7 8 C D F A B E Fig 9.1: Clock configuration Check 9: Is DACCLK normal? DACCLK for Audio-DAC is created by IC1501 using the 27 MHz master crystal oscillator (X1501). DACCLK DVD: DVD-REF-A1 TITLE 1 CD: Playback a normal CDDA. Common to all DVD-V compatible modules. Check with DGND being the reference. In case of NG, check the applicable line, the periphery of IC1501, soldering of the peripheral components and defective components. IC1501 DVD-LSI X1501 27 MHz crystal IC1801 Audio-DAC VCC33 VCC12 GND Fig 9.2: Clock specification value Side A Check point 2 (IC1501 172 pin) Check point 1 (stylus) Fig 9.3: 27 MHz, DACCLK check point Specification value 1 Specification value 2 Specification value 3 NO. Check point 1 (stylus) Media Specification value 1 Specification value 2 Specification value 3 1 2 DACCK DACCK DVD CD 2.0 V~VCC33 V 2.0 V~VCC33 V DGND~0.8 V DGND~0.8 V 36.864 0 MHz ± 300 ppm 33.868 8 MHz ± 300 ppm www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 186 1 2 3 4 1 2 3 4 C D F A B E Check 10: Is the audio circuit OK? The serial 3 lines digital output + DACCLK, output from DVD-LSI (IC1501), are converted to analog audio signal at Audio-DAC (IC1801) and are output from the HOST I/F (CN1901). Simultaneously, the analog MUTE signal is also output from DVD-LSI (IC1501) via the HOST I/F. The digital audio signal (IECOUT), output from DVD-LSI (IC1501), is output via CN1852. CN1901 HOST I/F LRCK LO ADOUT3 SRCK RO GNDAU CN1852 IC1801 Audio-DAC IC1501 DVD-LSI IEC Fig 10.1: Audio circuit Playback DVD-REF-A1 TITLE 2 CHAPTER 1 (48 k/16 bit 1 kHz 0 dB), and check with DGND being the reference. In case of NG, check the applicable line, periphery of major components as described in the above drawing, soldering of the peripheral components and defective components. NO. Check point 1 (stylus) 1 2 3 Specification value 1 Specification value 2 Reference waveform ADOUT3 SRCK LRCK VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher 0.4 V or lower 0.4 V or lower 0.4 V or lower Waveform 1 Waveform 2 Waveform 3 GND Fig 10.2: Serial 3 lines specification value Side A Specification value 1 Specification value 2 Fig 10.3: Serial 3 lines check points ADOUT3 SRCK LRCK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 187 5 6 7 8 5 6 7 8 C D F A B E The following checks shall be conducted using the following measurement circuits with GNDAU1 being the reference. NO. 4 5 Fig 10.4: Analog audio out (LO, RO) specification value. Side A Fig 10.5: Analog audio out check point Specification value is the root-mean-square value (rms). LO RO GNDAU1 Check point 1 (stylus) 1 400 ± 150 mV 1 400 ± 150 mV Specification value (rms) Reference waveform Waveform 4 Waveform 4 LO RO LO GNDAU1 RO 47 kΩ 47 kΩ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 188 1 2 3 4 1 2 3 4 C D F A B E Check with DGND being the reference. Check 2pin cord after connecting it to a jig, etc. NO. Check point 1 (stylus) Specification value 1 Specification value 2 Reference waveform 6 IEC VCC33 V-0.6 V or higher 0.4 V or lower Waveform 5 Side A Fig 10.6: Digital audio signal (IECOUT) check point IEC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 189 5 6 7 8 5 6 7 8 C D F A B E IN IN OUT At the time of 6ch digital out, the serial 6 lines output from DVD-LSI (IC1501) is output via CN1581. Furthermore, at the time of ripping, the serial 3 lines digital output + SUBC, output from DVD-LSI (IC1501), is output in 4 times speed via CN1851. CN1851 ADOUT0/SUBC ADOUT1/BLKCK ADOUT2/CLDCK SRCK LRCK DATA MCKENA RIPP IC1501 LSI IC1851 buffer SW, ripping or 6ch digital out. IC1852 buffer SW, ripping or 6ch digital out. IC1853 buffer SW, ripping or 6ch digital out. SBCK BMUTE EMPH IEC/IPFLG The signal at CN1851 for 6ch digital out/Ripping. Pin No. Pin name 2 4 6 8 10 12 14 16 18 20 21 22 23 SRCK LRCK AD0/SUBC AD1/BLK AD2/CLD AD3/DATA IEC/IPFLG - SBCK BMUTE MCKENA RIPP EMPH Pins 1, 3, 5, 7, 9, 11, 13, 15, 17, 19 and 24 are GNDD. Fig 10.7: 6ch digital out/Ripping circuit 6ch digital out Ripping SRCK LRCK ADOUT0 ADOUT1 ADOUT2 ADOUT3 IEC - - BMUTE Low High EMPH SRCK LRCK SUBC BLKCK CLDCK DATA IPFLG - SBCK - High Low EMPH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 190 1 2 3 4 1 2 3 4 C D F A B E Playback DVD-REF-A1 TITLE22 CHAPTER 1, and check with GNDD being the reference. In case of NG, check the applicable line, the periphery of the major components in the drawing above, soldering of the peripheral components and defective components. Check 24pin FFC after connecting it to a jig, etc. NO. Check point 1 (stylus) 7 8 9 10 11 12 13 SRCK LRCK ADOUT0 ADOUT1 ADOUT2 IEC MCKENA Specification value 2 0.4 V or lower 0.4 V or lower 0.4 V or lower 0.4 V or lower 0.4 V or lower 0.4 V or lower VCC33 V x 0.3 V or lower 0.4 V or lower 0.4 V or lower 0.4 V or lower 0.4 V or lower 0.4 V or lower 0.4 V or lower 0.4 V or lower VCC33 V x 0.3 V or lower Rip common CDDA, and check with GNDD being the reference. In case of NG, check the applicable line, the periphery of the major components in the drawing above, soldering of the peripheral components and defective components. Check 24pin FFC after connecting it to a jig, etc. NO. Check point 1 (stylus) 14 15 16 17 18 19 20 21 SRCK LRCK SUBC BLKCK CLDCK DATA SBCK RIPP Specification value 1 Specification value 2 VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher - Specification value 1 GND Specification value 2 Fig 10.8: 6ch digital out/Ripping specification value VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher - Specification value 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 191 5 6 7 8 5 6 7 8 C D F A B E Side A Side B Fig 10.9: 6ch digital out/Ripping check point ADOUT3 SRCK LRCK ADOUT2 ADOUT1 ADOUT0 MCKENA SBCK RIPP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-D3/XU/UC 192 1 2 3 4 1 2 3 4 C D F A B E Check 11: Is the video circuit OK? Composite signal and component signal are output from DVD-LSI (IC1501), and are output from the HOST I/F (CN1901) via a buffer circuit. CN1901 HOST I/F AVCC5 Composite Component Y Component Cb Component Cr COMPO Fig 11.1: Video circuit Playback DVD-REF-A1 TITLE2 CHAPTER5 (WHITE 100%), and monitor COMPO signal with an oscilloscope with GNDV1 (stylus) being the reference. Set the trigger mode to "TV trigger" and the trigger line to "150 line". Video buffer circuit NoMount IC1501 DVD_LSI Video DAC section NO. Check point 1 (stylus) Specification value Reference waveform 1 COMPO 1 000 mVpp ± 5 % Waveform 6 In case of NG, check the applicable line, the periphery of the major components in the drawing above, soldering of the peripheral components and defective components. PEAK COMPO signal Reference value Color burst Pedestal level BOTTOM Horizontal sync signal Fig 11.2: Waveform for the case of composite white 100% output
