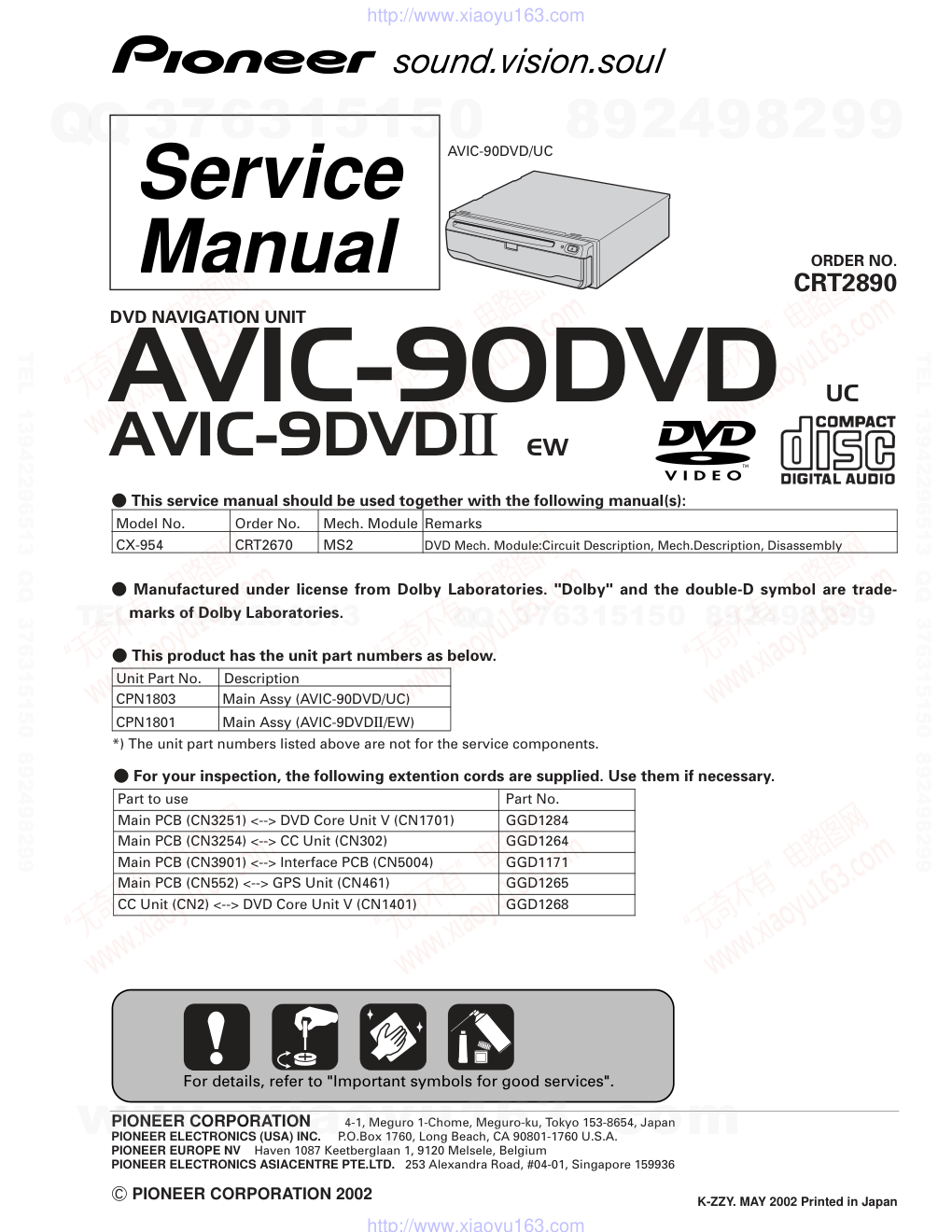

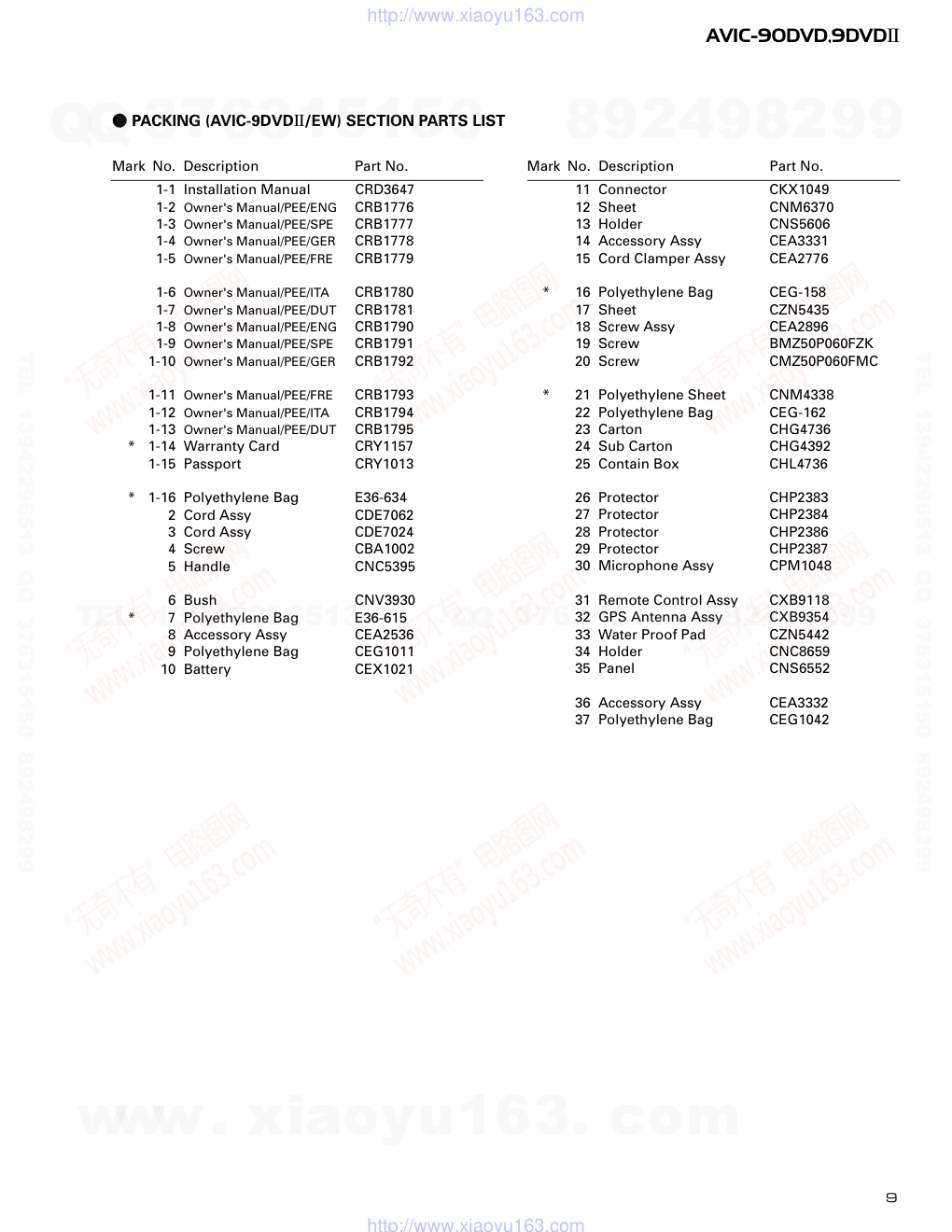

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936 C PIONEER CORPORATION 2002 K-ZZY. MAY 2002 Printed in Japan DVD NAVIGATION UNIT AVIC-90DVD UC - This service manual should be used together with the following manual(s): Model No. Order No. Mech. Module Remarks CX-954 CRT2670 MS2 DVD Mech. Module:Circuit Description, Mech.Description, Disassembly - This product has the unit part numbers as below. Unit Part No. Description CPN1803 Main Assy (AVIC-90DVD/UC) CPN1801 Main Assy (AVIC-9DVD—/EW) *) The unit part numbers listed above are not for the service components. - Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trade- marks of Dolby Laboratories. - For your inspection, the following extention cords are supplied. Use them if necessary. Part to use Part No. Main PCB (CN3251) <--> DVD Core Unit V (CN1701) GGD1284 Main PCB (CN3254) <--> CC Unit (CN302) GGD1264 Main PCB (CN3901) <--> Interface PCB (CN5004) GGD1171 Main PCB (CN552) <--> GPS Unit (CN461) GGD1265 CC Unit (CN2) <--> DVD Core Unit V (CN1401) GGD1268 For details, refer to "Important symbols for good services". ORDER NO. CRT2890 Service Manual AVIC-9DVD— EW AVIC-90DVD/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 AVIC-90DVD,9DVD— 1. SAFETY INFORMATION CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 CONTENTS 1. SAFETY INFORMATION ............................................2 2. EXPLODED VIEWS AND PARTS LIST.......................6 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...18 4. PCB CONNECTION DIAGRAM ................................94 5. ELECTRICAL PARTS LIST ......................................110 6. ADJUSTMENT........................................................128 7. GENERAL INFORMATION .....................................173 7.1 DIAGNOSIS ......................................................173 7.1.1 DISASSEMBLY .......................................173 7.1.2 CONNECTOR FUNCTION DESCRIPTION.....176 7.2 IC ......................................................................178 7.3 EXPLANATION .................................................190 7.3.1 CIRCUIT DESCRIPTIONS .......................190 7.3.2 OPERATIONAL FLOW CHART ...............191 7.4 CLEANING ........................................................192 8. OPERATIONS AND SPECIFICATIONS...................193 1. Safety Precautions for those who Service this Unit. • Follow the adjustment steps (see pages 129 through 149)in the service manual when servicing this unit. When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results. Caution: 1. During repair or tests, minimum distance of 13cm from the focus lens must be kept. 2. During repair or tests, do not view laser beam for 10 seconds or longer. - AVIC-9DVD—/EW CAUTION Danger of explosion if battery is incorrectly replaced. Replaced only with the same or equivalent type recommended by the manufacture. Discord used batteries according to the manufacture's instructions. - AVIC-90DVD/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 AVIC-90DVD,9DVD— 2. The triangular label is attached to the mechanism unit frame. On the bottom of the player. CAUTION : VORSICHT : ADVARSEL : VARNING : VARO! : VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM. SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETZEN! SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ UDSÆTTELSE FOR STRÀLING. SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN. AVATTAESSA ALTISTUT NÄKYVÄ JA NÄKYMÄTTÖMÄLLE LASERSATEIL YLLE. ÄLÄ KATSO SÄTEESEN. VRW1699 CLASS 1 LASER PRODUCT WARNING! The AEL (accessible emission level )of the laser power output is less than CLASS 1 but the laser component is capable of emitting radiation exceeding the limit for CLASS 1. A specially instructed person should do servicing operation of the apparatus. Laser diode characteristics Wave length: DVD:640~660nm CD:770~810nm Maximum output:2.44mw(Emitting period :9sec.) DVD:743mw(Emitting period : unlimited) Additionla Laser Caution Transistors Q1104 and Q1108 in PCB drive the laser diodes for DVD and CD respectively. When Q1104 or Q1108 is shorted between their terminals, the laser diodes for DVD or CD will radiate beam. If the top cover is removed with no disc loaded while such short-circuit is continued, the naked eyes may be exposed to the laser beam. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 AVIC-90DVD,9DVD— - DVD Player Service Precautions 1. Never adjust the LD VR in the pickup unit to protect the pickup from electrical damages. 2. For pickup unit(service)(CXX1530) handling, please refer to"Disassembly"(see page 173). During replacement, handling precautions shall be taken to prevent an electrostatic discharge(set the short switch of the pickup unit to the SHORT side). 3. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a connector is plugged or unplugged. 4. Please adjusting the skew after changing the pickup unit(see page 132). - High voltage is generated in the inverter when the power is supplied to the system. To avoid an electric shock, reconfirm that the power switch is set to OFF before starting operation. - Check of installation direction when G-Sensor Unit was after repair. Lock-screw Lock-screw Parallel Parallel Lever Lever Forward / Aft direction of vehicle Forward / Aft direction of vehicle Front Front [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 AVIC-90DVD,9DVD— www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 AVIC-90DVD,9DVD— 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING (AVIC-90DVD/UC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 AVIC-90DVD,9DVD— 1-1 Owner’s Manual CRB1798 1-2 Owner's Manual/PA/FRE CRB1783 1-3 Owner’s Manual CRB1796 1-4 Owner's Manual/PA/FRE CRB1797 1-5 Installation Manual CRD3650 1-6 Owner’s Manual CRD3661 * 1-8 Card ARY1048 1-9 Polyethylene Bag CEG1116 2 Cord Assy CDE7062 3 Accessory Assy CEA2913 4 Angle CNC5619 * 5 Polyethylene Bag E36-637 6 Cord Assy CDE7024 7 ••••• 8 Accessory Assy CEA2536 9 Polyethylene Bag CEG1011 10 Battery CEX1021 11 Connector CKX1049 12 Sheet CNM6370 13 Holder CNS5606 14 ••••• 15 Cord Clamper Assy CEA2776 16 ••••• 17 Screw Assy CEA2896 18 Screw BMZ50P060FZK 19 Screw CMZ50P060FMC * 20 Polyethylene Sheet CNM4338 21 Sheet CZN5435 22 Polyethylene Bag CEG1173 23 Carton CHG4738 24 Sub Carton CHG4392 25 Contain Box CHL4738 26 Protector CHP2383 27 Protector CHP2384 28 Protector CHP2386 29 Protector CHP2387 30 Microphone Assy CPM1048 31 Remote Control Assy CXB9118 32 GPS Antenna Assy CXB9354 33 Water Proof Pad CZN5442 34 DVD-ROM CPJ1143 35 Screw Assy CEA2938 36 Screw(M6x16) CBA1295 * 37 Polyethylene Bag E36-613 Mark No. Description Part No. Mark No. Description Part No. NOTE: - Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List. - Screws adjacent to ∇ mark on the product are used for disassembly. - For the applying amount of lubricants or glue, follow the instructions in this manual. ( In the case of no amount instructions, apply as you think it appropriate.) Part No. Language CRD3661 English, French CRB1798 English CRB1783 French CRB1796 English CRB1797 French - Owner's Manual Part No. Language CRD3650 English, French - Installation Manual - PACKING (AVIC-90DVD/UC) SECTION PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 AVIC-90DVD,9DVD— 2.2 PACKING (AVIC-9DVD—/EW) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 AVIC-90DVD,9DVD— 1-1 Installation Manual CRD3647 1-2 Owner's Manual/PEE/ENG CRB1776 1-3 Owner's Manual/PEE/SPE CRB1777 1-4 Owner's Manual/PEE/GER CRB1778 1-5 Owner's Manual/PEE/FRE CRB1779 1-6 Owner's Manual/PEE/ITA CRB1780 1-7 Owner's Manual/PEE/DUT CRB1781 1-8 Owner's Manual/PEE/ENG CRB1790 1-9 Owner's Manual/PEE/SPE CRB1791 1-10 Owner's Manual/PEE/GER CRB1792 1-11 Owner's Manual/PEE/FRE CRB1793 1-12 Owner's Manual/PEE/ITA CRB1794 1-13 Owner's Manual/PEE/DUT CRB1795 * 1-14 Warranty Card CRY1157 1-15 Passport CRY1013 * 1-16 Polyethylene Bag E36-634 2 Cord Assy CDE7062 3 Cord Assy CDE7024 4 Screw CBA1002 5 Handle CNC5395 6 Bush CNV3930 * 7 Polyethylene Bag E36-615 8 Accessory Assy CEA2536 9 Polyethylene Bag CEG1011 10 Battery CEX1021 11 Connector CKX1049 12 Sheet CNM6370 13 Holder CNS5606 14 Accessory Assy CEA3331 15 Cord Clamper Assy CEA2776 * 16 Polyethylene Bag CEG-158 17 Sheet CZN5435 18 Screw Assy CEA2896 19 Screw BMZ50P060FZK 20 Screw CMZ50P060FMC * 21 Polyethylene Sheet CNM4338 22 Polyethylene Bag CEG-162 23 Carton CHG4736 24 Sub Carton CHG4392 25 Contain Box CHL4736 26 Protector CHP2383 27 Protector CHP2384 28 Protector CHP2386 29 Protector CHP2387 30 Microphone Assy CPM1048 31 Remote Control Assy CXB9118 32 GPS Antenna Assy CXB9354 33 Water Proof Pad CZN5442 34 Holder CNC8659 35 Panel CNS6552 36 Accessory Assy CEA3332 37 Polyethylene Bag CEG1042 Mark No. Description Part No. Mark No. Description Part No. - PACKING (AVIC-9DVD—/EW) SECTION PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 AVIC-90DVD,9DVD— Part No. Language CRB1776, CRB1790 English CRB1777, CRB1791 Spanish CRB1778, CRB1792 German CRB1779, CRB1793 French CRB1780, CRB1794 Italian CRB1781, CRB1795 Dutch - Owner's Manual Part No. Language CRD3647 English, Spanish, German, French, Italian, Dutch - Installation Manual As materials for on-site adjustment, the following items are contained in the package: CRB1776, CRB1790 (Owner's manual in English) *A CRD3647 (Installation manual in English, Spanish, German, French, Italian and Dutch) *A CRB1777, CRB1791 (Owner's manual in Spanish) *B CRD3647 (Installation manual in English, Spanish, German, French, Italian and Dutch) *B CRB1778, CRB1792 (Owner's manual in German) *C CRD3647 (Installation manual in English, Spanish, German, French, Italian and Dutch) *C CRB1779, CRB1793 (Owner's manual in French) *D CRD3647 (Installation manual in English, Spanish, German, French, Italian and Dutch) *D CRB1780, CRB1794 (Owner's manual in Italian) *E CRD3647 (Installation manual in English, Spanish, German, French, Italian and Dutch) *E CRB1781, CRB1795 (Owner's manual in Dutch) *F CRD3647 (Installation manual in English, Spanish, German, French, Italian and Dutch) *F When the products are shipped from our factory, the above manuals are not included. A pair of manuals (*A, *B, *C, *D, *E, or *F) will be attached to the product package on the site (PEE) according to the lan- guage used in the country or area to which the product is delivered. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 AVIC-90DVD,9DVD— www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 AVIC-90DVD,9DVD— 2.3 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-90DVD,9DVD— 13 1 Screw BMZ20P025FMC 2 Screw BMZ26P040FMC 3 Screw(M2.6x4) CBA1013 4 Screw(M3x3) CBA1534 5 FFC CDE6529 6 FFC CDE6530 7 Chassis(UC MODEL) CNA2418 Chassis(EW MODEL) CNA2555 8 Case CNB2712 9 Bracket CNC9280 10 Bracket CNC9281 11 Shield CNC9643 12 Holder CNC9719 13 Holder CNC9720 14 Insulator CNM7186 15 Insulator CNM7597 16 Cushion CNM7442 17 Cushion CNM7459 18 Insulator CNM7460 19 Cushion CNM7461 20 Insulator CNM7506 21 PCB CNP6231 22 Cover CNV6912 23 CC Unit(UC MODEL) CWM8391 CC Unit(EW MODEL) CWM8390 24 Terminal(CN99) CKF1064 25 Terminal(CN100) CKF1064 26 Connector(CN2) CKS3930 27 Connector(CN901) CKS4070 28 Connector(CN302) CKS4429 29 Connector CKS4434 30 Shield CNC9267 31 Shield CNC9485 32 Sheet CNM7902 33 Insulator CNM7456 34 Insulator CNM7532 35 Screw IMS20P060FCR 36 Screw IMS26P030FMC 37 Main Unit(UC MODEL) CWM8484 Main Unit(EW MODEL) CWM8482 38 Cord Assy(CN555) CDE5955 39 Antenna Cable(CN551)(EW MODEL)CDH1304 40 Terminal(CN553) CKF1064 41 Terminal(CN554) CKF1064 42 Terminal(CN1803) CKF1064 43 Terminal(CN3258) CKF1064 44 Terminal(CN3259) CKF1064 45 Terminal(CN3903) CKF1064 46 Terminal(CN5006) CKF1064 47 Terminal(CN5007) CKF1064 48 Connector(CN1801) CKM1341 49 Jack(CN5005) CKN1035 50 Connector(CN1802) CKS3124 51 Connector(CN556) CKS3125 52 Connector(CN3251) CKS3751 53 Connector(CN5001) CKS3759 54 Connector(CN5004) CKS3991 55 Connector(CN552) CKS4065 56 Connector(CN3901) CKS4361 57 Connector(CN3254) CKS4430 58 Connector(CN3257) CKS4463 59 Connector(CN5002) CKS4473 60 Connector(CN660) CKS4518 61 Connector(CN2851) CKS4519 62 Holder CNC9270 63 Holder CNC9271 64 Holder CNC9272 65 Holder CNC9474 66 Holder CNC9475 67 Holder CNC9477 68 Shield(EW MODEL) CNC9533 69 Shield CNC9635 70 Insulator CNM7535 71 Holder CNV6763 72 Holder CNV6764 73 GPS Unit(UC MODEL) CWX2591 GPS Unit(EW MODEL) CWX2590 74 Connector(CN461) CKS4280 75 Connector(CN504) CKS4432 76 Shield CNC9191 77 Holder CNC9252 78 Holder Unit CXB7069 79 Screw BPZ20P050FMC 80 Button(EJECT) CAC7005 * 81 Badge CAH1754 82 Earth Plate CNC9476 83 Grille Unit(UC MODEL) CXB9390 Grille Unit(EW MODEL) CXB8500 84 Button(PC-CARD) CAC7105 85 Door CAT2285 86 Spring CBH2258 87 Spring CBH2499 88 Holder CNV6794 89 Latch Unit CXB3967 90 Door Unit(UC MODEL) CXB7566 Door Unit(EW MODEL) CXB7277 91 DVD Mechanism Module(MS2)CXK6160 92 Fan Motor CXM1192 93 Washer YE20FUC * 94 Battery CEX1068 95 Tuner Unit(FE551)(EW MODEL)CWE1622 96 Cord Assy CDE7062 97 Fuse(7.5A) CEK1135 98 Cap CNS1472 99 Resistor RS1/2PMF102J 100 Sheet CNM7595 101 Sheet CNM7670 102 Sheet CNM7671 - EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 AVIC-90DVD,9DVD— 2.4 DVD MECHANISM MODULE (A) (A) (A) (Excluding the gear) (B) (B) (B) (Claw only) (B) (A) (Recess) (A) (B) (B) (B) (A) (All over) (B) (All over) (B) (All geras) (B) (B) (Two gears) (B) (The flunig under) (A) (Hole) (A) (Shaft) (A) : GEM1024 (B) : GEM1040 (Recess) (Recess) (Recess) (All over) G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 AVIC-90DVD,9DVD— Mark No. Description Part No. Mark No. Description Part No. - DVD MECHANISM MODULE SECTION PARTS LIST 1 DVD Core Unit CWX2727 2 Terminal(CN1703) CKF1065 3 Terminal(CN1705) CKF1065 4 Terminal(CN1706) CKF1065 5 Connector(CN1100) CKS3749 6 Connector(CN1701) CKS4052 7 Connector(CN1700) CKS4374 8 Connector(CN1300) CKS4507 9 Screw(M2x3) CBA1486 10 Screw CBA1535 11 Screw(M2x2.2) CBA1547 12 Screw(M2x2.2) CBA1548 13 Screw(M1.4x2) CBA1549 14 Damper CNV6927 15 Washer CBF1038 16 Spring CBH2394 17 Spring CBH2395 18 Spring CBH2396 19 Spring CBH2397 20 Spring CBH2622 21 Spring CBH2399 22 Spring CBH2400 23 Spring CBH2401 24 Spring CBH2402 25 Spring CBH2403 26 Spring CBH2404 27 Spring CBH2405 28 Spring CBH2406 29 Spring CBH2407 30 Spring CBH2408 31 Spring CBH2410 32 Spring CBH2411 33 Spring CBH2413 34 Spring CBH2414 35 Spring CBL1499 36 Spring CBL1500 37 Sheet CNM7590 38 Pickup Unit(Service)(DP4)CXX1530 39 Shaft CLA3878 40 Shaft CLA3879 41 Shaft CLA3881 42 Lever CNC8988 43 Bracket CNC8992 44 Arm CNC8994 45 Sheet CNM6883 46 Sheet CNM6884 47 PCB CNP5971 48 Ball CNR1189 49 Guide CNV6352 50 Guide CNV6353 51 Guide CNV6354 52 Guide CNV6355 53 Guide CNV6356 54 Clamper CNV6357 55 Arm CNV6358 56 Gear CNV6361 57 Gear CNV6362 58-61 ••••• 62 Rack CNV6367 63 Damper CNV6368 64 Arm CNV6369 65 Arm CNV6370 66 Gear CNV6372 67 Holder CNV6374 68 Rack CNV6376 69 Arm CNV6377 70 Arm CNV6378 71 Arm CNV6379 72 Gear Unit CXB5959 73 Holder CNV6383 74 Guide CNV6384 75 Holder CNV6385 76 Lever Unit CXB5943 77 Holder Unit CXB5944 * 78 Holder Unit CXB5947 79 Frame Unit CXB5948 80 Frame Unit CXB5949 81 Arm Unit CXB5950 82 Arm Unit CXB5951 83 Arm Unit CXB5952 84 Chassis Unit CXB5953 85 Arm Unit CXB5954 86 Motor Unit(CRG) CXB5955 87 Screw Unit CXB5957 88 Roller Unit CXB5958 89 Washer CBF1060 90 Spring CBH2170 91 Roller CNV6068 92 Holder CNV6210 93 Washer YE20FUC 94 Motor Unit(LOAD) CXB5960 95 Motor Unit(SPDL) CXB6218 96 Washer YE15FUC 97 Screw IMS20P030FMC * 98 Shaft CLA3877 * 99 Gear CNV6359 * 100 Collar CNV6382 * 101 Arm Unit CXB5945 102 Connector(CN1401) CKS4052 103 Washer CBF1087 104 Roller CNV6928 105 Shaft CLA4180 106 Shaft CLA4181 107,108 ••••• 109 Screw (M2x3.5) CBA1560 110 Screw (M2x2.2) CBA1419 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 AVIC-90DVD,9DVD— 2.5 REMOTE CONTROL ASSY Mark No. Description Part No. - REMOTE CONTROL ASSY SECTION PARTS LIST 1 Remote Control Assy CXB9118 2 Cover CZN5432 3 Scroll Stick CZA5047 4 3D View Stick CZA5085 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 AVIC-90DVD,9DVD— www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM 1 19 1 19 1 19 1 19 IC 101 TC74LCX08FT 11 IC 112 TC7SH00FU 4 1 IC 114 TC7SH08FU 4 2 2 IRQPWR R/w cs^ CKE 84 96 105 CPU IC 2 UPD705103GM-180 IC 102 TC7SH04FU 1 13 IC 4 TC7SZ08FU 4 IC 1 K4S281632D-TL1L SDRAM IC 3 M2V2840ATP-7L SDRAM 37 37 XCS_SRAM SRAM_CSE 30 16 11 28 18 10 IC 803 TPS5102IDBT Q803 Q805 CCONB B.U POWER AMP SD3V Q807 Q806 IC 802 LP3965ES-ADJ 2.5V REGULATOR CCD2.5V CCD3V CN2 11 44 193 X2 X1 56 57 X1 30.000MHz 2 4 2 4 Q804 CCD5V 1 13 47 78 PORT80/TI G CN1401 CC UNIT E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A 1 IC 908 TC74VHC541FT IC 904 TC74VHCT541AFT Q301 A PC-CARD_I/F 6 XMS2RS K0RST 9 12 4 2 IC 309 TC7SH08FU 7 2 IC 302 TC7WH08FU 6 2 IC 301 M51957BFP CN302 CN3254 IC 304 PCM1725U DAC 2 8 1 IC 305 PCM1801U ADC CN901 55 IC 901 TC74VHCT541AFT IC 902 TC74VHCT541AFT IC 903 TC74VHCT541AFT IC 905 TC74LVX4245FS IC 906 TC74LVX4245FS 2 2 2 SCARLET IC 201 MB86291APFVS-G-DL 129 S 128 124 202 207 OSCOUT CLK X202 14.31818 MHz Q201 CCD3V SWDPC5CARD Q901 CCD5V Q903 CCD3V Q902 IC 103 TC74LCX245FT IC 104 TC74LCX245FT IC 105 TC74LCX245FT IC 113 M5M5V216ATP-70HI IC 106 TC74LCX245FT IC 107 TC74LCX541FT IC 108 TC74LCX541FT IC 109 TC74LCX541FT 1 19 1 19 1 19 1 19 BUS BUFFER BUS BUFFER BUS BUFFER FLASHROM FLASHROM SRAM BUS BUFFER BUS BUFFER BUS BUFFER BUS BUFFER CCD3V SOURCEON CPUWDT IRQPWR CTOSYS REM_IN PBSNS ANTON GUIDEON VIDEOSW CHGON HYOKA0 MONION ADC_GCNT0 ADC_GCNT1 CTOGPS DACOUTR ADC_GCNT2 GPSTOC 10 14 16 17 19 21 22 23 4 24 36 44 52 53 28 50 54 29 43 46 17 18 51 52 FSC OVER ONSEIMIC FSC OVER EXTAL0 XTAL0 16 18 X2 33.000MHz EXTAL1 XTAL1 58 60 X3 33.8688MHz ASIC IC 5 PD6336B (1/2) CCD3V X4 48.000MHz ADC_GCNT2 ADC_GCNT1 ADC_GCNT0 CPUWDT ILM PBSNS ANTON GUIDEON MONION CTOSYS VIDEOSW LPFSW REM_IN SOURCEON CTOGPS GPSTOC USB_CLK 65 142 143 127 148 126 125 124 45 27 82 50 14 96 29 30 10 11 44 XCS_SRAM SRAM_CSE 193 PC_XPWR 6 63 3 CCONB 5 11 CCON 5 129 ONSEIMUTE 68 ONSEIMUTE 59 20 ILM 46 ILM IC 907 TC74LVX4245FS 25 PCLED CDSW 26 CDSW 47 ASIC IC 5 PD6336B (2/2) DAC_DATA ADC_DATA 2 60 ADNOISE AOUTR AOUTG AOUTB 152 147 143 38 39 40 OUTRED OUTGREEN OUTBLUE IC 111 PD6404B (UC MODEL) PD6402B (EW MODEL) IC 110 PD6403B (UC MODEL) PD6401B (EW MODEL) TH153 CCX1056 PALMCTS THERMISTOR 5 GRAPHIC DISPLAY CONTROLLER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A TUNER UNIT SD 13 3 2 3 IC 571 S-81250SGUP AD5V SD S-METER AU8V Q551 8 VDD 7 3 SL SD 28 3 1 PLIO2 1 2 IC 3001 TC7S66F 10 CN556 CN3254 CN302 CN552 22 CN555 3 3 21 CTOGPS SPEED REVSNS RQ 16 GYRO OUT 11 3 GSNS 12 20 GPSTOC 19 POUT 15 G-SENSOR MODON 28 29 CN3254 CTOGPS GPSTOC FSC MONION 43 44 38 39 40 46 AOUTRED AOUTGREEN AOUTBLUE OVER 20 21 23 ILM PBSNS GUIDEON 22 ANTON 1,2 IC TC7S 3→5V 1,2 4 IC 3004 TC7SZ08FU 2 4 IC 3002 TC7SET08F 1 5 IC 665 NJM2904M SPEED SENSOR 7 6 IC 631 S-8423AFS BU3V(SRAM) 6 10 23 22 21 2 3 4 IC 3005 CXA1645M 4 IC TC7S 5→3V 1,2 IC TC7S 3→5V 4 IC TC7S BUF 4 17 CTOSYS 16 IRQPWR 14 CPUWDT 1,2 IC TC7S 3→5V 1,2 IC TC7S 3→5V 19 REM_IN 26 CDSW 25 PCLED RQ Q3001 CN3251 MAIN PCB BUP3V AD5V ROUT GOUT BOUT GY 572 CSX1052 3 1 GYRO SENSOR GY 573 CSX1042 G-SENSOR PCB Q3857 Q3858 Q3859 AU8V 1 2 7 6 IC 3851 NJM3404AM AUDIO LPF GAIN CONTROL (0dB to -13dB) Q3853 Q3852 Q3851 PROGGAIN2 PROGGAIN1 PROGGAIN0 ADNOISE ADONSEI 59 60 54 53 52 LPFSW 24 ONSEIMUTE 68 HYOKA 36 CCON 11 CCON 34 VIDEOOUT 28 VIDEOSW 4 Audio Rchout 12 XAMUTE 22 TMODE 20 DISC SET 24 EJSNS 21 Audio Lchout 15 7 IC 3951 NJM4558M 5 1 IC 3953 NJM4558M DACOUT LPF 1 7 2 IC 3006 NJM2246M 3 7 IC 3007 NJM2244M 75Ω DRIVER IC 3752 TC74HC4053AFT VOICE CON / TEL SW. LPF SW. 2 15 4 13 12 11 1 1 4 2 14 IC 3902 (1/2) NJM3414AM GUIDE AMP 7 6 1 IC 3601 (1/2) NJM3404AM MIC AMP 1 3 IC 3601 (2/2) NJM3404AM MIC HPF IC 3952 TC7S66FU GUIDE MUTE SW VOL CONT. Q3901 Q3905 Q3907 VDD5V VDD5 Q669 Q673 C CN302 3 1 IC 3602 NJM2904M 1/2VCC (AU2.5) AU25 CCD5 5 7 IC 3902 (2/2) NJM3414AM AU5V AU5V AU8V A PALMCTS 5 3 5 IC TC7S IC 608 TC7W32FU 1,2 4 IC 3753 TC7SET08FU DACOUTR 50 5 12 K0RST XRST 9 XRESET 16 CN1701 CN461 CN504 22 21 CTOGPS SPEED REVSNS RQ 8 9 133 132 16 20 1 4 1 6 7 1 4 17 19 22 110 130 131 120 140 143 5 2 X401 IC 502 PD6362B(UC) PD6361B(EW) FLASH ROM IC 503 M5M5V216ATP-70HI DRAM CRCK PIN0 PIN1 BOWWOWB RESETB IF Q441 IC 461 ADC12H034CIMSA RXD0 GPSTOC 7 19 TXD0 SPEED PSWOUT 17 15 ADIO2 PIN2 PIN3 IC 401 UPC2749T F401 CTF1548 IC 402 UPB1006GS IC 441 NJM2100V IC 501 PD3390A DRAGON RESET IC 504 MAX6364PUT29 BUP3V 128 129 X502 20.00MHz 16.368MHz XAUXIN XAUXOUT 102 103 X501 32.768kHz XRTCIN XRTCOUT 3 2 12 11 GSNSIN GYROIN GPS UNIT GPS ANTENNA A F D 3V BATTERY 3 VIDEO SELECTOR 20 1 1 2 5→3V CPU 13 3 13 3 PLIO2 RDS ANT. 1 2 CN551 EW MODEL ONLY DETIN 2 IC 532 LC72720YVS RDS DECODER X532 15 16 4.332MHz EW MODEL ONLY E G E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A 6 1 IC 662 TPD1018F ANT DRIVER B.U SYSTEM CONTROLLER IC 601 PE5228A 1,2 4 FROMCC 8 63 62 IC 602 TC7SET08FU 3 1 IC 1951 M5237ML 3→5V REG. 11 5 2 10 12 4 7 IC 661 PAJ002A 18 19 17 IC 1850 TPS5103IDB KEY MATRIX RESET BUFF RGB SENSE 2 3 5 6 IC 610 TC7W126FU 4 2 10 10 IC 606 TC7S14FU 1,2 4 IC 607 TC7SET08FU 4 1,2 IC 604 TC7SH08FU 5→3V REG. 1,2 4 IC 603 TC7SET08FU 3→5V REG. 4 1,2 IC 605 TC7SH08FU BUFFER 4 2 IRQPOW 32 CPUWDT 53 REMIN 61 CCON X2 X1 31 TVON 41 RGBMUTE 27 1,2 4 IC 612 TC7SET08FU 3→5V REG. 1,2 4 IC 613 TC7SET08FU 3→5V REG. TESTMODE 50 DISC 65 Q636 VDD5V DVD6V DVD8V Q661 asens bsens 60 reset 5 12 11 VOL TOEX FROMEX BUP VSW5V Q635 VDD5V Q1852 BUP 18 19 17 IC 1851 TPS5103IDB Q1853 BUP A Q1803 B.U Q1804 FAN MOTOR 2 11 10 ILM PKB GUIDE ON REV SOUND ON ACC PULSE 13 9 4 14 ANT ON 12 BUP 15 MONI ON BEACON 3 1 CN660 CN1801 CN1802 2 1 CN3257 MONON 22 HRXN HTXN 24 25 GUIDEON 21 REM-IN 18 TVON 20 YS RED GREEN BLUE CSYNC 8 1 2 3 4 CDSW 2 GLED 6 RLED CDSW GLED RLED KRST EJT 5 KRST 4 EJECT 3 CN2851 5 1 2 3 4 GUIDE+ GUIDE- 13 14 Lch 10 DVDVBS 6 Rch 11 GRILLE PCB INTERFACE PCB BUP AU8V Q1953 Q1952 Q1951 GND +BATTERY PARKING BRAKE + MUTE CAR SPEED SIGNAL INPUT ILL REVERSE-GEAR SIGNAL INPUT ACC EJECT SW RESET SW CARD SW Q2851 Q2852 CN5004 CN3901 MIC SPEAKER EXTENSION CN5001 CN5002 CN5005 18 19 17 16 GUIDE- GUIRTN+ GUIRTN- GUIDE+ 30 MICIN MICIN EXSP+ EXSP- RETSP+ RETSP- HYOKA VCE VCE 4 HYOKA GUIRTN- GUIRTN+ GUIDE- HYOKA VCUE GUIDE+ IC 5001 UPD4723GS RS232C DRIVER SP POWER AMP 9 6 7 VCUE 8 13 12 14 15 1 27 24 23 VCUE B Q1841 Q1842 Q667 ILM SENSE PARKING SENSE REVERSE SENSE Q665 Q668 Q664 Q671 6 1 IC 663 TPD1018F MOTOR DRIVER Q672 Q670 Q1805 Q1806 AU8V B.U B.U GPSBU 2 3 4 5 8 7 IC 3926 TDA7052A IC 3927 NJM2904M C Q662 B.U 70 69 X601 12.58MHz D D Q3151 B 6 1 IC 3901 NJM2068MD AUDIO Lch LPF+AMP Q3903 6 1 IC 3903 NJM2068MD AUDIO Rch LPF+AMP Q3902 Q3904 VDD5V Q3906 ACCPW 24 Q675 6 1 Q1802 IC 1801 NJM2903V IC 609 TC7SH04FU Q5001 29 RSTOUT B C CONNECTION BOX 5→3V REG. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A 30 11 12 28 DVD CORE UNIT V Q1104 Q1108 Q1105 Q1107 Q1102 65LD 78LD 2 41 4 VSHF Q1109 LCDSG1 Q1110 LCDSG2 Q1111 LCDSG3 CN1100 CN1300 LPC01 RFENV LPC02 5 7 IC 1101 NJM2904M IC 1704 TC74VCX08FT IC 1701 M5M5V216ATP-70HI IC1702 PD6396B FEP IC 1100 AN8702FH ODC IC 1400 MNZS25BDAUB ADSC IC 1200 MN677061ZYUB 59 XWR 100 MCK33 10 12 11 13 8 11 30 124 99 110 33 5 2 3 3 CPU IC 1700 PE5324C(1/2) 62 63 78 90 X1700 5MHz X2ENV CLKOUT 94 23 36 33 117 6 17 1 2 3 11 116 86 107 59 104 2 4 2 1 4 2 2 1 1 1 97 71 83 79 96 CD/DVD X2 X1 XWR BUSISO XRES XCSSRAM FSSW VCONTA VCONTB XUWR TILT1 TILT2 TILT3 AVREF ADENA DSCSNS Q1700 S1301 S1303 S1304 S1302 IC 1705 TC7SH04FU IC 1706 TC7SH32FU IC 1509 TC74VCX74FT IC 1401 TC74LCX245FT IC 1404 TC74LCX244FT IC 1503 TC74VCX74FT IC 1504 TC74VCX04FT SRAM FLASH MEMORY IC 1500 MSM56V16160F8TKFM SDRAM IC 1403 TC74LCX244FT IC 1405 TC7SH04FU IC 1506 SM8703AV IC 1501 MSM56V16160F8TKFM SDRAM IC 1802 BA033SFP IC 1804 BA00BC0WFP 2 IC 1803 BA18BC0WFP XBWR VGOUT CLK27 EXTCK HCLK 19 1 7 12 22 24 23 2 4 3 1 10 11 2 1 CLOCK GEN VCONTB VIDEO OUT Rch OUT Lch OUT AMUTE VCONTA Q1600 Q1601 F1600 IC 1601 AK4380VT Q1602 CN1700 CN1401 CN1701 VCC33 AV CHIP IC 1502 MN677532JAUB IC 1300 BA5985FM VCC VD63 2 1 IC 1801 BA05SFP VD63 27 6 7 8 PICKUP UNIT (SERVICE) (DP4) A,B1-4,C,RF+,RF- M SPINDLE MOTOR M CARRIAGE MOTOR M LOADING MOTOR FOP,FOM,TOP,TOM EC,CONT COP,COM DRIVER BLOCK 9 LOM 10 LOP CLAMP SW 12cm detect SW 8cm detect SW L/E ON/OFF SW GBAL, TBAL, FBAL Q1603 EXTCK,SRCKAV, AOUT0,LRCKAV A0-17,D0-15 CTS,DTR,RXPC,TXPC,VPP,SICOMN, SOCOMN,SCKCOMN 1 VCC33 4 VCC18 4 VCC27 4 28 22 15 12 TMODE 20 EJSNS 21 DISCSET 24 XRESET 16 CCON 34 CPU IC 1700 PE5324C(2/2) 105 DISCSET 74 EJECTSENS 25 TMODE 59 XRESET G E A CN2 CN3251 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 AVIC-90DVD,9DVD— www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A 3.2 OVERALL CONNECTION DIAGRAM Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS LIST”. MAIN ASSY DVD MECHANISM MODULE (MS2) MAIN UNIT CC UNIT GRILLE ASSY A 1/5 A 2/5 A 3/5 A 4/5 A 5/5 MAIN PCB(GPS) MAIN PCB(SYSCOM) MAIN PCB(P/S) MAIN PCB(VIDEO•CC CO MAIN PCB(AUDIO) E 1/6 E 2/6 E 3/6 E 4/6 E 5/6 CC UNIT(CPU,ASIC,SDRAM) CC UNIT(ROM,SRAM,BUS-BUFFER) CC UNIT(GRAPHIC) CC UNIT(PC CARD) CC UNIT(DSP,I/F CONNECTOR) CC UNIT(CC POWER SUPPLY) E 6/6 C GRILLE PCB B INT D G-SENSOR PCB G 1/2 G 2/2 DVD CORE UNIT V(FRONT END) DVD CORE UNIT V(BACK END) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A PS) YSCOM) S) DEO•CC CORE I/F) UDIO) B INTERFACE PCB F GPS UNIT CXB9354 TUNER UNIT (EW MODEL ONLY) (UC MODEL ONLY) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A MAIN PCB(GPS) 1/5 5V Re Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. EW MODEL ONLY MAIN UNIT Consists of MAIN PCB INTERFACE PCB GRILLE PCB G-SENSOR PCB 3.3 MAIN PCB 1/5 (GPS) 26 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A A 1/5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com GYRO SENSOR F CN461 A 3/5 A 4/5 A 2/5 5V Regulator D CN556 ates 27 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A A 1/5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A 3.4 MAIN PCB 2/5 (SYSCOM)(GUIDE PAGE) A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page A 5/5 A 1/5 A 4/5 *1 *1 *1 R605(UC MODEL ONLY) R606(EW MODEL ONLY) A 2/5 A-a 2/5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A DETOUCHSNS DETOUCHSNS DETOUCHSNS A 4/5 C CN2851 A MAIN PCB(SYSCOM) 2/5 A 5/5 A 3/5 A 4/5 MAIN UNIT Consists of MAIN PCB INTERFACE PCB GRILLE PCB G-SENSOR PCB A-b 2/5 A 2/5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A 1/5 A 4/5 30 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A A-a A-b 1 3 2 A-a 2/5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A 5/5 *1 *1 *1 R605(UC MODEL ONLY) R606(EW MODEL ONLY) 31 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A A-a A-b 5 4 A-a 2/5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DETOUCHSNS A 4/5 C CN2851 A MAIN PCB(SYSCOM) 2/5 A 5/5 A 3/5 32 1 2 3 4 1 2 3 4 D C B A A-a A-b AVIC-90DVD,9DVD— 1 3 2 A-b 2/5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A A-a A-b DETOUCHSNS DETOUCHSNS A 4/5 MAIN UNIT Consists of MAIN PCB INTERFACE PCB GRILLE PCB G-SENSOR PCB 5 4 A-b 2/5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FAN MOTOR > A 2/5 CXM1192 > > > A 4/5 A 1/5 THERMISTOR TEMPERATURE SENSOR 34 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A 3.5 MAIN PCB 3/5 (P/S) A 3/5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A CAR INTERFACE A MAIN PCB(P/S) 3/5 > > > > A 4/5 MAIN UNIT Consists of MAIN PCB INTERFACE PCB GRILLE PCB G-SENSOR PCB A 3/5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A A 5/5 CN1701 A 2/5 A 3/5 A 5/5 A 2/5 A 5/5 G 2/2 CN302 E 5/6 > D E F K H 3.6 MAIN PCB 4/5 (VIDEO•CC CORE I/F)(GUIDE PAGE) A 4/5 A-a 4/5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A SD3V R3264 0R0 D3157 1SS355 R3157 0R0 DETOUCHSNS DETOUCHSNS A MAIN PCB 4/5 A 2/5 A 2/5 A 2/5 A 3/5 A 1/5 (VIDEO • CC CORE I/F) A B C G,J I L M MAIN UNIT Consists of MAIN PCB INTERFACE PCB GRILLE PCB G-SENSOR PCB A-b 4/5 A 4/5 CORD ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A A 5/5 CN1701 A 2/5 A 3/5 A 5/5 G 2/2 CN302 E 5/6 > 1 2 3 A-a 4/5 A-a A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A A 2/5 A 5/5 D E F K H 4 5 A-a 4/5 A-a A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SD3V R3264 0R0 A MAIN PCB 4/5 A 2/5 A 3/5 A 1/5 (VIDEO • CC CORE I/F) MAIN UNIT Consists of MAIN PCB INTERFACE PCB GRILLE PCB G-SENSOR PCB 40 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A 1 2 3 A-b 4/5 A-a A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D3157 1SS355 R3157 0R0 DETOUCHSNS DETOUCHSNS A 2/5 A 2/5 A 2/5 A B C G,J I L M 41 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A 4 5 A-b 4/5 A-a A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 AVIC-90DVD,9DVD— - Waveforms Note: The encircled numbers denote measuring pointes in the circuit diagram. CH1 : C TP BLUE → CH2 : B TP GR → CH3 : A TP RED → CH1 : F TP BIN → CH2 : E TP GIN → CH3 : D TP RIN → • Navigation RGB Color Bar Signal • Navigation RGB Color Bar Signal • DVD Video Color Bar Signal CH1 : G TP VOUT → CH2 : H TP VIN0 → www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 AVIC-90DVD,9DVD— CH1 : I TP CSYNC → CH2 : J TP VOUT → • DVD Video Color Bar Signal • DVD Video Color Bar Signal CH1 : K TP FSC → www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 AVIC-90DVD,9DVD— CH1 : L TP Lch → CH2 : M TP Rch → CH1 : L TP Lch → CH2 : M TP Rch → CH1 : L TP Lch → CH2 : M TP Rch → • DVD Video : 1kHz, 0dB (48kHz and 16bit Sampling) • DVD Video : 1kHz, 0dB (96kHz and 24bit Sampling) • CDDA : 1kHz, 0dB * The A1 Disk is used. * The A1 Disk is used. * The TCD-785 Disk is used. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 AVIC-90DVD,9DVD— www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A A MAIN PCB(AUDIO) 5/5 A 4/5 A 4/5 A 4/5 3.7 MAIN PCB 5/5 (AUDIO)(GUIDE PAGE) A 5/5 A-a 5/5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A A 2/5 A 1/5 A 4/5 A 4/5 A 2/5 A 4/5 B CN5004 MAIN UNIT Consists of MAIN PCB INTERFACE PCB GRILLE PCB G-SENSOR PCB A-b 5/5 A 5/5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A A MAIN PCB(AUDIO) 5/5 A 4/5 A 4/5 1 3 2 4 A-a 5/5 A-a A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A A 4/5 A-a 5/5 A-a A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A A 4/5 A 2/5 A 4/5 1 3 2 4 A-b 5/5 A-a A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A A 2/5 A 1/5 A 4/5 B CN5004 MAIN UNIT Consists of MAIN PCB INTERFACE PCB GRILLE PCB G-SENSOR PCB A-b 5/5 A-a A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A 3.8 INTERFACE PCB B MIC SPEAKER A 5/5 CN3901 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EXTENSION (BLACK) B INTERFACE PCB UC MODEL ONLY MAIN UNIT Consists of MAIN PCB INTERFACE PCB GRILLE PCB G-SENSOR PCB 53 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A 3.9 GRILLE PCB CARD IN ILLUMI CARD OUT ILLUMI DISC INSERTION ILLUMI DISC INSERTION ILLUMI MODEL NAME ILLUMI CN660 C GRILLE PCB A 2/5 MAIN UNIT Consists of MAIN PCB INTERFACE PCB GRILLE PCB G-SENSOR PCB C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A CN555 D G-SENSOR PCB A 1/5 MAIN UNIT Consists of MAIN PCB INTERFACE PCB GRILLE PCB G-SENSOR PCB CSX1052 3.10 G-SENSOR PCB D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A 3.11 CC UNIT 1/6 (CPU, ASIC, SDRAM)(GUIDE PAGE) E 4/6 E CC UNIT(CPU,ASIC,SDRAM) 1/6 E 3/6 E 1/6 E-a 1/6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ← R181 TH153 E 2/6 E 5/6 G CN1401 1/2 57 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A E-b 1/6 E 1/6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com E 4/6 E CC UNIT(CPU,ASIC,SDRAM) 1/6 58 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A E-a E-b 1 2 E-a 1/6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com E 3/6 59 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A 3 E-a 1/6 E-a E-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ← E 5/6 G CN1401 1/2 60 1 2 3 4 1 2 3 4 D C B A E-a E-b AVIC-90DVD,9DVD— 1 2 E-b 1/6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A E-b 1/6 ← R181 TH153 E 2/6 3 E-a E-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com E 1/6 PD6403B(U PD6401B(E PD6404 PD6402 62 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A 3.12 CC UNIT 2/6 (ROM, SRAM, BUS-BUFFER) E 2/6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A E 2/6 E CC UNIT(ROM,SRAM,BUS-BUFFER) 2/6 E 3/6 E 4/6 E 5/6 PD6403B(UC MODEL) PD6401B(EW MODEL) PD6404B(UC MODEL) PD6402B(EW MODEL) UC MODEL ONLY EW MODEL ONLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A E 2/6 E CC UNIT(GRAPHIC) 3/6 E 1/6 Graphic Display 3.13 CC UNIT 3/6 (GRAPHIC) E 3/6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A E 3/6 E 5/6 Display Controller www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A E CC UNIT(PC CARD) 4/6 PC CARD 5V←3.3V 5V 3.3V ← 3.14 CC UNIT 4/6 (PC CARD) E 4/6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A E 4/6 E 1/6 E 2/6 E 5/6 5V↔3.3V 3.3V PC CARD POWER SW ← www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A E 1/6 E 2/6 E 3/6 E 4/6 A 4/5 CN3254 RE 3.15 CC UNIT 5/6 (DSP, I/F CONNECTOR)(GUIDE PAGE) E 5/6 E-a 5/6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A E 6/6 E CC UNIT(DSP,I/F CONNECTOR) 5/6 ESET NAVI SOUND E-b 5/6 E 5/6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A E 1/6 E 2/6 RESET 1 2 E-a 5/6 E-a E-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A E-a 5/6 E 3/6 E 4/6 A 4/5 CN3254 3 E-a E-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A E 6/6 E CC UNIT(DSP,I/F CONNECTOR) 5/6 RESET NAVI SOUND 1 2 E-b 5/6 E-a E-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A E-b 5/6 3 E-a E-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A 3.16 CC UNIT 6/6 (CC POWER SUPPLY) E 5/6 E CC UNIT(CC POWER SUPPLY) 6/6 > > 2.5V Regulator DC/DC E 6/6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A E 5/6 > DC/DC Converter 3.3V 5V 2ch E 6/6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A RF ADC CN552 A 1/5 ADC12H034CIMSA EW MODEL ONLY F 3.17 GPS UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A 77 F CPU FLASH ROM F GPS UNIT EW MODEL ONLY EW MODEL ONLY PD6362B(UC MODEL) PD6361B(EW MODEL) 10K(UC MODEL) 4R7K(EW MODEL) 10K(UC MODEL) 3R3K(EW MODEL) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MN677061ZYUB 5.0V 8.0V POWER SUPPLY 5.0V 3.3V POWER SUPPLY 5.0V 3.3V POWER SUPPLY 3.3V 2.7V 2.2V 1.65V 2.2V 1.65V 2 8 3 0 4 7 9 1 6 RF SIGNAL FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE CLOCK LINE F T C S CLK F T F T F T F T F T F T F T F T F T F T S C C S S C C S S C M M2 SPINDLE MOTOR CXB6218 M M3 CARRIAGE MOTOR CXB5955 M M1 LOADING MOTOR CXB5960 1/2 G DVD CORE UNIT V(FRONT END) 2/2 G PICKUP UNIT(SERVICE)(DP4) RF AMP BLOCK DISC DETECT SWITCH DRIVER BLOCK SERVO CONTROLLER BLOCK SERVO-C 2/2 G 3.18 DVD MECHANISM MODULE(1/2)(GUIDE PAGE) 78 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A G 1/2 G-a 1/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SYSTEM CONTROLLER I/F SYSTEM CONTROLLER I/F MNZS25BDAUB 680 680 680 680 680 680 POWER SUPPLY 3.3V 2.7V 5 ^ & % $ # @ ! S C S C CLK 33.8MHz CLK CLK CLK CLK K CPU I/F OPTICAL DISC CONTROLLER BLOCK ODC-CPU I/F MPEG STREAM 2/2 G 2/2 G 2/2 G E 1/6 CN2 ATAPI I/F 79 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A G-b 1/2 G 1/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A G-a G-b G-a 1/2 POWER SUPPLY 5.0V 3.3V 2 2V 2.2V 1.65V 8 3 0 RF SIGNAL FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE CLOCK LINE F T C S CLK F T 1/2 G DVD CORE UNIT V(FRONT END) 2/2 G PICKUP UNIT(SERVICE)(DP4) RF AMP BLOCK SERVO-CPU I/F 1 2 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A G-a 1/2 G-a G-b MN677061ZYUB 5.0V 8.0V POWER SUPPLY 5.0V 3.3V POWER SUPPLY 3.3V 2.7V 2.2V 1.65V 2 8 4 7 9 1 6 F T F T F T F T F T F T F T F T F F T S S C C S S C C S S C M M2 SPINDLE MOTOR CXB6218 M M3 CARRIAGE MOTOR CXB5955 M M1 LOADING MOTOR CXB5960 DISC DETECT SWITCH DRIVER BLOCK SERVO CONTROLLER BLOCK 2/2 G 4 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 1 2 3 4 1 2 3 4 D C B A G-a G-b AVIC-90DVD,9DVD— G-b 1/2 SYSTEM CONTROLLER I/F SYSTEM CONTROLLER I/F MNZS25BDAUB POWER SUPPLY 3.3V 2.7V 5 CLK 33.8MHz CLK -CPU I/F OPTICAL DISC CONTROLLER BLOCK ODC-CPU I/F 2/2 G 2/2 G 1 2 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A G-b 1/2 G-a G-b 680 680 680 680 680 680 ^ & % $ # @ ! S C S C CLK CLK CLK CK MPEG STREAM 2/2 G E 1/6 CN2 ATAPI I/F 4 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD6396B 4.97MHz 1/2 G 1/2 G 1/2 G 1/2 G 1/2 G 1/2 G MICRO COMPUTER BLOCK POWER SUPPLY POWER SUPPLY 3.3V CLOCK FREQUENCY 5MHz 1.8V 6.3V(5.0V) 2.7V 3.3V › PE5324C 84 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A G 2/2 3.19 DVD MECHANISM MODULE(2/2)(GUIDE PAGE) G-a 2/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MN677532JAUB 470 200 VCC A 4/5 CN3251 1/2 G 1/2 G MPEG STREAM 2/2 G DVD CORE UNIT V(BACK END) AV CHIP BLOCK CLK 33.8MHz AUDIO 2ch ANALOG OUT SRCKAV AOUT0 LRCKAV SRCKAV AOUT0 LRCKAV POWER SUPPLY 3.3V * ( ) ¤ ‹ L1732 L1759 L1760 (P940MP) 85 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A G 2/2 G-b 2/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 86 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A PD6396B 1/2 G 1/2 G 1/2 G 1/2 G 1/2 G 1/2 G POWER SUPPLY 1.8V 6.3V(5.0V) 2.7V 3.3V › 1 G-a G-b G-a 2/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 87 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A 4.97MHz MICRO COMPUTER BLOCK POWER SUPPLY 3.3V CLOCK FREQUENCY 5MHz PE5324C 2 G-a 2/2 G-a G-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 88 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A 1 470 VCC A 4/5 CN3251 1/2 G 2/2 G DVD CORE UNIT V(BACK END) AV CHIP BLOCK CLK 33.8MHz AUDIO 2ch ANALOG OUT SRCKAV AOUT0 LRCKAV SRCKAV AOUT0 LRCKAV ¤ ‹ L1732 L1759 L1760 (P940MP) G-a G-b G-b 2/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 89 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A 2 MN677532JAUB 200 1/2 G MPEG STREAM POWER SUPPLY 3.3V * ( ) G-b 2/2 G-a G-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 90 AVIC-90DVD,9DVDII 1 FEY 500mV/div. 1ms/div. Focus search 2 CH1: ASF 3 CH2: RFENV Focus search 200ms/div. 1ms/div. 1 CH1: FEY 500mV/div. 1ms/div. 4 CH2: FD 1V/div. 1ms/div. Focus close 2 CH1: ASF 3 CH1: RFENV Focus close 1 CH1: FEY 5 CH2: FOK Focus close 500mV/div. 10ms/div. 6 CH1: TEY 500mV/div. 1ms/div. Focus close(DVD) 6 CH1: TEY 500mV/div. 1ms/div. Focus close(CD) 1 CH1: FEY 4 CH2: FD Play 500mV/div.20ms/div. 6 CH1: TEY 7 CH2: TD Play 500mV/div.20ms/div. 8 CH1: RFOUT 0.1V/div. 0.1µs/div. Play(DVD surroundings on inside) 8 CH1: RFOUT 0.1V/div. 0.2µs/div. Play(CD) 6 CH1: TEY 9 CH2: CRGDRV Surroundings on inside-> surroundings on outside 500mV/div. 100ms/div. VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ 200mV/div. 2ms/div. VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ - Waveforms Note:1. The encircled number denote measuring pointes in the circuit diagram. 2. Reference voltage VHALF : 1.65V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 91 AVIC-90DVD,9DVD— 8 CH1: RFOUT200mV/div. 100µs/div. 0 CH2: BDO 2V/div. 100µs/div. Black dot 4 CH1: FD 1V/div. 100µs/div. 7 CH2: TD 500mV/div. 100µs/div. Black dot 6 CH1: TEY 1 CH2: FEY EDC1 mode set up(DVD) 500mV/div.1s/div. VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ ! CH1: STD1 @ CH2: STD4 # CH3: STD7 $ CH4: STENABLE G→ 5V/div. 2µs/div. G→ G→ G→ ←T % CH1: AVRTM ^ CH2: STCLK & CH3: STVALID $ CH4: STENABLE G→ 5V/div. 2µs/div. G→ G→ G→ ←T % CH1: AVRTM ^ CH2: STCLK & CH3: STVALID $ CH4: STENABLE G→ 5V/div. 50µs/div. G→ G→ G→ ←T * CH1: AOUT0 ( CH2: SRCKAV ) CH3: LRCKAV G→ 2V/div. 2µs/div. G→ G→ ←T ¤ CH1: LO ‹ CH2: RO G→ 1V/div. 500µs/div. G→ ←T › CH1: COMPO 200mV/div. 10µs/div. [White 100% output] G→ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 92 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A 3.20 PU UNIT(REFERENCE) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 93 AVIC-90DVD,9DVD— www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com IC,Q A MAIN PCB G CN1701 D CN556 C CN B CN500 4. PCB CONNECTION DIAGRAM 4.1 MAIN PCB 94 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A A Capacitor Connector P.C.Board Chip Part SIDE A SIDE B NOTE FOR PCB DIAGRAMS 1. The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2. Viewpoint of PCB diagrams FRONT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C CN2851 CN5004 FAN MOTOR CORD ASSY F CN461 E CN302 CORD ASSY ANTENNA CABLE (EW MODEL ONLY) 95 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A A SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A MAIN PCB 96 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com IC,Q 97 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 98 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A B 4.2 INTERFACE PCB SIDE A SIDE B IC,Q B INTERFACE PCB MICROPHONE SPEAKER EXTENSION IC,Q B INTERFACE PCB A CN3901 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com IC,Q C GRILLE PCB A CN660 PC-CARD C GRILLE PCB RESET EJECT 99 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A C 4.3 GRILLE PCB SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 100 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A D 4.4 G-SENSOR PCB D G-SENSOR PCB A CN555 D G-SENSOR PCB SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com IC,Q F GPS UNIT 101 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A 4.5 GPS UNIT F IC,Q F GPS UNIT A CN552 GPS ANTENNA SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com F E CC UNIT IC,Q PC Card G CN1401 102 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A E 4.6 CC UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com F SIDE A 103 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com F E CC UNIT 104 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com F SIDE B IC,Q A CN3254 105 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 106 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A IC,Q M2 M3 M1 PICKUP UNIT (SERVICE) (DP4) 4.7 DVD CORE UNIT V G DVD CORE UNIT V G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 107 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A ADJ M2 M3 A CN3251 E CN2 G SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 108 AVIC-90DVD,9DVD— 1 2 3 4 1 2 3 4 D C B A L1521 L1519 L1520 R1535 R1443 R1442 L/E ON/OFF G DVD CORE UNIT V G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 109 AVIC-90DVD,9DVD— 5 6 7 8 5 6 7 8 D C B A IC,Q CLAMP 12cm DETECT 8cm DETECT G SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 110 AVIC-90DVD,9DVD— 5. ELECTRICAL PARTS LIST NOTE: - Parts whose parts numbers are omitted are subject to being not supplied. - The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... Unit Number : CWM8391(AVIC-90DVD/UC) : CWM8390(AVIC-9DVD—/EW) Unit Name : CC Unit MISCELLANEOUS IC 1 IC K4S281632D-TL1L IC 2 IC UPD705103GM-180 IC 3 IC M2V2840ATP-7L IC 4 IC TC7SZ08FU IC 5 IC PD6336B IC 101 IC TC74LCX08FT IC 102 IC TC7SH04FU IC 103 IC TC74LCX245FT IC 104 IC TC74LCX245FT IC 105 IC TC74LCX245FT IC 106 IC TC74LCX245FT IC 107 IC TC74LCX541FT IC 108 IC TC74LCX541FT IC 109 IC TC74LCX541FT IC 110 IC (AVIC-90DVD/UC) PD6403B IC 110 IC (AVIC-9DVD—/EW) PD6401B IC 111 IC (AVIC-90DVD/UC) PD6404B IC 111 IC (AVIC-9DVD—/EW) PD6402B IC 112 IC TC7SH00FU IC 113 IC M5M5V216ATP-70HI IC 114 IC TC7SH08FU IC 201 IC MB86291APFVS-G-DL IC 301 IC M51957BFP IC 302 IC TC7WH08FU IC 304 IC PCM1725U IC 305 IC PCM1801U IC 309 IC TC7SH08FU IC 802 IC LP3965ES-ADJ IC 803 IC TPS5102IDBT IC 901 IC TC74VHCT541AFT IC 902 IC TC74VHCT541AFT IC 903 IC TC74VHCT541AFT IC 904 IC TC74VHCT541AFT IC 905 IC TC74LVX4245FS IC 906 IC TC74LVX4245FS IC 907 IC TC74LVX4245FS IC 908 IC TC74VHC541FT Q 201 Transistor UMD2N Q 301 Transistor DTC114EU Q 803 Transistor 2SA1834F5 Q 804 Transistor 2SC4081 Q 805 Transistor DTC114EU Q 806 FET RK4936 Q 807 FET RK4936 Q 901 Transistor 2SA1797 Q 902 Transistor 2SC2712 Q 903 Transistor DTA114EU D 801 Diode RB400D D 802 Diode RB400D D 803 Diode RB060L-40 D 804 Diode RB060L-40 L 1 Inductor CTF1558 L 2 Inductor CTF1558 L 3 Inductor CTF1410 L 5 Inductor CTF1556 L 6 Inductor CTF1295 L 7 Inductor CTF1558 L 8 Inductor CTF1556 L 101 Inductor CTF1557 L 102 Inductor CTF1557 L 103 Inductor CTF1557 L 104 Inductor CTF1557 L 105 Inductor CTF1557 L 106 Inductor CTF1557 L 107 Inductor CTF1557 L 108 Inductor CTF1557 L 109 Inductor CTF1557 L 110 Inductor CTF1556 L 111 Inductor CTF1556 L 112 Inductor CTF1556 L 113 Inductor CTF1557 L 114 Inductor CTF1557 L 201 Inductor CTF1556 L 203 Inductor CTF1556 L 204 Inductor CTF1488 L 205 Inductor CTF1556 L 206 Inductor CTF1556 L 207 Inductor CTF1379 L 301 Inductor CTF1557 L 302 Inductor CTF1557 L 305 Inductor CTF1556 L 306 Inductor CTF1556 L 307 Inductor CTF1556 L 312 Inductor CTF1410 L 801 Inductor CTH1257 L 802 Inductor CTH1257 L 803 Inductor CTH1253 L 901 Inductor CTF1410 L 902 Inductor CTF1410 L 903 Inductor CTF1410 L 904 Inductor CTF1410 L 905 Inductor CTF1410 L 906 Inductor CTF1410 L 907 Inductor CTF1410 L 908 Inductor CTF1410 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-90DVD,9DVD— 111 L 909 Inductor CTF1410 L 910 Inductor CTF1410 L 911 Inductor CTF1410 TH 153 Thermistor CCX1056 X 1 Radiator 30.0MHz CSS1563 X 2 Radiator 33.0MHz CSS1564 X 3 Radiator 33.86MHz CSS1551 X 202 Radiator 14.31818MHz CSS1562 FU 801 Fuse 4A CEK1199 FU 802 Fuse 2.5A CEK1209 FU 803 Fuse 2.5A CEK1209 EF 801 EMI Filter CCG1083 EF 901 EMI Filter CCG1104 EF 902 EMI Filter CCG1083 EF 903 EMI Filter CCG1083 RESISTORS R 2 RS1/16S0R0J R 4 RS1/16S0R0J R 5 RS1/16S473J R 6 RS1/16S473J R 7 RS1/16S220J R 8 RS1/16S473J R 9 RS1/16S473J R 10 RS1/16S104J R 11 RAB4C473J R 12 RS1/16S105J R 13 RS1/16S151J R 15 RS1/16S0R0J R 17 RS1/16S0R0J R 19 RS1/16S473J R 20 RS1/16S101J R 21 RS1/16S101J R 22 RS1/16S101J R 23 RS1/16S105J R 24 RS1/16S151J R 25 RS1/16S101J R 26 RS1/16S101J R 27 RS1/16S101J R 28 RS1/16S101J R 29 RS1/16S101J R 30 RS1/16S101J R 31 RS1/16S101J R 32 RS1/16S473J R 33 RS1/16S473J R 34 RS1/16S105J R 35 RS1/16S104J R 36 RS1/16S101J R 37 RS1/16S101J R 38 RS1/16S101J R 39 RS1/16S101J R 45 RS1/16S104J R 46 RS1/16S104J R 47 RS1/16S104J R 48 RS1/16S104J R 49 RS1/16S104J R 50 RS1/16S104J R 51 RS1/16S101J R 52 RS1/16S101J R 53 RS1/16S101J R 54 RS1/16S101J R 55 RS1/16S101J R 57 RS1/16S101J R 59 RS1/16S101J R 60 RS1/16S101J R 61 RS1/16S0R0J R 62 RS1/16S101J R 63 RS1/16S101J R 64 RS1/16S101J R 65 RS1/16S101J R 66 RS1/16S101J R 67 RS1/16S101J R 68 RS1/16S101J R 69 RS1/16S101J R 70 RS1/16S101J R 71 RS1/16S101J R 72 RS1/16S101J R 73 RS1/16S101J R 74 RS1/16S101J R 75 RS1/16S101J R 76 RS1/16S101J R 77 RS1/16S101J R 78 RS1/16S101J R 79 RS1/16S101J R 80 RS1/16S101J R 81 RS1/16S101J R 82 RS1/16S101J R 83 RS1/16S102J R 84 RS1/16S562J R 85 RS1/16S103J R 87 RS1/16S104J R 88 RS1/16S104J R 89 RS1/16S0R0J R 90 RS1/16S0R0J R 93 RS1/16S153J R 94 RS1/16S153J R 95 RS1/16S153J R 96 RS1/16S153J R 97 RS1/16S473J R 98 RS1/16S473J R 101 RS1/16S473J R 102 RS1/16S473J R 103 RS1/16S473J R 104 RS1/16S220J R 110 (AVIC-9DVD—/EW) RS1/16S0R0J R 111 (AVIC-90DVD/UC) RS1/16S0R0J R 154 RS1/16S473J R 155 RS1/16S473J R 156 RS1/16S473J R 157 RS1/16S473J R 158 RS1/16S473J R 159 RS1/16S473J R 160 RS1/16S473J R 161 RS1/16S103J R 162 RS1/16S473J R 163 RS1/16S560J R 166 RS1/16S473J R 176 RS1/16S0R0J R 180 RS1/16S220J R 181 RS1/16S473J R 201 RN1/16SE1502D R 202 RN1/16SE1202D R 210 RS1/16S104J R 211 RS1/16S104J R 212 RS1/16S104J R 213 RS1/16S104J R 217 RS1/16S272J R 220 RS1/16S223J R 221 RS1/16S105J R 222 RS1/16S151J R 224 RS1/16S0R0J R 225 RS1/16S104J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 112 AVIC-90DVD,9DVD— R 226 RS1/16S104J R 227 RS1/16S104J R 228 RS1/16S104J R 229 RS1/16S560J R 230 RS1/16S104J R 232 RS1/16S104J R 237 RS1/16S104J R 238 RS1/16S330J R 240 RS1/16S104J R 301 RS1/16S123J R 302 RS1/16S103J R 303 RS1/16S473J R 320 RS1/16S201J R 329 RS1/16S221J R 330 RS1/16S221J R 331 RS1/16S221J R 332 RS1/16S221J R 333 RS1/16S221J R 334 RS1/16S221J R 335 RS1/16S221J R 336 RS1/16S221J R 349 RS1/16S473J R 803 RN1/16SE1002D R 804 RN1/16SE3901D R 806 RS1/16S101J R 807 RS1/16S330J R 808 RS1/16S330J R 809 RS1/16S102J R 810 RS1/16S100J R 811 RN1/16SE1001D R 812 RN1/16SE1501D R 813 RN1/16SE3300D R 814 RN1/16SE1001D R 815 RN1/16SE3001D R 816 RN1/16SE3300D R 817 RS1/16S332J R 818 RS1/16S473J R 819 RS1/16S102J R 820 RS1/16S101J R 822 RS1/16S473J R 823 RS1/16S104J R 824 RS1/16S150J R 825 RS1/16S224J R 826 RS1/16S224J R 827 RS1/16S150J R 828 RS1/16S104J R 829 RN1/16SE6801D R 833 RS1/16S330J R 834 RS1/16S102J R 835 RS1/16S392J R 903 RS1/16S101J R 904 RS1/16S101J R 905 RS1/16S101J R 906 RS1/16S101J R 907 RS1/16S101J R 908 RS1/16S101J R 910 RAB4C101J R 911 RAB4C101J R 912 RAB4C101J R 913 RAB4C101J R 914 RAB4C101J R 915 RAB4C101J R 916 RAB4C101J R 917 RAB4C101J R 918 RAB4C101J R 919 RAB4C101J R 920 RAB4C101J R 921 RAB4C101J R 922 RAB4C101J R 923 RAB4C473J R 924 RS1/16S473J R 925 RS1/16S473J R 926 RS1/16S101J R 927 RS1/16S101J R 929 RS1/16S104J R 930 RS1/16S104J R 931 RS1/16S104J R 932 RS1/16S104J R 933 RS1/16S270J R 934 RS1/16S103J R 935 RS1/16S472J R 936 RS1/16S103J R 937 RS1/16S270J R 938 RS1/16S270J R 939 RS1/16S270J CAPACITORS C 1 CKSRYB104K16 C 2 CKSRYB104K16 C 3 CKSRYB104K16 C 4 CKSRYB104K16 C 5 CKSRYB104K16 C 6 CKSRYB104K16 C 7 CKSRYB104K16 C 8 CKSRYB104K16 C 9 CKSRYB104K16 C 10 CKSRYB104K16 C 11 CKSRYB104K16 C 12 CSZSQ100M6R3 C 13 CKSRYB104K16 C 14 CKSRYB104K16 C 15 CKSRYB104K16 C 16 CKSRYB104K16 C 17 CKSRYB104K16 C 18 CCSRCH100D50 C 19 CCSRCH100D50 C 20 CKSRYB104K16 C 21 CKSRYB104K16 C 22 CKSRYB104K16 C 23 CKSRYB104K16 C 24 CKSRYB104K16 C 25 CKSRYB104K16 C 26 CKSRYB104K16 C 27 CSZSQ100M6R3 C 28 CKSRYB104K16 C 29 CKSRYB104K16 C 30 CKSRYF104Z25 C 31 CCSRCH5R0D50 C 32 CCSRCH5R0D50 C 33 CKSRYB104K16 C 35 CKSRYB104K16 C 36 CKSRYB104K16 C 38 CSZS100M10 C 39 CKSRYB104K16 C 40 CKSRYB104K16 C 41 CKSRYB104K16 C 42 CKSRYB104K16 C 44 CKSRYB104K16 C 47 CKSRYB104K16 C 49 CKSRYB104K16 C 54 CCSRCH121J50 C 55 CKSRYB104K16 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-90DVD,9DVD— 113 C 57 CKSRYB104K16 C 60 CKSRYB104K16 C 63 CKSRYB104K16 C 64 CKSRYB104K16 C 66 CKSRYB104K16 C 67 CSZSQ100M6R3 C 68 CSZS330M6R3 C 69 CSZS330M6R3 C 70 CSZS330M6R3 C 71 CKSRYF103Z50 C 72 CKSRYF103Z50 C 73 CKSRYF104Z25 C 74 CKSRYF104Z25 C 75 CKSRYF104Z25 C 76 CKSRYB104K16 C 78 CKSRYB104K16 C 79 CKSRYB104K16 C 101 CKSRYB104K16 C 102 CKSRYB104K16 C 103 CKSRYB104K16 C 104 CKSRYB104K16 C 105 CKSRYB104K16 C 106 CKSRYB104K16 C 107 CKSRYB104K16 C 108 CKSRYB104K16 C 109 CKSRYB104K16 C 110 CSZSQ100M6R3 C 111 CKSRYB104K16 C 112 CKSRYF224Z16 C 113 CSZSQ100M6R3 C 114 CKSRYB104K16 C 115 CKSRYF224Z16 C 116 CKSRYF104Z25 C 117 CSZSQ100M6R3 C 118 CKSRYB104K16 C 119 CKSRYF104Z25 C 120 CKSRYF104Z25 C 121 CKSRYF104Z25 C 122 CKSRYF104Z25 C 123 CKSRYF103Z50 C 124 CCSRCH101J50 C 125 CKSRYF104Z25 C 126 CKSRYF104Z25 C 201 CKSRYB104K16 C 202 CKSRYB104K16 C 203 CKSRYB104K16 C 204 CKSRYB104K16 C 205 CKSRYB104K16 C 206 CKSRYB104K16 C 207 CKSRYB104K16 C 208 CKSRYB104K16 C 209 CKSRYB104K16 C 211 CKSRYB104K16 C 213 CKSRYB104K16 C 214 CKSRYB104K16 C 215 CKSRYB104K16 C 216 CKSRYB104K16 C 217 CKSRYB104K16 C 220 CSZS100M10 C 221 CKSRYB104K16 C 222 CKSRYB104K16 C 223 CKSRYB224K10 C 224 CKSRYB104K16 C 225 CKSRYB104K16 C 227 CKSRYB104K16 C 228 CKSRYB104K16 C 230 CCSRCH150J50 C 231 CCSRCH120J50 C 232 CKSRYB104K16 C 233 CKSRYB104K16 C 234 CKSRYB104K16 C 235 CKSRYB104K16 C 237 CKSRYB104K16 C 238 CKSRYB104K16 C 239 CKSRYB104K16 C 240 CKSRYB104K16 C 241 CKSRYB104K16 C 242 CKSRYB104K16 C 243 CKSRYB104K16 C 244 CKSRYB104K16 C 245 CKSRYB104K16 C 246 CKSRYB104K16 C 247 CKSRYB104K16 C 248 CKSRYB104K16 C 249 CSZS100M10 C 250 CSZS100M10 C 251 CSZS100M10 C 252 CSZS100M10 C 253 CKSRYF104Z25 C 301 CKSRYF104Z25 C 302 CKSRYB334K10 C 303 CKSRYF104Z25 C 306 CKSRYF104Z25 C 323 CSZS100M10 C 324 CKSRYB104K16 C 327 CSZS100M10 C 328 CKSRYB104K16 C 329 CSZS100M10 C 330 CSZS4R7M10 C 331 CSZS4R7M10 C 332 CKSRYB104K16 C 339 CSZS100M10 C 341 CCSRCH101J50 C 342 CKSRYF104Z25 C 343 CKSRYB102K50 C 802 CSZSR101M6R3 C 804 CCSRCH680J50 C 805 CSZSR101M6R3 C 806 CKSRYB104K16 C 808 CKSRYB105K10 C 809 CCSRCH101J50 C 810 4.7µF CCG1111 C 811 CCSRCH470J50 C 812 CKSYB475K10 C 813 CKSRYF474Z16 C 814 CKSRYF474Z16 C 815 10µF CCG1150 C 816 10µF CCG1150 C 817 CCSRCH221J50 C 819 330µF/6.3V CCH1366 C 820 330µF/6.3V CCH1366 C 821 CKSRYB682K50 C 822 CKSRYB224K10 C 823 CKSRYB103K25 C 824 CKSRYB223K25 C 825 CKSRYB103K25 C 826 CKSRYB104K16 C 827 10µF CCG1150 C 828 10µF CCG1150 C 829 CKSRYF104Z25 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 114 AVIC-90DVD,9DVD— C 830 CKSRYF104Z25 C 831 CSZS100M6R3 C 832 CKSRYF103Z50 C 833 CKSRYF104Z25 C 834 CKSRYF103Z50 C 835 CKSRYF103Z50 C 836 CKSRYF104Z25 C 837 CKSRYF103Z50 C 901 CKSRYF104Z25 C 902 CKSRYF104Z25 C 903 CKSRYF104Z25 C 904 CKSRYF104Z25 C 905 CKSRYF104Z25 C 906 CKSRYF104Z25 C 907 CKSRYF104Z25 C 908 CKSRYF104Z25 C 909 CKSRYF104Z25 C 910 CKSRYF104Z25 C 911 CKSRYF104Z25 C 912 CKSRYF104Z25 C 913 CKSRYF104Z25 C 914 CKSRYB334K10 Unit Number : CWX2591(AVIC-90DVD/UC) : CWX2590(AVIC-9DVD—/EW) Unit Name : GPS Unit MISCELLANEOUS IC 401 IC UPC2749T IC 402 IC UPB1006GS IC 441 IC NJM2100V IC 461 IC ADC12H034CIMSA IC 501 IC PD3390A IC 502 IC (AVIC-90DVD/UC) PD6362B IC 502 IC (AVIC-9DVD—/EW) PD6361B IC 503 IC M5M5V216ATP-70HI IC 504 IC MAX6364PUT29 IC 532 IC (AVIC-9DVD—/EW) LC72720YVS Q 441 Transistor 2SB1132 D 401 Diode 1SV314 D 501 Diode RB751V40 L 401 Inductor CTF1549 L 402 Inductor CTF1486 L 403 Inductor CTF1486 L 404 Inductor LCSA3N3R1608 L 405 Inductor LCYB22NJ1608 L 406 Inductor LCYB22NJ1608 L 407 Inductor CTF1410 L 408 Inductor (AVIC-90DVD/UC) CTF1556 L 408 Inductor (AVIC-9DVD—/EW) CTF1410 L 409 Inductor LCTB1R0K2125 L 410 Inductor CTF1547 L 412 Inductor CTF1547 L 413 Inductor CTF1547 L 414 Inductor CTF1547 L 415 Inductor CTF1547 L 416 Inductor CTF1547 L 417 Inductor CTF1547 L 418 Inductor CTF1410 L 441 Inductor CTF1410 L 442 Inductor CTF1410 L 461 Inductor CTF1410 L 462 Inductor CTF1410 L 467 Inductor CTF1547 L 468 Inductor CTF1547 L 469 Inductor CTF1410 L 501 Inductor CTF1410 L 502 Inductor CTF1410 L 503 Inductor CTF1410 L 504 Inductor CTF1410 L 531 Inductor CTF1410 X 401 TCXO 16.368MHz CWX2381 X 501 Radiator 32.768kHz CSS1319 X 502 Radiator 20.00MHz CSS1549 X 532 Radiator 4.332MHz (AVIC-9DVD—/EW) CSS1550 F 401 Filter CTF1548 RESISTORS R 401 RS1/16SS472J R 402 RS1/16SS472J R 403 RS1/16SS122J R 404 RS1/16SS622J R 405 RS1/16SS100J R 406 RS1/16S271J R 407 RS1/16S2R2J R 441 RN1/16SE10R0D R 442 RN1/16SE1501D R 443 RN1/16SE2402D R 444 RN1/16SE3302D R 445 RN1/16SE4702D R 446 RN1/16SE4702D R 447 RS1/16S432J R 448 RN1/16SE1002D R 449 RN1/16SE2202D R 450 RN1/16SE3302D R 451 RS1/16S103J R 452 RS1/16SS102J R 454 RS1/16SS102J R 460 RS1/16S0R0J R 461 RS1/16SS102J R 462 RS1/16SS102J R 463 RAB4CQ102J R 464 RAB4CQ333J R 465 RS1/16SS102J R 468 (AVIC-9DVD—/EW) RS1/16SS471J R 469 (AVIC-9DVD—/EW) RAB4CQ471J R 470 RAB4CQ471J R 471 RAB4CQ104J R 477 RS1/16SS222J R 478 RS1/16SS222J R 479 RS1/16SS222J R 480 RS1/16SS332J R 481 RS1/16SS332J R 482 RS1/16SS223J R 483 RS1/16SS473J R 501 RS1/16SS0R0J R 502 RS1/16SS102J R 503 RS1/16SS154J R 508 (AVIC-90DVD/UC) RS1/16SS103J R 508 (AVIC-9DVD—/EW) RS1/16SS472J R 509 RS1/16SS473J R 510 RS1/16SS102J R 511 RS1/16SS103J R 512 RS1/16SS473J R 513 RS1/16SS103J R 514 RS1/16SS473J R 515 RS1/16SS473J R 517 RS1/16SS103J R 519 RS1/16SS473J R 521 RS1/16SS473J R 532 (AVIC-9DVD—/EW) RS1/16SS104J R 533 (AVIC-90DVD/UC) RS1/16SS103J R 533 (AVIC-9DVD—/EW) RS1/16SS332J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-90DVD,9DVD— 115 R 534 RS1/16SS103J R 535 RS1/16SS103J R 536 RS1/16SS0R0J R 537 (AVIC-9DVD—/EW) RS1/16S0R0J R 538 (AVIC-9DVD—/EW) RS1/16SS0R0J CAPACITORS C 401 CCSRCH100D50 C 402 CCSSCH101J50 C 403 CKSSYB104K10 C 404 CCSSCH101J50 C 405 CCSRUJ220J50 C 406 CCSRUJ220J50 C 407 CKSSYB333K16 C 408 CKSSYB182K50 C 409 CSZS100M6R3 C 410 CKSSYB103K16 C 411 CKSSYB102K50 C 412 CKSSYB102K50 C 413 CKSSYB104K10 C 414 CKSSYB104K10 C 415 CKSSYB104K10 C 416 CKSSYB104K10 C 417 CKSSYB104K10 C 418 CKSSYB102K50 C 419 CKSSYB104K10 C 420 CKSSYB104K10 C 421 CKSSYB102K50 C 422 CKSSYB103K16 C 423 CKSSYB104K10 C 424 CCSRCH102J50 C 425 CCSRCH271J50 C 426 CCSRCH102J50 C 427 CKSSYB104K10 C 428 CKSSYB103K16 C 429 CCSRCH301J50 C 430 CCSSCH120J50 C 431 CCSRCH301J50 C 432 CKSSYB103K16 C 433 CCSRCH101J50 C 434 CKSSYB102K50 C 435 CKSSYB103K16 C 436 CKSSYB104K10 C 441 CKSRYB104K16 C 442 CCSRCH101J50 C 443 CKSRYB104K16 C 444 CKSSYB103K16 C 445 CKSSYB104K10 C 461 22µF/6.3V CCH1408 C 462 CKSRYB104K16 C 463 CKSRYB104K16 C 464 CKSSYB103K16 C 465 CKSSYB103K16 C 466 CKSSYB103K16 C 467 CKSSYB103K16 C 468 CKSSYB104K10 C 469 CSZS100M10 C 470 CKSSYB104K10 C 471 CCSSCH101J50 C 501 CKSSYB104K10 C 502 CCSRCH150J50 C 503 CCSRCH150J50 C 504 CKSSYB104K10 C 506 CKSSYB104K10 C 507 CKSSYB104K10 C 508 CKSSYB104K10 C 509 CKSSYB104K10 C 511 CKSSYB104K10 C 512 CKSSYB104K10 C 514 CSZS100M6R3 C 515 CKSSYB104K10 C 516 CKSSYB104K10 C 517 CKSSYB104K10 C 518 CKSSYB104K10 C 535 (AVIC-9DVD—/EW) CSZS100M6R3 C 539 (AVIC-9DVD—/EW) CCSRCH100D50 C 540 (AVIC-9DVD—/EW) CCSRCH100D50 C 541 (AVIC-9DVD—/EW) CCSRCH561J50 C 542 (AVIC-9DVD—/EW) CKSSYB104K10 C 543 (AVIC-9DVD—/EW) CSZS100M6R3 C 544 (AVIC-9DVD—/EW) CCSRCH331J50 C 545 (AVIC-9DVD—/EW) CKSSYB104K10 Unit Number : CWM8484 (AVIC-90DVD/UC) : CWM8482 (AVIC-9DVD—/EW) Unit Name : Main Unit MISCELLANEOUS IC 571 IC S-81250SGUP IC 601 IC PE5228A IC 602 IC TC7SET08FU IC 603 IC TC7SET08FU IC 604 IC TC7SH08FU IC 605 IC TC7SH08FU IC 606 IC TC7S14FU IC 607 IC TC7SET08FU IC 608 IC TC7W32FU IC 609 IC TC7SH04FU IC 610 IC TC7W126FU IC 612 IC TC7SET08FU IC 613 IC TC7SET08FU IC 631 IC S-8423AFS IC 661 IC PAJ002A IC 662 IC TPD1018F IC 663 IC TPD1018F IC 665 IC NJM2904M IC 1801 IC NJM2903V IC 1850 IC TPS5103IDB IC 1851 IC TPS5103IDB IC 1951 IC M5237ML IC 3001 IC TC7S66F IC 3002 IC TC7SET08F IC 3004 IC TC7SZ08FU IC 3005 IC CXA1645M IC 3006 IC NJM2246M IC 3007 IC NJM2244M IC 3601 IC NJM3404AM IC 3602 IC NJM2904M IC 3752 IC TC74HC4053AFT IC 3753 IC TC7SET08FU IC 3851 IC NJM3404AM IC 3901 IC NJM2068MD IC 3902 IC NJM3414AM IC 3903 IC NJM2068MD IC 3926 IC TDA7052A IC 3927 IC NJM2904M IC 3951 IC NJM4558M IC 3952 IC TC7S66FU =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A B Main Unit Consists of Main PCB Interface PCB Grille PCB G-Sensor PCB C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 116 AVIC-90DVD,9DVD— IC 3953 IC NJM4558M IC 5001 IC UPD4723GS Q 551 Chip Transistor (AVIC-9DVD—/EW) 2SC2712 Q 635 Transistor 2SA1036K Q 636 Transistor DTC114EU Q 661 Transistor 2SB1184F5 Q 662 Transistor DTC114EU Q 664 Transistor DTC114EU Q 665 Transistor 2SA1162 Q 667 Transistor 2SC2712 Q 668 Transistor 2SC2712 Q 669 Transistor DTC114EU Q 670 Transistor DTB113ZK Q 671 Transistor UMD2N Q 672 Transistor UMD2N Q 673 Transistor DTC114EU Q 675 Transistor DTC143EU Q 1802 Transistor DTC114EU Q 1803 Transistor IMD3A Q 1804 Transistor 2SD2098 Q 1805 Transistor 2SA1037K Q 1806 Transistor DTC114EU Q 1841 Transistor 2SA1037K Q 1842 Transistor DTC114EU Q 1852 FET RK4936 Q 1853 FET RK4936 Q 1951 Transistor 2SB1572 Q 1952 Transistor 2SB1184F5 Q 1953 Transistor DTC114EU Q 2851 Transistor IMD3A Q 2852 Transistor DTC114EU Q 3001 Transistor 2SC2712 Q 3151 Transistor 2SC2712 Q 3851 Transistor DTC323TU Q 3852 Transistor DTC323TU Q 3853 Transistor DTC323TU Q 3857 Transistor IMD2A Q 3858 Transistor IMD2A Q 3859 Transistor IMD2A Q 3901 Transistor DTC144EU Q 3902 Transistor DTC323TK Q 3903 Transistor DTC323TK Q 3904 Transistor IMD2A Q 3905 Transistor DTC323TU Q 3906 Transistor DTC144EU Q 3907 Transistor IMD2A Q 5001 Transistor (AVIC-90DVD/UC) 2SD1760F5 D 551 Diode (AVIC-9DVD—/EW) HZU3R3(B1) D 552 Diode UDZS5R6(B) D 601 Diode 1SS355 D 661 Diode RB751V40 D 663 Diode UDZ20(B) D 664 Diode UDZS6R8(B) D 665 Diode 1SS355 D 666 Diode 1SS355 D 667 Diode 1SS355 D 668 Diode 1SS355 D 669 Diode UDZS6R8(B) D 670 Diode RB500V-40 D 671 Diode RB500V-40 D 1801 Diode 5KP22A D 1803 Diode MA738 D 1804 Diode S1G-6904G2P D 1805 Diode S1G-6904G2P D 1806 Diode S1G-6904G2P D 1807 Diode S1G-6904G2P D 1808 Diode S1G-6904G2P D 1809 Diode MA8180(M) D 1810 Diode MA8180(M) D 1811 Diode MA8180(M) D 1812 Diode KS926S2 D 1817 Diode UDZ13(B) D 1818 Diode HZU7R5(B3) D 1841 Diode MA110 D 1850 Diode RB400D D 1851 Diode RB400D D 1852 Diode RB060L-40 D 1853 Diode RB060L-40 D 1951 Diode S1G-6904G2P D 2851 LED CL150PGCD(AB) D 2852 LED CL150PGCD(AB) D 2853 LED CL150PGCD(AB) D 2854 Diode CL150RCD D 2855 LED CL150PGCD(AB) D 2856 Diode MA8062(H) D 2860 LED CL150PGCD(AB) D 2861 Chip LED CL220UBXTS D 2862 Diode CL150RCD D 2863 LED CL150PGCD(AB) D 2864 LED CL150PGCD(AB) D 2865 Diode MA8062(H) D 3001 Diode UDZS10(B) D 3002 Diode UDZS10(B) D 3003 Diode UDZS10(B) D 3004 Diode UDZS10(B) D 3005 Diode UDZS10(B) D 3151 Diode UDZS6R8(B) D 3152 Diode UDZS6R8(B) D 3153 Diode UDZS6R8(B) D 3154 Diode UDZS6R8(B) D 3155 Diode UDZS10(B) D 3156 Diode UDZS10(B) D 3157 Diode 1SS355 D 3158 Diode UDZS10(B) D 3159 Diode UDZS10(B) D 3160 Diode UDZS10(B) D 3851 Diode DAP202U D 3852 Diode DAP202U D 3853 Diode DAP202U D 3901 Diode 1SS355 D 3902 Diode MA8047(M) D 3904 Diode DAP202U D 3905 Diode 1SS355 D 5001 Diode UDZS6R8(B) D 5006 Diode MA8120(H) D 5007 Diode MA8120(H) D 5008 Diode MA8120(H) D 5009 Diode MA8120(H) D 5010 Diode MA8120(H) D 5011 Diode MA8120(H) D 5016 Diode MA8120(H) D 5017 Diode MA8120(H) D 5018 Diode UDZS6R8(B) D 5019 Diode MA8120(H) D 5020 Diode MA8120(H) D 5021 Diode MA8120(H) D 5022 Diode MA8120(H) D 5027 Diode MA8110(H) D 5028 Diode MA8110(H) D 5029 Diode (AVIC-90DVD/UC) MA8056(H) =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 117 AVIC-90DVD,9DVD— ZNR 551 Surge Protector (AVIC-9DVD—/EW) RCCA-201Q43UA-PI L 551 Inductor (AVIC-9DVD—/EW) CTF1295 L 552 Inductor (AVIC-9DVD—/EW) CTF1295 L 553 Inductor (AVIC-9DVD—/EW) CTF1295 L 554 Inductor (AVIC-9DVD—/EW) CTF1295 L 555 Inductor (AVIC-9DVD—/EW) CTF1295 L 556 Inductor (AVIC-9DVD—/EW) CTF1295 L 557 Inductor (AVIC-9DVD—/EW) CTF1295 L 571 Inductor CTF1295 L 572 Inductor CTF1295 L 573 Inductor CTF1295 L 601 Inductor CTF1410 L 602 Inductor CTF1410 L 603 Inductor CTF1410 L 604 Inductor CTF1410 L 605 Inductor CTF1410 L 606 Inductor CTF1410 L 607 Inductor CTF1410 L 608 Inductor CTF1410 L 609 Inductor CTF1410 L 610 Inductor CTF1410 L 611 Inductor CTF1410 L 612 Inductor CTF1410 L 661 Inductor CTF1295 L 664 Inductor CTF1390 L 665 Inductor CTF1295 L 666 Inductor CTF1410 L 667 Inductor CTF1410 L 668 Inductor CTF1410 L 1802 Inductor CTF1556 L 1803 Inductor CTF1556 L 1804 Inductor CTF1556 L 1805 Inductor CTF1556 L 1806 Inductor CTF1556 L 1841 Inductor CTF1556 L 1850 Inductor CTH1254 L 1851 Inductor CTH1255 L 1852 Inductor CTH1257 L 1853 Inductor CTH1257 L 2851 Inductor CTF1295 L 2852 Inductor CTF1295 L 2853 Inductor CTF1295 L 2854 Inductor CTF1295 L 2855 Inductor CTF1295 L 3001 Inductor CTF1410 L 3002 Inductor CTF1410 L 3003 Inductor CTF1410 L 3005 Inductor LCTA680J3225 L 3006 Inductor CTF1410 L 3025 Inductor CTF1410 L 3151 Inductor CTF1557 L 3152 Inductor CTF1558 L 3153 Inductor CTF1557 L 3154 Inductor CTF1557 L 3157 Inductor CTF1306 L 3158 Inductor CTF1306 L 3159 Inductor CTF1306 L 3251 Inductor CTF1556 L 3252 Inductor CTF1556 L 3253 Inductor CTF1556 L 3254 Inductor CTF1556 L 3255 Inductor CTF1556 L 3256 Inductor CTF1556 L 3257 Inductor CTF1556 L 3258 Inductor CTF1556 L 3259 Inductor CTF1557 L 3260 Inductor CTF1557 L 3261 Inductor CTF1557 L 3262 Inductor CTF1557 L 3263 Inductor CTF1557 L 3264 Inductor CTF1557 L 3265 Inductor CTF1557 L 3266 Inductor CTF1557 L 3267 Inductor CTF1557 L 3268 Inductor CTF1557 L 3269 Inductor CTF1557 L 3270 Inductor CTF1557 L 3271 Inductor CTF1557 L 3272 Inductor CTF1557 L 3273 Inductor CTF1557 L 3274 Inductor CTF1556 L 3751 Inductor CTF1410 L 3752 Inductor CTF1410 L 3951 Inductor CTF1410 L 3952 Inductor CTF1410 L 3953 Inductor CTF1410 L 3954 Inductor CTF1410 L 3955 Inductor CTF1410 L 3956 Inductor CTF1410 L 5001 Inductor CTF1410 L 5002 Inductor CTF1334 L 5003 Inductor CTF1334 L 5004 Inductor CTF1334 L 5007 Inductor CTF1334 L 5008 Inductor CTF1334 L 5009 Inductor CTF1334 L 5010 Inductor CTF1557 L 5011 Inductor CTF1557 L 5012 Inductor (AVIC-90DVD/UC) CTF1557 X 601 Ceramic Resonator 12.583MHz CSS1108 S 2851 Switch(EJECT) CSG1106 S 2852 Switch(RESET) CSG1120 S 2853 Spring Switch(PC-CARD) CSN1051 FU 1801 Fuse 2A CEK1190 FU 1802 Fuse 4A CEK1199 FU 1803 Fuse 2.3A ICPS2R3 FU 1804 Fuse 4A CEK1199 FU 1850 Fuse 1A CEK1191 FU 3251 Fuse 1A CEK1191 GY 572 Sensor CSX1052 GY 573 Sensor CSX1042 EF 1801 EMI Filter CCG1025 EF 3001 EMI Filter CCG1081 EF 3002 EMI Filter CCG1081 EF 3003 EMI Filter CCG1081 EF 3004 EMI Filter CCG1081 EF 3005 EMI Filter CCG1081 EF 3006 EMI Filter CCG1081 EF 3151 EMI Filter CCG1067 EF 3152 EMI Filter CCG1067 EF 3251 EMI Filter CCG1030 EF 3252 EMI Filter CCG1030 EF 5001 EMI Filter CCG1030 FE 551 Tuner Unit (AVIC-9DVD—/EW) CWE1622 GPS Unit (AVIC-90DVD/UC) CWX2591 GPS Unit (AVIC-9DVD—/EW) CWX2590 RESISTORS R 551 (AVIC-9DVD—/EW) RS1/10S473J R 552 (AVIC-9DVD—/EW) RS1/10S473J R 554 (AVIC-9DVD—/EW) RS1/10S472J R 555 (AVIC-9DVD—/EW) RS1/10S471J R 556 (AVIC-9DVD—/EW) RS1/10S473J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 118 AVIC-90DVD,9DVD— R 557 (AVIC-9DVD—/EW) RS1/10S474J R 558 (AVIC-9DVD—/EW) RS1/10S0R0J R 561 RN1/16SE1001D R 562 RN1/16SE1101D R 563 RN1/16SE1001D R 572 RS1/10S151J R 573 RS1/10S105J R 574 RS1/16S104J R 575 RS1/16S0R0J R 601 RS1/16S473J R 602 RS1/16S473J R 603 RS1/16S104J R 605 (AVIC-90DVD/UC) RS1/16S104J R 606 (AVIC-9DVD—/EW) RS1/16S104J R 607 RS1/16S104J R 610 RS1/16S104J R 612 RS1/16S104J R 613 RS1/16S473J R 614 RS1/16S0R0J R 615 RS1/16S104J R 617 RS1/16S473J R 618 RS1/16S105J R 619 RS1/16S473J R 620 RS1/16S473J R 622 RS1/16S472J R 626 RS1/16S104J R 627 RS1/16S104J R 628 RS1/16S472J R 629 RS1/16S104J R 630 RS1/16S473J R 631 RS1/16S102J R 632 RS1/16S104J R 633 RS1/16S104J R 635 RS1/16S104J R 637 RS1/16S102J R 638 RS1/16S104J R 639 RS1/16S104J R 640 RS1/16S104J R 641 RS1/16S104J R 642 RS1/16S104J R 643 RS1/16S223J R 644 RS1/16S682J R 645 RS1/16S104J R 646 RS1/16S104J R 647 RS1/16S104J R 648 RS1/16S104J R 649 RS1/16S473J R 662 RS1/8S2R2J R 663 RS1/16S102J R 665 RS1/16S333J R 666 RS1/16S153J R 667 RS1/16S104J R 668 RS1/16S104J R 669 RS1/16S104J R 670 RS1/16S102J R 671 RS1/16S102J R 672 RS1/16S102J R 673 RS1/16S104J R 674 RS1/16S623J R 675 RS1/16S363J R 679 RS1/16S753J R 680 RS1/16S363J R 682 RS1/10S102J R 683 RS1/16S101J R 684 RS1/16S103J R 685 RS1/16S471J R 686 RS1/10S103J R 687 RS1/16S562J R 688 RS1/16S473J R 689 RS1/16S393J R 690 RS1/16S224J R 691 RS1/16S103J R 692 RS1/16S0R0J R 693 RS1/16S103J R 694 RS1/16S0R0J R 695 RS1/16S473J R 696 RS1/16S104J R 697 RS1/16S0R0J R 698 RS1/16S333J R 699 RS1/16S203J R 700 RS1/16S822J R 701 RS1/16S202J R 702 RS1/16S564J R 703 RS1/16S102J R 704 RS1/16S102J R 705 RS1/16S513J R 706 RS1/16S513J R 707 RS1/16S104J R 708 RS1/16S513J R 709 RS1/16S473J R 710 RS1/16S563J R 711 RS1/16S104J R 715 RS1/16S102J R 716 RS1/16S102J R 717 RS1/16S471J R 720 RS1/10S0R0J R 1801 RN1/10SE4701D R 1802 RS1/10S473J R 1803 RS1/10S102J R 1804 RS1/4S102J R 1805 RS1/10S224J R 1806 RS1/10S103J R 1807 RS1/10S103J R 1808 RS1/8S0R0J R 1820 RS1/4S471J R 1821 RN1/16SE8201D R 1822 RN1/16SE1502D R 1823 RN1/16SE2702D R 1824 RN1/16SE3303D R 1825 RS1/16S332J R 1826 RS1/16S273J R 1827 RS1/16S273J R 1828 RS1/16S332J R 1841 RS1/10S103J R 1842 RS1/10S103J R 1843 RS1/16S102J R 1844 RS1/16S104J R 1850 RS1/16S101J R 1851 RS1/16S101J R 1852 RN1/16SE1600D R 1853 RN1/16SE6801D R 1854 RN1/16SE1601D R 1855 RN1/16SE1600D R 1856 RN1/16SE5601D R 1857 RN1/16SE1001D R 1858 RS1/16S332J R 1859 RS1/16S332J R 1860 RS1/16S154J R 1861 RS1/16S154J R 1862 RS1/16S184J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 119 AVIC-90DVD,9DVD— R 1864 RS1/16S184J R 1866 RS1/16S100J R 1867 RS1/16S100J R 1868 RS1/16S100J R 1869 RS1/16S100J R 1951 RS1/16S223J R 1952 RS1/4S102J R 1953 RS1/4S102J R 1954 RS1/16S221J R 1955 RS1/10S271J R 1956 RN1/10SE2702D R 1957 RN1/10SE4701D R 2851 RS1/8S471J R 2852 RS1/10S620J R 2853 RS1/10S331J R 2854 RS1/10S331J R 2855 RS1/10S331J R 2856 RS1/8S331J R 2857 RS1/10S620J R 2858 RS1/10S103J R 2860 RS1/10S271J R 3001 RS1/16S222J R 3002 RS1/16S222J R 3003 RN1/10SE2002D R 3004 RS1/16S473J R 3005 RS1/16S101J R 3006 RS1/16S103J R 3007 RS1/16S272J R 3008 RS1/16S272J R 3009 RS1/16S101J R 3010 RS1/16S301J R 3014 RS1/10S620J R 3015 RS1/10S750J R 3016 RS1/10S750J R 3017 RS1/10S750J R 3018 RS1/10S750J R 3024 RS1/16S105J R 3025 RS1/16S0R0J R 3026 RS1/16S105J R 3027 RS1/10S750J R 3028 RS1/16S105J R 3029 RS1/16S910J R 3030 RS1/16S910J R 3031 RS1/16S910J R 3151 RS1/16S473J R 3152 RS1/16S104J R 3153 RS1/10S102J R 3154 RS1/10S102J R 3156 RS1/10S102J R 3157 RS1/10S0R0J R 3158 RS1/10S102J R 3206 RS1/16S102J R 3207 RS1/16S102J R 3208 RS1/16S102J R 3209 RS1/16S102J R 3217 RS1/16S102J R 3218 RS1/16S102J R 3220 RS1/16S0R0J R 3225 RS1/16S101J R 3226 RS1/16S102J R 3227 RS1/16S102J R 3228 RS1/16S102J R 3229 RS1/16S102J R 3230 RS1/16S102J R 3231 RS1/16S102J R 3233 RS1/16S0R0J R 3234 RS1/16S104J R 3235 RS1/16S104J R 3238 RS1/16S104J R 3240 RS1/16S104J R 3241 RS1/16S104J R 3242 RS1/16S104J R 3243 RS1/16S0R0J R 3250 RS1/16S102J R 3251 RS1/16S0R0J R 3252 RS1/16S0R0J R 3253 RS1/16S0R0J R 3255 RS1/16S102J R 3256 RS1/16S104J R 3259 RS1/16S104J R 3260 RS1/16S104J R 3262 RS1/16S102J R 3263 RS1/16S104J R 3264 RS1/16S0R0J R 3267 RS1/16S102J R 3268 RS1/16S104J R 3270 RS1/16S105J R 3273 RS1/16S105J R 3274 RS1/16S105J R 3278 RS1/16S105J R 3282 RS1/16S102J R 3283 RS1/16S102J R 3601 RS1/16S102J R 3602 RS1/16S102J R 3603 RS1/16S153J R 3604 RS1/16S683J R 3605 RS1/16S682J R 3606 RS1/16S682J R 3607 RS1/16S682J R 3608 RS1/16S104J R 3609 RS1/16S104J R 3610 RS1/16S101J R 3611 RS1/16S102J R 3770 RS1/16S0R0J R 3772 RS1/16S104J R 3851 RS1/16S102J R 3852 RS1/16S472J R 3853 RS1/16S152J R 3854 RS1/16S472J R 3855 RS1/16S472J R 3856 RS1/16S472J R 3857 RS1/16S102J R 3859 RS1/16S152J R 3861 RS1/16S472J R 3863 RS1/16S333J R 3864 RS1/16S683J R 3865 RS1/16S154J R 3866 RS1/16S101J R 3867 RS1/16S333J R 3868 RS1/16S683J R 3869 RS1/16S473J R 3870 RS1/16S473J R 3871 RS1/16S105J R 3872 RS1/16S105J R 3873 RS1/16S154J R 3874 RS1/16S101J R 3901 RS1/16S103J R 3902 RS1/16S473J R 3903 RS1/16S473J R 3904 RS1/16S473J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 120 AVIC-90DVD,9DVD— R 3905 RS1/16S470J R 3907 RS1/16S0R0J R 3908 RS1/16S473J R 3909 RS1/16S473J R 3910 RS1/16S473J R 3911 RS1/16S470J R 3913 RS1/16S223J R 3914 RS1/16S203J R 3915 RS1/16S471J R 3916 RS1/16S471J R 3917 RS1/16S471J R 3918 RS1/16S104J R 3919 RS1/16S473J R 3920 RS1/16S473J R 3921 RS1/16S0R0J R 3926 RN1/16SE5602D R 3927 RN1/16SE1802D R 3928 RS1/16S103J R 3951 RS1/16S104J R 3952 RS1/16S104J R 3953 RS1/16S104J R 3954 RS1/16S104J R 3956 RS1/16S104J R 3958 RS1/16S563J R 3959 RS1/16S563J R 3960 RS1/16S563J R 3967 RS1/16S0R0J R 3968 RS1/16S0R0J R 3969 RS1/16S0R0J R 3970 RS1/16S0R0J R 3971 RS1/16S0R0J R 3972 RS1/16S0R0J R 3981 RS1/16S104J R 3982 RS1/16S104J R 3983 RS1/16S102J R 3986 RS1/16S104J R 3987 RS1/16S104J R 3988 RS1/16S104J R 3989 RS1/16S104J R 3990 RS1/16S104J R 3991 RS1/16S101J R 3992 RS1/16S104J R 3993 RS1/16S104J R 3994 RS1/16S104J R 3995 RS1/16S0R0J R 3996 RS1/16S101J R 3997 RS1/16S473J R 3998 RS1/16S152J R 5004 RS1/16S681J R 5006 RS1/16S681J R 5007 RS1/16S681J R 5008 RS1/16S681J R 5009 RS1/16S101J R 5010 RS1/16S101J R 5011 RS1/16S101J R 5012 RS1/16S101J R 5015 RS1/16S101J R 5016 RS1/16S101J R 5017 RS1/16S101J R 5018 RS1/16S681J R 5019 RS1/16S681J R 5020 (AVIC-90DVD/UC) RS1/10S122J R 5021 (AVIC-90DVD/UC) RS1/10S122J R 5022 RS1/16S100J CAPACITORS C 551 (AVIC-9DVD—/EW) CKSQYB473K50 C 552 (AVIC-9DVD—/EW) CEV100M16 C 553 (AVIC-9DVD—/EW) CKSQYB473K50 C 554 (AVIC-9DVD—/EW) CEV100M16 C 555 (AVIC-9DVD—/EW) CEV100M16 C 556 (AVIC-9DVD—/EW) CKSQYB473K50 C 557 (AVIC-9DVD—/EW) CKSQYB103K50 C 558 (AVIC-9DVD—/EW) CKSQYB473K50 C 571 CEV1R0M50 C 572 CKSQYF334Z25 C 573 CKSRYF104Z25 C 574 CEVQ101M10 C 575 CKSQYB105K16 C 576 CKSRYB104K16 C 577 CKSRYB104K16 C 578 CKSQYB103K25 C 579 CKSYB106K6R3 C 601 CKSRYF104Z25 C 602 CKSRYF104Z25 C 603 CKSRYF104Z25 C 604 CKSRYF104Z25 C 605 CKSRYF104Z25 C 606 CKSRYF104Z25 C 607 CKSRYF104Z25 C 608 CKSRYF104Z25 C 609 CKSRYF104Z25 C 611 CKSRYF104Z25 C 612 CKSRYF104Z25 C 613 CKSRYF104Z25 C 614 CKSRYF104Z25 C 631 CKSRYF104Z25 C 632 CKSRYF104Z25 C 634 CKSRYF104Z25 C 635 CEV100M16 C 651 CKSRYB104K16 C 652 CKSRYB104K16 C 653 CEVQ220M16 C 654 CKSRYB474K10 C 661 CSZST330M16 C 662 CKSRYF104Z25 C 663 CKSRYF104Z25 C 664 CKSRYF104Z25 C 665 CKSRYF104Z25 C 666 CKSRYB104K16 C 667 CKSRYF104Z25 C 668 CKSRYB104K16 C 669 CKSRYB104K16 C 672 CKSRYB823K16 C 673 CKSRYB103K50 C 674 CKSRYB104K16 C 675 CKSRYB102K50 C 676 CKSRYF104Z25 C 679 CKSRYF104Z25 C 682 CKSRYF104Z25 C 684 CKSRYB473K50 C 685 CKSRYB473K50 C 686 CKSRYB473K50 C 687 CKSRYB473K50 C 1801 CKSRYB104K16 C 1803 CKSRYB104K16 C 1804 CKSRYB104K16 C 1805 CKSRYB473K50 C 1806 CKSRYB473K50 C 1807 CKSRYB104K16 C 1808 CKSRYF103Z50 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C 1809 CKSRYB104K16 C 1810 10000µF/16V CCH1412 C 1811 CKSRYB104K16 C 1831 CKSRYB103K50 C 1832 CKSRYB103K50 C 1833 CEV101M16 C 1834 CKSRYB103K50 C 1835 CKSRYB473K50 C 1836 CKSRYB103K50 C 1841 CKSRYB104K16 C 1842 CKSRYB104K16 C 1850 CKSRYB103K50 C 1851 CKSRYB153K50 C 1852 CCSRCH101J50 C 1853 CCSRCH101J50 C 1854 CKSRYB104K16 C 1855 CKSRYB104K16 C 1856 CKSRYB103K50 C 1857 CCSRCH330J50 C 1858 CKSRYB105K10 C 1859 CKSRYB103K50 C 1860 CCSRCH330J50 C 1861 CKSRYB105K10 C 1862 CKSYB475K10 C 1863 CKSYB475K10 C 1864 4.7µF CCG1111 C 1865 CKSRYF474Z16 C 1866 4.7µF CCG1111 C 1867 CKSRYF474Z16 C 1868 10µF CCG1150 C 1869 10µF CCG1150 C 1870 100µF/10V CCH1332 C 1871 100µF/10V CCH1332 C 1872 100µF/10V CCH1332 C 1873 CKSRYF104Z25 C 1874 CKSRYF104Z25 C 1875 10µF CCG1150 C 1876 10µF CCG1150 C 1877 10µF CCG1150 C 1878 10µF CCG1150 C 1879 10µF CCG1150 C 1880 10µF CCG1150 C 1881 CKSRYB102K50 C 1951 CKSRYB474K10 C 1952 CKSQYB105K16 C 1953 CEV101M10 C 2851 CKSQYB102K50 C 2853 CKSRYB102K50 C 2854 CKSQYB104K50 C 3001 CCSRCH5R0C50 C 3002 CKSRYF104Z25 C 3003 CKSRYF104Z25 C 3004 CKSRYF104Z25 C 3006 CKSRYB104K16 C 3007 CKSRYB104K16 C 3008 CKSRYB104K16 C 3009 CKSRYF104Z25 C 3010 CEVQ470M16 C 3011 CKSRYB103K50 C 3012 CCSRCH470J50 C 3013 CCSRCH220J50 C 3014 CEV100M16 C 3015 CKSRYF104Z25 C 3016 CKSRYB103K50 C 3017 CEVQ470M16 C 3018 CEV221M4 C 3019 CEV221M4 C 3020 CEV221M4 C 3021 330µF/6.3V CCH1410 C 3022 CEV100M10 C 3023 330µF/6.3V CCH1410 C 3025 CEV100M10 C 3026 CKSRYB105K6R3 C 3027 CKSRYB105K6R3 C 3028 CKSRYB103K50 C 3029 CEVQ101M10 C 3031 CEV100M10 C 3032 CKSRYB105K6R3 C 3033 CKSRYB103K50 C 3034 CCSRCH680J50 C 3151 CKSRYB102K50 C 3152 CKSRYB102K50 C 3153 CKSRYB102K50 C 3154 CCSRCH101J50 C 3155 CCSRCH101J50 C 3156 CKSRYB102K50 C 3157 CKSRYB104K16 C 3158 CKSRYB104K16 C 3159 CKSRYB102K50 C 3160 CKSRYB102K50 C 3251 CEV101M10 C 3252 CKSRYF105Z10 C 3253 CEV220M10 C 3254 CKSRYF105Z10 C 3256 CKSRYB105K6R3 C 3258 CKSRYF105Z10 C 3259 CEVQ101M10 C 3260 CKSRYF104Z25 C 3261 CEVQ101M10 C 3601 CEVQ220M16 C 3602 CKSRYB473K50 C 3603 CKSRYF104Z25 C 3604 CEVQ220M16 C 3605 CKSRYB184K10 C 3606 CKSRYB473K50 C 3607 CKSRYB224K16 C 3608 CEV100M16 C 3609 CKSRYF104Z25 C 3610 CEV220M16 C 3611 CKSRYB103K50 C 3612 CSZSR100M16 C 3753 CKSRYB104K16 C 3754 CKSRYB104K16 C 3851 CKSRYF104Z25 C 3852 CKSRYB471K50 C 3853 CCSRCH680J50 C 3854 CKSRYF105Z10 C 3855 CKSRYB471K50 C 3856 CEV100M16 C 3857 CKSRYB105K10 C 3858 CKSRYB474K10 C 3859 CKSRYB105K10 C 3860 CKSRYB474K10 C 3861 CCSRCH680J50 C 3862 CKSRYF105Z10 C 3901 CEV100M16 C 3902 CCSRCH151J50 C 3903 CCSRCH330J50 C 3904 CCSRCH151J50 C 3905 CCSRCH330J50 121 AVIC-90DVD,9DVD— =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C 3907 CKSRYF104Z25 C 3909 CEVNP100M16 C 3910 CEVNP100M16 C 3911 CKSRYF104Z25 C 3912 CKSRYB105K6R3 C 3913 CEV100M16 C 3914 CEV100M16 C 3915 CKSRYF104Z25 C 3918 CKSRYB105K10 C 3920 CSZSR100M16 C 3926 CKSRYF105Z10 C 3927 CKSRYB105K6R3 C 3928 CEV1R0M50 C 3929 CKSRYF104Z25 C 3930 CKSRYB105K10 C 3931 CEVQ101M10 C 3932 CKSRYB103K50 C 3933 CKSRYF104Z25 C 3955 CKSRYF104Z25 C 3956 CKSRYB105K6R3 C 3958 CKSRYB105K6R3 C 3959 CKSRYB221K50 C 3960 CKSRYB561K50 C 3962 CEV220M16 C 3963 CCSRCH121J50 C 3964 CEVNP2R2M35 C 3965 CEVNP2R2M35 C 3971 CKSRYB391K50 C 3972 CKSRYB471K50 C 3973 CCSRCH121J50 C 3974 CCSRCH820J50 C 3975 CKSRYB102K50 C 3976 CEV220M16 C 3977 CKSRYF104Z25 C 3978 CKSRYB105K10 C 3980 CKSRYB105K10 C 5001 CKSRYB105K6R3 C 5002 CEV1R0M50 C 5003 CEV1R0M50 C 5004 CEV1R0M50 C 5005 CEV1R0M50 C 5006 CEV1R0M50 C 5008 CKSRYB102K50 C 5010 CKSRYB102K50 C 5011 CKSRYB102K50 C 5012 CKSRYB102K50 C 5013 CKSRYB102K50 C 5014 CKSRYB102K50 C 5015 CEV330M6R3 C 5022 CKSRYB105K6R3 C 5023 CKSRYB103K25 C 5025 CEV100M16 C 5026 CKSRYB473K16 C 5027 CEV220M6R3 C 5028 CKSRYB473K16 C 5029 CKSRYB103K25 Unit Number : CWX2727 Unit Name : DVD Core Unit V MISCELLANEOUS IC 1100 IC AN8702FH IC 1101 IC NJM2904M IC 1200 IC MN677061ZYUB IC 1300 IC BA5985FM IC 1400 IC MNZS25BDAUB IC 1401 IC TC74LCX245FT IC 1403 IC TC74LCX244FT IC 1404 IC TC74LCX244FT IC 1405 IC TC7SH04FU IC 1500 IC MSM56V16160F8TKFM IC 1501 IC MSM56V16160F8TKFM IC 1502 IC MN677532JAUB IC 1503 IC TC74VCX74FT IC 1504 IC TC74VCX04FT IC 1506 IC SM8703AV IC 1509 IC TC74VCX74FT IC 1601 IC AK4380VT IC 1700 IC PE5324C IC 1701 IC M5M5V216ATP-70HI IC 1702 IC PD6396B IC 1704 IC TC74VCX08FT IC 1705 IC TC7SH04FU IC 1706 IC TC7SH32FU IC 1801 IC BA05SFP IC 1802 IC BA033SFP IC 1803 IC BA18BC0WFP IC 1804 IC BA00BC0WFP Q 1102 Transistor 2SD601A Q 1104 Transistor 2SB1260 Q 1105 Transistor 2SB709A Q 1107 Transistor UN2211 Q 1108 Transistor 2SB1260 Q 1109 Chip Transistor 2SC2712 Q 1110 Chip Transistor 2SC2712 Q 1111 Chip Transistor 2SC2712 Q 1600 Transistor 2SA1037K Q 1601 Transistor 2SA1037K Q 1602 Transistor FMG12 Q 1603 Transistor IMD2A Q 1700 Transistor DTA123JK D 1100 Diode 1SS355 D 1101 Diode 1SS355 D 1401 Diode UDZ2R7(B) D 1601 Chip Diode MA151WA D 1800 Diode S2G-6600 D 1801 Diode S2G-6600 D 1802 Diode S2G-6600 D 1803 Diode S2G-6600 D 1804 Diode 1SR154-400 L 1201 Inductor CTF1409 L 1202 Inductor CTF1409 L 1401 Inductor CTF1409 L 1402 Inductor CTF1409 L 1403 Inductor CTF1395 L 1404 Inductor CTF1473 L 1500 Inductor CTF1395 L 1501 Inductor CTF1394 L 1502 Inductor CTF1409 L 1503 Inductor CTF1399 L 1504 Inductor CTF1399 L 1505 Inductor CTF1399 L 1506 Inductor CTF1409 L 1507 Inductor CTF1473 L 1508 Inductor CTF1473 L 1509 Inductor CTF1473 L 1512 Inductor CTF1470 L 1600 Inductor CTF1473 L 1602 Inductor CTF1399 L 1700 Inductor CTF1395 L 1701 Inductor CTF1409 122 AVIC-90DVD,9DVD— =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com L 1702 Inductor CTF1473 L 1704 Inductor CTF1473 L 1720 Inductor CTF1473 L 1732 Inductor CTF1547 L 1759 Inductor CTF1547 L 1760 Inductor CTF1547 X 1500 Radiator 27MHz CSS1531 X 1700 Ceramic Resonator 4.97MHz CSS1575 S 1301 Spring Switch(CLAMP) CSN1051 S 1302 Spring Switch(L/E ON/OFF) CSN1051 S 1303 Spring Switch(8cm DETECT) CSN1051 S 1304 Spring Switch(12cm DETECT) CSN1051 VR 1500 Semi-fixed 2.2kΩ(B) CCP1177 F 1600 Filter CTF1515 RESISTORS R 1101 RS1/16SS330J R 1102 RS1/16SS3R9J R 1103 RS1/16SS330J R 1104 RS1/16SS3R9J R 1105 RS1/16SS122J R 1106 RS1/16SS472J R 1107 RS1/16S6201D R 1108 RS1/16SS3R9J R 1109 RS1/16SS3R9J R 1110 RS1/16S1002D R 1113 RS1/16S2402D R 1114 RS1/16SS823J R 1115 RS1/16SS682J R 1116 RS1/16SS3R9J R 1117 RS1/16SS3R9J R 1118 RS1/16SS223J R 1119 RS1/16SS202J R 1120 RS1/16SS105J R 1121 RS1/16SS105J R 1122 RS1/16SS103J R 1123 RS1/16SS103J R 1124 RS1/16SS103J R 1125 RS1/16SS103J R 1126 RS1/16SS103J R 1127 RS1/16SS103J R 1128 RS1/16SS3R9J R 1129 RS1/16SS3R9J R 1130 RS1/16SS102J R 1131 RS1/16SS102J R 1132 RS1/16SS102J R 1133 RS1/16SS102J R 1134 RS1/16SS102J R 1135 RAB4CQ0R0J R 1136 RS1/16SS133J R 1137 RS1/16SS133J R 1138 RS1/16SS0R0J R 1139 RS1/16SS0R0J R 1140 RS1/16SS0R0J R 1141 RS1/16SS0R0J R 1142 RS1/16SS183J R 1143 RS1/16SS273J R 1144 RS1/16SS273J R 1145 RS1/16SS0R0J R 1146 RS1/16SS0R0J R 1147 RS1/16SS0R0J R 1148 RS1/16SS0R0J R 1149 RS1/16SS102J R 1150 RS1/16SS102J R 1151 RS1/16SS102J R 1152 RS1/16SS154J R 1153 RS1/16SS154J R 1154 RS1/16SS154J R 1156 RS1/16SS224J R 1157 RS1/16SS0R0J R 1201 RS1/16SS203J R 1202 RS1/16SS102J R 1203 RS1/16SS471J R 1204 RS1/16SS221J R 1205 RS1/16SS221J R 1206 RS1/16SS473J R 1207 RS1/16SS101J R 1208 RS1/16SS101J R 1209 RS1/16SS473J R 1210 RS1/16SS222J R 1212 RS1/16SS473J R 1213 RS1/16SS101J R 1215 RS1/16SS123J R 1216 RS1/16SS473J R 1219 RS1/16SS123J R 1220 RS1/16SS105J R 1221 RS1/16SS562J R 1222 RS1/16SS273J R 1223 RS1/16SS273J R 1226 RS1/16SS153J R 1227 RS1/16SS123J R 1228 RS1/16SS472J R 1229 RS1/16SS472J R 1230 RS1/16SS472J R 1231 RS1/16SS273J R 1232 RS1/16S6801D R 1233 RS1/16SS273J R 1234 RS1/16SS183J R 1235 RS1/16SS102J R 1242 RAB4CQ221J R 1245 RS1/16SS562J R 1246 RS1/16SS242J R 1251 RS1/16SS473J R 1255 RS1/16SS0R0J R 1257 RS1/16S221J R 1258 RS1/16SS221J R 1259 RS1/16SS221J R 1260 RS1/16SS221J R 1261 RS1/16SS221J R 1262 RS1/16SS273J R 1263 RS1/16SS273J R 1264 RS1/16SS104J R 1301 RS1/16S3902D R 1302 RS1/16S3902D R 1303 RS1/16S3002D R 1304 RS1/16S3902D R 1305 RS1/16SS221J R 1306 RS1/16SS0R0J R 1307 RS1/16SS221J R 1308 RS1/16S3002D R 1310 RS1/16SS102J R 1311 RS1/16S3902D R 1312 RS1/16S0R0J R 1314 RS1/16SS221J R 1321 RS1/16SS221J R 1323 RS1/16SS104J R 1324 RS1/16SS473J R 1325 RS1/16SS273J R 1400 RAB4CQ681J R 1401 RAB4CQ681J R 1402 RAB4CQ103J 123 AVIC-90DVD,9DVD— =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com R 1403 RS1/16SS222J R 1404 RAB4CQ820J R 1405 RS1/16SS221J R 1406 RS1/16SS103J R 1407 RAB4CQ220J R 1408 RAB4CQ220J R 1409 RS1/16SS103J R 1410 RAB4CQ220J R 1411 RAB4CQ220J R 1412 RAB4CQ0R0J R 1413 RS1/16SS681J R 1414 RS1/16SS820J R 1415 RS1/16SS100J R 1416 RS1/16SS681J R 1417 RS1/16SS103J R 1418 RS1/16SS681J R 1419 RS1/16SS103J R 1420 RS1/16SS103J R 1421 RS1/16SS820J R 1422 RS1/16SS820J R 1423 RS1/16SS103J R 1424 RS1/16SS220J R 1425 RS1/16SS104J R 1426 RS1/16SS103J R 1429 RS1/16S470J R 1430 RS1/16SS101J R 1431 RS1/16SS103J R 1434 RS1/16SS681J R 1436 RS1/16SS103J R 1437 RS1/16SS103J R 1438 RS1/16SS221J R 1439 RAB4CQ0R0J R 1440 RAB4CQ0R0J R 1441 RS1/16SS0R0J R 1442 RS1/16SS221J R 1443 RS1/16SS221J R 1500 RS1/16SS560J R 1501 RS1/16SS560J R 1502 RS1/16SS560J R 1503 RS1/16SS560J R 1504 RS1/16SS560J R 1505 RS1/16SS560J R 1506 RS1/16SS560J R 1507 RS1/16SS560J R 1508 RS1/16SS560J R 1509 RS1/16SS560J R 1510 RS1/16SS560J R 1511 RS1/16SS560J R 1513 RS1/16SS750J R 1514 RS1/16SS622J R 1515 RS1/16SS162J R 1516 RS1/16SS182J R 1517 RS1/16SS201J R 1518 RS1/16SS201J R 1519 RS1/16S101J R 1520 RS1/16S101J R 1521 RS1/16S101J R 1523 RS1/16SS221J R 1524 RS1/16S470J R 1527 RS1/16SS103J R 1529 RS1/16SS104J R 1534 RS1/16SS221J R 1535 RS1/16SS101J R 1537 RS1/16SS391J R 1538 RS1/16SS391J R 1539 RAB4CQ391J R 1540 RAB4CQ391J R 1541 RAB4CQ391J R 1542 RAB4CQ391J R 1543 RAB4CQ391J R 1544 RAB4CQ391J R 1545 RAB4CQ391J R 1546 RS1/16SS103J R 1548 RS1/16SS103J R 1549 RS1/16SS560J R 1550 RS1/16SS560J R 1551 RS1/16SS560J R 1552 RS1/16SS560J R 1553 RS1/16SS560J R 1554 RS1/16SS560J R 1555 RS1/16SS560J R 1556 RS1/16SS560J R 1557 RS1/16SS560J R 1558 RS1/16SS560J R 1559 RS1/16SS560J R 1560 RS1/16SS560J R 1561 RS1/16SS560J R 1562 RS1/16SS560J R 1563 RS1/16SS560J R 1564 RS1/16SS560J R 1565 RS1/16SS560J R 1566 RS1/16S101J R 1567 RS1/16SS560J R 1568 RS1/16SS560J R 1569 RS1/16SS560J R 1570 RS1/16SS560J R 1571 RS1/16SS560J R 1572 RS1/16SS560J R 1573 RS1/16SS560J R 1574 RS1/16SS560J R 1575 RS1/16SS560J R 1577 RS1/16S0R0J R 1579 RS1/16S0R0J R 1600 RS1/16SS271J R 1601 RS1/16SS152J R 1602 RS1/16SS101J R 1604 RS1/16S3300D R 1605 RS1/16SS122J R 1606 RS1/16SS0R0J R 1623 RS1/16SS102J R 1624 RS1/16SS102J R 1625 RS1/16SS223J R 1626 RS1/16SS223J R 1628 RS1/16S68R0D R 1634 RS1/16SS472J R 1635 RS1/16SS472J R 1636 RS1/16SS472J R 1637 RS1/16SS472J R 1701 RN1/16SE1502D R 1702 RS1/16SS221J R 1703 RS1/16SS221J R 1704 RS1/16SS104J R 1705 RS1/16SS103J R 1706 RS1/16SS103J R 1707 RS1/16SS221J R 1708 RS1/16SS0R0J R 1709 RS1/16SS221J R 1710 RS1/16SS473J R 1711 RS1/16SS330J R 1712 RS1/16SS0R0J 124 AVIC-90DVD,9DVD— =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com R 1713 RS1/16SS104J R 1714 RS1/16SS104J R 1715 RS1/16SS472J R 1716 RS1/16SS104J R 1717 RS1/16SS473J R 1718 RS1/16SS104J R 1719 RS1/16SS104J R 1720 RS1/16SS473J R 1721 RS1/16SS104J R 1722 RS1/16SS104J R 1723 RS1/16SS473J R 1724 RS1/16SS221J R 1725 RS1/16S0R0J R 1726 RS1/16SS104J R 1727 RS1/16SS103J R 1728 RS1/16SS104J R 1729 RS1/16SS104J R 1730 RS1/16SS473J R 1733 RS1/16SS104J R 1734 RS1/16SS104J R 1735 RS1/16SS222J R 1736 RS1/16SS221J R 1737 RS1/16SS221J R 1738 RS1/16SS104J R 1739 RS1/16SS103J R 1740 RS1/16SS103J R 1741 RS1/16SS221J R 1742 RS1/16SS104J R 1743 RS1/16SS221J R 1744 RS1/16SS221J R 1745 RS1/16SS221J R 1746 RS1/16SS221J R 1747 RS1/16SS222J R 1748 RS1/16SS473J R 1749 RS1/16SS104J R 1750 RS1/16SS472J R 1751 RS1/16SS103J R 1752 RS1/16SS104J R 1753 RS1/16SS104J R 1754 RS1/16SS104J R 1755 RS1/16SS104J R 1756 RS1/16SS473J R 1757 RS1/16SS472J R 1758 RS1/16SS104J R 1762 RS1/16SS104J R 1763 RS1/16SS104J R 1764 RS1/16SS104J R 1766 RS1/16SS104J R 1771 RS1/16SS104J R 1772 RS1/16SS104J R 1773 RS1/16SS104J R 1774 RS1/16SS473J R 1775 RS1/16SS221J R 1776 RS1/16SS104J R 1777 RS1/16SS104J R 1778 RS1/16SS0R0J R 1801 RS1/16S3902D R 1802 RS1/16S3302D R 1808 RS1/16SS102J R 1809 RS1/16SS102J CAPACITORS C 1100 CKSRYB105K10 C 1101 CKSRYB473K25 C 1102 CKSSYB103K16 C 1103 CSZSR101M6R3 C 1104 CKSSYB104K10 C 1105 CKSSYB104K10 C 1106 CKSRYB473K25 C 1107 CKSSYB103K16 C 1108 CSZSR101M6R3 C 1109 CKSSYB104K10 C 1110 CKSRYB154K10 C 1111 CCSSCH221J25 C 1114 CCSSCH330J50 C 1115 CKSSYB104K10 C 1116 CCSSCH221J25 C 1117 CKSRYB105K10 C 1118 CKSSYB104K10 C 1119 CKSSYB104K10 C 1120 CKSSYB104K10 C 1121 CKSSYB104K10 C 1122 CSZSC470M16 C 1123 CKSRYB273K25 C 1124 CKSSYB104K10 C 1125 CKSSYB104K10 C 1126 CKSSYB473K10 C 1127 CCSRCH561J50 C 1128 CKSSYB104K10 C 1129 CKSSYB104K10 C 1130 CCSRCH102J50 C 1131 CCSSCH120J50 C 1133 CCSRCH561J50 C 1134 CKSSYB104K10 C 1136 CCSSCH101J50 C 1137 CCSSCH101J50 C 1138 CCSSCH101J50 C 1139 CKSSYB104K10 C 1140 CKSSYB103K16 C 1141 CKSSYB104K10 C 1142 CKSSYB104K10 C 1143 CKSSYB473K10 C 1144 CKSSYB473K10 C 1145 CKSSYB103K16 C 1146 CKSSYB473K10 C 1148 CKSSYB103K16 C 1201 CKSRYB105K10 C 1202 CCSSCH101J50 C 1203 CKSRYB474K10 C 1204 CCSRCH561J50 C 1205 CCSRCH331J50 C 1206 CKSRYB105K10 C 1207 CKSSYB104K10 C 1208 CCSRCH471J50 C 1209 CCSRCH391J50 C 1210 CKSRYB105K10 C 1211 CCSSCH101J50 C 1212 CKSSYB104K10 C 1213 CKSRYB474K10 C 1214 CCSRCH102J50 C 1215 CCSRCH102J50 C 1216 CKSSYB562K25 C 1217 CCSRCH102J50 C 1218 CKSSYB104K10 C 1219 CKSSYB104K10 C 1220 CKSRYB474K10 C 1221 CCSSCH470J50 C 1222 CKSRYB183K25 C 1223 CCSRCH102J50 C 1224 CKSSYB104K10 C 1225 CKSSYB104K10 C 1227 CKSSYB103K16 125 AVIC-90DVD,9DVD— =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C 1228 CKSSYB104K10 C 1229 CCSRCH102J50 C 1230 CKSSYB103K16 C 1231 CKSSYB104K10 C 1232 CKSRYB154K10 C 1233 CKSSYB104K10 C 1234 CKSSYB104K10 C 1235 CKSSYB104K10 C 1236 CKSSYB471K50 C 1241 CKSSYB103K16 C 1242 CKSSYB103K16 C 1243 CKSSYB104K10 C 1300 CKSSYB103K16 C 1301 CKSSYB103K16 C 1304 CKSRYB104K16 C 1305 CEV101M16 C 1308 CKSSYB104K10 C 1400 CKSSYB104K10 C 1401 CKSSYB104K10 C 1402 CKSSYB104K10 C 1403 CKSSYB104K10 C 1404 CKSSYB104K10 C 1405 CKSSYB104K10 C 1406 CKSSYB104K10 C 1407 CKSSYB104K10 C 1408 CKSSYB104K10 C 1409 CKSSYB104K10 C 1410 CKSSYB104K10 C 1411 CKSSYB104K10 C 1412 CKSSYB104K10 C 1413 CKSSYB104K10 C 1414 CKSRYB105K10 C 1415 CKSSYB104K10 C 1416 CKSSYB104K10 C 1417 CCSSCH181J25 C 1418 CKSSYB471K50 C 1419 CKSSYB104K10 C 1421 CKSSYB104K10 C 1422 CKSSYB104K10 C 1423 CKSSYB104K10 C 1500 CKSSYB104K10 C 1501 CKSSYB224K6R3 C 1502 CKSSYB104K10 C 1503 CKSSYB224K6R3 C 1504 CKSSYB224K6R3 C 1505 CKSSYB224K6R3 C 1506 CSZSC101M10 C 1507 CKSSYB104K10 C 1508 CKSSYB104K10 C 1509 CKSSYB224K6R3 C 1510 CKSSYB224K6R3 C 1511 CKSSYB104K10 C 1512 CKSSYB104K10 C 1513 CKSSYB104K10 C 1514 CKSSYB104K10 C 1515 CKSSYB104K10 C 1516 CKSSYB104K10 C 1517 CKSSYB104K10 C 1518 CKSSYB104K10 C 1519 CKSSYB104K10 C 1520 CKSSYB104K10 C 1521 CKSSYB104K10 C 1522 CKSSYB104K10 C 1523 CKSSYB104K10 C 1524 CKSSYB104K10 C 1525 CKSSYB104K10 C 1526 CKSSYB104K10 C 1527 CKSSYB104K10 C 1528 CKSSYB104K10 C 1529 CKSSYB471K50 C 1530 CKSSYB104K10 C 1532 CKSSYB104K10 C 1534 CCSSCH150J50 C 1535 CKSSYB104K10 C 1536 CKSSYB104K10 C 1537 CCSSCH150J50 C 1538 CKSSYB104K10 C 1539 CKSSYB104K10 C 1540 CKSRYB105K10 C 1541 CKSRYB105K10 C 1542 CKSSYB104K10 C 1543 CKSSYB104K10 C 1544 CKSSYB104K10 C 1545 CKSSYB104K10 C 1546 CKSSYB104K10 C 1547 CKSSYB104K10 C 1548 CKSSYB104K10 C 1549 CKSSYB104K10 C 1550 CKSSYB104K10 C 1551 CKSSYB104K10 C 1552 CKSSYB104K10 C 1553 CKSSYB104K10 C 1554 CKSSYB104K10 C 1555 CKSSYB104K10 C 1556 CKSSYB104K10 C 1570 CSZSR101M6R3 C 1571 CSZSR101M6R3 C 1572 CEV101M10 C 1573 CEV101M10 C 1574 CSZSC470M10 C 1575 CSZSC470M10 C 1576 CKSSYB104K10 C 1577 CKSSYB104K10 C 1578 CKSSYB104K10 C 1579 CKSSYB104K10 C 1600 CKSRYB104K16 C 1601 CSZSR4R7M16 C 1602 CKSSYB102K50 C 1608 CSZSR4R7M16 C 1609 CSZSR4R7M16 C 1634 10µF/10V CCH1349 C 1635 10µF/10V CCH1349 C 1636 CKSSYB104K10 C 1637 CKSSYB104K10 C 1700 CKSSYB104K10 C 1701 CKSSYB104K10 C 1702 CKSRYB105K10 C 1703 CKSRYB105K10 C 1704 CKSSYB104K10 C 1705 CKSRYB105K10 C 1706 CKSSYB104K10 C 1707 CKSRYB105K10 C 1708 CKSSYB104K10 C 1709 CKSSYB104K10 C 1710 CKSSYB104K10 C 1711 CKSSYB104K10 C 1712 CKSSYB103K16 C 1713 CKSSYB104K10 C 1714 CKSYB106K6R3 C 1715 CKSSYB104K10 126 AVIC-90DVD,9DVD— =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C 1716 CKSSYB104K10 C 1717 CKSSYB104K10 C 1719 CKSSYB471K50 C 1720 CKSSYB103K16 C 1721 CKSSYB104K10 C 1722 CKSSYB103K16 C 1800 CKSRYB474K10 C 1801 CKSRYB474K10 C 1802 CKSRYB474K10 C 1803 CKSRYB474K10 C 1804 22µF/6.3V CCH1300 C 1805 22µF/6.3V CCH1300 C 1808 CSZSC101M10 C 1809 CCSRCH102J50 C 1810 CCSRCH102J50 C 1811 CSZSR101M6R3 C 1812 CSZSC101M10 Miscellaneous Parts List Pickup Unit(Service)(DP4) CXX1530 M 1 Motor Unit(LOADING) CXB5960 M 2 Motor Unit(CARRIAGE) CXB5955 M 3 Motor(SPINDLE) CXB6218 Fan Motor CXM1192 127 AVIC-90DVD,9DVD— =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 128 AVIC-90DVD,9DVD— 6.1 JIG CONNECTION DIAGRAM 6. ADJUSTMENT DVD Mechanism Module Grille PCB Main PCB CC Unit GPS Unit Interface PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 129 AVIC-90DVD,9DVD— Cautions for servicing This product uses 5V and 3.3V as standard voltages. The electrical potential that is the reference for signals, is not GND, but VREF (approximately 2.2V) and VHALF (approximately 1.65V). During product adjustments, if the reference voltage is mistakenly taken as GND, and a grounding contact is made, not only would it be impossible to measure the accurate electrical potential, but also the servo motor would malfunction, resulting in the application of a strong impact on the pick up. The following precautionary measures should be strictly adhered to, in order to avoid such problems. The reference voltage and GND should not be confused when using the minus probe of a measurement device. When an oscilloscope is being used special care should be taken to make sure that the reference voltage is not connected to the probe of ch1 (on the minus side), while the probe of ch2 (on the minus side), is connected to GND. Further, since the body frame of most measurement devices have the same electrical potential as the minus side of the probe, the body frame of the measurement device should be set to floating ground. If the reference voltage is connected to GND by mistake, turn the regulator OFF immediately, or turn the power OFF. • Remove the filters and wires used for measurements only after the regulator has been turned OFF. • After the power supply is turned on, regulator ON the following adjustment and measurement are promptly done. • Whenever the product is in the test mode, the software will not take any protective action. For this reason, special care should be taken to make sure that no mechanical or electrical shock could be applied to the product when taking measurements in the test mode. • Whenever the EJECT key is pressed to eject the disk, no other keys, other than the EJECT key, should be pressed until the disk eject action has been completed. • Press the EJECT key only after the disk has stopped completely. • If the product hangs up turn the power OFF immediately. • Laser didoes may be damaged, if the volume switch for the laser power adjustment of the pick up unit, is turned. • Test mode starting procedure The test mode can be selected from the navigation test mode. Please use the " remote control unit of the product accessory" after the test mode starts. 6.2 DVD ADJUSTMENT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 130 AVIC-90DVD,9DVD— Test mode In Set source to DVD Start test mode FE test mode Power On Power Off CRG + CRG – LD_ON Focus close adjustment Focus Search Power Off CRG + CRG – T.Bal and other adjustments Focus Jump Power Off Focus Jump ID Search Tracking Open T. Jump +/– ID specification Track number specification Error Rate measurement (Note 2) Reproduction speed switching (Note 3) Power Off CRG – Tracking close adjustment CRG + Disc Type (Note 1) Eject EDC1 mode EDC2 mode 1 8 1 2 Focus Search Stop 2 3 4 8 1 2 3 4 8 1 2 5 6 7 3, 4 8 1 3 4 5 CRG_HOME 6 1 2 3 2~5 EJECT Power off condition Power on condition Focus close condition 2 Focus close condition 1 Tracking close condition 1~4 ID Search Start 5 Jump start 4 3 0000 0000 0FFF 0000 0FFF 0000 1X00 0000 1FFF 0000 0X00 0000 1A00 0000 1100 0000 TEST FE offset coefficient TE offset coefficient AS offset coefficient ENV offset coefficient TG offset coefficient DBALt coefficient FE MAX level FE MIN level AS MAX level ENV MAX level FE normalization feature Spindle gain coefficient TBAL Coefficient GBAL Coefficient TE normalization feature FBAL Coefficient Focus Gain Coefficient Tracking Gain Coefficient AS normalization adjustment feature 2FFF 0000 Layer L0:2000 0000 Layer L1:2100 0000 Layer L0:4X00 0000 Layer L1:4X00 0000 3000 0000 3FFF 0000 3B00 0000 DVD x CAV orCD x 2CLV: 4X00 0000 DVD x 1CAV orCD x 1CLV: 4X00 0000 3C00 0000 4A00 0000 Jump+: 4B00 0000 ID display Track number display 4000 0000 4X00 0000 Error Rate Focus Gain Coefficient Tracking Gain Coefficient AS normalization adjustment feature Operation while key is being pushed. Operation while key is being pushed. Operation while key is being pushed. Operation while key is being pushed. 2B00 0000 2C00 0000 *Please refer to the next page for the method of specfying ID. F-close and F-search cannot be executed, unless LD-ON is set. [If F-close isn't executed within 9 seconds after LD-ON, it switches to LD-OFF automatically. And even if F-search is executed within 9 seconds after LD-ON, it also switches to LD-OFF.] The track number designation is selected from the track numbers already prepared for selection. Switching to cyclic operation is made at step 4, 3, and the decision is finalized (entered) in step For CD: Tracks 1, 4, 10, 11 and 32. For DVD: Tracks 1, 4, 10, 11, 32, 64 and 100. Note 1: At this stage select the media type. Various settings are carried out according to the media selection made here. Note 2: While measurements are being taken, only the operation, for which the measurement is being taken, is allowed. Note 3: Reproduction (play) speed is selectable from: DVD x 1CAV ↔ x 1CLV, CD x 2CLV ↔ x 1CLV 2 : DVD, single-layer 3 : DVD, dual-layer 4 : CD 5 : CD-RW - Front-End test mode flow chart www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 131 AVIC-90DVD,9DVD— Layer 0 selected Layer 1 selected EDC1 mode ID designation 1 2 1~4 EDC1 start 5 Layer 0 selected Layer 1 selected EDC2 mode ID designation 1 2 1~4 EDC2 start 5 0000 0000 0000 0000 0100 0000 1103 0000 Layer0:10** **** Layer1:11** **** ** ****: ID specification value Layer0:20** **** Layer1:21** **** ** ****: Present ID value 0000 0000 1003 0000 0100 0000 1103 0000 0000 0000 1003 0000 Layer0:10** **** Layer1:11** **** ** ****: ID specification value Layer0:20** **** Layer1:21** **** ** ****: Present ID value Method for designating an ID address: • A number of digits are determined through commands 1 and 2. Numerical UP/DOWN operations are performed through commands 3 and 4. The decision is finalized (entered) with command 5. Error status from DVD micurocomputer Contents Display 0X50 Mecha. error No dislay 0X40 No disc No dislay 0X30 The temperature is abnormal Thermal Protection in Motion 0X20 Read error Error-02-XX 0XE2 Non-playable disc NON-PLAYABLE DISC 0X90 Drrerent region disc DFFERENT REGION DISC 0XFF Undefined error Error-FF Error code of read error(Part of XX) Error Code Contents Display 0X99 Data cannot read Please condirm the disc 0X80 The address cannot be found Please condirm the disc 0X90 Focus error Please condirm the disc 0X91 Spindle lock NG DVD is stopping because mechanism detected abnormality 0X92 Carrige home NG DVD is stopping because mechanism detected abnormality 0X93 FOK error Please condirm the disc 0X94 ID/Subcode cannot be read Please condirm the disc 0X95 High spindle rotation Please condirm the disc 0X96 Row spindle rotation DVD is stopping because mechanism detected abnormality 0X98 TOC cannot be found Please condirm the disc 0X9A AV chip error DVD is stopping because mechanism detected abnormality 0X9B RecaveryNG(BE) DVD is stopping because mechanism detected abnormality OSD display Error Code List www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 132 AVIC-90DVD,9DVD— Skew adjustment connection diagram • DVD Core Unit V GND1 RFOUT IC1100 Oscilloscope - Skew adjustment If any of the following replacements have been performed on the system, adjustments for pick up, must be conducted: 1. Pick up unit replacement 2. Spindle motor replacement 3. Carriage chassis replacement 4. Pick up unit main shaft replacement 5. Pick up unit sub-shaft replacement Measurement device and tools : Oscilloscope Allen key wrench 40-pin flexible extension Adhesive material(GEM1033) Screw rock(GYL1001) Disk used : GGV1018 Measurement reference : GND1 Measurement point : RFOUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 133 AVIC-90DVD,9DVD— PU diagram Adhesive material (GEM1033) Skew adjustment screw A Screw rock(GYL1001) Skew adjustment screw B Screw rock(GYL1001) Symptoms that can occur if proper adjustments are not made: Error rate reaches 10 (10 or less under normal conditions). The RF jitter becomes more pronounced - the RF waveform becomes deformed. Retraction of the tracking and the servo motor, become unstable. Cautions for performing adjustments: Do not look directly into the laser beam for any prolonged periods of time. Procedure: 1. Replace the cable, connecting the product's main unit and the DVD mechanical module, with a 40-pin extended flexible cable (GGD1170), and turn the DVD mechanical module upside down, in order to proceed with pick-up unit adjustments. 2. Remove adhesive materials from the pick-up unit, using tweezers. (Note) Make sure that adhesive material fragments are not scattered while removing the adhesive from the unit. Be also very careful not to exert excessive force on the actuator. 3. Connect the unit to an oscilloscope, referring to the connection diagram. 4. Turn the product power ON, and load the disk for adjustments (GGV1018). 5. Set the disk type to single-layer DVD in the front-end test mode, turn the power ON and then move the pick-up to the middle radius. 6. LD ON. 7. Close in the focus(Do not carry out 'T.Bal adjustment' and 'Tracking close'.) 8. Maximize the level by slightly turning the skew adjustment screw A, while looking at the RF waveform level on the oscilloscope. Next, maximize the level by turning the skew adjustment screw B, slightly. Repeat this procedure three times and adjust the unit to attain a maximum level. 9. Turn the power OFF in the test mode, and eject the disk after verifying that it has stopped spinning. 10. Apply adhesive and screw lock materials, to the locations specified in the pick-up diagram (shown below). Apply the adhesive material to secure the resin components on the pick-up chassis. Apply the screw lock material to secure the screws on the pick-up chassis. Do not apply any of these materials to the pick-up section or mechanical sections, which are not specified. Keep the unit away from vibration or shock until the materials securely fix the components and screws in place. -3 -4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 134 AVIC-90DVD,9DVD— Are all reproduced images and sounds normal? NO NO NG NG NG NG NG Are all clocks operating normally? Conduct check 2 Is the streaming I/F operating normally? Conduct Is the audio circuit operating normally? Conduct check 4 Is the video circuit operating normally? Conduct check 5 Is SDRAM I/F operating normally? Conduct check 6 All checks normal? Start Go to the F.E. section check Repair or replace any defective unit Check completed NG NO OK OK OK OK OK OK YES YES YES Is the F.E. section normal? Are all power supply voltages normal? Conduct check 1 Is the microprocessor operating normally? Conduct check 7 - Back end section check flow chart www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 135 AVIC-90DVD,9DVD— Check 1: Are all power supply voltages normal? Reproduce DVD-REF-A1 Title 1. Verify the voltage of the sensing pin. If results are not satisfactory, check to see if there are any problems with the resin flux cored solder, parts and components, in the vicinity of IC1802 through 1804 (the section marked 1 in the circuit diagram). NO. Verification location Rated value Unit 1 VD8-PGND 8±0.3 V 2 VD63-GND 6.3±0.3 V 3 VDD33-GND 3.3±0.3 V 4 SRVDD-GND 3.3±0.3 V 5 VCC5-GND 5±0.25 V 6 VCC33-GND 3.3±0.17 V 7 VCC27-GND 2.73±0.07 V 8 VCC18-GND 1.8±0.04 V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 136 AVIC-90DVD,9DVD— TO MAIN POWER SUPPLY 1.8V 6.3V(5.0V) 2.7V 3.3V Schematic diagram 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 137 AVIC-90DVD,9DVD— Check 2: Are all clocks operating normally? Reproduce DVD-REF-A1 Title 1. Verify the circuit described in Figure 2. This check is the same for all DVD-V compatible modules. Checks are to be conducted with a GND reference. If locations listed under "verification location 2", can be verified, there will be no need to perform verifications for the locations listed under "verification location 1." If the result is not satisfactory, check to see if there are any problems with the resin flux cored solder, parts and components, in the vicinity of IC1506 (the section marked 2 in the circuit diagram). Verification Verification NO. location 1 location 2 Media Rated value 1 Rated value 2 Rated value 3 (contact measurements) 1 CLK27 IC1502 99pin ALL 2.65V~VCC33 GND~0.65V 27MHz±50ppm 2 EXTCK IC1502 110pin DVD 2.65V~VCC33 GND~0.65V 36.8640MHz± IC1601 1pin 100ppm 3 EXTCK IC1502 110pin CD 2.65V~VCC33 GND~0.65V 33.8688MHz± IC1601 1pin 100ppm 4 MCK33 IC1400 100pin ALL 2.33~VCC33 GND~0.99V 33.8688MHz±100ppm Rated value 1 Rated value 3 Rated value 2 GND Clock rated values www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 138 AVIC-90DVD,9DVD— POWER SUPPLY 3.3V 2.7V POWER SUPPLY 3.3V Schematic diagram 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 139 AVIC-90DVD,9DVD— Rated value 1 Rated value 2 GND Check 3: Is the streaming I/F operating normally? Reproduce DVD-REF-A1 Title 1. Verify the circuit described in Figure 3. This check is the same for all DVD-V compatible modules. Checks are to be conducted with a GND reference. If the locations listed under "verification location 2" can be verified, then there is no need to conduct verifications for the locations listed under "verification location 1." If the result is not satisfactory, check to see if there are any problems with the resin flux cored solder, parts and components, in areas where a problem occurs, for the overall sequence of “output " input" of the checked location. Verification NO. location 1 Verification Verification Rated Rated Reference Others (contact location 2 Media value 1 value 2 waveform measurements) 1 STD0 IC1502 83pin DVD 2V~VCC33 GND~0.8V Waveform 1 Line name OHDD8 at R1401 2 STD1 IC1502 82pin DVD 2V~VCC33 GND~0.8V Waveform 1 Line name OHDD9 at R1401 3 STD2 IC1502 81pin DVD 2V~VCC33 GND~0.8V Waveform 1 Line name OHDD10 at R1401 4 STD3 IC1502 80pin DVD 2V~VCC33 GND~0.8V Waveform 1 Line name OHDD11 at R1401 5 STD4 IC1502 78pin DVD 2V~VCC33 GND~0.8V Waveform 1 Line name OHDD12 at R1400 6 STD5 IC1502 77pin DVD 2V~VCC33 GND~0.8V Waveform 1 Line name OHDD13 at R1400 7 STD6 IC1502 76pin DVD 2V~VCC33 GND~0.8V Waveform 1 Line name OHDD14 at R1400 8 STD7 IC1502 75pin DVD 2V~VCC33 GND~0.8V Waveform 1 Line name OHDD15 at R1400 9 AVRTM IC1502 73pin DVD 2V~VCC33 GND~0.8V Waveform 2 Line name O/IOWR at IC1403 10 STCLK IC1502 71pin DVD 2V~VCC33 GND~0.8V Waveform 2 Line name ODA2 at IC1403 11 STVALID IC1502 70pin DVD 2V~VCC33 GND~0.8V Waveform 2 Line name O/INTRO at IC1403 12 MASTER IC1400 24pin DVD 2V~VCC33 GND~0.8V Waveform 2 Line name STENABLE at IC1403 Streaming I/F rated value www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 140 AVIC-90DVD,9DVD— SYSTEM CONTROLLER I/F SYSTEM CONTROLLER I/F POWER SUPPLY 3.3V 2.7V POWER SUPPLY 3.3V Schematic diagram 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 141 AVIC-90DVD,9DVD— Check 4: Is the audio circuit operating normally? Reproduce DVD-REF-A1 Title 2 Chapter (48k/16-bit/1 kHz/0dB). This check is the same for all DVD-V compatible modules. Checks are to be conducted using GNDAU1 (sensing pins) as a reference. If the locations, listed under "verification location 2", can be verified, there is no need to conduct verifications for the locations listed under "verification location 1." If the result is not satisfactory, check to see if there are any problems with the resin flux cored solder, parts and components, in the vicinity of the main components (the section marked 4 in the circuit diagram circuit diagram). NO. Verification Verification Rated Rated Reference location 1 location 2 value 1 value 2 waveform 1 AOUT0 IC1601 pin-3 2.2V 0.8V Waveform 3 and over and lower 2 SRCKAV IC1601 pin-2 For 2.2V 0.8V Waveform 3 and over and lower 4 LRCKAV IC1601 pin-4 2.2V 0.8V Waveform 3 and over and lower Rated value1 Rated value 2 GND Three serial output rated values Checks are conducted with the measurement circuit below. NO. Verification Verification Rated value Reference location 1 location 2 waveform 4 LO CN1701 15pin 1120±150mV Waveform 4 5 RO CN1702 12pin 1120±150mV Waveform 4 Analog audio outputs (LO and RO) rated values LO and RO output measurement circuit NO. Verification Verification Rated value 1 Rated value 2 Reference location 1 location 2 waveform 6 IEC958 CN1702 1pin 2.2V and over 0.8V and lower Waveform 5 Rated value 22k AAGND HOST I/F RO LO Q1602.3 Peripheral muting circuit These resistors are inserted. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 142 AVIC-90DVD,9DVD— AUDIO 2ch ANALOG OUT POWER SUPPLY 3.3V Schematic diagram 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 143 AVIC-90DVD,9DVD— Check 5: Is the video circuit operated normally? Reproduce DVD-REF-A1 Title 2 Chapters (White 100IRE). Monitor the output with the oscilloscope, by setting the COMPO signal to a GND reference. Set the Trigger mode to the TV trigger, and the Trigger line to line-150. NO. Verification location Rated value Reference (sensing pin) waveform 1 COMPO 1.0±0.02Vpp Waveform 6 If the result is not satisfactory, check to see if there are any problems with resin flux cored solder, parts and components, in the vicinity of line-150 (the section marked 5 in the circuit diagram) and peripheral components Color burst Horizontal periodic signal Rated value When the result is not satisfactory, adjust the noise level to 1.0 + 0.02 Vpp. PEAK BOTTOM Pedestal COMPO signal Composite signal 100% output waveform www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 144 AVIC-90DVD,9DVD— AV CHIP BLOCK POWER SUPPLY 3.3V Schematic diagram 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 145 AVIC-90DVD,9DVD— Check 6: Is SDRAM I/F operating normally? Reproduce DVD-REF-A1 Title 1. Verify the circuit described in Figure 6. This check is the same for all DVD-V compatible modules. Check the conductivity of both the "Verification location 1" and the "Verification location2." If the result is not satisfactory, check to see if there are any problems with the resin flux cored solder, parts and components, in areas where a problem occurs, for the overall sequence of “output " input" of the checked location. NO. Signal name Verification location 1 Verification location 2 Rated value Others 1 MA0 IC1500/1501 21pin IC1502 2pin 56Ω ± 5% Same for both IC1500 and IC1501. 2 MA1 IC1500/1501 22pin IC1502 4pin 56Ω ± 5% Same for both IC1500 and IC1501. 3 MA2 IC1500/1501 23pin IC1502 7pin 56Ω ± 5% Same for both IC1500 and IC1501. 4 MA3 IC1500/1501 24pin IC1502 10pin 56Ω ± 5% Same for both IC1500 and IC1501. 5 MA4 IC1500/1501 27pin IC1502 8pin 56Ω ± 5% Same for both IC1500 and IC1501. 6 MA5 IC1500/1501 28pin IC1502 6pin 56Ω ± 5% Same for both IC1500 and IC1501. 7 MA6 IC1500/1501 29pin IC1502 3pin 56Ω ± 5% Same for both IC1500 and IC1501. 8 MA7 IC1500/1501 30pin IC1502 207pin 56Ω ± 5% Same for both IC1500 and IC1501. 9 MA8 IC1500/1501 31pin IC1502 204pin 56Ω ± 5% Same for both IC1500 and IC1501. 10 MA9 IC1500/1501 32pin IC1502 201pin 56Ω ± 5% Same for both IC1500 and IC1501. 11 MA10 IC1500/1501 20pin IC1502 206pin 56Ω ± 5% Same for both IC1500 and IC1501. 12 MA11 IC1500/1501 19pin IC1502 203pin 56Ω ± 5% Same for both IC1500 and IC1501. 13 MDQ0 IC1500/1501 2pin IC1502 159pin 56Ω ± 5% Same for both IC1500 and IC1501. 14 MDQ1 IC1500/1501 3pin IC1502 162pin 56Ω ± 5% Same for both IC1500 and IC1501. 15 MDQ2 IC1500/1501 5pin IC1502 165pin 56Ω ± 5% Same for both IC1500 and IC1501. 16 MDQ3 IC1500/1501 6pin IC1502 168pin 56Ω ± 5% Same for both IC1500 and IC1501. 17 MDQ4 IC1500/1501 8pin IC1502 171pin 56Ω ± 5% Same for both IC1500 and IC1501. 18 MDQ5 IC1500/1501 9pin IC1502 175pin 56Ω ± 5% Same for both IC1500 and IC1501. 19 MDQ6 IC1500/1501 11pin IC1502 178pin 56Ω ± 5% Same for both IC1500 and IC1501. 20 MDQ7 IC1500/1501 12pin IC1502 181pin 56Ω ± 5% Same for both IC1500 and IC1501. 21 MDQ8 IC1500/1501 39pin IC1502 180pin 56Ω ± 5% Same for both IC1500 and IC1501. 22 MDQ9 IC1500/1501 40pin IC1502 177pin 56Ω ± 5% Same for both IC1500 and IC1501. 23 MDQ10 IC1500/1501 42pin IC1502 173pin 56Ω ± 5% Same for both IC1500 and IC1501. 24 MDQ11 IC1500/1501 43pin IC1502 170pin 56Ω ± 5% Same for both IC1500 and IC1501. 25 MDQ12 IC1500/1501 45pin IC1502 167pin 56Ω ± 5% Same for both IC1500 and IC1501. 26 MDQ13 IC1500/1501 46pin IC1502 164pin 56Ω ± 5% Same for both IC1500 and IC1501. 27 MDQ14 IC1500/1501 48pin IC1502 161pin 56Ω ± 5% Same for both IC1500 and IC1501. 28 MDQ15 IC1500/1501 49pin IC1502 158pin 56Ω ± 5% Same for both IC1500 and IC1501. 29 MCK IC1500/1501 35pin IC1502 185pin 56Ω ± 5% Same for both IC1500 and IC1501. 30 XWE IC1500/1501 15pin IC1502 193pin 56Ω ± 5% Same for both IC1500 and IC1501. 31 XCAS IC1500/1501 16pin IC1502 195pin 56Ω ± 5% Same for both IC1500 and IC1501. 32 XRAS IC1500/1501 17pin IC1502 196pin 56Ω ± 5% Same for both IC1500 and IC1501. 33 XCSM IC1500 18pin IC1502 199pin 56Ω ± 5% Same for both IC1500 and IC1501. 34 XCSE IC1501 18pin IC1502 198pin 56Ω ± 5% 35 DQMUM IC1500 14pin IC1502 192pin 56Ω ± 5% 36 DQMLM IC1500 36pin IC1502 189pin 56Ω ± 5% 37 DQMUE IC1500 14pin IC1502 190pin 56Ω ± 5% 38 DQMLE IC1500 36pin IC1502 187pin 56Ω ± 5% www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 146 AVIC-90DVD,9DVD— POWER SUPPLY 3.3V Schematic diagram 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 147 AVIC-90DVD,9DVD— Check 7: Is the microprocessor operating normally? Verify the circuit described in Figure 7. This check is the same for all DVD-V compatible modules. Check the conductivity of both the "Verification location 1" and the "Verification location2." If the result is not satisfactory, check to see if there are any problems with the resin flux cored solder, parts and components, in areas where a problem occurs, for the overall sequence of "output – input" of the checked location. NO. Signal name Verification Verification Verification Rated value Others location 1 location 2 Media 1 A1 IC1700 142pin IC1502 35pin ALL 390Ω ± 5% 2 A2 IC1700 141pin IC1502 36pin ALL 390Ω ± 5% 3 A3 IC1700 140pin IC1502 37pin ALL 390Ω ± 5% 4 A4 IC1700 139pin IC1502 38pin ALL 390Ω ± 5% 5 A5 IC1700 138pin IC1502 40pin ALL 390Ω ± 5% 6 A6 IC1700 137pin IC1502 41pin ALL 390Ω ± 5% 7 A7 IC1700 136pin IC1502 42pin ALL 390Ω ± 5% 8 A8 IC1700 133pin IC1502 43pin ALL 390Ω ± 5% 9 A9 IC1700 132pin IC1502 45pin ALL 390Ω ± 5% 10 A10 IC1700 131pin IC1502 46pin ALL 390Ω ± 5% 11 A11 IC1700 130pin IC1502 47pin ALL 390Ω ± 5% 12 D0 IC1700 17pin IC1502 49pin ALL 390Ω ± 5% 13 D1 IC1700 16pin IC1502 50pin ALL 390Ω ± 5% 14 D2 IC1700 15pin IC1502 51pin ALL 390Ω ± 5% 15 D3 IC1700 14pin IC1502 54pin ALL 390Ω ± 5% 16 D4 IC1700 13pin IC1502 55pin ALL 390Ω ± 5% 17 D5 IC1700 12pin IC1502 56pin ALL 390Ω ± 5% 18 D6 IC1700 11pin IC1502 57pin ALL 390Ω ± 5% 19 D7 IC1700 10pin IC1502 59pin ALL 390Ω ± 5% 20 D8 IC1700 7pin IC1502 60pin ALL 390Ω ± 5% 21 D9 IC1700 6pin IC1502 61pin ALL 390Ω ± 5% 22 D10 IC1700 5pin IC1502 62pin ALL 390Ω ± 5% 23 D11 IC1700 4pin IC1502 64pin ALL 390Ω ± 5% 24 D12 IC1700 3pin IC1502 65pin ALL 390Ω ± 5% 25 D13 IC1700 2pin IC1502 66pin ALL 390Ω ± 5% 26 D14 IC1700 1pin IC1502 67pin ALL 390Ω ± 5% 27 D15 IC1700 144pin IC1502 69pin ALL 390Ω ± 5% 28 XCSAVR IC1700 101pin IC1704 5pin ALL 0Ω 29 XCSAVW IC1700 100pin IC1704 4pin ALL 0Ω 30 XCSAV IC1704 6pin IC1502 32pin ALL 390Ω ± 5% 31 XAVINT IC1700 39pin IC1502 27pin ALL 0Ω 32 XRD IC1700 95pin IC1502 31pin ALL 390Ω ± 5% 33 CLKOUT IC1700 90pin IC1509 3pin ALL 33Ω Dividing circuit For verification location 1, include also IC1054 pin-11 34 HCLK IC1509 5pin IC1502 33pin ALL 200Ω ± 5% 35 XWR IC1700 97pin IC1504 13pin ALL 0Ω 36 XBWR IC1503 8pin IC1502 30pin ALL 200Ω ± 5% www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com POWER SUPPLY 3.3V CLOCK FREQUENCY 5MHz POWER SUPPLY 3.3V Schematic diagram 7 148 AVIC-90DVD,9DVD— www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 149 AVIC-90DVD,9DVD— ! CH1: STD1 @ CH2: STD4 # CH3: STD7 $ CH4: STENABLE G→ 5V/div. 2µs/div. G→ G→ G→ ←T % CH1: AVRTM ^ CH2: STCLK & CH3: STVALID $ CH4: STENABLE G→ 5V/div. 2µs/div. G→ G→ G→ ←T % CH1: AVRTM ^ CH2: STCLK & CH3: STVALID $ CH4: STENABLE G→ 5V/div. 50µs/div. G→ G→ G→ ←T * CH1: AOUT0 ( CH2: SRCKAV ) CH3: LRCKAV G→ 2V/div. 2µs/div. G→ G→ ←T ⁄ CH1: IEC958 1V/div. 500ns/div. G→ ←T ¤ CH1: LO ‹ CH2: RO G→ 1V/div. 500µs/div. G→ ←T › CH1: COMPO 200mV/div. 10µs/div. [White 100% output] G→ Waveform1 Waveform2(1) Waveform2(2) Waveform3 Waveform4 Waveform5 Waveform6 Note:1. The encircled number denote measuring pointes in the circuit diagram. 2. Reference voltage VHALF : 1.65V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 150 AVIC-90DVD,9DVD— 1. Types of Test Modes There are two types of test modes: 1. Production Engineering Specification (this type is not available for service uses). 2. Service Specification, ROM / SDRAM version This type is available when the system start-up is conducted from system software in ROM. 2. Test Mode System Start-Up Method Service Specification Version (ROM / SDRAM version): 1. Press both the RESET and EJECT buttons simultaneously, when +Battery and ACC are both in an ON condition. 2. Release the RESET button only. 3. When the password entry screen is displayed, release the EJECT button. 4. Enter the password. 5. Once the password has been entered, press the OK button. 6. If the system matches the entered password the test mode menu will be displayed. * Ordinarily, the ROM version will start up. However, if the system software is being stored on an SDRAM, and if the ACC is turned ON while the EJECT button only is being pressed, the software on the SDRAM will start up. [Password] The password is "2580456". Enter the password using the ten-key pad, then press the OK button. All the alphabetical characters displayed are dummy displays. Seven digits are necessary for the password. Entering eight digits will result in a password error. • Password Entry Screen This is a special service application Not for customer use. Please input the whole password, then push the [OK] button. ABCDEFGHIJKLMNOPQRSTUVWXYZ SELECT : please joystick to left or right. INPUT : please push the [OK] button. CANSEL : please push the [BACK] button. - Navigation Test Modes 6.3 TEST MODE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 151 AVIC-90DVD,9DVD— • Password OK screen: This screen is displayed for approximately two seconds, then automatically changes to the menu screen. • Password NG screen This is a special service application Not for customer use. Please input the whole password, then push the [OK] button. ABCDEFGHIJKLMNOPQRSTUVWXYZ Password Right. Go to next page. This is a special service application Not for customer use. Please input the whole password, then push the [OK] button. ABCDEFGHIJKLMNOPQRSTUVWXYZ Wrong password. Restarting, please wait a moment. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 152 AVIC-90DVD,9DVD— 3. Format SRAM drive SRAM formatting The SRAM area used by the application will be initialized. When the initialization process has been completed, the display will return to the menu screen. 4. Clear backup memory Backup variable initialization The SRAM area used by the system software will be initialized. When the process has been completed, the system will reboot. 5. GPS backup data clear GPS backup data clearing The SRAM area, used by the GPS program, will be initialized. When the process has been completed, the display will return to the menu screen. 6. GYRO SENSOR INFO data clear Gyro sensor's learning function data clearing The learning values stored in the gyro sensor will be cleared. When the process has been completed, the display will return to the menu screen. 2. ERROR log Error log entry test (Refer to page XXX.) Displays an error log of the system software stored in the SRAM. A maximum of eight error logs can be displayed, starting with the latest error. 7. i-navi link unit check Not used. 1. Version check Version check Various version information. 3. Service Mode Menu Service Specification Version (ROM / SDRAM version) TESTMODE MENU [SERVICE_MENU(OS)] 1. Version check 2. ERROR log 3. Format SRAM drive 4. Clear backup memory 5. GPS backup data clear 6. GYRO SENSOR INFO data clear 7. i-navi link unit check ==> next page SYSTEM Ver. : [BOOT]0.00 [OS]0.00 155. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 153 AVIC-90DVD,9DVD— TESTMODE MENU [SERVICE_MENU(OS)] 1. Change to display error [Message] 2. Start within debug shell [ON ] 3. Program loading [Disc] 4. GPS assessment 5. File maintenance 6. HDD connect log 7. HDD BIOS check 8. Program forced write <== back page ==> next page SYSTEM Ver. : [BOOT]0.00 [OS]0.00 1. Change to display error 2. Start within debug shell 3. Program loading 8. Program forced write Error information switch (Refer to page XXX.) A display setting (for debugging) where an error occurs. A Message (message itself) or Information (error information) selection can be made. Debug shell Start-up setting for the debug shell (for debugging). An Off (no initial start-up) or On (initial start-up) selection can be made. Program loading Setting the storage location priority for the system software and application at start-up (for debugging). A Disc (disc prioritized as boot source) or Disc & Card (disc or card prioritized as boot source) selection can be made. Forced overwriting of the program Forced overwriting of SYS (system), GPS (GPS), APL (application) software, (and DSP software for Japanese domestic versions) are performed. For the system and application, the selection of a language is required (using the joystick). Pressing the BACK key will return the display to the menu screen. 4. GPS assessment GPS evaluation system start up Tests on the availability and usability of the GPS evaluation system are conducted. Pressing the BACK key will return the display to the menu screen. 5. File Maintenance File management function test Conducts formatting of the SRAM drive and PC card (ATA Flash Card). Data stored in the SRAM can be extracted and copied to the PC Card. Data extracted from the SRAM to the PC Card can be copied to the SRAM again. 6. HDD connect log Not used. 7. HDD BIOS check Not used. 156. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4. Test Mode's Menu Selection Method A selection can be made while moving the joystick up or down the menu. When the desired item has been emphasized, press the OK button to execute the selected test. This selection cannot be performed using the ten-key pad. A transition between pages of the menu can be performed by moving the joystick to the left and right. 5. Version Information The system software's version information is provided on the bottom line of the test mode menu. SYSTEM Ver. : [BOOT] X.XX ROM version = X.XX. No system software exists in an SDRAM. SYSTEM Ver. : [BOOT] X.XX [OS] Y.YY ROM version = X.XX. SDRAM version = Y.YY. 154 AVIC-90DVD,9DVD— TESTMODE MENU [SERVICE_MENU(OS)] 1. SDRAM/SRAM test 2. SENSOR test 3. CD-ROM reading test 4. RGB test 5. MS2/H2 check 6. MODE SET UP <== back page ==> next page SYSTEM Ver. : [BOOT]0.00 [OS]0.00 3. CD-ROM reading test CD-ROM reading test A reading test of the CD-ROM drive will be conducted. 1. SDRAM/SRAM test Memory check SRAM: Device and bus tests are conducted to all areas of the SRAM. Data is protected during the test. SDRAM: Device and bus tests are conducted to all areas of the SDRAM, by dividing the areas into BIOS / USER areas. During the device tests, data in the BIOS area is not protected, while the data in the USER area is protected During the bus test, data patterns are written in the USER area, therefore, the data in the USER area is not protected. 2. SENSOR test Sensor tests Tests on the G-sensor, gyro, power supply voltage and mechanical installation conditions, are conducted. Pressing the BACK key will return the display to the menu screen. 4. RGB test Display images RGB rendering checks RGB rendering tests (The upper half consists of eight colors of black, blue, red, pink, green, light blue, yellow and white, as well as the lower half three colors of red, green and blue.) -> Red (full) -> Green (full) -> Blue (full) -> The color toggle can be implemented by using the <- and -> keys. Pressing the BACK key will return the display to the menu screen. 5. MS2/H2 check Mechanism Module test Starting the DVD Mechanism Module test mode.(Refer to page XXX) 6. MODE SET UP Not used. 159. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 155 AVIC-90DVD,9DVD— 1. Error Information Descriptions of error information, for errors arising from system software problems, will be provided in this section. Up to eight sets of information, related to the system software’s errors, will be stored in the SRAM. By executing hi_sysdwn( ) the line number (on which the error occurred), the error code and detailed information of the error, will be stored in the error log. Hi_sysdwn( ) will be executed in the following two circumstances: 1. hi_sysdwn( ) will be intentionally stored if fatal errors occur with each BIOS. 2. If multiple exceptions, fatal exceptions, illegal command codes and trap command errors occur. 2. Error Log's Entry Function Up to eight sets of information, related to errors starting with the latest error, will be displayed by the error log entry function. There are two types of error log displays. The display will vary when the argument provided to hi_sysdwn( ), depending on whether detailed information (such as program name, version number, creation date, creation time and creator name) exists or not. 1. When detailed information exists: ERCD Error code. FILE Error occurring program name. LINE Error occurring program line number. VERS Error occurring program version number. DATE Error occurring program creation date. TIME Error occurring program creation time. AUTH Error occurring program creator name. ERROR-TIME Error occurrence date and time. - Error Information ERROR INFORMATION ** ** ERCD FILE LINE VERS DATE TIME AUTH ERROR-TIME 1999-03-24 16:50:19 No.2 ERROR No.1 No.8 Stop when push [BACK] button. f f f f f f f f(-1) tsk_ini.c 144(00000090) 1.16 1999-03-19 12:28:58+09 hiroaki = = = = = = = www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 156 AVIC-90DVD,9DVD— 2. When detailed information does not exist: type Error occurring program line number. ercd Error code. inf System down information. ERROR-TIME Error occurrence date and time. If an error occurs due to a multiple exception, the definitions will change to the following: type Execution address at the time of error occurrence. ercd Contributing factor for the exceptions. inf Program status word at the time of error occurrence. ERROR-TIME Error occurrence date and time. 3. Error Information Switch The product (with default settings) will display error messages to the user if an error occurs. Error information can be displayed if an error occurs by switching the error information in the test mode. In either case, the error log entry display will be the same. 1) Error message display (default settings): • Setting in the test mode: ERROR INFORMATION ** ** type = 00400016(4194326) ercd = 0000ff90(65424) inf = 00000002(2) ERROR-TIME 1999-03-24 17:17:01 No.2 ERROR No.1 No.8 Stop when push [BACK] button. TESTMODE MENU [SERVICE_MENU(OS)] 1. Change to display error [Message] 2. Start within debug shell [ON ] 3. Program loading [Disc] 4. GPS assessment 5. File maintenance 6. HDD connect log 7. HDD BIOS check 8. Program forced write <== back page ==> next page SYSTEM Ver. : [BOOT]0.00 [OS]0.00 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 157 AVIC-90DVD,9DVD— • Display when an error occurs: 2) Error information display • Settings in the test mode: Display when an error occurs: • If error information exists: An error has occured. Please turn power off and on again. TESTMODE MENU [SERVICE_MENU(OS)] 1. Change to display error [Information] 2. Start within debug shell [ON ] 3. Program loading [Disc] 4. GPS assessment 5. File maintenance 6. HDD connect log 7. HDD BIOS check 8. Program forced write <== back page ==> next page SYSTEM Ver. : [BOOT]0.00 [OS]0.00 ERROR INFORMATION ** ** ERCD FILE LINE VERS DATE TIME AUTH ERROR-TIME 1999-03-24 16:51:26 f f f f f f f f(-1) tsk_ini.c 144(00000090) 1.16 1999-03-19 12:28:58+09 hiroaki = = = = = = = www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 158 AVIC-90DVD,9DVD— • If error information does not exist: ERROR INFORMATION ** ** type = 0010a316(1090326) ercd = 0000ff90(65424) inf = 00000000(0) ERROR-TIME 1999-03-24 18:34:30 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 159 AVIC-90DVD,9DVD— - DVD Test Modes CAUTIONS Protection is not operational against a mechanical runaway conditions during servo testing,. Critical damage can result if the system is allowed to continue in a mechanical runaway state. If abnormal noise is heard during the test, turn the power OFF immediately. - Entering the test mode The test mode can be selected from the navigation test mode. - Keys (remote control) used for the DVD test mode [OK] : Selection decided. [BACK] : Go back. Directional keys : [ ] keys of the joystick. (1) Initial screen display FirmWare Revision: Version of the drive used. [1] Starts the FE test mode. [2] EDC1 mode (available for DVDs only). [3] EDC2 mode (available for DVDs only). [4] Executes the MS2 memory clearing operation. [OK] Executes. [BACK] Returns to the test mode menu. * Using the joystick select individual items . [MS2 X-954 Test] FirmWare Revision. Core Ver **.** Apl Ver **.** --------------------------------------------------------- [1] FE TestMode [2] EDC-1 mode [3] EDC-2 mode [4] MS2 Memory Clear Start Press [OK] to make a selection Press [BACK] to return www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 160 AVIC-90DVD,9DVD— (2) FE Test Menu Screen Display Status : "Power Off (during normal conditions)." [1] Power On (proceed to servo test 1-0). [2] Disk type : DVD single-layer. [3] Disk type : DVD double-layer. [4] Disk type : CD. [5] Disk type : CD-RW. [6] Ejects the disk. [OK] Executes. [BACK] Returns to the initial screen display for the test. * Using the joystick select individual items . (3) DVD EDC Test Menu Screen Display [X-954 FE Test menu] Status : Power Off Data : 0000 0000 ------------------------------------------------------------------ [1] Power On [2] Disc type : DVD 1-Layer [3] Disc type : DVD 2-Layer [4] Disc type : CD [5] Disc type : CD-RW [6] Disc Eject Press [OK] to make a selection Press [BACK] to X-954 Test top [X-954 DVD Test] EDC-1 +--------------------------------+ Layer : 0 ID : 20 03 0A 63 +--------------------------------+ [1] Select Layer 0 [2] Select Layer 1 [3] Disc Eject Press [OK] to make a selection Press [BACK] to DVD Test top (EDC end) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 161 AVIC-90DVD,9DVD— EDC-1 : Performs consecutive EDC tests. EDC-2 : Performs EDC tests for each block. ID : Performs ID of the test. [1] Selects layer 0. [2] Selects layer 1. [3] Ejects the disk. [OK] Executes. [BACK] Returns to the test mode menu. * Using the joystick select individual items . (4) DVD ECD Test Menu Screen Display EDC-1 : Performs consecutive EDC tests. EDC-2 : Performs EDC tests for each block. ID : Performs ID of the test. [1] Moves the cursor to the right by one increment. [2] Moves the cursor to the left by one increment. [3] Moves the cursor up by one increment. [4] Moves the cursor down by one increment. [5] Starts the EDC test. [6] Ejects the disk. [OK] Executes. [BACK] Returns to the test mode menu. [X-954 DVD Test] EDC-1 +--------------------------------+ Layer : 0 ID : 20 03 0A 63 +--------------------------------+ [1] cursor right [2] cursor left [3] cursor up [4] cursor down [5] Start EDC-1 [6] Disc Eject Press [OK] to make a selection Press [BACK] to DVD Test top (EDC end) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 162 AVIC-90DVD,9DVD— (5) Servo Test Screen Display 1-0 Test items are basically the same for both DVDs and CDs. * Using the joystick select individual items. Status : "Power On" (during normal conditions). * Focus closing and searching will not operate unless the LD-ON setting is made. [1] Closes in on the focus (proceeds to servo test 2-0). [2] Performs a focus search operation (S-curve measurement). Focus operation will then be stopped. [3] Moves the carriage (external). The carriage transition operation will then be stopped. [4] Moves the carriage (internal). The carriage transition operation will then be stopped. [5] Performs LD-ON/OFF operation. [6] Returns the carriage to the home position. [BACK] Returns to the DVD test menu screen display. * This operation will not be performed until the coefficient figures have been received. (6) Servo Test Screen Display 2-0 [X-954 DVD Servo. Test(1-0) ] Status : Power On Data : 0000 0000 ------------------------------------------------------------- [1] Focus Close [2] Focus Search (Start/Stop) [3] CRG + (Start/Stop) [4] CRG - (Start/Stop) [5] LD-ON/OFF [6] CRG HOME ------------------------------------------------------------- FE Offset : 0000 0000 TE Offset : 0000 0000 AS Offset : 0000 0000 ENV Offset : 0000 0000 TG Offset : 0000 0000 DBAL : 0000 0000 ------------------------------------------------------------- Press [OK] to make a selection Press [BACK] to DVD Test top (Power Off) [X-954 DVD Servo. Test(2-0) ] Status : Forcus Close Data : 0000 0000 ---------------------------------------------------------------- [1] T.Bal [2] Focus Jump [3] CRG + (Start/Stop) [4] CRG - (Start/Stop) ---------------------------------------------------------------- FE MAX : 0000 0000 FE MIN : 0000 0000 AS MAX : 0000 0000 ENV MAX : 0000 0000 FE Normal : 0000 0000 S.Gain : 0000 0000 ---------------------------------------------------------------- Press [OK] to make a selection Press [BACK] to DVD Test top (Power Off) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 163 AVIC-90DVD,9DVD— Test items are basically the same for both DVDs and CDs. * Using the joystick select individual items. Status : "Focus Close" (during normal conditions). [1] Adjusts tracking balance (proceeds to servo test 3-0). [2] Performs a focus jump operation. [3] Moves the carriage (external). The carriage transition operation will then be stopped. [4] Moves the carriage (internal). The carriage transition operation will then be stopped. [BACK] Returns to the DVD test menu screen display. * This operation will not be performed until the coefficient figures have been received. (7) Servo Test Screen Display 3-0 Test items are basically the same for both DVDs and CDs. * Using the joystick select individual items. Status : "Focus Close2" (during normal conditions). [1] Performs tracking close operation (proceeds to servo test 4-0). [3] Moves the carriage (external). The carriage transition operation will then be stopped. [4] Moves the carriage (internal). The carriage transition operation will then be stopped. [BACK] Returns to the DVD test menu screen display. * This operation will not be performed until the coefficient figures have been received. [X-954 DVD Servo. Test(3-0) ] Status : Focus Close2 Data : 0000 0000 --------------------------------------------------------------- [1] Tracking Close [3] CRG + (Start/Stop) [4] CRG - (Start/Stop) --------------------------------------------------------------- T.Bal : 0000 0000 G.Bal : 0000 0000 TE Normal : 0000 0000 --------------------------------------------------------------- Press [OK] to make a selection Press [BACK] to DVD Test top (Power Off) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 164 AVIC-90DVD,9DVD— (8) Servo Test Screen Display 4-0 Test items are basically the same for both DVDs and CDs. * Using the joystick select individual items. Status : "Tracking Close" (during normal conditions). [1] [OK] triggers measurement of the error rates (other operations can not be performed for approximately 10 seconds). [2] [OK] triggers switching of the reproduction speed. [3] Performs track jumping by a designated number of tracks (external). [4] Performs track jumping by a designated number of tracks (internal). [5] Performs a focus jump operation (for DVDs only). [6] Designates an ID (for DVDs only). [7] Performs a tracking open operation (for the focus close status: will proceed to servo test 2-0). [BACK] Returns to the DVD test menu screen display. * This operation will not be performed until the coefficient figures have been received. Reproduction speeds L0-layer DVD x CAV, CD x 2CLV 4000 0000 L0-layer DVD x 1CLV, CD x 1CLV 4200 0000 L1-layer DVD x CAV 4100 0000 L1-layer DVD x 1CLV 4300 0000 [X-954 DVD Servo. Test(4-0) ] Status : Tracking Close Data : 0000 0000 -------------------------------------------------------------------- [1] Error Rate . . . 1.105e04 [2] Read Speed [3] Track Jump + [4] Track Jump - [5] Focus Jump [6] ID Search [7] Tracking Open (to Focus Close) -------------------------------------------------------------------- F.Bal : 0000 0000 F.Gain : 0000 0000 T.Gain : 0000 0000 AS Normal : 0000 0000 -------------------------------------------------------------------- Press [OK] to make a selection Press [BACK] to DVD Test top (Power Off) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 165 AVIC-90DVD,9DVD— (9) Servo Test Screen Display 4-3/4 Test items are basically the same for both DVDs and CDs. Status : "Tracking Close" (during normal conditions). [1] Performs a track number designation (MS2 cyclically switches the ten available patterns). [2] Starts the tracking jump operation (will proceed to servo test 4-0). (10) Servo Test Screen Display 4-6 Available for DVDs only. Status : "Tracking Close" (during normal conditions). [1] Displays designated ID . [2] Moves the cursor to the right by one increment. [3] Moves the cursor to the left by one increment. [4] Moves the cursor up by one increment. [5] Moves the cursor down by one increment. [6] Starts the ID search operation (return to servo test 4-0). [X-954 DVD Servo. Test(4-3) ] Status : Tracking Close Data : 0000 0000 -------------------------------------------------------------------- [1] Track appointment [2] Start Track Jump +/- Press [OK] to make a selection [X-954 DVD Servo. Test(4-6) ] Status : Tracking Close Data : 0000 0000 ------------------------------------------------------------------ [1] ID appointment : 0000 0000 [2] cursor right [3] cursor left [4] cursor up [5] cursor down [6] Start ID Search Press [OK] to make a selection www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 166 AVIC-90DVD,9DVD— 1. Start up Insert the test disc into the system, and press the [BACK] key while the title, "AVIC-9DVD/EW, AVIC-9DVD/UC and AVIC-8DVD/EW TEST DISC" is displayed. This will bring up the menu screen. If keys are not pressed while the title is displayed, the initial screen of the line testing will be displayed. 2. Key Operations • Line testing screen display 1. To switch between the testing screen and menu screen displays press the [CR] key. 2. To test a selected item press the [BACK] key. 3. To revert to the previous screen press the [ ] key. 4. To move to the next test screen press the [ ] key (the display will not change to the next screen, unless the test has been completed successfully). * For details please refer to descriptions for each screen. • Menu screen for service 1. Select an item by using the [ ] and [ ] keys, then press the [CR] key to display the test screen. 2. To return to the menu screen press the [BACK] key. * For details please refer to descriptions on each screen. 3. Test Screen Display 1. External Connections • Status of items listed on the left will be updated every second. • The VCUE (Pin-9) line will be turned ON during the test. • The status of the Illumination, Parking Brake and Reverse Gear must change between ON and OFF. • Pressing the [ ] key will not enable the test to proceed to the next test unless all conditions have been satisfied. 6.4 USING THE TEST DISC Connection check Illumination signal Parking brake signal Reverse gear signal Car speed signal Gyro Gyro voltage Gyro delta sigma Battery voltage G sensor G sensor voltage Remote controller Helpnet switch/ sense [Push joy stick down to go to next check] OFF ON REV 0 LEFT << 49845 2.434 V OK 10.6 OK 12.3 V OK ++ 40635 1.985 V OK MENU KEY ON/ ON - TEST DISC Part No. : GGV1059 (CNDK-LT0102) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 167 AVIC-90DVD,9DVD— 2. Call Origination Microphone Line (Voice Recognition) • Voice recognition will be performed and the microphone and speaker line's connectivity tests will be conducted. Please input a voice signal in MICIN to verify the voice recognition's function, operation and input level. The gain of PROGGAIN0 through PROGGAIN2 can be increased or decreased by using the [ ] and [ ] of the joystick. • Enable and disable muting of the ONSEIMUTE signal by using the Current Position key as a toggle switch. • The next test can be performed by pressing the [ ] key. 3. Data Communications (Short Circuit Checks) • CUE connection will be checked for short circuits. If the CUE is not connected a loop-back check at CH5 will be performed. If the CUE connectivity or CH5 loop-back check results in an OK, the CH5 test will be successfully completed (OK). • The SIO #1, #6 and ETC checks, will be skipped. • If all tests result in an OK the next test can be performed by using the [ ] key. 4. Data Communications (Open Circuit Checks) • The SIO connection is checked for open circuits. Please do not connect anything to the pins. If the circuit is determined to be open, the test will result in an OK for each SIO connection. • The next test can be performed using the [ ] key, if all tests result in OK. Microphone & Gain control check Gain level (0-7) 1 [Push joy stick down to go to next check] [-> to raise gain, <- to lower gain ] Data Communication (Short Circuit) check Serial I/O #3 (for TV) Serial I/O #5 (for CUE Unit) +CUE Unit check Serial I/O #7 (for Debug) Serial I/O #9 (for Telephone) [Push joy stick down to go to next check] OK NG OK OK OK Data Communication (Open Circuit) check Serial I/O #3 (for TV) Serial I/O #5 (for CUE Unit) Serial I/O #7 (for Debug) Serial I/O #9 (for Telephone) [Push joy stick down to go to next check] OK OK OK OK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 168 AVIC-90DVD,9DVD— 5. Data Communications (Others) • PC card connection is checked. • The next test can be performed by pressing the [ ] key, if all tests result in OK. 6. FM Multiplex Error Measurements • FM multiplex error measurement is conducted. • The default frequency is 104.0MHz. • If the test is performed for the first time, measurements (taken at the time the test disk is started up) will be displayed. • Please set the frequency to a frequency other than the frequency used in the previous test for all tests following the second test. • The frequency can be changed by using the [ ] and [ ] keys after taking a measurement. • 500 blocks will be tested, and if the error rate is 1% or less, the results will be displayed as "OK". • The next test can be performed by pressing the [ ] key, if the test results in an OK. 7. Natural Image and Navigator P-side-P • A 256-color natural image will be displayed as a background image, and the right half of the image will be changed to a chroma key color. • The 1kHz sine wave, with a sampling rate of 22kHz, will be output for 30 seconds. • If the test screen is displayed, turn the guidance audio ON, then turn it OFF when the screen is no longer displayed. • The sound volume can be altered by pressing the [ ] and [ ] keys (from level 0 to 9). [JPEG file name: HITO1.JPG] [audio file name: A19K01KR.WAV] • The next test can be performed using the [ ] key. Data Communication (other) check PC Card [Push joy stick down to go to next check] OK FM multiplex tuner error rate measurement FM Frequency Blocks Received Correctly Blocks with one bit corrected Blocks with two bits corrected Blocks Received with error [Push joy stick down to go to next check] 104.0MHz 0000 OK 0000 OK 0000 OK 0000 OK [<- -> to adjust FM frequency ] Re-measure if you come from service menu www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 169 AVIC-90DVD,9DVD— 8. GPS Reception • The status of the GPS reception will be displayed. • Verification is made to ensure that the antenna connection is OK and that the latitude and longitude measurements are 1 degrees or more, resulting in a three-dimensional binary measurement. If these conditions have been verified to satisfy the requirements, the process can proceed to the next step. • The next test can be performed by pressing the [ ] key. 9. GPS Sensitivity Measurements • The sensitivity of the GPS selected by the [CR] key will be displayed. • The GPS selection can be changed by pressing the [ ] and [ ] keys. • The next test can be performed by pressing the [ ] key. 10. Software Version Display • The software version will be displayed. • The next test can be performed by pressing the [ ] key. GPS Self check Using satellites No. Antenna connection Receiving signal level Latitude Longitude [Push joy stick down to go to next check] 2001/01/25 10:10:05 01 02 03 04 05 06 07 08 OK 0.0 2D 0 00'00.00 0 00'00.00 GPS sensitivity measurment Satellite No. 3 [<- -> to select satellite] [Push joy stick down to go to next check] Ch. 1 2 3 4 5 6 7 8 All Lock OK OK OK OK OK OK OK OK - - SNR(AMU) 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 SNR(dB) 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 Sensitivity 10.0 (dB) DoppRMS 345.12(Hz) Software version System boot version System OS version Syscom version Drive core version Drive apl version Application version Language data version GPS program version 1.00 1.00 8.00 7.24 2.44 1.00 1.00 1.10 [Push joy stick down to go to next check] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 170 AVIC-90DVD,9DVD— 11. Language Selection Flag Initialization • Settings will be reset to the shipping conditions upon entering into this test stage (no settings). • Settings will be performed at the time this test starts. • The [ ] key will terminate the production engineering test. 4. Menus for Service 1. Display Image RGB • This is a test for the RGB image display. • The display can be switched by pressing the [ ] and [ ] keys. * An RGB image display is performed in the order of R100% -> R50% -> G100% -> G50% -> B100% -> B50%. • A total of six screen images will be displayed. 2. TV Tuner • The display can be switched to the TV screen display by pressing the V.CHANGE button. • Channels can be switched between 1, 8, 12, 13, 39 and 62 by using the up and down motion of the joystick. • Turning and holding the joystick to the right or left causes the seek action to go up or down. • Turning the joystick quickly to the right or left will cause the manual channel to scroll up or down. Language selection flag initialize Language selection flag is initialized. [Push joy stick down to end check] Self-test mode [TV Tuner] Change to the TV screen display by pressing the V.CHANGE button. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 171 AVIC-90DVD,9DVD— 3. GPS Information • If the cursor is over the "Position" and the [CR] key is pressed, the "Position Information" will be displayed. • If the cursor is over the "SV Stat" and the [CR] key is pressed, the "Status Information" will be displayed. • If the cursor is over the "Ver&Diag" and the [CR] key is pressed, the "Dialog Information" will be displayed. • If the cursor is over the "Err Info" and the [CR] key is pressed, the "Error Information" will be displayed. (The screen displayed shown here represent pressing the [CR] key when the cursor will be over the "SV Stat.") 4. Audio Reproduction • The audio selected by the [CR] key will be reproduced. • The audio selection can be changed by using the [ ] and [ ] keys. 5. File Management • The copying, deleting and dumping of files can be performed. Please refer to the HELP for details concerning the use of individual functions. 0D T2 H25.5 V25.5 01/03/28 23:05:47 SV Azi Ev SNR Flag ACC Doppler SrchW 10 26 18 23 17 9 14 4 119 25 310 305 317 196 260 142 39 60 25 33 49 56 73 81 3.0 4.9 0.0 0.0 0.0 0.0 0.0 0.0 UY- - UYC- - - -m - - -m - - -m - - -m - - -m - - -m 3 2 f f f f f 3 -2249 -1051 +0 +0 +0 +0 +0 +0 2883 3496 12487 21812 21812 21812 5994 5994 GPS information Position SV Stat Ver & Diag Err Info Sound play ADPCM fixation 11K 1K L ADPCM fixation 11K 1K mono ADPCM fixation 11K 1K R ADPCM fixation 11K 1K ste ADPCM fixation 19K 1K L ADPCM fixation 19K 1K mono ADPCM fixation 19K 1K R Main fader Vol. [0-15] 15 [Push BACK key to go to menu] [-> Vol. up, <- Vol. down ] File maintenance tool Total Capacity : 216.5K Remain : 216.3K Media:SRAM: Path:¥ LOGINFO.CFG 20 LOCPOS .DAT 20 84 80/01/01 00:00 68 01/01/01 21:22 [1]Media [2]Copy [3]Delete [4]Dump [0]Help www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 172 AVIC-90DVD,9DVD— 6. Display Image Check 1. Plain … White, yellow, light blue, green, purple, red and blue are displayed by using the [ ] and [ ] keys. 2. Color bar … These are white, yellow, light blue, green, purple, red and blue, from left to right. 3. Cross hatch 4. Sweep 5. Step 6. Ramp 7. Window 8. Monoscope 9. Frequency line 10. Horizontal stripe 1 11. Horizontal stripe 2 12. Japanese Kanji character pattern 13. Map (map.jpg) 14. Natural image (nature.jpg) 15. Portrait 1 (hito1.jpg) 16. Portrait 2 (hito2.jpg) 7. Device Check (for technical purposes only) • The devices listed to the left are tested for technical purposes only. • Selections are made by pressing the [ ] and [ ] keys, and then by pressing the [CR] key. • If the test pattern is selected, the test will start. Picture check tool MENU 1/2 1. Plain 2. Color Bar 3. Cross Hatch 4. Sweep 5. Step 6. Ramp 7. Window 8. Mono Scope 9. Vertical Resolution Column Press [OK] to make a selection Press [BACK] to return Device Check 1. SDRAM 2. SRAM 3. ASIC 4. All Device [Push BACK key to go to menu] (0x40886000~0x40ed0000) (0x42000000~0x4201f f f f) (0x43400890~0x43400894) OK OK OK OK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 173 AVIC-90DVD,9DVD— - Removing the Grille Assy (not shown) 1. Remove the Grille Assy. - Removing the CC Unit (Fig.2) Remove the solder and then straight the tab at location indicated. Remove the three screws and then remove the CC Unit. - Removing the Case (not shown) 1. Remove the screw and then remove the Case. - Removing the DVD Mechanism Module (Fig.1) Remove the four screws. Disconnect the connector and then remove the DVD Mechanism Module. - Removing the Interface PCB (Fig.1) Remove the two screws. Remove the two screws. Disconnect the connector and then remove the Interface PCB. Fig.1 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 DISASSEMBLY Fig.2 CC Unit DVD Mechanism Module Interface PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 174 AVIC-90DVD,9DVD— - Removing the Main PCB (Fig.3) Remove the screw and then remove the Holder and the Battery. Remove the screw and then remove the Fan Motor. Remove the four screws. Remove the six screws and then remove the Main PCB. Fig.3 Main PCB Holder Fan Motor www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 175 AVIC-90DVD,9DVD— - Handling the mechanical module 1. The mechanical module should be handled by holding the upper frame and main frame of the mechanical module. 2. The front section of the upper frame is not very sturdy, so this section should not be held too firmly (see fig.4). - Removing the DVD CORE UNIT 1. Bring the mechanism to a locked position (disk load standby position). 2. Turn the mechanical module upside down. 3. Set the pick-up flexible cable to a shorted position on the land end (the other is auxiliary), and turn the SW knob in the direction opposite to OP (see fig.5). 4. Remove the pick-up flexible cable and the CRG flexible cable from the connector. Remove the solder on the lead wires of the load motor. 5. Remove screws at three locations, and remove the DVD Core Unit (lift the board in the direction of the white arrow shown in fig.6, and remove it out diagonally). - Removing the PU unit (see fig.7) 1. Remove the DVD Core Unit according to the "Removing the DVD Core Unit" procedure described in the previous page. 2. Lift the pick-up rack to the center of the axis of the rack, turn it 90 degrees first, then press on it lightly, and fix it in place temporarily. 3. Remove the screw that keeps the main shaft clamp spring in place, and remove the main shaft clamp spring. 4. Remove the PU unit with the main shaft attached. Do not hold onto this area. Short Auxiliary land Fig.4 Fig.5 Fig.6 DVD Core Unit Fig.7 Main shaft CRG motor PU unit PU rack Main shaft clamp spring www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 176 AVIC-90DVD,9DVD— GPS MIC IN DISPLAY OUTPUT SP OUT POWER SUPPLY 6mm MAX EXTENSION IN/OUT 1 3 5 7 9 1113 15 2 4 6 8 101214 16 1 : BEACON 2 : SOURCE ON 3 : MONI ON 4 : GUIDE ON 5 : NC 6 : NC 7 : NC 8 : NC 9 : PKB 10 : PULSE 11 : ACC 12 : ANT ON 13 : ILM 14 : REV 15 : BUP 16 : GNDD 1 3 5 7 9 1113151719212325 2 4 6 8 101214161820222426 1 : RED 2 : GREEN 3 : BLUE 4 : CSYNC 5 : GND 6 : DVDVBS 7 : GND 8 : YS 9 : NC 10 : Lch 11 : Rch 12 : AGND 13 : GUIDE+ 14 : GUIDE- 15 : AUXL 16 : AUXR 17 : AUXGND 18 : REM-IN 19 : NC 20 : TVON 21 : GUIDEON 22 : MONION 23 : VSW5 24 : HRXN 25 : HTXN 26 : GNDD 1 3 5 7 9 2 4 6 8 10 1 : GPStoEX 2 : EXtoGPS 3 : GND 4 : NAVItoEX 5 : EXtoNAVI 6 : HYOKA 7 : NAVItoCUE 8 : CUEtoNAVI 9 : VCUE 10 : CUEGND GPS ANTENNA MICROPHONE SPEAKER 7.1.2 CONNECTOR FUNCTION DESCRIPTION - AVIC-90DVD/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 177 AVIC-90DVD,9DVD— GPS MIC IN DISPLAY OUTPUT SP OUT POWER SUPPLY 6mm MAX EXTENSION IN/OUT 1 3 5 7 9 1113 15 2 4 6 8 101214 16 1 : BEACON 2 : SOURCE ON 3 : MONI ON 4 : GUIDE ON 5 : NC 6 : NC 7 : NC 8 : NC 9 : PKB 10 : PULSE 11 : ACC 12 : ANT ON 13 : ILM 14 : REV 15 : BUP 16 : GNDD 1 3 5 7 9 1113151719212325 2 4 6 8 101214161820222426 1 : RED 2 : GREEN 3 : BLUE 4 : CSYNC 5 : GND 6 : DVDVBS 7 : GND 8 : YS 9 : NC 10 : Lch 11 : Rch 12 : AGND 13 : GUIDE+ 14 : GUIDE- 15 : AUXL 16 : AUXR 17 : AUXGND 18 : REM-IN 19 : NC 20 : TVON 21 : GUIDEON 22 : MONION 23 : VSW5 24 : HRXN 25 : HTXN 26 : GNDD 1 3 5 7 9 2 4 6 8 10 1 : GPStoEX 2 : EXtoGPS 3 : GND 4 : NAVItoEX 5 : EXtoNAVI 6 : HYOKA 7 : NAVItoCUE 8 : CUEtoNAVI 9 : VCUE 10 : CUEGND FM ANTENNA GPS ANTENNA MICROPHONE SPEAKER - AVIC-9DVD—/EW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 178 AVIC-90DVD,9DVD— 7.2 IC IC's marked by * are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction. 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 11 WE 12 RESET 13 NC 14 NC 15 16 RY/BY A18 A0-A18,A-1 RY/BY BYTE OE DQ0-DQ15 :Address output :Not used :Connect to VCC :Output enable input :Data input/output WE :Write enable input CE :Chip enable input RESET:Reset input 9 NC 10 NC 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 A16 BYTE VSS DQ15/A-1 DQ7 DQ14 DQ6 DQ13 38 DQ4 37 VCC 36 DQ11 35 DQ3 34 33 DQ10 DQ2 DQ5 39 DQ12 32 DQ9 31 DQ1 30 DQ8 29 DQ0 28 OE 27 VSS 26 CE 25 A0 47 46 45 44 43 42 48 41 40 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 11 WE 12 RESET 13 NC 14 NC 15 16 RY/BY A18 A0-A18,A-1 RY/BY BYTE OE DQ0-DQ15 :Address output :Not used :Connect to VCC :Output enable input :Data input/output WE :Write enable input CE :Chip enable input RESET:Reset input 9 NC 10 NC 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 A16 BYTE VSS DQ15/A-1 DQ7 DQ14 DQ6 DQ13 38 DQ4 37 VCC 36 DQ11 35 DQ3 34 33 DQ10 DQ2 DQ5 39 DQ12 32 DQ9 31 DQ1 30 DQ8 29 DQ0 28 OE 27 VSS 26 CE 25 A0 47 46 45 44 43 42 48 41 40 *PD6403B(AVIC-90DVD/UC) *PD6401B(AVIC-9DVD—/EW) *PD6404B(AVIC-90DVD/UC) *PD6402B(AVIC-9DVD—/EW) PD6403B PD6401B PD6404B PD6402B MB86291APFVS-G-DL K4S281632D-TL1L ADC12H034CIMSA PD6396B PE5324C PD6336B PD3390A PE5228A TDA7052A LC72720YVS PD6361B TC74LCX541FT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 179 AVIC-90DVD,9DVD— Host Interface Memory Interface Controller External Video Interface Controller Display Controller DAC Set-up Engine 2D/3D Rendering Engine Embedded SDRAM (64bit x 256K word) 64bit D0-32 A2-24 ARGB DRGB RBT656 *K4S281632D-TL1L DQ0 2 VDDQ 3 DQ1 4 DQ2 5 VSSQ 6 DQ3 7 DQ4 8 VDDQ 9 DQ5 10 DQ6 11 VSSQ 12 DQ7 13 VDD 14 WE 15 CAS 16 RAS 17 CS 18 BA1 19 A10/AP 20 A0 21 A1 22 A2 23 A3 24 48 DQ14 47 VSSQ 46 DQ13 45 DQ12 44 VDDQ 43 DQ11 42 DQ10 41 VSSQ 40 DQ9 39 DQ8 38 37 VSS 36 UDQM 35 CLK 34 CKE 33 NC 32 A9 31 A8 30 A7 29 A6 28 A5 54 A4 53 VSS VDD 1 VDD 25 49 DQ15 50 VSS 26 27 52 51 LDQM BA0 A11 NC VDDQ A0-A11 : Address output BA0-BA1 : Bank select address output DQ0-DQ15 : Data input/output CLK : Clock input CKE : Clock enable input cs : Chip select input ras : Row address strobe input cas : Column address strobe input we : Write enable input LDQM : Lower DQ mask enable input UDQM : Upper DQ mask enable input VDD : Power supply VSS : GND VDDQ : Data output power supply VSSQ : Data output GND NC : Not used *MB86291APFVS-G-DL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 180 AVIC-90DVD,9DVD— *ADC12H034CIMSA A14 2 A13 3 A12 4 A11 5 A10 6 A9 7 A8 8 NC 9 NC 10 11 12 13 14 A18 15 A17 16 A7 17 A6 18 A4 19 A3 20 A2 21 A1 22 23 24 48 VSS 47 46 ce 45 A16 44 A0 43 byte 42 DQ15/A-1 41 VSS 40 DQ7 39 DQ6 38 37 DQ13 36 DQ12 35 DQ4 34 VCC 33 DQ11 32 DQ10 31 DQ2 30 DQ9 29 DQ1 28 DQ8 DQ0 oe A15 1 25 26 27 A5 DQ3 DQ5 DQ14 A-1,A0-A18 : Address output DQ0-DQ15 : Data input/output ce : Chip enable input oe : Output enable output we : Write enable output reset : Connect to VCC RY/by : Not used byte : Connect to VCC VCC : Supply voltage VSS : GND NC : Not used we reset NC NC RY/by *PD6396B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 181 AVIC-90DVD,9DVD— INTC RPU SIO UART0/CSI0 UART1/CSI1 UART2 CSI2 PWM0 PWM1 ADC PORT ROM RAM 256k BYTE 10k BYTE CPU PC 32bit Ballel Sifter System Register General Register (32bit X 32) Multiplier (32 X 32 64) ALU Instruction Queue BCU MEMC DRAMC ROMC DMAC CG System Controller NMI XAVINT, XADSCINT, RESERVED, CTS LOCKDET, CRGSENS, OFTR TILT1/TILT, TILT3/CLOCK, XODCRES, AVREFOFF SOCOMN SICOMN SCKCOMN SLVSTS HSTCMD LTDAC TXPC RXPC SOADSC SIADSC SCKADSC AVREF AVSS IRQPWR LCDRFOFF TILT2/BIAS VSS VDD XRESET MODE0-MODE2 CVSS CVDD X2 X1 CLKOUT CKSEL ADSCENS, ADSCENC, CONT, OEIC XODCINT1, XODCINT0, CDLOCK, FG D0-D15 A0-A20 WAITODC XLWR XUWR LOAD XRD CD/DVD VERENT XUCHKENT XUBE XLBE EJECT DACINPUT FS44_48 XCSODC DISCDET RESERVED, XCSAVR XCSFLSH, BUSISO XCSAVW, XCSSRAM BMUTE AMUTE OPENSENS, EJECTSENS, CRGADIN, FOK, RFENV, DISCSENS, TEMP EMPH, DISCSET, VCONTA, VCONTB MCKENA DTR EDCF, TMODE, XADSCRES, XAVRES, LTFEP *PE5324C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 182 AVIC-90DVD,9DVD— 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 23 83 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 105 24 82 159 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 179 106 25 81 158 227 288 245 180 107 26 80 157 226 287 246 181 108 27 79 156 225 286 247 182 109 28 78 155 224 285 248 183 110 29 77 154 223 284 249 184 111 30 76 153 222 283 250 185 112 31 75 152 221 282 251 186 113 32 74 151 220 281 252 187 114 33 73 150 219 280 253 188 115 34 72 149 218 279 254 189 116 35 71 148 217 278 255 190 117 36 70 147 216 277 256 191 118 37 69 146 215 276 257 192 119 38 68 145 214 275 258 193 120 39 67 144 213 274 273 272 271 270 269 268 267 266 265 264 263 262 261 260 259 194 121 40 66 143 212 211 210 209 208 207 206 205 204 203 202 201 200 199 198 197 196 195 122 41 65 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 42 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 VSS PIO29 USBXPWREN USBXOVRCUR UVD1M UVD1P UVD2M UVD2P USBOVRCUR USB_CLK XCS_SRAM XWR_SRAM PIO31 IR_RX TEST0 XTAL0 MST EXTAL0 UART9_TXD UART8_TXD UART7_TXD VSS PIO27 PIO28 XCS_FLASH D0 XMRD USBPWREN XIOWR NC NC NC XREADY SRAM_CSSEL PIO30 XCS6 XTST SMCK XSM GDC_WT UART9_RXD UART8_RXD UART7_RXD UART6_TXD DSP_BCLKI PIO26 D2 D1 XMWR XLLBEN XIORD NC NC NC XBCYST XCS2 XCS3 DREQ0 DREQ1 INT3 INT2 INT0 ATA_DA0 ATA_DA1 UART6_RXD UART5_RXD PIO25 D4 D3 VSS VSS XLUBEN VDD NC VSS NC VDD VDD XCS5 VSS DREQ2 VDD INT1 VDD VSS ATA_INT OVSS0 UART5_TXD PIO24 D6 D5 VDD VSS ATA_XDMACK UART4_RXD UART4_TXD PIO22 OVSS7 D8 D7 ATA_XDIOR ATA_IORDY XRESET UART3_TXD OVDD3 D10 D9 VDD VDD ATA_DMARQ ATA_XDIOW OVDD0 DSP_BDI XCS_DSP D12 D11 ATA_DD1 ATA_DD0 UART3_RXD UART2_TXD DSP_XHINT PIO23 D16 D15 VSS ATA_DD3 ATA_DD2 UART2_RXD DSP_HRDY D18 D17 VDD ATA_DD5 ATA_DD4 UART1_RXD UART1_TXD OVSS6 D20 D19 VDD VDD ATA_DD7 ATA_DD6 A23 DSP_BFSO DSP_BDO D22 D21 VDD ATA_DD8 ATA_XRESET CPU_CLK DSP_BCLKO D24 D23 VSS ATA_DD10 ATA_DD9 UART_XDCD OVSS1 XCS_SRAMH PIO_OUT D26 D25 VSS ATA_DD12 ATA_DD11 UART1_XCTS OVDD2 OVSS5 D27 VDD ATA_DD14 ATA_DD13 UART_XRI UART_XDSR DSP_BFSI D14 D13 VSS VDD ATA_DA2 ATA_DD15 OVDD1 DSP_XRS TEST1 D29 D28 ATA_XCS0 ATA_XCS1 UART1_XDTR UART1_XRTS DSP_ATTCNT CD_LRCLK D30 VSS VDD PC_XPWR ATA_DIR PIO0 D31 CD_BLK A2 VSS VDD VPDP VDD A11 VSS PC_XVS2 VDD VDD PC_BVD1 VSS PC_XCD1 VDD PC_XOE VSS VSS PC_XUBUF PC_XLBUF PIO1 CD_MCLK ADC_GCNT0 A3 A4 A5 A7 A9 A12 PC_READY PC_RESET PC_WXT PC_BVD2 PC_WP PC_XCD2 PC_XCE1 PC_XCE2 PC_XVS1 PC_XIORD PC_XIOWR PC_XWE PIO2 OVSS2 ADC_GCNT2 ADC_GCNT1 ADC_BCLK ADC_MCLK A6 A8 A10 TEST2 DAC_MCLK DAC_BCLK PC_XREG PC_A0 PIO20 PIO19 PIO17 PIO15 PIO13 PIO11 PIO9 PIO7 PIO5 PIO3 VSS ADC_DATA ADC_LRCLK TEST4 EXTAL1 OVSS4 XTAL1 TEST3 DAC_LRCLK DAC_DATA PIO21 OVSS3 CD_DATA PIO18 PIO16 PIO14 PIO12 PIO10 PIO8 PIO6 PIO4 VSS TOP VEIW TOP VEIW *PD6336B - Pin Arrangement Chart www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 183 AVIC-90DVD,9DVD— A2-A11,A23 D0-D31 CPU_CLK XBCYST XRESET XCS2(SRAM) XCS3(ASIC) XCS5(PCCARD) XCS6(DSP) XIOWR XIORD XMWR XMRD XLLBEN XLUBEN DMARQ0 DMARQ1 DMARQ2 INTP0 INTP1 XREADY INTP2 INTP3 SRAM_CSSEL XCS_SRAM XCS_SRAMH XCS_FLASH XCS_DSP XWR_SRAM CPU I/F BLOCK TOP SECTION DMA CHANNEL SELECT SECTION WAIT CONTROL SECTION INTERRUPT CONTROL SECTION PROTECT and CHIP SELECT GENERATOR SECTION TIMER SECTION ASIC ASIC_CLK XRESET A7-A2 WExx RExx DMAxx WAIT WTxx INTxx DMA INT AUDIO BLOCK CD-ROM BLOCK PERI BLOCK (SIO,PIO, REMOTE CONTROL) ATAPI BLOCK PC-CARD BLOCK SOUND BLOCK USB BLOCK CPU - Block Diagram Chart www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 184 AVIC-90DVD,9DVD— - Pin Functions(PD3390A) Pin No. Pin Name I/O Format Function and Operation 1 VCC0 Power supply (3.3V) 2 VSS0 GND 3 TXD2 I/O SIO2 Transmission data input / output 4 RXD2 I/O SIO2 Reception data input / output 5 TXD1 O C SIO1 Transmission data output 6 RXD1 I SIO1 Reception data input 7 TXD0 O C SIO0 Transmission data output 8 RXD0 I SIO0 Reception data input 9 SPEED I SP I/F input 10 ADCSB O C AD I/F output 11 ADSCK O C AD I/F output 12 ADTXD O C AD I/F output 13 ADRXD I AD I/F input 14 ADSRX I AD I/F input 15 ADIO0 I/O AD I/F input / output 16 ADIO1 I/O AD I/F input / output 17 ADIO2 I/O AD I/F input / output 18 VCC1 Power supply (3.3V) 19 VSS1 GND 20 PWM O PWM signal output 21 PLINT I PLL I/F input 22 PLCE O C PLL I/F output 23 PLSCK O C PLL I/F output 24 PLTX O C PLL I/F output 25 PLRX I PLL I/F input 26 PLIO0 I/O PLL I/F input / output 27 PLIO1 I/O PLL I/F input / output 28 PLIO2 I/O PLL I/F input / output 29 DDINT I Darc I/F input 30 DDCE O C Darc I/F output 31 DDSCK O C Darc I/F output 32 DDTX O C Darc I/F output 33 DDRX I Darc I/F input 34 DDIO0 I/O Darc I/F input / output 35 DDIO1 I/O Darc I/F input / output 36 DDIO2 I/O Darc I/F input / output 37 TIOA0 I/O Parallel input / output 38 TIOA1 I/O Parallel input / output 39 TIOB0 I/O Parallel input / output 40 TIOB1 I/O Parallel input / output 41 VCC2 Power supply (3.3V) 42 VSS2 GND 43-53 A19-9 I/O Address bus input / output 54 VCC3 Power supply (3.3V) 55 VSS3 GND 56-64 A8-0 I/O Address bus input / output 65 VCC4 Power supply (3.3V) 66 VSS4 GND 67-82 D0-15 I/O Address bus input / output 83 VCC5 Power supply (3.3V) 84 VSS5 GND 85 WRHB I/O Upper data write strobe input / output 86 WRLB I/O Lower data write strobe input / output 87 RDB I/O Read data strobe input / output 88 CS2B I/O Chip select aria 1 for external storage input / output 89 CS0B I/O Chip select aria 0 for ROM input / output 90 VCC6 Power supply (3.3V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 185 AVIC-90DVD,9DVD— *PD3390A 36 37 72 73 108 109 144 1 Pin No. Pin Name I/O Format Function and Operation 91 VSS6 GND 92 TEST2 Test mode 93 CKOEB I CK output enable input 94 CK O C CPU clock output 95 CS5B O C DRAM low address strobe output 96 CS3B O C DRAM column address strobe output 97 CS1B O C DRAM column address upper byte strobe output 98 RTCVSS1 Power supply (3.3V) 99 SRAMB I Backup memory select input 100 STANBYB I Stand by signal input 101 RTCVSS0 GND 102 XRTCIN I Sub crystal oscillator input (RTC) 103 XRTCOUT O C Sub crystal oscillator output (RTC) 104 RTCVCC Power supply (3.3V) 105 PCKSEL0 I Processor clock select input 106 PCKSEL1 I Processor clock select input 107 CCKSEL I CRCK signal select input 108 CCKDIR I/O Carrier clock direct input / inverter amp output 109 CCKVCC Power supply (3.3V) 110 CRCK I Carrier clock 111 CCKGND GND 112-118 PC0-6 I/O Parallel input / output 119 NMI I/O Connect to VCC 120 RESETB I System reset input 121 MSTRSTB I Test reset input 122 TEST0 I Test mode input 123 TEST1 I Test mode input 124 REFSEL I GPS reference clock select input 125 REFCK I Reference clock input 126 VCC7 Power supply (3.3V) 127 VSS7 GND 128 XAUXIN I Sub crystal oscillator output (AUX) 129 XAUXOUT O C Sub crystal oscillator output (AUX) 130-133 PIN0-3 I Parallel input 134-137 PIO4-7 I/O Parallel input / output 138 TXD3 I/O SIO3 Transmission data input / output 139 RXD3 I/O SIO3 Reception data input / output 140 BOWWOWB O C Watch dog timer output 141 IFDIR I/O IF direct input / IF inverter amp output 142 IFVCC Power supply (3.3V) 143 IF I IF input 144 IFGND I IF amp GND input Format Meaning C C MOS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 186 AVIC-90DVD,9DVD— - Pin Functions (PE5228A) Pin No. Pin Name I/O Format Function and Operation 1-3 NC Not used 4 AVSS A/D GND 5 VOL O Guide voice volume output 6 NC Not used 7 AVREF1 (D/A converter reference voltage) 8 FROMCC I Data input from CC UNIT (UART) 9 TOCC O C Data output to CC UNIT (UART) 10 NC Not used 11 FORMEX I Data input from EXT (UART) 12 TOEX O C Data output to EXT (UART) 13-15 NC Not used 16 TSI/FSI I Test program data input 17 TSO/FSO O C Test program data output 18 TSCKFCK I Test program clock input 19,20 NC Not used 21 ROMDT O C ROM collection data output 22 ROMCLK O C ROM collection clock output 23 ROMCS O C ROM collection chip select output 24 ACCPW O C ACC power supply output 25 GPSON O C GPS power supply ON output 26 DRAMPW O C DRAM power supply control output 27 RGBMUTE O C RGB audio mute output 28 RCAMUTE O C RCA audio mute output 29 RSTOUT O C Reset output 30 DVDON O C DVD power supply ON output 31 CCON O C Car computer power supply ON output 32 IRQPOW O C Emergency stand-by request output (BSENS) 33 VSS1 GND 34,35 NC Not used 36-38 SIMUKE0-2 I Model detect input 0-2 39,40 SEDAI0,1 I Generation detect input 0,1 41 TVON O C TV communication enable output 42 ALARMOUT O C Detach warning LED output 43 MAYSNS I MAYDAY UNIT detect input (H : No unit) 44-47 CCPORT0-3 O C Control port output from CC UNIT 0-3 (Stand-by time = L) 48,49 INPORT0,1 I Input notice port input to CC UNIT 0,1 (Stand-by time = L) 50 TESTMODE I Navigation test mode detect input (H : Test mode) 51 TESTIN I Chip test / Enable input (L : Chip test) 52 NC Not used 53 CPUWDT I WDT operation input from CC UNIT 54 NC Not used 55 M/S I Master / Slave input (H : Alone) 56,57 NC Not used 58 TIMEOUT I (L : No time-out) 59 NC Not used 60 reset I Reset input 61 REMIN I Remote control data input 62 bsens I Back Up sense input 63 asens I ACC sense input 64 HELPIN I HELP system SW input 65 DISC I DISC detect input 66 NC Not used 67 VSS0 GND 68 VDD1 Power supply 69 X2 Crystal oscillating element connection pin (Main system) 70 X1 Crystal oscillating element connection pin (Main system) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 187 AVIC-90DVD,9DVD— Pin No. Pin Name I/O Format Function and Operation 71 TEST/VPP Connect to GND 72 XT2 Crystal oscillating element connection pin (Sub system) 73 XT1 Crystal oscillating element connection pin (Sub system) 74 VDD0 Power supply 75 AVDD (A/D converter power supply) 76-80 NC Not used *PE5228A 1 20 21 40 41 60 61 80 TDA7052A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 188 AVIC-90DVD,9DVD— - Pin Functions(LC72720YVS) Pin No. Pin Name I/O Function and Operation 1 VREF O Reference voltage output 2 MPXIN I Base band (multiplexed) signal input 3 Vdda Analog system power supply (+5V) 4 NC Not used 5 Vssa Analog system GND 6 FLOUT O Sub carrier output (filter output) 7 CIN I Sub carrier input (comparator input) 8 NC Not used 9 T1 I Test input (connect to GND) 10 T2 I Test input (stand-by control) 11 T3 O RDS clock output 12 NC Not used 13 T4 O RDS data output 14 T5 O Soft-decision control data output 15 XOUT O Crystal oscillator output 16 XIN I Crystal oscillator input 17 Vddd Digital system power supply (+5V) 18 Vssd Digital system GND 19 NC Not used 20 T6 O Error status, regenerated carrier and error block count outputs 21 T7 O Error correction status, SK detection and error block count outputs 22 SYNC O Block synchronization detection output 23 NC Not used 24 RDS-ID O RDS detection output 25 DO O Data output 26 CL I Clock input 27 NC Not used 28 DI I Data input 29 CE I Chip enable input 30 SYR I Synchronization and RAM address reset input *LC72720YVS 1 15 16 30 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 189 AVIC-90DVD,9DVD— *PD6361B A15 1 A14 2 A13 3 A12 4 A11 5 A10 6 A9 7 A8 8 N.C. 9 N.C. 10 WE 11 RESET 12 N.C. 13 N.C. 14 RY/BY 15 N.C. 16 A17 17 A7 18 A6 19 A5 20 A4 21 A3 22 A2 23 A1 24 48 A16 47 BYTE 46 VSS 45 DQ15/A-1 44 DQ7 43 DQ14 42 DQ6 41 DQ13 40 DQ5 39 DQ12 38 DQ4 37 VCC 36 DQ11 35 DQ3 34 DQ10 33 DQ2 32 DQ9 31 DQ1 30 DQ8 29 DQ0 28 OE 27 VSS 26 CE 25 A0 CIRCUIT WRITE WRITE/ERASE PULSE TIMER RY/BY BUFFER CONTROL (COMMAND LOW VCC LATCH DECODER Y YGATE 4,194,304 CELL MATRIX DATA INPUT/OUTPUT BUFFER CHIP ENABLE CIRCUIT OUTPUT ENABLE STB STB ADDRESS X DECODER LATCH DETECT CIRCUIT CIRCUIT REGISTER) CIRCUIT ERASE A-1 *TC74LCX541FT 14 Y5 13 Y6 12 Y7 11 Y8 10 GND 9 A8 8 A7 1 XG1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 15 Y4 16 Y3 17 Y2 18 Y1 19 XG2 20 VCC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 190 AVIC-90DVD,9DVD— 7.3 EXPLANATION 7.3.1 CIRCUIT DESCRIPTIONS Main PCB GPS Core DRAGON A/D Con. CC Core GYRO G-sensor VIDEO Circuit PC Card µ-com ASIC [ACCPW] [DRAMPW] [CCON] [MONION] SRAM Reg IC BUP3 SRAM VSW5 VDD [ACCPW] SYS µ-com SD3V SDRAM [CCON] CCD3 PAJ 3.3VD/D [DRAMPW] 5VD/D [CCON] CCD5 2.5V Reg AU8 FM8 [CCON] 8.5V Reg 6.3V D/D 8V D/D [CCON] [ACCPW] [ANT ON] [CCON] [MONION] 13V/7.5V Reg DVD6 DVD8 ANT+B FAN 5V Reg 5V Reg 3V Reg AU2.5 AU5 VCC5 FM3 AUDIO Internal V833:External Internal ROSE:External Internal DSP:External ASIC, ROM CCD3 DSP1.5 CCD3 CCD2.5 CCD3 CCD2.5 1.5V Reg CCD3 FAN MS2 SRAM µ-com CCD3 SD3V B+B BUP BU RDS-TMC Mech. Grille LED CUE Driver 232C Driver Connector PCB [CONTROL] Pulse Circuit Remote control Sensor Reference The others (When the backup of DRAM is unnecessary.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 191 AVIC-90DVD,9DVD— 7.3.2 OPERATIONAL FLOW CHART BSEN Detect voltage (7.71v) ASEN Detect voltage (8.25v) BUP ACC VDD5 PAJRST DRAMPW SD3 ACCON CCON CCD3, 5 FM8.5, DVD6.3, 8 KORST RSTOUT (RSTIC:Output from IC301) RST3(ST of CCR) Td t' (Setting by sys-com) CCD3=2.75V Threshold µ-com chattering 8~12ms Chattering 500ms µ-com chattering 8~12ms and timeout ?s * Td = t'+Cd(Cd=100ms) Push the RESET button 4~4.2v sense Postpones to the OFF processing end. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 192 AVIC-90DVD,9DVD— 7.4 CLEANING Before shipping out the product, be sure to clean the following portions by using the prescribed cleaning tools: Portions to be cleaned Fans Cleaning tools Cleaning paper : GED-008 Portions to be cleaned DVD pickup lenses Cleaning tools Cleaning liquid : GEM1004 Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 193 AVIC-90DVD,9DVD— 8. OPERATIONS AND SPECIFICATIONS 8.1 OPERATIONS Main unit (1) Disc loading slot (2) Reset button If the system goes wrong, reset it by pressing this recessed button with a ballpoint pen or sim- ilar pointed object. (3) Disc ejection button (4) PC card slot (5) PC card ejection button Remove the PC card by pressing this button. (6) PC card lock lever This lever is used when you remove the PC card. (7) PC card lock lamp The red light goes on when the PC card is inserted and a proper connection is made. 1 7 6 2 3 4 5 Key Finder www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 194 AVIC-90DVD,9DVD— NAVIGATION Operation (1) Transmitter Signals of the Remote Control are transmitted from here. (2) NEXT/PREV control You use the scale control to enlarge or reduce the dis- played map. When you move the scale control down- wards, the scale of the displayed map is enlarged and a more detailed map is displayed. Conversely, moving it upwards reduces the displayed map, and a wider area is displayed. In menus, when a list is longer than one screen, this control is used for indicating the next screen or previous screen. (3) Control stick and PLAY/PAUSE button (TALK button) You use the TALK button to start voice recognition, allowing you to command the Navigation System by speech. When a voice command is given, you can cycle through possible matches by clicking down this button. · With the “CD-SR80” Steering Remote Control (sold sepa- rately), you can press the BAND button and the F button to switch on the operation mode of the Steering Remote Control. When the operation mode is switched on, by pressing the BAND button of the Steering Remote Control, you can acti- vate voice operation, which is equivalent of pressing the TALK button. “CD-SR90” and “CD-SR100” also can start voice operation, which is equivalent of pressing the TALK button. (For the details of the operation, see the Owner’s man- ual of each steering remote control.) (4) Joystick/OK button Use the joystick to select items in the display and to scroll the map. The joystick is also the OK button; simply press it to select a location on the map or an option displayed on the screen. MENU TOP MENU DETOUR CANCEL ROUTE GUIDE 1 2 4 6 8 10 13 14 15 16 12 11 5 3 7 9 Used as the OK button : Press straight down. Used as the joystick : Directions of movements indi- cated by arrows are possible. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 195 AVIC-90DVD,9DVD— (5) BACK button While using a menu, pressing this button cancels the present operation and returns you to the previously displayed menu or list. (6) Operation mode switch Changes the remote control’s mode. (7) VOL dial When you turn the dial downwards, the volume decreases. Turning it upwards increases the volume. • When the Dipswitch 4 is ON, the volume of the voice guidance of the Navigation System is adjusted. • When the Dipswitch 4 is OFF, the volume of Pioneer Head Unit is adjusted. If the dial is pressed, the volume is reduced to around 1/10th of the volume (ATT function). When pressed again, the volume returns to its previous level. (8) MENU (NAVI) button You press this button to view the map or return to guidance. Also, when the map is scrolled, pressing this button returns to the display of the map of your surroundings. (9) TOP MENU (MENU) button Pressing this button displays a menu of options. (10) (DETOUR) button Press this button to restart route calculation, such as calculating a detour. If this button is pressed for more than two seconds, you can see the information (passing roads and driving distance, and so on) of the route down which you are currently being guided. (11) (CANCEL ROUTE) button Press this button to cancel the route guidance. When pressed for more than two seconds, the next via point is recognised as already being passed, and a new route calculation starts. (12) (GUIDE) button Press this button if you want to hear the voice guidance again. If this button is pressed for more than two seconds, you can listen to traffic information on your route (where available). (13) Numeric keypad You use this pad for entering characters or numbers. (14) AUDIO [•] button Not used. (15) SUB.T (DELETE) button Press to delete the character you just entered. If you press this button for more than two sec- onds, all the characters entered will be deleted. (16) ANGLE (OK) button This works in the same way as “OK” on the text palette. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 196 AVIC-90DVD,9DVD— (17) PGM (DVD POWER) button Function is preset for each source as shown below. Sources not shown below do not feature this function. (Depending on the component, you can change the Preprogram. For details, refer to the Head Unit’s instructions.) Not effective with NAVIGATION built-in sources. (18) NAVI/AV button Switches the display to the desired indications. Use to switch between Navigation map dis- plays and audio component displays. (19) SRC (SOURCE) button Switches between sources and switches power ON/OFF. (Depending on the connected units, operation may differ slightly. Refer to “Switching Sources” in the connected unit’s instruc- tions.) (20) Cross Key , , , button Use to skip CD tracks, perform preset tuning with the tuner, and select items indicated in the display. (21) AUDIO (A.MENU) button Displays audio menus. (22) BACK/FUNC button (23) DISP button If, for example, you use this product with a Multi-CD player, when playing a CD TEXT disc you can enjoy display of the CD title and other information. CD (one disc only), Multi-CD player, DVD player (one disc only), Multi-DVD player : PAUSE TUNER : BSM (Press for 2 seconds or more) TV : BSSM (Press for 2 seconds or more) External unit : FUNC1 Setting C : Not used. Setting A : Returns you to the previous display. Settings B and D : Display function menus. Setting C : Not used. NAVI/AV N/A /FUNC BACK 19 18 17 21 22 23 24 20 (24) BAND/ESC button This functions as the BAND button when using each source. It also cancels the menu you are viewing, and returns you to the original display. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Use this jack when connecting the CUE unit for obtaining traffic information. fff Please make sure to complete this connection. Otherwise you cannot see the image of the DVD-Video. Vi V Audio output Video output Vi V GPS aerial RCA cable (sold separarely) CD-RGB26P (Sold separately) Green Power cord This product Level Control This is used for adjusting output from Audio Output. If you turn it to the right, the volume increases, while turning it to the left reduces the volume. (Normally, turn it fully to the right, g and instead use the external equipment outputting sound, such d, su as a display, for adjusting the volume.) Green To RGB input of the display. To Audio input. To VTR input of the display. Yellow To the terminal always supplied with power regardless of ignition switch position. Fuse holder (7.5 A) Red To the electric terminal controlled by the ignition switch (12 V DC) ON/OFF. Do not connect this lead to power source terminals to which power is continuously supplied. If the lead is connected to such terminals, the battery may be drained. Orange/white To lighting switch terminal. Black To car (metal) body. To keep electromagnetic noise from the car body out of the navigation system, attach this lead near the main unit. Fuse resistor Fuse resistor Yellow/black, Purple/white, Pink, Lightgreen Note: When replacing the fuse, be sure to use only a fuse of the rating prescribed on the fuse holder. Power cord This product Note: The yellow, red, and orange/white leads should be connected to the opposite side of the fusebox terminals from the battery. Cords for this product and those for other products may be different colours even if they have the same function, When connecting this product to another product, refer to the supplied Installation manuals of both products and connect cords that have the same function. Note: 197 AVIC-90DVD,9DVD— Connecting the System www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 198 AVIC-90DVD,9DVD— This product Power cord Black, Orange/white, Red, Yellow Lightgreen Used to detect the ON/OFF status of the parking brake. This lead must be connected to the power supply side of the parking brake swich. If this connection is made incorrectly or omitted, certain functions of your navigation system will be unusable. Clamp firmly with needle-nosed pliers. Close the cover. Pass the extension cord and the lead for the speed detection circuit through this hole. Connection method Connection method Clamp firmly with needle-nosed pliers. Clamp the parking brake switch power supply side lead. Yellow/black When combining this navigation unit with a Pioneer car stereo, if the car stereo has yellow/black leads, connect them to those leads. This way when the guidance audio is output and when you operate the system by voice, the car stereo is automatically muted to reduce the car stereo volume. Connector Pink (CAR SPEED SIGNALINPUT) The navigation system is connected here to detect the distance the car travels. Always connect the car’s speed detection circuit or the ND-PG1 speed pulse generator, sold separately. Failure to make this connection will increase in the location display. Car injection computer Speed detection circuit lead Purple/white (REVERSEGEAR SIGNAL INPUT) Backup lamp lead. Fuse resistor Connection method Clamp firmly with needle-nosed pliers. Clamp the backup lamp lead. Power supply side Ground side Parking brake switch Note: The position of the speed detection circuit depends on the car model. For details, consult the relevant documents from Pioneer. When making connections for a model not listed in those documents or for which connection to the speed detection circuit is too difficult, connect the separately sold ND-PG1 speed pulse generator to the pink lead. Note: The position of the parking brake switch depends on the car model. For details, consult the car owner’s manual or dealer. This is connected so that the navigation system can detect whether the car is moving forwards or backwards. Connect the purple/white lead to the lead whose voltage changes when the shift lever is put in reverse. If this is not connected, the sensor inside this unit will determine whether your vehicle is travelling forwards or backwards. Note: When you use the ND-PG 1 speed pulse generator (sold separately), please make sure to connect it. Check the position of your car’s backup lamp (the one that lights up when the shift lever is in reverse [R]) and find the backup lamp lead in the trunk. Cords for this product and those for other products may be different colours even if they have the same function, When connecting this product to another product, refer to the supplied Installation manuals of both products and connect cords that have the same function. Note: WARNING: IMPROPER CONNECTION MAY RESULT IN SERIOUS DAMAGE OR INJURY INCLUDING ELE- CRICAL SHOCK, AND INTERFERENCE WITH THE OPERATION OF THE CAR’S ANTILOCK BRAKING SYS- TEM, AUTOMATIC TRANSMISSION AND SPEEDMETER INDICATION. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 199 AVIC-90DVD,9DVD— 8.2 SPECIFICATIONS Specifications Note: • The specifications and design are subject to change without prior notice. The product purchased may differ in detail from illustrations in this manual. Main unit (GPS receiver) System : L1, C/Acode GPS SPS (Standard Positioning Service) Reception system : 8-channel multi-channel reception system Reception frequency : 1,575.42 MHz Sensitivity : -130 dbm Frequency : Approx. once a second (Common) Max. output impedance : 1Vp-p, 75Ω Maximum current consumption : 2 A Power source : DC 14.4V (10.8 - 15.1V allowed) Ground type : Negative type GPS antenna Antenna : Micro strip flat antenna/right-handed helical polarization Antenna cable : 5.0 m (16ft. 5 in) Dimensions Main unit : 178(W)  50(H)  178(D) mm (7  2  7 in) GPS antenna : 34(W)  13(H) 36(D) mm (1-3/4  1-3/4  1-3/8 in) Remote controller : 38(W)  146(H)  30(D) mm (1-1/2  5-3/4  1-1/8 in) Weight Main unit : 1.5 kg (3.3 lbs.) GPS aerial : 105g (0.23 lbs.) Remote controller : 87g (incl. battery) (0.2 lbs.) DVD mechanism part REGION NUMBER : 1 USABLE DISCS : DVD-VIDEO/CD SIGNAL FORMAT Sampling frequency : 44.1/48/96KHz Number of quantization bits : 16/20/24 bit; linear FREQUENCY RESPONSE : 5~44,000Hz (± 1dB) S/N RATIO : 96dB (IEC-A NETWORK) 97dB (IEC-A NETWORK): CD DINAMIC RANGE : 96dB (1kHz) 95dB (1kHz): CD DISTORTION : 0.008% (1kHz) OUTPUT LEVEL VIDEO : 1Vp-p/75Ω AUDIO : 1mV (1kHz,0dB) NUMBER OF CHANNELS : 2 (STEREO) Buckup current : 4mA or less - AVIC-90DVD/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVIC-90DVD,9DVD— • The specifications and design are subject to change without prior notice. The product purchased may differ in detail from illustrations in this manual. Main unit (GPS receiver) System : L1, C/Acode GPS SPS (Standard Positioning Service) Reception system : 8-channel multi-channel reception system Reception frequency : 1,575.42 MHz Sensitivity : -130 dbm Position update frequency : Approx. once per second (Common) Max. output impedance : 1Vp-p, 75Ω Maximum current consumption : 2 A Power source : DC 14.4V (10.8 - 15.1V allowed) Ground type : Negative type GPS aerial Aerial : Micro strip flat antenna/right-handed helical polarization Aerial cable : 5.0 m Dimensions Main unit : 178(W)  50(H)  178(D) mm GPS aerial : 46(W)  46(H) 13(D) mm Remote control : 38(W)  146(H)  30(D) mm Weight Main unit : 1.5 kg GPS aerial : 130g Remote control : 80g (incl. battery) DVD mechanism part REGION NUMBER : 2 USABLE DISCS : DVD-VIDEO/CD SIGNAL FORMAT Sampling frequency : 44.1/48/96KHz Number of quantization bits : 16/20/24 bit; linear FREQUENCY RESPONSE : 5~44,000Hz (± 1dB) S/N RATIO : 96dB (IEC-A NETWORK) 97dB (IEC-A NETWORK): CD DINAMIC RANGE : 96dB (1kHz) 95dB (1kHz): CD DISTORTION : 0.008% (1kHz) OUTPUT LEVEL VIDEO : 1Vp-p/75Ω AUDIO : 1mV (1kHz,0dB) NUMBER OF CHANNELS : 2 (STEREO) Specifications Note: Buckup current : 4mA or less - AVIC-9DVD—/EW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
