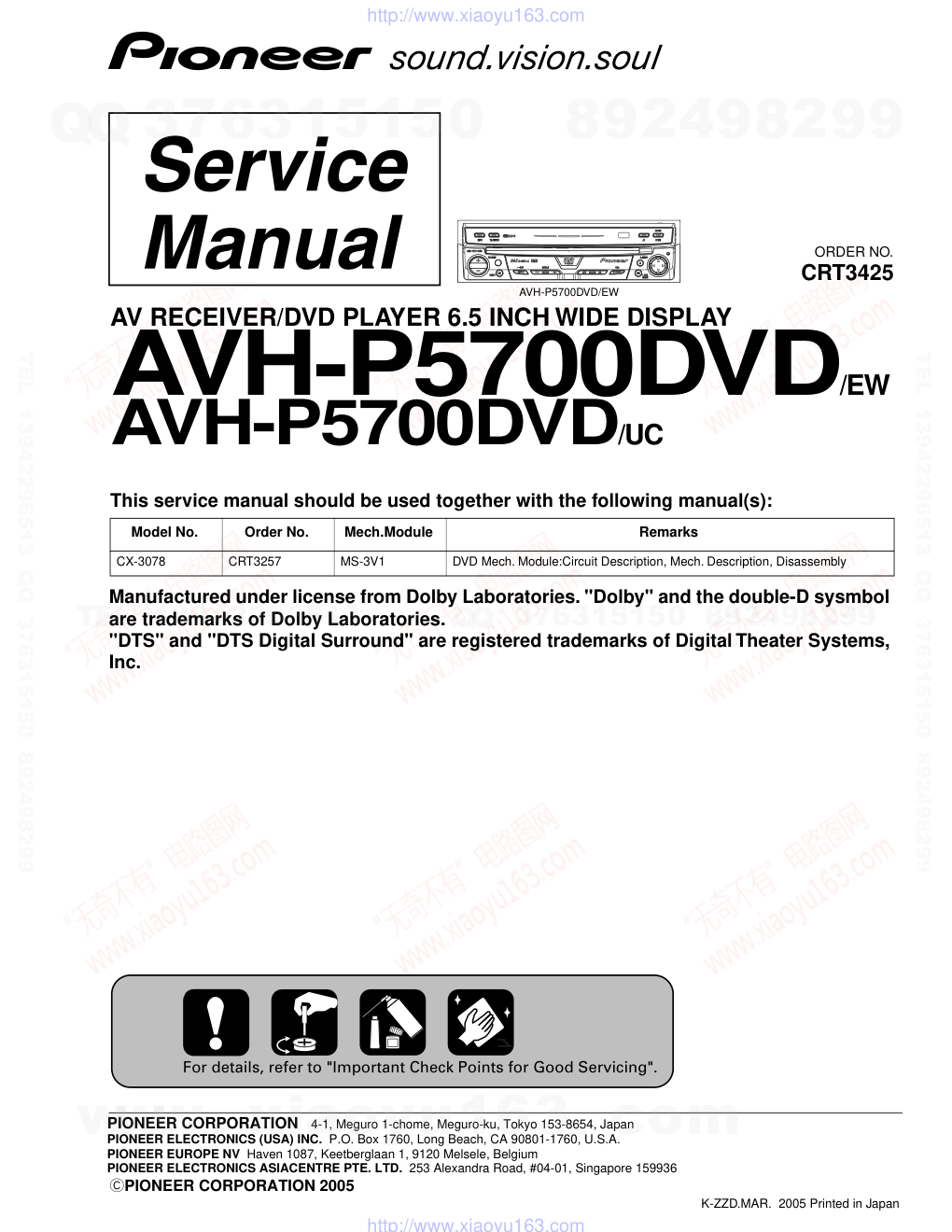

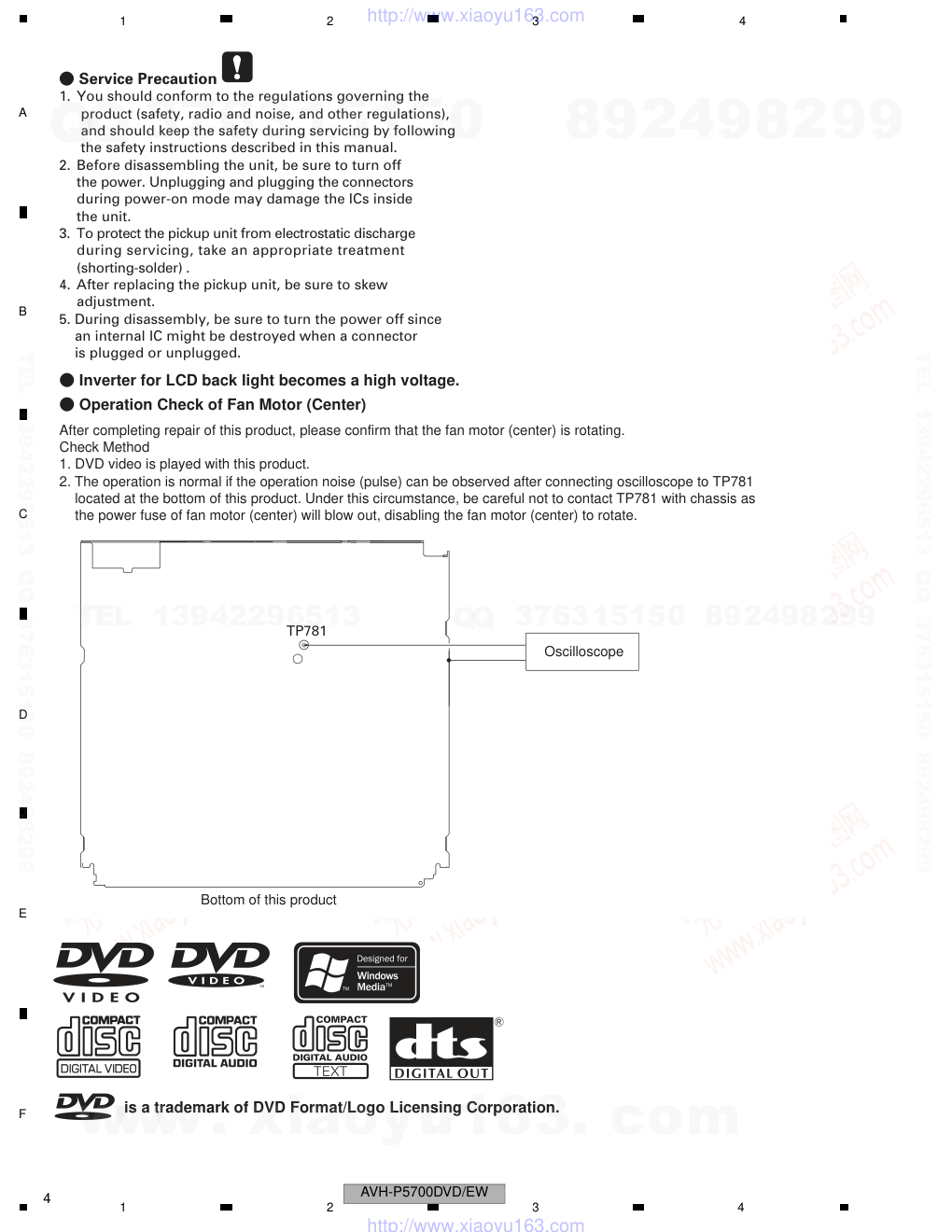

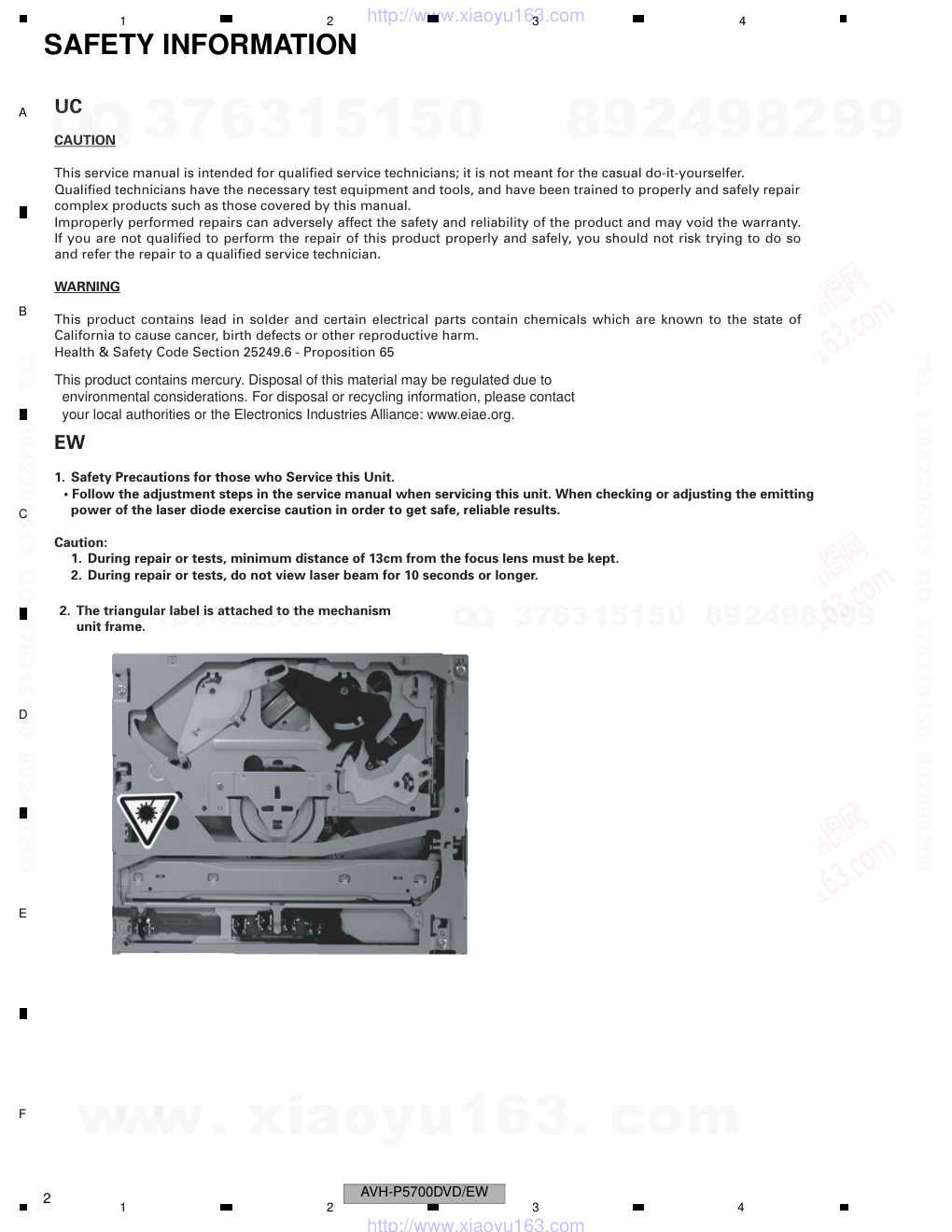

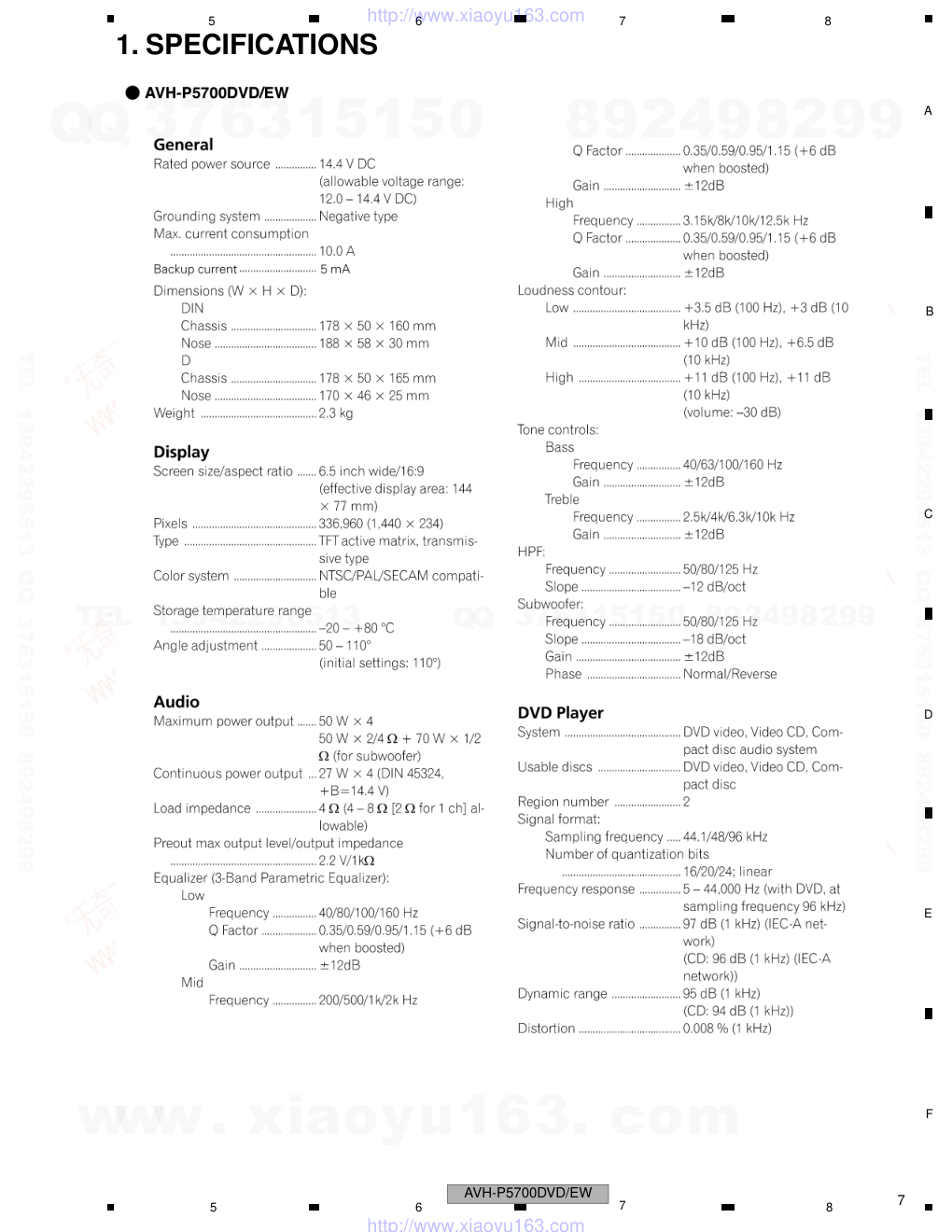

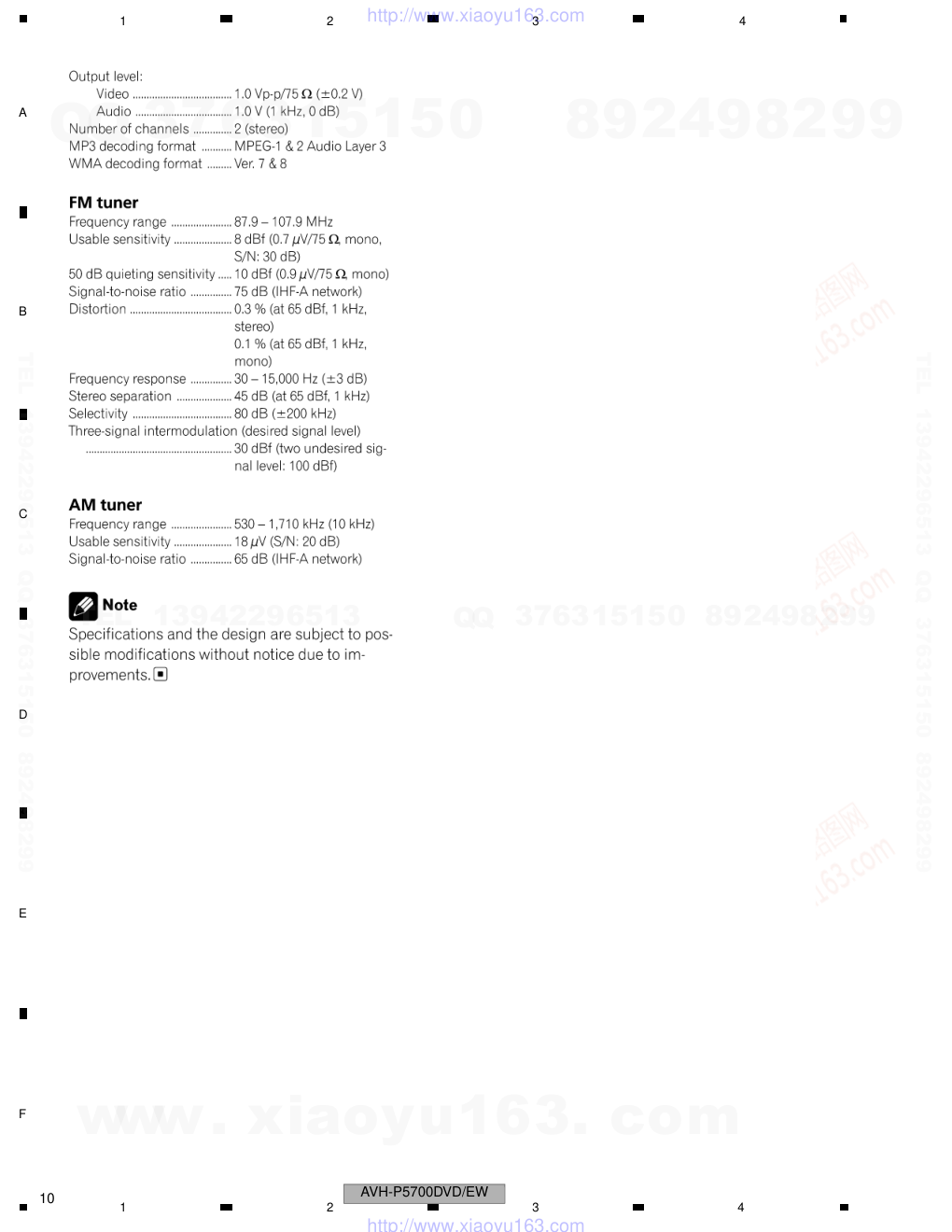

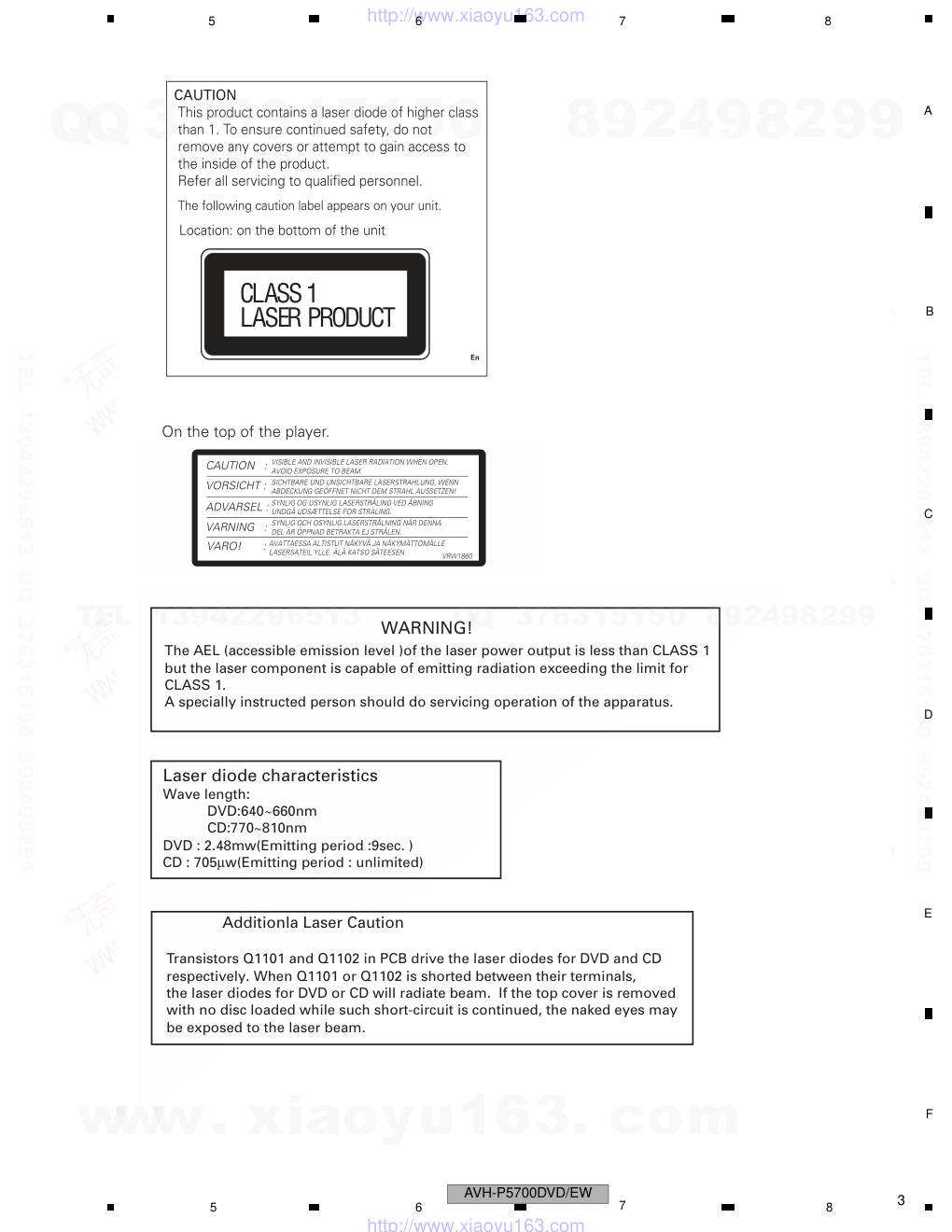

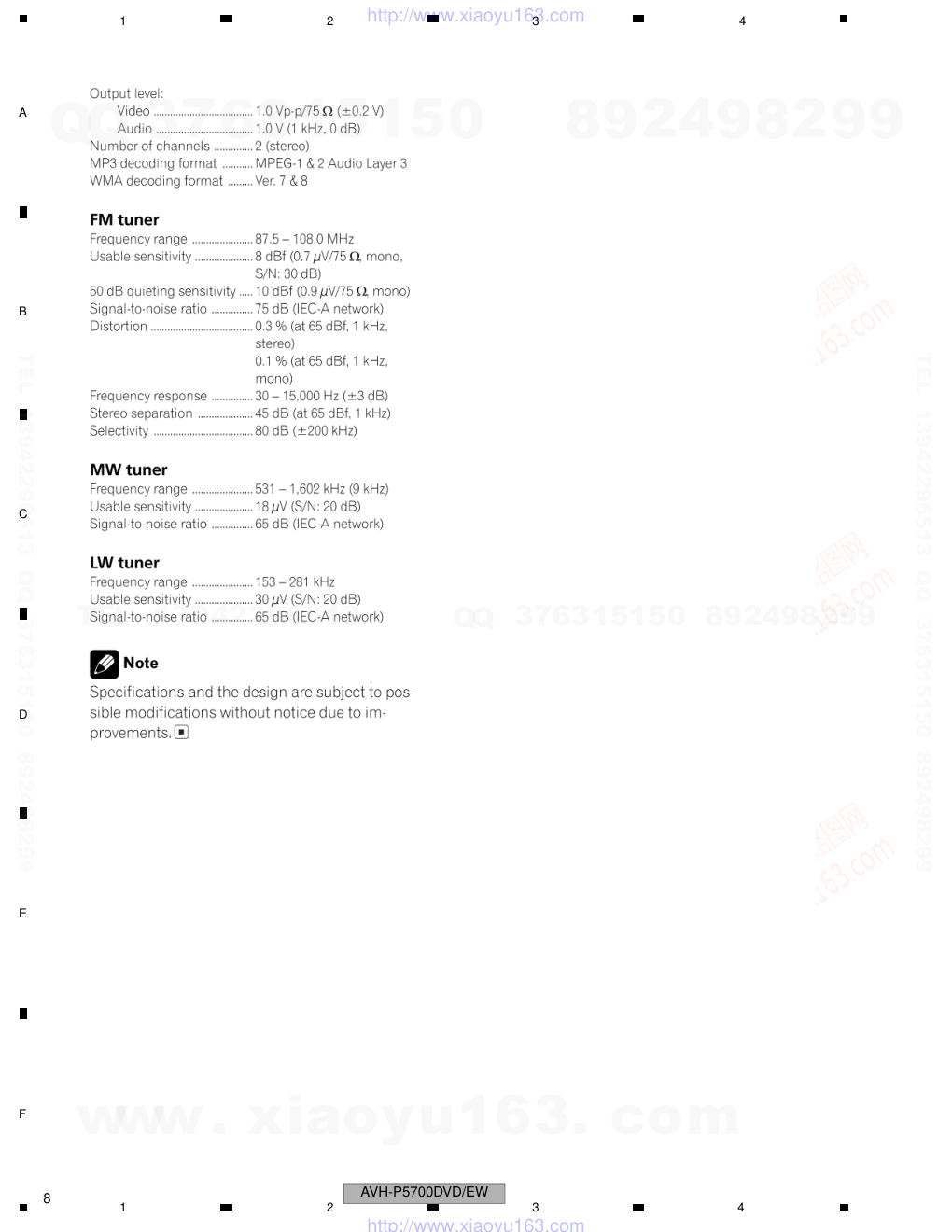

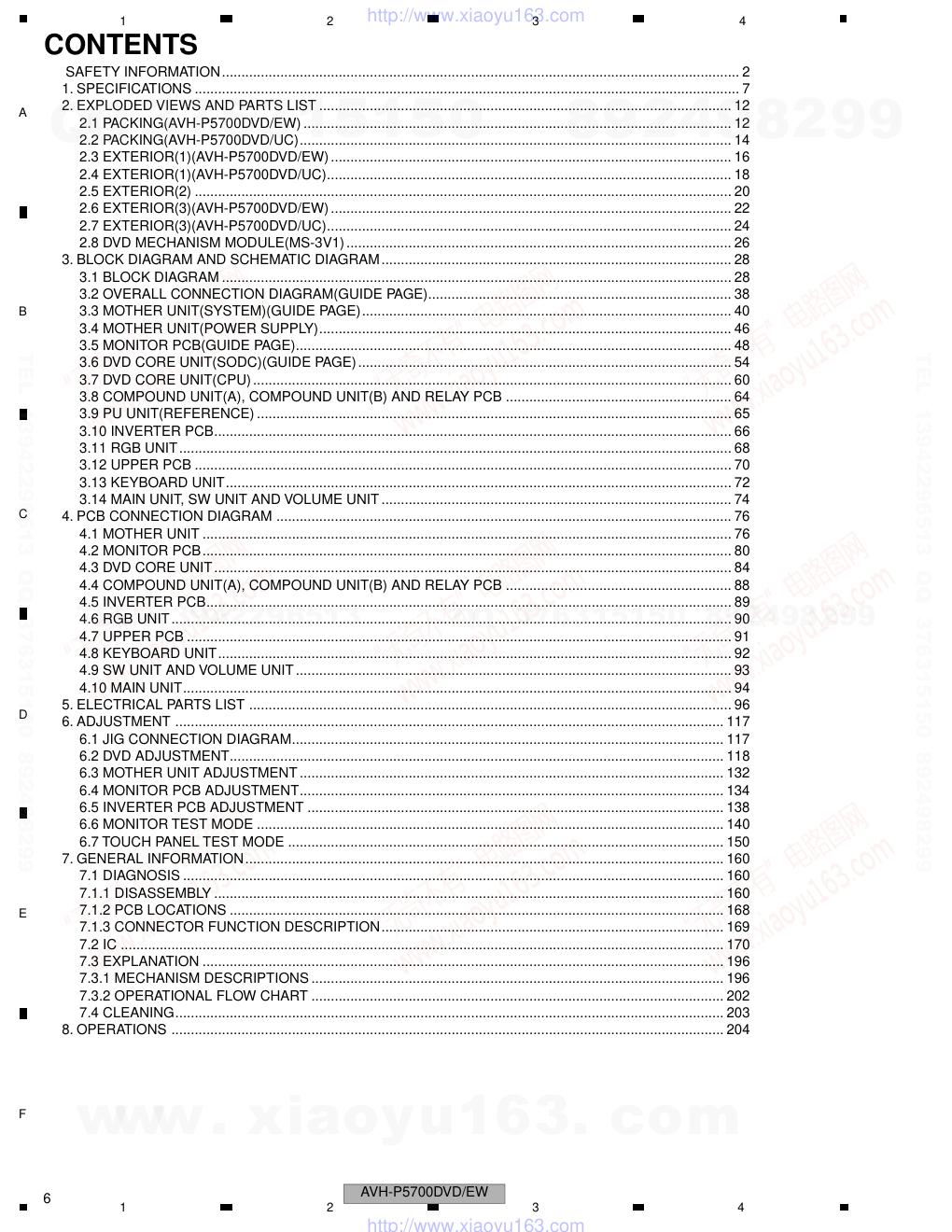

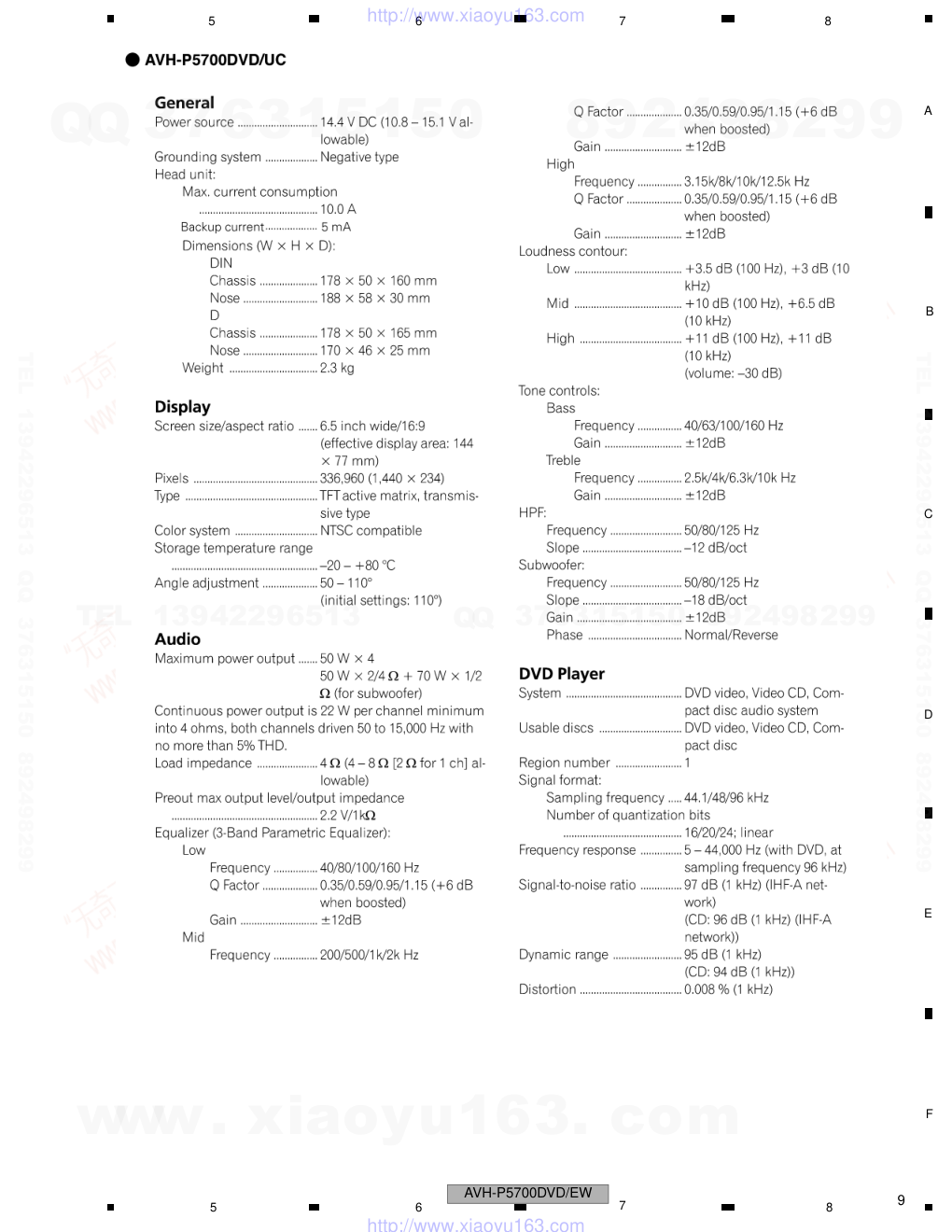

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2005 AVH-P5700DVD/EW CRT3425 AV RECEIVER/DVD PLAYER 6.5 INCH WIDE DISPLAY AVH-P5700DVD/EW AVH-P5700DVD/UC This service manual should be used together with the following manual(s): Model No. Order No. Mech.Module Remarks CX-3078 CRT3257 MS-3V1 DVD Mech. Module:Circuit Description, Mech. Description, Disassembly For details, refer to "Important Check Points for Good Servicing". K-ZZD.MAR. 2005 Printed in Japan Manufactured under license from Dolby Laboratories. "Dolby" and the double-D sysmbol are trademarks of Dolby Laboratories. "DTS" and "DTS Digital Surround" are registered trademarks of Digital Theater Systems, Inc. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION UC CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 EW 1. Safety Precautions for those who Service this Unit. • Follow the adjustment steps in the service manual when servicing this unit. When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results. Caution: 1. During repair or tests, minimum distance of 13cm from the focus lens must be kept. 2. During repair or tests, do not view laser beam for 10 seconds or longer. 2. The triangular label is attached to the mechanism unit frame. This product contains mercury. Disposal of this material may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronics Industries Alliance: www.eiae.org. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 3 5 6 7 8 5 6 7 8 C D F A B E On the top of the player. CAUTION : VORSICHT : ADVARSEL : VARNING : VARO! : VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM. SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETZEN! SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ UDSÆTTELSE FOR STRÀLING. SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN. AVATTAESSA ALTISTUT NÄKYVÄ JA NÄKYMÄTTÖMÄLLE LASERSATEIL YLLE. ÄLÄ KATSO SÄTEESEN. VRW1860 CLASS 1 LASER PRODUCT WARNING! The AEL (accessible emission level )of the laser power output is less than CLASS 1 but the laser component is capable of emitting radiation exceeding the limit for CLASS 1. A specially instructed person should do servicing operation of the apparatus. Laser diode characteristics Wave length: DVD:640~660nm CD:770~810nm DVD : 2.48mw(Emitting period :9sec. ) CD : 705µw(Emitting period : unlimited) Additionla Laser Caution Transistors Q1101 and Q1102 in PCB drive the laser diodes for DVD and CD respectively. When Q1101 or Q1102 is shorted between their terminals, the laser diodes for DVD or CD will radiate beam. If the top cover is removed with no disc loaded while such short-circuit is continued, the naked eyes may be exposed to the laser beam. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 4 1 2 3 4 1 2 3 4 C D F A B E After completing repair of this product, please confirm that the fan motor (center) is rotating. Check Method 1. DVD video is played with this product. 2. The operation is normal if the operation noise (pulse) can be observed after connecting oscilloscope to TP781 located at the bottom of this product. Under this circumstance, be careful not to contact TP781 with chassis as the power fuse of fan motor (center) will blow out, disabling the fan motor (center) to rotate. - Operation Check of Fan Motor (Center) - Inverter for LCD back light becomes a high voltage. - Service Precaution 1. You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. 2. Before disassembling the unit, be sure to turn off the power. Unplugging and plugging the connectors during power-on mode may damage the ICs inside the unit. 3. To protect the pickup unit from electrostatic discharge during servicing, take an appropriate treatment (shorting-solder) . 4. After replacing the pickup unit, be sure to skew adjustment. 5. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a connector is plugged or unplugged. Bottom of this product TP781 Oscilloscope is a trademark of DVD Format/Logo Licensing Corporation. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 5 5 6 7 8 5 6 7 8 C D F A B E [Important Check Points for Good Servicing] In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. 0 Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 6 1 2 3 4 1 2 3 4 C D F A B E CONTENTS SAFETY INFORMATION..................................................................................................................................... 2 1. SPECIFICATIONS ............................................................................................................................................ 7 2. EXPLODED VIEWS AND PARTS LIST .......................................................................................................... 12 2.1 PACKING(AVH-P5700DVD/EW) .............................................................................................................. 12 2.2 PACKING(AVH-P5700DVD/UC)............................................................................................................... 14 2.3 EXTERIOR(1)(AVH-P5700DVD/EW)....................................................................................................... 16 2.4 EXTERIOR(1)(AVH-P5700DVD/UC)........................................................................................................ 18 2.5 EXTERIOR(2) .......................................................................................................................................... 20 2.6 EXTERIOR(3)(AVH-P5700DVD/EW)....................................................................................................... 22 2.7 EXTERIOR(3)(AVH-P5700DVD/UC)........................................................................................................ 24 2.8 DVD MECHANISM MODULE(MS-3V1)................................................................................................... 26 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM.......................................................................................... 28 3.1 BLOCK DIAGRAM ................................................................................................................................... 28 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE).............................................................................. 38 3.3 MOTHER UNIT(SYSTEM)(GUIDE PAGE)............................................................................................... 40 3.4 MOTHER UNIT(POWER SUPPLY).......................................................................................................... 46 3.5 MONITOR PCB(GUIDE PAGE)................................................................................................................ 48 3.6 DVD CORE UNIT(SODC)(GUIDE PAGE)................................................................................................ 54 3.7 DVD CORE UNIT(CPU)........................................................................................................................... 60 3.8 COMPOUND UNIT(A), COMPOUND UNIT(B) AND RELAY PCB .......................................................... 64 3.9 PU UNIT(REFERENCE) .......................................................................................................................... 65 3.10 INVERTER PCB..................................................................................................................................... 66 3.11 RGB UNIT.............................................................................................................................................. 68 3.12 UPPER PCB .......................................................................................................................................... 70 3.13 KEYBOARD UNIT.................................................................................................................................. 72 3.14 MAIN UNIT, SW UNIT AND VOLUME UNIT .......................................................................................... 74 4. PCB CONNECTION DIAGRAM ..................................................................................................................... 76 4.1 MOTHER UNIT ........................................................................................................................................ 76 4.2 MONITOR PCB........................................................................................................................................ 80 4.3 DVD CORE UNIT..................................................................................................................................... 84 4.4 COMPOUND UNIT(A), COMPOUND UNIT(B) AND RELAY PCB .......................................................... 88 4.5 INVERTER PCB....................................................................................................................................... 89 4.6 RGB UNIT................................................................................................................................................ 90 4.7 UPPER PCB ............................................................................................................................................ 91 4.8 KEYBOARD UNIT.................................................................................................................................... 92 4.9 SW UNIT AND VOLUME UNIT................................................................................................................ 93 4.10 MAIN UNIT............................................................................................................................................. 94 5. ELECTRICAL PARTS LIST ............................................................................................................................ 96 6. ADJUSTMENT ............................................................................................................................................. 117 6.1 JIG CONNECTION DIAGRAM............................................................................................................... 117 6.2 DVD ADJUSTMENT............................................................................................................................... 118 6.3 MOTHER UNIT ADJUSTMENT ............................................................................................................. 132 6.4 MONITOR PCB ADJUSTMENT............................................................................................................. 134 6.5 INVERTER PCB ADJUSTMENT ........................................................................................................... 138 6.6 MONITOR TEST MODE ........................................................................................................................ 140 6.7 TOUCH PANEL TEST MODE ................................................................................................................ 150 7. GENERAL INFORMATION........................................................................................................................... 160 7.1 DIAGNOSIS ........................................................................................................................................... 160 7.1.1 DISASSEMBLY ................................................................................................................................... 160 7.1.2 PCB LOCATIONS ............................................................................................................................... 168 7.1.3 CONNECTOR FUNCTION DESCRIPTION........................................................................................ 169 7.2 IC ........................................................................................................................................................... 170 7.3 EXPLANATION ...................................................................................................................................... 196 7.3.1 MECHANISM DESCRIPTIONS .......................................................................................................... 196 7.3.2 OPERATIONAL FLOW CHART .......................................................................................................... 202 7.4 CLEANING............................................................................................................................................. 203 8. OPERATIONS .............................................................................................................................................. 204 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 7 5 6 7 8 5 6 7 8 C D F A B E 1. SPECIFICATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 8 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 9 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 10 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 11 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 12 1 2 3 4 1 2 3 4 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING(AVH-P5700DVD/EW) NOTES : • Parts marked by " * " are generally unavailable because they are not in our Master Spare Parts List. • The > mark found on some component parts indicatesthe importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Screw adjacent to mark on the product are used for disassembly. • For the applying amount of lobricants or glue, follow the instructions in this manual. (In the case of no amount instructions,apply as you think it appropriate.) " 11 12 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 13 5 6 7 8 5 6 7 8 C D F A B E PACKING(AVH-P5700DVD/EW) SECTION PARTS LIST Owner's Manual,Installation Manual Mark No. Description Part No. 1 Carton CHG5493 2 Sub Carton CHG5270 3 Contain Box CHL5493 4 Protector CHP2387 5 Protector CHP2708 6 Protector CHP2706 7 Protector CHP2707 8 Cord Assy CDE7321 9 Cord Assy CDE7801 10 Cord Assy CDE7792 11 Spacer CNM9773 12 Polyethylene Bag CEG1088 * 13 Lock Tie CNV-754 14 Screw Assy CEA5144 15 Screw BMZ50P060FTC 16 Screw(M4x3) CBA1870 17 Screw CMZ50P060FTC * 18 Polyethylene Sheet CNM4338 20 Sheet CNM8603 21 Accessory Assy CEA4771 23 Screw CBA1650 24 Bush CNV1917 * 25 Polyethylene Bag E36-615 * 26 Polyethylene Bag CEG-158 27-1 Polyethylene Bag CEG1116 27-2 Owner's Manual CRB2047 27-3 Owner's Manual CRB2048 27-4 Owner's Manual CRB2049 27-5 Owner's Manual CRB2050 * 27-6 Warranty Card CRY1157 * 27-7 Passport CRY1013 28 Screw CBA1875 29-1 Polyethylene Bag CEG1116 29-2 Owner's Manual CRB2051 29-3 Owner's Manual CRB2052 29-4 Installation Manual CRD3965 Mark No. Description Part No. Part No. Language CRB2047 English CRB2048 Spanish CRB2049 German CRB2050 French CRB2051 Italian CRB2052 Dutch CRD3965 English, Spanish, German, French, Italian, Dutch www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 14 1 2 3 4 1 2 3 4 C D F A B E 2.2 PACKING(AVH-P5700DVD/UC) 11 12 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 15 5 6 7 8 5 6 7 8 C D F A B E PACKING(AVH-P5700DVD/UC) SECTION PARTS LIST Owner's Manual,Installation Manual Mark No. Description Part No. 1 Carton CHG5494 2 Sub Carton CHG5270 3 Contain Box CHL5494 4 Protector CHP2387 5 Protector CHP2708 6 Protector CHP2706 7 Protector CHP2707 8 Cord Assy CDE7321 9 Cord Assy CDE7815 10 Cord Assy CDE7790 11 Spacer CNM9773 12 Polyethylene Bag CEG1185 13 ••••• 14 Screw Assy CEA5144 15 Screw BMZ50P060FTC 16 Screw(M4x3) CBA1870 17 Screw CMZ50P060FTC * 18 Polyethylene Sheet CNM4338 20 Sheet CNM8603 21 Accessory Assy CEA4771 23 Screw CBA1650 24 Bush CNV1917 * 25 Polyethylene Bag E36-615 26 ••••• 27-1 Polyethylene Bag CEG1116 27-2 Owner's Manual CRB2053 27-3 Owner's Manual CRB2054 27-4 Installation Manual CRD3966 * 27-5 Registration Card CRY1229 27-6 Caution Card CRP1310 28 Screw CBA1875 Mark No. Description Part No. Part No. Language CRB2053 English CRB2054 French CRD3966 English, French www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 16 1 2 3 4 1 2 3 4 C D F A B E 2.3 EXTERIOR(1)(AVH-P5700DVD/EW) 28 88 89 L G 97 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 17 5 6 7 8 5 6 7 8 C D F A B E EXTERIOR(1)(AVH-P5700DVD/EW) SECTION PARTS LIST Mark No. Description Part No. 1 Screw BMZ20P030FTB 2 Screw BMZ20P160FTC 3 Screw BMZ26P030FTC 4 Screw(M2x8) CBA1752 5 Screw BPZ20P060FTB 6 Screw(M2x2) CBA1872 7 Button(EJECT) CAC9051 8 Button(A-BM) CAC9052 9 Button(CROSS) CAC9053 10 Cord Assy CDE7176 11 Cord CDE7715 12 Cord Assy CDE7797 13 Flat Cable CDE7805 14 Cord Assy CDE7796 15 Panel CNB3101 16 Case CNB3104 17 Bracket CND1438 18 Holder CND1441 19 Button(VOL) CAC9050 20 Bracket CND2626 21 Bracket CND2627 22 Holder CND2628 23 Lever Unit CXC4211 24 Insulator CNM8495 25 Insulator CNM8864 26 Insulator CNM9398 27 Sheet CNM9517 28 Insulator CNM9750 29 Flexible PCB CNP8806 30 FFC CDE7807 31 Connector(CN5501) CKS4511 32 Guide CNV8415 33 Mother Unit CWM9808 34 Screw BMZ26P160FTC 35 Screw BSZ26P080FTC 36 Spring CBH2863 37 Flat Cable CDE7806 38 Antenna Cable CDH1348 39 FM/AM Tuner Unit CWE1650 40 Connector(CN101,102) CKS4653 41 Cushion CNM8671 42 Holder CND1432 43 Connector(CN154) CKS4823 44 Cord CDE7809 45 Terminal(CN731) CKF1064 46 Connector(CN701) CKM1332 47 Socket(CN261) CKM1457 48 Connector(CN171) CKS3751 49 ••••• 50 Connector(CN151) CKS4052 51 Connector(CN181) CKS4052 52 Connector(CN175) CKS4068 53 Connector(CN152) CKS4282 54 Connector(CN101) CKS4511 55 Connector(CN771) CKS4822 56 Connector(CN561) CKS4824 57 Connector(CN121) CKS4830 58 Connector(CN131) CKS4832 59 Connector(CN781) CKS4977 60 Holder CND2629 61 Holder CND2630 62 Shield CND2631 63 Holder CND2633 64 Insulator CNM9400 65 Insulator CNM9521 66 Spacer CNM9522 67 Spacer CNM9523 68 Heat Sink CNR1703 69 Heat Sink CNR1784 70 RGB Unit CWM9815 71 Connector(CN951) CKS4497 72 Connector(CN952) CKS4978 73 Jack(CN981) CKN1022 74 Connector(CN954) CKS4052 75 Detach Grille Assy CXC4192 76 Bracket CND1482 77 Holder CND2634 78 Button(SRC/-,+) CAC9054 79 Button(ATT,EQ/BAND) CAC9056 80 DVD Mechanism Module(MS-3V1) CXK6418 81 Fan Motor(M771) CXM1262 82 Fan Motor(M781) CXM1276 83 Screw IMS26P040FTC 84 Cover CNS8177 85 Grille CNS8173 86 Screw IPS20P060FTB 87 Grille Unit CXC4206 88 Transistor(Q892) 2SD2396 89 IC(IC871) NJM2388F84 90 IC(IC241) PAL007A 91 IC(IC5501) TSOP4840SB1 92 Cap CNV6727 93 Screw CMZ50P060FTC 94 Holder CNC9510 95 Panel CNS7797 96 Label VRW1860 97 Grille Assy CXC4187 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 18 1 2 3 4 1 2 3 4 C D F A B E 2.4 EXTERIOR(1)(AVH-P5700DVD/UC) 28 88 89 L G 97 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 19 5 6 7 8 5 6 7 8 C D F A B E EXTERIOR(1)(AVH-P5700DVD/UC) SECTION PARTS LIST Mark No. Description Part No. 1 Screw BMZ20P030FTB 2 Screw BMZ20P160FTC 3 Screw BMZ26P030FTC 4 Screw(M2x8) CBA1752 5 Screw BPZ20P060FTB 6 Screw(M2x2) CBA1872 7 Button(EJECT) CAC9051 8 Button(A-BM) CAC9052 9 Button(CROSS) CAC9053 10 Cord Assy CDE7176 11 Cord CDE7715 12 Cord Assy CDE7798 13 Flat Cable CDE7805 14 Cord Assy CDE7796 15 Panel CNB3102 16 Case CNB3104 17 Bracket CND1438 18 Holder CND1441 19 Button(VOL) CAC9050 20 Bracket CND2626 21 Bracket CND2627 22 Holder CND2628 23 Lever Unit CXC4211 24 Insulator CNM8495 25 Insulator CNM8864 26 Insulator CNM9398 27 Sheet CNM9517 28 Insulator CNM9750 29 Flexible PCB CNP8806 30 FFC CDE7807 31 Connector(CN5501) CKS4511 32 Guide CNV8415 33 Mother Unit CWM9809 34 Screw BMZ26P160FTC 35 Screw BSZ26P080FTC 36 Spring CBH2863 37 Flat Cable CDE7806 38 Antenna Cable CDH1348 39 FM/AM Tuner Unit CWE1651 40 Connector(CN101,102) CKS4653 41 Cushion CNM8671 42 Holder CND1432 43 Connector(CN154) CKS4823 44 Cord CDE7809 45 Terminal(CN731) CKF1064 46 Connector(CN701) CKM1332 47 Socket(CN261) CKM1457 48 Connector(CN171) CKS3751 49 ••••• 50 Connector(CN151) CKS4052 51 Connector(CN181) CKS4052 52 Connector(CN175) CKS4068 53 Connector(CN152) CKS4282 54 Connector(CN101) CKS4511 55 Connector(CN771) CKS4822 56 Connector(CN561) CKS4824 57 Connector(CN121) CKS4830 58 Connector(CN131) CKS4832 59 Connector(CN781) CKS4977 60 Holder CND2629 61 Holder CND2630 62 Shield CND2631 63 Holder CND2633 64 Insulator CNM9400 65 Insulator CNM9521 66 Spacer CNM9522 67 Spacer CNM9523 68 Heat Sink CNR1703 69 Heat Sink CNR1784 70 RGB Unit CWM9816 71 Connector(CN951) CKS4497 72 Connector(CN952) CKS4978 73 Jack(CN981) CKN1022 74 Connector(CN954) CKS4052 75 Detach Grille Assy CXC4193 76 Bracket CND1482 77 Holder CND2634 78 Button(SRC/-,+) CAC9054 79 Button(BOOST,EQ/BAND) CAC9055 80 DVD Mechanism Module(MS-3V1) CXK6418 81 Fan Motor(M771) CXM1262 82 Fan Motor(M781) CXM1276 83 Screw IMS26P040FTC 84 Cover CNS8177 85 Grille CNS8174 86 Screw IPS20P060FTB 87 Grille Unit CXC4206 88 Transistor(Q892) 2SD2396 89 IC(IC871) NJM2388F84 90 IC(IC241) PAL007A 91 IC(IC5501) TSOP4840SB1 92 Cap CNV6727 93 Screw CMZ50P060FTC 94 Holder CNC9510 95 Panel CNS7797 96 ••••• 97 Grille Assy CXC4188 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 20 1 2 3 4 1 2 3 4 C D F A B E 2.5 EXTERIOR(2) 172 172 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 21 5 6 7 8 5 6 7 8 C D F A B E EXTERIOR(2) SECTION PARTS LIST Mark No. Description Part No. 101 Screw(M2x3) CBA1082 102 Screw(M2x2.5) CBA1250 103 Screw(M2x4) CBA1277 104 Screw(M2x1.5) CBA1615 105 Washer CBF1038 106 Spring CBH2645 107 Spring CBH2646 108 Spring CBH2647 109 Spring CBL1585 110 Spring CBL1586 111 Spring CBL1587 112 Cord Assy CDE7047 113 Cord Assy CDE7213 114 Shaft CLA4270 115 Shaft CLA4305 116 Shaft CLA4306 117 Shaft CLA4309 118 Bracket CND1221 119 Heat Sink CND1228 120 Case CND1229 121 Holder CND1318 122 Holder CND1449 123 Sheet CNM8522 124 Sheet CNM8037 125 Insulator CNM8048 126 Insulator CNM8158 127 Sheet CNM8159 128 Tape CNM8160 129 Insulator CNM8294 130 Gear CNR1664 131 Gear CNR1665 132 Gear CNR1677 133 Gear CNR1678 134 Gear CNR1679 135 Gear CNR1680 136 Gear CNR1688 137 Gear CNR1802 138 Gear CNR1708 139 Gear CNV7383 140 Holder CNV7384 141 Holder CNV7385 142 Rack CNV7386 143 Rack CNV7387 144 Slider CNV7388 145 Slider CNV7389 146 Holder CNV7390 147 Arm CNV7391 148 Gear CNV7522 149 Gear CNV7523 150 Gear CNR1709 151 Gear CNV7529 152 Chassis Unit CXB9509 153 Frame Unit CXB9511 154 Holder Unit CXB9512 155 Shaft Unit CXB9513 156 Holder Unit CXB9514 157 Motor Unit(M3001)(Position) CXB9515 158 Motor Unit(M3002)(Angle) CXB9516 159 Screw CZB3082 160 Screw CZB3083 161 Washer CZB3084 162 Main Unit CZW3087 163 SW Unit CZW3088 164 Volume Unit CZW3089 165 Screw IMS20P020FTC 166 Screw IMS20P030FZK 167 Washer YE15S 168 Screw BMZ26P050FTC 169 Connector(CN3801) CKS4068 170 Connector(CN3802,CN3803) CKS4732 171 Connector(CN3807,3809) CKS4733 172 Spacer CNM9837 173 IC(IC3801) BA00AST 174 Volume(VR3841) CCW1025 175 ••••• 176 Bracket Unit CXC3048 177 Screw(M2x2) CBA1872 178 Holder CND2890 179 Spring CBH2750 180 Cover Unit(EW) CXC5117 Cover Unit(UC) CXC5118 181 Screw(M2x2) CBA1872 182 Screw(M2x1.8) CZB3085 183 Spring CBL1642 184 Screw(M2x4) CZB3088 185 Drive Unit CXC5111 186 Washer CZB3089 187 Sheet ••••• 188 Arm CNV8065 189 Holder CNV8066 190 Screw(M2x3) CBA1876 191 Spring CBL1679 192 Lever CND2202 193 Screw CBA1797 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 22 1 2 3 4 1 2 3 4 C D F A B E 2.6 EXTERIOR(3)(AVH-P5700DVD/EW) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 23 5 6 7 8 5 6 7 8 C D F A B E EXTERIOR(3)(AVH-P5700DVD/EW) SECTION PARTS LIST Mark No. Description Part No. 1 Screw BPZ20P060FTC 2 ••••• 3 FFC CDE7195 4 Touch Panel CSX1087 5 Screw(M2x2) CBA1872 6 FFC CDE7814 7 Holder CND2610 8 Gasket CNM8600 9 Sheet CNM8265 10 Sheet CNM7784 11 Insulator CNM9390 12 Monitor Unit CWM9820 13 Connector(CN4541) CKS3968 14 Connector(CN4301) CKS4054 15 Connector(CN4591) CKS4054 16 Connector(CN5342) CKS4428 17 Connector(CN4521) CKS4595 18 Connector(CN5001) CKS4595 19 Connector(CN4501) CKS4675 20 Connector(CN4007) CKS4872 21 Shield CND2737 22 Insulator CNM9251 23 LCD Module CWX3151 24 Grille Unit CXC4198 25 ••••• 26 ••••• 27 Cord Assy CDE7321 28 Cord Assy CDE7792 29 Cord Assy CDE7801 30 Cap CNV6727 31 ••••• 32 Resistor RSV2PMF102J 33 Cap CNS1472 34 Resistor RS1/2PMF102J > 35 Fuse(10A) CEK1136 36 ••••• 37 Terminal Cover CKX-003 38 Sheet CNM9742 39 Spacer CNM9840 40 Sheet CNM9744 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 24 1 2 3 4 1 2 3 4 C D F A B E 2.7 EXTERIOR(3)(AVH-P5700DVD/UC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 25 5 6 7 8 5 6 7 8 C D F A B E EXTERIOR(3)(AVH-P5700DVD/UC) SECTION PARTS LIST Mark No. Description Part No. 1 Screw BPZ20P060FTC 2 ••••• 3 FFC CDE7195 4 Touch Panel CSX1087 5 Screw(M2x2) CBA1872 6 FFC CDE7814 7 Holder CND2610 8 Gasket CNM8600 9 Sheet CNM8265 10 Sheet CNM7784 11 Insulator CNM9391 12 Monitor Unit CWM9821 13 Connector(CN4541) CKS3968 14 Connector(CN4301) CKS4054 15 Connector(CN4591) CKS4054 16 Connector(CN5342) CKS4428 17 Connector(CN4521) CKS4595 18 Connector(CN5001) CKS4595 19 Connector(CN4501) CKS4675 20 Connector(CN4007) CKS4872 21 Shield CND2737 22 Insulator CNM9251 23 LCD Module CWX3151 24 Grille Unit CXC4201 25 ••••• 26 ••••• 27 Cord Assy CDE7321 28 Cord Assy CDE7790 29 Cord Assy CDE7815 30 Cap CNV6727 31 ••••• 32 Resistor RSV2PMF102J 33 Cap CNS1472 34 Resistor RS1/2PMF102J > 35 Fuse(10A) CEK1136 36 ••••• 37 ••••• 38 Sheet CNM9742 39 Spacer CNM9840 40 Sheet CNM9744 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 26 1 2 3 4 1 2 3 4 C D F A B E 2.8 DVD MECHANISM MODULE(MS-3V1) M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 27 5 6 7 8 5 6 7 8 C D F A B E DVD MECHANISM MODULE (MS-3V1) SECTION PARTS LIST Mark No. Description Part No. 1 DVD Core Unit CWX3170 2 ••••• 3 Connector(CN1201) CKS4067 4 Connector(CN1551) CKS4817 5 Connector(CN1231) CKS4624 6 Connector(CN1903) CKS4374 7 Connector(CN1101) CKS4625 8 Connector(CN1901) CKS3971 9 Screw BMZ20P020FTC 10 Screw(M2 x 3.5) CBA1571 11 Screw(M2 x 2.5) CBA1623 12 Washer CBF1038 13 Washer CBF1064 14 Spring CBH2586 15 Spring CBH2587 16 Spring CBH2588 17 Spring CBH2589 18 Spring CBH2590 19 Spring CBH2591 20 Spring CBH2592 21 Spring CBH2593 22 Spring CBH2594 23 Spring CBH2595 24 Spring CBH2596 25 Spring CBH2597 26 Spring CBH2598 27 Spring CBH2599 28 Spring CBH2600 29 Spring CBH2601 30 Spring CBH2602 31 Spring CBH2603 32 Spring CBH2604 33 Spring CBH2605 34 Spring CBH2711 35 Spring CBL1564 36 Pickup Unit(Service) CXX1770 37 Shaft CLA3881 38 Shaft CLA4206 39 Shaft CLA4207 40 Lever CNC9933 41 Holder CNC9939 42 Holder CND2251 43 Holder CNC9941 44 Frame CND2250 45 Sheet CNM6883 46 Sheet CNM8283 47 Sheet CNM8643 48 Lever CNV8076 49 Lever CNV7155 50 Cam CNV7156 51 Rack CNV7157 52 Clamper CNV7158 53 Arm CNV7159 54 Arm CNV7160 55 Arm CNV7161 56 Arm CNV7162 * 57 Arm CNV7163 58 Arm CNV7164 59 Roller CNV7165 60 Arm CNV7166 61 Guide CNV8093 62 Gear CNV7169 63 Gear CNV7170 64 Gear CNV7171 65 Gear(Black) CNV7172 66 Gear CNV7173 67 Gear CNV7174 68 Rack CNV7175 69 Gear CNV7176 70 Arm CNV8077 71 Lever CNV7178 72 Lever CNV7179 73 Screw IMS20P030FTC 74 Gear CNV7181 75 Holder CNV7183 76 Holder CNV7184 77 Guide CNV7745 78 Roller CNV7344 79 Damper CNV7470 80 Damper CNV7471 81 Collar CNV7645 82 Compound Unit(A) CWX3154 83 Screw(M2x2) CBA1817 84 Compound Unit(B) CWX3156 85 Washer YE20FTC 86 Chassis Unit CXC3629 87 Arm Unit CXB8681 88 Frame Unit CXB8683 89 Arm Unit CXC4701 90 Bracket Unit CXB8685 91 Motor Unit(LOADING)(M1) CXC4659 92 Motor Unit(CARRIAGE)(M2) CXC4314 93 Screw Unit CXB8689 94 Roller Unit CXB8690 95 Motor(SPINDLE)(M3) CXM1272 96 Screw JFZ20P018FTC 97 Photo-transistor(Q1299) CPT231SCTD 98 Switch(S1201,S1202,S1203) CSN1069 99 Spring Switch(S1204,S1205) CSN1070 100 Resistor(R1298,R1299) RS1/16S0R0J 101 Gathering PCB CNX4320 102 Holder CNV8186 103 Arm CNV7742 104 Arm CNV7743 105 Spring CBH2710 106 Spring CBL1643 107 Spring CBH2712 108 Pickup Unit(Service)(Screw) GXX1242 109 Screw Assy CXX1750 110 Screw(M1.4xM1.4) CBA1787 111 Cover CNC9943 112 Screw JFZ20P018FTC Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 28 1 2 3 4 1 2 3 4 C D F A B E 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM VDD5 IC831 BA00BC0WFP 3.3V REG. 9 CN401 FM/AM ANT AVH-P5700DVD/EW IC801 AN8011S D/D CONVERTER VCC 3 1 2 ON/OFF 10 OUT1 13 IN-1 12 FB1 2 1 4 VDD VC VIN FU803 VD8 SYS+B VCC33 SYS+B B.UP FMRF ANT adj RF adj FM ANT T51 CF52 CF51 RFGND OSCGND DGND AUDIOGND NC VCC VDD_3.3 3.3V 2.5V IC 4 3.3V 2.5V ← IC 2 2.5V WC CE2 ROM_VDD SL DI CK CE1 LDET DO SL DI CK CE DO RDS_CK RDS_DATA RDS_LOCK RDS_HSLK 7 6 13 5 10 9 8 11 14 18 19 20 21 1 3 2 12 15 22 16 4 17 IC 1 3.3V AM ANT FMRF ATT LPF OSC IC 3 EEPROM 5.0V IC 5 5V 3.3V ← ATT MIXER, IF AMP DET, FM MPX, RDS DECODER 24 23 Rch Lch TUN TUN IC881 NJM2391DL1-33 3.3V REG. 1 3 OUT IN IC871 NJM2388F84 8.4V REG. 1 2 4 VOUT CONT VIN Q803 Q801 7 OUT2 Q804 Q805 Q806 Q802 FU801 4 IN-2 5 FB2 CT RT VCC15 FU802 CE2 LDET A A A AVH-P5700DVD/UC B MOTHER UNIT (1/2) FM/AM TUNER UNIT A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 29 5 6 7 8 5 6 7 8 C D F A B E CN771 2 1 FAN MOTOR (REAR) CN781 2 1 Q842 Q841 Q402 Q401 B.UP VDD5 VIDEO5V REG. VIDEO9V REG. ACC5V REG. SWVDD5V REG. OPT5V REG. REAR FAN6V REG. CENTER FAN6V REG. FU803 FU771 IC841 S-812C50AUA-C3E 5V REG. SYSTEM CONTROLLER 2 3 VOUT 103 CONTVDD 46 TUNPDI 45 100 TUNPCE 48 TUNPCK 47 TUNPDO 135 TUNSL 101 DO CE CK DI SL 29 ACCPW VIN IC851 S-818A35AUC-BGP 3.5V REG. 5 1 VOUT VIN 4 ON/OFF SRVDD 24 23 Rch Lch TUNR TUNL TUNR TUNL IC856 S-814A33AMC-BCX 3.3V REG. 1 5 VOUT VIN 3 CONTVDD ACCPW SWVDD HSEN FU861 ON/OFF VDD33 SWVDD5 Q861 (1/2) Q861 (2/2) OPT5 Q864 (1/2) Q864 (2/2) VPW SYSPW DDCONTL VPW CCONT1 CCONT2 CONTB MFLPW SW9 VIDEO9 Q892 Q893 Q773 (1/2) Q773 (2/2) Q772 VIDEO5 Q891 ACC5 Q867 (1/2) Q867 (2/2) Q772 Q771 Q774 FU781 Q782 (1/2) Q782 (2/2) Q781 Q783 CE2 TUNPCE2 LDET RDT RCK RDSHSLK RDSLK RDT RCK RDSHSLK RDSLK RDT RCK RDS57K RDSLK LDET 24 25 23 57 VPW CCONT1 CONTVDB VPW COOLCNT1 77 104 32 CCONT2 COOLCNT2 78 SYSPW SYSPW 31 DDCONTL DDCONTL CONTVDB 33 CONTB MFLPW TO MOTHER UNIT (2/2) CONTVDB A A : PE5484A A : PE5485A B IC601(1/2) FAN MOTOR (CENTER) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 30 1 2 3 4 1 2 3 4 C D F A B E MOTHER UNIT (2/2) A ANR1 CN171 ANG1 ANB1 MONVBS CSYNC ANR1 ANG1 ANB1 CSYNC YS HRX HTX RXMON TXMON MFLPW PWRVI SELFRST SELFRST MON5PW SWVDD MOREM PWRFL MONI5V ILMC VBILM ILMA VRILM ILMGB 31 30 32 35 27 25 19 20 21 16 15 13 18 23 5 3 1 2 39 37 36 VGILM SWVDD5 PWFL PWVI VD8 OPT5 VCC15 VCC33 SRVDD VIDEO9 VDD33 B.UP IPPW ASENBO PRGRST TXMON SWVDD RXMON FRONTMUTE VDT VCK VST SYSTEM CONTROLLER IC601(2/2) 40 VOUT1 33 39 41 27 26 84 86 62 108 107 109 CONTBIN 81 RXMS3 111 TXMS3 112 IRQPWR RXMS3 TXMS3 IRQPWR 113 114 119 TXNAV TXNAV RXNAV RXNAV 118 117 VOUT2 LOUT1 ROUT1 SDA SCL SDA SCL 47 TV 1 V1 8 V2 15 V3 23 V4 16 LV3 18 RV3 2 LV1 4 RV1 IC501 CXA2089Q AV SELECTOR TUN TUN DIN1 1 2 DOUT 8 91 90 88 87 TX RX IPPW BU BU IC121 HA12240F 1 2 8 3 4 9 13 10 11 12 14 19 15 17 18 20 21 24 25 27 26 28 30 31 32 | 39 CN151 CCR CCG HSEN OPT OUT OPT OUT OPT5 OPT5 CCB CCR CCG CCB CCSYNC GNDSIG DVDVBS GNDDVD YS CCAUL CCAUR GNDAU ONSEI+ ONSEI− GNDRAU CCREM DSEN TVON GION GUIDEON HTXD 4 1,2 HRXD TXNAV RXNAV GNDD FU151 39 37 35 29 27 28 26 1 23 22 20 21 19 18 17 | 14 12 | 10 8 | 2 4 3 1 CN181 VIDEO IN AV-BUS CN954 CN561 1 CN152 ANALOG ROUT VIDEO OUT ANALOG LOUT MS3 Rch MS3 Lch VDD33 AMUTE VCONTB CONTB XRESET IRQPWR HSTCMD SLVSTS IRQPWR TXMS3 RXMS3 VIN VF VOUT 3 6 8 1 1 6 7 1 4 9 4 SRVDD VCC33 VCC15(33) VD VCRV G BCAM G CN131 AV− AV+ VSEL1 VSEL2 AVON AVG REMIN AVG VCRINL VCRGND VCRINR 1 2 3 4 5 6 7 8 9 10 11 12 VCRGND XRESET XRESET RGBARI RGBARI RGBARI 53 AVON AVON IN XRESET IC182 TC7SET08FUS1 3V→5V IC541 SM5304AV VIDEO AMP D_OUT C_OUT B_OUT A_OUT IC461 NJM2138V RGB VIDEO ISOLATOR OUT1 OUT2 IN1B/2B IN1A IN2A IC441 TA2050F NAVI DVD(A) IC151 TC4S81F + − + − 6 2 3 2 3 6 VCR IN(V) B.CAMERA(V) IC551 NJM2136V IC561 NJM2136V IC181 TC74VHC08FTS1 5V→3V + − 6 2 3 13 12 10,15 NAVI DVD(V) IC571 NJM2136V + 6 3 4 2 3 BUFFER IC521 NJM2136V IC522 BA7623F VIDEO AM Q181 Q182 H I VSELIN1 VSELIN2 AVON CCR CCG CCB 10 Q461 Q151 5 3 12 1 7 8 14 2,6,9,13 8 1 OUT1 OUT2 IN1A IN1B/2B IN2A IC451 TA2050F AV-BUS(A) − + 6 3 2 10,15 12 13 AV-BUS(V) IC581 NJM2136V 8 1 ANB1 ANR1 CSYNC ANG1 CN665 TXNAV RXNAV TXNAV RXNAV PRGON PRGSW VPPON VPP PRGON PRGSW VPPON VPP 10 9 8 7 6 5 4 | 1 FU131 VIDEO5 Q571 VIDEO5 Q581 VIDEO5 Q561 Q551 Q131 G I CN4541 B CN101 1 6 2 ILMA REM RESET DFLED DSENS MOREM REMUTE DREM REMIN CCREM ACC5 Q691 Q693 Q692 Q695 Q694 Q696 ASENBO SELFRST RXMON TXMON SWVDD SWVDD CONTB CONTB ANGLE LIFTPUL MTRS MTRPW MTR2 MTR1 MTRSEL SNSPW PUSHSW DEG0SW ANGLE IN LIFTPUL MTRS MTRPW MTR2 MTR1 MTRSEL SNSPW PUSHSW DEG0SW RESET RESET ASENS BSENS VSELIN1 VSELIN1 VSELIN2 VSELIN2 51 52 PRGSW PRGSW 61 PRGON PRGON 58 VPPON VPPON 59 VPP VPP 41 X2 74 X1 73 REMUTE 106 DREM 105 96 PBSENS 129 69 BGSENS 130 TELIN 127 CILM 66 CGILM 35 CRILM ASENS BSENS PBSENS 68 BEEP AMPPW 30 AMPPW AMPMUTE 124 AMPMUTE RCAMUTE 50 RCAMUTE SYSMUTE 122 MUTE BGSENS TELIN CILM ILMGRN ILMRED 67 18 19 20 14 16 17 13 15 21 137 40 REMUTE DREM 83 142 KDT2 141 140 KDT1 KDT0 DSENS KEYDT2 KEYDT1 KEYDT0 34 DLED B.UP Q512 Q521 Q601 VR511 Q511 IN2 IN3 IN1 OUT STBY TO MOTHER UNIT (1/2) TO MOTHER UNIT (1/2) TO MOTHER UNIT (1/2) IETX IERX 11 12 9 10 NMIXCNT 121 X601 18.874368MHz :PE5484A A :PE5485A B A CN1901 C CN1551 C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 31 5 6 7 8 5 6 7 8 C D F A B E ANR1 CN121 IP-BUS ANG1 ANB1 MONVBS ANR1 ANG1 ANB1 ILMC VBILM ILMA VRILM ILMGB 31 30 32 35 39 37 36 IPL− BUS+ IPR− IPR+ ASENBO IPL+ BUS− BUS+ ASENBO BUS− 7 6 1 4 10 9 8 VGILM B.UP 43 35 10 IN4+L IN4+R 34 IN4−R 44 IN4−L FRONTOUT_L 24 3 2 5 1 7 6 FRONTOUT_R 12 PREOUT_L 22 PREOUT_R 41 IN2_L 37 MS3 Lch MS3 Rch IN2_R IN1_L IN1_R 11 REAROUT_L 23 REAROUT_R A+IN A−IN B+IN AOUT BOUT 5 23 3 4 7 19 9 17 21 B−IN IC201 PML009A ELECTRIC VOLUME 40 38 1 IN−1 OUT1 2 3 IN+1 IC301 NJM4558V IN+2 5 3 TUNL TUNR 7 1 IN+1 OUT2 OUT1 IC421 NJM4558MD TUNER AUDIO AMP DIN1 1 6 5 BUS+ BUS− 2 DOUT 8 TX RX IPPW BUS+ BUS− IC121 HA12240FP IC303 NJM4580V IC241 PAL007B POWER AMP 7 IN+2 OUT2 5 6 IN−2 7 IN+2 OUT2 6 5 Q302 Q303 Q301 IN−2 ONSEI+ ONSEI− GUIDEON RCA OUT POWER SUPPLY OUT VDD 1 2 IC681 S-80841CNUA-B82 RESET GEN. 6 3 8 REARV 4 2 V IC522 BA7623F VIDEO AMP H 1 2 3 CN154 FU152 CN3801 J CN5501 I 541 CN101 13 12 11 10 8 9 1 7 6 2 KEY0 KEY1 KEY2 KDT0 KDT1 KDT2 ILMG ILMA REM RESET DFLED ACC5 VGILM VRILM DSENS DSENS VDD5 Q101 (1/2) Q101 (2/2) ASENBO ASENBO CN175 ANGLEIN ANGLE BUP 15 14 16 17 13 12 11 10 3 1 2 20 19 18 B.UP LIFTPUL MTRS MTRPW MTR2 MTR1 MTRSEL LIFTPUL MTRS MTRPW MTR2 MTR1 MTRSEL ANGL0SW PUSHSW SENSPW SNSPW VDD FU175 FU176 VDD5 PUSHSW DEG0SW ANGLE LIFTPUL MTRS MTRPW MTR2 MTR1 MTRSEL SNSPW PUSHSW DEG0SW RESET Q754 VRILM CRILM Q753 B.UP ASENS BSENS CN701 ACC 15 14 16 13 12 11 4 3 1 2 8 7 10 9 5 6 B.REM B.G. MUTE B.UP PWVI PWFL RR+ FR+ RR− FR− RL+ FL+ RL− FL− P.B. BGSENS TELIN MFLPW PBSENS RR+ FR+ RR− FR− RL+ FL+ RL− FL− VGND FU703 Q703 Q705 Q704 FU701 RR+ FR+ RR− FR− RL+ FL+ RL− FL− AMPPW 12 FL 11 FR 14 15 RR+ FR+ RR− FR− RL+ FL+ RL− FL− 25 22 B.REMOTE MUTE FRIN FLIN RRIN RLIN Q706 Q701 Q702 Q756 FU702 VBILM CILM Q755 Q752 VGILM CGILM ASENS BSENS Q751 CN261 RL VCRINL VCRINR FL FR 6 4 8 10 12 14 13 11 3 1 7 9 5 RR VCRGND SYSMUTE RCAMUTE AMPMUTE Q281 Q245 Q244 Q242 Q241 REARV SWR FL FR FU261 B.UP IN3_L IN3_R 42 36 SWL PBSENS 9 BGSENS 0 TELIN 7 CILM CGILM CRILM AMPPW AMPMUTE 4 RCAMUTE SYSMUTE 2 7 Q261 Q262 I B.UP SYS+B Q243 RBU14 Q121 B.UP 1 IN−1 OUT1 2 3 IN+1 IC302 NJM4558V NAVI GUIDE MIXING IN2 IN3 IN1 OUT1 STBY NMIXCNT TO MOTHER UNIT (1/2) MFLPW TO MOTHER UNIT (1/2) BZ601 20 MUTE 19 STB 18 DATA 17 1 CLK STBY VDD5 SWVDD AVH-P5700DVD/EW A AVH-P5700DVD/UC B B B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 32 1 2 3 4 1 2 3 4 C D F A B E 1,2,5,6 1,2,5,6 MONITOR PCB B 26 25 27 29 23 21 20 19 17 16 15 13 14 4 2 3 1 ANR1 73 CN4541 CN4501 ANG1 74 ANB1 75 MONVBS CSYNC 86 YS GNDSIG MON5VPW MFLPW KYDT DPDT PWRVI 11 SELFRST 4 MOREM ILMGB ILMA ILMC VILLGB VILLA VILLC 3 PWRFL 30 1 2 31 32 12 MONI5V KST1 KST2 KDT4 KDT3 KDT2 KDT1 KD1 72 KD2 71 KD3 70 KD4 69 KS1 68 KS2 67 LSEN 94 XTAL-IN XTAL-OUT DAC OUT PLL IN X4001 42MHz Q4001 52 53 PNLADY 92 PNLVD 91 PNLYV PNLADX 90 93 PNLXV 80 Q4503 Q4502 (1/2) Q4502 (2/2) Q4501 (1/2) VSW3V2 Q4501 (2/2) V33 Q4441 YSSTP TOPOSD BLNK Q4602 Q4661 Q4603 Q4440 VSW3V1 VACC5 FU4541 VFL V14A1 60 56 VLSEN V33 VSW3V2 MONITOR u-COM IC4601 PEG087A 4 1 2 IC4604 TC7SET08FUS1 IC4605 TC7SH08FUS1 TEMP.Sens TH4301 4 2 1 IC4451(1/2) TC7WH08FU 7 2 1 IC4451(2/2) TC7WH08FU IC4453 TC7SH32FUS1 IC4452 TC7SH02FUS1 3 5 6 2 1 4 4 VSW5V VSW3V2 2 1 RADIN1 GADIN1 ROUT2-7 GOUT2-7 BOUT2-7 BADIN1 RGBSYNC1 STH 47 OVERLAY 101 OSDBLANKHin 66 139 LOAD 138 CPH 137 GOE 136 CPV 135 STV 134 SADIN1 (2/2)CN171 A PICTURE SPLIT IC IC4001 TC90A96AFG 4 3 1 DO DI CS 2 38 39 41 42 SK EPRDI EPRDO EPRCS EPRCK XOUT XIN 28 SCL EEPROM Block IC4691 S-93C56BD0I-J8 6 7 8 DI CLK LD A02 A01 5 6 4 DI CLK LD 24 DIMDTY 26 INVPUL INVBST IC4105 M62343FP IC4171 TC7S04FU 7 89 10 VDDSENS YSSTOP OSDTOP OSDBLNK YSSTP TOPOSD BLNK MFLPW KYDT DPDT STEST2 RGBSYNC2 SELFRST REMIN TEMPSEN 19 20 21 OSDR 32 OSDG 33 OSDB 34 81 35 36 75 77 Q4662 Q4663 78 RADIN2 79 GADIN2 80 BADIN2 104 SCL 31 SDA 105 SDA 11 5060IN 106 ACK 27 ICRES 107 RESET 23 MUTE 111 MUTE 17 4 2 OSDCLK 91 88 OSDCKout 62 HSYNC 93 OSDC/HSYNCout 64 VSYNC 92 OSDVSYNCout IC4102 TC7SET04FUS1 IC4122 TC7SET04FUS1 133 4 2 VCOM 4 1 9,11 2 - + 7 5 6 - + 1 2 3 1 2 IC4101 NJM2100V IC4103 TC7S66FU IC4104 NJM082BV - + 1 3 2 - + 7 5 2 1 4 6 DIMDT2 INVPUL INVBST V14A1 V5 3 4 3 4 D/D CONVERTER IC4181 BD6171KV 3.3V REG. 11 6 PVCC1 PVCC2 32 32 EN1 MVIPW OUT2 7 VS2 4 PVCC3 PVCC4 PVCC5 23 48 37 OUT1 10 OUT5 38 OUT4 47 V8 V8 Q4101 (1/2) Q4102 (1/2) VM12 V33 V31 V18 OUT3 22 V5 VM12 Q4182 8V REG. Q4181 42 VCC V8 Q4301 IC4531 TC7SET08FUS1 4 2 1 3 5 2.5V REG. VCOM AMP V33 IC4182 S-1131B25UC -N4K 5 1.5V REG. IC4183 S-1131B15UC -N4A 4 5 1 VACC5 IC4606 S-818A33AUC -BGN VSW3V2 VS1 13 TOUCH PANEL X4601 10MHz 13 15 RESET 12 1 2 IC4602 S-80827CNNB-B8M RESET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 33 5 6 7 8 5 6 7 8 C D F A B E V0-10 DC0-5 DB0-5 DA0-5 1 3 2 4 6 5 7 8 9 10 CN4591 INVERTER PCB F 1 2 | 30 35 | 36 41 | 42 47 59 29 9 20 8 6 28 17 16 26 | 24 13 4 58 | 48 16 2 1 3 4 5 7 6 8 9 10 14 15 1 15 16 14 13 12 10 11 9 8 7 3 2 CN5001 CN4521 CN4007 V33 STH1 LOAD CPH OE CPV STV1 L/R VDD1 V5 VDD2 V18 VGH VM12 VGL VCOM VCOM VDD1 IC4121 TC74VHC04FTS1 FUS1 IC4122 TC7SET04FUS1 4 4 1,3,5 9,11,13 2 1 CN5342 5 1 3 PWRFL VILMA VILMG DIMDTY INVPUL INVBST DIMDT2 INVPUL INVBST KST1 KDT2 KST2 LSEN KDT1 KDT1 VILLC VACC5 VILLA VILLGB VILLC VILLA VILLGB KDT2 KST1 KST2 VILLA VILLGB VILLA VILLGB KST1 KST2 KST1 KST2 GNDILM KS1 KS2 DIMDTY INVPUL INVBST KD3 KD4 ILMGND 20 14 15 5 4 3 6 7 2 LCT 3 ENA 7 V2500 9 FB DIM VDDA NDRV_B 19 PDRV_A 11 NDRV_D 12 PDRV_C 2 OVP Q5371 FU5341 S5102 WIDE (POS) Q5372 Q5342 D5251 D5252 D5253 D5201 D5202 D5203 Q5343 Q5344 5V REG. IC5373 TA78L05F LCD DRIVE IC5341 OZ961ISN PWRFL 18 CT Q5003 Q5002 T5341 FL1 FL2 1 2 Q5005 (1/2) Q5005 (2/2) IC5345 TC7SET08FUS1 1,2 4 A S5101 ENT (NAVI MENU) S5103 V.ADJ (NAVI/AV) KDT3 KDT4 KDT3 KDT4 V8 Q4101 (2/2) Q4101 (1/2) Q4102 (1/2) Q4102 (2/2) VFL 12 5 1 2.5V REG. V25 IC4182 S-1131B25UC -N4K 5 1 1.5V REG. V15 IC4183 S-1131B15UC -N4A 1 VLSEN VSW5V C4606 S-818A33AUC BGN AVH-P5700DVD/EW A AVH-P5700DVD/UC B VSW3V2 11 9 10 8 6 7 5 4 3 2 CN4301 Button Illumination (Green) Button Illumination (Red) S4392 Center Illumination (Blue) GILL KDT1 VILLC(VILLB) VILLA VILLGB KDT2 KST1 KST2 VSW5 LSEN S4393 FLIP DOWN S4391 INFO S4394 OPEN/CLOSE A B PGM TA/NEWS A +- +- 7 1 5 6 3 2 UPPER PCB H IC4311 NJM062V LCD LCD BACK LIGHT LCD MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 34 1 2 3 4 1 2 3 4 C D F A B E 40 39 33 38 37 32 28 31 30 29 27 22 26 24 23 21 2 20 17 16 14 15 13 11 10 9 8 7 6 5 4 3 CN954 CN981 CCR CCG HSEN OPT OUT OPT5 2 1 OPT5 4 CCB CCSYNC GNDSIG DVDVBS GNDDVD YS CCAUL CCAUR GNDAU ONSEI+ ONSEI− GNDRAU CCREM DSEN TVON GION HTXD HRXD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD OPTICAL OUT IC981 TC7SET08FUS1 (2/2)CN151 DIGITAL OUTPUT A INA INB OUTY RGB UNIT G 1 2 6 3 4 5 7 12 8 10 11 13 19 14 17 18 20 26 21 24 25 CN951 1 2 3 CN952 CCR CCG CCB CCSYNC GNDSIG DVDVBS GNDDVD YS CCAUL CCAUR GNDAU ONSEI+ ONSEI− GNDRAU CCREM DSEN TVON GION HTXD HRXD GNDD TO NAVI NAVI RGB SHIELD CN3802 MO1 MOB 1 2 CN3809 CN3843 CN3842 CN3841 CN3833 CN3831 CN3832 ANGLV ANGLIN0 1 2 ANGLG 3 IC 3802 BA6247FP Q3804 VR3841 CN3801 5 MTR2 4 MTRPW 3 MTRS 11 VDD 18 19 20 VBU 10 SNSPW 2 LIFTPUL 1 ANGLEIN 9 8 6 MTR1 REGULATOR FOR DRIVER MOTOR DRIVER 4 1 1 18 22 16 14 6 5 IC 3801 BA00AST Q3801 CN3803 MO2 MOB 2 1 M M POSITION MOTOR ANGLE MOTOR 1 3 IC 3803 TA78L05F Q3802 Q3803 1 3 IC 3805 GP2L24B 2 4 IC 3804 TC7S14FU CN3807 LIFT ANGLE0 1 3 GNDSNS 2 VOLUME UNIT SW UNIT S3832 LIFTSW S3831 ANGLE0SW ANGL0SW PUSHSW MAIN UNIT J L K (2/2)CN175 A AVH-P5700DVD/EW A AVH-P5700DVD/UC B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 35 5 6 7 8 5 6 7 8 C D F A B E CN5501 KEY0 KEY1 KEY2 SWVDD DSENS ILMG ILMA REM 3 S5517 DSENS D5510,D5512,D5514 D5516,D5518,D5520 D5522,D5524,D5526 1 13 12 11 10 8 9 1 7 6 2 KEYBOARD UNIT I S5504 S5505 VOL S5506 EJECT S5510 BOOK.M S5515 A.MENU S5501 SOURCE S5512 S5513 S5514 S5511 SLOT ILM S5507 S5508 BOOST ATT EQ S5509 BAND S5503 S5502 ANGLE − + IC5501 TSOP4840SB1 RESET DFLED S5516 RESET A A D5511,D5513,D5515 D5517,D5519,D5521 D5523,D5525,D5527 D5528 D5502-D5508 (2/2)CN101 A AVH-P5700DVD/EW A AVH-P5700DVD/UC B B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 36 1 2 3 4 1 2 3 4 C D F A B E 26 24 DVD CORE UNIT Q1101 Q1106 Q1102 Q1104 Q1103 Q1105 Q1107 65LD 78LD 133 135 VSHF CN1101 CN1201 CN1231 IC 1201 AN8471SAT1 IC1231 TC7SZ125FU CPU IC1501 MN35104UB 62,66 148 174 LRCK 175 SRCK 163 163 DAC4OUT BECLK AD1 76 DRY6 DSCSNS CLNP 181 IECOUT 47 XCSSR 33 XCSFM 68 NRST 39 1 EXADR18 IC1251 BA5985FM IC1601 PD6516A IC1672 TC7SZ08FU IC1652 TC7SZ126F IC1671 TC74LCX16373AFT IC1651 M5M5V216ATP-70HI IC1602 TC7SH86FU IC1570 K4S283232E-TC75 23 9 18 PICKUP UNIT(SERVICE) A,B1-4,C,RF+,RF- M SPINDLE MOTOR M CARRIGE MOTOR M LOADING MOTOR FOP,FOM,TOP,TOM COP,COM DRIVER 9 LOM 10 LOP 10 1 4 IC1051 PE5401A VCC15 C FD,TD,MD,CRGDRV FG LPCO2 LPCO1 AMUT S1206 S1202 S1203 S1204 S1201 S1205 CLAMP SW 12cm 8cm 8cm Disc sens Disc sens COMPOUND UNIT(B) E COMPOUND UNIT(A) D RELAY PCB M A0-20, ADT0-15 A20 CD/DVD 39 REV 21 XRES_M 25 2 4 25,48 4 1 2 2 VDD33 FSSW2 42 FSSW1 43 6 5 1 14 3 92 OSCI 2 13 15 IC1802 TC7WH157FU IC1801 SM8707LV ELERGENCY LOAD SDRAM SDRAM LATCH CLOCK GENERATOR FLASH MEMORY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 37 5 6 7 8 5 6 7 8 C D F A B E 37 39 1 10 3,5 8 3 7 1,2 3 5 6 1 5 2 1 2 1,2 1 3 16 IECOUT Lch OUT IC1851 PCM1742KE IC1852 NJM2140R VIDEO OUT 25 VCONTA CN1551 CN1901 672 Z08FU IC1652 TC7SZ126FU 0HI 51 1A 21 VDD33 VCC15 (2/2)CN181 A (2/2)CN152 A IC1853 NJM2100V AMUTE,XRES_S,IRQPWR,STSCOMN,CMDCOMN 1 CN1903 Q1551 REV 21 XRES_M 25 1 2 2 1 23 VCONTB 10 VD 6,7 11 12 VD Q1002 IC1003 LTC3411EMS IC1001 S-L2980A50MC-C7J IC1002 R1130H501B XRES_M 9 DC-DC CONVERTER ADAC SH MEMORY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 38 1 2 3 4 1 2 3 4 C D F A B E 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE) MONITOR PCB B INVERTER PCB F LCD MOD M M A 1/2 A 2/2 DVD MECHANISM MODULE(MS-3V1) C D E M CN1901 CN1551 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 39 5 6 7 8 5 6 7 8 C D F A B E ONITOR PCB LCD MODULE M781 FAN MOTOR (CENTER) M771 FAN MOTOR (REAR) AVH-P5700DVD/EW MOTHER UNIT (SYSTEM) MOTHER UNIT (POWER SUPPLY) A 1/2 A 2/2 RGB UNIT G KEYBOARD UNIT I UPPER PCB H DRIVE UNIT J L K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 40 1 2 3 4 1 2 3 4 C D F A B E 3.3 MOTHER UNIT(SYSTEM)(GUIDE PAGE) 1/2 A A-a 1/2 A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or "ELECTRICAL PARTS LIST". > > > 2/2 A ? G CN954 I CN5501 B CN4541 REAR VIDEO ISOLATOR VIDEO FILTER TVW ISOLATOR AUDIO ISOLATOR VIDEO ISOLATOR AUDIO ISOLATOR VIDEO ISOLATOR VIDEO ISOLATOR VIDEO ISOLATOR IP-BUS DRIVER RGB VIDEO ISOLATOR 5V 5.0V EW CN1901 2/2 C CN1551 1/2 C 1 2 3 5 8 9 10 11 6 7 1 2 3 4 5 8 9 10 11 6 7 G CN952 DVD/CD:+2.6dBs NAVI:+2.2dBs VCR(UC):+8.2dBs IP-BUS:+2.2dBs FM(100%):-20.0dBs AM(30%):-30.0dBs FM(100%):-16.0dBs AM(30%):-26.0dBs NAVI:+2.2dBs VCR:+8.2dBs VCR:+4.3dBs NAVI:+4.3dBs UC EW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 41 5 6 7 8 5 6 7 8 C D F A B E 1/2 A A-b 1/2 PAL007B : The power supply is shown with the marked box. > > > > > > Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. MOTHER UNIT (SYSTEM) 1/2 A 41 E-VOL RGB VIDEO ISOLATOR POWER AMP 8.4V 8.4V EW UC UC EW EW EW EW J CN3801 IP-BUS:+9.3dBs VCR:+9.3dBs NAVI:+9.3dBs DVD/CD:+9.7dBs IP-BUS:+8.54dBs VCR:+8.54dBs NAVI:+8.54dBs DVD/CD:+8.94dBs IP-BUS:+35.3dBs VCR:+35.3dBs NAVI:+35.3dBs DVD/CD:+35.7dBs FM:+5.1dBs AM: -4.9dBs FM:+7.1dBs AM: -0.9dBs (UC) (EW) FM:+4.34dBs AM: -5.66dBs FM:+6.34dBs AM: -1.66dBs (UC) (EW) FM:+31.1dBs AM:+21.1dBs FM:+33.1dBs AM:+25.1dBs (UC) (EW) VCR IN:+8.2dBs(EW) VIDEO OUTPUT FL OUTPUT FR OUTPUT SUBWOOFER L OUTPUT SUBWOOFER R OUTPUT L INPUT(EW) RL OUTPUT(UC) FR INPUT(EW) RR OUTPUT(UC) SYSTEM CONTROLLER > CEK1136 10A 1K(1/2W) UC RR + RR - FR + FR - FL + FL - RL + RL - ACC GND BACK UP B. REM EW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 42 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-a A-b 1/2 A-a 1/2 1 2 2/2 A ? B CN4541 REAR VIDEO ISOLATOR VIDEO FILTER TVW ISOLATOR AUDIO ISOLATOR VIDEO ISOLATOR RGB VIDEO ISOLATOR 5.0V 8.4V CN1901 2/2 C CN1551 1/2 C DVD/CD:+2.6dBs FM(100%):-20.0dBs AM(30%):-30.0dBs FM(100%):-16.0dBs AM(30%):-26.0dBs VCR:+8.2d VCR:+4.3dBs NAVI:+4.3dBs UC EW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 43 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-a A-b 1/2 A-a 1/2 3 > > > ? G CN954 I CN5501 AUDIO ISOLATOR VIDEO ISOLATOR VIDEO ISOLATOR VIDEO ISOLATOR IP-BUS DRIVER 5V EW CN1551 1/2 C 1 2 3 5 8 9 10 11 6 7 1 2 3 4 5 8 9 10 11 6 7 G CN952 NAVI:+2.2dBs VCR(UC):+8.2dBs IP-BUS:+2.2dBs NAVI:+2.2dBs VCR:+8.2dBs VCR:+4.3dBs NAVI:+4.3dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 44 1 2 3 4 1 2 3 4 C D F A B E A-a A-b A-b 1/2 1 2 PAL007B > > > Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. MOTHER UNIT (SYSTEM) 1/2 A E-VOL POWER AMP 8.4V 8.4V EW UC UC J CN3801 IP-BUS:+9.3dBs VCR:+9.3dBs NAVI:+9.3dBs DVD/CD:+9 7dBs IP-BUS:+8.54dBs VCR:+8.54dBs NAVI:+8.54dBs DVD/CD:+8.94dBs FM:+5.1dBs AM: -4.9dBs FM:+7.1dBs AM: -0.9dBs (UC) (EW) FM:+4.34dBs AM: -5.66dBs FM:+6.34dBs AM: -1.66dBs (UC) (EW) FM:+31.1dBs(UC) VCR IN:+8.2dBs(EW) VIDEO OUTPUT FL OUTPUT FR OUTPUT SUBWOOFER L OUTPUT SUBWOOFER R OUTPUT L INPUT(EW) RL OUTPUT(UC) FR INPUT(EW) RR OUTPUT(UC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 45 5 6 7 8 5 6 7 8 C D F A B E A-a A-b A-b 1/2 3 : The power supply is shown with the marked box. > > > The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. EW EW EW IP-BUS:+9.3dBs VCR:+9.3dBs NAVI:+9.3dBs DVD/CD:+9.7dBs IP-BUS:+35.3dBs VCR:+35.3dBs NAVI:+35.3dBs DVD/CD:+35.7dBs FM:+5.1dBs AM: -4.9dBs FM:+7.1dBs AM: -0.9dBs (UC) (EW) FM:+31.1dBs AM:+21.1dBs FM:+33.1dBs AM:+25.1dBs (UC) (EW) SYSTEM CONTROLLER > CEK1136 10A 1K(1/2W) UC RR + RR - FR + FR - FL + FL - RL + RL - ACC GND BACK UP B. REM EW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 46 1 2 3 4 1 2 3 4 C D F A B E 3.4 MOTHER UNIT(POWER SUPPLY) 2/2 A FMA/AM ANTENNA > > > FM/AM TUNER UNIT 3.4V 5.0V 9.1V 8.4V EW EW FM(100%):-20.0dBs AM(30%):-30.0dBs FM(100%):-16.0dBs AM(30%):-26.0dBs (UC) (EW) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 47 5 6 7 8 5 6 7 8 C D F A B E 2/2 A M FAN MOTOR(REAR) CXM1262 M771 M FAN MOTOR (CENTER) CXM1276 M781 2/2 A > MOTHER UNIT (POWER SUPPLY) > > 1/2 A 8.4V 5.0V 3.4V 3.4V 5.0V 5.0V 5.0V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 48 1 2 3 4 1 2 3 4 C D F A B E 3.5 MONITOR PCB(GUIDE PAGE) B-a B TOUCH PANEL > F CN5001 CN171 A 1/2 H CN4301 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 49 5 6 7 8 5 6 7 8 C D F A B E B-b B LCD MODULE B MONITOR PCB MONITOR UNIT Consists of MONITOR PCB INVERTER PCB UPPER PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 50 1 2 3 4 1 2 3 4 C D F A B E A-a B-b B-a B-a B-b 1 TOUCH PANEL F CN5001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 51 5 6 7 8 5 6 7 8 C D F A B E A-a B-b B-a B-a B-b 2 > CN171 A 1/2 H CN4301 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 52 1 2 3 4 1 2 3 4 C D F A B E B-a B-b B-b 1 B MONITOR PCB MONITOR UNIT Consists of MONITOR PCB INVERTER PCB UPPER PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 53 5 6 7 8 5 6 7 8 C D F A B E B-a B-b B-b 2 LCD MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 54 1 2 3 4 1 2 3 4 C D F A B E 3.6 DVD CORE UNIT(SODC)(GUIDE PAGE) C 1/2 C-a 1/2 CN152 F T PD6516A 1/2 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 55 5 6 7 8 5 6 7 8 C D F A B E C 1/2 C-b 1/2 PICKUP UNIT(SERVICE) M3 SPINDLE MOTOR CXM1272 RF SIGNAL FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE S M1 LOADINGMOTOR CXC4659 sense 2/2 C 2/2 C 1/2 C DVD CORE UNIT(SODC) M D E F S S C S S C C C S S S T F F F T T F T F T C S S T F T C 1 4 3 2 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 56 1 2 3 4 1 2 3 4 C D F A B E C-b 1/2 C-a 1/2 C-a (1/2) C-b (1/2) 1 PD6516A CN152 F T 1/2 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 57 5 6 7 8 5 6 7 8 C D F A B E C-b 1/2 C-a 1/2 C-a (1/2) C-b (1/2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 58 1 2 3 4 1 2 3 4 C D F A B E C-a (1/2) C-b (1/2) C-b 1/2 1 M3 SPINDLE MOTOR CXM1272 RF SIGNAL FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE S 2/2 C 1/2 C DVD CORE UNIT(SODC) F S C S S S T F F F T T S T T C 1 4 2 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 59 5 6 7 8 5 6 7 8 C D F A B E C-b 1/2 C-a (1/2) C-b (1/2) PICKUP UNIT(SERVICE) M3 SPINDLE MOT CXM1272 M1 LOADINGMOTOR CXC4659 sense 2/2 C M D E S C S S C C F F T F T C S S T 1 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 60 1 2 3 4 1 2 3 4 C D F A B E 3.7 DVD CORE UNIT(CPU) 2/2 C 1/2 C 2/2 C DVD CORE UNIT(CPU) 1/2 C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 61 5 6 7 8 5 6 7 8 C D F A B E 2/2 C CN181 1/2 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 62 1 2 3 4 1 2 3 4 C D F A B E 1 ANAMONI1 0.2V/div. 0.1µs/div. 0.2V/div. 100µs/div. 0.2V/div. 0.1µs/div. CDRF Interval 1 ANAMONI1 0.5V/div. 100µs/div. 1 ANAMONI1 DVDRF DVDRF(BD1mm) 2 TD1 0.5V/div. 100µs/div. Interval FWD 2 TD1 0.5V/div. 100µs/div. Interval REV 2 TD1 2 CH1: TD1 3 CH2: COP1-COM1 2.0V/div.5ms/div. Traverse501FWD 0.5V/div.5ms/div. 2 CH1: TD1 3 CH2: COP1-COM1 2.0V/div.5ms/div. Traverse501REV 0.5V/div.5ms/div. 2 CH1: TD1 3 CH2: COP1-COM1 2.0V/div.5ms/div. Traverse5000FWD 0.5V/div.5ms/div. - Waveforms Note:1. The encircled number denote measuring pointes in the circuit diagram. 2. Reference voltage VHALF : 1.65V(TD1,FD1,CRGDRV) : 2V Center(ANAMONI1) In this waveform, it is seeing on the GND standard. Offset of 1.65V or 2V is put in. VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 63 5 6 7 8 5 6 7 8 C D F A B E 2 TD1 Play TD 5 FD1 0.5V/div. 1ms/div. Focus close VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ VHALF→ 0.5V/div. 100µs/div. ID search Insaide → Outside 4 CRGPRV 2 CH1: TD1 3 CH2: COP1-COM1 2.0V/div.5ms/div. Traverse5000REV 0.5V/div.5ms/div. 0.5V/div.20ms/div. 5 FD1 Focus jamp L 0 → L1 0.5V/div.500µs/div. 2 TD1 Multi 32REV 0.5V/div.500µs/div. 2 TD1 Multi 32FWD 0.5V/div.500µs/div. 5 FD1 Focus jamp L1 → L 0 0.5V/div.500µs/div. 5 FD1 Play TD 0.5V/div.20ms/div. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 64 1 2 3 4 1 2 3 4 C D F A B E 3.8 COMPOUND UNIT(A), COMPOUND UNIT(B) AND RELAY PCB D E M E COMPOUND UNIT(B) M RELAY PCB D COMPOUND UNIT(A) CLAMP C 1/2 C 1/2 S1201 Q1299 S1202 S1204 S1203 R1298 0R0 1 2 3 4 5 6 S1205 R1299 0R0 CPT231SCTD CSN1069 CSN1069 CSN1069 CSN1070 CSN1070 12cm 8cm DISC SENS DISC SENS 8cm CN1231 CN1201 M2 CARRIAGE MOTOR CXC4314 C 1/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 65 5 6 7 8 5 6 7 8 C D F A B E 3.9 PU UNIT(REFERENCE) 24 Iop78 L2 LC Vcc GND GND IC1 L4 C2 C3 C6 C7 L3 17 15 C1 16 65LD 78LD LDGND R1 C5 Short round Short round L1 C4 78LD 65LD 65MD 65MDG VR2/ 65Rmd VR1/ 78Rmd Vmda 1 2 3 4 6 5 7 R2 L6 MDA Top View up MDA A SW Vcc C8 C9 12 GND 13 V r 14 MDC 9 8 78MD 78MDG MDG B1 B1 B2 RF- B3 RF+ B4 C Vref : 2.5V GND C10 TH1 TEMP Vcc SW A NC T- T+ F- F+ B2 RF- B3 RF+ B4 C LDGND 23 26 25 07 08 05 06 22 21 20 19 18 17 27 02 01 03 04 09 16 15 14 13 12 11 10 Iop65 Im/ 2 Im Im/ 2 Ishf Vshf : 4V CN1101 C 1/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 66 1 2 3 4 1 2 3 4 C D F A B E 3.10 INVERTER PCB F B CN4521 > www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 67 5 6 7 8 5 6 7 8 C D F A B E F LCD MODULE 15K(B) F INVERTER PCB MONITOR UNIT Consists of MONITOR PCB INVERTER PCB UPPER PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 68 1 2 3 4 1 2 3 4 C D F A B E 3.11 RGB UNIT G CN154 1/2 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 69 5 6 7 8 5 6 7 8 C D F A B E G CN151 G RGB UNIT 1/2 A DIGITAL OUTPUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 70 1 2 3 4 1 2 3 4 C D F A B E 3.12 UPPER PCB H B CN4591 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 71 5 6 7 8 5 6 7 8 C D F A B E H H UPPER PCB MONITOR UNIT Consists of MONITOR PCB INVERTER PCB UPPER PCB FLIP DOWN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 72 1 2 3 4 1 2 3 4 C D F A B E 3.13 KEYBOARD UNIT I EW UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 73 5 6 7 8 5 6 7 8 C D F A B E I CN101 I KEYBOARD UNIT 1/2 A EW EW EW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 74 1 2 3 4 1 2 3 4 C D F A B E 3.14 MAIN UNIT, SW UNIT AND VOLUME UNIT J K L J MAIN UNIT L VOLUME UNIT K SW UNIT CN175 1/2 A (High speed:L, Low speed:H) Short round (Open) Photo pulse output Photo pulse driver 5V regulator for sense Angle sense volume power supply switch Position motor Angle motor Regulator output Voltage adj. input Regulator for driver Position motor Position motor:H Angle motor Angle motor:H Motor driver Angle operation Horizon operation Note:It comes out lower about 1.5v than Vcc. Position motor Angle motor LIFT SW ANGLE SW CXB9515 CXB9516 Angle sense (Deg.0:L) (EJECT:L) (Deg.0:L) (EJECT:L) 3 6 2 5 1 8 7 4 M3001 M3002 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 75 5 6 7 8 5 6 7 8 C D F A B E - Waveforms The encircled number denote measuring pointes in the circuit diagram. • CLOSE -> OPEN • OPEN -> CLOSE 5 CH1:MTR1 6 CH3:ANGLSW • 0->MAX 2 CH2:MTRSEL 7 CH4:ANGLIN • MAX -> Deg.0 DOWN 1 CH1:MTR2 3 CH3:LIFTSW 2 CH2:MTRSEL 4 CH4:LFTPLS 1 CH1:MTR2 3 CH3:LIFTSW 2 CH2:MTRSEL 4 CH4:LFTPLS 5 CH1:MTR1 6 CH3:ANGLSW 2 CH2:MTRSEL 7 CH4:ANGLIN • Set back open -> Set 1 CH1:MTR2 3 CH3:LIFTSW 8 CH2:MTRS 4 CH4:LFTPLS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 76 1 2 3 4 1 2 3 4 C D F A B E 4. PCB CONNECTION DIAGRAM 4.1 MOTHER UNIT Capacitor Connector P.C.Board Chip Part A A MOTHER UNIT SIDE B SIDE A NOTE FOR PCB DIAGRAMS 1.The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2.Viewpoint of PCB diagrams 10 20 30 40 50 60 70 X 10 20 30 40 50 60 70 80 90 100 110 120 130 0 Y 140 150 F CN954 B CN4541 C CN1551 C CN1901 ANTENNA CABLE J CN3801 FM/AM TUNER UNIT G CN9 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 77 5 6 7 8 5 6 7 8 C D F A B E A SIDE A 70 80 90 100 110 120 130 140 150 160 170 RCA OUT FRONT VIDEO IN IP-BUS IN AV-BUS IN CORD ASSY(POWER SUPPLY) CORD ASSY(AV-BUS) CORD ASSY(IP-BUS) M771 FAN MOTOR(REAR) M781 FAN MOTOR (CENTER) CORD ASSY(RCA) CORD ASSY(VIDEO IN) CN952 G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 78 1 2 3 4 1 2 3 4 C D F A B E A A MOTHER UNIT 80 90 100 110 120 130 140 150 160 170 TP614 VCRVG VCRV www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 79 5 6 7 8 5 6 7 8 C D F A B E A SIDE B 10 20 30 40 50 60 70 80 90 X 10 20 30 40 50 60 70 80 90 100 110 120 130 0 Y 140 150 CN5501 I 14 PCL TP803 TP190 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 80 1 2 3 4 1 2 3 4 C D F A B E 4.2 MONITOR PCB B B MONITOR PCB FRONT A CN171 TOUCH PANEL H CN4301 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 81 5 6 7 8 5 6 7 8 C D F A B E B SIDE A LCD MODULE ONT 71 F CN5001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 82 1 2 3 4 1 2 3 4 C D F A B E B B MONITOR PCB RO4 R03 RO5 RO2 BO5 GO2 GO3 GO4 GO5 BO3 BO2 BO4 COM VM12 V18 COMDC VC1 VC3 VC9 VC5 VC7 V5 ANG1 ANB1 ANR1 CSYNC V25 V15 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 83 5 6 7 8 5 6 7 8 C D F A B E B SIDE B CVBS1 V14 V33 V8 V25 5 YSIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 84 1 2 3 4 1 2 3 4 C D F A B E 4.3 DVD CORE UNIT C C DVD CORE UNIT ANAMONI AGND R1698 R1697 PICKUP U E M1 M M3 A CN152 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 85 5 6 7 8 5 6 7 8 C D F A B E C SIDE A IC,Q PICKUP UNIT(SERVICE) M M3 A CN181 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 86 1 2 3 4 1 2 3 4 C D F A B E C C DVD CORE UNIT IC,Q www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 87 5 6 7 8 5 6 7 8 C D F A B E C SIDE B D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 88 1 2 3 4 1 2 3 4 C D F A B E 4.4 COMPOUND UNIT(A), COMPOUND UNIT(B) AND RELAY PCB D E M E D C C CLAMP M2 12cm S1201 R1298 R1299 Q1299 CN1231 C CN1201 1 6 DISC SENS S1204 DISC SENS S1203 8cm S1202 8cm S1205 M COMPOUND UNIT(B) RELAY PCB COMPOUND UNIT(A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 89 5 6 7 8 5 6 7 8 C D F A B E 4.5 INVERTER PCB F F INVERTER PCB F INVERTER PCB SIDE A SIDE B B CN4521 LCD MODULE FL1 FL2 GNDF2 INVPUL DIMDTY ENT WIDE V.ADJ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 90 1 2 3 4 1 2 3 4 C D F A B E 4.6 RGB UNIT G G RGB UNIT SIDE A SIDE B G RGB UNIT 0 10 20 30 40 50 60 70 10 20 30 40 Y X A CN151 DIGITAL OUTPUT RGB INPUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 91 5 6 7 8 5 6 7 8 C D F A B E 4.7 UPPER PCB H H UPPER PCB H UPPER PCB SIDE A SIDE B B CN4591 INFO TA/NEWS(EW) PGM(UC) OPEN/CLOSE FLIP DOWN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 92 1 2 3 4 1 2 3 4 C D F A B E 4.8 KEYBOARD UNIT I I KEYBOARD UNIT I KEYBOARD UNIT SIDE A SIDE B 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 X 10 20 0 Y 160 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 X 10 20 0 Y 160 A CN101 VOL+ SRC EJECT VOL- ANGLE- ATT ANGLE+ EQ BOOK.M BAND DOWN RESET A.MENU UP DSENSE RIGHT LEFT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 93 5 6 7 8 5 6 7 8 C D F A B E 4.9 SW UNIT AND VOLUME UNIT VOLUME UNIT L SW UNIT K L K ANGLE SW LIFT SW ANGLE SENSE J CN3807 J CN3809 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 94 1 2 3 4 1 2 3 4 C D F A B E 4.10 MAIN UNIT J J MAIN UNIT SIDE A L CN3841 CN3842 CN3843 A CN175 K CN3831 CN3832 CN3833 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 95 5 6 7 8 5 6 7 8 C D F A B E J J MAIN UNIT SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 96 1 2 3 4 1 2 3 4 C D F A B E 5. ELECTRICAL PARTS LIST NOTE: • Parts whose parts numbers are omitted are subject to being not supplied. • The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... • The > mark found on some component parts indicatesthe importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Meaning of the figures and others in the parentheses in the parts list. Example) IC 301 is on the point (face A, 91 of x-axis, and 111 of y-axis) of the corresponding PC board. IC 301 (A, 91, 111) IC NJM2068V Circuit Symbol and No. Part No. AVH-P5700DVD/EW Mother Unit : CWM9808 RGB Unit : CWM9815 Monitor Unit : CWM9820 Monitor PCB : NSP Inverter PCB : NSP Upper PCB : NSP Keyboard Unit : NSP DVD Core Unit : CWX3170 Compound Unit(A) : CWX3154 Compound Unit(B) : CWX3156 Main Unit : CZW3087 SW Unit : CZW3088 Volume Unit : CZW3089 AVH-P5700DVD/UC Mother Unit : CWM9809 RGB Unit : CWM9816 Monitor Unit : CWM9821 Monitor PCB : NSP Inverter PCB : NSP Upper PCB : NSP Keyboard Unit : NSP DVD Core Unit : CWX3170 Compound Unit(A) : CWX3154 Compound Unit(B) : CWX3156 Main Unit : CZW3087 SW Unit : CZW3088 Volume Unit : CZW3089 A Unit Number:CWM9809(UC) Unit Number:CWM9808(EW) Unit Name:Mother Unit MISCELLANEOUS IC 121 (B,115,96) IC HA12240FP IC 151 (B,42,94) IC TC4S81F IC 181 (A,46,81) IC TC74VHC08FTS1 IC 182 (A,50,82) IC TC7SET08FUS1 IC 201 (B,145,63) IC PML009A IC 241 (A,155,128) IC PAL007B IC 301 (B,127,91) IC NJM4558V IC 302 (B,138,84) IC NJM4558V IC 303 (B,136,97) IC NJM4580V IC 421 (B,126,51) IC NJM4558MD IC 441 (A,147,46) IC TA2050F IC 451 (A,132,46) IC TA2050F IC 461 (B,59,86) IC NJM2138V IC 501 (B,145,14) IC CXA2089Q IC 521 (A,162,17) IC NJM2136V IC 522 (A,160,29) IC BA7623F IC 541 (B,36,72) IC SM5304AV IC 551 (B,127,17) IC NJM2136V IC 561 (B,124,31) IC NJM2136V IC 571 (B,135,31) IC NJM2136V IC 581 (B,146,31) IC NJM2136V IC 601 (B,87,81) IC (UC) PE5485A (B,87,81) IC (EW) PE5484A IC 681 (B,94,43) IC S-80841CNUA-B82 IC 801 (A,41,40) IC AN8011S IC 831 (B,19,92) IC BA00BC0WFP IC 841 (B,112,24) IC S-812C50AUA-C3E IC 851 (A,70,21) IC S-818A35AUC-BGP IC 856 (A,57,64) IC S-814A33AMC-BCX IC 871 (A,168,100) IC NJM2388F84 IC 881 (B,25,146) IC NJM2391DL1-33 Q 101 (B,97,29) Transistor UMF23N Q 121 (B,123,107) Transistor UMF23N Q 131 (A,83,109) Transistor 2SC4081 Q 151 (B,49,102) Transistor 2SC4081 Q 181 (B,47,76) Transistor IMD2A Q 182 (B,47,73) Transistor IMX9 Q 241 (B,146,88) Transistor DTC124EU Q 242 (B,146,93) Transistor DTC144EU Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 97 5 6 7 8 5 6 7 8 C D F A B E Q 243 (B,150,84) Transistor IMD2A Q 244 (A,147,84) Transistor 2SC4081 Q 245 (B,152,77) Transistor IMD2A Q 261 (A,116,106) Transistor IMX9 Q 262 (A,109,106) Transistor IMX9 Q 281 (A,102,106) Transistor (UC) IMX9 Q 301 (B,133,83) Transistor IMD2A Q 302 (B,132,86) Transistor DTC323TU Q 303 (B,126,81) Transistor DTC124EU Q 401 (B,73,110) Transistor (EW) IMH2A Q 402 (B,72,106) Transistor (EW) IMH2A Q 461 (A,59,82) Transistor 2SC4081 Q 511 (A,135,5) Transistor 2SC4081 Q 512 (A,125,8) Transistor 2SA1577 Q 521 (B,161,19) Transistor 2SC4081 Q 551 (A,125,14) Transistor 2SC4081 Q 561 (A,124,28) Transistor 2SC4081 Q 571 (A,134,28) Transistor 2SC4081 Q 581 (A,145,28) Transistor 2SC4081 Q 601 (B,104,83) Transistor DTC124EU Q 691 (A,107,55) Transistor DTA114EU Q 692 (A,112,52) Transistor DTC144EU Q 693 (A,112,55) Transistor DTC114EU Q 694 (B,109,49) Transistor 2SC4081 Q 695 (B,112,49) Transistor 2SC4081 Q 696 (B,106,50) Transistor 2SC4081 Q 701 (B,12,19) Transistor 2SA1615-Z Q 702 (B,9,29) Transistor DTC114EU Q 703 (A,142,104) Transistor 2SA1576 Q 704 (A,138,105) Transistor 2SC4081 Q 705 (A,133,102) Transistor IMX1 Q 706 (A,142,109) Transistor 2SA1576 Q 751 (B,50,11) Transistor 2SA1577 Q 752 (B,50,9) Transistor DTC144EU Q 753 (B,58,11) Transistor (EW) 2SA1577 Q 754 (B,58,9) Transistor (EW) DTC144EU Q 755 (B,44,11) Transistor 2SA1577 Q 756 (B,44,9) Transistor DTC144EU Q 771 (B,72,146) Transistor 2SD1760F5 Q 772 (B,67,139) Transistor DTC144EU Q 773 (B,61,148) Transistor UMF5N Q 774 (B,62,141) Transistor DTC144EU Q 781 (B,67,45) Transistor 2SD1760F5 Q 782 (B,73,46) Transistor UMF5N Q 783 (B,72,37) Transistor DTC114EU Q 801 (A,27,44) Transistor 2SJ529S Q 802 (A,53,41) Transistor 2SJ529S Q 803 (A,33,43) Transistor 2SC4097 Q 804 (A,48,48) Transistor 2SC4097 Q 805 (B,44,37) Transistor DTC124EU Q 806 (B,51,39) Transistor DTC114EU Q 841 (B,108,34) Transistor 2SB1184F5 Q 842 (A,156,56) Transistor 2SD1767 Q 861 (A,72,14) Transistor UMF5N Q 864 (A,66,98) Transistor UMF5N Q 867 (A,99,25) Transistor UMF5N Q 891 (B,163,80) Transistor 2SD1767 Q 892 (A,167,115) Transistor 2SD2396 Q 893 (B,155,107) Transistor IMD2A D 101 (A,98,22) Diode UDZS5R6(B) Circuit Symbol and No. Part No. D 107 (B,94,26) Diode UDZS5R6(B) D 151 (B,46,93) Diode Network DA204U D 152 (B,42,97) Diode Network DA204U D 241 (B,144,85) Diode DAN202U D 242 (B,156,79) Diode RSX201L-30 D 243 (B,144,82) Diode DAN202U D 244 (A,146,89) Diode 1SS355 D 245 (A,159,71) Diode UDZS8R2(B) D 246 (B,149,81) Diode DAN202U D 421 (B,123,57) Diode UDZS3R9(B) D 681 (B,100,44) Diode 1SS355 D 691 (B,109,53) Diode 1SS355 D 692 (B,113,53) Diode 1SS355 D 701 (B,130,152) Diode S1G-6904G2P D 702 (B,124,152) Diode S1G-6904G2P D 703 (A,139,102) Diode DAN202U D 704 (B,132,108) Diode UDZS6R8(B) D 705 (A,136,108) Diode HZU7L(A1) D 706 (B,126,111) Diode HZU7L(C3) D 707 (B,139,105) Diode DAN202U D 708 (A,103,138) Diode 5KP24A D 771 (B,70,141) Diode HZU9R1(B2) D 772 (B,65,142) Diode HZU6R8(B3) D 773 (B,62,145) Diode HZU8R2(B2) D 781 (B,73,42) Diode HZU7R5(B2) D 782 (B,69,37) Diode HZU6R8(B3) D 801 (A,37,32) Diode RSX201L-30 D 802 (A,52,34) Diode RSX201L-30 D 803 (A,33,46) Diode MA111 D 804 (A,47,45) Diode MA111 D 805 (A,111,132) Diode RSX201L-30 D 806 (A,107,129) Diode RSX201L-30 D 831 (B,26,60) Diode S2G-6600 D 841 (A,139,56) Diode 1SR154-400 D 842 (A,157,52) Diode UDZS18(B) D 851 (A,66,26) Diode SC802-06 D 881 (B,40,143) Diode 1SR154-400 D 882 (B,45,141) Diode 1SR154-400 D 883 (B,48,146) Diode 1SR154-400 D 891 (B,165,73) Diode UDZS5R6(B) D 892 (B,152,104) Diode HZU9R1(B3) ZNR401 (B,9,99) Surge Protector RCCA-201Q31UA-PI L 101 (A,99,19) Inductor CTF1399 L 121 (B,117,91) Inductor LCTC2R2K1608 L 151 (A,65,96) Inductor CTF1473 L 171 (A,14,63) Inductor CTF1383 L 172 (A,6,55) Inductor CTF1473 L 181 (A,35,79) Inductor CTF1473 L 182 (A,35,81) Inductor CTF1473 L 183 (B,31,88) Inductor CTF1399 L 184 (A,43,86) Inductor CTF1305 L 185 (A,50,77) Inductor CTF1305 L 187 (A,40,86) Inductor CTF1473 L 201 (A,135,69) Inductor LCTAW2R2J2520 L 301 (A,130,90) Inductor CTF1399 L 302 (B,135,79) Inductor CTF1399 L 303 (A,133,92) Inductor CTF1399 L 401 (B,63,128) Chip Coil LCTAW1R0J2520 L 402 (A,37,104) Chip Coil LCTAW1R0J2520 L 403 (B,9,102) Chip Coil LCTAW4R7J2520 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 98 1 2 3 4 1 2 3 4 C D F A B E L 404 (A,68,103) Inductor CTF1473 L 405 (B,59,109) Inductor CTF1473 L 421 (B,130,58) Inductor CTF1399 L 441 (A,153,51) Inductor CTF1399 L 451 (A,139,51) Inductor CTF1399 L 461 (A,63,91) Inductor CTF1399 L 501 (B,160,12) Chip Coil LCTAW100J2520 L 511 (A,133,11) Inductor CTF1399 L 521 (A,167,21) Inductor CTF1399 L 522 (A,167,29) Inductor LCTAW150J2520 L 523 (B,118,115) Inductor CTF1383 L 541 (B,43,68) Inductor CTF1399 L 551 (B,125,11) Inductor CTF1399 L 561 (B,123,24) Inductor CTF1399 L 571 (B,135,23) Inductor CTF1399 L 581 (B,145,25) Inductor CTF1399 L 601 (B,82,95) Inductor CTF1306 L 602 (B,84,95) Inductor CTF1306 L 603 (B,94,62) Inductor LCTAW2R2J2520 L 604 (B,77,97) Inductor CTF1473 L 701 (A,24,58) Coil CTH1267 L 702 (A,22,8) Inductor CTH1262 L 703 (B,143,101) Inductor LCTC2R2K1608 L 704 (B,132,110) Inductor CTF1295 L 705 (B,138,108) Inductor LCTC2R2K1608 L 801 (A,29,33) Coil CTH1303 L 802 (A,52,28) Coil CTH1303 L 803 (A,49,61) Inductor CTH1253 L 804 (A,38,49) Inductor LCTAW100J2520 L 851 (A,75,22) Inductor CTF1383 L 856 (A,59,66) Inductor CTF1383 X 601 (B,103,91)Radiator 18.874368MHz CSS1622 VR511 (A,130,13)Semi-fixed 1.5kΩ(B) CCP1391 VR801 (A,45,31)Semi-fixed 10kΩ(B) CCP1396 FU131 (B,94,115) Fuse 3A CEK1286 FU151 (B,41,102) Fuse 3A CEK1286 FU152 (A,95,132) Fuse 3A CEK1286 FU175 (A,15,71) Fuse 1.75A CEK1283 FU176 (B,62,68) Fuse 1A CEK1280 FU261 (B,104,127) Fuse 3A CEK1286 FU701 (A,16,53) Fuse 1.25A CEK1281 FU702 (A,17,16) Fuse 1.75A CEK1283 FU703 (B,126,149) Fuse 3A CEK1286 FU771 (B,64,147) Fuse 1A CEK1280 FU781 (A,76,36) Fuse 1A CEK1280 FU801 (A,27,27) Fuse 2.5A CEK1285 FU802 (A,54,22) Fuse 2.5A CEK1285 FU803 (A,57,59) Fuse 2.5A CEK1285 FU861 (A,101,31) Fuse 1A CEK1280 BZ601 (A,83,10) Buzzer CPV1063 RESISTORS R 101 (B,72,26) RS1/16S472J R 102 (B,72,27) RS1/16S472J R 103 (B,70,29) RS1/16S472J R 104 (B,75,30) RAB4C222J R 105 (B,89,42) RS1/16S102J R 106 (B,91,42) RS1/16S102J R 107 (B,95,35) RS1/16S222J Circuit Symbol and No. Part No. R 108 (B,98,26) RS1/16S332J R 109 (B,100,28) RS1/16S332J R 121 (B,114,93) RS1/16S102J R 122 (B,120,96) RS1/16S101J R 123 (B,123,98) RS1/16S150J R 124 (B,125,98) RS1/16S470J R 125 (B,125,99) RS1/16S101J R 126 (B,122,110) RS1/16S222J R 127 (B,126,107) RS1/16S332J R 128 (B,124,104) RS1/16S562J R 131 (A,86,111) RS1/16S473J R 132 (A,83,112) RS1/16S473J R 133 (A,86,108) RS1/16S473J R 151 (B,52,98) RS1/16S750J R 152 (B,65,98) RS1/16S750J R 153 (B,60,98) RS1/16S750J R 154 (B,56,98) RS1/16S750J R 155 (B,44,102) RS1/16S681J R 156 (B,48,96) RS1/16S473J R 157 (B,46,102) RS1/16S473J R 158 (B,45,97) RS1/16S681J R 159 (B,48,92) RS1/16S473J R 160 (B,43,99) RS1/16S473J R 171 (B,5,52) RS1/16S0R0J R 172 (A,5,58) RS1/16S0R0J R 174 (A,15,56) RS1/16S102J R 175 (B,13,55) RS1/16S0R0J R 176 (B,11,54) RS1/16S0R0J R 177 (B,9,59) RS1/16S0R0J R 178 (A,5,53) RS1/16S0R0J R 179 (A,5,63) RS1/16S0R0J R 181 (A,40,82) RAB4C102J R 182 (A,36,85) RAB4C102J R 184 (A,46,74) RS1/16S103J R 185 (A,48,74) RS1/16S103J R 187 (B,43,71) RS1/16S0R0J R 188 (B,51,72) RS1/16S0R0J R 201 (B,137,53) RS1/16S181J R 202 (B,148,52) RS1/16S181J R 203 (B,135,55) RS1/16S223J R 204 (B,151,52) RS1/16S223J R 205 (B,135,56) RS1/16S102J R 206 (B,155,51) RS1/16S102J R 207 (B,140,51) RS1/16S0R0J R 208 (B,147,49) RS1/16S0R0J R 209 (B,136,60) RS1/16S0R0J R 210 (A,148,57) RS1/16S0R0J R 211 (B,130,71) RS1/16S0R0J R 212 (B,149,72) RS1/16S0R0J R 213 (B,134,67) RS1/16S0R0J R 214 (B,154,71) RS1/16S0R0J R 215 (B,135,68) RS1/16S0R0J R 216 (B,156,69) RS1/16S0R0J R 217 (B,145,110) RS1/16S471J R 218 (B,150,113) RS1/16S471J R 241 (B,150,93) RS1/16S103J R 242 (B,146,90) RS1/16S103J R 243 (B,151,90) RS1/16S221J R 244 (B,141,108) RS1/16S103J R 245 (B,146,101) RS1/16S473J Circuit Symbol and No. Part No. > > > > > > > > > > > > > > > www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 99 5 6 7 8 5 6 7 8 C D F A B E R 246 (B,149,90) RS1/16S101J R 247 (B,153,83) RS1/16S222J R 248 (A,148,87) RS1/16S103J R 249 (A,144,81) RS1/16S104J R 250 (A,143,84) RS1/16S473J R 251 (A,146,87) RS1/16S101J R 252 (B,155,74) RS1/16S222J R 261 (B,107,112) RS1/16S821J R 262 (B,103,112) RS1/16S821J R 263 (B,115,112) RS1/16S821J R 264 (B,111,109) RS1/16S821J R 265 (A,108,103) RS1/16S103J R 266 (A,111,103) RS1/16S103J R 267 (A,114,103) RS1/16S103J R 268 (A,118,103) RS1/16S103J R 269 (B,106,114) RS1/16S223J R 270 (B,103,114) RS1/16S223J R 271 (B,115,114) RS1/16S223J R 272 (B,111,114) RS1/16S223J R 281 (B,100,114) (UC) RS1/16S821J R 282 (B,97,114) (UC) RS1/16S821J R 283 (A,101,103) (UC) RS1/16S103J R 284 (A,104,103) (UC) RS1/16S103J R 285 (B,100,115) (UC) RS1/16S223J R 286 (B,97,115) (UC) RS1/16S223J R 287 (B,102,105) (EW) RS1/16S0R0J R 288 (B,97,105) (EW) RS1/16S0R0J R 289 (A,92,131) (EW) RS1/16S0R0J R 293 (B,104,130) (UC) RS1/16S0R0J R 301 (B,121,90) RS1/16S101J R 302 (B,124,90) RS1/16S473J R 303 (B,124,93) RS1/16S473J R 304 (B,131,94) RS1/16S472J R 305 (B,127,95) RS1/16S472J R 306 (B,136,89) RS1/16S473J R 307 (B,137,89) RS1/16S103J R 308 (B,134,89) RS1/16S103J R 309 (B,131,89) RS1/16S821J R 310 (B,130,88) RS1/16S473J R 311 (A,136,97) RS1/16S103J R 312 (A,134,97) RS1/16S103J R 313 (B,145,96) RS1/16S103J R 314 (B,142,96) RS1/16S103J R 315 (B,141,83) RS1/16S103J R 316 (B,133,94) RS1/16S103J R 317 (A,138,97) RS1/16S103J R 318 (A,132,100) RS1/16S103J R 319 (B,143,110) RS1/16S471J R 320 (B,146,110) RS1/16S471J R 321 (B,139,90) RS1/16S104J R 322 (B,124,87) RS1/16S473J R 323 (B,127,85) RS1/16S473J R 324 (A,130,81) RS1/16S473J R 325 (B,125,84) RS1/16S102J R 401 (B,54,106) RS1/16S681J R 402 (B,40,109) (EW) RS1/16S681J R 403 (B,38,109) RS1/16S681J R 404 (B,37,109) RS1/16S681J R 405 (B,35,109) RS1/16S681J R 406 (B,34,109) RS1/16S681J Circuit Symbol and No. Part No. R 407 (B,32,109) RS1/16S681J R 408 (A,73,101) (EW) RAB4C223J R 410 (A,30,6) RS1/16S0R0J R 421 (B,116,58) RS1/16S103J R 422 (B,117,58) RS1/16S103J R 423 (B,120,56) RS1/16S103J R 424 (B,120,57) RS1/16S103J R 427 (B,121,51) RS1/16S103J R 428 (B,131,51) RS1/16S103J R 429 (B,120,49) RS1/16S103J R 430 (B,133,49) RS1/16S103J R 431 (B,128,59) RS1/16S681J R 441 (B,151,39) RS1/16S102J R 442 (B,141,42) RS1/16S102J R 443 (B,148,41) RS1/16S181J R 444 (B,146,41) RS1/16S181J R 445 (B,150,41) RS1/16S223J R 446 (B,143,41) RS1/16S223J R 447 (A,141,24) RS1/16S562J R 448 (A,141,23) RS1/16S562J R 451 (B,137,41) RS1/16S123J R 452 (B,127,40) RS1/16S123J R 453 (B,133,41) RS1/16S123J R 454 (B,131,41) RS1/16S123J R 455 (B,134,41) RS1/16S223J R 456 (B,130,41) RS1/16S223J R 457 (B,136,41) RS1/16S223J R 458 (B,127,42) RS1/16S223J R 459 (B,120,44) RS1/16S562J R 460 (B,120,42) RS1/16S562J R 461 (B,51,91) RS1/16S472J R 462 (B,54,84) RS1/16S472J R 463 (B,53,91) RS1/16S472J R 464 (B,57,81) RS1/16S472J R 465 (B,55,91) RS1/16S472J R 466 (B,54,88) RS1/16S472J R 467 (B,57,91) RS1/16S472J R 468 (B,59,81) RS1/16S472J R 469 (B,66,91) RS1/16S472J R 470 (B,64,84) RS1/16S472J R 471 (B,64,91) RS1/16S472J R 472 (B,62,81) RS1/16S472J R 473 (B,62,91) RS1/16S472J R 474 (B,64,88) RS1/16S472J R 475 (B,60,91) RS1/16S472J R 476 (B,60,81) RS1/16S472J R 477 (A,54,77) RS1/16S101J R 478 (A,56,77) RS1/16S101J R 479 (A,59,77) RS1/16S101J R 480 (A,57,77) RS1/16S101J R 481 (A,54,79) RS1/16S102J R 482 (A,58,84) RS1/16S272J R 483 (A,54,82) RS1/16S472J R 491 (B,70,127) RS1/16S0R0J R 501 (B,155,8) RS1/16S0R0J R 502 (B,149,28) RS1/16S272J R 503 (B,127,28) RS1/16S272J R 504 (B,130,13) RS1/16S272J R 511 (A,136,8) RS1/16S222J R 512 (A,137,10) RS1/16S222J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 100 1 2 3 4 1 2 3 4 C D F A B E R 513 (A,132,8) RS1/16S681J R 514 (A,132,6) RS1/16S681J R 515 (A,130,9) RS1/16S331J R 516 (A,128,9) RS1/16S272J R 517 (A,129,6) RS1/16S0R0J R 518 (A,17,64) RS1/16S0R0J R 521 (A,160,12) RS1/16S472J R 522 (A,158,14) RS1/16S472J R 523 (B,162,21) RS1/16S272J R 524 (B,164,19) RS1/16S392J R 526 (A,162,20) RS1/16S101J R 527 (B,159,16) RS1/16S472J R 528 (B,158,19) RS1/16S102J R 529 (B,164,14) RS1/16S472J R 530 (B,166,15) RS1/16S101J R 531 (A,164,29) RS1/16S473J R 532 (A,164,32) RS1/16S333J R 533 (B,162,27) RS1/16S560J R 534 (B,162,29) RS1/16S150J R 543 (B,33,72) RS1/16S332J R 546 (B,38,66) RS1/16S101J R 547 (B,33,66) RS1/16S102J R 548 (B,139,5) RS1/16S0R0J R 551 (A,127,24) RS1/16S750J R 552 (A,126,21) RS1/16S472J R 553 (A,128,21) RS1/16S472J R 554 (B,130,11) RS1/16S101J R 555 (A,128,17) RS1/16S472J R 556 (B,124,17) RS1/16S472J R 557 (A,122,13) RS1/16S102J R 558 (A,125,18) RS1/16S272J R 559 (A,123,19) RS1/16S472J R 560 (B,133,9) RS1/16S0R0J R 561 (A,124,38) RS1/16S750J R 562 (A,124,35) RS1/16S472J R 563 (A,125,35) RS1/16S472J R 564 (B,128,24) RS1/16S101J R 565 (A,126,31) RS1/16S472J R 566 (B,121,31) RS1/16S472J R 567 (A,119,27) RS1/16S102J R 568 (B,135,16) RS1/16S0R0J R 569 (A,123,31) RS1/16S272J R 570 (A,119,30) RS1/16S472J R 571 (A,134,38) RS1/16S750J R 572 (A,134,35) RS1/16S472J R 573 (A,135,35) RS1/16S472J R 574 (B,137,25) RS1/16S101J R 575 (A,137,31) RS1/16S472J R 576 (B,132,31) RS1/16S472J R 577 (A,130,28) RS1/16S102J R 578 (A,134,31) RS1/16S272J R 579 (A,130,31) RS1/16S472J R 580 (B,141,24) RS1/16S0R0J R 581 (A,145,38) RS1/16S750J R 582 (A,144,35) RS1/16S472J R 583 (A,145,35) RS1/16S472J R 584 (B,148,25) RS1/16S101J R 585 (A,146,31) RS1/16S472J R 586 (B,143,31) RS1/16S472J R 587 (A,141,28) RS1/16S102J Circuit Symbol and No. Part No. R 588 (A,145,31) RS1/16S272J R 589 (A,141,31) RS1/16S472J R 590 (B,148,24) RS1/16S0R0J R 601 (B,72,70) RS1/16S102J R 602 (B,72,68) RS1/16S102J R 603 (B,72,66) RS1/16S102J R 604 (A,109,65) RAB4C102J R 605 (B,112,68) RS1/16S473J R 606 (B,69,75) RAB4C102J R 607 (B,71,79) RAB4C102J R 608 (B,68,80) RS1/16S102J R 609 (B,71,84) (EW) RAB4C101J R 610 (B,98,57) RS1/16S473J R 612 (B,98,46) RS1/16S102J R 613 (B,92,18) RS1/16S473J R 614 (B,93,16) RS1/16S0R0J R 615 (A,73,98) (EW) RS1/16S681J R 616 (A,77,100) RS1/16S221J R 617 (B,88,112) RS1/16S102J R 618 (B,88,115) RS1/16S473J R 619 (B,90,112) RS1/16S102J R 620 (B,90,115) RS1/16S473J R 621 (B,96,99) RS1/16S473J R 622 (B,96,97) RS1/16S102J R 623 (B,96,17) RAB4C102J R 624 (B,97,14) RS1/16S473J R 625 (B,92,15) RS1/16S473J R 626 (B,98,96) (EW) RS1/16S473J R 627 (B,103,54) RS1/16S102J R 628 (A,110,59) RS1/16S102J R 629 (B,111,71) RS1/16S104J R 630 (B,103,87) RS1/16S151J R 631 (B,109,69) RS1/16S104J R 632 (B,158,39) RS1/16S472J R 633 (B,158,38) RS1/16S472J R 634 (B,108,64) RAB4C102J R 635 (B,103,80) RS1/16S473J R 636 (B,108,84) RS1/16S472J R 637 (B,109,71) RS1/16S104J R 639 (B,108,72) RS1/16S681J R 641 (B,105,72) RS1/16S681J R 642 (B,101,73) RS1/16S102J R 643 (B,101,70) RS1/16S102J R 644 (B,104,64) RS1/16S473J R 645 (B,101,64) RAB4C681J R 646 (B,98,58) RS1/16S104J R 647 (A,100,61) RS1/16S681J R 648 (A,100,58) RS1/16S681J R 649 (A,101,53) RS1/16S473J R 651 (B,92,66) RS1/16S473J R 652 (B,77,57) RS1/16S681J R 653 (B,75,59) RS1/16S101J R 654 (B,76,63) RS1/16S473J R 661 (A,96,55) RS1/16S473J R 663 (A,94,55) RS1/16S473J R 671 (A,84,53) RS1/16S103J R 672 (A,88,55) RS1/16S473J R 673 (A,92,55) RS1/16S473J R 681 (B,98,43) RS1/16S104J R 691 (A,110,55) RS1/16S103J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 101 5 6 7 8 5 6 7 8 C D F A B E R 692 (A,109,50) RS1/16S223J R 693 (A,106,51) RS1/16S473J R 694 (B,109,56) RS1/16S472J R 695 (B,112,56) RS1/16S472J R 696 (B,106,48) RS1/16S473J R 697 (B,105,54) RS1/16S473J R 702 (B,16,24) RS1/16S153J R 703 (B,13,24) RS1/10S301J R 704 (B,9,24) RS1/10S301J R 705 (A,144,101) RS1/16S102J R 706 (A,143,101) RS1/16S473J R 707 (A,144,105) RS1/16S473J R 708 (B,143,100) RS1/16S103J R 709 (A,142,107) RS1/16S473J R 710 (B,134,103) RS1/16S103J R 711 (B,134,106) RS1/16S103J R 712 (B,129,109) RS1/16S103J R 713 (B,131,103) RS1/16S103J R 714 (A,134,105) RS1/16S473J R 715 (A,132,107) RS1/16S472J R 716 (B,128,105) RS1/16S104J R 717 (B,124,111) RS1/16S473J R 718 (A,143,112) RS1/16S102J R 719 (A,140,109) RS1/16S472J R 720 (A,138,108) RS1/16S472J R 721 (B,138,109) RS1/16S153J R 751 (B,48,9) RS1/16S472J R 752 (B,48,11) RS1/16S223J R 753 (B,55,9) (EW) RS1/16S472J R 754 (B,56,11) (EW) RS1/16S223J R 755 (B,41,9) RS1/16S472J R 756 (B,41,11) RS1/16S223J R 771 (B,71,150) RS1/16S271J R 772 (B,69,150) RS1/16S271J R 773 (B,66,150) RS1/16S271J R 774 (B,58,147) RS1/16S103J R 775 (B,58,150) RS1/16S103J R 776 (B,73,90) RS1/16S0R0J R 781 (A,76,39) RS1/16S0R0J R 782 (B,69,55) RS1/16S271J R 783 (B,69,54) RS1/16S271J R 784 (B,69,52) RS1/16S271J R 785 (B,72,52) RS1/16S103J R 786 (B,73,50) RS1/16S103J R 788 (B,66,56) RS1/16S0R0J R 801 (B,34,34) RS1/16S3901D R 802 (B,37,34) RS1/16S4701D R 803 (B,35,31) RS1/16S2202D R 804 (B,35,34) RS1/16S2202D R 805 (B,47,33) RS1/16S6801D R 806 (B,48,38) RS1/16S8200D R 807 (B,48,30) RS1/16S3900D R 808 (B,48,33) RS1/16S3301D R 809 (A,32,49) RS1/16S560J R 810 (A,53,48) RS1/16S560J R 811 (A,35,44) RS1/16S272J R 812 (A,46,47) RS1/16S272J R 813 (A,36,44) RS1/16S221J R 814 (A,47,43) RS1/16S221J Circuit Symbol and No. Part No. R 815 (B,38,38) RS1/16S6801D R 816 (A,36,37) RS1/16S1502D R 817 (A,46,35) RS1/16S6801D R 818 (A,47,38) RS1/16S6802D R 819 (B,34,39) RS1/16S3901D R 820 (B,48,40) RS1/16S7501D R 821 (B,38,40) RS1/16S2203D R 822 (B,44,40) RS1/16S4702D R 823 (B,38,43) RS1/16S3302D R 824 (B,43,43) RS1/16S3302D R 825 (A,103,130) RS1/16S0R0J R 826 (A,100,130) RS1/16S0R0J R 829 (B,54,39) RS1/16S1200D R 830 (B,51,43) RS1/16S102J R 831 (B,14,90) RS1/16S6802D R 832 (B,14,93) RS1/16S1202D R 833 (B,15,84) RS1/16S1203D R 834 (B,14,87) RS1/16S1502D R 835 (B,23,84) RS1/16S102J R 841 (B,112,18) RS1/16S471J R 842 (A,167,68) RS1/16S2R2J R 843 (A,167,65) RS1/16S2R2J R 844 (A,165,68) RS1/16S2R2J R 845 (A,165,65) RS1/16S2R2J R 846 (A,152,54) RS1/16S222J R 856 (A,61,64) RS1/16S473J R 861 (A,75,14) RS1/16S103J R 862 (A,74,16) RS1/16S332J R 864 (A,69,98) RS1/16S103J R 865 (A,67,100) RS1/16S332J R 867 (A,99,29) RS1/16S103J R 868 (A,97,28) RS1/16S332J R 871 (B,158,83) RS1/16S102J R 872 (B,156,84) RS1/16S473J R 891 (B,164,76) RS1/16S391J R 892 (A,159,90) RS1/16S0R0J R 893 (B,158,110) RS1/16S101J R 894 (B,156,110) RS1/16S101J R 895 (B,156,104) RS1/16S101J CAPACITORS C 121 (B,106,98) CKSRYB102K50 C 122 (B,108,98) CKSRYB102K50 C 123 (B,121,118) CKSRYB104K50 C 124 (B,109,98) CKSRYB104K50 C 153 (B,42,92) CKSRYB104K50 C 171 (B,5,54) CCSRCH101J50 C 181 (B,45,83) CKSRYB104K50 C 182 (A,50,79) CKSRYB104K50 C 184 (B,28,99) CKSRYB104K50 C 186 (B,28,79) CCSRCH101J50 C 187 (B,26,79) CKSRYB104K50 C 188 (B,32,62) CKSRYB104K50 C 201 (B,137,55) CKSRYB105K6R3 C 202 (B,151,53) CKSRYB105K6R3 C 203 (B,137,56) CKSRYB105K6R3 C 204 (B,154,54) CKSRYB105K6R3 C 205 (B,140,53) CKSRYB224K16 C 206 (B,147,54) CKSRYB224K16 C 207 (B,137,51) CKSRYB105K6R3 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 102 1 2 3 4 1 2 3 4 C D F A B E C 208 (B,150,49) CKSRYB105K6R3 C 211 (B,143,51) CKSRYB105K6R3 C 212 (B,145,51) CKSRYB105K6R3 C 213 (A,139,59) CKSYB475K16 C 214 (A,152,59) CKSYB475K16 C 217 (A,138,61) CKSYB475K16 C 218 (A,152,61) CKSYB475K16 C 219 (A,137,63) CKSYB475K16 C 220 (A,152,63) CKSYB475K16 C 221 (A,137,65) CKSYB475K16 C 222 (A,152,65) CKSYB475K16 C 223 (B,137,66) CCSRCH100D50 C 224 (B,153,66) CCSRCH100D50 C 225 (B,139,70) CCSRCH100D50 C 226 (B,153,71) CCSRCH100D50 C 227 (B,139,72) CCSRCH100D50 C 228 (B,150,70) CCSRCH100D50 C 229 (A,152,69) CEVLW100M16 C 230 (B,143,71) CKSRYB104K50 C 231 (B,143,72) CKSRYB104K50 C 232 (A,136,71) CKSRYB102K50 C 233 (A,145,63) CEVLW470M16 C 234 (A,138,68) CKSRYB104K50 C 241 (B,143,113) CKSRYB105K10 C 242 (B,146,113) CKSRYB105K10 C 243 (B,143,115) CKSRYB105K10 C 244 (B,146,115) CKSRYB105K10 C 245 (B,145,113) CKSRYB105K10 C 246 (B,152,115) CKSRYB105K10 C 247 (B,145,115) CKSRYB105K10 C 248 (B,155,115) CKSRYB105K10 C 249 (A,153,85) CEVLW330M25 C 250 (B,124,114) 10µF CCG1138 C 251 (A,119,127) 1000µF/16V CCH1428 C 252 (B,145,105) 10µF CCG1182 C 253 (A,160,117) CKSYB475K16 C 254 (A,157,117) CKSYB475K16 C 255 (B,157,115) CKSRYB473K50 C 256 (A,156,77) CEVLW470M16 C 257 (A,142,71) CEVW101M16 C 258 (A,143,86) 10µF CCG1182 C 261 (B,107,109) 10µF CCG1182 C 262 (B,104,109) 10µF CCG1182 C 263 (B,117,106) 10µF CCG1182 C 264 (B,113,106) 10µF CCG1182 C 265 (B,106,115) CCSRCH101J50 C 266 (B,103,115) CCSRCH101J50 C 267 (B,115,115) CCSRCH101J50 C 268 (B,111,115) CCSRCH101J50 C 269 (A,110,141) CKSRYB102K50 C 281 (B,100,111) 10µF (UC) CCG1182 C 282 (B,97,110) 10µF (UC) CCG1182 C 283 (B,100,117) (UC) CCSRCH101J50 C 284 (B,97,117) (UC) CCSRCH101J50 C 301 (B,121,89) CKSRYB105K6R3 C 302 (B,121,92) CKSRYB105K6R3 C 305 (A,150,76) CEVLW100M16 C 306 (B,133,81) CKSRYB104K50 C 307 (B,121,86) 10µF CCG1171 C 308 (A,131,94) CKSRYB104K50 Circuit Symbol and No. Part No. C 309 (B,133,89) CKSRYB104K50 C 310 (B,139,91) CKSRYB104K50 C 313 (A,136,94) CKSRYB104K50 C 402 (B,59,128) CKSYB475K16 C 403 (B,59,130) CKSRYB103K50 C 404 (A,68,110) CEVLW470M6R3 C 405 (B,57,111) CKSRYB103K50 C 406 (A,32,102) CKSRYB103K50 C 407 (A,33,109) CEVLW101M10 C 408 (B,84,116) CKSRYB102K50 C 409 (B,19,140) CKSRYB102K50 C 410 (B,75,137) CKSRYB102K50 C 411 (B,3,57) CCSRCH101J50 C 413 (A,68,104) CKSRYB104K50 C 417 (B,16,32) CKSRYB104K50 C 418 (B,28,7) CKSRYB102K50 C 419 (B,54,109) CKSRYB104K50 C 421 (B,77,110) CKSRYB474K10 C 422 (B,79,110) CKSRYB474K10 C 423 (B,120,54) CCSRCH470J50 C 424 (B,120,59) CCSRCH470J50 C 425 (B,126,58) CKSYB475K16 C 426 (B,124,58) CKSRYB103K50 C 427 (B,119,51) CCSRCH470J50 C 428 (B,133,51) CCSRCH470J50 C 429 (B,120,48) CKSRYB474K10 C 430 (B,133,47) CKSRYB474K10 C 431 (B,126,48) CKSRYB105K10 C 441 (B,151,42) CKSRYB105K6R3 C 442 (B,143,43) CKSRYB105K6R3 C 443 (B,149,43) CKSRYB105K6R3 C 444 (B,146,43) CKSRYB105K6R3 C 445 (A,139,25) CKSRYB105K6R3 C 446 (A,138,23) CKSRYB105K6R3 C 447 (A,145,41) CKSYB475K16 C 448 (A,155,46) CEVLW100M16 C 449 (A,149,41) CKSRYB104K50 C 451 (B,136,43) CKSRYB105K6R3 C 452 (B,127,43) CKSRYB105K6R3 C 453 (B,133,43) CKSRYB105K6R3 C 454 (B,130,43) CKSRYB105K6R3 C 455 (B,123,44) CKSRYB105K6R3 C 456 (B,123,42) CKSRYB105K6R3 C 457 (A,129,41) CKSYB475K16 C 458 (A,139,46) CEVLW100M16 C 459 (A,134,41) CKSRYB104K50 C 461 (B,55,95) CKSYB106K6R3 C 462 (B,57,95) CKSYB106K6R3 C 463 (B,53,95) CKSYB106K6R3 C 464 (B,51,95) CKSYB106K6R3 C 465 (B,64,95) CKSYB106K6R3 C 466 (B,66,95) CKSYB106K6R3 C 467 (B,60,95) CKSYB106K6R3 C 468 (B,62,95) CKSYB106K6R3 C 469 (B,52,84) CCSRCH6R0D50 C 470 (B,52,88) CCSRCH6R0D50 C 471 (B,65,84) CCSRCH6R0D50 C 472 (B,65,88) CCSRCH6R0D50 C 473 (A,54,81) CKSRYB104K50 C 474 (A,54,84) CKSRYB102K50 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 103 5 6 7 8 5 6 7 8 C D F A B E C 475 (A,58,85) CKSRYB104K50 C 481 (B,65,64) CKSRYB102K50 C 482 (B,61,64) CKSRYB102K50 C 483 (B,154,59) CKSRYB102K50 C 484 (B,70,131) CCSRCH101J50 C 487 (B,48,128) CKSRYB103K50 C 488 (B,42,65) CKSRYB104K50 C 501 (A,151,5) 10µF CCG1171 C 502 (A,150,10) CEVLW100M16 C 503 (A,155,8) CKSRYB104K50 C 511 (A,135,10) CKSRYB105K6R3 C 512 (A,142,8) CEVLW101M10 C 521 (A,156,6) 47µF CCG1181 C 522 (A,157,10) 47µF CCG1181 C 523 (A,153,25) CEVLW101M10 C 524 (A,162,22) 10µF CCG1171 C 525 (B,162,17) CKSRYB104K50 C 526 (B,165,17) CKSRYB104K50 C 527 (B,164,13) CCSRCH4R0D50 C 529 (A,153,33) CEVLW101M10 C 530 (A,165,26) 10µF CCG1171 C 531 (A,138,17) CEVLW221M4 C 532 (A,145,17) CEVLW221M4 C 533 (A,153,17) CEVLW221M4 C 535 (B,155,5) 22µF CCG1178 C 536 (B,156,15) 22µF CCG1178 C 541 (A,36,76) CKSYB106K6R3 C 543 (B,40,70) CKSYB475K16 C 544 (B,33,70) CKSRYB103K50 C 545 (A,33,70) CEVLW220M6R3 C 546 (A,40,70) CEVLW101M10 C 547 (B,136,5) CKSRYB105K6R3 C 551 (A,124,22) CKSYB106K6R3 C 552 (A,130,22) CKSYB106K6R3 C 554 (A,131,17) CCSRCH6R0D50 C 555 (A,122,15) CKSRYB104K50 C 556 (A,123,17) 10µF CCG1171 C 557 (B,124,14) CKSRYB104K50 C 558 (B,130,9) CKSRYB104K50 C 561 (A,122,36) CKSYB106K6R3 C 562 (A,127,36) CKSYB106K6R3 C 564 (A,125,31) CCSRCH6R0D50 C 565 (A,119,29) CKSRYB104K50 C 566 (B,135,19) CKSRYB104K50 C 567 (A,119,32) 10µF CCG1171 C 568 (B,123,26) CKSRYB104K50 C 571 (A,132,36) CKSYB106K6R3 C 572 (A,137,36) CKSYB106K6R3 C 574 (A,135,31) CCSRCH6R0D50 C 575 (A,130,29) CKSRYB104K50 C 576 (A,130,33) 10µF CCG1171 C 577 (B,134,25) CKSRYB104K50 C 578 (B,138,24) CKSRYB104K50 C 581 (A,142,36) CKSYB106K6R3 C 582 (A,147,36) CKSYB106K6R3 C 584 (A,148,31) CCSRCH6R0D50 C 585 (A,141,29) CKSRYB104K50 C 586 (A,141,33) 10µF CCG1171 C 587 (B,145,26) CKSRYB104K50 C 588 (B,151,24) CKSRYB104K50 Circuit Symbol and No. Part No. C 601 (B,76,95) CKSRYB105K6R3 C 604 (B,106,94) CCSRCH7R0D50 C 605 (B,106,89) CCSRCH7R0D50 C 606 (B,91,64) CKSRYB105K6R3 C 608 (B,75,61) CCSRCH101J50 C 609 (B,74,67) CKSRYB104K50 C 611 (B,95,56) CKSRYB103K50 C 612 (B,77,100) CKSRYB103K50 C 671 (B,88,50) CKSRYB105K6R3 C 681 (A,98,42) CEVLW2R2M50 C 691 (A,105,51) CKSRYB103K50 C 692 (B,112,58) CKSRYB103K50 C 701 (B,8,34) CKSRYB104K50 C 704 (A,6,42) 2200µF/16V CCH1405 C 705 (B,132,149) CKSRYB104K50 C 706 (B,143,103) CKSRYB103K50 C 707 (B,139,103) CKSRYB104K50 C 708 (B,133,103) CKSRYB104K50 C 709 (A,132,109) CKSRYB104K50 C 710 (B,109,129) CKSRYB103K50 C 711 (B,140,108) CKSRYB104K50 C 712 (B,124,118) CKSRYB104K50 C 751 (A,54,13) CKSRYB104K50 C 752 (A,58,13) (EW) CKSRYB104K50 C 753 (A,49,14) CKSRYB104K50 C 771 (B,63,150) CKSRYB103K50 C 772 (A,86,149) CEVLW100M16 C 773 (B,70,139) CKSRYB103K50 C 781 (B,70,35) CKSRYB103K50 C 782 (A,74,29) CEVLW100M16 C 783 (B,73,40) CKSRYB103K50 C 801 (B,34,31) CKSRYB153K50 C 802 (B,47,30) CKSRYB223K50 C 803 (A,35,20) 220µF/10V CCH1409 C 804 (A,46,20) 470µF/6.3V CCH1437 C 805 (A,52,51) CKSYB225K16 C 806 (A,34,50) CKSYB225K16 C 807 (B,38,36) CKSYB475K16 C 808 (B,42,34) CCSRCH101J50 C 809 (B,34,41) CKSRYB223K50 C 810 (B,48,41) CKSRYB683K50 C 811 (B,38,44) CKSRYB104K50 C 812 (B,43,44) CKSRYB104K50 C 813 (A,41,46) CKSRYB104K50 C 814 (A,42,48) CKSYB475K16 C 815 (A,65,48) 100µF/16V CCH1565 C 816 (A,60,54) CKSYB225K16 C 817 (A,89,125) 2200µF/16V CCH1405 C 818 (A,70,40) 100µF/16V CCH1565 C 819 (A,63,40) 100µF/16V CCH1565 C 820 (B,51,42) CKSRYB474K10 C 821 (A,35,25) 220µF/10V CCH1409 C 831 (B,18,84) CCSRCH102J50 C 832 (A,44,90) CEVLW470M16 C 833 (B,19,82) CKSRYB474K10 C 841 (B,101,34) CKSYB475K16 C 842 (B,101,32) CKSRYB102K50 C 843 (A,105,19) CEVLW101M10 C 845 (B,110,21) CKSRYB103K50 C 846 (B,113,21) CKSRYB103K50 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 104 1 2 3 4 1 2 3 4 C D F A B E C 847 (A,108,29) CEVW101M16 C 848 (A,165,61) 2200µF/16V CCH1405 C 849 (A,157,50) CKSRYB104K50 C 851 (A,84,24) 0.22µF CCL1058 C 852 (A,65,21) CKSQYB225K10 C 853 (A,70,24) CKSRYB105K10 C 854 (A,75,20) CKSRYB102K50 C 856 (A,61,63) CKSRYB105K6R3 C 857 (A,57,67) CKSRYB105K10 C 858 (A,59,69) CKSRYB103K50 C 864 (A,70,98) CKSRYB104K50 C 871 (A,154,101) CEVLW101M10 C 872 (A,158,110) CKSRYB103K50 C 873 (A,152,116) CEVW101M16 C 881 (A,5,140) CEVLW220M6R3 C 882 (B,32,139) CKSRYB103K50 C 883 (B,33,145) CKSYB475K16 C 884 (B,34,142) CKSRYB104K50 C 891 (B,161,75) CKSRYB104K50 C 892 (A,163,76) CEVLW470M6R3 C 893 (B,164,74) CKSRYB103K50 C 894 (A,166,71) 10µF CCG1182 C 895 (B,152,101) CKSRYB104K50 G Unit Number:CWM9816(UC) Unit Number:CWM9815(EW) Unit Name:RGB Unit MISCELLANEOUS IC 981 (A,59,33) IC TC7SET08FUS1 D 951 (A,38,28) Diode HZU2R7(B1) D 952 (A,36,28) Diode HZU2R7(B1) D 953 (A,18,18) Diode HZU2R7(B1) D 954 (A,22,18) Diode HZU2R7(B1) D 955 (A,13,23) Diode HZU2R7(B1) D 956 (A,17,23) Diode HZU2R7(B1) D 957 (A,15,21) Diode HZU2R7(B1) D 958 (A,18,19) Diode HZU2R7(B1) D 959 (A,13,24) Diode HZU2R7(B1) D 960 (A,17,24) Diode HZU2R7(B1) D 961 (A,56,27) Diode UDZS5R6(B) D 962 (A,16,26) Diode UDZS5R6(B) D 963 (A,12,26) Diode UDZS5R6(B) D 964 (A,16,28) Diode UDZS5R6(B) D 965 (A,12,28) Diode UDZS5R6(B) D 981 (A,65,40) Diode UDZS5R6(B) D 982 (A,59,35) Diode UDZS5R6(B) L 981 (A,56,31) Inductor CTF1389 L 982 (A,57,15) Inductor CTF1379 RESISTORS R 982 (A,57,27) RS1/16S0R0J R 983 (A,57,33) RS1/16S121J R 984 (A,68,39) RS1/16S473J R 985 (A,70,40) RS1/16S621J R 986 (A,72,39) RS1/16S221J R 987 (A,67,9) RS1/16S0R0J Circuit Symbol and No. Part No. CAPACITORS C 951 (A,61,9) CKSRYB102K50 C 952 (A,62,27) CCSRCH471J50 C 953 (A,8,24) CKSRYB104K50 C 981 (A,62,34) CKSYB106K6R3 C 982 (A,59,29) CKSRYB104K50 C 983 (A,70,38) CCSRCH150J50 C 984 (A,56,35) CKSRYB104K50 Monitor Unit Consists of Monitor PCB Inverter PCB Upper PCB BFH Unit Number:CWM9821(UC) Unit Number:CWM9820(EW) Unit Name:Monitor Unit MISCELLANEOUS IC 4001 (A,119,33) IC TC90A96AFG IC 4101 (A,100,67) IC NJM2100V IC 4102 (A,142,49) IC TC7SET04FUS1 IC 4103 (A,144,41) IC TC7S66FU IC 4104 (A,147,32) IC NJM082BV IC 4105 (A,95,66) IC M62343FP IC 4121 (A,96,57) IC TC74VHC04FTS1 IC 4122 (A,91,60) IC TC7SET04FUS1 IC 4171 (A,150,13) IC TC7S04FU IC 4181 (A,21,43) IC BD6171KV IC 4182 (A,74,16) IC S-1131B25UC-N4K IC 4183 (A,80,27) IC S-1131B15UC-N4A IC 4311 (B,7,106) IC NJM062V IC 4451 (A,144,21) IC TC7WH08FU IC 4452 (A,141,27) IC TC7SH02FUS1 IC 4453 (A,144,28) TC7SH32FUS1 IC 4531 (A,57,43) IC TC7SET08FUS1 IC 4601 (A,68,60) IC PEG087A IC 4602 (A,49,66) IC S-80827CNNB-B8M IC 4604 (A,62,44) IC TC7SET08FUS1 IC 4605 (A,64,43) IC TC7SH08FUS1 IC 4606 (A,49,70) IC S-818A33AUC-BGN IC 4691 (A,40,16) IC S-93C56BD0I-J8 IC 5341 (B,9,45) IC OZ961ISN IC 5345 (B,10,28) IC TC7SET08FUS1 IC 5373 (B,11,8) IC TA78L05F Q 4001 (A,114,14) Transistor 2SC4617 Q 4101 (A,149,41) Transistor UMX2N Q 4102 (A,148,48) Transistor UMT2N Q 4181 (A,31,38) FET RSQ035P03 Q 4182 (A,33,49) FET RSQ035P03 Q 4301 (A,30,9) Transistor 2SC4617 Q 4440 (A,84,10) Transistor 2SC4081 Q 4441 (A,91,10) Transistor 2SA1576 Q 4501 (A,19,76) Transistor UMF5N Q 4502 (A,23,76) Transistor UMF5N Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 105 5 6 7 8 5 6 7 8 C D F A B E Q 4503 (A,28,75) Transistor FMG12 Q 4602 (A,43,68) Transistor 2SC4617 Q 4603 (A,55,71) Transistor DTC114EE Q 4661 (A,66,11) Transistor 2SC4617 Q 4662 (A,66,15) Transistor 2SC4617 Q 4663 (A,62,12) Transistor 2SC4617 Q 5002 (B,12,65) Transistor 2SC4617 Q 5003 (B,11,67) Transistor 2SC4617 Q 5005 (B,10,72) Transistor UMX2N Q 5342 (B,5,34) Transistor 2SA1774 Q 5343 (A,9,52) FET SI6544DQ Q 5344 (A,7,55) FET SI6544DQ Q 5371 (A,11,30) Transistor 2SC4617 Q 5372 (A,10,34) Transistor 2SC4617 D 4181 (A,33,35) Diode RB160M-30 D 4182 (A,38,49) Diode U2FWJ44N D 4183 (A,30,33) Diode RB548W D 4184 (A,28,33) Diode RB548W D 4185 (A,16,29) Diode RB548W D 4186 (A,12,33) Diode RB548W D 4187 (A,12,37) Diode RB548W D 4241 (A,75,28) Diode RB500V-40 D 4242 (A,70,11) Diode RB500V-40 D 4311 (B,8,125) Photo Diode AM-30-21 D 4312 (B,4,131) Diode UDZS5R6(B) D 4313 (B,12,133) Diode UDZS5R6(B) D 4331 (B,6,11) Diode (EW) CL-195SR-CD D 4332 (B,6,20) Diode (EW) CL-195SR-CD D 4333 (B,6,142) Diode (EW) CL-195SR-CD D 4334 (B,6,151) Diode (EW) CL-195SR-CD D 4351 (B,6,9) LED CL-195PG-CD D 4352 (B,6,21) LED CL-195PG-CD D 4353 (B,6,141) LED CL-195PG-CD D 4354 (B,6,152) LED CL-195PG-CD D 4371 (B,9,65) LED CL-190UB2-X D 4372 (B,9,81) LED CL-190UB2-X D 4373 (B,9,96) LED CL-190UB2-X D 4501 (A,37,81) Diode UDZS5R6(B) D 4502 (A,35,84) Diode UDZS5R6(B) D 4503 (A,36,77) Diode UDZS5R6(B) D 4504 (A,39,76) Diode UDZS5R6(B) D 4505 (A,27,78) Diode MA111 D 4591 (A,21,16) Diode UDZS5R6(B) D 4592 (A,21,14) Diode UDZS5R6(B) D 4593 (A,21,13) Diode UDZS5R6(B) D 4594 (A,11,16) Diode UDZS5R6(B) D 5001 (B,7,63) Diode UDZS8R2(B) D 5201 (A,9,39) LED CL-195PG-CD D 5202 (A,9,26) LED CL-195PG-CD D 5203 (A,9,12) LED CL-195PG-CD D 5251 (A,7,39) Diode (EW) CL-195SR-CD D 5252 (A,7,26) Diode (EW) CL-195SR-CD D 5253 (A,7,12) Diode (EW) CL-195SR-CD D 5340 (B,5,70) Diode HZU6R2(B3) D 5341 (A,11,49) Diode HZU6R2(B3) D 5342 (A,6,49) Diode HZU6R2(B3) D 5343 (B,6,96) Diode MA143 D 5344 (B,5,75) Diode MA143 D 5351 (B,8,25) Diode 1SS355 D 5371 (B,6,31) Diode UDZS6R2(B) Circuit Symbol and No. Part No. D 5372 (B,12,33) Diode RB751V40 L 4001 (A,103,41) Inductor CTF1306 L 4002 (A,100,35) Inductor CTF1306 L 4003 (A,103,36) Inductor CTF1306 L 4004 (A,101,32) Inductor CTF1306 L 4005 (A,103,29) Inductor CTF1306 L 4006 (A,101,28) Inductor CTF1306 L 4007 (A,102,25) Inductor CTF1306 L 4008 (A,102,23) Inductor CTF1306 L 4009 (A,104,19) Inductor CTF1306 L 4010 (A,104,18) Inductor CTF1306 L 4011 (A,102,15) Inductor CTF1306 L 4012 (A,102,14) Inductor CTF1306 L 4013 (A,111,11) Inductor CTF1306 L 4018 (A,114,12) Inductor CTF1306 L 4025 (A,119,16) Inductor CTF1306 L 4030 (A,121,16) Inductor CTF1306 L 4034 (A,125,16) Inductor CTF1306 L 4036 (A,129,16) Inductor CTF1306 L 4038 (A,131,19) Inductor CTF1306 L 4039 (A,135,20) Inductor CTF1306 L 4040 (A,135,21) Inductor CTF1306 L 4041 (A,138,20) Inductor CTF1306 L 4042 (A,139,21) Inductor CTF1306 L 4043 (A,138,23) Inductor CTF1306 L 4044 (A,135,24) Inductor CTF1306 L 4048 (A,135,26) Inductor CTF1306 L 4049 (A,136,27) Inductor CTF1306 L 4050 (A,135,28) Inductor CTF1306 L 4051 (A,136,30) Inductor CTF1306 L 4052 (A,136,31) Inductor CTF1306 L 4053 (A,135,34) Inductor CTF1306 L 4054 (A,135,36) Inductor CTF1306 L 4055 (A,135,37) Inductor CTF1306 L 4056 (A,135,38) Inductor CTF1306 L 4057 (A,136,40) Inductor CTF1306 L 4058 (A,138,41) Inductor CTF1306 L 4059 (A,136,43) Inductor CTF1306 L 4060 (A,135,44) Inductor CTF1306 L 4061 (A,132,47) Ferrite Bead CTF1528 L 4062 (A,132,48) Ferrite Bead CTF1528 L 4063 (A,130,48) Ferrite Bead CTF1528 L 4064 (A,130,48) Ferrite Bead CTF1528 L 4065 (A,129,48) Ferrite Bead CTF1528 L 4066 (A,128,48) Ferrite Bead CTF1528 L 4067 (A,127,48) Ferrite Bead CTF1528 L 4068 (A,126,50) Inductor CTF1306 L 4069 (A,124,50) Inductor CTF1306 L 4070 (A,123,49) Ferrite Bead CTF1528 L 4071 (A,123,51) Ferrite Bead CTF1528 L 4072 (A,122,49) Ferrite Bead CTF1528 L 4073 (A,121,51) Ferrite Bead CTF1528 L 4074 (A,121,49) Ferrite Bead CTF1528 L 4075 (A,120,51) Ferrite Bead CTF1528 L 4076 (A,119,49) Inductor CTF1306 L 4077 (A,118,49) Ferrite Bead CTF1528 L 4078 (A,118,51) Ferrite Bead CTF1528 L 4079 (A,117,49) Ferrite Bead CTF1528 L 4080 (A,116,51) Ferrite Bead CTF1528 L 4081 (A,116,49) Ferrite Bead CTF1528 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 106 1 2 3 4 1 2 3 4 C D F A B E L 4082 (A,115,51) Ferrite Bead CTF1528 L 4083 (A,114,50) Inductor CTF1306 L 4084 (A,112,52) Inductor CTF1306 L 4085 (A,112,49) Inductor CTF1306 L 4086 (A,111,50) Ferrite Bead CTF1528 L 4087 (A,110,50) Ferrite Bead CTF1528 L 4088 (A,109,50) Ferrite Bead CTF1528 L 4089 (A,108,50) Ferrite Bead CTF1528 L 4090 (A,107,50) Ferrite Bead CTF1528 L 4091 (A,106,50) Ferrite Bead CTF1528 L 4092 (A,106,48) Inductor CTF1306 L 4093 (A,105,46) Inductor CTF1306 L 4094 (A,99,14) Inductor CTF1635 L 4095 (A,136,15) Inductor CTF1635 L 4096 (A,95,17) Inductor CTF1635 L 4097 (A,139,44) Inductor CTF1635 L 4098 (A,101,38) Inductor CTF1635 L 4099 (A,99,18) Inductor CTF1635 L 4100 (A,46,53) Choke Coil 18µH CTH1250 L 4101 (A,141,33) Inductor LCKAW101J2520 L 4102 (A,150,27) Inductor LCKAW101J2520 L 4105 (A,146,45) Inductor CTF1306 L 4121 (A,96,49) Inductor CTF1635 L 4122 (A,97,61) Inductor CTF1306 L 4123 (A,92,55) Inductor CTF1306 L 4151 (A,133,53) Chip Inductor DTL1096 L 4152 (A,128,53) Inductor CTF1635 L 4153 (A,136,54) Inductor CTF1635 L 4161 (A,144,55) Chip Inductor DTL1096 L 4171 (A,142,15) Inductor LCKAW101J2520 L 4172 (A,150,16) Inductor CTF1306 L 4173 (A,146,12) Inductor CTF1379 L 4181 (A,23,25) Chip Inductor DTL1096 L 4185 (A,42,60) Choke Coil 10µH CTH1249 L 4186 (A,10,47) Inductor CTF1635 L 4195 (A,26,26) Inductor CTF1635 L 4203 (A,36,30) Choke Coil 68µH CTH1318 L 4207 (A,12,27) Inductor CTF1635 L 4214 (A,36,55) Choke Coil 18µH CTH1250 L 4311 (B,11,114) Inductor LCKBW100K2520 L 4423 (A,79,15) Inductor LCKAW101J2520 L 4424 (A,88,15) Inductor LCTAW220J2520 L 4425 (A,91,15) Chip Coil LCTAW270J2520 L 4451 (A,145,15) Inductor LCKAW101J2520 L 4521 (A,88,81) Coil CTH1338 L 4531 (A,54,43) Inductor CTF1306 L 4541 (A,24,70) Inductor CTF1488 L 4601 (A,51,79) Inductor LCKBW100K2520 L 4602 (A,43,72) Inductor LCKBW100K2520 T 5341 (A,8,79) Transformer CTT1126 TH4301 (A,32,11) Thermistor CCX1051 X 4001 (A,107,13)Crystal Resonator 42MHz CSS1604 X 4601 (A,66,49) Radiator 10.0MHz CSS1577 S 4391 (B,8,5) Push Switch CSG1126 S 4392 (B,8,25) Push Switch CSG1126 S 4393 (B,8,137) Push Switch CSG1126 S 4394 (B,8,156) Push Switch CSG1126 S 5101 (A,11,39) Push Switch CSG1155 S 5102 (A,11,26) Push Switch CSG1155 S 5103 (A,11,12) Push Switch CSG1155 Circuit Symbol and No. Part No. VR5341 (A,10,43) Semi-fixed 15kΩ(B) CCP1424 FU4541 (A,29,70) Fuse 500mA CEK1251 FU5341 (B,4,27) Fuse 1.25A CEK1281 EF4401 (A,88,39) EMI Filter CCG1082 EF4402 (A,88,35) EMI Filter CCG1082 EF4403 (A,89,32) EMI Filter CCG1082 RESISTORS R 4001 (A,111,17) RS1/16SS105J R 4002 (A,110,14) RS1/16SS391J R 4003 (A,114,16) RS1/16SS152J R 4004 (A,116,16) RS1/16SS331J R 4005 (A,120,10) RS1/16S0R0J R 4061 (A,138,34) RS1/16SS333J R 4062 (A,134,48) RAB4CQ221J R 4063 (A,128,50) RAB4CQ221J R 4064 (A,122,53) RAB4CQ221J R 4065 (A,119,53) RAB4CQ221J R 4066 (A,134,33) RS1/16S102J R 4067 (A,116,53) RAB4CQ221J R 4068 (A,110,52) RAB4CQ221J R 4069 (A,107,52) RAB4CQ221J R 4070 (A,135,18) RS1/16S0R0J R 4101 (A,104,63) RS1/16S101J R 4102 (A,104,67) RS1/16S101J R 4103 (A,151,36) RS1/16SS472J R 4104 (A,151,31) RS1/16SS223J R 4106 (A,145,34) RS1/16S3302F R 4107 (A,144,32) RS1/16S5602F R 4108 (A,148,39) RS1/16S101J R 4111 (A,150,43) RS1/16S153J R 4112 (A,151,45) RS1/16SS153J R 4113 (A,148,44) RS1/16SS0R0J R 4114 (A,150,45) RS1/16SS0R0J R 4115 (A,150,39) RS1/16SS100J R 4116 (A,151,47) RS1/16SS100J R 4117 (A,143,46) RS1/16SS681J R 4118 (A,90,65) RAB4CQ221J R 4122 (A,101,61) RS1/16S27R0D R 4124 (A,101,59) RS1/16S10R0D R 4125 (A,105,61) RS1/16S6800D R 4126 (A,103,60) RS1/16S1000D R 4128 (A,104,58) RS1/16S82R0F R 4132 (A,104,57) RS1/16S56R0D R 4134 (A,102,54) RS1/16S47R0D R 4136 (A,102,53) RS1/16S36R0D R 4138 (A,102,51) RS1/16S33R0F R 4142 (A,100,53) RS1/16S27R0D R 4144 (A,101,55) RS1/16S1800D R 4146 (A,101,57) RS1/16S82R0F R 4148 (A,101,58) RS1/16S12R0F R 4151 (A,132,56) RS1/16S102J R 4171 (A,148,15) RS1/16SS102J R 4173 (A,140,15) RS1/16SS102J R 4174 (A,140,17) RS1/16SS101J R 4175 (A,140,19) RS1/16SS101J R 4181 (A,26,31) RS1/16S3303D R 4182 (A,25,35) RS1/16S1802D R 4183 (A,24,35) RS1/16S4300D Circuit Symbol and No. Part No. > > www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 107 5 6 7 8 5 6 7 8 C D F A B E R 4184 (A,22,35) RS1/16S5102D R 4185 (A,14,43) RS1/16S2202F R 4186 (A,13,45) RS1/16S1802F R 4187 (A,15,45) RS1/16S1002F R 4188 (A,30,42) RS1/16S563J R 4191 (A,29,44) RS1/16S150J R 4192 (A,27,49) RS1/16S150J R 4193 (A,30,50) RS1/16S273J R 4194 (A,27,53) RS1/16S1600D R 4195 (A,28,55) RS1/16S1001D R 4196 (A,28,52) RS1/16S2700D R 4201 (A,24,59) RS1/16S682J R 4203 (A,15,53) RS1/16S5100F R 4204 (A,21,51) RS1/16S2001F R 4216 (A,25,50) RS1/16S333J R 4217 (A,26,56) RS1/16S102J R 4218 (A,24,56) RS1/16S684J R 4219 (A,23,62) RS1/16S6801F R 4220 (A,20,61) RS1/16S1001D R 4221 (A,23,61) RS1/16S201J R 4222 (A,23,54) RS1/16S123J R 4241 (A,76,28) RS1/16SS684J R 4242 (A,74,22) RS1/16SS474J R 4251 (A,137,28) RS1/16SS470J R 4252 (A,139,31) RS1/16SS470J R 4253 (A,139,32) RS1/16SS471J R 4305 (A,33,14) RS1/16SS153J R 4308 (A,28,8) RS1/16SS104J R 4309 (A,31,6) RS1/16S103J R 4311 (B,7,112) RS1/16S155J R 4312 (B,7,117) RS1/16S105J R 4313 (B,7,100) RS1/16S393J R 4314 (B,7,101) RS1/16S103J R 4315 (B,9,99) RS1/16S203J R 4316 (B,7,98) RS1/16S393J R 4331 (B,4,17) (EW) RS1/16S271J R 4332 (B,5,16) (EW) RS1/16S271J R 4333 (B,4,14) (EW) RS1/16S181J R 4334 (B,5,13) (EW) RS1/16S181J R 4335 (B,9,45) (EW) RS1/16S271J R 4336 (B,9,48) (EW) RS1/16S271J R 4337 (B,8,87) (EW) RS1/16S181J R 4338 (B,8,90) (EW) RS1/16S181J R 4351 (B,11,19) RS1/16S271J R 4352 (B,11,16) RS1/16S271J R 4353 (B,11,10) RS1/16S331J R 4354 (B,4,7) RS1/16S331J R 4355 (B,8,45) RS1/16S271J R 4356 (B,8,48) RS1/16S271J R 4357 (B,7,87) RS1/16S331J R 4358 (B,7,90) RS1/16S331J R 4371 (B,7,58) RS1/16S101J R 4372 (B,8,60) RS1/16S101J R 4373 (B,8,61) RS1/16S101J R 4374 (B,8,63) RS1/16S221J R 4375 (B,9,69) RS1/16S221J R 4376 (B,9,72) RS1/16S221J R 4377 (B,9,74) RS1/16S221J R 4378 (B,9,77) RS1/16S221J R 4426 (A,77,76) RS1/16SS0R0J Circuit Symbol and No. Part No. R 4439 (A,88,8) RS1/16S391J R 4440 (A,92,29) RS1/16SS0R0J R 4442 (A,87,12) RS1/16SS104J R 4444 (A,92,18) RS1/16SS272J R 4445 (A,88,9) RS1/16S471J R 4446 (A,87,11) RS1/16SS681J R 4448 (A,85,19) RS1/16S472J R 4449 (A,86,19) RS1/16SS104J R 4450 (A,84,13) RS1/16SS153J R 4451 (A,150,20) RAB4CQ101J R 4452 (A,151,23) RS1/16SS473J R 4454 (A,145,18) RS1/16SS473J R 4455 (A,147,22) RS1/16SS473J R 4456 (A,149,22) RS1/16SS101J R 4501 (A,20,79) RS1/16SS105J R 4502 (A,23,79) RS1/16SS105J R 4503 (A,18,74) RS1/16SS103J R 4504 (A,20,74) RS1/16SS103J R 4505 (A,22,74) RS1/16SS103J R 4506 (A,24,74) RS1/16SS103J R 4507 (A,33,76) RS1/16SS102J R 4508 (A,31,77) RS1/16SS102J R 4521 (A,97,72) RS1/16SS101J R 4522 (A,96,74) RS1/16SS101J R 4523 (A,102,74) RS1/16SS101J R 4524 (A,101,74) RS1/16SS101J R 4525 (A,99,75) RS1/16SS101J R 4526 (A,98,75) RS1/16SS101J R 4531 (A,59,41) RS1/16SS101J R 4532 (A,55,44) RS1/16SS103J R 4541 (A,74,77) RS1/16SS471J R 4563 (A,65,74) RS1/16S0R0J R 4564 (A,61,75) RS1/16S0R0J R 4565 (A,67,45) RS1/16S0R0J R 4566 (A,69,46) RS1/16S0R0J R 4591 (A,12,16) RS1/16SS101J R 4592 (A,24,11) RS1/16SS101J R 4593 (A,24,13) RS1/16SS101J R 4594 (A,21,18) RS1/16SS101J R 4601 (A,50,73) RS1/16SS103J R 4602 (A,55,54) RS1/16SS473J R 4603 (A,55,46) RS1/16SS103J R 4604 (A,39,67) RS1/16SS473J R 4605 (A,41,68) RS1/16SS473J R 4606 (A,45,69) RS1/16SS473J R 4607 (A,63,48) RS1/16SS101J R 4608 (A,47,66) RS1/16SS103J R 4609 (A,71,49) RS1/16SS101J R 4611 (A,76,42) RS1/16SS272J R 4612 (A,75,41) RS1/16SS272J R 4613 (A,66,45) RS1/16SS471J R 4614 (A,64,47) RS1/16SS471J R 4616 (A,82,50) RAB4CQ102J R 4617 (A,82,61) RS1/16SS473J R 4619 (A,72,70) RS1/16SS0R0J R 4620 (A,70,71) RS1/16SS0R0J R 4621 (A,57,70) RS1/16SS473J R 4622 (A,56,69) RS1/16SS473J R 4625 (A,31,24) RS1/16SS473J R 4626 (A,53,62) RAB4CQ473J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 108 1 2 3 4 1 2 3 4 C D F A B E R 4627 (A,53,59) RS1/16SS471J R 4628 (A,54,66) RS1/16SS471J R 4630 (A,58,49) RAB4CQ473J R 4635 (A,76,70) RS1/16SS102J R 4636 (A,75,70) RS1/16SS472J R 4665 (A,64,11) RS1/16SS1002D R 4666 (A,65,14) RS1/16SS1002D R 4667 (A,60,12) RS1/16SS1002D R 4668 (A,65,12) RS1/16SS5602F R 4669 (A,64,15) RS1/16SS5602F R 4670 (A,62,14) RS1/16SS5602F R 4671 (A,63,9) RS1/16SS5602F R 4672 (A,67,14) RS1/16SS5602F R 4673 (A,60,10) RS1/16SS5602F R 4674 (A,65,9) RS1/16SS102J R 4675 (A,67,12) RS1/16SS102J R 4676 (A,62,10) RS1/16SS102J R 4692 (A,41,12) RS1/16S103J R 4701 (A,88,47) RS1/10S103J R 4708 (A,99,30) RS1/16S0R0J R 5002 (B,7,67) RS1/16S621J R 5003 (B,9,63) RS1/16S103J R 5004 (B,11,63) RS1/16S104J R 5005 (B,7,66) RS1/16S473J R 5006 (B,8,70) RS1/16S621J R 5007 (B,4,68) RS1/16S821J R 5008 (B,12,73) RS1/16S101J R 5009 (B,12,70) RS1/16S101J R 5221 (A,8,10) RS1/16SS151J R 5222 (A,5,12) RS1/16SS151J R 5223 (A,5,14) RS1/16SS101J R 5224 (A,5,15) RS1/16SS101J R 5251 (A,8,18) (EW) RAB4CQ181J R 5342 (B,9,31) RS1/16S103J R 5343 (B,5,37) RS1/16S333J R 5344 (B,5,33) RS1/16S473J R 5345 (B,5,29) RS1/16S472J R 5346 (B,4,66) RS1/16S513J R 5347 (B,4,72) RS1/16S105J R 5348 (A,12,44) RS1/16S563J R 5349 (A,5,47) RS1/16S103J R 5351 (A,9,47) RS1/16S103J R 5353 (B,4,92) RS1/16S511J R 5371 (B,7,35) RS1/16S103J R 5372 (A,8,30) RS1/16S104J R 5373 (B,8,36) RS1/16S473J R 5374 (B,11,37) RS1/16S105J R 5378 (B,12,30) RS1/16S102J CAPACITORS C 4001 (A,104,43) CKSSYF104Z16 C 4002 (A,104,39) CKSSYF104Z16 C 4003 (A,104,37) CKSSYF104Z16 C 4004 (A,104,33) CKSSYF104Z16 C 4005 (A,104,31) CKSSYF104Z16 C 4006 (A,104,27) CKSSYF104Z16 C 4007 (A,104,25) CKSSYF104Z16 C 4008 (A,104,22) CKSSYF104Z16 C 4009 (A,107,18) CKSSYF104Z16 C 4011 (A,109,18) CKSSYF104Z16 Circuit Symbol and No. Part No. C 4012 (A,111,18) CKSSYF104Z16 C 4013 (A,114,18) CKSSYF104Z16 C 4014 (A,105,14) CCSSCH9R0D50 C 4015 (A,110,12) CCSSCH9R0D50 C 4016 (A,113,16) CKSSYB103K16 C 4017 (A,112,14) CCSSCH181J25 C 4018 (A,116,18) CKSSYF104Z16 C 4019 (A,115,16) CCSSCH4R0C50 C 4020 (A,113,14) CKSSYF104Z16 C 4022 (A,116,14) CKSSYB104K10 C 4023 (A,117,15) CKSSYB104K10 C 4024 (A,117,17) CKSSYB104K10 C 4025 (A,119,18) CKSSYF104Z16 C 4026 (A,121,12) CKSSYB104K10 C 4027 (A,122,13) CKSSYB104K10 C 4028 (A,120,14) CKSSYB104K10 C 4030 (A,121,18) CKSSYF104Z16 C 4031 (A,123,15) CKSSYB104K10 C 4032 (A,122,17) CKSSYB104K10 C 4033 (A,123,17) CKSSYB104K10 C 4034 (A,124,17) CKSSYB104K10 C 4035 (A,125,18) CKSSYF104Z16 C 4036 (A,125,12) CKSSYB104K10 C 4037 (A,126,12) CKSSYB104K10 C 4038 (A,127,12) CKSSYB104K10 C 4039 (A,127,16) CKSSYB104K10 C 4040 (A,128,16) CKSSYB104K10 C 4041 (A,128,18) CKSSYF104Z16 C 4043 (A,133,11) CKSRYB104K50 C 4044 (A,129,18) CKSSYF104Z16 C 4045 (A,133,21) CKSSYF104Z16 C 4046 (A,134,23) CKSSYF104Z16 C 4047 (A,133,25) CKSSYF104Z16 C 4049 (A,134,27) CKSSYF104Z16 C 4053 (A,133,31) CKSSYF104Z16 C 4054 (A,133,35) CKSSYF104Z16 C 4055 (A,133,37) CKSSYF104Z16 C 4056 (A,133,38) CKSSYF104Z16 C 4057 (A,134,40) CKSSYF104Z16 C 4058 (A,135,41) CKSSYF104Z16 C 4059 (A,134,42) CKSSYF104Z16 C 4060 (A,133,45) CKSRYF105Z10 C 4062 (A,137,33) CKSSYF104Z16 C 4068 (A,126,47) CKSSYF104Z16 C 4069 (A,124,48) CKSSYF104Z16 C 4076 (A,120,47) CKSSYF104Z16 C 4083 (A,115,47) CKSSYF104Z16 C 4085 (A,113,47) CKSSYF104Z16 C 4089 (A,101,48) CSZSR330M10 C 4090 (A,113,48) CKSSYF104Z16 C 4091 (A,49,58) CKSRYB104K50 C 4092 (A,109,47) CKSSYF104Z16 C 4093 (A,106,46) CKSSYF104Z16 C 4094 (A,115,10) CKSYF105Z16 C 4095 (A,133,15) CSZSR330M10 C 4096 (A,97,14) CKSYF105Z16 C 4097 (A,141,43) CSZS100M16 C 4098 (A,100,41) CSZSR220M10 C 4099 (A,100,20) CSZSR220M10 C 4100 (A,101,45) CSZSR330M10 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 109 5 6 7 8 5 6 7 8 C D F A B E C 4101 (A,144,47) CKSSYF104Z16 C 4102 (A,99,71) CKSSYF104Z16 C 4103 (A,144,44) CKSRYB105K6R3 C 4104 (A,145,39) CKSRYB104K50 C 4105 (A,144,37) CKSSYF104Z16 C 4106 (A,145,25) CKSRYB104K50 C 4107 (A,141,38) CSZSR220M16 C 4108 (A,147,25) 4.7µF CCG1111 C 4109 (A,96,70) CSZS100M16 C 4111 (A,149,37) CKSRYB105K6R3 C 4112 (A,151,33) CKSRYB104K50 C 4121 (A,91,57) CKSRYF104Z16 C 4122 (A,98,53) CKSSYF104Z16 C 4123 (A,97,51) CSZS100M16 C 4151 (A,134,51) CKSSYF104Z16 C 4152 (A,128,58) CKSSYF104Z16 C 4153 (A,136,52) CKSRYB104K50 C 4154 (A,135,56) CKSRYB104K50 C 4155 (A,134,55) CKSSYF104Z16 C 4156 (A,128,56) CSZSR330M10 C 4157 (A,138,56) CKSQYF334Z25 C 4158 (A,132,52) CSZS100M16 C 4161 (A,130,51) CKSSYF104Z16 C 4162 (A,146,53) CKSRYB104K50 C 4163 (A,140,53) 4.7µF CCG1111 C 4164 (A,141,56) CKSRYB104K50 C 4172 (A,144,12) CKSRYB104K50 C 4181 (A,20,27) CKSQYF105Z25 C 4182 (A,30,27) CKSQYF105Z25 C 4183 (A,29,29) CKSRYB104K50 C 4184 (A,24,33) CKSQYF105Z25 C 4188 (A,13,31) CKSQYF105Z25 C 4190 (A,11,41) CKSQYF225Z16 C 4191 (A,11,40) CKSQYF225Z16 C 4192 (A,11,43) CKSQYF105Z25 C 4193 (A,15,35) CKSRYF474Z16 C 4194 (A,16,31) CKSRYF474Z16 C 4195 (A,20,31) CKSYF475Z16 C 4196 (A,26,35) CKSRYB472K50 C 4197 (A,29,35) CKSRYB472K50 C 4198 (A,26,23) CKSQYF105Z25 C 4199 (A,15,37) CKSRYF474Z16 C 4200 (A,11,35) CKSQYF105Z25 C 4201 (A,43,30) 33µF/10V CCH1586 C 4202 (A,40,29) CKSRYB104K50 C 4203 (A,33,39) CKSRYB103K50 C 4204 (A,36,38) 10µF CCG1138 C 4205 (A,27,38) CKSRYB103K50 C 4206 (A,28,38) CKSRYB105K6R3 C 4207 (A,10,27) CKSQYF105Z25 C 4208 (A,30,45) CKSRYB102K50 C 4209 (A,29,42) CKSRYB104K50 C 4210 (A,46,62) CKSQYF105Z25 C 4211 (A,30,47) CKSRYB105K6R3 C 4212 (A,36,45) 10µF CCG1138 C 4213 (A,30,48) CKSRYB104K50 C 4214 (A,39,45) 10µF CCG1138 C 4215 (A,38,51) CKSRYB104K50 C 4216 (A,41,53) 68µF/6.3V CCH1440 C 4217 (A,25,53) CCSRCH101J50 Circuit Symbol and No. Part No. C 4219 (A,26,49) CKSRYB103K50 C 4221 (A,26,55) CCSRCH331J50 C 4223 (A,26,57) CKSRYB393K16 C 4224 (A,22,56) CKSRYB103K50 C 4226 (A,22,59) CKSRYB473K50 C 4228 (A,17,53) CKSRYB393K16 C 4229 (A,14,47) CKSRYB393K16 C 4230 (A,32,62) CKSRYB102K50 C 4231 (A,17,50) CKSRYB104K50 C 4232 (A,19,51) CSZS100M16 C 4233 (A,14,48) CKSRYB105K6R3 C 4234 (A,10,50) CKSRYB104K50 C 4235 (A,21,31) CKSRYB103K50 C 4236 (A,81,24) CKSRYF105Z10 C 4237 (A,80,31) CKSSYB104K10 C 4238 (A,77,31) CSZS100M10 C 4239 (A,17,38) CKSSYF104Z16 C 4240 (A,33,45) CKSRYB103K50 C 4241 (A,75,20) CKSRYF105Z10 C 4242 (A,74,13) CKSSYB104K10 C 4243 (A,71,15) CSZS100M10 C 4244 (A,77,24) CSZS100M16 C 4245 (A,75,12) CKSSYF104Z16 C 4248 (A,77,28) CKSSYB104K10 C 4261 (A,41,10) CKSRYB104K50 C 4301 (A,30,6) CKSRYB105K6R3 C 4302 (A,33,10) CKSRYB104K50 C 4311 (B,7,114) CKSRYB474K10 C 4312 (B,7,115) CKSRYB104K50 C 4313 (B,4,117) CKSRYB104K50 C 4314 (B,10,117) CKSRYB104K50 C 4315 (B,5,106) CKSRYB104K50 C 4371 (B,6,65) CKSRYB104K50 C 4372 (B,6,80) CKSRYB104K50 C 4373 (B,6,95) CKSRYB104K50 C 4430 (A,91,18) CCSSCH470J50 C 4431 (A,90,18) CCSSCH680J50 C 4432 (A,89,18) CCSSCH470J50 C 4433 (A,85,15) 10µF CCG1171 C 4438 (A,81,13) CKSSYF104Z16 C 4439 (A,90,12) CCSSCH5R0C50 C 4440 (A,82,16) CSZSR330M10 C 4452 (A,141,30) CKSSYB104K10 C 4453 (A,143,19) CKSSYB104K10 C 4454 (A,144,30) CKSSYB104K10 C 4455 (A,149,18) CSZS100M10 C 4501 (A,38,81) CKSSYB102K10 C 4502 (A,37,85) CKSSYB102K10 C 4503 (A,37,78) CKSSYB102K10 C 4504 (A,38,75) CKSSYB102K10 C 4506 (A,34,76) CKSSYB102K10 C 4507 (A,33,78) CKSSYB102K10 C 4508 (A,33,75) CKSRYB105K6R3 C 4521 (A,82,80) 10µF CCG1138 C 4522 (A,78,80) 10µF CCG1138 C 4531 (A,57,41) CKSSYB104K10 C 4541 (A,21,68) CKSQYF224Z25 C 4601 (A,49,75) CSZSR330M10 C 4602 (A,47,73) CKSSYB104K10 C 4603 (A,45,72) CKSQYB225K10 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 110 1 2 3 4 1 2 3 4 C D F A B E C 4604 (A,36,70) CSZS330M6R3 C 4608 (A,70,50) CKSSYB104K10 C 4609 (A,64,41) CKSSYB104K10 C 4610 (A,62,41) CKSSYB104K10 C 4611 (A,45,66) CKSSYB104K10 C 4668 (A,76,40) 2.2µF CCG1179 C 4669 (A,75,49) 2.2µF CCG1179 C 4670 (A,77,40) 2.2µF CCG1179 C 4691 (A,35,16) CKSSYB104K10 C 5002 (B,10,69) CKSRYB104K50 C 5343 (B,10,34) CKSRYB104K50 C 5344 (B,12,40) CKSRYB105K10 C 5345 (A,13,34) CKSQYB474K16 C 5346 (B,8,38) CKSRYF105Z10 C 5347 (B,8,40) CKSRYF104Z50 C 5348 (B,4,38) CKSRYB332K50 C 5349 (B,4,41) CKSRYB152K50 C 5352 (B,12,39) CKSRYB103K50 C 5353 (A,5,51) CKSRYB473K50 C 5354 (B,11,50) CFHXSQ221J50 C 5355 (A,12,47) CKSRYB473K50 C 5356 (B,8,54) 10µF CCG1138 C 5357 (B,8,58) 10µF CCG1138 C 5358 (A,10,59) CKSQYB105K10 C 5359 (A,8,99) 22pF CCG1140 C 5361 (B,4,89) CKSRYB223K50 C 5362 (A,12,59) CKSQYB105K10 C 5371 (B,13,12) CKSRYF104Z50 C 5372 (B,8,9) CKSRYF105Z10 C 5391 (B,12,27) CKSRYF104Z50 I Unit Number: Unit Name:Keyboard Unit MISCELLANEOUS IC 5501 (A,19,11) IC TSOP4840SB1 D 5501 (B,58,9) LED (EW) CL-195SR-CD D 5502 (A,58,5) LED CL-190UB2-X D 5503 (A,121,5) LED CL-190UB2-X D 5504 (A,95,5) LED CL-190UB2-X D 5505 (A,71,5) LED CL-190UB2-X D 5506 (A,44,5) LED CL-190UB2-X D 5507 (A,108,5) LED CL-190UB2-X D 5508 (A,84,12) LED CL-190UB2-X D 5509 (B,24,12) Diode UDZS6R8(B) D 5510 (A,27,4) LED CL-195PG-CD D 5511 (A,29,4) LED (EW) CL-195SR-CD D 5512 (A,154,5) LED CL-195PG-CD D 5513 (A,154,7) LED (EW) CL-195SR-CD D 5514 (A,139,12) LED CL-195PG-CD D 5515 (A,138,12) LED (EW) CL-195SR-CD D 5516 (A,11,14) LED CL-195PG-CD D 5517 (A,9,14) LED (EW) CL-195SR-CD D 5518 (A,159,10) LED CL-195PG-CD D 5519 (A,158,10) LED (EW) CL-195SR-CD D 5520 (A,138,4) LED CL-195PG-CD D 5521 (A,137,4) LED (EW) CL-195SR-CD D 5522 (A,11,6) LED CL-195PG-CD Circuit Symbol and No. Part No. D 5523 (A,9,7) LED (EW) CL-195SR-CD D 5524 (A,154,14) LED CL-195PG-CD D 5525 (A,154,13) LED (EW) CL-195SR-CD D 5526 (A,150,9) LED CL-195PG-CD D 5527 (A,151,10) LED (EW) CL-195SR-CD D 5528 (A,100,11) LED CL-195SR-CD S 5501 (A,44,3) Push Switch CSG1155 S 5502 (A,75,3) Push Switch CSG1155 S 5503 (A,54,3) Push Switch CSG1155 S 5504 (A,9,17) Push Switch CSG1155 S 5505 (A,9,3) Push Switch CSG1155 S 5506 (A,24,4) Push Switch CSG1155 S 5507 (A,91,3) Push Switch CSG1155 S 5508 (A,112,3) Push Switch CSG1155 S 5509 (A,121,3) Push Switch CSG1155 S 5510 (A,142,4) Push Switch CSG1155 S 5511 (A,162,10) Push Switch CSG1155 S 5512 (A,154,17) Push Switch CSG1155 S 5513 (A,154,3) Push Switch CSG1155 S 5514 (A,147,10) Push Switch CSG1155 S 5515 (A,143,14) Push Switch CSG1155 S 5516 (A,162,20) Push Switch CSG1155 S 5517 (A,83,8) Switch CSN1057 RESISTORS R 5501 (B,63,6) RS1/16S122J R 5502 (A,63,4) RS1/16S202J R 5503 (B,24,5) RS1/16S392J R 5504 (B,7,9) RS1/16S123J R 5505 (B,60,9) (EW) RS1/16S220J R 5506 (A,83,4) RS1/16S122J R 5507 (B,112,6) RS1/16S202J R 5508 (B,116,6) RS1/16S392J R 5509 (B,142,6) RS1/16S123J R 5510 (B,156,6) RS1/16S122J R 5511 (B,160,12) RS1/16S202J R 5512 (B,159,10) RS1/16S392J R 5513 (B,146,8) RS1/16S123J R 5515 (B,44,6) RS1/16S221J R 5516 (B,106,4) RS1/16S221J R 5517 (B,94,9) RS1/16S221J R 5518 (B,70,5) RS1/16S391J R 5519 (B,47,6) RS1/16S221J R 5520 (B,109,4) RS1/16S221J R 5521 (B,96,9) RS1/16S221J R 5522 (B,73,5) RS1/16S391J R 5523 (B,50,6) RS1/16S221J R 5524 (B,112,4) RS1/16S221J R 5525 (B,97,9) RS1/16S221J R 5526 (B,73,4) RS1/16S331J R 5527 (B,40,5) RS1/16S151J R 5528 (B,156,14) RS1/16S151J R 5529 (B,136,12) RS1/16S151J R 5530 (B,38,5) RS1/16S121J R 5531 (B,157,12) RS1/16S121J R 5532 (B,138,12) RS1/16S121J R 5533 (B,36,5) RS1/16S121J R 5534 (B,157,10) RS1/16S121J R 5535 (B,139,12) RS1/16S121J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 111 5 6 7 8 5 6 7 8 C D F A B E R 5536 (B,32,10) RS1/16S103J R 5537 (B,33,12) RS1/16S101J R 5538 (B,34,5) RS1/16S121J R 5539 (B,157,8) RS1/16S121J R 5540 (B,137,9) RS1/16S121J R 5541 (B,29,9) RS1/16S101J R 5542 (B,105,10) RS1/16S101J R 5543 (B,105,11) RS1/16S101J R 5544 (A,9,8) (EW) RS1/16S750J R 5545 (B,151,10) (EW) RS1/16S750J R 5546 (B,149,11) (EW) RS1/16S750J CAPACITORS C 5501 (A,59,4) CKSRYB104K50 C 5502 (A,121,7) CKSRYB104K50 C 5503 (A,96,4) CKSRYB104K50 C 5504 (A,70,4) CKSRYB104K50 C 5505 (A,44,7) CKSRYB104K50 C 5506 (A,106,4) CKSRYB104K50 C 5507 (A,86,11) CKSRYB104K50 C 5508 (B,26,10) CKSYB475K16 C Unit Number:CWX3170 Unit Name:DVD Core Unit MISCELLANEOUS IC 1001 IC S-L2980A50MC-C7J IC 1002 IC R1130H501B IC 1003 IC LTC3411EMS IC 1051 IC PE5401A IC 1201 IC AN8471SAT1 IC 1231 IC TC7SZ125FU IC 1251 IC BA5985FM IC 1501 IC MN35104UB IC 1570 IC K4S283232E-TC75 IC 1601 IC PD6516A IC 1602 IC TC7SH86FU IC 1651 IC M5M5V216ATP-70HI IC 1652 IC TC7SZ126FU IC 1671 IC TC74LCX16373AFT IC 1672 IC TC7SZ08FU IC 1801 IC SM8707LV IC 1802 IC TC7WH157FU IC 1851 IC PCM1742KE IC 1852 IC NJM2140R IC 1853 IC NJM2100V Q 1002 Transistor DTC114EU Q 1101 Transistor 2SB1260 Q 1102 Transistor 2SB1260 Q 1103 Transistor DTC114EU Q 1104 Transistor 2SA1576A Q 1105 Transistor 2SC4081 Q 1106 Transistor 2SC4081 Q 1107 Transistor 2SC4081 Q 1551 Transistor 2SA1576 D 1001 Diode 1SR154-400 D 1101 Diode 1SS355 Circuit Symbol and No. Part No. D 1102 Diode 1SS355 D 1241 Chip LED CL205IRXTU L 1001 Inductor CTF1623 L 1002 Inductor CTF1624 L 1003 Inductor CTF1558 L 1004 Inductor CTF1558 L 1051 Inductor CTF1473 L 1101 Inductor CTF1305 L 1501 Inductor CTF1378 L 1502 Inductor CTF1487 L 1503 Inductor CTF1488 L 1554 Inductor CTF1473 L 1555 Inductor CTF1473 L 1556 Inductor CTF1400 L 1557 Inductor CTF1395 L 1558 Inductor CTF1473 L 1561 Inductor CTF1473 L 1601 Inductor CTF1464 L 1651 Inductor CTF1464 L 1671 Inductor CTF1473 L 1801 Inductor CTF1558 L 1802 Inductor CTF1558 L 1803 Inductor CTF1464 L 1804 Inductor CTF1468 L 1851 Inductor CTF1471 L 1852 Inductor CTF1473 L 1901 Inductor CTF1487 L 1902 Inductor CTF1558 L 1903 Inductor CTF1558 L 1904 Inductor CTF1468 L 1905 Inductor CTF1468 X 1051 Resonator 4.91MHz CSS1668 X 1801 Resonator 27.0000MHz CSS1661 VR1551 Semi-fixed 10kΩ(B) CCP1448 EF1801 Chp EMI Filter DTL1106 EF1802 Chp EMI Filter DTL1106 EF1803 Chp EMI Filter DTL1106 EF1901 Chp EMI Filter DTL1106 EF1902 Chp EMI Filter DTL1106 EF1903 Chp EMI Filter DTL1106 EF1904 Chp EMI Filter DTL1106 EF1905 Chp EMI Filter DTF1106 RESISTORS R 1001 RS1/10S0R0J R 1003 RS1/16SS1003D R 1004 RS1/10S0R0J R 1005 RS1/16SS1501D R 1006 RS1/16SS8202D R 1007 RS1/16SS1502D R 1008 RS1/16SS101J R 1010 RS1/16SS105J R 1011 RS1/16SS105J R 1013 RS1/16SS103J R 1014 RS1/16SS1203D R 1015 RS1/16SS2402D R 1016 RS1/16SS0R0J R 1017 RS1/16SS0R0J R 1018 RS1/16SS105J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 112 1 2 3 4 1 2 3 4 C D F A B E R 1021 RS1/16SS122J R 1051 RS1/16SS104J R 1052 RS1/16SS104J R 1053 RS1/16SS104J R 1054 RS1/16SS104J R 1055 RS1/16SS222J R 1057 RS1/16SS104J R 1058 RS1/16SS0R0J R 1059 RS1/16SS104J R 1060 RS1/16SS104J R 1061 RS1/16SS221J R 1062 RS1/16SS104J R 1063 RS1/16SS104J R 1064 RS1/16SS104J R 1065 RS1/16SS104J R 1066 RS1/16SS104J R 1067 RS1/16SS104J R 1068 RS1/16SS221J R 1069 RS1/16SS221J R 1070 RS1/16SS221J R 1071 RS1/16SS221J R 1072 RS1/16SS104J R 1073 RS1/16SS104J R 1074 RS1/16SS104J R 1075 RS1/16SS472J R 1076 RS1/16SS104J R 1080 RS1/16SS0R0J R 1081 RS1/16SS221J R 1082 RS1/16SS473J R 1083 RS1/16S153J R 1084 RS1/16SS104J R 1085 RS1/16S823J R 1087 RS1/16S104J R 1088 RS1/16SS104J R 1089 RS1/16SS104J R 1090 RAB4CQ104J R 1101 RS1/16S6R8J R 1102 RS1/16SS3R9J R 1103 RS1/16SS3R9J R 1104 RS1/16SS3R9J R 1105 RS1/16SS3R9J R 1106 RS1/16S6R8J R 1107 RS1/16SS3R9J R 1108 RS1/16SS3R9J R 1109 RS1/16SS3R9J R 1110 RS1/16SS3R9J R 1111 RS1/16SS272J R 1112 RS1/16SS472J R 1113 RS1/16SS102J R 1114 RS1/16SS221J R 1115 RS1/16SS221J R 1116 RS1/16SS331J R 1117 RS1/16SS221J R 1118 RS1/16SS0R0J R 1119 RS1/16SS0R0J R 1120 RS1/16SS0R0J R 1121 RS1/16SS0R0J R 1128 RS1/16S0R0J R 1129 RS1/16S0R0J R 1130 RS1/16S0R0J Circuit Symbol and No. Part No. R 1131 RS1/16S0R0J R 1201 RS1/16SS181J R 1202 RS1/16SS181J R 1203 RS1/16SS513J R 1204 RS1/16SS221J R 1206 RS1/16SS513J R 1207 RS1/16S0R0J R 1208 RS1/16S0R0J R 1211 RS1/16SS1R0J R 1212 RS1/16SS1R0J R 1213 RS1/16SS1R0J R 1214 RS1/16SS1R0J R 1215 RS1/16SS1R0J R 1216 RS1/16SS1R0J R 1231 RS1/16SS822J R 1232 RS1/16SS822J R 1233 RS1/16SS822J R 1234 RS1/16SS822J R 1235 RS1/16SS563J R 1236 RS1/16SS243J R 1237 RS1/16SS683J R 1238 RS1/16SS243J R 1240 RS1/16S471J R 1241 RS1/16S391J R 1246 RS1/16SS104J R 1248 RS1/16SS0R0J R 1251 RS1/16SS221J R 1252 RS1/16SS221J R 1253 RS1/16SS393J R 1254 RS1/16SS223J R 1256 RS1/16SS102J R 1257 RS1/16SS0R0J R 1258 RS1/16SS393J R 1259 RS1/16SS393J R 1260 RS1/16SS393J R 1261 RS1/16SS393J R 1262 RS1/16SS221J R 1263 RS1/16S0R0J R 1269 RS1/16SS102J R 1270 RS1/16SS102J R 1501 RS1/16SS0R0J R 1502 RS1/16SS0R0J R 1503 RAB4CQ101J R 1504 RS1/16SS0R0J R 1505 RS1/16SS0R0J R 1506 RAB4CQ101J R 1507 RS1/16SS0R0J R 1508 RAB4CQ101J R 1509 RS1/16SS0R0J R 1511 RAB4CQ101J R 1512 RS1/16SS0R0J R 1513 RS1/16SS473J R 1514 RS1/16SS104J R 1515 RS1/16SS222J R 1518 RS1/16SS104J R 1519 RS1/16SS104J R 1522 RS1/16SS103J R 1523 RS1/16SS104J R 1525 RS1/16SS102J R 1530 RS1/16SS104J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 113 5 6 7 8 5 6 7 8 C D F A B E R 1531 RS1/16S221J R 1532 RS1/16SS104J R 1536 RS1/16SS104J R 1537 RS1/16SS104J R 1540 RS1/16SS221J R 1541 RS1/16SS473J R 1543 RS1/16SS104J R 1544 RS1/16SS102J R 1545 RS1/16SS102J R 1546 RS1/16SS104J R 1547 RS1/16SS330J R 1548 RS1/16SS104J R 1551 Inductor CTF1387 R 1552 RS1/16S101J R 1555 RS1/16S101J R 1556 RS1/16S101J R 1558 RS1/16SS750J R 1561 RS1/16SS153J R 1562 RS1/16SS471J R 1563 RS1/16SS471J R 1565 RS1/16S68R0D R 1566 RS1/16S4R7J R 1567 RS1/16SS273J R 1568 RS1/16SS183J R 1569 RS1/16SS153J R 1571 RAB4CQ101J R 1572 RAB4CQ101J R 1573 RAB4CQ101J R 1574 RAB4CQ101J R 1575 RS1/16SS560J R 1576 RS1/16SS560J R 1577 RAB4CQ560J R 1578 RAB4CQ560J R 1579 RS1/16SS220J R 1580 RAB4CQ560J R 1581 RS1/16SS560J R 1582 RS1/16SS560J R 1583 RS1/16SS560J R 1584 RAB4CQ560J R 1585 RS1/16SS560J R 1586 RS1/16SS560J R 1587 RAB4CQ101J R 1588 RAB4CQ101J R 1589 RAB4CQ101J R 1590 RAB4CQ101J R 1593 RS1/16SS104J R 1594 RS1/16S0R0J R 1599 RS1/16S221J R 1604 RS1/16SS0R0J R 1608 RS1/16SS104J R 1613 RS1/16SS0R0J R 1652 RS1/16SS104J R 1653 RS1/16SS510J R 1671 RAB4CQ101J R 1672 RAB4CQ101J R 1673 RAB4CQ101J R 1674 RAB4CQ101J R 1675 RS1/16SS331J R 1701 RS1/16SS103J R 1702 RS1/16SS103J Circuit Symbol and No. Part No. R 1703 RS1/16SS0R0J R 1704 RS1/16SS105J R 1705 RN1/16SE1002D R 1706 RS1/16SS222J R 1708 RS1/16SS223J R 1709 RS1/16S1502D R 1710 RS1/16SS102J R 1711 RS1/16SS683J R 1712 RS1/16SS103J R 1713 RS1/16SS103J R 1714 RS1/16SS0R0J R 1715 RS1/16SS0R0J R 1716 RS1/16SS0R0J R 1717 RS1/16SS0R0J R 1718 RS1/16SS103J R 1719 RS1/16SS103J R 1720 RS1/16SS103J R 1721 RS1/16SS103J R 1723 RN1/16SE3901D R 1724 RS1/16SS0R0J R 1729 RAB4CQ220J R 1730 RAB4CQ220J R 1801 RS1/16S0R0J R 1802 RS1/16S151J R 1803 RS1/16S151J R 1804 RS1/16S221J R 1805 RS1/16S271J R 1806 RS1/16SS104J R 1807 RS1/16S560J R 1809 RS1/16SS0R0J R 1821 RS1/16SS222J R 1823 RS1/16SS101J R 1851 RS1/16SS0R0J R 1856 RS1/16SS102J R 1857 RS1/16SS102J R 1858 RS1/16SS222J R 1859 RS1/16SS222J R 1860 RS1/16SS472J R 1861 RS1/16SS472J R 1862 RS1/16SS472J R 1863 RS1/16SS472J R 1864 RS1/16SS103J R 1865 RS1/16SS103J R 1866 RS1/16SS472J R 1867 RS1/16SS472J R 1868 RS1/16SS821J R 1869 RS1/16SS821J R 1870 RS1/16SS104J R 1871 RS1/16SS104J R 1872 RS1/16SS0R0J R 1873 RS1/16SS0R0J R 1874 RS1/16SS0R0J R 1876 RS1/16SS0R0J R 1877 RS1/16SS0R0J R 1885 RS1/16SS0R0J R 1897 RS1/16SS0R0J R 1899 RS1/16SS0R0J R 1901 RS1/16SS221J R 1903 RS1/16SS221J R 1908 RS1/16SS102J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 114 1 2 3 4 1 2 3 4 C D F A B E R 1913 RS1/16S0R0J R 1922 RS1/16SS0R0J R 1923 RS1/16SS221J R 1925 RS1/16S0R0J R 1927 RS1/16SS0R0J R 1928 RS1/16SS221J R 1954 RS1/16SS221J R 1955 RS1/16SS221J R 1961 RS1/16S0R0J CAPACITORS C 1001 CKSRYB105K10 C 1002 CKSRYB104K25 C 1003 CKSRYB104K25 C 1004 CKSRYB104K25 C 1005 CKSRYB105K10 C 1006 CKSRYB104K25 C 1007 22µF CCG1178 C 1008 22µF CCG1178 C 1009 CCSSCH220J50 C 1010 CKSSYB102K16 C 1012 22µF CCG1178 C 1013 22µF CCG1178 C 1016 CKSRYB104K25 C 1051 CKSYB106K6R3 C 1052 CKSSYB104K10 C 1053 CKSSYB104K10 C 1054 CKSSYB103K16 C 1055 CKSSYB103K16 C 1058 CKSSYB471K50 C 1059 CKSSYB104K10 C 1060 CKSRYB105K10 C 1101 CSZSR220M16 C 1102 CSZSR101M6R3 C 1103 CKSSYB104K10 C 1104 CKSSYB103K16 C 1105 CSZSR101M6R3 C 1106 CKSSYB104K10 C 1107 CKSSYB103K16 C 1108 CKSRYB104K25 C 1109 CKSSYB473K10 C 1110 CKSSYB473K10 C 1111 CKSSYB103K16 C 1112 CKSRYB105K10 C 1113 CKSRYB105K10 C 1114 CKSSYB103K16 C 1115 CSZSR220M16 C 1201 CEVW101M16 C 1202 CKSRYB104K25 C 1203 CSZSR220M16 C 1204 CKSRYB104K25 C 1205 CKSRYB104K25 C 1206 CKSRYB104K25 C 1207 CSZSR220M16 C 1231 CKSRYB104K25 C 1232 CKSSYB104K10 C 1251 CKSRYB104K25 C 1254 CKSRYB103K50 C 1255 CKSRYB103K50 C 1256 CEVW101M16 Circuit Symbol and No. Part No. C 1257 CKSRYB104K25 C 1258 CCSSCH470J50 C 1259 CCSSCH5R0C50 C 1501 CSZSR470M10 C 1502 CSZSR101M6R3 C 1503 CSZSR101M6R3 C 1504 CKSSYB104K10 C 1505 CKSSYB104K10 C 1506 CKSSYB104K10 C 1507 CKSSYB104K10 C 1508 CKSSYB104K10 C 1509 CKSSYB104K10 C 1510 CKSSYB104K10 C 1511 CKSSYB104K10 C 1512 CKSSYB104K10 C 1513 CKSSYB104K10 C 1514 CKSSYB104K10 C 1515 CKSSYB104K10 C 1516 CKSSYB104K10 C 1517 CKSSYB104K10 C 1518 CKSSYB104K10 C 1519 CKSSYB104K10 C 1520 CKSSYB104K10 C 1521 CKSSYB104K10 C 1522 CKSSYB104K10 C 1523 CKSSYB104K10 C 1524 CKSSYB104K10 C 1525 CKSSYB104K10 C 1526 CKSSYB104K10 C 1527 CKSSYB104K10 C 1528 CKSSYB104K10 C 1529 CKSSYB104K10 C 1530 CKSSYB104K10 C 1531 CKSSYB471K50 C 1532 CKSSYB103K16 C 1533 CKSSYB103K16 C 1552 CKSSYB104K10 C 1553 CKSRYB104K25 C 1554 CKSSYB104K10 C 1555 CKSRYB105K10 C 1556 CSZSR470M10 C 1557 CKSSYB104K10 C 1558 CSZS4R7M16 C 1559 CKSRYB105K10 C 1561 CKSSYB102K50 C 1570 CSZSR470M10 C 1571 CKSSYB104K10 C 1572 CKSSYB104K10 C 1573 CKSSYB104K10 C 1574 CKSSYB104K10 C 1575 CKSSYB104K10 C 1576 CKSSYB104K10 C 1577 CKSSYB104K10 C 1578 CKSSYB104K10 C 1579 CKSSYB104K10 C 1580 CKSSYB104K10 C 1581 CKSSYB104K10 C 1582 CKSSYB104K10 C 1583 CSZSR470M10 C 1601 CSZSR470M10 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 115 5 6 7 8 5 6 7 8 C D F A B E C 1603 CKSSYB104K10 C 1651 CSZSR470M10 C 1653 CKSSYB104K10 C 1654 CKSRYB104K25 C 1655 CKSSYB104K10 C 1671 CKSSYB104K10 C 1672 CKSSYB104K10 C 1673 CKSSYB104K10 C 1674 CKSSYB104K10 C 1675 CKSRYB104K25 C 1676 CKSYB106K6R3 C 1701 CKSRYB104K25 C 1702 CKSRYB104K25 C 1703 CKSSYB104K10 C 1704 CKSSYB103K16 C 1705 CKSSYB103K16 C 1706 CKSSYB104K10 C 1707 CKSSYB104K10 C 1708 CKSSYB103K16 C 1709 CCSRCH221J50 C 1710 CKSSYB152K50 C 1711 CKSRYB105K10 C 1712 CKSRYB105K10 C 1713 CKSRYB105K10 C 1715 CKSSYB104K10 C 1716 CKSSYB104K10 C 1717 CKSSYB104K10 C 1718 CKSSYB104K10 C 1719 CKSSYB562K25 C 1720 CCSSCH101J50 C 1721 CCSSCH470J50 C 1722 CKSSYB103K16 C 1723 CKSSYB104K10 C 1724 CKSSYB104K10 C 1725 CKSSYB104K10 C 1726 CCSSCH330J50 C 1727 CKSSYB333K16 C 1728 CKSSYB104K10 C 1733 CKSSYB103K16 C 1801 CKSSYB104K10 C 1802 CKSSYB104K10 C 1804 CKSSYB104K10 C 1805 CCSSCH100D50 C 1809 CCSSCJ3R0C50 C 1810 CCSSCK2R0C50 C 1811 CKSSYB104K10 C 1851 CKSSYB104K10 C 1852 CKSSYB104K10 C 1853 CKSYB106K6R3 C 1854 CKSYB106K6R3 C 1855 CKSRYB104K25 C 1856 CKSRYB104K25 C 1857 CCSRCH471J50 C 1858 CCSRCH471J50 C 1859 CCSRCH471J50 C 1860 CCSRCH471J50 C 1861 CKSQYB225K10 C 1862 CKSSYB471K50 C 1863 CKSSYB471K50 C 1864 CKSYB475K10 Circuit Symbol and No. Part No. C 1865 CKSYB475K10 C 1870 CKSSYB104K10 C 1903 CKSRYB102K50 D Unit Number:CWX3154 Unit Name:Compound Unit(A) Q 1299 Photo-taransistor CPT231SCTD S 1201 Spring Switch(12cm) CSN1069 S 1202 Spring Switch(8cm) CSN1069 S 1203 Spring Switch(DISC SENS) CSN1069 S 1204 Spring Switch(DISC SENS) CSN1070 S 1205 Spring Switch(8cm) CSN1070 R 1298 RS1/16S0R0J R 1299 RS1/16S0R0J E Unit Number:CWX3156 Unit Name:Compound Unit(B) S 1206 Switch(CLAMP) CSN1051 J Unit Number:CZW3087 Unit Name:Main Unit MISCELLANEOUS IC 3801 IC BA00AST IC 3802 IC BA6247FP IC 3803 IC TA78L05F IC 3804 IC TC7S14FU IC 3805 Photo-interrupter GP2L24B Q 3801 Transistor DTC124EU Q 3802 Transistor 2SA1037K Q 3803 Transistor DTC124EU Q 3804 Transistor UMD2N D 3801 Diode UDZS5R6(B) D 3802 Diode 1SS355 L 3801 Inductor LCTA150J2520 L 3802 Inductor LCTA150J2520 RESISTORS R 3801 RS1/16S103J R 3802 RS1/16S222J R 3803 RS1/16S471J R 3804 RS1/16S102J R 3805 RS1/16S102J R 3806 RS1/16S102J R 3807 RS1/16S102J R 3808 RS1/16S103J R 3809 RS1/16S222J R 3810 RS1/16S222J R 3811 RS1/16S102J R 3812 RS1/16S102J R 3813 RS1/16S472J R 3814 RS1/16S102J R 3815 RS1/16S0R0J Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 116 1 2 3 4 1 2 3 4 C D F A B E R 3816 RS1/16S0R0J R 3817 RS1/16S0R0J R 3818 RS1/16S473J R 3819 RS1/16S0R0J R 3821 RS1/16S473J R 3822 RS1/16S512J R 3823 RS1/16S0R0J CAPACITORS C 3801 CKSQYB105K16 C 3802 CKSQYB105K16 C 3803 CKSRYB104K16 C 3804 CKSRYB104K16 C 3805 CKSRYB104K16 C 3806 CKSRYB223K50 C 3807 CKSRYB223K50 C 3808 CEVW101M16 C 3809 CEVW101M16 C 3810 CKSRYB104K16 C 3811 CEVW100M16 C 3812 CKSRYB104K16 C 3813 CKSRYB102K50 C 3815 CKSQYB104K50 C 3819 CEVW101M16 K Unit Number:CZW3088 Unit Name:SW Unit S 3831 Spring Switch(ANGLE) CSN1052 S 3832 Spring Switch(LIFT) CSN1052 L Unit Number:CZW3089 Unit Name:Volume Unit VR3841 Volume (ANGLE SENSE) CCW1025 Miscellaneous Parts List Pickup Unit(Service) CXX1770 M 1 Motor Unit(LOADING) CXC4659 M 2 Motor Unit(CARRIAGE) CXC4134 M 3 Motor(SPINDLE) CXM1272 M 771 Fan Motor(REAR) CXM1262 M 781 Fan Motor(CENTER) CXM1276 M 3001 Motor Unit(POSITION) CXB9515 M 3002 Motor Unit(ANGLE) CXB9516 Circuit Symbol and No. Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 117 5 6 7 8 5 6 7 8 C D F A B E 6. ADJUSTMENT 6.1 JIG CONNECTION DIAGRAM DVD MECHANISM MODULE (MS-3V1) MOTHER UNIT MONITOR PCB KEYBOARD UNIT - Jigs List Name 33 pin extension cable Relay PCB Relay PCB 20 pin extension cable p 40 pin extension cable 40 pin extension cable 2 pin extension cable Jig No. GGD1262 GGF1462 GGF1461 GGD1209 GGD1170 GGD1284 GGD1439 Remarks Connecting the monitor PCB to relay PCB(GGF1462) g y ( ) Connecting the monitor PCB extension cable to flexible PCB Connecting the monitor PCB extension cable to flexible PCB Connecting the mother unit to relay PCB(GGF1461) g y ( ) Connecting the mother unit to relay PCB(GGF1461) Connecting the mother unit to DVD mechanism module Connecting the mother unit to DVD mechanism module www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 118 1 2 3 4 1 2 3 4 C D F A B E 6.2 DVD ADJUSTMENT 1) Precautions This product uses 5V and 3.3V as standard voltages. The electrical potential that is the reference for signals, is not GND, but VREF (approximately 2.2V) and VHALF (approximately 1.65V). During product adjustments, if the reference voltage is mistakenly taken as GND, and a grounding contact is made, not only would it be impossible to measure the accurate electrical potential, but also the servo motor would malfunction, resulting in the application of a strong impact on the pick up. The following precaution- ary measures should be strictly adhered to, in order to avoid such problems. The reference voltage and GND should not be confused when using the minus probe of a measurement device. When an oscilloscope is being used special care should be taken to make sure that the reference voltage is not connected to the probe of ch1 (on the minus side), while the probe of ch2 (on the minus side), is connected to GND. Further, since the body frame of most mea- surement devices have the same electrical potential as the minus side of the probe, the body frame of the mea- surement device should be set to floating ground. If the reference voltage is connected to GND by mis- take, turn the regulator OFF immediately, or turn the power OFF. • Remove the filters and wires used for measurements only after the regulator has been turned OFF. • After the power supply is turned on, regulator ON the following adjustment and measurement are promptly done. • Whenever the product is in the test mode, the software will not take any protective action. For this reason, special care should be taken to make sure that no mechanical or electrical shock could be applied to the product when taking measurements in the test mode. • Whenever the EJECT key is pressed to eject the disk, no other keys, other than the EJECT key, should be pressed until the disk eject action has been complet- ed. • Press the EJECT key only after the disk has stopped completely. • If the product hangs up turn the power OFF immedi- ately. • Laser didoes may be damaged, if the volume switch for the laser power adjustment of the pick up unit, is turned. Attention) • Test mode starting procedure Reset start while pressing the BAND and ANGLE- keys together. • Test mode stopping procedure ACC and Backup OFF. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 119 5 6 7 8 5 6 7 8 C D F A B E Test mode In Set source to DVD Start test mode FE test mode Power On Power Off CRG + CRG – LD_ON Focus close adjustment Focus Search Power Off CRG + CRG – T.Bal and other adjustments Focus Jump Power Off Focus Jump ID Search Tracking Open T. Jump +/– ID specification Track number specification Error Rate measurement (Note 2) Reproduction speed switching (Note 3) Power Off CRG – Tracking close adjustment CRG + Disc Type (Note 1) Eject EDC1 mode EDC2 mode A.MENU A.MENU A.MENU A.MENU Focus Search Stop CRG_HOME ATT ATT EQ EQ A.MENU ATT ATT ANGLE- LEFT~ATT EJECT RIGHT LEFT LEFT LEFT LEFT LEFT RIGHT RIGHT RIGHT RIGHT RIGHT Power off condition Power on condition Focus close condition 2 Focus close condition 1 Tracking close condition ID Search Start Jump start 0X00 0000 0FFF 0000 0FFF 0000 1X00 0000 2X00 0000 1FFF 0000 0000 0000 1A00 0000 1100 0000 TEST FE offset coefficient TE offset coefficient AS offset coefficient ENV offset coefficient TG offset coefficient DBALt coefficient FE MAX level FE MIN level AS MAX level ENV MAX level FE normalization feature Spindle gain coefficient TEMAX level TEMIN level TBAL Coefficient(Layer 0) TBAL Coefficient(Layer 1) TE normalization feature (Layer0) TE normalization feature (Layer1) FBAL Coefficient(Layer0) FBAL Coefficient(Layer1) Focus Gain Coefficient(Layer0) Focus Gain Coefficient(Layer1) Tracking Gain Coefficient(Layer0) Tracking Gain Coefficient(Layer1) AS normalization adjustment feature (Layer0) AS normalization adjustment feature (Layer1) 2FFF 0000 Layer L0:2000 0000 Layer L1:2100 0000 Layer L0:4X00 0000 Layer L1:4X00 0000 3000 0000 3FFF 0000 3B00 0000 DVD x 1.3 ~ 1.6CAV CD x 4CLV: 4X00 0000 3C00 0000 4A00 0000 Jump+: 4B00 0000 Jump-: 4C00 0000 ID display Track number display 4000 0000 4X00 0000 Error Rate Focus Gain Coefficient(Layer0) Focus Gain Coefficient(Layer1) Tracking Gain Coefficient(Layer0) Tracking Gain Coefficient(Layer1) AS normalization adjustment feature (Layer0) AS normalization adjustment feature (Layer1) Operation while key is being pushed. Operation while key is being pushed. Operation while key is being pushed. Operation while key is being pushed. 2B00 0000 2C00 0000 Note 1: At this stage select the media type. Various settings are carried out according to the media selection made here. Note 2: While measurements are being taken, only the operation, for which the measurement is being taken, is allowed. Note 3: Reproduction (play) speed is selectable from Note 4: Gain change: Normal gain -> OEIC=H -> OEIC=H and FEP x 4 AMP ON DVD : x1.3 1.6CAV,CD : x 4CLV Fixation LEFT : DVD, single-layer ANGLE- : DVD, dual-layer ANGLE+ : CD ATT : CD-RW - Front-End test mode flow chart 1B00 0000 1C00 0000 1D00 0000 LD_ON :1100 0000 LD_OFF:1000 0000 RIGHT ANGLE+ ~ ANGLE- ANGLE-, ANGLE+ ANGLE+ ANGLE- ANGLE+ ANGLE- ANGLE+ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 120 1 2 3 4 1 2 3 4 C D F A B E Layer 0 selected Layer 1 selected EDC1 mode ID designation EDC1 start ATT Layer 0 selected Layer 1 selected EDC2 mode ID designation EDC2 start ATT F-close and F-search cannot be executed, unless LD-ON is set. 0000 0000 0000 0000 0100 0000 1103 0000 Layer0:10** **** Layer1:11** **** ** ****: ID specification value Layer0:20** **** Layer1:21** **** ** ****: Present ID value 0000 0000 1003 0000 0100 0000 1103 0000 0000 0000 1003 0000 Layer0:10** **** Layer1:11** **** ** ****: ID specification value Layer0:20** **** Layer1:21** **** ** ****: Present ID value The track number designation is selected from the track numbers already prepared for selection. Switching to cyclic operation is made at step ANGLE-, and the decision is finalized (entered) in step ATT. For CD: Tracks 1, 4, 10, 11 and 32. For DVD: Tracks 1, 4, 10, 11, 32, 64 and 100. Method for designating an ID address: • A number of digits are determined through commands RIGHT and LEFT. Numerical UP/DOWN operations are performed through commands ANGLE- and ANGLE+. The decision is finalized (entered) with command ATT. Error status from DVD microcomputer Contents Display 0X50 Mecha. error No display 0X40 No disc No display 0X30 The temperature is abnormal Thermal Protection in Motion 0X20 Read error Error-02-XX 0XE2 Non-playable disc NON-PLAYABLE DISC 0X90 Different region disc DIFFERENT REGION DISC 0XFF Undefined error Error-FF Error code of read error(Part of XX) Error Code Contents Display 0X99 Data cannot read Please confirm the disc 0X80 The address cannot be found Please confirm the disc 0X90 Focus error Please confirm the disc 0X91 Spindle lock NG DVD is stopping because mechanism detected abnormality 0X92 Carriage home NG DVD is stopping because mechanism detected abnormality 0X93 FOK error Please confirm the disc 0X94 ID/Subcode cannot be read Please confirm the disc 0X95 High spindle rotation 0X96 Row spindle rotation DVD is stopping because mechanism detected abnormality DVD is stopping because mechanism detected abnormality 0X98 TOC cannot be found Please confirm the disc 0X9A AV chip error DVD is stopping because mechanism detected abnormality 0X9B RecaveryNG(BE) Play state error Disc data error DVD is stopping because mechanism detected abnormality Display Error Code List RIGHT ANGLE+ ~ RIGHT ANGLE- ~ [If F-close isn't executed within 9 seconds after LD-ON, it switches to LD-OFF automatically. And even if F-search is executed within 9 seconds after LD-ON, it also switches to LD-OFF.] Please carry out F-close after carrying out power-off at once and carrying out power-on again, when carrying out F-close after performing F-search. RIGHT RIGHT LEFT LEFT 0X9C 0X9D 0X9E Serface error (Disc distinction is improper) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 121 5 6 7 8 5 6 7 8 C D F A B E Oscilloscope ANAMONI AGND If any of the following replacements have been performed on the system, adjustments for pick up, must be conducted: 1. Pick up unit replacement 2. Spindle motor replacement 3. Carriage chassis replacement 4. Pick up unit main shaft replacement 5. Pick up unit sub-shaft replacement Measurement device and tools Disk used Measurement reference Measurement point Connection diagram DVD core unit : Oscilloscope Allen key wrench 40-pin flexible extension (GGD1284) 2-pin extension cable(GGD1439) Screw lock (GYL1001) : GGV1018 : AGND3 : ANAMONI Skew Adjustment The skew adjustment is to adjust the pickup and the flatness of the disc so that the beam from the pickup continues to go to the disc vertically. In MS3 mecha, the pickup shaft on the inner track near the carriage motor is fixed, so the fixed position is regarded as the standard and the flatness is adjusted. Observing the RF waveform on the oscilloscope, repeat the adjustment on the inner track position and the outer track position, and narrow the adjusted value. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 122 1 2 3 4 1 2 3 4 C D F A B E Apply glue Shaft Skew adj. screw Skew adj. screw Prevent applied glue from extending beyond this position. Prevent applied glue from extending beyond this position. B A C 1 Symptoms in case of poor adjustment: Caution: Avoid exposing your eyes to laser beams for a long time. Preparation for adjustment: Clean both ends of the shafts. Use brand new skew screws supplied with the service kit GXX1242. Procedures: 1. Place the DVD mechanism module upside down. To avoid the disc from being robbed when it is turned upside down, first put a coin of about 1.5 mm on the table, then turn the disc upside down and set it so that the 1 in the figure comes to the point immediately above the coin. 2. After replacing the pickup (by referring to the procedures of "Removing the Pickup."), roughly adjust the three skew screws through visual check so that the pickup is mounted in parallel to the CRG chassis around the inner and outer tacks. 3. Connect an oscilloscope as shown in the connecting diagram. 4. Turn on the power of the product. Load the test disc (GGV1018). 5. In the front-end test mode, set the disc type to DVD layer 1. Then, turn on the power. Move the pickup toward the inner tracks. 6. Turn on the laser diodes. 7. With the focus servo closed, complete all automatic adjustments. Close the tracking servo, and then complete all automatic adjustments. 8 Follow the next procedures, from 8-1 to 8-5, and adjust the (three) skew screws. 8-1 Move the pickup toward the inner track and turn the skew adjustment screw C so that the RF level of oscilloscope becomes the maximum. (Tangential adjustment at the inner track position: Adjust the flatness of the disc at the inner track position with the adjustment screw C) 8-2 Move the pickup toward the outer track and turn the skew adjustment screw B so that the RF level becomes the maximum. (Tangential adjustment at the outer track position: Adjust the flatness of the disc at the outer track position with the adjustment screw B) 8-3 Leave the pickup at the outer track position and turn the skew adjustment screws A and B in the same direction alternately one quarter at a time (A•B•A•B •••) so that the RF level becomes the maximum. (Radial adjustment at the outer track position: Keeping the flatness at the outer track position, adjust the flatness of the whole disk with the adjustment screws A and B) 8-4 Move the pickup toward the inner track and turn the skew adjustment screw C so that the RF level becomes the maximum. (Tangential adjustment at the inner track position: Adjust the flatness of the disc at the inner track position with the djustment screw C) 8-5 Repeat the steps from 8-2 to 8-4 three times, and adjust at the position where the RF level becomes the maximum. 9. Turn off the power in the test mode. After confirming that the disc has stopped, eject the disc. 10. Adjust with a screw rock the shaft and skew adjustment screw to the same state as initial one. Error efficiency deteriorated: 10 (Optimum value: 10 or lower) High jitter of the RF signal RF waveform deformed Unstable operation in tracking closing and servo control -3 -4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 123 5 6 7 8 5 6 7 8 C D F A B E Are all power supply voltages? Execute Check 1 Are all clocks operating normally? Execute Check 2 Is the audio circuit operating normally? Execute Check 3 Is the video circuit operating normally? Execute Check 4 Are all reproduced images and sounds normal? Start Is SDRAM I/F operating normally? Execute Check 5 Repair or replace any defective unit All checks normal? Check completed Is the F.E. section normal? Go to the F.E. section check YES YES OK OK OK OK NO NO NG NG NG NG NG YES NO Back end section check flow chart www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 124 1 2 3 4 1 2 3 4 C D F A B E Reproduce DVD-REF-A1 Title 1. Verify the voltage of the sensing pin. Check 1 : Are all power supply voltages? No. 1 2 3 4 5 6 7 8 Verification location VD8_1/2 - PGND_1/2 VDD33 - DGND1/2/3 SRVDD - DGND1/2/3 VCC5_1 - AGND1 AVCC5_1 - AGND1 VCC33_1/2 - DGND1/2/3 VCC33_3/4/5 - DGND1/2/3 VCC15_1/2 - DGND1/2/3 Rated value 8.0 0.4 3.3 0.15 3.3 0.15 5.0 0.1 5.0 0.1 3.3 0.15 3.3 0.3 1.5 0.1 Unit V V V V V V V V Check 2 : Are all clock operating normally? Reproduce DVD-REF-A1 Title 1 Check Circuit Diagram . Checks are to conducted with a GND reference. If locations listed under "verification location 2", can be verified, there will be no need to perform verifications for the locations listed under "verification location 1." If the result is not satisfactory, check to see if there are any problems with the resin flux cored solder and other defects in the applicable line, vicinity of IC 1802 (Circuit Diagram ) and peripheral components. GND Rated Value 1 Rated value 3 Rated Value 2 Clock rated values 1 1 No. 1 2 3 4 5 6 Verification location 1 (Sensing pin) BECLK EXTCK EXTCK MCK33 DACCLK DACCLK Verification location 2 IC1501 IC1501 IC1501 IC1501 IC1851 IC1881 170pin 172pin 172pin 92pin 16pin 3pin Media ALL DVD CD ALL DVD DVD Rated value 1 2.3V VCC33 2.3V VCC33 2.3V VCC33 2.2V VCC33 2.0V VCC33 2.3V VCC33 Rated value 2 GND 0.8V GND 0.8V GND 0.8V GND 0.8V GND 0.8V GND 0.99V Rated value 3 27MHz 50ppm 36.8640MHz 300ppm 33.8688MHz 300ppm 33.898MHz 300ppm 33.8688MHz 300ppm 33.8689MHz 300ppm www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 125 5 6 7 8 5 6 7 8 C D F A B E Circuit Diagram 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 126 1 2 3 4 1 2 3 4 C D F A B E Check 3 : Is the audio circuit operating normally? Reproduce DVD-REF-A1 Title 2 Chapter (48k/16-bit 1 kHz/0dB). Checks are to be conducted using GNDAU1 (sensing pins) as a reference. If the locations, listed under "verification location 2", can be verified, there is no need to conduct verifications for the locations listed under "verification location 1." If the result is not satisfactory, check to see if there are any problems with resin flux cored solder and other defects in the applicable line, vicinity of major parts stated in the above diagram (Circuit Diagram ) and peripheral components. GND Rated value 1 Rated value 2 Three serial output rated values No. 1 2 3 Verification location 1 (Sensing pin) AOUT0 SRCK LRCK Verification location 2 IC1851 2pin IC1851 1pin IC1851 3pin Rated value 1 2.0V and over 2.0V and over 2.0V and over Rated value 2 0.8V and lower 0.8V and lower 0.8V and lower Reference waveform Waveform 1 Waveform 1 Waveform 1 2 Checks are conducted with the measurement circuit below. Analog audio outputs (LO and RO) rated values LO RO GNDAU HOST I/F Rated value is effective value (rms) 22k These resistors are inserted. LO and RO output measurement circuit No. 6 Verification location 1 (Sensing pin) IEC958 Verification location 2 CN1551 1pin Rated value 1 VCC33V-0.6V and over Rated value 2 0.4Vand lower Reference waveform Waveform 3 No. 4 5 Verification location 1 (Sensing pin) LO RO Verification location 2 CN1901 37pin CN1901 35pin Reference waveform Waveform 2 Waveform 2 Rated value (rms) 1100 150mV 1100 150mV www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 127 5 6 7 8 5 6 7 8 C D F A B E Circuit Diagram 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 128 1 2 3 4 1 2 3 4 C D F A B E Check 4 : Is the video circuit operated normally? Reproduce DVD-REF-A1 Title 2 Chapters (White 1000IRE) Monitor the output with the oscilloscope, by setting the COMPO signal to a GND reference. Set the Trigger mode to the TV trigger, and the Trigger line to line-150. Composite signal white 100% output waveform If the result is not satisfactory, check to see if there are any problems with resin flux cored solder and other defects in the applicable line, vicinity of major parts stated in the above diagram (Circuit Diagram ) and peripheral components. COMPO Signal < Method of Readjusting Video Levels > If the video composite output is not within the range of rated value, the video level is readjusted in the following method. Turn the video level adjustment volume (VR1551) to adjust its level to 1.0 0.02Vpp. Pedestal Level Rated value Color brust Horizontal periodic signal PEAK BOTTOM When the result is not satisfactory, adjust the level to 1.0 0.02Vpp. No. 1 Verification location 1 (Sensing pin) COMPO Reference waveform Waveform 4 Rated value 1.0 0.02Vpp 3 Check 5 : Is SDRAM I/F operated normally? Reproduce DVD-REF-A1 Title 1. Check Circuit Diagram Common to all DVD-V adapted modules Check the conductivity of both the "Verification location 1"and the "Verification location 2." If the result is not satisfactory, check to see if there are any problems with the resin flux cored solder, parts and components, in areas where as problem occurs, for the overall sequence of "output" "input" of the checked location. 3 No. 1 2 3 4 5 6 7 8 9 10 11 12 Verification location 1 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 25pin 26pin 27pin 60pin 61pin 62pin 63pin 64pin 65pin 66pin 24pin 21pin Signal name MA0 MA1 MA2 MA3 MA4 MA5 MA6 MA7 MA8 MA9 MA10 MA11 220pin 217pin 214pin 210pin 212pin 216pin 219pin 227pin 229pin 235pin 228pin 231pin Verification location 2 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 Rated value 56 5% 56 5% 56 5% 56 5% 56 5% 56 5% 56 5% 56 5% 56 5% 56 5% 56 5% 56 5% www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 129 5 6 7 8 5 6 7 8 C D F A B E No. 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 Verification location 1 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 IC1570 2pin 4pin 5pin 7pin 8pin 10pin 11pin 13pin 74pin 76pin 77pin 79pin 80pin 82pin 83pin 85pin 31pin 33pin 34pin 36pin 37pin 39pin 40pin 42pin 45pin 47pin 48pin 50pin 51pin 53pin 54pin 56pin 68pin 17pin 18pin 19pin 20pin 16pin 71pin 28pin 59pin 22pin 23pin Signal name MDQ0 MDQ1 MDQ2 MDQ3 MDQ4 MDQ5 MDQ6 MDQ7 MDQ8 MDQ9 MDQ10 MDQ11 MDQ12 MDQ13 MDQ14 MDQ15 MDQ16 MDQ17 MDQ18 MDQ19 MDQ20 MDQ21 MDQ22 MDQ23 MDQ24 MDQ25 MDQ26 MDQ27 MDQ28 MDQ29 MDQ30 MDQ31 MCK XWE XCAS XRAS XCSM DQM0 DQM1 DQM2 DQM3 BA0 BA1 12pin 9pin 6pin 3pin 256pin 253pin 251pin 247pin 249pin 252pin 255pin 2pin 5pin 8pin 10pin 13pin 205pin 203pin 200pin 197pin 193pin 191pin 187pin 185pin 184pin 188pin 190pin 192pin 196pin 199pin 201pin 204pin 225pin 232pin 242pin 239pin 238pin 243pin 246pin 208pin 207pin 234pin 237pin Verification location 2 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 IC1501 Rated value 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 100 5% 56 5% 22 5% 56 5% 56 5% 56 5% 56 5% 56 5% 56 5% 56 5% 56 5% 56 5% 56 5% www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 130 1 2 3 4 1 2 3 4 C D F A B E Circuit Diagram 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 131 5 6 7 8 5 6 7 8 C D F A B E CH1: AOUT0 CH2: SRCKAV CH3: LRCKAV G→ 2V/div. 2µs/div. G→ G→ ←T CH1: IEC958 1V/div. 500ns/div. G→ ←T CH1: LO CH2: RO G→ 1V/div. 500µs/div. G→ ←T CH1: COMPO 200mV/div. 10µs/div. [White 100% output] G→ Waveform1 Waveform2 Waveform3 Waveform4 Note: Reference voltage VHALF : 1.65V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 132 1 2 3 4 1 2 3 4 C D F A B E 6.3 MOTHER UNIT ADJUSTMENT VR511 TP614 PCL VCRVG VCRV TP803 TP190 VR801 - Adjustment Point SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 133 5 6 7 8 5 6 7 8 C D F A B E Step 1 Main video level Input test pin: VCRV....100 IRE (white 100%), 1.0Vp-p, (input via 75ohms) VCRVG.... (GND VIDEO GND) Mother PCB adjustment Mode AV Measuring instruments Specs Adjusting point Input signsl (input test pin,specs, other conditions) Output signsl (measuring point, waveform) Measuring point: TP190 Oscilloscope 1.4V ± 0.05Vp-p Measure between the sync tip and 100 IRE (top wave). Symptoms with poor adjustment. Over level : Luminance is too high. Under level : Luminance is too low. 2 Clock frequency Check IC601 pin56(TP614) to 5V Playback the DVD IC601 pin36(PCL) Frequency Counter 18.874368MHz±754Hz 3 DC-DC converter frequency Adjustment Test point TP803 Frequency Counter 370kHz±5Hz VR511 VR801 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 134 1 2 3 4 1 2 3 4 C D F A B E 6.4 MONITOR PCB ADJUSTMENT RO4 RO3 RO5 RO2 BO5 GO2 GO3 GO04 GO5 BO3 BO2 BO4 COM VM12 V18 COMDC VO1 VO3 VO9 VO5 VO7 V5 ANG1 ANB1 ANR1 CSYNC CVBS1 YSIN V14 V33 V8 V25 V15 - Adjustment Point SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 135 5 6 7 8 5 6 7 8 C D F A B E 1 No. Adjustment item Input signal Measurement point Check 3.3V power supply voltage TP:14.4V to14V C210 hot side (TP:V33) — NOTE : When shutting off the power supply of TC90A64AFG, be careful not to energize each IC terminal. However, IIC lines (SDA and SCL) is not included in this case and it is possible to energize them with up to 5V. Note Adjustment point Adjustment V33 = 3.3 ± 0.25V 2 Check 2.5V power supply voltage TP:14.4V to14V IC4182 1-pin (TP:V25) — V25 = 2.5 ± 0.15V 3 Check 1.5V power supply voltage TP:14.4V to14V IC4183 1-pin (TP:V15) — V15 = 1.5 ± 0.08V 4 Check 5V power supply voltage TP:14.4V to14V C4234 hot side (TP:V5) — V5 = 4.9 ± 0.3 V 5 Check 8V power supply voltage TP:14.4V to14V C4198 hot side (TP:V8) — V8 = 8.0 ± 0.5 V 6 Check 18.5V power supply voltage TP:14.4V to14V C4181 hot side (TP:V18) — V18 = 18.5 ± 0.5 V Check -12V power supply voltage TP:14.4V to14V C4207 hot side (TP:VM12) — VM12 = -12.0 ± 0.6 V 7 Vcom amplifier output amplitude check No definition CN4007 1-pin (TP:COM) — 4.70 ± 0.10 V 4.20 ± 0.30 V 1.80 ± 0.10 V 9 Tone voltage amplitude check V1 No definition CN4007 57-pin (TP:VO1) Connect LCD panel for measurement Connect LCD panel for measurement — 10 Tone voltage amplitude check V3 No definition CN4007 55-pin (TP:VO3) Connect LCD panel for measurement — 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 136 1 2 3 4 1 2 3 4 C D F A B E Make sure that each output is “Hi” continuously during displaying image. 15.734kHz 0.3V 3.3V 50µS No. Adjustment item Input signal Measurement point NOTE : When shutting off the power supply of TC90A64AFG, be careful not to energize each IC terminal. However, IIC lines (SDA and SCL) is not included in this case and it is possible to energize them with up to 5V. Note Adjustment point Adjustment Tone voltage amplitude adjustment V7 No definition CN4007 51-pin (TP:VO7) — 13 Tone voltage amplitude adjustment V9 No definition CN4007 49-pin (TP:VO9) Connect LCD panel for measurement Connect LCD panel for measurement — 14 Preparation for image check Input synchroniz- ed signal to TP CSYNC — Input 0.3V (75Ω) — 15 Check RGB digital output Input white 100% signal to TP ANR1, ANG1, ANB1 (0.70Vpp±1%) TP BO2 ∼ BO5 TP GO2 ∼ GO5 TP RO2 ∼ RO5 When OSD is displayed in EEPROM adjustment mode, LOW output is mixed to the parts where there is a character. — 12 11 Tone voltage amplitude adjustment V5 No definition CN4007 53-pin (TP:VO5) Connect LCD panel for measurement — 0.35 ± 0.10 V 0.60 ± 0.10 V 3.30 ± 0.20 V 16 Composite level adjustment Input composite image 10STEP signal to TP CVBS1 (1.4Vpp±1%) Verify YS performs. 17 YS performance check Input signal to TP YSIN For abroad: 0-3.3V For J spec: 0.4-1.4V(75Ω) TP GO1 TP GO2 ∼ GO5 Using EEPROM adjustment mode, set CMP CONTRAST on 30 and decrease value one by one. Decrease value by one when "L" starts to appear on output while displaying GO1 image. Check that "H" always appears on each output while displaying image. Using EEPROM adjustment mode, check that CONTRAST is being 168 to make adjustment. When OSD is displayed on EEPROM adjustment mode, ignore "L" output shown among lettered part. Resistor setting of SA13h D5-0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 137 5 6 7 8 5 6 7 8 C D F A B E SA**h in this chart means the sub-address of TC90A64AFG. No. Adjustment item Input signal Measurement point NOTE : When shutting off the power supply of TC90A64AFG, be careful not to energize each IC terminal. However, IIC line (SDA and SCL) is not included in this case and it is possible to energize it with up to 5V. Note Adjustment point Adjustment YS-OFFSET setting, check No definition — Register setting of SA2Fh D3-0 Adjust the flicker level to minimum from all directions. 20 Image check Input composite image lamp signal (monochrome) to TP CVBS1 Screen Execute to verify that 2-display IC digital-out is not bridged or “OPEN”ed. Check EEP-ROM setting value after writing. — 21 Aging No definition — — 22 Flicker adjustment Input black-white reverse signal per 1 line to TP ANR1, ANG1, ANB1 Screen Black-white reverse signal can be the input to TP CVBS1 (however, adjustment in RGB comes first). Brightness level of reverse signal should be 50%. Adjustment point can be COM DC of flicker adjustment mode. IC4101-3pin (TP COMDC) DC output 19 18 YS, RGB sampling phase setting, check No definition — Check EEP-ROM setting value after writing. Register setting for SA2Dh D15 ∼ 12 : YS D11 ∼ 8 : B D7 ∼ 4 : G D3 ∼ 0 : R (Line writing): 0100 (Service): [YS (R, G, B) SAMPL] should be 12 in EEPROM test mode (Line writing): 1111 (Service): [YS DELAY] should be 7 in EEPROM test mode Make sure that tone changes smoothly, and there is no colored area in the entire display. Leave for more than 30 minutes in operation mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 138 1 2 3 4 1 2 3 4 C D F A B E 6.5 INVERTER PCB ADJUSTMENT FL1 FL2 GNDF2 INVPUL DIMDTY VPFL1 VR5341 - Adjustment Point SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 139 5 6 7 8 5 6 7 8 C D F A B E No. Adjustment item Input signal Measurement point Note Adjustment point Adjustment Check frequency switching Input 98.0 ± 1kHz waveform below to TP INVPUL. 10 ± 2% 5V 0V TP FL1 TP FL2 — 3 Check frequency switching Input 104.0 ± 1kHz waveform below to TP INVPUL. TP FL1 TP FL2 Verify that the frequency of waveform measured in No.1 is 52kHz. Verify that the frequency of waveform measured in No.1 is 49kHz. — 2 1 Basic drive Frequency adjustment 14.4 ± 0.2V to TP VPFL1 TP DIMDTY : GND TP GNDFL : GND TP INVPUL : GND TP FL1 TP FL2 Connect 100kΩ between TP FL1 and FL2. Monitor the waveform after voltage division or TP FL2. Do not monitor TP FL1 directly (measurement meter may be damaged because of high voltage). VR5341 48.0 ± 0.1kHz 49.0 ± 0.5kHz 52.0 ± 0.5kHz 10 ± 2% 5V 0V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 140 1 2 3 4 1 2 3 4 C D F A B E 6.6 MONITOR TEST MODE 1. Start-up • Reset and start-up the monitor microcomputer while EPRTEST terminal is in the Low. • Press EQ key + SOURCE key together to Reset Start. 2. Operation Switching setting mode Press [MENU] key of remote control unit to go to the next mode. Selecting an adjustment item to be changed Press [ ↑ ↓ ] key of remote control unit. Changing value of the selected item Press [← →] key of remote control unit. 3. Setting mode (1) Flicker adjustment mode (start-up mode) (2) Line adjustment 1 mode (3) Line adjustment 2 mode (4) Line adjustment 3 mode (5) Line adjustment 4 mode (6) Line adjustment 5 mode (7) Line adjustment 6 mode (8) Line adjustment 7 mode (9) Line adjustment 8 mode (10) Line adjustment 9 mode (11) Line adjustment 10 mode (12) Parameter setting mode for dimmer 4. Operation key (If pressing a monitor key in this adjustment mode, there is no affection in operation of the main unit.) * Please note that there is a model by which the remote control signal is not connected to the monitor microcomputer (in that case, operation should be done only by key). * After writing a setting value to EEPROM, read and display it. Writing and reading should be done in 16-bit unit. The bit number of settings varies in each item. * After changing the value of CS (CHECKSUM), take exclusive OR (XOR) with 8-bit and execute writing. After writing this CS value to EEPROM, read and display it, too. If the written value and the read value are different, change the color of the read value. - EEPROM Setting Mode [Remote control code] head unit code Main unit key Key Code MENU AD19AF63 ↑ AD40 ↓ AD41 ← AD42 → AD43 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 141 5 6 7 8 5 6 7 8 C D F A B E EEPROM memory alignment chart (S-93C56BD0I-JS) ADDRESS Bit15 Bit14 Bit13 Bit12 Bit11 Bit10 Bit9 Bit8 Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 00h Outside light of dimmer adjustment coordinates (high) Backlight of dimmer adjustment coordinates (high) 01h Outside light of dimmer adjustment coordinates (middle) Backlight of dimmer adjustment coordinates (middle) 02h 03h 04h 05h 06h 07h 08h RELATED PIP (including operation settings) RELATED PIP (excluding operation settings) RELATED DIMMER 09h 0Ah 0Bh 0Ch 0Dh 0Eh 0Fh 10h 11h 12h 13h 14h 15h 16h 17h 18h 19h 1Ah 1Bh 1Ch 1Dh 1Eh 1Fh 20h 21h 22h Common reference output DC center value Common reverse output amplitude adjustment value Brightness G Brightness B Main horizontal enhancer Don't care Don't care Gain Limiter Gain Replicate Coring fo Don't care RGB simultaneous slope A γ γ γ γ R output DC offset SA24h UPPER SA25h UPPER SA26h UPPER TV SA26h UPPER SA27h UPPER TV SA27h UPPER SA46h UPPER SA47h UPPER SA48h UPPER SA49h UPPER SA4Ah UPPER SA4Bh UPPER SA4Ch UPPER SA4Dh UPPER SA4Eh UPPER SA4Fh UPPER Dot search threshold Phase search threshold SA4Dh LOWER SA4Eh LOWER SA4Fh LOWER YS search threshold Xdisp (display difference permissible level) Don't care Don't care Checksum EEPROM address:0AH-28H YS disp (display difference permissible level) Common reverse output DC center value reference Touch panel X coordinate 1 Touch panel Y coordinate 1 Touch panel X coordinate 2 Touch panel Y coordinate 2 Touch panel X coordinate 3 Touch panel Y coordinate 3 Touch panel X coordinate 4 Touch panel Y coordinate 4 Touch panel X coordinate 5 Touch panel Y coordinate 5 Touch panel X coordinate 6 Touch panel Y coordinate 6 Touch panel X coordinate 7 Touch panel Y coordinate 7 Touch panel X coordinate 8 Touch panel Y coordinate 8 SA46h LOWER SA47h LOWER SA48h LOWER SA49h LOWER SA4Ah LOWER SA4Bh LOWER SA4Ch LOWER SA24h LOWER SA25h LOWER SA26h LOWER TV SA26h LOWER SA27h LOWER TV SA27h LOWER Don't care Don't care Don't care RGB simultaneous slope C RGB simultaneous 3 inflection point RGB simultaneous slope B RGB simultaneous 2 inflection point Don't care G output DC offset B output DC offset Don't care Don't care Don't care Don't care Don't care Main Y contrast Sub Y contrast Sub vertical enhancer Don't care Don't care Don't care Don't care Don't care Main horizontal enhancer Gain Limiter Gain Replicate Coring RGB simultaneous 1 inflection point fo Sub vertical enhancer Don't care Don't care Brightness R Don't care YS internal delay adjustment value Gch sampling phase RELATED TOUCH PANEL 23h 24h 25h 26h 27h 28h 29h 2AH 2Bh 2Ch 2Dh 2Eh 2Fh 30h 31h 32h Touch panel X coordinate 9 Touch panel Y coordinate 9 33h Outside light of dimmer adjustment coordinates (low) Rch sampling phase Backlight of dimmer adjustment coordinates (low) Outside light threshold for dimmer (high) Outside light threshold for dimmer (low) Maximum value of backlight output RGB &YS horizontal positioning YS sampling phase Bch sampling phase Minimum value of backlight output Checksum EEPROM address:03h-04h Checksum EEPROM address:06h-08h 5. Memory item list and EEPROM γ γ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 142 1 2 3 4 1 2 3 4 C D F A B E ADDRESS Bit15 Bit14 Bit13 Bit12 Bit11 Bit10 Bit9 Bit8 Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Touch panel calibration adjustment result Touch panel outermost circumference adjustment result Checksum EEPROM address:2BH-3DH Flicker adjustment completion (writing of microcomputer) *A EEPROM adjustment completion (writing of production engineering jig) *B EJECT lock value RELATED TOUCH PANEL Others Addition To be determined 3Dh 3Eh 3FH 40H 41H ∼ 7FH * The order of RELATED DIMMER, RELATED PIP, RELATED TOUCH PANEL and others is determined according to frequency of changing. * When a writing & reading error or data check (checksum, magnitude relation) error occurs, initialization is done with data belonging to the software at the error time, and initialization is performed per divided section described above. However, RELATED DIMMER should be further divided into sections such as address 00H∼02H and 03H∼04H, then initialized. * The user changeable parts (address 00H∼02H) in the segment RELATED DIMMER is not a target of checksum. * Concerning the segment RELATED DIMMER, considering PIP register configuration, data obtained from PIP can be stored without software processing. And the alignment is designed to send data obtained from EEPROM to PIP without processing it. (same as NN629) Each area is divided according as whether it is changed during operation or not. (Checksum division is carried out to each.) * Address 2H, remote control reverse output DC center value reference is not a target of checksum because it maintains default settings, and basically it is READ ONLY and is not shipped. * Address 40H, sampling phase reference is not a target of checksum because it maintains default settings, and basically it is READ ONLY and is not shipped. * At the time of EEPROM reset, the address above (excluding 2AH, 40H) is initialized with data belonging to the software. *A : Microcomputer writes the result whether flicker adjustment is performed or not (direct mode, EEPROM adjustment screen). *B : Production engineering jig: After completing EEPROM adjustment, the value is written (this value is displayed on the confirmation screen). Touch panel X coordinate 10 Touch panel Y coordinate 10 Touch panel X coordinate 11 Touch panel Y coordinate 11 Touch panel X coordinate 12 Touch panel Y coordinate 12 Touch panel X coordinate 13 Touch panel Y coordinate 13 Touch panel X coordinate 14 Touch panel Y coordinate 14 Touch panel X coordinate 15 Touch panel Y coordinate 15 Touch panel X coordinate 16 Touch panel Y coordinate 16 Outermost circumference X min Outermost circumference Y min 34h 35h 36h 37h 38h 39h 3Ah 3Bh Outermost circumference X max Outermost circumference Y max 3Ch Ch sampling phase reference Ch sampling phase reference Ch sampling phase reference Don't care Don't care Don't care Don't care www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 143 5 6 7 8 5 6 7 8 C D F A B E IFlicker adjustment mode * INote1 : The contents of [COM DC, clock phase] should be reflected to the reverse output center reference value. 6. Screen specification of each mode Actual OSD screen samples are showed inside of the thick frame in the chart below. The numbers in the chart are the changed parts during adjustment in each screen (maximum value is showed in the sample). The items are for design review and line adjustment. Common reverse output center value [0-255] COM_DC 255 Setting item Adjustment range Display item Adjustment value Write value (DEC) ILine adjustment 1 mode • Adjust common reverse output amplitude by line in order to cancel the variation of hardware quality. • [COM AMPAJ] is a default value set by line and stored in EEPROM. • In the normal operation, [BRIGHT] is determined based on COM AMPAJ (common reverse output amplitude adjustment) and the attached “Image quality table” according to user setting steps, and this value controls monitor microcomputer [COM_AC] output. • User’s adjustment of “Black density (=bright)” on this product is done by controlling common reverse output amplitude only, not done by brightness of 2-display IC. • User’s adjustment of “Black density” is not reflected to [BRIGHT] in the test mode of single monitor. When adjusting [COM AMPAJ], [BRIGHT] changes accordingly. (Memorized [COM AMPAJ] is the same as the [BRIGHT] value of step0.) • When entering test mode in product condition, “Black density” by user’s adjustment is reflected to [BRIGHT] value. If changing [BRIGHT] value in the test mode, it is not reflected to the user setting value. * INote1 : The contents of [BRIGHT] and [CONTRAST] are the reference value for adjusting the other items, and not stored in EEPROM. * INote2 : Be careful about the contents of [R, G, B OUT BIAS] and [RGB, CMP CONTRST] since their indicated value / EEPROM written value and their registered value of 2-display IC (TC90A96AFG) are different. (Software conversion is running because correlation between registered value of 2-display IC and display output is not linear.) Setting item Adjustment range Display item Adjustment value Write value (DEC) LINE1 Bright [0-255] BRIGHT 150 NOT EEPROM RGB simultaneous contrast (SA0C [D0-7]) [0-255] CONTRAST 168 NOT EEPROM Common reverse output amplitude [0-255] COM AMP AJ 150 adjustment value R output DC offset (SA1A [D11-8]) [0-15] ROUT BIAS 8 G output DC offset (SA1C[D11-8]) [0-15] GOUT BIAS 8 B output DC offset (SA1E[D11-8]) [0-15] BOUT BIAS 8 Main Y contrast (SA0F[D5-0]) [0-63] RGB CNTRST 34 Sub Y contrast (SA13[D5-0]) [0-63] CMP CNTRST 26 CS FFFF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 144 1 2 3 4 1 2 3 4 C D F A B E ILine adjustment 2 mode * INote : Be careful about the contents of [YS,R,G,B SAMPL] and [YS DELAY] since their indicated value / EEPROM written value and their registered value of 2-display IC (TC90A96AFG) are different. (Software conversion is running because correlation between registered value of 2-display IC and display output is not linear.) [RGB, CMP, CNTRST] [R, G, BOUT BIAS] 15 15 0111 (MAX) 14 14 0110 : : : 9 9 0001 8 8 0000 (TYP) 7 7 1111 : : : 1 1 1001 0 0 1000 (MIN) Indicated value (=adjustment value) (DEC) EEPROM written value (DEC) Registered value of 2- display IC (BIN) 63 63 011111 (MAX) 62 62 011110 : : : 33 33 000001 32 32 000000 (TYP) 31 31 111111 : : : 1 1 100001 0 0 100000 (MIN) Indicated value (=adjustment value) (DEC) EEPROM written value (DEC) Registered value of 2- display IC (BIN) 15 15 0111 (MAX) 14 14 0110 : : : 9 9 0001 8 8 0000 (TYP) 7 7 1111 : : : 1 1 1001 0 0 1000 (MIN) Indicated value (=adjustment value) (DEC) EEPROM written value (DEC) Registered value of 2- display IC (BIN) Setting item Adjustment range Display item Adjustment value Write value (DEC) RGB & YS horizontal alignment (SA2B [D15-8]) [0-255] DOT H POSIT 63 LINE2 YS sampling phase 1 (SA2D [D15-12]) [0-15] YS SAMPL 8 AD sampling phase B (SA2D [D11-8]) [0-15] B SAMPL 8 AD sampling phase G (SA2D [D7-4]) [0-15] G SAMPL 8 AD sampling phase R (SA2D [D3-0]) [0-15] R SAMPL 8 YS internal delay adjustment phase (SA2F [D3-0]) [0-15] YS DELAY 8 CS FFFF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 145 5 6 7 8 5 6 7 8 C D F A B E ILine adjustment 3 mode ILine adjustment 4 mode Setting item Adjustment range Display item Adjustment value Write value (DEC) Dot search threshold [0-255] TH DOT 112 LINE3 YS search threshold [0-4] TH YS 3 Phase search threshold [0-255] TH PHASE 112 Xdisp [0-63] X DISP 32 Ydisp [0-4] YS DISP 2 CS FFFF Setting item Adjustment range Display item Adjustment value Write value (DEC) Main horizontal enhancer gain (SA10 [D13-12]) [0-3] MH GAIN 0 LINE4 Main horizontal enhancer limiter (SA10 [D11-10]) [0-3] MH LIMIT 0 Main horizontal enhancer f0 (SA10 [D8]) [0-1] MH F0 0 Main vertical enhancer gain (SA10 [D7-6]) [0-3] MV GAIN 0 Main vertical enhancer replicable (SA10 [D5-4]) [0-3] MV ORI 0 Main vertical enhancer coring (SA10 [D3-2]) [0-3] MV CORE 0 CS FFFF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 146 1 2 3 4 1 2 3 4 C D F A B E ILine adjustment 5 mode ILine adjustment 6 mode * INote : Be careful about the contents of [BRIGHTNESS R, G, B] since their indicated value / EEPROM written value and their registered value of 2-display IC (TC90A96AFG) are different. (Software conversion is running because correlation between registered value of 2-display IC and display output is not linear.) [BRIGHTNESS R, G, B] 63 63 011111 (MAX) 62 62 011110 : : : 33 33 000001 32 32 000000 (TYP) 31 31 111111 : : : 1 1 100001 0 0 100000 (MIN) Indicated value (=adjustment value) (DEC) EEPROM written value (DEC) Registered value of 2- display IC (BIN) Setting item Adjustment range Display item Adjustment value Write value (DEC) Sub horizontal enhancer gain (SA14 [D13-12]) [0-3] SH GAIN 1 LINE5 Sub horizontal enhancer limiter (SA14 [D11-10]) [0-3] SH LIMIT 1 Sub horizontal enhancer f0 (SA14 [D8]) [0-1] SH F0 1 Sub vertical enhancer gain (SA14 [D7-6]) [0-3] SV GAIN 2 Sub vertical enhancer replicable (SA14 [D5-4]) [0-3] SV ORI 1 Sub vertical enhancer coring (SA14 [D3-2]) [0-3] SV CORE 2 CS FFFF Setting item Adjustment range Display item Adjustment value Write value (DEC) Brightness R (SA0C [D13-8]) [0-63] BRIGHT R 16 LINE6 Brightness G (SA0D [D13-8]) [0-63] BRIGHT G 16 Brightness B (SA0E [D13-8]) [0-63] BRIGHT B 16 control ON/OFF (SA1A [D15]) GAMMA OFF RGB simultaneous 1 inflection point (SA1A [D5-D0]) [0-63] GAMMA 1 0 RGB simultaneous 2 inflection point (SA1B [D12-8]) [0-31] GAMMA 2 4 RGB simultaneous 3 inflection point (SA1B[D4-D0]) [0-31] GAMMA 3 1 RGB simultaneous slope A (SA1A [D14-12]) [0-7] GAMMASLP A 4 RGB simultaneous slope B (SA1B [D15-13]) [0-7] GAMMASLP B 1 RGB simultaneous slope C (SA1B [D7-5]) [0-7] GAMMASLP C 1 CS FFFF γ γ γ γ γ γ γ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 147 5 6 7 8 5 6 7 8 C D F A B E ILine adjustment 7 mode ILine adjustment 8 mode ILine adjustment 9 mode Setting item Adjustment range Display item Adjustment value Write value (DEC) LINE7 Main PLL0 (SA24 [D15-D8]) [0-255] MAIN PLL0 158 Main PLL1 (SA24 [D7-D0]) [0-255] MAIN PLL1 13 Main PLL2 (SA25 [D15-D8]) [0-255] MAIN PLL2 204 Main PLL3 (SA25 [D7-D0]) [0-255] MAIN PLL3 4 CS FFFF Setting item Adjustment range Display item Adjustment value Write value (DEC) LINE8 TV sub PLL0 (SA26 [D15-8]) [0-255] SUB PLL0 TV 140 TV sub PLL1 (SA26 [D7-D0]) [0-255] SUB PLL1 TV 136 Other sub PLL0 (SA27 [D15-D8]) [0-255] SUB PLL0 140 Other sub PLL1 (SA27 [D7-D0]) [0-255] SUB PLL1 141 TV sub PLL2 (SA28 [D15-8]) [0-255] SUB PLL2 TV 100 TV sub PLL3 (SA28 [D7-D0]) [0-255] SUB PLL3 TV 68 Other sub PLL0 (SA29 [D15-D8]) [0-255] SUB PLL2 152 Other sub PLL1 (SA29 [D7-D0]) [0-255] SUB PLL3 135 CS FFFF Setting item Adjustment range Display item Adjustment value Write value (DEC) SA46[D15-8] [0-255] SA46H UPPER 0 LINE9 SA46[D7-D0] [0-255] SA46H LOWER 0 SA47[D15-8] [0-255] SA47H UPPER 0 SA47[D7-D0] [0-255] SA47H LOWER 0 SA48[D15-8] [0-255] SA48H UPPER 0 SA48[D7-D0] [0-255] SA48H LOWER 0 SA49[D15-D8] [0-255] SA49H UPPER 0 SA49[D7-D0] [0-255] SA49H LOWER 0 SA4A[D15-8] [0-255] SA4AH UPPER 0 SA4A[D7-D0] [0-255] SA4AH LOWER 0 CS FFFF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 148 1 2 3 4 1 2 3 4 C D F A B E ILine adjustment 10 mode IParameter setting mode for dimmer * Data of point for dimmer (coordinates) is stored in EEPROM but is not a target of CS since that is changeable by user's operation. Setting item Adjustment range Display item Adjustment value Write value (DEC) SA4B[D15-D8] [0-255] SA4BH UPPER 0 LINE10 SA4B[D7-D0] [0-255] SA4BH LOWER 0 SA4C[D15-D8] [0-255] SA4CH UPPER 0 SA4C[D7-D0] [0-255] SA4CH LOWER 0 SA4D[D15-D8] [0-255] SA4DH UPPER 0 SA4D[D7-D0] [0-255] SA4DH LOWER 0 SA4E[D15-D8] [0-255] SA4EH UPPER 0 SA4E[D7-D0] [0-255] SA4EH LOWER 0 SA4F[D15-D8] [0-255] SA4FH UPPER 0 SA4F[D7-D0] [0-255] SA4FH LOWER 0 CS FFFF Setting item Adjustment range Display item Adjustment value Write value (DEC) Maximum Backlight power [0-255] BL MAX C4 DIMMER Minimum Backlight power [0-255] BL MIN 59 Dimmer threshold (high) [0-255] REF H C0 Dimmer threshold (low) [0-255] REF L 60 Outside light point (high) [0-255] LUM H E2 Outside light point (middle) [0-255] LUM M 87 Outside light point (low) [0-255] LUM L 52 Backlight point (high) [0-255] BL H C4 Backlight point (middle) [0-255] BL M C4 Backlight point (low) [0-255] BL L 68 CS FFFF Item Upper limit of backlight output Lower limit of backlight output Threshold value (high) of outer light for DIMMER Threshold value (low) of outer light for DIMMER Outer light value on DIMMER-adjusted coordinate (high) Outer light value on DIMMER-adjusted coordinate (middle) Outer light value on DIMMER-adjusted coordinate (low) Backlight value on DIMMER-adjusted coordinate (high) Backlight value on DIMMER-adjusted coordinate (middle) Backlight value on DIMMER-adjusted coordinate (low) DIMMER relation Touch panel relation C4 59 C0 60 E2 87 52 C4 C4 68 E2PROM initial value (HEX) Item X coordinate (1-16) of touch panel Y coordinate (1-16) of touch panel Ultimate perimeter (Xmin) of touch panel Ultimate perimeter (Xmax) of touch panel Ultimate perimeter (Ymin) of touch panel Ultimate perimeter (Ymax) of touch panel Result of adjusting calibration of touch panel Result of adjusting ultimate perimeter of touch panel 00 00 3A F8 40 F1 00 00 E2PROM initial value (HEX) 00 00 58 248 64 241 00 00 E2PROM initial value (DEC) IList of EEPROM write values www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 149 5 6 7 8 5 6 7 8 C D F A B E IC relation on Screen 2 Item COM_DC COM_AMP_AJ ROUT_BIAS GOUT_BIAS BOUT_BIAS RGB_CNTRST CMP_CNTRST DOT_H_POSIT YS_SAMPL B_SAMPL G_SAMPL R_SAMPL YS_DELAY TH_DOT TH_YS TH_PHASE X_DISP YS_DISP M_H_GAIN M_H_LIMIT M_H_F0 M_V_GAIN M_V_ORI M_V_CORE S_H_GAIN S_H_LIMIT S_H_F0 S_V_GAIN S_V_ORI S_V_CORE BRIGHT_R BRIGHT_G BRIGHT_B GAMMA_1 GAMMA_2 GAMMA_3 GAMMASLP_A GAMMASLP_B GAMMASLP_C SA24H_UPPER SA24H_LOWER SA25H_UPPER SA25H_LOWER SA26H_UPPER_TV SA26H_LOWER_TV SA26H_UPPER SA26H_LOWER SA27H_UPPER_TV SA27H_LOWER_TV SA27H_UPPER SA27H_LOWER SA46H_UPPER SA46H_LOWER SA47H_UPPER SA47H_LOWER SA48H_UPPER SA48H_LOWER SA49H_UPPER SA49H_LOWER SA4AH_UPPER SA4AH_LOWER SA4BH_UPPER SA4BH_LOWER SA4CH_UPPER SA4CH_LOWER SA4DH_UPPER SA4DH_LOWER SA4EH_UPPER SA4EH_LOWER SA4FH_UPPER SA4FH_LOWER *The value shown on the left is initial value which is adjusted based on No. 22 Flicker Adjustment in 6.4 Monitor PCB Adjustment. *The value shown on the left is initial value which is adjusted based on No. 16 Composite Level Adjustment in 6.4 Monitor PCB Adjustme -nt. (5C) 96 08 08 08 22 1A 3F 0C 0C 0C 0C 07 70 03 70 20 02 00 00 00 00 00 00 00 01 01 00 01 02 10 10 10 00 04 01 04 01 01 9E 0D CC 04 8C 88 8C 8D 64 44 98 6B 02 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 E2PROM initial value (HEX) (92) 150 8 8 8 34 26 63 12 12 12 12 7 112 3 112 32 2 0 0 0 0 0 0 0 1 1 0 1 2 16 16 16 0 4 1 4 1 1 158 13 204 4 140 136 140 141 100 68 152 107 2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 E2PROM initial value (DEC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 150 1 2 3 4 1 2 3 4 C D F A B E 6.7 TOUCH PANEL TEST MODE # # # C a l i b r a t i o n / T P - t e s t # # # 1 . S e t u p T P e f f e c t i v e r a n g e 2 . S e t u p c a l i b r a t i o n 3 . T o u c h - p a n e l t e s t 4 . C a l i b r a t i o n t e s t 5 . D a t a i n i t i a l i z e [ U P / D U W N ] C u r s o r m o v e m e n t [ E N T E R ] M e n u s e l e c t i o n [ A C C O F F ] E n d o f t e s t 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 1.2 Operation specification 1.3 Processing detail Currently selected item is displayed in blue (default : 1). *Background : black Characters : white Selected characters : blue Confirmation indication of conditioned item : red Non-selectable items : gray 1 TOP MENU 1.1 Screen configuration The mark meaning “conditioned item” is indicated under following condition: 1 When outermost circumference is adjusted, it is indicated. 2 When 16-point adjustment is done, it is indicated. The mark meaning “conditioned item” is not indicated under following condition: No calibration is done after product completion. Adjusted value initialization is done. EEPROM initialization is done. Confirmation indication of conditioned EEPROM Newly available with this product See “Production engineering test : result feedback specification document” for more detail. There is no condition in MENU selection. 1.4 Screen detail Reset Start by pressing ATT and ANGLE+ to go to touch panel calibration mode. Select each item with up and down keys and go to each setting screen with A.MENU key. Key [Remote control code] Code ENTER AD19AF63 ↑ AD40 ↓ AD41 Select each item of touch panel test mode. Key [Main unit key] ENTER ↑ ↓ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 151 5 6 7 8 5 6 7 8 C D F A B E # # S e t u p T P e f f e c t i v e r a n g e # # e f f e c t r a n g e ( b e f o r e , a f t e r ) T h r t o u c h - p a n e l P l e a s e t o u c h a r o u n d p a n e l < C A U T I O N > [ E N T E R ] C h e c k t h e V a l u e X m i n Y m i n X m a x Y m a x : ( 5 6 , 1 2 0 ) : ( 6 3 , 1 2 0 ) : ( 2 4 3 , 1 8 0 ) : ( 2 3 4 , 1 8 0 ) O . K [ E N T E R ] R e t u r n t o M e n u 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 N . G [ E N T E R ] R e t u r n t o M e n u 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 Audit result confirmation screen : normal case Audit result confirmation screen: abnormal case * [before] is the data stored already in EEPROM. [after] is the data going to be stored now. 2 OUTERMOST CIRCUMFERENCE 2.1 Screen configuration Go over the outermost circumference of touch panel to store the set value to EEPROM. NG condition information www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 152 1 2 3 4 1 2 3 4 C D F A B E Coordinates Minimum Maximum X Y pen tip for adjustment (zoom in) out-of-alignment length permissible screen area 58 64 248 241 Default is showed below. 2.2 Operation specification 2.3 Processing detail Press [ENT] key of main unit or remote control unit to finish adjustment and store setting value (maximum and minimum value) to EEPROM only when the taken value is within permissible zone. Receive confirmation screen TP and display OK or NG after fulfilling the following conditions: [O.K] is displayed after storing a taken value to EEPROM. [NG] is displayed when a taken value is determined to be outside permissible zone. 2.4 Additional information Consider diameter of the top of jig (pen tip) before adjusting outermost circumference. Out-of-alignment length 0.8 mm Perform calibration data operation with the size calculated by subtracting out-of-alignment length from permissible screen area. Touch the outermost circumference of screen, and take outermost circumference value of X, Y. Press [ENT] key of main unit or remote control unit to finish adjustment. After finishing adjustment, if a taken value is within permissible zone, enter [O.K] at the center, and if it is outside permissible zone, enter [NG] at the center. Then, press [ENT] key of main unit or remote control unit to return to TOP MENU. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 153 5 6 7 8 5 6 7 8 C D F A B E + 13 + 14 + 15 + 16 F I N I S H E D + 17 + 12 + 11 + 10 + 9 + 5 + 6 + 7 + 8 + 1 + 4 + 3 + 2 [ E N T E R ] R e t u r n t o M e n u 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 *It is invalid if the distant point from displayed block is pressed. **[FINISHED] above is displayed when the number 17 is pressed. 3 CALIBRATION 3.1 Overview Press cursor [ + ] on the screen in turn to calibrate and store the set value to EEPROM. The taken setting value is stored in EEPROM only when pressing the 17th point, and [FINISHED] is displayed after storing. See “ t ” about the area for storing EEPROM settings. See “ ” See “ 3.3 Processing detail Execute calibration by pressing cursor displayed at 16 points on the screen in turn and press one point to finish at the end (total 17 points). After the 17th point is displayed, [ FINISHED] is indicated at the center of the screen. Cursor is always showing one point only and the next cursor is displayed after pressing one correctly. Press [ENT] key of main unit or remote control unit to return to TOP MENU. When pressing [ESC] during adjustment, the adjusted value is not stored and TOP MENU screen is displayed. 3.2 Operation specification www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 154 1 2 3 4 1 2 3 4 C D F A B E # # # T P c o o r d i n a t e s t e s t # # # P o s i t i o n ( 7 9 , 8 0 ) + A D B e f o r e A f t e r ( 0 , 0 ) ( 0 , 0 ) ( 0 , 0 ) [ E N T E R ] R e t u r n t o M e n u 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 4.2 Operation specification 4 TOUCH PANEL COORDINATES AUDIT 4.1 Screen configuration *Explanation about displayed coordinates (from up to down) (79, 80) : Drawing system coordinates of the cross point of horizontal and vertical lines (X direction, Y direction [0-500, 0-240]). (0,0) : AD data value of the coordinates of pressed point (X direction, Y direction). (0,0) : The coordinates of normalized AD data of pressed point within permissible zone (X direction, Y direction). (0,0) : The coordinates corrected by calibration of the normalized coordinates (X direction, Y direction). Specification correction Rounding was done within the setting range with outermost circumference adjustment in the conventional product (AVH-P9DVA). When value more than outermost circumference value was entered, the outermost circumference value was used. From this time, considering that audit may be performed without outermost circumference adjustment, no limit is set. 4.3 Processing detail Move [ + ] mark by up and down, right and left keys and display its OSD coordinates. Press [ ENT] key of main unit or remote control unit to return to TOP MENU. M152 : The + mark is not displayed at 16 points on the screen. Check displayed coordinates before and after correction when pressing touch panel and perform operation check. Key [Remote control unit code] Operatable with main unit key Operatable only with remote control unit Code ENTER AD19AF63 ↑ AD40 ↓ AD41 ← AD42 → AD43 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 155 5 6 7 8 5 6 7 8 C D F A B E # # # C a l i b r a t i o n t e s t # # # X _ b e f o r e y _ b e f o r e X _ A f t e r y _ A f t e r + + + + + + + O K + + + + + + + + + = 3 5 = 4 0 = 3 8 = 4 5 [ E N T E R ] R e t u r n t o M e n u 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 4.5 Judgment processing 4.4 Screen processing (additional) OK, NG judgment indication According to the length between + indication and touched coordinates (the point where the cursor is pointed), OK or NG is indicated. OK condition the length between + position and cursor indication is within ± 6 mm at the center NG condition except OK condition The + mark at the point touched on screen is displayed. When a finger etc. is detached, the + mark at the point pressed at the last moment is displayed continuously. The + mark displayed when being pressed is showed at the under layer of the fixed red + mark. The value displayed at that time is still being displayed. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 156 1 2 3 4 1 2 3 4 C D F A B E 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 # # # C a l i b r a t i o n t e s t # # # X _ b e f o r e y _ b e f o r e X _ A f t e r y _ A f t e r + + + + + + + + + + + + + + + + = 3 5 = 4 0 = 3 8 = 4 5 + [ E N T E R ] R e t u r n t o M e n u Coordinates after data A 33 ∼ 95 Right corner correction data of correction area 96 ∼ 160 161 ∼ 224 B Left corner correction data of correction area C Left corner coordinates of correction area 0 1 2 3 4 5 6 7 8 9 5 TOUCH PANEL CONFIRMATION 5.1 Screen configuration Displayed items panel x_before = * normalized data before calibration (0-255) panel y_before = * normalized data before calibration (0-255) panel x_after = * normalized data after calibration (0-255) panel y_after = * normalized data after calibration (0-255) Follow the steps below to convert AD value entered from touch panel to the corrected coordinates. (Follow 1 → 2 in turn. Execute them during regular operation.) 1 Data expansion of raw coordinates Coordinates after data expansion = (raw coordinates − minimum value ) × 255 ÷ (maximum value − minimum value) *If raw coordinates are 0, the coordinates after data expansion should be 0. 2 Coordinates correction after data expansion (1) If the coordinates are under 224 after data expansion; Coordinates after correction = coordinates after data expansion + correction value × (1 − (coordinates after data expansion − 224) ÷ 31) *31: Because there are 31 points of coordinates position from the value 225 to 255. *The effect of correction value declines as the value is going to 255. (2) If the coordinates are less than or equal to 32 after data expansion; Coordinates after correction = coordinates after data expansion + (correction value × coordinates after data expansion ÷ 32) *32 : Because there are 32 points of coordinates position from the value 0 to 32 (coordinates 0 is not included). *The effect of correction value declines as the value is going to 0. (3) If the coordinates are 33 ∼ 224 after data expansion; Coordinates after correction = coordinates after data expansion + B + (A − B) × (coordinates after data expansion − C) ÷ 64) *64 : Because there are 64 points of coordinates position in each area. *Add the correction value at the left corner first. Then, the effect of correction value is increasing as going to right. 5.3 Processing detail 5.2 Operation specification Check the coordinates before and after correction by touching the touch panel. Press [ ENT] key of main unit or remote control unit to return to TOP MENU. Check displayed coordinates before and after correction when pressing touch panel and perform operation check. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 157 5 6 7 8 5 6 7 8 C D F A B E 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 # # # T P d a t a i n i t i a l i z e # # # [ L ] R a n g e i n i t [ M ] C a l i b r a t i o n i n i t [ E N T E R ] R e t u r n t o M e n u 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 6.2 6 INITIALIZATION OF TOUCH PANEL CALIBRATION DATA 6.1 Screen configuration The mark indicates that adjustment is finished. Deleted after initialization. (initialization = default inside microcomputer) [Initialization processing] It initializes outermost circumference value and 16-point value. It writes default of initialized items to EEPROM and clears conditioned flag. 6.3 Processing detail [ ] Clearing outermost circumference adjustment value and return it to default [M ] Clearing 16-point calibration value and return it to default. Press [ENT] key of main unit or remote control unit to return to TOP MENU. Return the outermost circumference, 16-point calibration data to default. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 158 1 2 3 4 1 2 3 4 C D F A B E - Information About Permissible Error Settings For TPS Touch Panel Audit Outermost circumference settings Permissible error of outermost circumference should be 10% of valid zone. *10% is calculated by the value determined by the outermost circumference zone as 100. Outermost circumference default min X Voltage (V) digital (AD) dot (OSD) NAVI Voltage (V) digital (AD) dot (OSD) NAVI ref 0.75 58 0 0 0.83 64 0 0 3.3 3.21 248 240 255 3.12 241 232 255 (V) Y *Default above is measured with to the very limit of frame during measuring outermost circumference value. max Settings valid zone (OK) Settings invalid zone (NG) 10% 10% Outermost circumference adjustment OK zone min X Minimum permissible value Maximum permissible value Minimum permissible value Maximum permissible value 0 77 0 82 229 255 223 255 Y max Outermost circumference permissible error value X Voltage (V) digital (AD) dot (OSD) NAVI Voltage (V) digital (AD) dot (OSD) NAVI 10% 19 0.25 24 26 0.23 18 23 26 Y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 159 5 6 7 8 5 6 7 8 C D F A B E Calibration Permissible error of point calibration should be 10% Settings valid zone (OK) Settings invalid zone (NG) 10% 10% + Outermost circumference permissible error value X Voltage (V) digital (AD) dot (OSD) NAVI Voltage (V) digital (AD) dot (OSD) NAVI 3.3 (V) 10% 19 0.25 24 26 0.23 18 23 26 Y ref www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 160 1 2 3 4 1 2 3 4 C D F A B E 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 DISASSEMBLY Fig.1 - Removing the Grille Assy (Fig.1) Fig.2 - Removing the Case 5 2 2 Grille Assy 1 1 1 5 Case 3 3 3 3 3 1 Remove the two screws and then remove the Holder. Disconnect the connector. 1 1 Holder 2 Remove the two screws and then remove the Grille Assy. 3 Remove the five screws.(Fig.1) 4 Remove the screw.(Fig.1) Note) Inside the product there is a flexible substrate that connects the Case and the Bracket. Be very careful and do not give it a strong pull when removing the Case, otherwise it may be torn. 5 Remove the two screws and then remove the Case.(Fig.1) 4 1 - Removing the DVD Mechanism Module (Fig.2) Remove the four screws. Disconnect the connector and then remove the DVD Mechanism Module. 1 DVD Mechanism Module Monitor section is drawn out forward. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 161 5 6 7 8 5 6 7 8 C D F A B E - Removing the Mother Unit (Fig.3) 5 5 4 Fig.3 6 6 3 6 6 7 Mother Unit 5 1 4 Panel Holder 1 Straighten the tabs at two locations indicated. 2 Remove the two screws and then remove the Holder. 4 Remove the two screws. 6 Straighten the tabs at five locations indicated. 7 Remove the screw and then remove the Mother Unit. 5 Remove the five screws and then remove the Panel. 1 3 5 2 3 Remove the two screws. Disconnect the connector and then remove the Fan Motor. Fan Motor 2 5 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 162 1 2 3 4 1 2 3 4 C D F A B E Fig.4 - Removing the Case (Fig.4) Remove the two screws and then remove the Lever. 1 4 Holder 1 Fig.5 1 Motor Unit - Removing the Display Assy (Fig.5) 1 5 5 2 Case Remove the three screws and then remove the Holder. 2 Holder Holder Display Assy 2 2 Remove the two screws and then remove the two Holders. 2 Pull out the Display Assy in the arrow indicated direction. Note) When reassembling, hold the switch down with tweezers or the like and put the Display Assy back to the Chassis. Otherwise, the switch may be damaged and not function properly. 3 Fig.6 1 Bracket Shaft Unit 2 2 2 2 Main Unit 3 3 3 - Removing the Main Unit (Fig.6) Remove the screw and then remove the Bracket. 1 Remove the four screws and then remove the Shaft Unit. 2 3 1 Remove the screw. Disconnect the connector and then remove the Motor Unit. Remove the three screws. Disconnect the connector and then remove the Main Unit. 3 Switch 5 5 3 2 2 5 Lever Remove the screw. 4 Disconnect the connector. 3 Remove the five screws and then remove the Case. 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 163 5 6 7 8 5 6 7 8 C D F A B E Fig.7 - Removing the Display Assy (Fig.7) 1 2 1 1 2 Display Assy 2 Fig.8 1 Monitor PCB 2 2 1 - Removing the Monitor PCB (Fig.8) Straighten the tabs at two locations indicated. 1 2 Cover Unit Holder 4 4 4 4 2 Remove the two screws and then remove the Holder. Remove the three screws and then remove the Cover Unit. 3 Remove the four screws. Disconnect the connector and then remove the Display Assy. Remove the three screws. Disconnect the connector and then remove the Monitor PCB. 2 Note: Tighten the screws with the panel in warped state as shown in the photograph below. Otherwise, it will be difficult to install Detach Grille Assy to Panel Assy. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 164 1 2 3 4 1 2 3 4 C D F A B E A C B 6 6 14 (mm) : Valley fold : Mountain fold 1. When exchanging a flexible PCB (CNP8806), fold the PCB as indicated in the upper figure. 2. Connect the mother unit side of the flexible PCB to the connecter of the mother unit. 3. Remove release B part of coated paper of the flexible PCB. 4. Paste A part of the flexible PCB along the corner of the bracket (CND2627). 3. Paste C part of the flexible PCB on the bracket. 5. Paste the sheet (CNM9517) according to A part of the flexible PCB. If the flexible PCB and the sheet are not contacted at this time, a monitor part will get damaged or a shutter mechanism will get hung up. Make sure that the flexible PCB and the sheet contact a bracket. In addition, since adhesive strength becomes weak, do not use again the sheet removed once. Release coated paper 1 Mother unit side Bracket (CND2627) Sheet (CNM9517) - Exchanging Flexible PCB (CNP8806) Flexible PCB (CNP8806) Flexible PCB (CNP8806) Sheet (CNM9517) Bracket (CND2627) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 165 5 6 7 8 5 6 7 8 C D F A B E - Precautions on handling the mechanism module 1. Hold the upper and main frames. 2. Do not hold the front portion of the upper frame. It is a delicate part. 3. Do not touch the switches on the top panel. 4. Be careful not to catch the flexible cables. Do not touch here. Do not touch here. Do not hold this delicate portion. - Removing the module pc board Load motor leads and clamp SW leads Connector (for 8/12 detection flexible cable) Connector (for pickup flexible cable) Connector (for CRG flexible cable) Short here. A B C Module pc board 1. Set the mechanism to the lock position (disc load standby position). 2. Place the mechanism module upside down. 3. Short the two lands on the pickup flexible cable as shown below. 4. Be sure to disconnect the pickup flexible cable and the CRG flexible cable from the connectors to protect them from damages. 5. Remove solder from the load motor leads and clamp SW leads. 6. Loosen the two fixing screws. Lift the position A of the module pc board lightly and move it in the direction B to remove it. Be careful not to damage the flexible cable C. 7. Disconnect the 8/12 detection flexible-cable from the connector. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 166 1 2 3 4 1 2 3 4 C D F A B E - Removing the pickup unit 1. Remove the module pc board in accordance with the procedure of "Removing the module pc board.” 2. While holding the pickup case, remove the skew screw (main). 3. Lifting the end of the pickup rack, slide the main shaft, and remove the pickup unit. Notes: Replacing the pickup unit requires the skew adjustment. Remove glue from both ends of the main and sub shafts, and skew stud. Do not reuse the old skew screw. Be sure to use a brand-new skew screw supplied with a new pickup unit. Fix the skew screw with glue (GYL1001) after adjustment. Sub shaft Pickup unit Skew screw Skew screw (main) Skew screw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 167 5 6 7 8 5 6 7 8 C D F A B E - How to install the Volume Unit fo the Drive Unit When install the Volume Unit, adjust the positioning of the rotating angle of the gear. 1. Set the Monitor Unit horizontally with the Main Unit of the Drive Unit. 2. When install the gear unit, rotate the gear by hand until the square box of the gear keeps in a horizontal position like the figure below. *Gap of one teeth is acceptable. Square box www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 168 1 2 3 4 1 2 3 4 C D F A B E 7.1.2 PCB LOCATIONS COMPOUND UINT(B) COMPOUND UINT(A) DVD CORE UNIT RELAY PCB D C M MOTHER UNIT A VOLUME UNIT L E RGB UNIT G MONITOR PCB B KEYBOARD UNIT I UPPER PCB H INVERTER PCB F MAIN UNIT J SW UNIT K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 169 5 6 7 8 5 6 7 8 C D F A B E 7.1.3 CONNECTOR FUNCTION DESCRIPTION 16 15 2 1 1 : FL- 2 : RL- 3 : FL+ 4 : RL+ 5 : FR- 6 : RR- 7 : FR+ 8 : RR+ 9 : P.B. 10 : VGND 11 : ACC 12 : B.REM 13 : B.G 14 : MUTE 15 : B.UP 16 : GND 1 : REAR V 2 : VGN D 3 : FL 4 : FLGND 5 : FR 6 : FRGND 7 : SWL 8 : SWLGND 9 : SWR 10 : SWRGND 11 : VCRINL(EW) : RL(UC) 12 : VCRGND(EW) : RLGND(UC) 13 : VCRINR(EW) : RR(UC) 14 : VCRGND(EW) : RRGND(UC) 1 : CCR 2 : CCG 3 : CCB 4 : CCSYNC 5 : GNDSIG 6 : DVDVBS 7 : GNDDVD 8 : YS 9 : NC 10 : CCAUL 11 : CCAUR 12 : GNDAU 13 : ONSEI+ 14 : ONSEI- 15 : REAUR 16 : REAUL 17 : GNDRAU 18 : CCREM 19 : DSEN 20 : TVON 21 : GION 22 : MONON 23 : VSW5 24 : HTXD 25 : HRXD 26 : GNDD M4x6MAX M5x6MAX 1 2 13 14 1 2 25 26 FM/AM ANTENNA INPUT 1. BUS+ 2. GND 3. GND 4. NC 5. BUS- 6. GND 7. BUS L+ OUTPUT 8. ASENB 9. BUS R+ OUTPUT 10. BUS R- OUTPUT 11. BUS L- OUT PUT 1. COMP GND 2. COMP 5. IP_SEL1 4. IP_SEL2 12. AV_ON 6. LED_V 7. GND 10. REMIN 11. NEW AV SENS REAR VIEW CAMERA INPUT(BROWN) VIDEO INPUT(YELLOW) RIGHT AUDIO INPUT(RED) LEFT AUDIO INPUT(WHITE) UC RGB VIDEO INPUT POWER SUPPLY, SPEAKER OUTPUT RCA OUTPUT IP-BUS INPUT AV-BUS INPUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 170 1 2 3 4 1 2 3 4 C D F A B E 7.2 IC 1 IN B 2 IN A 3 GND 4 OUT Y 5 VCC 1 2 3 VOUT VSS NC VREF 4 5 VIN ON/OFF ON/OFF + - 1 2 3 4 8 7 6 5 +INPUT V- -INPUT BAL ONTPUT NC V+ BAL *TC7SET08FUS1,TC7SH08FUS1 TC7SET08FUS1 TC7SH08FUS1 NJM2136V S-818A35AUC-BGP NJM2388F84 TC74VHC08FTS1 PE5484A PE5485A TC90A96AFG TC7SET04FUS1 TC74VHC04FTS1 BD6171KV S-1131B25UC-N4K S-1131B15UC-N4A TC7SH02FUS1 TC7SH32FUS1 S-93C56BD0I-J8 OZ961ISN PEG087A K4S283232E-TC75 NJM2140R TC7WH157FU R1130H501B SM8707LV TC74LCX16373AFT SM8707LV TC74LCK16373AFT PE5401A PD6516A S-L2980A50MC-C7J LTC3411EMS TC7SZ125FU MN35104UB *NJM2136V S-818A35AUC-BGP IC's marked by * are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 171 5 6 7 8 5 6 7 8 C D F A B E 1 2 3 4 VIN Bandgap Reference VOUT GND CONT ON/OFF control Over Voltage Protection Thermal Protection Over Current Protection + - 14 VCC 13 4B 12 4A 11 4Y 10 3B 9 3A 8 3Y 1 1A 2 1B 3 1Y 4 2A 5 2B 6 2Y 7 GND TC74VHC08FTS1 NJM2388F84 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 172 1 2 3 4 1 2 3 4 C D F A B E NC MODEL0,1 NC PORTGND0 ROMCS ROMCLK ROMDATA VDT VCK FRONTMUTE VST MTRPW MTRSEL MTRS MTR1 MTR2 SNSPW PUSHSW DEGOSW LIFTPUL PORTVDD0 RDT rds%&k rdslk RECIVE NC ACCPW AMPPW SYSPW VPW DDCCNTL DLED ILMGRN PCL GND0 CPUREG VDD0 reset VPP TSI NC TCK ldet TUNPDI TUNPDO TUNPCK NC RCAMUTE VSELIN1,2 AVONIN NC TESTIN rck PRGON VPPON PORTVDD1 Pin Name -Pin Functions(PE5484A(EW),PE5485A(UC)) 1 2,3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27,28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51,52 53 54,55 56 57 58 59 60 Pin No. I O O I/O O O O O O O O O O O I I I I I I O O O O O O O O I I I I I I/O I/O O I I I I I O I/O Not used Model select input Not used Port GND ROM Chip select output ROM Clock output ROM Data Input/output Electronic volume:Data output Electronic volume:Clock output Front Mute output Electronic volume:Strobe output FLAP Motor power supply control output FLAP motor control output FLAP Motor speed contorl output FLAP angle motor control signal output FLAP position motor control signal FLAP sense power supply output FLAP LIFE sense switch input FLAP monitor angle 0 sense input FLAP lift pulse input Port power supply RDS data input (EW model) RDS 57kHz input (EW model) RDS signal input (EW model) Not used Not used ACC power control output Amp power control output Video power control output DC/DC converter control output Anti-theft LED output Green illumination output System clock ouptut GND Filter capacitor connected Power supply System reset input Power supply for frash ROM Test data input Not used Test data clock input RDS PLL signal (EW model) TUNER PLL data input TUNER PLL data input/output TUNER PLL clock input/output Not used RCA REAR mute output VSEL input AV-BUS AV video sense input Not used Test mode input RDS data clock (EW model) System microcomputer program mode input VPP ON/OFF output Port power supply Function and operation www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 173 5 6 7 8 5 6 7 8 C D F A B E 61 62 63-65 66 67 68 69 70,71 72 73,74 75,76 77,78 79,80 81 82 83 84 85 86 87 88 89 90 91 92 93-95 96 97-99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115,116 117 118 119 120 121 122 123 124 125,126 127 128 129 130 PRGSW PRGRST NC CILM ILMRED BEEP bsens XT2,1 GND2 X1,2 NC COOLCNT1,2 NC CONTBIN NC dsens SDA NC SCL ASENBO IPPW NC ierx ietx PORTGND1 NC asens NC TUNPCE tunpce@ PORTVDD2 CONTVDD CONTVD8 DREM REMUTE RXMOM TXMON SWVDD NC RXMS3 TXMS3 IRQPWR xreset NC RXNAV TXNAV rgbari NC NMIXCNT MUTE NC AMPMUTE NC TELIN VDD1 PBSENS BGSENS I O O O O I O I I I/O O O O I O I O O O O O O I O O I O O O I O I O O O I I I System microcomputer programing mode input Display microcomputer programing mode reset output Not used Flap illumination output Red illumination output (EW model) BEEP output Backup sense input Sub clock oscillator connect GND Main clock oscillator connect Not used Fan control output1,2 Not used Backup off intput Notused Detach sense intput AVselector data input/output Not used AV selector clock output Slave ACC sense output IPBUS driver power supply contorl output Not used IPBUS data input IPBUS data output Port GND Not used ACC sense input Not used TUNER PLL chip enable output TUNER PLL chip enable output 2 Port power supply DVD Mechanism modul digital power control output DVD Mechanism modul motor power control output NAVI Reboot remote control output NAVI remote control mute output Display microcomputer data input Display microcomputer data output Display microcomputer power supply output Not used DVD Mechanism modul data input DVD Mechanism modul data output DVD Mechanism modul backup power output DVD Mechanism modul mechanism CPU reset output Not used NAVI data input NAVI command output RGB navigation ON sense input Not used Voice guide mute output Mute output Not used AMP mute output Not used TEL mute input Power supply Packing brake sense input Back gear sense input Pin No. Pin Name I/O Function and operation www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 174 1 2 3 4 1 2 3 4 C D F A B E 144 109 37 1 36 108 73 72 *PE5484A (EW),PE5485A (UC) Pin Name I/O Function and operation GND1 NC TUNSL NC ANGLEIN NC KEYDTA0-2 ADCVDD ADCGND I I I GND Not used TUNER signal level input Not used Mechanism volume for angle sense input Not used Key data input0-2 A/D Power supply A/D GND 131 132-134 135 136 137 138,139 140-142 143 144 Pin No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 175 5 6 7 8 5 6 7 8 C D F A B E 1 2 3 4 5 6 7 8 9 10 10 11 11 12 12 13 13 14 14 15 15 16 16 17 17 18 18 19 19 20 20 21 21 22 22 23 23 24 24 25 25 26 26 27 27 28 28 29 29 30 30 31 31 32 32 33 33 34 34 35 35 36 36 37 37 38 38 39 39 40 40 41 41 42 42 43 43 44 44 132 132 131 131 130 130 129 129 128 128 127 127 126 126 125 125 124 124 123 123 122 122 121 121 120 120 119 119 118 118 117 117 116 116 115 115 114 114 113 113 112 112 111 111 110 110 109 109 108 108 107 107 106 106 105 105 104 104 103 103 102 102 101 101 100 100 99 99 98 98 97 97 96 96 95 95 94 94 93 93 92 92 91 91 90 90 89 89 VSS-D1 VSS-D1 VDD-D1 VDD-D1 R7 D.IN R7 D.IN R6 D.IN R6 D.IN R5 D.IN R5 D.IN R4 D.IN R4 D.IN R3 D.IN R3 D.IN R2 D.IN R2 D.IN VSS-IO1 VSS-IO1 VDD-IO1 VDD-IO1 R1 D.IN R1 D.IN R0 D.IN R0 D.IN VSS-D2 VSS-D2 VDD-D2 VDD-D2 G7 D.IN G7 D.IN G6 D.IN G6 D.IN G5 D.IN G5 D.IN G4 D.IN G4 D.IN G3 D.IN G3 D.IN G2 D.IN G2 D.IN VSS-IO2 VSS-IO2 VDD-IO2 VDD-IO2 G1 D. IN G1 D. IN G0 D.IN G0 D.IN VSS-D3 VSS-D3 VDD-D3 VDD-D3 B7 D.IN B7 D.IN B6 D.IN B6 D.IN B5 D.IN B5 D.IN B4 D.IN B4 D.IN B3 D.IN B3 D.IN B2 D.IN B2 D.IN VSS-IO3 VSS-IO3 VDD-IO3 VDD-IO3 B1 D.IN B1 D.IN B0 D.IN B0 D.IN VSS-D4 VSS-D4 VDD-D4 VDD-D4 D-RGB V.Sync IN D-RGB V.Sync IN D-RGB H/C.Sync IN D-RGB H/C.Sync IN D-RGB Clock IN D-RGB Clock IN Test(DTNB) Test(DTNB) VDD-D5 VDD-D5 VSS-D5 VSS-D5 88 88 87 87 86 86 85 85 84 84 83 83 82 82 81 81 80 80 79 79 78 78 77 77 76 76 75 75 74 74 73 73 72 72 71 71 70 70 69 69 68 68 67 67 66 66 65 65 64 64 63 63 62 62 61 61 60 60 59 59 58 58 57 57 56 56 55 55 54 54 53 53 52 52 51 51 50 50 49 49 48 48 47 47 46 46 45 45 133 133 134 134 135 135 136 136 137 137 138 138 139 139 140 140 141 141 142 142 143 143 144 144 145 145 146 146 147 147 148 148 149 149 150 150 151 151 152 152 153 153 154 154 155 155 156 156 157 157 158 158 159 159 160 160 161 161 162 162 163 163 164 164 165 165 166 166 167 167 168 168 169 169 170 170 171 171 172 172 173 173 174 174 175 175 176 176 VSS25-DRAM VSS25-DRAM VDD15-DRAM3 VDD15-DRAM3 VSS15-DRAM3 VSS15-DRAM3 VDD-IO7 VDD-IO7 VSS-IO7 VSS-IO7 VDD-D11 VDD-D11 VSS-D11 VSS-D11 VDD15-DRAM2 VDD15-DRAM2 VSS15-DRAM2 VSS15-DRAM2 Test mode1 Test mode1 Test mode0 Test mode0 VDD15-DRAM1 VDD15-DRAM1 VSS15-DRAM1 VSS15-DRAM1 VDD-D10 VDD-D10 VSS-D10 VSS-D10 Test(Scan) Test(Scan) Test(MBST) Test(MBST) Main Clock Set Main Clock Set Dispaly Mute Dispaly Mute VDD-D9 VDD-D9 VSS-D9 VSS-D9 Rest IN Rest IN Bus ACK Out Bus ACK Out Bus Data I/O Bus Data I/O Bus Clock IN Bus Clock IN VDD-IO6 VDD-IO6 OSD BLK.H IN OSD BLK.H IN OSD BLK.L IN OSD BLK.L IN OSD R IN OSD R IN OSD G IN OSD G IN OSD B IN OSD B IN VDD-D8 VDD-D8 VSS-IO5 VSS-IO5 VDD-IO5 VDD-IO5 OSD H/C.Sync Out OSD H/C.Sync Out OSD V.Sync Out OSD V.Sync Out OSD Clock Out OSD Clock Out VDD-D7 VDD-D7 VDD25-DRAM VDD25-DRAM Test mode3 Test mode3 Test mode2 Test mode2 VSS-IO5 VSS-IO5 VSS-IO6 VSS-IO6 VSS-D7 VSS-D7 VSS-D6 VSS-D6 VDD-D6 VDD-D6 R7 D.IN R7 D.IN R6 D.IN R6 D.IN VSS-D6 VSS-D6 VDD-D6 VDD-D6 VDD-X'tal VDD-X'tal X'tal IN X'tal IN X'tal Out X'tal Out VSS-X'tal VSS-X'tal VDD-PLL VDD-PLL PLL IN PLL IN PLL Filter PLL Filter VSS-PLL VSS-PLL DVDD DVDD DAC Out DAC Out DVSS DVSS DAC Bias DAC Bias Sub ADC Bias Sub ADC Bias Sub ADC Vref.T Sub ADC Vref.T VDD Sub ADC VDD Sub ADC Sub C.Video IN.1 Sub C.Video IN.1 VSS Sub ADC VSS Sub ADC Sub C.Video IN.2 Sub C.Video IN.2 Sub ADC Vref B Sub ADC Vref B VSS Main ADC 1 VSS Main ADC 1 VDD Main ADC 1 VDD Main ADC 1 Main ADC Vref B Main ADC Vref B R IN 1 R IN 1 G IN 1 G IN 1 B IN 1 B IN 1 VSS Main ADC 2 VSS Main ADC 2 VDD Main ADC 2 VDD Main ADC 2 R IN 2 R IN 2 G IN 2 G IN 2 B IN 2 B IN 2 Main ADC Vref T Main ADC Vref T Main ADC Bias Main ADC Bias VSS Main ADC 3 VSS Main ADC 3 VDD Main ADC 3 VDD Main ADC 3 D-VSS D-VSS Main RGB Sync IN 1 Main RGB Sync IN 1 D-VDD D-VDD Main RGB Sync IN 2 Main RGB Sync IN 2 VSS-IO11 VSS-IO11 VDD-IO11 VDD-IO11 VDD-D14 VDD-D14 B0 D.Out B0 D.Out B1 D.Out B1 D.Out B2 D.Out B2 D.Out B3 D.Out B3 D.Out B4 D.Out B4 D.Out B5 D.Out B5 D.Out B6 D.Out B6 D.Out B7 D.Out B7 D.Out VDD-D13 VDD-D13 VSS-D13 VSS-D13 VDD-IO10 VDD-IO10 VDD15-DAM4 VDD15-DAM4 VSS15-DAM4 VSS15-DAM4 G0 D.Out G0 D.Out G1 D.Out G1 D.Out G2 D.Out G2 D.Out G3 D.Out G3 D.Out G4 D.Out G4 D.Out G5 D.Out G5 D.Out G6 D.Out G6 D.Out G7 D.Out G7 D.Out VDD-IO9 VDD-IO9 VSS-IO9 VSS-IO9 R0 D.Out R0 D.Out R1 D.Out R1 D.Out R2 D.Out R2 D.Out R3 D.Out R3 D.Out R4 D.Out R4 D.Out R5 D.Out R5 D.Out R6 D.Out R6 D.Out R7 D.Out R7 D.Out VDD-D12 VDD-D12 VDD-IO8 VDD-IO8 VSS-IO8 VSS-IO8 STH STH Load Load CPH CPH GOE GOE CPV CPV STV STV Vcom Vcom TC90A96AFG - Pin Layout www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 176 1 2 3 4 1 2 3 4 C D F A B E 39 40 41 47 99 98 97 R G B 101 100 104 105 60 53 56 86 88 57 73 OSD VDD(I/O) : 3.3V OSD H/C Sync V Sync Clock VDD(Analog & DRAM) : 2.5V VDD(Logic & DRAM) : 1.5V Blanking High (Charactor) Blanking Low (Back Ground) C.Video1 C.Video2 R1(Cr1) B1(Cb1) G1(Y1)/ NTSC Gamera R2(Cr2) B2(Cb2) G2(Y2)/ NTSC Camera Reset Clock Data (ACK) ACK Monitor Sub C.Sync Main Rate Low(GVGA)/High(VGA) Digital PLL Sync Clock LCD Controller STH/STH/HD Load/CX/Enable CPH/CPH/Ck GOE/DA Ck/Low CPV/CPV/Low STV/STV/VD Vcom/Vcom/Vcom Clock H/V OSD Timing Generator Side Panel Blue Back Frame DAC(6bit) 7.2/8.3M Main Sync XO 40pin : O. Sync or H. Sync Data RGB OSD(Palelte mode) RGB Palette Set HD/VD /Clock 39pin : V. Sync Digital I/F YCbCr 4:4:4 Through/Ovarlay/input A.OSD(OVGA) (VGA) Ys BLK.H H/V Enhanser Y Conlrast Y Brightness Y Mute Main/Sub picture Control CbCr Level CbCr Offset CTI C Mute Panel Sync D.OSD Panel Sync A.OSD OSD I/F BLK.H BLK.L Panel Sync Palette OSD Clamp DC SW ADC 8bit 28.8 / 33M Dot Phase Adj. RGB u YCbCr YCbCr u RGB Digital Ouut RGB 3ch 6bit or 8bit Display mute RGB Picture Control Mute Bus/111pin Contrast Brightness Gamma DC Offset Main H/V Comp. H/V Expand PinP D.RAM 6M bit Sub H/V Comp Y : Cb : Cr=4 : 2 : 2 Multi Color Decoder ACC, Killer. Decode Phase Adj Sub Sync Double Scan Conv. (Off/ON) Wide Aspect Conv. A.RGB mode only NTSC(Cammra) Color Decoder Y/C Sep. 3Line Comb (MTSC / PAL) LPF / BPF(DLher) Distinetion System Det. Dot Det. Sync Sep Clamp DC SW Sub.(C.Video) Signal System Main(RGB) Signal System ADC 8bit 28.8 / 33M ADC 8bit 28.8 / 33M Clamp Clamp IIC - Bus ADC 8bit 28.8 / 33M Input Sync mode A. OSD(BLK.H) /Over lay(Ys) Priority Ext. / Int. 74 75 78 79 80 66 68 136 135 134 133 139 111 138 137 93 92 91 107 106 48 112 52 TC90A96AFG - Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 177 5 6 7 8 5 6 7 8 C D F A B E 1 12 36 25 13 24 48 37 1 5 7 6 4 3 2 1A 3A GND 3Y 2Y 2A 1Y VCC 5Y 4Y 4A 5A 6Y 6A 14 10 8 9 11 12 13 1 2 3 4 5 GND VCC TC7SET04FUS1 BD6171KV TC74VHC04FTS1 - Pin Layout www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 178 1 2 3 4 1 2 3 4 C D F A B E EN1 32 42 41 33 34 35 36 21 17 16 15 14 26 20 19 18 2 27 44 1 37 38 39 40 29 30 43 31 3 28 45 46 47 48 4 5 7 6 13 12 10 9 11 25 24 22 23 EN2 EN5 1V 3V VCC VREF VREF SS1 SOFT START SOFT START INVERT DELAY GATE CRAMP LATCH LATCH UVLO CP POS CP NEG TSD OSC FET DRIVER ERROR AMP FET DRIVER ERROR AMP PWM DVCC PVCC3 0.6 VREGA EN3 EN4 OUT3 OUT1 RESET RESET VREGA VREGA 0.6V 0.6V OUT2 OUT4 FB4 PGND4 VO4DET VREGA VO5DET GND DGND SGND 0.6V 0.6V PGND5 FB5 DVCC 5VREG OUT5 PVCC5 SYNC RT FB2 INV2 SS2 VO1DET OCPC1 2V 2V FB1 INV1 1V VO2DET OCPC2 1V VREGA VREGA VREF OUT OUT CL2 VS2 PVCC4 EN4 EN5 CL1 VS1 PVCC2 FB3 VO3DET PVCC1 VREGB EN1 PWM OSCILLATOR EN2 EN3 + + - + - - + - + + + - + - - + - + - + - + - + - + + - + - + - - + - + BD6171KV - Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 179 5 6 7 8 5 6 7 8 C D F A B E 1 2 3 VOUT VSS NC VREF 4 5 VIN ON/OFF ON/OFF Over Current Protector IN B IN A GND OUT Y VCC 5 4 1 IN B 2 IN A 3 GND 4 OUT Y 5 VCC CS SK DI NC TEST DO GND VCC 1 2 3 4 8 7 6 5 NC VCC CS SK DI DO GND TEST :Not used :Power supply :Chip select input :Clock input :Data input :Data output :Ground :Test 1 2 3 S-1131B25UC-N4K S-1131B15UC-N4A TC7SH02FUS1 S-93C56BD0I-J8 TC7SH32FUS1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 180 1 2 3 4 1 2 3 4 C D F A B E 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 CTIMR OVP ENA SST VCCA GNDA REF RT1 FB CMP NDR_B PDR_A CT RT PGND LCT DIM LPWM PDR_C NDR_D Protection NDR_B PDR_A ZVS Phase-Shift Controller HF OSC PDR_C NDR_D Burst- Mode Control OVP ENA hys. COMP hys. COMP 1.5V 2V + - + - Reference OPLAMP - + EA - + 1.25V 3V 2.50V sub. POFF POFF I=3uA I=6uA Soft Start ACTIVE "HIGH" VCCA SST2 + - SST/2.5 OZ961ISN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 181 5 6 7 8 5 6 7 8 C D F A B E - Pin Functions (PEG087A) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29,30 31 32 33 34 35 36 37 38 39 40 41 42 43 44-50 51 52 53 54-61 62 63 64 65,66 67,68 69-72 73,74 75 I I O O O O I I I I I I O I I O O O O O O O O I/O O O O O I I I O O O I I I I I I I/O I I VHOLD1 HLF1 INVBST LD DI REMIN REMIN BYTE CNVSS VDDSENS 5060IN RESET XOUT VSS XIN VCC OSDCLK NC YSSTOP OSDTOP OSDBLNK NC MUTE DIMMER NC INVPUL ICRES SCL NC SDA OSDR OSDG OSDB KYDT DPDT TSCK EPRDI EPRDO NC EPRCS EPRCK TESTIN NC FSCWIDE LCD76 EPRCV NC HSYNC NC VSYNC NC KS2,1 KD4-1 NC STEST2 Not used Not used Inverter boost output COMAC,COMDC latch signal output COMAC,COMDC data output COMAC,COMDC clock output Remote control signal input GND connection GND connection VDD power supply sense input 50/60Hz input Reset input Clock output GND Clock input Power supply Clock input for OSD Not used NAVI over write enable output OSD/NAVI over write enable output OSD blanking output Not used 2 screens IC mute output Dimmer pulse output Not used Inverter pulse output IC reset output 2 screens IC clock output Not used 2 screens IC data input/output OSD analog R signal output OSD analog G signal output OSD analog B signal output Key data output Display data input Test mode clock input EEPROM data input for adjustment memory EEPROM data output for adjustment memory Not used EEPROM chip select output for adjustment memory EEPROM clock output for adjustment memory Chip test input Not used Not used LCD size select (H:7inch, L:6.5inch) input EEPROM adjustment input Not used HSYNC signal input for OSD Not used VSYNC signal input for OSD Not used Key strobe input/output Key data input Not used Touch panel test mode input Pin No. Pin Name I/O Format Function and Operation C C C C C C C C C C C C C C C C C C C C C C C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 182 1 2 3 4 1 2 3 4 C D F A B E 100 81 80 51 50 31 30 1 *PEG087A Format Meaning C C MOS 76 77 78,79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 NC SELFRST NC PNLXV MFLPW MVIPW ROMCS ROMCK ROMDATA EPRPST STEST1 EPRTEST TEMPSEN PNLYV PNLVD PNLADY PNLADX LSEN VHOLD2 HLF2 CVIN2 TVSETB VCCE CVIN1 Not used Self write reset input Not used Touch panel:X direction sense output Back light power supply control output Video power supply control output EEPROM chip select output EEPROM clock output EEPROM data input EEPROM initalize input for memory adjustment Monitor mode input EEPROM set mode input for memory adjustment Temperature sense input for inverter boost Touch panel:Y direction sense output Touch panel:sense output Touch panel:X data input Touch panel:Y data input Brightness on the outside sense input Not used Not used Not used Test mode input Power supply Not used Pin No. Pin Name I/O Format Function and Operation I O O O O O I I I I I O O I I I I I I I I C C C C C C C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 183 5 6 7 8 5 6 7 8 C D F A B E 25 28 32 29 30 31 26 27 DQ16 A0 DQM2 VSSQ VDD N.C DQ16 A1 A2 DQ17 DQ18 VDDQ DQ20 VSSQ DQ23 DQ21 DQ22 VDDQ VDD 36 34 35 37 38 42 39 40 41 43 51 62 59 55 58 57 56 61 60 54 53 52 DQ28 A5 DQM3 VDDQ VSS N.C DQ31 A4 A3 DQ30 DQ29 VSSQ DQ27 VDDQ DQ24 DQ26 DQ25 VCCQ VSS 49 45 48 47 46 44 50 1 2 5 9 6 7 8 3 4 DQ7 VDD DQ0 DQ2 VDDQ VSSQ DQ3 DQ4 VDDQ DQ1 DQ5 DQ6 VSSQ N.C BA1 VDD ras DQM0 we cas cs A11 BA0 A10/AP 13 11 12 14 23 15 19 16 17 18 20 21 22 24 74 86 85 82 78 81 80 79 84 83 77 76 75 DQ8 VSS DQ15 DQ13 VSSQ VDDQ DQ12 DQ11 VSSQ DQ14 DQ10 DQ9 VDDQ N.C A7 VSS CLK DQM1 N.C N.C CKE A9 A8 A6 64 72 68 71 70 69 67 66 65 63 73 33 10 Programming Register Latency & Burst Length Column Decoder Timing Register Row Decoder LRAS LCBR Sense AMP Output Buffer I/O Control Bank Select CLK ADD LCKE LRAS CLK CKE cs ras cas we DQM LCBR LWE LCAS LWCBR Data Input Register 1M x 32 LWE LDQM DQi 1M x 32 1M x 32 1M x 32 Address Register Col Buffer Row Buffer Refresh Counter *K4S283232E-TC75 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 184 1 2 3 4 1 2 3 4 C D F A B E 1 OUT A -IN A +IN A V+ V+ OUT B -IN B +IN B 2 3 4 8 7 6 5 A - + B + - NJM2140R 1 2 3 4 8 7 6 5 VCC st SELECT Y A B y GND EN 1 MUX 1 G1 *TC7WH157FU 1 2 5 6 7 8 3 4 YDD1 VSS1 VDD2 VSS2 XT1 XT0 MO1,NC1 MO2,NC1,SO1 48 47 44 43 42 41 46 45 NC2 SO4,SO3,SO2,NC1 VDD3 VSS3 AO1,SO2 SO2,SO1,AO1 FSEL,NC2 SO3,SO2,SO1 X’tal OSC Reference Divider 0 Phase Divider 0 Loop Divider 0 Charge Pump 0 LPF 0 VCO 0 Reference Divider 1 Phase Divider 1 Loop Divider 1 Charge Pump 1 LPF 1 VCO 1 Control Logic *SM8707LV Current Limit Vref VDD ce Vout GND + - 2 5 1 3 *R1130H501B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 185 5 6 7 8 5 6 7 8 C D F A B E 10 1 2 5 9 6 7 8 3 4 2Q1 1oe 1Q1 1Q3 1Q6 1Q4 VCC 1Q5 1Q2 GND GND 1Q7 1Q8 2Q2 2Q8 GND 2Q5 2Q3 2Q4 VCC 2Q6 GND 2Q7 1oe 13 11 12 14 23 15 19 16 17 18 20 21 22 24 36 48 47 44 40 43 42 41 46 45 39 38 37 2D1 1LE 1D1 1D3 1D6 1D4 VCC 1D5 1D2 GND GND 1D7 1D8 2D2 2D8 GND 2D5 2D3 2D4 VCC 2D6 GND 2D7 2LE 26 34 30 33 32 31 29 28 27 25 35 1LE 1oe 48 47 D LE Q 1D1 46 D LE Q 1D2 45 D LE Q 1D3 44 D LE Q 1D4 43 D LE Q 1D5 42 D LE Q 1D6 41 D LE Q 1D7 40 D LE Q 1D8 2 1Q1 3 1Q2 5 1Q3 6 1Q4 8 1Q5 9 1Q6 10 1Q7 11 1Q8 1 2LE 2oe 25 36 D LE Q 2D1 35 D LE Q 2D2 33 D LE Q 2D3 32 D LE Q 2D4 30 D LE Q 2D5 29 D LE Q 2D6 27 D LE Q 2D7 26 D LE Q 2D8 13 2Q1 14 2Q2 16 2Q3 17 2Q4 19 2Q5 20 2Q6 22 2Q7 23 2Q8 24 *TC74LCX16373AFT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 186 1 2 3 4 1 2 3 4 C D F A B E 16-bit TIMER/ EVENT COUNTER 00 8-bit TIMER/ EVENT COUNTER 50 TO00/TI10/P01 RxD0/P11 TxD0/P10 8-bit TIMER H0 TOH0/P15 8-bit TIMER H1 WATCH TIMER WATCHDOG TIMER 78K/0 CPU CORE ROM (FLASH MEMORY) TOH0/P16 TI50/TO50/P17 8-bit TIMER/ EVENT COUNTER 51 SERIAL INTERFACE UART0 TI51/TO51/P33 RxD0/P14 TxD0/P13 SERIAL INTERFACE UART6 SERIAL INTERFACE CSI10 SI10/P11 SO10/P12 TI000/P00 sck10/P10 ANI0/P20 8 ANI7/P27 A/D CONVERTER AVSS AVREF INTP0/P120 4 INTP1/P30 INTP6/P140 INTP5/P16 INTP4/P33 INTERRUPT CONTROL PORT 1 P10-P17 PORT 0 4 8 PORT 2 P20-P27 8 PORT 3 P30-P33 4 PORT 6 P60-P63 4 PORT 7 P70-P77 8 PORT 12 P00-P03 CLOCK OUTPUT CONTROL PCL/P140 KR0/P70- KR7/P77 VOLTAGE REGULATOR REGC P120 PORT 13 P130 PORT 14 P140 CLOCK MONITOR KEY RETURN RESET CONTROL Ring-OSC POWER ON CLEAR/ LOW VOLTAGE INDICATOR POC/LVI CONTROL 8 reset X1 XT2 X2 SYSTEM CONTROL VDD, EVDD VSS, EVSS IC (VPP) XT1 AVREF AVSS VPP/IC VDD REGC VSS X1 X2 reset XT1 XT2 P130 P120/INTP0 P75/KR5 P76/KR6 P77/KR7 P00/TI000 P01/TI010/TO00 P02 P03 P10/sck10/RXD0 P11/SI10/RXD0 P12/SO10 P13/TXD6 P14/RXD6 EVDD P33/TI51/TO51/INTP4 P32/INTP3 P31/INTP2 P30/INTP1 P140/PCL/INTP6 P17/TI50/TO50 P16/TOH1/INTP5 P15/TOH0 P60 P61 P62 P63 EVSS P20/ANI0 P21/ANI1 P22/ANI2 P23/ANI3 P24/ANI4 P25/ANI5 P26/ANI6 P27/ANI7 P70/KR0 P71/KR1 P72/KR2 P73/KR3 P74/KR4 1 14 15 16 17 18 19 20 21 22 23 24 25 26 52 51 50 49 48 47 46 45 44 43 42 41 40 2 3 4 5 6 7 8 9 10 11 12 13 39 38 37 36 35 34 33 32 31 30 29 28 27 *PE5401A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 187 5 6 7 8 5 6 7 8 C D F A B E 2 10 11 12 13 14 15 16 17 18 19 20 21 22 39 38 37 36 35 34 33 32 31 30 29 28 27 43 42 41 40 47 46 45 44 48 A15 A14 A13 A12 A11 A10 A9 A8 A19 A20 we reset NC ACC RY/by A18 A17 A7 A6 A5 A4 A3 A16 byte VSS DQ15/A-1 DQ7 DQ14 DQ6 DQ13 DQ5 DQ12 DQ4 VCC DQ11 DQ3 DQ10 DQ2 DQ9 DQ1 DQ8 DQ0 oe VSS 23 24 26 25 A2 A1 ce A0 A-1 A0-A20 DQ0-D15 byte ce oe RY/by reset ACC VCC VSS 8 9 4 5 6 7 3 1 :Data output/Address input :Address input :Data input output :Mode select :Chip enable input :Output enable input :Ready/Busy output :Reset :Acc :Power supply :GND *PD6516A ON/OFF VSS VIN NC VOUT 1 2 3 5 4 + - ON/OFF *S-L2980A50MC-C7J VOLTAGE REFERENCE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 188 1 2 3 4 1 2 3 4 C D F A B E 1 2 3 4 5 SHDN/RT SYNC/MODE SGND SW PGND ITH VFB PGOOD SVIN PVIN 10 9 8 7 6 VOLTAGE REFERENCE VOLTAGE REFERENCE OSCILLATOR LOGIC - + + - B + - + - + - SLOPE COMPENSATION NMOS COMPARATOR PMOS CURRENT COMPARATOR BURST COMPARATOR ERROR AMPLIFIER 0.74V 0.8V 0.86V VB REVERSE COMPARATOR + - + - *LTC3411EMS *MN35104UB *TC7SZ125FU 64 65 128 129 192 193 256 1 1 g 2 IN A 3 GND 5 4 VCC OUT Y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 189 5 6 7 8 5 6 7 8 C D F A B E 1 2,3 4 5,6 7 8-10 11 12,13 14 15 16 17 18 19-22 23 24 25,26 27,28 29 30 31,32 33 34-37 38,39 40,41 42 43 44,45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 VDD33 MDQ VSS MDQ VDD33 MDQ VSS MDQ VDD33 VDD15 VSS EXADR NEXWE EXADT VDD33 VSS EXADR EXADT VDD33 VSS EXADT NEXCE EXADT EXADR EXADT VD33 VSS EXADT NEXOE P15 P14 P13 P12 P11 P10 P9 P8 P7 VDD3 MMOD VSS P6 I / O I / O I / O I / O I / O O I / O I / O I / O I / O O I / O I / O I / O I / O O I / O I / O I / O I / O I / O I / O I / O I / O I / O I I / O IO power supply SDRAM data GND SDRAM data IO power supply SDRAM data GND SDRAM data IO power supply Power supply GND Memory address Memory write enable Memory address data IO power supply GND Memory address Memory address data IO power supply GND Memory address data Memory chip select Memory address data Memory address Memory address data IO power supply GND Memory address data Memory output(Read) enable Memory address bus The flag of transmitting end The flag of transmitting start Serial clock Serial output data Serial input data Serial clock Serial output data Serial input data IO power supply Test mode setting GND Serial clock - Pin Functions(MN35104UB) Pin No. Pin Name I/O Function and Operation www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 190 1 2 3 4 1 2 3 4 C D F A B E 60 61 62 63 64 65 66 67 68 69 70-77 78 79 80 81 82 83 84 85 86-89 90 91 92 93 94-97 98 99 100-103 104 105 106 107 108-110 111 112 113 114 115 116 117 118 119 P5 P4 P3 P2 P1 P0 FG VDD15 NRST VSS DRV DRV8 VDD33 VSS SCLOCK EXTRG SDATA EXTRG TRCCLK TRCDATA TRCST VDD33 OSCI VSS MONI VDD15 VSS MONI AVDDD PLFIL1 AVSSD PLFIL2 VREF VC0 RESI ANAMONI POFLT CDATA CCAPA CGD AVDDC AVSSC I / O I / O I / O I / O I / O I / O I I I / O I / O I / O I / O I / O I / O I / O I / O I / O I I / O I / O O O O I I O O O O O I Serial output data Serial input data Serial clock Serial output data Serial input data Serial clock Motor FG Power supply Master reset GND Servo port Servo port IO power supply GND Input clock for debug I/O trigger for debug I/O data for debug I/O trigger for debug Output trace clock for debug I/O trace data for debug Output trace status for debug Power supply Front end clock input GND Inside monitor Power supply GND Inside monitor Power supply DRC VCO GND DRC VCO Reference voltage gm-cEQ gm-cEQ Inside analog monitor DPDOFTR Inline data Inline capacitor Reference voltage Analog current Analog GND Pin No. Pin Name I/O Function and Operation www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 191 5 6 7 8 5 6 7 8 C D F A B E 120 121 122-131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146-148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 RFINN RFINP VIN LPC1 LPCO1 LPC2 LPCO2 VREFH VHALF AVSSB CTKC CSLFLT CWBLOUT CWBLIN VCOF RVI AVDDB AD AVDDA DAC1 AVSSA DAC0 AVDDE IREF1 AVSSE COMP1 AVDDF DAC1OUT AVSSF DAC2OUT DAC3OUT VREF DAC4OUT DAC5OUT AVDDG IREF2 VSSG COMP2 VSS BECLK VDD33 EXTCK I I I O I O O O O I O I I I I O O I I O O O I O O I I I I RF input RF input Head input DVDLPC input DVDLPC output CDLPC input CDLPC output Reference voltage Reference voltage Analog GND TC Capasitor DC cut for wobble DC cut for wobble JFVCO control voltage VREFH reference current Analog current AD input Analog current Tracking drive output Analog GND Focus drive output Analog current Inside DAC bias current Analog GND Inside DAC Analog current Analog signal Analog GND Analog signal Analog signal Reference voltage Analog signal Analog signal Analog power suplly Inside DAC bias current Analog GND Inside DAC GND Backend clock input IO power supply Exterior audio clock Pin No. Pin Name I/O Function and Operation www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 192 1 2 3 4 1 2 3 4 C D F A B E 173 174 175 176 177 178-180 181 182 183 184,185 186 187,188 189 190-193 194 195 196,197 198 199-201 202 203-205 206 207,208 209 210 211 212 213 214 215 216,217 218 219,220 221 222 223 224 225 226 227-229 230 231 PHCOMPO LRCK SRCK ADOUT3 VSS ADOUT IECOUT VDD33 VSS MDQ VDD15 MDQ VDD33 MDQ VSS VDD33 MDQ VSS MDQ VDD33 MDQ VSS DQM VDD33 MA VSS MA4 VDD15 MA2 VSS MA VDD33 MA VSS VDD15 MCKI VSS MCK VDD33 MA VSS MA O O O O O O I / O I / O I / O I / O I / O I / O O O O O O O I O O O Composite audio clock LR chanel clock output Bit clock output Audio down mixing GND Audio data IEC958 digital audio output IO power supply GND SDRAM data Power supply SDRAM data IO power supply SDRAM data GND IO power supply SDRAM data GND SDRAM data GND SDRAM data GND SDRAM data mask Power supply SDRAM address GND SDRAM address Power supply SDRAM address GND SDRAM address Power supply SDRAM address GND Power supply SDRAM output clock GND SDRAM input clock IO power supply SDRAM address GND SDRAM address Pin No. Pin Name I/O Function and Operation www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 193 5 6 7 8 5 6 7 8 C D F A B E 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251-253 254 255,256 NWE VDD33 BA0 MA VSS BA1 NCSM NRAS VDD33 VSS NCAS DQM0 VDD15 VSS DQM MDQ VSS MDQ VDD33 MDQ VSS MDQ O O O O O O O O O I / O I / O I / O I / O SDRAM writte enable IO power supply SDRAM bank address SDRAM address GND SDRAM bank address SDRAM chip select SDRAM low address strobe IO power supply GND SDRAM column address strobe SDRAM data mask Power supply GND SDRAM data mask SDRAM data GND SDRAM data IO power supply SDRAM data GND SDRAM data Pin No. Pin Name I/O Function and Operation www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 194 1 2 3 4 1 2 3 4 C D F A B E No. Symbol I/O Explain 1 AMANT I AM antenna input AM antenna input high impedance AMANT pin is connected with an all antenna by way of 4.7µH. (LAU type inductor) A series circuit including an inductor and a resistor is connected with RF ground for the countermeasure against the hum of power transmission line. 2 RFGND RF ground Ground of antenna block 3 FMANT I FM antenna input Input of FM antenna 75Ω Surge absorber(DSP-201M-S00B) is necessary. 4 VCC power supply The power supply for analog block. D.C 8.4V ± 0.3V 5 SL O signal level Output of FM/AM signals level 6 CE2 I chip enable-2 Chip enable for EEPROM ”Low” active 7 WC I write control You can write EEPROM, when EEPROM write control is “Low”. Ordinary non connection 8 CE1 I chip enable-1 Chip enable for AF•RF ”High” active 9 CK I clock Clock 10 DI I data in Data input 11 LDET O lock detector “Low” active 12 OSCGND osc ground Ground of oscillator block 13 ROM_VDD power supply Power supply for EEPROM pin 13 is connected with a power supply of micro computer. 14 DO O data out Data output 15 DGND digital ground Ground of digital block 16 NC non connection Not used 17 VDD_3.3 power supply The power supply for digital block. 3.3V ± 0.2V 18 RDS_CK O RDS clock Output of RDS clock(2.5V) 19 RDS_DATA O RDS data Output of RDS data(2.5V) 20 RDS_LOCK O RDS lock Output unit “High” active(2.5V) (RDS_LOCK turns over by the external transistor. “Low” active) 21 RDS_HSLK O RDS high speed Output unit “High” active(2.5V)(RDS_HSLK turns over by the lock external transistor. “Low” active) 22 AUDIOGND audio ground Ground of audio block 23 L ch O L channel output FM stereo “L-ch” signal output or AM audio output 24 R ch O R channel output FM stereo “R-ch” signal output or AM audio output FMRF ANT adj RF adj FM ANT T51 CF52 CF51 RFGND OSCGND DGND AUDIOGND NC VCC VDD_3.3 3.3V 2.5V IC 4 3.3V 2.5V ← IC 2 2.5V WC CE2 ROM_VDD SL DI CK CE1 LDET DO RDS_CK RDS_DATA RDS_LOCK RDS_HSLK 7 6 13 5 10 9 8 11 14 18 19 20 21 1 3 2 12 15 22 16 4 17 IC 1 3.3V AM ANT FMRF ATT LPF OSC IC 3 EEPROM 5.0V IC 5 5V 3.3V ← ATT MIXER, IF AMP DET, FM MPX, RDS DECODER 24 23 Rch Lch - FM/AM Tuner Unit(AVH-P5700DVD/EW) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 195 5 6 7 8 5 6 7 8 C D F A B E No. Symbol I/O Explain 1 AMANT I AM antenna input AM antenna input high impedance AMANT pin is connected with an all antenna by way of 4.7µH. (LAU type inductor) A series circuit including an inductor and a resistor is connected with RF ground for the countermeasure against the hum of power transmission line. 2 RFGND RF ground Ground of antenna block 3 FMANT I FM antenna input Input of FM antenna 75Ω Surge absorber(DSP-201M-S00B) is necessary. 4 VCC power supply The power supply for analog block. D.C 8.4V ± 0.3V 5 SL O signal level Output of FM/AM signals level 6 CE2 I chip enable-2 Chip enable for EEPROM ”Low” active 7 WC I write control You can write EEPROM, when EEPROM write control is “Low”. Ordinary non connection 8 CE1 I chip enable-1 Chip enable for AF•RF ”High” active 9 CK I clock Clock 10 DI I data in Data input 11 NC non connection Not used 12 OSCGND osc ground Ground of oscillator block 13 ROM_VDD power supply Power supply for EEPROM pin 13 is connected with a power supply of micro computer. 14 DO O data out Data output 15 DGND digital ground Ground of digital block 16 NC non connection Not used 17 VDD_3.3 power supply The power supply for digital block. 3.3V ± 0.2V 18 NC non connection Not used 19 NC non connection Not used 20 NC non connection Not used 21 NC non connection Not used 22 AUDIOGND audio ground Ground of audio block 23 L ch O L channel output FM stereo “L-ch” signal output or AM audio output 24 R ch O R channel output FM stereo “R-ch” signal output or AM audio output FMRF ANT adj RF adj FM ANT T51 CF52 CF51 RFGND OSCGND DGND AUDIOGND NC VCC VDD_3.3 3.3V 2.5V IC 4 3.3V 2.5V ← IC 2 2.5V WC CE2 ROM_VDD SL DI CK CE1 NC DO NC NC NC NC 7 6 13 5 10 9 8 11 14 18 19 20 21 1 3 2 12 15 22 16 4 17 IC 1 3.3V AM ANT FMRF ATT LPF OSC IC 3 EEPROM 5.0V IC 5 5V 3.3V ← ATT MIXER, IF AMP DET, FM MPX 24 23 Rch Lch - FM/AM Tuner Unit(AVH-P5700DVD/UC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 196 1 2 3 4 1 2 3 4 C D F A B E 7.3 EXPLANATION 7.3.1 MECHANISM DESCRIPTIONS - Outline of the FLAP motion 1. The motion is actuated made by two motors, the forward/backward driving motor (CXB9515) and the angle driving motor (CXB9516). 2. Analog electric potential generated by the angle encoder is detected to detect angle motion status and motion position. 3. Memory function for the angle last position is accomplished by the micro processor using the 256 resolution steps of the VDD. 4. A pulse is detected by the photo interrupter to detect the horizontal motion status. 5. In the case of reset start, the monitor will be in a stored position first, and ejection motion will take place, which puts the system in the booted up state. 6. Angle adjustment is made by the angle key (+/-). 7. OPEN/CLOSE key makes the monitor stored or ejected, and temporary folding key folds the monitor temporarily. 8. Setting of the monitor auto storage/ejection ON/OFF and set back ON/OFF at the time of ACC ON/OFF is made on the navigation menu screen. 9. A backlight is switched-off during forward/backward and storage. - Explanation on the FLAP ejection motion 1. When the OPEN key is pressed or ACC is set to ON while the auto OPEN/CLOSE is being set to ON, angle driving motor rotates in the 0° direction for 500ms. (Pressed down.) 2. After 500ms, the angle driving motor is stopped, and the forward/backward driving motor rotates in the ejection direction. 3. For a period of 600ms from the time when LIFTSW is switched from H to L, the forward/backward driving motor keeps rotating in the ejection direction. 4. After 600ms, the forward/backward driving motor is stopped, and the angle driving motor rotates in the UP direction. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 197 5 6 7 8 5 6 7 8 C D F A B E 5. When the angle voltage reaches the voltage for 110°, brake is applied to the angle driving motor, and the ejection is completed. (In case the previous angle is stored in the memory, the motion continues to that angle.) 6. When the setback is set to ON, after the monitor angle voltage has reached the previously memorized voltage, brake is applied to the angle driving motor, then the forward/backward driving motor is rotated in slow speed in the storage direction. After that, when LIFTSW has switched from L to H, the forward/backward driving motor is stopped. 110° voltage position or the last memory position. - Explanation of the FLAP storage motion 1. When CLOSE key is pressed, or after 6 seconds from ACC OFF when auto OPEN/CLOSE is being set to ON, the angle driving motor is rotated in the 0° direction. In case the setback setting is ON, the forward/backward driving motor is rotated in high speed in the ejection direction and the motor continues to rotate for 600ms from the time when LIFTSW is switched from H to L, then the angle driving motor is rotated in the 0° direction. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 198 1 2 3 4 1 2 3 4 C D F A B E 2. For a period of 500ms from the time when DIGOSW is switched from H to L, the angle driving motor is rotated in the 0° direction for the “pressed down” motion. 3. After 500ms, brake is applied to the angle driving motor, and then the forward/backward driving motor is rotated in the storage direction. 4. When the horizontal motion detection pulse is no longer detected for 200ms, brake is applied and the monitor storage motion is completed. - Explanation on the FLAP angle adjustment 1. The angle driving motor is rotated in UP direction by the “+” key and in DOWN direction by the “–” key from the monitor stop position. If the key is kept pressed, the monitor will keep changing the angle without steps within the range of 50 to 110 degrees. When the setback is being set to ON, the forward/backward driving motor is rotated in the horizontal ejection direction while the key is being pressed, and angle adjustment is made by changing the angle voltage to the extent the angle adjustment key is effective after 600ms has elapsed from the time when LIFTSW has switched from H to L. When 3 seconds have elapsed from the time of angle adjustment completion, the forward/backward driving motor is rotated in slow speed in the horizontal storage direction, and brake is applied when LIFTSW has switched from L to H. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 199 5 6 7 8 5 6 7 8 C D F A B E - Explanation on the FLAP temporary folding operation 1. By pressing the temporary folding key, the angle driving motor is rotated from the monitor stop position toward 0° direction. When the setback is being set to ON, the forward/backward driving motor is rotated when the key is pressed, brake is applied after 600ms has elapsed from the time when LIFTSW has switched from H to L, and the angle driving motor is rotated in 0° direction. 2. For a period of 500ms after DEGOSW has switched from H to L, the angle driving motor is rotated, and the monitor stops at its horizontal position by the brake. After 7 seconds, navigator operation sound is heard three times in 1 second interval. After 10 seconds, the angle driving motor is rotated in UP direction, and then the brake is applied to stop the motor at the last memory position. When the setback is being set to ON, after the angle driving motor stops at the last memory position, the forward/backward driving motor is rotated in slow speed in the horizontal storage direction, and the motor stops after LIFTSW has switched from L to H. - Notes related to the FLAP motion 1. Regarding the angle position, angle voltage is always checked, and the last memory is stored by addition or subtraction of the voltage. It should be noted, however, that the last memory will not be stored when the monitor is manually moved by force. 2. If the expected pulse is not detected during horizontal motion, the monitor will stop at that position. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 200 1 2 3 4 1 2 3 4 C D F A B E Bup ON (Reset start) Bup OFF Bup OFF ON ACC ON ACC OFF ON ACC OFF Last memory Bup ON (Reset start) Bup OFF Bup OFF ON ACC ON ACC OFF ON ACC OFF Last memory OPEN state CLOSE state CLOSE OPEN state Last angle To stand-by No state change No state change No state change 6 sec from ACC OFF Advance CLOSE motion CLOSE OPEN To stand-by No state change No state change No state change No state change OPEN In OPEN motion In CLOSE motion CLOSE state Continue OPEN motion Last angle Return To stand-by To stand-by To stand-by Continue OPEN motion Last angle Return Continue OPEN motion Last angle Return 6 sec from ACC OFF Advance CLOSE motion CLOSE OPEN CLOSE CLOSE To stand-by To stand-by To stand-by Continue OPEN motion Last angle Return Continue OPEN motion Last angle Return Continue OPEN motion Last angle Return OPEN CLOSE CLOSE Continue CLOSE motion CLOSE Continue CLOSE motion CLOSE Continue CLOSE motion CLOSE Continue CLOSE motion CLOSE Continue CLOSE motion CLOSE Continue CLOSE motion CLOSE Continue OPEN motion Last angle No state change OPEN motion Last angle Return No state change No state change No state change No state change No state change No state change - Table of driving unit operations by different preset modes * When the setback is being set to OFF, there will be no advance/return motion. After ACC OFF, if ACC is switched ON again during the 6 seconds counting, standby will be passed and the FLAP status will not change. Auto OPEN/CLOSE setting ON Auto OPEN/CLOSE setting OFF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 201 5 6 7 8 5 6 7 8 C D F A B E - Table of temporary folding control * When the setback is being set to OFF, there will be no advance/return motion. Bup ON Bup OFF ACC ON Bup OFF ON ACC OFF ON ACC OFF Last memory Bup ON Bup OFF ACC ON Bup OFF ON ACC OFF ON ACC OFF Last memory To stand-by To stand-by To stand-by Continue temporary folding motion Continue OPEN motion Last angle Return Continue temporary folding motion Temporary folding OPEN motion Last angle Return Continue OPEN motion Last angle Return Continue temporary folding motion Temporary folding 6 sec from ACC OFF CLOSE motion CLOSE Continue OPEN motion Last angle Return 6 sec from ACC OFF Advance CLOSE motion CLOSE Continue temporary folding motion Temporary folding 6 sec from ACC OFF CLOSE motion CLOSE OPEN OPEN OPEN To stand-by To stand-by To stand-by Continue temporary folding motion Temporary folding reset Temporary folding in motion OPEN motion Last angle Return Continue OPEN motion Last angle Return OPEN motion Last angle Return OPEN motion Last angle Return Continue OPEN motion Last angle Return OPEN motion Last angle Return OPEN OPEN OPEN Temporary folding state (horizontal position) Temporary folding reset (horizontal position last angle) Temporary folding in motion (last angle horizontal position) Auto OPEN/CLOSE setting ON Auto OPEN/CLOSE setting OFF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 202 1 2 3 4 1 2 3 4 C D F A B E 7.3.2 OPERATIONAL FLOW CHART VDD0=5V Pin 39 Power ON bsens=L asens=L dsens=L bsens Pin 69 asens Pin 96 dsens Pin 83 SWVDD←H Pin 109 ASENBO←H Pin 87 Source keys operative Completes power-on operation. (After that, proceed to each source operation) SYSPW←H Pin 31 Starts communication with Display microcomputer. Source ON Starts communication with System microcomputer ACCPW←H Pin 29 DISPLAY MICROCOMPUTER SWVDD ON Microcomputer Initialization SYS resending dimand Display processing Initialization Key Response Connection formation Resending dimand Comunication formation Key Scan (Sys control) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 203 5 6 7 8 5 6 7 8 C D F A B E 7.4 CLEANING Before shipping out the product, be sure to clean the following portions by using the prescribed cleaning tools: Portions to be cleaned Cleaning tools DVD pickup lenses Cleaning liquid : GEM1004 Cleaning paper : GED-008 Portions to be cleaned Cleaning tools Fans Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 204 1 2 3 4 1 2 3 4 C D F A B E 8. OPERATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 205 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 206 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 207 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 208 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 209 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 210 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 211 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 212 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 213 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 214 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 215 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 216 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 217 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 218 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 219 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 220 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 221 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 222 1 2 3 4 1 2 3 4 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 223 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5700DVD/EW 224 1 2 3 4 1 2 3 4 C D F A B E - Jigs List Name Test Disc Screw lock 33 pin extension cable Relay PCB y Relay PCB 20 pin extension cable 40 pin extension cable 40 pin extension cable 2 pin extension cable Jig No. GGV1018 GYL1001 GGD1262 GGF1462 GGF1461 GGD1209 GGD1170 GGD1284 GGD1439 Remarks Adjusting the skew j g Adjusting the skew Connecting the monitor PCB to relay PCB(GGF1462) Connecting the monitor g PCB extension cable to flexible PCB Connecting the monitor PCB extension cable to flexible PCB Connecting the mother unit to relay PCB(GGF1461) Connecting the mother unit to relay PCB(GGF1461) Connecting the mother unit to DVD mechanism module Connecting the mother unit to DVD mechanism module www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
