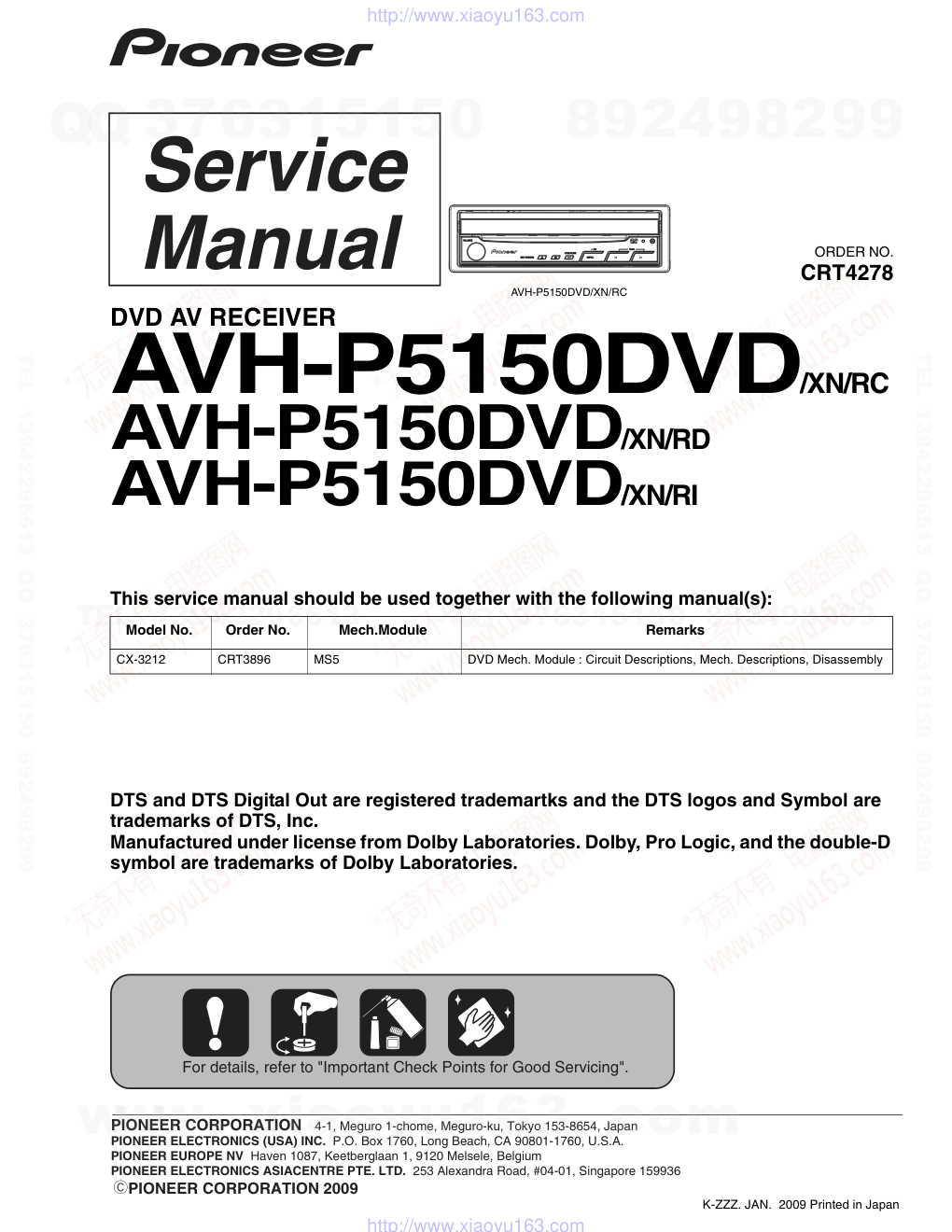

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2009 AVH-P5150DVD/XN/RC CRT4278 DVD AV RECEIVER AVH-P5150DVD/XN/RC AVH-P5150DVD/XN/RD AVH-P5150DVD/XN/RI This service manual should be used together with the following manual(s): Model No. Order No. Mech.Module Remarks CX-3212 CRT3896 MS5 DVD Mech. Module : Circuit Descriptions, Mech. Descriptions, Disassembly For details, refer to "Important Check Points for Good Servicing". K-ZZZ. JAN. 2009 Printed in Japan DTS and DTS Digital Out are registered trademartks and the DTS logos and Symbol are trademarks of DTS, Inc. Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION Where in a manufacturer’s service documentation, for example in circuit diagrams or lists of components, a symbol is used to indicate that a specific component shall be replaced only by the component specified in that documentation for safety reasons, the following symbol shall be used: This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safety repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safety, you should not risk trying to do so and refer the repair to a qualified service technician. CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. - Safety Precautions for those who Service this Unit. When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results. Caution: 1. During repair or tests, minimum distance of 13 cm from the focus lens must be kept. CAUTION CLASS 1M INVISIBLE LASER RADIATION WHEN OPEN. DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS 2. During repair or tests, do not view laser beam for 10 seconds or longer. WARNING! The AEL (accessible emission level )of the laser power output is less than CLASS 1 but the laser component is capable of emitting radiation exceeding the limit for CLASS 1. A specially instructed person should do servicing operation of the apparatus. Additional Laser Caution Transistors Q1103 and Q1104 in PCB drive the laser diodes for DVD and CD respectively. When Q1103 or Q1104 is shorted between their terminals, the laser diodes for DVD or CD will radiate beam. If the top cover is removed with no disc loaded while such short-circuit is continued, the naked eyes may be exposed to the laser beam. Laser diode characteristics Wave length: DVD:640 nm to 660 nm CD:770 nm to 810 nm DVD : 2.48 mW(Emitting period :9 sec.) CD : 705 W(Emitting period : unlimited) CAUTION Danger of explosion if battery is incorrectly replaced. Replaced only with the same or equivalent type recommended by the manufacture. Discord used batteries according to the manufacture's instructions. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 3 5 6 7 8 5 6 7 8 C D F A B E [Important Check Points for Good Servicing] In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. a Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 4 1 2 3 4 1 2 3 4 C D F A B E CONTENTS SAFETY INFORMATION..................................................................................................................................... 2 1. SERVICE PRECAUTIONS............................................................................................................................... 5 1.1 SERVICE PRECAUTIONS ........................................................................................................................ 5 1.2 NOTES ON SOLDERING .......................................................................................................................... 6 2. SPECIFICATIONS............................................................................................................................................ 7 2.1 SPECIFICATIONS ..................................................................................................................................... 7 2.2 DISC/CONTENT FORMAT ........................................................................................................................ 8 2.3 PANEL FACILITIES.................................................................................................................................... 9 2.4 CONNECTION DIAGRAM ....................................................................................................................... 13 3. BASIC ITEMS FOR SERVICE........................................................................................................................ 17 3.1 CHECK POINTS AFTER SERVICING..................................................................................................... 17 3.2 PCB LOCATIONS .................................................................................................................................... 18 3.3 JIGS LIST ................................................................................................................................................ 19 3.4 CLEANING............................................................................................................................................... 20 4. BLOCK DIAGRAM.......................................................................................................................................... 22 4.1 OVERALL CONNECTION DIAGRAM...................................................................................................... 22 4.2 BLOCK DIAGRAM ................................................................................................................................... 24 5. DIAGNOSIS.................................................................................................................................................... 33 5.1 OPERATIONAL FLOWCHART................................................................................................................ 33 5.2 INSPECTION METHOD OF PICKUP UNIT............................................................................................. 34 5.3 DIAGNOSIS FLOWCHART ..................................................................................................................... 37 5.4 ERROR CODE LIST ................................................................................................................................ 59 5.5 CONNECTOR FUNCTION DESCRIPTION............................................................................................. 62 5.6 SIMPLE OPERATION CHECK METHOD................................................................................................ 63 6. SERVICE MODE ............................................................................................................................................ 64 6.1 TEST MODE ............................................................................................................................................ 64 6.2 DVD TEST MODE ................................................................................................................................... 66 6.3 CALIBRATION TEST MODE ................................................................................................................... 69 6.4 MONITOR TEST MODE .......................................................................................................................... 69 7. DISASSEMBLY .............................................................................................................................................. 70 8. EACH SETTING AND ADJUSTMENT ........................................................................................................... 77 8.1 DVD ADJUSTMENT ................................................................................................................................ 77 8.2 DVD AMP UNIT ADJUSTMENT .............................................................................................................. 84 8.3 INVERTER PCB ADJUSTMENT ............................................................................................................. 86 8.4 MONITOR PCB ADJUSTMENT............................................................................................................... 88 8.5 TOUCH PANEL ADJUSTMENT............................................................................................................... 92 8.6 MONITOR ADJUSTMENT..................................................................................................................... 100 9. EXPLODED VIEWS AND PARTS LIST........................................................................................................ 108 9.1 PACKING ............................................................................................................................................... 108 9.2 EXTERIOR(1) .........................................................................................................................................110 9.3 EXTERIOR(2) .........................................................................................................................................112 9.4 EXTERIOR(3) .........................................................................................................................................114 9.5 EXTERIOR(4) .........................................................................................................................................116 9.6 DVD MECHANISM MODULE ................................................................................................................ 120 10. SCHEMATIC DIAGRAM............................................................................................................................. 122 10.1 DVD AMP UNIT(AMP)(GUIDE PAGE)................................................................................................. 122 10.2 DVD AMP UNIT(SYSTEM)(GUIDE PAGE).......................................................................................... 128 10.3 DVD AMP UNIT(POWER SUPPLY) .................................................................................................... 134 10.4 iPod CONNECTOR UNIT .................................................................................................................... 136 10.5 KEYBOARD UNIT................................................................................................................................ 137 10.6 DVD CORE UNIT(1/2)(GUIDE PAGE)................................................................................................. 138 10.7 DVD CORE UNIT(2/2) ......................................................................................................................... 144 10.8 COMPOUND UNIT(A) AND COMPOUND UNIT(B) ............................................................................ 146 10.9 MONITOR PCB(MONITOR)(GUIDE PAGE)........................................................................................ 148 10.10 MONITOR PCB(OSD)(GUIDE PAGE) ............................................................................................... 154 10.11 INVERTER PCB................................................................................................................................. 160 10.12 TUNER BOX UNIT............................................................................................................................. 162 10.13 DRIVE UNIT....................................................................................................................................... 164 10.14 WAVEFORMS.................................................................................................................................... 166 11. PCB CONNECTION DIAGRAM.................................................................................................................. 168 11.1 DVD AMP UNIT.................................................................................................................................... 168 11.2 iPod CONNECTOR UNIT..................................................................................................................... 172 11.3 KEYBOARD UNIT................................................................................................................................ 173 11.4 DVD CORE UNIT................................................................................................................................. 174 11.5 COMPOUND UNIT(A) AND COMPOUND UNIT(B)............................................................................. 178 11.6 INVERTER PCB................................................................................................................................... 179 11.7 MONITOR PCB.................................................................................................................................... 180 11.8 TUNER BOX UNIT............................................................................................................................... 184 11.9 DRIVE UNIT......................................................................................................................................... 186 12. ELECTRICAL PARTS LIST ........................................................................................................................ 187 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 5 5 6 7 8 5 6 7 8 C D F A B E 1. SERVICE PRECAUTIONS 1.1 SERVICE PRECAUTIONS 1. You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. 2. Be careful in handling ICs. Some ICs such as MOS type are so fragile that they can be damaged by electrostatic induction. 3. Before disassembling the unit, be sure to turn off the power. Unplugging and plugging the connectors during power-on mode may damage the ICs inside the unit. 4. To protect the pickup unit from electrostatic discharge during servicing, take an appropriate treatment (shorting-solder) by referring to "the DISASSEMBLY" . 5. After replacing the pickup unit, be sure to skew adjustment. 6. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a connector is plugged or unplugged. 7. In case the internal fuse blows out, check the latter part of voltage. 8. Touch panel consists of the glass. Take good care for its handling. Dropping the panel or adding severe impact on it may cause the risk of cracking. Also, the end face of glass is not chamfered. Use gloves and the like to protect your fingers from being cut. 9. AVH-P5150DVD will be operated only when Tuner Box is connected. When operating it without connecting Tuner Box such as in the case of confirming operation, short R678 (B face) of the DVD Amp Unit by soldering. *When returning it to the customer, do not forget to remove the shorted part as described above. It is the resistance land that enables operation in case the AVH-P5150DVD is returned to the service deposit with TUNER BOX excluded. If you return this land in the state of leaving it shorted after completion of repair, the failure may arise after returning it to the customer, who will claim that the product does not go OFF even by the detach. (See details to “5.6 SIMPLE OPERATION CHECK METHOD”.) 10. EJECT LOCK MODE for DVD mechanism In order to enter "EJECT LOCK" mode, press the EJECT key and the MUTE key for 2 seconds in the state of SOURCE OFF. DISC EJECT behavior of built-in DVD mecha is prohibited It is for DISC antitheft from the storefront display. With or without DISC, the behavior of pressing EJECT key during the EJECT lock is as follows. During grille closed Press EJECT key -> Grille is opened. * The key is valid at the point of being pressed (BEEP). To Leave the key makes grille opened. During grille opened Press EJECT key -> Grille is closed. * The key is valid at the point of being pressed (BEEP). To Leave the key makes grille opened. In order to exit "EJECT LOCK" mode, follow the same steps to enter this mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 6 1 2 3 4 1 2 3 4 C D F A B E 1.2 NOTES ON SOLDERING 11. Hot areas White area: Hot area. Be careful not to burn yourself DVD Amp Unit Tuner Box For environmental protection, lead-free solder is used on the printed circuit boards mounted in this unit. Be sure to use lead-free solder and a soldering iron that can meet specifications for use with lead-free solders for repairs accompanied by reworking of soldering. Compared with conventional eutectic solders, lead-free solders have higher melting points, by approximately 40 C. Therefore, for lead-free soldering, the tip temperature of a soldering iron must be set to around 373 C in general, although the temperature depends on the heat capacity of the PC board on which reworking is required and the weight of the tip of the soldering iron. Compared with eutectic solders, lead-free solders have higher bond strengths but slower wetting times and higher melting temperatures (hard to melt/easy to harden). The following lead-free solders are available as service parts: Parts numbers of lead-free solder: GYP1006 1.0 in dia. GYP1007 0.6 in dia. GYP1008 0.3 in dia. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 7 5 6 7 8 5 6 7 8 C D F A B E 2. SPECIFICATIONS 2.1 SPECIFICATIONS Dimensions (W × H × D): DIN Chassis........................... 180 mm × 50 mm × 165 mm Nose................................ 188 mm × 58 mm × 33 mm D Chassis................. 178 mm × 50 mm × 165 mm Nose....................... 170 mm × 46 mm × 28 mm Weight .................................... 2.4 kg Display Screen size/aspect ratio...... 7.0inch wide/16:9 (effective display area: 154 × 87 mm) Pixels ....................................... 336 960 (1 440 × 234) Display method .................... TFTactive matrix, transmis- sive type Color system.......................... NTSC/PAL/PAL-M/SECAM compatible Durable temperature range (power off) .............................................. -20 °C to +80 °C Angle adjustment ................. 50° to 110° (initial settings: 90°) Audio Maximum power output ...... 50 W × 4 50 W × 2/4 + 70 W × 1/2 (for subwoofer) Continuous power output .. 22 W × 4 (50 Hz to 15 000 Hz, 5 % THD, 4 load, both channels driven) Load impedance................... 4 to 8 × 4 4 to 8 × 2 + 2 × 1 Preout max output level ...... 4.0 V Equalizer (3-Band Parametric Equalizer): Low Frequency.............. 40/80/100/160 Hz Q Factor .................0.35/0.59/0.95/1.15 (+6 dB when boosted) Gain......................... ±12 dB Mid Frequency.............. 200/500/1k/2k Hz Q Factor .................0.35/0.59/0.95/1.15 (+6 dB when boosted) Gain......................... ±12 dB High Frequency.............. 3.15k/8k/10k/12.5k Hz Q Factor .................0.35/0.59/0.95/1.15 (+6 dB when boosted) Gain......................... ±12 dB HPF: Frequency.......................50/63/80/100/125 Hz Slope................................–12 dB/oct Subwoofer (mono): Frequency.......................50/63/80/100/125 Hz Slope................................–18 dB/oct Gain.................................. +6 dB to – 24 dB Phase ..............................Normal/Reverse Bass boost: Gain................................. +12 dB to 0 dB DVD Player System..................................... DVD video, DVD-VR, Video CD, CD, WMA, MP3, AAC, DivX system Usable discs .......................... DVD video, Video CD, CD, CD-R/RW, DVD-R/RW/RDL Region number: for Middle East Asian and South African models ..................................... 2 for Southeast Asian models ..................................... 3 for South American and Oceanian models ..................................... 4 Frequency response............. 5 Hz to 44 000 Hz(with DVD, at sampling frequency 96 kHz) Signal-to-noise ratio............. 96 dB (1 kHz) (IEC-A net- work) (RCA level) Output level: Video............................... 1.0 Vp-p/75 (±0.2 V) Number of channels ............ 2 (stereo) MP3 decoding format ..........MPEG-1 & 2 Audio Layer 3 WMA decoding format ....... Ver. 7, 7.1, 8, 9, 10, 11 (2ch audio) (Windows Media Player) AAC decoding format...........MPEG-4 AAC (iTunes en- coded only) (.m4a) (Ver. 8.0 and earlier) DivX decoding format...........Home Theater Ver. 3, 4, 5.2 (.avi, .divx) USB USB standard specification ............................................... USB 2.0full speed Maximum current supply .... 500 mA USB Class............................... MSC(Mass Storage Class) File system.............................. FAT16, FAT32 General Rated power source..............14.4 V DC (allowable voltage range: 12.0 V to 14.4 V DC) Grounding system.................Negative type Max. current consumption ...............................................10.0 A Backup current ......................5.0 mA or less www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 8 1 2 3 4 1 2 3 4 C D F A B E 2.2 DISC/CONTENT FORMAT MP3 decoding format ......... MPEG-1 & 2 Audio Layer 3 WMA decoding format ....... Ver. 7, 7.1, 8, 9, 10, 11 (2ch audio) (Windows Media Player) AAC decoding format.......... MPEG-4 AAC (iTunes en- coded only) (.m4a) (Ver. 8.0 and earlier) WAV signal format................Linear PCM & MS ADPCM (Non-compressed) FM tuner Frequency range................... 87.5 MHz to 108.0 MHz Usable sensitivity.................. 9 dBf (0.7 μV/75 , mono, S/N: 30 dB) Signal-to-noise ratio............. 72 dB (IEC-A network) AM tuner Frequency range................... 531 kHz to 1 602 kHz (9 kHz) 530 kHz to 1 640 kHz (10 kHz) Usable sensitivity.................. 25 μV(S/N: 20 dB) Signal-to-noise ratio............. 62 dB (IEC-A network) Infrared remote control Wavelength............................. 945 nm Output ......................................typ; 10 mw/sr per Infrared LED Note Specifications and the design are subject to mod- ifications without notice due to improvements. is a trademark of DVD Format/Logo Licensing Corporation. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 9 5 6 7 8 5 6 7 8 C D F A B E 2.3 PANEL FACILITIES What ’s what Head unit 1 VOLUME/MUTE button Rotate it to increase or decrease the vo- lume. Press to cut the sound. 2 Disc loading slot Insert a disc to play. 3 EJECT ( ) button Press to eject a disc from this unit. 4 EQ button Press to select various equalizer curves. 5 OPEN/CLOSE button Press to open or close the LCD panel. Press and hold to turn the LCD panel hori- zontal temporarily from upright position. 6 SRC button This unit is turned on by selecting a source. Press to cycle through all the available sources. 7 / (TRACK) buttons Press to do manual seek tuning, fast for- ward, reverse and track search controls. 8 RESET button Press to return to the factory settings (initial settings). 9 DETACH button Press to remove the front panel from the head unit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 10 1 2 3 4 1 2 3 4 C D F A B E Remote control Button names AVH mode DVD mode 1 Remote control selec- tion switch Switch to change the setting of the remote control. For details, refer toSetting re- mote control code type. 2 SRC button Press to cycle through all the available sources. Press and hold to turn the source off. 3 ATT button Press to quickly lower the volume level by about 90%. Press once more to return to the original volume level. 4 VOLUMEbuttons Press to increase or decrease the volume. 5 AUDIO button Press to change the audio language during DVD playback. SUBTITLE button Press to change the subtitle language during DVD playback. ANGLE button Press to change the viewing angle during DVD playback. 6 RETURN button Press to display the PBC (playback control) menu during PBC playback. 7 / buttons (DISC) Not used. Remote control code: AVH or B Not used. Remote control code: A Press to select the next/previous disc. 10 2 3 20 21 19 15 16 17 4 13 14 12 11 8 6 5 7 18 1 9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 11 5 6 7 8 5 6 7 8 C D F A B E 8 Remote control opera- tion mode switch Switch the operation mode between AVH, DVD and TV modes. Normally, set to AVH. For details, refer toUsing the remote control operation mode switchon the next page. 9 BOOK MARK button/ PGM button Press to operate the preprogrammed functions for each source. (Refer to Using the PGM button.) Press to turn the bookmark function on or off when your DVD player features bookmark function. For details, refer to DVD player’s operation manual. 10 DIRECT button Not used. 11 REAR SOURCE button Not used. Remote control code: AVH Not used. Remote control code: A or B Press to turn the DVD player on or off. 12 DISPLAY button Press to select different displays. Remote control code: AVH Not used. Remote control code: A or B Press to select different displays. 13 ENTERTAINMENT but- ton Not used. 14 0 to 10 buttons, CLEAR button Press0 to 10 to input numbers. Buttons 1 to 6 can operate the preset tuning for the tuner or disc changing for DVD player or multi-CD player. Press CLEAR to clear the input numbers. Press to select a menu item on a video CD featuring PBC (playback control). 15 BACK button Press to return to the previous display. Not used. 16 BAND/ESC button Press to select the tuner band when tuner is selected as a source. Also used to cancel the control mode of functions. Press to switch mode between com- pressed audio and audio data (CD-DA) when playing discs with compressed audio and audio data (CD-DA) such as CD-EXTRA and MIXED-MODE CDs. Press to switch mode between com- pressed audio and audio data (CD-DA) when playing discs with compressed audio and audio data (CD-DA) such as CD-EXTRA and MIXED-MODE CDs. 17 PLAY/PAUSE ( ) button Press to switch sequentially between playback and pause. REVERSE ( ) button Press to perform fast reverse. FORWARD ( ) but- ton Press to perform fast forward. PREVIOUS ( ) but- ton Press to return to the previous track (chapter). NEXT ( ) button Press to go to the next track (chapter). STEP ( / ) buttons Press to move ahead one frame at a time during DVD/VideoCD playback. Press and hold for one second to activate slow playback. STOP ( ) button Press to stop playback. 18 AUTO PLAY button Press to turn the DVD auto-playback function on or off. 19 / buttons (FOLDER) Press to select the next/previous folder. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 12 1 2 3 4 1 2 3 4 C D F A B E 20 Thumb pad Move to do fast forward, reverse and track search controls. Click to recall MENU. Move to select a menu on the DVD menu. 21 MENU button Press to display the DVD menu during DVD playback. TOP MENU button Press to return to the top menu during DVD playback. Using the remote control operation mode switch There are three remote control operation modes on the remote control. AVH mode operation When operating this unit by remote control, the mode is normally switched toAVH. DVD mode operation If you switch the mode toDVD, the thumb pad and 0 to 10 operations are changed for the DVD player. • When you want to operate the follow- ing functions, switch the mode to DVD: • When operating the DVD menu by using the thumb pad. (Refer toOperating the DVD menu.) • When operating the PBC menu by using 0 to 10. (Refer toPBC playback.) TV mode operation TV operations available with a Pioneer TV tuner (e.g. GEX-P5750TV(P)) can be controled with AVH mode. TV mode is not used with this unit. • For details concerning operation, refer to the TV tuner’s operation manuals. Fastening the front panel If you do not plan to detach the front panel, the front panel can be fastened with supplied screws. • Fix the front panel to the unit using screws and holder after removing the trim ring. Screws JGZ20P070FTC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 13 5 6 7 8 5 6 7 8 C D F A B E 2.4 CONNECTION DIAGRAM Connecting the power cord AUX jack (3.5 ø) Use a mini plug cable to connect with auxiliary equipment. Yellow Connect to the constant 12 V supply terminal. Fuse (10 A) Fuse resistor Red Connect to terminal controlled by ignition switch (12 V DC). Black (chassis ground) Connect to a clean, paint-free metal location. Fuse resistor Orange/white Connect to lighting switch terminal. Left Right re k a e p s tn o r F re k a e p s tn o r F Rear speaker or Subwoofer (4 ) White Gray Gray/black White/black Green Violet Green/black Violet/black Violet Violet/black Not used. Green Green/black When using a subwoofer of 70 W (2 ), be sure to connect with Violet and Violet/black leads of this unit. Do not connect anything to Green and Green/black leads. Subwoofer (4 ) × 2 Rear speaker or Subwoofer (4 ) This product 1.5 m 20 cm USB cable (supplied) Connect to separately sold USB device. USB input Gray Connection method 1. Clamp the lead. 2. Clamp firmly with needle-nosed pliers. Note: • The position of the parking brake switch depends on the vehicle model. For details, consult the vehicle Owner’s Manual or dealer. Light green Used to detect the ON/OFF status of the parking brake. This lead must be connected to the power supply side of the parking brake switch. Blue/white Connect to system control terminal of the power amp or auto-antenna relay control terminal (max. 300 mA 12 V DC). Ground side Power supply side Parking brake switch When you connect the separately sold multi- channel processor (e.g., DEQ-P7650) to this unit, do not connect anything to the speaker leads and system remote control (blue/white). With a 2 speaker system, do not connect anything to the speaker leads that are not connected to speakers. Note: • Change the initial setting of this unit (refer to the Operation Manual). The subwoofer output of this unit is monaural. Dock connector Connect to separately sold iPod. Interface cable (e.g., CD-IU205V) (sold separately) 80 cm Yellow/black If you use an equipment with Mute function, wire this lead to the Audio Mute lead on that piece of equipment. If not, keep the Audio Mute lead free of any connections. IP-BUS input (Blue) IP-BUS cable Tuner box (supplied) Antenna cable (supplied) 80 cm Multi-CD player (sold separately) Wired remote input Hard-wired remote control adaptor can be connected (sold separately). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 14 1 2 3 4 1 2 3 4 C D F A B E When connecting to separately sold power amp This product Front output (FRONT OUTPUT) Rear output or subwoofer output (REAR/SUBWOOFER/DEQ OUTPUT) 15 cm 15 cm Blue/white Connect to system control terminal of the power amp or auto-antenna relay control terminal (max. 300 mA 12 V DC). When you connect the separately sold multi- channel processor (e.g., DEQ-P7650) to this unit, do not connect anything to the speaker leads and system remote control (blue/white). When you connect the multi-channel processor to this unit, refer to multi-channel processor’s installation manual for the connection method. Note: • Change the initial setting of this unit (refer to the Operation Manual). The subwoofer output of this unit is monaural. Power amp (sold separately) Power amp (sold separately) Connect with RCA cables (sold separately) Rear speaker or subwoofer Rear speaker or subwoofer Perform these connections when using the optional amplifier. System remote control Front speaker Front speaker Left Right www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 15 5 6 7 8 5 6 7 8 C D F A B E When connecting with a rear view camera When this product is used with a rear view camera, it is possible to automatically switch from the video to rear view image when the gear shift is moved to REVERSE (R) . WARNING USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE REAR VIEW CAMERA. OTHER USE MAY RESULT IN INJURY OR DAMAGE. CAUTION • The screen image may appear reversed. • The rear view camera function is to be used as an aid for backing into a tight parking spot. Do not use this function for entertainment purposes. • Objects in the rear view may appear closer or more distant than they actually are. Violet/white Of the two lead wires connected to the back lamp, connect the one in which the voltage changes when the gear shift is in the REVERSE (R) position. This connection enables the unit to sense whether the car is moving forwards or backwards. This product Rear view camera input (REAR VIEW CAMERA IN) You must use a camera which outputs mirror reversed images. 20 cm Fuse resistor Connection method 1. Clamp the lead. 2. Clamp firmly with needle-nosed pliers. Note: • It is necessary to set CAMERA POLARITY properly in SYSTEM MENU when connecting the rear view camera. 15 cm RCA cable (sold separately) To video output CAUTION Rear view camera When connecting with a multi-channel processor When you connect a separately sold DVD player to the separately sold multi-channel processor, the optical cable from DVD player must be connected to the optical cable 2 input (OPT. IN2) of the multi-channel processor. This product 25 pin cable (supplied with DVD player) DEQ output (REAR/ SUBWOOFER/DEQ OUTPUT) Video input (VIDEO INPUT) 15 cm 25 cm Multi-CD player (sold separately) IP-BUS cable IP-BUS input (Blue) Optical cable connection box (e.g., CD-DD25) (sold separately) IP-BUS cable (supplied with multi-channel processor) RCA cable (supplied with DVD player) Optical cable (sold separately) Optical cable (supplied with multi-channel processor) RCA cable (supplied with multi-channel processor) DVD player (e.g., XDV-P650) (sold separately) Black Black Blue Hide-away unit (supplied with DVD player) Front video output (Yellow) IP-BUS cable (supplied with DVD player) Black Blue Multi-channel processor (e.g., DEQ-P7650) (sold separately) Black Blue Black Blue You can use only one video component with this unit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 16 1 2 3 4 1 2 3 4 C D F A B E Connecting and installing the optical cable connection box WARNING • Avoid installing this unit in locations where the operation of safety devices such as airbags is pre- vented by this unit. Otherwise, there is a danger of a fatal accident. • Avoid installing this unit in locations where the operation of the brake may be prevented. Otherwise, it may result in a traffic accident. • Fix this unit securely with the hook and loop fas- tener or lock tie. If this unit is loose, it disturbs driving stability, which may result in a traffic accident. CAUTION • Install this unit using only the parts supplied with this unit. If other parts are used, this unit may be damaged or could dismount itself, which leads to an accident or other problems. • Do not install this unit near the doors where rain- water is likely to be spilled on the unit. Incursion of water into the unit may cause smoke or fire. Connecting the optical cable 1. Connect the optical cable and ground lead to the main unit. Connect the optical cable so that it does not protrude from the unit, as shown in the illustration. Fasten the ground lead to the protrusion on the back of the unit. 2. Connect the optical cable to the optical cable connection box. Installing the optical cable connection box • Wheninstalling the optical cable connection box with the hook and loop fastener. Install the optical cable connection box using the hook and loop fastener in the ample space of the console box. • When installing the optical cable connection box with the lock tie. Wrap the optical cable and connection box with the protection tape and fasten with the power code using the lock tie. Fasten with the lock tie Wrap with the protection tape Hook fastener Loop fastener Optical cable Screw When connecting the external video component and the display • It is necessary to set AV INPUT to VIDEO in SYSTEM MENU when connecting the external video component. • It is necessary to set AV INPUT to S-DVD in SYSTEM MENU when connecting a multi-DVD player. When using a display connected to rear video output This product’s rear video output is for connection of a display to enable passengers in the rear seats to watch the DVD or Video CD. WARNING • NEVER install the display in a location that enables the Driver to watch the DVD or Video CD while driving. This product External video component (sold separately) RCA cables (sold separately) Audio input (AUDIO INPUT) Video input (VIDEO INPUT) 25 cm Display with RCA input jacks (sold separately) Rear monitor output (REAR MONITOR OUTPUT) To video input To video output To audio outputs 20 cm www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 17 5 6 7 8 5 6 7 8 C D F A B E 3. BASIC ITEMS FOR SERVICE 3.1 CHECK POINTS AFTER SERVICING To keep the product quality after servicing, please confirm following check points. No. Procedures Check points 1 Confirm whether the customer complain has been solved. If the customer complain occurs with the specific media, use it for the operation check. The customer complain must not be reappeared. Display, video, audio and operations must be normal. 2 Flap-mecha Check the operation of the flap mechanism. The flap mechanism operation must be smooth without making the noise and scratches. 3 DVD Measure playback error rates at the innermost and outermost tracks by using the test mode with the following disc. DVD test disc (GGV1025) Deterioration of mecha-drive can be checked. The error rate must be less than the threshold value. (Refer to the chapter of DIAGNOSIS for the threshold value.) 4 DVD Play back a DVD. (Menu operation; Title/chapter search) Display, video, audio and operations must be normal. 5 CD Play back a CD. (Track search) Display, audio and operations must be normal. 6 FM/AM tuner Check FM/AM tuner action. (Seek, Preset) Switch band to check both FM and AM. Display, audio and operations must be normal. 7 Check whether no disc is inside the product. The media used for the operating check must be ejected. 8 Appearance check No scratches or dirt on its appearance after receiving it for service. See the table below for the items to be checked regarding video and audio: Item to be checked regarding video Item to be checked regarding audio Block-noise Distortion Horizontal noise Noise Dot noise Volume too low Disturbed image (video jumpiness) Volume too high Too dark Volume fluctuating Too bright Sound interrupted Mottled color www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 18 1 2 3 4 1 2 3 4 C D F A B E 3.2 PCB LOCATIONS Monitor PCB Keyboard Unit DVD Amp Unit Main PCB Unit G C Inverter PCB H K J Tuner Box Unit I A L iPod Connector Unit B Switch PCB Unit Volume PCB Unit D E F DVD Core Unit (MS5AVCOD) Compound Unit (A) Compound Unit (B) Unit Number : CWN3852(RC) Unit Number : CWN3853(RD) Unit Number : CWN3854(RI) Unit Name : DVD Amp Unit Unit Number : Unit Name : Keyboard Unit Unit Number : Unit Name : iPod Connector Unit Monitor Unit Consists of Monitor PCB Inverter PCB Unit Number : CWN4088 Unit Name : Monitor Unit Unit Number : CWN3130 Unit Name : Tuner BOX Unit Unit Number : CXX2316 Unit Name : Main PCB Unit(SERVICE) Unit Number : CZW5029 Unit Name : Switch PCB Unit Unit Number : CZW5028 Unit Name : Volume PCB Unit Unit Number : YWX5005 Unit Name : DVD Core Unit Unit Number : CWX3595 Unit Name : Compound Unit(A) Unit Number : CWX3559 Unit Name : Compound Unit(B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 19 5 6 7 8 5 6 7 8 C D F A B E 3.3 JIGS LIST Cord CDE8589 Main PCB Unit GGD1284 40-Pin FFC BBR GGF1461 40-Pin + 20-Pin Relay PCB GGD1209 20-Pin FFC GGD1170 40-Pin FFC DVD Mechanism Module Bracket Monitor PCB DVD Amp Unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 20 1 2 3 4 1 2 3 4 C D F A B E 3.4 CLEANING DVD-Video GGV1025 Skew adjustment CD-DA TCD-782 Skew adjustment TORX driver(T2) GGK1095 Skew adjustment Bond GEM1033 Skew adjustment 40-Pin FFC GGD1170 Monitor PCB <--> Relay PCB 20-Pin FFC GGD1209 Main PCB Unit <--> Relay PCB 40-Pin FFC BBR GGD1284 DVD Mechanism Module <--> DVD Amp Unit 40-Pin + 20 Pin Relay PCB GGF1461 DVD Amp Unit <--> Monitor PCB, Main PCB Unit - Grease List Name Grease Grease Grease Grease Locking agents Grease Grease Grease Grease Grease Jig No. GEM1024 GEM1043 GEM1045 GEM1050 1401M GEM1011 GEM1047 GEM1071 GEM1072 GEM1070 Remarks DVD Mechanism Module and Chassis DVD Mechanism Module and Chassis DVD Mechanism Module DVD Mechanism Module DVD Mechanism Module (1401M:produced by THREE BOND) Chassis Chassis Chassis Chassis Chassis Before shipping out the product, be sure to clean the following portions by using the prescribed cleaning tools: Portions to be cleaned Cleaning tools DVD pickup lenses Cleaning liquid : GEM1004 Cleaning paper : GED-008 Portions to be cleaned Cleaning tools Fans Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 21 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 22 1 2 3 4 1 2 3 4 C D F A B E 4. BLOCK DIAGRAM 4.1 OVERALL CONNECTION DIAGRAM JA951 1 2 3 4 JA751 1 2 3 4 5 6 7 8 9 10 11 CN5002 1 2 3 4 CN5501 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 CN101 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 CN121 AGND 1 FL 2 AGND 3 RL 4 FR 5 AGND 6 RR 7 AGND 8 VCRAGND 9 VCR_L 10 VCR_R 11 VCRAGND 12 VCR_V 14 B.CAMERA 15 BC_VGND 16 VGND 17 REARVOUT 18 VCRVGND 13 CN5201 1 2 CN5004 INVBST 1 DIMDTY 2 INVPUL 3 GNDFL 4 GNDFL 5 GNDFL 6 NC 7 PWRFL 8 PWRFL 9 PWRFL 10 CN5602 1 2 3 4 5 6 7 8 9 10 CN5001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 CN851 1 RED 2 GREEN 3 BLUE 4 SWVDD33 5 ILMB 6 KEY1 7 REM 8 RESET 9 ILMA 10 ROT1 11 KEY2 12 ROT2 13 ILMGND 14 DGND 15 DSENS CN3001 3 15 8 11 2 4 12 10 5 6 7 9 1 14 13 CN852 1 2 3 4 5 CN441 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 IP-BUS INPUT DIGITAL OUT GND BUP VDD2 STV2 DC1 NC VDD2 BUP CPH MTRS GND OE DB5 MONVBS ANGL0SW DRAIVE UNIT U/D NC VDD2 MTRSEL VCOM DB3 NC NC GND CWX3264 STV1 NC CXC9160 GND DGND DB1 LIFTPUL DC2 GND DA4 NC DA5 VDD1 GND L/R VCOM MONITOR UNIT CWN4088 OSDGND DC3 DC0 NC DC4 NC SENSPW GND OSDGND DB0 SWVDD33V STH2 VDD1 TOUCH VGH CPV VDD OSDGND BUP DC5 MTRPW LCD MODULE DB2 GND PANEL CSX1115 LFTSW SWVDD33V MTR2 MTR1 LOAD DB4 VGL SWVDD33V NC DA3 AUXV VGND AGND AUXR MINIJACK RCA OUT VCR IN CONTROL CXC6317 REMOTE ASS'Y REA GNDFL GNDV REM GNDFL S_MTX GNDFL GND GNDD GNDD MONRST MFLPW PWRFL PWRFL PWRFL M_SRX GNDD PWRVI PWRVI GNDP GNDV GNDP NC NC NC NC NC NC NC NC NC NC NC BUS+ GND GND GND NC BUS- BUSL+ BUSR+ BUSR- BUSL- ABO OPTG OPTG OPTSENS OPTOUT PNLYV PNLXV PNLADX PNLADY IN CAM AUXL H INVERTER PCB G MONITOR PCB MONITOR PCB(MONITOR) 1/2 G MONITOR PCB(OSD) 2/2 G A DVD AMP UNIT DVD AMP UNIT(AMP) 1/3 A DVD AMP UNIT(SYSTEM) 2/3 A DVD AMP UNIT(POWER SUPPLY) 3/3 A C KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 23 5 6 7 8 5 6 7 8 C D F A B E JA2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 CN550 1 2 3 4 5 JA1901 1 2 3 4 5 6 7 8 9 10 11 12 13 RT1 RT2 CN1901 1 2 3 4 5 6 7 8 9 10 11 12 14 13 CN901 1 2 3 4 5 6 7 8 9 10 11 12 14 13 CN401 RDSLOCK 1 NC 2 RDSCK 3 DSEN 4 RDSHSLK 5 TUNCE2 6 RDSDATA 7 OSCGND 8 DGND 9 BEGND 10 TUNCK 11 TUN_R 12 TUNDI 13 TUN_L 14 TUNDO 15 ROMVDD 16 TUNSL 17 LDET 18 TUNCE 19 B.UP 20 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 101 12 13 14 15 16 17 18 19 20 1 VCR_R 11 VCRAGND 12 VCR_V 14 B.CAMERA 15 BC_VGND 16 VGND 17 REARVOUT 18 NC 19 VCRVGND 13 BG 20 CN1251 1 2 CN951 1 2 CN1852 1 2 JA1 1 2 3 CN801 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 JA431 4 3 1 2 CN171 1 2 3 4 5 6 7 8 9 10 11 12 14 15 16 13 CN1901 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 1 2 3 4 5 6 7 8 9 NC VD S MS5TX NC MS5 SRX VDD5 LOUT VGND COMPOSIT DGND DGND Cb VD Y WAKEUP STANBY DGND VGND PGND VGND DGND VDD5 XRES PGND AGND Cr IRQPWR VD VDD5 PGND AGND VGND AMUTE NC DGND VDD5 NC VGND ROUT AGND FL- VGND P.B. B.REM RR- B.UP ACC RL+ ILM RL- FL+ GND FR+ FR- MUTE RR+ POWER SUPPLY FAN MOTOR REAR CXK6631 MS5AVC2 MECHA MODULE IPOD USB IPOD_VG IPOD_AG GND IPODGND TXIPOD ROUT GND LOUT VOUT ACC_ID ACCDET RXIPOD ACC_PW MTRS ANGL0SW UNIT MTRSEL DB3 60 V8 DB1 LIFTPUL DA4 DA5 V0 V4 V10 V6 V3 DB0 DA1 V9 ANGLEIN V7 V2 V5 GND MTRPW DB2 LFTSW DA0 MTR2 MTR1 DA2 DB4 STH1 V1 DA3 VCR IN REAR VIEW OPTIN OPTGND FM/AM ANT WIRED REMOTE FANGND FANB WIREDGND WIREDAD WIRED USGND USGND USBDP USBDM USB5V LOUT IPODAG IPODAG ROUT IPODVG ACCDET VOUT ACCPW IPODGND ACCID IPODTX IPODRX FWGND FWPWR RDS_DATE DGND DO DI RDS_HSLK RDS_CK DGND ROMVDD33 LDET CK R DGND RDS_LOC DSEN CE1 BEGND L B.UP SL OSCGND CE2 IN CAMMERA REVERSE-GEAR SIGNAL IN B iPod CONNECTOR UNIT I TUNER BOX UNIT D E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 24 1 2 3 4 1 2 3 4 C D F A B E 4.2 BLOCK DIAGRAM 1 5 MINI JACK 1 5 8 7 11 IP-BUS INPUT 2 3 1 USB 2 5 8 9 4 10 11 6 7 FLASH WRITE CONNECTOR DVD AMP UNIT (1/2) A CN801 CN121(1/2) CN852 CN901 JA751 CN550 CN601 AV SELECTOR IC301 AN15887A V2-1 V6-1 L2-1 LOUT1 VOUT1 FB1 VOUT2 V5-1 L5-1 20 10 14 29 20 22 23 24 25 40 32 21 SCL SDA VD8 VD5 VDD5 LOUT VD FMPW VDD33 FMPWR BUS+ BUS- ABO BUSL+ BUSL- 2 7 11 STANBY MS5→SRX S→MS5TX IRQPWR XRES AMUTE STANDBY IRQPW WAKEUP COMPOSIT WAKEUP MS_SRX S_MSTX XRES AMUTE 15 18 VCR_L VCR_V BG B.CAMERA REARVOUT AUXV AUXL VOUT LOUT USBDM USBDP ACCDET ACCPW ACCID IPODTX IPODRX Q903(2/2) Q903(1/2) IRQPW AMUTE STANDBY BGSENS XRES MS-SRX WAKEUP S-MSTX DIN1 ROUT BUS- BUS+ IP-BUS DRIVER IC751 HA12241FP 1 1 1 4 5 5 28 35 36 34 33 5 4 5 46 16 USBCNT 26 27 22 21 23 MS_L BUSL+ BUSL- LOUT IN1 4 IN4 IN4 7 IN2 6 5 IN5 V1-1 V4-1 L4-1 L3-1 USB CONTROL IC501 PE5661A USBXTAL1 USBXTAL2 XTAL2 XTAL1 STBY BSRQ BRXEN BSCK BSO BSI RESET LOUT DM DP CN1901 D CN1901 B 1 2 6 5 15 38 12 11 14 7 1 6 8 10 I 17 14 I 3 1 I2C_SCL I2C_SDA nRESET CP-READY IPOD CP IC550 341S2304 Q751 BUP ACC5 B TO 2/2 BGSENS RXIE TXIE USB5V DCK FLMD0 DMS DRST DDI DDO USB5V IC551 R5523N001B 1 3 4 5 USBFLG USBCNT PID TXIPOD RXIPOD PSENS PSENSG 3 P801 RESET 3.3V ASENBO Q801 Q802 SYS+B Q141 BGSENS IC701 TC7WH08FU 3 5 1 7 47 32 19 23 43 AUX_L 45 AUX_V 39 VCR_V 8 VCR_L 37 MS_V IPOD_V IPOD_L 15 USB_L BC_V R_VOUT XIN USBFLG RESET X502 48.000 MHz 1 2 X501 52 50 4 5 A B C TO 2/2 EN FLG VOUT VIN REVERSE GEAR SIGNAL IN VCR IN REAR VIEW CAMMERA IN RCA OUT 55 TUN_L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 25 5 6 7 8 5 6 7 8 C D F A B E 4 2 1 3 2 12 9 11 15 4 8 5 4 1 2 CN3001 C CN5001 G POWER CONNECTOR Q152 21 5 3 AMP IC151 PAL007C RL+ FL+ FL- 23 RL- 25 B.REMOTE 4 STBY 22 MUTE 12 PA_FL FLIN 14 PA_RL RLIN DAC IC1551 M62343FP MONITOR VBS BUFFER A03 A01 A02 DI LD CLK Q153 SYS+B CN171 FL- FL+ RL- B.REM P.B. ACC B.UP RL+ Q171(1/2) BUP VDD33 SYSMUTE AMPPW 46 80 117 74 47 WAKEUP2 BGSENS CPCLK PCK PRDY PDT PRST 23 AVSCK 22 AVSDATA 2 7 11 76 ASENS 75 BSENS ISENS 13 ILM 14 MUTE Q172(1/2) Q172(2/2) Q171(2/2) Q173 82 143 PBSENS TELMUTEIN 14 CN851 CN441(1/2) PWVI PWFL SWVDD33 BLUE GREEN RED MFLPW MFLPW 3 6 11 10 12 15 135 RESET DSENS PWRVI PWRFL MONVBS SWVDD33 ILMB RESET AMUTE 62 XRESET 64 IRQPW TXMS5 21 61 66 63 RXMS5 STNDBY ASENBO PSENS PID TXIPOD RXIPOD TXIE RXIE PSENSG DSENS 136 ROT2 ROTIN2 137 ROT1 ROTIN1 138 KEY2 KEYIN2 139 KEY1 KEYIN1 26 RXMON 25 TXMON 29 MONIRST 119 LEDDT 120 LEDCK 118 LEDCS Q154 (1/2) 7 46 58 42 M-SRX 33 S-MTX 32 MONRST 31 REM REM Q1551 Q351 Q352 Q1552 Q1553 Q154 (2/2) Q155 BUP OFFMUTE AMPMUTE PBSENS ASENS BSENS ISENS TELMUTE IRQPW AMUTE STANDBY BGSENS XRES MS-SRX WAKEUP S-MSTX 30 32 59 132 31 60 116 115 40 39 42 41 20 8 95 94 BSO BRST 48 BSCK 54 BRXEN BSRQ USBCNT DMS DDO DDI DRST USBFLG DCK FLMD0 53 20 21 19 50 BSI 49 51 USBCNT MS_L BUSL+ BUSL- LOUT Pre/SW_L DATA CLK STB 106 107 105 EVSDA EVSCK EVSEL EVSDT EVSCK EVSTB EVSDT EVSCK EVSTB IN1_L Front_L Rear_L 4 IN4-_L IN4+_L 7 IN2_L 6 5 IN5+_L 12 10 11 RCA MUTE CN121(2/2) RL FL RCA_RL RCA_FL BUP 38 36 3 15 35 38 4 I 52 50 I 37 35 . 40 39 C_SCL C_SDA RESET READY 1 2 1 2 3 8 7 6 RESET IC602 S-80827CNNB-B8M E.VOL CAPTAIN6 IC201 PML018A C TO 2/2 Q101(1/2) Q101(2/2) 3 XIN USBFLG T RESET DSENS SYSTEM uCON IC601(1/2) PE5673A A TO 2/2 RCA OUT TUN_L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 26 1 2 3 4 1 2 3 4 C D F A B E DVD AMP UNIT (2/2) A 37 BUP FWPW FIREWIRE PW Q1303 | Q1305 133 PPOWER 131 VDSENS 5.4V 8V VD8 VD5 VD8 VDCNT VDCNT VDCONT 65 VD5 78 ILM_ON 8V ILMB ILMB Q1522 SWVDD33V SWV ACC5 1 2 4 ACC ACC33V IC1601 BA00BC0WFP SWVDD BUP PWFL PWVI PWFL PWVI Q1071 Q1072 P1071 IC1031 S-1206B41-U3 USB33 ACCPW ACCPW MFLPW ACC 5.4V 7 OUT2 P1401 10 OUT1 BUP 9 VCC P1403 IC1401 AN8011S 3 2 ON/OFF RT VC VIN VDD Q1402 Q1404 8V P1402 Q1401 Q1403 Q1701 Q1702 Q1501 Q1502 Q1621 Q1622 Q1405 VR1401 ACCPW 55 7 DDCCTL DC/DC CONVERTER 5.4V REGULATOR 8V REGULATOR 2 Q1031 Q1032 2 3 IC1001 S-812C33AUA-C2N Q1002 VDD TO 1/2 P1051 SWBUP Q1151 Q1152 BUP SWB BUP 6 SYSPW BUP 6 5 4 IC1202 LT3461AES6 EV1 HIOUT 12V Q1201 Q1202 SYSPW BUP 2 4 1 SYS SYS8.4V IC1101 BA00CC0WFP SYSPW SYSPW SYSPW P1151 P125 Q1251 | Q1254 111 CLCNT1 112 CLCNT2 FAN 56 BEEP X601 4.718592MHz BZ601 BUZZER 13 12 X2 X1 C Q1001 VDD33V A B C JA2 I CN1852 D 16 20 6 14 4 19 13 15 11 17 TUNDI TUNCE2 TUNCE DSEN ROM_VDD B.UP TUNDO A TO 1/2 VDD33 SWBUP TUNPCE2 DSENS TUN_L B TO 1/2 114 TUNPCE 113 TUNPDO 69 TUNPDI 68 TUNCK TUNPCK 70 TUNSL TUNSL 144 P402 CN401 CN951 OPTIN TO 1/2 125 MTR1 IC441 TC74VHCT08AFTS1 12 11 2 3 9 8 122 126 123 MTRPW 124 MTRS 17 LFTPULS 129 ANGLE 127 DEGOSW MTRSEL MTR2 24 LEFSW ACC5 ACC33 BUP 1B 4A 3A 1Y 4Y 3Y VIN VOUT SHDN VCC VOUT CTL SYSTEM uCON IC601(2/2) PE5673A IC951 TC7SET08FUS1 2 1 4 5 Q951 1 WIRED 140 WIREDAD 141 WIRED REMOTE JA431 WIRED WIREDAD GND 2 4 3 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 27 5 6 7 8 5 6 7 8 C D F A B E VD8 VD5 SWVDD33 ACC33 IC1031 S-1206B41-U3 USB33 ACC5 5.4V 8V 2 3 USB33 VDD33 SWBUP EV12 SYS+B 2 CN1251 JA951 1 P1251 REAR FAN CN101 J 8 9 10 11 1 2 3 4 7 MTRSEL MTRPW MTRS 5 6 MTR1 MTR2 LIFTPUL ANGLEIN ANGLOSW LETSW SENPW ACC5 P442 VDD ACC33 P441 BUP P443 I 20 18 CN441(2/2) OPTSENS OPTOUT OPTG FANB 2 4 3 1 DIGITAL OUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 28 1 2 3 4 1 2 3 4 C D F A B E MA0-11 MDQ0-31 DQM0-3 A16-19 AD0-15 VIDEO+AUDIO IC1501 MN2DS0016AAUB 1 3 2 13 AUDIO P SRCK LRCK ADOUT3 SDODAC LTDAC SCKDAC DACCK 15 14 16 174 173 175 91 74 90 172 DACCLK SRCK ADOUT3 SDODAC LRCK LTDAC SCKDAC DACCLK DRV3 95 CONT1 MD CONT2 84 97 85 LOADIN 93 FD 150 TD 149 LDIN FG HOME TEMP VIN1RF VIN3RF VIN4RF VIN2RF VIN5 VIN6 DVDMPD RFINN F+H_G+H CDMPD E+G_E+F LPCO2 LPCO1 99 98 145 123 121 120 122 VIN2 142 136 137 A C D B FE1 FE2 128 116 134 130 135 131 129 RF Cr Cb Y Comp 152 153 154 161 STANDBY 78 HOSTCMD 80 SLVSTS 79 IRQPWR 89 AMUTE 87 DSCSNS 147 PHOTOSNS 144 (CR) (CB) (Y) (COMPOSIT) CR CB Y COMPOSIT DRV2 96 NRES OSCO OSCI X1501 169 170 DEBUG STANBY CMDCOMN STSCOMN IECOUT 179 A16-19 A0-15 A0-15 AD0-15 AD0-15 XRD NRES 28 50 NEXOE 101 NRST 77 XCSSR 51 NEXCE 62 NEXWE XCSSR 26 12 XWR1 11 48 CE OE WE RESET 2 1 VSENS VOLTAGE DETECT IC1003 S-80859CNNB-B9K VD8 OUT VDD 88 VSENCE SDRAM IC1481 EDS1232AATA-75-E 20 68 CS CLK XWE 17 3 NWE XCAS 18 4 NCAS XRAS 19 5 NRAS XCSM 6 NCSM 22 8 BA0 23 10 BA1 BA0 BA1 MCK 234 MCK 232 MCKI CAS RAS WE CN1951 EXTRG0 SDATA SCLOCK EXTRG1_SPD_SW TRCD0 10 11 1 6 8 7 5 9 4 3 2 TRCST TRCCLK TRCD3 TRCD2 TRCD1 190 191 192 189 187 183 184 185 186 TRCST TRCDATA3 TRCDATA2 TRCDATA1 TRCDATA0 188 TRCCLK EXTRG0 SDATA SCLOCK EXTRG1 PR_A20 92 P0 VIN1 143 VIN3 140 VIN4 141 FLASH 16M IC1401 CWW1763 LATCH IC1352 TC74LCX16373FT IC1351 TC7SZ08FU IC1403 TC7SZ32FU XCSFM 26 11 XWR2 CE WE IC1402 CWW1764 4 1 2 4 1 2 XCSFM 1LE 25 2LE VDD5 DVD CORE UNIT D CLAMP 94 12 |13 VCC33 XCSSR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 29 5 6 7 8 5 6 7 8 C D F A B E AVCC5 VOUTL 7 BCK LRCK DATA MD 1 3 2 13 AUDIO 2CH ANALOG OUT IC1801 PCM1753DBQ LOUT ML MC SCK 15 14 16 SRCK ADOUT3 SDODAC LRCK LTDAC SCKDAC DACCLK 20 18 CTL2 SLO2- 3 ACO2+ 4 ACO2- MOTOR DRIVER IC1201 BD7996EFV 2 ACO1- 1 TOM TOP FOM FOP ACO1+ 21 CTL1 25 SLIN2 26 29 SPIN 10 LDIN 13 FG DISC DET IC1301 TC7SZ125FU VDD5 B- CN1201 17 SLO2+ 16 SLO1- 15 SLO1+ 42 V COILV 39 W COILW 44 U COILU 36 HB HBM 30 HW- HWM 31 HW+ HWP 32 HV- HVM 33 HV+ HVP 34 HU- HUM 35 HU+ HUP 20 18 15 14 17 1 2 3 4 9 10 7 12 11 8 13 16 5 6 Q1104 Q1102 VREF VCC5 CN1101 LD(CD) F- F+ T- T+ FOM TH TEMP B FOP TOM TOP LPCO2 25 20 19 1 2 3 4 10 11 8 14 12 9 15 21 17 22 24 5 7 Q1103 Q1101 LD(DVD) VCC LPCO1 4 DSCSNS 2 51 ACTIN1 50 ACTIN2 5 1 3 VIN VOUT ON/OFF AVCC5 REG. IC1005 S-L2980A50MC-C7J VCC5 VD8 4 5 1 VIN VOUT CONT VCC5 REG. IC1004 NJM2880U1-05 A C D FE1 FE2 78MD CDMPD 65MD DVDMPD RF F+H/G+H F+H_G+H E+G/E+F E+G_E+F 1 DRV3 SLIN1 DRV2 CONT1 CONT2 MD FD TD CR IECOUT CB Y COMPOSIT STANBY SLVSTS HSTCMD STSCOMN CMDCOMN IRQPWR AMUTE VD8 XRESET NRES WAKE UP B+ COIL_V COIL_W COIL_U A- ANALOG LOUT DiscDetect 8cm 8cm 12cm Photo PHOTOSNS CN1901 40 21 3 29 38 36 23 22 25 20 24 2 | 1 34 32 CN1852 1 CN1301 3 2 1 4 5 A+ HALL_BIAS- HALL_W- SWITCH HOME HALL_W+ HALL_V- HALL_V+ HALL_U- HALL_U+ HALL_BIAS+ 3 1 VDD5 VCC33 3.3V REG. IC1007 NJM2885DL1-33 OUT IN 8 2 VCC12 1.2V REG. IC1008 R1232D121B LX VIN 4 COMPOUND UNIT(A) E S1203 S1204 DISC SENS 3 S1202 8cm S1201 2 12cm 5 S1205 8cm 6 Q1299 CLAMP1 TP1 COMPOUND UNIT(B) F S1206 CLAMP 3 VDD VDD5 FU1901 14 | 17 VD5 PU (DP8) CN801 A CN951 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 30 1 2 3 4 1 2 3 4 C D F A B E 1,2,5,6 1,2,5,6 28 CN5001 DAC_Out PLL_IN Q5401 X'tal_IN X'tal_OUT X5401 42MHz 52 53 60 56 R[2-7]_D-Out G[2-7]_D-Out B[2-7]_D-Out STH 66 139 143-148 153-158 166-171 Load 138 CPH 137 OE 136 CPV 135 STV 134 Sub_C. Video_IN1 PICTURE SPLIT IC IC5401 TC90A96BFGSING 6 8 DI LD A02 A01 A03 IC5501 M62343FP 104 Bus_Clock_IN 105 Bus_Data_IN 107 Reset_IN 101 OSD_Blank_High_IN IC5502 TC7SET04FUS1 133 4 2 Vcom - + 7 5 6 - + 1 2 3 1 3 2 IC5503 NJM2100V IC5505 TC7S66FU IC5507 NJM082B - + 7 5 2 1 4 6 3 4 S G D S G D 3 4 D/D CONVERTER IC5103 BD6171KV 3.3V REGULATOR Q5102 11 6 PVCC1 PVCC2 32 43 EN1 FIN OUT2 7 VS2 4 PVCC3 PVCC4 PVCC5 23 48 37 OUT1 10 OUT5 38 OUT4 47 OUT3 22 8V REGULATOR Q5103 41 42 PVCC VCC CHARGE PUMP REGULATOR VS1 13 DACDI DACLD 23 22 21 OSCin VSYNC HSYNC OSDCS 2 9 11 A[0-17] D[0-11] MONITOR uCON IC5603 PE5674A OSD IC IC5802 PDC169B 63 62 52 15 5 7 OSDSCL 80 MVIPW OSDRES XIN PNLADY PNLADX PNLYV PNLXV XOUT 12 X5601 5MHz 13 SIN 6 18 7 CLK DACCLK 19 17 DIMMER 28 INVPUL 38 OSDPW 61 51 OSDDATA 28 58 26 57 PNLADY 89 RESET 14 PNLADX 90 PNLVD 83 PNLYV 81 TOUCHAD 92 PNLXV 82 15 MFLPW MFLPW 85 30 DDCON_SEL PWRVI SWVDD33 PWRFL PWRVI 19 9 REM 48 KYDT1 35 M-SRX 8 DPDT1 36 S-MTX REM MONVBS DO EPRDI 4 43 DI EPRDO 3 44 CS EPRCS 1 45 SK EPRCK 2 47 EEPROM IC5604 S-93C56BD0I-J8 A CN441 PIPRST PIPDA PIPCK SCLK I 12 10 . 14 13 I 23 21 TH5601 TEMP. SENSOR 100 TEMPSEN INVBST BLK ROUT 30 34 GOUT BOUT 35 36 93 88 OSD_C/H.Sync_Out Main_RGB_Sync_IN1-2 92 OSD_V.Sync_Out 80 B_IN.2 OSDB 79 G_IN.2 OSDG 78 R_IN.2 OSDR CE CE OE OE CS RST 1 4 IC5301 NJM2505AF 91 OSD_Clock_Out OSD ROM IC5801 PEH172A VCOM AMP MONITOR PCB G TOUCH PANEL Q5703 (1/2) Q5702 (2/2) Q5702 (1/2) Q5703 (2/2) 4 MONRST 7 3 1 2 SWVDD33 Q5701 (2/2) Q5701 (1/2) SWVDD33 Q5607 Q5608 Q5802(2/2) Q5801 Q5802(1/2) SWVDD33 OSD33V CN5002 SWD33 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 31 5 6 7 8 5 6 7 8 C D F A B E DC[0-5] DB[0-5] DA[0-5] 2 1 | 30 35 | 36 41 | 42 47 59 29 9 20 8 6 13 48 | 58 CN5501 CN5004 CN5602 ut IN Q5401 IN UT X5401 42MHz 52 53 60 56 VCC5V ut ut ut TH STH1 139 143-148 153-158 166-171 ad LOAD DIMDTY INVPUL INVBST 138 PH CPH 137 OE OE 136 PV CPV 135 TV STV1 VDD2 VCC18V VGH 4 VCCM12V VGL V[0-10] VCOM VCOM 134 IC5502 TC7SET04FUS1 IC5504 TC7SET04FUS1 133 4 2 m 4 1,3,5 2,4,6 8,10,12 9,11,13 2 IC5507 NJM082BV - + 1 3 2 - + 7 5 6 VCC8V VCC3.3V VCC18V VCC5V VCCM12V 4 4 5 1 2.5V REGULATOR RGE PUMP GULATOR VCOM DRIVE LADDER NETWORK DRIVER IC5506 TC74VHC04FTS1 V25 IC5102 S-1132B25-U5 5 1 1.5V REGULATOR V15 IC5101 S-1132B15-U5 V25P V25AM V25AS V33D 28 VCC3.3V L/R I 26 24 Q5501 Q5502 V15M V15D MP . 17 16 VDD1 V33IO V33 INVERTER PCB H CN5201 5 3 1 PWRFL 19 14 15 4,5 6 7 2,3 LCT 3 ENA 7 V2500 9 FB DIM VDDA PDRV_A 20 NDRV_B 12 PDRV_C 11 17 NDRV_D 2 OVP RT Q5202 Q5203 Q5207 Q5208 Q5204 VR5201 5V REGULATOR IC5201 TA78L05F IC5204 OZ961ISN LCD DRIVE 18 CT Q5206 Q5205 T5201 FL1 FL2 Q5201 IC5203 TC7SET08FUS1 1,2 4 INVBST INVPUL DIMDTY DIMMER PWRFL 2 2 1 3 1 I 10 8 2 3 1 I 10 8 LCD PANEL LCD LCD BACKLIGHT VOUT ON/OFF VIN VOUT ON/OFF VIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 32 1 2 3 4 1 2 3 4 C D F A B E CN3001 KEY1 6 S3006 EJECT S3007 OPEN/CLOSE S3008 EQ 7 REM 4 REMOTE CONTROL SENSOR SWVDD33 ACC_ID TXIPOD RXIPOD ACC_PW ACCDET VOUT LOUT FMPWR ACC_ID TXIPOD RXIPOD ACC_PW ACCDET VOUT LOUT FMPWR 1 3 IC3011 GP1UX31RK KEYBOARD UNIT C KEY2 11 S3003 SOURCE S3004 REVERSE S3005 FORWARD ROT1 10 ROT2 12 S3002 ATT&VOLUME 1 3 2 4 5 RED RESET 8 DSENS 15 S3001 RESET CN851 A CN901 A 1 2 GREEN D3024 Q3021(1/2) Q3022(1/2) Q3023(1/2) 3 BLUE D3025 Q3021(2/2) Q3022(2/2) Q3023(2/2) ILMB 5 JA1901 CN1901 iPod CONNECTOR UNIT B iPod 4 3 6 10 11 7 5 2 10 11 12 8 6 7 1 14 CN401 A FM/AM TUNER UNIT U1 JA2 JA1 AM_ANT FM_ANT B.UP ROMVDD33 SL SL CE2 CE2 CE1 CE1 CK CK DI DI DO DO Lch L DSEN ROM_VDD 1 Q2 TUNER BOX UNIT I 1 2,3 FM/AM ANTENNA VCC TUN+B TUN3.3V VDD_3.3 2 1 3 IC3 NJM2388F84 IC1 NJM2391DL1-33 1 3 23 8 9 10 14 4 17 13 5 6 14 17 15 10 4 3 18 8 19 21 IC5 TC7WH08FU 1 7 TUN33V TUN+B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 33 5 6 7 8 5 6 7 8 C D F A B E 5. DIAGNOSIS 5.1 OPERATIONAL FLOWCHART Vdd = 3.3 V Pin 9 Power ON BSENS Pin 75 ASENS Pin 74 SWVDD H Pin 37 ACCPW H Pin 7 Source keys operative Completes power-on operation. (After that, proceed to each source operation) SYSPW H Pin 6 Starts communication with Display microcomputer. Source ON or Back Camera ON 500 ms 300 ms In case of the above signal, the communication with Grille microcomputer may fail. If the time interval is not 500/300 msec, the oscillator may be defective. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 34 1 2 3 4 1 2 3 4 C D F A B E 5.2 INSPECTION METHOD OF PICKUP UNIT Disc to be used CD-DA: TCD-782 DVD-Video: GGV1025 Execution method START Is it OK? Is it OK? Ckeck parts other than PICK UP PICK UP cleaned? Perform lens cleaning SKEW ADJ. Is it OK? LD current check RF level check RF level check Yes Error rate check Finished LD turned on? Check parts No Is it OK? PICK UP cleaned? Perform lens cleaning Error rate check Is it OK? Replace the PICK UP Replace the PICK UP Replace the PICK UP Replace the PICK UP Check point: AS MAX check Check point: LD current check Check point: Error rate check Yes No Yes No Yes No Yes No Yes No Yes No Yes No Check point: AS MAX check Check point: Error rate check www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 35 5 6 7 8 5 6 7 8 C D F A B E LD current check Status: [Foucs closed] of TEST MODE Mode: DVD No. Disc Check Point Threshold Remarks: LD current 1 Status: [Foucs closed] of TEST MODE Mode: CD No. Disc Check Point Threshold Remarks: LD current 2 TCD-782 CDLD1 – VCC5_3 (mV) 10 – 60(mA) Notes: Please pay attention to the laser diode damage by static electricity. DVDLD1 VCC5_3 CDLD1 VCC5_3 GGV1025 DVDLD1 – VCC5_3 (mV) 10 – 65 (mA) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 36 1 2 3 4 1 2 3 4 C D F A B E ASMAX check ASMAX value shows the value of RF level. Status: [Foucs closed] of TEST MODE No. Disc Check Point Threshold Remarks: 8 digits value of ASMAX more than on display 0000 0600 8 digits value of ASMAX more than on display 0000 0C00 Error rate check Status: [Tracking Closed] of TEST MODE No. Disc Check Point Threshold Remarks: less than 1.000E-03 less than 1.000E-03 less than 2.500E-03 3 TCD-782 ID: HOME Position 2 GGV1025 ID: 200000 1 GGV1025 ID: 40000 1 GGV1025 Only four last digits are displayed according to the product. 2 TCD-782 Only four last digits is displayed according to the product. In this case, the value is displayed for a split second. When you tried to perform [FOCS CLOSE], the display will charge automatically in the following order. [1FFF0000]->[FEMAX]->[FE MIN]->[AS MAX]-> [ENV MAX]->[FE normal]->[Spindle gain]-> [TEMAX]->[TEMIN] ->[20000000] Watch carefully the value of ASMAX. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 37 5 6 7 8 5 6 7 8 C D F A B E 5.3 DIAGNOSIS FLOWCHART Is the image in error? Go to FE related repair process. Is FE section normal? BACK END section flow Can the playback start? Is the sound in error? Repair the defective part. Normal? NO YES NO YES YES YES YES YES YES Go to FE section check. YES YES NO NO NO NO NO NO NO FE section check. Go to FE section check. NO NO NO Replace the unit. YES YES Go to FE section check. NO YES YES NO START END NO NO NO NO Replace the unit. YES Normal? YES NO END NO YES YES YES YES YES Does the operation take time? Is the life of flash memory OK? Conduct check item 12. Standby OK? Execute check 1. Is VDD5 (VCC33, VCC12) power supply voltage OK? Execute check 2. Reset OK? Execute check 3. Is VD8, VCC5 power supply voltage OK? Execute check 7. Is SDRAM IF OK? Execute check 6. Is VSENS OK? Execute check 4. Is 27 MHz OK? Execute check 5. Is AVCC5 voltage OK? Execute check 8. Is DACCLK normal? Execute check 9. Is the audio circuit OK? Execute check 10. Is the video circuit OK? Execute check 11. Is AVCC5 voltage OK? Execute check 8. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 38 1 2 3 4 1 2 3 4 C D F A B E Check 1: Standby OK? Check the voltage at the “STANBY” test point while the power is on. Use the “DGND1” test point at the reference. NO. Check point Module No. Specification value Unit STANBY-DGND1 ALL VCC33 V- 0.6 V or more V Fig 1.1: STANBY check point Side A 1 DGND1 STANBY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 39 5 6 7 8 5 6 7 8 C D F A B E Check 2: Is VDD5 (VCC33, VCC12) power supply voltage OK? VDD5 VCC33 (= 3.3 V ) VDD5 VCC12 (= 1.2 V ) IC1401 FLASH power supply (Data) IC1402 FLASH power supply (Program) IC1481 SDRAM power supply IC1501 DVD-LSI power supply IC1501 DVD-LSI power supply IC1007 3.3 V output regulator IC1008 DC/DC converter 1.2 V output F.E. driver control system NO. Check point Module No. Specification value Unit 1 2 3 VDD5_3 - DGND1 VCC33_3 - DGND1 VCC12_1 - DGND1 ALL ALL ALL 5.0 ± 0.4 3.3 ± 0.15 1.2 ± 0.12 V V V Side A Fig 2.2: VDD5, VCC33, VCC12 voltage check points Fig 2.1: Power supply configuration Check the voltage at the “VDD5_3, VCC33_3 and VCC12_1” test point while the power is on. Use the “DGND1” test point at the reference. DGND1 VCC12_1 VCC33 VDD5_3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 40 1 2 3 4 1 2 3 4 C D F A B E Check 3: Reset OK? NO. Check point Module No. Specification value Unit 1 XRES-DGND1 ALL VCC33 × 0.7 or more V Side A Fig 3.1: RESET check point Check the voltage at the “XRES” test point while the power is on. Use the “DGND1” test point at the reference. DGND1 XRES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 41 5 6 7 8 5 6 7 8 C D F A B E Check 4: Is VSENS OK? CN1901 HOST I/F VD8 VSENS VCC33 VDD5 STANBY XRES Fig 4.1: Power supply configuration and VSENS NO. Check point IC1501 DVD-LSI IC1007 Regulator VCC12 IC1008 DC/DC converter IC1003 detection IC Side A Fig 4.2: VSENS check point Module No. Specification value Unit VSENS - DGND1 ALL VCC33 × 0.7 or more V 1 Check the voltage at the “VSENS” test point while the power is on. Use the “DGND1” test point at the reference. DGND1 VSENS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 42 1 2 3 4 1 2 3 4 C D F A B E Check 5: 27 MHz Normal? Each clock is created inside the IC1501 using the 27 MHz master crystal oscillator (X1501). OSCO OSCI Fig 5.1: Clock configuration IC1501 DVD-LSI X1501 27 MHz crystal VCC33 VCC12 Turn the power on, and check with DGND being the reference. In case of NG, check the applicable line, periphery of IC1501, soldering of the peripheral components and defective components. NO. Check point Module No. Specification value Unit 2 IC1501 169pin ALL 27 MHz ± 50 ppm ppm GND Fig 5.2: Clock specification value Side A Fig 5.3: 27 MHz check point Specification value DGND1 IC1501 169pin www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 43 5 6 7 8 5 6 7 8 C D F A B E Check 6: Is SDRAM I/F OK? In order to secure the MPEG stream data as the buffer, the capacity of communication I/F SDRAM between the LSI and the memory is 128Mbit. Be careful as XCSM, XWE, XCAS, XRAS and XSCM of IC1481 are called differently in IC1501, namely NCSM, NWE, NCAS, NRAS, NCSM. MA0~11 MDQ0~31 MCK XWE (NWE) XCAS (NCAS) XRAS (NRAS) XCSM (NCSM) DQM0 DQM1 DQM2 DQM3 BA0 BA1 Fig 6.1: SDRAM I/F IC 1481 SDRAM IC1501 DVD-LSI www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 44 1 2 3 4 1 2 3 4 C D F A B E 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 MA0 MA1 MA2 MA3 MA4 MA5 MA6 MA7 MA8 MA9 MA10 MA11 MDQ0 MDQ1 MDQ2 MDQ3 MDQ4 MDQ5 MDQ6 MDQ7 MDQ8 MDQ9 MDQ10 MDQ11 MDQ12 MDQ13 MDQ14 MDQ15 MDQ16 MDQ17 MDQ18 MDQ19 MDQ20 MDQ21 MDQ22 MDQ23 MDQ24 MDQ25 MDQ26 MDQ27 MDQ28 MDQ29 MDQ30 MDQ31 MCK XWE XCAS XRAS XCSM DQM0 DQM1 DQM2 DQM3 BA0 BA1 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 0.17 ohm or lower 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % 56 ohm ± 5 % IC1481 25pin IC1481 26pin IC1481 27pin IC1481 60pin IC1481 61pin IC1481 62pin IC1481 63pin IC1481 64pin IC1481 65pin IC1481 66pin IC1481 24pin IC1481 21pin IC1481 2pin IC1481 4pin IC1481 5pin IC1481 7pin IC1481 8pin IC1481 10pin IC1481 11pin IC1481 13pin IC1481 74pin IC1481 76pin IC1481 77pin IC1481 79pin IC1481 80pin IC1481 82pin IC1481 83pin IC1481 85pin IC1481 31pin IC1481 33pin IC1481 34pin IC1481 36pin IC1481 37pin IC1481 39pin IC1481 40pin IC1481 42pin IC1481 45pin IC1481 47pin IC1481 48pin IC1481 50pin IC1481 51pin IC1481 53pin IC1481 54pin IC1481 56pin IC1481 68pin IC1481 17pin IC1481 18pin IC1481 19pin IC1481 20pin IC1481 16pin IC1481 71pin IC1481 28pin IC1481 59pin IC1481 22pin IC1481 23pin IC1501 16pin IC1501 18pin IC1501 20pin IC1501 22pin IC1501 21pin IC1501 19pin IC1501 17pin IC1501 15pin IC1501 11pin IC1501 9pin IC1501 14pin IC1501 7pin IC1501 237pin IC1501 239pin IC1501 241pin IC1501 243pin IC1501 248pin IC1501 250pin IC1501 252pin IC1501 254pin IC1501 253pin IC1501 251pin IC1501 249pin IC1501 244pin IC1501 242pin IC1501 240pin IC1501 238pin IC1501 236pin IC1501 29pin IC1501 31pin IC1501 33pin IC1501 37pin IC1501 39pin IC1501 41pin IC1501 43pin IC1501 45pin IC1501 44pin IC1501 42pin IC1501 40pin IC1501 38pin IC1501 34pin IC1501 32pin IC1501 30pin IC1501 28pin IC1501 234pin IC1501 3pin IC1501 4pin IC1501 5pin IC1501 6pin IC1501 255pin IC1501 256pin IC1501 26pin IC1501 27pin IC1501 8pin IC1501 10pin Check the conductivity at “check point 1” and “check point 2” without power. In case of NG, check the soldering and defective components throughout the “output t input” of the applicable section. NO. Signal name Check point 1 Check point 2 Specification value www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 45 5 6 7 8 5 6 7 8 C D F A B E Side B Check point 1 (IC1481) Side A Check point 2 (IC1501) Fig 6.2: SDRAM I/F check point www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 46 1 2 3 4 1 2 3 4 C D F A B E Check 7: Is VD8, VCC5 power supply voltage OK? VD8_1 VD VCC5 (= 5.0V ) Fig 7.1: Power supply configuration F.E. driver system DISC detection LED Power supply for PU IC1004 REG IC for VCC 5V. NO. Check point Module No. Specification value Unit 1 2 3 VD8_1 - PGND3 VD - PGND3 VCC5_1- AGND1 ALL ALL ALL 8.0 ± 0.4 8.0 ± 0.4 5.0 ± 0.1 V V V Side A Fig 7.2: VD8, VCC5 voltage check points Check the voltage at the “VD8_1, VD and VCC5_1” test point while the power is on. Use the “PGND3 and AGND1” test point at the reference. VCC5_1 AGND1 VD VD8_1 PGND3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 47 5 6 7 8 5 6 7 8 C D F A B E Check 8: Is AVCC5 voltage OK? VD AVCC5 (= 5.0 V ) Fig 8.1: Power supply configuration Playback DVD-REF-A1 TITLE 1 and check the voltage at the stylus. Check with PGND and GNDAU being the reference. NO. Check point VD - PGND_3 AVCC5 - GNDAU1 IC1801 Audio-DAC IC1005 REG IC for AVCC 5 V. Module No. Specification value Unit 1 2 ALL ALL 8.0 ± 0.4 5.0 ± 0.1 V V Side A Fig 8.2: VD8, AVCC5 voltage check points PGND3 AVCC5 GNDAU VD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 48 1 2 3 4 1 2 3 4 C D F A B E Fig 9.1: Clock configuration Check 9: Is DACCLK normal? DACCLK for Audio-DAC is created by IC1501 using the 27 MHz master crystal oscillator (X1501). DACCLK DVD: DVD-REF-A1 TITLE 1 CD: Playback a normal CDDA. Common to all DVD-V compatible modules. Check with DGND being the reference. In case of NG, check the applicable line, the periphery of IC1501, soldering of the peripheral components and defective components. IC1501 DVD-LSI X1501 27 MHz crystal IC1801 Audio-DAC VCC33 VCC12 GND Fig 9.2: Clock specification value Side A Check point 2 (IC1501 172 pin) Check point 1 (stylus) Fig 9.3: 27 MHz, DACCLK check point Specification value 1 Specification value 2 Specification value 3 NO. Check point 1 (stylus) Media Specification value 1 Specification value 2 Specification value 3 1 2 DACCK DACCK DVD CD 2.0 V~VCC33 V 2.0 V~VCC33 V DGND~0.8 V DGND~0.8 V 36.864 0 MHz ± 300 ppm 33.868 8 MHz ± 300 ppm www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 49 5 6 7 8 5 6 7 8 C D F A B E Check 10: Is the audio circuit OK? The serial 3 lines digital output + DACCLK, output from DVD-LSI (IC1501), are converted to analog audio signal at Audio-DAC (IC1801) and are output from the HOST I/F (CN1901). Simultaneously, the analog MUTE signal is also output from DVD-LSI (IC1501) via the HOST I/F. The digital audio signal (IECOUT), output from DVD-LSI (IC1501), is output via CN1852. CN1901 HOST I/F LRCK LO ADOUT3 SRCK RO GNDAU CN1852 IC1801 Audio-DAC IC1501 DVD-LSI IEC Fig 10.1: Audio circuit Playback DVD-REF-A1 TITLE 2 CHAPTER 1 (48 k/16 bit 1 kHz 0 dB), and check with DGND being the reference. In case of NG, check the applicable line, periphery of major components as described in the above drawing, soldering of the peripheral components and defective components. NO. Check point 1 (stylus) 1 2 3 Specification value 1 Specification value 2 Reference waveform ADOUT3 SRCK LRCK VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher 0.4 V or lower 0.4 V or lower 0.4 V or lower Waveform 1 Waveform 2 Waveform 3 GND Fig 10.2: Serial 3 lines specification value Side A Specification value 1 Specification value 2 Fig 10.3: Serial 3 lines check points SRCK LRCK ADOUT3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 50 1 2 3 4 1 2 3 4 C D F A B E The following checks shall be conducted using the following measurement circuits with GNDAU1 being the reference. NO. 4 5 Fig 10.4: Analog audio out (LO, RO) specification value. Side A Fig 10.5: Analog audio out check point Specification value is the root-mean-square value (rms). Check point 1 (stylus) 1 400 ± 150 mV 1 400 ± 150 mV Specification value (rms) Reference waveform Waveform 4 Waveform 4 LO RO LO GNDAU1 RO 47 kohm 47 kohm LO RO GNDAU1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 51 5 6 7 8 5 6 7 8 C D F A B E Check with DGND being the reference. Check 2pin cord after connecting it to a jig, etc. NO. Check point 1 (stylus) Specification value 1 Specification value 2 Reference waveform 6 IEC VCC33 V-0.6 V or higher 0.4 V or lower Waveform 5 Side A Fig 10.6: Digital audio signal (IECOUT) check point IEC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 52 1 2 3 4 1 2 3 4 C D F A B E IN IN OUT At the time of 6ch digital out, the serial 6 lines output from DVD-LSI (IC1501) is output via CN1581. Furthermore, at the time of ripping, the serial 3 lines digital output + SUBC, output from DVD-LSI (IC1501), is output in 4 times speed via CN1851. CN1851 ADOUT0/SUBC ADOUT1/BLKCK ADOUT2/CLDCK SRCK LRCK DATA MCKENA RIPP IC1501 LSI IC1851 buffer SW, ripping or 6ch digital out. IC1852 buffer SW, ripping or 6ch digital out. IC1853 buffer SW, ripping or 6ch digital out. SBCK BMUTE EMPH IEC/IPFLG The signal at CN1851 for 6ch digital out/Ripping. Pin No. Pin name 23 21 19 17 15 13 11 9 7 5 4 3 2 SRCK LRCK AD0/SUBC AD1/BLK AD2/CLD AD3/DATA IEC/IPFLG - SBCK BMUTE MCKENA RIPP EMPH Pins 1, 6, 8, 10, 12, 14, 16, 18, 20, 22 and 24 are GNDD. Fig 10.7: 6ch digital out/Ripping circuit 6ch digital out Ripping SRCK LRCK ADOUT0 ADOUT1 ADOUT2 ADOUT3 IEC - - BMUTE Low High EMPH SRCK LRCK SUBC BLKCK CLDCK DATA IPFLG - SBCK - High Low EMPH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 53 5 6 7 8 5 6 7 8 C D F A B E Playback DVD-REF-A1 TITLE22 CHAPTER 1, and check with GNDD being the reference. In case of NG, check the applicable line, the periphery of the major components in the drawing above, soldering of the peripheral components and defective components. Check 24pin FFC after connecting it to a jig, etc. NO. Check point 1 (stylus) 7 8 9 10 11 12 13 SRCK LRCK ADOUT0 ADOUT1 ADOUT2 IEC MCKENA Specification value 2 0.4 V or lower 0.4 V or lower 0.4 V or lower 0.4 V or lower 0.4 V or lower 0.4 V or lower VCC33 V x 0.3 V or lower 0.4 V or lower 0.4 V or lower 0.4 V or lower 0.4 V or lower 0.4 V or lower 0.4 V or lower 0.4 V or lower VCC33 V x 0.3 V or lower Rip common CDDA, and check with GNDD being the reference. In case of NG, check the applicable line, the periphery of the major components in the drawing above, soldering of the peripheral components and defective components. Check 24pin FFC after connecting it to a jig, etc. NO. Check point 1 (stylus) 14 15 16 17 18 19 20 21 SRCK LRCK SUBC BLKCK CLDCK DATA SBCK RIPP Specification value 1 Specification value 2 VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher - Specification value 1 GND Specification value 2 Fig 10.8: 6ch digital out/Ripping specification value VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher VCC33 V-0.6 V or higher - Specification value 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 54 1 2 3 4 1 2 3 4 C D F A B E Side A Side B Fig 10.9: 6ch digital out/Ripping check point SRCK LRCK ADOUT3 ADOUT2 ADOUT1 ADOUT0 RIPP MCKENA SBCK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AVH-P5150DVD/XN/RC 55 5 6 7 8 5 6 7 8 C D F A B E Check 11: Is the video circuit OK? Composite signal and component signal are output from DVD-LSI (IC1501), and are output from the HOST I/F (CN1901) via a buffer circuit. CN1901 HOST I/F AVCC5 Composite Component Y Component Cb Component Cr COMPO Fig 11.1: Video circuit Playback DVD-REF-A1 TITLE2 CHAPTER5 (WHITE 100%), and monitor COMPO signal with an oscilloscope with GNDV1 (stylus) being the reference. Set the trigger mode to “TV trigger” and the trigger line to “150 line”. Video buffer circuit NoMount IC1501 DVD_LSI Video DAC section NO. Check point 1 (stylus) Specification value Reference waveform 1 COMPO 1 000 mVpp ± 5 % Waveform 6 In case of NG, check the applicable line, the periphery of the major components in the drawing above, soldering of the peripheral components and defective components. PEAK COMPO signal Reference value Color burst Pedestal level BOTTOM Horizontal sync signal Fig 11.2: Waveform for the case of composite white 100% output
