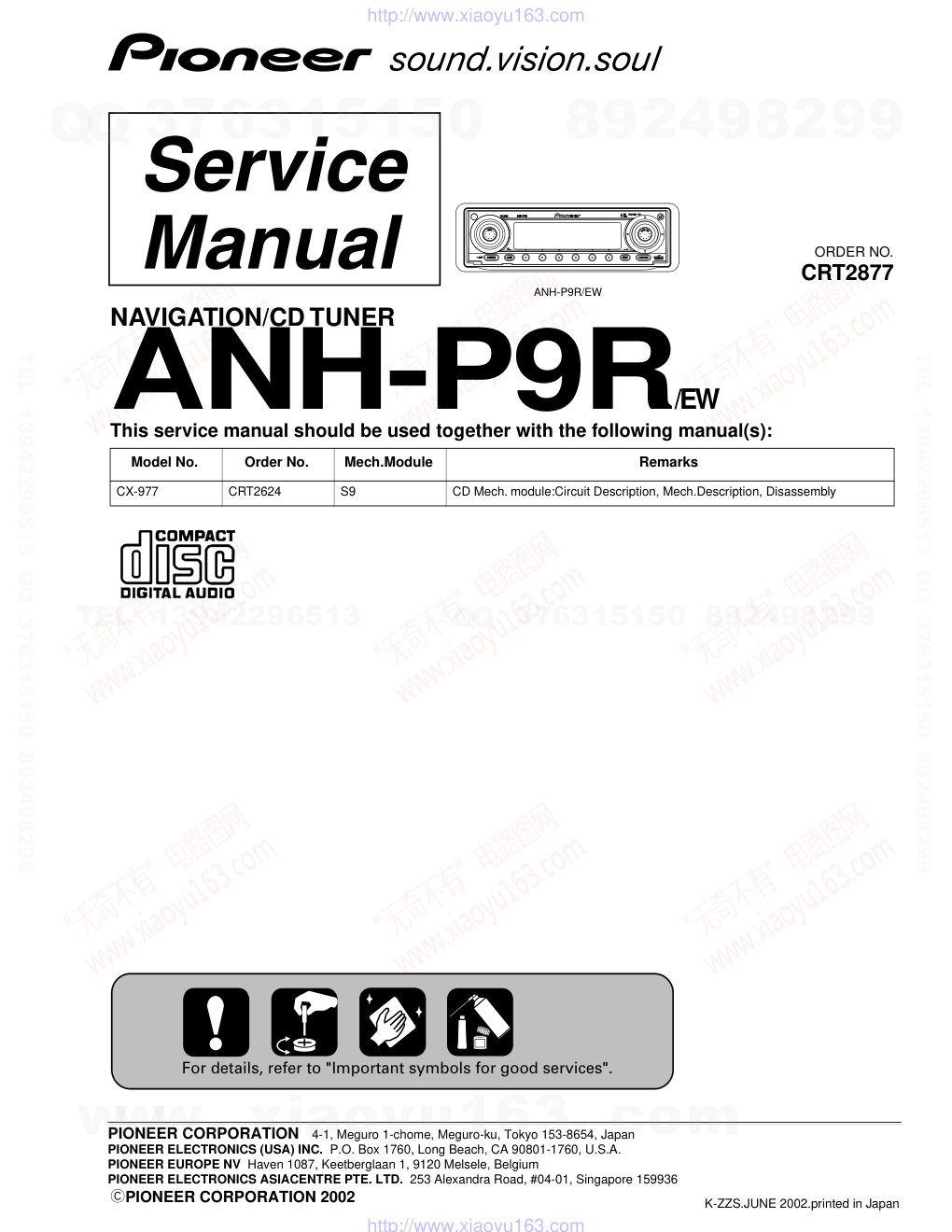

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2002 ANH-P9R/EW CRT2877 NAVIGATION/CD TUNER ANH-P9R/EW This service manual should be used together with the following manual(s): Model No. Order No. Mech.Module Remarks CX-977 CRT2624 S9 CD Mech. module:Circuit Description, Mech.Description, Disassembly For details, refer to "Important symbols for good services". K-ZZS.JUNE 2002.printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 2 SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. 1. Safety Precautions for those who Service this Unit. • When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results. Caution: 1. During repair or tests, minimum distance of 13cm from the focus lens must be kept. 2. During repair or tests, do not view laser beam for 10 seconds or longer. 2. A “CLASS 1 LASER PRODUCT” label is affixed to the bottom of the player. 3. The triangular label is attached to the mechanism unit frame. 4. Specifications of Laser Diode Specifications of laser radiation fields to which human access is possible during service. Wavelength = 800 nanometers CLASS 1 LASER PRODUCT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 3 [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. - CD section precaution 1. Before disassembling the unit, be sure to turn off the power. Unplugging and plugging the connectors dur- ing power-on mode may damage the ICs inside the unit. 2. To protect the pickup unit from electrostatic dis- charge during servicing, take an appropriate treat- ment (shorting-solder) by referring to “the DISAS- SEMBLY” on page 56. 3. After replacing the pickup unit, be sure to check the grating. (See p.51.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 4 CONTENTS SAFETY INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 1. SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2. EXPLODED VIEWS AND PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1 PACKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.2 EXTERIOR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 2.3 CD MECHANISM MODULE (S9ARROW) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.1 BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.2 OVERALL CONNECTION DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 3.3 MAIN UNIT(GUIDE PAGE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 3.4 KEYBOARD UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 3.5 PANEL UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 3.6 CD MECHANISM MODULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 4. PCB CONNECTION DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 4.1 MAIN UNIT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 4.2 KEYBOARD UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 4.3 PANEL UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 4.4 CD MECHANISM MODULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 5. ELECTRICAL PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 6. ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 6.1 TEST MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 6.2 SERVICE GARAGE MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 6.3 CD ADJUSTMENT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 6.4 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT . . . . . . . . . . . . . . . . . . . . . 51 6.5 ERROR CODE(CD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 7. GENERAL INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 7.1 DIAGNOSIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 7.1.1 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 7.1.2 CONNECTOR FUNCTION DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 7.2 IC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 7.3 OPERATIONAL FLOW CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 7.4 CLEANING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 8. OPERATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 5 1. SPECIFICATIONS General Power source .................. 14.4 V DC (10.8 – 15.1 V allowable) Grounding system .......... Negative type Max. current consumption ......................................... 10.0 A Backup current .........................................Less than 6 mA Dimensions (W x H x D): Chassis (DIN) ........... 178 x 50 x 157 mm Nose ......................... 188 x 58 x 18.0 mm Weight ............................. 2.0 kg Navigation (GPS receiver) System ............................. L1, C/Acode GPS SPS (Standard Positioning Service) Reception system ........... 12ch Reception frequency ...... 1,575.42 MHz Sensitivity ....................... –130 dbm Position update frequency Approx. once per second (Common) Maximum current consumption ......................................... 10 A Power source ......................... DC 14.4 V (10.8–15.1 V allowed) Ground type ........................... Negative type (GPS antenna) Aerial ............................... Micro strip flat antena/right-handed helical polarizaton Aerial cable ..................... 5.0 m (Dimensions) Main unit ............................... 178 (W) x 50 (H) x 157 (D) mm GPS antenna .................... 46 (W) x 46 (H) x 13 (D) mm (Weight) Main unit .......................... 1.5 kg GPS aerial ......................... 115 g Audio Maximum power output 50 W x 4 50 W x 2 ch/4 Ω + 70 W x 1 ch/2 Ω (for subwoofer) Continuous power output 27 W x 4 (DIN 45324, +B=14.4 V) Load impedance ............. 4 Ω (4 – 8 Ω [2 Ω for 1 ch] allowable) Preout max output level/output impedance ......................................... 2.2 V/1 kΩ Equalizer (3-Band Parametric Equalizer): (Low) Frequency ......... 40/80/100/160 Hz Q Factor ............. 0.35/0.59/0.95/1.15 (+6 dB when boosted) Gain ................... ±12 dB (Mid) Frequency ......... 200/500/1 k/2 k Hz Q Factor ............. 0.35/0.59/0.95/1.15 (+6 dB when boosted) Gain ................... ±12 dB (High) Frequency ......... 3.15 k/8 k/10 k/12.5 k Hz Q Factor ............. 0.35/0.59/0.95/1.15 (+6 dB when boosted) Gain ................... ±12 dB Loudness contour: (Low) ........................ +3.5 dB (100 Hz) +3 dB (10 kHz) (Mid) ......................... +10 dB (100 Hz) +6.5 dB (10 kHz) (High) ....................... +11 dB (100 Hz) +11 dB (10 kHz) (Volume: –30 dB) Tone controls: (Bass) Frequency ......... 40/63/100/160 Hz Gain ................... ±12 dB (Treble) Frequency ......... 2.5 k/4 k/6.3 k/10 k Hz Gain ................... ±12 dB Subwoofer: Frequency ......... 50/80/125 Hz Slope ................. –12 dB/oct Gain ................... ±12 dB CD player System ............................ Compact disc audio system Usable discs .................... Compact disc Signal format: Sampling frequency 44.1 kHz Number of quantization bits .................................. 16; linear Frequency characteristics ......................................... 5 – 20,000 Hz (±1 dB) Signal-to-noise ratio ....... 94 dB (1 kHz) (IEC-A network) Dynamic range ................ 92 dB (1 kHz) Number of channels ....... 2 (stereo) FM tuner Frequency range ............. 87.5 – 108.0 MHz Usable sensitivity ........... 9 dBf (0.8 µV/75 Ω, mono, S/N: 30 dB) 50 dB quieting sensitivity 15 dBf (1.5 µV/75 Ω, mono) Signal-to-noise ratio ....... 70 dB (IEC-A network) Distortion ........................ 0.3% (at 65 dBf, 1 kHz, stereo) Frequency response ....... 30 – 15,000 Hz (±3 dB) Stereo separation ........... 40 dB (at 65 dBf, 1 kHz) MW tuner Frequency range ............. 531 – 1,602 kHz (9 kHz) Usable sensitivity ........... 18 µV (S/N: 20 dB) Selectivity ....................... 50 dB (±9 kHz) LW tuner Frequency range ............. 153 – 281 kHz Usable sensitivity ........... 30 µV (S/N: 20 dB) Selectivity ....................... 50 dB (±9 kHz) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 6 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING NOTES : • Parts marked by " * " are generally unavailable because they are not in our Master Spare Parts List. • Screw adjacent to mark on the product are used for disassembly. • For the applying amount of lobricants or glue, follow the instructions in this manual. (In the case of no amount instructions,apply as you think it appropriate.) " www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 7 PACKING SECTION PARTS LIST Owner's Manual,Installation Manual Mark No. Description Part No. 1-1 Owner's Manual/PEE/ENG CRB1784 1-2 Owner's Manual/PEE/SPE CRB1785 1-3 Owner's Manual/PEE/GER CRB1786 1-4 Owner's Manual/PEE/FRE CRB1787 1-5 Owner's Manual/PEE/ITA CRB1788 1-6 Owner's Manual/PEE/DUT CRB1789 1-7 Installation Manual CRD3652 * 1-8 Warranty Card CRY1157 1-9 Polyethylene Bag CEG1116 * 1-10 Passport CRY1013 2 Cord Assy CDE6998 3 Screw CBA1002 4 Accessory Assy CEA3428 5 Cord Clamper Assy CEA2644 6 Polyethylene Bag CEG1161 7 Sheet CNM6902 8 GPS Antenna Assy CXB8937 9 Case Assy CXB3520 10 Carton CHG4739 11 Sub Carton CHG4779 12 Contain Box CHL4739 13 Protector CHP2386 14 Protector CHP2445 15 Protector CHP2446 16 Polyethylene Bag CEG-162 17 Protector CHP2553 18 Handle CNC5395 19 Bush CNV3930 20 CD-ROM Mark No. Description Part No. Part No. Language CRB1784 English CRB1785 Spanish CRB1786 German CRB1787 French CRB1788 Italian CRB1789 Dutch CRD3652 English, French, Spanish, German, Italian, Dutch CRB1784 (Owner's manual in English) CRB1785 (Owner's manual in Spanish) CRB1786 (Owner's manual in German) CRB1787 (Owner's manual in French) CRB1788 (Owner's manual in Italian) CRB1789 (Owner's manual in Dutch) When the products are shipped from our factory, the above manuals and CD-ROM are not A manual will be attached to the product package on the site (PEE) according to the lan- guage used in the country or area to which the product is delivered. A CD-ROM will be attached to the product package at the PEE. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 8 2.2 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 9 EXTERIOR SECTION PARTS LIST Mark No. Description Part No. 1 Screw BMZ26P140FZK 2 Screw BMZ30P040FMC 3 Screw BSZ26P080FMC 4 Screw BSZ26P160FMC 5 Cord Assy CDE6998 6 FFC CDE7000 7 CD Mech. Module(S9ARROW) CXK5553 8 Button(EJECT) CAC7653 9 Screw(M2x2) CBA1176 10 Washer CBF1038 11 Washer CBF1039 12 Spring CBH2428 13 Spring CBH2429 14 Spring CBL1512 15 Earth Plate CND1044 16 Holder CND1045 17 Cover CNM7763 18 Panel CNS7107 19 Pin CNV6486 20 Lighting Conductor CNV6487 21 Gear CNV6507 22 Arm CNV6508 23 Panel Unit CWM8366 24 Socket(CN1802) CKS3552 25 Connector(CN1801) CKS4566 26 Damper Unit CXB5070 27 Holder Unit CXB6356 28 Holder Unit CXB6357 29 Clutch Unit CXB6358 30 Screw IMS20P045FZK 31 Case CNB2762 32 Holder CNC8659 33 Cover CND1336 34 Insulator CNM7761 35 Insulator CNM7855 36 Shield CNM8069 37 Insulator CNM8074 38 Heat Sink CNR1647 39 Panel CNS7132 40 Main Unit CWM8365 41 Screw ASZ26P060FMC 42 Screw BPZ26P060FMC 43 Cord Assy CDE7003 44 Clamper(CN992) CEF1004 45 Clamper(CN991) CEF1004 46 Pin Jack(CN251) CKB1035 47 Pin Jack(CN252) CKB1035 48 Terminal(CN403) CKF1064 49 Terminal(CN402) CKF1064 50 Terminal(CN703) CKF1064 51 Terminal(CN471) CKF1064 52 Plug(CN901) CKM1278 53 Connector(CN131) CKS1961 54 Connector(CN472) CKS2619 55 Connector(CN952) CKS2619 56 Connector(CN971) CKS3124 57 Connector(CN101) CKS3408 58 Plug(CN951) CKS3539 59 Antenna Jack(CN401) CKX1056 60 Holder CND1041 61 Holder CND1042 62 Shield CND1043 63 Shield Case CND1060 64 Shield CND1186 65 Shield CND1337 * 66 Spacer CNM8006 67 FM/AM Tuner Unit CWE1607 68 Connector(CN1,2) CKS4244 69 Holder CNC8708 70 Case CNC8709 71 GPS Unit CWX2693 72 Navi Unit CWX2694 73 Detach Grille Assy CXB8921 74 Screw BPZ20P100FZK 75 Button(SOURCE,BACK) CAC7654 76 Button(NEXT,BAND) CAC7655 77 Button(1-6) CAC7656 78 Button(OPEN) CAC7657 79 Spring CBH2430 80 Spring CBH2431 81 Spring CBH2491 82 Shield CNM8075 83 Case CNS7106 84 Holder CNV6505 85 Holder CNV6506 86 Keyboard Unit CWM8367 87 Connector CDE6741 88 Connector(CN1902) CKS3995 89 Connector(CN1901) CKS4565 90 Spacer CNM7764 91 OEL Module MXK8019 92 IC(IC1901) TSOP4840SB1 93 Sub Grille Assy CXB8908 94 Knob Unit(INFO) CXB8909 95 Knob Unit(NAVI) CXB8910 96 Chassis Unit CXB9873 97 Fan Motor CXM1207 98 Screw IMS26P050FMC 99 Tuner Unit(Y471) CWE1674 100 Transistor(Q801,812,862) 2SD2396 101 Cap CNS1472 102 Resistor RS1/2PMF102J 103 Fuse(10A) CEK1136 104 Cap CKX-003 105 Insulator CNM8076 106 Insulator CNM8128 107 Spacer CNM8135 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 10 2.3 CD MECHANISM MODULE (S9ARROW) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 11 CD MECHANISM MODULE SECTION PARTS LIST Mark No. Description Part No. 1 CD Core Unit CWX2685 2 Connector(CN701) CKS1961 3 Connector(CN101) CKS3486 4 Screw BMZ20P025FMC 5 Screw BSZ20P040FMC 6 Screw(M2x4) CBA1362 7 Screw(M2x3) CBA1527 8 Screw CBA1545 9 Washer CBF1037 10 Washer CBF1038 11 Washer CBF1039 12 Washer CBF1060 13 Spring CBH2378 14 Spring CBH2379 15 Spring CBH2514 16 Spring CBH2533 17 Spring CBH2382 18 Spring CBH2383 19 Spring CBH2384 20 Spring CBH2527 21 Spring CBH2386 22 Spring CBH2537 23 Spring CBH2390 24 Spring CBH2391 25 Spring CBH2523 26 Spring CBH2426 27 Spring CBH2444 28 Spring CBL1561 29 Spring CBL1553 30 Shaft CLA3845 31 Roller CLA3910 32 Frame CNC9654 33 Lever CNC9664 34 Lever CNC8949 35 Arm CNC9661 36 Arm CNC9016 37 Arm CNC9017 38 Bracket CNC9123 39 Frame CNC9263 40 Belt CNT1086 41 Gear CNV6886 42 Gear CNV6316 43 Gear CNV6317 44 Gear CNV6318 45 Gear CNV6319 46 Gear CNV6320 47 Arm CNV6322 48 Arm CNV6323 49 Arm CNV6324 50 Arm CNV6888 51 Arm CNV6889 52 Guide CNV6327 53 Arm CNV6924 54 Guide CNV6921 55 Rack CNV6923 56 Clamper CNV6331 57 Arm CNV6332 58 Guide CNV6333 59 Cover CNV6334 60 Arm CNV6335 61 Guide CNV6336 62 Roller CNV6338 63 Damper CNV6339 64 Damper CNV6340 65 Guide CNV6925 66 Chassis Unit CXB7980 * 67 Arm Unit CXB7983 68 Arm Unit CXB7984 69 Arm Unit CXB7985 70 Motor Unit(M2) CXB5903 71 Screw Unit CXB5904 72 Gear Unit CXB8076 73 Bracket Unit CXB7982 74 Motor Unit(M1) CXB6007 75 Arm Unit CXB8504 76 Screw(M2x5) EBA1028 77 Screw JFZ20P020FMC 78 Screw JGZ17P020FZK 79 Washer YE15FUC 80 Washer YE20FUC 81 Pickup Unit(Service)(P9) CXX1480 82 Screw IMS26P030FMC 83 Guide CNV6922 84 Roller CNV6887 85 Spring CBH2509 86 Spring CBH2512 87 Spring CBH2536 88 Collar CNV6906 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 12 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM IC 101 HA12187FP IP-BUS DRIVER 66 AMPMUTE XOUT XIN PEE 24 OELPW 88 34 SYSTEM CONTROLLER IC 601(2/2) PD5783A CN401 VDD VCC ANT 1 2 BUS- BU BUS+ BUS+L BUS-L 1 2 8 6 5 TX RX IPPW SWVDD BU BU BU CN131 BU Q820 Q861 Q862 MAIN UNIT 13 X601 15 1 SWDACC VST,VC TUN L BUS+L BUS-L CD L Q821 31 DPDT 32 KYDT 37 SYSPW Q102 Q101 EJTIN 39 47 ILMPOW S601 DSENS 72 DSENS CN701 CN101 Q302 44 DALMON 87 MUTE 27 PULSEIN IC 451 PM4009A X451 RDS DECODER 12 11 20 8 Q407 CN952 CN472 IC 501 LC72720NM TMC DECODER 2 Q501 Q101 VDD GPS ANTENNA CN701 CN702-1 CN702-2 7 5 57 56 VROT_B VROT_A 58 59 NROT_1 NROT_2 BUP 5 8 1 7 CN101 11 BUZZER IC 3 EEPROM FM/AM TUNER UNIT 28 27 FM/AM 1ST IF 10.7MHz T51 Q51 CF51 CF52 CF53 IC1 MIXER, IF AMP, DET. 6 21 18 LDET COMP 22 25 10 14 12 15 16 8 13 2 3 4 CF202 VDD VCC DI/DO CE2 CK CE1 SDBW SL FMSD NL1 NL2 IC 2 FM MPX AMANT FMANT ATT ATT AMRF FMRF IMG ADJ RF ADJ X901 10.25MHz ANT ADJ LOCL 23 LOCH AMDET MPXREF 41kHz AM 2ND IF 450kHz 19 CREQ 11 DGND 1 STIND L ch 5 R ch 24 FMLOCL 17 7 WC 26 RFGND 9 AMDET AMPNS 20 AMIN L532 L535 L537 Y471 TUNER UNIT DETOUT 7 11 GPS UNIT NAVI UNIT VDD Q101 M LASER DIODE MONITOR DIODE CLAMP SENSE DISC SENSE FOCUS ACT. SPINDLE MOTOR M CARRIAGE MOTOR LOADING/ TRACKING ACT. LD- MD FO+ TO+ 15 5 4 1 PICKUP UNIT(SERVICE)(P9) HOLOGRAM UNIT IC 401 BA5996FM IC 201 TC9495F2 IC 701 BA05SFP 5V REGULATOR SERVO CONTROL, DSP, LPF, DAC ACT,MOTOR DRIVER 2 VD VD VDD 9 VDCONT 8 RST 23 LOUT TOP FOP 16 SOP 15 SOM 17 LCOP 18 LCOM 22 1 2 LOEJ 78 85 LO 79 9 CONT 12 FOP TD/FD AC,BD F,E SD/MD 38 RFI 43 FEI 4 14 TOP S901 HOME 12EJ SENSE 8EJ SENSE LD+ 14 VDD 9 LDO 8 MDI IC 101 TA2153FN RFRPIN FEO TEO 24 16 14 46 TEI RF AMP 2 9 8 23 D CD CORE UNIT D A IC 601 PE5320A 5 3 63 6 31 48 7 CD5VON LOEJ CONT HOME DSCSNS SINGLE - CD CONTROLLER RESET VDCONT A 30 CDMUTE B Q530 Q531 BDATA,BSCK,BSRQ,BRXEN C RF GPS CONT SRAM FLASH CPU SH1 CODEC SRAM FLASH DRAM DECODER 23 IC 701 NJM2904M GY701 8 D D IC 201(2/2) NJM4558V 1 3 IC 201(1/2) NJM4558V 6 5 GUIDE-VOL IC 202 M51132FP 16 15 IC 203 TC7W66FU 2 1 5 AGC FRQ, SYNTH. DET 9 REG. TXI_GPS RXI_GPS 4 2 1 UG5V UG3V UD3V 21 17 19 CC.NMI,CC.RESET,RX.ICB,TX.ICB RDSLK,RDT,RCK,LDET,RDS57K TSYRES,TCE,TDO,TDI,TCL,TRDSID SDATA,LCK,BCK,C2P0 GONUG,GRES,GPWRES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 13 12 1 BSENS ASENS VDD BU 74 20 SD SL TUNPCE TUNPCK TUNPCE2 TUNPDO ASENBO 10 11 66 MPMUTE XOUT XIN ILB SWVDD OELB ILB SWDVDD OELB 3 5 23 21 FL- FL+ RL- RL+ ACC 43 97 42 4 43 44 41 54 53 55 52 26 30 29 22 FLIN 12 RLIN 14 22 4 RESET POWER AMP IC 601(1/2) PD5783A ER IC 602 S-80735ANDZI IC 301 PAL007A RESET VDD Q801 Q901 SYSPW BU TX RX TX RX IPPW ELECTRONIC VOLUME/ SOURCE SELECTOR SWVDD BU BU STBY MUTE IC 1902 PD6387A DISPLAY CONTROLLER KEY MATRIX 16 14 2 KEY DATA OEL DATA VCC3 82 CN951 CN1901 Q841 Q840 Q830 KEYBOARD UNIT 13 X601 15 2 VST,VCK,VDT TUN L BUS+L BUS-L CD L DPDT 8 6 DPDT KYDT SYS+B BU Q810 Q811 37 SYSPW BU Q351 MUTE FL Q251 FL Q831 EJTIN 39 17 15 2 12 7 10 17 15 2 12 7 10 CN1802 CN1801 S1801 KYDT 16 14 2 8 6 IC 1905 FONT ROM IC 1901 TSOP4840SB1 REMOTE CONTROL SENSOR OPT IN 3 1 45 REM 25 26 DSPDT KTDT EJECT OEL MODULE 17,18 47 ILMPOW MUTE FL RL S601 DSENS 72 DSENS SYSTEM CONTROLLER Q902 Q903 VDD ISENS 33 TELIN 81 FL- FL+ RL- RL+ IC 1908 NJM2391DL1-33 3.3V REGULATOR 3 1 VDD REGULATOR ILL SENSE BACKUP SENSE ACC SENSE TELEPHONE MUTE SYS+B REGULATOR 5 9 11 12 10 1 3 8 6 5 9 11 12 10 1 3 8 6 2 2 PD8096A PML008A FL RL IN3-L IN4+L IN4-L IN2-L IC 151 PANEL UNIT C B IC 1907 PD3430A OEL CONTROLLER IC 1911 TC7SH08FU 4 1 S1919 NAVI JOY-STICK NROT1 7 NROT2 12 7 12 S1918 ROTARY VOL. VROTA 5 VROTB 5 10 10 44 DALMON 87 MUTE Q812 6 S602 RESET RL Q802 IC 221(2/2) NJM2058V 1 2 IC 221(1/2) NJM2058V 7 6 Q354 Q353 GUIDE-AUDIO MIX IC 1908 NJM2391DL1-33 SPEED SENSE 5 1 Q905 27 PULSEIN 6 5 6 5 8 9 8 9 2 1 Q973 Q971 Q972 SYS+B BU CN901 Q252 B.U CN252 CN251 B.U Q355 B.U CN971 FAN MOTOR NL1 95 FUSE 10A B A B BACK UP GND ACC ILM SPEED PULSE RR– FR– FL– RL– RR+ FR+ FL+ RL+ BACK UP ILL GND B.REM ACC TELMUTE TEL REV SPEED C NL2DT 90 IC 203 TC7W66FU 2 1 NVOLL 4 DET,RDS57K DI,TCL,TRDSID FUSE 250mA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 14 3.2 OVERALL CONNECTION DIAGRAM B KEY C OEL MODULE (MXK8019) FAN MOTOR D CD CORE UNIT CD MECHANISM MODULE GPS ANTENNA ASSY A MAIN UNIT NAVI UNIT GPS UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 15 B KEYBOARD UNIT C PANEL UNIT FM/AM TUNER UNIT TUNER UNIT AIN UNIT CODE ASSY (POWER SUPPLY) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 16 3.3 MAIN UNIT(GUIDE PAGE) A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or "ELECTRICAL PARTS LIST". A-a A 1 2 3 4 D CN701 C CN1802 GPS UNIT NAVI UNIT MECHA. POWER SUPPLY TUNER UNIT TMC DECODER RDS DECODER FM/AM TUNER UNIT DISTRIBUTOR 1 LRCK 2 C2PO 3 SDATA 4 BCK 5 GND 6 KL30_TEILER 7 GND 8 NAVI_NF 9 GND 10 RESET 11 RX1_GPS 12 RX0_ICB 13 TX1_GPS 14 TX0_ICB 15 GND 16 GND 17 UG3V 18 STRAQ 19 UG3V3 20 NMI 21 UG5V 22 GND 23 GYRO 24 GND 25 GND 26 KOCLK 27 NC 28 MSONDE_SPG 29 KOMPY 30 KOMPX 1 UD3V 2 UG3V3 3 GND 4 UG5V 5 RXD(1) 6 TXD(0) 7 TXD(1) 8 RXD(0) 9 UBAST 10 UG9V 11 GND 12 GND 13 GND 14 ONUGQ 15 GND 16 GPSREQ 17 OSZOUT 18 PWRESQ 19 UD5V 20 UG5V ANTENNA CD:+3.65dBs P-BUS:+2.2dBs FM(30%):-26.0dBs AM(30%):-26.0dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 17 A-b A 1 2 3 4 GMUTE > FAN MOTOR PLY GUIDE-VOL E-VOL MUTE RESET POWER AMP GUIDE-AUDIO MIX FRONT RCA OUT REAR RCA OUT SYSTEM POWER µcom VDD TEL MUTE SYSTEM µCOM Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. RR + RR - FR + FR - FL + FL - RL + RL - ACC GND ILL BACK UP B. REM A MAIN UNIT REV PULSE TEL FM(30%): -3.9dBs AM(30%): -1.9dBs CD:+9.75dBs IP-BUS:+10.3dBs FM(30%):+22dBs AM(30%):+24dBs CD:+36dBs IP-BUS:+36dBs CXM1207 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 18 A-a A-b A-a A-a A-b 1 2 D CN701 GPS UNIT NAVI UNIT MECHA. POWER SUPPLY R UNIT 1 LRCK 2 C2PO 3 SDATA 4 BCK 5 GND 6 KL30_TEILER 7 GND 8 NAVI_NF 9 GND 10 RESET 11 RX1_GPS 12 RX0_ICB 13 TX1_GPS 14 TX0_ICB 15 GND 16 GND 17 UG3V 18 STRAQ 19 UG3V3 20 NMI 21 UG5V 22 GND 23 GYRO 24 GND 25 GND 26 KOCLK 27 NC 28 MSONDE_SPG 29 KOMPY 30 KOMPX 1 UD3V 2 UG3V3 3 GND 4 UG5V 5 RXD(1) 6 TXD(0) 7 TXD(1) 8 RXD(0) 9 UBAST 10 UG9V 11 GND 12 GND 13 GND 14 ONUGQ 15 GND 16 GPSREQ 17 OSZOUT 18 PWRESQ 19 UD5V 20 UG5V CD:+3.65dBs P-BUS:+2.2dBs FM(30%):-26.0dBs AM(30%):-26.0dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 19 A-a A-b A-a A-a A-b 3 4 C CN1802 SYSTEM µC TUNER UNIT TMC DECODER RDS DECODER FM/AM TUNER UNIT DISTRIBUTOR ANTENNA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 20 A-a A-b A-b 1 2 > FAN MOTOR GUIDE-VOL E-VOL MUTE RESET POWER AMP GUIDE-AUDIO MIX FRONT RCA OUT REAR RCA OUT A MAIN UNIT FM(30%): -3.9dBs AM(30%): -1.9dBs CD:+9.75dBs IP-BUS:+10.3dBs CXM1207 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 21 A-a A-b A-b 3 4 GMUTE SYSTEM POWER µcom VDD TEL MUTE SYSTEM µCOM Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. NOTE : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. RR + RR - FR + FR - FL + FL - RL + RL - ACC GND ILL BACK UP B. REM REV PULSE TEL FM(30%):+22dBs AM(30%):+24dBs CD:+36dBs IP-BUS:+36dBs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 22 3.4 KEYBOARD UNIT B TSOP4840SB1 C CN1801 3.3V REGULATOR RESET REMOTE CONTROL SENSOR REM VOLUME ENCODER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 23B DISPLAY CONTROLLER B KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 24 3.5 PANEL UNIT C CD EJECT A CN951 B CN1901 C PANEL UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 25 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 26 3.6 CD MECHANISM MODULE D SPINDLE MOTOR M1 CXB6007 LOADING/CARRIAGE MOTOR M2 CXB5903 PICKUP UNIT (SERVICE)(P9) SERVO C ACT/MOTOR DRIVER 5V REGULATOR RF AMP D CD CORE UNIT F F F F F F F T T T T T T T T F T F F T T F F T T F F T T F F T S C S C S C S C C S C S S C 6 & 8 % 0 * 7 ( 3 2 ! ^ 5 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 27D SWITCHES: CD CORE UNIT S901 : HOME SWITCH ON-OFF S902 : CLAMP SWITCH ON-OFF S903 : DSCSNS SWITCH ON-OFF S904 : 12EJ SWITCH ON-OFF S905 : 8EJ SWITCH ON-OFF .... ........ ...... ........... ............ The underlined indicates the switch position. SERVO CONTROL /DSP/DAC/LPF SINGLE-CD CONTROLLER A CN131 F T C S SIGNAL LINE FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE C 4 # @ $ 9 6 & 3 2 ) ⁄ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 28 @ CH1:BCK 2V/div. During "Play" Sine wave(1kHz/0dB) play 1 CH1:DSCSNS 5V/div. 2 CH2:CLCONT 5V/div. 3 CH3:LOEJ 5V/div. 4 CH4:VD 10V/div. When loading (8 cm CD) 500ms/div. 5 CH1:FD 500mV/div. 6 CH2:FOK 5V/div. 7 CH3:MD 5V/div. When setting up "Source On" 500ms/div. 8 CH1:FE 500mV/div. 9 CH2:FOON 5V/div. When setting up "Source On" 500ms/div. 5 CH1:FD 500mV/div. 6 CH2:FOK 5V/div. 7 CH3:MD 5V/div. Magnified drawing for "time" 100ms/div. 1 CH1:DSCSNS 5V/div. 2 CH2:CLCONT 5V/div. 3 CH3:LOEJ 5V/div. 4 CH4:VD 10V/div. When loading (12 cm CD) Ref. : GND Mode : Normal Ref. : GND Mode : Normal Ref. : VREF Mode : Normal Ref. : VREF Mode : Normal Ref. : VREF Mode : Normal Ref. : VREF Mode : Normal Ref. : VREF Mode : Normal Ref. : VREF Mode : Normal Ref. : VREF Mode : Normal 500ms/div. 0 CH1:TE 500mV/div. 8 CH2:FE 500mV/div. When setting up "Source On" 200ms/div. 1µs/div. # CH1:LRCK 2V/div. $ CH2:DOUT 2V/div. During "Play" 10µs/div. 5 CH1:FD 500mV/div. 6 CH2:FOK 5V/div. 7 CH3:MD 5V/div. 1s/div. Ref. : VREF Mode : Normal 8 CH1:FE 500mV/div. 5 CH2:FD 500mV/div. 0 CH3:TE 500mV/div. ! CH4:TD 500mV/div. During "Play" Figure of waveforms of kick bias to switch to double-speed mode with a magnified time scale (Playing CD-ROM) Playing at a double speed after the source switching to ON (Playing CD-ROM) 1ms/div. Ref. : VREF Mode : Normal 5 CH1:FD 500mV/div. 6 CH2:FOK 5V/div. 7 CH3:MD 5V/div. 200ms/div. Ref. : GND Mode : Normal ) CH1:LOUT 2V/div. ⁄ CH2:ROUT 2V/div. 500µs/div. - Waveforms Note:1. The encircled numbers denote measuring pointes in the circuit diagram. 2. Reference voltage VREF:2.1V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 29 Ref. : VREF Mode : Normal Ref. : VREF Mode : Normal Ref. : VREF Mode : Test 7 CH1:MD 500mV/div. During "Play" 10µs/div. % CH1:RFO 500mV/div. During "Play" 0.5µs/div. % CH1:RFO 500mV/div. 0 CH2:TE 500mV/div. During "Tracking Open" 2ms/div. % CH1:RFO 1V/div. 0 CH2:TE 500mV/div. & CH3:DFCT 5V/div. During inside/outside search 200ms/div. % CH1:RFO 1V/div. 0 CH2:TE 500mV/div. ! CH3:TD 1V/div. 1 Track Jump 500µs/div. % CH1:RFO 1V/div. 0 CH2:TE 1V/div. ! CH3:TD 1V/div. 100 Track Jump 5ms/div. % CH1:RFO 1V/div. 0 CH2:TE 1V/div. ! CH3:TD 1V/div. 32 Track Jump 5ms/div. 5 CH1:FD 1V/div. ^ CH2:FOP 2V/div. With no disk inserted During "Focus Close" 200ms/div. 1 CH1:DSCSNS 5V/div. 2 CH2:CLCONT 5V/div. 3 CH3:LOEJ 5V/div. When "Eject" (8cm CD) 200ms/div. * CH1:TEY 500mV/div. ( CH2:SD 2V/div. During inside/outside search 200ms/div. 1 CH1:DSCSNS 5V/div. 2 CH2:CLCONT 5V/div. 3 CH3:LOEJ 5V/div. When "Eject" (12 cm CD) 200ms/div. % CH1:RFO 2V/div. & CH2:DFCT 5V/div. 5 CH3:FD 1V/div. ! CH4:TD 2V/div. When reproducing black dots (800µm) 500µs/div. Ref. : VREF Mode : Test Ref. : VREF Mode : Test Ref. : VREF Mode : Normal Ref. : VREF Mode : Normal Ref. : VREF Mode : Test Ref. : VREF Mode : Test Ref. : VREF Mode : Normal Ref. : GND Mode : Normal Ref. : GND Mode : Normal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 30 4. PCB CONNECTION DIAGRAM 4.1 MAIN UNIT Capacitor Connector P.C.Board Chip Part A A MAIN UNIT SIDE B SIDE A NOTE FOR PCB DIAGRAMS 1.The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2.Viewpoint of PCB diagrams 15 13 11 9 7 5 3 1 16 14 12 10 8 6 4 2 FRONT CORD FM/AM TUNER UNIT FM/AM ANTENNA DETACH RESET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 31A SIDE A IC,Q 7 5 3 1 8 6 4 2 FRONT REAR or SUB WOOFER 4 3 2 1 7 11 10 9 8 6 5 FAN MOTOR FRONT CORD ASSY C GPS UNIT NAVI UNIT TUNER UNIT CN1802 D CN701 IP-BUS RESETwww. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 32A A MAIN UNIT IC,Q www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 33A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 34 4.2 KEYBOARD UNIT B B KEYBOARD UNIT SIDE A B KEYBOARD UNIT SIDE B IC,Q IC,Q C CN1801 OEL MODULE VOLUME SOURCE BACK 1 2 3 4 5 6 NEXT BAND NAVI JOY-STICK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 35 4.3 PANEL UNIT C C PANEL UNIT C PANEL UNIT SIDE A SIDE B B CN1901 A CN951 CD EJECT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 36 4.4 CD MECHANISM MODULE D D CD CORE UNIT SIDE A 12EJ DSCSNS HOME A CN131 PICUP UNIT (SERVICE) M1 SPINDLE MOTOR M2 LOADING/CARRIAGE MOTOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 37D D CD CORE UNIT SIDE B CLAMP 8EJ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 38 5. ELECTRICAL PARTS LIST NOTE: • Parts whose parts numbers are omitted are subject to being not supplied. • The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... Circuit Symbol and No. Part Name Part No. D Unit Number:CWX2685 Unit Name:CD Core Unit MISCELLANEOUS IC 101 IC TA2153FN IC 201 IC TC9495F2 IC 401 IC BA5996FM IC 601 IC PE5320A IC 701 IC BA05SFP Q 101 Transistor 2SD1664 Q 102 Transistor UMD2N Q 301 Transistor UMD2N Q 302 Transistor FMG12 Q 601 Transistor UN2111 D 301 Chip Diode MA151WA L 301 Inductor CTF1546 L 302 Inductor CTF1546 L 303 Inductor CTF1546 L 304 Inductor CTF1546 L 305 Inductor CTF1546 L 306 Inductor CTF1546 L 307 Inductor CTF1546 L 308 Inductor CTF1546 L 1308 Inductor CTF1306 L 1309 Inductor CTF1306 L 1310 Inductor CTF1306 L 1311 Inductor CTF1306 TH601 Thermistor CCX1037 X 301 Ceramic Resonator 16.934MHz CSS1525 X 601 Ceramic Resonator 25MHz CSS1510 S 901 Spring Switch(HOME) CSN1051 S 902 Spring Switch(CLAMP) CSN1052 S 903 Spring Switch(DSCSNS) CSN1051 S 904 Spring Switch(12EJ) CSN1052 S 905 Spring Switch(8EJ) CSN1051 EF701 EMI Filter CCG1051 RESISTORS R 101 RS1/16S222J R 102 RS1/8S120J R 103 RS1/8S100J R 201 RS1/16S513J R 202 RS1/16S513J R 203 RS1/16S9102D R 204 RS1/16S9102D R 206 RS1/16S8202D R 208 RS1/16S124J R 209 RS1/16S183J R 210 RS1/16S153J R 211 RS1/16S103J R 212 RS1/16S103J R 213 RS1/16S124J R 215 RS1/16S0R0J R 216 RS1/16S471J R 301 RS1/16S153J R 302 RS1/16S332J R 303 RS1/16S332J R 304 RS1/16S514J R 306 RS1/16S102J R 307 RS1/16S102J R 312 RS1/16S103J R 313 RS1/16S473J R 314 RS1/16S224J R 315 RS1/16S334J R 316 RS1/16S223J R 317 RS1/16S223J R 324 RS1/16S332J R 325 RS1/16S331J R 401 RS1/16S684J R 402 RS1/16S103J R 403 RS1/16S103J R 404 RS1/16S183J R 405 RS1/16S123J R 407 RS1/16S622J R 408 RS1/16S622J R 409 RS1/16S113J R 410 RS1/16S752J R 601 RS1/16S102J R 602 RS1/16S102J R 603 RS1/16S102J R 604 RS1/16S102J R 606 RS1/16S102J R 607 RS1/16S473J R 608 RS1/16S223J R 609 RN1/16SE1302D R 610 RS1/16S104J R 611 RS1/16S222J R 612 RS1/16S103J R 615 RS1/16S104J R 616 RS1/16S0R0J R 618 RS1/16S102J R 619 RS1/16S102J R 620 RS1/16S102J R 621 RS1/16S102J R 622 RS1/16S102J R 623 RS1/16S102J R 625 RS1/16S104J R 701 RS1/16S681J Circuit Symbol and No. Part Name Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 39 R 702 RS1/16S681J R 703 RS1/16S681J R 704 RS1/16S681J R 705 RS1/16S681J R 706 RS1/16S102J R 901 RS1/16S104J R 902 RS1/16S473J R 903 RS1/16S273J R 1318 RS1/16S221J R 1319 RS1/16S221J R 1320 RS1/16S221J R 1321 RS1/16S221J CAPACITORS C 101 CEV470M6R3 C 102 CKSRYB102K50 C 103 CKSRYB104K16 C 104 CKSRYB224K16 C 105 CEV470M6R3 C 106 CKSRYB104K16 C 107 CKSRYB105K6R3 C 201 CKSRYB104K16 C 202 CCSRCH560J50 C 204 CKSRYB224K16 C 205 CKSRYB224K16 C 206 CKSRYB273K25 C 207 CKSRYB273K25 C 208 CKSRYB104K16 C 209 CKSRYB104K16 C 210 CCSRCK2R0C50 C 211 CCSRCH220J50 C 215 CCSRCH220J50 C 301 CKSRYB153K25 C 302 CKSRYB104K16 C 303 CKSRYB103K50 C 304 CKSRYB822K50 C 305 CKSRYB104K16 C 306 CKSRYB104K16 C 307 CKSRYB333K16 C 308 CKSRYB104K16 C 309 CKSRYB473K16 C 310 CKSRYB473K16 C 311 CKSRYB104K16 C 312 CKSRYB104K16 C 313 CKSRYB104K16 C 315 CEV220M6R3 C 317 CKSRYB104K16 C 318 CKSRYB104K16 C 319 CKSRYB104K16 C 320 CCSRCH330J50 C 325 CKSRYB471K50 C 328 CKSRYB472K50 C 329 CKSRYB104K16 C 331 CSZS4R7M10 C 332 CSZS4R7M10 C 333 CKSRYB104K16 C 334 CKSRYB104K16 C 401 CKSRYB221K50 C 402 CKSRYB221K50 C 403 CKSRYB153K25 C 404 CKSRYB103K50 C 405 CEV101M10 C 406 CKSRYB104K16 C 601 CKSRYB103K50 Circuit Symbol and No. Part Name Part No. C 602 CKSRYB472K50 C 604 CKSRYB471K50 C 605 CKSRYB104K16 C 606 CKSRYB104K16 C 607 CKSRYB104K16 C 608 CKSRYB104K16 C 701 CKSRYB104K16 C 801 10µF/10V CCH1349 C 802 CEV101M10 C 803 CKSRYB224K16 A Unit Number:CWM8365 Unit Name:Main Unit MISCELLANEOUS IC 101 IC HA12187FP IC 151 IC PML008A IC 201 IC NJM4558V IC 202 IC M51132FP IC 203 IC TC7W66FU IC 221 IC NJM2058V IC 301 IC PAL007A IC 451 IC PM4009A IC 501 IC LC72720NMHS IC 601 IC PD5783A IC 602 IC S-80735ANDZI IC 701 IC NJM2904M IC 901 IC NJM2904V Q 101 Transistor DTC124EU Q 102 Transistor 2SA1162 Q 231 Transistor DTC114EU Q 251 Transistor IMH3A Q 252 Transistor IMD2A Q 351 Transistor DTC124EU Q 352 Transistor 2SC4081 Q 353 Transistor IMH3A Q 354 Transistor IMH3A Q 355 Transistor IMD2A Q 401 Transistor 2SD1757K Q 402 Transistor 2SD1757K Q 403 Transistor IMH3A Q 405 Transistor 2SC4081 Q 406 Transistor 2SC4081 Q 407 Transistor 2SC4081 Q 451 Transistor DTA124EU Q 501 Transistor IMD2A Q 530 Transistor 2SC3357 Q 531 Transistor 2SC3127 Q 532 Transistor 2SC3545 Q 701 FET CPH3313 Q 703 Transistor IMD2A Q 704 Transistor DTC144EU Q 705 Transistor DTC114EU Q 706 Transistor DTC144EU Q 801 Transistor 2SD2396 Q 802 Transistor IMD2A Q 810 Transistor 2SB1260 Q 811 Transistor DTC123JU Q 812 Transistor 2SD2396 Q 820 Transistor IMD2A Circuit Symbol and No. Part Name Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 40 Q 821 Transistor 2SD1760F5 Q 830 Transistor 2SD1760F5 Q 831 Transistor IMD2A Q 840 Transistor IMD2A Q 841 Transistor 2SD1760F5 Q 861 Transistor IMD2A Q 862 Transistor 2SD2396 Q 901 Transistor IMX1 Q 902 Transistor 2SC4081 Q 903 Transistor 2SA1162 Q 904 Transistor 2SC4081 Q 905 Transistor DTC114EU Q 951 Transistor DTC143EU Q 971 Transistor 2SA1587 Q 972 Transistor DTC143EU Q 973 Transistor 2SD1859 D 151 Diode MA8051(L) D 152 Diode MA8051(L) D 153 Diode Network DA204U D 154 Diode Network DA204U D 201 Diode UDZS3R9(B) D 301 Diode MPG06G-6415G3 D 302 Diode MPG06G-6415G3 D 351 Diode DAN202U D 352 Diode HZS9L(A2) D 353 Diode DAN202U D 471 Diode HZU3R3(B1) D 601 Diode 1SS355 D 701 Diode RB060L-40 D 702 Diode 1SS355 D 801 Diode MPG06G-6415G3 D 802 Diode HZS6L(A1) D 805 Diode 5KP22A D 810 Diode HZS9L(B2) D 820 Diode HZS9L(C3) D 830 Diode HZS6L(B1) D 840 Diode HZS9L(C2) D 861 Diode HZS9L(A3) D 901 Diode HZS7L(C3) D 902 Diode HZS7L(A1) D 903 Diode DAN202U D 904 Diode MA8180(M) D 905 Diode HZS6L(B2) D 906 Diode S1G-6904G2P D 907 Diode MA8180(M) D 908 Diode MA8180(M) D 909 Diode 1SS355 D 952 Diode DAP202U D 953 Diode DAP202U D 956 Diode DAP202U D 958 Diode DAP202U D 959 Diode DAP202U D 960 Diode MA8100(M) D 961 Diode MA8100(M) D 962 Diode DAP202U D 974 Diode UDZS13(B) ZNR401 Surge Protector DSPS-201M-S00B L 101 Inductor LAU3R3K L 131 Inductor LCTA2R2J2520 L 132 Inductor CTF1389 L 133 Inductor CTF1389 L 134 Inductor CTF1389 L 135 Inductor CTF1389 Circuit Symbol and No. Part Name Part No. L 136 Inductor CTF1389 L 137 Inductor CTF1389 L 151 Inductor LAU100K L 251 Inductor CTF1306 L 252 Inductor CTF1306 L 253 Inductor CTF1306 L 254 Inductor CTF1306 L 402 Ferri-Inductor LAU4R7K L 403 Ferri-Inductor LAU2R2K L 453 Inductor CTF1557 L 454 Inductor CTF1470 L 455 Inductor CTF1557 L 471 Inductor LAU1R0K L 472 Ferri-Inductor LAU2R2K L 473 Inductor CTF1557 L 501 Ferri-Inductor LAU2R2K L 502 Inductor CTF1467 L 530 Inductor LCTBR12K2125 L 531 Coil LCTBR10K2125 L 532 Coil CTC1143 L 533 Coil LCTBR10K2125 L 534 Inductor LCTBR18K2125 L 535 Coil CTC1142 L 536 Ferri-Inductor LAU101K L 537 Coil CTC1139 L 538 Coil LCTBR22K2125 L 539 Inductor LAU1R0K L 540 Inductor LCTA101J2520 L 601 Ferri-Inductor LAU2R2K L 603 Inductor LCTA100J2520 L 604 Inductor LCTA100J2520 L 701 Inductor CTF1389 L 702 Inductor CTF1584 L 820 Inductor CTF1489 L 830 Inductor LAU100K L 901 Ferri-Inductor LAU2R2K L 902 Inductor CTF1295 L 903 Inductor CTF1556 L 907 Inductor CTF1556 L 950 Inductor CTF1399 L 951 Inductor CTF1306 X 451 Crystal Resonator 3.648MHz CSS1447 X 501 Crystal Resonator 4.332MHz CSS1473 X 601 Radiator 10.00MHz CSS1475 S 601 Switch(DETACH) CSN1039 S 602 Switch(RESET) CSG1046 FU971 Fuse 250mA CEK1213 GY701 Sensor CSX1042 FM/AM Tuner Unit CWE1607 GPS Unit CWX2693 NAVI Unit CWX2694 Y 471 Tuner Unit CWE1674 SP601 Buzzer CPV1062 RESISTORS R 101 RS1/16S103J R 102 RS1/16S101J R 103 RS1/16S470J R 104 RS1/16S150J R 105 RS1/16S101J R 106 RS1/16S222J R 107 RS1/16S562J R 108 RS1/16S332J Circuit Symbol and No. Part Name Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 41 R 131 RS1/16S101J R 132 RS1/16S101J R 133 RS1/16S101J R 134 RS1/16S101J R 135 RS1/16S101J R 151 RS1/16S181J R 152 RS1/16S181J R 153 RS1/16S223J R 154 RS1/16S223J R 155 RS1/16S102J R 156 RS1/16S102J R 157 RS1/16S0R0J R 158 RS1/16S0R0J R 159 RS1/16S681J R 160 RS1/16S681J R 161 RS1/16S821J R 162 RS1/16S821J R 163 RS1/16S473J R 164 RS1/16S473J R 165 RAB4C102J R 201 RS1/16S474J R 202 RS1/16S473J R 203 RS1/16S473J R 204 RS1/16S473J R 205 RS1/16S473J R 207 RS1/16S682J R 208 RS1/16S183J R 209 RS1/16S102J R 211 RS1/16S473J R 212 RS1/16S473J R 221 RS1/16S473J R 222 RS1/16S473J R 223 RS1/16S472J R 224 RS1/16S472J R 225 RS1/16S472J R 226 RS1/16S472J R 231 RS1/16S104J R 232 RS1/16S104J R 233 RS1/16S104J R 234 RS1/16S104J R 235 RS1/16S104J R 251 RS1/16S821J R 252 RS1/16S821J R 253 RS1/16S223J R 254 RS1/16S223J R 257 RS1/16S223J R 258 RS1/16S223J R 261 RD1/4PU102J R 351 RS1/16S103J R 352 RS1/16S103J R 353 RS1/16S331J R 354 RS1/16S473J R 355 RS1/16S223J R 356 RS1/16S473J R 357 RS1/16S473J R 358 RS1/16S473J R 359 RS1/16S473J R 360 RS1/16S473J R 361 RD1/4PU102J R 401 RS1/16S473J R 402 RS1/16S473J R 403 RS1/16S473J R 404 RS1/16S681J Circuit Symbol and No. Part Name Part No. R 405 RS1/16S681J R 406 RS1/16S681J R 407 RS1/16S681J R 408 RS1/16S681J R 409 RS1/16S103J R 410 RS1/16S681J R 411 RS1/16S681J R 412 RS1/16S681J R 413 RS1/16S162J R 414 RS1/16S162J R 415 RS1/16S272J R 416 RS1/16S272J R 417 RS1/16S224J R 418 RS1/16S224J R 419 RS1/16S222J R 420 RS1/16S222J R 421 RS1/16S223J R 422 RS1/16S223J R 423 RS1/16S104J R 424 RS1/16S104J R 425 RS1/16S472J R 426 RS1/16S473J R 427 RS1/16S473J R 428 RS1/16S393J R 429 RS1/16S473J R 430 RS1/16S473J R 431 RS1/16S224J R 432 RS1/16S222J R 433 RS1/16S222J R 434 RS1/16S681J R 435 RS1/16S681J R 436 RS1/16S473J R 437 RS1/16S153J R 438 RS1/16S474J R 439 RS1/16S681J R 440 RS1/16S105J R 451 RS1/16S225J R 452 RAB4C102J R 453 RS1/16S102J R 454 RS1/16S470J R 471 RS1/16S472J R 472 RS1/16S391J R 497 RD1/4PU0R0J R 498 RD1/4PU0R0J R 499 RD1/4PU0R0J R 502 RS1/16S103J R 503 RS1/16S472J R 530 RS1/16S821J R 531 RS1/16S330J R 532 RS1/16S151J R 533 RS1/16S332J R 534 RS1/16S681J R 535 RS1/16S152J R 536 RS1/16S680J R 537 RS1/16S151J R 538 RS1/16S152J R 539 RS1/16S151J R 540 RS1/16S101J R 541 RS1/16S680J R 542 RS1/16S681J R 543 RS1/16S151J R 601 RS1/16S473J R 602 RS1/16S473J R 603 RS1/16S473J Circuit Symbol and No. Part Name Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 42 R 604 RS1/16S472J R 605 RS1/16S102J R 606 RS1/16S473J R 607 RS1/16S473J R 608 RS1/16S473J R 609 RS1/16S102J R 610 RS1/16S102J R 611 RS1/16S473J R 612 RS1/16S102J R 613 RS1/16S104J R 614 RS1/16S473J R 615 RS1/16S473J R 616 RS1/16S104J R 618 RS1/16S473J R 619 RS1/16S102J R 620 RS1/16S822J R 621 RS1/16S102J R 622 RS1/16S102J R 626 RS1/16S102J R 627 RS1/16S102J R 628 RS1/16S0R0J R 629 RS1/16S102J R 630 RS1/16S0R0J R 631 RS1/16S102J R 632 RS1/16S102J R 633 RS1/16S0R0J R 634 RS1/16S0R0J R 635 RAB4C102J R 636 RAB4C102J R 637 RAB4C102J R 638 RS1/16S102J R 639 RAB4C102J R 640 RAB4C102J R 641 RS1/16S102J R 642 RS1/16S0R0J R 643 RS1/16S512J R 644 RS1/16S102J R 646 RS1/16S473J R 647 RS1/16S102J R 648 RS1/16S102J R 649 RS1/16S0R0J R 651 RS1/16S102J R 652 RS1/16S102J R 701 RS1/16S0R0J R 702 RS1/16S102J R 703 RS1/16S102J R 704 RS1/16S0R0J R 705 RS1/16S0R0J R 706 RN1/16SE1102D R 707 RN1/16SE5601D R 708 RS1/16S0R0J R 709 RS1/16S103J R 710 RS1/16S103J R 711 RS1/16S102J R 712 RS1/16S102J R 714 RN1/16SE1102D R 715 RS1/16S151J R 716 RS1/16S104J R 717 RN1/16SE3301D R 718 RN1/16SE2702D R 719 RN1/16SE5601D R 720 RS1/16S471J R 721 RS1/16S1R5J Circuit Symbol and No. Part Name Part No. R 722 RS1/16S332J R 724 RS1/16S102J R 725 RS1/16S0R0J R 726 RS1/16S0R0J R 727 RS1/16S0R0J R 728 RS1/16S0R0J R 801 RS1/16S821J R 802 RS1/16S821J R 803 RS1/16S223J R 810 RD1/4PU331J R 811 RD1/4PU331J R 812 RD1/4PU331J R 813 RD1/4PU331J R 814 RS1/16S103J R 815 RS1/16S271J R 816 RS1/16S271J R 817 RS1/16S221J R 820 RS1/16S681J R 821 RS1/16S102J R 830 RS1/10S242J R 840 RS1/16S561J R 851 RD1/4PU391J R 861 RS1/16S680J R 862 RS1/16S680J R 863 RS1/16S680J R 864 RS1/16S221J R 901 RS1/16S473J R 902 RS1/16S104J R 904 RS1/16S472J R 905 RS1/16S473J R 906 RS1/16S103J R 907 RD1/4PU102J R 908 RS1/16S473J R 909 RS1/16S103J R 910 RD1/4PU153J R 911 RS1/16S472J R 912 RS1/16S472J R 913 RS1/16S102J R 914 RD1/4PU102J R 915 RS1/16S103J R 916 RS1/16S103J R 917 RS1/16S473J R 918 RS1/16S333J R 919 RS1/16S203J R 920 RS1/16S822J R 921 RS1/16S202J R 922 RS1/16S564J R 923 RS1/16S513J R 924 RS1/16S513J R 925 RS1/16S102J R 926 RS1/16S102J R 927 RS1/16S104J R 928 RS1/16S513J R 929 RS1/16S473J R 930 RS1/16S563J R 931 RS1/16S104J R 932 RS1/16S473J R 951 RS1/16S222J R 952 RS1/16S222J R 955 RS1/16S222J R 956 RS1/16S222J R 957 RS1/16S222J R 959 RS1/16S222J Circuit Symbol and No. Part Name Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 43 R 960 RS1/16S122J R 961 RS1/16S473J R 963 RS1/16S473J R 964 RS1/16S473J R 965 RS1/16S473J R 966 RS1/16S104J R 967 RS1/16S104J R 971 RS1/16S103J R 972 RS1/16S512J R 977 RS1/16S102J R 978 RS1/16S102J R 979 RS1/16S222J R 980 RS1/16S222J R 981 RS1/16S222J R 982 RS1/16S222J R 983 RS1/16S102J R 984 RS1/16S102J CAPACITORS C 101 CKSRYB104K25 C 102 CKSRYB104K25 C 131 CCSRCH102J50 C 132 CKSRYB103K50 C 133 CKSRYB103K50 C 134 CKSRYB103K50 C 135 CCSRCH470J50 C 136 CCSRCH470J50 C 137 CCSRCH470J50 C 138 CCSRCH470J50 C 139 CKSRYB473K50 C 151 CKSRYB152K50 C 152 CKSRYB152K50 C 153 CKSRYB105K10 C 154 CKSRYB105K10 C 155 CKSRYB105K10 C 156 CKSRYB105K10 C 157 CKSRYB105K10 C 158 CKSRYB105K10 C 159 CKSRYB105K10 C 160 CKSRYB105K10 C 161 CEJQ470M10 C 162 CKSRYB104K25 C 163 CEJQNP4R7M16 C 164 CEJQNP4R7M16 C 165 CEJQNP4R7M16 C 166 CEJQNP4R7M16 C 167 CEJQNP4R7M16 C 168 CEJQNP4R7M16 C 170 CEJQ100M16 C 175 CKSQYB225K10 C 176 CKSQYB225K10 C 177 CKSQYB225K10 C 178 CKSQYB225K10 C 179 CKSRYB105K10 C 180 CKSRYB105K10 C 201 CKSRYB105K10 C 202 CCSRCH101J50 C 203 CKSRYB331K50 C 204 CCSRCH820J50 C 205 CCSRCH820J50 C 206 CKSRYB105K10 C 207 CKSRYB105K10 C 208 CEJQ100M16 C 209 CEJQ220M10 Circuit Symbol and No. Part Name Part No. C 210 CEJQ4R7M35 C 211 CKSRYB105K10 C 212 CKSRYB105K10 C 213 CKSRYB103K50 C 214 CKSRYB103K50 C 215 CKSRYB474K10 C 221 CCSRCH270J50 C 222 CCSRCH270J50 C 223 CCSRCH101J50 C 224 CCSRCH101J50 C 225 CKSRYB103K50 C 230 CKSRYB104K25 C 231 CKSRYB105K10 C 232 CKSRYB105K10 C 251 CEJQ100M16 C 252 CEJQ100M16 C 255 CEJQ100M16 C 256 CEJQ100M16 C 301 4700µF/16V CCH1367 C 302 CKSRYB104K25 C 303 CKSRYB104K16 C 304 CKSQYB225K10 C 305 CKSQYB225K10 C 306 CEJQ100M16 C 307 CKSQYB474K25 C 308 CKSQYB474K25 C 309 CKSRYB474K10 C 310 CKSRYB474K10 C 311 CKSQYB474K25 C 312 CKSQYB474K25 C 313 CKSRYB474K10 C 314 CKSRYB474K10 C 315 CKSRYB122K50 C 316 CKSRYB122K50 C 317 CKSRYB122K50 C 318 CKSRYB122K50 C 319 CKSRYB122K50 C 320 CKSRYB122K50 C 321 CKSRYB122K50 C 322 CKSRYB122K50 C 351 CEJQ330M10 C 352 CKSYB105K25 C 401 CKSRYB182K50 C 403 CKSRYB123K50 C 404 CKSRYB123K50 C 405 CKSRYB105K10 C 406 CKSRYB105K10 C 411 CKSRYB473K50 C 412 CKSRYB103K50 C 413 CEJQ101M16 C 415 CKSRYB472K50 C 418 CKSRYB223K50 C 420 CKSRYB472K50 C 421 CEJQ220M16 C 422 CKSRYB103K50 C 423 CKSRYB103K50 C 451 CEJQ220M10 C 452 CEJQ220M10 C 453 CKSRYB104K25 C 454 CKSRYB104K25 C 455 CKSRYB471K50 C 456 CKSRYB471K50 C 457 CKSRYB104K25 Circuit Symbol and No. Part Name Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 44 C 458 CCSRCH270J50 C 459 CCSRCH270J50 C 461 CKSRYB103K50 C 462 CKSRYB103K50 C 463 CKSRYB103K50 C 464 CKSRYB102K50 C 465 CKSRYB102K50 C 466 CKSRYB103K50 C 471 CKSRYB103K50 C 472 CEJQ220M10 C 473 CEJQ220M10 C 474 CKSRYB473K50 C 501 CEJQ100M16 C 502 CKSRYB104K25 C 503 CKSRYB331K50 C 504 CKSRYB561K50 C 505 CCSRCH220D50 C 506 CCSRCH220D50 C 507 CKSRYB104K25 C 530 CCSRCH270J50 C 531 CCSRCH220J50 C 532 CCSRCH270J50 C 533 CCSRCH330J50 C 534 CCSRCH470J50 C 535 CKSRYB103K50 C 538 CKSRYB103K50 C 539 CCSRCH270J50 C 540 CKSRYB103K50 C 541 CCSRCH150J50 C 543 CKSRYB222K50 C 544 CKSRYB103K50 C 545 CKSRYB222K50 C 546 CKSRYB222K50 C 548 CKSRYB222K50 C 549 CCSRCH220J50 C 550 CKSRYB222K50 C 551 CKSRYB103K50 C 601 CCSRCH180J50 C 602 CCSRCH180J50 C 604 CEJQ4R7M35 C 605 CKSRYB102K50 C 606 CKSRYB102K50 C 607 CEJQ2R2M50 C 609 CKSRYB103K50 C 610 CKSRYB105K10 C 611 CKSRYB105K10 C 612 CKSRYB102K50 C 613 CKSRYB102K50 C 701 CEJQ100M16 C 702 CEJQ100M16 C 703 CEJQ100M16 C 704 CEJQ100M16 C 705 470µF/16V CCH1331 C 706 CKSQYB225K10 C 707 CEJQ100M16 C 708 CKSRYB223K50 C 709 CKSRYB102K50 C 710 CKSYB106K6R3 C 711 CKSRYB103K50 C 712 CKSYB106K6R3 C 713 CKSRYB103K50 C 714 CKSRYB103K50 C 715 CKSRYB104K25 Circuit Symbol and No. Part Name Part No. C 716 CKSRYB102K50 C 717 CKSRYB105K10 C 718 CKSRYB105K10 C 719 CKSRYB105K10 C 801 CKSRYB104K25 C 802 470µF/16V CCH1331 C 803 470µF/16V CCH1331 C 804 CKSRYB472K50 C 805 CKSRYB103K50 C 806 CEJQ470M10 C 810 CEJQ101M16 C 811 330µF/10V CCH1181 C 812 CKSRYB103K50 C 813 CEJQ101M16 C 820 CKSRYB103K50 C 821 CKSRYB473K50 C 822 CEJQ101M16 C 823 CKSYB475K16 C 825 CEJQ470M10 C 826 CKSYB475K16 C 830 CEJQ221M6R3 C 831 CKSRYB104K25 C 833 CKSQYB105K16 C 840 CKSRYB473K50 C 861 CKSRYB473K50 C 862 CKSRYB102K50 C 863 CEJQ101M16 C 864 CEJQ100M16 C 901 CKSRYB104K25 C 902 CKSRYB104K25 C 903 CEJQ100M16 C 904 CKSRYB104K25 C 905 CKSRYB104K25 C 906 CKSRYB104K25 C 907 CKSRYB103K50 C 908 CKSRYB104K25 C 909 CKSRYB102K50 C 910 CKSRYB104K25 C 951 CKSRYB102K50 C 952 CKSRYB103K50 C 953 CKSRYB102K50 C 954 CKSRYB102K50 C 955 CCSRCH101J50 C 956 CKSRYB102K50 C 957 CKSRYB102K50 C 958 CCSRCH101J50 C 959 CCSRCH101J50 C 972 CKSRYB103K50 C 973 CEJQ100M16 C 974 CEJQ101M16 C 975 CKSRYB103K50 B Unit Number:CWM8367 Unit Name:Keyboard Unit MISCELLANEOUS IC 1901 IC TSOP4840SB1 IC 1902 IC PD6387A IC 1903 IC S-80827ANUP-EDQ IC 1905 IC PD8096A Circuit Symbol and No. Part Name Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 45 IC 1907 IC PD3430A IC 1908 IC NJM2391DL1-33 IC 1909 IC TC7SH08FU IC 1910 IC TC7SET08FU IC 1911 IC TC7SH08FU D 1901 Diode DAP202U D 1902 Diode DAN202U D 1905 Diode MA110 D 1910 LED CL170UBX D 1911 LED CL170UBX D 1912 LED CL170UBX D 1914 LED CL170UBX D 1915 LED CL170UBX D 1916 LED CL170UBX L 1901 Inductor CTF1295 L 1902 Inductor CTF1484 L 1906 Inductor LCTC2R2K3216 L 1907 Inductor LCTC2R2K3216 L 1911 Inductor LCTC2R2K3216 L 1912 Chip-Inductor LCTA2R2J3225 L 1923 Inductor CTF1379 L 1924 Inductor CTF1379 L 1930 Inductor CTF1379 L 1931 Inductor CTF1379 L 1932 Inductor-Array CTF1421 L 1933 Inductor-Array CTF1421 L 1934 Inductor-Array CTF1421 L 1935 Inductor-Array CTF1421 L 1941 Inductor-Array CTF1421 L 1942 Inductor-Array CTF1421 L 1944 Inductor CTF1306 L 1945 Inductor CTF1306 L 1948 Inductor CTF1579 L 1949 Inductor-Array CTF1421 L 1950 Inductor CTF1399 X 1901 Ceramic Resonator 10.0MHz CSS1466 S 1901 Push Switch CSG1135 S 1902 Push Switch CSG1135 S 1903 Push Switch CSG1135 S 1904 Push Switch CSG1135 S 1905 Push Switch CSG1135 S 1906 Push Switch CSG1135 S 1907 Push Switch CSG1135 S 1908 Push Switch CSG1135 S 1909 Push Switch CSG1135 S 1910 Push Switch CSG1135 S 1918 Encoder(VOLUME) CSD1089 S 1919 Switch(NAVI JOY-STICK) CSX1051 EF1901 Filter CCG1067 RESISTORS R 1901 RS1/16S222J R 1902 RS1/16S222J R 1905 RS1/16S103J R 1906 RS1/16S121J R 1907 RS1/16S2R2J R 1908 RS1/16S222J R 1910 RS1/16S104J R 1911 RS1/16S104J R 1916 RS1/16S102J R 1917 RS1/16S104J R 1918 RS1/16S0R0J R 1921 RS1/16S222J Circuit Symbol and No. Part Name Part No. R 1930 RS1/16S103J R 1931 RS1/16S202J R 1932 RS1/16S302J R 1933 RS1/16S512J R 1934 RS1/16S393J R 1936 RS1/16S302J R 1937 RS1/16S302J R 1938 RS1/16S512J R 1939 RS1/16S512J R 1940 RS1/16S103J R 1941 RS1/16S103J R 1942 RS1/16S202J R 1943 RS1/16S202J R 1944 RS1/16S101J R 1945 RS1/16S303J R 1946 RAB4C101J R 1947 RAB4C101J R 1948 RAB4C101J R 1949 RAB4C101J R 1950 RAB4C101J R 1951 RS1/16S470J R 1952 RS1/16S470J R 1953 RS1/16S331J R 1954 RS1/16S331J R 1955 RS1/16S470J R 1956 RS1/16S470J R 1957 RS1/16S331J R 1958 RS1/16S331J R 1960 RS1/16S101J R 1961 RS1/16S820J R 1962 RS1/16S101J R 1963 RS1/16S820J R 1964 RS1/16S271J R 1965 RS1/16S271J R 1966 RS1/16S331J R 1967 RS1/16S331J R 1968 RS1/16S271J R 1969 RS1/16S271J R 1970 RS1/16S331J R 1971 RS1/16S331J R 1972 RS1/16S101J R 1976 RS1/16S331J R 1977 RS1/16S331J R 1978 RS1/16S331J R 1979 RS1/16S331J R 1989 RS1/16S472J R 1990 RS1/16S472J R 1991 RAB4C103J R 1992 RS1/16S473J R 1993 RS1/16S473J R 1994 RS1/16S473J R 1995 RS1/16S472J R 1996 RS1/16S473J R 1997 RS1/16S393J R 1998 RS1/16S0R0J R 1999 RS1/16S103J CAPACITORS C 1901 CSZSR100M10 C 1902 CKSRYB105K10 C 1904 CSZSR100M10 C 1906 4.7µF CCG1111 C 1907 CKSRYB105K10 Circuit Symbol and No. Part Name Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 46 C 1908 CSZSR100M16 C 1909 CKSRYB105K10 C 1911 CKSRYB104K25 C 1914 CKSRYB103K50 C 1916 CKSRYB103K50 C 1917 CSZSR100M10 C 1918 CKSRYB103K50 C 1919 CCSRCH101J50 C 1920 CCSRCH101J50 C 1924 CCSRCH101J50 C 1925 CCSRCH102J50 C 1926 CSZSR100M10 C 1927 CKSRYB104K25 C 1928 CKSRYB104K25 C 1929 CKSRYB104K25 C 1930 CKSRYB104K25 C 1931 CCSRCH101J50 C 1933 CKSRYB104K25 C 1934 CKSRYB104K25 C 1935 CKSRYB104K25 C 1937 CKSRYB104K25 C 1938 CKSRYB104K25 C 1939 CKSRYB104K25 C 1947 CCSRCH101J50 C 1948 CCSRCH101J50 C 1949 CKSRYB103K50 C 1950 CKSRYB103K50 C 1952 CCSRCH101J50 C 1953 CCSRCH101J50 C 1960 CKSRYB221K50 C 1963 CCSRCH101J50 C 1964 CKSRYB104K25 C 1966 CSZSR4R7M10 C 1967 CSZSR100M10 C 1968 CKSRYB104K25 C 1969 CKSRYB104K25 C 1971 CKSRYB103K50 C 1972 CCSRCH101J50 C 1973 CCSRCH101J50 C 1976 CKSRYB104K25 C 1977 CKSRYB104K25 C 1978 CKSRYB103K50 C 1979 CCSRCH101J50 C 1980 CCSRCH101J50 C 1981 CCSRCH101J50 C 1982 CCSRCH101J50 C 1983 CCSRCH101J50 C Unit Number:CWM8366 Unit Name:Panel Unit MISCELLANEOUS D 1801 LED CL220SRCTS S 1801 Push Switch(CD EJECT) CSG1135 RESISTORS R 1801 RS1/10S560J R 1802 RS1/10S560J CAPACITORS Circuit Symbol and No. Part Name Part No. C 1801 CKSQYB105K16 Miscellaneous Parts List PU Unit(SERVICE)(P9) CXX1480 M 1 Motor Unit(SPINDLE) CXB6007 M 2 Motor Unit(LOADING/CARRIAGE) CXB5903 FAN MOTOR CXM1207 Circuit Symbol and No. Part Name Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 47 6. ADJUSTMENT 6.1 TEST MODE CD MECH. TEST MODE See page 50. See page 48. While pressing the [4] and [6] buttons Simultaneously, turn on the ACC And BACKUP. DISPLAY TEST MODE While pressing the [1] and [3] buttons Simultaneously, turn on the ACC And BACKUP. Press the BAND/ESC button twice. ROM_DATA_BUS ROM_DATA_BUS : OK : NG CPU : V713 ROM : V604 Display Controller (IC1902) version Display samples "TEST" is displayed. SERVICE GARAGE MODE "DESTINATION" is displayed. Press the BACK button. "SAVE POSITION" is displayed. Press the NAVI/OK button. Insert the NAVI DISC. Press the [3] and [5] buttons Simultaneously. FONT ROM(IC1905) version www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 48 6.2 SERVICE GARAGE MODE SERVICE GARAGE MODE Version information (A21) (A12) Default Calibration VERSION 4.0 NAV-CD TPA0045 GPS information display 13.03.99 12:53:22 FIX: 3D X: 6000000 P 99.0 Y:30000000 (A20) Press the Back key twice to return to the "DESTINATION". CALIBRATION RIDE MODULE TEST SENSORS SPEECH TEST DEMO Service garage mode VERSION GPS INFO CALIBRATION Sensor display WHEEL: 35150 REVERSE: 0 GYRO: 10 X: 0 Y: 0 Demo display DEMO MODE ON / OFF Speech test display " PLEASE INSERT THE NAVIGATION CD " SPEECH TEST (A12) (1) (A12) (A15) (A12) (A23) Calibration menu MODIFY DO NOT DELETE DELETE A Restart of the Software Takes Place. Afterwards, The NAVI-MENU/1 is Displayed. Calibration display *1 The values X and Y are not fixed. *2 Information for the calibration status 0 and 1 *3 Information for the calibration status 2 and 3 STATUS: 1 FIX: 2D RAD: 35150 RUCK: 0*1 11:38.34E 54:49.4N*2 Module test display MODULE TEST OK STATUS: 2 FIX: 2D *3 11:38.34E 54:49.14N SYSTEM- CALIBRATION BACK key BACK key 8sec. BACK key ENTER key 2sec. BACK key BACK key CAL IBRATION RIDE CAN START! *4 *4 *4 *4 *4 *4 *4 *4 *4 NAVI/OK key www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 49 6.3 CD ADJUSTMENT 1) Precautions • This unit uses a single power supply (+5V) for the reg- ulator. The signal reference potential, therefore, is connected to VREF(approx. 2.1V) instead of GND. If VREF and GND are connected to each other by mis- take during adjustments, not only will it be impossi- ble to measure the potential correctly, but the servo will malfunction and a severe shock will be applied to the pick-up. To avoid this, take special note of the fol- lowing. Do not connect the negative probe of the measuring equipment to VREF and GND together. It is especially important not to connect the channel 1 negative probe of the oscilloscope to VREF with the channel 2 negative probe connected to GND. Since the frame of the measuring instrument is usual- ly at the same potential as the negative probe, change the frame of the measuring instrument to floating sta- tus. If by accident VREF comes in contact with GND, immediately switch the regulator or power OFF. • Always make sure the regulator is OFF when connect- ing and disconnecting the various filters and wiring required for measurements. • Before proceeding to further adjustments and mea- surements after switching regulator ON, let the player run for about one minute to allow the circuits to stabi- lize. • Since the protective systems in the unit's software are rendered inoperative in test mode, be very careful to avoid mechanical and /or electrical shocks to the sys- tem when making adjustment. • The RFI and RFO signals are easy to oscillate because of a wide band. When observing them, insert a resis- tor of about 1 kΩ to the series. • This equipment will not guarantee the load ejection operation when the mechanical unit is turned upside down. In particular, if the ejection operation is incor- rectly performed and recovery is disabled, the recov- ery is enabled by resetting a product or turning ACC off to on. 2) Test Mode This mode is used for adjusting the CD mechanism module of the device. • Test mode starting procedure Reset while pressing the 4 and 6 keys together. • Test mode cancellation Switch ACC, back-up OFF. • After pressing the EJECT key, do not press any other key until the disk is completely ejected. • If the UP or DOWN key is pressed while focus search is in progress, immediately turn the power off (other- wise the actuator may be damaged due to adhesion of the lenses). • Jump operation of TRs other than 100TR continues after releasing the key. CRG move and 100TR jump operations are brought into the “Tracking close” sta- tus when the key is released. • Powering Off/On resets the jump mode to “Single TR(91)”, the RF AMP gain setting to 0 dB, and the automatic adjustment value to the initial value. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 50 - Flow Chart *1) +12dB TRK12 MIN12 SEC12 TYP TRK MIN SEC *2) S. curve check setting TRK01 MIN01 SEC01 Focus Close setting TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 *8) CRG motor voltage = 2 [V] *3) T.Offset Display Switch to the order of the original display F.Offset Display *7) F.AGC Gain RF AGC Gain TRK/MIN/SEC T.AGC Gain *5 Single TR TRK91 MIN91 SEC91 or TRK81 MIN81 SEC81 32TR TRK92 MIN92 SEC92 or TRK82 MIN82 SEC82 100TR TRK93 MIN93 SEC93 or TRK83 MIN83 SEC83 CRG Move TRK94 MIN94 SEC94 or TRK84 MIN84 SEC84 *4) 1TR/32TR/100TR *6) Only at the time of CRG move or 100TR jump [BAND] Power On (T. offset is adjusted) TRK00 MIN00 SEC00 [CD] or [SOURCE] Source On TRK MIN [4]+[6]+Reset Test Mode In [3] Power On (T. offset is not adjusted) TRK99 MIN99 SEC99 [2] RF AMP Gain switching*1 TRKGG MINGG SECGG [BAND] Power Off TRK MIN SEC [BAND] Power Off TRK MIN SEC [BAND] Power Off TRK MIN SEC [BAND] Power Off TRK MIN SEC [3] Focus Close / S. curve check TRK91 MIN91 SEC91 [6] Focus Mode switching*2 TRK0x MIN0x SEC0x [1] Tracking Servo Close TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 [LEFT] CRG- *8 TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 [RIGHT] CRG+ *8 TRK00 MIN00 SEC00 or TRK99 MIN99 SEC99 [6] New Test Mode [2] Automatic adjustment value display switching *3 TRK?? MIN?? SEC?? [1] T.CLS and F,T AGC and RF AGC and Applicable servomechanism TRKxx MINxx SECxx [6] T.Close and Applicable servomechanism TRKxx MINxx SECxx [3] RF AGC / RF AGC coefficient display TRK?? MIN?? SEC?? [RIGHT] CRG+ TRK8x MIN8x SEC8x or TRK9x MIN9x SEC9x [LEFT] CRG- TRK8x MIN8x SEC8x or TRK9x MIN9x SEC9x [2] T.Balance adjustment / T.Balance coefficient display TRK?? MIN?? SEC?? [1] F,T,RF AGC / F.Bias display switching*7 TRK?? MIN?? SEC?? [3] F,T AGC,F.Bias and RF AGC TRKxx MINxx SECxx [6] CRG/TR jump value *5 switching TRKxx MINxx SECxx [RIGHT] CRG+/TR Jump+ *4 TRKxx MINxx SECxx [LEFT] CRG-/TR Jump- *4 TRK xx MINxx SEC xx [2] Tracking Open TRK8x MIN8x SEC8x or TRK9x MIN9x SEC9x [2] Tracking Open TRK8x MIN8x SEC8x or TRK9x MIN9x SEC9x F. EQ measurement setting TRK02 MIN02 SEC02 [Key] [BAND] [RIGHT] [LEFT] [1] [2] [3] [4] [6] Power On/Off CRG +/TR Jump+ (Direction of the external surface) CRG -/TR Jump- (Direction of the internal surface) T.CLS and AGC and Applicable servomechanism/ AGC,AGC display switching RF Gain switching/Offset adjustment display/ T.Balance adjustment/T.OPN F.CLS,S.Curve/Rough Servo and RF AGC/ F,T,RF AGC SPDL 1X/2X switching (Double-speed compatibility only) Error rate measurement F.Mode switching/T.CLS/CRG,TR Jump switching Test Mode New Test Mode Operation Error occurrence time/ cause display switching TRK+/FF TRK-/REV SCAN MODE (ITP) - - Auto/Manual switching F.Bias [KEY] Contents Display [5] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 51 6.4 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT • Note : The grating angle of the PU unit cannot be adjusted after the PU unit is changed. The PU unit in the CD mecha- nism module is adjusted on the production line to match the CD mechanism module and is thus the best adjusted PU unit for the CD mechanism module. Changing the PU unit is thus best considered as a last resort. However, if the PU unit must be changed, the grating should be checked using the procedure below. • Purpose : To check that the grating is within an acceptable range when the PU unit is changed. • Symptoms of Mal-adjustment : If the grating is off by a large amount symptoms such as being unable to close tracking, being unable to perform track search operations, or taking a long time for track searching. • Method : • Measuring Equipment • Oscilloscope, Two L.P.F. • Measuring Points • E, F, VREF1 • Disc • ABEX TCD-784 • Mode • TEST MODE • Checking Procedure 1. In test mode, load the disc and switch the 5V regulator on. 2. Using the UP and DOWN buttons, move the PU unit to the innermost track. 3. Press key 3 to close focus, the display should read "91". Press key 2 to implement the tracking balance adjust- ment the display should now read "81". Press key 3. The display will change, returning to "81" on the fourth press. 4. As shown in the diagram above, monitor the LPF outputs using the oscilloscope and check that the phase differ- ence is within 75° . Refer to the photographs supplied to determine the phase angle. 5. If the phase difference is determined to be greater than 75° try changing the PU unit to see if there is any improvement. If, after trying this a number of times, the grating angle does not become less than 75° then the mechanism should be judged to be at fault. • Note Because of eccentricity in the disc and a slight misalignment of the clamping center the grating waveform may be seen to "wobble" ( the phase difference changes as the disc rotates). The angle specified above indicates the aver- age angle. • Hint Reloading the disc changes the clamp position and may decrease the "wobble". 100kΩ 390pF 100kΩ 390pF E VREF F VREF Xch Ych L.P.F. L.P.F. VREF1 E F CD CORE UNIT Oscilloscope www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 52 Grating waveform Ech → Xch 20mV/div, AC Fch → Ych 20mV/div, AC 45° 0° 75° 60° 30° 90° www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 53 6.5 ERROR CODE(CD) - Error Messages If a CD is not operative or stopped during operation due to an error, the error mode is turned on and cause(s) of the error is indicated with a corresponding number. This arrangement is intended at reducing nonsense calls from the users and also for facilitating trouble analysis and repair work in servicing. (1) Basic Indication Method 1) When SERRORM is selected for the CSMOD (CD mode area for the system), error codes are written to DMIN (min- utes display area) and DSEC (seconds display area). The same data is written to DMIN and DSEC. DTNO remains in blank as before. 2) Head unit display examples Depending on display capability of LCD used, display will vary as shown below. xx contains the error number. 8-digit display 6-digit display 4-digit display ERROR–xx ERR–xx E–xx (2) Error Code List Code Class Displayed error code Description of the code and potential cause(s) 10 Electricity Carriage Home NG CRG can't be moved to inner diameter. SERVO LSI Com- CRG can't be moved from inner diameter. munication Error → Failure on home switch or CRG move mechanism. Communication error between microcomputer and SERVO LSI. 11 Electricity Focus Servo NG Focusing not available. → Stains on rear side of disc or excessive vibrations on REWRITABLE. 12 Electricity Spindle Lock NG Spindle not locked. Sub-code is strange (not readable). Subcode NG → Failure on spindle, stains or damages on disc, or excessive vibrations. A disc not containing CD-R data is found. Turned over disc are found, though rarely. CD signal error. 17 Electricity Setup NG AGC protection doesn't work. Focus can be easily lost. → Damages or stains on disc, or excessive vibrations on REWRITABLE. 30 Electricity Search Time Out Failed to reach target address. → CRG tracking error or damages on disc. 44 Electricity ALL Skip Skip setting for all track. (CD-R/RW) 50 Mechanism CD On Mech Error Mechanical error during CD ON. → Defective loading motor, mechanical lock and mechanical sensor. A0 System Power Supply NG Power (VD) is ground faulted. → Failure on SW transistor or power supply (failure on connector). Remarks: Mechanical errors are not displayed (because a CD is turned off in these errors). Unreadable TOC does not constitute an error. An intended operation continues in this case. Upper digits of an error code are subdivided as shown below: 1x: Setup relevant errors, 3x: Search relevant errors, Ax: Other errors. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 54 - New Test Mode S-CD plays the same way as before. If an error such as off focus, spindle unlocking, unreadable sub-code, or sound skipping occurs after setup, its cause and time occurred (in absolute time) are displayed. During setup, operational status of the control software is displayed. These displays and functions are prepared for enhancing aging in the servicing and efficiency of trouble analysis. (1) Shifting to the New Test Mode 1 Turn on the current test mode by starting the reset from the key. 2 Select S-CD for the source through the specified procedure including use of the [SOURCE] key, and inserting the disc. Then, press the [Jump Mode Selector] key while maintaining the regulator turned off. 3 After the above operations, the new test mode remains on irrespective of whether the S-CD is turned on or off. You can reset the new test mode by turning on the reset start. (2) Key Correspondence Key Test mode New test mode Regulator Off Regulator On In-play Error Production BAND To regulator on To regulator off – Time/Err.No. switching RIGHT – FWD-Kick FF/TR+ – LEFT – REV-Kick REV/TR- – 1 – Tracking Close Scan – 2 – Tracking Open Mode – 3 – Focus Close – – – – Focus Open – – – – – – Jump Off 6 To new test mode Jump mode switching Auto/Manu – Note: Eject and CD on/off is performed in the same procedure as that for the normal mode. (3) Cause of Error and Error Code Code Class Contents Description and cause 40 Electricity Off focus detected. FOK goes low. → Damages/stains on disc, vibrations or failure on servo. 41 Electricity Spindle unlocked. LOCK = Low continued for 150 msec. → Damages/stains on disc, vibrations or failure on servo. 42 Electricity Sub-code unreadable. Sub-code was unreadable for 500 msec. → Damages/stains on disc, vibrations or failure on servo. 43 Electricity Sound skipping detected. Last address memory function was activated. → Damages/stains on disc, vibrations or failure on servo. Note: Mechanical errors during aging are not displayed. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 55 (4) Display of Operational Status during Setup Status No. Contents Protective action 21 Focus search start Focus search timeout. 22 Focus search 2 Focus search timeout. 23 Focus search 3 Focus search timeout. 24 Focus search 4 Focus search timeout. 25 Focus search(Setup protection) Focus slips off. 26 Focus search(Fast recovery) Focus slips off. 27 RF detection Focus slips off. 28 Spindle rough servocontrol Focus slips off. 29 Tracking balance adjustment start Focus slips off. 30 Tracking balance adjustment 2 Focus slips off. 31 Tracking balance adjustment 3 Focus slips off. 32 Tracking close start(Spindle stationary servocontrol setting) Focus slips off. 33 Tracking close 2 Focus slips off. 34 Tracking close 3 Focus slips off. 35 Focus/Tracking AGC start Focus slips off. 36 Focus/Tracking AGC 2 Focus slips off. 37 Focus/Tracking AGC 3 Focus slips off. 38 Focus/Tracking AGC 4 Focus slips off. 39 Focus/Tracking AGC 5 Focus slips off. 40 Focus/Tracking AGC 6 Focus slips off. 41 Focus/Tracking AGC 7 Focus slips off. 42 Focus/Tracking AGC 8 Focus slips off. 43 FE bias start Focus slips off. 44 FE bias 2 Focus slips off. 45 RF AGC start Focus slips off. 46 RF AGC 2 Focus slips off. 47 Lock check start Focus slips off. 48 Lock is being checked Focus slips off. 49 Subcode check start Focus slips off, spindle lock is not performed. 50 Subcode is being checked Focus slips off, no subcode can be read. (5) Display Examples 1) During Setup 8-digit display, 6-digit display 4-digit display(Auto setting) 4-digit display(Manual setting) TNO. Min Sec TNO. Min Sec 11 11' 11" 11 11' 11" 2) During Operation (TOC read, TRK search, Play, FF and REV) The same as in the normal mode. 3) When a Protection Error Occurred (A) Error display ((A)←→(B), (C) : BAND key) 8-digit display 6-digit display 4-digit display ERROR-xx ERR-xx E-xx (B) Error occurrence timing display in track no. ((B)←→(C) : Auto/Manual key) 8-digit display, 6-digit display 4-digit display(Auto setting) TNO. Min Sec TNO. 10 40' 05" 10 (C) Error occurrence timing display in absolute time. ((B)←→(C) : Auto/Manual key) 8-digit display, 6-digit display 4-digit display(Manual setting) TNO. Min Sec Min Sec 10 40' 05" 40' 05" www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 56 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 DISASSEMBLY 1. Remove the Case. Remove the four screws. - Removing the CD Mechanism Module (Fig.1) 1 Fig.1 - Removing the Case (not shown) 1 1 CD Mechanism Module Disconnect the connector and then remove the CD Mechanism Module. Remove the two screws and then remove the Detach Grille Assy. - Removing the Detach Grille Assy (Fig.1) 2 Fig.2 Heat Sink Detach Grille Assy 2 2 1 1 Fan Motor 1 1 3 2 2 3 3 Remove the two screws. - Removing the Fan Motor (Fig.2) 1 Disconnect the connector and then remove the Fan Motor. Remove the two screws. - Removing the Heat Sink (Fig.2) 2 Remove the three screws and then remove the Heat Sink. 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 57 Fig.3 Remove the screw. - Removing the Main Unit (Fig.3) 1 Remove the screw. 2 3 Remove the three screws and then remove the Main Unit. Main Unit 1 2 3 3 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 58 - How to hold the Mechanical Unit 1.Hold the top and bottom frame. 2.Do not squeeze top frame's front portion too tight, because it is fragile. - How to remove the Top and Bottom Frame 1.When the disk is in "clamp" state, unlock Spring A (6 pieces) and Spring B (2 pieces), and unscrew screws (4 pieces). 2.Unlock each 1 of pawl at the both side of the frame, then remove the top frame. 3.Remove the Carriage Mechanical part in such way that; you remove the mechanical part from 3 pieces of Damper while slowly pulling up the part. 4.Now, the top frame has been removed, and under this state, fix the genuine Connector again, and eject the disk. (Caution) When you reassemble the Carriage Mechanical part, apply a bit of alcohol to Dampers. - How to remove the Guide Arm Assy 1.Unlock the spring (1 piece) at the right side of the assembly. 2.Unscrew screws (2 pieces), then remove the Screw Gear Bracket. 3.Shift the Guide Arm Assy to the left and slowly rotate it to the upper direction. 4.When the Guide Arm Assy rotates approximately 45 degree, shift the Assy to the right side direction and remove it. Top Frame Bottom Frame Damper Spring Screw Gear Bracket Guide Arm Assy Carriage Mechanical Part Do not squeeze. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 59 - How to remove the Control Unit 1.Give jumper-solder treatment to the Flexible Wire of the Pickup unit, then remove the wire from the Connector. 2.Remove all 4 points of solder-treatment on the Lead Wire. Also, unscrew the screw(1 piece). 3.Then, Remove the Control unit. (Caution) Be careful not to damage SW when you reassemble the Control Unit into the device. - How to remove the Loading Arm Assy 1.Unlock the spring (1 piece) and remove the E ring (1 piece) of the Fulcrum Shaft. 2.Shift the arm to the left side direction and unlock pins (2 pieces). - How to remove the Pickup Unit 1.Unscrew 2 pieces of screws, then remove the Pulley Cover. 2.Remove the Feed Screw unit from the pawl of the Feed Screw Guide (The pawl is located inside the guide). 3.Remove the belt from the Pulley, then remove the Pickup unit. (Caution) Make sure not to stain the belt with grease when you fix the belt. Control Unit Jumper-Solder Solder Loading Arm Assy Pickup Unit Pulley Cover Feed Screw Guide Belt Grease Application Grease Application Grease Application www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 60 7.1.2 CONNECTOR FUNCTION DESCRIPTION M4x8MAX R F FM/AM ANTENNA GPS ANTENNA FRONT PRE OUTPUT IP BUS REAR PRE OUTPUT 1. BUS+ 2. GND 3. GND 4. NC 5. BUS- 6. GND 7. BUS L+ INPUT 8. ASENB 9. BUS R+ INPUT 10. BUS R- INPUT 11. BUS L- INPUT 11 10 9 8 7 6 5 4 3 2 1 1 2 10 16 15 5 1. BACKUP 2. GND 3. ILL 4. B REMOTE 5. ACC 6. SPEED PULSE 7. REVERSE 8. TEL 9. RL- 10. FL- 11. RL+ 12. FL+ 13. RR- 14. FR- 15. RR+ 16. FR+ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 61 7.2 IC - Pin Functions (PD5783A) Pin No. Pin Name I/O Function and Operation 1 BSO I/O PBUS:Communication data input/output 2 BSCK I/O PBUS:Communication data clock input/output 3 NVOLR O NAVI:Guide volume R output 4 NVOLL O NAVI:Guide volume L output 5 VST O EVOL:Strobe output 6 VDT O EVOL:Data output 7 VCK O EVOL:Clock output 8 BYTE Vss 9 CNVSS Vss 10 ROMDT I ROM correction:Data input 11 ROMCK O ROM correction:Clock output 12 RESET I Reset input 13 XOUT Clock output 14 VSS Power supply input(Vss) 15 XIN Clock input 16 VCC Power supply input(Vcc) 17 NC Not used(Vcc)(Pull up) 18 rck I RDS:Clock input 19 ldet I RDS:PLL lock detection input 20 bsens I Backup sense input 21 RX2 I IPBUS:Data input 22 IPPW O IPBUS:Driver power supply control output 23 ROMCS O ROM correction:Chip select output 24 PEE O Beep tone output 25 RDS57K I RDS:57kHz pulse count input 26 ASESBO O ACC sense output 27 PULSEIN I Speed sense pulse input 28 tmute O Tuner mute output 29 RX I IPBUS:Data input 30 TX O IPBUS:Data output 31 DPDT O GRILLE:Data output 32 KYDT I GRILLE:Data input 33 isens I Illumination sense input 34 SWVDD O GRILLE:Display controller power supply control output 35 STON O NAVI UNIT data output 36 NTOS I NAVI UNIT data input 37 SYSPW O System power control output 38 LOCL O TUNER:Local L output 39 eject I Eject key input 40 LOCH O TUNER:Local H output 41 AM_fm O TUNER:AM/FM power supply control output 42 st I TUNER:Stereo input 43 SD I TUNER:SD input 44 DALMON O For consumption low-current output 45 currq O RDS:Voltage FIX output 46 SDBW I RDS:In case of NF, SD input 47 ILMPOW O Illumination power supply control output 48 drst O RDS:Reset output 49 rdslk I RDS:Lock signal input 50 RDT I RDS:Data input 51 TUNPDI I TUNER:PLL communication data input 52 TUNPDO O TUNER:Data output(PLL) 53 TUNPCK O TUNER:Clock output(PLL) 54 TUNPCE O TUNER:Chip enable output(PLL) 55 tunpce@ O TUNER:Chip enable output(EEPROM) 56 VROT_A I Rotary encoder input A 57 VROT_B I Rotary encoder input B 58 NROT_1 I Rotary stick input 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 62 Pin No. Pin Name I/O Function and Operation 59 NROT_2 I Rotary stick input 1 60 g_onug O GPS:Power supply control output 61 g_res O GPS:Reset output 62 VCC Power supply 63 G_PWRES I GPS:Power supply sense input 64 VSS Power supply input(Vss) 65 REVSENS I Reverse sense input 66 AMPMUTE O Amp mute output 67 cc_nmi O NAVI:NMI output 68 cc_res O NAVI:Reset output 69 brxen I/O PBUS:Communication input/output 70 brst O PBUS:Reset output 71 bsrq I PBUS:Communication request input 72 dsens I Detach sense input 73 t_rdsid I TMC:RDS ID input 74 asens I ACC sense input 75 GMUTE O Guide mute output 76 t_syres O TMC:Reset output 77 T_CE O TMC:Enable output 78 T_DI I TMC:Data input 79 T_CL O TMC:Clock output 80 T_DO O TMC:Data output 81 TELIN I TEL:Cellular mute input 82 TP_SD I TMC:PLL SD input 83 TP_DI I TMC:PLL data input 84 TP_DO O TMC:PLL data output 85 TP_CK O TMC:PLL clock output 86 TP_CE1 O TMC:PLL enable output 87 MUTE O Mute output 88 OELPW O OEL power supply output 89 TESTIN I Test program input 90 NL2DT I RDS:Noise level 2 91 NC Connect to VDD 92 csens I Flap open/close sense input 93 FLPILM O Inside of flap illumination output 94 T_SL TMC:PLL signal level 95 NL1 RDS:Noise level input 1 96 AVSS AD converter power supply input(Vss) 97 SL TUNER:Signal level input 98 VREF AD converter reference voltage(Vref) 99 AVCC AD converter power supply input(Vcc) 100 BSI I PBUS:Communication data input *PD5783A 30 31 50 51 80 81 100 1 IC's marked by * are MOS type. Be careful in handling them because they are ver liable to be damaged by electrostatic induction. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 63 - Pin Functions (PD6387A) Pin No. Pin Name I/O Function and Operation 1-4 A18-21 O Bus address output 5-7 NC O Not used 8 A01 O Bus address output 9 VSS DGND 10-20 A02-12 O Bus address output 21 VCC5 O VDD connection 22-24 A13-15 O Bus address output 25 DSPDT I Display data input 26 KEYDT O Key data output 27-32 NC Not used 33 AVCC VDD connection 34 AVRH VDD connection 35 AVSS VSS connection 36-38 KDT1-3 I Key data input 39 NC Not used 40 VSS VSS connection 41-43 NC Not used 44 FLASH I VDD connection 45 REMIN I Remote control signal input 46 NC Not used 47,48 MD0,1 VDD connection 49 MD2 VSS connection 50-57 NC Not used 58 OEL_CS O OEL controller chip select output 59 ROM_CS O ROM chip select output 60-66 NC Not used 67 OEL_RESET O OEL controller reset output 68 NC Not used 69 ROM_RD O ROM read enable output 70 OEL_WR O OEL controller write output 71-73 NC O Not used 74 RDY I Ready signal input 75 CPU_RESET I Reset input 76 CLK O Bus clock output 77 NC Not used 78 DGND DGND connection 79 GND GND connection 80 XO O Crystal oscillating element connection 81 XI I Crystal oscillating element connection 82 VCC3 VDD connection 83-98 D00-15 I/O Bus data input/output 99,100 A16,17 O Bus address output *PD6387A 25 26 50 51 75 76 100 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 64 NJM2391DL1-33 IN OUT GND 1 3 2 Thermal Shutdown Over current protector VREF +- *PD8096A 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 NC A18 A17 A7 A6 A5 A4 A3 A2 A1 A0 ce VSS1 oe D0 D8 D1 D9 D2 D10 D3 D11 VCC D4 D12 D5 D13 D6 D14 D7 D15/A-1 VSS2 byte A16 A15 A14 A13 A12 A11 A10 A9 A8 A19 A20 D15/A-1 : Data output / Address input A0-A20 : Address input D0-D14 : Data output ce : Chip enable oe : Output enable byte : Mode switch VCC : Power supply VSS1,2 : GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 65 PAL007A 1 TAB 2 P-GND2 3 OUT2- 4 STBY 5 OUT2+ 6 VCC 7 OUT1- 8 P-GND1 9 OUT1+ 10 SVR 11 IN1 12 IN2 13 S-GND 14 IN4 15 IN3 16 AC-GND 17 OUT3+ 18 P-GND3 19 OUT3- 20 VCC 21 OUT4+ 22 MUTE 23 OUT4- 24 P-GND4 SWITCH 25 + - + - Offset Detection + - + - Offset Detection + - + - Offset Detection + - + - Offset Detection Protector; Over current limit sw_vcc stby Protector; Short circuit Mute circuit amp_vcc Stand-by Circuit Protector; Over voltage sw_vcc Protector; Thermal Reference amp_vcc S-80827ANUP-EDQ GND VDD VSS 1 2 3 VREF NJM2058V 6 4 1 3 2 7 5 9 11 14 12 13 8 10 D OUTPUT D -INPUT D +INPUT GND C +INPUT C -INPUT C OUTPUT A OUTPUT A -INPUT A +INPUT V+ B +INPUT B -INPUT B OUTPUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 66 - Pin Function (PE5320A) Pin No. Pin Name I/O Format Function and Operation 1 bsck I/O /C Input/output of P-Bus serial clock 2 BDATA I/O /C Input/output of P-Bus serial data 3 CONT O C Output of control of power supply to servo driver 4 CLCONT O C Output for switching between driver inputs 5 LOEJ O C Output for switching between LOAD/EJECT directions 6 home I Input of sensing Home SW 7 reset I Input of system reset 8 VDD Positive power supply (+5V) 9 X2 Connected to the oscillator for the main clock (25 MHz) 10 X1 I Connected to the oscillator for the main clock (25 MHz) 11 VSS Potential of GND 12-14 CBANK0-2 O C Output 0-2 of bank settings of Compression IC (Open) 15 crst O C Output of reset control of Compression IC (Open) 16-21 NC Open 22 DSET O C Output for lighting the disc set indicator (Open) 23, 24 NC Open 25 DSPMUTE O C Output of DSP Mute (Open) 26 NC Open 27 SUBOK O C Output of O.K. (sub code read) 28 NC Open 29 BRXEN I/O /C P-Bus receiving enabled 30 CDMUTE O C Output of control of CD Mute 31 CD5VON O C Output of control of CD +5V power supply 32, 33 NC Open 34 emph O C Output of information on emphasis (Open) 35 NC Open 36 xrst O C Output of control of CD LSI reset 37 NC Open 38 XCE O C Output for chip enable of CD LSI 39 xsck O C Output for clock of CD LSI 40-43 XPIO3-0 I/O /C Input/output for data of CD LSI 44 NC Open 45 VSS Potential of GND 46 NC Connected to VSS 47 NC Open 48 VDCONT O C Output of control of VD power supply 49-51 NC Open 52 bsrq O C Output of request in P-Bus polling 53 NC Open 54 adena O C Output of control of A/D reference voltage supply 55 VDD Positive power supply (+5V) 56 CSENS Input of sensing the flap closed 57 VDSENS Input of sensing short of VD power supply 58, 59 NC Open 60 TEMP Input of sensing information on temperature 61, 62 NC Open 63 DSCSNS Input of sensing disc status 64 AVDD Power supply of A/D converter 65 AVREF Input of reference voltage for A/D converter 66 AVSS GND of A/D converter 67, 68 NC Open 69, 70 AVREF Connected to VSS 71 NC Connected to VSS 72 TXARI I Connected to VSS 73 testin I Input with starting test program 74-76 NC Connected to VDD 77 brst Input of reset of P-Bus 78 NC Connected to VSS 79, 80 NC Open www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 67 *LC72720NMHS 23 SYR CE DI CL DO RDS-ID SYNC T7(OORREC/ARI-ID/BEO) T6(ERROR/ARI-ID/BEO) Vssd Vddd XIN VREF MPXIN Vdda Vssa FLOUT CIN T1 T2 T3(RDCL) T4(RDDA) T5(RSFT) XOUT 22 21 20 19 18 17 16 15 14 1 2 4 5 6 7 8 9 10 11 REFERENCE VOLTAGE CCB 12 3 24 13 TEST TEST ANTIALIASING FILTER SMOOTHING FILTER 57kHz BPF (SCF) - + VREF PLL (57kHz) DATA DECODER CLOCK RECOVERY (1187.5Hz) SYNC/EC CONTROLLER SYNC DETECT-2 SYNC DETECT-1 ERROR CORRECTION (SOFT DECISION) RAM (24 BLOCK DATA) MEMORY CONTROL OSC/DIVIDER CLK (4.332MHz) 20 21 40 41 60 61 80 1 *PE5320A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 68 49 48 33 32 17 16 1 64 *PD3430A - Pin Functions (PD3430A) Pin No. Pin Name I/O Function and Operation 1-4 DB12-15 I/O Data bus input / output 5 IR I Instruction register selection input 6 CS1 I Chip select 1 input 7 CS0B I Chip select 0 input 8 WRB I Write strobe input 9 RDB I Read strobe input 10 BCLK I Bus clock input 11 RDYB O Ready signal output 12 CSOUT O Outside chip select output 13 VCC3 3.3V power supply 14 GND GND 15 VCC5 5V power supply 16 GND GND 17 CKD O Serial data clock output 18 UCKA O The anode drive clock output 19 LS O Synchronizing line signal output pin 20,21 UADL0,1 O Anode serial data output 22,23 UADR0,1 O Anode serial data output 24 PVCCK O Not used 25 UCD O Cathode serial data output 26 VCC3 3.3V power supply 27 GND GND 28 LCD O Not used 29 LCKA O Not used 30,31 LADL0,1 O Not used 32,33 LADR0,1 O Not used 34 SEGCKA O Not used 35,36 SEGAD0,1 O Not used 37 VCC5 5V power supply 38 GND GND 39 VCC3 3.3V power supply 40 GND GND 41,42 PVCSEL0,1 Not used 43 TESTRAM Not used 44,45 TESTSEL0,1 Not used 46,47 PNLSEL0,1 Not used 48 T Test pin 49 W Test pin 50 RB I Reset input 51-56 DB0-5 I/O Data bus input / output 57 GND GND 58 VCC3 3.3V power supply 59-64 DB6-11 I/O Data bus input / output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 69 No. Symbol I/O Explain 1 STIND O stereo "Low" when the FM stereo signals are received. indicator To be pulled up to the "VDD" at 47kΩ. 2 FMSD FM station "High" when signals are received. To be pulled up to the "VDD" at 47kΩ detector Meanwhile, 10kΩ should be used when taking diver FIX trigger from here and "High: 0.9VDD or more" and "Low: 250mV or less". (Should satisfy the diver IC specifications) 3 NL1 O noise level-1 "High" when noise is received. Output for the RDS. GND at 47kΩ//1,800pF. 4 NL2 O noise level-2 "High" when noise is received. Output for the RDS. GND at 36kΩ//330pF. 5 Rch O R channel FM stereo "R-ch" signal output or AM audio output. output Add the specified de-emphasis constant. 6 Lch O L channel FM stereo "L-ch" signal output or AM audio output. output Add the specified de-emphasis constant. 7 WC write control EEPROM write control. Writing permissible at "Low". Normally open. 8 SDBW O SD bandwidth SD bandwidth signal output. For detection of detuning data for the RDS. 9 AMDET O AM detector AM detector output. r out < 100Ω output 10 VDD power Power supply pin for the digital section. supply DC 5V +/- 0.25V. Be careful about overlapping noise in the logic section. 11 DGND digital ground Grounding for the digital section. 12 CE2 I chip enable-2 EEPROM chip enable. Active a "Low" To be pulled up to the "VDD" at 47kΩ 13 SL I/O signal level Received FM/AM signal level (strength) output. Connect the specified load resistor and capacitor (10k Ω+ 39k Ω//4,700pF) 14 DI/DO I/O data input/ Data input/Data output data output To be pulled up to the "VDD" at 47kΩ 15 CK I clock Clock input To be pulled up to the "VDD" at 47kΩ 16 CE1 I chip enable-1 AF·RF chip enable. Active at "High"To be grounded at 47kΩ 17 AMPNS AM PNS IF signal IF signal output for AM PNS circuit. 18 LDET O lock detector Active at "Low". To be pulled up to the "VDD" at 47kΩ 19 CREQ I current request Active at "Low". To be grounded at 47kΩ 20 AMINI AM audio input The frequency response and the level are set by connecting an external CR network with terminal AMIN as terminal AMDET. r in = 50kΩ 21 COMP O composite signal FM composite signal output. r out < 100Ω 22 VCC power supply Analog section power supply pin.DC 8.4V +/- 0.3V 23 LOCH I local high FM local high pin. When seeking local high, apply 5V together with "LOCL". 24 FMLOCL I FM local low FM local low pin. When seeking local low, apply 5V to the base of the NPN transistor with which the specified resistor is being connected to the emitter. Keep it open in case of ordinary marketed models. 25 LOCL I local low FM/AM local low pin. When seeking local low, apply 5V to the base of the NPN transistor.Since this pin is exclusive for AM when the FMLOCL is in use, do not drive it under FM. 26 RFGND RF ground Grounding for the antenna section. 27 FMANT I FM antenna input FM antenna input. 75Ω. Surge absorber (DSP-201M-S00B) is necessary. 28 AMANT I AM antenna input AM antenna input. High impedance. Connect to the antenna through an L (LAU type) of 4.7µH.To cope with the power transmission line hums, insert a series circuit consisting of an L (a coil of about 100mH) + R (a resistor of 470 Ω to 2.2kΩ) between the GND. IC 3 EEPROM 28 27 FM/AM 1ST IF 10.7MHz T51 Q51 CF51 CF52 CF53 IC1 MIXER, IF AMP, DET. 6 21 18 LDET COMP 22 25 10 14 12 15 16 81 32 34 CF202 VDD VCC DI/DO CE2 CK CE1 SDBW SL FMSD NL1 NL2 IC 2 FM MPX AMANT FMANT ATT ATT AMRF FMRF IMG ADJ RF ADJ X901 10.25MHz ANT ADJ LOCL 23 LOCH AMDET MPXREF 41kHz AM 2ND IF 450kHz 19 CREQ 11 DGND 1 STIND L ch 5 R ch 9 24 AMDET FMLOCL 20 17 7 AMPNS WC 26 RFGND AMIN - FM/AM Tuner Unit O O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 70 - Tuner unit (CWE1674) 21.7MHz 21.7MHz DET. S METER SD IF COUNT AGC LC72133V AN7261NFBQ 7.2MHz OSC FM ANT VT I/O PDO CL DI CE SD SMETER DET OUT 8V 3V IF COUNT 4 1 2 13 14 15 16 1 6 9 7 10 11 VT 2 GND 8 GND FREQUENCY SYNTHESIZER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 71 7.3 OPERATIONAL FLOW CHART VCC=5V Pin 16/62/98/99 Power ON bsens=L asens=L dsens=L bsens Pin 20 asens Pin 74 dsens Pin 72 ASENBO←H Pin 26 SWVDD←H Pin 34 Source keys operative Completes power-on operation. (After that, proceed to each source operation) Starts communication with Grille microcomputer. Source ON 500ms 500ms In case of the above signal, the communication with Grille microcomputer may fail. If the time interval is not 500msec, the oscillator may be defective. SYSPW←H Pin 37 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 72 7.4 CLEANING Before shipping out the product, be sure to clean the following portions by using the prescribed cleaning tools: Portions to be cleaned Cleaning tools CD pickup lenses Cleaning liquid : GEM1004 Cleaning paper : GED-008 Portions to be cleaned Cleaning tools Fans Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 73 8. OPERATIONS Before You Start What’s what 1 Rotary volume, INFO button With the NAVIGATION function Rotary: Lets you adjust guidance volume level. Push: Displays information indications. With the AUDIO function Rotary: Lets you adjust the volume level of each source. Push: Lets you cancel each function dur- ing operation. 2 Rotary stick, NAVI/OK button With the NAVIGATION function Rotary: Lets you select an item. 2/3/∞/5 : Let you select an item. Push: Lets you enter a selected item and switch functions ON/OFF. With the AUDIO function Rotary: Lets you manually adjust. 2/3/∞/5 : Let you manually adjust. Push: Switches to the main navigation display. 3 OPEN button Press to open the front panel. 4 BAND/ESC button Press to select among three FM or MW/LW bands and cancel the control mode of functions. 5 NEXT button Press NEXT to switch through the func- tions of the multi-function buttons. 6 Multi-function buttons Press to select functions. 7 BACK button Pressing BACK cancels the current menu or mode and returns to the previously selected menu or mode. 8 SOURCE button With the NAVIGATION function Switches to the main audio display. With the AUDIO function This unit is switched on by selecting a source. Press to cycle through all of the available sources. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 74 Optional remote control The steering remote control CD-SR100 is sold separately. Operation is the same as when using the button on the head unit. See the explanation of the head unit about the operation of each button with the exception of ATT, which is explained below. 9 ATT button Press to quickly lower the volume level, by about 90%. Press once more to return to the original volume level. 0 BAND button - 5/∞/2/3 buttons = FUNCTION button ~ SOURCE button ! AUDIO button @ VOLUME button Note • Navigation operations of the ANH-P9R cannot be performed even if the CD-SR100 is switched to the navigation mode. @ 9 ! = ~ - 0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 75 Basic Operation Turning a source on or off You can select the source you want to listen to. To switch to built-in CD player, load a CD in this product. 1 Press SOURCE to select the desired source (e.g., tuner). Press SOURCE repeatedly to switch between the following sources: Built-in CD player—TV tuner—Tuner— DAB tuner—Multi-CD player—External unit 1— External unit 2—AUX 2 Raise or lower the volume. Rolling the VOLUME changes the volume level. • Roll clockwise to raise the volume level. • Roll counterclockwise to lower the volume level. 3 Press and hold SOURCE to turn the source off. Notes • External unit refers to a Pioneer product (such as one available in the future) that, although incompatible as a source, enables control of basic functions by this product. Two external units can be con- trolled by this product, although “External” is displayed whether you select external unit 1 or external unit 2. When two external units are connected, the allo- cation of them to external unit 1 or exter- nal unit 2 is automatically set by this prod- uct. • In the following cases, the sound source will not change: * When no product corresponding to the source is connected to this product. * No audio disc is set in this product. * No magazine is set in the multi-CD player. * AUX (auxiliary setting) is set to off. • When this product’s blue/white lead is connected to the car’s auto-antenna relay control terminal, the car’s auto-antenna extends when this product’s source is switched on. Using navigation and SOURCES simultaneously If SOURCE is pressed after having set the destination during navigation, the SOURCE display and navigation information are dis- played simultaneously. An announcement is made by the guide audio as necessary. In the case the name of the course changes, although the display will switch to the navigation display, it will automatically return to the SOURCE display. SOFT KEY operation SOFT KEY operation means that the func- tion of a button changes as indicated on the display. The multi-function buttons provide SOFT KEY operation; the functions performed by the buttons change according to the function or setting that has been selected. Function names “3” Multi-function buttons Important • In this manual, for operations using the multi-function buttons the function dis- played is used as the name of the function button. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 76 Switching the function of the multi-function buttons The “3” indicator shows that the multi- function buttons have functions other than those currently displayed. When this indica- tor is visible, press NEXT to switch through the functions of the multi-function buttons. • Press NEXT to display the desired functions (e.g., built-in CD player). Press NEXT repeatedly to switch between the following functions: « Notes • The number of functions or displays switched through will differ according to the source or menu selected. • When no function is indicated for a but- ton, that button is not currently active. Example of multi-function button oper- ation Here the “random play” function of the built-in CD player is used as an example to illustrate operation of the multi-function buttons. 1 Press NEXT to display FUNC. Press NEXT repeatedly until FUNC appears. 2 Press FUNC to enter the function menu. With the switch to the function menu, the functions of the multi-function buttons also change simultaneously. 3 Press RDM to select the random mode. 4 Press RDM to turn random play on. The light illuminates. • Press RDM again to turn random play off. The light goes off. 5 Press BACK to exit the function menu. When the function menu is exited, the func- tions of the multi-function buttons also change simultaneously. Key guidance indicator This product’s display features key guidance indicators. These light to indicate which of the 5/∞/2/3 buttons you can use. When you’re in the function menu, audio menu or the other menus, they also make it easy to see which 5/∞/2/3 buttons you can use to switch functions on/off, switch repeat selections and perform other operations. Key guidance indicators Note • In this manual, operation for each mode is given mainly in terms of the multi-func- tion buttons. However, in each mode, when the key guidance indicators are lit it is also possible to use5/∞/2/3 to oper- ate the mode. Display example (e.g., built-in CD player) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 77 20 pin cable (supplied with the display) Violet White Gray This Product FM MODULATOR IP-BUS MAIN UNIT IP-BUS AV MASTER IP-BUS cable (supplied with the TV tuner) Green Black Blue Black Blue Blue Green IP-BUS cable (supplied with the DAB tuner) IP-BUS cable (supplied with the Multi-CD player) Multi-CD player (sold separately) Hide-away TV tuner (e.g. GEX-P7000TVP) (sold separately) Color LCD display (e.g. AVD-W6010) (sold separately) Hide-away DAB tuner (e.g. GEX-P700DAB) (sold separately) - Connection Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 1 2 3 4 1 2 3 4 78 Connect leads of the same color to each other. Cap (1*) When not using this terminal, do not remove the cap. Fuse holder Yellow (2*) To terminal always supplied with power regardless of ignition switch position. Red (4*) To electric terminal controlled by ignition switch (12 V DC) ON/OFF. Yellow (3*) Back-up (or accessory) Red (5*) Accessory (or back-up) Black (ground) To vehicle (metal) body. Orange/white To lighting switch terminal. Fuse resistor Fuse resistor Note Depending on the kind of vehicle, the function of 3* and 5* may be different. In this case, be sure to connect 2* to 5* and 4* to 3*. Fuse resistor Violet/white Pink Connect leads of the same color to each other. Blue/white (7*) To Auto-antenna relay control terminal (max. 300 mA 12 V DC). Blue/white (6*) Blue/white To system control terminal of the power amp (max. 300 mA 12 V DC). Yellow/black If you use a cellular telephone, connect it via the Audio Mute lead on the cellular telephone. If not, keep the Audio Mute lead free of any connections. IP-BUS cable Speaker leads White White/black Gray Gray/black Green Green/black Violet Violet/black : Front left + : Front left ≠ : Front right + : Front right ≠ : Rear left + or Subwoofer + : Rear left ≠ or Subwoofer ≠ : Rear right + or Subwoofer + : Rear right ≠ or Subwoofer ≠ 1* 2* 4* 3* 5* The pin position of the ISO connector will differ depending on the type of vehicle. Connect 6* and 7* when Pin 5 is an antenna control type. In another type of vehicle, never connect 6* and 7*. This Product Antenna jack IP-BUS input (Blue) GPS aerial jack Multi-CD player (sold separately) RCA outputs (Refer to page 10.) GPS aerial ISO connector Note In some vehicles, the ISO connector may be divided into two. In this case, be sure to connect to both connectors. Note The position of the speed detection circuit depends on the vehicle model. For details, consult the relevant documents from PIONEER. When making connections for a model not listed in those documents or for which connection to the speed detection circuit is too difficult, connect the separately sold ND-PG1 speed pulse generator to the pink lead. The mobile navigation system is connected here to detect the distance the vehicle travels. Always connect the vehicle’s speed detection circuit or the ND-PG1 speed pulse genator, sold separately. Failure to make this connection will increase errors in the location display. This is connected so that the navigation system can detect whether the vehicle is moving forwards or backwards. Connect the violet/white lead to the lead whose voltage changes when the reverse gear is engaged. If this is not connected, the sensor inside this unit will determine whether your vehicle is travelling forwards or backwards. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ANH-P9R/EW A B C D 5 6 7 8 5 6 7 8 79 Use this for connections when you have the separately available amplifier. Blue/white To system control terminal of the power amp (max. 300 mA 12 V DC). Blue/white (7*) To Auto-antenna relay control terminal (max. 300 mA 12 V DC). Blue/white (6*) Note: When a subwoofer is connected to this unit instead of a rear speaker, change the rear output setting in the Initial Setting. (Refer to the Operation Manual.) The subwoofer output of this unit is monaural. System remote control Front speaker Front speaker Connecting cords with RCA pin plugs (sold separately) Left Right System remote control Front output (F) Rear output or subwoofer output (R) Rear speaker or subwoofer Rear speaker or subwoofer ≠ + ≠ + ≠ + ≠ + Power amp (sold separately) Power amp (sold separately) The pin position of the ISO connector will differ depending on the type of vehicle. Connect 6* and 7* when Pin 5 is an antenna control type. In another type of vehicle, never connect 6* and 7*. Antenna jack IP-BUS input (Blue) This Product GPS aerial jack www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
