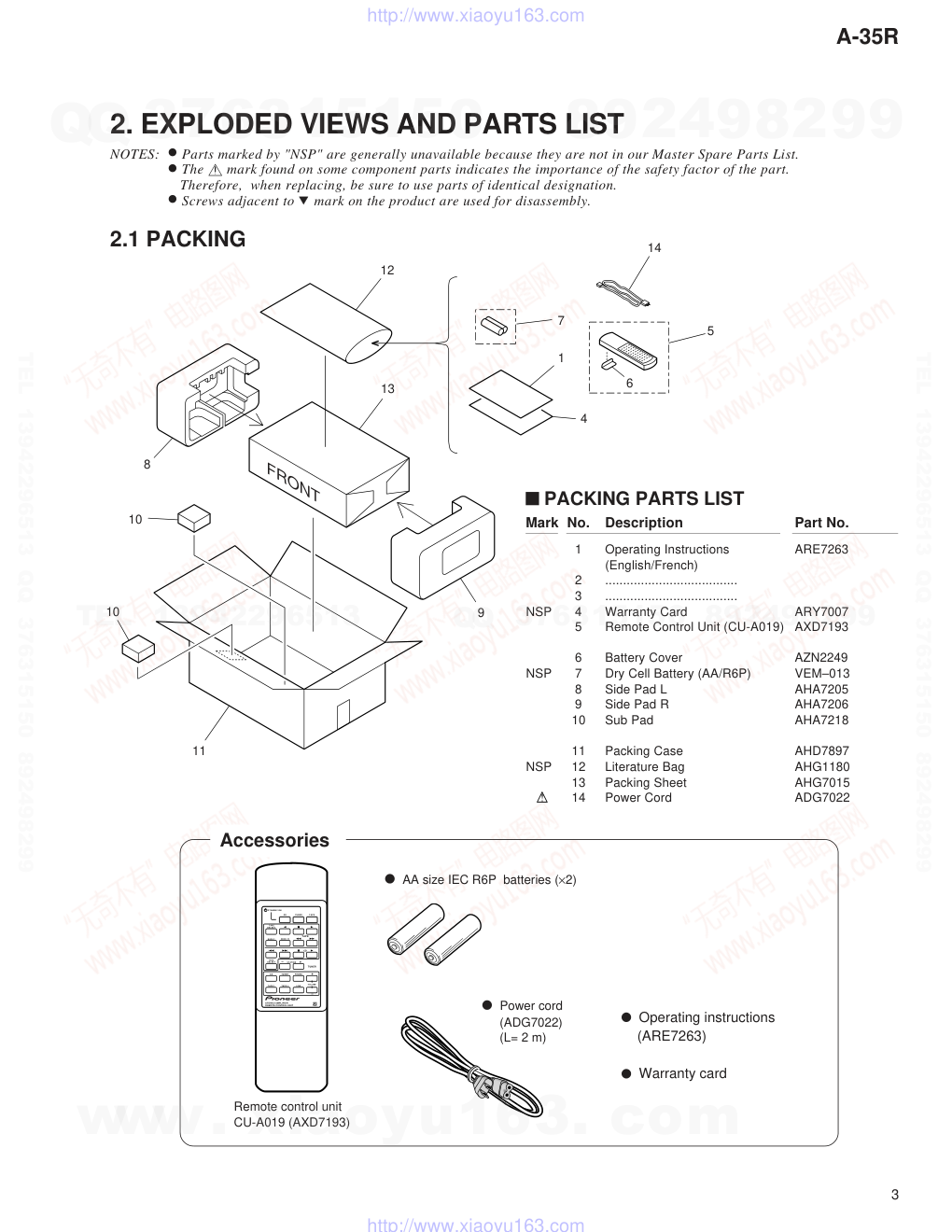

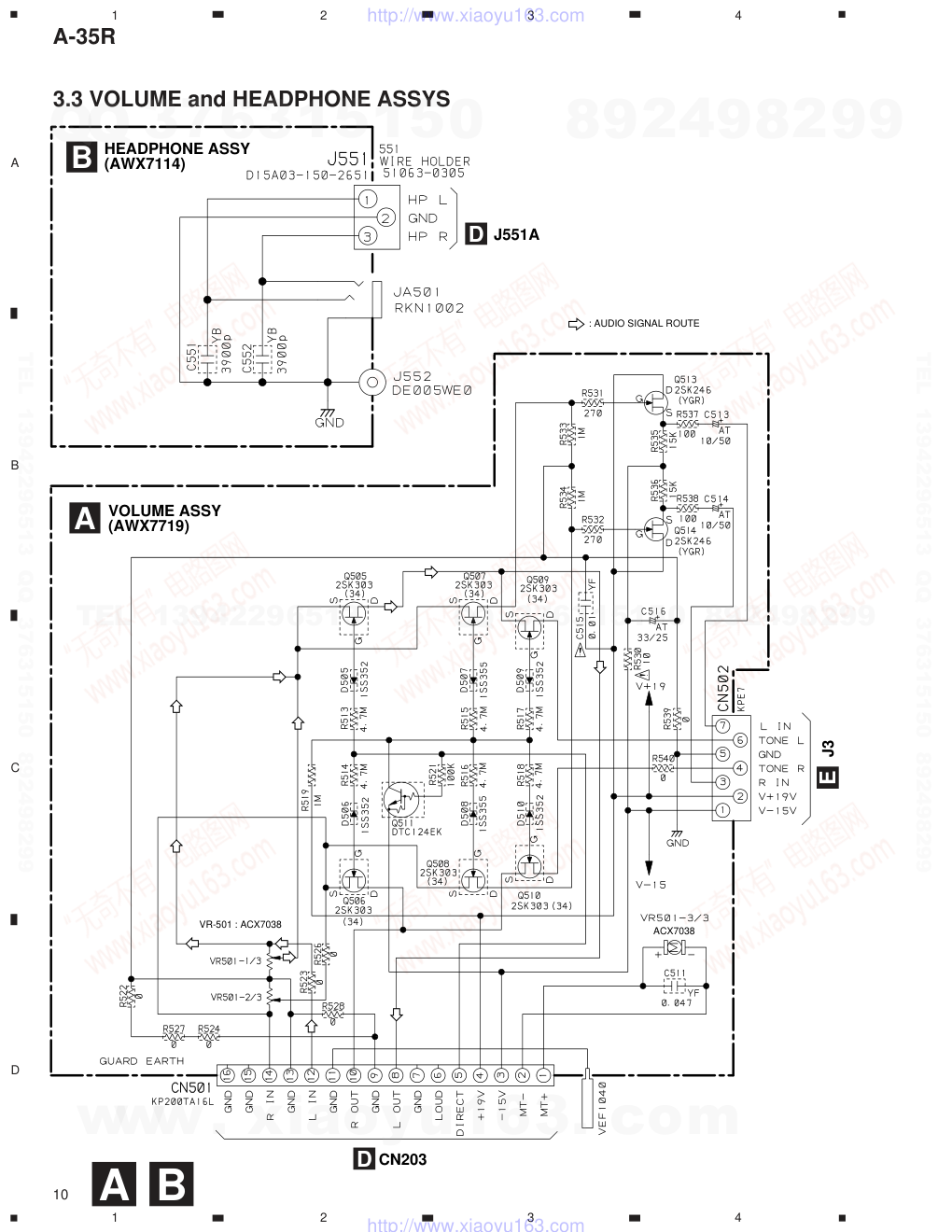

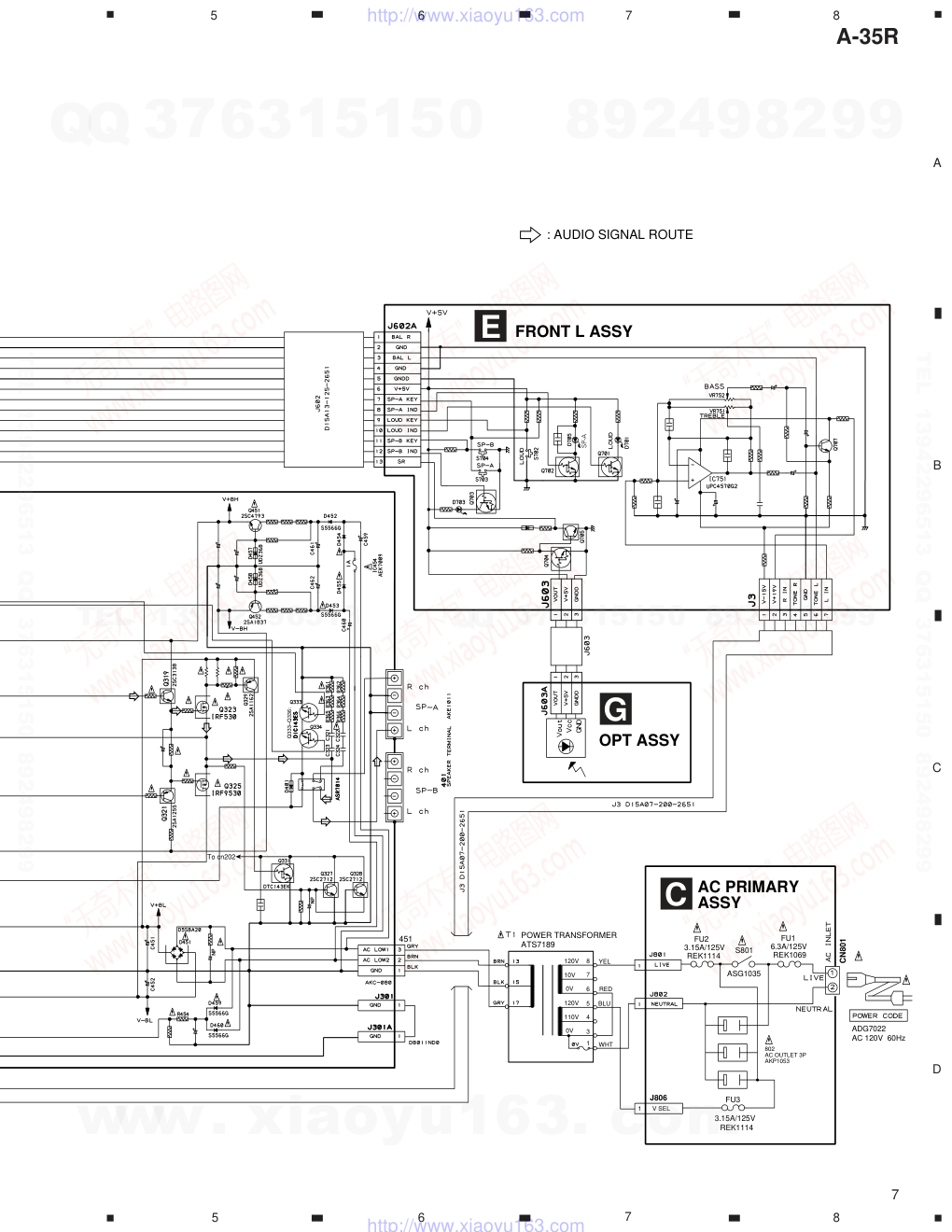

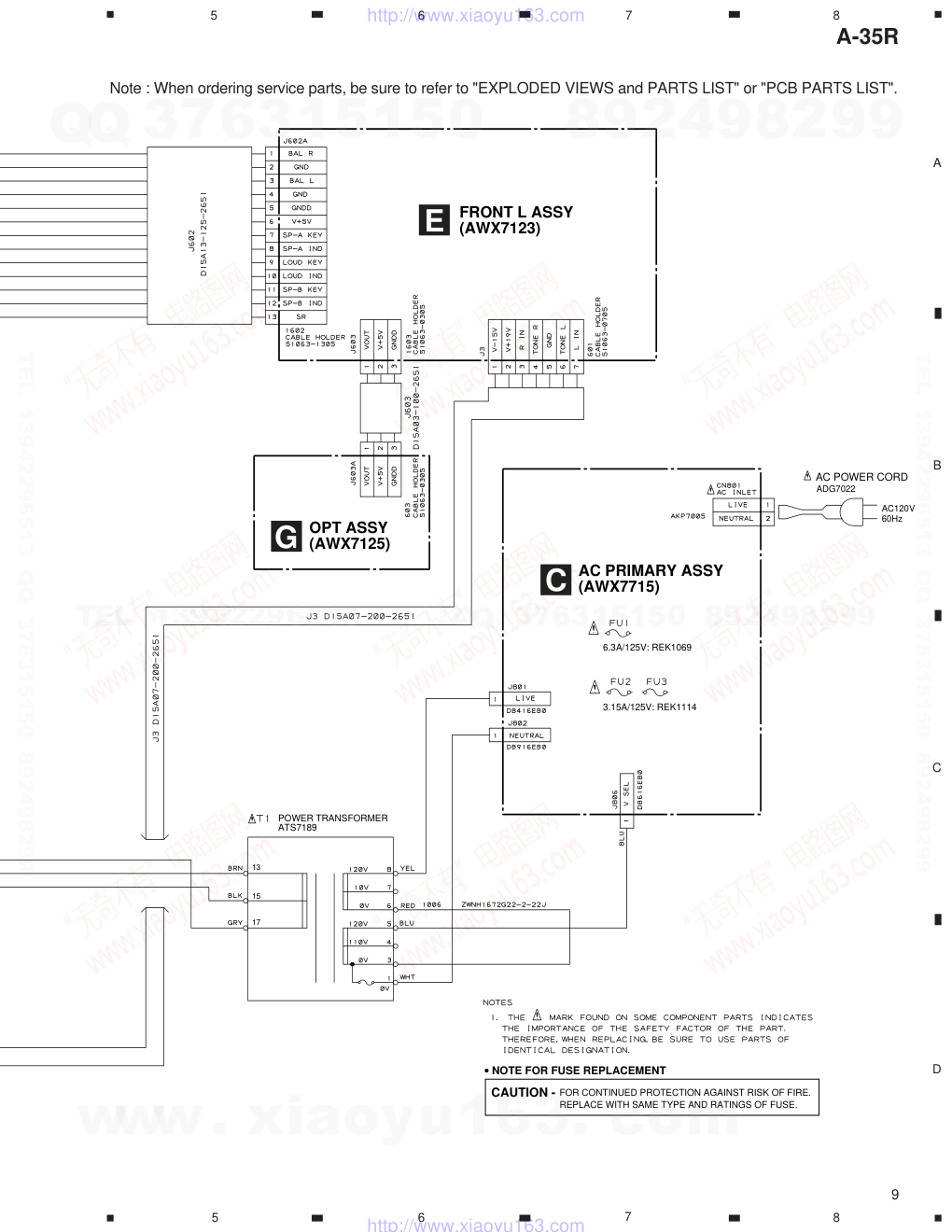

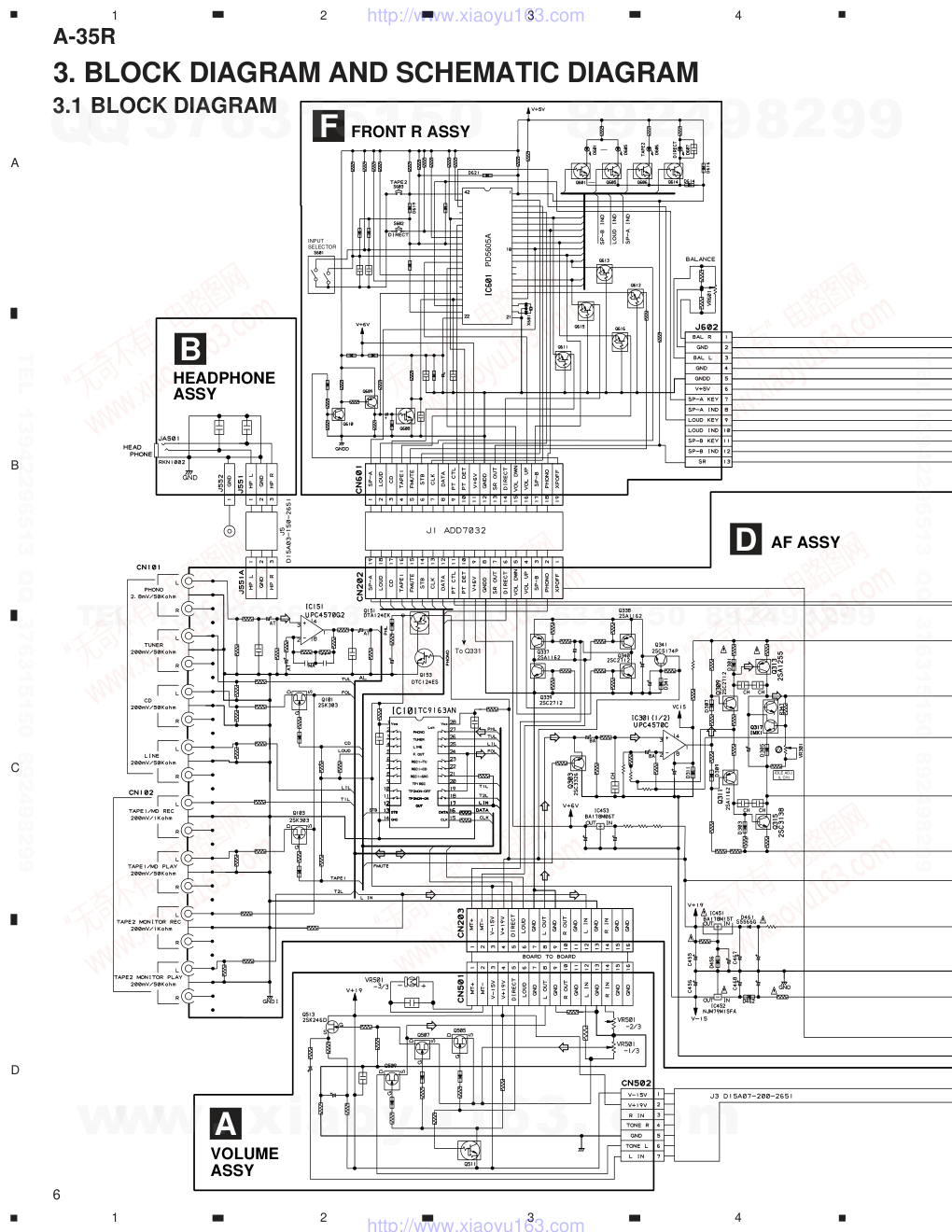

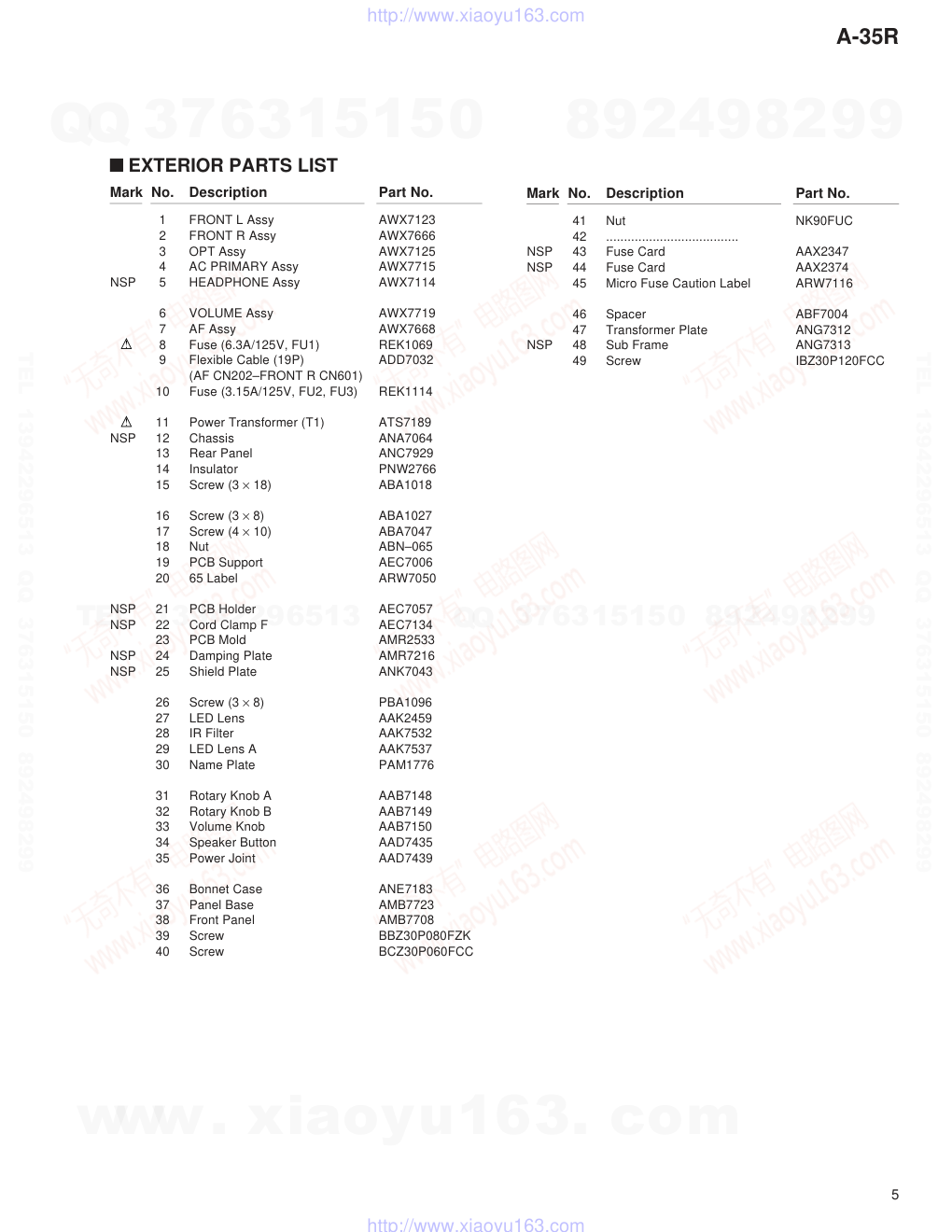

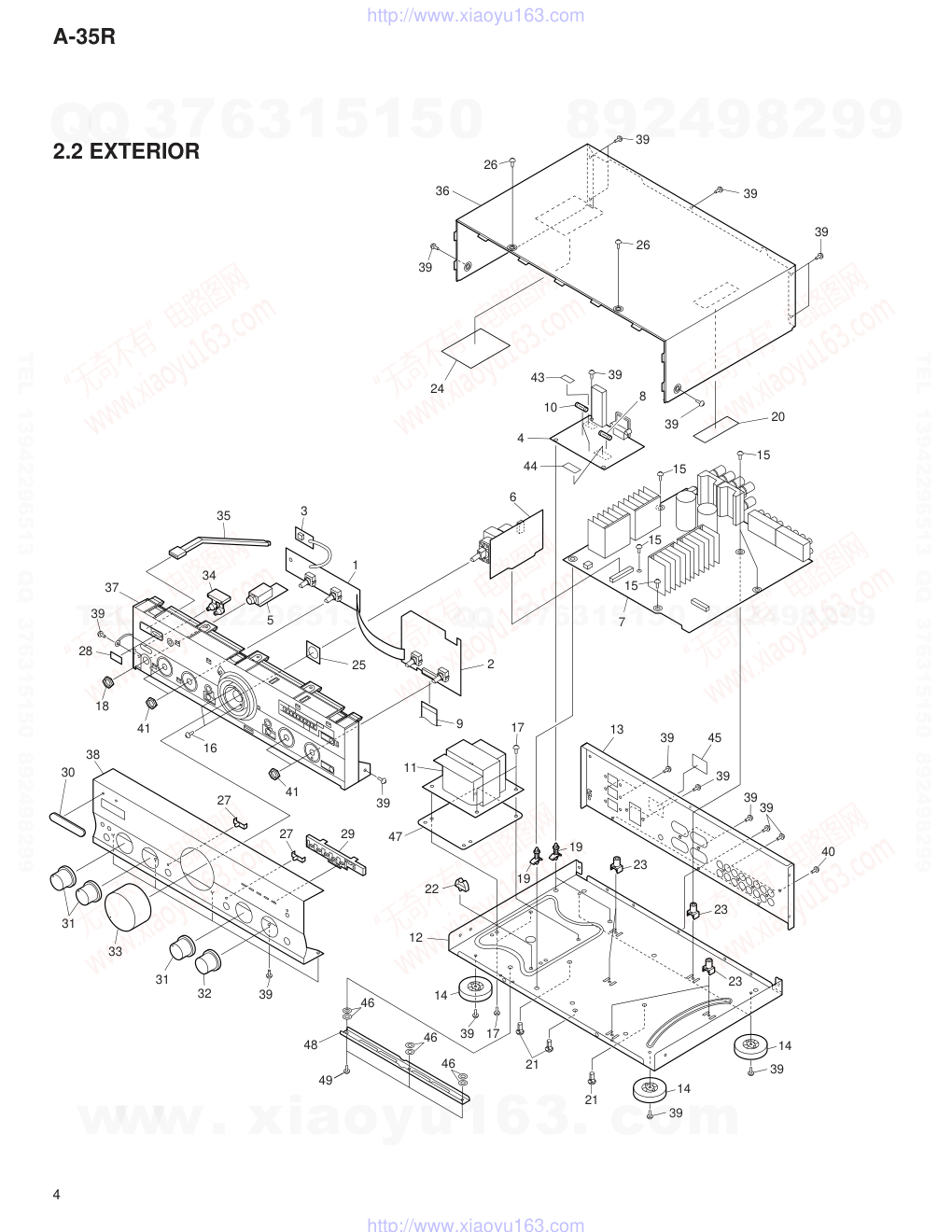

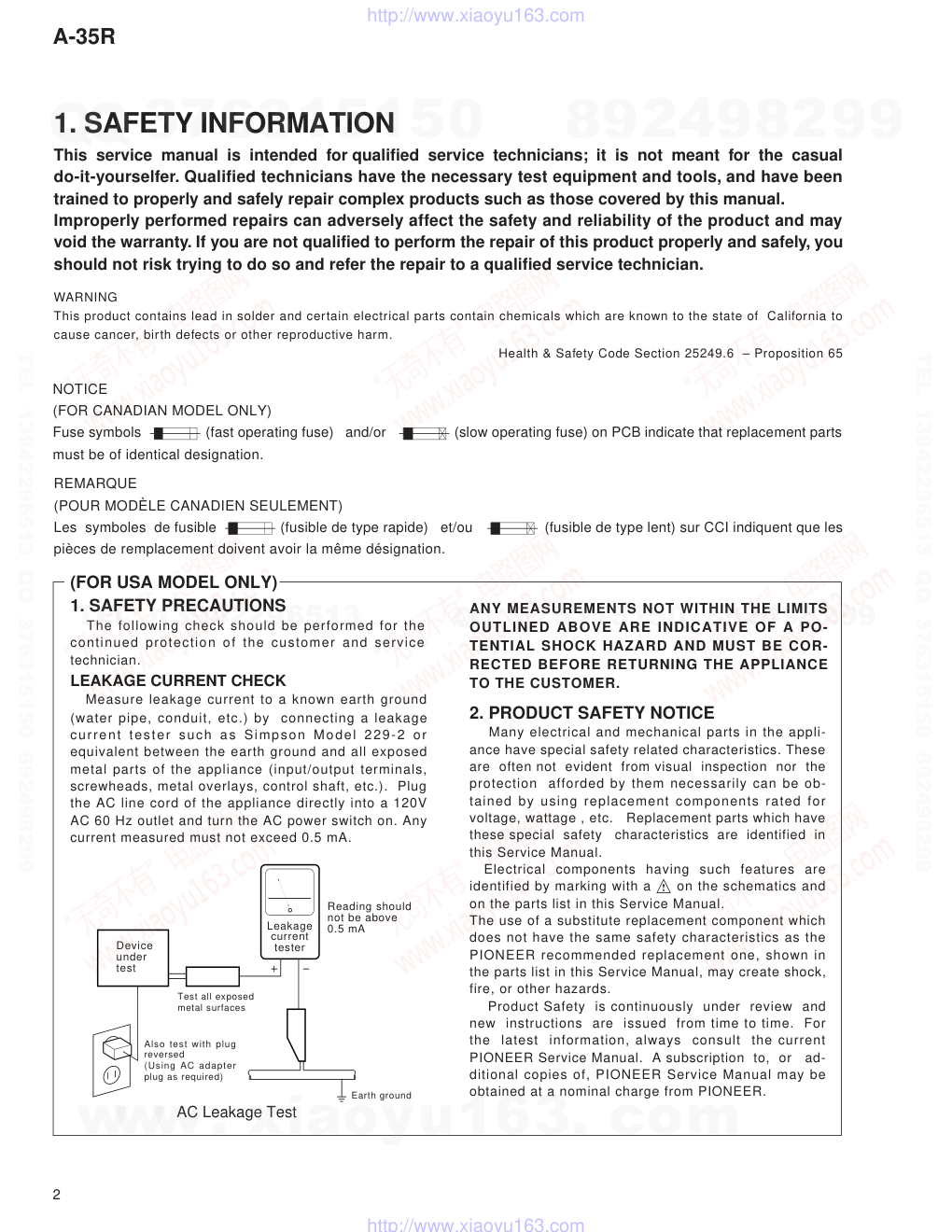

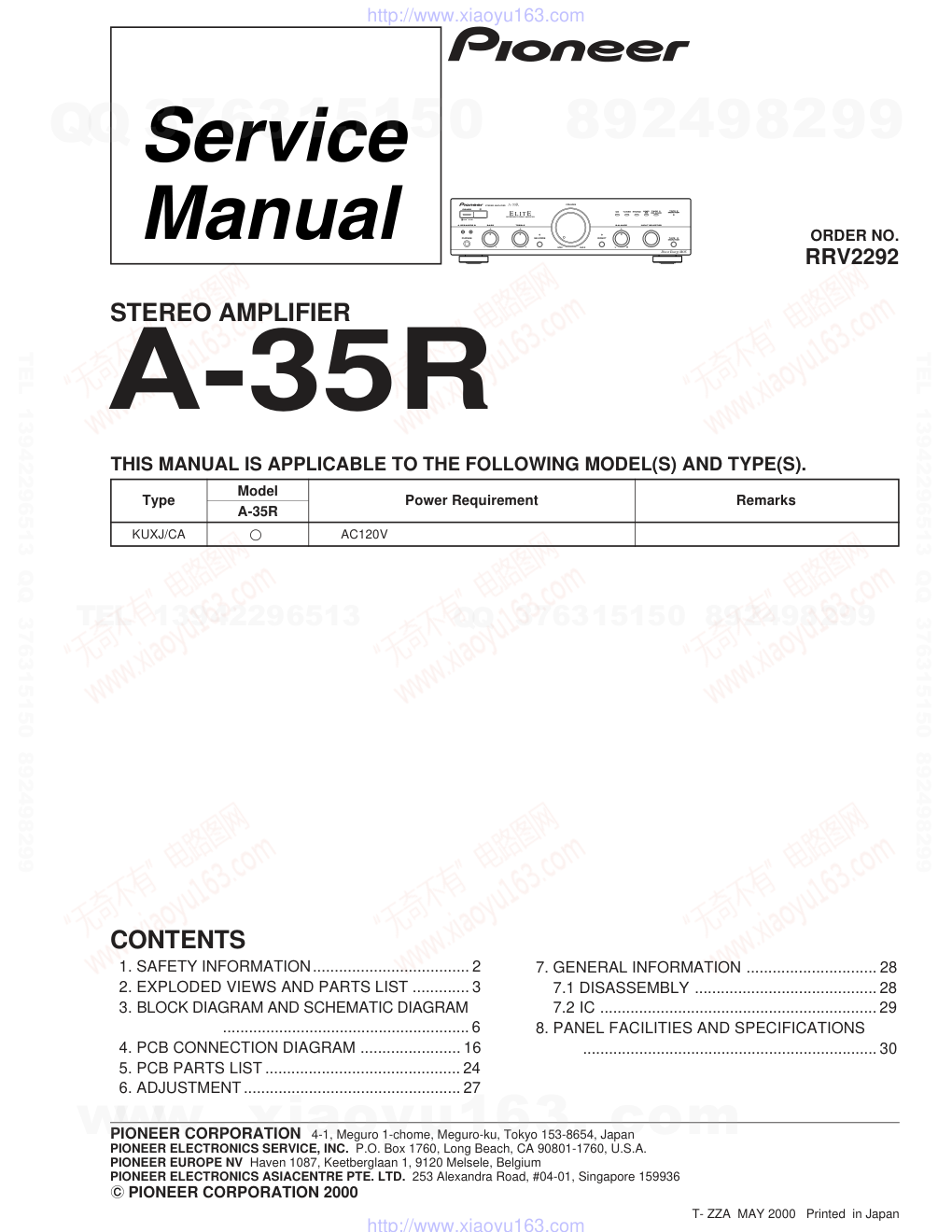

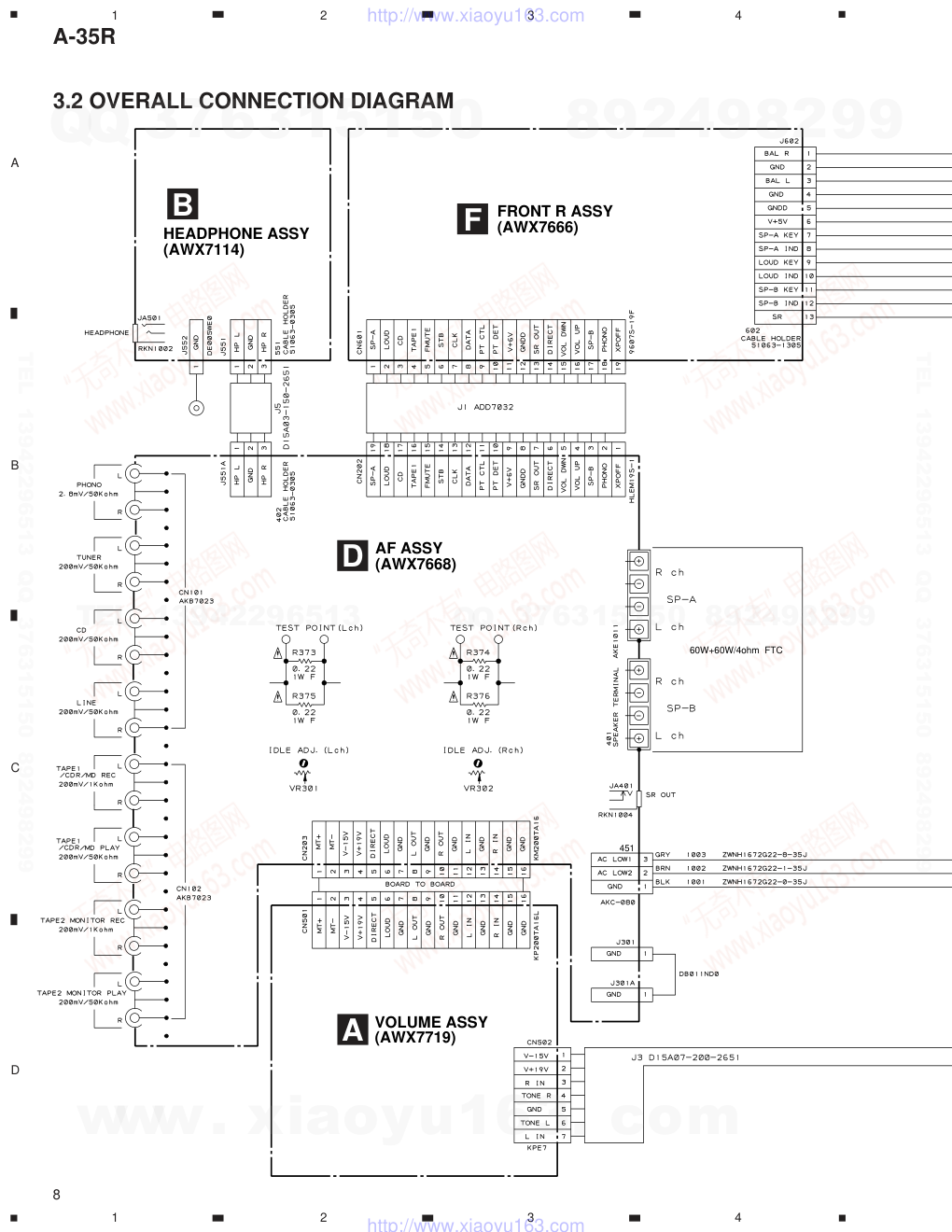

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2000 Model A-35R STEREO AMPLIFIER RRV2292 T- ZZA MAY 2000 Printed in Japan 1. SAFETY INFORMATION.................................... 2 2. EXPLODED VIEWS AND PARTS LIST ............. 3 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ......................................................... 6 4. PCB CONNECTION DIAGRAM ....................... 16 5. PCB PARTS LIST ............................................. 24 6. ADJUSTMENT.................................................. 27 CONTENTS 7. GENERAL INFORMATION .............................. 28 7.1 DISASSEMBLY .......................................... 28 7.2 IC ................................................................ 29 8. PANEL FACILITIES AND SPECIFICATIONS .................................................................... 30 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Remarks Power Requirement Type A-35R KUXJ/CA AC120V PHONES A SPEAKERS B OFF ON STEREO AMPLIFIER _ —� z¿≤.B TAPE 1/ CD-R/MD TAPE 2 MONITOR LINE / SB TUNER PHONO CD BASS + – TREBLE + – VOLUME MIN MAX SB MODE DIRECT BALANCE R L INPUT SELECTOR TAPE 2 MONITOR POWER Î� Direct Energy MOS REFERENCE STEREO AMPLIFIER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A-35R 2 1. SAFETY INFORMATION 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A PO- TENTIAL SHOCK HAZARD AND MUST BE COR- RECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appli- ance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be ob- tained by using replacement components rated for voltage, wattage , etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or ad- ditional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA. (FOR USA MODEL ONLY) Also test with plug reversed (Using AC adapter plug as required) Device under test Test all exposed metal surfaces Earth ground Leakage current tester Reading should not be above 0.5 mA AC Leakage Test REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 A-35R FRONT 6 12 13 8 10 10 11 9 5 7 14 1 4 2.1 PACKING 2. EXPLODED VIEWS AND PARTS LIST NOTES: • Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. • The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Screws adjacent to mark on the product are used for disassembly. 1 Operating Instructions ARE7263 (English/French) 2 ..................................... 3 ..................................... NSP 4 Warranty Card ARY7007 5 Remote Control Unit (CU-A019) AXD7193 6 Battery Cover AZN2249 NSP 7 Dry Cell Battery (AA/R6P) VEM–013 8 Side Pad L AHA7205 9 Side Pad R AHA7206 10 Sub Pad AHA7218 11 Packing Case AHD7897 NSP 12 Literature Bag AHG1180 13 Packing Sheet AHG7015 14 Power Cord ADG7022 PACKING PARTS LIST Mark No. Description Part No. Accessories Remote control unit CU-A019 (AXD7193) AA size IEC R6P batteries (×2) Power cord (ADG7022) (L= 2 m) 1 ¡� Î� STEREO AMPLIFIER REMOTE CONTROL UNIT CD TUNER TAPE TAPE SELECT DECK Ι DECK ΙΙ TAPE CD DISC SELECT STATION TUNER STANDBY/ON CD TUNER PHONO VOLUME TAPE 1 TAPE 2 LINE + – 2 7 3 4 ¢� 7 3 – + Operating instructions (ARE7263) Warranty card www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 A-35R 2.2 EXTERIOR 25 41 18 28 37 39 34 35 5 3 41 16 1 2 9 30 31 33 31 32 38 27 27 29 14 39 21 21 39 14 17 12 22 19 19 23 23 23 39 14 13 39 45 39 39 40 39 7 15 39 4 44 43 10 24 20 8 15 15 15 6 39 11 17 39 39 26 26 39 39 39 39 36 47 49 48 46 46 46 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 A-35R 1 FRONT L Assy AWX7123 2 FRONT R Assy AWX7666 3 OPT Assy AWX7125 4 AC PRIMARY Assy AWX7715 NSP 5 HEADPHONE Assy AWX7114 6 VOLUME Assy AWX7719 7 AF Assy AWX7668 8 Fuse (6.3A/125V, FU1) REK1069 9 Flexible Cable (19P) ADD7032 (AF CN202–FRONT R CN601) 10 Fuse (3.15A/125V, FU2, FU3) REK1114 11 Power Transformer (T1) ATS7189 NSP 12 Chassis ANA7064 13 Rear Panel ANC7929 14 Insulator PNW2766 15 Screw (3 × 18) ABA1018 16 Screw (3 × 8) ABA1027 17 Screw (4 × 10) ABA7047 18 Nut ABN–065 19 PCB Support AEC7006 20 65 Label ARW7050 NSP 21 PCB Holder AEC7057 NSP 22 Cord Clamp F AEC7134 23 PCB Mold AMR2533 NSP 24 Damping Plate AMR7216 NSP 25 Shield Plate ANK7043 26 Screw (3 × 8) PBA1096 27 LED Lens AAK2459 28 IR Filter AAK7532 29 LED Lens A AAK7537 30 Name Plate PAM1776 31 Rotary Knob A AAB7148 32 Rotary Knob B AAB7149 33 Volume Knob AAB7150 34 Speaker Button AAD7435 35 Power Joint AAD7439 36 Bonnet Case ANE7183 37 Panel Base AMB7723 38 Front Panel AMB7708 39 Screw BBZ30P080FZK 40 Screw BCZ30P060FCC EXTERIOR PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 41 Nut NK90FUC 42 ..................................... NSP 43 Fuse Card AAX2347 NSP 44 Fuse Card AAX2374 45 Micro Fuse Caution Label ARW7116 46 Spacer ABF7004 47 Transformer Plate ANG7312 NSP 48 Sub Frame ANG7313 49 Screw IBZ30P120FCC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A-35R 6 A B C D 1 2 3 4 1 2 3 4 INPUT SELECTOR — — IDLE ADJ. (L CH) To Q331 B HEADPHONE ASSY F FRONT R ASSY D AF ASSY A VOLUME ASSY PD5605A 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A-35R 7 A B C D 5 6 7 8 5 6 7 8 ATS7189 POWER TRANSFORMER 451 S801 FU1 FU3 3.15A/125V 6.3A/125V FU2 3.15A/125V REK1114 REK1069 REK1114 ASG1035 CN801 ADG7022 AC 120V 60Hz Q333–Q336: To cn202 : AUDIO SIGNAL ROUTE 8 120V 10V 0V 120V 110V 0V 7 6 5 4 3 1 1 V SEL J806 802 AC OUTLET 3P AKP1053 RED BLU WHT YEL AC PRIMARY ASSY C G E FRONT L ASSY OPT ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A-35R 8 A B C D 1 2 3 4 1 2 3 4 451 60W+60W/4ohm FTC B HEADPHONE ASSY (AWX7114) F FRONT R ASSY (AWX7666) D AF ASSY (AWX7668) A VOLUME ASSY (AWX7719) 3.2 OVERALL CONNECTION DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A-35R 9 A B C D 5 6 7 8 5 6 7 8 POWER TRANSFORMER ATS7189 ADG7022 AC120V 60Hz AC POWER CORD 13 6.3A/125V: REK1069 3.15A/125V: REK1114 15 17 G OPT ASSY (AWX7125) E FRONT L ASSY (AWX7123) C AC PRIMARY ASSY (AWX7715) • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS OF FUSE. CAUTION - Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A-35R 10 A B C D 1 2 3 4 1 2 3 4 A B 3.3 VOLUME and HEADPHONE ASSYS D J551A B HEADPHONE ASSY (AWX7114) E J3 A VOLUME ASSY (AWX7719) D CN203 VR-501 : ACX7038 ACX7038 : AUDIO SIGNAL ROUTE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A-35R 11 A B C D 1 2 3 4 1 2 3 4C 3.4 AC PRIMARY ASSY C AC PRIMARY ASSY (AWX7715) REK1114 3.15A/125V REK1114 3.15A/125V REK1069 6.3A/125V UNSWITCHED SWITCHED 802 AC OUTLET 3P AKP1053 S801 ASG1035 LIVE NEUTRAL TO POWER TRANSFORMER TO AC POWER CORD TO POWER TRANSFORMER • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS OF FUSE. CAUTION - POWER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A-35R 12 A B C D 1 2 3 4 1 2 3 4 IDLE ADJ. (L CH) IDLE ADJ. (R CH) C314,C338 : C313,C337 : 1k 1k D A CN501 : AUDIO SIGNAL ROUTE AF ASSY (AWX7668) 3.5 AF ASSY D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A-35R 13 A B C D 5 6 7 8 5 6 7 8 CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491001 MFD, BY LITTELFUSE INC. FOR IC454 (AEK7009). C321–C324: R361–R366: Q333–Q336: IRF530(S) IRF9530(S) IRF530(S) IRF9530(S) F CN601 B J551 TO POWER TRANSFORMER C451 ACH7048 (10000/42) C452 ACH7049 (10000/42) D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A-35R 14 A B C D 1 2 3 4 1 2 3 4 3.6 FRONT L, FRONT R and OPT ASSYS E G F E FRONT L ASSY (AWX7123) G OPT ASSY (AWX7125) D CN202 A CN502 S702 : SB MODE S703 : SPEAKER A S704 : SPEAKER B VSG1009 VSG1009 VSG1009 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A-35R 15 A B C D 5 6 7 8 5 6 7 8F F FRONT R ASSY (AWX7666) FRONT R ASSY S601 : INPUT SELECTOR CD TUNER PHONE LINE TAPE1/CD-R/MD S602 : DIRECT S603 : TAPE2 MONITOR INPUT SELECTOR VSG1009 VSG1009 PD5605A C601 ACH7017 0.047/5.5 47/16 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A-35R 16 A B C D 1 2 3 4 1 2 3 4 A NOTE FOR PCB DIAGRAMS: 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. Symbol in PCB Diagrams Symbol in Schematic Diagrams Part Name Transistor Transistor with resistor Field effect transistor B C E B C E B C E D G S B C E B C E B C E D G S D G S Symbol in PCB Diagrams Symbol in Schematic Diagrams Part Name 3. The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic diagram. 4. Viewpoint of PCB diagrams Resistor array 3-terminal regulator Capacitor Connector P. C. Board Chip Part SIDE B SIDE A VOLUME ASSY A E J3 D CN203 (ANP7232-A) Q513,Q514 VR501 VOLUME ASSY A (ANP7232-A) Q503,Q502 Q501,Q504 Q511 Q509,Q510 Q507,Q508 Q505,Q506 4.1 VOLUME ASSY 4. PCB CONNECTION DIAGRAM SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A-35R 17 A B C D 1 2 3 4 1 2 3 4 4.2 HEADPHONE and AC PRIMARY ASSYS (ANP7232-A) HEADPHONE ASSY B J551A D (ANP7232-A) HEADPHONE ASSY B (ANP7232-A) POWER TRANSFORMER AC POWER CORD AC PRIMARY ASSY C (ANP7232-A) AC PRIMARY ASSY C SIDE B SIDE A SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A-35R 18 A B C D 1 2 3 4 1 2 3 4 AF ASSY D POWER TRANSFORMER 4.3 AF ASSY D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A-35R 19 A B C D 5 6 7 8 5 6 7 8D F CN601 A CN501 B J551 (ANP7232-A) Q153 Q341 IC101 IC451-IC453 Q333-Q336 Q324,Q326 Q452 IC301 Q451 Q323,Q325 IC454 Front VR301 VR302 SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A-35R 20 A B C D 1 2 3 4 1 2 3 4 D AF ASSY D Front www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A-35R 21 A B C D 5 6 7 8 5 6 7 8D (ANP7232-A) Q151 IC151 Q152 Q338,Q337 Q340,Q339 Q102 Q101 Q104 Q103 Q332 Q328,Q327 Q318,Q330 Q322,Q320 Q316,Q314 Q312,Q310 Q304,Q303 Q311,Q309 Q315,Q313 Q321,Q319 Q317,Q329 Q331,Q343 SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A-35R 22 A B C D 1 2 3 4 1 2 3 4 4.4 FRONT L and OPT ASSYS G E (ANP7231-A) FRONT L ASSY E Q703,Q702 Q705,Q704 Q708 Q707 VR751 VR752 IC751,Q701 (ANP7231-A) J602 F CN502 A FRONT L ASSY E (ANP7231-A) OPT ASSY G (ANP7231-A) OPT ASSY G SIDE B SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A-35R 23 A B C D 1 2 3 4 1 2 3 4 4.5 FRONT R ASSY F SIDE B SIDE A FRONT R ASSY F (ANP7231-A) CN202 D J602A E IC601 VR601 FRONT R ASSY F (ANP7231-A) Q601-Q606 Q614-Q616 Q608-Q613 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 A-35R LIST OF PCB ASSEMBLIES NSP AF COMPLEX ASSY AWM7513 VOLUME ASSY AWX7719 NSP HEADPHONE ASSY AWX7114 AC PRIMARY ASSY AWX7715 AF ASSY AWX7668 NSP CONTROL ASSY AWG7020 FRONT L ASSY AWX7123 FRONT R ASSY AWX7666 OPT ASSY AWX7125 VOLUME ASSY SEMICONDUCTORS Q513, Q514 2SK246 Q505–Q510 2SK303 Q511 DTC124EK D505, D506, D509, D510 1SS352 D507, D508 1SS355 CAPACITORS C513, C514 CEAT100M50 C516 CEAT330M25 C515 CKCYF103Z50 C511 CKSQYF473Z50 RESISTORS R530 RS1/10S100J VR501 ACX7038 Other Resistors RS1/10S J OTHERS CN501 16P SOCKET KP200TA16L CN502 CONNECTOR 7P KPE7 PCB BINDER VEF1040 HEADPHONE ASSY CAPACITORS C551, C552 CKSQYB392K50 OTHERS 3P CABLE HOLDER 51063-0305 J552 CORD WITH PLUG DE005WE0 JA501 HEADPHONE JACK RKN1002 J551 JUMPER WIRE D15A03-150-2651 AC PRIMARY ASSY SWITCH S801 ASG1035 CAPACITORS C801, C802 (0.01µF/AC250V) ACG7020 OTHERS CN801 AC INLET AKP7025 H1–H6 FUSE CLIP AKR7001 AC OUTLET (3P) AKP1053 AF ASSY SEMICONDUCTORS IC454 (1A) AEK7009 IC453 BA178M06T IC451 BA178M15T IC452 NJM79M15FA IC101 TC9163AN IC301 UPC4570C IC151 UPC4570G2 Q311, Q312, Q329, Q330 2SA1162 Q337, Q338 2SA1162 Q313, Q314, Q321, Q322 2SA1255 Q452 2SA1837 Q309, Q310, Q327, Q328 2SC2712 Q339, Q340 2SC2712 Q315, Q316, Q319, Q320 2SC3138 Q303, Q304 2SC3326 C NOTES : ÷ Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List. ÷ The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÷ When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J = 5%, and K = 10%). 560 Ω = 56 × 10 1 = 561 ................................................... RD1/4PU 5 6 1 J 47k Ω = 47 × 10 3 = 473 .................................................. RD1/4PU 4 7 3 J 0.5 Ω = R50 ...................................................................... RN2H  5 0 K 1 Ω = 1R0 ......................................................................... RS1P 1  0 K Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω = 562 × 10 1 = 5621 ........................................... RN1/4PC 5 6 2 1 F 5. PCB PARTS LIST Mark No. Description Part No. Mark No. Description Part No. D B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 A-35R Q451 2SC4793 Q341 2SC5174P Q101–Q104 2SK303 Q151 DTA124EK Q152 DTC124EK Q153 DTC124ES Q331, Q332, Q343 DTC143EK Q333–Q336 DTC143ES Q317, Q318 IMX1 Q323, Q324 IRF530 (S) Q325, Q326 IRF9530 (S) D101–D104, D151, D301–D310 1SS355 D401–D404 1SS355 D451 D5SBA20 D452–D455, D459, D460 S5566G (TPB2) D461 S5566G (TPB2) D311, D312 UDZ15B D457, D458 UDZ36B D456 UDZ4.7B D341 UDZS5.1B D462 UDZS5.6B RELAYS RY401–RY403 ASR7014 CAPACITORS C451 (10000µF/42V) ACH7048 C452 (10000µF/42V) ACH7049 C313–C316, C337–C340 CCSQCH121J50 C153, C154 CCSQCH151J50 C303, C304 CCSQCH221J50 C334 CEANP100M16 C471 CEANP1R0M2A C172 CEANP1R0M50 C333 CEANP470M10 C155, C156, C167, C168 CEAT100M50 C317–C320, C335, C336 CEAT100M50 C453–C458, C465, C466, C469 CEAT100M50 C461, C462 CEAT101M2A C467, C468 CEAT1R0M50 C470 CEAT3R3M50 C169, C170 CEAT470M25 C459, C460, C463, C464 CEAT470M50 C157, C158 CEAT471M6R3 C301, C302, C305, C306 CEBA100M50 C307, C308 CEBA221M25 C321–C324 CFTYA224J50 C173 CFTYA564J50 C165, C166 CKSQYB222K50 C111–C113, C171, C341 CKSQYF473Z50 C472 CKSQYF473Z50 C159, C160 CQMA243J50 C161, C162 CQMBA823J50 RESISTORS R311, R312 RDR1/4VM152J R301, R302 RDR1/4VM240J R303, R304 RDR1/4VM561J R143 RS1/10S100J R133, R134, R171, R172 RS1/10S101J R351–R354, R452 RS1/10S101J R317, R318, R331, R332 RS1/10S122J R357–R360 RS1/10S151J R377, R378, R453 RS1/10S153J R465–R470 RS1/10S161J R361–R366 RS1/10S1R5J R339–R346 RS1/10S221J R454 RS1/10S273J R460 RS1/10S2R2J R355, R356 RS1/10S432J R459 RS1/10S470J R464 RS1/10S4R7J R379, R380 RS1/10S682J R451 RS1LMF270J R401, R402 RS1LMF331J R461–R463 RS1LMF390J R403 RS1LMF821J R373–R376 RS1LMFR22J VR301, VR302 (2.2 kΩ) VCP1123 Other Resistors RS1/10S J OTHERS 3P CABLE HOLDER 51063-0305 SCREW ABA1007 SCREW ABA1052 CN101, CN102 8P PIN JACK AKB7023 8P SPEAKER TERMINAL AKE1011 HEAT SINK M ANH-813 HEAT SINK B ANH1021 CN202 FFC CONNECTOR 19P HLEM19S-1 CN203 16P PLUG KM200TA16 JA401 REMOTE CONTROL JACK RKN1004 PCB BINDER VEF1040 KN101, KN201, KN301, KN451 VNF1084 EARTH METAL FITTING FRONT L ASSY SEMICONDUCTORS IC751 UPC4570G2 Q707, Q708 2SC1845 Q705 2SC2712 Q701–Q704 DTC124EK D704 1SS355 D701, D703, D705 SLP9118C51H SWITCHES S702–S704 VSG1009 Mark No. Description Part No. Mark No. Description Part No. E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 A-35R CAPACITORS C753, C754, C761, C762 CCSQCH101J50 C767, C768 CCSQCH221J50 C751, C752, C755, C756 CEAL100M50 C763, C764 CEALR10M50 C759, C760 CEALR47M50 C757, C758 CFTYA153J50 C701 CKSQYF104Z25 RESISTORS R751, R752 RS1/10S101J VR751, VR752 (30 kΩ) ACS7028 Other Resistors RS1/10S J OTHERS 3P CABLE HOLDER 51063-0305 7P CABLE HOLDER 51063-0705 13P CABLE HOLDER 51063-1305 J603 JUMPER WIRE D15A03-100-2651 J3 JUMPER WIRE D15A07-200-2651 FRONT R ASSY SEMICONDUCTORS IC601 PD5605A Q609 2SA1162 Q610 2SC2712 Q611–Q613, Q615, Q616 DTA124EK Q601–Q606, Q608, Q614 DTC124EK D608–D612, D614–D621 1SS355 D607 SLP6118C51H D601–D606 SLP9118C51H SWITCHES S602, S603 VSG1009 S601 ASX7008 CAPACITORS C601 (0.047µF/5.5V) ACH7017 C602 CEAT470M16 C604 CEJA2R2M50 C603, C611 CKSQYF103Z50 C607, C608 CKSQYF104Z25 C605, C606, C610 CKSQYF473Z50 RESISTORS VR601 (500 kΩ) ACS7029 Other Resistors RS1/10S J OTHERS X601 CERAMIC RESONATOR VSS1014 (4.19MHz) 13P CABLE HOLDER 51063-1305 CN601 19P FFC CONNECTOR 9607S-19F J602 JUMPER WIRE D15A13-125-2651 Mark No. Description Part No. Mark No. Description Part No. F OPT ASSY OTHERS 3P CABLE HOLDER 51063-0305 REMOTE RECEIVER UNIT GP1U27X G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A-35R 27 6. ADJUSTMENT Fig. 6-1 Adjustment Method VR301 VR302 R375 R376 R373 R374 Heat Sink CN202 AF ASSY DC Voltmeter DC Voltmeter SIDE A Heat Sink Heat Sink Heat Sink D 6.1 IDLE CURRENT ADJUSTMENT ¶ CAUTION: Heatsinks’ (Q323–Q326) DC level is equal to +B or -B. Don’t touch them or you will be electric shocked. 1. Connect the measuring instrument as shown in Fig.6-1. (R373 or R374) 2. Turn the POWER switch to ON. 3. Adjust VR301 (VR302) so that the voltage between both sides of R373 (R374) becomes 10mV ± 1mV. 4. Ages for 5 minutes. 5. Adjust VR301 (VR302) so that the voltage between both sides of R373 (R374) becomes 11mV ± 1mV. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A-35R 28 7. GENERAL INFORMATION 7.1 DISASSEMBLY 2 1 1 1 1 1 5 1 5 ×2 ×2 3 4 ×2 5 ×5 ×3 ×2 8 7 7 7 9 Screw for Rear Panel Rear Panel Rear Panel Front Panel Diagnose the AF Assy. Chassis Chassis 6 6 6 Cutting Pliers PCB Support ×3 Unhook lead wires. 1 3 2 For Service 10 13 11 12 ∗ : Be careful not to injure the Front Panel. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A-35R 29 No. Pin Name I/O Function 17 P20/IN0 O FUNCTION switch MUTE. 18 VREF I Pulls up to 5V. 19 XIN I 4.19MHz . 20 XOUT O Ceramic vibrating and connecting terminal. 21 VSS – Digatal GND. 22 VCC – Power supply +5V. 23 P50/XCIN I SPEAKER-B KEY input. 24 P51/XCOUT I SPEAKER-A KEY input. 25 RESET I Reset pin. 26 P30/INT0 I BACK UP detection pin. interrupt specification. 27 P31/INT1 I Not used. 28 P32/CNTR0 I REC selector input 1. 29 P33/CNTR1 I REC selector input 2. interrupt specification. 30 P40 O Volume DOWN data output. 31 P41 O Volume UP data output. 32 P42 I FUNCTION selector input 1. 33 P43 I FUNCTION selector input 2. 34 P00 I WAKE UP input. Key on wake up specification. 35 P01 O Not used. 36 P02 I DIRECT KEY input. Key on wake up specification. 37 P03 O Protection control pin. 38 P04 I Output error detection pin. 39 P05 O MUTING control pin. 40 P06 I LOUDNESS KEY input. Key on wake up specification. 41 P07 O Not used. 42 P52 I TAPE2 KEY input. No. Pin Name I/O Function 1 P53 I Remote control signal input pin. 2 P17/SRDY O STB for TC9163N. 3 P16/CLK O CLOCK for TC9163N. 4 P15/SOUT O DATA for TC9163N. 5 P14/SIN O CD INDICATOR. 6 P13/T1 O TUNER INDICATOR. 7 P12/T0 O PHONO INDICATOR. 8 P11 O LINE INDICATOR. 9 P10 O TAPE1 INDICATOR. 10 P27/IN7 O SPEAKER-A INDICATOR. 11 P26/IN6 O SPEAKER-B INDICATOR. 12 P25/IN5 O LOUDNESS INDICATOR. 13 P24/IN4 O Not used. 14 P23/IN3 O Not used. 15 P22/IN2 O DIRECT INDICATOR. 16 P21/IN1 O TAPE2 INDICATOR. 7.2 IC PD5605A (IC601: FRONT R ASSY) • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. Pin Function 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 SR STB CLK DATA CD-IND TU-IND PH-IND LI-IND T1-IND SPA-IND SPB-IND LOU-IND NC NC DIR-IND T2-IND VREF XIN XOUT VSS F-MUTE P53 P17/SRDY P16/CLK P15/SOUT P14/SIN P13/T1 P12/T0 P11 P10 P27/IN7 P26/IN6 P25/IN5 P24/IN4 P23/IN3 P22/IN2 P21/IN1 P20/IN0 VREF XIN XOUT VSS T2 NC LOUD M-CTRL P-DET P-CTRL DIRECT NC WAKE UP FUNC2 FUNC1 V-UP V-DOWN RSEL2 RSEL1 NC VCC P52 P07 P06 P05 P04 P03 P02 P01 P00 P43 P42 P41 P40 P33/CNTR1 P32/CNTR0 P31/INT1 P30/INT0 RESET P51/XCOUT P50/XCIN VCC BACK UP RST SPA SPB Remote Control AmpMicrocomputer Pin Assignment (Top view) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 A-35R 8. PANEL FACILITIES AND SPECIFICATIONS [ FRONT PANEL ] PHONES A SPEAKERS B OFF ON STEREO AMPLIFIER _ —� z¿≤.B TAPE 1/ CD-R/MD TAPE 2 MONITOR LINE / SB TUNER PHONO CD BASS + – TREBLE + – VOLUME MIN MAX SB MODE DIRECT BALANCE R L INPUT SELECTOR TAPE 2 MONITOR POWER Î� ~ 1 3 4 5 6 7 8 9 0 = - 2 Direct Energy MOS REFERENCE STEREO AMPLIFIER 8.1 PANEL FACILITIES 1 POWER (— OFF/_ ON) switch Press to turn power to the unit ON and OFF. This unit cannot be turned ON and OFF using the remote control unit. 2 REMOTE CONTROL SENSOR window 3 VOLUME control Use to adjust the volume level. 4 INPUT SELECTOR knob/indicators Turn the knob clockwise or counterclockwise so that the indicator lights for your desired input source. Turning the knob clockwise causes the lit indicator to right. Turning counter- clockwise causes it to left. CD : For compact disc playback with a CD player. TUNER : For AM or FM broadcast reception with a tuner. PHONO : For record playback with a turntable. LINE/SB : Set to this position when listening to the pro- gram from a component connected to the LINE/SURROUND BACK terminals. TAPE 1/ : For playback with a cassette deck, CD CD-R/MD recorder or MD recorder connected to TAPE1/ CD-R/MD terminals. 5 TAPE 2 MONITOR button/indicator Use when there is an adaptor component (graphic equalizer, etc.) or cassette deck connected to the TAPE2 MONITOR terminals. On : Indicator lights when using the adaptor component or listening to the cassette deck. Off : Indicator goes off when not in use. NOTES: ÷ When no connections are made to the TAPE2 MONITOR terminals, or when they are not in use, be sure to set this switch to the off position. (No sound will be heard if it is set to the on position.) ÷ When the TAPE2 MONITOR indicator is on and the INPUT SELECTOR knob is not set to TAPE1/CD-R/MD, the signals which are input through TAPE 2 MONITOR are then output at TAPE1/CD-R/MD REC OUT. 6 BALANCE control Should normally be left in the center position. Adjust balance if the sound is louder from one of the speakers. If the right side is louder, turn toward the L (left) position and if the left side is louder, turn toward the R (right) position. NOTE: This control does not operate when the DIRECT button is in the on position. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 A-35R - SPEAKERS B (ON/OFF) button/indicator Use this button to listen to the speaker system connected to SPEAKERS B terminals. ON : The indicator lights. Sound is heard from the speaker system. OFF : The indicator goes off. No sound is heard from the speaker system. Set to this position when listening with headphones. = PHONES jack When using headphones, insert the plug into this jack. NOTE: The speakers continue to output sound even when head- phones are plugged into this jack. To mute the sound from the speakers, press the SPEAKERS button to OFF. ~ SPEAKERS A (ON/OFF) button/indicator Use this button to listen to the speaker system connected to SPEAKERS A terminals. ON : The indicator lights. Sound is heard from the speaker system. OFF : The indicator goes off. No sound is heard from the speaker system. Set to this position when listening with headphones. 7 DIRECT button/indicator Use this button when you do not wish to pass the output from input terminal equipment through the various frequency ad- justing circuits (BASS, TREBLE, BALANCE, LOUDNESS). On : The indicator lights: The signals passing through the input terminals are reproduced without passing through the various frequency adjusting circuits. This results in flat, pure sound which is a more faithful reproduction of the input source. Off : The indicator goes off: The signal passes through the various frequency adjusting circuits. 8 SB MODE button/indicator The SB mode is a special mode in which the amplifier does not accept remote control (But all of the facilities can be controled by manual as same as SB mode OFF.). Fix the VOLUME control near the center position. In this mode, the set can be used as a power amplifier which amplifies the LINE/SUR- ROUND BACK input (the function name is LINE/SB) with a input sensitivity of 1 V. For example, when the set is combined with one of Pioneer’s Surround Back compatible receiver, the set can be used as the Surround Back amplifier (For details, please refer to the instruction manual of the receiver.) 9 TREBLE tone control Use to adjust the high-frequency tone. The center position is the flat (normal) position. When turned to the right, high- frequency tones are emphasized; when turned to the left, high-frequency tones are de-emphasized. NOTE: This control does not operate when the DIRECT button is in the on position. 0 BASS tone control Use to adjust the low-frequency tone. The center position is the flat (normal) position. When turned to the right, low- frequency tones are emphasized; when turned to the left, low- frequency tones are de-emphasized. NOTE: This control does not operate when the DIRECT button is in the on position. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 A-35R [ REAR PANEL ] @ AC INLET jack Connect power cord to here and an AC wall socket, or the AC outlet of an audio timer. If you are going to be away from home for a long period of time, disconnect the unit from the wall socket. NOTES: ÷ If you use an other power cord than provided, we cannot assume the liabilities in what may occur as a result of it. ÷ (The provided power cord has a current capacity of 7 A.) # AC OUTLETS [SWITCHED TOTAL 100 W MAX] Power supplied through these outlets is turned on and off by the amplifier’s POWER ON/OFF switch. Total electrical power con- sumption of connected equipment should not exceed 100 W. [UNSWITCHED 100 W MAX] Power flows continually to this outlet, regardless of whether the amplifier is switched ON or OFF. Electrical power consumption of the connected equipment should not exceed 100 W. NOTES: • Do not connect appliances with high power consumption such as heaters, irons, or television sets to the AC OUT- LETS in order to avoid overheating or fire risk. This can cause the amplifier to malfunction. • The equipment should be disconnected by removing the mains plug from the wall socket when not in regular use, e.g. when on vacation. 1 GND (Turntable ground) terminal 2 PHONO terminals 3 TUNER terminals 4 CD terminals 5 LINE/SURROUND BACK terminals 6 TAPE 1/CD-R/MD REC (OUT) terminals 7 TAPE 1/CD-R/MD PLAY (IN) terminals 8 TAPE 2 MONITOR REC (OUT) terminals 9 TAPE 2 MONITOR PLAY (IN) terminals 0 SPEAKERS B terminals (Right channel) - SPEAKERS B terminals (Left channel) = SPEAKERS A terminals (Right channel) ~ SPEAKERS A terminals (Left channel) ! CONTROL OUT jack This jack is for output of control signals when operating other components bearing the Î mark with the attached remote control unit. TAPE 2 MONITOR SIGNAL GND L R PHONO IN TUNER IN CD IN LINE/ SURROUND BACK IN TAPE 1/CD-R/MD REC PLAY REC PLAY OUT IN OUT IN L R S P E A K E R S AC INLET CONTROL OUT R L R A B L ª� ·� ·� ª� 1 0 - ! ~ = @ AC 120 V 60 Hz SWITCHED TOTAL 100W MAX 0.8A MAX UNSWITCHED 100W MAX 0.8A MAX AC OUTLETS CAUTION: DO NOT CONNECT TV SET OR MONITOR. ATTENTION: NE RELIEZ PAS AL'APPAREIL DE TELEVISION OU AU MONITEUR. 2 3 4 6 5 7 8 9 # www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 A-35R 7 TUNER POWER button Switches TUNER power ON/OFF. 8 TAPE POWER button Switches the cassette deck power ON/OFF. (Can not turn ON/OFF some cassette decks.) 9 TAPE operation buttons 2, 3 : Playback in the direction of the arrows. 7 : Stop 1, ¡ : Tape fast forward/reverse. 0 CD player operation buttons 4 : Returns you to the start of the current track. (Track search) ¢ : Takes you to the start of the next track. (Track search) 7 : Stop 3 : Play - STATION + (up), – (down) buttons Calls each station number in sequence. = VOLUME + (up), – (down) buttons + ........................................................ Increases the volume. – ....................................................... Decreases the volume. NOTE: When the accessory remote control unit is used to operate other Pioneer components with the Î mark, it cannot be used to operate functions which do not correspond to the functions listed on the remote control unit. 1 ¡� Î� STEREO AMPLIFIER REMOTE CONTROL UNIT CD TUNER TAPE TAPE SELECT DECK Ι DECK ΙΙ TAPE CD DISC SELECT STATION TUNER STANDBY/ON CD TUNER PHONO VOLUME TAPE 1 TAPE 2 LINE + – 2 7 3 4 ¢� 7 3 – + 1 2 3 4 5 6 0 - 9 = 7 8 [ REMOTE CONTROL ] 1 CD POWER button Switches CD player power ON/OFF. 2 TAPE SELECT button Selects the cassette No. (1 to 6) for multi-cassette changer. 3 DECK II button To operate Deck II, press this button before pressing the operating buttons. Also, when using a single deck, press this button before pressing the operating buttons. 4 DECK I button To operate Deck I, press this button before pressing the operating buttons. 5 DISC SELECT button Press this to select discs on a multi or twin tray compact disc player. 6 Input selector button Use to select the playback source. CD : For compact disc playback with a CD player. TUNER : For AM or FM broadcast reception with a tuner. PHONO : For record playback with a turntable. TAPE 1 : For playback with a cassette deck,CD recorder or MD recorder connected to TAPE1/CD-R/MD ter- minals. TAPE 2 : For playback with a cassette deck or adaptor con- nected to TAPE 2 MONITOR terminals. LINE : For playback with a component connected to the LINE/SURROUND BACK terminal. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 A-35R Amplifier Section Continuous rated power output of 60 watts* per channel, min., at 4 ohms, from 20 Hz to 20,000 Hz with no more than 0.3 %** total harmonic distor- tion. Input sensitivity/impedance PHONO (MM) ........................................... 2.8 mV/50 kΩ CD, TUNER, LINE/SB, TAPE1/CD-R/MD, TAPE2 MONITOR .................................................................. 200 mV/50 kΩ PHONO (MM) overload level 1 kHz, T.H.D. 0.1 % ............................................ 150 mV Output level/impedance TAPE1 REC, TAPE2 MONITOR REC ......... 200 mV/1 kΩ Frequency response PHONO (MM) .......................... 20 Hz to 20 kHz, ±0.5 dB CD, TUNER, LINE/SB, TAPE1/CD-R/MD, TAPE2 MONITOR ................................................ 5 Hz to 100 kHz, +0 –3 dB*** Tone control BASS ...................................................... ±8 dB (100 Hz) TREBLE ................................................... ±8 dB (10 kHz) Loudness contour (volume control set at –30 dB position) ........................................ +6 dB (100 Hz)/+4 dB (10 kHz) Signal-to-Noise ratio (IHF short circuit, A network) PHONO (MM, 5 mV input) ............................. 85 dB*** CD, TUNER, LINE/SB, TAPE1/CD-R/MD, TAPE2 MONITOR ....................................................................... 106 dB*** Power Supply/Miscellaneous Power requirements ................................. AC 120 V, 60 Hz Power consumption ................................................... 145 W Dimensions (including knobs and other protruding parts) .......................................420 (W) x 114 (H) x 307 (D) mm Weight (without package) ...........................................5.9 kg Accessories Remote control unit ............................................................ 1 Batteries (AA/R6P) .............................................................. 2 Power cord (Rated current 7 A) .......................................... 1 Operating instructions ......................................................... 1 Warranty card ...................................................................... 1 NOTE: Specifications and design are subject to possible modifica- tions without notice, due to improvements. * Measured pursuant to the Federal Trade Commission’s Trade Regulation rule on Power Output Claims for Ampli- fiers. ** Measured by Audio Spectrum Analyzer. *** Measured with DIRECT button set to on. 8.2 SPECIFICATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
