先锋PIONEER A-209R音响电路原理图

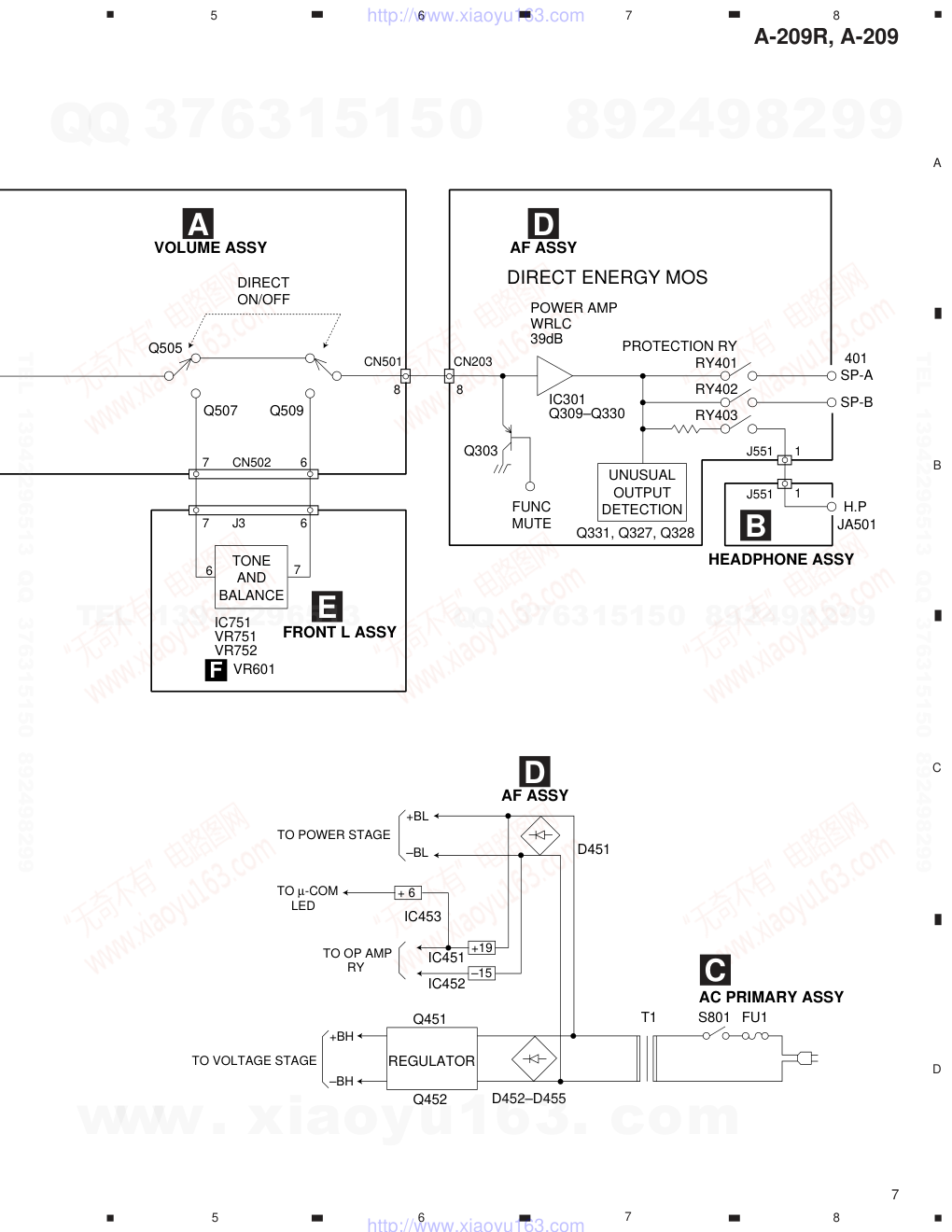

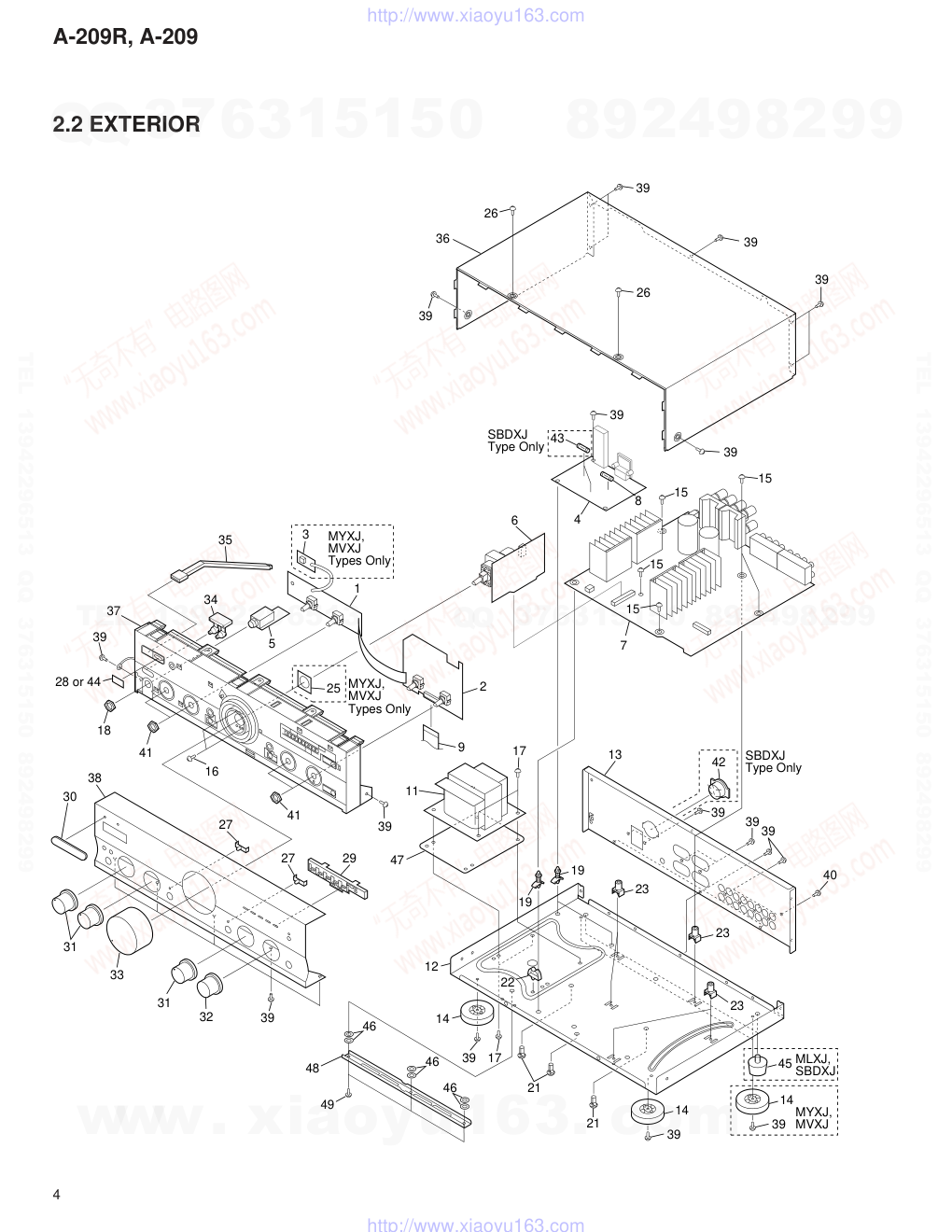

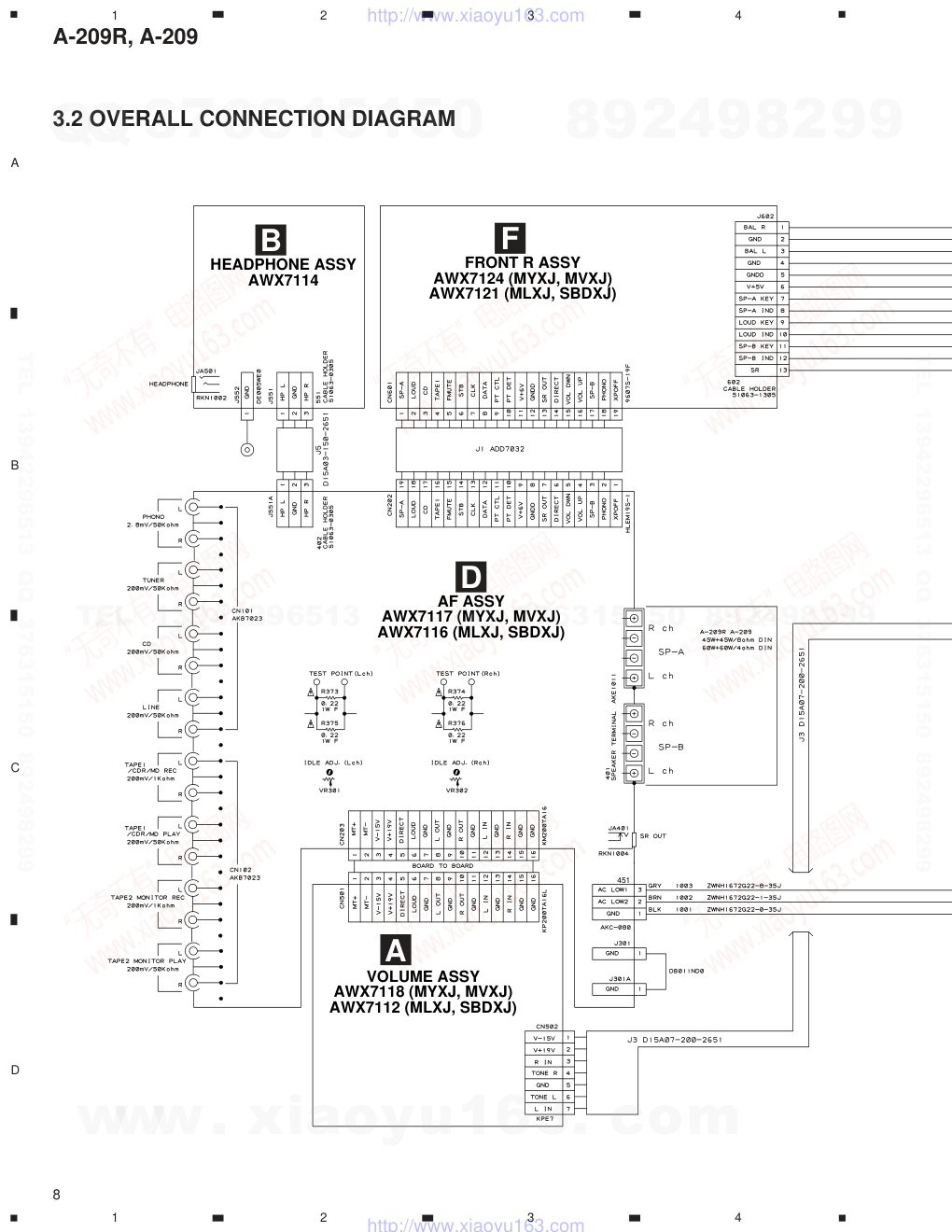

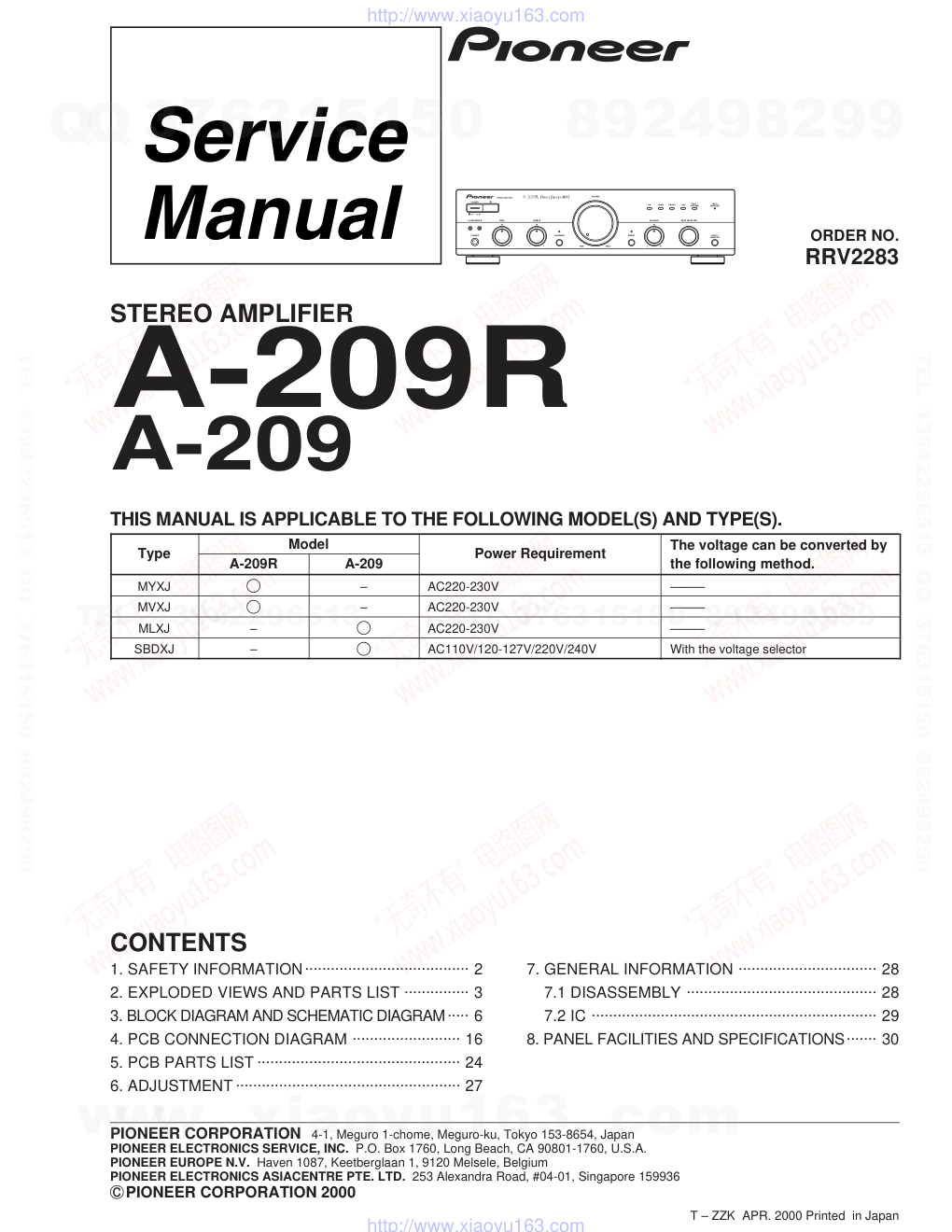

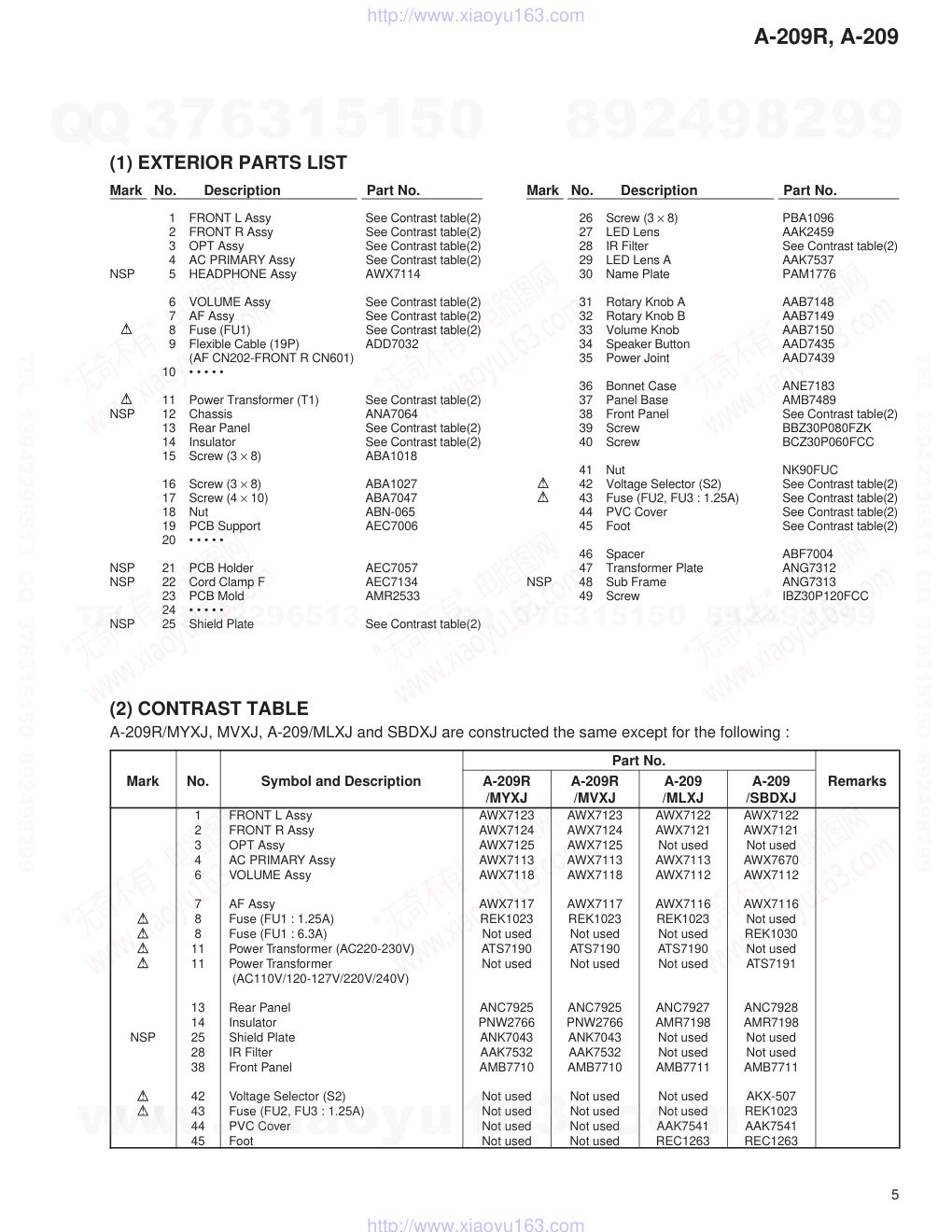

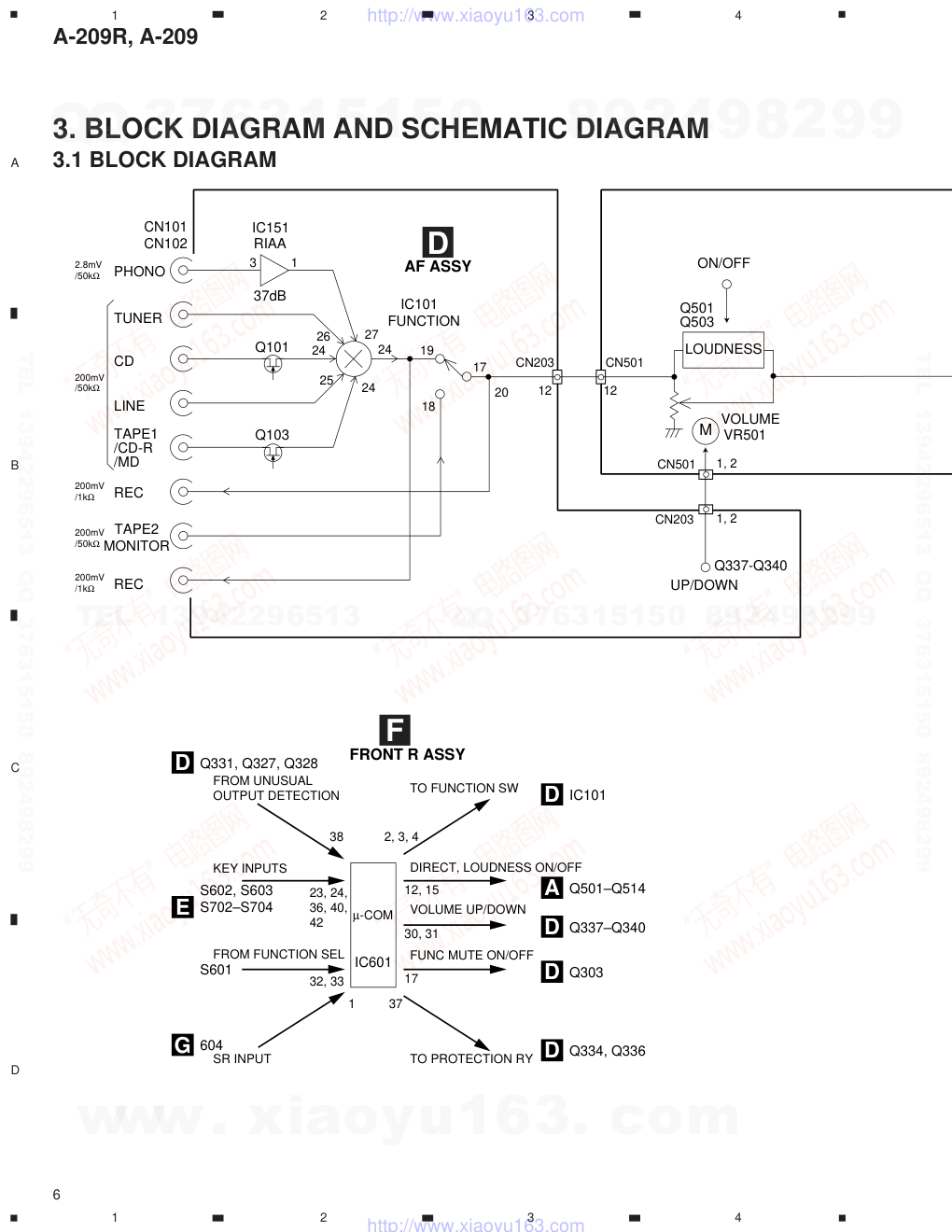

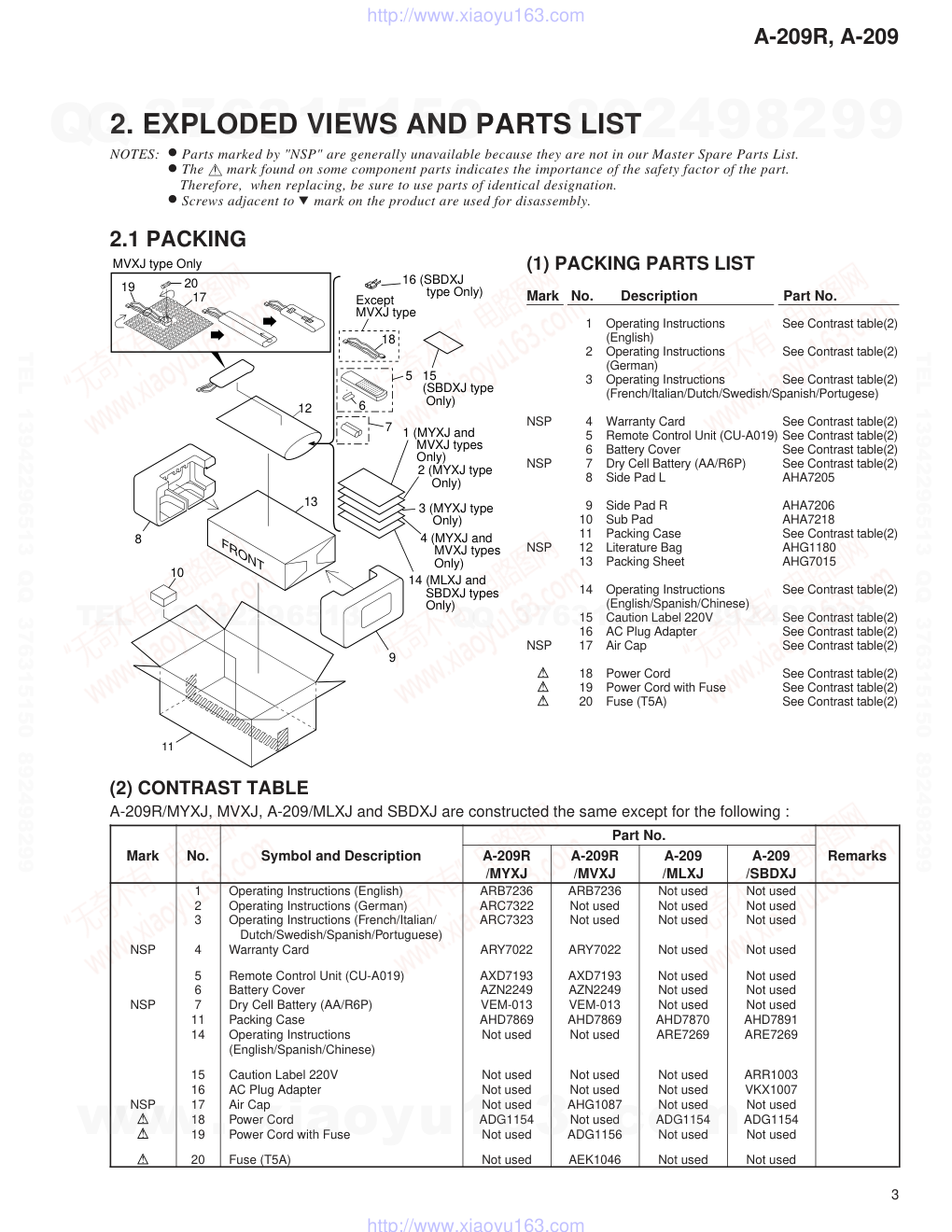

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER CORPORATION 2000 c Type Model Power Requirement The voltage can be converted by A-209R A-209 the following method. MYXJ – AC220-230V ––––– MVXJ – AC220-230V ––––– MLXJ – AC220-230V ––––– SBDXJ – AC110V/120-127V/220V/240V With the voltage selector RRV2283 1. SAFETY INFORMATION...................................... 2 2. EXPLODED VIEWS AND PARTS LIST ............... 3 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM..... 6 4. PCB CONNECTION DIAGRAM ......................... 16 5. PCB PARTS LIST ............................................... 24 6. ADJUSTMENT .................................................... 27 CONTENTS 7. GENERAL INFORMATION ................................ 28 7.1 DISASSEMBLY ............................................ 28 7.2 IC .................................................................. 29 8. PANEL FACILITIES AND SPECIFICATIONS....... 30 T – ZZK APR. 2000 Printed in Japan THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). PHONES A SPEAKERS B OFF ON STEREO AMPLIFIER _ —� z¿
