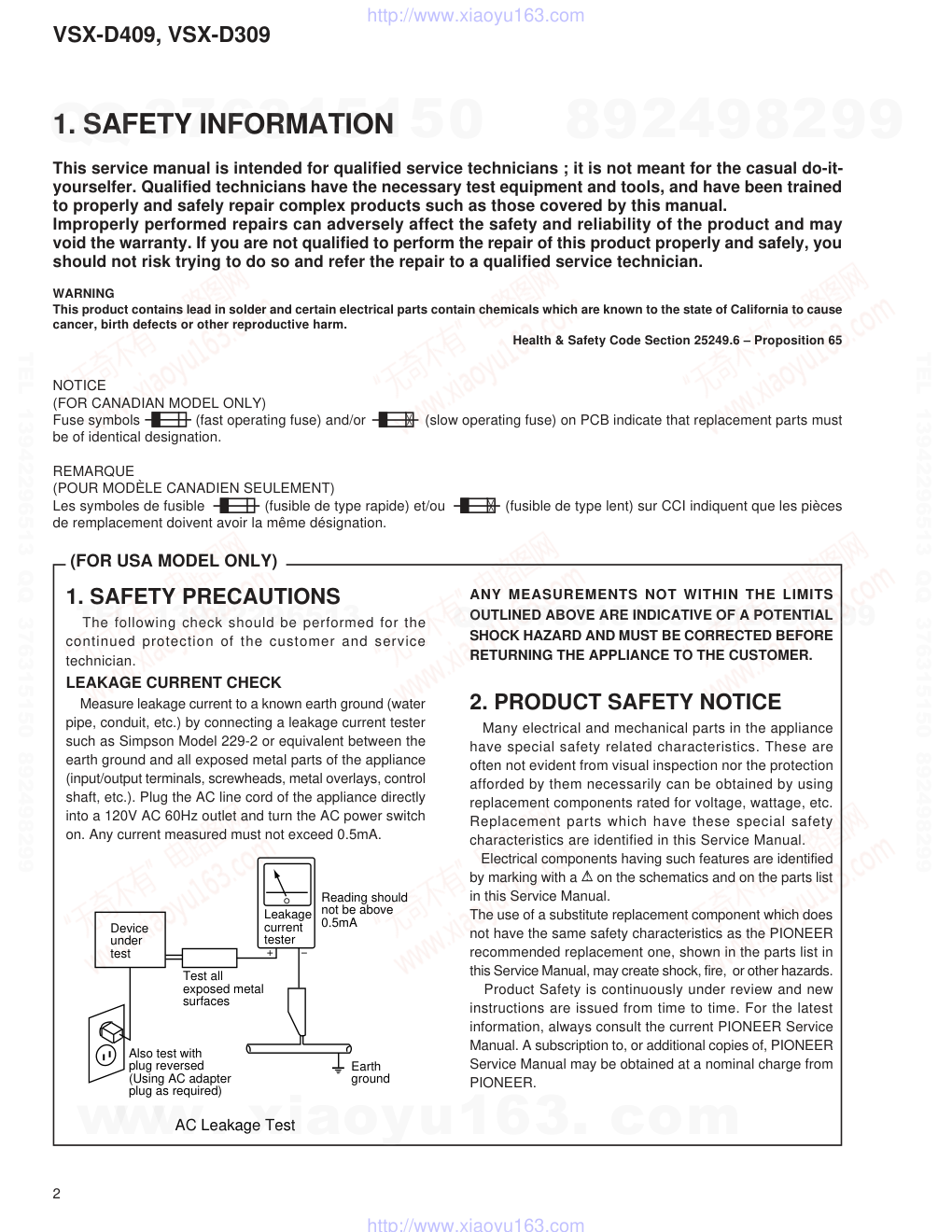

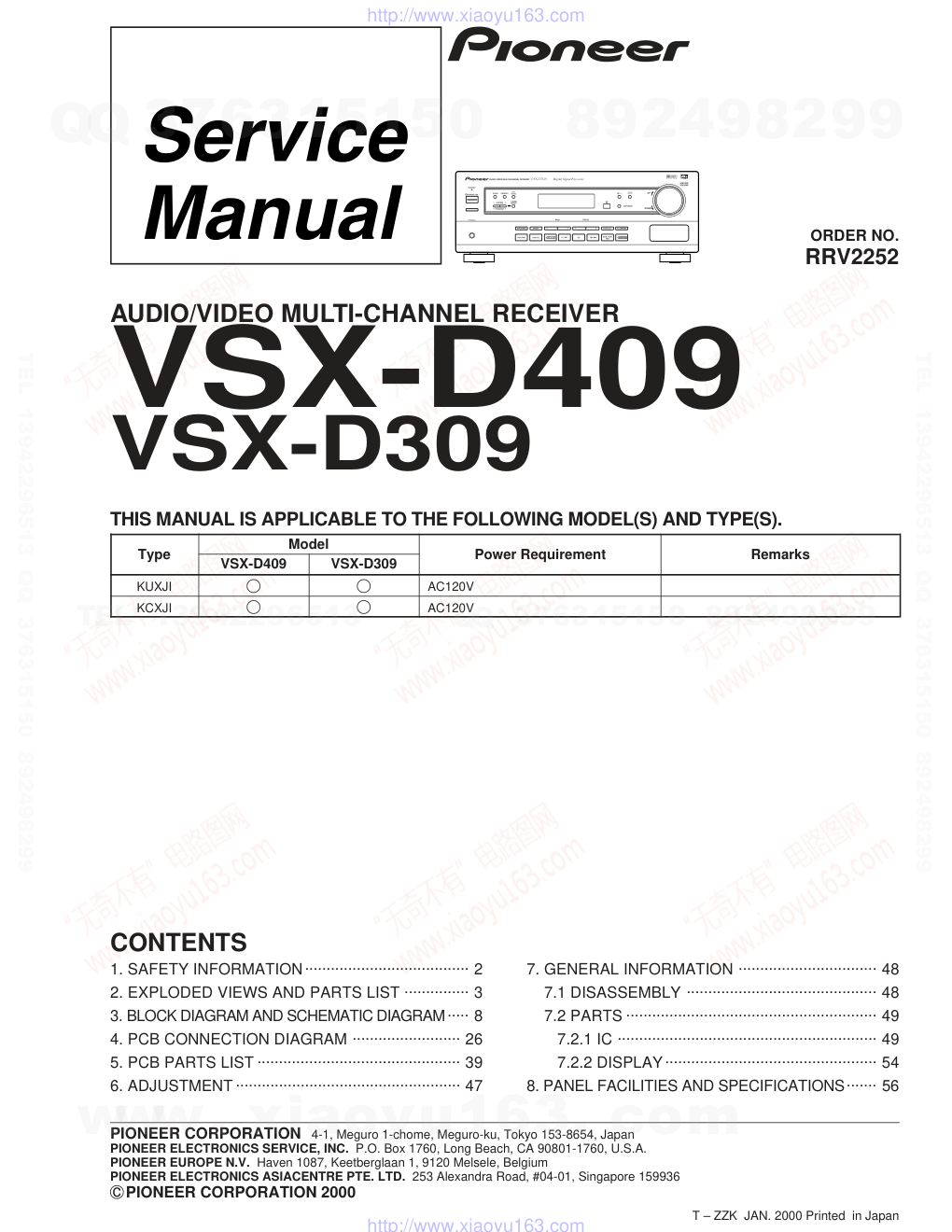

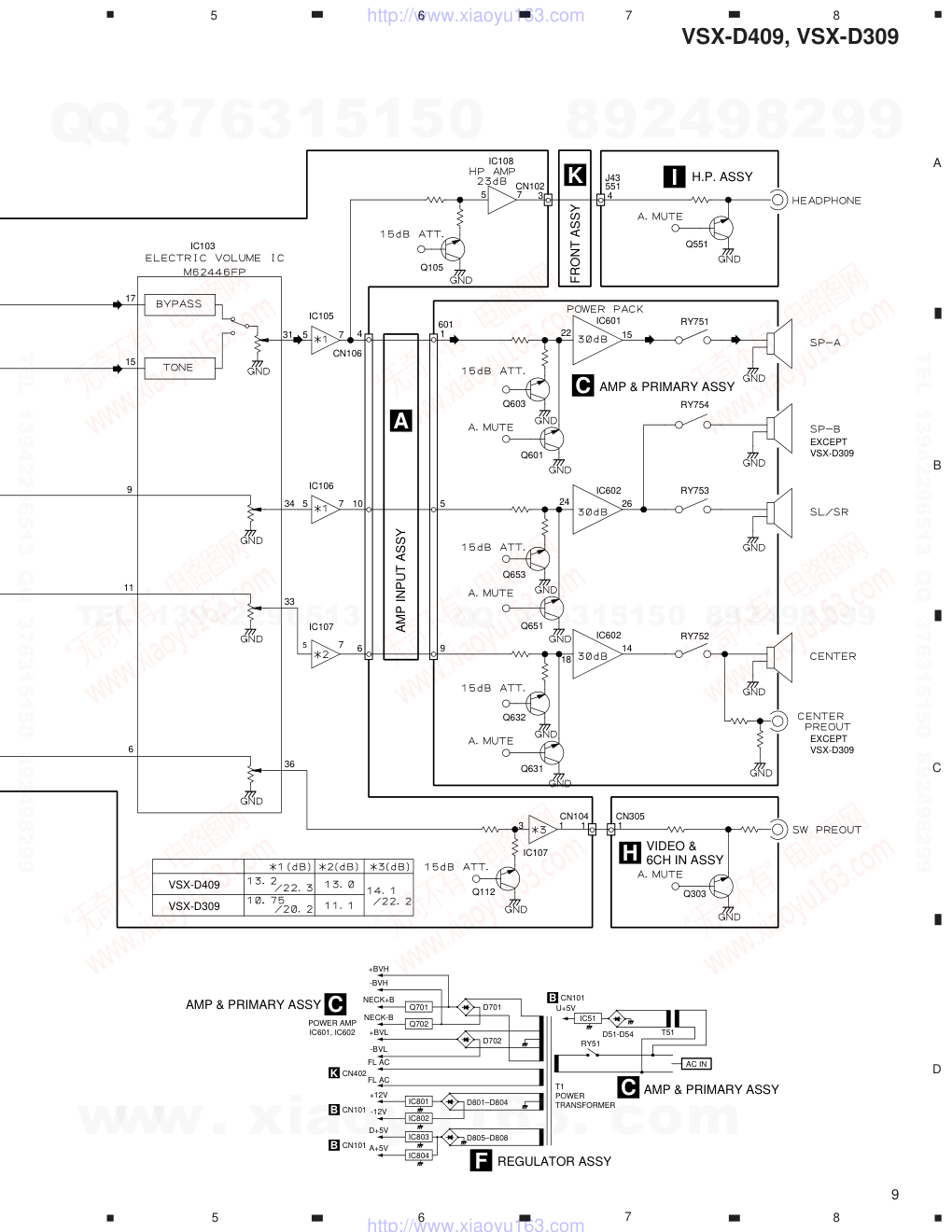

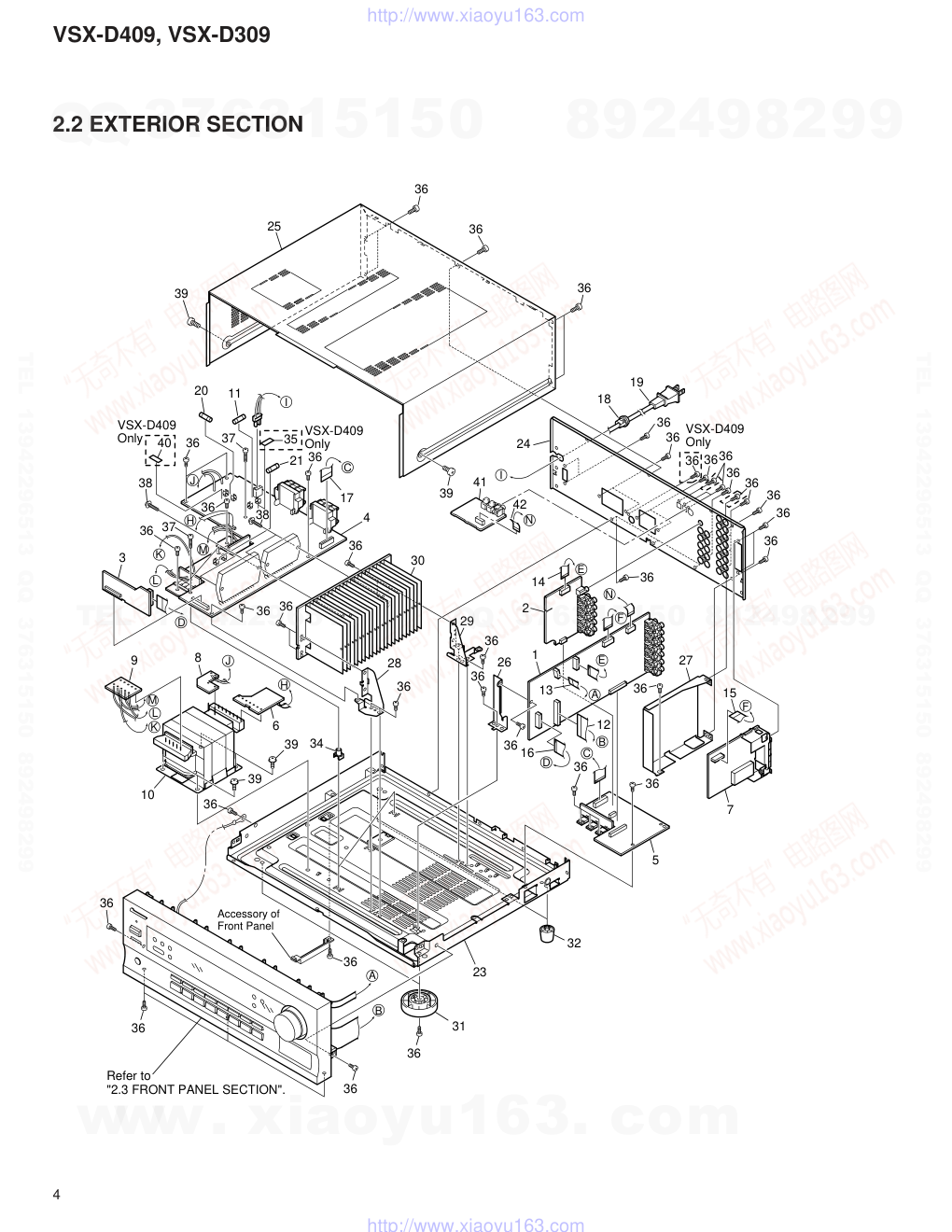

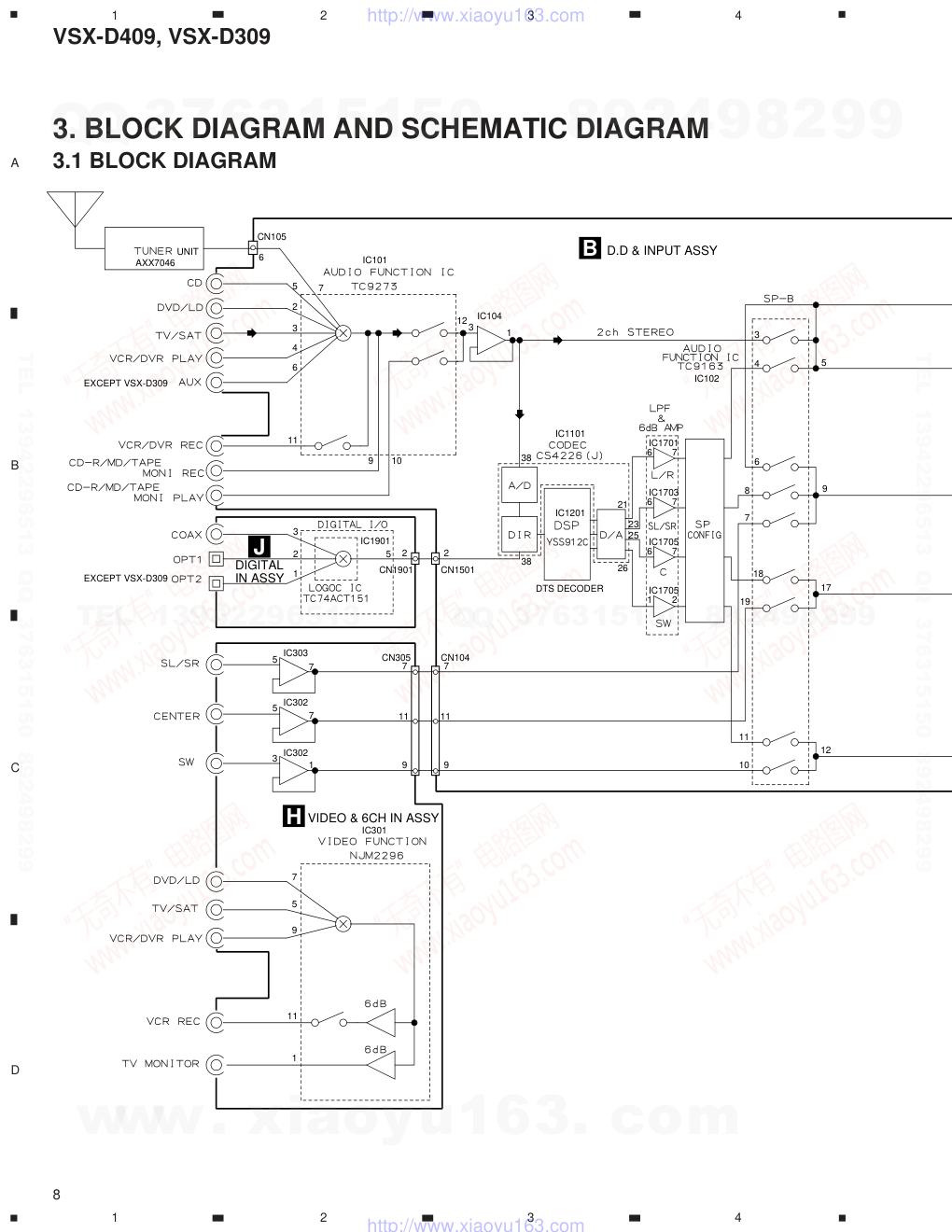

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER CORPORATION 2000 c RRV2252 1. SAFETY INFORMATION...................................... 2 2. EXPLODED VIEWS AND PARTS LIST ............... 3 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM..... 8 4. PCB CONNECTION DIAGRAM ......................... 26 5. PCB PARTS LIST ............................................... 39 6. ADJUSTMENT .................................................... 47 CONTENTS 7. GENERAL INFORMATION ................................ 48 7.1 DISASSEMBLY ............................................ 48 7.2 PARTS .......................................................... 49 7.2.1 IC ............................................................ 49 7.2.2 DISPLAY................................................. 54 8. PANEL FACILITIES AND SPECIFICATIONS....... 56 T – ZZK JAN. 2000 Printed in Japan Type Model Power Requirement Remarks VSX-D409 VSX-D309 KUXJI AC120V KCXJI AC120V THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). PHONES MPX MODE @ @ MIDNIGHT 2/DTS SIGNAL SELECT 1 R N∫m-Û≤?/���� Digital Signal Processor AUDIO/VIDEO MULTI-CHANNEL RECEIVER VSX-D409 VSX-D309 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 VSX-D409, VSX-D309 1. SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5mA. (FOR USA MODEL ONLY) Leakage current tester Reading should not be above 0.5mA Device under test Test all exposed metal surfaces Also test with plug reversed (Using AC adapter plug as required) Earth ground AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 VSX-D409, VSX-D309 2.1 PACKING 1 FM Wire Antenna ADH7004 2 AM Loop Antenna ATB7009 3 Polyethylene Bag Z21-038 (0.03 × 230 × 340) NSP 4 Warranty Card See Contrast table (2) 5 Remote Control Unit AXD7246 6 Battery Cover AZA7378 NSP 7 Dry Cell Battery (R6P, AA) VEM-013 8 Left Pad AHA7275 9 Right Pad AHA7276 10 Packing Sheet AHG7069 11 Packing Case See Contrast table (2) 12 Operating Instructions See Contrast table (2) (English) 13 Operating Instructions See Contrast table (2) (French) (1) PACKING PARTS LIST Mark No. Description Part No. 2. EXPLODED VIEWS AND PARTS LIST NOTES: • Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. • The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Screws adjacent to mark on the product are used for disassembly. 1 2 4 12 7 3 8 9 5 10 11 13 KCXJI Type Only 6 (2) CONTRAST TABLE VSX-D409/KUXJI, KCXJI, VSX-D309/KUXJI and KCXJI are constructed the same except for the following : Part No. Mark No. Symbol and Description VSX-D409 VSX-D409 VSX-D309 VSX-D309 Remarks /KUXJI /KCXJI /KUXJI /KCXJI NSP 4 Warranty Card ARY7023 ARY7024 ARY7023 ARY7024 11 Packing Case AHD7823 AHD7823 AHD7822 AHD7822 12 Operating Instructions (English) ARB7219 ARB7219 ARB7214 ARB7214 13 Operating Instructions (French) Not used ARC7289 Not used ARC7272 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 VSX-D409, VSX-D309 D L K H M J I C I J M L K H E E B A C D F N N F A B 35 18 24 19 36 36 39 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36 26 15 7 1 2 5 27 36 25 39 12 13 14 16 36 17 4 3 9 8 6 36 11 36 36 37 37 38 38 36 36 36 10 Accessory of Front Panel 36 34 36 36 36 36 Refer to "2.3 FRONT PANEL SECTION". 39 39 29 28 30 21 41 42 36 36 31 32 23 36 36 20 VSX-D409 Only 40 VSX-D409 Only VSX-D409 Only 2.2 EXTERIOR SECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 VSX-D409, VSX-D309 1 D.D & INPUT Assy See Contrast table (2) 2 VIDEO&6CH IN Assy AWX7474 NSP 3 AMP INPUT Assy AWX7382 4 AMP&PRIMARY Assy See Contrast table (2) 5 REGULATOR Assy See Contrast table (2) 6 TRANS 2 Assy AWX7468 7 FM/AM TUNER Unit AXX7046 NSP 8 TRANS 1 Assy AWX7390 NSP 9 TRANS 3 Assy AWX7392 10 Power Transformer (AC120V) See Contrast table (2) 11 Fuse (FU1) See Contrast table (2) 12 FFC (J31 : 32P/180 BD 60V) ADD7222 (D.D & INPUT CN102 ↔ FRONT CN402) 13 FFC (J32 : 19P/200 BD 60V) ADD7221 (D.D & INPUT CN103 ↔ FRONT CN401) 14 FFC (J33 : 13P/200 BD 60V) ADD7220 (D.D & INPUT CN104 ↔ VIDEO&6CH IN CN303) 15 FFC (J34 : 13P/80 BD 60V) ADD7189 (D.D & INPUT CN105 ↔ FM/AM TUNER CN1) 16 FFC (J35 : 17P/90 BD 60V) ADD7219 (D.D & INPUT CN106 ↔ AMP INPUT CN290) 17 FFC (J36 : 22P/80 BD 60V) ADD7224 (REGULATOR CN801 ↔ AMP&PRIMARY CN53) 18 Strain Relief CM-22C 19 AC Power Cord ADG7024 20 Fuse (FU2) See Contrast table (2) (1) EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 21 Fuse (FU701 : 10A) REK1087 22 • • • • • • NSP 23 Under Base 409 ANA7094 24 Rear Panel See Contrast table (2) 25 Bonnet Case AZN7818 26 PCB Angle ANG7253 27 Shield R3 ANG7277 28 Heat Sink Angle F ANG7251 29 Heat Sink Angle R ANG7252 NSP 30 Heat Sink 0.4 See Contrast table (2) 31 Insulator AMR7198 32 Foot Assy REC1263 33 • • • • • • 34 PCB Mold AMR2533 NSP 35 Fuse Card See Contrast table (2) 36 Screw BBZ30P080FMC 37 Screw BBZ30P200FMC 38 Screw ABA7043 39 Screw FBT40P080FZK NSP 40 Fuse Card See Contrast table (2) 41 DIGITAL IN Assy See Contrast table (2) 42 FFC (J37 : 6P/150 BD 60V) ADD7223 (D.D & INPUT CN1501 ↔ DIGITAL IN CN1901) (2) CONTRAST TABLE VSX-D409/KUXJI, KCXJI, VSX-D309/KUXJI and KCXJI are constructed the same except for the following : Part No. Mark No. Symbol and Description VSX-D409 VSX-D409 VSX-D309 VSX-D309 Remarks /KUXJI /KCXJI /KUXJI /KCXJI 1 D.D & INPUT Assy AWX7649 AWX7649 AWX7494 AWX7494 4 AMP&PRIMARY Assy AWX7480 AWX7480 AWX7506 AWX7506 5 REGULATOR Assy AWX7467 AWX7467 AWX7493 AWX7493 10 Power Transformer (AC120V) ATS7264 ATS7264 ATS7263 ATS7263 11 Fuse (FU1 : 10A) REK1087 REK1087 Not used Not used 11 Fuse (FU1 : 6.3A) Not used Not used REK1069 REK1069 20 Fuse (FU2 : 8A) REK1086 REK1086 Not used Not used 20 Fuse (FU2 : 5A) Not used Not used REK1067 REK1067 24 Rear Panel ANC7887 ANC7886 ANC7884 ANC7885 NSP 30 Heat Sink 0.4 ANH7109 ANH7109 Not used Not used NSP 30 Heat Sink 0.4*50 Not used Not used ANH7123 ANH7123 NSP 35 Fuse Card AXX7096 AXX7096 Not used Not used NSP 40 Fuse Card AXX2332 AXX2332 Not used Not used 41 DIGITAL IN Assy AWX7505 AWX7505 AWX7476 AWX7476 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 VSX-D409, VSX-D309 2.3 FRONT PANEL SECTION B A 11 13 10 14 17 7 4 2 6 Cut 9 12 1 3 16 16 16 16 16 16 16 Cut www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 VSX-D409, VSX-D309 (1) FRONT PANEL SECTION PARTS LIST Mark No. Description Part No. 1 FRONT Assy See Contrast table (2) 2 POWER SW Assy AWX7385 NSP 3 R. ENCODER Assy AWX7386 NSP 4 H.P. Assy AWX7556 5 • • • • • • 6 Volume Knob AAB7179 7 Power Button AAD7440 8 • • • • • • 9 Window AAK7719 10 F Button See Contrast table (2) Mark No. Description Part No. (2) CONTRAST TABLE VSX-D409/KUXJI, KCXJI, VSX-D309/KUXJI and KCXJI are constructed the same except for the following : Part No. Mark No. Symbol and Description VSX-D409 VSX-D409 VSX-D309 VSX-D309 Remarks /KUXJI /KCXJI /KUXJI /KCXJI 1 FRONT Assy AWX7479 AWX7479 AWX7475 AWX7475 10 F Button AAD7562 AAD7562 AAD7561 AAD7561 12 F Panel AMB7663 AMB7663 AMB7661 AMB7661 11 Sub Panel AAD7552 12 F Panel See Contrast table (2) 13 Name Plate PAM1776 14 LED Lens PNW2019 15 • • • • • • 16 Screw PPZ30P080FMC 17 Screw ABA7009 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 8 A B C D 1 2 3 4 1 2 3 4 AXX7046 UNIT CN105 6 CN305 IC101 EXCEPT VSX-D309 EXCEPT VSX-D309 IC303 IC1901 IC302 IC302 IC301 IC104 IC102 IC1701 IC1101 IC1201 B H J 7 7 7 1 9 11 CN104 7 9 11 CN1901 2 CN1501 2 5 3 7 5 9 1 11 5 5 3 2 5 1 3 4 6 123 38 38 21 26 23 25 6 7 IC1703 6 7 IC1705 6 7 IC1705 1 2 4 6 3 8 7 19 18 17 12 11 10 9 5 1 7 2 11 9 10 D.D & INPUT ASSY DIGITAL IN ASSY VIDEO & 6CH IN ASSY DTS DECODER 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 9 A B C D 5 6 7 8 5 6 7 8 IC103 IC105 IC106 IC107 IC108 IC107 VSX-D409 VSX-D309 Q603 Q601 Q653 Q651 Q632 Q631 CN104 1 CN305 1 11 15 17 31 34 33 36 6 9 5 7 5 7 5 7 5 7 3 1 IC602 18 14 IC602 24 26 IC601 RY751 EXCEPT VSX-D309 EXCEPT VSX-D309 RY753 RY754 RY752 22 15 Q551 Q105 I K A CN102 3 551 J43 4 CN106 4 601 1 10 5 6 9 +12V -12V T1 POWER TRANSFORMER T51 AC IN D801–D804 U+5V D51-D54 RY51 IC51 IC801 CN101 IC802 NECK+B POWER AMP IC601, IC602 NECK-B D702 D701 +BVL +BVH -BVH -BVL FL AC FL AC Q701 Q702 C C B D+5V D805–D808 IC803 A+5V IC804 CN101 F B CN101 B CN402 K Q112 Q303 H AMP & PRIMARY ASSY AMP & PRIMARY ASSY REGULATOR ASSY AMP & PRIMARY ASSY VIDEO & 6CH IN ASSY H.P. ASSY FRONT ASSY AMP INPUT ASSY C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 10 A B C D 1 2 3 4 1 2 3 4 3.2 OVERALL WIRING CONNECTION DIAGRAM and AMP INPUT ASSY FRONT ASSY (VSX-D409 : AWX7479) (VSX-D409 : AWX7475) K R.ENCODER ASSY (AWX7386) L D.D & INPUT ASSY (VSX-D409 : AWX7649) (VSX-D309 : AWX7494) B REGULATOR ASSY (VSX-D409 : AWX7467) (VSX-D309 : AWX7493) F DIGITAL IN ASSY (VSX-D409 : AWX7505) (VSX-D309 : AWX7476) J VIDEO& 6CH IN ASSY (AWX7474) H AMP&PRIMARY ASSY (VSX-D409 : AWX7480) (VSX-D309 : AWX7506) C AMP INPUT ASSY (AWX7382) A FM/AM TUNER UNIT (AXX7046) 491 511 C 1/2, C 2/2 B 1/3, B 2/3, B 3/3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 11 A B C D 5 6 7 8 5 6 7 8 Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". A AMP INPUT ASSY (AWX7382) A CN106 CN601 B 1/3 C 1/2 POWER SW ASSY (AWX7385) M H.P. ASSY (AWX7556) I TRANS3 ASSY (AWX7392) E TRANS1 ASSY (AWX7390) G TRANS2 ASSY (AWX7468) D 471 J3 J7 J6 501 403 551 701 851 J1 J2 J4 J5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 12 A B C D 1 2 3 4 1 2 3 4 VSX-D309 VSX-D409 VSX-D309 VSX-D409 D.D & INPUT ASSY (VSX-D409 : AWX7649) (VSX-D309 : AWX7494) B 1/3 FM/AM TUNER UNIT CN802 F 3.3 D.D & INPUT (1/3) ASSY 1/3 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 13 A B C D 5 6 7 8 5 6 7 8 CN290 A CN401 K CN402 K B 3/3 B 2/3 B 3/3 B 2/3 B 3/3 CN303 H : The power supply is shown with the marked box. E-VR IC 1/3 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 14 A B C D 1 2 3 4 1 2 3 4 3.4 D.D & INPUT ASSY (2/3) 2/3 B D.D & INPUT ASSY (VSX-D409 : AWX7649) (VSX-D309 : AWX7494) B 2/3 CN1901 J B 1/3 B 3/3 B 1/3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 15 A B C D 5 6 7 8 5 6 7 82/3 B : The power supply is shown with the marked box. B 3/3 DTS DECODER IC SRAM(256K) MULTI CH CODEC IC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 16 A B C D 1 2 3 4 1 2 3 4 D.D & INPUT ASSY (VSX-D409 : AWX7649) (VSX-D309 : AWX7494) B 3/3 B 2/3 B 2/3 B 1/3 E-SW IC 3.5 D.D & INPUT ASSY (3/3) 3/3 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 17 A B C D 5 6 7 8 5 6 7 8 B 1/3 3/3 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 18 A B C D 1 2 3 4 1 2 3 4 3.6 AMP&PRIMARY (1/2), TRANS2 and TRANS3 ASSYS 1/2 C 6P 6P 6P 6P 6P 6P 6P 6P 6P 6P VSX-D309 VSX-D409 AMP&PRIMARY ASSY (VSX-D407 : AWX7480) (VSX-D307 : AWX7506) C 1/2 CN291 A VSX-D309 ONLY VSX-D409 ONLY VSX-D309 ONLY VSX-D409 ONLY VSX-D309 ONLY VSX-D409 ONLY VSX-D309 ONLY VSX-D409 ONLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 19 A B C D 5 6 7 8 5 6 7 8 1/2 C E D VSX -D309 VSX -D409 VSX-D309 VSX-D409 VSX-D409 VSX-D309 TRANS3 ASSY (AWX7392) E TRANS2 ASSY (AWX7468) D POWER TRANSFORMER CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 49101.6 FOR IC851, IC852 AND IC853 MFD, BY LITTELFUSE INC. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491001 FOR IC603 MFD, BY LITTELFUSE INC. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491010 FOR IC604, IC605, IC606, AND IC607 MFD, BY LITTELFUSE INC. C 2/2 C 2/2 F701 : REK1087 (10A) VSX-D409 ONLY VSX-D409 ONLY VSX-D309 ONLY VSX-D409 ONLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 20 A B C D 1 2 3 4 1 2 3 4 2/2 C 3.7 AMP&PRIMARY (2/2), REGULATOR and TRANS1 ASSYS F CN101 B 1/3 REGULATOR ASSY (VSX-D409 : AWX7467) (VSX-D309 : AWX7493) F CN306 VSX-D409 ONLY H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 21 A B C D 5 6 7 8 5 6 7 8 2/2 C G AMP&PRIMARY ASSY (VSX-D409 : AWX7480) (VSX-D309 : AWX7506) C 2/2 C 1/2 C 1/2 G TRANS1 ASSY (AWX7390) POWER TRANSFORMER LIVE NEUTRAL VSX-D409 : REK1087 (10A) VSX-D309 : REK1069 (6.3A) ATT7057 VSX-D409 : REK1086 (8A) VSX-D309 : REK1067 (5A) AC POWER CORD ADG7024 • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 22 A B C D 1 2 3 4 1 2 3 4 VIDEO&6CH IN ASSY (AWX7474) H CN104 CN803 F B 1/3 VIDEO SW IC 3.8 VIDEO&6CH IN, H. P. and DIGITAL IN ASSYS H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 23 A B C D 1 2 3 4 1 2 3 4 VSX-D409 GP1F32R 0.1 YB 100 JA1903 (OPT. 2) C1901 R1901 VSX-D309 Not used Not used Not used H.P. ASSY (AWX7556) I DIGITAL IN ASSY (VSX-D409 : AWX7505) (VSX-D309 : AWX7476) J CN1501 B 2/3 403 K J I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 24 A B C D 1 2 3 4 1 2 3 4 VSX-D409 VSX-D309 FRONT ASSY (VSX-D409 : AWX7479) (VSX-D309 : AWX7475) K R.ENCODER ASSY (AWX7386) L CN102 B 1/3 CN103 B 1/3 3.9 FRONT, R. ENCODER and POWER SW ASSYS K L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 25 A B C D 5 6 7 8 5 6 7 8 VSX-D309 VSX-D409 POWER SW ASSY (AWX7385) M 551 I FRONT ASSY S451 : DOLBY PRO LOGIC S452 : DSP MODE S453 : SIGNAL SELECT S454 : MONITOR (VSX-D409) DIMMER (VSX-D309) S455 : TREBLE (+) S456 : FM/AM S457 : LOUDNESS S458 : TREBLE (–) S459 : BASS (+) S460 : DVD 5.1CH S461 : TV/SAT S462 : CD S463 : DIRECT S464 : BASS (–) S465 : DVD/LD S466 : VCR/DVR S467 : SPEAKERS S469 : MPX MODE S470 : MEMORY S471 : CLASS S472 : TUNING SELECT S473 : STATION (+) S474 : STATION (–) S475 : CD-R (VSX-D409) MONITOR (VSX-D309) S476 : AUX (VSX-D409) CD-R (VSX-D309) SYSTEM CONTROL MCU M K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 26 A B C D 1 2 3 4 1 2 3 4 NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B 4. PCB CONNECTION DIAGRAM 4.1 DIGITAL IN ASSY J (ANP7341-A) CN1501 B SIDE A DIGITAL IN ASSY J (ANP7341-A) DIGITAL IN ASSY J SIDE B IC1901 IC1902 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 27 A B C D 1 2 3 4 1 2 3 4 4.2 TRANS2, TRANS3, REGULATOR and TRANS1 ASSYS G F E (ANP7331-B) Q805 Q803 Q806 Q801 Q804 Q802 IC804 REGULATOR ASSY F TRANS3 ASSY E TRANS2 ASSY D CN53 C CN306 H CN101 B 701 C J1 J2 C J6 J4 J3 J5 J7 C SIDE A IC802 IC803 IC801 POWER TRANSFORMER TRANS1 ASSY G D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 28 A B C D 1 2 3 4 1 2 3 4 AMP INPUT ASSY A AMP&PRIMARY ASSY C CN106 B Q604 Q606 Q605 Q602 Q603 IC601 IC603 Q632 Q704 Q702 Q703 Q701 Q631 Q656 IC602 Q633 Q655 Q691 Q692 Q652 Q654 Q651 Q653 J7 E J6 E J3 E (ANP7331-B) SIDE A (ANP7331-B) SIDE A A C 4.3 AMP INPUT and AMP&PRIMARY ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 29 A B C D 5 6 7 8 5 6 7 8 J4 E J5 E 851 D Q51 IC52 IC51 AC IN NEUTRAL LIVE CN801 F J2 G J1 G C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 30 A B C D 1 2 3 4 1 2 3 4 B 4.4 D.D & INPUT ASSY D.D & INPUT ASSY B CN402 K CN401 K CN303 H CN290 A IC102 IC1602 IC103 IC16 IC1701 IC1712 IC17 Q1602 Q1601 Q1604 Q Q106 Q111 IC107 Q112 Q1608 Q1607 Q1609 Q1610 Q107 Q108 Q109 Q110 IC109 IC105 IC106 IC108 Q105 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 31 A B C D 5 6 7 8 5 6 7 8B CN802 F CN1901 J IC102 1602 IC1603 IC1604 IC1201 1701 IC1712 IC1704 IC1703 IC1705 Q1003 Q1004 Q1001 Q1002 IC1101 IC1301 Q101 Q102 Q104 Q103 2 Q1601 Q1604 Q1603 Q1606 Q1605 IC1001 IC104 IC1401 Q1101 Q1102 (ANP7342-A) SIDE A FM/AM TUNER UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 32 A B C D 1 2 3 4 1 2 3 4 B D.D & INPUT ASSY B IC1801 IC101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 33 A B C D 5 6 7 8 5 6 7 8B C1801 (ANP7342-A) SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 34 A B C D 1 2 3 4 1 2 3 4 FRONT ASSY K POWER SW ASSY M H.P. ASSY I Q471 Q483 Q481 Q482 4.5 H.P., FRONT, R.ENCODER and POWER SW ASSYS I K M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 35 A B C D 5 6 7 8 5 6 7 8L K CN103 B CN102 B R.ENCODER ASSY L Q441 Q401 Q442 Q405 Q402 Q403 (ANP7341-A) SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 36 A B C D 1 2 3 4 1 2 3 4 K L FRONT ASSY K IC401 (ANP7341-A) SIDE B R.ENCODER ASSY L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 37 A B C D 5 6 7 8 5 6 7 8M K I IC481 IC401 POWER SW ASSY M H.P. ASSY I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-D409, VSX-D309 38 A B C D 1 2 3 4 1 2 3 4 H 4.6 VIDEO&6CH IN ASSY (ANP7341-A) VIDEO&6CH IN ASSY H CN104 B CN803 F SIDE A Q301 Q303 Q306 Q305 Q307 Q304 Q302 (ANP7341-A) SIDE B VIDEO&6CH IN ASSY H IC302 IC303 IC301 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 VSX-D409, VSX-D309 Mark No. Description Part No. Mark No. Description Part No. Part No. Mark Symbol and Description VSX-D409 VSX-D309 Remarks /KUXJI, KCXJI /KUXJI, KCXJI NSP COMPLEX ASSY AWK7569 AWK7565 POWER SW ASSY AWX7385 AWX7385 NSP R.ENCODER ASSY AWX7386 AWX7386 VIDEO&6CH IN ASSY AWX7474 AWX7474 FRONT ASSY AWX7479 AWX7475 DIGITAL IN ASSY AWX7505 AWX7476 NSP H.P. ASSY AWX7556 AWX7556 NSP AMP&PS ASSY AWK7570 AWK7566 NSP AMP INPUT ASSY AWX7382 AWX7382 REGULATOR ASSY AWX7467 AWX7493 TRANS2 ASSY AWX7468 AWX7468 NSP TRANS1 ASSY AWX7390 AWX7390 NSP TRANS3 ASSY AWX7392 AWX7392 AMP&PRIMARY ASSY AWX7480 AWX7506 D.D & INPUT ASSY AWX7649 AWX7494 5. PCB PARTS LIST NOTES: •The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. •When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω → 56 × 10 1 → 561 ........................................................ RD1/4PU 5 6 1 J 47k Ω → 47 × 10 3 → 473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω → R50 ..................................................................................... RN2H R 5 0 K 1 Ω → 1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω → 562 × 10 1 → 5621 ...................................................... RN1/4PC 5 6 2 1 F CONTRAST OF PCB ASSEMBLIES D.D & INPUT ASSY B AWX7494 and AWX7649 are constructed the same except for the following : Mark Symbol and Description Part No. Remarks AWX7649 AWX7494 C197, C198 CCSQCH101J50 Not used R129, R130 RS1/10S331J RS1/10S0R0J R153, R154, R159, R160 RS1/16S103J RS1/16S132J R165 RS1/16S182J RS1/16S242J R189, R190, R197, R198 RS1/16S242J RS1/16S362J R213, R214 Not used RS1/16S0R0J JA101 PIN JACK(4P) AKB7048 AKB7050 JA102 PIN JACK(4P) AKB7048 Not used CONTRAST OF PCB ASSEMBLIES REGULATOR ASSY F AWX7493 and AWX7467 are constructed the same except for the following : Mark Symbol and Description Part No. Remarks AWX7467 AWX7493 Q805 KRA103M Not used Q806 KRC101M Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 VSX-D409, VSX-D309 Mark No. Description Part No. Mark No. Description Part No. Mark No. Description Part No. Mark No. Description Part No. PCB PARTS LIST FOR VSX-D409 UNLESS OTHERWISE NOTED AMP&PRIMARY ASSY C AWX7506 and AWX7480 are constructed the same except for the following : Mark Symbol and Description Part No. Remarks AWX7480 AWX7506 IC601 PAC010A PAC012A IC602 PAC011A PAC013A IC604–IC607 PROTECTOR (10A) AEK7022 Not used D758 1SS133 Not used RY754 ASR7001 Not used C701, C702 ACH7137(4700µF/71V) Not used C703, C704 ACH7135 (3300µF/42V) CEAT222M35 C709, C710 Not used ACH7136 (3300µF/56V) R711 RS2LMF392J RS2LMF272J R757 RD1/4PU223J Not used R758 RD1/4PU202J Not used CN753 PIN JACK 1-P AKB7042 Not used CN754 SPEAKER TERMINAL 8-P AKB7057 Not used 752 SPEAKER TERMINAL 4-P Not used AKE1012 DIGITAL IN ASSY J AWX7476 and AWX7505 are constructed the same except for the following : Mark Symbol and Description Part No. Remarks AWX7505 AWX7476 C1901 CKSQYB102K25 Not used R1901 RS1/10S101J Not used JA1903 OPTICAL RECEIV MOD. GP1F32R Not used FRONT ASSY K AWX7475 and AWX7479 are constructed the same except for the following : Mark Symbol and Description Part No. Remarks AWX7479 AWX7475 R429 RS1/10S751J RS1/10S182J AMP INPUT ASSY OTHERS CN290 17P CONNECTOR 52044-1745 CN291 16P SOCKET KP200TA16L D.D & INPUT ASSY SEMICONDUCTORS IC101 ANALOG SWITCH IC TC9273F-007 IC102 E-SW IC TC9163AF IC103 E-VR IC M62446FP IC104 OP-AMP IC UPC4570G2 IC105 OP-AMP IC UPC4570G2 IC106 OP-AMP IC UPC4570G2 IC107 OP-AMP IC UPC4570G2 IC108 OP-AMP IC M5216FP IC1001 OP-AMP IC NJM2100M IC1101 MULTI CH CODEC IC CS4226-KQ(J) IC1201 DTS DECODER IC YSS912C IC1301 SRAM(256K) KM68257EJ-15 IC1401 REGULATOR IC PQ20WZ51 IC1601 E-SW IC TC9164AF IC1602 IC NJM4558MD IC1603 IC NJM4558MD IC1604 IC NJM4558MD IC1701 IC NJM4558MD IC1702 IC NJM4558MD IC1703 IC NJM4558MD IC1704 IC NJM4558MD IC1705 IC NJM4558MD Q101 CHIP TRANSISTOR 2SC2412K Q103 TRANSISTOR DTA143EK Q104 DIGITAL TRANSISTOR DTC124EK Q105 CHIP MUTING TR 2SC3326 Q106 CHIP MUTING TR 2SC3326 Q107 CHIP MUTING TR 2SC3326 Q108 CHIP MUTING TR 2SC3326 Q109 CHIP MUTING TR 2SC3326 B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 VSX-D409, VSX-D309 Mark No. Description Part No. Mark No. Description Part No. Q110 CHIP MUTING TR 2SC3326 Q111 CHIP MUTING TR 2SC3326 Q112 CHIP MUTING TR 2SC3326 Q1001 CHIP MUTING TR 2SC3326 Q1002 CHIP MUTING TR 2SC3326 Q1003 CHIP DIGITAL TRANS. DTA124EK Q1004 DIGITAL TRANSISTOR DTC124EK Q1101 CHIP DIGITAL TRANS. DTA124EK Q1102 DIGITAL TRANSISTOR DTC124EK Q1601 CHIP MUTING TR 2SC3326 Q1602 CHIP MUTING TR 2SC3326 Q1603 CHIP MUTING TR 2SC3326 Q1604 CHIP MUTING TR 2SC3326 Q1605 CHIP MUTING TR 2SC3326 Q1606 CHIP MUTING TR 2SC3326 Q1607 CHIP DIGITAL TRANS. DTA124EK Q1608 CHIP DIGITAL TRANS. DTA124EK Q1609 DIGITAL TRANSISTOR DTC124EK Q1610 CHIP DIGITAL TRANS. DTA124EK D101 CHIP ZENER DIODE UDZS6.8B D102 CHIP ZENER DIODE UDZS6.8B D103 DIODE 1SS355 D104 CHIP ZENER DIODE UDZS5.1B D105 DIODE 1SS355 D106 DIODE 1SS355 D1601 DIODE 1SS181 D1602 DIODE 1SS181 COILS AND FILTERS F101 CHIP BEAD DTF1067 F1101 CHIP BEAD DTF1064 F1123 CHIP BEAD DTF1064 F1124 CHIP BEAD DTF1064 F1203 CHIP BEAD DTF1064 F1204 CHIP BEAD DTF1064 F1302 CHIP BEAD DTF1064 F1601 CHIP BEAD DTF1064 F1602 CHIP BEAD DTF1064 L1101 CHIP SOLID INDUCTOR QTL1013 L1102 CHIP SOLID INDUCTOR QTL1013 L1103 CHIP SOLID INDUCTOR QTL1013 L1104 CHIP SOLID INDUCTOR QTL1013 L1401 CHIP SOLID INDUCTOR ATL7002 CAPACITORS C101 CHIP CAPACITOR CCSQCH101J50 C102 CHIP CAPACITOR CCSQCH101J50 C103 CHIP CAPACITOR CCSQCH101J50 C104 CHIP CAPACITOR CCSQCH101J50 C105 CHIP CAPACITOR CCSQCH101J50 C106 CHIP CAPACITOR CCSQCH101J50 C107 CHIP CAPACITOR CCSQCH101J50 C108 CHIP CAPACITOR CCSQCH101J50 C109 CHIP CAPACITOR CCSQCH101J50 C110 CHIP CAPACITOR CCSQCH101J50 C111 CHIP CAPACITOR CCSQCH101J50 C112 CHIP CAPACITOR CCSQCH101J50 C113 CHIP CAPACITOR CCSQCH101J50 C114 CHIP CAPACITOR CCSQCH101J50 C115 ELECT. CAPACITOR CEAT4R7M50 C116 ELECT. CAPACITOR CEAT4R7M50 C117 ELECT. CAPACITOR CEAT470M25 C118 ELECT. CAPACITOR CEAT470M25 C119 CHIP CERAMIC C. CKSRYB103K50 C120 CHIP CERAMIC C. CKSRYB103K50 C121 CERAMIC CAPACITOR CCSRCH101J50 C122 CERAMIC CAPACITOR CCSRCH101J50 C123 CERAMIC CAPACITOR CCSRCH101J50 C124 CHIP CERAMIC C. CKSRYB103K50 C125 CHIP CERAMIC C. CKSRYB103K50 C126 CERAMIC CAPACITOR CCSRCH101J50 C127 CERAMIC CAPACITOR CCSRCH101J50 C128 CERAMIC CAPACITOR CCSRCH101J50 C130 ELECT. CAPACITOR CEAT100M50 C131 ELECT. CAPACITOR CEAT100M50 C132 ELECT. CAPACITOR CEAT100M50 C133 ELECT. CAPACITOR CEAT100M50 C134 ELECT. CAPACITOR CEAT100M50 C135 ELECT. CAPACITOR CEAT100M50 C136 ELECT. CAPACITOR CEAT100M50 C137 ELECT. CAPACITOR CEAT100M50 C138 CHIP CERAMIC C. CKSRYB822K50 C139 CHIP CERAMIC C. CKSRYB153K50 C140 CERAMIC CAPACITOR CKSQYB334K16 C141 CHIP CERAMIC C. CKSRYB822K50 C142 CHIP CERAMIC C. CKSRYB153K50 C143 CERAMIC CAPACITOR CKSQYB334K16 C144 ELECT. CAPACITOR CEAT3R3M50 C145 ELECT. CAPACITOR CEAT3R3M50 C146 ELECT. CAPACITOR CEAT100M50 C147 ELECT. CAPACITOR CEAT3R3M50 C148 ELECT. CAPACITOR CEAT3R3M50 C149 ELECT. CAPACITOR CEAT3R3M50 C150 ELECT. CAPACITOR CEAT3R3M50 C151 ELECT. CAPACITOR CEAT3R3M50 C152 CERAMIC CAPACITOR CCSRCH101J50 C153 CERAMIC CAPACITOR CCSRCH101J50 C154 CERAMIC CAPACITOR CCSRCH101J50 C155 ELECT. CAPACITOR CEAT471M10 C156 ELECT. CAPACITOR CEAT471M10 C157 ELECT. CAPACITOR CEAT101M16 C159 CERAMIC CAPACITOR CCSRCH101J50 C160 CERAMIC CAPACITOR CCSRCH101J50 C161 ELECT. CAPACITOR CEAT470M25 C162 ELECT. CAPACITOR CEAT470M25 C163 CERAMIC CAPACITOR CCSRCH101J50 C164 CERAMIC CAPACITOR CCSRCH101J50 C165 ELECT. CAPACITOR CEAT470M25 C166 ELECT. CAPACITOR CEAT470M25 C167 CHIP CERAMIC C. CCSRCH221J50 C168 CERAMIC CAPACITOR CKSRYB152K50 C169 ELECT. CAPACITOR CEAT470M25 C170 ELECT. CAPACITOR CEAT4R7M50 C171 CHIP CERAMIC C. CKSRYB103K50 C172 CHIP CERAMIC C. CKSRYB103K50 C173 CHIP CERAMIC C. CCSRCH151J50 C174 CHIP CERAMIC C. CCSRCH151J50 C175 ELECT. CAPACITOR CEAT101M16 C176 ELECT. CAPACITOR CEAT101M16 C177 CERAMIC CAPACITOR CKSQYB103K50 C178 CERAMIC CAPACITOR CKSQYB103K50 C179 CERAMIC CAPACITOR CKSQYB103K50 C180 CERAMIC CAPACITOR CKSQYB103K50 C183 CERAMIC CAPACITOR CKSQYB103K50 C184 CERAMIC CAPACITOR CKSQYF473Z50 C185 CERAMIC CAPACITOR CKSQYF473Z50 C186 CERAMIC CAPACITOR CKSQYB103K50 C187 CERAMIC CAPACITOR CKSQYB103K50 C188 CERAMIC CAPACITOR CKSQYB103K50 C189 CERAMIC CAPACITOR CKSQYB103K50 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 VSX-D409, VSX-D309 Mark No. Description Part No. Mark No. Description Part No. C190 CERAMIC CAPACITOR CKSQYB103K50 C191 CERAMIC CAPACITOR CKSQYB103K50 C192 CERAMIC CAPACITOR CKSQYB103K50 C193 CERAMIC CAPACITOR CKSQYB103K50 C194 ELECT. CAPACITOR CEAT4R7M50 C195 ELECT. CAPACITOR CEAT4R7M50 C197 CHIP CAPACITOR CCSQCH101J50 C198 CHIP CAPACITOR CCSQCH101J50 C199 CERAMIC CAPACITOR CKSQYB103K50 C201 ELECT. CAPACITOR CEAT4R7M50 C202 CERAMIC CAPACITOR CKSRYF104Z16 C205 ELECT. CAPACITOR CEAT3R3M50 C207 CHIP CAPACITOR CCSQCH101J50 C208 CHIP CAPACITOR CCSQCH101J50 C209 CERAMIC CAPACITOR CKSQYF104Z25 C1001 CERAMIC CAPACITOR CCSRCH101J50 C1002 CERAMIC CAPACITOR CCSRCH101J50 C1003 ELECT. CAPACITOR CEAT4R7M50 C1004 ELECT. CAPACITOR CEAT4R7M50 C1005 ELECT. CAPACITOR CEAT221M6R3 C1006 CHIP CERAMIC C. CKSRYB103K50 C1007 ELECT. CAPACITOR CEJANP100M10 C1008 ELECT. CAPACITOR CEJANP100M10 C1009 CERAMIC CAPACITOR CKSQYF104Z25 C1101 CHIP CERAMIC C. CCSRCH471J50 C1102 CERAMIC CAPACITOR CCSRCH102J50 C1103 CERAMIC CAPACITOR CCSRCH390J50 C1104 CERAMIC CAPACITOR CCSRCH390J50 C1105 CERAMIC CAPACITOR CKSRYF104Z16 C1106 CHIP CERAMIC C. CCSRCH471J50 C1107 CHIP CERAMIC C. CKSRYB223K50 C1108 CERAMIC CAPACITOR CKSQYB224K16 C1109 CERAMIC CAPACITOR CKSRYF104Z16 C1110 CHIP CERAMIC C. CCSRCH471J50 C1111 CERAMIC CAPACITOR CKSQYF104Z25 C1112 ELECT. CAPACITOR CEAT1R0M50 C1113 CERAMIC CAPACITOR CCSRCH180J50 C1114 CERAMIC CAPACITOR CCSRCH180J50 C1115 ELECT. CAPACITOR CEATR47M50 C1116 ELECT. CAPACITOR CEAT101M10 C1117 CERAMIC CAPACITOR CKSQYF104Z25 C1118 CHIP CERAMIC C. CCSQCH471J50 C1119 CHIP CERAMIC C. CCSQCH271J50 C1121 ELECT. CAPACITOR CEAT101M10 C1122 ELECT. CAPACITOR CEAT101M10 C1123 CHIP CAPACITOR CCSQCH331J50 C1124 CHIP CAPACITOR CCSQCH331J50 C1128 CHIP CERAMIC C. CKSRYB103K50 C1129 CERAMIC CAPACITOR CKSQYB103K50 C1130 CHIP CERAMIC C. CCSQCH471J50 C1132 CERAMIC CAPACITOR CKSQYB103K50 C1133 CERAMIC CAPACITOR CKSQYF104Z25 C1134 CHIP CERAMIC C. CKSRYB103K50 C1201 ELECT. CAPACITOR CEAT101M10 C1202 ELECT. CAPACITOR CEAT221M6R3 C1203 CHIP CERAMIC C. CCSRCH200J50 C1204 CHIP CERAMIC C. CCSRCH200J50 C1205 CHIP CERAMIC C. CKSRYB103K50 C1206 CERAMIC CAPACITOR CKSQYB103K50 C1207 CHIP CAPACITOR CCSQCH101J50 C1208 CERAMIC CAPACITOR CKSQYB103K50 C1209 CHIP CAPACITOR CCSQCH101J50 C1210 CHIP CERAMIC C. CCSRCH471J50 C1211 CHIP CERAMIC C. CKSRYB103K50 C1212 CERAMIC CAPACITOR CCSRCH101J50 C1213 CHIP CAPACITOR CCSQCH101J50 C1214 CHIP CERAMIC C. CKSRYB103K50 C1215 CERAMIC CAPACITOR CKSQYB103K50 C1216 CERAMIC CAPACITOR CKSQYB103K50 C1217 CHIP CAPACITOR CCSQCH101J50 C1218 CHIP CAPACITOR CCSQCH101J50 C1219 CERAMIC CAPACITOR CKSQYF104Z25 C1220 CERAMIC CAPACITOR CKSQYB103K50 C1221 CHIP CAPACITOR CCSQCH101J50 C1222 CHIP CERAMIC C. CKSRYB103K50 C1223 CERAMIC CAPACITOR CCSRCH101J50 C1224 CERAMIC CAPACITOR CKSQYF104Z25 C1225 CERAMIC CAPACITOR CKSQYF104Z25 C1226 CERAMIC CAPACITOR CKSRYF104Z16 C1227 CERAMIC CAPACITOR CKSRYF104Z16 C1228 CERAMIC CAPACITOR CKSQYF104Z25 C1229 CERAMIC CAPACITOR CKSQYF104Z25 C1230 CERAMIC CAPACITOR CKSRYF104Z16 C1231 CERAMIC CAPACITOR CKSQYF104Z25 C1232 CERAMIC CAPACITOR CKSRYF104Z16 C1301 ELECT. CAPACITOR CEJA101M10 C1302 CERAMIC CAPACITOR CKSQYB103K50 C1303 CHIP CAPACITOR CCSQCH101J50 C1304 CERAMIC CAPACITOR CKSQYF104Z25 C1401 ELECT. CAPACITOR CEAT4R7M50 C1404 ELECT. CAPACITOR CEAT101M10 C1601 CHIP CERAMIC C. CCSRCH221J50 C1602 CHIP CERAMIC C. CCSRCH221J50 C1603 CHIP CERAMIC C. CCSRCH471J50 C1604 CHIP CERAMIC C. CCSRCH471J50 C1605 ELECT. CAPACITOR CEAT4R7M50 C1606 ELECT. CAPACITOR CEAT4R7M50 C1607 CERAMIC CAPACITOR CKSQYB103K50 C1608 CERAMIC CAPACITOR CKSQYB103K50 C1609 CHIP CERAMIC C. CCSRCH221J50 C1610 CHIP CERAMIC C. CCSRCH221J50 C1611 CHIP CERAMIC C. CCSRCH471J50 C1612 CHIP CERAMIC C. CCSRCH471J50 C1613 ELECT. CAPACITOR CEAT4R7M50 C1614 ELECT. CAPACITOR CEAT4R7M50 C1615 CHIP CERAMIC C. CKSRYB222K50 C1616 CHIP CERAMIC C. CKSRYB222K50 C1617 CHIP CERAMIC C. CKSRYB222K50 C1618 CHIP CERAMIC C. CKSRYB222K50 C1619 CERAMIC CAPACITOR CKSQYB103K50 C1620 CERAMIC CAPACITOR CKSQYB103K50 C1621 CHIP CERAMIC C. CKSRYB122K50 C1623 CHIP CERAMIC C. CCSRCH271J50 C1625 ELECT. CAPACITOR CEAT4R7M50 C1626 ELECT. CAPACITOR CEAT4R7M50 C1627 CHIP CERAMIC C. CKSRYB222K50 C1628 CERAMIC CAPACITOR CKSRYF104Z50 C1629 CERAMIC CAPACITOR CKSQYB103K50 C1630 CERAMIC CAPACITOR CKSQYB103K50 C1631 CERAMIC CAPACITOR CKSQYF104Z25 C1632 CERAMIC CAPACITOR CKSQYF104Z25 C1636 CHIP CERAMIC C. CKSRYB103K50 C1637 CHIP CERAMIC C. CKSRYB103K50 C1639 CHIP CERAMIC C. CCSQCH471J50 C1640 CHIP CAPACITOR CCSQCH101J50 C1641 CHIP CAPACITOR CCSQCH101J50 C1642 CHIP CERAMIC C. CKSRYB103K50 C1701 CERAMIC CAPACITOR CKSRYB682K50 C1702 CERAMIC CAPACITOR CKSRYB682K50 C1703 CHIP CERAMIC C. CKSRYB222K50 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 VSX-D409, VSX-D309 Mark No. Description Part No. Mark No. Description Part No. C1704 CHIP CERAMIC C. CKSRYB222K50 C1705 CERAMIC CAPACITOR CKSRYB104K16 C1706 CERAMIC CAPACITOR CKSRYB104K16 C1707 CHIP CERAMIC C. CCSRCH151J50 C1708 CHIP CERAMIC C. CCSRCH151J50 C1709 CHIP CERAMIC C. CKSRYB103K50 C1710 CHIP CERAMIC C. CKSRYB103K50 C1711 CHIP CERAMIC C. CKSRYB103K50 C1712 CHIP CERAMIC C. CKSRYB103K50 C1713 ELECT. CAPACITOR CEAT220M25 C1714 ELECT. CAPACITOR CEAT220M25 C1715 CERAMIC CAPACITOR CKSRYB682K50 C1716 CERAMIC CAPACITOR CKSRYB682K50 C1717 CHIP CERAMIC C. CKSRYB222K50 C1718 CHIP CERAMIC C. CKSRYB222K50 C1719 CERAMIC CAPACITOR CKSRYB104K16 C1720 CERAMIC CAPACITOR CKSRYB104K16 C1721 CHIP CERAMIC C. CCSRCH151J50 C1722 CHIP CERAMIC C. CCSRCH151J50 C1723 CHIP CERAMIC C. CKSRYB103K50 C1724 CHIP CERAMIC C. CKSRYB103K50 C1725 CHIP CERAMIC C. CKSRYB103K50 C1726 CHIP CERAMIC C. CKSRYB103K50 C1727 ELECT. CAPACITOR CEAT220M25 C1728 ELECT. CAPACITOR CEAT220M25 C1729 CERAMIC CAPACITOR CKSRYB682K50 C1731 CHIP CERAMIC C. CKSRYB222K50 C1732 CERAMIC CAPACITOR CKSRYB682K50 C1733 CERAMIC CAPACITOR CKSRYB104K16 C1734 CERAMIC CAPACITOR CKSRYB104K16 C1735 CHIP CERAMIC C. CCSRCH151J50 C1736 CERAMIC CAPACITOR CCSRCH102J50 C1737 CHIP CERAMIC C. CKSRYB103K50 C1738 CHIP CERAMIC C. CKSRYB103K50 C1739 ELECT. CAPACITOR CEAT220M25 C1740 ELECT. CAPACITOR CEAT220M25 RESISTORS R101 CHIP RESISTOR RS1/10S331J R102 CHIP RESISTOR RS1/10S331J R103 CHIP RESISTOR RS1/10S222J R104 CHIP RESISTOR RS1/10S222J R105 CHIP RESISTOR RS1/10S331J R106 CHIP RESISTOR RS1/10S331J R107 CHIP RESISTOR RS1/10S331J R108 CHIP RESISTOR RS1/10S331J R109 CHIP RESISTOR RS1/10S331J R110 CHIP RESISTOR RS1/10S331J R111 CHIP RESISTOR RS1/10S222J R112 CHIP RESISTOR RS1/10S222J R113 CHIP RESISTOR RS1/10S331J R114 CHIP RESISTOR RS1/10S331J R115 CHIP RESISTOR RS1/10S104J R116 CHIP RESISTOR RS1/10S104J R117 CHIP RESISTOR RS1/10S104J R118 CHIP RESISTOR RS1/10S104J R121 CHIP RESISTOR RS1/10S104J R122 CHIP RESISTOR RS1/10S104J R129 CHIP RESISTOR RS1/10S331J R130 CHIP RESISTOR RS1/10S331J R132 CHIP RESISTOR RS1/10S104J R133 CHIP RESISTOR RS1/10S104J R134 CHIP RESISTOR RS1/10S104J R135 CHIP RESISTOR RS1/10S104J R138 CHIP RESISTOR RS1/10S473J R139 CHIP RESISTOR RS1/10S104J R140 CHIP RESISTOR RS1/10S104J R141 CHIP RESISTOR RS1/10S104J R142 CHIP RESISTOR RS1/10S104J R143 CHIP RESISTOR RS1/10S104J R144 CHIP RESISTOR RS1/10S204J R157 CHIP RESISTOR RS1/10S104J R158 CHIP RESISTOR RS1/10S104J R163 CHIP RESISTOR RS1/10S104J R164 CHIP RESISTOR RS1/10S104J R174 METAL OXIDE RESISTOR RS1LMF101J R175 METAL OXIDE RESISTOR RS1LMF101J R182 CHIP RESISTOR RS1/10S473J R183 CHIP RESISTOR RS1/10S122J R185 CHIP RESISTOR RS1/10S104J R186 CHIP RESISTOR RS1/10S104J R192 CHIP RESISTOR RS1/10S104J R193 CHIP RESISTOR RS1/10S104J R211 CHIP RESISTOR RS1/10S100J R212 CHIP RESISTOR RS1/10S100J R1206 CHIP RESISTOR RS1/10S102J R1207 CHIP RESISTOR RS1/10S102J R1208 CHIP RESISTOR RS1/10S102J R1211 CHIP RESISTOR RS1/10S472J R1212 CHIP RESISTOR RS1/10S472J R1213 CHIP RESISTOR RS1/10S472J R1302 CHIP RESISTOR RS1/10S0R0J R1638 CHIP RESISTOR RS1/10S102J R1639 CHIP RESISTOR RS1/10S102J R1640 CHIP RESISTOR RS1/10S102J R1641 CHIP RESISTOR RS1/10S473J R1689 CHIP RESISTOR RS1/10S0R0J R1713 CHIP RESISTOR RS1/10S473J R1714 CHIP RESISTOR RS1/10S473J R1727 CHIP RESISTOR RS1/10S473J R1728 CHIP RESISTOR RS1/10S473J R1741 CHIP RESISTOR RS1/10S473J R1742 CHIP RESISTOR RS1/10S473J Other Resistors RS1/16S&&&J OTHERS CN101 19P SOCKET KP200TA19L CN102 32P CONNECTOR 52045-3245 CN103 20P CONNECTOR 52045-1945 CN104 CONNECTOR 52045-1345 CN105 CONNECTOR 52045-1345 CN106 CONNECTOR 52045-1745 CN1501 CONNECTOR 6P 52045-0645 JA101 PIN JACK(4P) AKB7048 JA102 PIN JACK(4P) AKB7048 JA103 PIN JACK(4P) AKB7048 JA104 PIN JACK(4P) AKB7048 X1101 CRYSTAL RESONATOR RSS1052 (18.432MHz) X1201 CRYSTAL RESONATOR VSS1140 (12.288MHz) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 VSX-D409, VSX-D309 Mark No. Description Part No. Mark No. Description Part No. AMP&PRIMARY ASSY SEMICONDUCTORS IC51 REGULATOR IC NJM78M56FA IC601 AUDIO IC PAC010A IC602 AUDIO IC PAC011A IC603 PROTECTOR (1A) AEK7009 IC604 PROTECTOR (10A) AEK7022 IC605 PROTECTOR (10A) AEK7022 IC606 PROTECTOR (10A) AEK7022 IC607 PROTECTOR (10A) AEK7022 Q51 TRANSISTOR KRC101M Q601 TRANSISTOR 2SC2878 Q602 TRANSISTOR 2SC2878 Q603 TRANSISTOR 2SC2878 Q604 TRANSISTOR 2SC2878 Q605 TRANSISTOR 2SC2240 Q606 TRANSISTOR 2SC2240 Q631 TRANSISTOR 2SC2878 Q632 TRANSISTOR 2SC2878 Q633 TRANSISTOR 2SC2240 Q651 TRANSISTOR 2SC2878 Q652 TRANSISTOR 2SC2878 Q653 TRANSISTOR 2SC2878 Q654 TRANSISTOR 2SC2878 Q655 TRANSISTOR 2SC2240 Q656 TRANSISTOR 2SC2240 Q691 TRANSISTOR 2SC1740S Q692 TRANSISTOR 2SC1740S Q701 TRANSISTOR 2SD1859X Q702 TRANSISTOR 2SB1238X Q703 TRANSISTOR 2SA1145 Q704 TRANSISTOR 2SC1845 D51 DIODE S5688G D52 DIODE S5688G D53 DIODE S5688G D54 DIODE S5688G D55 DIODE S5688G D56 DIODE 1SS133 D58 ZENER DIODE MTZJ5.1A D601 DIODE 1SS133 D602 DIODE 1SS133 D603 DIODE 1SS133 D604 DIODE 1SS133 D605 ZENER DIODE MTZJ8.2A D606 ZENER DIODE MTZJ8.2A D631 DIODE 1SS133 D632 DIODE 1SS133 D633 ZENER DIODE MTZJ8.2A D634 ZENER DIODE MTZJ8.2A D651 DIODE 1SS133 D652 DIODE 1SS133 D653 DIODE 1SS133 D654 DIODE 1SS133 D701 DIODE D5SBA20(B) D702 DIODE D5SBA20(B) D711 ZENER DIODE MTZJ22D D712 ZENER DIODE MTZJ5.1B D752 DIODE 1SS133 D754 DIODE 1SS133 D756 DIODE 1SS133 D758 DIODE 1SS133 COILS AND FILTERS L51 LINE FILTER ATF7018 L751 COIL ATH1004 L752 COIL ATH1004 L753 COIL ATH1004 L761 COIL ATH1004 L762 COIL ATH1004 SWITCHES AND RELAYS RY51 JOE LOWPOWER RELAY ASR7013 RY751 RELAY ASR7001 RY752 RELAY ASR7001 RY753 RELAY ASR7001 RY754 RELAY ASR7001 CAPACITORS C51 CKA (10000pF/AC250V) ACG7020 C52 CKA (10000pF/AC250V) ACG7020 C53 ELECT. CAPACITOR CEAT102M16 C54 ELECT. CAPACITOR CEAT470M25 C55 CERAMIC CAPACITOR CGCYX103M25 C56 CERAMIC CAPACITOR CGCYX103M25 C57 CERAMIC CAPACITOR CGCYX103M25 C601 CERAMIC CAPACITOR CKCYB102K50 C602 CERAMIC CAPACITOR CKCYB102K50 C603 CERAMIC CAPACITOR CKCYB331K50 C604 CERAMIC CAPACITOR CKCYB331K50 C605 ELECT. CAPACITOR CEAT4R7M50 C606 ELECT. CAPACITOR CEAT4R7M50 C607 CERAMIC CAPACITOR CCCSL6R0D50 C608 CERAMIC CAPACITOR CCCSL6R0D50 C609 CERAMIC CAPACITOR CCCSL6R0D50 C610 CERAMIC CAPACITOR CCCSL6R0D50 C611 ELECT. CAPACITOR CEAT101M16 C612 ELECT. CAPACITOR CEAT101M16 C615 ELECT. CAPACITOR CEANP2R2M50 C616 ELECT. CAPACITOR CEANP2R2M50 C631 CERAMIC CAPACITOR CKCYB102K50 C632 CERAMIC CAPACITOR CKCYB331K50 C633 ELECT. CAPACITOR CEAT4R7M50 C634 CERAMIC CAPACITOR CCCSL6R0D50 C635 CERAMIC CAPACITOR CCCSL6R0D50 C636 ELECT. CAPACITOR CEAT101M16 C638 ELECT. CAPACITOR CEANP2R2M50 C651 CERAMIC CAPACITOR CKCYB102K50 C652 CERAMIC CAPACITOR CKCYB102K50 C653 CERAMIC CAPACITOR CKCYB331K50 C654 CERAMIC CAPACITOR CKCYB331K50 C655 ELECT. CAPACITOR CEAT4R7M50 C656 ELECT. CAPACITOR CEAT4R7M50 C657 CERAMIC CAPACITOR CCCSL6R0D50 C658 CERAMIC CAPACITOR CCCSL6R0D50 C659 CERAMIC CAPACITOR CCCSL6R0D50 C660 CERAMIC CAPACITOR CCCSL6R0D50 C661 ELECT. CAPACITOR CEAT101M16 C662 ELECT. CAPACITOR CEAT101M16 C665 ELECT. CAPACITOR CEANP2R2M50 C666 ELECT. CAPACITOR CEANP2R2M50 C691 CERAMIC CAPACITOR CKCYB102K50 C692 ELECT. CAPACITOR CEAT221M10 C701 ELECT.CAPACITOR ACH7137 (4700µF/71V) C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 VSX-D409, VSX-D309 Mark No. Description Part No. Mark No. Description Part No. C702 ELECT.CAPACITOR ACH7137 (4700µF/71V) C703 ELECT.CAPACITOR ACH7135 (3300µF/42V) C704 ELECT.CAPACITOR ACH7135 (3300µF/42V) C705 ELECT. CAPACITOR CEAT100M2A C706 ELECT. CAPACITOR CEAT100M2A C707 CKA (0.01µF/AC250V) ACG1005 C708 CKA (0.01µF/AC250V) ACG1005 C711 ELECT. CAPACITOR CEAT101M35 C712 ELECT. CAPACITOR CEAT101M10 C751 AUDIO FILM CAPACITOR CFTYA104J50 C752 AUDIO FILM CAPACITOR CFTYA104J50 C755 AUDIO FILM CAPACITOR CFTYA104J50 C761 AUDIO FILM CAPACITOR CFTYA104J50 C762 AUDIO FILM CAPACITOR CFTYA104J50 RESISTORS R51 RESISTOR(2.2MΩ/ 1/2W) RCN1080 R52 CARBON FILM RESISTOR RD1/2PM270J R615 RESISTOR (0.22Ω/5W) ACN7094 R616 RESISTOR (0.22Ω/5W) ACN7094 R638 RESISTOR (0.22Ω/5W) ACN7094 R665 RESISTOR (0.22Ω/5W) ACN7094 R666 RESISTOR (0.22Ω/5W) ACN7094 R711 METAL OXIDE RESISTOR RS2LMF392J R751 CARBON FILM RESISTOR RD1/4PMF101J R752 CARBON FILM RESISTOR RD1/4PMF101J R753 METAL OXIDE RESISTOR RS1LMF4R7J R754 METAL OXIDE RESISTOR RS1LMF4R7J R755 CARBON FILM RESISTOR RD1/4PMF101J R756 METAL OXIDE RESISTOR RS1LMF4R7J R761 CARBON FILM RESISTOR RD1/4PMF101J R762 CARBON FILM RESISTOR RD1/4PMF101J R763 METAL OXIDE RESISTOR RS1LMF4R7J R764 METAL OXIDE RESISTOR RS1LMF4R7J Other Resistors RD1/4PU&&&J OTHERS 51 AC SOCKET 1-P AKP1060 701 7P CABLE HOLDER 51048-0700 CN51 AC CODE SOCKET RKP1751 CN53 22P CONNECTOR 52045-2245 CN601 16P PLUG KM200TA16 CN751 SPEAKER TERMINAL 6-P AKE7020 CN753 PIN JACK 1-P AKB7042 CN754 SPEAKER TERMINAL 8-P AKE7057 H51 FUSE CLIP AKR7001 H52 FUSE CLIP AKR7001 H53 FUSE CLIP AKR7001 H54 FUSE CLIP AKR7001 H701 FUSE CLIP AKR7001 H702 FUSE CLIP AKR7001 T51 STANDBY TRANSFORMER ATT7057 KN51 EARTH METAL FITTING VNF1084 KN601 EARTH METAL FITTING VNF1084 TRANS2 ASSY SEMICONDUCTORS IC851 PROTECTOR (1.6A) AEK7012 IC852 PROTECTOR (1.6A) AEK7012 IC853 PROTECTOR (1.6A) AEK7012 OTHERS 851 7P CABLE HOLDER 51048-0700 TRANS3 ASSY TRANS3 ASSY has no service part. REGULATOR ASSY SEMICONDUCTORS IC801 REGULATOR IC NJM78M12FA IC802 REGULATOR IC NJM79M12FA IC803 REGULATOR IC NJM78M05FA IC804 REGULATOR IC NJM78M05FA Q801 TRANSISTOR KRA103M Q802 TRANSISTOR KRC101M Q803 TRANSISTOR KRA103M Q804 TRANSISTOR KRC101M Q805 TRANSISTOR KRA103M Q806 TRANSISTOR KRC101M D801 DIODE S5688G D802 DIODE S5688G D803 DIODE S5688G D804 DIODE S5688G D805 DIODE S5688G D806 DIODE S5688G D807 DIODE S5688G D808 DIODE S5688G CAPACITORS C801 ELECT. CAPACITOR CEAT222M25 C802 ELECT. CAPACITOR CEAT222M25 C803 CERAMIC CAPACITOR CGCYX103M25 C804 CERAMIC CAPACITOR CGCYX103M25 C805 ELECT. CAPACITOR CEAT101M16 C806 ELECT. CAPACITOR CEAT101M16 C807 CERAMIC CAPACITOR CGCYX103M25 C808 ELECT. CAPACITOR CEAT101M10 C809 ELECT. CAPACITOR CEAT222M16 C810 CERAMIC CAPACITOR CGCYX103M25 C811 ELECT. CAPACITOR CEAT101M10 OTHERS CN801 22P CONNECTOR 52045-2245 CN802 19P PLUG KM200TA19 CN803 5P PLUG KM200TA5 TRANS1 ASSY TRANS1 ASSY has no service part. VIDEO&6CH IN ASSY SEMICONDUCTORS IC301 VIDEO SW IC NJM2296M IC302 IC NJM4558MD IC303 IC NJM4558MD Q301 TRANSISTOR 2SC3377 Q302 TRANSISTOR 2SA1515 D E F G H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 VSX-D409, VSX-D309 Mark No. Description Part No. Mark No. Description Part No. Q303 TRANSISTOR 2SC2878 D301 DIODE 1SS355 D302 DIODE 1SS355 D303 CHIP ZENER DIODE UDZS6.2B D304 CHIP ZENER DIODE UDZS6.2B D305 DIODE 1SS355 D306 DIODE 1SS355 CAPACITORS C302 CERAMIC CAPACITOR CKSQYB103K50 C304 CERAMIC CAPACITOR CKSQYB221K50 C305 CERAMIC CAPACITOR CKSQYB221K50 C306 CERAMIC CAPACITOR CKSQYB221K50 C307 ELECT. CAPACITOR CEAT470M25 C308 ELECT. CAPACITOR CEAT470M25 C309 ELECT. CAPACITOR CEAT470M25 C310 ELECT. CAPACITOR CEAT470M25 C311 CERAMIC CAPACITOR CKSQYB473K50 C312 ELECT. CAPACITOR CEAT470M25 C313 CERAMIC CAPACITOR CKSQYB473K50 C314 ELECT. CAPACITOR CEAT470M25 C315 CERAMIC CAPACITOR CKSQYB103K50 C316 CERAMIC CAPACITOR CKSQYB103K50 C317 CERAMIC CAPACITOR CKSQYB221K50 C318 CERAMIC CAPACITOR CKSQYB221K50 C319 CHIP CAPACITOR CCSQCH101J50 C320 CHIP CAPACITOR CCSQCH101J50 C321 ELECT. CAPACITOR CEAT4R7M50 C322 CERAMIC CAPACITOR CKSQYB103K50 C323 CERAMIC CAPACITOR CKSQYB103K50 C324 ELECT. CAPACITOR CEAT4R7M50 C325 CERAMIC CAPACITOR CKSQYB221K50 C326 CERAMIC CAPACITOR CKSQYB221K50 C327 CHIP CAPACITOR CCSQCH101J50 C328 CHIP CAPACITOR CCSQCH101J50 C329 CERAMIC CAPACITOR CKSQYB103K50 C330 CERAMIC CAPACITOR CKSQYB103K50 C331 ELECT. CAPACITOR CEAT4R7M50 C332 ELECT. CAPACITOR CEAT4R7M50 C333 CERAMIC CAPACITOR CKSQYB331K50 C338 ELECT. CAPACITOR CEAT470M25 C342 CHIP CAPACITOR CCSQCH101J50 C343 CHIP CAPACITOR CCSQCH101J50 C344 CHIP CAPACITOR CCSQCH101J50 C345 CHIP CAPACITOR CCSQCH101J50 C346 CERAMIC CAPACITOR CKSQYB104K16 C347 CHIP CAPACITOR CCSQCH470J50 RESISTORS R343 METAL OXIDE RESISTOR RS1LMF820J R344 METAL OXIDE RESISTOR RS1LMF820J Other Resistors RS1/10S&&&J OTHERS CN302 5P SOCKET KP200TA5L CN303 13P CONNECTOR 52044-1345 CN305 6P PIN JACK AKB7123 CN307 PIN JACK(4P) AKB7087 JA301 JACK RKN1004 H.P. ASSY SEMICONDUCTORS Q551 TRANSISTOR 2SC2878 Q552 TRANSISTOR 2SC2878 CAPACITORS C551 CERAMIC CAPACITOR CKSQYB104K16 C552 CERAMIC CAPACITOR CKSQYB103K50 C553 CHIP CERAMIC C. CCSQCH471J50 C555 CHIP CAPACITOR CKSQYB223K50 C556 CHIP CAPACITOR CKSQYB223K50 RESISTORS R551 METAL OXIDE RESISTOR RS1/2LMF121J R552 METAL OXIDE RESISTOR RS1/2LMF121J Other Resistors RS1/10S&&&J OTHERS 551 CABLE HOLDER(4P) 51063-0405 JA551 JACK RKN1002 DIGITAL IN ASSY SEMICONDUCTORS IC1901 LOGIC IC TC74ACT151F IC1902 LOGIC IC TC74HCU04AF COILS AND FILTERS F1901 CHIP BEAD DTF1067 F1902 CHIP BEAD DTF1067 F1903 CHIP BEAD DTF1067 F1904 CHIP BEAD DTF1067 CAPACITORS C1901 CERAMIC CAPACITOR CKSQYB104K25 C1902 CERAMIC CAPACITOR CKSQYB104K25 C1904 ELECT. CAPACITOR CEAT101M10 C1905 ELECT. CAPACITOR CEAT101M10 C1906 CERAMIC CAPACITOR CKSQYB103K50 C1907 CHIP CERAMIC C. CCSQCH271J50 C1908 CERAMIC CAPACITOR CKSQYB104K25 C1909 CERAMIC CAPACITOR CKSQYB104K25 C1910 CERAMIC CAPACITOR CKSQYB103K50 C1911 CERAMIC CAPACITOR CCSQCH560J50 C1912 ELECT. CAPACITOR CEAT101M10 C1913 CERAMIC CAPACITOR CKSQYB103K50 C1914 CHIP CERAMIC C. CCSQCH271J50 C1915 CHIP CAPACITOR CKSQYB102K50 C1916 CHIP CERAMIC C. CCSQCH471J50 C1917 CHIP CERAMIC C. CCSQCH220J50 C1918 CHIP CERAMIC C. CCSQCH221J50 C1919 CERAMIC CAPACITOR CKSQYB103K50 C1920 CERAMIC CAPACITOR CKSQYB103K50 C1921 CERAMIC CAPACITOR CKSQYB104K25 C1922 CERAMIC CAPACITOR CKSQYB103K50 RESISTORS All Resistors RS1/10S&&&J OTHERS CN1901 CONNECTOR 6P 52045-0645 JA1901 JACK VKB1077 JA1902 OPTICAL RECEIV MOD. GP1F32R JA1903 OPTICAL RECEIV MOD. GP1F32R I J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 VSX-D409, VSX-D309 Mark No. Description Part No. Mark No. Description Part No. FRONT ASSY SEMICONDUCTORS IC401 CONTROL MCU PDG247A Q401 TRANSISTOR KRA103M Q402 TRANSISTOR KRA103M Q403 TRANSISTOR KRC101M Q405 TRANSISTOR 2SA933S Q441 TRANSISTOR KRC101M Q442 TRANSISTOR KRA103M Q471 TRANSISTOR KRA103M D401 CHIP DIODE ARRAY DAP202K D403 DIODE DAN217 D404 CHIP DIODE ARRAY DAP202K D405 DIODE DAN217 D407 DIODE 1SS355 D408 DIODE 1SS355 D442 DIODE 1SS355 COILS AND FILTERS L401 RADIAL INDUCTOR LFEA2R2J SWITCHES AND RELAYS S451 SWITCH XSG3001 S452 SWITCH XSG3001 S453 SWITCH XSG3001 S454 SWITCH XSG3001 S455 SWITCH XSG3001 S456 SWITCH XSG3001 S457 SWITCH XSG3001 S458 SWITCH XSG3001 S459 SWITCH XSG3001 S460 SWITCH XSG3001 S461 SWITCH XSG3001 S462 SWITCH XSG3001 S463 SWITCH XSG3001 S464 SWITCH XSG3001 S465 SWITCH XSG3001 S466 SWITCH XSG3001 S467 SWITCH XSG3001 S469 SWITCH XSG3001 S470 SWITCH XSG3001 S471 SWITCH XSG3001 S472 SWITCH XSG3001 S473 SWITCH XSG3001 S474 SWITCH XSG3001 S475 SWITCH XSG3001 S476 SWITCH XSG3001 CAPACITORS C401 CERAMIC CAPACITOR CKSQYB103K50 C402 ELECT. CAPACITOR CEAT221M6R3 C403 CERAMIC CAPACITOR CKSQYB103K50 C404 EDL CAPACITOR ACH7017 (0.047F/5.5V) C405 ELECT. CAPACITOR CEAT221M6R3 C406 CERAMIC CAPACITOR CKSQYB473K16 C407 CERAMIC CAPACITOR CKSQYB473K16 C408 CERAMIC CAPACITOR CKSQYB104K16 C409 ELECT. CAPACITOR CEAT2R2M50 C410 ELECT. CAPACITOR CEAT2R2M50 C411 CERAMIC CAPACITOR CKSQYB103K50 C412 ELECT. CAPACITOR CEAT470M50 C416 CERAMIC CAPACITOR CKSQYB104K16 C418 CERAMIC CAPACITOR CKSQYB104K16 C420 ELECTROLYTIC CAPACIT ACH7101 (220µF/35V) C441 CERAMIC CAPACITOR CKSQYB103K50 C442 ELECT. CAPACITOR CEJA470M10 C451 CHIP CAPACITOR CKSQYB102K50 C452 CHIP CAPACITOR CKSQYB102K50 C453 CHIP CAPACITOR CKSQYB102K50 C454 CHIP CAPACITOR CKSQYB102K50 C491 CERAMIC CAPACITOR CKSQYB104K16 C492 CERAMIC CAPACITOR CKSQYB104K16 C493 CERAMIC CAPACITOR CKSQYB104K16 C494 CERAMIC CAPACITOR CKSQYB104K16 C495 CHIP CAPACITOR CKSQYB102K50 C531 CERAMIC CAPACITOR CKSQYB103K50 C532 CERAMIC CAPACITOR CKSQYB223K25 RESISTORS All Resistors RS1/10S&&&J OTHERS 401 REMOTE RECEIVER UNIT GP1U27X 403 CABLE HOLDER(4P) 51063-0405 471 CABLE HOLDER(4P) 51063-0405 491 CABLE HOLDER(3P) 51063-0305 CN401 19P CONNECTOR 52044-1945 CN402 32P CONNECTOR 52044-3245 V401 FL TUBE AAV7072 X401 CERAMIC RESONATOR ASS7018 (7.2MHz) R.ENCODER ASSY SWITCHES AND RELAYS S511 ROTARY ENCODER ASX7004 OTHERS 511 CABLE HOLDER(3P) 51063-0305 POWER SW ASSY SEMICONDUCTORS D501 LED BR3371XJ30A SWITCHES AND RELAYS S501 SWITCH XSG3001 RESISTORS R501 CHIP RESISTOR RS1/10S271J OTHERS 501 CABLE HOLDER(4P) 51063-0405 6. ADJUSTMENT There is no information to be shown in this chapter. M L K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 VSX-D409, VSX-D309 2 ×2 Remove the Bonnet (seven screws). 1 Rear Panel Pull up 2 2 4 Diagnosis AMP&PRIMARY Assy REGULATOR Assy Heat Sink 5 ×2 2 ×3 2 ×5 3 ×3 ×2 2 ×3 7.1 DISASSEMBLY 7. GENERAL INFORMATION Diagnosis PCB Location AMP&PRIMARY Assy FRONT Assy AMP INPUT Assy D.D & INPUT Assy VIDEO&6CH IN Assy FM/AM TUNER Unit REGULATOR Assy DIGITAL IN Assy H.P. Assy TRANS 3 Assy TRANS 2 Assy TRANS 1 Assy A B H F K J I E G D C Note : This photograph shows other models. However, the work method is the same. POWER SW Assy M R. ENCODER Assy L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 VSX-D409, VSX-D309 PDG247A (FRONT ASSY : IC401) • System Control MCU • Pin Arrangement (Top View) • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. 7.2 PARTS 7.2.1 IC 1 G2 G1 NC ACIN RDS_DT RDS_CK OVFB RMC MRIN PLL_CE CDC_CS CDC_CK CDC_DO CDC_DI STEREO TUNED ENC_A ENC_B A.MUTE CSB DSP_CS DSP_CK DSP_SI DSP_SO VER_2 ST_EVR PLL_DO KEYIN1 KEYIN2 G1/A1 G0/A0 NC PE0/EC0/INT0 PE1/EC1/INT1 PE2/INT2 PE3/INT3/NMI PE4/RMC PE5 PE6/PWM PE7/TO/ADJ PC0/KR0 PC1/KR1 PC2/KR2 PC3/KR3 PC4/KR4 PC5/KR5 PC6/KR6 PC7/KR7 PB0/CINT PB1/CS0 PB2/SCK0 PB3/SI0 PB4/SO0 PB5/SCK1 PB6/SI1 PB7/SO1 AVREF PA1/AN0 PA1/AN1 KEYIN3 KEYIN4 VERSION AMP_DC AMP_OL MVRATT VIDEO1 VIDEO2 VIDEO3 SYS_CK SYS_DT PA2/AN2 PA3/AN3 PA4/AN4 PA5/AN5 PA6/AN6 PA7/AN7 AVSS RST EXTAL XTAL VSS TX TEX VDD VFIP PD0/A55 PD1/A54 PD2/A53 PD3/A52 PD4/A51 A21 A22 A23 PH7/A24 PH6/A25 PH5/A26 PH4/A27 PH3/A28 PH2/A29 PH1/A30 PH0/A31 PG7/A32 PG6/A33 PG5/A34 PG4/A35 PG3/A36 PG2/A37 PG1/A38 PG0/A39 PF7/A40 PF6/A41 PF5/A42 PF4/A43 PF3/A44 PF2/A45 PF1/A46 PF0/A47 PD7/A48 PD6/A49 PD5/A50 S11 S12 S13 S14 S15 S16 S17 S18 S19 S20 S21 S22 RY_B RY_C/R RY_A RY_AC GAIN NECK DSP_RST 9164_CS T_MUTE T_POWON FM+(RDS) CDC_RST DSP_MT 9273_CS D_MUTE G2/A2 G3/A3 G4/A4 G5/A5 G6/A6 G7/A7 G8/A8 G9/A9 G10/A10 G11/A11 G12/A12 VDD G13/A13 G14/A14 G15/A15 A16 A17 A18 A19 A20 G3 G4 G5 G6 G7 G8 G9 G10 S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 21 22 23 24 25 26 27 28 29 30 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 VSX-D409, VSX-D309 No. Pin Name I/O Pin Function Active 1 G2 O Grid output 2 H 2 G1 O Grid output 1 H 3 NC − Connect to VDD 4 ACIN I AC pulse input 5 RDS_DT I Serial control DATA signal of RDS communication 6 RDS_CK I Serial control CLOCK signal of RDS communication 7 DIRLOCK I ERR/OVER input from CODEC 8 RMC I Remote control signal input (no-carrier signal) 9 MRIN I MULTI-ROOM input 10 PLL_CE O Chip select signal for communication with LC72131 (tuner) H 11 CDC_CS O CODEC chip serect 12 CDC_CK O CODEC, TC9164 control clock 13 CDC_DO O CODEC, TC9164 control data output 14 CDC_DI I Data input from CODEC 15 STEREO I Stereo/Monoral signal judgment signal 16 TUNED I TUNED information 17 ENC_A I Rotary encoder signal input A 18 ENC_B I Rotary encoder signal input B 19 AMUTE O Audio mute L 20 CSB O Chip select for control of YSS912 sub DSP L 21 DSP_CS O Chip select for control of YSS912 main DSP L 22 DSP_CK O Clock signal for communication with YSS912 H 23 DSP_SI I DATA input for communication with YSS912 24 DSP_SO O DATA output signal for communication with YSS912 H 25 VER_2 I Destination switch 2 26 ST_EVR O Strobe signal for communication with electric volume IC H 27 PLL_DO I Data input signal for communication with LC72131 (tuner) 28 AVref − Connect to VDD 29 KEYIN1 I Key input A/D conversion port 1 30 KEYIN2 I Key input A/D conversion port 2 31 KEYIN3 I Key input A/D conversion port 3 32 KEYIN4 I Key input A/D conversion port 4 33 VER 1 I Destination switch (A/D input) 34 AMP_DC I DC abnormality detection of protection circuit (L : Abnormality detection) L 35 AMP_OL I Over-load detection of protection circuit (L : Abnormality detection) L 36 MVRATT O ATT control of master volume (L : Less than -15dB) H 37 AVSS − Connect to VSS 38 RST − Reset 39 EXTAL − Connect to the oscillator (7.2MHz) 40 XTAL − 41 VSS − Connect to VSS 42 TX − Open 43 TEX − Connect to VSS 44 VDD − +5V 45 VFDP − -30V 46 VIDEO1 O NJM2296D control H 47 VIDEO2 48 VIDEO3 49 SYS_DT O Data signal for communication with M62446, TC9163, TC9164 and PLL H O Clock signal for communication with M62446, TC9163, TC9164 and PLL H 50 SYS_CK • Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 VSX-D409, VSX-D309 No. Pin Name I/O Pin Function Active 51 D_MUTE O TC9273 Chip select O Digital mute (Not used) O DSP mute (ASSY mute) H H H 52 9273_CS 53 DSP_MT 54 CDC_RST O CODEC reset H 55 FM+(RDS) O Tr switch ON/OFF for power supply of RDS decoder (L : AM, power OFF , H : Other) H 56 O Not used 57 T_POWON O Tuner module ON/OFF (North America model only) H 58 T_MUTE O Tuner mute H 59 9164 CS O TC9163, TC9164 Chip select H 60 DSP_RST O YSS912 reset 61 NECK_SEL O 5.1ch, surround mode and A+B Stereo : H / Stereo : L H/L 62 GAIN_SEL O Gain select (5.1ch and Stereo of analog input : H ) H 63 O Not used H 64 RY_AC O AC relay ON/OFF H 65 RY_A O Speaker A relay ON/OFF H 66 RY_C/R O Rear/Center Speaker relay ON/OFF H 67 O Not used H 68 O Not used H 69 S22 O Segment output 22 H 70 S21 Segment output 21 71 S20 Segment output 20 72 S19 Segment output 19 73 S18 Segment output 18 74 S17 Segment output 17 75 S16 Segment output 16 76 S15 Segment output 15 77 S14 Segment output 14 78 S13 Segment output 13 79 S12 Segment output 12 80 S11 Segment output 11 81 S10 Segment output 10 82 S9 Segment output 9 H 83 S8 Segment output 8 84 S7 Segment output 7 85 S6 Segment output 6 86 S5 Segment output 5 87 S4 Segment output 4 88 S3 Segment output 3 89 VDD − 5V 90 S2 O O Segment output 2 H 91 S1 Segment output 1 92 Not used (Fixed Vfdp) 93 G10 Grid output 10 94 G9 Grid output 9 95 G8 Grid output 8 96 G7 Grid output 7 97 G6 Grid output 6 98 G5 Grid output 5 99 G4 Grid output 4 100 G3 Grid output 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 VSX-D409, VSX-D309 OUT4 OUT3 OUT2 OUT1 AVDD SWin GNDS SRin 1 2 3 4 5 6 7 8 SLin GNDC Cin GNDR Rin GNDL Lin BYPASSR 9 10 11 12 13 14 15 16 BYPASSR LTRE LBASS3 LBASS2 LBASS1 17 18 19 20 21 MCU I/F DVDD CLK DATA LATCH DGND AGND SWout Volume 17-24kΩ SRout 42 41 40 39 38 37 36 35 SLout Cout Rout Lout AVSS CL1 CL2 CR1 34 33 32 31 30 29 28 27 CR2 RTRE RBASS3 RBASS2 RBASS1 26 25 24 23 22 Volume 17-24kΩ Volume 17-24kΩ Volume 17-24kΩ Volume 17-24kΩ 70kΩ 70kΩ Volume 17-24kΩ S T 70kΩ 70kΩ 70kΩ 12kΩ 12kΩ 300kΩ 1.5kΩ S T 70kΩ 12kΩ 12kΩ 300kΩ 1.5kΩ M62446FP (D.D & INPUT ASSY : IC103) • Sound Controller IC (Volume and Tone Control) • Pin Function • Block Diagram No. Pin Name Function 1 OUT4 2 OUT3 Output port (open drain of PchTr) 3 OUT2 4 OUT1 5 AVDD Analog positive power supply port 7 GNDS 10 GNDC GND (connect to analog ground) 12 GNDR 14 GNDL 6 SWin 8 SRin Volume input 9 SLin 11 Cin 36 SWout 35 SRout Volume output 34 SLout 33 Cout 13 Rin TONE input 15 Lin 16 BYPASSR L and R Volume input at bypass 17 BYPASSL 31 Lout L output 32 Rout R output No. Pin Name Function 18 LTRE TONE TREBLE frequency control port 25 RTRE 19 LBASS3 24 RBASS3 20 LBASS2 TONE BASS frequency control port 23 RBASS2 21 LBASS1 22 RBASS1 26 CR2 TONE output port 28 CL2 27 CR1 L and R volume input 29 CL1 31 Lout L output 32 Rout R output 30 AVSS Analog negative power supply port 37 AGND Analog ground port 38 DGND Digital ground port 39 LATCH Latch input port 40 DATA Data input port 41 CLK Clock input port for data transmission 42 DVDD Digital power supply port www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 VSX-D409, VSX-D309 W24257AJ-12 (D.D & INPUT ASSY : IC1301) • 32K × 8 High-Speed CMOS Static RAM • Block Diagram • Pin Function VDD DSS A0 A14 28 14 10 1 20 22 27 I/O8 19 I/O1 11 CS OE WE DECORER DATA I/O CORE ARRAY CONTROL No. Pin Name Function 1 A14 2 A12 3 A7 4 A6 5 A5 6 A4 7 A3 8 A2 Addres Inputs 9 A1 10 A0 21 A10 23 A11 24 A9 25 A8 26 A13 11 I/O1 12 I/O2 13 I/O3 15 I/O4 Data Inputs/Outputs 16 I/O5 17 I/O6 18 I/O7 19 I/O8 14 Vss Ground 20 CS Chip Select Input 22 OE Output Enable Input 27 WE Write Enable Input 28 Vdd Power Supply TC9273F-007 (D.D & INPUT ASSY : IC101) • Analog Switch Array • Block Diagram • Pin Function VDD DSS S1 28 1 CK GND 14 13 STB DATA 16 15 2 S2 3 S3 4 S4 5 S5 6 S6 7 S7 8 S8 9 S9 10 Level Shift + Shift Register Circuit (L-ch) 10 bit Latch Circuit (R-ch) 10 bit Latch Circuit S10 11 S11 S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 12 27 26 25 24 23 22 21 20 19 18 17 No. Pin Name Function 1 VSS Minus Power Supply 2, 27 S1 3, 26 S2 4, 25 S3 5, 24 S4 6, 23 S5 7, 22 S6 Input and Output 8, 21 S7 9, 20 S8 10, 19 S9 21, 18 S10 26, 17 S11 13 GND Digital Ground 14 CK Clock Input 15 DATA Data Input 16 STB Strobe Input 28 VDD Plus Power Supply www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 VSX-D409, VSX-D309 AAV7072 (FRONT ASSY : V401) • FL DISPLAY 7.2.2 DISPLAY • Pin Assignment • Pin Connection • Grid Assignment www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 VSX-D409, VSX-D309 • Anode Connection www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 VSX-D409, VSX-D309 PHONES MPX MODE @ @ MIDNIGHT 2/DTS SIGNAL SELECT 1 R N∫m-Û≤?/���� Digital Signal Processor ! @ & ^ ~ % # $ 1 2 3 4 5 6 7 8 9 0 - = 8.1 PANEL FACILITIES 8. PANEL FACILITIES AND SPECIFICATIONS Front Panel 1 STANDBY indicator Lights when the receiver is in standby mode (note that the receiver consumes a small amount of power (1W) in standby mode). 2 STANDBY/ON button Switches the receiver between on and standby.(note that the receiver consumes a small amount of power (1W) in standby mode). 3 STATION (+/–), FREQUENCY (+/–), TUNING SELECT buttons STATION (+/–) Selects station memories when using the tuner. FREQUENCY (+/–) Selects the frequency when using the tuner. TUNING SELECT Switches between station memory and frequency select modes. 4 CLASS button Switches between the three banks (classes) of station memories. 5 MEMORY button Press to memorize a station for recall using the STATION (+/–) buttons. 6 MPX button lf the TUNED or STEREO indicators don't light when tuning to an FM station because the signal is weak, press the MPX button to switch the receiver into mono reception mode. This should improve the sound quality and allow you to enjoy the broadcast. 7 Display 8� Remote sensor Receives the signals from the remote control. 9 DSP MODE button Use to switch between the various DSP modes available (HALL1, HALL 2, JAZZ, DANCE, THEATER1, THEATER 2) and DSP off. Use to create different surround sound effects from any stereo source. 0 2 /DTS button Use to switch between the various Dolby/DTS surround modes. - SIGNAL SELECT button Use to select between an analog or digital signal. = MASTER VOLUME Use to set the overall listening volume. ~ PHONES jack Use to connect headphones but this does not switch the speakers off. !� SPEAKER button Use to switch the speaker system on or off. @� DIRECT button Use to switch DIRECT playback on or off. This mode bypasses the tone controls and channel levels for the most accurate reproduction of a program source. # BASS (+/–) buttons Use to increase/decrease bass (within a range of -6dB to 6dB in 2dB steps). $ TREBLE (+/–) buttons Use to increase/decrease treble (within a range of -6dB to 6dB in 2dB steps). %� Function buttons Use to select a source for playback or recording. ^ MIDNIGHT button Use when listening to movie soundtracks at low volume. This feature will enable you to hear quiet sounds and not get jolted by loud or sudden sound effects. & FL DIMMER button (VSX-D309) Use this button to make the fluorescent display (FL) dimmer or brighter. There are three brightness settings as well as an off setting. MONITOR button (VSX-D409) Press to switch tape monitoring on/off. The illustration shows VSX-D309. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 VSX-D409, VSX-D309 Display 1 DTS indicator Lights when DTS mode is being used. 2 2 PRO LOGIC indicator When the 2 Surround/DTS mode of the receiver is on, this lights to indicate playback of a two channel source. 3 DSP indicator Lights when any Advanced Theater or DSP mode is selected. 4 MIDNIGHT indicator Lights when MIDNIGHT listening mode is in use. 5 DIRECT indicator Lights when source DIRECT is in use. This function bypasses all tone, balance, DSP and Dolby Surround effects. 6� MONITOR indicator Lights when MONITOR is selected to hear a recording as it's being made. 7 TUNER indicators MONO: Lights when the mono mode is set using the MPX MODE button. TUNED: Lights when a broadcast is being received. STEREO: Lights when a stereo FM broadcast is being received in auto stereo mode. 8 SIGNAL SELECT indicators Light to indicate the type of input signal assigned for the current component (see “Front Panel“, -, SIGNAL SELECT). ANALOG : Lights when an analog signal is selected. DIGITAL : Lights when a digital audio signal is selected. 2 DIGITAL : Lights when a DOLBY DIGITAL signal is played. DTS: Lights when a source with DTS audio signals is played. 9 2 DIGITAL indicator When the 2 Surround/DTS mode of the receiver is on, this lights to indicate playback of a Dolby Digital signal. 0 CHARACTER display Shows the radio frequency or function (DVD/LD, CD, etc.) receiver is using . - OVERLOAD indicator This lights when an analog signal is too strong (the SIGNAL SELECT needs to be on ANALOG). It indicates the sound is distorting and the signal should be reduced. = ATT indicator Lights when ATT is used to attenuate (reduce) the level of the input signal (can only be used in ANALOG mode). ~ LOUDNESS indicator Lights when the LOUDNESS, used to boost the bass and treble in quiet listening, is on. ! SPEAKER indicator Shows if the speaker system is on or not. SP 3A means speakers are switched on. SP 3� means speakers are switched off. @� MASTER VOLUME LEVEL Shows the overall volume level. Volume level is maintained even when the power is off. ---dB indicates the minimum level, and 0dB indicates the maximum level. • Depending on the level settings you make for individual channels, the MAX level can range between –10dB and 0dB. dB PRO LOGIC DIGITAL DSP ATT SIGNAL SELECT MIDNIGHT LOUDNESS DIRECT S.BASS MONITOR EON RDS RF ATT TUNED MONO ANALOG DIGITAL DIGITAL DTS SP AB STEREO 2 3 1 � 6 5 7 8 9 0 - = ~ ! @ 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 VSX-D409, VSX-D309 1 MULTI CONTROL buttons Use to put the receiver/remote control in the stated mode. For other equipment controls, see Controlling the Rest of Your System. 2 RECEIVER button Use this button when setting up the surround sound for the receiver. 3 NUMBER/MODE buttons Use the number buttons to select the radio frequency in tuner DIRECT ACCESS mode or the tracks in CD, DVD mode etc. Also, buttons marked with the following names have special functions. If you try to use one of these functions but he display flashes it means that function cannot be used int he current mode (for example DSP modes cannot be used when 5.1 CH setting is on). 2 Use to put receiver in DOLBY DIGITAL and DTS modes. To use first press the RECEIVER button then operate this button. DSP mode Use to put receiver in one of the DSP modes. To use first press the RECEIVER button then operate this button. MIDNIGHT Use to put receiver in MIDNIGHT mode. To use first press the RECEIVER button then operate this button. 5.1 CH When the DVD/LD or DVD 5.1 CH function is selected each press switches the DVD/LD input between DVD/LD and DVD 5.1 CH. To use first press the RECEIVER button then operate this button. CHANNEL SELECT Use to slect a speaker when setting up the surround sound of the receiver. To use first press the RECEIVER button then operate this button. TEST TONE Use to sound the TEST TONE when setting up the surround sound of the receiver. To use first press the RECEIVER button then operate this button. ATT Use to attenunate (lower) the level of an analog input signal and prevent distortion. To use first press the RECEIVER button then operate this button. CHANNEL LEVEL +/– Use to set up the levels of the surround sound of the receiver. To use first press the RECEIVER button then operate this button. SIGNAL SELECT Use to select the proper signal (analog, digital) for the source your are inputting. To use first press the RECEIVER button then operate this button. Remote Control MULTI CONTROL DVD/LD TV/SAT VCR/DVR CD SOURCE CLASS MPX BAND LOUDNESS FUNCTION MUTING RECEIVER D.ACCESS CHANNEL ATT VOL MENU TOP MENU VOL CH 2 DSP MODE MIDNIGHT 5.1CH CD-R/ TAPE/MD CHANNEL SELECT CHANNEL LEVEL EFFECT ENTER ENTER FQ FQ ST ST FL DIMMER REMOTE SETUP MASTER VOLUME AUDIO/VIDEO PRE-PROGRAMMED REMOTE CONTROL UNIT TV CONTROL FUNC 10 DISC SIGNAL SELECT TEST TONE RECEIVER TUNER TV CONT Î� 1 2 3 4 1� ¡� 4� ¢� 7� 8� 3 5 6 7 8 9 0 ‡ 2 6 8 5 1 3 0 9 - = ! @ ~ # % $ ^ 7 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 VSX-D409, VSX-D309 4 THE FOLLOWING FOUR SETS OF BUTTONS ARE DEDICATED TV CONTROL. THEY ARE ONLY USED FOR CONTROLLING YOUR TV. FUNC button Use select the TV function. TV POWER button Use to turn on the power of the TV. �� TV CHANNEL +/– buttons Use to change channels on your TV. TV VOLUME +/– buttons Use to adjust the volume on your TV. 5 MENU button Use to access different menus associated with your DVD player. 6� SOURCE button Use to turn on/off other components coneccted to the receiver. 7 THE FOLLOWING BUTTONS ARE BOTH CONTROLS FOR OTHER COMPONENTS (LIKE A DVD PLAYER) AND DEDICATED TUNER CONTROLS. THE TUNER CONTROLS ARE EXPLAINED HERE. YOU CAN USE THEM AFTER YOU HAVE PUSHED THE TUNER MULTI CONTROL BUTTON. CLASS button Use to switch between the three banks (classes) of station memories. MPX MODE� button Use to switch between auto stereo and mono reception of FM broadcasts. If the signal is weak then switching to MONO will improve the sound quality. Also, this is the pause button for CDs, tapes, DVDs, etc. BAND button Use to switch between the AM and FM band when in TUNER mode. D. ACCESS button Use to directly access a radio station by pressing the number of the station you want. 8 LOUDNESS button Use to switch on the loudness. This feature is useful for getting good bass and treble sounds listening at low volumes. 9� FUNCTION button Use select the playback or recording source. This button lets you cycle through the different functions of the receiver in the following order: CD, tuner, CDR/TAPE, VCDR/DVR, DVD/LD, DVD 5.1 CH., and TV/SAT. etc. 0 RECEIVER (POWER) button This switches between STANDBY mode and power ON for this receiver. - FL DIMMER button Use this button to make the fluorescent display (FL) dimmer or brighter. There are three brightness settings as well as an off setting. = LED DISPLAY This display flashes when a command is sent from the remote control to the receiver. It also flashes at other times, for example when teaching the receiver preset codes, with specific meanings. ~ EFFECT +/– buttons Use to add or subtract the amount of effect in different DSP sound modes or advanced listening modes. ! 2�3�5∞ ( FQ +/–) & ENTER buttons Use these arrow buttons when setting up your surround sound system. These buttons are also used to control DVD menus/options and for deck 1 of a double cassette deck player. The FQ +/– buttons can be used to find radio frequencies. @ TOP MENU button In DVD mode this button brings you to the top or most fundamental menu. # CHANNEL +/– buttons Use to select the stations of memorized radio frequencies. Also use to skip tracks backward or forward on CDs, DVDs, etc. $ MUTING button Use to mute the sound or restore the sound if it has been muted. % MASTER VOLUME +/– buttons Use to set the overall listening volume. ^ REMOTE SETUP button Use this button when setting up the remote control to control other components. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 VSX-D409, VSX-D309 FM UNBAL 75Ω L R L R AM LOOP ANTENNA FM ANTENNA CD OUT CD-R /TAPE /MD IN IN IN IN IN IN IN IN OUT CONTROL SURROUND CENTER SUB WOOFER PREOUT TO MONITOR TV VCR/ DVR VIDEO TV/ SAT DVD /LD FRONT P L A Y CENTER SPEAKER SURROUND SPEAKERS FRONT SPEAKERS PCM/2/DTS DIGITAL IN COAX OPT AC OUTLET L R SUB WOOFER L R O U T R E C DVD 5.1 CH INPUT OUT PLAY REC L R OUT L R CD player Cassette deck , CD-R MD, DAT etc. Connecting Audio Components Connect your audio components as shown below. These are analog connections. When connecting equipment, always make sure the power switched off and the power cord is disconnected from the wall outlet. Cassette deck placement Depending on where the cassette deck is placed, noise caused by leakage flux from the transformer in the receiver may occur during playback. If you experience noise, move the cassette deck farther away from the receiver. Audio/Video cords Use good quality audio/video cords with RCA/phono plugs at each end to connect the audio or video components and a video cord to connect the monitor/TV. Connect red plugs to R (right), white plugs to L (left), and the yellow plugs to VIDEO. Be sure to push home the plugs into their sockets. The illustration shows VSX-D309. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 VSX-D409, VSX-D309 8.2 SPECIFICATIONS Amplifier Section Continuous average power output of 60 watts* per channel, min., at 8 ohms, from 40 Hz to 20,000 Hz with no more than 0.2 %** total harmonic distortion (front). (VSX-D309) Continuous average power output of 100 watts* per channel, min., at 8 ohms, from 20 Hz to 20,000 Hz with no more than 0.2 %** total harmonic distortion (front). (VSX-D409) * Measured pursuant to the Federal Trade Commission’s Trade Regulation rule on Power Output Claims for Amplifiers. ** Measured by Audio Spectrum Analyzer. Continuous Power Output Front .................. 60 W per channel (1kHz, 0.8 %, 8 Ω) (VSX-D309) Center ................................... 60 W (1kHz, 0.8 %, 8 Ω) (VSX-D309) Surround ........... 60 W per channel (1kHz, 0.8 %, 8 Ω) (VSX-D309) Front ................ 100 W per channel (1kHz, 0.8 %, 8 Ω) (VSX-D409) Center ................................. 100 W (1kHz, 0.8 %, 8 Ω) (VSX-D409) Surround ......... 100 W per channel (1kHz, 0.8 %, 8 Ω) (VSX-D409) Input (Sensitivity/Impedance) CD, VCR/DVR, CD-R/TAPE/MD, DVD/LD, TV/SAT .............................................................................. 200 mV/47 kΩ Frequency Response CD, VCR/DVR, CD-R/TAPE/MD, DVD/LD, TV/SAT .............................................................. 5 Hz to 100,000 Hz dB Output (Level/Impedance) VCR/DVR REC, CD-R/TAPE/MD REC ............................................................................. 200 mV/2.2 kΩ Tone Control BASS ................................................................... ± 6 dB (100 Hz) TREBLE .............................................................. ± 6 dB (10 kHz) LOUDNESS ................................ +9 dB/+9 dB (100 Hz/10 kHz) Signal-to-Noise Ratio (IHF, short circuited, A network) CD, VCR/DV-R, CD-R/TAPE/MD, DVD/LD, TV/SAT ............................................................................................ 96 dB Signal-to Noise Ratio [EIA, at 1 W (1 kHz)] CD, VCR/DV-R, CD-R/TAPE/MD, DVD/LD, TV/SAT ............................................................................................ 79 dB +0 –3 MULTI CONTROL DVD/LD TV/SAT VCR/DVR CD SOURCE CLASS MPX BAND LOUDNESS FUNCTION MUTING RECEIVER D.ACCESS CHANNEL ATT VOL MENU TOP MENU VOL CH 2 DSP MODE MIDNIGHT 5.1CH CD-R/ TAPE/MD CHANNEL SELECT CHANNEL LEVEL EFFECT ENTER ENTER FQ FQ ST ST FL DIMMER REMOTE SETUP MASTER VOLUME AUDIO/VIDEO PRE-PROGRAMMED REMOTE CONTROL UNIT TV CONTROL FUNC 10 DISC SIGNAL SELECT TEST TONE RECEIVER TUNER TV CONT Î� 1 2 3 4 1� ¡� 4� ¢� 7� 8� 3 5 6 7 8 9 0 ‡ Accessories Remote control unit (AXD7246) AM loop antenna (ATB7009) FM wire antenna (ADH7004) AA size IEC R6P batteries (x2) Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. © 1992-1997 Dolby Laboratories, Inc. All rights reserved. Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942 and other worldwide patents issues and pending. “DTS” and “DTS Digital Surround” are trademarks of Digital Theater Systems, Inc. © 1996 Digital Theater Systems, Inc. All rights reserved. Video Section Input (Sensitivity/Impedance) VCR/DVR, DVD/LD, TV/SAT ...................................... 1 Vp-p/75 Ω Output (Level/Impedance) VCR/DVR, MONITOR ............................................... 1 Vp-p/75 Ω Frequency Response VCR/DVR, MONITOR ................................. 5 Hz to 7 MHz dB Signal-to-Noise Ratio .......................................................... 55 dB Cross Talk ............................................................................ 55 dB FM Tuner Section Frequency Range .......................................... 87.5 MHz to 108 MHz Usable Sensitivity .......................Mono:13.2 dBf, IHF (1.3 µV/ 75 Ω) 50 dB Quieting Sensitivity ......................................... Mono: 20.2 dB Stereo: 38.6 dBf Signal-to-Noise Ratio ................................. Mono: 73 dB (at 85 dBf) Stereo: 70 dB (at 85 dBf) Distortion ........................................................ Stereo: 0.5 % (1 kHz) Alternate Channel Selectivity ................................. 60 dB (400 kHz) Stereo Separation ...................................................... 40 dB (1 kHz) Frequency Response ................................. 30 Hz to 15 kHz (±1) dB Antenna Input (DIN) .............................................. 75 Ω unbalanced AM Tuner Section Frequency Range ........................................... 530 kHz to 1,700 kHz Sensitivity (IHF, Loop antenna) ......................................... 350 µV/m Selectivity ................................................................................ 25 dB Signal-to-Noise Ratio .............................................................. 50 dB Antenna ...................................................................... Loop antenna Miscellaneous Power Requirements .............................................. AC 120 V, 60 Hz Power Consumption ...........................................180 W (VSX-D309) Power Consumption ...........................................250 W (VSX-D409) In Standby .................................................................................. 1 W Dimensions ................................... 420 (W) x 158 (H) x 391 (D) mm (16-9/16 (W) x 6-4/16 (H) x 15-6/16 (D) in.) Weight (without package) ....................................................... 8.4 kg (18 lb 8 oz.) Furnished Parts FM Antenna ................................................................................... 1 AM Loop Antenna .......................................................................... 1 Dry Cell Batteries size AA (IEC R6P).......................................................................... 2 Remote Control Unit ...................................................................... 1 Operating Instructions .................................................................... 1 NOTE: Specifications and the design are subject to possible modifications without notice, due to improvements. +0 –3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
