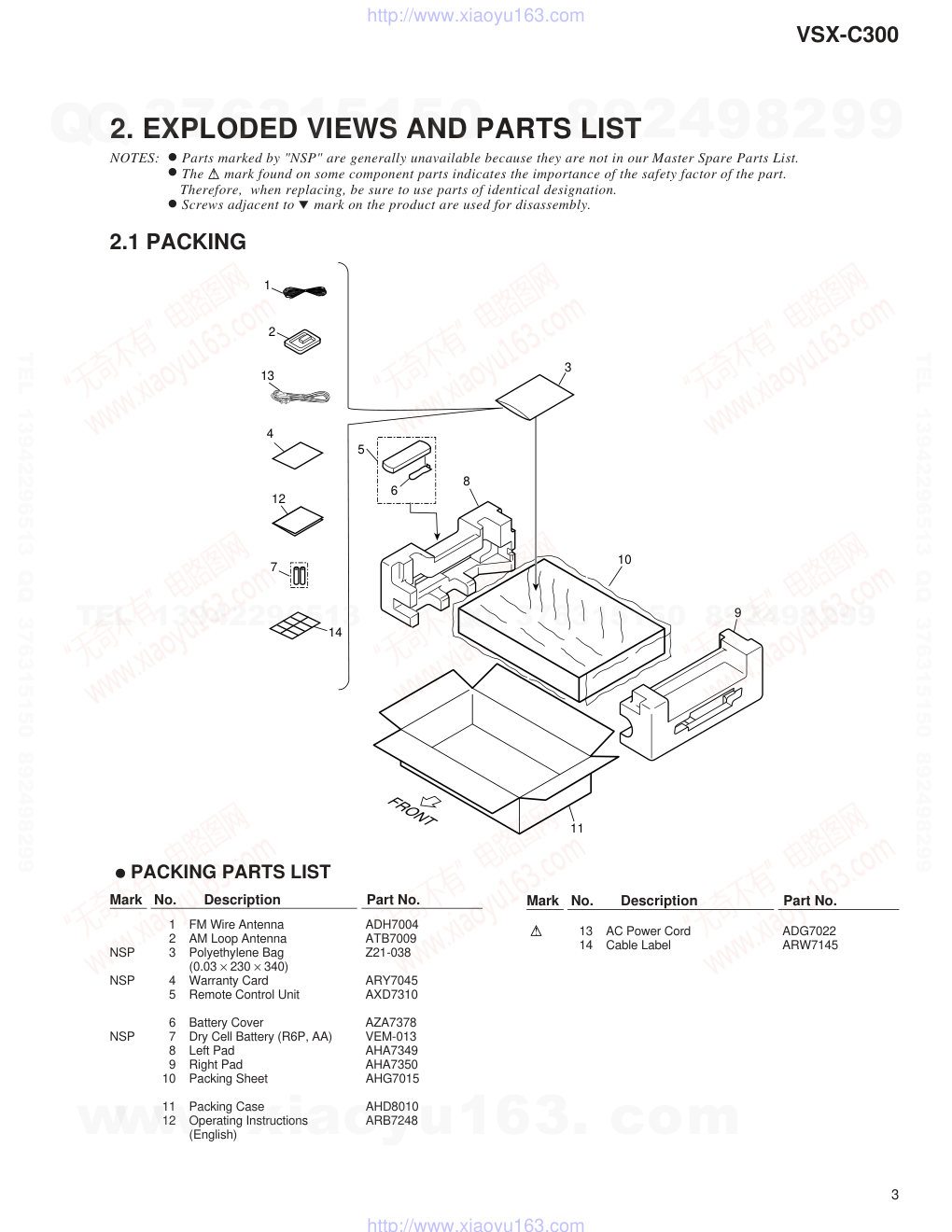

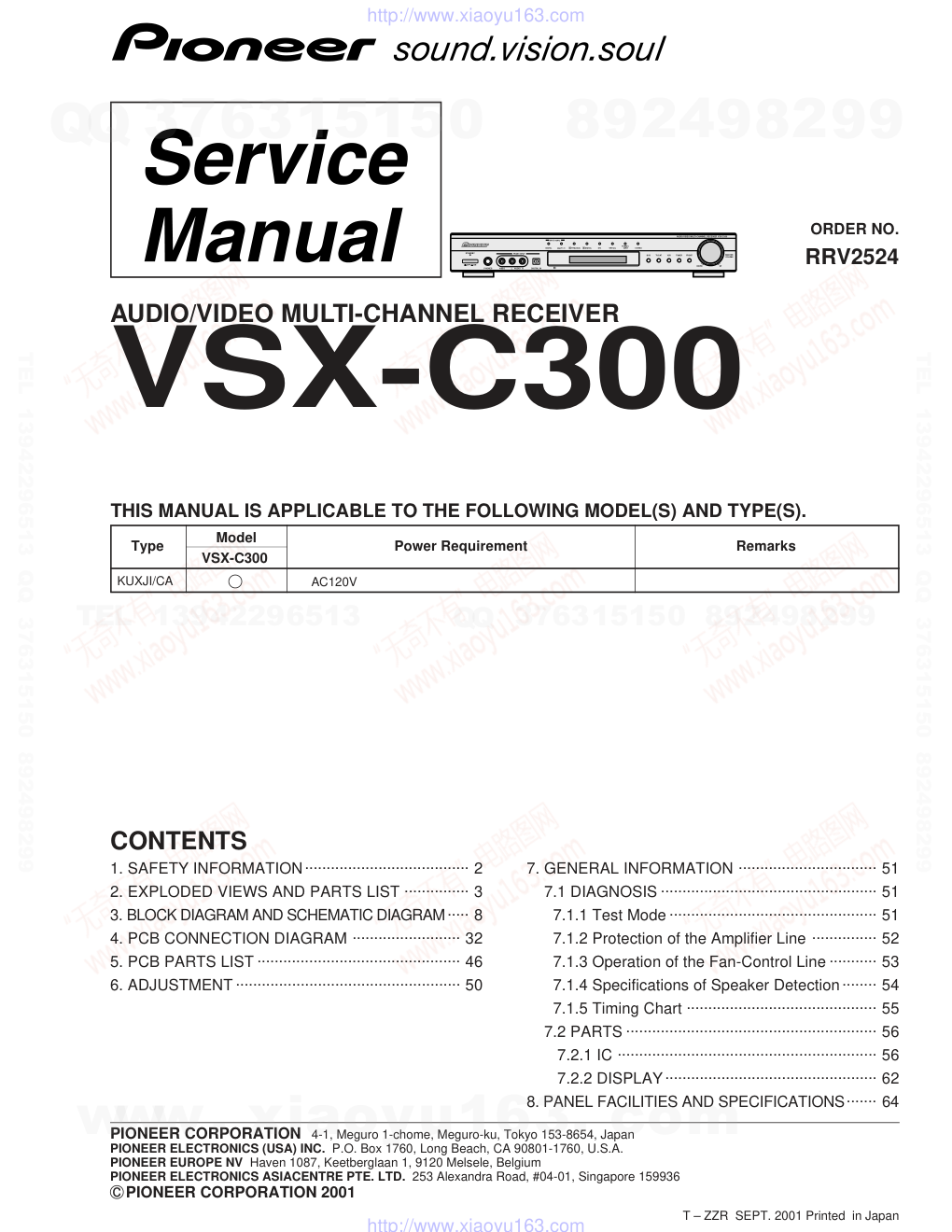

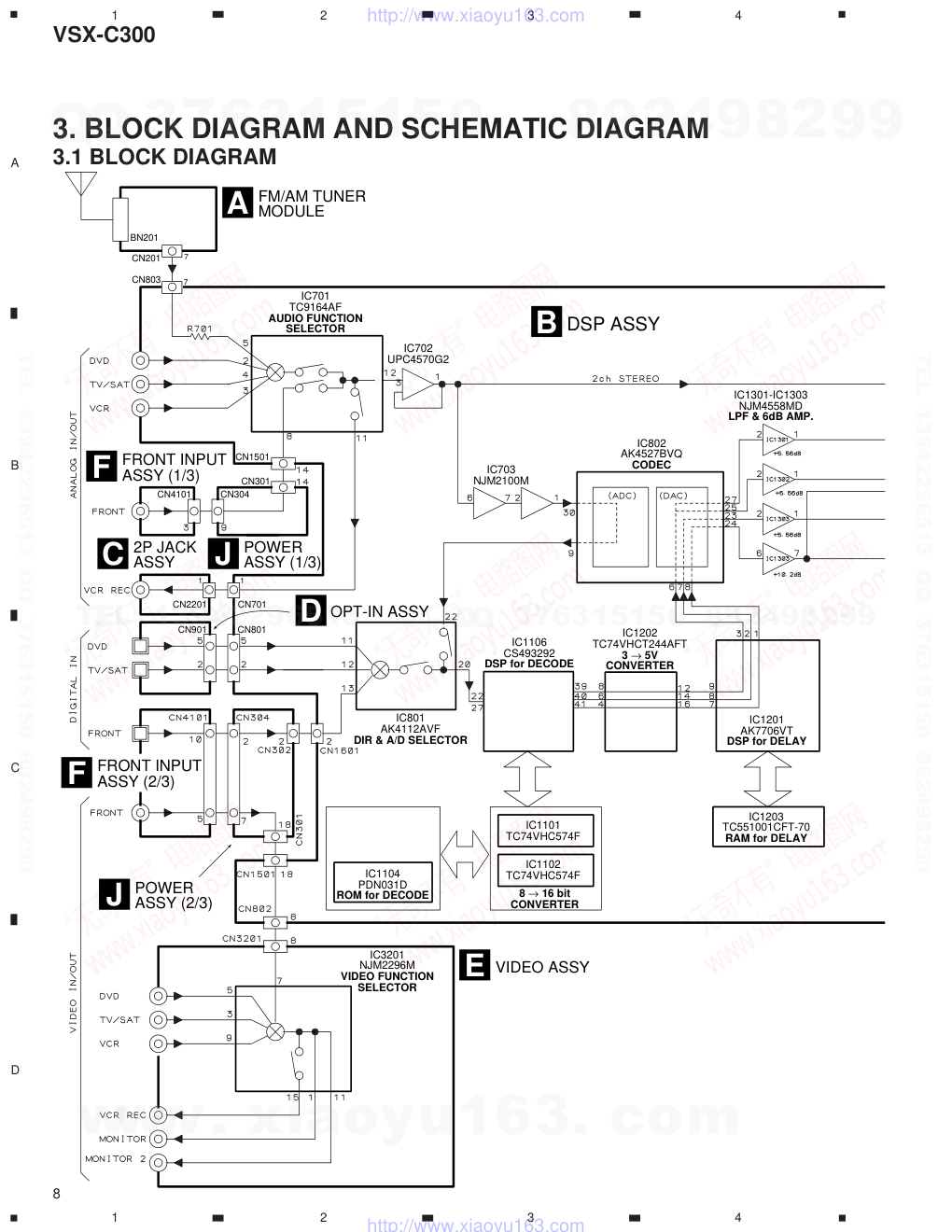

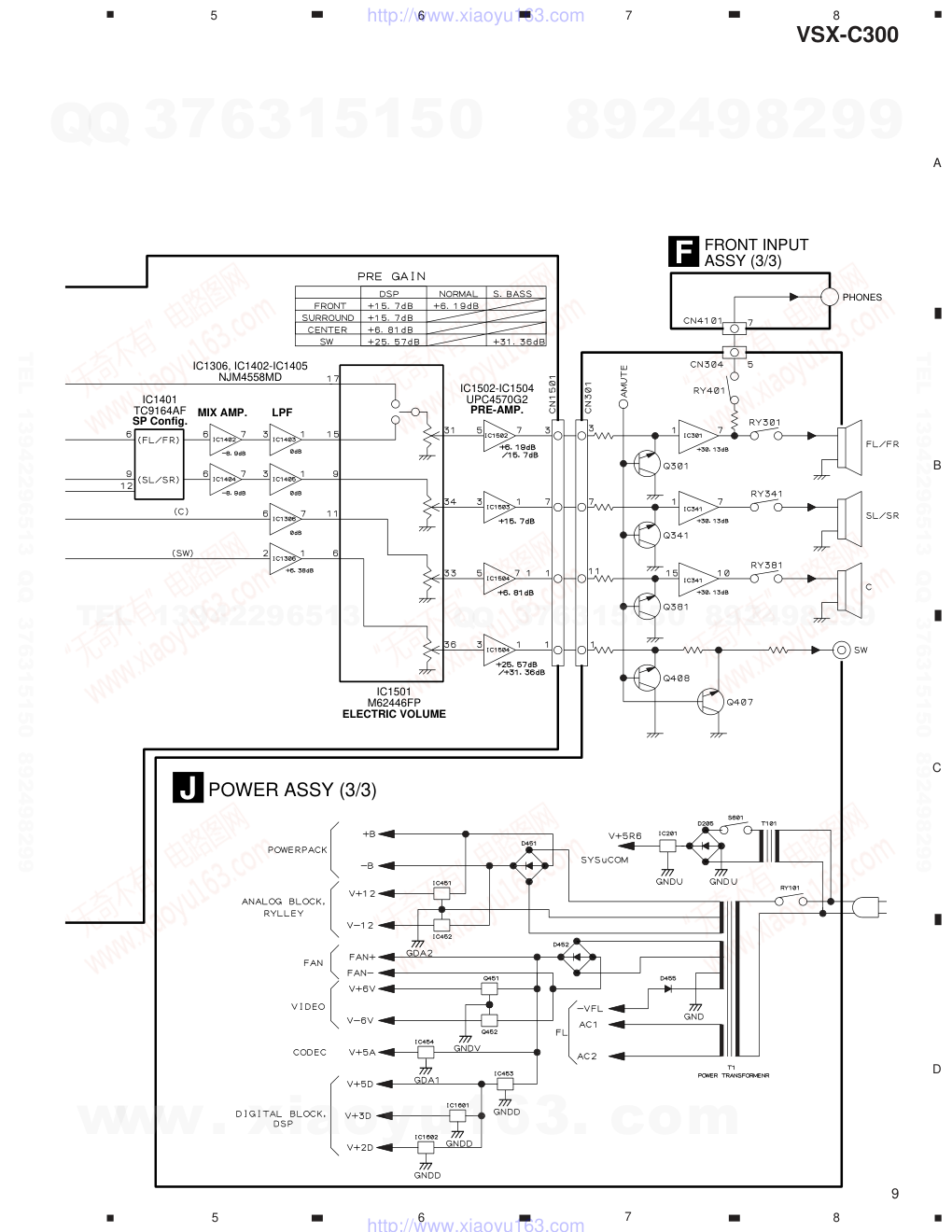

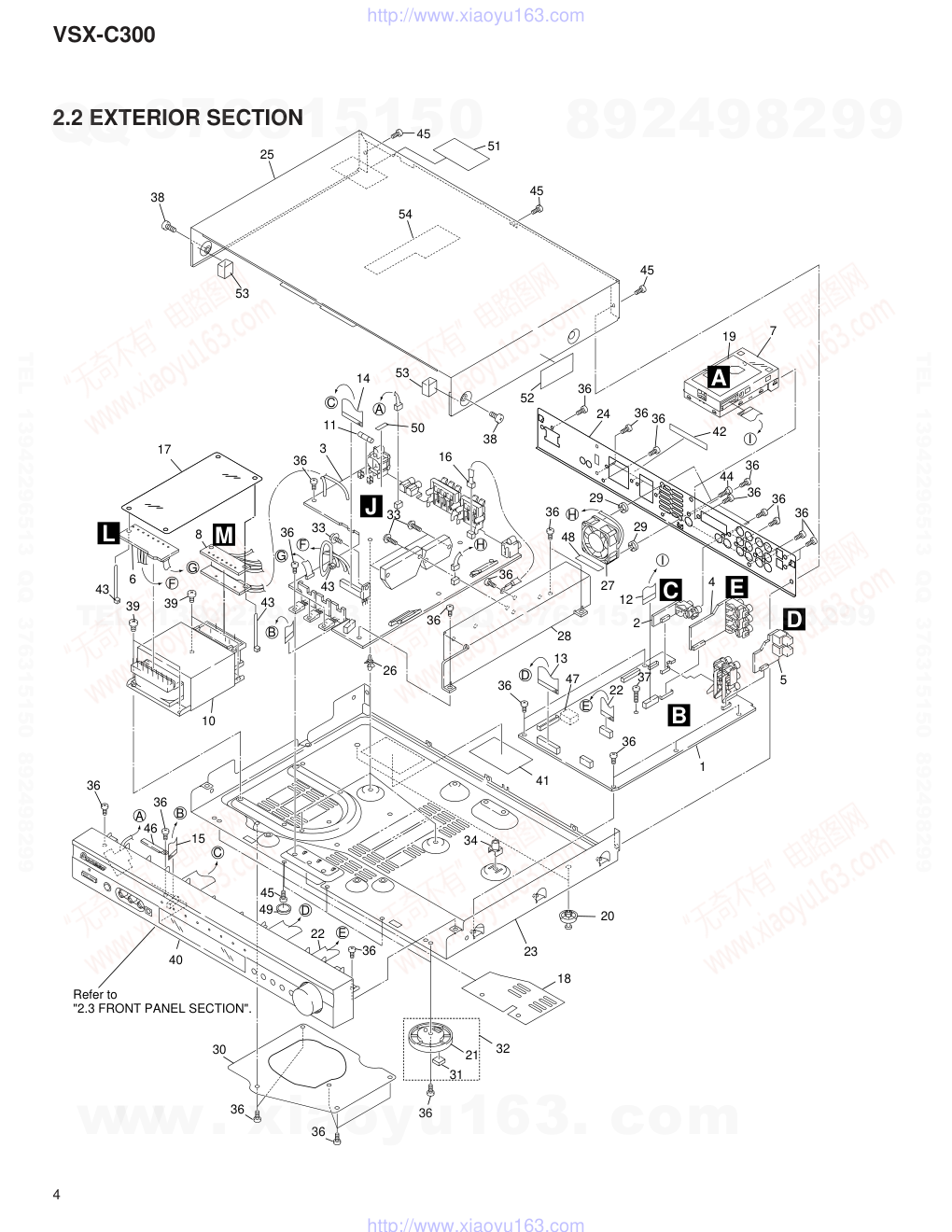

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER CORPORATION 2001 c ORDER NO. RRV2524 1. SAFETY INFORMATION...................................... 2 2. EXPLODED VIEWS AND PARTS LIST ............... 3 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM..... 8 4. PCB CONNECTION DIAGRAM ......................... 32 5. PCB PARTS LIST ............................................... 46 6. ADJUSTMENT .................................................... 50 CONTENTS 7. GENERAL INFORMATION ................................ 51 7.1 DIAGNOSIS .................................................. 51 7.1.1 Test Mode ................................................ 51 7.1.2 Protection of the Amplifier Line ............... 52 7.1.3 Operation of the Fan-Control Line ........... 53 7.1.4 Specifications of Speaker Detection........ 54 7.1.5 Timing Chart ............................................ 55 7.2 PARTS .......................................................... 56 7.2.1 IC ............................................................ 56 7.2.2 DISPLAY................................................. 62 8. PANEL FACILITIES AND SPECIFICATIONS....... 64 T – ZZR SEPT. 2001 Printed in Japan AUDIO/VIDEO MULTI-CHANNEL RECEIVER VSX-C300 STANDBY PHONES VIDEO AUDIO DIGITAL IN FRONT INPUT INPUT SIGNAL DIGITAL 2DIGITAL 2PROLOGIC DTS VIRTUAL PHONES SURR STEREO AUDIO/VIDEO MULTI-CHANNEL RECEIVER VSX-C300 DVD TV/SAT VCR FRONT TUNER MASTER VOLUME DOWN UP � MULTI ch L R OFF ON THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Remarks Power Requirement Type Model VSX-C300 KUXJI/CA AC120V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 VSX-C300 1. SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5mA. (FOR USA MODEL ONLY) Leakage current tester Reading should not be above 0.5mA Device under test Test all exposed metal surfaces Also test with plug reversed (Using AC adapter plug as required) Earth ground AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 VSX-C300 2.1 PACKING 1 FM Wire Antenna ADH7004 2 AM Loop Antenna ATB7009 NSP 3 Polyethylene Bag Z21-038 (0.03 × 230 × 340) NSP 4 Warranty Card ARY7045 5 Remote Control Unit AXD7310 6 Battery Cover AZA7378 NSP 7 Dry Cell Battery (R6P, AA) VEM-013 8 Left Pad AHA7349 9 Right Pad AHA7350 10 Packing Sheet AHG7015 11 Packing Case AHD8010 12 Operating Instructions ARB7248 (English) ÷ PACKING PARTS LIST Mark No. Description Part No. 2. EXPLODED VIEWS AND PARTS LIST NOTES: • Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. • The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Screws adjacent to mark on the product are used for disassembly. 4 12 7 3 8 9 5 10 11 6 14 2 13 1 13 AC Power Cord ADG7022 14 Cable Label ARW7145 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 VSX-C300 A A B B C C D E D F F H I I H G G 24 36 33 36 36 36 36 36 36 36 36 37 36 36 28 29 15 29 1 2 5 27 12 13 47 14 16 20 E 22 17 4 3 8 6 36 11 36 36 33 43 43 43 36 48 10 36 36 36 40 Refer to "2.3 FRONT PANEL SECTION". 26 30 22 38 42 36 31 23 44 E A M J B C D L 36 21 32 34 41 45 51 52 45 45 25 54 39 39 38 7 19 45 49 18 46 50 53 53 2.2 EXTERIOR SECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 VSX-C300 1 DSP ASSY AWX7937 2 2P - JACK ASSY AWX7926 3 POWER ASSY AWX7910 4 VIDEO ASSY AWX7928 5 OPT - IN ASSY AWX7908 6 TRANS 2 Assy AWX7907 7 FM/AM TUNER MODULE AXQ7231 NSP 8 TRANS 1 Assy AWX7906 9 • • • • • 10 Power Transformer (AC120V) ATS7317 11 Fuse (FU1 : 2.5A) REK1112 12 FFC (J804 : 13P/180 BD 60V) ADD7242 (DSP CN803 ↔ TUNER CN201) 13 FFC (J1702 : 23P/180 BD 60V) ADD7293 (DSP CN1702 ↔ FRONT CN4202) 14 FFC (J4201 : 23P/200 BD 60V) ADD7293 (POWER CN303 ↔ FRONT CN4201) 15 FFC (J4101 : 11P/100 BD 60V) ADD7336 (POWER CN304 ↔ FRONT INPUT CN4101) 16 Thermistor AEX7004 (POWER CN306 ↔ TH9014) 17 Trans Shield Barrier AEC7380 18 REG. Cover AEC7384 19 Tuner Barrier AEC7383 20 Leg Assy REC-434 21 Insulator 50 AMR7363 22 FFC (J803 : 7P/150 BD 60V) ADD7292 (DSP CN804 ↔ FRONT CN203) NSP 23 Under Base ANA7129 24 Rear Panel ANC8017 25 Bonnet Case S (Box) AZN7886 26 PCB Support AEC7365 27 DC Fan Motor AXM7017 NSP 28 Heat Sink HL ANH7144 29 Damper BK AEB7231 NSP 30 Trans Stabilizer ANG7362 ÷ EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 31 Rubber Cushion AEB7235 32 Insulator 50 Assy AMR7379 33 Screw With Washer ABA7080 34 PCB Mold AMR2534 35 • • • • • 36 Screw BBZ30P080FZK 37 Screw BBZ30P140FMC 38 Screw BBZ40P080FNI 39 Screw BBZ40P060FCC 40 Front Panel Assy AMB7778 41 Dolby DTS. Label ARW7136 42 Speaker Label E AAX7870 43 Binder ZCA–BK1 44 Screw (3x11.5) ABA7071 45 Screw BBZ30P080FNI 46 Cord Clamper RNH-184 47 Cushion H11 AEB7239 48 Damper Cushion AED7055 49 Cushion Circle 16S AED7054 50 Fuse Card AAX2344 51 65 Label ARW7050 52 Caution Label ARW7143 53 Rubber Cushion AEB7235 54 Support PCB ANZ7133 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 VSX-C300 2.3 FRONT PANEL SECTION 9 7 10 16 17 17 5 13 4 2 12 22 21 14 25 18 6 24 3 16 20 16 8 15 23 16 16 16 1 11 F H G K I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 VSX-C300 ÷ FRONT PANEL SECTION PARTS LIST Mark No. Description Part No. 1 FRONT ASSY AWX7933 2 POWER SW ASSY AWX7904 3 ENCODER ASSY AWX7914 NSP 4 LED ASSY AWX7913 5 FRONT INPUT ASSY AWX7916 6 Front Panel Assy AMB7778 7 Function Button AAD7633 8 FFC (J1702 : 23P ADD7293 Front CN4202 ÔDSP CN1702) 9 Name Plate VAM1129 10 Standby Lens AAK7902 11 LED Lens AAK7903 12 Volume Knob P Assy AAB7239 13 Power Button AAD7630 14 Volume Cap AAC7032 15 FFC (J4201 : 23P ADD7293 Front CN4201ÔPower CN303) 16 Screw BPZ30P080FMC 17 Screw (FE) ABA7009 18 Display Panel AAK7904 19 • • • • 20 FFC (J4101 : 11P ADD7336 Front input CN4101ÔPower CN304) 21 Volume Mold AAC7033 22 Front Panel AMB7776 23 FFC (J803 : 7P ADD7292 Front CN4203ÔDSP CN804) 24 Energy Star Label AAX7876 25 Ring ABH7213 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 1 2 3 4 1 2 3 4 8 VSX-C300 B DSP ASSY A FM/AM TUNER MODULE E VIDEO ASSY F FRONT INPUT ASSY (1/3) C 2P JACK ASSY J POWER ASSY (1/3) D OPT-IN ASSY J POWER ASSY (2/3) BN201 CN201 IC701 TC9164AF AUDIO FUNCTION SELECTOR IC702 UPC4570G2 IC703 NJM2100M IC802 AK4527BVQ CODEC IC801 AK4112AVF DIR & A/D SELECTOR IC1104 PDN031D ROM for DECODE IC1106 CS493292 DSP for DECODE IC1201 AK7706VT DSP for DELAY IC1203 TC551001CFT-70 RAM for DELAY IC1202 TC74VHCT244AFT 3 → 5V CONVERTER 8 → 16 bit CONVERTER IC1101 TC74VHC574F IC1102 TC74VHC574F IC3201 NJM2296M VIDEO FUNCTION SELECTOR IC1301-IC1303 NJM4558MD LPF & 6dB AMP. CN803 CN4101 CN901 CN801 CN2201 CN701 CN304 CN1501 CN301 7 1 1 7 F FRONT INPUT ASSY (2/3) 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 5 6 7 8 5 6 7 8 9 VSX-C300 J POWER ASSY (3/3) F FRONT INPUT ASSY (3/3) IC1401 TC9164AF SP Config. IC1501 M62446FP ELECTRIC VOLUME PHONES IC1502-IC1504 UPC4570G2 PRE-AMP. IC1306, IC1402-IC1405 NJM4558MD MIX AMP. LPF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 1 2 3 4 1 2 3 4 10 VSX-C300 POWER CORD KUXJI/CA : ADG7022 DC FAN MOTOR : AXM7017 T1 POWER TRANSFORMER : ATS7317 J 1/2, J 2/2 POWER ASSY (AWX7910) J FRONT ASSY (AWX7933) G LED ASSY (AWX7913) H TRANS 2 ASSY (AWX7907) L TRANS 1 ASSY (AWX7906) M SW ASSY (AWX7904) K FRONT INPUT ASSY (AWX7916) F : AKP7032 3.2 OVERALL WIRING DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 5 6 7 8 5 6 7 8 11 VSX-C300 B 1/5- B 5/5 DSP ASSY (AWX7937) B VIDEO ASSY (AWX7928) E FM/AM TUNER MODULE (AXQ7231) SUPPORT ASSY A ENCODER ASSY (AWX7914) I 2P JACK ASSY (AWX7926) C OPT-IN ASSY (AWX7908) D TH9014 THERMISTOR : AEX7004 CN201 Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 1 2 3 4 1 2 3 4 12 VSX-C300 3.3 FM/AM TUNER MODULE A FM FRONT END MW RF TUNING BLOCK FM/AM TUNER UNIT MODULE (AXQ7231) A OSC : 980 - 2150kHz 10k step (AM) (AM) (AM) (AM) (AM) (AM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 5 6 7 8 5 6 7 8 13 VSX-C300 A 1/5 B CN803 L201 ATE7003 PLL IC AM/FM IF+MPX IC ATF7026 : AUDIO SIGNAL ROUTE (TUNER) (TX) : AM SIGNAL ROUTE (AM) : FM SIGNAL ROUTE (FM) (AM) (AM) (FM) (AM) (AM) (AM) (AM) (AM) (AM) (FM) (AM) (FM) (TX) (TX) (TX) (TX) (TX) (FM) : The power supply is shown with the marked box. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 1 2 3 4 1 2 3 4 14 VSX-C300 Audio Function Selector B 1/5 DSP ASSY (AWX7937) 2P JACK ASSY (AWX7926) C CN901 D 4/5 B 5/5 B 4/5 B CN3201 E (TX) (TX) (TX) (TX) (TX) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) (D) 3.4 DSP (1/5) and 2P JACK ASSYS 1/5 B C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 5 6 7 8 5 6 7 8 15 VSX-C300 DIR & A/D Selector CODEC CN4203 G 2/5 B 3/5 B 5/5 B 4/5 B CN201 A (FL) : AUDIO SIGNAL ROUTE (Front L ch) (TX) : AUDIO SIGNAL ROUTE (RL) : AUDIO SIGNAL ROUTE (Rear L ch) (SW) : AUDIO SIGNAL ROUTE (Sub Woofer) (C) : AUDIO SIGNAL ROUTE (Center) : AUDIO SIGNAL ROUTE (Tuner) (D) : AUDIO SIGNAL ROUTE (Digital) (TX) (TX) (FL) (RL) (SW) (C) (FL) (SW) (C) (RL) 1/5 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 1 2 3 4 1 2 3 4 16 VSX-C300 B 2/5 DSP ASSY (AWX7937) ROM for DECODE DSP for DECODE 3.5 DSP ASSY (2/5) 2/5 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 5 6 7 8 5 6 7 8 17 VSX-C300 1/5 B 5/5 B DSP for Delay RAM for Delay 3V → 5V Converter : AUDIO SIGNAL ROUTE 2/5 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 1 2 3 4 1 2 3 4 18 VSX-C300 3.6 DSP ASSY (3/5) 3/5 B SP Config. B 3/5 DSP ASSY (AWX7937) 1/5 B 5/5 B 1/5 B (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (RL) (RL) (RL) (RL) (RL) (RL) (RL) (RL) (SW) (SW) (SW) (SW) (SW) (C) (C) (C) (C) (SW) (C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 5 6 7 8 5 6 7 8 19 VSX-C300 3/5 B 4/5 B (FL) : AUDIO SIGNAL ROUTE (Front L ch) (RL) : AUDIO SIGNAL ROUTE (Rear L ch) (SW) : AUDIO SIGNAL ROUTE (Sub Woofer) (C) : AUDIO SIGNAL ROUTE (Center) (FL) (FL) (FL) (FL) (FL) (RL) (RL) (RL) (RL) (RL) (RL) (SW) (C) (SW) (SW) (SW) (SW) (C) (C) (C) (C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 1 2 3 4 1 2 3 4 20 VSX-C300 Electric Volume B 4/5 DSP ASSY (AWX7937) 1/5 B 5/5 B 3/5 B (FL) (FL) (FL) (FL) (FL) (FL) (FL) (RL) (RL) (RL) (RL) (RL) (RL) (SW) (SW) (SW) (SW) (SW) (SW) (C) (C) (C) (C) (C) (C) 3.7 DSP ASSY (4/5) 4/5 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 5 6 7 8 5 6 7 8 21 VSX-C300 5/5 B 1/5 B CN301 J 1/2 (FL) : AUDIO SIGNAL ROUTE (Front L ch) : AUDIO SIGNAL ROUTE : VIDEO SIGNAL ROUTE (RL) : AUDIO SIGNAL ROUTE (Rear L ch) (SW) : AUDIO SIGNAL ROUTE (Sub Woofer) (C) : AUDIO SIGNAL ROUTE (Center) (FL) (FL) (FL) (FL) (FL) (RL) (RL) (RL) (RL) (SW) (SW) (SW) (SW) (SW) (SW) (C) (C) (C) (C) (C) 4/5 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 1 2 3 4 1 2 3 4 22 VSX-C300 B 5/5 DSP ASSY (AWX7937) 1/5 B 1/5 B CN302 J 1/2 CN801 B 1/5 OPT-IN ASSY (AWX7908) D (D) (D) (D) (D) (D) (D) (D) (D) (D) : AUDIO SIGNAL ROUTE (Digital) 3.8 DSP (5/5) and OPT-IN ASSYS 5/5 B D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 5 6 7 8 5 6 7 8 23 VSX-C300 2/5 B 4/5 B 1/5 B 3/5 B CN4202 G : The power supply is shown with the marked box. 5/5 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 1 2 3 4 1 2 3 4 24 VSX-C300 CN802 B 1/5 VIDEO ASSY (AWX7928) E : VIDEO SIGNAL ROUTE E 3.9 VIDEO ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 1 2 3 4 1 2 3 4 25 VSX-C300 CN304 J 1/2 FRONT INPUT ASSY (AWX7916) F (D) (D) (D) (D) : AUDIO SIGNAL ROUTE (Digital) : AUDIO SIGNAL ROUTE : VIDEO SIGNAL ROUTE 3.10 FRONT INPUT ASSY F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 1 2 3 4 1 2 3 4 26 VSX-C300 REMOTE RECEIVER UNIT CN303 J 1/2 CN1702 B 5/5 CN804 B 1/5 FRONT ASSY (AWX7933) G G 3.11 FRONT, LED and ENCODER ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 5 6 7 8 5 6 7 8 27 VSX-C300 ENCODER ASSY (AWX7914) I LED ASSY (AWX7913) H : The power supply is shown with the marked box. FRONT ASSY S4201 : DVD S4202 : TV / SAT S4203 : VCR S4204 : TUNER S4205 : FRONT ENCODER ASSY S4401 : MASTER VOLUM I H G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 1 2 3 4 1 2 3 4 28 VSX-C300 Q301 2SC3326(AB) Q302 2SC3326(AB) Q407 2SC3326(AB) Q341 2SC3326(AB) Q381 2SC3326(AB) Q386 2SA1037K (QR) Q385 2SC2412K (QR) Q383 2SC2712 (GRBL) Q346 2SC2712 (GRBL) Q345 2SC2712(GRBL) Q306 2SC2712(GRBL) Q305 2SC2712(GRBL) Q384 2SC2412K(QR) Q404 2SC2712(GRBL) Q405 DTA124EK Q402 DTA124EK Q403 2SC2712(GRBL) Q406 DTA124EK Q342 2SC3326(AB) 1SS355 1SS355 1SS355 1SS355 1SS355 1SS355 1SS355 1SS355 1SS355 1SS355 1SS355 1SS355 1SS355 1SS355 J 1/2 POWER ASSY (AWX7910) CN1501 B 4/5 CN1601 B 5/5 2/2 J CN4201 G DC FAN MOTOR THERMISTOR CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491001 MFD, BY LITTELFUSE INK. FOR IC302 (AEK7009). Front Power Amp. Rear, Center Power Amp. Mute Mute Mute Mute Mute FAN Drive Center SP Det. DC Det. Over-Load Det. Over Load Det. Over Load Det. Over Load Det. Over Load Det. 0V 0V 0V 0V 0V 29V -29V -27V 0V 0V 0V 0V 0V 29V -29V -27V 27V 0V 0V 0V 27V 5V -12V 0V 5V 5V 4.3V 4.3V 0V -12V -32V Q408 2SC3326(AB) (D) (D) (D) (D) (D) (RL) (RL) (SW) (C) (C) (C) (C) (C) (C) (C) (C) (C) (C) (FL) (RL) (RL) (RL) (RL) (RL) (FL) (FL) (FL) (FL) (FL) (FL) (SW) 1/2 J 3.12 POWER ASSY (1/2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 5 6 7 8 5 6 7 8 29 VSX-C300 Q451 2SD2012 Q452 2SB1375 Q390 DTA124EK Q389 DTC143EK Q387 DTC143EK Q401 DTC143EK 1SS355 1SS355 1SS355 1SS355 1SS355 1SS355 1SS355 1SS355 1SS355 CN4101 F J454A L J451A J452A J453A L SPEAKERS SPEAKERS HP RY Drive Front RY Drive Rear, CenterRY Drive 0V 29V 12V -29V 10.3V -11.6V -40V -12V 6V -6V 5V 5V • No Loaded • FAN Stop • Stereo Voltage Status (RL) : AUDIO SIGNAL ROUTE (Rear L ch) (SW) : AUDIO SIGNAL ROUTE (Sub Woofer) (C) : AUDIO SIGNAL ROUTE (Center) (FL) (D) : AUDIO SIGNAL ROUTE (Front L ch) : AUDIO SIGNAL ROUTE (Digital) : AUDIO SIGNAL ROUTE : VIDEO SIGNAL ROUTE (D) (C) (C) (C) (C) (C) (C) (RL) (RL) (RL) (RL) (RL) (RL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) : The power supply is shown with the marked box. 1/2 J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 1 2 3 4 1 2 3 4 30 VSX-C300 3.13 POWER (2/2), SW, TRANS 2 and TRANS 1 ASSYS L M CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 49102.5 MFD, BY LITTELFUSE INK. FOR IC501 and IC502 (AEK7014). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.630 MFD, BY LITTELFUSE INK. FOR IC503 (AEK7006). TRANS 1 ASSY (AWX7906) M TRANS 2 ASSY (AWX7907) L J451 J452 J453 J454 J 1/2 J 1/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 5 6 7 8 5 6 7 8 31 VSX-C300 2/2 J K AN101 AKP7032 AC IN LIVE NEUTRAL REK1112 (2.5A/125V) ATT7057 1SS355 1SS355 11.4 5.6 5 J 2/2 POWER ASSY (AWX7910) 1/2 J SW ASSY (AWX7904) K • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - : The power supply is shown with the marked box. SW ASSY S601 : POWER ON/OFF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-C300 32 A B C D 1 2 3 4 1 2 3 4 NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B 4. PCB CONNECTION DIAGRAM 4.1 FRONT INPUT ASSY F CN304 J SIDE A FRONT INPUT ASSY F (ANP7396-B) SIDE B FRONT INPUT ASSY F (ANP7396-B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-C300 33 A B C D 1 2 3 4 1 2 3 4 (ANP7338-B) (ANP7338-B) CN803 B FM/AM TUNER MODULE A FM/AM TUNER MODULE A SIDE A SIDE B IC201 Q205 Q204 Q203 IC202 Q201 Q202 A 4.2 FM/AM TUNER MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-C300 34 A B C D 1 2 3 4 1 2 3 4 B IC704 Q702 Q701 IC703 Q703 Q704 IC702 Q705 IC801 IC802 IC1302 IC1303 IC1502 IC1504 Q1501 Q1502 Q1506 IC1501 Q1507 Q1401 Q1412 Q Q1411 Q1508 IC1301 IC1107 CN901 D CN3201 E CN301 J CN201 A DSP ASSY B 2PA-JACK ASSY C SIDE A (ANP7395-C) 4.3 DSP and 2P-JACK ASSYS C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-C300 35 A B C D 5 6 7 8 5 6 7 8B (ANP7396-B) IC1106 IC1201 Q1401 Q1408 Q1402 Q1412 Q1404 Q1403 IC1402 IC1406 IC1404 IC1601 IC1602 Q1405 Q1406 Q1407 IC1701 IC1203 IC1104 IC1103 Q1411 301 IC1107 CN302 J CN4202 G CN4203 G SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-C300 36 A B C D 1 2 3 4 1 2 3 4 B IC1102 Q1101 IC1105 IC1401 IC1405 IC1403 Q1102 IC1101 IC1202 DSP ASSY B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-C300 37 A B C D 5 6 7 8 5 6 7 8C 02 Q801 Q803 IC701 IC1503 IC803 (ANP7396-B) SIDE B 2PA-JACK ASSY C SIDE B (ANP7395-C) B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-C300 38 A B C D 1 2 3 4 1 2 3 4 J CN1501 B FANMOTOR THERMISTOR J601 J102B J101A J451 K M L M POWER ASSY J IC201 4.4 POWER and SW ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-C300 39 A B C D 5 6 7 8 5 6 7 8K J J451A J452A J453A CN1601 B L L CN4101 F CN4201 G J454A L L SIDE A IC453 Q452 IC454 IC451 IC452 Q451 (ANP7395-C) CN201 J SW ASSY K SIDE A (ANP7395-C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-C300 40 A B C D 1 2 3 4 1 2 3 4 K J POWER ASSY J Q401 Q385 Q383 Q306 Q305 Q389 Q387 Q388 Q390 Q402 Q384 Q386 Q404 Q405 Q409 Q406 Q403 Q410 Q381 Q342 Q341 Q302 Q301 Q408 Q407 SIDE B SW ASSY K (ANP7395-C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-C300 41 A B C D 5 6 7 8 5 6 7 8J SIDE B Q201 (ANP7396-B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-C300 42 A B C D 1 2 3 4 1 2 3 4 J4204A H CN303 J FRONT ASSY G Q4205 Q4206 Q4208 Q4211 Q4213 Q4212 CN802 B VIDEO ASSY E SIDE A (ANP7395-C) CN801 B OPT-IN ASSY D (ANP7395-C) J4204 G LED ASSY H (ANP7396-B) J4205 G ENCODER ASSY I (ANP7396-B) 4.5 FRONT, VIDEO, OPT-IN, TRANS1 and TRANS2 ASSYS D E G H I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-C300 43 A B C D 5 6 7 8 5 6 7 8M L G CN1702 B CN804 B J4205A I SIDE A Q4213 (ANP7396-B) J102 J101 TRANS 1 ASSY M (ANP7395-C) Transformer J454 J J J J J451 J452 J453 SIDE A TRANS2 ASSY L (ANP7395-C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-C300 44 A B C D 1 2 3 4 1 2 3 4 D E G FRONT ASSY G IC4681 Q4681 Q4683 Q4682 IC4201 VIDEO ASSY E SIDE B IC3201 (ANP7395-C) OPT-IN ASSY D SIDE B (ANP7395-C) LED ASSY H (ANP7396-B) ENCORDER ASSY I (ANP7396-B) H I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-C300 45 A B C D 5 6 7 8 5 6 7 8M L G SIDE B Q4207 Q4202 Q4201 (ANP7396-B) Transformer TRANS 2 ASSY L SIDE B (ANP7395-C) TRANS 1 ASSY M (ANP7395-C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 VSX-C300 LIST OF PCB ASSEMBLIES FM/AM TUNER MODULE AXQ7231 NSP COMPLEX 1 ASSY AWM7579 SW ASSY AWX7904 TRANS 2 ASSY AWX7907 OPT-IN ASSY AWX7908 POWER ASSY AWX7910 2P JACK ASSY AWX7926 VIDEO ASSY AWX7928 NSP COMPLEX 2 ASSY AWM7580 NSP LED ASSY AWX7913 ENCODER ASSY AWX7914 FRONT INPUT ASSY AWX7916 DSP ASSY AWX7937 FRONT ASSY AWX7933 FM/AM TUNER MODULE SEMICONDUCTORS IC201 BA1451F IC202 LC72131MD Q201, Q204, Q205 2SC2412K Q202 DTA124ES Q203 DTC124EK D201 1SS133 D202 MTZJ5.1C COILS AND FILTERS L201 FM DETECTOR COIL ATE7003 F202 CERAMIC FILTER ATF-107 F201 CERAMIC FILTER ATF-119 F203 AM CERAMIC FILTER ATF7026 CAPACITORS C212, C213, C226, C233-C235 CCSRCH101J50 C240 CCSRCH101J50 C206 CCSRCH100D50 C231, C232 CCSRCH150J50 C223 CEAT100M50 C229 CEAT101M10 C224 CEAT1R0M50 C227 CEAT220M25 C241 CEAT2R2M50 C243 CEAT330M16 5. PCB PARTS LIST NOTES : ÷ Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List. ÷ The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÷ When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J = 5%, and K = 10%). 560 Ω = 56 × 10 1 = 561 ................................................... RD1/4PU 5 6 1 J 47k Ω = 47 × 10 3 = 473 .................................................. RD1/4PU 4 7 3 J 0.5 Ω = R50 ...................................................................... RN2H Â 5 0 K 1 Ω = 1R0 ......................................................................... RS1P 1 Â 0 K Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω = 562 × 10 1 = 5621 ........................................... RN1/4PC 5 6 2 1 F Mark No. Description Part No. Mark No. Description Part No. C228 CEAT3R3M50 C237 CEAT470M10 C211 CEJA1R0M50 C210 CEJA470M16 C204, C238, C602 CKSRYB102K50 C101, C102, C208, C220 CKSRYB103K50 C239, C242, C601 CKSRYB103K50 C225, C216, C217 CKSRYB153K50 C201, C205, C214, C230, C236 CKSRYB223K50 C209 CKSRYB223K50 C221 CKSRYB224K10 C603 CKSRYB223K50 C215 CKSRYB681K50 C202, C222 CKSRYB473K16 RESISTORS R211 RD1/4PU221J R221 RD1/4PU222J R233 RD1/4PU391J R243 RD1/10S0R0J R103 RS1/10S331J R104 RS1/10S391J OtherResistors RS1/16S&&&J OTHERS CN201 13P SOCKET 52044-1345 BN201 4P ANTENNA TERM. AKA7003 SHIELD CASE T ANK7072 SHIELD CASE B ANK7073 X201 CRYSTAR RES.(7.2MHz) ASS1093 FM FRONT END AXF7003 AM RF TUNING BLOCK AXX7071 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 VSX-C300 Mark No. Description Part No. Mark No. Description Part No. DSP ASSY SEMICONDUCTORS IC801 AK4112AVF IC802 AK4527BVQ IC1201 AK7706VT IC1203 BS62LV1024TC-70 IC1106 CS493292 IC1501 M62446FP IC703, IC704 NJM2100M IC1301-IC1303, IC1402-IC1406 NJM4558MD IC1701 PD5681A IC1104 PDN031D IC1601 PQ20WZ51 IC1602 PQ7VZ5 IC1105 TC74LVX244F IC1101, IC1102 TC74VHC574F IC1202 TC74VHCT244AF IC1107 TC7WU04FU IC1401, IC701 TC9164AF IC1502-IC1504, IC702 UPC4570G2 Q1507 2SA1515 Q705 2SC1740S Q1401-Q1404, Q1409, Q1410 2SC3326 Q1501, Q1502, Q1506, Q701, Q702 2SC3326 Q1508 2SC3377 Q1405, Q1406, Q1408, Q703, Q801 DTA124EK Q803 DTA124EK Q1407, Q704, Q802, Q804 DTC124EK D1504, D701 1SS355 D1401, D1402 DAP202K D1503 UDZS5.1B D1501, D1502 UDZS7.5B COILS AND FILTERS L1103, L1201, L1601, L1602, L1701 ATL7002 F1601-F1610, F1701 DTF1070 L1101, L1102, L1104, L1202, L1203 QTL1013 L701, L801-L808 QTL1013 CAPACITORS C1127, C1128 CCSRCH100D50 C1319, C1320, C1331, C1413, C1414 CCSRCH101J50 C1518-C1520, C703, C706-C710 CCSRCH101J50 C717-C719, C721, C722, C816 CCSRCH101J50 C815 CCSRCH150J50 C814 CCSRCH180J50 C1425, C1426, C1527, C1528 CCSRCH221J50 C1533, C1534, C1541, C840 CCSRCH221J50 C1130, C1436, C1706, C1716 CCSRCH271J50 C1102, C1104, C1108, C1111, C1113 CCSRCH471J50 C1119, C1120, C1122, C1125, C1133 CCSRCH471J50 C1202, C1204, C1207, C1208, C1210 CCSRCH471J50 C1212, C1218, C1220, C1405 CCSRCH471J50 C1423, C1424, C1704, C755, C757 CCSRCH471J50 C810, C819, C828, C834, C848 CCSRCH471J50 C854, C856 CCSRCH471J50 C737, C738 CCSRCH560J50 C1307, C1308 CCSRCH820J50 C1317, C1318, C1329, C1332 CCSRCH821J50 C1409, C1410 CCSRCH821J50 C1326 CEANP100M16 C1109, C1216, C1401, C1403 CEAT100M50 C1512-C1517, C1551, C1552 CEAT100M50 C713, C714 CEAT100M50 C1106, C1115, C1203, C1222, C1336 CEAT101M16 C1501, C1521, C1601-C1604 CEAT101M16 C1607-C1610, C1705, C758, C811 CEAT101M16 C832 CEAT101M16 C808 CEAT221M6R3 C1502, C1522 CEAT331M10 C729, C730, C804 CEAT470M25 C826 CEAT471M16 C1124, C829 CEJQ2R2M50 C1301, C1302, C1311-C1314 CEJQ330M10 C1323-C1325, C1335 CEJQ330M10 C1510, C1511 CEJQ3R3M50 C1417, C1418, C1429, C1430 CEJQ4R7M50 C1439, C1440, C1539, C1546 CEJQ4R7M50 C1605, C1606, C723, C724 CEJQ4R7M50 C731, C732, C735, C736 CEJQ4R7M50 C824 CEJQR47M50 C753 CKSQYF105Z16 C1343-C1348, C1443-C1446 CKSQYF225Z16 C1451-C1456, C1557-C1562, C756 CKSQYF225Z16 C1542, C1714, C841 CKSRYB102K50 C1101, C1103, C1107, C1110, C1112 CKSRYB103K50 C1118, C1121, C1123, C1126, C1129 CKSRYB103K50 C1131, C1132, C1201, C1205, C1206 CKSRYB103K50 C1209, C1211, C1213, C1215, C1219 CKSRYB103K50 C1349, C1402, C1404, C1525 CKSRYB103K50 C743–C746, C805-C807, C809 CKSRYB103K50 C820, C833, C836, C842, C845 CKSRYB103K50 C847 CKSRYB103K50 C1223, C1328, C1442, C1447-C1450 CKSRYB104K25 C1505, C1508, C1524, C1540, C1707 CKSRYB104K25 C1717, C1718, C733, C734 CKSRYB104K25 C739, C740, C754, C803 CKSRYB104K25 C817, C818, C827, C830, C835 CKSRYB104K25 C839, C844, C855 CKSRYB104K25 C1411, C1412, C1435 CKSRYB122K50 C741, C742 CKSRYB152K50 C1549, C1550 CKSRYB153K50 C1305, C1306, C1315, C1316, C1327 CKSRYB182K50 C1419, C1420, C1431, C1432, C1441 CKSRYB222K50 C1217, C1504, C1507 CKSRYB224K16 C1303, C1304 CKSRYB272K50 C1330 CKSRYB333K16 C1433 CKSRYB472K50 C1503, C1523 CKSRYB473K50 C825 CKSRYB682K50 C1506, C1509 CKSRYB822K50 RESISTORS R1604, R1606 RS1/16S1201F R1514, R1554 RS1LMF101J OtherResistors RS1/16S&&&J OTHERS CN1601 FJ CONNECTOR 14P 14R-FJ CN1501 1.25 FJ CONNECTOR 19P 19R-1.25FJ CN804 7P FFC CONNECTOR 52045-0745 CN1701 10P FFC CONNECTOR 52045-1045 CN803 13P FFC CONNECTOR 52045-1345 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 VSX-C300 CN1702 23P FFC CONNECTOR 52045-2345 JA702 3P PIN JACK AKB7137 JA701 3P PIN JACK AKB7138 CN701 7P PLUG AKP7056 X801 CRYSTAL RESO.(24MHz) ASS7025 X1701 CERAMIC RESO.(17MHz) ASS7032 CN801 5P PLUG KM200TA5 CN802 8P PLUG KM200TA8 0 PCB BINDER VEF1040 KN801 EARTH METAL FITTING VNF1084 X1101 CRYSTAL RESO.(27MHz) VSS1086 J801 JUMPER WIRE DB010NB0 2P JACK ASSY CAPACITORS C2201, C2202 CCSRCH101J50 C2203, C2204 CCSRCH220J50 RESISTORS OtherResistors RS1/16S&&&J OTHERS 2201 2P PIN JACK AKB7143 CN2201 7P SOCKET AKP7067 OPT-IN ASSY CAPACITORS C901, C902 CKSRYB104K25 RESISTORS OtherResistors RS1/16S&&&J OTHERS JA901, JA902 OPTICAL RECEIVE MOD. GP1FA502RZ CN901 5P SOCKET KP200TA5L VIDEO ASSY SEMICONDUCTORS IC3201 NJM2296M D3201-D3204 1SS355 CAPACITORS C3203, C3206, C3215 CCSRCH221J50 C3217 CCSRCH470J50 C3202, C3204, C3205, C3209, C3211 CEAT470M25 RESISTORS OtherResistors RS1/16S&&&J OTHERS JA3201 6P PIN JACK AKB7140 CN3201 8P SOCKET KP200TA8L POWER ASSY SEMICONDUCTORS IC302 AEK7009 IC453, IC454 NJM7805FA C Mark No. Description Part No. Mark No. Description Part No. IC451 NJM7812FA IC201 NJM78M56FA IC452 NJM7912FA IC301 STK402-040 IC341 STK402-240 Q386 2SA1037K Q452 2SB1375 Q384, Q385 2SC2412K Q305, Q306, Q345, Q346, Q383 2SC2712 Q403, Q404 2SC2712 Q301, Q302, Q341, Q342, Q381 2SC3326 Q407, Q408 2SC3326 Q451 2SD2012 Q390, Q402, Q405, Q406 DTA124EK Q409, Q410 DTC124EK Q201, Q387, Q389, Q401 DTC143EK D201-D203, D301-D306 1SS355 D341-D346, D381-D386, D401 1SS355 D403-D408 1SS355 D452 D3SBA20(B) D451 D5SBA20(B) D457, D458 RB501V-40 D205 S1VB20/F03 D455 S5566G(TPB2) D459 UDZ20B D204, D410 UDZS5.1B D409 UDZS5.6B D453, D454, D456 UDZS6.8B COILS AND FILTERS L101 ATF7018 L301, L302, L341, L342, L381 ATH-133 F401 DTF1070 SWITCHESANDRELAYS RY301, RY341, RY381, RY401 ASR7001 RY101 ASR7013 CAPACITORS C101, C102 ACG7033 C451, C452 (4700µF/35v) ACH7161 C401, C403 CCSRCH101J50 C305, C306, C345, C346, C383 CCSRCH221J50 C410 CCSRCH221J50 C407 CCSRCH331J50 C303, C304, C343, C344, C382 CCSRCH471J50 C309-C312, C349-C352 CCSRCH6R0D50 C385, C386 CCSRCH6R0D50 C313, C314, C353, C354 CEAT100M50 C202, C459 CEAT102M16 C408 CEAT1R0M50 C463, C464, C471 CEAT221M25 C454 CEAT222M25 C321, C322, C361, C362, C389 CEAT2R2M50 C465 CEAT331M50 C453 CEAT332M16 C201 CEAT470M25 C404, C461 CEAT471M16 C466 CEAT471M35 C315, C316, C355, C356 CEHAT101M35 C391 CEHAT221M10 C455, C456 CEAT101M50 J D E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 VSX-C300 C307, C308, C347, C348, C384 CEHAT330M25 C301, C302, C341, C342 CKSQYF225Z16 C371-C375, C381, C481, C482 CKSQYF225Z16 C393 CKSRYB102K50 C203-C205, C402 CKSRYB103K50 C317-C320, C357-C360 CKSRYB104K25 C387, C388, C405, C406, C411 CKSRYB104K25 C460, C462, C472 CKSRYB104K25 C325, C326, C365, C366, C392 CKSRYB472K50 C467, C468 CKSRYB473K50 RESISTORS R321, R322, R361, R362, R388 RD1/2LMF100J R319, R320, R359, R360, R387 RD1/2MMF4R7J R201 RD1/2VM270J R311, R312, R351, R352 RD1/4MUF101J R451, R452 RD1/4MUF4R7J R453, R454 RS1/16S1R0J R461 RS1LMF102J R409 RS1LMF121J R401, R402 RS1LMF221J R317, R318, R357, R358, R386 XCN3001 R204 RCN1080 OtherResistors RS1/16S&&&J OTHERS CN302 FJ CONNECTOR 14P 14PL-FJ 454 5P CABLE HOLDER 51048-0500 CN304 11P FFC CONNECTOR 52045-1145 CN303 23P FFC CONNECTOR 52045-2345 JA301 1P PIN JACK AKB7080 341 6P SPEAKER TERMINAL AKE7077 301 4P SPEAKER TERMINAL AKE7078 H101, H102 FUSE CLIP AKR7001 451 D. HEAT SINK ANH7146 T101 SUB TRANS FORMER ATT7057 CN201, CN305 3P CONNECTOR B3B-PH-K AN101 AC INLET AKP7032 J454 5P JUMPER D20PYY0515E J457 JUMPER WIR UNIT DB015NB0 CN306 3P PLUG KM250MA3 JA401, JA402 REMOTE JACK RKN1004 491- 493 PCB BINDER VEF1040 CN301 19P 1.25FJ CONNECTOR VKN1775 J455 JUMPER WIR DB010NB0 FRONT INPUT ASSY CAPACITORS C4103, C4104 CCSRCH101J50 C4107, C4111 CCSRCH471J50 C4108 CEAT470M25 C4105, C4109, C4117 CKSRYB103K50 C4102, C4106, C4110 CKSRYB104K25 C4112, C4113 CKSRYB223K50 RESISTORS OtherResistors RS1/16S&&&J OTHERS CN4101 11P FFC CONNECTOR 52045-1145 JA4101 3P PIN JACK AKB7098 Mark No. Description Part No. Mark No. Description Part No. JA4102 OPTICAL LINK GP1FA502RZ JA4103 HP. JACK RKB1014 KN4101 EARTH METAL FITTING VNF1084 FRONT ASSY SEMICONDUCTORS IC4201 PDG264A Q4201, Q4207 DTA124EK Q4202, Q4205, Q4206, Q4208-Q4214 DTC143EK D4213-D4215 1SS355 D4203, D4204 DAN217 D4201, D4202 DAP202K D4206, D4208–D4210 SLR-343MC(NPQ) D4205, D4212 SLR-343VC(NPQ) D4207, D4211 SLR-343YC(MNP) COILS AND FILTERS L4201 LFEA2R2J SWITCHESANDRELAYS S4201-S4205 VSG1009 CAPACITORS C4216 ACH7144 C4208 CEAL470M16 C4214 CEAT221M6R3 C4230, C4231 CKSQYF225Z16 C4201, C4210, C4226 CKSRYB102K50 C4202, C4209, C4213, C4215, C4222 CKSRYB103K50 C4203-C4207, C4211, C4220, C4224 CKSRYB104K25 C4217, C4218, C4232-C4239 CKSRYB473K50 RESISTORS OtherResistors RS1/16S&&&J OTHERS 4204, 4205 3P CABLE HOLDER 51048-0300 CN4203 7P FFC CONNECTOR 52045-0745 CN4201, CN4202 FFC CONNECTOR 52045-2345 V4301 FL TUBE AAV7083 X4201 CERAMIC RESO. (7.2MHz) ASS7039 J4205 3P JUMPER WIRE D20PYY0310E J4204 3P JUMPER WIRE D20PYY0315E 4201 REMOTE RECEIVER UNIT GP1U27X 4301 FL HOLDER VNF1122 LED ASSY SEMICONDUCTORS D4501 SLR-343VC(NPQ) RESISTORS R4501 RS1/16S471J OTHERS 4501 3P CABLE HOLDER 51048-0300 G F H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 VSX-C300 ENCODER ASSY SEMICONDUCTORS S4401 ROTARY ENCODER ASX7040 CAPACITORS C4401, C4402 CKSRYB102K50 OTHERS 4401 3P CABLE HOLDER 51048-0300 SW ASSY SWITCHES AND RELAYS S601 ASG7024 CAPACITORS C601, C602 CKSRYB103K50 OTHERS J601 3P SHIELD HOUSING ADX7392 TRANS 2 ASSY SEMICONDUCTORS IC503 PROTECTOR(0.63A) AEK7006 IC501, IC502 PROTECTOR(2.5A) AEK7014 COILS AND FILTERS F501, F502 DTF1070 CAPACITORS C501, C502 ACH1237 C503, C504 CKSRYB473K50 RESISTORS R501 RD1/4MUF100J R502 RD1/4MUF4R7J OTHERS 504 5P CABLE HOLDER 51048-0500 TRANS 1 ASSY TRANS 1 ASSY has no service part. 6. ADJUSTMENT There is no information to be shown in this chapter. I Mark No. Description Part No. M L K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 VSX-C300 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 Test Mode • How to Enter the Test Mode With the attatched Remote Control Unit 1. For Preset mode, set the remote control (1) Enter [ REMOTE SETUP ] + [ 1 ] keys. (Simul taneous aggressiveness) (2) Enter [ 1 ], [ 5 ], [ 0 ] keys. (Call a PRESET ID code 150 ) (3) Enter [ Front ] key. (Assign a function key) (4) Enter [ REMOTE SETUP ] key. (Confirm PRESET mode) 2. Test mode ON " +10 " key • "TEST" is displayed for 5 seconds when Test mode is entered. • Function: TV/SAT • Speaker setting: All high volume, SW ON No automatic speaker detection • STANDARD mode • Presetting of the tuner for Test mode will be carried out. Other settings will be returned to the factory-preset values. 3. FL & LED light-emission check " 1 " key Each time the remote-control code is received, the displays of the FL and LED change cyclically as follows: Normal display → All lights for the FL and LED on → All lights for the FL and LED off → FL: "ABCDEFGH" displayed; and LED: Every other letter of the alphabets is displayed → FL: "IJKLMNOP" displayed; and LED: Every other letter of the alphabets is displayed highlighted → Normal display → ... 4. Rear-and-center-relay switch " 2 " key Each time the remote-control code is received, the rear-and-center relay is toggled on or off. 5. DOLBY Pro Logic mode " 3 " key • Distance setting for the front and center speakers: 10 feet • Distance setting for the rear speaker: 5 feet • STANDARD mode • Speaker setting: All high volume, SW ON All settings other than the above will be returned to the factory- preset values. 6. FAN ON/OFF switch " 4 " key The fan is turned on or off and rotates as follows: Low speed → High speed → Off ... 7. Master volume switch " 5 " key The master volume is switched between minus infinity and 0 dB, and each trim is 0 dB. When the remote-control code is received for the first time, the master volume is set to minus infinity. 8. 9k/10k switch " 6 " key For the models HL, SB and SP only, when the $A55F+$A505 code is received, this switches between 9k and 10k. 9. Thermistor A/D value, time display " 7 " key When the remote-control code is received, the A/D value (0-255) of the thermistor is displayed on the FL display. Time is displayed until 60:00, and then stops. While the A/D value and time are displayed, if the remote-control code is received again, the display will return to the normal display. Time counting will not stop. 10. Speaker auto-detection check " 8 " key When the remote-control code is received, automatic detection of the speaker starts, and the result will be displayed for 5 seconds, as "C:_SW:_", where Ο¸ indicates connected, and × indicates that no speaker is connected. 11. Analog inputs check " 9 " key When the remote-control code is received, forced analog inputs and 2-channel stereo mode are set for all functions. • Speaker setting: All high volume, SW ON • When this mode is entered, "SJG:ANA" will be displayed for 5 seconds. 12. STBY mode " 0 " key STBY mode is entered when the remote-control code is received. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 VSX-C300 7.1.2 Protection of the Amplifier Line 1. Detection of abnormalities in DC circuits This detection has priority over the overload detection and abnormality detection for the fan and thermistor. If an abnormality has been detected, AMUTE is on, RELAY is off, and the "AMP ERR" display is flashing. Does the abnormality continue for 5 seconds or more? Power is turned off. Yes The program restarts from the beginning. No (recovery) ↓ ↓ ↓ 2. Detection of overload This detection has priority over the abnormality detection of the fan and thermistor. If an abnormality has been detected, AMUTE is on, RELAY is off, and the "OVERLOAD" display is flashing. Does the abnormality continue for 5 seconds or more? Power is turned off. Yes Power is turned off even if the unit has achieved recovery. No (recovery) ↓ ↓ ↓ While the unit is recovering from the abnormality, the "OVERLOAD" display continues flashing. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 VSX-C300 7.1.3 Operation of the Fan-Control Line 1. Detection of the heat sink The detection is carried out every other second by taking in the voltage of the thermistor at A/D (PORT 31). 2. According to the temperature detected, the following operation will be executed: THRMO DCT Set voltage of A/D FAN START FAN MAX SP RELAY AMUTE Display 0 to 0.1V < 5 L L L L "THDCT NG" flashes for 5 seconds. 0.1V to 2.4V 5 to 122(60°C) L L H H 2.6V to 2.8V (70°C)134 – H L H H 2.8V to 3.4V (75°C)145 – L H H H 3.4V to 4.1V (90°C)174 – L H H H "HEAT UP" flashes for 5 seconds at 20-sec intervals. 4.1V – (115°C)210 – L H L L "OVERHEAT" flashes. 31 pin 15 pin 25 pin 64,66,67 pin 19 pin • If you wish to switch FAN START from "H" to "L" and FAN MAX from "L" to "H," first set FAN START to "L," then after 100 µs, set FAN MAX to "H." • While "OVERHEAT" is flashing, only the POWER key is functional. 3. FAN operation • Once the fan starts rotating, it continues to rotate at the same speed until the temperature falls to 65°C. • Once the fan starts rotating, it continues to rotate for at least 20 seconds even after the temperature falls to the above-mentioned level. 4. Detection of abnormalities in the fan • If any abnormality is detected in the fan 5 seconds after it starts rotating at high speed, and if H (abnormal) is indicated for the FANDCT connector, "FAN STOP" is displayed for 5 seconds, then the power is turned off. • While "FAN STOP" is displayed, AMUTE is on, and RELAY is off. • While "FAN STOP" is displayed, only the POWER key is functional. • While the fan is rotating at low speed, abnormality detection is not carried out. 5. Abnormality in the thermistor If an abnormality (A/D voltage: 0.1 V or less) is detected in the thermistor, "THDCT NG" is displayed for 5 seconds, then the power is turned off. FAN Driver Q404 2SC2712(GRBL) Q405 DTA124EK Q402 DTA124EK R420 Q403 2SC2712(GRBL) Q406 DTA124EK 1SS355 1SS355 1SS355 FAN Drive 5V SW DCT 12V V+12 +6V -11.6V IC4201 PDG264A CN305 CN306 TERMO DTC V+5 FAN+ FAN- FAN STOP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 VSX-C300 Center SP Sub-woofer Front SP Center SP Surround SP Subwoofer Connected Connected low low low ON Connected Not connected high low low OFF Not connected Connected low Not connected low ON Not connected Not connected high Not connected low OFF 7.1.4 Specifications of Speaker Detection 1. Purposes Whether the speakers are connected or not is automatically detected, and settings appropriate for the detected speakers are made to allow you to easily play surround-sound without making cumbersome speaker settings. 2. Method of detecting speakers Whether a center speaker and/or subwoofer is connected or not is detected 600 ms after the power is turned on. < Detection of the center speaker > The microcomputer sends a detection signal and after 10 ms will read the logic of the responding signal to judge whether the speaker is connected or not. The response signal will be read at A/D. A voltage of 3.5 V or more is judged as no speaker connected. The response signals at A/D are read every 2 ms, and if the same results (less or more than 3.5 V) are obtained, the detection result is considered correct. If a different result is obtained for the second detection, a third detection is carried out, and the two results that agree will outvote the other. If detection fails three times, then it is judged that no center speaker is connected. < Detection of the subwoofer > The logic of the signal from the phono jack with a switch is read by the microcomputer to judge whether the speaker is connected or not. The signals are read every 1 ms, and if the same results are obtained, the detection result is considered correct. If a different result is obtained for the second detection, a third detection is carried out, and the two results that agree will outvote the other. If detection fails three times, then it is judged that no subwoofer is connected. 3. Speaker settings According to the results of the detection, speaker settings are made as follows: Results of the Detections Speaker Settings 4. User's settings In Setup mode, more detailed speaker settings are available. Once the user's settings are made, those settings have priority. However, if the configuration of connected speakers has changed, then the detection results become valid and have priority over the user's settings until new user's settings are made. 5. Detection circuit for the center speaker mute More than 100 kΩ POWER AMP Center Detection Check signal from U-COM Detection signal to U-COM Mute About 8Ω www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 VSX-C300 7.1.5 Timing Chart AC relay (UCOM port) A. MUTE (UCOM port) FL, LED control Function SW (TC9164) Speaker detection Video (NJM2279) Tuner (built-in model) (LC72131) E-VOL (M62446FP) DSP UCOM (PD5681A) SP relay Overload DC abnormality detection FAN control "H" (ON) 0 200 400 0 200 400 (msec) 600 1000 1800 2800 3600 4800 5200 (msec) "H" (ON) "L" or "H" Control start Detection Full open Control start Control start Control start Reset Last data Last data Last data Last data Last data ON Last data Mute Dummy data Mute OFF AC relay (UCOM port) A. MUTE (UCOM port) Function SW (TC9164) Video (NJM2279) Tuner mute E-VOL (M62446FP) DSP UCOM (PD5681A) Relay (UCOM port) "H" "L" "L" Full open Reset Mute ON Mute OFF Timing Chart of Power ON Initial Timing Chart of Power OFF Initial www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 VSX-C300 1 G2 G1/A1 2 G1 G0/A0 3 NC NC 4 ACIN PE0/EC0/INT0 5 RDSDT PE1/EC1/INT1 6 RDS CK PE2/INT2 7 SW DCT PE3/INT3/NMI 8 RMC PE4/RMC 9 STEREO PE5 10 TMUTE PE6/PWM 11 PLL CE PE7/TO/ADJ 12 SP CONT PC0/KR0 13 TUNED PC1/KR1 14 PLL DO PC2/KR2 15 FAN START PC3/KR3 16 FAN DCT PC4/KR4 17 VENC_A PC5/KR5 18 VENC_B PC6/KR6 19 A.MUTE PC7/KR7 20 DSPM_CS2 PB0/CINT 21 DSPM_CS1 PB1/CS0 22 DSPM_CK PB2/SCK0 23 DSPM_SI PB3/SI0 24 DSPM_SO PB4/SO0 25 FAN MAX PB5/SCK1 26 ST_EVR PB6/SI1 27 DSPM_RST PB7/SO1 28 AVREF 29 HP DCT PA1/AN0 30 CENTER DCT PA1/AN1 31 THRMO DCT PA2/AN2 32 AMP_DC PA3/AN3 33 AMP_OL PA4/AN4 34 VER_1 PA5/AN5 35 KEYIN2 PA6/AN6 36 KEYIN1 PA7/AN7 37 AVSS 38 RST 39 EXTAL 40 XTAL 41 VSS 42 TX 43 TEX 44 VDD 45 VFIP 46 VIDEO1 PD0/A55 47 VIDEO2 PD1/A54 48 VIDEO3 PD2/A53 49 VIDEO4 PD3/A52 50 SYS_DT PD4/A51 100 G2/A2 G3 99 G3/A3 G4 98 G4/A4 G5 97 G5/A5 G6 96 G6/A6 G7 95 G7/A7 G8 94 G8/A8 G9 93 G9/A9 G10 92 G10/A10 91 G11/A11 S1 90 G12/A12 S2 89 VDD 88 G13/A13 S3 87 G14/A14 S4 86 G15/A15 S5 85 A16 S6 84 A17 S7 83 A18 S8 82 A19 S9 81 A20 S10 80 A21 S11 79 A22 S12 78 A23 S13 77 PH7/A24 S14 76 PH6/A25 S15 75 PH5/A26 S16 74 PH4/A27 S17 73 PH3/A28 S18 72 PH2/A29 S19 71 PH1/A30 S20 70 PH0/A31 S21 69 PG7/A32 S22 68 PG6/A33 S23 67 PG5/A34 RY_C/R 66 PG4/A35 RY_A 65 PG3/A36 RY_AC 64 PG2/A37 RY_HP 63 PG1/A38 DIGITAL input 62 PG0/A39 Multi ch input 61 PF7/A40 Prologic 60 PF6/A41 DolbyDigital 59 PF5/A42 DTS 58 PF4/A43 FM+ 57 PF3/A44 MPEG/HP surr 56 PF2/A45 VIRTUAL/HP_surr 55 PF1/A46 MIDNIGHT 54 PF0/A47 SW boost 53 9164_CS 52 PD6/A49 PD7/A48 GAIN_SEL 51 PD5/A50 SYS_CK • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. PDG264A (FRONT ASSY : IC4201) • Mode Control IC • Pin Assignment (Top view) 7.2 PARTS 7.2.1 IC •List of IC PDG264A, PD5681A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 VSX-C300 . o N e m a N n i P O /I n o it c n u F e v it c A 1 2 G O 2 t u p t u o dir G H 2 1 G 1 t u p t u o dir G H 3 C N − d d V o t tc e n n o C 4 N I C A I t u p ni e slu p C A 5 T D S D R I n oit a cin u m m o c S D R r o f la n gis a t a d lo rt n o c lair e S 6 K C S D R I )t p u rr e t nila n r e tx e r o f e s U ( n oit a cin u m m o c S D R r o f la n gis k c olc lo rt n o c lair e S 7 T C D W S I t u p nila n gis n oitc e t e d r e f o o w b u S 8 C M R I )la n gis r eirr a c n o n ( t u p nila n gis lo rt n o c e t o m e R 9 O E R E T S I la n gis o n o M / o e r e t S f o la n gis n oit a ni m ir c si D 0 1 E T U M _ T O e t u m r e n u T 1 1 E C _ L L P O )r e n u t( 1 3 1 2 7 C L h ti w e t a cin u m m o c r o f la n gis tc ele s pih C 2 1 T N O C P S O n oitc e t e d r e k a e p s r e t n e c r o f t u p t u o la n gi S H 3 1 D E N U T I n oit a m r o f ni D E N U T 4 1 O D _ L L P I )r e n u t( 1 3 1 2 7 C L h ti w e t a cin u m m o c r o fla n gis t u p ni a t a D 5 1 T R A T S N A F O t u p t u o la n gis n oit a t o r N A F H 6 1 T C D N A F I la n gis n oitc e t e d P O T S N A F 7 1 A _ C N E V I A t u p nila n gis r e d o c n e y r a t o r L O V E 8 1 B _ C N E V B t u p nila n gis r e d o c n e y r a t o r L O V E 9 1 E T U M A O e t u m oid u A L 0 2 2 S C _ M P S D I lo rt n o c r e t u p m o c o r ci m P S D r o f t u p ni S C 1 2 1 S C _ M P S D O lo rt n o c r e t u p m o c o r ci m P S D r o f t u p t u o S C L 2 2 K C _ M P S D O r e t u p m o c o r ci m P S D e h t h ti w e t a cin u m m o c r o fla n gis k c ol C H 3 2 I S _ M P S D I r e t u p m o c o r ci m P S D e h t h ti w e t a cin u m m o c r o fla n gis t u p ni a t a D 4 2 O S _ M P S D O r e t u p m o c o r ci m P S D e h t h ti w e t a cin u m m o c r o f la n gis t u p t u o a t a D H 5 2 X A M _ N A F O t u p t u o la n gis n oit a t o r N A F H 6 2 R V E _ T S O C I L O V - E e h t h ti w e t a cin u m m o c r o fla n gis e b o rt S H 7 2 T S R _ M P S D O t e s e r r e t u p m o c o r ci m P S D 8 2 f e r V A − d d V o t tc e n n o C 9 2 T C D P H I t u p nila n gis n oitc e t e d e n o h p d a e H 0 3 T C D R E T N E C I t u p nila n gis n oitc e t e d r e k a e p s r e t n e C 1 3 T C D O M R H T I t u p nila n gis n oitc e t e d la m r e h T 2 3 C D _ P M A I ) n oitc e t e d la m r o n b A : L ( tiu c ric n oitc e t o r p e h t f o n oitc e t e d la m r o n b a C D 3 3 L O _ P M A I ) n oitc e t e d la m r o n b A : L ( tiu c ric n oitc e t o r p e h t f o n oitc e t e d la m r o n b a d a olr e v O 4 3 1 _ R E V I ) ni- e k a t D / A ( h cti w s n oit a nits e D 5 3 2 N I Y E K I t u p ni y e k f o tr o p n ois r e v n o c D / A 6 3 1 N I Y E K 7 3 S S V A − s s V o t tc e n n o C 8 3 T S R − t e s e R 9 3 L A T X E − z H M 2 . 7 r o t allic s o n a tc e n n o C 0 4 L A T X − 1 4 S S V − s s V o t tc e n n o C 2 4 X T − n e p o 3 4 X E T − s s V o t tc e n n o C 4 4 D D V − V 5 + 5 4 P D F V − V 0 3 - 6 4 1 O E D I V O lo rt n o c 6 9 2 2 M J N 7 4 2 O E D I V H 8 4 3 O E D I V H 9 4 4 O E D I V H 0 5 T D _ S Y S O L L P d n a 3 6 1 9 C T , 6 4 4 2 6 M h ti w e t a cin u m m o c r o fla n gis a t a D H • Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 VSX-C300 . o N e m a N n i P O /I n o it c n u F e v it c A 1 5 K C _ S Y S O L L P d n a 3 6 1 9 C T , 6 4 4 2 6 M h ti w e t a cin u m m o c r o fla n gis k c ol C H 2 5 L E S _ N I A G O t u p ni g ola n a f o t al F d n a o e r e t S t a L h cti w s nia G H 3 5 S C _ 4 6 1 9 O tc ele s pih c 4 6 1 9 C T H 4 5 ts o o b W S O S S A B . S t a ts o o b r e f o o w b u S H 5 5 O E R E T S O o e r e ts t a st h giL ,y alp sid D E L H 6 5 rr u s P H /la u tri V O la u triv , R R U S P H t a : H ,J , d d u s P H : S , K ,y alp sid D E L H 7 5 la u triv/ G E P M O L A U T R I V t a : K ,k c a b y alp C B t a : H ,J , C A A G E P M ,y alp sid D E L H 8 5 ) S D R ( + M F O ) s r e h t o : H , F F O r e w o p , M A : L ( r e d o c e d S D R f o r T ylp p u s r e w o p r o f F F O / N O g nih cti w S H 9 5 S T D O k c a b y alp le n n a h c -itlu m S T D t a st h giL ,y alp sid D E L H 0 6 la tigi D y blo D O k c a b y alp e d o c e d la tigid y blo d t a st h giL ,y alp sid D E L H 1 6 cig olo r P O k c a b y alp cig olo r p t a st h giL ,y alp sid D E L H 2 6 t u p ni h citlu M O h c 2 r o f d e t p e c x e sila n gis t u p nila tigid t a st h giL H 3 6 t u p ni L A T I G I D O d e k c ol sila n gis t u p nila tigid t a st h giL H 4 6 P H _ Y R O F F O / N O y ale r P H H 5 6 C A _ Y R O F F O / N O y ale r C A H 6 6 A _ Y R O F F O / N O y ale r A r e k a e p S H 7 6 R / C _ Y R O F F O / N O y ale r r e t n e C /r a e R H 8 6 3 2 S O 3 2 o t 3 t u p t u o t n e m g e S H 9 6 2 2 S H 0 7 1 2 S H 1 7 0 2 S H 2 7 9 1 S H 3 7 8 1 S H 4 7 7 1 S H 5 7 6 1 S H 6 7 5 1 S H 7 7 4 1 S H 8 7 3 1 S H 9 7 2 1 S H 0 8 1 1 S H 1 8 0 1 S H 2 8 9 S H 3 8 8 S H 4 8 7 S H 5 8 6 S H 6 8 5 S H 7 8 4 S H 8 8 3 S H 9 8 D D V − V 5 0 9 2 S O 2 d n a 1 t u p t u o t n e m g e S H 1 9 1 S H 2 9 d e s u t o N O ) P D F V o t d e xif( d e s u t o N 3 9 0 1 G O 0 1 o t 3 t u p t u o dir G H 4 9 9 G H 5 9 8 G H 6 9 7 G H 7 9 6 G H 8 9 5 G H 9 9 4 G H 0 0 1 3 G H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 VSX-C300 PD5681A (DSP ASSY : IC1701) • DSP Microcomputer • Pin Assignment (Top view) 1 ASO P96 2 ACK P95 3 AREQ P94 4 P93 5 M_DO P92 6 M_DI P91 7 M_CK P90 8 GND BYTE 9 GND CNVSS 10 M_CS2 P87 11 M_READY P86 12 RESET RESET 13 XOUT 14 GND VSS 15 XIN 16 5V VCC 17 P85 18 M_CSI P84 19 P83 20 P82 21 P81 22 P80 23 P77 24 P76 25 P75 26 P74 27 P73 28 P72 29 P71 30 P70 31 T-LXD P67 32 T-RXD P66 33 T-SCLK P65 34 T-BUSY P64 35 CSDO P63 36 CDT CCK CRST CREQ ABOT GND CCS CA17 CA16 CA15 P62 37 P61 38 P60 39 P57 40 P56 41 P55 42 P54 43 P53 44 P52 45 P51 46 5V P50 47 P47 48 MUTE P46 49 ADMD P45 50 DT P44 100 P97 ASI 99 AVCC 5V 98 VREF 5V 97 P100 ADRT 96 AVSS GND 95 P101 ADRY 94 P102 ARDY 93 P103 AIRT 92 P104 91 P105 90 P106 ANOVL 89 P107 88 P00 87 P01 86 P02 2CHSW1 85 P03 2CHSW2 84 P04 83 P05 82 P06 81 P07 80 P10 79 P11 78 P12 CDC_CK 77 P13 CDC_DT 76 P14 CDC_CS 75 P15 ERR 74 P16 73 P17 72 P20 71 P21 70 P22 FS96 69 P23 CODEC PD 68 P24 DIR SDTO 67 P25 DIR PD 66 P26 65 P27 64 VSS GND 63 P30 62 VCC 5V 61 P31 ATT 60 P32 59 P33 58 P34 57 P35 56 P36 SELC 55 P37 SELB 54 P40 SELA 53 52 P42 P41 ST 51 P43 CK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 VSX-C300 . o N e m a N n i P O /I n o it c n u F 1 O S A O P S D 2 K C A 3 Q E R A 4 d e s u t o N O d e s u t o N 5 O D _ M O r e t u p m o c o r ci m nia m e h t o t t u p t u o a t a D 6 I D _ M I r e t u p m o c o r ci m nia m e h t m o rf t u p ni a t a D 7 K C _ M I r e t u p m o c o r ci m nia m e h t h ti w e t a cin u m m o c r o f t u p ni k c ol C 8 E T Y B I D N G 9 E O / M G P - T I ) e tir w e r H S A L F r o f( D N G d n a s s V N C o t n w o d -llu P 0 1 2 S C _ M O n oit a cin u m m o c r e t u p m o c o r ci m nia m r o f t u p t u o S C 1 1 Y D A E R _ M O n oit a cin u m m o c r e t u p m o c o r ci m nia m r o f t u p t u o Y D A E R 2 1 T E S E R − r e t u p m o c o r ci m nia m e h t m o rf t e s e R 3 1 T U O X − r o t allic s O 4 1 s s V − D N G 5 1 N I X − r o t allic s O 6 1 c c V − V 5 7 1 I M N I V 5 8 1 1 S C _ M I n oit a cin u m m o c r e t u p m o c o r ci m nia m r o f t u p ni S C 9 1 d e s u t o N O d e s u t o N 0 2 d e s u t o N 1 2 d e s u t o N 2 2 d e s u t o N 3 2 d e s u t o N 4 2 d e s u t o N 5 2 d e s u t o N 6 2 d e s u t o N 7 2 d e s u t o N 8 2 d e s u t o N 9 2 d e s u t o N 0 3 d e s u t o N 1 3 D X T O e tir w e r H S A L F r o F 2 3 D X R I 3 3 K L C S - T I 4 3 Y S U B - T O 5 3 O D S C O P S D la ts y r c r o F 6 3 T D C I 7 3 K C C O 8 3 T S R C O 9 3 Q E R C I 0 4 T O B A O 1 4 s s V - 2 4 S C C O P S D la ts y r c r o F 3 4 7 1 A C O 4 4 6 1 A C 5 4 5 1 A C 6 4 d d V - T I V 5 7 4 d e s u t o N O d e s u t o N 8 4 E T U M O ) 4 6 1 9 C T ( W S - E r o F 9 4 D M D A 0 5 T D • Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 VSX-C300 . o N e m a N n i P O /I n o it c n u F 1 5 K C O ) 4 6 1 9 C T ( W S - E r o F 2 5 T S 3 5 d e s u t o N O d e s u t o N 4 5 A L E S O F 1 5 1 T C A 4 7 C T , C I cig o L r o F 5 5 B L E S 6 5 C L E S 7 5 d e s u t o N O d e s u t o N 8 5 d e s u t o N 9 5 d e s u t o N 0 6 d e s u t o N 1 6 T T A O t u p t u o T T A 2 6 c c V − V 5 3 6 d e s u t o N O d e s u t o N 4 6 s s V − D N G 5 6 d e s u t o N O d e s u t o N 6 6 d e s u t o N 7 6 D P R I D O R I D r o f n w o d r e w o P 8 6 O D T S R I D I t u p ni a t a d R I D 9 6 D P _ C D C O n w o d r e w o p C E D O C 0 7 6 9 S F I k 6 9 1 7 d e s u t o N O d e s u t o N 2 7 d e s u t o N 3 7 d e s u t o N 4 7 d e s u t o N 5 7 R R E I R I D 6 7 S C _ C D C O n oit a cin u m m o c C E D O C r o f S C 7 7 T D _ C D C O n oit a cin u m m o c C E D O C r o f t u p t u o a t a D 8 7 K C _ C D C O n oit a cin u m m o c C E D O C r o f k c ol C 9 7 d e s u t o N O d e s u t o N 0 8 d e s u t o N 1 8 d e s u t o N 2 8 d e s u t o N 3 8 d e s u t o N 4 8 d e s u t o N 5 8 2 W S H C 2 O ) D E R R E W O P : L , V I S S A P : H W S ( lo rt n o c 5 1 2 9 C T r o F 6 8 1 W S H C 2 ) H C 6 : L , P S D : H B S ( lo rt n o c 5 1 2 9 C T r o F 7 8 d e s u t o N O d e s u t o N 8 8 d e s u t o N 9 8 V O N A I ) D / A ( t u p ni g ola n a f o n oitc e t e d d a olr e v O 0 9 d e s u t o N O d e s u t o N 1 9 d e s u t o N 2 9 d e s u t o N 3 9 T R I A O ) yln o ylp p u s r e w o p f o e g d e g nisir t a lo rt n o c ( t e s e r T I N I P S D 4 9 Y D R A I P S D 5 9 Y R D A O 6 9 s s V A − D N G 7 9 T R D A O t e s e r P S D 8 9 f e r V − V 5 9 9 c c V A − V 5 0 0 1 I S A I P S D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 VSX-C300 7.2.2 DISPLAY AAV7083 (FRONT ASSY : V4301) • FL DISPLAY • Pin Assignment 45 1 • Segment Designation • Grid Assignment www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 VSX-C300 • Pin Connection • Anode Connection www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 VSX-C300 8. PANEL FACILITIES AND SPECIFICATIONS 1 — OFF/ _ ON button Press this button to the ON position so that the power button on the remote control will be opera- tional. If the button is OFF (—), the power of the receiver is shut off and the RECEIVER button on the remote control does not function. When this button is ON, the power button on the remote control toggles between ON and STANDBY mode. 2 STANDBY indicator Lights when the receiver is in standby mode. The receiver uses a small amount of electricity (1W) in standby mode. 3 INPUT SIGNAL indicators Indicates the kind of input signal. DIGITAL : When a digital source is input this indicator will light. MULTI : When a multichannel source is input this indicator will light. 4 DECODE MODE indicators Indicates how the signal is being decoded. 2 PRO LOGIC: Lights when 2 PRO LOGIC decoding is in use. 2 DIGITAL: Lights when playing a 2 DIGITAL sound source DTS: lights when playing a DTS sound source . 5 2 Ch Listening Mode indicators When these indicators are lit sound is only coming from the front speakers (and possibly the subwoofer in some settings) or headphones. VIRTUAL.: Lights when the VIRTUAL sound modes are selected. PHONES SURR.: Lights when the PHONES SURR. listening modes are selected. STEREO: Lights in stereo mode. 6 MASTER VOLUME Use to set the overall listening volume. 7 Input buttons Use to select the playback source: the possibilities are DVD, TV/SAT, VCR, TUNER and FRONT. If the receiver is in standby mode pressing these buttons will also turn the power on. 8 FRONT jacks You can connect a portable DVD player, video camera, video game system, or whatever equipment you would like to have handy, to the FRONT jacks 9 PHONES jack Use to connect headphones (this switches the speakers off). 0 Volume level indicator - MIDNIGHT indicator Lights when Midnight Listening mode is on. = CHARACTER display Shows the current input (DVD, TV/SAT, etc.), listening mode, radio frequency, etc. ~ TUNER indicators STEREO: Lights when a stereo FM broadcast is being received in auto stereo mode. TUNED: Lights when a broadcast is being received. MONO: Lights when the mono mode is set using the MPX button. Front Panel 8.1 PANEL FACILITIES Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories. STANDBY PHONES VIDEO AUDIO DIGITAL IN FRONT INPUT INPUT SIGNAL DIGITAL 2DIGITAL 2PROLOGIC DTS VIRTUAL PHONES SURR STEREO AUDIO/VIDEO MULTI-CHANNEL RECEIVER VSX-C300 DVD TV/SAT VCR FRONT TUNER MASTER VOLUME DOWN UP � MULTI ch L R OFF ON 1 2 3 4 6 7 8 9 5 B d TUNED STEREO MONO ~ = 0 - www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 VSX-C300 Remote Control 1 RECEIVER (Power) button: This switches between STANDBY mode and power ON for this receiver. 2 Input/Control Mode Select buttons Use to put the receiver/remote control in the input stated on the button. If the Direct Selection is off, then these buttons won’t put the receiver in the input written on the button. 3 Control Mode Select buttons: Use these buttons to put the remote control in receiver or TV mode . 4 LED indicator : This indicator flashes when a command is sent from the remote control to the receiver. It also flashes at when teaching the receiver preset codes. 5 INPUT SELECT button : Use to select the playback source. This button lets you cycle through the different inputs: DVD, TV/SAT, VCR, TUNER and FRONT. 6 MASTER VOLUME +/– buttons: Use to set the overall listening volume. 7 REMOTE SETUP button : Use this button when setting up the remote control with the REMOTE SETUP feature. 8 MUTING button : Use to mute the sound or restore the sound if it has been muted. 9 DISPLAY button : Use to display information. You can confirm what settings have been made by going through the various displays. 0 TV (POWER) button : Use to turn on/off the power of the TV. a INPUT SELECT button : Use to select the TV input. b VOLUME +/– buttons : Use to adjust the volume on your TV. c CHANNEL +/– buttons : Use to select channels on your TV. - SOURCE (Power) button : Use this button to turn on and off the power of other components. = CH SELECT button : Use to select a speaker when setting the volume level of each channel. ~ TEST TONE button : Use to sound the TEST TONE when setting the volume level of each channel. ! DIMMER button : Press to change the display brightness. The DIMMER button allows you to cycle through the four different brightness strengths for the display. a Tone Effect buttons: FLAT button - Press for FLAT mode. This mode plays as recorded with no tone adjustments. QUIET button - Press for QUIET mode. This mode is for delicate soundtracks. S. BASS button - Press for S.BASS mode, which adds additional bass to the sound. 2 3 1 - = ~ % ! VIRTUAL 5-D GAME TV SURR. PHONES SURR. STANDARD MIDNGHT AUTO 2/MULTI STEREO 2ch MULTI S M FLAT DIMMER QUIET AUDIO S.BASS L VOLUME CHANNEL ENTER ENTER TUNE ST CH. SELECT CH. LEVEL TEST TONE TOP MENU MENU ST MUSICAL DRAMA ACTION AUDIO/VIDEO PRE-PROGRAMMED REMOTE CONTROL UNIT DVD TV/SAT RECEIVER REMOTE SETUP INPUT SELECT INPUT SELECT MASTER VOLUME RECEIVER TV SOURCE TV CONTROL ROOM SETUP TUNER FRONT MUTING DISPLAY VCR TV 1 2 3 4 5 9 6 7 8 0 +10 TUNE BAND CLASS EDIT DISPLAY 4 5 0 @ 6 8 9 7 # $ * & ^ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 VSX-C300 @ ROOM SETUP (S-M-L) buttons : Use these functions when setting up the surround sound speaker distances with the Quick Start, easy-to-do method. # CH.LEVEL +/– buttons : Use these buttons to control the volume level of each channel or add or subtract the amount of effect in a listening mode. $ 2 2 2 2 2 3 3 3 3 3 5 5 5 5 5 ∞ ∞∞ ∞ ∞ & ENTER buttons : Use these arrow buttons when setting up your surround system. % 2 channel listening mode buttons : VIRTUAL button- Press for VIRTUAL listening mode. This listening mode imitates surround sound but only uses two channels. PHONES SURR. button- Press for PHONES SURR. listening mode. This listening mode imitates surround sound for headphones (also only two channel reproduc tion). STEREO button- Press for STEREO listening mode. This is regular stereo reproduction (always two channel sound). ^ MULTI channel listening mode buttons : STANDARD button-Press for STANDARD listening mode. This is the basic listening mode for listening to Dolby Digital 5.1, DTS 5.1 and other surround soundtracks as well as Dolby Surround soundtracks. It offers pure decoding of the signal with no added effects. 2 channel sources will get decoded and played back as Dolby Pro Logic surround soundtracks. 5-D button-Press for 5-D sound mode. This listening mode takes two channel sources and simulates surround sound. GAME button-Press for GAME listening mode. This listening mode is best for games and other soundtracks with lots of electronic sounds. TV SURR. button-Press for TV SURR. listening mode. This listening mode takes mono (TV sound) sources and simulates surround sound. MUSICAL button- Press for MUSICAL listening mode. This listening mode is best for music and other soundtracks with lots of melody. DRAMA button-Press for DRAMA listening mode. This listening mode is best for dramatic movies and other soundtracks with lots of dialog. ACTION button-Press for ACTION listening mode. This listening mode is best for action movies and other soundtracks with lots of animated sounds. & MIDNIGHT button : Use to put receiver in MIDNIGHT mode. * 2/MULTI channel listening mode button : AUTO button: Use to put receiver in the AUTO mode, where the receiver automatically switches between STEREO (2 ch) and STANDARD (MULTI) according to the input. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 VSX-C300 Amplifier Section Continuous average power output of 21 watts* per channel, min., at 6 ohms, from 20 Hz to 20,000 Hz with no more than 0.9 %** total harmonic distortion (front). Continuous Power Output (SURROUND MODE) FRONT ..................... 33 W / ch (1 kHz, THD 1 %, 6 Ω) CENTER ........................... 33W (1 kHz, THD 1 %, 6 Ω) SURROUND ............. 33 W / ch (1 kHz, THD 1 %, 6 Ω) RMS Power Output (SURROUND MODE) FRONT ................... 40 W / ch (1 kHz, THD 10 %, 6 Ω) CENTER ....................... 40 W (1 kHz, THD 10 %, 6 Ω) SURROUND ........... 40 W / ch (1 kHz, THD 10 %, 6 Ω) Input (Sensitivity/Impedance) DVD, TV/SAT, VCR, FRONT ................ 200 mV/47 kΩ Frequency Response DVD, TV/SAT, VCR, FRONT ......................................... 5 Hz to 100,000 Hz dB Output (Level/Impedance) VCR OUT ........................................... 200 mV/2.2 kΩ Signal-to-Noise Ratio (IHF, short circuited, A network) DVD, TV/SAT, VCR, FRONT ........................... 97 dB Signal-to Noise Ratio [EIA, at 1 W (1 kHz)] DVD, TV/SAT, VCR, FRONT ........................... 79 dB * Measured pursuant to the Federal Trade Commission’s Trade Regulation rule on Power Output Claims for Amplifiers. ** Measured by Audio Spectrum Analyzer. VIDEO Section Input (Sensitivity/Impedance) DVD, TV/SAT, VCR, FRONT .................... 1 Vp-p/75 Ω Output (Level/Impedance) VCR, MONITOR ...................................... 1 Vp-p/75 Ω Frequency Response DVD, TV/SAT, VCR, FRONT → MONITOR ................................................ 5 Hz to 7 MHz dB Signal-to-Noise Ratio ............................................55 dB Accessories Remote control unit (AXD7310) AM loop antenna (ATB7009) FM wire antenna (ADH7004) AA size IEC R6P Dry cell batteries (x2) 8.2 SPECIFICATIONS VIRTUAL 5-D GAME TV SURR. PHONES SURR. STANDARD MIDNGHT AUTO 2/MULTI STEREO 2ch MULTI S M FLAT DIMMER QUIET AUDIO S.BASS L VOLUME CHANNEL ENTER ENTER TUNE ST CH. SELECT CH. LEVEL TEST TONE TOP MENU MENU ST MUSICAL DRAMA ACTION AUDIO/VIDEO PRE-PROGRAMMED REMOTE CONTROL UNIT DVD TV/SAT RECEIVER REMOTE SETUP INPUT SELECT INPUT SELECT MASTER VOLUME RECEIVER TV SOURCE TV CONTROL ROOM SETUP TUNER FRONT MUTING DISPLAY VCR TV 1 2 3 4 5 9 6 7 8 0 +10 TUNE BAND CLASS EDIT DISPLAY +0 –3 +0 –3 FM Tuner Section Frequency Range ....................... 87.5 MHz to 108 MHz Usable Sensitivity ..... Mono:13.2 dBf, IHF (1.3 µV/ 75 Ω) 50 dB Quieting Sensitivity .................... Mono: 20.2 dBf ......................................................... Stereo: 38.6 dBf Signal-to-Noise Ratio ............... Mono: 73 dB (at 85 dBf) ........................................... Stereo: 70 dB (at 85 dBf) Distortion .................................... Stereo: 0.5 % (1 kHz) Alternate Channel Selectivity ...............60 dB (400 kHz) Stereo Separation .....................................40 dB (1 kHz) Frequency Response ................ 30 Hz to 15 kHz (±1dB) Antenna Input (DIN) .......................... 75 Ω unbalanced AM Tuner Section Frequency Range ......... 530 kHz to 1,700 kHz (10 kHz) Sensitivity (IHF, Loop antenna) ...................... 350 µV/m Selectivity .............................................................25 dB Signal-to-Noise Ratio ............................................50 dB Antenna ................................................... Loop antenna Miscellaneous Power Requirements ............................ AC 120 V, 60 Hz Power Consumption ........................................... 130 W In Standby .............................................................. 1 W Dimensions .................. 420 (W) x 65 (H) x 322(D) mm .............. 16 9/16 (W) x 2 9/16 (H) x 12 11/16(D) in. Weight (without package) ................. 5.2 kg (11 lb 8 oz) Furnished Parts AM loop antenna ......................................................... 1 FM wire antenna .......................................................... 1 Dry cell batteries (AA size IEC R6P) ............................. 2 Remote control unit ..................................................... 1 Power cord ..................................................................1 Speaker cord labels ......................................................1 Operating instructions .................................................1 NOTE: • Specifications and the design are subject to possible modifications without notice, due to improvements. AC Power cord (ADG7022) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
