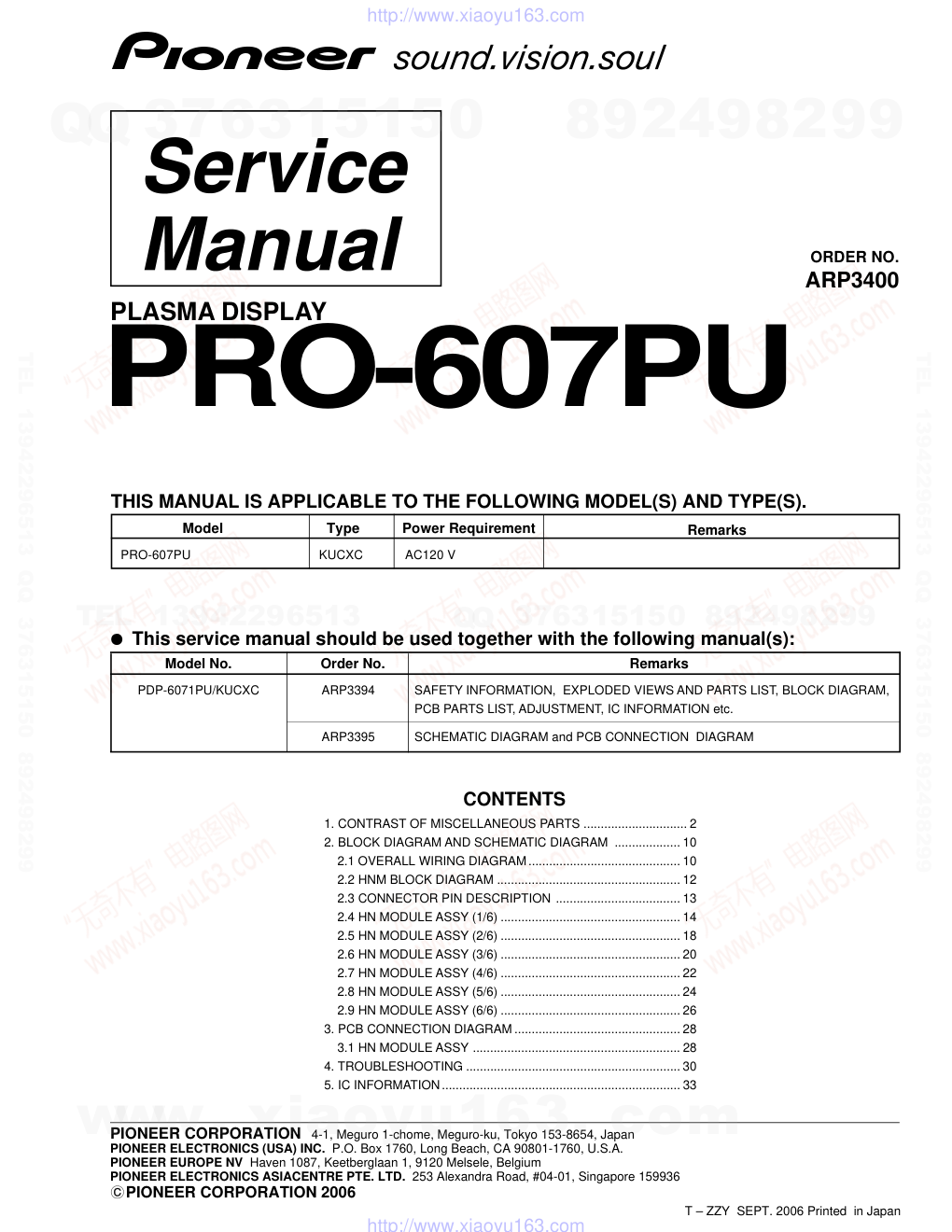

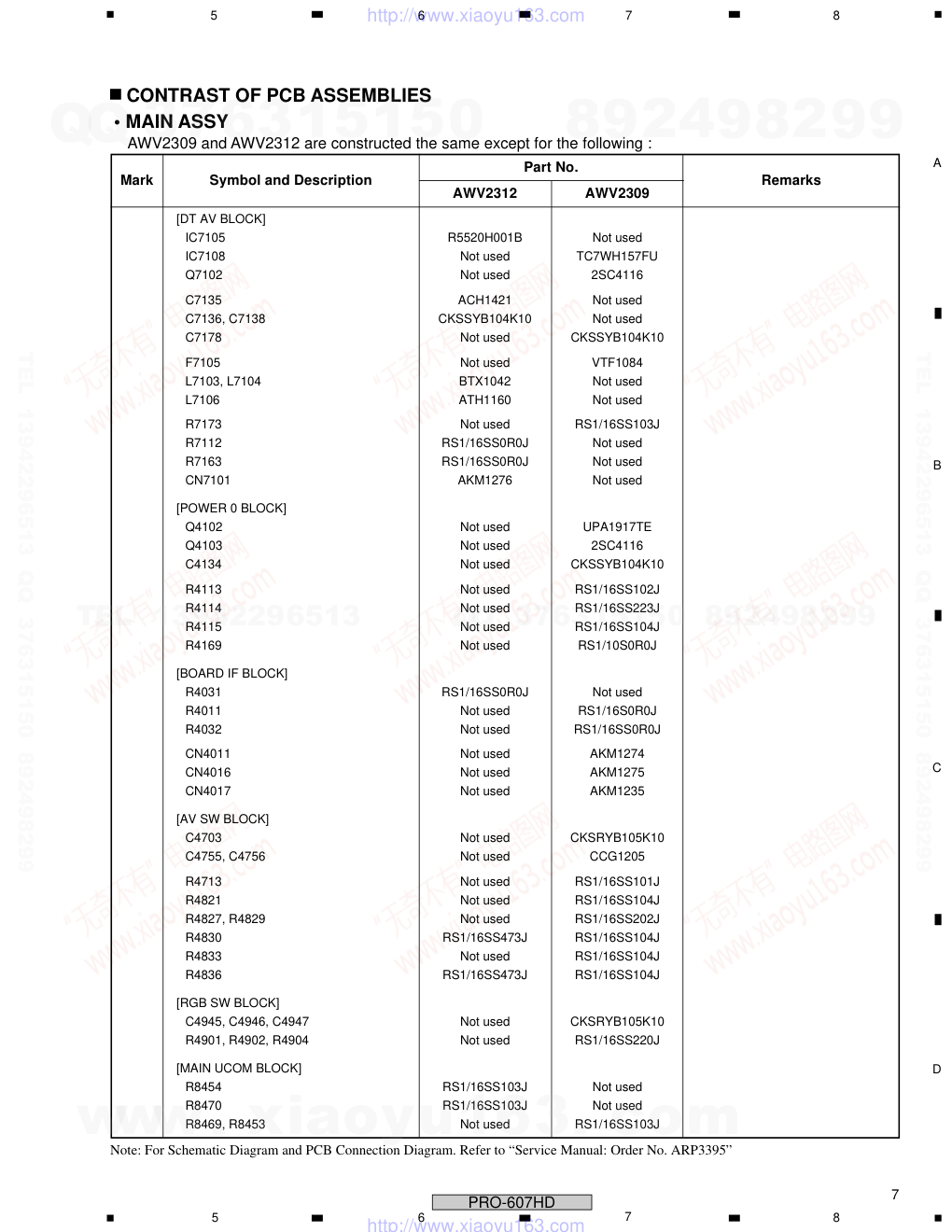

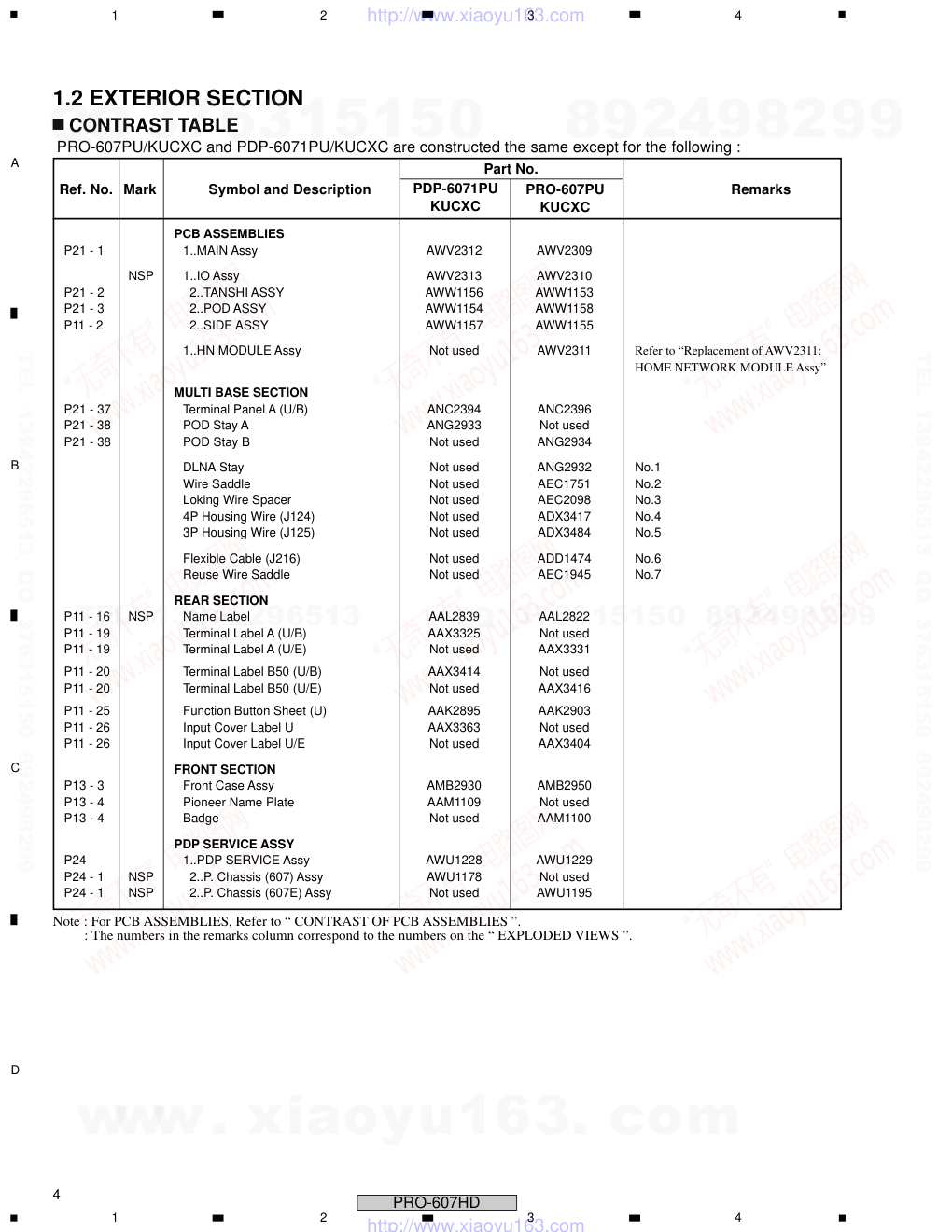

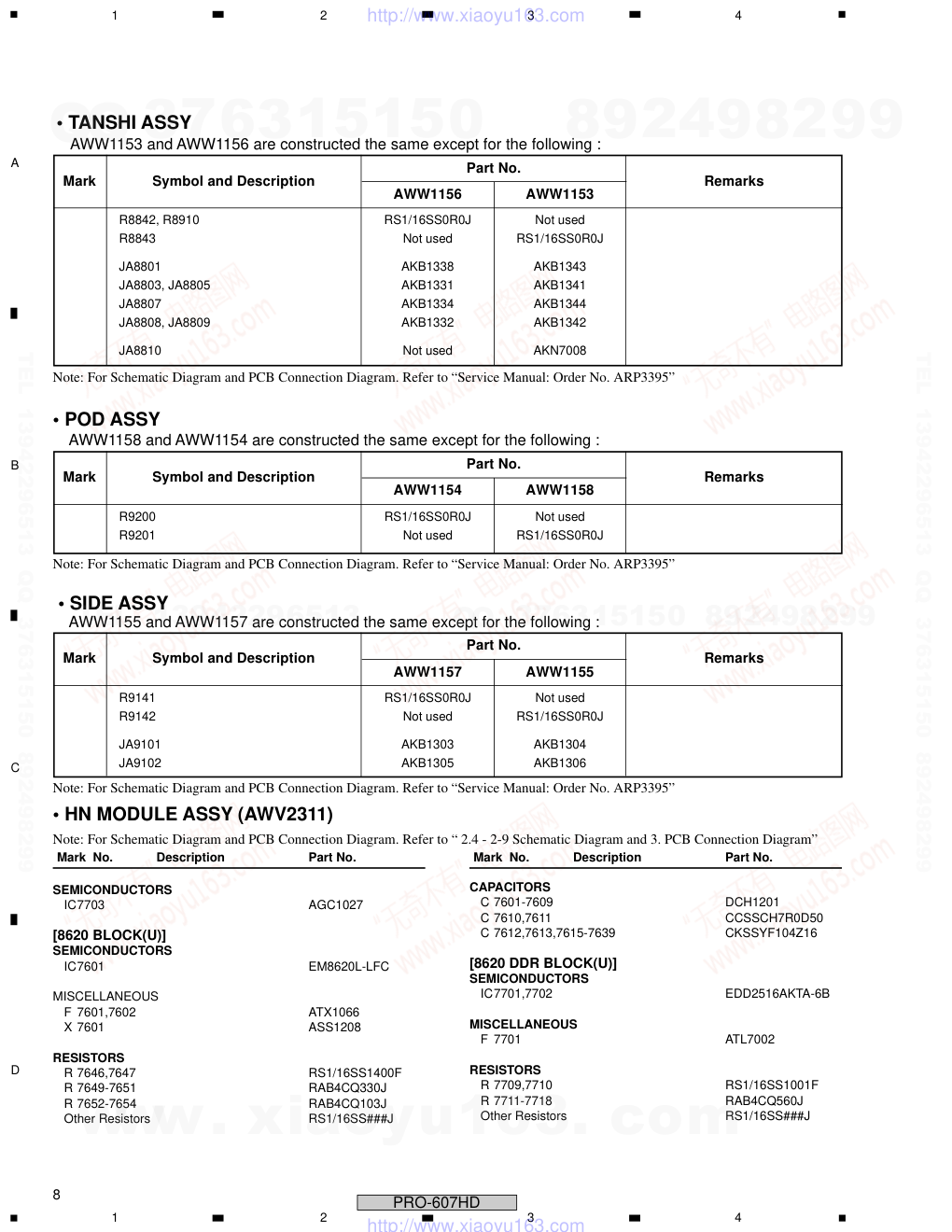

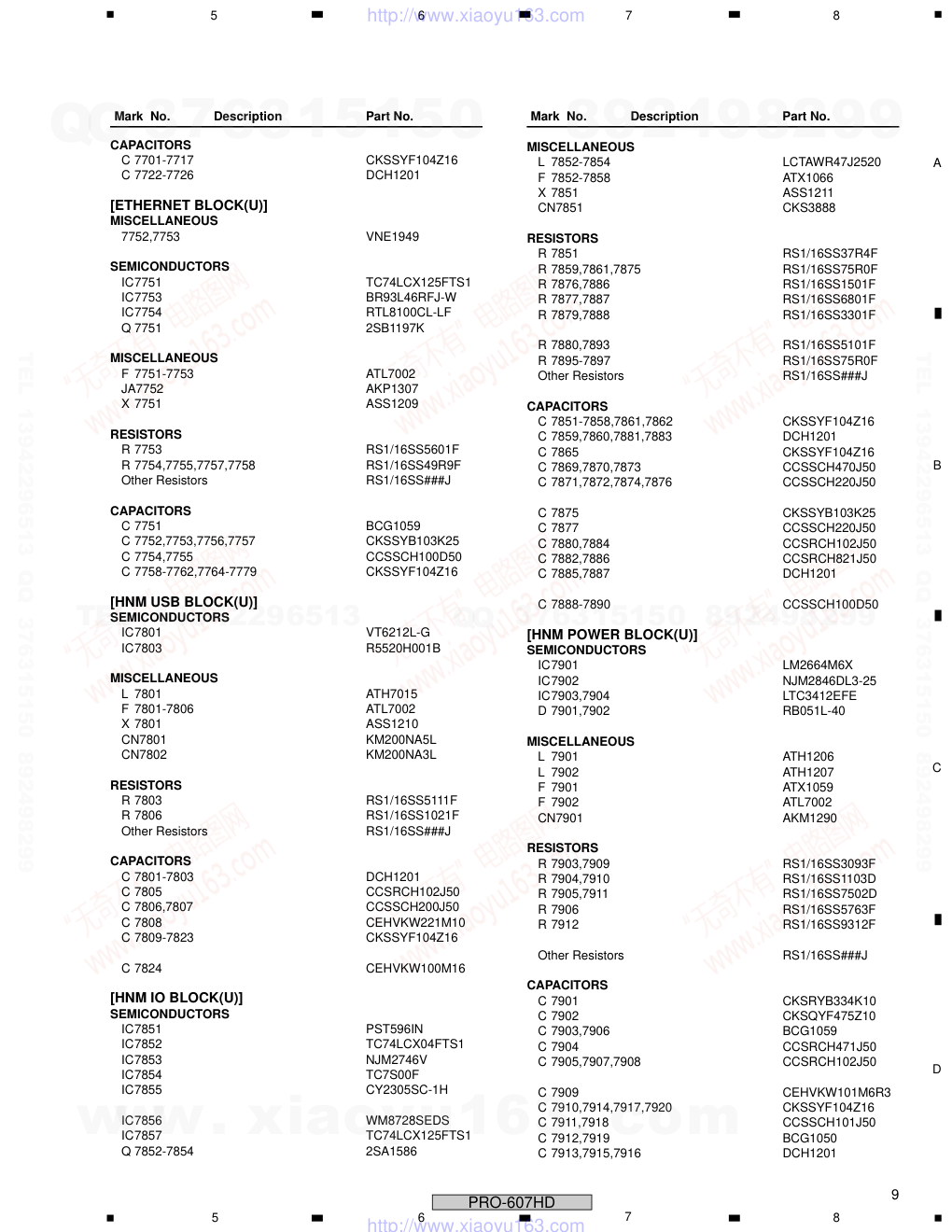

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2006 ARP3400 T – ZZY SEPT. 2006 Printed in Japan THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model Type Power Requirement Remarks PRO-607PU KUCXC AC120 V PRO-607PU PLASMA DISPLAY ¶ This service manual should be used together with the following manual(s): Model No. Order No. Remarks PDP-6071PU/KUCXC ARP3394 SAFETY INFORMATION, EXPLODED VIEWS AND PARTS LIST, BLOCK DIAGRAM, PCB PARTS LIST, ADJUSTMENT, IC INFORMATION etc. ARP3395 SCHEMATIC DIAGRAM and PCB CONNECTION DIAGRAM CONTENTS 1. CONTRAST OF MISCELLANEOUS PARTS .............................. 2 2. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ................... 10 2.1 OVERALL WIRING DIAGRAM............................................ 10 2.2 HNM BLOCK DIAGRAM ..................................................... 12 2.3 CONNECTOR PIN DESCRIPTION .................................... 13 2.4 HN MODULE ASSY (1/6) .................................................... 14 2.5 HN MODULE ASSY (2/6) .................................................... 18 2.6 HN MODULE ASSY (3/6) .................................................... 20 2.7 HN MODULE ASSY (4/6) .................................................... 22 2.8 HN MODULE ASSY (5/6) .................................................... 24 2.9 HN MODULE ASSY (6/6) .................................................... 26 3. PCB CONNECTION DIAGRAM ................................................ 28 3.1 HN MODULE ASSY ............................................................ 28 4. TROUBLESHOOTING .............................................................. 30 5. IC INFORMATION..................................................................... 33 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 A B C D 1 2 3 4 1 2 3 4 PRO-607HD 1. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 560 47k 0.5 1 RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 101 47 x 103 R50 1R0 561 473 5.62k RN1/4PC F 562 x 101 5621 • Parts of the packing section are all mentioned in this manual. 1.1 PACKING SECTION Speed clamp x3 Bead band x3 Noise filter for G-Link cable Binder for noise filter 9, 11, 13, 27, 28 8 1 3 16 15 15 12 6 25 24 19 18 23 23 10 21 20 24 26 17 2 5 7 22 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 A B C D 5 6 7 8 5 6 7 8 PRO-607HD • PACKING Parts List Mark No. Description Part No. > 1 Power Cord (2 m) ADG1215 2 G-LINK Cable (3 m) VDX1010 3 Remote Control Unit AXD1531 4 Battery Cover AZN2681 NSP 5 Alkaline Dry Cell Battery (LR6, AA) VEM1023 6 Ferrite Core CTX1054 7 Binder Assy AEC1908 8 Cleaning Cloth AED1285 9 Operating Instructions (English) ARB1573 10 Caution Card ARM1239 11 Cleaning Caution ARM1303 NSP 12 Warranty Card ARY1123 NSP 13 Card ARY1156 14 • • • • • 15 Vinyl Bag AHG1347 16 Polyethylene Bag S AHG1395 17 Polyethylene Bag AHG1394 18 Pad (607 T-L) AHA2617 19 Pad (607 T-R) AHA2618 20 Pad (607 B-L) AHA2619 21 Pad (607 B-R) AHA2620 22 Accessory Box AHC1091 23 Reinforce Carton (607) AHC1092 24 Under Carton (607) AHD3548 25 Upper Carton (607EL) AHD3543 26 Mirror Mat AHG1397 27 Disclaimer Sheet ARX1139 28 Terminal Position Sheet AAX3335 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 A B C D 1 2 3 4 1 2 3 4 PRO-607HD PRO-607PU/KUCXC and PDP-6071PU/KUCXC are constructed the same except for the following : PCB ASSEMBLIES P21 - 1 1..MAIN Assy AWV2312 AWV2309 NSP 1..IO Assy AWV2313 AWV2310 P21 - 2 2..TANSHI ASSY AWW1156 AWW1153 P21 - 3 2..POD ASSY AWW1154 AWW1158 P11 - 2 2..SIDE ASSY AWW1157 AWW1155 1..HN MODULE Assy Not used AWV2311 Refer to “Replacement of AWV2311: HOME NETWORK MODULE Assy” MULTI BASE SECTION P21 - 37 Terminal Panel A (U/B) ANC2394 ANC2396 P21 - 38 POD Stay A ANG2933 Not used P21 - 38 POD Stay B Not used ANG2934 DLNA Stay Not used ANG2932 No.1 Wire Saddle Not used AEC1751 No.2 Loking Wire Spacer Not used AEC2098 No.3 4P Housing Wire (J124) Not used ADX3417 No.4 3P Housing Wire (J125) Not used ADX3484 No.5 Flexible Cable (J216) Not used ADD1474 No.6 Reuse Wire Saddle Not used AEC1945 No.7 REAR SECTION P11 - 16 NSP Name Label AAL2839 AAL2822 P11 - 19 Terminal Label A (U/B) AAX3325 Not used P11 - 19 Terminal Label A (U/E) Not used AAX3331 P11 - 20 Terminal Label B50 (U/B) AAX3414 Not used P11 - 20 Terminal Label B50 (U/E) Not used AAX3416 P11 - 25 Function Button Sheet (U) AAK2895 AAK2903 P11 - 26 Input Cover Label U AAX3363 Not used P11 - 26 Input Cover Label U/E Not used AAX3404 FRONT SECTION P13 - 3 Front Case Assy AMB2930 AMB2950 P13 - 4 Pioneer Name Plate AAM1109 Not used P13 - 4 Badge Not used AAM1100 PDP SERVICE ASSY P24 1..PDP SERVICE Assy AWU1228 AWU1229 P24 - 1 NSP 2..P. Chassis (607) Assy AWU1178 Not used P24 - 1 NSP 2..P. Chassis (607E) Assy Not used AWU1195 CONTRAST TABLE Part No. PDP-6071PU KUCXC Ref. No. Symbol and Description Remarks Mark PRO-607PU KUCXC Note : For PCB ASSEMBLIES, Refer to “ CONTRAST OF PCB ASSEMBLIES ”. 1.2 EXTERIOR SECTION : The numbers in the remarks column correspond to the numbers on the “ EXPLODED VIEWS ”. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 A B C D 5 6 7 8 5 6 7 8 PRO-607HD EXPLODED VIEWS No.5 No.5 No.4 No.4 No.5 No.5 No.5 No.5 Note: see next page Note: see next page No.5 No.5 No.1 No.1 No.5 No.5 No.7 No.7 No.5 No.5 No.2 No.2 No.5 No.5 No.3 No.3 No.5 No.5 No.6 No.6 POD Stay B POD Stay B PMB30P080FNI PMB30P080FNI AMZ30P060FTB AMZ30P060FTB AMZ30P060FTB AMZ30P060FTB BMZ30P060FTB BMZ30P060FTB BMZ30P060FTB BMZ30P060FTB No.5 No.5 No.4 No.5 No.5 No.5 Note: see next page No.5 No.5 No.1 No.5 No.5 No.7 No.5 No.5 No.2 No.5 No.5 No.3 No.5 No.5 No.6 POD Stay B PMB30P080FNI AMZ30P060FTB AMZ30P060FTB BMZ30P060FTB BMZ30P060FTB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 A B C D 1 2 3 4 1 2 3 4 PRO-607HD Replacement of AWV2311: HOME NETWORK MODULE ass'y There are two types of HOME NETWORK MODULE ass'y in interface with MAIN ass'y, and only AWV2311-B /J is available as a service parts ass'y. AWV2311- A /J AWV2311- B /J J7601: ADX3483 yes no CN7802: KM200NA3L no yes Connection with MAIN ass'y Figure A Figure B When AWV2311-A /J is used in the product, order ADX3484 in addition, and connect it with MAIN ass'y as shown in Figure B. Or perform the following steps as shown in Figure A. 1. Take off ADX3483 from the defective ass'y 2. Solder it to the same point (4th pin in IC7803) on a service parts ass'y 3. Fix the wire by bond-lock, and then connect it with MAIN ass'y When AWV2311-B /J is used in the product, replace the defective ass'y with a service parts ass'y as shown in Figure B. Figure A: AWV2311-A /J Figure B: AWV2311-B /J Fix the wire by bond-lock. Fix the wire by bond-lock. 4th pin in IC7803 4th pin in IC7803 ADX3484 ADX3484 CN7802 CN7802 M17 M17 M17 M17 ADX3483 ADX3483 ADX3485 ADX3485 Fix the wire by bond-lock. 4th pin in IC7803 ADX3484 CN7802 M17 M17 ADX3483 ADX3485 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 A B C D 5 6 7 8 5 6 7 8 PRO-607HD CONTRAST OF PCB ASSEMBLIES • MAIN ASSY AWV2309 and AWV2312 are constructed the same except for the following : Mark Symbol and Description Part No. AWV2312 AWV2309 Remarks [DT AV BLOCK] IC7105 R5520H001B Not used IC7108 Not used TC7WH157FU Q7102 Not used 2SC4116 C7135 ACH1421 Not used C7136, C7138 CKSSYB104K10 Not used C7178 Not used CKSSYB104K10 F7105 Not used VTF1084 L7103, L7104 BTX1042 Not used L7106 ATH1160 Not used R7173 Not used RS1/16SS103J R7112 RS1/16SS0R0J Not used R7163 RS1/16SS0R0J Not used CN7101 AKM1276 Not used [POWER 0 BLOCK] Q4102 Not used UPA1917TE Q4103 Not used 2SC4116 C4134 Not used CKSSYB104K10 R4113 Not used RS1/16SS102J R4114 Not used RS1/16SS223J R4115 Not used RS1/16SS104J R4169 Not used RS1/10S0R0J [BOARD IF BLOCK] R4031 RS1/16SS0R0J Not used R4011 Not used RS1/16S0R0J R4032 Not used RS1/16SS0R0J CN4011 Not used AKM1274 CN4016 Not used AKM1275 CN4017 Not used AKM1235 [AV SW BLOCK] C4703 Not used CKSRYB105K10 C4755, C4756 Not used CCG1205 R4713 Not used RS1/16SS101J R4821 Not used RS1/16SS104J R4827, R4829 Not used RS1/16SS202J R4830 RS1/16SS473J RS1/16SS104J R4833 Not used RS1/16SS104J R4836 RS1/16SS473J RS1/16SS104J [RGB SW BLOCK] C4945, C4946, C4947 Not used CKSRYB105K10 R4901, R4902, R4904 Not used RS1/16SS220J [MAIN UCOM BLOCK] R8454 RS1/16SS103J Not used R8470 RS1/16SS103J Not used R8469, R8453 Not used RS1/16SS103J Note: For Schematic Diagram and PCB Connection Diagram. Refer to “Service Manual: Order No. ARP3395” www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 A B C D 1 2 3 4 1 2 3 4 PRO-607HD SEMICONDUCTORS IC7703 AGC1027 [8620 BLOCK(U)] SEMICONDUCTORS IC7601 EM8620L-LFC MISCELLANEOUS F 7601,7602 ATX1066 X 7601 ASS1208 RESISTORS R 7646,7647 RS1/16SS1400F R 7649-7651 RAB4CQ330J R 7652-7654 RAB4CQ103J Other Resistors RS1/16SS###J • HN MODULE ASSY (AWV2311) Note: For Schematic Diagram and PCB Connection Diagram. Refer to “ 2.4 - 2-9 Schematic Diagram and 3. PCB Connection Diagram” • TANSHI ASSY AWW1153 and AWW1156 are constructed the same except for the following : Mark Symbol and Description Part No. AWW1156 AWW1153 Remarks R8842, R8910 RS1/16SS0R0J Not used R8843 Not used RS1/16SS0R0J JA8801 AKB1338 AKB1343 JA8803, JA8805 AKB1331 AKB1341 JA8807 AKB1334 AKB1344 JA8808, JA8809 AKB1332 AKB1342 JA8810 Not used AKN7008 • POD ASSY Mark Symbol and Description Part No. AWW1154 AWW1158 Remarks R9200 RS1/16SS0R0J Not used R9201 Not used RS1/16SS0R0J AWW1158 and AWW1154 are constructed the same except for the following : • SIDE ASSY Mark Symbol and Description Part No. AWW1157 AWW1155 Remarks R9141 RS1/16SS0R0J Not used R9142 Not used RS1/16SS0R0J JA9101 AKB1303 AKB1304 JA9102 AKB1305 AKB1306 AWW1155 and AWW1157 are constructed the same except for the following : Note: For Schematic Diagram and PCB Connection Diagram. Refer to “Service Manual: Order No. ARP3395” Note: For Schematic Diagram and PCB Connection Diagram. Refer to “Service Manual: Order No. ARP3395” Note: For Schematic Diagram and PCB Connection Diagram. Refer to “Service Manual: Order No. ARP3395” Mark No. Description Part No. Mark No. Description Part No. CAPACITORS C 7601-7609 DCH1201 C 7610,7611 CCSSCH7R0D50 C 7612,7613,7615-7639 CKSSYF104Z16 [8620 DDR BLOCK(U)] SEMICONDUCTORS IC7701,7702 EDD2516AKTA-6B MISCELLANEOUS F 7701 ATL7002 RESISTORS R 7709,7710 RS1/16SS1001F R 7711-7718 RAB4CQ560J Other Resistors RS1/16SS###J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 A B C D 5 6 7 8 5 6 7 8 PRO-607HD CAPACITORS C 7701-7717 CKSSYF104Z16 C 7722-7726 DCH1201 [ETHERNET BLOCK(U)] MISCELLANEOUS 7752,7753 VNE1949 SEMICONDUCTORS IC7751 TC74LCX125FTS1 IC7753 BR93L46RFJ-W IC7754 RTL8100CL-LF Q 7751 2SB1197K MISCELLANEOUS F 7751-7753 ATL7002 JA7752 AKP1307 X 7751 ASS1209 RESISTORS R 7753 RS1/16SS5601F R 7754,7755,7757,7758 RS1/16SS49R9F Other Resistors RS1/16SS###J CAPACITORS C 7751 BCG1059 C 7752,7753,7756,7757 CKSSYB103K25 C 7754,7755 CCSSCH100D50 C 7758-7762,7764-7779 CKSSYF104Z16 [HNM USB BLOCK(U)] SEMICONDUCTORS IC7801 VT6212L-G IC7803 R5520H001B MISCELLANEOUS L 7801 ATH7015 F 7801-7806 ATL7002 X 7801 ASS1210 CN7801 KM200NA5L CN7802 KM200NA3L RESISTORS R 7803 RS1/16SS5111F R 7806 RS1/16SS1021F Other Resistors RS1/16SS###J CAPACITORS C 7801-7803 DCH1201 C 7805 CCSRCH102J50 C 7806,7807 CCSSCH200J50 C 7808 CEHVKW221M10 C 7809-7823 CKSSYF104Z16 C 7824 CEHVKW100M16 [HNM IO BLOCK(U)] SEMICONDUCTORS IC7851 PST596IN IC7852 TC74LCX04FTS1 IC7853 NJM2746V IC7854 TC7S00F IC7855 CY2305SC-1H IC7856 WM8728SEDS IC7857 TC74LCX125FTS1 Q 7852-7854 2SA1586 Mark No. Description Part No. Mark No. Description Part No. MISCELLANEOUS L 7852-7854 LCTAWR47J2520 F 7852-7858 ATX1066 X 7851 ASS1211 CN7851 CKS3888 RESISTORS R 7851 RS1/16SS37R4F R 7859,7861,7875 RS1/16SS75R0F R 7876,7886 RS1/16SS1501F R 7877,7887 RS1/16SS6801F R 7879,7888 RS1/16SS3301F R 7880,7893 RS1/16SS5101F R 7895-7897 RS1/16SS75R0F Other Resistors RS1/16SS###J CAPACITORS C 7851-7858,7861,7862 CKSSYF104Z16 C 7859,7860,7881,7883 DCH1201 C 7865 CKSSYF104Z16 C 7869,7870,7873 CCSSCH470J50 C 7871,7872,7874,7876 CCSSCH220J50 C 7875 CKSSYB103K25 C 7877 CCSSCH220J50 C 7880,7884 CCSRCH102J50 C 7882,7886 CCSRCH821J50 C 7885,7887 DCH1201 C 7888-7890 CCSSCH100D50 [HNM POWER BLOCK(U)] SEMICONDUCTORS IC7901 LM2664M6X IC7902 NJM2846DL3-25 IC7903,7904 LTC3412EFE D 7901,7902 RB051L-40 MISCELLANEOUS L 7901 ATH1206 L 7902 ATH1207 F 7901 ATX1059 F 7902 ATL7002 CN7901 AKM1290 RESISTORS R 7903,7909 RS1/16SS3093F R 7904,7910 RS1/16SS1103D R 7905,7911 RS1/16SS7502D R 7906 RS1/16SS5763F R 7912 RS1/16SS9312F Other Resistors RS1/16SS###J CAPACITORS C 7901 CKSRYB334K10 C 7902 CKSQYF475Z10 C 7903,7906 BCG1059 C 7904 CCSRCH471J50 C 7905,7907,7908 CCSRCH102J50 C 7909 CEHVKW101M6R3 C 7910,7914,7917,7920 CKSSYF104Z16 C 7911,7918 CCSSCH101J50 C 7912,7919 BCG1050 C 7913,7915,7916 DCH1201 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 A B C D 1 2 3 4 1 2 3 4 PRO-607HD 2. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 2.1 OVERALL WIRING DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 A B C D 5 6 7 8 5 6 7 8 PRO-607HD for AWV2311-B for AWV2311-A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 A B C D 1 2 3 4 1 2 3 4 PRO-607HD 2.2 HNM BLOCK DIAGRAM • HNM Ass'y Block Diagram Connector to outside of the ass'y Host controll signal Other digital signal Power supply block Ethernet block DDR block USB block 8620 block I/O block PCI clock block IC xxxx IC7701 EDD2516AKTA-6B [DDR-SDRAM (256Mbit)] IC7703 AGC1027-A-PI (S29GL128N90TFIR2) [Flash Memory (128Mbit)] IC7702 EDD2516AKTA-6B [DDR-SDRAM (256Mbit)] Connector to Main Ass'y +5V for USB Bus-power +5V for Power supply Memory bus Peripheral bus PCI bus PCI clock X7851 ASS1211- [33MHz OSC] IC7855 CY2305SC-1H [Clock Buffer] L7801 ATH7015- [C. mode filter] IC7803 R5520H001B [USB High-side Switch] to USB Receptacle Connector USB Differencial signal +5V IC7753 BR93L46RFJ-W [EEPROM (1kbit)] IC7751 TC74LCX125 [3-state Buffer] Tx Rx Tx / Rx IC7857 TC74LCX125 [3-state Buffer] Reset Reset Reset Reset IC7851 PST596IN [Reset IC] IC7852 TC7S00F [NAND] IC7852 TC74LCX04 [Inverter] Reset +3.3V +2.5V -5.0V +1.2V +5.0V IC7902 NJM2846DL3-25 [Regulator IC] IC7903 LTC3412EFE [SW Reg. IC] IC7904 LTC3412EFE [SW Reg. IC] RJ-45 Ethernet Connector IC7801 VT6212L-G [USB Controller] IC7754 RTL8100CL-LF [Ethernet Controller] IC7601 EM8620L-LFC [Digital Media Processor] 27MHz X'tal 24MHz X'tal 25MHz X'tal * Or, a wire is soldered directly to IC7803. IC7901 LM2664M6X [Converter IC] CN7901 CN7851 *CN7802 CN7801 JA7752 AKP1307- CN (JA) xxxx xx MHz X'tal Classification of each component IC, memory, regulator and so on X'tal or oscillator Power supply Differential signal Bus signal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 A B C D 5 6 7 8 5 6 7 8 PRO-607HD 2.3 CONNECTOR PIN DESCRIPTION HNM Ass'y MTB MAIN Ass'y [HN1] CN7851 [M14] CN4017 pin pin name I/O description voltage (V) pin 1 TXD_DLNA I UART signal with Main ass'y, Main => HNM +3.3 / 0 1 2 RXD_DLNA O UART signal with Main ass'y, HNM => Main +3.3 / 0 2 3 RST_DLNA I Reset signal for HNM ass'y, Active low +3.3 / 0 3 • • 20 20 HNM Ass'y MTB MAIN Ass'y [HN2] CN7901 [M15] CN4016 pin pin name I/O description voltage (V) pin 1 +5V I +5V power supply +5.0 1 2 N.C. - No use in this model - 2 3 GND - 0 3 4 GND - 0 4 HNM Ass'y USB cable [HN3] CN7801 pin pin name I/O description voltage (V) 1 +5V O +5V for USB bus-power +5.0 2 D- I/O USB differential signal minus +3.3 / 0 3 D+ I/O USB differential signal plus +3.3 / 0 4 GND - 0 5 Sheild - 0 HNM Ass'y MTB MAIN Ass'y [HN7] CN7802* CN4011 pin pin name I/O description voltage (V) pin 1 N.C. - No connection in this ass'y - 1 2 +5.1V I +5V for USB bus-power +5.1 2 3 N.C. - - 3 * CN7802 connector exists only in AWV2311-B. For AWV2311-A, a wire is directly soldered to 4th pin of IC7803 . • Voltage at each connecter. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 A B C D 1 2 3 4 1 2 3 4 PRO-607HD 2.4 HN MODULE ASSY (1/6) • 8620 BLOCK HN MODULE ASSY (1/6) 1/2 2/2 1/2 Large size SCH diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 A B C D 5 6 7 8 5 6 7 8 PRO-607HD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 A B C D 1 2 3 4 1 2 3 4 PRO-607HD • 8620 BLOCK HN MODULE ASSY (1/6) 1/2 2/2 2/2 Large size SCH diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 A B C D 5 6 7 8 5 6 7 8 PRO-607HD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 A B C D 1 2 3 4 1 2 3 4 PRO-607HD 2.5 HN MODULE ASSY (2/6) • 86220 DDR BLOCK HN MODULE ASSY (2/6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 A B C D 5 6 7 8 5 6 7 8 PRO-607HD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 A B C D 1 2 3 4 1 2 3 4 PRO-607HD 2.6 HN MODULE ASSY (3/6) • ETHERNET BLOCK HN MODULE ASSY (3/6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 A B C D 5 6 7 8 5 6 7 8 PRO-607HD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 A B C D 1 2 3 4 1 2 3 4 PRO-607HD 2.7 HN MODULE ASSY (4/6) • HNM USB BLOCK HN MODULE ASSY (4/6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 A B C D 5 6 7 8 5 6 7 8 PRO-607HD USB POWER SECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 A B C D 1 2 3 4 1 2 3 4 PRO-607HD 2.8 HN MODULE ASSY (5/6) • HNM IO BLOCK HN MODULE ASSY (5/6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 A B C D 5 6 7 8 5 6 7 8 PRO-607HD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 A B C D 1 2 3 4 1 2 3 4 PRO-607HD 2.9 HN MODULE ASSY (6/6) • HNM POWER BLOCK HN MODULE ASSY (6/6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 A B C D 5 6 7 8 5 6 7 8 PRO-607HD For Power Sequence www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 A B C D 1 2 3 4 1 2 3 4 PRO-607HD 3. PCB CONNECTION DIAGRAM 3.1 HN MODULE ASSY • HN MODULE ASSY SIDE A (ANP2148B) NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 A B C D 5 6 7 8 5 6 7 8 PRO-607HD • HN MODULE ASSY SIDE B (ANP2148B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 A B C D 1 2 3 4 1 2 3 4 PRO-607HD Contents via the network server can not be played! Can "Home Media Gallery" on "HOME MENU" GUI be selected? Then, is the main menu of "Home Media Gallery" displayed? By selecting "Media Navigatorî, is the network server name displayed and selectable? Confirm that a correct network cable is used and correctly inserted into both ethernet terminal. Note: When the PDP is connected to a network hub, a straight cable is used. When the PDP is directly connected to a network server, a cross (reverse) cable is used. Confirm that the IP address setting is properly set up. Most of the network server has the setting to register the client or prohibit the specific client from accessing. Is there any register restriction in the server? Note: In case of " Windows Media Connect " server, the number of registerd client is restricted within 10. Is the directory in the server displayed? No yes yes yes yes No Is the target folder or file in the server surely shared with the network client? No yes If the contents can not be played though it can be selected, try other contents. Then, is there any other contents which can be played? The failed contents may be out of support. There may be something defective in HNM ass'y. Replace the HNM ass'y with another one. No There may be other restriction in the server. With examining the user's manual of the server, check the server operation in detail. There may be something defective in HNM ass'y. Replace the HNM ass'y with another one. No Before PDP turned on, has the network server been turned on and connected to PDP with a network cable? Jump and refer to the sheet of "Fundamental operation failure". yes yes yes Note: The network server should be connected before the PDP's power-on. Note: When the DHCP server function is available in your local network, select " Automatically acquire IP " in " Network Setup " menu to use the DHCP client function of PDP. Most of the broadband routers have the DHCP server function. When the DHCP server function is not available in the network, it needs to set an appropriate IP address by yourself. In this case, make settings as follows. Subnet mask: Use the same as the network server uses. IP Address: Make the same for the network address part designated by the Subnet mask. For the rest, use the number which has not been used in the network. All " 0 " and all " 1 " in binary can not be used. For instance, if the network server has Subnet mask: 255.255.255.0 IP Address: 192.168.201.1 An example for PDP is Subnet mask: 255.255.255.0 IP Address: 192.168.201.2 • Network operation failure Note: One of the supported video format is WMV. Try WMV, except that the server does not support WMV. Below is the URL from which some WMV files of 720p resolution are available. http://www.microsoft.com/windows/window smedia/musicandvideo/hdvideo/contentsho wcase.aspx 4. TROUBLESHOOTING www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 A B C D 5 6 7 8 5 6 7 8 PRO-607HD A picture via USB can not be displayed! Is the USB device name or the directory in the device displayed? No Confirm that the USB cable is correctly inserted into both side: PDP and the USB device. Is the USB device surely supprted one? Note: This product supports the USB Mass Storage Class device only. Some digital camera does not support this. For example, most of the CANON digital cameras only support PTP. And most of the SONY digital cameras are not supported by this PDP. When a digital camera is used as a USB device, try a multi card reader instead of the digital camera. Is the symptom improved? There may be something defective in the product. Is the inside USB cable is correctly inserted into CN7801 in HNM ass'y? Is the USB bus-power wire is surely attached? One end is attached to CN7802 or the 4th pin of IC7803 in HNM ass'y. The other end is attached to CN4011 in MAIN ass'y. There may be something defective in HNM ass'y. Replace the HNM ass'y with another one. Even if you use any USB device available, can't the symptom be improved? Note: One of the supported video format is WMV. Below is the URL from which some WMV files of 720p resolution are available. http://www.microsoft.com/windows/windo wsmedia/musicandvideo/hdvideo/content showcase.aspx The failed contents may be out of support. There may be something defective in HNM ass'y. Replace the HNM ass'y with another one. yes yes yes yes No No No No yes yes Refer to the sheet of "Fundamental operation failure". Can "Home Media Gallery" on "HOME MENU" GUI be selected? Then, is the main menu of "Home Media Gallery" displayed? If the contents can not be played though it can be selected, try other contents. Then, is there any other contents which can be played? yes yes • USB operation failure www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 A B C D 1 2 3 4 1 2 3 4 PRO-607HD Doesn't "Home Media Gallery" on "HOME MENU" become selectable after power-on? Note: It takes a short while to start "Home Media Gallery" function. Please wait for about 40 seconds until "Home Media Gallery" turns selectable. Check each wire connection with the MAIN ass'y. [HN1]CN7851<=>[M14]CN4017 [HN2]CN7901<=>[M15]CN4016 Isn't there any failure? "Home Media Gallery" does not work at all! There may be something defective in the product. Check the power supply for HNM ass'y. Is there +5V voltage on 1st pin in CN7901 of HNM side and on 1st pin in CN4016 of MAIN side? Check the FET transistor switch in MAIN ass'y for HNM power supply. That is Q4102 and the parts around it. To make analysis, remove the wire ass'y between CN7901 and CN4016. Then, check the voltage in MAIN side again. Is +5V still not there? Note: The wire ass'y between CN7901 and CN4016 has only three wires, though 4- pin connector is used. There may be something defective in HNM ass'y. Replace the HNM ass'y with another one. There may be something defective in MAIN ass'y. Check the UART communication between HNM ass'y and MAIN ass'y. Almost 35 seconds after power-on, is any pulse signal observed on 2nd pin in CN7851: RXD_DLNA? Note: After completing the self-initializing, HNM ass'y notice it to MAIN ass'y by using RXD_DLNA. There may be something defective in MAIN ass'y. Check the UART path in MAIN ass'y. No yes yes yes No No No No • Fundamental operation failure www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 A B C D 5 6 7 8 5 6 7 8 PRO-607HD 5. IC INFORMATION RTL8100CL-LF (HN MODULE Assy: IC7754) • Ethernet Controller IC Pin Arrangement • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 A B C D 1 2 3 4 1 2 3 4 PRO-607HD Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 A B C D 5 6 7 8 5 6 7 8 PRO-607HD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 A B C D 1 2 3 4 1 2 3 4 PRO-607HD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 A B C D 5 6 7 8 5 6 7 8 PRO-607HD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 A B C D 1 2 3 4 1 2 3 4 PRO-607HD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 A B C D 5 6 7 8 5 6 7 8 PRO-607HD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
