PDR-F10
RRV2377
1. SAFETY INFORMATION...................................... 2
2. EXPLODED VIEWS AND PARTS LIST ............... 3

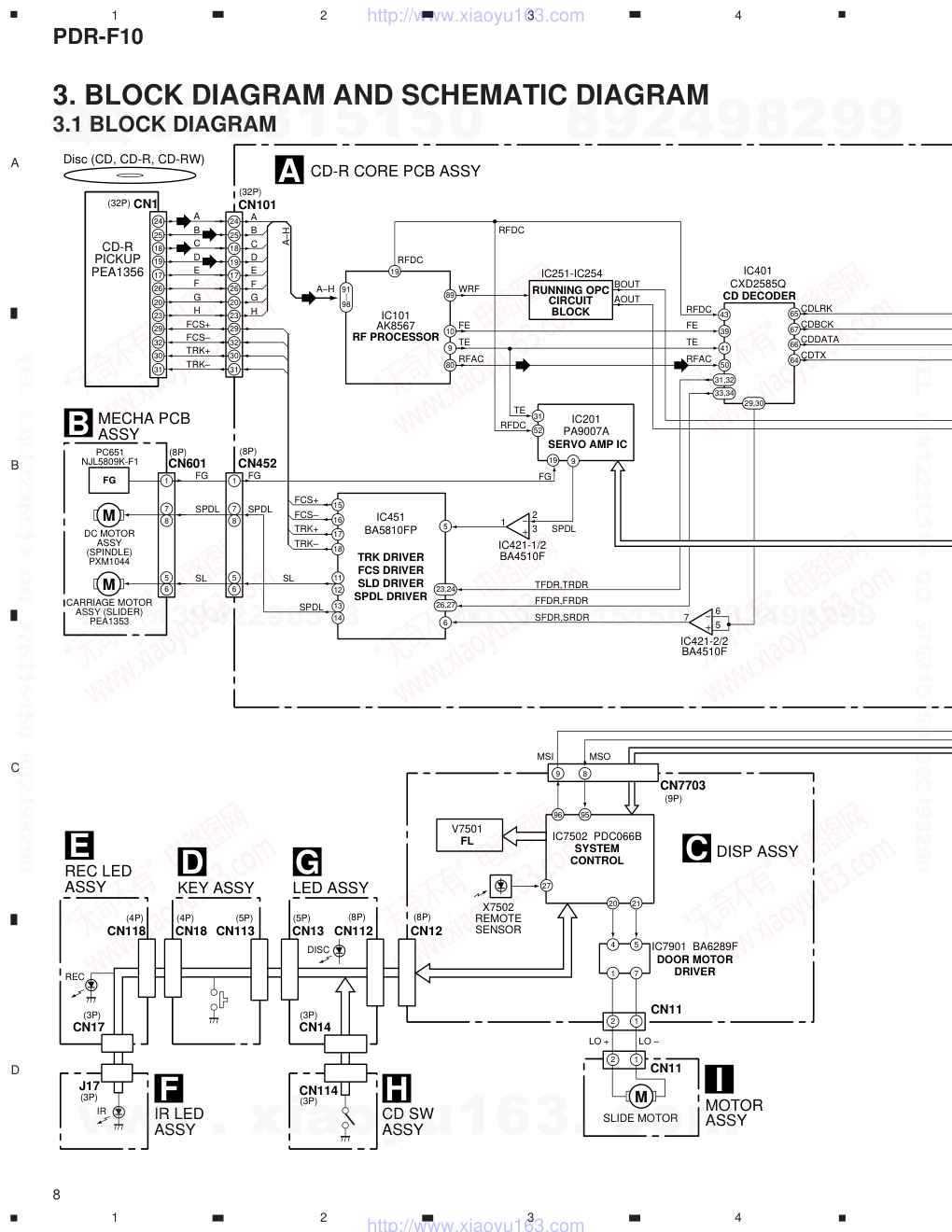

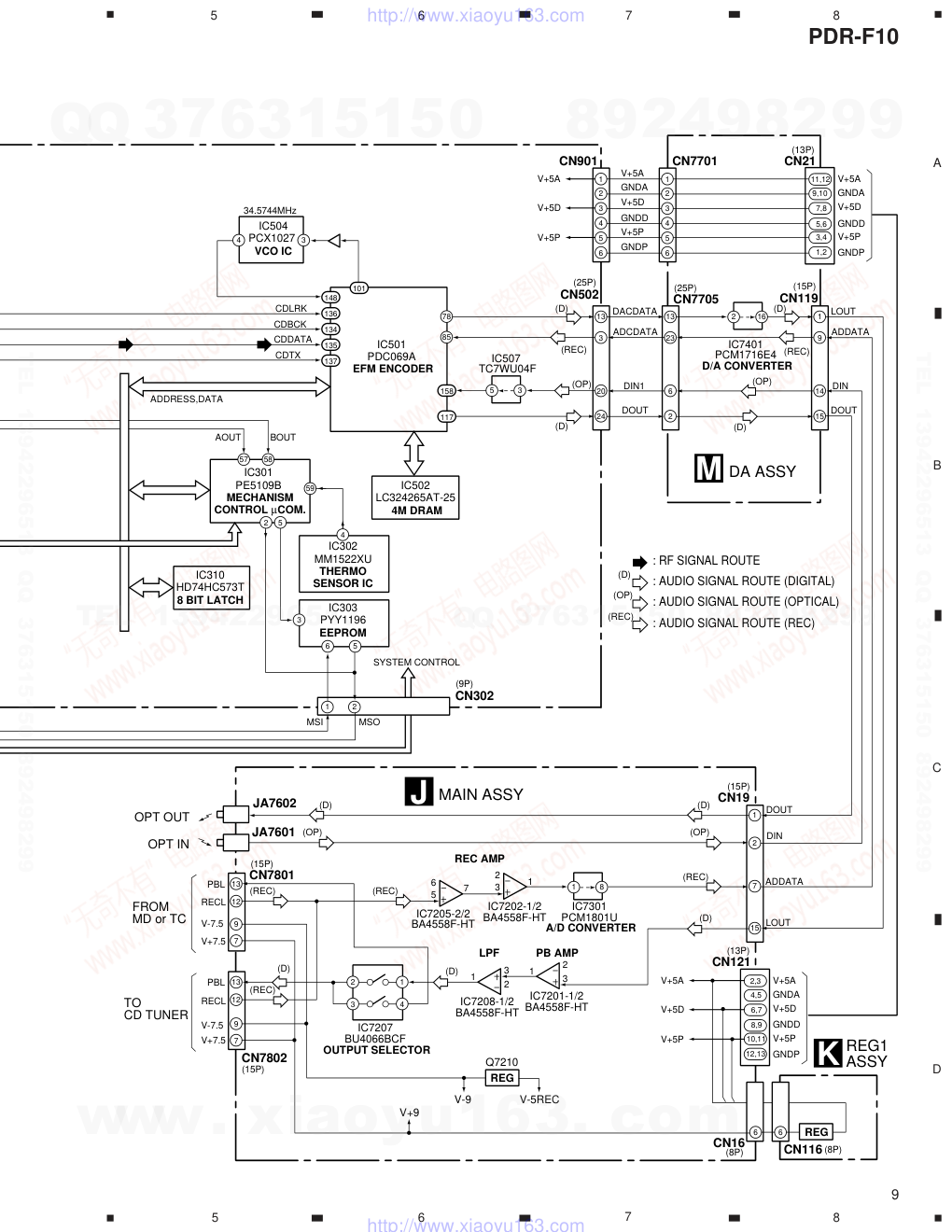

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM..... 8
4. PCB CONNECTION DIAGRAM ......................... 32
5. PCB PARTS LIST ............................................... 40
6. ADJUSTMENT .................................................... 44
7. GENERAL INFORMATION ................................ 60
7.1 DIAGNOSIS .................................................. 60
CONTENTS
7.1.1 ERROR CODE ....................................... 60
7.1.2 TROUBLE SHOOTIG ............................. 62
7.1.3 ERROR MEESAGE”CHECK TEMP” ...... 63
7.1.4 CD-R DISC MANUFACTURER CODE .. 63
7.1.5 DISASSEMBLY ...................................... 65
7.2 PARTS .......................................................... 68
7.2.1 IC ............................................................ 68
7.2.2 DISPLAY................................................. 80
8. PANEL FACILITIES AND SPECIFICATIONS....... 81
T – ZZR SEPT. 2000 Printed in Japan
COMPACT DISC RECORDER
Type
Model
Power Requirement
Remarks
PDR-F10
ZVYXJ
DC power supplied from other system component
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Component Model Service manual Remarks
STEREO CD TUNER
XC-F10
RRV2341
STEREO POWER AMPLIFIER M-F10
RRV2345
SPEAKER SYSTEM
S-F10-LRW RRV2346
COMPACT DISC RECORDER
PDR-F10
RRV2377
This manual.
÷ This products are component of systems. This product does not operate normally by
itself. Please connect it to the STEREO CD TUNER XC-F10 and the STEREO POWER
AMPLIFIER M-F10 for adjustment and operation inspection.
¶ This product is a system(s) component.
Be sure to connect it to the prescribed system component(s), otherwise damage may
result.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
2
PDR-F10

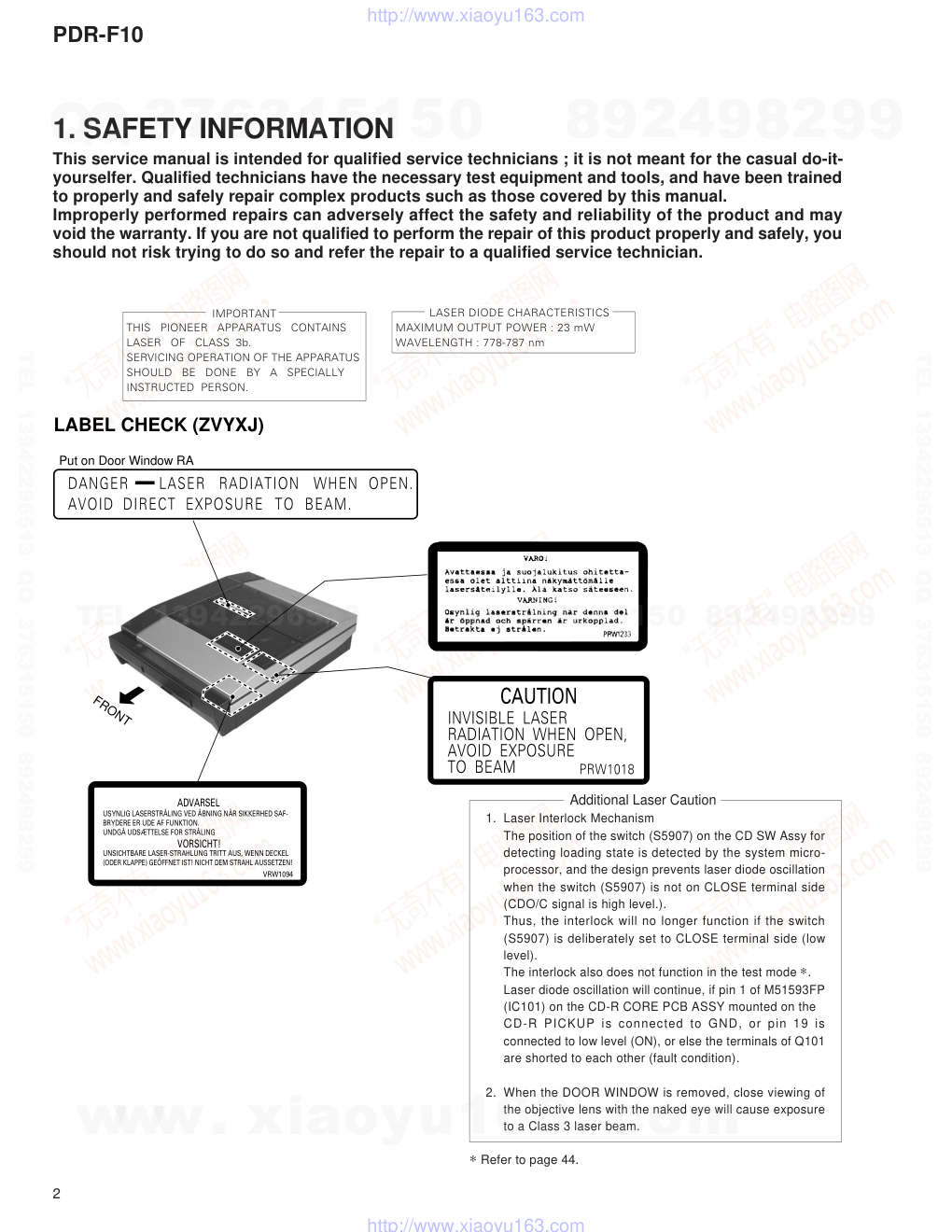

1. SAFETY INFORMATION
This service manual is intended for qualified service technicians ; it is not meant for the casual do-it-
yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained
to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
USYNLIG LASERSTRÅLING VED ÅBNING NÅR SIKKERHED SAF-
BRYDERE ER UDE AF FUNKTION.
UNDGÅ UDSÆTTELSE FOR STRÅLING
UNSICHTBARE LASER-STRAHLUNG TRITT AUS, WENN DECKEL
(ODER KLAPPE) GEÖFFNET IST! NICHT DEM STRAHL AUSSETZEN!
VRW1094
ADVARSEL
VORSICHT!
LABEL CHECK (ZVYXJ)
Put on Door Window RA
FRONT
IMPORTANT
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS 3b.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PERSON.
LASER DIODE CHARACTERISTICS
MAXIMUM OUTPUT POWER : 23 mW
WAVELENGTH : 778-787 nm
1. Laser Interlock Mechanism
The position of the switch (S5907) on the CD SW Assy for
detecting loading state is detected by the system micro-
processor, and the design prevents laser diode oscillation
when the switch (S5907) is not on CLOSE terminal side
(CDO/C signal is high level.).
Thus, the interlock will no longer function if the switch
(S5907) is deliberately set to CLOSE terminal side (low
level).
The interlock also does not function in the test mode ∗.
Laser diode oscillation will continue, if pin 1 of M51593FP
(IC101) on the CD-R CORE PCB ASSY mounted on the
CD-R PICKUP is connected to GND, or pin 19 is
connected to low level (ON), or else the terminals of Q101
are shorted to each other (fault condition).
2. When the DOOR WINDOW is removed, close viewing of
the objective lens with the naked eye will cause exposure
to a Class 3 laser beam.
Additional Laser Caution
∗ Refer to page 44.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
3
PDR-F10

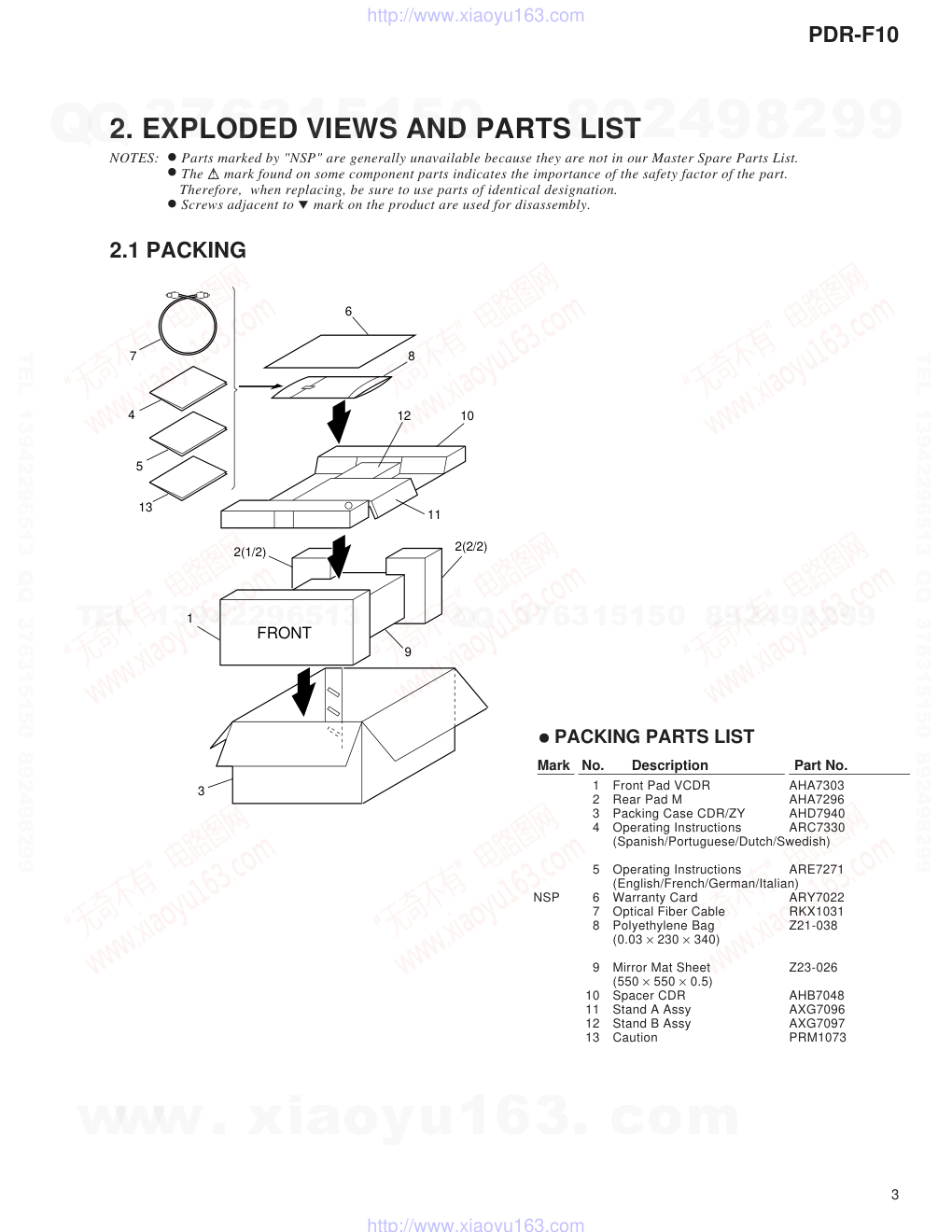

2.1 PACKING
1
Front Pad VCDR
AHA7303
2
Rear Pad M
AHA7296
3
Packing Case CDR/ZY
AHD7940
4
Operating Instructions
ARC7330
(Spanish/Portuguese/Dutch/Swedish)
5
Operating Instructions
ARE7271
(English/French/German/Italian)
NSP
6
Warranty Card
ARY7022
7
Optical Fiber Cable
RKX1031
8
Polyethylene Bag
Z21-038
(0.03 × 230 × 340)
9
Mirror Mat Sheet
Z23-026
(550 × 550 × 0.5)
10
Spacer CDR
AHB7048
11
Stand A Assy
AXG7096
12
Stand B Assy
AXG7097
13
Caution
PRM1073
÷ PACKING PARTS LIST
Mark No. Description Part No.
2. EXPLODED VIEWS AND PARTS LIST
NOTES: • Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
• The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
• Screws adjacent to mark on the product are used for disassembly.
1
10
11
12
2(1/2)
2(2/2)
3
9
5
4
6
8
13
FRONT
7
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
4
PDR-F10
2.2 EXTERIOR
M
M
N
O
I
O
J
H
G
H
K
L
L
J
I
N
F
E
F
G
E
K
C
D
C
D
B
A
E
E
E
B
A
Q
P
S
R
P
S
R
Q
Q
48
58
82
58
49
72
56
71
57
62
56
52
33
60
81
19
81
80
81
81
81
45
76
77
29
27
81
81
38
42
4
3
81
23
44
83 46
31
36
43
35
81
41
40
81
81
53
50
81
11
55
34
81
7
81
81
39
81
70
81
37
26
28
77
77
Refer to "2.3 CD-R
CORE ASSY".
90
18
16
17
81
80
81
24
78
21
14
13
81
81
84
81
84
54
64
80
25
20
32
32
59
51
30
63
67
66
65
30
75
61
10
80
81
15
81
2
1
47
6
9
8
81
81
12
68
69
E
D
C
J
L
H
F
G
I
K
M
A
85
81
91
90
90
86
73
81
81
79
89
88
87
90
79
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
5
PDR-F10

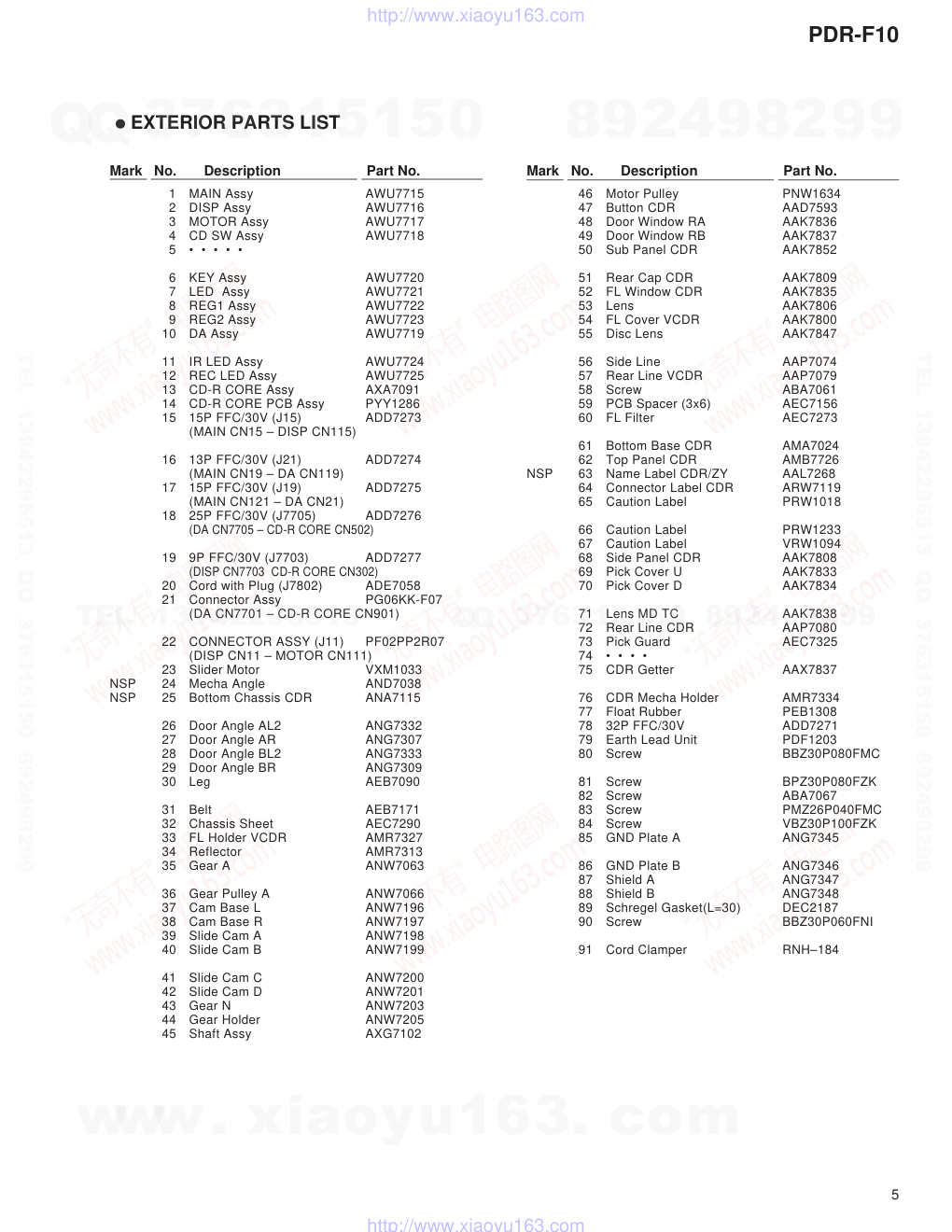

÷ EXTERIOR PARTS LIST
Mark No. Description Part No.
1
MAIN Assy
AWU7715
2
DISP Assy
AWU7716
3
MOTOR Assy
AWU7717
4
CD SW Assy
AWU7718
5
• • • • •
6
KEY Assy
AWU7720
7
LED Assy
AWU7721
8
REG1 Assy
AWU7722
9
REG2 Assy
AWU7723
10
DA Assy
AWU7719
11
IR LED Assy
AWU7724
12
REC LED Assy
AWU7725
13
CD-R CORE Assy
AXA7091
14
CD-R CORE PCB Assy
PYY1286
15
15P FFC/30V (J15)
ADD7273
(MAIN CN15 – DISP CN115)
16
13P FFC/30V (J21)
ADD7274
(MAIN CN19 – DA CN119)
17
15P FFC/30V (J19)
ADD7275
(MAIN CN121 – DA CN21)
18
25P FFC/30V (J7705)
ADD7276
(DA CN7705 – CD-R CORE CN502)
19
9P FFC/30V (J7703)
ADD7277
(DISP CN7703 CD-R CORE CN302)
20
Cord with Plug (J7802)
ADE7058
21
Connector Assy
PG06KK-F07
(DA CN7701 – CD-R CORE CN901)
22
CONNECTOR ASSY (J11)
PF02PP2R07
(DISP CN11 – MOTOR CN111)
23
Slider Motor
VXM1033
NSP
24
Mecha Angle
AND7038
NSP
25
Bottom Chassis CDR
ANA7115
26
Door Angle AL2
ANG7332
27
Door Angle AR
ANG7307
28
Door Angle BL2
ANG7333
29
Door Angle BR
ANG7309
30
Leg
AEB7090
31
Belt
AEB7171
32
Chassis Sheet
AEC7290
33
FL Holder VCDR
AMR7327
34
Reflector
AMR7313
35
Gear A
ANW7063
36
Gear Pulley A
ANW7066
37
Cam Base L
ANW7196
38
Cam Base R
ANW7197
39
Slide Cam A
ANW7198
40
Slide Cam B
ANW7199
41
Slide Cam C
ANW7200
42
Slide Cam D
ANW7201
43
Gear N
ANW7203
44
Gear Holder
ANW7205
45
Shaft Assy
AXG7102
46
Motor Pulley
PNW1634
47
Button CDR
AAD7593
48
Door Window RA
AAK7836
49
Door Window RB
AAK7837
50
Sub Panel CDR
AAK7852
51
Rear Cap CDR
AAK7809
52
FL Window CDR
AAK7835
53
Lens
AAK7806
54
FL Cover VCDR
AAK7800
55
Disc Lens
AAK7847
56
Side Line
AAP7074
57
Rear Line VCDR
AAP7079
58
Screw
ABA7061
59
PCB Spacer (3x6)
AEC7156
60
FL Filter
AEC7273
61
Bottom Base CDR
AMA7024
62
Top Panel CDR
AMB7726
NSP
63
Name Label CDR/ZY
AAL7268
64
Connector Label CDR
ARW7119
65
Caution Label
PRW1018
66
Caution Label
PRW1233
67
Caution Label
VRW1094
68
Side Panel CDR
AAK7808
69
Pick Cover U
AAK7833
70
Pick Cover D
AAK7834
71
Lens MD TC
AAK7838
72
Rear Line CDR
AAP7080
73
Pick Guard
AEC7325
74
• • • •
75
CDR Getter
AAX7837
76
CDR Mecha Holder
AMR7334
77
Float Rubber
PEB1308
78
32P FFC/30V
ADD7271
79
Earth Lead Unit
PDF1203
80
Screw
BBZ30P080FMC
81
Screw
BPZ30P080FZK
82
Screw
ABA7067
83
Screw
PMZ26P040FMC
84
Screw
VBZ30P100FZK
85
GND Plate A
ANG7345
86
GND Plate B
ANG7346
87
Shield A
ANG7347
88
Shield B
ANG7348
89
Schregel Gasket(L=30)
DEC2187
90
Screw
BBZ30P060FNI
91
Cord Clamper
RNH–184
Mark No. Description Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
6
PDR-F10
2.3 CD-R CORE ASSY
Use nippers or other tool to cut the two sections marked A in figure 1 .
While supporting the spindle motor shaft with the stopper, put spacer on
top of the carriage base, and stick the disc table on top (takes about 9kg
pressure). Take off the spacer.
Spacer
Spacer
OK
NG
A
2
1
2.8mm
11mm
Disc table Assy
(Pressure of about 9kg)
Carriage
Base
PCB
Stopper
Spindle
motor
Spacer setting
Position
Spacer
Servo Base
A
1
2
How to Install the Disc Table
11
25
21
4
8
18
19
16
2
22
To
CD-CORE
CN452
17
3
24 24
1
5
4
9
10
24
1
12
14
22
16
6
13
• Bottom View
B
B
Mark No. Description Part No.
• CD-R CORE ASSY PARTS LIST
NSP
1
MECHA PCB Assy
PWX1625
2
DC Motor (SPINDLE)
PXM1044
NSP
3
DC Motor (CARRIAGE)
PXM1045
4
Float Rubber
PEB1308
5
Carriage Motor Assy
PEA1353
NSP
6
Rack Spring
DBH1285
7
• • • • •
8
CDR Mecha Holder
AMR7334
9
Pinion Gear
PNW2994
10
Gear A
PNW2855
11
Gear B
PNW2856
12
Gear C
PNW2969
13
Rack
PNW2965
14
Rack Stopper
PNW2966
15
• • • • •
16
Carriage Base
PNW2967
17
8P FFC/30V
ADD7272
18
Guide Bar
VLL1504
19
Sub Guide Bar
VLL1505
20
• • • • •
21
CD-R Pickup
PEA1356
22
• • • • •
23
Screw
BBZ26P040FMC
24
Screw
JGZ17P028FMC
25
Disc Table Assy
AXA7093
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
7
PDR-F10
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
8
A
B
C
D
1
2
3
4
1
2
3
4
FG
M
M
PC651
NJL5809K-F1
DC MOTOR
ASSY
(SPINDLE)
PXM1044
CN1
CN101
CN601
A
CD-R
PICKUP
PEA1356
WRF
FE
RFDC
RFDC
RFDC
CDLRK
BOUT
AOUT
A–H
A–H
IC101
AK8567
RF PROCESSOR
IC251-IC254
RUNNING OPC
CIRCUIT
BLOCK
IC201
PA9007A
SERVO AMP IC
IC7502 PDC066B
SYSTEM
CONTROL
IC7901 BA6289F
DOOR MOTOR
DRIVER
V7501
FL
IC421-1/2
BA4510F
X7502
REMOTE
SENSOR
SLIDE MOTOR
IC421-2/2
BA4510F
IC401
CXD2585Q
CD DECODER
IC451
BA5810FP
TRK DRIVER
FCS DRIVER
SLD DRIVER
SPDL DRIVER
Disc (CD, CD-R, CD-RW)
24
25
18
19
17
26
20
23
29
32
30
31
29
32
30
15
19
89
43
65
39
41
50
31
24
25
18
19
17
26
20
B
C
D
E
F
G
H
FCS+
FCS+
FCS–
TRK+
TRK–
FG
SPDL
23
A
B
C
D
10
31
52
9
5
6
19
TE
TE
RFDC
SPDL
TFDR,TRDR
FFDR,FRDR
SFDR,SRDR
9
RFAC
FE
TE
RFAC
80
E
F
G
H
MECHA PCB
ASSY
B
DISP ASSY
C
MOTOR
ASSY
I
CD SW
ASSY
H
IR LED
ASSY
F
REC LED
ASSY
E
KEY ASSY
D
LED ASSY
G
CD-R CORE PCB ASSY
A
1
7
8
M
CARRIAGE MOTOR
ASSY (SLIDER)
PEA1353
SL
5
6
CN452
FG
(8P)
(32P)
(32P)
(8P)
FG
2
3
1
SPDL
SPDL
1
7
8
SL
5
6
16
FCS–
17
TRK+
18
11
12
13
14
TRK–
CDBCK
67
CDDATA
66
CDTX
64
(9P)
(8P)
MSI
MSO
LO –
LO +
9
8
96
27
95
21
20
5
4
7
1
1
2
1
2
CN7703
CN12
(8P)
(5P)
(5P)
(4P)
(4P)
(3P)
DISC
REC
IR
(3P)
CN112
CN18
CN118
CN13
CN113
CN14
CN114
CN11
CN11
91
|
98
6
5
7
23,24
31,32
33,34
29,30
26,27
(3P)
(3P)
J17
CN17
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM
3.1 BLOCK DIAGRAM
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
9
A
B
C
D
5
6
7
8
5
6
7
8
CN502
CN7705
CN119
CN901
CN7701
CN21
34.5744MHz
AOUT
BOUT
SYSTEM CONTROL
ADDRESS,DATA
IC301
PE5109B
MECHANISM
CONTROL µCOM.
IC501
PDC069A
EFM ENCODER
IC7401
PCM1716E4
D/A CONVERTER
IC7301
PCM1801U
A/D CONVERTER
IC7207
BU4066BCF
OUTPUT SELECTOR
REG
IC504
PCX1027
VCO IC
IC502
LC324265AT-25
4M DRAM
IC507
TC7WU04F
IC302
MM1522XU
THERMO
SENSOR IC
IC303
PYY1196
EEPROM
IC310
HD74HC573T
8 BIT LATCH
MAIN ASSY
J
K
REG1
ASSY
DA ASSY
M
(25P)
(25P)
(15P)
(13P)
(9P)
57
58
59
4
85
78
3
5
3
6
5
5
2
CDLRK
CDBCK
CDDATA
CDTX
DACDATA
V+5A
V+5A
GNDA
GNDD
GNDP
V+5D
V+5P
V+5D
V+5P
V+5A
GNDA
GNDD
GNDP
V+5D
V+5P
ADCDATA
DIN1
DOUT
LOUT
ADDATA
DIN
DOUT
8
1
REG
1
2
16
2
3
4
13
1
2
3
4
5
6
1
2
3
4
5
6
3
20
24
13
23
6
2
1
9
14
15
CN19
REC AMP
PB AMP
LPF
(15P)
CN7801
JA7602
JA7601
(15P)
OPT OUT
OPT IN
FROM
MD or TC
TO
CD TUNER
CN7802
(15P)
DOUT
DIN
ADDATA
PBL
RECL
V-7.5
V+7.5
PBL
RECL
V-7.5
V+7.5
LOUT
1
2
7
15
6
MSI
MSO
1
2
(OP)
(OP)
(OP)
(D)
CN302
2
3
1
3
2
1
IC7202-1/2
BA4558F-HT
IC7201-1/2
BA4558F-HT
V-5REC
V-9
V+9
IC7208-1/2
BA4558F-HT
Q7210
IC7205-2/2
BA4558F-HT
1
2
3
7
6
5
11,12
9,10
7,8
5,6
3,4
1,2
CN121
CN16
CN116
(13P)
(8P)
(8P)
V+5A
GNDA
GNDD
GNDP
V+5D
V+5P
2,3
4,5
6,7
8,9
10,11
12,13
137
158
117
135
134
136
148
101
(D)
(REC)
(REC)
(REC)
V+5A
V+5D
V+5P
(D)
(D)
(D)
(D)
(D)
4
3
12
9
7
13
12
13
9
7
6
(D)
(D)
(D)
(OP)
(REC)
(REC)
(REC)
: RF SIGNAL ROUTE
: AUDIO SIGNAL ROUTE (DIGITAL)
(OP)
: AUDIO SIGNAL ROUTE (OPTICAL)
(REC)
: AUDIO SIGNAL ROUTE (REC)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
10
A
B
C
D
1
2
3
4
1
2
3
4
J 1/2- J 2/2
MAIN ASSY (AWU7715)
J
C 1/2- C 2/2
DISP ASSY (AWU7716)
C
REG1 ASSY
(AWU7722)
K
REG2 ASSY
(AWU7723)
L
DA ASSY
(AWU7719)
M
A/D
CONVERTER
D/A
CONVERTER

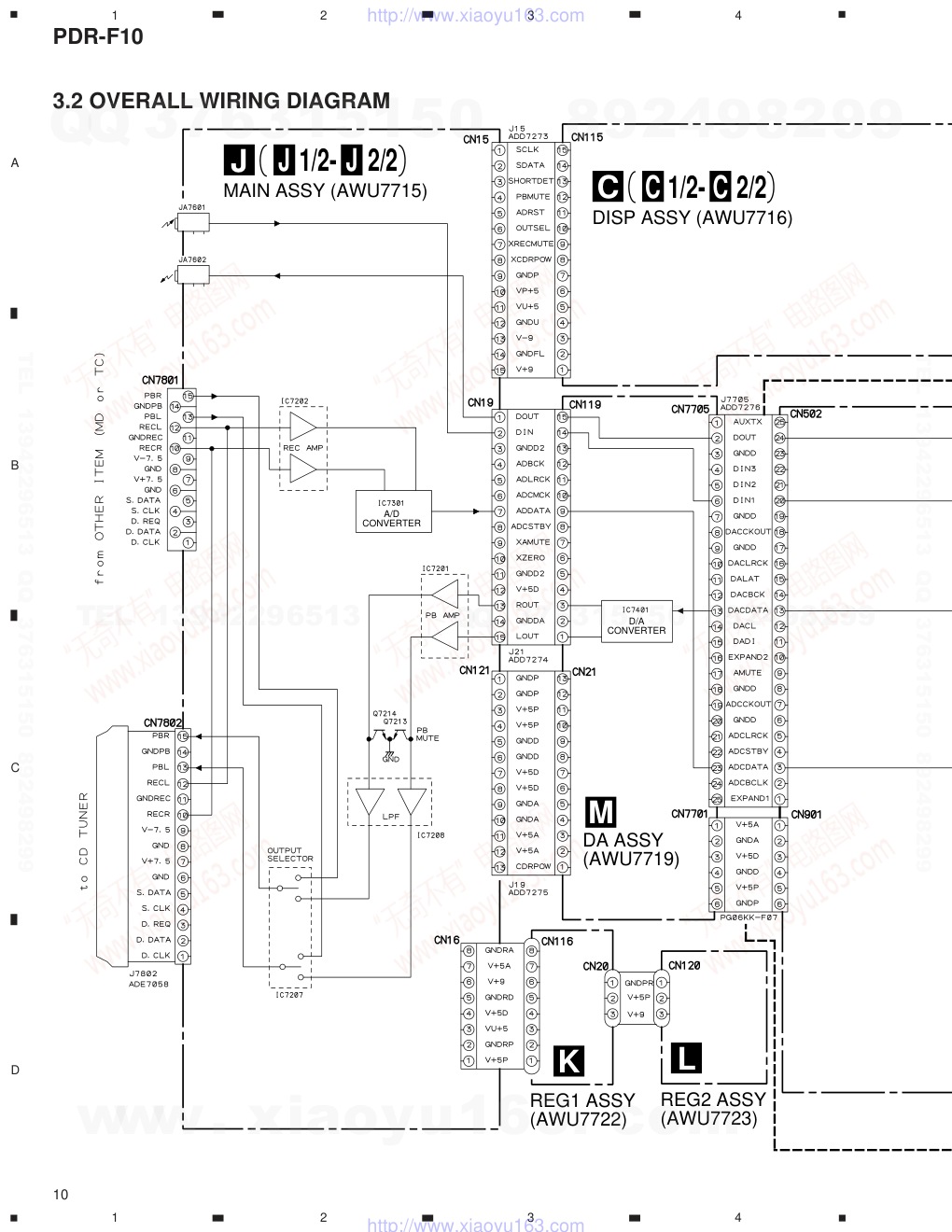

3.2 OVERALL WIRING DIAGRAM
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
11
A
B
C
D
5
6
7
8
5
6
7
8
Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST".
A 1/5- A 5/5
CD-R CORE PCB ASSY
(PYY1286)
A
MOTOR ASSY
(AWU7717)
SLIDE
MOTOR
VXM1033
I
KEY ASSY
(AWU7720)
D
CD SW
ASSY
(AWU7718)
CD-R PICKUP
(PEA1356)
H
REC LED ASSY
(AWU7725)
E
IR LED ASSY
(AWU7724)
F
MECHA PCB ASSY
(PWX1625)
CD-R CORE ASSY
(AXA7091)
B
LED
ASSY
(AWU7721)
G
MECHA
CONTROL
EFM ENCODER
CN601
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
12
A
B
C
D
1
2
3
4
1
2
3
4
3.3 CD-R CORE PCB ASSY (1/5)
2/2
1/2
PYY1196
RESET
THERMO SENSOR
EEEPROM
CD-R CORE PCB ASSY
(PYY1286)
A 1/5
A 4/5
A 3/5
1/5
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
13
A
B
C
D
5
6
7
8
5
6
7
8
PE5190B
MECHA CONTROL
MICROCOMPUTER
8 BIT LATCH
NC
: The power supply is shown with the marked box.
A 5/5
A 3/5
A 2/5
A 2/5,4/5
C 1/2 CN7703
CN302
3
5
4
1
6
10
9
8
7
2
1/5
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
14
A
B
C
D
1
2
3
4
1
2
3
4
A 3/5
A 1/5
A 4/5
A 1/5
(R)
(R)
CN101
CN1
CD-R CORE PCB ASSY
(PYY1286)
CD-R PICKUP
(PEA1356)
A 2/5
11
12
(R)
(R)
2/5
A
3.4 CD-R CORE PCB ASSY (2/5) and CD-R PICKUP
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
15
A
B
C
D
5
6
7
8
5
6
7
8
2/2
F rank: 1%
F rank: 1%
2/2
1/2
1/2
A 3/5
A 1/5
A 4/5
A 5/5
A 3/5
A 1/5
A 4/5
CN102
TP_POINT
RF PROCESSOR
: RF SIGNAL ROUTE
: AUDIO SIGNAL ROUTE (REC)
14
13
15
16
17
(R)
2/5
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
16
A
B
C
D
1
2
3
4
1
2
3
4
2/2
2/2
2/2
2/2
1/2
1/2
1/2
1/2
CD-R CORE PCB ASSY
(PYY1286)
A 3/5
A 2/5
A 5/5
A 2/5
18
3.5 CD-R CORE PCB ASSY (3/5)
3/5
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
17
A
B
C
D
5
6
7
8
5
6
7
8
NC
NC
NC
NC
NC
NC
NC
SERVO AMP
MULTI PLEXER
A 1/5
A 2/5
A 4/5
A 4/5
A 1/5
3/5
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
18
A
B
C
D
1
2
3
4
1
2
3
4
EFM ENCODER
4M DRAM
NC
A 1/5
A 5/5
A 5/5
A 1/5
(OP)
(OP)
23
3.6 CD-R CORE PCB ASSY (4/5)
4/5
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
19
A
B
C
D
5
6
7
8
5
6
7
8
CD-R CORE PCB ASSY
(PYY1286)
A 4/5
A 3/5
A 5/5
A 2/5
A 5/5
A 2/5
A
2/5
A 3/5
CN7705
(R)
(D)
(OP)
(D)
(OP)
(D)
(D)
(R)
(R)
(R)
(D)
(D)
(D)
M
: AUDIO SIGNAL ROUTE (REC)
: AUDIO SIGNAL ROUTE (DIGITAL)
: AUDIO SIGNAL ROUTE (OPTICAL)
22
21
20
19
24
4/5
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
20
A
B
C
D
1
2
3
4
1
2
3
4
F rank (1%)
CD-R CORE PCB ASSY
(PYY1286)
A 5/5
1/2
2/2
TRK, FCS, SLD & SPDL DRIVER
A 3/5
A 4/5
A 2/5
MECHA PCB ASSY
(PWX1625)
B
PC651
NJL5809K-F1
CARRIAGE MOTOR
ASSY (SLIDER)
PEA1353
DC MOTOR ASSY
(SPINDLE)
PXM1044
J601
CN601
S601
08FM-1.0ST
CN452
Not used
Not used
R602
R651
240
PSG1014
27
25
26
3.7 CD-R CORE PCB ASSY (5/5) and MECHA PCB ASSY
B
5/5
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
21
A
B
C
D
5
6
7
8
5
6
7
8
F rank (1%)
CD DECODER
A 2/5
A 1/5
A 1/5
A 4/5
: The power supply is shown with the marked box.
CN901
CN7701
M
(D)
(D)
(D)
28
: RF SIGNAL ROUTE
: AUDIO SIGNAL ROUTE (DIGITAL)
5/5
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
22
Media
Pickup Position
SPDLG1
(IC501-pin97)
SPDLG3
(IC501-pin99)
CD
Inner
5V
0V
Outer
0V
5V
CD-R
CD-RW
12cm Inner
5V
0V
12cm Outer
0V
5V
8cm CD-R
0V
5V
STOP
5V
5V
• Spindle System
• Digital Input System
• Audio System
VOLTAGES and WAVEFORMS
CD-R CORE ASSY
A 4/5
CD-R CORE ASSY
A 1/5
CD-R CORE ASSY
A 4/5
CD-R CORE ASSY
A 4/5
• Others
CD-R CORE ASSY
A 1/5
at FS = 44.1 kHz
Others
XVCO
(IC501-pin 101)
0V
5V
CLV
(IC301-pin 30)
ECLV
(IC301-pin 29)
STOP
0V
0V
CAV, W-CLV
5V
0V
E-CLV
5V
5V
Operating
Mode
A/D Converter used
at Analog REC Pause,
REC, Monitor
Others
ADCSTBY
(CN502-pin 4)
5V
0V
Signal Logic
* Inner: Absolute time is less than 23 minutes.
Outer: Absolute time is more than 23 minutes.
* W-CLV: WOBBLECLV , E-CLV: EFMCLV
at DIGITAL LOCK
at DIGITAL UNLOCK
DIRERR
(IC501-pin 142)
0V
5V
at MUTE ON
(Audio Signal Not Output)
at MUTE OFF
(Audio Signal Output)
AMUTE
(CN502-pin 9)
5V
0V
XPFAIL
(CN302-pin 9)
5V
Note :
The encircled numbers denote measuring point in the schematic
diagram.
1
CN302 - pin 1 (MSI)
V: 200mV/div. , H: 5msec/div.
2
CN302 - pin 2 (MSO)
V: 200mV/div. , H: 5msec/div.
3
CN302 - pin 5 (MSCK)
V: 200mV/div. , H: 500nsec/div.
(PLAY)
4
CN302 - pin 7 (SYSREQ)
V: 200mV/div. , H: 5msec/div.
5
CN302 - pin 8 (MACK)
V: 200mV/div. , H: 5msec/div.
6
IC301 - pin 21 (CLOCKDEC)
V: 200mV/div. , H: 5msec/div.
7
IC301 - pin 24 (XLATDEC)
V: 200mV/div. , H: 5msec/div.
8
IC301 - pin 25 (CLOCKRF)
V: 200mV/div. H: 5msec/div.
9
IC301 - pin 26 (DATA)
V: 200mV/div. , H: 5msec/div.
10
IC301 - pin 27 (XLATRF)
V: 200mV/div. , H: 5msec/div.
CD-R CORE ASSY
A 1/5
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
23
11
CN101 - pin 29 (F+)
V: 200mV/div. , H: 20µsec/div.
12
CN101 - pin 30 (T+)
V: 200mV/div. , H: 20µsec/div.
13
CN102 - pin 1 (EQRF)
V: 20mV/div. , H: 500nsec/div.
(PLAY)
14
CN102 - pin 2 (RF)
V: 50mV/div. , H: 500nsec/div.
(PLAY)
17
CN102-pin 8 (FE)
V: 20mV/div. , H: 2msec/div.
(PLAY)
18
Foot of R212 (SPDL)
V: 20mV/div. , H: 2msec/div.
(PLAY)
15
CN102 - pin 4 (MPP)
V: 20mV/div. , H: 2msec/div.
(PLAY)
16
CN102 - pin 5 (TE)
V: 20mV/div. , H: 2msec/div.
(PLAY)
19
IC501 - pin 37 (REWLDON)
V: 200mV/div. , H: 1msec/div.
(REC) RW
20
IC501 - pin 38 (WLDON)
V: 200mV/div. , H: 1msec/div.
(REC)
21
IC501 - pin 45 (ODON)
V: 200mV/div. , H: 200nsec/div.
(REC)
22
IC501 - pin 48 (WDAT)
V: 200mV/div. , H: 200nsec/div.
(REC)
23
IC501 - pin 126 (SPDO)
V: 200mV/div. , H: 100µsec/div.
(REC)
24
Foot of R583 (ATFG)
V: 200mV/div. , H: 20µsec/div.
(REC)
25
CN452 - pin 4 (SL+)
V: 200mV/div. , H: 5msec/div.
(PLAY)
26
CN452 - pin 7 (SP+)
V: 200mV/div. , H: 5msec/div.
(PLAY)
27
CN452 - pin 1 (FG)
V: 200mV/div. , H: 1msec/div.
(PLAY)
28
IC401 - pin 25 (MDP)
V: 200mV/div. , H: 5µsec/div.
(PLAY)
CD-R CORE ASSY
A 2/5
CD-R CORE ASSY
A 4/5
CD-R CORE ASSY
A 5/5
CD-R CORE ASSY
A 3/5
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
24
A
B
C
D
1
2
3
4
1
2
3
4
DISP ASSY
(AWU7716)
C 1/2
WRITE TO FLASH MEMORY
OF SYSTEM CONTROLLER
C 2/2
3.8 DISP ASSY (1/2)
1/2
C
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
25
A
B
C
D
5
6
7
8
5
6
7
8
A 1/5 CN302
NORMAL
MECHA ADJ
SYSTEM CONTROL
1/2
C
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
26
A
B
C
D
1
2
3
4
1
2
3
4
DISP ASSY (AWU7716)
C 2/2
C 1/2
J 1/2 CN15
NC
NC
NC
3.9 DISP (2/2), KEY, REC LED, IR LED, CD SW and MOTOR ASSYS
2/2
C
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
27
A
B
C
D
5
6
7
8
5
6
7
8
at START-UP: 300mA
at NORMAL: 150mA
at LOCK : 450mA
MOTOR ASSY
(AWU7717)
SLIDE
MOTOR
VXM1033
I
KEY ASSY (AWU7720)
D
CD SW ASSY
(AWU7718)
H
REC LED ASSY
(AWU7725)
E
IR LED ASSY
(AWU7724)
LED ASSY (AWU7721)
F
G
: The power supply is shown with the marked box.
KEY ASSY
S7901
: REC
S7902
: LEVEL+
S7903
: LEVEL –
S7904
: INPUT SEL.
S7905
: SKIP ID.
S7906
: OPEN/CLOSE
S7907
: 6 (PLAY/PAUSE)
S7908
: 7 (STOP)
CD SW ASSY
S7909
: PREOPEN
S7910
: PRECLOSE
S7911
: OPEN
S7912
: CLOSE
2/2
C
D E F G H I
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
28
A
B
C
D
1
2
3
4
1
2
3
4
MAIN ASSY (AWU7715)
J 1/2
: The power supply is shown with the marked box.
J 2/2
D7201-D7212: UDZS6.2B
IC7207:
OUTPUT
SELECTOR
(R)
(R)
(R)
(R)
(OP)
(OP)
(OP)
(R)
3.10 MAIN (1/2), REG1 and REG2 ASSYS
1/2
J
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
29
A
B
C
D
5
6
7
8
5
6
7
8
C 2/2 CN115
REG1 ASSY
(AWU7722)
K
REG2 ASSY
(AWU7723)
L
J 2/2
REC AMP
AEK7058
: AUDIO SIGNAL ROUTE
(R)
(R)
(R)
(R)
(R)
(R)
: AUDIO SIGNAL ROUTE (REC)
(OP)
: AUDIO SIGNAL ROUTE (OPTICAL)
1/2
J
K L
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
30
A
B
C
D
1
2
3
4
1
2
3
4
MAIN ASSY (AWU7715)
J 2/2
J 1/2
A/D CONVERTER
A/D
PB AMP
SHORT DET
(R)
(R)
(OP)
(OP)
(OP)
(OP)
(D)
(D)
(D)
(R)
(R)
(R)
(R)
3.11 MAIN (2/2) and DA ASSYS
2/2
J
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
31
A
B
C
D
5
6
7
8
5
6
7
8
A 4/5 CN502
A 5/5 CN901
: The power supply is shown with the marked box.
DA ASSY (AWU7719)
M
D/A CONVERTER
: AUDIO SIGNAL ROUTE
(R)
(R)
(OP)
(OP)
(R)
(R)
(D)
(D)
(D)
(D)
(OP)
(OP)
(D)
(D)
(D)
(OP)
: AUDIO SIGNAL ROUTE (REC)
(D)
: AUDIO SIGNAL ROUTE (DIGITAL)
(OP)
: AUDIO SIGNAL ROUTE (OPTICAL)
2/2
J
M
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
32
A
B
C
D
1
2
3
4
1
2
3
4
A
M
M
(ANP7382-A)
CD-R CORE PCB ASSY
A
SIDE A
MECHA
PCB ASSY
B
(PNP1476-A)
CARRIAGE
MOTOR
IC307 IC308
IC201
IC506
IC502
IC507
IC107
IC102
IC103
IC303
IC504
Q101
Q102
Q104
IC401
IC306
IC101
IC931
IC309
IC255
IC304
IC421
IC422
IC302
IC305
SPINDLE
MOTOR
NOTE FOR PCB DIAGRAMS :
1. Part numbers in PCB diagrams match those in the schematic
diagrams.
2. A comparison between the main parts of PCB and schematic
diagrams is shown below.
3. The parts mounted on this PCB include all necessary parts for
several destinations.
For further information for respective destinations, be sure to
check with the schematic diagram.
4. View point of PCB diagrams.
Symbol In PCB
Diagrams
Symbol In Schematic
Diagrams
Part Name
B C E
D
D
G
G
S
S
B C E
B
C
E
D
G
S
B
C
E
B
C
E
B
C
E
Transistor
Transistor
with resistor
Field effect
transistor
Resistor array
3-terminal
regulator
Capacitor
Connector
P.C.Board
Chip Part
SIDE A
SIDE B
4. PCB CONNECTION DIAGRAM
4.1 CD-R CORE PCB and MECHA PCB
ASSYS
B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
33
A
B
C
D
1
2
3
4
1
2
3
4
(ANP7382-A)
CN7703
C
CN7701
M
SIDE B
To CD-R PICKUP
CN7705
M
CD-R CORE
PCB ASSY
A
MECHA PCB ASSY
B
(PNP1476-A)
IC503
IC501
IC310
IC451
IC101
Q502
Q273 Q202
Q401 Q402
IC301
IC207
IC251 IC253
IC252 IC254
IC206
Q201
A B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
34
A
B
C
D
1
2
3
4
1
2
3
4
CN112
G
CN15
J
CN302
A
DISP ASSY
C
MOTOR ASSY
I
(ANP7355-A)
SIDE A
Q7902
Q7903
Q7901
Q7506
Q7518
Q7509
Q7514
Q7513
IC7501
IC7503
IC7504
Q7505
Q7501
Q7003
Q7005
Q7004
IC7004
Q7516
Q7515
Q7504
Q7519
Q7517
Q7516
Q7515
Q7504
Q7519
Q7517
IC7901
4.2 DISP and MOTOR ASSYS
C I
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
35
A
B
C
D
1
2
3
4
1
2
3
4
DISP ASSY
C
MOTOR ASSY
I
(ANP7355-A)
SIDE B
IC7502
Q7512
Q7507
Q7702
Q7703
Q7003
Q7004
C I
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
36
A
B
C
D
1
2
3
4
1
2
3
4
KEY ASSY
D
REC LED ASSY
E
IR LED
ASSY
F
LED ASSY
G
CD SW ASSY
H
CN12
C
SIDE A
(ANP7355-A)
4.3 KEY, REC LED, IR LED and CD SW ASSYS
D E F G H
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
37
A
B
C
D
1
2
3
4
1
2
3
4
REC LED ASSY
E
IR LED
ASSY
F
LED ASSY
G
CD SW ASSY
H
SIDE B
(ANP7355-A)
KEY ASSY
D
D E F G H
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
38
A
B
C
D
1
2
3
4
1
2
3
4
DA ASSY
M
REG2 ASSY
L
REG1 ASSY
K
MAIN ASSY
J
SIDE A
(ANP7355-A)
CN115
C
CN502
A
CN901
A
IC7005
IC7202
IC7205
IC7206
IC7201
IC7208
Q7301 Q7302
Q7210
Q7204
Q7207
Q7203
Q7214
Q7213
Q7206
4.4 MAIN, REG1, REG2 and DA ASSYS
J K L M
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDR-F10
39
A
B
C
D
1
2
3
4
1
2
3
4
REG2 ASSY
L
REG1 ASSY
K
MAIN ASSY
J
SIDE B
(ANP7355-A)
DA ASSY
M
IC7207
IC7301
IC7207
Q7201
Q7208
Q7205
Q7211
Q7212
Q7202
IC7401
Q7401
J K L M
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
40
PDR-F10
Mark No. Description Part No.
Mark No. Description Part No.
LIST OF ASSEMBLIES
Mark No. Description Part No.
Mark No. Description Part No.
5. PCB PARTS LIST
NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
•The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
•When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
560 Ω
→
56 × 10
1
→
561 ........................................................ RD1/4PU 5 6 1 J
47k Ω
→
47 × 10
3
→
473 ........................................................ RD1/4PU 4 7 3 J
0.5 Ω
→
R50 ..................................................................................... RN2H R 5 0 K
1 Ω
→
1R0 ..................................................................................... RS1P 1 R 0 K
Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).
5.62k Ω
→
562 × 10
1
→
5621 ...................................................... RN1/4PC 5 6 2 1 F
CD-R CORE ASSY
AXA7091
CD-R CORE PCB ASSY
PYY1286
NSP
MECHA PCB ASSY
PWX1625
NSP
CD-R MAIN ASSY
AWM7518
DISP ASSY
AWU7716
KEY ASSY
AWU7720
REC LED ASSY
AWU7725
IR LED ASSY
AWU7724
LED ASSY
AWU7721
CD SW ASSY
AWU7718
MOTOR ASSY
AWU7717
MAIN ASSY
AWU7715
REG1 ASSY
AWU7722
REG2 ASSY
AWU7723
DA ASSY
AWU7719
CD-R CORE PCB ASSY
SEMICONDUCTORS
IC101
AK8567
IC252-IC254,IC421
BA4510F
IC451
BA5810FP
IC303 (BR93LC66F)
PYY1196
IC401
CXD2585Q
IC255
HD74HC4053FP
IC310
HD74HC573T
IC502
LC324265AT-25
IC102,IC103,IC304
LM358M
IC309
LP2980IM5-4.5
IC161
MM1385AN
IC302
MM1522XU
IC251
NJU7016M
IC201
PA9007A
IC504
PCX1027
IC501
PDC069A
IC301
PE5190B
IC503
PQ20WZ51
IC931
PST9245
IC307
TC7S00F
IC506
TC7S02F
IC308
TC7S14F
IC507
TC7WU04F
Q451,Q452
2SK208
Q204,Q205,Q401,Q402
DTA124EK
Q501
DTA143EK
Q101,Q201,Q203
DTC114TK
Q502
DTC124EK
D104,D201,D303,D451,D452
1SS355
D105,D202,D251
DA204K
D252
MA704
D161,D162,D501-D503
RB521S-30
COILS
L101,L1579,L302-L304
QTL1013
L401,L402,L501-L503
QTL1013
L507,L508,L511,L513,L514
QTL1013
L517,L521,L522
QTL1013
L509,L510,L515,L516
VTL1077
L518-L520
VTL1077
CAPACITORS
C901 (56µF/10V)
ACH7109
C129
CCSRCH100D50
C139,C304,C307-C309,C320
CCSRCH101J50
C104,C105
CCSRCH121J50
C574
CCSRCH101J50
C406,C420
CCSRCH221J50
C106,C119,C404
CCSRCH331J50
C128,C263,C352,C575,C578
CCSRCH470J50
C213,C256,C474,C475,C511
CCSRCH471J50
C517,C518
CCSRCH5R0C50
C902
CEV101M6R3
C144,C151,C163,C201,C253
CEV220M6R3
C325,C501,C503,C505,C519
CEV220M6R3
C531,C537,C539,C549,C570
CEV220M6R3
C581,C582
CEV220M6R3
C281
CEV2R2M50
C101,C127,C130,C401,C409
CEV470M6R3
C452
CEV470M6R3
C108,C232,C258,C543
CKSQYB105K10
C114-C117,C123,C133,C215
CKSQYB334K16
C227-C229
CKSQYB334K16
C426
CKSQYB474K16
C141,C207,C233,C252,C257
CKSRYB102K50
C322,C403,C407,C525
CKSRYB102K50
C907,C908,C932
CKSRYB102K50
C121,C137,C140,C161,C162
CKSRYB103K50
C226,C230,C231,C251,C412
CKSRYB103K50
C425,C454-C459,C470-C473
CKSRYB103K50
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
41
PDR-F10
Mark No. Description Part No.
Mark No. Description Part No.
C515,C546,C557,C572,C583
CKSRYB103K50
C136,C155,C198,C209
CKSRYB104K16
C224,C225,C303,C305,C306
CKSRYB104K16
C310,C314,C323,C421,C514
CKSRYB104K16
C516,C521,C522,C526
CKSRYB104K16
C547,C548
CKSRYB104K16
C208,C414
CKSRYB152K50
C122
CKSRYB222K50
C138,C259
CKSRYB223K50
C212,C451
CKSRYB272K50
C113,C205
CKSRYB333K16
C480,C481
CKSRYB471K50
C124
CKSRYB472K50
C102,C206,C413
CKSRYB473K16
C132
CKSRYB563K16
C204,C408,C468,C469
CKSRYB681K50
C125,C463,C464
CKSRYB682K50
C416,C905
CKSRYF103Z50
C107,C111,C120,C126,C131
CKSRYF473Z25
C135,C142,C145,C164,C199
CKSRYF473Z25
C202,C211,C214,C217
CKSRYF473Z25
C254,C255,C260-C262,C313
CKSRYF473Z25
C315-C319,C321,C324,C351
CKSRYF473Z25
C361,C402,C405,C410,C411
CKSRYF473Z25
C415,C453,C465,C482,C502
CKSRYF473Z25
C504,C506,C508-C510
CKSRYF473Z25
C512,C513,C520,C524
CKSRYF473Z25
C527,C528,C530,C532-C536
CKSRYF473Z25
C538,C540-C542,C545,C550
CKSRYF473Z25
C552,C554,C556,C558,C571
CKSRYF473Z25
C584,C904,C931
CKSRYF473Z25
C585 (0.22F/3.5V)
PCH1145
C143 (0.1F/5.5V)
PCH1146
RESISTORS
R454,R472
ACN7041
R307,R308,R360,R361 (22kΩ)
ACN7073
R536,R552 (100kΩ)
ACN7081
R321,R322,R503,R507-R510 (100Ω) DCN1092
R556 (100Ω)
DCN1092
R1901-R1904
RS1/10S0R0J
R116,R468,R470,R476,R478
RS1/16S1002F
R114
RS1/16S1302F
R115
RS1/16S1502F
R465,R467
RS1/16S1603F
R596
RS1/16S2001F
R118,R119,R477,R479
RS1/16S2002F
R464,R466
RS1/16S2202F
R102
RS1/16S4701F
R126
RS1/16S4703F
R598
RS1/16S5100F
R469,R471
RS1/16S9102F
Other Resistors
RS1/16S
J
OTHERS
X301 CERAMIC RESONATOR (32MHz) PSS1024
X501 CRYSTAL RESONATOR
PSS1025
(33.8688MHz)
CN101 32P FFC CONNECTOR
PKN1024
CN901 6P CONNECTOR
S6B-PH-SM3
CN102 8P CONNECTOR
S8B-PH-SM3
CN452 8P FFC CONNECTOR
VKN1300
CN302 9P FFC CONNECTOR
VKN1301
CN502 25P FFC CONNECTOR
VKN1317
KN901 EARTH METAL FITTING
VNF1109
MECHA PCB ASSY
SEMICONDUCTOR
PC651
NJL5809K-F1
SWITCH
S601
PSG1014
RESISTORS
All Resistors
RD1/4PU
J
OTHERS
J601 3P JUMPER WIRE
D20PWW0305E
PC BOARD
PNP1476
DISP ASSY
SEMICONDUCTORS
IC7901
BA6289F
IC7504
BR24C64F
IC7004
BU4069UB
IC7503
BU4094BCF
IC7501
PD5601A
IC7502
PDC066B
Q7506,Q7703
2SA1037K
Q7004
2SB1237X
Q7005
2SB1238X
Q7501,Q7702
2SC2412K
Q7003
2SD1858X
Q7505,Q7514,Q7516
DTA143EK
Q7504,Q7512,Q7513,Q7517
DTC124EK
Q7507
DTC143EK
D7008-D7013
1SR154-400
D7015,D7509,D7511,D7516,D7518 1SS355
D7006
UDZ15B
D7016
UDZ16B
D7019
UDZ18B
D7506
UDZ3.0B
D7014,D7020
UDZS5.6B
D7512
UDZS6.8B
COILS
L7005
LFEA100J
L7501
LFEA220J
L7001,L7002,L7006
LFEA680J
CAPACITORS
C7516-C7519,C7523,C7526-C7529 CCSRCH221J50
C7021-C7023
CCSRCH391J50
C7025
CEAL470M35
C7530
CEJQ100M25
C7031,C7035
CEJQ100M50
C7013,C7014
CEJQ101M10
C7503,C7504,C7538,C7903
CEJQ101M6R3
C7034
CEJQ220M50
C7506
CEJQ330M25
B
C
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
42
PDR-F10
Mark No. Description Part No.
Mark No. Description Part No.
C7018,C7026,C7028,C7030
CEJQ470M16
C7024,C7027,C7029
CEJQ470M25
C7512,C7515
CEJQ470M6R3
C7534
CKSRYB102K50
C7505,C7520,C7521,C7531,C7540 CKSRYB103K50
C7901,C7902
CKSRYB103K50
C7711
CKSRYB104K25
C7032,C7033,C7036,C7037
CKSRYB223K50
C7039-C7044,C7507,C7508
CKSRYB223K50
C7011,C7012,C7015,C7016
CKSRYB473K16
C7019,C7020,C7502,C7510,C7511 CKSRYF104Z25
C7513,C7524,C7525
CKSRYF104Z25
RESISTORS
All Resistors
RS1/16S
J
OTHERS
X7501
CERAMIC RESONATOR
ASS7029
(3.84MHz)
X7503
CERAMIC RESONATOR
DSS1048
(10MHz)
CN12
8P CABLE HOLDER
51048-0800
CN115
FFC CONNECTOR 24P
52492-1520
V7501
FL TUB
AAV7077
FL SPACER
AEB7199
BZ7501 BUZZER
APV7002
CN11
CONNECTOR POST
B2B-PH-K-S
X7502
REMOTE RECEIVER UNIT GP1U27X
CN7703 9P FFC CONNECTOR
RKN1050
KEY ASSY
SWITCHES
S7901-S7908
ASG7013
RESISTORS
All Resistors
RS1/16S
J
OTHERS
CN18 4P CABLE HOLDER
51048-0400
CN113 5P CABLE HOLDER
51048-0500
J18 JUMPER WIRE 4P
D20PYY0405E
J13 JUMPER WIRE 5P
D20PYY0510E
REC LED ASSY
SEMICONDUCTOR
D7517
SML-210VT
IR LED ASSY
SEMICONDUCTORS
D7510
SIR-56ST3F
OTHERS
LED SPACER
AEB7204
J17 3P JUMPER WIRE
D20PWY0310E
LED ASSY
SEMICONDUCTORS
D7502
NSPB500-0008
CAPACITORS
C7501
CKSRYF104Z25
OTHERS
CN112 8P CABLE HOLDER
51048-0800
J12 JUMPER WIRE 8P
D20PYY0820E
CD SW ASSY
SWITCHES
S7909-S7912
ASG7023
RESISTORS
All Resistors
RS1/16S
J
OTHERS
CN114 3P CABLE HOLDER
51048-0300
J14 JUMPER WIRE 3P
ADD7262
MOTOR ASSY
CAPACITORS
C7904
CKSRYF104Z25
OTHERS
CN111 CONNECTOR 2P
S2B-PH-K-S
MAIN ASSY
SEMICONDUCTORS
IC7005
AEK7058
IC7201,IC7202,IC7205,IC7206,IC7208 BA4558F-HT
IC7207
BU4066BCF
IC7301
PCM1801U
Q7208,Q7210
2SA1037K
Q7207
2SC2412K
Q7211-Q7214
2SD2114K
Q7201,Q7204,Q7206
DTA124EK
Q7302
DTA143EK
Q7202,Q7203,Q7205,Q7301
DTC124EK
D7302
1SS184
D7214,D7216,D7220
1SS355
D7301
DAP202K
D7201-D7212,D7215,D7217,D7221
UDZS6.2B
D7701,D7702
UDZS8.2B
COILS
L7601
LFEA100J
L7302
LFEA680J
D
E
F
G
H
I
J
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
43
PDR-F10
Mark No. Description Part No.
Mark No. Description Part No.
CAPACITORS
C7201-C7206,C7227-C7230
CCSRCH101J50
C7213-C7216,C7265,C7266
CCSRCH101J50
C7308
CCSRCH470J50
C7245,C7246,C7249,C7250
CCSRCH471J50
C7217,C7218,C7235,C7236
CEAL100M16
C7243,C7244,C7251,C7252
CEAL100M16
C7219,C7221,C7303,C7602
CEAL101M10
C7231,C7232,C7234
CEAL470M6R3
C7306,C7307
CEAL4R7M35
C7207-C7212,C7223-C7226
CEV100M16
C7237,C7238
CEV100M16
C7239,C7242,C7301
CEV101M16
C7263,C7264
CKSRYB102K50
C7220,C7222,C7240,C7241
CKSRYB103K50
C7255-C7258,C7601,C7603
CKSRYB103K50
C7606,C7607
CKSRYB103K50
C7302,C7304,C7305
CKSRYB104K16
C7247,C7248
CKSRYB152K50
C7605
CKSRYF104Z25
RESISTORS
R7215-R7222,R7247-R7250
RS1/16S1002F
R7251-R7254
RS1/16S9101F
Other Resistors
RS1/16S
J
OTHERS
CN7801
SOCKET(15P)
AKP1038
CN15
15P FFC CONNECTOR
FF3-15-S15
JA7601
OPTICAL LINK IN
GP1FA550RZ
JA7602
OPTICAL LINK OUT
GP1FA550TZ
CN7802
CONNECTOR(15P)
KPE15
CN121
13P CONNECTOR
VKN1244
CN19
15P FFC CONNECTOR
VKN1419
KN7001
EARTH METAL FITTING VNF1084
REG1 ASSY
SEMICONDUCTORS
IC7001,IC7002
NJM7805FA
D7001,D7002
MTZJ6.8B
CAPACITORS
C7004,C7006
CEAT101M10
C7003,C7005
CEAT1R0M50
RESISTORS
R7032
RS1/16S0R0J
OTHERS
CN20 3P CABLE HOLDER
51048-0300
CN116 8P CABLE HOLDER
51048-0800
J16 JUMPER WIRE 8P
D20PYY0815E
REG2 ASSY
SEMICONDUCTORS
Q7001
2SB1566
Q7002
2SD1858X
D7003
UDZS7.5B
CAPACITORS
C7007
CEAT470M16
RESISTORS
R7001
RFA1/4PS4R7J
Other Resistors
RS1/16S
J
OTHERS
CN120 3P CABLE HOLDER
51048-0300
J20 JUMPER WIRE 3P
D20PYY0305E
DA ASSY
SEMICONDUCTORS
IC7401
PCM1716E4
Q7401
DTC124EK
D7401
1SS184
D7403,D7404
1SS355
D7402
DAP202K
COILS
L7401
LFEA680J
L7701,L7704,L7706,L7708
VTL1081
CAPACITORS
C7413-C7416
CCSRCH101J50
C7417
CCSRCH220J50
C7401,C7405,C7407
CEAL101M10
C7403,C7410
CEAL4R7M35
C7712
CKSRYB102K50
C7713
CKSRYB103K50
C7402,C7404,C7411,C7412,C7702CKSRYB104K16
C7409,C7608
CKSRYB104K25
RESISTORS
Other Resistors
RS1/16S
J
OTHERS
CN7701
CONNECTOR 6P
B6B-PH-K-S
CN21
13P CONNECTOR
VKN1244
CN7705
25P CONNECTOR
VKN1256
CN119
15P CONNECTOR
VKN1419
KN7701
EARTH METAL FITTING VNF1084
K
L
M
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
44
PDR-F10
TEST MODE : ON
TEST MODE : STOP CANCEL
STOP key
Power key -OFF
Display
Display
System
Power
ON
FL all lights
6.2 MEASURING INSTRUMENTS
6.3 TEST MODE
• SERVO SYSTEM ADJUSTMENT
6.3.1 How to Enter the Test Mode
6.3.2 TP- POINT
CD: Test disc for adjustment (STD-903) or equivalent
Test disc for inspection (STD-914) or equivalent
(1) Laser power meter
Following power meter manufactured
by Advantest Corporation or equivalent:
TQ8210 + TQ82017
TQ8215 + TQ82021
TQ8215 + TQ82010 + TQ82017
LE8010 (by LEADER)
(2) Oscilloscope
(3) CD Jitter Meter
8 7 6 5 4 3 2 1
CN102
CN102
TP- point
1. EQRF
2. RF
3. MPXO
4. MPP
5. TE
6. VC
7. ATFM
8. FE
SIDE A
CD-R CORE ASSY
A
Front
SIDE B
DISP ASSY
C
Fig. 6-1
TEST POINT
Short point
6.1 DISCS TO BE USED
6. ADJUSTMENT
For adjustment, use the STEREO CD TUNER (XC-F10) in combination with the STEREO POWER AMPLIFIER(M-F10).
Fig. 6–2
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
45
PDR-F10
6.3.3 Operations in Test Mode
Please use the remote control provited with the LD sevice remote control (GGF1067)
In Test mode, the following adjustment functions are assigned to the buttons, as explained below.
LASER
DISC
§�
DIG/ANA
DISP
TEST
MODE
ESC
T T
CX
REP.A
REP.B
STEREO
P. N
A,MON
TV/LDP
−
+
A
B
SCAN
×3
CHAPTER
SKIP
PLAY 3
1
2
3
CLEAR
4
5
6
+10
7
8
9
0
FRM/TIM
CHAP
CHP/TIM
SEARCH
SPEED
SIDE
STILL
STEP
PAUSE 8
PIONEER SERVICE
GGF1067
SR
1
¡�
×3
2
3
e
E
4
¢�
DIG/ANA Button : INPUT SELECTOR
(DIGITAL/ANALOG)
ERASE Button
(Disc specification switch)
SIDE A Button : RECORD
(LD POWER adjustment standby)
SIDE B Button : REC MUTE
(Starts the LD POWER adjustment )
CHAPTER 4 Button
(Move the pickup to inner periphery of the disc )
CHAPTER ¢ Button
(Move the pickup to outer periphery of the disc )
STOP Button
(LD power adjustment end)
IFRM/TIM Button : TIME
(Adjustment from the adjustment result
stored in the EEPROM at adjustment standby)
SEARCH Button : ENTER
(Adjustment data register )
PLAY Button
(Store the power adjustment value
to theEEPROM and shift to the next
power adjustment)
[" ANALOG " segment lights this time]
[Remote Control Unit ]
Fig.1 During adjustment of LD power
(The button shown in
corresponds in GGF1067)
�
(Adjustment value setting)
SCAN Button : JOG ±
LASER
DISC
§�
DIG/ANA
DISP
TEST
MODE
ESC
T T
CX
REP.A
REP.B
STEREO
P. N
A,MON
TV/LDP
−
+
A
B
SCAN
×3
CHAPTER
SKIP
PLAY 3
1
2
3
CLEAR
4
5
6
+10
7
8
9
0
FRM/TIM
CHAP
CHP/TIM
SEARCH
SPEED
SIDE
STILL
STEP
PAUSE 8
PIONEER SERVICE
GGF1067
SR
1
¡�
×3
2
3
e
E
4
¢�
�
Fig.2 During adjustment of servo system
[" DIGITAL " segment lights this time ]
DIG/ANA Button : INPUT SELECTOR
(DIGITAL/ANALOG)
SEARCH Button : ENTER
(Adjustment data register )
PLAY3 Button : PLAY
(Spindle servo ON,
Tracking servo ON/OFF)
(Adjustment value setting)
SCAN Button : JOG ±
CX Button : AUTO
(Servo adjustment mode feed )
CHAPTER 4 Button : R SCAN
(Move the pickup to inner periphery of the disc )
CHAPTER ¢ Button : F SCAN
(Move the pickup to outer periphery of the disc )
TV / LDP Button : ERASE
(Disc specification switch)
SIDE A Button : RECORD
(Starts the automatic adjustment of
servo adjustment("FEOS"is displayed))
SIDE B Button : REC MUTE
(Starts the LD POWER adjustment )
STOP Button
(Servo OFF)
2�X3 Button : FINALIZE
(Focus servo ON)
X3 3Button : SYNCHRO
(Execute the average adjustment)
FRM/TIM Button : TIME
(Adjustment from the adjustment result
stored in the EEPROM at adjustment standby)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
46
PDR-F10
e
m
a
N
y
e
K
y
e
k
nia
m
R
-
D
C
e
t
o
m
e
r
e
civ
e
s
D
L
)
7
6
0
1
F
G
G
(
lo
rt
n
o
c
t
u
o
e
t
o
m
e
R
e
d
o
c
P
O
N
-
-
-
N
E
P
O
E
S
O
L
C
/
N
E
P
O
-
-
P
O
T
S
P
O
T
S
P
O
T
S
6
1
8
A
)
Y
A
L
P
(
E
S
U
A
P
/
Y
A
L
P
E
S
U
A
P
/
Y
A
L
P
Y
A
L
P
7
1
8
A
E
S
U
A
P
/
Y
A
L
P
-
E
S
U
A
P
8
1
8
A
C
E
R
C
E
R
A
E
D
I
S
D
4
8
A
E
T
U
M
-
B
E
D
I
S
E
4
8
A
N
A
C
S
F
-
R
E
T
P
A
H
C
¢
2
5
8
A
N
A
C
S
R
-
R
E
T
P
A
H
C
4
3
5
8
A
1
-
1
1
0
8
A
2
-
2
2
0
8
A
3
-
3
3
0
8
A
4
-
4
4
0
8
A
5
-
5
5
0
8
A
6
-
6
6
0
8
A
7
-
7
7
0
8
A
8
-
8
8
0
8
A
9
-
9
9
0
8
A
0
1
-
0
1
/
0
0
0
8
A
0
2
-
0
1
F
1
8
A
K
C
A
R
T
F
-
N
A
C
S
¡
0
1
8
A
K
C
A
R
T
R
-
N
A
C
S
1
1
1
8
A
M
G
P
-
.
P
A
H
C
0
4
8
A
T
P
R
-
B
.
P
E
R
4
4
8
A
R
L
C
-
O
E
R
E
T
S
A
4
8
A
K
C
E
H
C
-
N
U
R
.
P
6
5
8
A
E
Z
I
L
A
N
I
F
-
2
3
X
9
5
8
A
R
L
C
P
I
K
S
D
I
P
I
K
S
R
E
L
C
5
4
8
A
E
S
A
R
E
-
P
D
L
/
V
T
T
N
A
F
0
8
A
R
E
T
I
N
O
M
-
R
A
E
L
C
3
4
8
A
R
E
T
N
E
-
M
E
M
/
H
C
R
A
E
S
2
4
8
A
E
M
I
T
-
M
I
T
/
M
R
F
1
4
8
A
O
T
U
A
-
F
F
O
/
N
O
X
C
E
0
8
A
T
U
P
N
I
.
L
E
S
T
U
P
N
I
T
N
A
/
G
I
D
C
0
8
A
O
R
H
C
N
Y
S
-
3
X
3
1
5
8
A
U
N
E
M
-
-
D
E
E
P
S
6
4
8
A
6.3.4 Function And Operation In CD-R Test Mode
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
47
PDR-F10
3
2
1
4
6.3.5 OPERATIONS IN TEST MODE
LD Power Adjustment (INPUT SELECTOR: ANALOG)
Servo Adjustment (INPUT SELECTOR: OPTICAL)
Key No.
Sevice remote Key
Contents of Movement
1
0 (OPEN/CLOSE)
Tray Open/Close
2
7 (STOP)
Servo OFF
3
£ (PLAY)
Spindle servo ON, Tracking servo ON/OFF
4
¶ (REC)/ SIDE A
Starts the automatic adjustment of servo adjustment ("FEOS" is displayed.)
�
¢ (CHAPTER)
Move the pickup to outer periphery of the disc
�
4 (CHAPTER)
Move the pickup to inner periphery of the disc
�
1 ¡ (SCAN)
Adjustment value setting
�
SRARCH
Adjustment data register
�
2�X3
Focus servo ON
�
TV / LDP
Disc specification switch
Continue pressing it more than three seconds and initialize the adjustment data.
�
3�X3
Execute the average adjustment
�
CX
Servo adjustment mode feed
Key No.
Sevice remote Key
Contents of Movement
1
0 (OPEN/CLOSE)
Tray Open/Close
2
7 (STOP)
LD power adjustment end
Turn off the LD and disc selection set to CD.
3
£ (PLAY)
Store the power adjustment value to the EEPROM and shift to the next power adjustment.
4
¶ (REC)/SIDEA)
LD POWER adjustment standby Switch the setting of 4•¢ key during adjustment.
(coarse adjustment j fine adjustment : default is the coarse adjustment)
�
(SIDE B)
Starts the LD POWER adjustment (from 0)
(CD: Playback power, CD-R/RW: Record power)
�
¢ (CHAPTER)
Move the pickup to outer periphery of the disc
�
4 (CHAPTER)
Move the pickup to inner periphery of the disc
�
1�¡ (SCAN)
Adjustment value setting
�
SEARCH
Adjustment data register
�
TV / LDP
Disc specification switch
�
FRM / TIM
Adjustment from the adjustment result stored in the EEPROM at adjustment standby.
During adjustment, shift to the next power adjustmnet not to store the current power adjustment value
in the EEPROM.
REC
LEVEL(–)
LEVEL(+)
INPUT SEL.
SKIP ID
STOP
PLAY/PAUSE
OPEN/CLOSE
7�Main body key
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
48
PDR-F10
EXCHANGE CD-R CORE (Mechanism) ASSY
Mechanical
point
Electric
point
Mechanical
point
Electric
point
CD-R Pickup
Exchange Mechanism Assy
Spindle Motor
Exchange Mechanism Assy
6.4 NECESSARY ADJUSTMENT POINTS
When
Adjustment Points
6.5 LD Power adjustment
6.6 Servo Adjustment (Automatic Adjustment)
6.6 Servo Adjustment (Automatic Adjustment)
EXCHANGE CD-R CORE (PCB) ASSY
Mechanical
point
Electric
point
CDRR CORE (PCB) ASSY
Exchange PCB
6.5 LD Power adjustment
6.6 Servo Adjustment (Automatic Adjustment)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
49
PDR-F10
[Procedure]
1. Enter the Test mode.
2. Press the INPUT key so that "DIG/ANA" appears on the FL display.
3. Press the TV/LDP key so that "CD" appears on the FL display.
4. Move the pickup to the position where the power is easy to measure by pressing the SCAN key.
( 1��¡ )
5. Press the SIDE A and SIDE B key in order, and light the LD.
6. Turn the CHAPTER key to adjust the power.
Switch the coarse adjustment and the fine adjustment by pressing the REC/REC MUTE key, and adjust it.
(initial state is the coarse adjustment.)
7. Press the PLAY key to register the adjustment if the power became the adjustment value.
When it is registered, shift to the CD-R Record Power Adjustment automatically.
6.5 LD POWER ADJUSTMENT
6.5.1 Playback Power Adjustment
Notes : Each test mode key uses remote control for service.
[Procedure]
1. Move the pickup to the position where the power is easy to measure by pressing the CHAPTER key.
( 4��¢ )
2. Press the SIDE A and SIDE B key in order, and light the LD.
版权声明
1. 本站所有素材，仅限学习交流，仅展示部分内容，如需查看完整内容，请下载原文件。
2. 会员在本站下载的所有素材，只拥有使用权，著作权归原作者所有。
3. 所有素材，未经合法授权，请勿用于商业用途，会员不得以任何形式发布、传播、复制、转售该素材，否则一律封号处理。
4. 如果素材损害你的权益请联系客服QQ：77594475 处理。
