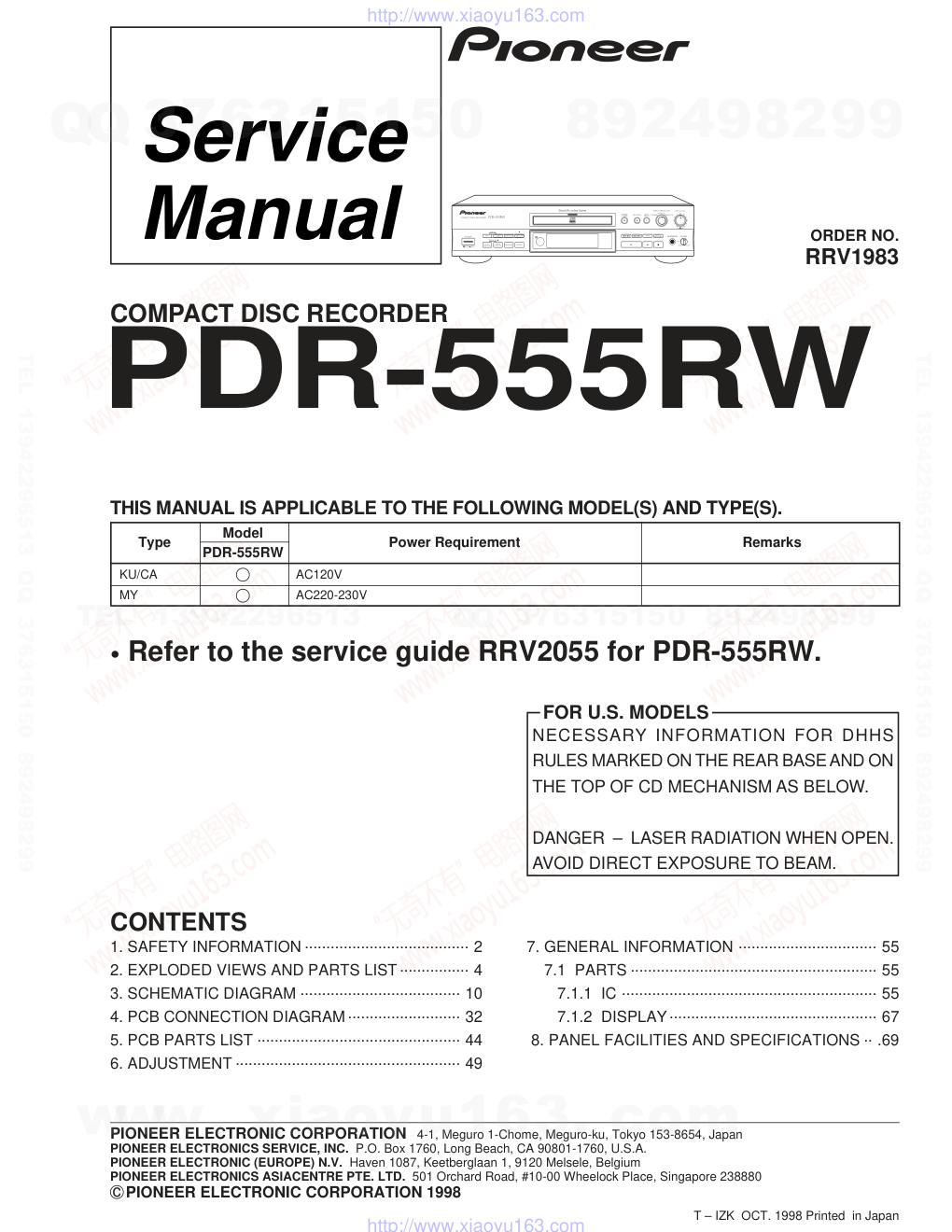

ORDER NO. PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880 � � � � � � � � � �PIONEER ELECTRONIC CORPORATION 1998 c PDR-555RW RRV1983 1. SAFETY INFORMATION ...................................... 2 2. EXPLODED VIEWS AND PARTS LIST ................ 4 3. SCHEMATIC DIAGRAM ..................................... 10 4. PCB CONNECTION DIAGRAM .......................... 32 5. PCB PARTS LIST ............................................... 44 6. ADJUSTMENT .................................................... 49 CONTENTS 7. GENERAL INFORMATION ................................ 55 7.1 PARTS ......................................................... 55 7.1.1 IC ........................................................... 55 7.1.2 DISPLAY................................................ 67 8. PANEL FACILITIES AND SPECIFICATIONS .. .69 T – IZK OCT. 1998 Printed in Japan Type Model Power Requirement Remarks PDR-555RW KU/CA AC120V MY AC220-230V THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). COMPACT DISC RECORDER FOR U.S. MODELS NECESSARY INFORMATION FOR DHHS RULES MARKED ON THE REAR BASE AND ON THE TOP OF CD MECHANISM AS BELOW. DANGER – LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM. • Refer to the service guide RRV2055 for PDR-555RW. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 PDR-555RW 1. SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5mA. (FOR USA MODEL ONLY) Leakage current tester Reading should not be above 0.5mA Device under test Test all exposed metal surfaces Also test with plug reversed (Using AC adapter plug as required) Earth ground AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 PDR-555RW IMPORTANT THIS PIONEER APPARATUS CONTAINS LASER OF CLASS ΙΙΙ b. SERVICING OPERATION OF THE APPARATUS SHOULD BE DONE BY A SPECIALLY INSTRUTED PERSON. LASER DIODE CHARACTERISTICS MAXIMUM OUTPUT POWER: 23 mW WAVELENGTH: 778 – 787 nm 1. Laser Interlock Mechanism The position of the switch (S601) for detecting loading state is detected by the system microprocessor, and the design prevents laser diode oscillation when the switch (S601) is not on CLMP terminal side (CLMP signal is OFF or high level.). Thus, the interlock will no longer function if the switch (S601) is deliberately set to CLMP terminal side (low level). The interlock also does not function in the test mode ∗. Laser diode oscillation will continue, if pin 1 of M51593FP (IC101) on the PRE-AMP BOARD ASSY mounted on the pickup assembly is connected to GND, or pin 19 is connected to low level (ON), or else the terminals of Q101 are shorted to each other (fault condition). 2. When the cover is opened with the servo mechanism block removed and turned over, close viewing of the objective lens with the naked eye will cause exposure to a Class 1 laser beam. Additional Laser Caution ∗ Refer to page 49 . LABEL CHECK KU/CA type Printed on Rear Panel Printed on Rear Panel MY Type MY Type MY Type www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 PDR-555RW 15 KU/CA Type only MY Type only 10 8 4 5 2 1 7 6 9 3 13 11 (1/2) 12 (1/2) 12 (2/2) 11 (2/2) 14 2.1 PACKING (1) PACKING PARTS LIST Mark No. Description Part No. 2. EXPLODED VIEWS AND PARTS LIST NOTES: • Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. • The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Screws adjacent to mark on the product are used for disassembly. Mark No. Description Part No. 1 AC Power Cord See Contrast table (2) NSP 2 Warranty Card See Contrast table (2) 3 Audio Cable PDE1248 4 Operating Instructions See Contrast table (2) 5 Caution See Contrast table (2) 6 Remote Control Unit PWW1144 (CU-PD099) 7 Battery Cover AZA7123 NSP 8 Dry Cell Battery (R6P,AA) VEM-013 9 Polyethylene Bag Z21-038 10 Packing Case See Contrast table (2) 11 Protector (F) RHA1238 12 Protector (R) RHA1239 13 Seat Z23-007 14 Operating Instructions See Contrast table (2) 15 Operating Instructions See Contrast table (2) (2) CONTRAST TABLE PDR-555RW/KU/CA and MY are constructed the same except for the following : Mark No. Symbol and Description Part No. Remarks PDR-555RW/KU/CA PDR-555RW/MY 1 AC Power Cord ADG7021 ADG1127 NSP 2 Warranty Card ARY7023 ARY7022 4 Operating Instructions (English) PRB1270 Not used 5 Caution PRM1046 PRM1045 10 Packing Case PHG2317 PHG2318 14 Operating Instructions Not used PRD1031 (Dutch/Swedish/Spanish/Danish) 15 Operating Instructions Not used PRE1269 (English/French/German/Italian) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 PDR-555RW 12 29 20 11 21 16 17 13 35 13 15 Refer to "2.4 LOADING MECHANISM ASSY". Refer to "2.3 FRONT PANEL SECTION". 33 C I F A B 33 28 18 12 39 2 11 11 34 14 34 31 40 12 14 27 30 5 6 8 3 1 4 12 7 11 14 24 9 11 11 11 30 30 24 24 23 10 12 34 34 22 IC308 24 37 36 38 MY Type only G A H I B C D D J J E G H E F KU/CA Type only KU/CA Type only 2.2 EXTERIOR SECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 PDR-555RW (1) EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 1 SERVO DIGITAL Assy See Contrast table (2) 2 AUDIO Assy See Contrast table (2) 3 POWER Assy See Contrast table (2) 4 TRANS Assy See Contrast table (2) 5 Jumper Wire (J) D20PYY0335E 6 Connector Assy (8P) PDE1300 7 Connector Assy PG05KK-E10 8 Connector Assy PG09KK-E35 9 Power Transformer See Contrast table (2) 10 Fuse (FU1) See Contrast table (2) 11 Screw (Steel) ABA1011 12 Screw (Steel) ABA1207 NSP 13 PCB Mould AMR1525 NSP 14 Cord Stopper DNF1128 15 Bonnet PYY1254 NSP 16 Under Base PNA2427 17 Rear Base See Contrast table (2) NSP 18 Mecha Base PNB1591 19 • • • • • NSP 20 Binder Holder PNW1021 21 Insulator PNW2766 NSP 22 Cap VEC1810 23 Cord Clamper RNH-184 24 Screw RBA1132 25 • • • • • • 26 • • • • • • 27 Power Button PAC1877 28 Tray Panel PNW2798 29 Screw BBZ30P080FCC 30 Screw IBZ30P060FCC 31 Screw BBZ30P100FCC 32 • • • • • • 33 Screw FBT40P080FZK 34 Screw IBZ30P180FCC 35 Binder ZCA-SKB90BK 36 Black Label PRW1470 37 Caution Label HE See Contrast table (2) 38 Caution Label See Contrast table (2) 39 65 Label See Contrast table (2) NSP 40 Laser Caution Label See Contrast table (2) (2) CONTRAST TABLE PDR-555RW/KU/CA and MY are constructed the same except for the following : Mark No. Symbol and Description Part No. Remarks PDR-555RW/KU/CA PDR-555RW/MY 1 SERVO DIGITAL Assy PWM2217 PWM2216 2 AUDIO Assy PWZ3723 PWZ3729 3 POWER Assy PWZ3724 PWZ3741 4 TRANS Assy PWZ3750 PWZ3725 9 Power Transformer PTT1345 PTT1346 10 Fuse (FU1 : 1A) REK1075 Not used 10 Fuse (FU1 : T500mA) Not used AEK1051 17 Rear Base PNA2428 PNA2429 37 Caution Label HE Not used PRW1233 38 Caution Label Not used VRW1094 39 65 Label ORW1069 Not used NSP 40 Laser Caution Label PRW1516 Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 PDR-555RW 23 23 23 8 7 17 19 26 3 9 18 22 5 2 6 21 Accessories for the VR ASSY. 13 14 20 23 4 A A 11 15 16 25 12 24 1 (1) FRONT PANEL SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 2.3 FRONT PANEL SECTION 1 FUNCTION Assy See Contrast table (2) 2 HEADPHONE Assy See Contrast table (2) 3 VR Assy PWZ3689 4 22P F•F•C/60V PDD1190 5 Screw With Washer ABA1005 6 Knob PAC1707 7 Mode Button PAC1873 8 Manual Button L PAC1874 9 REC Button PAC1876 10 • • • • • • 11 Manual Button R PAC1878 12 VOL Knob Assy PXA1616 13 VOL Knob L PAC1902 14 VOL Knob R PAC1903 15 FL Sheet See Contrast table (2) 16 Display Window PAM1757 17 LED Lens PNW2745 18 REC Ring PNW2795 19 Lens PNW2796 20 Sub Panel PNW2797 21 Front Panel 555 See Contrast table (2) 22 Play Button B RAC2204 23 Screw PPZ30P100FMC 24 Name Plate PAN1376 25 Getter Label 555 See Contrast table (2) 26 IC (EEPROM) PYY1196 (2) CONTRAST TABLE PDR-555RW/KU/CA and MY are constructed the same except for the following : Mark No. Symbol and Description Part No. Remarks PDR-555RW/KU/CA PDR-555RW/MY 1 FUNCTION ASSY PYY1258 PYY1259 2 HEADPHONE Assy PWZ3713 PWZ3688 15 FL Sheet PAM1756 PAM1762 21 Front Panel 555 PNW2799 PNW2817 25 Getter Label 555 PRW1488 PRW1504 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 PDR-555RW • LOADING MECHANISM ASSY PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 2.4 LOADING MECHANISM ASSY • Bottom View 8 17 11 3 21 28 9 23 22 24 5 2 18 20 12 Loading Base 13 6 4 26 26 29 25 19 15 1 14 16 10 7 27 A A 1 32P F•F•C/30V PDD1187 NSP 2 Earth Lead Unit PDF1088 3 Connector Assy PG02KK-E35 4 DC Motor PXM1027 5 Screw DBA1006 6 Motor Pulley PNW1634 7 Screw VBA1055 8 Tray Stopper Spring VBH1277 9 Rubber Belt VEB1260 10 Loading Base VNL1730 11 Tray VNL1731 12 Gear Pulley VNL1733 13 Loading Gear VNL1734 14 Drive Gear VNL1735 15 Drive Cam VNL1736 16 Lock Plate VNL1820 17 Tray Stopper VNL1739 NSP 18 CD-RW SERVO MECH Assy PXA1609 19 Screw BBZ26P040FMC 20 Screw IPZ20P080FMC 21 Loading Motor Assy VXX2505 NSP 22 Loading Mechanism Assy PXA1608 23 Clamper Plate VNE2068 24 Bridge VNE2069 25 Clamper VNL1738 26 Screw IPZ26P060FCU NSP 27 LOADING A Assy PWZ3727 NSP 28 LOADING B Assy PWZ3728 29 Tray Holder PNM1326 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 PDR-555RW Spacer Spacer OK NG A 2 1 2.8mm 11mm Disc table Assy (Pressure of about 9kg) Carriage Base PCB Stopper Spindle motor Spacer setting Position Spacer Servo Base A How to Install the Disc Table 1 Use nippers or other tool to cut the two sections marked A in figure 1 . 2 While supporting the spindle motor shaft with the stopper, put spacer on top of the carriage base, and stick the disc table on top (takes about 9kg pressure). Take off the spacer. 11 21 5 8 18 19 16 20 15 7 2 25 22 3 23 1 26 4 9 10 24 12 14 22 6 SERVO MECH ASSY Carriage Base S 13 • Bottom View • SERVO MECHANISM ASSY PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 2.5 SERVO MECHANISM ASSY NSP 1 SERVO MECH Assy PWZ3758 2 D.C.mortor Assy PEA1235 NSP 3 DC Motor PXM1042 4 Float Rubber A AEB7063 5 Float Rubber B AEB7066 NSP 6 Rack Spring DBH1285 NSP 7 Mirror Sheet PNM1325 8 Servo Base PNW2853 9 Pinion Gear PNW2854 10 Gear A PNW2855 11 Gear B PNW2856 12 Gear C PNW2857 13 Rack PNW2858 14 Rack Stopper PNW2859 NSP 15 Disc Table PNW2860 16 Carriage Base S PNW2874 17 • • • • • 18 Guide Bar VLL1488 19 Sub Guide Bar VLL1489 NSP 20 Magnet VYM1024 21 CD-R Pickup PEA1351 22 Screw IPZ20P060FMC 23 Screw PMZ20P030FMC 24 Screw JGZ17P030FMC 25 Disc Table Assy PEA1349 26 Carriage Motor Assy PEA1350 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 10 A B C D 1 2 3 4 1 2 3 4 A 6/6 SERVO DIGITAL ASSY (PWM2217 : KU/CA) (PWM2216 : MY) D SERVO MECH ASSY (PWZ3758) LOADING B ASSY (PWZ3728) C B LOADING A ASSY (PWZ3727) A D 1/6 D PICKUP ASSY PC651 NJL5803K–F1 PEA1350 PEA1235 VXX2505 B C 3. SCHEMATIC DIAGRAM 3.1 OVERALL CONNECTIONS, LOADING A, B, and SERVO MECH ASSEMBLIES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 11 A B C D 5 6 7 8 5 6 7 8 Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". KU/CA : ADG7021 MY : ADG1127 TRANS ASSY (PWZ3750 : KU/CA) (PWZ3725 : MY) I HEADPHONE ASSY (PWZ3713:KU/CA) (PWZ3688:MY) F VR ASSY (PWZ3689) G POWER ASSY (PWZ3724: KU/CA) (PWZ3741: MY) H FUNCTION ASSY (PWZ3687: KU/CA) (PWZ3697: MY) J 2/2 AUDIO ASSY (PWZ3723: KU/CA) (PWZ3729: MY) E E 1/2, E J851 J3 LIVE NEUTRAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 12 A B C D 1 2 3 4 1 2 3 4 TK11041M-1 ATIP DECODER 5/6 D 2/6 D 4/6 D 2/6 D 3/6 D 1/6 D 3.2 SERVO DIGITAL ASSY(1/6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 13 A B C D 5 6 7 8 5 6 7 8 LP2950CZ–5.0 (NS) 8BIT LATCH 1/6 SERVO DIGITAL ASSY(1/6) (PWM2217 : KU/CA) (PWM2216 : MY) CN701 J D 4/6 D 6/6 D • MECHA.CONTROL MICOM BLOCK 1/6 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 14 A B C D 1 2 3 4 1 2 3 4 MA700 2/6 SERVO DIGITAL ASSY(2/6) (PWM2217 : KU/CA) (PWM2216 : MY) D • RF PROCESSOR BLOCK 2/6 D 3.3 SERVO DIGITAL(2/6) and PICKUP ASSEMBLIES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 15 A B C D 5 6 7 8 5 6 7 8 D103–D105 : 1SS355 3/6 D 3/6 D 1/6 D 6/6 D 4/6 D 5/6 D 2/6 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 16 A B C D 1 2 3 4 1 2 3 4 NJM2107F 1/6 D 5/6 D 2/6 D 2/6 D 3/6 D 3.4 SERVO DIGITAL ASSY(3/6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 17 A B C D 5 6 7 8 5 6 7 8 CDR SERVO AMP D206–D208 : 1SS355 3/6 SERVO DIGITAL ASSY(3/6) (PWM2217 : KU/CA) (PWM2216 : MY) D 2/6 D 1/6 D 1/6 D 1/6 D 6/6 D • SERVO BLOCK 3/6 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 18 A B C D 1 2 3 4 1 2 3 4 OPTICAL INPUT COAXIAL INPUT (5/6) (4/6) (4/4) (4/4) (3/4) (3/4) (2/4) (2/4) (1/4) (1/4) 2/2 1/2 NJM2904M ! ! L1097 QTL1015 : KU/CA R97 0 : MY R1310 0 : KU/CA L310 QTL1015 : MY 6/6 D 1/6 D 4/6 D 3.5 SERVO DIGITAL ASSY(4/6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 19 A B C D 5 6 7 8 5 6 7 8 (6/6) (1/6) (2/6) (3/6) OPTICAL OUTPUT COAXIAL OUTPUT ! L1171 QTL1015 : KU/CA R171 0 : MY R1305 0 : KU/CA L305 QTL1015 : MY 4/6 SERVO DIGITAL ASSY(4/6) (PWM2217 : KU/CA) (PWM2216 : MY) D 1/2 E • DIGITAL BLOCK 1/6 D 5/6 D 2/6 D J801 MY TYPE ONLY 4/6 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 20 A B C D 1 2 3 4 1 2 3 4 5/6 SERVO DIGITAL ASSY(5/6) (PWM2217 : KU/CA) (PWM2216 : MY) D 3/6 D 2/6 D • DECODER BLOCK CN501 A CN601 C 5/6 D 3.6 SERVO DIGITAL ASSY(5/6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 21 A B C D 5 6 7 8 5 6 7 8 CXD2585Q R1354 0 : KU/CA L354 QTL1015 : MY R1353 0 : KU/CA L353 QTL1015 : MY 1/6 D 4/6 D J21 H 5/6 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 22 A B C D 1 2 3 4 1 2 3 4 6/6 SERVO DIGITAL ASSY(6/6) (PWM2217 : KU/CA) (PWM2216 : MY) D 4/6 D 2/6 D 2/6 D 3/6 D 4/6 D 4/6 D 1/6 D • STRATEGY BLOCK 6/6 D 3.7 SERVO DIGITAL ASSY(6/6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 23 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 24 A B C D 1 2 3 4 1 2 3 4 D/A CONVERTER C406,C407 : PCH1127(4.7/50) C471,C472 PCH1124(47/50) : KU/CA 47/25 : MY 4/6 D 2/2 E 2/2 E CN301 J31 H 1/2 E 3.8 AUDIO(1/2) and HEADPHONE ASSEMBLIES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 25 A B C D 5 6 7 8 5 6 7 8 4700p : KU/CA 1500p : MY 4700p : KU/CA 1500p : MY ! L461–L463 : QTL1015 1/2 AUDIO ASSY(1/2) (PWZ3723 : KU/CA) (PWZ3729 : MY) E • D/A BLOCK HEADPHONE ASSY (PWZ3713 : KU/CA) (PWZ3688 : MY) F : AUDIO SIGNAL ROUTE F 1/2 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 26 A B C D 1 2 3 4 1 2 3 4 VR ASSY (PWZ3689) G G 2/2 E 3.9 AUDIO(2/2) and VR ASSEMBLIES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 27 A B C D 5 6 7 8 5 6 7 8 A/D CONVERTER 2/2 AUDIO ASSY(2/2) (PWZ3723 : KU/CA) (PWZ3729 : MY) E 1/2 E 1/2 E • A/D BLOCK MY TYPE ONLY KU/CA TYPE ONLY MY TYPE ONLY KU/CA TYPE ONLY : AUDIO SIGNAL ROUTE 2/2 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 28 A B C D 1 2 3 4 1 2 3 4 PCH1127 : KU/CA (4.7/50) 4.7/50 : MY C901 C902 C903 C904 C905 C906 C907 C908 C909 J11 DTUY0915E POWER TRANSFORMER J1 PDE1299 (10000p/250) 1P AC INLET • NOTE FOR FUSE REPLACEMENT AC POWER CORD TRANS ASSY (PWZ3750 : KU/CA) (PWZ3725 : MY) I H I 3.10 POWER and TRANS ASSEMBLIES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 29 A B C D 5 6 7 8 5 6 7 8 470/16 : KU/CA PCH1129(470/50) : MY 1000/16 : KU/CA PCH1122(1000/16) : MY 100/35 : KU/CA PCH1126 : MY (100/35) 47/35 : KU/CA PCH1128 : MY (220/25) CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. ICP-N15, MFD BY ROHM CO., LTD. FOR IC22,IC23,IC25. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. ICP-N10, MFD BY ROHM CO., LTD. FOR IC35,IC36. J701 CN355 5/6 J D CN402 1/2 E POWER ASSY (PWZ3724 : KU/CA) (PWZ3741 : MY) H H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 30 A B C D 1 2 3 4 1 2 3 4 FL HOLDER REMOTE RECEIVER UNIT GNDS V–27 AC2 AC1 S712–S719 : VSG1009 FUNCTION ASSY S702 : PLAY 3 S703 : PAUSE 8 S704 : STOP 7 S705 : TRACK SEARCH 4�1 S706 : TRACK SEARCH ¡�¢ S707 : OPEN/CLOSE S708 : TIME S709 : RECORD S710 : DIGITAL SYNCHRO S711 : REC MUTE S712 : SKIP ID SET S713 : SKIP ID CLEAR S714 : SKIP PLAY S715 : DISP OFF S716 : TRACK No. AUTO/MANUAL S717 : TRACK No. WRITE S718 : FINALIZE S719 : ERASE FUNCTION ASSY (PWZ3687 : KU/CA) (PWZ3697 : MY) CN51 J H J 3.11 FUNCTION ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 31 A B C D 5 6 7 8 5 6 7 8 KU/CA TYPE ONLY MY TYPE ONLY Q701–Q704 : DTA114EK SYSTEM RESET MODE CONTROLLER R710–R715 : ACN7081 CN202 1/6 D J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 32 4. PCB CONNECTION DIAGRAM NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 33 A B C D 1 2 3 4 1 2 3 4C B A 4.1 LOADING A, LOADING B and SERVO MECH ASSEMBLIES A LOADING A ASSY B LOADING B ASSY D CN352 C SERVO MECH ASSY D CN353 (PNP1447-B) (PNP1447-B) M M M SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 34 A B C D 1 2 3 4 1 2 3 4 D SIDE A 4.2 SERVO DIGITAL ASSY D SERVO DIGITAL ASSY J CN701 C CN601 A CN501 PICKUP ASSY H VR101 VR107 VR108 VR103 VR104 VR106 VR102 VR105 IC351 Q107 IC352 Q102 IC243 Q101 Q106 IC103 IC101 IC355 IC248 IC249 IC245 IC250 IC212 IC213 IC247 IC211 IC209 Q243 Q244 Q250 IC206 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 35 A B C D 5 6 7 8 5 6 7 8D (PNP1445-C) H J21 E J801 VR301 IC353 IC301 IC308 IC311 IC318 IC201 IC302 IC310 IC309 IC205 IC204 IC303 IC202 IC314 Q301 IC316 Q203 IC209 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 36 A B C D 1 2 3 4 1 2 3 4 D D SERVO DIGITAL ASSY (PNP1445-C) IC305 Q302 IC354 Q351 Q201 IC313 IC320 Q303 IC312 Q204 IC207 IC203 SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 37 A B C D 5 6 7 8 5 6 7 8D IC246 IC105 Q242 Q241 Q103 Q104 Q105 Q201 IC102 IC104 IC210 IC208 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 38 A B C D 1 2 3 4 1 2 3 4 E F G 4.3 AUDIO, HEADPHONE and VR ASSEMBLIES E AUDIO ASSY G VR ASSY F HEADPHONE ASSY H J31 D CN301 (PNP1456-A) (PNP1456-A) (PNP1446-A) IC451 IC404 IC804 IC803 Q405 Q406 Q408 Q407 SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 39 A B C D 1 2 3 4 1 2 3 4G F E E AUDIO ASSY F HEADPHONE ASSY G VR ASSY (PNP1456-A) (PNP1446-A) (PNP1456-A) Q404 Q409 Q403 IC406 IC401 Q401 IC801 Q402 IC402 SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 40 A B C D 1 2 3 4 1 2 3 4 H I 4.4 POWER and TRANS ASSEMBLIES H POWER ASSY E CN402 AC POWER CORD (PNP1446-A) (PNP1456-A) D CN355 I TRANS ASSY J J701 LIVE NEUTRAL IC33 IC36 IC32 IC31 IC35 IC25 IC24 IC23 IC21 POWER TRANSFORMER SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 41 A B C D 1 2 3 4 1 2 3 4I H H POWER ASSY I TRANS ASSY (PNP1446-A) (PNP1456-A) SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 42 A B C D 1 2 3 4 1 2 3 4 J 4.5 FUNCTION ASSY J FUNCTION ASSY J FUNCTION ASSY D CN202 IC705 IC704 Q701 Q704 Q706 Q705 IC702 SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PDR-555RW 43 A B C D 5 6 7 8 5 6 7 8J H CN51 IC701 (PNP1456-A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 PDR-555RW Mark No. Description Part No. Mark No. Description Part No. 5. PCB PARTS LIST NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. •The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. •When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω → 56 × 10 1 → 561 ........................................................ RD1/4PU 5 6 1 J 47k Ω → 47 × 10 3 → 473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω → R50 ..................................................................................... RN2H R 5 0 K 1 Ω → 1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω → 562 × 10 1 → 5621 ...................................................... RN1/4PC 5 6 2 1 F LIST OF WHOLE PCB ASSEMBLIES Mark Symbol and Description Part No. Remarks KU/CA Type MY Type NSP SERVO MECH ASSY PWX1569 PWX1569 NSP LOADING A ASSY PWZ3727 PWZ3727 NSP LOADING B ASSY PWZ3728 PWZ3728 NSP SERVO MECH ASSY PWZ3758 PWZ3758 SERVO DIGITAL ASSY PWM2217 PWM2216 NSP POWER AUDIO ASSY PWX1558 PWX1559 AUDIO ASSY PWZ3723 PWZ3729 POWER ASSY PWZ3724 PWZ3741 NSP FUNCTION ASSY PWX1591 PWX1592 NSP FUNCTION ASSY PWZ3687 PWZ3697 HEADPHONE ASSY PWZ3713 PWZ3688 VR ASSY PWZ3689 PWZ3689 TRANS ASSY PWZ3750 PWZ3725 Mark No. Description Part No. Mark No. Description Part No. LOADING A ASSY SWITCH S501 VSK1011 OTHERS CN502 KR CONNECTOR S2B-PH-K-S CN501 KR CONNECTOR S5B-PH-K-S LOADING B ASSY OTHERS CN551 KR CONNECTOR B2B-PH-K-S A B SERVO MECH ASSY SEMICONDUCTOR PC651 NJL5803K-F1 SWITCH S601 PSG1013 RESISTORS All Resistors RD1/4PU J OTHERS J601 3P JUMPER WIRE D20PWW0305E CN601 KR CONNECTOR S9B-PH-K-S C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 PDR-555RW Mark No. Description Part No. Mark No. Description Part No. COILS L209 OTL1040 L308 PULSE TRANS. PTL1003 L315 CHOKE COIL PTL1017 L312 EMI FILTER PTL1019 L1097,L1151,L1154,L1156,L1157 QTL1015 CHIP SOLID INDUCTOR L1162,L1163,L1166-L1171,L190 QTL1015 CHIP SOLID INDUCTOR L201,L202,L211-L222 QTL1015 CHIP SOLID INDUCTOR L301-L304,L307,L309 QTL1015 CHIP SOLID INDUCTOR L311 CHIP SOLID INDUCTOR QTL1015 L313,L314,L317,L320,L321 QTL1015 CHIP SOLID INDUCTOR L351,L352 CHIP SOLID INDUCTOR QTL1015 CAPACITORS C120 CCSQCH100D50 C306,C316,C325,C326,C338 CCSQCH101J50 C303 CCSQCH160J50 C350,C375,C399 CCSQCH221J50 C278 CCSQCH270J50 C133,C361 CCSQCH331J50 C336,C337 CCSQCH470J50 C231,C377 CCSQCH471J50 C134 CCSQCH6R0D50 C104 CCSQCJ3R0C50 C328 CCSQSL561J50 C232,C307,C318,C329 CEAT100M50 C103 CEAT101M10 C102,C150,C382-C384,C386 CEAT101M16 C390 CEAT101M16 C214,C255 CEAT1R0M50 C206,C212 CEAT221M6R3 C264,C277 CEAT2R2M50 C323 CEAT330M25 C223 CEAT3R3M50 C108,C194,C395 CEAT470M10 C149,C209,C226,C241,C248 CEAT470M16 C275,C279,C304,C310 CEAT470M16 C320,C321,C333,C341,C344 CEAT470M16 C355,C370,C385 CEAT470M16 C228 CEAT4R7M50 C141,C142,C196,C197,C254 CKSQYB102K50 C266,C331,C335,C340,C347 CKSQYB102K50 C351,C364,C376,C396 CKSQYB102K50 C112,C123,C124,C222 CKSQYB103K50 C243,C244,C282,C296-C299 CKSQYB103K50 C315,C322,C332,C343,C346 CKSQYB103K50 C365-C368,C373,C391,C392 CKSQYB103K50 C126,C138,C224,C230,C252 CKSQYB104K25 C259-C261,C327,C339 CKSQYB104K25 C115,C127,C131,C249,C314 CKSQYB105K10 C268,C381 CKSQYB152K50 C348,C349,C397,C398 CKSQYB222K50 C140,C262 CKSQYB223K50 C110,C111,C116-C118,C144 CKSQYB224K16 C216,C217 CKSQYB224K16 C281 CKSQYB272K50 C136,C269-C271,C274 CKSQYB331K50 C135 CKSQYB333K50 C128,C256-C258,C276 CKSQYB334K16 SERVO DIGITAL ASSY (2)PARTS LIST FOR PWM2217 SEMICONDUCTORS IC311 AD1893JST IC103 AK8563 IC201 BA05T IC351 BA5912AFP-Y IC352 BA5932FP IC302 BA7082F IC353 CXD2585Q IC104,IC105,IC243 HD74HC4053FP IC203 HD74HC573FP IC308 LC89585 IC301 LH64256CK-70 IC212 LP2950CZ-5.0(NS) IC245 M5238AFP IC102 MC34072D IC246 NJM2100M IC250 NJM2107F IC101 NJM2136M IC207,IC248,IC249,IC314 NJM2904M IC247 PA9004A IC204 PD4956B IC205 PDJ014A IC316 PDK033A IC206 PST994C IC202 TC4W53F IC312,IC313 TC74HC00AF IC305 TC74HCU04AF IC210 TC7S00F IC208,IC303 TC7S04F IC320 TC7S08F IC209,IC211,IC310 TC7S14F IC354 TC7SU04F IC355 TK11041M-1 Q102,Q301 DTA114TK Q242,Q351 DTA124EK Q103,Q104,Q241,Q243,Q244 DTC114TK Q303 DTC114TK Q101,Q107,Q201,Q203,Q204 DTC124EK D101,D103-D105,D201,D202 1SS355 D205-D210,D214,D215 1SS355 D211,D301 DA204K D302 DAN202K D203 DAP202K D102 MA700 D212 MA704 D (1) CONTRAST TABLE PWM2217 and PWM2216 are constructed the same except for the following : Mark Symbol and Description Part No. Remarks PWM2217 PWM2216 L305,L310,L353,L354 Not used QTL1015 L1097,L1151,L1154, QTL1015 Not used L1156,L1157,L1162, L1163,L1166-L1171 R97,R171,R1182 Not used RS1/10S0R0J R151,R154,R156,R157, Not used RS1/10S102J R162,R163,R166-R170 R1305,R1310,R1353, RS1/10S0R0J Not used R1354 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 PDR-555RW Mark No. Description Part No. Mark No. Description Part No. C221,C288,C354,C358,C359 CKSQYB471K50 C267,C380 CKSQYB473K25 C143 CKSQYB473K50 C147,C263,C357,C362,C363 CKSQYB681K50 C352,C353 CKSQYB682K50 C265 CKSQYB823K25 C145,C199,C201,C202 CKSQYF103Z50 C207,C208,C234,C240,C250 CKSQYF103Z50 C301,C302 CKSQYF103Z50 C101,C105,C109,C113,C121 CKSQYF104Z25 C125,C129,C139,C151,C160 CKSQYF104Z25 C198,C210,C211,C213 CKSQYF104Z25 C218,C219,C225,C233,C242 CKSQYF104Z25 C253,C273,C280,C283-C287 CKSQYF104Z25 C305,C308,C309,C311,C313 CKSQYF104Z25 C317,C319,C324,C330,C334 CKSQYF104Z25 C342,C345,C356,C369 CKSQYF104Z25 C371,C372,C388,C393,C394 CKSQYF104Z25 C114,C119,C122,C130,C132 CKSQYF105Z16 C137 CKSQYF105Z16 C205 (1.0F) RCH1152 RESISTORS R127 (2.2kΩ) PCN1039 VR101-VR103,VR105,VR106 VCP1154 (4.7kΩ) VR104 (22kΩ) VCP1158 Other Resistors RS1/10S J OTHERS X201 CERAMIC RESONATOR PSS1023 (32MHz) CN355 6P JUMPER CONNECTOR 52147-0610 CN301 15P JUMPER CONNECTOR 52147-1510 CN202 22P FFC CONNECTOR 9604S-22C CN352 KR CONNECTOR B5B-PH-K-S CN351 5P TOP POST B5P-SHF-1AA CN102,CN354 6P TOP POST B6P-SHF-1AA JA301 OPTICAL RECEIVE MODULE GP1F32R JA303 OPTICAL SEND MODULE GP1F32T JA302 1P JACK (ORANGE) PKB1027 JA304 1P JACK (ORANGE) PKB1028 JA305 REMOTE CONTROL JACK PKN1004 PCB BINDER VEF1040 CN101 32P FFC CONNECTOR VKN1463 KN302,KN303 VNF1084 EARTH METAL FITTING AUDIO ASSY (1) CONTRAST TABLE PWZ3723 and PWZ3729 are constructed the same except for the following : E Mark Symbol and Description Part No. Remarks PWZ3723 PWZ3729 C431,C432 CQMBA472J50 CQMBA152J50 C471,C472 PCH1124 CEGA470M25 L831,L832 Not used LFA1R0K (2) PARTS LIST FOR PWZ3723 SEMICONDUCTORS IC801 AK5340-VS IC406 M5218AFP IC803,IC804 NJM4565D-D IC404 NJM4580D IC401 PE8001A Q405-Q408 2SC3068 Q402 DTA114EK Q409 DTA114TK Q403 DTA124EK Q401,Q404 DTC124EK D401-D404 1SS254 D407,D408 1SS355 D406,D801,D803 DAN202K D405,D802,D804 DAP202K COILS L328,L329,L402,L404 QTL1015 CHIP SOLID INDUCTOR L407,L408 CHIP SOLID INDUCTOR QTL1015 L401 FERRITE BEAD VTH1020 CAPACITORS C414,C415,C429,C430,C801 CCSQCH101J50 C821 CCSQCH101J50 C402,C823,C824 CCSQCH120J50 C803,C804 CCSQCH121J50 C401 CCSQCH220J50 C817,C818,C833,C835 CEAT100M50 C813,C814,C844,C848 CEAT220M50 C851,C852 CEAT220M50 C832 CEAT4R7M50 C421,C422,C425,C426 CEGA470M50 C441 CEZA4R7M50 C413 CKSQYB102K50 C403 CKSQYB473K50 C819,C820 CKSQYB821K50 C454,C807-C810,C846 CKSQYF103Z50 C815,C816,C831,C834,C836 CKSQYF104Z25 C847,C883,C884 CKSQYF104Z25 C404,C408,C409 CKSQYF104Z50 C427,C428 CQMBA102J50 C423,C424,C433,C434 CQMBA152J50 C431,C432 CQMBA472J50 C410 (1000µF/16V) PCH1122 C471,C472,C805,C806 PCH1124 (47µF/50V) C811,C812 (47µF/50V) PCH1124 C406,C407 (4.7µF/50V) PCH1127 C405,C411,C412 (220µF/25V) PCH1128 RESISTORS R475,R476 RD1/4PU102J R441-R444,R811,R812 RD1/4PU103J R817,R818 RD1/4PU103J R427,R428 RD1/4PU223J R435,R436 RD1/4PU271J R440,R807,R808 RD1/4PU272J R819,R820,R823,R824 RD1/4PU301J R429-R434,R448,R466 RD1/4PU471J R821,R822,R825,R826 RD1/4PU473J R411,R412 RDR1/2PM101J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 PDR-555RW Mark No. Description Part No. Mark No. Description Part No. G H Mark Symbol and Description Part No. Remarks PWZ3724 PWZ3741 C23,C25 CEAT471M16 PCH1129 C34,C35 PCH1127 CEGA4R7M50 C42 CEAT102M16 PCH1122 C52 CEAT101M35 PCH1126 C54 CEAT470M35 PCH1128 CN1 1P AC INLET AKP1122 AKP7005 R413,R414 RN1/10SE1002D R415,R416 RN1/10SE1202D R801-R804 RS1/2LMF101J Other Resistors RS1/10S J OTHERS CN401 3P JUMPER CONNECTOR 52147-0310 CN402 8P JUMPER CONNECTOR 52147-0810 J801 JUMPER WIRE 15P D20PYY1510E JA401,JA801 2P JACK (AU) PKB1029 X401 CRYSTAL RESONATOR PSS1008 PCB BINDER VEF1040 KN111,KN112,KN114 VNF1084 EARTH METAL FITTING HEADPHONE ASSY Although PWZ3688 and PWZ3713 are different in part number, they consist of the same components. PARTS LIST FOR PWZ3713 COILS L461-L463 CHIP SOLID INDUCTOR QTL1015 CAPACITORS C461,C463,C466 CCSQCH101J50 C468 CKCYF473Z50 C462,C464,C465 CKSQYF103Z50 RESISTOR VR401 RCV1123 OTHERS CN403 3P JUMPER CONNECTOR 52147-0310 JA403 HEADPHONE JACK RKN1002 KN401 EARTH METAL FITTING VNF1084 VR ASSY RESISTORS VR801 PCS1016 Other Resistors RS1/10S J POWER ASSY (1) CONTRAST TABLE PWZ3724 and PWZ3741 are constructed the same except for the following : (2) PARTS LIST FOR PWZ3724 SEMICONDUCTORS IC21,IC24 BA05T IC35,IC36 ICP-N10 IC22,IC23,IC25 ICP-N15 IC33 NJM7805FA IC31 NJM7812FA IC32 NJM79M12FA D31-D34 10DF2FA9 D52 11ES2 D54 MTZJ18B D11 S2VB20F COILS L11,L23 FERRITE BEAD VTH1020 SWITCH S1 RSA1001 CAPACITORS C1 (10000pF/AC250V) ACG7020 C52 CEAT101M35 C42 CEAT102M16 C54 CEAT470M35 C23,C25 CEAT471M16 C11,C13,C32,C33 CFTLA103J50 C55,C56 CFTLA103J50 C38,C39 CFTLA393J50 C31 CKSQYF102Z50 C16,C17 CKSQYF103Z50 C12 CKSQYF104Z50 C15,C24 CKSQYF473Z50 C34,C35 (4.7µF/50V) PCH1127 C37,C41 (1000µF/35V) PCH1136 C36,C40 (3300µF/35V) PCH1137 C21 (10000µF/16V) VCH1054 RESISTORS R51 RD1/4PU103J R52-R54 RD1/4PU152J R31 RD1/4PU8R2J R38 RFA1/4PL8R2J Other Resistors RS1/10S J OTHERS 6P CABLE HOLDER 51048-0600 8P CABLE HOLDER 51048-0800 CN51 4P JUMPER CONNECTOR 52147-0410 CN1 1P AC INLET AKP1122 H1,H2 FUSE CLIP AKR1003 CN2 2P-VH CONNECTOR B2P3-VH J21 JUMPER WIRE 6P D20PYY0630G J31 JUMPER WIRE 8P D20PYY0820G CN11 9P JUMPER CONNECTOR KPD9 J2 EARTH LEAD UNIT PDF1168 KN12,KN13 EARTH METAL FITTING VNF1084 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 PDR-555RW Mark No. Description Part No. Mark No. Description Part No. J Mark Symbol and Description Part No. Remarks PWZ3687 PWZ3697 R707 RS1/10S473J Not used R721 Not used RS1/10S473J TRANS ASSY Although PWZ3725 and PWZ3750 are different in part number, they consist of the same components. PARTS LIST FOR PWZ3750 SEMICONDUCTORS IC1 AEK7017 CAPACITORS C901-C909 CKSQYF104Z50 OTHERS 9P CABLE HOLDER 51052-0900 J11 PARALLEL CORD DTUY0915E J1 CONNECTOR ASSY 2P PDE1299 J3 EARTH LEAD UNIT (70L) PDF1176 FUNCTION ASSY (1) CONTRAST TABLE PWZ3687 and PWZ3697 are constructed the same except for the following : (2) PARTS LIST FOR PWZ3687 SEMICONDUCTORS IC705 BR93LC46AF IC704 BU2092F IC701 PD4968A IC702 S-806E Q705 2SC2412K Q701-Q704 DTA114EK Q706 DTC124TK D709 1SS355 D707,D708 GL3ED8 D705,D706 SLP9118C51H COIL L701 CHIP SOLID INDUCTOR QTL1015 SWITCHES S720 PSB1007 S702-S719 VSG1009 CAPACITORS C715 CCCCH470J50 C701 CCSQCH101J50 C705,C739 CEAT101M10 C711 CEAT470M10 C702 CKSQYF103Z50 C706,C708-C710 CKSQYF104Z25 I RESISTORS R710-R715 ACN7081 R731 DCN1094 Other Resistors RS1/10S J OTHERS 5P CABLE HOLDER 51048-0500 CN701 22P FFC CONNECTOR 9604S-22C J701 JUMPER WIRE 4P D20PWY0425G J703 JUMPER WIRE 5P D20PWY0515E REMOTE RECEIVER UNIT GP1U27X V701 FL INDICATOR TUBE PEL1097 X701 CERAMIC RESONATOR VSS1014 (4.19MHz) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 PDR-555RW 6. ADJUSTMENT 6.1 DISCS TO BE USED 1. When adjusting the servo system adjustment CD : Test disc for adjustment (STD-903 or equivalent) Test disc for inspection (STD-914 or equivalent) 6.2 MEASURING INSTRUMENTS (1) Laser Power Meter Following power meter manufactured by Advantest Corporation or equivalent : TQ8210 + TQ82017 TQ8215 + TQ82021 TQ8215 + TQ82010 + TQ82017 (2) Audio Analyzer (3) Oscilloscope (4) Distortion Factor Meter (5) CD Jitter Meter (6) Block Error Rate Counter 6.3 TEST MODE 6.3.1 Test Mode For adjustment, set the unit to Test mode. To enter Test mode, turn on the unit with the Test Mode Short-Circuit pattern on the FUNCTION Assy. In Test mode, all the displays (FL, LEDs) on the unit should be lit. If not, turn the power off and repeat the same steps again. 6.3.2 Operations in Test Mode In Test mode, the following adjustment functions are assigned to the buttons, as explained below. LED for confirmation of LD emission LD emitting LD not emitting Switching CD, CD-R and CD-RW Fig.2 During adjustment of LD power (Input selector: analog) ERASE button ¶ (RECORD) and • (REC MUTE) buttons 7 (STOP) button + key – key Stop Focus in Fig.3 During adjustment of servo system (Input selector: optical) FINALIZE button Set SET button Average DIGITAL SYNCHRO button Mode switch AUTO/MANUAL button ¶� (RECORD) button Sled move 4�1, ¡�¢ buttons •� (REC MUTE) button 7 (STOP) button Tracking close 8 (PAUSE) button Spindle kick 3 (PLAY) button 6.3.3 How to Playback a Disc in Test Mode In test mode, since the servos operate independently, playing back a disc requires that you operate the keys in the correct order to close the servos. Here is the key operation sequence for playing back a disc in test mode. FINALIZE Lights up the laser diode and closes the focus servo. ‘ PLAY 3 Starts the spindle motor and closes the spindle servo. ‘ PAUSE 8 Close the tracking servo. ‘ Wait at least 2 – 3 seconds between each of these operations. Short-circuit Fig. 1 Enter the Test mode SIDE B FUNCTION ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 PDR-555RW 6.4 ADJUSTMENT 1 (LASER DIODE POWER ADJUSTMENT) CN102 Fig. 4 Adjustment points VR104 RW REC.PW0 VR101 PB. PW VR103 R REC.PW2 VR102 R REC. PW1 VR105 RW REC. PW1 VR106 RW REC. PW2 CN354 1 1 6 6 SERVO DIGITAL ASSY Playback power Playback CD-R recording CD-R overdrive CD-R record power CD-RW record power CD-RW bias power CD-RW recording Fig.5 Output power of the laser diode CD-RW erase power The following adjustments 1 through 3 must be done with the Input Selector set to the Analog position (LD power adjustment mode). Note 1 : Attach the remote sensor of the laser power meter to a point angled away about 10 degrees against the pickup lens and where the maximum power is detected, so that there will be no light reflected onto the pickup. Note 2 : When adjusting with VR101 to VR106, first turn them completely counter- clockwise and then adjust clockwise, so that the value to be reached is not exceeded. Note 3 : Set the wavelength of laser power meter to 780 nm. [Procedure] (1) Check that "CD" is displayed on the FL display. If "CD-R" or "CD-RW" is displayed, press the STOP button repeatedly until "CD" is displayed. (2) Press the RECORD button. The LED for confirmation of LD emission will light in orange. (3) Press the REC MUTE button. The LED for confirmation of LD emission will light in red. The LD is emitting in this status. (4) Turn VR101 clockwise until the adjustment value to be reached is obtained. (5) Press the STOP button to shut off the LD. 6.4.1 Playback Power Adjustment Pickup objective lens Test Point Adjustment Point Adjustment Value VR101 (PB. PW) 0.60 mW ± 0.05 mW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 PDR-555RW [Procedure] (1) Turn VR102 and VR103 completely counterclockwise to set their power output to minimum. (2) Press the ERASE button once so that "CD-R" appears on the FL display. If the indication is "CD" or "CD-RW," press the ERASE button repeatedly until "CD-R" is displayed on the FL display. (3) Press the RECORD button. The LED for confirmation of LD emission will light in orange. (4) Press the REC MUTE button. The LED for confirmation of LD emission will light in red. The LD is emitting in this status. Adjustment of CD-R record power (5) Turn VR102 clockwise until the adjusted value is 4.60 mW ± 0.1 mW. Adjustment of CD-R overdrive power (6) Turn VR103 clockwise until the adjusted value becomes adjustment value at Step 5 above + (0.1 mW ± 0.01 mW). (7) Press the STOP button to shut off the LD. 6.4.2 CD-R Record Power Adjustment Pickup objective lens Test Point Adjustment Point Adjustment Value VR102 (R REC. PW1), VR103 (R REC. PW2) VR102 : 4.60 mW ± 0.1 mW VR103 : Addition of 0.1 mW ± 0.01 mW to the adjustment value of VR102 [Procedure] (1) Turn VR104, VR105 and VR106 completely counterclockwise to set their power output to minimum. (2) Press the ERASE button twice so that "CD-RW" appears on the FL display. If the indication is "CD" or "CD-R," press the ERASE button repeatedly until "CD-RW" appears on the FL display. (3) Press the RECORD button. The LED for confirmation of LD emission will light in orange. (4) Press the REC MUTE button. The LED for confirmation of LD emission will light in red. The LD is emitting in this status. (5) Turn VR104 clockwise until the adjusted value is 0.40 mW ± 0.05 mW. Adjustment of CD-RW record power (6) Turn VR106 clockwise until the adjusted value is 2.40 mW ± 0.1 mW. Adjustment of CD-RW erase power (7) Turn VR105 clockwise until the adjusted value is 5.90 mW ± 0.1 mW. (8) Press the STOP button to shut off the LD. 6.4.3 CD-RW Record Power Adjustment Pickup objective lens Test Point Adjustment Point Adjustment Value VR104 (RW REC. PW0), VR106 (RW REC. PW2), VR105 (RW REC. PW1) VR104 : 0.40 mW ± 0.05 mW VR106 : 2.40 mW ± 0.1 mW VR105 : 5.90 mW ± 0.1 mW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 PDR-555RW 6.5 ADJUSTMENT 2 (SERVO SYSTEM ADJUSTMENT) CN102 CN102 1 : VC 2 : TESTEQRFP 3 : TE 4 : MPP 5 : MPXOUT 6 : FMOUT CN354 1 : RF 2 : TE 3 : TEIN 4 : VC 5 : FEIN 6 : FE Fig. 6 Adjustment points CN354 (TP201) 1 1 6 6 SERVO DIGITAL ASSY For servo adjustment, set the INPUT SELECTOR to OPTICAL. Use the RECORD and REC MUTE buttons to make the adjustments. To reset the adjusted values to the initial settings, press and hold the (SKIP ID) CLEAR button for 4 seconds. To register an adjustment, press the (SKIP ID) SET button. [Procedure] (1) Press the AUTO/MANUAL button until "01 F4" appears on the FL display. (2) Adjust with the RECORD and REC MUTE buttons until the value for Pin 6 of CN354 is 0 mV ± 10 mV. (3) Press the SET button to register the adjustment. Once the adjustment is registered with the SET button, "?" on the FL display will disappear. 6.5.1 Focus Offset Adjustment CN354 - pin 6 (FE) Test Point Adjustment Point Adjustment Value 0 mV ± 10 mV Oscilloscope 10:1 probe 10 : 1 FE VC RECORD button and REC MUTE button www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 PDR-555RW [Procedure] (1) Press the AUTO/MANUAL button so that "02 F3" appears on the FL display. (2) Press the FINALIZE button for focus-in. (3) Press the PLAY button for CAV-servo spindle kick (the status where the spindle rotates with the focus servo on and tracking servo off). (4) Adjust with the RECORD and REC MUTE buttons until the value to be reached is obtained. (5) Press the SET button to register the adjustment. Once the adjustment is registered with the SET button, "?" on the FL display will disappear. (6) Press the STOP button to stop the unit. Note: For adjustment, use the following circuits. Note: Adjustment must be done around mid-radius on a disc. 6.5.2 M-S Mix Ratio Adjustment CN102 - pin 3 (TE) and pin 4 (MPP) Test Point Adjustment Point Adjustment Value RECORD button and REC MUTE button Adjust until the value of the output signals from pin 3 (TE) and pin 4 (MPP) of CN102 are the same, or the differential output of these signals is minimal. [Procedure] (1) Press the AUTO/MANUAL button so that "03 F6" appears on the FL display. (2) Adjust with the RECORD and REC MUTE buttons until the above adjustment value to be reached is obtained. (3) Press the SET button to register the adjustment. Once the adjustment is registered with the SET button, "?" on the FL display will disappear. Note: Perform the adjustment in Stop mode. This adjustment is possible with the low-pass filter used in adjustment 5 above attached. 6.5.3 Tracking Offset Adjustment CN354 - pin 2 (TE) or CN102-pin 3 (TE) Test Point Adjustment Point Adjustment Value RECORD button and REC MUTE button 0 mV ± 10 mV Oscilloscope 10:1 probe 10 : 1 10 : 1 TE CH1 CH2 39kΩ 39kΩ VC MPP 0.001µF 0.001µF Oscilloscope 10:1 probe 10 : 1 TE VC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 PDR-555RW [Procedure] (1) Press the DIGITAL SYNCHRO button in Stop mode. Note: Make sure the unit is in Stop mode. (2) Check that "48" appears on the FL display. (3) Press the AUTO/MANUAL button so that "04 34" appears on the FL display. (4) Press the FINALIZE button for focus-in. (5) Press the PLAY button for CAV-servo spindle kick. (6) Press the PAUSE button to close the tracking servo, then set the unit to Playback mode. (7) Adjust with the RECORD and REC MUTE buttons until the above adjustment value to be reached is obtained. Press the SET button to register the adjustment. Once the adjustment is registered with the SET button, "?" on the FL display will disappear. (8) Press the STOP button to stop the unit. Note: Adjustment must be done around mid-radius on a disc. 6.5.4 Focus Bias Adjustment CN354 - pin 1 (RF) Test Point Adjustment Point Adjustment Value DIGITAL SYNCHRO button, RECORD button and REC MUTE button Adjust until RF jitter is minimal or that the eye pattern of the RF waveform is most open. Jitter Meter 10:1 probe or 10 : 1 Oscilloscope RF VC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 PDR-555RW 7. GENERAL INFORMATION • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. NJM2136M (SERVO DIGITAL ASSY : IC101) • Operational Amplifier •Block Diagram 7.1 PARTS 7.1.1 IC • List of IC NJM2136M, MC34072D, AK8563, BA7082F, AD1893JST, BA5912AFP-Y, BA5932FP, CXD2585Q, TK11041M-1, S-806E, PE8001A 1 BAL 8 BAL 2 –INPUT 7 V+ 3 +INPUT 6 OUTPUT 4 V– 5 NC MC34072D (SERVO DIGITAL ASSY : IC102) • Operational Amplifier • Pin Assignment – Inputs Bias Q1 Q3 Q2 Q8 Q9 R1 C1 R2 Q10 Q11 Q4 Q5 Q6 Q7 Q17 D2 R6 R7 R8 D3 C2 R5 Q18 Q19 Q16 Q14 Q13 R4 R3 D1 Base Current Cancellation Q12 Q15 Current Limit + VEE/GND Output VCC 1 Output 1 8 VCC 2 Input 1 7 Output 2 3 Input 1 6 Input 2 4 VEE 5 Input 2 • Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 PDR-555RW AK8563 (SERVO DIGITAL ASSY : IC103) • RF Processor IC • Pin Assignment (Top view) AVDD1 61 RECDIN 62 RRF 63 MPXOUT 64 AUX1 65 AUX2 66 AUX3 67 GIN 68 HIN 69 EIN 70 FIN 71 HAVC 72 DIN 73 CIN 74 BIN 75 AIN 76 RREF 77 VRDCN 78 VRDC 79 AVSS3 80 DVDD 21 ATFG 22 XTOR 23 XTAND 24 TZC 25 RECD2 26 RECD1 27 RZC 28 DECEFM 29 XDECEFM 30 GAINUP3 31 GAINUP2 32 GAINUP1 33 SLHOLD 34 MPDSH 35 SPDSH 36 WBLSH 37 RFPDSH 38 WFPDSH 39 AVSS2 40 AVDD3 1 AVSS1 60 NC(VSS) 59 WRF 58 OSTCC 57 SLLPFN 56 SLLPFP 55 TESTEQRFP 54 TESTEQRFN 53 PHO 52 BHO 51 AGND2 50 AGC3C 49 AGC2C 48 AGC1C 47 ATFM 46 TESTAGC 45 AGCON 44 WLDON 43 XRST 42 AVDD2 41 FPDIN 2 FVREF 3 FPDO 4 WREF 5 VWDC 6 VWDCN 7 MPP 8 TEIN 9 TE 10 FE 11 BIAS 12 AGND1 13 VREF 14 NC(VSS) 15 XLAT 16 SDATA 17 SCLK 18 MCLK 19 DVSS 20 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 PDR-555RW 72 58 HAVC SRFO RFO ADO BCO SADBC WRF RFOM FEO SPPO 35 MPDSH 76 AIN 75 BIN 74 CIN 73 DIN 36 SPDSH 70 EIN 71 FIN 68 GIN 69 HIN 37 WBLSH 33 GAINUP1 3 FVREF 2 FPDIN 39 WFPDSH 38 RFPDSH 43 WLDON 4 FPDO WRF 34 SLHOLD 56 SLLPFN 55 SLLPFP 62 RECDIN 9 TEIN 29 DECEFM 30 XDECEFM 63 RRF 28 RZC 27 RECD1 26 RECD2 57 OSTCC 53 TESTEQRFN 54 TESTEQRFP 11 FE 10 TE 8 MPP 25 TZC 24 XTAND 23 XTOR 46 ATFM 22 ATFG 47 AGC1C 48 AGC2C 49 AGC3C 44 AGCON 32 GAINUP2 31 GAINUP3 65 AUX1 66 AUX2 67 AUX3 17 SDATA 18 SCLK 16 XLAT 42 XRST SH MATRIX RF_EQUALIZER FOCUS & TRACK ATIP 52 PH0 51 BH0 64 MPXOUT P/H & B/H REG VREF APC MPX MPP RRF TESTEQRF RRF FE TE ATFM VRDC VWDC VREF 59 NC(VSS) 15 NC(VSS) 20 DVSS 21 DVDD 80 AVSS3 1 AVDD3 40 AVSS2 41 AVDD2 60 AVSS1 61 AVDD1 19 MCLK 45 TESTAGC 78 VRDCN 77 RREF 7 VWDCN 5 WREF 14 VREF 79 VRDC 6 VWDC 13 AGND1 50 AGND2 12 BIAS • Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 PDR-555RW • Pin Function . o N e m a N n i P O /I n o it c n u F . o N e m a N n i P O /I n o it c n u F 1 3 D D V A I nip ylp p u s r e w o p e vitis o p g ola n A 1 4 2 D D V A I nip ylp p u s r e w o p e vitis o p g ola n A 2 N I D P F I nip n oitc e n n o c e d oid r o tin o m r e s a L 2 4 T S R X I r e tsig e r e h t e zilaitin I :" L " t e s e r r e tsig e R 3 F E R V F I C P A r o f t u p ni e g a tlo v e c n e r e f e R 3 4 N O D L W I t u p nilo rt n o c D L e tir W N O D L :" H " , o r e z o t e ula v -t e s C P A e tir W t e S :" L " 4 0 D P F O /I V /I r o f r o tsis e r a tc e n n o c ( t u p t u o r o tin o m r e s a L / ) ) 2 nip ( N I D P F d n a nip sih t n e e w t e b n ois r e v n o c t u p ni e g a tlo v r o tin o m r e s a L 4 4 N O C G A I t u p ni elb a n e C G A elb b o W t e s e r C G A :" L " , N O C G A :" H " 5 F E R W I C P A e tir W r o f t u p ni e g a tlo v g nitt e s r e w o P 5 4 C G A T S E T O nip ts e T 6 C D W V O e tir W r o f t u p t u o lo rt n o c r e vir d r e s a L 6 4 M F T A O t u p t u o la n gis elb b o W 7 N C D W V I e tir W r o f ) – (. p m a lo rt n o c r e vir d r e s a L 7 4 C 1 C G A O e s n o p s e r C G A r o f nip n oitc e n n o c r o tic a p a c la n r e tx E g nitt e s d e e p s 8 P P M O t u p t u o la n gis llu p - h s u p nia M 8 4 C 2 C G A O 9 N I E T I s s e c o r p la n gis g nik c a rt r o f t u p n I 9 4 C 3 C G A O 0 1 E T O t u p t u o la n gis r o rr e g nik c a r T 0 5 2 D N G A O e g a tlo v e c n e r e f e r la n r e t ni r o f nip g nilp u o c e D 1 1 E F O t u p t u o la n gis r o rr e s u c o F 1 5 0 H B O la n gis F R R f o t u p t u o le v el- m o tt o B 2 1 S A I B O k 7 . 4 = S A I B R .r o tsis e r s aib a tc e n n o C Ω 2 5 0 H P O la n gis F R R f o t u p t u o le v el- k a e P 3 1 1 D N G A O e g a tlo v e c n e r e f e r la n r e t ni r o f nip g nilp u o c e D 3 5 N F R Q E T S E T O nip ts e T 4 1 F E R V O /I / e g a tlo v e c n e r e f e r la n r e t ni r o f nip g nilp u o c e D t u p ni e g a tlo v e c n e r e f e R 4 5 P F R Q E T S E T O nip ts e T 5 1 ) S S V ( C N − S S V o t tc e n n o C 5 5 P F P L L S I e cils o t u a r o f ) + ( t u p ni F P L 6 1 T A L X I g nitt e s r e tsig e r r o f t u p ni h ct a L 6 5 N F P L L S I e cils o t u a r o f ) – ( t u p ni F P L 7 1 A T A D S I g nitt e s r e tsig e r r o f t u p ni a t a D 7 5 C C T S O O r e zila u q e f o g nitt e s cf r o f nip n oitc e n n o c r o tic a p a C r elle c n a c -t e sff o t u p t u o 8 1 K L C S I g nitt e s r e tsig e r r o f t u p ni k c ol C 8 5 F R W O t u p t u o la n gis F R e tir W 9 1 K L C M I ) z H M 4 4 7 5 . 4 3 ( t u p ni k c olc nia M 9 5 ) S S V ( C N − S S V o t tc e n n o C 0 2 S S V D I nip d n u o r g la tigi D 0 6 1 S S V A O nip d n u o r g g ola n A 1 2 D D V D I nip ylp p u s r e w o p e vitis o p la tigi D 1 6 1 D D V A I nip ylp p u s r e w o p e vitis o p g ola n A 2 2 G F T A O a t a d y r a nib e h t r e tf a la n gis elb b o W ( t u p t u o G F P I T A ) n ois r e v n o c 2 6 N I D C E R I n oitc e t e d k c olb g nid r o c e r r o f t u p ni F R 3 2 R O T X O t u p t u o n oitc e t e d e d u tilp m a g nik c a r T 3 6 F R R O t u p t u o la n gis F R d a e R 4 2 D N A T X O t u p t u o n oitc e t e d r o rr e g nik c a r T 4 6 T U O X P M O r o tin o m la n gis r o f t u p t u o r e x elpitlu M 5 2 C Z T O t u p t u o la n gis n oitc e t e d s s o r c - o r e z g nik c a r T 5 6 1 X U A I r o tin o m la n gis r o f ) 1 ( t u p ni y r ailix u A 6 2 2 D C E R O 2 la n gis n oitc e t e d k c olb g nid r o c e R k c olb g nid r o c e r n U :" L " , k c olb g nid r o c e R :" H " 6 6 2 X U A I r o tin o m la n gis r o f ) 2 ( t u p ni y r ailix u A 7 2 1 D C E R O 1 la n gis n oitc e t e d k c olb g nid r o c e R k c olb g nid r o c e r n U :" L " , k c olb g nid r o c e R :" H " 7 6 3 X U A I r o tin o m la n gis r o f ) 3 ( t u p ni y r ailix u A 8 2 C Z R O t u p t u o la n gis n oitc e t e d s s o r c - o r e z F R 8 6 N I G I t u p ni ) G ( la n gis m a e b e di S 9 2 M F E C E D O ) n ois r e v ni( d e cils r e tf a t u p t u o M F E 9 6 N I H I t u p ni ) H ( la n gis m a e b e di S 0 3 M F E C E D X O ) e s a h p - e vitis o p ( d e cils r e tf a t u p t u o M F E 0 7 N I E I t u p ni ) E ( la n gis m a e b e di S 1 3 3 P U N I A G I t u p nilo rt n o c g nih cti w s B d 8 1 + d n a 0 B d 0 :" L " , B d 8 1 + :" H " 1 7 N I F I t u p ni ) F ( la n gis m a e b e di S 2 3 2 P U N I A G I 2 7 C V A H I sla n gis m a e b e dis d n a nia m f o t u p ni e g a tlo v r e t n e C 3 3 1 P U N I A G I 3 7 N I D I t u p ni ) D ( la n gis m a e b nia M 4 3 D L O H L S I dlo H :" H " t u p nila n gis dlo h le v el e cil S 4 7 N I C I t u p ni ) C ( la n gis m a e b nia M 5 3 H S D P M I m a e b - nia m r o f t u p ni e slu p elp m a S dlo H :" L " , elp m a S :" H " 5 7 N I B I t u p ni ) B ( la n gis m a e b nia M 6 3 H S D P S I m a e b - e dis r o f t u p ni e slu p elp m a S dlo H :" L " , elp m a S :" H " 6 7 N I A I t u p ni ) A ( la n gis m a e b nia M 7 3 H S L B W I la n gis elb b o W r o f t u p ni e slu p elp m a S dlo H :" L " , elp m a S :" H " 7 7 F E R R I C P A d a e R r o f t u p ni e g a tlo v g nitt e s r e w o P 8 3 H S D P F R I C P A d a e R r o f t u p ni e slu p elp m a S dlo H :" L " , elp m a S :" H " 8 7 N C D R V I d a e R r o f ) – ( . p m a lo rt n o c r e vir d r e s a L 9 3 H S D P F W I C P A e tir W r o f t u p ni e slu p elp m a S dlo H :" L " , elp m a S :" H " 9 7 C D R V O d a e R r o f t u p t u o lo rt n o c r e vir d r e s a L 0 4 2 S S V A I nip d n u o r g g ola n A 0 8 3 S S V A I nip d n u o r g g ola n A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 PDR-555RW BA7082F (SERVO DIGITAL ASSY : IC302) • VCO IC • Block Diagram 16 IN1 1 SW1 15 IN2 2 SW2 14 VO 3 SW3 13 VCTL 4 BW 12 CT1 VCO 1/2 SW 5 BWB 11 CT2 6 1/2FB 10 VCC 7 FOUT 9 FADJ 8 GND • Pin Function . o N e m a N n i P O /I n o it c n u F . o N e m a N n i P O /I n o it c n u F 1 1 W S O t u p t u o n e p o r o tc ello C ytilibis n e s lo rt n o c r o f t u p t u o k c olb cig o L t n e m ts ujd a 9 J D A F − nip ts ujd A 0 f 2 2 W S 0 1 C C V − nip C C V 3 3 W S 1 1 2 T C − n oit allic s o O C V r o f nip n oitc e n n o c r o tic a p a C 4 W B I ytilibis n e s lo rt n o c r o f t u p ni k c olb cig o L t n e m ts ujd a 2 1 1 T C 5 B W B 3 1 L T C V I -tr o h s r o f e s u ,ylla m r o N nip lo rt n o c O C V .) 4 1 nip ( O V h ti w tiu c ric 6 B F 2 / 1 I ytilibis n e s lo rt n o c r o f t u p ni k c olb cig o L r eilpitlu m e d y c n e u q e rf 2 / 1 d n a t n e m ts ujd a y c n e u q e rf 2 / 1 : L , h g u o r h t : H h cti w s t u p t u o r eilpitlu m e d 4 1 0 V O t n e m ts ujd a ytilibis n e s r o f t u p t u o . p m A 7 T U O F O nip t u p t u o O C V 5 1 2 N I I t n e m ts ujd a ytilibis n e s r o f t u p ni . p m A t u p ni g nitr e v n I : 2 N I t u p ni e s a h p - e vitis o p : 1 N I 8 D N G − nip D N G 6 1 1 N I • Block Diagram 1 44 NC 2 BCLK_I 3 WCLK_I 4 LR_I 5 NC 6 VDO 7 GND 8 NC 9 BKPOL_I 10 MODE0_I 11 12 NC NC 13 MODE1_I 14 RESET 15 NC 16 GND 17 NC 18 MUTE_I 19 NC 20 MUTE_O 21 MODE1_O 22 NC 23 NC 24 MODE0_O 25 BKPOL_O 26 NC 27 GND 28 VDO 29 NC 30 DATA_O 31 LR_O 32 WCLK_O 33 NC NC 43 DATA_I 42 XTAL_I 41 NC 40 XTAL_O 39 NC 38 SETSLW 37 NC 36 PWRDWN 35 BCLK_O 34 NC SERIAL IN ACCUM MULT CLOCK TRACKING SERIAL OUT FIFO COEF ROM AD1893JST (SERVO DIGITAL ASSY : IC311) • Sample Rate Converter IC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 PDR-555RW • Pin Function BA5912AFP-Y (SERVO DIGITAL ASSY : IC351) • Driver IC • Block Diagram 25 IN1' 24 IN1 23 OP2-OUT 22 OP2-IN– 21 OP2-IN+ 20 BIAS 19 GND 18 OP1-IN+ 17 OP1-IN– 16 OP1-OUT 15 IN2 14 IN2' GND 1 MUTE1 2 REF1 3 Pow Vcc1 4 OUT1– 5 OUT1+ 6 GND 7 OUT2+ 8 OUT2– 9 Pow Vcc2 10 Pre Vcc 11 REF2 12 MUTE2 13 CH1 MUTE REF1 SWITCH LEVEL SHIFT T.S.D. CH2 MUTE REF2 SWITCH LEVEL SHIFT 10kΩ 10kΩ 10kΩ 10kΩ 10kΩ Vref1 Vref1 Vref2 Vref2 10kΩ 10kΩ 10kΩ 10kΩ 10kΩ 10kΩ 10kΩ . o N e m a N n i P n o it c n u F . o N e m a N n i P n o it c n u F 1 D N G D N G t h gia rts - b u S 4 1 '2 N I t n e m ts ujd a nia g r o f nip t u p ni 2 H C 2 1 E T U M nip e t u m 1 H C 5 1 2 N I t u p ni d e xif nia g 2 H C 3 1 F E R nip g nih cti w s f e r V 1 H C 6 1 T U O - 1 P O t u p t u o 1 . p m a P O 4 1 c c V w o P ) 1 H C ( c c V w o P 7 1 – N I- 1 P O t u p ni – 1 . p m a P O 5 – 1 T U O t u p t u o e vit a g e n 1 H C 8 1 + N I- 1 P O t u p ni + 1 . p m a P O 6 + 1 T U O t u p t u o e vitis o p 1 H C 9 1 D N G D N G t h gia rts - b u S 7 D N G D N G t h gia rts - b u S 0 2 S A I B t u p ni s ai B 8 + 2 T U O t u p t u o e vitis o p 2 H C 1 2 + N I- 2 P O t u p ni + 2 . p m a P O 9 – 2 T U O t u p t u o e vit a g e n 2 H C 2 2 – N I- 2 P O t u p ni – 2 . p m a P O 0 1 2 c c V w o P ) 2 H C ( c c V w o P 3 2 T U O - 2 P O t u p t u o 2 . p m a P O 1 1 c c V e r P c c V e r P 4 2 1 N I t u p ni d e xif nia g 1 H C 2 1 2 F E R nip g nih cti w s f e r V 2 H C 5 2 '1 N I t n e m ts ujd a nia g r o f nip t u p ni 1 H C 3 1 2 E T U M nip e t u m 2 H C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 PDR-555RW BA5932FP (SERVO DIGITAL ASSY : IC352) • Driver IC • Block Diagram MUTE Driver⋅Mute 1 OPIN11+ 2 FWD1 3 REV1 4 OPIN11– 5 OPOUT11 6 OPIN12– 7 GND 8 OPOUT12 9 SW 10 OUT1– 11 OUT1+ 12 REV 13 LDOUT– 14 28 VREF 27 OPIN21+ 26 FWD2 25 REV2 24 OPIN21– 23 OPOUT21 22 OPIN22 21 VCC 20 OPOUT22 19 OUT2– 18 OUT2+ 17 FWD 16 LDOUT+ 15 LDVCC × 1 × 1 10kΩ 10kΩ 10kΩ 10kΩ Vcc Vcc 10kΩ 10kΩ LOADING Vcc 10kΩ 10kΩ 10kΩ 10kΩ × 1 × 1 Analog⋅Switch FWD OUT REV OUT TSO LOADING • Pin Function . o N e m a N n i P n o it c n u F . o N e m a N n i P n o it c n u F 1 E T U M nip e t u M 5 1 c c V D L n oitc e s e g dir b H t u p t u o d n a g nid a ol r o f c c V 2 + 1 1 N I P O t u p ni g nitr e v ni- n o n . p m a P O 6 1 + T U O D L t u p t u o e vitis o p g nid a o L 3 1 D W F t u p ni d r a w r o F 7 1 D W F t u p ni d r a w r o f g nid a o L 4 1 V E R t u p ni e s r e v e R 8 1 + 2 T U O t u p t u o r e vir D 5 – 1 1 N I P O t u p ni g nitr e v ni . p m a P O 9 1 – 2 T U O t u p t u o r e vir D 6 1 1 T U O P O t u p t u o . p m a P O 0 2 2 2 T U O P O t u p t u o . p m a P O 7 – 2 1 N I P O t u p ni g nitr e v ni . p m a P O 1 2 c c V n oitc e s e r p g nid a ol d n a r e vir d s e x a o w t r o f c c V 8 D N G D N G t h gia rts - b u S 2 2 2 2 N I P O t u p ni g nitr e v ni . p m a P O 9 2 1 T U O P O t u p t u o . p m a P O 3 2 1 2 T U O P O t u p t u o . p m a P O 0 1 W S t u p ni h cti w s g ola n A 4 2 – 1 2 N I P O t u p ni g nitr e v ni . p m a P O 1 1 – 1 T U O t u p t u o r e vir D 5 2 2 V E R t u p ni e s r e v e R 2 1 + 1 T U O t u p t u o r e vir D 6 2 2 D W F t u p ni d r a w r o F 3 1 V E R t u p ni e s r e v e r g nid a o L 7 2 + 1 2 N I P O t u p ni g nitr e v ni- n o n . p m a P O 4 1 – T U O D L t u p t u o e vit a g e n g nid a o L 8 2 F E R V t u p t u o e g a tlo v e c n e r e f e R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 PDR-555RW CXD2585Q (SERVO DIGITAL ASSY : IC353) • Digital Signal Processor IC • Pin Assignment (Top view) 61 DVDD2 62 ASYE 63 MD2 64 DOUT 65 LRCK 66 PCMD 67 BCK 68 EMPH 69 XTSL 70 DVSS2 71 XTAI 72 XTAO 73 SOUT 74 SOCK 75 XOLT 76 SQSO 77 SQCK 78 SCSY 79 SBSO 80 EXCK 1 DVDD0 2 XRST 3 MUTE 4 DATA 5 XLAT 6 CLOK 7 SENS 8 SCLK 9 ATSK 10 WFCK 11 XUGF 12 XPCK 13 GFS 14 C2PO 15 SCOR 16 C4M 17 WDCK 18 DVSS0 19 COUT 20 MIRR 21 DFCT 22 FOK 23 PWMI 24 LOCK 25 MDP 26 SSTP 27 FSTO 28 DVDD1 29 SFDR 30 SRDR 31 TFDR 32 TRDR 33 FFDR 34 FRDR 35 DVSS1 36 TEST 37 TES1 38 VC 39 FE 40 41 SE TE 42 CE 43 RFDC 44 ADIO 45 AVSS0 46 IGEN 47 AVDD0 48 ASYO 49 ASYI 50 RFAC 51 AVSS1 52 CLTV 53 FILO 54 FILI 55 PCO 56 AVDD1 57 BIAS 58 VCTL 59 V16M 60 VPCO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 PDR-555RW Clock Generator Asymmetry Corrector Digital PLL Sub Code Processor Error Corrector 32k RAM 27 71 FSTO 16 C4M 48 ASYO 12 XPCK Digital CLV 25 MDP CPU Interface A/D Converter OP Amp Analog Switch 7 SENS 15 SCOR 24 LOCK 53 FILO 55 PCO 50 RFAC 49 62 ASYE 57 BIAS 54 FILI 52 CLTV 23 PWMI 4 DATA 5 XLAT 6 CLOK 80 EXCK 78 SCSY 79 SBSO 77 SQCK 76 SQSO ASYI XTAI 72 XTAO 60 VPCO 69 Digital OUT XTSL 58 VCTL 59 EFM Demodulator 11 XUGF 13 GFS 68 EMPH WFCK 10 MUTE 3 D/A Interface 17 WDCK 14 C2PO 65 LRCK PCMD 66 BCK 67 V16M Servo Auto Sequencer Servo Interface MIRR DFCT FOK SERVO DSP SLED SERVO TRACKING SERVO FOCUS SERVO PWM GENERATOR SLED PWM GENERATOR TRAKING PWM GENERATOR FOCUS PWM GENERATOR 37 TES1 36 TEST 2 XRST 63 MD2 64 DOUT 8 SCLK 26 SSTP 9 ATSK 20 MIRR 21 DFCT 22 FOK 19 COUT 73 SOUT 33 FFDR 34 FRDR 31 TFDR 32 TRDR 29 SFDR 30 SRDR 74 SOCK 75 XOLT 46 IGEN 44 ADIO 38 VC 39 FE 40 SE 41 TE 42 CE 43 RFDC SERVO BLOCK SIGNAL PROCESSING BLOCK • Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 PDR-555RW • Pin Function . o N e m a N n i P O /I n o it c n u F . o N e m a N n i P O /I n o it c n u F 1 V D D D 0 − ylp p u s r e w o p la tigi D 1 4 E T I t u p ni r o rr e g nik c a r T 2 T S R X I " L " n e h w t e s e R t e s e r m e ts y S 2 4 E C I t u p ni g ola n a o v r e s r e t n e C 3 E T U M I " H " n e h w e t u M t u p ni e t u M 3 4 C D F R I t u p nila n gis F R 4 A T A D I U P C m o rf t u p ni a t a d lair e S 4 4 O I D A O n oitc e n n o c n o N nip ts e T 5 T A L X I U P C m o rf t u p ni h ct a L . e g d e g nilla f e h t t a d e h ct al si a t a d lair e S 5 4 V A S S 0 − D N G g ola n A 6 K O L C I U P C m o rf t u p ni k c olc r e fs n a rt a t a d lair e S 6 4 N E G I I r eifilp m a P O r o f t u p ni t n e rr u c t n a ts n o C 7 S N E S O U P C o t t u p t u o S N E S 7 4 V A D D 0 − ylp p u s r e w o p g ola n A 8 K L C S I t u o d a e r a t a d -lair e s S N E S r o f t u p ni k c ol C 8 4 O Y S A O ) D D V = " H " , S S V = " L "( t u p t u o g ni w s -llu f M F E 9 K S T A O /I k c o h s -it n u r o f t u p t u o d n a t u p n I 9 4 I Y S A I t u p ni e g a tlo v e t a r a p m o c y rt e m m y s A 0 1 K C F W O t u p t u o K C F W 0 5 C A F R I t u p nila n gis M F E 1 1 F G U X O y b t u p t u o K C F R d n a 0 T N M t u p t u o F G U X . d n a m m o c e h t g nih cti w s 1 5 V A S S 1 − D N G g ola n A 2 1 K C P X O e h t g nih cti w s y b t u p t u o 1 T N M t u p t u o K C P X . d n a m m o c 2 5 V T L C I e s a e r c nila u d a r g r o f t u p ni e g a tlo v lo rt n o c 1 O C V 3 1 S F G O y b t u p t u o F O R X d n a 2 T N M t u p t u o S F G . d n a m m o c e h t g nih cti w s 3 5 O L I F O ) L L P la tigid = e v al S ( L L P r e ts a m r o f t u p t u o r e tli F 4 1 O P 2 C O y b t u p t u o P O T G d n a 3 T N M t u p t u o O P 2 C . d n a m m o c e h t g nih cti w s 4 5 I L I F I L L P r e ts a m r o f t u p ni r e tli F 5 1 R O C S O si 1 S r o 0 S .c n y s e d o c b u s r e h tie n e h w " H " st u p t u O . d e tc e t e d 5 5 O C P O L L P r e ts a m r o f t u p t u o p m u p e g r a h C 6 1 M 4 C O ylpitlu m e d y c n e u q e rf 4 / 1 st u p t u O t u p t u o z H M 6 3 3 2 . 4 . h ctip elb air a v d n a e d o m W - V A C e h t ni M 6 1 V f o 6 5 V A D D 1 − ylp p u s r e w o p g ola n A 7 1 K C D W O s F 2 = f t u p t u o k c olc d r o W h cti w s d n a m m o c y b R O C S R G st u p t u O 7 5 S A I B I tiu c ric y rt e m m y s a f o t u p ni t n e rr u c t n a ts n o C 8 1 V D S S 0 − D N G la tigi D 8 5 L T C V I L L P M F E d n a b - e di w r o f t u p ni e g a tlo v lo rt n o c 2 O C V 9 1 T U O C O /I la n gis t n u o c r e b m u n - k c a rt f o t u p t u o d n a t u p n I 9 5 M 6 1 V O /I L L P M F E d n a b - e di w r o f t u p t u o n oit allic s o 2 O C V d n a m m o c y b L L P - M F E d n a b - e di w r o f t u p ni k c ol C h cti w s 0 2 R R I M O /I t u p t u o d n a t u p nila n gis r o rri M 0 6 O C P V O L L P M F E d n a b - e di w r o f t u p t u o p m u p e g r a h C 1 2 T C F D O /I t u p t u o d n a t u p nila n gis tc e f e D 1 6 V D D D 2 − ylp p u s r e w o p la tigi D 2 2 K O F O /I t u p t u o d n a t u p nila n gis K O s u c o F 2 6 E Y S A I ) N O : H , F F O : L ( lo rt n o c F F O / N O tiu c ric y rt e m m y s A 3 2 I M W P I r o t o m eld nip s f o t u p nilo rt n o c la n r e tx E 3 6 2 D M I ) N O : H , F F O : L ( lo rt n o c F F O / N O t u o la tigi D 4 2 K C O L O /I nip sih t ," H " si S F G n e h w ;z H 0 6 4 t a d elp m a s si S F G ,s elp m a s e vit u c e s n o c t h gie " L " si S F G fI ." H " st u p t u o ." 1 " = N I K L n e h w t u p n I ." L " st u p t u o nip sih t 4 6 T U O D O t u p t u o t u o la tigi D 5 2 P D M O r o t o m eld nip s f o t u p t u o lo rt n o c o v r e S 5 6 K C R L O s F = f t u p t u o k c olc R L e c a fr e t ni A / D 6 2 P T S S I ts o m r e n ni c sid f o t u p nila n gis n oitc e t e D 6 6 D M C P O B S M , P M O C s'2 ( t u p t u o a t a d lair e S e c a fr e t ni A / D )ts rif 7 2 O T S F O nip L A T X f o ylpitlu m e d y c n e u q e rf 3 / 2 st u p t u O 7 6 K C B O t u p t u o k c olc ti B e c a fr e t ni A / D 8 2 V D D D 1 − ylp p u s r e w o p la tigi D 8 6 H P M E O ,sis a h p m e s a h c sid k c a b y alp e h t n e h w " H " st u p t u O .sis a h p m e o n si e r e h t n e h w " L " d n a 9 2 R D F S O t u p t u o e vir d d el S 9 6 L S T X I t u p ni n oitc ele s la t' X H :z H M 8 8 6 8 . 3 3 , L :z H M 4 4 3 9 . 6 1 0 3 R D R S O 0 7 V D S S 2 − D N G la tigi D 1 3 R D F T O t u p t u o e vir d g nik c a r T 1 7 I A T X I t u p ni tiu c ric n oit allic s o la ts y r C . nip sih t aiv k c olc r e ts a m la n r e tx e e h t t u p n I 2 3 R D R T O 2 7 O A T X O t u p t u o tiu c ric n oit allic s o la ts y r C 3 3 R D F F O t u p t u o e vir d s u c o F 3 7 T U O S O k c olb o v r e s e h t ni t u p t u o a t a d lair e S 4 3 R D R F O 4 7 K C O S O k c olb o v r e s e h t ni t u p t u o k c olc t u o d a e r a t a d lair e S 5 3 V D S S 1 − D N G la tigi D 5 7 T L O X O k c olb o v r e s e h t ni t u p t u o h ct al a t a d lair e S 6 3 T S E T I D N G ylla m r o n : nip T S E T 6 7 O S Q S O t u p t u o a t a d le v el d n a k a e p M C P ,tib - 0 8 Q b u S t u p t u o a t a d T X E T D C 7 3 1 S E T I 7 7 K C Q S I t u o d a e r O S Q S r o f t u p ni k c ol C 8 3 C V I t u p ni e g a tlo v r e t n e C 8 7 Y S C S I R O C S R G f o s u o n o r h c n y s e r r o f t u p n I 9 3 E F I t u p nila n gis r o rr e s u c o F 9 7 O S B S O W o t P b u S f o t u p t u o lair e S 0 4 E S I t u p nila n gis r o rr e d el S 0 8 K C X E I t u o d a e r O S B S r o f t u p ni k c ol C Notes) • PCMD is an MSB first. two's complement output. • GTOP is used to monitor the frame sync protection status. (High:sync protection window released) • XUGF is the negative pulse for the frame sync derived from the EFM signal. It is the signal before sync protection. • XPCK is the inverse of the EFM PLL clock. The PLL is designed so that the falling edge of XPCK and the EFM signal transition point coincide. • GFS goes high when the frame sync and the insertion protection timing match. • RFCK is derived with the crystal accuracy. This signal has a cycle of 136µs. • C2PO represents the data error status. • XROF is generated when the 32K RAM exceeds the ±28 Frame jitter margin. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 PDR-555RW TK11041M-1 (SERVO DIGITAL ASSY : IC355) • Thermo Sensor IC • Block Diagram × 1 Temperature Sensor VO 3 VCC 1 GND 5 S-806E (FUNCTION ASSY : IC702) • Voltage Detector IC • Block Diagram 1 VDD VSS OUT 2 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 PDR-555RW PE8001A (AUDIO ASSY : IC401) • D/A Converter IC • Block Diagram Serial Input I/F 8X Oversampling Digital Filter with Function Controller Multi-level Delta-Sigma Modulator BPZ-Cont Crystal OSC Power Supply Low-pass Filter DAC Low-pass Filter Open drain DAC Mode Control I/F SCK 1 LRCK 2 DATA 23 CS/IWO 24 MODE 25 MUTE 22 RST 6 XTO 8 VDD 14 AGND1 15 VCC1 7 DGND 5 XTI 4 CLKO 26 MD/DM0 27 MC/DM1 28 ML/IIS 3 BCK 16 VOUTL 18 EXTL 13 VOUTR 11 EXTR 21 ZERO 20 VCC2L 19 AGND2L 9 VOUT2R 10 AGND2R • Pin Function . o N e m a N n i P O /I n o it c n u F . o N e m a N n i P O /I n o it c n u F 1 K C R L I ) sf( t u p ni k c olc K C R L ∗1 5 1 1 C C V − V 5 + ylp p u s r e w o p g ola n A 2 A T A D I t u p ni a t a D ∗1 6 1 L T U O V O t u p t u o e g a tlo v g ola n a h c L 3 K C B I a t a d r o f t u p ni k c olc ti B ∗1 7 1 C N − n oitc e n n o c n o N 4 O K L C O k c olc m e ts y s f o t u p t u o r e ff u B 8 1 L T X E O n o m m o c . p m a t u p t u o g ola n a h c L 5 I T X I la n r e tx e r o n oitc e n n o c n oit allic s o la ts y r C t u p ni k c olc 9 1 L 2 D N G A − D N G g ola n A 6 O T X O n oitc e n n o c n oit allic s o la ts y r C 0 2 L 2 C C V − V 5 + ylp p u s r e w o p g ola n A 7 D N G D − D N G la tigi D 1 2 O R E Z O g alf a t a d o r e Z 8 D D V − V 5 + ylp p u s r e w o p la tigi D 2 2 T S R I t e s e R ∗2 9 R 2 C C V − V 5 + ylp p u s r e w o p g ola n A 3 2 O W I/ S C I tc ele s t a m r o f t u p n I / tc ele s pih C ∗3 0 1 R 2 D N G A − D N G g ola n A 4 2 E D O M I tc ele s lo rt n o c e d o M ∗2 ) e r a w d r a H : L , e r a w tf o S : H ( 1 1 R T X E O n o m m o c . p m a t u p t u o g ola n a h c R 5 2 E T U M I lo rt n o c e t u M ∗2 2 1 C N − n oitc e n n o c n o N 6 2 0 M D / D M I 1 tc ele s sis a h p m e e d / a t a d lo rt n o c e d o M ∗2 3 1 R T U O V O t u p t u o e g a tlo v g ola n a h c R 7 2 1 M D / C M I 2 tc ele s sis a h p m e e d / K C B lo rt n o c e d o M ∗2 4 1 1 D N G A − D N G g ola n A 8 2 S II/ L M I tc ele s t a m r o f t u p n I / h ct allo rt n o c e d o M ∗2 : e t o N ∗ t u p ni r e g girt tti m h c S : 1 ∗ r o tsis e r p u -llu p h ti w t u p ni r e g girt tti m h c S : 2 ∗ r o tsis e r n w o d -llu p h ti w t u p ni r e g girt tti m h c S : 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 PDR-555RW • FL TUBE 7.1.2 DISPLAY PEL1097 (FUNCTION ASSY : V701) • Anode & Grid Assignment 1 35 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 PDR-555RW • Pin Assignment www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 PDR-555RW • PANEL FACILITIES 8. PANEL FACILITIES AND SPECIFICATIONS FRONT PANEL The operations available using buttons marked "*" are also available using the buttons with the same names or inscriptions on the remote control unit. POWER switch SKIP ID SET, CLEAR buttons SKIP PLAY button DISP(Display) OFF button DISP(Display) OFF indicator Disc tray OPEN/CLOSE button (0) Function indicator Recording ... Lights in red Recording mute ... Blinks in red Playback ... Lights in green Erasing ... Lights in orange *RECORD button (¶) *REC MUTE button (•) INPUT SELECTOR knob REC LEVEL knobs (outer: L ch, inner: R ch) TRACK No. AUTO/MANUAL button *TRACK No. WRITE (MANUAL) button TRACK No. WRITE (MANUAL) indicator Lights when the track number manual writing is possible. Display panel Remote control sensor ERASE button FINALIZE button Headphones level control (PHONES LEVEL) DIGITAL SYNCHRO button *TIME button Headphones jack (PHONES) *Stop button(7) *Pause button(8) *Play button (3) *Track/*Manual search buttons (4�1 ,� ¡� ¢) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 PDR-555RW DISPLAY PANEL Switching the time display The following operation allows you to check the recording time information during recording or playing time information during playback. Every time the TIME button is pressed, the time information contents are switched in order of A = B = C = D. The display mode varies depending on whether the current operation is recording or playing back (in order of A = B = C during recording). ± ± During recording A : Elapsed recording time (2 min. 16 sec. after the start of track No. 2) During playback A : Elapsed playing time (2 min. 16 sec. after the start of track No. 1) B : Remaining recording time (56 min. 10 sec. remaining on the disc) C : Total recording time (3 min. 50 sec. of 2-track recording) B : Remaining playing time of track being played (3 min. 20 sec. remaining for track No. 1) C : Remaining playing time of all tracks on disc being played (46 min. 40 sec. remaining on the disc) D : Total playing time (60 min. 0 sec. for 8 tracks) Lights when automatic digital- source synchro recording is activated. Lights during repeat playback. Lights in the program mode. Lights during random playback. Lights during playback. Blinks during fade-in/out. Lights or blinks during pause. Displays the track No. Displays messages. Blinks during disc identification and lights steadily. CD: Lights when a disc is loaded. CD-R: Lights if the loaded disc is a CD-R disc before finalization. CD-RW: Lights if the loaded disc is a CD-RW disc Lights if the loaded disc is a finalized CD-RW disc. Displays the sampling frequency (Fs) of the current digital input. All indicators are off when the input signal is interrupted. Lights during record mode. Blinks in the record muting mode. Lights when automatic track number write during recording is activated. Displays the elapsed playing time, remaining playing time, total playing time, elapsed recording time, remaining recording time, total recording time and remaining time until the end of finalization. (See below.) Lights, goes off or blinks during skip ID setting or clearing. The disc contains skip ID data, the SKIP ON indicator lights automatically. Displays the input level during record or the play level during playback www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 PDR-555RW REMOTE CONTROL UNIT 7 Remote controllable range Caution on the remote control operation ÷ Remote control may be impossible if there is an obstacle between the remote control unit and main unit or if the remote control unit is operated at too great of an angle from the remote control sensor. ÷ Erroneous operation may occur if strong light such as direct sunlight or fluorescent lamp light is incident to the remote control sensor. ÷ The main unit may operate erroneously if it is used near equipment radiating infrared rays or if the infrared remote control unit of other equipment is used near the unit. On the contrary, if this remote control unit is operated near another piece of equipment which can be controlled with infrared rays, the equipment may operate erroneously. ÷ Replace batteries when the remote controllable range decreases noticeably. Remote control sensor ÷ Point the remote con- trol unit and press its buttons. Operations performed by buttons marked "*" can also be carried out by using buttons with the same name on the main unit. 30 30 7m(23 ft) *Record buttons (¶REC) For recording, press the two buttons simultaneously. *Manual search buttons (1, ¡) *Track search buttons (4, ¢) *Play button (3) *Pause button (8) *TIME button CLEAR button CHECK button *Record muting button (•) FADER button *TRACK No. WRITE (MANUAL) button RANDOM button REPEAT button *Stop button (7) Numeric buttons (1 to 10, >10) PGM (Program) button www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 PDR-555RW Remote control unit CU-PD099 (PWW1144) • SPECIFICATIONS (KU/CA TYPE) 1. GENERAL Model .......................................Compact disc audio system Applicable discs ......................... CDs, CD-Rs and CD-RWs Power supply ............................................ AC 120 V, 60 Hz Power consumption ..................................................... 20 W Operating temperature ...............................+5 °C to +35 °C (+41 °F to +95 °F) Weight (without package) ....................... 4.8 kg (10 lb 9 oz) Max. dimensions .............. 420 (W) x 385 (D) x 105 (H) mm 16-9/16 (W) x 15-3/16 (D) x 4-1/8 (H) in 2. AUDIO UNIT Frequency characteristics ........................... 2 Hz to 20 kHz Playback S/N .................................................110 dB (EIAJ) Playback dynamic range .................................98 dB (EIAJ) Playback total harmonic distortion .............. 0.002 % (EIAJ) Playback channel separation ................................... 100 dB Recording S/N ............................................................ 92 dB Recording dynamic range .......................................... 92 dB Recording total harmonic distortion........................ 0.005 % Output voltage ................................................................ 2 V Wow-flutter.............................Less than measurement limit ((±0.001 % W.PEAK) (EIAJ)) Number of channels ............................. 2 channels (stereo) Digital output Coaxial output ............................. 0.5 Vp-p ±20 % (75 Ω) Optical output .... –15 to –21 dBm (wavelenght: 660 nm) Frequency deflection: Level 2 (standard mode) * Recording specification values are for the LINE input (ANALOG). 3. INPUT JACKS Optical digital input jack Coaxial digital input jack Audio LINE input jack 4. OUTPUT JACKS Optical digital output jack Coaxial digital output jack Audio LINE output jack 5. ACCESSORIES ÷ Remote control unit ....................................................... 1 ÷ Size AA/R6 dry cell batteries ........................................ 2 ÷ Audio cable ................................................................... 2 ÷ AC power cord .............................................................. 1 ÷ Operating Instructions ................................................... 1 6. PICKUP ÷ Laser wavelength (λ) ............................... 778 to 787 nm ÷ Object lens out (3 beam total)............................... 23mW ÷ Laser class ................................................................ b NOTE: The specifications and design of this product are subject to change without notice, due to improvements. • ACCESSORIES Red White Audio cables ... x 2 (analog recording, analog playback output) (PDE1248) (L=1m) Size "AA"/R6 dry cell batteries ... x 2 AC power cord (KU/CA TYPE :ADG7021) (MY TYPE :ADG1127) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
