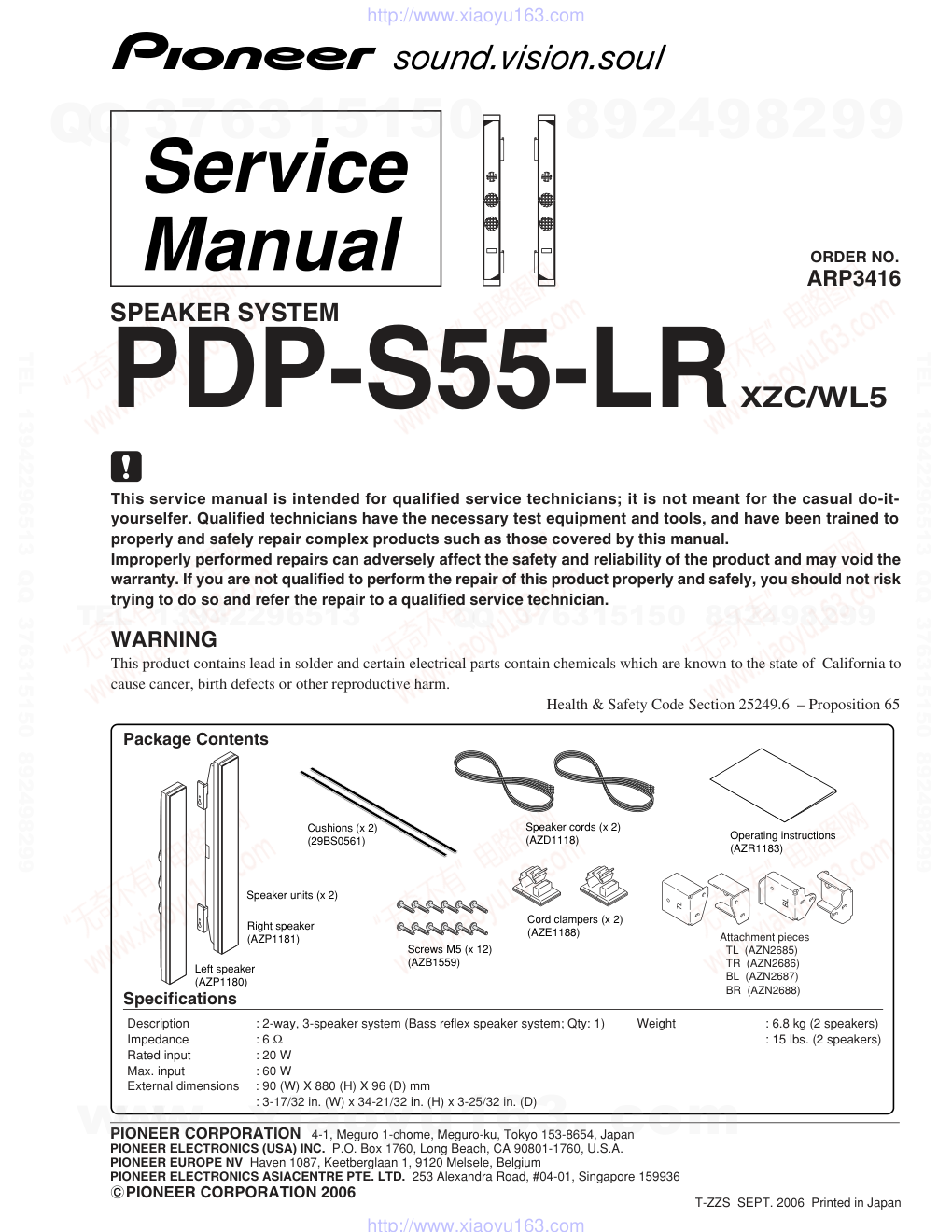

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2006 SPEAKER SYSTEM PDP-S55-LR XZC/WL5 ARP3416 T-ZZS SEPT. 2006 Printed in Japan This service manual is intended for qualified service technicians; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 Attachment pieces TL (AZN2685) TR (AZN2686) BL (AZN2687) BR (AZN2688) Package Contents Description : 2-way, 3-speaker system (Bass reflex speaker system; Qty: 1) Impedance : 6 Ω Rated input : 20 W Max. input : 60 W External dimensions : 90 (W) X 880 (H) X 96 (D) mm : 3-17/32 in. (W) x 34-21/32 in. (H) x 3-25/32 in. (D) Weight : 6.8 kg (2 speakers) : 15 lbs. (2 speakers) Specifications Right speaker (AZP1181) Left speaker (AZP1180) Speaker units (x 2) Cushions (x 2) (29BS0561) Operating instructions (AZR1183) Speaker cords (x 2) (AZD1118) Screws M5 (x 12) (AZB1559) Cord clampers (x 2) (AZE1188) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E PDP-S55-LR Speaker Unit L Speaker Unit R Carton Box/ TOP Lch Rch Carton Box/ BOTTOM (Cushion : include 2 pieces) (Cord Clamper : include 2 pieces) (Speaker Cord : include 2 pieces) 2 1 1 5 4 7 8 10 16 3 13 11 12 14 5 6 15 9 2. EXPLODED VIEWS AND PARTS LIST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: 2.1 PACKING • Do not pinch the connecting cord when attachting the speaker system. • Make sure the L and R Holders are attached to the correct speakers. • The speaker system is not serviceable and must be exchanged. 1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS 1 Protection Sheet (S55) AZH1296 2 Bag Poly (S55) AZE1193 3 Bag Poly (SP Manual) AZE1155 4 Carton Box (S55) AZH1261 5 Cushion Box (61SP) 29M00841 6 Cushion Piece AZH1301 7 Label U (S55) AZR1186 8 Cord Clamper AZE1188 9 Speaker Cord AZD1118 10 Cushion 29BS0561 PACKING Parts List 11 Attachment Piece TL AZN2685 12 Attachment Piece TR AZN2686 13 Attachment Piece BL AZN2687 14 Attachment Piece BR AZN2688 15 Screw (PMB50P120FBN) AZB1559 16 Operating Instructions AZR1183 (Japanese, English, French, German, Italian, Dutch, Spanish) Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 1 2 3 4 1 2 3 4 C D F A B E PDP-S55-LR L L R 2 5 R 2 5 3 3 [ Front View ] [ Back View ] 3 3 1 4 2.2 SPEAKER UNIT 1 Speaker Unit (L) AZP1180 2 Holder L (S55) AZN2683 3 Screw (M4 x 8) AZB1522 4 Speaker Unit (R) AZP1181 5 Holder R (S55) AZN2684 3 Screw (M4 x 8) AZB1522 Mark No. Description Part No. SPEAKER UNIT Parts List Main VC Tweeter INPUT Blue Red Black Black 100 µF/50 V 3.3 µF/50 V C1 C2 Sub VC White Black L1 18 mH Network Assy Woofer x2 3. SCHEMATIC DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
