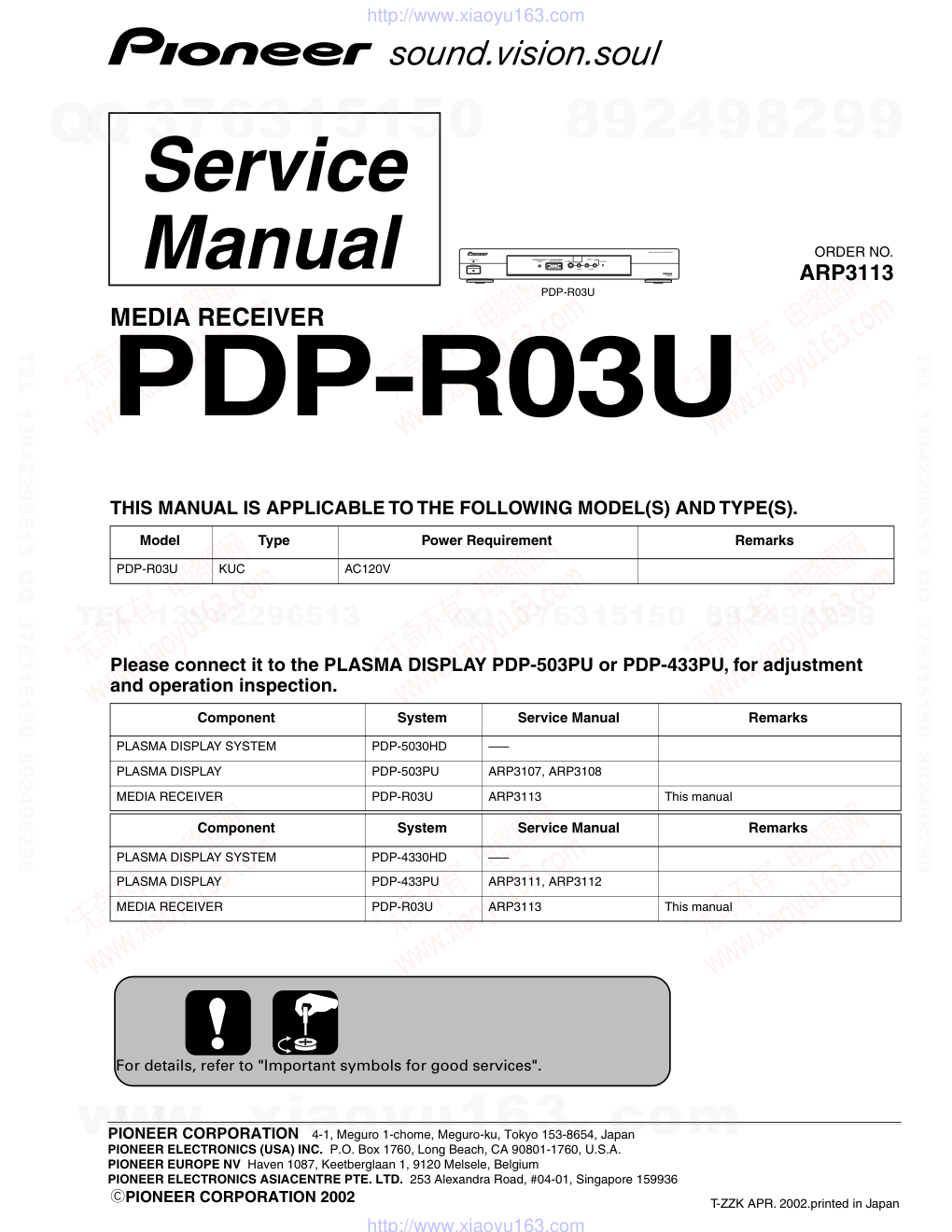

先锋PIONEER PDP-R03U音响电路图
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2002
POWER
STANDBY/ON
MEDIA RECEIVER PDP-R03U
PDP-R03U
ARP3113
MEDIA RECEIVER
PDP-R03U
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Please connect it to the PLASMA DISPLAY PDP-503PU or PDP-433PU, for adjustment
and operation inspection.
Model
Type
Power Requirement
Remarks
PDP-R03U
KUC
AC120V
Component
System
Service Manual
Remarks
PLASMA DISPLAY SYSTEM
PDP-5030HD
–––
PLASMA DISPLAY
PDP-503PU
ARP3107, ARP3108
MEDIA RECEIVER
PDP-R03U
ARP3113
This manual
Component
System
Service Manual
Remarks
PLASMA DISPLAY SYSTEM
PDP-4330HD
–––
PLASMA DISPLAY
PDP-433PU
ARP3111, ARP3112
MEDIA RECEIVER
PDP-R03U
ARP3113
This manual
For details, refer to "Important symbols for good services".
T-ZZK APR. 2002.printed in Japan
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
2
1
2
3
4
1
2
3
4
C
D
F
A
B
E

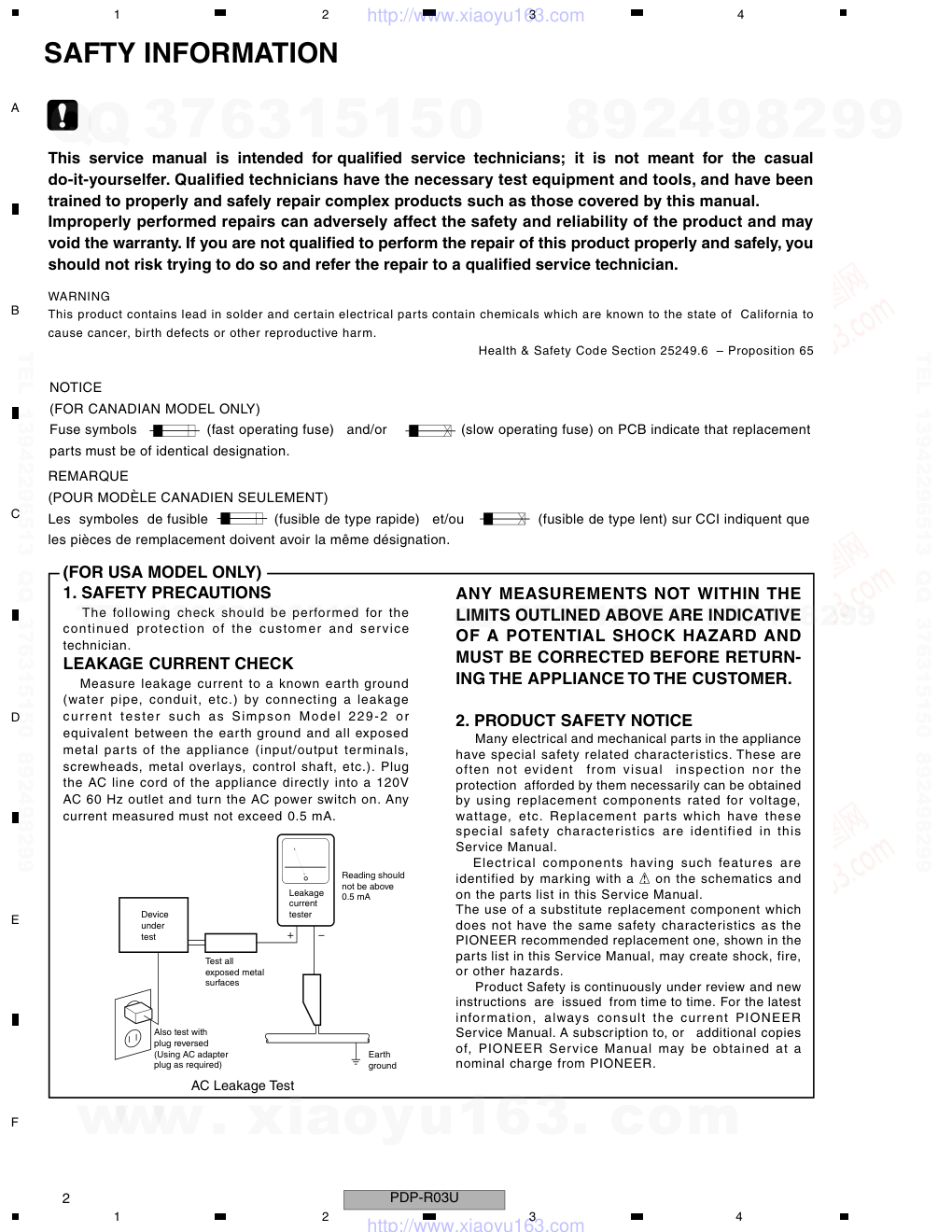

SAFTY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 – Proposition 65
NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement
parts must be of identical designation.
REMARQUE
(POUR MODÈLE CANADIEN SEULEMENT)
Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que
les pièces de remplacement doivent avoir la même désignation.
ANY MEASUREMENTS NOT WITHIN THE
LIMITS OUTLINED ABOVE ARE INDICATIVE
OF A POTENTIAL SHOCK HAZARD AND
MUST BE CORRECTED BEFORE RETURN-
ING THE APPLIANCE TO THE CUSTOMER.
2. PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are
often not evident from visual inspection nor the
protection afforded by them necessarily can be obtained
by using replacement components rated for voltage,
wattage, etc. Replacement parts which have these
special safety characteristics are identified in this
Service Manual.
Electrical components having such features are
identified by marking with a
on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
does not have the same safety characteristics as the
PIONEER recommended replacement one, shown in the
parts list in this Service Manual, may create shock, fire,
or other hazards.
Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current PIONEER
Service Manual. A subscription to, or additional copies
of, PIONEER Service Manual may be obtained at a
nominal charge from PIONEER.
(FOR USA MODEL ONLY)
1. SAFETY PRECAUTIONS
The following check should be performed for the
continued protection of the customer and service
technician.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60 Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5 mA.
Device
under
test
Leakage
current
tester
Earth
ground
Reading should
not be above
0.5 mA
Also test with
plug reversed
(Using AC adapter
plug as required)
Test all
exposed metal
surfaces
AC Leakage Test
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
3
5
6
7
8
5
6
7
8
C
D
F
A
B
E

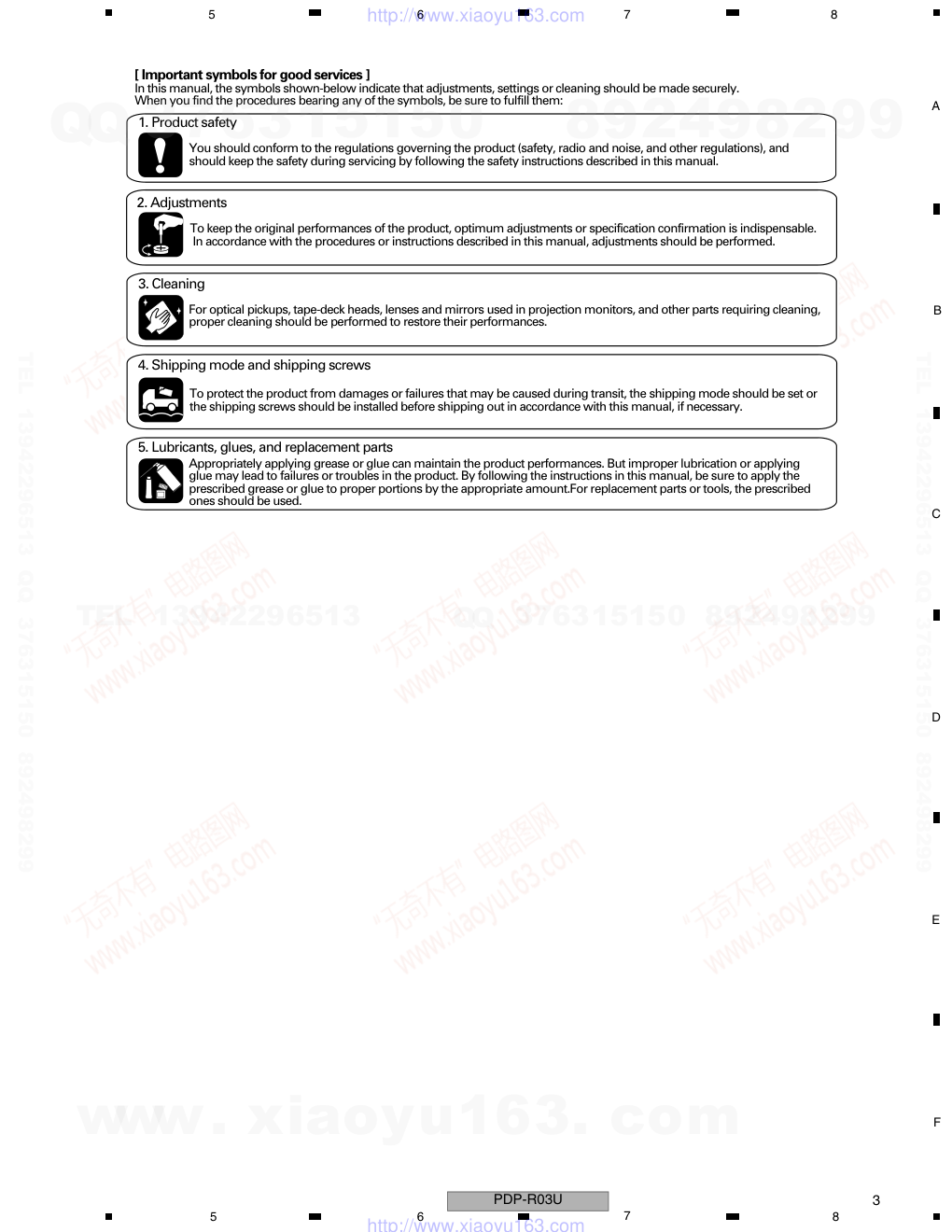

[ Important symbols for good services ]
In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely.
When you find the procedures bearing any of the symbols, be sure to fulfill them:
2. Adjustments
To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable.
In accordance with the procedures or instructions described in this manual, adjustments should be performed.
3. Cleaning
For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning,
proper cleaning should be performed to restore their performances.
5. Lubricants, glues, and replacement parts
Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying
glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the
prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed
ones should be used.
4. Shipping mode and shipping screws
To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or
the shipping screws should be installed before shipping out in accordance with this manual, if necessary.
1. Product safety
You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and
should keep the safety during servicing by following the safety instructions described in this manual.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
4
1
2
3
4
1
2
3
4
C
D
F
A
B
E

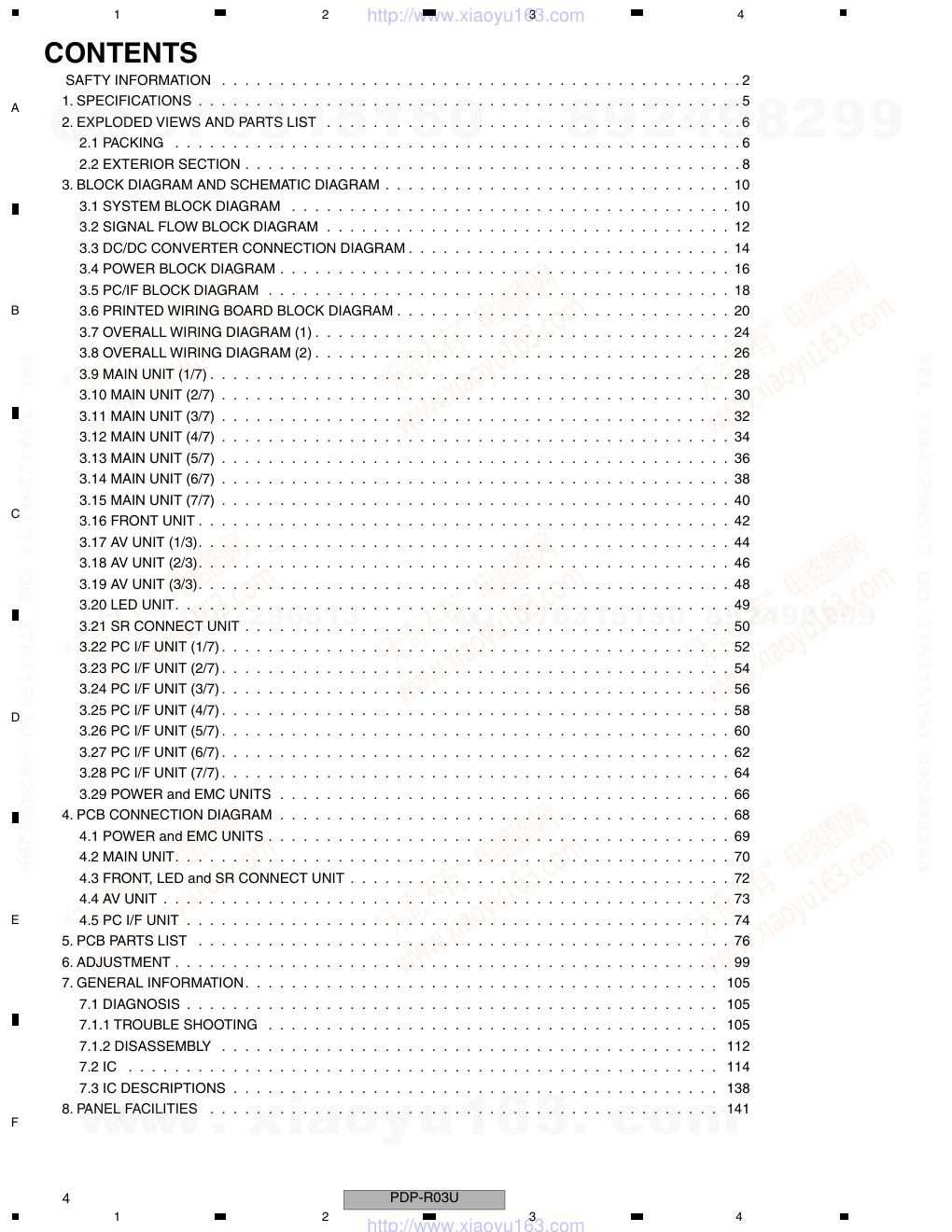

CONTENTS
SAFTY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1. SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2. EXPLODED VIEWS AND PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.1 PACKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 EXTERIOR SECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.1 SYSTEM BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.2 SIGNAL FLOW BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.3 DC/DC CONVERTER CONNECTION DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.4 POWER BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.5 PC/IF BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.6 PRINTED WIRING BOARD BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.7 OVERALL WIRING DIAGRAM (1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.8 OVERALL WIRING DIAGRAM (2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3.9 MAIN UNIT (1/7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
3.10 MAIN UNIT (2/7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.11 MAIN UNIT (3/7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3.12 MAIN UNIT (4/7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3.13 MAIN UNIT (5/7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
3.14 MAIN UNIT (6/7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
3.15 MAIN UNIT (7/7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
3.16 FRONT UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
3.17 AV UNIT (1/3). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
3.18 AV UNIT (2/3). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
3.19 AV UNIT (3/3). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
3.20 LED UNIT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
3.21 SR CONNECT UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
3.22 PC I/F UNIT (1/7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
3.23 PC I/F UNIT (2/7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
3.24 PC I/F UNIT (3/7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
3.25 PC I/F UNIT (4/7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
3.26 PC I/F UNIT (5/7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
3.27 PC I/F UNIT (6/7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
3.28 PC I/F UNIT (7/7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
3.29 POWER and EMC UNITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
4. PCB CONNECTION DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
4.1 POWER and EMC UNITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
4.2 MAIN UNIT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
4.3 FRONT, LED and SR CONNECT UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
4.4 AV UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
4.5 PC I/F UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
5. PCB PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
6. ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
7. GENERAL INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
7.1 DIAGNOSIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
7.1.1 TROUBLE SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
7.1.2 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
7.2 IC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
7.3 IC DESCRIPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
8. PANEL FACILITIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
5
5
6
7
8
5
6
7
8
C
D
F
A
B
E

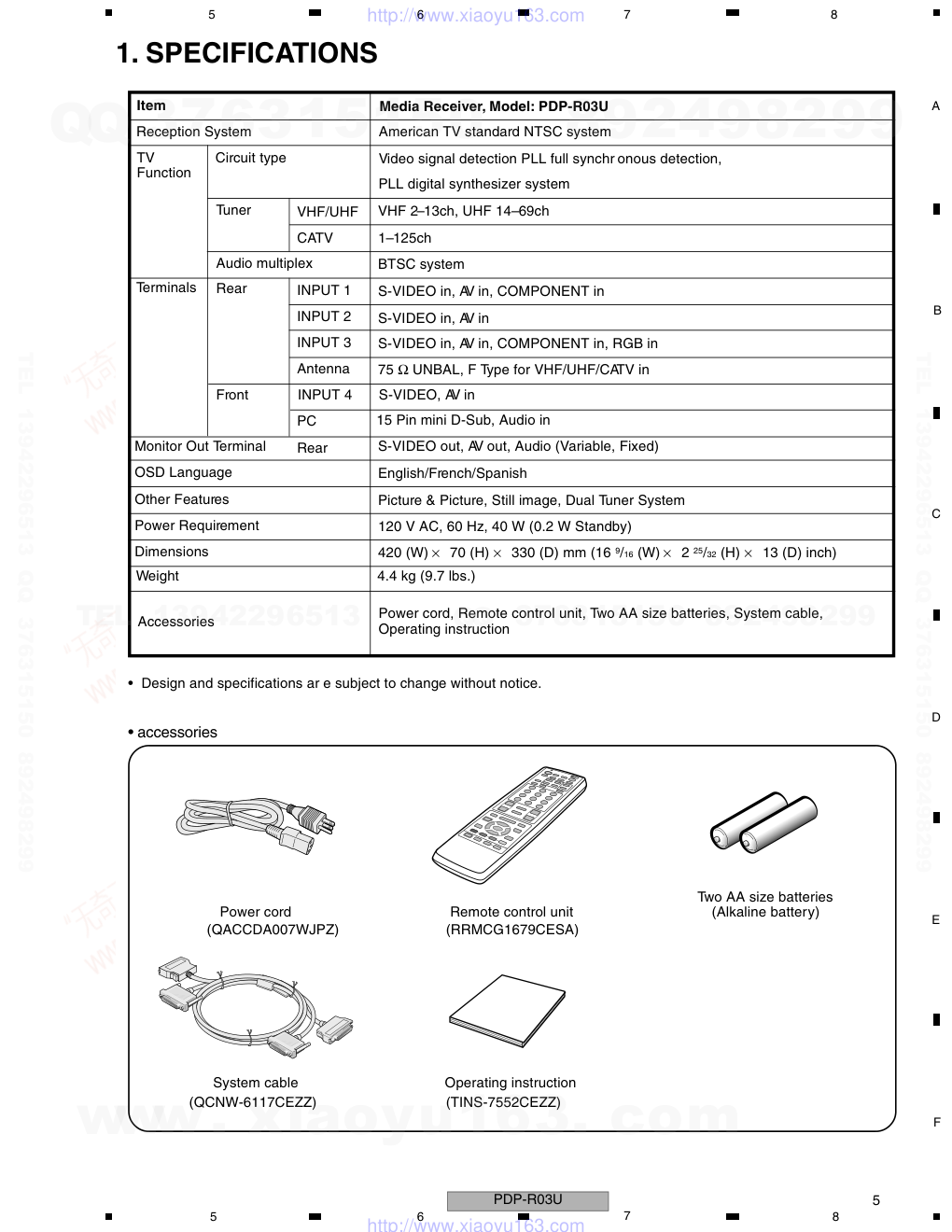

1. SPECIFICATIONS
• accessories
Power cord
Remote control unit
Two AA size batteries
(Alkaline batter
(QACCDA007WJPZ)
(RRMCG1679CESA)
(TINS-7552CEZZ)
(QCNW-6117CEZZ)
y)
System cable
Operating instruction
Item
Media Receiver, Model: PDP-R03U
Reception System
American TV standard NTSC system
TV
Function
Video signal detection PLL full synchr onous detection,
VHF/UHF
VHF 2–13ch, UHF 14–69ch
CATV
1–125ch
Audio multiplex
BTSC system
Terminals
S-VIDEO in, AV in, COMPONENT in
INPUT 2
S-VIDEO in, AV in
INPUT 3
S-VIDEO in, AV in, COMPONENT in, RGB in
Antenna
75 Ω UNBAL, F Type for VHF/UHF/CATV in
INPUT 4
S-VIDEO, AV in
PC
15 Pin mini D-Sub, Audio in
Monitor Out Terminal
S-VIDEO out, AV out, Audio (Variable, Fixed)
Power Requirement
120 V AC, 60 Hz, 40 W (0.2 W Standby)
Dimensions
420 (W) × 70 (H) × 330 (D) mm (16 9/16 (W) × 2 25/32 (H) × 13 (D) inch)
Weight
4.4 kg (9.7 lbs.)
Accessories
Power cord, Remote control unit, Two AA size batteries, System cable,
Operating instruction
Circuit type
Tuner
Rear
INPUT 1
Front
Rear
• Design and specifications ar e subject to change without notice.
Other Features
OSD Language
English/French/Spanish
Picture & Picture, Still image, Dual Tuner System
PLL digital synthesizer system
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
6
1
2
3
4
1
2
3
4
C
D
F
A
B
E

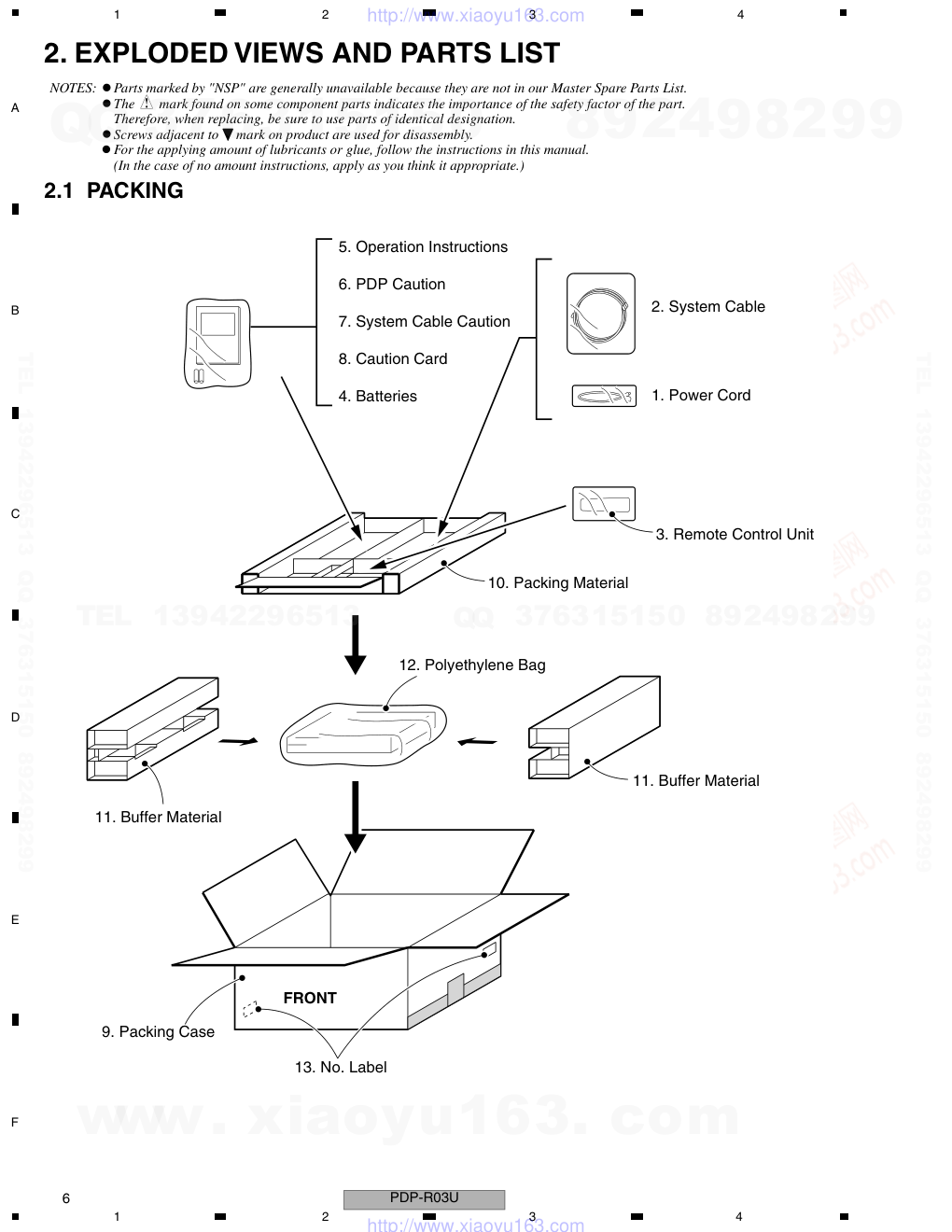

2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to mark on product are used for disassembly.
For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
NOTES:
FRONT
9. Packing Case
13. No. Label
3. Remote Control Unit
11. Buffer Material
11. Buffer Material
10. Packing Material
12. Polyethylene Bag
5. Operation Instructions
6. PDP Caution
7. System Cable Caution
8. Caution Card
4. Batteries
1. Power Cord
2. System Cable
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
7
5
6
7
8
5
6
7
8
C
D
F
A
B
E

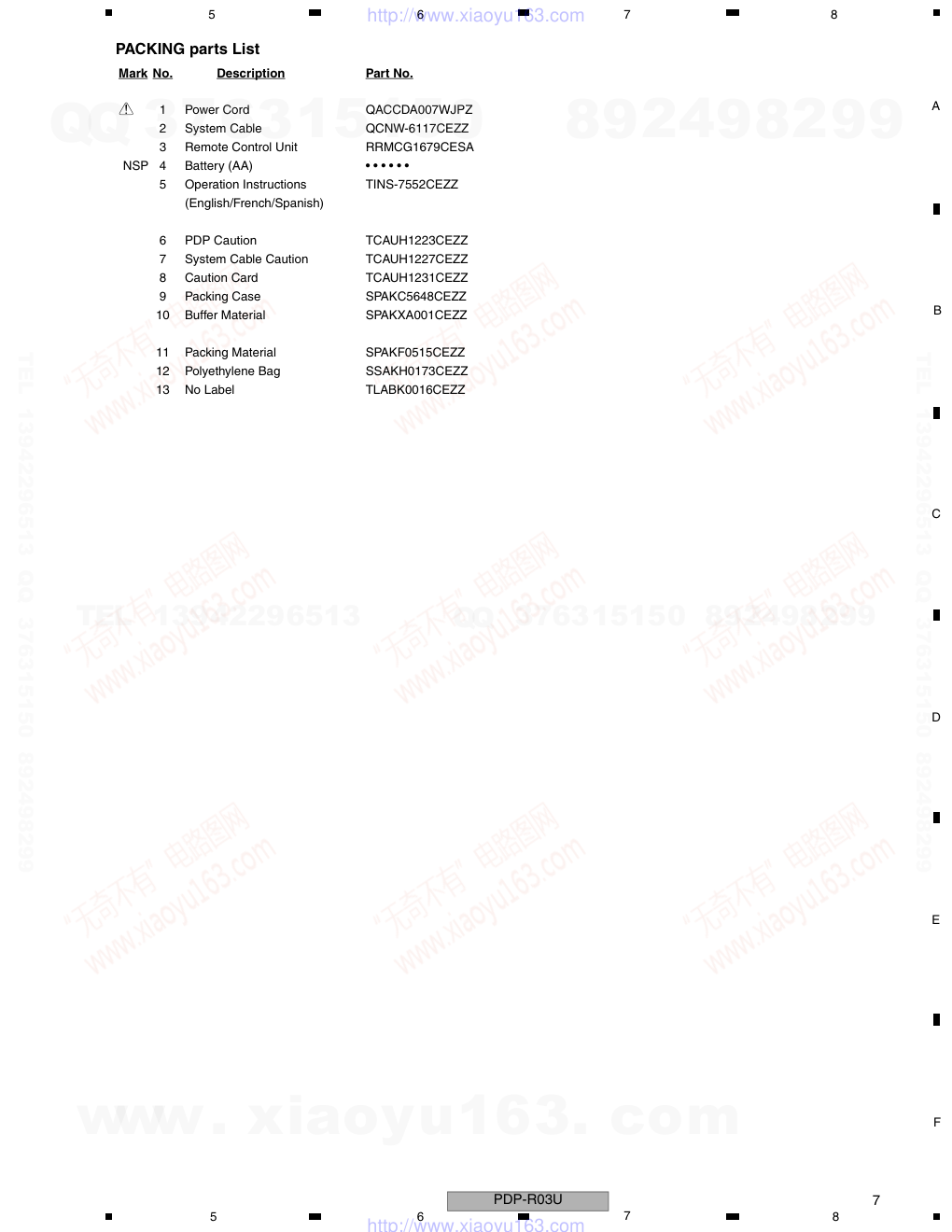

PACKING parts List
Mark No.
Description
Part No.
>
1
Power Cord
QACCDA007WJPZ
2
System Cable
QCNW-6117CEZZ
3
Remote Control Unit
RRMCG1679CESA
NSP
4
Battery (AA)
• • • • • •
5
Operation Instructions
TINS-7552CEZZ
(English/French/Spanish)
6
PDP Caution
TCAUH1223CEZZ
7
System Cable Caution
TCAUH1227CEZZ
8
Caution Card
TCAUH1231CEZZ
9
Packing Case
SPAKC5648CEZZ
10
Buffer Material
SPAKXA001CEZZ
11
Packing Material
SPAKF0515CEZZ
12
Polyethylene Bag
SSAKH0173CEZZ
13
No Label
TLABK0016CEZZ
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
8
1
2
3
4
1
2
3
4
C
D
F
A
B
E

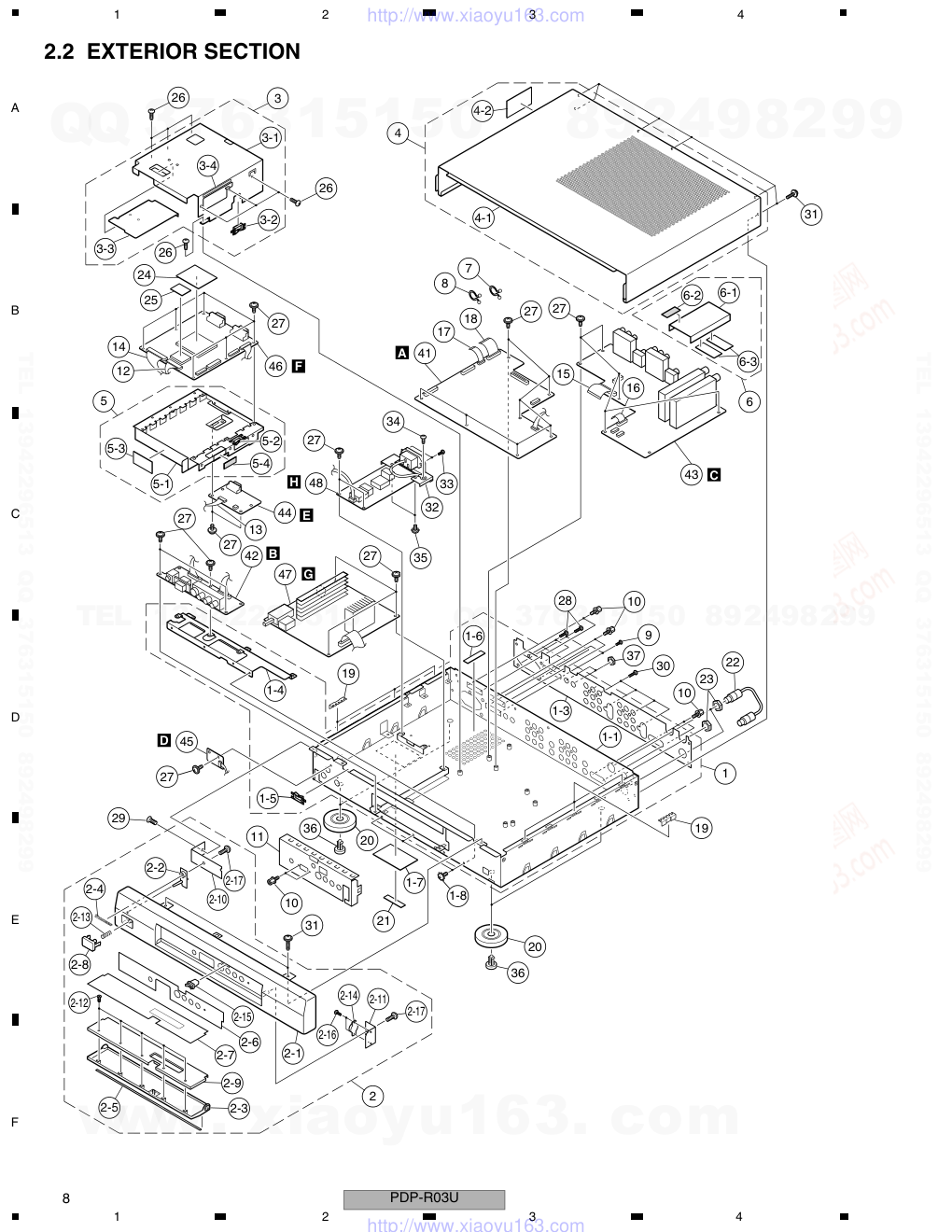

2.2 EXTERIOR SECTION
37
28
10
10
30
23
1-3
1-6
4-1
1-1
1
19
27
15
16
6
31
4
27
18
6-2
6-1
6-3
17
8
26
27
26
3-3
5-1
5-2
5-3
5-4
14
25
24
12
34
27
5
3-1
3
3-2
3-4
26
27
27
1-4
27
13
35
32
33
19
11
10
20
1-7
27
21
36
1-5
20
36
7
1-8
9
22
4-2
46
44
47
48
42
41
43
45
A
C
G
B
F
H
E
D
2-10
29
2-2
2-15
2-1
2-13
2-8
2-12
31
2
2-17
2-11
2-14
2-16
2-17
2-9
2-3
2-6
2-7
2-4
2-5www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
9
5
6
7
8
5
6
7
8
C
D
F
A
B
E

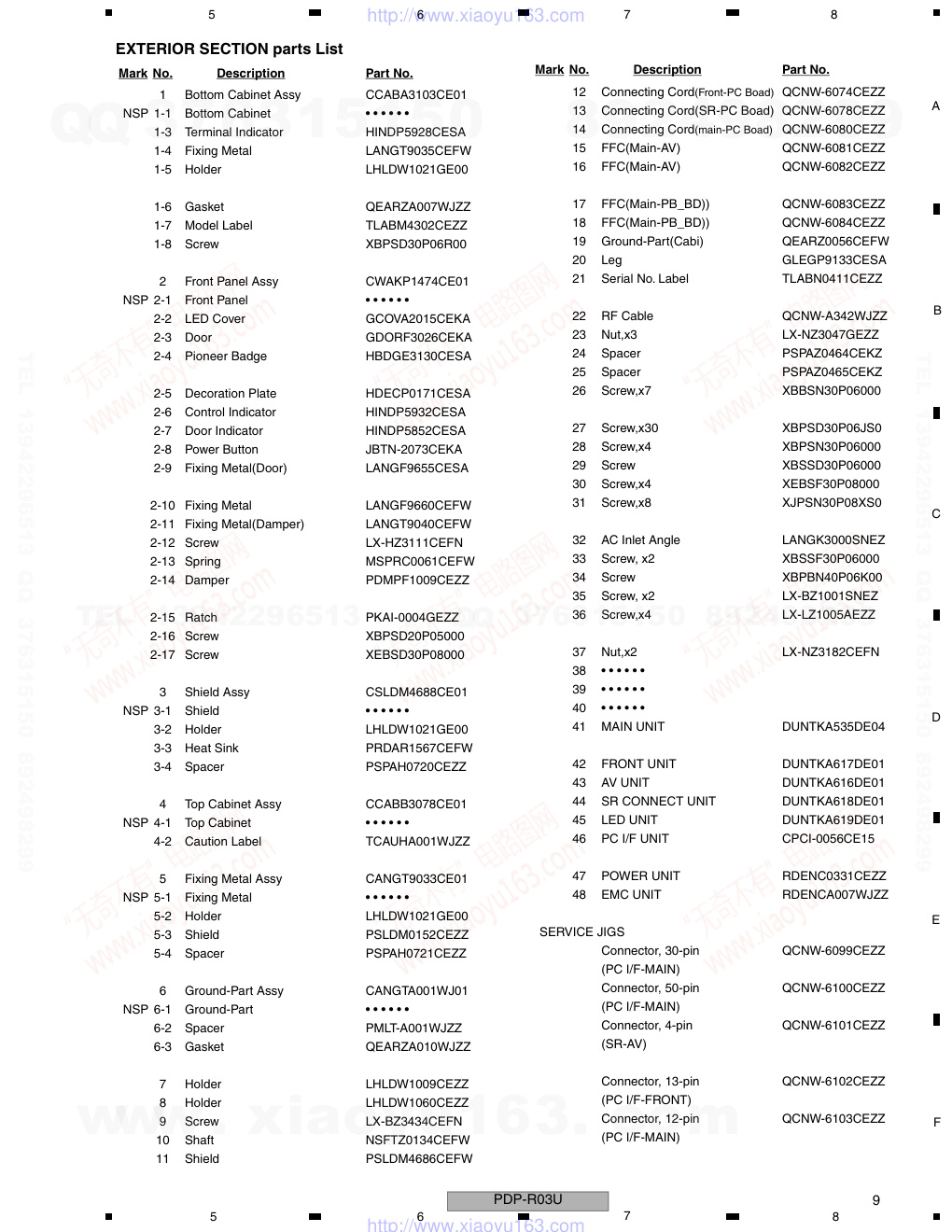

EXTERIOR SECTION parts List
Mark No.
Description
Part No.
1
Bottom Cabinet Assy
CCABA3103CE01
NSP 1-1
Bottom Cabinet
• • • • • •
1-3
Terminal Indicator
HINDP5928CESA
1-4
Fixing Metal
LANGT9035CEFW
1-5
Holder
LHLDW1021GE00
1-6
Gasket
QEARZA007WJZZ
1-7
Model Label
TLABM4302CEZZ
1-8
Screw
XBPSD30P06R00
2
Front Panel Assy
CWAKP1474CE01
NSP 2-1
Front Panel
• • • • • •
2-2
LED Cover
GCOVA2015CEKA
2-3
Door
GDORF3026CEKA
2-4
Pioneer Badge
HBDGE3130CESA
2-5
Decoration Plate
HDECP0171CESA
2-6
Control Indicator
HINDP5932CESA
2-7
Door Indicator
HINDP5852CESA
2-8
Power Button
JBTN-2073CEKA
2-9
Fixing Metal(Door)
LANGF9655CESA
2-10 Fixing Metal
LANGF9660CEFW
2-11 Fixing Metal(Damper)
LANGT9040CEFW
2-12 Screw
LX-HZ3111CEFN
2-13 Spring
MSPRC0061CEFW
2-14 Damper
PDMPF1009CEZZ
2-15 Ratch
PKAI-0004GEZZ
2-16 Screw
XBPSD20P05000
2-17 Screw
XEBSD30P08000
3
Shield Assy
CSLDM4688CE01
NSP 3-1
Shield
• • • • • •
3-2
Holder
LHLDW1021GE00
3-3
Heat Sink
PRDAR1567CEFW
3-4
Spacer
PSPAH0720CEZZ
4
Top Cabinet Assy
CCABB3078CE01
NSP 4-1
Top Cabinet
• • • • • •
4-2
Caution Label
TCAUHA001WJZZ
5
Fixing Metal Assy
CANGT9033CE01
NSP 5-1
Fixing Metal
• • • • • •
5-2
Holder
LHLDW1021GE00
5-3
Shield
PSLDM0152CEZZ
5-4
Spacer
PSPAH0721CEZZ
6
Ground-Part Assy
CANGTA001WJ01
NSP 6-1
Ground-Part
• • • • • •
6-2
Spacer
PMLT-A001WJZZ
6-3
Gasket
QEARZA010WJZZ
7
Holder
LHLDW1009CEZZ
8
Holder
LHLDW1060CEZZ
9
Screw
LX-BZ3434CEFN
10
Shaft
NSFTZ0134CEFW
11
Shield
PSLDM4686CEFW
12
Connecting Cord(Front-PC Boad) QCNW-6074CEZZ
13
Connecting Cord(SR-PC Boad) QCNW-6078CEZZ
14
Connecting Cord(main-PC Boad) QCNW-6080CEZZ
15
FFC(Main-AV)
QCNW-6081CEZZ
16
FFC(Main-AV)
QCNW-6082CEZZ
17
FFC(Main-PB_BD))
QCNW-6083CEZZ
18
FFC(Main-PB_BD))
QCNW-6084CEZZ
19
Ground-Part(Cabi)
QEARZ0056CEFW
20
Leg
GLEGP9133CESA
21
Serial No. Label
TLABN0411CEZZ
22
RF Cable
QCNW-A342WJZZ
23
Nut,x3
LX-NZ3047GEZZ
24
Spacer
PSPAZ0464CEKZ
25
Spacer
PSPAZ0465CEKZ
26
Screw,x7
XBBSN30P06000
27
Screw,x30
XBPSD30P06JS0
28
Screw,x4
XBPSN30P06000
29
Screw
XBSSD30P06000
30
Screw,x4
XEBSF30P08000
31
Screw,x8
XJPSN30P08XS0
32
AC Inlet Angle
LANGK3000SNEZ
33
Screw, x2
XBSSF30P06000
34
Screw
XBPBN40P06K00
35
Screw, x2
LX-BZ1001SNEZ
36
Screw,x4
LX-LZ1005AEZZ
37
Nut,x2
LX-NZ3182CEFN
38
• • • • • •
39
• • • • • •
40
• • • • • •
41
MAIN UNIT
DUNTKA535DE04
42
FRONT UNIT
DUNTKA617DE01
43
AV UNIT
DUNTKA616DE01
44
SR CONNECT UNIT
DUNTKA618DE01
45
LED UNIT
DUNTKA619DE01
46
PC I/F UNIT
CPCI-0056CE15
47
POWER UNIT
RDENC0331CEZZ
48
EMC UNIT
RDENCA007WJZZ
SERVICE JIGS
Connector, 30-pin
QCNW-6099CEZZ
(PC I/F-MAIN)
Connector, 50-pin
QCNW-6100CEZZ
(PC I/F-MAIN)
Connector, 4-pin
QCNW-6101CEZZ
(SR-AV)
Connector, 13-pin
QCNW-6102CEZZ
(PC I/F-FRONT)
Connector, 12-pin
QCNW-6103CEZZ
(PC I/F-MAIN)
Mark No.
Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
10
1
2
3
4
1
2
3
4
C
D
F
A
B
E

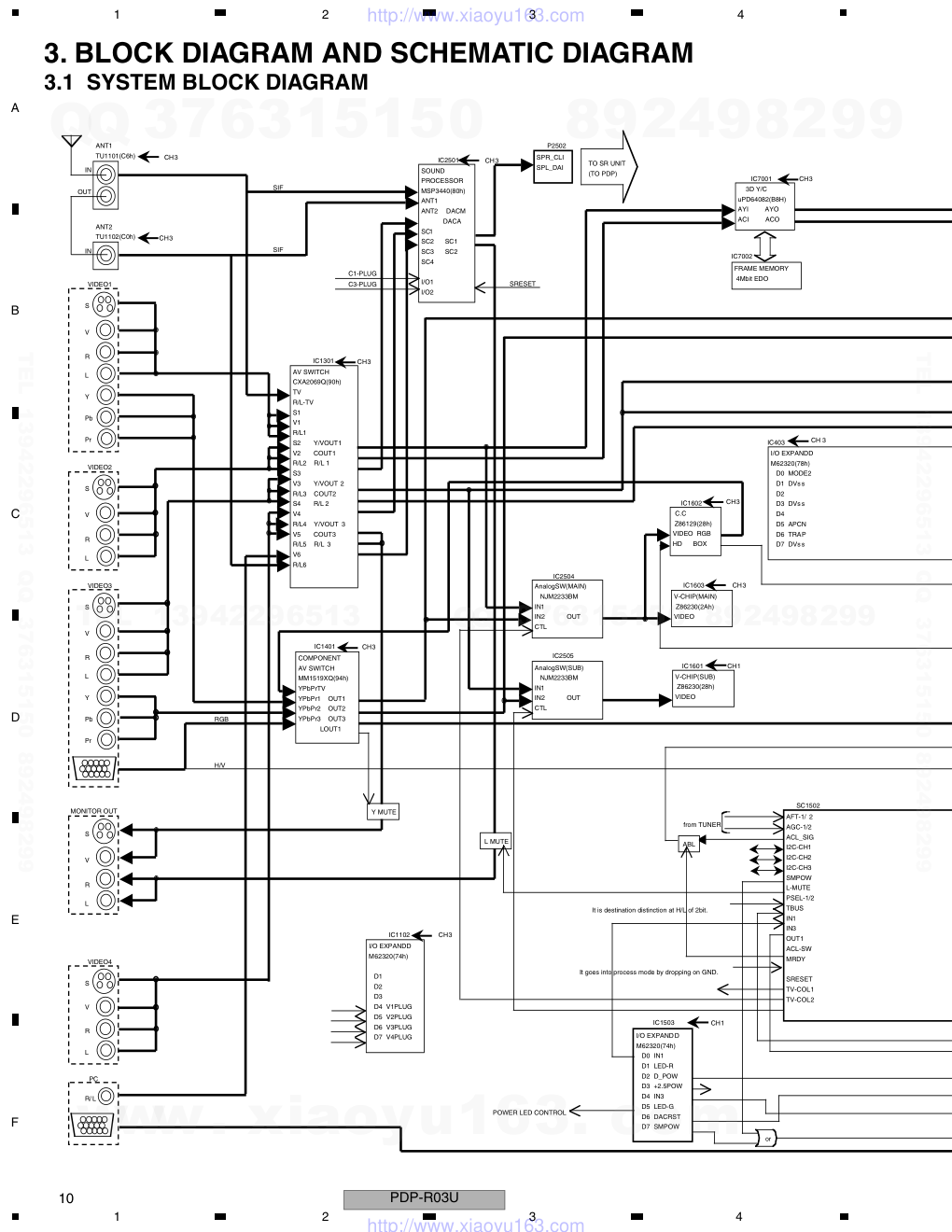

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM
3.1 SYSTEM BLOCK DIAGRAM
IC1301
ANT1
TU1101(C6h)
TU1102(C0h)
IN
IN
OUT
S
V
R
L
Y
Pb
Pr
VIDEO1
VIDEO2
SIF
SIF
C1-PLUG
C3-PLUG
CH3
ANT2
CH3
CH3
CXA2069Q(90h)
TV
R/L-TV
S1
V1
R/L1
S2 Y/VOUT1
V2 COUT1
R/L2 R/L 1
S3
V3 Y/VOUT 2
R/L3 COUT2
S4 R/L 2
V4
R/L4 Y/VOUT 3
V5 COUT3
R/L5 R/L 3
V6
R/L6
AV SWITCH
S
V
R
L
S
V
R
L
Y
Pb
Pr
VIDEO3
RGB
H/V
MM1519XQ(94h)
YPbPrTV
YPbPr1 OUT1
YPbPr2 OUT2
YPbPr3 OUT3
LOUT1
IC1401
CH
COMPONENT
AV SWITCH
3
MONITOR OUT
S
V
R
L
Y MUTE
VIDEO4
S
V
R
L
PC
R/L
D1
D2
D3
D4 V1PLUG
D5 V2PLUG
D6 V3PLUG
D7 V4PLUG
IC1102
I/O EXPANDD
62320(74h)
M
CH3
D
I/O EXPAND
M62320(74h)
CH1
L MUTE
ABL
from TUNER
It is destination distinction at H/L of 2bit.
POWER LED CONTROL
or
D0 IN1
D1 LED-R
D2 D_POW
D3 +2.5POW
D4 IN3
D5 LED-G
D6 DACRST
D7 SMPOW
IC1503
It goes into process mode by dropping on GND.
AFT-1/ 2
AGC-1/2
ACL_SIG
I2C-CH1
I2C-CH2
I2C-CH3
SMPOW
L-MUTE
PSEL-1/2
TBUS
IN1
IN3
OUT1
ACL-SW
MRDY
SRESET
TV-COL1
TV-COL2
SC1502
NJM2233BM
IN1
IN2 OUT
CTL
IC2504
NJM2233BM
IN1
IN2 OUT
CTL
IC2505
AnalogSW(MAIN)
AnalogSW(SUB)
CH3
CH3
CH1
Z86129(28h)
VIDEO RGB
HD BOX
IC1602
Z86230(28h)
VIDEO
IC1601
Z86230(2Ah)
VIDEO
IC1603
C.C
V-CHIP(SUB)
V-CHIP(MAIN)
IC2501
SOUND
PROCESSOR
CH3
MSP3440(80h)
ANT1
ANT2 DACM
DACA
SC1
SC2 SC1
SC3 SC2
SC4
I/O1
I/O2
SPR_CLI
SPL_DAI
P2502
TO SR UNIT
(TO PDP)
SRESET
3D Y/C
FRAME MEMORY
CH3
uPD64082(B8H)
AYI AYO
ACI ACO
IC7001
4Mbit EDO
IC7002
D0 MODE2
D1 DVss
D2
D3 DVss
D4
D5 APCN
D6 TRAP
D7 DVss
IC403
I/O EXPANDD
M62320(78h)
CH 3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
11
5
6
7
8
5
6
7
8
C
D
F
A
B
E
PC I/F UNIT
TC7W53
IN0 OUT
IN1
CNT
IC1504
AnalogSW
IC15
A1 CR-MAIN
A2 CR-SUB
A3 +B2.5
A4 +BADJ2
A5 REFADJ
A6
A7
A8 CB-GAIN
RESET
CH
DAC EXPAN D
M62393(92h)
1
IX-3289CE
Y/V IN VBLK
H/ V
IC7200
V-BLK GEN. AutoWide
LOWER LUMINANCE CNR
SIG. PROCESSO R
(SUB )
CH3
IC801
TB1274AF(88h)
CVBS/Y1 YOUT
C1
CVBS/Y2 CbOUT
C2
CVBS/Y3 CrOUT
C3 H/V
YS2/YM
YCbCr1
YCbCr2
RGB1
RGB2
LEVEL ADJ.
LEVEL ADJ.
CR-MAIN
CB-GAIN
SIG. PROCESSO R
(MAIN)
CH3
CXD2093Q
ADIN AYO
ACO
IC402
3Line COM
TB1274AF(8Ah)
CVBS/Y1
C1 YOUT
CVBS/Y2 CbOUT
C2 CrOUT
CVBS/Y3
C3 H/V
COMB_Y
COMB_C
YCbCr1
RGB1
RGB2
IC802
IC803
SIG. PROCESSO R
CH3
CXA2101Q(84h)
YCbCr1
H/V1
YCbCr2
H/V2 ROU T
YCbCr3 GOUT
H/V3 BOU T
YCbCr4
H/V4
YCbCr5 H/V
H/V5
YS/YM1
RGB1
RGB2
SCP
ABL FIL
ML6426-1
RGB INA
RGB INB RGB
A/B MUX
SYNC
IC810
ML6426-1
RGB INA
RGB INB RGB
A/B MUX
SYNC
IC811
SC1501
LPF6.7M(MAIN)
LPF30M(MAIN)
IC1901
ML6426-1
RGB INA
RGB INB RGB
A/B MUX
SYNC
IC804
MAIN R
MAIN G
MAIN B
MAIN H
MAIN V
SUB Y
SUB Cb
SUB Cr
SUB H
SUB V
PC I/F UNIT
LPF6.7M(SUB)
EPM3064-10
SP_H/V/CLP PL_H/V
HD/VD1 PL_BLK/CLP
HD/VD2 HD/VD3
US_H/V CNR_CLP/BLK
AW_VBLK TEXT_H/V
HDS/VDS
D0 MODEC
D1 MODEB
D2 MODEA
D3 SEL_A
D4 SEL_OE
D5 MFIL_SEL
D6
D7
IC1902
H-BLK GEN. PLD
I/O EXPAND
M62320(7Bh)
RGB H/V
CLR-SW
P3401
+5 VBK
+12V
-5V(A)
+3.3V(D)
+2.5VCV
+5V(A)
+5V(D)
P1702
PC I/F UNTI
PC I/F UNIT
+2.5VCV
+3.3V(D)
+6V
IC1701
PS-ON
+5VBK
+10V
P1502
BACK UP
+2.5POW
POWER UNIT
DC/DC
B35V
D6V
-5 V
+12VA
T1701
+5V(A)
IC1709
+12V
IC1713
DC/DC
REG
REG
TA1318(D8h)
HD/VD1
HD/VD2 HD/VD 1
HD/VD3 HD/VD 2
SYNC1 CP
SYNC2
IC604
+5V(A )
IC1708
+5V(A )
IC1710
+5V(D )
IC1711
+5V(A
IC1712
+8V
IC1706
+9V(A
IC1704
REG
REG
REG
REG
REG
REG
SYNC. SEP.
CH3
)
)
CH3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
12
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.2 SIGNAL FLOW BLOCK DIAGRAM
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
13
5
6
7
8
5
6
7
8
C
D
F
A
B
E
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
14
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.3 DC/DC CONVERTER CONNECTION DIAGRAM
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
15
5
6
7
8
5
6
7
8
C
D
F
A
B
E
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
16
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.4 POWER BLOCK DIAGRAM
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
17
5
6
7
8
5
6
7
8
C
D
F
A
B
E
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
18
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.5 PC/IF BLOCK DIAGRAM
V0
A/D
Amp
PLL
IC4
CXA3506R
I2C=CH2
5V->3.3V Reg
IC8 PQ20VZ11
X4
25MHz
CVIC
IC25
V1
A/D
IC310
TLC5733A
12V->5VReg
IC7 PQ05TZ11
PC_ C3
HV SEL
OV0 _H
V1
PLL
IC328
TLC2933IPW
12V->9V R eg
IC415 BA09FP
OV0_CLP
CPCI-00 56CE
V0
Sync
Sel
IC411
74LCX157
1B
2B
4B
1A
2A
4A
-A /+B
1Y
2Y
4Y
CN8
7
9
10
PC _H
PC_V
PC_C
CN6
18
17
29,3
0
MAIN _H
D
MAIN_VD
5
1
3
PC_R
RIN2
GIN2
BIN2
PC _G
PC_B
RIN1
GIN1
BIN1
25,2
6
21,2
2
MAI N_
B
MAI N_
G
MAI N_
R
ROUT
GOUT
BOUT
SYNCIN1
SYNCIN2
HOLD
CLPIN
DIVOUT
1/2C LK
XPOWERSAVE
RA[7..0]
RB[7..0]
GA[7..0]
GB[7..0]
BA[7..0]
BB[7..0]
AIN
BIN
CIN
RT
RB
3.27V
1.17V
AO[8..1]
BO[8..1]
CO[8..1]
EXTCLP
CLK
- OE
FIN-A
FIN-B
PFDINH
VCOOUT
13,1
4
9,10
5,6
SUB _Y
SUB_ Cb
SUB_ Cr
SUB_ HD
2
1
SUB _VD
About 60MHz
12pin TO CONNECTOR PWB
SDRAM
512Kx128bitx4 BANK
8
V0_HSYNC
V0_VSYNC
V0_CSYNC
OV0_V
V0_HSYNR
OV0_HSYNR
V0_PDEN
OV0_PDEN
V0_CLP
OV0_CLP
V0_HSYNC2
V0_VDCLK_I
OV0_HSC2
OVCLK(Max60MHz)
V0_RA[7..0]
V0_RB[7..0]
V0_GA[7..0]
V0_GB[7..0]
V0_BA[7..0]
V0_BB[7..0]
8
8
8
8
8
XPW R_SV
V1_GA[7..0]
V1_BA[7..0]
V1_RA[7..0]
8
8
8
OV1_VCKO
(
15M Hz)
V1_VDCLK_O
OV1_CLP
V1_CLP
SAD C_OE
V1_HSYNR
V1_HSYNF
V1_PDEN
OV1_HSNR
OV1_HSNF
OV1_PDEN
V1_HSYNC
V1_VSYNC
V1_VDCLK_I
OV1 _H
OV1_V
OV1_VCLK
SDRAM BUS
D:128,A:11,BA:2,Ctrl:13
SDCLK=100MHz
DO_RA[9..2]
DO_GA[9..2]
DO_BA[9..2]
DO_HSYNC
DO_VSYNC
DO_HDISP
DCLK
MCK_REF
LCLK
BINT
BCLK
XBCS
BWAIT
XRESET
PLL_S
BD,BA
ACL_S IG
12
CLR_ SW
FPC 30pin TO MAIN PWB
CXA3506R
VCO
WHISKER
CORRECTIO
N CIRCUIT
IC423, IC424
VIDEO SIGNAL
PEAK DETECTION
V1 ADC
RT, RB SETTING
CIRCUIT
IC319-322
HY57V653220BTC-7 4 PCS.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
19
5
6
7
8
5
6
7
8
C
D
F
A
B
E
X5
79.794MHz
DO_VS YNC
DO_HS YNC
LCLK(79.79
4MHz)
EEPROM
IC3
AT24C128N
I2C=CH3
TMDS(4ch)
PanelLink
HDCP
Transmitter
IC413
SiI168
I2C=CH1
CPU
IC1
SH7709
I2C PORT
CH1 Do:PTB4,Di:PTG5,Clk:PTB5
CH2 Do:PTC1,Di:PTF2,Clk:PTC2
CH3 Do:PTA6,Di:PTG6,Clk:PTA7
CH4 Do:PTD0,Di:PTG4,Clk:PTA4
5V->3.3V R eg
IC412 PQ1R33
DO_HD ISP
EEPROM
IC414
M24C32
X3
1.8432MHz
-RESET_C1
-
RST_P LL
-C1_I NT
XPWR_SV
-CS2
-WAIT _C1
8
8
8
D[23..16]
D[15..8]
D[7..0]
HSYNC
VSYNC
DE
IDCK+
EDGE
RST
TX
MDA
MCK
PTB3
PTA1
MON_DET
-RST _PL
PTC5
HVSEL
PTA0
PTD7
PTE6
SEL _CD
SAD C_OE
CAR D_RST
PXOE
THER MO
B SREQ
CKIO(24MHz)
IRQ4
IRQ3
PTB7
PTC7
AN7
PTE6
CKIO
IRQ0
CS2
WAIT
PTD2
PTD5
CPU BUS D:16,A:26
D[15..0],A[25..0]
SCK1
SCK2
EXTAL
XTAL
RESETP
CN3
DVI
RS232C
Driver&
Reciever
IC405
uPD4721G
TXD2
RXD2
CTS2
RTS2
CN7
FPC 50pin (TO MAIN PWB)
I2C=CH1,2,3, SERIAL=CH1
IRQ1
4
SSYSTEM
PC_V
10
IO_STB
CN1
15pin
SERIAL=CH0
PTB6
PTE7
FLASH_W
SRST
4
5
23
1
CSEN1
2
CSEN2
14
12
35
9
SENCE
SMPOW
7
AN2
6
CCKM
S1
15
FWMODEN
PTD1
PTF0
FLAS HWP
PTE1
FST ATUS
FLWP
FLASH
2Mx16bit
IC27
LH28F320S3NS
-C S0
DRAM 1Mx16bit
IC28
MSM51V18165D
PTD6
16
HOTPLUG
ACL_S IG
44
5
PTG2
KOUTEI
CLR_ SW
PTD4
DAC_DATA
PTJ4
13
16
PTJ5
DAC_CLK
8
PTE3
ACL_SW
25
PTE2
RES_OUT3
PTE1
3
SRESET
PTG1
15
AW_ DATA
PTC4
1
TV_COL2
PTC0
2
TV_COL1
PTB2
26
HPMUTE
1
PTB0
24
LMUTE
PTJ7
14
SH_ON
PTA5
18
AWC S_R
PTA3
17
AWC S_W
48
AN0
AG C1
AN1
47
AG C2
50
49
AN4
AN3
AF T1
AF T2
20
19
AN6
AN5
PSE L1
PSE L2
6
WP
STS
VPP
A20
A20
CN9
1:VD+5
3:VA+5
5,6:VD+2.5
8:VD+3.3
10:V-5
12:VA+12
13:VD+5BK
X1
6 MHz
TXD1
RXD1
TXD0
RXD0
RXD 1_T
TXD 1_T
RXD0_M
TXD0_M
RXD 1_T
TXD 1_T
8
9
42
41
RXD 1_T
TXD 1_T
R1077
R1078
R1105
R1106
PTC6
X6
25.175MHz
VGA_OE
WXGA_OE
VGA_ OE
WXGA_OE
CE2A
CKE
RESET CIRCUIT
+2.5V IC19 PST623XW
+3.3V IC2 PST600IW
I2C=CH1
(TO MONITOR)
13pin (TO MAIN PWB)
POWER CONNECTOR
CN5
RS232C
SERIAL=CH2
INTERNAL 72MHz
EXTERNAL 24MHz
SERIAL CONNECTION FOR
CE01 ONLY
(R1081, R1080)
CVIC INTERNAL SUPPLY
VOLTAGE SELECTOR
R1077 MOUNTED: VD+2.5V=2.5V
R1078 MOUNTED: VD+2.5V=1.8V
CVIC INTERNAL SUPPLY VOLTAGE
MONITOR
R1105 MOUNTED: VD+2.5V=2.5V
R1106 MOUNTED: VD+2.5V=1.8V
PC
DDC
DETECT
FLASH WRITE AT FWMODEN=LOW
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
20
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.6 PRINTED WIRING BOARD BLOCK DIAGRAM
TU1102 U/V TUNER
IC1603
V-CHIP
IC1601
V-CHIP
IC2501
MULTI SOUND
P2502
CONNECTOR
IC1301
AV SWITCH
P1301
CONNECTOR
SC1401
CONNECTOR
SC1402
CONNECTOR
P2503
CONNECTOR
P2501
CONNECTOR
IC1401
AV SWITCH
J1103
INPUT1 AV TERMINAL
INPUT2 AV TERMINAL
INPUT1 CONPONENT TERMINAL
V-CHIP CIRCUIT
COMP. AV SWITCH CIRCUIT
ANALOG AV SWITCH CIRCUIT
TU1101 U/V TUNER
J1104
INPUT3 AV TERMINAL
INPUT3 CONPONENT TERMINAL
MONITER OUT AV TERMINAL
SC1101
INPUT1, INPUT2
S-VIDEO TERMINAL
SC1103
INPUT4
RGB TERMINAL
SC1102
INPUT3, MONITER OUT
S-VIDEO TERMINAL
IC1602
CCD
IC1102
CONTROL
CN1
CONNECTOR
CN
CONNECTOR
CN6
CONNECTOR
IC25
CIVIC
IC1
CPU
IC310
VIDEO SUB
A/D CONV
IC4
VIDEO MAIN/PC
A/D CONV
IC413
PANEL LINK
IC319
SDRAM
IC320
SDRAM
CN9
CONNECTOR
CN8
CONNECTOR
IC7
REG.
IC8
REG.
CN5
RS-232C
CN3
DISPLAY OUT-1
IC405
RS-323 RECIVER
PANEL LINK
OUTPUT
CIRCUIT
RS-232C LINE
DRIVER I/F
CIRCUIT
VIDEO IN A/D
CONVERTER
CIRCUIT
POWER REG.
CIRCUIT
PC R,G,B INPUT
CIRCUIT
CPU CIRCUIT
VIDEO PROCESSOR
CIRCUIT
CPCI-0056CE
PC/IF UNIT
F
AV UNIT
C
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
21
5
6
7
8
5
6
7
8
C
D
F
A
B
E
DC/DC CONVERTER CIRCUIT
P1703
CONNECTOR
IC1502
DAC
IC801
MAIN VIDEO CHROMA
IC604
SYNC SEPARATE
IC803
RGB DECODER
P1502
CONNECTOR
P1901
PROGRAMMING
CONNECTOR
P1702
CONNECTOR
SC1502
CONNECTOR
IC403
CONTROL
IC802
SUB VIDEO CHROMA
SC1503
CONNECTOR
IC402
SUB COMB FILTER
IC1901
PLD
SC1504
CONNECTOR
POWER SUPPLY
IC7001
Y/C SEPARATE
L1711
L1708
L1718
L1710
T1701
IC7002
MEMORY
SC1501
CONNECTOR
MAIN UNIT
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
22
1
2
3
4
1
2
3
4
C
D
F
A
B
E
DESCRIPTION OF SCHEMATIC DIAGRAM
VOLTAGE MEASUREMENT CONDITION:
1. When the exclusive-use AC adapter is used, the color
bar signal of color bar generator for service is input to
get the normal screen. When the audio is minimized,
the voltage value is measured with the 20 k /V tester.
WAVEFORM MEASUREMENT CONDITION:
1. When the exclusive-use AC adapter is used, the color
density, lightness and color hue are set to the center
position, and the signal of color bar generator for service
is observed to get waveform.
2. indicates waveform check points (See chart,
waveforms are measured from point indicated to
chassis ground.)
INDICATION OF RESISTOR & CAPACITOR:
RESISTOR
1. The unit of resistance “ ” is omitted.
(K=k =1000 , M=M ).
2. All resistors are ± 5%, unless otherwise noted.
(J= ± 5%, F= ± 1%, D= ± 0.5%)
3. All resistors are Carbon type, unless otherwise noted.
C : Solid
W : Cement
S : Oxide Film
T : Special
N : Metal Coating
CAUTION:
This circuit diagram is original one, therefore there may be a
slight difference from yours.
IMPORTANT SAFETY NOTICE:
PARTS MARKED WITH “
” ( )ARE
IMPORTANT FOR MAINTAINING THE SAFETY OF
THE SET. BE SURE TO REPLACE THESE PARTS
WITH SPECIFIED ONES FOR MAINTAINING THE
SAFETY AND PERFORMANCE OF THE SET.
CAPACITOR
1. All capacitors are mF, unless otherwise noted.
(P=pF=mmF).
2. All capacitors are Ceramic type, unless otherwise
noted.
(ML) : Mylar
(TA) : Tantalum
(PF) : Polypro Film
(ST) : Styrol
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
23
5
6
7
8
5
6
7
8
C
D
F
A
B
E
WAVEFORMS
1
IC1301 63-pin
V: 200mV/div H: 10µsec/div
2
IC1301 60-pin
V: 200mV/div H: 10µsec/div
3
IC1301 56-pin
V: 500mV/div H: 10µsec/div
4
TP7004
V: 200mV/div H: 10µsec/div
5
TP7003
V: 200mV/div H: 10µsec/div
6
TP812
V: 200mV/div H: 10µsec/div
7
TP603
V: 200mV/div H: 10µsec/div
8
TP803
V: 100mV/div H: 10µsec/div
9
TP802
V: 100mV/div H: 10µsec/div
0
TP801
V: 100mV/div H: 10µsec/div
-
TP809
V: 200mV/div H: 10µsec/div
=
TP808
V: 200mV/div H: 10µsec/div
~
TP807
V: 200mV/div H: 10µsec/div
!
IC810 13-pin
V: 200mV/div H: 10µsec/div
@
IC810 11-pin
V: 200mV/div H: 10µsec/div
#
IC810 10-pin
V: 200mV/div H: 10µsec/div
$
IC803 31-pin
V: 1V/div H: 10µsec/div
%
IC1301 44-pin
V: 500mV/div H: 10µsec/div
^
TP410
V: 500mV/div H: 10µsec/div
&
IC802 21-pin
V: 200mV/div H: 10µsec/div
*
IC802 22-pin
V: 200mV/div H: 10µsec/div
(
IC802 23-pin
V: 200mV/div H: 10µsec/div
)
IC804 13-pin
V: 500mV/div H: 10µsec/div
_
IC804 11-pin
V: 500mV/div H: 10µsec/div
+
IC804 10-pin
V: 500mV/div H: 10µsec/div
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
24
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.7 OVERALL WIRING DIAGRAM (1)
CN9
CN8
CN703
CN702
CN6
CN7
CN1
QCNW-6077CEZZ
QCNW-
6083CEZZ
QCNW-
6084CEZZ
P3001
P6000
P6001
PC I/F UNIT
F
SR CONNECT
UNIT
LED UNIT
POWER UNIT
EMC
UNIT
G
H
E
D
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
25
5
6
7
8
5
6
7
8
C
D
F
A
B
E
TUNER
P3401
P3402
P1703
SC1503
SC1401
P1301
P2501
P2503
SC1402
SC1504
SC1502
SC1501
P1702
P1502
QCNW-6073CEZZ
QCNW-A280WJZZ
QCNW-6082CEZZ
QCNW-6079CEZZ
QCNW-6076CEZZ
QCNW-6074CEZZ
QCNW-6081CEZZ
QCNW-6080CEZZ
QCNW-6078CEZZ
P2502
TUNER
MAIN UNIT
A
AV UNIT
FRONT UNIT
C
B
Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST".
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
26
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.8 OVERALL WIRING DIAGRAM (2)
PC I/F UNIT (CPCI-0056CE15)
F
F 1/7-7/7
AV UNIT (DUNTKA616DE01)
FRONT UNIT
(DUNTKA617DE01)
SR CONNECT
UNIT
(DUNTKA
618DE01)
(DUNTKA
619DE01)
LED
UNIT
C
C 1/3-3/3
B
E
D
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
27
5
6
7
8
5
6
7
8
C
D
F
A
B
E
MAIN UNIT (DUNTKA535DE04)
A
A 1/7-7/7
POWER UNIT
(RDENC0331CEZZ)
EMC
UNIT
(RDENCA
007WJZZ)
G
H
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
28
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.9 MAIN UNIT (1/7)
A
A 1/7
A 1/7 MAIN UNIT (DUNTKA535DE04)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
29
5
6
7
8
5
6
7
8
C
D
F
A
B
E
A 1/7
7/7
A
6/7
A
2/7
A
6/7
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
30
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.10 MAIN UNIT (2/7)
A
A 2/7
A 2/7
MAIN UNIT
(DUNTKA535DE04)
1/7
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
31
5
6
7
8
5
6
7
8
C
D
F
A
B
E
A 2/7
3/7
A
7/7
A
4/7
A
4/7
A
6/7
A
7/7
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
32
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.11 MAIN UNIT (3/7)
A
A 3/7
MAIN UNIT
(DUNTKA535DE04)
A 3/7
2/7
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
33
5
6
7
8
5
6
7
8
C
D
F
A
B
E
A 3/7
6/7
A
7/7
A
6/7
A
5/7
A
4/7
A
6/7
A
6/7
A
6/7
A
4/7
A
7/7
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
34
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.12 MAIN UNIT (4/7)
A
A 4/7
MAIN UNIT (DUNTKA535DE04)
A 4/7
2/7
A
3/7
A
3/7
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
35
5
6
7
8
5
6
7
8
C
D
F
A
B
E
A 4/7
7/7
A
7/7
A
6/7
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
36
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.13 MAIN UNIT (5/7)
A
A 5/7
MAIN UNIT (DUNTKA535DE04)
A 5/7
7/7
A
3/7
A
6/7
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
37
5
6
7
8
5
6
7
8
C
D
F
A
B
E
A 5/7
7/7
A
6/7
A
3/7
A
3/7
A
3/7
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
38
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.14 MAIN UNIT (6/7)
A
A 6/7
MAIN UNIT (DUNTKA535DE04)
A 6/7
2/7
A
3/7
A
4/7
A
5/7
A
CN6
F 7/7
SC1401
C 2/3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
39
5
6
7
8
5
6
7
8
C
D
F
A
B
E
A 6/7
7/7
A
SC1402
C 2/3
CN703
G
CN7
F 2/7
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
40
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.15 MAIN UNIT (7/7)
A
A 7/7
MAIN UNIT (DUNTKA535DE04)
A 7/7
2/7
A
1/7
A
3/7
A
4/7
A
5/7
A
6/7
A
6/7
A
6/7
A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
41
5
6
7
8
5
6
7
8
C
D
F
A
B
E
A 7/7
CN9
F 7/7
P2501
C 2/3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
42
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.16 FRONT UNIT
B
FRONT UNIT (DUNTKA617DE01)
B
CN8
F 3/7
SW3401 : CLEAR
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
43
5
6
7
8
5
6
7
8
C
D
F
A
B
E
B
P1301
C 2/3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
44
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.17 AV UNIT (1/3)
A
C 1/3
AV UNIT (DUNTKA616DE01)
C 1/3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
45
5
6
7
8
5
6
7
8
C
D
F
A
B
E
C 1/3
2/3
C
2/3
C
2/3
C
2/3
C
3/3
C
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
46
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.18 AV UNIT (2/3)
A
C 2/3
1/3
P1703
A 7/7
P6001
E
C
1/3
C
P3402
B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
47
5
6
7
8
5
6
7
8
C
D
F
A
B
E
C 2/3
AV UNIT (DUNTKA616DE01)
C 2/3
3/3
C
SC1503
A 6/7
SC1504
A 6/7
P3001
D
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
48
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.19 AV UNIT (3/3)
A
C 3/3
AV UNIT (DUNTKA616DE01)
C 3/3
2/3
C
2/3
C
2/3
C
2/3
C
2/3
C
2/3
C
2/3
C
1/3
C
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
49
5
6
7
8
5
6
7
8
C
D
F
A
B
E
3.20 LED UNIT
D
LED UNIT (DUNTKA619DE01)
D
P2503
C 2/3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
50
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.21 SR CONNECT UNIT
E
SR CONNECT UNIT (DUNTKA618DE01)
E
P2502
C 2/3
CN1
F 7/7
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
51
5
6
7
8
5
6
7
8
C
D
F
A
B
E
E
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
52
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.22 PC I/F UNIT (1/7)
A
F 1/7
PC I/F UNIT (CPCI-0056CE15)
F 1/7
2/7
F
7/7
F
2/7
F
5/7
F
7/7
F
3/7
F
5/7
F
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
53
5
6
7
8
5
6
7
8
C
D
F
A
B
E
F 1/7
7/7
F
4/7
F
5/7
F
2/7
F
3/7
F
7/7
F
5/7
F
2/7
F
7/7
F
5/7
F
2/7
F
5/7
F
3/7
F
2/7
F
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
54
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.23 PC I/F UNIT (2/7)
A
F 2/7
1/7
F
1/7
F
1/7
F
5/7
F
1/7
F
1/7
F
1/7
F
SC1502
A 6/7
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
55
5
6
7
8
5
6
7
8
C
D
F
A
B
E
PC I/F UNIT (CPCI-0056CE15)
F 2/7
F 2/7
3/7
F
7/7
F
5/7
F
3/7
F
4/7
F
4/7
F
7/7
F
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
56
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.24 PC I/F UNIT (3/7)
A
F 3/7
1/7
F
2/7
F
4/7
F
7/7
F
7/7
F
1/7
F
2/7
F
7/7
F
5/7
F
P3401
B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
57
5
6
7
8
5
6
7
8
C
D
F
A
B
E
PC I/F UNIT (CPCI-0056CE15)
F 3/7
F 3/7
4/7
F
5/7
F
5/7
F
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
58
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.25 PC I/F UNIT (4/7)
A
F 4/7
PC I/F UNIT (CPCI-0056CE15)
F 4/7
2/7
F
3/7
F
5/7
F
7/7
F
2/7
F
7/7
F
7/7
F
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
59
5
6
7
8
5
6
7
8
C
D
F
A
B
E
F 4/7
5/7
F
7/7
F
5/7
F
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
60
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.26 PC I/F UNIT (5/7)
A
F 5/7
2/7
F
4/7
F
7/7
F
4/7
F
3/7
F
1/7
F
2/7
F
3/7
F
4/7
F
3/7
F
7/7
Fwww. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
61
5
6
7
8
5
6
7
8
C
D
F
A
B
E
PC I/F UNIT (CPCI-0056CE15)
F 5/7
F 5/7
6/7
F
2/7
F
6/7
F
7/7
F
1/7
F
6/7
F
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
62
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.27 PC I/F UNIT (6/7)
A
F 6/7
PC I/F UNIT
(CPCI-0056CE15)
F 6/7
5/7
F
5/7
F
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
63
5
6
7
8
5
6
7
8
C
D
F
A
B
E
F 6/7
7/7
F
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
64
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.28 PC I/F UNIT (7/7)
A
F 7/7
PC I/F UNIT (CPCI-0056CE15)
F 7/7
3/7
F
2/7
F
1/7
F
3/7
F
4/7
F
5/7
F
6/7
F
4/7
F
5/7
F
1/7
F
P1702
A 7/7
P6000
E
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
65
5
6
7
8
5
6
7
8
C
D
F
A
B
E
F 7/7
2/7
F
SC1501
A 6/7
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
66
1
2
3
4
1
2
3
4
C
D
F
A
B
E
3.29 POWER and EMC UNITS
G H
EMC UNIT (RDENCA007WJZZ)
H
(LIVE)
(NEUTRAL)
(LIVE)
(NEUTRAL)
• NOTE FOR FUSE REPLACEMENT
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE WITH SAME TYPE AND RATINGS ONLY.
CAUTION -
(LIVE)
(NEUTRAL)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
67
5
6
7
8
5
6
7
8
C
D
F
A
B
E
G
POWER UNIT (RDENC0331CEZZ)
G
P1502
A 6/7
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
68
1
2
3
4
1
2
3
4
C
D
F
A
B
E
4. PCB CONNECTION DIAGRAM
NOTE FOR PCB DIAGRAMS :
1. Part numbers in PCB diagrams match those in the schematic
diagrams.
2. A comparison between the main parts of PCB and schematic
diagrams is shown below.
3. The parts mounted on this PCB include all necessary parts for
several destinations.
For further information for respective destinations, be sure to
check with the schematic diagram.
4. View point of PCB diagrams.
Symbol In PCB
Diagrams
Symbol In Schematic
Diagrams
Part Name
B C E
D
D
G
G
S
S
B C E
B
C
E
D
G
S
B
C
E
B
C
E
B
C
E
Transistor
Transistor
with resistor
Field effect
transistor
Resistor array
3-terminal
regulator
Capacitor
Connector
P.C.Board
Chip Part
SIDE A
SIDE B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
69
5
6
7
8
5
6
7
8
C
D
F
A
B
E
4.1 POWER and EMC UNITS
G H
G H
SIDE A
SIDE A
EMC UNIT
H
POWER UNIT
G
LIVE
NEUTRAL
AC IN
P1502
A
Q708
Q709
Q701
Q703
Q704
Q702
IC701
IC702
IC703
Q707
Q706
Q705
CN703
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
70
1
2
3
4
1
2
3
4
C
D
F
A
B
E
4.2 MAIN UNIT
A
A
SIDE A
SIDE A
IC1706
IC1704
IC1502
Q7001
Q424
Q427
Q616
Q619
IC7001
IC7004
IC405
IC402
IC604
IC603
IC801
IC406
IC403
IC803
IC7200
IC802
IC807
IC1903
IC1901
MAIN UNIT
A
CN7
F
SC1402
C
CN9
F
P2501
C
SC1401
C
CN6
F
CN703
G
Q818
Q827
Q1508
Q1511
P1502
SC1501
SC1502
SC1503
SC1504
P1703
P1702
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
71
5
6
7
8
5
6
7
8
C
D
F
A
B
E
Q1710
Q1718
Q1701
Q1708
Q1719
Q1713
Q1716
Q1726
Q1712
IC1701
IC1713
IC1504
IC1710
IC1711
IC1712
Q601
Q615
Q621
IC7003
IC7002
IC602
IC1708
IC404
IC605
IC814
IC7201
IC1902
IC1503
IC804
IC813
IC812
IC811
IC810
MAIN UNIT
A
Q801
Q813
Q803
Q806
Q7202
Q7205
Q1502
Q1503
Q1504
Q7002
Q7010
IC407
Q408
Q407
Q414
Q415
Q416
Q420
Q421
Q428
A
A
SIDE B
SIDE B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
72
1
2
3
4
1
2
3
4
C
D
F
A
B
E
4.3 FRONT, LED and SR CONNECT UNIT
B D E
B D E
SIDE A
SIDE A
LED UNIT
D
SR CONNECT UNIT
E
FRONT UNIT
B
CN1
F
P2503
C
P2502
C
CN8
F
P1301
C
IC3401
Q3403
Q3402 Q3401
Q6001
Q6004
Q6003
Q6002
Q6006
Q6005
P6001
P6000
P3401
P3402
P3001
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
73
5
6
7
8
5
6
7
8
C
D
F
A
B
E
4.4 AV UNIT
C
C
SIDE A
SIDE A
AV UNIT
C
SC1504
A
SC1503
A
P3402
B
P1703
A
P3001
E
P6001
D
IC1401
IC1301
IC1102
IC1606
IC1605
IC1012
IC1602
IC1611
IC1603
IC1601
IC1604
IC1606
IC2504
IC2501
IC1105
IC1103
IC1104
IC1615
IC1614
IC1609
IC1613
IC2503
Q1101
Q1406
Q1405
Q1407
Q1103
Q1108
Q1102
Q1125
Q1127
Q1130
Q1109
Q1106
Q1107
Q1104
Q1105
Q1105
Q1133
Q1124
Q1120
Q1106
Q1107
Q1610
Q1611
Q1609
Q1112
Q1109
Q1112
Q1113
Q1117
Q1131
Q1135
P2502
P1402
P2503
P2501
P1301
SC1401
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
74
1
2
3
4
1
2
3
4
C
D
F
A
B
E
4.5 PC I/F UNIT
F
F
SIDE A
SIDE A
PC I/F UNIT
F
P1702
A
P3401
B
SC1502
A
SC1501
A
P6000
D
IC413
IC405
IC53
IC418
IC400
IC25
IC1
IC319
IC320
IC4
IC324
IC326
IC323
IC316
IC327
IC411
IC8
IC7
IC310
IC423
Q12
Q102
CN1
CN9
CN8
CN7
CN6
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
75
5
6
7
8
5
6
7
8
C
D
F
A
B
E
F
F
SIDE B
SIDE B
PC I/F UNIT
F
Q103
Q120
Q101
Q104
Q119
IC414
IC27
IC28
IC321
IC404
IC402
IC422
IC408
IC410
IC328
IC415
IC421
IC420
IC419
IC407
IC322
IC19
IC2
IC3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
76
1
2
3
4
1
2
3
4
C
D
F
A
B
E
5. PCB PARTS LIST
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).
5 6 1
4 7 3
R 5 0
1 R 0
5 6 2 1
NOTES:
560 Ω
47k Ω
0.5 Ω
1 Ω
RD1/4PU J
RD1/4PU J
RN2H K
RS1P K
56 x 10 1
47 x 10 3
R50
1R0
561
473
5.62k Ω
RN1/4PC F
562 x 10 1
5621
Mark No. Description
Part No.
LIST OF ASSEMBLIES
1..MAIN UNIT
DUNTKA535DE04
1..FRONT UNIT
DUNTKA617DE01
1..AV UNIT
DUNTKA616DE01
1..LED UNIT
DUNTKA619DE01
1..SR UNIT
DUNTKA618DE01
1..PC I/F UNIT
CPCI-0056CE15
1..POWER UNIT
RDENC0331CEZZ
1..EMC UNIT
RDENCA007WJZZ
Mark No. Description
Part No.
AMAIN UNIT
IC
IC402
CXD2093Q
VHiCXD2093Q-1Q
IC403
M62320FP
VHiM62320FP-1
IC404
Ml6428
VHiML6428C1-1Y
IC604
TA1318AF
VHiTA1318AF-1Y
IC801
TB1274AF
VHiTB1274AF-1Q
IC802
TB1274AF
VHiTB1274AF-1Q
IC803
CXA2101AQ-Tl
VHiCXA2101Q-1
IC804
Ml6426CS-1
RH-iX3473CEZZ
IC807
TC7W34FU
VHiTC7W34U/-1Y
IC808
TC7W34FU
VHiTC7W34U/-1Y
IC810
Ml6426CS-1
RH-iX3473CEZZ
IC811
Ml6426CS-4
RH-iX3474CEZZ
IC812
NJM353M
VHiNJM353M/-1
IC814
BA7655AF
VHiBA7655AF-1
IC1502 M62393FP
VHiM62393FP-1
IC1503 M62320FP
VHiM62320FP-1
IC1504 TC7W53FU
VHiTC7W53U/-1
IC1701 FA3675F
VHiFA3675F/-1
IC1704 BA09FP-E2
VHiBA09T/FP-1
IC1706 BA08FP
VHiBA08FP++-1Y
IC1708 BA05FP
VHiBA05FP++-1Y
IC1709 BA05FP
VHiBA05FP++-1Y
IC1710 BA05FP
VHiBA05FP++-1Y
IC1711 BA05FP
VHiBA05FP++-1Y
IC1712 BA05FP
VHiBA05FP++-1Y
IC1713 BA12FP-E2
VHiBA12FP++-1Y
IC1901 I.C.
RH-iXA194WJZZQ
IC1902 M62320FP
VHiM62320FP-1
IC1903 TC7W34FU
VHiTC7W34U/-1Y
IC7001 UPD64082GF-3BA
VHiPD64082/-1S
IC7002 MSM514265C50JS
RH-IX3152CEZZY
IC7003 Ml6428
VHiML6428C1-1Y
IC7004 BA033FP-E2
VHiBA033FP/-1
IC7005 PST600IMT
VHiPST600iM-1Y
IC7200 IX3289CE
RH-iX3289CEZZ
TRANSISTOR
Q403
2SA1530AR
VS2SA1530AR-1
Q405
2SA1530AR
VS2SA1530AR-1
Q406
2SC3928AR
VS2SC3928AR-1
Q407
2SC3928AR
VS2SC3928AR-1
Q408
2SC3928AR
VS2SC3928AR-1
Q424
2SA1530AR
VS2SA1530AR-1
Q425
2SA1530AR
VS2SA1530AR-1
Q601
2SC3928AR
VS2SC3928AR-1
Q602
2SC3928AR
VS2SC3928AR-1
Q603
2SC3928AR
VS2SC3928AR-1
Q604
2SC3928AR
VS2SC3928AR-1
Q605
2SC3928AR
VS2SC3928AR-1
Q606
2SC3928AR
VS2SC3928AR-1
Q607
2SC3928AR
VS2SC3928AR-1
Q608
2SC3928AR
VS2SC3928AR-1
Q609
2SC3928AR
VS2SC3928AR-1
Q610
2SK1467
VS2SK1467//-1
Q611
2SC3928AR
VS2SC3928AR-1
Q612
2SC3928AR
VS2SC3928AR-1
Q613
2SC3928AR
VS2SC3928AR-1
Q614
2SC3928AR
VS2SC3928AR-1
Q615
2SC3928AR
VS2SC3928AR-1
Q616
2SC3928AR
VS2SC3928AR-1
Q617
2SA1530AR
VS2SA1530AR-1
Q801
2SA1530AR
VS2SA1530AR-1
Q802
2SA1530AR
VS2SA1530AR-1
Q803
2SA1530AR
VS2SA1530AR-1
Q804
2SA1530AR
VS2SA1530AR-1
Q805
DTC144EE
VSDTC144EE/-1
Q807
2SC3928AR
VS2SC3928AR-1
Q808
2SA1530AR
VS2SA1530AR-1
Q809
2SC3928AR
VS2SC3928AR-1
Q810
2SA1530AR
VS2SA1530AR-1
Q811
2SA1530AR
VS2SA1530AR-1
Q812
2SA1530AR
VS2SA1530AR-1
Q813
DTC124EKA
VSDTC124EKA-1
Q814
2SA1530AR
VS2SA1530AR-1
Q815
2SA1530AR
VS2SA1530AR-1
Q818
2SA1530AR
VS2SA1530AR-1
Q819
2SA1530AR
VS2SA1530AR-1
Q820
2SA1530AR
VS2SA1530AR-1
Q821
2SC2735
VS2SC2735//1E
Q822
2SC2735
VS2SC2735//1E
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
77
5
6
7
8
5
6
7
8
C
D
F
A
B
E
Q823
2SC2735
VS2SC2735//1E
Q824
2SA1530AR
VS2SA1530AR-1
Q825
2SA1530AR
VS2SA1530AR-1
Q826
2SA1530AR
VS2SA1530AR-1
Q827
2SA1530AR
VS2SA1530AR-1
Q828
2SA1530AR
VS2SA1530AR-1
Q830
2SC3928AR
VS2SC3928AR-1
Q837
2SC3928AR
VS2SC3928AR-1
Q838
2SA1530AR
VS2SA1530AR-1
Q839
2SC2735
VS2SC2735//1E
Q840
2SC2735
VS2SC2735//1E
Q841
2SC2735
VS2SC2735//1E
Q842
2SC3928AR
VS2SC3928AR-1
Q843
2SC3928AR
VS2SC3928AR-1
Q844
2SC3928AR
VS2SC3928AR-1
Q1502 DTC144EE
VSDTC144EE/-1
Q1503 2SB1132Q
VS2SB1132Q/-1
Q1504 2SC3928AR
VS2SC3928AR-1
Q1507 DTC144EE
VSDTC144EE/-1
Q1508 DTA124EKA
VSDTA124EKA-1
Q1509 DTC124EKA
VSDTC124EKA-1
Q1510 DTA124EKA
VSDTA124EKA-1
Q1511 DTC124EKA
VSDTC124EKA-1
Q1512 DTA124EKA
VSDTA124EKA-1
Q1513 DTC124EKA
VSDTC124EKA-1
Q1701 DTC114EE
VSDTC114EE/-1
Q1708 DTC114EE
VSDTC114EE/-1
Q1710 FMMT718
VSFMMT718//-1
Q1718 2SK2503
VS2SK2503//-1
Q1719 2SC3928AR
VS2SC3928AR-1
Q7001 2SA1530AR
VS2SA1530AR-1
Q7002 2SC3928AR
VS2SC3928AR-1
Q7003 2SA1530AR
VS2SA1530AR-1
Q7004 2SC3928AR
VS2SC3928AR-1
Q7005 2SA1530AR
VS2SA1530AR-1
Q7006 2SA1530AR
VS2SA1530AR-1
Q7007 2SA1530AR
VS2SA1530AR-1
Q7008 2SA1530AR
VS2SA1530AR-1
Q7009 2SA1530AR
VS2SA1530AR-1
Q7010 2SA1530AR
VS2SA1530AR-1
Q7201 2SC3928AR
VS2SC3928AR-1
Q7206 2SC3928AR
VS2SC3928AR-1
DIODE
D601
Diode
VHD1SS355//-1
D801
Diode
VHD1SS355//-1
D802
Diode
VHD1SS355//-1
D1502
Diode
VHDDAN222//-1
D1503
Diode
VHDDAN222//-1
D1504
Diode
VHDDAN222//-1
D1505
Diode
VHD1SS355//-1
D1506
Diode
VHD1SS355//-1
D1701
Diode
VHDHSU119//-1
D1702
Diode
VHDHSU119//-1
D1706
Diode
VHDSFPB74//2E
D1708
Zener Diode
RH-EX0501CEZZY
D1709
Zener Diode
RH-EX0501CEZZY
D1710
Zener Diode
RH-EX0523CEZZ
D1711
Diode
VHDSFPB74//2E
D1712
Diode
VHDHSU119//-1
Mark No. Description
Part No.
D1713
Diode
VHDHSU119//-1
D1715
Diode
VHDSFPB56//2E
D1716
Diode
VHD1SS250//1E
D1717
Diode
VHDSFPB76//2E
D1719
Diode
VHDSFPB76//2E
D1720
Diode
VHDSFPB76//2E
D1723
Diode
VHDSFPB74//2E
D1724
Diode
VHDHSU119//-1
D1727
Diode
VHDHSU119//-1
D7201
Diode
VHDDAN222//-1
D7202
Diode
VHDDAN222//-1
PACKAGED CIRCUIT
X601
Filter
RFiLA0034CEZZ
X801
Crystal
RCRSB0244CEZZ
X802
Crystal
RCRSB0244CEZZ
X1901
Crystal
RCRSZ0093CEZZY
X7001
Crystal
RCRSC0026CEZZY
FILTER , COIL, TANSFORMER
CF7201 Filter
RFiLA0098CEZZ
FL7001 Filter
RFiLN0097GEZZY
FL7002 Filter
RFiLN0097GEZZY
FL7003 Filter
RFiLN0079GEZZY
FL7004 Filter
RFiLN0079GEZZY
L401
Peaking 4.7µH
VP-1M4R7J1R2N
L404
Peaking 27µH
VP-1M270J3R8N
L407
Peaking 22µH
VP-1M220J2R9N
L409
Peaking 4.7µH
VP-1M4R7J1R2N
L601
Peaking 12µH
VP-1M120J1R9N
L602
Peaking 6.8µH
VP-1M6R8J1R4N
L603
Peaking 47µH
VP-1M470J5R4N
L604
Peaking 6.8µH
VP-1M6R8J1R4N
L605
Peaking 5.6µH
VP-1M5R6J1R2NY
L606
Peaking 8.2µH
VP-1M8R2J1R5N
L801
Peaking 4.7µH
VP-1M4R7J1R2N
L802
Peaking 4.7µH
VP-1M4R7J1R2N
L803
Peaking 4.7µH
VP-1M4R7J1R2N
L804
Peaking 4.7µH
VP-1M4R7J1R2N
L805
Peaking 4.7µH
VP-1M4R7J1R2N
L806
Peaking 4.7µH
VP-1M4R7J1R2N
L807
Peaking 4.7µH
VP-1M4R7J1R2N
L1708
Coil
RCiLC0175CEZZY
L1710
Coil
RCiLC0175CEZZY
L1711
Coil
RCiLC0130CEZZ
L1712
Coil
RCiLP0159GEZZ
L1718
Coil
RCiLC0170CEZZY
L1719
Coil
RCiLP0159GEZZ
L1720
Coil
RCiLP0159GEZZ
L1721
Coil
RCiLP0160GEZZ
L1722
Coil
RCiLP0166GEZZY
L7001
Peaking 4.7µH
VP-1M4R7J1R2N
L7002
Peaking 22µH
VP-1M220J2R9N
L7003
Peaking 22µH
VP-1M220J2R9N
T1701
Transformer
RTRNZ0802CEZZY
CAPACITOR
C403
22 6.3V Electrolytic
VCEAPF0JW226M
C404
0.1 25V Ceramic
VCKYCY1EF104Z
C405
0.1 25V Ceramic
VCKYCY1EF104Z
C406
0.1 25V Ceramic
VCKYCY1EF104Z
C407
0.1 25V Ceramic
VCKYCY1EF104Z
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
78
1
2
3
4
1
2
3
4
C
D
F
A
B
E
C408
0.1 25V Ceramic
VCKYCY1EF104Z
C409
0.1 25V Ceramic
VCKYCY1EF104Z
C410
1.0 16V Ceramic
VCKYTV1CB105K
C411
0.1 25V Ceramic
VCKYTV1EB104K
C412
0.1 25V Ceramic
VCKYCY1EF104Z
C413
0.1 25V Ceramic
VCKYCY1EF104Z
C414
0.1 25V Ceramic
VCKYCY1EF104Z
C415
0.1 25V Ceramic
VCKYCY1EF104Z
C416
100 6.3V Electrolytic
VCEAPF0JN107M
C417
1000p 50V Ceramic
VCKYCY1HB102K
C418
0.022 50V Ceramic
VCKYCY1HF223Z
C419
0.1 25V Ceramic
VCKYCY1EF104Z
C420
0.1 25V Ceramic
VCKYCY1EF104Z
C421
0.1 25V Ceramic
VCKYCY1EF104Z
C422
100 16V Electrolytic
VCEAPW1CN107M
C423
0.1 25V Ceramic
VCKYCY1EF104Z
C427
27p 50V Ceramic
VCCCCY1HH270J
C428
56p 50V Ceramic
VCCCCY1HH560J
C429
0.1 25V Ceramic
VCKYCY1EF104Z
C452
100 6.3V Electrolytic
VCEAPF0JN107M
C460
27p 50V Ceramic
VCCCCY1HH270J
C461
10p 50V Ceramic
VCCCCY1HH100D
C462
10p 50V Ceramic
VCCCCY1HH100D
C466
100 16V Electrolytic
VCEAPW1CN107M
C467
0.1 25V Ceramic
VCKYCY1EF104Z
C468
0.1 25V Ceramic
VCKYCY1EF104Z
C614
1.0 50V Electrolytic
VCEAPF1HN105M
C615
0.01 50V Ceramic
VCKYCY1HB103K
C616
1.0 50V Electrolytic
VCEAPF1HW105M
C617
0.1 25V Ceramic
VCKYCY1EF104Z
C618
330 16V Electrolytic
RC-EZ0538CEZZ
C620
220 6.3V Electrolytic
VCEASH0JN227MY
C622
0.01 50V Ceramic
VCKYCY1HB103K
C623
0.1 25V Ceramic
VCKYCY1EF104Z
C624
47 16V Electrolytic
VCEAPF1CW476M
C625
0.1 25V Ceramic
VCKYCY1EF104Z
C626
47 16V Electrolytic
VCEAPF1CW476M
C627
0.1 25V Ceramic
VCKYCY1EF104Z
C628
220p 50V Ceramic
VCCCCY1HH221J
C629
820p 50V Ceramic
VCCCCY1HH821JY
C630
3900p 50V Ceramic
VCKYCY1HB392K
C631
1200p 50V Ceramic
VCKYCY1HB122K
C632
120p 50V Ceramic
VCCCCY1HH121J
C633
0.01 50V Ceramic
VCKYCY1HB103K
C634
22 16V Electrolytic
VCEAPF1CW226M
C635
10 16V Electrolytic
VCEAPF1CW106M
C636
0.1 25V Ceramic
VCKYCY1EF104Z
C638
0.1 25V Ceramic
VCKYCY1EF104Z
C639
10 16V Electrolytic
VCEAPF1CW106M
C640
10 16V Electrolytic
VCEAPF1CW106M
C641
22 16V Electrolytic
VCEAPF1CW226M
C642
0.1 25V Ceramic
VCKYCY1EF104Z
C643
0.1 25V Ceramic
VCKYCY1EF104Z
C644
47 16V Electrolytic
VCEAPF1CW476M
C645
0.1 25V Ceramic
VCKYCY1EF104Z
C646
4.7 50V Electrolytic
VCEAPF1HW475M
C647
33 10V Electrolytic
VCEAPF1AW336M
C648
100 16V Electrolytic
VCEAPF1CW107M
C649
0.1 25V Ceramic
VCKYCY1EF104Z
C650
150p 50V Ceramic
VCCCCY1HH151J
Mark No. Description
Part No.
C651
120p 50V Ceramic
VCCCCY1HH121J
C652
270p 50V Ceramic
VCCCCY1HH271J
C653
0.01 50V Ceramic
VCKYCY1HB103K
C654
0.1 25V Ceramic
VCKYCY1EF104Z
C801
0.1 25V Ceramic
VCKYTV1EB104K
C802
0.1 25V Ceramic
VCKYCY1EF104Z
C803
0.01 50V Ceramic
VCKYCY1HB103K
C804
100 6.3V Electrolytic
VCEAPF0JN107M
C805
0.01 50V Ceramic
VCKYCY1HB103K
C807
0.1 25V Ceramic
VCKYTV1EB104K
C808
0.1 25V Ceramic
VCKYTV1EB104K
C809
0.1 25V Ceramic
VCKYTV1EB104K
C810
4.7 25V Electrolytic
VCEAPF1EN475MY
C811
0.1 25V Ceramic
VCKYTV1EB104K
C812
0.1 25V Ceramic
VCKYTV1EB104K
C813
0.1 25V Ceramic
VCKYTV1EB104K
C814
0.01 50V Ceramic
VCKYCY1HB103K
C815
100 6.3V Electrolytic
VCAAPF0JJ107MY
C816
9.0p 50V Ceramic
VCCCCY1HH9R0DY
C817
0.01 50V Ceramic
VCKYCY1HB103K
C818
0.47 50V Electrolytic
VCEAPF1HN474M
C819
2.2 50V Electrolytic
VCEAPF1HN225MY
C820
0.022 25V Ceramic
VCKYCY1EB223KY
C821
0.01 50V Ceramic
VCKYCY1HB103K
C822
0.1 25V Ceramic
VCKYTV1EB104K
C823
0.1 25V Ceramic
VCKYCY1EF104Z
C824
0.1 25V Ceramic
VCKYTV1EB104K
C825
0.01 50V Ceramic
VCKYCY1HB103K
C826
100 6.3V Electrolytic
VCEAPF0JN107M
C827
0.01 50V Ceramic
VCKYCY1HB103K
C828
0.01 50V Ceramic
VCKYCY1HB103K
C829
10 16V Electrolytic
VCEAPF1CN106M
C830
0.1 25V Ceramic
VCKYTV1EB104K
C831
0.1 25V Ceramic
VCKYTV1EB104K
C832
0.1 25V Ceramic
VCKYTV1EB104K
C833
4.7 25V Electrolytic
VCEAPF1EN475MY
C834
0.1 25V Ceramic
VCKYTV1EB104K
C835
0.1 25V Ceramic
VCKYTV1EB104K
C836
0.1 25V Ceramic
VCKYTV1EB104K
C837
100 6.3V Electrolytic
VCAAPF0JJ107MY
C838
0.01 50V Ceramic
VCKYCY1HB103K
C839
9.0p 50V Ceramic
VCCCCY1HH9R0DY
C840
0.01 50V Ceramic
VCKYCY1HB103K
C841
0.47 50V Electrolytic
VCEAPF1HN474M
C842
0.1 25V Ceramic
VCKYCY1EF104Z
C845
2.2 50V Electrolytic
VCEAPF1HN225MY
C846
0.022 25V Ceramic
VCKYCY1EB223KY
C847
0.01 50V Ceramic
VCKYCY1HB103K
C848
1.0 50V Electrolytic
VCEAPF1HN105M
C849
1.0 50V Electrolytic
VCEAPF1HN105M
C850
1.0 50V Electrolytic
VCEAPF1HN105M
C851
0.1 25V Ceramic
VCKYCY1EF104Z
C852
470 16V Electrolytic
VCEASK1CN477MY
C854
220 6.3V Electrolytic
VCEAPF0JW227MY
C855
220 6.3V Electrolytic
VCEAPF0JW227MY
C856
220 6.3V Electrolytic
VCEAPF0JW227MY
C861
0.1 25V Ceramic
VCKYCY1EF104Z
C866
0.1 25V Ceramic
VCKYCY1EF104Z
C868
0.01 50V Ceramic
VCKYCY1HB103K
C869
0.1 25V Ceramic
VCKYCY1EF104Z
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
79
5
6
7
8
5
6
7
8
C
D
F
A
B
E
C870
0.1 25V Ceramic
VCKYCY1EF104Z
C871
0.1 25V Ceramic
VCKYCY1EF104Z
C872
0.1 25V Ceramic
VCKYCY1EF104Z
C873
1.0 16V Ceramic
VCKYTV1CB105K
C874
1.0 16V Ceramic
VCKYTV1CB105K
C875
1.0 16V Ceramic
VCKYTV1CB105K
C876
2200p 50V Ceramic
VCKYCY1HB222K
C877
0.47 16V Ceramic
VCKYTV1CB474K
C878
0.47 16V Ceramic
VCKYTV1CB474K
C879
22 16V Electrolytic
VCEAPF1CN226MY
C880
0.1 25V Ceramic
VCKYTV1EB104K
C881
0.1 25V Ceramic
VCKYTV1EB104K
C882
0.1 25V Ceramic
VCKYTV1EB104K
C883
22 16V Electrolytic
VCEAPF1CW226M
C884
22 16V Electrolytic
VCEAPF1CW226M
C885
22 16V Electrolytic
VCEAPF1CW226M
C886
39p 50V Ceramic
VCCCCY1HH390J
C887
10 16V Electrolytic
VCEAPF1CN106M
C888
0.47 16V Ceramic
VCKYTV1CB474K
C890
Ceramic
RC-KZ1025CEZZ
C891
47 6.3V Electrolytic
VCEAPF0JN476MY
C892
0.1 25V Ceramic
VCKYTV1EB104K
C893
0.1 25V Ceramic
VCKYTV1EB104K
C894
0.1 25V Ceramic
VCKYTV1EB104K
C895
0.1 25V Ceramic
VCKYTV1EB104K
C896
0.1 25V Ceramic
VCKYTV1EB104K
C897
0.1 25V Ceramic
VCKYTV1EB104K
C898
0.1 25V Ceramic
VCKYCY1EF104Z
C899
47 6.3V Electrolytic
VCEAPF0JN476MY
C900
100 6.3V Electrolytic
VCEAPF0JN107M
C901
0.1 25V Ceramic
VCKYCY1EF104Z
C902
1.0 50V Electrolytic
VCEAPF1HN105M
C903
0.1 25V Ceramic
VCKYCY1EF104Z
C912
0.47 50V Electrolytic
VCEAPF1HN474M
C913
0.47 50V Electrolytic
VCEAPF1HN474M
C914
39 16V Electrolytic
VCAAPF1CJ396MY
C915
0.1 25V Ceramic
VCKYCY1EF104Z
C916
0.1 25V Ceramic
VCKYCY1EF104Z
C917
0.1 25V Ceramic
VCKYTV1EB104K
C918
0.1 25V Ceramic
VCKYTV1EB104K
C919
0.1 25V Ceramic
VCKYTV1EB104K
C920
1.0 16V Ceramic
VCKYTV1CB105K
C921
1.0 16V Ceramic
VCKYTV1CB105K
C922
1.0 16V Ceramic
VCKYTV1CB105K
C923
0.1 25V Ceramic
VCKYCY1EF104Z
C924
0.1 25V Ceramic
VCKYCY1EF104Z
C925
0.1 25V Ceramic
VCKYCY1EF104Z
C926
0.1 25V Ceramic
VCKYCY1EF104Z
C927
0.1 25V Ceramic
VCKYCY1EF104Z
C928
47 16V Electrolytic
VCEAPF1CN476MY
C929
47 16V Electrolytic
VCEAPF1CN476MY
C930
0.1 25V Ceramic
VCKYCY1EF104Z
C931
10 16V Electrolytic
VCEAPF1CN106M
C932
10 16V Electrolytic
VCEAPF1CN106M
C933
0.1 25V Ceramic
VCKYCY1EF104Z
C934
22 16V Electrolytic
VCEAPF1CN226MY
C935
220 6.3V Electrolytic
VCEASH0JN227MY
C936
10 16V Electrolytic
VCEAPF1CN106M
C937
10 16V Electrolytic
VCEAPF1CN106M
C938
0.1 25V Ceramic
VCKYCY1EF104Z
Mark No. Description
Part No.
C944
Capacitor
RC-KZ1025CEZZ
C950
0.1 25V Ceramic
VCKYCY1EF104Z
C951
0.1 25V Ceramic
VCKYCY1EF104Z
C952
0.1 25V Ceramic
VCKYCY1EF104Z
C953
0.1 25V Ceramic
VCKYCY1EF104Z
C954
0.1 25V Ceramic
VCKYCY1EF104Z
C1502
0.1 25V Ceramic
VCKYCY1EF104Z
C1503
0.1 25V Ceramic
VCKYCY1EF104Z
C1504
100 6.3V Electrolytic
VCEAPF0JN107M
C1505
47 16V Electrolytic
VCEAPF1CW476M
C1506
47 16V Electrolytic
VCEAPF1CW476M
C1511
0.1 25V Ceramic
VCKYCY1EF104Z
C1512
1.0 16V Ceramic
VCKYTV1CF105Z
C1701
330 16V Electrolytic
VCEASH1CN337MY
C1702
22 16V Electrolytic
VCEAPF1CW226M
C1703
0.1 25V Ceramic
VCKYCY1EF104Z
C1704
100p 50V Ceramic
VCCCCY1HH101J
C1705
0.47 16V Ceramic
VCKYCY1CF474Z
C1706
1.0 16V Ceramic
VCKYTV1CF105Z
C1707
0.22 16V Ceramic
VCKYTV1CF224Z
C1709
0.1 25V Ceramic
VCKYCY1EF104Z
C1711
0.1 16V Ceramic
VCKYTV1CF104Z
C1712
0.01 50V Ceramic
VCKYCY1HB103K
C1713
1.0 16V Ceramic
VCKYTV1CB105K
C1714
2200p 50V Ceramic
VCKYCY1HB222K
C1715
2200p 50V Ceramic
VCKYCY1HB222K
C1717
0.33 16V Ceramic
VCKYCY1CF334Z
C1718
100 16V Electrolytic
VCEAPF1CN107M
C1719
2200p 50V Ceramic
VCKYCY1HB222K
C1720
2200p 50V Ceramic
VCKYCY1HB222K
C1721
0.33 16V Ceramic
VCKYCY1CF334Z
C1722
100 16V Electrolytic
VCEAPF1CN107M
C1724
0.1 25V Ceramic
VCKYCY1EF104Z
C1725
1.0 16V Ceramic
VCKYTV1CF105Z
C1727
39 16V Electrolytic
VCAAPF1CJ396MY
C1728
82 16V Electrolytic
VCAAPF1CJ826MY
C1729
220 6.3V Electrolytic
VCAAPF0JJ227MY
C1731
0.1 25V Ceramic
VCKYCY1EF104Z
C1732
470 16V Electrolytic
VCEASK1CN477MY
C1733
0.33 16V Ceramic
VCKYCY1CF334Z
C1734
100 16V Electrolytic
VCEAPF1CN107M
C1735
470 16V Electrolytic
VCEASK1CN477MY
C1736
39 16V Electrolytic
VCAAPF1CJ396MY
C1737
82 16V Electrolytic
VCAAPF1CJ826MY
C1738
330 4.0V Electrolytic
VCAAPF0GJ337MY
C1740
1000p 50V Ceramic
VCKYCY1HB102K
C1741
0.33 16V Ceramic
VCKYCY1CF334Z
C1742
100 16V Electrolytic
VCEAPF1CN107M
C1743
1000p 50V Ceramic
VCKYCY1HB102K
C1744
1000p 50V Ceramic
VCKYCY1HB102K
C1745
1.0 16V Ceramic
VCKYTV1CF105Z
C1746
1000p 50V Ceramic
VCKYCY1HB102K
C1748
0.33 16V Ceramic
VCKYCY1CF334Z
C1749
100 16V Electrolytic
VCEAPF1CN107M
C1750
330 16V Electrolytic
VCEASH1CN337MY
C1751
5600p 50V Ceramic
VCKYCY1HB562K
C1752
82 16V Electrolytic
VCAAPF1CJ826MY
C1753
5600p 50V Ceramic
VCKYCY1HB562K
C1754
100 50V Electrolytic
VCEASH1HN107MY
C1755
0.1 50V Ceramic
VCKYTV1HF104Z
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
80
1
2
3
4
1
2
3
4
C
D
F
A
B
E
C1756
1.0 16V Ceramic
VCKYTV1CF105Z
C1757
330 16V Electrolytic
VCEASH1CN337MY
C1758
1.0 16V Ceramic
VCKYTV1CF105Z
C1759
Capacitor
RC-EZ1339CEZZ
C1764
330 16V Electrolytic
VCEASH1CN337MY
C1765
1.0 16V Ceramic
VCKYTV1CF105Z
C1766
Capacitor
RC-EZ1339CEZZ
C1767
1.0 16V Ceramic
VCKYTV1CF105Z
C1768
330 16V Electrolytic
VCEASH1CN337MY
C1769
Capacitor
RC-EZ1339CEZZ
C1770
1000p 50V Ceramic
VCKYCY1HB102K
C1771
1000p 50V Ceramic
VCKYCY1HB102K
C1772
1000p 50V Ceramic
VCKYCY1HB102K
C1773
1000p 50V Ceramic
VCKYCY1HB102K
C1774
470 16V Electrolytic
VCEASK1CN477MY
C1775
330 16V Electrolytic
VCEASK1CN337MY
C1776
1000p 50V Ceramic
VCKYCY1HB102K
C1777
1000p 50V Ceramic
VCKYCY1HB102K
C1778
100 6.3V Electrolytic
VCEAPF0JW107M
C1779
0.1 25V Ceramic
VCKYCY1EF104Z
C1780
1000p 50V Ceramic
VCKYCY1HB102K
C1781
1000p 50V Ceramic
VCKYCY1HB102K
C1782
1000p 50V Ceramic
VCKYCY1HB102K
C1783
39 16V Electrolytic
VCAAPF1CJ396MY
C1784
82 16V Electrolytic
VCAAPF1CJ826MY
C1785
150 10V Electrolytic
VCAAPF1AJ157MY
C1787
1000p 50V Ceramic
VCKYCY1HB102K
C1788
1000p 50V Ceramic
VCKYCY1HB102K
C1789
1000p 50V Ceramic
VCKYCY1HB102K
C1790
1000p 50V Ceramic
VCKYCY1HB102K
C1791
1000p 50V Ceramic
VCKYCY1HB102K
C1792
0.33 16V Ceramic
VCKYCY1CF334Z
C1793
100 16V Electrolytic
VCEAPF1CN107M
C1794
0.33 16V Ceramic
VCKYCY1CF334Z
C1795
100 16V Electrolytic
VCEAPF1CN107M
C1796
0.33 16V Ceramic
VCKYCY1CF334Z
C1797
100 16V Electrolytic
VCEAPF1CN107M
C1798
1000p 50V Ceramic
VCKYCY1HB102K
C1901
100 6.3V Electrolytic
VCEAPF0JW107M
C1902
0.1 25V Ceramic
VCKYCY1EF104Z
C1903
0.1 25V Ceramic
VCKYCY1EF104Z
C1904
0.1 25V Ceramic
VCKYCY1EF104Z
C1905
0.1 25V Ceramic
VCKYCY1EF104Z
C1906
0.1 25V Ceramic
VCKYCY1EF104Z
C1907
0.1 25V Ceramic
VCKYCY1EF104Z
C1908
100 6.3V Electrolytic
VCEAPF0JW107M
C1909
0.1 25V Ceramic
VCKYCY1EF104Z
C1910
0.1 25V Ceramic
VCKYCY1EF104Z
C1911
0.1 25V Ceramic
VCKYCY1EF104Z
C7001
22p 50V Ceramic
VCCCCY1HH220JY
C7002
22p 50V Ceramic
VCCCCY1HH220JY
C7003
0.1 25V Ceramic
VCKYCY1EF104Z
C7004
0.1 25V Ceramic
VCKYCY1EF104Z
C7005
0.1 25V Ceramic
VCKYCY1EF104Z
C7006
0.1 25V Ceramic
VCKYCY1EF104Z
C7007
390p 50V Ceramic
VCCCCY1HH391JY
C7008
0.1 25V Ceramic
VCKYCY1EF104Z
C7009
10 16V Electrolytic
VCEAPF1CN106M
C7010
0.1 25V Ceramic
VCKYCY1EF104Z
C7011
0.1 25V Ceramic
VCKYCY1EF104Z
Mark No. Description
Part No.
C7012
0.47 50V Electrolytic
VCEAPF1HN474M
C7013
0.01 50V Ceramic
VCKYCY1HB103K
C7014
0.1 25V Ceramic
VCKYCY1EF104Z
C7015
470p 50V Ceramic
VCCCCY1HH471JY
C7016
0.33 50V Electrolytic
VCEAPF1HN334MY
C7017
0.1 25V Ceramic
VCKYCY1EF104Z
C7018
0.1 25V Ceramic
VCKYCY1EF104Z
C7019
0.1 25V Ceramic
VCKYCY1EF104Z
C7020
0.1 25V Ceramic
VCKYCY1EF104Z
C7021
10 16V Electrolytic
VCEAPF1CN106M
C7022
0.1 25V Ceramic
VCKYCY1EF104Z
C7023
100p 50V Ceramic
VCCCCY1HH101J
C7024
1.0 50V Elect.(N.P)
VCE9PF1HW105MY
C7025
0.1 25V Ceramic
VCKYCY1EF104Z
C7026
0.1 25V Ceramic
VCKYCY1EF104Z
C7027
0.1 25V Ceramic
VCKYCY1EF104Z
C7028
0.1 25V Ceramic
VCKYCY1EF104Z
C7029
0.1 25V Ceramic
VCKYCY1EF104Z
C7030
0.1 25V Ceramic
VCKYCY1EF104Z
C7031
0.1 25V Ceramic
VCKYCY1EF104Z
C7032
0.1 25V Ceramic
VCKYCY1EF104Z
C7033
0.1 25V Ceramic
VCKYCY1EF104Z
C7034
1.0p 50V Ceramic
VCCCCY1HH1R0CY
C7035
1.0 16V Ceramic
VCKYTV1CB105K
C7036
1.0 16V Ceramic
VCKYTV1CB105K
C7037
0.1 25V Ceramic
VCKYCY1EF104Z
C7038
100 6.3V Electrolytic
VCAAPF0JJ107MY
C7041
0.1 25V Ceramic
VCKYCY1EF104Z
C7042
47 16V Electrolytic
VCEAPF1CN476MY
C7043
10p 50V Ceramic
VCCCCY1HH100D
C7044
27p 50V Ceramic
VCCCCY1HH270J
C7045
10p 50V Ceramic
VCCCCY1HH100D
C7046
10p 50V Ceramic
VCCCCY1HH100D
C7047
27p 50V Ceramic
VCCCCY1HH270J
C7048
10p 50V Ceramic
VCCCCY1HH100D
C7049
0.01 50V Ceramic
VCKYCY1HB103K
C7050
0.01 50V Ceramic
VCKYCY1HB103K
C7051
100 6.3V Electrolytic
VCEAPF0JN107M
C7052
Capacitor
RC-EZ0416CEZZY
C7053
100 6.3V Electrolytic
VCEAPF0JN107M
C7054
100 6.3V Electrolytic
VCEAPF0JN107M
C7055
0.1 25V Ceramic
VCKYCY1EF104Z
C7057
100 6.3V Electrolytic
VCEAPF0JN107M
C7058
0.1 25V Ceramic
VCKYCY1EF104Z
C7201
0.1 25V Ceramic
VCKYCY1EF104Z
C7203
33p 50V Ceramic
VCCCCY1HH330J
C7204
33p 50V Ceramic
VCCCCY1HH330J
C7205
33p 50V Ceramic
VCCCCY1HH330J
C7206
33p 50V Ceramic
VCCCCY1HH330J
C7207
0.1 25V Ceramic
VCKYCY1EF104Z
C7208
0.1 25V Ceramic
VCKYCY1EF104Z
C7209
0.1 25V Ceramic
VCKYCY1EF104Z
C7210
0.1 25V Ceramic
VCKYCY1EF104Z
C7221
100 6.3V Electrolytic
VCEAPF0JW107M
RESISTOR
R403
470 1/16W Metal Oxide
VRS-CY1JF471F
R405
220 1/16W Metal Oxide
VRS-CY1JF221F
R406
390 1/16W Metal Oxide
VRS-CY1JF391F
R409
1.0k 1/16W Metal Oxide
VRS-CY1JF102F
R410
2.7k 1/16W Metal Oxide
VRS-CY1JF272F
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
81
5
6
7
8
5
6
7
8
C
D
F
A
B
E
R411
3.3k 1/16W Metal Oxide
VRS-CY1JF332F
R412
560 1/16W Metal Oxide
VRS-CY1JF561J
R413
56k 1/16W Metal Oxide
VRS-CY1JF563J
R414
390 1/16W Metal Oxide
VRS-CY1JF391J
R415
390 1/16W Metal Oxide
VRS-CY1JF391J
R416
390 1/16W Metal Oxide
VRS-CY1JF391J
R420
390 1/16W Metal Oxide
VRS-CY1JF391J
R421
390 1/16W Metal Oxide
VRS-CY1JF391J
R422
100 1/16W Metal Oxide
VRS-CY1JF101J
R423
100 1/16W Metal Oxide
VRS-CY1JF101J
R424
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R425
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R435
100 1/16W Metal Oxide
VRS-CY1JF101J
R436
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R437
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R439
27k 1/16W Metal Oxide
VRS-CY1JF273J
R440
27k 1/16W Metal Oxide
VRS-CY1JF273J
R441
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R444
100 1/16W Metal Oxide
VRS-CY1JF101J
R445
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R446
330 1/16W Metal Oxide
VRS-CY1JF331J
R447
360 1/16W Metal Oxide
VRS-CY1JF361J
R448
100 1/16W Metal Oxide
VRS-CY1JF101J
R449
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R450
330 1/16W Metal Oxide
VRS-CY1JF331J
R451
330 1/16W Metal Oxide
VRS-CY1JF331J
R452
100 1/16W Metal Oxide
VRS-CY1JF101J
R453
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R454
330 1/16W Metal Oxide
VRS-CY1JF331J
R455
390 1/16W Metal Oxide
VRS-CY1JF391J
R459
560 1/16W Metal Oxide
VRS-CY1JF561J
R481
390 1/16W Metal Oxide
VRS-CY1JF391J
R528
2.2k 1/16W Metal Oxide
VRS-CY1JF222J
R529
910 1/16W Metal Oxide
VRS-CY1JF911J
R530
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R531
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R536
3.3k 1/16W Metal Oxide
VRS-CY1JF332J
R607
12k 1/16W Metal Oxide
VRS-CY1JF123J
R608
12k 1/16W Metal Oxide
VRS-CY1JF123J
R609
100 1/16W Metal Oxide
VRS-CY1JF101J
R610
100 1/16W Metal Oxide
VRS-CY1JF101J
R611
6.8k 1/16W Metal Oxide
VRS-CY1JF682J
R612
390 1/16W Metal Oxide
VRS-CY1JF391J
R613
100 1/16W Metal Oxide
VRS-CY1JF101J
R614
100 1/16W Metal Oxide
VRS-CY1JF101J
R615
100 1/16W Metal Oxide
VRS-CY1JF101J
R620
3.3k 1/16W Metal Oxide
VRS-CY1JF332J
R621
47 1/16W Metal Oxide
VRS-CY1JF470J
R622
3.3k 1/16W Metal Oxide
VRS-CY1JF332J
R623
330 1/16W Metal Oxide
VRS-CY1JF331J
R624
470 1/16W Metal Oxide
VRS-CY1JF471F
R625
1.2k 1/16W Metal Oxide
VRS-CY1JF122J
R626
3.3k 1/16W Metal Oxide
VRS-CY1JF332J
R627
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R628
47 1/16W Metal Oxide
VRS-CY1JF470J
R629
3.3k 1/16W Metal Oxide
VRS-CY1JF332J
R630
470 1/16W Metal Oxide
VRS-CY1JF471J
R631
100 1/16W Metal Oxide
VRS-CY1JF101J
R632
330 1/16W Metal Oxide
VRS-CY1JF331J
R633
6.8k 1/16W Metal Oxide
VRS-CY1JF682J
Mark No. Description
Part No.
R634
1.8k 1/16W Metal Oxide
VRS-CY1JF182J
R635
100 1/16W Metal Oxide
VRS-CY1JF101J
R636
820 1/16W Metal Oxide
VRS-CY1JF821J
R637
15k 1/16W Metal Oxide
VRS-CY1JF153J
R638
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R639
820 1/16W Metal Oxide
VRS-CY1JF821J
R640
1.8k 1/16W Metal Oxide
VRS-CY1JF182J
R641
6.8k 1/16W Metal Oxide
VRS-CY1JF682J
R642
47 1/16W Metal Oxide
VRS-CY1JF470J
R643
680 1/16W Metal Oxide
VRS-CY1JF681J
R644
2.2k 1/16W Metal Oxide
VRS-CY1JF222J
R646
47 1/16W Metal Oxide
VRS-CY1JF470J
R647
330 1/16W Metal Oxide
VRS-CY1JF331J
R648
100 1/16W Metal Oxide
VRS-CY1JF101J
R649
18k 1/16W Metal Oxide
VRS-CY1JF183J
R650
47 1/16W Metal Oxide
VRS-CY1JF470J
R651
5.1k 1/16W Metal Oxide
VRS-CY1JF512J
R652
6.8k 1/16W Metal Oxide
VRS-CY1JF682J
R653
470 1/16W Metal Oxide
VRS-CY1JF471J
R654
220 1/16W Metal Oxide
VRS-CY1JF221J
R655
15k 1/16W Metal Oxide
VRS-CY1JF153J
R656
5.1k 1/16W Metal Oxide
VRS-CY1JF512J
R658
47 1/16W Metal Oxide
VRS-CY1JF470J
R659
1.2k 1/16W Metal Oxide
VRS-CY1JF122J
R661
680 1/16W Metal Oxide
VRS-CY1JF681J
R664
300 1/16W Metal Oxide
VRS-CY1JF301F
R665
1.2k 1/16W Metal Oxide
VRS-CY1JF122J
R666
820 1/16W Metal Oxide
VRS-CY1JF821J
R667
47 1/16W Metal Oxide
VRS-CY1JF470J
R668
3.3k 1/16W Metal Oxide
VRS-CY1JF332J
R669
2.2k 1/16W Metal Oxide
VRS-CY1JF222J
R670
2.2k 1/16W Metal Oxide
VRS-CY1JF222J
R671
0 1/16W Metal Oxide
VRS-CY1JF000J
R672
0 1/16W Metal Oxide
VRS-CY1JF000J
R675
33k 1/16W Metal Oxide
VRS-CY1JF333J
R676
22k 1/16W Metal Oxide
VRS-CY1JF223J
R677
47 1/16W Metal Oxide
VRS-CY1JF470J
R678
2.2k 1/16W Metal Oxide
VRS-CY1JF222J
R679
470 1/16W Metal Oxide
VRS-CY1JF471J
R680
10k 1/16W Metal Oxide
VRS-CY1JF103J
R681
330 1/16W Metal Oxide
VRS-CY1JF331J
R682
47k 1/16W Metal Oxide
VRS-CY1JF473J
R683
18k 1/16W Metal Oxide
VRS-CY1JF183J
R684
47 1/16W Metal Oxide
VRS-CY1JF470J
R685
2.2k 1/16W Metal Oxide
VRS-CY1JF222J
R699
0 1/16W Metal Oxide
VRS-CY1JF000J
R800
0 1/16W Metal Oxide
VRS-CY1JF000J
R801
560 1/16W Metal Oxide
VRS-CY1JF561J
R802
100 1/16W Metal Oxide
VRS-CY1JF101J
R803
100 1/16W Metal Oxide
VRS-CY1JF101J
R805
27k 1/16W Metal Oxide
VRS-CY1JF273J
R807
3.9k 1/16W Metal Oxide
VRS-CY1JF392J
R808
100 1/16W Metal Oxide
VRS-CY1JF101J
R809
100 1/16W Metal Oxide
VRS-CY1JF101J
R811
27k 1/16W Metal Oxide
VRS-CY1JF273J
R812
100 1/16W Metal Oxide
VRS-CY1JF101J
R813
3.9k 1/16W Metal Oxide
VRS-CY1JF392J
R816
10k 1/16W Metal Oxide
VRS-CY1JF103J
R817
10k 1/16W Metal Oxide
VRS-CY1JF103J
R818
10k 1/16W Metal Oxide
VRS-CY1JF103J
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
82
1
2
3
4
1
2
3
4
C
D
F
A
B
E
R819
10k 1/16W Metal Oxide
VRS-CY1JF103J
R820
75 1/8W Metal Oxide
VRS-TQ2BD750J
R821
75 1/8W Metal Oxide
VRS-TQ2BD750J
R822
75 1/8W Metal Oxide
VRS-TQ2BD750J
R830
680 1/16W Metal Oxide
VRS-CY1JF681J
R831
470 1/16W Metal Oxide
VRS-CY1JF471J
R832
47k 1/16W Metal Oxide
VRS-CY1JF473F
R833
100 1/16W Metal Oxide
VRS-CY1JF101J
R834
100 1/16W Metal Oxide
VRS-CY1JF101J
R835
47 1/16W Metal Oxide
VRS-CY1JF470J
R836
47 1/16W Metal Oxide
VRS-CY1JF470J
R837
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R841
47 1/16W Metal Oxide
VRS-CY1JF470J
R842
5.6k 1/16W Metal Oxide
VRS-CY1JF562J
R844
6.8k 1/16W Metal Oxide
VRS-CY1JF682J
R846
47 1/16W Metal Oxide
VRS-CY1JF470J
R847
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R850
47 1/16W Metal Oxide
VRS-CY1JF470J
R851
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R854
4.7k 1/16W Metal Oxide
VRS-CY1JF472J
R855
3.3M 1/16W Metal Oxide
VRS-CY1JF335J
R856
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R857
10k 1/16W Metal Oxide
VRS-CY1JF103J
R858
10k 1/16W Metal Oxide
VRS-CY1JF103J
R859
0 1/16W Metal Oxide
VRS-CY1JF000J
R864
100 1/16W Metal Oxide
VRS-CY1JF101J
R865
100 1/16W Metal Oxide
VRS-CY1JF101J
R866
4.7k 1/16W Metal Oxide
VRS-CY1JF472J
R867
4.7k 1/16W Metal Oxide
VRS-CY1JF472J
R868
4.7k 1/16W Metal Oxide
VRS-CY1JF472J
R869
10k 1/16W Metal Oxide
VRS-CY1JF103J
R873
22k 1/16W Metal Oxide
VRS-CY1JF223F
R874
10k 1/16W Metal Oxide
VRS-CY1JF103J
R875
10k 1/16W Metal Oxide
VRS-CY1JF103J
R876
10k 1/16W Metal Oxide
VRS-CY1JF103J
R877
10k 1/16W Metal Oxide
VRS-CY1JF103J
R886
2.2k 1/16W Metal Oxide
VRS-CY1JF222J
R891
100 1/16W Metal Oxide
VRS-CY1JF101J
R892
100 1/16W Metal Oxide
VRS-CY1JF101J
R894
100 1/16W Metal Oxide
VRS-CY1JF101J
R896
2.2k 1/16W Metal Oxide
VRS-CY1JF222J
R898
10k 1/16W Metal Oxide
VRS-CY1JF103J
R899
10k 1/16W Metal Oxide
VRS-CY1JF103J
R900
10k 1/16W Metal Oxide
VRS-CY1JF103J
R901
18k 1/16W Metal Oxide
VRS-CY1JF183J
R902
22k 1/16W Metal Oxide
VRS-CY1JF223J
R903
18k 1/16W Metal Oxide
VRS-CY1JF183J
R904
22k 1/16W Metal Oxide
VRS-CY1JF223J
R905
18k 1/16W Metal Oxide
VRS-CY1JF183J
R906
22k 1/16W Metal Oxide
VRS-CY1JF223J
R907
56 1/16W Metal Oxide
VRS-CY1JF560J
R908
150 1/8W Metal Oxide
VRS-TQ2BD151J
R909
470 1/16W Metal Oxide
VRS-CY1JF471J
R910
180 1/16W Metal Oxide
VRS-CY1JF181J
R911
470 1/16W Metal Oxide
VRS-CY1JF471J
R912
4.3k 1/16W Metal Oxide
VRS-CY1JF432J
R913
150 1/8W Metal Oxide
VRS-TQ2BD151J
R914
1.5k 1/16W Metal Oxide
VRS-CY1JF152J
R915
56 1/16W Metal Oxide
VRS-CY1JF560J
R923
56 1/16W Metal Oxide
VRS-CY1JF560J
Mark No. Description
Part No.
R924
6.8k 1/16W Metal Oxide
VRS-CY1JF682J
R925
10k 1/16W Metal Oxide
VRS-CY1JF103J
R926
3.3k 1/16W Metal Oxide
VRS-CY1JF332J
R927
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R928
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R929
56 1/16W Metal Oxide
VRS-CY1JF560J
R930
56 1/16W Metal Oxide
VRS-CY1JF560J
R931
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R932
100 1/16W Metal Oxide
VRS-CY1JF101J
R933
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R934
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R935
820 1/16W Metal Oxide
VRS-CY1JF821J
R936
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R937
100 1/16W Metal Oxide
VRS-CY1JF101J
R938
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R939
820 1/16W Metal Oxide
VRS-CY1JF821J
R940
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R941
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R942
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R943
820 1/16W Metal Oxide
VRS-CY1JF821J
R944
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R945
820 1/16W Metal Oxide
VRS-CY1JF821J
R946
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R947
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R948
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R949
820 1/16W Metal Oxide
VRS-CY1JF821J
R950
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R951
820 1/16W Metal Oxide
VRS-CY1JF821J
R952
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R953
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R954
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R955
820 1/16W Metal Oxide
VRS-CY1JF821J
R956
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R957
820 1/16W Metal Oxide
VRS-CY1JF821J
R958
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R959
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R960
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R961
820 1/16W Metal Oxide
VRS-CY1JF821J
R962
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R963
47 1/16W Metal Oxide
VRS-CY1JF470J
R964
4.7k 1/16W Metal Oxide
VRS-CY1JF472J
R965
47 1/16W Metal Oxide
VRS-CY1JF470J
R966
4.7k 1/16W Metal Oxide
VRS-CY1JF472J
R967
22k 1/16W Metal Oxide
VRS-CY1JF223J
R968
4.7k 1/16W Metal Oxide
VRS-CY1JF472J
R969
47 1/16W Metal Oxide
VRS-CY1JF470J
R970
11k 1/16W Metal Oxide
VRS-CY1JF113F
R971
6.8k 1/16W Metal Oxide
VRS-CY1JF682F
R972
1.5k 1/16W Metal Oxide
VRS-CY1JF152F
R973
47 1/16W Metal Oxide
VRS-CY1JF470J
R974
1.0M 1/16W Metal Oxide
VRS-CY1JF105J
R975
4.7k 1/16W Metal Oxide
VRS-CY1JF472J
R976
4.7k 1/16W Metal Oxide
VRS-CY1JF472J
R977
10k 1/16W Metal Oxide
VRS-CY1JF103J
R978
8.2k 1/16W Metal Oxide
VRS-CY1JF822J
R979
33k 1/16W Metal Oxide
VRS-CY1JF333F
R980
56 1/16W Metal Oxide
VRS-CY1JF560J
R981
10k 1/16W Metal Oxide
VRS-CY1JF103J
R982
10k 1/16W Metal Oxide
VRS-CY1JF103J
R983
10k 1/16W Metal Oxide
VRS-CY1JF103J
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
83
5
6
7
8
5
6
7
8
C
D
F
A
B
E
R984
22k 1/16W Metal Oxide
VRS-CY1JF223J
R987
330 1/16W Metal Oxide
VRS-CY1JF331F
R988
1.0k 1/16W Metal Oxide
VRS-CY1JF102F
R989
120 1/16W Metal Oxide
VRS-CY1JF121FY
R990
39k 1/16W Metal Oxide
VRS-CY1JF393F
R991
47 1/16W Metal Oxide
VRS-CY1JF470J
R992
100 1/16W Metal Oxide
VRS-CY1JF101J
R993
100 1/16W Metal Oxide
VRS-CY1JF101J
R994
100 1/16W Metal Oxide
VRS-CY1JF101J
R995
100 1/16W Metal Oxide
VRS-CY1JF101J
R996
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R997
56 1/16W Metal Oxide
VRS-CY1JF560J
R998
56 1/16W Metal Oxide
VRS-CY1JF560J
R999
100 1/16W Metal Oxide
VRS-CY1JF101J
R1501
100 1/16W Metal Oxide
VRS-CY1JF101J
R1502
100 1/16W Metal Oxide
VRS-CY1JF101J
R1503
100 1/16W Metal Oxide
VRS-CY1JF101J
R1504
100 1/16W Metal Oxide
VRS-CY1JF101J
R1505
100 1/16W Metal Oxide
VRS-CY1JF101J
R1506
100 1/16W Metal Oxide
VRS-CY1JF101J
R1507
100 1/16W Metal Oxide
VRS-CY1JF101J
R1515
22k 1/16W Metal Oxide
VRS-CY1JF223J
R1516
22k 1/16W Metal Oxide
VRS-CY1JF223J
R1517
22k 1/16W Metal Oxide
VRS-CY1JF223J
R1518
100 1/16W Metal Oxide
VRS-CY1JF101J
R1519
100 1/16W Metal Oxide
VRS-CY1JF101J
R1521
390 1/16W Metal Oxide
VRS-CY1JF391J
R1522
390 1/16W Metal Oxide
VRS-CY1JF391J
R1524
390 1/16W Metal Oxide
VRS-CY1JF391J
R1525
390 1/16W Metal Oxide
VRS-CY1JF391J
R1529
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R1530
4.7k 1/16W Metal Oxide
VRS-CY1JF472J
R1531
100 1/16W Metal Oxide
VRS-CY1JF101J
R1533
100 1/16W Metal Oxide
VRS-CY1JF101J
R1534
100 1/16W Metal Oxide
VRS-CY1JF101J
R1535
47k 1/16W Metal Oxide
VRS-CY1JF473J
R1538
22k 1/16W Metal Oxide
VRS-CY1JF223J
R1539
22k 1/16W Metal Oxide
VRS-CY1JF223J
R1544
100 1/16W Metal Oxide
VRS-CY1JF101J
R1545
100 1/16W Metal Oxide
VRS-CY1JF101J
R1550
22k 1/16W Metal Oxide
VRS-CY1JF223J
R1551
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R1564
10k 1/16W Metal Oxide
VRS-CY1JF103J
R1565
390 1/16W Metal Oxide
VRS-CY1JF391J
R1567
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R1568
47k 1/16W Metal Oxide
VRS-CY1JF473J
R1569
47k 1/16W Metal Oxide
VRS-CY1JF473J
R1570
47k 1/16W Metal Oxide
VRS-CY1JF473J
R1571
47k 1/16W Metal Oxide
VRS-CY1JF473J
R1572
47k 1/16W Metal Oxide
VRS-CY1JF473J
R1573
47k 1/16W Metal Oxide
VRS-CY1JF473J
R1594
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R1596
22k 1/16W Metal Oxide
VRS-CY1JF223J
R1701
68k 1/16W Metal Oxide
VRS-CY1JF683J
R1702
2.7k 1/16W Metal Oxide
VRS-CY1JF272J
R1706
33k 1/16W Metal Oxide
VRS-CY1JF333J
R1707
27k 1/16W Metal Oxide
VRS-CY1JF273J
R1708
39k 1/16W Metal Oxide
VRS-CY1JF393J
R1709
10 1/4W Metal Oxide
VRS-TW2ED100J
R1711
100 1/16W Metal Oxide
VRS-CY1JF101J
Mark No. Description
Part No.
R1712
100 1/16W Metal Oxide
VRS-CY1JF101J
R1713
100 1/16W Metal Oxide
VRS-CY1JF101J
R1714
10k 1/16W Metal Oxide
VRS-CY1JF103J
R1718
100k 1/16W Metal Oxide
VRS-CY1JF104J
R1719
100k 1/16W Metal Oxide
VRS-CY1JF104J
R1721
100k 1/16W Metal Oxide
VRS-CY1JF104J
R1722
100k 1/16W Metal Oxide
VRS-CY1JF104J
R1724
100k 1/16W Metal Oxide
VRS-CY1JF104J
R1726
100k 1/16W Metal Oxide
VRS-CY1JF104J
R1727
100k 1/16W Metal Oxide
VRS-CY1JF104J
R1728
100k 1/16W Metal Oxide
VRS-CY1JF104J
R1736
4.7k 1/16W Metal Oxide
VRS-CY1JF472J
R1743
12 1/4W Metal Oxide
VRS-TW2ED120J
R1744
3.3k 1/16W Metal Oxide
VRS-CY1JF332F
R1745
330 1/16W Metal Oxide
VRS-CY1JF331F
R1746
1.5k 1/16W Metal Oxide
VRS-CY1JF152F
R1747
47k 1/16W Metal Oxide
VRS-CY1JF473F
R1751
470 1/4W Metal Oxide
VRS-TW2ED471J
R1753
10k 1/16W Metal Oxide
VRS-CY1JF103J
R1756
4.7k 1/16W Metal Oxide
VRS-CY1JF472J
R1763
12 1/4W Metal Oxide
VRS-TW2ED120J
R1764
2.7k 1/16W Metal Oxide
VRS-CY1JF272F
R1765
330 1/16W Metal Oxide
VRS-CY1JF331F
R1766
1.8k 1/16W Metal Oxide
VRS-CY1JF182F
R1767
12k 1/16W Metal Oxide
VRS-CY1JF123F
R1774
22k 1/16W Metal Oxide
VRS-CY1JF223J
R1775
1.0k 1/16W Metal Oxide
VRS-CY1JF102F
R1776
560 1/16W Metal Oxide
VRS-CY1JF561F
R1777
30k 1/16W Metal Oxide
VRS-CY1JF303F
R1778
4.7k 1/16W Metal Oxide
VRS-CY1JF472F
R1779
39k 1/16W Metal Oxide
VRS-CY1JF393F
R1780
47k 1/16W Metal Oxide
VRS-CY1JF473J
R1781
10k 1/16W Metal Oxide
VRS-CY1JF103J
R1782
12 1/4W Metal Oxide
VRS-TW2ED120J
R1783
1.0k 1/16W Metal Oxide
VRS-CY1JF102F
R1784
12k 1/16W Metal Oxide
VRS-CY1JF123J
R1785
4.7k 1/16W Metal Oxide
VRS-CY1JF472J
R1786
0 1/16W Metal Oxide
VRS-CY1JF000J
R1788
820 1W Metal Oxide
VRS-CR3AD821J
R1790
68k 1/8W Metal Oxide
VRS-TQ2BD683J
R1791
22k 1/16W Metal Oxide
VRS-CY1JF223J
R1792
22k 1/16W Metal Oxide
VRS-CY1JF223J
R1794
22k 1/16W Metal Oxide
VRS-CY1JF223J
R1901
22k 1/16W Metal Oxide
VRS-CY1JF223J
R1902
22k 1/16W Metal Oxide
VRS-CY1JF223J
R1905
100 1/16W Metal Oxide
VRS-CY1JF101J
R1906
100 1/16W Metal Oxide
VRS-CY1JF101J
R1907
100 1/16W Metal Oxide
VRS-CY1JF101J
R1911
0 1/16W Metal Oxide
VRS-CY1JF000J
R1913
22k 1/16W Metal Oxide
VRS-CY1JF223J
R1915
22k 1/16W Metal Oxide
VRS-CY1JF223J
R1916
100 1/16W Metal Oxide
VRS-CY1JF101J
R1917
100 1/16W Metal Oxide
VRS-CY1JF101J
R1920
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R1921
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R1922
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R1923
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R1926
10k 1/16W Metal Oxide
VRS-CY1JF103J
R1927
10k 1/16W Metal Oxide
VRS-CY1JF103J
R1928
10k 1/16W Metal Oxide
VRS-CY1JF103J
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
84
1
2
3
4
1
2
3
4
C
D
F
A
B
E
R1929
10k 1/16W Metal Oxide
VRS-CY1JF103J
R1930
10k 1/16W Metal Oxide
VRS-CY1JF103J
R1931
100 1/16W Metal Oxide
VRS-CY1JF101J
R1932
100 1/16W Metal Oxide
VRS-CY1JF101J
R1933
100 1/16W Metal Oxide
VRS-CY1JF101J
R1934
100 1/16W Metal Oxide
VRS-CY1JF101J
R1935
100 1/16W Metal Oxide
VRS-CY1JF101J
R1936
100 1/16W Metal Oxide
VRS-CY1JF101J
R1937
100 1/16W Metal Oxide
VRS-CY1JF101J
R1938
100 1/16W Metal Oxide
VRS-CY1JF101J
R1941
100 1/16W Metal Oxide
VRS-CY1JF101J
R1942
100 1/16W Metal Oxide
VRS-CY1JF101J
R1943
100 1/16W Metal Oxide
VRS-CY1JF101J
R1944
100 1/16W Metal Oxide
VRS-CY1JF101J
R7001
470 1/16W Metal Oxide
VRS-CY1JF471J
R7002
470 1/16W Metal Oxide
VRS-CY1JF471J
R7003
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R7004
33k 1/16W Metal Oxide
VRS-CY1JF333J
R7005
270 1/16W Metal Oxide
VRS-CY1JF271J
R7006
270 1/16W Metal Oxide
VRS-CY1JF271J
R7007
1.8k 1/16W Metal Oxide
VRS-CY1JF182J
R7008
1.8k 1/16W Metal Oxide
VRS-CY1JF182J
R7009
4.7k 1/16W Metal Oxide
VRS-CY1JF472J
R7010
470 1/16W Metal Oxide
VRS-CY1JF471J
R7011
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R7012
2.2k 1/16W Metal Oxide
VRS-CY1JF222J
R7013
47k 1/16W Metal Oxide
VRS-CY1JF473J
R7014
220k 1/16W Metal Oxide
VRS-CY1JF224J
R7015
220 1/16W Metal Oxide
VRS-CY1JF221J
R7016
0 1/8W Metal Oxide
VRS-TQ2BD000J
R7017
100 1/16W Metal Oxide
VRS-CY1JF101J
R7018
100k 1/16W Metal Oxide
VRS-CY1JF104J
R7019
100k 1/16W Metal Oxide
VRS-CY1JF104J
R7020
100k 1/16W Metal Oxide
VRS-CY1JF104J
R7021
100k 1/16W Metal Oxide
VRS-CY1JF104J
R7023
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R7027
0 1/16W Metal Oxide
VRS-CY1JF000J
R7028
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R7031
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R7034
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R7035
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R7036
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R7037
910 1/16W Metal Oxide
VRS-CY1JF911J
R7038
1.5k 1/16W Metal Oxide
VRS-CY1JF152J
R7039
1.5k 1/16W Metal Oxide
VRS-CY1JF152J
R7040
2.2k 1/16W Metal Oxide
VRS-CY1JF222J
R7041
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R7042
910 1/16W Metal Oxide
VRS-CY1JF911J
R7043
1.5k 1/16W Metal Oxide
VRS-CY1JF152J
R7044
1.5k 1/16W Metal Oxide
VRS-CY1JF152J
R7045
2.2 1/2W Metal Oxide
VRS-TX2HF2R2JY
R7046
2.2 1/2W Metal Oxide
VRS-TX2HF2R2JY
R7049
47 1/16W Metal Oxide
VRS-CY1JF470J
R7050
620 1/16W Metal Oxide
VRS-CY1JF621JY
R7201
1.0M 1/16W Metal Oxide
VRS-CY1JF105J
R7202
220 1/16W Metal Oxide
VRS-CY1JF221J
R7203
5.6k 1/16W Metal Oxide
VRS-CY1JF562J
R7205
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R7206
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R7207
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
Mark No. Description
Part No.
R7208
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R7209
100 1/16W Metal Oxide
VRS-CY1JF101J
R7210
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R7211
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R7215
10k 1/16W Metal Oxide
VRS-CY1JF103J
R7216
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R7217
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R7224
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R7225
3.3k 1/16W Metal Oxide
VRS-CY1JF332J
R7237
100 1/16W Metal Oxide
VRS-CY1JF101J
R7238
10k 1/16W Metal Oxide
VRS-CY1JF103J
R7239
10k 1/16W Metal Oxide
VRS-CY1JF103J
R7240
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
MISCELLANEOUS PARTS
F1702
Fuse 4A
QFS-D0011CEZZ
FB401
Ferrite Bead
RBLN-0061TAZZ
FB601
Ferrite Bead
RBLN-0061TAZZ
FB602
Ferrite Bead
RBLN-0061TAZZ
FB603
Ferrite Bead
RBLN-0061TAZZ
FB801
Ferrite Bead
RBLN-0061TAZZ
FB802
Ferrite Bead
RBLN-0061TAZZ
FB803
Ferrite Bead
RBLN-0061TAZZ
FB1701 Ferrite Bead
RBLN-0210TAZZ
FB1702 Ferrite Bead
RBLN-0210TAZZ
FB1703 Ferrite Bead
RBLN-0210TAZZ
FB1704 Ferrite Bead
RBLN-0210TAZZ
FB1705 Ferrite Bead
RBLN-0210TAZZ
FB1706 Ferrite Bead
RBLN-0210TAZZ
FB1707 Ferrite Bead
RBLN-0210TAZZ
FB1709 Ferrite Bead
RBLN-0210TAZZ
FB1710 Ferrite Bead
RBLN-0210TAZZ
FB1711 Ferrite Bead
RBLN-0210TAZZ
FB1712 Ferrite Bead
RBLN-0210TAZZ
FB1713 Ferrite Bead
RBLN-0210TAZZ
FB1714 Ferrite Bead
RBLN-0210TAZZ
FB1715 Ferrite Bead
RBLN-0210TAZZ
FB1716 Ferrite Bead
RBLN-0210TAZZ
FB1717 Ferrite Bead
RBLN-0210TAZZ
FB1718 Ferrite Bead
RBLN-0210TAZZ
FB1719 Ferrite Bead
RBLN-0210TAZZ
FB1720 Ferrite Bead
RBLN-0210TAZZ
FB1721 Ferrite Bead
RBLN-0210TAZZ
FB1722 Ferrite Bead
RBLN-0210TAZZ
FB1723 Ferrite Bead
RBLN-0210TAZZ
FB1724 Ferrite Bead
RBLN-0051TAZZ
FB1725 Ferrite Bead
RBLN-0210TAZZ
FB1727 Ferrite Bead
RBLN-0210TAZZ
FB1728 Ferrite Bead
RBLN-0210TAZZ
FB1729 Ferrite Bead
RBLN-0210TAZZ
FB1730 Ferrite Bead
RBLN-0210TAZZ
FB1731 Ferrite Bead
RBLN-0006TAZZ
FB1732 Ferrite Bead
RBLN-0210TAZZ
FB1733 Ferrite Bead
RBLN-0210TAZZ
FB1734 Ferrite Bead
RBLN-0210TAZZ
FB1735 Ferrite Bead
RBLN-0210TAZZ
FB1736 Ferrite Bead
RBLN-0210TAZZ
FB1737 Ferrite Bead
RBLN-0210TAZZ
FB1740 Ferrite Bead
RBLN-0210TAZZ
FB1741 Ferrite Bead
RBLN-0210TAZZ
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
85
5
6
7
8
5
6
7
8
C
D
F
A
B
E
FB1742 Ferrite Bead
RBLN-0210TAZZ
FB1744 Ferrite Bead
RBLN-0210TAZZ
FB1745 Ferrite Bead
RBLN-0210TAZZ
FB1746 Ferrite Bead
RBLN-0210TAZZ
FB1747 Ferrite Bead
RBLN-0210TAZZ
FB1748 Ferrite Bead
RBLN-0210TAZZ
FB1749 Ferrite Bead
RBLN-0210TAZZ
FB1750 Ferrite Bead
RBLN-0210TAZZ
FB1751 Ferrite Bead
RBLN-0210TAZZ
FB1752 Ferrite Bead
RBLN-0210TAZZ
FB1901 Ferrite Bead
RBLN-0060TAZZ
FB1902 Ferrite Bead
RBLN-0060TAZZ
FB7001 Ferrite Bead
RBLN-0061TAZZ
FB7002 Ferrite Bead
RBLN-0061TAZZ
FB7003 Ferrite Bead
RBLN-0061TAZZ
FB7004 Ferrite Bead
RBLN-0059CEZZY
FB7005 Ferrite Bead
RBLN-0059CEZZY
FB7006 Ferrite Bead
RBLN-0059CEZZY
FB7007 Ferrite Bead
RBLN-0059CEZZY
FB7008 Ferrite Bead
RBLN-0061TAZZ
FB7201 Ferrite Bead
RBLN-0061TAZZ
FB7203 Ferrite Bead
RBLN-0061TAZZ
FH1703 Fuse Holder
QFSHD1002CEZZ
FH1704 Fuse Holder
QFSHD1002CEZZ
P801
Plug 6-Pin
QPLGN0056CEZZY
P1502
Plug 12-Pin
QPLGN0549FJZZY
P1504
Plug 10-Pin
QPLGN0060CEZZY
P1702
Plug 13-Pin
QPLGN0550FJZZY
P1703
Plug 12-Pin
QPLGN0062CEZZY
P1901
Plug
QPLGN1094CEZZ
SC1501 Socket 30-Pin
QSOCN0490FJZZ
SC1502 Socket 50-Pin
QSOCN0464FJZZ
SC1503 Socket 30-Pin
QSOCN0550FJZZY
SC1504 Socket 30-Pin
QSOCN0490FJZZ
Connecting Cord
QCNW-6077CEZZ
BFRONT UNIT
IC
IC3401 24LC21T
VHi24LC21//-1
TRANSISTOR
Q3401 2SC2735
VS2SC2735//1E
Q3402 2SC2735
VS2SC2735//1E
Q3403 2SC2735
VS2SC2735//1E
DIODE
D3401
Zener Diode
RH-EX1264CEZZ
D3402
Diode
VHDMA3120WA-1
D3403
Diode
VHDMA3120WA-1
D3404
Diode
VHDMA3120WA-1
D3405
Zener Diode
RH-EX1264CEZZ
D3406
Zener Diode
RH-EX1264CEZZ
D3407
Zener Diode
RH-EX1271CEZZ
D3408
Zener Diode
RH-EX1271CEZZ
D3409
Diode
VHDDAN222//-1
FILTER, COIL
FL3401 Filter
RFiLN0003TAZZ
FL3402 Filter
RFiLN0003TAZZ
FL3403 Filter
RFiLN0003TAZZ
FL3412 Filter
RFiLN0017TAZZ
FL3413 Filter
RFiLN0017TAZZ
Mark No. Description
Part No.
FL3414 Filter
RFiLN0017TAZZ
L3401
Peaking 10µH
VP-1M100J1R6N
CAPACITOR
C3401
100 6.3V Electrolytic
VCEAPF0JW107M
C3402
0.01 50V Ceramic
VCKYCY1HB103K
C3403
0.1 25V Ceramic
VCKYCY1EF104Z
C3404
47 16V Electrolytic
VCEAPF1CW476M
C3405
0.01 50V Ceramic
VCKYCY1HB103K
C3406
10 16V Electrolytic
VCEAPF1CN106M
C3407
0.01 50V Ceramic
VCKYCY1HB103K
C3408
10 16V Electrolytic
VCEAPF1CN106M
C3409
0.01 50V Ceramic
VCKYCY1HB103K
C3410
10 16V Electrolytic
VCEAPF1CN106M
C3411
10 16V Electrolytic
VCEAPF1CN106M
C3412
10 16V Electrolytic
VCEAPF1CN106M
C3414
10p 50V Ceramic
VCCCCY1HH100D
C3415
10 16V Electrolytic
VCEAPF1CN106M
C3416
0.1 25V Ceramic
VCKYCY1EF104Z
C3417
10p 50V Ceramic
VCCCCY1HH100D
C3418
10 16V Electrolytic
VCEAPF1CN106M
C3420
0.01 50V Ceramic
VCKYCY1HB103K
C3421
0.01 50V Ceramic
VCKYCY1HB103K
C3422
0.01 50V Ceramic
VCKYCY1HB103K
C3423
0.1 25V Ceramic
VCKYCY1EF104Z
C3426
10 25V Electrolytic
VCEAPW1EN106M
C3427
10 25V Electrolytic
VCEAPW1EN106M
C3428
100p 50V Ceramic
VCCCCY1HH101J
C3429
100p 50V Ceramic
VCCCCY1HH101J
C3430
56p 50V Ceramic
VCCCCY1HH560J
C3431
56p 50V Ceramic
VCCCCY1HH560J
C3432
100p 50V Ceramic
VCCCCY1HH101J
C3433
1000p 50V Ceramic
VCKYCY1HB102K
C3434
1000p 50V Ceramic
VCKYCY1HB102K
C3435
100p 50V Ceramic
VCCCCY1HH101J
C3436
1000p 50V Ceramic
VCKYCY1HB102K
C3437
1000p 50V Ceramic
VCKYCY1HB102K
RESISTOR
R3401
560 1/8W Metal Oxide
VRS-TQ2BD561J
R3402
100 1/16W Metal Oxide
VRS-CY1JF101J
R3403
5.6k 1/16W Metal Oxide
VRS-CY1JF562J
R3404
10k 1/16W Metal Oxide
VRS-CY1JF103J
R3405
560 1/8W Metal Oxide
VRS-TQ2BD561J
R3406
100 1/16W Metal Oxide
VRS-CY1JF101J
R3407
5.6k 1/16W Metal Oxide
VRS-CY1JF562J
R3408
10k 1/16W Metal Oxide
VRS-CY1JF103J
R3409
560 1/8W Metal Oxide
VRS-TQ2BD561J
R3410
100 1/16W Metal Oxide
VRS-CY1JF101J
R3411
5.6k 1/16W Metal Oxide
VRS-CY1JF562J
R3412
10k 1/16W Metal Oxide
VRS-CY1JF103J
R3413
100 1/16W Metal Oxide
VRS-CY1JF101J
R3414
100 1/16W Metal Oxide
VRS-CY1JF101J
R3415
2.2k 1/16W Metal Oxide
VRS-CY1JF222J
R3416
100 1/16W Metal Oxide
VRS-CY1JF101J
R3417
47k 1/16W Metal Oxide
VRS-CY1JF473J
R3418
47k 1/16W Metal Oxide
VRS-CY1JF473J
R3422
75 1/4W Metal Oxide
VRS-TW2ED750J
R3423
75 1/4W Metal Oxide
VRS-TW2ED750J
R3424
75 1/4W Metal Oxide
VRS-TW2ED750J
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
86
1
2
3
4
1
2
3
4
C
D
F
A
B
E
R3425
100 1/16W Metal Oxide
VRS-CY1JF101J
R3427
0 1/16W Metal Oxide
VRS-CY1JF000J
R3428
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R3429
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R3430
100k 1/16W Metal Oxide
VRS-CY1JF104J
R3431
100k 1/16W Metal Oxide
VRS-CY1JF104J
R3432
75 1/8W Metal Oxide
VRS-TQ2BD750J
R3433
100 1/16W Metal Oxide
VRS-CY1JF101J
R3434
75 1/4W Metal Oxide
VRS-TW2ED750J
R3435
10k 1/16W Metal Oxide
VRS-CY1JF103J
R3436
270k 1/16W Metal Oxide
VRS-CY1JF274F
R3437
75 1/8W Metal Oxide
VRS-TQ2BD750J
R3439
47 1/16W Metal Oxide
VRS-CY1JF470J
R3440
47 1/16W Metal Oxide
VRS-CY1JF470J
R3441
47 1/16W Metal Oxide
VRS-CY1JF470J
R3442
100k 1/16W Metal Oxide
VRS-CY1JF104J
R3443
100k 1/16W Metal Oxide
VRS-CY1JF104J
R3444
100 1/16W Metal Oxide
VRS-CY1JF101J
R3445
4.7 1/4W Metal Oxide
VRS-TW2ED4R7J
R3446
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R3447
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R3448
4.7 1/4W Metal Oxide
VRS-TW2ED4R7J
R3449
100 1/16W Metal Oxide
VRS-CY1JF101J
R3450
100 1/16W Metal Oxide
VRS-CY1JF101J
R3451
100 1/16W Metal Oxide
VRS-CY1JF101J
R3453
2.2k 1/16W Metal Oxide
VRS-CY1JF222J
R3454
2.2k 1/16W Metal Oxide
VRS-CY1JF222J
R3455
1.0k 1/16W Metal Oxide
VRS-TV1JD102J
R3456
1.0k 1/16W Metal Oxide
VRS-TV1JD102J
SWITCH
SW3401Switch
QSW-K0069CEZZ
MISCELLANEOUS PARTS
FB3401 Ferrite Bead
RBLN-0076TAZZ
FB3402 Ferrite Bead
RBLN-0060TAZZ
FB3403 Ferrite Bead
RBLN-0060TAZZ
FB3404 Ferrite Bead
RBLN-0060TAZZ
FB3405 Ferrite Bead
RBLN-0062TAZZ
FB3406 Ferrite Bead
RBLN-0062TAZZ
FB3407 Ferrite Bead
RBLN-0062TAZZ
FB3408 Ferrite Bead
RBLN-0062TAZZ
FB3409 Ferrite Bead
RBLN-0062TAZZ
J3401
Jack 3-RCA/DIN
QJAKZ0102PEZZ
J3403
Jack (PC-SIN)
QJAKJ0047CEZZ
P3401
Plug 12-Pin
QPLGN1278GEZZ
P3402
Plug 18-Pin
QPLGN0428FJZZ
SC3401 Socket 15-Pin D-sub
QSOCN1594CEZZ
CAV UNIT
TUNER
TU1101 Tuner
VTUVT2U5UW253
TU1102 Tuner
VTUVT2U5UF253
IC
IC1101 BA05FP
VHiBA05FP++-1Y
IC1102 M62320FP
VHiM62320FP-1
IC1103 BA05FP
VHiBA05FP++-1Y
IC1104 MM1506XNRE
VHiMM1506XN-1
IC1105 MM1506XNRE
VHiMM1506XN-1
IC1301 CXA2069Q
VHiCXA2069Q-1
IC1401 MM1519XG
VHiMM1519XQ-1
Mark No. Description
Part No.
IC1601 Z8623012SSC
VHiZ86230S+-1Y
IC1602 Z8612912SSC
VHiZ86129S+-1Y
IC1603 Z8623012SSC
VHiZ86230S+-1Y
IC2501 MSP3440G-QA-B8
RH-IX3370CEN1Q
IC2503 PST529DMT
VHiPST529DM-1
IC2504 NJM2233BM
VHiNJ2233BM-1Y
IC2505 NJM2233BM
VHiNJ2233BM-1Y
TRANSISTOR
Q1101 2SC3928AR
VS2SC3928AR-1
Q1102 DTC314TK
VSDTC314TK/-1
Q1103 DTC314TK
VSDTC314TK/-1
Q1104 2SC3928AR
VS2SC3928AR-1
Q1105 2SA1530AR
VS2SA1530AR-1
Q1106 2SA1530AR
VS2SA1530AR-1
Q1107 2SA1530AR
VS2SA1530AR-1
Q1108 2SC3928AR
VS2SC3928AR-1
Q1111 2SC3928AR
VS2SC3928AR-1
Q1112 2SA1530AR
VS2SA1530AR-1
Q1401 2SC3928AR
VS2SC3928AR-1
Q1402 2SC3928AR
VS2SC3928AR-1
Q1403 2SC3928AR
VS2SC3928AR-1
Q1405 2SA1530AR
VS2SA1530AR-1
Q1406 2SA1530AR
VS2SA1530AR-1
Q1407 2SA1530AR
VS2SA1530AR-1
Q1581 2SA1298Y(PDP-R03T)
VS2SA1298Y/-1Y
Q1582 DTC144TE(PDP-R03T)
VSDTC144TE/-1Y
Q1601 2SC3928AR
VS2SC3928AR-1
Q1602 2SC3928AR
VS2SC3928AR-1
Q2502 2SA1530AR
VS2SA1530AR-1
Q2503 2SA1530AR
VS2SA1530AR-1
Q2504 2SA1530AR
VS2SA1530AR-1
Q2505 2SA1530AR
VS2SA1530AR-1
Q2506 2SA1530AR
VS2SA1530AR-1
Q2510 DTA144EE
VSDTA144EE/-1
Q2511 DTC144EE
VSDTC144EE/-1
DIODE
D1101
Zener Diode
RH-EX1264CEZZ
D1102
Zener Diode
RH-EX1264CEZZ
D1103
Diode
VHDHSU119//-1
D1104
Diode
VHDHSU119//-1
D1110
Zener Diode
RH-EX0207CEZZY
D1301
Zener Diode
RH-EX1264CEZZ
D1302
Zener Diode
RH-EX1264CEZZ
D1303
Zener Diode
RH-EX1264CEZZ
D1304
Zener Diode
RH-EX1264CEZZ
D1305
Zener Diode
RH-EX1264CEZZ
D1306
Zener Diode
RH-EX1264CEZZ
D1307
Zener Diode
RH-EX1264CEZZ
D1308
Zener Diode
RH-EX1264CEZZ
D1309
Zener Diode
RH-EX1264CEZZ
D1310
Zener Diode
RH-EX1264CEZZ
D1311
Zener Diode
RH-EX1264CEZZ
D1312
Zener Diode
RH-EX1264CEZZ
D1313
Zener Diode
RH-EX1264CEZZ
D1401
Diode
VHDMA157A//-1
D1402
Diode
VHDMA157A//-1
D1403
Diode
VHDMA157A//-1
D1406
Diode
VHDMA157A//-1
D1407
Diode
VHDMA157A//-1
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
87
5
6
7
8
5
6
7
8
C
D
F
A
B
E
D1411
Diode
VHDMA157A//-1
D1412
Diode
VHDMA157A//-1
D1413
Diode
VHDMA157A//-1
D1581
Diode(PDP-R03T)
VHDHSU119//-1
D1582
Diode(PDP-R03T)
VHDHSU119//-1
D1583
Diode(PDP-R03T)
VHDHSU119//-1
D2502
Diode
VHDDAN222//-1
D2503
Diode
VHD1SS250//1E
D2504
Diode
VHD1SS250//1E
D2505
Diode
VHDMA157A//-1
D2506
Diode
VHDHSU119//-1
PACKAGED CIRCUIT
X1601
Crystal
RCRSCA005WJZZY
X1602
Crystal
RCRSCA005WJZZY
X2501
Crystal
RCRSB0250GEZZ
FILTER, COIL
FL1101 Filter
RFiLN0017TAZZ
FL1102 Filter
RFiLN0017TAZZ
FL1103 Filter
RFiLN0017TAZZ
FL1104 Filter
RFiLN0017TAZZ
FL1105 Filter
RFiLN0017TAZZ
FL1106 Filter
RFiLN0017TAZZ
FL1107 Filter
RFiLN0017TAZZ
FL1108 Filter
RFiLN0017TAZZ
FL1109 Filter
RFiLN0017TAZZ
FL1110 Filter
RFiLN0017TAZZ
FL1111 Filter
RFiLN0017TAZZ
FL1112 Filter
RFiLN0017TAZZ
FL1113 Filter
RFiLN0017TAZZ
FL1114 Filter
RFiLN0017TAZZ
FL1115 Filter
RFiLN0017TAZZ
FL1116 Filter
RFiLN0017TAZZ
FL1117 Filter
RFiLN0017TAZZ
FL1118 Filter
RFiLN0017TAZZ
FL1119 Filter
RFiLN0003TAZZ
FL1120 Filter
RFiLN0003TAZZ
FL1121 Filter
RFiLN0003TAZZ
L1101
Peaking 4.7µH
VP-1M4R7J1R2N
L1102
Peaking 4.7µH
VP-1M4R7J1R2N
L1401
Peaking 10µH
VP-1M100J1R6N
L2501
Peaking 100µH
VP-1M101J7R7N
L2502
Peaking 4.7µH
VP-1M4R7J1R2N
L2503
Peaking 100µH
VP-1M101J7R7N
L2504
Peaking 4.7µH
VP-1M4R7J1R2N
CONTROL
R1121
Variable Resistor
RVR-M7997TAZZ
R1219
Variable Resistor
RVR-M7997TAZZ
CAPACITOR
C1101
0.01 50V Ceramic
VCKYCY1HB103K
C1102
220 6.3V Electrolytic
VCAAPF0JJ227MY
C1103
0.01 50V Ceramic
VCKYCY1HB103K
C1104
0.1 25V Ceramic
VCKYCY1EF104Z
C1105
100 6.3V Electrolytic
VCAAPF0JJ107MY
C1106
39 16V Electrolytic
VCAAPF1CJ396MY
C1107
0.1 25V Ceramic
VCKYCY1EF104Z
C1108
0.01 50V Ceramic
VCKYCY1HB103K
C1109
0.01 50V Ceramic
VCKYCY1HB103K
C1110
0.01 50V Ceramic
VCKYCY1HB103K
Mark No. Description
Part No.
C1111
1000p 50V Ceramic
VCKYCY1HB102K
C1112
0.1 25V Ceramic
VCKYCY1EF104Z
C1113
10 16V Elect.(N.P)
VCE9PF1CW106M
C1114
0.1 25V Ceramic
VCKYCY1EF104Z
C1115
0.01 50V Ceramic
VCKYCY1HB103K
C1116
0.01 50V Ceramic
VCKYCY1HB103K
C1119
0.01 50V Ceramic
VCKYCY1HB103K
C1120
0.01 50V Ceramic
VCKYCY1HB103K
C1121
0.1 25V Ceramic
VCKYCY1EF104Z
C1122
0.01 50V Ceramic
VCKYCY1HB103K
C1123
1.0 16V Ceramic
VCKYTV1CB105K
C1124
1.0 16V Ceramic
VCKYTV1CB105K
C1125
0.01 50V Ceramic
VCKYCY1HB103K
C1126
0.01 50V Ceramic
VCKYCY1HB103K
C1127
0.1 25V Ceramic
VCKYCY1EF104Z
C1128
0.01 50V Ceramic
VCKYCY1HB103K
C1129
0.01 50V Ceramic
VCKYCY1HB103K
C1130
0.01 50V Ceramic
VCKYCY1HB103K
C1131
0.01 50V Ceramic
VCKYCY1HB103K
C1132
0.1 25V Ceramic
VCKYCY1EF104Z
C1133
1.0 16V Ceramic
VCKYTV1CB105K
C1134
470 16V Electrolytic
VCEAPW1CN477M
C1135
1.0 16V Ceramic
VCKYTV1CB105K
C1136
10 16V Electrolytic
VCEAPF1CW106M
C1137
1.0 16V Ceramic
VCKYTV1CB105K
C1138
1.0 16V Ceramic
VCKYTV1CB105K
C1139
10 16V Electrolytic
VCEAPF1CW106M
C1140
1.0 16V Ceramic
VCKYTV1CB105K
C1141
1.0 16V Ceramic
VCKYTV1CB105K
C1142
10 16V Electrolytic
VCEAPF1CW106M
C1143
1.0 16V Ceramic
VCKYTV1CB105K
C1144
1.0 16V Ceramic
VCKYTV1CB105K
C1145
1.0 16V Ceramic
VCKYTV1CB105K
C1146
470 16V Electrolytic
VCEAPW1CN477M
C1147
1.0 16V Ceramic
VCKYTV1CB105K
C1148
1.0 16V Ceramic
VCKYTV1CB105K
C1149
1.0 16V Ceramic
VCKYTV1CB105K
C1150
1.0 16V Ceramic
VCKYTV1CB105K
C1151
1.0 16V Ceramic
VCKYTV1CB105K
C1152
1.0 16V Ceramic
VCKYTV1CB105K
C1153
33p 50V Ceramic
VCCCCY1HH330J
C1154
33p 50V Ceramic
VCCCCY1HH330J
C1155
10 16V Electrolytic
VCEAPF1CW106M
C1156
10 16V Electrolytic
VCEAPF1CW106M
C1157
10 16V Electrolytic
VCEAPF1CW106M
C1158
10 16V Electrolytic
VCEAPF1CW106M
C1159
0.1 25V Ceramic
VCKYCY1EF104Z
C1160
0.01 50V Ceramic
VCKYCY1HB103K
C1161
220 6.3V Electrolytic
VCAAPF0JJ227MY
C1162
0.01 50V Ceramic
VCKYCY1HB103K
C1164
100 6.3V Electrolytic
VCAAPF0JJ107MY
C1165
39 16V Electrolytic
VCAAPF1CJ396MY
C1166
100p 50V Ceramic
VCCCCY1HH101J
C1167
100p 50V Ceramic
VCCCCY1HH101J
C1168
100p 50V Ceramic
VCCCCY1HH101J
C1169
100p 50V Ceramic
VCCCCY1HH101J
C1170
100p 50V Ceramic
VCCCCY1HH101J
C1171
100p 50V Ceramic
VCCCCY1HH101J
C1172
100p 50V Ceramic
VCCCCY1HH101J
C1173
100p 50V Ceramic
VCCCCY1HH101J
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
88
1
2
3
4
1
2
3
4
C
D
F
A
B
E
C1174
10 16V Electrolytic
VCEAPF1CN106M
C1175
10 16V Electrolytic
VCEAPF1CN106M
C1176
10 16V Electrolytic
VCEAPF1CN106M
C1177
0.1 25V Ceramic
VCKYCY1EF104Z
C1178
0.1 25V Ceramic
VCKYCY1EF104Z
C1179
1000p 50V Ceramic
VCKYCY1HB102K
C1180
10 16V Elect.(N.P)
VCE9PF1CW106M
C1181
0.1 25V Ceramic
VCKYCY1EF104Z
C1182
10 50V Electrolytic
VCEAPF1HW106MY
C1309
0.1 25V Ceramic
VCKYCY1EF104Z
C1310
0.1 25V Ceramic
VCKYCY1EF104Z
C1311
22 16V Electrolytic
VCEAPF1CW226M
C1312
10 10V Elect.(N.P)
VCE9PF1AW106M
C1313
1000p 50V Ceramic
VCKYCY1HB102K
C1314
1000p 50V Ceramic
VCKYCY1HB102K
C1316
1.0 16V Ceramic
VCKYTV1CB105K
C1320
100p 50V Ceramic
VCCCCY1HH101J
C1321
100p 50V Ceramic
VCCCCY1HH101J
C1324
100p 50V Ceramic
VCCCCY1HH101J
C1325
100p 50V Ceramic
VCCCCY1HH101J
C1326
100p 50V Ceramic
VCCCCY1HH101J
C1327
100p 50V Ceramic
VCCCCY1HH101J
C1328
0.1 25V Ceramic
VCKYCY1EF104Z
C1401
0.1 16V Ceramic
VCKYCY1CB104K
C1402
0.1 16V Ceramic
VCKYCY1CB104K
C1404
0.1 16V Ceramic
VCKYCY1CB104K
C1406
0.1 25V Ceramic
VCKYCY1EF104Z
C1407
0.1 25V Ceramic
VCKYCY1EF104Z
C1408
0.1 25V Ceramic
VCKYCY1EF104Z
C1409
100 16V Electrolytic
VCEAPF1CW107M
C1410
0.1 16V Ceramic
VCKYCY1CB104K
C1411
0.1 16V Ceramic
VCKYCY1CB104K
C1412
1.0 16V Ceramic
VCKYTV1CB105K
C1413
1.0 16V Ceramic
VCKYTV1CB105K
C1415
0.1 25V Ceramic
VCKYCY1EF104Z
C1417
0.1 25V Ceramic
VCKYCY1EF104Z
C1419
0.1 25V Ceramic
VCKYCY1EF104Z
C1420
1.0 16V Ceramic
VCKYTV1CB105K
C1421
1.0 16V Ceramic
VCKYTV1CB105K
C1422
100 16V Electrolytic
VCEAPF1CW107M
C1434
0.1 16V Ceramic
VCKYCY1CB104K
C1435
0.1 16V Ceramic
VCKYCY1CB104K
C1436
0.1 16V Ceramic
VCKYCY1CB104K
C1581
22 16V Electrolytic(PDP-R03T) VCEAPF1CW226M
C1601
0.1 16V Ceramic
VCKYCY1CB104K
C1602
27p 50V Ceramic
VCCCCY1HH270J
C1603
18p 50V Ceramic
VCCCCY1HH180J
C1604
560p 50V Ceramic
VCCCCY1HH561JY
C1605
0.1 25V Ceramic
VCKYCY1EF104Z
C1606
0.068 16V Ceramic
VCKYCY1CB683KY
C1607
6800p 50V Ceramic
VCKYCY1HB682KY
C1608
0.1 25V Ceramic
VCKYCY1EF104Z
C1609
0.1 25V Ceramic
VCKYCY1EF104Z
C1612
0.1 16V Ceramic
VCKYCY1CB104K
C1614
560p 50V Ceramic
VCCCCY1HH561JY
C1615
0.1 25V Ceramic
VCKYCY1EF104Z
C1616
0.068 16V Ceramic
VCKYCY1CB683KY
C1617
6800p 50V Ceramic
VCKYCY1HB682KY
C1618
0.1 25V Ceramic
VCKYCY1EF104Z
C1619
100 6.3V Electrolytic
VCEAPF0JW107M
Mark No. Description
Part No.
C1621
0.1 25V Ceramic
VCKYCY1EF104Z
C1622
0.1 16V Ceramic
VCKYCY1CB104K
C1623
27p 50V Ceramic
VCCCCY1HH270J
C1624
18p 50V Ceramic
VCCCCY1HH180J
C1625
560p 50V Ceramic
VCCCCY1HH561JY
C1626
0.1 25V Ceramic
VCKYCY1EF104Z
C1627
6800p 50V Ceramic
VCKYCY1HB682KY
C1628
0.068 16V Ceramic
VCKYCY1CB683KY
C1629
0.1 25V Ceramic
VCKYCY1EF104Z
C1630
100 6.3V Electrolytic
VCEAPF0JW107M
C1640
150p 50V Ceramic
VCCCCY1HH151J
C1641
150p 50V Ceramic
VCCCCY1HH151J
C1642
150p 50V Ceramic
VCCCCY1HH151J
C1643
150p 50V Ceramic
VCCCCY1HH151J
C1644
150p 50V Ceramic
VCCCCY1HH151J
C1645
150p 50V Ceramic
VCCCCY1HH151J
C2501
0.1 25V Ceramic
VCKYCY1EF104Z
C2502
100 6.3V Electrolytic
VCEAPF0JW107M
C2503
0.1 25V Ceramic
VCKYCY1EF104Z
C2512
3300p 50V Ceramic
VCKYCY1HB332K
C2513
3300p 50V Ceramic
VCKYCY1HB332K
C2514
3300p 50V Ceramic
VCKYCY1HB332K
C2515
3300p 50V Ceramic
VCKYCY1HB332K
C2516
10 16V Electrolytic
VCEAPF1CW106M
C2517
10 16V Electrolytic
VCEAPF1CW106M
C2518
0.1 25V Ceramic
VCKYCY1EF104Z
C2519
100 16V Electrolytic
VCEAPF1CW107M
C2520
100 16V Electrolytic
VCEAPF1CW107M
C2521
3.3 50V Electrolytic
VCEAPF1HW335M
C2522
0.1 25V Ceramic
VCKYCY1EF104Z
C2523
1.0 16V Ceramic
VCKYTV1CB105K
C2524
1.0 16V Ceramic
VCKYTV1CB105K
C2525
1.0 16V Ceramic
VCKYTV1CB105K
C2526
1.0 16V Ceramic
VCKYTV1CB105K
C2527
0.1 25V Ceramic
VCKYCY1EF104Z
C2528
10 16V Electrolytic
VCEAPF1CW106M
C2529
1.0 16V Ceramic
VCKYTV1CB105K
C2530
100 6.3V Electrolytic
VCEAPF0JW107M
C2531
56p 50V Ceramic
VCCCCY1HH560J
C2532
0.01 50V Ceramic
VCKYCY1HB103K
C2533
56p 50V Ceramic
VCCCCY1HH560J
C2534
5.0p 50V Ceramic
VCCCCY1HH5R0C
C2535
5.0p 50V Ceramic
VCCCCY1HH5R0C
C2536
470 6.3V Electrolytic
VCEASH0JN477MY
C2537
1.0 16V Ceramic
VCKYTV1CB105K
C2538
1.0 16V Ceramic
VCKYTV1CB105K
C2539
1.0 16V Ceramic
VCKYTV1CB105K
C2543
1.0 16V Ceramic
VCKYTV1CB105K
C2544
1.0 16V Ceramic
VCKYTV1CB105K
C2545
1.0 16V Ceramic
VCKYTV1CB105K
C2546
1.0 16V Ceramic
VCKYTV1CB105K
C2547
0.1 25V Ceramic
VCKYCY1EF104Z
C2548
0.1 25V Ceramic
VCKYCY1EF104Z
C2553
0.01 50V Ceramic
VCKYCY1HB103K
C2554
0.01 50V Ceramic
VCKYCY1HB103K
RESISTOR
R1104
68 1/16W Metal Oxide
VRS-CY1JF680JY
R1105
68 1/16W Metal Oxide
VRS-CY1JF680JY
R1107
0 1/16W Metal Oxide
VRS-CY1JF000J
R1110
68k 1/16W Metal Oxide
VRS-CY1JF683J
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
89
5
6
7
8
5
6
7
8
C
D
F
A
B
E
R1112
100 1/16W Metal Oxide
VRS-CY1JF101J
R1113
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R1114
5.6k 1/16W Metal Oxide
VRS-CY1JF562J
R1115
100 1/16W Metal Oxide
VRS-CY1JF101J
R1116
1.2k 1/16W Metal Oxide
VRS-CY1JF122J
R1117
2.2k 1/16W Metal Oxide
VRS-CY1JF222J
R1118
2.2k 1/16W Metal Oxide
VRS-CY1JF222J
R1119
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R1120
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R1122
470 1/16W Metal Oxide
VRS-CY1JF471J
R1123
22k 1/16W Metal Oxide
VRS-CY1JF223J
R1124
100k 1/16W Metal Oxide
VRS-CY1JF104J
R1125
100k 1/16W Metal Oxide
VRS-CY1JF104J
R1126
100k 1/16W Metal Oxide
VRS-CY1JF104J
R1127
100k 1/16W Metal Oxide
VRS-CY1JF104J
R1128
100k 1/16W Metal Oxide
VRS-CY1JF104J
R1129
100k 1/16W Metal Oxide
VRS-CY1JF104J
R1130
2.2k 1/16W Metal Oxide
VRS-CY1JF222J
R1131
2.2k 1/16W Metal Oxide
VRS-CY1JF222J
R1135
10k 1/16W Metal Oxide
VRS-CY1JF103J
R1136
270k 1/16W Metal Oxide
VRS-CY1JF274JY
R1137
75 1/16W Metal Oxide
VRS-TV1JD750JY
R1138
75 1/8W Metal Oxide
VRS-TQ2BD750J
R1139
75 1/8W Metal Oxide
VRS-TQ2BD750J
R1140
10k 1/16W Metal Oxide
VRS-CY1JF103J
R1141
270k 1/16W Metal Oxide
VRS-CY1JF274JY
R1142
75 1/16W Metal Oxide
VRS-TV1JD750JY
R1143
10k 1/16W Metal Oxide
VRS-CY1JF103J
R1144
270k 1/16W Metal Oxide
VRS-CY1JF274JY
R1145
75 1/16W Metal Oxide
VRS-TV1JD750JY
R1146
75 1/8W Metal Oxide
VRS-TQ2BD750J
R1147
68 1/2W Metal Oxide
VRS-TX2HF680J
R1148
100k 1/16W Metal Oxide
VRS-CY1JF104J
R1149
68 1/2W Metal Oxide
VRS-TX2HF680J
R1150
100k 1/16W Metal Oxide
VRS-CY1JF104J
R1151
100 1/16W Metal Oxide
VRS-CY1JF101J
R1152
75 1/8W Metal Oxide
VRS-TQ2BD750J
R1153
100 1/16W Metal Oxide
VRS-CY1JF101J
R1154
75 1/8W Metal Oxide
VRS-TQ2BD750J
R1155
100 1/16W Metal Oxide
VRS-CY1JF101J
R1156
75 1/8W Metal Oxide
VRS-TQ2BD750J
R1157
75 1/8W Metal Oxide
VRS-TQ2BD750J
R1158
220 1/16W Metal Oxide
VRS-CY1JF221J
R1159
220 1/16W Metal Oxide
VRS-CY1JF221J
R1160
75 1/8W Metal Oxide
VRS-TQ2BD750J
R1161
220 1/16W Metal Oxide
VRS-CY1JF221J
R1162
220 1/16W Metal Oxide
VRS-CY1JF221J
R1163
100 1/16W Metal Oxide
VRS-CY1JF101J
R1164
75 1/8W Metal Oxide
VRS-TQ2BD750J
R1165
68 1/2W Metal Oxide
VRS-TX2HF680J
R1166
100k 1/16W Metal Oxide
VRS-CY1JF104J
R1167
220 1/16W Metal Oxide
VRS-CY1JF221J
R1168
270 1/16W Metal Oxide
VRS-CY1JF271J
R1169
220k 1/16W Metal Oxide
VRS-CY1JF224J
R1170
220 1/16W Metal Oxide
VRS-CY1JF221J
R1171
270 1/16W Metal Oxide
VRS-CY1JF271J
R1172
220k 1/16W Metal Oxide
VRS-CY1JF224J
R1173
560k 1/16W Metal Oxide
VRS-CY1JF564J
R1174
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R1175
560k 1/16W Metal Oxide
VRS-CY1JF564J
Mark No. Description
Part No.
R1176
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R1177
22k 1/16W Metal Oxide
VRS-CY1JF223J
R1178
22k 1/16W Metal Oxide
VRS-CY1JF223J
R1179
22k 1/16W Metal Oxide
VRS-CY1JF223J
R1180
100 1/16W Metal Oxide
VRS-CY1JF101J
R1181
100 1/16W Metal Oxide
VRS-CY1JF101J
R1182
22k 1/16W Metal Oxide
VRS-CY1JF223J
R1183
22k 1/16W Metal Oxide
VRS-CY1JF223J
R1184
22k 1/16W Metal Oxide
VRS-CY1JF223J
R1185
100 1/16W Metal Oxide
VRS-CY1JF101J
R1186
22k 1/16W Metal Oxide
VRS-CY1JF223J
R1187
560 1/16W Metal Oxide
VRS-CY1JF561J
R1188
560 1/16W Metal Oxide
VRS-CY1JF561J
R1189
75 1/8W Metal Oxide
VRS-TQ2BD750J
R1190
75 1/8W Metal Oxide
VRS-TQ2BD750J
R1191
100 1/16W Metal Oxide
VRS-CY1JF101J
R1192
75 1/8W Metal Oxide
VRS-TQ2BD750J
R1196
68 1/16W Metal Oxide
VRS-CY1JF680JY
R1197
68 1/16W Metal Oxide
VRS-CY1JF680JY
R1199
0 1/16W Metal Oxide
VRS-CY1JF000J
R1202
68k 1/16W Metal Oxide
VRS-CY1JF683J
R1204
100 1/16W Metal Oxide
VRS-CY1JF101J
R1205
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R1206
560 1/8W Metal Oxide
VRS-TQ2BD561J
R1207
75 1/4W Metal Oxide
VRS-TW2ED750J
R1208
75 1/4W Metal Oxide
VRS-TW2ED750J
R1209
75 1/4W Metal Oxide
VRS-TW2ED750J
R1210
100 1/16W Metal Oxide
VRS-CY1JF101J
R1211
100 1/16W Metal Oxide
VRS-CY1JF101J
R1212
5.6k 1/16W Metal Oxide
VRS-CY1JF562J
R1213
100 1/16W Metal Oxide
VRS-CY1JF101J
R1214
1.2k 1/16W Metal Oxide
VRS-CY1JF122J
R1215
2.2k 1/16W Metal Oxide
VRS-CY1JF222J
R1216
2.2k 1/16W Metal Oxide
VRS-CY1JF222J
R1217
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R1218
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R1220
470 1/16W Metal Oxide
VRS-CY1JF471J
R1301
100 1/16W Metal Oxide
VRS-CY1JF101J
R1302
6.8k 1/16W Metal Oxide
VRS-CY1JF682J
R1303
100 1/16W Metal Oxide
VRS-CY1JF101J
R1304
6.8k 1/16W Metal Oxide
VRS-CY1JF682J
R1305
100 1/16W Metal Oxide
VRS-CY1JF101J
R1306
100 1/16W Metal Oxide
VRS-CY1JF101J
R1307
100 1/16W Metal Oxide
VRS-CY1JF101J
R1308
100 1/16W Metal Oxide
VRS-CY1JF101J
R1309
6.8k 1/16W Metal Oxide
VRS-CY1JF682J
R1310
100 1/16W Metal Oxide
VRS-CY1JF101J
R1311
6.8k 1/16W Metal Oxide
VRS-CY1JF682J
R1312
100 1/16W Metal Oxide
VRS-CY1JF101J
R1313
100 1/16W Metal Oxide
VRS-CY1JF101J
R1314
6.8k 1/16W Metal Oxide
VRS-CY1JF682J
R1315
100 1/16W Metal Oxide
VRS-CY1JF101J
R1316
6.8k 1/16W Metal Oxide
VRS-CY1JF682J
R1317
100 1/16W Metal Oxide
VRS-CY1JF101J
R1318
100 1/16W Metal Oxide
VRS-CY1JF101J
R1319
100 1/16W Metal Oxide
VRS-CY1JF101J
R1320
6.8k 1/16W Metal Oxide
VRS-CY1JF682J
R1321
100 1/16W Metal Oxide
VRS-CY1JF101J
R1322
6.8k 1/16W Metal Oxide
VRS-CY1JF682J
R1323
100 1/16W Metal Oxide
VRS-CY1JF101J
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
90
1
2
3
4
1
2
3
4
C
D
F
A
B
E
R1324
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R1325
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R1326
6.8k 1/16W Metal Oxide
VRS-CY1JF682J
R1327
6.8k 1/16W Metal Oxide
VRS-CY1JF682J
R1328
220 1/4W Metal Oxide
VRS-TW2ED221J
R1329
220 1/4W Metal Oxide
VRS-TW2ED221J
R1330
220 1/4W Metal Oxide
VRS-TW2ED221J
R1331
100 1/16W Metal Oxide
VRS-CY1JF101J
R1332
100 1/16W Metal Oxide
VRS-CY1JF101J
R1334
560 1/16W Metal Oxide
VRS-CY1JF561J
R1335
100 1/16W Metal Oxide
VRS-CY1JF101J
R1336
100 1/16W Metal Oxide
VRS-CY1JF101J
R1337
0 1/16W Metal Oxide
VRS-CY1JF000J
R1338
100 1/16W Metal Oxide
VRS-CY1JF101J
R1339
0 1/16W Metal Oxide
VRS-CY1JF000J
R1340
100 1/16W Metal Oxide
VRS-CY1JF101J
R1341
0 1/16W Metal Oxide
VRS-CY1JF000J
R1342
0 1/16W Metal Oxide
VRS-CY1JF000J
R1343
100 1/16W Metal Oxide
VRS-CY1JF101J
R1344
0 1/16W Metal Oxide
VRS-CY1JF000J
R1345
0 1/16W Metal Oxide
VRS-CY1JF000J
R1348
100 1/16W Metal Oxide
VRS-CY1JF101J
R1349
100 1/16W Metal Oxide
VRS-CY1JF101J
R1350
100 1/16W Metal Oxide
VRS-CY1JF101J
R1354
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R1405
22 1/16W Metal Oxide
VRS-CY1JF220J
R1406
22 1/16W Metal Oxide
VRS-CY1JF220J
R1407
22 1/16W Metal Oxide
VRS-CY1JF220J
R1408
100 1/16W Metal Oxide
VRS-CY1JF101J
R1409
100 1/16W Metal Oxide
VRS-CY1JF101J
R1411
22 1/16W Metal Oxide
VRS-CY1JF220J
R1412
22 1/16W Metal Oxide
VRS-CY1JF220J
R1413
22 1/16W Metal Oxide
VRS-CY1JF220J
R1418
10k 1/16W Metal Oxide
VRS-CY1JF103J
R1421
100 1/16W Metal Oxide
VRS-CA1JF101J
R1422
10 1/16W Metal Oxide
VRS-CY1JF100J
R1423
10 1/16W Metal Oxide
VRS-CY1JF100J
R1424
10 1/16W Metal Oxide
VRS-CY1JF100J
R1425
10 1/16W Metal Oxide
VRS-CY1JF100J
R1429
10 1/16W Metal Oxide
VRS-CY1JF100J
R1430
10 1/16W Metal Oxide
VRS-CY1JF100J
R1431
10 1/16W Metal Oxide
VRS-CY1JF100J
R1432
10 1/16W Metal Oxide
VRS-CY1JF100J
R1433
10 1/16W Metal Oxide
VRS-CY1JF100J
R1437
22 1/16W Metal Oxide
VRS-CY1JF220J
R1438
22 1/16W Metal Oxide
VRS-CY1JF220J
R1439
22 1/16W Metal Oxide
VRS-CY1JF220J
R1443
100 1/16W Metal Oxide
VRS-CY1JF101J
R1444
100 1/16W Metal Oxide
VRS-CY1JF101J
R1445
100 1/16W Metal Oxide
VRS-CY1JF101J
R1446
100 1/16W Metal Oxide
VRS-CY1JF101J
R1457
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R1458
10 1/16W Metal Oxide
VRS-CY1JF100J
R1459
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R1460
10 1/16W Metal Oxide
VRS-CY1JF100J
R1461
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R1462
10 1/16W Metal Oxide
VRS-CY1JF100J
R1463
0 1/16W Metal Oxide
VRS-CY1JF000J
R1581
33 1W Metal Oxide(PDP-R03T) VRS-CR3AD330J
R1582
10k 1/16W Metal Oxide(PDP-R03T) VRS-CY1JF103J
Mark No. Description
Part No.
R1583
560 1/16W Metal Oxide(PDP-R03T) VRS-CY1JF561J
R1584
1.0k 1/16W Metal Oxide(PDP-R03T) VRS-CY1JF102J
R1601
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R1602
470 1/16W Metal Oxide
VRS-CY1JF471J
R1603
0 1/16W Metal Oxide
VRS-CY1JF000J
R1604
820k 1/16W Metal Oxide
VRS-CY1JF824JY
R1605
Resistor
RR-SZ0080CEZZY
R1606
0 1/16W Metal Oxide
VRS-CY1JF000J
R1607
470 1/16W Metal Oxide
VRS-CY1JF471J
R1608
6.8k 1/16W Metal Oxide
VRS-CY1JF682J
R1609
10k 1/16W Metal Oxide
VRS-CY1JF103F
R1610
100 1/16W Metal Oxide
VRS-CY1JF101J
R1611
100 1/16W Metal Oxide
VRS-CY1JF101J
R1612
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R1613
470 1/16W Metal Oxide
VRS-CY1JF471J
R1614
120 1/16W Metal Oxide
VRS-CY1JF121JY
R1615
100 1/16W Metal Oxide
VRS-CY1JF101J
R1616
6.8k 1/16W Metal Oxide
VRS-CY1JF682J
R1617
10k 1/16W Metal Oxide
VRS-CY1JF103F
R1618
100 1/16W Metal Oxide
VRS-CY1JF101J
R1619
100 1/16W Metal Oxide
VRS-CY1JF101J
R1620
100 1/16W Metal Oxide
VRS-CY1JF101J
R1623
1.8k 1/16W Metal Oxide
VRS-CY1JF182J
R1624
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R1625
0 1/16W Metal Oxide
VRS-CY1JF000J
R1626
820k 1/16W Metal Oxide
VRS-CY1JF824JY
R1627
Resistor
RR-SZ0080CEZZY
R1629
470 1/16W Metal Oxide
VRS-CY1JF471J
R1630
6.8k 1/16W Metal Oxide
VRS-CY1JF682J
R1631
10k 1/16W Metal Oxide
VRS-CY1JF103F
R1632
100 1/16W Metal Oxide
VRS-CY1JF101J
R1633
100 1/16W Metal Oxide
VRS-CY1JF101J
R1634
100 1/16W Metal Oxide
VRS-CY1JF101J
R1635
100 1/16W Metal Oxide
VRS-CY1JF101J
R1636
0 1/16W Metal Oxide
VRS-CY1JF000J
R1637
1.8k 1/16W Metal Oxide
VRS-CY1JF182J
R1638
100 1/16W Metal Oxide
VRS-CY1JF101J
R1639
100 1/16W Metal Oxide
VRS-CY1JF101J
R1640
1.8k 1/16W Metal Oxide
VRS-CY1JF182J
R1641
100 1/16W Metal Oxide
VRS-CY1JF101J
R1642
100 1/16W Metal Oxide
VRS-CY1JF101J
R1643
1.8k 1/16W Metal Oxide
VRS-CY1JF182J
R1644
100 1/16W Metal Oxide
VRS-CY1JF101J
R1645
100 1/16W Metal Oxide
VRS-CY1JF101J
R1650
330 1/16W Metal Oxide
VRS-CY1JF331J
R1651
330 1/16W Metal Oxide
VRS-CY1JF331J
R1652
330 1/16W Metal Oxide
VRS-CY1JF331J
R2501
100 1/16W Metal Oxide
VRS-CA1JF101J
R2502
22k 1/16W Metal Oxide
VRS-CY1JF223J
R2503
22k 1/16W Metal Oxide
VRS-CY1JF223J
R2505
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R2510
3.3k 1/16W Metal Oxide
VRS-CY1JF332J
R2511
5.6k 1/16W Metal Oxide
VRS-CY1JF562J
R2513
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R2514
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R2515
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R2516
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R2517
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R2518
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R2519
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
91
5
6
7
8
5
6
7
8
C
D
F
A
B
E
R2520
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R2521
100 1/16W Metal Oxide
VRS-CA1JF101J
R2522
100 1/16W Metal Oxide
VRS-CA1JF101J
R2523
1.0M 1/16W Metal Oxide
VRS-CY1JF105J
R2524
2.2k 1/16W Metal Oxide
VRS-CY1JF222J
R2525
22k 1/16W Metal Oxide
VRS-CY1JF223J
R2526
5.6k 1/16W Metal Oxide
VRS-CY1JF562J
R2527
0 1/16W Metal Oxide
VRS-CY1JF000J
R2528
100 1/16W Metal Oxide
VRS-CA1JF101J
R2531
100 1/16W Metal Oxide
VRS-CY1JF101J
R2534
100 1/16W Metal Oxide
VRS-CY1JF101J
R2535
22 1/16W Metal Oxide
VRS-CY1JF220J
R2537
22 1/16W Metal Oxide
VRS-CY1JF220J
R2538
100 1/16W Metal Oxide
VRS-CY1JF101J
R2539
100 1/16W Metal Oxide
VRS-CY1JF101J
R2540
100 1/16W Metal Oxide
VRS-CY1JF101J
R2542
0 1/16W Metal Oxide
VRS-CY1JF000J
R2555
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R2556
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
MISCELLANEOUS PARTS
FB1101 Ferrite Bead
RBLN-0065CEZZY
FB1102 Ferrite Bead
RBLN-0065CEZZY
FB1103 Ferrite Bead
RBLN-0062TAZZ
FB1104 Ferrite Bead
RBLN-0062TAZZ
FB1105 Ferrite Bead
RBLN-0062TAZZ
FB1106 Ferrite Bead
RBLN-0062TAZZ
FB1107 Ferrite Bead
RBLN-0062TAZZ
FB1108 Ferrite Bead
RBLN-0062TAZZ
FB1109 Ferrite Bead
RBLN-0062TAZZ
FB1110 Ferrite Bead
RBLN-0062TAZZ
FB1401 Ferrite Bead
RBLN-0061TAZZ
FB1402 Ferrite Bead
RBLN-0061TAZZ
FB1602 Ferrite Bead
RBLN-0064TAZZY
FB2501 Ferrite Bead
RBLN-0051TAZZ
FB2502 Ferrite Bead
RBLN-0060TAZZ
FB2503 Ferrite Bead
RBLN-0051TAZZ
FB2504 Ferrite Bead
RBLN-0051TAZZ
FB2505 Ferrite Bead
RBLN-0051TAZZ
FB2506 Ferrite Bead
RBLN-0051TAZZ
FB2507 Ferrite Bead
RBLN-0051TAZZ
J1103
Video 1/2,Compo 1IN
QTANJ0974CEZZ
J1104
Video 3,Compo 3IN,Monitor
QTANJ0974CEZZ
P1301
Plug 18-Pin
QPLGN0428FJZZ
P1402
Socket 30-Pin
QSOCN0490FJZZ
P2501
Plug 12-Pin
QPLGN0062CEZZY
P2502
Plug 4-Pin
QPLGN0478GEZZ
P2503
Plug 5-Pin
QPLGN0578GEZZ
SC1101 Socket DINx2
QSOCD0834CEZZ
SC1102 Socket DINx2
QSOCD0834CEZZ
SC1103 Socket 15Pin D-sub
QSOCN1594CEZZ
SC1401 Socket 30-Pin
QSOCN0550FJZZY
Connecting Cord
QCNW-6073CEZZ
Connecting Cord
QCNW-6079CEZZ
DLED UNIT
TRANSISTOR
Q3001 2SC3928AR
VS2SC3928AR-1
Q3002 2SC3928AR
VS2SC3928AR-1
Q3003 DTC144EE
VSDTC144EE/-1
Mark No. Description
Part No.
Q3004 DTC144EE
VSDTC144EE/-1
Q3005 DTC144EE
VSDTC144EE/-1
DIODE
D3001
Photodiode
RH-PX0421CEZZ
RESISTOR
R3001
470 1/16W Metal Oxide
VRS-CY1JF471J
R3002
22k 1/16W Metal Oxide
VRS-CY1JF223J
R3003
100k 1/16W Metal Oxide
VRS-CY1JF104J
R3004
1.8k 1/16W Metal Oxide
VRS-CY1JF182J
R3005
10k 1/16W Metal Oxide
VRS-CY1JF103J
R3006
10k 1/16W Metal Oxide
VRS-CY1JF103J
R3007
10k 1/16W Metal Oxide
VRS-CY1JF103J
R3008
10k 1/16W Metal Oxide
VRS-CY1JF103J
R3010
10k 1/16W Metal Oxide
VRS-CY1JF103J
R3011
0 1/16W Metal Oxide
VRS-CY1JF000J
R3012
0 1/16W Metal Oxide
VRS-CY1JF000J
MISCELLANEOUS PARTS
P3001
Plug 5-Pin
QPLGN0564TAZZ
Connecting Cord
QCNW-6076CEZZ
ESR UNIT
TRANSISTOR
Q6001 2SC3928AR
VS2SC3928AR-1
Q6002 2SA1530AR
VS2SA1530AR-1
Q6003 2SA1530AR
VS2SA1530AR-1
Q6004 2SC3928AR
VS2SC3928AR-1
Q6005 DTC314TK
VSDTC314TK/-1
Q6006 DTC314TK
VSDTC314TK/-1
Q6007 2SA1530AR
VS2SA1530AR-1
Q6008 2SC3928AR
VS2SC3928AR-1
DIODE
D6000
Diode
VHDMA157A//-1
D6001
Diode
VHDMA157A//-1
D6002
Zener Diode
RH-EX1264CEZZ
D6003
Zener Diode
RH-EX1264CEZZ
D6004
Diode
VHDMA157A//-1
D6006
Diode
VHDMA157A//-1
D6007
Diode
VHDMA157A//-1
D6008
Diode
VHD1SS355//-1
D6009
Diode
VHD1SS355//-1
D6010
Diode
VHD1SS355//-1
D6011
Zener Diode
RH-EX1264CEZZ
D6012
Zener Diode
RH-EX1264CEZZ
D6013
Diode
VHDMA157A//-1
D6014
Diode
VHDMA157A//-1
D6015
Zener Diode
RH-EX1232CEZZY
CAPACITOR
C6000
10 16V Electrolytic
VCEAPF1CW106M
C6001
10 16V Electrolytic
VCEAPF1CW106M
C6002
0.1 25V Ceramic
VCKYCY1EF104Z
C6003
1.0 10V Ceramic
VCKYCY1AF105Z
C6004
1.0 10V Ceramic
VCKYCY1AF105Z
RESISTOR
R6000
56 1/16W Metal Oxide
VRS-CY1JF560J
R6001
56 1/16W Metal Oxide
VRS-CY1JF560J
R6002
56 1/16W Metal Oxide
VRS-CY1JF560J
R6003
47k 1/16W Metal Oxide
VRS-CY1JF473J
R6004
56 1/16W Metal Oxide
VRS-CY1JF560J
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
92
1
2
3
4
1
2
3
4
C
D
F
A
B
E
R6005
56 1/16W Metal Oxide
VRS-CY1JF560J
R6006
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R6007
56 1/16W Metal Oxide
VRS-CY1JF560J
R6011
470 1/16W Metal Oxide
VRS-CY1JF471J
R6012
470 1/16W Metal Oxide
VRS-CY1JF471J
R6013
0 1/8W Metal Oxide
VRS-TQ2BD000J
R6014
0 1/8W Metal Oxide
VRS-TQ2BD000J
R6015
220 1/16W Metal Oxide
VRS-CY1JF221J
R6016
4.7k 1/16W Metal Oxide
VRS-CY1JF472J
R6017
10k 1/16W Metal Oxide
VRS-CY1JF103J
R6018
10k 1/16W Metal Oxide
VRS-CY1JF103J
R6019
2.2k 1/16W Metal Oxide
VRS-CY1JF222J
R6020
4.7k 1/16W Metal Oxide
VRS-CY1JF472J
R6021
4.7k 1/16W Metal Oxide
VRS-CY1JF472J
R6022
10k 1/16W Metal Oxide
VRS-CY1JF103J
R6023
220k 1/16W Metal Oxide
VRS-CY1JF224J
R6024
10k 1/16W Metal Oxide
VRS-CY1JF103J
R6025
10k 1/16W Metal Oxide
VRS-CY1JF103J
R6030
100k 1/16W Metal Oxide
VRS-CY1JF104J
R6031
100k 1/16W Metal Oxide
VRS-CY1JF104J
R6032
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R6033
1.0k 1/16W Metal Oxide
VRS-CY1JF102J
R6036
22k 1/16W Metal Oxide
VRS-CY1JF223J
R6037
10k 1/16W Metal Oxide
VRS-CY1JF103J
R6038
10k 1/16W Metal Oxide
VRS-CY1JF103J
R6039
680 1/16W Metal Oxide
VRS-CY1JF681J
R6040
1.0M 1/16W Metal Oxide
VRS-CY1JF105J
MISCELLANEOUS PARTS
FB6000 Ferrite Bead
RBLN-0060TAZZ
FB6001 Ferrite Bead
RBLN-0060TAZZ
FB6002 Ferrite Bead
RBLN-0060TAZZ
J6001
Jack
QJAKJ0110CEZZ
J6002
Jack
QJAKJ0110CEZZ
P6000
Plug 14-Pin
QPLGN1474TAZZY
P6001
Plug 4-Pin
QPLGN0480GEZZ
SC6000 Socket 15-Pin D-Sub
QSOCZ2015CEZZ
Connecting Cord
QCNW-A280WJZZ
FPC I/F UNIT
IC
IC2
PST600IM
9DK001-15061
IC3
AT24C128N-10SC-1.8
9DK001-11020
IC4
CXA3506R
9DK001-15079
IC7
PQ05TZ11
9DK001-15038
IC8
PQ20VZ11
9DK001-15071
IC19
PST623XW
9DK001-15060
IC27
LH28F320S3NS-L11
RH-IX3430CEZZQ
IC28
MSM51V181865F-60TS-K
9DK001-11027
IC53
74LVX86MTC
9DK001-12079
IC310
TLC5733A
9DK001-15082
IC316
TL431CPS
9DK001-15053
IC319
HY57V653220BTC-7
9DK001-11024
IC320
HY57V653220BTC-7
9DK001-11024
IC321
HY57V653220BTC-7
9DK001-11024
IC322
HY57V653220BTC-7
9DK001-11024
IC327
NJM4560M
9DK001-15084
IC328
TLC2933IPW
9DK001-15054
IC400
74LVX86MTC
9DK001-12079
IC402
74LVX125MTC
9DK001-12105
Mark No. Description
Part No.
IC404
74LVX125MTC
9DK001-12105
IC405
uPD4721G
9DK001-15107
IC408
HD74HCT244T
9DK001-12085
or 74VHCT244AMTC
9DK001-12086
IC410
HD74HCT244T
9DK001-12085
or 74VHCT244AMTC
9DK001-12086
IC411
74LCX157MTC
9DK001-12103
IC412
PQ1R33
9DK001-15093
IC415
BA09FP
9DK001-15109
IC419
TC7WH123FK
9DK001-12102
IC420
TC7WH126FK
9DK001-12096
IC422
HD74HCT125T
9DK001-12070
IC423
TC7WH123FK
9DK001-12102
IC424
NC7S08P5
9DK001-12106
TRANSISTOR
Q12
IMB3A
9DK001-20025
Q13
2SC2412KQ
9DK001-20011
Q15
2SA1037AKQ
9DK001-20012
Q102
NDC7002N
9DK001-20036
Q103
2SC2412KQ
9DK001-20011
Q104
2SC2412KQ
9DK001-20011
Q105
2SC2412KQ
9DK001-20011
Q107
2SC2412KQ
9DK001-20011
Q108
2SC2412KQ
9DK001-20011
Q109
2SC2412KQ
9DK001-20011
Q110
2SC2412KQ
9DK001-20011
Q111
2SA1037AKQ
9DK001-20012
Q112
2SA1037AKQ
9DK001-20012
Q113
2SA1037AKQ
9DK001-20012
Q114
2SC2412KQ
9DK001-20011
Q117
2SC2412KQ
9DK001-20011
Q118
2SC2412KQ
9DK001-20011
Q119
2SC2412KQ
9DK001-20011
Q120
NDC7002N
9DK001-20036
DIODE
D9
Diode 1SS187
9DK001-30018
D20
Diode 1SS187
9DK001-30018
D50
Diode 1SS193
9DK001-30001
D51
Diode 1SS193
9DK001-30001
D52
Diode 1SS193
9DK001-30001
D53
Diode 1SS193
9DK001-30001
D54
Diode MA3120WA
9DK001-30022
D55
Diode MA3120WA
9DK001-30022
D56
Diode MA3120WA
9DK001-30022
D57
Diode MA3120WA
9DK001-30022
D70
Diode 1SS355
9DK001-30020
D71
Diode 1SS355
9DK001-30020
D72
Diode 1SS355
9DK001-30020
D73
Diode 1SS400
9DK001-30021
D75
Diode 1SS187
9DK001-30018
D76
Diode 1SS187
9DK001-30018
D77
Diode 1SS400
9DK001-30021
PACKAGED CIRCUIT
X1
Crystal, 6MHz
9DK001-80012
X3
Crystal, FXO-31FL
9DK001-80011
(1.8432MHz)
X4
Crystal, FXO-31FL
9DK001-80018
(25MHz)
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
93
5
6
7
8
5
6
7
8
C
D
F
A
B
E
X5
Crystal, DS07515V
9DK001-80029
(79.794MHz)
X6
Crystal, 25.175MHz
9DK001-80031
FILTER AND COIL
FL5
Filter BMK351
9DK001-81020
FL6
Filter BMK351
9DK001-81020
FL10
Filter BMK351
9DK001-81020
FL20
Filter BMK351
9DK001-81020
FL21
Filter BMK351
9DK001-81020
FL22
Filter BMK351
9DK001-81020
FL23
Filter BMK351
9DK001-81020
FL29
Filter BMK351
9DK001-81020
FL30
Filter BMK351
9DK001-81020
FL31
Filter BMK351
9DK001-81020
FL32
Filter BMK351
9DK001-81020
FL94
Filter BMK351
9DK001-81020
FL95
Filter BMK351
9DK001-81020
FL96
Filter BMK351
9DK001-81020
FL97
Filter BMK351
9DK001-81020
FL200
Filter BMK351
9DK001-81020
FL201
Filter BMK351
9DK001-81020
FL204
Filter BMK351
9DK001-81020
L1
Inductor NLC322522T-3R3M
9DK001-81052
L2
Inductor NLC322522T-3R3M
9DK001-81052
L3
Inductor NLC322522T-3R3M
9DK001-81052
L4
Inductor NLC322522T-3R3M
9DK001-81052
L22
Inductor NLC322522T-3R3M
9DK001-81052
L100
Inductor NLC322522T-3R3M
9DK001-81052
L101
Inductor NLC322522T-3R3M
9DK001-81052
CAPACITOR
C1
0.1 25V Ceramic
9DK001-42094
C2
0.1 25V Ceramic
9DK001-42094
C6
0.01 50V Ceramic
9DK001-42096
C7
0.01 50V Ceramic
9DK001-42096
C8
0.01 50V Ceramic
9DK001-42096
C9
0.01 50V Ceramic
9DK001-42096
C10
10 10V Ceramic
9DK001-42131
or 10 25V Ceramic
9DK001-42118
C12
15p 50V Ceramic
9DK001-42103
C13
15p 50V Ceramic
9DK001-42103
C14
0.01 50V Ceramic
9DK001-42096
C15
10 10V Ceramic
9DK001-42131
or 10 25V Ceramic
9DK001-42118
C17
0.01 50V Ceramic
9DK001-42096
C18
0.01 50V Ceramic
9DK001-42096
C19
470p 50V Ceramic
9DK001-42104
C20
470p 50V Ceramic
9DK001-42104
C21
0.01 50V Ceramic
9DK001-42096
C22
0.01 50V Ceramic
9DK001-42096
C23
0.01 50V Ceramic
9DK001-42096
C24
10 16V EL
9DK001-40077
C25
0.01 50V Ceramic
9DK001-42096
C26
0.01 50V Ceramic
9DK001-42096
C27
0.01 50V Ceramic
9DK001-42096
C28
0.01 50V Ceramic
9DK001-42096
C29
0.01 50V Ceramic
9DK001-42096
C30
0.047 50V Ceramic
9DK001-42105
C31
0.1 25V Ceramic
9DK001-42094
C32
0.1 25V Ceramic
9DK001-42094
C33
0.1 25V Ceramic
9DK001-42094
Mark No. Description
Part No.
C34
0.01 50V Ceramic
9DK001-42096
C35
0.01 50V Ceramic
9DK001-42096
C36
0.01 50V Ceramic
9DK001-42096
C37
0.01 50V Ceramic
9DK001-42096
C38
0.01 50V Ceramic
9DK001-42096
C42
0.01 50V Ceramic
9DK001-42096
C43
0.01 50V Ceramic
9DK001-42096
C51
0.01 50V Ceramic
9DK001-42096
C52
0.01 50V Ceramic
9DK001-42096
C53
0.01 50V Ceramic
9DK001-42096
C62
0.1 25V Ceramic
9DK001-42094
C70
0.1 25V Ceramic
9DK001-42094
C78
0.1 25V Ceramic
9DK001-42094
C79
47 6.3V EL
9DK001-40089
C80
47 16V EL
9DK001-40079
C81
0.01 50V Ceramic
9DK001-42096
C82
0.01 50V Ceramic
9DK001-42096
C83
0.01 50V Ceramic
9DK001-42096
C84
47 6.3V EL
9DK001-40089
C96
47 6.3V EL
9DK001-40089
C110
0.1 25V Ceramic
9DK001-42094
C111
0.1 25V Ceramic
9DK001-42094
C112
0.1 25V Ceramic
9DK001-42094
C113
1 10V Ceramic
9DK001-42111
C114
0.1 25V Ceramic
9DK001-42094
C115
0.1 25V Ceramic
9DK001-42094
C116
0.1 25V Ceramic
9DK001-42094
C117
0.1 25V Ceramic
9DK001-42094
C118
0.1 25V Ceramic
9DK001-42094
C119
0.1 25V Ceramic
9DK001-42094
C120
0.1 25V Ceramic
9DK001-42094
C121
0.1 25V Ceramic
9DK001-42094
C122
1 10V Ceramic
9DK001-42111
C123
0.1 25V Ceramic
9DK001-42094
C124
0.1 25V Ceramic
9DK001-42094
C125
0.1 25V Ceramic
9DK001-42094
C126
0.1 25V Ceramic
9DK001-42094
C127
100p 50V Ceramic
9DK001-42099
C128
0.33 16V Film
9DK001-42149
C130
100p 50V Ceramic
9DK001-42099
C131
0.1 25V Ceramic
9DK001-42094
C132
0.1 25V Ceramic
9DK001-42094
C133
0.1 25V Ceramic
9DK001-42094
C134
0.1 25V Ceramic
9DK001-42094
C135
0.1 25V Ceramic
9DK001-42094
C136
0.1 25V Ceramic
9DK001-42094
C137
0.1 25V Ceramic
9DK001-42094
C138
0.1 25V Ceramic
9DK001-42094
C143
0.01 50V Ceramic
9DK001-42096
C144
47 6.3V EL
9DK001-40089
C145
0.01 50V Ceramic
9DK001-42096
C146
47 6.3V EL
9DK001-40089
C147
0.01 50V Ceramic
9DK001-42096
C148
47 6.3V EL
9DK001-40089
C149
0.01 50V Ceramic
9DK001-42096
C350
0.01 50V Ceramic
9DK001-42096
C361
47 6.3V EL
9DK001-40089
C366
100 6.3V EL
9DK001-40080
C367
100 4V EL
9DK001-40091
C531
47 6.3V EL
9DK001-40089
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
94
1
2
3
4
1
2
3
4
C
D
F
A
B
E
C532
0.01 50V Ceramic
9DK001-42096
C537
10 16V EL
9DK001-40077
C538
0.1 25V Ceramic
9DK001-42094
C542
10 16V EL
9DK001-40077
C543
0.1 25V Ceramic
9DK001-42094
C544
2200p 50V Ceramic
9DK001-42102
C545
2200p 50V Ceramic
9DK001-42102
C546
2200p 50V Ceramic
9DK001-42102
C550
10 16V EL
9DK001-40077
C551
0.1 25V Ceramic
9DK001-42094
C552
0.1 25V Ceramic
9DK001-42094
C553
0.1 25V Ceramic
9DK001-42094
C554
10 16V EL
9DK001-40077
C555
0.1 25V Ceramic
9DK001-42094
C556
0.1 25V Ceramic
9DK001-42094
C557
0.1 25V Ceramic
9DK001-42094
C558
0.1 25V Ceramic
9DK001-42094
C559
10 10V Ceramic
9DK001-42131
or 10 25V Ceramic
9DK001-42118
C562
0.1 25V Ceramic
9DK001-42094
C563
0.1 25V Ceramic
9DK001-42094
C564
33 6.3V OS
9DK001-40106
C565
0.1 25V Ceramic
9DK001-42094
C566
330p 50V Ceramic
9DK001-42123
C573
47 6.3V EL
9DK001-40089
C574
47 6.3V EL
9DK001-40089
C575
0.01 50V Ceramic
9DK001-42096
C576
0.01 50V Ceramic
9DK001-42096
C577
0.01 50V Ceramic
9DK001-42096
C578
0.01 50V Ceramic
9DK001-42096
C579
0.01 50V Ceramic
9DK001-42096
C580
0.01 50V Ceramic
9DK001-42096
C581
0.01 50V Ceramic
9DK001-42096
C582
0.01 50V Ceramic
9DK001-42096
C583
0.01 50V Ceramic
9DK001-42096
C584
0.01 50V Ceramic
9DK001-42096
C585
0.01 50V Ceramic
9DK001-42096
C586
0.01 50V Ceramic
9DK001-42096
C587
47 6.3V EL
9DK001-40089
C588
47 6.3V EL
9DK001-40089
C589
0.01 50V Ceramic
9DK001-42096
C590
0.01 50V Ceramic
9DK001-42096
C591
0.01 50V Ceramic
9DK001-42096
C592
0.01 50V Ceramic
9DK001-42096
C593
0.01 50V Ceramic
9DK001-42096
C594
0.01 50V Ceramic
9DK001-42096
C595
0.01 50V Ceramic
9DK001-42096
C596
0.01 50V Ceramic
9DK001-42096
C597
0.01 50V Ceramic
9DK001-42096
C598
0.01 50V Ceramic
9DK001-42096
C599
0.01 50V Ceramic
9DK001-42096
C600
0.01 50V Ceramic
9DK001-42096
C697
0.01 50V Ceramic
9DK001-42096
C698
0.47 16V Ceramic
9DK001-42152
C700
0.47 16V Ceramic
9DK001-42152
C702
0.47 16V Ceramic
9DK001-42152
C704
1 10V Ceramic
9DK001-42111
C705
0.1 16V Film
9DK001-42145
C706
0.01 50V Ceramic
9DK001-42096
C715
0.01 50V Ceramic
9DK001-42096
Mark No. Description
Part No.
C716
0.01 50V Ceramic
9DK001-42096
C717
0.01 50V Ceramic
9DK001-42096
C741
47 6.3V EL
9DK001-40089
C757
4.7 10V Ceramic
9DK001-42113
C759
0.01 50V Ceramic
9DK001-42096
C762
0.1 25V Ceramic
9DK001-42094
C763
0.1 25V Ceramic
9DK001-42094
C764
0.1 25V Ceramic
9DK001-42094
C766
0.1 25V Ceramic
9DK001-42094
C767
6.8 10V OS
9DK001-40104
C768
1 10V Ceramic
9DK001-42111
C769
4.7 10V Ceramic
9DK001-42113
C776
6.8 10V OS
9DK001-40104
C777
0.1 25V Ceramic
9DK001-42094
C800
0.1 25V Ceramic
9DK001-42094
C802
0.1 25V Ceramic
9DK001-42094
C803
0.1 25V Ceramic
9DK001-42094
C804
2.2 50V EL
9DK001-40103
C805
2.2 50V EL
9DK001-40103
C806
2.2 50V EL
9DK001-40103
C807
2.2 50V EL
9DK001-40103
C808
2.2 50V EL
9DK001-40103
C813
0.1 25V Ceramic
9DK001-42094
C814
0.1 25V Ceramic
9DK001-42094
C815
0.1 25V Ceramic
9DK001-42094
C816
0.1 25V Ceramic
9DK001-42094
C817
0.1 25V Ceramic
9DK001-42094
C818
0.1 25V Ceramic
9DK001-42094
C819
0.1 25V Ceramic
9DK001-42094
C820
0.1 25V Ceramic
9DK001-42094
C821
0.1 25V Ceramic
9DK001-42094
C822
0.1 25V Ceramic
9DK001-42094
C823
0.1 25V Ceramic
9DK001-42094
C824
0.1 25V Ceramic
9DK001-42094
C825
0.1 25V Ceramic
9DK001-42094
C826
0.1 25V Ceramic
9DK001-42094
C827
0.1 25V Ceramic
9DK001-42094
C828
0.1 25V Ceramic
9DK001-42094
C829
0.1 25V Ceramic
9DK001-42094
C830
0.1 25V Ceramic
9DK001-42094
C831
0.1 25V Ceramic
9DK001-42094
C832
0.1 25V Ceramic
9DK001-42094
C833
0.1 25V Ceramic
9DK001-42094
C834
0.1 25V Ceramic
9DK001-42094
C835
0.1 25V Ceramic
9DK001-42094
C836
0.1 25V Ceramic
9DK001-42094
C837
0.1 25V Ceramic
9DK001-42094
C838
0.1 25V Ceramic
9DK001-42094
C839
0.1 25V Ceramic
9DK001-42094
C840
0.1 25V Ceramic
9DK001-42094
C841
0.1 25V Ceramic
9DK001-42094
C842
0.1 25V Ceramic
9DK001-42094
C843
0.1 25V Ceramic
9DK001-42094
C844
0.1 25V Ceramic
9DK001-42094
C845
0.1 25V Ceramic
9DK001-42094
C846
0.1 25V Ceramic
9DK001-42094
C847
100 6.3V EL
9DK001-40080
C848
0.1 25V Ceramic
9DK001-42094
C849
100 6.3V EL
9DK001-40080
C850
220 4V EL
9DK001-40092
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
95
5
6
7
8
5
6
7
8
C
D
F
A
B
E
C851
100 6.3V EL
9DK001-40080
C852
47 6.3V EL
9DK001-40089
C853
0.01 50V Ceramic
9DK001-42096
C854
47 16V EL
9DK001-40079
C855
82p 50V Ceramic
9DK001-42133
C856
0.1 25V Ceramic
9DK001-42094
C857
10 16V EL
9DK001-40077
C858
82p 50V Ceramic
9DK001-42133
C859
0.1 25V Ceramic
9DK001-42094
C860
10 16V EL
9DK001-40077
C863
82p 50V Ceramic
9DK001-42133
C864
82p 50V Ceramic
9DK001-42133
C865
82p 50V Ceramic
9DK001-42133
C867
10 16V EL
9DK001-40077
C868
0.1 25V Ceramic
9DK001-42094
C869
0.1 25V Ceramic
9DK001-42094
C870
82p 50V Ceramic
9DK001-42133
C872
0.1 25V Ceramic
9DK001-42094
C874
82p 50V Ceramic
9DK001-42133
C875
82p 50V Ceramic
9DK001-42133
C876
0.1 25V Ceramic
9DK001-42094
C878
0.1 25V Ceramic
9DK001-42094
C879
82p 50V Ceramic
9DK001-42133
C880
0.47 16V Ceramic
9DK001-42152
C881
0.1 25V Ceramic
9DK001-42094
C882
22 16V EL
9DK001-40078
C883
0.1 25V Ceramic
9DK001-42094
C884
0.1 25V Ceramic
9DK001-42094
C885
0.1 25V Ceramic
9DK001-42094
C886
0.47 16V Ceramic
9DK001-42152
C887
120p 50V Ceramic
9DK001-42151
C888
120p 50V Ceramic
9DK001-42151
C889
120p 50V Ceramic
9DK001-42151
C890
10 16V EL
9DK001-40077
C891
10 16V EL
9DK001-40077
C894
0.1 25V Ceramic
9DK001-42094
C895
0.1 25V Ceramic
9DK001-42094
C896
0.1 25V Ceramic
9DK001-42094
C897
0.1 25V Ceramic
9DK001-42094
C898
100p 50V Ceramic
9DK001-42099
C899
100p 50V Ceramic
9DK001-42099
C900
100p 50V Ceramic
9DK001-42099
C904
0.1 25V Ceramic
9DK001-42094
C905
0.1 25V Ceramic
9DK001-42094
C907
0.1 25V Ceramic
9DK001-42094
C908
0.01 50V Ceramic
9DK001-42096
C913
0.1 25V Ceramic
9DK001-42094
C916
0.1 25V Ceramic
9DK001-42094
C917
0.01 50V Ceramic
9DK001-42096
C918
0.01 50V Ceramic
9DK001-42096
RESISTOR
R10
10k 1/16W Resistor Array
9DK001-51030
R11
10k 1/16W Resistor Array
9DK001-51030
R16
1.69k 1/16W Chip1608
9DK001-50198
R17
33k 1/16W Chip1608
9DK001-50210
R18
2.15k 1/16W Chip1608
9DK001-50199
R19
10k 1/16W Resistor Array
9DK001-51030
R21
0 1/16W Chip1608
9DK001-50149
R22
10k 1/16W Chip1608
9DK001-50185
Mark No. Description
Part No.
R27
27k 1/16W Chip1608
9DK001-50209
R29
10k 1/16W Resistor Array
9DK001-51030
R33
10k 1/16W Resistor Array
9DK001-51030
R34
10k 1/16W Resistor Array
9DK001-51030
R35
10k 1/16W Resistor Array
9DK001-51030
R36
10k 1/16W Resistor Array
9DK001-51030
R40
68 1/16W Chip1608
9DK001-50163
R43
10k 1/16W Resistor Array
9DK001-51030
R44
10k 1/16W Resistor Array
9DK001-51030
R50
10k 1/16W Resistor Array
9DK001-51030
R51
10k 1/16W Resistor Array
9DK001-51030
R57
10k 1/16W Resistor Array
9DK001-51030
R58
10k 1/16W Resistor Array
9DK001-51030
R62
10 1/16W Resistor Array
9DK001-51029
R65
10k 1/16W Resistor Array
9DK001-51030
R75
0 1/16W Chip1608
9DK001-50149
R80
270 1/10W Chip2125
9DK001-50103
R83
0 1/16W Chip1608
9DK001-50149
R88
270 1/10W Chip2125
9DK001-50103
R91
0 1/16W Chip1608
9DK001-50149
R96
270 1/10W Chip2125
9DK001-50103
R121
47 1/4W Chip3216
9DK001-50065
R122
47 1/4W Chip3216
9DK001-50065
R123
1.6k 1/16W Chip1608
9DK001-50256
R124
1.0k 1/16W Chip1608
9DK001-50237
R128
10 1/16W Chip1608
9DK001-50150
R132
3.3k 1/16W Chip1608
9DK001-50156
R133
3k 1/16W Chip1608
9DK001-50155
R138
0 1/16W Chip1608
9DK001-50149
R140
0 1/16W Chip1608
9DK001-50149
R289
4.7k 1/16W Chip1608
9DK001-50183
R340
10k 1/16W Chip1608
9DK001-50185
R650
10k 1/16W Chip1608
9DK001-50185
R651
6.8k 1/16W Resistor Array
9DK001-51037
R652
10k 1/16W Resistor Array
9DK001-51030
R654
150 1/16W Chip1608
9DK001-50204
R656
4.7k 1/16W Chip1608
9DK001-50183
R664
15k 1/16W Chip1608
9DK001-50259
R665
15k 1/16W Chip1608
9DK001-50259
R671
15k 1/16W Chip1608
9DK001-50259
R677
470 1/16W Chip1608
9DK001-50173
R678
1.2k 1/16W Chip1608
9DK001-50254
R680
3k 1/16W Chip1608
9DK001-50155
R681
3k 1/16W Chip1608
9DK001-50155
R682
1.2k 1/16W Chip1608
9DK001-50254
R687
470 1/16W Chip1608
9DK001-50173
R688
15 1/16W Chip1608
9DK001-50201
R689
470 1/16W Chip1608
9DK001-50173
R690
1.8k 1/16W Chip1608
9DK001-50205
R691
1.8k 1/16W Chip1608
9DK001-50205
R692
22 1/16W Chip1608
9DK001-50159
R693
22 1/16W Chip1608
9DK001-50159
R694
22 1/16W Chip1608
9DK001-50159
R695
22 1/16W Chip1608
9DK001-50159
R696
10k 1/16W Chip1608
9DK001-50185
R697
10k 1/16W Chip1608
9DK001-50185
R698
10k 1/16W Chip1608
9DK001-50185
R699
10k 1/16W Chip1608
9DK001-50185
R702
10k 1/16W Resistor Array
9DK001-51030
R708
10k 1/16W Resistor Array
9DK001-51030
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
96
1
2
3
4
1
2
3
4
C
D
F
A
B
E
R730
680 1/16W Chip1608
9DK001-50175
R731
620 1/16W Chip1608
9DK001-50271
R733
10k 1/16W Chip1608
9DK001-50185
R734
10k 1/16W Chip1608
9DK001-50185
R735
10k 1/16W Chip1608
9DK001-50185
R736
10k 1/16W Chip1608
9DK001-50185
R737
10k 1/16W Chip1608
9DK001-50185
R738
10k 1/16W Chip1608
9DK001-50185
R739
10k 1/16W Chip1608
9DK001-50185
R740
10k 1/16W Chip1608
9DK001-50185
R742
0 1/16W Chip1608
9DK001-50149
R743
1.8k 1/16W Chip1608
9DK001-50205
R745
0 1/16W Chip1608
9DK001-50149
R747
0 1/16W Chip1608
9DK001-50149
R749
0 1/16W Chip1608
9DK001-50149
R757
0 1/16W Chip1608
9DK001-50149
R758
0 1/16W Chip1608
9DK001-50149
R758
10k 1/16W Chip1608
9DK001-50185
R759
1k 1/16W Chip1608
9DK001-50177
R760
1k 1/16W Chip1608
9DK001-50177
R763
0 1/16W Chip1608
9DK001-50149
R764
0 1/16W Chip1608
9DK001-50149
R765
0 1/16W Chip1608
9DK001-50149
R867
510 1/16W Chip1608
9DK001-50217
R868
510 1/16W Chip1608
9DK001-50217
R869
510 1/16W Chip1608
9DK001-50217
R876
0 1/16W Chip1608
9DK001-50149
R877
10k 1/16W Chip1608
9DK001-50185
R879
0 1/16W Chip1608
9DK001-50149
R881
0 1/16W Chip1608
9DK001-50149
R883
0 1/16W Chip1608
9DK001-50149
R885
0 1/16W Chip1608
9DK001-50149
R887
0 1/16W Chip1608
9DK001-50149
R901
0 1/4W Chip3216
9DK001-50113
R911
10 1/10W Chip2125
9DK001-50121
R912
10 1/10W Chip2125
9DK001-50121
R920
100 1/16W Chip1608
9DK001-50165
R921
100 1/16W Chip1608
9DK001-50165
R922
10k 1/16W Chip1608
9DK001-50185
R924
4.7k 1/16W Chip1608
9DK001-50183
R925
4.7k 1/16W Chip1608
9DK001-50183
R926
0 1/16W Chip1608
9DK001-50149
R927
100 1/16W Chip1608
9DK001-50165
R928
100 1/16W Chip1608
9DK001-50165
R929
100 1/16W Chip1608
9DK001-50165
R930
100 1/16W Chip1608
9DK001-50165
R934
68 1/16W Resistor Array
9DK001-51040
R936
68 1/16W Resistor Array
9DK001-51040
R937
68 1/16W Resistor Array
9DK001-51040
R939
68 1/16W Resistor Array
9DK001-51040
R940
68 1/16W Resistor Array
9DK001-51040
R941
68 1/16W Resistor Array
9DK001-51040
R947
56 1/16W Resistor Array
9DK001-51039
R951
6.8k 1/16W Resistor Array
9DK001-51037
R959
68 1/16W Resistor Array
9DK001-51040
R960
68 1/16W Resistor Array
9DK001-51040
R961
68 1/16W Resistor Array
9DK001-51040
R962
68 1/16W Resistor Array
9DK001-51040
R963
68 1/16W Resistor Array
9DK001-51040
R964
68 1/16W Resistor Array
9DK001-51040
Mark No. Description
Part No.
R965
68 1/16W Resistor Array
9DK001-51040
R966
68 1/16W Resistor Array
9DK001-51040
R967
68 1/16W Resistor Array
9DK001-51040
R968
68 1/16W Resistor Array
9DK001-51040
R969
68 1/16W Resistor Array
9DK001-51040
R970
68 1/16W Resistor Array
9DK001-51040
R971
33 1/16W Resistor Array
9DK001-51042
R972
33 1/16W Resistor Array
9DK001-51042
R973
33 1/16W Resistor Array
9DK001-51042
R974
33 1/16W Resistor Array
9DK001-51042
R975
33 1/16W Resistor Array
9DK001-51042
R976
33 1/16W Resistor Array
9DK001-51042
R977
10k 1/16W Chip1608
9DK001-50185
R978
68 1/16W Chip1608
9DK001-50163
R979
0 1/16W Chip1608
9DK001-50149
R980
0 1/16W Chip1608
9DK001-50149
R993
0 1/16W Chip1608
9DK001-50149
R998
0 1/16W Chip1608
9DK001-50149
R999
510 1/16W Chip1608
9DK001-50217
R1000
4.7k 1/16W Chip1608
9DK001-50183
R1001
4.7k 1/16W Chip1608
9DK001-50183
R1002
100 1/16W Chip1608
9DK001-50165
R1003
100 1/16W Chip1608
9DK001-50165
R1004
1k 1/16W Chip1608
9DK001-50177
R1005
1k 1/16W Chip1608
9DK001-50177
R1006
2.2k 1/16W Chip1608
9DK001-50179
R1007
1k 1/16W Chip1608
9DK001-50177
R1008
1k 1/16W Chip1608
9DK001-50177
R1009
2.2k 1/16W Chip1608
9DK001-50179
R1011
33k 1/16W Chip1608
9DK001-50210
R1012
1k 1/16W Chip1608
9DK001-50177
R1013
47 1/16W Chip1608
9DK001-50161
R1015
47 1/16W Chip1608
9DK001-50161
R1017
47 1/16W Chip1608
9DK001-50161
R1019
2.2k 1/16W Chip1608
9DK001-50179
R1022
3.3k 1/16W Chip1608
9DK001-50181
R1023
3.3k 1/16W Chip1608
9DK001-50181
R1024
3.3k 1/16W Chip1608
9DK001-50181
R1025
0 1/16W Chip1608
9DK001-50149
R1026
220 1/16W Chip1608
9DK001-50169
R1027
220 1/16W Chip1608
9DK001-50169
R1028
220 1/16W Chip1608
9DK001-50169
R1029
1M 1/16W Chip1608
9DK001-50190
R1030
1k 1/16W Chip1608
9DK001-50177
R1031
22k 1/16W Chip1608
9DK001-50186
R1032
100k 1/16W Chip1608
9DK001-50212
R1033
1k 1/16W Chip1608
9DK001-50177
R1034
1k 1/16W Chip1608
9DK001-50177
R1035
100k 1/16W Chip1608
9DK001-50212
R1036
1k 1/16W Chip1608
9DK001-50177
R1037
22k 1/16W Chip1608
9DK001-50186
R1038
100k 1/16W Chip1608
9DK001-50212
R1042
1k 1/16W Chip1608
9DK001-50177
R1043
1k 1/16W Chip1608
9DK001-50177
R1044
1k 1/16W Chip1608
9DK001-50177
R1045
560 1/16W Chip1608
9DK001-50174
R1048
47 1/16W Chip1608
9DK001-50161
R1049
47 1/16W Chip1608
9DK001-50161
R1050
47 1/16W Chip1608
9DK001-50161
R1051
4.7k 1/16W Chip1608
9DK001-50183
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
97
5
6
7
8
5
6
7
8
C
D
F
A
B
E
R1052
4.7k 1/16W Chip1608
9DK001-50183
R1053
4.7k 1/16W Chip1608
9DK001-50183
R1054
4.7k 1/16W Chip1608
9DK001-50183
R1055
4.7k 1/16W Chip1608
9DK001-50183
R1056
4.7k 1/16W Chip1608
9DK001-50183
R1058
4.7k 1/16W Chip1608
9DK001-50183
R1059
4.7k 1/16W Chip1608
9DK001-50183
R1060
4.7k 1/16W Chip1608
9DK001-50183
R1061
4.7k 1/16W Chip1608
9DK001-50183
R1062
4.7k 1/16W Chip1608
9DK001-50183
R1077
6.8k 1/16W Chip1608
9DK001-50207
R1079
56 1/16W Resistor Array
9DK001-51039
R1082
22 1/16W Chip1608
9DK001-50159
R1083
1k 1/16W Chip1608
9DK001-50177
R1084
10k 1/16W Chip1608
9DK001-50185
R1085
6.8k 1/16W Chip1608
9DK001-50207
R1089
100 1/16W Chip1608
9DK001-50165
R1099
0 1/16W Chip1608
9DK001-50149
R1101
56 1/16W Resistor Array
9DK001-51039
R1102
56 1/16W Resistor Array
9DK001-51039
R1104
100 1/16W Chip1608
9DK001-50165
R1105
10k 1/16W Chip1608
9DK001-50185
R1107
1k 1/16W Chip1608
9DK001-50177
R1108
16k 1/16W Chip1608
9DK001-50214
R1110
4.7k 1/16W Chip1608
9DK001-50183
R1120
0 1/16W Chip1608
9DK001-50149
R1121
0 1/16W Chip1608
9DK001-50149
R1122
0 1/16W Chip1608
9DK001-50149
R1123
0 1/16W Chip1608
9DK001-50149
R1124
0 1/16W Chip1608
9DK001-50149
R1125
0 1/16W Chip1608
9DK001-50149
R1126
10 1/4W Chip3216
9DK001-50088
R1127
10k 1/16W Chip1608
9DK001-50185
R1128
47 1/16W Chip1608
9DK001-50161
FB15
0 1/10W Chip2125
9DK001-50110
FB18
0 1/10W Chip2125
9DK001-50110
FB19
0 1/10W Chip2125
9DK001-50110
FL1
0 1/10W Chip2125
9DK001-50110
FL98
33 1/10W Chip2125
9DK001-50080
FL99
0 1/10W Chip2125
9DK001-50110
FL102
0 1/10W Chip2125
9DK001-50110
FL110
0 1/10W Chip2125
9DK001-50110
SWITCH
S1
Switch Slide
9DK001-70012
MISCELLANEOUS PARTS
FB50
Ferrite Bead Chip2125
9DK001-81060
FB51
Ferrite Bead Chip2125
9DK001-81060
FB52
Ferrite Bead Chip2125
9DK001-81060
FB53
Ferrite Bead Chip2125
9DK001-81060
CN1
Connector, 15-pin
9DK001-60074
CN3
Connector, 29-pin
9DK001-60053
CN5
Connector, JEY-9P-1A3F
9DK001-60066
CN6
Connector, 30-pin
9DK001-60067
CN7
Connector, 50-pin
9DK001-60058
CN8
Connector, 12-pin
9DK001-60070
CN9
Connector, 13-pin
9DK001-60071
GPOWER UNIT
Mark No. Description
Part No.
IC
IC701
NJM2375AD
VHiNJM2375AD1
IC702
TNY264P
VHiTNY264P/-1
IC703
TA76431
VHiTA76431S15
TRANSISTOR
Q701
2SK2662
VS2SK2662//-1
Q702
2SC1741AS
VS2SC1741AS-1
Q703
2SK2700
VS2SK2700//-1
Q704
2SC1741AS
VS2SC1741AS-1
Q705
DTD113ZS
VSDTD113ZS/-1
Q706
DTC124ESA
VSDTC124ESA-1
Q707
DTA124XSA
VSDTA124XSA-1
Q708
DTC124ESA
VSDTC124ESA-1
Q709
DTA114ESA
VSDTA114ESA-1
DIODE
D701
Diode
VHDD3SB60//-1
D702
Diode
VHD5JL2CZ47-1
D703
Diode
VHD1SS270ATE1
D704
Diode
VHD1SS270ATE1
D705
Zener Diode
VHEHZS18-3/-1
D706
Diode
VHD1SS270ATE1
D707
Diode
VHD05NH45//-1
D708
Diode
VHD05NH45//-1
D709
Diode
VHDAG01////-1
D710
Diode
VHDFMB26L//-1
D711
Zener Diode
VHEHZS12A3/-1
D713
Diode
VHDRK39LFC3-1
D714
1SS270A
VHD1SS270ATE1
D715
Zener Diode
VHEHZS3CLL/-1
D716
Zener Diode
VHEHZS6C2//-1
D717
Diode
VHD1SS270ATE1
PACKAGED CIRCUIT
> PC701 Photo Coupler PC123FY
VHPPC123FY2-
> PC702 Photo Coupler PC123FY
VHPPC123FY2-
> PC703 Photo Coupler PC123FY
VHPPC123FY2-
> PC704 Photo Coupler PC123FY
VHPPC123FY2-
FILTER AND COIL
L703
Coil
RCiLC1239SNEZY
L704
Coil
RCiLC1249SNEZ
L705
Coil
RCiLC1250SNEZ
TRANSFORMER
> T701
Transformer
RTRNP1219SNE
> T702
Transformer
RTRNP1220SNE
TH701 Power Thermistor
VHS8D2-10LD-1
TH702 Power Thermistor
VHS8D2-10LD-1
CAPACITOR
> C704
0.01 275V Film
RC-M2E103RES
> C705
1000p 250V Ceramic
RCDE0910R102
C706
0.82 400V Film
RC-M2G824MDSC
C707
220p 2kV Ceramic
RCDE0707R221S
C708
56 450V EL.
RC-E2W566KMMZ
C709
0.01 50V Ceramic
RCDD350BC103K
C710
100 35V EL.
RC-E1V107SNPW
C711
0.47 12V Ceramic
RC-DD312F474Z
C713
220p 2kV Ceramic
RCDE0707R221S
C714
220p 2kV Ceramic
RCDE0707R221S
C715
0.1 16V Ceramic
RCDD407SR104K
C716
0.1 16V Ceramic
RCDD407SR104K
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
98
1
2
3
4
1
2
3
4
C
D
F
A
B
E
C717
4700p 50V Ceramic
RCDD107-B472K
C718
0.01 50V Ceramic
RCDD350BC103K
C719
22 400V EL.
RC-E2G226KMXZ
C720
100p 2kV Ceramic
RCDE0705SL101
C721
0.1 16V Ceramic
RCDD407SR104K
C722
22 50V EL.
RC-E1H226SNPJ
C723
470 25V EL.
RC-E1E477SNPW
C724
470 25V EL.
RC-E1E477SNPW
C725
470 25V EL.
RC-E1E477SNPW
C726
0.1 16V Ceramic
RCDD407SR104K
C727
470 25V EL.
RC-E1E477SNPW
C728
220 10V EL.
RC-E1A227SNPW
C729
220 10V EL.
RC-E1A227SNPW
C730
0.1 16V Ceramic
RCDD407SR104K
C731
0.047 50V Ceramic
RCDD407SR473K
C732
1 50V EL.
RC-E1H105SNPR
C733
2200p 50V Ceramic
RCDD106-B222K
RESISTOR
R702
1M 1/4W Carbon
VRD-HT2EY105J
R703
1M 1/4W Carbon
VRD-HT2EY105J
R704
22k 1/4W Carbon
VRD-HT2EY223J
R705
10 1/4W Carbon
VRD-HT2EY100J
R706
0.15 2W M-Ox.
RR-HRNMR15J2C
R707
820k 1/4W Carbon
VRD-HT2EY824J
R708
750k 1/4W Carbon
VRD-HT2EY754J
R709
0 1/4W Carbon
VRD-HT2EY000J
R710
15k 1/4W Carbon
VRD-HT2EY153J
R711
560 1/4W Carbon
VRD-HT2EY561J
R712
1k 1/4W Carbon
VRD-HT2EY102J
R713
10k 1/4W Carbon
VRD-HT2EY103J
R714
100 2W M-Ox.
VRS-RE3DA101J
R715
270k 1/2W Carbon
VRD-HT2HY274J
R716
270k 1/2W Carbon
VRD-HT2HY274J
R717
18k 1/4W Carbon
VRD-HT2EY183J
R718
5.6k 1/4W Carbon
VRD-HT2EY562J
R719
3 3W M-Ox.
RR-HRSM3R0J3C
R720
1.5k 1/4W Carbon
VRD-HT2EY152J
R721
220 1/2W Carbon
VRD-HT2HY221J
R722
68 1/4W Carbon
VRD-HT2EY680J
R723
100 1/4W Carbon
VRD-HT2EY101J
R724
470 1/4W Carbon
VRD-HT2EY471J
R725
1k 1/4W Carbon
VRD-HT2EY102J
R726
1.2k 1/4W Carbon
VRD-HT2EY122J
R727
1.5k 1/2W Carbon
VRD-HT2HY152J
R728
10 1/4W Carbon
VRD-HT2EY100J
R729
100 1/4W Carbon
VRD-HT2EY101J
R730
220 1/4W Carbon
VRD-HT2EY221J
R731
1k 1/4W Carbon
VRD-HT2EY102J
R732
10k 1/4W Carbon
VRD-HT2EY103J
R733
3.6k 1/4W Carbon
VRNHT2EK3601F
R734
150 1/4W Carbon
VRNHT2EK1500F
R735
1k 1/4W Carbon
VRNHT2EK1001F
R736
1k 1/4W Carbon
VRD-HT2EY102J
R737
2.2k 1/4W Carbon
VRD-HT2EY222J
R738
2.2k 1/4W Carbon
VRD-HT2EY222J
R739
5.6k 1/4W Carbon
VRD-HT2EY562J
R740
51k 1/4W Carbon
VRD-HT2EY513J
SWITCH
> SW701 Switch
QSW-P0591CEZ
Mark No. Description
Part No.
MISCELLANEOUS PARTS
FB701
Ferrite Bead
RCORF1011SNEZ
FB702
Ferrite Bead
RCORF1011SNEZ
> RL701
Relay
RRLYD1010SNE
> F702
Fuse T2A 250V TR-5
QFS-A1129SNE
CN702 Connector, 3-pin
QCNCM1003SNEZ
CN703 Connector, 12-pin
QCNCM1766SNEZ
Heat Sink
PRDAF1085SNEZ
Heat Sink
PRDAF1073SNEZ
HEMC UNIT
DIODE
> VA701
Varistor
VHVNV470D10-
FILTER
> L701
Filter
RCiLZ1230SNE
> L702
Filter
RCiLZ1230SNE
CAPACITOR
> C701
0.22 275V Film
RC-M2E224RES
> C702
1000p 250V Ceramic
RCDE0910R102
> C703
1000p 250V Ceramic
RCDE0910R102
> C735
0.22 275V Film
RC-M2E224RES
RESISTOR
R701
390k 1/2W Carbon
VRD-HT2HY394J
R741
5.6M 1/2W Carbon(PDP-R03U) RR-RCR50+565J
R742
5.6M 1/2W Carbon(PDP-R03U) RR-RCR50+565J
MISCELLANEOUS PARTS
> F701
Fuse T2A 250V TR-5
QFS-A1129SNE
> CN701 Socket, 3-pin
QSOCA1012SNE
CNW701Connecting Cord (NF)
QCNW-1765SNEZ
CNW702Connecting Cord (Earth)
QCNW-1769SNEZ
Mark No. Description
Part No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
99
5
6
7
8
5
6
7
8
C
D
F
A
B
E
6. ADJUSTMENT
Procedure for turning ON the power
1. Connecting the system
(1) Using the system cable, interconnect the plasma display and the AVC system.
(2) Connect the plasma display to the AC power source.
(3) Connect the AVC System to the AC power source.
2. Procedure for turning ON the power
(1) Turn ON the AC power switch located on the plasma display.
The power indicator on the plasma display will start blinking in red.
(When the AC power switch on the AVC System is not ON, the power indicator on the plasma display always
blinks in red.)
(2) Turn ON the power switch located on the AVC System.
The power indicator on the AVC System will be illuminated in green. Simultaneously, the power indicator on the
plasma display will change from blinking in red to illumination in green. Now the system has started up.
(3) If the power indicators on the AVC System and on the plasma display are both illuminated in red, press the
power key located on the remote controller and the power button located on the plasma display. The power
indicators on the plasma display and on the AVC System will change from red to green. Now the system has
started up.
Procedure for upgrading the AVC System software
(1) With the power being OFF, open the top cabinet of the AVC System and then set the slide switch from the
NORMAL position to the WRITE position by inserting an insulated stick into the cutout located between the
WHITE port on the rear of the shield case for the PC I/F unit and the RS-232C port. (Or the software may be
upgraded by calling the process adjustment mode and using CENTER PROG UPDATE on the process
adjustment menu screen. This is discussed later.)
(2) Connect a program-installed PC to the AVC system using the RS-232C cross cable. (For the details of the
program, see Appendix.)
(3) Open the MS-DOS window on the PC and then go to the directory in which the software is installed.
(4) Start up the system to which the AVC System and plasma display have been connected.
(5) Run “vup.bat (tentative name)” at the MS-DOS prompt. The software will be upgraded.
(6) Load the file “civic_XXXXa.bhx main.bhx osd.bhx (tentative name)”.
It will take a couple of minutes until the file has been loaded. Never turn OFF the power or operate the system
during this rewriting period.
(7) After the file has been loaded, turn OFF the plasma display and the AVC System, and then return the slide
switch in the above step (1) back from the WRITE position to the NORMAL position. Now the software has been
upgraded.
Procedure for adjusting each part of the AVC System
1. The adjustments were made to the best settings at factory. If any setting deviates or if any readjustment is
regarded as necessary when any part has been replaced, perform the following steps.
2. Any parameter that has been changed in the process adjustment mode is stored on the memory. If any
readjustment is required, write down the current value before changing it.
3. Use a stable AC power source.
4. If the program is upgraded, it will take approximately 1 minute for the EEPROM to be initialized before any
video appears. Therefore, you will need to wait for this time period. Do not turn OFF the power or operate the
system during the period.
5. If the program is rewritten, preferably write down the parameters that have been changed within the process
adjustment (see “OSD menu and parameters displayed at manual adjustment”), initialize the EEPROM, and
then reenter the recorded values.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
100
1
2
3
4
1
2
3
4
C
D
F
A
B
E
Entering a special mode
1. Entering the process adjustment mode
With the system being ON, turn OFF the main power of the plasma display. Next holding down the INPUT SELECT
and CH UP buttons on the plasma display itself, turn ON the main power again. Now the adjustment mode screen
shows up.
2. Adjustments in the adjustment process mode
[Steps]
Make adjustments using the process adjustment mode buttons, listed below.
[Description]
Following the items displayed on the process adjustment menu screen, adjust the settings given in their
adjustment tables.
3. Procedure for making factory settings
[Steps]
In the process adjustment mode, move the cursor to the line “INDUSTRY INIT” onscreen. Turn ON with the VOL
key and press the SET/ENTER key.
(Within the adjustment process, the channel settings remain unchanged. Once you exit the process adjustment
mode, the channel settings entered in the delivery adjustment mode become valid.)
[Description]
The user’s adjustment parameters and others will be set to the default values. Keep in mind that the channel
settings will also be initialized.
Exiting the process adjustment mode
To exit the process adjustment mode, turn off the AVC System power.
OSD menu and parameters displayed at manual adjustment
• The default values may slightly differ depending upon the program version to be rewritten.
• The settings are not initialized to the default values by merely rewriting the program. (See the paragraph for
Procedure for adjusting each part of the AVC System.)
(1) Descriptions of special buttons in process adjustment mode
(All on the remote controller)
Cursor UP key
: Returns to the previous page.
Cursor DOWN key : Proceeds to the next page.
Vol UP key
: Increases the adjusted value by 1.
Vol DOWN key
: Decreases the adjusted value by 1.
Cursor RIGHT key : Increases the adjusted value by 10.
Cursor LEFT key
: Decreases the adjusted value by 10.
CH UP key
: Moves up the cursor.
CH DOWN key
: Moves down the cursor.
(2) Process adjustment menu table
The items displayed on the menu screen must be written down before replacing the EEPROM at the AVC
System side.
Procedure for replacing the PC I/F unit
Before replacing the PC I/F unit, write down the items displayed on each menu screen of the adjustment process.
If the I/F unit is completely broken and the above items cannot be jotted down in advance, follow the instructions
in “Adjustment procedures and items” and make all adjustments.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
101
5
6
7
8
5
6
7
8
C
D
F
A
B
E
(2) Organization of process adjustment screen
The example of a display
Parameter display
+B Adj3.3V
+B Adj2.5V
SUB N358 Y
SUB N358 COLOR GAIN
SUB N358 TINT
N358 Y CONTRAST
N358 COLOR GAIN
MAIN CR GAIN N358
N358 TINT
MAIN CONTRAST 15K
MAIN SUB BRIGHT 15K
COMP 15K Y CONTRAST
COMP 15K COLOR GAIN
MAIN CR GAIN COMP 15K
COMP HDTV CONTRAST
COMP HDTV SUB BRIGHT
PEAK ACL SW
Setting range
0
~ 255
0
~ 255
0
~
63
0
~
63
0
~
63
0
~
63
0
~
63
0
~ 255
0
~
63
0
~
63
0
~
15
0
~
63
0
~
63
0
~ 255
0
~
63
0
~
63
OFF/ON
Description
3.3 V adjustment
2.2 V adjustment
Sub N358 Y level adiustment
Sub N358 color gain adjustment
Sub N358 tint adjustment
Main N358 Y contrast adjustment
Main N358 color gain adjustment
Main N358 Cr level adjustment
Main N358 Tint adjustment
Main Contrast adjustment (15k)
Main sub bright adjustment (15k)
COMP 15k Y level adjustment
COMP 15k Color gain adjustment
COMP 15k Cr level adjustment
COMP HDTV contrast level adjustment
COMP HDTV black level adjustment
The values for the above parameters should be written down before the EEPROM is replaced on
the AVC System.
+Badj3.3V
+Badj2.5V
KEY WRITE
INDUSTRY INIT
CENTER Version
OSD version
CVIC Version
MONITOR version
PANEL Version
FLASH version
MONITOR Model
MODEL select MAIN
MODEL select AV
Model Select MONITOR
STANDBY TYPE
128
024
OFF
OFF
MR MAIN E 2001/11/14A
MR OSD 2001/09/06A
W2001/10/02 17.28 X2001/10/02 V2001/09/12 09.12
F6 91xx
-00
-01
11
2
1
Page
Input Source
Distinguish Signal
HDCP
1/16
INPUT1
No SIG HDCP:ON
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
102
1
2
3
4
1
2
3
4
C
D
F
A
B
E
Procedures before and after replacing the PC I/F unit
1) Before replacing the PC I/F unit, write down the values for the parameters listed on the 2nd and 3rd pages of
the Adjustment Process A screen.
If the values for the parameters cannot be written down because the PC I/F unit is completely broken or for any
other reason, make all the adjustments in accordance with the paragraph for Adjustment procedure and
parameters, rather than the following procedures. (End)
Set the parameters listed on the 2nd and 3rd pages of the Adjustment Process A screen to the values you have
written down.
Adjustment parameters
1) Analog adjustment
(1) Prior adjustment for AVC system chassis
(2) N358 signal adjustment
1
Process adjustment
mode
Adjustment item
Description
Adjustment procedure
2
AVC center 3.3V
adjustment
3
AVC center 2.5V
adjustment
1
Setup
Adjustment item
Description
Adjustment procedure
2
Tuner level adjustment
1.0Vp-p
3
MAIN N358 Y
CONTRAST
adjustment
0.7Vp-p
4
MAIN N358 COLOR
GAIN adjustment
5
MAIN N358 TINT
adjustment
0.3Vp-p
Smoothed
Call the process adjustment mode.
Adjust output voltage of DC/DC 3.3 V line to
3.25 ±0.01 V.
Adjust output voltage of DC/DC 2.5 V line to
2.6 ±0.01 V.
1. Receive the SPLIT FIELD color bar signal.
white 100%, 75% color bar, modulation
1. Adjust the V-LEVEL (R1121) control so that the tuner output
(TP1101) on the AV PWB (DUNTKA616) should be
1.0 ±0.02 Vp-p.
2. Adjust the V-LEVEL (R1219) control so that the tuner output
(TP1201) on the AV PWB (DUNTKA616) should be
1.0 ±0.02 Vp-p.
1. Adjust TB1274_MAIN output (pin (1) of P801)
to 0.7 ±0.01 Vp-p.
1. Adjust TB1274_MAIN output (pin (3) of P801) so that the
level shown below should be 0.3 ±0.01 Vp-p.
1. Adjust TB1274_MAIN output (pin (3) of P801) so that the
waveform should become as shown below.
Connect DC voltmeter to
TP1702.
Connect DC voltmeter to
TP1701.
•
MAIN side
•
SUB side
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
103
5
6
7
8
5
6
7
8
C
D
F
A
B
E
6
MAIN N358 Cr level
adjustment
Adjustment item
Description
Adjustment procedure
7
MAIN N358
CONTRAST
adjustment
8
SUB N358 Y LEVEL
adjustment
9
SUB N358 COLOR
GAIN adjustment
0.3Vp-p
0.9Vp-p
0.68Vp-p
(3) Component 15 kHz signal adjustment
1
Setup
Adjustment item
Description
Adjustment procedure
2
COMPONENT
15 kHz Y level adjustment
3
COMPONENT
15 kHz COLOR GAIN
adjustment
4
COMPONENT
15 kHz Cr level
adjustment
0.7Vp-p
0.7Vp-p
Peak ACL: OFF
Check DC Tran 01
Press the TWIN PICTURE
key.
1. Adjust TB1274_MAIN output (pin (5) of P801) so that the
level shown below should be 0.3 ±0.01 Vp-p.
1. Turn off the PEAK ACL control. Adjust the output (TP815) of
IC810 to have 1.1 Vp-p from the pedestal level.
Adjusted value: 1.1 ±0.02 V
1. Select the special TWIN PICTURE settings for adjustment
(so that the same video source is reflected on MAIN/SUB).
1. Adjust TB1274_SUB output (TP806) to 0.9 ±0.02 Vp-p.
1. Adjust TB1274_SUB output (TP805) so that the level shown
below should be 0.68 ±0.01 Vp-p.
1. Select the component 15 kHz source (100% white color bar
signal).
1. Adjust TB1274_MAIN output (pin (1) of P801)
to 0.7 ±0.01 Vp-p.
1. Adjust TB1274_MAIN output (pin (3) of P801) so that the
level shown below should be 0.7 ±0.01 Vp-p.
1. Adjust TB1274_MAIN output (pin (3) of P801) so that the
level shown below should be 0.7 ±0.01 Vp-p.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
104
1
2
3
4
1
2
3
4
C
D
F
A
B
E
(4) Component HDTV signal adjustment
1
Setup
Adjustment item
Description
Adjustment procedure
2
COMPONENT
HDTV CONTRAST
adjustment
1. Select the component HDTV source (100% white color bar
signal).
1. Turn off the PEAK ACL control. Adjust the output (TP815) of
IC810 to have 1.1 ±0.02 Vp-p from the pedestal level.
Peak ACL: OFF
2. Factory settings
1
INDUSTRY INIT
Adjustment item
Description
Adjustment procedure
Check the PEAK ACL is "ON" and DC Tran is "00".
Press the Delivery Setup key on the remote controller. Or position
the cursor on the INDUSTRY INIT line, set the line to ON with
the VOL key, and then press the ENTER key. The adjustment is
finished when the line turns OFF.
Then turn off the AC power supply of the AVC System. (Be careful not to use the power switches of the remote controller and
panel unit.)
TP1101
SC1102
J1104
SC1101
J1103
IC1401
AV SWITCH
IC1301
AV SWITCH
IC1102
P1301
CONNECTOR
SC1502
CONNECTOR
SC1501
CONNECTOR
P1502
CONNECTOR
P1702
CONNECTOR
P1703
CONNECTOR
SC1401
CONNECTOR
SC1503
CONNECTOR
SC1504
CONNECTOR
SC1402
CONNECTOR
P2503
CONNECTOR
P2501
CONNECTOR
P2502
CONNECTOR
SC1103
TU1102 U/V TUNER
TU1101 U/V TUNER
TP1701
TP806
TP805
TP815
TP1201
R1219
R1121
TP1702
P801
IC1602
CCD
IC1601
V-CHIP
IC1603
V-CHIP
IC2501
MULTI SOUND
IC802
SUB VIDEO CHROMA
IC1901
PLD
IC402
SUB COMB FILTER
IC403
CONTROL
IC604
SYNC SEPARATE
P1901
PROGRAMMING
CONNECTOR
IC803
RGB DECODER
IC7002
MEMORY
IC801
MAIN VIDEO CHROMA
IC7001
Y/C SEPERATE
IC1502
DAC
IC1502
DAC
L1708
L1718
L1710
T1701
L1711
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
105
5
6
7
8
5
6
7
8
C
D
F
A
B
E
7. GENERAL INFORMATION
7.1 DIAGNOSIS
7.1.1 TROUBLE SHOOTING
No sound
No sound from speaker
NO
YES
Does output icon denote speaker when
operating audio volume control?
NO
NO
Does output icon denote lineout when
operating audio volume control?
YES
Is audio output available at each
related pin of IC2501
(MULTI SOUND PROCESSOR)
normal ?
IC2501 Pins (36) and (37) (SC1 OUT L/R)
YES
Check Q2505, 2504 (Buffer) and
their peripheral circuits.
YES
Check PC I/F Unit and its peripheral
circuits.
No audio output (INPUT 1/2/3)
YES
Is audio output available at each
related pin of IC2501
(MULTI SOUND PROCESSOR)
normal?
IC2501 Pins (37) and (36)
(SC1 OUT L/R)
YES
Check the circuit between
pins (37)/(36) of IC2501 and
pins (5)/(14) of J1103 (INPUT1),
pins (2)/(11) of J1103 (INPUT2), and
pins (5)/(14) of J1104 (INPUT3),
as well as audio mute circuit.
Check the circuit between
pins (37)/(36) of IC2501 and
pins (10)/(13) of J3401 (INPUT4),
as well as audio mute circuit.
Check the circuit between
pins (34)/(33) of IC2501 and
pins (2)/(11) of J1104 (Monitor audio
output), as well as audio mute circuit.
NO
Is tuner audio input available at each
related pin of IC2501
(MULTI SOUND PROCESSOR) normal?
IC2501 Pin (67) (SOUND S-IF1)
IC2501 Pin (69) (SOUND S-IF2)
NO
NO
Is audio output available at each related pin of
IC1301 (AV SWITCH) normal?
IC1301 Pins (52) and (54)(MAIN L/R)
IC1301 Pins (43) and (45)(SUB L/R)
IC1301 Pins (38) and (40)(MONITOR OUT L/R)
NO
No audio output (INPUT4)
YES
Is audio output available at each
related pin of IC2501
(MULTI SOUND PROCESSOR)
normal?
IC2501 Pins (37) and (36)
(SC1 OUT L/R)
YES
No monitor audio output
YES
Is audio output available at each
related pin of IC2501
(MULTI SOUND PROCESSOR)
normal?
IC2501 Pins (34) and (33)
(SC2 OUT L/R)
YES
Check the plasma display section.
On TV reception
On external input / PC input
Check IC2501 (MULTI SOUND PROCESSOR) and its peripheral circuits.
Check B.P.F. of SIF1 and SIF2 respectively.
Check U/V tuner (TU1101, TU1102) and peripherals.
Is each audio input circuit between J3401 (PC
INPUT/AUDIO) and pins (29)/(31) of IC1301
normal?
Check IC1301 and peripherals.
NO
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
PDP-R03U
106
1
2
3
4
1
2
3
4
C
D
F
A
B
E
No picture (1)
NO
Check IC1301 and its
peripheral circuits.
Are there MAIN-R/G/B signal inputs at pins (5), (7) and
(9) of IC810 (6.7MHz L.P.F.), respectively?
YES
YES
NO
Check IC810 and its
peripheral circuits.
Are there MAIN-R/G/B signal outputs at pins (13), (11)
and (10) of IC810, respectively?
NO
Check between
IC803 and IC810.
YES
NO
Check the line between
IC7001 and IC801.
YES
YES
YES
Are there MAIN-Y and MAIN-C signal inputs at pins (1)
and (48) of IC801 (MAIN VIDEO CHROMA) respectively?
NO
Check the line between
IC402 and IC802.
Are there SUB-Y and SUB-C signal input at pin (44) and
(1) of IC802 (SUB VIDEO CHROMA), respectively?
YES
NO
Check IC801 and its
peripheral circuits.
YES
Are there MAIN-Component-Y/Cb/Cr signal outputs
at pins (21), (22) and (23) of IC801, respectively?
NO
Check IC802 and its
peripheral circuits.
Are there SUB-Y/Cb/Cr signal outputs at pins (21),
(22) and (23) of IC802, respectively?
NO
Check IC7001 and its
peripheral circuits.
Is there video signal input at pin (88) of IC7001 (Y/C
Spearate)?
NO
Check IC402 and its
peripheral circuits.
Is there video signal at pins (2) and (1) of IC402
(Sub Comb Filter)?
YES
NO
Check the line between
IC801 and IC803.
YES
Are there MAIN-Component-Y/Cb/Cr signal inputs at pins
(69), (68) and (67) of IC803 (RGB DECODER), respectively?
NO
Check the line between
IC802 and IC810.
Are there SUB-Y/Cb/Cr signal inputs at pins (5), (9)
and (7) of IC810 (6.7MHz L.P.F.), respectively?
YES
NO
Check IC803 and its
peripheral circuits.
YES
YES
Are there MAIN-R/G/B signal outputs at pins (35),
(37) and (39) of IC803, respectively?
NO
Check IC810 and its
peripheral circuits.
Are there SUB-R/G/B signal outputs at pins (13),
(11) and (10) of IC810, respectively?
YES
No external input
版权声明
1. 本站所有素材，仅限学习交流，仅展示部分内容，如需查看完整内容，请下载原文件。
2. 会员在本站下载的所有素材，只拥有使用权，著作权归原作者所有。
3. 所有素材，未经合法授权，请勿用于商业用途，会员不得以任何形式发布、传播、复制、转售该素材，否则一律封号处理。
4. 如果素材损害你的权益请联系客服QQ：77594475 处理。
