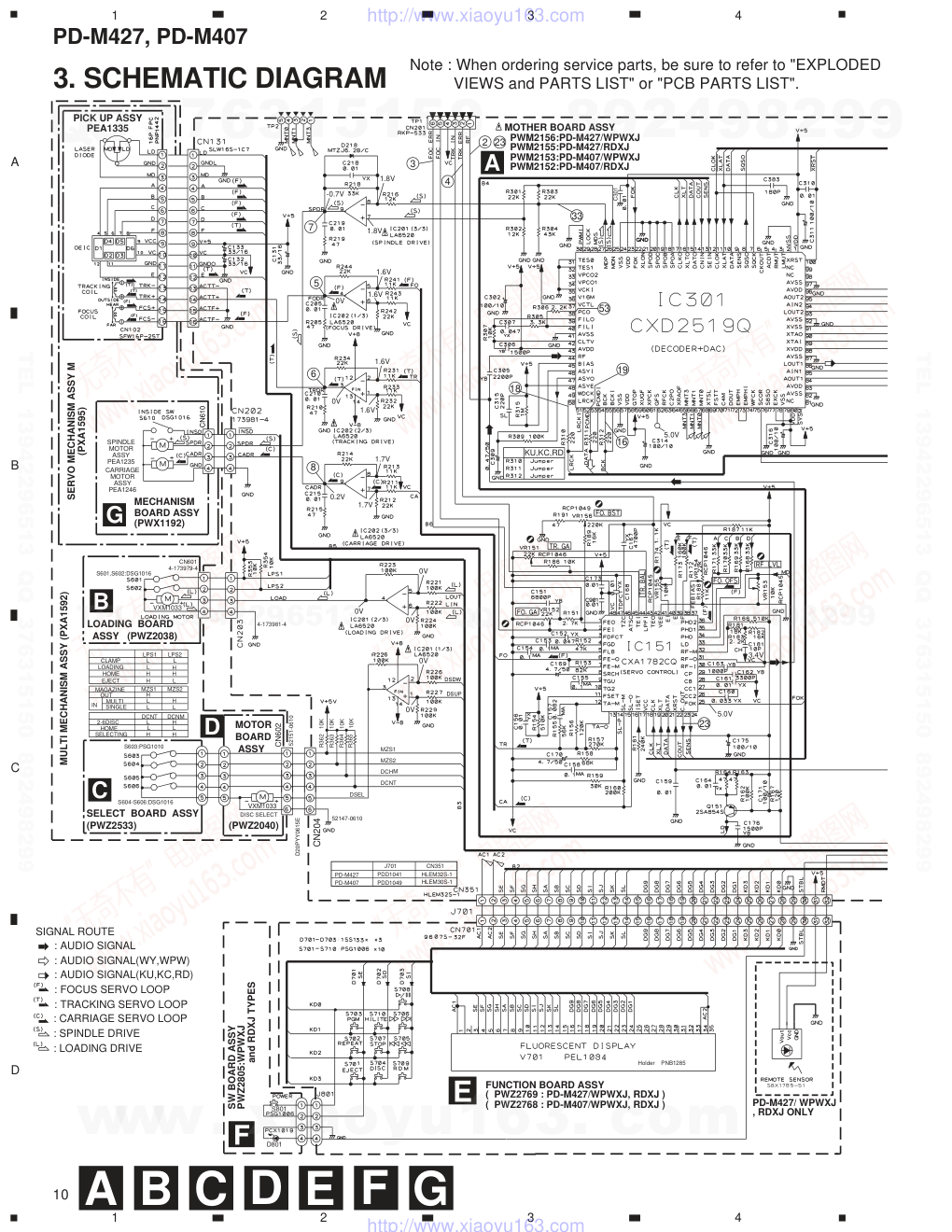

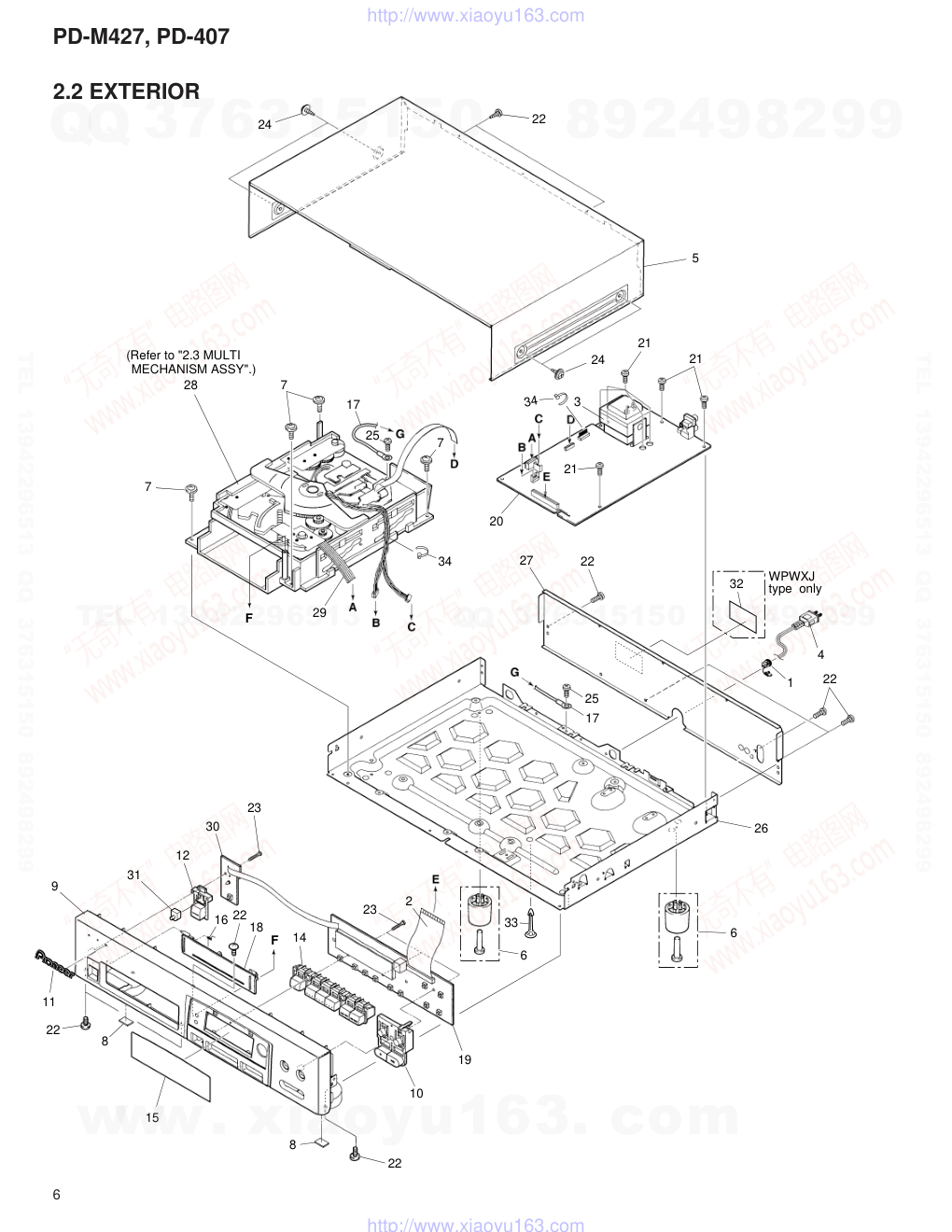

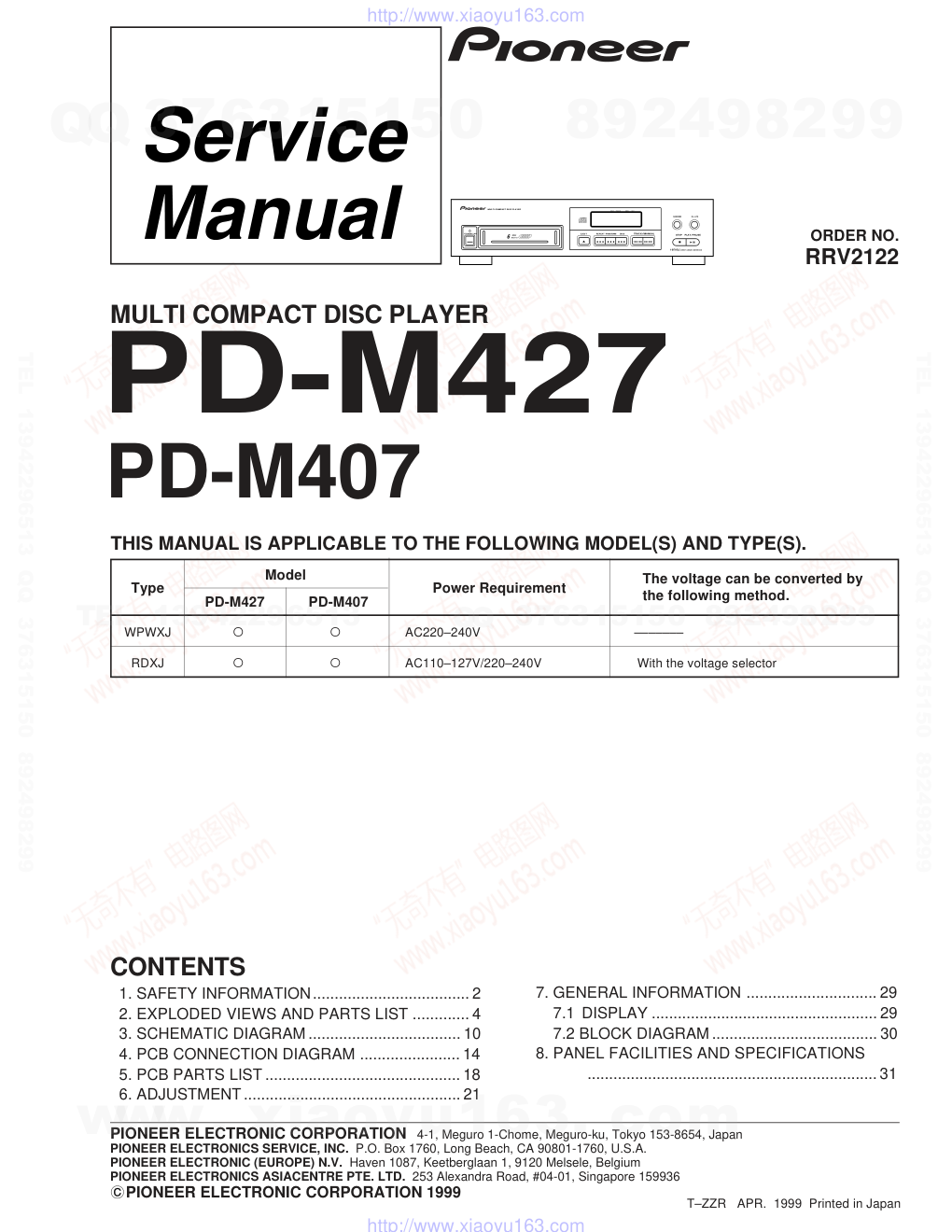

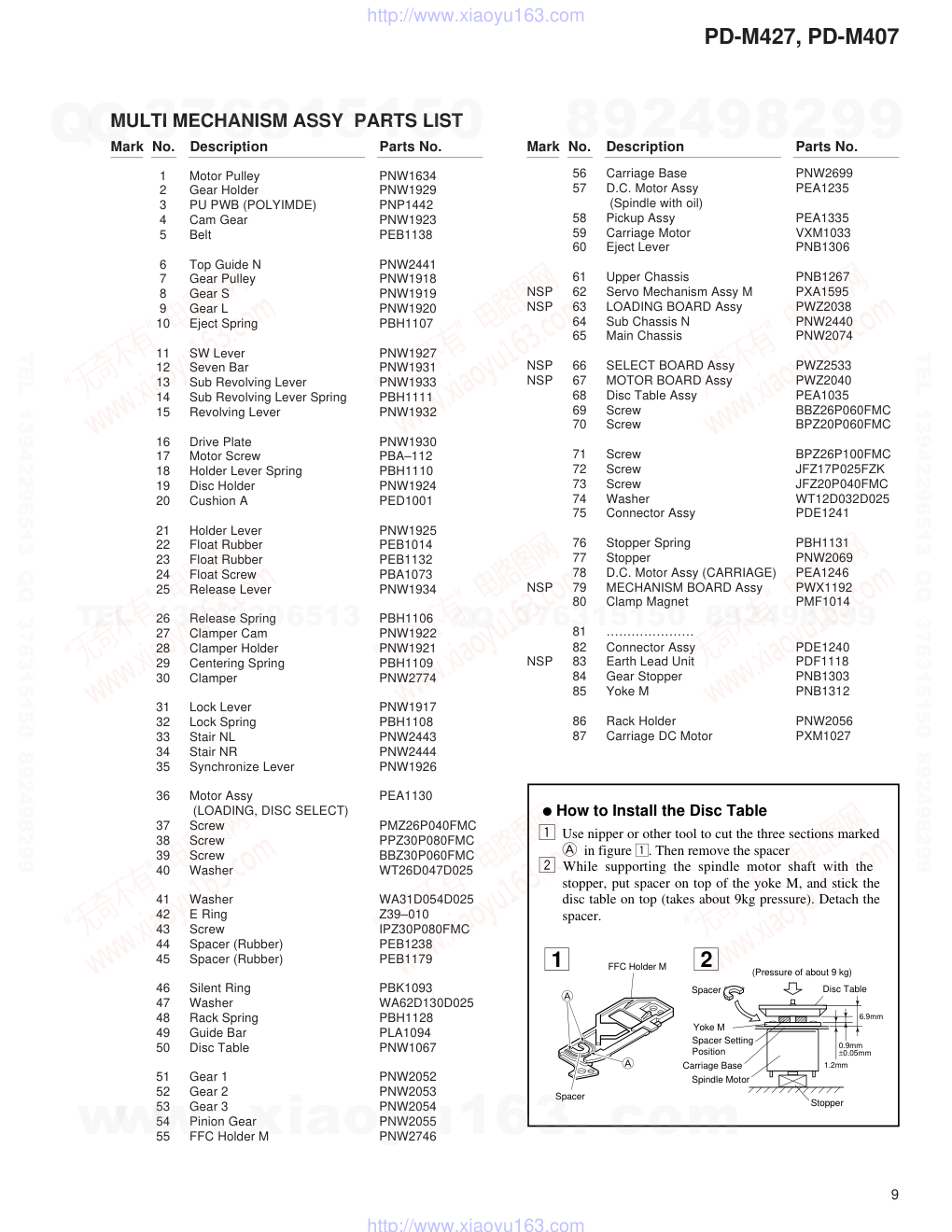

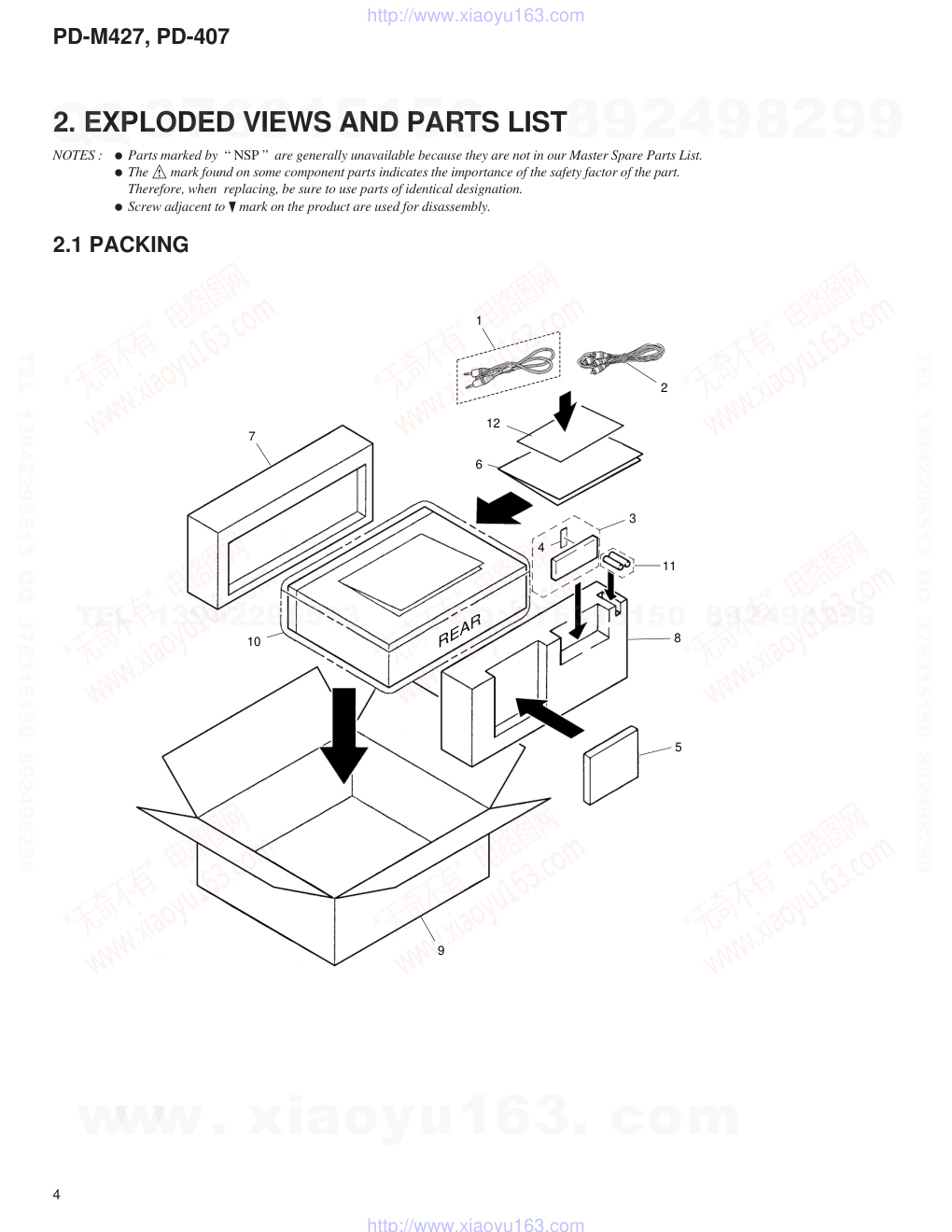

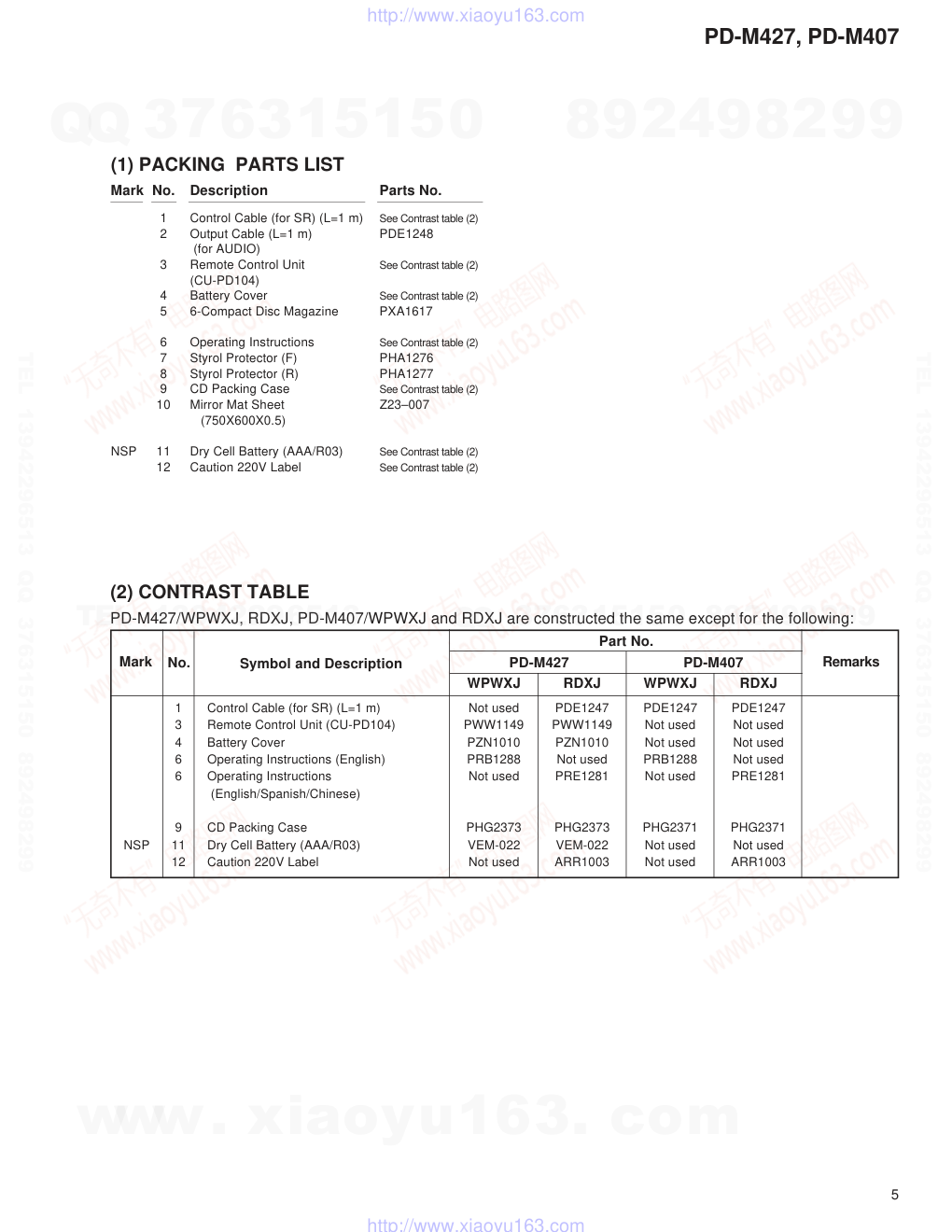

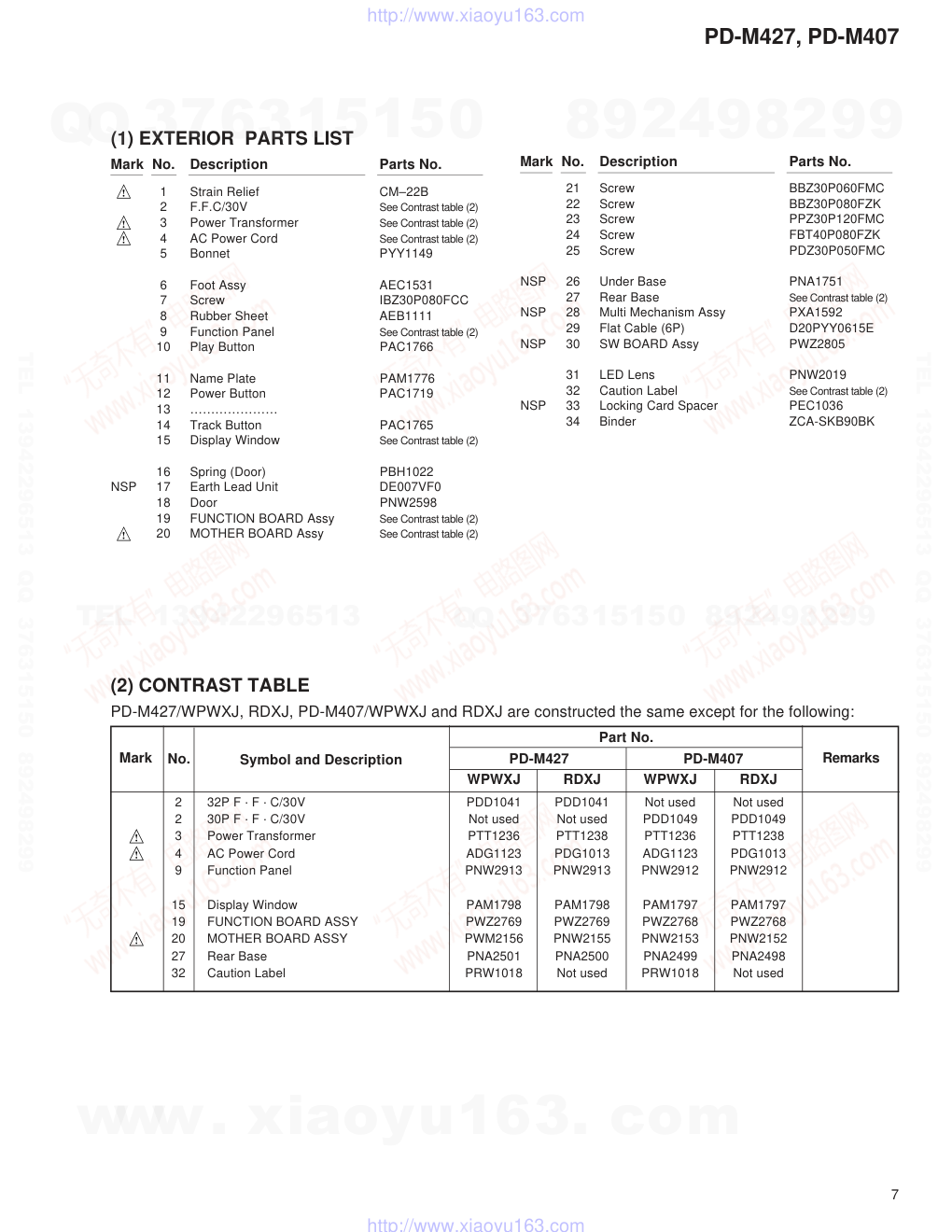

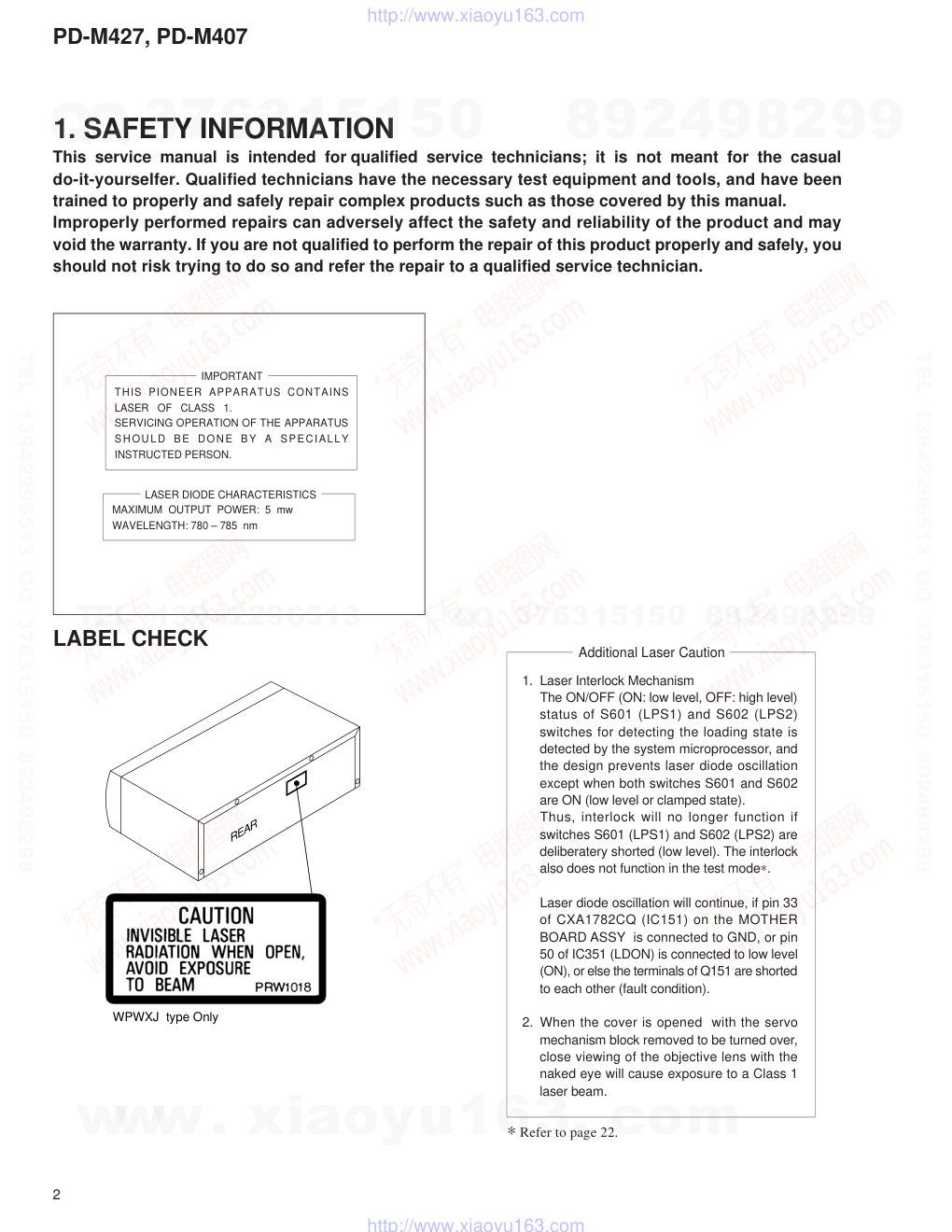

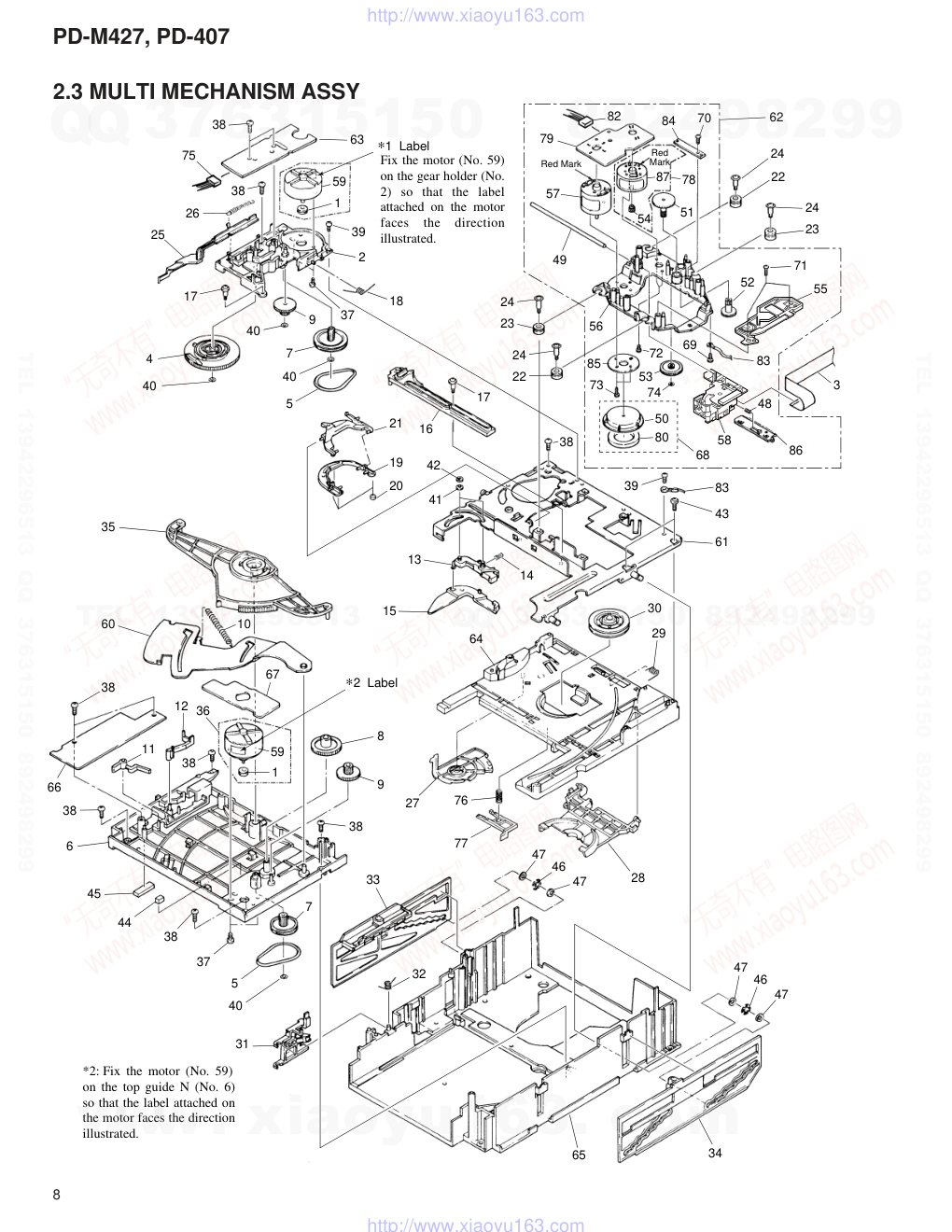

ORDER NO. PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER ELECTRONIC CORPORATION 1999 WPWXJ ‡ ‡ AC220–240V ––––––– RDXJ ‡ ‡ AC110–127V/220–240V With the voltage selector MULTI COMPACT DISC PLAYER RRV2122 T–ZZR APR. 1999 Printed in Japan PD-M427 CONTENTS 1. SAFETY INFORMATION.................................... 2 2. EXPLODED VIEWS AND PARTS LIST ............. 4 3. SCHEMATIC DIAGRAM ................................... 10 4. PCB CONNECTION DIAGRAM ....................... 14 5. PCB PARTS LIST ............................................. 18 6. ADJUSTMENT.................................................. 21 7. GENERAL INFORMATION .............................. 29 7.1 DISPLAY .................................................... 29 7.2 BLOCK DIAGRAM ...................................... 30 8. PANEL FACILITIES AND SPECIFICATIONS ................................................................... 31 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). ' 7 6 6 MULTI COMPACT DISC PLAYER STANDBY/ON DISC TRACK MIN SEC 1-BIT¥DLC DIRECT LINEAR CONVERSION EJECT REPEAT PROGRAM DISC TRACK/MANUAL RANDOM HI—LITE STOP PLAY/PAUSE -DISC MULTI CD � 0 4 1 ¢� ¡� PD-M407 Model PD-M427 PD-M407 Type Power Requirement The voltage can be converted by the following method. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 2 WPWXJ type Only REAR IMPORTANT THIS PIONEER APPARATUS CONTAINS LASER OF CLASS 1. SERVICING OPERATION OF THE APPARATUS SHOULD BE DONE BY A SPECIALLY INSTRUCTED PERSON. LASER DIODE CHARACTERISTICS MAXIMUM OUTPUT POWER: 5 mw WAVELENGTH: 780 – 785 nm LABEL CHECK 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. 1. Laser Interlock Mechanism The ON/OFF (ON: low level, OFF: high level) status of S601 (LPS1) and S602 (LPS2) switches for detecting the loading state is detected by the system microprocessor, and the design prevents laser diode oscillation except when both switches S601 and S602 are ON (low level or clamped state). Thus, interlock will no longer function if switches S601 (LPS1) and S602 (LPS2) are deliberatery shorted (low level). The interlock also does not function in the test mode∗. Laser diode oscillation will continue, if pin 33 of CXA1782CQ (IC151) on the MOTHER BOARD ASSY is connected to GND, or pin 50 of IC351 (LDON) is connected to low level (ON), or else the terminals of Q151 are shorted to each other (fault condition). 2. When the cover is opened with the servo mechanism block removed to be turned over, close viewing of the objective lens with the naked eye will cause exposure to a Class 1 laser beam. Additional Laser Caution ∗ Refer to page 22. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-407 4 REAR 10 9 5 8 11 4 3 7 6 12 1 2 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING NOTES : ÷ Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List. ÷ The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÷ Screw adjacent to ∞ mark on the product are used for disassembly. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 5 1 Control Cable (for SR) (L=1 m) Not used PDE1247 PDE1247 PDE1247 3 Remote Control Unit (CU-PD104) PWW1149 PWW1149 Not used Not used 4 Battery Cover PZN1010 PZN1010 Not used Not used 6 Operating Instructions (English) PRB1288 Not used PRB1288 Not used 6 Operating Instructions Not used PRE1281 Not used PRE1281 (English/Spanish/Chinese) 9 CD Packing Case PHG2373 PHG2373 PHG2371 PHG2371 NSP 11 Dry Cell Battery (AAA/R03) VEM-022 VEM-022 Not used Not used 12 Caution 220V Label Not used ARR1003 Not used ARR1003 1 Control Cable (for SR) (L=1 m) See Contrast table (2) 2 Output Cable (L=1 m) PDE1248 (for AUDIO) 3 Remote Control Unit See Contrast table (2) (CU-PD104) 4 Battery Cover See Contrast table (2) 5 6-Compact Disc Magazine PXA1617 6 Operating Instructions See Contrast table (2) 7 Styrol Protector (F) PHA1276 8 Styrol Protector (R) PHA1277 9 CD Packing Case See Contrast table (2) 10 Mirror Mat Sheet Z23–007 (750X600X0.5) NSP 11 Dry Cell Battery (AAA/R03) See Contrast table (2) 12 Caution 220V Label See Contrast table (2) (1) PACKING PARTS LIST Mark No. Description Parts No. (2) CONTRAST TABLE PD-M427/WPWXJ, RDXJ, PD-M407/WPWXJ and RDXJ are constructed the same except for the following: WPWXJ RDXJ WPWXJ RDXJ Part No. Mark Remarks Symbol and Description No. PD-M427 PD-M407 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-407 6 2.2 EXTERIOR F F 1 4 3 20 21 21 24 21 22 22 32 27 29 5 22 7 7 28 7 17 25 25 17 24 2 6 26 8 10 14 19 9 16 18 22 23 30 23 22 22 12 31 11 8 6 33 15 (Refer to "2.3 MULTI MECHANISM ASSY".) WPWXJ type only 34 34 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 7 2 32P F · F · C/30V PDD1041 PDD1041 Not used Not used 2 30P F · F · C/30V Not used Not used PDD1049 PDD1049 3 Power Transformer PTT1236 PTT1238 PTT1236 PTT1238 4 AC Power Cord ADG1123 PDG1013 ADG1123 PDG1013 9 Function Panel PNW2913 PNW2913 PNW2912 PNW2912 15 Display Window PAM1798 PAM1798 PAM1797 PAM1797 19 FUNCTION BOARD ASSY PWZ2769 PWZ2769 PWZ2768 PWZ2768 20 MOTHER BOARD ASSY PWM2156 PNW2155 PNW2153 PNW2152 27 Rear Base PNA2501 PNA2500 PNA2499 PNA2498 32 Caution Label PRW1018 Not used PRW1018 Not used 1 Strain Relief CM–22B 2 F.F.C/30V See Contrast table (2) 3 Power Transformer See Contrast table (2) 4 AC Power Cord See Contrast table (2) 5 Bonnet PYY1149 6 Foot Assy AEC1531 7 Screw IBZ30P080FCC 8 Rubber Sheet AEB1111 9 Function Panel See Contrast table (2) 10 Play Button PAC1766 11 Name Plate PAM1776 12 Power Button PAC1719 13 ………………… 14 Track Button PAC1765 15 Display Window See Contrast table (2) 16 Spring (Door) PBH1022 NSP 17 Earth Lead Unit DE007VF0 18 Door PNW2598 19 FUNCTION BOARD Assy See Contrast table (2) 20 MOTHER BOARD Assy See Contrast table (2) (1) EXTERIOR PARTS LIST Mark No. Description Parts No. (2) CONTRAST TABLE PD-M427/WPWXJ, RDXJ, PD-M407/WPWXJ and RDXJ are constructed the same except for the following: Mark No. Description Parts No. 21 Screw BBZ30P060FMC 22 Screw BBZ30P080FZK 23 Screw PPZ30P120FMC 24 Screw FBT40P080FZK 25 Screw PDZ30P050FMC NSP 26 Under Base PNA1751 27 Rear Base See Contrast table (2) NSP 28 Multi Mechanism Assy PXA1592 29 Flat Cable (6P) D20PYY0615E NSP 30 SW BOARD Assy PWZ2805 31 LED Lens PNW2019 32 Caution Label See Contrast table (2) NSP 33 Locking Card Spacer PEC1036 34 Binder ZCA-SKB90BK WPWXJ RDXJ WPWXJ RDXJ Part No. Mark Remarks Symbol and Description No. PD-M427 PD-M407 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-407 8 2.3 MULTI MECHANISM ASSY 47 32 33 76 29 30 39 50 80 68 38 43 83 61 27 64 13 42 21 7 9 2 18 39 59 38 75 63 38 26 25 1 37 40 17 40 5 4 40 16 17 24 71 52 55 3 83 48 86 58 69 23 24 62 22 24 23 24 85 56 49 54 51 87 78 57 70 84 82 79 73 74 53 72 22 19 20 41 14 15 77 38 9 1 38 12 36 67 11 59 ∗2 Label 8 38 66 38 60 10 35 6 45 44 38 37 5 40 7 31 46 47 28 47 46 47 34 65 ∗1 Label Red Mark Red Mark Fix the motor (No. 59) on the gear holder (No. 2) so that the label attached on the motor faces the direction illustrated. *2: Fix the motor (No. 59) on the top guide N (No. 6) so that the label attached on the motor faces the direction illustrated. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 9 1 Motor Pulley PNW1634 2 Gear Holder PNW1929 3 PU PWB (POLYIMDE) PNP1442 4 Cam Gear PNW1923 5 Belt PEB1138 6 Top Guide N PNW2441 7 Gear Pulley PNW1918 8 Gear S PNW1919 9 Gear L PNW1920 10 Eject Spring PBH1107 11 SW Lever PNW1927 12 Seven Bar PNW1931 13 Sub Revolving Lever PNW1933 14 Sub Revolving Lever Spring PBH1111 15 Revolving Lever PNW1932 16 Drive Plate PNW1930 17 Motor Screw PBA–112 18 Holder Lever Spring PBH1110 19 Disc Holder PNW1924 20 Cushion A PED1001 21 Holder Lever PNW1925 22 Float Rubber PEB1014 23 Float Rubber PEB1132 24 Float Screw PBA1073 25 Release Lever PNW1934 26 Release Spring PBH1106 27 Clamper Cam PNW1922 28 Clamper Holder PNW1921 29 Centering Spring PBH1109 30 Clamper PNW2774 31 Lock Lever PNW1917 32 Lock Spring PBH1108 33 Stair NL PNW2443 34 Stair NR PNW2444 35 Synchronize Lever PNW1926 36 Motor Assy PEA1130 (LOADING, DISC SELECT) 37 Screw PMZ26P040FMC 38 Screw PPZ30P080FMC 39 Screw BBZ30P060FMC 40 Washer WT26D047D025 41 Washer WA31D054D025 42 E Ring Z39–010 43 Screw IPZ30P080FMC 44 Spacer (Rubber) PEB1238 45 Spacer (Rubber) PEB1179 46 Silent Ring PBK1093 47 Washer WA62D130D025 48 Rack Spring PBH1128 49 Guide Bar PLA1094 50 Disc Table PNW1067 51 Gear 1 PNW2052 52 Gear 2 PNW2053 53 Gear 3 PNW2054 54 Pinion Gear PNW2055 55 FFC Holder M PNW2746 MULTI MECHANISM ASSY PARTS LIST Mark No. Description Parts No. Mark No. Description Parts No. 56 Carriage Base PNW2699 57 D.C. Motor Assy PEA1235 (Spindle with oil) 58 Pickup Assy PEA1335 59 Carriage Motor VXM1033 60 Eject Lever PNB1306 61 Upper Chassis PNB1267 NSP 62 Servo Mechanism Assy M PXA1595 NSP 63 LOADING BOARD Assy PWZ2038 64 Sub Chassis N PNW2440 65 Main Chassis PNW2074 NSP 66 SELECT BOARD Assy PWZ2533 NSP 67 MOTOR BOARD Assy PWZ2040 68 Disc Table Assy PEA1035 69 Screw BBZ26P060FMC 70 Screw BPZ20P060FMC 71 Screw BPZ26P100FMC 72 Screw JFZ17P025FZK 73 Screw JFZ20P040FMC 74 Washer WT12D032D025 75 Connector Assy PDE1241 76 Stopper Spring PBH1131 77 Stopper PNW2069 78 D.C. Motor Assy (CARRIAGE) PEA1246 NSP 79 MECHANISM BOARD Assy PWX1192 80 Clamp Magnet PMF1014 81 ………………… 82 Connector Assy PDE1240 NSP 83 Earth Lead Unit PDF1118 84 Gear Stopper PNB1303 85 Yoke M PNB1312 86 Rack Holder PNW2056 87 Carriage DC Motor PXM1027 Spacer Spacer FFC Holder M (Pressure of about 9 kg) Disc Table 1.2mm 6.9mm 0.9mm ±0.05mm Yoke M Spindle Motor Carriage Base Stopper Spacer Setting Position 2 1 1 Use nipper or other tool to cut the three sections marked A in figure 1. Then remove the spacer 2 While supporting the spindle motor shaft with the stopper, put spacer on top of the yoke M, and stick the disc table on top (takes about 9kg pressure). Detach the spacer. ¶ How to Install the Disc Table A A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 10 A B C D 1 2 3 4 1 2 3 4 3. SCHEMATIC DIAGRAM Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". B C D A E F G 53 18 19 16 33 2 23 3 4 7 5 6 8 23 -0.7V 1.8V 1.8V 0V 1.6V 1.6V 0V 1.6V 1.6V 0.2V 1.7V 1.7V 0V 0V 0V 0V 0V 5.0V 3.4V 5.0V MOTHER BOARD ASSY SW BOARD ASSY PWZ2805:WPWXJ and RDXJ TYPES S801 FUNCTION BOARD ASSY ( PWZ2769 : PD-M427/WPWXJ, RDXJ ) ( PWZ2768 : PD-M407/WPWXJ, RDXJ ) PD-M427/ WPWXJ , RDXJ ONLY C D B G A PICK UP ASSY PEA1335 SERVO MECHANISM ASSY M (PXA1595) MULTI MECHANISM ASSY (PXA1592) PWM2156:PD-M427/WPWXJ PWM2155:PD-M427/RDXJ PWM2153:PD-M407/WPWXJ PWM2152:PD-M407/RDXJ D801 SIGNAL ROUTE : AUDIO SIGNAL : AUDIO SIGNAL(WY,WPW) : AUDIO SIGNAL(KU,KC,RD) : FOCUS SERVO LOOP : TRACKING SERVO LOOP : CARRIAGE SERVO LOOP : SPINDLE DRIVE : LOADING DRIVE SPINDLE MOTOR ASSY PEA1235 CARRIAGE MOTOR ASSY PEA1246 VXM1033 VXM1033 KU,KC,RD 4 C301 R362 CN602 D20PYY0615E R363 R364 R365 10K 10K 10K 10K MZS1 MZS2 DCH DCNT DSEL M CN204 DISC SELECT SELECT BOARD ASSY (PWZ2533) LOADING BOARD ASSY (PWZ2038) MECHANISM BOARD ASSY (PWX1192) MOTOR BOARD ASSY (PWZ2040) LPS1 LPS2 CLAMP LOADING HOME EJECT MAGAZINE MZS1 MZS2 OUT MULTI SINGLE DCNT DCNM 2-6DISC HOME SELECTING IN L L L L L L L L L L H H H H H H H H H J701 CN351 HLEM32S-1 HLEM30S-1 PD-M427 PD-M407 PDD1041 PDD1049 S603:PSG1010 S604-S606:DSG1016 52147-0610 52151-0610 S601,S602:DSG1016 CN601 4-173979-4 4-173981-4 Holder PNB1285 DSDW DSUP CN610 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 11 A B C D 5 6 7 8 5 6 7 8A 1.6V 1.6V 0V 0V -9.2V 0V -9.2V 0V 1.6V 1.6V 0V PD-M427/RDXJ and PD-M407/RDXJ TYPES PD-M427, PD-M407/ RDXJ PD-M427/WPWXJ, PD-M407/WPWXJ ONLY 39P PD-M427/WPWXJ and PD-M407/WPWXJ TYPES PD-M427/RDXJ, PD-M407/WPWXJ and PD-M407/RDXJ TYPES AC POWER CORD ADG1123 : AC220-240V 50/60Hz WPWXJ TYPE POWER TRANSFORMR WPWXJ : PTT1236 PD-M427/RDXJ and PD-M407/RDXJ TYPES WPWXJ ONLY AC POWER CORD PDG1013 : AC110-127V/220-240V 50/60Hz POWER TRANSFORMER RDXJ : PTT1238 MTZJ5.1 FUNCTION BOARD ASSY S701 : EJECT S702 : REPEAT S703 : PGM S704 : DISC S705 : TRACK /MANUAL SEARCH REV S706 : TRACK /MANUAL SEARCH FWD S707 : STOP S709 : RANDOM S710 : HI-LITESCAN SW BOARD ASSY S801 : POWER STANDBY/ON 1SS254 10 10 WPWXJ PD-M427/ ONLY WPWXJ RDXJ EXCEPT PD-M427/WPWXJ MZSI MZS2 DCHM LPS2 DCNT DSUP DSDW LPS1 ( WPWXJ:0.01) ( WPWXJ:0.01) B (16.9344MHz) : NJM4558D-D NJM4558D-D 22/25 22/25 PIN No. Volta- ge(V) PLAY PLAY:1DISC PLAY. STOP 5.0 5.0 -23.2 -23.8 1 2 3 4 5 -23.2 -23.2 -23.2 -23.7 -23.7 -23.8 6 7 8 9 -23.2 -23.8 -23.2 -23.8 -23.2 -23.8 -23.2 -23.8 10 11 12 13 14 -23.2 -23.8 -23.2 -23.8 4.9 0.2 15 16 17 18 19 -0.1 -0.1 -25.9 -26.4 -5.2 -5.2 20 PIN No. Volta- ge(V) PLAY STOP 21 22 23 24 25 26 27 28 29 4.9 4.9 -22.8 -26.4 30 31 32 33 34 4.9 4.8 4.0 2.5 35 36 37 38 39 4.9 4.9 0.0 0.0 40 4.8 4.9 2.9 4.0 2.3 0.0 0.0 0.0 0.0 0.0 0.0 PIN No. Volta- ge(V) PLAY STOP 41 42 43 44 45 46 47 48 49 0.0 0.0 50 51 52 53 54 4.9 4.9 55 56 57 58 59 4.9 4.9 0.1 0.1 60 4.9 4.9 4.9 2.3 2.3 2.2 2.2 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 5.0 5.0 0.0 0.0 5.0 0.0 4.9 0.0 4.9 61 62 63 64 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 IC351(PD4836A) -16.8-17.0 -16.7-16.7 -22.2 -23.0 -22.9 -22.5 -19.8 -23.2 -13.5 -10.5 -0.4 -0.37 -0.43 -0.44 -19.0 -20.0 -13.5 -10.5 -13.3 -10.4 0.9 0.0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 12 TP1-Pin 1: PLAY MODE (RF) 500mV/div 500nsec/div IC202-Pin 9: PLAY MODE (CADR) 0.2V/div 2sec/div 2 2 5 5 7 7 8 6 4 3 6' 4' TP1-Pin 1: TRACK SEARCH MODE (RF) 500 mV/div 200 µsec/div TP1-Pin 6: PLAY MODE (FOER) 100mV/div 10msec/div TP1-Pin 2: PLAY MODE (TRER) 200mV/div 1msec/div TP1-Pin 2: 50T - JUMP (*1) MODE (TRER) 200mV/div 1msec/div IC202-Pin 4: FOCUS-IN (*2) MODE (FODR) 1V/div 200msec/div IC202-Pin 4: PLAY MODE (FODR) 1V/div 1msec/div IC202-Pin 3: PLAY MODE (TRDR) 500mV/div 1msec/div IC202-Pin 3: 50T - JUMP (*1) MODE (TRDR) 500mV/div 1msec/div IC201-Pin 9: PLAY MODE (SPDR) 1V/div 50msec/div IC201-Pin 9: TRACK SEARCH MODE (SPDR) 2V/div 50msec/div – VC – VC – VC – VC – VC – GND – GND – GND – GND – GND – GND – GND A Waveforms (Mother Board Assy) Note: The encircled numbers denote measuring point in the schematic diagram. ∗1 50T-JUMP: After switching to the pause mode, press the manual search key. ∗2 FOCUS-IN: Press the play key without loading a disc. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 13 IC301-Pin 38 : PLAY MODE (PCO) 2V/div 10 µsec/div 53 33 19 23 10 18 16 8 IC202-Pin 9: TRACK SEARCH MODE (CADR) 2V/div 200msec/div IC401-Pin 10 : PLAY MODE (1kHz) (LO) ...............WPWXJ IC301-Pin 86 : PLAY MODE (1kHz) (LOUT1) ...............RDXJ 1V/div 200msec/div IC301-Pin 54 : PLAY MODE (1kHz) (BCK) 2V/div 500nsec/div IC301-Pin 50 : PLAY MODE (1kHz) (LRCK) 2V/div 10 µsec/div IC301-Pin 52 : PLAY MODE (1kHz) (PCMD) 2V/div 500nsec/div TRACK SEARCH MODE Upper : TP1-Pin 1 (RF) 1V/div Lower : IC151-Pin 23 (C.OUT) 2V/div 50 µsec/div IC301-Pin 27 : PLAY MODE (MDP) 2V/div 2 µsec/div – GND – GND – GND – GND – GND – GND – GND – GND – GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 14 A B C D 1 2 3 4 1 2 3 4 4. PCB CONNECTION DIAGRAM 4.1 LOADING BOARD ASSY, SELECT BOARD ASSY, MOTOR BOARD ASSY and MECHANISM BOARD ASSY SPINDLE MOTOR INSIDE CARRIAGE MOTOR M M G MECHANISM BOARD ASSY MULTI MECHANISM ASSY (PXA1592) SERVO MECHANISM ASSY M (PXA1595) PICKUP ASSY (PEA1335) CN102 B LOADING BOARD ASSY C SELECT BOARD ASSY D MOTOR BOARD ASSY A CN202 A CN131 A CN203 A CN204 PNP1331-A SIDE A B C D G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 15 A B C D 1 2 3 4 1 2 3 4 4.2 FUNCTION BOARD ASSY and SW BOARD ASSY E F SIDE A E FUNCTION BOARD ASSY F SW BOARD ASSY A CN351 PNP1366-A NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 16 A B C D 1 2 3 4 1 2 3 4 A 4.3 MOTHER BOARD ASSY A MOTHER BOARD ASSY PNP1424–B G CN610 AC POWER CORD To PICKUP ASSY D CN602 B CN601 E CN701 VR151 VR152 Q391 Q452 Q454 Q404 Q403 Q453 Q451 Q405 IC406 IC405 IC31 IC401 IC34 Q341 Q151 Q152 Q201 IC202 IC21 Q321 VR153 VR154 VR155 VR156 SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 17 A B C D 1 2 3 4 1 2 3 4A A MOTHER BOARD ASSY PNP1424–B IC301 IC151 IC351 SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 18 MOTHER BOARD ASSY PWM2156 PWM2155 PWM2153 PWM2152 NSP SUB BOARD ASSY PWX1337 PWX1337 PWX1335 PWX1335 FUNCTION BOARD ASSY PWZ2769 PWZ2769 PWZ2768 PWZ2768 NSP SW BOARD ASSY PWZ2805 PWZ2805 PWZ2805 PWZ2805 NSP MULTI MECHANISM ASSY PXA1592 PXA1592 PXA1592 PXA1592 NSP MECHA BOARD ASSY PWX1279 PWX1279 PWX1279 PWX1279 NSP LOADING BOARD ASSY PWZ2038 PWZ2038 PWZ2038 PWZ2038 NSP MOTOR BOARD ASSY PWZ2040 PWZ2040 PWZ2040 PWZ2040 NSP SELECT BOARD ASSY PWZ2533 PWZ2533 PWZ2533 PWZ2533 NSP SERVO MECHANISM ASSY M PXA1595 PXA1595 PXA1595 PXA1595 NSP MECHANISM BOARD ASSY PWX1192 PWX1192 PWX1192 PWX1192 CN701 9607S–32F 9607S–30F Remote Sensor SBX1785–51 Not used 5. PCB PARTS LIST NOTES : ÷ Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List. ÷ The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÷ When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J = 5%, and K = 10%). 560 Ω = 56 × 10 1 = 561 ................................................... RD1/4PU 5 6 1 J 47k Ω = 47 × 10 3 = 473 .................................................. RD1/4PU 4 7 3 J 0.5 Ω = R50 ...................................................................... RN2H  5 0 K 1 Ω = 1R0 ......................................................................... RS1P 1  0 K Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω = 562 × 10 1 = 5621 ........................................... RN1/4PC 5 6 2 1 F 7 LIST OF WHOLE PCB ASSEMBLIES FUNCTION BOARD ASSY PWZ2769 and PWZ2768 are constructed the same except for the following: Mark Remarks Symbol and Description Part No. PWZ2769 PWZ2768 7 CONTRAST OF PCB ASSEMBLIES MOTHER BOARD ASSY PWM2156, PWM2155, PWM2153 and PWM2152 are constructed the same except for the following: Part No. PD-M427 / WPWXJ PD-M427 / RDXJ PD-M407 / WPWXJ PD-M407 / RDXJ Mark Symbol and Description Remarks IC401 PD2026B (L) Not used PD2026B (L) Not used Q341 Not used 2SK246 Not used 2SK246 D341, D391–D394 Not used 1SS254 1SS254 1SS254 L391 Not used LAU1R0J LAU1R0J LAU1R0J S5 Not used PSB1006 Not used PSB1006 Mark Symbol and Description Part No. PWM2156 PWM2155 PWM2153 PWM2152 Remarks www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 19 C29, C461 CKCYF103Z50 Not used CKCYF103Z50 Not used C312, C313 CKCYF103Z50 CEAS101M10 CKCYF103Z50 CEAS101M10 C341, C342 Not used CCCCH120J50 Not used CCCCH120J50 C393 Not used CCCSL101J50 CCCSL101J50 CCCSL101J50 C399 Not used Not used CKCYF103Z50 Not used C403 CCCCH120J50 Not used CCCCH120J50 Not used C404 CCCCH220J50 Not used CCCCH220J50 Not used C413– C416 CFTXA104J50 Not used CFTXA104J50 Not used C429, C430, C435– C438 CCCSL390J50 Not used CCCSL390J50 Not used C431, C432 CEAT330M16 Not used CEAT330M16 Not used C481, C482 Not used CCCSL390J50 Not used CCCSL390J50 R310– R312 RD1/4PU221J Not used RD1/4PU221J Not used R341 Not used RD1/4PU271J Not used RD1/4PU271J R342, R366 Not used RD1/4PU105J Not used RD1/4PU105J R391 Not used PD1/4PU244J PD1/4PU244J PD1/4PU244J R392 Not used RD1/4PU102J RD1/4PU102J RD1/4PU102J R401 RD1/4PU102J Not used RD1/4PU102J Not used R405– R410 RD1/4PU471J Not used RD1/4PU471J Not used R411– R413 RD1/4PU221J Not used RD1/4PU221J Not used R427– R430 RD1/4PU223J Not used RD1/4PU223J Not used R435, R436 RD1/4PU163J Not used RD1/4PU163J Not used R437, R438 RD1/4PU163J RD1/4PU473J RD1/4PU163J RD1/4PU473J R439– R442 RD1/4PU433J RD1/4PU823J RD1/4PU433J RD1/4PU823J R481, R482, R485, R486 Not used RD1/4PU223J Not used RD1/4PU223J R487– R490 Not used RD1/4PU104J Not used RD1/4PU104J JA391, JA392 Not used RKN1004 RKN1004 RKN1004 CN351 HLEM32S-1 HLEM32S-1 HLEM30S-1 HLEM30S-1 X341 ( 16.9344MHz ) Not used PSS1008 Not used PSS1008 X401 ( 16.9344MHz ) PSS1008 Not used PSS1008 Not used MOTHER BOARD Assy Mark No. Description Parts No. Mark No. Description Parts No. 7 PARTS LIST FOR PD-M427/WPWXJ MOTHER BOARD ASSY SEMICONDUCTORS IC151 CXA1782CQ IC301 CXD2519Q IC31, IC34 ICP–N10 IC201, IC202 LA6520 IC405 NJM4558D–D IC401 PD2026B(L) IC351 PD4836A IC21 PQ05RR12 Q151 2SA854S Q403, Q404 2SD2144S Q152 DTA124ES Q405 DTC124ES D352 1SS254 D54 MTZJ18B D359 MTZJ5.1B D218 MTZJ6.2B D11–D14, D52 S5688G COILS AND FILTERS L351 AXIAL INDUCTOR LAU100J CAPACITORS C181 CCCCH100D50 C403 CCCCH120J50 C404 CCCCH220J50 C383 CCCSL181J50 A Mark Symbol and Description Part No. PWM2156 PWM2155 PWM2153 PWM2152 Remarks www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 20 Mark No. Description Parts No. Mark No. Description Parts No. C315 CCCSL221J50 C429, C430, C435, C436, C437 CCCSL390J50 C438 CCCSL390J50 C171, C175, C302, C311, C314 CEAS101M10 C316 CEAS101M10 C52 CEAS101M35 C26 CEAS102M16 C433, C434 CEAS220M25 C131– C133, C27 CEAS330M16 C25 CEAS332M16 C351 CEAS471M6R3 C169, C170, C356 CEAS4R7M50 C309 CEASR47M50 C431, C432 CEAT330M16 C413, C414, C415, C416 CFTXA104J50 C156, C161, C164, C168, C218 CGCYX103K25 C160 CGCYX333K25 C167 CGCYX472K25 C152, C307 CGCYX473K25 C157 CGCYX823K25 C163 CKCYB102K50 C176, C306, C441, C442 CKCYB152K50 C305 CKCYB222K50 C162 CKCYB332K50 C151 CKCYB682K50 C11, C13, C15, C16, C17 CKCYF103Z50 C29, C159, C205, C210, C215 CKCYF103Z50 C219, C301, C304, C310– C313 CKCYF103Z50 C353, C357, C461 CKCYF103Z50 C153– C155, C158 CQMA104J50 RESISTORS VR153, VR155 (10k Ω) RCP1045 VR151, VR152, VR154 (22k Ω) RCP1046 VR156 (220k Ω) RCP1049 Other Resistors RD1/4PU&&&J OTHERS CN131 1mm CONNECTOR SLW16S–1C7 CN202 MT 4P CONNECTOR 173981–4 CN203 CONNECTOR 4P 4–173981–4 CN204 6P JUMPER CONNECTOR 52147–0610 CN351 32P FFC CONNECTOR HLEM32S–1 JA401 2P PIN JACK PKB1023 X401 XTAL RES(16.9344 MHz) PSS1008 TERMINAL RKC–061 CN201 CONNECTOR 6P RKP–533 X351 CERAMIC RES(4.19 MHz) VSS1014 FUNCTION BOARD ASSY SEMICONDUCTOR D701– D703 1SS133X SWITCHES S701– S710 PSG1006 OTHERS CN701 FFC CONNECTOR 32P 9607S–32F V701 FL INDICATOR TUBE PEL1084 REMOTE SENSOR SBX1785–51 SW BOARD ASSY SEMICONDUCTOR D801 PCX1019 SWITCH S801 PSG1006 OTHER J801 2mm JUMPER WIRE D20PWW0420E LOADING BOARD ASSY SWITCHES S601, S602 DSG1016 OTHER CN601 CONNECTOR 4P 4–173979–4 MOTOR BOARD ASSY OTHER CN602 6PJUMPER CONNECTOR 52151–0610 SELECT BOARD ASSY SWITCHES S604–S606 DSG1016 S603 PSG1010 MECHANISM BOARD ASSY SWITCH S610 DSG1016 OTHER CN610 MT 4P CONNECTOR 173979–4 B D G E F C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 21 6. ADJUSTMENT 6.1 PREPARATIONS 6.1.1 Jigs and Measuring Instruments 6.1.2 Necessary Adjustment Points When Adjustment points Exchange PICKUP Exchange MAIN BOARD ASSY Exchange SERVO MECH ASSY Exchange SPINDLE MOTOR 1.2.3.4.5.6.7. 8.9.10.11.12 ADJ = Page 9 CD TEST DISC (YEDS-7) screwdriver (small) Precise screwdriver screwdriver (medium) screwdriver (large) 39 kΩ 0.001µF Low-frequency oscillator Dual-trace oscilloscope (10 : 1 probe) Low pass filter 1 (39 kΩ + 0.001µF) 56 kΩ 0.001µF Low pass filter 2 (56 kΩ + 0.001µF) Ball point hexagon wrench (size: 1.5mm) GGK1002 = Page 23~28 1.3.5.6.7.8. 9.10.11.12 1.2.3.4.5.6.7. 8.9.10.11.12 = Page 23~28 = Page 23~28 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 22 TEST MODE : ON TEST MODE : PLAY TEST MODE : STOP = CANCEL 6.2.1 How to Start/Cancel Test Mode 6.2.2 Adjustment Location 6.2 ADJUSTMENT Short Point W107 W108 MOTHER BOARD ASSY Short Point W107 W108 MOTHER BOARD ASSY TEST DISC : YEDS-7 CD 4 / 1 ¡ / ¢� inwards outwards Pickup Move Focus servo : CLOSE PROGRAM 6 Spindle motor : START Spindle servo : CLOSE 6 6 Tracking servo : CLOSE OPEN 7 STOP all operations. REAR FRONT 1 6 CN201 W107 W108 VR151 VR152 VR155 VR156 VR154 VR153 Grating VR151 : TR GAIN VR152 : FO GAIN VR153 : RF LEVEL VR154 : FO OFFSET VR155 : TR BAL VR156 : FO BEST 2 1 4 5 3 6 TP1 1 RF 2 TE 3 TI 4 VC 5 FI 6 FE CN201 Adjustment screw (Tangential tilt direction) Adjustment screw (Radial tilt direction) adjustment PICKUP ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 23 4 2 6 1. Focus Offset Adjustment Test mode None disc VR154 MOTHER BOARD ASSY DC voltage 0±50mV Oscilloscope DC Mode V: 5mV/div H: 10mSec/div Prove (10:1) GND START TP1 (CN201) Player 2. Grating Adjustment Oscilloscope DC Mode V: 10mV/div H: 5mSec/div Player FE VC START TP1 (CN201) TE VC Locate null. Counterclockwise, Maximum amplitude. 39kΩ 0.001µF Prove (10:1) GND Low pass filter 1 MOTHER BOARD ASSY MOTHER BOARD ASSY 6.2.3 Check and Adjustment 4 Test mode SPDL servo FOCUS servo TRKG servo =� =� = CLOSE CLOSE OPEN TEST DISC Innermost circumference (1 TRK) PLAY Turn counterclockwise from null. PICKUP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 24 1 4 2 3. Tracking Error Balance Adjustment Probe (10:1) VR155 A=B Oscilloscope DC Mode V: 10mV/div H: 5mSec/div START TP1 (CN201) Player TE VC 39kΩ 0.001µF Low pass filter 1 Test mode SPDL servo FOCUS servo TRKG servo =� =� = CLOSE CLOSE OPEN TEST DISC PLAY Innermost circumference (1 TRK) VC A B GND GND Player TP1 (CN201) RF VC START Probe (10:1) Oscilloscope AC Mode V: 20mV/div H: 200nSec/div NG OK (Smooth) Eye pattern 4. Pickup 1Radial 2Tangential Direction Tilt Adjustment MOTHER BOARD ASSY MOTHER BOARD ASSY MOTHER BOARD ASSY TEST DISC PLAY Test mode SPDL servo FOCUS servo TRKG servo =� =� = CLOSE CLOSE CLOSE Position where the screw is visible through the adjustment hole of the float base after moving toward the outer peripheral. 4 Remove lock tight. TEST DISC 1 2 2 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 25 11 4 5. RF Level Adjustment VR153 1.2VP-P ±0.1V Oscilloscope AC Mode V: 50mV/div H: 10mSec/div START TP1 (CN201) Player RF VC GND Prove (10:1) 6. Focus Best Adjustment Oscilloscope DC Mode CH1: 5mV/div CH2: 20mV/div H: 200ns/div Prove(10:1) Player START TP1 (CN201) RF VC MAX GND Prove(10:1) FE 6 1 4 GND Adjust the RF level to maximum, with the focus error voltage within ±150mV. MOTHER BOARD ASSY MOTHER BOARD ASSY MOTHER BOARD ASSY Test mode SPDL servo FOCUS servo TRKG servo =� =� = CLOSE CLOSE CLOSE TEST DISC PLAY Innermost circumference (1 TRK) VR156 MOTHER BOARD ASSY Test mode SPDL servo FOCUS servo TRKG servo =� =� = CLOSE CLOSE CLOSE TEST DISC PLAY Innermost circumference (1 TRK) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 26 11 4 7. RF Level Adjustment 1.2VP-P ±0.1V Oscilloscope AC Mode V: 50mV/div H: 10mSec/div START TP1 (CN201) Player RF VC GND Prove (10:1) 8. Focus Servo Loop Gain Adjustment UNDER Oscilloscope X-Y Mode X: 20mV/div Y: 5mV/div GND Prove (10:1) Player START TP1 (CN201) FI VC UPPER JUST Low-frequency oscillator 1.2kHz 1Vp-p GND GND Prove (10:1) 56kΩ 0.001µF Low pass filter 2 100kΩ FE Make adjustment if the value exceeds the specified range. Check 6 5 4 Lissajous Waveform MOTHER BOARD ASSY MOTHER BOARD ASSY VR153 MOTHER BOARD ASSY Test mode SPDL servo FOCUS servo TRKG servo =� =� = CLOSE CLOSE CLOSE TEST DISC PLAY Innermost circumference (1 TRK) Test mode SPDL servo FOCUS servo TRKG servo =� =� = CLOSE CLOSE CLOSE TEST DISC PLAY Innermost circumference (1 TRK) VR152 MOTHER BOARD ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 27 10. Focus Servo Loop Gain Adjustment 9. Focus Best Adjustment Oscilloscope DC Mode CH1: 5mV/div CH2: 20mV/div H: 200ns/div Prove (10:1) Player START TP1 (CN201) RF VC MAX GND Prove (10:1) FE 6 1 4 GND Readjust if adjustment is incorrect. Adjust the RF level to maximum, with the focus error voltage within ±150mV. MOTHER BOARD ASSY VR153 MOTHER BOARD ASSY Test mode SPDL servo FOCUS servo TRKG servo =� =� = CLOSE CLOSE CLOSE TEST DISC PLAY Innermost circumference (1 TRK) UNDER Oscilloscope X-Y Mode X: 20mV/div Y: 5mV/div GND Prove (10:1) Player START TP1 (CN201) FI VC UPPER JUST Low-frequency oscillator 1.2kHz 1Vp-p GND GND Prove (10:1) 56kΩ 0.001µF Low pass filter 2 100kΩ FE 6 5 4 Lissajous Waveform MOTHER BOARD ASSY Test mode SPDL servo FOCUS servo TRKG servo =� =� = CLOSE CLOSE CLOSE TEST DISC PLAY Innermost circumference (1 TRK) VR152 MOTHER BOARD ASSY Check www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 28 11. Focus Best Adjustment Oscilloscope DC Mode CH1: 5mV/div CH2: 20mV/div H: 200ns/div Prove (10:1) Player START TP1 (CN201) RF VC MAX GND Prove (10:1) FE 6 1 4 GND Adjust the RF level to maximum, with the focus error voltage within ±150mV. Adjust this point only if adjustment was made in item 10. MOTHER BOARD ASSY VR156 MOTHER BOARD ASSY Test mode SPDL servo FOCUS servo TRKG servo =� =� = CLOSE CLOSE CLOSE TEST DISC PLAY Innermost circumference (1 TRK) 12. Tracking Servo Loop Gain Adjustment UNDER Oscilloscope X-Y Mode X: 20mV/div Y: 10mV/div GND Prove (10:1) Player START TP1 (CN201) TI VC UPPER JUST Low-frequency oscillator 1.2kHz 1Vp-p GND GND Prove (10:1) 100kΩ TE 2 3 4 Lissajous Waveform MOTHER BOARD ASSY Test mode SPDL servo FOCUS servo TRKG servo =� =� = CLOSE CLOSE CLOSE TEST DISC PLAY Innermost circumference (1 TRK) VR151 MOTHER BOARD ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 29 7. GENERAL INFORMATION ¶ Pin Assignment ¶ Pin Connection ¶ Grid Assignment ¶ Anode Connection 7.1 DISPLAY 7 PEL1084 (V701: FUNCTION BOARD ASSY) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 30 7.2 BLOCK DIAGRAM PICKUP Assembly SERVO CONTROLLER IC151 CXA1782CQ DECODER IC301 CXD2519Q DAC IC401 PD2026B(L) LPF IC405 NJM4558D-D AUDIO SIGNAL CPU IC351 PD4836A AMP IC201 IC202 LA6520 Spindle Carriage Loading etc Focus Tracking M DISPLAY FUNCTION KEY POWER SUPPLY ... .. WPWXJ type Only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 31 ' Î� STANDBY/ON DISC 1 DISC 2 DISC 3 DISC 4 DISC 5 DISC 6 7 8 3 1 ¡� 4 ¢� RANDOM HI–LITE PROGRAM DELETE CLEAR CHECK MULTI COMPACT DISC PLAYER REMOTE CONTROL UNIT CU-PD104 ' 7 6 6 MULTI COMPACT DISC PLAYER STANDBY/ON DISC TRACK MIN SEC 1-BIT¥DLC DIRECT LINEAR CONVERSION EJECT REPEAT PROGRAM DISC TRACK/MANUAL RANDOM HI—LITE STOP PLAY/PAUSE -DISC MULTI CD � 0 4 1 ¢� ¡� Î� PD—M427 DELETE RANDOM PROGRAM REPEAT—1 DISC SCAN 1 2 3 4 5 6 TRACK DISC MIN SEC 8. PANEL FACILITIES AND SPECIFICATIONS 7 PANEL FACILITIES REMOTE CONTROL UNIT Remote control buttons with the same names or marks as buttons on the front panel of the player control the same operations as the corresponding front panel buttons. 1 STANDBY/ON button 2 DISC NUMBER buttons (DISC 1-DISC 6) 3 STOP button (77777) 4 RANDOM button 5 Hl-LlTE SCAN button 6 PROGRAM button 7 CHECK button 8 PAUSE button 9 PLAY button (3 3 3 3 3) 10 MANUAL search buttons (1 1 1 1 1 , ¡ ¡ ¡ ¡ ¡) 11 TRACK search buttons (4 4 4 4 4 , ¢ ¢ ¢ ¢ ¢) 12 DELETE button 13 CLEAR button 1 2 6 5 4 3 7 8 9 10 12 11 13 PLAY/PAUSE STOP EJECT PROGRAM REPEAT HI-LITE RANDOM DELETE Pause DISC number TRACK number TRACK/MANUAL REPEAT PROGRAM Play DISC SCAN Minutes DISC Seconds DISC Remote sensor window Receive the signal from the remote control unit. RANDOM STANDBY/ON Display window MAGAZINE insertion slot (PD-M427 Only) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-M427, PD-M407 32 7 SPECIFICATIONS General Type ............................... Compact disc digital audio system Power requirements Multi-voltage model ...................... AC 110-127/220-240 V (Switchable), 50/60Hz Australian and New Zealand models ..................................................... AC 220-240 V, 50/60Hz Power consumption Australian and New Zealand models ........................ 12 W Operating temperature...................................... +5°C-+35°C (+41°F– +95°F) Weight (without package) ........................ 3.7 kg (8 lb, 3 oz.) External dimensions ............420(W) x 294 (D) x 105 (H) mm 16-9/16 (W) x 11-9/16 (D) x 4-1/8 (H) in Audio section Frequency response ...................................... 2 Hz – 20 kHz Output voltage ............................................................. 2.0 V Wow and flutter ................................ Limit of measurement (0.001% W.PEAK) or less (EIAJ) Channels .................................................. 2-channel (stereo) Output terminal Audio line output Control input/output jacks Accessories • Remote control unit (PD-M427 only) .............................. 1 • Size AAA/R03 dry cell batteries (PD-M427 only) ............ 2 • Six-compact-disc magazine............................................. 1 • Control cable ................................................................... 1 • Output cable ................................................................... 1 • Operating instructions .................................................... 1 NOTE: Specifications and design subject to possible modification without notice, due to improvements. The Magazine Type Multi CD Players with mark and the Magazines with the same mark are compatible for 5 inch (12 cm) discs. White Red Accessories Dry cell batteries (AAA/R03) Remote control unit (PWW1149) (CU-PD104) Control cable (PDE1247) (L= 1 m) Output cable (PDE1248) (L= 1 m) 6-Compact disc magazine (PXA1617) • Operating instructions ' Î� STANDBY/ON DISC 1 DISC 2 DISC 3 DISC 4 DISC 5 DISC 6 7 8 3 1 ¡� 4 ¢� RANDOM HI–LITE PROGRAM DELETE CLEAR CHECK MULTI COMPACT DISC PLAYER REMOTE CONTROL UNIT CU-PD104 PD-M427 Only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
